Instruction Manual

INTRODUCTION TO USING AN IN-CAR CAM

The iN-CAR CAM range of dash cams have been designed speciﬁcally with ease of use in mind, it is

recommended NOT to change the default settings, which have been carefully selected to give the

best performance for day to day use.

Basic operation.

The iN-CAR CAM is set to record video, in ﬁles of just 3 minutes in length. This means that each

video ﬁle is a manageable size should you need to download and send to your insurance company.

Eventually your MicroSD card will ﬁll up with video ﬁles but don't worry, the camera automatically

deletes the oldest ﬁle to make space for new recordings. This way you never run out of space and

have plenty of driving historical evidence saved.

Typically a 16Gb card will store the last 2 hours of driving footage.

The Time and Date are automatically set upon the camera from satellite data, however it will always

set Greenwich Mean Time (GMT). For summer months where the clocks are brought forward or for

driving in other countries, adjust the time in the General Settings Menu (Timezone / DST) to account

for the time difference from GMT by adding or subtracting 1 hour etc, if required.

There are 3 modes of camera operation - Video, Photo and Playback.

Video Mode: The default mode when the camera is turned on, for video recording.

Photo Mode: Allows you to take still photographs.

Playback mode: Allows you to view recorded video or photographs upon the dash cam LCD screen.

Press the MODE button on the iN-CAR CAM to select required mode.

Automatic Start / Stop Technology. The iN-CAR CAM senses power supplied to the cigarette lighter

socket as soon as the vehicle ignition is turned on and will start to record automatically.

When the ignition is turned off, the iN-CAR CAM will perform an automatic shutdown process.

1. Tips for capturing best video footage:

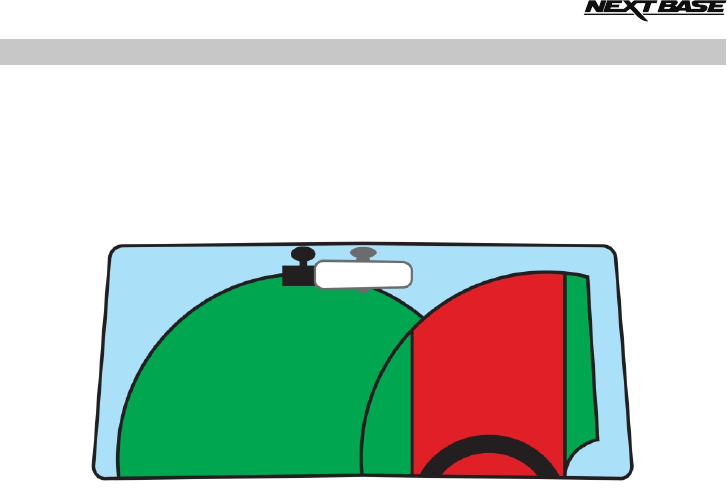

1.1 Position the iN-CAR CAM in the centre of the windscreen and ideally behind the rear view

mirror so it is not a distraction to the driver.

1.2 Reduce the amount of sky in the picture, by angling the view of the camera towards the road.

Too much sky will make the road appear darker due to the automatic exposure compensation.

1.3 Remove unnecessary items from your dashboard. If objects are placed on your dashboard

these can cause reﬂections to be seen on the windscreen and these reﬂections may be

captured during recording.

2. Tips for stable memory card performance:

2.1 Periodically reformat the memory card. Every 2-3 weeks we recommend that you reformat

the memory card. This will wipe any ﬁles from the card and set it up afresh for continued use

with your iN-CAR CAM.

Of course, you should only do this AFTER you've downloaded any ﬁles from the card that you

may want to keep, as formatting the card will remove all content.

2.1 Format your memory card using the iN-CAR CAM. This will make sure that the card is

structured speciﬁcally for your camera. Press MENU twice and choose the Format Card

option. Follow the on-screen instructions accordingly.

2.2 Switch off the iN-CAR CAM before removing the SD memory card, to prevent the chance

of damage being caused to the memory card or the ﬁles stored upon it, turn OFF the

iN-CAR CAM before removing or inserting the memory card.

TABLE OF CONTENTS

INTRODUCTION TO USING AN IN-CAR CAM

TABLE OF CONTENTS

PRECAUTIONS

CAUTIONS ON USING THIS PRODUCT

PRODUCT SPECIFICATION

PACKAGE CONTENTS

PRODUCT FEATURES

POWERED GPS MOUNT

CAMERA - PARTS & CONTROLS

IN VEHICLE INSTALLATION

VIDEO MODE

PHOTO MODE

PLAYBACK MODE

SETUP MENU

MASS STORAGE & PC CAMERA

VIDEO & AUDIO OUTPUT

WIFI APPLICATION INTRODUCTION

WIFI APPLICATION FOR SMARTPHONES & TABLETS

PLAYBACK SOFTWARE FOR WINDOWS

PLAYBACK SOFTWARE FOR MAC

TROUBLE SHOOTING

.............................................................

.................................................................................................

.............................................................................................................

......................................................................

.........................................................................................

.................................................................................................

..............................................................................................

.................................................................................

.........................................................................................

................................................................................................................

..............................................................................................................

........................................................................................................

................................................................................................................

.................................................................................

..............................................................................................

...........................................................................

...............................................

...................................................................

..............................................................................

..............................................................................................

PRECAUTIONS

CAUTION:

LCD:

WEEE: Disposal of Waste Electrical and Electronic Equipment and/or Battery by users

in private households in the European Union.

This symbol on the product or on the packaging indicates that this cannot be disposed

of as household waste. You must dispose of your waste equipment and/or battery by

handing it over to the applicable take-back scheme for the recycling of electronic

equipment and/or batteries. For more information please contact your local household

waste disposal office.

A Liquid Crystal Display (LCD) screen is a multilayer complex component, containing

691,200 pixels. Pixels can however fail during normal product life. 1 pixel = 0.0001%

failure rate, and one pixel failure per year of operation is considered normal and not

a cause for concern.

To reduce the risk of electric shock, do not perform any servicing other than that

contained in the instruction manual unless you are qualified to do so.

Have the unit serviced by a qualified service technician if;

The Unit has been exposed to rain or water.

The unit does not seem to operate normally.

The unit exhibits a marked change in performance.

WARNING: Do not expose this product to rain, moisture or water under any circumstances, doing

so may result in the risk of electric shock or fire.

Please read this manual carefully before operation and keep it for future reference. It will be helpful

should you encounter any operational problem.

1. Ensure that the windscreen is free of dirt or grease before placing mount upon it.

Do not obscure the view of the road ahead or impede the deployment of any airbags in the event 2.

of an accident.

When not in use, please disconnect the car adaptor from both the 12/24Vdc outlet in your vehicle 3.

and the device itself.

4. Only clean the device with a soft dry cloth, for tough dirt, apply some neutral detergent diluted in

5 to 6 parts water to a soft cloth.

Note that alcohol, thinner, benzene etc could cause damage to the paint or coatings.

Avoid making contact with the len s as damage be caused. 5. se may

If required clean the glass lens carefully using spectacle lens cleaning fluid on a soft cloth only. 6.

The video recordings made by this Digital Video Recorder are intended for personal use only. 7.

Publication of the recordings on Youtube, the internet or other methods are subject to the 8.

Data Protection Act and the requirements thereof must be adhered to.

If the Digital Video Recorder is to be used within a commercial environment, i.e. truck use, then

the CCTV regulation apply also, in addition to the Data Protection Act regulations. This includes

olabelling to identify the use f CCTV is taking place, the omission of Audio recording and

he relevant informing t authorities of who controls the data.

Video playback upon the device which is visible to the driver is prohibited or restricted in some 9.

countries or States. Please adhere to these laws.

Whilst driving, do not adjust the controls of your device as this is a distraction to driving. 10.

CAUTIONS ON USING THIS PRODUCT

Model Number / Name

Power Requirements

Power Supply

Sensor Resolution

Lens -

Type / Angle / Aperture

Recording Resolution

Screen Size

Screen Resolution

Screen Ratio

Card Reader

SD Card

(Recommended Type)

SD Card Recorded File

Capacity

(based on default settings)

Recording Format

Video / Audio Out

Internal Battery

Unit Dimensions

Unit Weight

NBDVR312GW / NEXTBASE iN-CAR CAM DELUXE

5V / 1.5A

12-24Vdc Car Power Cable (supplied)

Fuse Type: 32mm / 2A

Output: 5Vdc

3M Pixel (3,000,000 Pixel)

6G / 140° / F1.8

1920 x 1080 @ 30fps (default)

2.7"

960 (W) X 240 (H) pixels x RGB

16:9

MicroSD, Class 6-10, up to 32GB

8-32GB SDHC, Class 10 (48mb/s), for best results use a

recognized brand

8GB Micro SD = 75mins of recording (25x 3 minute recordings)

16GB Micro SD = 150mins of recording (50x 3 minute recordings)

32GB Micro SD = 300mins of recording (100x 3 minute recordings)

MOV

2.5mm Jack (Video / Audio)

Lithium-ion 3.7V / 450mAh (approx. 30mins recording time)

Battery design allows the 'Auto Power Off' feature to function in

event of power loss within the vehicle. It is not intended as an

alternative power source to replace the supplied car adaptor.

92 x 57 x 37mm

86g

PRODUCT SPECIFICATION

‘Android’ is a trademark of Google Inc. in the United States and other countries.

‘Dropbox’ and the Dropbox logo are trademarks of Dropbox, Inc.

‘Datakam’ is a registered trademark of DATAKAM Technology Co., Ltd. in the Russian Federation

and other countries.

‘Mac’ and ‘iOS’ are registered trademarks of Apple Inc. in the United States and other countries.

whom remain the copyright owner.

‘Windows’ is a registered trademark of Microsoft Corporation in the United States and other countries.

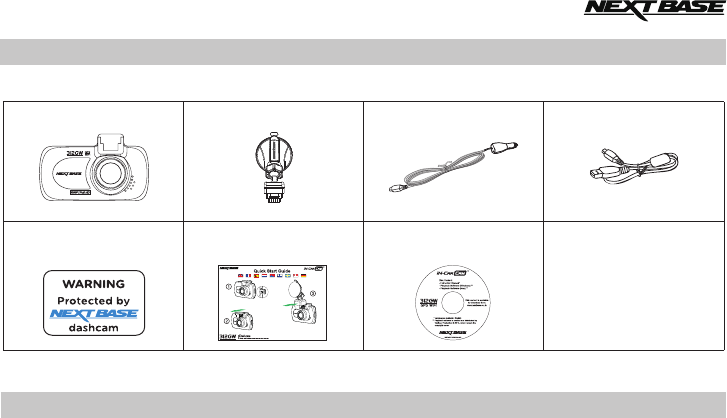

PACKAGE CONTENTS

iN-CAR CAM

Powered GPS Mount Car Power Cable USB Cable

PRODUCT FEATURES

Instruction Manual

& Software Disk

Quick Start

Guide

Please check the contents of your iN-CAR CAM product.

Product appearance may differ slightly to that shown above.

Window

Sticker

Thank you for purchasing this NEXTBASE iN-CAR CAM product, in this section we will outline some

of the features available with this dash cam.

2.7" LCD Colour Screen

LCD screen for ease of use and viewing the playback of recorded videos and photos.

Powered GPS Mount

Supplied with an Easy-Fit powered mount, which allows the iN-CAR CAM to be fitted and removed

quickly and easily. The car power cable can remain in place, connected to the mount.

GPS Logger

GPS co-ordinates, date and time are recorded, the journey can then be viewed using the supplied

Windows / Mac playback software.

WiFi Connectivity

Connect your smartphone or tablet device to the iN-CAR CAM, can be used to Start/Stop recording

or to view or download files from the iN-CAR CAM

G Sensor / File Protection

In the event of an impact the device will automatically 'protect' the recording, stopping the file from

being over-written. This can also be performed manually, by pressing the ‘protect’ button.

Individual files can also be 'protected' when viewed within playback mode.

Automatic Start / Stop Technology

The iN-CAR CAM senses power supplied to the cigarette lighter socket, as soon as the vehicle

ignition is turned on and will start to record automatically.

When the ignition is turned off, the iN-CAR CAM will perform an automatic shutdown process.

Parking Mode

The iN-CAR CAM turns on automatically to record 30 seconds of video, when physical movement of

your vehicle is detected.

Built-in Microphone & Speaker

Record audio to compliment the video recordings.

Remove cover / Enlever le couvercle

Retire la cubierta / Verwijder het deksel

Ta av dekselet / Remover kansi

Ta bort täcka / Fjern dækslet

Abdeckung zu entfernen

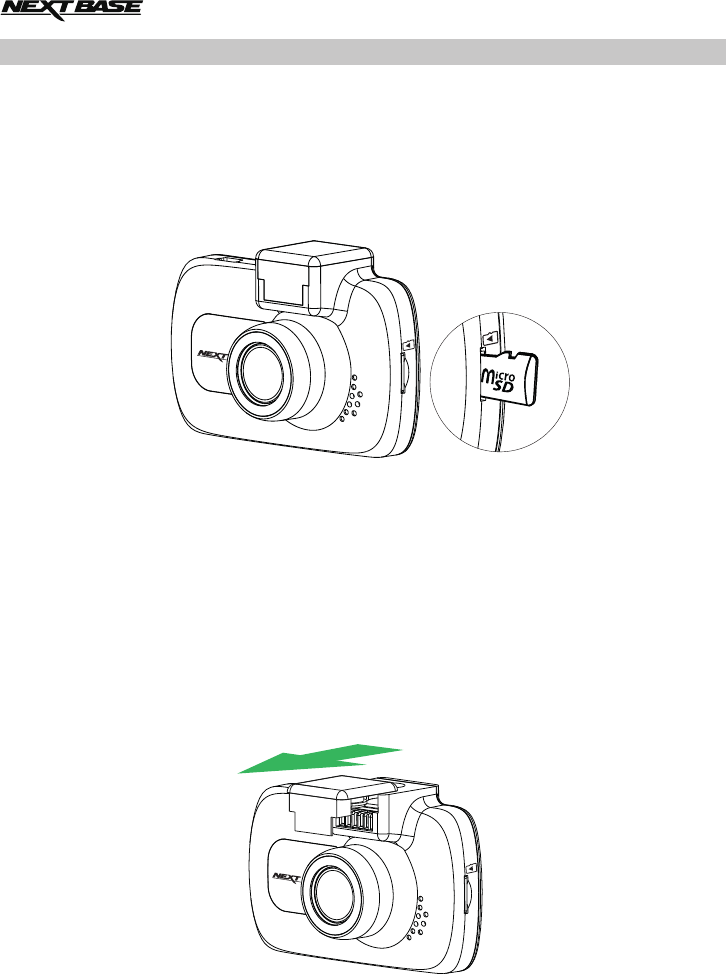

Attach mount / Attacher le support

Una el soporte / Bevestig houder

Fest montebrakett / Kiinnitä asennusteline

Montera fästet / S t monteringsdelen opæ

Halterung anbringen

Insert MicroSD card / Ins rer carte MicroSD / Inserte tarjeta MicroSDé

Plaats MicroSD kaart / Sett MicroSD kort / Aseta MicroSD muistikortti

Sätt I MicroSD kort / Isæt MicroSD-kort / SD-karte einlegen

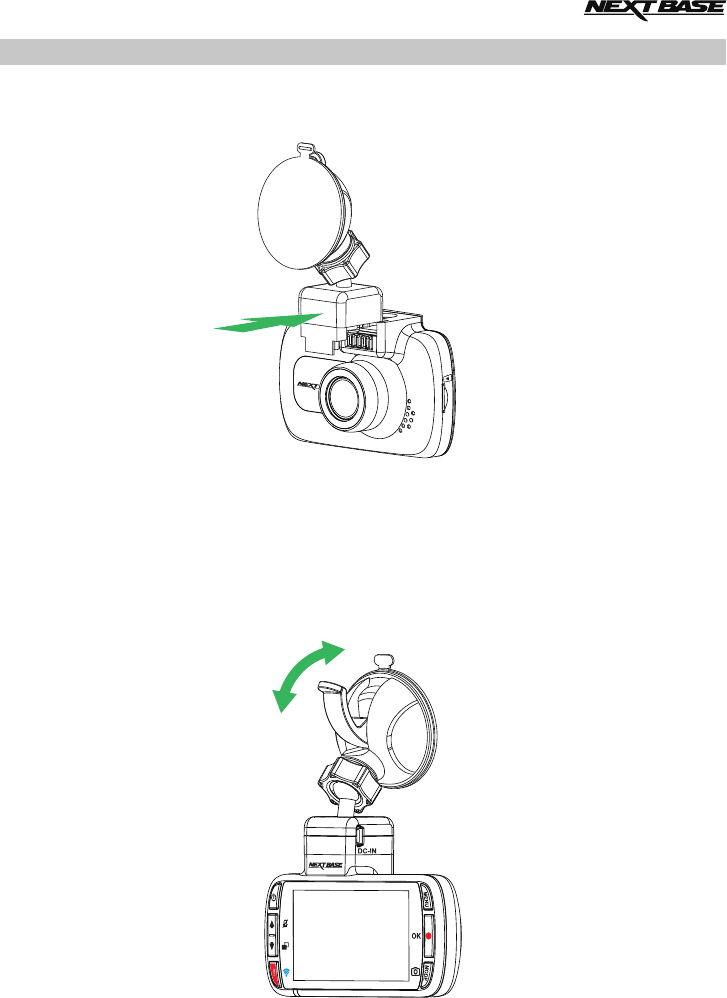

POWERED GPS MOUNT

Please see below to identify the parts of the supplied powered mount.

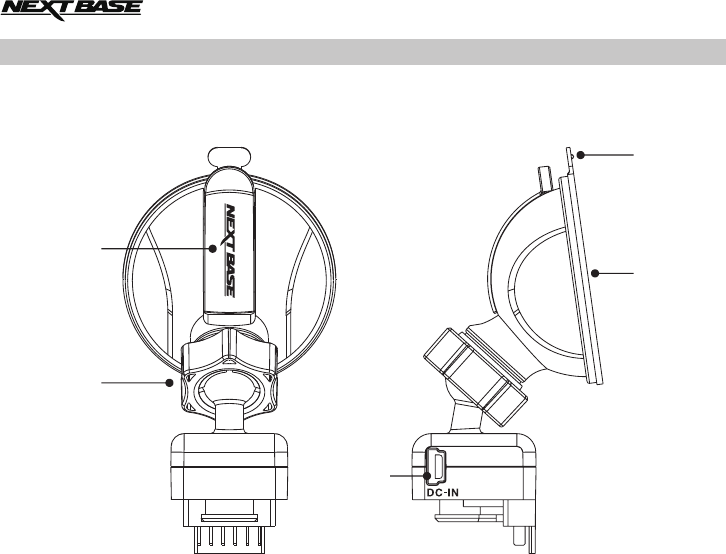

1. Locking lever

The locking lever is used to attach and release the window mount to your vehicles windscreen.

Pull the lever down to prepare the window mount for use. Once the mount is firmly upon the

windscreen (in a suitable location) push the lever to lock the mount in place.

2. Locking ring

Loosen the locking ring to adjust the iN-CAR CAM position if required, remembering to

re-tighten before use.

3. DC-IN socket

Connect the supplied car power cable here.

4. Suction cup

This is used to attach and release the window mount to your vehicles windscreen.

Affix to a clear piece of windscreen where there is no paint effect applied.

5. Suction release tab

Once the locking lever has been opened use this release tab to break the seal between

the mount and windscreen.

CAMERA - PARTS & CONTROLS

Please see below to identify the parts and controls of your iN-CAR CAM.

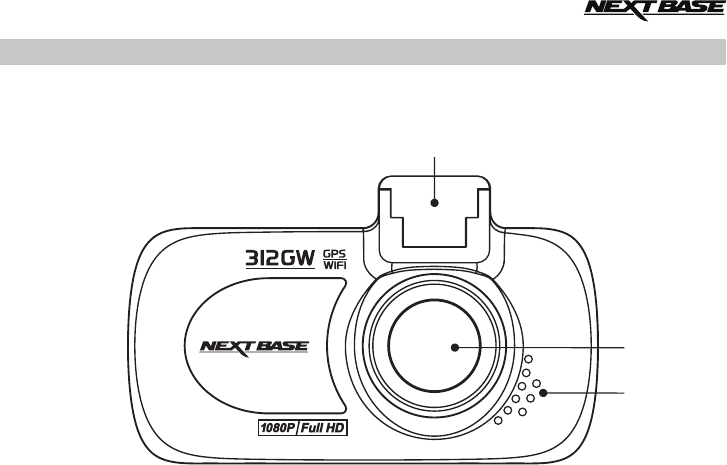

Front:

1. Mounting point (located under dust cover)

After removing the dust cover, attach the supplied powered GPS mount here.

2. Camera lens

Wide Angle 140°, 6 Element glass lens for optimum picture quality.

3. Speaker

Integral speaker for audio playback directly from the iN-CAR CAM.

CAMERA - PARTS & CONTROLS (CONTD.)

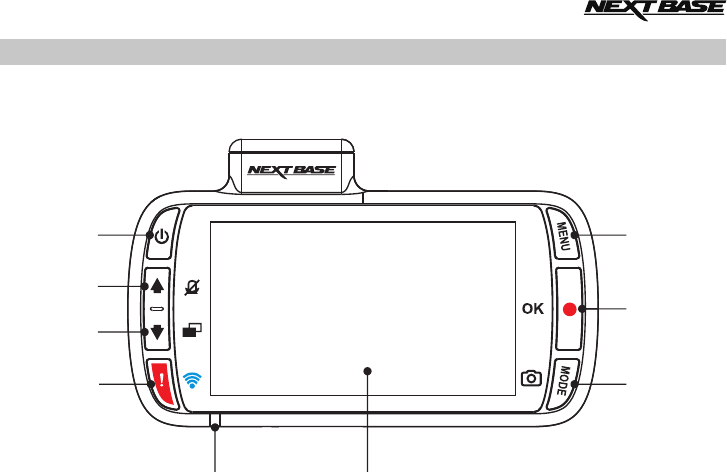

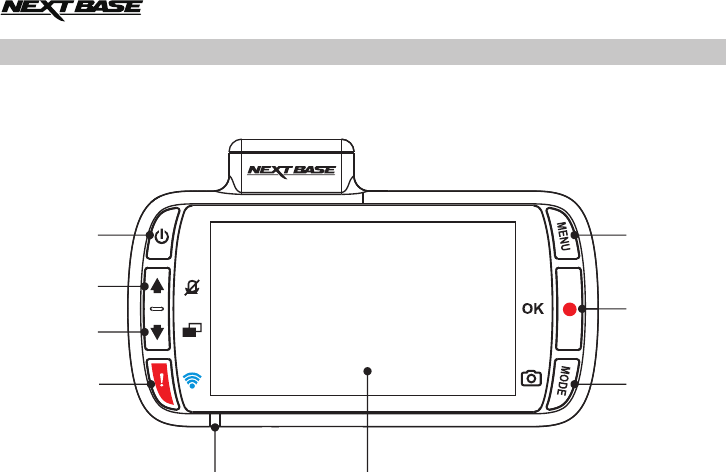

Back:

4. Power On / Off button

Press and hold for 3 seconds to turn on / off the iN-CAR CAM.

5. Up / Microphone Off button

Up:

Press to navigate up within menus and to move to the previous file when in playback mode.

Microphone Off:

Press to turn off / on the microphone (audio recording), only available whilst in video mode.

6. Down / Screen Off button

Down:

Press to navigate down within menus and to move to the next file when in playback mode.

Screen Off:

Press to turn off / on the screen, only available whilst in video mode.

7. Protect File / WiFi button

Protect File:

Press whilst recording to protect the current file in event of an emergency situation.

WiFi:

Press and hold for three seconds to turn on WiFi mode, this is not available whilst recording

or during playback.

Note:

- To exit WiFi mode please press the OK button once paired device has been disconnected.

CAMERA - PARTS & CONTROLS (CONTD.)CAMERA - PARTS & CONTROLS (CONTD.)

Continued from previous page.

8. Dual colour LED indicator

Red = power on

Red flashing = recording

Blue = battery charging

9. Screen

2.7' LCD colour screen for the viewing of recorded files on the iN-CAR CAM.

10. Mode / Screen Capture button

Mode:

Press to change between video, photo or playback modes.

Screen capture:

Whilst recording press to save a screen capture of the current frame.

11. Record / OK button

Record:

Press to start or stop a recording when in video mode, or take a photo when in photo mode.

OK:

Press to confirm selection when in menus.

12. Menu button

Press to open the menu within current mode, press twice to open the general settings.

CAMERA - PARTS & CONTROLS (CONTD.)

Top:

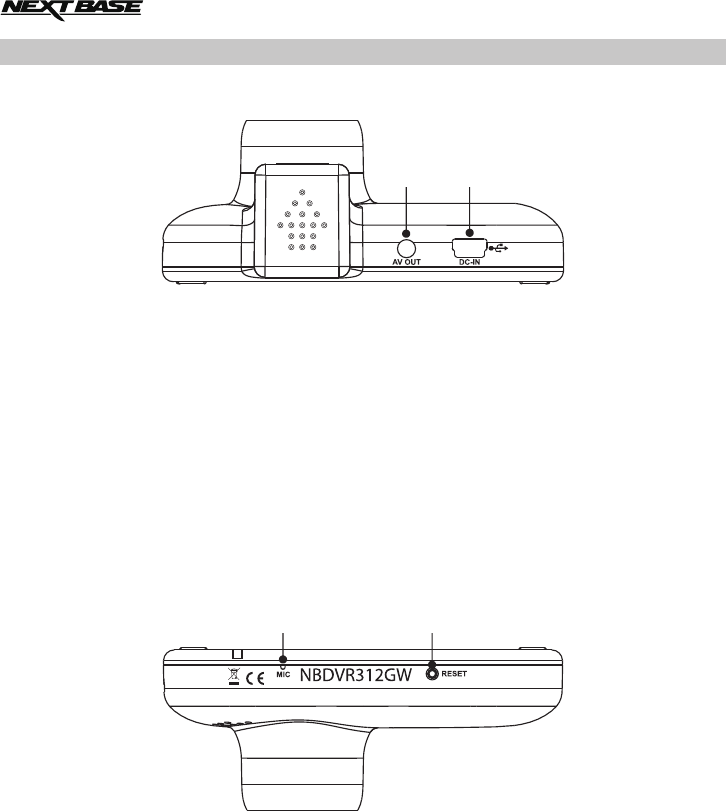

13. AV Out socket

Used to connect your iN-CAR CAM to a television using an AV Cable (sold separately).

14. DC-IN & USB socket

Connect the supplied car power cable or USB data cable here.

Note:

- Normally the car power cable is connected to the mount when in use, not directly to

this socket.

Bottom:

15. Microphone

Integral microphone for audio recording.

16. Reset button

In the unlikely event the iN-CAR CAM becomes unresponsive, press the RESET button to

restart the iN-CAR CAM.

1413

1615

CAMERA - PARTS & CONTROLS (CONTD.)

Sides:

17. Serial Number sticker

Please keep a record of your iN-CAR CAMs serial number, this may be required should you

seek technical support.

18. MicroSD Card slot

Insert the MicroSD card here, taking care that the gold contacts are facing towards the back

of the iN-CAR CAM.

17 18

IN VEHICLE INSTALLATION

Please follow the instructions below for first-time installation of the iN-CAR CAM. For day to day use

simply remove the camera from the mount as required.

1. Insert MicroSD Card

Insert a suitable MicroSD card (Class 10 48/Mbps) in to the iN-CAR CAM, taking care that the

gold contacts are facing towards the LCD screen side of the iN-CAR CAM. Push the memory

card until it clicks into place.

Note:

- Use the edge of a small coin (or similar object) to push the memory card in place if required.

Take care that card has 'clicked' into place, a second push inwards will release the memory

card.

- Do not remove or insert the memory card when the iN-CAR CAM is turned on. This may

damage the memory card.

2. Remove dust cover from iN-CAR CAM

Remove the dust cover that is located on the top of the iN-CAR CAM to gain access to the

mounting point.

To remove the dust cover, slide it forwards away from the LCD screen of the iN-CAR CAM.

Note:

- If the iN-CAR CAM is not to be used for a period of time please replace the dust cover to

help keep the metal contacts free of dust or other contaminants.

IN VEHICLE INSTALLATION (CONTD.)

3. Attach the mount to the iN-CAR CAM

Slide the iN-CAR CAM onto the mount. Once attached magnets within the mount will hold the

two parts together.

4. Attach the mount to the windscreen

Remove the protective plastic film from the suction cup of the mount.

Select a suitable position for the mount and clean the windscreen with a dry / clean cloth to

achieve a good contact between the glass and suction cup.

Release the locking lever of the mount by pulling down and then whilst holding the suction

cup onto the glass push the lever up to secure the mount to the windscreen.

Note:

- Choose a smooth glass area without painted effect.

- Please ensure that once mounted the iN-CAR CAM will be located within the area of the

vehicles windscreen wipers to maintain a clear view during rainfall.

IN VEHICLE INSTALLATION (CONTD.)

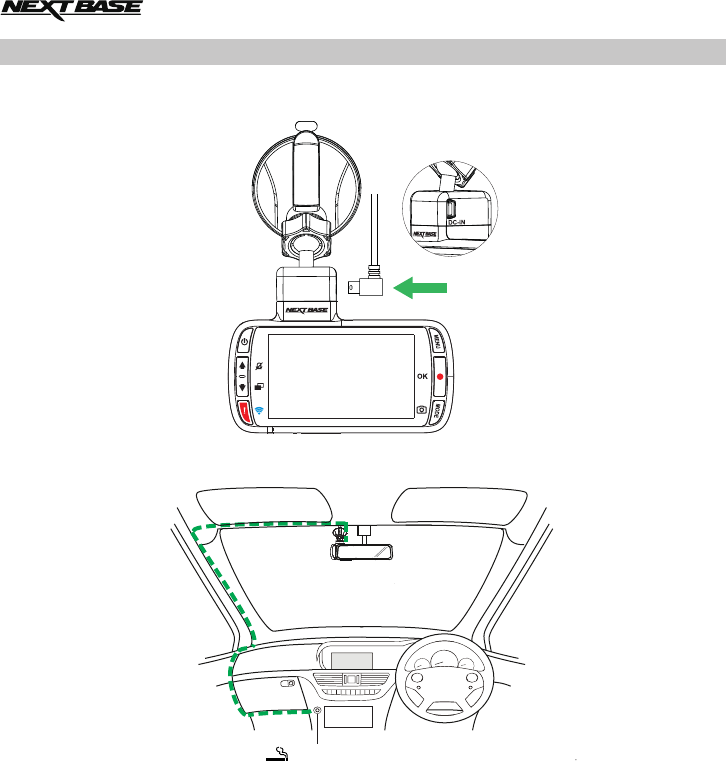

12-24V DC The above diagram is for illustration purposes only.

5. Connect car power cable

Connect the supplied car power cable to DC-IN socket of the mount.

Plug the power cable into the 12-24Vdc outlet of your vehicle.

The iN-CAR CAM will automatically power on and start recording once power is available.

In some vehicles this will be when connections are made, for others the iN-CAR CAM will

power on once the ignition has been turned on.

Should your vehicle not have a 12-24Vdc outlet, but does have a 5Vdc USB Outlet, this can be

used instead. Connect the USB cable supplied with your iN-CAR CAM in place of the car power

cable. Ensure you connect the USB cable to the Powered Mount only, NOT directly to the

camera when using in–car

Note:

- Do NOT wire the iN-CAR CAM directly to a 12V supply by cutting the cigarette plug

off the end of the cable, or damage will result.

- A Nextbase hardwire kit is available from your retailer. This connects directly to the

vehicle fusebox and hence leaves your cigarette socket available for Phone / Sat Nav

charging. The Nextbase hardwire kit includes the necessary 12-24VDC to 5Vdc

convertor and battery protection circuitry.

Please read and follow the notes below for the safe operation of your iN-CAR CAM within your

vehicle.

As per the installation instructions, you must install the iN-CAR CAM so it does NOT obstruct the

drivers view of the road, preferably on the passenger side of the vehicle and behind the rear view

mirror. Whilst the iN-CAR CAM clearly needs to view through the windscreen in an area swept by the

windscreen wipers, the iN-CAR CAM should be installed so as not to intrude significantly within the

wiped area. A 40mm intrusion into the green wiped area is the maximum permitted by law.

Do NOT mount the iN-CAR CAM in front of the driver, as depicted by the red area in the above

illustration.

When installing the iN-CAR CAM in a vehicle, always place the device securely against the

windscreen and where possible conceal the power cable under trim. Make sure that the iN-CAR CAM

power cable does not interfere with the drivers operating controls, such as the steering wheel, pedals

or gear levers.

Do NOT mount the iN-CAR CAM in front of an airbag field of deployment or in a position to obscure

any mirrors.

Clean the windscreen at the point of location, prior to fitting the iN-CAR CAM, also, applying some

moisture to the suction cup may be beneficial, to ensure absolute adhesion.

It is recommended NOT to operate the iN-CAR CAM whilst driving. The automatic Start-Stop

technology incorporated within the device negates any need to operate the controls whilst driving.

Adjust any settings or review recordings whilst stationery, not whilst driving.

Only use your mobile device whilst stationery, not whilst driving.

After the preliminary SETUP has been carried out upon the iN-CAR CAM, adjust the Screen Saver

setting to 1 minute, this will blank the screen automatically shortly after starting the vehicle and

therefore the screen will NOT be a distraction in any way to the driver.

IN VEHICLE INSTALLATION (CONTD.)

VIDEO MODE

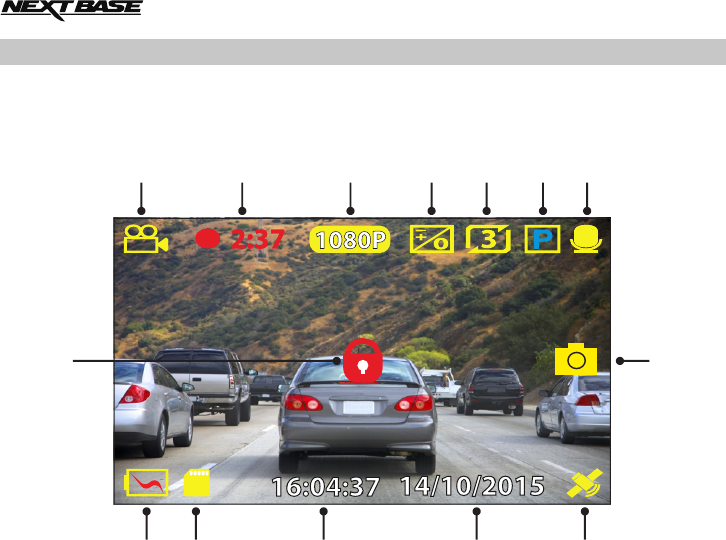

The key below explains the various information displayed on the screen when your iN-CAR CAM is in

Video mode, some icons will only be displayed once the relevant function has been selected within

the Video menu, as described below.

1. Mode: indicates the iN-CAR CAM is in Video mode.

2. Recording: appears on screen when recording is in progress.

3. Resolution: displays the current resolution.

4. Exposure: displays current Exposure level setting.

5. Video Length: displays the length of the individual recordings in minutes.

6. Parking Mode: appears on screen when Parking Mode has been turned on.

7. Microphone: displayed on screen when Audio Recording is active.

8. Screen Capture: appears on screen during screen capture.

9. GPS: The satellite icon will flash whilst the iN-CAR CAM locates satellites. Once a stable

signal is received, the icon will stop flashing and remain on screen.

10. Date: current date.

11. Time: current time.

12. Memory Card: indicates whether a memory card is present.

13. Battery: indicates whether iN-CAR CAM is running on battery or external power.

14. Protected: shown on screen when a video file has been protected by activation of the

G Sensor or by the pressing of the file protect button.

The default settings within the iN-CAR CAM have been set to allow you to use the iN-CAR CAM

without the need to change any settings.

See the next page for video menu settings, should you want to make any adjustments however.

1 2 3 4567

1112

13 10

VIDEO MODE (CONTD.)

Video Menu

The Video Menu is accessed by pressing the MENU button whilst in video mode.

The default settings have been carefully selected to allow you to use the iN-CAR CAM without the

need to change any settings. However, should you wish to change a setting then please see below.

Use the up and down buttons to highlight the function that you'd like to change and press the OK

button to enter the settings sub-menu.

Once in the submenu, use the up and down buttons to highlight the required setting and then press

OK to confirm your selection and return to the Video Menu.

Press the MENU button twice to return to video mode.

Note:

- Menus are not accessible whilst the iN-CAR CAM is recording.

1. Resolution

Select recording resolution, this will increase or decrease the quality of the recorded video.

Options: 1080P, 720P and 720P 60FPS

Default Setting: 1080P

2. Exposure

Adjust exposure level for different light conditions.

Options: +2, +1, 0, -1 and -2

Default Setting: 0

3. Audio Recording

Turn On / Off the microphone.

Options: On and Off

Default Setting: On

4. Number Plate

Enter the registration number for your vehicle, this will then be shown on the video file.

Video Menu

Resolution

Exposure

Audio Recording

Video Length

Back

MENU Enter

Video Menu

Resolution

Exposure

Audio Recording

Number Plate

VIDEO MODE (CONTD.)

Continued from previous page.

5. Video Length

Select the duration of the individual recorded video files. The iN-CAR CAM will continue

recording, filling the memory card. When the memory card becomes full, the oldest file will

be automatically deleted to make space for the new recording.

Note:

- Protected files will never be deleted.

Options: 2 Minutes, 3 Minutes and 5 Minutes

Default Setting: 3 Minutes

6. Parking Mode

When Parking Mode has been turned ON, the iN-CAR CAM remains in standby mode, when

the 12Vdc supply has been turned OFF (typically removing your ignition key). Should physical

movement of the vehicle be detected the iN-CAR CAM will power on and start recording a 30

second video and then return to standby mode.

The recorded file will automatically be protected.

Options: On and Off

Default Setting: Off

Note:

- Remember to turn off Parking Mode from within the Setup Menu during normal driving use,

to turn off Parking Mode stop the recording and then change setting to Off

7. Rotate Display

Rotate the display 180°, particularly useful should the iN-CAR CAM be mounted on the

dashboard, the iN-CAR CAM control button functions do not rotate.

8. Time & Date Stamp

Turn On / Off the time and date stamp shown on recorded files.

Options: Off and On

Default Setting: On

Video Menu

Resolution

Exposure

Audio Recording

Video Length

Back

MENU Enter

Video Menu

Video Length

Parking Mode

Rotate Display

Time & Date Stamp

VIDEO MODE (CONTD.)

Continued from previous page.

9. Speed Stamp

Turn On / Off the Speed Stamp shown on recorded files.

Options: On and Off

Default Setting: On

10. GPS Location Stamp

Turn On / Off both the GPS co-ordinates and speed stamp that are shown on recorded files.

When a recording is viewed using the supplied NEXTBASE Replay playbck software both the

GPS co-ordinates and speed information remains available.

Options: On and Off

Default Setting: On

11. Nextbase Stamp

Turn On / Off the NEXTBASE Stamp shown in the top left corner of recorded files.

Options: On and Off

Default Setting: On

12. G Sensor

Turn Off or adjust the sensitivity of the built in G Sensor. The G Sensor detects forces which

will automatically protect the current recording in event of a collision.

Note:

- This does not affect Parking mode sensitivity.

Options: High, Medium, Low and Off

Default Setting: Medium

Note:

- Within the Setup Menu which is accessed by pressing the MENU button twice, there is

a ‘Default Settings’ option to allow you to reset the iN-CAR CAM to the factory defaults,

if required.

Video Menu

Resolution

Exposure

Audio Recording

Video Length

Back

MENU Enter

Video Menu

Speed Stamp

GPS Location Stamp

Nextbase Stamp

G Sensor

Press the MODE button to select Photo mode.

The key below explains the information displayed on the screen when your iN-CAR CAM is in Photo

mode.

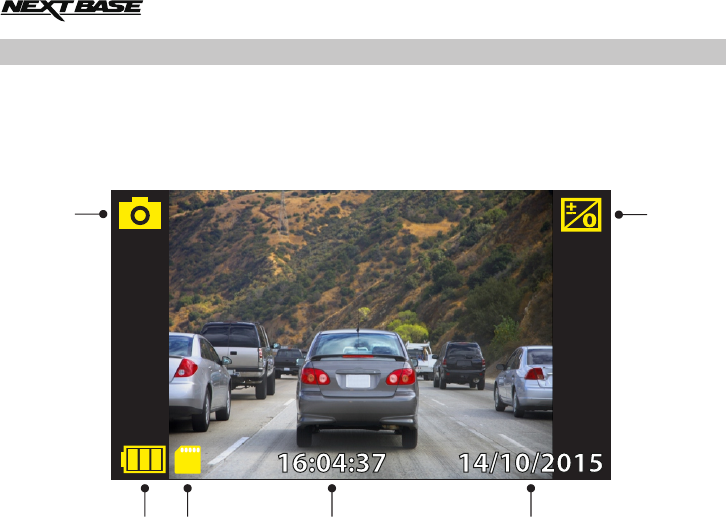

1. Mode: indicates the iN-CAR CAM is in Photo mode.

2. Exposure: displays current exposure level setting.

3. Date: current date.

4. Time: current time.

5. Memory Card: indicates whether a memory card is present.

6. Battery: indicates whether iN-CAR CAM is running on battery or external power.

See the next page for photo menu settings.

PHOTO MODE

PHOTO MODE (CONTD.)

Photo Menu

The Photo Menu is accessed by pressing the MENU button whilst in photo mode.

The default settings have been carefully selected to allow you to use the iN-CAR CAM without the

need to change any settings. However, should you wish to change a setting then please see below.

Use the up and down buttons to highlight the function that you'd like to change and press the OK

button to enter the settings sub-menu.

Once in the submenu, use the up and down buttons to highlight the required setting and then press

OK to confirm your selection and return to the Photo Menu.

Press the MENU button twice to return to photo mode.

1. Exposure

Adjust exposure level for different light conditions.

Options: +2, +1, 0, -1 and -2

Default Setting: 0

2. Time & Date Stamp

Turn On / Off the time and date stamp shown on images.

Options: On and Off

Default Setting: On

Note:

- Within the Setup Menu which is accessed by pressing the MENU button twice, there is

a ‘Default Settings’ option to allow you to reset the iN-CAR CAM to the factory defaults,

if required.

Video Menu

Resolution

Exposure

Audio Recording

Video Length

Back

MENU Enter

Photo Menu

Exposure

Time & Date Stamp

Audio Recording

PLAYBACK MODE

Press the MODE button to select Playback mode, the iN-CAR CAM will display the last recorded file.

Dependent on the type of file, the on-screen information and playback functions differ.

Video Files:

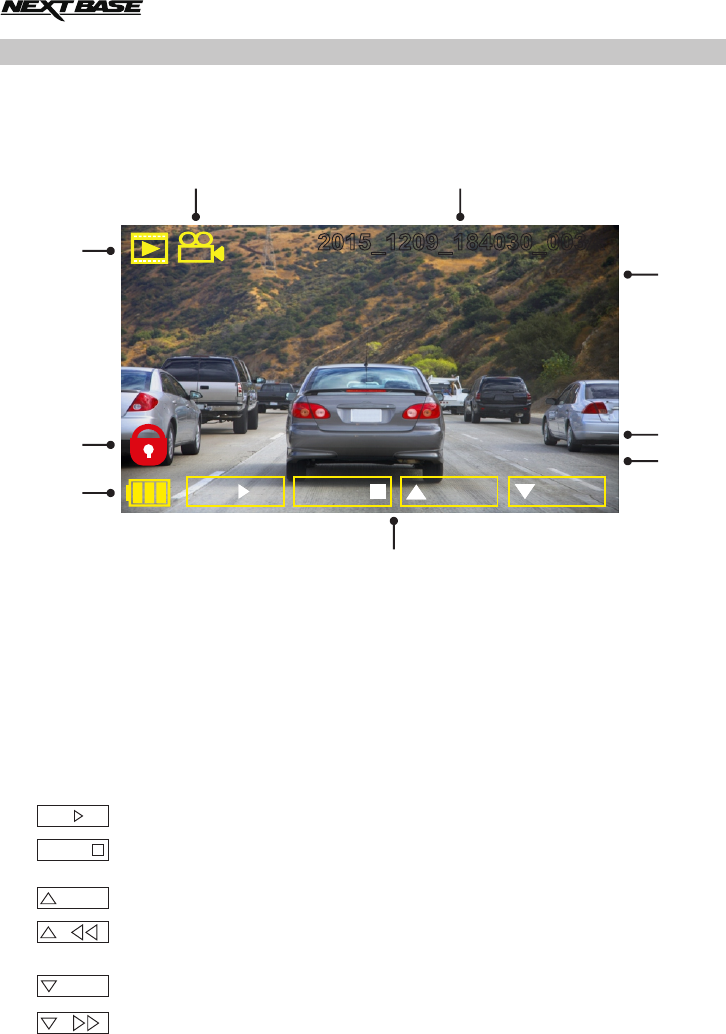

1. Mode: indicates the iN-CAR CAM is in Playback mode.

2. File type: indicates whether a video or photo file is being viewed.

3. File number: displays current file number.

4. Elapsed time: Displays the elapsed time for the video being watched.

5. Time: displays the start time that the current file was recorded.

6. Date: displays date that the current file was recorded.

7. Playback controls: use the iN-CAR CAM buttons as described below.

8. Battery: indicates whether iN-CAR CAM is running on battery or external power.

9. Protected file: indicates that the video file is protected.

Playback Controls:

23550001.MOV

1080P

23:55:54

06/01/2015

MODE::NEXT :PREV

/ II

OK:

1:06

23:55:54

06/01/2015

MODE::PREV

/ II

OK:MODE::PREV

/ II

OK::NEXT

:NEXT

Press the OK button to play / pause playback.

Press the MODE button to stop playback.

Use the UP button to select the previous file, this is only available once playback

has been stopped.

During playback press the UP button to rewind, press the OK button to pause

rewind and then press once more to restart playback at normal speed.

Use the DOWN button to select the next file, this is only available once playback

has been stopped.

During playback press the DOWN button to fast forward, press the OK button to

pause fast forward and then press once more to restart playback at normal speed.

2015_1209_184030_003A

MODE:

:PREV

/ II

OK:

:NEXT

23550001.MOV

1080P

23:55:54

06/01/2015

MODE::NEXT

/ II

OK:

23:55:54

06/01/2015

PLAYBACK MODE

Photo Files:

1. Mode: indicates the iN-CAR CAM is in Playback mode.

2. File type: indicates whether a video or photo file is being viewed.

3. File number: displays current file number.

4. Time: displays the time that the current image was taken.

5. Date: displays the date that the current image was taken.

6. Next: press the down button to move to previous file.

7. Previous: press the up button to move to previous file.

8. Battery: indicates whether iN-CAR CAM is running on battery or external power.

9. Protected file: indicates that the video file is protected.

Within Playback mode there are options available to Delete and Protect files, press the MENU button

to access the Playback Menu.

See following pages for details.

:PREV

:PREV :NEXT

:NEXT

2015_1209_184030_003A

PLAYBACK MODE (CONTD.)

Deleting files:

Highlight the Delete Files option and press the OK button.

This will then give you two options:

Note:

- Protected files cannot be deleted.

Video Menu

Resolution

Exposure

Back

MENU Enter

Delete Files

Protect Files

Playback Menu

Video Menu

Resolution

Exposure

Back

MENU Enter

Delete File

Delete All Files

Delete Files

Delete File

Once selected, follow the on screen

instructions to delete the current file.

Video Menu

Resolution

Exposure

Back

MENU Enter

Delete File

Delete All Files

Delete Files

Delete All Files

Once selected, follow the on screen

instructions to delete all files.

PLAYBACK MODE (CONTD.)

Protecting files:

Highlight the Protect Files option and press the OK button.

This will then give you four options:

Note:

- The ‘Protect’ button can also be used to Protect files when in Playback Mode.

Video Menu

Resolution

Exposure

Back

MENU Enter

Delete Files

Protect Files

Playback Menu

Video Menu

Resolution

Exposure

Back

MENU Enter

Protect Files

Protect File

Unprotect File

Protect ALL Files

Unprotect ALL Files

Protect All Files

Once selected, follow the on screen

instructions to Protect all files.

Video Menu

Resolution

Exposure

Back

MENU Enter

Protect Files

Protect File

Unprotect File

Protect ALL Files

Unprotect ALL Files

Unprotect File

Once selected, follow the on screen

instructions to Unprotect the current file.

Video Menu

Resolution

Exposure

Back

MENU Enter

Protect Files

Protect File

Unprotect File

Protect ALL Files

Unprotect ALL Files

Unprotect All Files

Once selected, follow the on screen

instructions to Unprotect all files.

Video Menu

Resolution

Exposure

Back

MENU Enter

Protect Files

Protect File

Unprotect File

Protect ALL Files

Unprotect ALL Files

Protect File

Once selected, follow the on screen

instructions to Protect the current file.

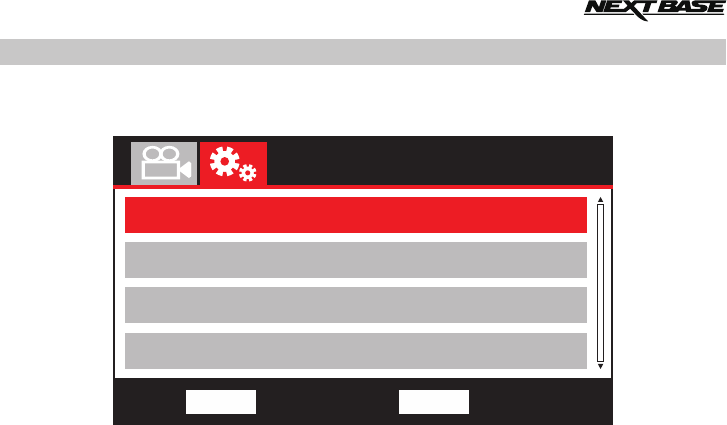

Setup Menu

The Setup Menu is accessed by pressing the MENU button twice.

The default settings have been carefully selected to allow you to use the iN-CAR CAM without the

need to change any settings. However, should you wish to change a setting then please see below.

Use the up and down buttons to highlight the function that you'd like to change and press the OK

button to enter the settings sub-menu.

Once in the submenu, use the up and down buttons to highlight the required setting and then press

OK to confirm your selection and return to the Photo Menu.

Press the MENU button twice to return to video mode.

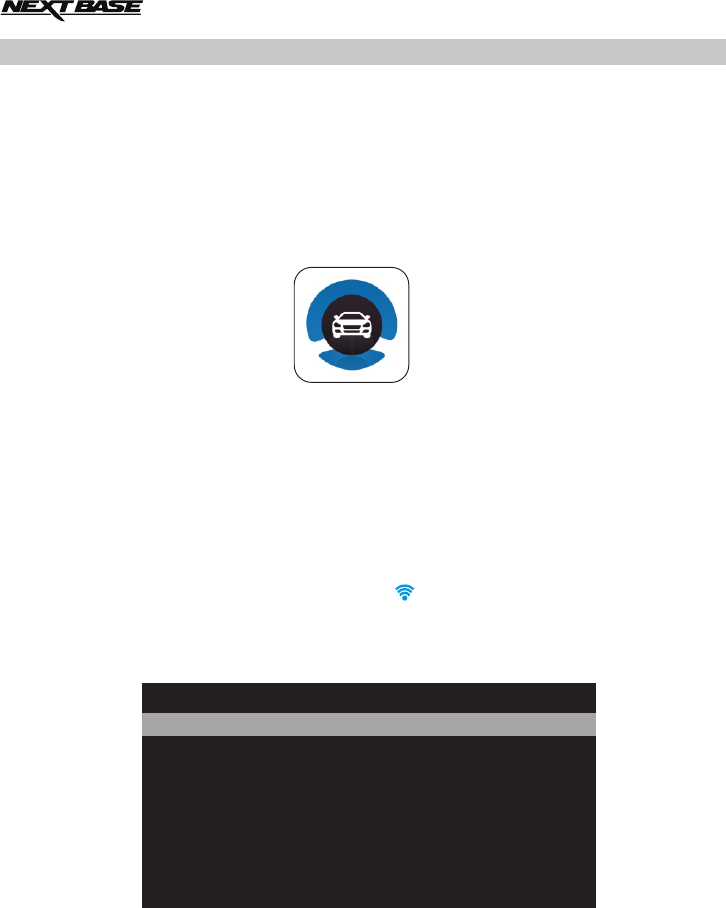

1. WiFi

The Wi-Fi function allows you to use your smartphone or tablet device to view recordings

directly from the dash cam.

See pages 33 to 40 for full guide on using the WiFi function.

2. Format SD Card

Format the inserted memory card, this will delete all content.

Note:

- For stable performance, it is recommended that you format the memory card every

2-3 weeks.

Of course, you should only do this AFTER you've downloaded any ﬁles from the card that

you may want to keep.

3. Time & Date

Adjust the time / date as required using the OK button to toggle through the fields and use

the up & down buttons to set variables. Press MENU to exit and return to the Setup Menu.

4. Time Zones / DST

The time and date is automatically set from the satellite signal, but can be adjusted

dependent upon your Time Zone (country) or whether Daylight Savings Time (DST) is

operational.

SETUP MENU

Video Menu

Resolution

Exposure

Audio Recording

Video Length

Back

MENU Enter

Setup Menu

WiFi

Format SD Card

Time & Date

Times Zones / DST

Video Menu

Resolution

Exposure

Audio Recording

Video Length

Back

MENU Enter

Setup Menu

Language

Speed Units

Screen Saver

Device Sounds

Continued from previous page.

5. Language

Select preferred language.

Options: English, Dansk, Deutsch, Español, Français, Nederlands, Norsk, Suomi and

Svenska.

Default Setting: English

6. Speed Units

Select whether to record and display speed in KMH or MPH.

Options: KMH and MPH

Default Setting: MPH

7. Screen Saver

Turn on the Screen Saver function to shut down the screen after a chosen period of

inactivity, press any button to re-activate the display.

Options: Off, 10 Seconds, 30 Seconds and 2 Minutes

Default Setting: Off

8. Device Sounds

Turn Off / On the beep sound which is heard when a button is pressed and also mute

the startup and shutdown chimes.

Options: On and Off

Default Setting: On

SETUP MENU (CONTD.)

Continued from previous page.

9. Auto Power Off

Adjust the timing of the Auto Power Off function, this can be used to continue recording in

event of loss of power within in the vehicle.

Options: 10 Seconds, 1 Minute and 2 Minutes

Default Setting: 10 Seconds

10. System Info

Version:

The installed software version of your iN-CAR CAM is displayed here.

WiFi Info:

View the SSID (network name) and Password of your iN-CAR CAM.

11. Default Settings

Reset the iN-CAR CAM to the default settings.

SETUP MENU (CONTD.)

Resolution

Exposure

Audio Recording

Back

MENU Enter

Auto Power Off

System Info

Default Settings

MASS STORAGE & PC CAMERA

Use the supplied USB cable to connect the iN-CAR CAM directly to your PC via the socket,

do NOT connect the USB cable to the Powered Mount.

Once connected the iN-CAR CAM will turn on with three options available, as described below.

Use the UP and DOWN buttons to select required function and press OK to confirm selection.

- Mass Storage

- PC Camera

- Power On

Mass Storage (Windows)

When this option is selected, the iN-CAR CAM will function as a card reader for your PC. An extra

drive will appear, e.g. NEXTBASE (D:) and you will be able to view / manage the stored files upon

the MicroSD card within the iN-CAR CAM.

Note:

- The iN-CAR CAM is a ‘read-only’ device, therefore uploading files to the SD card when

in Mass Storage mode is not possible.

Turn off the camera before disconnecting from your computer.

Mass Storage (Mac)

When this option is selected, the iN-CAR CAM will function as a card reader for your MAC. The

'NEXTBASE' external USB disk icon will appear on your MAC and you will be able to view and/or

manage stored files.

Note:

- The iN-CAR CAM is a ‘read-only’ device, therefore uploading files to the SD card when

in Mass Storage mode is not possible.

Turn off the camera before disconnecting from your computer.

PC Camera (Windows & Mac)

When this option is selected, the iN-CAR CAM will function as a webcam for your PC. Start the

normal application upon your PC that uses a webcam (e.g. Skype) and select the iN-CAR CAM.

Power On (Windows & Mac)

When this option is selected, the iN-CAR CAM will power on with all functions available. This

includes charging of the internal battery, a full charge will take approximately 2 hours.

Note:

- ALWAYS turn Off the iN-CAR CAM before disconnecting from your computer.

The iN-CAR CAM can be connected to external video equipment, such as a television or a monitor

within your vehicle that uses standard RCA inputs.

Connect the AV cable (sold separately) between the iN-CAR CAM and your external device, then

turn on the iN-CAR CAM. The screen on the iN-CAR CAM will be blank as the video image is now

being sent to the external device, the red power LED on the iN-CAR CAM will be lit indicating the

unit is turned on.

Make sure that the iN-CAR CAM battery is charged prior to use, as power is not supplied to the

iN-CAR CAM via the AV cable.

For prolonged use an external power supply may be required, use the supplied USB cable with a

5Vdc/USB adaptor, of the type typically supplied with mobile phones.

Note:

- ENSURE that any external power sources are of the correct 5Vdc output, otherwise damage will

be caused that is not covered under the manufacturers warranty.

Please visit: nextbaseshop.co.uk to purchase the correct AV Cable (PN: NBDVR312GW-AVC).

VIDEO & AUDIO OUTPUT

WIFI APPLICATION AN INTRODUCTION

Introduction to the Cam Viewer App

Using the Wi-Fi function of the iN-CAR CAM with the Nextbase Cam Viewer App allows you to

connect your phone or tablet device to the iN-CAR CAM.

The Cam Viewer App has three primary functions:

Live View

This allows you to view the live image from the iN-CAR CAM and make recordings.

Playback

Control and view playback of recordings on your device directly from the iN-CAR CAM.

Upload

This allows you to upload a chosen recording to a secure server and then provide a 'link' to

the uploaded recording that can be emailed to your insurance company or friends.

This makes the provision of recorded evidence to your insurance company very simple.

The following instructions and images are based on an iOS device, however all functions and

features are the same for Android devices.

The Cam Viewer app has been designed to be viewed in portrait mode as you would usually use

your phone, however some functions are best viewed when your phone has been rotated to give

a landscape view, such as: Live View and when watching recordings.

Note:

- Due to the nature of Cam Viewer, functions and features are subject to change without notice.

- Cam Viewer is compatible with 'tablet' devices; however appearance and functionality may vary

between devices.

WIFI APPLICATION FOR SMARTPHONES & TABLETS

Installing the Cam Viewer App

The Nextbase Cam Viewer App is available for free download from the Google Play Store (Android)

and the App Store (iOS).

The App can easily be found by searching for 'Nextbase Cam Viewer' within your chosen store.

Once installed Cam Viewer will be available on your device.

Connect your phone to the iN-CAR CAM.

Connecting your phone to the iN-CAR CAM is exactly the same method as used when connecting

your phone to any WiFi network.

Firstly, please make sure that the WiFi function of the iN-CAR CAM has been turned on.

There two ways to turn on the WiFi function, using the button (press and hold for 3 seconds) or

from within the iN-CAR CAM’s Setup menu.

Once turned on the WiFi Mode screen will open upon the iN-CAR CAM, as shown below.

This screen gives the name of the iN-CAR CAM SSID (network name): 'NEXTBASE 312GW xxx’

and also the password: 12345678.

Refresh WiFi OFF

WiFi Mode

SSID: NEXTBASE 312GW xxx

PWD: 12345678

REFRESH WiFi OFF

Cam Viewer

Once opened the 'Startup Screen' will be shown, from which there are two options available -

Continue and Settings.

Continue

This option is used when you wish to use Cam Viewer to manage files that have already

been downloaded from the iN-CAR CAM to your phone.

Settings

This option is used when you wish to connect your phone to the iN-CAR CAM.

Press the 'Settings' button on the 'Startup Screen', this will open the WiFi options on your phone.

The Dash Cam will be shown as 'NEXTBASE 312GW xxx', enter the password (12345678).

Once connected successfully the ‘Device connected’ popup message will appear on the

iN-CAR CAM screen.

Note:

- Should the iN-CAR CAM not be available within the available networks shown on your phone

please restart the iN-CAR CAM and then turn on the WiFi function again.

Continue Settings

Unable to connect to iN-CAR CAM

Open Settings to connect to

iN-CAR CAM using WiFi

WIFI APPLICATION FOR SMARTPHONES & TABLETS (CONTD.)

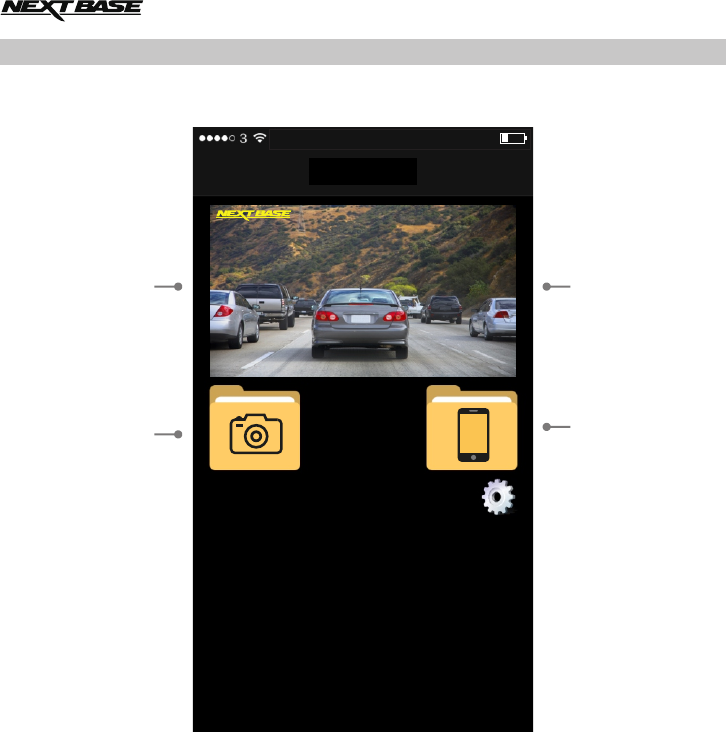

Once connected, the 'Home' screen will open, as shown below.

From the 'Home' screen you can access all the functions and features available within Cam Viewer.

NBDVR312GW 16:04:37 14/10/2014 12345678 30MPH N52° 41’ 33.15” W62° 42’ 33.15”

00:45 24%

Cam Viewer

Live View

Files on Camera

Local Files

Settings

WIFI APPLICATION FOR SMARTPHONES & TABLETS (CONTD.)

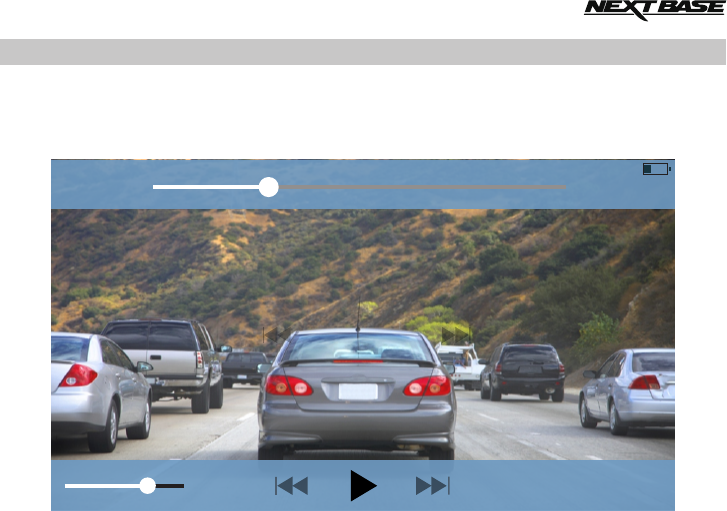

Live View

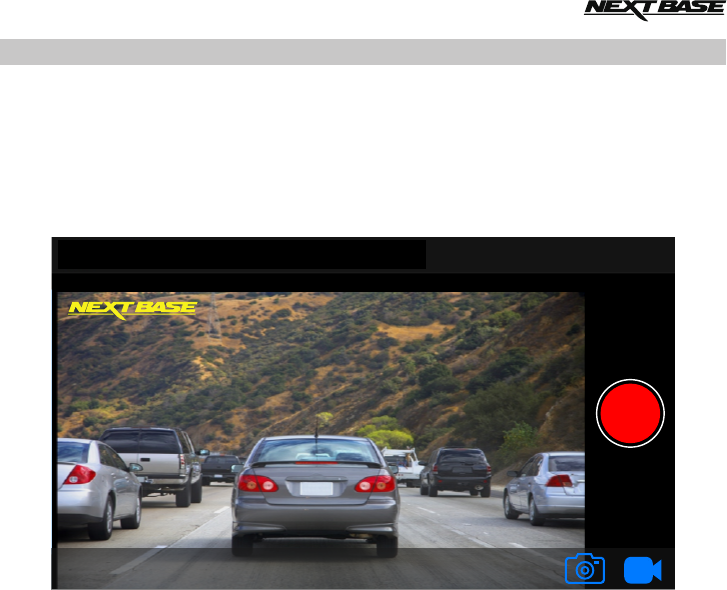

Select 'Live View' to see the live image from the iN-CAR CAM on your phone.

Rotate your phone to allow the Live View to become full screen.

It is from 'Live View' that you can start and stop recording or take a photo, by pressing the red button.

Use the blue icons in the bottom right corner to change the iN-CAR CAM between video and

photo modes, as required.

NBDVR312GW 16:04:37 14/10/2014 12345678 30MPH N52° 41’ 33.15” W62° 42’ 33.15”

Cam Viewer

Live View

WIFI APPLICATION FOR SMARTPHONES & TABLETS (CONTD.)

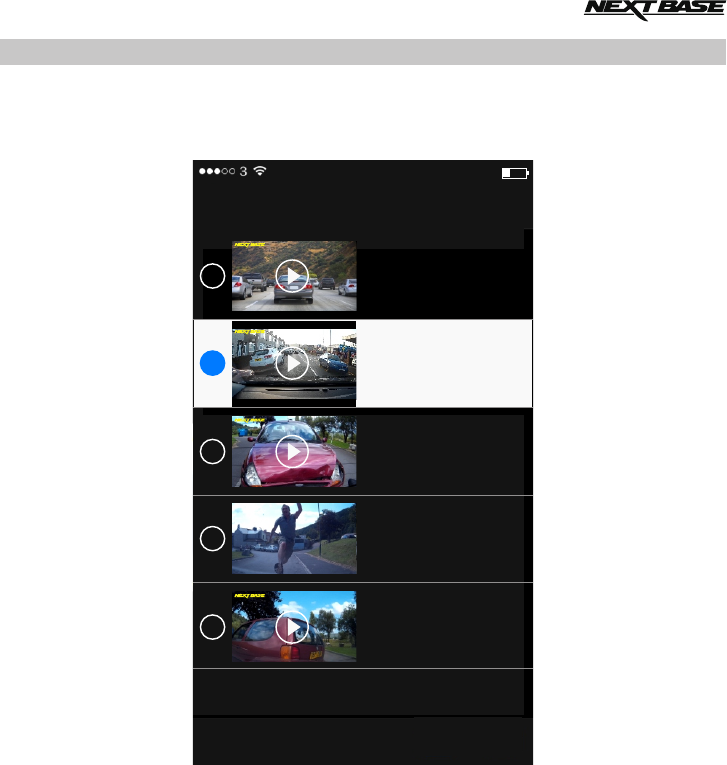

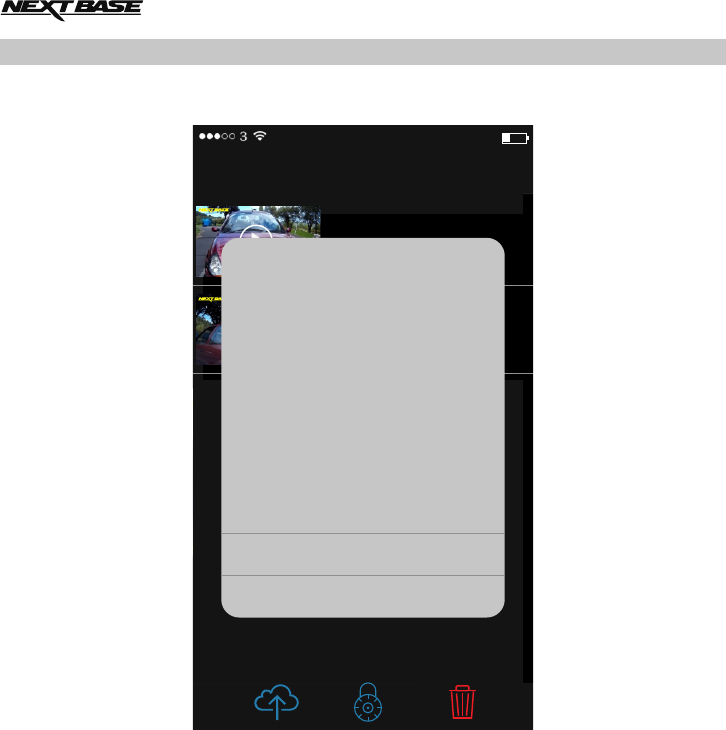

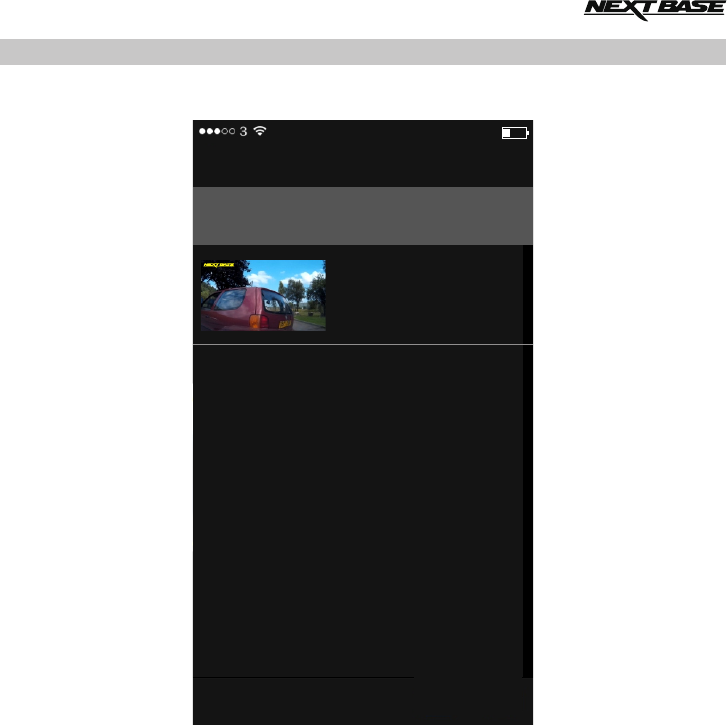

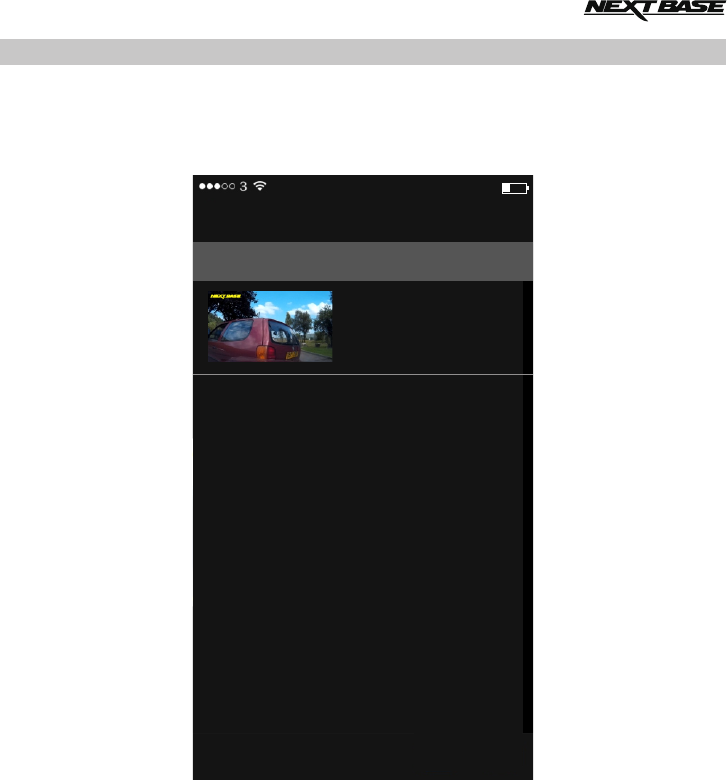

Files on Camera

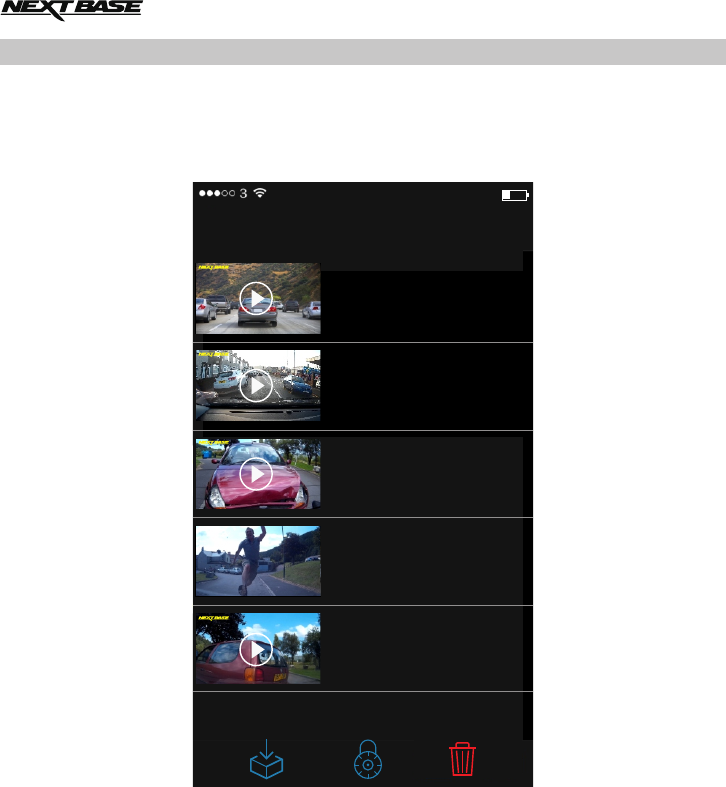

Manage the files that are currently stored on the memory card that is within the iN-CAR CAM, this

option will only be available when your phone is connected to the iN-CAR CAM.

14:55 24%

Cam Viewer

Files on Camera

22 Mar 2016
