Nextlink RP24RA9D 2.4GHz RADIO CONTROL User Manual Manual

Nextlink Co., Ltd. 2.4GHz RADIO CONTROL Manual

Users Manual

User's Manual
Handbuch
RF䊝䉳䊠䊷䊦䊶䊧䉲䊷䊋䊷ขᛒ⺑᣿ᦠ
RF ϐʨ / Ύչд ӡٝ ԋύԅ
*This user guide is subject to change without notice.
RP24TD9
RP24TD9J
RP24TD9M
RP24RA4D
RP24RA5D
RP24RA6D
RP24RA8D
RP24RA9D
Ver. 2.0
www.rcenjoy.com
Tx 2.4GHz Radio Control
Receiver
&OHMJTI
ڋڌ
Introduction
The existing 2.4GHz Radio Control and receivers cause inconvenience
to RC users because of restricted frequency use, which comes
from FM radio technology.
Utilizing digital spectrum technology within the 2.4 GHz ISM band,
the Radiopost RF System provides secure radio link, high
transmission speed and superb resolution allowing the device
to respond quickly and accurately without interference. The
Radiopost Tx 2.4GHz Radio Control and receivers offer a significant advantage
of eliminating the possibility of interference.
Each Tx 2.4GHz Radio Control is programmed with a unique identification code
to communicate with its specified receiver. Once the receiver is
paired with the Tx 2.4GHz Radio Control (called ID Setting), the receiver will only
take data from this specific radio controller where the Tx 2.4GHz Radio Control
is equipped, ignoring signals from other sources.
The Radiopost Tx 2.4GHz Radio Control and receivers scan and select the
superior channels that are not being used to avoid collision in
channels and data loss between the Tx 2.4GHz Radio Control and the receiver.
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Information
&OHMJTI
ڋڍ

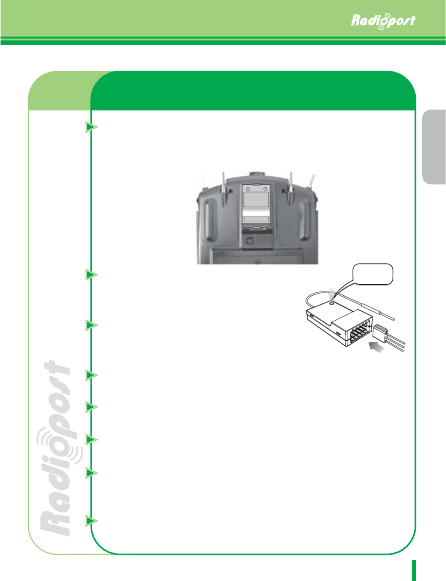

Precautions
Read this manual before installation or use.
Do not disassemble the Tx 2.4GHz Radio Control and the receiver
because it may cause severe damage or problems.
Install the Tx 2.4GHz Radio Control and the receiver after cutting off the
power of the radio controller and RC models such as model
aircrafts or helicopters or cars.
The receiver should be turned on after the radio controller
is switched on. When turning on the radio controller, be sure
to put the throttle to the stop position.
When switching off, make sure the engine or the motor
of the RC models should be stopped. First, switch off the
receiver then the radio controller. If this is not done in
this order, it may cause temporary malfunctions.
Prior to actual use and control of RC models, perform
operation tests between the Tx 2.4GHz Radio Control and the receiver.
If these tests fail, do not operate RC models.
When installing the receiver in RC models, use impact
protection materials to avoid damage to the receiver, which
may be caused by the vibration of RC models or the impact
from the outside.
Do not alter length of antenna arbitrarily.
The antenna should not be hidden by the RC model's main
body or cover, coated with metallic paint or carbon fiber.
Do not use Radiopost Tx 2.4GHz Radio Control and receivers together
with Tx 2.4GHz Radio Control and receivers produced by other
manufacturers.
Do not operate the Tx module with two or more receivers.
The receiver antenna shall be installed not to get affected
by the magnetic field of power cables.
* Nextlink will not be responsible for damage caused by use
which is prohibited.
4BGFUZ
$BVUJPO
&OHMJTI
ڋڎ
Name of Each Part
RP24TD9JRP24TD9
ID Setting
Button
ID Setting
Button
Status
LED
Status
LED
ID Setting
Button
Status
LED
RP24TD9M
RP24RA4D RP24RA8D RP24RA9DRP24RA6DRP24RA5D
[For JR radio controllers] [For Sanwa radio controllers]
[For Futaba and
Hitec radio controllers]
www.rcenjoy.com
Spread Spectrum
2.4GHz
2.4GHz
RF MODULE
www.rcenjoy.com
ID SET STATUS
RP24TD9J
2.4GHz
2.4GHz
RF MODULE
ID SETSTATUS
RP24TD9
RP24TD9
www.rcenjoy.com
Antenna Antenna
Antenna
Status LED
ID Setting
Button
RP24RA6D
RP24RA6D
2.4GHz
2.4GHz
6CH Receiver
ID SET
ՙ՞Շ
ՙ՞Ո
ՙ՞Չ
ՙ՞Պ
ՙ՞Ջ
՘Յՙ՞Ռ
www.r cenjo y.com
Antenna Antenna
Status LED
ID Setting Button
Failsafe Button
RP24RA8D
RP24RA8D
2.4GHz
2.4GHz
8CH Receiver
ID SET F/S
ՙ՞Շ
ՙ՞Ո
ՙ՞Չ
ՙ՞Պ
ՙ՞Ջ
ՙ՞Ռ
ՙ՞Ս
՘Յՙ՞Վ
www.rcenjoy.com
Antenna
Status LED
ID Setting
Button
Failsafe Button
Status LED
ID Setting
Button
ՙՇ
ՙՈ
ՙՉ
ՙՊ
՘ՅՙՋ
5
5
Channel
Receiver
www.rcenjoy.com
2.4GHz
2.4GHz
RP24RA5D
RP24RA5D
Antenna
Status LED
ID Setting
Button
Antenna
ID SET
2.4GHz
2.4GHz
RP24RA4D
RP24RA4D
4
4
Channel
Channel
Tx 2.4GHz Radio Control
Receiver
&OHMJTI
ڋڏ
Tx
Module
Features
High stability is guaranteed by using 2.4 GHz ISM bandwidth.
Crystal is not necessary due to automatic channel selection.
ID Setting is checked by beeping sounds.
Binding speed is superior.
The embedded Tx 2.4GHz Radio Control antenna provides convenience
for users when the stand is attached to the radio controller.
Radiopost Tx 2.4GHz Radio Control can be paired with any Radiopost
receivers.
It provides a wide range and high durability.
It is a highly sensitive receiver which is less affected by
intermodulation
It is a universal type which can be used for model
aircrafts, helicopters and cars.
It is free from "NO CONTROL" after ID Setting.
The Failsafe Function (only applied to RP24RA8D/
RP24RA9D)
minimizes damage to RC models caused by accident.
Receiver
&OHMJTI
ڋڐ
LED Status by Function
When powered on for the first
time, the white LED blinks.
When ID Setting button is
pressed, the white LED blinks
faster than previously.
When ID Setting is done, the
LED turns green and remains still.
The white LED blinks slowly if
there is no data transferred from
theTx 2.4GHz Radio Control
LED turns
green
White LED
blinks slowly
White LED
blinks
Power
Tx
Module
Red LED
blinks
Receiver
Green LED
blinks.
Green color
remains still
White LED
blinks faster
When powered on for the first
time, the green LED blinks
turning into the receiver searching
status.
When ID Setting button is
pressed, it turns into ID-Setting
mode and the red LED blinks.
When ID Setting is done, the
LED turns green and the green
color remains still.
&OHMJTI
ڋڒ
Failsafe Function
The Failsafe Function is used to redirect the servos to
the designated location set by users in advance when
there is a connection failure or data loss for 2 seconds during
the flying session.
Turning on the Failsafe Function
Turn on the Tx 2.4GHz Radio Control first and then the receiver.
Check the paring by moving the lever of the radio
controller.
By using the lever of the radio controller, set the positions
of each servo to be redirected when the Failsafe mode
gets started.
Press the Failsafe Function button for 3 seconds. The
LED will blink in red once, which means the Failsafe
Function is activated.
* When users set the Failsafe Function with the receiver
installed in the RC models, be sure to put the engine
power channel of the radio controller in hold mode or
cut off the engine power.
*When you buy the Tx 2.4GHz Radio Control and receivers, the
Failsafe function is not activated. If wish to set the
Failsafe function, please follow instructions described
in the user guide.
"QQMJFEUP.PEFM3'3"%
3'3"%POMZ
$BVUJPO
Failsafe Function Setup
&OHMJTI
ڋڔ
Warranty
Repair Service
If any difficulties are encountered while setting up or operating the modules,
please consult this instruction manual first. For further assistance you may
also refer to your hobby dealer, or contact Radiopost Service Center at the web
site or call or fax us at the numbers below;
Web site: www.rcenjoy.com
Name of
Products
Date of purchase
Dealer or store
Tel.
Customer
Warranty period: 12 months from date of retail purchase
Price:
Remarks:
Tx
Receiver
RP24TD9 / RP24TD9J / RP24TD9M
RP24RA4D / RP24RA5D / RP24RA6D / RP24RA8D / RP24RA9D
Name
Address
Tel.
The damage caused by accident, abuse, misuse, flood, earthquake or
other external causes.
The damage caused by the service performed by anyone who is not
a representative of Radiopost or a Radiopost authorized service provider.
The products or parts that have been modified to alter functionality
or capability without approval of Radiopost.
In case the seal on the module is defected or detached.
3. This warranty covers repairs of defected hardware at no charge, exchange of
it for the product which is new or equivalent to new in performance and reliability
and a refund of the purchase price.
4. If there are any product defects that arise, please contact the retail store or
the contact information below.
1. The warranty period for this product is 12 months from the date of retail
purchase.The warranty covers any defects in materials and workmanship
under normal use.
2. Limitations: Even within the warranty period, service charges may be
required for the followings:
Europe, Asia Pacific
Tel.: +82-31-737-6060
Fax: +82-31-737-6263
Email: arex@nextlink.co.kr
North America, Latin America
Tel.: +1-949-273-8282
Fax: +1-949-273-8285
Eamil:anthony@nextlink.co.kr
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, (example - use only shielded interface cables
when connecting to computer or peripheral devices). Any changes or modifications not
expressly approved by the party responsible for compliance could void the user’s authority to
operate this equipment.This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation
including interference that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOIDTHE USER᪽S AUTHORITY TO OPERATE THE
EQUIPMENT.
IMPORTANT Safety Instruction:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Do not using near any heat sources such as radiators, heat resisters, stove, or other
equipment that produce heat.

Navigation menu
