Nextlink TS401 2.4GHz RADIO CONTROL User Manual for 4 Channel Transmitter
Nextlink Co., Ltd. 2.4GHz RADIO CONTROL for 4 Channel Transmitter
Nextlink >
Users Manual
User Manual
for 4 Channel Transmitter
TS401 2.4GHz
2
■General Information
Caution
☞It is prohibited to copy a part of or the whole of this manual.
☞The contents of the manual may change without prior notice.
☞If there are mistakes or missing parts in this manual, please contact us.
☞In some cases, the manufacturer does not take responsibilities for the results which are
brought upon by the customers.
■Compliance Information Statement (for U.S.A.)
This device, trade name Radiopost, model number TS401, complies with part
15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Thank you for purchasing the Radiopost TS401 2.4GHz. The unique features of
this product are introduced in this manual. Please read the instruction manual
carefully and thoroughly for optimal enjoyment and control.
This RC system operates with a direct connection between the transmitter and
its receiver, using a 2.4GHz digital frequency band. As others transmitters may
use various frequencies or a crystal type FM band, Radiopost‟s TS401 2.4GHz
system is free from interference to respond more quickly and accurately.
Radiopost TS401 2.4GHz is designed for all kinds of RC cars and boats.
Whether it is on-road or off-road, at a pond or lake, Radiopost‟s products are
made for various RC hobbyists. From beginners to experts, Radiopost wishes
you the best as you set forth into the RC world with our specialized products.
▶TS401 2.4GHz is a high powered RC system. Please check the maximum
coverage distance and operation range for your safety.
▶The 2.4GHz is an ISM band that can be used for devices or equipments
other than RC hobby models. The use of different products in the same
2.4GHz bandwidth may cause frequency interferences among the products.
So, before you start, check to see if the servos move properly and other
connections, by performing a test run from the furthest distance possible.
▶As various manufacturers and products may have different 2.4GHz
technology, only the Radiopost receivers bind with the TS401.
3
■Safety
■Precautions & Warnings
▣Precautions in Application, Export and Modification
Before using the TS401 2.4GHz system, please carefully and thoroughly read
this manual in order to use your RC system safely.
Use this product in a safe manner, observing all safety precautions at all
times.
Please follow and observe all additional rules at the place of operation as
suggested (i.e. race tracks, lakes, etc.) or wherever you use the RC system.
If the RC model is not running properly, please immediately stop all controls.
Do not run the RC model before completely fixing the problems.
The RC model you use may cause injuries or damages. Please always be
careful when running the RC system and models.
Water or moisture may cause malfunctions to the system. Please keep the
RC system away from water and moisture.
For the RC boat, please install the receiver and servo in the waterproof box.
If you are a beginner to the RC hobby, we strongly recommend that you
seek the advice of experts who can assist you or contact your local RC
hobby shop.
▶(Application) Do not use the transmitter for non-RC models. This
product is not designed and intended for use in any application other
than the radio control models for hobby and recreational purposes.
▶(Export precautions) When this product is exported from the country of
manufacturer, its use is to be approved by the laws governing the
country of destination for the devices emitting radio frequency. If this
product is then re-exported to other countries, it may be subject to
restrictions on such export. Prior approval of the appropriate government
authorities may be required. If you have purchased this product from an
exporter outside your country and not an authorized Radiopost
4
▣Precautions for the Transmitter
▣Precautions for the Receiver
distributors or dealer in your country, please immediately contact the
seller to determine if such export regulations have been met. Use of this
product with other than models may be restricted by the export and
trade control regulations and an application for export approval must be
submitted.
▶(Modifications, Adjustment and Replacement of Parts) Radiopost is not
responsible for the unauthorized modification, adjustment and
replacement of parts on this product. Any such changes may void any
or all warranties associated with this product.
▶To start, first switch on the transmitter and secondly, the receiver.
After using the RC Model, please switch off the receiver first and then
the transmitter. Reversing the order of powering on and off may cause
critical damages to the devices or persons.
▶Please check if the batteries for transmitter and receiver are fully charged
before starting.
▶ The antenna for Radiopost‟s transmitter TS450 2.4GHz is built-in the
product (Internal). The antenna in located underneath the front top
section, above the power switch of the transmitter. Be careful not to
cover this part of transmitter, as it may cause weak signal output if
covered.
▶The receiver antenna is made of coaxial cable that consists of a covered
part and naked wire part. The naked wire is used to receive the radio
wave. Be careful not to bend the naked part of the wire, as it also may
weaken the signal quality of the receiver.
▶An antenna cable is very delicate. Please handle it with care.
▶Do not forcibly pull the antenna cable.
▶Do not cut or link the antenna cable with other wires.
5
▶Do not drive the models on rainy days, on damp or humid days and or at
night. If the product(s) come in contact with water, malfunctions may
occur to the transmitter and the model and may cause the systems be out
of control.
Warning
▶Covered part of the antenna may be slightly made into a smooth curve. But
do not fully bend it repeatedly or too sharply, which may cause unexpected
problems with the antenna.
▶The antenna must be installed in the plastic tube or antenna pipe to stand
upright according to the RC model assembly instruction. It is highly
recommended to mount the antenna of receiver away from the motor, the
battery and the speed controller.
▶If the connector of receiver shakes, an unexpected outcome may occur
during controlling. Please check if the receiver, the servo and the switch
connectors are firmly attached to the model.
▶The receiver is sensitive to vibrations, impacts and humidity. Please take
appropriate measures for the receiver to be kept away vibration,
impact and humidity. If not, malfunctions or other problems may occur.
▶When mounting the receiver, avoid any contact with carbon or metal chassis.
▶The contact between metal components mounted on the product may
cause electrical noise and may cause malfunctions and decrease the
receiver‟s performance.
▶The manufacturer is not responsible for the damages caused by the use of
parts other than Radiopost‟s genuine components.
▶Use five AA-size dry cell batteries, five AA-size rechargeable batteries, or its
equivalents only. Batteries other than specified above may cause serious
damages on your TS401. Misuse of battery may void warranty.
Warning
6
■General Information
■Safety
■Precautions & Warnings
1. Before Using
1.1 Features
1.2 Parts and Accessories
1.3 Nomenclature

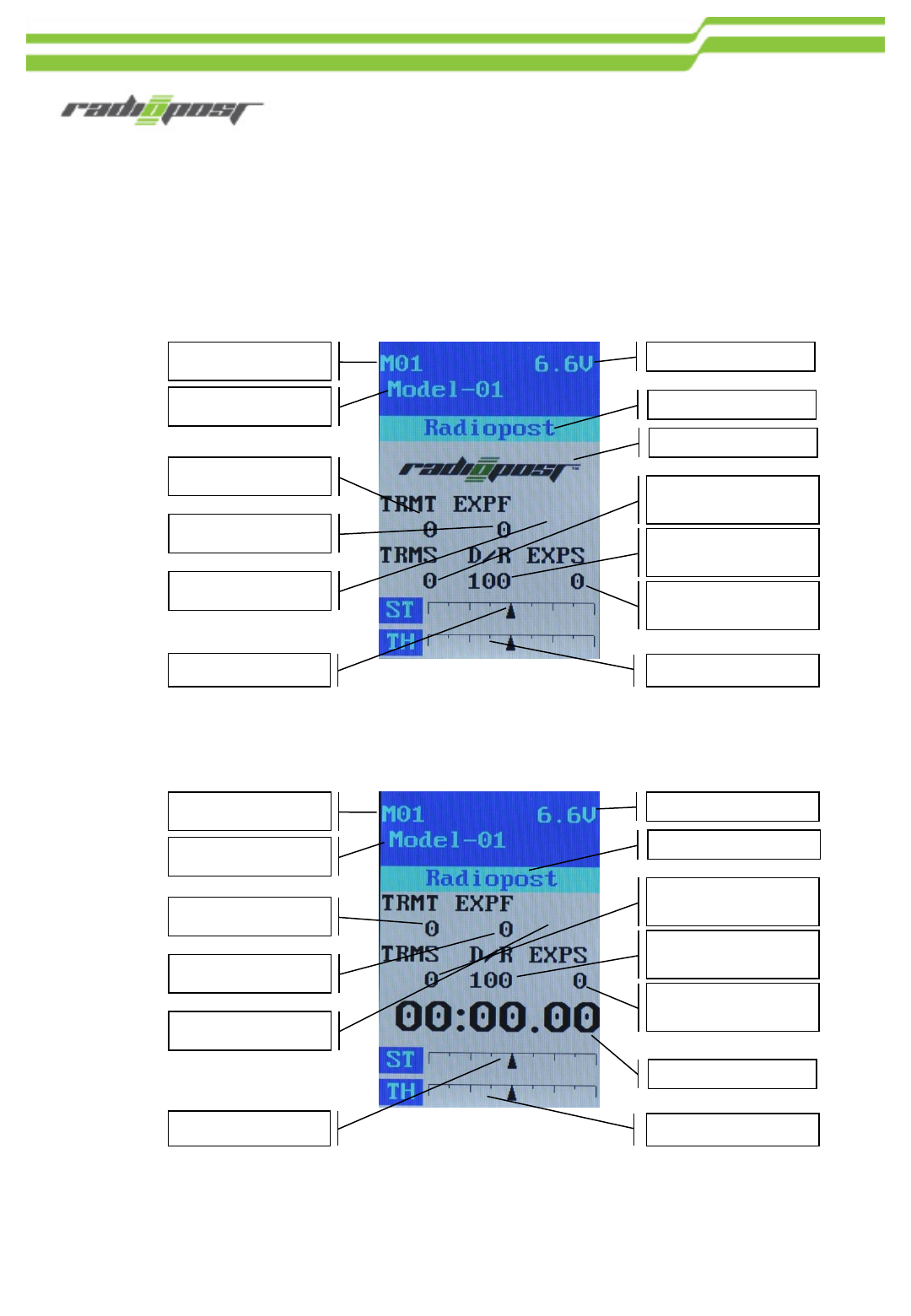

1.4 Welcome Screen
1.4.1 Vertical View
1.4.2 Horizontal View
2. Personal Adaptation

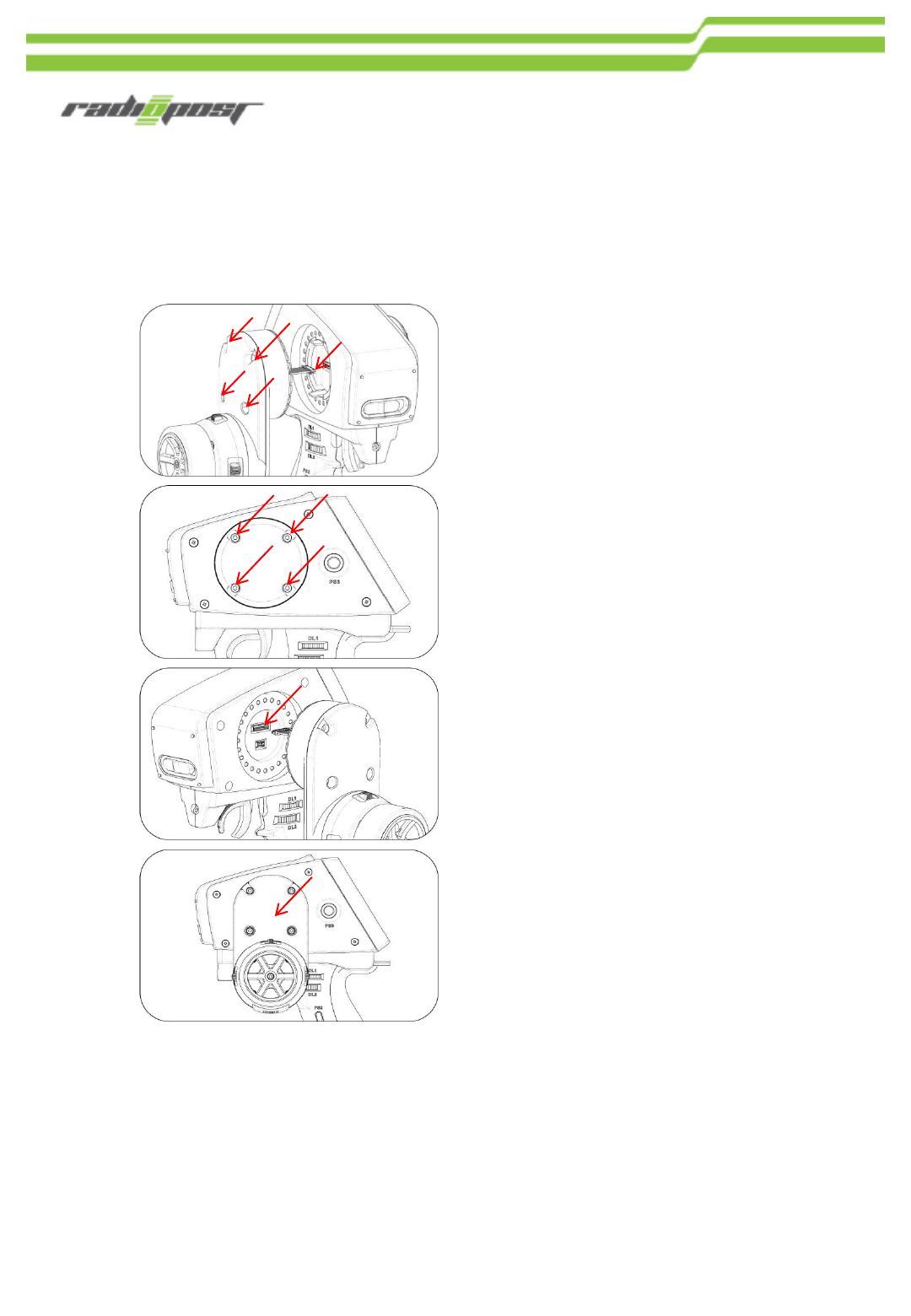

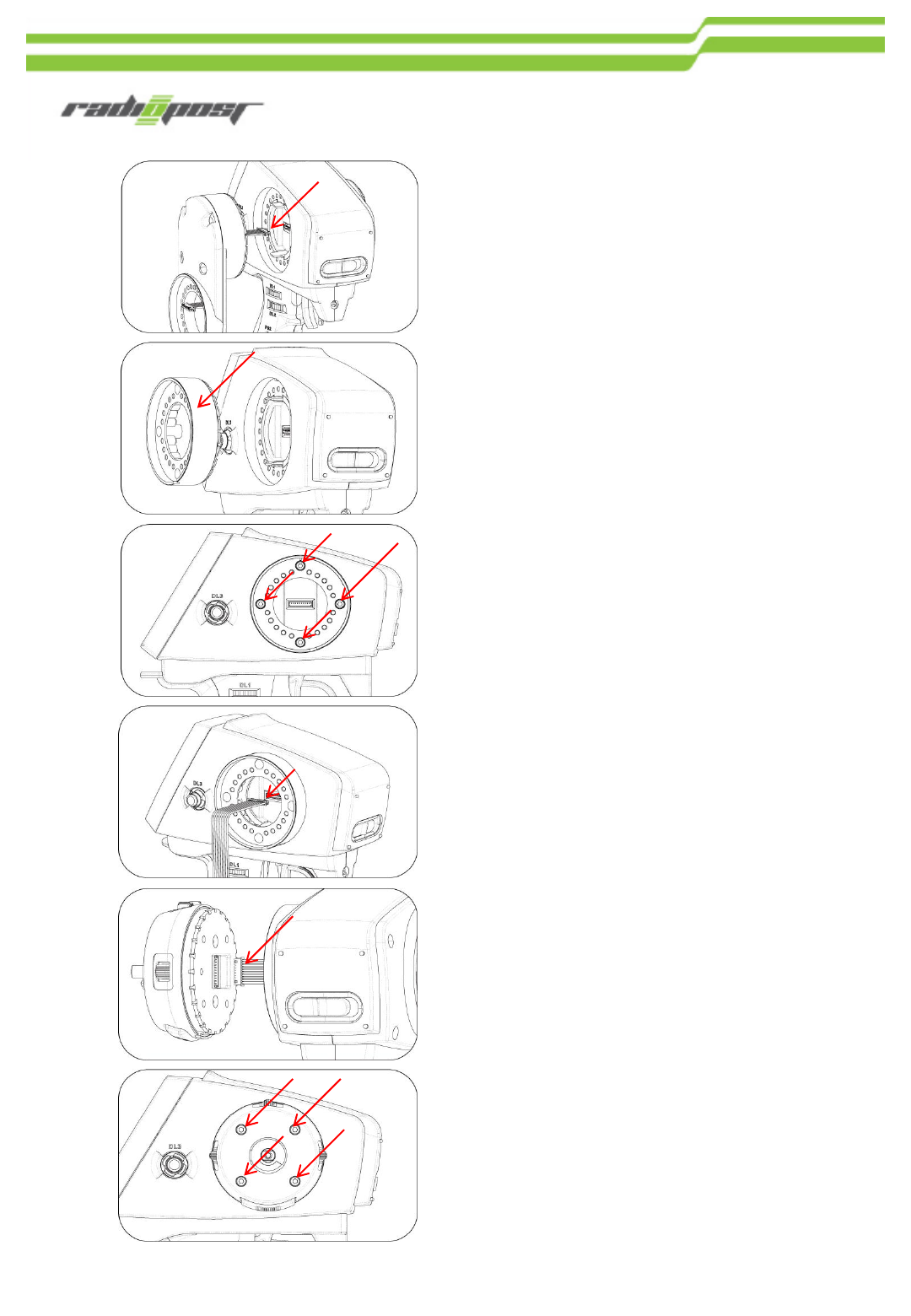

2.1 How to Remove and Attach the Adapter for Wheel Extension
2.2 How to Change the Wheel Angle
2.3 How to Change the Wheel Position for the Left-handed Use
3. Functions and Description of Buttons
3.1 Edit Buttons
3.2 Trim Buttons
3.3 Dial Buttons
3.4 Push Switches
4. Function Map (Quick Menu/All Menu)
4.1 Quick Menu
4.2 All Menu
5. Description of Functions
5.1 Model

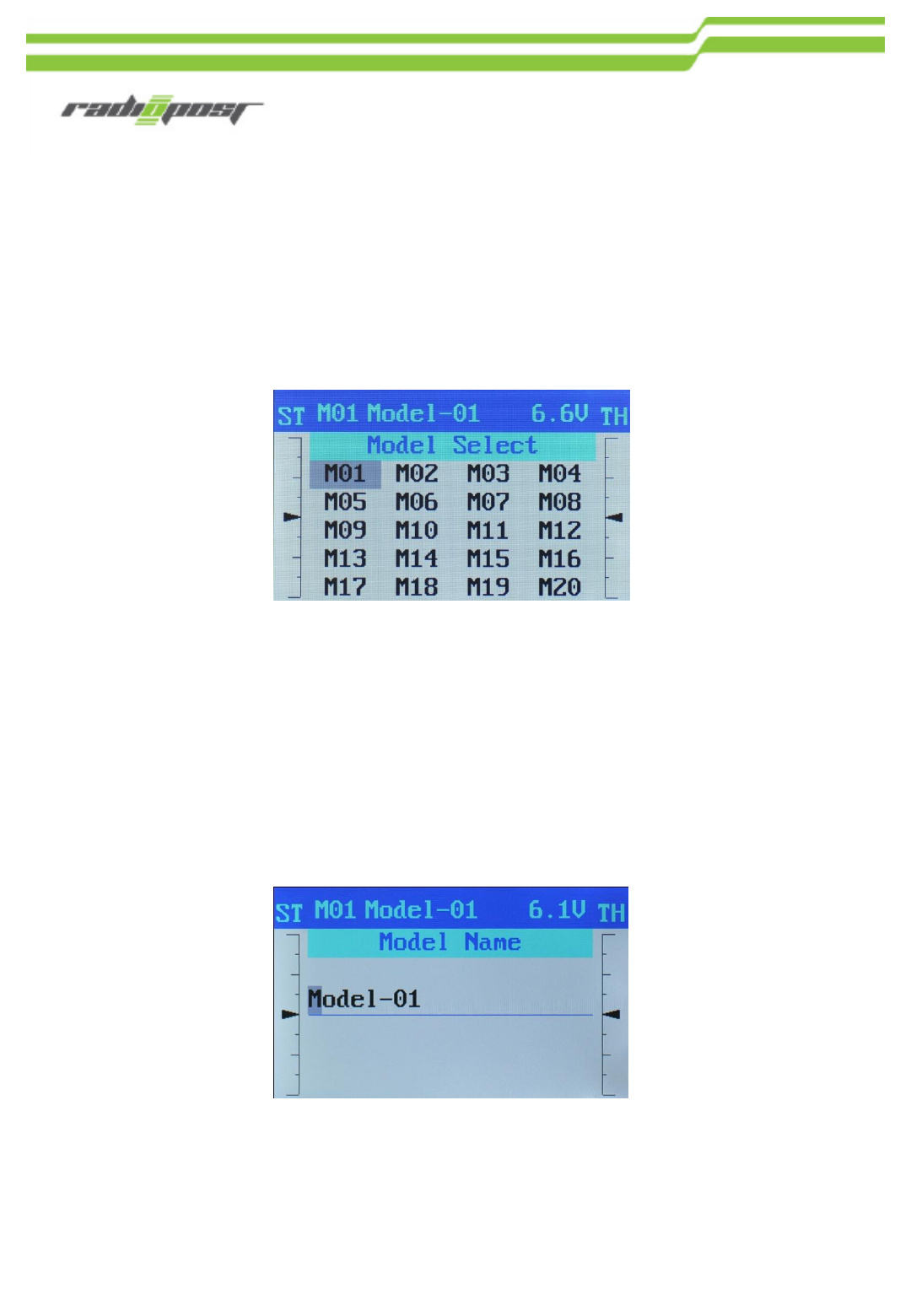

5.1.1 Model Select
5.1.2 Model Name
5.1.3 Model Copy

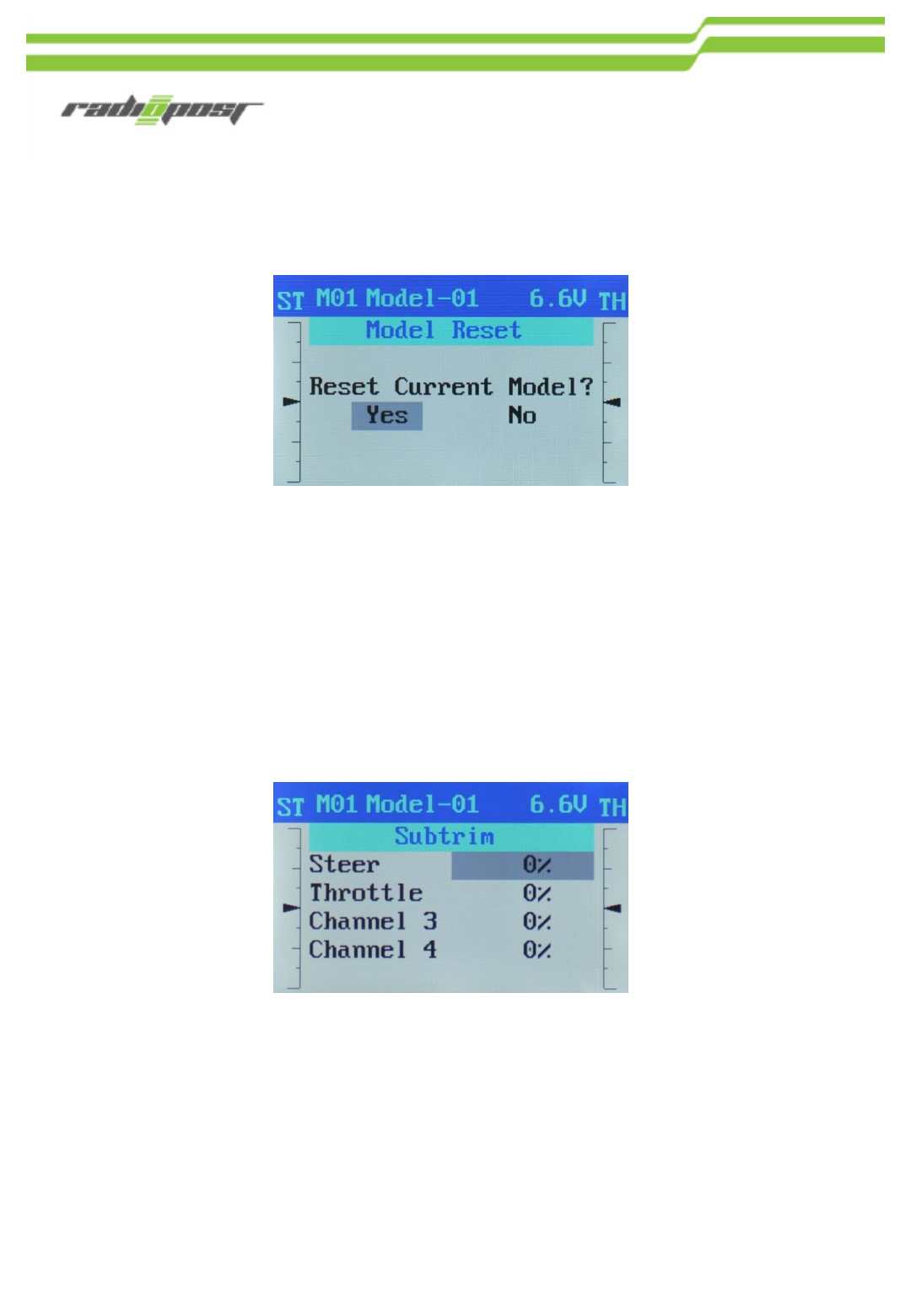

5.1.4 Model Reset
5.2 Subtrim
5.3 Dual Rate
5.4 EPA 1

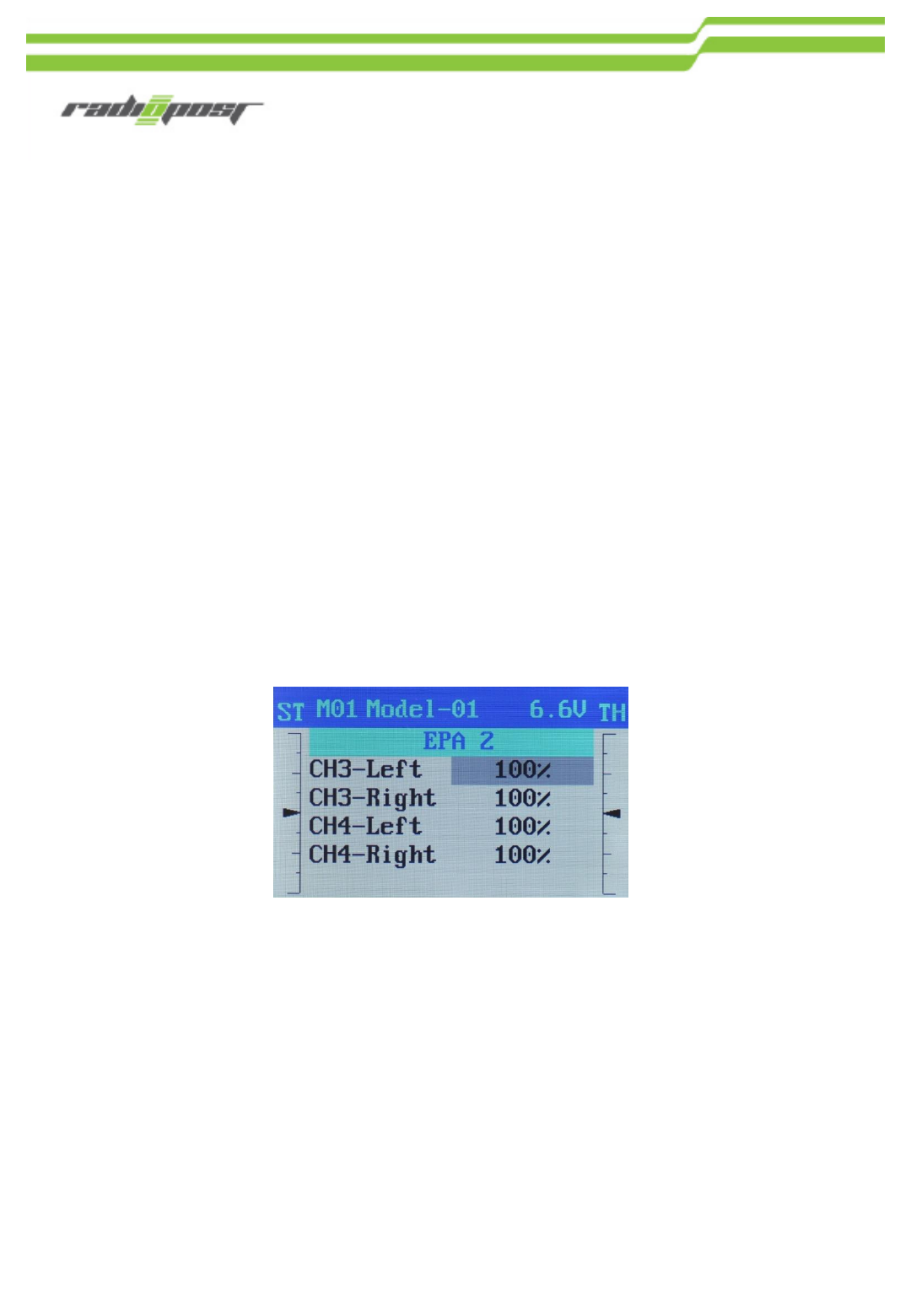

5.5 EPA 2
5.6 Exponential

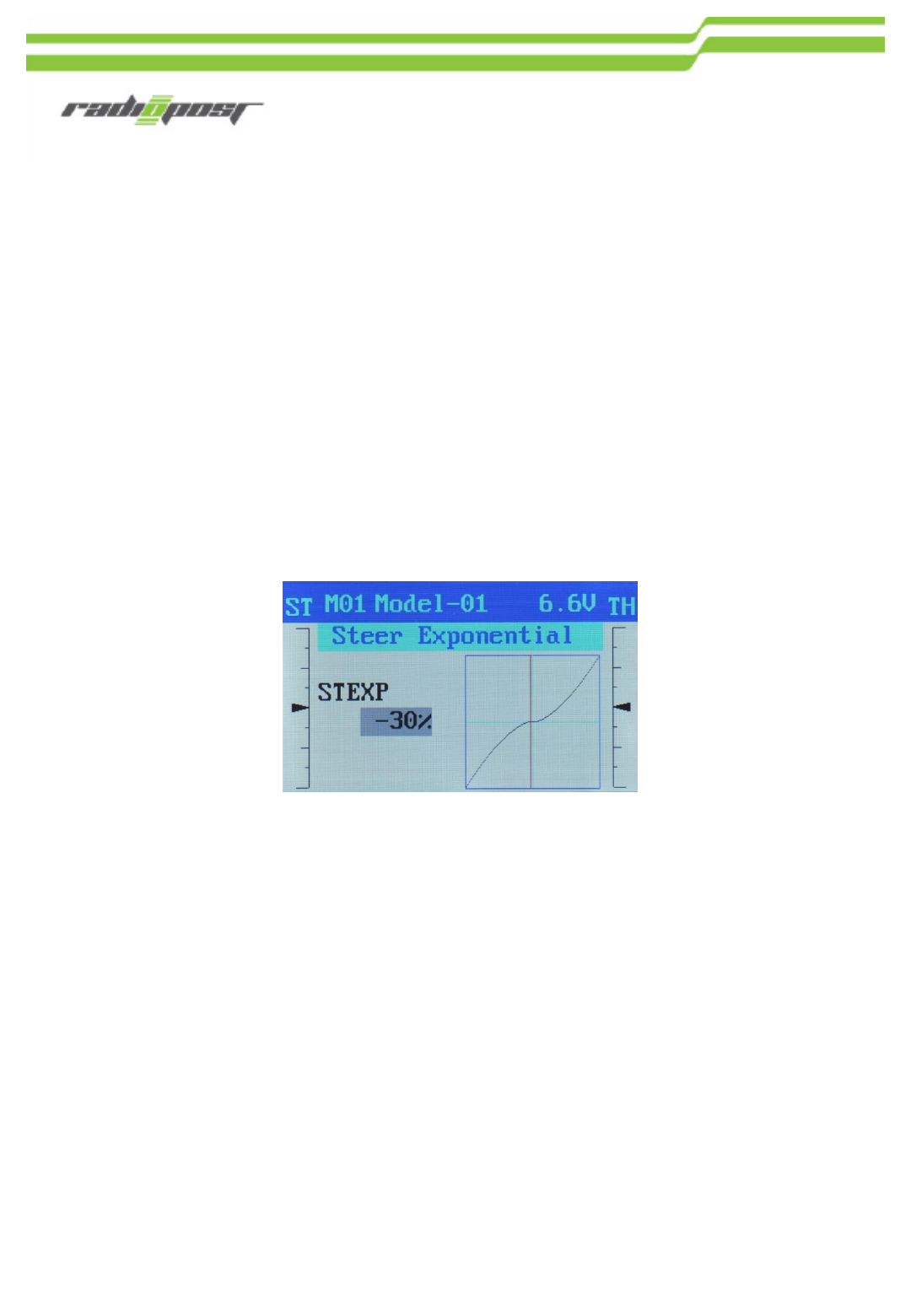

5.6.1 Steer Exponential
5.6.2 Throttle EXP
Table of Contents
7
5.7 Reverse
5.8 Bind Receiver
5.9 Selection of Switch
5.9.1 Push Switch

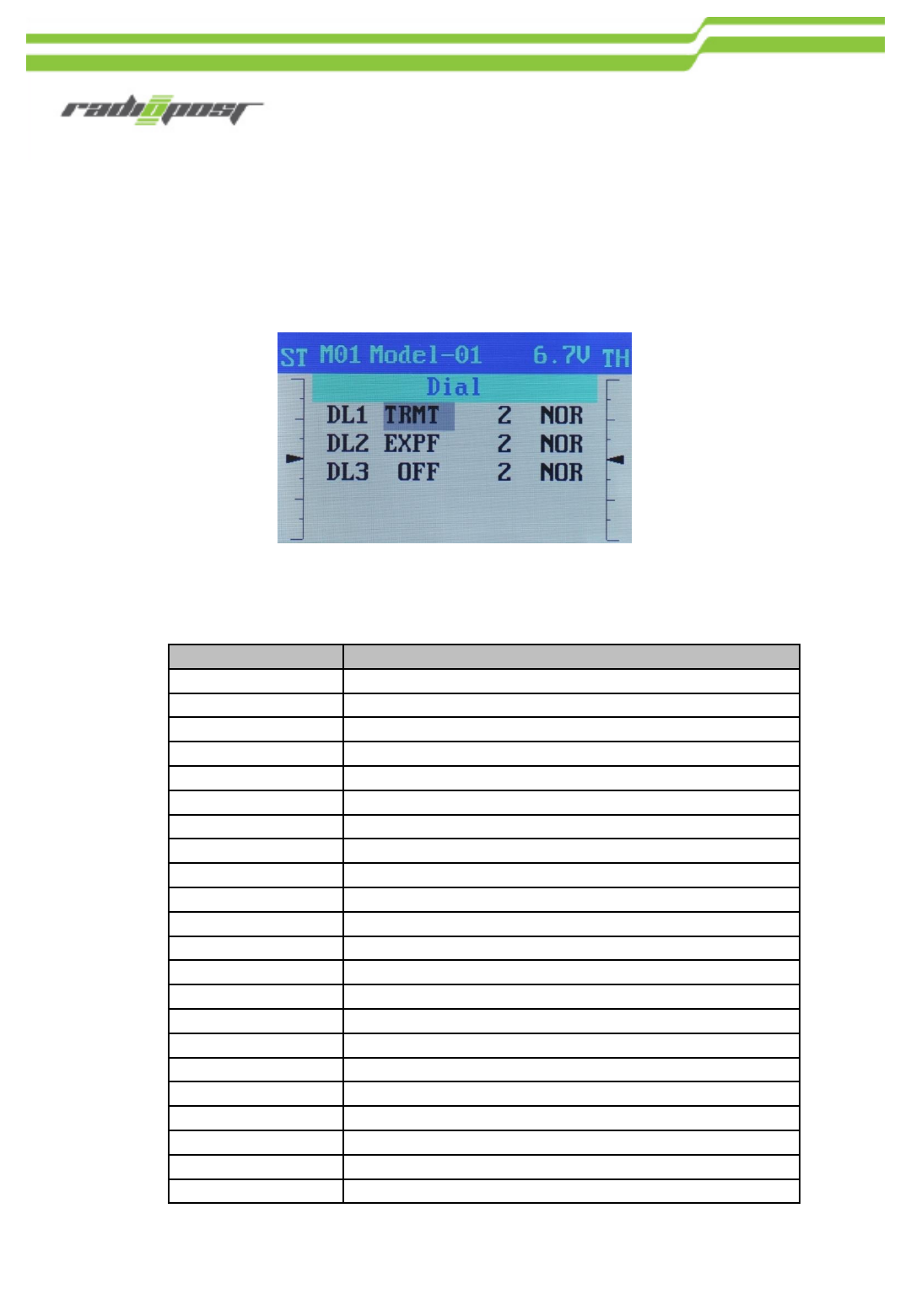

5.9.2 Dial Switch

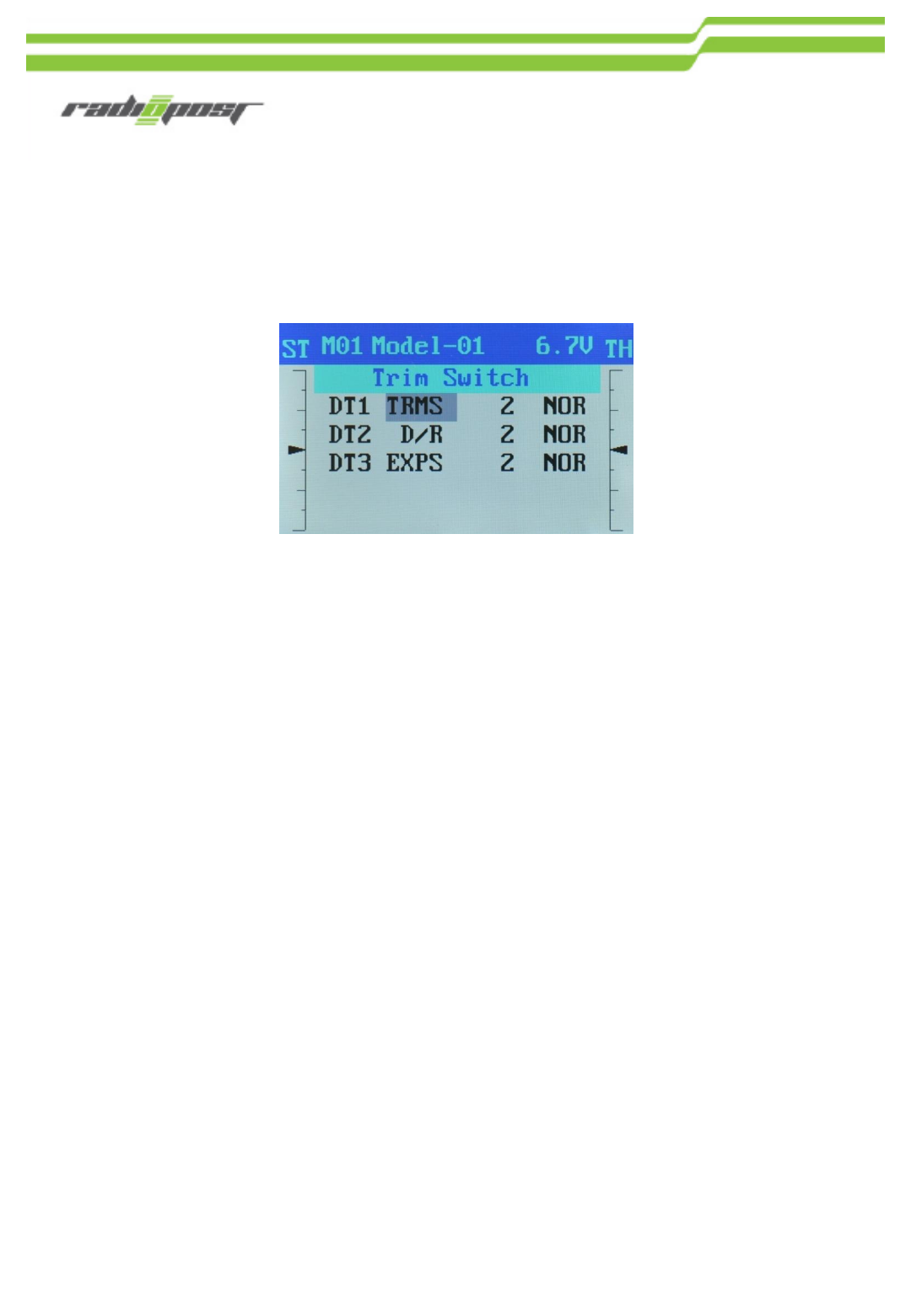

5.9.3 Trim Switch
5.10 Speed

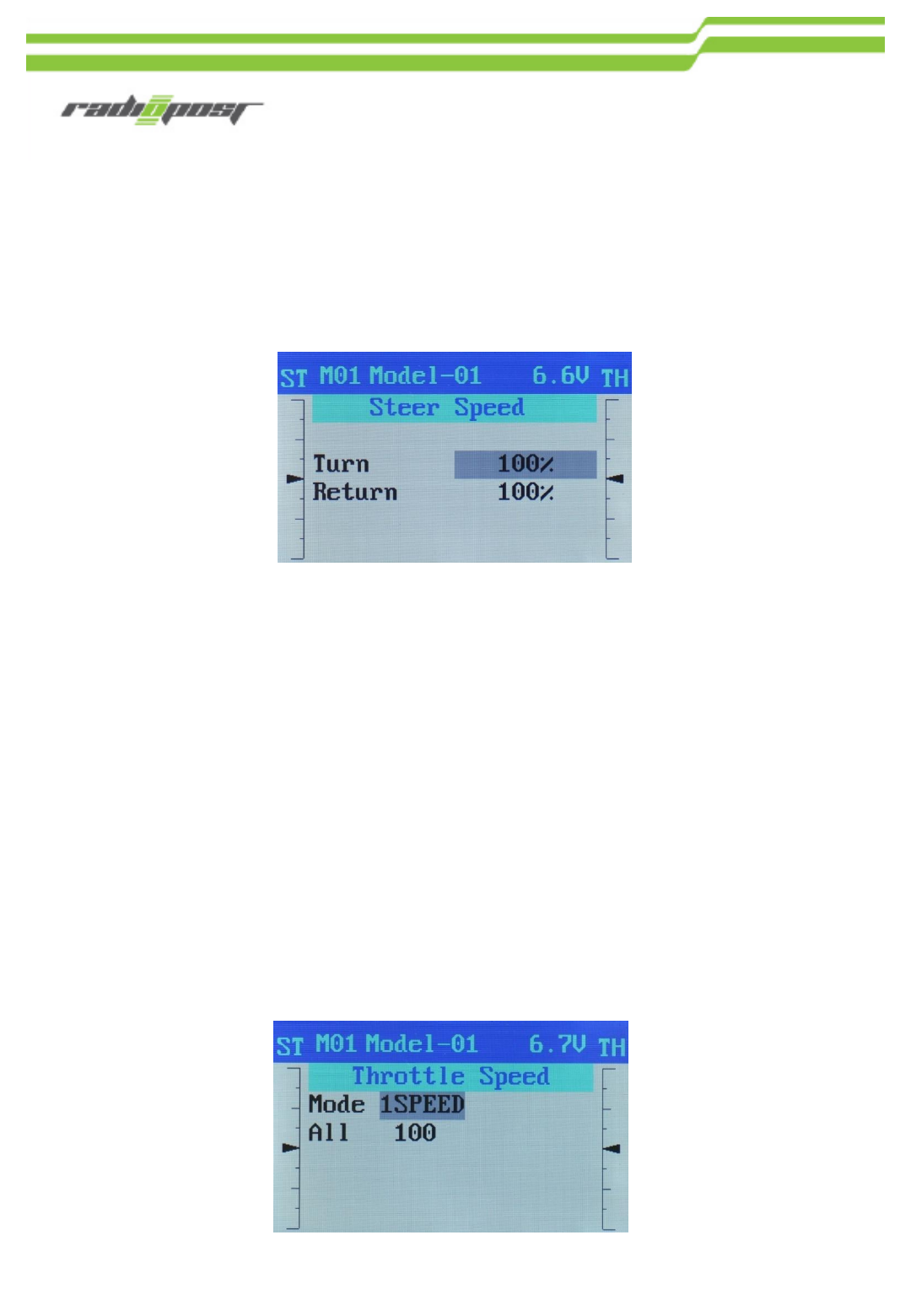

5.10.1 Steer Speed

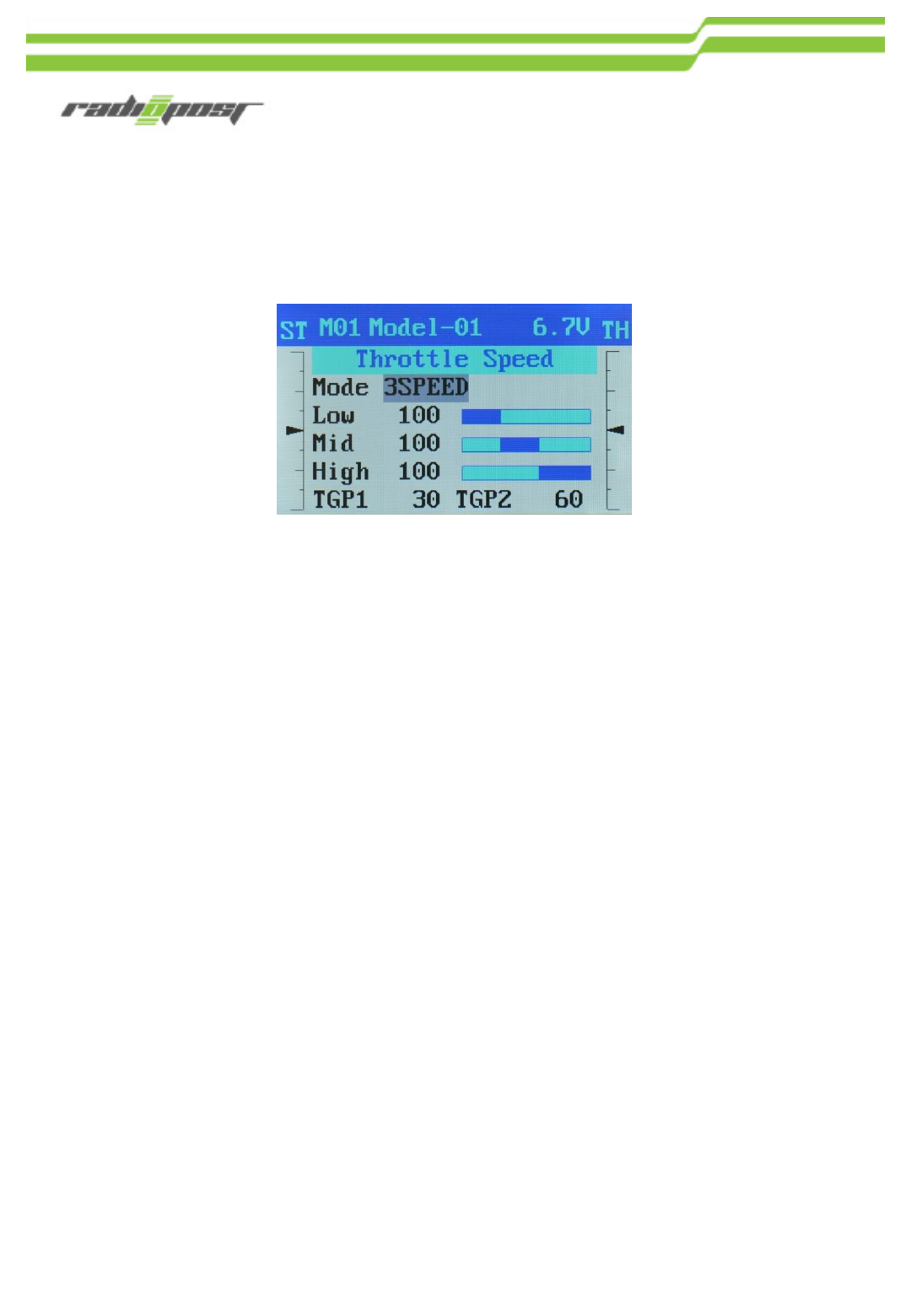

5.10.2 Throttle Speed

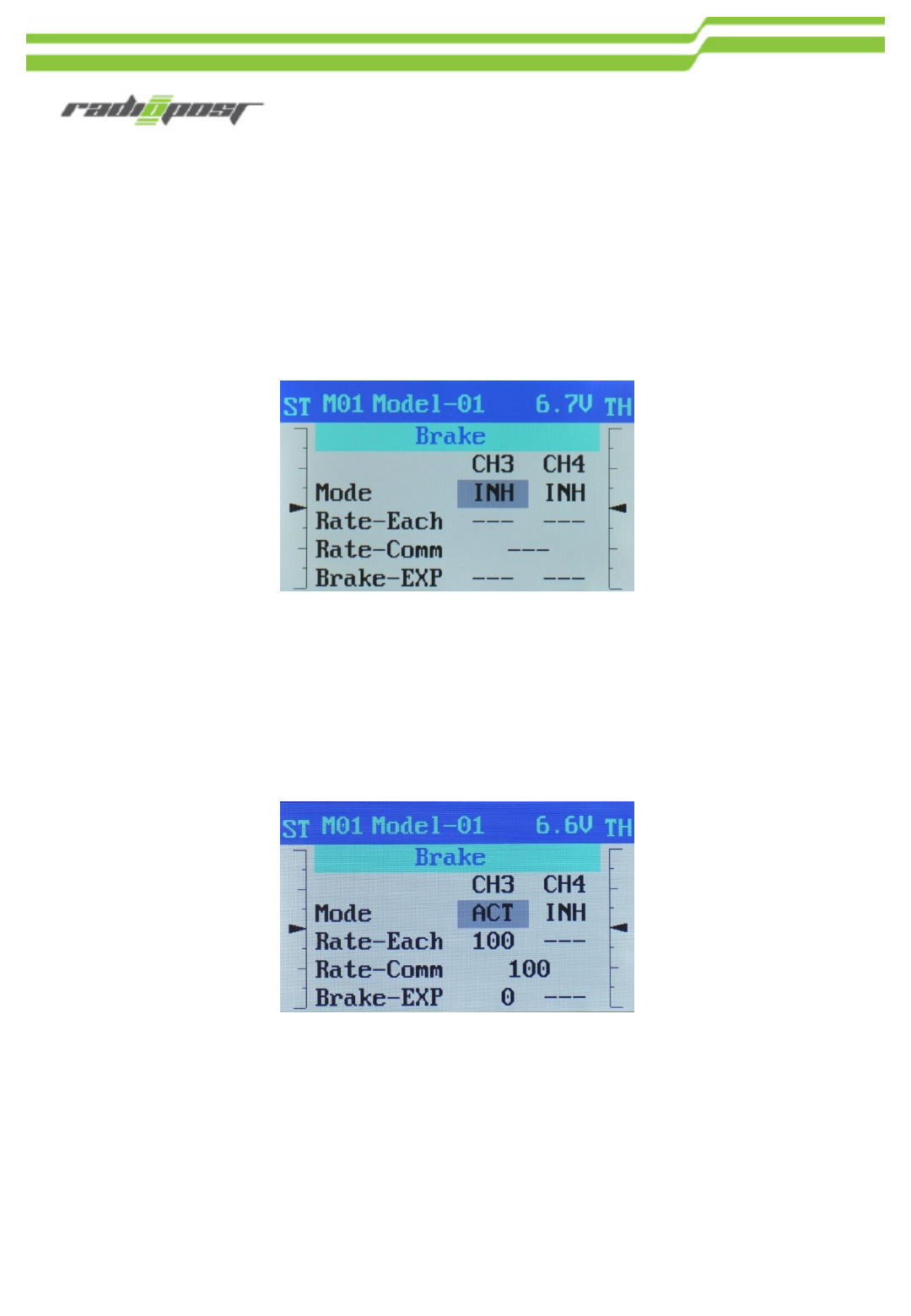

5.11 Brake

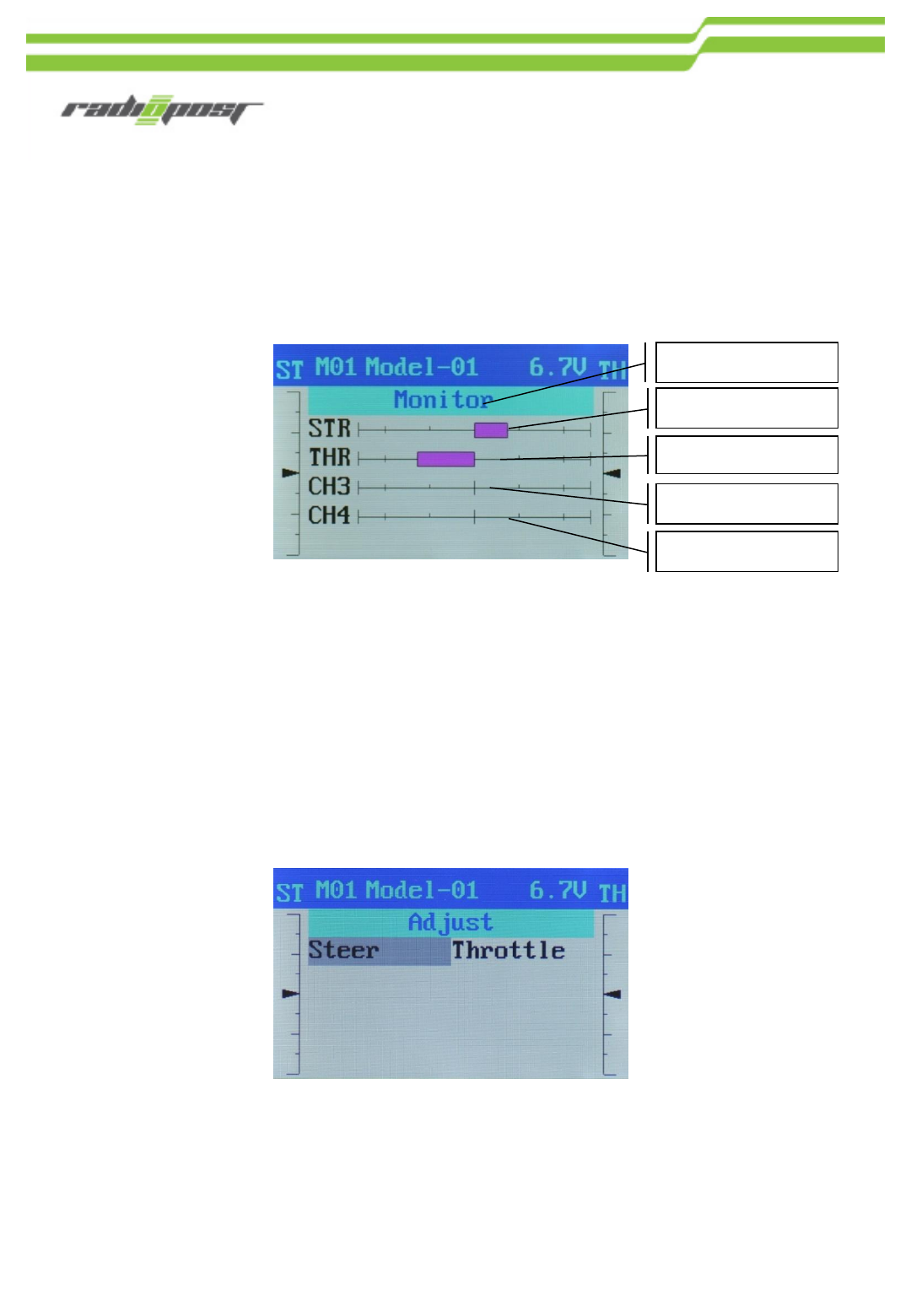

5.12 Monitor

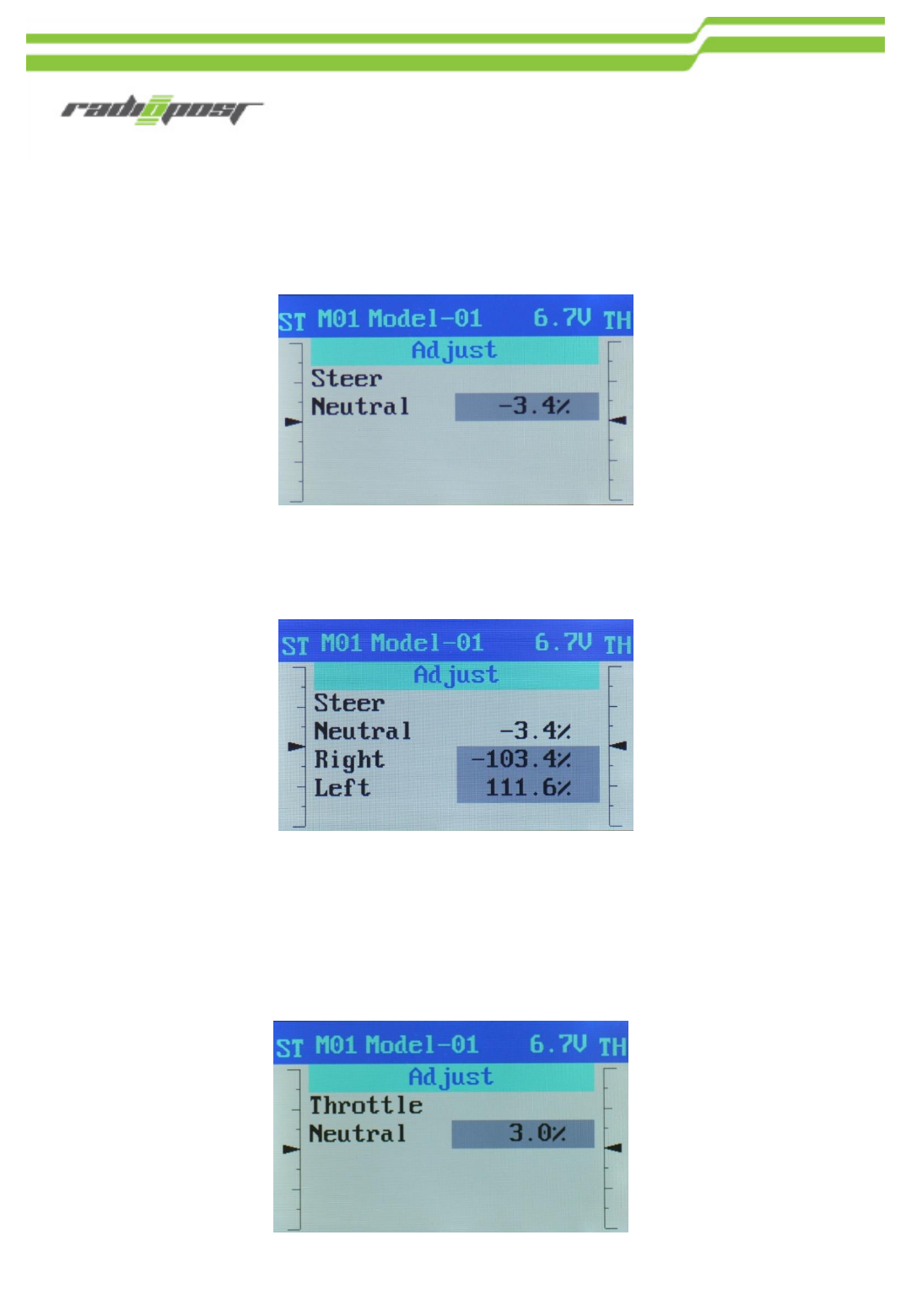

5.13 Adjust
5.14 Timer
5.15 LAP List
5.16 Edit Banner

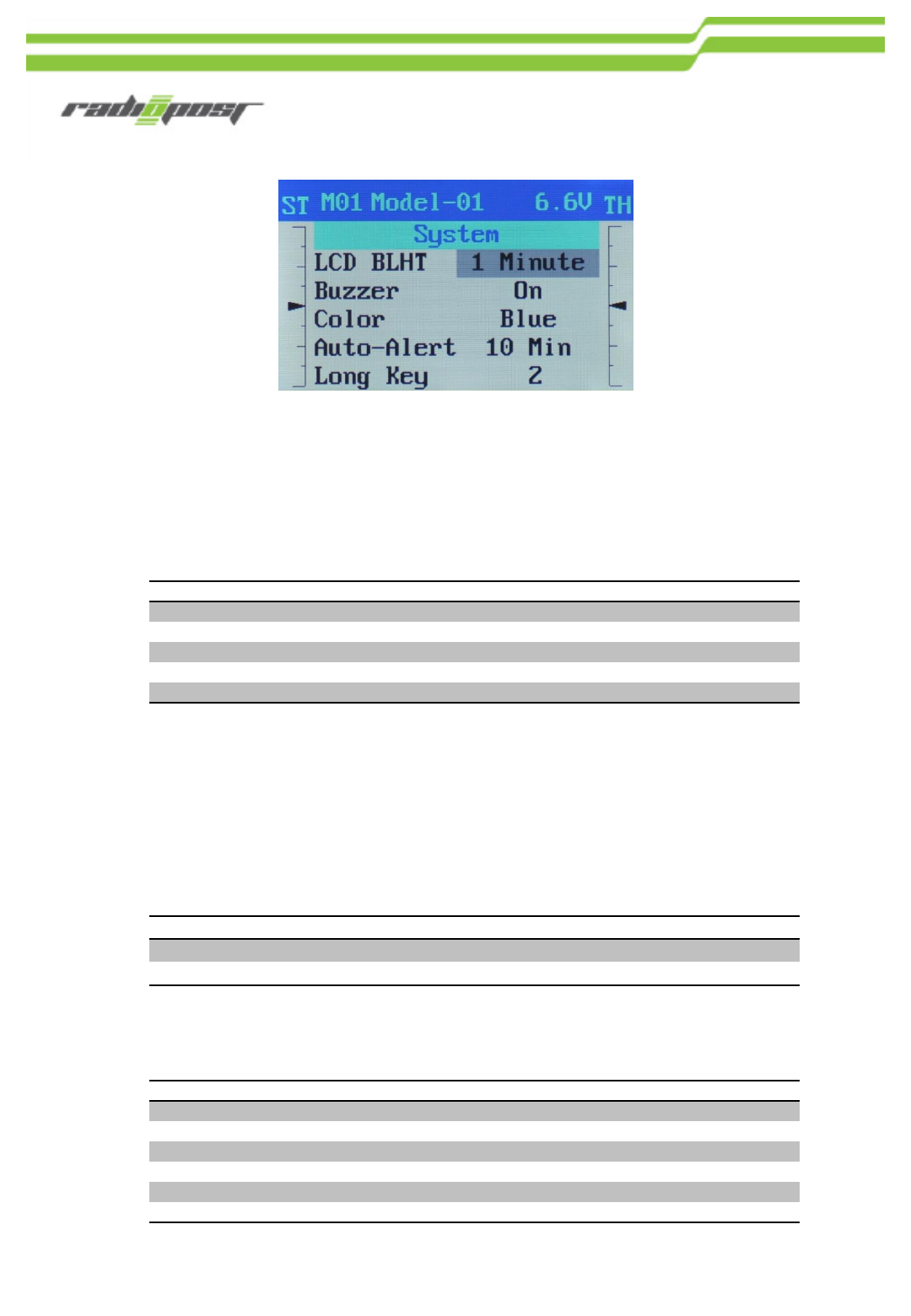

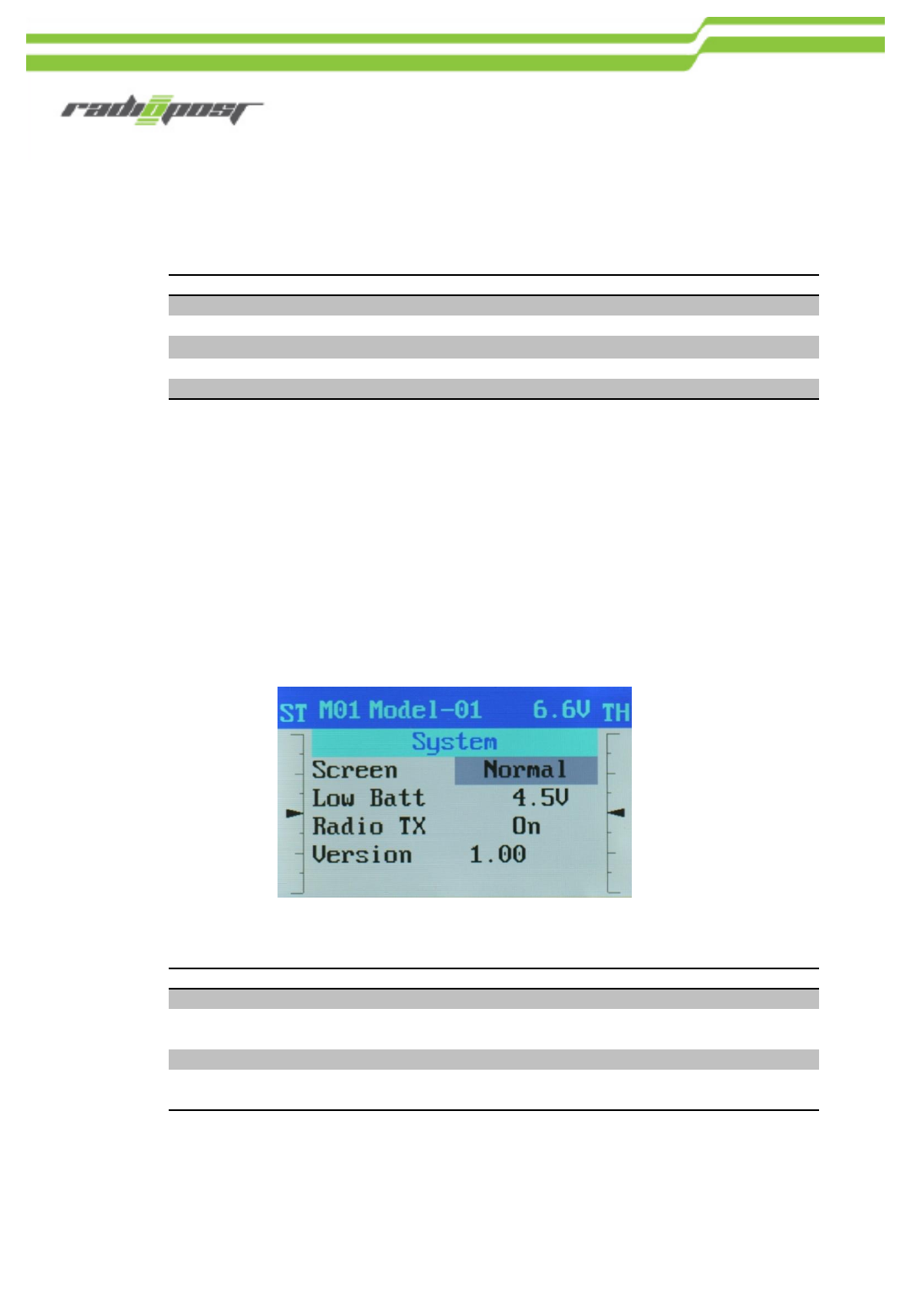

5.17 System
5.18 Advanced

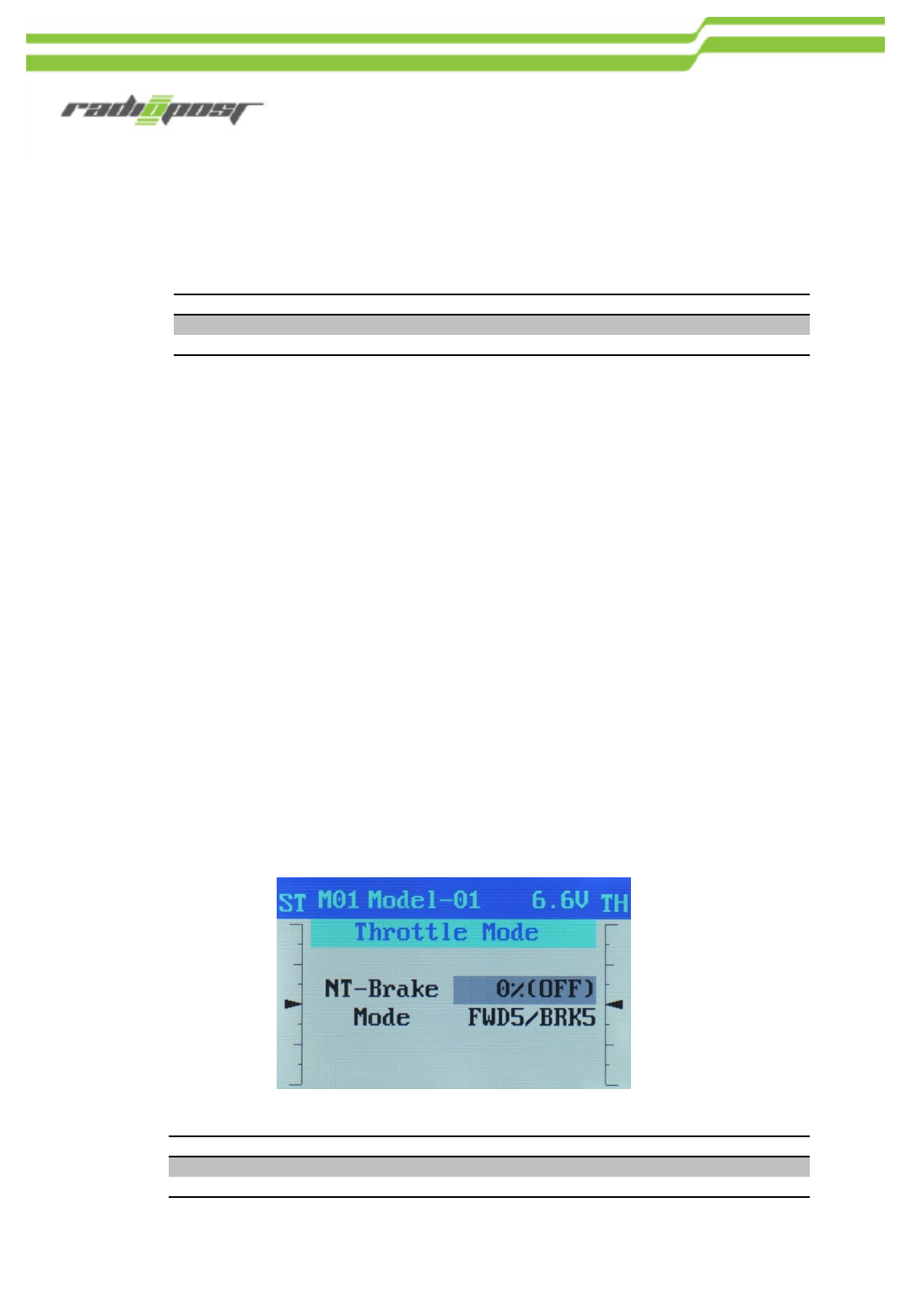

5.18.1 Throttle Mode

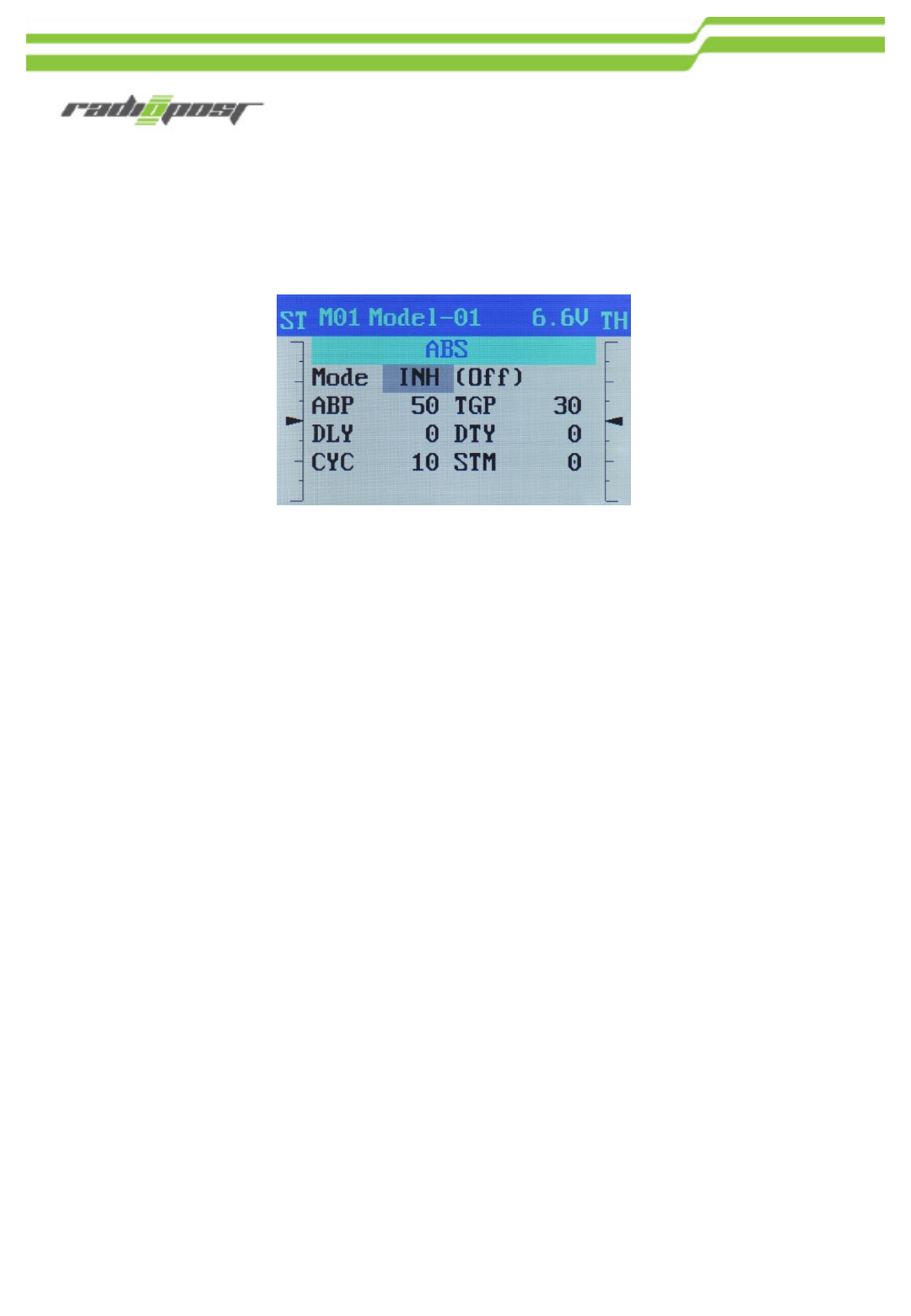

5.18.2 ABS
5.18.3 TH-Acceleration
5.18.4 AT-Start

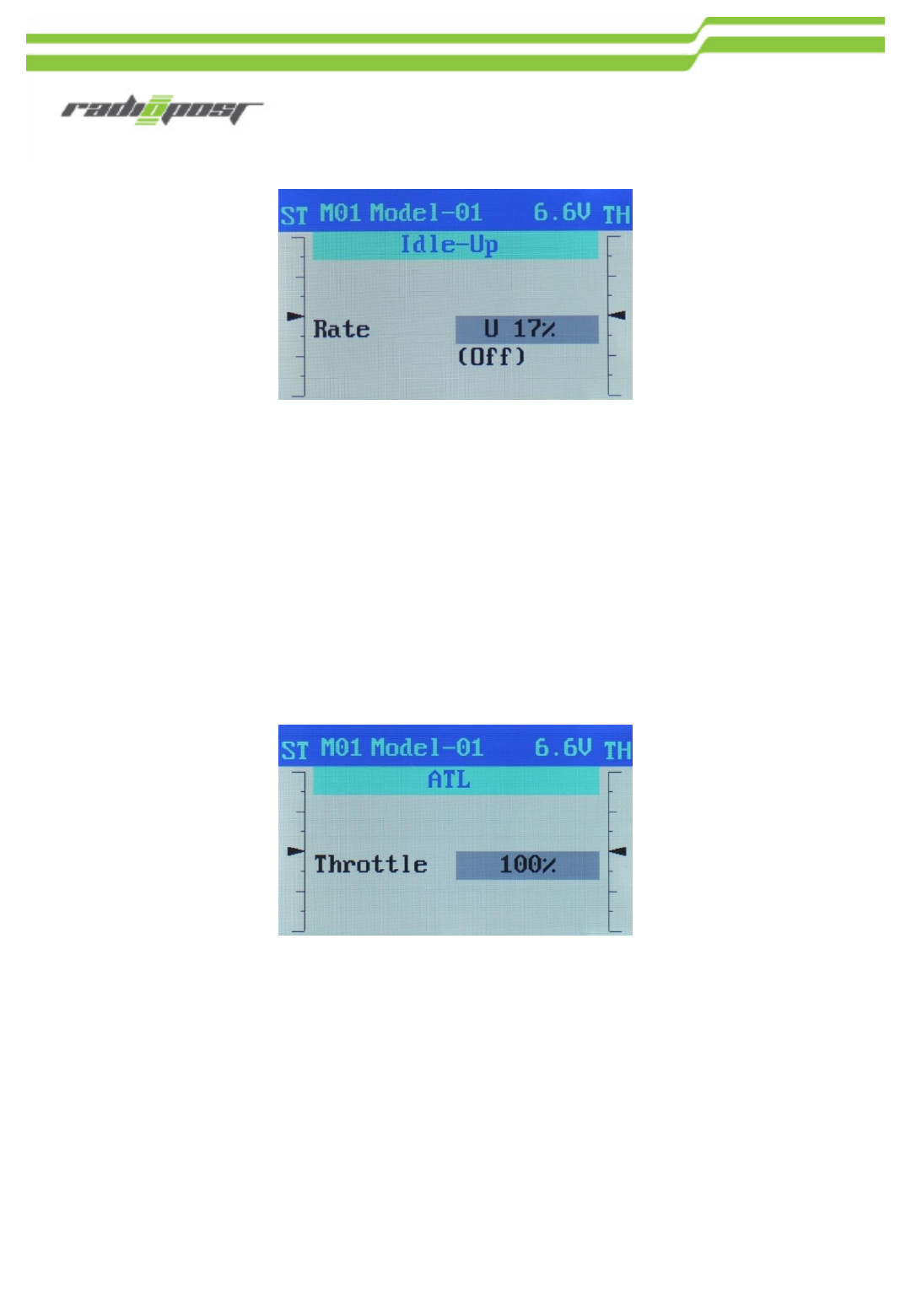

5.18.5 Idle-Up
5.18.6 ATL

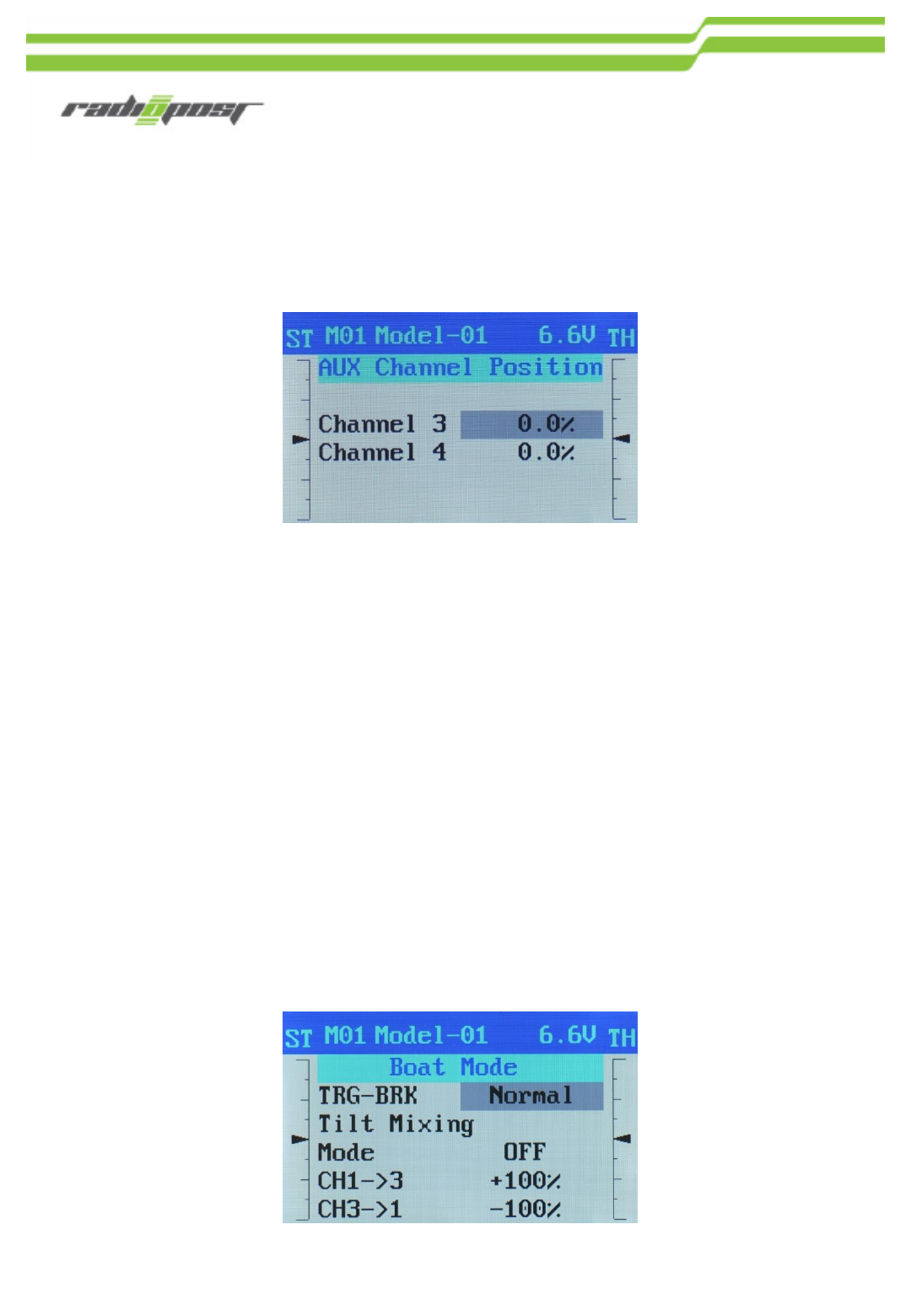

5.18.7 AUX CH Position
5.18.8 Boat Mode

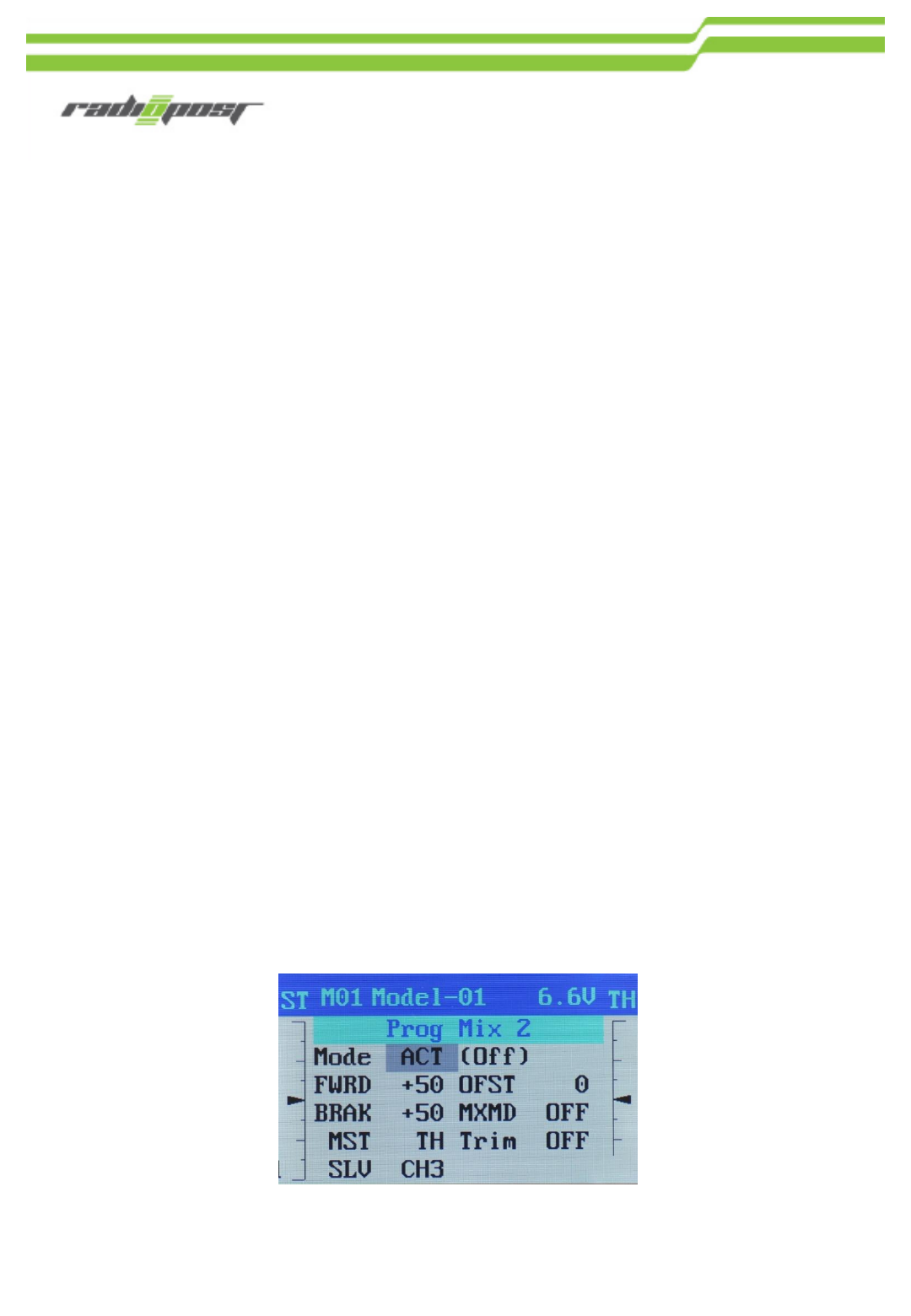

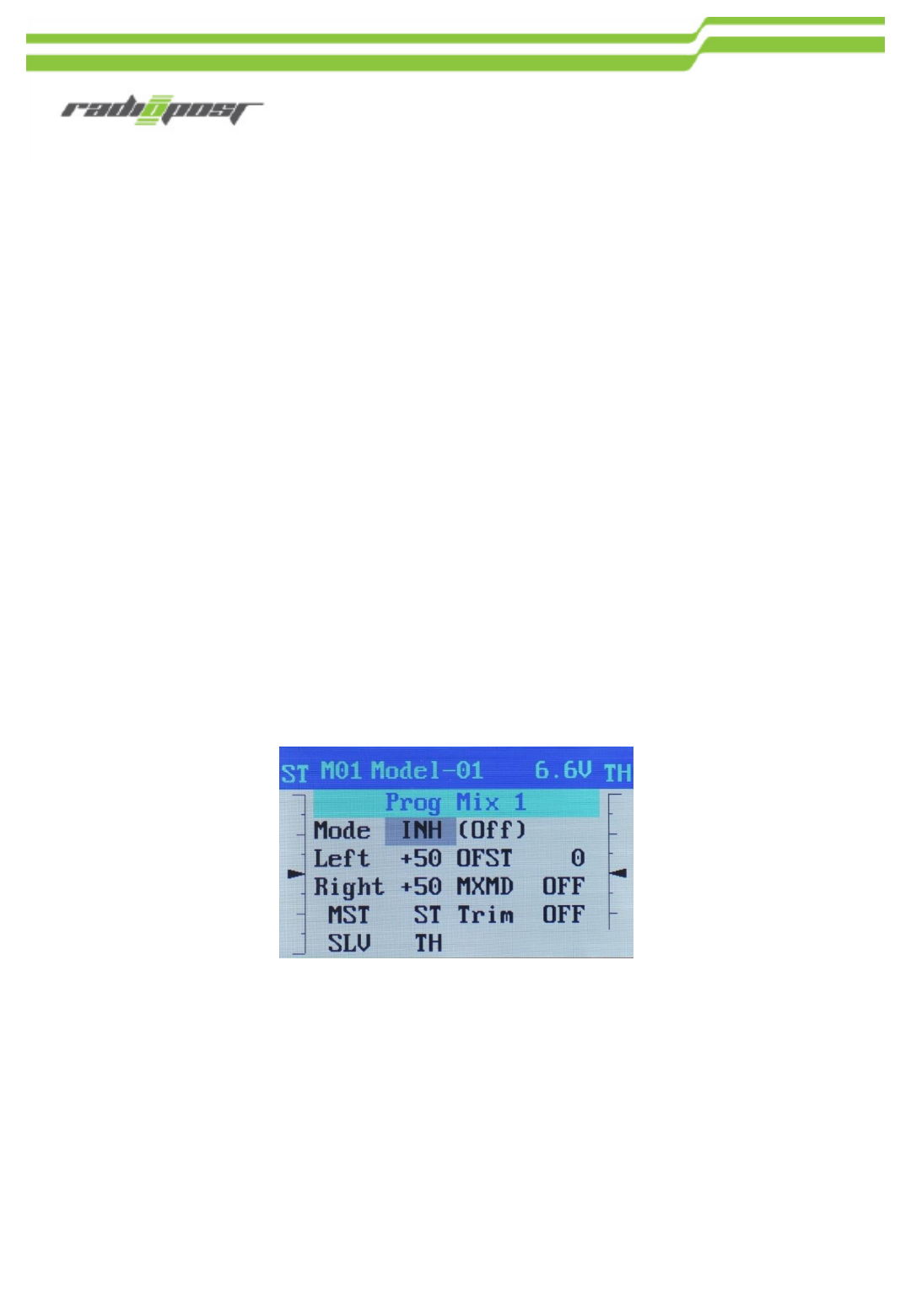

5.18.9 Prog Mix
■Troubleshooting Guide
■Abbreviation
■Warranty
■Contact
8
1.1 Features
1. Before Using
▣2.4GHz radio communication system
Frequency channel setting unnecessary and channel shifting takes place
within the 2.4GHz band automatically. This system minimizes the
interference from other 2.4GHz systems by using DSSS that has high
signal transmission rate.
▣Model memory for 20 models
The model names can use letters, numbers and symbols so that logical
names may be used.
▣Two menu mode
The menu is consist of 2 sub-menus – Quick menu and 8 Icons‟ menu –
so that quickly and easily call the functions.
▣Brake Mixing
Brake mixing of the front and rear wheels can be adjusted independently.
▣A.B.S system
A.B,S function applies the brakes that gasoline engine cars do not lose
their grip on the road even when braking at corners.
▣ACCEL
Gasoline engine cars have a time lag before the clutch and brakes
become effective. The ACCEL function reduces this time lag.
▣Throttle speed
Sudden trigger operation on a slippery road surface will cause the wheel
to spin and the model not to accelerate smoothly. By using the throttle
speed function, operation can be performed smoothly and easily. It also
suppresses battery consumption.
▣Left-handed support
The left and right installation direction of the wheel section can be
reversed.
9
▣Racing timer
The racing timer can record total time and average lap time.
The race time and audible alarm can be set.
▣Tension adjustment function
The tension of the steering wheel & throttle trigger springs can be
adjusted from the outside.
▣Color LCD
LCD can be adjusted with favorite color among blue, brown, green
and background can be adjusted black or white.
▣Rubber grip handle
Rubber grip handle is designed for comfortable grip and control.
▣Internal antenna
The built-in antenna is applied for the convenience to carry around and
cannot be broken.
10

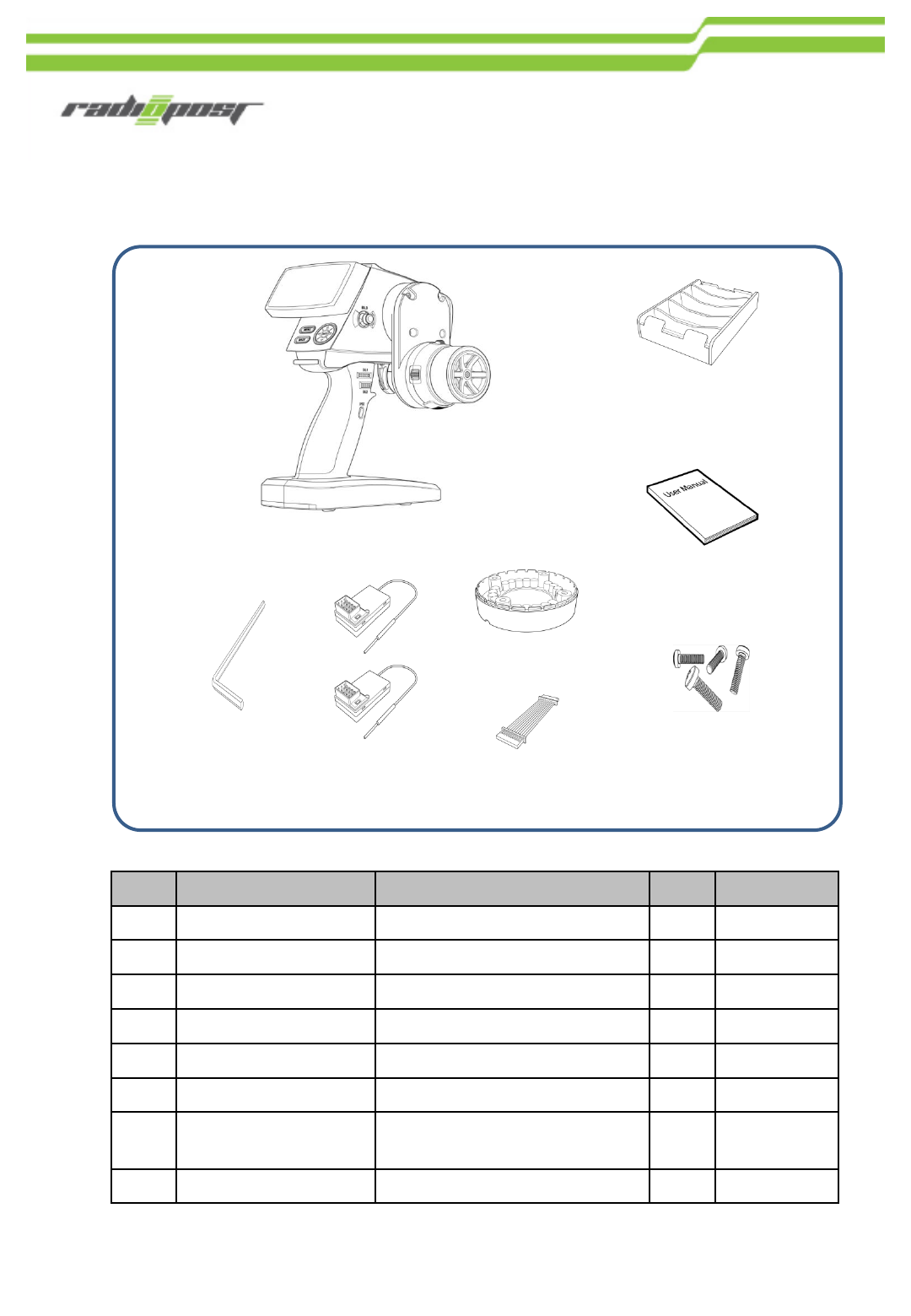

1.2 Parts and Accessories
No.
Name
Description
Q’ty
Remarks
1
TS401 Transmitter
4Ch. Surface Transmitter
1
2
RP24RS5D Receiver
5Ch. Receiver
2
3
Battery Holder
Holder for AA Battery
1
4
Wheel Holder
Holder for Wheel Set
1
5
Wire
Wire Used with Wheel Set
1
6
Screw
Screws for Wheel Holder
4
7
Hex Wrench
Used for Personal
Adaptation
1
8
User Manual
User Guide for TS401
1
Transmitter
User Manual
Battery Holder
1.5 mm
Hex Wrench
5Ch.
Receivers
Wheel Holder
Wire Screws for
Wheel Holder
11

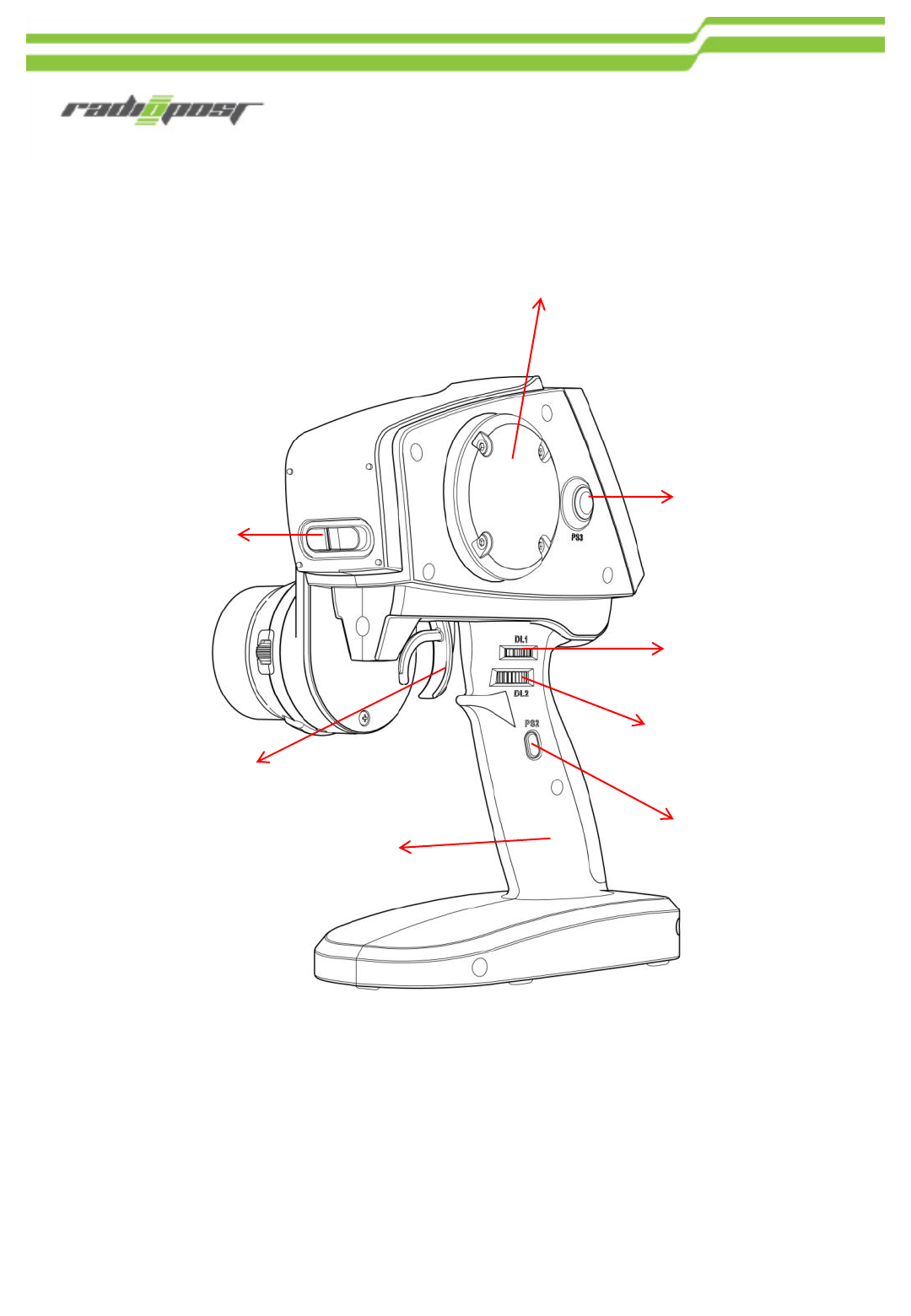

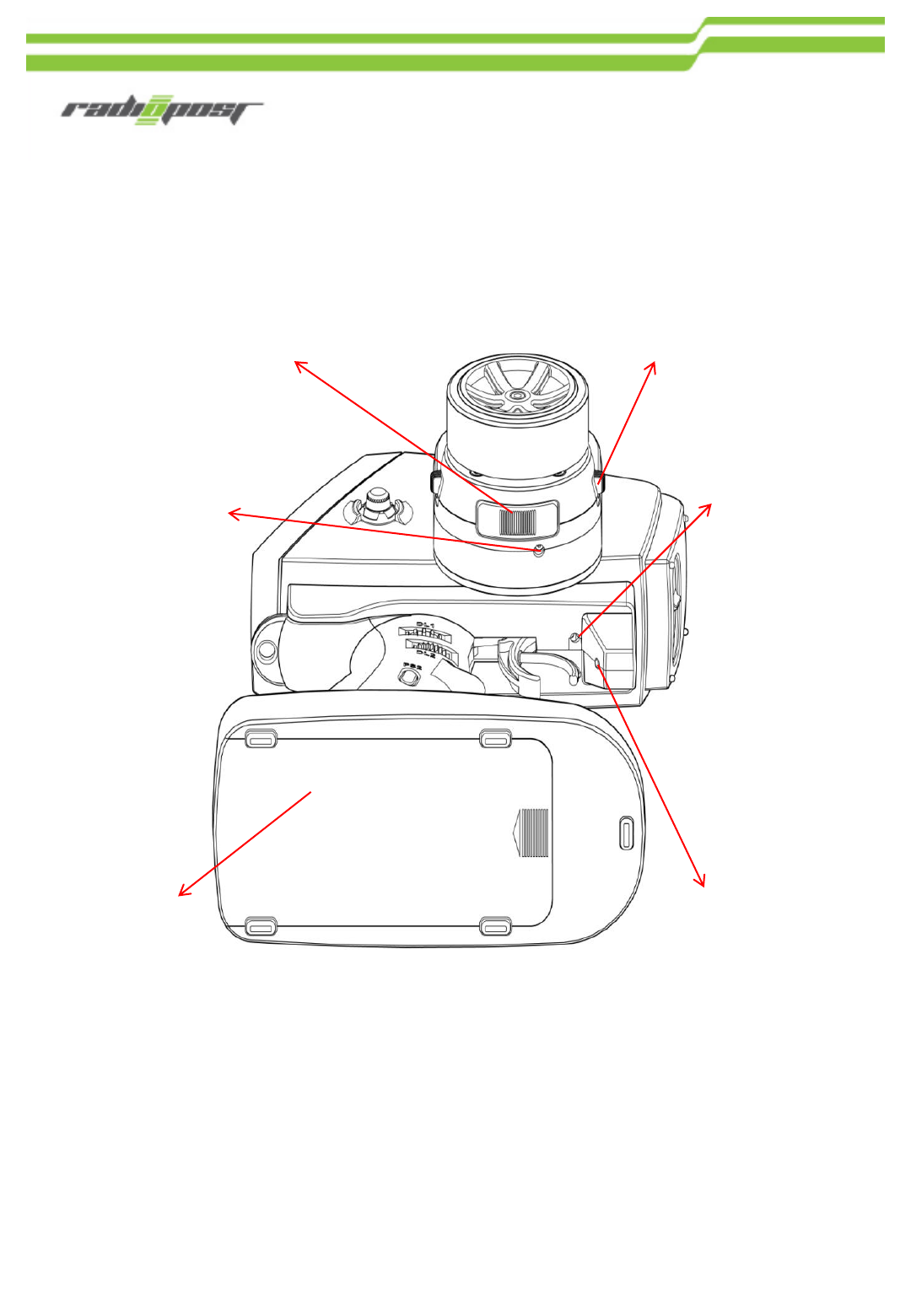

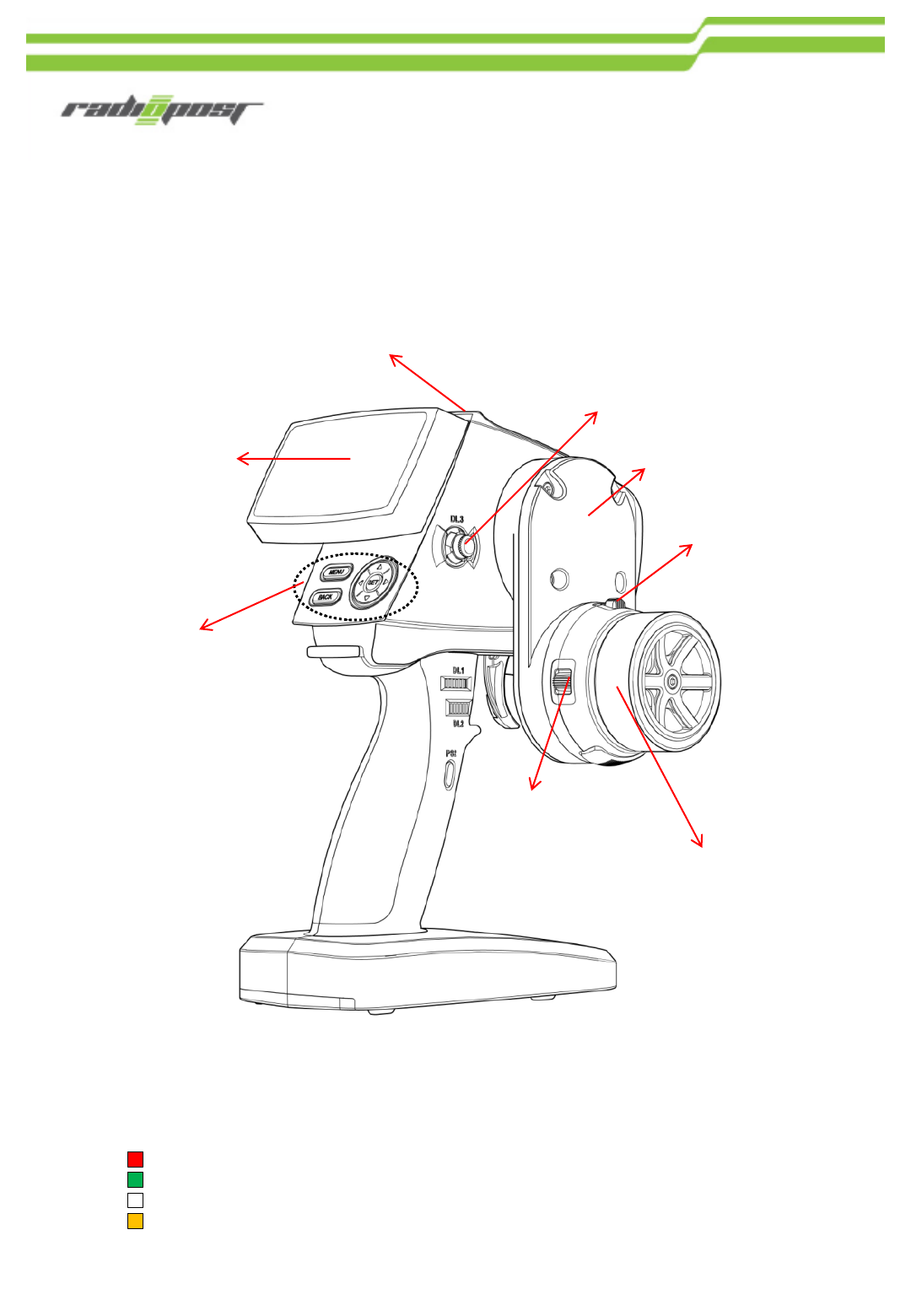

1.3 Nomenclature
LCD SCREEN
EDIT BUTTONS
LED WINDOW*
DIGITAL DIAL 3 (DL3)
STEERING WHEEL
DIGITAL
TRIM 1 (DT1)
DIGITAL TRIM 2 (DT2)
ADAPTER FOR
WHEEL EXTENSION
<LED Colors>
RED: Lights if RF is turned off.
GREEN: Lights if a receiver is bound.
WHITE: Blinks if a receiver is not bound.
ORANGE: Blinks if mixing is applied.
12
PUSH
SWITCH 2 (PS2)
POWER
SWITCH
GRIP HANDLE
PUSH
SWITCH 1 (PS3)
THROTTLE
TRIGGER
DIGITAL
DIAL 1 (DL1)
DIGITAL
DIAL 2 (DL2)
EMPTY WHEEL COVER
13
BATTERY
COVER
PUSH SWITCH 1 (PS1) DIGITAL TRIM 3 (DT3)
WHEEL
TENSION
ADJUSTING
SCREW
TRIGGER
TENSION
ADJUSTING
SCREW
TRIGGER SLIDE
ADJUSTING SCREW
14
1.4.1 Vertical View
1) Normal Option Screen
2) Time Option Screen
Dial 1 Indication
Dial 2 Indication
Steer Trim
Model Number Battery Indication
Throttle Trim
Trim Button 1
Indication
Trim Button 2
Indication
Trim Button 3
Indication
1.4 Welcome Screen
Model Name
Dial 3 Indication
Banner Display
Logo Display
Dial 1 Indication
Dial 2 Indication
Steer Trim
Model Number Battery Indication
Throttle Trim
Trim Button 1
Indication
Trim Button 2
Indication
Trim Button 3
Indication
Model Name
Dial 3 Indication
Banner Display
Timer Display
15
Battery Indication
Throttle Trim
Dial 1 Indication
Dial 2 Indication
Trim Button 3
Indication
Steer Trim
Model Number &
Name
1.4.2 Horizontal View
2) Time Option Screen
Dial 1 Indication
Dial 2 Indication
Steer Trim
Model Number &
Name
Dial 3 Indication
Throttle Trim
Banner Display
Trim Button 1
Indication
Trim Button 2
Indication
Trim Button 3
Indication
Time Display
1) Normal Option Screen
Trim Button 1
Indication Trim Button 2
Indication
Battery Indication
16
2. Personal Adaptation
2.1 How to Remove and Attach the Adapter for Wheel Extension
The wheel position of TS401 can be changed using the adapter for wheel
extension. The adapter is assembled on the transmitter as a factory setup.
1. Detach the wheel by first taking off the
screw at the center of steering wheel
using the hex wrench.
2. Take off the 4 screws on the wheel set.
3. Separate the wheel set from the
adapter and disconnect the wire.
4. Take off the 4 screws on the adapter
neck.
Caution
TS401 2.4GHz can be adapted according to the user‟s preference. Be sure to
POWER OFF before making any changes or preference setting.
17
6. Attach the wheel holder separately
provided.
7. Screw in the 4 screws on the wheel
holder. These screws are separately
provided.
8. Plug in the wire to the transmitter
body. Use the wire which is provided
separately.
9. Plug in the other end of wire to wheel
set.
10. Screw in the 4 screws on the wheel set.
Use the screws which were taken off in
the Step 2.
5. Detach the adapter from the
transmitter body and disconnect the
wire.
18
11. Assemble the wheel by driving the
center screw.
2.2 How to Change the Wheel Angle
1. Take off the 4 screws on the adapter
neck.
The wheel angle of TS401 with the adapter for wheel extension
assembled can be modified for the user‟s preference.
2. Pull the adapter softly and adjust
the wheel angle to the desired
direction. The angle can be adjusted
by every 15°.
3. Mount the adapter to the
transmitter body keeping the
adjusted angle and drive the 4
screws on the adapter neck.
19
2.3 How to Change the Wheel Position for the Left-handed Use
1. Take off the 4 screws on the adapter
neck and disconnect the wire.
The default set of TS401 wheel is for the right-handed use. The wheel
position can be easily modified for the left-handed persons.
2. Detach the empty wheel cover on
the left side of transmitter by taking
off the 4 screws and attach it to the
right side.
4. Connect the adapter for wheel
extension by driving the 4 screws.
3. Connect the wire to the transmitter
body.
<Note>
To remove the adapter from the wheel position, refer to the steps in
2.1 (How to remove and attach the adapter for wheel extension).
20
3. Functions and Description of Buttons
3.1 Edit Buttons
There are 7 Edit Buttons such as Navigation (UP and DOWN/ Left and
RIGHT and SET ), MENU and BACK. Edit Buttons have two type of Modes:
Normal or Edit. Normal Mode is for selecting items, and Edit Mode is for
saving the edited values.
Button Name
Description
MENU
In the welcome screen, the MENU is used to move to the menu
In the edit mode, the MENU is used to change the edited value
to the default value.
BACK
The BACK is used to move to previous step in the menu.
In the edit mode, the BACK is used to move to the normal
mode without saving.
UP
In the normal mode, the UP is used to move to the upper step.
In the edit mode, the UP is used to increase the edit value.
DOWN
In the normal mode, the DOWN is used to move to the sub-step.
In the edit mode, the DOWN is used to decrease the edit value.
LEFT
In the normal mode, the LEFT is used to move to the left item.
In the edit mode, the LEFT is used to decrease the edit value.
RIGHT
In the normal mode, the RIGHT is used to move to the right
item.
In the edit mode, the RIGHT is used to increase the edit value.
SET
In the welcome screen, the SET is used to move to the Menu.
In the edit mode, the SET is used to change the edit value to
the default value.
21
3.2 Trim Buttons
There are 3 Trim Buttons such as DT1, DT2 and DT3.
Button Name
Description
DT1
Press the DT1 to the left direction to decrease the setting value
of the allocated function.
Press the DT1 to the right direction to increase the setting value
of the allocated function.
DT2
Press the DT2 to the left direction to decrease the setting value
of the allocated function.
Press the DT2 to the right direction to increase the setting value
of the allocated function.
DT3
Press the DT3 to the left direction to decrease the setting value
of the allocated function.
Press the DT3 to the right direction to increase the setting value
of the allocated function.
3.3 Dial Buttons
There are 3 Dial buttons such as Dial 1, Dial 2 and Dial 3.
Button Name
Description
Dial 1
Turn the Dial 1 left to decrease the setting value of the
allocated function.
Turn the Dial 1 right to increase the setting value of the
allocated function.
Dial 2
Turn the Dial 2 left to decrease the setting value of the
allocated function.
Turn the Dial 2 right to increase the setting value of the
allocated function..
Dial 3
Turn the Dial 3 left to decrease the setting value of the
allocated function.
Turn the Dial 3 right to increase the setting value of the
allocated function.
22
3.4 Push Switches
There are 3 Push Switch such as PS1, PS2 and PS3.
Switch Name
Description
PS1
Press the PS1 to activate the allocated function of the switch.
PS2
Press the PS2 to activate the allocated function of the switch..
PS3
Press the PS3 to activate the allocated function of the switch.
PS3 has On status and Off status.
4. Function Map (Quick Menu/All Menu)
4.1 Quick Menu
EPA1
Servo Reserve
Steer Exp
System
Throttle Exp
Model Select
Subtrim
Main Menu
23
Top
Depth 1
Depth 2
Menu
Model
Model Select
Model Name
Model Copy
Model Reset
Subtrim
Dual Rate
EPA 1
EPA 2
Exponential
Steer Exponential
Throttle EXP
Reverse
Bind Receiver
Switch Select
Switch
Dial
Trim Switch
Speed
Steer Speed
Throttle Speed
Brake
Monitor
Adjust
Timer
Lap List
Edit Banner
System
Advanced
Throttle Mode
ABS
TH-Acceleration
AT-Start
Idle-Up
ATL
AUX CH Position
Boat Mode
Prog Mix
4.2 All Menu
24
5. Description of Functions
5.1.1 Model Select
5.1 Model
Transmitter can save up 20 different models. Select your model(s) in
the menu displayed below.
■How to Set
Move to the model number by using the directional (LEFT/ RIGHT/
UP/DOWN). Press the SET to select the model.
5.1.2 Model Name
Use the “Model Name” function to change the model name. The
model name can be created with a maximum of 20 characters
including capital and lower case letters, numbers and symbols.
(!"#$%&'()*+, -./:;<=>?@[\]^_`{|}~).
Move to the location you want to change by using the LEFT and
the RIGHT. Press the SET to display the text box (the cursor will
automatically move to your selection).
■How to Set
25
Use the directional (LEFT/RIGHT/UP/DOWN) to select a character
and press the SET to confirm. Repeat to change other characters
as needed.
5.1.3 Model Copy
Use the Model Copy function to copy the data value of your selected
model onto another model.
Select the model you want to copy in the "Model Select" menu.
Use the UP/DOWN to select the designated model. Press the SET
and the designated model will be copied and moved to the
previous menu.
Select the "Yes" and press the SET to initialize the current model's
input values (DR, ATL, EPA, ST-EXP, TH-EXP, Brake, etc.) to the
default value.
■How to Set
26
5.1.4 Model Reset
Use the “Model Reset” to initialize the current model's input values
(DR, ATL, EPA, ST-EXP, TH-EXP, Brake, etc.).
Select the model you want to reset in "Model Select" menu by
selecting the "Model Reset" menu. Select "Yes" and press SET to
reset current model's input value to the default value.
■How to Set
5.2 Subtrim
In case the control arm of the servo is not neutral or centered, use the
“Subtrim” to adjust the servo horn left or right to make it centered.
Adjust the Servo movement with the Steer channel so that the steering can
be in a neutral position. The available setting range is from L 100%(left) to
R 100% (right). Use the "Throttle channel" to make the servo control the
engine throttle at neutral. The available setting range is from F 100%
(accelerator) to B 100% (brake). The aux channels ( channel 3 and 4) have
the available settings ranging from -100% to 100%. The default value is 0%.
27
■How to Set
Use the UP/DOWN to move to the preferred channel, then press
the SET. Change the trim value with LEFT and RIGHT. Adjust
subtrim value to center the servo at the neutral position. After the
adjustment, press the SET to save the changed value.
5.3 Dual Rate
Adjust the maximum end point of the steer servo. The dual rate is
allocated in the Dial Switch No. 1 on the grip handle. Other Dial Switches
( No. 2 or No. 3) are also able to allocate the angle value.
■How to Set
Press the SET, then change the value with the LEFT or RIGHT.
Press the SET to save the changed value. Steer dual rate has an
adjustable range from 0% to 100%. Default value is 100%.
5.4 EPA 1
Use EPA 1 to set the maximum end point of Steer channel and Throttle
channel.
28
Use the “STR-LEFT” to set the maximum left end point of steer channel.
Use the “STR-RIGHT” to set the maximum right end point of steer channel.
Use the “THR-FWD” to set the maximum end point toward the forward
direction of throttle channel.
Use the “THR-BRAKE” to set the maximum end point toward the brake
direction of throttle channel.
The maximum end point has adjustable range from 50% to 120%, and the
default value is 100%.
■How to Set
Use the UP/DOWN to move preferred channel and press the SET.
Change trim value with the LEFT and the RIGHT. After adjustment,
press the SET to save the changed value.
5.5 EPA 2
Set the maximum end point of the aux channels (CH3, CH4).
Use the “CH3-LEFT” to set the maximum left end point of 3rd channel.
Use the “CH3-RIGHT” to set the maximum right end point of 3rd channel.
Use the “CH4-LEFT” to set the maximum left end point of 4th channel.
Use the “CH4-RIGHT” to set the maximum right end point of 4th channel.
The maximum end point has an adjustable range from 50% to 120%
and default value is 100%.
29
■How to Set
Use UP/DOWN to move to preferred channel, then press SET. Change
trim value with LEFT and RIGHT.
After adjustment, press SET to save the changed value.
5.6 Exponential
5.6.1 Steer Exponential
Use the “Steer Exponential” to adjust the movement in neutral.
If the steer exponential value is less than “0”, the response of control
will be slower.
In contrast, if the steer exponential value is greater than “0”, the
response of control will be faster.
The Exponential value has an adjustable range from -100% to 100%
and default value is 0%.
■How to Set
Press the SET and change the exponential value with the LEFT and
RIGHT. If the graph has preferred curve, press the SET to save the
adjusted value. The movement of steer would be changed
according to the curve setting value.
30
5.6.2 Throttle EXP
Use the Throttle EXP to adjust the movement of throttle (Accelerator/
Brake) channel. The direction of accelerator and brake is separately
adjustable. The channel movement of accelerator direction is
adjustable as following 3 types.
•EXP: Adjust the sensitivity of movement in neutral by using
exponential curve.
•VTR: Put the curve point between the neutral point and the highest
throttle point to move in a different straight line before and
after the curve point.
•CRV: There are 3 designated curve points between the neutral
point and the highest point. (0~25%, 25~50%, 50~75%, 75~
100%). Set different movements between the curve points.
Brake direction is available to adjust by using the EXP only. If the
EXP value is less than “0”, the response of control in neutral would
be slower. In contrary, the EXP value is greater than “0”, the response
of control in neutral would be faster.
■How to Set
•EXP: Select EXP by pressing the SET on TYPE. Press the
DOWN to move to FWD.
•FWD: Press the SET on FWD and set the EXP values by using
the LEFT and RIGHT, After adjustment, press the SET
once more to save the changed value. EXP value has
adjustable range between -100~100%, and default value
is 0%.
•BRK: Press the DOWN to move to BRK. Press the SET on the
“BRK” and set the “EXP” value by using the LEFT and the
RIGHT. After adjustment, press the SET once again to save
the changed Value. The EXP value has an adjustable range
between -100~100% and default value is 0%.
31
•VTR: Press the SET on TYPE and select VTR. Press the DOWN to
move to FWD.
•FWD: Press the SET on FWD, and set the trigger point value by
using LEFT and RIGHT. Press the SET to save the changed
value.
•TGP: Press DOWN to move to TGP. Press the SET on TGP, and
move the trigger point by using the LEFT and the RIGHT.
After adjustment, press the SET once again to save the
changed value.
•BRK: The setting method of Brake direction is same with that of
EXP brake direction. Please refer to the setting method of
EXP brake direction.
•CRV: Press the SET on TYPE and select CRV. Press the DOWN to
move to FWD.
32
Set FWD for each 3 (1,2,3) trigger points. Press the SET on “1:” and
adjust the value by using the LEFT and RIGHT. After adjustment,
press the SET to save the adjusted value. Press the DOWN to
move to “2:” and “3:” Setting methods of “2:” and “3:” are the same
as “1:”.
The setting method of the Brake direction is the same as the EXP
brake direction. Please refer to the setting method of EXP brake
direction.
5.7 Reverse
Use Reverse in case that the movement of each channel servo is reversed.
If the movement is in the right direction, set the value as “Normal”
(default value), and if the movement is in the opposite direction, set the
value as “Reverse”. The default value is Normal.
Move to the preferred channel by using the UP/DOWN and press the
SET. Press the LEFT or RIGHT to select Normal or Reverse. Press the
SET to save the adjusted value.
33
5.8 Bind Receiver
This function is used to bind a new receiver to the transmitter.
■How to Set
Turn on the power to receiver, press and hold down the ID button
of the receiver until it goes into binding mode. Press the SET on the
transmitter to go into binding mode with the message "Wait until
Bound” is displayed on the LCD screen.
When the transmitter and receiver successfully bind, the message
“Successfully Bound” is displayed on the screen. If the transmitter
and the receiver fail to bind, the message “Failed to Bind” is
displayed on the screen. In case that a failure occurs, wait a short
period of time before attempting to bind again.
34
Caution
If the RF transmitter is set as OFF, the transmitter does not go into the
binding mode with the message “Enable RF First” displayed on the screen.
In this case, go to the System Menu and set the Radio TX as On for binding.
35
5.9 Selection of Switch
5.9.1 Push Switch
There are 3 push switches on the transmitter: PS1, PS2 and PS3. The
functions shown in the below table can be assigned to each push
switch. The default setting of push switches is OFF.
The table shows the functions that can be assigned to the push
switches.
Item
Functions
OFF
Not Assigned
PRESET
Enables Auto Start
NT-BRAKE
Enables Neutral Brake
ABS.CH2
Enables ABS over Channel 2
ABS.CH3/4
Enables ABS over Channel 3/4
IDLE-UP
Enables Idleup
PROG MIX1
Enables Program Mix 1
PROG MIX2
Enables Program Mix 2
CH3
Channel 3 Value
CH4
Channel 4 Value
LAP START
Starts Timer
LAP RESET
Resets Timer
■How to Set
In order to assign a function to PS1, press the SET and move to the
preferred function using the LEFT and RIGHT and press the SET
again.
Move to the right side of screen by pressing the RIGHT” to set the
motion types between Normal and Alternative.
How to assign functions to PS2 and PS3 is same as that to PS1.
But note that PS3 has a Normal motion and Reverse motion.
36
5.9.2 Dial Switch
There are 3 dial switches on the transmitter: DL1, DL2 and DL3.
These functions shown in the table below can be assigned to each
dial switch. The default setting of DL1 is TRMT, DL2 is EXPF and DL3
is OFF.
The following table shows the functions that can be assigned to the
dial switches.
Item
Functions
OFF
Not Assigned
D/R
Steer Dual Rate
ATL
ATL
EXPS
Steer Exponential
EXPF
Throttle Exponential (Forward side)
EXPB
Throttle Exponential (Brake side)
EXP3
Brake Exponential for Channel 3
EXP4
Brake Exponential for Channel 4
SPTn
Steer Speed (Turn side)
SPRn
Steer Speed (Return side)
AB.P
ABS function (Return amount)
ABSD
ABS function (Delay)
CYCL
ABS function (cycle speed)
ACCF
Throttle acceleration (Forward side)
ACCB
Throttle acceleration (Brake side)
THS1
Throttle speed (All/Low)
THS2
Throttle speed (MID)
THS3
Throttle speed (High)
TRMS
Steer Trim
TRMT
Throttle Trim
3CH
Channel 3
4CH
Channel 4
37
Item
Functions
SBT1
Sub trim (CH1)
SBT2
Sub trim (CH2)
SBT3
Sub trim (CH3)
SBT4
Sub trim (CH4)
IDLE
Idleup
TL13
Tilt Mixing (13)
TL31
Tilt Mixing (31)
PM1A
Program Mix 1 (LEFT/FWRD/UP sides)
PM1B
Program Mix 1 (RIGHT/BRAKE/DOWN sides)
PM2A
Program Mix 2 (LEFT/FWRD/UP sides)
PM2B
Program Mix 2 (RIGHT/BRAKE/DOWN sides)
B3RT
Channel 3 brake mixing rate
B3이
Channel 3 brake mixing delay
B3AP
Channel 3 brake mixing ABS return amount
B3AD
Channel 3 brake mixing ABS delay
B4RT
Channel 4 brake mixing rate
B4이
Channel 4 brake mixing delay
B4AP
Channel 4 brake mixing ABS return amount
B4AD
Channel 4 brake mixing ABS delay
B34RT
Brake mixing rate for both channel 3 and
channel 4
■How to Set
In order to assign a function to DL1, press the SET and move to the
preferred function using the LEFT and RIGHT. Press the SET to save
the selected function.
Move to the right side of screen by pressing the RIGHT to set the
change unit per click. The default value of clicks is set at 2, which
means that one click of the switch increases or decreases the
relevant value by 2.
Move to the right side of screen by pressing the RIGHT to set the
motion direction of dial between Normal and Reverse. The default
setting of dial direction is Normal.
To assign functions, setting the change unit per dial click and
setting the motion direction for DL2 and DL3 are the same as
mentioned for DL1.
38
5.9.3 Trim Switch
There are 3 digital trim switches on the transmitter: DT1, DT2 and
DT3. The preferred functions can be assigned to each trim switch.
The default setting of DT1 is TRMS, DT2 is D/R and DT3 is EXPS.
All the functions for the dial switches as shown in the table of the
Dial Switch section can be assigned to the trim switches.
■How to Set
In order to assign a function to DT1, press the SET, move to the
preferred function using the LEFT and the RIGHT and the press the
SET to save the selected function.
Move to the right side of screen by pressing the RIGHT to set the
change unit per pressing.
The default value of change per click is 2, which means that one
press of the trim switch increases or decreases the relevant value by
2.
Move to the right side of screen by pressing the RIGHT to set the
motion direction of trim switch between Normal and Reverse. The
default setting of motion direction is Normal.
How to assign functions, how to set the change unit per pressing
and how to set the motion direction for DT2 and DT3 are same as
those for DT1.
39
5.10 Speed
5.10.1 Steer Speed
Abrupt steering may cause excessive or insufficient rotation of vehicle
and possibly cause deceleration. To prevent unexpected results, it is
suggested to adjust the reaction speed of the steering.
■How to Set
Select whether to adjust the value of start turn direction or to
adjust the value of rotation return direction, and then press the
SET. Use the LEFT and the RIGHT to change the value. Press the
SET to save the adjusted value. Delay occurs to the movement of
steering according to the set value.
5.10.2 Throttle Speed
In case of sudden start on a slippery road, the acceleration may not
be as smooth due to lack of traction of the vehicles wheels. The start
can be smoother and the power consumption may be reduced if you
use this Throttle Speed function. The speed can be adjusted in 3
ranges.
Speed is set as the whole direction of throttle acceleration is one
range.
Speed 1
40
■How to Set
Select Speed 1 in the Mode. Move to All by using the DOWN and
press the SET. The value can be changed using the LEFT and the
RIGHT. After finishing the adjustment, press the SET to save the
changed value. The speed changes according to the setting value
of throttle.
Speed is set as the direction of throttle acceleration is divided into
the low range and the high range on the basis of a trigger point.
Speed 2
■How to Set
Select Speed 2 in the Mode. Move to Low using the DOWN and
press the SET. Change the value in the Low range using the LEFT
and the RIGHT. After finishing the adjustment, press the SET to
save the changed value. The speed in the Low range of throttle
changes according to the setting value.
Move to High using the DOWN and press the SET. Change the
value in the High range using the LEFT and the RIGHT. After
finishing the adjustment, press the SET to save the changed value.
The speed in the High range of throttle changed according to the
setting value.
Move to TGP 1 using DOWN and press the SET. Change the value
of the boundary point between the Low range and the High range.
After finishing the adjustment, press the SET to save the changed
value.
41
Speed is set as the direction of throttle acceleration is divided into
the low range, the mid range and the high range on the basis of two
trigger points.
Speed 3
Select Speed 3 in the Mode. Move to Low using the DOWN and
press the SET. Change the value in the Low range using the LEFT
and RIGHT. After finishing the adjustment, press the SET to save
the changed value. The speed in the Low range of throttle
changes according to the setting value.
Move to MID using the DOWN and press the SET. Change the
value in the MID range using the LEFT and RIGHT. After finishing
the adjustment, press the SET to save the changed value. The
speed in the MID range of throttle changes according to the
setting value.
Move to High using the DOWN and press the SET. Change the
value in the High range using the LEFT and RIGHT. After finishing
the adjustment, press the SET to save the changed value. The
speed in the High range of throttle changes according to the
setting value.
Move to TGP 1 using DOWN and press the SET. Change the value
of the boundary point between the Low range and the MID range.
After finishing the adjustment, press the SET to save the changed
value. Move to TGP 2 using the DOWN and press the SET.
Change the value of the boundary point between MID range and
the High range. After finishing the adjustment, press the SET to
save the changed value.
■How to Set
42
5.11 Brake
This function is used to operate the brake system of front wheels and the
brake system of rear wheels separately. The brake of rear wheels can be
connected to the Ch. 2 and the brake of front wheels can be connected
to the Ch. 3 or Ch. 4. Brake mixing can be applied to Ch. 3 and Ch. 4
respectively. If the mixing function is inhibited (INH), the value setting
cannot be done and will be blocked by the mark „---„.
The default setting for this function is INH. Move to the channel to
be set using the LEFT and the RIGHT in the Mode. Press the SET
to change the mode into ACT using the RIGHT and press the SET
again to activate the selected channel. The figure below shows that
Ch. 3 is activated.
■How to Set
Move to the RATE-EACH using the DOWN to set the mixing ratio.
The range of mixing ratio is 0 to 100. The default value is 100.
Move to the RATE-COM using the DOWN to set the mixing ratio.
The range of mixing ratio is 0 to 100. The default value is 100. As
the RATE-COM setting affects Ch. 4, it is used to apply the brake
mixing ratio both to Ch. 3 and Ch. 4.
43
Move to the Brake-DLY in the next page by pressing the DOWN on
Brake-EXP. Press the SET on Brake-DLY to set the brake delay time.
The brake delay time can be set to the front or rear brake.
Move to the STM-LEFT using the DOWN to set the steering mixing
value. It is to set the change the mixing value ratio when the
steering wheel is turned toward the left. The range of mixing ratio
is 0 to 100. The default value is 100.
Move to the STM-RIGHT using the DOWN to set the steering
mixing value. It is to set the change the mixing value ratio when
the steering wheel is turned toward the right. The range of mixing
ratio is 0 to 100. The default value is 100.
Move to the Brake-EXP using the DOWN to set the exponential
value. The range of exponential value is -100 to 100. The default
value is 0. When the value is negative (-), the motion around the
neutral position becomes dull. When the value is positive (+), the
motion around the neutral position becomes sensitive.
44
Move to ABS-Mode in the next page by pressing the DOWN on
the STM-RIGHT. The default setting of ABS-Mode is INH. In the
INH state, the mixing value cannot be set because the slot for
value setting is blocked by the mark „---„. In order to activate the
ABS-Mode, change INH to ACT first.
Move to the ABS-ABP using the DOWN to set the brake return
amount value. The value range is 0 to 100. The default value is 50.
When the value is 0, no brake return is carried out, which means
ABS function does not work. When the value is 50, the brake
return is carried out to the 50% position of trigger point. When
the value is 100, the brake servo performs the brake return to the
neutral position.
Move to the ABS-DLY using the DOWN to set the brake delay time
value. The value range is 0 to 100. The default value is 100.
When the value is 0, there is no brake delay. When the value is 50,
ABS brake starts around 0.75 second after the brake is on. When
the value is 100, ABS brake starts around 1.5 seconds after the
brake is on.
45
5.12 Monitor
This function is to display the position of servo which is detected by the
transmitter. The 4 channels are displayed in order. Ch.1 is for steering,
Ch.2 is for throttle, and Ch.3 and Ch.4 are in reserve.
Current MENU
Channel 1 Steer
Channel 2 Throttle
Channel 3
Channel 4
5.13 Adjust
In case that the steering and the throttle weaken or their neutral values
go wrong due to some mechanical issues, the motions can be calibrated
by resetting the neutral position, minimum value and maximum value
using this adjustment function. The setting items for adjustment are Steer
and Throttle.
46
Select Steer. Put the steering wheel on the neutral position and
press the SET.
■How to Set
Turn the steering wheel to the left end and to the right end to
make the maximum values recognized.
Press the SET to save the neutral position value, the left maximum
value and the right maximum value.
Select Throttle using the RIGHT. Put the throttle on the neutral
position and press the SET.
47
Move the throttle to the forward end and to the backward end to
make the maximum values recognized.
Press the SET to save the neutral position value, the Forward
maximum value and the Brake maximum value.
5.14 Timer
4 different types of timer are available. (UP, DOWN, LAP, LAP Navigate)
Current MENU
UP/DOWN/LAP/
LAP navigate
Timer Status
Select TYPE first and select the type of timer using the UP/DOWN.
Timer has 3 kinds of mode.
•RESET: The timer value is “0” which means timer is not activated.
•RUN : The timer is activated.
•STOP : the timer is suspended for a while. In this case, the timer
value may not be “0”.
48
UP Timer
The timer‟s range is 0 to 99.9999 minutes.
Alarms can be set in 1 minute increments.
Pre-alarms can be set in 1 second increments.
When the timer reaches the set alarm time, alarm sound is made.
When a pre-alarm is set, the warning sound beeps for the set pre-alarm
period before the timer reaches the set alarm time.
When the timer reaches the set alarm time, alarm sound is made.
If the user does not stop the timer even after alarm sound has been
made, the warning sound beeps every one minute.
Move to TYPE using the UP/DOWN and press the SET. Then, select
UP and press the SET.
Move to ALRM using the DOWN and press the SET. Set the alarm
time and press the SET.
The alarms can be set in 1 minute increments up to 99 minutes.
(e.g. OFF/1min./2min.~99min.)
Move to PRAL using the DOWN and press the SET. Set the pre-
alarm and press the SET.
The pre-alarms can be set in 1 second increments up to 99 seconds.
(e.g. OFF/1sec./2sec.~99sec.)
■How to Set the Timer
FUEL DOWN Timer
The time on the timer is decreased from the set alarm time to “0”.
When the timer reaches “0”, the alarm sound is made.
If the user does not stop the timer, the time continues to decrease.
49
LAP
Move to TYPE using the UP/DOWN and press the SET. Then,
select PUEL Down and press the SET.
Move to ALRM using the DOWN and press the SET. Set the alarm
time and press the SET.
The alarms can be set in 1 minute increments up to 99 minutes.
(e.g. OFF/1min./2min.~99min.)
Move to PRAL using the DOWN and press the SET.
Set the pre-alarm and press the SET.
The pre-alarms can be set in 1 second increments up to 99 seconds.
(e.g. OFF/1sec./2sec.~99sec.)
■How to Set the Timer (Same with that of UP Timer)
It is to record the LAP Time which is taken in driving the track one time.
When pressing the switch, the time from the switch set point to the
present. LAP TIME can be checked in the LAP List of Menu.
50
LAP Navigate
Warning sound beeps on every set time.
The time range of warning sound can be selected from 1 second to 99
seconds in the NAVI menu.
5.15 LAP List
LAP TIME can be checked.
Up to 100 LAP TIMEs can be saved.
The LAP TIME up to 99 seconds can be saved in 0.01 second increments.
When pressing the SET, the currently selected LAP TIME is initialized to
0.00 second.
When pressing the MENU, all LAP TIMEs are initialized to 0.00 second
regardless the currently selected LAP TIME.
The user can edit the top line banner on the welcome screen. Using
capital or lower case letters and other marks (!"#$%&'()*+,-./:;<=>?@[\]^_
`{|}~), 15 characters in maximum can be input. The default banner is
Radiopost.
5.16 Edit Banner
51
■How to Set
Move to the place to be changed using the LEFT and the RIGHT.
Press the SET to display the character box and use the navigation
keys to move to different letters symbols in the cursor box.
Move to the character to be input using the direction buttons
(LEFT/RIGHT/UP/DOWN) and press the SET. Change the other
characters in the other positions in the same way.
5.17 System
The user can modify this System setting. The below table is the list of
items which can be changed.
Item
Setting Values
Default Value
LCD backlight
Always On/30 sec./1 min./5 min.
1 min.
Buzzer
On/Off
On
Color
Blue/Blue2/Brown/Brown2/Green/Green2
Blue
Auto-Alert
Off/ 5Min/10Min/15Min/20Min
10MIN
Long Key Steps
1~100
2
Screen
Normal/Normal2/Timer/Timer2
Normal
Low Batt
4.1V~7.0V
4.5V
Radio Tx
On/Off
On
52
LCD Backlight
This function is used to reduce battery consumption.
If the user does not press the EDIT button for a specified period,
the power of LCD screen turns off.
Setting Values
Description
Always On
The LCD screen is always on.
30 Seconds
Turned off after 30 seconds.
1 Minute
Turned off after 1 minute.
2 Minutes
Turned off after 2 minutes.
5 Minutes
Turned off after 5 minutes.
Buzzer
This function is used to turn the buzzer sound on or off. It is useful
when the user prefers to keep the buzzer silent. However, the alarm
timer, the low battery warning and the auto-alert sounds are defaulted
as “on” regardless of the user‟s discretion.
Setting Values
Description
On
The buzzer sounds.
Off
The buzzer does not sound.
Color
Setting Values
Description
BLUE
The primary color is blue and the ground color is white.
BLUE2
The primary color is blue and the ground color is black.
BROWN
The primary color is brown and the ground color is white.
BROWN 2
The primary color is brown and the ground color is black.
GREEN
The primary color is green and the ground color is white.
GREEN2
The primary color is green and the ground color is black.
53
Auto-Alert
This function creates a warning sound to let the user know that the
transmitter has been idle with the power on.
Setting Values
Description
Off
No warning sound.
5 Minutes
Warning sound after 5 minutes.
10 Minutes
Warning sound after 10 minutes.
15 Minutes
Warning sound after 15 minutes.
20 Minutes
Warning sound after 20 minutes.
Long Key
When the user presses the Edit buttons (LEFT/RIGHT/UP/DOWN) to
change the setting values in the Menu, this function allows the user to
change a unit to a larger or smaller value in increments of one, but
may be edited to two, three, etc.
For example, if the LONG KEY STEP is 2, the setting value changes by
1 at first and then by 2 while the user keeps on pressing the LEFT.
The setting range is 1 to 100. The default value is 2.
Screen
Low Batt.
The function is used to set the voltage value at which the low battery
warning is issued.
Setting Values
Description
Normal
Basic welcome screen with the logo.
Normal 2
Basic welcome screen with the logo on which the box-type
trim bar is applied.
Timer
Basic welcome screen with the timer.
Timer 2
Basic welcome screen with the timer on which the box-type
trim bar is applied.
54
Radio TX
This function sets the transmitter to send RF or not. If it is set as OFF,
the transmitter does not send any data to the receiver.
Setting Values
Description
On
Power is on to the RF part, the data are transmitted.
Off
Power is off to the RF part, the data are not transmitted.
5.18 Advanced
5.18.1 Throttle Mode
The user needs to assign this function to a switch first.
Set the neutral positions of accelerator and brake and adjust the ratio
of accelerator and brake.
Setting Values
Description
On
Power is on to the RF part, the data are transmitted.
Off
Power is off to the RF part, the data are not transmitted.
■How to Set
Press the SET on NT-Brake. Set the neutral ratio of brake using the
LEFT and the RIGHT and press the SET.
There are two kinds of Mode; 50:50 and 70:30, which show the ratio
of the accelerator direction (FORWARD) to the brake direction
(Reverse). FWD5/BRK5 means 50% for the accelerator direction and
50% for the brake direction. FWD7/BRK3 means 70% for the
accelerator direction and 30% for the brake direction.
55
5.18.2 ABS
While cornering with brake on, the vehicle may be push and lose
traction. Such pushing can be prevented using ABS function.
Move to ABP using the DOWN to set the brake return amount
value. The range of value is 0 to 100. The default value is 50.
When the value is 0, the brake return does not work. (In other
words, the ABS function does not work.) When the value is 50, the
brake return works to the 50% position of trigger point. When the
value is 100, the brake servo causes the brake return to the neutral
position.
■How to Set
This function is initially inhibited (INH). Press the SET on Mode
and then press the RIGHT to change the value to ACT. Press the
SET again to activate the function.
Move to DLY using the DOWN to delay for ABS. ABS starts
operating after a specified time is passed if DLY is set. The range of
DLY value is 0 to 100. The default value is 0. If the value is 0, there
is no delay. If the value is 50, the delay is about 0.75 seconds. If
the value is 100, the delay is about 1.5 seconds.
Move to CYC using the DOWN to set the brake pulse speed value.
The smaller value is, the faster pulse is. The range of CYC value is 1
to 30. The default value is 10.
Move to TGP using the RIGHT and UP to set the trigger point. The
range of TGP value is 10 to 100 and the default value is 10. The
value is the percentage meaning that the end point of the trigger is
100%.
56
Move to DTY using the DOWN to set the brake pulse duty value.
Duty is the ratio between the brake-on time and brake-off time.
DTY value can one of -3, -2, -1, 0, 1, 2, 3. The smaller value is, the
longer the brake-on time is.
Move to STM using the DOWN to set the steer mix value. STM can
be ranged N10~N100, 0, E10~E100. If the value is 0, ABS operates
without regard to steer position. If the value is N30, ABS operates
if steer is positioned in neutral point or inside 30% of steer end
point. If the value is E30, ABS operates if steer is positioned
outside 30% of steer end point. The default value is 0.
5.18.3 TH-Acceleration
This function is used when the maximum throttle is required. If
throttle trigger is moved slightly from its neutral point, the throttle will
be set to the specified value so that the maximum power can be
applied.
■How to Set
Press SET to edit the value when the cursor is placed in Forward.
Modify the value as desired using LEFT and RIGHT.
Press DOWN to move to Brake. when the cursor is placed in
Forward. Modify the value as desired using LEFT and RIGHT.
Move to Brake using the DOWN to set the brake side acceleration
value. Use LEFT and RIGHT to modify the value. If Brake is
modified to the desired value, press SET again to save the value.
57
If the Brake is mixed to the 3rd channel and 4th channel, throttle
acceleration can be applied to them separately and it works
independently according to the set values.
5.18.4 AT-Start
If the road is slippery and the throttle trigger is pulled abruptly, the
car will spin with no traction. Using AT-Start function, the acceleration
can be slowed down so that the car spins smoothly on the road.
■How to Set
Press the SET when placed in Mode, and use RIGHT to select
AT&SW. Press the SET again to activate the function.
Move to Preset using the DOWN. Preset can be the values of 0,
B1~B100, F1~F100. B means brake side and F means forward side.
The default is 0.
Move to TGP using the DOWN. TGP can be the values ranging
from 5 to 95. The default is 5.
Move to ATS using the DOWN. ATS is set to OFF in the beginning.
Press SET and modify the value to Ready. Start function will
operates if the throttle trigger is moved to the TGP point or above.
58
■How to Set
Press SET when placed in Mode, and use RIGHT to select AT.
Press SET again to activate the function.
Move to Preset using the DOWN. Preset can be the values of 0,
B1~B100, F1~F100. B means brake side and F means forward side.
The default is 0.
Caution
ATS will go back to Off state if start function is operated by throttle
movement. In case that this function is required in next start, user needs to
set ATS to Ready again.
5.18.5 Idle-Up
This function is used if GP car is used and idling RPM of the engine
needs to be controlled. It can be useful in starting the engines with
moderately high RPM. The push switch can be applied for idle-up.
It moves the neutral point to either acceleration or brake side so as to
manage the idling RPM of the engine.
59
■How to Set
Press SET, and use the LEFT and/or the RIGHT to modify the values.
Press SET again to save the value. The value can be modified to
100 toward the up side and to 100 toward the down side. The
default is 0, which means the neutral point.
5.18.6 ATL
It limits the end point of brake side for throttle movement. This value
can be assigned to the dial switches. (see How to set Dial Switch).
■How to Set
Press the SET, and use the LEFT and/or the RIGHT to modify the
values. Press the SET again to save the value. The value can be
modified from 0% to 100%. The default is 100%.
60
5.18.7 AUX CH Position
Move to the channel which is desired to change the position. Press
the SET and change the position value. The value is the percentage
ranging from -100% to 100%, and it can be controlled with
resolution of 0.1%. Press the LEFT to decrease the value by 0.1%.
Press the RIGHT to increase the value by 0.1%. Press the DOWN to
decrease the value by 1%. Press the “UP” to increase the value by
1%. The default is 0%.
■How to Set
5.18.8 Boat Mode
Boat does not include move backward, thus the whole range of -
100%~+100% can be used as forward movement. If TRG-BRK is set to
Cut Off, all range of the receiver output will be used for acceleration.
Tilt Mixing is used to mix the 1st channel (typically, rudder channel)
and 3rd channel.
It is used to change the position of auxiliary channels. (the 3rd
channel and the 4th channel.) Auxiliary channels can be assigned to
the Dial Switches or Trim switches for instant change.
61
■How to Set
Press the SET when placed in TRG-BRK, and use the RIGHT to
modify it to Cut Off. Press the SET again to save it.
5.18.9 Prog Mix
It is used to mix one channel to the other channel. Two mixing is
available and each can be programmable independently and work
independently.
Move to Mode using the DOWN. Press the SET and use the RIGHT
to change it to On. Press the SET again to activate the function.
Move to CH1->3 using the DOWN. Use the LEFT and the RIGHT to
modify the rate. Press the SET again to save the modified value.
The value is in the range from -100% to 100%.
The default is 100%.
Move to Ch 3 1 using the DOWN. Use the LEFT and the RIGHT
to modify the rate. Press the SET again to save the modified value.
The value is in the range from -100% to 100%. The default is 100%.
■How to Set
Press the SET when being placed in the Mode, and use the RIGHT
to select ACT. Press the SET again to save the activation.
Move to MST by pressing the DOWN twice. Press the SET and
select the master channel using the LEFT and the RIGHT. Press the
SET again to save the master channel.
62
Move to MST using the DOWN twice. Press the SET and select the
slave channel using the LEFT and the RIGHT. Press the SET again
to save the slave channel.
Move to the Left (Or FWRD) by pressing the UP three times. Press
the SET and use the LEFT and the RIGHT to modify the mix rate.
Press the SET again to save the rate. Mix rate is the range
between -10 and 120. The default is 50.
Move to the Right (Or BRAK) by pressing the DOWN three times.
Press the SET and use the LEFT and the RIGHT to modify the mix
rate. Press the SET again to save the rate. Mix rate is the range
between -10 and 120. The default is 50.
Move to OFST by pressing the UP and the RIGHT. Press the SET
and use the LEFT and the RIGHT to modify the offset. Press the
SET again to save the offset. Offset is the range between -100 and
100. The default is 0.
Move to MXMD using the DOWN. Press the SET and use the LEFT
and the RIGHT to select OFF and MIX. Press the SET again to save
the selection. If MIX is selected, mixing is applied after master
channel‟s function is applied. If OFF is selected, mixing is applied
before master channel‟s function is applied.
Move to MXMD using the DOWN. Press the SET and use the LEFT
and the RIGHT to select OFF and ON. Press the SET again to save
the selection. If ON is selected, mixing is applied after master
channel‟s trim is applied. If OFF is selected, mixing is applied
before master channel‟s trim is applied.
63
■System Specifications
Transmitter
Receiver
Model
TS401
Model
RP24RS5D
Frequency
2.4GHz Band DSSS
Frequency
2.4GHz Band DSSS
Operating Voltage
6V
Operating Voltage
4.6V ~ 12.6V
Power Supply
5AA Alkaline
Dry Cell DC 7.2V
Weight
7.5g
Weight
646g
64
■Troubleshooting Guide
Troubles
Causes
Troubleshooting
Unable to transmit the radio.
No battery or not
enough voltage.
Charge the battery.
Alarm
does not
stop.
Alarm sounds
continuously.
Low voltage of battery.
Charge the battery.
Alarm sounds
at regular
intervals.
The interval timer is
“ON”.
Turn “OFF”
the interval.
No sound when pressing
keys.
The buzzer option is set
as “OFF”.
Turn the Buzzer
setting “ON” in
the system menu.
Servos move slowly.
The value set in the
speed menu is too low/
small.
Change the speed
setting value to the
default or higher value.
Low battery.
Check the battery.
Linkage is too tight.
Free the linkage from
binding.
Although the settings for
the left and the right are
same, the steering angles
are different.
Trim or Subtrim is not
in the neutral position.
Edit the trim and
subtrim.
Servo does not move to the
end of the range.
D-rate and EPA setting
values are too high.
Reset the linkage on
the servo.
Servo is not able to be
controlled by the trim
switch.
Trim is out of
operation range.
Set trim as zero “0”,
and put the servo
horn and linkage in
the neutral position.
Lap-timer and Interval timer
do not work.
Timer is set as “OFF”.
Set the timer as “ON”.
LED is blinking white or red.
White=Transmitter and
receiver are not bound
properly.
Repeat the bind
process again.
Red=Connection Lost.
Transmitter and receiver
do not bind.
Binding button of the
receiver has been
pressed for too long.
Press the button key
on the binding menu
immediately after
pressing the binding
button.
65
■Abbreviation
Abbreviation
Meaning
NT-BRAKE
Neutral Brake
ABS
Anti-Lock Brake System
PROG MIX
Programmable Mix
D/R
Dual Rate
EXPS
Steer Exponential
EXPF
Throttle Exponential (Forward side)
EXPB
Throttle Exponential (Brake side)
EXP3
Brake Exponential for Channel 3
EXP4
Brake Exponential for Channel 4
SPTn
Steer Speed (Turn side)
SPRn
Steer Speed (Return side)
AB.P
ABS function (Return amount)
ABSD
ABS function (Delay)
CYCL
ABS function (cycle speed)
ACCF
Throttle acceleration (Forward side)
ACCB
Throttle acceleration (Brake side)
THS1
Throttle speed (All/Low)
THS2
Throttle speed (MID)
THS3
Throttle speed (High)
TRMS
Steer Trim
TRMT
Throttle Trim
3CH
Channel 3
4CH
Channel 4
SBT1
Sub trim (CH1)
SBT2
Sub trim (CH2)
SBT3
Sub trim (CH3)
SBT4
Sub trim (CH4)
IDLE
Idle-up
TL13
Tilt Mixing (13)
TL31
Tilt Mixing (31)
PM1A
Program Mix 1 (LEFT/FWRD/UP sides)
PM1B
Program Mix 1 (RIGHT/BRAKE/DOWN sides)
PM2A
Program Mix 2 (LEFT/FWRD/UP sides)
PM2B
Program Mix 2 (RIGHT/BRAKE/DOWN sides)
B3RT
Channel 3 brake mixing rate
B3DL
Channel 3 brake mixing delay
B3AP
Channel 3 brake mixing ABS return amount
B3AD
Channel 3 brake mixing ABS delay
B4RT
Channel 4 brake mixing rate
B4DL
Channel 4 brake mixing delay
B4AP
Channel 4 brake mixing ABS return amount
B4AD
Channel 4 brake mixing ABS delay
B34RT
brake mixing rate for both channel 3 and channel 4
66
■Warranty
1 YEAR LIMITED WARRANTY
Warranty Period
Radiopost Inc. (Radiopost RC) warranties that the Products purchased (the “Product”)
will be free from defects in materials and workmanship for a period of 1 year from the
date of purchase by the Purchaser.
Limited Warranty
(b) Limitations‐RADIOPOST MAKES NO WARRANTY OR REPRESENTATION, EXPRESS
OR IMPLIED, ABOUT NON‐INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE OF THE PRODUCT. THE PURCHASER ACKNOWLEDGES THAT
THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE
REQUIREMENTS OF THE PURCHASERS INTENDED USE.
(c) Purchaser Remedy‐Radiopost's sole obligation hereunder shall be that Radiopost
will, at its option, (i) repair or (ii) replace, any Product determined by Radiopost to be
defective. In the event of a defect, these are the Purchaser's exclusive remedies.
Radiopost reserves the right to inspect any and all equipment involved in a warranty
claim. Repair or replacement decisions are at the sole discretion of Radiopost. This
warranty does not cover cosmetic damage or damage due to acts of God, accident,
misuse, abuse, negligence, commercial use, or modification of or to any part of the
Product. This warranty does not cover damage due to Improper installation, operation,
maintenance, or attempted repair by anyone other than Radiopost. Return of any
goods by Purchaser must be approved in writing by Radiopost before shipment.
(a) This warranty is limited to the original Purchaser ("Purchaser") and is not
transferable. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE
EXCLUSIVE REMEDY OF THE PURCHASER. This warranty covers only those
Products purchased from an authorized Radiopost dealer located in the US & Canada.
Third party transactions are not covered by this warranty. Proof of purchase is required
for warranty claims. Further, Radiopost reserves the right to change or modify this
warranty without notice and disclaims all other warranties, express or implied.
Damage Limits:
RADIOPOST SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY
CONNECTED WITH THE PRODUCT, WHETHER SUCH CLAIM IS BASED IN CONTRACT,
WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. Further, in no event shall the liability
of Radiopost exceed the individual price of the Product on which liability is asserted.
As Radiopost has no control over use, setup, final assembly, modification or misuse,
no liability shall be assumed nor accepted for any resulting damage or injury. By the
act of use, setup or assembly, the user accepts all resulting liability. If you as the
Purchaser or user are not prepared to accept the liability associated with the use of
this Product, you are advised to return this Product immediately in new and unused
condition to the place of purchase, please contact your dealer for specific return
policies.
67
RETURN POLICY (RMA)
Safety Precautions:
This is a sophisticated hobby Product and must be operated with caution, as some
prerequisite knowledge of mechanical abilities may be required. It must be operated
with caution and common sense and requires some basic mechanical ability. Failure to
operate this Product in a safe and responsible manner could result in injury or
damage to the Product or other property. This Product is not intended for use by
children without direct adult supervision. The Product manual contains instructions for
safety, operation and maintenance. It is essential to read and follow all the instructions
and warnings in the manual, prior to assembly, setup or use, in order to operate
correctly and avoid damage or injury.
Questions, Assistance, and Repairs:
Contact your local dealer for assistance or you may reach our customer/product
support at 1.888.947.5551 or service@radiopost.com.
Inspection or Repairs
If this Product needs to be inspected or repaired, please call for a Return Merchandise
Authorization (RMA). Pack the Product securely using a shipping carton. Please note
that original boxes may be included, but are not designed to withstand the rigors of
shipping without additional protection. Ship via a carrier that provides tracking and
insurance for lost or damaged parcels, as Radiopost is not responsible for
merchandise until it arrives and is accepted at our facility.
If you do not have internet access, please include a letter with your complete name,
street address, email address and phone number where you can be reached during
business days, your RMA number, a list of the included items, method of payment for
any non‐warranty expenses and brief summary of the problem. Your original sales
receipt must also be included for warranty consideration. Be sure your name, address
and RMA number are clearly written on the outside of the shipping carton.
Warranty Inspection and Repairs
To receive warranty service, you must include your original sales receipt verifying the
proof‐of‐purchase date. Provided warranty conditions have been met, your product will
be repaired or replaced free of charge.
Repair or replacement decisions are at the sole discretion of Radiopost Inc.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOIDTHE USER᪽S AUTHORITY TO OPERATE THE
EQUIPMENT.
