INSTRUCTION MANUAL
CD/MP3/WMA PLAYER WITH FM RADIO
AND USB READER AND BLUETOOTH RECEPTION
MODEL: BTU108AM-FM
Please read and follow these instructions before using your unit.
FCC Warnings
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
2 3

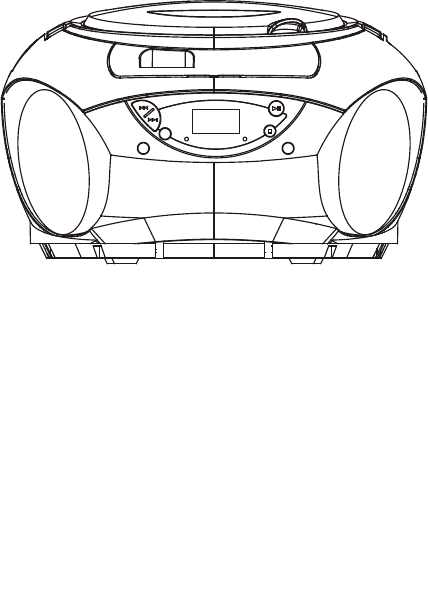

OVERVIEW OF THE PLAYER
1
2
3
4
5
6
7
8 10
11
12
13
2
20
14
15
16
17
18
19
9
LOCATION OF CONTROLS
1. VOLUME CONTROL
2. SPEAKER
3. SKIP DN/TUN- BUTTON
4. SKIP UP/TUN+ BUTTON
5. SOURCE BUTTON
6. MODE/PROG/MEM BUTTON
7. STANDBY INDICATOR
8. LCD DISPLAY
9. BLUETOOTH INDICATOR
10. STOP/CH- BUTTON
11. POWER BUTTON
12. PLAY/PAUSE/CH+/PAIR BUTTON
13. DC IN JACK
14. FM TELESCOPIC ANTENNA
15. FOLDING HANDLE
16. AUX IN JACK
17. CD DOOR
18. USB PORT
19. CD DOOR OPEN AREA
20. BATTERY COMPARTMENT
POWER SUPPLY
BATTERY OPERATION
1. Remove the battery compartment cover gently.
2. Install 8 x 'C' size batteries (UM-2 or equivalent) while observing the correct polarities.
3. Replace the battery compartment cover.
NOTE:
The AC/DC adapter must be detached from the DC IN jack of the player for battery
operation.
Leaking batteries may damage the battery cabinet and the player as a whole, so they
should be removed from the cabinet when becoming flat or when the player is not to
be played on batteries for some time.
DC INPUT OPERATION
Plug the supplied adapter to the DC IN jack on the unit and to the main power.
FM RADIO
TUNING THE FM RADIO
1. The standby indicator will light once connect the main unit to the main power. Press the
POWER button to turn the unit on (the standby indicator will be off).
2. Press the SOURCE button repeatedly to switch the unit to the FM radio mode.
3. To launch the auto-searching(forward or backward), press and hold the SKIP DN/TUN-
button or SKIP UP/TUN+ button several seconds and then release it. When an available
station is found, the unit broadcasts it immediately.
4. Press the SKIP DN/TUN- button or SKIP UP/TUN+ button to tune the radio stations
manually.
5. Adjust the volume level to a comfortable listening level.
6. Press the POWER button to turn off the unit.
NOTE:
When FM (stereo) station is received, the FM stereo icon will be displayed on the screen.
The FM TELESCOPIC ANTENNA is directional. When you are receiving an FM
broadcast, fully extend the TELESCOPIC ANTENNA and rotate it for the best reception.
STORING YOUR FAVORITE RADIO STATION
1. Tune to your favorite station first; press the MODE/PROG/MEM button for storing the
current station until memory cell number flashes on the screen.
2. Use the STOP/CH- button or the PLAY/PAUSE/CH+/PAIR button to select the
corresponding memory cell among P01-P20 for storing the station.
3. Confirm your selection by pressing the MODE/PROG/MEM button.
4. During radio playback, press the STOP/CH- button or the PLAY/PAUSE/CH+/PAIR button
repeatedly to recall the preset stations.
4 5
HANDLING AND MAINTENANCE OF A DISC
Follow the instructions below to handle and maintain your disc in
order that long time and trouble free performance can possibly be
obtained:
Ensure not to caress the rain bow side of the disc; handle the disc
by the edge.
Long time exposure to sunshine, high temperatures and humidity
will damage the disc. And keep storage area clean.
Avoid sticking labels on both sides of a disc. Writing with pointed
articles on the disc should be strictly avoided.
Clean the disc wiping the centre and then working out to the edge
with a dry & soft cloth or a disc brush. Avoid any cleansing lotion
or chemical eradicator.
Store them in their cases when they are not to be used.
LOAD A DISC
1. Open the CD door by the Door open area.
2. Load a disc on the disc tray with the label side facing up.
3. Close the CD door.
PLAY A DISC (CD/MP3/WMA)
1. Press the POWER button to turn the unit on (the standby indicator will be off).
2. Press the SOURCE button repeatedly to switch to CD mode.
3. Follow the steps above to load a disc.
4. The player begins reading disc immediately.
5. When the disc is successfully read, the total number of the tracks shows in the LCD and
playback follows with the first track.
6. Press the PLAY/PAUSE/CH+/PAIR button once to halt music playback, the elapsed time
flashes to indicate the player in Pause mode; press the STOP/CH- button to cease music
playback, the LCD shows the total number of the tracks again.
EXTERNAL MEMORY MEDIA OPERATION (USB)
1. Press the POWER button to turn the unit on (the standby indicator will be off).
2. Insert an USB to the USB port.
3. Press the SOURCE button repeatedly to switch to USB mode.
4. When the inserted USB is detected and read, the first track will be played automatically.
5. Press the PLAY/PAUSE/CH+/PAIR button to pause or resume the playback.
6. Press the STOP/CH- button to cease the playback.
SKIP TRACKS AND SEARCH FOR A SPECIFIC POINT TO PLAY (CD/MP3/WMA/USB)
1. Press once the SKIP UP/TUN+ button in music play to skip to the next track; press once
the SKIP DN/TUN- button in music play to go back to beginning of the current track, press
the button twice continuously to skip to the previous track.
2. Press and hold the SKIP UP/TUN+ button or the SKIP DN/TUN- button in music play to
search at quick rate for a specific point to play.
REPEAT PLAYBACK (CD/MP3/WMA/USB)
During playback, press the MODE/PROG/MEM button to repeat play a single track; press
the button twice to repeat play all tracks; press the button three times to enter the
introduction play mode; press the button four times to enter the random play mode; press
the button five times to exit.
PROGRAMMED PLAY (CD/MP3/WMA DISC/USB)
1. At stop mode, press the MODE/PROG/MEM button once, the program’s icon shows with
a program sequence indication "P01" first, then a track number flickers on the LCD with
the program’s icon;
2. Select the first track to be programmed using the SKP UP/TUN+ button or the SKIP
DN/TUN- button, and then press the MODE/PROG/MEM button again to store and
advance to the next programming step (If there are several folders on the MP3/WMA disc
or USB, it is necessary to program folders first and then the tracks. The method of the
folders programming is the same as the tracks programming.).
3. Repeat the above steps to program more tracks. A maximum of 20 tracks for CD and 99
tracks for MP3/USB/WMA can be programmed in memory in a preferred order. If the
memory is full, the screen will show “FUL” for indicating.
4. Press the PLAY/PAUSE/CH+/PAIR button to begin programmed play in the preferred
order after you are done with programming. The player stops automatically after all
programmed tracks are played.
5. You may press the STOP/CH- button to terminate programmed playback. In program stop
mode, press the PLAY/PAUSE/CH+/PAIR button to begin the programmed playback with
the programming order identical with the previous one done; press the STOP/CH- button
again to clear the programming.
BLUETOOTH OPERATING
This unit can receive stereo audio signal from a BLUETOOTH stereo audio source device.
1. Power on the unit, switch to BLUETOOTH mode by pressing the SOURCE button
repeatedly.
2. LED indicator rapid blinking while it is pairing.
3. Pair and connect to BTU108 on the BLUETOOTH audio source device. If prompted for
passcode, enter “0000”.
4. Pairing successful (LED indicator flashes intermittently), ready to stream music.
5. Press the PLAY/PAUSE/CH+/PAIR button to pause/resume the playback.
6. Press once the SKIP UP/TUN+ button in music play to skip to the next track; press the
SKIP DN/TUN- button once to skip to the previous track.
7. Press and hold the SKIP UP/TUN+ button or the SKIP DN/TUN- button in music play to
search at quick rate for a specific point to play.
Note:
1. Pairing mode is canceled about 1.5 minutes. The PAIR mode can be entered again
possibly by pressing and holding the PLAY/PAUSE/CH+/PAIR button.
2. The above are generic steps to pair a BLUETOOTH device, for more specific instructions
on BLUETOOTH connectivity for your device, please consult your manufacturer’s
manual.
HANDLE DISC ONLY AS SHOWN
CLEAN FROM CENTER TO EDGE
DO NOT STORE NEAR HEAT
6 7
RE-CONNECT TO THE BLUETOOTH AUDIO SOURCE DEVICE
If the device is already paired with the BTU108, but became unconnected even with both
Bluetooth devices turned on. You can re-connect them by following steps:
1. Press and hold the PLAY/PAUSE/CH+/PAIR button on the unit to re-link the audio source
device. The Bluetooth indicator will blink for about 1.5 minutes for connecting.
2. Select BTU108 on the audio source device for connecting. Bluetooth indicator will turn to
solid blue if the BTU108 and the device have been re-connected successfully
AUX IN
1. Connect the Aux in jack on the unit to an audio source, for example, MP3 player with an
audio cable.
2. Power on the unit following the corresponding instructions.
3. Press the SOURCE button repeatedly to switch to AUX mode.
4. Use the native controls on the connected audio device to begin playing music through the
connected unit.
IMPORTANT SAFETY INSTRUCTIONS
The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
When the AC/DC adapter is used as the disconnect device, the disconnect device shall
remain readily operable. To be completely disconnected the power input, the AC/DC
adapter shall be disconnected from the mains completely.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Minimum distances 2.0cm around the apparatus for sufficient ventilation. The ventilation
should not be impeded by covering the ventilation openings with items, such as
newspapers, table-cloths, curtains, etc.
The use of apparatus is in tropical and/or moderate climates.
Attention should be drawn to the environmental aspects of battery disposal.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
The marking plate is located at the back of the apparatus.
