Nice North America 00155 Keychain Remote User Manual

Nortek Security & Control LLC Keychain Remote Users Manual

Users Manual

Welcome to yourADT Keychain Remote

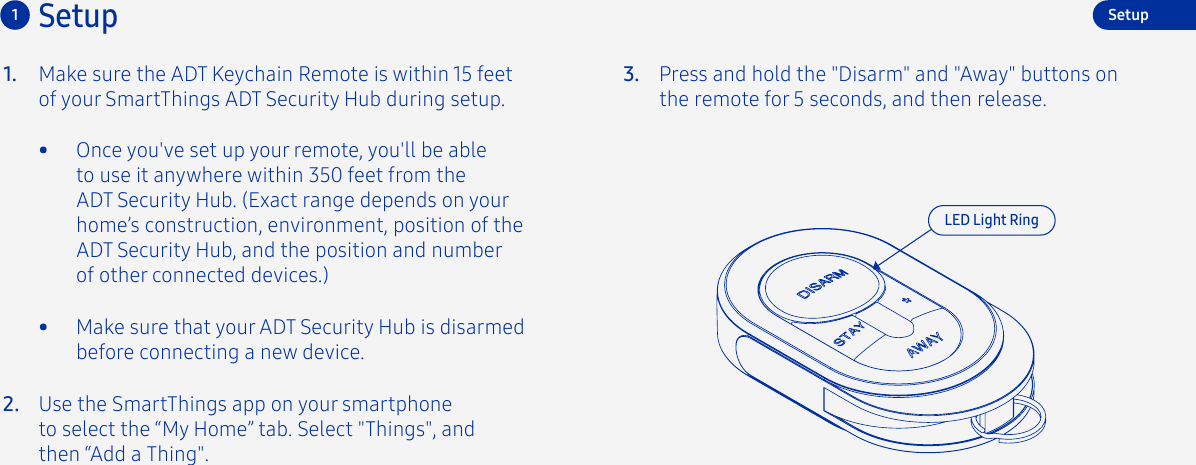

Make sure the ADT Keychain Remote is within 15 feet of your SmartThings ADT Security Hub during setup.1.• Once you've set up your remote, you'll be able to use it anywhere within 350 feet from the ADT Security Hub. (Exact range depends on your home’s construction, environment, position of the ADT Security Hub, and the position and number of other connected devices.)2.3. Press and hold the "Disarm" and "Away" buttons on the remote for 5 seconds, and then release.Use the SmartThings app on your smartphone to select the “My Home” tab. Select "Things", and then “Add a Thing".Setup1LED Light RingSetup• Make sure that your ADT Security Hub is disarmed before connecting a new device.
Testing2If you have an ADT professional monitoring service activated, make sure that your ADT Security Hub is in Test Mode to avoid triggering a false alarm. See the ADT Security Hub User Guide for more details.Press the Disarm button on your remote for2 seconds to disarm the ADT Security Hub. Door, window, and motion detectors will be disarmed.Press the Away button on your remote for 2 seconds to arm the ADT Security Hub. Door, window, and motion detectors will be armed.Press the Stay button on your remote for 2 seconds to arm the ADT Security Hub in Stay Mode. Door and window detectors will be armed.Press the * and Stay buttons on your remote for 3 seconds to send a panic alert (requires optional ADT professional monitoring service).1.2.3.4.Keychain Remote (Back)SetupUse the SmartThings app to scan the QR code on the back of the remote and then follow the on-screen instructions to complete setup.4.5.QR CodeRemove the QR code from the back of the remote and attach it to this guide for future reference.

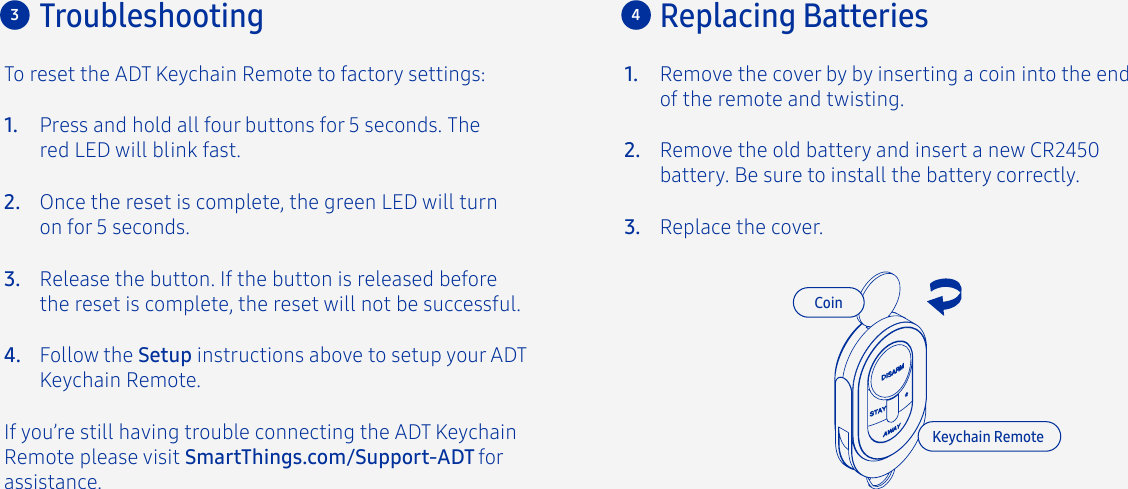

Troubleshooting3To reset the ADT Keychain Remote to factory settings:Press and hold all four buttons for 5 seconds. The red LED will blink fast.Once the reset is complete, the green LED will turn on for 5 seconds.Release the button. If the button is released before the reset is complete, the reset will not be successful.Follow the Setup instructions above to setup your ADT Keychain Remote.If you’re still having trouble connecting the ADT Keychain Remote please visit SmartThings.com/Support-ADT for assistance.1.2.3.4.4Replacing BatteriesCoinKeychain RemoteRemove the cover by by inserting a coin into the end of the remote and twisting.1.Remove the old battery and insert a new CR2450 battery. Be sure to install the battery correctly.Replace the cover.2.3.

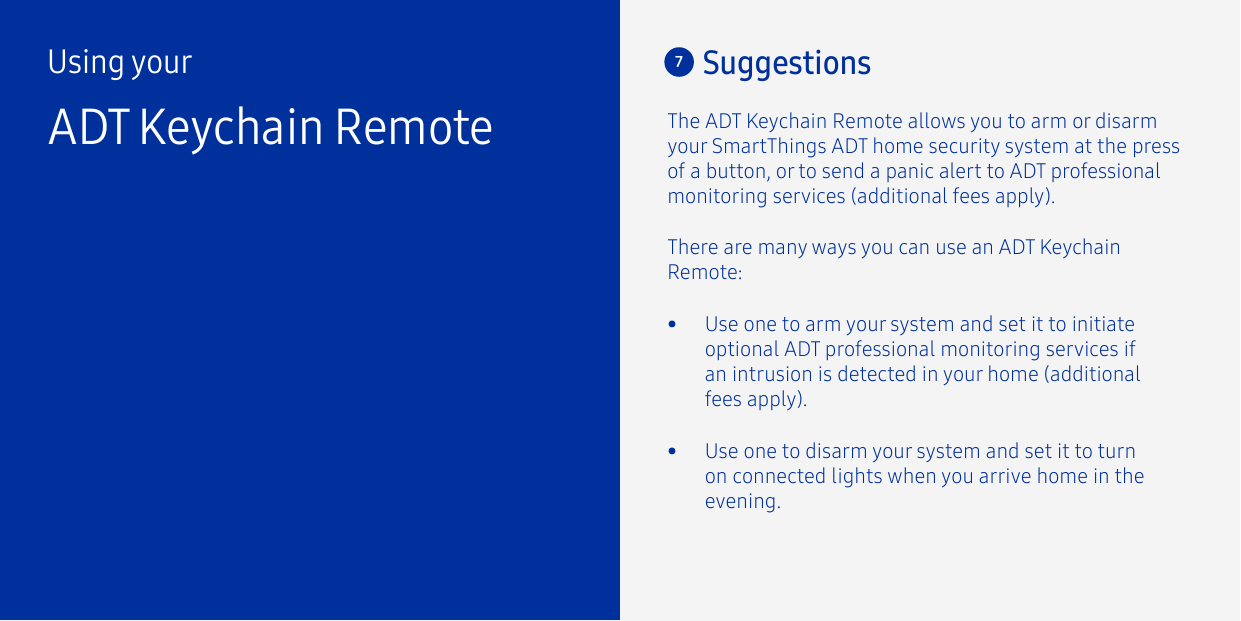

Using yourADT Keychain RemoteThere are many ways you can use an ADT Keychain Remote:The ADT Keychain Remote allows you to arm or disarm your SmartThings ADT home security system at the press of a button, or to send a panic alert to ADT professional monitoring services (additional fees apply). 7Suggestions• Use one to arm your system and set it to initiate optional ADT professional monitoring services if an intrusion is detected in your home (additional fees apply).• Use one to disarm your system and set it to turn on connected lights when you arrive home in the evening.

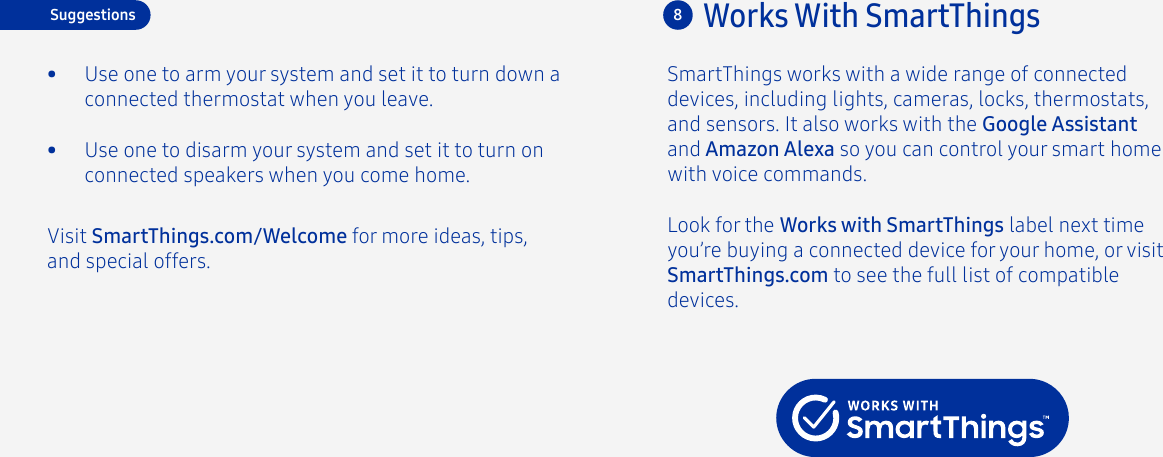

Look for the Works with SmartThings label next time you’re buying a connected device for your home, or visit SmartThings.com to see the full list of compatible devices.Works With SmartThings8Visit SmartThings.com/Welcome for more ideas, tips, and special offers.• Use one to disarm your system and set it to turn on connected speakers when you come home.Suggestions• Use one to arm your system and set it to turn down a connected thermostat when you leave.SmartThings works with a wide range of connected devices, including lights, cameras, locks, thermostats, and sensors. It also works with the Google Assistant and Amazon Alexa so you can control your smart home with voice commands.

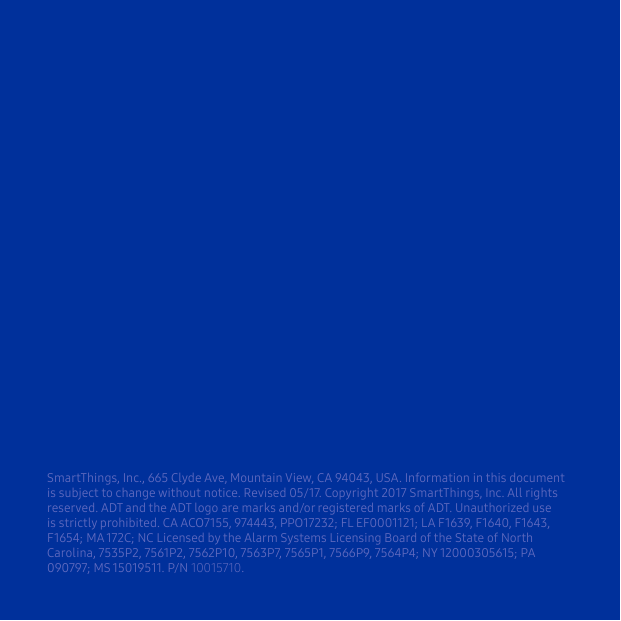

SmartThings, Inc., 665 Clyde Ave, Mountain View, CA 94043, USA. Information in this document is subject to change without notice. Revised 05/17. Copyright 2017 SmartThings, Inc. All rights reserved. ADT and the ADT logo are marks and/or registered marks of ADT. Unauthorized use is strictly prohibited. CA ACO7155, 974443, PPO17232; FL EF0001121; LA F1639, F1640, F1643, F1654; MA 172C; NC Licensed by the Alarm Systems Licensing Board of the State of North Carolina, 7535P2, 7561P2, 7562P10, 7563P7, 7565P1, 7566P9, 7564P4; NY 12000305615; PA 090797; MS 15019511. P/N 10015710.
Health, Safety and Regulatory GuideSafety Instructions• Read, keep, and follow these instructions. Heed all warnings.• Clean only with a dry cloth.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.•Only use attachments and accessories specied by the Manufacturer.• Read our Product Usage Guidelines at: www.SmartThings.com/Guidelines. Safety Instructions: ADT Security HubLimitations of Alarm Products: This product should be tested periodically to make sure it is working properly. The product, if used properly, may reduce the risk of burglary, robbery, and other adverse events that have the potential to result in injury or loss of life; however, the manufacturer is not an insurer. This product is neither insurance nor a guarantee that such an event will be prevented, and users should protect themselves with proper insurance. The manufacturer makes no representation that this product cannot be compromised or circumvented, that it will provide an adequate warning, or that it will prevent any personal injuries, property damage, or other losses. Like any alarm product, it may be bypassed, it is subject to compromise, and it may fail to warn for a variety of reasons, including, but not limited to: • improper installation or positioning; improper maintenance; tampering; dead or improperly installed batteries; sensing limitations; component failures; receivers; •intrusions may be outside of a product’s designated range and certain environmental conditions may impact performance, and audible alarm signals may be outside of hearing range, muted by doors, walls, and oors, unheard by deep sleepers or the hearing-impaired, or overwhelmed by other sounds.Risk of Noise Induced Hearing Loss: The ADT Security Hub is equipped with a warning siren. Exposure to high sound levels or prolonged exposure to the warning siren can result in Noise Induced Hearing Loss (NIHL).Disclaimer Some content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal non-commercial use. You may not use any content or services in a manner that has not been authorised by the content owner or service provider. Without limiting the foregoing, unless expressly authorised by the applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services displayed through this device. US CerticationsCertied under FCC Part 15.ADT Security HubManufacturer Model : F-ADT-HUB-1FCC ID : EF400150Battery Type: Shenzhen Grepow Battery CO LTD, MFG P/N: GLP823990ADT Door and Window DetectorManufacturer Model : F-ADT-DW-1FCC ID : EF400151Battery Type: 1 x CR2450 (Panasonic)ADT Motion DetectorManufacturer Model : F-ADT-PIR-1FCC ID : EF400152Battery Type: 1 x CR123A (Panasonic)ADT Smoke AlarmManufacturer Model : F-ADT-SMK-1FCC ID : EF400153Battery Type: 2 x CR123A (Panasonic)ADT Carbon Monoxide AlarmManufacturer Model : F-ADT-CO-1FCC ID : EF400154Battery Type: 2 x AAA (Duracell)ADT Keychain RemoteManufacturer Model : F-ADT-KEY-1FCC ID : EF400155Battery Type: 1 x CR2450 (Panasonic)ADT Water Leak DetectorManufacturer Model : F-ADT-WTR-1FCC ID : EF400156Battery Type: CR17345 (Panasonic)Safety Instructions: ADT Detectors• Do not expose products to moisture or extreme temperature.•Make sure that products are used in a dry location and within the recommended operating temperature: ⸰ ADT Security Hub: 32° to 120° F (0° to 49° C) ⸰ ADT Door and Window Detector: 32° to 120° F (0° to 49° C) ⸰ ADT Motion Detector: 32° to 120° F (0° to 49° C). ⸰ ADT Water Leak Detector: 32° to 104° F (0° to 40° C) ⸰ ADT Smoke Alarm: 32° to 104° F (0° to 40° C) ⸰ ADT Carbon Monoxide Alarm: 32° to 120° F (0° to 49° C) ⸰ ADT Keychain Remote: 32° to 120° F (0° to 49° C)•Make sure that the ADT Door and Window Detector is not positioned near metal or metallic surfaces. Example: foil wallpaper.•The ADT Water Leak Detector is water resistant but not waterproof; avoid submerging it in water or liquid to keep interior dry and to protect batteries. All other detectors should not be used near water or exposed to dripping or splashing of any water or liquid.CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Avoid installing the SmartThings Hub near or inside sources of metal, radio or electromagnetic interference.WARNING: No user-serviceable parts inside. Refer all servicing to qualied service personnel.IMPORTANT CONSUMER INFORMATION: Please read before activating or using the device.WARNING: This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. For more information, please call 1-800-SAMSUNG (726-7864).For each of the devices listed in the previous table, the following FCC statements and information apply: FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Important Note: FCC Radiation Exposure Statement To satisfy FCC radiation exposure safety requirements for the ADT Securty Hub, a separation distance of 20cm or more should be maintained between this device and a person’s body (excluding extremities: hands, wrists, feet, and ankles.)This ZigBee Certied Product works with ZigBee networks supporting the Home Automation Prole. Global 2.4 GHz wireless use.ZigBee® Certied is a registered trademark of the ZigBee Alliance.

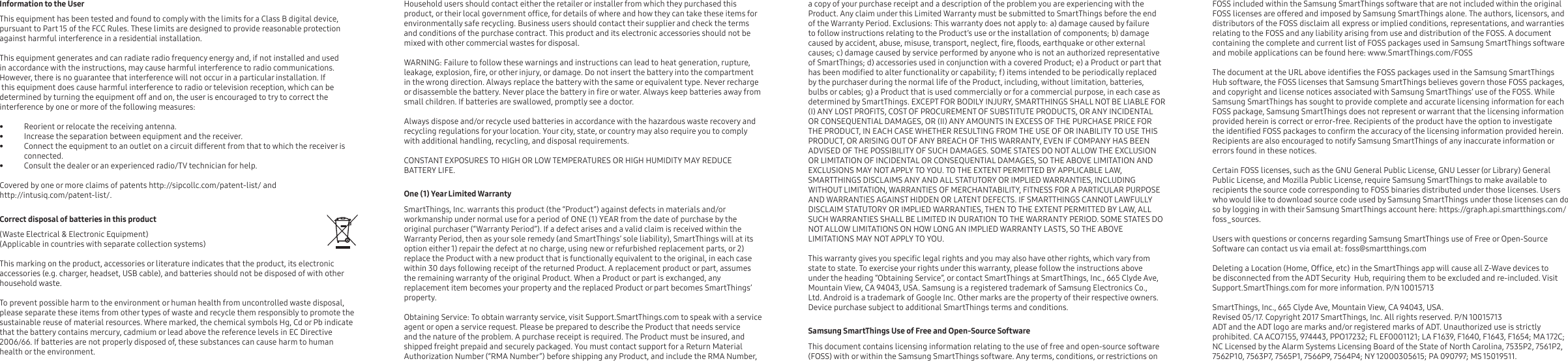

a copy of your purchase receipt and a description of the problem you are experiencing with the Product. Any claim under this Limited Warranty must be submitted to SmartThings before the end of the Warranty Period. Exclusions: This warranty does not apply to: a) damage caused by failure to follow instructions relating to the Product’s use or the installation of components; b) damage caused by accident, abuse, misuse, transport, neglect, re, oods, earthquake or other external causes; c) damage caused by service performed by anyone who is not an authorized representative of SmartThings; d) accessories used in conjunction with a covered Product; e) a Product or part that has been modied to alter functionality or capability; f) items intended to be periodically replaced by the purchaser during the normal life of the Product, including, without limitation, batteries, bulbs or cables; g) a Product that is used commercially or for a commercial purpose, in each case as determined by SmartThings. EXCEPT FOR BODILY INJURY, SMARTTHINGS SHALL NOT BE LIABLE FOR (I) ANY LOST PROFITS, COST OF PROCUREMENT OF SUBSTITUTE PRODUCTS, OR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR (II) ANY AMOUNTS IN EXCESS OF THE PURCHASE PRICE FOR THE PRODUCT, IN EACH CASE WHETHER RESULTING FROM THE USE OF OR INABILITY TO USE THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, EVEN IF COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSIONS MAY NOT APPLY TO YOU. TO THE EXTENT PERMITTED BY APPLICABLE LAW, SMARTTHINGS DISCLAIMS ANY AND ALL STATUTORY OR IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. IF SMARTTHINGS CANNOT LAWFULLY DISCLAIM STATUTORY OR IMPLIED WARRANTIES, THEN TO THE EXTENT PERMITTED BY LAW, ALL SUCH WARRANTIES SHALL BE LIMITED IN DURATION TO THE WARRANTY PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. This warranty gives you specic legal rights and you may also have other rights, which vary from state to state. To exercise your rights under this warranty, please follow the instructions above under the heading “Obtaining Service”, or contact SmartThings at SmartThings, Inc., 665 Clyde Ave, Mountain View, CA 94043, USA. Samsung is a registered trademark of Samsung Electronics Co., Ltd. Android is a trademark of Google Inc. Other marks are the property of their respective owners. Device purchase subject to additional SmartThings terms and conditions.Samsung SmartThings Use of Free and Open-Source Software This document contains licensing information relating to the use of free and open-source software (FOSS) with or within the Samsung SmartThings software. Any terms, conditions, or restrictions on FOSS included within the Samsung SmartThings software that are not included within the original FOSS licenses are offered and imposed by Samsung SmartThings alone. The authors, licensors, and distributors of the FOSS disclaim all express or implied conditions, representations, and warranties relating to the FOSS and any liability arising from use and distribution of the FOSS. A document containing the complete and current list of FOSS packages used in Samsung SmartThings software and mobile applications can be found here: www.SmartThings.com/FOSS The document at the URL above identies the FOSS packages used in the Samsung SmartThings Hub software, the FOSS licenses that Samsung SmartThings believes govern those FOSS packages, and copyright and license notices associated with Samsung SmartThings’ use of the FOSS. While Samsung SmartThings has sought to provide complete and accurate licensing information for each FOSS package, Samsung SmartThings does not represent or warrant that the licensing information provided herein is correct or error-free. Recipients of the product have the option to investigate the identied FOSS packages to conrm the accuracy of the licensing information provided herein. Recipients are also encouraged to notify Samsung SmartThings of any inaccurate information or errors found in these notices. Certain FOSS licenses, such as the GNU General Public License, GNU Lesser (or Library) General Public License, and Mozilla Public License, require Samsung SmartThings to make available to recipients the source code corresponding to FOSS binaries distributed under those licenses. Users who would like to download source code used by Samsung SmartThings under those licenses can do so by logging in with their Samsung SmartThings account here: https://graph.api.smartthings.com/foss_sources.Users with questions or concerns regarding Samsung SmartThings use of Free or Open-Source Software can contact us via email at: foss@smartthings.com Deleting a Location (Home, Ofce, etc) in the SmartThings app will cause all Z-Wave devices to be disconnected from the ADT Security Hub, requiring them to be excluded and re-included. Visit Support.SmartThings.com for more information. P/N 10015713SmartThings, Inc., 665 Clyde Ave, Mountain View, CA 94043, USA. Revised 05/17. Copyright 2017 SmartThings, Inc. All rights reserved. P/N 10015713ADT and the ADT logo are marks and/or registered marks of ADT. Unauthorized use is strictly prohibited. CA ACO7155, 974443, PPO17232; FL EF0001121; LA F1639, F1640, F1643, F1654; MA 172C; NC Licensed by the Alarm Systems Licensing Board of the State of North Carolina, 7535P2, 7561P2, 7562P10, 7563P7, 7565P1, 7566P9, 7564P4; NY 12000305615; PA 090797; MS 15019511.Household users should contact either the retailer or installer from which they purchased this product, or their local government ofce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.WARNING: Failure to follow these warnings and instructions can lead to heat generation, rupture, leakage, explosion, re, or other injury, or damage. Do not insert the battery into the compartment in the wrong direction. Always replace the battery with the same or equivalent type. Never recharge or disassemble the battery. Never place the battery in re or water. Always keep batteries away from small children. If batteries are swallowed, promptly see a doctor.Always dispose and/or recycle used batteries in accordance with the hazardous waste recovery and recycling regulations for your location. Your city, state, or country may also require you to comply with additional handling, recycling, and disposal requirements.CONSTANT EXPOSURES TO HIGH OR LOW TEMPERATURES OR HIGH HUMIDITY MAY REDUCE BATTERY LIFE.One (1) Year Limited Warranty SmartThings, Inc. warrants this product (the “Product”) against defects in materials and/or workmanship under normal use for a period of ONE (1) YEAR from the date of purchase by the original purchaser (“Warranty Period”). If a defect arises and a valid claim is received within the Warranty Period, then as your sole remedy (and SmartThings’ sole liability), SmartThings will at its option either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the Product with a new product that is functionally equivalent to the original, in each case within 30 days following receipt of the returned Product. A replacement product or part, assumes the remaining warranty of the original Product. When a Product or part is exchanged, any replacement item becomes your property and the replaced Product or part becomes SmartThings’ property.Obtaining Service: To obtain warranty service, visit Support.SmartThings.com to speak with a service agent or open a service request. Please be prepared to describe the Product that needs service and the nature of the problem. A purchase receipt is required. The Product must be insured, and shipped freight prepaid and securely packaged. You must contact support for a Return Material Authorization Number (“RMA Number”) before shipping any Product, and include the RMA Number, Information to the User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna.• Increase the separation between equipment and the receiver.• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help. Covered by one or more claims of patents http://sipcollc.com/patent-list/ and http://intusiq.com/patent-list/.Correct disposal of batteries in this product(Waste Electrical & Electronic Equipment)(Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product, its electronic accessories (e.g. charger, headset, USB cable), and batteries should not be disposed of with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
