Nice Polska Sp z o o FGBHDW002 Door/Window Sensor User Manual

Fibar Group S.A. Door/Window Sensor

User Manual

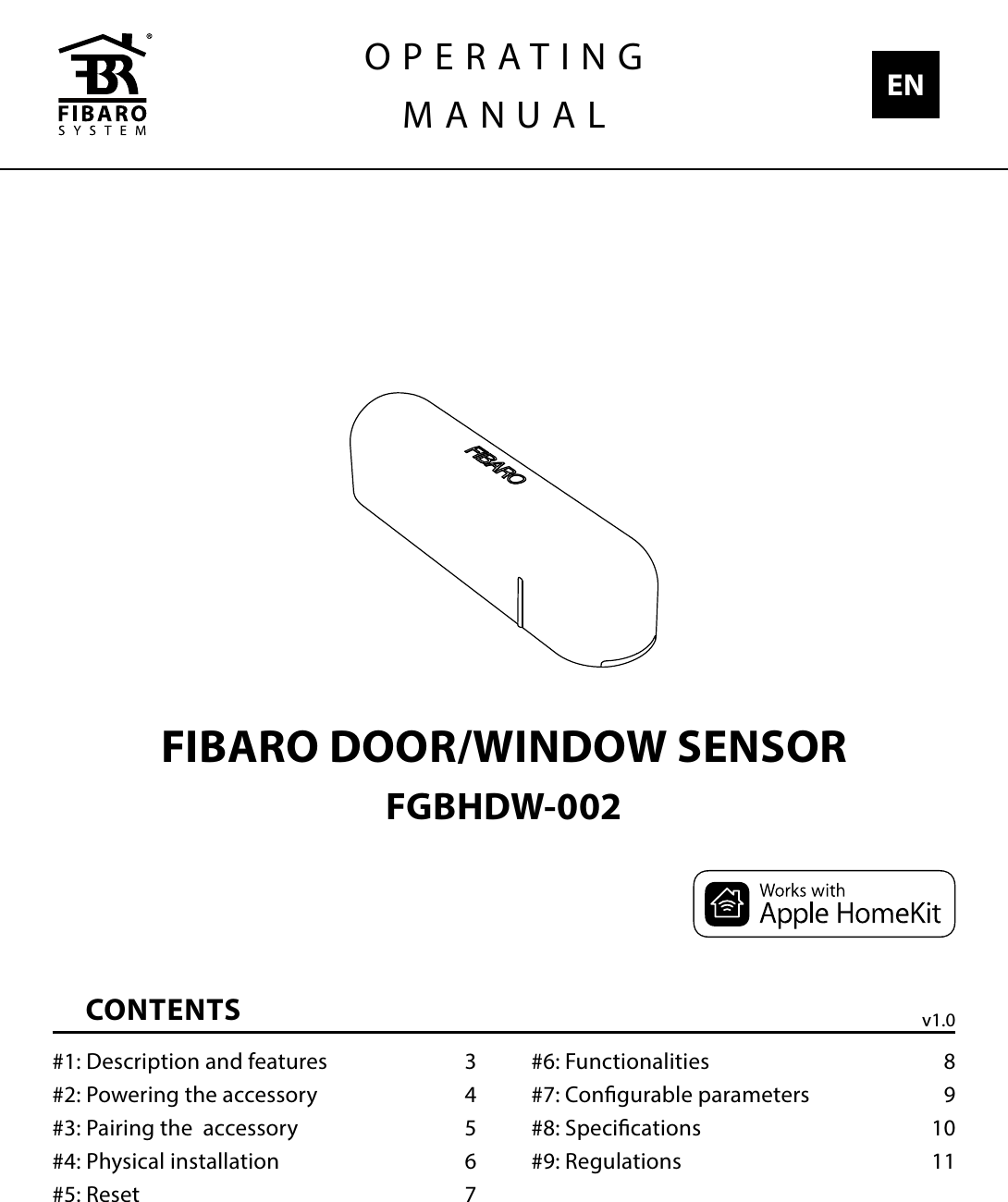

FIBARO DOOR/WINDOW SENSORFGBHDW-002CONTENTS#1: Description and features 3#2: Powering the accessory 4#3: Pairing the accessory 5#4: Physical installation 6#5: Reset 7#6: Functionalities 8#7: Congurable parameters 9#8: Specications 10#9: Regulations 11OPERATINGMANUAL ENv1.0

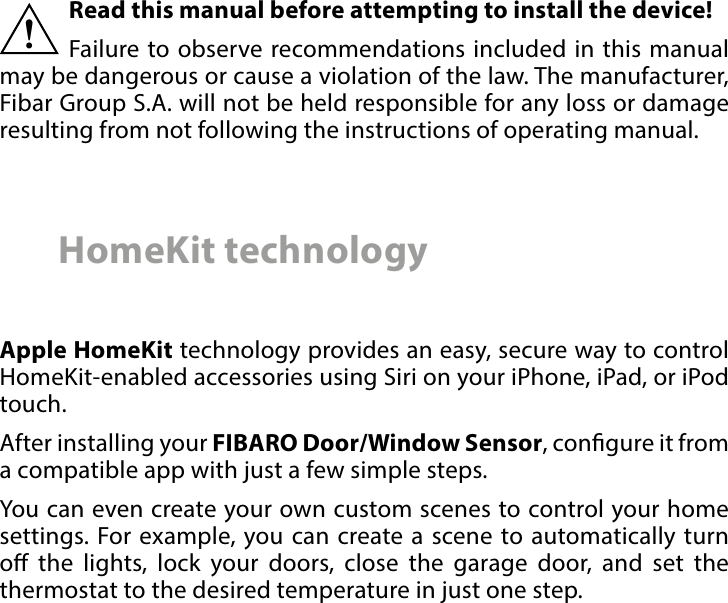

2 Important safety informationRead this manual before attempting to install the device! Failure to observe recommendations included in this manual may be dangerous or cause a violation of the law. The manufacturer, Fibar Group S.A. will not be held responsible for any loss or damage resulting from not following the instructions of operating manual.!HomeKit technologyApple HomeKit technology provides an easy, secure way to control HomeKit-enabled accessories using Siri on your iPhone, iPad, or iPod touch. After installing your FIBARO Door/Window Sensor, congure it from a compatible app with just a few simple steps. You can even create your own custom scenes to control your home settings. For example, you can create a scene to automatically turn o the lights, lock your doors, close the garage door, and set the thermostat to the desired temperature in just one step.

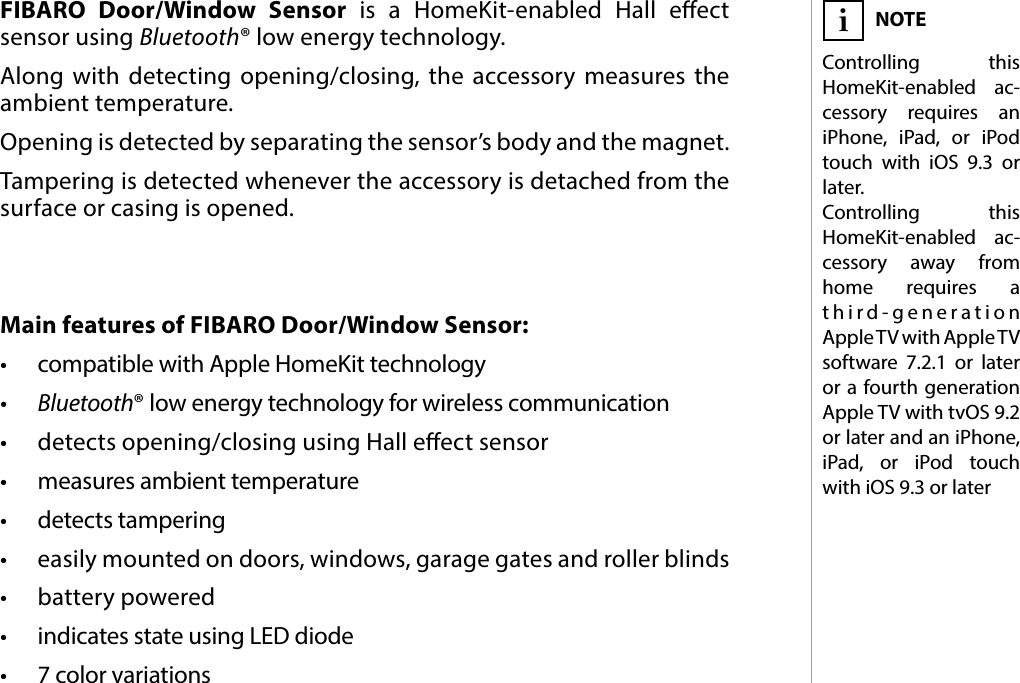

3DESCRIPTION AND FEATURESMain features of FIBARO Door/Window Sensor:• compatible with Apple HomeKit technology• Bluetooth® low energy technology for wireless communication• detects opening/closing using Hall eect sensor• measures ambient temperature• detects tampering• easily mounted on doors, windows, garage gates and roller blinds• battery powered• indicates state using LED diode• 7 color variationsFIBARO Door/Window Sensor is a HomeKit-enabled Hall eect sensor using Bluetooth® low energy technology. Along with detecting opening/closing, the accessory measures the ambient temperature. Opening is detected by separating the sensor’s body and the magnet. Tampering is detected whenever the accessory is detached from the surface or casing is opened.#1: Description and featuresNOTEControlling this HomeKit-enabled ac-cessory requires an iPhone, iPad, or iPod touch with iOS 9.3 or later. Controlling this HomeKit-enabled ac- cessory away from home requires a third-generation Apple TV with Apple TV software 7.2.1 or later or a fourth generation AppleTV with tvOS 9.2 or later and an iPhone, iPad, or iPod touch with iOS 9.3 or lateri

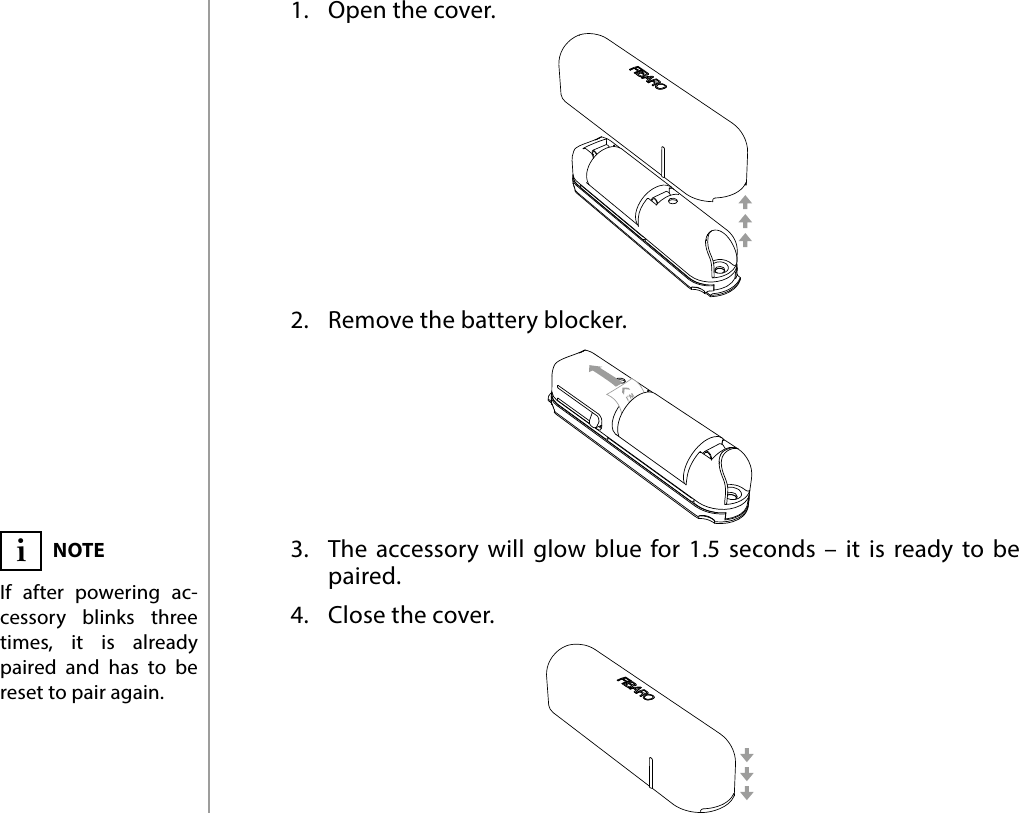

4POWERING THE ACCESSORY#2: Powering the accessory1. Open the cover.2. Remove the battery blocker.3. The accessory will glow blue for 1.5 seconds – it is ready to be paired.4. Close the cover.NOTEIf after powering ac-cessory blinks three times, it is already paired and has to be reset to pair again.i

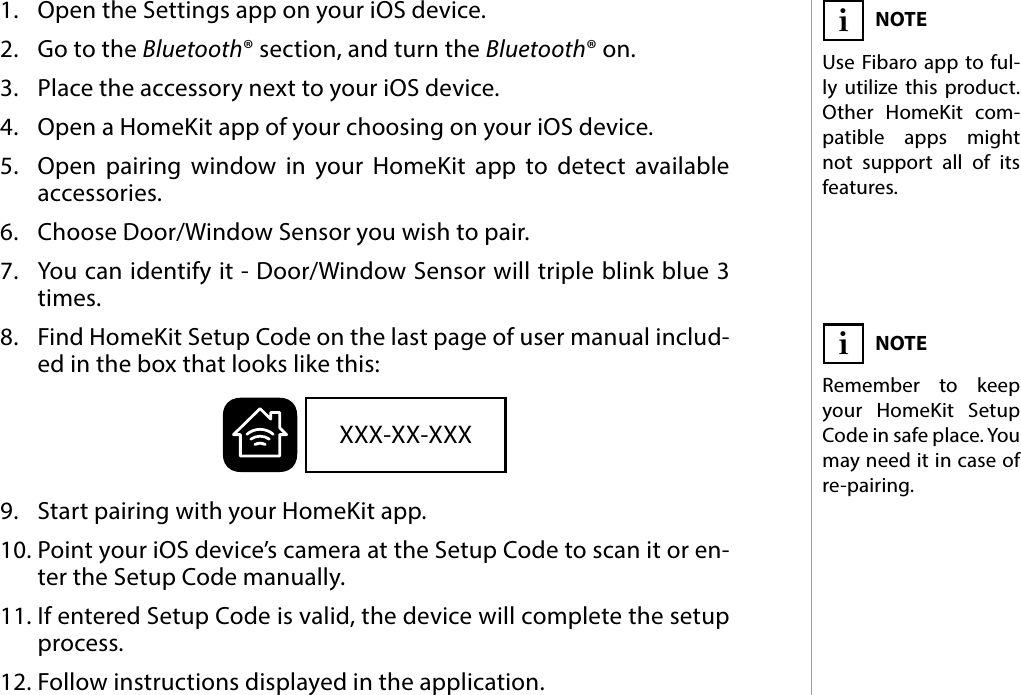

5PAIRING THE ACCESSORY#3: Pairing the accessory1. Open the Settings app on your iOS device.2. Go to the Bluetooth® section, and turn the Bluetooth® on.3. Place the accessory next to your iOS device.4. Open a HomeKit app of your choosing on your iOS device.5. Open pairing window in your HomeKit app to detect available accessories.6. Choose Door/Window Sensor you wish to pair.7. You can identify it - Door/Window Sensor will triple blink blue 3 times.8. Find HomeKit Setup Code on the last page of user manual includ-ed in the box that looks like this:9. Start pairing with your HomeKit app.10. Point your iOS device’s camera at the Setup Code to scan it or en-ter the Setup Code manually.11. If entered Setup Code is valid, the device will complete the setup process.12. Follow instructions displayed in the application.NOTEUse Fibaro app to ful-ly utilize this product. Other HomeKit com-patible apps might not support all of its features.iXXX-XX-XXXNOTERemember to keep your HomeKit Setup Code in safe place. You may need it in case of re-pairing.i

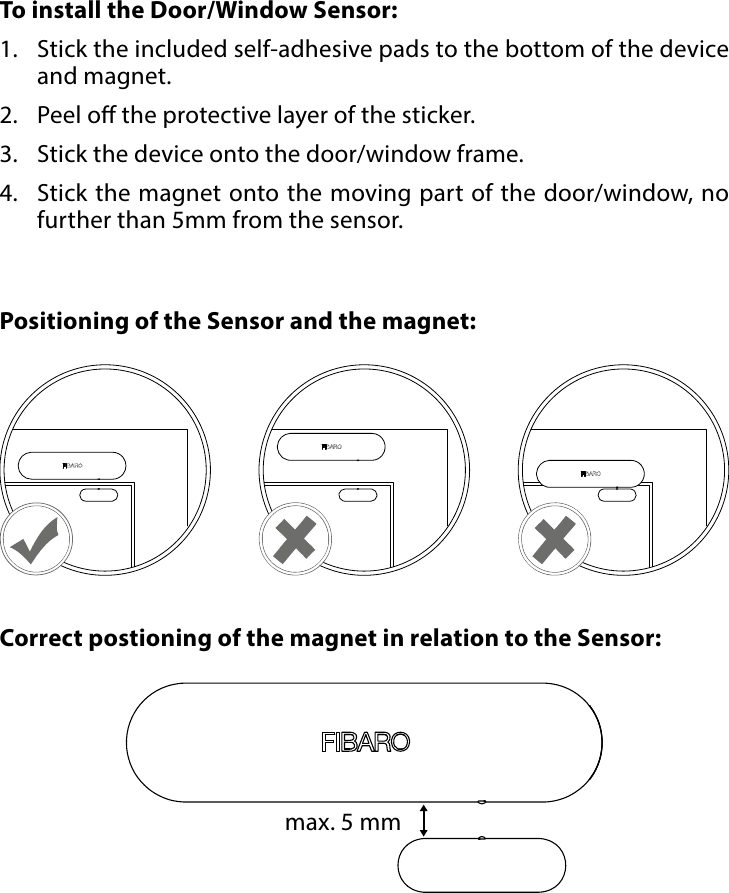

6PHYSICAL INSTALLATION#4: Physical installationTo install the Door/Window Sensor:1. Stick the included self-adhesive pads to the bottom of the device and magnet.2. Peel o the protective layer of the sticker.3. Stick the device onto the door/window frame.4. Stick the magnet onto the moving part of the door/window, no further than 5mm from the sensor.Correct postioning of the magnet in relation to the Sensor:Positioning of the Sensor and the magnet:max. 5 mm

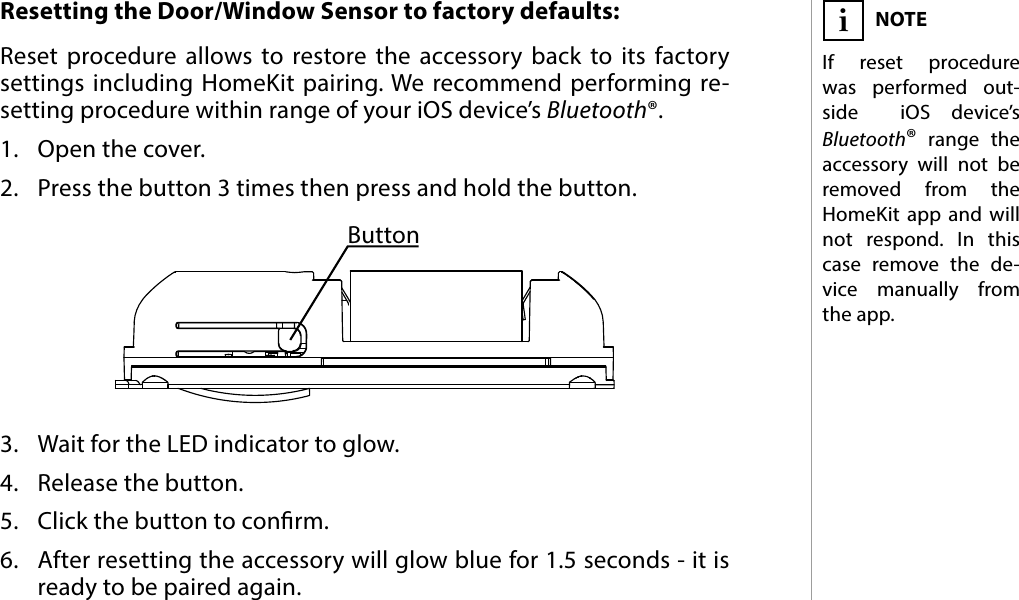

7RESETResetting the Door/Window Sensor to factory defaults: Reset procedure allows to restore the accessory back to its factory settings including HomeKit pairing. We recommend performing re-setting procedure within range of your iOS device’s Bluetooth®.1. Open the cover.2. Press the button 3 times then press and hold the button.3. Wait for the LED indicator to glow.4. Release the button.5. Click the button to conrm.6. After resetting the accessory will glow blue for 1.5 seconds - it is ready to be paired again.NOTEIf reset procedure was performed out-side iOS device’s Bluetooth® range the accessory will not be removed from the HomeKit app and will not respond. In this case remove the de-vice manually from the app. i#5: ResetButton

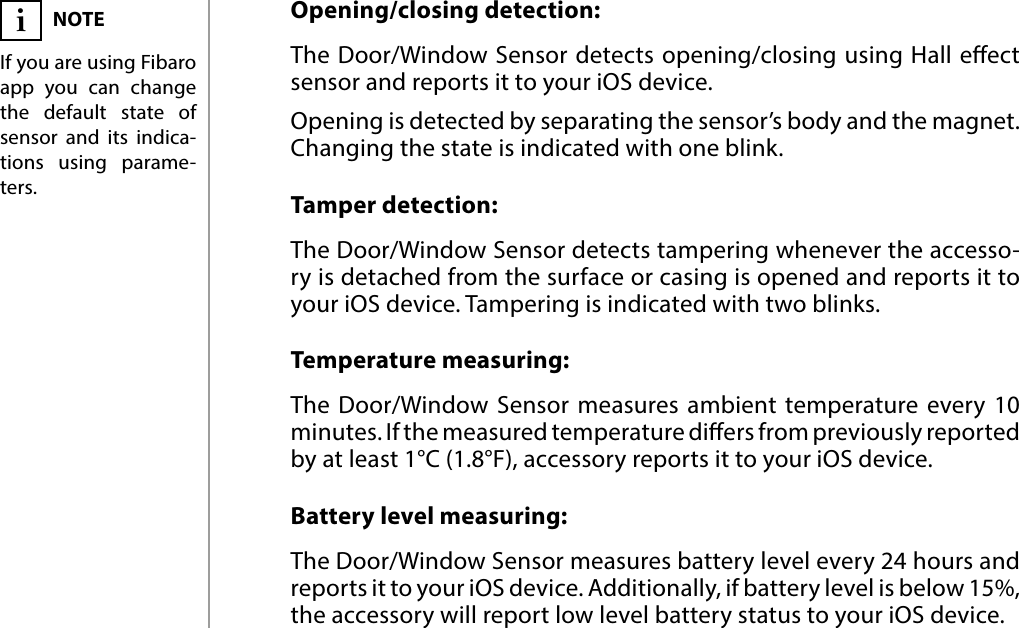

8FUNCTIONALITIES#6: FunctionalitiesOpening/closing detection:The Door/Window Sensor detects opening/closing using Hall eect sensor and reports it to your iOS device. Opening is detected by separating the sensor’s body and the magnet. Changing the state is indicated with one blink.Tamper detection:The Door/Window Sensor detects tampering whenever the accesso-ry is detached from the surface or casing is opened and reports it to your iOS device. Tampering is indicated with two blinks.Temperature measuring:The Door/Window Sensor measures ambient temperature every 10 minutes. If the measured temperature diers from previously reported by at least 1°C (1.8°F), accessory reports it to your iOS device.Battery level measuring:The Door/Window Sensor measures battery level every 24 hours and reports it to your iOS device. Additionally, if battery level is below 15%, the accessory will report low level battery status to your iOS device.NOTEIf you are using Fibaro app you can change the default state of sensor and its indica-tions using parame-ters.i

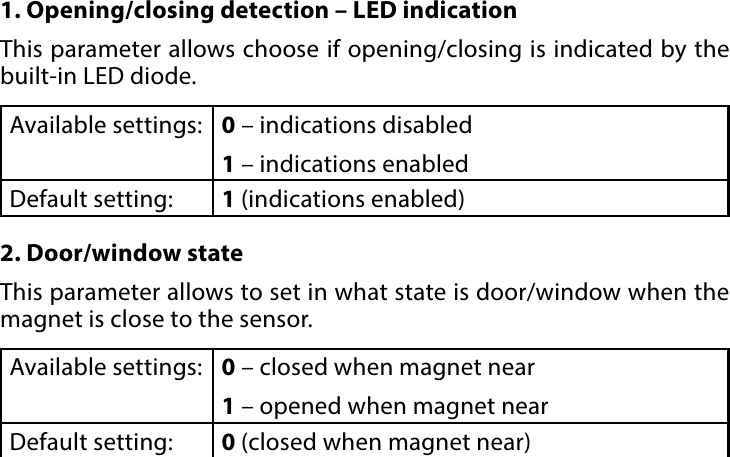

9CONFIGURABLE PARAMETERS#7: Congurable parameters1. Opening/closing detection – LED indicationThis parameter allows choose if opening/closing is indicated by the built-in LED diode.Available settings: 0 – indications disabled1 – indications enabledDefault setting: 1 (indications enabled)2. Door/window stateThis parameter allows to set in what state is door/window when the magnet is close to the sensor.Available settings: 0 – closed when magnet near1 – opened when magnet nearDefault setting: 0 (closed when magnet near)

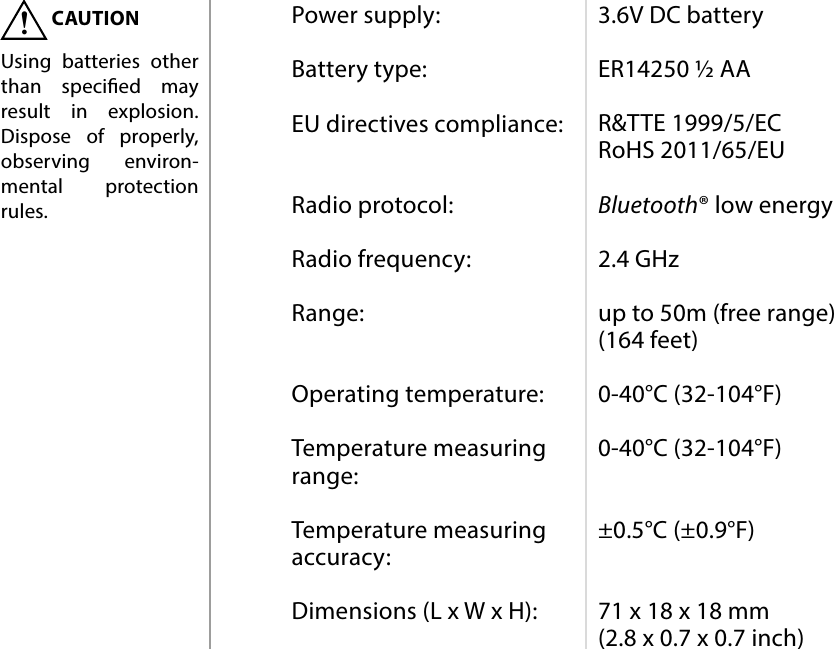

10SPECIFICATIONSPower supply: Battery type: EU directives compliance: Radio protocol: Radio frequency: Range: Operating temperature: Temperature measuring range: Temperature measuring accuracy: Dimensions (L x W x H):3.6V DC battery ER14250 ½ AA R&TTE 1999/5/EC RoHS 2011/65/EU Bluetooth® low energy 2.4 GHz up to 50m (free range) (164 feet) 0-40°C (32-104°F) 0-40°C (32-104°F) ±0.5°C (±0.9°F) 71 x 18 x 18 mm (2.8 x 0.7 x 0.7 inch)#8: SpecicationsCAUTIONUsing batteries other than specied may result in explosion. Dispose of properly, observing environ-mental protection rules.!

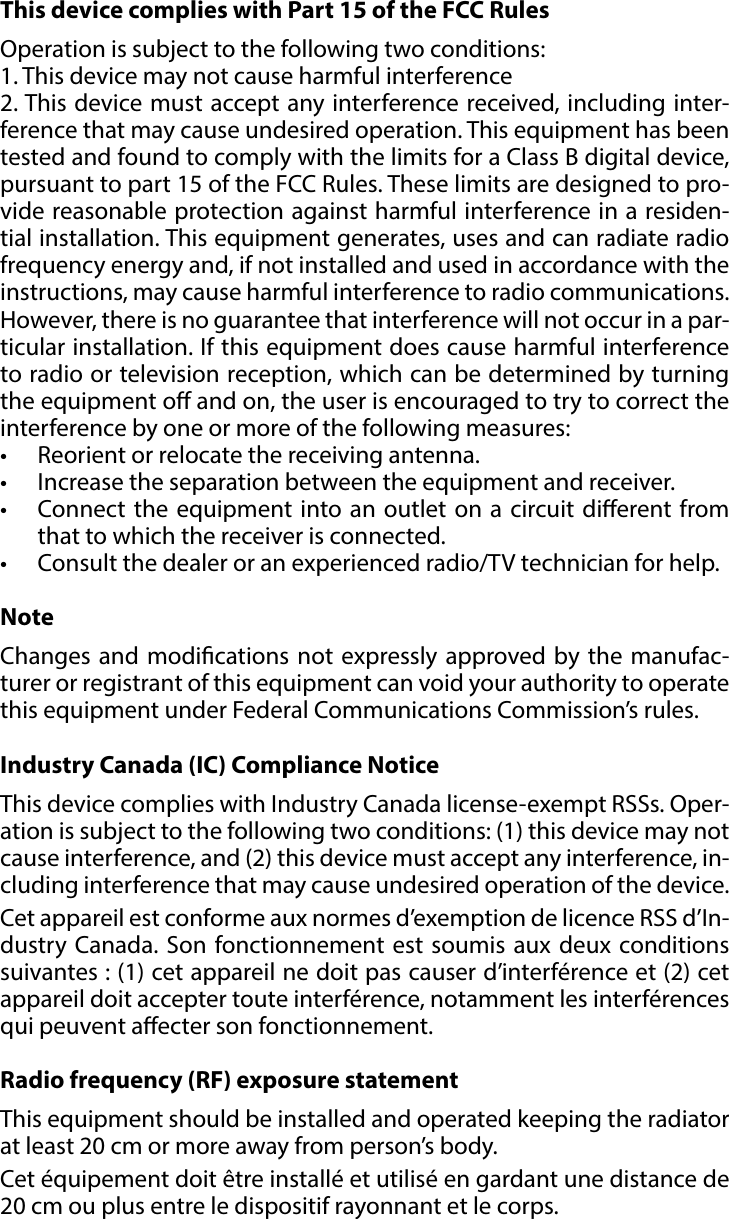

11REGULATIONS#9: RegulationsThis device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:1. This device may not cause harmful interference2. This device must accept any interference received, including inter-ference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residen-tial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a par-ticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.NoteChanges and modications not expressly approved by the manufac-turer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission’s rules.Industry Canada (IC) Compliance NoticeThis device complies with Industry Canada license-exempt RSSs. Oper-ation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, in-cluding interference that may cause undesired operation of the device.Cet appareil est conforme aux normes d’exemption de licence RSS d’In-dustry Canada. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent aecter son fonctionnement.Radio frequency (RF) exposure statementThis equipment should be installed and operated keeping the radiator at least 20 cm or more away from person’s body.Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps.

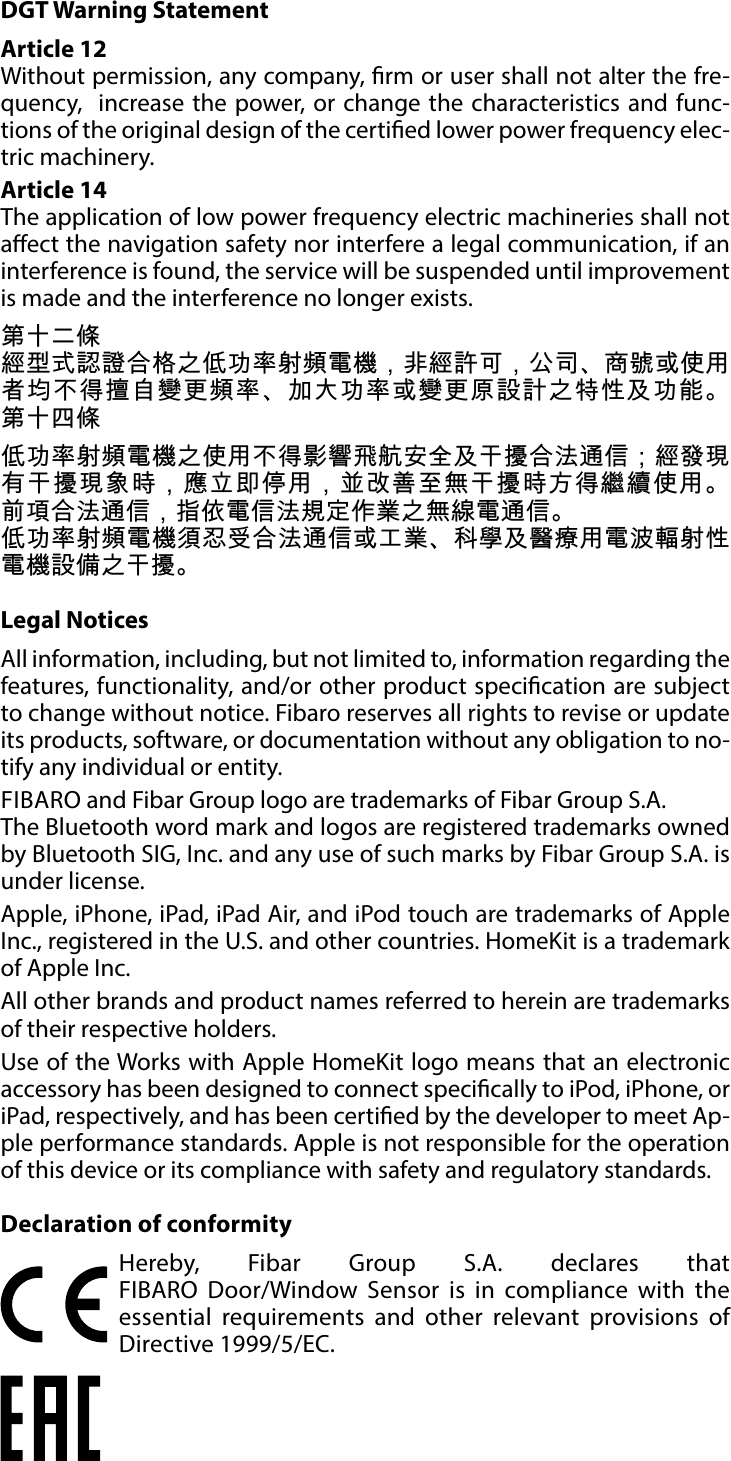

12SPECIFICATIONSDGT Warning StatementArticle 12 Without permission, any company, rm or user shall not alter the fre-quency, increase the power, or change the characteristics and func-tions of the original design of the certied lower power frequency elec-tric machinery. Article 14 The application of low power frequency electric machineries shall not aect the navigation safety nor interfere a legal communication, if an interference is found, the service will be suspended until improvement is made and the interference no longer exists. 第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。Legal NoticesAll information, including, but not limited to, information regarding the features, functionality, and/or other product specication are subject to change without notice. Fibaro reserves all rights to revise or update its products, software, or documentation without any obligation to no-tify any individual or entity.FIBARO and Fibar Group logo are trademarks of Fibar Group S.A. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Fibar Group S.A. is under license. Apple, iPhone, iPad, iPad Air, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. HomeKit is a trademark of Apple Inc.All other brands and product names referred to herein are trademarks of their respective holders.Use of the Works with Apple HomeKit logo means that an electronic accessory has been designed to connect specically to iPod, iPhone, or iPad, respectively, and has been certied by the developer to meet Ap-ple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.Declaration of conformityHereby, Fibar Group S.A. declares that FIBARO Door/Window Sensor is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
