Nice Polska Sp z o o FGBHPB101 The Button User Manual

Fibar Group S.A. The Button

User Manual

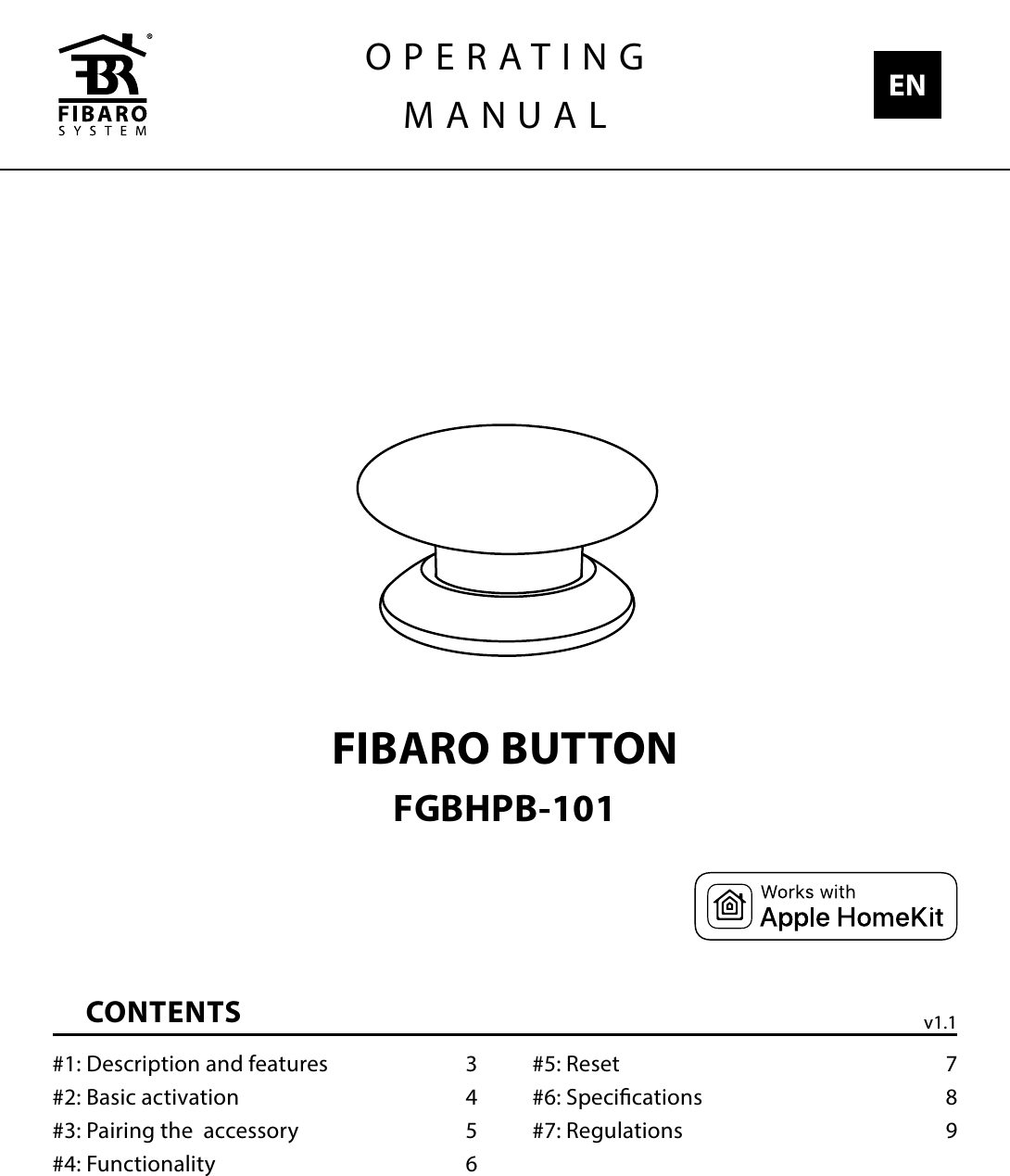

FIBARO BUTTONFGBHPB-101CONTENTS#1: Description and features 3#2: Basic activation 4#3: Pairing the accessory 5#4: Functionality 6#5: Reset 7#6: Specications 8#7: Regulations 9OPERATINGMANUAL ENv1.1

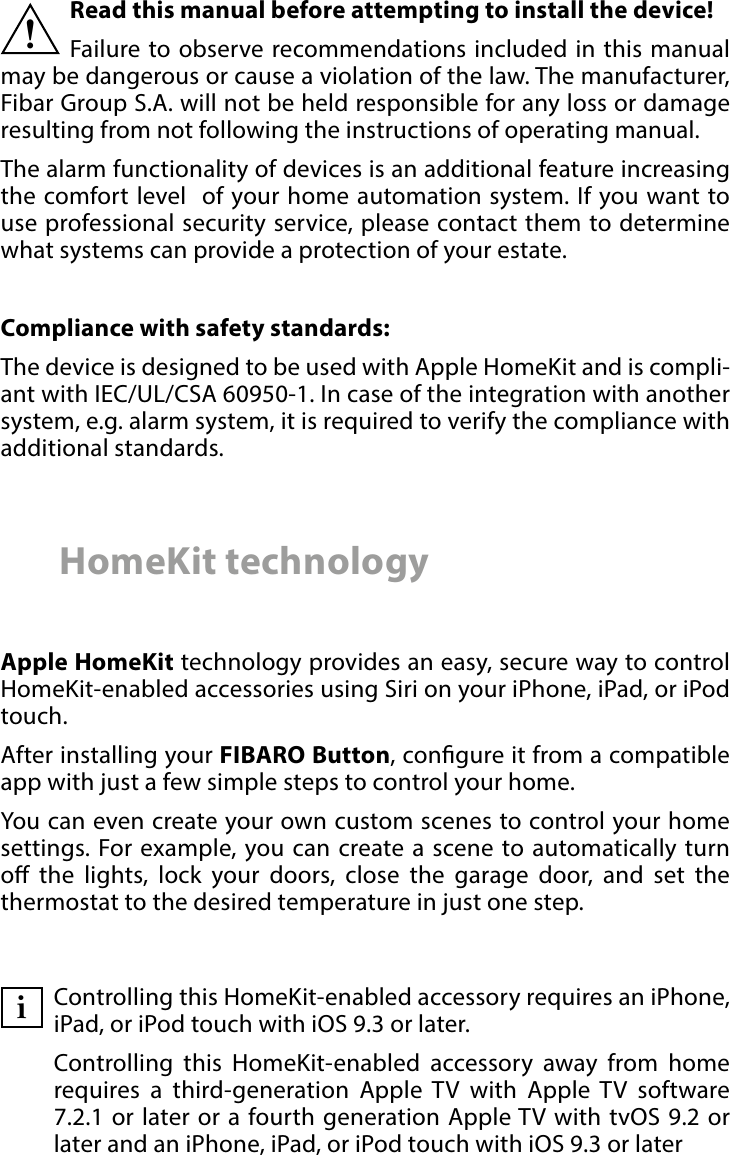

2 Important safety informationRead this manual before attempting to install the device! Failure to observe recommendations included in this manual may be dangerous or cause a violation of the law. The manufacturer, Fibar Group S.A. will not be held responsible for any loss or damage resulting from not following the instructions of operating manual.The alarm functionality of devices is an additional feature increasing the comfort level of your home automation system. If you want to use professional security service, please contact them to determine what systems can provide a protection of your estate.Compliance with safety standards:The device is designed to be used with Apple HomeKit and is compli-ant with IEC/UL/CSA 60950-1. In case of the integration with another system, e.g. alarm system, it is required to verify the compliance with additional standards.!HomeKit technologyApple HomeKit technology provides an easy, secure way to control HomeKit-enabled accessories using Siri on your iPhone, iPad, or iPod touch. After installing your FIBARO Button, congure it from a compatible app with just a few simple steps to control your home.You can even create your own custom scenes to control your home settings. For example, you can create a scene to automatically turn o the lights, lock your doors, close the garage door, and set the thermostat to the desired temperature in just one step.Controlling this HomeKit-enabled accessory requires an iPhone, iPad, or iPod touch with iOS 9.3 or later. Controlling this HomeKit-enabled accessory away from home requires a third-generation Apple TV with Apple TV software 7.2.1 or later or a fourth generation AppleTV with tvOS 9.2 or later and an iPhone, iPad, or iPod touch with iOS 9.3 or lateri

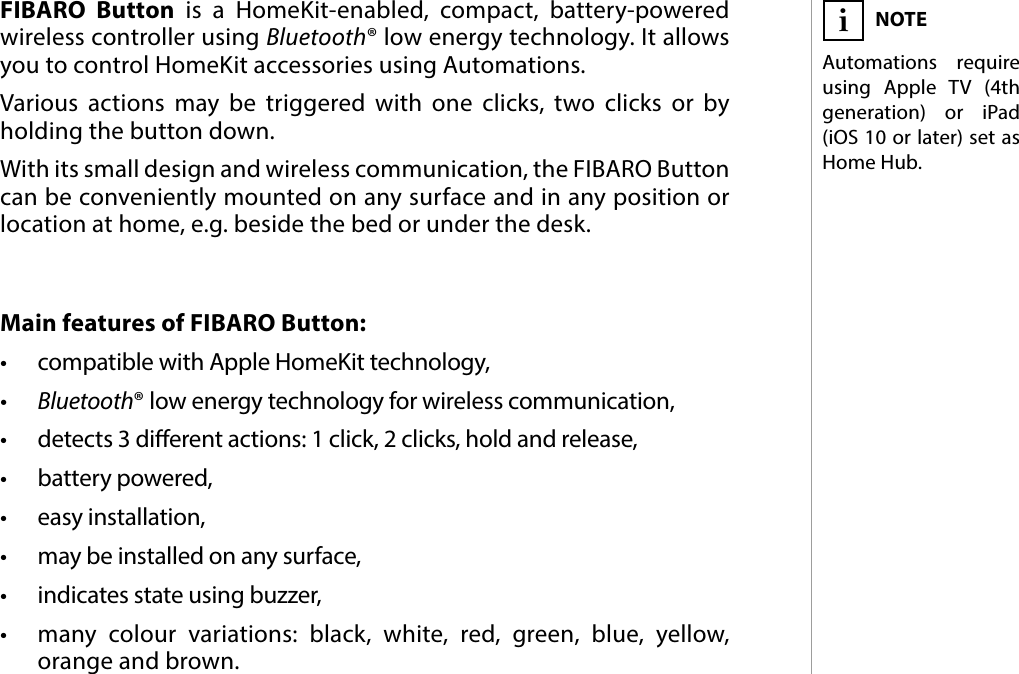

3DESCRIPTION AND FEATURESMain features of FIBARO Button:• compatible with Apple HomeKit technology,• Bluetooth® low energy technology for wireless communication,• detects 3 dierent actions: 1 click, 2 clicks, hold and release,• battery powered,• easy installation,• may be installed on any surface,• indicates state using buzzer,• many colour variations: black, white, red, green, blue, yellow, orange and brown.FIBARO Button is a HomeKit-enabled, compact, battery-powered wireless controller using Bluetooth® low energy technology. It allows you to control HomeKit accessories using Automations.Various actions may be triggered with one clicks, two clicks or by holding the button down. With its small design and wireless communication, the FIBARO Button can be conveniently mounted on any surface and in any position or location at home, e.g. beside the bed or under the desk.#1: Description and featuresNOTEAutomations require using Apple TV (4th generation) or iPad (iOS 10 or later) set as Home Hub.i

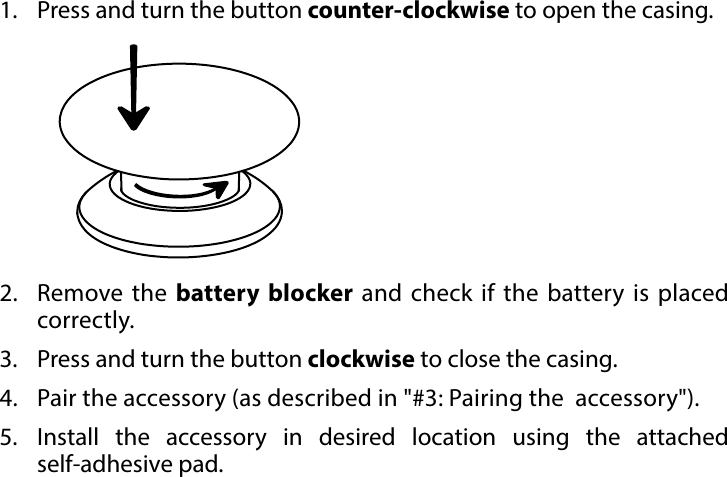

4BASIC ACTIVATION#2: Basic activation1. Press and turn the button counter-clockwise to open the casing.2. Remove the battery blocker and check if the battery is placed correctly.3. Press and turn the button clockwise to close the casing.4. Pair the accessory (as described in "#3: Pairing the accessory").5. Install the accessory in desired location using the attached self-adhesive pad.

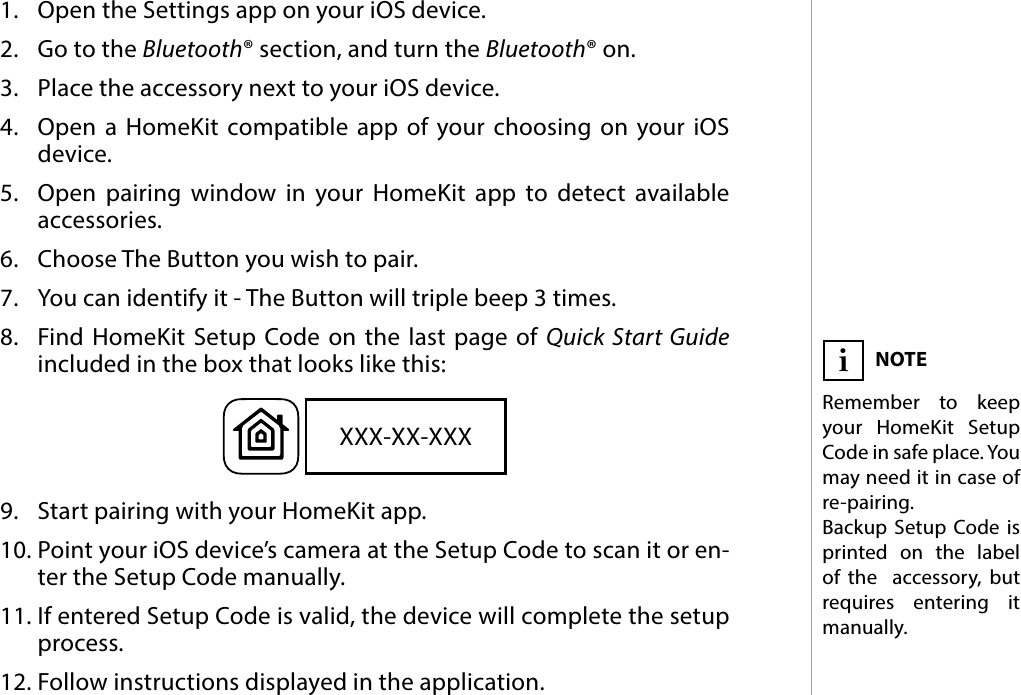

5PAIRING THE ACCESSORY#3: Pairing the accessory1. Open the Settings app on your iOS device.2. Go to the Bluetooth® section, and turn the Bluetooth® on.3. Place the accessory next to your iOS device.4. Open a HomeKit compatible app of your choosing on your iOS device.5. Open pairing window in your HomeKit app to detect available accessories.6. Choose The Button you wish to pair.7. You can identify it - The Button will triple beep 3 times.8. Find HomeKit Setup Code on the last page of Quick Start Guide included in the box that looks like this:9. Start pairing with your HomeKit app.10. Point your iOS device’s camera at the Setup Code to scan it or en-ter the Setup Code manually.11. If entered Setup Code is valid, the device will complete the setup process.12. Follow instructions displayed in the application.XXX-XX-XXXNOTERemember to keep your HomeKit Setup Code in safe place. You may need it in case of re-pairing. Backup Setup Code is printed on the label of the accessory, but requires entering it manually.i
6FUNCTIONALITY#4: FunctionalityDetecting Button pushes:The Button detect if it was clicked one time, two times, held or re-leased, then reports it to your iOS device. Automations can be created based on the detected action.Battery level measuring:The Button measures battery level every 24 hours and reports it to your iOS device. Additionally, if battery level is below 15%, the acces-sory will report low level battery status to your iOS device.Buzzer:The Button is equipped with a built-in buzzer that signals status of the accessory, like identication (3 triple beeps) or reset conrmation (long beep).If enabled, the accessory can also respond to actions with sound sig-nals. The accessory will conrm number of performed clicks with the same amount of beeps (e.g. two clicks - two beeps). Holding will be signaled with intermittent tone.NOTEAutomations require using Apple TV (4th generation) or iPad (iOS 10 or later) set as Home Hub.i

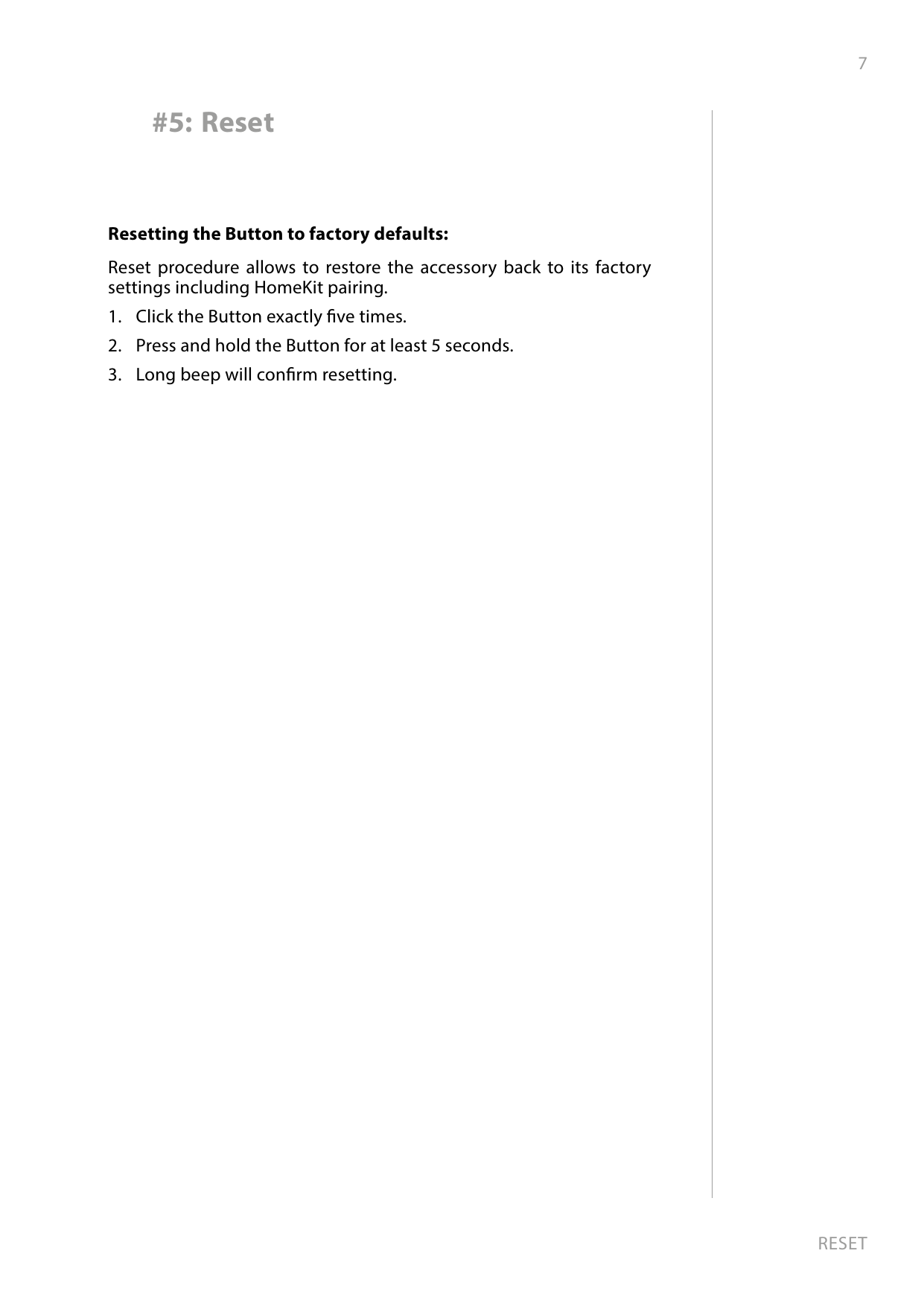

7RESETResetting the Button to factory defaults: Reset procedure allows to restore the accessory back to its factory settings including HomeKit pairing. 1. Click the Button exactly ve times.2. Press and hold the Button for at least 5 seconds.3. Long beep will conrm resetting.#5: Reset

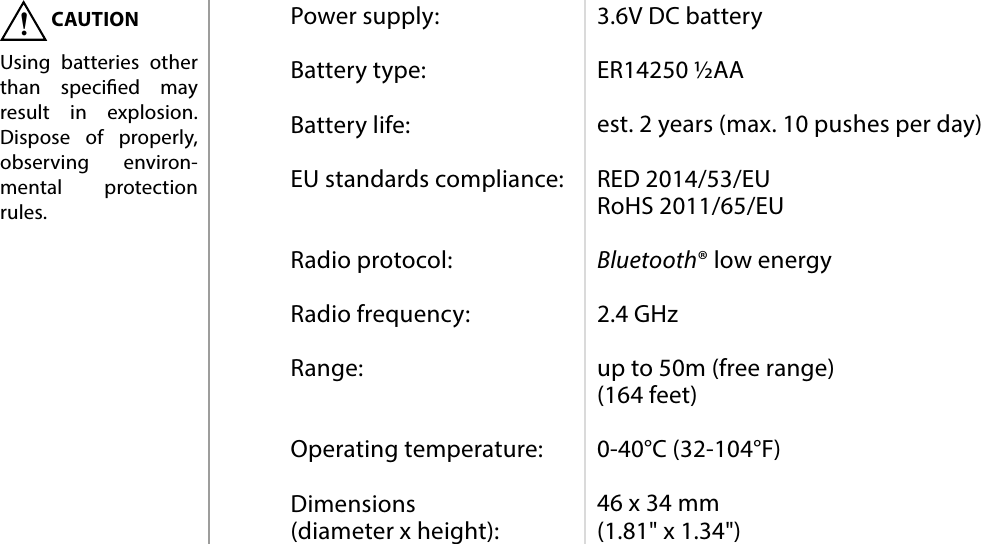

8SPECIFICATIONSPower supply: Battery type: Battery life: EU standards compliance: Radio protocol: Radio frequency: Range: Operating temperature: Dimensions (diameter x height):3.6V DC battery ER14250 ½AA est. 2 years (max. 10 pushes per day) RED 2014/53/EU RoHS 2011/65/EU Bluetooth® low energy 2.4 GHz up to 50m (free range) (164 feet) 0-40°C (32-104°F) 46 x 34 mm (1.81" x 1.34")#6: SpecicationsCAUTIONUsing batteries other than specied may result in explosion. Dispose of properly, observing environ-mental protection rules.!

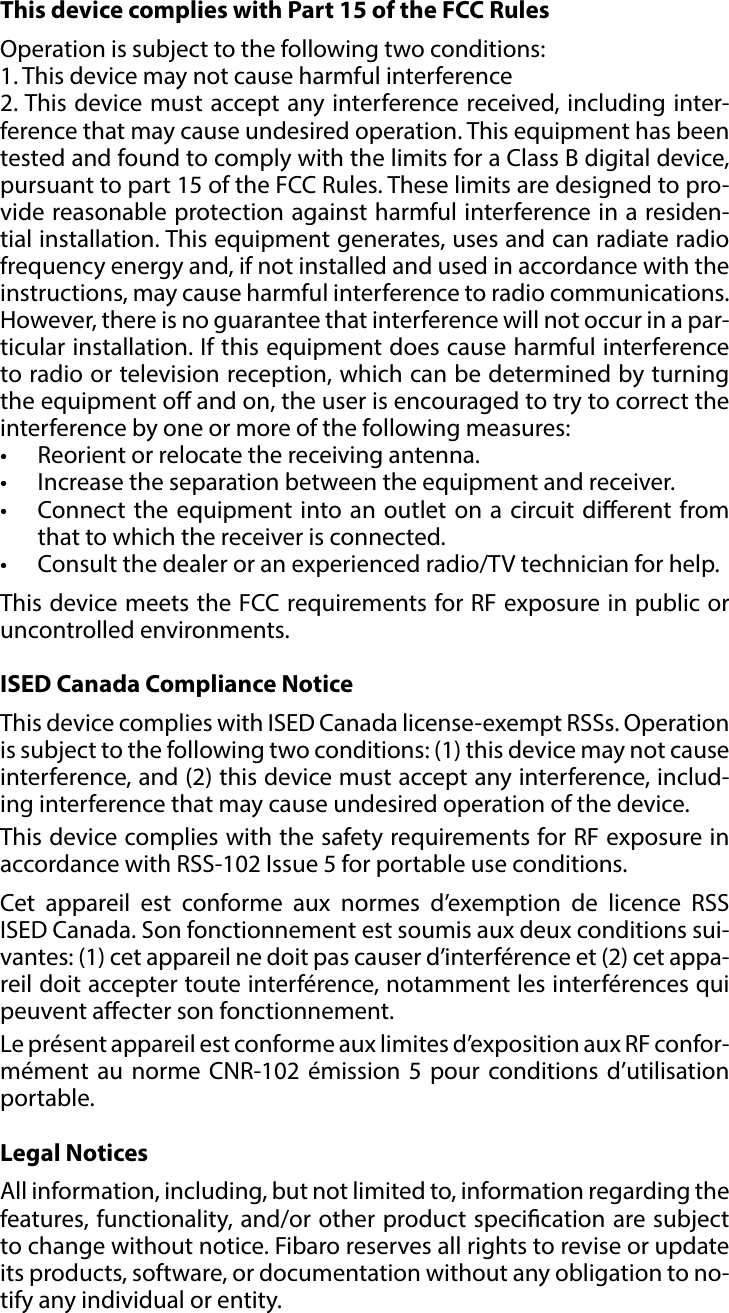

9REGULATIONS#7: RegulationsThis device complies with Part 15 of the FCC RulesOperation is subject to the following two conditions:1. This device may not cause harmful interference2. This device must accept any interference received, including inter-ference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residen-tial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a par-ticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.This device meets the FCC requirements for RF exposure in public or uncontrolled environments.ISED Canada Compliance NoticeThis device complies with ISED Canada license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ-ing interference that may cause undesired operation of the device.This device complies with the safety requirements for RF exposure in accordance with RSS-102 Issue 5 for portable use conditions.Cet appareil est conforme aux normes d’exemption de licence RSS ISED Canada. Son fonctionnement est soumis aux deux conditions sui-vantes: (1) cet appareil ne doit pas causer d’interférence et (2) cet appa-reil doit accepter toute interférence, notamment les interférences qui peuvent aecter son fonctionnement.Le présent appareil est conforme aux limites d’exposition aux RF confor-mément au norme CNR-102 émission 5 pour conditions d’utilisation portable.Legal NoticesAll information, including, but not limited to, information regarding the features, functionality, and/or other product specication are subject to change without notice. Fibaro reserves all rights to revise or update its products, software, or documentation without any obligation to no-tify any individual or entity.

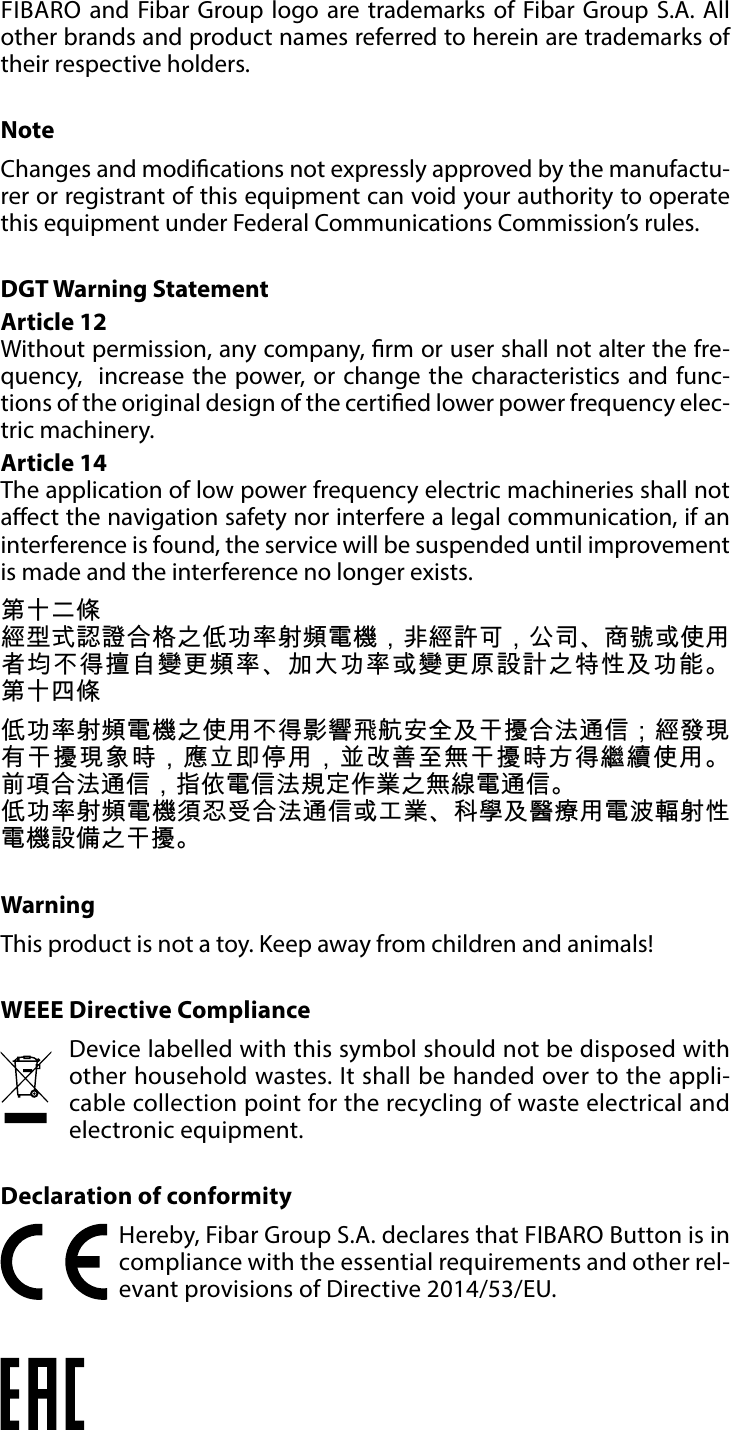

10REGULATIONSFIBARO and Fibar Group logo are trademarks of Fibar Group S.A. All other brands and product names referred to herein are trademarks of their respective holders.NoteChanges and modications not expressly approved by the manufactu-rer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission’s rules.DGT Warning StatementArticle 12 Without permission, any company, rm or user shall not alter the fre-quency, increase the power, or change the characteristics and func-tions of the original design of the certied lower power frequency elec-tric machinery. Article 14 The application of low power frequency electric machineries shall not aect the navigation safety nor interfere a legal communication, if an interference is found, the service will be suspended until improvement is made and the interference no longer exists. 第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。WarningThis product is not a toy. Keep away from children and animals! WEEE Directive ComplianceDevice labelled with this symbol should not be disposed with other household wastes. It shall be handed over to the appli-cable collection point for the recycling of waste electrical and electronic equipment.Declaration of conformityHereby, Fibar Group S.A. declares that FIBARO Button is in compliance with the essential requirements and other rel-evant provisions of Directive 2014/53/EU.
