User Manual_20160916_v1 - 6 SHORT TERM CONFIDENTIAL FGPB-101 User Manual

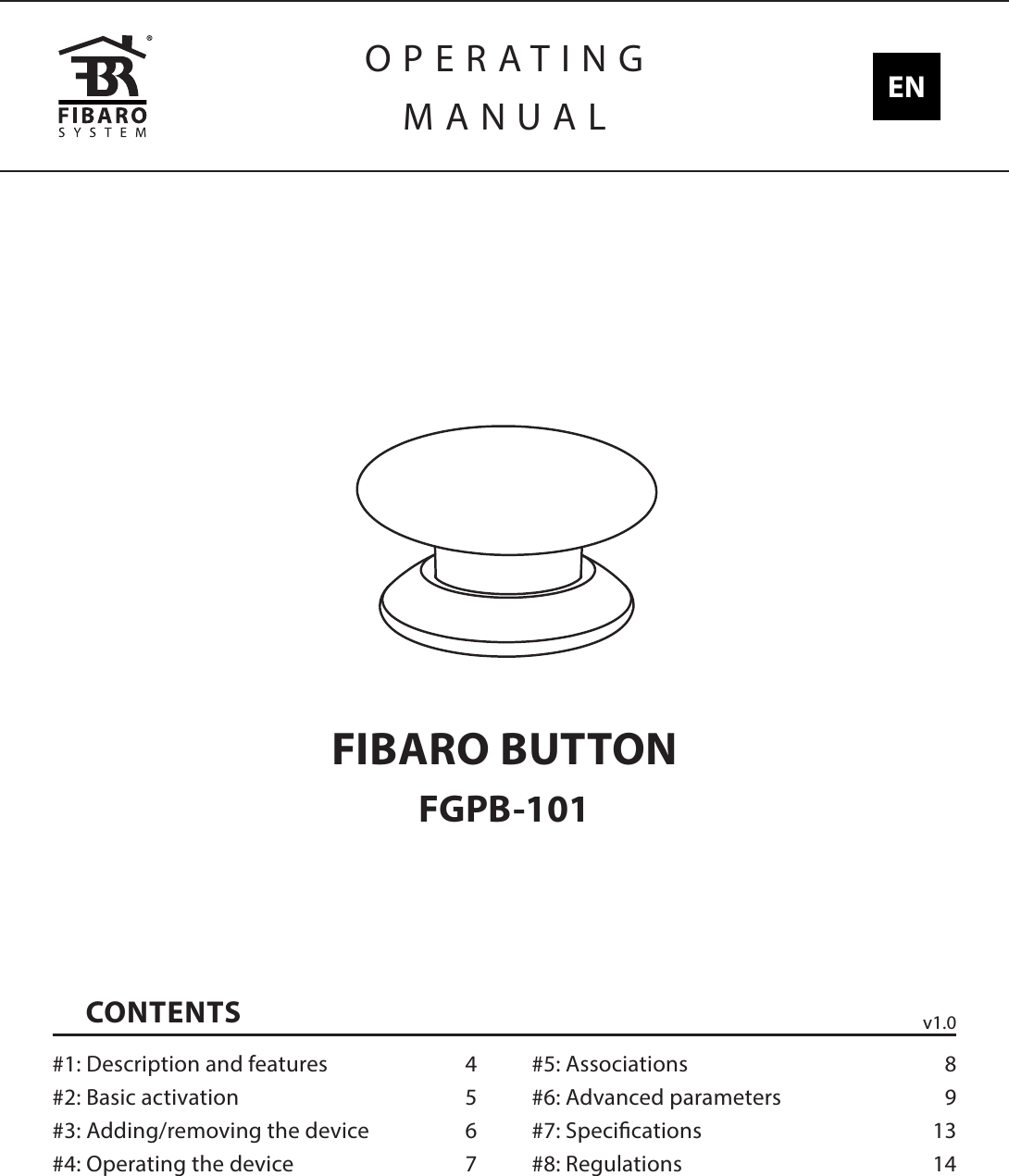

FIBARO BUTTONFGPB-101CONTENTS#1: Description and features 4#2: Basic activation 5#3: Adding/removing the device 6#4: Operating the device 7#5: Associations 8#6: Advanced parameters 9#7: Specications 13#8: Regulations 14OPERATINGMANUAL ENv1.0

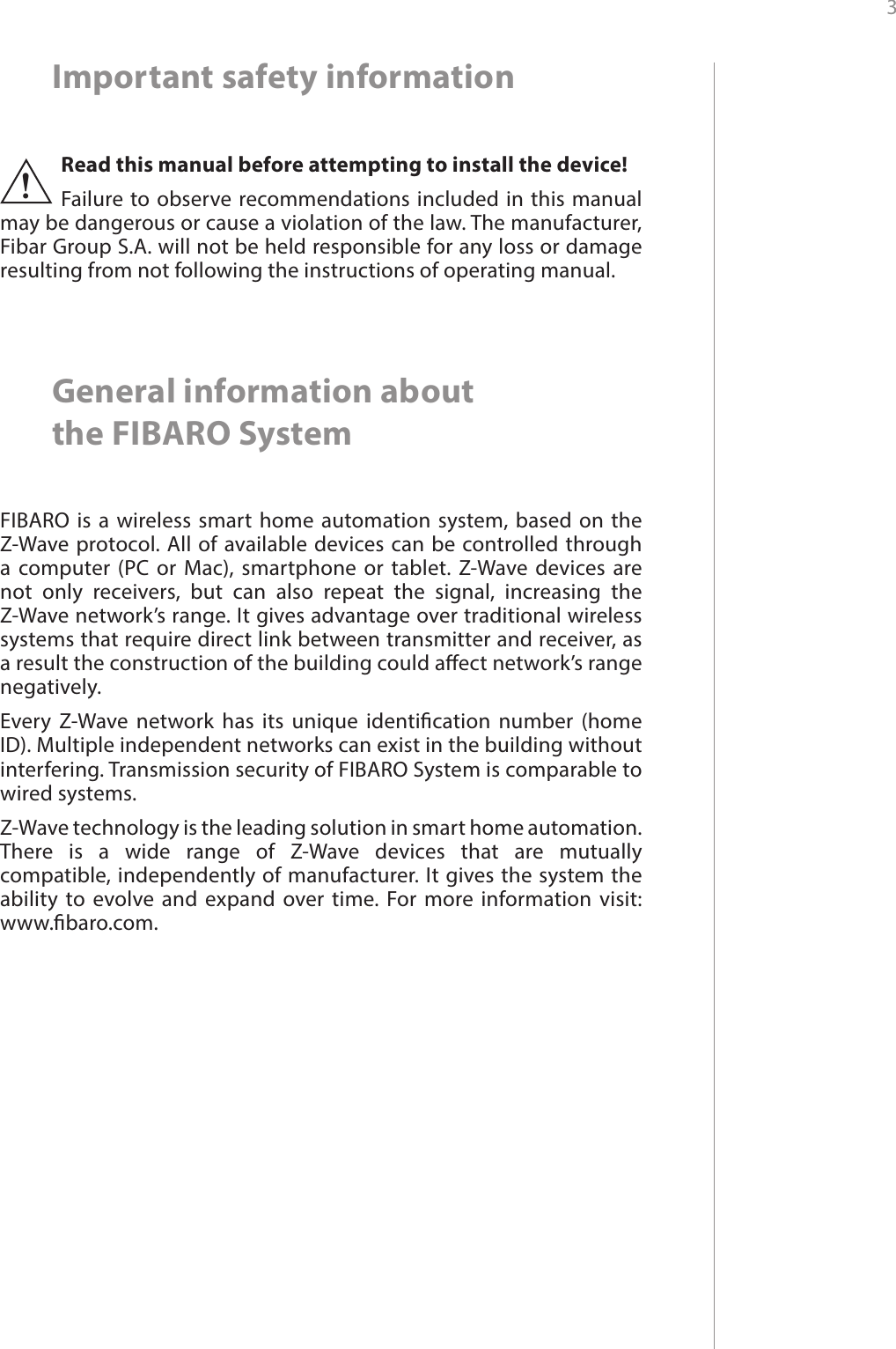

3 Important safety informationRead this manual before attempting to install the device! Failure to observe recommendations included in this manual may be dangerous or cause a violation of the law. The manufacturer, Fibar Group S.A. will not be held responsible for any loss or damage resulting from not following the instructions of operating manual.!General information about the FIBARO SystemFIBARO is a wireless smart home automation system, based on the Z-Wave protocol. All of available devices can be controlled through a computer (PC or Mac), smartphone or tablet. Z-Wave devices are not only receivers, but can also repeat the signal, increasing the Z-Wave network’s range. It gives advantage over traditional wireless systems that require direct link between transmitter and receiver, as a result the construction of the building could aect network’s range negatively.Every Z-Wave network has its unique identication number (home ID). Multiple independent networks can exist in the building without interfering. Transmission security of FIBARO System is comparable to wired systems.Z-Wave technology is the leading solution in smart home automation. There is a wide range of Z-Wave devices that are mutually compatible, independently of manufacturer. It gives the system the ability to evolve and expand over time. For more information visit: www.baro.com.

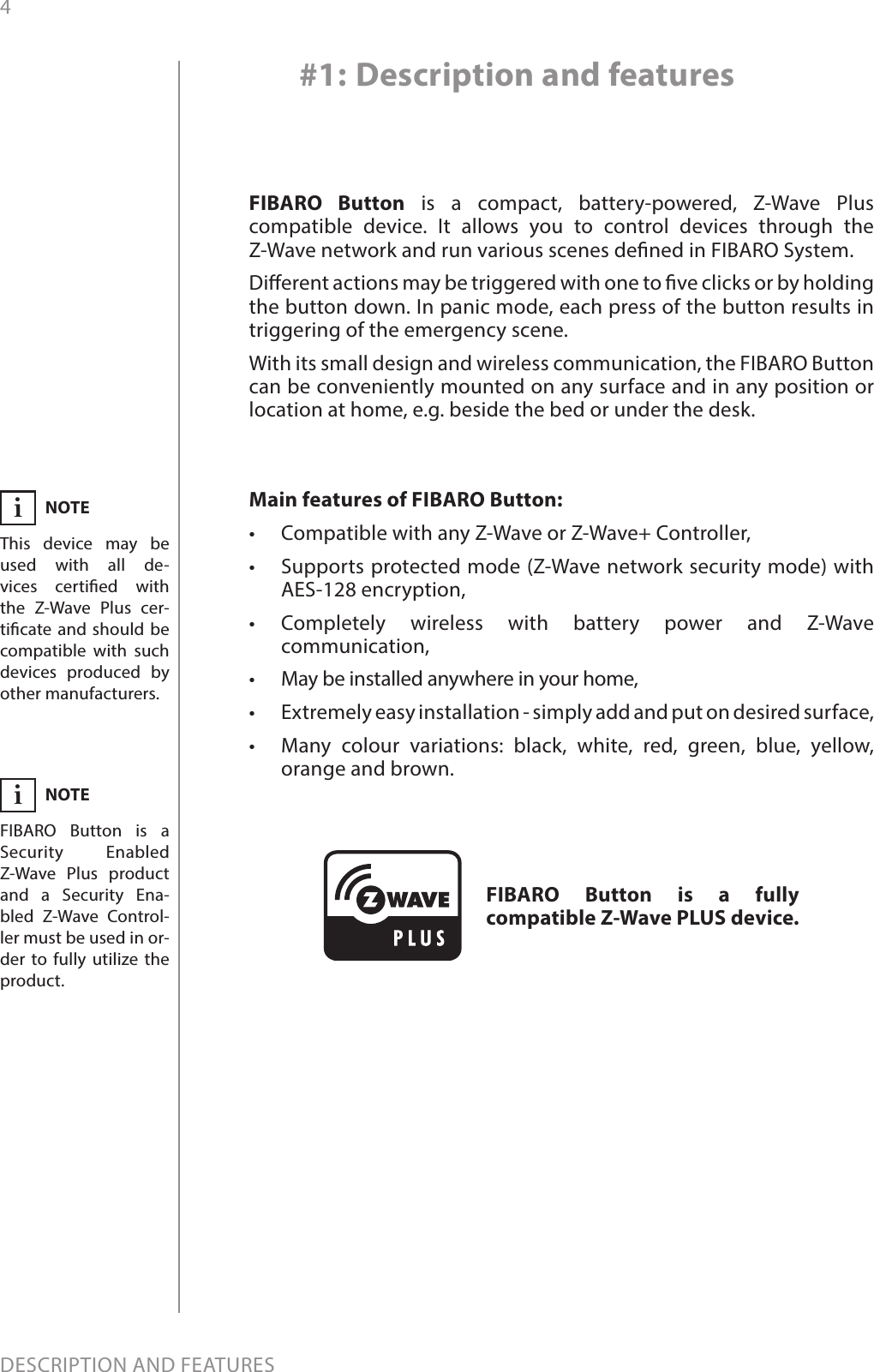

4DESCRIPTION AND FEATURESMain features of FIBARO Button:• Compatible with any Z-Wave or Z-Wave+ Controller,• Supports protected mode (Z-Wave network security mode) with AES-128 encryption,• Completely wireless with battery power and Z-Wave communication,• May be installed anywhere in your home,• Extremely easy installation - simply add and put on desired surface,• Many colour variations: black, white, red, green, blue, yellow, orange and brown.FIBARO Button is a compact, battery-powered, Z-Wave Plus compatible device. It allows you to control devices through the Z-Wave network and run various scenes dened in FIBARO System.Dierent actions may be triggered with one to ve clicks or by holding the button down. In panic mode, each press of the button results in triggering of the emergency scene. With its small design and wireless communication, the FIBARO Button can be conveniently mounted on any surface and in any position or location at home, e.g. beside the bed or under the desk.#1: Description and featuresFIBARO Button is a fully compatible Z-Wave PLUS device.NOTEThis device may be used with all de-vices certied with the Z-Wave Plus cer-ticate and should be compatible with such devices produced by other manufacturers.iNOTEFIBARO Button is a Security Enabled Z-Wave Plus product and a Security Ena-bled Z-Wave Control-ler must be used in or-der to fully utilize the product.i

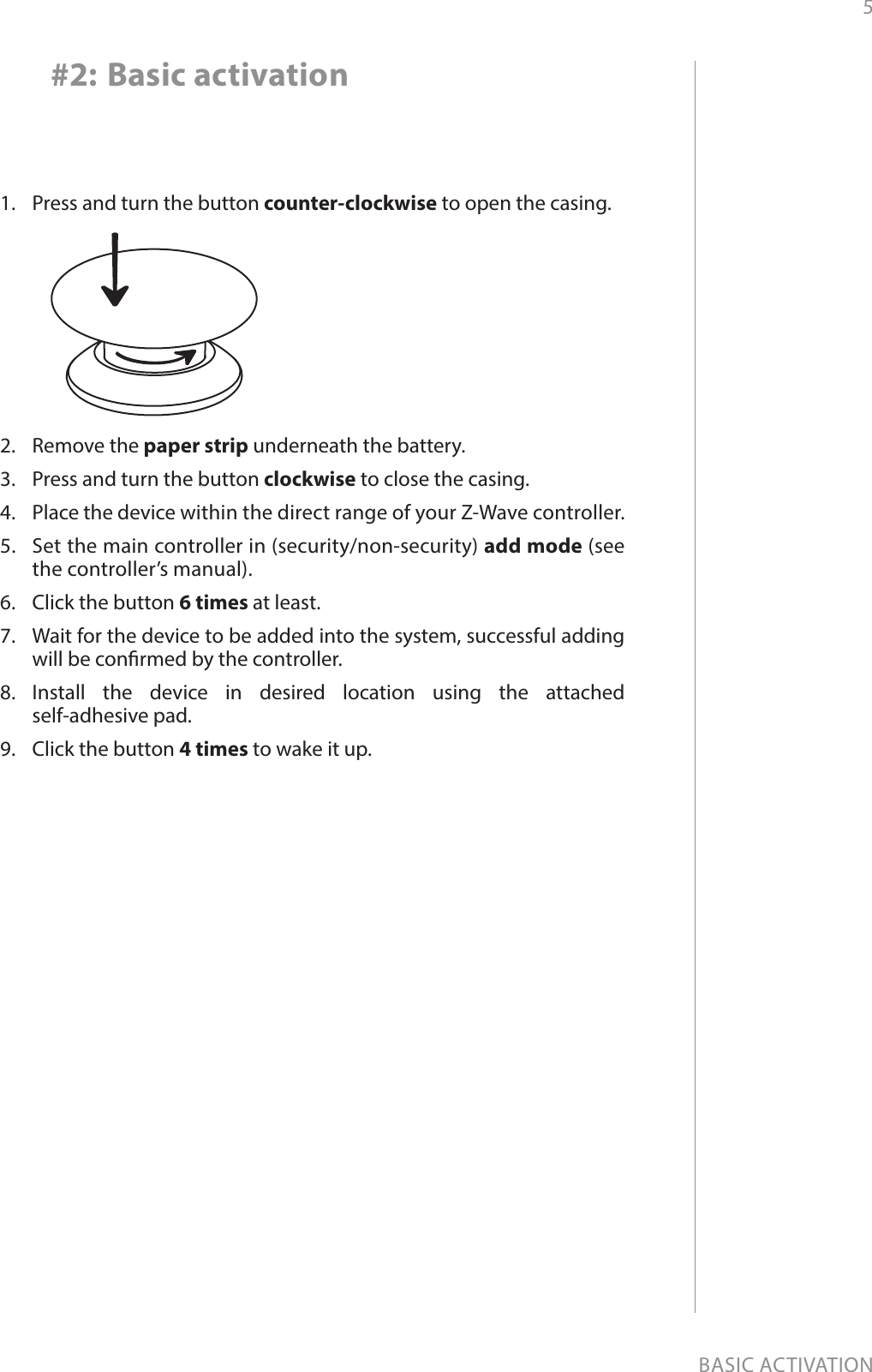

5BASIC ACTIVATION#2: Basic activation1. Press and turn the button counter-clockwise to open the casing.2. Remove the paper strip underneath the battery.3. Press and turn the button clockwise to close the casing.4. Place the device within the direct range of your Z-Wave controller.5. Set the main controller in (security/non-security) add mode (see the controller’s manual).6. Click the button 6 times at least.7. Wait for the device to be added into the system, successful adding will be conrmed by the controller.8. Install the device in desired location using the attached self-adhesive pad.9. Click the button 4 times to wake it up.

6ADDING/REMOVING THE DEVICEAdding (Inclusion) - Z-Wave device learning mode, allowing to add the device to existing Z-Wave network.To add the device to the Z-Wave network:1. Place the Button within the direct range of your Z-Wave controller.2. Set the main controller in (security/non-security) add mode (see the controller’s manual).3. Click the Button at least six times.4. Wait for the adding process to end.5. Successful adding will be conrmed by the Z-Wave controller’s message.Removing (Exclusion) - Z-Wave device learning mode, allowing to remove the device from existing Z-Wave network.To remove the device to the Z-Wave network:1. Place the Button within the direct range of your Z-Wave controller.2. Set the main controller in remove mode (see the controller’s manual).3. Click the Button at least six times.4. Wait for the removing process to end.5. Successful removing will be conrmed by the Z-Wave controller’s message.#3: Adding/removing the deviceNOTEAdding in security mode must be per-formed up to 2 meters from the controller.iNOTERemoving the Button from the Z-Wave net-work restores all the default parameters of the device.iNOTEIn case the device is not added, repeat the adding procedure.i

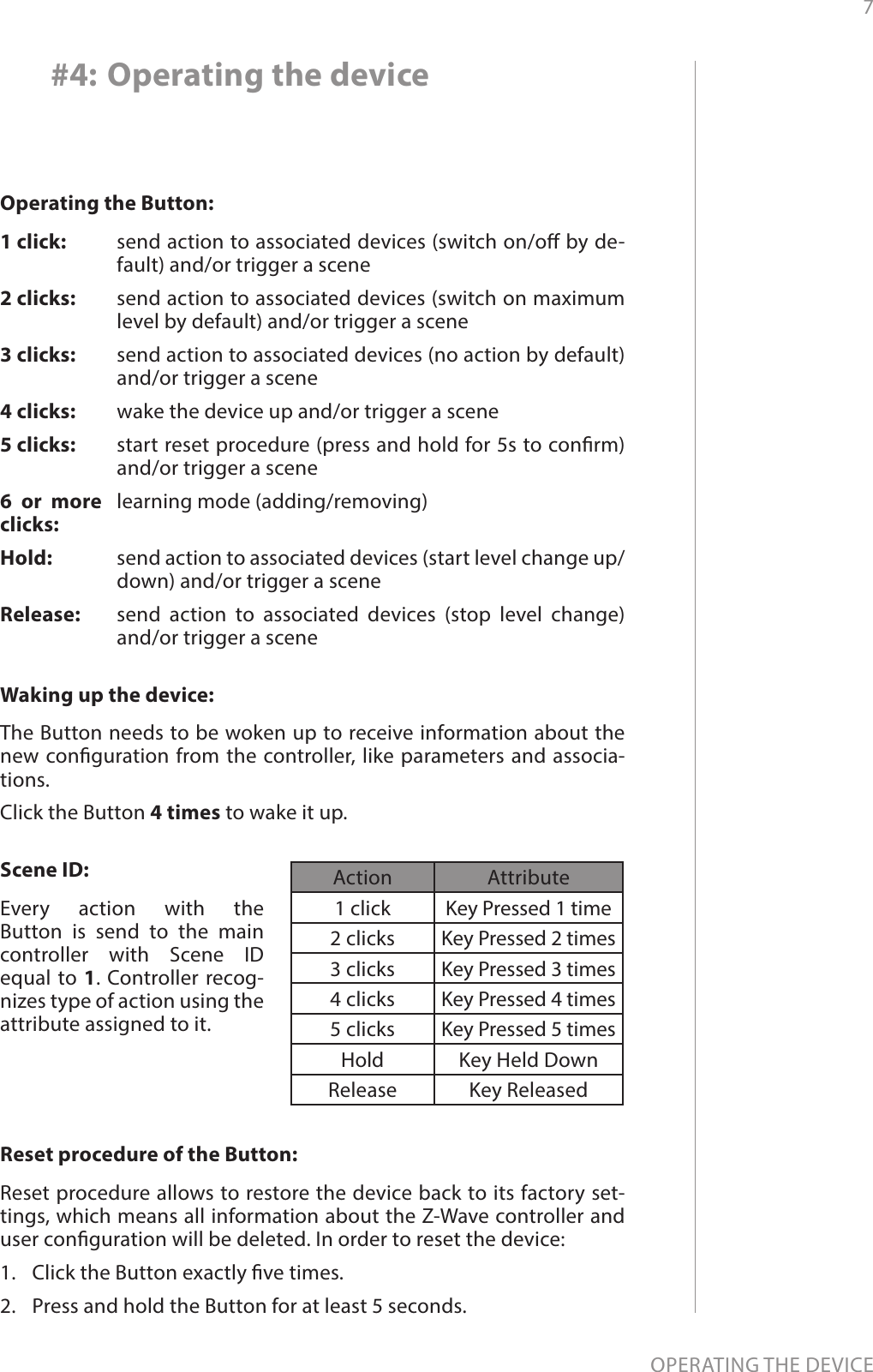

7OPERATING THE DEVICE#4: Operating the deviceWaking up the device: The Button needs to be woken up to receive information about the new conguration from the controller, like parameters and associa-tions. Click the Button 4 times to wake it up.Operating the Button:1 click: 2 clicks: 3 clicks: 4 clicks:5 clicks: 6 or more clicks:Hold: Release:send action to associated devices (switch on/o by de-fault) and/or trigger a scenesend action to associated devices (switch on maximum level by default) and/or trigger a scenesend action to associated devices (no action by default) and/or trigger a scenewake the device up and/or trigger a scenestart reset procedure (press and hold for 5s to conrm) and/or trigger a scenelearning mode (adding/removing) send action to associated devices (start level change up/down) and/or trigger a scenesend action to associated devices (stop level change) and/or trigger a sceneScene ID:Every action with the Button is send to the main controller with Scene ID equal to 1. Controller recog-nizes type of action using the attribute assigned to it.Reset procedure of the Button: Reset procedure allows to restore the device back to its factory set-tings, which means all information about the Z-Wave controller and user conguration will be deleted. In order to reset the device:1. Click the Button exactly ve times.2. Press and hold the Button for at least 5 seconds.Action Attribute1 click Key Pressed 1 time2 clicks Key Pressed 2 times3 clicks Key Pressed 3 times4 clicks Key Pressed 4 times5 clicks Key Pressed 5 timesHold Key Held DownRelease Key Released

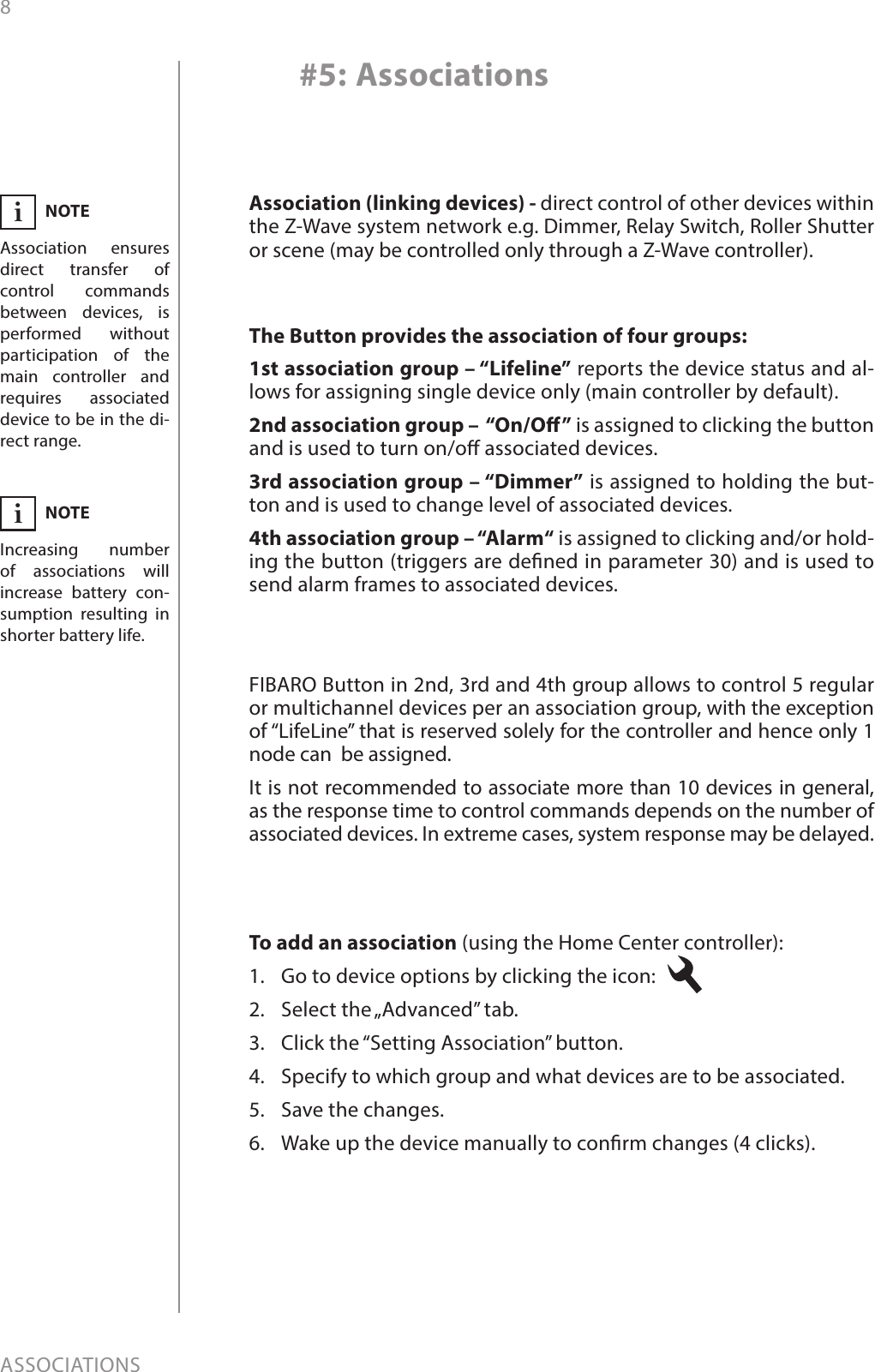

8ASSOCIATIONS#5: AssociationsThe Button provides the association of four groups:1st association group – “Lifeline” reports the device status and al-lows for assigning single device only (main controller by default).2nd association group – “On/O” is assigned to clicking the button and is used to turn on/o associated devices.3rd association group – “Dimmer” is assigned to holding the but-ton and is used to change level of associated devices.4th association group – “Alarm“ is assigned to clicking and/or hold-ing the button (triggers are dened in parameter 30) and is used to send alarm frames to associated devices.To add an association (using the Home Center controller):1. Go to device options by clicking the icon: 2. Select the „Advanced” tab.3. Click the “Setting Association” button.4. Specify to which group and what devices are to be associated.5. Save the changes.6. Wake up the device manually to conrm changes (4 clicks).FIBARO Button in 2nd, 3rd and 4th group allows to control 5 regular or multichannel devices per an association group, with the exception of “LifeLine” that is reserved solely for the controller and hence only 1 node can be assigned.It is not recommended to associate more than 10 devices in general, as the response time to control commands depends on the number of associated devices. In extreme cases, system response may be delayed.Association (linking devices) - direct control of other devices within the Z-Wave system network e.g. Dimmer, Relay Switch, Roller Shutter or scene (may be controlled only through a Z-Wave controller).NOTEAssociation ensures direct transfer of control commands between devices, is performed without participation of the main controller and requires associated device to be in the di-rect range.iNOTEIncreasing number of associations will increase battery con-sumption resulting in shorter battery life.i

9ADVANCED PARAMETERS#6: Advanced parameters1. Scenes sent to the controllerThis parameter determines which actions result in sending scene IDs and attributes assigned to them.Available settings: 1 - Key Pressed 1 time2 - Key Pressed 2 times4 - Key Pressed 3 times8 - Key Pressed 4 times16 - Key Pressed 5 times32 - Key Held Down64 - Key ReleasedDefault setting: 127 (all) Parameter size: 1 [byte]The Button allows to customize its operation to user’s needs. The set-tings are available in the FIBARO interface as simple options that may be chosen by selecting the appropriate box.In order to congure the Button (using the HC controller):1. Go to the device options by clicking the icon: 2. Select the „Advanced” tab.3. Modify values of chosen parameters.4. Save the changes.5. Wake up the device manually to conrm changes (4 clicks).Wake up intervalAvailable settings: 0 or 3600-64800 (in seconds, 1h - 18h)Default setting: 0The Button will wake up at each dened time interval and always try to connect with the main controller. After successful communication at-tempt, the device will update conguration parameters, associations and settings and then will go into Z-Wave communication standby. After failed communication attempt (eg. no Z-Wave range) the device will go into Z-Wave communication standby and retry to establish connection with the main controller after the next time interval.Setting wake up interval to 0 disables sending Wake Up notication to the controller automatically. Wake up may be still performed man-ually by clicking the Button 4 times.NOTEValues of parameter 1 may be combined, e.g. 1+2=3 means that scenes will be sent after pressing the but-ton once or twice.iNOTELonger wake up time interval means less frequent communica-tion and thus a longer battery life.i

10ADVANCED PARAMETERSNOTESetting parameters 11, 13, 15, 21, 23 and 25 to appropriate val-ue will result in:1-99 - forcing level of associated devices255 - setting associat-ed devices to the last remembered state or turning them oni3. Associations in Z-Wave network security modeThis parameter denes how commands are sent in specied associa-tion groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. It does not apply to 1st „Lifeline” group.Available settings: 1 - 2nd group sent as secure2 - 3rd group sent as secure4 - 4th group sent as secureDefault setting: 7 (all) Parameter size: 1 [byte]10. Key Pressed 1 time – command sent to 2nd association groupThis parameter denes commands sent to devices associated in 2nd association group after a single click.Available settings: 0 - no action1 - SWITCH ON2 - SWITCH OFF3 - SWITCH ON/OFF – alternatelyDefault setting: 3Parameter size: 1 [byte]11. Key Pressed 1 time – value of SWITCH ON command sent to 2nd association groupThis parameter denes value of SWITCH ON command sent to devices in 2nd association group after a single click. Available settings: 1-255 - sent valueDefault setting: 255 Parameter size: 2 [bytes]12. Key Pressed 2 times – command sent to 2nd association groupThis parameter denes commands sent to devices associated in 2nd association group after a double click.Available settings: 0 - no action1 - SWITCH ON2 - SWITCH OFF3 - SWITCH ON/OFF – alternatelyDefault setting: 1Parameter size: 1 [byte]13. Key Pressed 2 times – value of SWITCH ON command sent to 2nd association groupThis parameter denes value of SWITCH ON command sent to devices in 2nd association group after a double click. Available settings: 1-255 - sent valueDefault setting: 99 Parameter size: 2 [bytes]NOTEValues of parameter 3 may be combined, e.g. 1+2=3 means that 2nd & 3rd group are sent as secure.i

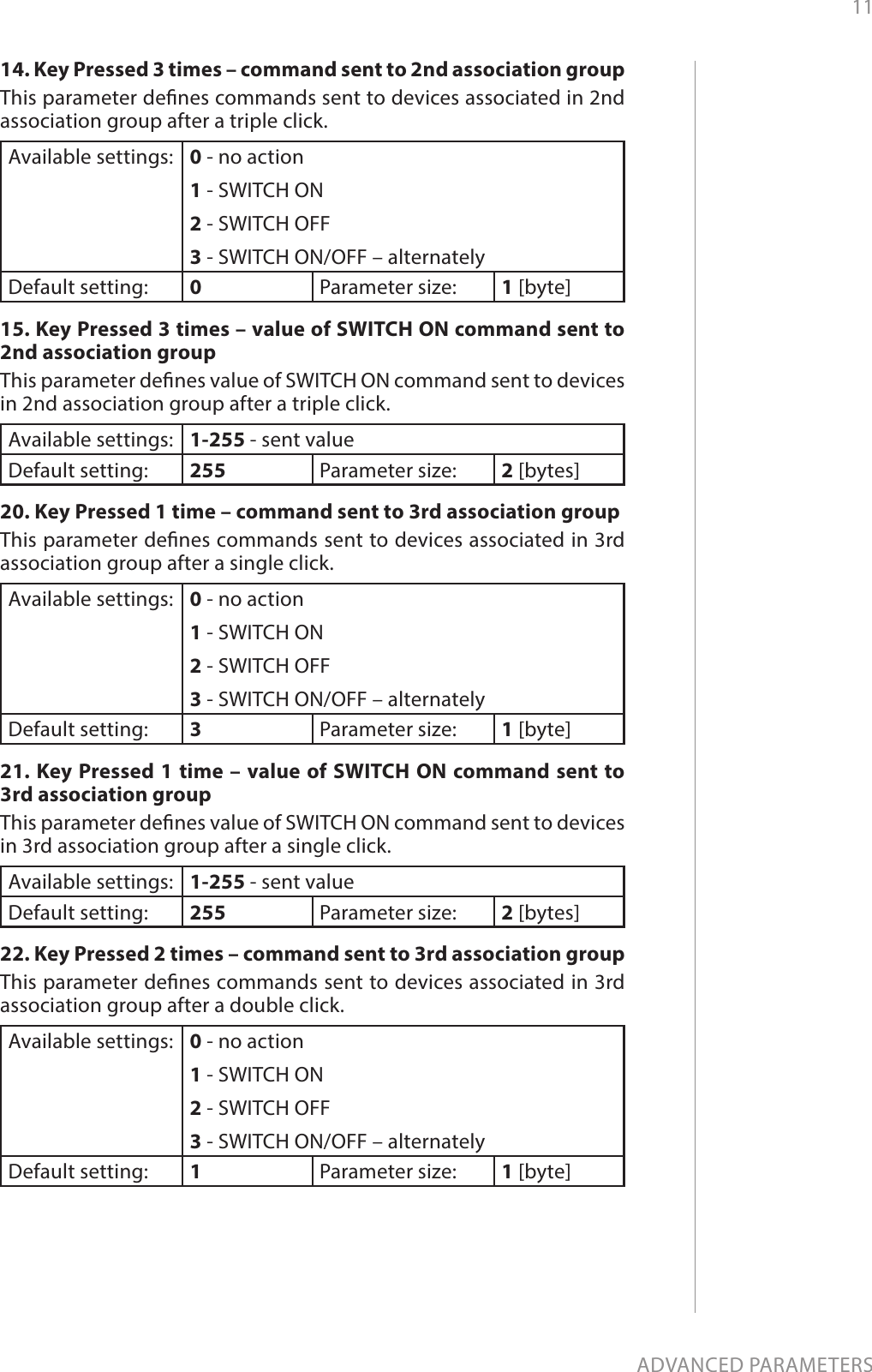

11ADVANCED PARAMETERS14. Key Pressed 3 times – command sent to 2nd association groupThis parameter denes commands sent to devices associated in 2nd association group after a triple click.Available settings: 0 - no action1 - SWITCH ON2 - SWITCH OFF3 - SWITCH ON/OFF – alternatelyDefault setting: 0Parameter size: 1 [byte]15. Key Pressed 3 times – value of SWITCH ON command sent to 2nd association groupThis parameter denes value of SWITCH ON command sent to devices in 2nd association group after a triple click. Available settings: 1-255 - sent valueDefault setting: 255 Parameter size: 2 [bytes]20. Key Pressed 1 time – command sent to 3rd association groupThis parameter denes commands sent to devices associated in 3rd association group after a single click.Available settings: 0 - no action1 - SWITCH ON2 - SWITCH OFF3 - SWITCH ON/OFF – alternatelyDefault setting: 3Parameter size: 1 [byte]21. Key Pressed 1 time – value of SWITCH ON command sent to 3rd association groupThis parameter denes value of SWITCH ON command sent to devices in 3rd association group after a single click. Available settings: 1-255 - sent valueDefault setting: 255 Parameter size: 2 [bytes]22. Key Pressed 2 times – command sent to 3rd association groupThis parameter denes commands sent to devices associated in 3rd association group after a double click.Available settings: 0 - no action1 - SWITCH ON2 - SWITCH OFF3 - SWITCH ON/OFF – alternatelyDefault setting: 1Parameter size: 1 [byte]

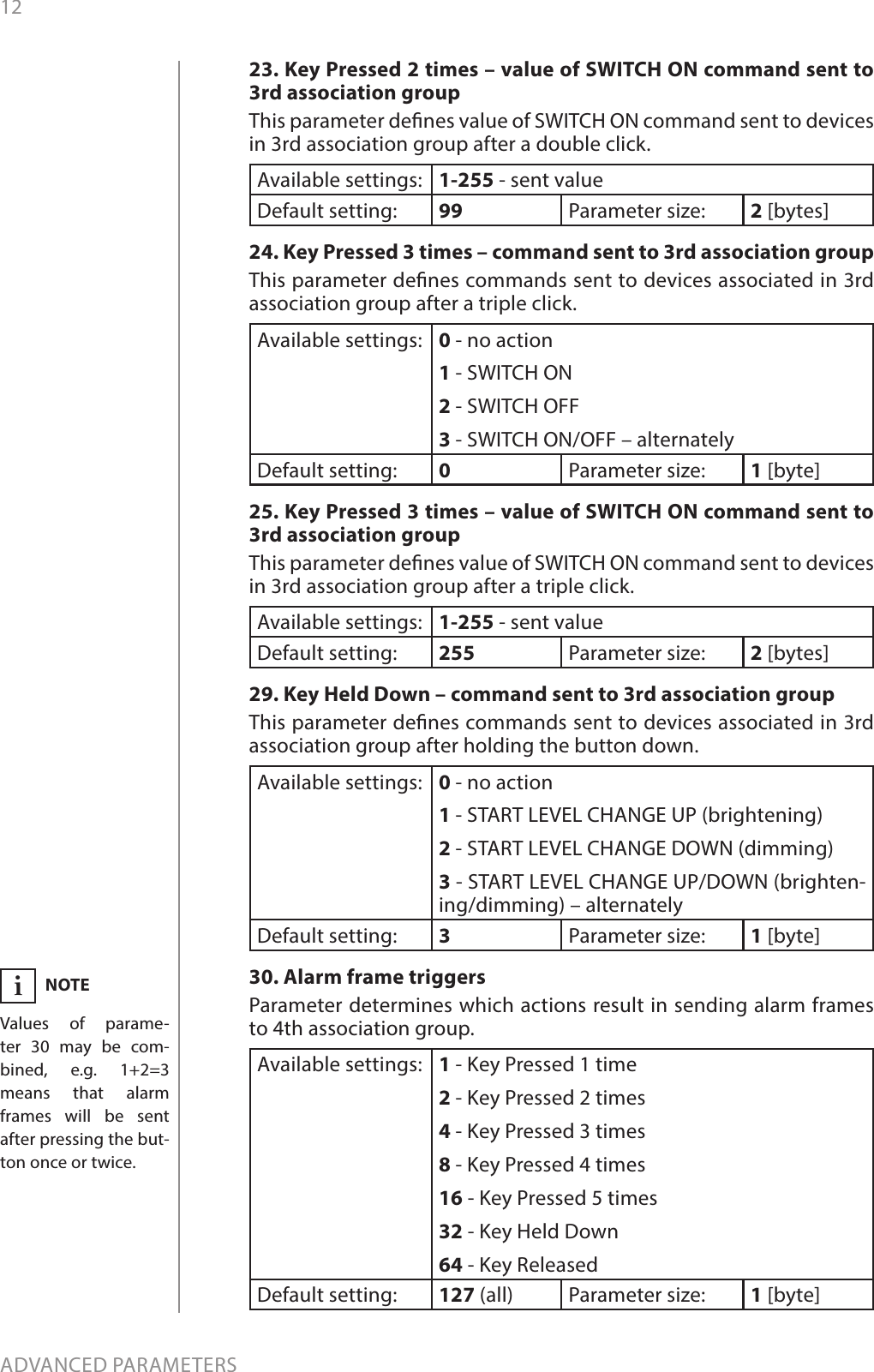

12ADVANCED PARAMETERS23. Key Pressed 2 times – value of SWITCH ON command sent to 3rd association groupThis parameter denes value of SWITCH ON command sent to devices in 3rd association group after a double click. Available settings: 1-255 - sent valueDefault setting: 99 Parameter size: 2 [bytes]24. Key Pressed 3 times – command sent to 3rd association groupThis parameter denes commands sent to devices associated in 3rd association group after a triple click.Available settings: 0 - no action1 - SWITCH ON2 - SWITCH OFF3 - SWITCH ON/OFF – alternatelyDefault setting: 0Parameter size: 1 [byte]25. Key Pressed 3 times – value of SWITCH ON command sent to 3rd association groupThis parameter denes value of SWITCH ON command sent to devices in 3rd association group after a triple click. Available settings: 1-255 - sent valueDefault setting: 255 Parameter size: 2 [bytes]29. Key Held Down – command sent to 3rd association groupThis parameter denes commands sent to devices associated in 3rd association group after holding the button down.Available settings: 0 - no action1 - START LEVEL CHANGE UP (brightening)2 - START LEVEL CHANGE DOWN (dimming)3 - START LEVEL CHANGE UP/DOWN (brighten-ing/dimming) – alternatelyDefault setting: 3Parameter size: 1 [byte]30. Alarm frame triggersParameter determines which actions result in sending alarm frames to 4th association group.Available settings: 1 - Key Pressed 1 time2 - Key Pressed 2 times4 - Key Pressed 3 times8 - Key Pressed 4 times16 - Key Pressed 5 times32 - Key Held Down64 - Key ReleasedDefault setting: 127 (all) Parameter size: 1 [byte]NOTEValues of parame-ter 30 may be com-bined, e.g. 1+2=3 means that alarm frames will be sent after pressing the but-ton once or twice.i

13SPECIFICATIONSBattery type: Battery life: Operating temperature: EU standards compliance: Radio protocol: Radio frequency: Range: Dimensions (diameter x height):ER14250 ½AA 3.6V est. 2 years (with default settings and max. 10 pushes per day) 0 - 40°C (32 - 104°F) EMC 2014/30/EU RED 2014/53/EU RoHS 2011/65/EU LVD 2014/35/EU Z-Wave (500 series chip) 868.4 or 869.8 MHz EU; 908.4, 908.42 or 916.0 MHz US; 921.4 or 919.8 MHz ANZ; 869.0 MHz RU; up to 50m (164 ft) outdoors up to 40m (131 ft) indoors (Depending on terrain and building structure) 46 x 34 mm (1.81" x 1.34")#7: SpecicationsCAUTIONUsing batteries other than specied may result in explosion. Dispose of properly, observing environ-mental protection rules.!NOTERadio frequency of individual device must be same as your Z-Wave controller. Check information on the box or consult your dealer if you are not sure.i

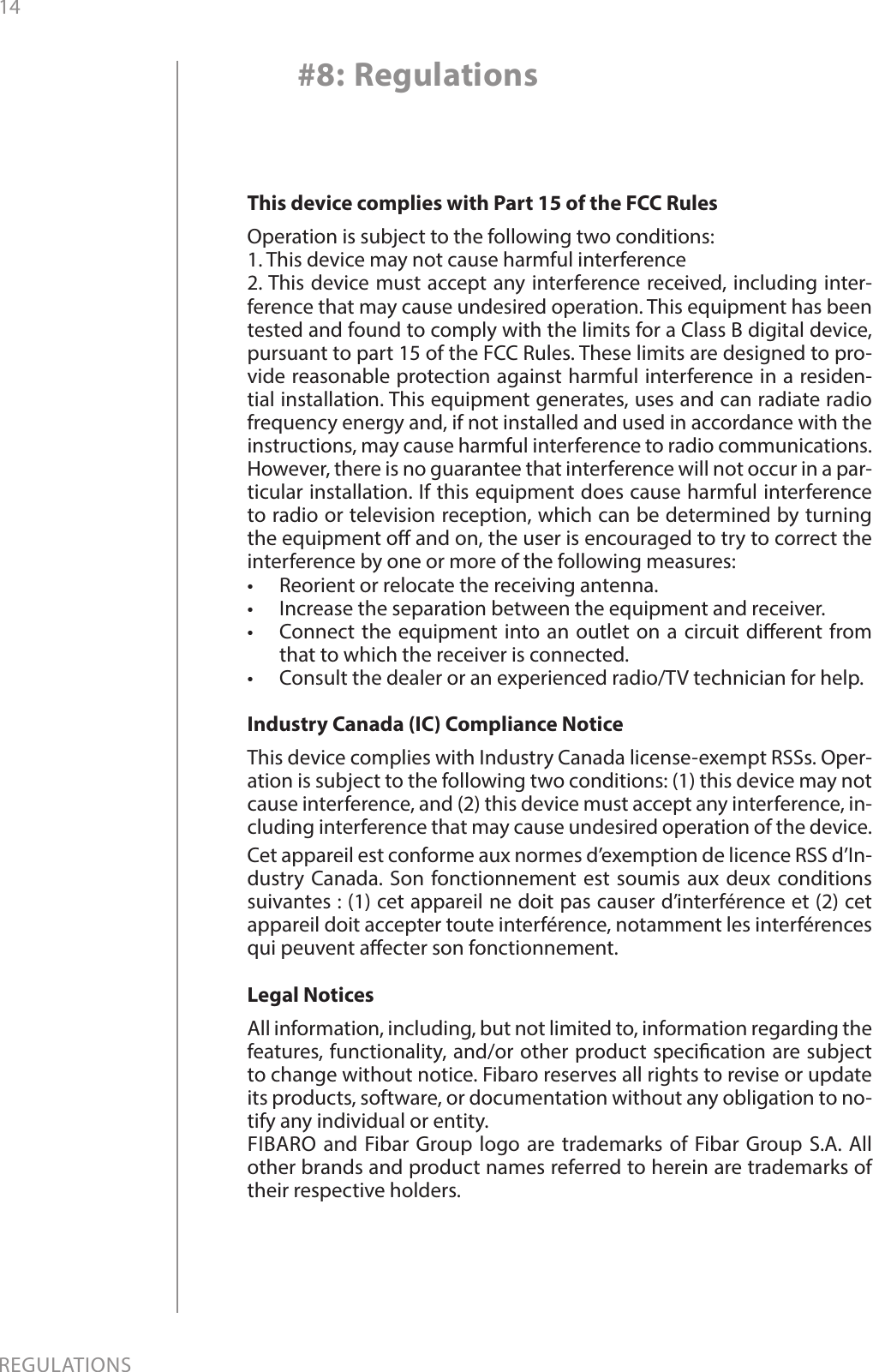

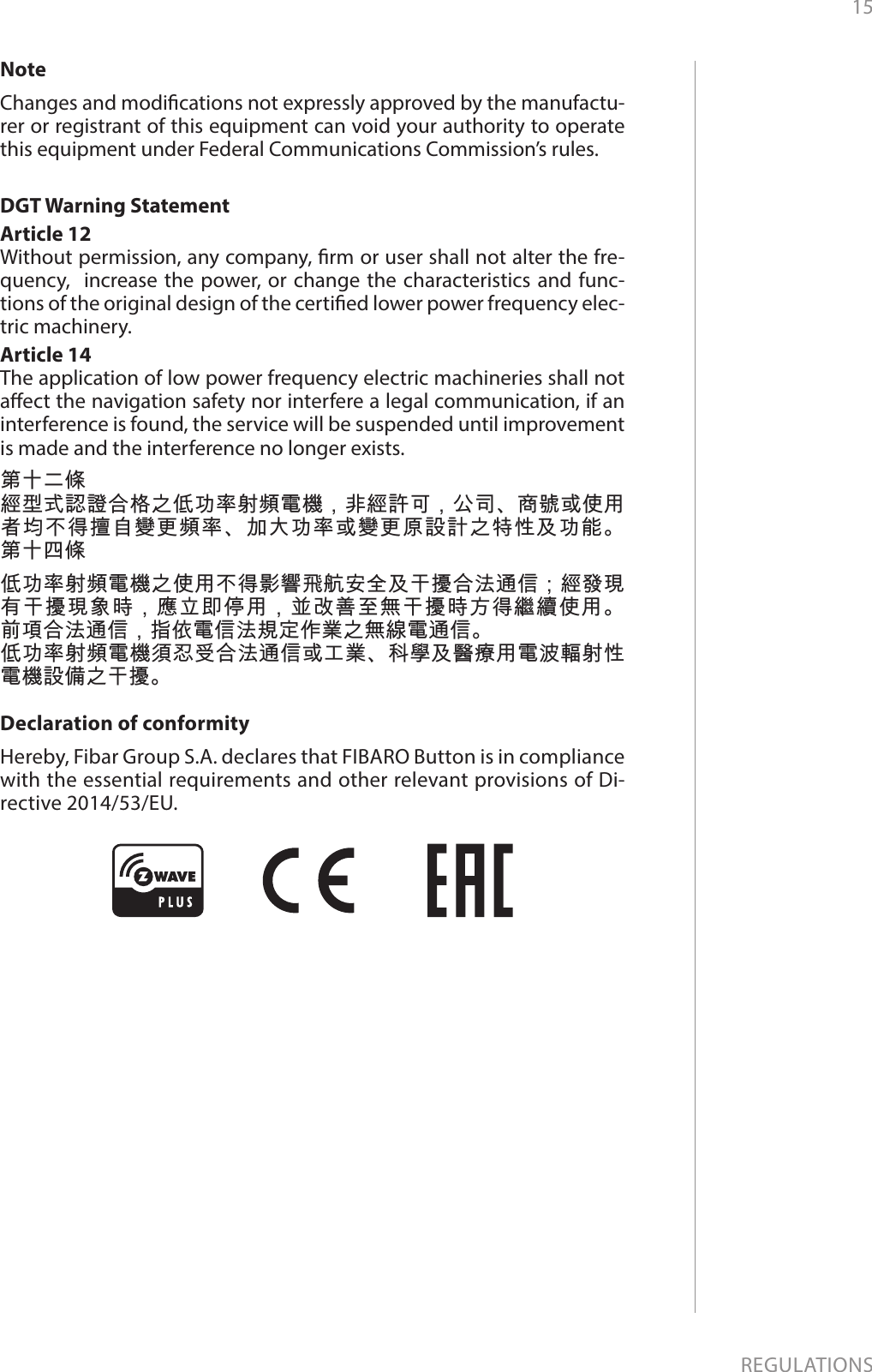

15REGULATIONSNoteChanges and modications not expressly approved by the manufactu-rer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission’s rules.DGT Warning StatementArticle 12 Without permission, any company, rm or user shall not alter the fre-quency, increase the power, or change the characteristics and func-tions of the original design of the certied lower power frequency elec-tric machinery. Article 14 The application of low power frequency electric machineries shall not aect the navigation safety nor interfere a legal communication, if an interference is found, the service will be suspended until improvement is made and the interference no longer exists. 第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。Declaration of conformityHereby, Fibar Group S.A. declares that FIBARO Button is in compliance with the essential requirements and other relevant provisions of Di-rective 2014/53/EU.
