Users Manual
SKYLINE - ST-39803 English FCC
2-channel full function: Forward, reverse, left/ right turn and stop.
Rear wheel differential gear.
Front & rear suspension.
2 speed (Turbo/ forward speed)
Working headlight/ taillight/ brakelight.
Engine sound and Vibration.
2- canaux et toutes les fonctions: marche avant, arrière, virage à droite/ gauche et arrêt.
Engrenage différentiel des roues arrière.
Suspension avant et arrière.
2 vitesse (vitesse marche avant/ turbo)
Fonctionnement des phares avant et arrière et des feux d'arrêt.
Moteur bruit et les vibrations.
Funciones completas mediante dos canales: Avance, retroceso, giros a la izquierda / derecha y detención.
Piñón diferencial de rueda trasera.
Suspensión delantera y trasera.
2 Velocidad (Velocidad avance y Turbo).
Luz de trabajo, luz trasera y luz freno.
Motor sonido y vibración.
ST-39803
PRINTED IN MALAYSIA
IMPRIME EN MALAISIE
IMPRESO EN MALASIA
English / Français / Español
Owner's Manual
Manuel du lutilisateur
Manual del Propietario

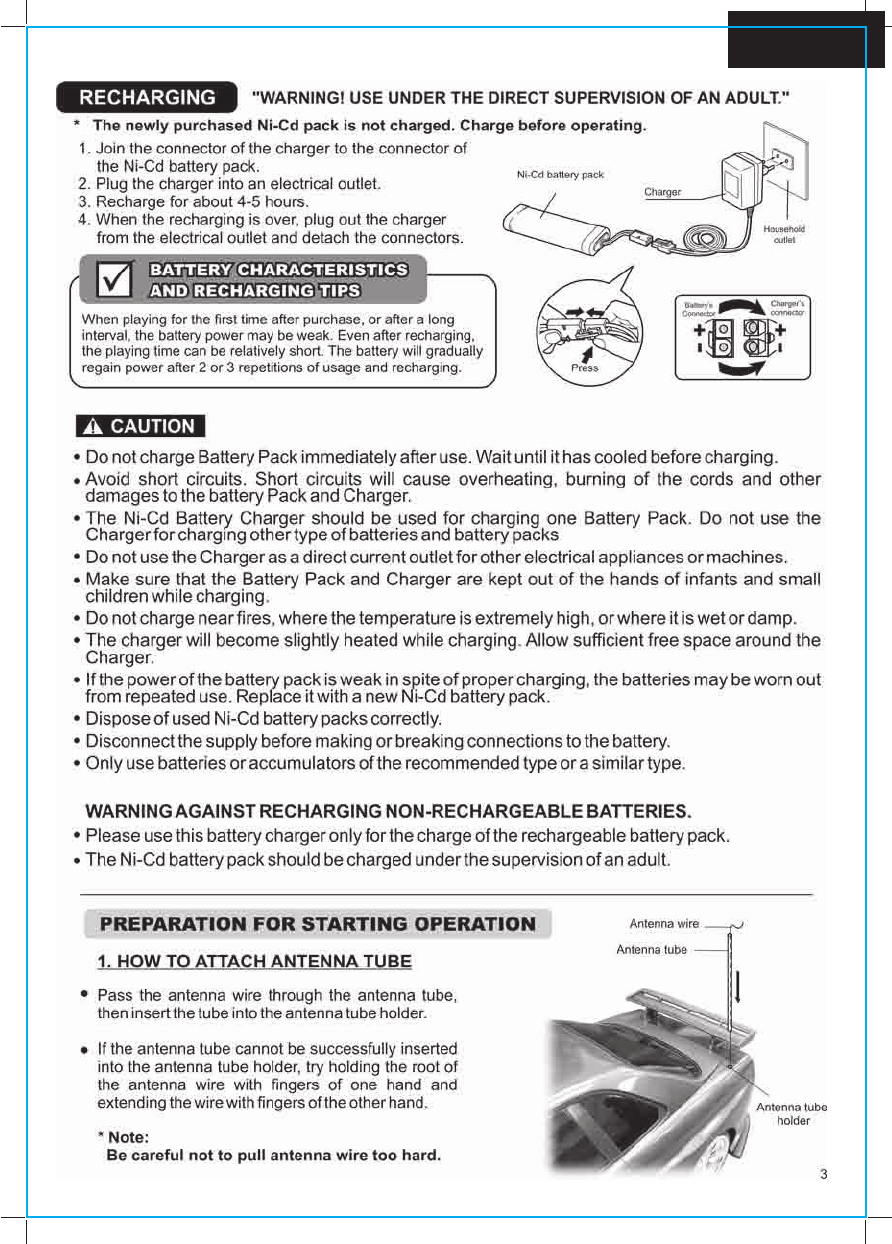

• Recharge the Battery
Before You Start to Operate
• Recargue la bateria antes de
empezar a jugar
• Recharger la batterie avant d'allumer
ATTENTTION: JOUET ELECTRIQUE
Non recommandé pour les enfants de moins de 8 ans. Comme aves tous les appareils électriques, des précaut
ons doivent être observées pendant la manipulation et l'emploi pour éviter toute décharge électrique.
Entrée: secteur 120 VAC, 60 Hz seulement
Sortie: 9VDC 500mA
PARENTS ATTENTION
Il est recommandé de vérifier périodiquement l'absence de risque potentiel sur ce jouet et tous les
accessoires et de réparer o remplacer les pieces potentieliement dangereuses.
FEATURES
BATTERY REQUIREMENTS
Vehicle : Ni-Cd rechargeable
battery pack
( 7.2V, 1200-1600mAh )
Transmitter : 1 x 9V(006P)battery
PRECAUCÓN: JUGETE ELÉCTRICO
No recomendado para niños de menos de 8 años de edad. AL igual que con todos los productos eléctricos,
para evitar un shock eléctrico, se deben observar precauciones especiales al manipular y usar este juguete.
Entrada: Solamente 120 VAC, 60 Hz.
Salida: 9 VDC, 500mA
ATENCIÓN PADRES
Se recomienca que este juguete y todos sus accesorios sean examinados periódicamente para tratar
de encontrar peligros potenciales provocados por piezas que necesiten ser reparadas o cambiadas.
PILES
Véhicule : a set de piles Ni-Cd
rechargeables
(7,2V, 1200-1600mAh)
Emetteur : 1 pile 006p(9V)
CARACTERISTIQUES
PILAS USADAS
Vehiculo : Pack de bateria 1x
NiCd recargable
( 7.2V, 1200-1600mAh )
Transmisor : 1 pila de 9 V (006P)
CARACTERÍSTICAS
Lea estas instrucciones detenidamente antes de la utilización.
Guardar la caja y el manual para su consulta en el futuro.
Precautión! Úselo bajo la supervisión diercta de un adulto.
El producto real puede diferir ligeramente de las ilustraciones.
!
Lisez attentivement ce manuel avant de commencer à utiliser le véhicule.
Conservez la boîte d'exposition et le manuel pour toute référence ultérieure.
Attention! A utiliser sous la supervision directe d’un adulte.
La moto contenue dans l'emballage peut ne pas correspondre exactement aux illustrations.
Please read carefully before starting to operate.
Keep the display box and the manual for future reference.
Warning! Use under the direct supervision of an adult
Actual product may vary from illustration of this manual.
KMNA-050031-R
NM0-060805
7.2V
1
NIKKO
Bonus Grill & Spoiler upgrade parts included.
Faldón extra y Alerón de preparación incluidos.
Bonus : Spoiler et aileron inclus
SKYLINE - ST-39803

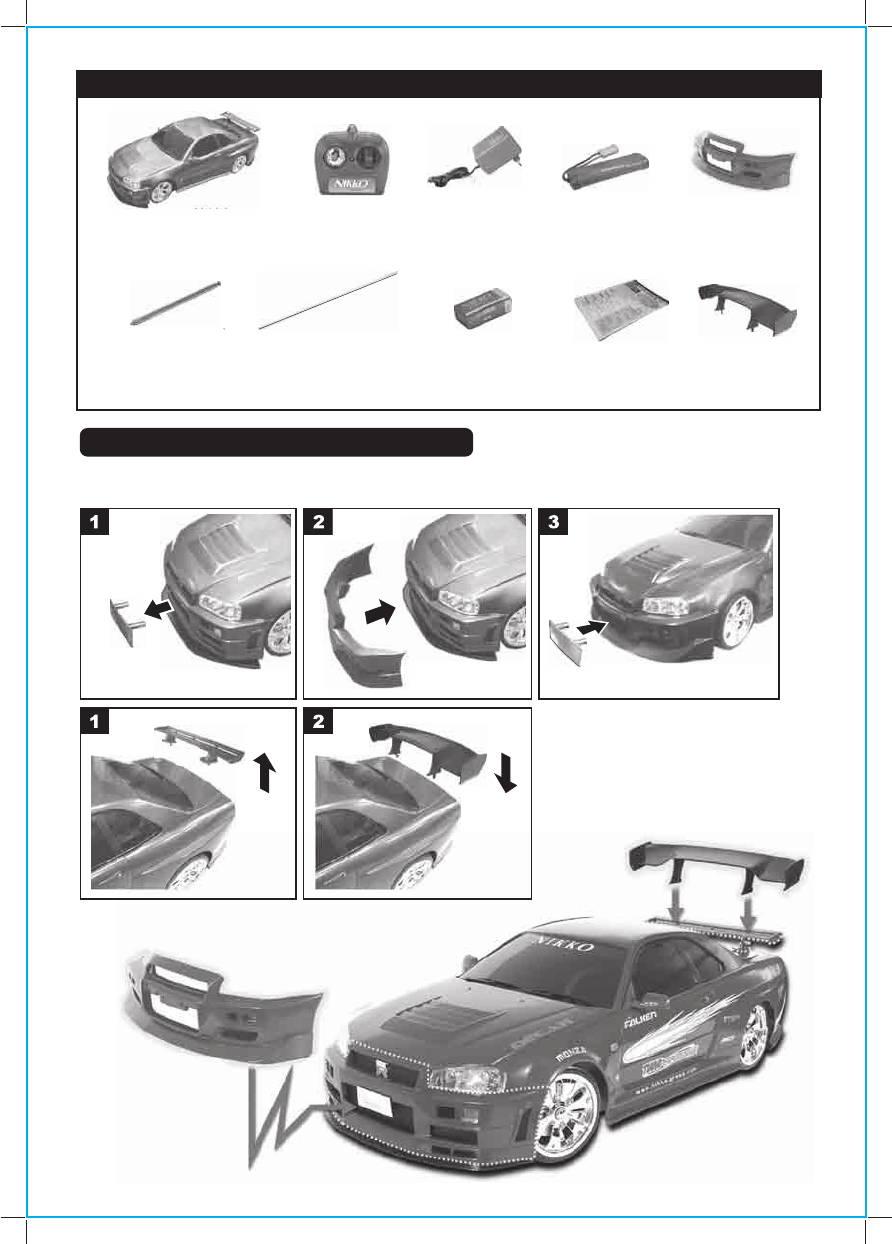

CONTENTS OF THE KIT / CONTENU DU KIT / CONTENIDO DEL CONJUNTO
Transmitter
Transmitter antenna Antenna tube
Ni-Cd battery
9 V(006P) battery Owner's manual
Charger
Vehicle
HOW TO INSTALL GRILL & SPOILER
Grill
Spoiler
2
Emetteur Batterie Ni-CdChargeur
Véhicule
Transmisor Pilas Ni-CdCargador
Vehículo
Antenne d'émetteur Tube d'antenne Pile 006P (9V) Manuel du lutilisateur
Antena del transmisor Tubo de la antena Pila 006P (9V) Manual del Propietario Alerón
Faldón
Como instalar el Faldón y el Alerón
Comment installer le spoiler et l'aileron
Spoiler
Aileron
English
SKYLINE - ST-39803
English
4
English

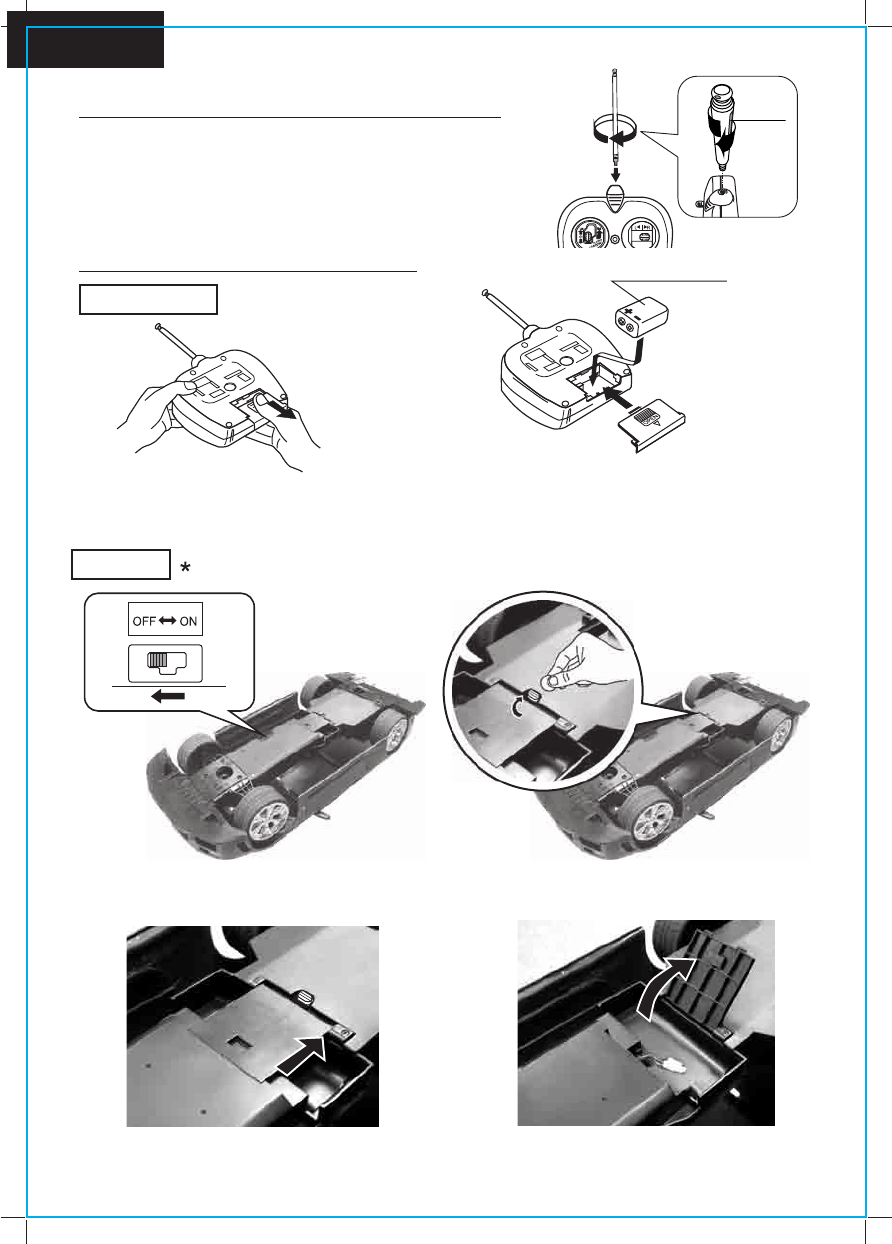

2. HOW TO INSTALL TRANSMITTER ANTENNA
Place the transmitter antenna into the antenna holder
and screw it in clock-wise.
3. HOW TO INSTALL THE BATTERIES
Transmitter
To remove the battery lid, press the point
marked “OPEN” and pull the lid downward.
Install battery make sure that (+) and (-) poles are
positioned properly.
One 9 volt (006P) battery
Vehicle
When installing a Ni-Cd battery pack, Make sure that the power switch of the vehicle is OFF.
Transmitter
antenna
1. Slide the power switch (ON/OFF)
located at the bottom of the vehicle to OFF. 2. Turn the battery lid stopper.
* Dispose the used batteries separately from other trash.
3. Slide the battery lid backwards. 4. Lift the battery lid upwards.
SKYLINE - ST-39803
It is dangerous to fully extend the antenna when installing.
Be sure to screw the antenna securely. If the antenna is not
screwed in securely the vehicle may move erratically.
5
English

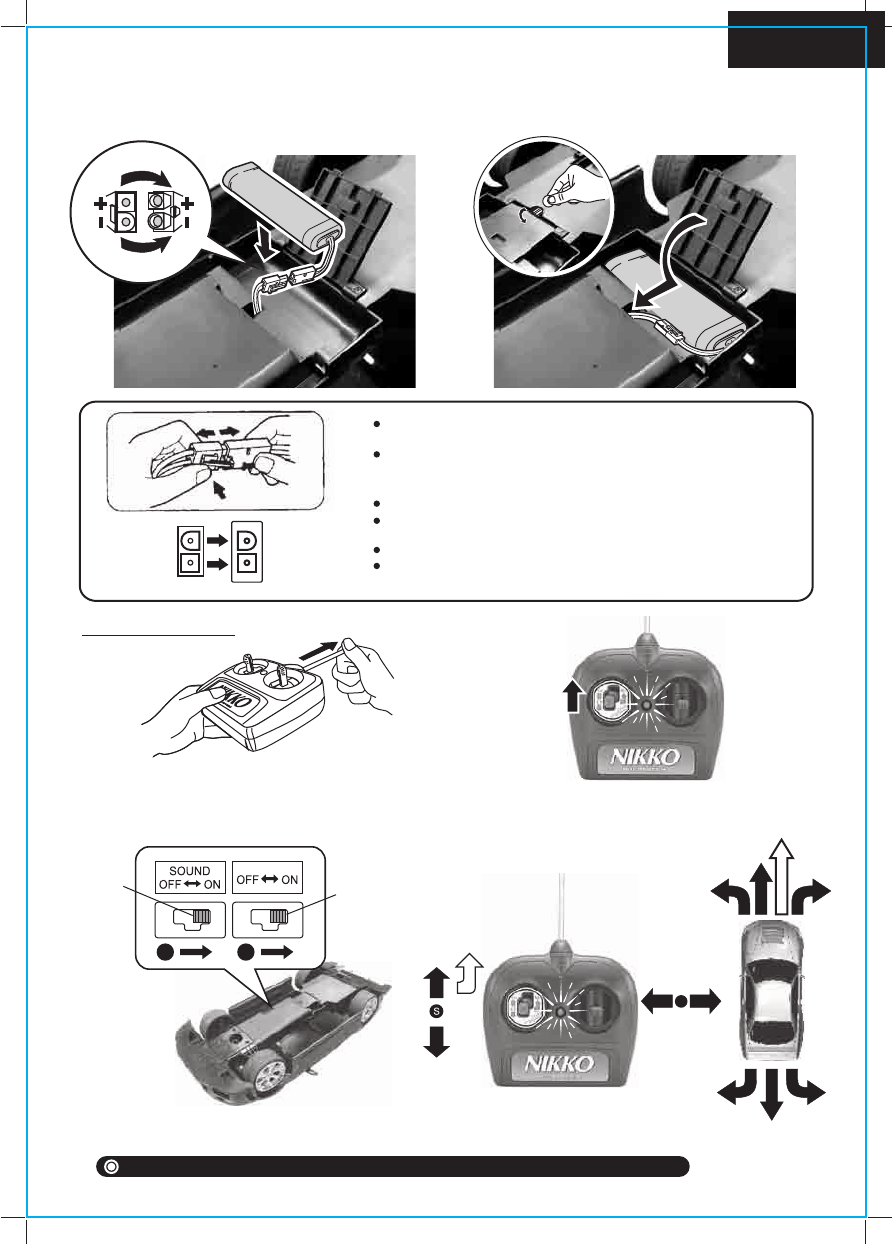

(1) Extend the transmitter antenna fully.
You can control the vehicle at a longer dis-
tance by holding the transmitter higher with
the antenna straight up.
(2) Turn on the transmitter by operating
the control stick. (The power indica-
tor will light up.)
*
4. HOW TO PLAY
(3) Turn ON the power switch and sound
switch of the vehicle.
(4) Start operation.
5. Install a Ni-Cd battery pack. 6. Close the cover and slide it forwards,
then turn the battery lid stopper.
When you connect the connectors. Make sure the vehicle power
switch is in the “OFF” position.
Fixed connectors properly.(The connectors are designed to be
connected in only one way so that the positive(+) and the negative(-)
terminals are connected accurately.)
Disconnect the connectors immediately after played.
When you disconnect the connectors, be careful do not pull the wire
too strongly.
Avoid short circuits because it is very dangerous.
Remove all the batteries both from the vehicle and the transmitter
after played.
++
--
++
--
Vehicle's
connector
Battery’s
Connectors
SKYLINE - ST-39803
Sound
Switch
Power
Switch
2 1
The sound can be muted by turning the sound switch to "OFF" position.
English
6

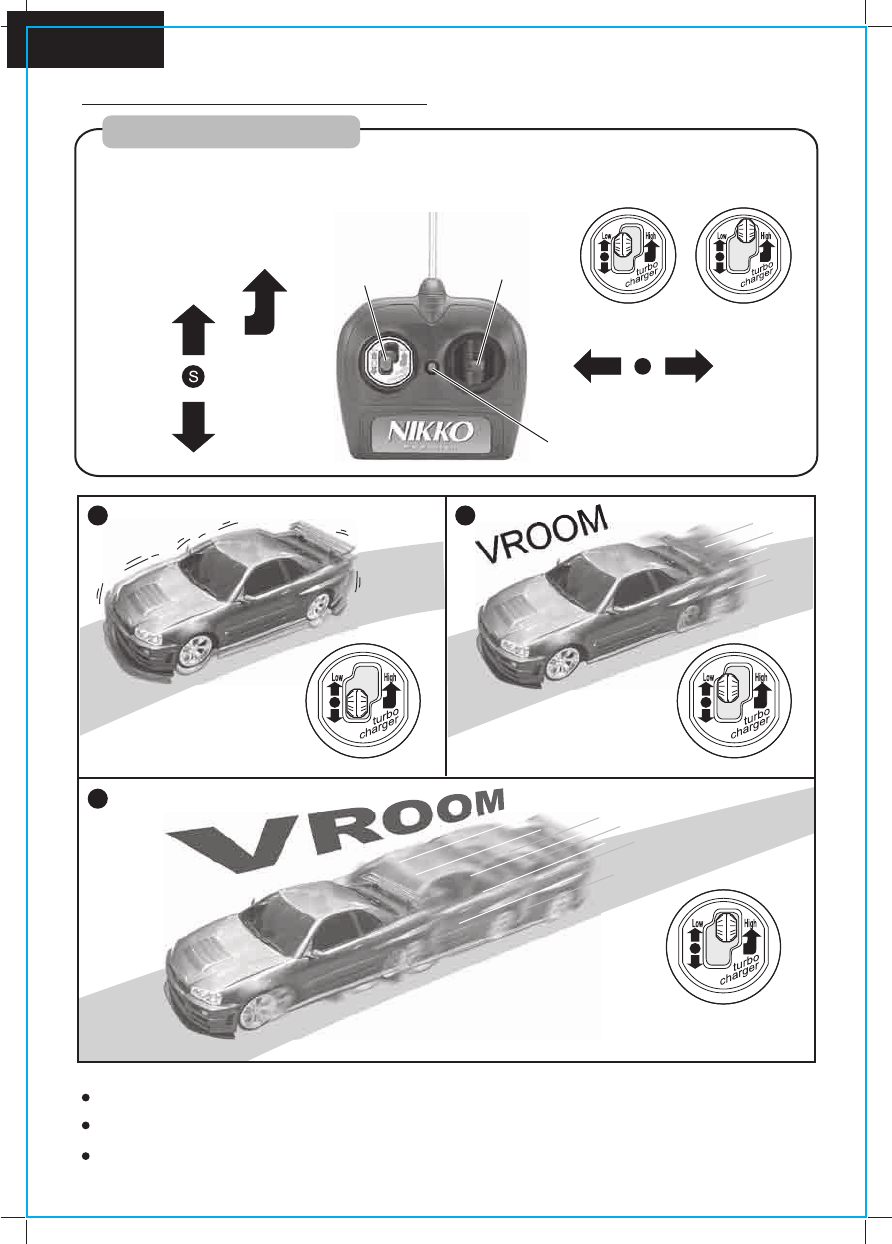

FORWARD RUNNING
You can enjoy the excitement of 2 stages of speed from Normal (LOW) to High
(TURBO) speed forward running by operating the speed control stick.
Steering
control stick
Forward/Reverse
control stick
Red LED
power indicator
FORWARD
STOP
(NEUTRAL)
REVERSE
LEFT / STRAIGHT / RIGHT
LOW
SPEED
TURBO
(HIGH SPEED)
S S
SS
1 2
3
SKYLINE - ST-39803
Stop Normal
S
Turbo
TRANSMITTER OPERATIONS
Car vibration and reviving engine sound arise when the car is in stationary condition.
The sound and vibration will be discontinued if the car is left unused for 50 seconds.
The sound from Normal speed and Turbo speed is different.
7
English
(6) To prevent damage from battery leak-
age, remove all the batteries from
transmitter and vehicle after playing.
(5) Turn OFF the power switch and the
sound switch of vehicle after playing.
SKYLINE - ST-39803

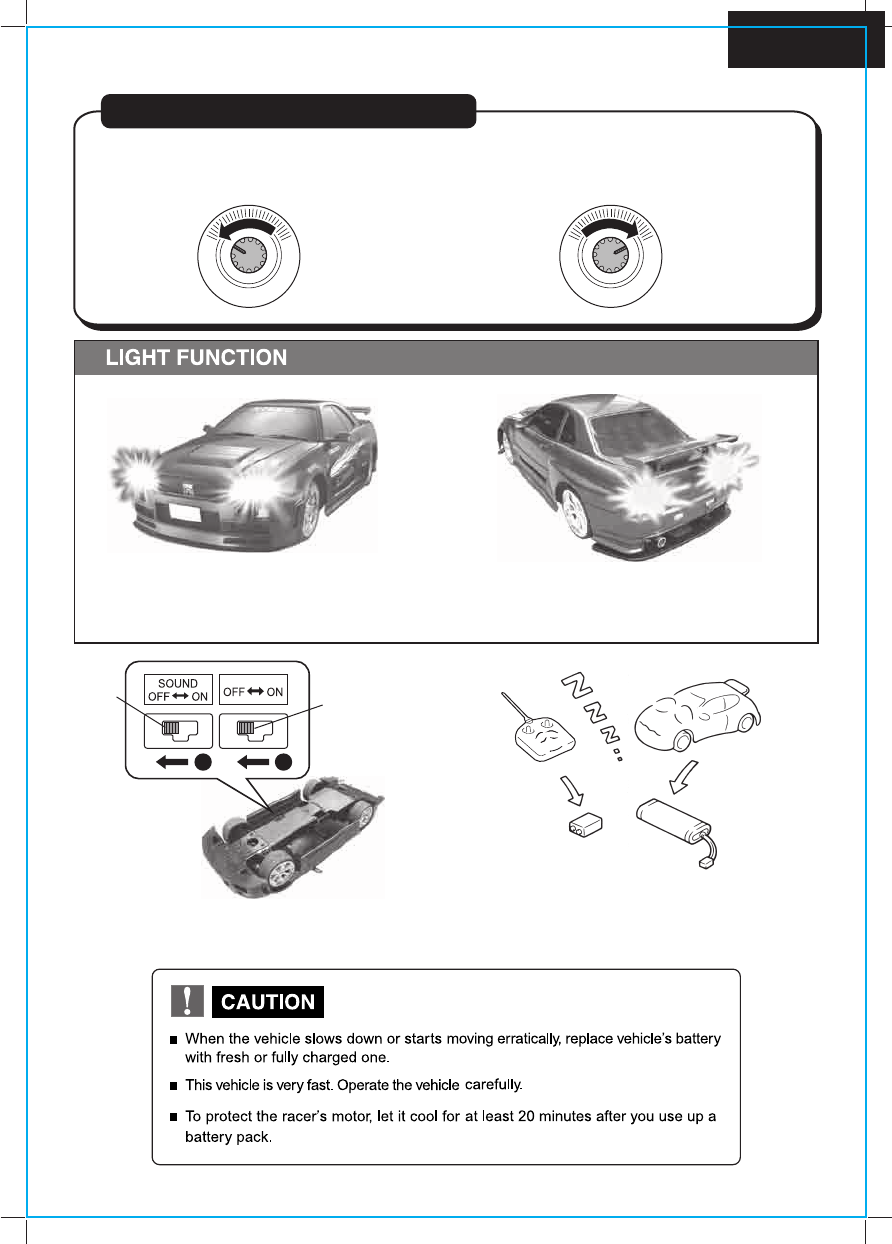

Adjust the steering alignment when the vehicle does not run straight forward.
TO ADJUST STEERING ALIGNMENT
Turn the steering alignment lever towards
“L” if the vehicle runs towards right. Turn the steering alignment lever towards
“R” if the vehicle runs towards left.
L RL R
Sound
Switch
Power
Switch
21
The taillamps light up when the vehicle moves
forward or reverse.
The brake lamps light up when the vehicle stops.
The headlamps light up when the vehicle
moves forward or reverse.
English
8
SKYLINE - ST-39803
DO NOT operate your vehicle on tick-piled carpets. It can be dangerous since the carpet fiber
may twine round a shaft and cause a motor overheated.
TM
THE RBRC Seal on the nickel cadmium battery pack indicates that Nikko America is
voluntarily participating in an industry program to collect and recycle these batteries at the end of
their useful life. The RBRC program provides a convenient alternative to disposing nickel-
cadmium batteries into the trash or municipal waste stream, which is illegal in some areas.
Nikko America's payments to RBRC makes it easy for you to drop off the battery
pack at local retailers who sell replacement nickel-cadmium batteries.
You may also contact your local recycling center for information on where to return the spent
battery pack. RBRC is a trademark of the Rechargeable Battery Recycling Corporation.
non-functional
THE FCC WANTS YOU KNOW
This device is complies with part 15 of the FCC Rules, Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
Your R/C car might cause TV or radio interference even when it is operating properly.
To determine whether your R/C car is causing the interference, turn off your R/C car.
If the interference goes away, your R/C car is causing the interference.
Try to eliminate the interference by:
• Moving your R/C car away from the receiver.
• Contacting your local store for help.
If you cannot eliminate the interference, the FCC requires that you stop using your R/C car.
Select a SAFE place to operate your vehicle, Do not drive in the street. Avoid driving on SAND or through puddles of
WATER. These hazards can impair performance. Check the surface ahead of you and watch for obstacles.
The radio receiver in your vehicle and transmitter are sensitive instruments. Do not leave Vehicle or Transmitter near
sources of HEAT or under DIRECT SUNLIGHT for long periods of time.
Avoid leaving Vehicle or Transmitter OUTSIDE OVERNIGHT. NIGHT DAMPNESS IS HARMFUL TO INTERIOR
MECHANISM.
Cleaning and maintenance:
This toy vehicle needs periodic maintenance and cleaning.
Warning to the parents:
The charger for the Ni-Cd battery pack needs periodic inspection
to see that the lead wires, plugs, outer case, and other parts are
not damaged in any way. If any of the parts are damaged,
do not use the charger until it is completely repaired.
Caution:
Keep out of reach of small children under 36 months old as there is danger of getting hurt.
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER FOR COMPLIANCE
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
RADIO INTERFERENCE:
Sometimes erratic behavior or loss of control of vehicle is the result of interference caused by high tension wires, high
voltage transformers, certain types of building, concrete walls or narrow places where RADIO SIGNALS sent from your
transmitter MAY BE SCATTERED thus making it DIFFICULT for your vehicle to
receive a GOOD RADIO SIGNAL. If you encounter this type of behavior or loss of control, CHANGE TO A DIFFERENT
LOCATION. You will encounter INTERFERENCE if ANOTHER radio controlled vehicle or CB radio is operating ti the
vicinity on your SAME FREQUENCY.
CAUTION
Check the batteries regularly for leakage.
Remove empty batteries from the toy.
Never try to charge non-rechargeable batteries.
Rechargeable batteries may only be charge under the supervision of an adult.
When inserting the batteries take care not to reverse their polarity.
Never use batteries of different manufacturers, and do not mix old and new batteries.
Use only the recommended batteries or batteries of equal quality.
Never short-circuit the terminals.
Rechargeable batteries which can be recharged must be removed from the toy prior to charging.
