Specifications and equipment are subject to change without any notice or obligation on the part of the manufacturer. December 2007 ©2007 NIKON CORPORATION

Stereoscopic Zoom Microscope SMZ445/460

Dimensions

Combination with the LED Stand Combination with the LED Stand

Type Twin zooming objective optical system

Total magnification 8x ~ 35x (4x ~ 70x by replacing eyepiece 7x ~ 30x (3.5x∼60x by replacing eyepiece

and/or auxiliary objective lens) and/or auxiliary objective lens)

Eyepiece SM 10xB eyepieces (F.N. 21), SM 15xB eyepieces (F.N.14), SM 20xB eyepieces (F.N. 12)

Zoom range 0.8x ~ 3.5x (Zoom ratio: 4.4:1) 0.7x ~ 3x (Zoom ratio: 4.3:1)

Auxiliary objective lens AL0.5x, 0.7x (optional)

Working distance 100mm (standard configuration), 127.5mm (AL0.7x), 181mm (AL0.5x)

Eyepiece inclination 45º60º

Optical system True erect image, 12º inner bevel, independent adjustment of right and left eyepieces,

and 54 to 75mm interpupillary adjustment

Weight (Zooming body) Approx. 1.0kg

Specifications

120∼225

0°∼55°

350.5

120∼225

350.5

160

E.P

325

200 325325

366

200

160

E.P

0°∼55°

Code No. 2CE-MQFH-1

Printed in Japan (0712-05) Am/M

NIKON CORPORATION

6-3, Nishiohi 1-chome, Shinagawa-ku,

Tokyo 140-8601, Japan

phone: +81-3-3773-8973 fax: +81-3-3773-8986

http://www.nikon-instruments.jp/eng/

NIKON INSTRUMENTS INC.

1300 Walt Whitman Road, Melville, N.Y. 11747-3064, U.S.A.

phone: +1-631-547-8500; +1-800-52-NIKON (within the U.S.A.only)

fax: +1-631-547-0306

http://www.nikoninstruments.com/

NIKON INSTRUMENTS EUROPE B.V.

P.O. Box 222, 1170 AE Badhoevedorp, The Netherlands

phone: +31-20-44-96-222 fax: +31-20-44-96-298

http://www.nikoninstruments.eu/

NIKON INSTRUMENTS (SHANGHAI) CO., LTD.

CHINA phone: +86-21-5836-0050 fax: +86-21-5836-0030

(Beijing branch) phone: +86-10-5869-2255 fax: +86-10-5869-2277

(Guangzhou branch) phone: +86-20-3882-0552 fax: +86-20-3882-0580

NIKON SINGAPORE PTE LTD

SINGAPORE phone: +65-6559-3618 fax: +65-6559-3668

NIKON MALAYSIA SDN. BHD.

MALAYSIA phone: +60-3-78763887 fax: +60-3-78763387

NIKON INSTRUMENTS KOREA CO., LTD.

KOREA phone: +82-2-2186-8410 fax: +82-2-555-4415

NIKON CANADA INC.

CANADA phone: +1-905-625-9910 fax: +1-905-625-0103

NIKON FRANCE S.A.S.

FRANCE phone: +33-1-45-16-45-16 fax: +33-1-45-16-00-33

NIKON GMBH

GERMANY phone: +49-211-9414-0 fax: +49-211-9414-322

NIKON INSTRUMENTS S.p.A.

ITALY phone: +39-55-3009601 fax: +39-55-300993

NIKON AG

SWITZERLAND phone: +41-43-277-2860 fax: +41-43-277-2861

NIKON UK LTD.

UNITED KINGDOM phone: +44-20-8541-4440 fax: +44-20-8541-4584

NIKON GMBH AUSTRIA

AUSTRIA phone: +43-1-972-6111-00 fax: +43-1-972-6111-40

NIKON BELUX

BELGIUM phone: +32-2-705-56-65 fax: +32-2-726-66-45

0°∼55°

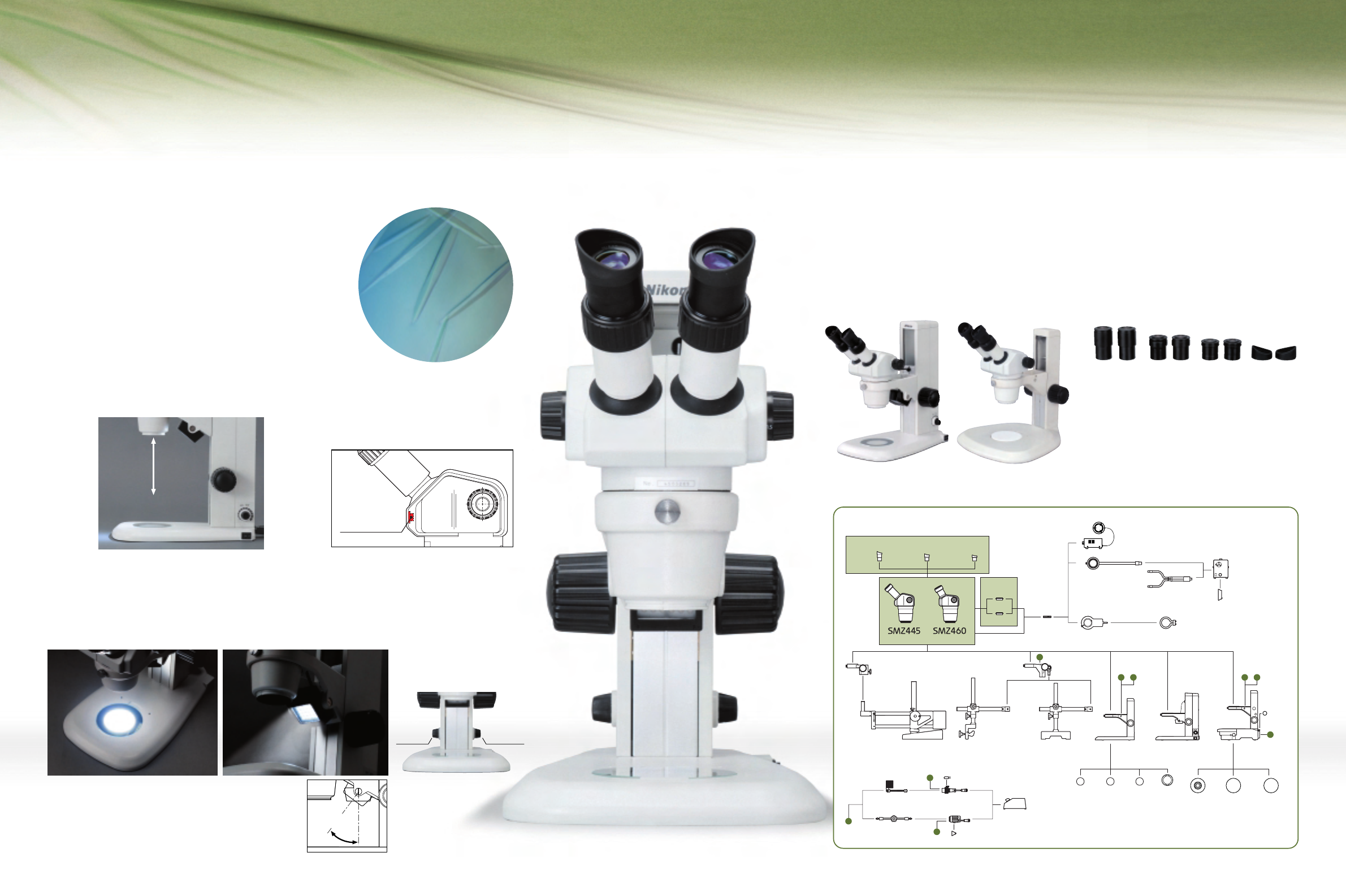

Premium performance in a compact body

Premium performance in a compact body

The SMZ445 and SMZ460 deliver the outstanding optical performance you expect from Nikon's

cutting-edge series of stereoscopic zoom microscopes. Porro prisms enable a lightweight,

compact design. Choose between the two models: the SMZ445 with 0.8x ~ 3.5x zoom

magnification or the SMZ460 with 0.7x - 3.0x zoom magnification, inclination angles of 45˚ or 60˚

respectively. With the new diascopic/episcopic LED Stand, these microscopes let you observe

a wide range of specimens, from Petri dishes to plants, insects, small animals and minerals.

Outstanding optical performance

High quality images with superior flatness are achieved by following

the optical design and quality criteria of all Nikon's high-

performance stereoscopic microscope series. The multicoatings

on lens surfaces provide clear, bright and high contrast images.

Mold-resistant finish

The inside of the zooming body is treated with

a mold-resistant finish. This maintains the quality

of the lenses even in hot, humid environments.

A single stand enables both diascopic and episcopic observation.

Diascopic illumination and

episcopic illumination can

be adjusted separately.

The angle of episcopic

illumination can be adjusted

through a range of 0˚~55˚.

Dedicated eyepiece lenses with diopter

adjustments for parfocality. Combining the

SMZ445 with 20x eyepiece lenses enables

observation at a maximum of 70x. Rubber

eyecups are available for the 10x eyepiece

lenses.

In addition to the LED Stand with built-in diascopic

and episcopic illumination, Nikon offers other

choices like the Plain Stand, which comes in two

base stand sizes, and the Diascopic Stand S, with

a built-in 6V, 20W halogen lamp.

Stands Eyepiece lenses

Simply attaching an auxiliary objective lens

achieves a wider field of view and longer

working distance. Two type are available,

0.5x (WD 181mm) and 0.7x (WD 127.5mm).

Auxiliary objectives

Long working distance

The long working distance of 100mm allows

safe focusing even with specimens having

markedly uneven surfaces. This is useful when

using tweezers, dissection tools or a pipette

during specimen manipulation.

LED Stand with all-in-one design

The newly developed LED Stand features built-in diascopic and episcopic illumination. The light

intensity of each illumination can be adjusted individually, and both can be used simultaneously. The

light source uses very bright LEDs. Since they have a very long life, they avoid the cost and trouble of

frequent replacement. And while the base is compact and thin, it is designed to be robust for all uses.

W.D.

100mm

Episcopic illuminationDiascopic illumination Episcopic illuminationDiascopic illumination

SM 10xB, SM 15xB, SM 20xB,

Eyecups available for SM 10xB eyepieces

C-PS/C-PSC Plain StandC-LEDS Hybrid LED Stand

Diascopic

light

control

Episcopic

light

control

System Diagram

G-OBA

60 Adapter

C-FMA

Focusing Mount A

C-FMB

Focusing Mount B

Universal Table Stand US-3 G-US1

Universal

Table Stand 1

G-US2

Universal

Table Stand 2

C-PS/C-PSC

Plain Stand

Opal &

Black

Acrylic

Plate

Glass

Plate

ESD

Plate

A

A B

C-LEDS

Hybrid LED Stand

Zooming Body Zooming Body

Eyepiece Lens

SM

Eyepiece

10xB

SM

Eyepiece

15xB

SM

Eyepiece

20xB

C-DS

Diascopic Stand S

A B

C

G-EIA Articulated

Supporting Arm

Articulated Arm

6V-10W Halogen Lamp

6V-20W Halogen Lamp with reflector

C-DSLS Illuminator

G-LS Illuminator XN (TN)

Transformer

A

B

C

C-FPS

Fluorescent Ring Illuminator

C-FRL

Fluorescent Ring Lamp 8W

SM-LW61Ji

LED Illuminator

C-FID Bifurcated

Fiber Light Guide

(12V-100W halogen)

C-FI115/230

Fiber Transformer

12V-100W

Halogen Lamp

C-FIR

Ring Fiber Light Guide

(12V-100W halogen)

P-ICI

33mm

NCB14

Circular

Floating

Stage 2

C-POL

Polarizer

C-GSP180

Glass Plate

180mm

C-ASP180

Opal & Black

Acrylic Plate

180mm

Auxiliary

objectives

AL0.5x

AL0.7x

Mold-resistant

tablet
