Ninebot NB01 Bluetooth 4.0 BLE Module User Manual Use Manualx
Ninebot (Tianjin) Tech Co., Ltd. Bluetooth 4.0 BLE Module Use Manualx
Ninebot >
Users Manual
1
www.ninebot.com
OEM User Manual and Installation Guide Instruction Book
Bluetooth 4.0 BLE Module
Module Type
NB-01
1、Product Parameter
Bluetooth protocol version：Bluetooth Specification V4.0 BLE
Working frequency：2.4GHz ISM band
Modulation system：GFSK（Gaussian Frequency Shift Keying）
Transmitted power：4dbm
Sensitivity≤ -84dBm at 0.1%BER
Support services：Peripheral
Support interface：TTL，115200
Supply voltage：+3.3VDC
Operating temperature：-25℃~+75℃
External dimension：25mm * 18mm * 1.5mm
2、Product overview
NB series of Bluetooth module utilizes Nrf51822 chip from Nordic Company, interior part
integrates 256KB space and radio-frequency emission portion. This series of module is only for
Ninebot Inc. internal using, product externally expands one road of TTL UART, Baud rate is fixed
at 115200.
3、Applied range
NB series of Bluetooth module is only applicable for Ninebot Inc. product which needs connect
with smartphone by Bluetooth, not for external sale and technical support.
2
www.ninebot.com

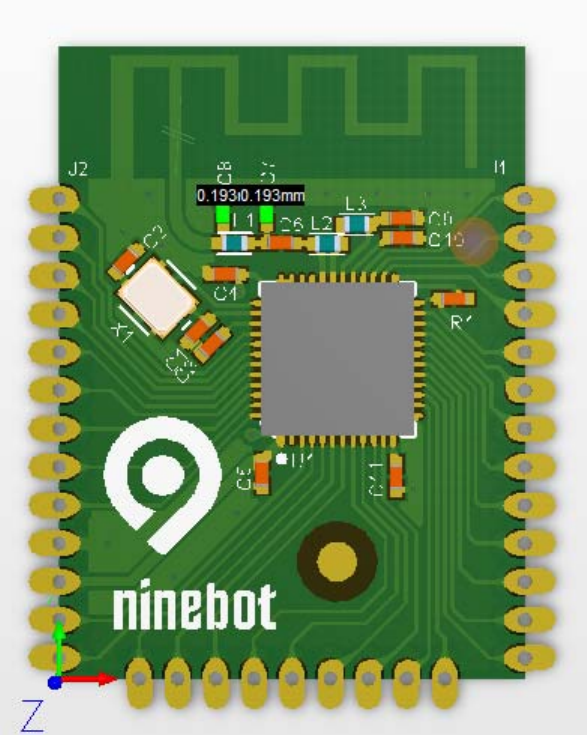

Figure 1: 3D figure of module
4、 Application steps
Welding module on PCB of equipment that needs Bluetooth to access, link VOC, GND, UART
and IO, then smartphone can be connected to Bluetooth module, equipment can send data from
UART to phone by Bluetooth. Meanwhile, phone data can be converted into UART data by
Bluetooth module.
5、 Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
3
www.ninebot.com
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
6、 Other regulatory notes for OEM.
Modular transmitters save manufacturers the time and any related expenses that would be
incurred if a new equipment authorization were needed for the same transmitter when it is
installed in a new device. This means that it can be integrated into end products without
further testing or approval listing. The manufacturer must state the Ninebot (Tianjin) part
number and product reference in his literature in order to meet the requirements of the
Bluetooth and regulatory. This should be clearly indicated in the OEM manuals.
7、 FCC Label Instructions
The outside of final products that contain a NB-01 device must display a label referring to
the enclosed module. This exterior label can use wording such as the following:
“Contains Transmitter Module FCC ID: 2AF2B-NB01.” Any similar wording that
expresses the same meaning may be used.
4
www.ninebot.com

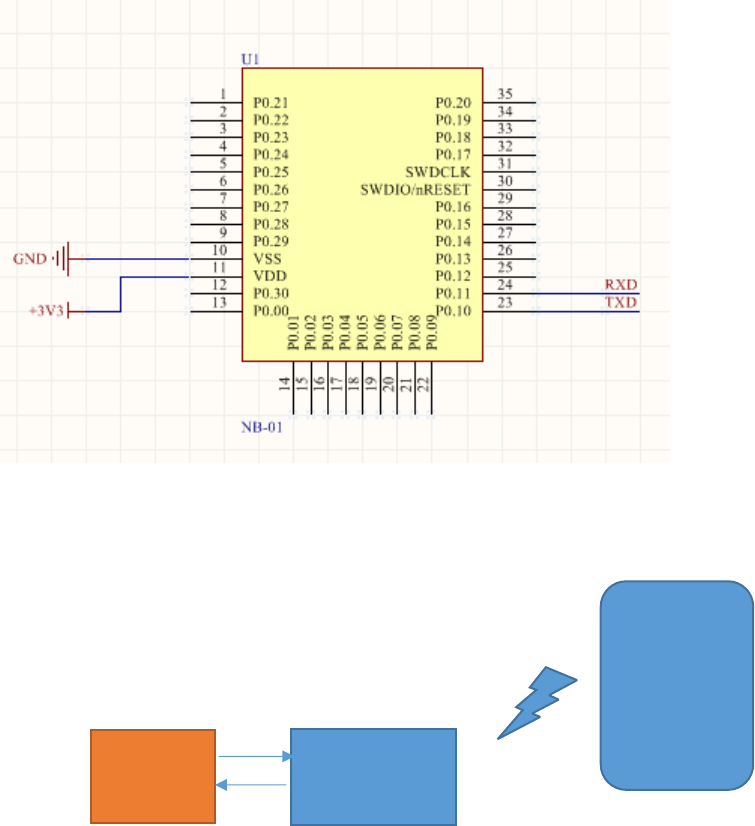

Figure 2: Application theory figure
Figure 3: Function module figure
Equipment NB-01Module
Smart
device
includes
BLE (like
smartphone)
UART
