Ninebot NB5213 Segway miniPLUS User Manual miniPLUS UM 2017 07 04
Ninebot (Changzhou) Tech Co., Ltd. Segway miniPLUS miniPLUS UM 2017 07 04
Ninebot >
Contents
User Manual
www.segway.com
The manufacturer reserves the right to make changes to the Segway miniPLUS, release firmware updates, and update this
manual at any time. Visit www.segway.com to download the latest user materials. You must install App to follow the New
Rider Tutorial, activate your Segway miniPLUS, and obtain the latest updates and safety instructions.
25521-00001 aa
USER MANUAL
Go to www.segway.com to watch the safety video.
Rendez-vous sur www.segway.com pour télécharger le manuel d’utilisation.
Vaya a www.segway.com para descargar el manual del usuario.
Visite www.segway.com para baixar o manual do usuário.
01
Thanks for choosing Segway miniPLUSContents
Thanks for choosing the Segway miniPLUS (hereinafter referred to as miniPLUS). Your miniPLUS is both a
powerful, remote controlled, electric balancing device and also a personal recreational vehicle.
Enjoy the many features of your miniPLUS, powered by our innovative RF locating technology and the
remote control. Your miniPLUS is easy and safe to control. Have fun with it!
You can also buy a gimbal camera to equip your miniPLUS for stunning photos and videos.
Enjoy your ride!
4. Assembling Your Segway miniPLUS
1. Riding Safety
5. First Ride
3. Diagram
6. Charging
2. Packing List
02
04
05
07
08
09
12. Specifications
7. Storage Compartment
14. Trademark and Legal Statement
13. Certifications
9. Warning
11. Maintenance
8. Learning to Ride
10. Features
15. Contact
09
10
12
14
16
18
17
20
21
Appendix 1: Using the Camera (sold separately) 22
Appendix 2: Using Your Segway miniPLUS + Camera 23
Front Back
WARNING!
Always step on/o from the back of the miniPLUS. Otherwise you risk falls and/or collisions
because the steering direction is reversed.
02 03

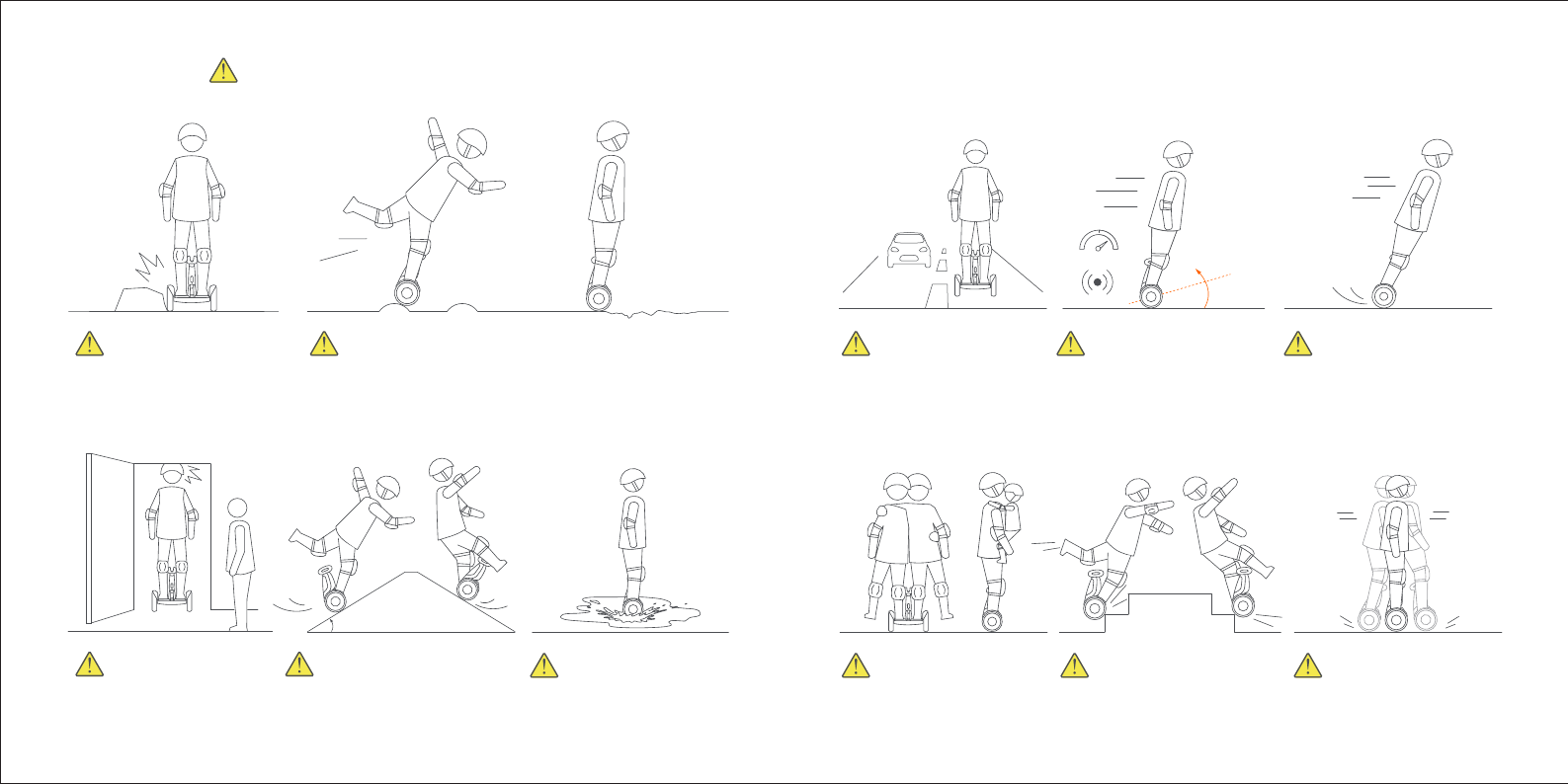

1 Riding Safety
1. The miniPLUS is a recreational product. Before mastering riding skills, you need to practice. Neither Ninebot Inc. nor
Segway Inc. is responsible for any injuries or damage caused by a rider's inexperience or failure to follow the
instructions in this document.
2. Please understand that you can reduce the risk by following all the instructions and warnings in this manual, but you
cannot eliminate all the risks. Remember that whenever you ride the miniPLUS you risk injury or death from loss of
control, collisions, and falls. When entering into public spaces always comply with the local laws and regulations. As
with other vehicles, faster speeds require longer braking distance. Sudden braking on smooth surfaces could lead to
wheel slip, loss of balance, or falls. Be cautious and always keep a safe distance between you and other people or
vehicles when riding. Be alert and slow down when entering unfamiliar areas.
3. Always wear a helmet when riding. Use an approved bicycle or skateboard helmet that fits properly with the chin strap
in place, and provides protection for the back of your head.
4. Do not attempt your first ride in any area where you might encounter children, pedestrians, pets, vehicles, bicycles, or
other obstacles and potential hazards.
5. Respect pedestrians by always yielding the right of way. Pass on the left whenever possible. When approaching a
pedestrian from the front, stay to the right and slow down. Avoid startling pedestrians. When approaching from behind,
announce yourself and slow down to walking speed when passing. Please obey local trac laws and regulations if
situation is dierent.
6. In places without laws and regulations governing self-balancing electric vehicles, comply with the safety guidelines
outlined in this manual. Neither Ninebot Inc. nor Segway Inc. is responsible for any property damage, personal
injury/death, accidents, or legal disputes caused by violations of the safety instructions.
7. Do not allow anyone to ride your miniPLUS on his/her own unless they have carefully read this manual, watched the
safety video, and followed the New Rider Tutorial on the App. The safety of new riders is your responsibility. Assist new
riders until they are comfortable with the basic operation of the miniPLUS. Make sure each new rider wears a helmet
and other protective gear.
8. Before each ride check for loose fasteners, damaged components, and low tire pressure. If the miniPLUS makes
abnormal sounds or signals an alarm, immediately stop riding. Diagnose your miniPLUS via the App and call your
dealer/distributor for service.
9. Be alert! Scan both far ahead and in front of your miniPLUS — your eyes are your best tool for safely avoiding
obstacles and low traction surfaces (including, but not limited to, wet ground, loose sand, loose gravel, and ice).
10. To reduce risk of injury, you must read and follow all “CAUTION” and “WARNING” notices in this document. Do not ride
at an unsafe speed. Under no circumstance should you ride on roads with motor vehicles. The manufacturer
recommends riders be between the ages of 16-60 years old. Always follow these safety instructions:
A. People who should not ride the miniPLUS include:
i. Anyone under the influence of alcohol or drugs.
ii. Anyone who suers from disease that puts them at risk if they engage in strenuous physical activity.
iii. Anyone who has problems with balance or with motor skills that would interfere with their ability to maintain
balance.
iv. Anyone whose height or weight is outside the stated limits (see Specifications).
v. Pregnant women.
B. Riders under the age of 18 years old should ride under adult supervision.
C. Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws.
D. To ride safely, you must be able to clearly see what is in front of you and you must be clearly visible to others.
E. Do not ride in the snow, in the rain, or on roads which are wet, muddy, icy, or that are slippery for any reason. Do
not ride over obstacles (sand, loose gravel, or sticks). Doing so could result in a loss of balance or traction and
could cause a fall.
F. Do not accelerate or decelerate suddenly. Do not accelerate when the miniPLUS tilts back or sounds an alarm. Do
not attempt to override the speed limiter.
11. Do not attempt to charge your miniPLUS if it, the charger, or the power outlet is wet.
12. As with any electronic device, use a surge protector when charging to help protect your miniPLUS from damage due to
power surges and voltage spikes. Only use the Segway supplied charger. Do not use a charger from any other product.
13. Use only Ninebot or Segway approved parts and accessories. Do not modify your miniPLUS. Modifications to your
miniPLUS could interfere with the operation of the miniPLUS, could result in serious injury and/or damage, and
could void the Limited Warranty.
14. Do not sit on the steering bar. Doing so could result in serious injury and/or damage to your miniPLUS.
04 05
2 Packing List
Mainframe
Steering Bar
(RF locating system integrated)
Valve Stem
Extension x 1
M5 Screws x2 Cap x1 Hex Wrench x1
Remote Control x 1
User Materials
Accessories Box
Accessories in the Box
When unpacking your miniPLUS, please verify that the above items are included in the package. If you are missing any
components, please contact your dealer/distributor or nearest service center (see contacts in the user manual). After
verifying that all components are present and in good condition, you can assemble your new miniPLUS.
Please retain the box and packaging materials in case you need to ship your miniPLUS in the future.
Always power o your miniPLUS and unplug the charge cable before assembling, mounting accessories, or cleaning.
3 Diagram
Dashboard
When the App is connected to the miniPLUS, this icon will glow steadily. When Bluetooth is enabled—
but not connected to a smart phone—this icon will blink.
Bluetooth
Enable and adjust Speed Limit Mode via the App. When the icon is illuminated, Speed Limit Mode is on.
This speed limit can be adjusted in the App. As you approach the speed limit, the miniPLUS tilts back.
When you reach the speed limit, the miniPLUS beeps.
Speed Limit
Lock
Power Button Turn ON/OFF. The miniPLUS will automatically power OFF when idle for 10 minutes, or when laid
down (horizontal) for over 30 seconds.
Power Level
Enable Lock Mode via the App. The miniPLUS and app will vibrate and sound an alarm if anyone moves it.
The remote control will also alarm if it is powered on and within range (65 ft. [20 meters]) of the miniPLUS.
Indicates the remaining battery life. Each block equates to approximately 20% power level. When the
battery is nearly empty this icon blinks and the miniPLUS beeps, indicating that you need to charge
your miniPLUS. Your miniPLUS will gradually reduce the max speed limit as the power level gradually
decreases. When less than 10%, the speed will be limited to 6.2 mph (10 km/h). Use the App to view
the remaining power and estimated remaining range.
Charger x1USB Charge Cord x 1
Camera
Your personal
photographer!
Camera sold separately.
Camera Interface
Steering Bar
Storage Compartment
Handle and Knee Pads
Charge Port
Battery Cabin
Valve Stem
Foot Mat
Wheel Light
Wheel
Fender
Power Button
Headlight
Lock
Bluetooth
Speed Limit
Power Level
USER MANUAL LIMITED WARRANTYQUICK START
06 07
Remote Control
When using the remote control, do not shield the antenna area; do not cover the antenna area with any part of your body.
Turn o the remote control and stow it in the storage compartment when not in use. Please note that the remote control
cannot control the movement of your miniPLUS when in Riding Mode.
With the App, you can customize what this button does. By default it enables/disables Lock Mode.
When a camera is detected, short press the Camera Mode button to take a photo. Long press
(1 sec) to start recording video, and then short press to stop recording. The button blinks blue
while recording.
Camera
Follow
Home
Power switch. Short press the Home button to power on the remote control. Long press to turn it o.
The remote control will turn o when idle for two minutes.
Home mode. Short press the Home button to tell your miniPLUS to hold position.
Remote control battery indicator light.
> 20% power Blue Charging Red, Breathing
< 20% power Red Fully Charged Blue
< 10% power Red, Blinking
< 5% power The remote control powers o automatically.
1)
2)
3)
Move the joystick to turn on Remote Control Mode. Use the App to adjust the maximum vehicle
speed.
Joystick 1)
1)
2)
Short press the Follow Mode button to enable/disable Follow Mode. Use the App to adjust the
following speed and distance (from vehicle to controller).
Long press (1 sec) the Follow Mode Button to use the joystick to control the pitch and yaw
position of the attached camera.
1)
2)
4 Assembling Your Segway miniPLUS
Ensure the cables are firmly connected.
1. Slide the steering bar onto to the mounting bracket. Route the cable through the hole.
2. Align the tab on one connector with the notch on the other. Connect the cables.
3. Install the two M4 screws. Tighten securely with the included hex wrench.
4. Power on the unit for self check to ensure the cables are connected properly. The miniPLUS beeps if
the cable is not installed correctly. Press the cap onto the steering bar until it snaps in place.
1 2 3 4
WARNING!
● The remote control contains a Li-ion battery. Follow all instructions in this document and on the device
label. Otherwise you risk personal injury or property damage due to fire, explosion, electric shock, and
other dangers.
● Not user serviceable. To replace the battery, contact Segway (page 21).
● Only use a Ninebot or Segway approved charge cable. Please use it properly within the rated range.
● Always use a power supply that meets SELV and IEC60950-1 Limited Power Source requirements.
Antenna Area
Camera Mode
(Customizable)
Follow Mode
Joystick
Home
Refer to the camera instructions for more information.
08 09
6 Charging
The storage compartment is water resistant, but not waterproof. It cannot prevent extensive rain or water
from entering.
Your miniPLUS is fully charged when the LED on the charger changes from red (charging) to green
(trickle charge).
7 Storage Compartment
Opening and Closing: to open, first press the button, then pull o the cover; to close, insert the bottom
of the cover first, then press closed until it clicks.
Using: stow the remote control or camera inside the storage compartment, as shown. Use the retaining
strap to hold the item securely.
1.
2.
3
12
Install the App and register/login. Power ON the miniPLUS. The Bluetooth icon
blinking indicates the miniPLUS is waiting for
a connection.
There are safety risks when learning to ride the miniPLUS. You must read the
Safety Instructions and follow the New Rider Tutorial in the App before your first ride.
For your safety, your miniPLUS is not activated at this time and will beep occasionally
after Power ON.
Until activated, the miniPLUS maintains a very low riding speed and steering
sensitivity, and should not be ridden. Install the App on your mobile device (with
Bluetooth 4.0 or above), connect to the miniPLUS with Bluetooth, and follow the App
instructions to activate your miniPLUS and follow the training procedures.
Scan the QR code to download the App (iOS 8.0 or above, Android™ 4.3 or above).
Click “Search Device” to connect to your
miniPLUS. The miniPLUS will beep when the
connection is successful. The Bluetooth icon
will stop blinking and remain illuminated.
If your miniPLUS intermittently sounds an alarm, stop riding and check the App (if connected) for details.
Do not connect the charger if the charge port or charge cable is wet.
Segway App Charge port Open the rubber cap Insert the plug
into the socket
12
CameraRemote
5 First Ride
CHARGING
10 11
8 Learning to Ride
Go to a large open area and ask a friend to assist
you on your first ride.
1Lightly place one foot on the foot mat,
while keeping your other foot on the
ground holding your weight. Do not
press the steering bar with your leg.
2
Stand with your weight evenly
distributed on both feet and
relax, looking straight ahead.
4
Gently lean your body forward and
backward to control your movement.
5To turn, gently lean left or right
against the steering bar.
6
3Slowly transfer your weight onto the
miniPLUS. The unit will beep,
indicating it is now in Balance Mode.
Slowly step on with your other foot.
≥ 12 ft. (4 m)
≥ 12 ft. (4 m)
WARNING
Always step on/o from the back of the miniPLUS.
After activation, the App will lead you through the New
Rider Tutorial. Please follow the instructions in the App
and in this manual.
NOTE
You must first download the App on your mobile device.
The App will lead you through the New Rider Tutorial.
For your safety, the miniPLUS will limit the max speed to
2.5 mph (4 km/h) until you complete the New Rider
Tutorial. For the first 0.6 miles (1 km) after completing the
New Rider Tutorial, the max speed will be limited to 6.2
mph (10 km/h), after which you can disable the speed
limiter via the App and reach a maximum speed of
miniPLUS (see specifications).
Wear an approved helmet and other
protective gear to minimize any
possible injury.
WARNING
Rider must weigh 55–220 lbs (25–100 kg)
and must be 4'3"–6'6" (130–200 cm) tall.
12 13
15°
9 Warning
Watch your head when
passing through doorways.
Avoid contacting
obstacles with the
tire/wheel.
When traversing small bumps or uneven terrain, maintain
a moderate speed of 2-6 mph (3-10 km/h) and keep your
knees bent. Do not go too slow or too fast; otherwise you
may lose control and fall.
Avoid slopes steeper than 15°. Do not ride through
puddles or other bodies of
water. Do not get wet.
You must read and understand the Warnings and Safe Riding instructions in this manual
before attempting to ride the miniPLUS. Failure to follow these warnings could result in
death or serious injury due to: loss of balance, traction, and/or control; collisions; and falls.
Do not ride on public
roads, motorways,
highways, or streets.
Do not accelerate when
the miniPLUS tilts back or
sounds an alarm (speed
limiter). Do not attempt to
override the speed limiter.
Do not accelerate or
decelerate abruptly. Do not
lean more than 5° or
accelerate/decelerate faster
than 2.5 mph/s (4 km/h/s).
The miniPLUS is for one
rider only. Do not ride
double or carry any
passengers. Do not carry
a child.
Do not rock back and forth
or shift your weight abruptly.
Do not ride over holes, curbs,
steps, or other obstacles.
0
14 15
Power Assist
Mode
Lifting
For your safety, motor power is cut o when the miniPLUS is lifted o the ground in Balance Mode. When the miniPLUS is
put back down it will begin balancing again. Do not lift the miniPLUS by the fenders or mainframe; you risk pinching or
injuring your fingers/hands. Please lift via the steering bar as shown above.
When your miniPLUS is powered on, but no rider is standing on it, it is in Power Assist Mode. Steer the miniPLUS across
smooth surfaces using the steering bar. Do not guide it up stairs, across potholes, over large cracked/uneven surfaces, or
over other obstacles; guide your miniPLUS around the obstacle or carry it over the obstacle as shown above.
Follow Mode Remote Control Mode
When you don’t want to ride, use Follow Mode to
bring your miniPLUS with you. Press the Follow
button on the remote control to enable or disable
Follow Mode.
Do not ride on low traction
surfaces (including, but not
limited to, wet ground, loose
sand, loose gravel, and ice).
Do not attempt stunts of
any kind. Always keep
both feet on the foot mats.
Maintain contact with the
ground at all times. Do not
jump or attempt stunts.
You don’t need to bend down awkwardly to steer
your miniPLUS around obstacles. Move the joystick
on the remote control to drive your miniPLUS
around.
Warning You must read and understand the Warnings and Safe Riding instructions in this manual
before attempting to ride the miniPLUS. Failure to follow these warnings could result in
death or serious injury due to: loss of balance, traction, and/or control; collisions; and falls.
10 Features
WARNING!
• If your mobile device or remote control goes outside of range (65 ft. [20 meters]), the miniPLUS will stop moving.
However, use caution: if the miniPLUS is on any type of slope, it may continue to move or even lose control and cause
serious personal injury or property damage.
• Do not use Follow Mode or Remote Control Mode in crowded areas or where there is a potential risk of endangering
people or property. In addition, always keep the unit in sight while in Remote Control Mode.
• Do not use your miniPLUS to chase people, animals, cars, or anything else in Remote Control Mode.
NOTE
In Remote Control Mode the default maximum speed is 3 mph (5 km/h), however you may change the max speed in the App.
16 17
Cleaning and Storing Your miniPLUS
Use a soft, wet cloth to wipe the mainframe clean. Hard to remove dirt can be scrubbed with a toothbrush and toothpaste,
then cleaned with a soft, wet cloth. Scratches on plastic parts can be polished with extra fine grit abrasive paper.
NOTE
Do not wash your miniPLUS with alcohol, gasoline, acetone, or other corrosive/volatile solvents. These substances may
damage the appearance and internal structure of your miniPLUS. Do not wash your miniPLUS with a power washer or high
pressure hose.
WARNING
Make sure the miniPLUS is powered OFF, the charging cable is unplugged, and the rubber cap on the charge port is tightly
sealed before cleaning; otherwise you may expose yourself to electric shock or damage the electronic components.
Store your miniPLUS in a cool, dry place. Do not store it outdoors for extended periods of time. Exposure to sunlight and
temperature extremes (both hot and cold) will accelerate the aging process of the plastic components and may reduce
battery life.
Tire Pressure
Inflate tires to 45–50 psi. Inflate both tires equally.
Battery Pack Maintenance
Do not store or charge the battery at temperatures outside the stated limits (see Specifications). Do not discard or destroy
the battery. Refer to your local laws and regulations regarding battery recycling and/or disposal.
A well maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid
draining the battery completely. When used at room temperature (70°F [22°C]) the battery range and performance is at its
best; whereas using it at temperatures below 32°F (0°C) can decrease range and performance. Typically, at -4°F (-20°C)
range can be half that of the same battery at 70°F (22°C). Battery range will recover when temperature rises. More details
are available in the App.
NOTE
Typically, a fully charged battery should retain charge for 120-180 days in Standby Mode. Remember to charge the battery
after each use. Completely draining the battery may cause permanent damage to the battery. Electronics inside the battery
record the charge-discharge condition of the battery; damage caused by over-discharge or under-discharge will not be
covered by the Limited Warranty.
WARNING
Do not attempt to disassemble the battery. Risk of fire. No user serviceable parts.
WARNING
We strongly recommend against riding when the ambient temperature is below 23°F (-5°C) because low temperature will
limit the maximum power/torque. Doing so could cause personal injury or property damage due to slips or falls.
11 Maintenance 12 Specifications
[1] Typical Range: tested while riding under full power, 154 lbs (70 kg) load, 77°F (25°C), 9.3 mph (15 km/h) average speed on
pavement.
[2] Continuous Discharge Power: tested while under full power at 77°F (25°C). The value changes with temperature and remaining
battery capacity. For example, the continuous discharge power drops to ~80% of the maximum value at 10% remaining battery
capacity, and the continuous discharge power drops to ~70% of the maximum value at 32°F (0°C).
Item N4M350 Parameters
Dimensions Unit
35 lbs (16 kg)
22 miles (35 km)
15°
4’3”–6’6” (130–200 cm)
12.5 mph (20 km/h)
Package
Weight Payload
Net
Rider Recommended Age
Required Height
Machine
Parameters
Max. Speed
Typical Range 1
Max. Slope
Battery
Motors
Charge Time
23×11×24 in (577×280×620 mm)
55–220 lbs (25–100 kg)
16–60 years
23×18×13 in (580×445×330 mm)
Pavement, packed dirt, slopes < 15°, obstacles < 0.4 in (1 cm),
gaps < 1.2 in (3 cm)
Traversable Terrain
Operating Temperature
Storage Temperature
IP Rating
Nominal Voltage
Max. Charging Voltage
Charging Temperature
Nominal Capacity
Continuous Discharge Power 2
Battery Management System
Nominal Power
Max. Power
14–104°F (-10–40°C)
-4–122°F (-20–50°C)
IP54
32–104°F (0–40°C)
51 V DC
58.8 V DC
329 Wh
1530 W
Over-voltage, under-voltage, short circuit, and over-heating
protection. Auto-sleep and auto-wake.
800×2 W
400×2 W
4 hours
18 19
This product has been tested and passed ANSI/CAN/UL-2272.
The battery complies with UN/DOT 38.3
Federal Communications Commission (FCC) Compliance Statement for USA
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
Industry Canada (IC) Compliance Statement for Canada
This device complies with Industry Canada license-exempt RSS standard (s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
CAN ICES-3 (B)/NMB-3(B)
Ninebot is not responsible for any changes or modifications not expressly approved by Ninebot. Such modifications could
void the user's authority to operate the equipment.
Segway miniPLUS (model N4M350) Remote Control (model N4MZ68)
FCC ID: 2ALS8-NB5213 FCC ID: 2ALS8-NBPLUS
IC: 22636-NB5213 IC: 22636-NBPLUS
European Union Compliance Statement
Battery recycling information for the European Union
Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC concerning batteries
and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and
recycling of used batteries and accumulators as applicable throughout the European Union. This label is applied to various
batteries to indicate that the battery is not to be thrown away, but rather reclaimed upon end of life per this Directive.
13 Certifications
32–104°F (0–40°C)
Charger
Model Number
Manufacturer
Supplier
Nominal Power
Input Voltage
Output Voltage
Output Current
Charging Temperature
120 W
HT-A10-120W-58.8V
100-240 V AC @ 50/60 Hz
Compliance CE, RoHS, REACH, UL, FCC, IC, CCC
58.8 VDC
2 A
Chingmi(Beijing)Technology Co.,Ltd.
Chingmi(Beijing)Technology Co.,Ltd.
Remote Control
Model Number
Rated Voltage
Operating Temperature
Storage Temperature
Battery Capacity
N4MZ68
680 mAh
3.7 VDC
Input Voltage 5 VDC
14–122°F (-10°C–50°C)
14–113°F (-10°C–45°C)
In accordance with the European Directive 2006/66/EC, batteries and accumulators are labeled to indicate that they are to
be collected separately and recycled at end of life. The label on the battery may also include a chemical symbol for the
metal concerned in the battery (Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries and accumulators
must not dispose of batteries and accumulators as unsorted municipal waste, but use the collection framework available to
customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to
minimize any potential eects of batteries and accumulators on the environment and human health due to the potential
presence of hazardous substances.
Restriction of Hazardous Substances Directive (RoHS)
Ninebot products sold in the European Union, on or after 3 January 2013 meet the requirements of Directive 2011/65/EU
on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS recast” or
“RoHS 2”).
Radio and Telecommunications Terminal Equipment Directive
Segway Europe B.V.
EU Contact Address for regulatory topics only: Hogehilweg 8, 1101CC, Amsterdam, The Netherlands
Hereby, Ninebot (Changzhou) Tech Co., Ltd, declares that the wireless equipment listed in this section are in compliance
with the essential requirements and other relevant provisions of Directive 2014/53/EU.
20 21
Ninebot and the shape icon are trademarks of Ninebot Inc.; Segway is the registered trademark of Segway Inc.; Ninebot by
Segway is a trademark of Segway Inc.; iPhone and iOS, that of Apple Inc.; Android, that of Google Inc. The respective
owners reserve the rights of their trademarks referred to in this manual.
Ninebot is the owner or licensee of various patents relating to Ninebot personal transportation robots, with other patents
pending. This manual is prepared by Ninebot who reserves all its copyrights. No institute or individual shall copy or
disseminate this manual in whole or in part, or make use of the aforesaid patents without the consent of Ninebot in writing.
The miniPLUS is covered by U.S. and foreign patents. For patent information go to http://www.segway.com. Ninebot
(Tianjin) Technology Co. Ltd. manufactures and sells the miniPLUS under a license from DEKA Products Limited
Partnership.
This product has been tested and passed ANSI/CAN/UL-2272.
The battery complies with UN/DOT 38.3
Federal Communications Commission (FCC) Compliance Statement for USA
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
Industry Canada (IC) Compliance Statement for Canada
This device complies with Industry Canada license-exempt RSS standard (s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
CAN ICES-3 (B)/NMB-3(B)
Ninebot is not responsible for any changes or modifications not expressly approved by Ninebot. Such modifications could
void the user's authority to operate the equipment.
Segway miniPLUS (model N4M350) Remote Control (model N4MZ68)
FCC ID: 2ALS8-NB5213 FCC ID: 2ALS8-NBPLUS
IC: 22636-NB5213 IC: 22636-NBPLUS
European Union Compliance Statement
Battery recycling information for the European Union
Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC concerning batteries
and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and
recycling of used batteries and accumulators as applicable throughout the European Union. This label is applied to various
batteries to indicate that the battery is not to be thrown away, but rather reclaimed upon end of life per this Directive.
14 Trademark and Legal Statement
Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your miniPLUS.
Americas:
Segway Inc.
14 Technology Drive, Bedford, NH 03110, united states
Tel : 1-603-222-6000
Fax: 1-603-222-6001
Toll Free: 1-866-473-4929
E-mail Sales: customeroperation@segway.com
E-mail Service: technicalsupport@segway.com
Website: www.segway.com
Europe, Middle East and Africa:
Segway Europe B.V.
Hogehilweg 8, 1101CC, Amsterdam, The Netherlands
Email service: service@segway.eu.com
Website: www.segway.com
Have your Segway miniPLUS's serial number on hand when contacting Segway.
You can find your serial number on the skid plate on the underside of your miniPLUS
or in the App under More Settings –> Basic Information.
15 Contact
In accordance with the European Directive 2006/66/EC, batteries and accumulators are labeled to indicate that they are to
be collected separately and recycled at end of life. The label on the battery may also include a chemical symbol for the
metal concerned in the battery (Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries and accumulators
must not dispose of batteries and accumulators as unsorted municipal waste, but use the collection framework available to
customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to
minimize any potential eects of batteries and accumulators on the environment and human health due to the potential
presence of hazardous substances.
Restriction of Hazardous Substances Directive (RoHS)
Ninebot products sold in the European Union, on or after 3 January 2013 meet the requirements of Directive 2011/65/EU
on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS recast” or
“RoHS 2”).
Radio and Telecommunications Terminal Equipment Directive
Segway Europe B.V.
EU Contact Address for regulatory topics only: Hogehilweg 8, 1101CC, Amsterdam, The Netherlands
Hereby, Ninebot (Changzhou) Tech Co., Ltd, declares that the wireless equipment listed in this section are in compliance
with the essential requirements and other relevant provisions of Directive 2014/53/EU.
We have attempted to include descriptions and instructions for all the functions of the miniPLUS at the time of printing.
However, your miniPLUS may dier slightly from the one shown in this document. Visit the Apple App Store (iOS) or the
Google Play Store (Android) to download and install the App.
Please note that there are multiple Segway and Ninebot by Segway models with dierent functions, and some of the
functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design
and functionality of the miniPLUS product and documentation without prior notice.
All rights reserved. Copyright Segway 2017.
22 23
Appendix 1: Using the Camera (sold separately)
Gimbal Connection Button
Camera
Gimbal
Initial Angle Adjuster
Adapter
Together with the camera, your miniPLUS can take photos and videos. Use your miniPLUS like a drone camera close
to the ground to take engaging, active photos and video.
In the default mode, use the remote control to drive your miniPLUS, take photos and record video. You can also have
the camera follow the remote control intelligently, or fix the camera in a specific direction while your miniPLUS
moves around.
There is more fun to explore. Go get your personal photographer!
Scan QR code for
more information
Mount the camera on your miniPLUS and adjust the inital angle.
Adapter
Gimbal
Camera
Take pictures and record video; wide angle images; remote
control; real-time preview and transmission with App; high
quality video at 1920*1080/60fps; compatible with TFlash
（Micro-SD) card.
High accuracy three-axis stabilizer.
Appendix 2: Using Your Segway miniPLUS + Camera
1. Drive your miniPLUS in Remote Control Mode for real-time photos and videos, or let your miniPLUS drive itself in
Follow Mode.
2. Path shooting: using the App’s advanced functions, the user can manually set a path, or automatically record a path
by riding the miniPLUS or using the remote control to drive the miniPLUS. Then simply replay the path and record
amazing video.
