Ningbo EverFlourish Smart Technology 2300ULRF Remote Control User Manual 23UL RF EMW200TK E

Everflourish Electrical Co., Ltd. Remote Control 23UL RF EMW200TK E

User manual

23UL-RF+EMW200TK (E), P1/3
Instruction Manual for
RF Remote Socket and Transmitter
Ref: 23UL/RF + EMW200TK
Function
1. The remote control socket (23UL/RF) turns on and off the connected lighting or appliance by a wireless
transmitter (EMW200TK) using radio frequency up to 25 meters away.
2. It is ideal for controlling lighting for the purposes of home automation and energy saving.

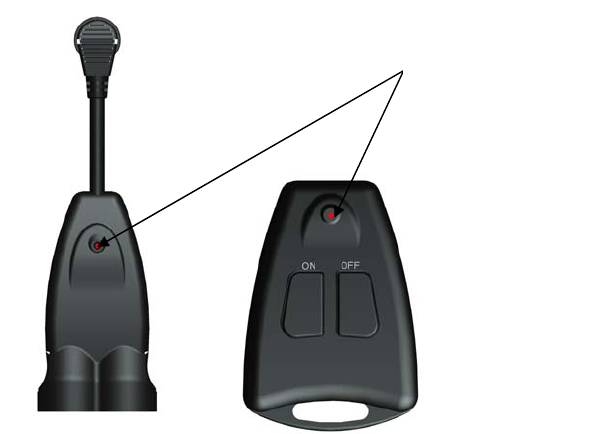

23UL/RF EMW200TK
Operation
1. Connect the remote control socket to the mains power supply.
2. Press the corresponding “ON”, “OFF” buttons on the transmitter to switch on and off the connected appliance by
remote control.
3. The indicator on the receiver blink once for every reception of power on/off
Warning:
1. For safety reason, always switch off your appliance before connection.
2. Appliances to be connected to the remote control socket MUST NOT exceed the voltage and frequency ratings
as in “Specifications”.
3. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.

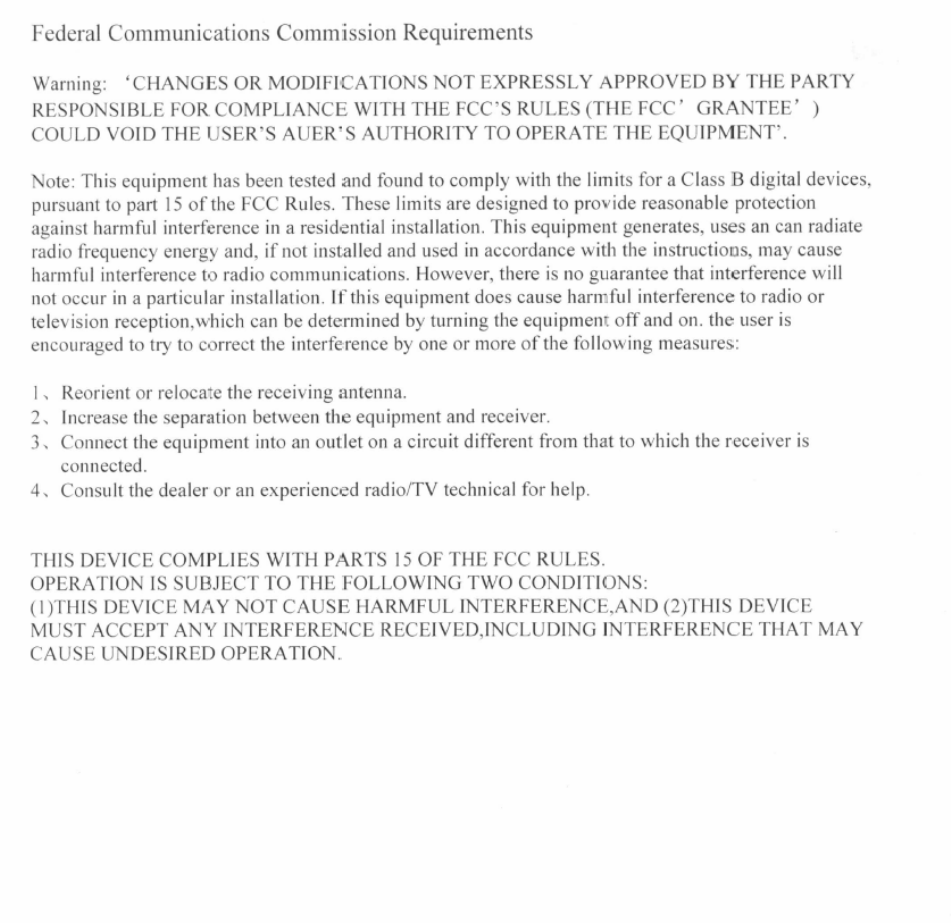

4. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and , if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
Indicator
23UL-RF+EMW200TK (E), P2/3
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected
Consult the dealer or an experienced radio/TV technician for help.
Specifications
23UL/PC
1. Power Rating : 125V~, 50Hz, 1000W; 600W(Tungsten)
2. Frequency: : 315 MHz
3. Distance: : 25 meters
EMW200TK
1. Battery : 23A 3L R50 12V
2. Frequency : 315MHz
3. Distance : 25 meters max.
23UL-RF+EMW200TK (E), P3/3
