Ningbo Richen Electrical Appliance RCS08C Remote Control Transmitter User Manual
Ningbo Richen Electrical Appliance Co.,Ltd. Remote Control Transmitter
User Manual
RCS08C
RCS08CRCS08C
RCS08C
Remote control emitter
Remote control emitterRemote control emitter
Remote control emitter——
————
——user
useruser
user’
’’
’s manual
s manuals manual
s manual
1. Model：RCS08C
2. Appearance：
Emitter appearance, deployment and icon of button as shown in the figure below:
3. Key description：
3.1 ，
Key to control turn on/turn off. Press : turn on the controller，Press : turn off the
controller
3.2 ，
Key to control flame effect. Press :flame increase，Press :flame decrease.
Long press : Send separate signal,could enter a specific pattern，such as“pilot only”。
3.3 ，
Key to control fan speed. Press ,increase the fan speed; Press 键，decrease the fan
speed.
3.4 ，
Key to control the brightness of fuel bed. Press , increase the brightness of fuel bed;
Working indicat
Press , decrease the brightness of fuel bed.
3.5 Press any key，turn on the working indictor lamp; Loosen the button light will put out.
4. Battery
4.1 Battery model：CR2450
4.2 Battery voltage：3V DC
4.3 Replace battery：

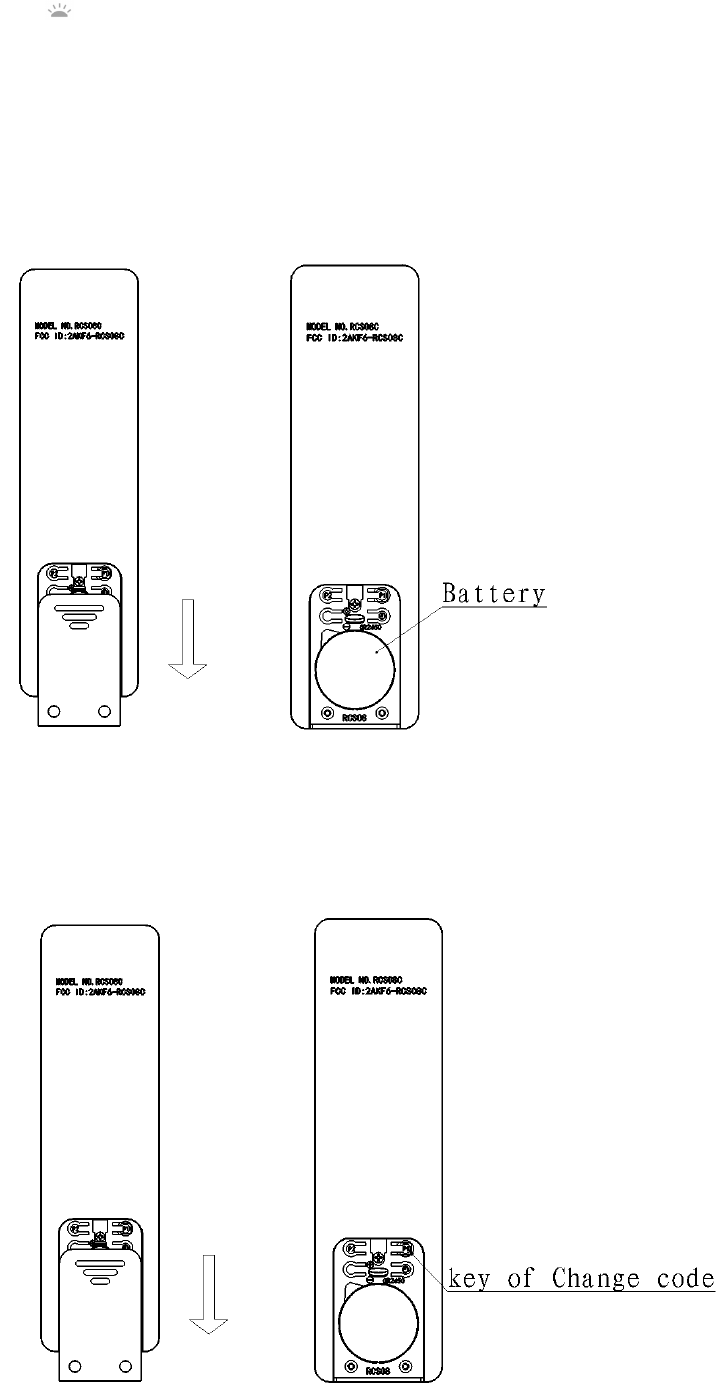

As shown in the figure below, according to the direction indicated by an arrow landed discharge
the lid of the remote control transmitter, then could remove battery.
5. key code
Each remote control transmitter needs a corresponding remote receiver，If the remote control
transmitter can control many sets of remote control receiver, it need change the code. As shown
in the figure below, remove the back lid of the remote control transmitter and press the key of
change code.
6. Warning：
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This product has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This product generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this product does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
