1. APPLIANCE DATA AND INPORTANCE WARNINGS
1.1 Appliance data
Voltag………………………………………3VDC
Frequency…………………………ASK/OOK 433.92MHZ
Maximum transmit power………10Mw
Hardware version: RF290A-TX-V1.3
Software version:RF290A_C_V0.6.0.hex
1.2 Importance warnings
1.2.1 FCC Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This product generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this product does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Please take attention that changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
1.2.2 IC Statement :
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference
to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il
faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne
dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
User Instructions
3
2. Operations

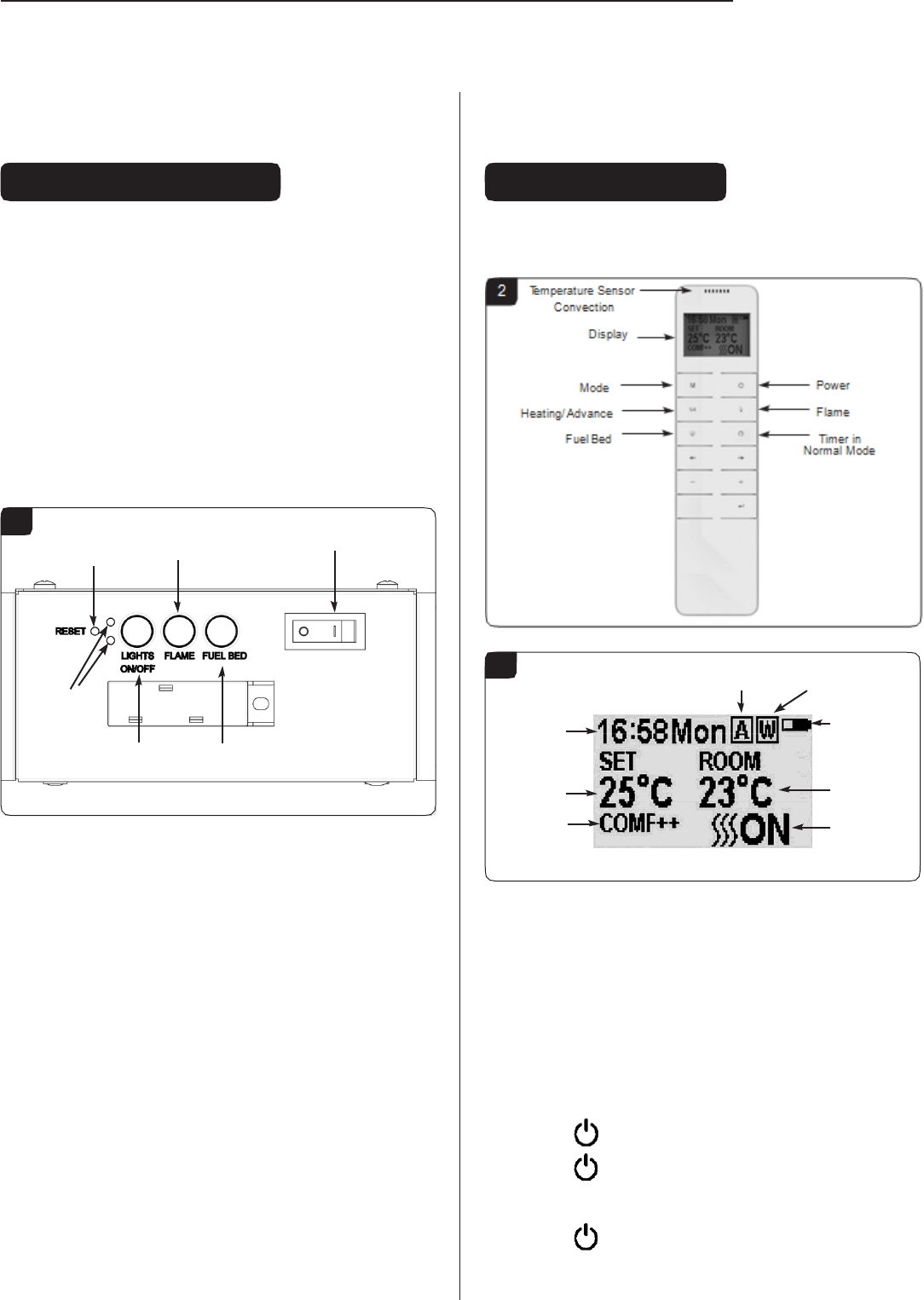

2a. Manual Control Panel
2a.1 The manual controls on appliance are located at the
upper right of appliance.
2a.2 Turning on the appliance with the main power switch on
‘—‘
position. A long beep will be heard.
2a.3 Press “LIGHTS ON/OFF” to turn on or turn off both the
flame and fuel bed at the same time.

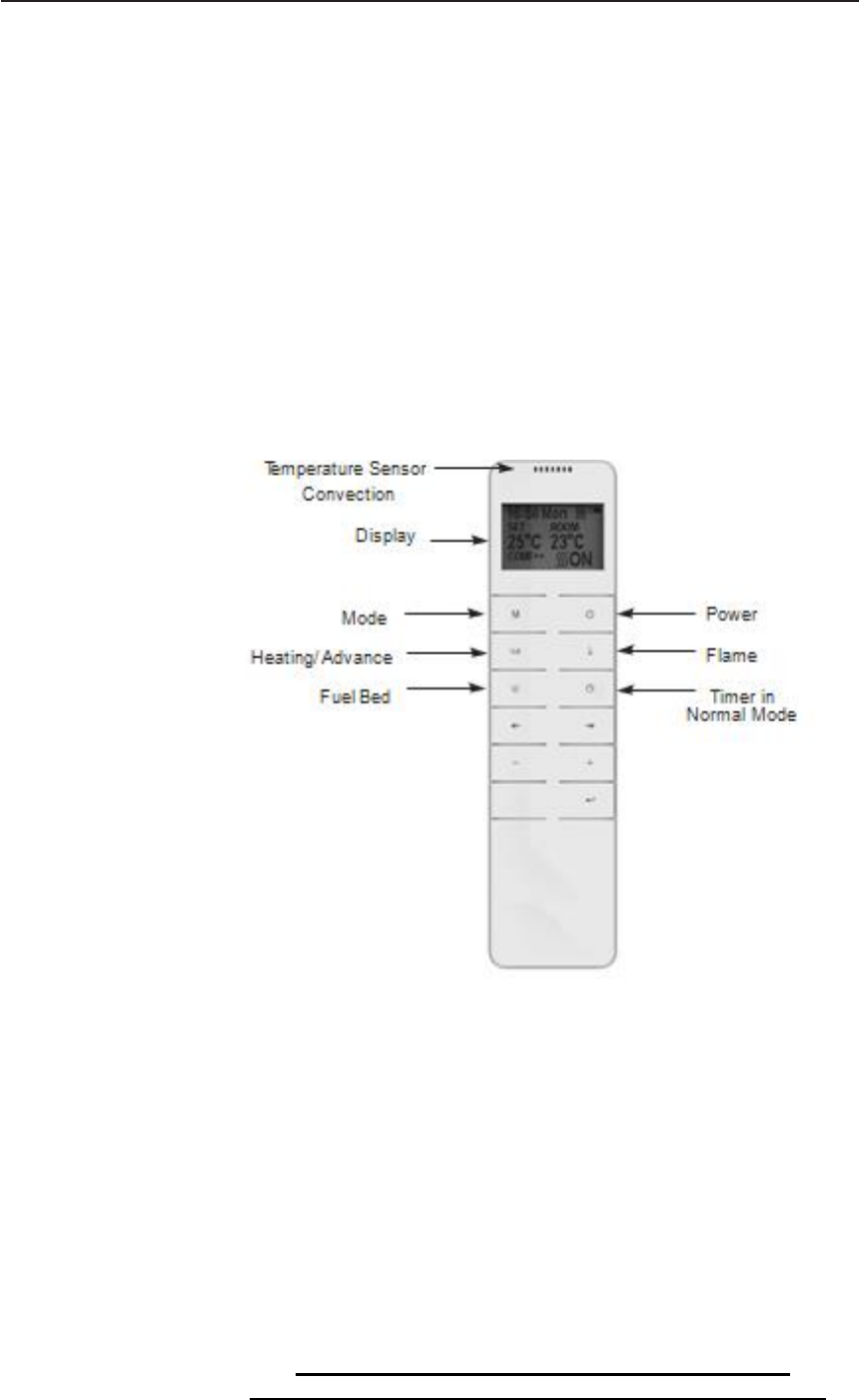

2b. Remote Controls
The remote control should be left on a flat surface in
the room where the appliance is installed and away
from any direct flow of hot air.
2
2a.4 There are 3 flame colour options:
Press “FLAME” button to select the colour of flame (3 kinds
of flame colour with flame) or return to the OFF position.
2a.5 Press “FUEL BED” button to select the colour of fuel bed
(14 kinds of fuel bed) or return to the OFF position.
1
Reset Button for
Remote Control
Flame setting
button
Mains Power
(On/Off) Switch
Heater Running
Indicators
All Lights
Fuel bed
3
Time and
Day
Advance
Timer Mode
Battery Power
On/ Off button setting button
Note: The remote control will lose the memory for all
function settings when the switch is set to the Off
Position.
When the remote runs out of power, only the light
functions will lose memory.
Heater Running Indicators (see Diagram 1)
Temperature
Setting
Comfort
Setting
Signal Code

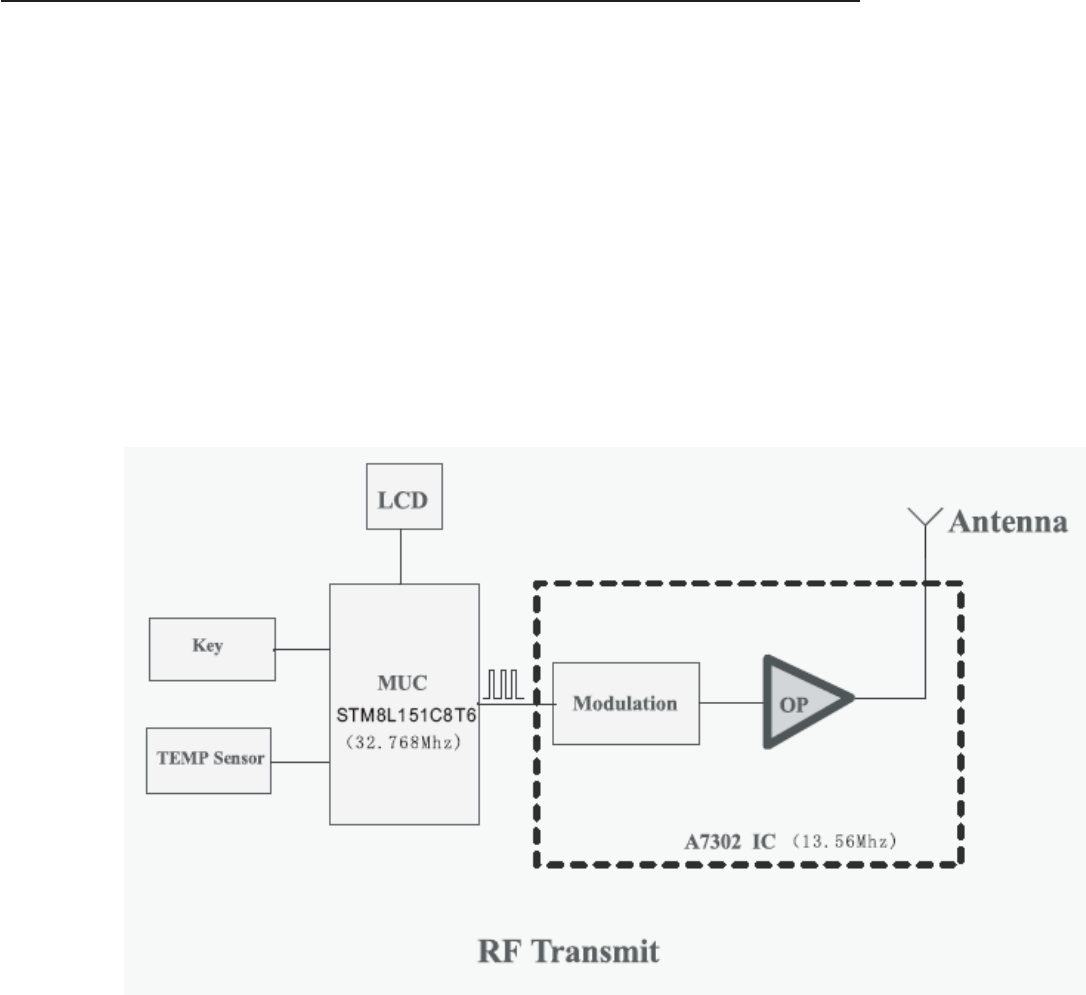

2b.1 The remote control works by radio
signal.
Actual Room
Temperature
Heating Period
2a.6 When the fan heater is used in conjunction with the flame or
fuel bed effects the heater running indicators will light up for
10 seconds.
The LEDs will illuminate for 10 seconds if the flame or fuel
bed effect is On.
If the fan heater is used independently, the heater running
indicators will stay on.
Reset Button for Remote Control
2a.7 If the handset loses signal or needs to be replaced then,
see Section 17 in Servicing Section for details.
The handheld transmitter is configured in the factory with a
unique signal code.
IMPORTANT: If the handset loses signal or needs to be
replaced then, see Section 17 in Servicing Section for
details.
Turn on/off.
2b.2 Press button to turn on the flame effect.
2b.3 Press button to turn off all the functions under the
normal heating control mode including flame effect and fan
heater.
2b.4 Press button to turn off the flame effect under daily and
week timer heating mode.
User Instructions
4
Flame Colour Adjustment

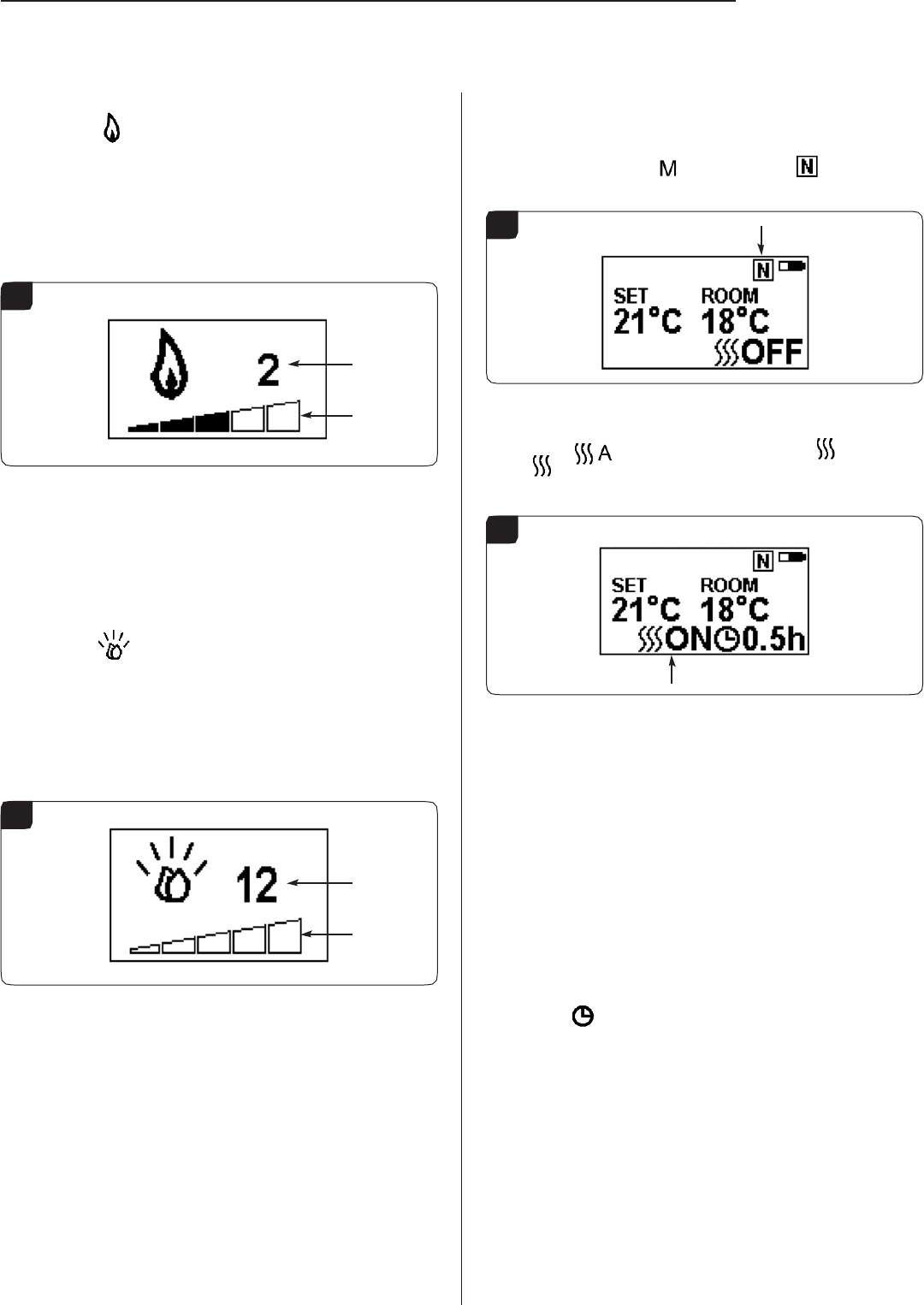

2b.5 Press button to enter the flame adjustment screen.
There are 3 flame colour options, indicated by the number
shown in Diagram 4.
There are 6 levels of brightness, including off. This is
indicated by the bar, with the blank bar indicating off, see
Diagram 4.
Normal Control Mode
2b.11 Normal Control Mode is the default setting.
Alternatively press button until the logo is shown
at the upper right corner of the screen, see Diagram 6.
6
4
Colour
Option
Brightness
Level
2b.6 Press the ‘
’ or ‘
’ button to cycle through the flame
colour options.
2b.7 Press the ‘
+
’ button to increase the flame brightness.
Press the ‘-’ button to decrease the flame brightness until
off.
Fuel Bed Colour Adjustment
2b.8 Press to enter the fuel bed light adjustment screen.
There are 14 fuel bed colour options, indicated by the
number shown in Diagram 5.
There are 6 levels of brightness, including off. This is
indicated by the bar, with the blank bar indicating off, see
Diagram 5.
5
Colour
Option
Brightness
Level
2b.9 Press the ‘
’ or ‘
’ button to cycle through the fuel bed
colour options.
2b.10 Press the ‘
+
’ button to increase the fuel bed brightness.
Press the ‘-’ button to decrease the fuel bed brightness until
off.
2b.12 Press the ‘+’ or
‘-’
button to adjust the setting temperature
from 17 ℃ to 25℃.
2b.13 Press button to turn the heat on/off, ON or
OFF will show at the lower right corner of the screen,
see Diagram 7.
7
Note: It is normal for the fan heater to stop running for
periods of time. This happens if the room temperature is
higher than the temperature set on the control.
The heater indicator will be turned off after 10s if the flame is
switched ON. The heater indicator will stay ON if only the
heating function is used.
When in Normal Control Mode switching the appliance
off with the remote will stop both the light and heat
output.
Count Down Timer
This setting is only in normal heating control mode. It allows
the appliance to be returned to Standby after a set period of
time. The heater must be switched on to use this function.
2b.14 Press to cycle through the setting from Off and 0.5 hours
to 9 hours. Timer logo and remaining time will show on the
screen.
The heater of appliance can be automatically run by using
daily timer and weekly timer on the remote.
User Instructions
5
Battery
The battery power level is indicated at the top right of the
remote control screen, see Diagram 3.
Battery Full
No action required
Battery Half Power
Ensure new batteries are available.
Battery Empty
Replace batteries immediately
Battery replacement is recommended after 1 year. The
Remote requires two 1.5V alkaline AAA batteries.
Changing the batteries will not affect the Timer Mode
settings, however, the clock may need adjusting.
Week Days/ Time/ Comfort Temperature and Unit Setting
2b.15 Keep pressing button for 3 seconds to enter the
setting screen.
2b.16 Press the ‘
’ or ‘
’ button to choose setting to change.
The selected character will be highlighted, see Diagram 8.
8
2b.17
Press the ‘+’ or ‘-’ button to adjust the number.
Time: 24-hour system.
Select Comfort temperature from 15-25℃.
Temperature unit: ℃/℉.
2b.18 Press the button for 3 seconds or wait 10 seconds to
save and exit the week, time and heating temperature setting.
Daily Timer Heating
2b.19 The following heating periods have been preset, these can be
altered if desired:
06:00 until 08:00
17:00 until 22:00
2b.20 Press until shows at the upper right corner of
the screen to enter the daily timer heating mode.
2b.21 Hold the button for 6 seconds to enter the daily heating
setting.
A maximum of 3 timed heating periods can be set per day.
2b.22 Press ‘’ or ‘’ to choose hour or minute,
2b.23 Press ‘+’ or ‘-’ to set the number.
The minute increment / decrement by 15min per press.
10
2b.24 Hold the button for 3 seconds or wait for 10 seconds to
save and exit the heating time period setting.
2b.25 Check the timer setting. Press to check the daily
timer mode.
2b.26 If the heating needs to be turned off, it will be necessary to
go back to the Normal Control Mode to it turn off.
When in Daily Timer Mode switching the appliance
off with the remote will stop the light output. The heat
output will continue according to the timer settings.
Adjusting the Set Temperature
2b.27 Press the ‘+’ or
‘-’
button to increase or decrease the
temperature on the basis of COMF temperature.
COMF means the actual temperature is the same as setting.
ECO means the actual temperature is 2℃ lower than the
setting temperature.
ECO- means 4℃ lower, COMF+ means 2℃ higher.
COMF++ means 4℃ higher.
Adaptive start control
According to room temperature and set-pointed temperature,
the heater will automatically determine the appropriate
time to heat to ensure that it will reach the set-pointed
temperature in the set time (up to 45 minutes prior to the set
time.)
9
User Instructions
6
Week Timer Heating
2b.28 The following heating periods have been preset, these can
be altered if desired:
From Monday to Friday
06:00 until 08:30
17:00 until 22:00
From Saturday to Sunday
06:30 until 09:30
11:00 until 13:00
17:00 until 22:00
2b.29 Press until shows at the upper right corner of
the screen to enter the week heating mode.
11

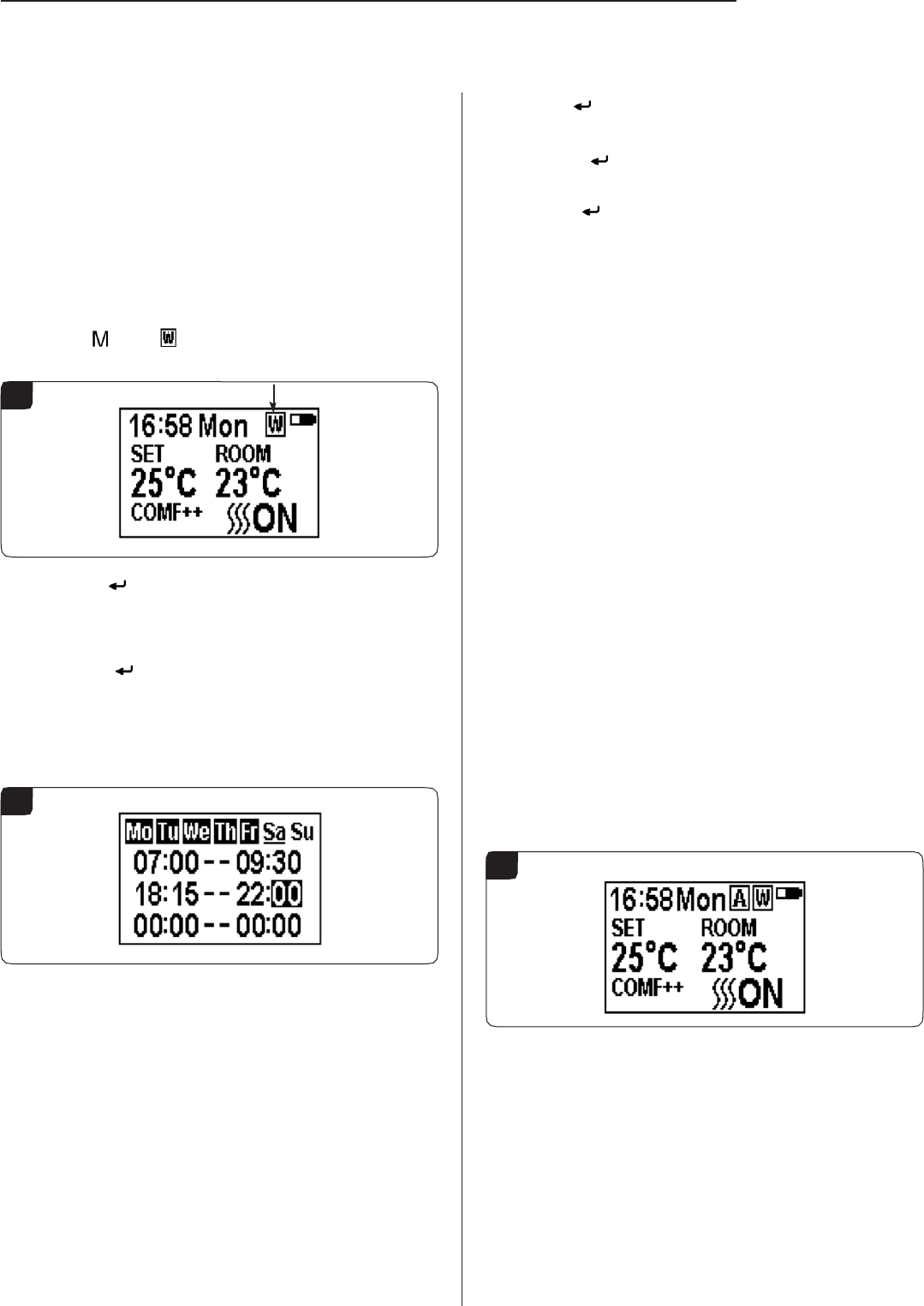

2b.30 Hold the button for 6 seconds to enter the week
timer heating mode setting.
2b.31 Press ‘’ or ‘’ to move the cursor (a flashing underline).
2b.32 Press the button in the corresponding week position
to select (the character is highlighted) or cancel (the character
is displayed normally) the current setting, the same time
period can be selected together.
12
2b.36 Press to set the heating time for the selected day and
return to the week line.
2b.37 Hold the button for 3 seconds or wait for 10 seconds to
save and exit the heating time period setting.
2b.38 Press
‘
’ or ‘
’ to check the timer setting for the
week
timer heating mode.
2b.39 If the heating needs to be turned off, it will be necessary to
go
back to the Normal Control Mode to it turn off.
When in Weekly Timer Mode switching the appliance
off with the remote will stop the light output. The heat
output will continue according to the timer settings.
Adjusting the Set Temperature
2b.40 Press the ‘+’ or
‘-’
button to increase or decrease the
temperature on the basis of COMF temperature.
COMF means the actual temperature is the same as setting.
ECO means the actual temperature is 2℃ lower than the
setting temperature.
ECO- means 4℃ lower.
COMF+ means 2℃ higher.
COMF++ means 4℃ higher.
Adaptive start control
According to room temperature and set-pointed temperature,
the heater will automatically determine the appropriate time to
heat to ensure that it will reach the set-pointed temperature in
the set time (up to 45 minutes prior to the set time.)
Advance mode
2b.41 The heating state can be advanced to the next period is
under both the daily and week timer heating mode.
13
2b.33 Press the ‘
’ button to move the cursor to the time period
setting area.
2b.34 Press ‘
’ or ‘
’ button to choose hour or minute.
2b.35 Press ‘+’ or ‘-’ to set the number.
A maximum of 3 timed heating periods can be set per day.
Minute increment / decrement by 15min per press.
If the heater is on in the current period, pressing the button
will turn the heater off.
If the heater is off in the current period, pressing the button
will turn the heater on.
Whether the actual heating will be on/off also depends on
the room temperature and setting temperature.
User Instructions
7
2b.42 Press to enter the Advance mode under the daily and
week timer heating mode, will show at the upper right
corner of the screen.
2b.43 Press again or timer period ends will exit the Advance
mode.
Window open detecting

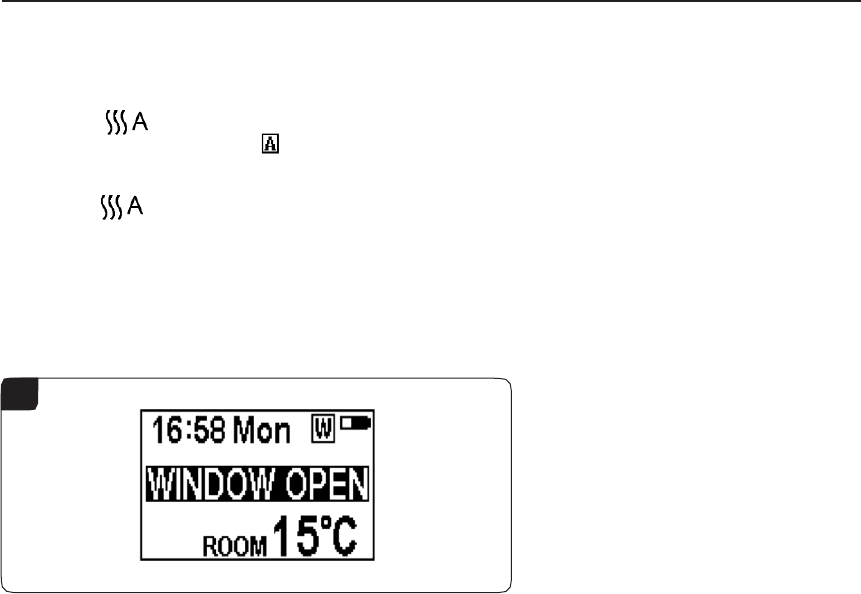

2b.44 When the transmitter detects a rapid drop in room
temperature, it will be judged as an open window: the
warning icon will be displayed and the heating will be turned
off automatically.
14
16
2b.45 After indoor temperature rise or manual intervention (by
operating remote control), it will return to normal working
state.
User Instructions
8
3. Principle of operation and block diagram
Principle of operation instructions
MCU（STM8L151）detected the valid keys operation, the blue indicator light of remote turn
on(Loosen the button light will put out),at the same time, MCU change head code, address code,
remote control button code value and the check code four groups of data into a binary data and
then through port transmit to RF chip A7302.RF chip in the form of ASK/OOK put the binary data
modulate to 433 MHZ carrier, send out by the antenna network.
BLOCK DIAGRAM
