ninjacoffeebar.com

1-877-646-5288

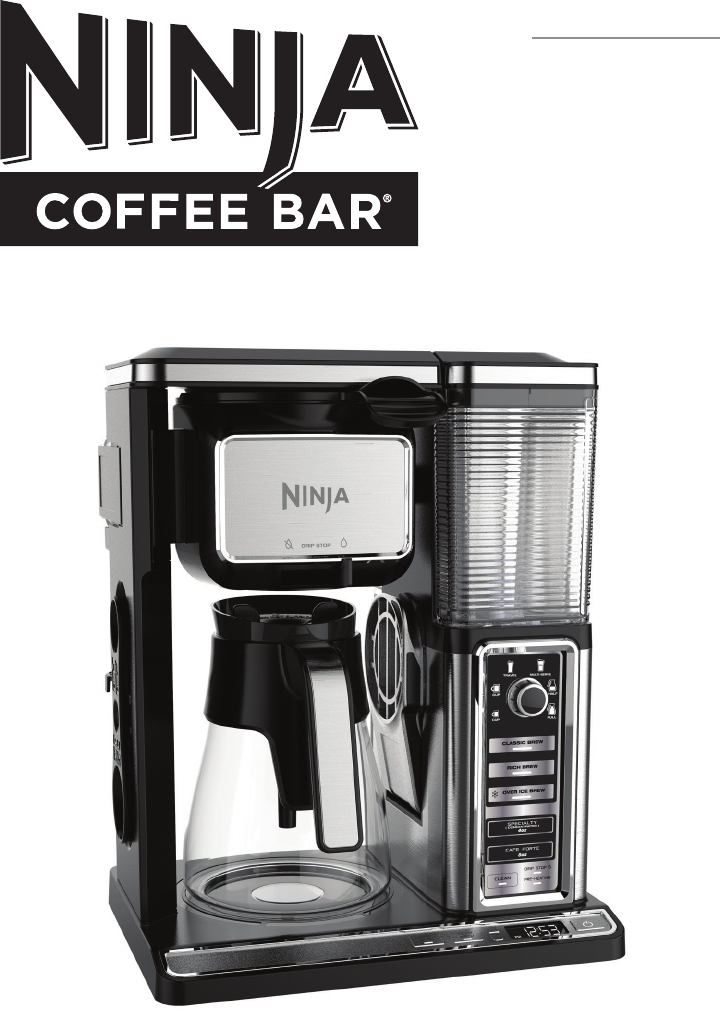

CF091 series

OWNER’S GUIDE

11-877-646-5288

THIS BOOK COVERS MODEL NUMBERS:

CF090A 30

CF090CO 30

CF091 30

TECHNICAL SPECIFICATIONS

Voltage: 120V~, 60Hz.

Power: 1450 Watts

Water Reservoir

Capacity: 50 Ounces

Ninja and Ninja Coffee Bar are registered

trademarks of SharkNinja Operating LLC.

READ ALL INSTRUCTIONS BEFORE USING

YOUR NINJA COFFEE BAR®.

Safety Signal Words

This manual and the safety labels attached to this

appliance utilize signal words that signify safety

hazards with different levels of severity.

Below are the words used and the definitions for

these words:

• WARNING indicates a hazardous situation

which, if not avoided, could result in death or

serious injury.

• CAUTION indicates a hazardous situation

which, if not avoided, could result in minor or

moderate injury.

• NOTICE is used to address practices not

related to physical injury.

The words “WARNING” and “CAUTION” are

preceded by a triangle signifying that these are

safety-related.

The terms “IMPORTANT” and “NOTE” are also

used to describe good ideas for better and more

efficient equipment use.

IMPORTANT SAFEGUARDS

For Household Use Only

WARNING:

To reduce the risk of fire, electric shock, serious

injury, death or damage when using this appliance,

follow these basic safety precautions.

General Precautions

1 DO NOT allow young children to operate the

appliance or use as a toy. Close supervision

is necessary when any appliance is used near

children.

2 To reduce the risk of electric shock, this

appliance has a polarized plug (one blade is

wider than the other). As a safety feature, this

plug will fit into a polarized outlet only one

way. If the plug does not fit fully into the outlet,

reverse the plug. If it still does not fit, contact a

qualified electrician. DO NOT force into outlet or

try to modify to fit.

3 To protect against electrical shock, DO NOT

submerge the appliance or allow the power cord

to come into contact with water or any other

liquid.

4 Allow the appliance to cool before taking off

parts and before cleaning.

5 NEVER carry the appliance by the power cord

or yank it to disconnect from electrical outlet;

instead grasp the plug and pull to disconnect.

6 DO NOT operate any appliance with a

damaged cord or plug, or after the appliance

malfunctions, or has been dropped or damaged

in any manner.

7 DO NOT let the power cord hang over the edge

of table or counter or touch hot surfaces such

as the stove.

8 Extension cords are not recommended for use

with this product.

9 DO NOT remove the brew basket or carafe

while the appliance is brewing. Scalding may

occur if any of these parts are removed

during brewing cycles.

2

ninjacoffeebar.com

10 The use of an accessory not recommended

by the manufacturer may create an overflow

condition and scalding hazard, or result in fire,

electric shock, or personal injury.

11 DO NOT operate your appliance in an appliance

garage or under a wall cabinet. When storing

in an appliance garage always unplug the unit

from the electrical outlet. Not doing so could

create a risk of fire, especially if the appliance

touches the walls of the garage or the door

touches the unit as it closes.

Operating Notice

12 DO NOT use well water, use tap water.

13 Clogging and backing up of water and/or coffee

in the filter basket can occur under any of the

following conditions: The use of coffee that

is too finely ground; using two or more paper

filters; using a permanent filter in conjunction

with a paper filter; not cleaning coffee grounds

from a permanent filter; or allowing coffee

grounds to spill over the filter.

14 ALWAYS use appliance on a dry, level surface.

15 DO NOT place on or near a hot gas or electric

burner, or in a heated oven.

16 DO NOT use this appliance for anything other

than its intended use. DO NOT use outdoors.

17 DO NOT touch hot surfaces. Use handles

orknobs.

18 DO NOT touch warming plate while the brewer

is in use.

19 DO NOT reach across top of brewer to froth

during brewing. Steam is released from vent on

top of brewer and can result in a steam burn.

Glass Carafe

20 The carafe is designed for use with this

appliance. It must never be used on a range

top.

21 DO NOT set a hot carafe on a wet or cold

surface.

22 DO NOT use a cracked or scratched carafe or a

carafe that has a loose or weakened handle.

23 DO NOT clean carafe with abrasive cleansers,

steel wool pads, or other abrasive material.

24 DO NOT place carafe in microwave.

25 DO NOT expose carafe to extreme temperature

changes.

26 DO NOT place on or near a hot gas or electrical

burner, or in a heated oven.

27 DO NOT use for carbonated beverages.

28 DO NOT drink directly from the carafe. Liquid

from the carafe may be very hot.

29 DO NOT use the carafe to store any other type

of food when not in use.

30 Ensure that the carafe is completely empty

before starting a cleaning or brewing cycle.

Starting a cycle with water or coffee in the

carafe will cause an overflow.

31 To prevent illness from bacterial growth in the

appliance, follow all cleaning instructions in the

“Care & Maintenance” section of this owner’s

guide.

Maintenance

32 Remove the power cord from the electrical

outlet and allow unit to cool before removing

brew basket, water reservoir, or filters before

surface cleaning.

33 If the product is not operating properly contact

SharkNinja Operating LLC at 1-877-646-5288

or ninjacoffeebar.com for examination, repair or

adjustment.

34 Clean the system on a weekly basis.

Cord Statement

35 A short power-supply cord is provided to reduce

the risks resulting from becoming entangled in

or tripping over a longer cord.

36 DO NOT use extension cords with this product.

SAVE THESE

INSTRUCTIONS

31-877-646-5288

Contents

Getting To Know Your Ninja Coffee Bar ............................................................................ 4

Control Panel ................................................................................................................ 5

Features Of The Ninja Coffee Bar .................................................................................... 6

Before First Use ............................................................................................................ 7

Setting The Clock and Delay Brew .................................................................................. 8

Assembly ..................................................................................................................... 9

Preparing and Using the Ninja Coffee Bar ..................................................................... 11

How Much Coffee Do You Get In Your Cup? .............................................................. 11

Would You Like A Hotter Coffee?.............................................................................. 11

Pre-Heating ........................................................................................................... 11

Filling The Brew Basket With Coffee ......................................................................... 12

Drip Stop ............................................................................................................... 13

Intelligent Warming Plate ........................................................................................ 13

Brewing Coffee ...................................................................................................... 14

Classic and Rich Brew ............................................................................................ 14

Over Ice Brew ........................................................................................................ 15

Signature Brews: Specialty and Cafe Forte Brew....................................................... 15

Frothing Your Milk .................................................................................................. 16

Care & Maintenance ................................................................................................... 17

Cleaning After A Brew ............................................................................................. 17

How To Clean & Descale The Brewing System .......................................................... 18

Troubleshooting Guide ................................................................................................. 19

Replacement Parts ...................................................................................................... 21

Warranty & Registration ............................................................................................... 22

Thank you for

purchasing the

Ninja Coffee Bar®

.

4

ninjacoffeebar.com

Getting To Know Your Ninja Coffee Bar®

a Flip-Top Water Reservoir Lid

b Removable Water Reservoir

c Brewer

d Control Panels

e Permanent Filter

f Swinging Brew Basket

g Removable Filter Holder

h Integrated Frother

i Drip Stop Toggle

j Brew-through Carafe Lid

k Glass Carafe

l Multi-Serve Cup Platform

m Intelligent Warming Plate

n Double-Sided Scoop: Carafe Side and Single Serve Side

o Power Cord & Wrap (not shown)

p Frother Whisk

q Showerhead

r Water Tank Shelf

m

a

b

c

h

e

d

f

g

i

j

k

l

p

q

r

n

CAUTION: DO NOT reach across top of brewer to froth

during brewing. Steam is released from vent on top of

brewer and can result in a steam burn.

q

p

r

51-877-646-5288

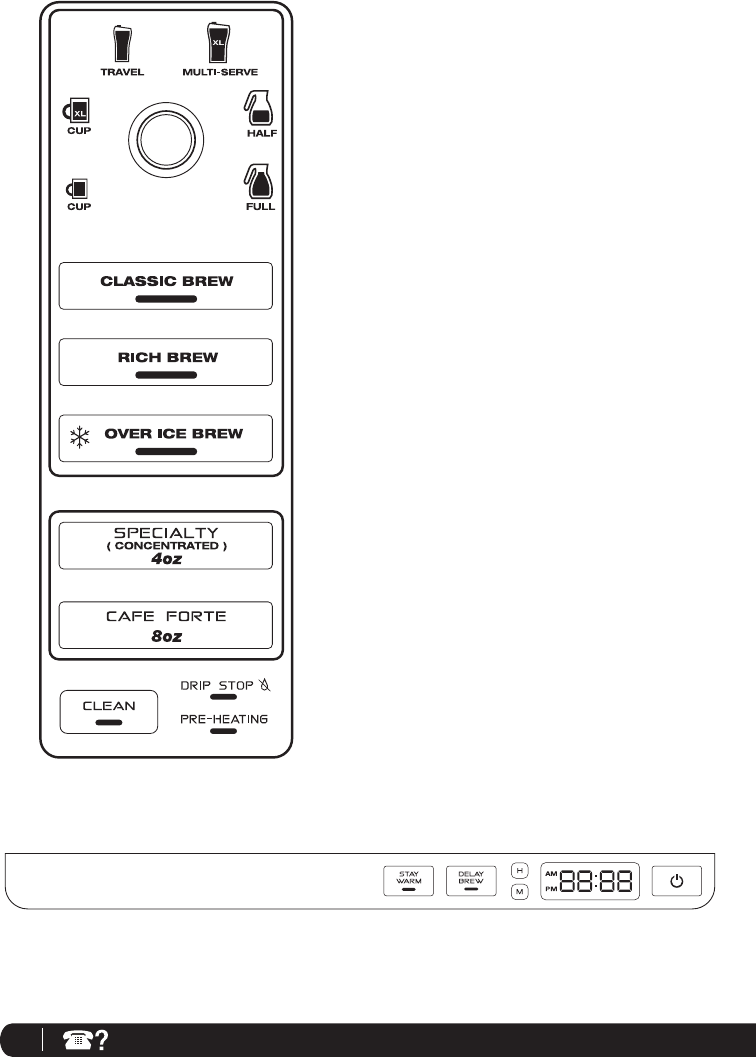

Control Panel

1c 1d

1b

2a

2b

3a

2c

3b

4

1e

1a 1f

5

6

87 9 10 11

1 Multi-Serve Dial

a Cup

b XL Cup

c Travel Mug

d XL Multi-Serve

e Half Carafe

f Full Carafe

2 Custom Brew Types

a Classic Brew Button

b Rich Brew Button

c Over Ice Brew Button

3 Ninja® Signature Brews

a Specialty Brew Button

b Cafe Forte Brew Button

4 Intelligent Clean Cycle Indicator/Button

5 Drip Stop Indicator

6 Pre-Heat Indicator

Secondary User Interface

7 Stay Warm Button

8 Delay Brew Button

9 Clock Hour and Minute Buttons

10 Programmable Digital Clock

11 Power Save Button

6

ninjacoffeebar.com

Features of the Ninja Coffee Bar®

• Thermal Flavor Extraction® Technology - Blends Precision Water Delivery with automated controls for Calibrated Temperature,

Pre-infusion, Coffee Saturation, and Flavor Richness. Ninja’s Advanced Thermal Flavor Extraction technology can truly unlock the full

flavor potential of your coffee.

• Custom Brews – Ability to brew directly into your favorite cup, travel mug, or carafe.

• Brew Types – Control the strength and style of your coffee:

a. Classic Brew for smooth, balanced flavor from your favorite coffee.

b. Rich Brew for a richer, never-bitter coffee flavor that stands up to milk, cream, or flavoring.

c. Over Ice Brew for a smooth, rich, freshly brewed iced coffee that’s not watered down.

d. Specialty Brew to create a super-rich concentrate to use as a key ingredient in all kinds of hot milk-based,

iced, and frozen coffeehouse-style drinks.

e. Cafe Forte for deep, full-bodied, and complex flavor that is so rich and drinkable, it tastes great

black—no milk or sweeteners needed.

• Multi-Serve Cup Platform – Pull it down, place your favorite cup on it and brew directly into it.

• Removable Water Reservoir with Easy Access Flip-Top Lid – For quick and easy filling.

• Auto-iQ™ – The Ninja Coffee Bar knows how much water to use for each size and brew type.

• 50 oz. Glass Carafe

• LED Control Panels with Programmable Digital Clock

• 24-Hour Programmable Delay Brew Button – Set it to automatically brew the following morning.

• Drip Stop – Stops the flow of coffee from the brew basket, allowing you to pour a cup mid-brew; switch toggle to the closed position to

prevent dripping once the brew cycle is finished.

• Clean Function – It illuminates when your Ninja Coffee Bar senses that there is hard water calcium buildup in your brewer which can

affect the flavor of your coffee. When it illuminates, follow the cleaning instructions in the Care & Maintenance section or printed on the

back of your brewer.

• Stay Warm Button – Your warming plate will automatically turn on after brewing a carafe and turn off after 2 hours. The Stay Warm

button allows you to manually turn the warming plate off.

• Intelligent Warming Plate – Automatically adjusts the temperature of the warming plate to keep your coffee at the ideal drinking

temperature without burning it.

• Audible Ready Signal – Alerts you that your coffee is ready.

• 2 hour shut off – Automatically turns off the warming plate two hours after you brew coffee.

• Permanent Filter - The permanent filter is a reusable filter that preserves the natural coffee oils and small coffee particles to provide

a robust flavor, similar to what you would experience when using a French press.

• Pre-Heat - After plugging in or turning your brewer on from Power Save mode, allow 3 minutes for your brewer to pre-heat. When

plugged in, your Ninja Coffee Bar will stay ready in pre-warmed mode unless you put the brewer into power save mode.

Brew into a cup or travel mug

Go to ninjacoffeebar.com for more

information and how-to videos.

Half Carafe or Full Carafe

Cup or XL Cup Travel Mug & XL Multi-Serve

71-877-646-5288

Before First Use

1 Remove all packaging material, stickers and labels from

the brewer.

NOTE: The glass carafe is dishwasher safe. Place on

top rack only.

2 Wash the water reservoir, permanent filter, glass carafe

and brew basket in warm, soapy water with a soft cloth.

3 Rinse and dry thoroughly.

4 Wipe the intelligent warming plate with a damp cloth.

5 Before first use, prime the system by running two

full carafe cycles with water only. After each cycle is

complete, discard the brew.

PLEASE KEEP THESE IMPORTANT

SAFEGUARDS IN MIND WHEN USING THE

APPLIANCE:

CAUTION: APPLIANCE CREATES HOT LIQUID.

HANDLE WITH CARE.

CAUTION: DO NOT remove the vessel while

the appliance is running without the Drip

Stop in the closed position. Return the

vessel quickly and open the Drip Stop to

continue the brew.

CAUTION: Never open the brew basket when

the coffeemaker is in use.

CAUTION: Please ensure that you are using at

least a 12 oz. cup for the cup size, 14 oz. cup for

the tall cup size, 16 oz. travel mug for the travel

mug size and 20 oz. travel mug for the XL Multi-

Serve size to prevent overflow and a scalding

injury.

IMPORTANT: DO NOT run the appliance

without water.

IMPORTANT: Always place a vessel beneath

the brew basket to receive the brewed

coffee.

IMPORTANT:

DO NOT overfill the water

reservoir. Fill water only to the Max Fill line.

8

ninjacoffeebar.com

TO SET THE CLOCK

1 Plug the power cord into an electrical outlet. The clock

will flash on the control panel to indicate that the time

has not been set. (Fig. 1)

2 Press the H (hour) or M (minute) button until you reach

the current time. The AM or PM indicator will illuminate

on the left side of the display as you are setting the

time. (Fig. 2)

3 After 5 seconds the clock will stop flashing and the

clock will be set.

NOTE: If the clock stops flashing and does not display

the correct time of day, pressing the H (hour) or the M

(minute) button at any time will cause the clock to flash

again. You can now re-program the correct time of day

by following the steps above.

NOTE: If you unplug the brewer or in the event of an

extended power loss, you will need to reset the clock

the next time the brewer is plugged in.

TO SET THE DELAY BREW TIME

1 Press Delay Brew. The Delay Brew button will illuminate

and the clock will begin to flash “12:00” or the last

delay brew time that was set. (Fig. 3)

2 While the clock is flashing, press the H (hour) or M

(minute) button to set the time that you would like

the delay brew to begin. The AM or PM indicator will

illuminate on the left side of the display as you are

setting the desired time.

Setting the Clock & Delay Brew

3 Once the proper time has been set, select the size of

the vessel that you would like to brew.

4

Select the Brew Type that you desire from the 5 flashing

buttons. The selected brew type will be lit.

(Fig. 4)

5 Once the time, brew size, and brew type have been set, allow

the Delay Brew to flash and lock in or press the Delay Brew

button to activate the Delay Brew. When the Delay Brew is

activated, the light on the Delay Brew button will illuminate

and an audible signal will play to verify the Delay Brew is set.

6 The Delay Brew time is now set and your Ninja Coffee Bar®

will automatically brew at the time you programmed.

NOTE: To deactivate the Delay Brew cycle, press the Delay

Brew button once more and the light on the Delay Brew

button will turn off. Any change to the selected brew size or

starting any other brew will cancel the programmed

Delay Brew.

7 Place the appropriate-sized vessel under brew basket for the

selected size.

IMPORTANT: Make sure the Drip Stop is in the open position.

Go to ninjacoffeebar.com for more

information and how-to videos.

Fig. 3

Fig. 4

Fig. 2

Fig. 1

91-877-646-5288

Assembly

1 Place the brewer on a dry, clean and level surface.

2 To easily fill the water reservoir, use the hand grips to lift

it straight up off the brewer. (Fig. 5) The water reservoir

lid flips open for easy filling, and the entire lid is easily

removable for quick cleaning. Add fresh, filtered water at

or above the minimum fill line for your desired beverage

size (Fig. 6), then return the water reservoir to the brewer

and lock into place. (Fig. 7) Do not fill water reservoir

with any other liquids such as brewed coffee, carbonated

beverages, etc. as other liquids may damage your brewer.

3 Slide brew basket out (Fig. 8) and lift both the

permanent filter and Filter Carrier Insert from the

brew basket to remove. (Fig. 9) To reinsert, set the

permanent filter and Filter Carrier Insert back into the

brew basket. (Fig. 10) When cleaning, you can remove

the permanent filter from the brew basket.

4 Once the filter is in place, slide the brew basket all the

way in until you hear a slight click.

Fig. 5

Fig. 8

Fig. 6

Fig. 9

Fig. 7

Fig. 10

10

ninjacoffeebar.com

Fig. 11 Fig. 12

5 Twist the brew-through lid clockwise onto the glass

carafe to lock into place. (Fig. 11)

6 Center the carafe below the brew basket. (Fig. 12)

NOTE: Do not use any coffee for the first two brew

cycles in order to clean the brewer.

7 Plug the brewer into an electrical outlet.

8 Once all parts are securely in place, press the Power

Save button then press the CLEAN button to thoroughly

clean the machine before first use. (Fig. 13)

9 Discard the water in the carafe and repeat, beginning

with step 2, with one more Clean Cycle of water before

first use.

Fig. 13

11 1-877-646-5288

Preparing and Using the Ninja Coffee Bar®

CERAMIC CUP NINJA® CUP PAPER CUP

Cup

Temperature

Room

Temperature

Pre-warmed with

hot water

Pre-warmed in

microwave with milk

Room

Temperature

Room

Temperature

Drinking

Temperature

Hot Hotter Hotter Hotter Hottest

Why is there a

difference?

A cold ceramic

mug will steal heat

from the coffee as

it warms itself up.

If the mug is

already warm, it

will not steal as

much heat from

the coffee.

Just like your

cold mug, cold

milk lowers the

temperature of

your coffee.

The Ninja

double wall cup is

designed to retain

initial coffee temp

better than a

ceramic cup.

Unlike a ceramic

mug, a thinner

paper cup

does not steal

substantial heat

from the coffee.

WOULD YOU LIKE A HOTTER COFFEE?

Have you ever wondered why coffee is served in paper cups when you order it to go? The type of cup you brew into can drastically influence

the drinking temperature.

HOW MUCH COFFEE DO YOU GET IN YOUR CUP?

CAUTION: Please ensure that you are using at least a 12 oz. cup for the cup size, 14 oz. cup for the XL Cup

size, 16 oz. travel mug for the travel mug size and 20 oz. travel mug for the XL Multi-Serve size to prevent

overflow and a scalding injury.

Each size and brew type produces a different amount of coffee to optimize strength, taste, and size.

NOTE: The coffee grounds will absorb some of the water that is brewed, resulting in slightly less brewed coffee than water used.

APPROXIMATE BREW VOLUME

Size/Brew Classic Rich Over Ice

(coffee only)

Over Ice

(filled with ice)

Cup 9.5 oz. 8.7 oz. 3.8 oz. 9.5 oz.

XL Cup 11.5 oz. 10.3 oz. 4.6 oz. 11.5 oz.

Travel Mug 14 oz. 13.2 oz. 5.9 oz. 14 oz.

XL Multi-Serve 18 oz. 16 oz. 7.3 oz. 18 oz.

Our Specialty Brew is always 4 oz. and Cafe Forte is always 8 oz., so you don’t need to adjust the dial for our Signature Brews.

PRE-HEATING

1 After plugging in or turning your brewer on from Power Save mode, press the Power Save button to initiate Pre-heating.

You will see your pre-heat LED turn on.

2 Allow 3 minutes for your brewer to pre-heat.

3 After 3 minutes, the light will turn off. Your brewer has now pre-heated.

4. Your Ninja Coffee Bar will in stay pre-warmed mode unless you put the brewer into power save mode by pressing the

Power Save Button.

12

ninjacoffeebar.com

FILLING THE BREW BASKET WITH COFFEE

For best results, use the below measurements of ground coffee

for each size brew–the amount of ground coffee for each size will

remain the same for any brew type that you select. For example, if

you select Cup and Classic Brew, you will use the same amount of

coffee grounds as if you select Cup and Over Ice Brew.

CAUTION: The maximum capacity for ground coffee

is 12 rounded tablespoons or 6 Ninja Big Scoops.

Exceeding this amount or using fine ground coffee

may cause overflow.

1 Open the brew basket by sliding it out of the brewer. (Fig. 14)

NOTE: Check for any loose grounds that may be left in the

brew basket. Remove and rinse the brew basket if needed.

2 Place the permanent filter or a #4 paper cone filter in the

brew basket. If using a paper filter, first ensure the permanent

filter is removed from the brew basket. Then fold a #4 paper

cone filter along the seams and insert firmly into the brew

basket. (Fig. 15)

3 Use the Ninja Scoop and follow the measurements in the

chart to fill the filter. These measurements are based on level

scoops—adjust to your preferred taste. (Fig. 16) We suggest

using a medium grind size if grinding whole beans.

Serving Size Ninja® Scoop Tablespoons

Cup / XL Cup 2–3 small scoops 2–3 Tbsp.

Travel Mug /

XL Multi-Serve 3–5 small scoops 3–5 Tbsp.

Half Carafe 3–4 big scoops 6–8 Tbsp.

Full Carafe 4–6 big scoops 8–12 Tbsp.

Signature Brews Ninja® Scoop Tablespoons

Specialty (4oz. Brew) 2 big scoops 4 Tbsp.

Cafe Forte (8oz. Brew) 2 big scoops 4 Tbsp.

NOTE: Exceeding the recommended medium grind size for

whole beans may cause the brew basket to overflow.

4 Slide the brew basket back into the brewer and click in place.

Fig. 14 Fig. 15 Fig. 16

or

13 1-877-646-5288

CAUTION: HOT WATER Do not remove the brew basket or vessel while brewing.

CAUTION: STEAM Do not touch steam vents or the top of the brewer while brewing.

CAUTION: The brew basket is hot after brewing. Always allow the brewer to cool down before cleaning.

DRIP STOP

NOTE: If the Drip Stop is closed before you begin a

brew, the brewer will notify you with 5 beeps and

the Drip Stop light will be illuminated. Set the Drip

Stop to the open position and select your brew

concentration level.

CAN’T WAIT FOR THAT FIRST CUP TO BE READY?

When brewing a carafe, close the Drip Stop to pause the

brew cycle and pour a cup. Remember to reopen the Drip

Stop to complete the brew. (Fig. 17)

NOTE: If you forget to open the Drip Stop, the Ninja Coffee

Bar will pause the brew, and after 20 seconds it will give

you a friendly audible reminder. After 6 minutes the brew

will be canceled.

CAN’T WAIT FOR THE LAST FEW DROPS?

When the brew cycle is complete, set the Drip Stop to the

closed position to stop dripping from the brew basket.

NOTE: While the Drip Stop is closed the Drip Stop indicator

will light up in the bottom right hand corner of the control

panel.

NOTE: Remember to open the Drip Stop when you’re ready

to brew again. If you forget, your Ninja Coffee Bar will give

you a friendly audible reminder.

INTELLIGENT WARMING PLATE

The Intelligent Warming Plate will automatically turn on

after a full or half carafe size of Classic or Rich brew. The

Intelligent Warming Plate will adjust the heat it produces in

order to avoid burning the coffee over time.

CAUTION: The HOT SURFACE light will illuminate

when the warming plate is hot. Do not touch the

surface when this light is illuminated.

STAY WARM BUTTON

Press the Stay Warm Button after the brew to turn the

Intelligent Warming Plate off. You can turn the Intelligent

Warming Plate back on within 2 hours of the brew by

pressing the stay warm button again if desired. (Fig.18)

Fig. 17

Fig. 18

Preparing and Using the Ninja Coffee Bar® - cont.

14

ninjacoffeebar.com

NOTE: If making a single cup, lower the Multi-Serve

Cup Platform down and center the cup or mug on the

cup platform. Please ensure that you are using at at

least a 12 oz. cup for the cup size, 14 oz. cup for the tall

cup size, 16 oz. travel mug for the travel mug size and

20 oz. travel mug for the XL Multi-Serve size.

3 Press the CLASSIC BREW or RICH BREW button

and the brew will begin. (Fig. 19, Fig. 20) Press the

CLASSIC BREW or RICH BREW button again to cancel

the brew.

NOTE: The brew will begin, stop, and be quiet for

a short period of time before it begins again. This

process is used to evenly saturate your coffee

grounds.

NOTE: If brewing a half carafe or a full carafe, the

Stay Warm indicator and Intelligent Warming Plate

will automatically turn on. (Fig. 19, Fig. 20) This can

be turned off by pressing the Stay Warm button once

illuminated. The Intelligent Warming Plate will turn off

automatically after 2 hours.

NOTE: Do not remove water reservoir, brew basket, or

vessel while brewing.

4 The Ninja Coffee Bar® will beep to signal a

completedbrew.

NOTE: Rich Brew will use slightly less water and yield

slightly less brewed coffee than Classic Brew.

BREWING COFFEE

NOTE: Each brew has a pre-infusion cycle with

varying times. The brew will begin, stop, and be

quiet for a short period of time before it begins

again. This process is used to evenly saturate your

coffee grounds.

NOTE: For a hotter coffee, rinse the coffee cup, mug or

glass carafe with hot water prior to brewing.

CAUTION: Ensure the coffee cup, mug or glass

carafe is completely empty before starting a brewing

cycle. Starting a brewing cycle with coffee in the

vessel will cause an overflow.

CUSTOM BREWS: CLASSIC, RICH OR OVER ICE BREW

Classic Brew - For a smooth, balanced flavor.

Rich Brew - For a coffee that is richer than Classic

Brew and still smooth, with more room for milk and

cream.

1 After filling the water reservoir and adding ground

coffee to the filter, be sure that the Drip Stop is open

and the reservoir, basket, and filter are securely in

place.

2 Use the Multi-Serve dial to select the size of coffee

you would like to brew. Place the empty vessel that

you would like to brew into underneath the brew

basket.

Fig. 19 Fig. 20

15 1-877-646-5288

Fig. 21 Fig. 22 Fig. 23

OVER ICE BREW

Designed to brew hot coffee over ice to lock in the flavor for a rich,

freshly brewed, smooth iced coffee without becoming watered

down. Be sure your vessel is filled with ice before brewing.

CAUTION: DO NOT USE GLASSWARE. However, the

provided glass carafe is safe to use due to the

specialized glass material.

1 After filling the water reservoir, add ground coffee to the

filter (feel free to add more coffee if you like a stronger

taste.) Be sure that the Drip Stop is open and the

reservoir, basket and filter are in place.

2 Use the Multi-Serve dial to select the size of coffee that

you would like to brew.

3 Before brewing, fill the desired vessel to the top with ice

cubes and place the vessel below the brew basket. Press the

OVER ICE BREW button and the brew will begin. (Fig. 21)

Press the OVER ICE BREW button again to cancel the brew.

IMPORTANT: Always fill the desired vessel to the

top with ice before placing it below the brew

basket. Do not add ice to the water reservoir.

NOTE: The brew will begin, stop, and be quiet for

a short period of time before it begins again. This

process is used to evenly saturate your coffee

grounds.

NOTE: If making a carafe of Over Ice Brew, fill the

carafe with ice and brew without the brew-through lid.

4 The Ninja Coffee Bar will beep to signal a completed

brew. Stir to cool coffee completely.

CAUTION: Make sure to use the proper cup size, to

prevent coffee overflowing the cup.

NINJA BREWS

Specialty and Cafe Forte brews deliver a specific amount

of concentrated coffee for the perfect brew every time.

Specialty delivers approximately 4 oz. and Cafe Forte

delivers approximately 8 oz.

SPECIALTY OR CAFE FORTE BREW

The Specialty Brew produces a strong coffee concentrate

perfect for an iced blended coffee drink or milk-based

specialty drink.

Cafe Forte has a deep, full-bodied, and complex flavor

that is rich and drinkable. It tastes great black—no milk

or sweeteners needed. Refer to the Inspiration Guide for

recipes.

1 After filling the water reservoir and adding ground coffee

to the filter, be sure that the Drip Stop is open and that

the reservoir, basket and filter are securely in place.

Note: If brewing an iced blended drink, fill the desired

vessel with the amount of ice recommended in the

recipe before brewing.

2 Place the vessel that you would like to brew into

underneath the brew basket. Press the SPECIALTY

BREW button or CAFE FORTE button and the brew

will begin. (Fig. 22, 23) Press the SPECIALTY BREW

button or CAFE FORTE button again or press the Power

Save button to cancel the brew.

NOTE: The brew will begin, stop, and be quiet for

a short period of time before it begins again. This

process is used to evenly saturate your coffee

grounds.

NOTE: No matter which size is selected on the

Multi-Serve dial, Specialty will always brew 4 oz.

and Cafe Forte will always brew 8 oz.

3

The Ninja

Coffee Bar will beep to signal a completed brew.

Go to ninjacoffeebar.com for more

information and how-to videos.

Preparing and Using the Ninja Coffee Bar® - cont.

16

ninjacoffeebar.com

Fig. 24 Fig. 25

Fig. 26

FROTHING YOUR MILK

1 Pour milk into cup, until it is about one-third full. (Use

more or less milk depending on your preference.)

Microwave for 45-60 seconds for hot milk.

2 Move the frother into the ready position by swinging the

arm toward the front.

3 Hold cup under the frother and submerge the whisk just

below the surface of the milk. This allows air to fold into

the milk, for the frothiest results. (Fig. 24)

4 Press and hold the frothing button for 30 to 45

seconds. (Fig. 25)

5 You can easily remove the frother whisk by twisting it

clockwise. Keep your cup below the whisk and carry it to

your sink or dishwasher for cleaning. (Fig. 26)

CAUTION: DO NOT reach across the top of the brewer to froth during brewing. Steam is released from vent on

top of brewer and can result in a steam burn.

17 1-877-646-5288

Care & Maintenance

CLEANING AFTER A BREW

CAUTION: Make sure that the brewer is unplugged

from the power source beforecleaning.

CAUTION: Be sure to allow the brewer to cool before

cleaning.

IMPORTANT: Discontinue use if the glass carafe is

scratched or handle is loose or damaged.

NOTE: Do not leave coffee in the glass carafe for an

extended period of time after a brew.

NOTE: Do not leave water in or underneath the water

reservoir unused for multiple days. Rinse and replace

with freshwater.

1 Before cleaning, close the Drip Stop.

2 After each brew is complete and the coffee grounds have

cooled, carefully remove the permanent filter and wash. If

using a paper filter, simply discard. Remove brew basket from

the brewer, rinse and wash with soap and warm water.

3 After each froth, rinse thoroughly or place the frother whisk

on top rack of dishwasher.

NOTE: The swinging brew basket is not dishwasher

safe.

Note: The flip-top reservoir lid is not dishwasher safe.

NOTE: If coffee grounds spilled over into the brew basket or

in the overflow channels, remove and rinse under water until

grounds are removed.

4 Wash the carafe and brew-through lid with soap and warm

water. Use a bottle brush or a cloth to wash the inside of the

carafe.

NOTE: The brew-through lid, glass carafe, permanent filter

and water reservoir are top shelf dishwasher safe.

IMPORTANT: Clean the glass carafe with a soft brush or

sponge. Do not use a wire brush.

5 Wipe machine down with a warm cloth with soap and water.

Let the warming plate cool before cleaning with a wet cloth and

soap and water. Clean shower head, the water reservoir shelf,

the water reservoir, flip-top water reservoir lid, the removable

filter carrier and Filter Carrier Insert with soap and water. Do

not immerse the base in water.

NOTE: For best results, use a bottle brush. This will allow you to

scrub all of the inside with soap and hot water.

CLEANING YOUR CARAFE

We recommend rinsing your carafe with warm

soapy water, or placing in the top shelf of your

dishwasher.

If you want to clean the carafe more thoroughly,

we recommend using a soft foam brush such

as the one shown.

CLEANING YOUR WATER RESERVOIR

1

Empty the water reservoir.

2

Hand wash with dish soap and rinse, or place on the top rack

of your dishwasher.

3

Clean the water reservoir shelf with cloth and warm soapy

water.

18

ninjacoffeebar.com

Fig. 27

HOW TO CLEAN & DESCALE THE BREWING

SYSTEM

CAUTION: Be sure to allow the brewer to cool

before cleaning.

CAUTION: DO NOT immerse the coffeemaker into

water or any other liquid.

NOTE: Cleaning is recommended before use, weekly,

and as soon as the CLEAN button illuminates. Cleaning

your Ninja Coffee Bar® is recommended to keep your

brewer brewing hot, rich, and smooth coffee.

The CLEAN button will illuminate when your Ninja

Coffee Bar senses there is a calcium buildup on your

machine, that could be affecting the flavor of your

coffee. To clean your machine and keep the same great

taste of Ninja® coffee, follow the directions below.

1 Select the carafe size and set the carafe in place

beneath the brew basket.

2 Use a descaling solution and follow the directions

on the package. Fill the water reservoir up to but not

exceeding the Max Fill line (43 oz.)

OR

Fill the water reservoir to the travel mug line (16 oz.) with

white vinegar, then fill the rest of the water reservoir with

water up to but not exceeding the Max Fill line (43 oz.)

IMPORTANT: Use only white vinegar.

3 Once the water reservoir is filled with your cleaning

solution and water mixture (not exceeding the Max

Fill line), simply press the CLEAN button to activate the

Clean Cycle. (Fig. 27)

NOTE: The Clean Cycle takes approximately 8 minutes

to fully descale and clean the machine.

4 Run Clean Cycle Twice.

5 Once the Clean Cycle is complete, empty and rinse the

carafe and water reservoir. Please take special care

to thoroughly clean the carafe and water reservoir to

remove any cleaning solution that could affect the flavor

of your coffee.

6 Once the CLEAN light turns off, fill with fresh water up

to, but not exceeding the carafe line (43 oz. Max Fill

line) and run 2 or 3 Clean Cycles with fresh water to

rinse. Discard the water in the carafe after each cycle.

NOTE: If the CLEAN light illuminates on the next brew

after a Clean Cycle, this means there is still calcium

buildup on the brewer. Repeat steps above and the

CLEAN light will automatically shut off when it senses

your Ninja Coffee Bar is clean and free of calcium

buildup.

Please call Customer Service at 1-877-646-5288 if the

brewer needs any servicing.

19 1-877-646-5288

Troubleshooting Guide

PROBLEMS POSSIBLE REASONS & SOLUTIONS

Sediment in my coffee.

If there is sediment at the bottom of the brewed coffee, this may be due to using finely ground

coffee in the permanent filter.

To reduce the amount of sediment in the brewed coffee use a slightly coarser grind or use a paper

filter.

Grounds in my coffee.

If there are grounds in your coffee, check to make sure the brew basket did not overflow.

If there are too many grounds in the brew basket, or you are using a fine ground coffee, the

grounds will flow into an overflow channel designed to make sure overflow is captured in the brew

vessel. For best results use medium ground coffee in the recommended measurements.

Brew Basket dripping

after brew.

Check to see if the Drip Stop toggle is set to the closed, no-drip position.

If the Drip Stop is set to the closed, no drip position and the brewer continues to drip, run a Clean

Cycle or wash the brew basket thoroughly with warm, soapy water.

Paper filter falling

over.

The Ninja Coffee Bar® is designed to take a #2 cone filter. Be sure you are using this size and shape

for best results.

Be sure the paper filter is firmly pressed into the brew basket.

Wet the corners of the filter for best results.

If problem persists, try using the permanent filter.

Coffee is not hot

enough.

To keep your coffee hotter longer, pre-heat your mug or carafe by rinsing it with hot water from the

tap.

If using a microwave safe mug with cream or milk, try pre-heating the cream or milk in the

microwave for 30 seconds.

NOTE: Never place carafe in the microwave.

Over Ice Brew is not

cold.

The Over Ice Brew is designed to brew hot coffee over ice to lock in the flavor for rich, smooth iced

coffee. Make sure your cup, travel mug, or carafe is filled all the way to the top with ice cubes.

Weak coffee.

If the coffee tastes weak, try adding more coffee grounds into the brew basket for the next

brew cycle.

If the coffee is still weak after adding more coffee grounds, try Rich Brew to make a stronger, more

concentrated cup.

Coffee too strong.

Try using a coarser grind.

If the coffee is still too strong, try using less coffee grounds.

Brew will not start.

Make sure the Power Save Button light is illuminated. Check to make sure the brewer is plugged in

and water is in the water reservoir.

If the Drip Stop is in the open position, check that the brew basket is pushed all the way into the

brewer.

If you hear 5 beeps, check that the Drip Stop is in the open position.

NOTE: The brew will begin, stop, and be quiet for a short period of time before it begins again. This

process is used to evenly saturate your coffee grounds.

Brew cycle is too slow.

A carafe brew will take approximately 8 minutes and the single cup will take approximately 4

minutes.

If the brew cycle is taking longer than normal, run the Clean Cycle with the descaling solution.

20

ninjacoffeebar.com

*K-Cup is a registered trademark of Keurig Green Mountain, Inc. Use of the K-Cup trademark does not imply any affiliation with

or endorsement by Keurig Green Mountain, Inc.

PROBLEMS POSSIBLE REASONS & SOLUTIONS

My cup, travel mug or

carafe overflowed.

The cup, travel mug or carafe may not have been empty prior to brewing.

The water exceeded the Max Fill line on the water reservoir prior to brewing.

The Ninja Coffee Bar® is designed to dispense the following amounts on Classic brew:

Cup 9.5 oz.

XL Cup 11.5 oz.

Travel Mug 14 oz.

XL Multi-Serve 18 oz.

Half Carafe 28 oz.

Carafe 43 oz.

Please ensure that you are using at least a 12 oz. cup for the cup size, 14 oz. cup for the

XL Cup size, 16 oz. travel mug for the travel mug size and 20 oz. travel mug for the XL

Multi-Serve size.

NOTE: On Rich Brew and Over Ice Brew there will be less volume dispensed. Specialty

Brew will deliver approximately 4 oz. and Cafe Forte will deliver approximately 8 oz.

Brew basket

overflowed. Check the amount of coffee or type of grind used.

Water left in my

reservoir.

Ninja Coffee Bar allows you to fill the reservoir up to but not exceeding the Max Fill line

and Auto-iQ™ One-Touch Intelligence will only use the water needed for the brew size

and style selected.

After a brew you may notice leftover water in your water reservoir after filling to the

minimum fill line of the size selected. The water reservoir markings are minimum fill lines

that indicate if there is enough water for the proper brew size in the reservoir, but all

brew styles use different amounts of water to create the proper flavor and concentration.

You can brew multiple cups before needing to refill.

Does it take coffee

pods? This brewer is designed to brew coffee grounds only. Do not insert pods or K-Cups®.

My Ninja Coffee Bar is

leaking.

If the leak is coming from the brew basket, be sure all the parts are fit securely in the

brewer.

If the leak is coming from the bottom of the brewer, call customer service

at 1-877-646-5288.

My Ninja Coffee Bar

beeped and did not

complete the full brew

that I selected.

Ensure the water reservoir is locked in place and is filled with enough water for the

desired brew.

Check the CLEAN indicator light. If illuminated, run a Clean Cycle with the appropriate

descaling solution or a white vinegar mixture. See Care & Maintenance section.

Check the Drip Stop indicator light. If illuminated, ensure the brew basket is fully inserted

into the brewer and open the Drip Stop once the vessel is placed under the brew basket.

If the problem persists, please call customer service at 1-877-646-5288.

Why is the second cup

that I brewed hotter

than the first cup?

Once the Ninja Coffee Bar has brewed the first cup, the brewing system is pre-warmed.

This enables any following brews to be slightly hotter. For a hot first cup, try pre-

warming your mug. Or after pugging in or turning on your brewer from Power Save mode,

allow 3 minutes for your brewer to preheat.

21 1-877-646-5288

Replacement Parts

ORDERING REPLACEMENT PARTS

To order additional parts and attachments, please visit ninjacoffeebar.com

or feel free to contact customer service: 1-877-646-5288.

Go to ninjacoffeebar.com for more

information and how-to videos.

PROBLEMS POSSIBLE REASONS & SOLUTIONS

I noticed the carafe

design & lid. What are

the benefits?

Our unique carafe shape and design has the following benefits:

Easy-grip design makes it easy to pour coffee without dripping.

Thoroughly mixes your coffee from the first drop to the last thanks to the brew-through

carafe lid.

Optimizes coffee temperature.

Allows you to brew both hot and iced coffee.

Coffee Brew Volume:

What impacts coffee

brew volume?

When you make hot coffee, coffee grounds will absorb some of the water that is brewed,

resulting in slightly less brewed coffee than the water used. The more coffee you use,

the more water will be absorbed. Additionally, our wider bottom carafe holds most of the

volume coffee at the base which helps control the temperature more evenly.

Classic Brew:

How does the Ninja

Coffee Bar® keep

coffee at the right

temperature?

The carafe is designed to keep most of the coffee volume in the bottom so it can be

held closer to the Intelligent Warming Plate. This helps maintain the coffee at the ideal

drinking temperature.

Full Carafe Half Carafe

Troubleshooting Guide - cont.

22

ninjacoffeebar.com

Product Registration

Please visit ninjacoffeebar.com or call 1-877-646-5288 to register your new Ninja® product within ten (10) days

of purchase. You will be asked to provide the store name, date of purchase and model number along with your

name and address.

The registration will enable us to contact you in the unlikely event of a product safety notification. By

registering, you acknowledge to have read and understood the instructions for use and warnings set forth in the

accompanying instructions.

ONE (1) YEAR LIMITED WARRANTY

SharkNinja Operating LLC warrants this product to be free from material defects and workmanship for a period of

one (1) year from the date of purchase when utilized for normal household use, subject to the following conditions,

exclusions and exceptions.

The liability of SharkNinja Operating LLC is limited solely to the cost of the repair or replacement of the unit at

our option. This Limited Warranty does not cover normal wear of parts and does not apply to any unit that has been

tampered with or used for commercial purposes. This Limited Warranty does not cover damage caused by misuse,

abuse, negligent handling or damage due to faulty packaging or mishandling in transit. This Limited Warranty does

not cover damage or defects caused by or resulting from damages from shipping or from repairs, service or alteration

to the

product or any of its parts, which have been performed by a repair person not authorized by SharkNinja

Operating LLC.

If your appliance fails to operate properly while in use under normal household conditions within the warranty period,

return the complete appliance and accessories, freight prepaid. For assistance with warranty service options or

customer support, please call our customer care and product specialists at 1 (877) 646-5288 or visit our website

ninjacoffeebar.com.

If the appliance is found to be defective in material or workmanship, SharkNinja Operating LLC will repair or replace

it free of charge. Proof of purchase is required and a fee of $19.95 will apply to cover the cost of return freight.*

This Limited Warranty is extended to the original purchaser of the unit and excludes all other legal, implied and/or

conventional warranties. The responsibility of SharkNinja Operating LLC, if any, is limited to the specific obligations

expressly assumed by it under the terms of this Limited Warranty. In no event is SharkNinja Operating LLC liable for

incidental or consequential damages to anyone of any nature whatsoever. Some states do not permit the exclusion or

limitation of incidental or consequential damages, so the above may not apply to you.

This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state

or from province to province.

*IMPORTANT: Carefully pack item to avoid damage in shipping. Be sure to include proof of purchase date

and to attach tag to item before packing with your name, complete address and phone number with a

note giving purchase information, model number and what you believe is the problem with the item. We

recommend you insure the package (as damage in shipping is not covered by your Limited Warranty).

Mark the outside of your package “ATTENTION CUSTOMER SERVICE”.

SharkNinja Operating LLC

US: Newton, MA 02459

CAN: Ville St-Laurent, QC H4S 1A7

1-877-646-5288

ninjacoffeebar.com

Copyright © 2016 SharkNinja Operating LLC

For SharkNinja U.S. Patent information visit sharkninja.com/USPatents

Ninja, Ninja Coffee Bar and Thermal Flavor Extraction are registered trademarks of SharkNinja Operating LLC.

Auto-iQ is a trademark of SharkNinja Operating LLC.

Printed in China

Illustrations may differ from actual product. We are constantly striving to improve our products, therefore the

specifications contained herein are subject to change without notice.

CF091_Series_IB_160613_1
