Ninja User Manual NN310

User Manual: Ninja User Manual Ninja® Precision Processor® with Auto-Spiralizer® (NN310) | Ninja®

Open the PDF directly: View PDF .
Page Count: 13

ninjakitchen.com

1-877-646-5288

®

INSTRUCTIONS

Precision Processor™

with Auto-Spiralizer™

NN310

Series

1 21-877-646-5288 ninjakitchen.com

ENGLISH

CONTENTS

THANK YOU

for purchasing the Ninja® Precision Processor™ with Auto-Spiralizer™

Important Safety Instructions � � � � � � � � � � � � � � � � � � � � � � � � � � � 3

Before First Use � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6

Getting to Know Your Precision Processor™

with Auto-Spiralizer™ � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7

Using Your Precision Processor Bowl � � � � � � � � � � � � � � � � � � � � 9

Assembling Your Auto-Spiralizer � � � � � � � � � � � � � � � � � � � � � � � 13

Using Your Auto-Spiralizer � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15

Care & Maintenance � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19

Cleaning � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �19

Storing � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �19

Resetting the Motor Thermostat � � � � � � � � � � � � � � � � � � � � � � � � � � �19

Ordering Replacement Parts � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �19

Troubleshooting Guide � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20

Warranty � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22

PLEASE READ CAREFULLY AND KEEP FOR

FUTURE REFERENCE�

These instructions are designed to help youget a

complete understanding of your newNinja Precision

Processor with Auto-Spiralizer.

If you have any questions, please call our customer

service line at 1-877-646-5288.

TECHNICAL SPECIFICATIONS

Voltage: 120V, 60Hz

Watts: 400W

TIP: You can find the

model and serial numbers

on the QR code label

which is located on the

back of the motor base.

RECORD THIS INFORMATION

Model Number: ��������������������������������������

Serial Number: ��������������������������������������

Date of Purchase (Keep receipt): �����������������������

Store of Purchase: �����������������������������������

REGISTER YOUR PURCHASE

registeryourninja.com

1-877-646-5288

Scan QR code using mobile device

3 41-877-646-5288 ninjakitchen.com

ENGLISH

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE USE • FOR HOUSEHOLD USE ONLY

1 Read all instructions prior to using the

appliance and its accessories.

2 Carefully observe and follow all warnings

and instructions. This unit contains

electrical connections and moving parts

that potentially present risk to the user.

3 This product is provided with a Chopping

Blade Assembly. Always exercise care

when handling blade assemblies. The

blade assemblies are sharp and are

NOT locked in place in their containers.

The blade assemblies are designed to

be removable to facilitate cleaning and

replacement if needed. ONLY grasp the

blade assembly by the top of the shaft.

Failure to use care when handling the blade

assemblies will result in a risk of laceration.

4 Take your time and exercise care during

unpacking and appliance setup. This

appliance contains sharp, loose blades that

can cause injury if mishandled.

5 Take inventory of all contents to ensure

you have all parts needed to properly and

safely operate your appliance.

6 Unplug the appliance from the outlet

when not in use, before assembling or

disassembling parts, and before cleaning.

To unplug, grasp the plug by the body

and pull from the outlet. Never unplug by

grasping and pulling the flexible cord.

7 Before use, wash all parts that may come

in contact with food. Follow washing

instructions covered in this instruction

manual.

8 To protect against the risk of electric

shock, DO NOT submerge the appliance

or allow the power cord to contact any

form of liquid.

9 DO NOT use this appliance outdoors. It is

designed for indoor household use only.

10 This appliance has a polarized plug (one

blade is wider than the other). To reduce

the risk of electric shock, this plug will fit

in a polarized outlet only one way. If the

plug does not fit fully in the outlet, reverse

the plug. If it still does not fit, contact a

qualified electrician. DO NOT modify the

plug in any way.

11 DO NOT operate any appliance with

a damaged cord or plug, or after the

appliance malfunctions or has been

dropped or damaged in any manner.

This appliance has important markings

on the plug blade. The entire cordset is

not suitable for replacement. If damaged,

please contact SharkNinja LLC for service.

12 Extension cords should NOT be used with

this appliance.

13 DO NOT allow young children to operate

this appliance or use as a toy. Close

supervision is necessary when any

appliance is used near children.

14 This appliance is NOT intended to be used

by people (including children) with reduced

physical, sensory, or mental capabilities,

or lack of experience and knowledge,

unless they have been given supervision or

instruction concerning use of the appliance

by a person responsible for their safety.

15 Before each use, inspect blade assemblies

for damage. If a blade is bent or damage is

suspected, contact SharkNinja to arrange

for replacement.

16 DO NOT attempt to sharpen blades.

17 DO NOT allow the cord to hang over the

edges of tables or counters. The cord may

become snagged and pull the appliance off

the work surface.

18 DO NOT allow the unit or the cord to

contact hot surfaces, including stoves and

other heating appliances.

19 ALWAYS use the appliance on a dry and

level surface.

20 NEVER place a blade assembly on the

motor base without it first being attached

to its corresponding bowl and lid.

21 Keep hands, hair, and clothing out of the

container when loading and operating.

22 ONLY use attachments and accessories

that are provided with the product or are

recommended by SharkNinja. The use of

attachments not recommended or sold by

SharkNinja may cause fire, electric shock,

or injury.

23 During operation and handling of the

appliance, avoid contact with moving

parts.

24 DO NOT operate the appliance with an

empty container.

25 DO NOT fill containers past the max fill or

max liquid lines.

26 DO NOT microwave any containers or

accessories provided with the appliance.

27 Before operation, ensure all utensils are

removed from containers. Failure to remove

utensils can cause containers to shatter

and potentially result in personal injury and

property damage.

28 Keep hands and utensils out of containers

while in use to reduce the risk of severe

personal injury or damage to the unit. A

scraper may ONLY be used when the unit

is not running.

29 NEVER operate the appliance without lids

and caps in place. DO NOT attempt to

defeat the interlock mechanism. Ensure

the container and lid are properly installed

before operation.

30 DO NOT expose the containers and

accessories to extreme temperature

changes. They may experience damage.

31 NEVER leave the appliance unattended

while in use.

32 DO NOT blend hot liquids. Doing so may

result in a pressure buildup and steam

exposure that can pose a risk of the user

being burned.

CONTINUED ON PAGE 5

WARNING

When using electrical appliances, basic safety precautions should always be

followed, including the following:

5 61-877-646-5288 ninjakitchen.com

ENGLISH

33 DO NOT attempt to remove the container

or lids from the motor base while blade

assembly is still spinning. Allow the

appliance to come to a complete stop

before removing lid and container.

34 Upon completion of processing, ensure

the blade assembly is removed BEFORE

emptying container’s contents. Remove

the blade assembly by carefully grasping

the top of the shaft and lifting it from the

container. Failure to remove the blade

assembly before emptying the container

will result in a risk of laceration.

35 If the appliance overheats, a thermal switch

will activate and temporarily disable the

motor. To reset, unplug the appliance

and allow it to cool for approximately 15

minutes before using again.

36 The maximum wattage rating for this

appliance is based on the configuration of

the Dough Blade Assembly and Precision

Processor™ Bowl. Other configurations

may draw less power or current.

37 The Blade Discs are sharp. Always use the

handles on the side of each Blade Disc

when placing it into the bowl or removing

it. Follow all cleaning instructions. Failure to

do so will result in a risk of laceration.

38 When using the Spiralizer, ALWAYS use

the Food Pusher. NEVER feed ingredients

into the Spiralizer by hand or with other

utensils. Failure to use the Food Pusher

may cause personal injury.

39 If Blade Discs appear to be damaged or

broken, do not use or attempt to repair.

Call customer service for assistance.

40 DO NOT attempt to sharpen Blade Discs.

41 DO NOT remove Feed Chute Lid until

Blade Disc stops spinning.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE USE • FOR HOUSEHOLD USE ONLY

WARNING

When using electrical appliances, basic safety precautions should always be

followed, including the following:

DID YOU KNOW?

• All containers and lids are

BPA free.

• All blades, containers

and lids are top-rack

dishwasher safe.

IMPORTANT: Review all

warnings on pages 3–5

before proceeding.

BEFORE FIRST USE

1 Remove all packaging materials from the appliance.

Exercise care when unpacking blade assemblies and Blade

Discs. All blade assemblies and Blade Discs are sharp.

2 The Chopping Blade Assembly is

NOT

locked in place in

its container. Handle the Chopping Blade Assembly by

grasping the top of the shaft.

3 Wash containers, lids, Blade Discs, and blade assemblies

in warm, soapy water, using a dishwashing utensil with

a handle or the provided cleaning brush to avoid direct

contact with the blades. Exercise care when handling blade

assemblies, as the blades are sharp.

4 Thoroughly rinse and air-dry all parts.

5 All attachments are dishwasher safe. It is recommended

that the lids, Blade Discs, and blade assemblies be placed

on the top rack of the dishwasher. Ensure blade assemblies

and Blade Discs are removed from their containers before

placing in the dishwasher. Exercise care when handling

blade assemblies and Blade Discs.

6 Wipe the motor base with a clean, damp cloth.

7 81-877-646-5288 ninjakitchen.com

ENGLISH

GETTING TO KNOW YOUR

PRECISION PROCESSOR™ WITH AUTO-SPIRALIZER™

WELCOME!

Congratulations on

your purchase. Use this

instruction manual to

learn about the great

features of your Ninja.

From assembly to use

to maintenance, you will

find it all in here.

MAIN UNIT

A Motor Base

B Precision Processor Bowl Lid

C Chopping Blade Assembly

D Dough Blade Assembly

E Precision Processor Bowl*

F Food Pusher

G Feed Chute Lid

H Collecting Bowl

I Spiralizer Bowl

J Spaghetti Blade Disc

K Fettuccine Blade Disc

L Cleaning Brush

There are a variety of

accessories that are

compatible with this series.

NOTE:

The top flap of

your box shows the select

accessories that are

included with your model�

If you have any questions,

concerns, or feedback, we’d

love to hear from you. Give

us a call at 1-877-646-5288

or visit ninjakitchen.com/

customersupport

To purchase more accessories

and to find great recipes, visit

ninjakitchen.com

* 3.5 cups max capacity/

15 oz. max liquid capacity.

A F

G

H

I

J

K

L

B

E

C

D

9 101-877-646-5288 ninjakitchen.com

ENGLISH

TIP: If the blade assembly

is not fully seated, you will

not be able to install and

lock the lid into position.

NOTE:

DO NOT

add

ingredients before installing

the blade assembly.

NOTE: For best results,

follow recipe loading

instructions.

TIP: For best results when

processing hard or tough

ingredients such as raw

meat, baking chocolate,

or hard cheese in the

Precision Processor bowl,

cut ingredients into 1”

cubes and process no

more than 1 cup at a time.

USING YOUR PRECISION PROCESSOR™ BOWL

IMPORTANT: Review all

warnings on pages 3–5

before proceeding.

1

Place the unplugged motor

base on a clean, dry, and

level surface such as a

countertop or table. Press

downward on the motor

base to adhere the suction

cups to the work surface.

Ensure the motor base is

connected to power.

2 Lower the Precision

Processor Bowl onto the

motor base.

3 Rotate Precision

Processor™ Bowl

clockwise until it clicks into

place.

4 Exercising care, grasp the

Chopping Blade Assembly

by the top of the shaft

and place it onto the drive

gear inside the bowl. Note

that the Chopping Blade

Assembly will fit loosely

onto the drive gear.

5 Add ingredients to the

bowl, making sure not to

exceed the max liquid and

max fill lines.

11 121-877-646-5288 ninjakitchen.com

ENGLISH

USING YOUR PRECISION PROCESSOR

™

BOWL - CONT�

IMPORTANT: Review all

warnings on pages 3–5

before proceeding.

6 Place lid on Precision

Processor Bowl, with

silver line on tab aligned

slightly to the right of tab

on front of bowl. Turn lid

clockwise to lock in place.

When properly locked,

the silver line on lid will

line up with the silver line

on bowl. When the unit is

connected to power and

the container is correctly

locked into the motor

base, the program buttons

will illuminate and the unit

will be ready for use.

7 Press START/STOP to run

continuously or PULSE to

pulse the blade assembly.

NOTE: Please follow the same

assembly instructions for the

Dough Blade Assembly.

8 To remove the bowl from

the motor base, turn the

bowl counterclockwise

and then lift it up.

9 Remove the lid by pressing

the release button on the

front tab, twisting the lid

counterclockwise, and

lifting up. Always remove

the Chopping Blade

Assembly before emptying

any of the ingredients in

the bowl. To remove the

Chopping Blade Assembly,

carefully grasp it by the top

of the shaft and lift it out of

the bowl.

10 Unplug the appliance

when finished. To release

the motor base, gently pull

the unit up and toward

you. Refer to page 19 for

storing instructions.

13 141-877-646-5288 ninjakitchen.com

ENGLISH

ASSEMBLING YOUR AUTO-SPIRALIZER™

IMPORTANT: Review all

warnings on pages 3–5

before proceeding.

IMPORTANT: As a safety

feature, if the Spiralizer

Bowl and Feed Chute Lid

are not properly installed,

the unit will not power

on and the motor will be

disabled.

1 Place the unplugged

motor base on a clean,

dry, and level surface

such as a countertop or

table. Press downward on

the motor to adhere the

suction cups to the work

surface. Ensure the motor

base is connected to

power.

2 Lower the Spiralizer Bowl

onto the motor base.

3 Rotate the Spiralizer Bowl

clockwise until it clicks into

place.

4 Place the Collecting Bowl inside the

Spiralizer Bowl, aligning it over the gear post.

5 Choose your Blade Disc, making sure to

handle it carefully.

6 Install the Blade Disc onto the top of the

Collecting Bowl. The rim of the Blade Disc

should sit flush against the top of the bowl,

and the tabs on the sides of the Blade

Discs must align with the slots on the top

of the Collecting Bowl.

7 Assemble the Feed Chute Lid on top of the

Spiralizer Bowl. Turn the lid clockwise onto

the Spiralizer Bowl, making sure to align

the gray tabs on the lid with the front of the

bowl. When the unit is connected to power

and the container is correctly assembled,

the START/STOP button will illuminate,

indicating the unit is ready for use.

15 161-877-646-5288 ninjakitchen.com

ENGLISH

USING YOUR AUTO-SPIRALIZER™

IMPORTANT: Review all

warnings on pages 3–5

before proceeding.

NOTE: To find out how

to properly prep your

ingredient, refer to the

Food Prep section in your

Quick Start Guide or your

Inspiration Guide.

NOTE:

NEVER

Spiralize

multiple ingredients at one

time.

NOTE: The Auto-

Spiralizer is only intended

for processing fruit and

vegetables. Processing

hard ingredients such

as cheese, meats,

and dried foods is not

recommended.

1 Before spiralizing, prepare

your ingredient by

trimming it so it is no more

than 3” wide. Place the

prepped ingredient into the

Feed Chute, through the

opening at the top.

2 Center the ingredient

on the pin in the center

of the Blade Disc, then

push down, securing the

ingredient on the pin.

3 Place Food Pusher on top

of ingredient and press

down firmly to hold in

place.

4 Select START/STOP to

begin spiralizing. Continue

to press firmly with Food

Pusher to guide ingredient

through Feed Chute.

5 Spiralizing is complete

when the Food Pusher sits

flat atop the Feed Chute

Lid. Press START/STOP to

power off the motor.

After spiralizing an

ingredient, all leftover

pieces must be removed

from the Collecting Bowl

and Blade Disc before

spiralizing again.

17 181-877-646-5288 ninjakitchen.com

ENGLISH

USING YOUR AUTO-SPIRALIZER™ - CONT�

IMPORTANT: Review all

warnings on pages 3–5

before proceeding.

6 To remove the Spiralizer

Bowl from the motor

base, turn the bowl

counterclockwise and

liftup.

7

To remove the Feed Chute

Lid, press the release

button on the left side of the

front tab, then twist the lid

counterclockwise and lift up.

8 Remove the Collecting

Bowl by lifting it up and

out of the Spiralizer Bowl.

Remove the Blade Disc by

gripping the handles on

the side of the disc and

liftingup.

9 Remove the noodles from

the Collecting Bowl and

prepare as desired.

10 Unplug the unit when

finished. To release the

motor base, gently pull it

toward you. Refer to page

19 for storing instructions.

19 201-877-646-5288 ninjakitchen.com

ENGLISH

CARE &

MAINTENANCE

CLEANING

1 Separate all parts.

2 Hand Washing

Wash containers, lids, blade assemblies

and Blade Discs in warm, soapy water

using a dishwashing utensil with a handle or

the provided cleaning brush to avoid direct

contact with the blades. Exercise care

when handling blade assemblies, as the

blades are sharp. Thoroughly rinse and

air-dry all parts.

Dishwasher

All attachments are dishwasher safe. It is

recommended that the lids, containers, blade

assemblies, and Blade Discs be placed on

the top rack of the dishwasher

ONLY

. Ensure

that blade assemblies and Blade Discs are

removed from their containers before placing

in the dishwasher. Exercise care when

handling blade assemblies.

3 Wipe the motor base with a clean, damp

cloth. Allow to dry completely before

operation.

STORING

Wrap the power cord around the back of the

motor base. Store the unit upright and store

all blade assemblies inside or attached to their

respective containers with their lids locked in

place.

DO NOT

stack items on top of the containers.

Store any remaining attachments alongside

the unit or in a cabinet where they will not be

damaged or create a hazard.

RESETTING THE MOTOR THERMOSTAT

This unit features a unique safety system

that prevents damage to the motor and drive

system should you inadvertently overload the

unit. If the unit is overloaded, the motor will be

temporarily disabled. Should this occur, follow

the reset procedure below.

1 Unplug the unit from the electricaloutlet.

2 Allow the unit to cool for approximately 15

minutes.

3

Remove the container lid and blade assembly.

Empty the container and ensure no ingredients

are jamming the blade assemblies.

4 Reset the unit in accordance with the

applicable instructions for the container

and blade type.

IMPORTANT: Ensure that maximum

capacities are not exceeded. This is the

most typical cause of unit overload.

If your unit needs servicing, please call

Customer Service at 1-877-646-5288.

ORDERING REPLACEMENT PARTS

To order additional parts and attachments,

please visit ninjakitchen.com or contact

customer service at 1-877-646-5288.

TROUBLESHOOTING

GUIDE

WARNING: To reduce the risk of shock and unintended operation, turn

power o and unplug unit before troubleshooting�

Unit doesn’t turn on�

• Make sure unit is plugged in.

• Insert and rotate container clockwise on base until it clicks. Programs will illuminate, indicating your unit is

ready for use.

Unit doesn’t turn o�

• Remove container from base by rotating it counterclockwise and lifting it up. Display should turn off. Unplug

the power cord from the outlet.

Ingredients are not evenly chopped�

• For best results when chopping, cut pieces down to even sizes and do no overfill the Precision Processor

™

Bowl.

Motor base won’t stick to counter or tabletop�

• Make sure surface and suction feet are wiped clean. Suction feet will only stick to smooth surfaces.

• Suction feet

will not

stick on some surfaces such as wood, tile, and non-polished finishes.

•

DO NOT

attempt to use appliance when the motor base is stuck to a surface that is not secure (cutting

board, platter, plate, etc.).

Unit is dicult to remove from counter for storage�

• The suction feet at the base of the unit provide stability when in use. To release suction, gently pull the unit

toward you.

You get semi-circular or shredded noodles�

• If the Collecting Bowl is overfilled, causing the Blade Disc to lift up after Spiralizing, your ingredient may have

been too large. Make sure to trim and prepare your ingredients properly before spiralizing by following the

instructions in the Food Prep section of your Quick Start Guide or Inspiration Guide.

• For the most consistent results, be sure to center the ingredient on the pin located in the center of the Blade

Disc. (Refer to page 15, step 2.)

Ingredient is not fully processed and is spinning on the pusher�

• Remove remaining ingredient from Blade Disc pin and trim top and bottom so that both are flat. Make

sure you center ingredient on the Blade Disc pin and secure the Food Pusher firmly on top of the

ingredient. While maintaining pressure on Food Pusher, press the START/STOP button.

Unit turned o while in use�

• As a safety feature to prevent damage to the motor and drive system, the unit will power off after a

continuous run of 45 seconds.

21 221-877-646-5288 ninjakitchen.com

ENGLISH

ONE (1) YEAR

LIMITED WARRANTY

The 1-Year Limited Warranty applies to purchases made from authorized retailers of SharkNinja Operating LLC.

Warranty coverage applies to the original owner and to the original product only and is not transferable.

SharkNinja warrants that the unit shall be free from defects in material and workmanship for a period of 1 year

from the date of purchase when it is used under normal household conditions and maintained according to the

requirements outlined in this instruction manual, subject to the following conditions and exclusions.

What is covered by my warranty?

1. The original unit and/or non-wearable components deemed defective, in SharkNinja’s sole discretion,

will be repaired or replaced for up to 1 year from the original purchase date.

2. In the rare event that a replacement unit is issued, the warranty coverage ends six months after the

receipt date of the replacement unit or the remainder of the existing warranty, whichever is greater. If

the unit is replaced, SharkNinja reserves the right to replace the unit with one of equal or greater value.

What is not covered by my warranty?

Our Customer Service/Product Specialists are available to provide all the warranty service options available to

you, including the possibility of upgrading to our VIP Warranty Service Options for select product categories.

1. Normal wear and tear of wearable parts (including all blending vessels, lids, blades and blender base)

which require regular maintenance and/or replacement to ensure the proper functioning of your unit are

not covered by this warranty.

2. Any unit that has been tampered with or used for commercial purposes.

3. SharkNinja will cover the cost for the customer to send the unit to us for repair or replacement. A fee

of $19.95 for return shipping costs will be charged at the time of return shipment of the repaired or

replacement unit.

4. Damage caused by misuse, abuse, or negligent handling, or damage due to mishandling in transit.

5. Consequential and incidental damages.

6. Defects caused by or resulting from damages from shipping or from repairs, service, or alteration to the

product or any of its parts which have been performed by a repair person not authorized by SharkNinja.

7. Products purchased, used or operated outside of North America.

Problems with your unit/How to get service:

If your appliance fails to operate properly while in use under normal household conditions within the warranty

period, visit ninjakitchen.com for product care/maintenance self-help. Our Customer Service and product

specialists are also available at 1-877-646-5288 to assist with product support and warranty service options.

How to initiate a warranty claim:

You can call 1-877-646-5288 to have a Customer Service specialist assist you. Please note, you must call

1-877-646-5288 to initiate a warranty claim. Return and Packing Instruction information will be provided at

that time.

Replacement parts are available for purchase at ninjakitchen.com. For more information on which parts are

classified as wearable and non-wearable, please visit ninjakitchen.com/warranty

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

Some states do not permit the exclusion or limitation of incidental or consequential damages, so the above

may not apply to you.

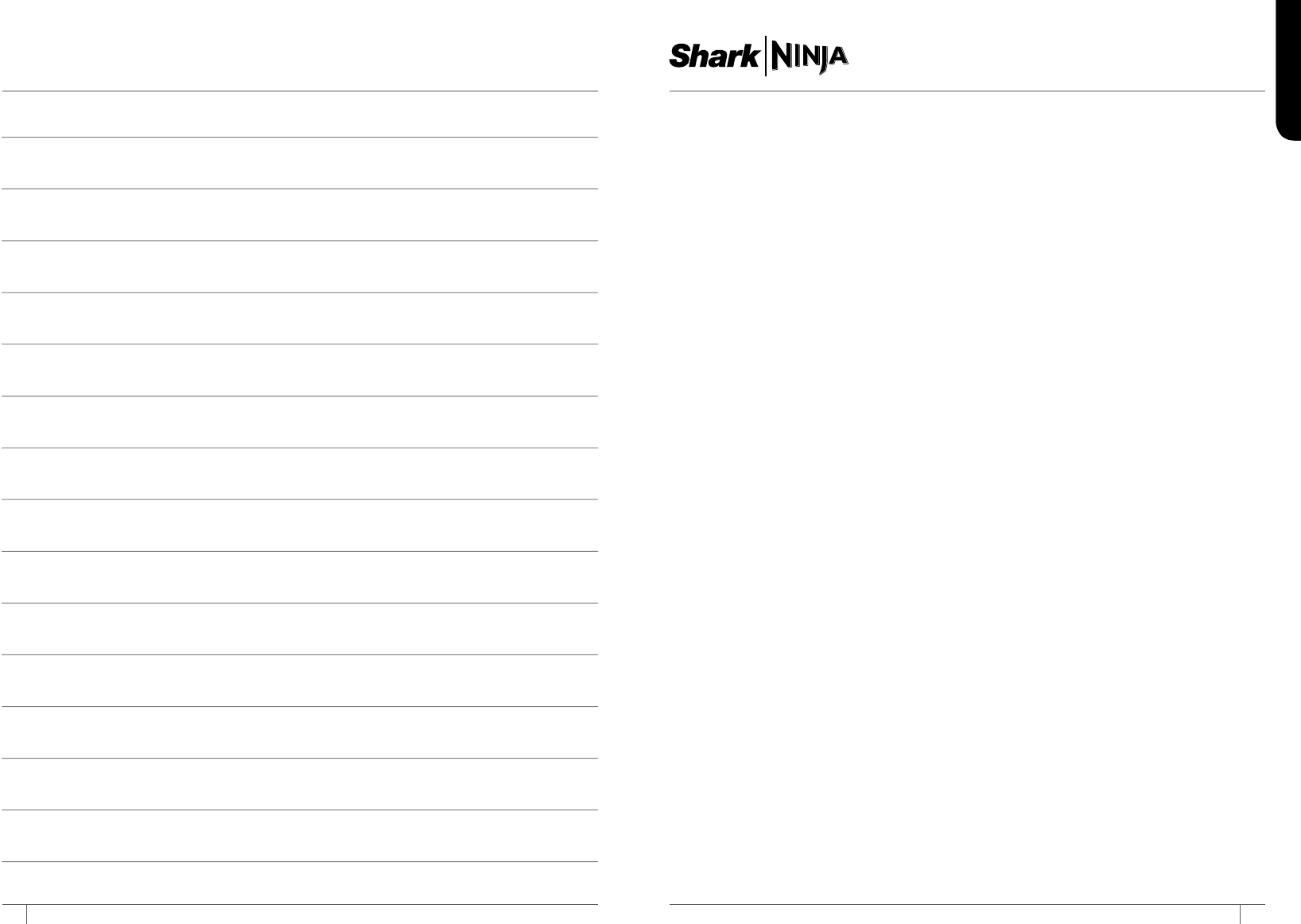

NOTES

@ninjakitchen

SharkNinja Operating LLC

US: Newton, MA 02459

CAN: Ville St-Laurent, QC H4S 1A7

1-877-646-5288

ninjakitchen�com

Illustrations may differ from actual product. We are constantly striving to improve

our products; therefore the specifications contained herein are subject to change

withoutnotice.

NINJA is a registered trademark of SharkNinja Operating LLC.

AUTO-SPIRALIZER and PRECISION PROCESSOR are trademarks of SharkNinja

Operating LLC.

For SharkNinja U.S. Patent information visit sharkninja.com/USPatents

© 2017 SharkNinja Operating LLC

NN310�E�IB�170519�MP

PRINTED IN CHINA
