Wii mini Operations Manual

System Setup

MAA-RVO-S-USZ-C0

NINTENDO OF AMERICA INC.

P.O. BOX 957, REDMOND, WA

98073-0957 U.S.A.

BESOIN D’AIDE POUR L’INSTALLATION,

L’ENTRETIEN OU LA RÉPARATION?

Servicio al Cliente de Nintendo

SUPPORT.NINTENDO.COM

ou composez le 1 800 255 3700

¿NECESITAS AYUDA DE INSTALACION,

MANTENIMIENTO O SERVICIO?

Servicio al Cliente de Nintendo

SUPPORT.NINTENDO.COM

o llame al 1-800-255-3700

NEED HELP WITH INSTALLATION,

MAINTENANCE OR SERVICE?

Nintendo Customer Service

SUPPORT.NINTENDO.COM

or call 1-800-255-3700 78844A PRINTED IN CHINA

The ofﬁcial seal is your assurance

that this product is licensed or

manufactured by Nintendo.

Always look for this seal when

buying video game systems,

accessories, games and related products.

Health and Safety Information 2–3

System Components

Wii mini Console 4–5

Wii Remote Plus 6

Nunchuk™ 7

Sensor Bar 7

Wii AC Adapter 8

Wii AV Cable 8

System Setup

Wii mini Console 9

Wii AV Cable 10

Sensor Bar 11–14

Wii AC Adapter 14

TV and Audio/Video Settings 15

Setup of Wii Remote Plus 16–18

Synchronizing Your Wii Remote Plus and Wii mini Console 19–20

Using Game Discs 21

Wii System Play Guidelines 22

Using the Wii Remote Plus 23–24

Using the Nunchuk 25–26

Troubleshooting 27–29

FCC Information 30

Warranty and Service Information 31

Error Messages 32-33

Error Codes 34

To protect your health and safety, and for correct

use of the Wii mini system (the “Wii system”),

please read and follow the instructions in this

operations manual before setup or use.

Throughout this manual, you will see this symbol followed by WARNING or

CAUTION. These terms have different levels of meaning:

WARNING - Warns you about incorrect use of the Wii system that could result in

serious personal injury.

CAUTION - Cautions you about incorrect use of the Wii system that could result in

personal injury or damage to the Wii system, components, game discs or accessories.

IMPORTANT NOTE FOR PARENTS:

Before allowing any child to use the Wii system, a parent or other responsible

adult should determine whether the Wii system is appropriate for the child.

Only children who are old enough and capable of wearing the wrist strap and

properly gripping the Wii Remote Plus should use the system. You should

also consider whether children should be supervised while playing games.

Be sure to explain all safety and health information and instructions to any

children who are going to use the system. Failure to do so may result in

injuries or damage to the system or other property.

NOTE: This product only plays Wii Game Discs labeled with “For use only in USA,

Canada, Mexico and Latin America”. This product does not play CD or DVD discs. This

Wii mini console is for use only in the United States, Canada, Mexico or Latin America.

Contents

patent pending, both in the United States and internationally.

Product recycling information:

visit recycle.nintendo.com

NOTE:

• This Wii system does not connect to the Internet or support any

online features in games. Because Wii mini doesn’t come with

internet features, Wi-Fi features, WiiConnect24, nor SD card slot,

some of the software features will be disabled.

• This Wii system is not compatible with Nintendo GameCube™

Game Discs or accessories.

• The instructions for operating the Wii Menu and the pre-installed

software are available electronically on your console. Using the

Wii Remote Plus™ controller, point at theWii Menu Manu-

aliconand press the A Button. Then select Start on the channel

preview screen to open the manual.

Français – Page 35

Español – Página 71

Health and Safety Information

WARNING - Seizures

WARNING - Electric Shock

CAUTION - Motion Sickness

CAUTION - Laser Device

WARNING - Radio Frequency Interference

WARNING - Repetitive Motion Injuries

and Eyestrain

IMPORTANT SAFETY INFORMATION – READ THE FOLLOWING

WARNINGS BEFORE SETUP OR USE OF THE Wii mini. IF THIS

PRODUCT WILL BE USED BY YOUNG CHILDREN, THIS MANUAL

SHOULD BE READ AND EXPLAINED TO THEM BY AN ADULT.

FAILING TO DO SO MAY CAUSE INJURY.

PLEASE CAREFULLY REVIEW THE INSTRUCTION BOOKLET FOR

THE GAME YOU ARE PLAYING FOR ADDITIONAL HEALTH AND

SAFETY INFORMATION.

Some people (about 1 in 4000) may have seizures or blackouts triggered by light

ﬂashes or patterns, and this may occur while they are watching TV or playing video

games, even if they have never had a seizure before.

Anyone who has had a seizure, loss of awareness, or other symptom linked to an

epileptic condition should consult a doctor before playing a video game.

Parents should watch their children play video games. Stop playing and consult a

doctor if you or your child has any of the following symptoms:

Convulsions Eye or muscle twitching Loss of awareness

Altered vision Involuntary movements Disorientation

To reduce the likelihood of a seizure when playing video games:

• Sit or stand as far from the screen as possible.

• Play video games on the smallest available television screen.

• Do not play if you are tired or need sleep.

• Play in a well-lit room.

• Take a 10 to 15 minute break every hour.

Playing video games can make your muscles, joints, skin or eyes hurt. Follow these

instructions to avoid problems such as tendinitis, carpal tunnel syndrome, skin

irritation or eyestrain:

• Avoid excessive play. Parents should monitor their children for appropriate play.

• Take a 10 to 15 minute break every hour, even if you don’t think you need it.

• If your hands, wrists, arms or eyes become tired or sore while playing, or if you feel

symptoms such as tingling, numbness, burning or stiffness, stop and rest for

several hours before playing again.

• If you continue to have any of the above symptoms or other discomfort during or

after play, stop playing and see a doctor.

To avoid electric shock when you use this system:

• Do not use the Wii system during a lightning storm. There may be a risk of

electric shock from lightning.

• Use only the AC Adapter that comes with your system.

• Do not use the AC Adapter if it has damaged, split or broken cords or wires.

• Make sure that the AC Adapter cord is fully inserted into the wall outlet or

extension cord.

• Always carefully disconnect all plugs by pulling on the plug and not on the cord.

Make sure the Wii mini power button is turned OFF before removing the

AC Adapter cord from an outlet.

Playing video games can cause motion sickness in some players. If you or your child

feel dizzy or nauseous when playing video games, stop playing and rest. Do not drive

or engage in other demanding activity until you feel better.

The Wii mini console and Wii Remote Plus can emit radio waves that can affect the

operation of nearby electronics, including cardiac pacemakers.

• Do not operate the Wii mini console or remote within 9 inches of a pacemaker.

• If you have a pacemaker or other implanted medical device, do not use the

Wii mini console or remote without ﬁrst consulting your doctor or the

manufacturer of your medical device.

The Wii mini console is a Class I laser product. Do not attempt to disassemble the

Wii mini console. Refer servicing to qualiﬁed personnel only.

Caution: Use of controls or adjustments or procedures other than those speciﬁed

herein may result in hazardous radiation exposure.

NOTE: This product does not contain latex.

This product complies with applicable laws barring the use of toxic materials such as

lead, mercury, cadmium, hexavalent chromium, PBB or PBDE in consumer products.

Speciﬁcations:

Laser Type: Semiconductor laser Laser wave length: 662nm (typ.)(647nm~687nm)

Laser power: Max. 0.9mW Numeric aperture: 0.6

Power LED

Shows the status of the Wii mini console.

Blue - Power is ON.

Red - Power is OFF.

POWER Button

Press to turn the console ON or OFF.

NOTE: The Power LED does not go out

when the power is turned off.

SYNC Button

Used when synchronizing a Wii Remote

or Wii Remote Plus with the console.

See pages 19–20.

OPEN Button

Press to open cover. Then load

or remove the Game Disc.

USB Connector Air Vent

Do not block.

Sensor Bar Connector

Connects to the Sensor Bar.

AV Out Connector

Connects to the AV Cable for

your television.

DC Input Connector

Connects to the Wii AC Adapter.

Air Intake

Do not block. Battery Cover

For access to CR Coin Lithium battery (CR2032). Perchlorate Material – special handling may apply.

More information can be found at http://www.dtsc.ca.gov/hazardouswaste/perchlorate/index.cfm.

Do not remove battery cover unless instructed to do so by a Nintendo Customer Service representative.

Components

Wii mini Console

Front view Back view

Left side view

Components

Wii Remote™ Plus

(Shown with the included Wii Remote Jacket attached.)

Back view

(Shown with the battery cover removed.)

Pointer Lens

Power Button

Press to turn the Wii mini

console ON or OFF.

+Control Pad

A Button

HOME Button

Press to display the HOME Menu

screen. See the Wii Menu Manual,

HOME Menu, for more information.

Minus (–) Button

Plus (+) Button

Speaker

1 Button

2 Button

Player LEDs

Indicate which player the

remote is set up for.

Wii Remote Wrist

Strap

See page 18 for information on

wrist strap use.

B Button

Strap Lock

Wrist Strap

Attachment

Wrist Strap cord

External Extension

Connector

Allows connection of external

accessories such as the Nunchuk.

SYNC Button

Used when synchronizing a Wii

Remote Plus with the console.

See pages 19–20.

Nunchuk™Sensor Bar

Control Stick

Nunchuk Plug

Connects to the External Extension

Connector on the Wii Remote Plus.

Connector Hook

Insert the cord of the wrist

strap through the hook.

Z Button

C Button

Lock/Release Levers

Squeeze levers to remove

plug from Wii Remote Plus.

To take advantage of the features of the Nunchuk accessory, you must use Wii

game software that supports Nunchuk gameplay features. Look for this icon on

game packaging for games that are designed to be used with Nunchuk.

NOTE: If the Control Stick is moved out of neutral position when the Wii power is turned ON, or when

connecting to the remote, that position will be set as neutral position, causing incorrect game control during

game play. To reset the Control Stick, allow it to return to the normal neutral position, then simultaneously

hold down the A, B, Plus (+) and Minus (–) buttons on the remote for three seconds.

To avoid this from occurring, do not move the Control Stick when:

• Turning the Wii mini console on

• Plugging the Nunchuk into the Wii Remote Plus

• Starting Channels from the Channel Menu

• Returning to the Wii Menu from games or Channels

Sensor Bar Plug

Plugs into the Sensor Bar Connector on the back of the Wii mini console.

See pages 11–14 for installation instructions.

System Setup

Components

Components System Setup

Wii AC Adapter

Wii AV Cable

Video

Audio (Left)

Audio (Right)

AC Plug

Connects to a 120V AC wall

outlet.

DC Plug

Connects to the DC Input connector

on the back of the Wii mini console.

AV Out Plug

Plugs into the AV Out connector on the

back of the Wii mini console.

RCA Plugs

Plug into the AV input

connectors on a television.

Wii mini Console Usage Precautions

Please read and follow the precautions listed below when

setting up and using the Wii mini console. Failure to do so

may result in damage to your Wii system or accessories.

• Do not use any AC Adapter other than the one provided with your system.

• The console has intake and exhaust vents designed to maintain adequate

ventilation. Do not operate the console in any location where these vents may

become covered or obstructed, for example, on carpet or in a tightly enclosed

space. Keep vents clear of any dust or other foreign material.

• Do not disassemble or try to repair the console, accessories or components.

Doing so voids your warranty.

• After you have nished playing, be sure to remove the Game Disc from the

console.

• Do not store the console in a humid place, on the oor, or in any location where it

may collect dirt, dust, lint, etc.

• Do not drop, hit or otherwise abuse the console, components or accessories.

• When disconnecting any plugs from the console or wall outlet, rst turn the

Wii mini console off. Then carefully pull by the plug itself rather than by the cord.

• Do not step on, sharply pull or bend any wire or cables.

• Do not expose the console, components or accessories to extreme heat or cold.

• Do not spill any liquids on the console, components or accessories.

To clean, use a soft slightly damp cloth. Use water only. Allow to dry completely

before using.

Wii mini Console Placement

Place the Wii mini console on a ﬂat horizontal surface.

NOTE: Choose a location to set up the console that has enough room to

allow for free ﬂow of ventilation around the console.

10 11

System Setup

Connecting the AV Cable

IMPORANT: The Wii mini console will not work with any AV cable other

than the model supplied. CAUTION - TV Screen Damage

Some televisions can be damaged by the display of a stationary image, because the image

may be permanently “burned” into the screen. Playing video games with stationary images

or patterns, or leaving video games on hold or pause, may lead to this type of damage. When

taking a break, place the game on pause and turn the TV off until you are ready to play again.

Before using your Wii system with any TV, especially front and rear projection or

plasma models, be sure to review all documentation included with your TV to ﬁnd

out whether video games can be played on the TV without damaging it.

If in doubt, contact the manufacturer of the TV. Neither Nintendo nor any of Nintendo’s

licensees will be liable for any damage to your TV.

Wii mini Console

TV Inputs

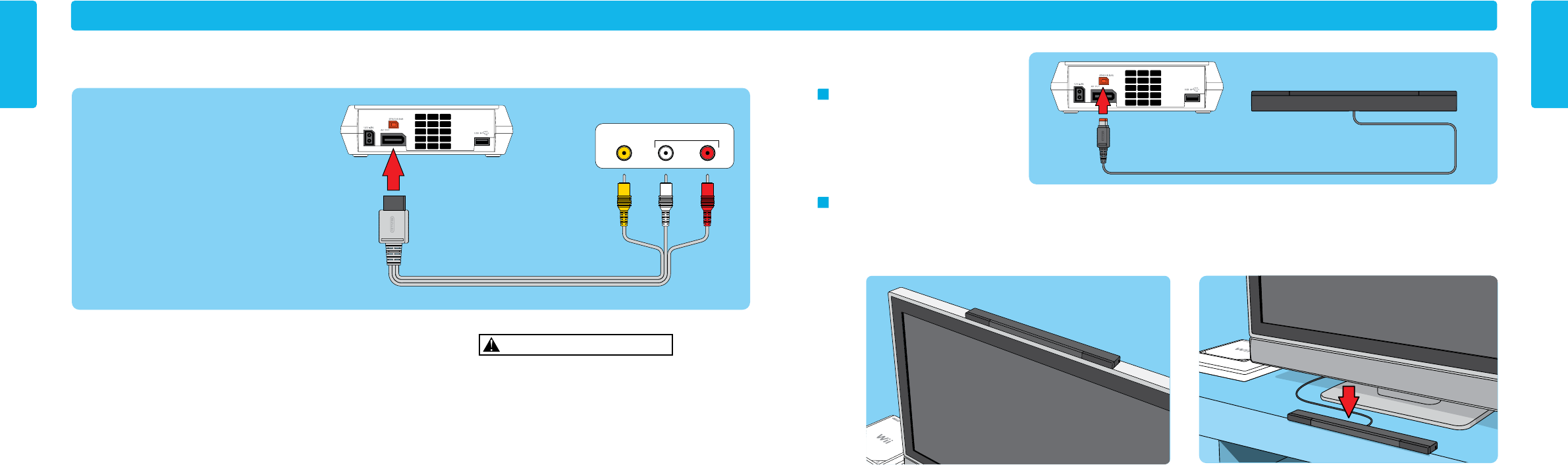

1. Insert the AV Out plug on the Wii AV Cable into the AV Out

connector on the back of the console.

2. Insert the RCA plugs on the Wii AV Cable into the input

connectors on the TV, VCR or other audio equipment.

Connecting the Sensor Bar

Insert the Sensor Bar plug into the Sensor Bar

connector on the back of the console.

Placing the Sensor Bar

The Sensor Bar can be placed either above or below the TV screen.

• See page 12 for instructions on mounting the Sensor Bar to the top of the TV.

• See page 13 for instructions on mounting the Sensor Bar below the TV screen.

Sensor Bar Setup

VIDEO AUDIO L AUDIO R

Sensor Bar mounted

above the screen.

Sensor Bar mounted

below the screen.

12 13

System Setup

Mounting the Sensor Bar Above the Screen

1. Remove the protective ﬁlm from the foam pads

on the bottom of the Sensor Bar.

• The front of the Sensor Bar should be

aligned close to the front of the TV.

• The center of the Sensor Bar should be

aligned with the center of the TV.

1. Remove the protective ﬁlm from the foam pads

on the bottom of the Sensor Bar.

2. Mount the Sensor Bar to the front edge of the

surface the TV is sitting on. Do not place the

Sensor Bar below the surface that the TV is

sitting on; for example, on shelves below

the TV.

• The center of the Sensor Bar should be

aligned with the center of the TV.

Mounting the Sensor Bar Below the Screen

• The front of the Sensor Bar should be

aligned with the front of the surface

the TV is sitting on.

2. Mount the Sensor Bar to the top of the TV.

14 15

System Setup

Wii AC Adapter

Sensor Bar cable position

If desired, the Sensor Bar cable can be fed through a channel on the bottom of the

Sensor Bar to orient the cable to the left or right.

1. Insert the DC plug on the Wii AC Adapter cord into the DC input connector on the

back of the console.

2. Insert the AC plug into a 120V AC wall outlet. Make sure the power is off (the

Power LED is red) when unplugging the AC Adapter.

CAUTION: To prevent electric shock, match the wide blade of the plug to the

wide slot and insert fully into outlet.

120 V AC outlet

DC Input Connector

Input Select Information

The input select allows you to switch between the different inputs on your TV or VCR.

Manufacturers of TVs and VCRs use different names and locations for “input select.”

The common names for the input select are: input, select, input select, line, line in,

source, in, EXT, and AUX. Consult your TV or VCR instruction manual for details.

NOTE: More information on “Input Select” is available on our web site at

support.nintendo.com/consumer/inputselects.html

Locate the input select for the component that the Wii AV Cable is connected to (either

the TV or VCR). The most common locations for input select are:

• A button on the front of the TV or VCR.

• A button on the remote control.

• A high-numbered or low numbered channel (92, 99, 00, or 02) on the TV or VCR.

• An on-screen menu selection.

TV and Audio/Video Settings

After you have completed all steps of the setup procedure and are ready to

use the Wii system, you will need to set the appropriate “input select”

setting for your TV, VCR or other audio equipment.

1. Turn ON the power for your TV and any audio equipment connected to your

gameplay setup and the power on the Wii mini console.

2. Select the correct input setting for your TV (see Input Select Information at right).

3. The Wii Menu (see below) should appear on the TV screen. See the e-manual

for more information on this feature.

If the Wii Menu screen does not appear, check to make sure your input setting is

correct and review the Troubleshooting section on page 27.

16 17

System Setup

WARNING - Battery Leakage

Setup of Wii Remote Plus

The Wii Remote™ Plus comes with the Wii Remote jacket installed.

• BesurethattheWiiRemotejacketisinstalledduringgameplaytoreduce 

the risk of harm to the remote, surrounding objects, or people.

• ItmaybenecessarytoremovetheWiiRemotejacket–forexample,to 

replace the batteries in the Wii Remote Plus. If you do remove the Wii

Remote jacket, be sure to replace it before further play.

Wii Remote Jacket

Installing Batteries

The Wii Remote Plus uses AA batteries. Nintendo recommends high quality alkaline

batteries for best performance and longevity of battery life. If you use rechargeable

nickel metal hydride (NiMH) batteries, be sure to follow the manufacturer’s

guidelines for safety and proper usage.

Leakage of battery ﬂuid can cause personal injury as well as damage to your remote.

If battery leakage occurs, thoroughly wash the affected skin and clothes. Keep battery

ﬂuid away from your eyes and mouth. Leaking batteries may make popping sounds.

To avoid battery leakage:

• Do not mix used and new batteries (replace all batteries at the same time).

• Do not mix different brands of batteries.

• Nintendo recommends alkaline batteries. Do not use Lithium ion, nickel cadmium

(nicad), or carbon zinc batteries.

• Do not leave batteries in the remote for long periods of non-use.

• Do not recharge alkaline or non-rechargeable batteries.

• Do not put the batteries in backwards. Make sure that the positive (+) and

negative (-) ends are facing in the correct directions. Insert the negative end ﬁrst.

When removing batteries, remove the positive end ﬁrst.

• Do not use damaged, deformed or leaking batteries.

• Do not dispose of batteries in a re.

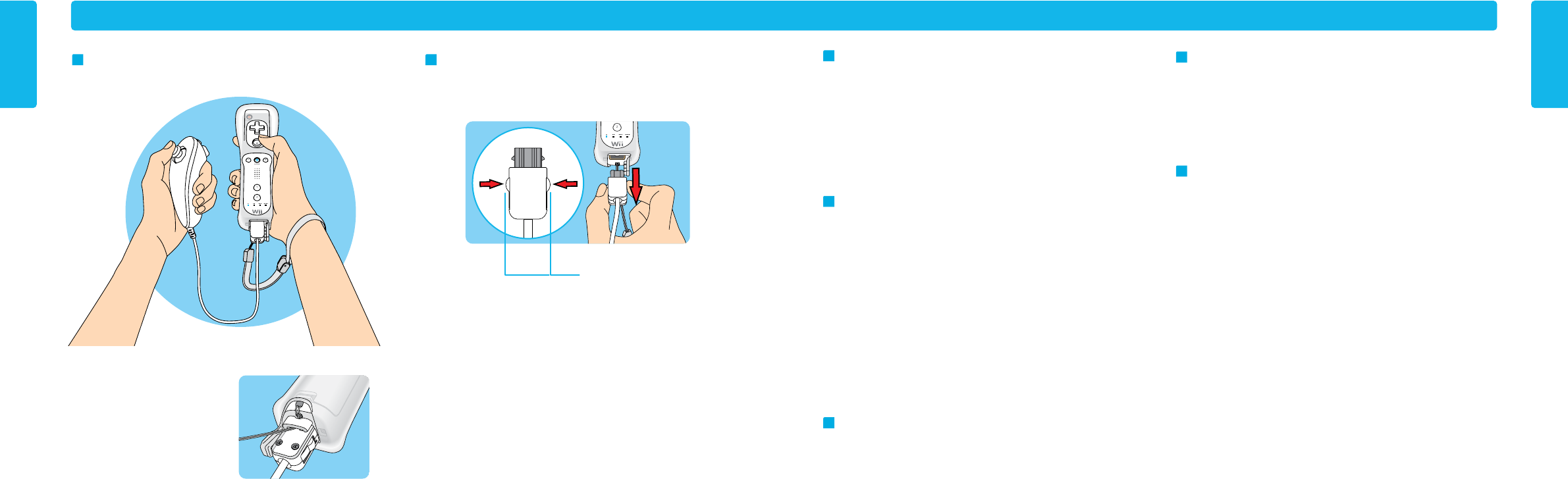

1. Pull the Wii Remote jacket

off the base of the Wii

Remote Plus and pull the

wrist strap out of the hole

in the bottom of the jacket.

2. Pull the jacket up the remote far

enough to expose the entire

battery cover and remove the cover.

3. Insert the batteries into the battery

chamber. Be sure to insert the

minus (–) end ﬁrst when inserting

new batteries, and remove the

plus (+) end ﬁrst when replacing

the batteries.

4. Replace the battery cover, thread

the wrist strap through the hole in

the bottom of the jacket and pull

the jacket back over the bottom of

the remote.

5. If you remove the jacket from the

remote, replace it by inserting the

top of the remote into the large

hole on the front of the jacket.

Be sure to push it all the way into

the inside of the jacket.

6. Thread the wrist strap throught

hole in the bottom of the jacket,

as shown in step 4, above.

7. Insert the connector cover into the

External Extension Connector on

the bottom of the remote.

NOTE: Battery life can be checked by pressing the HOME Button.

See the Wii Menu Manual for more information.

18 19

1. Press the Power button on the Wii mini console to turn it on.

2. Press and release the SYNC. button on the back of the Wii Remote Plus. The Player

LEDs will blink.

NOTE: Some models may require to remove the battery cover to push the SYNC. button.

3. Press the SYNC Button on the side

of the console. When the Player

LED blinking stops, connection is

complete. The LED that is illuminated

indicates the player number.

IMPORTANT: This procedure must be followed for each additional remote added

to your system.

System Setup

CAUTION - Use the Wrist Strap

Wii gameplay with the Wii Remote Plus can involve rapid or vigorous motion.

Please use the wrist strap to prevent losing your grip on the remote and causing

damage to the remote or surrounding objects, or injury to other people.

WEAR THE WRIST STRAP WHEN USING THE Wii REMOTE PLUS.

• Make sure all players use the wrist strap and that the strap lock is correctly tightened.

• When sharing the Wii Remote Plus between multiple players, make sure each

person uses the wrist strap properly.

• Wearing the wrist strap will prevent you from accidentally dropping or throwing the

remote during gameplay, which could damage the remote or surrounding objects,

or cause injury to other people.

DO NOT LET GO OF THE REMOTE DURING GAME PLAY.

• Read the Instruction booklet for the game you are playing and follow all game

control instructions for correct use of the Wii Remote Plus or accessory controllers.

• Hold the remote securely and avoid excessive motion, as it may cause you to let go

of the remote and may break the wrist strap.

• If your hands become moist, stop and dry your hands.

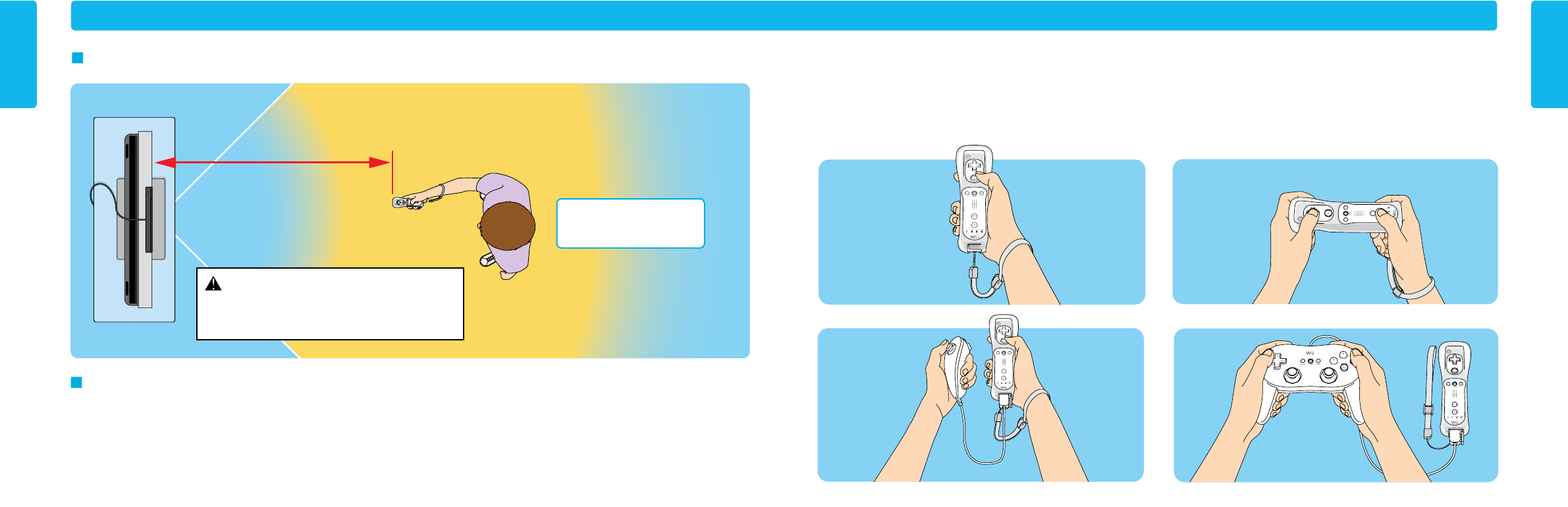

ALLOW ADEQUATE ROOM AROUND YOU DURING GAME PLAY.

• Stay at least three (3) feet away from the television.

• As you may move around during gameplay, make sure objects and other people are

out of your range of movement or arm motion to prevent damage or injury.

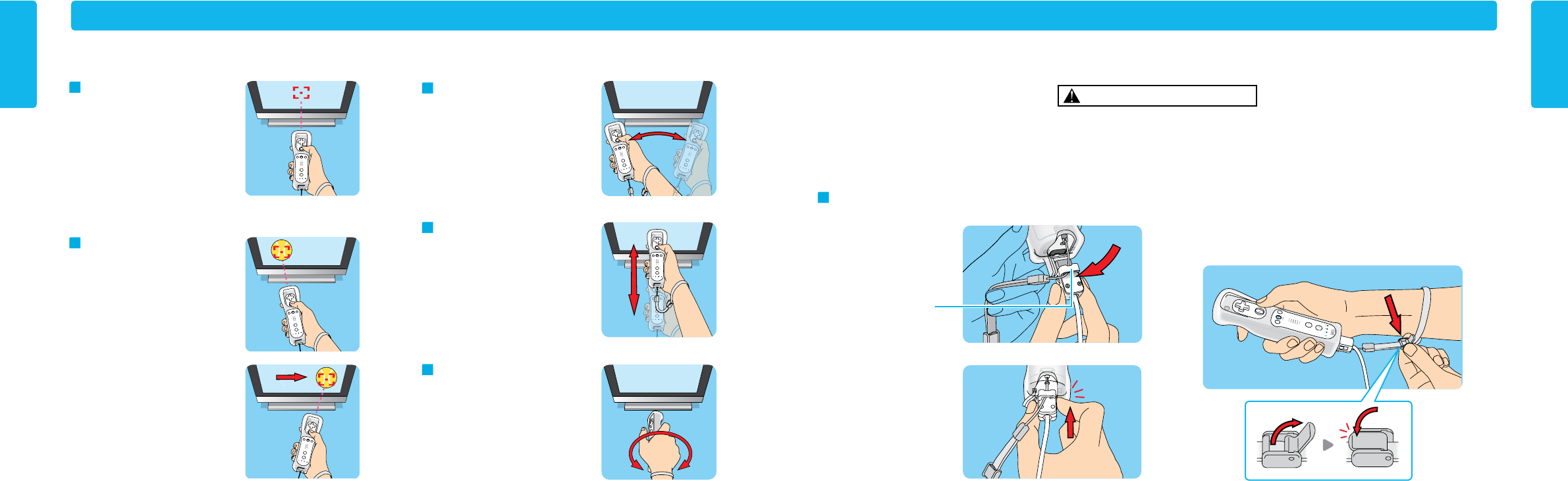

Wearing the Wii Remote Wrist Strap

1. Open the lever on the strap lock and place your hand through the wrist strap.

Hold the remote ﬁrmly in your hand.

2. Slide the strap lock up so that the strap will not fall off your wrist. Do not over

tighten the strap lock so that it’s uncomfortable. It should just be tight enough to

hold the wrist strap in place. Close the lever to hold the strap lock in place.

Synchronizing Your Wii Remote Plus with

the Wii mini Console

NOTE: Make sure you have placed batteries in the Wii Remote Plus.

This procedure allows the Wii Remote or Wii Remote Plus to communicate with

the console.

The Wii Remote Plus included with your Wii system has been synchronized

with the console at the factory.

There are two different modes of synchronizing (syncing) a Wii Remote or Wii Remote

Plus with your console:

STANDARD MODE – The Standard Mode procedure is used when adding additional

remotes to your system or if you want to re-synchronize your original remote.

Once synchronized, the remote will stay synced to the console unless you overwrite

this setting by syncing the remote to a different console.

NOTE: With Standard Mode Synchronization, you can synchronize up to 10 Wii

Remote or Wii Remote Plus controllers with your Wii mini console. The data of

the remote that was sychronized ﬁrst is deleted if you synchronize more than 10.

ONE TIME MODE – This mode allows you to temporarily use your remote on a console

other than your own or to use a friends remote on your console. It does not delete

the Standard Mode setting stored in the remote. In this mode, the remote will

only communicate with the console while the power is on. When the power is turned

off the remote will lose its sync with the console.

• Only a Wii Remote or Wii Remote Plus in Standard Mode can turn the console

power ON or OFF.

Standard Mode Synchronization

20 21

Using Game Discs

System Setup

One Time Mode Synchronization

NOTE: This mode temporarily removes the Standard Mode synchronization setup for

all remotes until the power of the Wii mini console is turned off. When the power is

turned back on again, the Standard Mode settings will return.

1. Press the HOME Button on a remote that is synchronized with the console.

2. Select the Wii Remote Settings option

from the Home Button menu, then

select the Reconnect option.

3. Press the 1 and 2 Buttons

simultaneously on the remote

that you want to synchronize with

the console.

The order in which you synchronize

remotes will set the player order for

multiplayer games.

4. The Player LEDs will blink during the syncing process. When the blinking stops,

the connection is complete. See diagram at right for a description of what the

blinking indicates.

During the syncing

process, the number of

LEDs that blink will show

the battery life of the

remote that is being

synchronized.

After the syncing

process, LED that is lit

shows the player

number for that remote.

NOTE: One Time Mode synchronization is temporary. The Wii Remote or Wii

Remote Plus will lose this synchronization under the following conditions:

• When you turn off the console by pressing the Power Button on either the remote

or the console.

• When starting up a game or Channel from the Wii Menu.

• When returning to the Wii Menu after exiting from a game or Channel.

• When you select Reset on the HOME Menu screen.

• When you press the Reset Button on the front of the console.

IMPORTANT: IF YOUR REMOTE LOSES IT’S SYNCHRONIZATION WITH THE CONSOLE

AND YOU ARE UNABLE TO RE-SYNC IT, REVIEW THE Wii REMOTE PLUS TROUBLE-

SHOOTING PROCEDURES ON PAGE 28.

MORE Battery Life LESS

1P 2P 3P 4P

Playing a Wii Game Disc

NOTE: Nintendo GameCube™ Game Discs are not compatible

with this Wii mini console.

Before Loading a Disc

• Turn ON the power for your TV and any audio equipment connected to your

gameplay setup.

• Select the correct input setting for your TV. (See page 15, TV and Audio/Video

Settings.)

Loading a Game Disc

Press the Open Button to open the cover. Load the Game Disc, label facing up,

onto the disc hub and press into place. Close the cover and press the POWER button

to turn the console on.

Game Disc Usage Precautions

Please read and follow the precautions listed below when using

Wii Game Discs in the Wii mini Console. Failure to do so may result

in damage to your Wii system or game discs.

• To avoid pinching your nger, do not load the disc with your nger in the

hole. Always handle the disc by the edges.

• Do not touch the bottom unprinted surface of the Game Disc. Always handle

the disc by the edges.

• Do not use cracked, deformed or repaired discs.

• Do not bend or put excessive pressure on discs when loading into console.

• Do not leave discs in direct sunlight or expose them to high temperatures,

high humidity or dust, dirt or other contaminates.

• When not using discs, store them in their cases to prevent them from getting

scratched, dirty or damaged.

• Do not write on, or place stickers on any part of the disc.

• If a disc becomes dirty or contaminated with ngerprints, the system may not

be able to read the game data correctly. If necessary, clean the disc with a

soft, slightly damp cotton cloth (use water only). Clean the disc from center

towards the edges; do not use a circular motion.

• Do not remove a disc until it has completely stopped spinning.

Starting the Game

1. Using the Wii Remote Plus, move the cursor over the Disc Channel option on the

Wii Menu screen and press the A Button to make a selection.

NOTE: Please see Playing Wii Discs in the built-in Wii Menu

Manual for more information on using Game Discs in the Wii

mini console.

2. Select “PLAY” on the game title screen to begin the game. Review the

instruction booklet for the game you are playing for speciﬁc

game information.

Using Game Discs

Label faces

upwards

22 23

Using the Wii Remote Plus

Wii System Play Guidelines

For best results when using the Wii system, follow these recommendations.

Recommended distance: 3’– 10’

(from Sensor Bar to Wii Remote Plus)

For best operation, play

directly in front of the TV.

Be sure you have enough space around you during game play.

To avoid injury or damage, make sure other people or objects are

not within your range of motion.

CAUTION - Adequate Space Required

For best use of the Wii Remote Plus, follow these guidelines:

Using the Wii Remote Plus

• Avoid blocking the signal between the remote, the Sensor Bar and the Wii mini

console with objects.

• Use the remote the correct distance from the Sensor Bar. The optimal distance is

between 3 and 10 feet.

• Avoid bright light sources, including sunlight, behind or near the TV, shining towards

the remote or reﬂecting off of the screen.

• Avoid highly reective surfaces near the Sensor Bar.

• Avoid sources of infrared light in the gameplay area such as electric, propane or

kerosene heaters, ﬂames from ﬁreplaces or candles, and stoves or other sources of heat.

• If the remote seems to operate eratically, check and adjust the Sensor Bar sensitivity if

necessary. (See the e-manual.)

Be sure to read the following pages on using the Wii Remote Plus before

using the Wii system.

Wii Remote Plus Conﬁgurations

Depending on the game, the way you hold and operate the remote will vary. You may need to hold the remote in either one or two hands. Read the instruction booklet for the

game you are playing for information about what kind of gameplay control is required for that game.

The remote can be used by itself, or in different conﬁgurations when connected up to other Wii accessories. These conﬁgurations can be used right or left handed.

Wii Remote Plus –

Vertical Position

Wii Remote Plus – Horizontal Position

Wii Remote Plus and Nunchuk

Wii Remote Plus

and Classic Controller Pro™ (sold separately)

24 25

Using the Nunchuk

Using the Wii Remote Plus

Basic Operations

Point

Point the remote at a speciﬁc place on

the TV screen.

Holding or Grabbing

Point the remote at a speciﬁc place on

the TV screen and move the remote

while holding down a button.

Waving

Wave the remote back and forth from

side to side.

Pushing or Pulling

Move the remote forward and backward.

Twisting

Move the remote in a twisting motion by

rotating your arm.

Using the Nunchuk

CAUTION - Use the Wrist Strap

Setup and Use of the Nunchuk

Wii gameplay with the Wii Remote Plus and Nunchuk can involve rapid or vigorous motion. Please use the wrist strap to prevent losing your grip on the remote

and causing damage to the remote and surrounding objects, or injury to other people.

Be sure to install the Nunchuk as described. Use the connector hook on the Nunchuk plug with the wrist strap cord to prevent the Nunchuk plug from becoming

separated from the External Extension connector on the remote and striking objects or people.

Connecting the Nunchuk

1. Feed the cord on the wrist strap

through the connector hook.

2. Insert the Nunchuk plug into the

External Extension Connector on

the bottom of the remote until it

“clicks” into place.

3. Open the lever on the strap lock and place your hand through the wrist strap. Hold

the remote ﬁrmly in your hand. Slide the strap lock up so that the strap will not fall

off your wrist. Do not over tighten the strap lock so that it’s uncomfortable. It

should just be tight enough to hold the wrist strap in place. Close the lever to

hold the strap lock in place.

Connector Hook

26 27

Using the Nunchuk

Holding the Nunchuk and Wii Remote Plus Disconnecting the Nunchuk

Press the Lock/Release Levers on the sides of the Nunchuk plug and pull the plug

straight out of the External Extension Connector on the bottom of the remote.

IMPORTANT: Make sure the

wrist strap cord runs through

the connector hook.

Lock/Release Levers

Squeeze levers to remove

plug from Wii Remote Plus.

Troubleshooting (Before seeking assistance, review the following problems and solutions.)

No picture on TV screen

• Make sure you have completed all steps, in the order that they appear, on the Quick

Setup sheet included with your system.

• Make sure that all components of your setup are plugged into power outlets and that

all components are turned ON.

• Make sure that cable connections are correctly installed and that all plugs are

securely plugged into the appropriate connectors.

• Make sure that the INPUT settings are correct for your particular setup. (Review page

15 on Input Select information.)

No sound is heard or sound quality is poor

• Make sure the TV volume is not turned off or muted.

• Make sure that all audio connections are correctly installed and that all plugs are

securely plugged into the appropriate connectors.

• Make sure the Wii AV Cable is plugged into the “input” connectors on the

TV or VCR, not the “output” connectors.

• Make sure that the INPUT settings are correct for your particular setup. (Review

page 15 on Input Select information.)

• The sound in some games doesn’t begin until the game begins.

• If you have a mono TV or VCR and have left one of the audio cables unconnected

you may not get all game sounds. Use a “Y” Adapter to get both left and right

sound channels.

• If your TV/VCR have both mono and stereo options, make sure they match your setup.

• Check the instruction booklet for the game you are playing to see if there are volume

controls or mono/stereo options that can be set from within the game.

Can’t get past the Language Select screen

• Synchronize your Wii Remote Plus controllers using the procedure on pages 19–22.

• Review the Sensor Bar setup instructions on pages 11–14 to ensure proper placement

and installation.

The console Power LED does not come on, or goes off

during game play

• Make sure the AC Adapter is plugged into both the wall outlet and the back of

the console.

• If the light is still off, disconnect the AC Adapter plug from the wall outlet, wait 2

minutes and plug it back into the outlet. Turn the console power ON.

System unable to read the Wii Game Disc or disc will

not operate in console

NOTE: Game Discs will not start automatically. You must start disc games from the Disc

Channel on the Channel Menu screen.

• Make sure the Game Disc is inserted correctly. The label side of the disc must

face upwards.

• Check to be sure that the Game Disc is clean and in good condition. If dirty, wipe

with a soft cloth, from the center to the outside. Do not wipe with a circular motion.

• Remove the Game Disc, and turn the power OFF and then ON. Reinsert the disc and

try playing the game again.

• Check that the Game Disc will work on your version of the Wii. This system will only

work with Game Discs made for use in the USA, Canada, Mexico and Latin America.

Troubleshooting

28 29

Troubleshooting

Wii Remote Plus lights blink, but don’t stay lit

(remote does not sync)

• Review the Sensor Bar setup instructions in this manual to ensure proper placement.

• Make sure batteries are not depleted.

• Try resetting the Wii Remote Plus - remove the batteries, wait one minute,

then replace the batteries. Wait a few seconds, and then try synchronizing

the remote again.

• If you are unable to re-sync the remote, try the following procedure:

1. Turn off the power of the Wii mini console.

2. Unplug the power cord from the wall outlet for a few seconds, then plug it back

in again.

3. Turn on the power of the Wii mini console.

4. Synchronize your Wii Remote Plus controllers using the procedure on

pages 19–22.

Wii Remote Plus or controller accessory buttons stick

Clean sticking buttons using the following procedure:

1. For the Wii Remote Plus, remove batteries and disconnect any accessories

before cleaning.

2. Use an unused toothbrush and hot tap water. Do not use boiling water,

soap or detergent.

3. Dip the toothbrush in hot water and shake off excess amount. Lightly scrub

sticking buttons, working the bristles around sides of buttons and into cracks.

4. Dry controller with soft cloth or towel and let air dry for at least 2 hours.

5. Test buttons and repeat procedure if necessary. Do not submerge in,

or pour any type of liquid onto a controller or accessory.

Wii Remote Plus doesn’t properly respond to player

motion

(erratic hand cursor, can’t swing bat, can’t bowl, etc.)

• If the lights on your remote blink, but do not stay lit, see the rst troubleshooting

step on this page, at left.

• Review the Sensor Bar setup instructions in this manual to ensure proper

placement.

• Make sure no objects are blocking the signals between the Sensor Bar, the Wii

mini console, and the Wii Remote Plus.

• Make sure batteries are not depleted.

• Check and adjust the Sensor Bar sensitivity if necessary. (See the e-manual.)

The following conditions can interfere with the operation of the remote:

1. Using the remote too close or too far from the Sensor Bar. The optimal distance is

between 3 and 10 feet.

2. Bright light sources, including sunlight, behind or near the TV, shining towards

the remote or reﬂecting off the TV screen.

3. Highly reﬂective surfaces near the sensor bar.

4. Sources of infrared light in the gameplay area such as electric, propane or

kerosene heaters, ﬂames from ﬁreplaces or candles, and stoves or other sources of

heat.

5. Radio frequency interference may cause the Wii Remote Plus to work erratically.

Check for and move or turn off wireless devices such as cordless phones,

wireless computer keyboards or mice or other similar devices.

If you think any of these conditions are affecting the operation of the remote, try

removing or reducing the source of interference.

When playing a game that includes Wii MotionPlus

features, the Wii Remote Plus operates erratically

or unexpectedly.

• The Wii Remote Plus may need to be recalibrated due to the following:

1. Changing batteries in the Wii Remote Plus during gameplay.

2. Moving Wii MotionPlus from a cold environment into a warm environment.

To recalibrate the Wii Remote Plus, place it on a ﬂat horizontal surface with the buttons

facing down. Wait for a few seconds and check the operation. Also, review the instruc-

tion manual for the game you are playing for more information.

NOTE: This procedure must be done during gameplay.

If your Wii system still does not operate correctly after trying

the troubleshooting steps, DO NOT return the console to

the store. Visit support.nintendo.com for assistance and

additional troubleshooting and repair options or call

1-800-255-3700.

30 31

Warranty and Service Information

FCC Information

Regulations for Equipment Use in U.S.A. and Canada

FCC and Industry Canada Information

In order to comply with FCC radio-frequency radiation exposure guidelines for an uncontrolled exposure, this device and its antenna must not be co-located or operating in conjunction with any other

antenna or transmitter. This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful inter-

ference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modiﬁcations not expressly approved by the manufacturer could

void the user’s authority to operate this device.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi-

sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician or call Nintendo Consumer Service at 1-800-255-3700 for assistance.

The user may ﬁnd the following booklet prepared by the Federal Communications Commission helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S.

Government Printing Ofﬁce, Washington, D.C., 20402, Stock No. 004-000-00345-4.

The term IC before the certiﬁcation/registration number only signiﬁes that the Industry Canada technical speciﬁcations were met.

You may need only simple instructions to correct a problem with your product. Try our web site at support.nintendo.com or call our Consumer Assistance Hotline at 1-800-255-3700,

rather than going to your retailer. Hours of operation are 6 a.m. to 7 p.m., Paciﬁc Time, Monday - Sunday (times subject to change). If the problem cannot be solved with the troubleshooting

information available online or over the telephone, you will be offered express factory service through Nintendo. Please do not send any products to Nintendo without contacting us ﬁrst.

HARDWARE WARRANTY

Nintendo of America Inc. (“Nintendo”) warrants to the original purchaser that the hardware product shall be free from defects in material and workmanship for twelve (12) months from the date of

purchase. If a defect covered by this warranty occurs during this warranty period, Nintendo will repair or replace the defective hardware product or component, free of charge.* The original purchaser is

entitled to this warranty only if the date of purchase is registered at point of sale or the consumer can demonstrate, to Nintendo’s satisfaction, that the product was purchased within the last 12 months.

GAME & ACCESSORY WARRANTY

Nintendo warrants to the original purchaser that the product (games and accessories) shall be free from defects in material and workmanship for a period of three (3) months from the date of purchase. If a

defect covered by this warranty occurs during this three (3) month warranty period, Nintendo will repair or replace the defective product, free of charge.*

SERVICE AFTER EXPIRATION OF WARRANTY

Please try our web site at support.nintendo.com or call the Consumer Assistance Hotline at 1-800-255-3700 for troubleshooting information and repair or replacement options and pricing.*

*In some instances, it may be necessary for you to ship the complete product, FREIGHT PREPAID AND INSURED FOR LOSS OR DAMAGE, to Nintendo. Please do not send any products to Nintendo without

contacting us ﬁrst.

WARRANTY LIMITATIONS

THIS WARRANTY SHALL NOT APPLY IF THIS PRODUCT: (a) IS USED WITH PRODUCTS NOT SOLD OR LICENSED BY NINTENDO (INCLUDING, BUT NOT LIMITED TO, NON-LICENSED GAME ENHANCEMENT AND

COPIER DEVICES, ADAPTERS, SOFTWARE, AND POWER SUPPLIES); (b) IS USED FOR COMMERCIAL PURPOSES (INCLUDING RENTAL); (c) IS MODIFIED OR TAMPERED WITH; (d) IS DAMAGED BY NEGLIGENCE,

ACCIDENT, UNREASONABLE USE, OR BY OTHER CAUSES UNRELATED TO DEFECTIVE MATERIALS OR WORKMANSHIP; OR (e) HAS HAD THE SERIAL NUMBER ALTERED, DEFACED OR REMOVED.

ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITED IN DURATION TO THE WARRANTY PERIODS DE-

SCRIBED ABOVE (12 MONTHS OR 3 MONTHS, AS APPLICABLE). IN NO EVENT SHALL NINTENDO BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES RESULTING FROM THE BREACH OF ANY IMPLIED OR

EXPRESS WARRANTIES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR EXCLUSION OF CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE LIMITATIONS

MAY NOT APPLY TO YOU.

This warranty gives you speciﬁc legal rights. You may also have other rights which vary from state to state or province to province. Nintendo’s address is: Nintendo of America Inc., P.O. Box 957, Redmond, WA

98073-0957 U.S.A. This warranty is only valid in the United States and Canada.

Rev. R1

Unlicensed Accessories

Do not attach unlicensed accessories to the Wii Remote Plus, as the use of unlicensed accessories may lead to injury to yourself or others and may cause

performance issues and/or damage to the system. Use of any such unlicensed accessories will invalidate your Nintendo product warranty.

Warranty and Service Information

Error Messages

32 33

If an error occurs, a message like the following may appear on the TV screen. Proceed according to the following table.

Error Message Try This

An error has occurred. Turn the console off, then press

the OPEN Button and remove the disc. Refer to the

console manual for help troubleshooting.

Wii Remote error. For details read the console manual.

Could not read the disc. For details read the console

manual.

Wii console save memory is corrupted. For details read

the Wii console manual.

First turn the Wii mini console power OFF, and remove the AC adapter’s AC plug from the power socket.

Next, check whether the disc is dirty or scratched. If it is dirty, gently wipe with a soft cloth from the center to the

outside. Wait about 5 minutes. Then plug the AC adapter’s AC plug back into the power socket and turn the console

power on. If the same message still appears, the console may be damaged. Turn the console off immediately.

Remove the AC adapter’s AC plug from the plug, and visit support.nintendo.com for additional troubleshooting or

call 1-800-255-3700.

See Wii Remote Plus troubleshooting in this manual.

There may be dirt or scratches on the disc or internal lens.

First remove the disc and gently wipe from the center to the outside with a soft cloth. Then re-insert the disc in the

Wii mini console and turn the power on again. If the same error message still appears, visit support.nintendo.com

for additional troubleshooting or call 1-800-255-3700.

Wii mini console save memory is corrupted. Visit support.nintendo.com for additional troubleshooting or

call 1-800-255-3700.

Error Message Try This

Abnormal free space in Wii console save memory.

For details read the Wii console manual.

Abnormal number of ﬁles in Wii console save memory.

For details read the Wii console manual.

Delete the save data for the channel that is running. If the same error message still appears, visit support.nintendo.

com for additional troubleshooting or call 1-800-255-3700.

Delete the save data for the channel that is running. If the same error message still appears, visit

support.nintendo.com for additional troubleshooting or call 1-800-255-3700.

Error Messages

Error Codes

34 35

If an error code appears during operation of the Wii system, please review the following tables and try the recommended solutions.

Error Code Try This

110210

110211

110212

110213

205926

205927

205928

These errors indicate a hardware issue. Please contact Nintendo Consumer Service at 1-800-255-3700 for

assistance.

Mode d’emploi de la Wii mini

Installation de la console

Nintendo Wii Mini Operation Manual

MAA-RVO-S-USZ-C0 to the manual 919179d8-56a4-47aa-9351-ffdb42a420f3

Wii Mini - Operations Manual Wii_Mini_en Free User Guide for Nintendo Console, Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
