Black plate (3,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-E7E6B9D7-70D5-46FD-8070-D86AD68B3005
Welcome to the growing family of new NISSAN
owners. This vehicle is delivered to you with
confidence. It was produced using the latest
techniques and strict quality control.
This manual was prepared to help you under-
stand the operation and maintenance of your
vehicle so that you may enjoy many miles of
driving pleasure. Please read through this
manual before operating your vehicle.
A separate Warranty Information Booklet
explains details about the warranties cov-
ering your vehicle. The NISSAN Service
and Maintenance Guide explains details
about maintaining and servicing your ve-
hicle. Additionally, a separate Customer
Care/Lemon Law Booklet (U.S. only) will
explain how to resolve any concerns you
may have with your vehicle, as well as
clarify your rights under your state’s lemon
law.
In addition to factory installed options, your
vehicle may also be equipped with additional
accessories installed by NISSAN or by your
NISSAN dealer prior to delivery. It is important
that you familiarize yourself with all disclosures,
warnings, cautions and instructions concerning
proper use of such accessories prior to operat-
ing the vehicle and/or accessory. See a NISSAN
dealer for details concerning the particular
accessories with which your vehicle is
equipped.
Your NISSAN dealer knows your vehicle best.
When you require any service or have any
questions, we will be glad to assist you with the
extensive resources available to us.
READ FIRST — THEN DRIVE SAFELY
GUID-E8CEB247-EE99-4DF1-B514-E4CF8D44A577
Before driving your vehicle, read your Owner’s
Manual carefully. This will ensure familiarity with
controls and maintenance requirements, assist-
ing you in the safe operation of your vehicle.
WARNING
IMPORTANT SAFETY INFORMATION
REMINDERS FOR SAFETY!
Follow these important driving rules to
help ensure a safe and comfortable trip
for you and your passengers!
.NEVER drive under the influence of
alcohol or drugs.
.ALWAYS observe posted speed lim-
its and never drive too fast for
conditions.
.ALWAYS give your full attention to
driving and avoid using vehicle
features or taking other actions that
could distract you.
.ALWAYS use your seat belts and
appropriate child restraint systems.
Pre-teen children should be seated
in the rear seat.
.ALWAYS provide information about
the proper use of vehicle safety
features to all occupants of the
vehicle.
.ALWAYS review this Owner’s Man-
ual for important safety information.
ON-PAVEMENT AND OFF-ROAD
DRIVING
This vehicle will handle and maneuver
differently from an ordinary passenger
car because it has a higher center of
gravity. As with other vehicles with fea-
tures of this type, failure to operate this
vehicle correctly may result in loss of
control or an accident. Be sure to read
“On-pavement and off-road driving pre-
cautions”, “Avoiding collision and roll-
over” and “Driving safety precautions” in
the “5. Starting and driving” section of
this manual.
Foreword
Condition:
Black plate (4,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
MODIFICATION OF YOUR VEHI-
CLE
This vehicle should not be modified.
Modification could affect its performance,
safety or durability, and may even violate
governmental regulations. In addition,
damage or performance problems result-
ing from modification may not be covered
under NISSAN warranties.
WHEN READING THE MANUAL
GUID-CB23972B-7971-4127-B62D-40CCA4B9E808
This manual includes information for all
options available on this model. Therefore,
you may find some information that does
not apply to your vehicle.
All information, specifications and illustrations in
this manual are those in effect at the time of
printing. NISSAN reserves the right to change
specifications or design at any time without
notice.
IMPORTANT INFORMATION ABOUT
THIS MANUAL
GUID-6AD293D0-4474-4333-B259-0836BB040D67
You will see various symbols in this manual. They
are used in the following ways:
WARNING
This is used to indicate the presence of
a hazard that could cause death or
serious personal injury. To avoid or
reduce the risk, the procedures must
be followed precisely.
CAUTION
This is used to indicate the presence of
a hazard that could cause minor or
moderate personal injury or damage to
your vehicle. To avoid or reduce the risk,
the procedures must be followed care-
fully.
SIC0697
If you see the symbol above, it means “Do not
do this” or “Do not let this happen”.
NOS1274
If you see a symbol similar to those above in an
illustration, it means the arrow points to the front
of the vehicle.
NOS1275
Arrows in an illustration that are similar to those
above indicate movement or action.
NOS1276
Arrows in an illustration that are similar to those
Condition:
Black plate (5,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
above call attention to an item in the illustration.
CALIFORNIA PROPOSITION 65
WARNING GUID-2BB33B36-3AFC-416F-9AE2-CFC36E1C928F
WARNING
Engine exhaust, some of its constitu-
ents, and certain vehicle components
contain or emit chemicals known to the
State of California to cause cancer and
birth defects or other reproductive
harm. In addition, certain fluids con-
tained in vehicles and certain products
of component wear contain or emit
chemicals known to the State of Cali-
fornia to cause cancer and birth defects
or other reproductive harm.
CALIFORNIA PERCHLORATE ADVI-
SORY GUID-99091439-C66E-435E-940E-FCA5DE8B559E
Some vehicle parts, such as lithium bat-
teries, may contain perchlorate material.
The following advisory is provided: “Per-
chlorate Material - special handling may
apply, See www.dtsc.ca.gov/
hazardouswaste/perchlorate.”
Bluetooth
®
is a trademark owned
by Bluetooth SIG, Inc. and li-
senced to Visteon Corporation
and Clarion Co., Ltd.
Gracenote
®
is a registered tra-
demark of Gracenote, Inc. The
Gracenote logo and logo type,
and the “Powered by Gracenote”
logo are trademarks of Grace-
note.
SiriusXM Satellite Radio requires
subscription, sold separately.
Not available in Alaska, Hawaii or
Guam. For more information, visit
www.siriusxm.com.
*C2012 NISSAN MOTOR CO., LTD.
All rights reserved. No part of this Owner’s
Manual may be reproduced or stored in a
retrieval system, or transmitted in any form, or
by any means, electronic, mechanical, photo-
copying, recording or otherwise, without the
prior written permission of Nissan Motor Co.,
Ltd.
Condition:
Black plate (6,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-180FB925-3DF8-475A-9F88-B86194155C87
NISSAN CARES ...
Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are
our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your
NISSAN dealer cannot assist you with or you
would like to provide NISSAN directly with
comments or questions, please contact the
NISSAN Consumer Affairs Department using
our toll-free number:
For U.S. customers
1-800-NISSAN-1
(1-800-647-7261)
For Canadian customers
1-800-387-0122
The Consumer Affairs Department will ask for
the following information:
.Your name, address, and telephone number
.Vehicle identification number (attached to
the top of the instrument panel on the
driver’s side)
.Date of purchase
.Current odometer reading
.Your NISSAN dealer’s name
.Your comments or questions
OR
You can write to NISSAN with the information at:
For U.S. customers
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
nnaconsumeraffairs@nissan-usa.com
For Canadian customers
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.centre@nissancanada.
com
If you prefer, visit us at:
www.nissanusa.com (for U.S. customers) or
www.nissan.ca (for Canadian customers)
We appreciate your interest in NISSAN and
thank you for buying a quality NISSAN vehicle.
NISSAN CUSTOMER CARE
PROGRAM
Condition:
Black plate (2,1)
Black plate (1,1)
Condition:
Illustrated table of contents 0
Safety — Seats, seat belts and supplemental
restraint system 1
Instruments and controls
Pre-driving checks and adjustments
Monitor, heater, air conditioner, audio, phone and
voice recognition systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Index
2
3
4
5
6
7
8
9
10
Table of
Contents
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
Black plate (2,1)
Black plate (7,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS) ............................................................................... 0-2
Hardtop models ...................................................................... 0-2
CrossCabriolet models ......................................................... 0-3

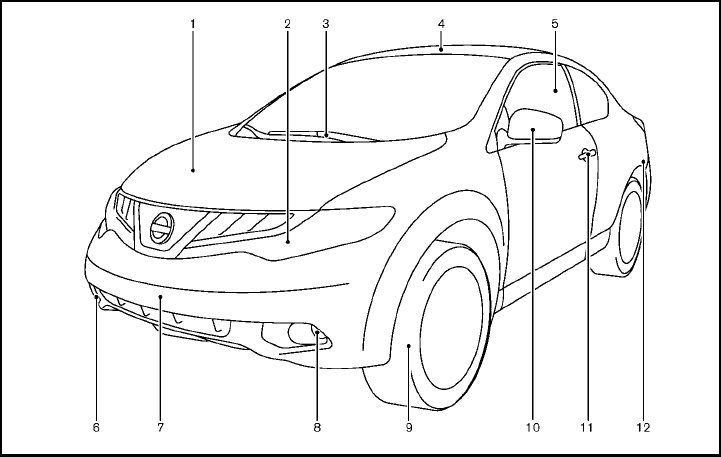

Exterior front .................................................................................. 0-4
Hardtop models ...................................................................... 0-4
CrossCabriolet models ......................................................... 0-5
Exterior rear ................................................................................... 0-6
Hardtop models ...................................................................... 0-6
CrossCabriolet models ......................................................... 0-7

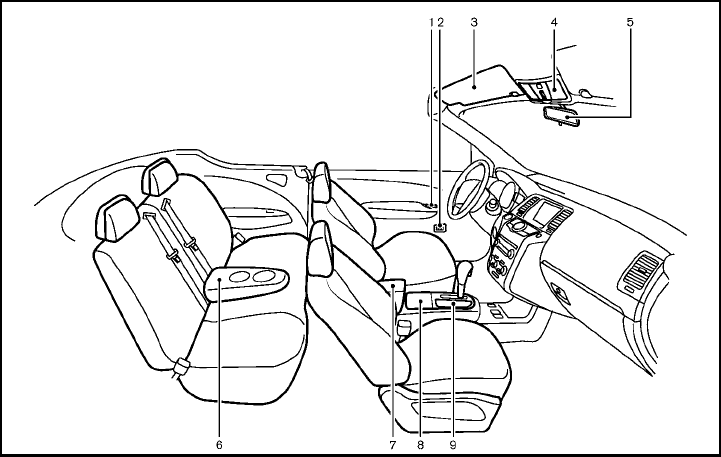

Passenger compartment ............................................................ 0-8
Hardtop models .................................................................... 0-8
CrossCabriolet models ....................................................... 0-9

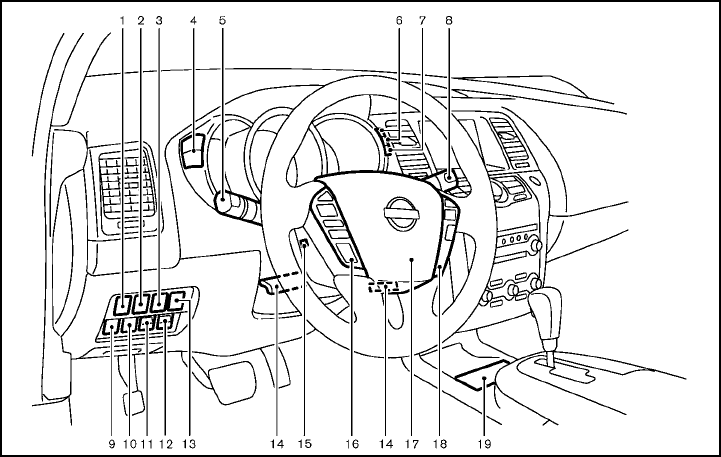

Cockpit ........................................................................................ 0-10
Instrument panel ....................................................................... 0-12

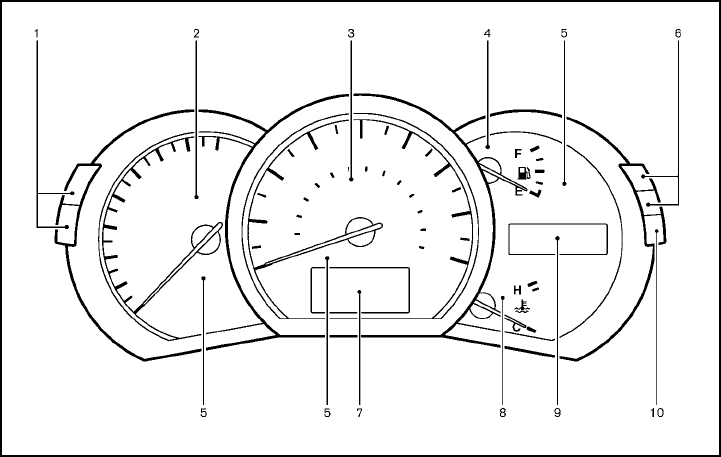

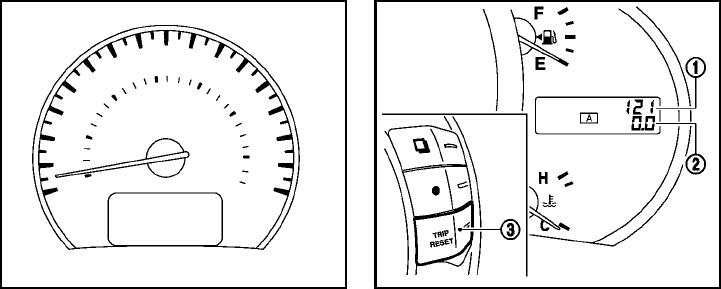

Meters and gauges .................................................................. 0-13

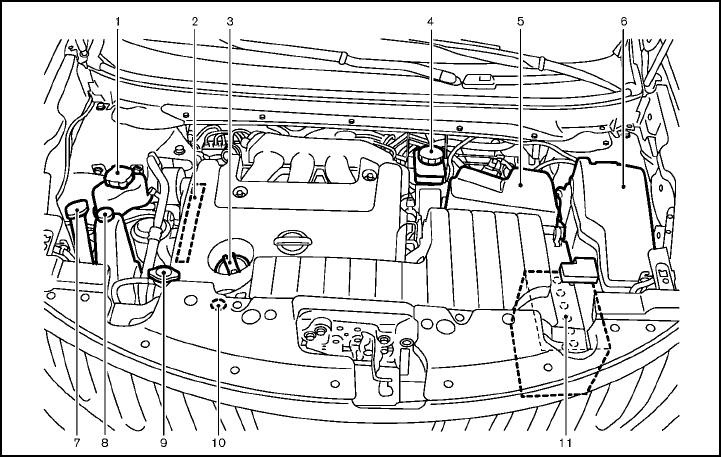

Engine compartment ............................................................... 0-14
VQ35DE engine ................................................................ 0-14
Warning and indicator lights ................................................. 0-15
Condition:
Black plate (8,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0-2 Illustrated table of contents
GUID-F65304FF-4FEF-47A3-91E8-E248623FE3F9
JVO0063X

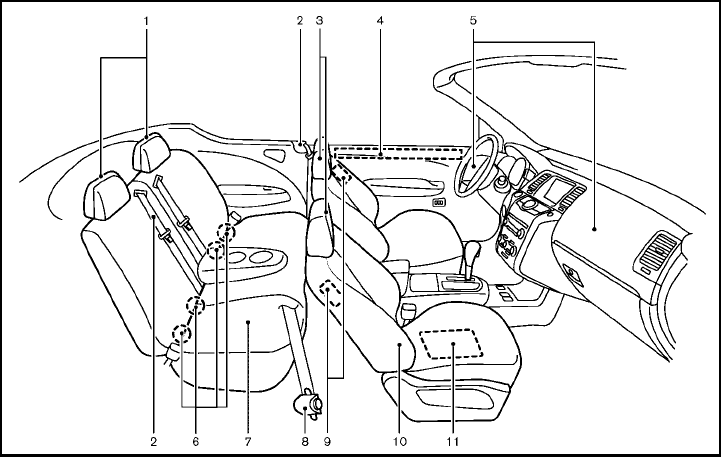

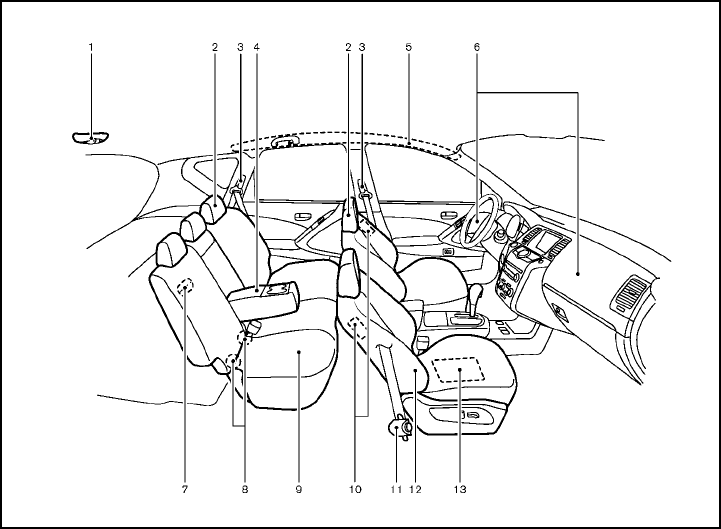

HARDTOP MODELS
GUID-AF63B3DB-D6FC-464B-85E2-0C7FD3C88CF1
1. Rear center seat belt (P.1-22)
2. Head restraints (P.1-11)
Front-seat Active Head Restraints (P.1-14)
3. Seat belts (P.1-15)
4. Armrest (P.1-15)
5. Roof-mounted curtain side-impact and rollover
supplemental air bags (P.1-45)
6. Supplemental front-impact air bags (P.1-45)
7. Child restraint anchor points (for top tether strap
child restraint) (P.1-41)
8. LATCH (Lower Anchors and Tethers for CHil-
dren) system (P.1-30)
9. Rear seats (P.1-9)
Child restraints (P.1-28)
10. Front seat-mounted side-impact supplemental
air bags (P.1-45)
11. Seat belt pretensioner (P.1-58)
12. Front seats (P.1-3)
13. Occupant classification sensor (pattern sensor)
Advanced Air Bag System (P.1-51)
SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
Condition:
Black plate (9,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSI0834
CROSSCABRIOLET MODELS
GUID-0E8434A8-4BC2-4163-BDCF-16D45DCFAF34
1. Dual pop-up roll bar system (P.1-61)
2. Seat belts (P.1-15)
3. Head restraints (P.1-11)
Front-seat Active Head Restraints (P.1-14)
4. Door-mounted curtain side-impact and rollover
supplemental air bags (P.1-45)
5. Supplemental front-impact air bags (P.1-45)
6. LATCH (Lower Anchors for CHildren) system
(P.1-30)
7. Rear seats
Child restraints (P.1-28)
8. Seat belt pretensioner (P.1-58)
9. Front seat-mounted side-impact supplemental
air bags (P.1-45)
10. Front seats (P.1-3)
11. Occupant classification sensor (pattern sensor)
Advanced Air Bag System (P.1-51)
Illustrated table of contents 0-3
Condition:
Black plate (10,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0-4 Illustrated table of contents
GUID-ACAC74ED-4CE9-4346-84EA-C135DDC40621
JVO0040X
HARDTOP MODELS
GUID-45F5CB05-5240-4214-B1AF-9A6EAB41FB53
1. Hood (P.3-20)
2. Headlight and turn signal lights
Switch operation (P.2-37)
Bulb replacement (P.8-27)
3. Windshield wiper and washer
Switch operation (P.2-32)
Rain-sensing auto wiper system* (P.2-34)
Blade replacement (P.8-18)
Window washer fluid (P.8-13)
4. Roof rack (rail)* (P.2-54)
5. Moonroof* (P.2-58)
6. Power windows (P.2-55)
7. Recovery hook (P.6-22)
8. License plate installation (P.9-12)
9. Fog lights*
Switch operation (P.2-41)
Bulb replacement (P.8-29)
10. Tires
Wheel and tires (P.8-32, P.9-7)
Flat tire (P.6-3)
Tire Pressure Monitoring System (TPMS)
(P.2-14, P.5-4)
11. Outside mirrors (P.3-50)
12. Doors
Keys (P.3-3)
Door locks (P.3-5)
Intelligent Key system (P.3-8)
Security system (P.2-29)
13. Child safety rear door lock (P.3-8)
14. Fuel-filler door
Operation (P.3-44)
Fuel recommendation (P.9-3)
*: if so equipped
EXTERIOR FRONT
Condition:
Black plate (11,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSI0835
CROSSCABRIOLET MODELS
GUID-DF0D496F-8646-47E0-B4BF-8034FB00EB80
1. Hood (P.3-20)
2. Headlight and turn signal lights
Switch operation (P.2-37)
Bulb replacement (P.8-27)
3. Windshield wiper and washer
Switch operation (P.2-32)
Blade replacement (P.8-18)
Window washer fluid (P.8-13)
4. Soft top (P.3-28)
5. Power windows (P.2-55)
6. Recovery hook (P.6-22)
7. License plate installation (P.9-12)
8. Fog lights
Switch operation (P.2-41)
Bulb replacement (P.8-29)
9. Tires
Wheel and tires (P.8-32, P.9-7)
Flat tire (P.6-3)
Tire Pressure Monitoring System (TPMS)
(P.2-14, P.5-4)
10. Outside mirrors (P.3-50)
11. Doors
Keys (P.3-3)
Door locks (P.3-5)
Intelligent Key system (P.3-8)
Security system (P.2-29)
12. Fuel-filler door
Operation (P.3-44)
Fuel recommendation (P.9-3)
Illustrated table of contents 0-5
Condition:
Black plate (12,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0-6 Illustrated table of contents
GUID-B2A0C3DF-DA6E-4362-BE30-301154FA231D
SSI0813
HARDTOP MODELS
GUID-98A8E9ED-6064-4584-986D-7BB45FD520AB
1. Lift gate (P.3-20)
Remote keyless entry system (P.3-16)
Intelligent Key system (P.3-8)
2. Rear window wiper and washer
Switch operation (P.2-35)
Window washer fluid (P.8-13)
3. Rear window defroster (P.2-36)
4. High-mounted stop light (P.8-29)
5. Antenna (P.4-88)
Satellite radio antenna* (P.4-47)
6. Rear view camera*
RearView monitor* (P.4-23)
Rear and rear-wide view monitor with Moving
Object Detection (MOD)* (P.4-30)
Lane Departure Warning (LDW) system*
(P.5-20)
Blind Spot Warning (BSW) system* (P.5-20)
7. Rear combination light
Bulb replacement (P.8-29)
*: if so equipped
EXTERIOR REAR
Condition:
Black plate (13,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSI0836
CROSSCABRIOLET MODELS
GUID-6AA1108F-4E3C-4010-9EAE-A25163A23048
1. Antenna (P.4-88)
Satellite radio antenna (P.4-47)
2. High-mounted stop light (P.8-29)
3. Rear window defroster (P.2-36)
4. Trunk (P.3-25)
Remote keyless entry system (P.3-16)
Intelligent Key system (P.3-8)
5. Rear view camera (P.4-23)
6. Rear combination light
Bulb replacement (P.8-29)
Illustrated table of contents 0-7
Condition:
Black plate (14,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0-8 Illustrated table of contents
GUID-898A5FAA-ACAF-45AC-AF7C-F2CDAFA957BC
SSI0815
HARDTOP MODELS
GUID-1D3BA59C-6D3E-4AA7-9A6F-1F494D6CD9FC
1. Cargo cover* (P.2-52)
2. Rear personal light (P.2-60)
3. Coat hooks (P.2-55)
4. Automatic drive positioner switch* (P.3-51)
5. Door armrest
Power window switch (P.2-55)
Power door lock switch (P.3-7)
Outside mirror remote control switch
(P.3-50)
6. Sun visors (P.3-47)
7. Moonroof* (P.2-58)
8. Front map lights (P.2-60)
9. Mood light (P.2-62)
10. Sunglasses holder (P.2-48)
11. Inside rearview mirror (P.3-48)
— HomeLink
®
universal transceiver* (P.2-63)
Compass* (P.2-8)
12. Cargo area
Storages (P.2-50)
Luggage hooks (P.2-53)
Cargo light (P.2-63)
Spare tire (P.6-5)
13. Rear cup holders (P.2-47)
14. Heated seat switch (rear)* (P.2-42)
15. Console box (P.2-49)
Power outlet (P.2-45)
Auxiliary input jacks* (P.4-84)
— iPod
®
connector* (P.4-82)
USB connector* (P.4-73)
16. Front cup holders (P.2-47)
17. Storage box* (P.2-50) or Cigarette lighter/
Ashtray* (P.2-46)
*: if so equipped
PASSENGER COMPARTMENT
Condition:
Black plate (15,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSI0837
CROSSCABRIOLET MODELS
GUID-62E8FEB0-3BDC-4FB2-AC71-097B4EB82FFF
1. Door armrest
Power window switch (P.2-55)
Power door lock switch (P.3-7)
Outside mirror remote control switch
(P.3-50)
2. Automatic drive positioner switch (P.3-51)
3. Sun visors (P.3-47)
4. Front map lights (P.2-60)
5. Inside rearview mirror (P.3-48)
— HomeLink
®
universal transceiver (P.2-63)
Compass* (P.2-8)
6. Rear cup holders (P.2-47)
7. Console box (P.2-49)
Power outlet (P.2-45)
Auxiliary input jacks (P.4-84)
— iPod
®
connector (P.4-82)
USB connector (P.4-73)
8. Front cup holders (P.2-47)
9. Storage box (P.2-50)
*: if so equipped
Illustrated table of contents 0-9
Condition:
Black plate (16,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0-10 Illustrated table of contents
GUID-32B6101A-1F0F-4AD4-AF3B-40C2CE7B8097
JVO0067X
1. Heated steering wheel switch* (P.2-41)
2. Power lift gate switch* (Hardtop models)
(P.3-20) or trunk lid release switch (Cross-
Cabriolet models) (P.3-25)
3. Warning systems switch* (P.2-43)
Lane Departure Warning (LDW) system*
(P.5-20)
Blind Spot Warning (BSW) system* (P.5-20)
4. Instrument brightness control switch (P.2-40)
5. Headlight, fog light and turn signal switch
Headlight (P.2-37)
Turn signal light (P.2-40)
Fog light* (P.2-41)
6. Trip computer switch (P.2-25)
7. TRIP/RESET switch (P.2-6)
8. Wiper and washer switch (P.2-32)
9. Vehicle Dynamic Control (VDC) off switch (P.
2-44, P.5-39)
10. Power lift gate main switch* (Hardtop models)
(P.3-20) or All-Wheel Drive (AWD) LOCK
switch (CrossCabriolet models) (P.5-33)
11. Power rear seatback switch* (Hardtop models)
(P.1-9)
12. Power rear seatback switch* (Hardtop models)
(P.1-9) or Remote walk-in switch (CrossCabrio-
let models) (P.1-7)
13. Fuel-filler door opener switch (P.3-44)
14. Manual tilting/telescopic steering wheel lever*
(P.3-47)
15. Electric tilting/telescopic steering wheel switch*
(P.3-47)
16. Steering-wheel-mounted controls (left side)*
Audio control* (P.4-87)
— Bluetooth
®
Hands-Free Phone System con-
trol (models with navigation system)* (P.4-89)
— Bluetooth
®
Hands-Free Phone System con-
trol (models without navigation system)*
(P.4-100)
17. Steering wheel
Horn (P.2-41)
Driver supplemental air bag (P.1-45)
Power steering system (P.5-37)
18. Steering-wheel-mounted controls (right side)
Cruise control switches (P.5-30)
19. Center-console mounted controls
COCKPIT
Condition:
Black plate (17,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
Heated seat switches* (P.2-42)
— All-Wheel Drive (AWD) LOCK switch*
(Hardtop models) (P.5-33)
Soft top operating switch (CrossCabriolet
models) (P.3-28)
*: if so equipped
Illustrated table of contents 0-11
Condition:
Black plate (18,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0-12 Illustrated table of contents
GUID-D2FB24F0-4B17-402D-8429-41D9E163851B
SSI0839
1. Side ventilator (P.4-40)
2. Meters and gauges (P.2-5)
3. Push-button ignition switch (P.5-11)
4. Center ventilator (P.4-40)
5. Center display
Center color display* (P.4-3)
Navigation system**
6. Heater/air conditioner control (P.4-41) or Center
multi-function control panel* (P.4-3)
Navigation system**
Vehicle information and setting buttons*
(P.4-9)
— Bluetooth
®
Hands-Free Phone System
(models with navigation system)* (P.4-89)
— Bluetooth
®
Hands-Free Phone System
(models without navigation system)* (P.4-100)
7. Hazard warning flasher switch (P.6-2)
8. Front passenger supplemental air bag (P.1-45)
9. Hood release handle (P.3-20)
10. Fuse box cover (P.8-21)
11. Parking brake (P.5-19)
12. Intelligent Key port (P.5-14)
13. Audio system (P.4-46)
Clock* (P.2-44)
14. Front passenger air bag status light (P.1-53)
15. Power outlet (P.2-45)
16. Rear window and outside mirror* defroster
switch (P.2-36)
17. Heater/air conditioner control (P.4-41) or Audio
system (P.4-46)
18. Trunk release power cancel switch (Cross-
Cabriolet models) (P.3-26)
19. Glove box (P.2-49)
*: if so equipped
**: Refer to the separate Navigation System Own-
er’s Manual (if so equipped).
INSTRUMENT PANEL
Condition:
Black plate (19,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-8035B36E-5604-4EA6-AA6B-CA8C0BC1732D
JVO0043X
1. Instrument brightness control switch (P.2-40)
2. Tachometer (P.2-7)
3. Speedometer (P.2-6)
4. Fuel gauge (P.2-8)
5. Warning/indicator lights (P.2-11)
6. Trip computer switch (P.2-25)
7. Dot matrix liquid crystal display (P.2-20)
Trip computer (P.2-40)
8. Engine coolant temperature gauge (P.2-7)
9. Odometer/twin trip odometer (P.2-6)/Continu-
ously Variable Transmission (CVT) position
indicator (P.2-17)
10. RESET switch for trip odometer (P.2-6)
Illustrated table of contents 0-13
METERS AND GAUGES
Condition:
Black plate (20,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0-14 Illustrated table of contents
GUID-907FC48F-D93C-457F-AEE4-15BFC27C6D55
SDI2172
VQ35DE ENGINE
GUID-E583ADB4-3DB5-4B36-96ED-07E29BF970D7
1. Power steering fluid reservoir (P.8-11)
2. Drive belt location (P.8-15)
3. Engine oil filler cap (P.8-8)
4. Brake fluid reservoir (P.8-12)
5. Air cleaner (P.8-17)
6. Fuse/fusible link holder (P.8-20)
7. Window washer fluid reservoir (P.8-13)
8. Engine coolant reservoir (P.8-7)
9. Radiator filler cap (P.8-7)
10. Engine oil dipstick (P.8-8)
11. Battery (P.8-13)
ENGINE COMPARTMENT
Condition:
Black plate (21,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-353409D4-8EDC-4D72-921B-F87CF9A54D49
Warning
light Name Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-12
Anti-lock Braking System
(ABS) warning light 2-12
Blind Spot Warning (BSW)
light (orange)* 2-13
Brake warning light 2-13
Charge warning light 2-13
Engine oil pressure warning
light 2-14
Intelligent Key warning light 2-14
Lane Departure Warning
(LDW) light (orange)* 2-14
Low tire pressure warning light 2-14
Master warning light 2-16
Seat belt warning light 2-16
Supplemental air bag warning
light 2-16
Vehicle Dynamic Control (VDC)
warning light 2-16
Indicator
light Name Page
All-Wheel Drive (AWD) LOCK
indicator light (AWD models)* 2-17
Blind Spot Warning (BSW)
light (green)* 2-17
Continuously Variable Trans-
mission (CVT) position indicator
light
2-17
Cruise indicator light 2-17
Exterior light indicator 2-17
Front passenger air bag status
light 2-17
High beam indicator light 2-17
Lane Departure Warning (LDW)
light (green)* 2-18
Malfunction Indicator Light
(MIL) 2-18
Overdrive off indicator light 2-19
Soft top indicator light (Cross-
Cabriolet models)* 2-19
Turn signal/hazard indicator
lights 2-19
Vehicle Dynamic Control (VDC)
off indicator light 2-19
*: if so equipped
Illustrated table of contents 0-15
WARNING AND INDICATOR LIGHTS
Condition:
Black plate (22,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0-16 Illustrated table of contents
MEMO
Condition:
Black plate (23,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1 Safety — Seats, seat belts and supplemental
restraint system
Seats ............................................................................................... 1-2
Front seats ............................................................................... 1-3
Rear seats (Hardtop models) ............................................. 1-9
Head restraints .................................................................... 1-11
Armrest (Hardtop models) ................................................ 1-15
Seat belts .................................................................................... 1-15
Precautions on seat belt usage ....................................... 1-15
Pregnant women ................................................................. 1-18
Injured persons .................................................................... 1-18
Three-point type seat belt ................................................. 1-18
Seat belt extenders ............................................................. 1-25
Seat belt maintenance ....................................................... 1-26
Child safety ................................................................................. 1-26
Infants ..................................................................................... 1-27
Small children ....................................................................... 1-27
Larger children ..................................................................... 1-27
Child restraints ........................................................................... 1-28
Precautions on child restraints ........................................ 1-28
LATCH Lower Anchors System ....................................... 1-30
Rear-facing child restraint installation
using LATCH ........................................................................ 1-32
Rear-facing child restraint installation using the
seat belts ............................................................................... 1-34
Forward-facing child restraint installation using
LATCH (Hardtop models only) ...................................... 1-36
Forward-facing child restraint installation using the
seat belts ............................................................................. 1-38
Installing top tether strap (Hardtop models) ............. 1-41
Booster seats ..................................................................... 1-42
Supplemental restraint system .............................................. 1-45
Precautions on supplemental restraint system .......... 1-45
NISSAN Advanced Air Bag System
(front seats) ........................................................................ 1-51
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact and
rollover supplemental air bag (Hardtop models) or
door-mounted curtain side-impact and rollover
supplemental air bag (CrossCabriolet
models) systems ............................................................... 1-57
Seat belts with pretensioners (front seats) ................ 1-58
Supplemental air bag warning labels .......................... 1-60
Supplemental air bag warning light ............................. 1-60
Repair and replacement procedure ............................. 1-60
Dual pop-up roll bar system
(CrossCabriolet models) ................................................. 1-61
Condition:
Black plate (24,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-2 Safety — Seats, seat belts and supplemental restraint system
GUID-2869D0FF-2DAC-47DC-BF36-8D864A5BD9A3
SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
.For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat
properly. See “Precautions on seat
belt usage” later in this section.
.After adjustment, gently rock in the
seat to make sure it is securely
locked.
.Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
.The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or da-
mages.
SEATS
Condition:
Black plate (25,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS0792
FRONT SEATS
GUID-589050CC-5D5C-4407-A4F0-CB0819F0ABAB
Manual seat adjustment
GUID-6BE5370B-3D84-4E0B-B0E0-081F8AF0F764
Forward and backward:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Pull the lever *1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
To recline the seatback, pull the lever *2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) Also, the seatback can be
reclined to allow occupants to rest when the
vehicle is stopped and the transmission in the P
(Park) position.
JVR0034X
Sliding front passenger seat (CrossCab-
riolet models):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
To slide the front passenger seat from the front
most position to the rear most position, push the
bottom half of the seatback *Aor the front seat
cushion *B. If you push the top half of the
seatback *C, it will lock the seat in the front
most position.
Safety — Seats, seat belts and supplemental restraint system 1-3
Condition:
Black plate (26,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-4 Safety — Seats, seat belts and supplemental restraint system
SSS0793
Seat lifter (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
SSS0684
Lumbar support (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The lumbar support feature provides lower back
support to the driver.
Move the lever *1up or down to adjust the
seatback lumbar area.
Power seat adjustment
GUID-2155E48C-B77E-4502-84B7-2AF110D60DE4
Operating tips:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
.Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “Automatic drive positioner” in the “3. Pre-
driving checks and adjustments” section for the
seat position memory function (if so equipped).
Condition:
Black plate (27,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JVR0038X
Forward and backward:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Moving the switch *Aforward or backward will
slide the seat forward or backward to the
desired position.
Pushing the front *1or back *2end of the
slide switch *Bwill slide the driver seat forward
or backward to the desired position (Cross-
Cabriolet models driver’s seat only).
Safety — Seats, seat belts and supplemental restraint system 1-5
Condition:
Black plate (28,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-6 Safety — Seats, seat belts and supplemental restraint system
JVR0039X
Reclining: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Move the recline switch *Abackward until the
desired angle is obtained. To bring the seatback
forward again, move the switch *Aforward.
Push and hold the back *2end of the reclining
switch *Buntil the desired angle is obtained.
To bring the seatback forward again, push and
hold the front *1end of the switch (Cross-
Cabriolet models driver’s seat only).
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) Also, the seatback can be
reclined to allow occupants to rest when the
vehicle is stopped and the transmission is in the
P (Park) position.
SSS1027
Seat lifter (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Push the front or rear end of the switch up or
down to adjust the angle of the front portion or
height of the seat.
Condition:
Black plate (29,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS1028
Lumbar support (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The lumbar support feature provides lower back
support to the driver.
Push the front *1or back *2end of the switch
to adjust the seatback lumbar area.
SSS1172
Front passenger’s seatback switch
SSS1175
Remote walk-in switch
Walk-in function (front passenger seat,
CrossCabriolet models):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CAUTION
.When operating the walk-in func-
tion, be sure not to contact any
moving parts to avoid possible in-
juries and/or damages.
.When operating the walk-in func-
tion, be sure that the front passen-
ger seat is not occupied by a
passenger and/or any objects to
avoid possible injuries and/or da-
mages.
.After operating the walk-in function,
be sure to return the seat to the
rearmost position and then tilt up
the seatback until it latches.
This feature makes it easier to get in and out of
the rear seat. Use the following procedure when
getting in and out of the rear seat on the
passenger’s side. If the sun visor is used, close it
to the original position before operating the
walk-in feature.
1. Push the front passenger’s seatback switch
to fold down the seatback and unlock the
seat position.
Safety — Seats, seat belts and supplemental restraint system 1-7
Condition:
Black plate (30,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-8 Safety — Seats, seat belts and supplemental restraint system
Alternatively, you can push the remote walk-
in switch located on the instrument panel to
fold down the front passenger’s seatback
and unlock the seat position.
2. Slide the seat forward to the foremost
position manually.
3. Get in or out the vehicle.
4. Return the front passenger seat to the
rearmost position. To slide the front passen-
ger seat, see “Manual seat adjustment”
earlier in this section.
SSS1173
Driver’s seatback release (CrossCabrio-
let models) GUID-116F27BD-8437-47A9-8270-AD99D91FA75D
To exit the rear seat from the driver’s side, pull
the strap behind the driver’s seat to release the
driver’s seatback. The driver’s seatback will tilt
forward so that you can exit the vehicle.
NOTE:
Pulling the strap behind the driver’s seat
does not slide the driver’s seat forward.
You cannot slide the driver’s seat manu-
ally.
WARNING
Before using the driver’s seatback re-
lease, be sure that the driver’s seat is
not occupied by a driver and/or any
objects to avoid possible injuries and/
or damage.
Condition:
Black plate (31,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS0569
REAR SEATS (Hardtop models)
GUID-42670C07-8DEA-4731-BDEC-1C3F2B7295A1
Folding GUID-8333E9E4-6111-43A4-8DC3-B860D3C64DA7
Before folding the rear seats:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
.Secure the seat belts on the seat belt hooks
on the side wall. (See “Seat belt hooks
(Hardtop models)” later in this section.)
.Disconnect and stow the center seat belt
and tongue into the retractor base. (See
“Rear center seat belt (Hardtop models)”
later in this section.)
.Always reconnect the center seat belt when
the seat is returned to the upright position.
.Remove drink containers from the rear cup
holder.
To fold down the seatbacks:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Pull the strap on the rear seat *A. Pull the lever
*Bbeside the cargo area and fold the seat-
back.
SSS0821
To return the seatbacks:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Manual operation:
Lift up each seatback and push it to the upright
position until it is latched.
Power operation (if so equipped):
Push and hold the corresponding switch located
on the lower side of the instrument panel *Bor
the right or left side in the cargo area *A.
A beep sounds once and the seatback will be
returned automatically.
A beep sounds twice when the seatback is fully
returned to the seating position.
If the control unit detects any obstacle or
malfunctions while in the power operation, a
Safety — Seats, seat belts and supplemental restraint system 1-9
Condition:
Black plate (32,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-10 Safety — Seats, seat belts and supplemental restraint system
beep sounds for 4 seconds and the seatback
will return to the folded position automatically.
Check if there are any obstacles caught that
prevent seats from returning to the folded
position. See a NISSAN dealer if the beep still
sounds.
CAUTION
When operating the rear power seat-
back return, make sure that the vehicle
is stopped and the transmission is in
the P (Park) position.
WARNING
.Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. In a collision, people riding
in these areas are more likely to be
seriously injured or killed.
.Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.
Be sure everyone in your vehicle is
in a seat and using a seat belt
properly.
.Do not fold down the rear seats
when occupants are in the rear seat
area or any luggage is on the rear
seats.
.When folding or returning the seat-
backs to the upright position, to
avoid injury to yourself and others:
Make sure that the seat path is
clear before moving the seat.
— Be careful not to allow hands or
feet to get caught or pinched in
the seat.
.Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than the
seatbacks. In a sudden stop or
collision, unsecured cargo could
cause personal injury.
.When returning the seatbacks, be
sure to attach the rear center seat
belt connector.
.Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.
.When attaching the rear center seat
belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear
center seat belt connector is com-
pletely secured.
.If the rear center seat belt connector
and the seatbacks are not secured
in the correct position, serious per-
sonal injury may result in an acci-
dent or sudden stop.
Condition:
Black plate (33,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS0227A
Reclining GUID-1BFE5C97-1FC3-4054-A6B3-17A9466D0C05
Pull the reclining strap *Aand position the
seatback at the desired angle. Release the
reclining strap after positioning the seat at the
desired angle.
The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. (See “Precautions on
seat belt usage” later in this section.) The
seatback may also be reclined to allow occu-
pants to rest when the vehicle is parked.
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
.For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat belt
properly. See “Precautions on seat
belt usage” later in this section.
.After adjustment, check to be sure
the seat is securely locked.
HEAD RESTRAINTS
GUID-5E605952-D804-4293-B401-616CD7C38955
WARNING
Head restraints supplement the other
vehicle safety systems. They may pro-
vide additional protection against injury
in certain rear end collisions. Adjust the
head restraints properly, as specified in
this section. Check the adjustment after
someone else uses the seat. Do not
attach anything to the head restraint
stalks or remove the head restraint. Do
not use the seat if the head restraint
has been removed. If the head restraint
was removed, install and properly ad-
just the head restraint before an occu-
pant uses the seating position. Failure
to follow these instructions can reduce
the effectiveness of the head restraints.
This may increase the risk of serious
injury or death in a collision.
Safety — Seats, seat belts and supplemental restraint system 1-11
Condition:
Black plate (34,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-12 Safety — Seats, seat belts and supplemental restraint system
JVR0140X
The illustration shows the seating positions
equipped with head restraints and headrest.
For Hardtop models, the head restraints and the
headrest are adjustable.
For CrossCabriolet models, the front head
restraints are adjustable and the rear head
restraints are not removable or adjustable.
Indicates the seating position is equipped
with a head restraint.
Indicates the seating position is equipped
with an adjustable headrest (for Hardtop mod-
els).
SSS0992
Components
GUID-D58E33DF-16BC-41B1-B4C5-AA96E133EBC7
1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
SSS0997
Adjustment GUID-ACB994E3-70CF-4004-BDD8-BB431714EC1E
Adjust the head restraint so the center is level
with the center of your ears.
Condition:
Black plate (35,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS0993
To raise the head restraint, pull it up.
SSS0994
To lower, push and hold the lock knob and push
the head restraint down.
SSS0995
Removal GUID-FC0E7C18-BEC7-4083-8503-66512F55EE99
Use the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highest
position.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure
place so it is not loose in the vehicle.
5. Reinstall and properly adjust the head
restraint before an occupant uses the
seating position.
Safety — Seats, seat belts and supplemental restraint system 1-13
Condition:
Black plate (36,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-14 Safety — Seats, seat belts and supplemental restraint system
SSS0996
Install GUID-10B7C451-D81D-4E42-9DB2-2C10EBE1FF75
1. Align the head restraint stalks with the holes
in the seat. Make sure that the head restraint
is facing the correct direction. The stalk with
the adjustment notches *1must be in-
stalled in the hole with the lock knob *2.
2. Push and hold the lock knob and push the
head restraint down.
3. Properly adjust the head restraint before an
occupant uses the seating position.
SSS0508
Front-seat Active Head Restraint
GUID-3164FE3F-22C1-4D05-B110-75CFEC562928
The Active Head Restraint moves forward
utilizing the force that the seatback receives
from the occupant in a rear-end collision. The
movement of the head restraint helps support
the occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is said
that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original position.
Adjust the Active Head Restraints properly as
described earlier in this section.
Condition:
Black plate (37,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS0229A
ARMREST (Hardtop models)
GUID-38665920-E49E-4A44-96F5-25968146C89C
Rear armrest
GUID-9BC9B1A5-D55E-4C9C-A0C9-6CB62211A931
Pull the armrest forward until it is horizontal.
GUID-02C3DBF6-9D5A-47DE-B2F0-C98E0027F971
PRECAUTIONS ON SEAT BELT
USAGE GUID-0C8D3A44-10AF-48A1-A8CC-9A495B9121D7
If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be
worn at all times when a vehicle is being
driven.
Safety — Seats, seat belts and supplemental restraint system 1-15
SEAT BELTS
Condition:
Black plate (38,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-16 Safety — Seats, seat belts and supplemental restraint system
SSS0136
SSS0134
SSS0016
SSS0014
Condition:
Black plate (39,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be prop-
erly restrained in the rear seat and,
if appropriate, in a child restraint.
.The seat belt should be properly
adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of
injury in an accident. Serious injury
or death can occur if the seat belt is
not worn properly.
.Always route the shoulder belt over
your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.
.Position the lap belt as low and
snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci-
dent.
.Be sure the seat belt tongue is
securely fastened to the proper
buckle.
.Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
.Do not allow more than one person
to use the same seat belt.
.Never carry more people in the
vehicle than there are seat belts.
.If the seat belt warning light glows
continuously while the ignition is
pushed to the ON position with all
doors closed and all seat belts
fastened, it may indicate a malfunc-
tion in the system. Have the system
checked by a NISSAN dealer.
.No changes should be made to the
seat belt system. For example, do
not modify the seat belt, add mate-
rial, or install devices that may
change the seat belt routing or
tension. Doing so may affect the
operation of the seat belt system.
Modifying or tampering with the
seat belt system may result in
serious personal injury.
.Once a seat belt pretensioner has
activated, it cannot be reused and
must be replaced together with the
retractor. See a NISSAN dealer.
.Removal and installation of the
pretensioner system components
should be done by a NISSAN dealer.
.All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion by a NISSAN dealer. NISSAN
recommends that all seat belt as-
semblies in use during a collision be
replaced unless the collision was
minor and the belts show no da-
mage and continue to operate prop-
erly. Seat belt assemblies not in use
during a collision should also be
inspected and replaced if either
damage or improper operation is
noted.
.All child restraints and attaching
hardware should be inspected after
any collision. Always follow the
restraint manufacturer’s inspection
instructions and replacement re-
commendations. The child restraints
should be replaced if they are
Safety — Seats, seat belts and supplemental restraint system 1-17
Condition:
Black plate (40,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-18 Safety — Seats, seat belts and supplemental restraint system
damaged.
PREGNANT WOMEN
GUID-92E572E7-A7ED-4EC2-8824-E9C667CD8A35
NISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist. Place
the shoulder belt over your shoulder and across
your chest. Never run the lap/shoulder belt over
your abdominal area. Contact your doctor for
specific recommendations.
INJURED PERSONS
GUID-B47CCE32-408A-4E62-B891-7EBBE28DCC23
NISSAN recommends that injured persons use
seat belts. Check with your doctor for specific
recommendations.
THREE-POINT TYPE SEAT BELT
GUID-F9647E3B-7CCB-4333-9D53-DBFEBA7433EC
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times.
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
.For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat belt
properly.
.Do not allow children to play with
the seat belts. Most seating posi-
tions are equipped with Automatic
Locking Retractor (ALR) mode seat
belts. If the seat belt becomes
wrapped around a child’s neck with
the ALR mode activated, the child
can be seriously injured or killed if
the seat belt retracts and becomes
tight. This can occur even if the
vehicle is parked. Unbuckle the seat
belt to release the child. For the
center of the rear seat, the connec-
tor tongue may also be released.
Release the connector tongue by
inserting a suitable tool (such as a
key) into the connector buckle. If the
seat belt can not be unbuckled or is
already unbuckled, release the child
by cutting the seat belt with a
suitable tool (such as a knife or
scissors) to release the seat belt.
Condition:
Black plate (41,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS0292
Fastening the seat belts
GUID-4C4C9056-82D7-4B6A-80A4-9DBA4C079A82
1. Adjust the seat. (See “Seats” earlier in this
section.)
2. Slowly pull the seat belt out of the retractor
and insert the tongue into the buckle until
you hear and feel the latch engage.
.The retractor is designed to lock
during a sudden stop or on impact.
A slow pulling motion permits the
belt to move and allows you some
freedom of movement in the seat.
.If the seat belt cannot be pulled from
its fully retracted position, firmly pull
the belt and release it. Then
smoothly pull the belt out of the
retractor.
SSS0290
3. Position the lap belt portion low and snug
on the hips as shown.
4. Pull the shoulder belt portion toward the
retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.
The front passenger seat and the rear seating
positions three-point seat belts have two modes
of operation:
.Emergency Locking Retractor (ELR)
.Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to
allow the driver and passengers some freedom
Safety — Seats, seat belts and supplemental restraint system 1-19
Condition:
Black plate (42,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-20 Safety — Seats, seat belts and supplemental restraint system
of movement in the seat. The ELR locks the seat
belt when the vehicle slows down rapidly or
during certain impacts.
The Automatic Locking Retractor (ALR) mode
(child restraint mode) locks the seat belt for
child restraint installation.
When ALR mode is activated the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt fully retracts. For additional
information, see “Child restraints” later in this
section.
The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR
mode should not be activated. If it is
activated, it may cause uncomfortable seat
belt tension.
WARNING
When fastening the seat belts, be
certain that seatbacks are completely
secured in the latched position. If they
are not completely secured, passengers
may be injured in an accident or sudden
stop.
SSS0326
Unfastening the seat belts
GUID-313FD5EC-9489-4699-B4F1-98B31FED4129
To unfasten the seat belt, push the button on the
buckle. The seat belt automatically retracts.
Checking seat belt operation
GUID-AED6BCDC-CBDB-4FCF-9DB2-9B060E99627A
Seat belt retractors are designed to lock seat
belt movement by two separate methods:
.When the belt is pulled quickly from the
retractor.
.When the vehicle slows down rapidly.
To increase your confidence in the seat belts,
check the operation as follows:
.Grasp the shoulder belt and pull forward
quickly. The retractor should lock and
restrict further belt movement.
If the retractor does not lock during this check or
if you have any question about seat belt
operation, see a NISSAN dealer.
Condition:
Black plate (43,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS1181
Seat belt guide (front seats, CrossCab-
riolet models)
GUID-3EF9ED5F-135A-43B1-8954-CAD684674E27
When the seat belt guide is used with the front
seat, the seat belt can easily be pulled out.
Release the seat belt guide, clip the seat belt
and install the seat belt guide again.
When using the seat belt guide, do not allow it
to twist.
WARNING
When using the seat belt guide, make
sure that the seat belt guide is securely
installed to the seat. Otherwise, the
seat belt may slip and result in personal
injury.
CAUTION
.When entering or exiting the rear
seat, or inserting or retrieving lug-
gage with the seatback folded
down, always release the seat belt
guide. Otherwise, the seat belt
guide may be damaged.
.Do not fold the seat forward or pull
it backward by holding the seat belt
guide in your hand. Doing so may
damage the seat belt guide.
SSS0351A
Shoulder belt height adjustment (Hard-
top models)GUID-E8DCDEEB-44E6-4A0A-B2D9-EB6DBF18146C
The shoulder belt anchor height should be
adjusted to the position best for you. (See
“Precautions on seat belt usage” earlier in this
section.)
To adjust, pull the adjustment button *1, and
then move the shoulder belt anchor to the
desired position *2, so that the belt passes
over the center of the shoulder. The belt should
be away from your face and neck, but not falling
off of your shoulder. Release the adjustment
button to lock the shoulder belt anchor into
position.
Safety — Seats, seat belts and supplemental restraint system 1-21
Condition:
Black plate (44,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-22 Safety — Seats, seat belts and supplemental restraint system
WARNING
.After adjustment, release the ad-
justment button and try to move the
shoulder belt anchor up and down
to make sure it is securely fixed in
position.
.The shoulder belt anchor height
should be adjusted to the position
best for you. Failure to do so may
reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury in an
accident.
SSS0845
Seat belt hooks (Hardtop models)
GUID-0F6C8515-923F-4DA4-BED8-81B474353BA2
When the rear seat belts are not in use and
when folding down the rear seats, hook the rear
outer seat belts on the seat belt hooks.
SSS0846
Rear center seat belt (Hardtop models)
GUID-D2977525-73CC-440E-AC17-490B6791BECA
The rear center seat belt has a connector tongue
*1and a seat belt tongue *2. Both the
connector tongue and the seat belt tongue must
be securely latched for proper seat belt opera-
tion.
Condition:
Black plate (45,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS0241
WARNING
.Always fasten the connector tongue
and the seat belt in the order shown.
.Always make sure both the connec-
tor tongue and the seat belt tongue
are secured when using the seat
belt or installing a child restraint. Do
not use the seat belt or child
restraint with only the seat belt
tongue attached. This could result
in serious personal injury in case of
an accident or a sudden stop.
SSS0703
The center seat belt buckle and the tongue are
identified by the CENTER mark. The center seat
belt tongue can be fastened only into the center
seat belt buckle.
SSS0225
Safety — Seats, seat belts and supplemental restraint system 1-23
Condition:
Black plate (46,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-24 Safety — Seats, seat belts and supplemental restraint system
Stowing rear center seat belt:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
When folding down the rear seat, the rear center
seat belt can be retracted into a stowed position
as follows:
1. Hold the connector tongue *1so that the
seat belt does not retract suddenly when the
tongue is released from the connector
buckle. Release the connector tongue by
inserting a suitable tool such as key *Ainto
the connector buckle.
2. Insert the seat belt tongue into the retractor
base first *2.
3. Then secure the connector tongue into the
retractor base *3.
WARNING
.Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.
.When attaching the rear center seat
belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear
center seat belt connector is com-
pletely secured.
.If the rear center seat belt connector
and the seatbacks are not secured
in the correct position, serious per-
sonal injury may result in an acci-
dent or sudden stop.
SSS0232
Condition:
Black plate (47,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
Attaching rear center seat belt:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Always be sure the rear center seat belt
connector tongue and connector buckle are
attached. Disconnect only when folding down
the rear seat.
To connect the buckle:
1. Pull out the connector tongue from the
retractor base *1.
2. Pull out the seat belt tongue from the
retractor base *2.
3. Pull the seat belt and secure the connector
buckle until it clicks *3.
The center seat belt connector tongue and
buckle are indicated by the !and ~mark.
The center seat belt connector tongue can be
attached only into the rear center seat belt
connector buckle.
To fasten the seat belt, see “Fastening the seat
belts” earlier in this section.
WARNING
.Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.
.When attaching the rear center seat
belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear
center seat belt connector is com-
pletely secured.
.If the rear center seat belt connector
and the seatbacks are not secured
in the correct position, serious per-
sonal injury may result in an acci-
dent or sudden stop.
SSS0235
Storing rear seat belt buckles (Hardtop
models) GUID-34BA1AAF-B284-4222-A05C-7E212FF3C674
Before folding down the seat, put the buckles in
the storage of the seat cushion to avoid
dropping it under the seat cushion.
SEAT BELT EXTENDERS
GUID-798C755D-7740-4606-AB38-FAC398986CFA
If, because of body size or driving position, it is
not possible to properly fit the lap-shoulder belt
and fasten it, an extender that is compatible with
the installed seat belts is available that can be
purchased. The extender adds approximately 8
in (200 mm) of length and may be used for either
the driver or front passenger seating position.
See a NISSAN dealer for assistance with
Safety — Seats, seat belts and supplemental restraint system 1-25
Condition:
Black plate (48,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-26 Safety — Seats, seat belts and supplemental restraint system
purchasing an extender if an extender is
required.
WARNING
.Only NISSAN seat belt extenders,
made by the same company which
made the original equipment seat
belts, should be used with NISSAN
seat belts.
.Adults and children who can use the
standard seat belt should not use an
extender. Such unnecessary use
could result in serious personal
injury in the event of an accident.
.Never use seat belt extenders to
install child restraints. If the child
restraint is not secured properly, the
child could be seriously injured in a
collision or a sudden stop.
SEAT BELT MAINTENANCE
GUID-3D5EE851-7E10-4B7F-A02B-8BFBB0D4CCE6
.To clean the seat belt webbing, apply a
mild soap solution or any solution recom-
mended for cleaning upholstery or carpets.
Then wipe with a cloth and allow the seat
belts to dry in the shade. Do not allow the
seat belts to retract until they are completely
dry.
.If dirt builds up in the shoulder belt
guide of the seat belt anchors, the seat
belts may retract slowly. Wipe the shoulder
belt guide with a clean, dry cloth.
.Periodically check to see that the seat
belt and the metal components, such as
buckles, tongues, retractors, flexible wires
and anchors, work properly. If loose parts,
deterioration, cuts or other damage on the
webbing is found, the entire seat belt
assembly should be replaced.
GUID-26D16DBE-9A0E-4759-945D-C9D751725375
WARNING
Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the
seat belt becomes wrapped around a
child’s neck with the ALR mode acti-
vated, the child can be seriously injured
or killed if the seat belt retracts and
becomes tight. This can occur even if
the vehicle is parked. Unbuckle the seat
belt to release the child. For the center
of the rear seat, the connector tongue
may also be released. Release the
connector tongue by inserting a suita-
ble tool (such as a key) into the
connector buckle. If the seat belt can
not be unbuckled or is already un-
buckled, release the child by cutting
the seat belt with a suitable tool (such
as a knife or scissors) to release the
seat belt.
Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is available from
CHILD SAFETY
Condition:
Black plate (49,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
many other sources, including doctors, teachers,
government traffic safety offices, and community
organizations. Every child is different, so be sure
to learn the best way to transport your child.
There are three basic types of child restraint
systems:
.Rear-facing child restraint
.Forward-facing child restraint
.Booster seat
The proper restraint depends on the child’s size.
Generally, infants up to about 1 year and less
than 20 lbs (9 kg) should be placed in rear-
facing child restraints. Forward-facing child
restraints are available for children who outgrow
rear-facing child restraints and are at least 1
year old. Booster seats are used to help position
a vehicle lap/shoulder belt on a child who can no
longer use a forward-facing child restraint.
WARNING
Infants and children need special pro-
tection. The vehicle’s seat belts may not
fit them properly. The shoulder belt may
come too close to the face or neck. The
lap belt may not fit over their small hip
bones. In an accident, an improperly
fitting seat belt could cause serious or
fatal injury. Always use appropriate
child restraints.
All U.S. states and Canadian provinces or
territories require the use of approved child
restraints for infants and small children. See
“Child restraints” later in this section.
A child restraint may be secured in the vehicle
by using either the LATCH (Lower Anchor and
Tethers for CHildren) system or with the vehicle
seat belt. See “Child restraints” later in this
section for more information.
NISSAN recommends that all pre-teens
and children be restrained in the rear seat.
Studies show that children are safer when
properly restrained in the rear seat than in
the front seat.
This is especially important because your
vehicle has a supplemental restraint sys-
tem (Air bag system) for the front passen-
ger. See “Supplemental restraint system”
later in this section.
INFANTS GUID-0FA535EA-6323-4DB9-92F9-8B508130A6AC
Infants up to at least 1 year old should be placed
in a rear-facing child restraint. NISSAN recom-
mends that infants be placed in child restraints
that comply with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle Safety
Standards. You should choose a child restraint
that fits your vehicle and always follow the
manufacturer’s instructions for installation and
use.
SMALL CHILDREN
GUID-927D047A-9A7C-4FEB-90C0-65CE234F2245
Children that are over 1 year old and weigh at
least 20 lbs (9 kg) should remain in a rear-facing
child restraint as long as possible up to the
height or weight limit of the child restraint.
Children who outgrow the height or weight limit
of the rear-facing child restraint and are at least
1 year old should be secured in a forward-facing
child restraint with a harness. Refer to the
manufacturer’s instructions for minimum and
maximum weight and height recommendations.
NISSAN recommends that small children be
placed in child restraints that comply with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards. You
should choose a child restraint that fits your
vehicle and always follow the manufacturer’s
instructions for installation and use.
LARGER CHILDREN
GUID-EC196FE5-D487-4C51-9056-7FA7FF17ACB0
Children should remain in a forward-facing child
restraint with a harness until they reach the
maximum height or weight limit allowed by the
child restraint manufacturer.
Once a child outgrows the height or weight limit
of the harness-equipped forward-facing child
restraint, NISSAN recommends that the child be
Safety — Seats, seat belts and supplemental restraint system 1-27
Condition:
Black plate (50,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-28 Safety — Seats, seat belts and supplemental restraint system
placed in a commercially available booster seat
to obtain proper seat belt fit. For a seat belt to fit
properly, the booster seat should raise the child
so that the shoulder belt is properly positioned
across the chest and the top, middle portion of
the shoulder. The shoulder belt should not cross
the neck or face and should not fall off the
shoulder. The lap belt should lie snugly across
the lower hips or upper thighs, not the abdomen.
A booster seat can only be used in seating
positions that have a three-point type seat belt.
The booster seat should fit the vehicle seat and
have a label certifying that it complies with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.
Once the child has grown so the shoulder belt
is no longer on or near the face and neck, and
the lap belt can be positioned properly across
the lower hips or upper thighs, use the seat belt
without the booster seat.
WARNING
Never let a child stand or kneel on any
seat and do not allow a child in the
cargo area. The child could be seriously
injured or killed in a sudden stop or
collision.
GUID-D2F4DA62-62F0-46FA-BDC9-C09A7F684094
SSS0099
SSS0100
PRECAUTIONS ON CHILD RE-
STRAINTS GUID-6A8C536A-DB98-4A79-B638-8ED4F6FB91BB
WARNING
.CrossCabriolet models are not
equipped with top tethers. A child
restraint system requiring a top
tether strap cannot be properly in-
stalled and should not be used in
your vehicle.
.Failure to follow the warnings and
instructions for proper use and in-
stallation of child restraints could
result in serious injury or death of a
child or other passengers in a
sudden stop or collision:
The child restraint must be used
and installed properly. Always
follow all of the child restraint
manufacturer’s instructions for
installation and use.
— Infants and children should
never be held on anyone’s lap.
Even the strongest adult cannot
resist the forces of a collision.
— Do not put a seat belt around
both a child and another pas-
CHILD RESTRAINTS
Condition:
Black plate (51,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
senger.
NISSAN recommends that all
child restraints be installed in
the rear seat. Studies show that
children are safer when properly
restrained in the rear seat than
in the front seat. If you must
install a forward-facing child
restraint in the front seat, see
“Forward-facing child restraint
installation using the seat belts”
later in this section.
Even with the NISSAN Advanced
Air Bag System, never install a
rear-facing child restraint in the
front seat. An inflating air bag
could seriously injure or kill a
child. A rear-facing child re-
straint must only be used in the
rear seat.
Be sure to purchase a child
restraint that will fit the child
and vehicle. Some child re-
straints may not fit properly in
your vehicle.
Child restraint anchor points are
designed to withstand loads
from child restraints that are
properly fitted.
— Never use the anchor points for
adult seat belts or harnesses.
A child restraint with a top tether
strap should not be used in the
front passenger seat.
— Keep seatbacks as upright as
possible after fitting the child
restraint.
— Infants and children should al-
ways be placed in an appropri-
ate child restraint while in the
vehicle.
.When the child restraint is not in
use, keep it secured with the LATCH
system or a seat belt. In a sudden
stop or collision, loose objects can
injure occupants or damage the
vehicle.
CAUTION
A child restraint in a closed vehicle can
become very hot. Check the seating
surface and buckles before placing a
child in the child restraint.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the
LATCH (Lower Anchors and Tethers for CHil-
dren) system. Some child restraints include rigid
or webbing-mounted attachments that can be
connected to these anchors.
For details, see “LATCH Lower Anchors Sys-
tem” later in this section.
LATCH child restraints generally require the use
of a top tether strap. If your vehicle does not
have top tether anchor locations, do not install a
child restraint in your vehicle that requires the
use of a top tether strap.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
Several manufacturers offer child restraints for
infants and small children of various sizes. When
selecting any child restraint, keep the following
points in mind:
.Choose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
.Check the child restraint in your vehicle to
be sure it is compatible with the vehicle’s
seat and seat belt system.
.If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
Safety — Seats, seat belts and supplemental restraint system 1-29
Condition:
Black plate (52,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-30 Safety — Seats, seat belts and supplemental restraint system
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child
restraints to be secured to the designated
anchor point on the vehicle.
SSS0419B
LATCH label location (Hardtop models)
SSS0933
LATCH label location (CrossCabriolet models)
LATCH Lower Anchors SYSTEM
GUID-5B0A4406-68B6-491C-B161-EC20158AB5AF
Your vehicle is equipped with special anchor
points that are used with the LATCH (Lower
Anchors and Tethers for CHildren) system
compatible child restraints. This system may
also be referred to as the ISOFIX or ISOFIX
compatible system. With this system, you do not
have to use a vehicle seat belt to secure the
child restraint.
The LATCH anchor points are provided to install
child restraints in the rear outboard seating
positions only.
LATCH lower anchor
GUID-4797B6AD-EBE0-4886-9CA1-312C75CE0CF6
WARNING
Failure to follow the warnings and
instructions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or
other passengers in a sudden stop or
collision:
.Attach LATCH system compatible
child restraints only at the locations
shown in the illustration.
.Do not secure a child restraint in the
center rear seating position using
the LATCH lower anchors. The child
Condition:
Black plate (53,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
restraint will not be secured prop-
erly.
.Inspect the lower anchors by insert-
ing your fingers into the lower
anchor area. Feel to make sure
there are no obstructions over the
anchors such as seat belt webbing
or seat cushion material. The child
restraint will not be secured prop-
erly if the lower anchors are ob-
structed.
SSS0637
LATCH lower anchor location
LATCH lower anchor location
GUID-94E9EDFE-3FEF-48B7-A3C5-82134F7A076B
The LATCH anchors are located at the rear of
the seat cushion near the seatback. A label is
attached to the seatback to help you locate the
LATCH anchors.
SSS0643
LATCH webbing-mounted attachment
Installing child restraint LATCH lower
anchor attachments
GUID-4BE9649D-8090-4388-B26D-DF734FBAADA5
LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this
system, you do not have to use a vehicle seat
belt to secure the child restraint. Check your
child restraint for a label stating that it is
compatible with LATCH. This information may
also be in the instructions provided by the child
restraint manufacturer.
Safety — Seats, seat belts and supplemental restraint system 1-31
Condition:
Black plate (54,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-32 Safety — Seats, seat belts and supplemental restraint system
SSS0644
LATCH rigid-mounted attachment
If your vehicle is equipped with a top tether
anchor, it must be used when installing child
restraints with the LATCH lower anchor attach-
ments or seat belts. See “Top tether anchor
(Hardtop models)” later in this section for
installation instructions (Hardtop models).
When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.
SSS0822
Top tether anchor (Hardtop models)
GUID-0CAD3BA9-2525-4BC2-BA48-40988918011E
WARNING
.If the cargo cover (if so equipped)
contacts the top tether strap when it
is attached to the top tether anchor,
remove the cargo cover from the
vehicle or secure it on the cargo
floor below its attachment location.
If the cargo cover is not removed, it
may damage the top tether strap
during a collision. Your child could
be seriously injured or killed in a
collision if the child restraint top
tether strap is damaged.
.Do not allow cargo to contact the
top tether strap when it is attached
to the top tether anchor. Properly
secure the cargo so it does not
contact the top tether strap. Cargo
that is not properly secured or cargo
that contacts the top tether strap
may damage the top tether strap
during a collision. Your child could
be seriously injured or killed in a
collision if the child restraint top
tether strap is damaged.
Top tether anchor point locations:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Anchor points are located on the back side of
the seatbacks.
REAR-FACING CHILD RESTRAINT IN-
STALLATION USING LATCH
GUID-0637B231-098A-443B-BFD0-B842E89E11E5
Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before
installing a child restraint.
Follow these steps to install a rear-facing child
restraint using the LATCH system:
1. Position the child restraint on the seat.
Always follow the child restraint manufac-
turer’s instructions.
Condition:
Black plate (55,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS0648
Rear-facing web-mounted — step 2
SSS0649
Rear-facing rigid-mounted — step 2
SSS0639
Rear-facing — step 3
2. Secure the child restraint anchor attach-
ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchors.
3. For child restraints that are equipped with
webbing-mounted attachments, remove any
additional slack from the anchor attach-
ments. Press downward and rearward firmly
in the center of the child restraint with your
hand to compress the vehicle seat cushion
and seatback while tightening the webbing
of the anchor attachments.
SSS0650
Rear-facing — step 4
4. After attaching the child restraint, test it
before you place the child in it. Push it from
side to side while holding the child restraint
near the LATCH attachment path. The child
restraint should not move more than 1 inch
(25 mm), from side to side. Try to tug it
forward and check to see if the LATCH
attachment holds the restraint in place. If the
restraint is not secure, tighten the LATCH
attachment as necessary, or put the restraint
in another seat and test it again. You may
need to try a different child restraint or try
installing by using the vehicle seat belt (if
applicable). Not all child restraints fit in all
types of vehicles.
Safety — Seats, seat belts and supplemental restraint system 1-33
Condition:
Black plate (56,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-34 Safety — Seats, seat belts and supplemental restraint system
5. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 4.
REAR-FACING CHILD RESTRAINT IN-
STALLATION USING THE SEAT BELTS
GUID-8DE8014C-18D8-487E-9787-117D005E68B6
WARNING
.The three-point seat belt with Auto-
matic Locking Retractor (ALR) must
be used when installing a child
restraint. Failure to use the ALR
mode will result in the child re-
straint not being properly secured.
The restraint could tip over or be
loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front
passenger air bag. See “Front pas-
senger air bag and status light”
later in this section.
.When installing a child restraint
system in the rear center position,
both the center seat belt connector
tongue and buckle tongue must be
secured. See “Rear center seat belt
(Hardtop models)” earlier in this
section. (Hardtop models)
SSS0100
Rear-facing — step 1
Refer to all Warnings and Cautions in the “Child
safety” earlier in this section and “Child re-
straints” earlier in this section before installing a
child restraint.
Follow these steps to install a rear-facing child
restraint using the vehicle seat belts in the rear
seats:
1. Child restraints for infants must be
used in the rear-facing direction and
therefore must not be used in the front
seat. Position the child restraint on the seat.
Always follow the restraint manufacturer’s
instructions.
Condition:
Black plate (57,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS0654
Rear-facing — step 2
2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s
instructions for belt routing.
SSS0655
Rear-facing — step 3
3. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode). It reverts to the
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.
SSS0656
Rear-facing — step 4
4. Allow the seat belt to retract. Pull up on the
shoulder belt to remove any slack in the belt.
Safety — Seats, seat belts and supplemental restraint system 1-35
Condition:
Black plate (58,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-36 Safety — Seats, seat belts and supplemental restraint system
SSS0657
Rear-facing — step 5
5. Remove any additional slack from the seat
belt; press downward and rearward firmly in
the center of the child restraint to compress
the vehicle seat cushion and seatback while
pulling up on the seat belt.
SSS0658
Rear-facing — step 6
6. After attaching the child restraint, test it
before you place the child in it. Push it from
side to side while holding the child restraint
near the seat belt path. The child restraint
should not move more than 1 inch (25 mm),
from side to side. Try to tug it forward and
check to see if the belt holds the restraint in
place. If the restraint is not secure, tighten
the seat belt as necessary, or put the
restraint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.
7. Check to make sure that the child restraint is
properly secured prior to each use. If the
seat belt is not locked, repeat steps 1
through 6.
After the child restraint is removed and the seat
belt fully retracted, the ALR mode (child restraint
mode) is canceled.
FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING
LATCH (Hardtop models only)
GUID-C0068E19-F4E9-4C59-AAD1-F67BC6381275
Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before
installing a child restraint.
Follow these steps to install a forward-facing
child restraint using the LATCH system:
1. Position the child restraint on the seat.
Always follow the child restraint manufac-
turer’s instructions.
Condition:
Black plate (59,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS0645
Forward-facing web-mounted — step 2
2. Secure the child restraint anchor attach-
ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchors.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. See “Installing top tether strap (Hard-
top models)” later in this section. Do not
install child restraints that require the use of
a top tether strap in seating positions that do
not have a top tether anchor.
SSS0646
Forward-facing rigid-mounted — step 2
3. The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint to obtain the correct child restraint
fit. If the head restraint is removed, store it in
a secure place. Be sure to reinstall the
head restraint when the child restraint
is removed. See “Head restraints” earlier in
this section for head restraint adjustment
information.
If the seating position does not have an
adjustable head restraint and it is interfering
with the proper child restraint fit, try another
seating position or a different child restraint.
SSS0647
Forward-facing — step 4
4. For child restraints that are equipped with
webbing-mounted attachments, remove any
additional slack from the anchor attach-
ments. Press downward and rearward firmly
in the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while tightening the webbing
of the anchor attachments.
5. Tighten the tether strap according to the
manufacturer’s instructions to remove any
slack.
Safety — Seats, seat belts and supplemental restraint system 1-37
Condition:
Black plate (60,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-38 Safety — Seats, seat belts and supplemental restraint system
SSS0638
Forward-facing — step 6
6. After attaching the child restraint, test it
before you place the child in it. Push it from
side to side while holding the child restraint
near the LATCH attachment path. The child
restraint should not move more than 1 inch
(25 mm), from side to side. Try to tug it
forward and check to see if the LATCH
attachment holds the restraint in place. If the
restraint is not secure, tighten the LATCH
attachment as necessary, or put the restraint
in another seat and test it again. You may
need to try a different child restraint. Not all
child restraints fit in all types of vehicles.
7. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 6.
FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING THE
SEAT BELTS
GUID-D986E0DE-3F9D-4081-B625-7A6C59773877
WARNING
.The three-point seat belt with Auto-
matic Locking Retractor (ALR) must
be used when installing a child
restraint. Failure to use the ALR
mode will result in the child re-
straint not being properly secured.
The restraint could tip over or be
loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front
passenger air bag. See “Front pas-
senger air bag and status light”
later in this section.
.When installing a child restraint
system in the rear center position,
both the center seat belt connector
tongue and buckle tongue must be
secured. See “Rear center seat belt
(Hardtop models)” earlier in this
section. (for Hardtop models)
SSS0640
Forward-facing (front passenger seat) — step 1
Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before
installing a child restraint.
Follow these steps to install a forward-facing
child restraint using the vehicle seat belt in the
rear seats or in the front passenger seat:
1. If you must install a child restraint in
the front seat, it should be placed in a
forward-facing direction only. Move the
seat to the rearmost position. Child
restraints for infants must be used in
the rear-facing direction and, therefore,
must not be used in the front seat.
Condition:
Black plate (61,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2. Position the child restraint on the seat.
Always follow the child restraint manufac-
turer’s instructions.
The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint or headrest to obtain the correct
child restraint fit. If the head restraint or
headrest is removed, store it in a secure
place. Be sure to reinstall the head
restraint or headrest when the child
restraint is removed. See “Head re-
straints” earlier in this section for head
restraint or headrest adjustment, removal
and installation information.
If the seating position does not have an
adjustable head restraint or headrest and it
is interfering with the proper child restraint
fit, try another seating position or a different
child restraint.
SSS0360B
Forward-facing — step 3
3. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s
instructions for belt routing.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point (rear seat installation only, Hardtop
models). See “Installing top tether strap
(Hardtop models)” later in this section. Do
not install child restraints that require the
use of a top tether strap in seating positions
that do not have a top tether anchor.
SSS0651
Forward-facing — step 4
4. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode). It reverts to
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.
Safety — Seats, seat belts and supplemental restraint system 1-39
Condition:
Black plate (62,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-40 Safety — Seats, seat belts and supplemental restraint system
SSS0652
Forward-facing — step 5
5. Allow the seat belt to retract. Pull up on the
shoulder belt to remove any slack in the belt.
SSS0653
Forward-facing — step 6
6. Remove any additional slack from the seat
belt; press downward and rearward firmly in
the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while pulling up on the seat
belt.
7. Tighten the tether strap according to the
manufacturer’s instructions to remove any
slack.
SSS0641
Forward-facing — step 8
8. After attaching the child restraint, test it
before you place the child in it. Push it from
side to side while holding the child restraint
near the seat belt path. The child restraint
should not move more than 1 inch (25 mm),
from side to side. Try to tug it forward and
check to see if the belt holds the restraint in
place. If the restraint is not secure, tighten
the seat belt as necessary, or put the
restraint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.
9. Check to make sure the child restraint is
properly secured prior to each use. If the
Condition:
Black plate (63,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
seat belt is not locked, repeat steps 2
through 8.
SSS0823
Forward-facing — step 10
10. If the child restraint is installed in the front
passenger seat, place the ignition switch in
the ON position. The front passenger air bag
status light should illuminate. If this light
is not illuminated, see “Front passenger air
bag and status light” later in this section.
Move the child restraint to another
seating position. Have the system
checked by a NISSAN dealer.
After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child
restraint mode) is canceled.
SSS0822
INSTALLING TOP TETHER STRAP
(Hardtop models)
GUID-10E4B72F-E871-4B10-A99B-9504B51D59C9
First, secure the child restraint with the LATCH
lower anchors (rear outboard seat positions
only) or the seat belt, as applicable.
1. If necessary, raise or remove the head
restraint or headrest to position the top
tether strap over the top of the seatback. If
the head restraint or headrest is removed,
store it in a secure place. Be sure to reinstall
the head restraint or headrest when the child
restraint is removed.
See “Head restraints” earlier in this section
for head restraint or headrest adjustment,
removal and installation information.
Safety — Seats, seat belts and supplemental restraint system 1-41
Condition:
Black plate (64,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-42 Safety — Seats, seat belts and supplemental restraint system
Position the top tether strap over the top of
the seatback.
2. Secure the top tether strap to the tether
anchor point on the back of the seatback
behind the child restraint.
3. Refer to the appropriate child restraint
installation procedure steps in this section
before tightening the tether strap.
If you have any questions when installing a
top tether strap, consult your NISSAN
dealer for details.
BOOSTER SEATS
GUID-5C761715-A70E-4E74-8871-BE6A74AC0326
Precautions on booster seats
GUID-469816AF-C7E6-4180-AFB1-93AE88597A78
WARNING
If a booster seat and seat belt are not
used properly, the risk of a child being
injured in a sudden stop or collision
greatly increases:
.Make sure the shoulder portion of
the belt is away from the child’s face
and neck and the lap portion of the
belt does not cross the stomach.
.Make sure the shoulder belt is not
behind the child or under the child’s
arm.
.A booster seat must only be in-
stalled in a seating position that has
a lap/shoulder belt.
LRS0455
Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
.Choose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
.Check the booster seat in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
Condition:
Black plate (65,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
LRS0453
.Make sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat *1is chosen, the
vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat *2should be used.
.If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with
your child. Always follow all recommended
procedures.
LRS0464
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.
The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.
Booster seat installation
GUID-DD7C3A91-D5DD-463D-A292-37C02FD6C0EF
CAUTION
Do not use the lap/shoulder belt Auto-
matic Locking Retractor (ALR) mode
when using a booster seat with the
seat belts.
Refer to all Warnings and Cautions in the “Child
safety” earlier in this section, “Child restraints”
earlier in this section and “Booster seats” earlier
in this section before installing a child restraint.
Follow these steps to install a booster seat in the
rear seat or in the front passenger seat:
Safety — Seats, seat belts and supplemental restraint system 1-43
Condition:
Black plate (66,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-44 Safety — Seats, seat belts and supplemental restraint system
SSS0640
1. If you must install a booster seat in the
front seat, move the seat to the rear-
most position.
2. Position the booster seat on the seat. Only
place it in a forward-facing direction. Always
follow the booster seat manufacturer’s
instructions.
LRS0454
Front passenger position
3. The booster seat should be positioned on
the vehicle seat so that it is stable.
If necessary, adjust or remove the head
restraint or headrest to obtain the correct
booster seat fit. If the head restraint or
headrest is removed, store it in a secure
place. Be sure to reinstall the head
restraint or headrest when the booster
seat is removed. See “Head restraints”
earlier in this section for head restraint or
headrest adjustment, removal and installa-
tion information.
If the seating position does not have an
adjustable head restraint or headrest and it
is interfering with the proper booster seat fit,
try another seating position or a different
booster seat.
4. Position the lap portion of the seat belt low
and snug on the child’s hips. Be sure to
follow the booster seat manufacturer’s
instructions for adjusting the seat belt
routing.
5. Pull the shoulder belt portion of the seat belt
toward the retractor to take up extra slack.
Be sure the shoulder belt is positioned
across the top, middle portion of the child’s
shoulder. Be sure to follow the booster seat
manufacturer’s instructions for adjusting the
seat belt routing.
6. Follow the warnings, cautions and instruc-
tions for properly fastening a seat belt
shown in “Seat belts” earlier in this section.
Condition:
Black plate (67,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS0823
7. If the booster seat is installed in the front
passenger seat, place the ignition switch in
the ON position. The front passenger air bag
status light may or may not illuminate
depending on the size of the child and the
type of booster seat used. See “Front
passenger air bag and status light” later in
this section.
GUID-89C89C02-D98C-47EA-BD3E-60C2DD1787AC
PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM
GUID-7DBBCDDD-81AC-4813-B231-7475F02B5DFA
This Supplemental Restraint System (SRS)
section contains important information concern-
ing the following systems:
.Driver and passenger supplemental front-
impact air bag (NISSAN Advanced Air Bag
System)
.Front seat-mounted side-impact supple-
mental air bag
.Roof-mounted curtain side-impact and roll-
over supplemental air bag (for Hardtop
models)
.Door-mounted curtain side-impact and roll-
over supplemental air bag (for CrossCabrio-
let models)
.Seat belt pretensioner
Supplemental front-impact air bag system:
The NISSAN Advanced Air Bag System can
help cushion the impact force to the head and
chest of the driver and front passenger in certain
frontal collisions.
Front seat-mounted side-impact supple-
mental air bag system: This system can help
cushion the impact force to the chest area of the
driver and front passenger in certain side impact
collisions. The side air bags are designed to
inflate on the side where the vehicle is impacted.
Roof-mounted curtain side-impact and
rollover supplemental air bag system (for
Hardtop models): This system can help
cushion the impact force to the head of
occupants in front and rear outboard seating
positions in certain side impact or rollover
collisions. In a side impact, the curtain and
rollover air bags are designed to inflate on the
side where the vehicle is impacted. In a rollover,
the curtain and rollover air bags on both sides
are designed to inflate. Under both side-impact
and rollover situations, the curtain air bags will
remain inflated for a short period of time.
Door-mounted curtain side-impact and
rollover supplemental air bag system (for
CrossCabriolet models): This system can
help cushion the impact force to the heads of
the driver and front passenger in certain side-
impact or rollover collisions. In a side impact, the
curtain and rollover air bags are designed to
inflate on the side where the vehicle is impacted.
In a rollover, the curtain and rollover air bags on
both sides are designed to inflate. Under both
side-impact and rollover situations, the curtain
air bags will remain inflated for a short period of
time.
These supplemental restraint systems are de-
signed to supplement the crash protection
provided by the driver and passenger seat belts
and are not a substitute for them. Seat belts
Safety — Seats, seat belts and supplemental restraint system 1-45
SUPPLEMENTAL RESTRAINT
SYSTEM
Condition:
Black plate (68,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-46 Safety — Seats, seat belts and supplemental restraint system
should always be correctly worn and the
occupant seated a suitable distance away from
the steering wheel, instrument panel and door
finishers. (See “Seat belts” earlier in this section
for instructions and precautions on seat belt
usage.)
The supplemental air bags operate only
when the ignition switch is in the ON
position.
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational. SSS0131
SSS0132
Condition:
Black plate (69,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
WARNING
.The front air bags ordinarily will not
inflate in the event of a side impact,
rear impact, rollover, or lower se-
verity frontal collision. Always wear
your seat belts to help reduce the
risk or severity of injury in various
kinds of accidents.
.The front passenger air bag will not
inflate if the passenger air bag
status light is lit or if the front
passenger seat is unoccupied. See
“Front passenger air bag and status
light” later in this section.
.The seat belts and the front air bags
are most effective when you are
sitting well back and upright in the
seat with both feet on the floor. The
front air bags inflate with great
force. Even with the NISSAN Ad-
vanced Air Bag System, if you are
unrestrained, leaning forward, sit-
ting sideways or out of position in
any way, you are at greater risk of
injury or death in a crash. You may
also receive serious or fatal injuries
from the front air bag if you are up
against it when it inflates. Always sit
back against the seatback and as
far-away as practical from the steer-
ing wheel or instrument panel. Al-
ways use the seat belts.
.The driver and front passenger seat
belt buckles are equipped with
sensors that detect if the seat belts
are fastened. The Advanced Air Bag
System monitors the severity of a
collision and seat belt usage then
inflates the air bags as needed.
Failure to properly wear seat belts
can increase the risk or severity of
injury in an accident.
.The front passenger seat is
equipped with an occupant classifi-
cation sensor (pattern sensor) that
turns the front passenger air bag
OFF under some conditions. This
sensor is only used in this seat.
Failure to be properly seated and
wearing the seat belt can increase
the risk or severity of injury in an
accident. See “Front passenger air
bag and status light” later in this
section.
.Keep hands on the outside of the
steering wheel. Placing them inside
the steering wheel rim could in-
crease the risk that they are injured
if the front air bag inflates.
Safety — Seats, seat belts and supplemental restraint system 1-47
Condition:
Black plate (70,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-48 Safety — Seats, seat belts and supplemental restraint system
SSS0007
SSS0006
SSS0008
SSS0009
SSS0099
SSS0100
Condition:
Black plate (71,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
WARNING
.Never let children ride unrestrained
or extend their hands or face out of
the window. Do not attempt to hold
them in your lap or arms. Some
examples of dangerous riding posi-
tions are shown in the illustrations.
.Children may be severely injured or
killed when the front air bags, side
air bags or curtain and rollover air
bags inflate if they are not properly
restrained. Pre-teens and children
should be properly restrained in the
rear seat, if possible.
.Even with the NISSAN Advanced Air
Bag System, never install a rear-
facing child restraint in the front
seat. An inflating front air bag could
seriously injure or kill your child.
See “Child restraints” earlier in this
section for details.
SSS0059A
Do not lean against doors or windows.
SSS0188A
SSS0140
SSS0162
Safety — Seats, seat belts and supplemental restraint system 1-49
Condition:
Black plate (72,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-50 Safety — Seats, seat belts and supplemental restraint system
SSS0159
WARNING
Front seat-mounted side-impact sup-
plemental air bags and roof-mounted
curtain side-impact and rollover supple-
mental air bags (Hardtop models) or
door-mounted curtain side-impact and
rollover supplemental air bags (Cross-
Cabriolet models):
.The side air bags and curtain air
bags ordinarily will not inflate in the
event of a frontal impact, rear im-
pact or lower severity side collision.
Always wear your seat belts to help
reduce the risk or severity of injury
in various kinds of accidents.
.The seat belts and air bags are most
effective when you are sitting well
back and upright in the seat with
both feet on the floor. The air bags
inflate with great force. Do not allow
anyone to place their hand, leg or
face near the side air bag on the
side of the seatback of the front
seat, near the side roof rails (Hard-
top models), or near the top of the
door finisher (CrossCabriolet mod-
els). Do not allow anyone sitting in
the front seats or rear outboard
seats to extend their hand out of
the window or lean against the
door. Some examples of dangerous
riding positions are shown in the
previous illustrations.
.When sitting in the rear seat, do not
hold onto the seatback of the front
seat. If the side air bag inflates, you
may be seriously injured. Be espe-
cially careful with children, who
should always be properly re-
strained. Some examples of danger-
ous riding positions are shown in
the illustrations.
.Do not use seat covers on the front
seatbacks. They may interfere with
side air bag inflation.
Condition:
Black plate (73,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS0847
Hardtop models
NISSAN ADVANCED AIR BAG SYSTEM (front seats)
GUID-62252794-B440-46E4-B4A3-195A0FB9B0EC
1. Crash zone sensor
2. Supplemental front-impact air bag modules
3. Front seat-mounted side-impact supplemental
air bag modules
4. Occupant classification sensor (pattern sensor)
5. Occupant classification system control unit
6. Roof-mounted curtain side-impact and rollover
supplemental air bags
7. Roof-mounted curtain side-impact and rollover
supplemental air bag inflators
8. Seat belt pretensioners
9. Satellite sensors
10. Air bag Control Unit (ACU)
Safety — Seats, seat belts and supplemental restraint system 1-51
Condition:
Black plate (74,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-52 Safety — Seats, seat belts and supplemental restraint system
SSS1174
CrossCabriolet models
1. Crash zone sensor
2. Supplemental front-impact air bag modules
3. Front seat-mounted side-impact supplemental
air bags
4. Occupant classification system control unit
5. Occupant classification sensor (pattern sensor)
6. Dual pop-up roll bars
7. Door-mounted curtain side-impact and rollover
supplemental air bag inflators
8. Door-mounted curtain side-impact and rollover
supplemental air bags
9. Satellite sensors
10. Seat belt pretensioners
11. Air bag Control Unit (ACU)
This vehicle is equipped with the NISSAN
Advanced Air Bag System for the driver and
front passenger seats. This system is designed
to meet certification requirements under U.S.
regulations. It is also permitted in Canada.
However, all of the information, cautions
and warnings in this manual still apply and
must be followed.
The driver supplemental front-impact air bag is
located in the center of the steering wheel; the
passenger supplemental front-impact air bag is
mounted in the instrument panel above the glove
box. The front air bags are designed to inflate in
higher severity frontal collisions, although they
may inflate if the forces in another type of
collision are similar to those of a higher severity
frontal impact. They may not inflate in certain
frontal collisions. Vehicle damage (or lack of it) is
not always an indication of proper front air bag
operation.
The NISSAN Advanced Air Bag System has
dual stage air bag inflators. The system monitors
information from the crash zone sensor, satellite
sensor, Air bag Control Unit (ACU), seat belt
buckle sensors and occupant classification
sensor (pattern sensor). Inflator operation is
based on the severity of a collision and seat belt
usage for the driver. For the front passenger, the
occupant classification sensor is also monitored.
Based on information from the sensors, only one
Condition:
Black plate (75,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
front air bag may inflate in a crash, depending on
the crash severity and whether the front
occupants are belted or unbelted. Additionally,
the front passenger air bag may be automatically
turned OFF under some conditions, depending
on the information provided by the occupant
classification sensor. If the front passenger air
bag is OFF, the passenger air bag status light
will be illuminated (if the seat is unoccupied, the
light will not be illuminated, but the air bag will
be off). (See “Front passenger air bag and
status light” later in this section for further
details.) One front air bag inflating does not
indicate improper performance of the system.
If you have any questions about your air bag
system, contact NISSAN or a NISSAN dealer. If
you are considering modification of your vehicle
due to a disability, you may also contact
NISSAN. Contact information is contained in
the front of this Owner’s Manual.
When a front air bag inflates, a fairly loud noise
may be heard, followed by release of smoke.
This smoke is not harmful and does not indicate
a fire. Care should be taken not to inhale it, as it
may cause irritation and choking. Those with a
history of a breathing condition should get fresh
air promptly.
Front air bags, along with the use of seat belts,
help to cushion the impact force on the head
and chest of the front occupants. They can help
save lives and reduce serious injuries. However,
an inflating front air bag may cause facial
abrasions or other injuries. Front air bags do
not provide restraint to the lower body.
Even with NISSAN Advanced Air Bags, seat
belts should be correctly worn and the driver
and passenger seated upright as far as practical
away from the steering wheel or instrument
panel. The front air bags inflate quickly in order
to help protect the front occupants. Because of
this, the force of the front air bag inflating can
increase the risk of injury if the occupant is too
close to, or is against, the air bag module during
inflation.
The front air bags will deflate quickly after a
collision.
The front air bags operate only when the
ignition switch is in the ON position.
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational.
SSS0823
Front passenger air bag status light
Front passenger air bag and status light
GUID-3CBF7429-7AEE-4E17-9176-3C55CA8B9FB7
WARNING
The front passenger air bag is designed
to automatically turn OFF under some
conditions. Read this section carefully
to learn how it operates. Proper use of
the seat, seat belt and child restraints is
necessary for most effective protection.
Failure to follow all instructions in this
manual concerning the use of seats,
seat belts and child restraints can
increase the risk or severity of injury in
Safety — Seats, seat belts and supplemental restraint system 1-53
Condition:
Black plate (76,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-54 Safety — Seats, seat belts and supplemental restraint system
an accident.
Status light: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The front passenger air bag status light is
located on the instrument panel below the air
conditioner controls. After the ignition switch is
placed in the ON position, the front passenger
air bag status light illuminates for about 7
seconds and then turns off or illuminates
depending on the front passenger seat occu-
pied status. The light operates as follows:
.Unoccupied passenger seat: The
light is OFF and the front passenger air
bag is OFF and will not inflate in a crash.
.Passenger’s seat occupied by a small adult,
child or child restraint as outlined in this
section: The light illuminates to
indicate that the front passenger air bag is
OFF and will not inflate in a crash.
.Occupied passenger seat and the passen-
ger meets the conditions outlined in this
section: The light is OFF to indicate
that the front passenger air bag is opera-
tional.
Front passenger air bag:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The front passenger air bag is designed to
automatically turn OFF when the vehicle is
operated under some conditions as described
below as permitted by U.S. regulations. If the
front passenger air bag is OFF, it will not inflate
in a crash. The driver air bag and other air bags
in your vehicle are not part of this system.
The purpose of the regulation is to help reduce
the risk of injury or death from an inflating air bag
to certain front passenger seat occupants, such
as children, by requiring the air bag to be
automatically turned OFF.
The occupant classification sensor (pattern
sensor) is in the front passenger seat cushion
and is designed to detect an occupant and
objects on the seat. For example, if a child is in
the front passenger seat, the Advanced Air Bag
System is designed to turn the passenger air
bag OFF in accordance with the regulations.
Also, if a child restraint of the type specified in
the regulations is on the seat, the occupant
classification sensor can detect it and cause the
air bag to turn OFF.
Front passenger seat adult occupants who are
properly seated and using the seat belt as
outlined in this manual should not cause the
passenger air bag to be automatically turned
OFF. For small adults it may be turned OFF,
however, if the occupant does not sit in the seat
properly (for example, by not sitting upright, by
sitting on an edge of the seat, or by otherwise
being out of position), this could cause the
sensor to turn the air bag OFF. Always be sure
to be seated and wearing the seat belt properly
for the most effective protection by the seat belt
and supplemental air bag.
NISSAN recommends that pre-teens and chil-
dren be properly restrained in a rear seat.
NISSAN also recommends that appropriate
child restraints and booster seats be properly
installed in a rear seat. If this is not possible, the
occupant classification sensor is designed to
operate as described above to turn the front
passenger air bag OFF for specified child
restraints. Failing to properly secure child
restrains and to use the Automatic Locking
Retractor (ALR) mode (child restraint mode)
may allow the restraint to tip or move in an
accident or sudden stop. This can also result in
the passenger air bag inflating in a crash instead
of being OFF. (See “Child restraints” earlier in
this section for proper use and installation.)
If the front passenger seat is not occupied, the
passenger air bag is designed not to inflate in a
crash. However, heavy objects placed on the
seat could result in air bag inflation, because of
the object being detected by the occupant
classification sensor. Other conditions could
also result in air bag inflation, such as if a child is
standing on the seat, or if two children are on the
seat, contrary to the instructions in this manual.
Always be sure that you and all vehicle
Condition:
Black plate (77,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
occupants are seated and restrained properly.
Using the passenger air bag status light, you can
monitor when the front passenger air bag is
automatically turned OFF with the seat occu-
pied. The light will not illuminate when the front
passenger seat is unoccupied.
If an adult occupant is in the seat but the
passenger air bag status light is illuminated
(indicating that the air bag is OFF), it could be
that the person is a small adult, or is not sitting
on the seat properly.
If a child restraint must be used in the front seat,
the passenger air bag status light may or may
not be illuminated, depending on the size of the
child and the type of child restraint being used. If
the air bag status light is not illuminated
(indicating that the air bag might inflate in a
crash), it could be that the child restraint or seat
belt is not being used properly. Make sure that
the child restraint is installed properly, the seat
belt is used properly and the occupant is
positioned properly. If the air bag status light is
not illuminated, reposition the occupant or child
restraint in a rear seat.
If the passenger air bag status light will not
illuminate even though you believe that the child
restraint, the seat belts and the occupant are
properly positioned, the system may be sensing
an unoccupied seat (in which case the air bag is
OFF). Your NISSAN dealer can check that the
system is OFF by using a special tool. However,
until you have confirmed with your dealer that
your air bag is working properly, reposition the
occupant or child restraint in a rear seat.
The air bag system and passenger air bag status
light will take a few seconds to register a change
in the passenger seat status. However, if the
seat becomes unoccupied, the air bag status
light will remain off.
If a malfunction occurs in the front passenger air
bag system, the supplemental air bag warning
light , located in the meter and gauges area,
will blink. Have the system checked by a
NISSAN dealer.
Other supplemental front-impact air bag
precautions GUID-1331924B-CE23-4E8A-A024-69044301EFB8
WARNING
.Do not place any objects on the
steering wheel pad or on the instru-
ment panel. Also, do not place any
objects between any occupant and
the steering wheel or instrument
panel. Such objects may become
dangerous projectiles and cause
injury if the front air bags inflate.
.Do not place objects with sharp
edges on the seat. Also, do not
place heavy objects on the seat that
will leave permanent impressions in
the seat. Such objects can damage
the seat or occupant classification
sensor (pattern sensor). This can
affect the operation of the air bag
system and result in serious perso-
nal injury.
.Do not use water or acidic cleaners
(hot steam cleaners) on the seat.
This can damage the seat or occu-
pant classification sensor. This can
also affect the operation of the air
bag system and result in serious
personal injury.
.Immediately after inflation, several
front air bag system components
will be hot. Do not touch them; you
may severely burn yourself.
.No unauthorized changes should be
made to any components or wiring
of the supplemental air bag system.
This is to prevent accidental infla-
tion of the supplemental air bag or
damage to the supplemental air bag
system.
Safety — Seats, seat belts and supplemental restraint system 1-55
Condition:
Black plate (78,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-56 Safety — Seats, seat belts and supplemental restraint system
.Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or front end
structure. This could affect proper
operation of the front air bag sys-
tem.
.Tampering with the supplemental
air bag system may result in serious
personal injury. Tampering includes
changes to the steering wheel and
the instrument panel assembly by
placing material over the steering
wheel pad and above the instrument
panel or by installing additional trim
material around the air bag system.
.Modifying or tampering with the
front passenger seat may result in
serious personal injury. For exam-
ple, do not change the front seats by
placing material on the seat cushion
or by installing additional trim ma-
terial, such as seat covers, on the
seat that is not specifically designed
to assure proper air bag operation.
Additionally, do not stow any ob-
jects under the front passenger seat
or the seat cushion and seatback.
Such objects may interfere with the
proper operation of the occupant
classification sensor.
.No unauthorized changes should be
made to any components or wiring
of the seat belt system. This may
affect the front air bag system.
Tampering with the seat belt system
may result in serious personal in-
jury.
.Work on and around the front air
bag system should be done by a
NISSAN dealer. Installation of elec-
trical equipment should also be
done by a NISSAN dealer. The
Supplemental Restraint System
(SRS) wiring harnesses* should not
be modified or disconnected. Un-
authorized electrical test equipment
and probing devices should not be
used on the air bag system.
.A cracked windshield should be
replaced immediately by a qualified
repair facility. A cracked windshield
could affect the function of the
supplemental air bag system.
*The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the front air bag system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
Condition:
Black plate (79,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSS0848
Hardtop models
SSS0982
CrossCabriolet moldels
FRONT SEAT-MOUNTED SIDE-IM-
PACT SUPPLEMENTAL AIR BAG AND
ROOF-MOUNTED CURTAIN SIDE-IM-
PACT AND ROLLOVER SUPPLEMEN-
TAL AIR BAG (Hardtop models) OR
DOOR-MOUNTED CURTAIN SIDE-IM-
PACT AND ROLLOVER SUPPLEMEN-
TAL AIR BAG (CrossCabriolet models)
SYSTEMS GUID-EB2F6895-6E81-4642-9F76-FC0B9A82DFD3
The side air bags are located in the outside of
the seatback of the front seats. The curtain air
bags are located in the side roof rails (Hardtop
models) or upper side of the door trim (Cross-
Cabriolet models). These systems are designed
to meet voluntary guidelines to help reduce the
risk of injury to out-of-position occupants.
However, all of the information, cautions
and warnings in this manual still apply and
must be followed. The side air bags and
curtain and rollover air bags are designed to
inflate in higher severity side collisions, although
they may inflate if the forces in another type of
collision are similar to those of a higher severity
side impact. They are designed to inflate on the
side where the vehicle is impacted. They may
not inflate in certain side collisions. Curtain and
rollover air bags are also designed to inflate in
certain types of rollover collisions or near
rollovers.
Vehicle damage (or lack of it) is not always an
indication of proper side air bag and curtain and
rollover air bag operation.
When the side air bags and curtain and rollover
air bags inflate, a fairly loud noise may be heard,
followed by release of smoke. This smoke is not
harmful and does not indicate a fire. Care should
be taken not to inhale it, as it may cause irritation
and choking. Those with a history of a breathing
condition should get fresh air promptly.
Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest
and pelvic area of the front occupants. Curtain
and rollover air bags help to cushion the impact
force to the heads of occupants in the front and
rear outboard seating positions (Hardtop mod-
els) or the heads of the driver and front
passenger (CrossCabriolet models). They can
help save lives and reduce serious injuries.
However, side air bags and curtain and rollover
air bags may cause abrasions or other injuries.
Side air bags and curtain and rollover air bags
do not provide restraint to the lower body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the side air bags. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof
rails. The side air bags and curtain and rollover
Safety — Seats, seat belts and supplemental restraint system 1-57
Condition:
Black plate (80,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-58 Safety — Seats, seat belts and supplemental restraint system
air bags inflate quickly in order to help protect
the occupants. Because of this, the force of the
side air bags and curtain and rollover air bags
inflating can increase the risk of injury if the
occupant is too close to, or is against, these air
bag modules during inflation. In a rollover, the
curtain and rollover air bags on both sides are
designed to inflate. Under both side-impact and
rollover situations, the curtain air bags will
remain inflated for a short period of time.
The side air bags and curtain and rollover
air bags operate only when the ignition
switch is in the ON position.
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.
WARNING
.Do not place any objects near the
seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door
finisher and the front seat. Such
objects may become dangerous
projectiles and cause injury if a side
air bag or door-mounted curtain air
bag (CrossCabriolet model) inflates.
.Right after inflation, several side air
bag and curtain and rollover air bag
system components will be hot. Do
not touch them; you may severely
burn yourself.
.No unauthorized changes should be
made to any components or wiring
of this side air bag and curtain and
rollover air bags. This is to prevent
damage to or accidental inflation of
the side-impact air bag and curtain
side-impact and rollover air bag
systems.
.Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system, door panel,
door trim, or side panel. This could
affect proper operation of the side
air bag and curtain and rollover air
bag systems.
.Tampering with the supplemental
air bag system may result in serious
personal injury. For example, do not
change the front seats by placing
material near the seatbacks or by
installing additional trim material,
such as seat covers, around the side
air bag.
.Work around and on the side air bag
and curtain and rollover air bag
systems should be done by a
NISSAN dealer. Installation of elec-
trical equipment should also be
done by a NISSAN dealer. The
Supplemental Restraint System
(SRS) wiring harnesses* should not
be modified or disconnected. Un-
authorized electrical test equipment
and probing devices should not be
used on the side air bag and curtain
and rollover air bag systems.
*The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain and rollover air bag systems and guide
the buyer to the appropriate sections in this
Owner’s Manual.
SEAT BELTS WITH PRETENSIONERS
(front seats) GUID-3B87B5A0-4336-4C99-89BF-22D756A42161
WARNING
.The pretensioners cannot be reused
after activation. They must be re-
Condition:
Black plate (81,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
placed together with the retractor
and buckle as a unit.
.If the vehicle becomes involved in a
collision but a pretensioner is not
activated, be sure to have the pre-
tensioner system checked and, if
necessary, replaced by a NISSAN
dealer.
.No unauthorized changes should be
made to any components or wiring
of the pretensioner system. This is
to prevent damage to or accidental
activation of the pretensioners.
Tampering with the pretensioner
system may result in serious perso-
nal injury.
.Work around and on the preten-
sioner system should be done by a
NISSAN dealer. Installation of elec-
trical equipment should also be
done by a NISSAN dealer. Un-
authorized electrical test equipment
and probing devices should not be
used on the pretensioner system.
.If you need to dispose of a preten-
sioner or scrap the vehicle, contact a
NISSAN dealer. Correct preten-
sioner disposal procedures are set
forth in the appropriate NISSAN
Service Manual. Incorrect disposal
procedures could cause personal
injury.
The pretensioner system may activate with the
supplemental air bag system in certain types of
collisions. Working with the seat belt retractor, it
helps tighten the seat belt when the vehicle
becomes involved in certain types of collisions,
helping to restrain front seat occupants.
The pretensioner is encased with the seat belt
retractor. These seat belts are used the same
way as conventional seat belts.
When a pretensioner activates, smoke is re-
leased and a loud noise may be heard. The
smoke is not harmful and does not indicate a
fire. Care should be taken not to inhale it, as it
may cause irritation and choking. Those with a
history of a breathing condition should get fresh
air promptly.
After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.
The supplemental air bag warning light is
used to indicate malfunctions in the pretensioner
system. (See “Supplemental air bag warning
light” later in this section for more details.) If the
operation of the supplemental air bag warning
light indicates there is a malfunction, have the
system checked by a NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
Safety — Seats, seat belts and supplemental restraint system 1-59
Condition:
Black plate (82,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-60 Safety — Seats, seat belts and supplemental restraint system
SSS1016
SUPPLEMENTAL AIR BAG WARNING
LABELS GUID-903148F5-C14E-43FA-AED1-8BBDAE796F82
Warning labels about the supplemental front-
impact air bag system are placed in the vehicle
as shown in the illustration.
SRS air bag GUID-7BC8FADF-7E78-40A4-B77A-006F326840B9
The warning labels *1are located on the
surface of the sun visors.
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT GUID-51E691C0-0E01-4640-9FB4-F2F56D4D2B94
The supplemental air bag warning light, display-
ing in the instrument panel, monitors the
circuits for the air bag systems, pretensioner
seat belt system and all related wiring.
When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the SRS air bag systems are
operational.
If any of the following conditions occur, the air
bags and/or pretensioner systems need servi-
cing:
.The supplemental air bag warning light
remains on after approximately 7 seconds.
.The supplemental air bag warning light
flashes intermittently.
.The supplemental air bag warning light does
not come on at all.
Under these conditions, the air bags and/or
pretensioner systems may not operate properly.
They must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.
WARNING
If the supplemental air bag warning
light is on, it could mean that the air
bags and/or pretensioner systems will
not operate in an accident. To help
avoid injury to yourself or others, have
your vehicle checked by a NISSAN
dealer as soon as possible.
REPAIR AND REPLACEMENT PRO-
CEDURE GUID-BE097191-F8D3-4AAC-850E-F3F16831D6C5
The front air bags, side air bags, curtain and
rollover air bags and pretensioners are designed
to activate on a one-time-only basis. As a
reminder, unless it is damaged, the supplemen-
tal air bag warning light will remain illuminated
after inflation has occurred. Repair and replace-
Condition:
Black plate (83,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
ment of these systems should be done only by a
NISSAN dealer.
When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
and rollover air bags and pretensioners and
related parts should be pointed out to the
person performing the maintenance. The ignition
switch should always be in the LOCK position
when working under the hood or inside the
vehicle.
WARNING
.Once a front air bag, side air bag or
curtain and rollover air bag has
inflated, the air bag module will
not function again and must be
replaced. Additionally, the activated
pretensioners must also be re-
placed. The air bag module and
pretensioner system should be re-
placed by a NISSAN dealer. The air
bag modules and pretensioner sys-
tem cannot be repaired.
.The front air bag, side air bag and
curtain and rollover air bag systems,
and pretensioner system should be
inspected by a NISSAN dealer if
there is any damage to the front
end or side portion of the vehicle.
.If you need to dispose of a supple-
mental air bag or pretensioner sys-
tems, or scrap the vehicle, contact a
NISSAN dealer. Correct supplemen-
tal air bag and pretensioner system
disposal procedures are set forth in
the appropriate NISSAN Service
Manual. Incorrect disposal proce-
dures could cause personal injury.
SSS1178
DUAL POP-UP ROLL BAR SYSTEM
(CrossCabriolet models)
GUID-94609B65-694A-4C47-A779-9B5BB5581CB7
The dual pop-up roll bars are designed to
deploy only during rollover collisions. The dual
pop-up roll bars are located behind the rear
seatback and deploy when the Air bag Control
Unit (ACU) judges that the vehicle will overturn.
The dual pop-up roll bars, with proper seat belt
usage, help preserve occupant headroom in a
rollover collision and can help reduce the risk of
occupant injury.
Safety — Seats, seat belts and supplemental restraint system 1-61
Condition:
Black plate (84,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-62 Safety — Seats, seat belts and supplemental restraint system
WARNING
Failure to follow the warnings and
instructions in this section may result
in serious injury or death.
.The dual pop-up roll bars deploy
upward at a high speed when acti-
vated. Keep hands and other body
parts away from the dual pop-up roll
bars.
.Never place objects (such as um-
brellas or accessories) near the dual
pop-up roll bars, which deploy from
the top of rear seatback. Such
objects can become dangerous pro-
jectiles when dual pop-up roll bars
deploy.
.Tampering with the dual pop-up roll
bars may cause them to uninten-
tionally deploy or operate abnor-
mally.
.Never open the dual pop-up roll bar
covers or modify or disassemble the
dual pop-up roll bars.
.Do not sit, place a heavy object, or
apply a strong load on the dual pop-
up roll bar cover. Doing so could
cause damage to the cover or cause
the dual pop-up roll bar to not
operate properly.
.Never allow anyone other than a
NISSAN dealer to retract or repair
the dual pop-up roll bars. Always
contact a NISSAN dealer after dual
pop-up roll bars deploy.
Condition:
Black plate (85,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2 Instruments and controls
Cockpit ........................................................................................... 2-3
Instrument panel ........................................................................... 2-4
Meters and gauges ...................................................................... 2-5
Speedometer and odometer ............................................... 2-6
Tachometer .............................................................................. 2-7
Engine coolant temperature gauge ................................... 2-7
Fuel gauge ............................................................................... 2-8
Compass (if so equipped) ......................................................... 2-8
Zone variation change procedure ................................... 2-10
Warning/indicator lights and audible reminders ............... 2-11
Checking bulbs .................................................................... 2-12
Warning lights ...................................................................... 2-12
Indicator lights ...................................................................... 2-17
Audible reminders ............................................................... 2-20
Dot matrix liquid crystal display ............................................. 2-20
Operational indicators ........................................................ 2-21
Maintenance indicators ...................................................... 2-24
Trip computer ....................................................................... 2-25
Security systems ....................................................................... 2-29
Vehicle security system (if so equipped) ...................... 2-30
NISSAN Vehicle Immobilizer System ............................. 2-31
Windshield wiper and washer switch .................................. 2-32
Rain-sensing auto wiper system (if so equipped) ........ 2-34
Rear window wiper and washer switch
(Hardtop models) ...................................................................... 2-35
Rear window and outside mirror defroster switch .......... 2-36
Headlight and turn signal switch .......................................... 2-37
Xenon headlights (if so equipped) ............................... 2-37
Headlight switch ............................................................... 2-37
Turn signal switch ............................................................. 2-40
Fog light switch (if so equipped) ................................. 2-41
Horn ............................................................................................. 2-41
Heated steering wheel (if so equipped) ............................ 2-41
Heated seats (if so equipped) .............................................. 2-42
Warning systems switch (if so equipped) ......................... 2-43
Clock ........................................................................................... 2-44
Models with color display ............................................... 2-44
Models without color display ......................................... 2-44
Vehicle Dynamic Control (VDC) OFF switch .................... 2-44
Power outlet ............................................................................... 2-45
Cigarette lighter and ashtray (if so equipped) ................. 2-46
Storage ....................................................................................... 2-47
Cup holders ........................................................................ 2-47
Sunglasses holder (Hardtop models) .......................... 2-48
Glove box ............................................................................ 2-49
Console box ....................................................................... 2-49
Storage box (if so equipped) ......................................... 2-50
Cargo floor box (if so equipped for
Hardtop models) ............................................................... 2-50
Luggage side box (Hardtop models) ........................... 2-51
Condition:
>
Black plate (86,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
Cargo cover (if so equipped for
Hardtop models) ................................................................. 2-52
Luggage hooks (Hardtop models) .................................. 2-53
Luggage cover (CrossCabriolet models) ...................... 2-53
Roof rack (if so equipped for Hardtop models) .......... 2-54
Coat hooks (Hardtop models) ......................................... 2-55
Windows ..................................................................................... 2-55
Power windows ................................................................... 2-55
Moonroof (if so equipped for Hardtop models) ................ 2-58
Automatic moonroof and sunshades ............................. 2-59
Interior lights ............................................................................... 2-60
Map lights .............................................................................. 2-60
Personal lights (Hardtop models) ................................... 2-61
Interior light control switch ............................................... 2-61
Mood lights (Hardtop models) ............................................. 2-62
Vanity mirror lights .................................................................... 2-62
Cargo lights (Hardtop models) ............................................. 2-63
Trunk light (CrossCabriolet models) ................................... 2-63
HomeLink
®
Universal Transceiver (if so equipped) ......... 2-63
Programming HomeLink
®
................................................ 2-64
Programming HomeLink
®
for Canadian customers
and gate openers .............................................................. 2-65
Operating the HomeLink
®
Universal Transceiver ....................................................... 2-66
Programming troubleshooting ........................................ 2-66
Clearing the programmed information ......................... 2-66
Reprogramming a single HomeLink
®
button ............. 2-66
If your vehicle is stolen .................................................... 2-67
Condition:
Black plate (87,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-06B56D4D-A0AA-4178-A121-A31F959AC846
JVO0067X
1. Heated steering wheel switch*
2. Power lift gate switch* (Hardtop models) or
trunk lid release switch (CrossCabriolet models)
3. Warning systems switch*
- Lane Departure Warning (LDW) system*
- Blind Spot Warning (BSW) system*
4. Instrument brightness control switch
5. Headlight, fog light and turn signal switch
— Headlight
Turn signal light
Fog light*
6. Trip computer switch
7. TRIP/RESET switch
8. Wiper and washer switch
9. Vehicle Dynamic Control (VDC) off switch
10. Power lift gate main switch* (Hardtop models) or
All-Wheel Drive (AWD) LOCK switch (Cross-
Cabriolet models)
11. Power rear seatback switch* (Hardtop models)
12. Power rear seatback switch* (Hardtop models)
or Remote walk-in switch (CrossCabriolet mod-
els)
13. Fuel-filler door opener switch
14. Manual tilting/telescopic steering wheel lever*
15. Electric tilting/telescopic steering wheel switch*
16. Steering-wheel-mounted controls (left side)*
Audio control*
— Bluetooth
®
Hands-Free Phone System con-
trol (models with navigation system)*
— Bluetooth
®
Hands-Free Phone System con-
trol (models without navigation system)*
17. Steering wheel
— Horn
Driver supplemental air bag
Power steering system
18. Steering-wheel-mounted controls (right side)
Cruise control switches
19. Center-console mounted controls
Heated seat switches*
— All-Wheel Drive (AWD) LOCK switch*
(Hardtop models)
Soft top operating switch (CrossCabriolet
models)
*: if so equipped
Instruments and controls 2-3
COCKPIT
Condition:
Black plate (88,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-4 Instruments and controls
GUID-73174318-E521-4B16-8B9D-A3A74ECB1262
SSI0839
1. Side ventilator
2. Meters and gauges
3. Push-button ignition switch
4. Center ventilator
5. Center display
Center color display*
Navigation system**
6. Heater/air conditioner control or Center multi-
function control panel*
Navigation system**
Vehicle information and setting buttons*
— Bluetooth
®
Hands-Free Phone System*
(models with navigation system)
— Bluetooth
®
Hands-Free Phone System*
(models without navigation system)
7. Hazard warning flasher switch
8. Front passenger supplemental air bag
9. Hood release handle
10. Fuse box cover
11. Parking brake
12. Intelligent Key port
13. Audio system
— Clock*
14. Front passenger air bag status light
15. Power outlet
16. Rear window and outside mirror* defroster
switch
17. Heater/air conditioner control or Audio system
18. Trunk release power cancel switch (Cross-
Cabriolet models)
19. Glove box
*: if so equipped
**: Refer to the separate Navigation System Own-
er’s Manual (if so equipped).
INSTRUMENT PANEL
Condition:
Black plate (89,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-A68BAE6F-B6C6-458C-9E0C-28DA5D3B2890
JVO0043X
1. Instrument brightness control switch
2. Tachometer
3. Speedometer
4. Fuel gauge
5. Warning/indicator lights
6. Trip computer switch
7. Dot matrix liquid crystal display
Trip computer
8. Engine coolant temperature gauge
9. Odometer/twin trip odometer/Continuously Vari-
able Transmission (CVT) position indicator
10. RESET switch for trip odometer
The needle indicators may move slightly
after the ignition switch is pushed to the
LOCK position. This is not a malfunction.
Instruments and controls 2-5
METERS AND GAUGES
Condition:
Black plate (90,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-6 Instruments and controls
JVI0252X
Speedometer
SPEEDOMETER AND ODOMETER
GUID-A5312850-B162-4691-B245-BFE52CFF92CD
Speedometer
GUID-6D108D90-F044-4A12-A5A1-80A313264F81
The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).
SIC4699
Odometer/twin trip odometer
Odometer/twin trip odometer
GUID-8971DF72-32A1-467A-9B68-200871A5DCCC
The odometer *1and twin trip odometer *2
are displayed when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Pushing the TRIP RESET switch *3on the right
side of the combination meter panel changes
the display as follows:
TRIP A ?TRIP B ?TRIP A
Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Pushing the TRIP RESET switch *3for more
than 1 second resets the trip odometer to zero.
Condition:
Black plate (91,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JVI0253X
TACHOMETER
GUID-D6E06D01-68FC-46F3-83E0-465A7D80EEAA
The tachometer indicates engine speed in
revolutions per minute (RPM). Do not rev the
engine into the red zone *1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
SIC4690
ENGINE COOLANT TEMPERATURE
GAUGE GUID-5D79A6DB-7B0E-48CD-B3D5-38EB0D89F9F4
The gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range when the gauge needle points
within the zone *1shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature near the hot (H) end of the
normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible and let the
engine idle. If the engine is overheated,
continued operation of the vehicle may
seriously damage the engine. See “If
your vehicle overheats” in the “6. In
case of emergency” section for immedi-
ate action required.
Instruments and controls 2-7
Condition:
Black plate (92,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-8 Instruments and controls
JVI0338X
FUEL GAUGE
GUID-7C88D297-60D4-4310-84BB-E1EC1735E409
The gauge indicates the approximate fuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to E (Empty) after the
ignition switch is pushed to the OFF position.
Refill the fuel tank before the gauge
registers “E” (Empty).
The low fuel warning appears on the dot
matrix liquid crystal display when the fuel level in
the tank is getting low. Refuel as soon as it is
convenient, preferably before the gauge reaches
“E”. There will be a small reserve of fuel in the
tank when the fuel gauge needle reaches “E”.
The indicates that the fuel-filler door is
located on the driver’s side of the vehicle.
CAUTION
.If the vehicle runs out of fuel, the
malfunction indicator light (MIL)
may come on. Refuel as soon as
possible. After a few driving trips,
the light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer.
.For additional information, see
“Malfunction Indicator Light (MIL)”
later in this section.
GUID-56AB49A5-E009-4FD9-864E-78F14A1329E1
SIC3181
When the ignition switch is pushed to the ON
position, the compass display *Bwill indicate
the direction of the vehicle’s heading.
NOS1741
If the display reads “C”, calibrate the compass
by driving the vehicle in 3 complete circles at
less than 5 MPH (8 km/h). You can also
calibrate the compass by driving your vehicle
COMPASS (if so equipped)
Condition:
Black plate (93,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
on your everyday route. The compass will be
calibrated once it has tracked 3 complete
circles.
To turn on and off the compass manually, push
the switch *Awhile the ignition switch is in
the ON position.
SIC0611B
Zone map
Instruments and controls 2-9
Condition:
Black plate (94,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-10 Instruments and controls
ZONE VARIATION CHANGE PROCE-
DURE GUID-0E831674-32EA-49CF-AB30-0F9EEEB78E33
The difference between magnetic north and
geographical north is known as variance. In
some areas, this difference can sometimes be
great enough to cause false compass readings.
Follow these instructions to set the variance for
your particular location if this happens:
1. Push the switch for more than 3
seconds. The current zone number will
appear in the display.
2. Find your current location and variance
number on the zone map.
NOTE:
Use zone number 5 for Hawaii.
3. Push the switch repeatedly until the
new zone number appears in the display,
then release the switch. After you release
the switch, the display will show a compass
direction within a few seconds.
.If the compass deviates from the correct
indication soon after repeated adjust-
ment, have the compass checked at a
NISSAN dealer.
.The compass may not indicate the
correct compass point in tunnels or while
driving up or down a steep hill.
(The compass returns to the correct com-
pass point when the vehicle moves to an
area where the geomagnetism is stabilized.)
CAUTION
.Do not install a ski rack, antenna,
etc., which are attached to the
vehicle by means of a magnet. They
affect the operation of the compass.
.When cleaning the mirror, use a
paper towel or similar material
dampened with glass cleaner. Do
not spray glass cleaner directly on
the mirror as it may cause the liquid
cleaner to enter the mirror housing.
Condition:
Black plate (95,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-6AC4475F-D514-4474-861E-A33DFE4DFCFD
All-Wheel Drive (AWD) warning light (AWD
models)* Low tire pressure warning light Exterior light indicator
Anti-lock Braking System (ABS) warning
light
Master warning light Front passenger air bag status light
Seat belt warning light High beam indicator light
Blind Spot Warning (BSW) light (orange)* Supplemental air bag warning light Lane Departure Warning (LDW) light
(green)*
Brake warning light Vehicle Dynamic Control (VDC) warning
light Malfunction Indicator Light (MIL)
Charge warning light All-Wheel Drive (AWD) LOCK indicator light
(AWD models) Overdrive off indicator light
Engine oil pressure warning light Blind Spot Warning (BSW) light (green)* Soft top indicator light (CrossCabriolet
models)
Intelligent Key warning light Continuously Variable Transmission (CVT)
position indicator light Turn signal/hazard indicator lights
Lane Departure Warning (LDW) light (or-
ange)* Cruise indicator light Vehicle Dynamic Control (VDC) off indicator
light
Instruments and controls 2-11
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Condition:
Black plate (96,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-12 Instruments and controls
CHECKING BULBS
GUID-B5546604-D327-4511-B24A-C4F4615F5F1F
With all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine. The following lights
will come on (if so equipped):
, or , , , , ,
The following lights come on briefly and then go
off (if so equipped):
, or , , , , , ,
, ,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the
electrical system. Have the system checked by
a NISSAN dealer.
Some indicators and warnings are also dis-
played on the dot matrix crystal display on the
speedometer. (See “Dot matrix liquid crystal
display” later in this section.)
WARNING LIGHTS
GUID-39AE13E8-806F-40A7-8C69-3AF4A1790761
All-Wheel Drive (AWD) warning
light (AWD models)
GUID-2C7F9D36-036A-4856-8580-AE4D2A3CACAA
The light comes on when the ignition switch is
pushed to ON. It turns off soon after the engine
is started.
If the AWD system malfunctions, or the diameter
of the front and the rear wheels are different, the
warning light will either remain illuminated or
blink. (See “All-Wheel Drive (AWD)” in the “5.
Starting and driving” section.)
CAUTION
.If the warning light comes on while
driving there may be a malfunction
in the AWD system. Reduce the
vehicle speed and have your vehicle
checked by a NISSAN dealer as
soon as possible.
.If the AWD warning light blinks
when you are driving:
blinks rapidly (about twice a
second):
Pull off the road in a safe area,
and idle the engine. The driving
mode will change to 2WD to
prevent the AWD system from
malfunctioning. If the warning
light turns off, you can drive
again.
— blinks slowly (about once every
2 seconds):
Pull off the road in a safe area,
and idle the engine. Check that
all tire sizes are the same, tire
pressure is correct and tires are
not worn.
.If the warning light is still on after
the above operations, have your
vehicle checked by a NISSAN dealer
as soon as possible.
or Anti-lock Braking System
(ABS) warning light
GUID-06CAAC80-C465-4A21-9EB7-C024333BA100
When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by a NISSAN dealer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
Condition:
Black plate (97,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
tance. (See “Brake system” in the “5. Starting
and driving” section.)
Blind Spot Warning (BSW) light
(orange; if so equipped)
GUID-B39C25AE-4ABA-4768-B972-D7A8500E4C34
When the ignition switch is placed in the "ON"
position, the light will first illuminate in orange
and turn green. This indicates that the Blind
Spot Warning (BSW) system is operational.
If the light comes on in orange and remains on, it
may indicate that the BSW system is not
functioning properly. Have the system checked
by a NISSAN dealer. See “Blind Spot Warning
(BSW)/Lane Departure Warning (LDW) sys-
tems” in the “5. Starting and driving” section.
or Brake warning light
GUID-4A67DFC2-D59E-4197-BAD5-168A3CE40A7E
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid
as necessary. (See “Brake fluid” in the “8.
Maintenance and do-it-yourself” section.)
2. If the brake fluid level is correct, have the
warning system checked by a NISSAN
dealer.
Anti-lock Braking System (ABS) warning
indicator: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re-
paired, by a NISSAN dealer promptly. (See
Anti-lock Braking System (ABS) warning light”
earlier in this section.)
WARNING
.Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.
.Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
.If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.
Charge warning light
GUID-69B03338-0451-441C-B766-BECF7DE9BC90
If the light comes on while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.
CAUTION
Do not continue driving if the alternator
belt is loose, broken or missing.
Instruments and controls 2-13
Condition:
Black plate (98,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-14 Instruments and controls
Engine oil pressure warning light
GUID-0AE5784C-961F-4FC8-BFAF-77A224D6D347
This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a NISSAN dealer or other
authorized repair shop.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. (See
“Engine oil” in the “8. Maintenance and do-it-
yourself” section.)
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning light
GUID-0700CAF3-DF55-4F0A-A342-324495D014C0
After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
This light warns of a malfunction with the
Intelligent Key system.
If the light comes on while the engine is
stopped, it may be impossible to start the
engine. If the light comes on while the engine
is running, you can drive the vehicle. However in
these cases, contact a NISSAN dealer for repair
as soon as possible.
Lane Departure Warning (LDW)
light (orange; if so equipped)
GUID-81D318A7-8F3C-436E-BEFA-B4243024E948
When the ignition switch is placed in the ON
position, the light will come on in orange and
turn green. This indicates that the Lane Depar-
ture Warning (LDW) system is operational.
While the LDW system is on, the light will blink
in orange and a warning chime will sound if the
vehicle is traveling close to either the left or the
right of a traveling lane with detectable lane
markers.
If the light comes on in orange and remains on, it
may indicate that the LDW system is not
functioning properly. Have the systems checked
by a NISSAN dealer.
See “Blind Spot Warning (BSW)/Lane Depar-
ture Warning (LDW) systems” in the “5. Starting
and driving” section.
Low tire pressure warning light
GUID-2FD87A32-C17B-42A1-B740-5A7539F98F4B
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is pushed ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A
CHECK TIRE PRESSURE warning also appears
on the dot matrix liquid crystal display.
When the low tire pressure warning light
illuminates, you should stop and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure warning
light does not automatically turn off when the tire
pressure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
The CHECK TIRE PRESSURE warning appears
each time the ignition switch is placed in the ON
Condition:
Black plate (99,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
position as long as the low tire pressure warning
light remains illuminated.
For additional information, see “Dot matrix liquid
crystal display” later in this section, “Tire
Pressure Monitoring System (TPMS)” in the “5.
Starting and driving” section and “Tire Pressure
Monitoring System (TPMS)” in the “6. In case of
emergency” section.
TPMS malfunction:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after the 1
minute. Have the system checked by a NISSAN
dealer. The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure warning
light illuminates to indicate a TPMS malfunction.
For additional information, see “Tire Pressure
Monitoring System (TPMS)” in the “5. Starting
and driving” section. For the CHECK TIRE
PRESSURE warning, see “Dot matrix liquid
crystal display” later in this section.
WARNING
.If the light does not illuminate with
the ignition switch pushed ON, have
the vehicle checked by a NISSAN
dealer as soon as possible.
.If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle
speed, pull off the road to a safe
location and stop the vehicle as
soon as possible. Driving with un-
der-inflated tires may permanently
damage the tires and increase the
likelihood of tire failure. Serious
vehicle damage could occur and
may lead to an accident and could
result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading
Information label to turn the low
tire pressure warning light OFF. If
the light still illuminates while driv-
ing after adjusting the tire pressure,
a tire may be flat. If you have a flat
tire, replace it with a spare tire as
soon as possible.
.When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
.Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
CAUTION
.The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.
.If the vehicle is being driven at
speeds of less than 16 MPH (25
km/h), the TPMS may not operate
correctly.
.Be sure to correctly install the
specified size of tires to the four
wheels.
Instruments and controls 2-15
Condition:
Black plate (100,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-16 Instruments and controls
Master warning light
GUID-6AB3A8A0-B446-4089-A66C-618A6659F580
When the ignition switch is in the ON position,
the master warning light illuminates if any of the
following are displayed on the dot matrix liquid
crystal display:
.No key warning
.Low fuel warning
.Low washer fluid warning
.Parking brake release warning
.Door/lift gate open warning (Hardtop mod-
els)
.Door/trunk open warning (CrossCabriolet
models)
.Loose fuel cap warning
.Check tire pressure warning
.Extended storage fuse warning
See “Dot matrix liquid crystal display” later in this
section.
Seat belt warning light
GUID-956FC59D-0351-472F-8CD0-3356E0A21318
The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch is pushed to the ON position, and will
remain illuminated until the driver’s seat belt is
fastened.
The seat belt warning light for the front
passenger will illuminate if the seat belt is not
fastened when the front passenger’s seat is
occupied. For approximately 5 seconds after the
ignition switch is in the ON position, the system
does not activate the warning light for the front
passenger.
See “Seat belts” in the “1. Safety — Seats, seat
belts and supplemental restraint system” section
for precautions on seat belt usage.
Supplemental air bag warning light
GUID-C47663FA-9971-432A-840C-6232303C8EC4
After pushing the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate. The supplemental air bag warning
light will turn off after about 7 seconds if the
SRS air bag systems are operational.
If any of the following conditions occur, the air
bags and/or pretensioner systems need servi-
cing and your vehicle must be taken to your
nearest NISSAN dealer.
.The supplemental air bag warning light
remains on after approximately 7 seconds.
.The supplemental air bag warning light
flashes intermittently.
.The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the Supplemental
Restraint Systems (air bag systems) and/or the
pretensioners may not function properly.
For additional information, see “Supplemental
restraint system” in the “1. Safety — Seats, seat
belts and supplemental restraint system” sec-
tion.
WARNING
If the supplemental air bag warning
light is on, it could mean that the air
bags and/or pretensioner systems will
not operate in an accident. To help
avoid injury to yourself or others, have
your vehicle checked by a NISSAN
dealer as soon as possible.
Vehicle dynamic control (VDC)
warning light
GUID-9CD9709D-A6B8-4177-B503-4BF50BC0F688
The light will blink when the Vehicle Dynamic
Control (VDC) system or the traction control
system is operating, thus alerting the driver that
the vehicle is nearing its traction limits. The road
surface may be slippery.
If the VDC warning light comes on and stays on
while the VDC system is on, this light alerts the
driver to the fact that the VDC system’s fail-safe
mode is operating, for example the VDC system
may not be functioning properly. Have the
system checked by a NISSAN dealer. If a
malfunction occurs in the system, the VDC
system function will be canceled but the vehicle
Condition:
Black plate (101,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
is still driveable. For additional information, see
“Vehicle Dynamic Control (VDC) system” in the
“5. Starting and driving” section of this manual.
INDICATOR LIGHTS
GUID-BDD7DC61-68C7-435D-8B71-5F80E875AAAB
All-Wheel Drive (AWD) LOCK
indicator light (AWD models)
GUID-B333F845-9EFA-4E8B-A367-0BBBFF6CDC04
This light illuminates when the ignition switch is
placed in the ON position, and turns off within 1
second.
When selecting the LOCK mode while the
engine is running, this light will illuminate. (See
All-Wheel Drive (AWD)” in the “5. Starting and
driving” section.)
Blind Spot Warning (BSW) light
(green; if so equipped)
GUID-8A539306-30AB-427D-B362-AEEB01FC0854
The Blind Spot Warning (BSW) light (green) will
illuminate when the BSW system is turned on.
The light turns off when the system is turned off.
(See “Blind Spot Warning (BSW)/Lane Depar-
ture Warning (LDW) systems” in the “5. Starting
and driving” section.)
NOTE:
This light is common with the Blind Spot
Warning (BSW) light (orange). (See “Blind
Spot Warning (BSW) light” earlier in this
section.)
Continuously Variable Transmis-
sion (CVT) position indicator light
GUID-0130F932-2380-4325-91F5-49DD5E3D8B5F
When the ignition switch is pushed to the ON
position, the indicator shows the automatic
selector shift position. (See “Continuously Vari-
able Transmission (CVT)” in the “5. Starting and
driving” section.)
Cruise indicator light
GUID-C4011DB6-8909-4DF3-8C75-17ED51FCED58
Cruise main switch indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
This light illuminates when the cruise control
main switch is pushed. The light turns off when
the main switch is pushed again. When the
cruise main switch indicator light illuminates, the
cruise control system is operational. (See
“Cruise control” in the “5. Starting and driving”
section.)
Cruise malfunction:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
If the cruise indicator light blinks while the
engine is running, it may indicate the cruise
control system is not functioning properly. Have
the system checked by a NISSAN dealer. (See
“Cruise control” in the “5. Starting and driving”
section.)
Exterior light indicator
GUID-31C3710D-82FC-41EC-AE8C-69D56A05CEF7
This indicator illuminates when the headlight
switch is turned to the AUTO (if so equipped),
or position and the front parking lights,
instrument panel lights, tail lights, license plate
lights or headlights are on. The indicator turns
off when these lights are turned off.
Front passenger air bag status light
GUID-1AD6EFB7-D318-4868-99B0-D18664F33C71
The front passenger air bag status light
will be lit and the passenger front air bag will be
OFF depending on how the front passenger
seat is being used.
For front passenger air bag status light opera-
tion, see “NISSAN Advanced Air Bag System
(front seats)” in the “1. Safety — Seats, seat
belts and supplemental restraint system” section
of this manual.
High beam indicator light
GUID-4EECC9D2-4C62-4418-9FA3-CF0C228A1386
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Instruments and controls 2-17
Condition:
Black plate (102,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-18 Instruments and controls
Lane Departure Warning (LDW)
light (green; if so equipped)
GUID-E3C994B9-093A-4F82-BA6D-735ADC99A238
The Lane Departure Warning (LDW) light
(green) will illuminate when the LDW system is
turned on. The light turns off when the system is
turned off. (See “Blind Spot Warning (BSW)/
Lane Departure Warning (LDW) systems” in the
“5. Starting and driving” section.)
NOTE:
This light is common with the Lane Depar-
ture Warning (LDW) light (orange). (See
“Lane Departure Warning (LDW) light”
earlier in this section.)
Malfunction Indicator Light (MIL)
GUID-6AF8662E-1DE1-45FE-852C-925D132DCE37
If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control and/or
Continuously Variable Transmission (CVT) mal-
function.
The malfunction indicator light may also come on
steady if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 US
gallons (11.4 liters) of fuel in the fuel tank.
After a few driving trips, the light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (See “Readiness for Inspec-
tion/Maintenance (I/M) test” in the “9. Technical
and consumer information” section.)
Operation: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The malfunction indicator light will come on in
one of two ways:
.Malfunction indicator light on steady — An
emission control system and/or CVT mal-
function has been detected. Check the fuel-
filler cap if the LOOSE FUEL CAP warning
appears on the dot matrix liquid crystal
display. If the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The light
should turn off after a few driving trips. If the
light does not turn off after a few driving
trips, have the vehicle inspected by a
NISSAN dealer. You do not need to have
your vehicle towed to the dealer.
.Malfunction indicator light blinking — An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
Do not drive at speeds above 45 MPH
(72 km/h).
Avoid hard acceleration or deceleration.
Avoid steep uphill grades.
If possible, reduce the amount of cargo
being hauled or towed.
The malfunction indicator light may stop
blinking and remain on.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
and/or CVT system checked and re-
paired as necessary could lead to poor
driveability, reduced fuel economy, and
possible damage to the emission con-
trol system.
Condition:
Black plate (103,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
Overdrive off indicator light
GUID-A88B5A9D-E1E7-4ADD-B5C6-FE6EBACFA9C0
The overdrive off indicator light illuminates when
the overdrive off mode is selected.
For additional information, see “Continuously
Variable Transmission (CVT)” in the “5. Starting
and driving” section of this manual.
Soft top indicator light (Cross-
Cabriolet models)
GUID-387DFA5A-917F-4E6B-8A1D-1A0AD860A8FA
This light illuminates when the soft top is being
operated or it is stopped before reaching a full
open/close state. When the top is fully opened
or closed, the light will turn off.
The light blinks while the soft top is not fully
opened or closed under the following condi-
tions:
.When the vehicle is driven.
.When the selector lever is in the R (Reverse)
position.
Be sure to fully open or close the soft top when
driving the vehicle.
The soft top can be moved with the soft top
operating switch only under all of the following
conditions:
.When the vehicle is stopped.
.When the ignition switch is ON.
.When the trunk is closed.
.When the luggage cover is pulled out and
hooked so that the roof storage area is
separated from the trunk.
.When the selector lever is in a position other
than the R (Reverse) position.
CAUTION
Operate the soft top with the engine
running to prevent a discharged battery.
When the soft top is operating, if any of the
above conditions are discontinued or any of the
following conditions are met, the top will stop
operating.
.When the selector lever is in the R (Reverse)
position.
.When the vehicle moves at a speed of 3
MPH (5 km/h) or more.
.When the battery voltage is extremely low.
.When the temperature of the soft top
system becomes extremely high.
Release the operating switch, and push it again
under the above conditions until the top is fully
opened or closed. The soft top indicator light will
turn off when the top operation is completely
finished.
If the soft top indicator light illuminates with the
ignition switch ON, it may indicate the electric
soft top control unit is not functioning properly.
Have your vehicle checked by a NISSAN dealer
as soon as possible.
For more details about the electric soft top
operation, see “Soft top (CrossCabriolet mod-
els)” in the “3. Pre-driving checks and adjust-
ments” section.
Turn signal/hazard indicator lights
GUID-F77394DF-EFC3-4B65-ACF6-5E0E91264160
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control (VDC) off
indicator light
GUID-CE6E8B94-E3C1-4EDD-B5CC-1AA8B731382A
The light comes on when the Vehicle Dynamic
Control (VDC) off switch is pushed to OFF. This
indicates that the VDC system is not operating.
For additional information, see “Vehicle Dynamic
Control (VDC) system” in the “5. Starting and
driving” section of this manual.
Instruments and controls 2-19
Condition:
Black plate (104,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-20 Instruments and controls
AUDIBLE REMINDERS
GUID-854CE725-BA1A-4800-8732-43382E89CE05
Key reminder chime
GUID-03B79EB0-07EF-4F48-9DFC-C531CF03B6F2
A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position or pushed to the OFF or
LOCK position with the Intelligent Key left in the
Intelligent Key port. Make sure the ignition
switch is pushed to the OFF position, and take
the Intelligent Key with you when leaving the
vehicle.
Light reminder chime
GUID-7B425B53-6E2D-43C2-AE08-9F717545E029
A chime will sound when the driver side door is
opened with the light switch in the or
position and the ignition switch in the ACC
or OFF position.
Turn the light switch off when you leave the
vehicle.
Parking brake reminder chime
GUID-16CE9E88-5960-4CAA-845D-8ACC44A8DB19
The chime will sound if the vehicle is driven at
more than 4 MPH (7 km/h) with the parking
brake applied. Stop the vehicle and release the
parking brake.
Seat belt warning chime
GUID-6CB52CBC-6585-437E-BC4E-959C5BB57A7B
The chime will sound for about 6 seconds
unless the driver’s seat belt is securely fastened.
Brake pad wear warning
GUID-A531CD6C-63DF-4083-A7B6-FC8F79CA75A0
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
GUID-8111787A-C29E-4E6F-9310-B498CC7E010D
JVI0254X
The dot matrix liquid crystal display *1is
located in the speedometer, and it displays,
the key operation information and other warn-
ings and information.
For the detail about the Intelligent Key System,
see “Intelligent Key system” in the “3. Pre-
driving checks and adjustments” section.
DOT MATRIX LIQUID CRYSTAL
DISPLAY
Condition:
Black plate (105,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JVI0540X
OPERATIONAL INDICATORS
GUID-2BC84707-B5D6-420C-AF4E-599CBE87C0AA
1. Engine start operation indicator
GUID-D97EB6AE-486E-4B90-8447-B6FE87D4AD91
This indicator appears when the selector lever is
in the P (Park) position.
This indicator means that the engine will start by
pushing the ignition switch with the brake pedal
depressed.
You can start the engine directly in any position.
2. Key insertion indicator
GUID-05110D15-ABEF-44EB-A8DB-34AB9197B4B8
This indicator appears when the key needs to be
inserted into the key port. (For example, the
Intelligent Key battery is discharged.)
If this indicator appears, insert the key into the
key port in the correct direction. (See “Push-
Instruments and controls 2-21
Condition:
Black plate (106,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-22 Instruments and controls
button ignition switch” in the “5. Starting and
driving” section.)
3. Key removal indicator
GUID-BB5416CE-8D01-47D1-8C3E-4F7E493AE6E1
This indicator appears when the driver’s door is
opened with the ignition switch in the OFF or
LOCK position and the key placed in the key
port. A key reminder chime also sounds.
If this indicator appears, remove the key from the
key port and take it with you when leaving the
vehicle.
4. NO KEY warning
GUID-F57235F8-65EC-43AC-9534-39FFBAF7DBAD
This warning appears in either of the following
conditions.
No key inside the vehicle:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered key:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The warning appears when the ignition switch is
pushed from the LOCK position and the key
cannot be recognized by the system. You cannot
start the engine with an unregistered key. Use
the registered key.
See “Intelligent Key system” in the “3. Pre-
driving checks and adjustments” section for
more details.
5. SHIFT “P” warning
GUID-F63536DD-DDB8-49FB-8271-F811D25EC8A1
This warning appears when the ignition switch is
pushed to stop the engine with the selector lever
in any position except the P (Park) position.
If this warning appears, move the selector lever
to the P (Park) position or push the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“Intelligent Key system” in the “3. Pre-driving
checks and adjustments” section.)
6. “PUSH” warning
GUID-2B3DB981-A402-45B6-B5BB-474886B28E6A
This warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.
To push the ignition switch to the OFF position,
perform the following procedure:
SHIFT “P” warning ?(Move the selector
lever to “P”) ?PUSH warning ?(Push the
ignition switch ?ignition switch position is
turned to ON) ?PUSH warning ?(Push the
ignition switch ?ignition switch position is
turned to OFF)
7. Key battery discharge indicator
GUID-4EDE548E-8FF0-4D46-ABCB-68B647C3999A
This indicator appears when the key battery is
running out of power.
If this indicator appears, replace the battery with
a new one. (See “Intelligent Key battery replace-
ment” in the “8. Maintenance and do-it-yourself”
section.)
8. Clean Rear Camera warning (if so
equipped) GUID-68B781FF-FFC1-4365-8ABF-4F80FB874175
This warning appears if dirt, rain or snow
accumulates on the rear camera and cannot
be removed by the automatic washer and
blower. See “Blind Spot Warning (BSW)/Lane
Departure Warning (LDW) systems” in the “5.
Starting and driving” section.
9. Parking brake release warning
GUID-834CC27F-8812-483E-9320-C2D89C3E4B39
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied. Stop the vehicle and release the
parking brake.
10. Low fuel warning
GUID-15EF772B-A9F6-4FC2-AB15-CABF1BB1DF48
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
Condition:
Black plate (107,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
the empty (E) position.
11. Low washer fluid warning
GUID-75BFB25F-0C2B-423E-890D-9368CFA667DD
This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See “Window washer fluid” in the “8. Main-
tenance and do-it-yourself” section.)
12. Door/lift gate open warning (ignition
switch is in the ON position) (Hardtop
models) GUID-E8BF5142-318A-41D5-8AB1-86843D59BCCF
This warning appears if any of the doors and/or
the lift gate are open or not closed securely. The
vehicle icon indicates which door is open on the
display.
13. Door/trunk open warning (ignition
switch is in the ON position) (Cross-
Cabriolet models)
GUID-CE5E7381-F4E7-4E9D-8BC1-5FDCD9D031B0
This warning appears if any of the doors and/or
the trunk are open or not closed securely. The
vehicle icon indicates which door is open on the
display.
14. Loose fuel cap warning
GUID-BF7DA770-AB4E-4465-8317-1B41831C3607
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “Fuel-filler cap” in the “3.
Pre-driving checks and adjustments” section.)
15. Check tire pressure warning
GUID-0DD3569E-5223-4496-8B17-789648E1715D
This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. If this warning appears,
stop the vehicle and adjust the tire pressure to
the recommended COLD tire pressure shown
on the Tire and Loading Information label. (See
“Low tire pressure warning light” earlier in this
section and “Tire Pressure Monitoring System
(TPMS)” in the “5. Starting and driving” section.)
16. “TIMER” indicator
GUID-FF6A1FD2-B5C4-4083-B2CA-3E728C17C633
This indicator appears when the set “TIMER”
indicator activates. You can set the time for up to
6 hours. (See “Trip computer” later in this
section.)
17. Low outside temperature warning
GUID-84D86BBA-1B59-4DDE-9353-177DB0D95B81
This warning appears if the outside temperature
is below 378F (38C). The warning can be set not
to be displayed. (See “Trip computer” later in
this section.)
18. Extended storage fuse warning
GUID-2A83B50D-AAD9-4A8C-8305-E655D5991D17
This warning may appear if the extended storage
fuse switch is not pushed in (switched on).
When this warning appears, push in (switch on)
the extended storage fuse switch to turn off the
warning. For more information, see “Extended
storage fuse switch” in the “8. Maintenance and
do-it-yourself” section.
Instruments and controls 2-23
Condition:
Black plate (108,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-24 Instruments and controls
SIC4237
MAINTENANCE INDICATORS
GUID-0A851647-6BB2-4E92-AEB5-E04319FCA2E4
1. Engine oil replacement indicator
GUID-9CEF8B90-48A9-4FB5-BFD9-0CF43586EC4F
This indicator appears when the customer set
time comes for changing the engine oil. You can
set or reset the distance for changing the engine
oil. (See “Trip computer” later in this section.)
2. Oil filter replacement indicator
GUID-C344252D-B1CB-46F2-AEAD-7C37EC262221
This indicator appears when the customer set
time comes for replacing the oil filter. You can
set or reset the distance for replacing the oil
filter. (See “Trip computer” later in this section.)
3. Tire replacement indicator
GUID-1A74526D-9B7C-43A3-95CF-62EFC05FBC61
This indicator appears when the customer set
distance comes for replacing tires. You can set
or reset the distance for replacing tires. (See
“Trip computer” later in this section.)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
“Changing wheels and tires” in the “8.
Maintenance and do-it-yourself” sec-
tion. Many factors including tire infla-
tion, alignment, driving habits and road
conditions affect tire wear and when
tires should be replaced. Setting the
tire replacement indicator for a certain
driving distance does not mean your
tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
4. “OTHER” indicator
GUID-17015DA7-2755-4CAC-AF46-619CAF47DE9D
This indicator appears when the customer set
time comes for replacing items other than the
engine oil, oil filter and tires. You can set or reset
the distance for replacing the items. (See “Trip
computer” later in this section.)
More maintenance reminders are also available
on the center display (if so equipped). (See
“How to use INFO button” in the “4. Monitor,
heater, air conditioner, audio, phone and voice
recognition systems” section.)
Condition:
Black plate (109,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC3580
TRIP COMPUTER
GUID-F63231D7-123A-4BC6-844C-BA3C14A5C066
Switches for the trip computer are located on
the right side of the combination meter panel. To
operate the trip computer, push the side or front
of the switches as shown above.
*Aswitch
*Bswitch
When the ignition switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the switch *A.
Each time the switch *Ais pushed, the
display will change as follows:
Current and average fuel consumption ?
Average fuel consumption and speed ?
Elapsed time and trip odometer ?Distance to
empty (dte) ?Outside air temperature (ICY) ?
Setting ?Warning check
JVI0251X
Current and average fuel consumption
(MPG, l (liter)/100 km)
GUID-C03B6A5C-9ED7-43A7-9BC4-010DAD1E69BD
The current and average fuel consumption mode
shows the current and average fuel consump-
tion.
Instruments and controls 2-25
Condition:
Black plate (110,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-26 Instruments and controls
SIC3674
Average fuel consumption (MPG, l/100
km) and speed (MPH or km/h)
GUID-5567CAAC-37CB-49C0-8903-54489EC24183
Fuel consumption:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the switch *B
for longer than 1 second. (The average speed is
also reset at the same time.)
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “——”.
Speed: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The average speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pushing the switch *Bfor longer
than 1 second. (The average fuel consumption is
also reset at the same time.)
The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
“——”.
SIC4701
Elapsed time and trip odometer (miles or
km) GUID-FEA80D52-9DA7-4A2D-BD49-7619EBBECCF9
Elapsed time: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the switch *Bfor longer than 1
second. (The trip odometer is also reset at the
same time.)
Trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The trip odometer mode shows the total
distance the vehicle has been driven since the
last reset. Resetting is done by pushing the
switch *Bfor longer than 1 second. (The
elapsed time is also reset at the same time.)
Condition:
Black plate (111,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC4702
Distance to empty (dte — miles or km)
GUID-6D35B21A-8E00-4687-AB2C-E21288A7467A
The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to “——”.
.If the amount of fuel added is small, the
display just before the ignition switch is
pushed to the OFF position may continue to
be displayed.
.When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.
SIC4703
Outside air temperature (ICY — 8F or 8C)
GUID-1F0F141E-7E24-493C-9ABE-8A75128A7804
The outside air temperature is displayed in 8F or
8C in the range of 22 to 1408F (30 to 608C).
The outside air temperature mode includes a low
temperature warning feature. If the outside air
temperature is below 378F (38C), the warning is
displayed on the screen.
The outside temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and
other driving conditions. The display may differ
from the actual outside temperature or the
temperature displayed on various signs or bill-
boards.
Instruments and controls 2-27
Condition:
Black plate (112,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-28 Instruments and controls
SIC3678
Setting GUID-180A1674-9E9A-45F6-9ECF-354F636CDD00
Setting cannot be made while driving. A
message “Setting can only be operated
when stopped” is also displayed on the dot
matrix crystal display.
The switch *Aand switch *Bare
used in the setting mode to select and decide a
menu.
SKIP: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Push the switch *Ato move to the warning
check mode.
Push the switch *Bto select other menus.
ALERT: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Alert menu can be set to notify the following
items.
.TIMER
Select this submenu to specify when the
“TIMER” indicator activates.
.ICY
Select this submenu to display the low
outside temperature warning.
To return to the top page of the setting mode,
select “BACK”.
MAINTENANCE:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The maintenance intervals of the following items
can be set or reset for the reminders.
.OIL
Select this submenu to set or reset the
distance for changing the engine oil.
.FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
.TIRE
Select this submenu to set or reset the
distance for replacing tires.
.OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires.
To return to the top page of the setting mode,
select “BACK”.
OPTIONS: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The following option menus can be set to your
preference.
.LANGUAGE
Select this submenu to choose English,
French or Spanish for display.
.UNIT
Select this submenu to choose the unit from
MPG or l/100 km.
.EFFECTS
Select this menu to set the dial effects
described below to on or off.
The indicator needles sweep in the
meters and the ring illumination will be
brightened gradually when the engine is
started.
To return to the top page of the setting mode,
select “BACK”.
Condition:
Black plate (113,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC3993
Warning check
GUID-FF3DCF80-E792-4B60-B3EB-0786D9710BD7
To see if there are any of the following warnings
and corresponding details, select this menu.
.No key warning
.Low fuel warning
.Low washer fluid warning
.Parking brake release warning
.Door/lift gate open warning (Hardtop mod-
els)
.Door/trunk open warning (CrossCabriolet
models)
.Loose fuel cap warning
.Check tire pressure warning
SKIP: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Push the switch *Ato exit the warning
check display.
Push the switch *Bto select DETAIL
menus.
DETAIL: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
This item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
GUID-5B8EE3AC-B3AC-45D4-BF38-6AC7583B2D4C
SIC2133
Your vehicle has two types of security systems,
as follows:
.Vehicle security system (if so equipped)
.NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
Instruments and controls 2-29
SECURITY SYSTEMS
Condition:
Black plate (114,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-30 Instruments and controls
VEHICLE SECURITY SYSTEM (if so
equipped) GUID-3A2129E5-3F98-44E7-8D33-56C1DC801E7A
The vehicle security system provides visual and
audio alarm signals if someone opens the doors
or lift gate/trunk when the system is armed. It is
not, however, a motion detection type system
that activates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock it when unattended. Be aware
of your surroundings, and park in secure, well-lit
areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your
NISSAN dealer may also offer such equipment.
Check with your insurance company to see if
you may be eligible for discounts for various
theft protection features.
SIC1699A
How to arm the vehicle security system
GUID-E45D0EB0-DDEE-43F9-BCF5-4FFD6F801B10
1. Close all windows.
The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF position.
3. Carry the Intelligent Key.
4. Close all doors and lift gate/trunk. Lock all
door. The doors can be locked with:
.the lock button on the Intelligent Key
.any request switch
.the power door lock switch
.the key — master or mechanical
5. Confirm that the security indicator light *A
comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors and lift gate/trunk locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activation
GUID-D932FA41-7646-4669-AA61-035AB796F12C
The vehicle security system will give the follow-
ing alarm:
.The headlights blink and the horn sounds
intermittently.
.The alarm automatically turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again.
Condition:
Black plate (115,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
The alarm is activated by:
.Unlocking the door or opening the lift gate/
trunk without using the button on the
Intelligent Key, the request switch or the
key. (Even if the door is opened by releasing
the door inside lock knob, the alarm will
activate.)
How to stop an activated alarm
GUID-3A47058D-D66F-43FA-8D5B-CE27C3B3E4A6
The alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent
Key, pushing the request switch or using the key.
The alarm will not stop if the ignition switch is
placed in the ACC or ON position.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.
NISSAN VEHICLE IMMOBILIZER SYS-
TEM GUID-140A6D7E-5E78-4398-9FB4-FDC469E689FE
The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key. Never leave these keys in the
vehicle.
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) this device may not cause interference,
and (2) this device must accept any inter-
ference, including interference that may
cause undesired operation of the device.
SIC1699A
Security indicator light
GUID-DBC33161-BF46-4EE3-8435-AB868C640CC4
The security indicator light *Aindicates the
status of the NISSAN Vehicle Immobilizer
System.
The light blinks after the ignition switch was in
the ACC, OFF and LOCK position. This function
indicates the security systems equipped on the
vehicle are operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer System
Instruments and controls 2-31
Condition:
Black plate (116,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-32 Instruments and controls
service as soon as possible. Please bring
all registered keys that you have when
visiting a NISSAN dealer for service.
GUID-15F1CDB4-078A-4D01-A331-3BCB3082F46B
WARNING
In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm windshield with
the defroster before you wash the
windshield.
CAUTION
.Do not operate the washer continu-
ously for more than 30 seconds.
.Do not operate the washer if the
reservoir tank is empty.
.Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
.Pre-mix washer fluid concentrates
with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the
window washer reservoir tank to
mix the washer fluid concentrate
and water.
WINDSHIELD WIPER AND WASHER
SWITCH
Condition:
Black plate (117,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC3664
Type A
SIC4395
Type B
SIC3922
Type C
The windshield wiper and washer operates
when the ignition switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:
*1INT (Type A or Type C) — intermittent operation
can be adjusted by turning the knob toward *A
(Slower) or *B(Faster).
*1AUTO (Type B) — For models with the rain-
sensing auto wiper system, see “Rain-sensing
auto wiper system” later in this section.
*2LO — continuous low speed operation
*3HI — continuous high speed operation
Push the lever up *4(MIST) to have one sweep
operation of the wiper.
Pull the lever toward you *5to operate the
washer. Then the wiper will also operate several
times.
Instruments and controls 2-33
Condition:
Black plate (118,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-34 Instruments and controls
SIC4017
RAIN-SENSING AUTO WIPER SYS-
TEM (if so equipped)
GUID-05A0C0C8-F56A-4E1F-90FD-7DD9CB5E2B3F
The rain-sensing auto wiper system can auto-
matically turn on the wipers and adjust the wiper
speed depending on the rainfall and the vehicle
speed by using the rain sensor located on the
upper part of the windshield.
To set the rain-sensing auto wiper system, push
the lever down to the AUTO position *1. The
wiper will sweep once while the ignition switch
is in the ON position.
The rain sensor sensitivity level can be adjusted
by turning the knob toward the front *2(High)
or toward the rear *3(Low).
.High — High sensitive operation
.Low — Low sensitive operation
To turn the rain-sensing auto wiper system off,
push up the lever to the OFF position, or pull
down the lever to the LO or HI position.
CAUTION
Do not touch the rain sensor and
around it when the wiper switch is in
the AUTO position and the ignition
switch is in the ON position. The wipers
may operate unexpectedly and cause to
an injury or a wiper damage.
.The rain-sensing auto wipers are in-
tended for use during rain. If the switch
is left in the AUTO position, the wipers
may operate unexpectedly when dirt,
fingerprints, oil film or insects are stuck
on or around the sensor. The wipers
may also operate when exhaust gas or
moisture affect the rain sensor.
.When the windshield glass is coated
with water repellent, the speed of the
rain-sensing auto wipers may be higher
even though the amount of the rainfall
is small.
.Be sure to turn off the rain-sensing
auto wiper system when you use a car
wash.
.The rain-sensing auto wipers may not
operate if rain does not hit the rain
sensor even if it is raining.
.Using genuine wiper blades is recom-
mended for proper operation of the
rain-sensing auto wiper system. (See
“Windshield wiper blades” in the “8.
Maintenance and do-it-yourself” sec-
tion for wiper blade replacement.)
Condition:
Black plate (119,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-E9B01D50-BAE9-400D-AF33-89486215C486
WARNING
In freezing temperatures the washer
solution may freeze on the rear window
glass and obscure your vision. Warm
the rear window with the defroster
before you wash the rear window.
CAUTION
.Do not operate the washer continu-
ously for more than 30 seconds.
.Do not operate the washer if the
reservoir tank is empty.
.Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
.Pre-mix washer fluid concentrates
with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the
window washer reservoir tank to
mix the washer fluid concentrate
and water.
If the rear window wiper operation is
interrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that is
on and around the wiper arms. In approxi-
mately 1 minute, turn the switch on again
to operate the wiper.
SIC3666
Type A
SIC4019
Type B
Instruments and controls 2-35
REAR WINDOW WIPER AND
WASHER SWITCH (Hardtop models)
Condition:
Black plate (120,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-36 Instruments and controls
The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
*1Intermittent (INT) — intermittent operation (not
adjustable)
*2Low (ON) — continuous low speed operation
Push the switch forward *3to operate the
washer. Then the wiper will also operate several
times.
GUID-6A8EA538-4B5A-4260-A4F9-59AA6EEC9D6A
SIC3584
Type A
SIC3667
Type B
To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the engine
and push the switch *1on. The indicator light
*2will come on. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
.When cleaning the inner side of the
rear window, be careful not to
scratch or damage the rear window
defroster.
.Do not use the rear window defros-
ter switch while the soft top is being
operated or fully opened. The heat
may damage the soft top material
and/or components (CrossCabriolet
models).
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH
Condition:
Black plate (121,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-2E72A4A0-1386-460B-B497-869BC1657D74
XENON HEADLIGHTS (if so equipped)
GUID-DDA42A0C-5BBE-4E9D-9B84-A8C6395E4D9F
WARNING
HIGH VOLTAGE
.When xenon headlights are on, they
produce a high voltage. To prevent
an electric shock, never attempt to
modify or disassemble. Always have
your xenon headlights replaced at a
NISSAN dealer.
.Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your ve-
hicle to a NISSAN dealer and have
the headlights adjusted correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
.The life of xenon headlights will be
shortened by frequent on-off opera-
tion. It is generally desirable not to turn
off the headlights for short intervals
(for example, when the vehicle stops at
a traffic signal).
.If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start
blinking, or the color of the light will
become reddish. If one or more of the
above signs appear, contact a NISSAN
dealer.
SIC3668
HEADLIGHT SWITCH
GUID-996522C0-4578-43C8-83E0-51BB0ADB49B2
Lighting GUID-C1692F98-2EF5-42BF-980D-AA54247F5578
*1Turn the switch to the position.
The front parking, side marker, tail, license plate
and instrument lights will come on.
*2Turn the switch to the position.
Headlights will come on and all the other lights
remain on.
Instruments and controls 2-37
HEADLIGHT AND TURN SIGNAL
SWITCH
Condition:
Black plate (122,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-38 Instruments and controls
SIC3669
Autolight system (if so equipped)
GUID-8905665A-6EF0-4112-A643-8A502F17847E
The autolight system allows the headlights to be
set so they turn on and off automatically.
To set the autolight system:
1. Make sure the headlight switch is in the
AUTO position *1.
2. Push the ignition switch to the ON position.
3. The autolight system automatically turns the
headlights on and off.
To turn the autolight system off, turn the switch
to the OFF, or position.
The autolight system can turn on the headlights
automatically when it is dark and turn off the
headlights when it is light.
If the ignition switch is pushed to the OFF
position and one of the doors is opened and this
condition is continued, the headlights remain on
for a period of time.
SAA0642A
Be sure not to put anything on top of the
photo sensor *Alocated on the top of the
instrument panel. The photo sensor con-
trols the autolight; if it is covered, the
photo sensor reacts as if it is dark and the
headlights will illuminate.
Automatic headlights off delay:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
You can keep the headlights on for up to 180
seconds after you push the ignition switch to
OFF and open any door then close all the doors.
You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF) to
180 seconds. The factory default setting is 45
seconds.
Condition:
Black plate (123,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
For automatic headlights off delay setting, see
“Vehicle information and settings” in the “4.
Monitor, heater, air conditioner, audio, phone
and voice recognition systems” section.
SIC3670
Headlight beam select
GUID-2ADBA756-362E-41D6-9A9B-2AF1DAC13669
*1To select the low beam, put the lever in the
neutral position as shown.
*2To select the high beam, push the lever forward
while the switch is in the position. Pull it
back to select the low beam.
*3Pulling the lever toward you will flash the
headlight high beam even when the headlight
switch is in the OFF position.
Battery saver system
GUID-A19290B7-AD6C-4095-AB12-FAB3BC8E2D05
A chime will sound when the driver side door is
opened with the light switch in the or
position and the ignition switch in the
ACC, OFF or LOCK position.
When the headlight switch is in the or
position while the ignition switch is in the ON
position, the lights will automatically turn off
within a period of time after the ignition switch
has been pushed to the OFF position.
When the headlight switch remains in the
or position after the lights automatically turn
off, the lights will turn on when the ignition
switch is pushed to the ON position.
CAUTION
.When you turn on the headlight
switch again after the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to
turn the light switch to the OFF
position when you leave the vehicle
for extended periods of time, other-
wise the battery will be discharged.
.Never leave the light switch on
when the engine is not running for
extended periods of time even if the
Instruments and controls 2-39
Condition:
Black plate (124,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-40 Instruments and controls
headlights turn off automatically.
Daytime running light system (Canada
only) GUID-297966B1-EC0F-457B-84B2-00A3EEA09CA5
The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights
operate with the headlight switch in the OFF
position or in the position. Turn the head-
light switch to the position for full illumina-
tion when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illuminate
once the parking brake is released. The daytime
running lights will remain on until the ignition
switch is pushed to the OFF position.
WARNING
When the daytime running light system
is active, tail lights on your vehicle are
not on. It is necessary at dusk to turn on
your headlights. Failure to do so could
cause an accident injuring yourself and
others.
SIC3585
Instrument brightness control
GUID-AE1AD09A-C607-43AF-A5FF-F011B28EA715
The instrument brightness control operates
when the ignition switch is in the ON position.
To adjust the brightness of instrument panel
lights, push the control switches. Pushing the
upper switch *Awill brighten the lights. When
the brightness reaches the maximum level, a
beep will sound. The lower switch *Bdims the
lights. Repeatedly pushing the lower switch will
turn the lights off and a beep will sound.
SIC3671
TURN SIGNAL SWITCH
GUID-05BFC159-21E8-4470-8F9F-A8F1315EF7D5
*1Turn signal
GUID-B3C07939-E89F-428A-BA7C-0BA5D82E2BAF
Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
*2Lane change signal
GUID-8FD0B298-53B2-4596-8590-D033172CF1AF
To indicate a lane change, move the lever up or
down to the point where lights begin flashing.
Condition:
Black plate (125,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC3672
FOG LIGHT SWITCH (if so equipped)
GUID-B77E006A-B448-42A0-B9EB-E9953893F221
To turn the fog lights on, turn the headlight
switch to the position, then turn the switch
to the position. To turn them off, turn the
switch to the OFF position.
The headlights must be on for the fog lights to
operate.
GUID-76AEBFE4-FB9E-4225-A909-4F10E8A5C7A6
SIC3586
To sound the horn, push the pad area *Aof the
steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.
GUID-158A9409-77D0-4867-8A63-D9F0D56BF7B6
SIC4401
The heated steering wheel system is designed
to operate only when the surface temperature of
the steering wheel is below 688F (208C).
Push the heated steering wheel switch to warm
the steering wheel after the engine starts. The
indicator light *1on the switch will illuminate.
If the surface temperature of the steering wheel
is below 688F (208C), the system will heat the
steering wheel and cycle off and on to maintain a
temperature above 688F (208C). The indicator
light will remain on as long as the system is on.
Push the switch again to turn the heated
steering wheel system off manually. The indica-
tor light will turn off.
Instruments and controls 2-41
HORN HEATED STEERING WHEEL (if so
equipped)
Condition:
Black plate (126,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-42 Instruments and controls
NOTE:
If the surface temperature of the steering
wheel is above 688F (208C) when the switch
is turned on, the system will not heat the
steering wheel. This is not a malfunction.
GUID-633E2177-1D7D-44F5-94F5-0C74D026B322
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
body parts that contact the seat. Use of
the seat heater by such people could
result in serious injury.
CAUTION
.The battery could run down if the
seat heater is operated while the
engine is not running.
.Do not use the seat heater for
extended periods or when no one
is using the seat.
.Do not put anything on the seat
which insulates heat, such as a
blanket, cushion, seat cover, etc.
Otherwise, the seat may become
overheated.
.Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar object. This may result in
damage to the heater.
.Any liquid spilled on the heated seat
should be removed immediately
with a dry cloth.
.When cleaning the seat, never use
gasoline, thinner, or any similar
materials.
.If any malfunctions are found or the
heated seat does not operate, turn
the switch off and have the system
checked by a NISSAN dealer.
HEATED SEATS (if so equipped)
Condition:
Black plate (127,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC2770
The seats are warmed by built-in heaters. The
switches located on the center console and rear
doors (if so equipped for rear seats) can be
operated independently of each other.
1. Start the engine.
2. Select heat range.
*1For high heat, push the HI (High) side of
the switch.
*2For low heat, push the LO (Low) side of
the switch.
The indicator light in the switch *3will
illuminate when the heater is on.
3. To turn off the heater, return the switch to
the level position. Make sure the indicator
light goes off.
The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
GUID-F89AABEA-1D6F-4266-9295-A728292F5BCF
SSD1156
The warning systems switch is used to tem-
porarily turn off the warning systems (Lane
Departure Warning (LDW) and Blind Spot
Warning (BSW) systems) that are activated on
the center display.
When the warning systems switch is turned off,
the indicator *1on the switch is off. The
indicator will also be off if all of the warning
systems are deactivated using the center dis-
play.
The BSW system will turn on the Blind Spot
Indicator lights, located inside the outside
mirrors, if a vehicle is located in the detection
zone. If the turn signal is activated in the
direction of the detected vehicle, a chime
Instruments and controls 2-43
WARNING SYSTEMS SWITCH (if so
equipped)
Condition:
Black plate (128,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-44 Instruments and controls
sounds twice and the Blind Spot Indicator light
will flash. For additional information, see “Blind
Spot Warning (BSW)/Lane Departure Warning
(LDW) systems” in the “5. Starting and driving”
section.
The LDW system will sound a warning chime
and the LDW light (orange) in the instrument
panel blinks to alert the driver if the vehicle is
traveling close to either the left or the right of a
traveling lane when detected by the camera unit.
For additional information, see “Blind Spot
Warning (BSW)/Lane Departure Warning
(LDW) systems” in the “5. Starting and driving”
section.
GUID-53AD618D-9089-48A6-866B-1B418BEC8B62
MODELS WITH COLOR DISPLAY
GUID-9BC2B067-0CB2-4D68-A1A5-7BFFBFAD895C
To adjust the clock on the front color display, use
the SETTING button on the center multi-
function control panel. See “How to use
SETTING button” in the “4. Monitor, heater, air
conditioner, audio, phone and voice recognition
systems” section.
The clock settings display cannot be operated
while driving. Stop the vehicle in a safe place
and apply the parking brake before setting the
clock.
MODELS WITHOUT COLOR DISPLAY
GUID-8DDA095F-EC3A-4CDC-BF15-CE4DA0C40D53
The digital clock (in the audio unit) displays the
time when the ignition switch is in the ACC or
ON position.
To adjust the clock, see “FM-AM radio with
Compact Disc (CD) changer” in the “4. Monitor,
heater, air conditioner, audio, phone and voice
recognition systems” section.
GUID-6C21F80D-D0C6-473F-BAEB-444C091BCCDE
SSD1153
The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “Vehicle
Dynamic Control (VDC) system” in the “5.
Starting and driving” section.)
CLOCK VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH
Condition:
Black plate (129,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-6E6BB70A-A5D0-4C05-9E0F-176C7AC9D46F
SIC3587
Center console
SIC3651
Cargo area (Hardtop models)
SIC3652
Console box — Type A
SIC3653
Console box — Type B
To use the power outlet, pull the cover as
illustrated.
CAUTION
.The outlet and plug may be hot
during or immediately after use.
.Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
.Use power outlet with the engine
running to avoid discharging the
vehicle battery.
.Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
.This power outlet is not designed
for use with a cigarette lighter unit.
.Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
.Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
Instruments and controls 2-45
POWER OUTLET
Condition:
Black plate (130,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-46 Instruments and controls
.When not in use, be sure to close
the cap. Do not allow water or any
liquid to contact the outlet.
GUID-4C7EBD79-5E6D-4E92-9577-71A7BEE6B260
SIC3588
To open the ashtray lid, push the lid down and
release it *1.
To empty the ashtray, pull out *2.
The cigarette lighter operates when the ignition
switch is in the ON position.
Push the lighter in all the way *3, then release
it. When the lighter is heated, it will spring out.
Return the lighter to its original position after
use.
CAUTION
.The cigarette lighter socket is a
power source for the cigarette light-
er element only. The use of the
cigarette lighter socket as a power
source for any other accessory is
not recommended.
.Do not use any other power outlet
for an accessory lighter.
CIGARETTE LIGHTER AND
ASHTRAY (if so equipped)
Condition:
Black plate (131,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-86E3CA2B-BC40-4857-A4C1-B3487E3BB786
CUP HOLDERS
GUID-4F3D35E7-AF46-473C-BC0C-F0EE7C53FAAC
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
.Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
SIC3118
Front
Front GUID-B482EF25-AADD-4164-87B3-E8C8642A9631
To open the cup holder, push the lid *1.
To remove the inner tray for cleaning, pull it up as
illustrated *2.
SIC3042
Hardtop models
Rear GUID-D403F1AF-3B46-4568-9E5A-F5957C8699C4
Pull the armrest forward until it is horizontal.
Instruments and controls 2-47
STORAGE
Condition:
Black plate (132,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-48 Instruments and controls
SIC4742
CrossCabriolet models
The cup holders are located on the center of
rear seat.
SIC3589
SUNGLASSES HOLDER (Hardtop
models) GUID-53F668A0-3562-4634-B37B-CFE15C4C94BD
WARNING
Keep the sunglasses holder closed
while driving to prevent an accident.
To open the sunglasses holder, push *1.
CAUTION
.Do not use for anything other than
glasses.
.Do not leave glasses in the sun-
glasses holder while parking in
direct sunlight. The heat may da-
mage the glasses.
Condition:
Black plate (133,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC3590
GLOVE BOX
GUID-D5755917-EFBF-415E-AE59-B43411F701B6
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle *1.
To close, push the lid in until the lock latches.
To lock *2/unlock *3the glove box, use the
mechanical key. For the mechanical key usage,
see “Keys” in the “3. Pre-driving checks and
adjustments” section.
SIC3654
Front
CONSOLE BOX
GUID-5C4739C0-4DF5-44A9-B5FD-FBFAAABBD011
Front GUID-DD4ABB5A-EB54-4D5E-B3ED-627D92BFD082
When the lever *A(driver’s seat side) is pulled,
the upper case is available for storing some
small items. When the lever *B(front passen-
ger’s seat side) is pulled, the bottom case is
available for storing some larger ones.
Instruments and controls 2-49
Condition:
Black plate (134,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-50 Instruments and controls
SIC3591
Rear
Rear (Hardtop models)
GUID-92205B1E-0645-4A20-A11C-FD29D6989A28
To open, push the knob *1and pull out *2.
SIC3593
STORAGE BOX (if so equipped)
GUID-A2B41DF3-66C9-4356-B69B-5EF4B1E23F3B
To open, push the storage box lid *1as
illustrated.
The inner tray can be removed *2as illustrated.
Do not place valuable items in the storage
box.
Do not use the storage box as an ashtray.
SIC3655
Type A
CARGO FLOOR BOX (if so equipped
for Hardtop models)
GUID-22855E8F-5045-4BAA-A462-88723F2D13B2
Type A GUID-D8151D1B-506A-40B8-A864-5F630B4E8E0B
1. To open the cargo floor box, pull the strap
*A.
2. Remove the strap *Bfrom the back side of
the board and hang it on the lip of the lift
gate.
Condition:
Black plate (135,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC3656
Type B
Type B GUID-4B77D327-C009-48B6-8B7B-1FC4BF4CC444
To open the cargo floor box, push *A. To close,
push the lid until the lock latches.
The net partitions can be removed *Bto make
a larger storage space.
The cargo floor box needs to be removed when
you need a spare tire. (See “Flat tire” in the “6. In
case of emergency” section.)
CAUTION
To avoid damage, do not load more
than 22 lbs (10 kg) of cargo into the
cargo floor box.
SIC3594
LUGGAGE SIDE BOX (Hardtop mod-
els) GUID-9D068CD2-3E85-4F54-A788-DBF041E5F1B2
To open the luggage side box, pull up the strap.
Instruments and controls 2-51
Condition:
Black plate (136,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-52 Instruments and controls
SIC3595
CARGO COVER (if so equipped for
Hardtop models)
GUID-3641C44E-8123-4F91-B5B7-07B068F6D402
The cargo cover keeps the contents in the cargo
area hidden from the outside.
To use the cargo cover, pull it out and hang both
sides on the hooks *1.
To use the sub cover, hang the straps on the
back of the head restraint *2.
To stow the cargo cover, remove it from the
hooks and hold until it is retracted.
To remove the cargo cover, stow the cover and
pull the left side of the holder to the opposite
side *3.
WARNING
.Never put anything on the cargo
cover, no matter how small. Any
object on it could cause an injury
in an accident or sudden stop.
.Close the cargo cover when folding
the rear seat.
.Do not leave the cargo cover in the
vehicle with it disengaged from the
holder.
.Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.
.Your child could be seriously injured
or killed in a collision if the child
restraint top tether strap is da-
maged.
— If the cargo cover contacts the
top tether strap when it is at-
tached to the top tether anchor,
remove the cargo cover from the
vehicle or secure it on the cargo
floor below its attachment loca-
tion. If the cargo cover is not
removed, it may damage the top
tether strap during a collision.
Do not allow cargo to contact
the top tether strap when it is
attached to the top tether an-
chor. Properly secure the cargo
so it does not contact the top
tether strap. Cargo that is not
properly secured or that con-
tacts the top tether strap may
damage the top tether strap
during a collision.
Condition:
Black plate (137,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC3596
LUGGAGE HOOKS (Hardtop models)
GUID-A76D431E-5514-466D-8503-9352D8CBD662
WARNING
.Always make sure that the cargo is
properly secured. Use the suitable
ropes and hooks.
.Unsecured cargo can become dan-
gerous in an accident or sudden
stop.
CAUTION
Do not apply a total load of more than
22 lb (10 kg) *Aor 7 lb (3 kg) *Bto a
single hook.
SIC4744
LUGGAGE COVER (CrossCabriolet
models) GUID-6FCB585A-E72B-4BA2-A8FD-8ADDC214EFA2
A luggage cover is used to separate the trunk
and the top storage area.
To use the luggage cover, pull it out and hang
both sides on the hooks *1.
To stow the luggage cover, remove it from the
hooks and hold it until it is retracted.
The luggage cover must be pulled out and hung
on hooks *1for the soft top to oparate. (See
“Soft top (CrossCabriolet models)” in the “3.
Pre-driving checks and adjustments” section.)
Instruments and controls 2-53
Condition:
Black plate (138,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-54 Instruments and controls
WARNING
.Do not place anything over the
luggage cover during soft top op-
eration.
.Do not place or leave objects under
the cover that may push the cover
up.
.Do not place items on sides that
intrude into luggage cover area.
SIC3597
ROOF RACK (if so equipped for Hard-
top models) GUID-75E038EF-E93A-4F7C-AC23-5CF5D424F222
Always distribute the luggage evenly on the roof
rack. Do not load more than 165 lb (75 kg)
(black) or 220 lb (100 kg) (silver) on the roof
rails. Observe the maximum load limit shown on
the crossbars or roof carriers when you attach
them on the roof rails. Contact a NISSAN dealer
for crossbar or other equipment information. Be
careful that your vehicle does not exceed the
Gross Vehicle Weight Rating (GVWR) or its
Gross Axle Weight Rating (GAWR front and
rear). The GVWR and GAWR are located on the
F.M.V.S.S. or C.V.M.S.S. certification label (lo-
cated on the driver’s door pillar). For more
information regarding GVWR and GAWR, see
“Vehicle loading information” in the “9. Technical
and consumer information” section.
WARNING
.Drive extra carefully when the vehi-
cle is loaded at or near the cargo
carrying capacity, especially if the
significant portion of that load is
carried on the roof rack.
.Heavy loading of the roof rack has
the potential to affect the vehicle
stability and handling during sud-
den or unusual handling maneuvers.
.Roof rack load should be evenly
distributed.
.Do not exceed maximum roof rack
load weight capacity.
.Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
Condition:
Black plate (139,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
CAUTION
Use care when placing or removing
items from the roof rack. If you cannot
comfortably lift the items onto the roof
rack from the ground, use a ladder or
stool.
SIC3505
COAT HOOKS (Hardtop models)
GUID-81FB43A8-33F0-4D0C-8696-020589E0AB14
The coat hooks are equipped beside the rear
personal lights.
CAUTION
Do not place items which are more than
2 lb (1 kg) on the hook.
GUID-F440431D-2466-4C69-98F0-4066DC360F6E
POWER WINDOWS
GUID-B224B039-2B26-4B2E-990E-61770AE48A00
WARNING
.Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.
.Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols and become trapped in the
window. Unattended children could
become involved in serious acci-
dents.
The power windows operate when the ignition
switch is in the ON position or for about 45
seconds after the ignition switch is pushed to
the OFF position. If the driver’s or front
passenger’s door is opened during this period
of about 45 seconds, power to the windows is
canceled.
The power window switches will be deactivated
during soft top operation (CrossCabriolet mod-
els).
Instruments and controls 2-55
WINDOWS
Condition:
Black plate (140,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-56 Instruments and controls
SIC3283A
1. Driver side window
2. Front passenger side window
3. Rear left passenger side window
4. Rear right passenger side window
5. Window lock button
Main power window switch (driver’s
side) GUID-26DFB0BE-6989-43F9-8167-0F6C3694B624
To open or close the window, push down *Aor
pull up *Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Locking passengers’ windows
GUID-16F0A2BC-0A92-4EBF-AEF9-3903882D9E1D
When the lock button *Cis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
SIC3336
Passenger side power window switch
GUID-4D77BC1E-53A2-4A38-9A39-222E83528CCC
The passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
Condition:
Black plate (141,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC3285
Hardtop models
SIC4743
CrossCabriolet models
Automatic operation
GUID-3B0158AA-9687-4021-B3A8-12225F5D2198
The automatic function is available for the switch
that has an mark on its surface.
To fully open or close the window, completely
push down or pull up the switch and release it; it
need not be held. The window will automatically
open or close all the way. To stop the window,
just push or lift the switch in the opposite
direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
The rear window automatic operation is for the
opening function only (CrossCabriolet models).
Simultaneous operation of all four win-
dows (CrossCabriolet models)
GUID-F3222C8C-2BD6-4165-85A5-6DEB6C706AF6
WARNING
Make sure that all passengers have
their hands, etc. inside the vehicle
before closing the windows.
When the driver’s and passenger’s door window
switches (driver’s side) are pushed down or
pulled up simultaneously, all four windows are
opened or closed.
Auto reverse function
GUID-19580295-1D80-4877-93A6-203373FD0AB2
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is
pushed to the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
Instruments and controls 2-57
Condition:
Black plate (142,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-58 Instruments and controls
Automatic window lowering (CrossCab-
riolet models)
GUID-68431D2A-45C1-4082-9602-DC8E37328739
When the soft top operating switch is pressed,
the power windows will automatically be low-
ered completely. The windows do not rise
automatically after the soft top open/close
operation is completed. Use the power window
switches to raise them.
Automatic adjusting function (Cross-
Cabriolet models)
GUID-2A57D8B8-D2B5-4017-A2B4-5D5758878B3A
CAUTION
When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work
and the side roof panel may be da-
maged.
The power window has an automatic adjusting
function. When the door is being opened, the
window is automatically lowered slightly to avoid
contact between the window and the top side
rail. When the door is closed, the window is
automatically raised slightly.
While the automatic adjusting function does not
work, the window will be controlled as follows:
.When the door is opened, the window
lowers for approximately 0.39 in (10 mm).
.While the door is open, the window cannot
be raised.
If the windows do not close automatically
GUID-4DA9302E-1FB0-4884-925F-1A056E33BC0E
If the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.
1. Push the ignition switch to the ON position.
2. Close the door and soft top (CrossCabriolet
models).
3. Open the window completely by operating
the power window switch.
4. Pull the power window switch and hold it to
close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate
the window by the automatic function to
confirm the initialization is complete.
6. Perform steps 2 through 5 above for other
windows.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by a
NISSAN dealer.
GUID-B46D76D1-C71E-43ED-8E5B-5188E0D125CB
WARNING
.In an accident you could be thrown
from the vehicle through an open
moonroof. Always use seat belts
and child restraints.
.Do not allow anyone to stand up or
extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.
CAUTION
.Remove water drops, snow, ice or
sand from the moonroof before
opening.
.Do not place any heavy object on
the moonroof or surrounding area.
.Do not push or pull on the sun-
shade. Doing so can damage the
sunshade.
MOONROOF (if so equipped for
Hardtop models)
Condition:
Black plate (143,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
AUTOMATIC MOONROOF AND SUN-
SHADES GUID-3349AE79-1AF5-473F-9AB7-69A7957FBC85
The moonroof and sunshades only operates
when the ignition switch is in the ON position.
The automatic moonroof and sunshades are
operational for about 45 seconds, even if the
ignition switch is pushed to the OFF position. If
the driver’s door or the passenger’s door is
opened during this period of about 45 seconds,
power to the moonroof and sunshades is
canceled.
SIC3801
Sliding sunshade and moonroof
GUID-35ECC1C1-78E5-4B3C-860F-E718E2CD552D
When the moonroof switch is pushed to the
OPEN position *1, the front and rear sun-
shades will fully open. When the switch is
pushed again, the moonroof will fully open.
When the moonroof switch is pushed to the
CLOSE position *2, the moonroof will auto-
matically close. Push the switch again, and the
front and rear sunshades will close.
When the moonroof switch is pushed to the
second detent to the OPEN *3or CLOSE *4
position, both the sunshade and moonroof will
open or close.
To stop the sunshades or moonroof during the
operation, push the moonroof switch to either of
the OPEN *1, CLOSE *2or UP *5position.
Tilting moonroof
GUID-5BCB6B6D-1017-4E94-B105-E837913634C6
To tilt up the moonroof, push the moonroof
switch to the UP position *5.
To tilt down the moonroof, push the switch to the
UP position *5or push the switch to the
CLOSE position *2.
When the moonroof is tilted up, push the
moonroof switch to the second detent to the
CLOSE position *4. The moonroof will tilt down
and the sunshades will close.
Auto reverse function
GUID-07736A6E-057D-4405-B60A-86505A7F3C58
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.
If the control unit detects something caught in
the moonroof and sunshades when they are
closing, the moonroof will be immediately
opened.
Instruments and controls 2-59
Condition:
Black plate (144,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-60 Instruments and controls
The auto reverse function can be activated when
the moonroof and sunshades are closed by
automatic operation when the ignition switch is
in the ON position or for about 45 seconds after
the ignition switch is pushed to the OFF
position.
If the moonroof and sunshades cannot be
closed automatically when the auto reverse
function activates due to a malfunction, push
and hold the switch to the CLOSE position *2.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
If the moonroof does not operate
GUID-55D929EA-1A05-47B0-9DBB-75466D80DB38
If the moonroof does not operate properly,
perform the following procedure to initialize the
moonroof operation system.
1. If the moonroof is open, close it fully by
pushing the switch to the CLOSE position
*2.
2. Push and hold the switch to the CLOSE
position *2.
3. Release the moonroof switch after the
moonroof or sunshade moves slightly to
the closed position.
4. Push and hold the switch to the CLOSE
position *2for 10 seconds.
5. The moonroof and sunshades will fully open
and then close.
6. Check if the moonroof switch operates
normally.
If the moonroof does not operate properly after
performing the procedure above, have your
vehicle checked by a NISSAN dealer.
GUID-396974CF-8D5C-4223-9393-BF5087FE27B2
SIC4238
MAP LIGHTS
GUID-EACC0B68-0B00-4B4C-B7BA-2C1E9F1879FC
Push the button as illustrated to turn the light on
or off.
INTERIOR LIGHTS
Condition:
Black plate (145,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC3250
PERSONAL LIGHTS (Hardtop models)
GUID-649CAF7C-2CCF-4E76-A1BD-9F34B3E94A95
Rear GUID-0958BB58-F974-4165-8A79-D4E6DD15AACD
Push the button as illustrated to turn the light on
or off.
SIC4239
INTERIOR LIGHT CONTROL SWITCH
GUID-2A6055BA-7B37-4FE4-B397-77EF5A05A796
The interior light control switch has three
positions: ON, DOOR and OFF.
ON position GUID-7462AA90-5FAE-4F84-925A-24F0133E09B3
When the switch is in the ON position *1the
map lights and rear personal lights will illumi-
nate.
DOOR position
GUID-2534F567-EC7E-4D89-9E58-CCFFC0DDC2B3
When the switch is in the DOOR position *2,
the map lights and rear personal lights will
illuminate under the following conditions:
.ignition switch is switched to the LOCK
position
remain on for about 15 seconds.
.doors are unlocked by pushing the UN-
LOCK button on the Intelligent Key or door
handle request switch with the ignition
switch in the LOCK position
remain on for about 15 seconds.
.any door is opened and then closed with the
ignition switch in the LOCK position
remain on for about 15 seconds.
.any door is opened with the ignition switch
in the ACC or ON position
remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
Models with color display:
When the auto interior illumination is set to the
OFF position (see “Vehicle information and
settings” in the “4. Monitor, heater, air condi-
tioner, audio, phone and voice recognition
systems” section), the lights will illuminate under
the following condition:
.any door is opened with the ignition switch
in any position
Instruments and controls 2-61
Condition:
Black plate (146,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-62 Instruments and controls
remain on while the door is opened.
When the door is closed, the lights go
off.
OFF positionGUID-2E9E6196-2FCF-4993-83DD-8C4EF8E70D73
When the switch is in the OFF position *3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
GUID-010F00F5-89B1-468A-B28C-562B74BD8B74
SIC3599
Map lights
The mood lights *Alocated in the following
positions will illuminate whenever the headlight
switch is in the or position.
.next to the map lights
.under the instrument panel
.under the driver’s power window switch
The brightness of the mood lights can be
adjusted with the illumination control buttons.
See “Instrument brightness control” earlier in
this section.
GUID-6E431C2A-BCAB-4ED8-9FA7-03F14AE124F0
SIC2064
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
MOOD LIGHTS (Hardtop models) VANITY MIRROR LIGHTS
Condition:
Black plate (147,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-AC16BAD8-F320-4304-996B-A0D05319728A
SIC2131A
When the switch is in the ON position *1, the
light illuminates while the lift gate is opened.
When the lift gate is closed, the light will turn off.
When the switch is in the OFF position *2, the
light will turn off.
The lights will turn off after a period of
time when the light remain illuminated to
prevent the battery from becoming dis-
charged.
GUID-F7665349-183E-4013-AA39-F31226267085
The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the light
will turn off.
The light will also turn off after a period of
time when the light remains illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
GUID-55E56F2F-00B7-4A2E-969B-A4422F852328
The HomeLink
®
Universal Transceiver provides a
convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.
HomeLink
®
Universal Transceiver:
.Will operate most Radio Frequency (RF)
devices such as garage doors, gates, home
and office lighting, entry door locks and
security systems.
.Is powered by your vehicle’s battery. No
separate batteries are required. If the
vehicle’s battery is discharged or is dis-
connected, HomeLink
®
will retain all pro-
gramming.
When the HomeLink
®
Universal Transcei-
ver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases).
Upon sale of the vehicle, the programmed
HomeLink
®
Universal Transceiver buttons
should be erased for security purposes.
For additional information, refer to “Pro-
gramming HomeLink
®
” later in this sec-
tion.
Instruments and controls 2-63
CARGO LIGHTS (Hardtop models) TRUNK LIGHT (CrossCabriolet
models)
HomeLink
®
UNIVERSAL
TRANSCEIVER (if so equipped)
Condition:
Black plate (148,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-64 Instruments and controls
WARNING
.Do not use the HomeLink
®
Universal
Transceiver with any garage door
opener that lacks safety stop and
reverse features as required by
federal safety standards. (These
standards became effective for
opener models manufactured after
April 1, 1982). A garage door opener
which cannot detect an object in the
path of a closing garage door and
then automatically stop and reverse,
does not meet current federal safety
standards. Using a garage door
opener without these features in-
creases the risk of serious injury or
death.
.During the programming procedure
your garage door or security gate
will open and close (if the transmit-
ter is within range). Make sure that
people or objects are clear of the
garage door, gate, etc. that you are
programming.
.Your vehicle’s engine should be
turned off while programming the
HomeLink
®
Universal Transceiver.
Do not breathe exhaust gases; they
contain colorless and odorless car-
bon monoxide. Carbon monoxide is
dangerous. It can cause uncon-
sciousness or death.
PROGRAMMING HomeLink
®
GUID-D8C5E61E-41B3-4673-B29E-956822CDD882
If you have any questions or are having difficulty
programming your HomeLink
®
buttons, refer to
the HomeLink
®
web site at: www.homelink.com
or call 1-800-355-3515.
NOTE:
It is also recommended that a new battery
be placed in the hand-held transmitter of
the device being programmed to
HomeLink
®
for quicker programming and
accurate transmission of the radio-fre-
quency.
1. Position the end of your hand-held transmit-
ter 1-3 in (26-76 mm) away from the
HomeLink
®
surface, keeping the HomeLink
®
indicator light *1in view.
JVI0428X
2. Using both hands, simultaneously press and
hold the desired HomeLink
®
button and
handheld transmitter button. DO NOT re-
lease until the HomeLink
®
indicator light *1
flashes slowly and then rapidly. When the
indicator light flashes rapidly, both buttons
may be released. (The rapid flashing indi-
cates successful programming.)
NOTE:
Some devices to be programmed may
require you to replace Step 2 with the
cycling procedure noted in the “Pro-
gramming HomeLink
®
for Canadian
customers and gate openers”.
Condition:
Black plate (149,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JVI0429X
3. Press and hold the programmed HomeLink
®
button and observe the indicator light.
.If the indicator light *1is solid/contin-
uous, programming is complete and your
device should activate when the
HomeLink
®
button is pressed and re-
leased.
.If the indicator light *1blinks rapidly for
two seconds and then turns to a solid/
continuous light, continue with Steps 4-6
for a rolling code device. A second
person may make the following steps
easier. Use a ladder or other device. Do
not stand on your vehicle to perform the
next steps.
4. At the receiver located on the garage door
opener motor in the garage, locate the
“learn” or “smart” button (the name and
color of the button may vary by manufacturer
but it is usually located near where the
hanging antenna wire is attached to the
unit). If there is difficulty locating the button,
reference the garage door opener’s manual.
5. Press and release the “learn” or “smart”
button.
NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.
6. Return to the vehicle and firmly press and
hold the programmed HomeLink
®
button for
two seconds and release. Repeat the
“press/hold/release” sequence up to 3
times to complete the programming pro-
cess. HomeLink
®
should now activate your
rolling code equipped device.
7. If you have any questions or are having
difficulty programming your HomeLink
®
but-
tons, refer to the HomeLink
®
web site at:
www.homelink.com or call 1-800-355-
3515.
PROGRAMMING HomeLink
®
FOR CA-
NADIAN CUSTOMERS AND GATE
OPENERS GUID-8263D00C-5505-4CBD-9B5E-CB372155C17A
Canadian radio-frequency laws require trans-
mitter signals to “time-out” (or quit) after several
seconds of transmission – which may not be
long enough for HomeLink
®
to pick up the signal
during programming. Similar to this Canadian
law, some U.S. gate operators are designed to
“time-out” in the same manner.
If you live in Canada or you are having difficulties
programming a gate operator or garage door
opener by using the “Programming HomeLink
®
procedures, replace “Programming HomeLink
®
Step 2 with the following:
NOTE:
When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.
Step 2: Using both hands, simultaneously press
and hold the desired HomeLink
®
button and the
hand-held transmitter button. During program-
ming, your hand-held transmitter may automati-
cally stop transmitting. Continue to press and
hold the desired HomeLink
®
button while you
press and re-press (“cycle”) your hand-held
transmitter every two seconds until the fre-
quency signal has been learned. The HomeLink
®
Instruments and controls 2-65
Condition:
Black plate (150,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-66 Instruments and controls
indicator light will flash slowly and then rapidly
after several seconds upon successful program-
ming. DO NOT release until the HomeLink
®
indicator light flashes slowly and then rapidly.
When the indicator light flashes rapidly, both
buttons may be released. The rapid flashing
indicates successful programming.
Proceed with “Programming HomeLink
®
” step 3
to complete.
Remember to plug the device back in when
programming is completed.
OPERATING THE HomeLink
®
UNIVER-
SAL TRANSCEIVER
GUID-19BE850B-BBDC-470B-9850-DE6B57FF6B98
The HomeLink
®
Universal Transceiver, after it is
programmed, can be used to activate the
programmed device. To operate, simply press
and release the appropriate programmed
HomeLink
®
Universal Transceiver button. The
amber indicator light will illuminate while the
signal is being transmitted.
For convenience, the hand-held transmitter of
the device may also be used at any time.
PROGRAMMING TROUBLESHOOT-
ING GUID-0B904713-E37A-46A3-9A90-63FADE14E79C
If the HomeLink
®
does not quickly learn the
hand-held transmitter information:
.replace the hand-held transmitter batteries
with new batteries.
.position the hand-held transmitter with its
battery area facing away from the
HomeLink
®
surface.
.press and hold both the HomeLink
®
and
hand-held transmitter buttons without inter-
ruption.
.position the hand-held transmitter 1-3 in
(26-76 mm) away from the HomeLink
®
surface. Hold the transmitter in that position
for up to 15 seconds. If HomeLink
®
is not
programmed within that time, try holding the
transmitter in another position - keeping the
indicator light in view at all times.
If you have any questions or are having difficulty
programming your HomeLink
®
buttons, refer to
the HomeLink
®
web site at: www.homelink.com
or 1-800-355-3515.
CLEARING THE PROGRAMMED IN-
FORMATION
GUID-8C1871E3-C252-465F-A399-47B1EB58E018
The following procedure clears the programmed
information from both buttons. Individual buttons
cannot be cleared. However, individual buttons
can be reprogrammed, see “Reprogramming a
single HomeLink
®
button” later in this section.
To clear all programming
GUID-A8FB6BA7-7DB6-4CE5-B9B3-E2187D21C0EE
1. Press and hold the two outer HomeLink
®
buttons until the indicator light begins to
flash in approximately 10 seconds. Do not
hold for longer than 20 seconds.
2. Release both buttons.
HomeLink
®
is now in the programming mode
and can be programmed at any time beginning
with “Programming HomeLink
®
” - Step 1.
REPROGRAMMING A SINGLE
HomeLink
®
BUTTON
GUID-2BF52974-A0FA-4080-821F-2E188B5DC58B
To reprogram a HomeLink
®
Universal Transcei-
ver button, complete the following.
1. Press and hold the desired HomeLink
®
button. DO NOT release the button.
2. The indicator light will begin to flash after 20
seconds. Without releasing the HomeLink
®
button, proceed with “Programming
HomeLink
®
” - Step 1.
For questions or comments, contact HomeLink
®
Condition:
Black plate (151,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
at: www.homelink.com or 1-800-355-3515.
The HomeLink
®
Universal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink
®
button that was just programmed. This proce-
dure will not affect any other programmed
HomeLink
®
buttons.
IF YOUR VEHICLE IS STOLEN
GUID-464C8E7D-4693-445C-BEED-4B9B07479827
If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink
®
. Consult the
Owner’s Manual of each device or call the
manufacturer or retailer of those devices for
additional information.
When your vehicle is recovered, you will
need to reprogram the HomeLink
®
Univer-
sal Transceiver with your new transmitter
information.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
Instruments and controls 2-67
Condition:
Black plate (152,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-68 Instruments and controls
MEMO
Condition:
Black plate (153,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3 Pre-driving checks and adjustments
Keys ................................................................................................. 3-3
Intelligent Key system ............................................................ 3-3
Mechanical key ....................................................................... 3-4
Valet hand-off .......................................................................... 3-5
Doors ............................................................................................... 3-5
Locking with mechanical key ............................................... 3-5
Opening and closing windows with the
mechanical key ........................................................................ 3-6
Locking with inside lock knob ............................................. 3-6
Locking with power door lock switch ............................... 3-7
Automatic door locks ............................................................ 3-7
Child safety rear door lock (Hardtop models) ................ 3-8
Intelligent Key system ................................................................. 3-8
Intelligent Key operating range ........................................ 3-10
Door locks/unlocks precaution ........................................ 3-10
Intelligent Key operation .................................................... 3-11
Battery saver system .......................................................... 3-14
Warning signals ................................................................... 3-14
Troubleshooting guide ........................................................ 3-15
Remote keyless entry system ................................................ 3-16
How to use remote keyless entry system ..................... 3-17
Hood ............................................................................................. 3-20
Lift gate (Hardtop models) ..................................................... 3-20
Operating manual lift gate ................................................ 3-21
Operating power lift gate (if so equipped) .................. 3-21
Auto closure ....................................................................... 3-24
Lift gate release ................................................................. 3-25
Trunk lid (CrossCabriolet models) ....................................... 3-25
Trunk lid release switch ................................................... 3-25
Trunk open request switch ............................................. 3-26
Trunk button ....................................................................... 3-26
Opening with key .............................................................. 3-26
Trunk release power cancel switch .............................. 3-26
Interior trunk lid release ................................................... 3-27
Soft top (CrossCabriolet models) ....................................... 3-28
Before operating the top ................................................. 3-28
When operating the top .................................................. 3-32
Luggage cover ................................................................... 3-33
Soft top indicator light ..................................................... 3-33
Automatic window lowering ........................................... 3-34
Opening the top ................................................................ 3-34
Closing the top .................................................................. 3-35
Opening the top using the intelligent key .................. 3-35
Troubleshooting guide ..................................................... 3-37
If the top does not open or close electrically ............ 3-38
Care of the soft top and the vehicle body ................. 3-43
Fuel-filler door ........................................................................... 3-44
Opening fuel-filler door ................................................... 3-44
Fuel-filler cap ..................................................................... 3-44
Condition:
Black plate (154,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
Tilt/telescopic steering ............................................................. 3-46
Manual operation ................................................................. 3-47
Electric operation ................................................................ 3-47
Sun visors ................................................................................... 3-47
Hardtop models ................................................................... 3-48
CrossCabriolet models ...................................................... 3-48
Mirrors .......................................................................................... 3-48
Inside mirror .......................................................................... 3-48
Outside mirrors .................................................................. 3-50
Vanity mirror ........................................................................ 3-51
Automatic drive positioner (if so equipped) ...................... 3-51
Entry/exit function (for Hardtop models) .................... 3-51
Memory storage ................................................................. 3-52
System operation .............................................................. 3-53
Condition:
Black plate (155,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-32E91F93-1BF6-407D-9C4D-E11C706B93DC
A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.
SPA2406
Type A
SPA2431
Type B
SPA2865
Type C
1. Intelligent Key (2)
2. Mechanical key (inside the key) (2)
3. Key number plate (1)
INTELLIGENT KEY SYSTEM
GUID-64550E60-3C68-49DC-B450-6EF37FA5B9C2
Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-
Pre-driving checks and adjustments 3-3
KEYS
Condition:
Black plate (156,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-4 Pre-driving checks and adjustments
nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.
CAUTION
.Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
— The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
Do not bend, drop or strike it
against another object.
— If the outside temperature is
below 148F (108C), the battery
of the Intelligent Key may not
function properly.
— Do not place the Intelligent Key
for an extended period in a
place where temperatures ex-
ceed 1408F (608C).
Do not change or modify the
Intelligent Key.
Do not use a magnet key holder.
— Do not place the Intelligent Key
near an electric appliance such
as a television set, personal
computer or cellular phone.
— Do not allow the Intelligent Key
to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.
.If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, please con-
tact a NISSAN dealer.
SPA2033
MECHANICAL KEY
GUID-3D9FF77C-98B0-40A3-93C5-048839219F68
To remove the mechanical key, release the lock
knob at the back of the key.
To install the mechanical key, firmly insert it into
the key until the lock knob returns to the lock
position.
Use the mechanical key to lock or unlock the
doors and glove box, if they are equipped with a
key cylinder.
See “Doors” later in this section and “Storage”
in the “2. Instruments and controls” section.
Condition:
Black plate (157,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
CAUTION
Always carry the mechanical key in-
stalled in the key.
VALET HAND-OFF
GUID-EFC63B4C-0F15-4531-AA8B-ACA78CB96860
When you have to leave a key with a valet, give
them the Intelligent Key itself after removing the
mechanical key to protect your belongings.
To prevent the glove box or the trunk (Cross-
Cabriolet models) from being opened during
valet hand-off, follow the procedures below.
1. Push the trunk release power cancel switch
to the OFF side (CrossCabriolet models).
2. Remove the mechanical key from the In-
telligent Key.
3. Lock the glove box with the mechanical key.
4. Hand the Intelligent Key to the valet, keeping
the mechanical key in your pocket or bag.
Insert the mechanical key into the Intelligent
Key when you retrieve your vehicle.
See glove box and “Storage” in the “2. Instru-
ments and controls” section and “Trunk lid
(CrossCabriolet models)” later in this section.
GUID-A6EDA02E-9855-47C0-A2E8-46DEBDFFD06C
WARNING
.Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
.Before opening any door, always
look for and avoid oncoming traffic.
.Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
SPA2432
LOCKING WITH MECHANICAL KEY
GUID-E8E0764D-7E38-467C-AB80-1609CF8DDD47
The power door lock system allows you to lock
or unlock all doors simultaneously using the
mechanical key.
Hardtop models
GUID-0BFF314E-455C-4A8A-9BCF-B9DF3F2390B1
.Turning the driver’s door key cylinder to the
front of the vehicle *1will lock all doors.
.Turning the driver’s door key cylinder once
to the rear of the vehicle *2will unlock the
driver’s door. After returning the key to the
neutral position *3, turning it to the rear
again within 5 seconds will unlock all doors.
Pre-driving checks and adjustments 3-5
DOORS
Condition:
Black plate (158,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-6 Pre-driving checks and adjustments
Crosscabriolet models
GUID-E42A3CA3-AD22-4044-A8E7-1CE5A91D11A8
.Turning the driver’s door key cylinder to the
rear of the vehicle *2will lock all doors.
.Turning the driver’s door key cylinder once
to the front of the vehicle *1will unlock the
driver’s door. After returning the key to the
neutral position *3, turning it to the front
again within 5 seconds will unlock all doors.
Models with color display:
You can switch the lock system to the mode that
allows you to open all the doors when the key is
turned once. (See “How to use SETTING
button” in the “4. Monitor, heater, air conditioner,
audio, phone and voice recognition systems”
section.)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY
GUID-5CA6B107-CCEF-4728-83E6-1D0247152077
The driver’s door key operation also allows you
to open and close the window that is equipped
with the automatic open/close function. (See
“Power windows” in the “2. Instruments and
controls” section).
To open the windows, turn the driver’s door key
cylinder to unlock for longer than 1 second.
The door is unlocked and the window keeps
opening while turning the key.
This function can also be performed by pushing
and holding the door UNLOCK button of the
key. (See “Remote keyless entry system” later in
this section.)
To close the windows, turn the driver’s door key
cylinder to lock for longer than 1 second. The
door is locked and the window keeps closing
while turning the key.
SPA2465
LOCKING WITH INSIDE LOCK KNOB
GUID-280B5B43-891E-4CBE-9845-1698016E3BD4
To lock the door individually, move the inside
lock knob to the lock position *1then close the
door.
To unlock, move the inside lock knob to the
unlock position *2.
When locking the door without Intelligent
Key, be sure not to leave the Intelligent
Key inside the vehicle.
Condition:
Black plate (159,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SPA2300
LOCKING WITH POWER DOOR LOCK
SWITCH GUID-DB03598A-E334-478D-9F87-2864156F8581
Operating the power door lock switch will lock
or unlock all the doors. The switches are located
on the driver’s and front passenger’s door
armrests.
To lock the doors, push the power door lock
switch to the lock position *1with the driver’s
or front passenger’s door open, then close the
door.
When locking the door this way, be certain
not to leave the Intelligent Key inside the
vehicle.
To unlock the doors, push the power door lock
switch to the unlock position *2.
Lockout protection
GUID-BB47EDF9-3384-43BF-9799-EA35B33C1506
When the power door lock switch (driver or front
passenger) is moved to the lock position with
the Intelligent Key in the port and any door open,
all doors will lock and unlock automatically. With
the Intelligent Key left in the vehicle (not in the
Intelligent Key port) and any door open, all doors
will unlock automatically and a chime will sound
after the door is closed.
These functions help to prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCKS
GUID-FC92C800-B665-49FF-9CDE-4A1CBC7A147B
.All doors will be locked automatically when
the vehicle speed reaches 15 MPH (24
km/h).
.All doors will be unlocked automatically
when the ignition switch is placed in the
OFF position.
The automatic unlock function can be
deactivated or activated. To deactivate or
activate the automatic door unlock system,
perform the following procedure:
1. Close all doors.
2. Place the ignition switch in the ON position.
3. Within 20 seconds of performing Step 2,
push and hold the power door lock switch to
the position (UNLOCK) for more than 5
seconds.
4. When activated, the hazard indicator will
flash twice. When deactivated, the hazard
indicator will flash once.
5. The ignition switch must be placed in the
OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition switch is placed in the OFF position. To
unlock the door manually, use the inside lock
knob or the power door lock switch (driver’s or
front passenger’s side).
Pre-driving checks and adjustments 3-7
Condition:
Black plate (160,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-8 Pre-driving checks and adjustments
SPA2433
CHILD SAFETY REAR DOOR LOCK
(Hardtop models)
GUID-02E4EA0C-4602-4E41-993C-FC56ED415767
The child safety rear door locks help prevent
doors from being opened accidentally, espe-
cially when small children are in the vehicle.
When the levers are in the lock position
*1, the rear doors can be opened only
from the outside.
To disengage, move the levers to the unlock
position *2.
GUID-A26B93CD-32CF-44F2-8707-5F0887B9E015
WARNING
.Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.
.The Intelligent Key transmits radio
waves when the buttons are
pushed. The FAA advises that radio
waves may affect aircraft navigation
and communication systems. Do not
operate the Intelligent Key while on
an airplane. Make sure the buttons
are not operated unintentionally
when the unit is stored for a flight.
The Intelligent Key system can operate all the
door (including the lift gate) and the trunk lid
locks using the remote keyless function or
pushing the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or condi-
tions may affect the Intelligent Key system
operation.
Be sure to read the following before using the
