A476_THE_ULTRATIDE_INSTRUCTION MANUAL-V2
INSTRUCTION MANUAL
THE ULTRATIDE
A476
ULTRATIDE - INSTRUCTION MANUAL
DEC-17-2014
nick.everist@nixon.com
© 2015 Nixon watches inc. All rights reserved.
Date:
00 CONTENTS
WELCOME
01 - THE ULTRATIDE FEATURES
02 - HOW IT WORKS
GETTING STARTED
03-QUICK START GUIDE
04-WATCH NAVIGATION & SETTINGS
05-READING THE TIDE
06-WATCH SCREEN DETAILS
07-CARING FOR YOUR ULTRATIDE

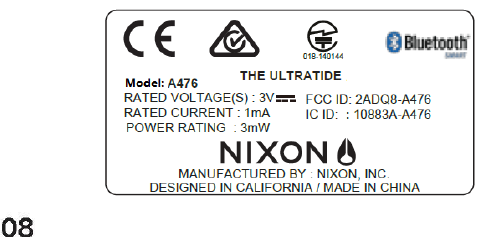

08-TECH SPECIFICATIONS
09-WARRANTY
SERVICE & SUPPORT
01 WELCOME TO NIXON
You just bought a NIXON watch. How about that. Welcome to the NIXON side, a side
that’s about custom-built product, quality, and durability. We’re stoked you selected one of
our watches. e fact you bought a NIXON means you can probably tell time, but you may
not be familiar with all the doo-dads and features. So if you’re stuck, read through these
instructions. Or get your friends to read them and then they can tell you what’s up.
ULTRATIDE FEATURES :
An evolution in time and technology, Nixon’s Ultratide is the product of ocial partnership
with Surine—the world’s preeminent source for surf reports and surf forecasting—deliv-
ering real-time conditions for your favorite breaks via Bluetooth® technology. Tide, wave
height, swell direction, wind direction and speed, water and air temperatures; all data
provided by Surine, so you’ll never not know. *No Surine membership required.
10X MORE DATA THAN A TRADITIONAL TIDE WATCH - WITH THE UTLRATIDE
YOU GET :
1. Surine Rating
2. Wave Height
3. Swell Height / Direction
4. Forecasted Swell Height / Direction
5. Wind
6. Water Temp
7. Air Temp
8. Sky Condition
9. Real Time Tide
10. Tomorrow’s Tide
01 ULTRATIDE FEATURES CONTINUED
FEATURES
•NO CHARGING REQUIRED: row away those pesky cables, the lithium coin cell battery
requires no charging so you’re ready for every session whether you planned on it or not.
•10X MORE LOCATIONS: e Ultratide features more locations for tide data than any other
watch. e Nixon Supertide features 270 locations while the Ultratide features 2700 locations.
•AUTO-GEOLOCATE: e Ultratide automatically locates the nearest surf spot to your current
location.
•CUSTOM SURF ALERTS: Create custom surf alerts for your favorite spots, and your Ultratide
will alert you when the surf is good (or just how you like it) at your selected spots. Never miss an epic
session.
•ONE AND DONE: Use one touch setup to sync the watch to your phone. Easy companion app
makes things simple and seamless.
•TRACK AND SAVE YOUR SESSION: track your session, keep track of your waves, the board you
surfed, and log all the Surine forecast details for your session so they can be used to setup custom
alerts and be reviewed in your Surf Journal.
•ULTRA COMFORT: Whale belly pattern on the back side of the band helps channel the water o
your wrist.
•POWERED BY SURFLINE : e global leader in surf forecasting for over 30 years
•BLACK OR WHITE?: Easily invert between positive or negative display screens at your preference.
•HIGH RESOLUTION DISPLAY: Super crisp digital read out.
•SHARE YOUR SESSION: Find, follow, share. Tell your 1,000 (or more if you’ve got ‘em) closest
friends about your sessions with the Ultratide app.
•STRONG: e solid stainless steel case and bezel means your Ultratide is rugged, tough and can
withstand whatever Mother Nature throws at it.
•HEAT TIMER: customizable countdown timer. Countdown events up to 60 minutes
•PATENTED LOCKING LOOPER: In a 400 year-old industry Nixon was the rst watchmaker to
patent a locking looper to make sure your watch stays on your wrist and not at the bottom of the
ocean.

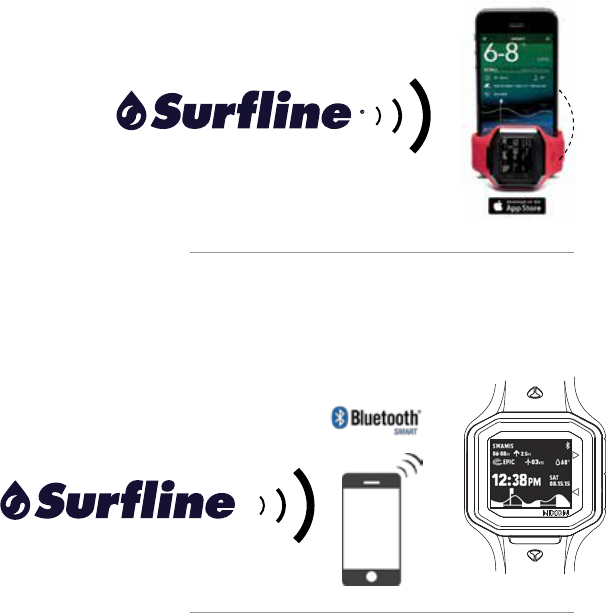

e Ultratide App taps you directly into the Surine Network. Download the Ultratide app,
and pair your Ultratide watch with the Ultratide app. Once paired, they will remember each
other and work in the background to stay updated - all you gotta do is decide where you’re
going to surf. Simply leave the Ultratide App running in the background, and whenever it is
within range of your Ultratide watch (30 Feet / 10 Meters)it will make sure your watch is
updated with the freshest info available from Surine via Bluetooh® wireless communication
from your mobile device to the watch.
02 HOW IT WORKS
3 SIMPLE STEPS AND YOU’RE READY TO ROCK :
1. DOWNLOAD THE APP : Available in the iTunes for free.
2. SETUP WATCH : Syc it up. Turn on Bluetooth on your device, open the App and follow the
instructions to creat your account and setup your watch.
3. SETUP YOUR PRESETS : Choose your favorite spots from the entire Surine network.
03 QUICK START GUIDE
DOWNLOAD THE APP
Available in iTunes store for free.
1
Turn on Bluetooth, Open the App, and
follow instructions to setup an account
and sync your watch.
SETUP WATCH
2
Never not know.
SETUP YOUR PRESETS
Choose your favorite spots from the entire
Surfline network.
3
GET THE APP!!
OPEN THE APP, AND FOLLOW THE INSTRUCTIONS TO CREATE AN ACCOUNT,
AND SYNC YOUR WATCH. THE APP WILL RUN YOU THROUGH A QUICK
TUTORIAL DETAILING HOW TO NAVIGATE THROUGH THE APP AND PERFORM
BASIC FUNCTIONS.
IMPORTANT TIPS:
-LOCATION SERVICES : BE SURE TO ALLOW LOCATION SERVICES AND SET TO
“ALWAYS”.
- KEEP THE ULTRATIDE APP RUNNING IN THE BACKGROUND. THIS WILL
ENSURE YOUR WATCH STAYS UPDATED, AND YOU NEVER MISS AN EPIC
SESSION.
-KEEP YOUR ULTRATIDE APP AND MOBILE DEVICE UPDATED WITH THE LATEST
SOFTWARE UPDATES. THIS WILL ENSURE OPTIMUM PERFORMANCE.
03 QUICK START GUIDE CONT.
PUSHER B
(LONG PRESS 3-SECOND
FOR LIGHT)
PUSHER C
(BROWSE PRESETS
& LONG PRESS 3-SECOND
FOR MANUAL SYNC)
PUSHER A
(SPOT SUMMARY QUICK VIEW
& MODE)
NAVIGTION BASICS :
THE ULTRATIDE HAS THREE BUTTONS :
PUSHER A : FROM THE HOME SCREEN, SHOWS YOU :
1) SPOT SUMMARY QUICK VIEW : QUICKLY REVIEW CURRENT
SURF HEIGHT AND SURFLINE RATING FOR YOUR 5 PRESET SPOTS
2) TOGGLE THROUGH ALL MODES IN THE FOLLOWING ORDER :
-SPOT SUMMARY QUICK VIEW
-SESSION MODE
-HEAT TIMER MODE
3) TAKES YOU FROM FORECAST DETAILS PAGE 1, TO FORECAST
DETAILS PAGES 2 AND 3
PUSHER B : LIGHT. ON ALL SCREENS, A 3-SECOND LONG PRESS OF THIS PUSHER
WILL ACTIVATE THE EL BACKLIGHT FOR 4 SECONDS. IN SESSION MODE AND
HEAT TIMER A SHORT-PRESS OF THIS PUSHER WILL START /STOP THE TIMER.
PUSHER C : FROM THE HOME SCREEN, TOGGLES BETWEEN YOUR 5 PRESET
SPOTS, SHOWING DETAILED FORECAST PAGE 1. (TO SEE FORECAST DETAILS
PAGES 2 AND 3 FOR EACH SPOT, PRESS PUSHER A.) IN SEESION MODE, THIS
PUSHER WILL FUNCTION AS YOUR MANUAL WAVE COUNTER. IN HEAT TIMER
MODE, USE THIS PUSHER TO SET THE HEAT TIME.
04 WATCH NAVIGATION AND SETTINGS
WATCH SETTINGS :
ALL STANDARD WATCH SETTINGS WILL BE AUTOMATICALLY SET FOR YOU
DURING THE SYNC PROCESS WITH THE ULTRATIDE APP. JUST PAIR IT AND GO!
MANUAL SYNC :
THE ULTRATIDE WORKS WITH THE APP TO STAY UPDATED WITH THE LATEST
FORECAST - NO NEED FOR YOU TO MANUALLY SYNC - JUST ENSURE THE APP IS
RUNNING IN THE BACKGROUND ON YOUR MOBILE DEVICE AND THE APP WILL
DO THE REST. HOWEVER, FROM TIME TO TIME YOU MAY WANT TO ADJUST
SOME SETTINGS OR PRESET LOCATIONS FROM THE APP, AND SYNC THE
CHANGES IMMEDIATELY TO THE WATCH; TO DO THIS, SIMPLY PERFROM A
MANUAL SYNC BY LONG PRESSING PUSHER C FOR 3 SECONDS. YOU WILL SEE
“CONNECTING” AND THEN “SYNCED” AFTER SUCCESS. IF YOU EXPERIENCE ANY
ERRORS DURING SYNC, PLEASE ENSURE THE APP IS RUNNING AND TRY AGAIN.
OTHER SETTINGS :
IN ADDITION TO STANDARD WATCH SETTINGS, YOU CAN ALSO CUSTOMIZE
YOUR WATCH BY CHANGING THE FOLLOWING :
1. DETAILED OR SIMPLE VIEW? CHOOSE YOUR MAIN SCREEN:
CHANGE YOUR HOME SCREEN BETWEEN A DETAILED OR SIMPLE VIEW.
-PRESS AND HOLD PUSHER A FOR 3 SECONDS TO ENTER SETTING STATE > PRESS
PUSHER A TO NAVIGATE THROUGH YOUR SETTINGS OPTIONS, GO TO “MAIN
SCREEN”, USE PUSHERS B AND C TO TOGGLE BETWEEN “SIMPLE” AND
“DETAILED” OPTIONS.
2. BLACK OR WHITE? INVERT THE DISPLAY :
INVERT THE DISPLAY ON YOUR ULTRATIDE TO HAVE EITHER BLACK OR WHITE
FONT.
--PRESS AND HOLD PUSHER A FOR 3 SECONDS TO ENTER SETTING STATE >
PRESS PUSHER A TO NAVIGATE THROUGH YOUR SETTINGS OPTIONS, GO TO
“INVERT DISPLAY”,USE PUSHERS B AND C TO TOGGLE BETWEEN “ON” AND
“OFF”.
OTHER WATCH SETTINGS FOUND IN SETTING STATE:
12/24HR FORMAT
HOURLY CHIME
BEEP ON/OFF
TIME ZONE
ALARM SETTING
MANUAL TIME/DATE SETTING
IF YOU’RE AWAY FROM YOUR MOBILE DEVCE AND WOULD LIKE TO MANUALLY
ADJUST THE TIME OR DATE, FOLLOW THIS PROCESS :
PRESS AND HOLD PUSHER A FOR 3 SECONDS TO ENTER SETTING STATE > PRESS
PUSHER A TO NAVIGATE THROUGH YOUR SETTINGS OPTIONS, USING PUSHERS
B AND C TO INCREASE OR DECREASE EACH VALUE, RESPECTIVELY.
04 WATCH NAVIGATION AND SETTINGS CONT.

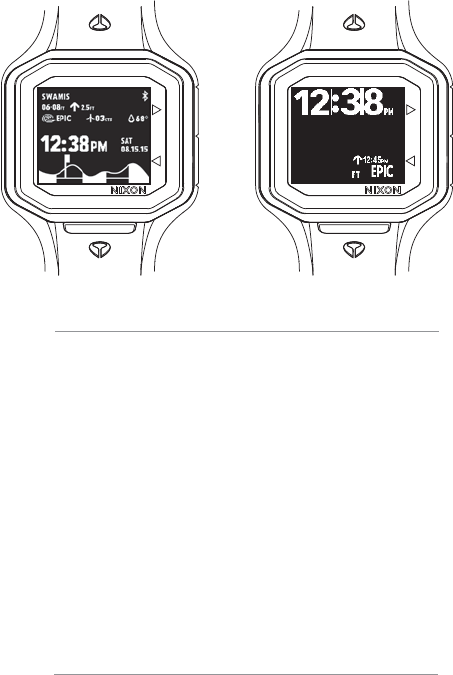

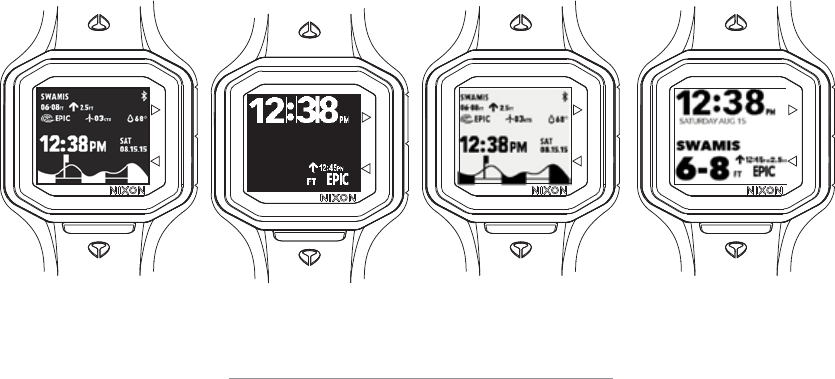

DETAILED HOME SCREEN
INVERT DISPLAY OFF SIMPLE HOME SCREEN
INVERT DISPLAY OFF
SWAMIS
6-8
SATURDAY AUG 15
2.5FT
DETAILED HOME SCREEN
INVERT DISPLAY ON
SIMPLE HOME SCREEN
INVERT DISPLAY ON
SWAMIS
6-8
SATURDAY AUG 15
2.5FT
A - LOW BATTERY WARNING
B - SESSION / HEAT TIMER INDICATOR
C - BLUETOOTH INDICATOR
ADDITIONAL ICONS
A - LOW BATTERY WARNING : YOU HAVE 20% BATTERY REMAINING. WHEN
YOUR BATTERY REACHES A CRITICAL LEVEL, YOUR WATCH WILL POWER DOWN
AND INDICATE IT IS TIME TO SEND IT IN FOR SERVICE. CONTACT
NIXON.COM/SUPPORT
B - SESSION/HEAT TIMER INDICATOR : INDICATES YOU HAVE EITHER A SESSION
OR HEAT TIMER RUNNING. FOR BEST BATTERY PERFORMANCE, DO NOT LEAVE
UNNECESSARY SESSIONS OR HEAT TIMERS RUNNING.
C- BLUETOOTH INDICATOR : INDICATES YOUR WATCH IS GETTING UPDATED
DATA FROM THE APP. IF THERE IS AN X OVER THIS ICON, IT MEANS YOUR
WATCH IS OUT OF RANGE OF THE APP AND NEEDS TO SYNC.
D - ALERT INDICATOR : TIME TO SURF! THIS MEANS ONE OF YOUR ALERT
CRITERIA IS MET.
E - GEO-LOCATED SPOT : INDICATES THIS SPOT IS THE CLOSEST GEO-LOCATED
SURF SPOT TO YOUR CURRENT LOCATION.
F - ALERT INDICATOR : INDICATES THAT THIS SPOT CURRENTLY HAS AN
ACTIVE ALERT THAT HAS MET YOUR CRITERIA.
G - TIDE DETAILS : THIS IS WHERE THE FULL TIDE DETAILS ARE SUMMARIZED
H - SWELL DETAILS : THIS IS WHERE THE FULL SWELL DETAILS ARE
SUMMARIZED
04 WATCH NAVIGATION CONTINUED
HOME SCREEN
SUMMARY SCREEN
DETAILS SCREEN 2
E -GEO-LOCATED
SPOT
D - ALERT INDICATOR
G - TIDE DETAILS
H - SWELL DETAILS
QUICKLY SEE WHAT’S GOING ON WITH THE TIDE DIRECT FROM THE HOME
SCREEN.
A - DETAILED HOME SCREEN
A1 - USE THE TIDE GRAPH TO GET A QUICK VISUAL INDICATION OF WHAT THE
TIDE IS DOING - GOING HIGH, GOING LOW, AND AN INDICTION OF HOW
EXTREME THE TIDES ARE.
A2 - UP ARROW INDICATES RISING TIDE. DOWN ARROW INDICATES DROPPING
TIDE. THE FT OR M NUMBER SHOWS THE THE HEIGHT OF THE NEXT TIDE
EVENT.
B - SIMPLE HOME SCREEN
B1 - UP ARROW INDICATES RISING TIDE. DOWN ARROW INDICATES DROPPING
TIDE. THE TIME DISPLEY IS THE TIME OF THE NEXT TIDE EVENT (LOW OR
HIGH TIDE) AND THE FT OR M NUMBER SHOWS THE THE HEIGHT OF THE
NEXT TIDE EVENT.
ALL TIDE DETAILS FOR TODAY/TOMORROW:
TO SEE ALL TIDE EVENTS FOR TODAY, WITH TIME AND HEIGHT IN A SUMMARY
VIEW, NAVIGATE TO THE DETAILS PAGE 2 FOR EACH SPOT (PRESS PUSHER C
UNTIL YOU ARE ON YOUR DESIRED SPOT, THEN PUSHER A 1X TO GO TO
DETAILS PAGE 2)
TO SEE ALL TIDE EVENTS FOR TOMORROW, WITH TIME AND HEIGHT IN A
SUMMARY VIEW, NAVIGATE TO THE DETAILS PAGE 3 FOR EACH SPOT (PRESS
PUSHER C UNTIL YOU ARE ON YOUR DESIRED SPOT, THEN PUSHER A 2X TO GO
TO DETAILS PAGE 3)
05 READING THE TIDE
SWAMIS
6-8
SATURDAY AUG 15
2.5FT
IN THE ULTRATIDE APP, CLICK ON THE NIXON LOGO IN THE UPPER LEFT
CORNER. THIS WILL PLAY AN INSTRUCTIONAL VIDEO THAT OUTLINES THE
FORECAST DETAILS ON THE WATCH.
THE FOLLOWING WILL DETAIL EACH WATCH SCREEN
06 WATCH SCREEN DETAILS
HOME SCREEN - DETAILED
A - SURF SPOT NAME : THIS IS THE NAME OF YOUR #1 PRESET SPOT - ALL
FORECAST DATA ON THE HOME SCREEN IS FOR THIS SPOT. YOU CAN CHANGE
THIS SPOT BY GOING TO “MANAGE PRESETS” IN THE APP MENU, THEN
SELECTING “EDIT” AND MOVING A NEW PRESET TO THE #1 POSITION.
B - WAVE HEIGHT : THIS IS THE CURRENT SURFLINE PREDICTED WAVE HEIGHT.
C- SURFLINE RATING : THIS IS THE CURRENT SURFLINE RATING. THIS IS ONLY
AVAILABLE FOR SPOTS THAT HAVE A HUMAN GENERATED FORECAST. NOT ALL
SPOTS WILL HAVE A SURFLINE RATING.
D - TIME OF DAY : THIS IS THE CURRENT TIME, DISPLAYED IN EITHER 12 OR 24
HR FORMAT.
E - CURRENT TIDE FLAG : INDICATES THE CURRENT TIDE. GIVES THE USER A
QUICK VISUAL INDICATOR OF WHAT THE TIDE IS DOING.
F - TIDE EVENT DETAIL : DETAILS FOR THE NEXT TIDE EVENT. UP ARROW
INDICATES TIDE IS RISING, DOWN ARROW INDICATES TIDE IS FALLING. THE
NUMBER INDICATES THE HEIGHT OF THE NEXT TIDE EVENT (LOW OR HIGH
TIDE) AND IS DISPLAYED IN EITHER FEET OR METERS.
G - WATER TEMP : INDICATES THE CURRENT PREDICTED WATER TEMP.
H - WIND SPEED : SHOWS THE CURRENT PREDICTED WIND SPEED.
I - DAY/DATE : CURRENT DAY OF THE WEEK, AND DATE
J - TIDE GRAPH : QUICK VISUAL REPRESENTATION OF THE TIDE EVENTS FOR A
24HR PERIOD.
I
06 WATCH SCREEN DETAILS CONT.
J
HOME SCREEN - DETAILED
G
H
F
D
C
A
E
B
HOME SCREEN - SIMPLE
A - TIME OF DAY : THIS IS THE CURRENT TIME, DISPLAYED IN EITHER 12 OR 24
HR FORMAT.
B - DAY/DATE : CURRENT DAY OF THE WEEK, AND DATE
C- SURF SPOT NAME : THIS IS THE NAME OF YOUR #1 PRESET SPOT - ALL
FORECAST DATA ON THE HOME SCREEN IS FOR THIS SPOT. YOU CAN CHANGE
THIS SPOT BY GOING TO “MANAGE PRESETS” IN THE APP MENU, THEN
SELECTING “EDIT” AND MOVING A NEW PRESET TO THE #1 POSITION.
D - WAVE HEIGHT : THIS IS THE CURRENT SURFLINE PREDICTED WAVE HEIGHT.
E - TIDE EVENT DETAIL : DETAILS FOR THE NEXT TIDE EVENT. UP ARROW
INDICATES TIDE IS RISING, DOWN ARROW INDICATES TIDE IS FALLING. THE
TIME INDICATES THE TIME OF NEXT TIDE EVENT AND IS DISPLAYED IN 12HR
FORMAT, THE NUMBER INDICATES THE HEIGHT OF THE NEXT TIDE EVENT
(LOW OR HIGH TIDE) AND IS DISPLAYED IN EITHER FEET OR METERS.
F - SURFLINE RATING : THIS IS THE CURRENT SURFLINE RATING. THIS IS ONLY
AVAILABLE FOR SPOTS THAT HAVE A HUMAN GENERATED FORECAST. NOT ALL
SPOTS WILL HAVE A SURFLINE RATING.
HOME SCREEN - SIMPLE
F
E
C
B
D
A
06 WATCH SCREEN DETAILS CONT.
FORECAST DETAILS SCREENS 1-3
A - SURF SPOT NAME : THIS IS THE NAME OF YOUR #1 PRESET SPOT - ALL
FORECAST DATA ON THE HOME SCREEN IS FOR THIS SPOT. YOU CAN CHANGE
THIS SPOT BY GOING TO “MANAGE PRESETS” IN THE APP MENU, THEN
SELECTING “EDIT” AND MOVING A NEW PRESET TO THE #1 POSITION.
B - LAST UPDATED : INDICATE HOW LONG AGO THE SURFLINE FORECAST
REPORT WAS GENERATED.
C- WAVE HEIGHT : THIS IS THE CURRENT SURFLINE PREDICTED WAVE HEIGHT.
D - WIND SPEED AND DIRECTION : SHOWS THE CURRENT PREDICTED WIND
SPEED AND DIRECTION.
E - CURRENT TIDE FLAG : INDICATES THE CURRENT TIDE. GIVES THE USER A
QUICK VISUAL INDICATOR OF WHAT THE TIDE IS DOING.
F - SURFLINE RATING : THIS IS THE CURRENT SURFLINE RATING. THIS IS ONLY
AVAILABLE FOR SPOTS THAT HAVE A HUMAN GENERATED FORECAST. NOT ALL
SPOTS WILL HAVE A SURFLINE RATING.
G - WATER TEMP : INDICATES THE CURRENT PREDICTED WATER TEMP.
H - SKY CONDITION AND TEMPERATURE : INDICATES THE PREDICTED SKY
CONDITION (RAIN, CLOUDY, SUNNY, PARTLY CLOUDY) AND THE PREDICTED
AIR TEMPERATURE (IN CELCIUS OR FARHENHEIT).
I - TIDE GRAPH : QUICK VISUAL REPRESENTATION OF THE TIDE EVENTS FOR A
24HR PERIOD.
J - TIDE EVENTS FOR TODAY : TABLE OF ALL TIDE EVENTS FOR CURRENT DAY
FORECAST DETAILS SCREENS 1-3
K - TODAY’S TIDE HEIGHTS : TODAY’S PREDICTED TIDE HEIGHTS (IN FEET OR
METERS)
L - TODAY’S TIDE TIMES : TODAY’S PREDICTED TIDE TIMES (TIME OF LOW OR
HIGH TIDE).
M- SWELL HEIGHT AND DETAILS: INDICATES THE PREDICTED SWELL HEIGHT
AND DETAILS FOR TODAY BEING.
N - SWELL PERIOD : INDICATES THE PREDICTED SWELL PERIOD FOR TODAY
O - SWELL DIRECTION : INDICATES THE PREDICTED SWELL DIRECTION FOR
TODAY
P - TIDE EVENTS FOR TOMORROW : TABLE OF ALL TIDE EVENTS FOR CURRENT
DAY
Q - TOMORROW’S TIDE HEIGHTS : TOMORROW’S PREDICTION TIDE HEIGHTS
(IN FEET OR METERS)
R - TODAY’S TIDE TIMES : TOMORROW’S PREDICTED TIDE TIMES (TIME OF LOW
OR HIGH TIDE).
S- SWELL HEIGHT AND DETAILS: INDICATES THE PREDICTED SWELL HEIGHT
AND DETAILS FOR TOMORROW
T - SWELL PERIOD : INDICATES THE PREDICTED SWELL PERIOD FOR
TOMORROW
U - SWELL DIRECTION : INDICATES THE PREDICTED SWELL DIRECTION FOR
TOMORROW
DETAILS SCREEN - 1
DETAILS SCREEN - 2
DETAILS SCREEN - 3
E
C
A
J
K
D
B
G
H
F
I
L
M
NO
P
Q
R
S
TU
06 WATCH SCREEN DETAILS CONT.
SESSION SCREEN
To get to the SESSIONS SCREEN, From the HOME screen press PUSHER A 2 times.
Use this screen to track your sessions. Before paddling out, START A SESSION. When you
return within range of the Ultratide App, sync and save the session to your Surf Journal. Upload
photos, save the board you surfed, edit details, leave comments or notes, and share the session with
your Facebook, Instragram, or Ultratide friends - Or just keep it a secret...
e Ultratide will save all the Surine forecast details for the exact time of your session, and make
them available for you to review later - you can quickly and easily setup a custom surf alert based
on the Surine data with the one touch alert setup, or just keep it in your journal as a reminder of
how a specic board worked for the conditions. Use this tool to help you plan when and where to
surf, and what equipment to use - or just to brag about an epic score...
A - START/STOP SESSION - Press pusher B to START and STOP your session. e timer will
begin. You can leave this screen, and return to it at any time.
B - SAVED SESSIONS : is will display the # of saved sessions waiting to sync with the App
D - WAVE COUNTER : Use this to manually track your wave count. Press pusher C to log a
wave.
C - TIMER : is is the active time of your current session
E - STOP : Stop your session when it is done. en select SAVE to save the session on your
watch. Next time you’re in range of your device
SESSION SCREEN
(ACTIVE SESSION)
SESSION SCREEN
E
D
C
06 WATCH SCREEN DETAILS CONT.
B
A
HEAT TIMER
To get to the HEAT TIMER SCREEN, From the HOME screen press PUSHER A 3 times.
e heat timer is a customizable countdown timer. It is customizable up to 60 minutes, in 1
minute resolution.
A - TIMER : is represents the countdown time remaining. e timer will countdown in 1
second intervals until zero from this time.
B - START/STOP TIMER : Press this timer to START/STOP the timer.
C - CHANGE / RESET : Press this to change the countdown time. After e timer has started
and stopped, RESET will appear here. Press RESET to reset the timer back to original start time.
HEAT TIMER SCREEN
C
B
A
06 WATCH SCREEN DETAILS CONT.
-Please refer to the watch case back for your watch’s water resistancy rating, or our website :
www.nixon.com
-All Industry standard watch-testing is done to na overpressure situation in a static laboratory
environment and does not signify a diving depth. Because surng is NOT a statics sport there are
many outside inuences that can eect a watches ability to remain water resistance - such as large
wipeouts, sudden pressure forces and changes due to large waves, salt water exposure, etc. ese
can all impact the water resistance performance of your watch. e water resistancy of this watch is
attained using rubber or plastic seals which will deteriorate under normal conditions and reduce
the water resistancy of your watch. ese seals should be checked by an authorized Nixon repair
center to at least every two years to ensure the rated water resistancy.
-NEVER PUSH A BUTTON OR SET THE WATCH WHEN IT IS SUBMERGED
UNDERWATER
-Rinse watch with soap and water after exposure to salt water or sand.
-Replace the battery when advised. e Ultratide will notify you when your battery level is at 20%
with a low battery icon on the home screen. When your battery power reaches a critcally low level,
the watch will power down and direct you to contact your local Nixon service center for a battery
replacement (nixon.com/suppor). Dead or low batteries left in a watch may leak and destroy the
movement of your watch.
-Do not expose your watch to extreme temperatures (over 60 C or 140 F, under -10 C or 14 F)
and avoid extreme shocks. No hot tubs or saunas either. Sorry, but do you really need to know
the time when you’re tubbing?
-Avoid exposing the watch to cleaning solvents, spray sun-screen, aerosol sprays, and other
chemicals at they will damage the nish.
-Never try to open the watch - leave it to a trained and certied professional.
07 CARING FOR YOUR ULTRATIDE
TECH SPECIFICATIONS
FCC ID: 2ADQ8-A476 IC ID : 10883A-A476 MANUFATURED BY NIXON, INC. RATED VOLTAGE : 3V RATED
CURRENT: 1mA POWER RATING: 3mW
SYSTEM REQUIREMENTS
iOS 7 and later versions iPhone 4S and later versions iPad 2 and later versions iPod 5
and later versions Sorry, we currently do not currently support Android devices. Soon…
TECHNICAL SPECIFICATIONS
Auto-Set Time & Date Via BLE Sync to Ultratide App Forecast Locations Full Surfline
Location : 2,700+ And Growing Light Yes Alarm Yes 12/24HR Yes Imperial/Metric Selectable
Display Options Detailed Home. Simple Home, Invert Display Heat Timer Yes Battery
Lithium-ion Coin Cell battery. Battery life estimate 12-18 months.
Dimensions / Weight
Display High Resolution Memory LCD Case Width 45mm Case Thickness 15mm Strap Width
30-25mm tapered Case Material 316L Stainless Steel Caseback Material 316L Stainless Steel
Band Material Silicone
Water Resistance 100 Meter / 10ATM / 330 FT
Connectivity Bluetooth® Smart, estimated range 10m/33ft Must have Ultratide
App iOS7 and Later iPhone 4S and later versions
Nixon oers a limited warranty on defects in materials and workmanship for a period of two (2)
years after original purchase from an authorized Nixon dealer. is means that if the materials in
your watch aren’t right or if the watch isn’t put together correctly, we’ll repair or replace it, at our
option. But, this doesn’t mean you can abuse your watch and expect us to x it for free. We don’t
cover normal wear and tear or batteries, crystal, watch case, strap, bracelet, loss or theft. If you need
help repairing your watch, we can help. Please call us. You will void your warranty if you open
your caseback, push the buttons underwater, or forget to screw down or push in the crown and
expose your watch to moisture. Problems? If you’re in North America, please call us at 1 760 944
0900 during normal business hours, Pacic Time, and we can work it out. If you’re somewhere
else in the world, please contact the store at which you bought your Nixon and they will point you
in the right direction. NO IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS, SHALL APPLY TO THIS PRODUCT FOR ANY
PERIOD BEYOND THE TWO (2) YEAR TERM OF THIS WRITTEN WARRANTY.
NIXON IS NOT LIABLE, UNDER ANY CIRCUMSTANCES, FOR ANY INCIDENTAL
DAMAGES SUSTAINED IN CONNECTION WITH THIS PRODUCT. ANY RECOVERY
MAY NOT BE GREATER THAN THE PURCHASE PRICE PAID FOR THIS PRODUCT.
Some countries and states, however, do not allow the exclusion or limitation on how long an
implied warranty lasts or allow the exclusion or limitation of incidental or consequential damages,
so the above limitations and exclusions may not apply to you. is warranty gives you specic legal
rights, and you may also have other rights which may vary from country to country and state to
state.
09 WARRANTY
For troubleshooting, service, and support for your Ultratide please visit our website :
nixon.com/support
BATTERY LIFE:
No charging required - the Ultratide battery will last an estimated 12-18 months. Your Ultratide
will notify when your battery is low (20% power remaining), and then again when the level is
critcally low. Please contact NIXON support to arrange a battery replacement when the battery
reaches critical level.
nixon.com/support
10 SERVICE, SUPPORT, AND WARNINGS
WARNING:
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
is device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) is device may not cause harmful interference.
(2) is device must accept any interference received, including interference that may cause undesired operation.
RF exposure information: is device meets FCC and IC requirements for RF exposure in controlled or uncontrolled environment.
La operación de este equipo está sujeta a las siguientes dos
condiciones: (1) es posible que este equipo o dispositivo no
cause interferencia perjudicial y (2) este equipo o dispositivo
debe aceptar cualquier interferencia, incluyendo la que pueda
causar su operación no desead
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
a minimum distance of 5mm between the radiator & your body. This transmitter
must not be co-located or operating in conjunction with any other antenna or
transmitter.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
