Nokia Bell G120WF 321 218 User Manual 7368 ISAM ONT G 120W F Product Guide
Alcatel-Lucent Shanghai Bell Co. Ltd. 321 218 7368 ISAM ONT G 120W F Product Guide
User Manual
![](/img.php?id=3443441&img=bg1.png)
Nokia — Proprietary and confidential
Use pursuant to applicable agreements
7368 Intelligent Services Access
Manager ONT
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA
Issue: 01
7368 ISAM ONT G-120W-F Product Guide
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg2.png)
2
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Nokia is a registered trademark of Nokia Corporation. Other products and company
names mentioned herein may be trademarks or tradenames of their respective
owners.
The information presented is subject to change without notice. No responsibility is
assumed for inaccuracies contained herein.
© 2017 Nokia.
Contains proprietary/trade secret information which is the property of Nokia and must
not be made available to, or copied or used by anyone outside Nokia without its
written authorization. Not to be used or disclosed except in accordance with
applicable agreements.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg3.png)
7368 ISAM ONT G-120W-F Product Guide Preface
Issue: 01 3FE-46922-AAAA-TCZZA 3
1Preface
This preface provides general information about the documentation set for optical
network terminals (ONTs).
1.1 Scope
This documentation set provides information about safety, features and functionality,
ordering, hardware installation and maintenance, and software installation
procedures for the current release.
1.2 Audience
This documentation set is intended for planners, administrators, operators, and
maintenance personnel involved in installing, upgrading, or maintaining the ONTs.
1.3 Required knowledge
The reader must be familiar with general telecommunications principles.
1.4 Acronyms and initialisms
The expansions and optional descriptions of most acronyms and initialisms appear
in the glossary.
1.5 Assistance and ordering phone numbers
Nokia provides global technical support through regional call centers. Phone
numbers for the regional call centers are available at the following URL:
http://support.alcatel-lucent.com.
For ordering information, contact your Nokia sales representative.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg4.png)
Preface
4
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
1.6 Nokia quality processes
Nokia’s ONT quality practices are in compliance with TL 9000 requirements. These
requirements are documented in the Fixed Networks Quality Manual
3FQ-30146-6000-QRZZA. The quality practices adequately ensure that technical
requirements and customer end-point requirements are met. The customer or its
representatives may be allowed to perform on-site quality surveillance audits, as
agreed upon during contract negotiations
1.7 Safety information
For safety information, see the appropriate safety guidelines chapter.
1.8 Documents
Documents are available using ALED or OLCS.
Procedure 1 To download a ZIP file package of the customer documentation
1Navigate to http://support.alcatel-lucent.com and enter your user name and password. If you
are a new user and require access to this service, please contact your Nokia sales
representative.
2From the Technical Content for drop-down menu, choose the product.
3Click on Downloads: Electronic Delivery.
4Choose Documentation from the drop-down menu and click Next.
5Select the image from the drop-down menu and click Next.
6Follow the on-screen directions to download the file.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg5.png)
7368 ISAM ONT G-120W-F Product Guide Preface
Issue: 01 3FE-46922-AAAA-TCZZA 5
Procedure 2 To access individual documents
Individual PDFs of customer documents are also accessible through the Nokia Customer Support
website.
1Navigate to http://support.alcatel-lucent.com and enter your user name and password. If you
are a new user and require access to this service, please contact your Nokia sales
representative.
2From the Technical Content for drop-down menu, choose the product.
3Click on Manuals and Guides to display a list of customer documents by title and part
number. You can filter this list using the Release drop-down menu.
4Click on the PDF to open or save the file.
1.9 Special information
The following are examples of how special information is presented in this document.
Danger — Danger indicates that the described activity or
situation may result in serious personal injury or death; for
example, high voltage or electric shock hazards.
Warning — Warning indicates that the described activity or
situation may, or will, cause equipment damage or serious
performance problems.
Caution — Caution indicates that the described activity or
situation may, or will, cause service interruption.
Note — A note provides information that is, or may be, of
special interest.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg6.png)
Preface
6
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
1.9.1 Procedures with options or substeps
When there are options in a procedure, they are identified by letters. When there are
required substeps in a procedure, they are identified by roman numerals.
Procedure 3 Example of options in a procedure
At step 1, you can choose option a or b. At step 2, you must do what the step indicates.
1This step offers two options. You must choose one of the following:
aThis is one option.
bThis is another option.
2You must perform this step.
Procedure 4 Example of required substeps in a procedure
At step 1, you must perform a series of substeps within a step. At step 2, you must do what the
step indicates.
1This step has a series of substeps that you must perform to complete the step. You must
perform the following substeps:
iThis is the first substep.
ii This is the second substep.
iii This is the third substep.
2 You must perform this step.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg7.png)
7368 ISAM ONT G-120W-F Product Guide Preface
Issue: 01 3FE-46922-AAAA-TCZZA 7
1.10 Multiple PDF document search
You can use Adobe Reader Release 6.0 and later to search multiple PDF files for a
common term. Adobe Reader displays the results in a single display panel. The
results are grouped by PDF file, and you can expand the entry for each file.
Procedure 5 To search multiple PDF files for a common term
1Open Adobe Acrobat Reader.
2Choose Edit→Search from the Acrobat Reader main menu. The Search PDF panel appears.
3Enter the search criteria.
4Click on the All PDF Documents In radio button.
5Select the folder in which to search using the drop-down menu.
6Click on the Search button.
Acrobat Reader displays the search results. You can expand the entries for each document
by clicking on the + symbol.
Note — The PDF files in which you search must be in the same
folder.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg8.png)
Preface
8
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg9.png)
7368 ISAM ONT G-120W-F Product Guide
Issue: 01 3FE-46922-AAAA-TCZZA 9
Table of contents
1 Preface.............................................................................................3
1.1 Scope ..........................................................................................................3
1.2 Audience......................................................................................................3
1.3 Required knowledge....................................................................................3
1.4 Acronyms and initialisms .............................................................................3
1.5 Assistance and ordering phone numbers ....................................................3
1.6 Nokia quality processes...............................................................................4
1.7 Safety information........................................................................................4
1.8 Documents ..................................................................................................4
1.9 Special information ......................................................................................5
1.9.1 Procedures with options or substeps...........................................................6
1.10 Multiple PDF document search ...................................................................7
2 ETSI ONT safety guidelines .........................................................17
2.1 Safety instructions .....................................................................................17
2.1.1 Safety instruction boxes ............................................................................17
2.1.2 Safety-related labels..................................................................................18
2.2 Safety standards compliance ....................................................................19
2.2.1 EMC, EMI, and ESD compliance...............................................................19
2.2.2 Equipment safety standard compliance.....................................................19
2.2.3 Environmental standard compliance .........................................................20
2.2.4 Laser product standard compliance ..........................................................20
2.2.5 Resistibility requirements compliance .......................................................20
2.2.6 Acoustic noise emission standard compliance..........................................20
2.3 Electrical safety guidelines ........................................................................20
2.3.1 Power supplies ..........................................................................................21
2.3.2 Cabling ......................................................................................................21
2.3.3 Protective earth .........................................................................................21
2.4 ESD safety guidelines ...............................................................................21
2.5 Laser safety guidelines..............................................................................21
2.5.1 Laser classification ....................................................................................22
2.5.1.1 Laser warning labels..................................................................................22
2.5.2 Transmit optical output ..............................................................................24
2.5.3 Normal laser operation ..............................................................................24
2.5.4 Location class............................................................................................25
2.6 Environmental requirements......................................................................25
3 ETSI environmental and CRoHS guidelines...............................27
3.1 Environmental labels .................................................................................27
3.1.1 Overview....................................................................................................27
3.1.2 Environmental related labels .....................................................................27
3.1.2.1 Products below Maximum Concentration Value (MCV) label....................27
3.1.2.2 Products containing hazardous substances above Maximum
Concentration Value (MCV) label ..............................................................28
3.2 Hazardous Substances Table (HST).........................................................29
3.3 Other environmental requirements ............................................................30
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bga.png)
10
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
3.3.1 ONT environmental requirements .............................................................30
3.3.2 Storage ......................................................................................................30
3.3.3 Transportation ...........................................................................................30
3.3.4 Stationary use............................................................................................30
3.3.5 Thermal limitations ....................................................................................30
3.3.6 Material content compliance......................................................................31
3.3.7 End-of-life collection and treatment ...........................................................31
4 ANSI ONT safety guidelines ........................................................33
4.1 Safety instructions .....................................................................................33
4.1.1 Safety instruction boxes in customer documentation ................................33
4.1.2 Safety-related labels..................................................................................34
4.2 Safety standards compliance ....................................................................35
4.2.1 EMC, EMI, and ESD standards compliance..............................................36
4.2.2 Equipment safety standard compliance.....................................................36
4.2.3 Environmental standards compliance........................................................37
4.2.4 Laser product standards compliance.........................................................37
4.2.5 Resistibility requirements compliance .......................................................38
4.3 Laser safety guidelines..............................................................................38
4.3.1 Laser warning labels..................................................................................38
4.3.2 Laser classification ....................................................................................40
4.3.3 Transmit optical output ..............................................................................41
4.3.4 Normal laser operation ..............................................................................41
4.3.5 Location class............................................................................................41
4.4 Electrical safety guidelines ........................................................................42
4.4.1 Power supplies ..........................................................................................42
4.4.2 Cabling ......................................................................................................42
4.4.3 Protective earth .........................................................................................42
4.5 ESD safety guidelines ...............................................................................42
4.6 Environmental requirements......................................................................43
5 G-120W-F unit data sheet.............................................................45
5.1 G-120W-F part numbers and identification................................................46
5.2 G-120W-F general description ..................................................................47
5.2.1 TR-069 support..........................................................................................48
5.2.2 TR-104 parameter extension support for voice service.............................48
5.2.3 TR-181 Wi-Fi objects adapted in TR-098 ..................................................48
5.2.4 Mobile offload support ...............................................................................49
5.2.5 Bridged Residential Gateway (BRG) support ............................................50
5.2.6 Support for soft GRE tunnels.....................................................................50
5.2.6.1 GRE...........................................................................................................50
5.2.6.2 Soft GRE ...................................................................................................51
5.3 G-120W-F software and installation feature support .................................52
5.4 G-120W-F interfaces and interface capacity .............................................52
5.4.1 G-120W-F connections and components ..................................................52
5.5 G-120W-F LEDs ........................................................................................54
5.6 G-120W-F detailed specifications..............................................................55
5.7 G-120W-F GEM ports and T-CONTs ........................................................56
5.8 G-120W-F performance monitoring statistics ............................................56
5.9 G-120W-F functional blocks ......................................................................58
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bgb.png)
7368 ISAM ONT G-120W-F Product Guide
Issue: 01 3FE-46922-AAAA-TCZZA 11
5.10 G-120W-F standards compliance..............................................................61
5.10.1 Energy-related products standby and off modes compliance....................62
5.11 G-120W-F special considerations .............................................................62
5.11.1 Wi-Fi service..............................................................................................62
5.11.1.1 Wi-Fi physical features ..............................................................................63
5.11.1.2 Wi-Fi standards and certifications .............................................................63
5.11.1.3 Wi-Fi GUI features.....................................................................................63
5.11.2 G-120W-F ONT considerations and limitations .........................................63
6 Install a G-120W-F indoor ONT....................................................65
6.1 Purpose .....................................................................................................65
6.2 General......................................................................................................65
6.3 Prerequisites..............................................................................................65
6.4 Recommended tools..................................................................................65
6.5 Safety information......................................................................................66
6.6 Procedure ..................................................................................................67
7 Replace a G-120W-F indoor ONT ................................................71
7.1 Purpose .....................................................................................................71
7.2 General......................................................................................................71
7.3 Prerequisites..............................................................................................71
7.4 Recommended tools..................................................................................71
7.5 Safety information......................................................................................72
7.6 Procedure ..................................................................................................73
8 Configure a G-120W-F indoor ONT .............................................77
8.1 General......................................................................................................77
8.2 HGU mode GUI configuration....................................................................77
8.2.1 Login..........................................................................................................77
8.2.2 Device and connection status....................................................................78
8.2.3 Network configuration................................................................................91
8.2.4 Security configuration ..............................................................................107
8.2.5 Application configuration .........................................................................117
8.2.6 Maintenance ............................................................................................124
8.2.7 RG troubleshooting counters...................................................................136
8.3 SFU mode GUI configuration ..................................................................138
8.3.1 Login........................................................................................................138
8.3.2 Device and connection status..................................................................139
8.3.3 Network configuration..............................................................................142
8.3.4 Maintenance ............................................................................................143
8.4 Operator ID..............................................................................................146
9 ONT configuration file over OMCI .............................................149
9.1 Purpose ...................................................................................................149
9.2 Supported configuration file types ...........................................................149
9.2.1 Filename conventions..............................................................................151
9.3 ONT configuration file over OMCI ...........................................................151
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bgc.png)
12
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bgd.png)
7368 ISAM ONT G-120W-F Product Guide
Issue: 01 3FE-46922-AAAA-TCZZA 13
List of figures
2 ETSI ONT safety guidelines .........................................................17
Figure 1 PSE certification ........................................................................................19
Figure 2 Laser product label ....................................................................................22
Figure 3 Laser classification label............................................................................23
Figure 4 Laser warning labels..................................................................................24
3 ETSI environmental and CRoHS guidelines...............................27
Figure 5 Products below MCV value label...............................................................28
Figure 6 Products above MCV value label ..............................................................29
Figure 7 Recycling/take back/disposal of product symbol .......................................31
4 ANSI ONT safety guidelines ........................................................33
Figure 8 Sample safety label on the ONT equipment..............................................35
Figure 9 Sample laser product label showing CDRH 21 CFR compliance..............37
Figure 10 Laser product label ....................................................................................39
Figure 11 Laser classification label............................................................................39

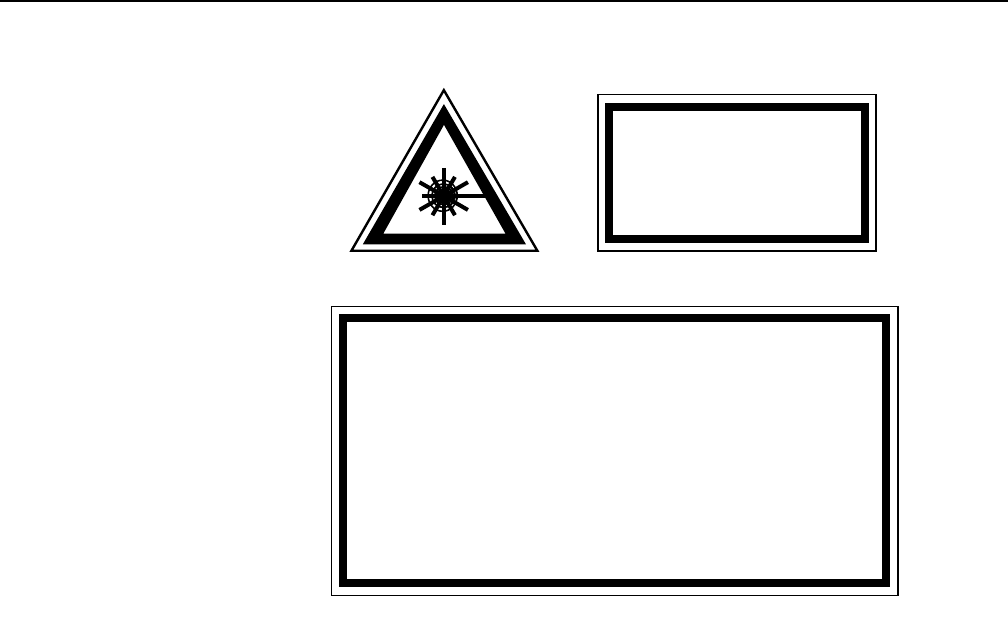

Figure 12 Laser warning labels..................................................................................40
Figure 13 Sample laser product safety label on the ONT equipment ........................41
5 G-120W-F unit data sheet.............................................................45

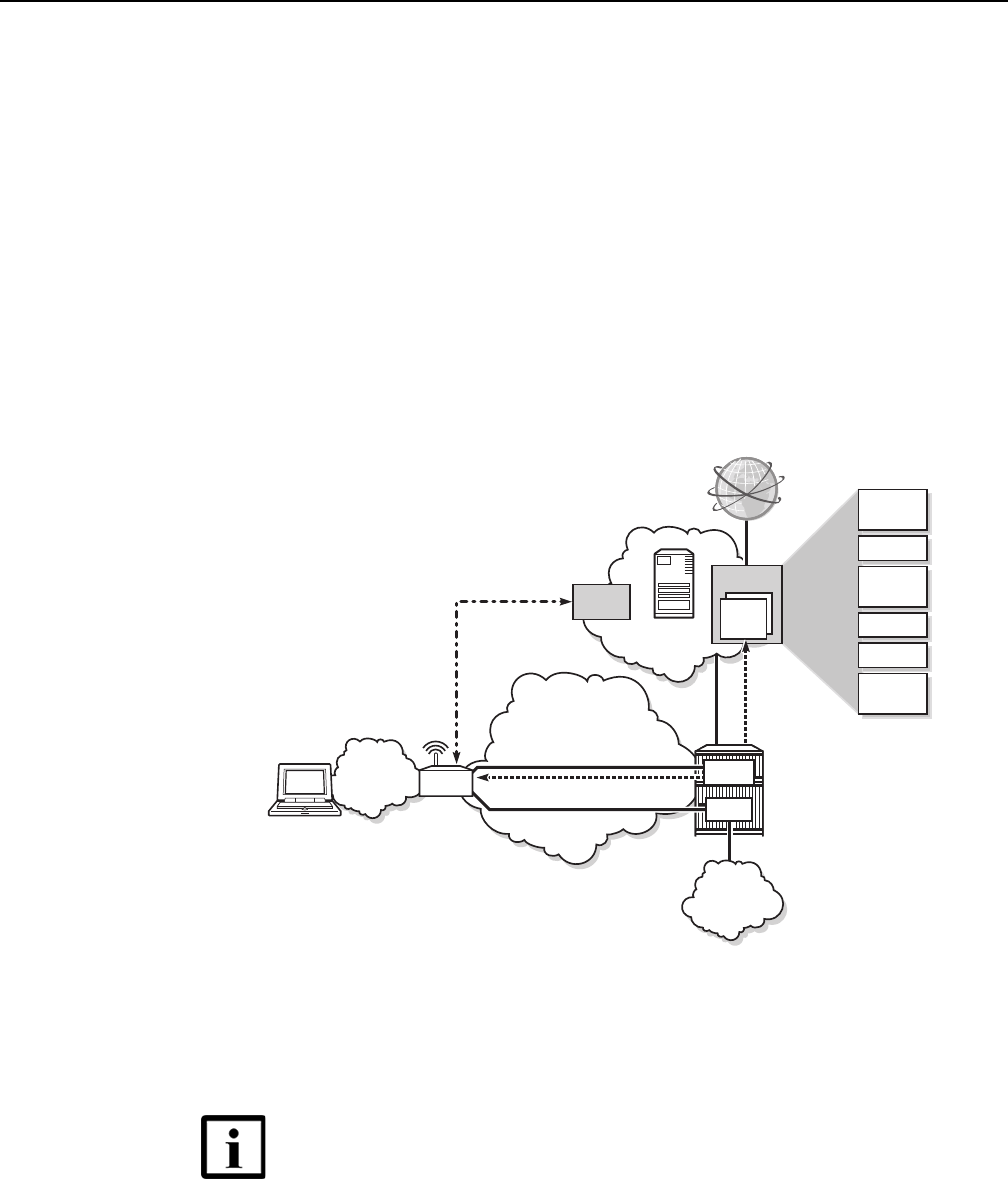

Figure 14 SoftGRE-based architecture......................................................................51

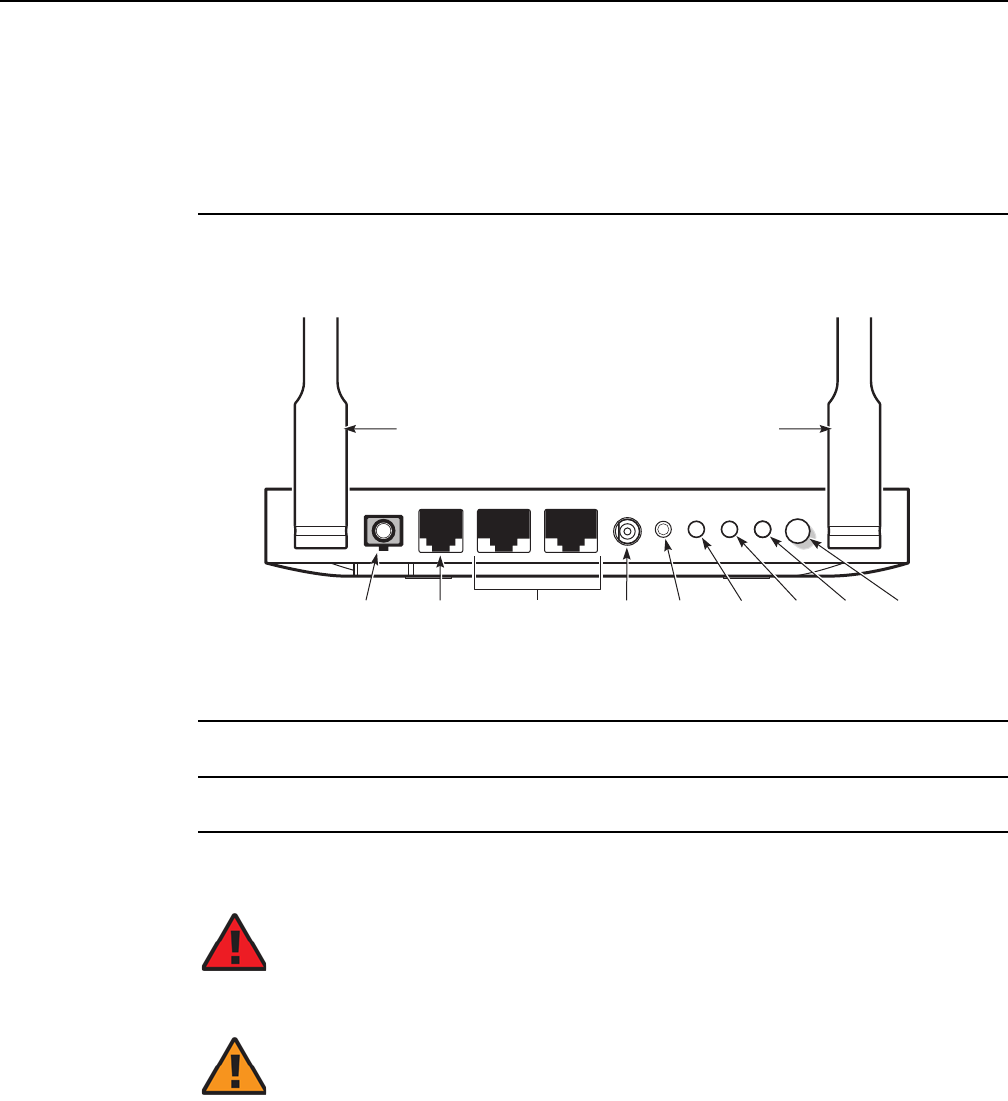

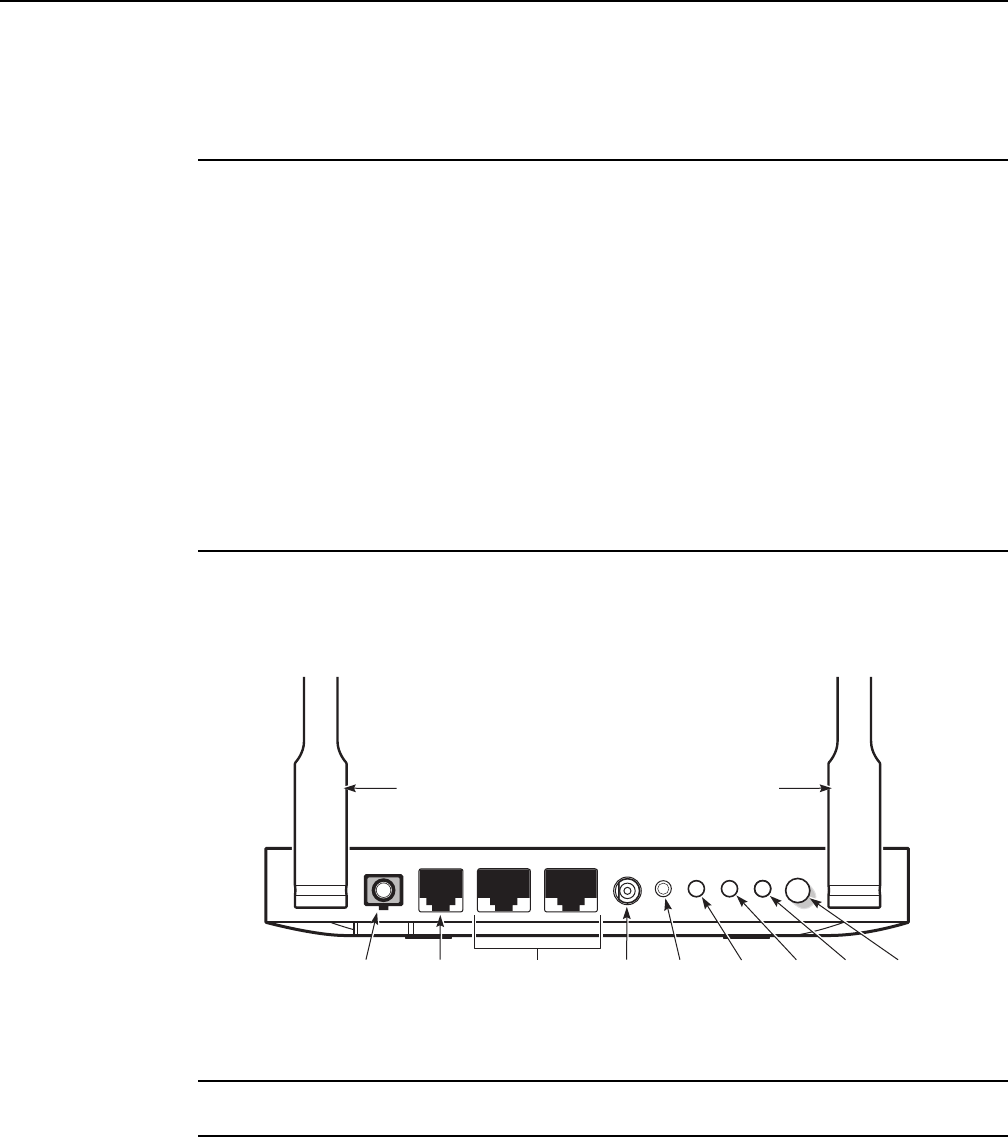

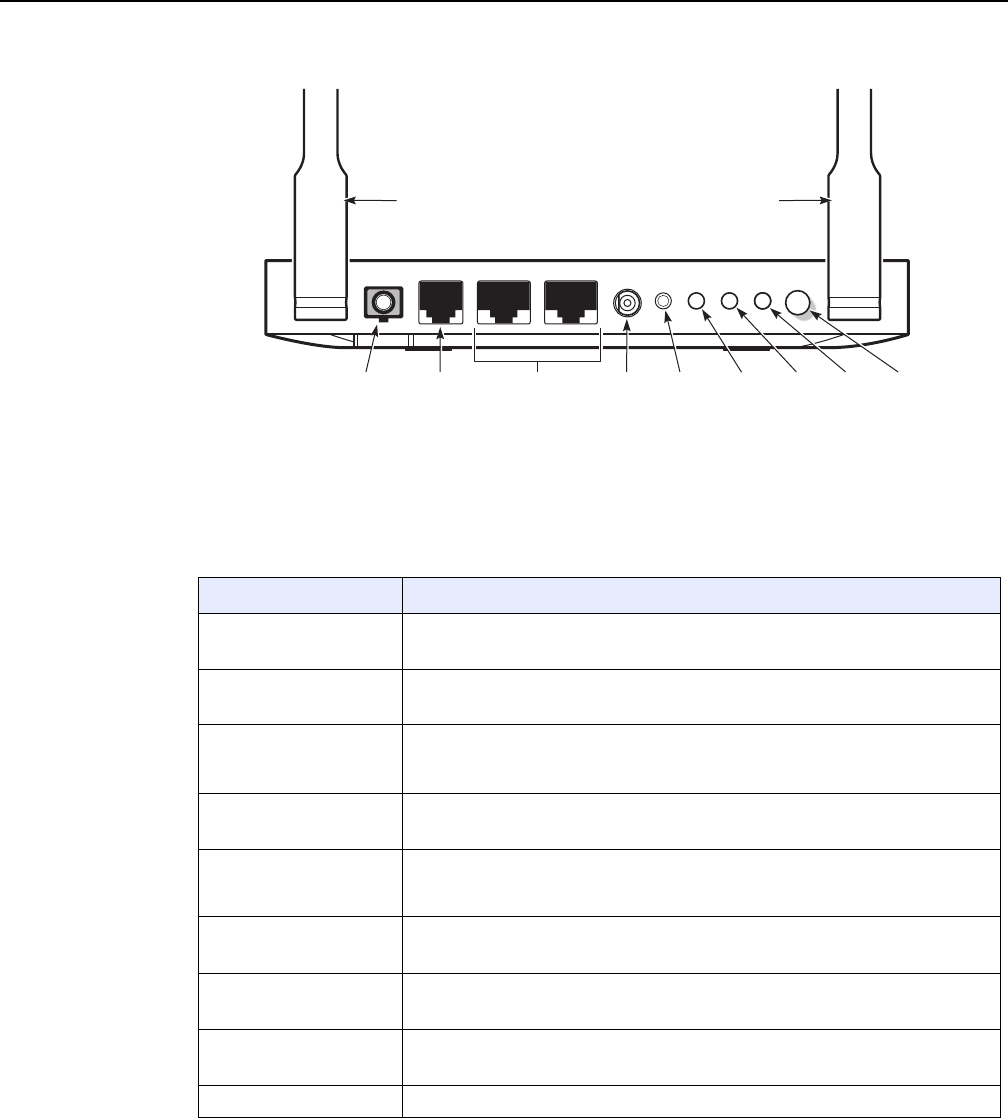

Figure 15 G-120W-F indoor ONT physical connections ............................................53

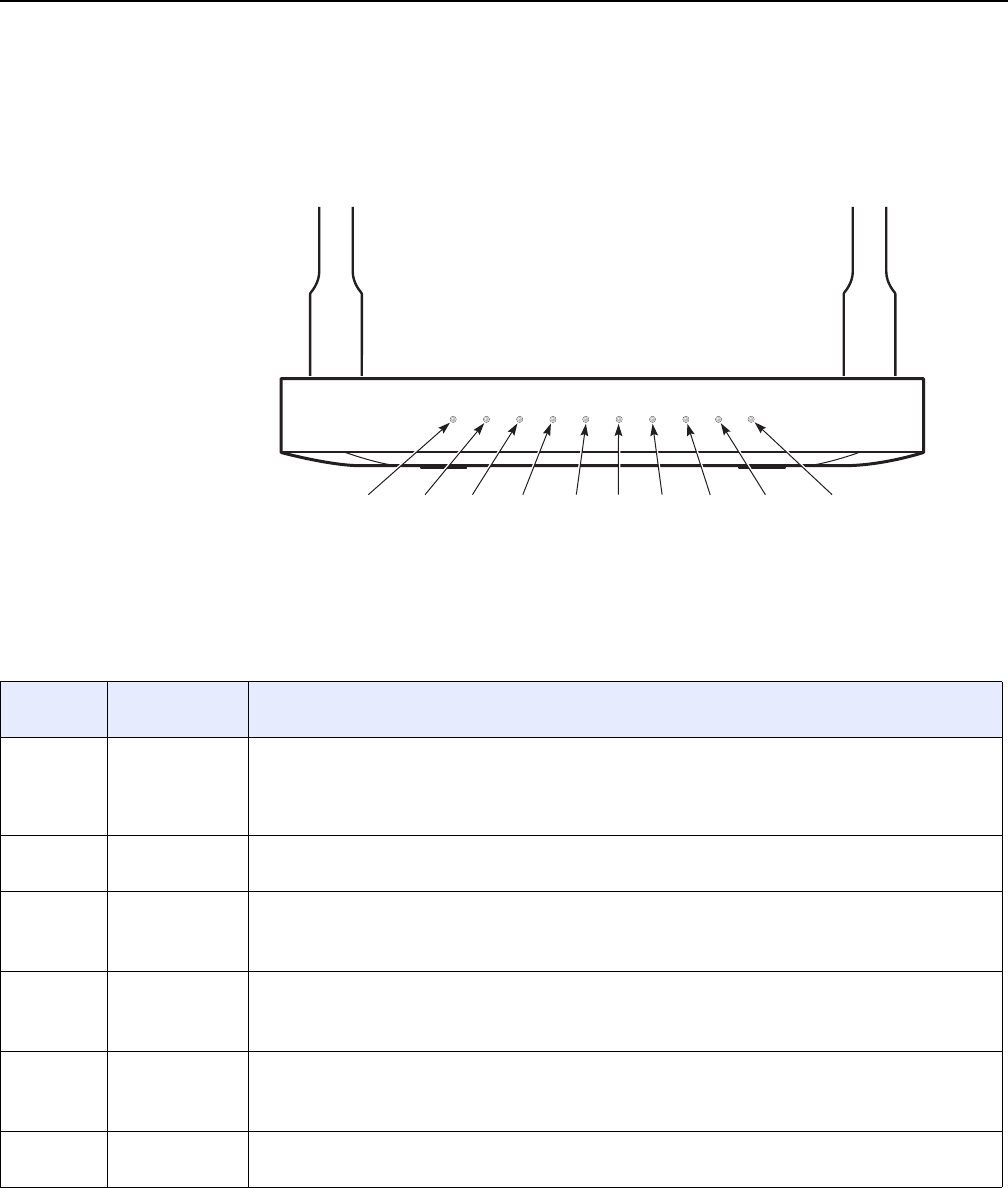

Figure 16 G-120W-F indoor ONT LEDs ....................................................................54
Figure 17 Single-residence Wi-Fi ONT with Gigabit Ethernet and POTS and
without RF video........................................................................................59
Figure 18 G-120W-F ONT hardware block................................................................60
Figure 19 G-120W-F ONT product label....................................................................61
Figure 20 G-120W-F ONT safety label ......................................................................62
6 Install a G-120W-F indoor ONT....................................................65

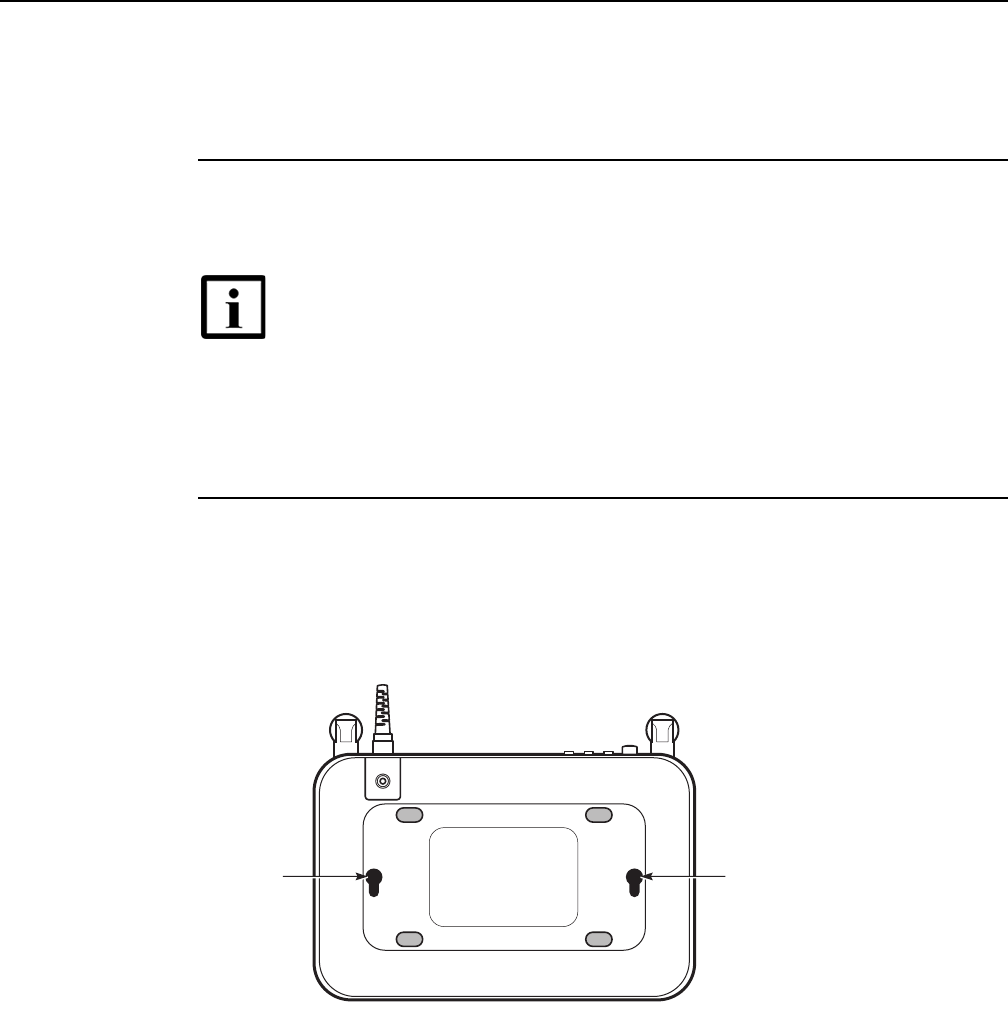

Figure 21 G-120W-F indoor ONT wall mounting holes (bottom view) .......................67
Figure 22 G-120W-F indoor ONT connections ..........................................................68
7 Replace a G-120W-F indoor ONT ................................................71
Figure 23 G-120W-F indoor ONT connections ..........................................................73
8 Configure a G-120W-F indoor ONT .............................................77

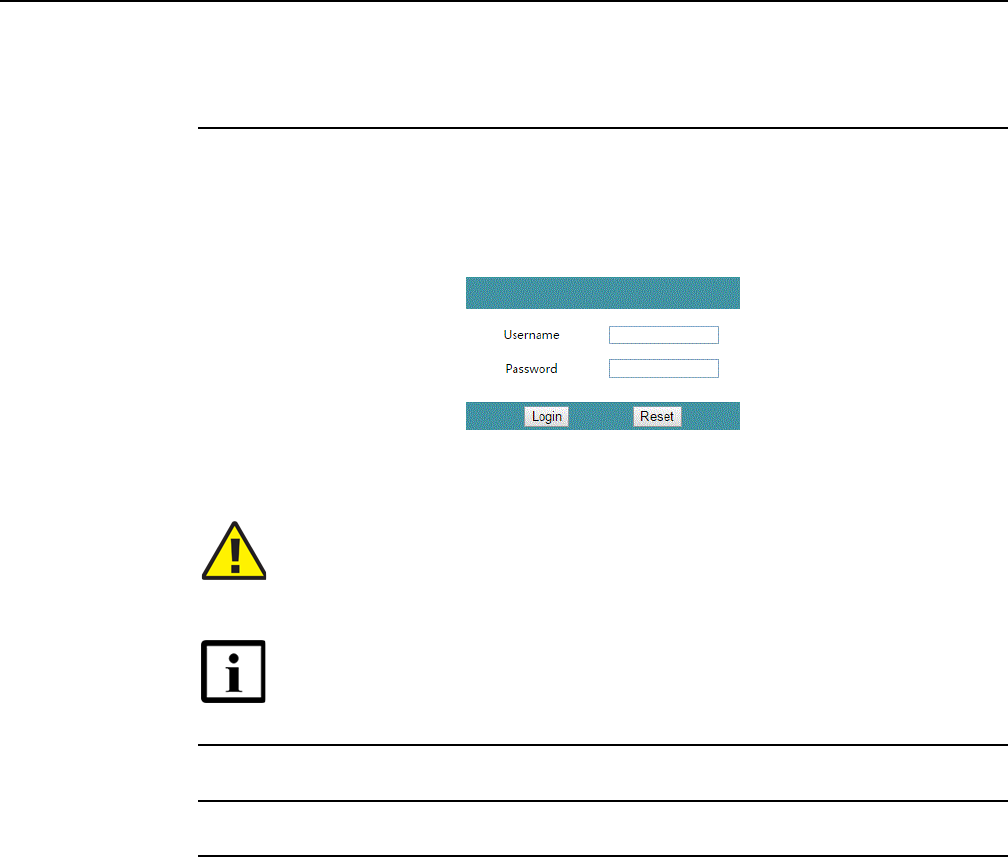

Figure 24 Web login window......................................................................................78
Figure 25 Device Information window........................................................................79

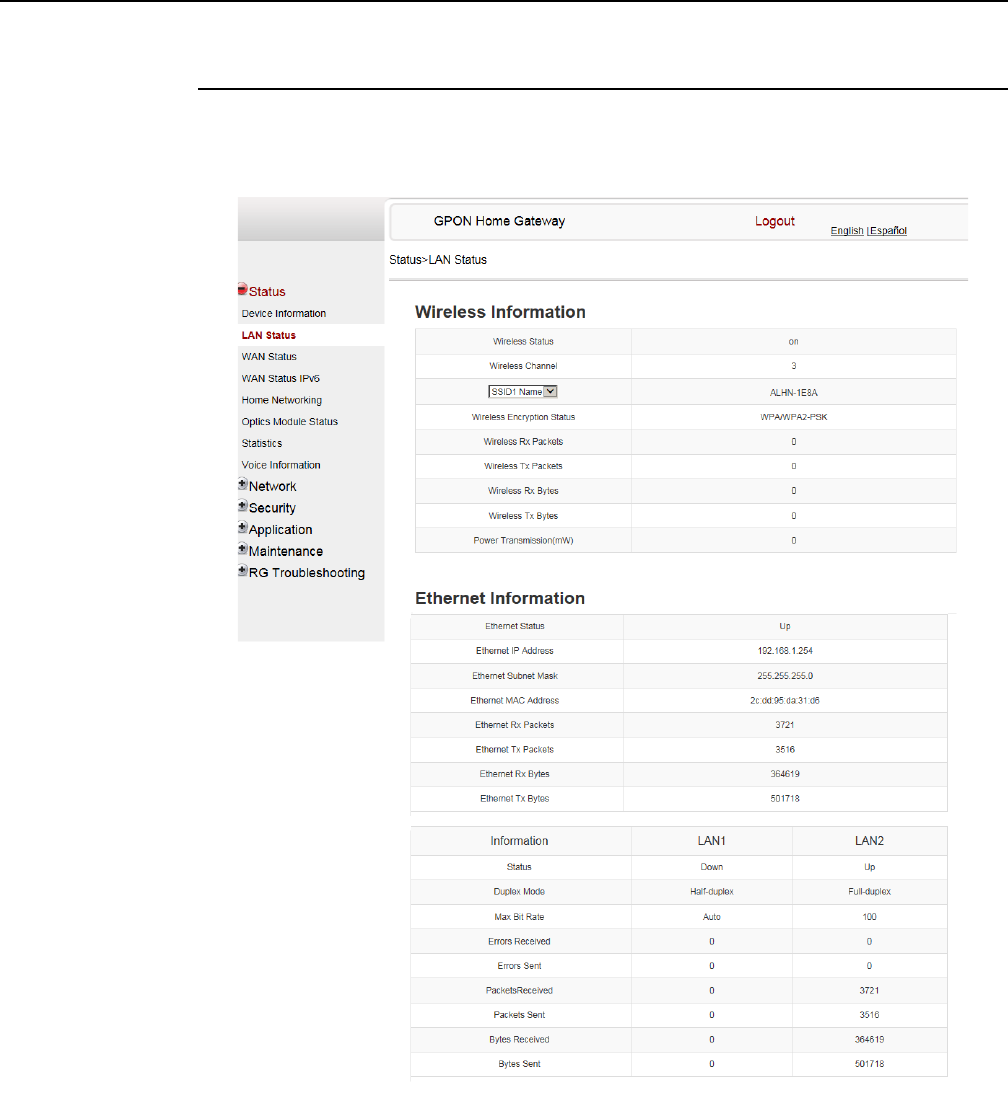

Figure 26 LAN status window ....................................................................................81

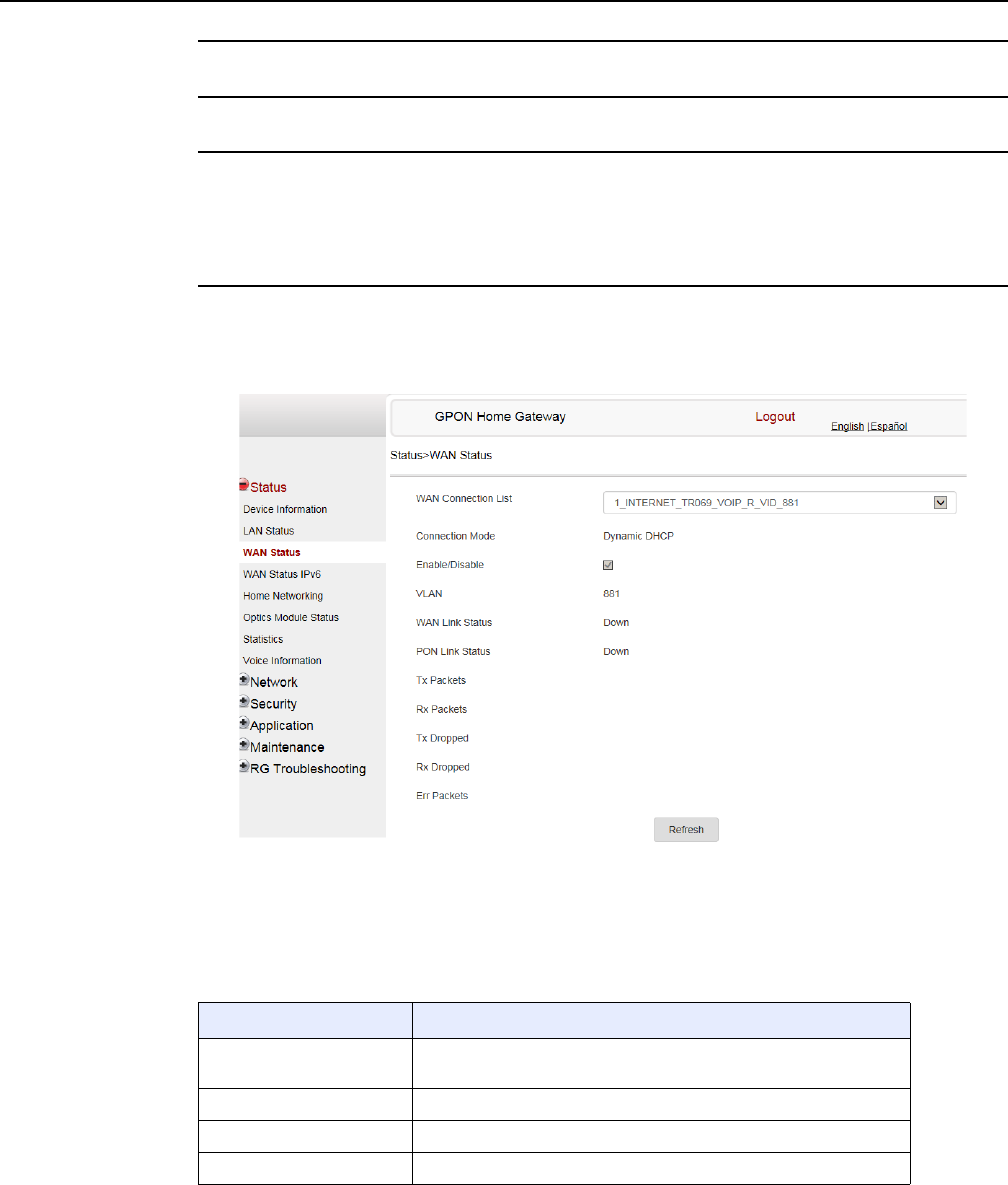

Figure 27 WAN status window...................................................................................83

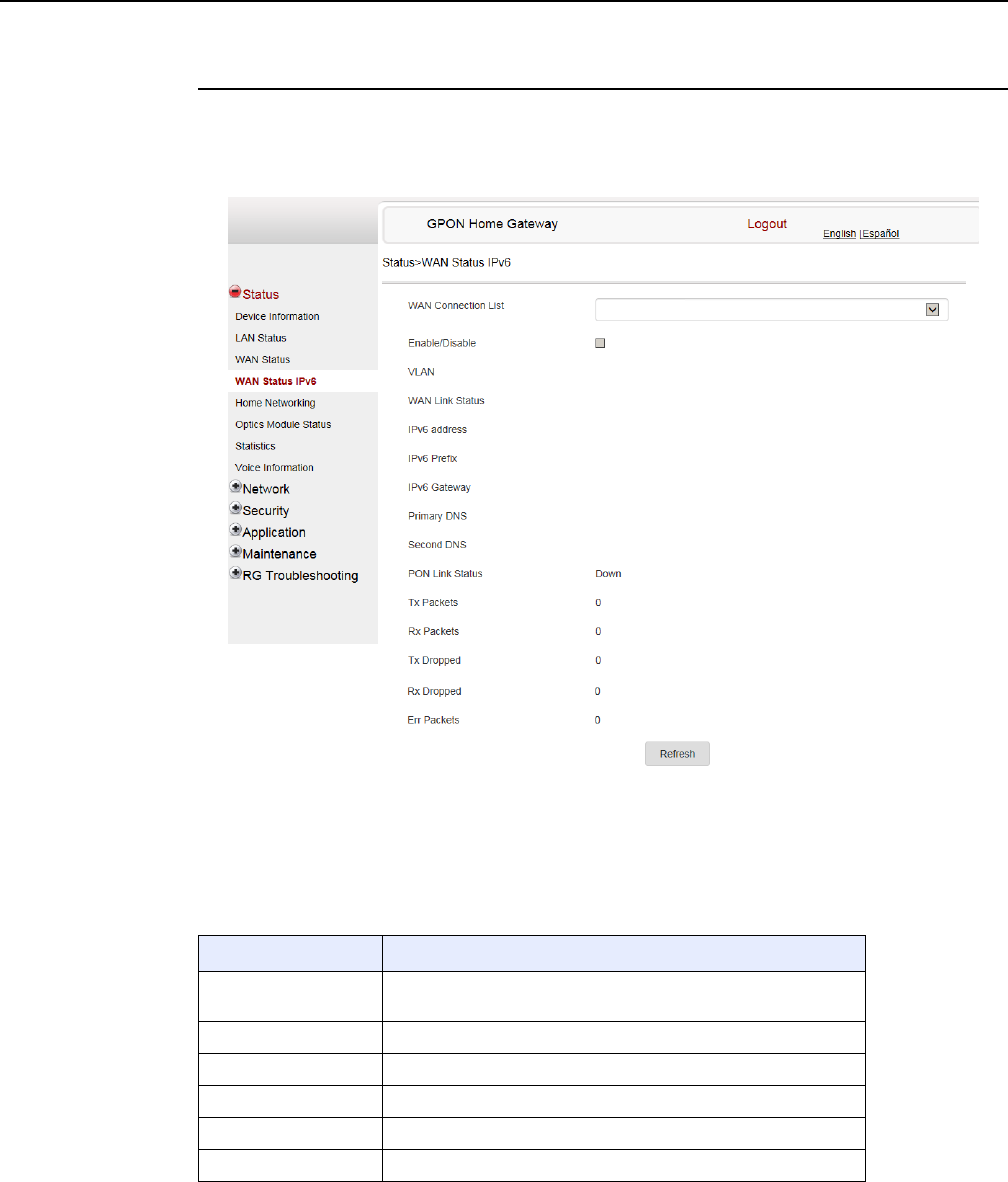

Figure 28 WAN status IPv6 window ..........................................................................85

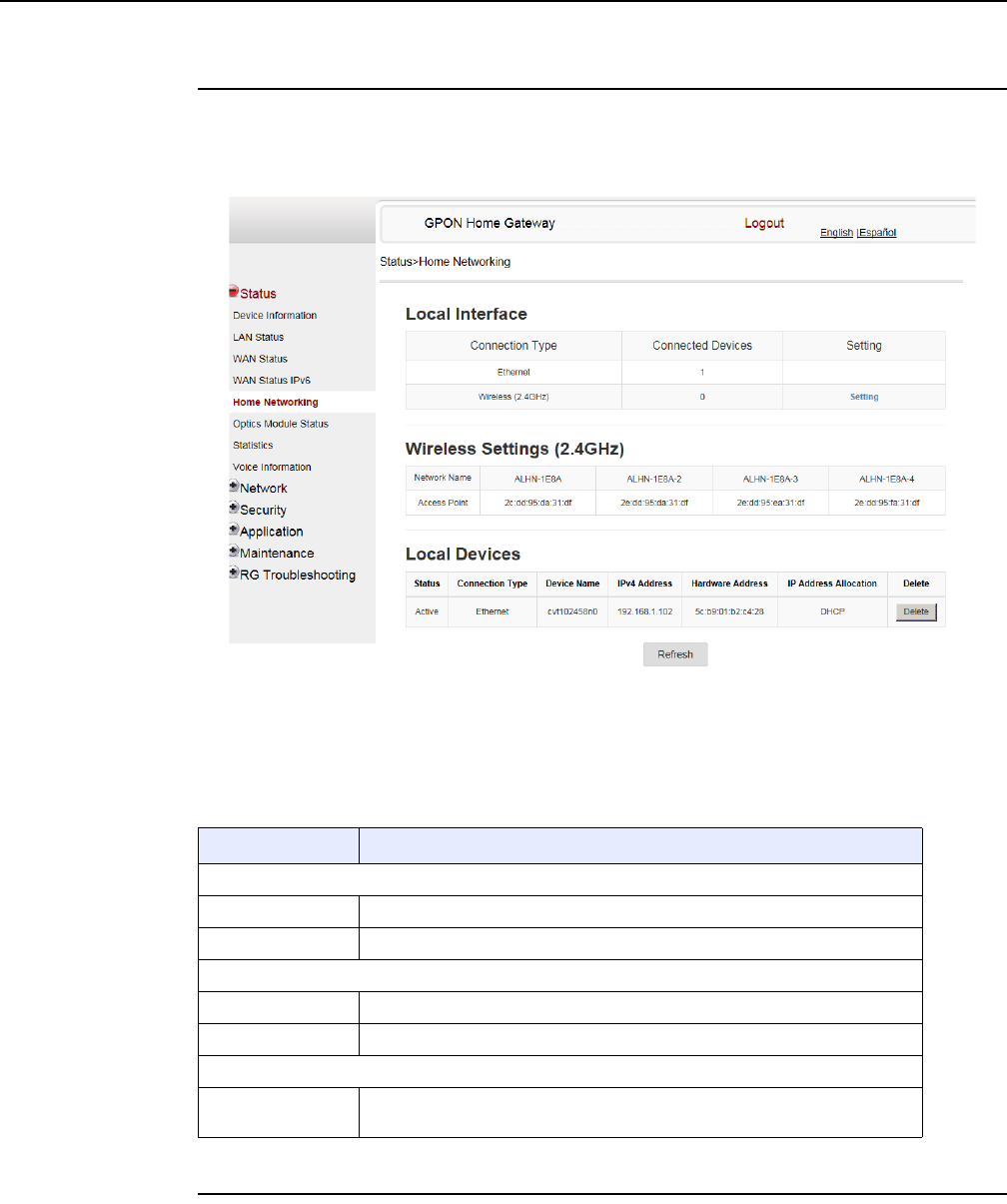

Figure 29 Home networking information window.......................................................87

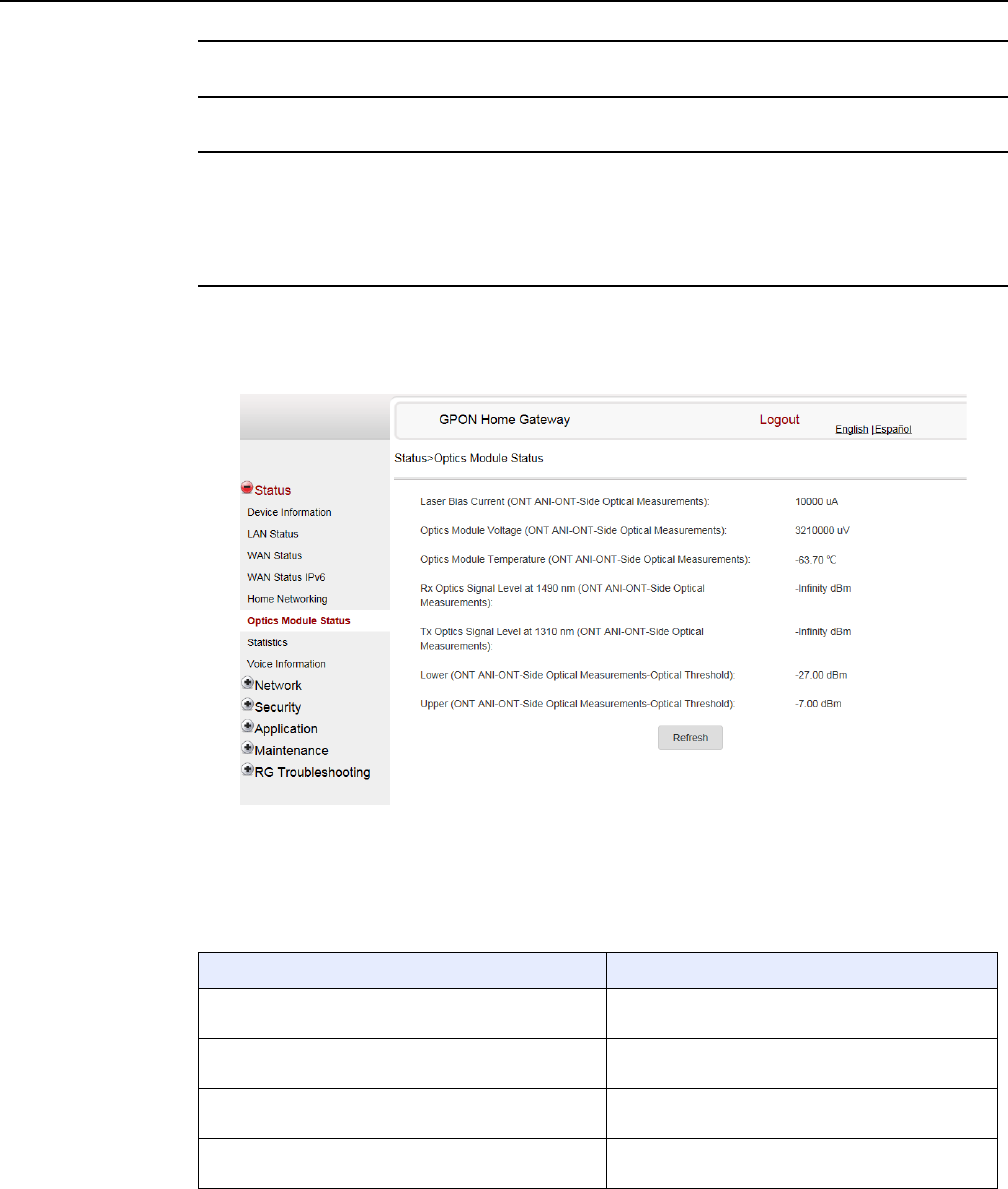

Figure 30 Optics module status window ....................................................................88

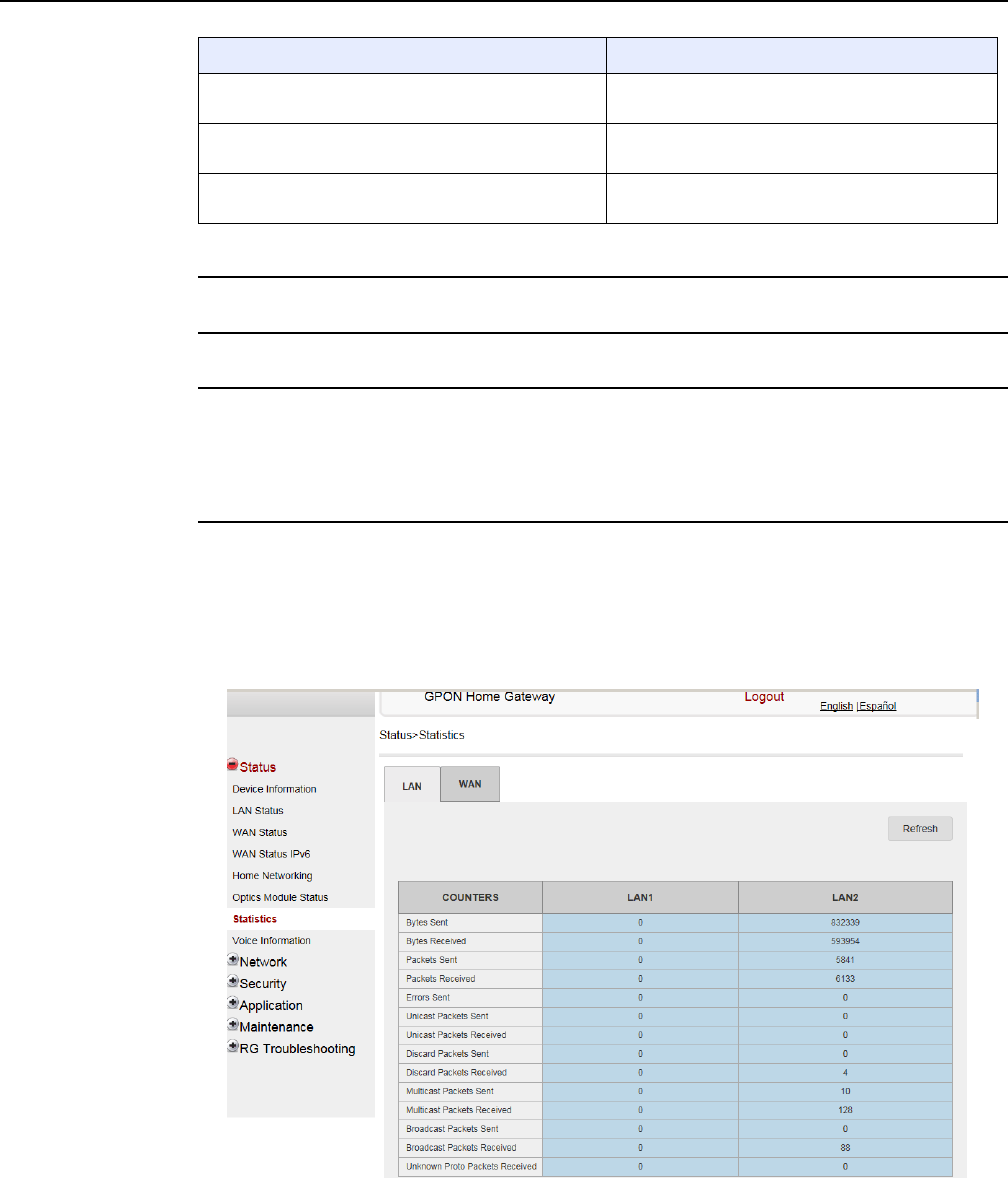

Figure 31 LAN ports Statistics window ......................................................................89

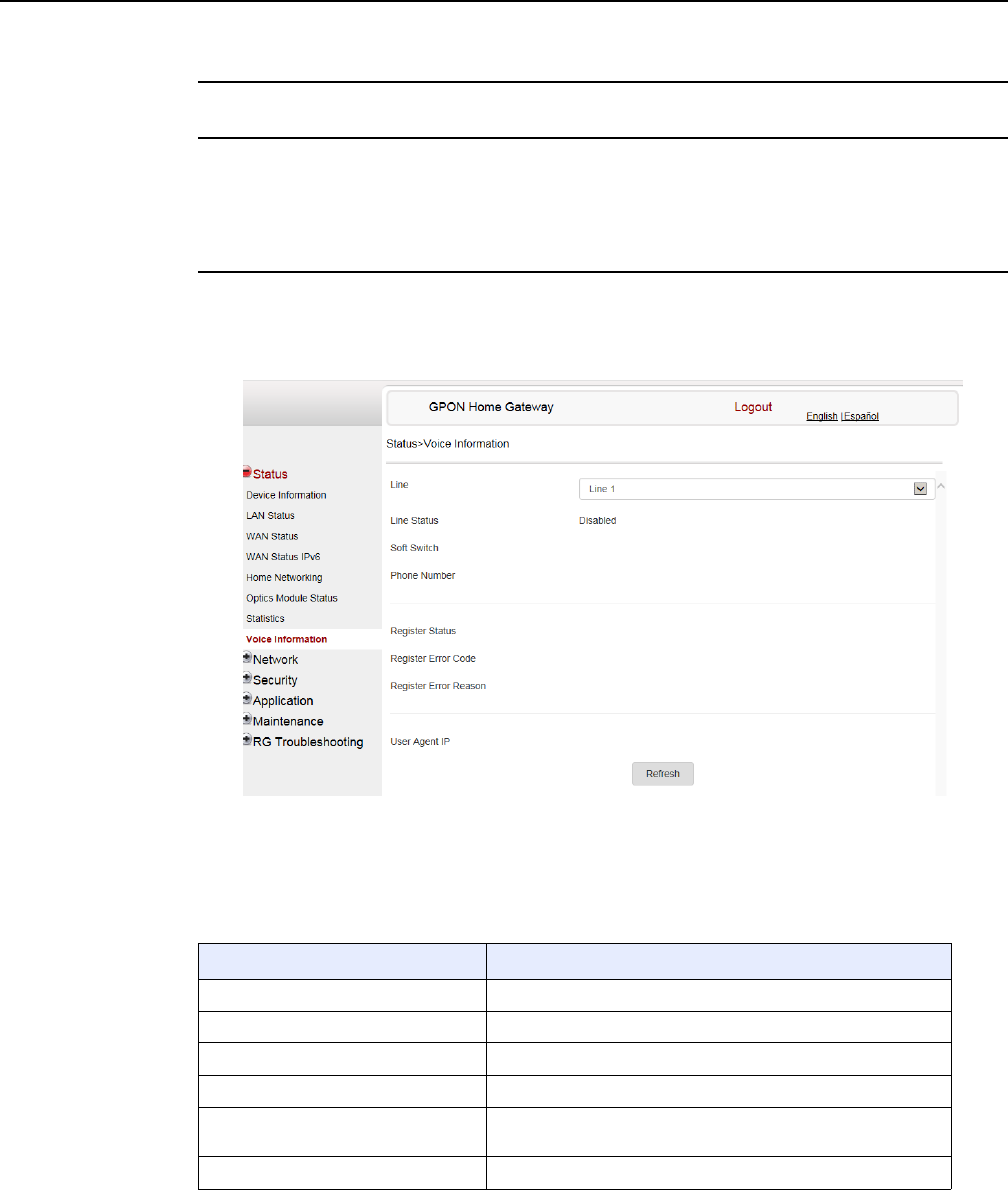

Figure 32 Voice Information window..........................................................................90
Figure 33 LAN network window .................................................................................92

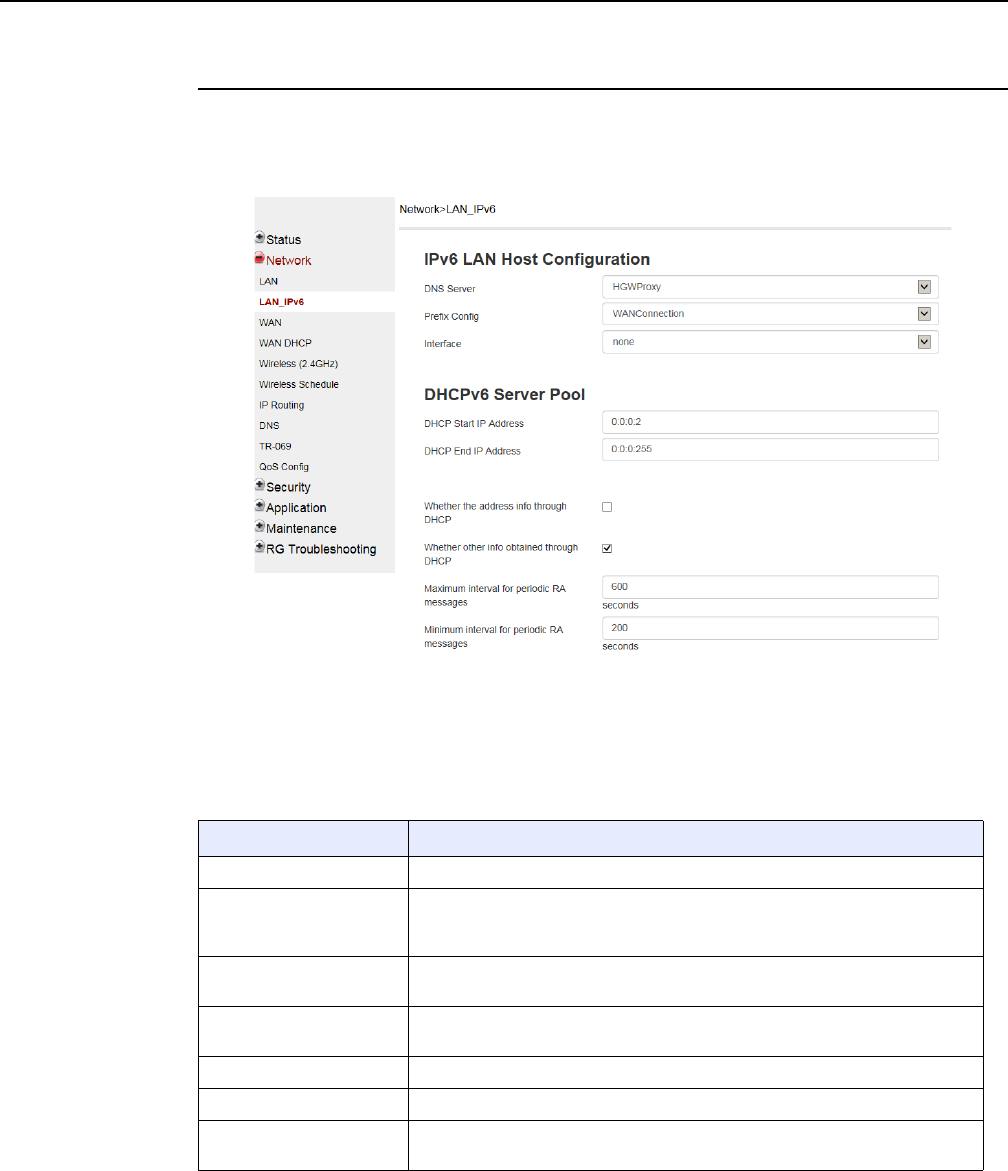

Figure 34 LAN IPv6 network window.........................................................................94
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bge.png)
14
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Figure 35 WAN network window................................................................................96

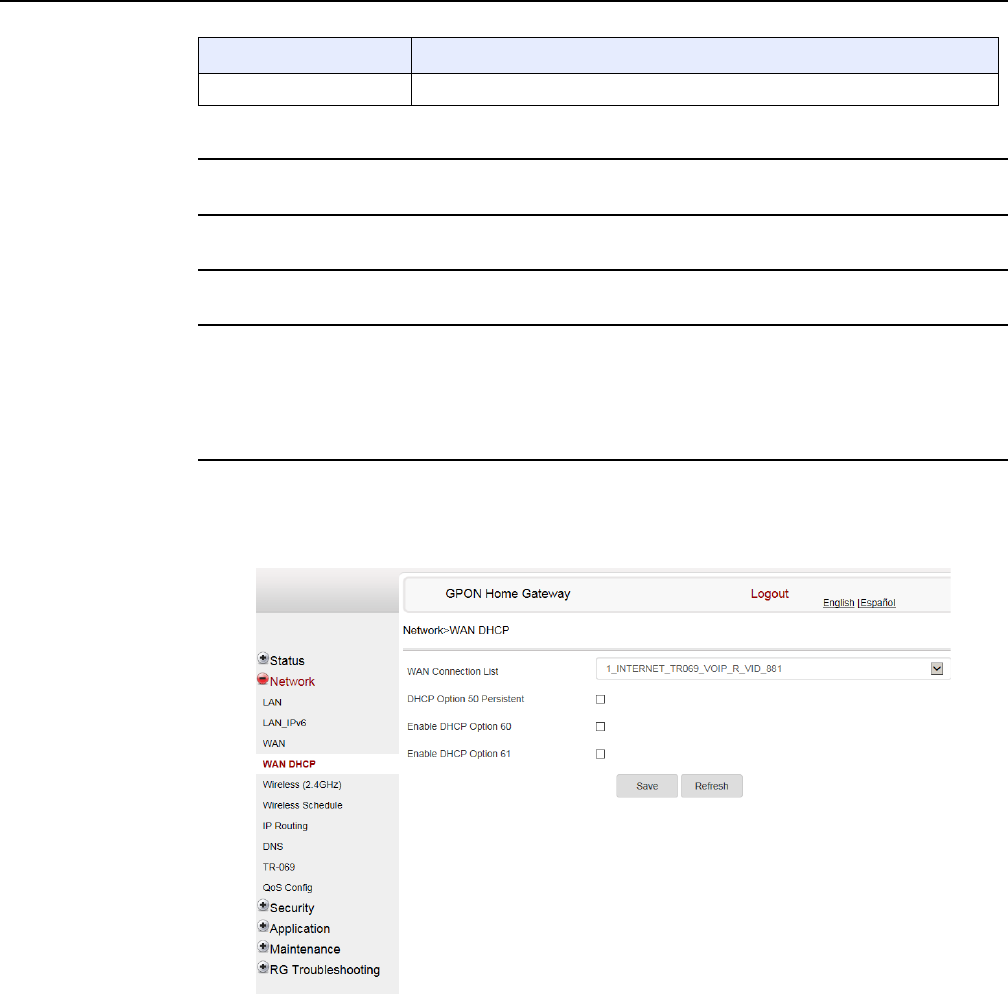

Figure 36 WAN DHCP window ..................................................................................97

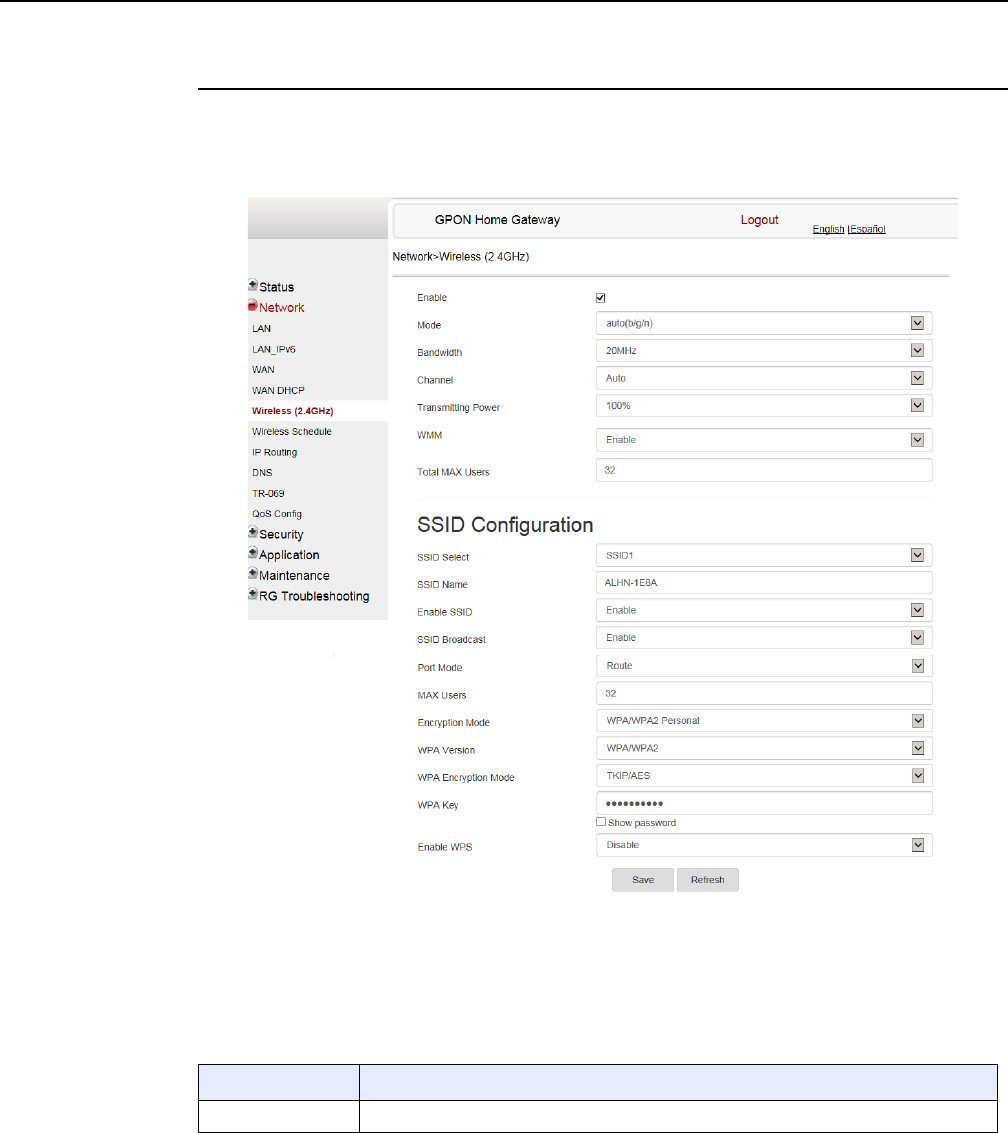

Figure 37 Wireless 2.4GHz network window .............................................................99

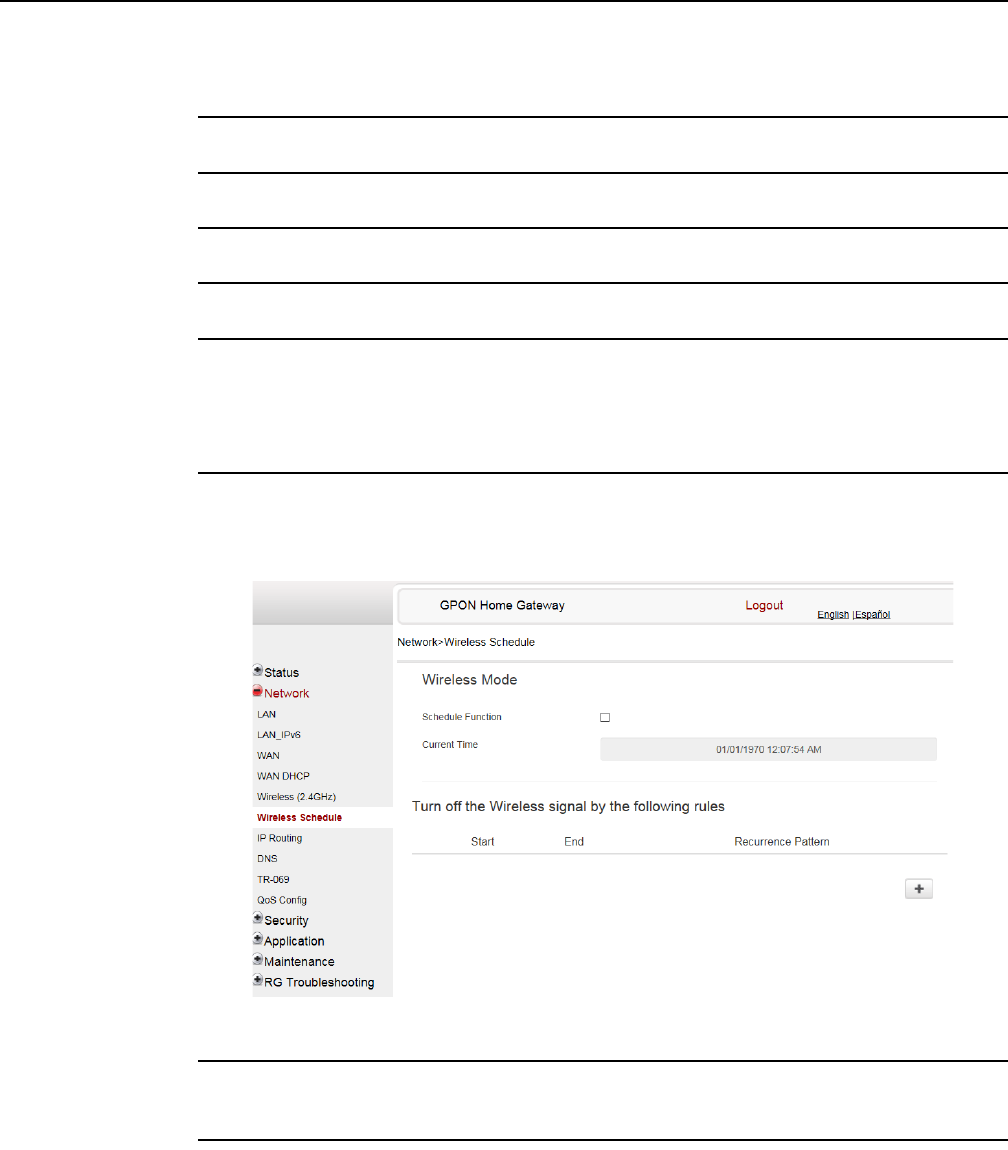

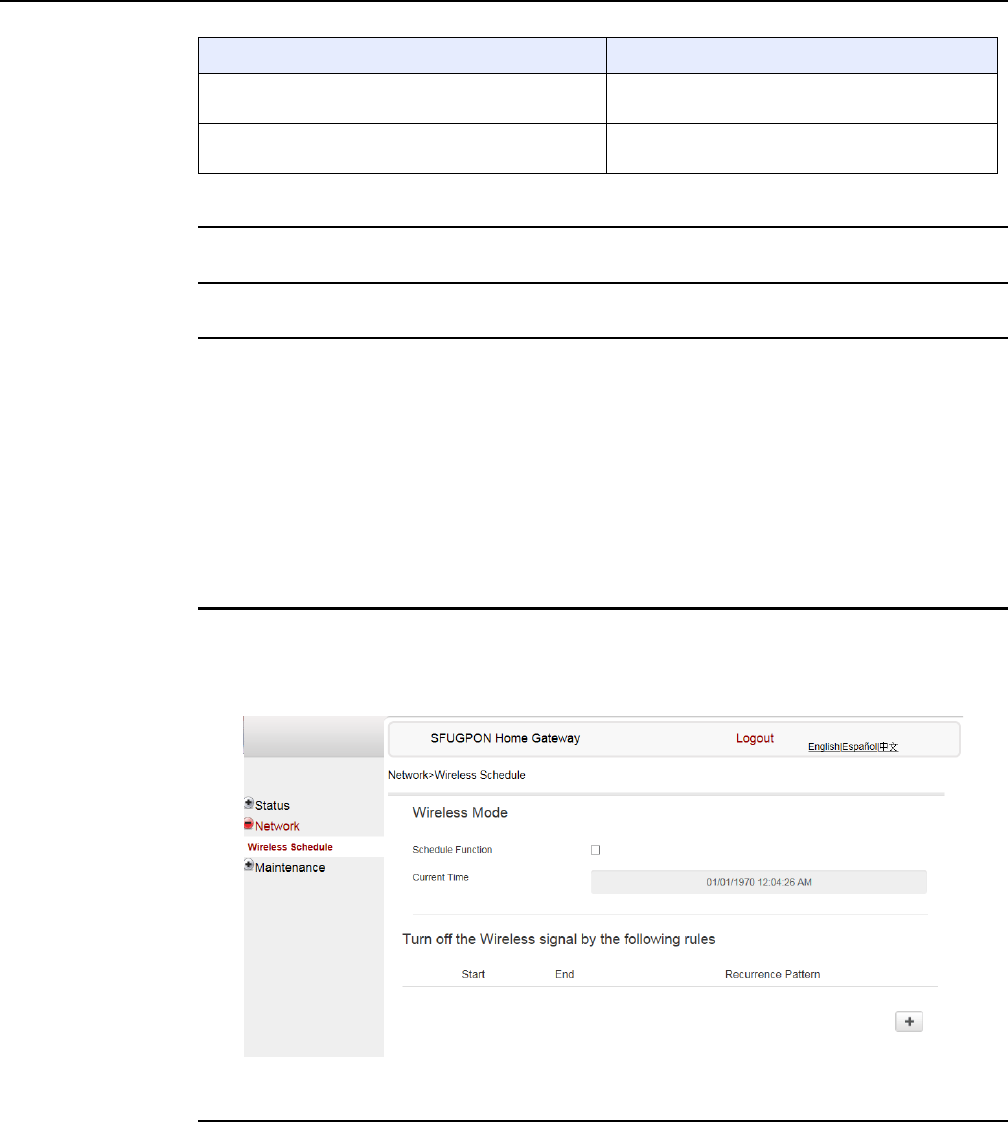

Figure 38 Wireless Schedule window......................................................................101

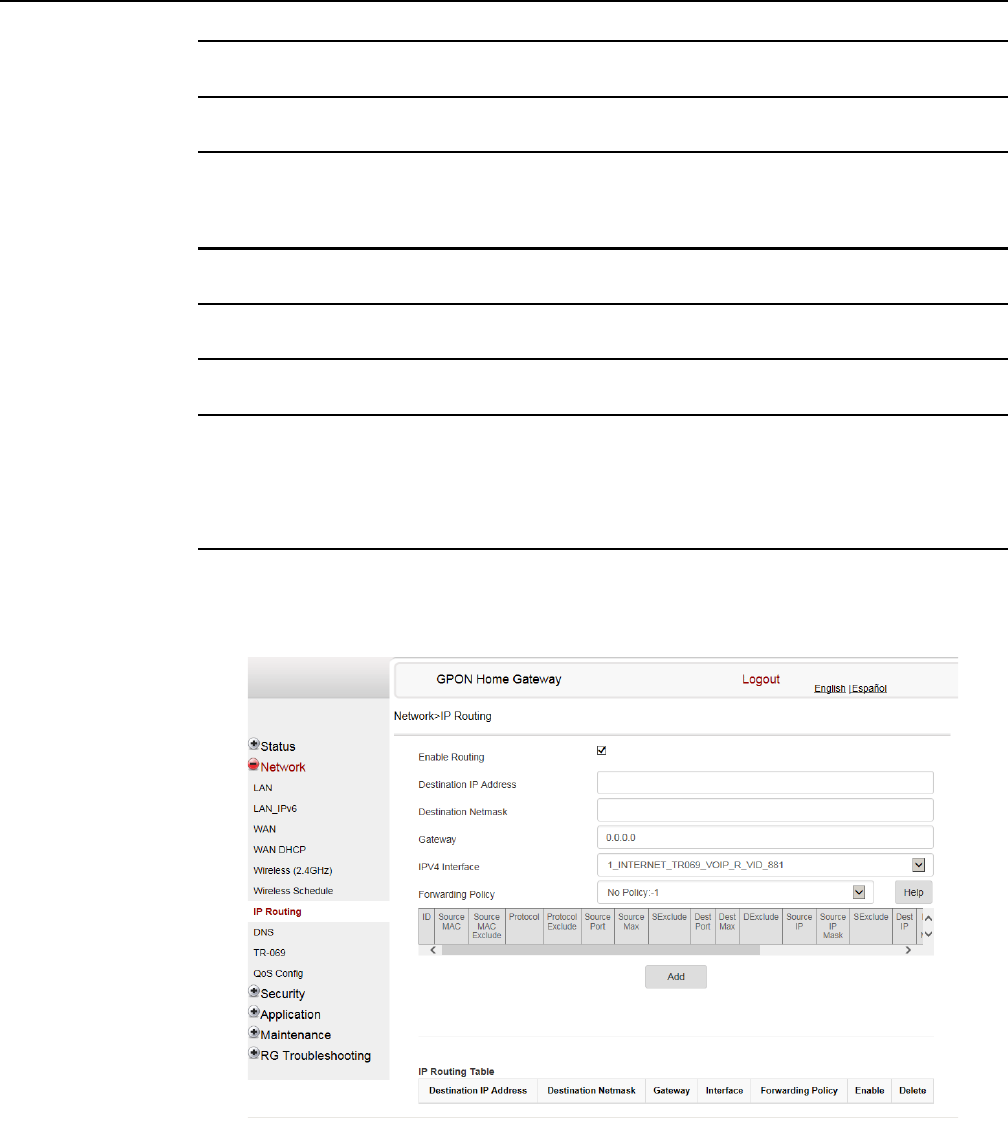

Figure 39 IP Routing network window .....................................................................102

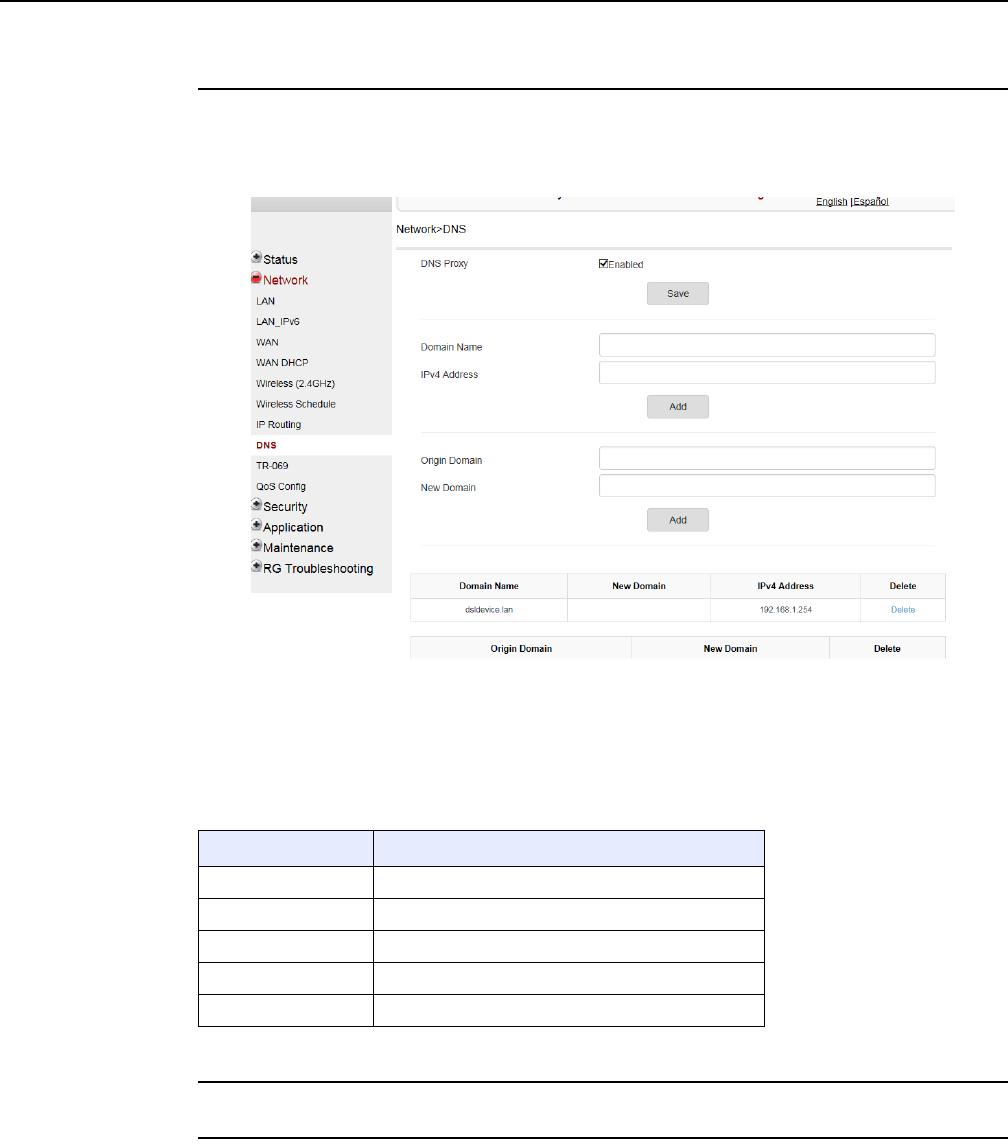

Figure 40 DNS network window ..............................................................................104

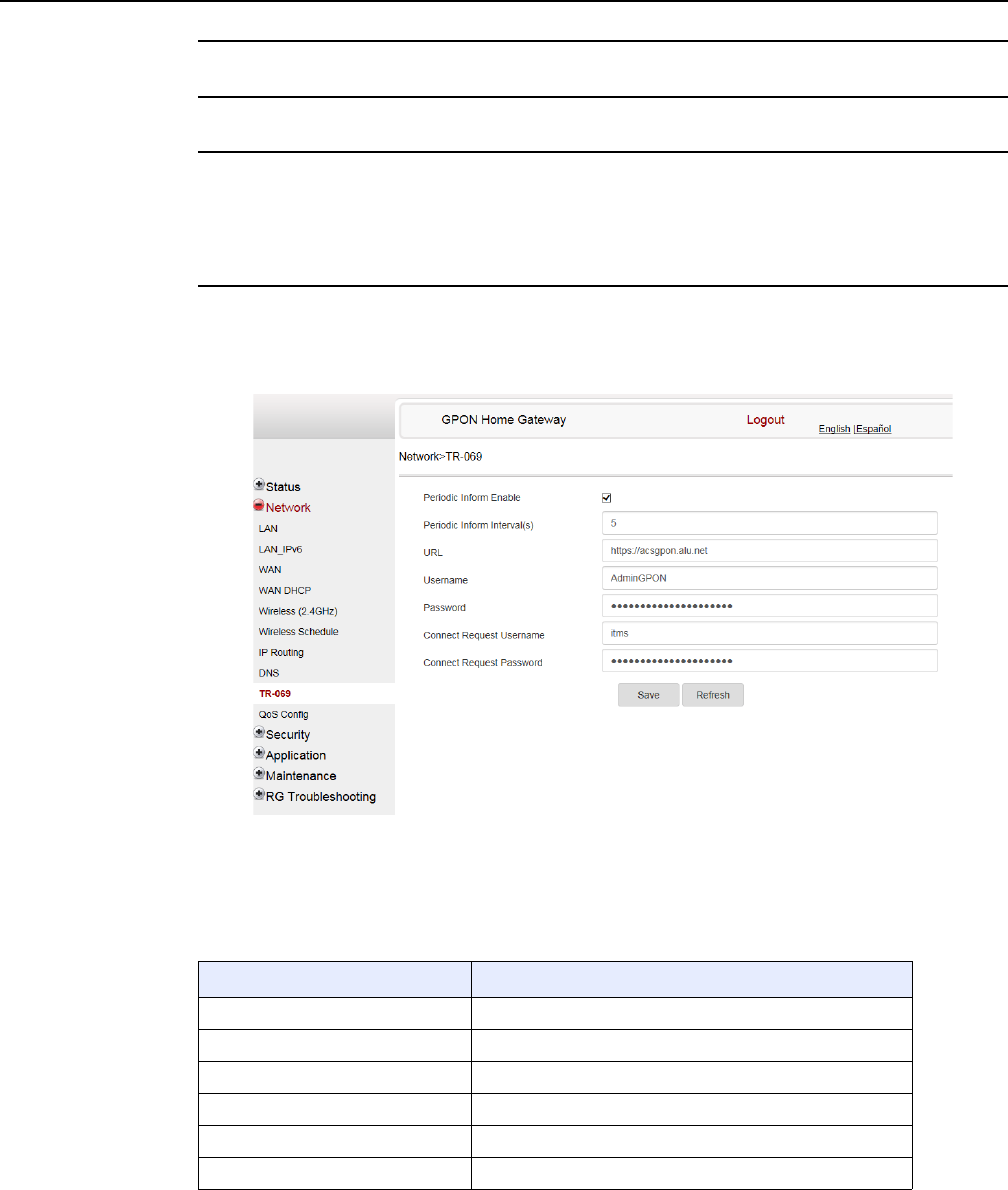

Figure 41 TR-069 network window..........................................................................105
Figure 42 QoS Config window (L2)..........................................................................106
Figure 43 Firewall window .......................................................................................108
Figure 44 MAC filter window....................................................................................109

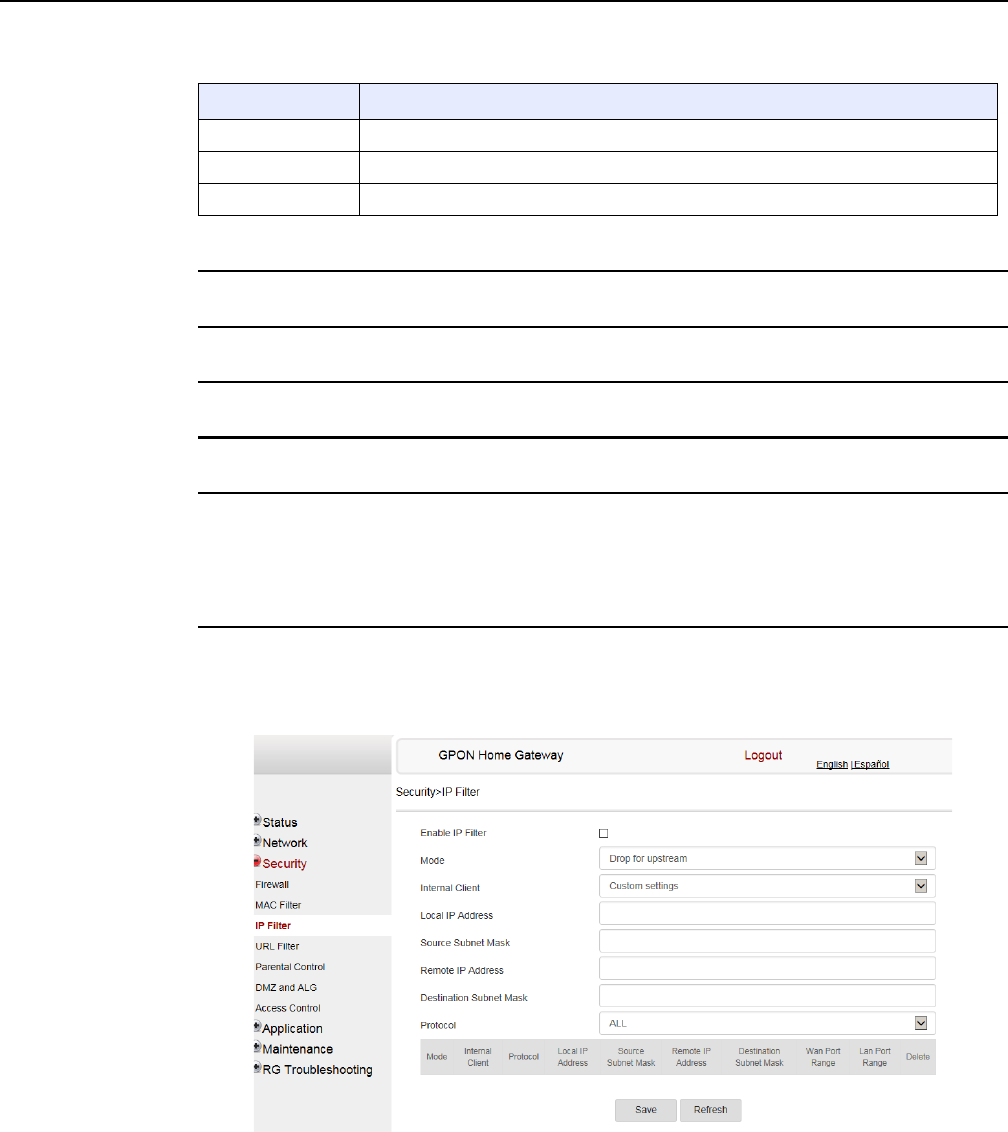

Figure 45 IP filter window ........................................................................................110

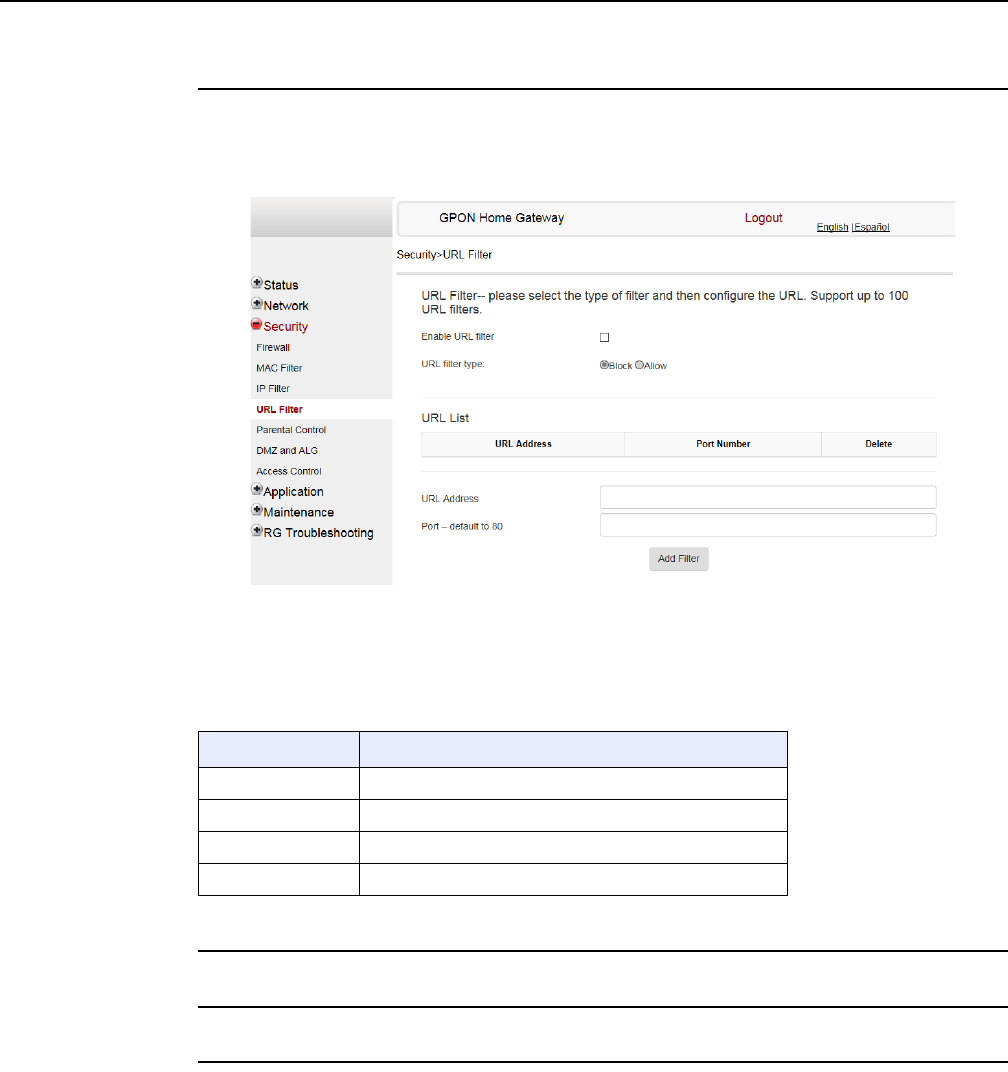

Figure 46 URL Filter window ...................................................................................112

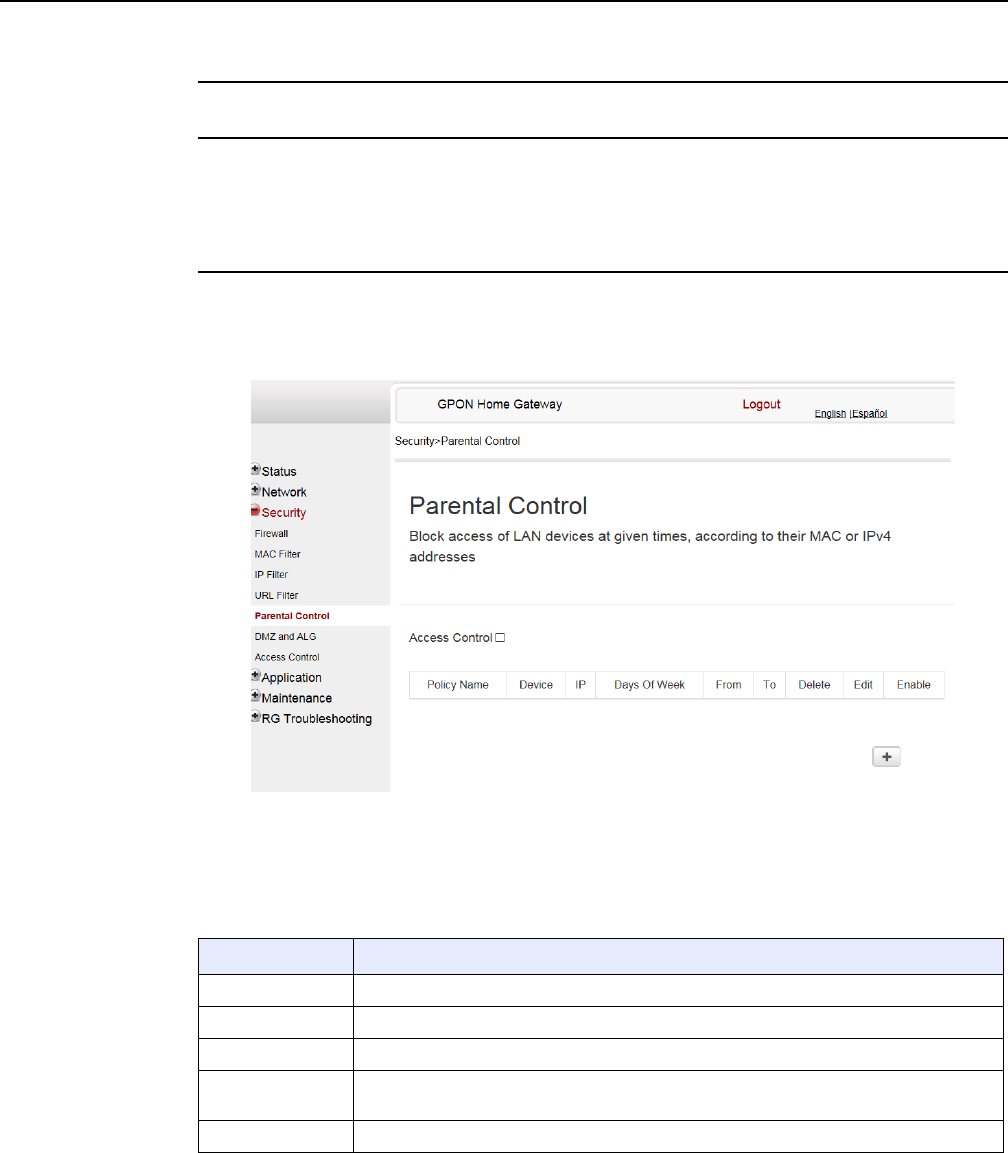

Figure 47 Parental Control window..........................................................................113

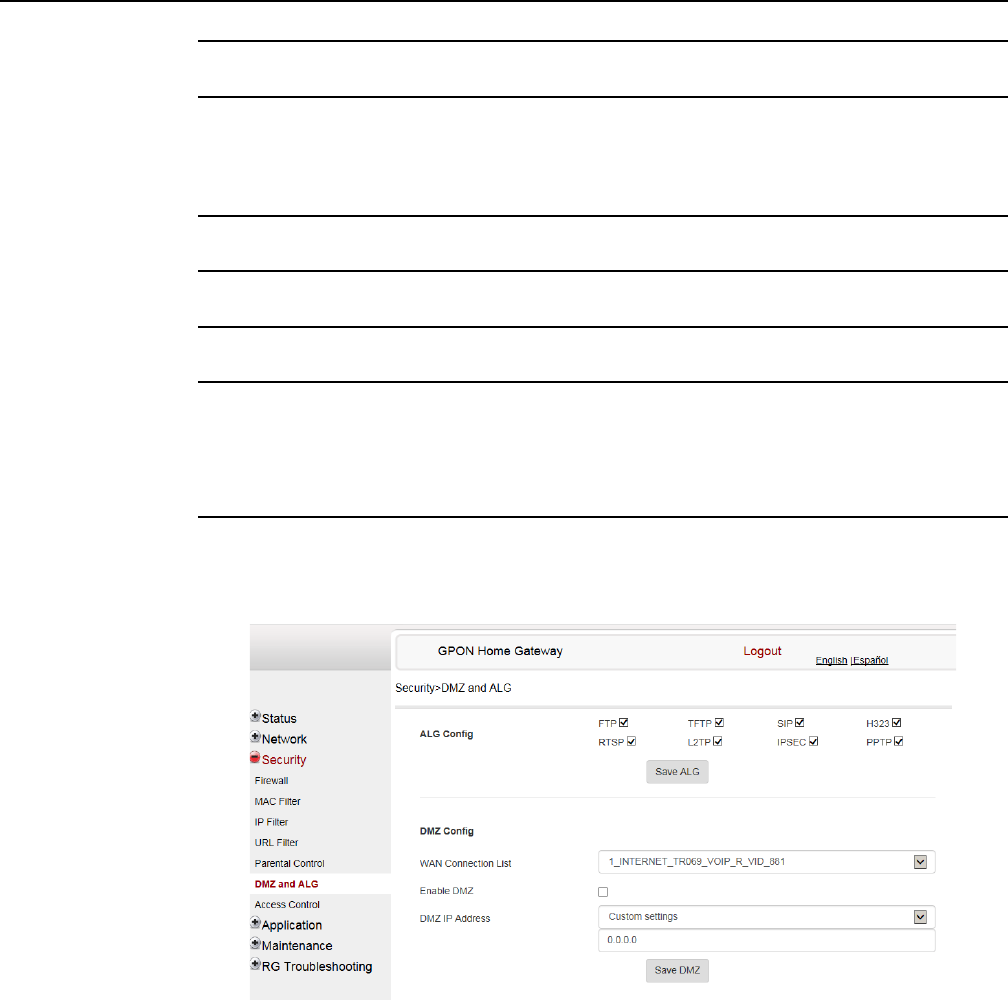

Figure 48 DMZ and ALG window.............................................................................114

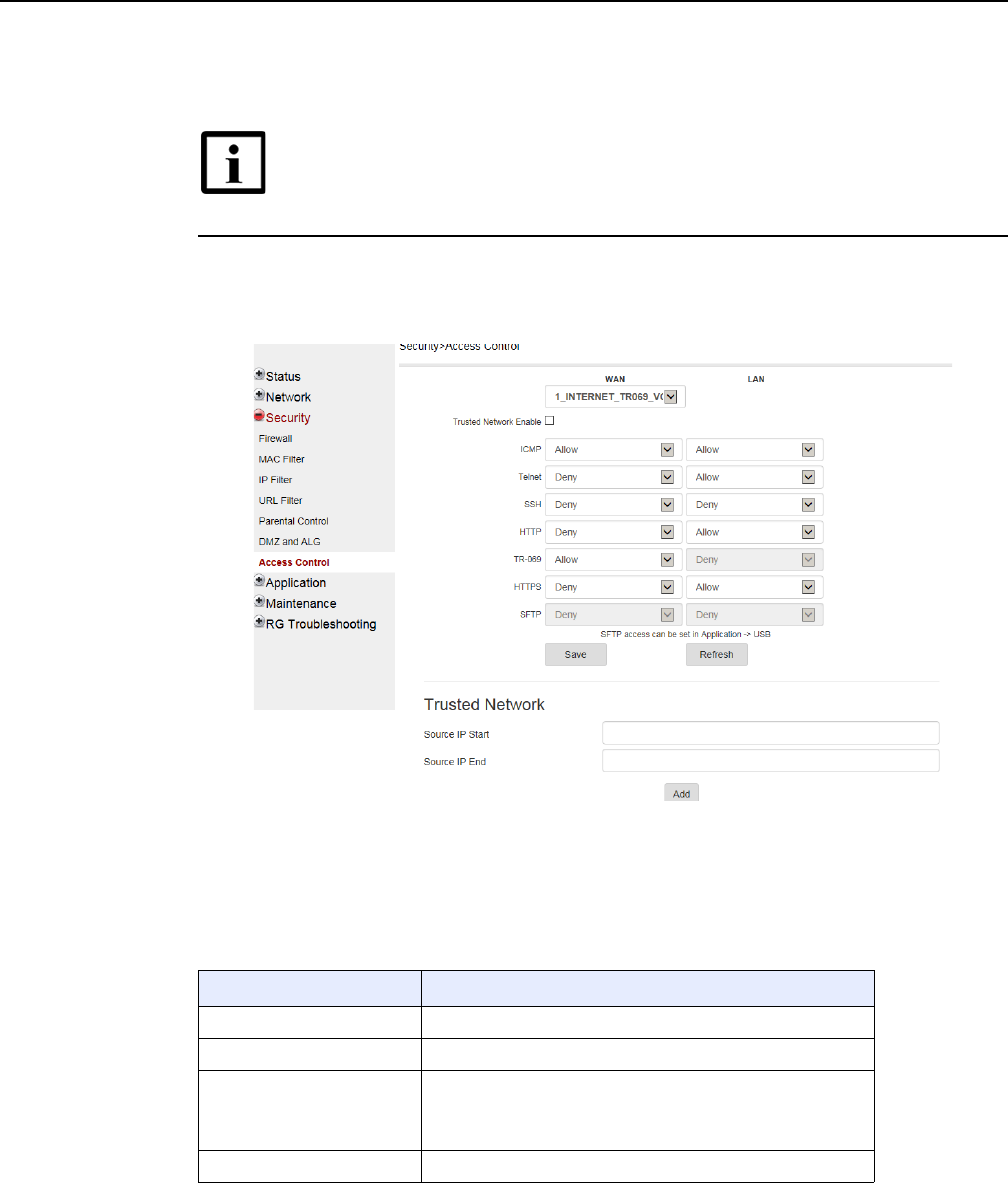

Figure 49 Access Control window ...........................................................................116
Figure 50 Port forwarding window ...........................................................................118
Figure 51 Port Triggering window............................................................................119

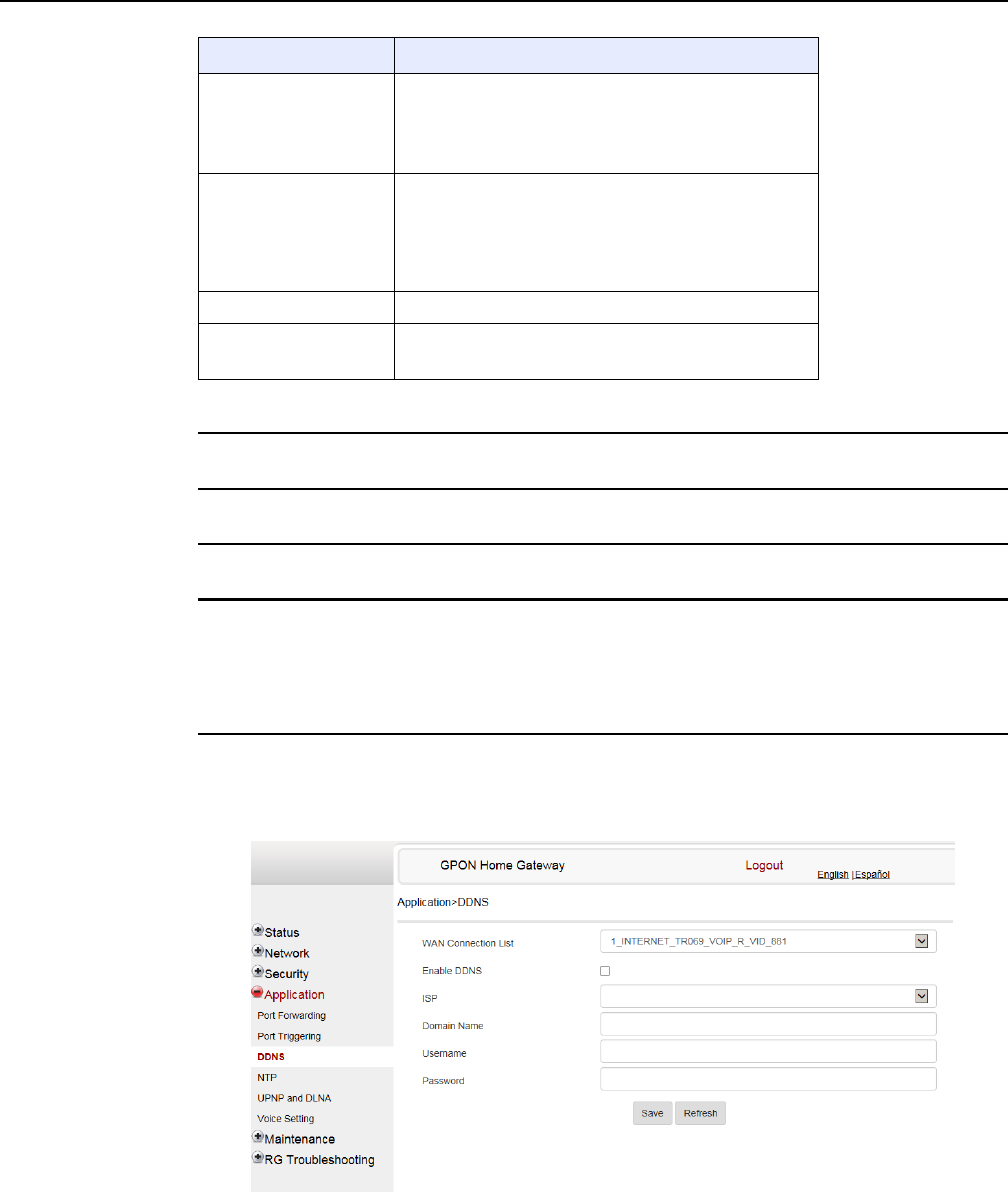

Figure 52 DDNS window .........................................................................................120

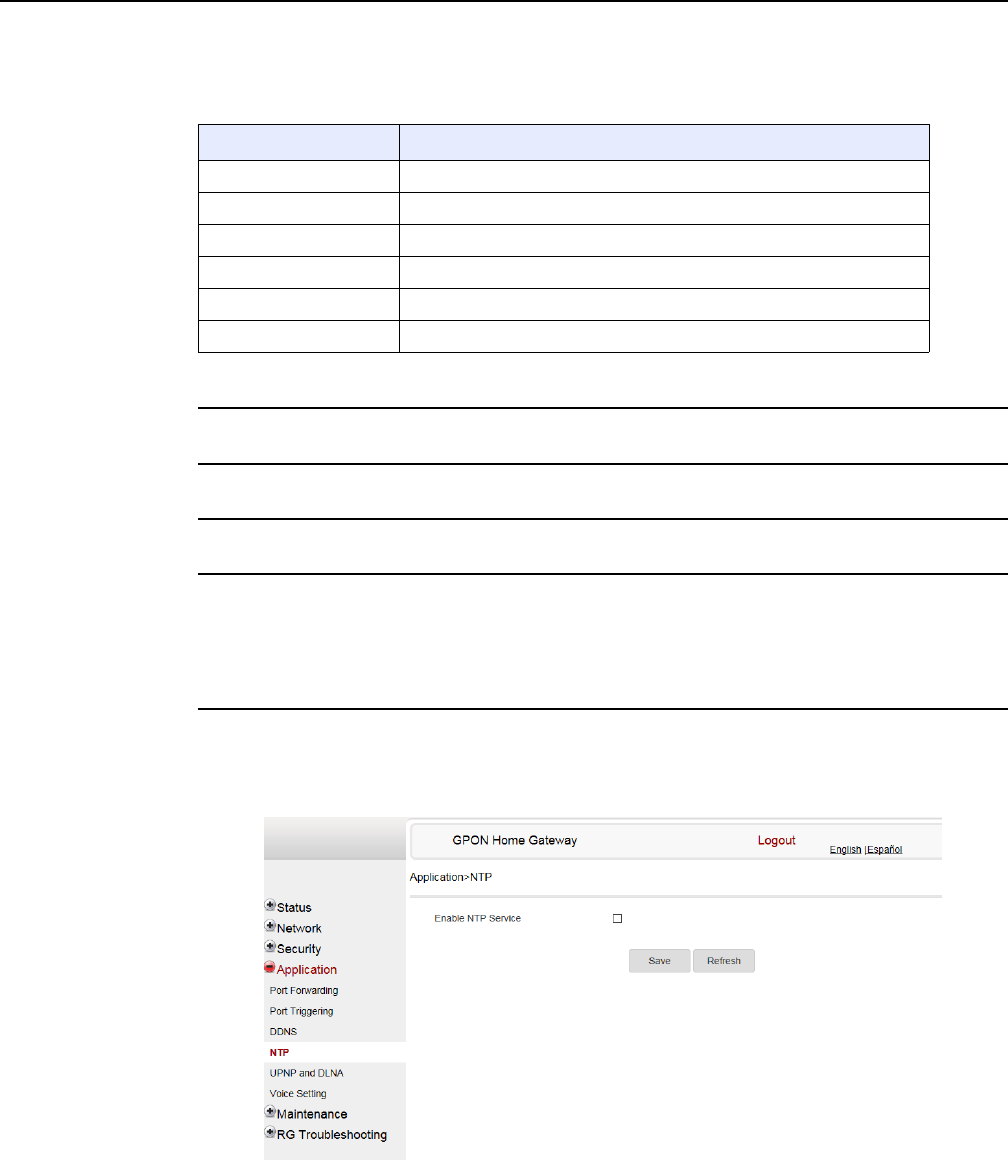

Figure 53 NTP window ............................................................................................121

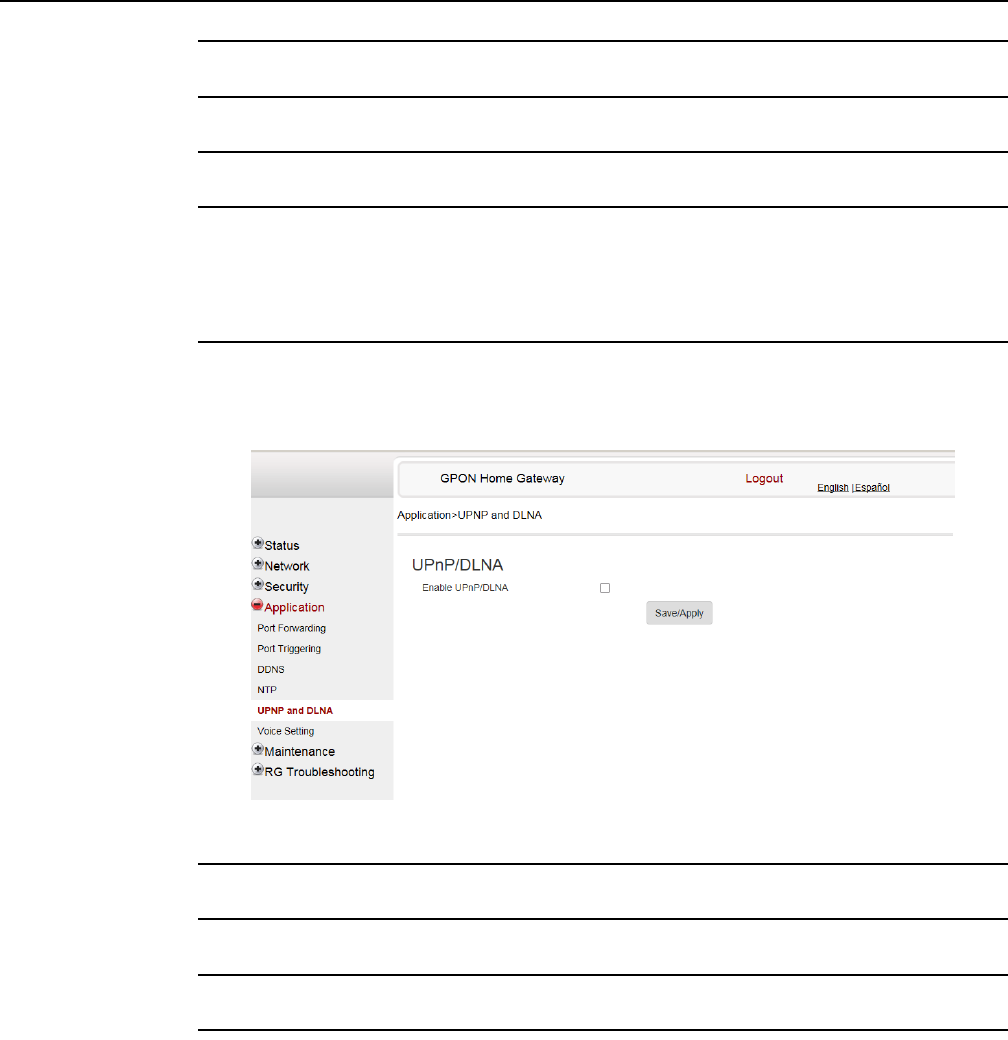

Figure 54 UPnP and DLNA window.........................................................................122

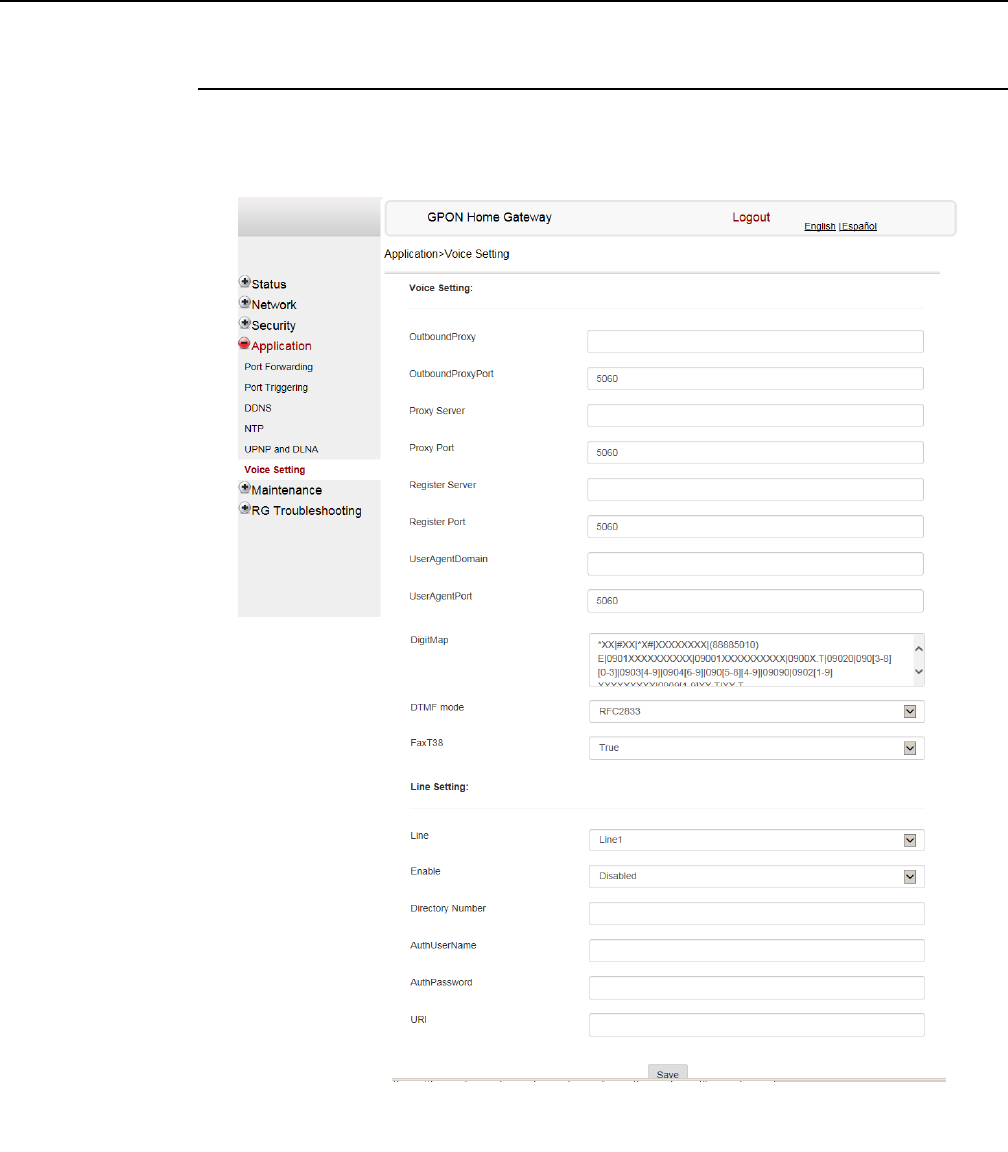

Figure 55 Voice setting window ...............................................................................123

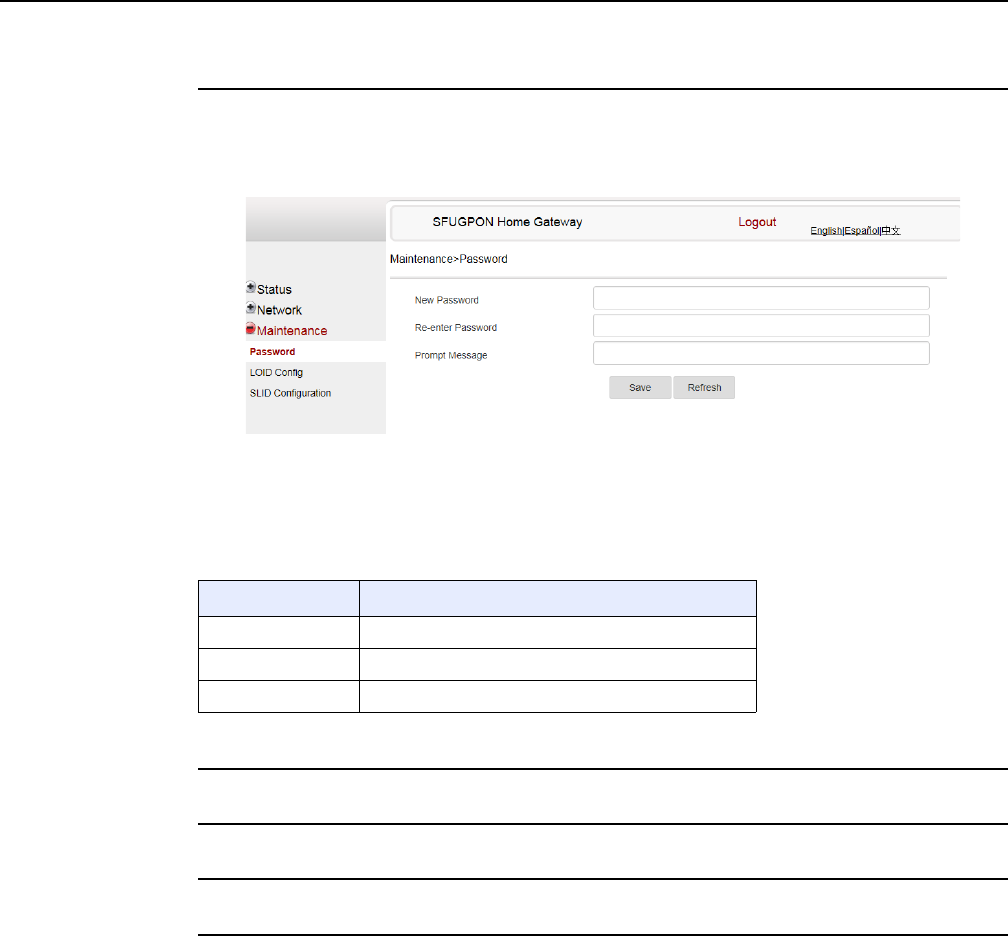

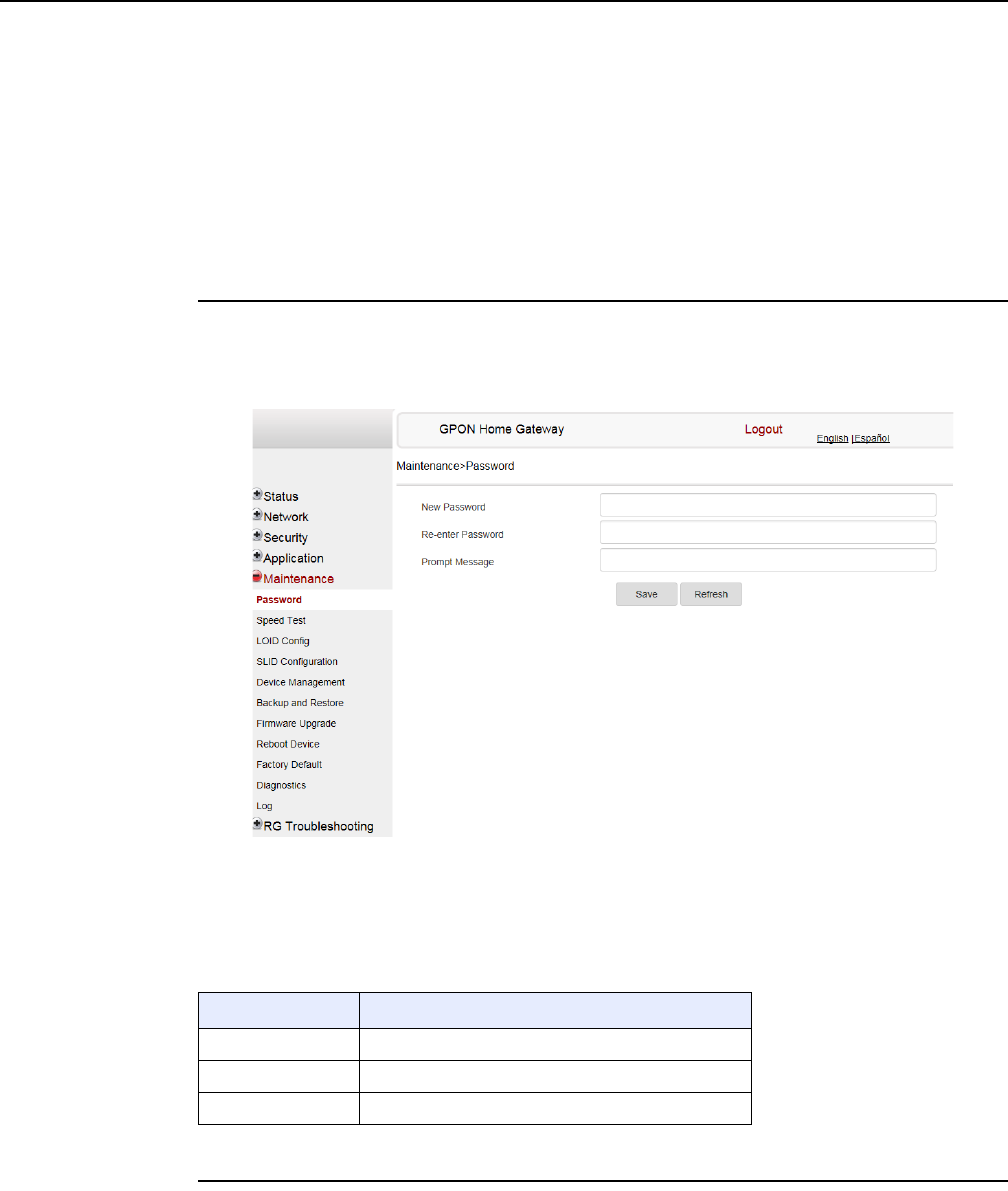

Figure 56 Password window....................................................................................125

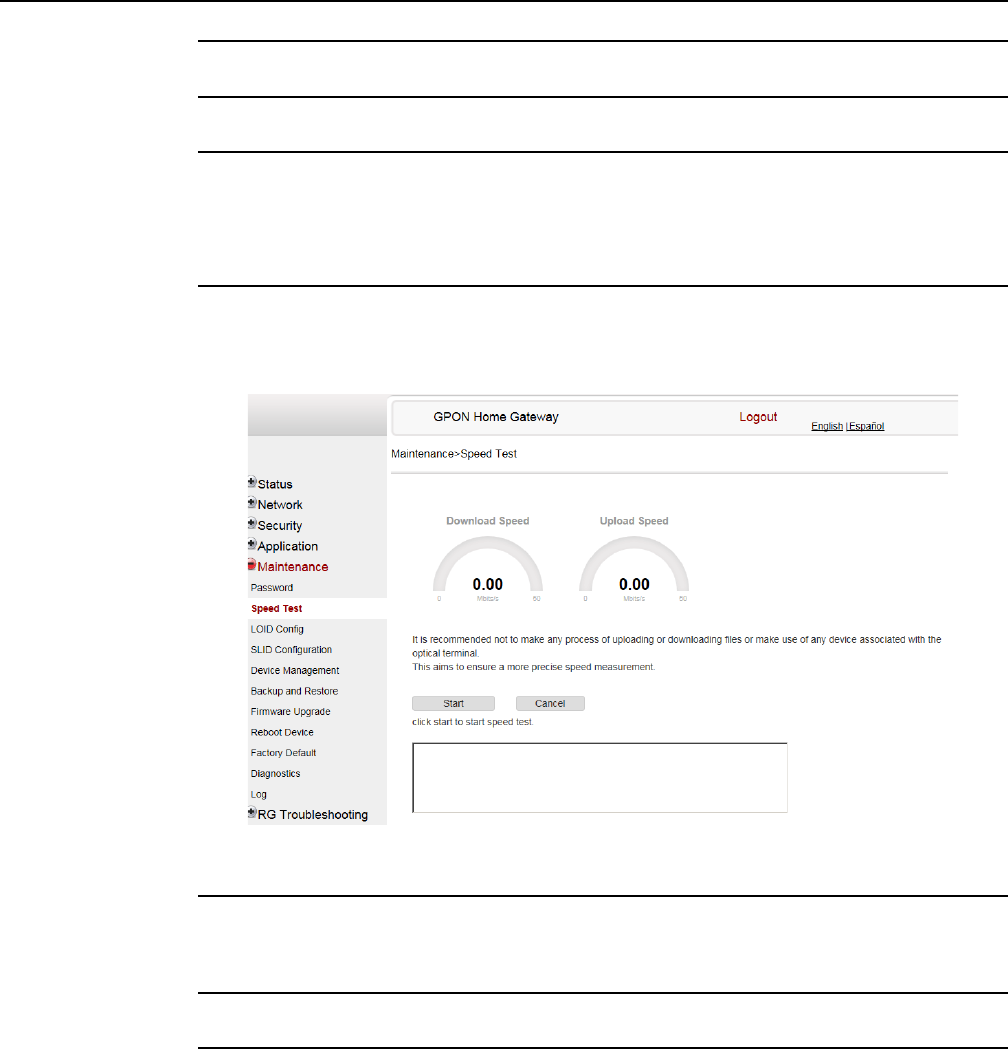

Figure 57 Speed Test window .................................................................................126

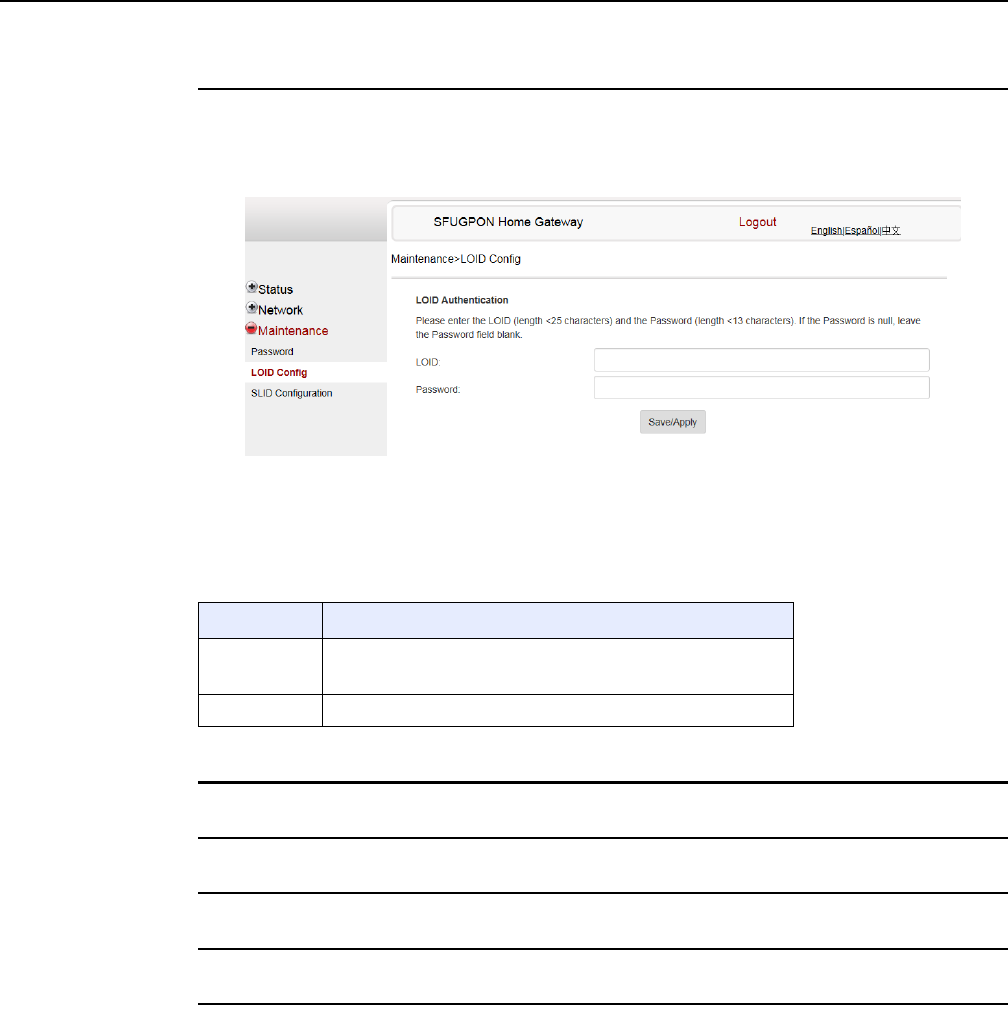

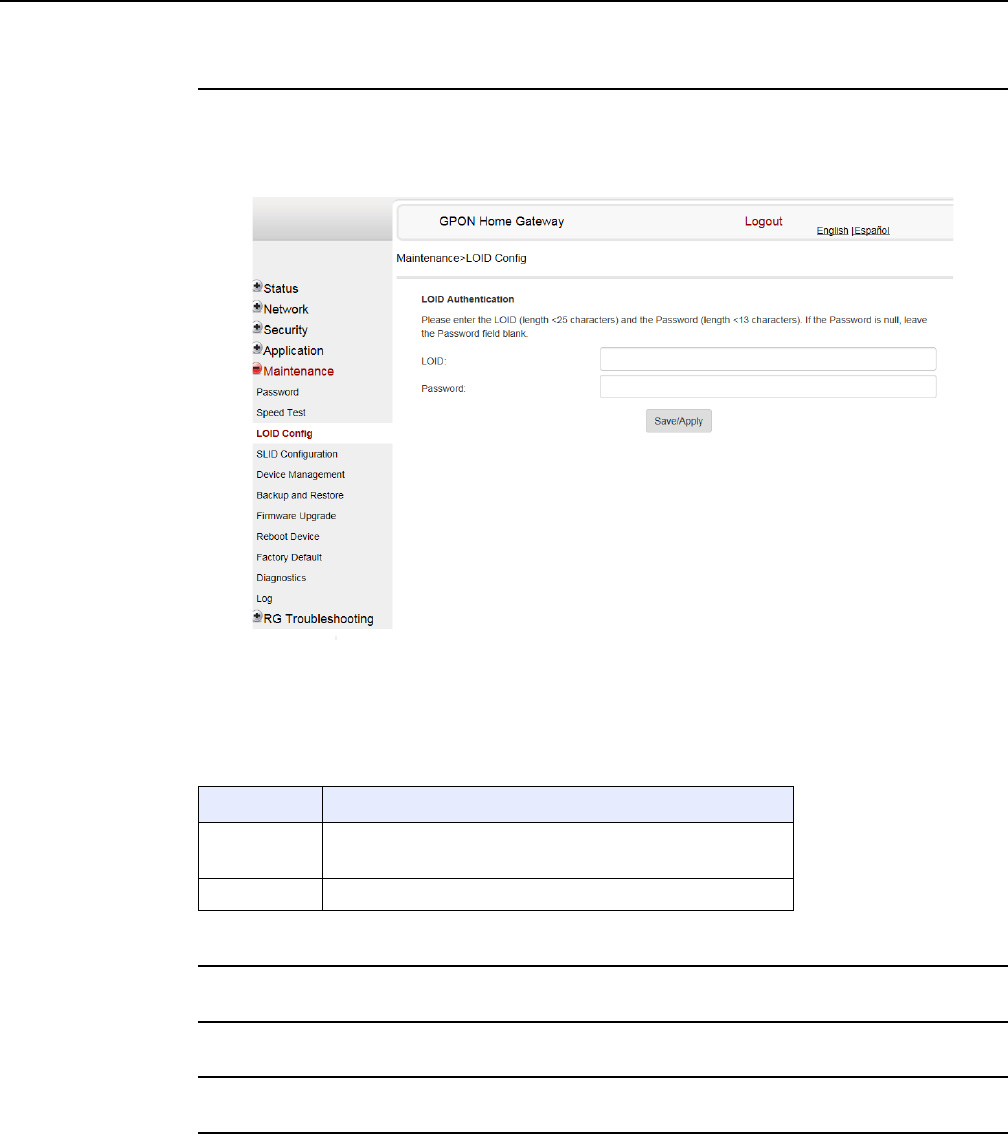

Figure 58 LOID Config window................................................................................127

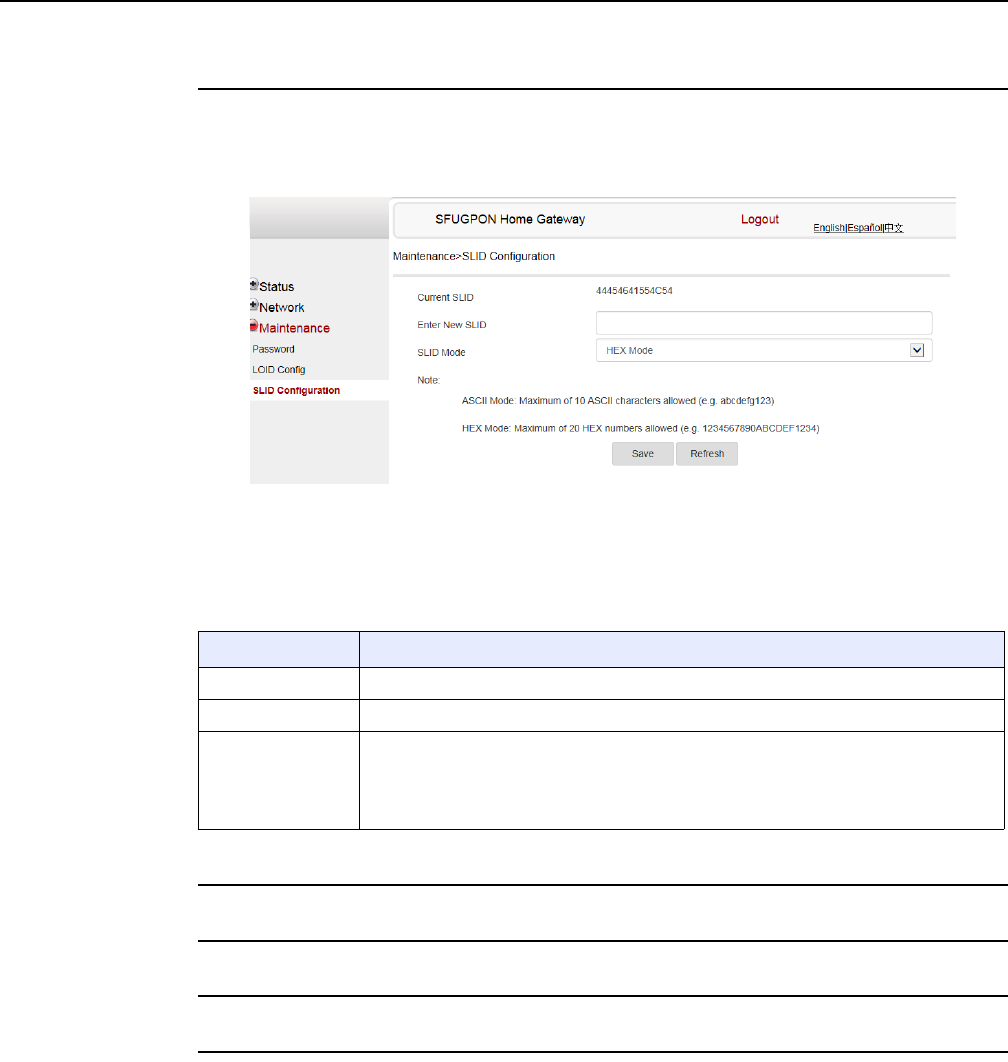

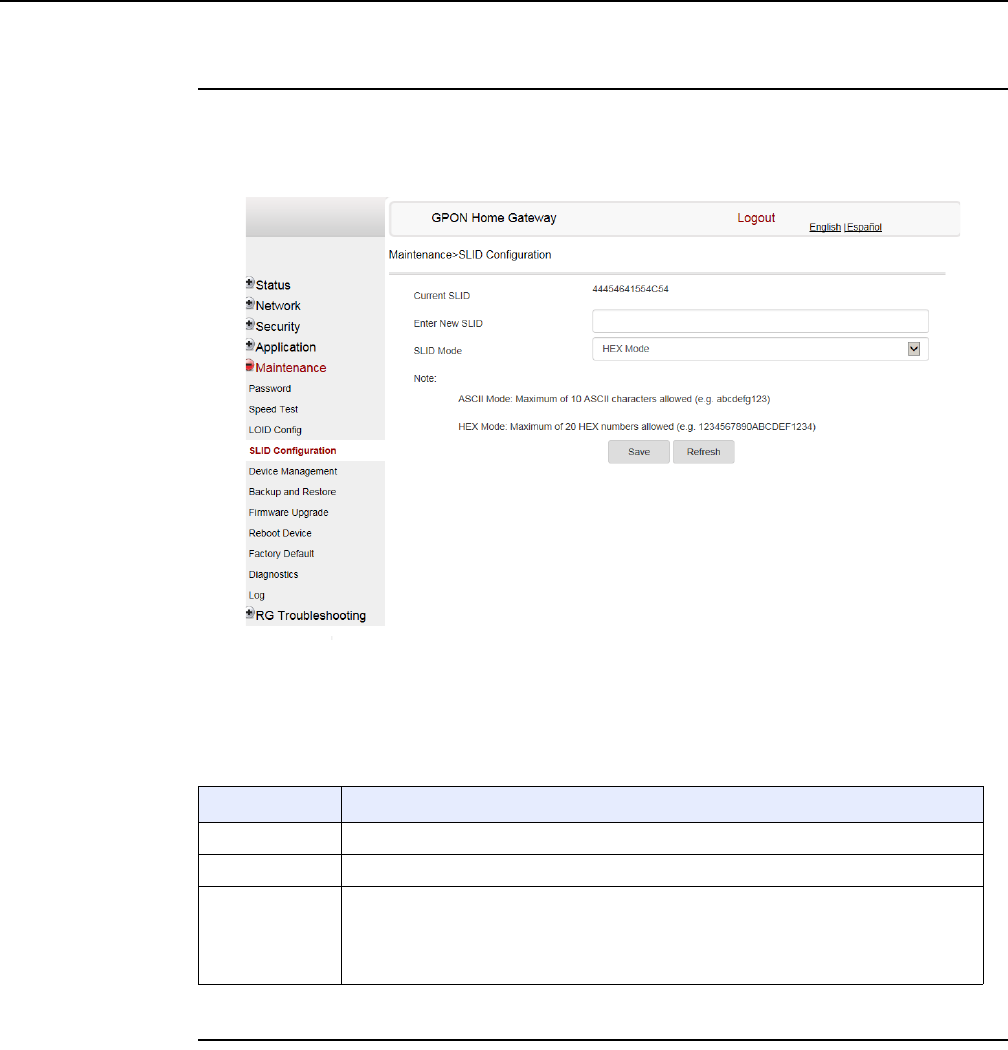

Figure 59 SLID configuration window......................................................................128
Figure 60 Device management window...................................................................129

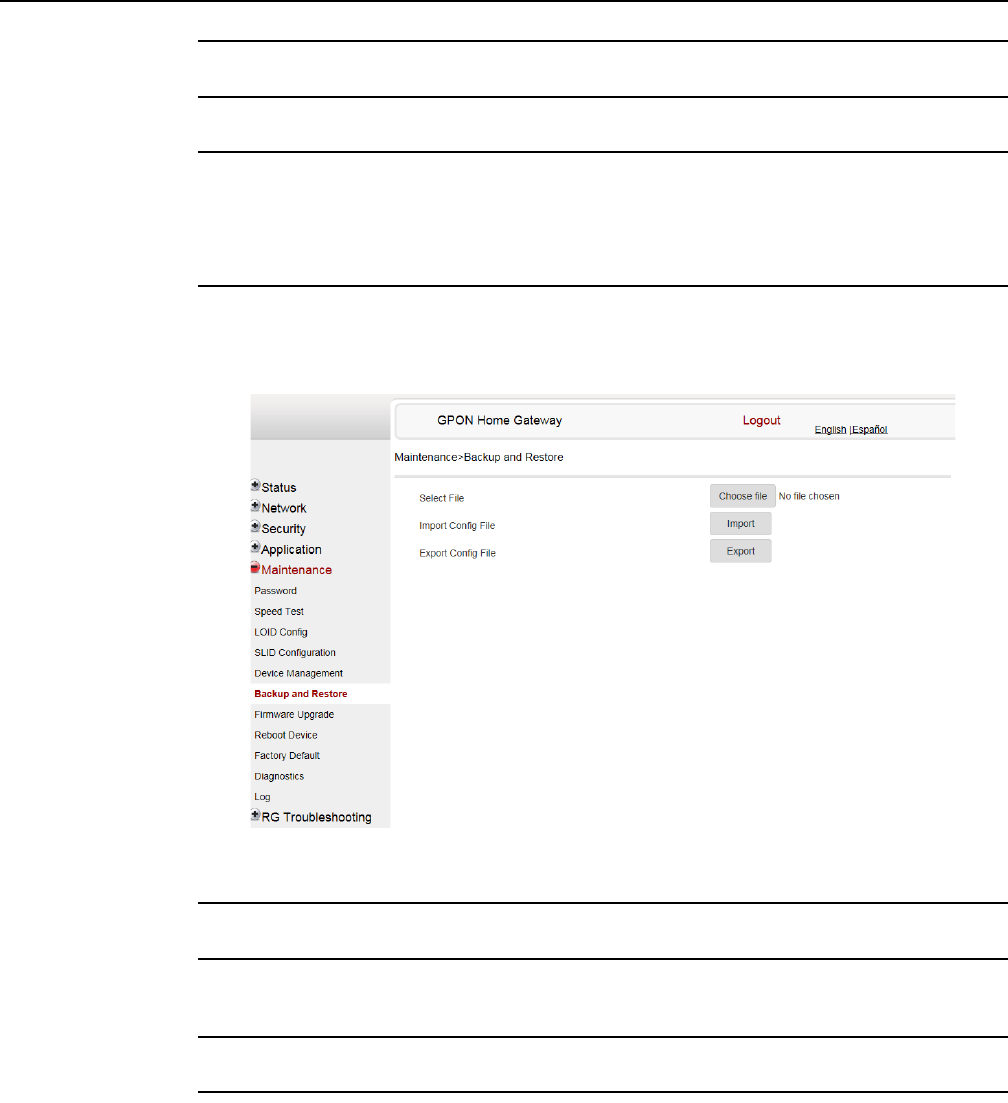

Figure 61 Backup and Restore window ...................................................................130

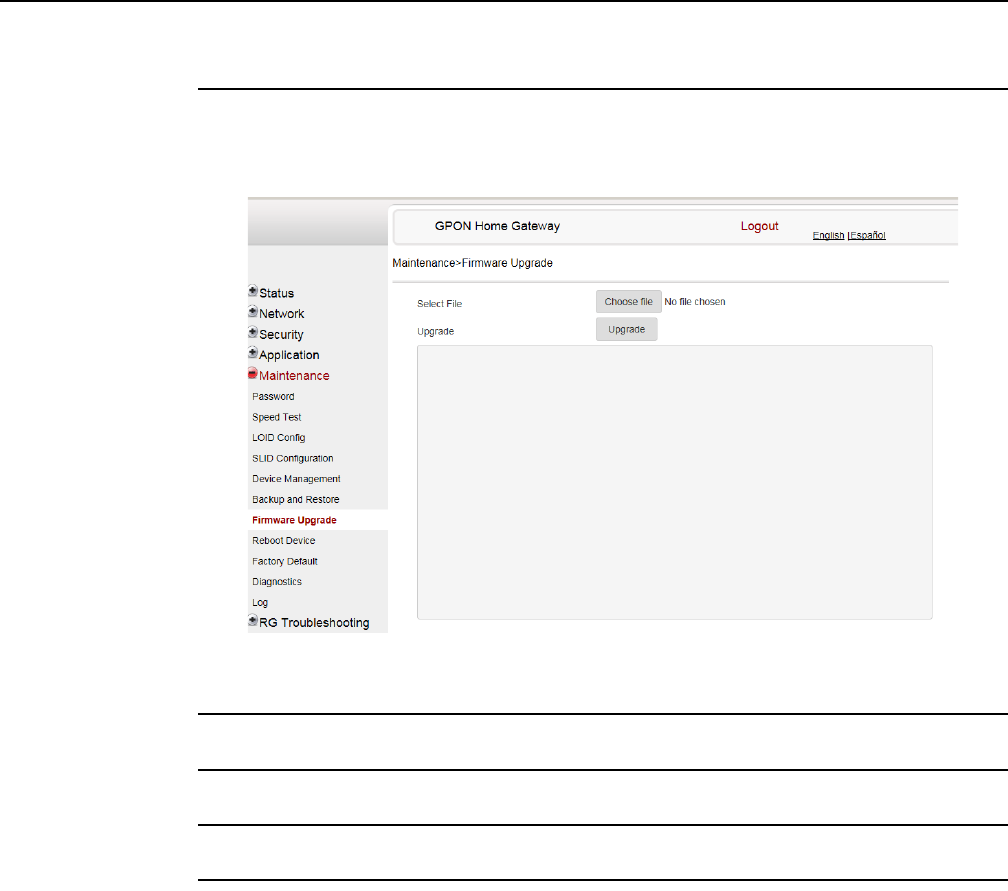

Figure 62 Firmware upgrade window ......................................................................131

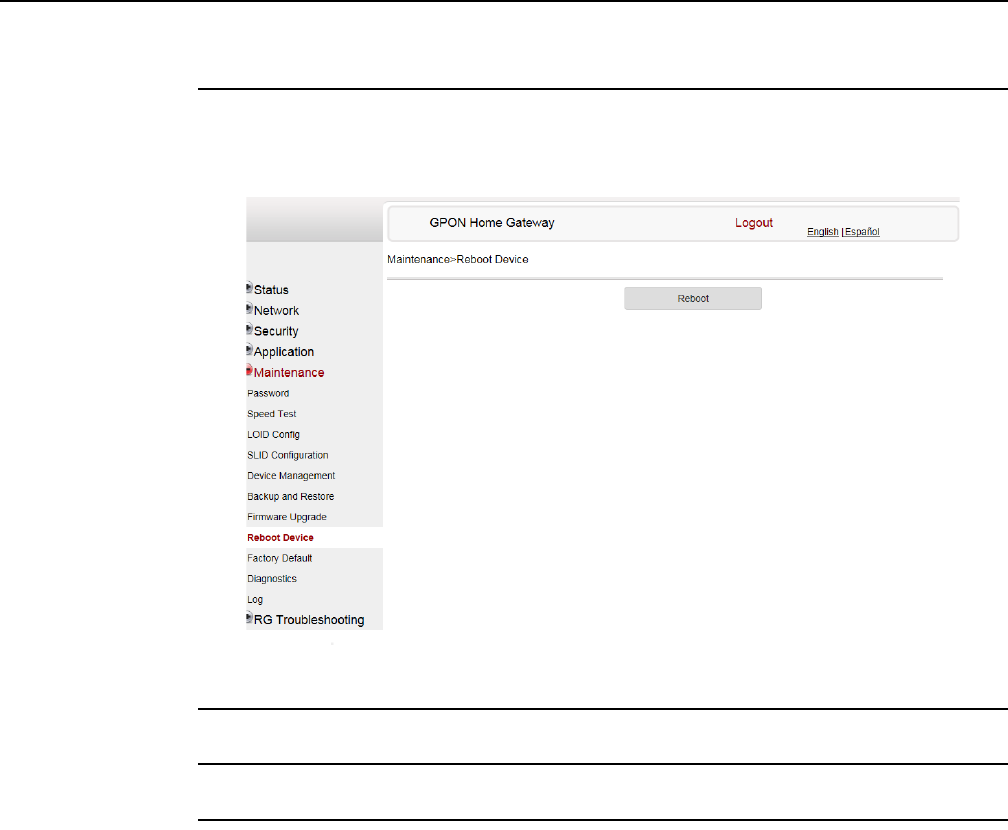

Figure 63 Reboot window ........................................................................................132

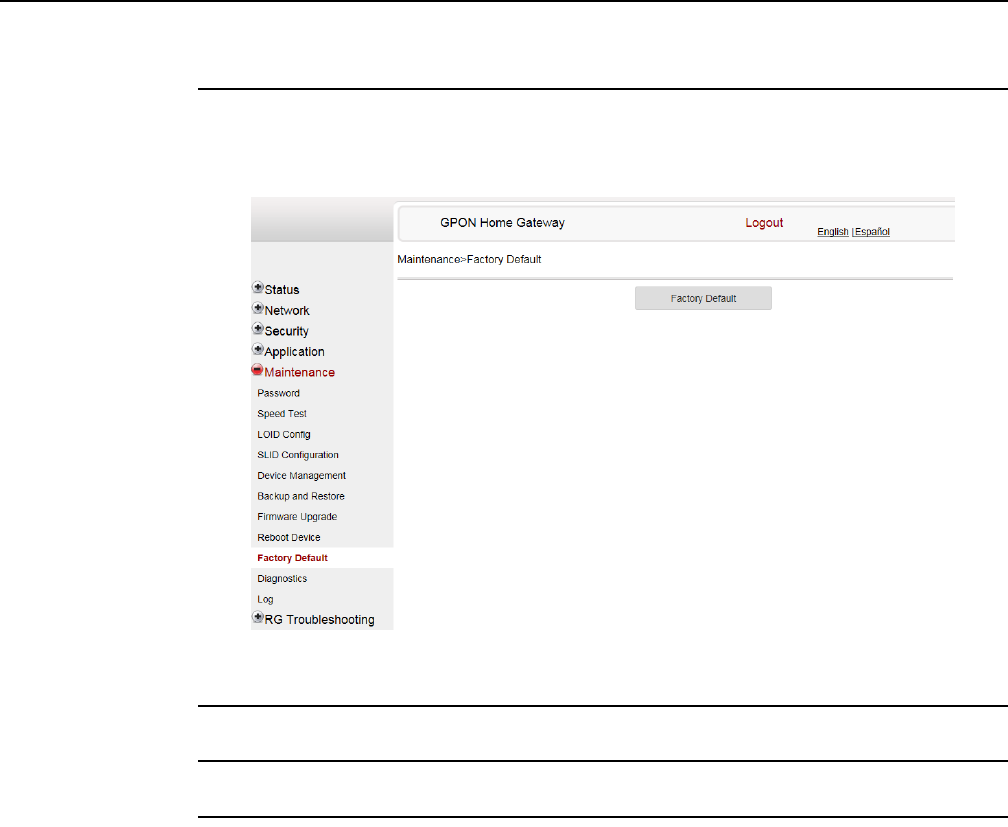

Figure 64 Factory default window............................................................................133

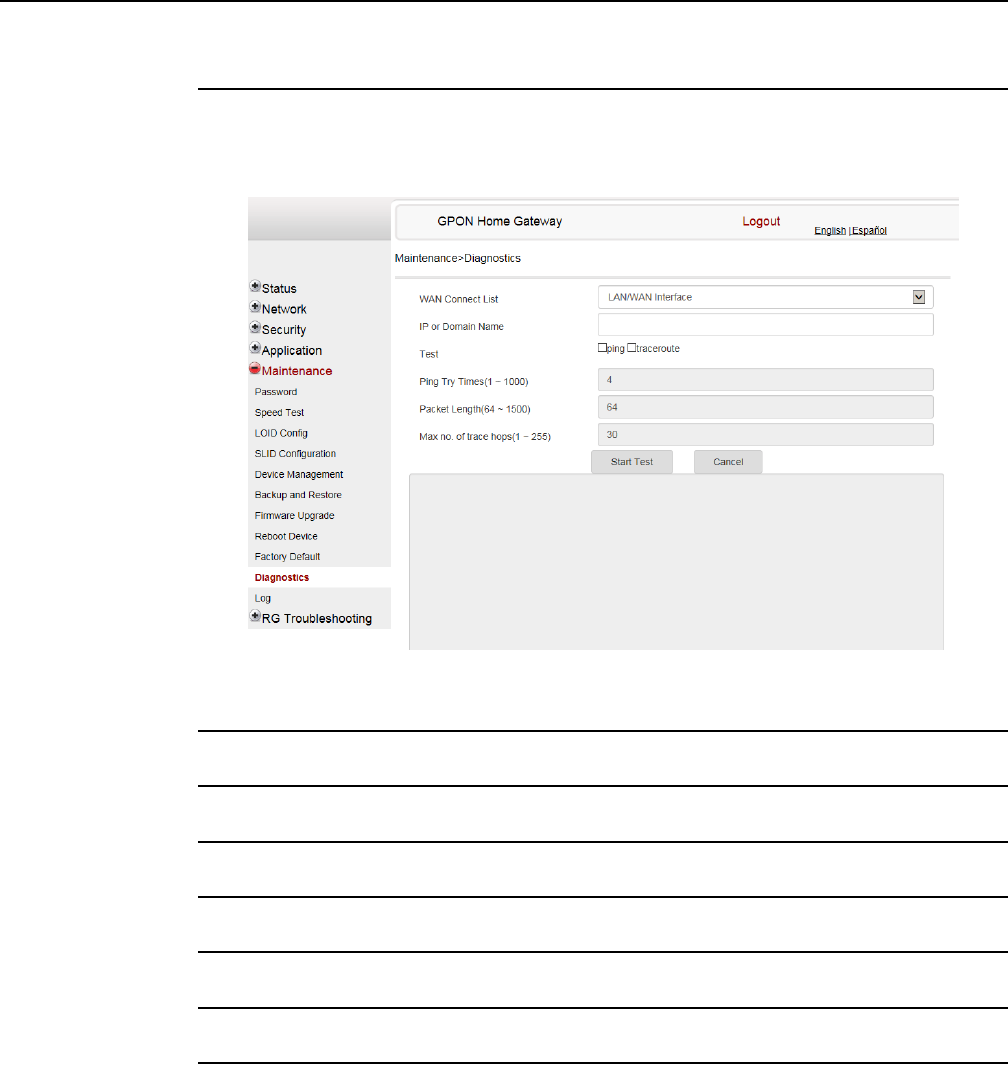

Figure 65 Diagnostics window .................................................................................134

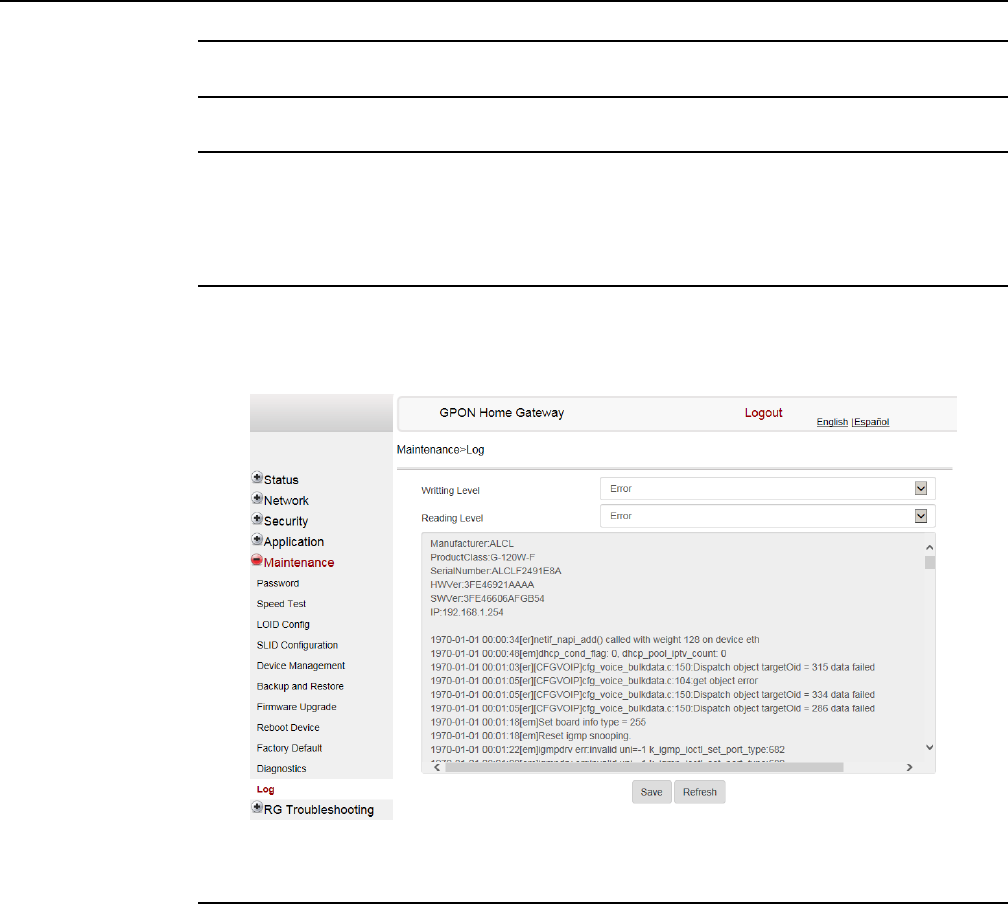

Figure 66 Log window..............................................................................................135

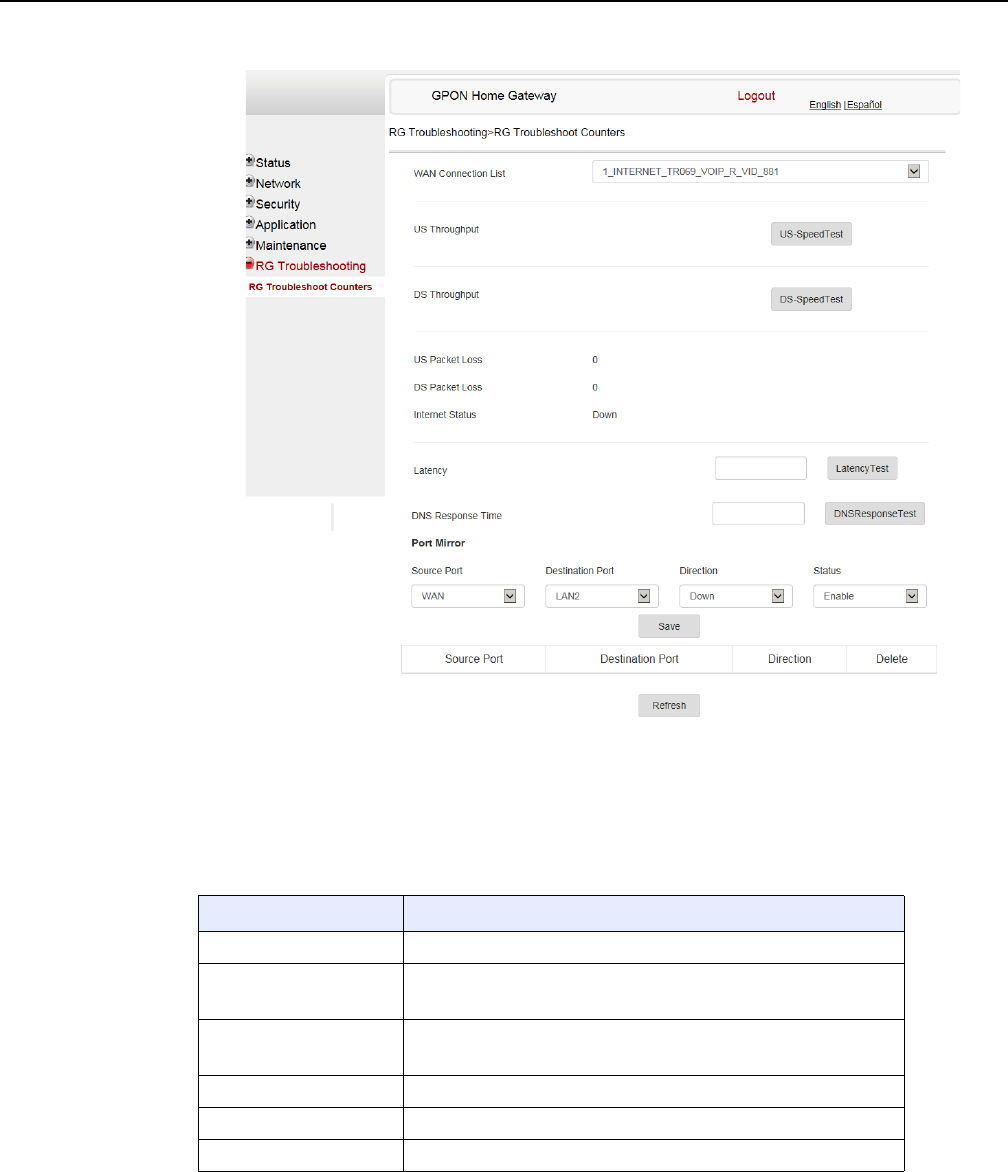

Figure 67 RG Troubleshooting Counters window....................................................137

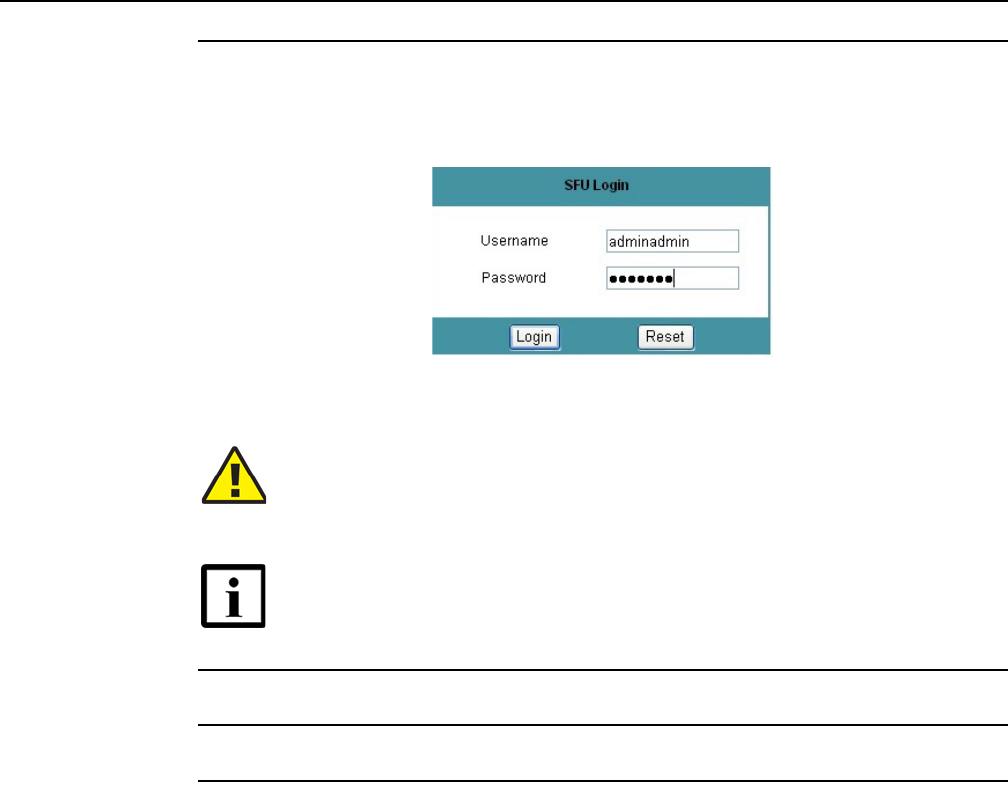

Figure 68 Web login window....................................................................................139

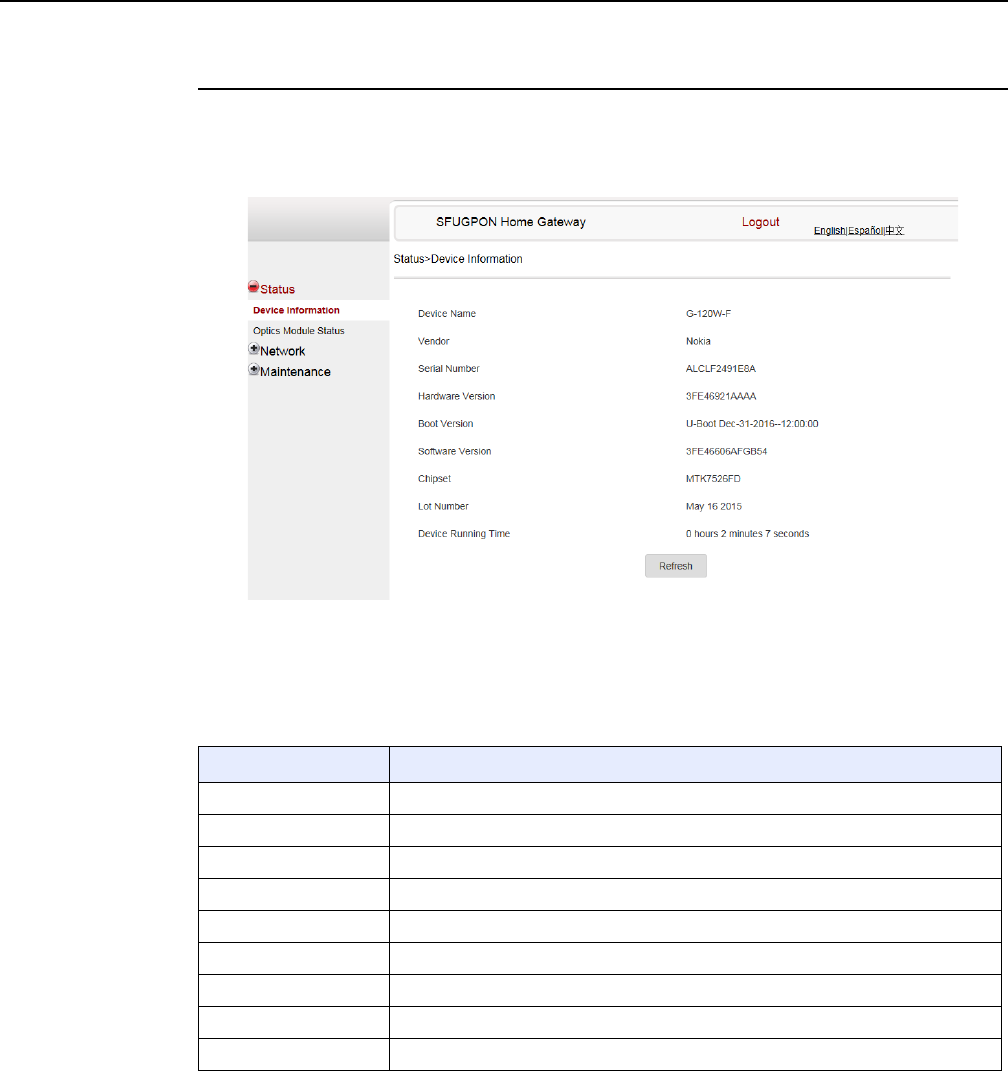

Figure 69 Device Information window......................................................................140
Figure 70 Optics module status window ..................................................................141
Figure 71 Wireless Schedule window......................................................................142
Figure 72 Password window....................................................................................144
Figure 73 LOID Authentication window ...................................................................145
Figure 74 SLID configuration window......................................................................146
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bgf.png)
7368 ISAM ONT G-120W-F Product Guide
Issue: 01 3FE-46922-AAAA-TCZZA 15
List of tables
2 ETSI ONT safety guidelines .........................................................17
Table 1 Safety labels ..............................................................................................18
4 ANSI ONT safety guidelines ........................................................33
Table 2 Safety labels ..............................................................................................34
5 G-120W-F unit data sheet.............................................................45
Table 3 Identification of G-120W-F indoor ONTs ...................................................46
Table 4 G-120W-F indoor ONT interface connection capacity...............................52
Table 5 G-120W-F indoor ONT physical connections ............................................53
Table 6 G-120W-F indoor ONT LEDs ....................................................................54
Table 7 G-120W-F indoor ONT physical specifications..........................................55
Table 8 G-120W-F indoor ONT power consumption specifications .......................55
Table 9 G-120W-F indoor ONT environmental specifications ................................56
Table 10 G-120W-F indoor ONT capacity for GEM ports and T-CONTs .................56
Table 11 Package S ONTs ONTENET performance monitoring statistics...............57
Table 12 Package S ONTs ONTL2UNI performance monitoring statistics ..............57
Table 13 Package S ONTs PONONTTC, PONONTMCTC, PONONTTCHSI,
PONONTTCCES, PONONTTCFLOW, PONONTTCVOIP
performance monitoring statistics..............................................................57
Table 14 Package S ONTs PONONTTC aggregate performance monitoring
statistics.....................................................................................................58
Table 15 G-120W-F ONT considerations and limitations .........................................63
8 Configure a G-120W-F indoor ONT .............................................77
Table 16 Device Information parameters .................................................................79
Table 17 LAN status parameters..............................................................................82
Table 18 WAN status parameters ............................................................................83
Table 19 WAN status IPv6 parameters ....................................................................85
Table 20 Home networking parameters ...................................................................87
Table 21 Optics module status parameters..............................................................88
Table 22 Voice Information parameters ...................................................................90
Table 23 LAN network parameters...........................................................................92
Table 24 LAN IPv6 network parameters...................................................................94
Table 25 WAN network parameters .........................................................................96
Table 26 WAN DHCP parameters............................................................................98
Table 27 WiFi 2.4G network parameters..................................................................99
Table 28 IP Routing network parameters ...............................................................103
Table 29 DNS network parameters ........................................................................104
Table 30 TR-069 network parameters....................................................................105
Table 31 QoS Config parameters...........................................................................107
Table 32 Firewall parameters .................................................................................109
Table 33 MAC filter parameters..............................................................................110
Table 34 IP filter parameters ..................................................................................111
Table 35 URL Filter parameters .............................................................................112
Table 36 Parental control parameters ....................................................................113
Table 37 DMZ and ALG parameters ......................................................................115
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg10.png)
16
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Table 38 Access control parameters ......................................................................116
Table 39 Port forwarding parameters .....................................................................118
Table 40 Port triggering parameters.......................................................................119
Table 41 DDNS parameters ...................................................................................121
Table 42 Voice setting parameters.........................................................................124
Table 43 Password parameters..............................................................................125
Table 44 LOID configuration parameters ...............................................................127
Table 45 SLID configuration parameters................................................................128
Table 46 Device management parameters ............................................................129
Table 47 RG Troubleshooting Counters parameters..............................................137
Table 48 Device Information parameters ...............................................................140
Table 49 Optics module status parameters............................................................141
Table 50 Password parameters..............................................................................144
Table 51 LOID configuration parameters ...............................................................145
Table 52 SLID configuration parameters................................................................146
9 ONT configuration file over OMCI .............................................149
Table 53 Supported configuration files ...................................................................150
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg11.png)
7368 ISAM ONT G-120W-F Product Guide ETSI ONT safety guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 17
2 ETSI ONT safety guidelines
This chapter provides information about the mandatory regulations that govern the
installation and operation of the optical network terminals (ONTs).
2.1 Safety instructions
This section describes the safety instructions that are provided in the ONT customer
documentation and on the equipment.
2.1.1 Safety instruction boxes
The safety instruction boxes are provided in the ONT customer documentation.
Observe the instructions to meet safety requirements.
The following is an example of the Danger box.
The Danger box indicates that the described activity or situation may pose a threat
to personal safety. It calls attention to a situation or procedure which, if not correctly
performed or adhered to, may result in death or serious physical harm.
Do not proceed beyond a Danger box until the indicated conditions are fully
understood and met.
The following is an example of the Warning box.
The Warning box indicates that the described activity or situation may, or will, cause
equipment damage, loss of data, or serious performance problems. It identifies a
possible equipment-damaging situation or provides essential information to avoid the
degradation of system operations or data.
Do not proceed beyond a warning until the indicated conditions are fully understood
and met.
Danger — Possibility of personal injury.
Warning 1 — Possibility of equipment damage.
Warning 2 — Possibility of data loss.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg12.png)
ETSI ONT safety guidelines
18
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
The following is an example of the Caution box.
The Caution box indicates that the described activity or situation may, or will, cause
service interruption.
Do not proceed beyond a caution until the indicated conditions are fully understood
and met.
The following is an example of the Note box.
The Note box provides information that assists the personnel working with ONTs. It
does not provide safety-related instructions.
2.1.2 Safety-related labels
The ONT equipment is labeled with the specific safety instructions and compliance
information that is related to a variant of the ONT. Observe the instructions on the
safety labels.
Table 1 provides sample safety labels on the ONT equipment.
Table 1 Safety labels
Figure 1 shows the PSE certification.
Caution 1 — Possibility of service interruption.
Caution 2 — Service interruption.
Note — Information of special interest.
Description Label text
ESD warning Caution: This assembly contains an electrostatic sensitive device.
Laser classification Class 1 laser product
PSE marking These power supplies are Japan PSE certified and compliant with
Japan VCCI emissions standards.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg13.png)
7368 ISAM ONT G-120W-F Product Guide ETSI ONT safety guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 19
Figure 1 PSE certification
2.2 Safety standards compliance
This section describes the ONT compliance with the European safety standards.
2.2.1 EMC, EMI, and ESD compliance
The ONT equipment complies with the following EMC, EMI, and ESD requirements:
•EN 300-328 v1.9.1 wide band data transmission standards for 2.4GHz bands
•EN 300-386 V1.5.1: Electromagnetic Compatibility and Radio Spectrum Matters
(ERM): Telecommunications Network Equipment; Electromagnetic Compatibility
(EMC) requirements; Electrostatic Discharge (ESD) requirements
•EN 55022 (2006): Class B, Information Technology Equipment, Radio
Disturbance Characteristics, limits and methods of measurement
•EN 55024 (2010): Information Technology Equipment, Immunity Characteristics,
limits and methods of measurement
•European Council Directive 2004/108/EC
•EN 300-386 V1.4.1: 2008
•EN 55022:2006 Class B (ONTs)
2.2.2 Equipment safety standard compliance
The ONT equipment complies with the requirements of EN 60950-1, Safety of
Information Technology Equipment for use in a restricted location (per R-269).
This is a Class B product based on the standard of the Voluntary Control Council for Interference
from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in
a domestic environment, it may cause radio interference. Install and use the equipment according
to the instruction manual.
Warning
19841
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg14.png)
ETSI ONT safety guidelines
20
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
2.2.3 Environmental standard compliance
The ONT equipment complies with the EN 300 019 European environmental
standards.
2.2.4 Laser product standard compliance
For most ONTs, the ONT equipment complies with EN 60825-1 and IEC 60825-2 for
laser products. If there is an exception to this compliance regulation, you can find this
information in the standards compliance section of the unit data sheet in this Product
Guide.
2.2.5 Resistibility requirements compliance
The ONT equipment complies with the requirements of ITU Recommendation K.21
for resistibility of telecommunication equipment installed in customer premises to
over voltage and overcurrents.
2.2.6 Acoustic noise emission standard compliance
The ONT equipment complies with EN 300 753 acoustic noise emission limit and test
methods.
2.3 Electrical safety guidelines
This section provides the electrical safety guidelines for the ONT equipment.
Note 1 — The ONTs comply with the U.S. National Electrical
Code. However, local electrical authorities have jurisdiction
when there are differences between the local and U.S.
standards.
Note 2 — The ONTs comply with BS EN 61140.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg15.png)
7368 ISAM ONT G-120W-F Product Guide ETSI ONT safety guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 21
2.3.1 Power supplies
The use of any non-Nokia approved power supplies or power adapters is not
supported or endorsed by Nokia. Such use will void any warranty or support contract
with Nokia. Such use greatly increases the danger of damage to equipment or
property.
2.3.2 Cabling
The following are the guidelines regarding cables used for the ONT equipment:
•All cables must be approved by the relevant national electrical code.
•The cables for outdoor installation of ONTs must be suitable for outdoor use.
• POTS wiring run outside the subscriber premises must comply with the
requirements of local electrical codes. In some markets, the maximum allowed
length of the outside run is 140 feet (43 m). If the outside run is longer, NEC
requires primary protection at both the exit and entry points for the wire.
2.3.3 Protective earth
Earthing and bonding of the ONTs must comply with the requirements of local
electrical codes.
2.4 ESD safety guidelines
The ONT equipment is sensitive to ESD. Operations personnel must observe the
following ESD instructions when they handle the ONT equipment.
During installation and maintenance, service personnel must wear wrist straps to
prevent damage caused by ESD.
2.5 Laser safety guidelines
Observe the following instructions when you perform installation, operations, and
maintenance tasks on the ONT equipment.
Caution — This equipment is ESD sensitive. Proper ESD
protections should be used when you enter the TELCO Access
portion of the ONT.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg16.png)
ETSI ONT safety guidelines
22
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Only qualified service personnel who are extremely familiar with laser radiation
hazards should install or remove the fiber optic cables and units in this system.
Observe the following danger for laser hazard. Eyes can be damaged when they are
exposed to a laser beam. Take necessary precautions before you plug in the optical
modules.
2.5.1 Laser classification
The ONT is classified as a Class 1 laser product based on its transmit optical output.
2.5.1.1 Laser warning labels
The following figures show the labels related to laser product, classification and
warning.
Figure 2 shows a laser product label.
Figure 2 Laser product label
Figure 3 shows a laser classification label. Laser classification labels may be
provided in other languages.
Danger — There may be invisible laser radiation at the fiber
optic cable when the cable is removed from the connector.
Avoid direct exposure to the laser beam.
Danger — Possibility of equipment damage. Risk of eye
damage by laser radiation.
18455
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg17.png)
7368 ISAM ONT G-120W-F Product Guide ETSI ONT safety guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 23
Figure 3 Laser classification label
Figure 4 shows a laser warning label and an explanatory label for laser products.
Labels and warning may be provided in other languages. The explanatory label
provides the following information:
•a warning that calls attention to the invisible laser radiation
•an instruction against staring into the beam or viewing directly with optical
instruments
•wavelength
•normal output power
•maximum output power
LASER CLASSE 1CLASE 1 DEL LASER
CLASS 1 LASER PRODUCT PRODUCTO LASER CLASE 1
18992
'
'
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg18.png)
ETSI ONT safety guidelines
24
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Figure 4 Laser warning labels
2.5.2 Transmit optical output
The maximum transmit optical output of an ONT is +5 dBm.
2.5.3 Normal laser operation
In normal operation, fiber cable laser radiation is always off until it receives signal
from the line terminal card.
Eyes can be damaged when they exposed to a laser beam. Operating personnel
must observe the instructions on the laser explanatory label before plugging in the
optical module.
INVISIBLE LASER RADIATION
DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS
Wavelength(s): xxxx nm
Normal output power: xx m W
Max output power: yyy m W
Laser Warning Label Laser Warning Label
CLASS 1 LASER PRODUCT
INVISIBLE LASER RADIATION PRESENT AT FIBER OPTIC CABLE
WHEN NOT CONNECTED. AVOID DIRECT EXPOSURE TO BEAM.
RAYONNEMENT LASER CLASSE 1
RAYONNEMENT LASER INVISIBLE
EVITER TOUTE EXPOSITION AU FAISCEAU
NE PAS DEMONTER. FAIRE APPEL A UN PERSONNELL QUALIFIE
CLASE 1 DEL LASER
RADIACION DE LASER INVISIBLE. EVITAR CUALOUIER EXPOSICION AL
RAYO LASER. NO DESMONTAR. LLAMAR A PERSONAL AUTORIZADO
Laser Warning Label
18993
'
Danger — Risk of eye damage by laser radiation.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg19.png)
7368 ISAM ONT G-120W-F Product Guide ETSI ONT safety guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 25
2.5.4 Location class
Use cable supports and guides to protect the receptacles from strain.
2.6 Environmental requirements
See the ONT technical specification documentation for more information about
temperature ranges.
During operation in the supported temperature range, condensation inside the ONT
caused by humidity is not an issue. To avoid condensation caused by rapid changes
in temperature and humidity, Nokia recommends:
•The door of the ONT not be opened until temperature inside and outside the
enclosure has stabilized.
•If the door of the ONT must be opened after a rapid change in temperature or
humidity, use a dry cloth to wipe down the metal interior to prevent the risk of
condensation.
•When high humidity is present, installation of a cover or tent over the ONT helps
prevent condensation when the door is opened.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg1a.png)
ETSI ONT safety guidelines
26
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg1b.png)
7368 ISAM ONT G-120W-F Product Guide ETSI environmental and CRoHS guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 27
3 ETSI environmental and CRoHS
guidelines
This chapter provides information about the ETSI environmental China Restriction of
Hazardous Substances (CRoHS) regulations that govern the installation and
operation of the optical line termination (OLT) and optical network termination (ONT)
systems. This chapter also includes environmental operation parameters of general
interest.
3.1 Environmental labels
This section describes the environmental instructions that are provided with the
customer documentation, equipment, and location where the equipment resides.
3.1.1 Overview
CRoHS is applicable to Electronic Information Products (EIP) manufactured or sold
and imported in the territory of the mainland of the People’s Republic of China. EIP
refers to products and their accessories manufactured by using electronic
information technology, including electronic communications products and such
subcomponents as batteries and cables.
3.1.2 Environmental related labels
Environmental labels are located on appropriate equipment. The following are
sample labels.
3.1.2.1 Products below Maximum Concentration Value
(MCV) label
Figure 5 shows the label that indicates a product is below the maximum
concentration value, as defined by standard SJ/T11363-2006 (Requirements for
Concentration Limits for Certain Hazardous Substances in Electronic Information
Products). Products with this label are recyclable. The label may be found in this
documentation or on the product.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg1c.png)
ETSI environmental and CRoHS guidelines
28
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Figure 5 Products below MCV value label
3.1.2.2 Products containing hazardous substances above
Maximum Concentration Value (MCV) label
Figure 6 shows the label that indicates a product is above the maximum
concentration value, as defined by standard SJ/T11363-2006 (Requirements for
Concentration Limits for Certain Hazardous Substances in Electronic Information
Products). The number contained inside the label indicates the Environment-Friendly
User Period (EFUP) value. The label may be found in this documentation or on the
product.
18986
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg1d.png)
7368 ISAM ONT G-120W-F Product Guide ETSI environmental and CRoHS guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 29
Figure 6 Products above MCV value label
Together with major international telecommunications equipment companies, Nokia
has determined it is appropriate to use an EFUP of 50 years for network
infrastructure equipment and an EFUP of 20 years for handsets and accessories.
These values are based on manufacturers' extensive practical experience of the
design, manufacturing, maintenance, usage conditions, operating environments,
and physical condition of infrastructure and handsets after years of service. The
values reflect minimum values and refer to products operated according to the
intended use conditions. See “Hazardous Substances Table (HST)” for more
information.
3.2 Hazardous Substances Table (HST)
This section describes the compliance of the OLT and ONT equipment to the CRoHS
standard when the product and subassemblies contain hazardous substances
beyond the MCV value. This information is found in this user documentation where
part numbers for the product and subassemblies are listed. It may be referenced in
other OLT and ONT documentation.
In accordance with the People’s Republic of China Electronic Industry Standard
Marking for the Control of Pollution Caused by Electronic Information Products
(SJ/T11364-2006), customers may access the Nokia Hazardous Substance Table,
in Chinese, from the following location:
•http://www.alcatel-sbell.com.cn/wwwroot/images/upload/private/1/media/ChinaRo
HS.pdf
18985
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg1e.png)
ETSI environmental and CRoHS guidelines
30
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
3.3 Other environmental requirements
Observe the following environmental requirements when handling the P-OLT or ONT
equipment.
3.3.1 ONT environmental requirements
See the ONT technical specification documentation for more information about
temperature ranges.
3.3.2 Storage
According to ETS 300-019-1-1 - Class 1.1, storage of OLT equipment must be in
Class 1.1, weather-protected, temperature-controlled locations.
3.3.3 Transportation
According to EN 300-019-1-2 - Class 2.3, transportation of the OLT equipment must
be in packed, public transportation with no rain on packing allowed.
3.3.4 Stationary use
According to EN 300-019-1-3 - Class 3.1/3.2/3.E, stationary use of OLT equipment
must be in a temperature-controlled location, with no rain allowed, and with no
condensation allowed.
3.3.5 Thermal limitations
When the OLT is installed in the CO or CEV, install air filters on the P-OLT. The
thermal limitations for OLT operation in a CO or CEV are:
•operating temperature: 5°C to 40°C (41°F to 104°F)
•short-term temperature: –5°C to 50°C (23°F to 122°F)
•operating relative humidity: 5% to 85%
•short-term relative humidity: 5% to 95%, but not to exceed 0.024 kg of water/kg
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg1f.png)
7368 ISAM ONT G-120W-F Product Guide ETSI environmental and CRoHS guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 31
3.3.6 Material content compliance
European Union (EU) Directive 2002/95/EC, “Restriction of the use of certain
Hazardous Substances” (RoHS), restricts the use of lead, mercury, cadmium,
hexavalent chromium, and certain flame retardants in electrical and electronic
equipment. This Directive applies to electrical and electronic products placed on the
EU market after 1 July 2006, with various exemptions, including an exemption for
lead solder in network infrastructure equipment. Nokia products shipped to the EU
after 1 July 2006 comply with the EU RoHS Directive.
Nokia has implemented a material/substance content management process. The
process is described in: Nokia process for ensuring RoHS Compliance
(1AA002660031ASZZA). This ensures compliance with the European Union
Directive 2011/65/EU on the Restriction of the Use of Certain Hazardous Substances
in Electrical and Electronic Equipment (RoHS2). With the process equipment is
assessed in accordance with the Harmonised Standard EN50581:2012 (CENELEC)
on Technical documentation for the assessment of electrical and electronic products
with respect to the restriction of hazardous substances.
3.3.7 End-of-life collection and treatment
Electronic products bearing or referencing the symbol shown in Figure 7, when put
on the market within the European Union (EU), shall be collected and treated at the
end of their useful life, in compliance with applicable EU and local legislation. They
shall not be disposed of as part of unsorted municipal waste. Due to materials that
may be contained in the product, such as heavy metals or batteries, the environment
and human health may be negatively impacted as a result of inappropriate disposal.
Figure 7 Recycling/take back/disposal of product symbol
Note — In the European Union, a solid bar under the symbol for
a crossed-out wheeled bin indicates that the product was put on
the market after 13 August 2005.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg20.png)
ETSI environmental and CRoHS guidelines
32
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
At the end of their life, the OLT and ONT products are subject to the applicable local
legislations that implement the European Directive 2012/19EU on waste electrical
and electronic equipment (WEEE).
There can be different requirements for collection and treatment in different member
states of the European Union.
In compliance with legal requirements and contractual agreements, where
applicable, Nokia will offer to provide for the collection and treatment of Nokia
products bearing the logo shown in Figure 7 at the end of their useful life, or products
displaced by Nokia equipment offers. For information regarding take-back of
equipment by Nokia, or for more information regarding the requirements for
recycling/disposal of product, contact your Nokia account manager or Nokia take
back support at sustainability.global@nokia.com.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg21.png)
7368 ISAM ONT G-120W-F Product Guide ANSI ONT safety guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 33
4 ANSI ONT safety guidelines
This chapter provides information about the mandatory regulations that govern the
installation and operation of the optical network terminals or units (ONTs or ONUs)
in the North American or ANSI market.
4.1 Safety instructions
This section describes the safety instructions that are provided in the ONT customer
documentation and on the equipment.
4.1.1 Safety instruction boxes in customer
documentation
The safety instruction boxes are provided in the ONT customer documentation.
Observe the instructions to meet safety requirements.
The following is an example of the Danger box.
The Danger box indicates that the described activity or situation may pose a threat
to personal safety. It calls attention to a situation or procedure which, if not correctly
performed or adhered to, may result in death or serious physical harm.
Do not proceed beyond a Danger box until the indicated conditions are fully
understood and met.
The following is an example of the Warning box.
The Warning box indicates that the described activity or situation may, or will, cause
equipment damage, loss of data, or serious performance problems. It identifies a
possible equipment-damaging situation or provides essential information to avoid the
degradation of system operations or data.
Do not proceed beyond a warning until the indicated conditions are fully understood
and met.
Danger — Possibility of personal injury.
Warning 1 — Possibility of equipment damage.
Warning 2 — Possibility of data loss.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg22.png)
ANSI ONT safety guidelines
34
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
The following is an example of the Caution box.
The Caution box indicates that the described activity or situation may, or will, cause
service interruption.
Do not proceed beyond a caution until the indicated conditions are fully understood
and met.
The following is an example of the Note box.
The Note box provides information that assists the personnel working with ONTs. It
does not provide safety-related instructions.
4.1.2 Safety-related labels
The ONT equipment is labeled with specific safety compliance information and
instructions that are related to a variant of the ONT. Observe the instructions on the
safety labels.
Table 2 provides examples of the text in the various ONT safety labels.
Table 2 Safety labels
Caution 1 — Possibility of service interruption.
Caution 2 — Service interruption.
Note — Information of special interest.
Description Label text
UL compliance Communication service equipment US listed. Type 3R enclosure -
Rainproof.
TUV compliance Type 3R enclosure - Rainproof.
ESD warning Caution: This assembly contains electrostatic sensitive device.
Laser classification Class 1 laser product
Laser product compliance This laser product conforms to all applicable standards of 21 CFR
1040.10 at date of manufacture.
FCC standards compliance Tested to comply with FCC standards for home or office use.
CDRH compliance Complies with 21 CFR 1040.10 and 1040.11 except for deviations
pursuant to Laser Notice No. 50, dated June 24, 2007
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg23.png)
7368 ISAM ONT G-120W-F Product Guide ANSI ONT safety guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 35
Figure 8 shows a sample safety label on the ONT equipment.
Figure 8 Sample safety label on the ONT equipment
4.2 Safety standards compliance
This section describes the ONT compliance with North American safety standards.
Operation conditions This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Canadian standard
compliance (modular ONT)
This Class A digital apparatus complies with Canadian ICES-003.
Canadian standard
compliance (outdoor ONT)
This Class B digital apparatus complies with Canadian ICES-003.
CE marking There are various CE symbols for CE compliance.
Description Label text
(2 of 2)
18533
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This Class A digital apparatus complies with Canadian ICES-003. Cet appareil
numerique de la class A est conforme a la norme NMB-003 du Canada
Tested to Comply
with FCC Standards
FOR HOME OR OFFICE USE
COMMUNICATION SERVICE EQUIPMENT
US LISTED
27FY
Type 3R Enclosure - Rainproof
CAUTION
This Assembly Contains Electrostatic Sensitive Devices
c
®
Warning — Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg24.png)
ANSI ONT safety guidelines
36
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
4.2.1 EMC, EMI, and ESD standards compliance
The ONT equipment complies with the following requirements:
•Federal Communications Commission (FCC) CFR 47, Part 15, Subpart B, Class
A requirements for OLT equipment
•GR-1089-CORE requirements, including:
•Section 3 Electromagnetic Interference, Emissions Radiated and Conducted
•Section 3 Immunity, Radiated and Conducted
•Section 2 ESD Discharge Immunity: System Level Electrostatic Discharge and EFT
Immunity: Electrically Fast Transients
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is needed.
•Consult the dealer or an experienced radio/TV technician for help.
4.2.2 Equipment safety standard compliance
The ONT equipment complies with the requirements of UL60950-1, Outdoor ONTs
to “Communication Service Equipment” (CSE) and Indoor ONTs to Information
Technology Equipment (ITE).
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg25.png)
7368 ISAM ONT G-120W-F Product Guide ANSI ONT safety guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 37
4.2.3 Environmental standards compliance
The ONT equipment complies with the following standards:
•GR-63-CORE (NEBS): requirements related to operating, storage, humidity,
altitude, earthquake, office vibration, transportation and handling, fire resistance
and spread, airborne contaminants, illumination, and acoustic noise
•GR-487-CORE: requirements related to rain, chemical, sand, and dust
•GR-487 R3-82: requirements related to condensation
•GR-3108: Requirements for Network Equipment in the Outside Plant (OSP)
•TP76200: Common Systems Equipment Interconnections Standards
4.2.4 Laser product standards compliance
The ONT equipment complies with 21 CFR 1040.10 and CFR 1040.11, except for
deviations pursuant to Laser Notice No. 50, dated June 24, 2007” or to 21 CFR
1040.10 U.S. Center for Devices and Radiological Health (CDRH) of the Food and
Drug Administration (FDA) Laser Notice 42 for ONTs containing Class 1 Laser
modules certified by original manufactures.
Per CDRH 21 CFR 10.40.10 (h) (1) (iv) distributors of Class 1 laser products, such
as Nokia ONTs shall leave the following Laser Safety cautions with the end user.
a) “Class 1 Laser Product”
b) “Caution – Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.”
Figure 9 shows a laser product label.
Figure 9 Sample laser product label showing CDRH 21 CFR compliance
FiOS Enabled
To Order FiOS: 888 GET-FiOS
or visit Verizon.com
For Service: 888 553-1555
2301 Sugar Bush Rd.
Raleigh, NC 27612
No User Serviceable Parts Inside. Refer All Servicing To Qualified Personnel.
Complies with 21 CFR 1040.10 and
1040.11 except for deviations pursuant to
Laser Notice No. 50, dated June 24, 2007.
4P92
I.T.E 12VDC 2.5A
22813
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg26.png)
ANSI ONT safety guidelines
38
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
4.2.5 Resistibility requirements compliance
The ONT equipment complies with the requirements of ITU Recommendation K.21
for resistibility of telecommunication equipment installed in customer premises to
overvoltage and overcurrents.
4.3 Laser safety guidelines
Only qualified service personnel who are extremely familiar with laser radiation
hazards should install or remove the fiber optic cables and units in this system.
Observe the following warnings when you perform installation, operations, and
maintenance tasks on the ONT equipment.
Observe the following danger for a laser hazard. Eyes can be damaged when they
are exposed to a laser beam. Take necessary precautions before you plug in the
optical modules.
Per CDRH 21 CFR 10.40.10 (h) (1) (iv) distributors of Class 1 laser products, such
as Nokia ONTs shall leave the following Laser Safety cautions with the end user.
a) “Class 1 Laser Product”
b) “Caution – Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.”
4.3.1 Laser warning labels
The following figures show sample labels related to laser product, classification and
warning.
Figure 10 shows a laser product label.
Danger — There may be invisible laser radiation at the fiber
optic cable when the cable is removed from the connector.
Avoid direct exposure to beam.
Danger — Possibility of equipment damage. Risk of eye
damage by laser radiation.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg27.png)
7368 ISAM ONT G-120W-F Product Guide ANSI ONT safety guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 39
Figure 10 Laser product label
Figure 11 shows a laser classification label. Laser classification labels may be
provided in other languages.
Figure 11 Laser classification label
Figure 12 shows a laser warning label and an explanatory label for laser products.
Explanatory labels may be provided in other languages. The explanatory label
provides the following information:
•a warning that calls attention to the invisible laser radiation
•an instruction against staring into the beam or viewing directly with optical
instruments
•wavelength
•normal output power
•maximum output power
18455
LASER CLASSE 1CLASE 1 DEL LASER
CLASS 1 LASER PRODUCT PRODUCTO LASER CLASE 1
18992
'
'
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg28.png)
ANSI ONT safety guidelines
40
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Figure 12 Laser warning labels
4.3.2 Laser classification
The ONT is classified as a Class 1 laser product based on its transmit optical output.
For Class 1 laser products, lasers are safe under reasonably foreseeable conditions
of operation, including the use of optical instruments for intrabeam viewing.
Figure 13 shows a sample laser product safety label on the ONT equipment.
INVISIBLE LASER RADIATION
DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS
Wavelength(s): xxxx nm
Normal output power: xx m W
Max output power: yyy m W
Laser Warning Label Laser Warning Label
CLASS 1 LASER PRODUCT
INVISIBLE LASER RADIATION PRESENT AT FIBER OPTIC CABLE
WHEN NOT CONNECTED. AVOID DIRECT EXPOSURE TO BEAM.
RAYONNEMENT LASER CLASSE 1
RAYONNEMENT LASER INVISIBLE
EVITER TOUTE EXPOSITION AU FAISCEAU
NE PAS DEMONTER. FAIRE APPEL A UN PERSONNELL QUALIFIE
CLASE 1 DEL LASER
RADIACION DE LASER INVISIBLE. EVITAR CUALOUIER EXPOSICION AL
RAYO LASER. NO DESMONTAR. LLAMAR A PERSONAL AUTORIZADO
Laser Warning Label
18993
'
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg29.png)
7368 ISAM ONT G-120W-F Product Guide ANSI ONT safety guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 41
Figure 13 Sample laser product safety label on the ONT equipment
4.3.3 Transmit optical output
The maximum transmit optical output of an ONT is +5 dBm.
4.3.4 Normal laser operation
In normal operation, fiber cable laser radiation is always off until it receives signal
from the line terminal card.
Operating personnel must observe the instructions on the laser explanatory label
before plugging in the optical module.
4.3.5 Location class
Use cable supports and guides to protect the receptacles from strain.
18532
3FE55851ABAA
Model:
MFG:
MONTH: XX
YEAR: XXXX
ICS: XX
MRev: XX
MAC:XXXXXXXXXXXX
SN:ALCLXXXXXXXX
FCC ID: XXXXXXXXXXX
This device complies with Part 15 of the FCC Rule.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including intereference that may cause undesired operation.
ASSEMBLED IN CHINA
2301 Sugar Bush Rd
.
Raleigh, NC 27612
DANGER - Invisible Laser radiation when open.
AVOID DIRECT EXPOSURE TO BEAM.
DANGER - Rayonnement Laser invisible lorsqu’elle
est ouverte. Evitee l’expostion direct au faisceau.
Complies with 21 CFR 1040.10 and 1040.11 except for deviations
pursuant to Laser Notice No. 50 dated June 24, 2007
12VDC 3A
I.T.E
Intertek
4006119
CLASS 1 LASER PRODUCT
PRODUIT LASER DE CLASSE 1
Danger — Risk of eye damage by laser radiation.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg2a.png)
ANSI ONT safety guidelines
42
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
4.4 Electrical safety guidelines
This section provides the electrical safety guidelines for the ONT equipment.
4.4.1 Power supplies
The use of any non-Nokia approved power supplies or power adapters is not
supported or endorsed by Nokia. Such use will void any warranty or support contract
with Nokia. Such use greatly increases the danger of damage to equipment or
property.
4.4.2 Cabling
The following are the guidelines regarding cables used for the ONT equipment:
•Use only cables approved by the relevant national electrical code.
•Use cables suitable for outdoor use for outdoor installation of ONTs.
•The ONTs have been evaluated for use with external POTS wiring without primary
protection that may not exceed 140 ft (43 m) in reach. However, the power cable
must not exceed 100 ft (31 m).
4.4.3 Protective earth
Earthing and bonding of the ONTs must comply with the requirements of NEC article
250 or local electrical codes.
4.5 ESD safety guidelines
The ONT equipment is sensitive to ESD. Operations personnel must observe the
following ESD instructions when they handle the ONT equipment.
Note — The ONTs comply with the U.S. National Electrical
Code. However, local electrical authorities have jurisdiction
when there are differences between the local and U.S.
standards.
Caution — This equipment is ESD sensitive. Proper ESD
protections should be used when entering the TELCO Access
portion of the ONT.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg2b.png)
7368 ISAM ONT G-120W-F Product Guide ANSI ONT safety guidelines
Issue: 01 3FE-46922-AAAA-TCZZA 43
During installation and maintenance, service personnel must wear wrist straps to
prevent damage caused by ESD.
Nokia recommends that you prepare the site before you install the ONT equipment.
In addition, you must control relative humidity, use static dissipating material for
furniture or flooring, and restrict the use of air conditioning.
4.6 Environmental requirements
See the ONT technical specification documentation for temperature ranges for
ONTs.
During operation in the supported temperature range, condensation inside the ONT
caused by humidity is not an issue. To avoid condensation caused by rapid changes
in temperature and humidity, Nokia recommends:
•The door of the ONT not be opened until temperature inside and outside the
enclosure has stabilized.
•If the door of the ONT must be opened after a rapid change in temperature or
humidity, use a dry cloth to wipe down the metal interior to prevent the risk of
condensation.
•When high humidity is present, installation of a cover or tent over the ONT helps
prevent condensation when the door is opened.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg2c.png)
ANSI ONT safety guidelines
44
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg2d.png)
7368 ISAM ONT G-120W-F Product Guide G-120W-F unit data sheet
Issue: 01 3FE-46922-AAAA-TCZZA 45
5 G-120W-F unit data sheet
5.1 G-120W-F part numbers and identification
5.2 G-120W-F general description
5.3 G-120W-F software and installation feature support
5.4 G-120W-F interfaces and interface capacity
5.5 G-120W-F LEDs
5.6 G-120W-F detailed specifications
5.7 G-120W-F GEM ports and T-CONTs
5.8 G-120W-F performance monitoring statistics
5.9 G-120W-F functional blocks
5.10 G-120W-F standards compliance
5.11 G-120W-F special considerations
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg2e.png)
G-120W-F unit data sheet
46
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
5.1 G-120W-F part numbers and identification
Table 3 provides part numbers and identification information for the G-120W-F
indoor ONT.
Table 3 Identification of G-120W-F indoor ONTs
Ordering kit
part number
Provisioning
part number
Description CLEI CPR ECI/
Bar
code
3FE 47000 AA 3FE 46922 AA Package S GPON indoor ONT with one POTS port, two Ethernet
interfaces, one 100 mW Wi-Fi radio with on/off switch, and an
SC/APC fiber optic connection.
Includes two 5dBI indoor multi-directional external WiFi antenna
(not detachable), one 1.5m CAT-5E Ethernet cable with RJ-45
endpoint, and one 1.5m RJ-11 cable.
Also includes one 2-pin wall-mounted 12V AC/DC power adapter
with US plug.
———
3FE 47000 BA Package S GPON indoor ONT with one POTS port, two Ethernet
interfaces, one 100 mW Wi-Fi radio with on/off switch, and an
SC/APC fiber optic connection.
Includes two 5dBI indoor multi-directional external WiFi antenna
(not detachable), one 1.5m CAT-5E Ethernet cable with RJ-45
endpoint, and one 1.5m RJ-11 cable.
Also includes one 2-pin wall-mounted 12V AC/DC power adapter
with EU plug.
———
3FE 47000 CA Package S GPON indoor ONT with one POTS port, two Ethernet
interfaces, one 100 mW Wi-Fi radio with on/off switch, and an
SC/APC fiber optic connection.
Includes two 5dBI indoor multi-directional external WiFi antenna
(not detachable), one 1.5m CAT-5E Ethernet cable with RJ-45
endpoint, and one 1.5m RJ-11 cable.
Also includes one 3-pin wall-mounted 12V AC/DC power adapter
with UK plug.
———
3FE 47000 BB
Customer-specific
Package S GPON indoor ONT with one POTS port, two Ethernet
interfaces, one 100 mW Wi-Fi radio with on/off switch, and an
SC/APC fiber optic connection.
Includes two 5dBI indoor multi-directional external WiFi antenna
(not detachable), one 1.5m CAT-5E Ethernet cable with RJ-45
endpoint, and one 1.5m RJ-11 cable.
Also includes one 2-pin wall-mounted 12V AC/DC power adapter
with EU plug.
———
3FE 47000 BC
Customer-specific
Package S GPON indoor ONT with one POTS port, two Ethernet
interfaces, one 100 mW Wi-Fi radio with on/off switch, and an
SC/APC fiber optic connection.
Includes two 5dBI indoor multi-directional external WiFi antenna
(not detachable), one 1.5m CAT-5E Ethernet cable with RJ-45
endpoint, and one 1.5m RJ-11 cable.
Also includes one 2-pin wall-mounted 12V AC/DC power adapter
with EU plug.
———
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg2f.png)
7368 ISAM ONT G-120W-F Product Guide G-120W-F unit data sheet
Issue: 01 3FE-46922-AAAA-TCZZA 47
For the G-120W-F indoor ONT power supply information, contact your Nokia
technical support representative.
5.2 G-120W-F general description
G-120W-F indoor ONTs provide the subscriber interface for the network by
terminating the PON interface and converting it to user interfaces that directly
connect to subscriber devices. The ONT is compatible with all existing subscriber
equipment, including analog phones with both tone and rotary dial capabilities,
cordless phones, modems, fax machines, and caller ID boxes (Type I, Type II, and
Type III).
G-120W-F ONTs can be placed on a flat surface, such as a desk or shelf, or wall
mounted in a horizontal position.
G-120W-F indoor ONTs provide the following functions:
•single fiber GPON interface with 1.244Gbit/s upstream and 2.488Gbit/s
downstream data rates
•2 Ethernet LAN connections
•1 POTS connection
•reset button
•LED indicators on/off button
•WLAN enable/disable button
•WPS enable/disable button
•UPnP IGD2.0 support
•2.4 GHz wireless interface
•2 5dBI indoor multi-directional external WiFi antenna (not detachable)
•MIMO
•support for up to 20 concurrent wireless connections
•802.11b/g/n compliant
•MDI/MDIX auto sensing
•auto-negotiation for speed and duplex
•multiple voice Codec
•echo cancellation
•Analog Telephone Adapter (ATA) function integrated based on SIP (RFC 3261)
with various CLASS services supported, including Caller ID, Call Waiting, Call
Forwarding, and Call Transfer
•auto reconnect when connection to server is lost
•Network Address Translation (NAT)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg30.png)
G-120W-F unit data sheet
48
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
5.2.1 TR-069 support
The ONT supports the reading of optical parameters via TR-069:
•laser bias current
•voltage
•temperature
•received signal levels
•lower thresholds
These are the same optical parameters supported in the GUI. For more information,
see Table 21 in the chapter “Configure a G-120W-F indoor ONT”.
The ONT supports the status retrieval and configuration of the following Wi-Fi
parameters via TR-069:
•channel
•SSID
•password for WPA and WEP
•Tx power (transmission rate in dBm)
These are the same TR-069 object parameters that are supported in the GUI. For
more information, see Tables 17 and 27 in the chapter “Configure a G-120W-F
indoor ONT”.
The ONT also supports TR-069 statistics and troubleshooting for LAN, WAN, and
WiFi.
5.2.2 TR-104 parameter extension support for voice
service
A proprietary attribute has been added to the TR-104 Voice Service object structure
to enable the ACS to configure the name of the embedded GSIP XML file to be
selected.
The TR-104 Voice Service Object is:
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.
The proprietary attribute is: X_ALU-COM_XML_File_Name_Path.
5.2.3 TR-181 Wi-Fi objects adapted in TR-098
TR-181 is the device data model for TR-069 Wi-Fi objects.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg31.png)
7368 ISAM ONT G-120W-F Product Guide G-120W-F unit data sheet
Issue: 01 3FE-46922-AAAA-TCZZA 49
The following TR-181 Wi-Fi objects (and sub-objects) adapted in TR-098 are
supported in this release:
•Device.WiFi
•Device.WiFi.Radio.{i}.
•Device.WiFi.Radio.{i}.Stats.
•Device.WiFi.SSID.{i}.
•Device.WiFi.SSID.{i}.Stats.
•Device.WiFi.AccessPoint.{i}.
•Device.WiFi.AccessPoint.{i}.Security.
•Device.WiFi.AccessPoint.{i}.WPS.
•Device.WiFi.AccessPoint.{i}.AssociatedDevice{i}.
•Device.WiFi.Endpoint.{i}.
•Device.WiFi.Endpoint.{i}.Stats.
•Device.WiFi.Endpoint.{i}.Security.
•Device.WiFi.Endpoint.{i}.Profile{i}.
•Device.WiFi.Endpoint.{i}.Profile{i}.Security.
•Device.WiFi.Endpoint.{i}.WPS.
•Device.WiFi.NeighboringWiFiDiagnostics.
•Device.WiFi.NeighboringWiFiDiagnostics.Result.{i}.
5.2.4 Mobile offload support
As part of the E2E solution supported by the ISAM 7750 service router, the
G-120W-F ONT offers Mobile Offload support using a combination of EAP-SIM and
ITU-T 802.11.
EAP-SIM is an authentication method that uses the user credentials on the SIM card
and EAP to authenticate the user with the Wi-Fi network, removing the need for user
input (username and password).
A dedicated public mobile offload SSID in the ONT enables mobile subscribers to
connect to the Internet. Encryption is supported by 802.11, providing seamless Wi-Fi
authentication for SIM-based user equipment.
The ONT acts as the RADIUS client and sends the encapsulated EAP messages to
the AAA server via the WLAN Gateway, which acts as the RADIUS proxy server. The
interaction between the ONT and the AAA server provides subscriber management
for authenticated mobile users without adding authentication load to the 3G network.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg32.png)
G-120W-F unit data sheet
50
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
5.2.5 Bridged Residential Gateway (BRG) support
The BRG receives IP addresses for the WAN interface using DHCP or PPPoE. The
BRG can use either Ipv4 or Ipv6 addresses. BRG uses OpenFlow protocol version
1.3.1 to manage Access Control List entries and routing protocols. TR-069 can be
used to manage the local DHCP server and the soft GRE tunnel.
The BRG supports the encapsulation of Ethernet frames from different bridges in the
GRE tunnel to the access tunnel. Multiple bridges can map to the same GRE tunnel.
Where encapsulated packets exceed the MTU (packet size), fragmentation is also
supported.
Upstream QoS can reserve bandwidth for public and private Wi-Fi bridges, based on
profiles defined for the access uplink speed. A unique VLAN tag can be configured
for each SSID on the BRG. Unicast QoS adjustment can be enabled to support
Multicast IPTV
Liveness detection and redundancy, link failure notification, and DHCP local server
fallback are provided to help manage potential problems with gateway access. Event
notification via TR-069 reports when the PON link is up and the tunnel is
unreachable.
5.2.6 Support for soft GRE tunnels
This section describes the support for soft GRE tunnels for integration with the 7750
Service Router WLAN gateway. The Nokia 7750 Service Router WLAN GW can
accept soft GRE tunnels from any IP Source Address, in a preconfigured Subnet or
Access Control List, or MPLS label.
5.2.6.1 GRE
Generic Routing Encapsulation (GRE) is a tunneling protocol that can encapsulate a
wide variety of network layer protocols inside virtual point-to-point links over an
Internet Protocol network. GRE provides a secure path for transporting packets
through a public network. In essence, GRE creates a private P2P connection, similar
to a VPN, between clients and servers. GRE is the preferred transport mechanism
between the Carrier Wi-Fi access network and the WLAN GW.
GRE works by encapsulating a payload (an inner packet that needs to be delivered
to a destination network) inside an outer IP packet. GRE tunnel endpoints send
payloads through GRE tunnels by routing encapsulated packets through intervening
IP networks. The inner packets are not parsed along the way; only the outer IP
packets are parsed as they are forwarded towards the GRE tunnel endpoint, where
the GRE encapsulation is removed, and the payload is forwarded to its final
destination.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg33.png)
7368 ISAM ONT G-120W-F Product Guide G-120W-F unit data sheet
Issue: 01 3FE-46922-AAAA-TCZZA 51
5.2.6.2 Soft GRE
In soft GRE, only one side of the tunnel needs to be configured; the other end learns
the remote IP addresses of all remote tunnel endpoints by examining the incoming
GRE packets.
GRE tunnels can be automatically created when devices attach to the AP,
eliminating the need for each AP to be explicitly provisioned on the WLAN Gateway.
Because this soft GRE is stateless and the tunnel contexts are created based on
need, the WLAN Gateway does not need to maintain states for unused tunnels,
which improves scalability.
The operator can restrict the traffic going through the GRE tunnel based on the
SSIDs or LAN ports.
Figure 14 illustrates the soft GRE architecture.
Figure 14 SoftGRE-based architecture
For more information about soft GRE architecture and configuration procedures, see
the 7368 Configuration, Management, and Troubleshooting guide, which contains
the vCPE User Guide.
Note — While the vCPE forwards all traffic over the GRE
tunnel, the soft GRE architecture for the G-120W-F enables the
operator to restrict the traffic over the GRE tunnel bases on
SSIDs or LAN ports.
DHCP
server
Motive
Access Network
Security
Diag.
Qos
Viurs
scanner
Parental
Cntl
BW on
Demand
Basic
vCPE
VSR
Home
Network
VLAN: 100
Soft-GRE
Tunnel
TR-069 VLAN: 881
IPTV VLAN: 981
Mgmt
IPTV
Network
BRG
25265
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg34.png)
G-120W-F unit data sheet
52
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
5.3 G-120W-F software and installation feature
support
For information on installing or replacing the G-120W-F see:
•Install a G-120W-F indoor ONT
•Replace a G-120W-F indoor ONT
For information on the following topics, see the 7368 ISAM ONT Product Overview
Guide:
•ONT and MDU general descriptions of features and functions
•Ethernet interface specifications
•POTS interface specifications
•RSSI specifications
•Wi-Fi specifications
•ONT optical budget
•SLID entry via Ethernet port
•ONT management using an ONT interface
5.4 G-120W-F interfaces and interface capacity
Table 4 describes the supported interfaces and interface capacity for G-120W-F
indoor ONTs.
Table 4 G-120W-F indoor ONT interface connection capacity
Note
(1) The G-120W-F ONTs provide Wi-Fi service that is enabled and disabled using a Wi-Fi on/off switch.
5.4.1 G-120W-F connections and components
Figure 15 shows the physical connections on the back of the G-120W-F indoor ONT.
ONT type
and model
Maximum
capacity
POTS 10/ 100 FE 10/ 100/ 1000 GE RF video
(CATV)
MoCA VDSL2 E1/T1 Local
craft
GPON
SC/APC
G-120W-F
(1)
11 1 —————1
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg35.png)
7368 ISAM ONT G-120W-F Product Guide G-120W-F unit data sheet
Issue: 01 3FE-46922-AAAA-TCZZA 53
Figure 15 G-120W-F indoor ONT physical connections
Table 5 describes the physical connections for G-120W-F indoor ONTs.
Table 5 G-120W-F indoor ONT physical connections
Note
(1) The primary path for the earth ground for these ONTs is provided by the 12V Return signal in the power
connector.
Connection (1) Description
GPON
(Fiber optic port)
This connection is provided through an SC/APC fiber optic connector.
TEL1
(RJ-11 POTS port)
This connection is provided through an RJ-11 port. The POTS port supports voice
services.
LAN1 and LAN2
(RJ-45 Ethernet ports)
This connection is provided through Ethernet RJ-45 connectors. One 10/100/1000
GE and one 10/100 FE Base-T Ethernet interface are supported.The Ethernet
ports can support both data and in-band video services on all four interfaces.
POWER
(Power input)
This connection is provided through the power connector. A power cable fitted with
a barrel connector is used to make the connection.
RESET Pressing the Reset button for less than 10 seconds reboots the ONT; pressing the
Reset button for 10 seconds resets the ONT to the factory defaults, except for the
LOID and SLID.
WLAN
(Wireless On/Off button)
Wi-Fi service is compliant with IEEE 802.11 standards and is enabled or disabled
using the WLAN button.
WPS
(Wi-Fi security button)
The Wi-Fi Protected Setup (WPS) button enables and disables WLAN data
encryption.
LED
(LED indicator button)
This button turns all LED indicators on or off.
ON/OFF This button turns the ONT on or off.
TELGPON LAN2 LAN1
POWER
RESET WLAN WPSLED ON/OFF
Fiber
connection
POTS
port
Ethernet
Ports (2)
Power
input
Reset
ONT
AntennaAntenna
Wireless
on/off
WPS
on/off
LEDs
on/off
ONT
on/off
26048
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg36.png)
G-120W-F unit data sheet
54
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
5.5 G-120W-F LEDs
Figure 16 shows the G-120W-F indoor ONT LEDs.
Figure 16 G-120W-F indoor ONT LEDs
Table 6 provides LED descriptions for G-120W-F indoor ONTs.
Table 6 G-120W-F indoor ONT LEDs
26049
POWER LINK AUT H LAN1 LAN2 TEL VOIP WPS WLAN INTERNET
POWER LINK AUTH LAN1 LAN2 TEL VOIP WPSWLAN INTERNET
Indicator LED color and
behavior
LED behavior description
Power(1) Green solid
Red solid
Off
Power on
Light failed on startup (for example corrupt flash), or self test failed on startup, or self test failed during
regular operation or when executed over OMCI
Power off
Link Green solid
Off
GPON link between ONT and OLT is operating normally
GPON link is down or no link connected
Auth Green solid
Green flashing
Off
ONT is authorized
ONT is In process of ranging or synchronizing on OMCI
ONT is not authorized
LAN 1-2 Green solid
Green flashing
Off
Ethernet is linked
LAN activity is present (in either direction)
ONT power off or Ethernet not connected
TEL Green solid
Green flashing
Off
Phone off hook
Phone in ‘call in’ or ‘talking’ condition
Phone on hook
VOIP Green solid
Off
VOIP service is built up and can provide service
VOIP service is not built up or out of service
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg37.png)
7368 ISAM ONT G-120W-F Product Guide G-120W-F unit data sheet
Issue: 01 3FE-46922-AAAA-TCZZA 55
Notes
(1) The LED Power light is red by default until the software is running properly, after which it behaves as described in row 1 of Table 6.
5.6 G-120W-F detailed specifications
Table 7 lists the physical specifications for G-120W-F indoor ONTs.
Table 7 G-120W-F indoor ONT physical specifications
Table 8 lists the power consumption specifications for G-120W-F indoor ONT.
Table 8 G-120W-F indoor ONT power consumption specifications
Table 9 lists the environmental specifications for G-120W-F indoor ONT.
WPS Green solid
Green flashing
Off
WiFi protected setup link is up (negotiation and auto-configuration successful)
WiFi protected setup link activity (negotiation and auto-configuration ongoing)
WiFi protected setup link down or no link connected (negotiation has not started or has failed)
WLAN Green solid
Green flashing
Off
WLAN link is up (wireless enabled)
WLAN activity (traffic on wireless link)
WLAN link is down or no link is connected
INTERNET Green solid
Green flashing
Off
HSI WAN is connected: a) the device has an IP address assigned from IPCP, DHCP, or static, and no
traffic has been detected; b) the session is dropped due to idle timeout but the PON link is still present.
PPPoE or DHCP connection in progress
HSI WAN is not connected: a) there is no physical interface connection; b) the device is in bridged mode
without an assigned IP address; c) the session has been dropped for reasons other than idle timeout.
Indicator LED color and
behavior
LED behavior description
(2 of 2)
Description Specification
Width 6.1 in. (155 mm)
Length 3.93 in. (100 mm)
6.7 in. (169 mm with antenna)
Height 0.85 in. (21.6 mm)
Weight [within ± 0.5 lb (0.23 kg)] 0.44 lb (0.2 kg)
Maximum
power (Not
to exceed)
Condition Minimum
power
Condition
4.8 W 2 POTS off-hook, 4 10/100/1000
Base-T Ethernet, Wi-Fi operational
1.92 W 2 POTS on-hook, other
interfaces/services not provisioned
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg38.png)
G-120W-F unit data sheet
56
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Table 9 G-120W-F indoor ONT environmental specifications
5.7 G-120W-F GEM ports and T-CONTs
Table 10 lists the maximum number of supported T-CONTs and GEM ports.
Table 10 G-120W-F indoor ONT capacity for GEM ports and T-CONTs
5.8 G-120W-F performance monitoring statistics
The following section identifies the supported performance monitoring statistics for
G-120W-F ONTs. A check mark indicates the statistic is supported on that ONT. An
empty cell indicates the statistic is not supported. The following tables are
categorized by supported alarm types:
•Table 11 provides statistics for ONTENET type counters
•Table 12 provides statistics for ONTL2UNI type counters
•Table 13 provides statistics for PONONTTC, PONONTMCTC, PONONTTCHSI,
PONONTTCCES, PONONTTCFLOW, and PONONTTCVOIP type counters
•Table 14 provides statistics for PONONTTC aggregate type counters
Temperature range and humidity Altitude
Operating: 23°F to 113 F (-5°C to 45°C) ambient temperature
5% to 95% relative humidity, non-condensing
Contact your Nokia technical support
representative for more information
Storage: -4°F to 158°F (-20°C to 70C)
GEM ports or TCONTs Maximum Notes
GEM ports per indoor or outdoor ONT 256 254 are present; 122 are available, and 2 are
reserved for multicast and debugging
T-CONTs per indoor or outdoor ONT 32 32 are present; 31 are available, and 1 is reserved
for OMCI
Note — If you have trouble accessing G-120W-F ONTs
performance monitoring statistics using TL1, please contact
your Nokia support representative for more information about
how to access and retrieve performance monitoring type
counters.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg39.png)
7368 ISAM ONT G-120W-F Product Guide G-120W-F unit data sheet
Issue: 01 3FE-46922-AAAA-TCZZA 57
Table 11 Package S ONTs ONTENET performance monitoring statistics
Note
(1) A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window
is 5 seconds
Table 12 Package S ONTs ONTL2UNI performance monitoring statistics
Note
(1) A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window
is 5 seconds
Table 13 Package S ONTs PONONTTC, PONONTMCTC, PONONTTCHSI,
PONONTTCCES, PONONTTCFLOW, PONONTTCVOIP perfor-
mance monitoring statistics
Note
(1) A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window
is 5 seconds
ONT ONTENET statistics
FCSE
EC
LC
RBO
SCF
MCF
DT
IMTE
CSE
AE
IMRE
FTL
TBO
SQE
G-120W-F (1) ✓✓✓✓✓✓✓✓✓✓✓✓✓✓
ONT ONTL2UNI statistics
FRAMES
BYTES
MCFRAMES
DSDRPDFRMS
USDRPDFRMS
USFRAMES
DSFRAMES
USBYTES
DSBYTES
USMCFRAMES
DSMCFRAMES
G-120W-F (
1)
✓✓✓✓✓✓✓✓✓✓✓
ONT PONONTTC, PONONTMCTC, PONONTTCHSI, PONONTTCCES,
PONONTTCFLOW, PONONTTCVOIP statistics
TXBLOCKS
TXFRAGS
RXBLOCKS
RXFRAGS
LOSTFRAGS
BADGEMHDRS
G-120W-F (1) ✓✓✓✓✓
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg3a.png)
G-120W-F unit data sheet
58
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Table 14 Package S ONTs PONONTTC aggregate performance monitor-
ing statistics
Note
(1) A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window
is 5 seconds
5.9 G-120W-F functional blocks
G-120W-F indoor ONTs are single-residence ONTs that support Wireless (Wi-Fi)
service. Wi-Fi services on these ONTs are compliant with the IEEE 802.11 standard
and enabled or disabled using a WLAN button. In addition to the Wi-Fi service, these
ONTs transmit Ethernet packets to four RJ-45 Ethernet ports and voice traffic to two
RJ-11 POTS ports. These ONTs also feature fiber optic, USB, and power
connectors.
Figure 17 shows the functional blocks for G-120W-F indoor ONT.
ONT PONONTTC (aggregate) statistics
TXBLOCKS
TXFRAGS
RXBLOCKS
RXFRAGS
LOSTFRAGS
BADGEMHDRS
G-120W-F (1) ✓✓✓✓✓
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg3b.png)
7368 ISAM ONT G-120W-F Product Guide G-120W-F unit data sheet
Issue: 01 3FE-46922-AAAA-TCZZA 59
Figure 17 Single-residence Wi-Fi ONT with Gigabit Ethernet and POTS and without RF video
ONT SoC technology serves as the main hardware block for these ONTs; see
Figure 18.
Transformer
m1000 RJ45 +
100M RJ45
1GE+1*100M
PCI-E
MDI
SLIC
Protection
RJ11
1*POTS
NAND
FLASH
Clock, Reset
ZSI
MDI Transformer
m
Optical
BOB
LED
RX/TX_SD,
TX_PD, TX_Fault
SerDes
12C
SoC
GPON
3V3
1V2
3V3
VBAT
1V5
DC12V
DC/DC
12V
Adaptor LDO
WIFI
1V6
26050
DDR3
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg3c.png)
G-120W-F unit data sheet
60
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01

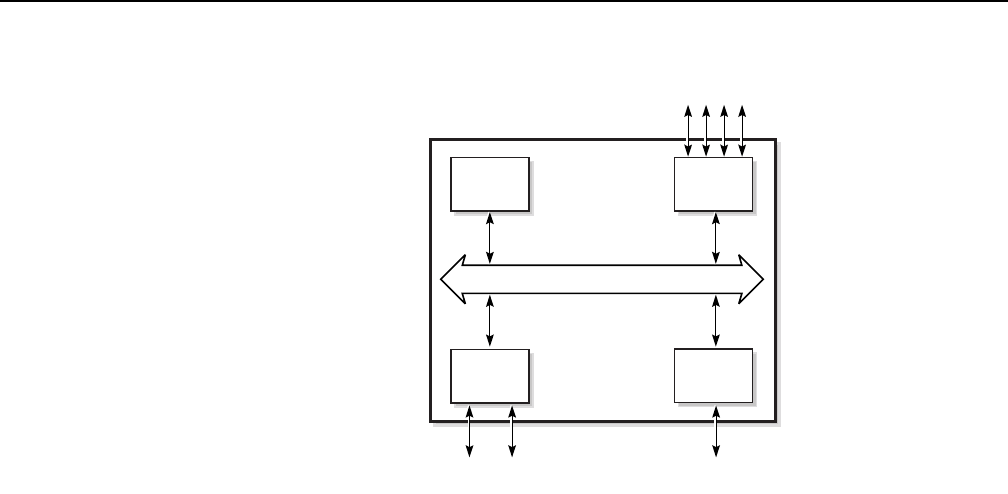

Figure 18 G-120W-F ONT hardware block
ONT SoC technology consists of five key elements:
•GPON MAC
The Gigabit Passive Optical Network Media Access Control (GPON MAC)
element on the SoC terminates the GPON interface using an optical diplexer. This
interface supports GPON as described in G.984.3 (GPON TC Layer) ITU
specification.
•Ethernet MAC
The SoC provides up to four GE MACs.
•DSP interface
The Digital Signal Processor (DSP) provides voice processing for 2 POTS lines
with 3-way calling. The DSP has a dedicated 64 kbyte instruction cache and
shares a 32 kbyte data cache with the Control Processor. It provides up to 4
network processor cores, each at 800MHz.
•Control Processor
The Control Processor features an integral memory management unit that
supports a dedicated 64 kbyte instruction cache and shares a single 32 kbyte data
cache with the DSP. The Control Processor and DSP also include a single
channel Data Management Application (DMA) controller with a 4 kbyte read
ahead low-latency Dynamic Random Access Memory (DRAM) access port. The
processors typically run at 600 MHz.
•Switch matrix
The Switch matrix provides an integrated data channel between the four GE
MACs, the GPON MAC, the DSP, the control processor, and the other integrated
elements such as flash memory, DRAM, and the local bus controller.
Control
processor
Ethernet
MACs
Ethernet ports GPON
POTS ports
DSP
GPON
MAC
SoC
19421
SoC Bridge
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg3d.png)
7368 ISAM ONT G-120W-F Product Guide G-120W-F unit data sheet
Issue: 01 3FE-46922-AAAA-TCZZA 61
These ONTs can also interact with additional hardware components to support
functionality not provided by the SoC technology.
5.10 G-120W-F standards compliance
G-120W-F indoor ONTs are compliant with the following standards:
•802.1p QoS
•802.1q VLANs
•802.3 auto negotiation, flow control
•802.11 b/g/n at 2.4 GHz
•Codec G.711 a/u, G.722, G.723, G.726, G.729
•EN 300-328 v1.9.1 wide band data transmission standards for 2.4GHz bands
•Energy Star standards. Level 6
•EU CoC v5 broadband communication
•G.984 support GPON interface (framing)
•G.984.2 support for Amd1, class B+
•G.984.3 support for activation and password functions
•G.984.3 support for AES with operator enable/disable on per port-ID level
•G.984.3 support for FEC in both upstream and downstream directions
•G.984.3 support for multicast using a single GEM Port-ID for all video traffic
•G984.4 and G.983.2 support for OMCI v1 and v2 interface for ONT management
and provisioning
•SIPv2 RFC 3261 signaling
Figure 19 shows the product label for the G-120W-F ONT.
Figure 19 G-120W-F ONT product label
Figure 20 shows an example of the safety label for the G-120W-F ONT.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg3e.png)
G-120W-F unit data sheet
62
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Figure 20 G-120W-F ONT safety label
5.10.1 Energy-related products standby and off modes
compliance
Hereby, Nokia declares that the G-120W-F ONTs are in compliance with the
essential requirements and other relevant provisions of Directive 2009/125/EC
together with Commission Regulation (EC) No 1275/2008 and Commission
Regulation (EC) No 801/2013.
The G-120W-F ONTS qualify as equipment with high network availability (HiNA)
functionality. Since the main purpose of G-120W-F ONTs is to provide network
functionality with HiNA 7 days /24 hours, the modes Off/Standby, Power
Management, and Networked Standby are inappropriate.
For information about the type and number of network ports, see “G-120W-F
interfaces and interface capacity” in this chapter.
For information about power consumption, see “G-120W-F detailed specifications” in
this chapter.
5.11 G-120W-F special considerations
G-120W-F is a Package S ONT.
5.11.1 Wi-Fi service
G-120W-F indoor ONTs feature Wi-Fi service as well as voice and data services.
Wi-Fi is a wireless networking technology that uses radio waves to provide wireless
HSI and network connections. This ONT complies with the IEEE 802.11 standards,
which the Wi-Fi Alliance defines as the basis for Wi-Fi technology.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg3f.png)
7368 ISAM ONT G-120W-F Product Guide G-120W-F unit data sheet
Issue: 01 3FE-46922-AAAA-TCZZA 63
5.11.1.1 Wi-Fi physical features
G-120W-F indoor ONTs have the following physical features that assist in providing
Wi-Fi service:
•WLAN button for enabling and disabling Wi-Fi service
•two external multi-directional antennae
•Wi-Fi Protected Setup (WPS) push button for enabling and disabling wireless
protective services
5.11.1.2 Wi-Fi standards and certifications
The Wi-Fi service on G-120W-F indoor ONTs supports the following IEEE standards
and Wi-Fi Alliance certifications:
•certified for IEEE 802.11b/g/n standards
•WPA support including WPA-PSK
•certified for WPA2-Personal and WPA2-Enterprise
5.11.1.3 Wi-Fi GUI features
G-120W-F indoor ONTs have HTML-based Wi-Fi configuration GUIs.
5.11.2 G-120W-F ONT considerations and limitations
Table 15 lists the considerations and limitations for Package S G-120W-F ONTs.
Table 15 G-120W-F ONT considerations and limitations
Considerations and limitations
Do not put the metallic material plate on top of the enclosure.
Call History Data collection (ONTCALLHST) is supported, except for the following parameters:
RTP packets (discarded), far-end RTCP and RTCP-XR participation, RTCP average and peak round trip delay,
MOS, average jitter, number of jitter-buffer over-runs and under runs.
Some voice features are configurable on a per ONT basis, including Call Waiting, Call Hold, 3-Way Calling, and
Call Transfer.
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg40.png)
G-120W-F unit data sheet
64
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
The following voice features / GSIP parameters are configurable on a per-Client/ per-ONT basis (not
per-Subscriber):
•Enable Caller ID and Enable Caller Name ID
•Digitmap and the associated Interdigit and Critical timers and Enter key parameters
•Warmline timer is enabled per subscriber, but the warmline timer value is configured per ONT and must
have a lower value than the Permanent time
•Miscellaneous timers: Permanent, Timed-release, Reanswer, Error-tone, and CW-alert timers
•Features / functions: Message waiting mode, WMWI refresh interval, DTMF volume level
•Service Codes for the following features: CCW, Call Hold and Warmline
Considerations and limitations
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg41.png)
7368 ISAM ONT G-120W-F Product Guide Install a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 65
6 Install a G-120W-F indoor ONT
6.1 Purpose
6.2 General
6.3 Prerequisites
6.4 Recommended tools
6.5 Safety information
6.6 Procedure
6.1 Purpose
This chapter provides the steps to install a G-120W-F indoor ONT.
6.2 General
The steps listed in this chapter describe mounting and cabling for G-120W-F indoor
ONTs.
6.3 Prerequisites
You need the following items before beginning the installation:
•all required cables
6.4 Recommended tools
You need the following tools for the installation:
•#2 Phillips screwdriver
•1/4 in. (6 mm) flat blade screwdriver
•wire strippers
•fiber optic splicing tools
•RJ-45 cable plug crimp tool
•voltmeter or multimeter
•optical power meter
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg42.png)
Install a G-120W-F indoor ONT
66
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
•drill and drill bits
•paper clip
6.5 Safety information
Read the following safety information before installing the unit.
Danger 1 — Hazardous electrical voltages and currents can
cause serious physical harm or death. Always use insulated
tools and follow proper safety precautions when connecting or
disconnecting power circuits.
Danger 2 — Make sure all sources of power are turned off and
have no live voltages present on feed lines or terminals. Use a
voltmeter to measure for voltage before proceeding.
Danger 3 — Always contact the local utility company before
connecting the enclosure to the utilities.
Warning — This equipment is ESD sensitive. Proper ESD
protections should be used when removing the fiber access
cover of the indoor ONT.
Caution — Keep indoor ONTs out of direct sunlight. Prolonged
exposure to direct sunlight can damage the unit.
Note 1 — Observe the local and national laws and regulations
that may be applicable to this installation.
Note 2 — Observe the following:
•The indoor ONT should be installed in accordance with the
applicable requirements of the NEC or CEC. Local
authorities and practices take precedent when there is
conflict between the local standard and the NEC or CEC.
•The indoor ONT must be installed by qualified service
personnel.
•Indoor ONTs must be installed with cables that are suitably
rated and listed for indoor use.
•See the detailed specifications in the G-120W-F unit data
sheet for the temperature ranges for these ONTs.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg43.png)
7368 ISAM ONT G-120W-F Product Guide Install a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 67
6.6 Procedure
Use this procedure to install a G-120W-F indoor ONT.
1Place the indoor ONT unit:
aOn the flat surface, such as a desk or shelf; go to step 3.
bOn a wall, go to step 2.
2Mount the G-120W-F indoor ONT on a wall.
iThe G-120W-F indoor ONT can only be mounted in a horizontal position.
Figure 21 shows the wall mounting holes for the G-120W-F ONTs.
Figure 21 G-120W-F indoor ONT wall mounting holes (bottom view)
If possible, mount the ONT on a wall stud
ii Mark the wall with the location of the mounting holes. These holes should be the same
distance apart as the distance between the centers of the keyholes on the ONT.
iii Drill the two holes in the wall where the ONT will be mounted and then drive the
mounting screws into the holes.
Note — The G-120W-F cannot be stacked with another ONT or with
other equipment. The ONT mounting requirements are:
•allow a minimum 100 mm clearance above the top cover
•allow a minimum 50 mm clearance from the side vents
•do not place any heat source directly above the top cover or below the
bottom cover
Wall mounting hole Wall mounting hole
26051
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg44.png)
Install a G-120W-F indoor ONT
68
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
The recommended length of mounting screw is 1.15 in. (3.8 cm).
Do not drive the screw into the wall completely. Leave approximately 1/8 in. (6 mm)
between the screw head and the wall surface.
iv Slide the wall mount keyholes on the ONT enclosure down over the mounting screws
until the ONT is securely seated.
3Review the connection locations as shown in Figure 22.
Figure 22 G-120W-F indoor ONT connections
4Connect the Ethernet cables to the RJ-45 port.
5Route the POTS cables directly to the RJ-11 ports as per local practices.
6Connect the fiber optic cable with SC/APC adapter into the SC/APC connector.
Danger — Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or
adapters.
Warning — Be careful to maintain a bend radius of no less than 1.5 in.
(3.8 cm) when connecting the fiber optic cable. Too small of a bend radius
in the cable can result in damage to the optic fiber.
TELGPON LAN2 LAN1
POWER
RESET WLAN WPSLED ON/OFF
Fiber
connection
POTS
port
Ethernet
Ports (2)
Power
input
Reset
ONT
AntennaAntenna
Wireless
on/off
WPS
on/off
LEDs
on/off
ONT
on/off
26048
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg45.png)
7368 ISAM ONT G-120W-F Product Guide Install a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 69
7Install the power supply according to manufacturer specifications.
8Connect the power cable to the power connector.
9Power up the ONT unit by using the power on/off switch.
10 If used, enable the Wi-Fi service by pressing the WLAN button.
11 If used, enable the WPS by pressing the WPS button.
12 Verify the ONT LEDs, voltage status, and optical signal levels; see the 7368 Hardware and
Cabling Installation Guide.
13 Activate and test the services; see the 7368 Hardware and Cabling Installation Guide.
14 If used, configure the SLID; see the 7368 ISAM ONT Configuration, Management, and
Troubleshooting Guide.
15 If necessary, reset the ONT.
iLocate the Reset button on the back of the G-120W-F indoor ONT as shown in
Figure 22.
ii Insert the end of a straightened paper clip or other narrow object into the hole in the
Reset button to reset the ONT.
16 STOP. This procedure is complete.
Note — Fiber cable preparation varies depending on the type and size
of the inside or outside plant fiber cable being spliced to the SC/APC
(SC/UPC) fiber optic pigtail cable.
Note — Observe the following:
•Units must be powered by a Listed or CE approved and marked
limited power source power supply with a minimum output rate of
12 V dc, 1.25 A.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg46.png)
Install a G-120W-F indoor ONT
70
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg47.png)
7368 ISAM ONT G-120W-F Product Guide Replace a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 71
7 Replace a G-120W-F indoor ONT
7.1 Purpose
7.2 General
7.3 Prerequisites
7.4 Recommended tools
7.5 Safety information
7.6 Procedure
7.1 Purpose
This chapter provides the steps to replace G-120W-F indoor ONTs.
7.2 General
The steps listed in this chapter describe mounting and cabling for G-120W-F indoor
ONTs.
7.3 Prerequisites
You need the following items before beginning the installation:
•all required cables
7.4 Recommended tools
You need the following tools for replacing the ONT:
•#2 Phillips screwdriver
•1/4 in. (6 mm) flat blade screwdriver
•wire strippers
•fiber optic splicing tools
•RJ-45 cable plug crimp tool
•voltmeter or multimeter
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg48.png)
Replace a G-120W-F indoor ONT
72
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
•optical power meter
•drill and drill bits
7.5 Safety information
Read the following safety information before replacing the unit.
Danger 1 — Hazardous electrical voltages and currents can
cause serious physical harm or death. Always use insulated
tools and follow proper safety precautions when connecting or
disconnecting power circuits.
Danger 2 — Make sure all sources of power are turned off and
have no live voltages present on feed lines or terminals. Use a
voltmeter to measure for voltage before proceeding.
Danger 3 — Always contact the local utility company before
connecting the enclosure to the utilities.
Warning — This equipment is ESD sensitive. Proper ESD
protections should be used when removing the fiber access
cover of the indoor ONT.
Caution — Keep indoor ONTs out of direct sunlight. Prolonged
exposure to direct sunlight can damage the unit.
Note 1 — Observe the local and national laws and regulations
that may be applicable to this installation.
Note 2 — Observe the following:
•The indoor ONT should be installed in accordance with the
applicable requirements of the NEC or CEC. Local
authorities and practices take precedent when there is
conflict between the local standard and the NEC or CEC.
•The indoor ONT must be installed by qualified service
personnel.
•Indoor ONTs must be installed with cables that are suitably
rated and listed for indoor use.
•See the detailed specifications in the G-120W-F unit data
sheet for the ONT temperature ranges for these ONTs.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg49.png)
7368 ISAM ONT G-120W-F Product Guide Replace a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 73
7.6 Procedure
Use this procedure to replace a G-120W-F indoor ONT.
1Deactivate the ONT services at the P-OLT.
If you are using the SLID feature, this step is not required. The ONT and the services can
remain in service (IS).
iUse the RTRV-ONT command to verify the ONT status and th associated services.
Record the serial number or the SLID of the ONT displayed in the command output.
Example:
RTRV-ONT::ONT-1-1-1-1-1;
ii If the ONT is in service, place the ONT in OOS state.
Example:
ED-ONT::ONT-1-1-1-1-1;
2If used, disable the Wi-Fi service by pressing the WLAN button; see Figure 23 for the location
of the WLAN button on the back of the ONT.
Figure 23 G-120W-F indoor ONT connections
3Power down the unit by using the on/off power switch.
4Disconnect the POTS, Ethernet, and power cables.
TELGPON LAN2 LAN1
POWER
RESET WLAN WPSLED ON/OFF
Fiber
connection
POTS
port
Ethernet
Ports (2)
Power
input
Reset
ONT
AntennaAntenna
Wireless
on/off
WPS
on/off
LEDs
on/off
ONT
on/off
26048
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg4a.png)
Replace a G-120W-F indoor ONT
74
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
5Disconnect the fiber optic cable.
iUnplug the fiber optic cable with SC/APC connector from the fiber optic port.
ii Attach a fiber dust cover to the end of the SC/APC (SC/UPC) connector.
6Replace the ONT with a new unit:
aOn a flat surface, such as a desk or shelf, substitute the new ONT for the old ONT on a
flat surface, horizontally resting on its four feet.
bOn a wall.
iSlide the old ONT off of the mounting screws until the ONT is free of the wall.
ii Slide the wall mount holes on the new ONT enclosure over the mounting screws
until it is securely seated.
7Connect the Ethernet cables directly to the RJ-45 ports.
8Connect the POTS cables directly to the RJ-11 ports as per local practices.
9If required, have approved service personnel who are trained to work with optic fiber clean
the fiber optic connection. See the 7368 ISAM ONT Configuration, Management, and
Troubleshooting Guide for more information about fiber optic handling, inspection, and
cleaning.
10 Connect the fiber optic cable with SC/APC adapter into the SC/APC connector.
Danger — Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or
adapters.
Danger — Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or
adapters.
Warning — Be careful to maintain a bend radius of no less than 1.5 in.
(3.8 cm) when connecting the fiber optic cable. Too small of a bend radius
in the cable can result in damage to the optic fiber.
Note — Fiber cable preparation varies depending on the type and size
of the inside or outside plant fiber cable being spliced to the SC/APC fiber
optic pigtail cable.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg4b.png)
7368 ISAM ONT G-120W-F Product Guide Replace a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 75
11 Install the power supply according to manufacturer specifications.
12 Connect the power cable to the power connector.
13 Power up the unit by using the on/off power switch.
14 If used, enable the Wi-Fi service by pressing the WLAN button.
15 If used, enable the WPS by pressing the WPS button.
16 If used, configure the SLID; see the 7368 ISAM ONT Configuration, Management, and
Troubleshooting Guide for more information.
17 Verify the ONT LEDs, voltage status, and optical signal levels; see the 7368 Hardware and
Cabling Installation Guide.
18 Activate and test the services; see the 7368 Hardware and Cabling Installation Guide.
19 If necessary, reset the ONT.
iLocate the Reset button on the back of the G-120W-F indoor ONT as shown in
Figure 23.
ii Insert the end of a straightened paper clip or other narrow object into the hole in the
Reset button to reset the ONT.
20 STOP. This procedure is complete.
Note — Observe the following:
•Units must be powered by a Listed or CE approved and marked
limited power source power supply with a minimum output rate of
12 V dc, 1.25 A.
Note — A new SLID or the old SLID may be used with the replacement
ONT. If a new SLID is used, the new SLID must also be programmed at
the P-OLT using TL1 or a network manager. If the old SLID is used, no
changes need to be made at the P-OLT; see the operations and
maintenance documentation for the OLT for more details.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg4c.png)
Replace a G-120W-F indoor ONT
76
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg4d.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 77
8 Configure a G-120W-F indoor ONT
8.1 General
8.2 HGU mode GUI configuration
8.3 SFU mode GUI configuration
8.4 Operator ID
8.1 General
Please refer to the configuration information provided with your OLT for the software
configuration procedure for a G-120W-F ONT.
For HTTP configuration procedures, please refer to the 7368 ISAM ONT
Configuration, Management, and Troubleshooting Guide.
8.2 HGU mode GUI configuration
Use the procedures below to use the web-based GUI for the G-120W-F in HGU
mode. This mode is preset at delivery.
A home gateway unit (HGU) is a home networking device, used as a gateway to
connect devices in the home through fiber to the Internet. An HGU provides a variety
of features for the home network including routing and firewall capability. By using
the HGU, users can connect all smart equipment in their home, including personal
computers, set-top boxes, mobile phones, and other consumer electronics devices,
to the Internet.
8.2.1 Login
Use the procedure below to login to the web-based GUI for the G-120W-F.
Procedure 6 Login to web-based GUI
1Open a web browser and enter the IP address of the ONT in the address bar.
The login window appears.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg4e.png)
Configure a G-120W-F indoor ONT
78
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
The default gateway IP address is http://192.168.1.254. You can connect to this IP address
using your web browser after connecting your PC to one of Ethernet ports of the ONT. The
static IP address of your PC must be in the same subnet as the ONT.
2Enter your username and password in the Log in window, as shown in Figure 24.
The default user name is userAdmin. The default password is a random number, which is
included in the ONT kit.
Figure 24 Web login window
3Click Login.
4STOP. This procedure is complete.
8.2.2 Device and connection status
G-120W-F ONTs support the retrieval of a variety of device and connection
information, including:
•device information
•LAN status
•WAN status
•WAN status IPv6
•home networking information
Caution — Pressing the Reset button for less than 10 seconds reboots
the ONT; pressing the Reset button for 10 seconds resets the ONT to the
factory defaults, except for the LOID and SLID.
Note — If you forget the current username and password, press the
reset button for 10 s and the default values for the username and
password will be recovered at startup.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg4f.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 79
•optics module status
•statistics
•voice information
Procedure 7 Device information retrieval
1Select Status > Device Information from the top-level menu in the GPON Home Gateway
window, as shown in Figure 25.
Figure 25 Device Information window
Table 16 describes the fields in the Device Information window.
Table 16 Device Information parameters
Field Description
Device Name Name on the ONT
Vendor Name of the vendor
Serial Number Serial number of the ONT
Hardware version Hardware version of the ONT
Boot version Boot version of the ONT
Software version Software version of the ONT
Chipset Chipset of the ONT
Lot Number Production date of the ONT
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg50.png)
Configure a G-120W-F indoor ONT
80
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Device Running Time Amount of time the device has run since
last reset in hours, minutes, and seconds
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg51.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 81
Procedure 8 LAN status retrieval
1Select Status > LAN Status from the top-level menu in the GPON Home Gateway window,
as shown in Figure 26.
Figure 26 LAN status window
Table 17 describes the fields in the LAN status window.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg52.png)
Configure a G-120W-F indoor ONT
82
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Table 17 LAN status parameters
Field Description
Wireless Information
Wireless Status Indicates whether the wireless is on or off
Wireless Channel Wireless channel number
SSID Name Name of each SSID
Wireless Encryption Status Encryption type used on the wireless connection
Wireless Rx Packets Number of packets received on the wireless connection
Wireless Tx Packets Number of packets transmitted on the wireless connection
Wireless Rx Bytes Number of bytes received on the wireless connection
Wireless Tx Bytes Number of bytes transmitted on the wireless connection
Power Transmission (mW) Power of the wireless transmission, in mW
Ethernet Information
Ethernet Status Indicates whether the Ethernet connection is on or off
Ethernet IP Address IP address of the Ethernet connection
Ethernet Subnet Mask Subnet Mask of the Ethernet connection
Ethernet MAC Address MAC address of the Ethernet connection
Ethernet Rx Packets Number of packets received on the Ethernet connection
Ethernet Tx Packets Number of packets transmitted on the Ethernet connection
Ethernet Rx Bytes Number of bytes received on the Ethernet connection
Ethernet Tx Bytes Number of bytes transmitted on the Ethernet connection
Information (for each LAN line)
Status Status of the LAN line: up or down
Duplex Mode Duplex mode: full duplex or half duplex
Max Bit Rate Max bit rate: auto or number
Errors Received Number of errors received
Errors Sent Number of errors sent
Packets Received Number of packets received
Packets Sent Number of packets sent
Bytes Received Number of bytes received
Bytes Sent Number of bytes sent
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg53.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 83
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Procedure 9 WAN status retrieval
1Select Status > WAN Status from the top-level menu in the GPON Home Gateway window,
as shown in Figure 27.
Figure 27 WAN status window
Table 18 describes the fields in the WAN status window.
Table 18 WAN status parameters
Field Description
WAN connection list Drop-down menu listing all WAN connections. The connection
shown is the connection for which WAN status will be shown.
Connection Mode Connection mode of the WAN connection
Enable/Disable Select this checkbox to enable the WAN connection
VLAN VLAN ID
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg54.png)
Configure a G-120W-F indoor ONT
84
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
WAN Link Status Whether the WAN link is up or down
Pon Link Status Whether the PON link is up or down
Tx Packets Number of packets transmitted on the WAN connection
Rx Packets Number of packets received on the WAN connection
Tx Dropped Number of packets dropped on the transmit WAN connection
Rx Dropped Number of packets dropped on the receive WAN connection
Err Packets Number of errored packets on the WAN connection
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg55.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 85
Procedure 10 WAN status IPv6 retrieval
1Select Status > WAN Status IPv6 from the top-level menu in the GPON Home Gateway
window, as shown in Figure 28.
Figure 28 WAN status IPv6 window
Table 19 describes the fields in the WAN status IPv6 window.
Table 19 WAN status IPv6 parameters
Field Description
WAN connection list Drop-down menu listing all WAN connections. The connection
shown is the connection for which WAN status will be shown.
Enable/Disable Select this checkbox to enable the WAN connection
VLAN VLAN ID
WAN Link Status Whether the WAN link is up or down
IPv6 Address IPv6 Address that identifies the device and its location
IPv6 Prefix IPv6 prefix
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg56.png)
Configure a G-120W-F indoor ONT
86
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
IPv6 Gateway IPv6 gateway address
Primary DNS Primary Domain Name Server
Second DNS Secondary Domain Name Server
Pon Link Status Whether the PON link is up or down
Tx Packets Number of packets transmitted on the WAN connection
Rx Packets Number of packets received on the WAN connection
Tx Dropped Number of packets dropped on the transmit WAN connection
Rx Dropped Number of packets dropped on the receive WAN connection
Err Packets Number of errored packets on the WAN connection
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg57.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 87
Procedure 11 Home networking information retrieval
1Select Status > Home Networking from the top-level menu in the GPON Home Gateway
window, as shown in Figure 29.
Figure 29 Home networking information window
Table 20 describes the fields in the Home networking window.
Table 20 Home networking parameters
2Click Delete to delete a particular local device connection.
Field Description
Local Interface
Ethernet Table displays the number of Ethernet connections and their settings
Wireless (2.4G) Table displays the number of wireless connections and their settings
Wireless Settings (2.4G)
Network Name Name of the wireless network
Access Point Hexadecimal address of the wireless access point
Local Devices
Table entry Each entry indicates the status, connection type, device name, IPv4 address,
hardware address, and IP address allocation of each connected local device.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg58.png)
Configure a G-120W-F indoor ONT
88
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
3Click Refresh to update the displayed information.
4STOP. This procedure is complete.
Procedure 12 Optics module status retrieval
1Select Status > Optics Module Status from the top-level menu in the GPON Home Gateway
window, as shown in Figure 30.
Figure 30 Optics module status window
Table 21 describes the fields in the Optics module status window.
Table 21 Optics module status parameters
Field Description
Laser Bias Current (ONT ANI-ONT-Side Optical
Measurements)
Laser bias current, measured in uA
Optics Module Voltage (ONT ANI-ONT-Side Optical
Measurements)
Optics module voltage, measured in V
Optics Module Temperature (ONT ANI-ONT-Side
Optical Measurements)
Optics module temperature, measured in C
Rx Optics Signal Level at 1490 nm (ONT
ANI-ONT-Side Optical Measurements)
Received optics signal level at 1490 nm, measured
in dBm
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg59.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 89
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Procedure 13 Statistics retrieval
1Select Status > Statistics from the top-level menu in the GPON Home Gateway window.
Statistics are available for LAN ports and WAN ports.
Figure 31 shows the statistics for the LAN ports.
Figure 31 LAN ports Statistics window
Tx Optics Signal Level at 1310 nm (ONT
ANI-ONT-Side Optical Measurements)
Transmitted optics signal level at 1310 nm,
measured in dBm
Lower (ONT ANI-ONT-Side Optical
Measurements-Optical Threshold)
Lower optical threshold, measured in dBm
Upper (ONT ANI-ONT-Side Optical
Measurements-Optical Threshold)
Lower optical threshold, measured in dBm
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg5a.png)
Configure a G-120W-F indoor ONT
90
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
If there are no WAN connections to display, the system displays a message to indicate that.
2STOP. This procedure is complete.
Procedure 14 Voice information retrieval
1Select Status > Voice Information from the top-level menu in the GPON Home Gateway
window, as shown in Figure 32.
Figure 32 Voice Information window
Table 22 describes the fields in the Voice Information window.
Table 22 Voice Information parameters
Field Description
Line Select the POTS line: 1 or 2
Line Status Status of the selected POTS line: IDLE, Off Hook, or On Hook
Softswitch(1) Proxy IP address; blank if the line is not registered
Phone number(1) Phone number configured for the selected telephone line
Register Status Registration status of the selected POTS port: registered or
unregistered
Register Error Code Error code for the unregistered POTS port
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg5b.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 91
Note
(1) This field is only visible at the adminGPON level; it is not visible at the userAdmin level.
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
8.2.3 Network configuration
G-120W-F ONTs also support network configuration, including:
•LAN
•LAN IPv6
•WAN
•WAN DHCP
•wireless 2.4GHz
•wireless schedule
•IP routing
•DNS
•TR-069
•QoS
Register Error Reason Error reason for the unregistered POTS port
User Agent IP IP address of the user agent
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg5c.png)
Configure a G-120W-F indoor ONT
92
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 15 LAN networking configuration
1Select Network > LAN from the top-level menu in the GPON Home Gateway window, as
shown in Figure 33.
Figure 33 LAN network window
Table 23 describes the fields in the LAN network window.
Table 23 LAN network parameters
Field Description
Port Mode: All Port to Bridge Mode Select this checkbox to set all ports to Bridge mode
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg5d.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 93
2Select the mode for each port.
3Click Save.
4Enter the DHCP configuration information.
5Click Save.
6Bind a MAC address to the LAN by entering the MAC and IP addresses and then clicking
Add. Repeat for all MAC addresses to be bound.
7STOP. This procedure is complete.
Port Mode: Port 1 - 4 Drop-down port mode for each port: Route mode or Bridge mode
IPv4 Address IP Address of the ONT
Subnet Mask Subnet mask of the ONT
DHCP enable Select this checkbox to enable DHCP
DHCP Start IP Address Starting DHCP IP address
DHCP End IP Address Ending DHCP IP address
DHCP Lease Time DHCP lease time (in min)
Primary DNS Primary DNS address
Secondary DNS Secondary DNS address
Static DHCP MAC Address MAC address to associate to the LAN
Static DHCP IPv4 Address IPv4 address to associate to the MAC address
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg5e.png)
Configure a G-120W-F indoor ONT
94
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 16 LAN IPv6 networking configuration
1Select Network > LAN_IPv6 from the top-level menu in the GPON Home Gateway window,
as shown in Figure 34.
Figure 34 LAN IPv6 network window
Table 24 describes the fields in the LAN IPv6 network window.
Table 24 LAN IPv6 network parameters
Field Description
DNS Server Choose a DNS server from the drop-down menu.
prefix config Choose a prefix config option from the drop-down menu, either
WANConnection (prefix will be obtained from the WAN) or Static (enables you
to enter the prefix).
prefix This field appears if you selected the “Static” option for the “prefix config” field.
Type a connection.
Interface This field appears if you selected the Wan Connection option for the “prefix
config” field. Choose a WAN connection interface from the drop-down menu.
DHCP Start IP Address Enter the starting DHCP IP address.
DHCP End IP Address Enter the ending DHCP IP address.
Whether the address info
through DCHP
Select this checkbox to enable address information retrieval through DHCP.
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg5f.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 95
2Choose a DNS server, prefix config, and interface.
3Select or enter the DHCP configuration information.
4Enter the maximum and minimum intervals for RA messages.
5Click Save/Apply.
6STOP. This procedure is complete.
Whether other info
obtained through DHCP
Select this checkbox to enable retrieval of other information through DHCP.
Maximum interval for
periodic RA messages
Enter the maximum interval (in seconds) for periodic Router Advertisement
messages. The interval range is from 4 to 1800.
Minimum interval for
periodic RA messages
Enter the minimum interval (in seconds) for periodic Router Advertisement
messages. The interval range is from 4 to 1800.
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg60.png)
Configure a G-120W-F indoor ONT
96
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 17 WAN networking configuration
1Select Network > WAN from the top-level menu in the GPON Home Gateway window, as
shown in Figure 35.
Figure 35 WAN network window
Table 25 describes the fields in the WAN network window.
Table 25 WAN network parameters
Field Description
WAN Connection List Choose a WAN connection from the drop-down menu to set the connection
parameters
Connection Type Select a connection type: IPoE or PPPoE
IP Mode Choose an IP mode from the drop-down menu: IPv4 or IPv6
Enable/Disable Select this checkbox to enable the WAN connection
NAT Select this checkbox to enable NAT
Service Select the checkboxes to enable service types for this connection
Enable VLAN Select this checkbox to enable VLAN
VLAN ID Enter the VLAN ID
VLAN PRI Enter the VLAN PRI
WAN IP Mode Choose an IP mode from the drop-down menu
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg61.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 97
2Configure a specific WAN connection.
3Click Save.
4STOP. This procedure is complete.
Procedure 18 WAN DHCP configuration
1Select Network > WAN DHCP from the top-level menu in the GPON Home Gateway window,
as shown in Figure 36.
Figure 36 WAN DHCP window
Table 26 describes the fields in the WAN DHCP window.
Manual DNS Enter a manual DNS
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg62.png)
Configure a G-120W-F indoor ONT
98
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Table 26 WAN DHCP parameters
2Configure a WAN DHCP option.
3Click Save.
4STOP. This procedure is complete.
Field Description
WAN Connection List Choose a WAN connection from the drop-down menu
DHCP Option 50 persistent Select this checkbox to enable DHCP Option 50 persistent
Enable DHCP Option 60 Select this checkbox to enable DHCP Option 60 (vendor class identifier)
Enable DHCP Option 61 Select this checkbox to enable DHCP Option 61 (client identifier)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg63.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 99
Procedure 19 Wireless 2.4GHz networking configuration
1Select Network > Wireless 2.4GHz from the top-level menu in the GPON Home Gateway
window, as shown in Figure 37.
Figure 37 Wireless 2.4GHz network window
Table 27 describes the fields in the Wireless 2.4GHZ network window.
Table 27 WiFi 2.4G network parameters
Field Description
Enable Select this checkbox to enable WiFi
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg64.png)
Configure a G-120W-F indoor ONT
100
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Notes
(1) When Encryption Mode is set to “WPA/WPA2 Enterprise”, the following options are no longer available: WPA
version, WPA encryption mode, WPA key, Enable WPS, WPS mode.
Mode Choose a Wi-Fi mode from the drop-down menu:
•auto (b/g/n)
•b
•g
•n
•b/g
Bandwidth Choose from:
•20 MHz
•40 MHz
•20/40 MHz
Channel Choose a channel from the drop-down menu or choose Auto to have the channel
automatically assigned
Transmitting Power Choose a percentage for the transmitting power from the drop-down menu:
•Low (25%)
•Medium (50%)
•High (75%)
•Maximum (100%)
WMM Choose Enable or Disable from the drop-down menu to enable or disable WiFi
multi-media
Total MAX Users Enter the number of total MAX users
SSID Select Choose the SSID from the drop-down menu
SSID Name Enter the SSID name
Enable SSID Enable or disable SSID from this drop-down menu
SSID Broadcast Enable or disable SSID broadcast from this drop-down menu
MAX Users Enter the number of MAX users
Encryption Mode Choose an encryption mode from the drop-down menu:
•OPEN
•WEP
•WPA/WPA2 Personal
•WPA/WPA2 Enterprise (1)(2)
WPA Version Choose a WPA version from the drop-down menu:
•WPA1
•WPA2
•WPA1/WPA2
WPA Encryption
Mode
Choose a WPA encryption mode from the drop-down menu:
•TKIP
•AES
•TKIP/AES
WPA Key Enter the WPA key
Enable WPS Enable or disable WPS from this drop-down menu
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg65.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 101
(2) When Encryption Mode is set to “WPA/WPA2 Enterprise”, the following options become available: Primary
RADIUS server, port and password; Secondary RADIUS server, port, and password; RADIUS accounting port.
2Configure the WiFi connection.
3If you have enabled and configured WPS, click WPS connect.
4Click Save.
5STOP. This procedure is complete.
Procedure 20 Wireless scheduling
1Select Network > Wireless Schedule from the top-level menu in the GPON Gateway window,
as shown in Figure 38.
Figure 38 Wireless Schedule window
2Select the Schedule Function checkbox to turn the wireless signal off for the configured
period.
3Click the plus sign (+) to add a scheduling rule.
A separate panel displays for configuring wireless schedule rules.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg66.png)
Configure a G-120W-F indoor ONT
102
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
4Enter a start time and end time for the period in which you want the wireless signal off.
5Choose Everyday or Individual Days from the drop-down menu.
6If you chose Individual Days, select the checkboxes for the desired days.
The Recurrence Pattern shows the rules created to date.
7If desired, click the plus sign (+) to add more rules.
8Click Save Changes.
9STOP. This procedure is complete.
Procedure 21 IP Routing configuration
1Select Network > IP Routing from the top-level menu in the GPON Home Gateway window,
as shown in Figure 39.
Figure 39 IP Routing network window
Table 28 describes the fields in the IP Routing network window.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg67.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 103
Table 28 IP Routing network parameters
2Enter the routing information.
3Click Add.
4STOP. This procedure is complete.
Field Description
Enable Routing Select this checkbox to enable routing
Destination IP Address Enter the destination IP address
Destination Netmask Enter the destination network mask
Gateway Enter the gateway address
IPv4 Interface Choose a WAN connection previously created in the
WAN network window from the drop-down menu
Forwarding Policy Choose a forwarding policy from the drop-down menu
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg68.png)
Configure a G-120W-F indoor ONT
104
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 22 DNS configuration
1Select Network > DNS from the top-level menu in the Home Gateway window, as shown in
Figure 40.
Figure 40 DNS network window
Table 29 describes the fields in the DNS network window.
Table 29 DNS network parameters
2Select the Enabled checkbox and click Save to enable DNS proxy.
3Enter the domain name and IPv4 address and click Add.
Field Description
DNS Proxy Enabled Select the Enabled checkbox to enable DNS proxy
Domain Name Enter the domain name
IPv4 Address Enter the IPv4 address
OriginalDomain Enter the original domain name
New Domain Enter the new domain name
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg69.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 105
4If required, associate an original domain with a new domain, click Add.
5STOP. This procedure is complete.
Procedure 23 TR-069 configuration
1Select Network > TR-069 from the top-level menu in the GPON Home Gateway window, as
shown in Figure 41.
Figure 41 TR-069 network window
Table 30 describes the fields in the TR-069 network window.
Table 30 TR-069 network parameters
Field Description
Periodic Inform Enable Select this checkbox to enable periodic inform updates
Periodic Inform Interval(s) Time between periodic inform updates, in seconds
URL URL of the auto-configuration server
Username Username used to log in to the ONT
Password Password used to log in to the ONT
Connect Request Username Username used to log in to the auto-configuration server
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg6a.png)
Configure a G-120W-F indoor ONT
106
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
2Configure TR-069 by entering the required information.
3Click Save.
4STOP. This procedure is complete.
Procedure 24 QoS configuration
1Select Network > QoS Config from the top-level menu in the Home Gateway window.
Figure 42 shows the window for configuring QoS L2 (Layer 2 packet sizes).
Figure 42 QoS Config window (L2)
Table 31 describes the fields in the QoS Config window.
Connect Request Password Password used to log in to the auto-configuration server
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg6b.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 107
Table 31 QoS Config parameters
2Choose a QoS type from the drop-down menu: L2 or L3.
3Configure a QoS policy.
4Click Add to add a QoS policy.
5STOP. This procedure is complete.
8.2.4 Security configuration
G-120W-F ONT also supports security configuration, including:
•firewall
•MAC filter
•IP filter
•URL filter
Field Description
Type Choose a QoS service layer type from the drop-down menu L2 or L3.
Source MAC Enter the source MAC.
Select the Exclude checkbox to exclude the source MAC
Interface Choose an interface from the drop-down menu
802.1p Mark Enter the value for the 802.1p (range: 0-7)
DSCP Mark Enter the value for the DSCP mark (range: 0-63)
Forwarding Policy Enter the number for the forwarding policy (range: 1-7)
Additional fields for L3
Protocol Choose a protocol from the drop-down menu, or select the Exclude checkbox
Application Choose an application from the drop-down menu
Source IP and
Source IP Mask
Enter the values for the source IP and IP mask, or select the Exclude checkbox
Destination IP and
Destination IP Mask
Enter the values for the destination IP and IP mask, or select the Exclude checkbox
Source Port and
Source Port Max
Enter the values for the source port and port max (highest port number) or select the
Exclude checkbox
Destination Port and
Destination Port Max
Enter the values for the destination port and port max (highest port number), or select
the Exclude checkbox
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg6c.png)
Configure a G-120W-F indoor ONT
108
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
•parental control
•DMZ and ALG
•access control
Procedure 25 Firewall configuration
1Select Security > Firewall from the top-level menu in the GPON Home Gateway window, as
shown in Figure 43.
Figure 43 Firewall window
Firewall security applies only to services provided by the ONT. Internet access from the LAN
side is not affected by this firewall.
Three security levels are available: Low, Medium, and High.
At the Low level, pre-routing is supported: port forwarding, DMZ, host application, and host
drop. Also supported are application services: DDNS, DHCP, DNS, H248, IGMP, NTP client,
SSH, Telnet, TFTP, TR-069, and VoIP.
At the Medium level, pre-routing is supported: port forwarding, DMZ, host application, and
host drop. Also supported are application services: DDNS, DHCP, DNS, H248, IGMP, NTP
client, TFTP, TR-069, and VoIP. The following types of ICMP messages are permitted: echo
request and reply, destination unreachable, and TTL exceeded. Other types of ICMP
messages are blocked. DNS proxy is supported from LAN to WAN but not from WAN to LAN.
At the High level, pre-routing and application services are not supported. UDP Port 8000 can
be used to access the services, for example FTP can use 8021 and Telnet can use 8023.
Regular UDP cannot be used. RG access is permitted via the LAN side but not via the WAN
side.
Table 32 describes the fields in the firewall window.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg6d.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 109
Table 32 Firewall parameters
2Configure the firewall.
3Click Save.
4STOP. This procedure is complete.
Procedure 26 MAC filter configuration
1Select Security > Mac Filter from the top-level menu in the GPON Home Gateway window,
as shown in Figure 44.
Figure 44 MAC filter window
Table 33 describes the fields in the MAC filter window.
Field Description
Security level Choose the security level from the drop-down menu: low, medium, or high
Attack Protect
(Protection against DoS or
DDoS attacks)
Choose enable or disable attack protect from the drop-down menu
The default is disable
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg6e.png)
Configure a G-120W-F indoor ONT
110
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Table 33 MAC filter parameters
2Click Refresh to update the information.
3Configure a MAC filter.
4Click Add.
5STOP. This procedure is complete.
Procedure 27 IP filter configuration
1Select Security > IP filter from the top-level menu in the GPON Home Gateway window, as
shown in Figure 45.
Figure 45 IP filter window
Table 34 describes the fields in the IP filter window.
Field Description
Enable MAC filter Select this checkbox to enable the MAC filter
Mac Address Select a MAC address from the drop-down menu or enter the address in the text field
Mac Filter Mode Choose the MAC filter mode from this drop-down menu: Blocked or Allowed
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg6f.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 111
Table 34 IP filter parameters
2Configure the IP filter.
3Click Add.
4STOP. This procedure is complete.
Field Description
Enable IP Filter Select this checkbox to enable an IP filter
Mode Choose an IP filter mode from the drop-down menu:
•Drop for upstream
•Drop for downstream
Internal Client Choose an internal client from the drop-down menu:
•Customer setting - uses the IP address input below
•IP - uses the connecting devices' IP to the ONT
Local IP Address Local IP address
Source Subnet Mask Source subnet mask
Remote IP Address Remote IP address
Destination Subnet Mask Destination subnet mask
Protocol Choose an application protocol or all from the drop-down menu
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg70.png)
Configure a G-120W-F indoor ONT
112
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 28 URL filter configuration
1Select Security > URL Filter from the top-level menu in the GPON Home Gateway window,
as shown in Figure 46.
Figure 46 URL Filter window
Table 35 describes the fields in the URL Filter window.
Table 35 URL Filter parameters
2Configure the URL Filter.
3Click Add Filter.
4To configure additional filters, repeat steps 2 and 3.
Field Description
Enable URL filter Select the checkbox to enable the URL filter
URL filter type Select the Block or Allow checkbox
URL Address Type the URL address
Port Number Type the port number; the default is 80
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg71.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 113
You can configure up to 100 URL filters.
5STOP. This procedure is complete.
Procedure 29 Parental control
1Select Security > Parent Control from the top-level menu in the EPON Home Gateway
window, as shown in Figure 47.
Figure 47 Parental Control window
Table 36 describes the fields in the Parental Control window.
Table 36 Parental control parameters
Field Description
Policy Name Enter a name for the parental control policy or choose a policy from the list
Device Enter the MAC address or choose a MAC address from the list
IP Enter the IPv4 address for the device or choose an IPv4 address from the list
Days of the week Choose Every Day, or Individual Days and select the checkboxes for the days of the week
for which the policy applies
From/To Enter the times for the policy to be in effect
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg72.png)
Configure a G-120W-F indoor ONT
114
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
2Select the Access Control checkbox.
3Click the plus sign (+) to add a policy.
A separate panel displays for configuring the policy name, IP address of the device, and
dates and times for the policy.
4Configure the parental control policy.
5Click Enable to activate the policy.
6STOP. This procedure is complete.
Procedure 30 DMZ and ALG configuration
1Select Security > DMZ and ALG from the top-level menu in the GPON Home Gateway
window, as shown in Figure 48.
Figure 48 DMZ and ALG window
Table 37 describes the fields in the DMZ and ALG window.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg73.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 115
Table 37 DMZ and ALG parameters
2Configure ALG.
3Click Save ALG.
4Configure DMZ.
5Click Save DMZ.
6STOP. This procedure is complete.
Field Description
ALG Config Select the checkboxes to enable the protocols to be supported by the ALG: FTP,
TFTP, SIP, H323, RTSP, L2TP, IPSEC, PPTP
DMZ Config
WAN Connection List Choose a WAN connection from the drop-down menu
Enable DMZ Select this checkbox to enable DMZ on the chosen WAN connection
DMZ IP Address Choose Customer Setting and enter the DMZ IP address or choose the IP address
of a connected device from the drop-down menu
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg74.png)
Configure a G-120W-F indoor ONT
116
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 31 Access control configuration
This procedure describes how to configure the access control level (ACL).
1Select Security > Access Control from the top-level menu in the GPON Home Gateway
window, as shown in Figure 49.
Figure 49 Access Control window
Table 38 describes the fields in the Access Control window.
Table 38 Access control parameters
Note 1 — ACL takes precedence over the firewall policy.
Note 2 — The trusted network object will be shared for all WAN
connections; it is not applied individually to a WAN connection.
Field Description
WAN Choose a connection from the drop-down menu
Trusted Network Enable Click to enable or disable
ICMP, Telnet, SSH, HTTP,
TR-069, HTTPS, SFTP
Select an access control level for each protocol:
WAN side: Allow, Deny, or Trusted Network Only
LAN side: Allow or Deny
Source IP Start Enter a start IP address for the new subnet trusted network
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg75.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 117
2Select a WAN connection from the drop-down menu.
3Click to enable or disable Trusted Network.
4Select an access control level for each of the seven protocols for both the WAN and the LAN
side.
5Click Save.
6Optionally, add one or more subnet trusted networks.
The maximum number of entries is 32.
You can also use the Source IP fields to delete a previously created entry for a subnet trusted
network.
7STOP. This procedure is complete.
8.2.5 Application configuration
G-120W-F ONT also supports application configuration, including:
•port forwarding
•port triggering
•DDNS
•NTP
•UPnP and DLNA
•voice setting
Source IP End Enter an end IP address for the new subnet trusted network
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg76.png)
Configure a G-120W-F indoor ONT
118
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 32 Port forwarding configuration
1Select Application > Port forwarding from the top-level menu in the GPON Home Gateway
window, as shown in Figure 50.
Figure 50 Port forwarding window
Table 39 describes the fields in the port forwarding window.
Table 39 Port forwarding parameters
2Configure port forwarding.
Field Description
Application Name Choose an application name from the drop-down menu
WAN Port WAN port range
LAN Port LAN port range
Internal Client Choose a connected device from the drop-down menu and enter
the associated IP address
Protocol Choose the port forwarding protocol from the drop-down menu:
•TCP
•UDP
•TCP/UDP
Enable Mapping Select this checkbox to enable mapping
WAN Connection List Choose a WAN connection from the drop-down menu
Note: only active devices are shown on this menu
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg77.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 119
3Click Add.
4STOP. This procedure is complete.
Procedure 33 Port triggering
1Select Application > Port Triggering from the top-level menu in the GPON Gateway window,
as shown in Figure 51.
Figure 51 Port Triggering window
Table 40 describes the fields in the Port Triggering window.
Table 40 Port triggering parameters
Field Description
Application Name Choose an application name from the drop-down menu
Open Port Enter the open port range
Triggering Port Enter the triggering port range
Expire Time Enter the expiration time in seconds
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg78.png)
Configure a G-120W-F indoor ONT
120
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
2Configure port triggering.
3Click Add.
4STOP. This procedure is complete.
Procedure 34 DDNS configuration
1Select Application > DDNS from the top-level menu in the GPON Home Gateway window, as
shown in Figure 52.
Figure 52 DDNS window
Open Protocol Choose the open port protocol from the drop-down menu:
•TCP
•UDP
•TCP/UDP
Trigger Protocol Choose the triggering port protocol from the drop-down
menu:
•TCP
•UDP
•TCP/UDP
Enable Triggering Select this checkbox to enable port triggering
WAN Connection List Choose a WAN connection from the drop-down menu
Note: only active devices are shown on this menu
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg79.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 121
Table 41 describes the fields in the DDNS window.
Table 41 DDNS parameters
2Configure the DDNS.
3Click Save.
4STOP. This procedure is complete.
Procedure 35 NTP configuration
1Select Application > NTP from the top-level menu in the GPON Home Gateway window, as
shown in Figure 53.
Figure 53 NTP window
Field Description
WAN Connection List Choose a WAN connection from the drop-down menu
Enable DDNS Select this checkbox to enable DDNS on the chosen WAN connection
ISP Choose an ISP from the drop-down menu.
Domain Name Domain name
Username Username
Password Password
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg7a.png)
Configure a G-120W-F indoor ONT
122
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
2Select the Enable NTP Service checkbox to enable NTP service.
3Click Save.
4STOP. This procedure is complete.
Procedure 36 UPnP and DLNA configuration
1Select Application > UPnP and DLNA from the top-level menu in the GPON Home Gateway
window, as shown in Figure 54.
Figure 54 UPnP and DLNA window
2Select the Enable UPnP/DLNA checkbox to enable UPnP and DLNA.
3Click Save/Apply.
4STOP. This procedure is complete.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg7b.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 123
Procedure 37 Voice setting
1Select Application > Voice Setting from the top-level menu in the EPON Home Gateway
window, as shown in Figure 55.
Figure 55 Voice setting window
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg7c.png)
Configure a G-120W-F indoor ONT
124
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Table 42 describes the fields in the Voice Setting window.
Table 42 Voice setting parameters
2Configure voice setting.
3Click Save.
4STOP. This procedure is complete.
8.2.6 Maintenance
G-120W-F ONT also supports maintenance tasks, including:
•change password
•WAN speed test
•configure LOID
•configure SLID
•manage device
Field Description
Outbound Proxy Enter the SIP outbound proxy
Outbound Proxy Port Enter the outbound proxy port
Proxy Server Enter the proxy server
Proxy Port Enter the proxy port
Register Server Enter the register server
Register Port Enter the register port
User Agent Domain Enter the user agent domain
User Agent Port Enter the user agent port
DTMF Mode Choose InBand, rfc2822, Info, or Auto from the drop-down menu
FaxT38 Choose False or True from the drop-down menu
Line Choose a line from the drop-down menu
Enable Choose Enabled or Disabled from the drop-down menu
Directory Number Enter a directory number
AuthUserName Enter an authorized user name
AuthPassword Enter a password for the user
URL Enter the URL
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg7d.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 125
•backup and restore
•upgrade firmware
•reboot device
•restore factory defaults
•diagnose WAN connections
•log
Procedure 38 Password configuration
1Select Maintenance > Password from the top-level menu in the GPON Home Gateway
window, as shown in Figure 56.
Figure 56 Password window
Table 43 describes the fields in the password window.
Table 43 Password parameters
2Configure the new password.
Field Description
New Password New password
Re-enter password Password must match password entered above
Prompt message Password prompt message
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg7e.png)
Configure a G-120W-F indoor ONT
126
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
3Click Save.
4STOP. This procedure is complete.
Procedure 39 WAN speed test
1Select Maintenance > Speed Test from the top-level menu in the GPON Home Gateway
window, as shown in Figure 57.
Figure 57 Speed Test window
2Click Start to start the speed test.
Enter the URL for the test server in the pop-up window.
3STOP. This procedure is complete.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg7f.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 127
Procedure 40 LOID configuration
1Select Maintenance > LOID Config from the top-level menu in the GPON Home Gateway
window, as shown in Figure 58.
Figure 58 LOID Config window
Table 44 describes the fields in the LOID configuration window.
Table 44 LOID configuration parameters
2Configure the LOID.
3Click Save/Apply.
4STOP. This procedure is complete.
Field Description
LOID Type the LOID; the maximum number of characters is 24
If the password is null, this field may be left blank
Password Type the password; the maximum number of characters is 12
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg80.png)
Configure a G-120W-F indoor ONT
128
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 41 SLID configuration
1Select Maintenance > SLID Configuration from the top-level menu in the GPON Home
Gateway window, as shown in Figure 59.
Figure 59 SLID configuration window
Table 45 describes the fields in the SLID configuration window.
Table 45 SLID configuration parameters
2Configure the new SLID.
Field Description
Current SLID Displays current SLID
Enter new SLID Enter new SLID
SLID Mode Choose a SLID mode from the drop-down menu: HEX or ASCII
In ASCII mode, the maximum number of characters is 10, for example: abcdefg123.
In HEX mode, the maximum number of characters is 20, for example:
1234567890ABCDEF1234
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg81.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 129
3Click Save.
4STOP. This procedure is complete.
Procedure 42 Device management
1Select Maintenance > Device Management from the top-level menu in the GPON Home
Gateway window, as shown in Figure 60.
Figure 60 Device management window
Table 46 describes the fields in the Device management window.
Table 46 Device management parameters
2Configure an alias for a specific host.
Field Description
Host Name Choose a host from the drop-down menu
Host Alias Enter an alias for the chosen host
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg82.png)
Configure a G-120W-F indoor ONT
130
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
3Click Add.
4STOP. This procedure is complete.
Procedure 43 Backup and restore
1Select Maintenance > Backup and Restore from the top-level menu in the GPON Home
Gateway window, as shown in Figure 61.
Figure 61 Backup and Restore window
2Click Choose File and choose the backup file.
3Click Import Config File to restore the ONT to the saved backup or click Export Config File to
export the current ONT configuration to the backup file.
4STOP. This procedure is complete.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg83.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 131
Procedure 44 Upgrade firmware
1Select Maintenance> Firmware Upgrade from the top-level menu in the GPON Home
Gateway window, as shown in Figure 62.
Figure 62 Firmware upgrade window
2Click Choose File and choose the firmware file.
3Click Upgrade to upgrade the firmware.
4STOP. This procedure is complete.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg84.png)
Configure a G-120W-F indoor ONT
132
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 45 Reboot ONT
1Select Maintenance > Reboot Device from the top-level menu in the GPON Home Gateway
window, as shown in Figure 63.
Figure 63 Reboot window
2Click Reboot to reboot the ONT.
3STOP. This procedure is complete.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg85.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 133
Procedure 46 Restore factory defaults
1Select Maintenance > Factory Default from the top-level menu in the GPON Home Gateway
window, as shown in Figure 64.
Figure 64 Factory default window
2Click Factory Default to reset the ONT to its factory default settings.
3STOP. This procedure is complete.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg86.png)
Configure a G-120W-F indoor ONT
134
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 47 Diagnose WAN connections
1Select Maintenance > Diagnostics from the top-level menu in the GPON Home Gateway
window, as shown in Figure 65.
Figure 65 Diagnostics window
2Choose a WAN connection to diagnose from the drop-down menu.
3Enter the IP address or domain name.
4Select the test type: ping, traceroute, or both.
5Enter the number of ping attempts to perform (1 - 1000); the default is 4.
6Enter a ping packet length (64-1500); the default is 64.
7Enter the maximum number of trace hops (1-255); the default is 30.
8Click Start Test.
The results will be displayed in the bottom panel of the window.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg87.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 135
9Click Cancel to cancel the test.
10 STOP. This procedure is complete.
Procedure 48 View log files
1Select Maintenance > Log from the top-level menu in the GPON Home Gateway window, as
shown in Figure 66.
Figure 66 Log window
2Choose a write level from the drop-down menu to determine which types of events are
recorded in the log file:
•Emergency
•Alert
•Critical
•Error
•Warning
•Notice
•Informational
•Debug
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg88.png)
Configure a G-120W-F indoor ONT
136
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
3Choose a reading level from the drop-down menu to determine which types of events to
display from the log file:
•Emergency
•Alert
•Critical
•Error
•Warning
•Notice
•Informational
•Debug
4The log file is displayed in the bottom panel of the window.
5STOP. This procedure is complete.
8.2.7 RG troubleshooting counters
The Troubleshooting Counters feature enables service providers and end users to
monitor the performance of their broadband connection.
Tests are run to retrieve upstream and downstream throughput, latency, and DNS
response time. The Troubleshooting Counters window also displays upstream and
downstream packet loss and Internet status.
Procedure 49 Retrieve Residential Gateway (RG) troubleshooting counters
1Select RG Troubleshooting Counters from the left menu in the GPON Home Gateway
window.
The RG Troubleshooting Counters window appears; see Figure 67.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg89.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 137
Figure 67 RG Troubleshooting Counters window
Table 47 describes the fields in the RG Troubleshooting Counters window.
Table 47 RG Troubleshooting Counters parameters
Field Description
WAN Connection List Select a WAN connection from the list
US Throughput Click US Speed Test to specify the time for the upstream test
The default is weekly, performed at idle to a public server
DS Throughput Click DS Speed Test to specify the time for the downstream test
The default is weekly, performed at idle to a public server
US Packet Loss The number of upstream packages lost
DS Packet Loss The number of downstream packages lost
Internet Status Whether the broadband connections is active (UP) or not (DOWN)
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg8a.png)
Configure a G-120W-F indoor ONT
138
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
2Configure the test times if desired.
3Click Refresh to update the data.
4STOP. This procedure is complete.
8.3 SFU mode GUI configuration
Use the procedures below to use the web-based GUI for the G-120W-F in SFU
mode.
SFU customer premise devices are designed for single indoor residential
applications. These ONTs address the demand for bandwidth intensive services,
such as high definition television (HDTV), video-on-demand (VOD) and online
games. The ONT can be configured to seamlessly deliver voice-over-IP and high
speed Internet access via a single fiber optic connection to the home.
8.3.1 Login
Use the procedure below to login to the web-based GUI for the G-120W-F.
Procedure 50 Login to web-based GUI
1Open a web browser and enter the IP address of the ONT in the address bar.
The login window appears.
The default gateway IP address is http://192.168.1.254. You can connect to this IP address
using your web browser after connecting your PC to one of Ethernet ports of the ONT. The
static IP address of your PC must be in the same subnet as the ONT.
Latency Click Latency Test to specify the time for the test
The default is weekly, performed at idle to a public server
DNS Response Time Click DNS Response Test to specify the time for the test
The default is weekly, performed at idle to a public server
Port Mirror Choose the source and destination ports, the direction (up or down),
and the status (enable or disable) from the drop-down menu, and
click Save
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg8b.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 139
2Enter your username and password in the Log in window, as shown in Figure 68.
The default username is adminadmin. The default password is ALC#FGU.
Figure 68 Web login window
3Click Login.
4STOP. This procedure is complete.
8.3.2 Device and connection status
G-120W-F ONTs support the retrieval of a variety of device information, as well as
the optics module status.
Caution — Pressing the Reset button for less than 10 seconds reboots
the ONT; pressing the Reset button for 10 seconds resets the ONT to the
factory defaults, except for the LOID and SLID.
Note — If you forget the current username and password, press the
reset button for 10 s and the default values for the username and
password will be recovered at startup.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg8c.png)
Configure a G-120W-F indoor ONT
140
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 51 Device information retrieval
1Select Status > Device Information from the top-level menu in the SFU GPON Home
Gateway window, as shown in Figure 69.
Figure 69 Device Information window
Table 48 describes the fields in the Device Information window.
Table 48 Device Information parameters
Field Description
Device Name Name on the ONT
Vendor Name of the vendor
Serial Number Serial number of the ONT
Hardware version Hardware version of the ONT
Boot version Boot version of the ONT
Software version Software version of the ONT
Chipset Chipset of the ONT
Lot Number The manufacturing date of the ONT
Device Running Time Amount of time the device has run since last reset in hours, minutes, and seconds
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg8d.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 141
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Procedure 52 Optics module status retrieval
1Select Status > Optics Module Status from the top-level menu in the SFU GPON Home
Gateway window, as shown in Figure 70.
Figure 70 Optics module status window
Table 49 describes the fields in the Optics module status window.
Table 49 Optics module status parameters
Field Description
Laser Bias Current (ONT ANI-ONT-Side Optical
Measurements)
Laser bias current, measured in uA
Optics Module Voltage (ONT ANI-ONT-Side Optical
Measurements)
Optics module voltage, measured in V
Optics Module Temperature (ONT ANI-ONT-Side
Optical Measurements)
Optics module temperature, measured in C
Rx Optics Signal Level at 1490 nm (ONT
ANI-ONT-Side Optical Measurements)
Received optics signal level at 1490 nm, measured
in dBm
Tx Optics Signal Level at 1310 nm (ONT
ANI-ONT-Side Optical Measurements)
Transmitted optics signal level at 1310 nm,
measured in dBm
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg8e.png)
Configure a G-120W-F indoor ONT
142
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
8.3.3 Network configuration
G-120W-F ONTs also support wireless scheduling.
Procedure 53 Wireless scheduling
1Select Network > Wireless Schedule from the top-level menu in the SFU GPON Gateway
window, as shown in Figure 71.
Figure 71 Wireless Schedule window
2Select the Schedule Function checkbox to turn the wireless signal off for the configured
period.
Lower (ONT ANI-ONT-Side Optical
Measurements-Optical Threshold)
Lower optical threshold, measured in dBm
Upper (ONT ANI-ONT-Side Optical
Measurements-Optical Threshold)
Lower optical threshold, measured in dBm
Field Description
(2 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg8f.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 143
3Click the plus sign (+) to add a scheduling rule.
A separate panel displays for configuring wireless schedule rules.
4Enter a start time and end time for the period in which you want the wireless signal off.
5Choose Everyday or Individual Days from the drop-down menu.
6If you chose Individual Days, select the checkboxes for the desired days.
The Recurrence Pattern shows the rules created to date.
7If desired, click the plus sign (+) to add more rules.
8Click Save Changes.
9STOP. This procedure is complete.
8.3.4 Maintenance
G-120W-F ONTs also support maintenance tasks, including:
•password change
•LOID configuration
•SLID configuration
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg90.png)
Configure a G-120W-F indoor ONT
144
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 54 Password configuration
1Select Maintenance > Password from the top-level menu in the SFU GPON Home Gateway
window, as shown in Figure 72.
Figure 72 Password window
Table 50 describes the fields in the password window.
Table 50 Password parameters
2Configure the new password.
3Click Save.
4STOP. This procedure is complete.
Field Description
New Password New password
Re-enter password Password must match password entered above
Prompt message Password prompt message
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg91.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 145
Procedure 55 LOID configuration
1Select Maintenance> LOID Config from the top-level menu in the SFU GPON Home
Gateway window, as shown in Figure 73.
Figure 73 LOID Authentication window
Table 51 describes the fields in the LOID configuration window.
Table 51 LOID configuration parameters
2Enter the LOID.
3Enter the password, if applicable.
4Click Save/Apply.
5STOP. This procedure is complete.
Field Description
LOID Type the LOID; the maximum number of characters is 24
If the password is null, this field may be left blank
Password Type the password; the maximum number of characters is 12
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg92.png)
Configure a G-120W-F indoor ONT
146
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 56 SLID configuration
1Select Maintenance > SLID Configuration from the top-level menu in the SFU GPON Home
Gateway window, as shown in Figure 74.
Figure 74 SLID configuration window
Table 52 describes the fields in the SLID configuration window.
Table 52 SLID configuration parameters
2Configure the new SLID.
3Click Save.
4STOP. This procedure is complete.
8.4 Operator ID
Use the procedure below to modify the operator ID for the G-120W-F.
Field Description
Current SLID Displays current SLID
Input new SLID Enter new SLID
SLID Mode Choose a SLID mode from the drop-down menu: HEX or ASCII
In ASCII mode, the maximum number of characters is 10, for example: abcdefg123.
In HEX mode, the maximum number of characters is 20, for example:
1234567890ABCDEF1234
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg93.png)
7368 ISAM ONT G-120W-F Product Guide Configure a G-120W-F indoor ONT
Issue: 01 3FE-46922-AAAA-TCZZA 147
Procedure 57 Modifying the operator ID
1Register the ONT with the OLT.
2Check the original OPID.
3Update the OntConfig.xml file by adding-the following content:
<OperatorObject version=”1.0”>
<OperatorID=”XXXX”>
</OperatorObject>
where: xxxx is the correct operator ID, for example ALCL for HGU mode, or XXXX for SFU mode.
4Use a TFTP client tool to transfer the OntConfi.xml file to the OLT’s ONT directory and
change the filename to the software version number, for example, 3FE123456789.xml.
5Use a TL1 command to configure ONUSWCRTL:
ENT-ONTSWCTRL::1::::HWVER=hwver,VARNT=,PLNDSWVER=UNPLANNED,
PLNDSWVERCONF=UNPLANNED,DLDSWVER=swver;
where:
hwver is the EQPTVERNUM, for example EQPTVERNUM=3FE54945ABAA.
swver is the software version number used as the filename in step 2, for example 3FE123456789.xml.
6Download the xml file to update the operator ID:
ED-ONT::ONT-1/1/3/1/19::::DLSW=AUTO;
7Restart the ONT, then connect to the LAN and access the web-based GUI to check the
operator ID default setting.
8Use a TL1 command to disable further downloads:
ED-ONT::ONT-1/1/3/1/19::::DLSW=DISABLED;
9STOP. This procedure is complete.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg94.png)
Configure a G-120W-F indoor ONT
148
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg95.png)
7368 ISAM ONT G-120W-F Product Guide ONT configuration file over OMCI
Issue: 01 3FE-46922-AAAA-TCZZA 149
9 ONT configuration file over OMCI
9.1 Purpose
9.2 Supported configuration file types
9.3 ONT configuration file over OMCI
9.1 Purpose
This procedure describes how to use configuration files over OMCI to configure
ONTs. Some advantages include:
•flexibility to change the ONT default behavior by downloading configuration file
•flexibility to update a deployed ONT by downloading updated parameters
•ability to securely download any configuration file to an ONT
•ability to avoid using embedded configuration files in ONT software
9.2 Supported configuration file types
Table 53 describes the configuration file types that are supported from 7368 ISAM
ONT R05.02.00 and later.
Note — This feature is supported for use with the 7360 ISAM
FX and the 7342 ISAM FTTU.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg96.png)
ONT configuration file over OMCI
150
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Table 53 Supported configuration files
File Index Description Details Supported ONTs/DPU
PRE ONT
pre-configuration file
The XML-based PRECONFIG file controls the working
mechanics of the ONT for various services. The
default behavior of different ONTs may vary based on
the factory settings.
The pre-configuration file includes the factory default
value for the residential gateway.
Note: the pre-configuration file does not work with SFU
ONTs; therefore, this feature applies only to
Residential Gateway ONTs.
The pre-configuration file can be used as is, but Nokia
provides its customers with the flexibility to customize
the pre-configuration file.
This pre-configuration file enables operators to change
the default behavior by downloading a customized
pre-configuration based on customer inputs.
This PRE XML file includes a custom OPERID.
The Nokia defined index for the PRECONFIG file is:
"PRE"
HGU ONTs:
G-120G-E, G-120W-F,
G-240G-C, G-240W-B,
G-240W-C, I-240W-A
CFG ONT configuration
delta file
The XML-based CFG file updates the configurable
parameters (the PRE settings) in the existing PRE file
of a deployed ONT, where required.
This configuration file enables operators to change the
deployed behavior by downloading customized
updates in the CFG file.
This file is used only to modify the parameters in the
PRE file; it is not used for service provisioning.
No OPERID is required, because the update is based
on the OPERID used for the PRE file.
The Nokia defined index for the PRECONFIG DELTA
file is: "CFG"
XML Voice XML file The Voice XML file provides an alternate method for
securely downloading voice parameters from the OLT,
rather than using FTP (OMCIv1/OMCIv2) or HTTPS
(TR-069). Downloading this file makes the applicable
changes in the voice parameters.
This file enables operators to change the voice
behavior by downloading the updated voice XML file.
Nokia recommends using this procedure, rather than
embedded voice XML files.
The Nokia defined index for the Voice XML file is:
"XML"
(1 of 2)
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg97.png)
7368 ISAM ONT G-120W-F Product Guide ONT configuration file over OMCI
Issue: 01 3FE-46922-AAAA-TCZZA 151
9.2.1 Filename conventions
Nokia provides the raw configuration files, which must be saved by the operator in a
TAR file to be uploaded. TAR file names must be unique.
The filenames of the raw configuration files may not adhere to the naming
conventions outlined below. In this case, the files must be renamed to adhere to the
naming conventions before the operator generates the TAR file. Filenames are not
case-sensitive.
ABCXXXXVER
where
ABC is the file index type (PRE, CFG, XML, GFT)
XXXX is the operator ID
For PRE and CFG, a valid operator ID is required
For XML and GFT, any characters may be used
VER is the file version (from 001 to 999)
Note: you cannot update the configuration using two files with the same name.
9.3 ONT configuration file over OMCI
Use this procedure to configure ONTs using configuration files via OMCI.
GFT G.fast-related
configuration file
This text-based json script file controls the default
behavior of the G.Fast ONT.
This file includes the provisioning parameters of the
G.fast transports layer; it does not include VLAN or
QoS provisioning.
While the ONT functions well with the default values;
they can optionally be customized.
While default values can work in VDSL mode, a
download file is required for the device to function as a
G.fast ONT.
The Nokia defined index for the G.fast file is: "GFT"
HGU ONTs:
G-120G-E, G-120W-F,
G-240G-C, G-240W-B,
G-240W-C, I-240W-A
File Index Description Details Supported ONTs/DPU
(2 of 2)
Warning — Executing the following procedure will trigger the
ONT to reboot, which will impact ongoing services.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg98.png)
ONT configuration file over OMCI
152
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
Procedure 58 Configuring an ONT using a configuration file via OMCI
1Generate the TAR file to be uploaded to the OLT.
Using the raw configuration file(s) provided by Nokia, generate the TAR file as follows:
iOn a Linux platform, rename the raw configuration file to adhere to the naming
convention, as described in section 9.2.
ii Tar the ABCXXXXVER raw configuration file:
tar -cf ABCXXXXVER.tar ABCXXXXVER
Where
ABCXXXXVER
Is the name of the file created in step i.
This creates two files: ABCXXXXVER and ABCXXXXVER.tar.
iii Rename ABCXXXXVER to ABCXXXXVER.org
iv Remove the “.tar” extension from ABCXXXXVER.tar file.
2Upload the ABCXXXXVER TAR file to the /ONT/ directory in the OLT.
A maximum of 250 files can be kept in the OLT file system.
3Using OLT commands, download the TAR file to the ONT.
For OLT commands, refer to the 7360 ISAM FX CLI Command Guide for 100_320Gbps FD
NT and FX NT, or the 7342 ISAM FTTU Operation and Maintenance Using TL1 and CLI.
Please note:
•pri-cfgfile-pland/dnload or sec-cfgfile-pland/dnload can be 1 to 14
characters.
•pri-cfgfile-pland and pri-cfgfile-dnload should be the same name.
Examples
Note: X can be 1 or 2 unless specified:
iIf pland-cfgfileX= Disabled and dnload-cfgfileX= Disabled ,
no file will be downloaded to the ONT.
ii If pland-cfgfileX=FILENAME1 and dnload-cfgfileX= Disabled ,
FILENAME1 will be downloaded and FILENAME1 will be made active. An ONT reboot
is required.
iii If pland-cfgfileX=Disabled and dnload-cfgfileX= FILENAME2
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg99.png)
7368 ISAM ONT G-120W-F Product Guide ONT configuration file over OMCI
Issue: 01 3FE-46922-AAAA-TCZZA 153
FILENAME2 will be downloaded and FILENAME2 will be made passive. An ONT reboot
is not required.
iv If pland-cfgfileX=FILENAME3 and dnload-cfgfileX= FILENAME 4, the OLT
reports an error because the filenames are not the same.
vConfigure equipment interface … pland-cfgfile1=XMLXXXXXX1 and
dnload-cfgfile1 XMLXXXXXX1
Configure equipment interface … pland-cfgfile2=XMLXXXXXX2 and
dnload-cfgfile2 XMLXXXXXX2
Although the OLT permits the above two steps without reporting an error, Nokia does
not recommend executing them, because the ONT may exhibit unexpected behavior.
vi If pland-cfgfileX=Auto and dnload-cfgfileX= Auto
The OLT will download the XML file from "sw-ctr-list" (configure equipment ont
sw-ctrl)
4STOP. This procedure is complete.
The ONT will distribute the configuration files to the different services based on the active
indication from the OLT and on the Nokia defined index.
The ONT automatically reboots to apply the configuration files. After the ONT reboots and reports
the active version, the OLT completes the file download procedure.
Operators must check the committed file from the OLT to verify whether the corresponding file has
been applied. If an error occurs, contact Nokia for support.
R05.06.01 | June 2017 | Edition 01
![](/img.php?id=3443441&img=bg9a.png)
ONT configuration file over OMCI
154
7368 ISAM ONT G-120W-F Product Guide
3FE-46922-AAAA-TCZZA Issue: 01
