Nokia Bell G240WA GPON ONT(Optical Network Terminal) User Manual 7368 ISAM ONT G 240W A Product Guide
Alcatel-Lucent Shanghai Bell Co. Ltd. GPON ONT(Optical Network Terminal) 7368 ISAM ONT G 240W A Product Guide
User Manual
Alcatel-Lucent 7368
INTELLIGENT SERVICES ACCESS MANAGER ONT
G-240W-A PRODUCT GUIDE
Alcatel-Lucent Proprietary
This document contains proprietary information of Alcatel-Lucent and is not to be disclosed
or used except in accordance with applicable agreements.
Copyright 2015 © Alcatel-Lucent. All rights reserved.
G-240W-A PRODUCT GUIDE
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
When printed by Alcatel-Lucent, this document is printed on recycled paper.
Alcatel-Lucent assumes no responsibility for the accuracy of the information presented, which is
subject to change without notice.
Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All
other trademarks are the property of their respective owners.
Copyright 2015 Alcatel-Lucent.
All rights reserved.
Disclaimers
Alcatel-Lucent products are intended for commercial uses. Without the appropriate network design
engineering, they must not be sold, licensed or otherwise distributed for use in any hazardous
environments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft
navigation or communication systems, air traffic control, direct life-support machines, or weapons
systems, in which the failure of products could lead directly to death, personal injury, or severe physical
or environmental damage. The customer hereby agrees that the use, sale, license or other distribution
of the products for any such application without the prior written consent of Alcatel-Lucent, shall be at
the customer's sole risk. The customer hereby agrees to defend and hold Alcatel-Lucent harmless from
any claims for loss, cost, damage, expense or liability that may arise out of or in connection with the
use, sale, license or other distribution of the products in such applications.
This document may contain information regarding the use and installation of non-Alcatel-Lucent
products. Please note that this information is provided as a courtesy to assist you. While Alcatel-Lucent
tries to ensure that this information accurately reflects information provided by the supplier, please refer
to the materials provided with any non-Alcatel-Lucent product and contact the supplier for
confirmation. Alcatel-Lucent assumes no responsibility or liability for incorrect or incomplete
information provided about non-Alcatel-Lucent products.
However, this does not constitute a representation or warranty. The warranties provided for
Alcatel-Lucent products, if any, are set forth in contractual documentation entered into by
Alcatel-Lucent and its customers.
This document was originally written in English. If there is any conflict or inconsistency between the
English version and any other version of a document, the English version shall prevail.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Alcatel-Lucent 7368 ISAM ONT iii
Edition 02
G-240W-A Product Guide
Preface
This preface provides general information about the documentation set for optical
network terminals (ONTs).
Scope
This documentation set provides information about safety, features and
functionality, ordering, hardware installation and maintenance, and software
installation procedures for the current release.
Audience
This documentation set is intended for planners, administrators, operators, and
maintenance personnel involved in installing, upgrading, or maintaining the ONTs.
Required knowledge
The reader must be familiar with general telecommunications principles.
Acronyms and initialisms
The expansions and optional descriptions of most acronyms and initialisms appear
in the glossary.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Preface
iv Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Assistance and ordering phone numbers
Alcatel-Lucent provides global technical support through regional call centers.
Phone numbers for the regional call centers are available at the following URL:
http://www.alcatel-lucent.com/myaccess.
For ordering information, contact your Alcatel-Lucent sales representative.
Alcatel-Lucent quality processes
Alcatel-Lucent’s ONT manufacturing, testing, and inspecting practices are in
compliance with GR-1252-CORE and TL 9000 requirements. These requirements
are documented in the Operations Quality Plan 8BD-00023-4204-QRZZA, the
Alcatel North American Quality Manual 8BD-00001-0000-QRZZA, and the
Wireline Network Quality Manual 8AB-83179-0001-QRAAA.
The quality plans and practices adequately ensure that technical requirements and
customer end-point requirements are met. The customer or its representatives may
be allowed to perform on-site quality surveillance audits, as agreed upon during
contract negotiations.
Safety information
For safety information, see the appropriate safety guidelines chapter.
Documents
Documents are available using ALED or OLCS.
Procedure 1 To download a ZIP file package of the customer
documentation
1Navigate to http://www.alcatel-lucent.com/myaccess and enter your user name
and password. If you are a new user and require access to this service, please
contact your Alcatel-Lucent sales representative.
2From the Technical Content for drop-down menu, choose the product.
3Click on Downloads: Electronic Delivery.
4Choose Documentation from the drop-down menu and click Next.
5Select the image from the drop-down menu and click Next.
6Follow the on-screen directions to download the file.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Preface
Alcatel-Lucent 7368 ISAM ONT v
Edition 02
G-240W-A Product Guide
Procedure 2 To access individual documents
Individual PDFs of customer documents are also accessible through the Alcatel-Lucent
Customer Support website.
1Navigate to http://www.alcatel-lucent.com/myaccess and enter your user name
and password. If you are a new user and require access to this service, please
contact your Alcatel-Lucent sales representative.
2From the Technical Content for drop-down menu, choose the product.
3Click on Manuals and Guides to display a list of customer documents by title and
part number. You can filter this list using the Release drop-down menu.
4Click on the PDF to open or save the file.
Special information
The following are examples of how special information is presented in this
document.
Procedures with options or substeps
When there are options in a procedure, they are identified by letters. When there are
required substeps in a procedure, they are identified by roman numerals.
Danger — Danger indicates that the described activity or situation
may result in serious personal injury or death; for example, high
voltage or electric shock hazards.
Warning — Warning indicates that the described activity or situation
may, or will, cause equipment damage or serious performance
problems.
Caution — Caution indicates that the described activity or situation
may, or will, cause service interruption.
Note — A note provides information that is, or may be, of special
interest.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Preface
vi Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 3 Example of options in a procedure
At step 1, you can choose option a or b. At step 2, you must do what the step indicates.
1This step offers two options. You must choose one of the following:
aThis is one option.
bThis is another option.
2You must perform this step.
Procedure 4 Example of required substeps in a procedure
At step 1, you must perform a series of substeps within a step. At step 2, you must do
what the step indicates.
1This step has a series of substeps that you must perform to complete the step. You
must perform the following substeps:
iThis is the first substep.
ii This is the second substep.
iii This is the third substep.
2 You must perform this step.
Multiple PDF document search
You can use Adobe Reader Release 6.0 and later to search multiple PDF files for a
common term. Adobe Reader displays the results in a single display panel. The
results are grouped by PDF file, and you can expand the entry for each file.
Procedure 5 To search multiple PDF files for a common term
1Open Adobe Acrobat Reader.
2Choose Edit→Search from the Acrobat Reader main menu. The Search PDF panel
appears.
3Enter the search criteria.
Note — The PDF files in which you search must be in the same
folder.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Preface
Alcatel-Lucent 7368 ISAM ONT vii
Edition 02
G-240W-A Product Guide
4Click on the All PDF Documents In radio button.
5Select the folder in which to search using the drop-down menu.
6Click on the Search button.
Acrobat Reader displays the search results. You can expand the entries for each
document by clicking on the + symbol.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Preface
viii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Alcatel-Lucent 7368 ISAM ONT ix
Edition 02
G-240W-A Product Guide
ETSI ONT safety guidelines
This chapter provides information about the mandatory regulations that govern the
installation and operation of the optical network terminals (ONTs).
Safety instructions
This section describes the safety instructions that are provided in the ONT customer
documentation and on the equipment.
Safety instruction boxes
The safety instruction boxes are provided in the ONT customer documentation.
Observe the instructions to meet safety requirements.
The following is an example of the Danger box.
The Danger box indicates that the described activity or situation may pose a threat to
personal safety. It calls attention to a situation or procedure which, if not correctly
performed or adhered to, may result in death or serious physical harm.
Do not proceed beyond a Danger box until the indicated conditions are fully
understood and met.
The following is an example of the Warning box.
Danger — Possibility of personal injury.
Warning 1 — Possibility of equipment damage.
Warning 2 — Possibility of data loss.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ETSI ONT safety guidelines
xAlcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
The Warning box indicates that the described activity or situation may, or will, cause
equipment damage, loss of data, or serious performance problems. It identifies a
possible equipment-damaging situation or provides essential information to avoid
the degradation of system operations or data.
Do not proceed beyond a warning until the indicated conditions are fully understood
and met.
The following is an example of the Caution box.
The Caution box indicates that the described activity or situation may, or will, cause
service interruption.
Do not proceed beyond a caution until the indicated conditions are fully understood
and met.
The following is an example of the Note box.
The Note box provides information that assists the personnel working with ONTs. It
does not provide safety-related instructions.
Safety-related labels
The ONT equipment is labeled with the specific safety instructions and compliance
information that is related to a variant of the ONT. Observe the instructions on the
safety labels.

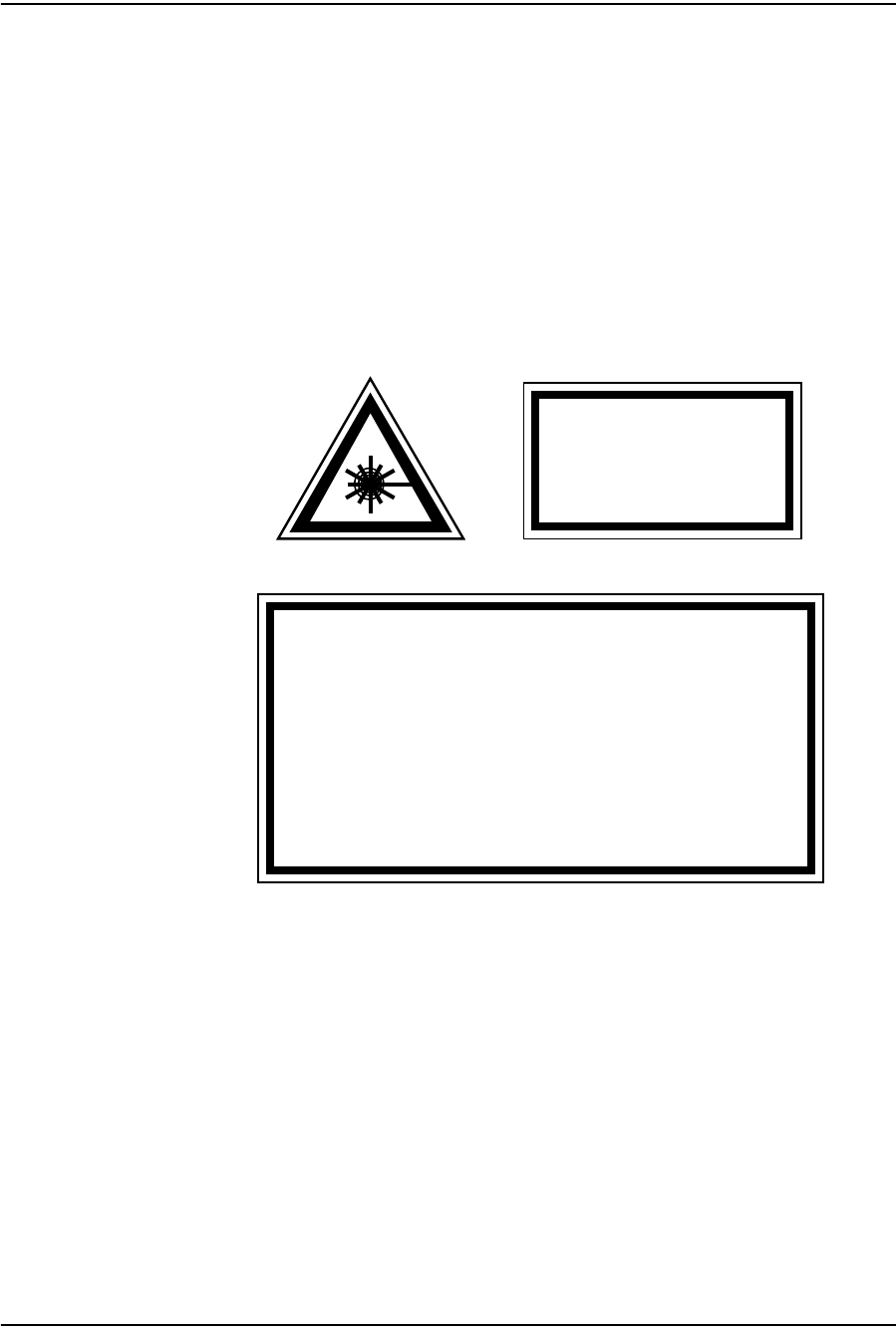

Table 1 provides sample safety labels on the ONT equipment.
Table 1 Safety labels
Figure 1 shows the PSE certification.
Caution 1 — Possibility of service interruption.
Caution 2 — Service interruption.
Note — Information of special interest.
Description Label text
ESD warning Caution: This assembly contains an electrostatic sensitive device.
Laser classification Class 1 laser product
PSE marking These power supplies are Japan PSE certified and compliant with
Japan VCCI emissions standards.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ETSI ONT safety guidelines
Alcatel-Lucent 7368 ISAM ONT xi
Edition 02
G-240W-A Product Guide
Figure 1 PSE certification
Safety standards compliance
This section describes the ONT compliance with the European safety standards.
EMC, EMI, and ESD compliance
The ONT equipment complies with the following EMC, EMI, and ESD
requirements:
•EN 300-386 V1.5.1: Electromagnetic Compatibility and Radio Spectrum Matters
(ERM): Telecommunications Network Equipment; Electromagnetic
Compatibility (EMC) requirements; Electrostatic Discharge (ESD) requirements
•EN 55022 (2006): Class B, Information Technology Equipment, Radio
Disturbance Characteristics, limits and methods of measurement
•EN 55024 (2010): Information Technology Equipment, Immunity
Characteristics, limits and methods of measurement
•European Council Directive 2004/108/EC
•EN 300-386 V1.4.1: 2008
•EN 55022:2006 Class B (ONTs)
Equipment safety standard compliance
The ONT equipment complies with the requirements of EN 60950-1, Safety of
Information Technology Equipment for use in a restricted location (per R-269).
Environmental standard compliance
The ONT equipment complies with the EN 300 019 European environmental
standards.
Laser product standard compliance
For most ONTs, the ONT equipment complies with EN 60825-1 and IEC 60825-2
for laser products. If there is an exception to this compliance regulation, you can find
this information in the standards compliance section of the unit data sheet in this
Product Guide.
This is a Class B product based on the standard of the Voluntary Control Council for Interference
from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in
a domestic environment, it may cause radio interference. Install and use the equipment according
to the instruction manual.
Warning
19841
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ETSI ONT safety guidelines
xii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Resistibility requirements compliance
The ONT equipment complies with the requirements of ITU Recommendation K.21
for resistibility of telecommunication equipment installed in customer premises to
over voltage and overcurrents.
Acoustic noise emission standard compliance
The ONT equipment complies with EN 300 753 acoustic noise emission limit and
test methods.
Electrical safety guidelines
This section provides the electrical safety guidelines for the ONT equipment.
Power supplies
The use of any non-Alcatel-Lucent approved power supplies or power adapters is not
supported or endorsed by Alcatel-Lucent. Such use will void any warranty or support
contract with Alcatel-Lucent. Such use greatly increases the danger of damage to
equipment or property.
Cabling
The following are the guidelines regarding cables used for the ONT equipment:
•All cables must be approved by the relevant national electrical code.
•The cables for outdoor installation of ONTs must be suitable for outdoor use.
• POTS wiring run outside the subscriber premises must comply with the
requirements of local electrical codes. In some markets, the maximum allowed
length of the outside run is 140 feet (43 m). If the outside run is longer, NEC
requires primary protection at both the exit and entry points for the wire.
Protective earth
Earthing and bonding of the ONTs must comply with the requirements of local
electrical codes.
Note 1 — The ONTs comply with the U.S. National Electrical Code.
However, local electrical authorities have jurisdiction when there are
differences between the local and U.S. standards.
Note 2 — The ONTs comply with BS EN 61140.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ETSI ONT safety guidelines
Alcatel-Lucent 7368 ISAM ONT xiii
Edition 02
G-240W-A Product Guide
ESD safety guidelines
The ONT equipment is sensitive to ESD. Operations personnel must observe the
following ESD instructions when they handle the ONT equipment.
During installation and maintenance, service personnel must wear wrist straps to
prevent damage caused by ESD.
Laser safety guidelines
Observe the following instructions when you perform installation, operations, and
maintenance tasks on the ONT equipment.
Only qualified service personnel who are extremely familiar with laser radiation
hazards should install or remove the fiber optic cables and units in this system.
Observe the following danger for laser hazard. Eyes can be damaged when they are
exposed to a laser beam. Take necessary precautions before you plug in the optical
modules.
Laser classification
The ONT is classified as a Class 1 laser product based on its transmit optical output.
Laser warning labels
The following figures show the labels related to laser product, classification and
warning.
Figure 2 shows a laser product label.
Caution — This equipment is ESD sensitive. Proper ESD protections
should be used when you enter the TELCO Access portion of the
ONT.
Danger — There may be invisible laser radiation at the fiber optic
cable when the cable is removed from the connector. Avoid direct
exposure to the laser beam.
Danger — Possibility of equipment damage. Risk of eye damage by
laser radiation.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ETSI ONT safety guidelines
xiv Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Figure 2 Laser product label
Figure 3 shows a laser classification label. Laser classification labels may be
provided in other languages.
Figure 3 Laser classification label
Figure 4
shows a laser warning label and an explanatory label for laser products.
Labels and warning may be provided in other languages. The explanatory label
provides the following information:
•a warning that calls attention to the invisible laser radiation
•an instruction against staring into the beam or viewing directly with optical
instruments
•wavelength
•normal output power
•maximum output power
18455
LASER CLASSE 1CLASE 1 DEL LASER
CLASS 1 LASER PRODUCT PRODUCTO LASER CLASE 1
18992
'
'
With the fiber connector exposed, remove the dust plug, clean the fiber ends and
terminate the SC quipped fiber.
Danger!. Exposure to invisible LASER radiation may cause serious retinal
damager or even blindness. Verify the optical source is disabled through
the use if an optical power meter before handling optical fibers.
Danger!. L'exposition à un rayonnement laser invisible peut causer tout
dommage matérial rétinenne grave ou même la cécité. Vérifiez la source
optique est désactivée par l'utilisation d'un compteur de puissance optique
avant de manupuler des fibres optique.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ETSI ONT safety guidelines
Alcatel-Lucent 7368 ISAM ONT xv
Edition 02
G-240W-A Product Guide

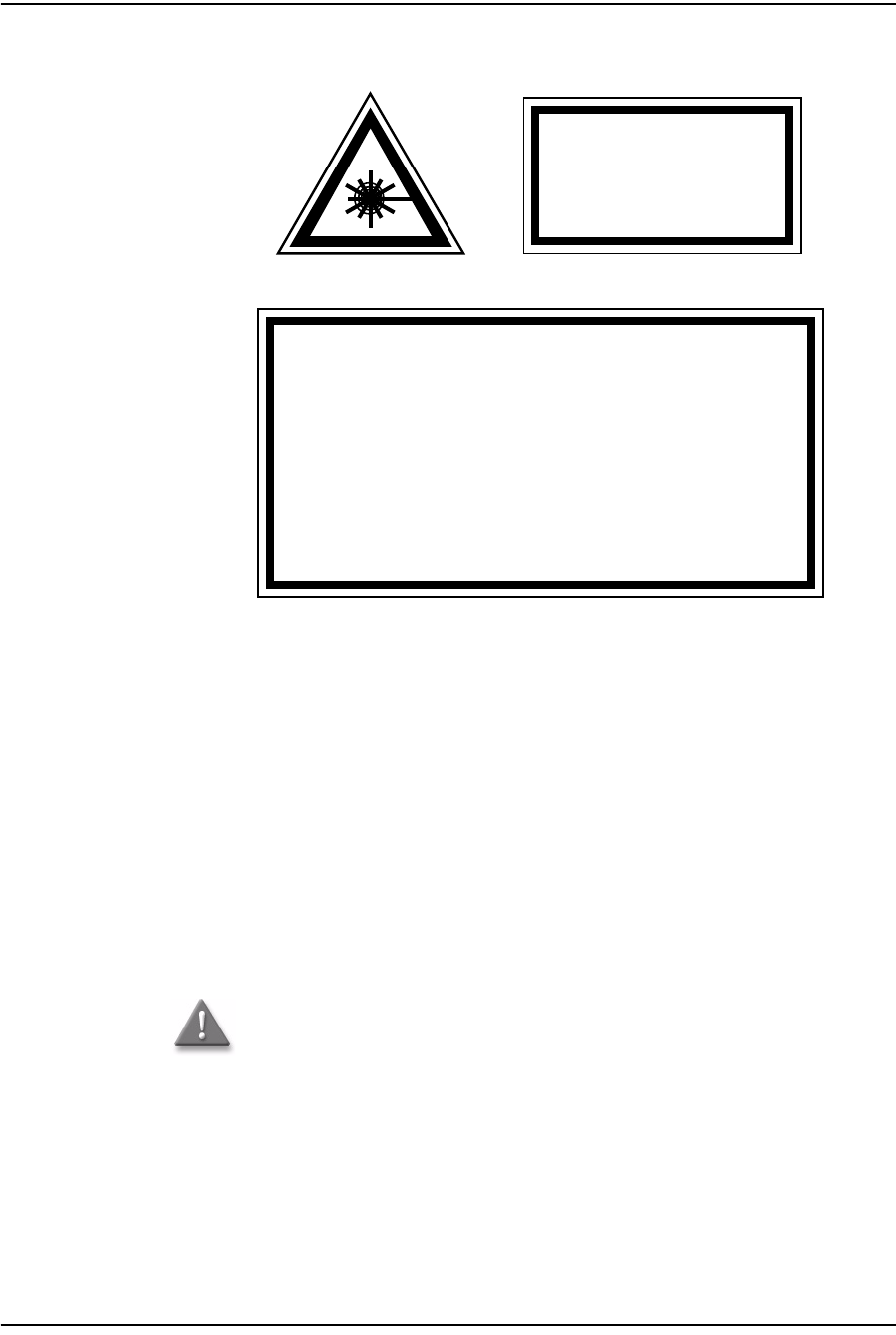

Figure 4 Laser warning labels
Transmit optical output
The maximum transmit optical output of an ONT is +5 dBm.
Normal laser operation
In normal operation, fiber cable laser radiation is always off until it receives signal
from the line terminal card.
Eyes can be damaged when they exposed to a laser beam. Operating personnel must
observe the instructions on the laser explanatory label before plugging in the optical
module.
Location class
Use cable supports and guides to protect the receptacles from strain.
INVISIBLE LASER RADIATION
DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS
Wavelength(s): xxxx nm
Normal output power: xx m W
Max output power: yyy m W
Laser Warning Label Laser Warning Label
CLASS 1 LASER PRODUCT
INVISIBLE LASER RADIATION PRESENT AT FIBER OPTIC CABLE
WHEN NOT CONNECTED. AVOID DIRECT EXPOSURE TO BEAM.
RAYONNEMENT LASER CLASSE 1
RAYONNEMENT LASER INVISIBLE
EVITER TOUTE EXPOSITION AU FAISCEAU
NE PAS DEMONTER. FAIRE APPEL A UN PERSONNELL QUALIFIE
CLASE 1 DEL LASER
RADIACION DE LASER INVISIBLE. EVITAR CUALOUIER EXPOSICION AL
RAYO LASER. NO DESMONTAR. LLAMAR A PERSONAL AUTORIZADO
Laser Warning Label
18993
'
Danger — Risk of eye damage by laser radiation.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ETSI ONT safety guidelines
xvi Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Environmental requirements
See the ONT technical specification documentation for more information about
temperature ranges.
During operation in the supported temperature range, condensation inside the ONT
caused by humidity is not an issue. To avoid condensation caused by rapid changes
in temperature and humidity, Alcatel-Lucent recommends:
•The door of the ONT not be opened until temperature inside and outside the
enclosure has stabilized.
•If the door of the ONT must be opened after a rapid change in temperature or
humidity, use a dry cloth to wipe down the metal interior to prevent the risk of
condensation.
•When high humidity is present, installation of a cover or tent over the ONT helps
prevent condensation when the door is opened.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Alcatel-Lucent 7368 ISAM ONT xvii
Edition 02
G-240W-A Product Guide
ETSI environmental and CRoHS guidelines
This chapter provides information about the ETSI environmental China Restriction
of Hazardous Substances (CRoHS) regulations that govern the installation and
operation of the optical line termination (OLT) and optical network termination
(ONT) systems. This chapter also includes environmental operation parameters of
general interest.
Environmental labels
This section describes the environmental instructions that are provided with the
customer documentation, equipment, and location where the equipment resides.
Overview
CRoHS is applicable to Electronic Information Products (EIP) manufactured or sold
and imported in the territory of the mainland of the People’s Republic of China. EIP
refers to products and their accessories manufactured by using electronic information
technology, including electronic communications products and such subcomponents
as batteries and cables.
Environmental related labels
Environmental labels are located on appropriate equipment. The following are
sample labels.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ETSI environmental and CRoHS guidelines
xviii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Products below Maximum Concentration Value (MCV) label
Figure 1 shows the label that indicates a product is below the maximum
concentration value, as defined by standard SJ/T11363-2006 (Requirements for
Concentration Limits for Certain Hazardous Substances in Electronic Information
Products). Products with this label are recyclable. The label may be found in this
documentation or on the product.
Figure 1 Products below MCV value label
Products containing hazardous substances above Maximum Concentration
Value (MCV) label
Figure 2 shows the label that indicates a product is above the maximum
concentration value, as defined by standard SJ/T11363-2006 (Requirements for
Concentration Limits for Certain Hazardous Substances in Electronic Information
Products). The number contained inside the label indicates the
Environment-Friendly User Period (EFUP) value. The label may be found in this
documentation or on the product.
18986
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ETSI environmental and CRoHS guidelines
Alcatel-Lucent 7368 ISAM ONT xix
Edition 02
G-240W-A Product Guide

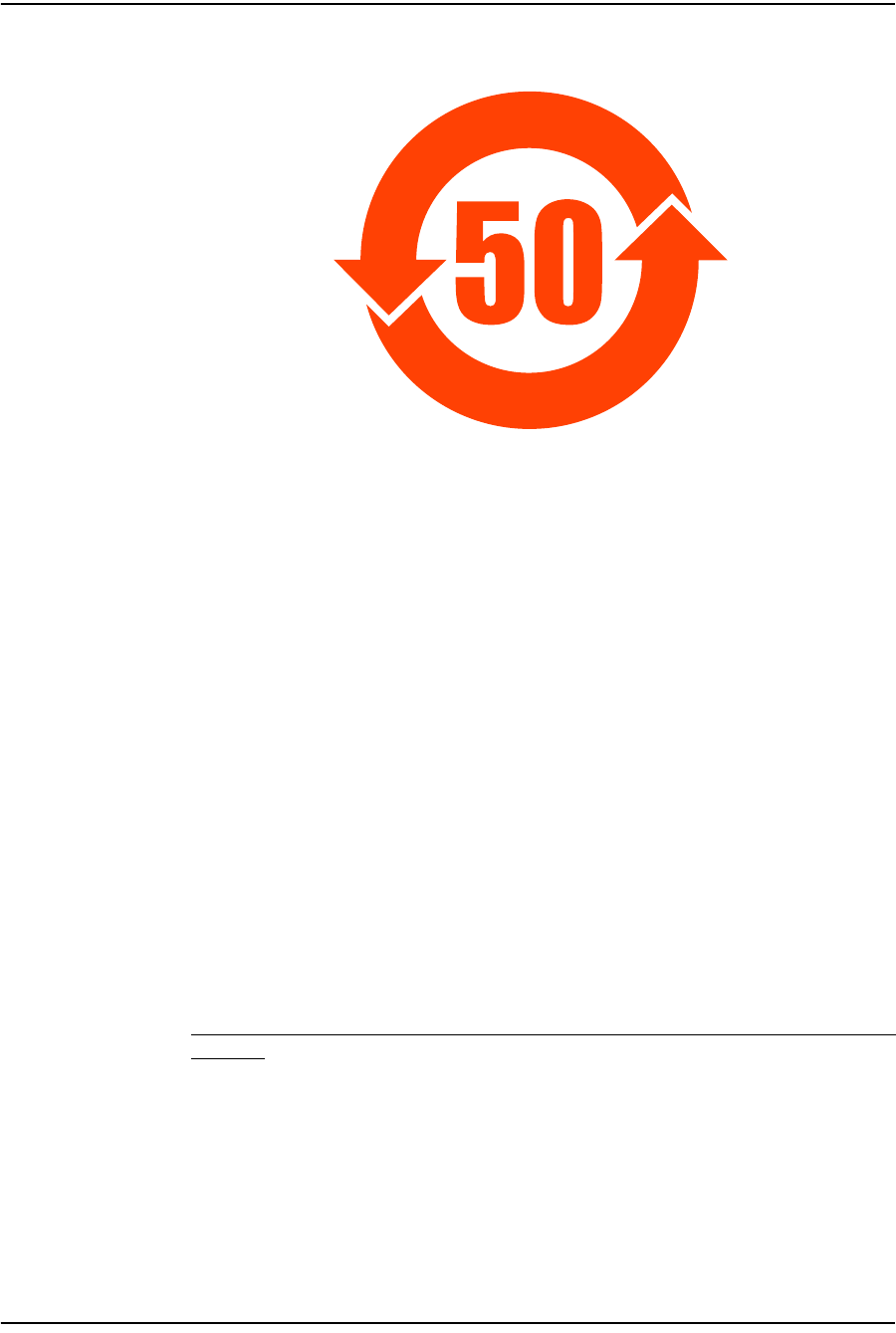

Figure 2 Products above MCV value label
Together with major international telecommunications equipment companies,
Alcatel-Lucent has determined it is appropriate to use an EFUP of 50 years for
network infrastructure equipment and an EFUP of 20 years for handsets and
accessories. These values are based on manufacturers' extensive practical experience
of the design, manufacturing, maintenance, usage conditions, operating
environments, and physical condition of infrastructure and handsets after years of
service. The values reflect minimum values and refer to products operated according
to the intended use conditions. See “Hazardous Substances Table (HST)” for more
information.
Hazardous Substances Table (HST)
This section describes the compliance of the OLT and ONT equipment to the CRoHS
standard when the product and subassemblies contain hazardous substances beyond
the MCV value. This information is found in this user documentation where part
numbers for the product and subassemblies are listed. It may be referenced in other
OLT and ONT documentation.
In accordance with the People’s Republic of China Electronic Industry Standard
Marking for the Control of Pollution Caused by Electronic Information Products
(SJ/T11364-2006), customers may access the Alcatel-Lucent Hazardous Substance
Table, in Chinese, from the following location:
•http://www.alcatel-sbell.com.cn/wwwroot/images/upload/private/1/media/ChinaR
oHS.pdf
Other environmental requirements
Observe the following environmental requirements when handling the P-OLT or
ONT equipment.
18985
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ETSI environmental and CRoHS guidelines
xx Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
ONT environmental requirements
See the ONT technical specification documentation for more information about
temperature ranges.
Storage
According to ETS 300-019-1-1 - Class 1.1, storage of OLT equipment must be in
Class 1.1, weather-protected, temperature-controlled locations.
Transportation
According to EN 300-019-1-2 - Class 2.3, transportation of the OLT equipment must
be in packed, public transportation with no rain on packing allowed.
Stationary use
According to EN 300-019-1-3 - Class 3.1/3.2/3.E, stationary use of OLT equipment
must be in a temperature-controlled location, with no rain allowed, and with no
condensation allowed.
Thermal limitations
When the OLT is installed in the CO or CEV, install air filters on the P-OLT. The
thermal limitations for OLT operation in a CO or CEV are:
•operating temperature: 5°C to 40°C (41°F to 104°F)
•short-term temperature: –5°C to 50°C (23°F to 122°F)
•operating relative humidity: 5% to 85%
•short-term relative humidity: 5% to 95%, but not to exceed 0.024 kg of water/kg
Material content compliance
European Union (EU) Directive 2002/95/EC, “Restriction of the use of certain
Hazardous Substances” (RoHS), restricts the use of lead, mercury, cadmium,
hexavalent chromium, and certain flame retardants in electrical and electronic
equipment. This Directive applies to electrical and electronic products placed on the
EU market after 1 July 2006, with various exemptions, including an exemption for
lead solder in network infrastructure equipment. Alcatel-Lucent products shipped to
the EU after 1 July 2006 comply with the EU RoHS Directive.
Alcatel-Lucent has implemented a material/substance content management process.
The process is described in: Alcatel-Lucent process for ensuring RoHS Compliance
(1AA002660031ASZZA). This ensures compliance with the European Union
Directive 2011/65/EU on the Restriction of the Use of Certain Hazardous Substances
in Electrical and Electronic Equipment (RoHS2). With the process equipment is
assessed in accordance with the Harmonised Standard EN50581:2012 (CENELEC)
on Technical documentation for the assessment of electrical and electronic products
with respect to the restriction of hazardous substances.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ETSI environmental and CRoHS guidelines
Alcatel-Lucent 7368 ISAM ONT xxi
Edition 02
G-240W-A Product Guide
End-of-life collection and treatment
Electronic products bearing or referencing the symbol shown in Figure 3, when put
on the market within the European Union (EU), shall be collected and treated at the
end of their useful life, in compliance with applicable EU and local legislation. They
shall not be disposed of as part of unsorted municipal waste. Due to materials that
may be contained in the product, such as heavy metals or batteries, the environment
and human health may be negatively impacted as a result of inappropriate disposal.
Figure 3 Recycling/take back/disposal of product symbol
At the end of their life, the OLT and ONT products are subject to the applicable local
legislations that implement the European Directive 2012/19EU on waste electrical
and electronic equipment (WEEE).
There can be different requirements for collection and treatment in different member
states of the European Union.
In compliance with legal requirements and contractual agreements, where
applicable, Alcatel-Lucent will offer to provide for the collection and treatment of
Alcatel-Lucent products bearing the logo shown in Figure 3 at the end of their useful
life, or products displaced by Alcatel-Lucent equipment offers. For information
regarding take-back of equipment by Alcatel-Lucent, or for more information
regarding the requirements for recycling/disposal of product, contact your
Alcatel-Lucent account manager or Alcatel-Lucent take back support at
takeback@alcatel-lucent.com.
Note — In the European Union, a solid bar under the symbol for a
crossed-out wheeled bin indicates that the product was put on the
market after 13 August 2005.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ETSI environmental and CRoHS guidelines
xxii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Alcatel-Lucent 7368 ISAM ONT xxiii
Edition 02
G-240W-A Product Guide
ANSI ONT safety guidelines
This chapter provides information about the mandatory regulations that govern the
installation and operation of the optical network terminals or units (ONTs or ONUs)
in the North American or ANSI market.
Safety instructions
This section describes the safety instructions that are provided in the ONT customer
documentation and on the equipment.
Safety instruction boxes in customer documentation
The safety instruction boxes are provided in the ONT customer documentation.
Observe the instructions to meet safety requirements.
The following is an example of the Danger box.
The Danger box indicates that the described activity or situation may pose a threat to
personal safety. It calls attention to a situation or procedure which, if not correctly
performed or adhered to, may result in death or serious physical harm.
Do not proceed beyond a Danger box until the indicated conditions are fully
understood and met.
Danger — Possibility of personal injury.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ANSI ONT safety guidelines
xxiv Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
The following is an example of the Warning box.
The Warning box indicates that the described activity or situation may, or will, cause
equipment damage, loss of data, or serious performance problems. It identifies a
possible equipment-damaging situation or provides essential information to avoid
the degradation of system operations or data.
Do not proceed beyond a warning until the indicated conditions are fully understood
and met.
The following is an example of the Caution box.
The Caution box indicates that the described activity or situation may, or will, cause
service interruption.
Do not proceed beyond a caution until the indicated conditions are fully understood
and met.
The following is an example of the Note box.
The Note box provides information that assists the personnel working with ONTs. It
does not provide safety-related instructions.
Safety-related labels
The ONT equipment is labeled with specific safety compliance information and
instructions that are related to a variant of the ONT. Observe the instructions on the
safety labels.
Table 1 provides examples of the text in the various ONT safety labels.
Table 1 Safety labels
Warning 1 — Possibility of equipment damage.
Warning 2 — Possibility of data loss.
Caution 1 — Possibility of service interruption.
Caution 2 — Service interruption.
Note — Information of special interest.
Description Label text
UL compliance Communication service equipment US listed. Type 3R enclosure -
Rainproof.
TUV compliance Type 3R enclosure - Rainproof.
ESD warning Caution: This assembly contains electrostatic sensitive device.
(1 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ANSI ONT safety guidelines
Alcatel-Lucent 7368 ISAM ONT xxv
Edition 02
G-240W-A Product Guide

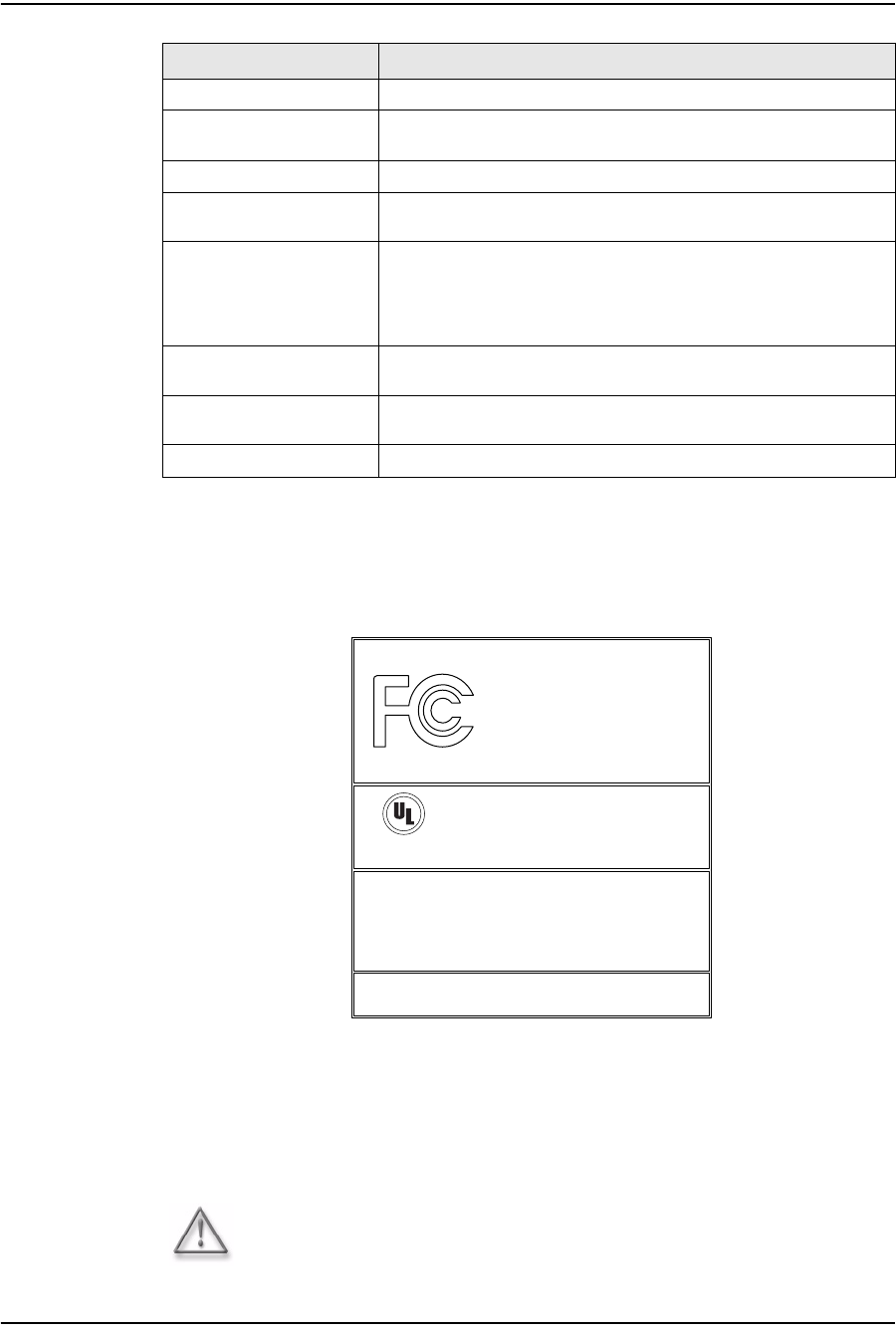

Figure 1 shows a sample safety label on the ONT equipment.

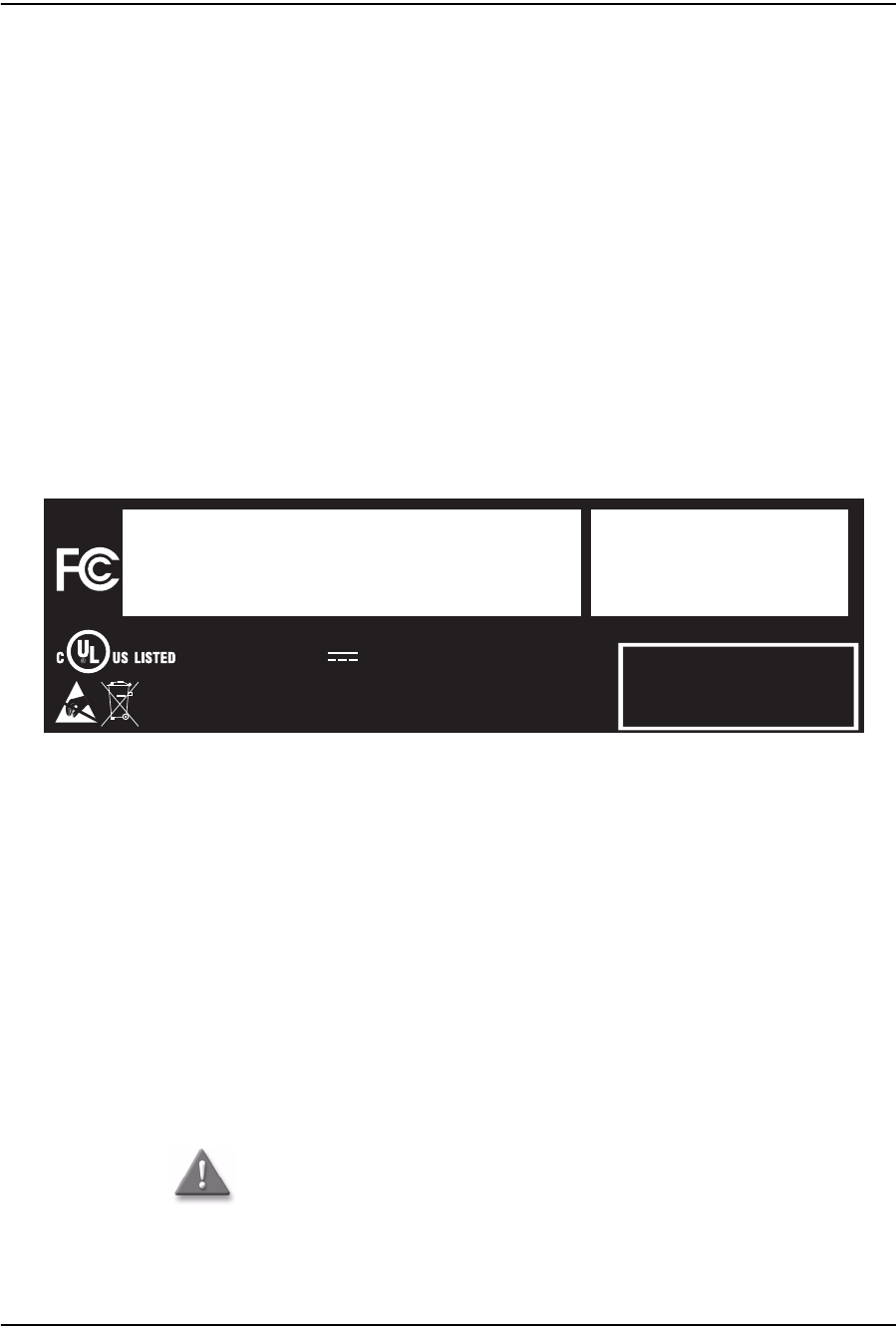

Figure 1 Sample safety label on the ONT equipment
Safety standards compliance
This section describes the ONT compliance with North American safety standards.
Laser classification Class 1 laser product
Laser product compliance This laser product conforms to all applicable standards of 21 CFR
1040.10 at date of manufacture.
FCC standards compliance Tested to comply with FCC standards for home or office use.
CDRH compliance Complies with 21 CFR 1040.10 and 1040.11 except for deviations
pursuant to Laser Notice No. 50, dated June 24, 2007
Operation conditions This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Canadian standard
compliance (modular ONT) This Class A digital apparatus complies with Canadian ICES-003.
Canadian standard
compliance (outdoor ONT) This Class B digital apparatus complies with Canadian ICES-003.
CE marking There are various CE symbols for CE compliance.
Description Label text
(2 of 2)
18533
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This Class A digital apparatus complies with Canadian ICES-003. Cet appareil
numerique de la class A est conforme a la norme NMB-003 du Canada
Tested to Comply
with FCC Standards
FOR HOME OR OFFICE USE
COMMUNICATION SERVICE EQUIPMENT
US LISTED
27FY
Type 3R Enclosure - Rainproof
CAUTION
This Assembly Contains Electrostatic Sensitive Devices
c
®
Warning — Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user's authority to operate the equipment.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ANSI ONT safety guidelines
xxvi Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
EMC, EMI, and ESD standards compliance
The ONT equipment complies with the following requirements:
•Federal Communications Commission (FCC) CFR 47, Part 15, Subpart B, Class
A requirements for OLT equipment
•GR-1089-CORE requirements, including:
•Section 3 Electromagnetic Interference, Emissions Radiated and Conducted
•Section 3 Immunity, Radiated and Conducted
•Section 2 ESD Discharge Immunity: System Level Electrostatic Discharge and EFT
Immunity: Electrically Fast Transients
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is needed.
•Consult the dealer or an experienced radio/TV technician for help.
Equipment safety standard compliance
The ONT equipment complies with the requirements of UL60950-1, Outdoor ONTs
to “Communication Service Equipment” (CSE) and Indoor ONTs to Information
Technology Equipment (ITE).
Environmental standards compliance
The ONT equipment complies with the following standards:
•GR-63-CORE (NEBS): requirements related to operating, storage, humidity,
altitude, earthquake, office vibration, transportation and handling, fire resistance
and spread, airborne contaminants, illumination, and acoustic noise
•GR-487-CORE: requirements related to rain, chemical, sand, and dust
•GR-487 R3-82: requirements related to condensation
•GR-3108: Requirements for Network Equipment in the Outside Plant (OSP)
•TP76200: Common Systems Equipment Interconnections Standards
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ANSI ONT safety guidelines
Alcatel-Lucent 7368 ISAM ONT xxvii
Edition 02
G-240W-A Product Guide
Laser product standards compliance
The ONT equipment complies with 21 CFR 1040.10 and CFR 1040.11, except for
deviations pursuant to Laser Notice No. 50, dated June 24, 2007” or to 21 CFR
1040.10 U.S. Center for Devices and Radiological Health (CDRH) of the Food and
Drug Administration (FDA) Laser Notice 42 for ONTs containing Class 1 Laser
modules certified by original manufactures.
Per CDRH 21 CFR 10.40.10 (h) (1) (iv) distributors of Class 1 laser products, such
as ALU ONTs shall leave the following Laser Safety cautions with the end user.
a) “Class 1 Laser Product”
b) “Caution – Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.”
Figure 2 shows a laser product label.
Figure 2 Sample laser product label showing CDRH 21 CFR compliance
Resistibility requirements compliance
The ONT equipment complies with the requirements of ITU Recommendation K.21
for resistibility of telecommunication equipment installed in customer premises to
overvoltage and overcurrents.
Laser safety guidelines
Only qualified service personnel who are extremely familiar with laser radiation
hazards should install or remove the fiber optic cables and units in this system.
Observe the following warnings when you perform installation, operations, and
maintenance tasks on the ONT equipment.
FiOS Enabled
To Order FiOS: 888 GET-FiOS
or visit Verizon.com
For Service: 888 553-1555
2301 Sugar Bush Rd.
Raleigh, NC 27612
No User Serviceable Parts Inside. Refer All Servicing To Qualified Personnel.
Complies with 21 CFR 1040.10 and
1040.11 except for deviations pursuant to
Laser Notice No. 50, dated June 24, 2007.
4P92
I.T.E 12VDC 2.5A
22813
Danger — There may be invisible laser radiation at the fiber optic
cable when the cable is removed from the connector. Avoid direct
exposure to beam.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ANSI ONT safety guidelines
xxviii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Observe the following danger for a laser hazard. Eyes can be damaged when they are
exposed to a laser beam. Take necessary precautions before you plug in the optical
modules.
Per CDRH 21 CFR 10.40.10 (h) (1) (iv) distributors of Class 1 laser products, such
as ALU ONTs shall leave the following Laser Safety cautions with the end user.
a) “Class 1 Laser Product”
b) “Caution – Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.”
Laser warning labels
The following figures show sample labels related to laser product, classification and
warning.
Figure 3 shows a laser product label.
Figure 3 Laser product label
Figure 4 shows a laser classification label. Laser classification labels may be
provided in other languages.
Figure 4 Laser classification label
Danger — Possibility of equipment damage. Risk of eye damage by
laser radiation.
18455
LASER CLASSE 1CLASE 1 DEL LASER
CLASS 1 LASER PRODUCT PRODUCTO LASER CLASE 1
18992
'
'
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ANSI ONT safety guidelines
Alcatel-Lucent 7368 ISAM ONT xxix
Edition 02
G-240W-A Product Guide
Figure 5 shows a laser warning label and an explanatory label for laser products.
Explanatory labels may be provided in other languages. The explanatory label
provides the following information:
•a warning that calls attention to the invisible laser radiation
•an instruction against staring into the beam or viewing directly with optical
instruments
•wavelength
•normal output power
•maximum output power
Figure 5 Laser warning labels
Laser classification
The ONT is classified as a Class 1 laser product based on its transmit optical output.
For Class 1 laser products, lasers are safe under reasonably foreseeable conditions of
operation, including the use of optical instruments for intrabeam viewing.
Figure 6 shows a sample laser product safety label on the ONT equipment.
INVISIBLE LASER RADIATION
DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS
Wavelength(s): xxxx nm
Normal output power: xx m W
Max output power: yyy m W
Laser Warning Label Laser Warning Label
CLASS 1 LASER PRODUCT
INVISIBLE LASER RADIATION PRESENT AT FIBER OPTIC CABLE
WHEN NOT CONNECTED. AVOID DIRECT EXPOSURE TO BEAM.
RAYONNEMENT LASER CLASSE 1
RAYONNEMENT LASER INVISIBLE
EVITER TOUTE EXPOSITION AU FAISCEAU
NE PAS DEMONTER. FAIRE APPEL A UN PERSONNELL QUALIFIE
CLASE 1 DEL LASER
RADIACION DE LASER INVISIBLE. EVITAR CUALOUIER EXPOSICION AL
RAYO LASER. NO DESMONTAR. LLAMAR A PERSONAL AUTORIZADO
Laser Warning Label
18993
'
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ANSI ONT safety guidelines
xxx Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Figure 6 Sample laser product safety label on the ONT equipment
Transmit optical output
The maximum transmit optical output of an ONT is +5 dBm.
Normal laser operation
In normal operation, fiber cable laser radiation is always off until it receives signal
from the line terminal card.
Operating personnel must observe the instructions on the laser explanatory label
before plugging in the optical module.
Location class
Use cable supports and guides to protect the receptacles from strain.
Electrical safety guidelines
This section provides the electrical safety guidelines for the ONT equipment.
Power supplies
The use of any non-Alcatel-Lucent approved power supplies or power adapters is not
supported or endorsed by Alcatel-Lucent. Such use will void any warranty or support
contract with Alcatel-Lucent. Such use greatly increases the danger of damage to
equipment or property.
CLASS 1 LASER PRODUCT
THIS LASER PRODUCT CONFORMS TO ALL APPLICABLE
STANDARDS OF 21 CFR 1040.10 AT DATE OF MANUFACTURE.
MANUFACTURED:
MONTH YEAR
18532
Danger — Risk of eye damage by laser radiation.
Note — The ONTs comply with the U.S. National Electrical Code.
However, local electrical authorities have jurisdiction when there are
differences between the local and U.S. standards.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ANSI ONT safety guidelines
Alcatel-Lucent 7368 ISAM ONT xxxi
Edition 02
G-240W-A Product Guide
Cabling
The following are the guidelines regarding cables used for the ONT equipment:
•Use only cables approved by the relevant national electrical code.
•Use cables suitable for outdoor use for outdoor installation of ONTs.
•The ONTs have been evaluated for use with external POTS wiring without
primary protection that may not exceed 140 ft (43 m) in reach. However, the
power cable must not exceed 100 ft (31 m).
Protective earth
Earthing and bonding of the ONTs must comply with the requirements of NEC
article 250 or local electrical codes.
ESD safety guidelines
The ONT equipment is sensitive to ESD. Operations personnel must observe the
following ESD instructions when they handle the ONT equipment.
During installation and maintenance, service personnel must wear wrist straps to
prevent damage caused by ESD.
Alcatel-Lucent recommends that you prepare the site before you install the ONT
equipment. In addition, you must control relative humidity, use static dissipating
material for furniture or flooring, and restrict the use of air conditioning.
Environmental requirements
See the ONT technical specification documentation for temperature ranges for
ONTs.
During operation in the supported temperature range, condensation inside the ONT
caused by humidity is not an issue. To avoid condensation caused by rapid changes
in temperature and humidity, Alcatel-Lucent recommends:
•The door of the ONT not be opened until temperature inside and outside the
enclosure has stabilized.
•If the door of the ONT must be opened after a rapid change in temperature or
humidity, use a dry cloth to wipe down the metal interior to prevent the risk of
condensation.
•When high humidity is present, installation of a cover or tent over the ONT helps
prevent condensation when the door is opened.
Caution — This equipment is ESD sensitive. Proper ESD protections
should be used when entering the TELCO Access portion of the ONT.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
ANSI ONT safety guidelines
xxxii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Alcatel-Lucent 7368 ISAM ONT xxxiii
Edition 02
G-240W-A Product Guide
Contents
Preface iii
Scope ...............................................................................................iii
Audience ...............................................................................................iii
Required knowledge...................................................................................iii
Acronyms and initialisms .............................................................................iii
Assistance and ordering phone numbers ........................................................... iv
Alcatel-Lucent quality processes.................................................................... iv
Safety information..................................................................................... iv
Documents .............................................................................................. iv
Procedure 1 To download a ZIP file package of the customer
documentation.................................................................... iv
Procedure 2 To access individual documents ......................................v
Special information.....................................................................................v
Procedures with options or substeps.................................................v
Procedure 3 Example of options in a procedure.................................. vi
Procedure 4 Example of required substeps in a procedure.....................vi
Multiple PDF document search....................................................................... vi
Procedure 5 To search multiple PDF files for a common term................. vi
ETSI ONT safety guidelines ix
Safety instructions..................................................................................... ix
Safety instruction boxes .............................................................. ix
Safety-related labels ...................................................................x
Safety standards compliance.........................................................................xi
EMC, EMI, and ESD compliance....................................................... xi
Equipment safety standard compliance ............................................xi
Environmental standard compliance ................................................xi
Laser product standard compliance.................................................xi
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Contents
xxxiv Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Resistibility requirements compliance............................................. xii
Acoustic noise emission standard compliance .................................... xii
Electrical safety guidelines.......................................................................... xii
Power supplies......................................................................... xii
Cabling.................................................................................. xii
Protective earth....................................................................... xii
ESD safety guidelines................................................................................ xiii
Laser safety guidelines.............................................................................. xiii
Laser classification................................................................... xiii
Transmit optical output.............................................................. xv
Normal laser operation............................................................... xv
Location class.......................................................................... xv
Environmental requirements........................................................................xvi
ETSI environmental and CRoHS guidelines xvii
Environmental labels................................................................................xvii
Overview ..............................................................................xvii
Environmental related labels.......................................................xvii
Hazardous Substances Table (HST).................................................................xix
Other environmental requirements................................................................xix
ONT environmental requirements .................................................. xx
Storage.................................................................................. xx
Transportation......................................................................... xx
Stationary use ......................................................................... xx
Thermal limitations................................................................... xx
Material content compliance........................................................ xx
End-of-life collection and treatment ..............................................xxi
ANSI ONT safety guidelines xxiii
Safety instructions.................................................................................. xxiii
Safety instruction boxes in customer documentation ......................... xxiii
Safety-related labels ............................................................... xxiv
Safety standards compliance....................................................................... xxv
EMC, EMI, and ESD standards compliance ....................................... xxvi
Equipment safety standard compliance ......................................... xxvi
Environmental standards compliance............................................ xxvi
Laser product standards compliance.............................................xxvii
Resistibility requirements compliance...........................................xxvii
Laser safety guidelines.............................................................................xxvii
Laser warning labels...............................................................xxviii
Laser classification.................................................................. xxix
Transmit optical output............................................................. xxx
Normal laser operation.............................................................. xxx
Location class......................................................................... xxx
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Contents
Alcatel-Lucent 7368 ISAM ONT xxxv
Edition 02
G-240W-A Product Guide
Electrical safety guidelines......................................................................... xxx
Power supplies........................................................................ xxx
Cabling................................................................................ xxxi
Protective earth..................................................................... xxxi
ESD safety guidelines............................................................................... xxxi
Environmental requirements...................................................................... xxxi
1 — G-240W-A unit data sheet 1-1
1.1 G-240W-A part numbers and identification......................................... 1-2
1.2 G-240W-A general description ........................................................ 1-3
TR-069 support for reading optical parameters ................................. 1-5
TR-104 parameter extension support for voice service ........................ 1-5
Mobile offload support .............................................................. 1-5
1.3 G-240W-A software and installation feature support.............................. 1-5
1.4 G-240W-A interfaces and interface capacity ....................................... 1-6
G-240W-A connections and components.......................................... 1-6

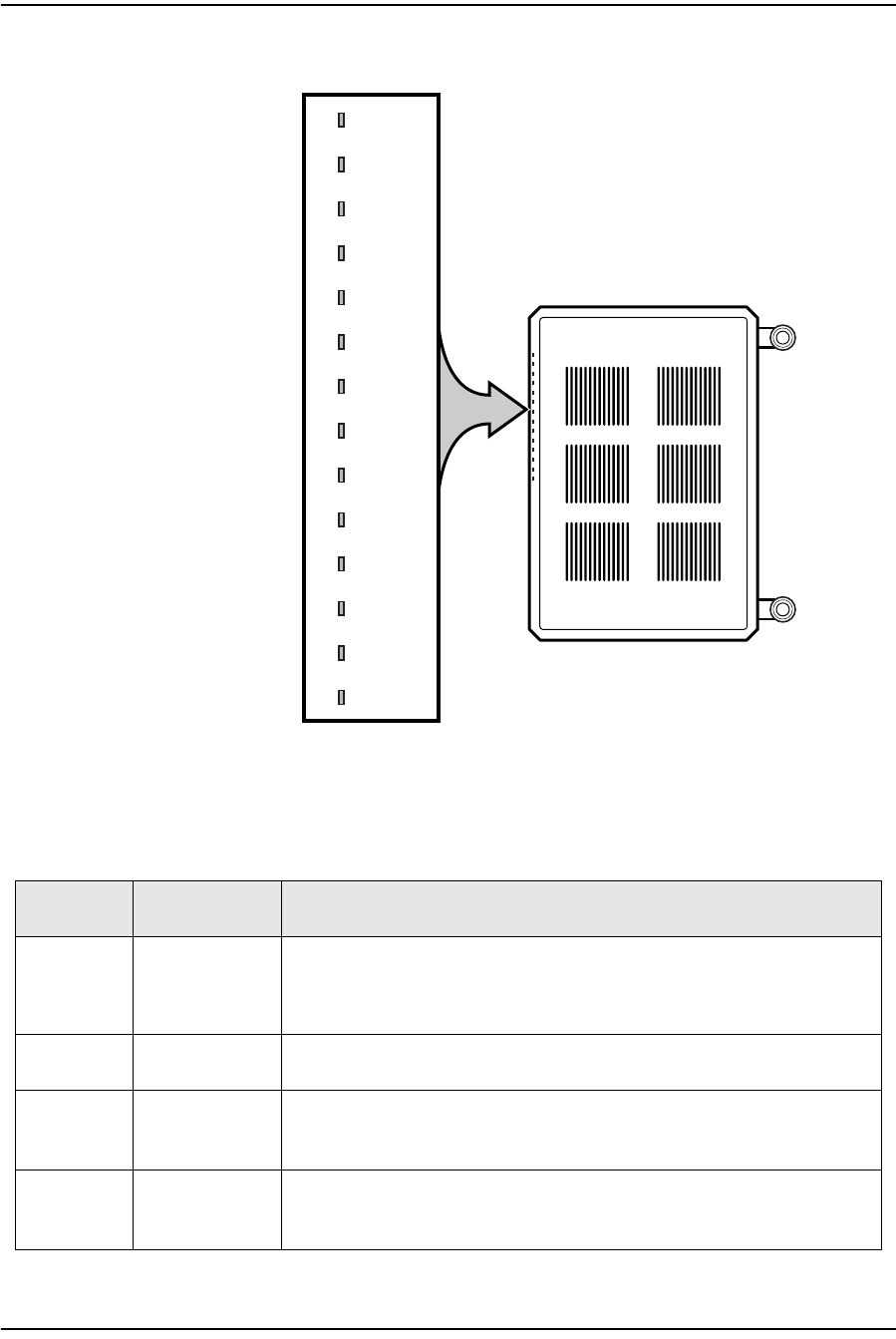

1.5 G-240W-A LEDs .......................................................................... 1-8
1.6 G-240W-A detailed specifications ...................................................1-10
1.7 G-240W-A GEM ports and T-CONTs ..................................................1-11
1.8 G-240W-A performance monitoring statistics......................................1-11

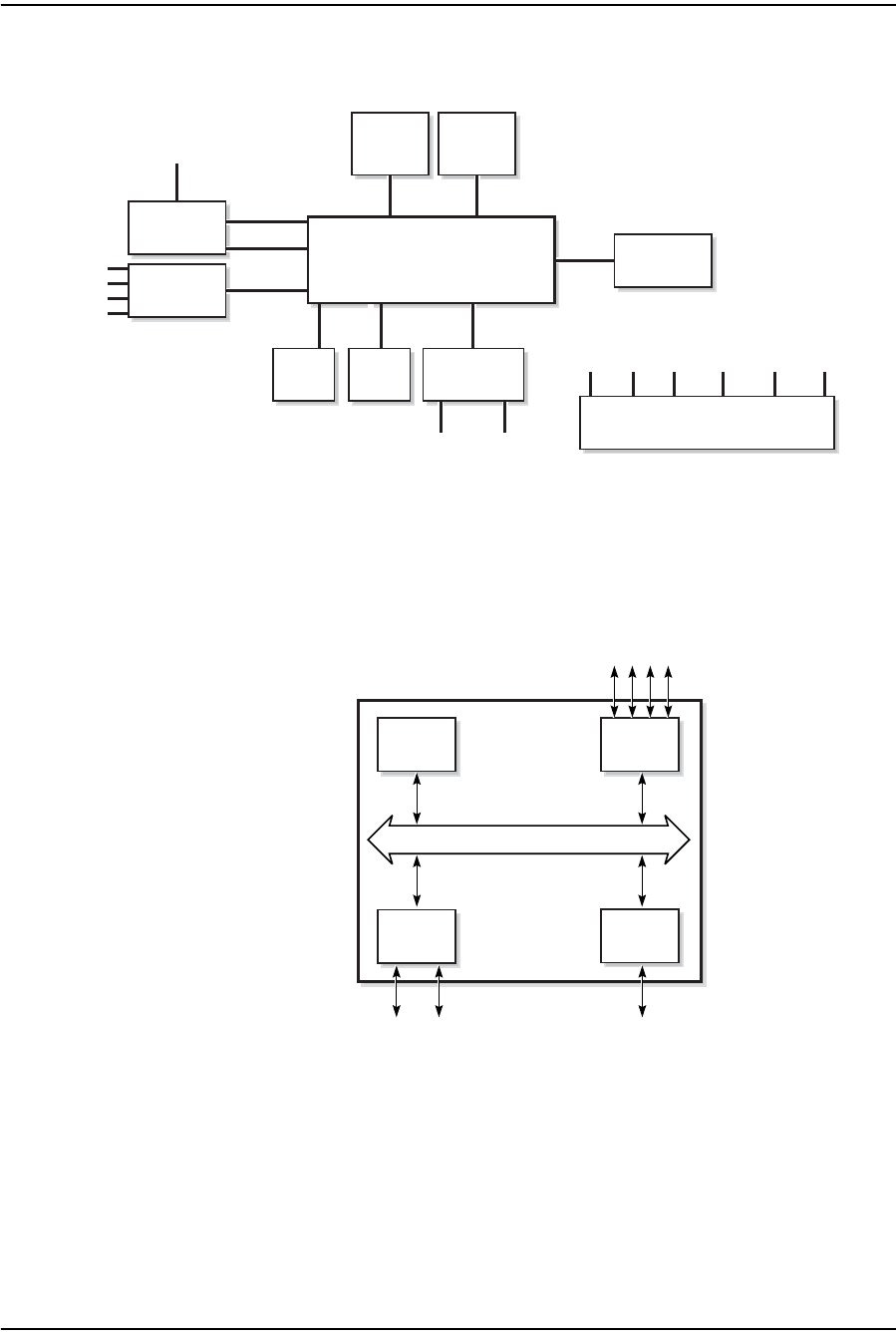

1.9 G-240W-A functional blocks ..........................................................1-13
1.10 G-240W-A standards compliance ....................................................1-15
Energy-related products standby and off modes compliance ................1-15
1.11 G-240W-A special considerations ....................................................1-16
Wi-Fi service .........................................................................1-16
G-240W-A ONT considerations and limitations .................................1-16
2 — Install a G-240W-A indoor ONT 2-1
2.1 Purpose ................................................................................... 2-2
2.2 General ................................................................................... 2-2
2.3 Prerequisites............................................................................. 2-2
2.4 Recommended tools .................................................................... 2-2
2.5 Safety information ...................................................................... 2-3
2.6 Procedure ................................................................................ 2-4
3 — Replace a G-240W-A indoor ONT 3-1
3.1 Purpose ................................................................................... 3-2
3.2 General ................................................................................... 3-2
3.3 Prerequisites............................................................................. 3-2
3.4 Recommended tools .................................................................... 3-2
3.5 Safety information ...................................................................... 3-3
3.6 Procedure ................................................................................ 3-4
4 — Configure a G-240W-A indoor ONT 4-1
4.1 General ................................................................................... 4-2
4.2 HGU mode GUI configuration.......................................................... 4-2
Login ................................................................................... 4-2

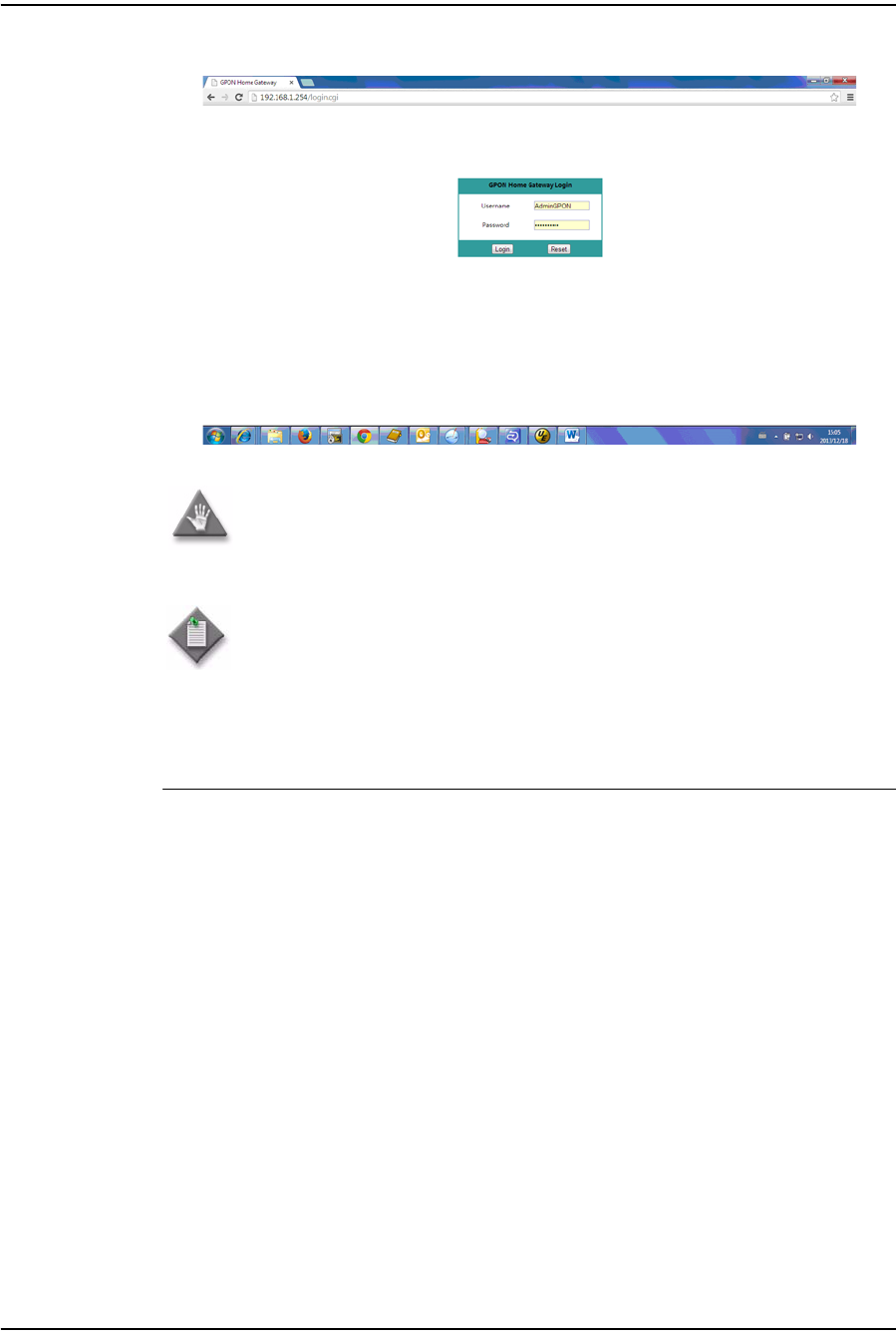

Procedure 4-1 Login to web-based GUI .......................................... 4-2
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Contents
xxxvi Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Device and connection status ...................................................... 4-3

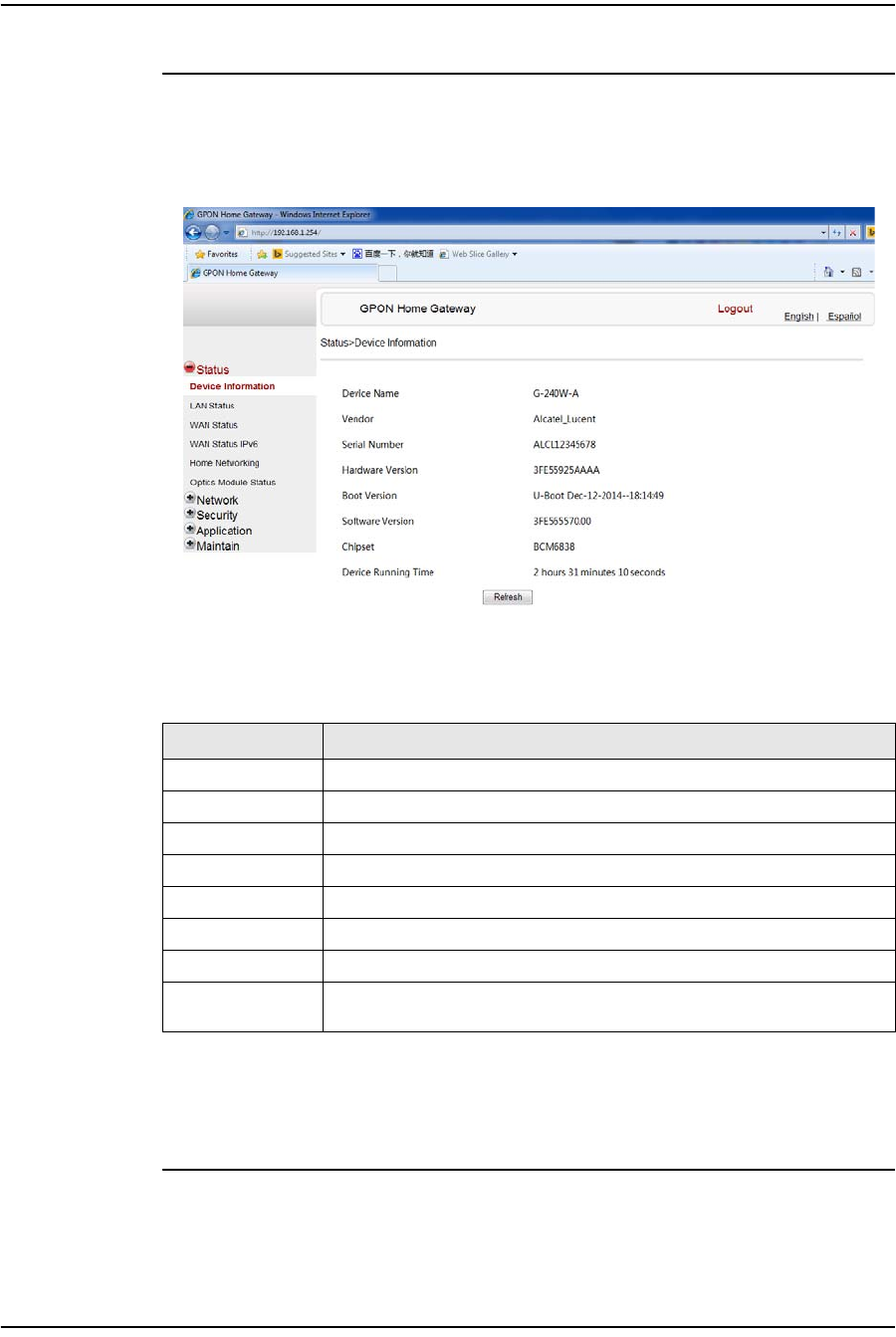

Procedure 4-2 Device information retrieval..................................... 4-4
Procedure 4-3 LAN status retrieval............................................... 4-5
Procedure 4-4 WAN status retrieval.............................................. 4-6

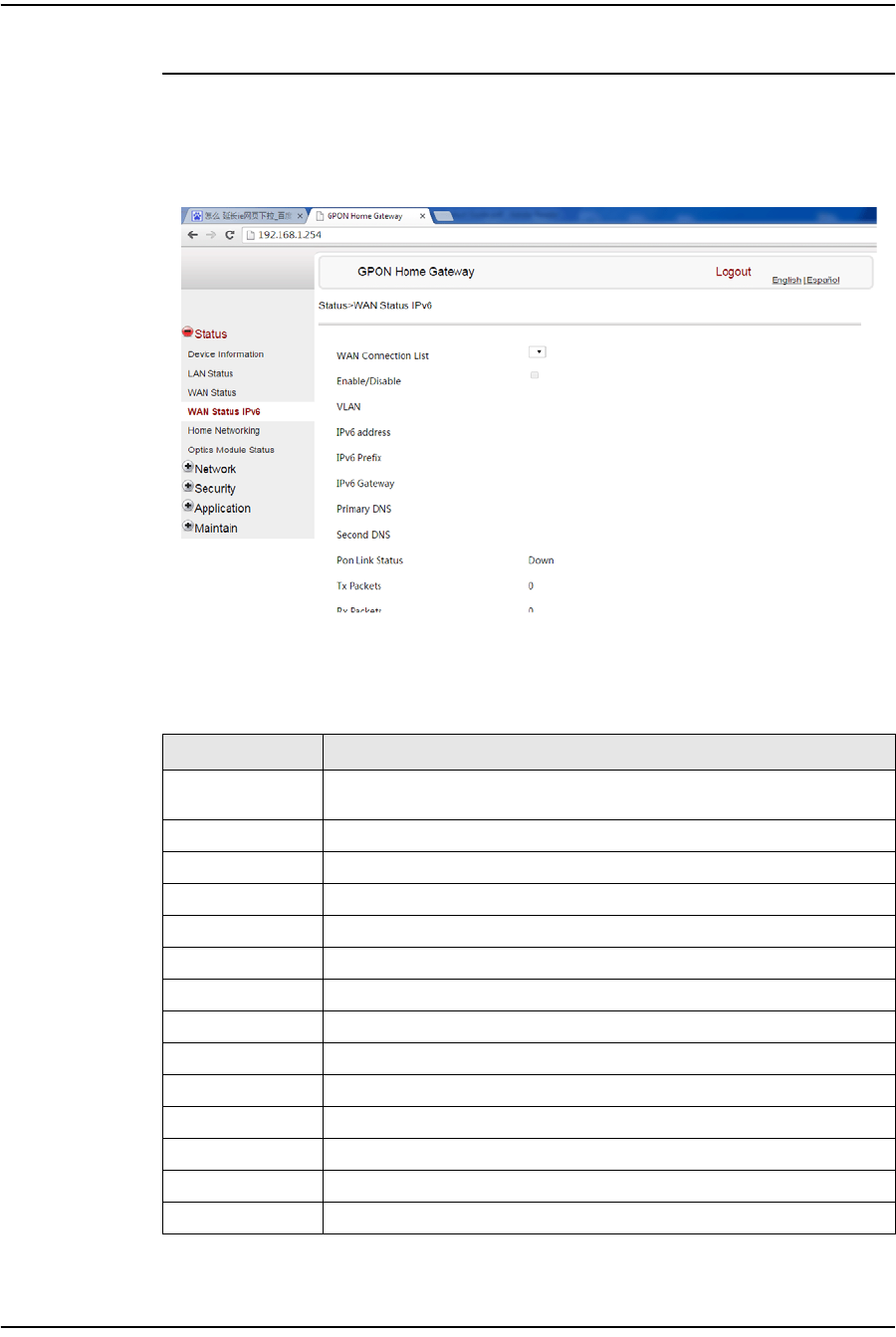

Procedure 4-5 WAN status IPv6 retrieval ........................................ 4-8

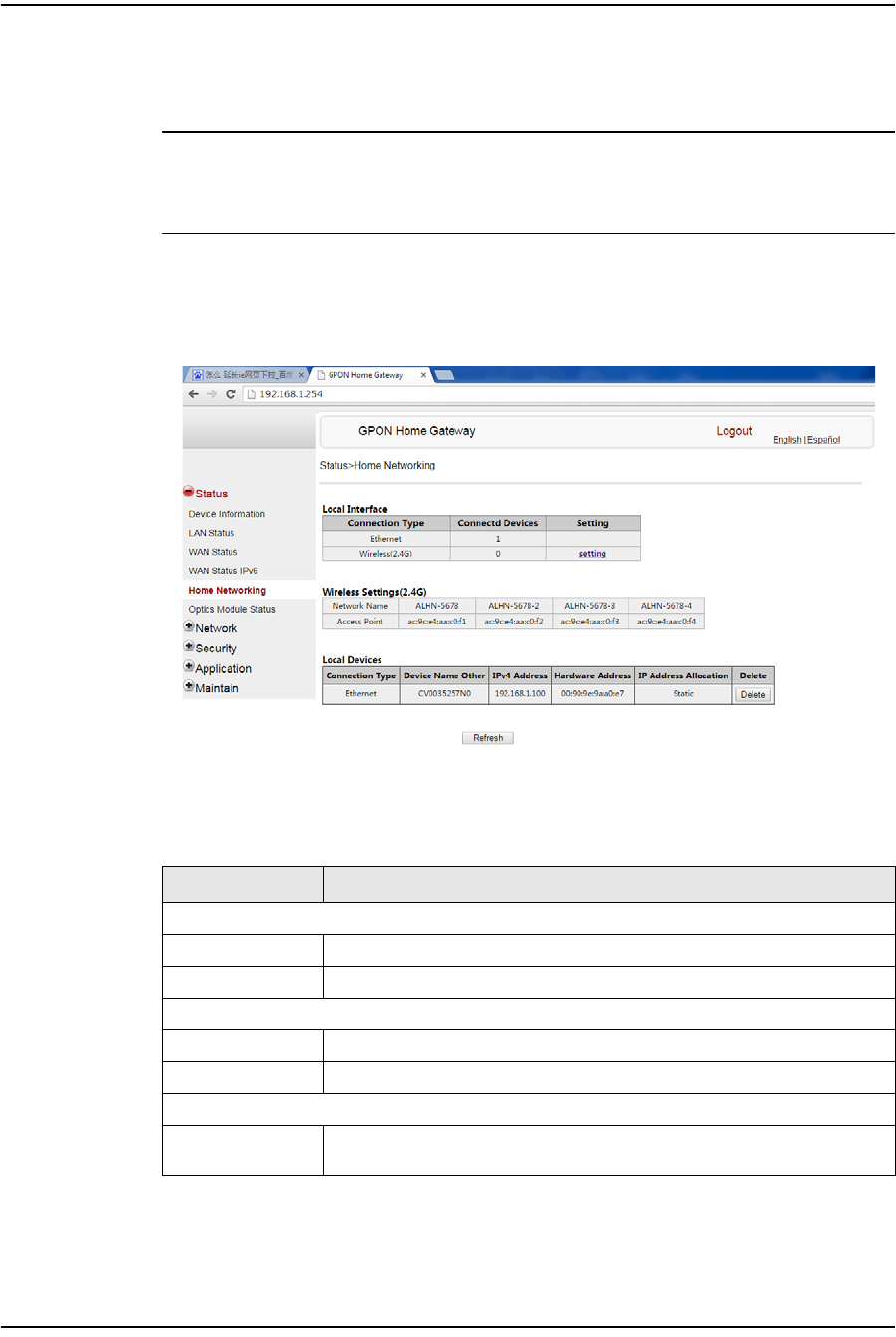

Procedure 4-6 Home networking information retrieval ....................... 4-9

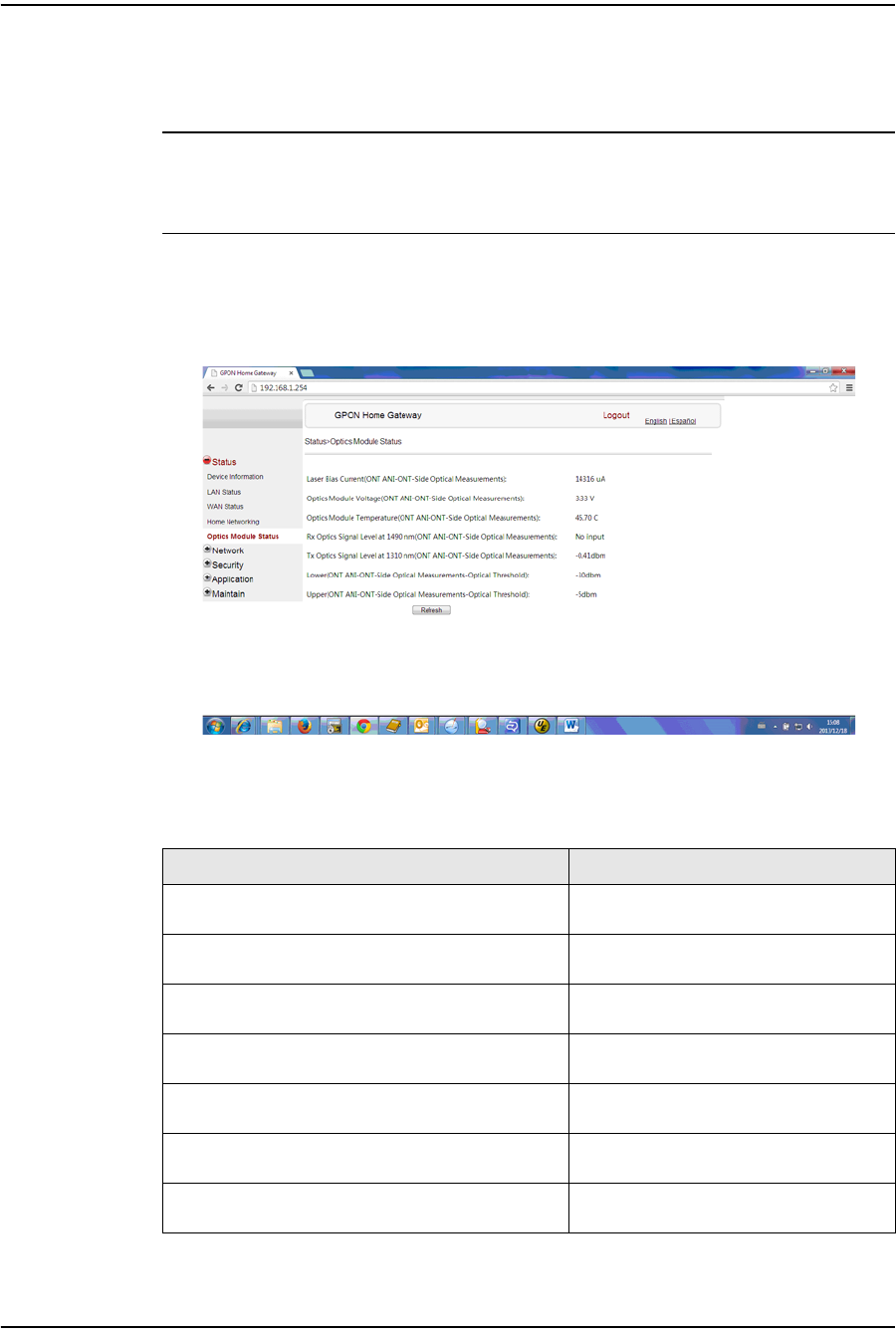

Procedure 4-7 Optics module status retrieval .................................4-10

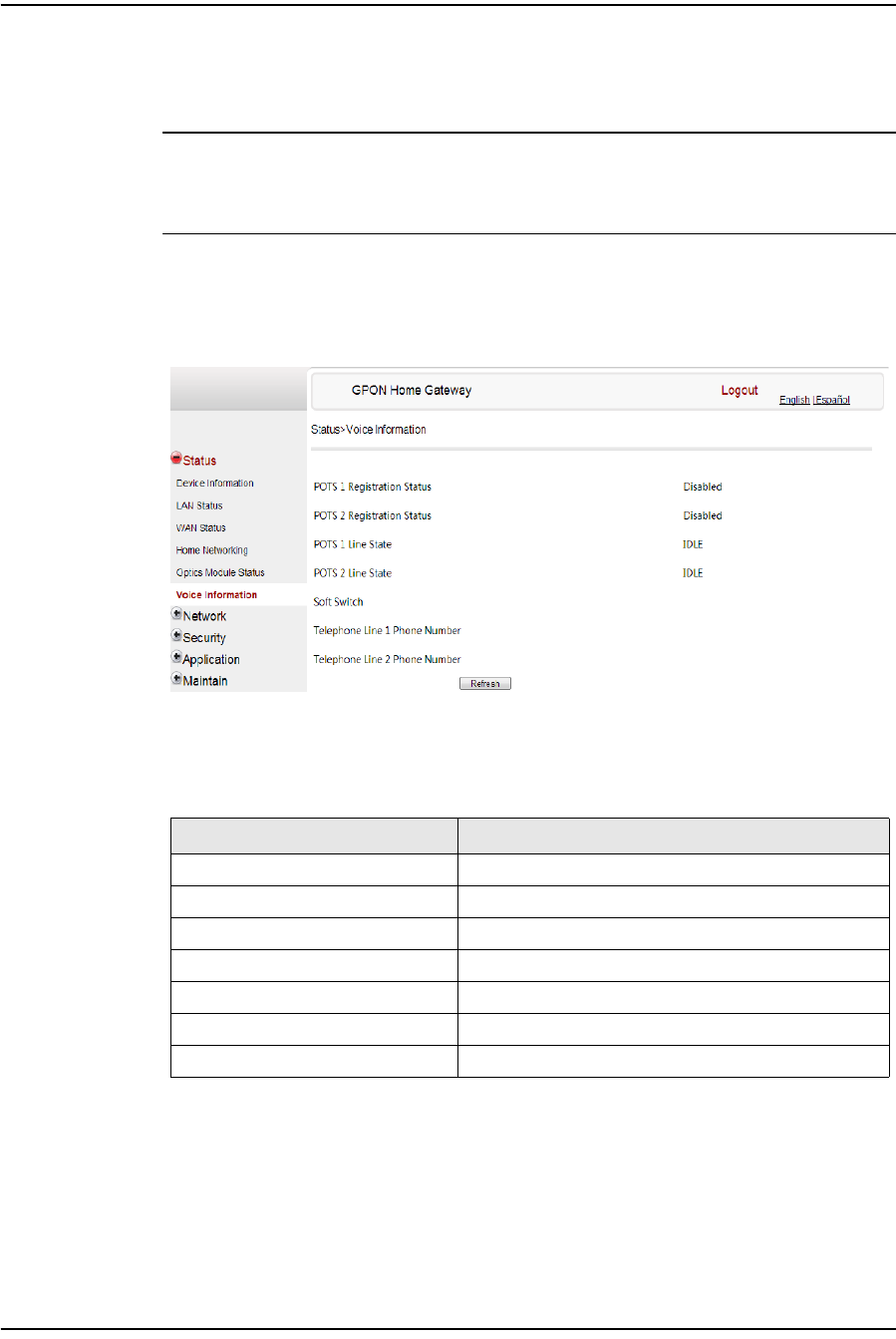

Procedure 4-8 Voice information retrieval.....................................4-11
Network configuration..............................................................4-12

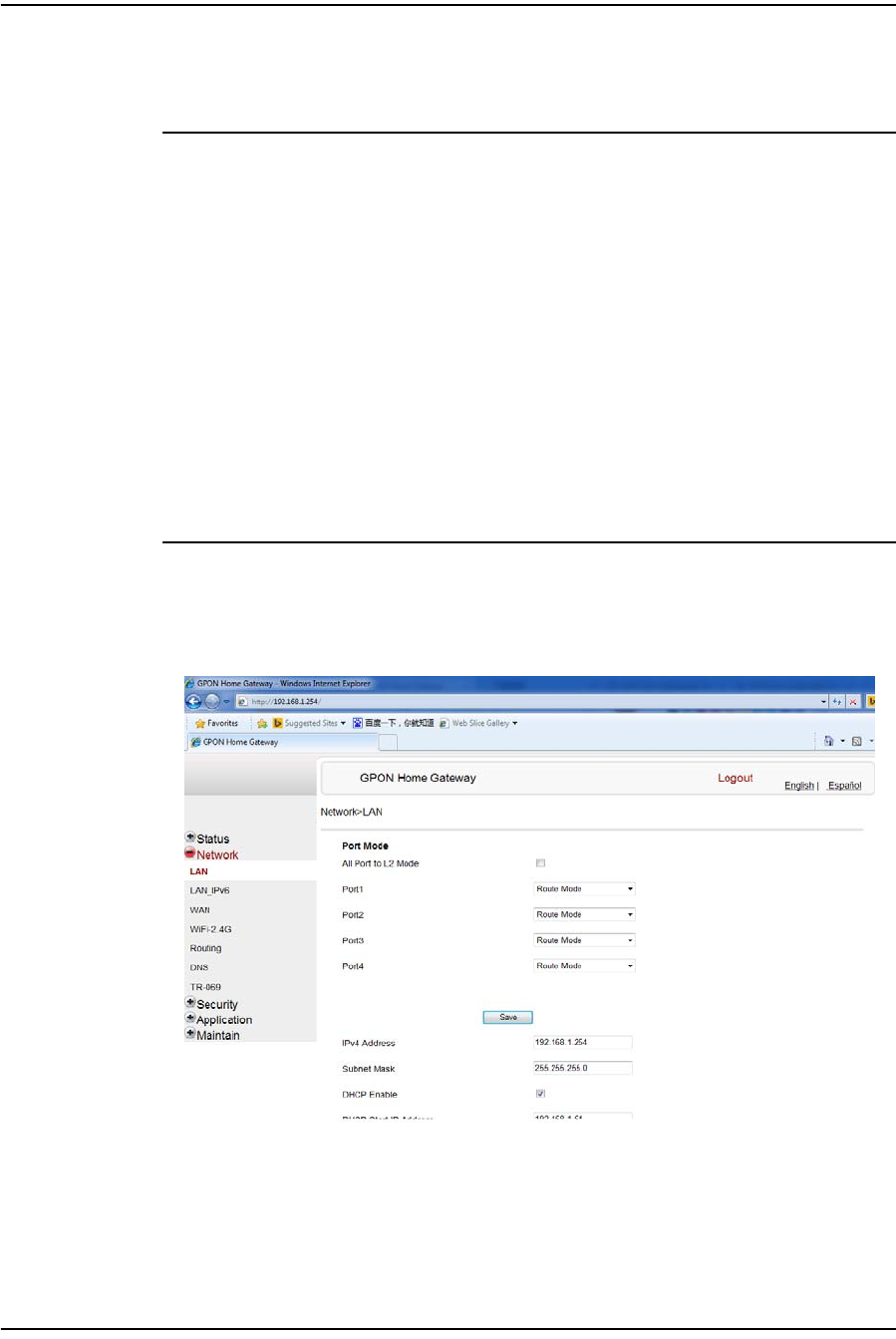

Procedure 4-9 LAN networking configuration..................................4-12

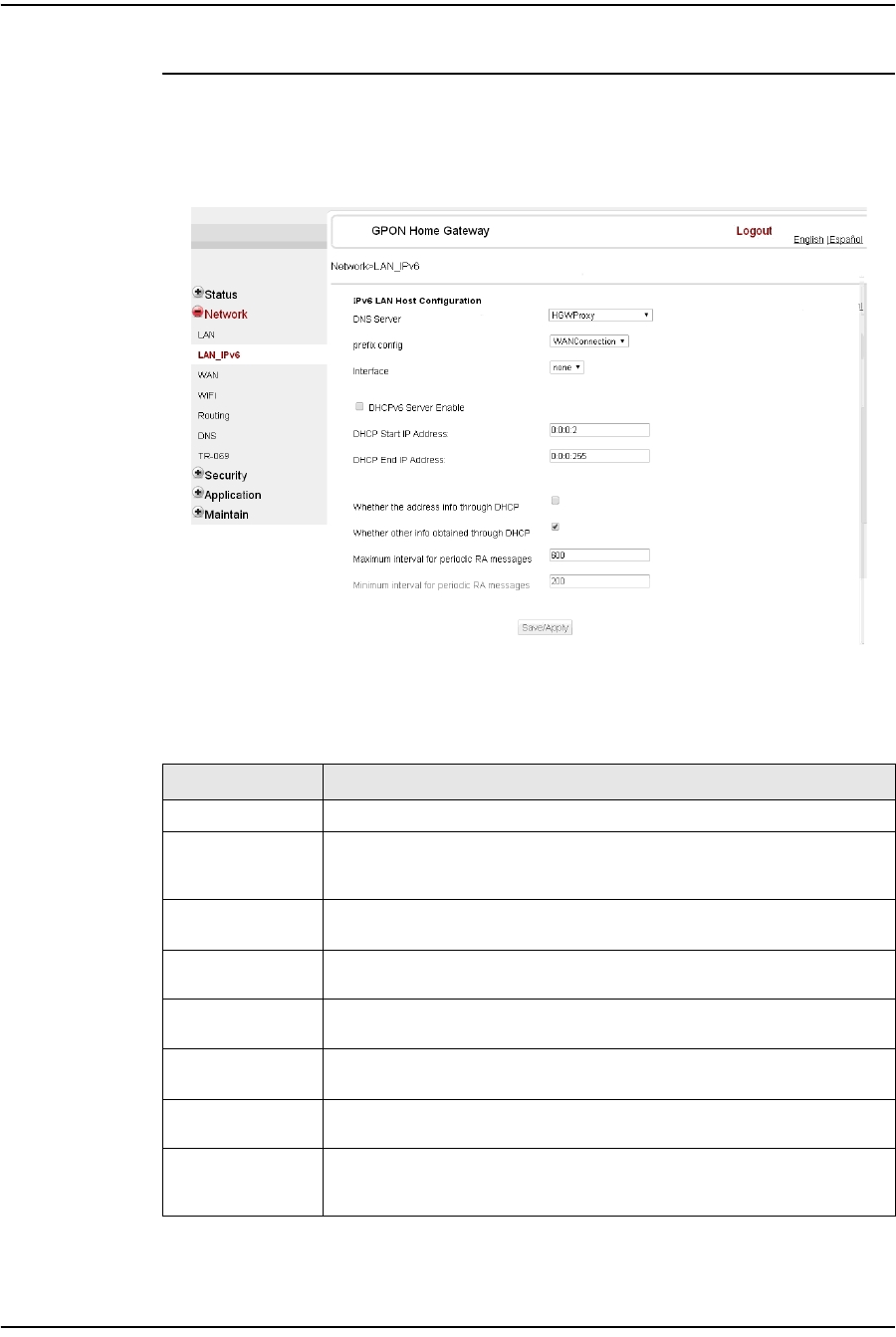

Procedure 4-10 LAN IPv6 networking configuration...........................4-14

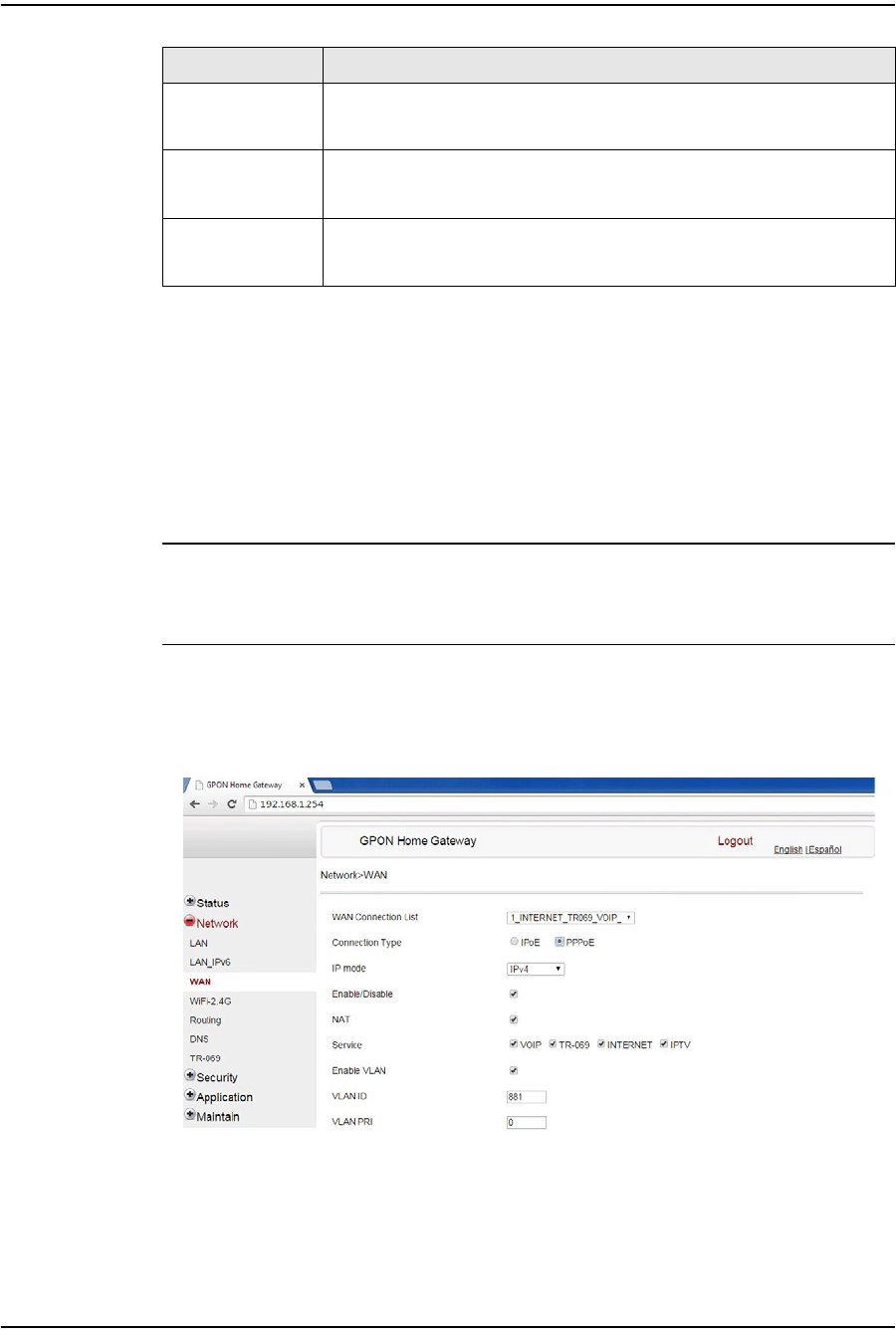

Procedure 4-11 WAN networking configuration................................4-15

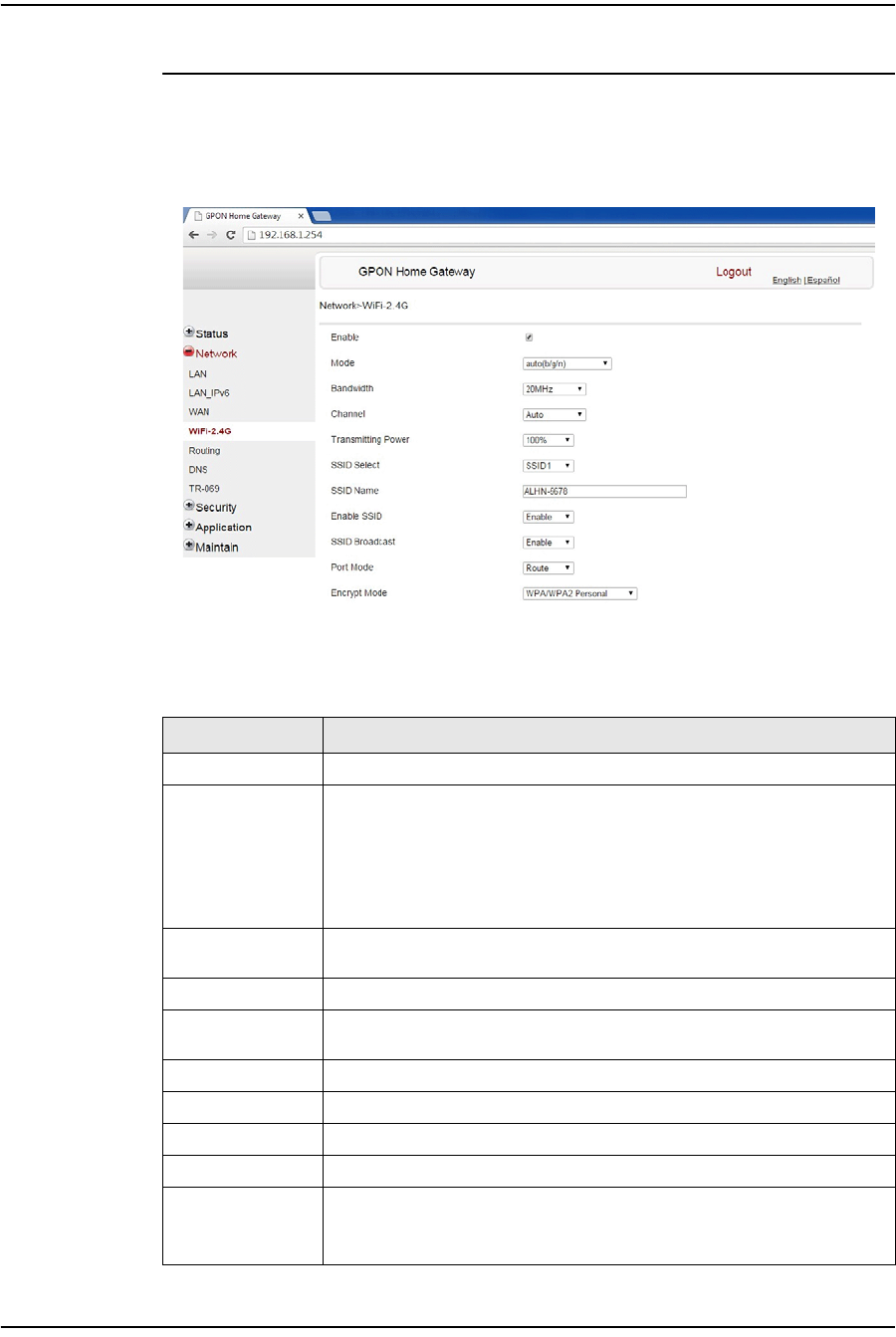

Procedure 4-12 WiFi networking configuration................................4-17
Procedure 4-13 Routing configuration ..........................................4-19
Procedure 4-14 DNS configuration...............................................4-20

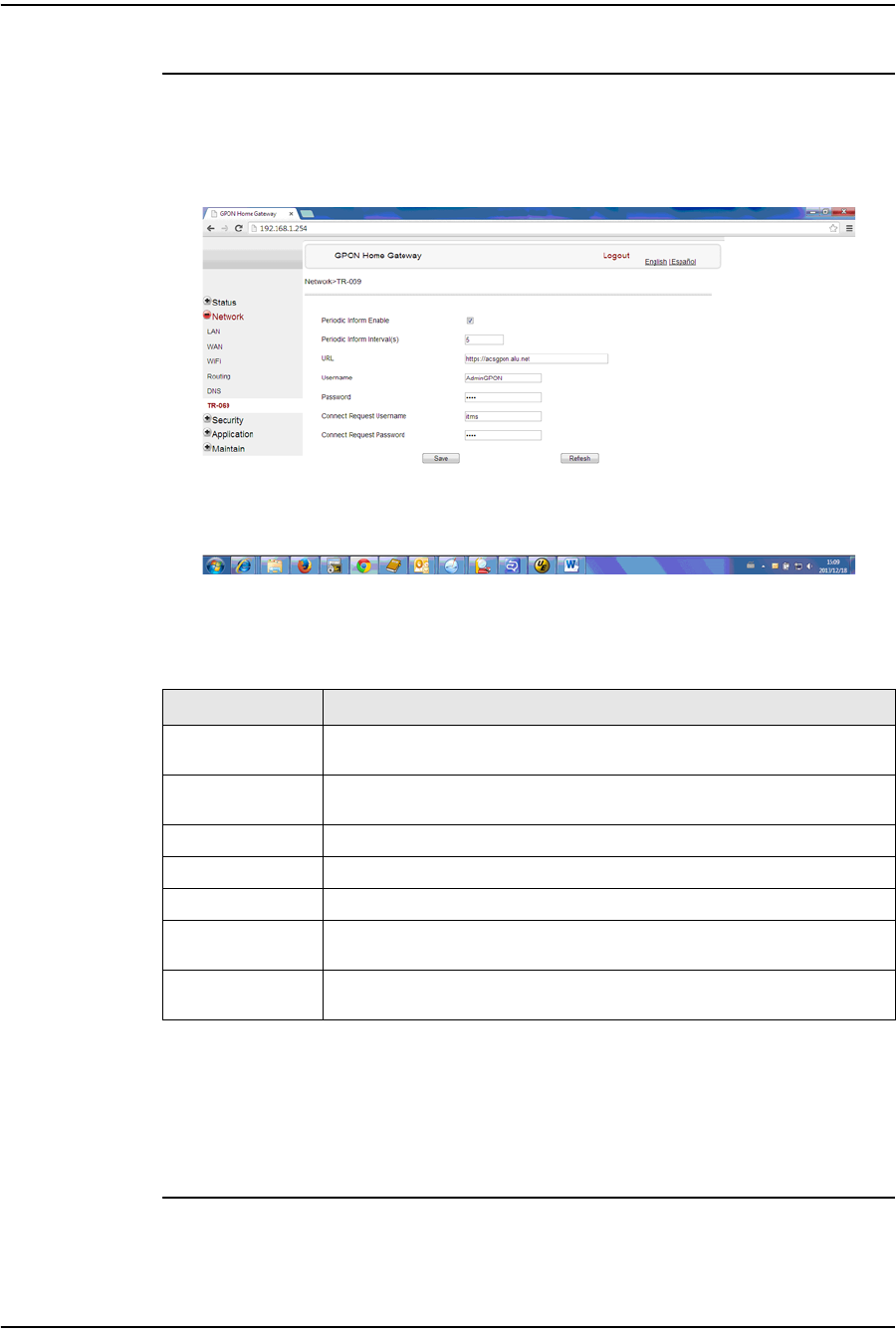

Procedure 4-15 TR-069 configuration ...........................................4-21
Security configuration..............................................................4-22
Procedure 4-16 Firewall configuration..........................................4-22

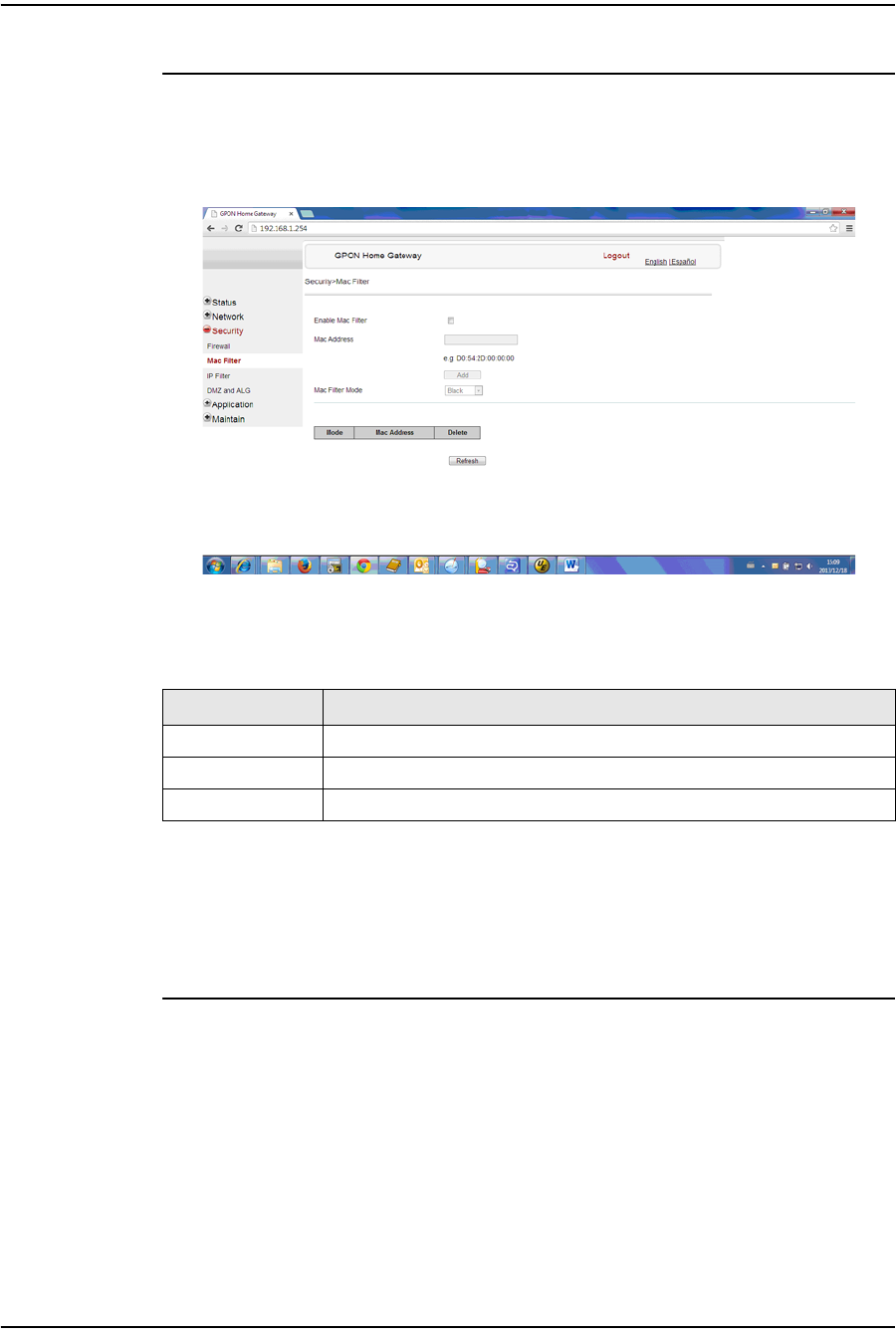

Procedure 4-17 MAC filter configuration .......................................4-23

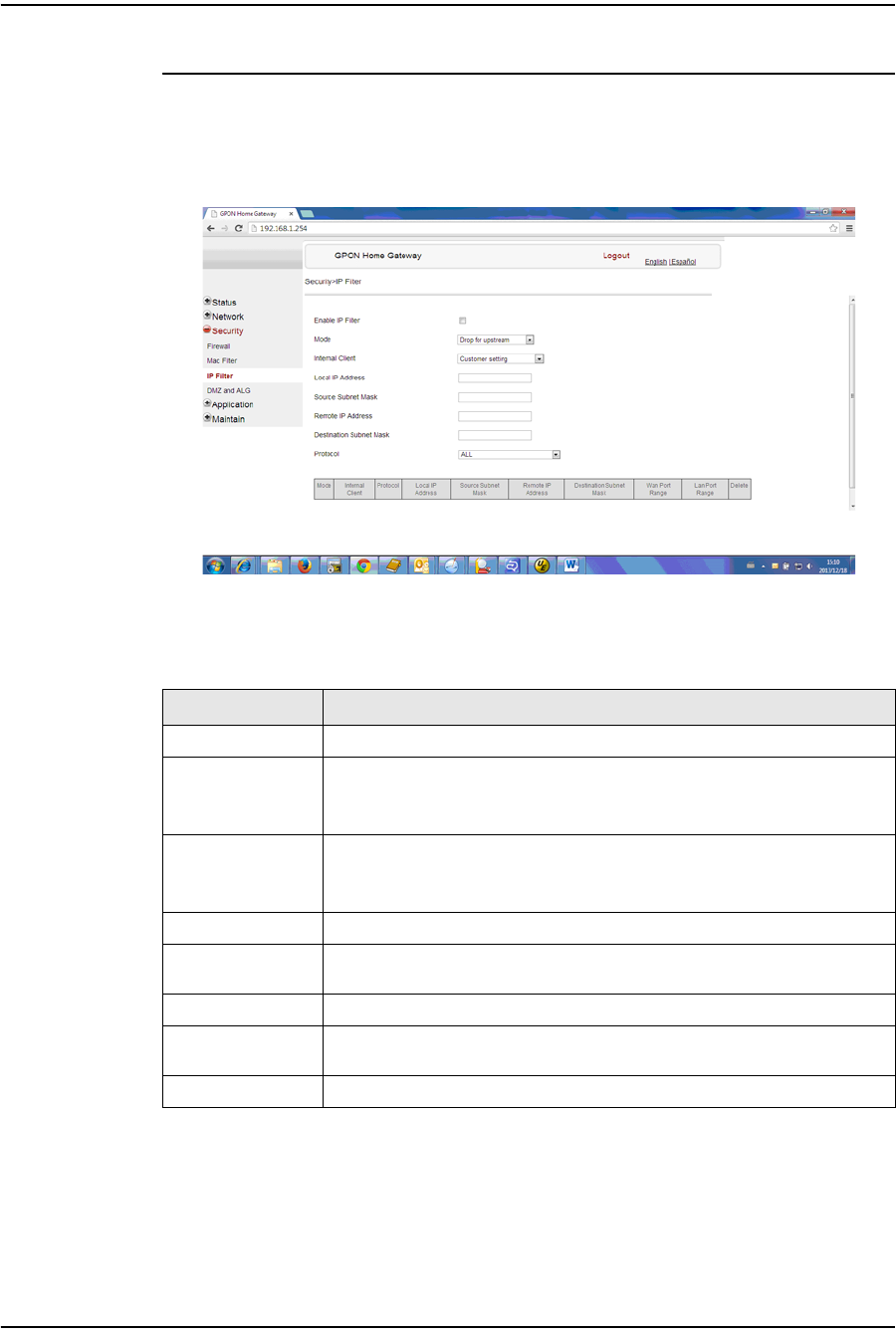

Procedure 4-18 IP filter configuration ..........................................4-24

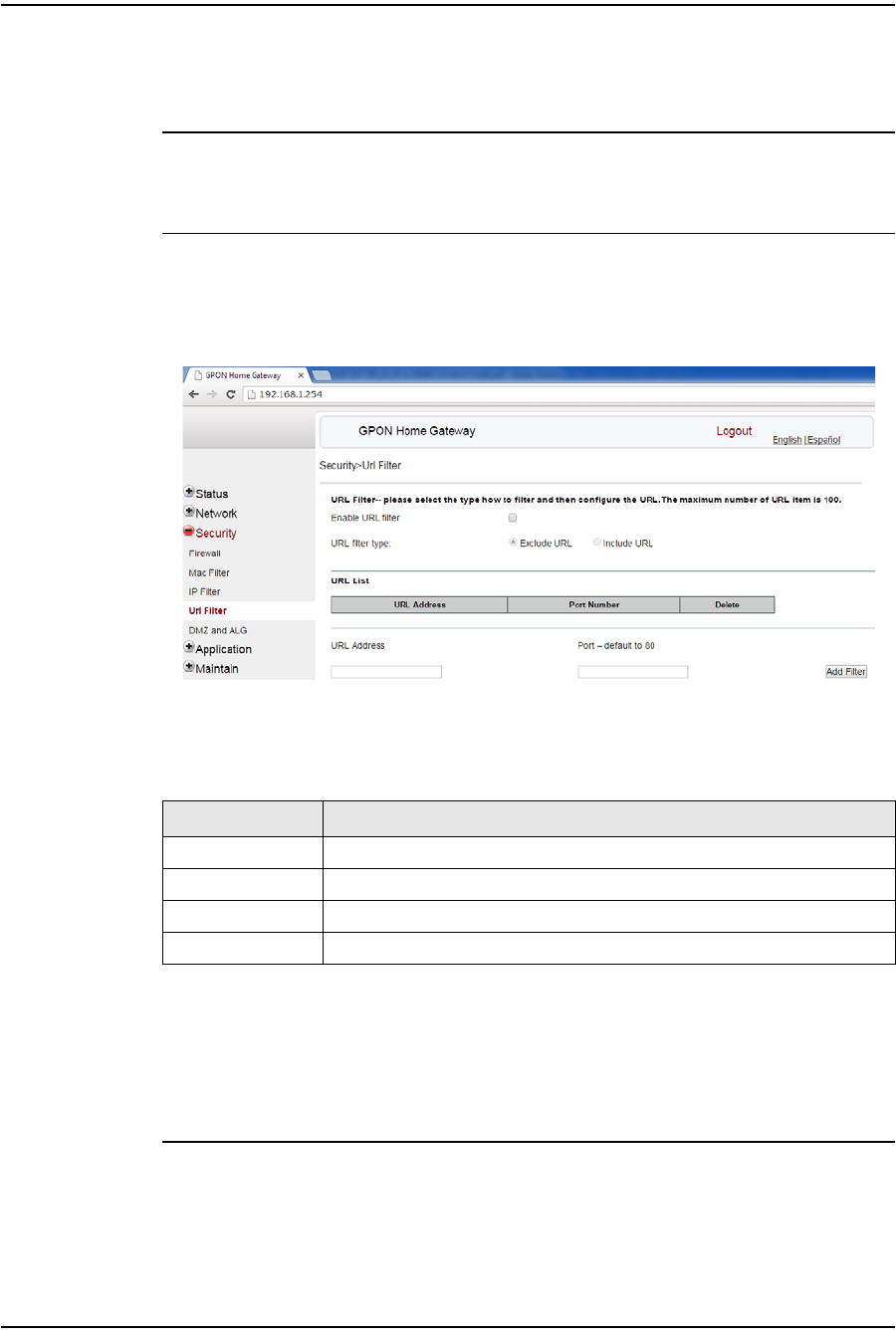

Procedure 4-19 URL filter configuration........................................4-25

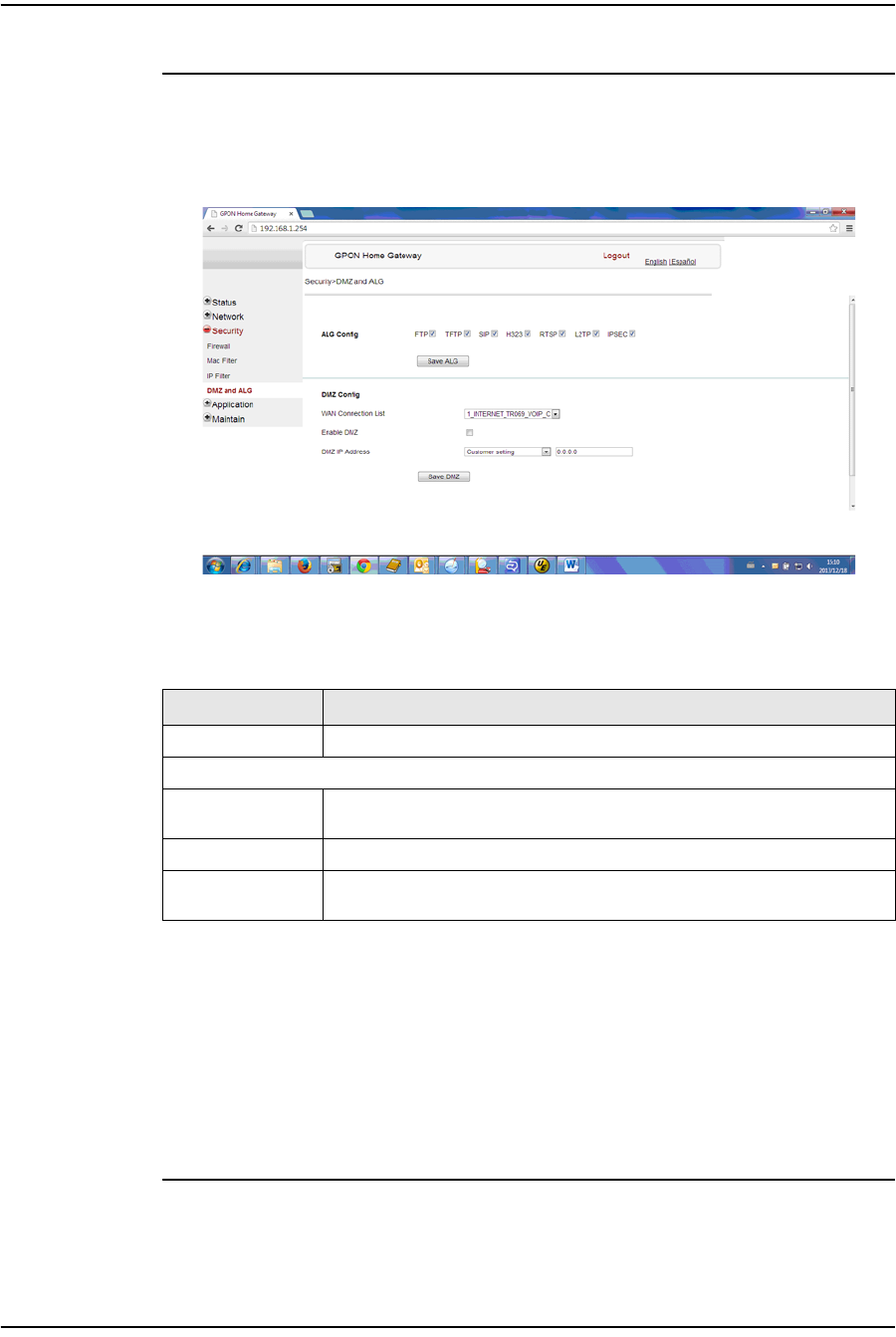

Procedure 4-20 DMZ and ALG configuration....................................4-26
Application configuration..........................................................4-27
Procedure 4-21 Port forwarding configuration ................................4-27

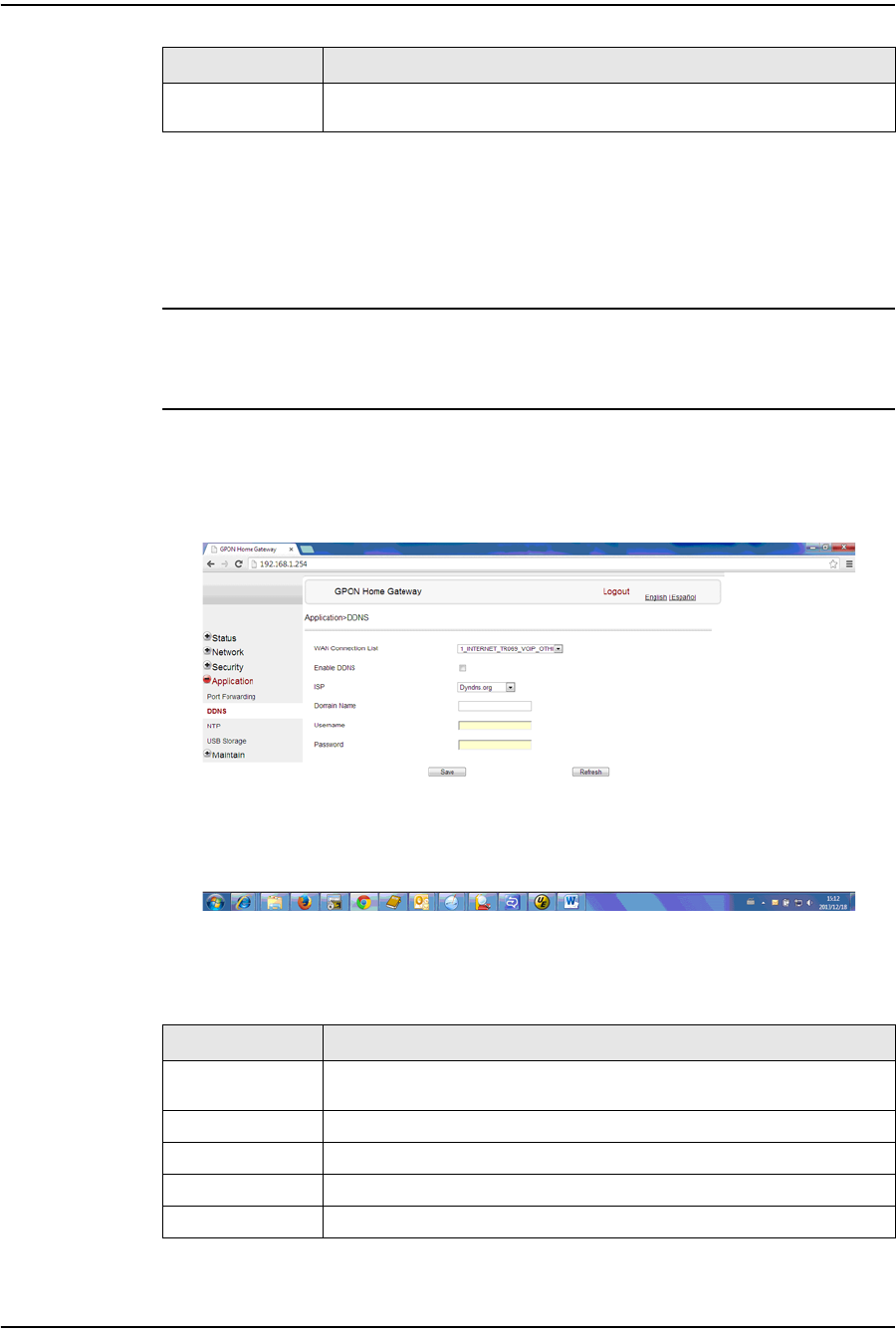

Procedure 4-22 DDNS configuration .............................................4-28

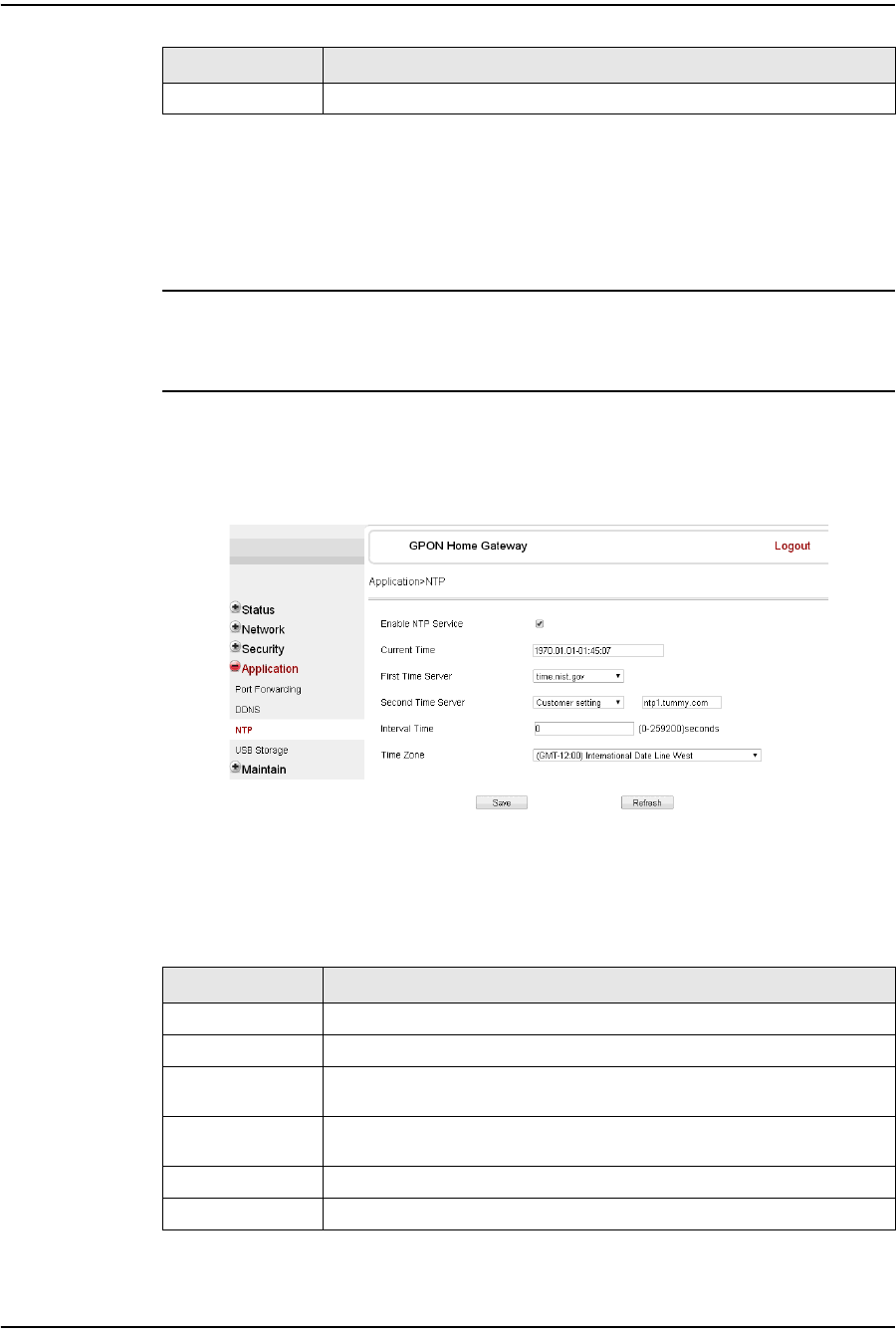

Procedure 4-23 NTP configuration...............................................4-29

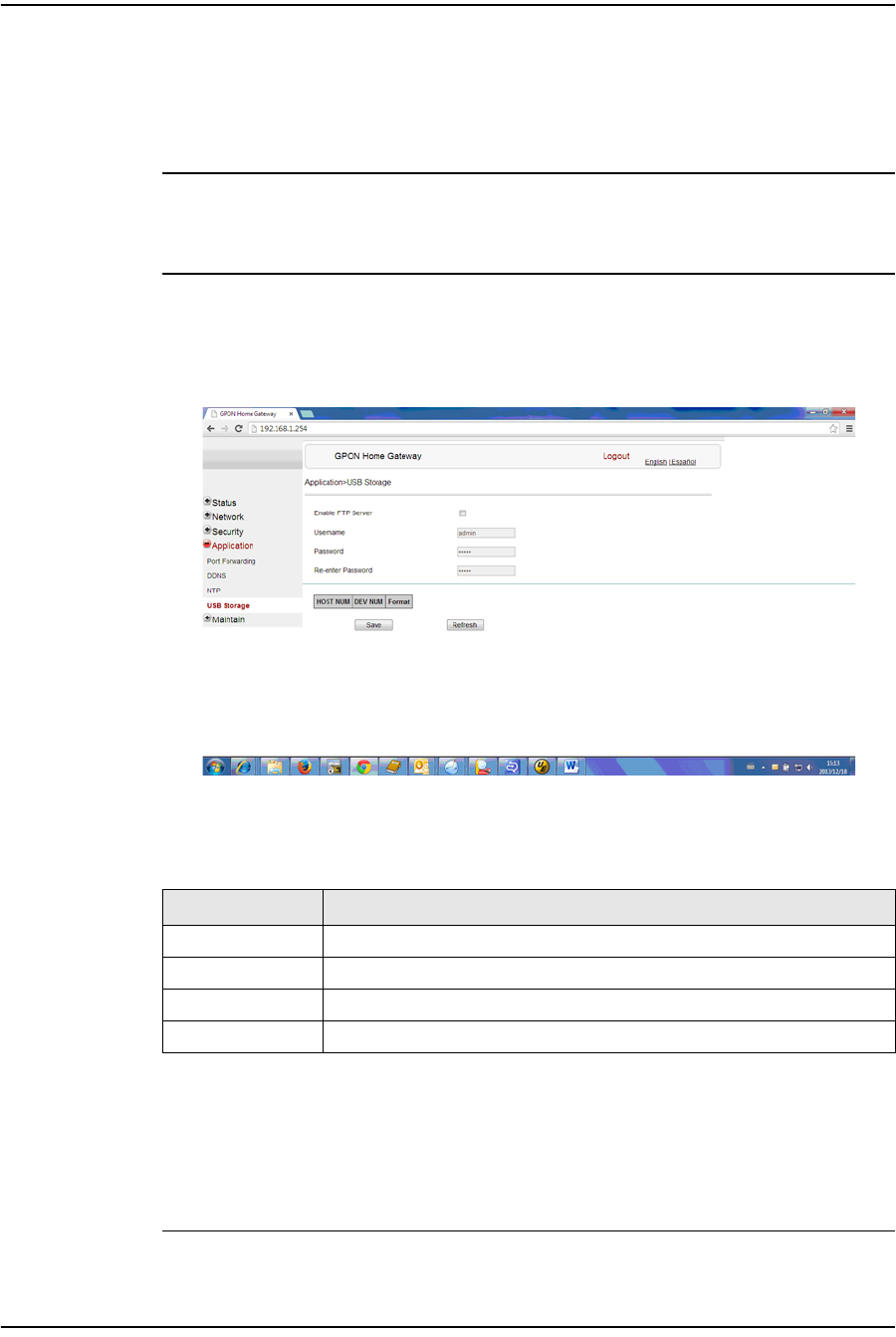

Procedure 4-24 USB storage configuration .....................................4-30

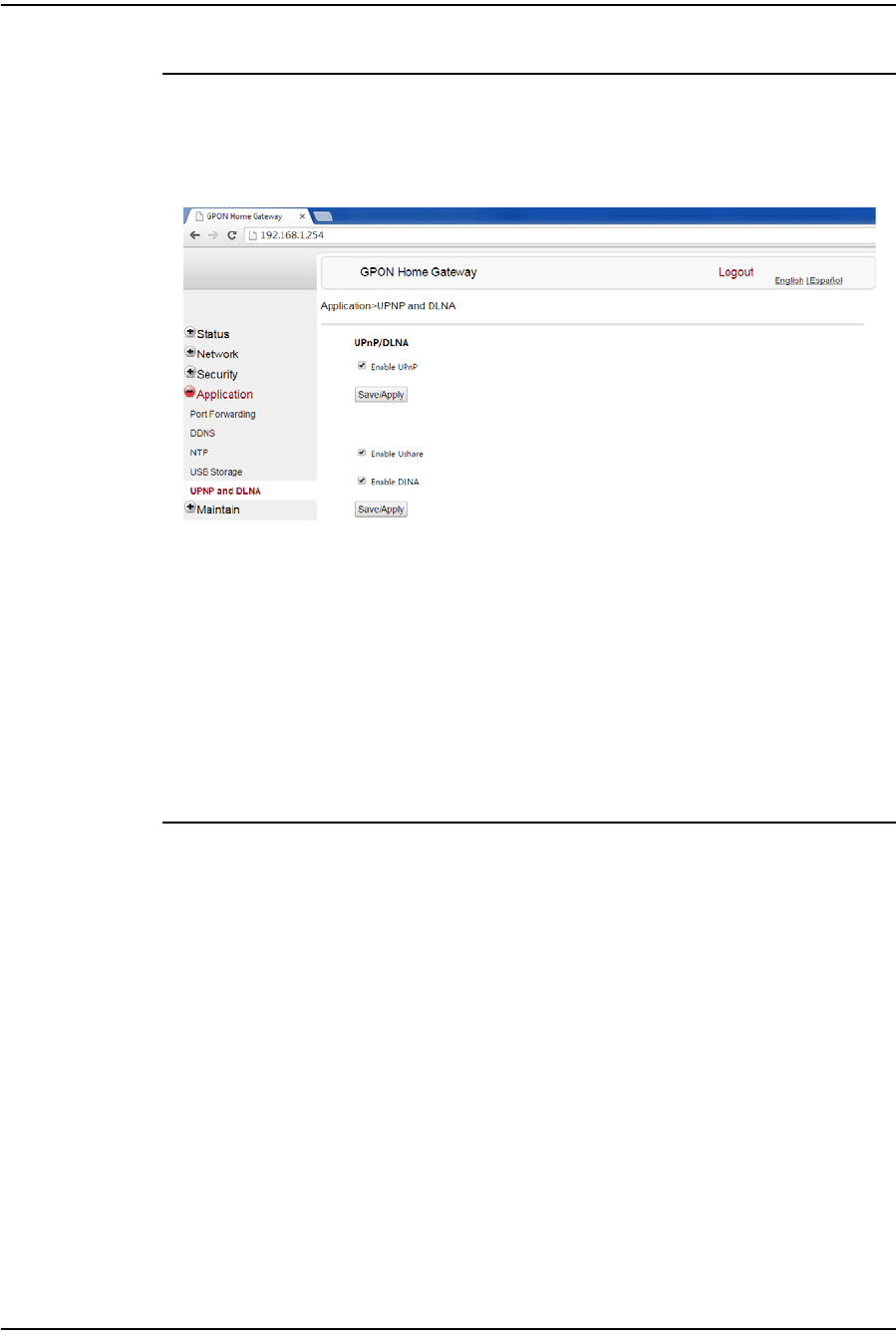

Procedure 4-25 UPnP and DLNA configuration.................................4-31
Maintenance .........................................................................4-31

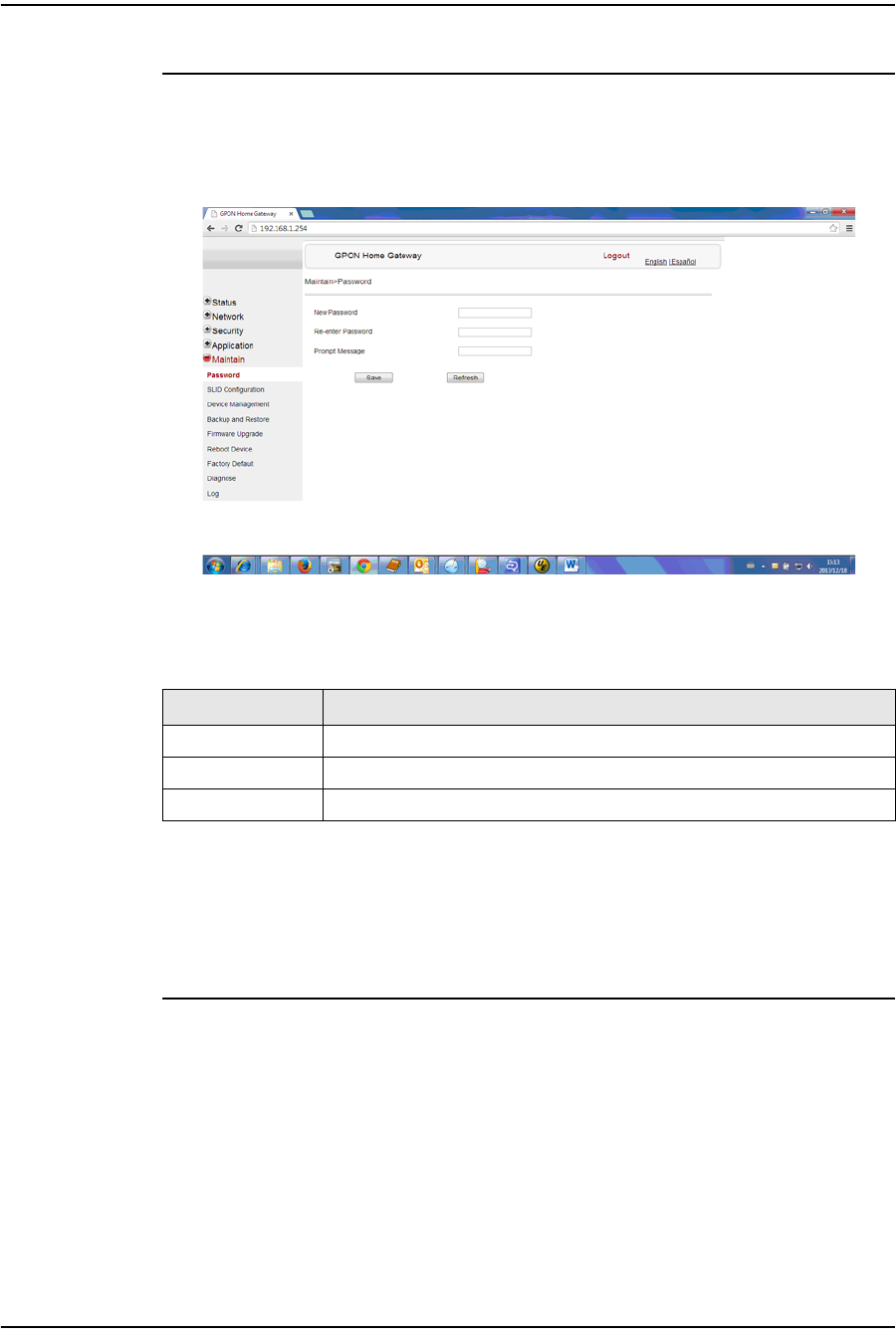

Procedure 4-26 Password configuration ........................................4-32

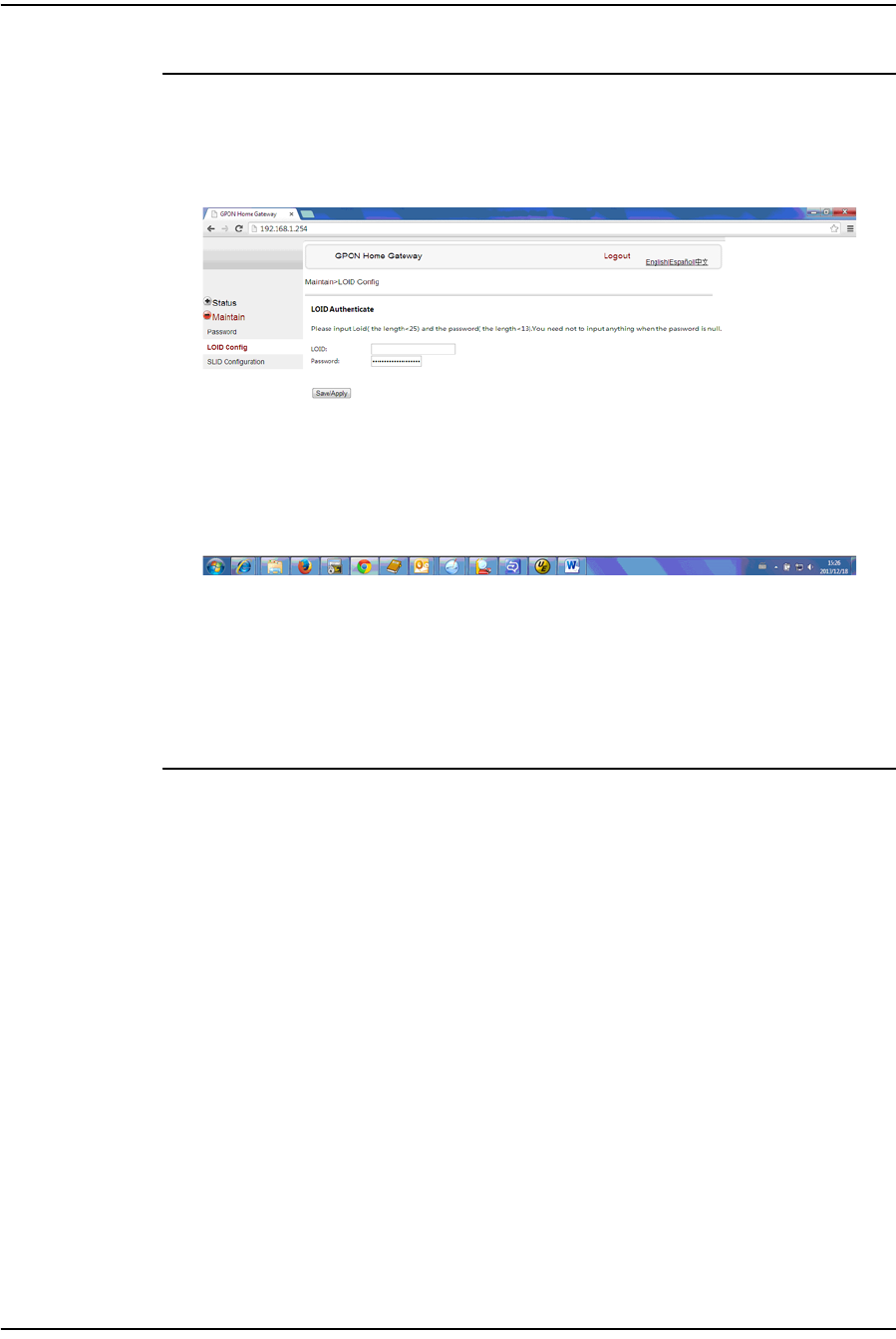

Procedure 4-27 LOID configuration..............................................4-33

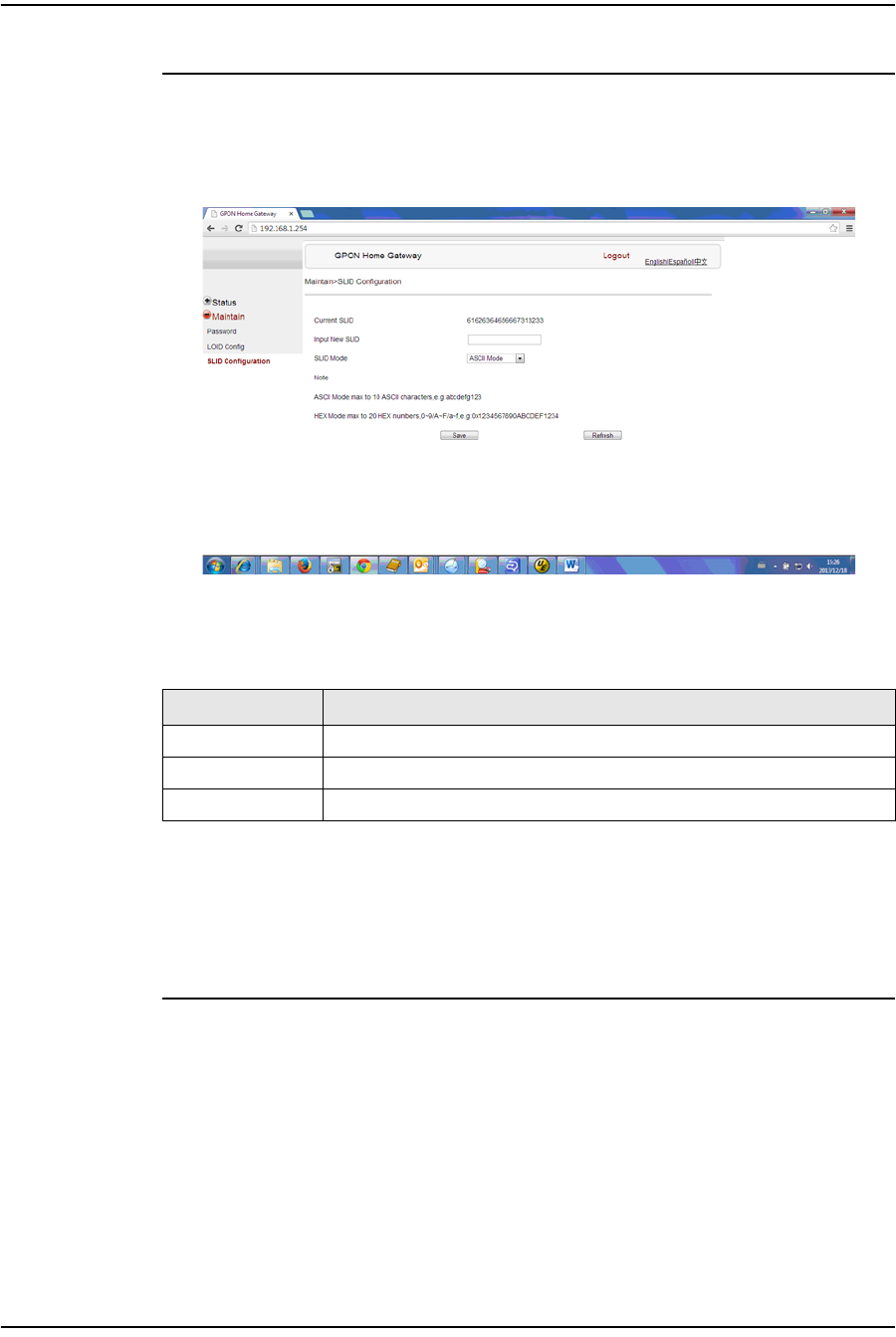

Procedure 4-28 SLID configuration ..............................................4-34
Procedure 4-29 Device management............................................4-35

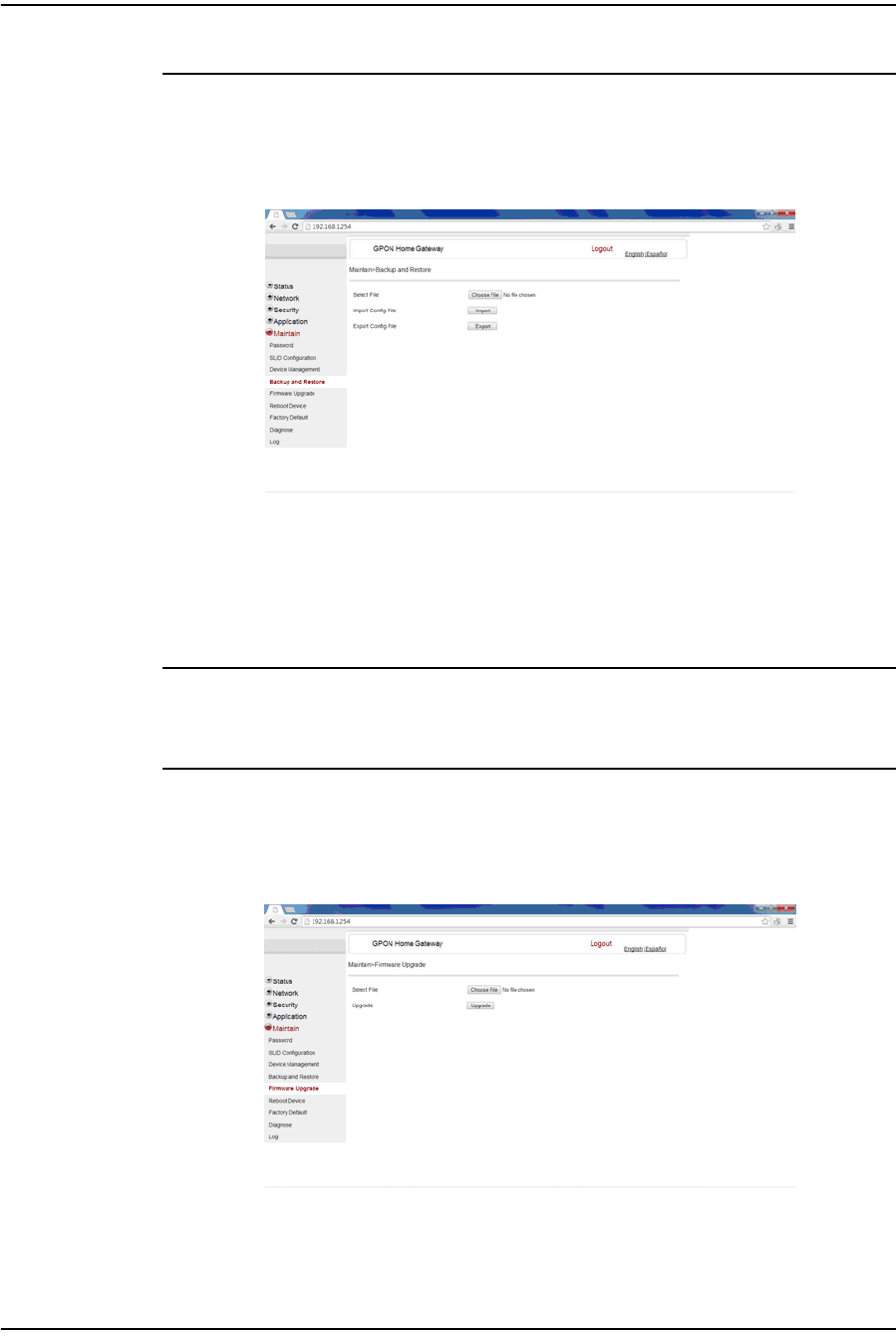

Procedure 4-30 Backup and restore .............................................4-36
Procedure 4-31 Upgrade firmware...............................................4-36

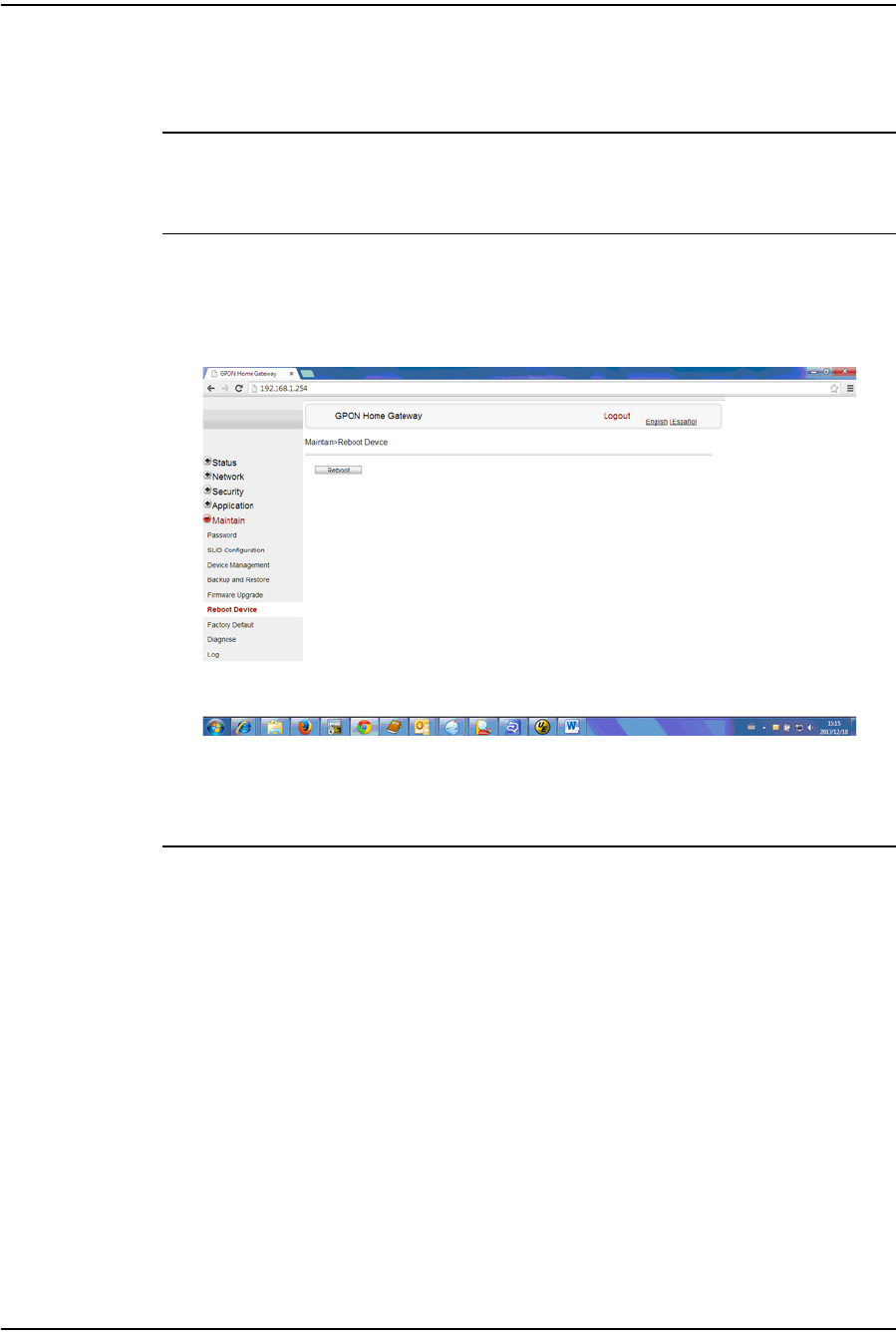

Procedure 4-32 Reboot ONT ......................................................4-37

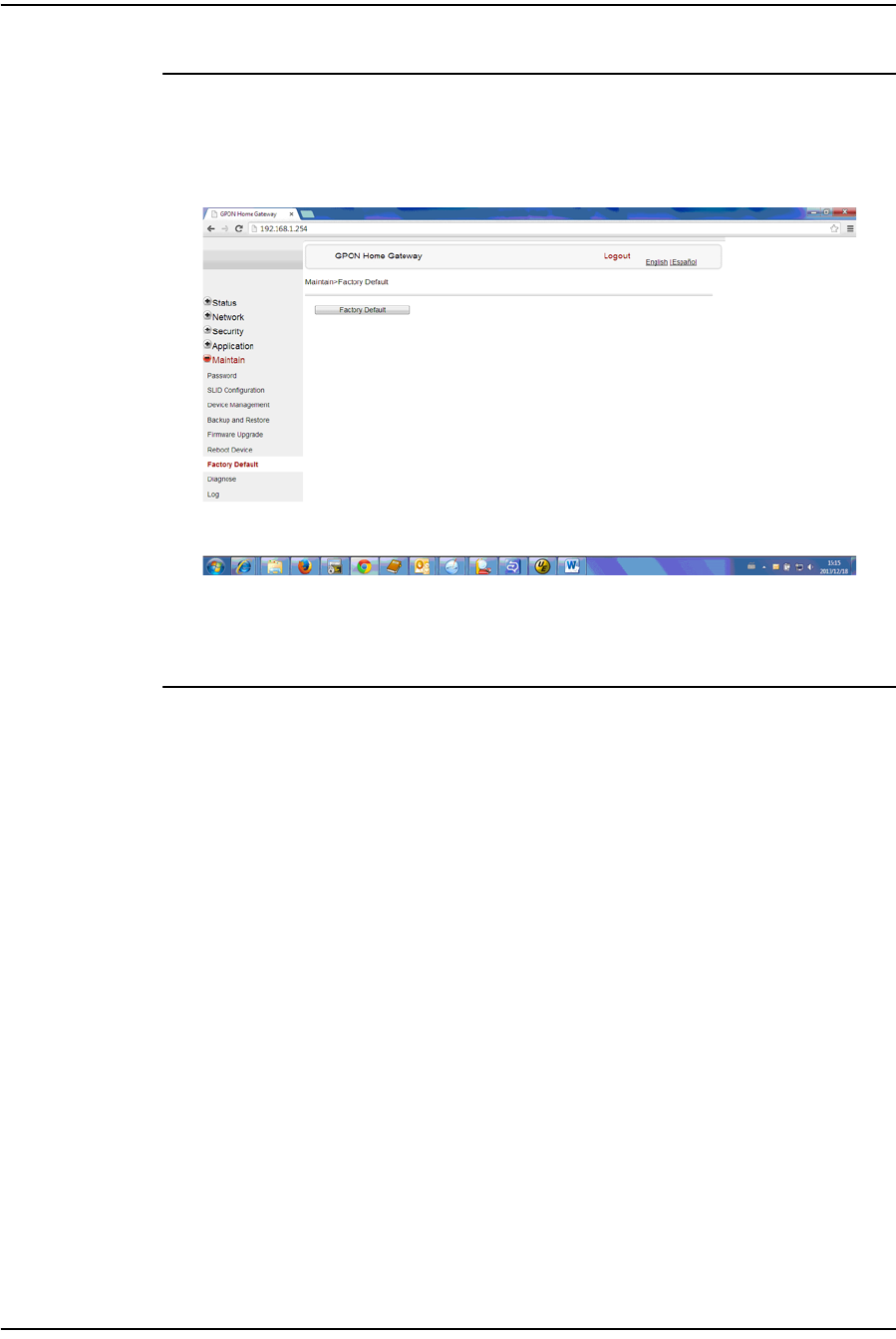

Procedure 4-33 Restore factory defaults .......................................4-38

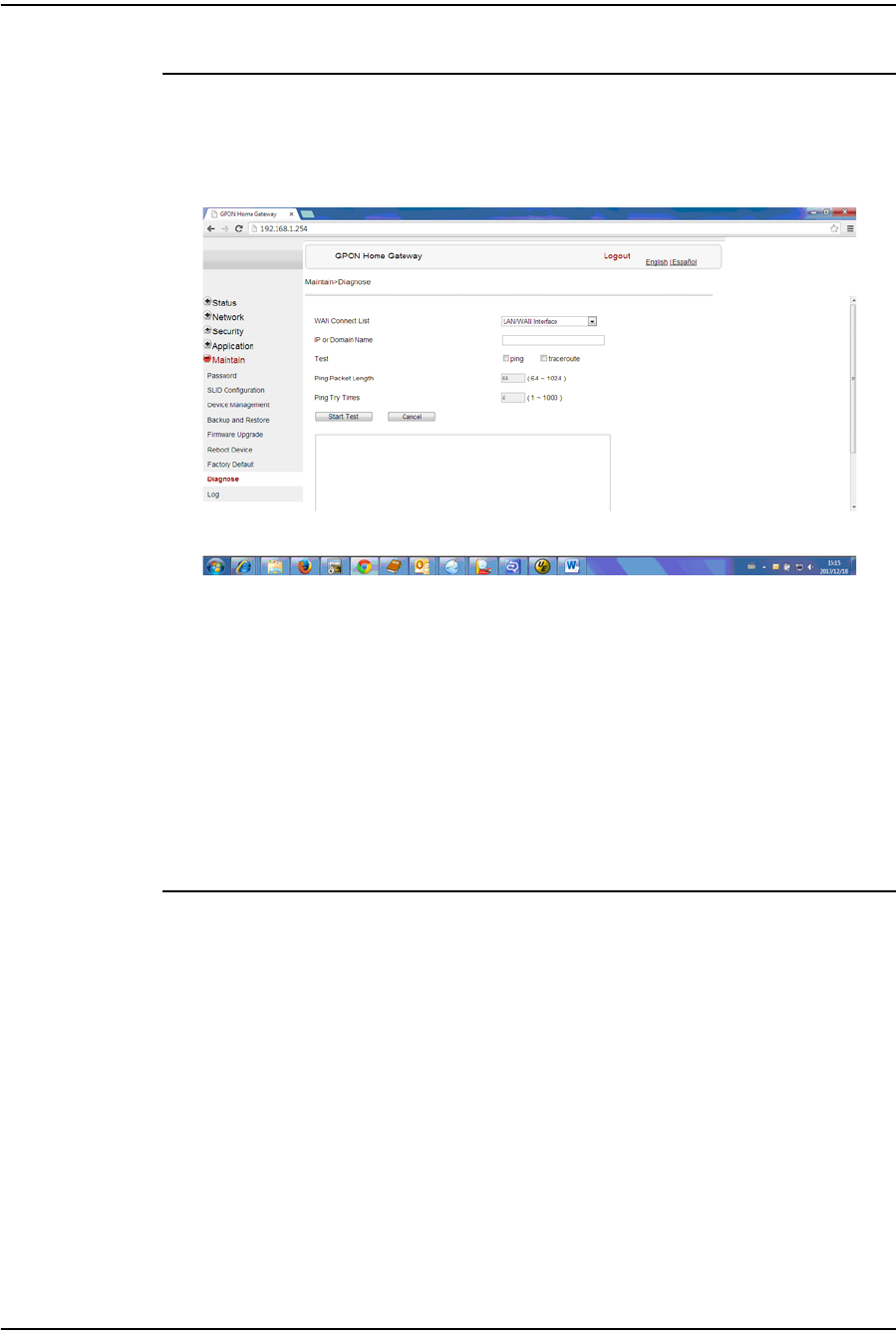

Procedure 4-34 Diagnose connections...........................................4-39

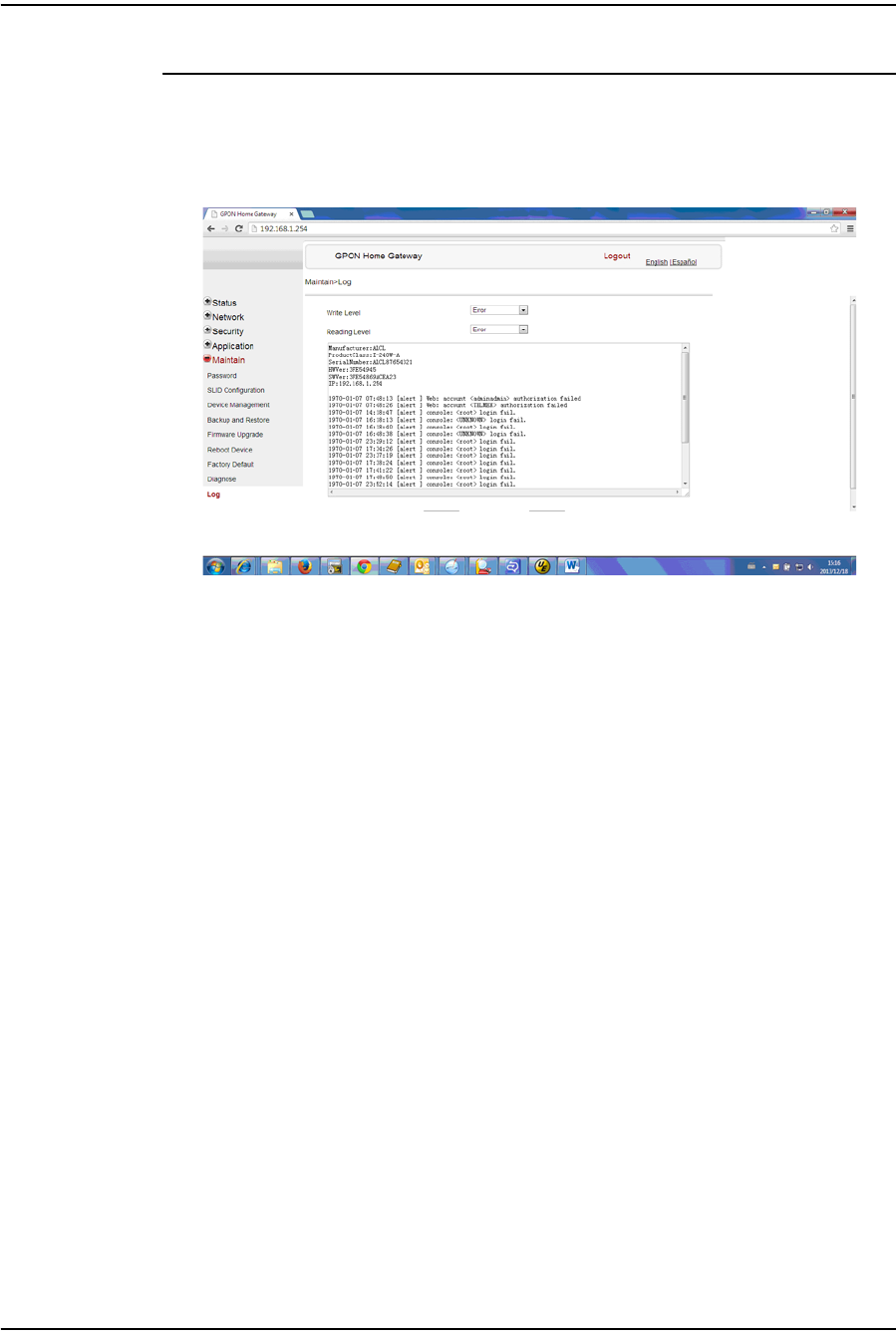

Procedure 4-35 View log files ....................................................4-40
RG troubleshooting counters ......................................................4-41

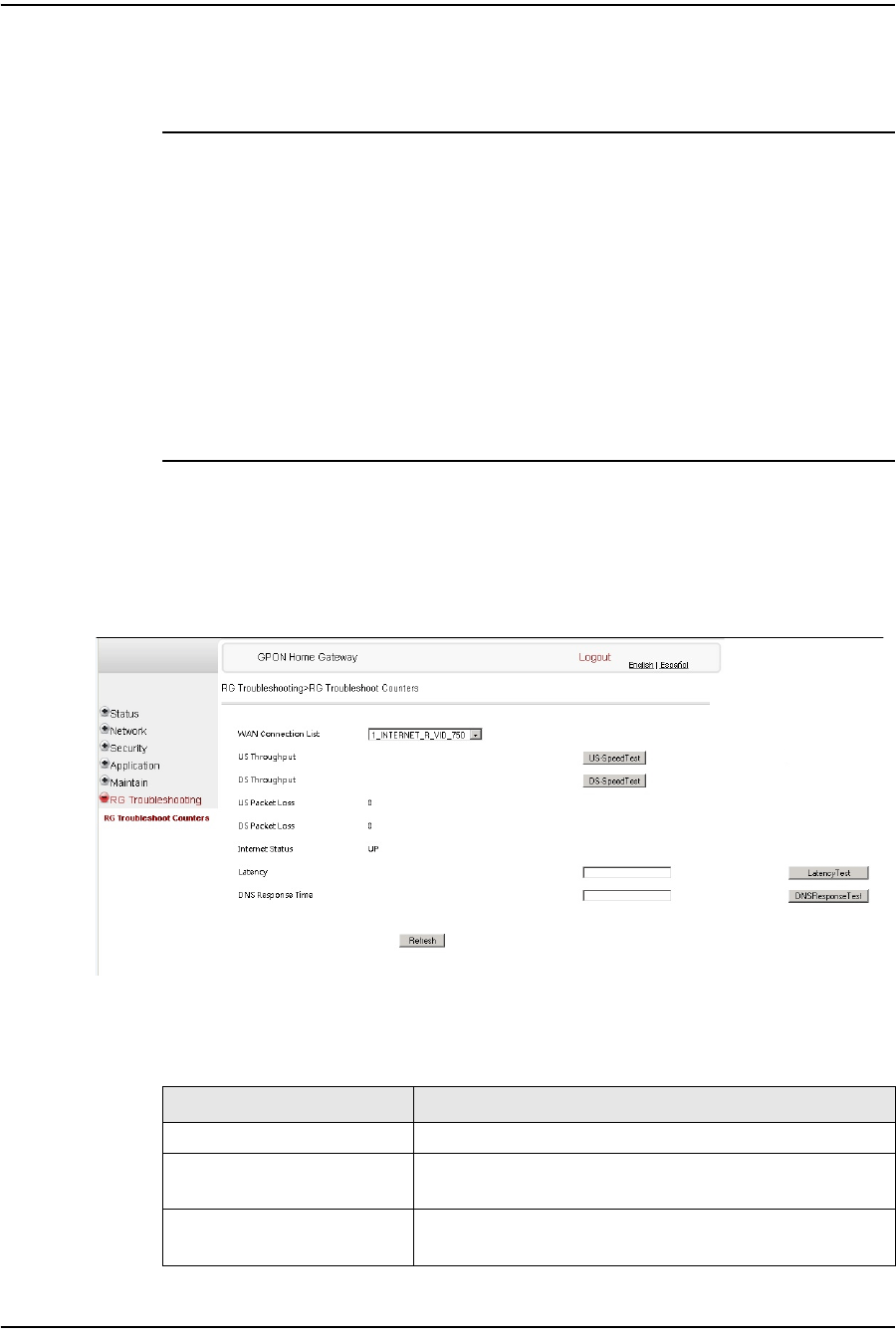

Procedure 4-36 Retrieve Residential Gateway (RG)
troubleshooting counters ....................................................4-41
4.3 SFU mode GUI configuration .........................................................4-42
Login ..................................................................................4-42
Procedure 4-37 Login to web-based GUI........................................4-42
Device and connection status .....................................................4-43

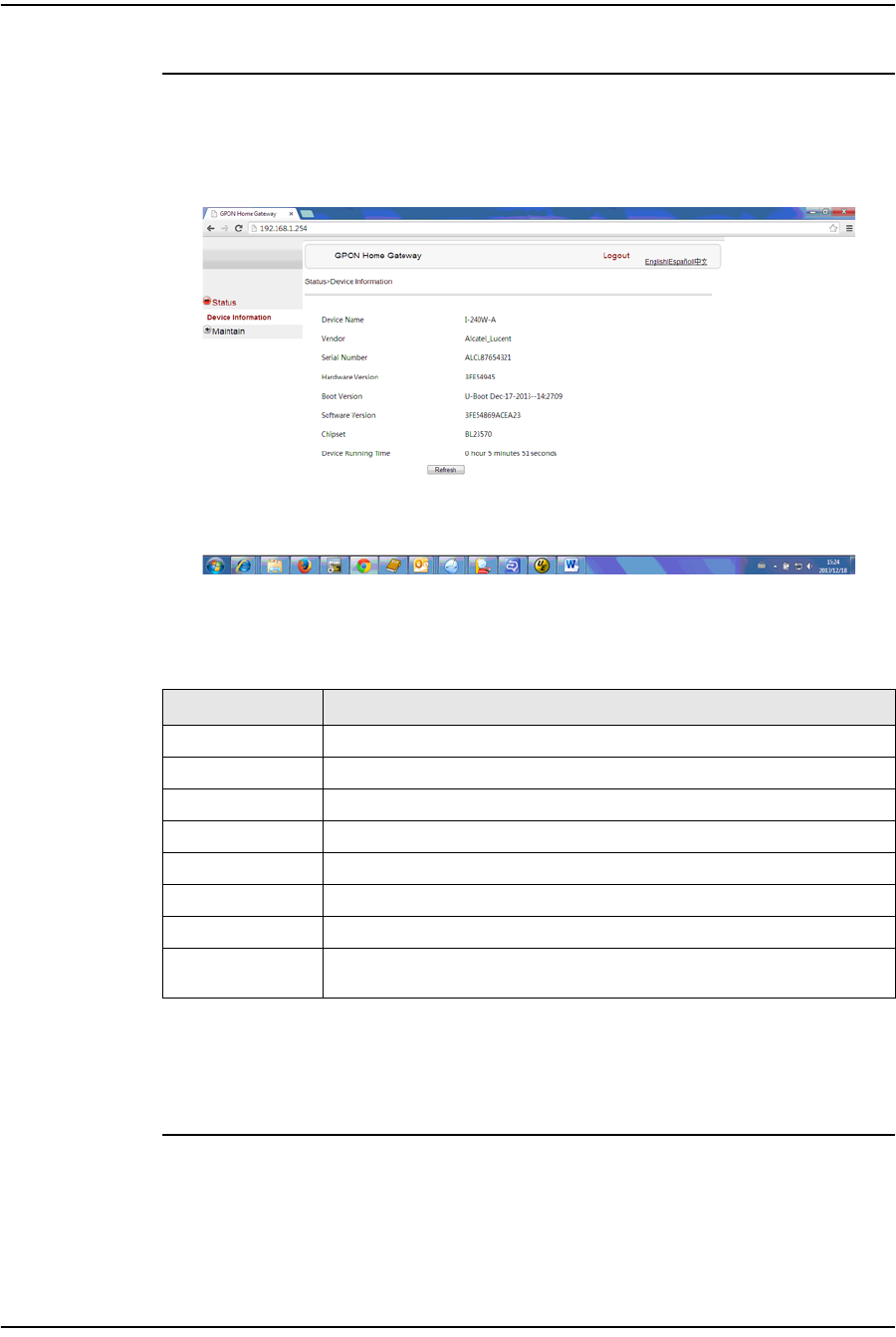

Procedure 4-38 Device information retrieval ..................................4-44
Maintenance .........................................................................4-45
Procedure 4-39 Password configuration ........................................4-45
Procedure 4-40 LOID configuration..............................................4-46
Procedure 4-41 SLID configuration ..............................................4-47
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Contents
Alcatel-Lucent 7368 ISAM ONT xxxvii
Edition 02
G-240W-A Product Guide
4.4 Operator ID..............................................................................4-47
Procedure 4-42 Modifying the operator ID .....................................4-48
5 — ONT configuration file over OMCI 5-1
5.1 Purpose ................................................................................... 5-2
5.2 Supported configuration file types................................................... 5-2
Filename conventions ............................................................... 5-4
5.3 ONT configuration file over OMCI..................................................... 5-4
Procedure 5-1 Configuring an ONT using a configuration file via
OMCI.............................................................................. 5-5
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Contents
xxxviii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
List of figures
Figure 1 PSE certification............................................................................ xi
Figure 2 Laser product label .......................................................................xiv
Figure 3 Laser classification label.................................................................xiv
Figure 4 Laser warning labels ...................................................................... xv
Figure 1 Products below MCV value label ...................................................... xviii
Figure 2 Products above MCV value label ........................................................xix
Figure 3 Recycling/take back/disposal of product symbol ....................................xxi
Figure 1 Sample safety label on the ONT equipment.......................................... xxv
Figure 2 Sample laser product label showing CDRH 21 CFR compliance ..................xxvii
Figure 3 Laser product label ....................................................................xxviii
Figure 4 Laser classification label..............................................................xxviii
Figure 5 Laser warning labels .................................................................... xxix
Figure 6 Sample laser product safety label on the ONT equipment......................... xxx

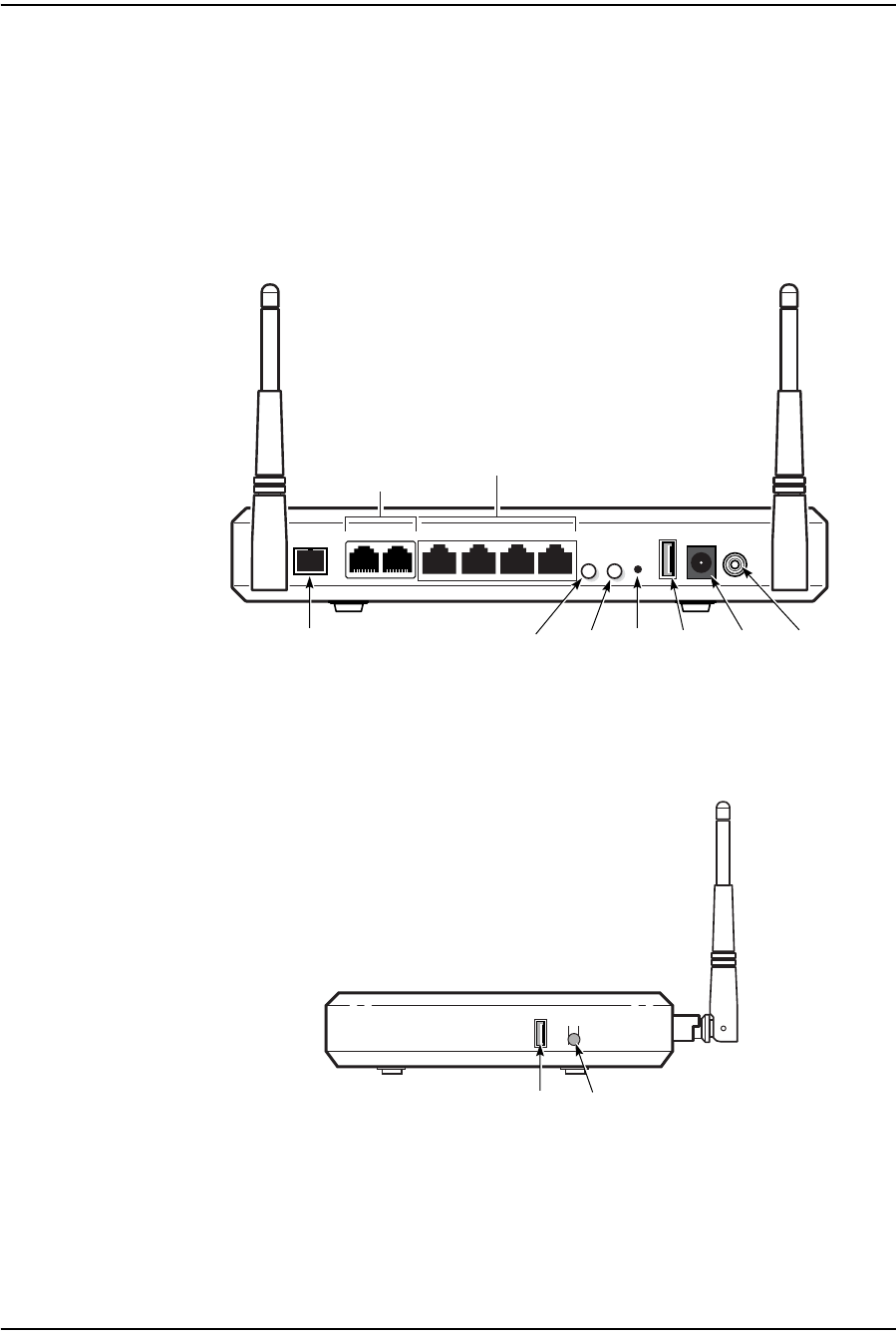

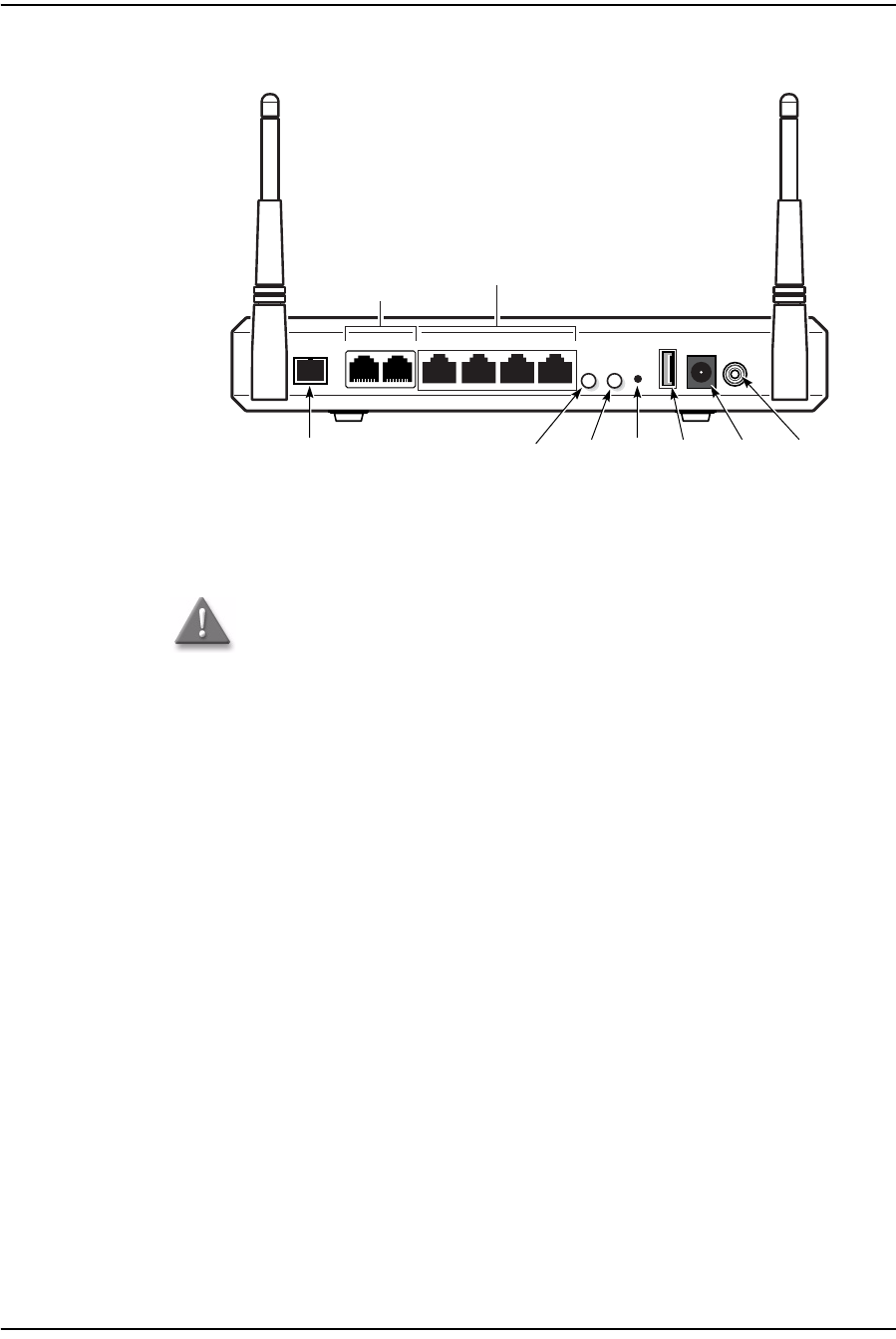

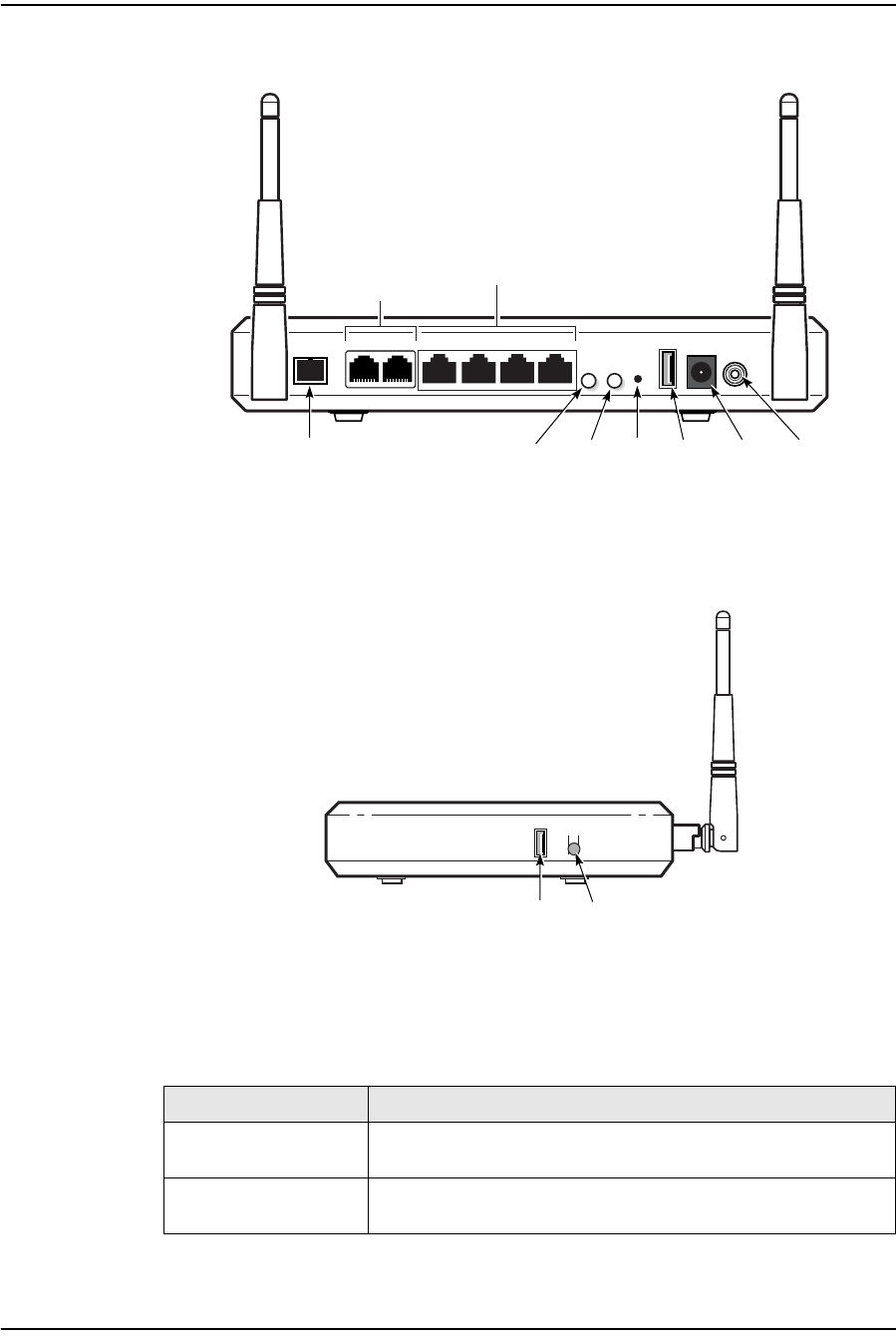

Figure 1-1 G-240W-A indoor ONT physical connections (back view) ........................ 1-7

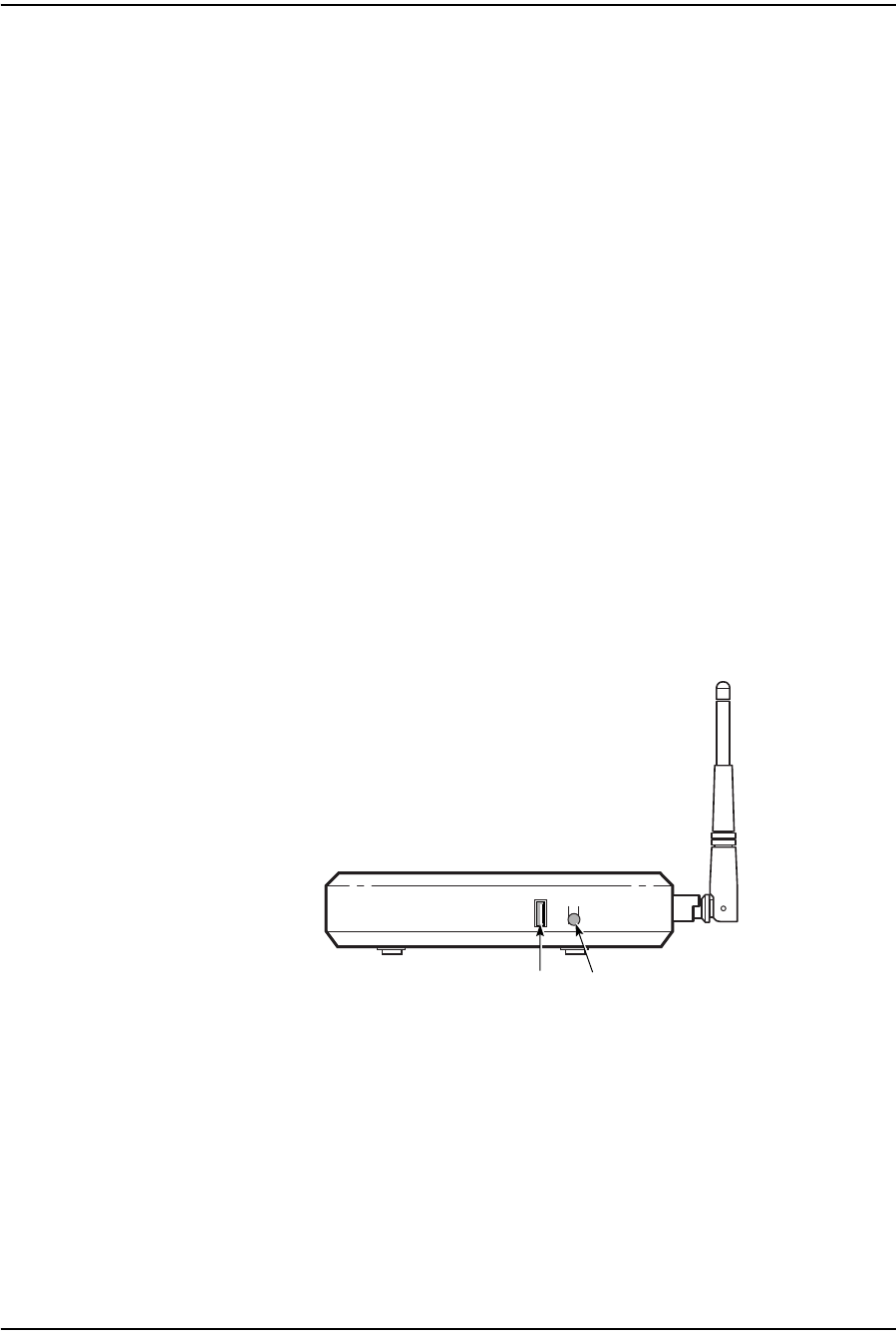

Figure 1-2 G-240W-A indoor ONT physical connections (side view)......................... 1-7
Figure 1-3 G-240W-A indoor ONT LEDs........................................................... 1-9
Figure 1-4 Single-residence Wi-Fi ONT with Gigabit Ethernet and POTS and
without RF video ................................................................1-14
Figure 1-5 G-240W-A ONT hardware block.....................................................1-14

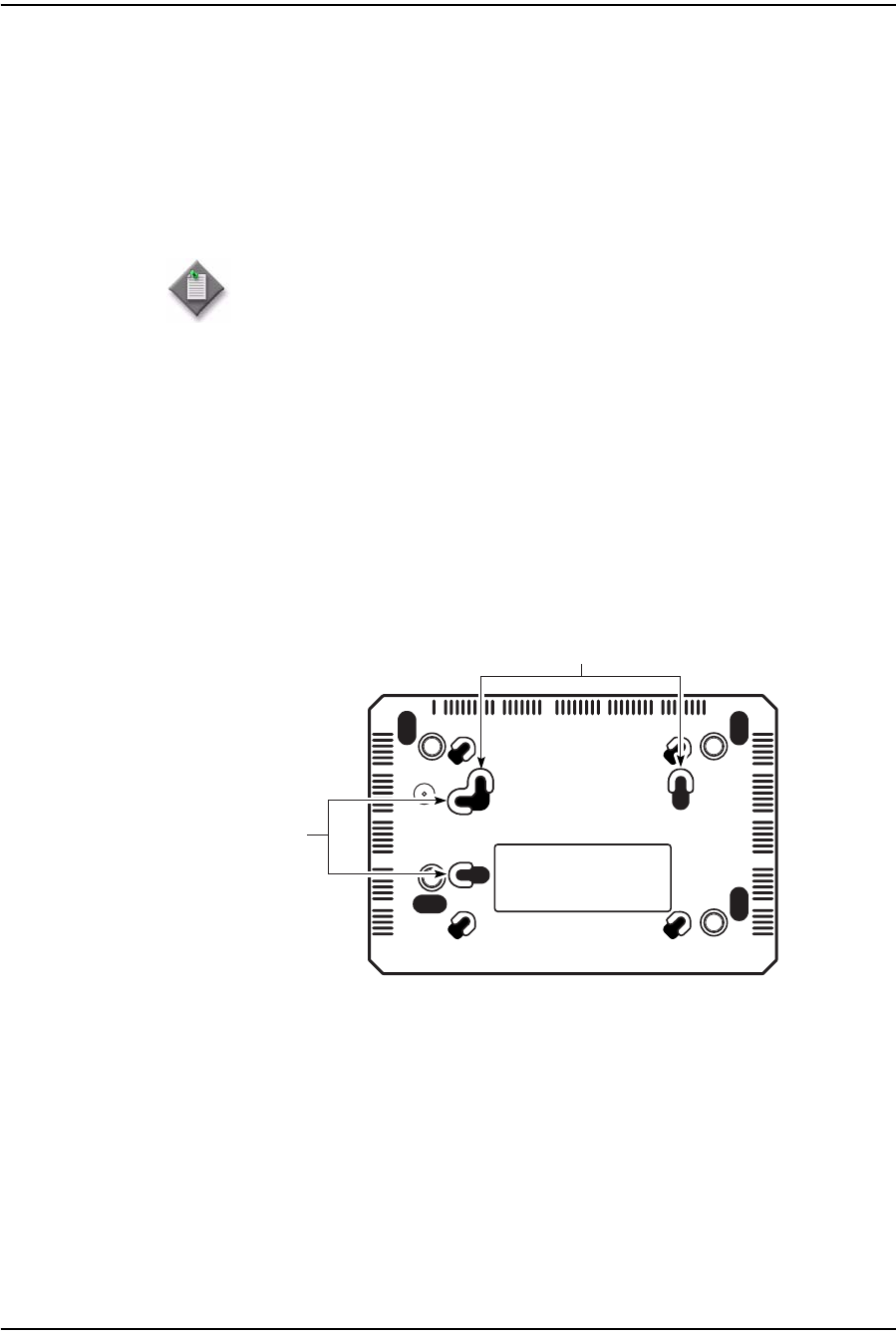

Figure 2-1 Wall mounting keyholes on G-240W-A indoor ONTs .............................. 2-4
Figure 2-2 G-240W-A indoor ONT connections (back view)................................... 2-5
Figure 2-3 G-240W-A indoor ONT connections (side view) ................................... 2-5
Figure 3-1 G-240W-A indoor ONT connections (side view) ................................... 3-4
Figure 3-2 G-240W-A indoor ONT connections (back view)................................... 3-5
Figure 4-1 Web login window ..................................................................... 4-3
Figure 4-2 Device Information window .......................................................... 4-4
Figure 4-3 LAN status window..................................................................... 4-5
Figure 4-4 WAN status window.................................................................... 4-6
Figure 4-5 WAN status IPv6 window.............................................................. 4-8
Figure 4-6 Home networking information window............................................. 4-9
Figure 4-7 Optics module status window.......................................................4-10
Figure 4-8 Voice Information window...........................................................4-11
Figure 4-9 LAN network window.................................................................4-12
Figure 4-10 LAN IPv6 network window..........................................................4-14
Figure 4-11 WAN network window...............................................................4-15
Figure 4-12 WiFi network window...............................................................4-17
Figure 4-13 Routing network window ...........................................................4-19
Figure 4-14 DNS network window................................................................4-20
Figure 4-15 TR-069 network window............................................................4-21
Figure 4-16 Firewall window .....................................................................4-22
Figure 4-17 MAC filter window...................................................................4-23
Figure 4-18 IP filter window......................................................................4-24
Figure 4-19 URL Filter window...................................................................4-25
Figure 4-20 DMZ and ALG window ...............................................................4-26
Figure 4-21 Port forwarding window............................................................4-27
Figure 4-22 DDNS window.........................................................................4-28
Figure 4-23 NTP window ..........................................................................4-29
Figure 4-24 USB storage window.................................................................4-30
Figure 4-25 UPnP and DLNA window ............................................................4-31
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Contents
Alcatel-Lucent 7368 ISAM ONT xxxix
Edition 02
G-240W-A Product Guide
Figure 4-26 Password window....................................................................4-32
Figure 4-27 LOID Config window.................................................................4-33
Figure 4-28 SLID configuration window.........................................................4-34
Figure 4-29 Device management window ......................................................4-35
Figure 4-30 Backup and Restore window .......................................................4-36
Figure 4-31 Firmware upgrade window.........................................................4-36
Figure 4-32 Reboot window ......................................................................4-37
Figure 4-33 Factory default window ............................................................4-38
Figure 4-34 Diagnose window ....................................................................4-39
Figure 4-35 Log window...........................................................................4-40
Figure 4-36 RG Troubleshooting Counters window............................................4-41
Figure 4-37 Web login window ...................................................................4-43
Figure 4-38 Device Information window........................................................4-44
Figure 4-39 Password window....................................................................4-45
Figure 4-40 LOID configuration window ........................................................4-46
Figure 4-41 SLID configuration window.........................................................4-47
List of tables
Table 1 Safety labels ..................................................................................x
Table 1 Safety labels .............................................................................. xxiv
Table 1-1 Identification of G-240W-A indoor ONTs............................................. 1-2
Table 1-2 G-240W-A indoor ONT interface connection capacity ............................. 1-6
Table 1-3 G-240W-A indoor ONT physical connections......................................... 1-7
Table 1-4 G-240W-A indoor ONT LEDs ............................................................ 1-9
Table 1-5 G-240W-A indoor ONT physical specifications .....................................1-10
Table 1-6 G-240W-A indoor ONT power consumption specifications .......................1-11
Table 1-7 G-240W-A indoor ONT environmental specifications..............................1-11
Table 1-8 G-240W-A indoor ONT capacity for GEM ports and T-CONTs.....................1-11
Table 1-9 Package P ONTs ONTENET performance monitoring statistics ..................1-12
Table 1-10 Package P ONTs ONTL2UNI performance monitoring statistics ................1-12
Table 1-11 Package P ONTs PONONTTC, PONONTMCTC, PONONTTCHSI,
PONONTTCCES, PONONTTCFLOW, PONONTTCVOIP performance
monitoring statistics ............................................................1-13
Table 1-12 Package P ONTs PONONTTC aggregate performance monitoring
statistics ..........................................................................1-13
Table 1-13 G-240W-A ONT considerations and limitations ...................................1-17
Table 4-1 Device Information parameters ....................................................... 4-4
Table 4-2 LAN status parameters.................................................................. 4-5
Table 4-3 WAN status parameters................................................................. 4-7
Table 4-4 WAN status IPv6 parameters........................................................... 4-8
Table 4-5 Home networking parameters ......................................................... 4-9
Table 4-6 Optics module status parameters....................................................4-10
Table 4-7 Voice Information parameters........................................................4-11
Table 4-8 LAN network parameters ..............................................................4-13
Table 4-9 LAN IPv6 network parameters ........................................................4-14
Table 4-10 WAN network parameters............................................................4-16
Table 4-11 WiFi network parameters............................................................4-17
Table 4-12 Routing network parameters........................................................4-19
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Contents
xl Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Table 4-13 DNS network parameters.............................................................4-20
Table 4-14 TR-069 network parameters.........................................................4-21
Table 4-15 Firewall parameters ..................................................................4-22
Table 4-16 MAC filter parameters................................................................4-23
Table 4-17 IP filter parameters...................................................................4-24
Table 4-18 URL Filter parameters................................................................4-25
Table 4-19 DMZ and ALG parameters ............................................................4-26
Table 4-20 Port forwarding parameters.........................................................4-27
Table 4-21 DDNS parameters......................................................................4-28
Table 4-22 NTP parameters .......................................................................4-29
Table 4-23 USB storage parameters..............................................................4-30
Table 4-24 Password parameters.................................................................4-32
Table 4-25 LOID configuration parameters .....................................................4-33
Table 4-26 SLID configuration parameters......................................................4-34
Table 4-27 Device management parameters ...................................................4-35
Table 4-28 RG Troubleshooting Counters parameters.........................................4-41
Table 4-29 Device Information parameters.....................................................4-44
Table 4-30 Password parameters.................................................................4-45
Table 4-31 SLID configuration parameters......................................................4-47
Table 5-1 Supported configuration files.......................................................... 5-3
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Alcatel-Lucent 7368 ISAM ONT 1-1
Edition 02
G-240W-A Product Guide
1 — G-240W-A unit data sheet
1.1 G-240W-A part numbers and identification 1-2
1.2 G-240W-A general description 1-3
1.3 G-240W-A software and installation feature support 1-5
1.4 G-240W-A interfaces and interface capacity 1-6
1.5 G-240W-A LEDs 1-8
1.6 G-240W-A detailed specifications 1-10
1.7 G-240W-A GEM ports and T-CONTs 1-11
1.8 G-240W-A performance monitoring statistics 1-11
1.9 G-240W-A functional blocks 1-13
1.10 G-240W-A standards compliance 1-15
1.11 G-240W-A special considerations 1-16
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
1-2 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
1.1 G-240W-A part numbers and identification
Table 1-1 provides part numbers and identification information for the G-240W-A
indoor ONT.
Table 1-1 Identification of G-240W-A indoor ONTs
Mnemonic Ordering kit
part number Provisioning
part number Description CLEI CPR ECI/
Bar
code
G-240W-A 3FE 55925 AA 3FE 56525
AAAA Package P 2 POTS ports, 4
10/100/1000 Base-T Ethernet
interfaces, and 1 100 mW Wi-Fi
radio with on/off switch. This ONT
also has 2 USB ports.
Includes 2-pin wall-mounted
European (EU) AC/DC adapter.
———
3FE 55925 AB
Customer-
specific
Package P 2 POTS ports, 4
10/100/1000 Base-T Ethernet
interfaces, and 1 100 mW Wi-Fi
radio with on/off switch. This ONT
also has 2 USB ports.
Includes 2-pin wall-mounted
European (EU) AC/DC adapter.
Also includes 5dBi indoor
multi-direction WiFi antenna and
1.8m Ethernet cable.(1)
———
3FE 55925 AC Package P 2 POTS ports, 4
10/100/1000 Base-T Ethernet
interfaces, and 1 100 mW Wi-Fi
radio with on/off switch. This ONT
also has 2 USB ports.
Includes 2-pin wall-mounted
European (EU) AC/DC adapter.
Also includes 5dBi indoor
multi-direction WiFi antenna and
1.8m Ethernet cable.(1)
———
3FE 55925 CA Package P 2 POTS ports, 4
10/100/1000 Base-T Ethernet
interfaces, and 1 100 mW Wi-Fi
radio with on/off switch. This ONT
also has 2 USB ports.
Includes 3-pin wall-mounted British
(UK) AC/DC adapter.
———
3FE 55925 DA Package P 2 POTS ports, 4
10/100/1000 Base-T Ethernet
interfaces, and 1 100 mW Wi-Fi
radio with on/off switch. This ONT
also has 2 USB ports.
Includes 3-pin wall-mounted US
AC/DC adapter.
———
(1 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
Alcatel-Lucent 7368 ISAM ONT 1-3
Edition 02
G-240W-A Product Guide
Note
(1) The transmit power is adjustable. See Procedure 4-11 in Network configuration for more information.
For the G-240W-A indoor ONT power supply information, contact your
Alcatel-Lucent technical support representative.
1.2 G-240W-A general description
G-240W-A indoor ONTs provide the subscriber interface for the network by
terminating the PON interface and converting it to user interfaces that directly
connect to subscriber devices. The ONT is compatible with all existing subscriber
equipment, including analog phones with both tone and rotary dial capabilities,
cordless phones, modems, fax machines, and caller ID boxes (Type I, Type II, and
Type III).
G-240W-A 3FE 45150 AA
customer-
specific
3FE 56525
BAAB Package P 2 POTS ports, 4
10/100/1000 Base-T Ethernet
interfaces, and 1 100 mW Wi-Fi
radio with on/off switch. This ONT
also has 2 USB ports.
Includes 2-pin wall-mounted
European (EU) AC/DC adapter.
Also includes 5dBi indoor
multi-direction WiFi antenna and
one 2m RJ-45 Ethernet cable.(1)
———
3FE 45150 AC 3FE 56525
AAAB Package P 2 POTS ports, 4
10/100/1000 Base-T Ethernet
interfaces, and 1 100 mW Wi-Fi
radio with on/off switch. This ONT
also has 2 USB ports.
Includes 2-pin wall-mounted
European (EU) AC/DC adapter.
Also includes 5dBi indoor
multi-direction detachable WiFi
antenna and one 2m RJ-45 Ethernet
cable.(1)
———
3FE 45150 BA Package P 2 POTS ports, 4
10/100/1000 Base-T Ethernet
interfaces, and 1 100 mW Wi-Fi
radio with on/off switch. This ONT
also has 2 USB ports.
Includes 2-pin wall-mounted US
AC/DC adapter.
Also includes 5dBi indoor
multi-direction detachable WiFi
antenna, one 2m RJ-45 Ethernet
cable, and one 3m optical fiber
cable.
———
Mnemonic Ordering kit
part number Provisioning
part number Description CLEI CPR ECI/
Bar
code
(2 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
1-4 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
G-240W-A indoor ONTs provide the following functions:
•Single fiber GPON interface with 1.244Gbit/s upstream and 2.488Gbit/s
downstream data rates
•Advanced data features such as VLAN tag manipulation, classification, and
filtering.
•Traffic classification and QoS capability
•Analog Telephone Adapter (ATA) function integrated based on SIP (RFC3261)
and H.248, with various CLASS services supported, including Caller ID, Call
Waiting, Call Forwarding, and Call Transfer
•5 REN per line
•Multiple voice Codec
•Amplitude modulated tone support
•MDI/MDIX auto-negotiation
•Line Rate L2 traffic
•Internal Switch
•UPnP IGD1.0 support
•Bridged mode or routed mode per LAN port
•Internal DHCP server, with configurable DHCP pool and gateway
•WPS on wireless authorization support
•ONT security has been enhanced; SSH-Telnet-FTP and http server are disabled
from the WAN side
•2.4 GHz wireless interface
•802.11n, compliant with 802.11b/g
•MIMO
•64/128 WEP encryption
•WPA, WPA-PSK/TKIP
•WPA2, WPA2-PSK/AES
•4 SSID
•WLAN on/off push button
•WPS/PBC button
•IP router and firewall
•Ethernet-based Point-to-Point (PPPoE)
•Network Address Translation (NAT)
•Network Address Port Translation (NAPT)
•ALG and UpnP port forwarding
•DMZ
•IP/MAC filter
•Multi-level firewall
•DNS server
•DHCP client/server
•PPPoE client
•support for up to 11 simultaneous wireless connections
•support for AIS with DOWN MEP
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
Alcatel-Lucent 7368 ISAM ONT 1-5
Edition 02
G-240W-A Product Guide
TR-069 support for reading optical parameters
The ONT supports the reading of optical parameters via TR-069:
•laser bias current
•voltage
•temperature
•received signal levels
•lower thresholds
These are the same optical parameters supported in the GUI. For more information,
see Table 4-6 in the chapter “Configure a G-240W-A indoor ONT”.
TR-104 parameter extension support for voice service
A proprietary attribute has been added to the TR-104 Voice Service object structure
to enable the ACS to configure the name of the embedded GSIP XML file to be
selected.
The TR-104 Voice Service Object is:
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.
The proprietary attribute is: X_ALU-COM_XML_File_Name_Path.
Mobile offload support
As part of the E2E solution supported by the ISAM 7750 service router, the
G-240W-A ONT offers Mobile Offload support using a combination of EAP-SIM
and ITU-T 802.11.
EAP-SIM is an authentication method that uses the user credentials on the SIM card
and EAP to authenticate the user with the Wi-Fi network, removing the need for user
input (username and password).
A dedicated public mobile offload SSID in the ONT enables mobile subscribers to
connect to the Internet. Encryption is supported by 802.11, providing seamless Wi-Fi
authentication for SIM-based user equipment.
The ONT acts as the RADIUS client and sends the encapsulated EAP messages to
the AAA server via the WLAN Gateway, which acts as the RADIUS proxy server.
The interaction between the ONT and the AAA server provides subscriber
management for authenticated mobile users without adding authentication load to the
3G network.
1.3 G-240W-A software and installation feature support
For information on installing or replacing the G-240W-A see:
•Install a G-240W-A indoor ONT
•Replace a G-240W-A indoor ONT
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
1-6 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
For information on the following topics, see the 7368 ISAM ONT Product Overview
Guide:
•ONT and MDU general descriptions of features and functions
•Ethernet interface specifications
•POTS interface specifications
•RSSI specifications
•Wi-Fi specifications
•ONT optical budget
•SLID entry via Ethernet port
•ONT management using an ONT interface
1.4 G-240W-A interfaces and interface capacity
Table 1-2 describes the supported interfaces and interface capacity for G-240W-A
indoor ONTs.
Table 1-2 G-240W-A indoor ONT interface connection capacity
Note
(1) The G-240W-A ONTs provide Wi-Fi service that is enabled and disabled using a Wi-Fi on/off switch.
G-240W-A connections and components
Figure 1-1and 1-2 show the physical connections for G-240W-A indoor ONTs,
ONT type
and model Maximum capacity
POTS 10/
100
BASE-T
10/
100/
1000
BASE-T
RF video
(CATV) MoCA VDSL2 E1/T1 Local craft GPON
SC/
APC
G-240W-A (1) 2—4— ———— 1
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
Alcatel-Lucent 7368 ISAM ONT 1-7
Edition 02
G-240W-A Product Guide
Figure 1-1 G-240W-A indoor ONT physical connections (back view)
Figure 1-2 G-240W-A indoor ONT physical connections (side view)
Table 1-3 describes the physical connections for G-240W-A indoor ONTs.
Table 1-3 G-240W-A indoor ONT physical connections
Connection (1) Description
PON
(Fiber optic port)
This connection is provided through an SC/APC fiber optic connector.
TEL1, TEL2
(RJ-11 POTS ports)
This connection is provided through RJ-11 ports. Up to two POTS
connections are supported.The POTS ports support voice services.
(1 of 2)
LAN4
PON
LAN3 LAN2 LAN1 WPS WLAN RESET USB POWER ON/OFF
TEL2 TEL1
Ethernet ports (4)
(RJ-45)
POTS
ports (2)
(RJ-11)
USB
port
Reset
button
Wireless
On/Off
button
Wi-Fi
security
button
Fiber
Optic
port
24434
On/Off
button
Power
input
24435
LED
USB
LED
indicator
USB
port
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
1-8 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Note
(1) The primary path for the earth ground for these ONTs is provided by the 12V Return signal in the
power connector.
1.5 G-240W-A LEDs
Figure 1-3 shows the G-240W-A indoor ONT LEDs.
LAN1-LAN4
(RJ-45 Ethernet ports)
This connection is provided through Ethernet RJ-45 connectors. Up to
four 10/100/1000 Base-T Ethernet interfaces are supported.The
Ethernet ports can support both data and in-band video services on all
four interfaces.
WPS
(Wi-Fi security button)
The Wi-Fi Protected Setup (WPS) button enables and disables WLAN
data encryption.
WLAN
(Wireless On/Off button)
Wi-Fi service is compliant with IEEE 802.11 standards and is enabled
and disabled using a Wireless button.
Reset Pressing the Reset button for less than 10 seconds reboots the ONT;
pressing the Reset button for 10 seconds resets the ONT to the factory
defaults, except for the LOID and SLID.
USB
(USB port)
This connection is provided through one of two USB ports, one on the
back of the ONT, and one on the side.
Power
(Power input)
This connection is provided through the power connector. A power
cable fitted with a barrel connector is used to make the connection.
ON/OFF This button turns the ONT on or off.
USB
(USB port)
This connection is provided through one of two USB ports, one on the
back of the ONT, and one on the side.
LED
(LED indicator button)
This buttons turns all LEDs on or off.
Connection (1) Description
(2 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
Alcatel-Lucent 7368 ISAM ONT 1-9
Edition 02
G-240W-A Product Guide
Figure 1-3 G-240W-A indoor ONT LEDs
Table 1-4 provides LED descriptions for G-240W-A indoor ONTs.
Table 1-4 G-240W-A indoor ONT LEDs
POWER
LINK
AUTH
LAN1
LAN2
LAN3
LAN4
TEL1
TEL2
VoIP
WPS
WLAN
USB
INTERNET
POWER
LINK
AUTH
LAN1
LAN2
LAN3
LAN4
TEL1
TEL2
VoIP
WPS
WLAN
USB
INTERNET
24510
Indicator LED color and
behavior LED behavior description
Power Green solid
Red solid
Off
Power on
Light failed on startup (for example corrupt flash), or self test failed on startup,
or self test failed during regular operation or when executed over OMCI
Power off
Link Green solid
Off
GPON link between ONT and OLT is operating normally
GPON link is down or no link connected
Auth Green solid
Green flashing
Off
ONT is authorized
In process of ranging or synchronizing on OMCI
ONT is not authorized
LAN 1 to 4 Green solid
Green flashing
Off
Ethernet is linked
LAN activity is present (in either direction)
ONT power off or Ethernet not connected
(1 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
1-10 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
1.6 G-240W-A detailed specifications
Table 1-5 lists the physical specifications for G-240W-A indoor ONTs.
Table 1-5 G-240W-A indoor ONT physical specifications
Table 1-6 lists the power consumption specifications for G-240W-A indoor ONT.
TEL 1 to 2 Green solid
Green flashing
Off
Off hook
Call in or talking
On hook
VOIP Green solid
Off
VOIP service is OK
VOIP service is not OK
WPS Green solid
Green flashing
Off
Wireless LAN link is up
Wireless LAN link activity
Wireless LAN link down or no link connected
WLAN Green solid
Green flashing
Off
Wireless enabled
Traffic on wireless interface
Wireless is down or no link connected
USB Green solid
Green flashing
Off
At least one USB device is connected
Traffic activity on at least on USB device
No USB device connected
INTERNET Green solid
Green flashing
Off
HSI WAN is connected: a) the device has an IP address assigned from IPCP, DHCP,
or static, and no traffic has been detected; b) the session is dropped due to idle
timeout but the PON link is still present.
PPPoE or DHCP connection in progress
HSI WAN is not connected: a) there is no physical interface connection; b) the
device is in bridged mode without an assigned IP address; c) the session has been
dropped for reasons other than idle timeout.
Indicator LED color and
behavior LED behavior description
(2 of 2)
Description Specification
Length 8.2 in. (208 mm)
Width 5.6 in. (142 mm)
Height 1.3 in. (33 mm)
Weight [within ± 0.5 lb (0.23 kg)] 0.72 lb (0.33 kg)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
Alcatel-Lucent 7368 ISAM ONT 1-11
Edition 02
G-240W-A Product Guide
Table 1-6 G-240W-A indoor ONT power consumption specifications
Table 1-7 lists the environmental specifications for G-240W-A indoor ONT.
Table 1-7 G-240W-A indoor ONT environmental specifications
1.7 G-240W-A GEM ports and T-CONTs
Table 1-8 lists the maximum number of supported T-CONTs and GEM ports. See the
appropriate release Customer Release Notes for the most accurate list of supported
devices.
Table 1-8 G-240W-A indoor ONT capacity for GEM ports and T-CONTs
1.8 G-240W-A performance monitoring statistics
The following section identifies the supported performance monitoring statistics for
G-240W-A ONTs. A check mark indicates the statistic is supported on that ONT. An
empty cell indicates the statistic is not supported. The following tables are
categorized by supported alarm types:
•Table 1-9 provides statistics for ONTENET type counters
•Table 1-10 provides statistics for ONTL2UNI type counters
Mnemonic Maximum power
(Not to exceed) Condition Minimum power Condition
G-240W-A
(3FE 56525
AAAA)
18 W 2 POTS off-hook, 4
10/100/1000 Base-T
Ethernet, Wi-Fi operational
5.9 W 2 POTS on-hook, other
interfaces/services not
provisioned
Mounting method Temperature range and humidity Altitude
On desk or wall
mounted Operating: 32°F to 113°F (0°C to 45°C) ambient
temperature
10% to 90% relative humidity, non-condensing
Contact your Alcatel-Lucent technical support
representative for more information
Storage: Contact your Alcatel-Lucent support
representative for more information
ONT or MDU Maximum Notes
Package P ONTs
GEM ports per indoor or
outdoor ONT 124 124 are present; 122 are available, and 2 are
reserved for multicast and debugging
T-CONTs per indoor or outdoor
ONT 32 32 are present; 31 are available, and 1 is
reserved for OMCI
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
1-12 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
•Table 1-11 provides statistics for PONONTTC, PONONTMCTC,
PONONTTCHSI, PONONTTCCES, PONONTTCFLOW, and
PONONTTCVOIP type counters
•Table 1-12 provides statistics for PONONTTC aggregate type counters
Table 1-9 Package P ONTs ONTENET performance monitoring statistics
Note
(1) A 5 second polling window limitation exists on the ONT, therefore the margin of error for each
15-min window is 5 seconds
Table 1-10 Package P ONTs ONTL2UNI performance monitoring statistics
Note
(1) A 5 second polling window limitation exists on the ONT, therefore the margin of error for each
15-min window is 5 seconds
Note — If you have trouble accessing G-240W-A ONTs performance
monitoring statistics using TL1, please contact your Alcatel-Lucent
support representative for more information about how to access and
retrieve performance monitoring type counters.
ONT ONTENET statistics
FCSE
EC
LC
RBO
SCF
MCF
DT
IMTE
CSE
AE
IMRE
FTL
TBO
SQE
G-240W-A (1) ✓✓✓✓✓✓✓✓✓✓✓✓✓✓
ONT ONTL2UNI statistics
FRAMES
BYTES
MCFRAMES
DSDRPDFRMS
USDRPDFRMS
USFRAMES
DSFRAMES
USBYTES
DSBYTES
USMCFRAMES
DSMCFRAMES
G-240W-A (
1)
✓✓✓✓✓✓✓✓✓✓✓
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
Alcatel-Lucent 7368 ISAM ONT 1-13
Edition 02
G-240W-A Product Guide
Table 1-11 Package P ONTs PONONTTC, PONONTMCTC, PONONTTCHSI, PONONTTCCES,
PONONTTCFLOW, PONONTTCVOIP performance monitoring statistics
Note
(1) A 5 second polling window limitation exists on the ONT, therefore the margin of error for each
15-min window is 5 seconds
Table 1-12 Package P ONTs PONONTTC aggregate performance monitoring statistics
Note
(1) A 5 second polling window limitation exists on the ONT, therefore the margin of error for each
15-min window is 5 seconds
1.9 G-240W-A functional blocks
G-240W-A indoor ONTs are single-residence ONTs that support Wireless (Wi-Fi)
service. Wi-Fi service on these ONTs are compliant with the IEEE 802.11 standard
and enabled or disabled using a WLAN button. In addition to the Wi-Fi service, these
ONTs transmit Ethernet packets to four RJ-45 Ethernet ports and voice traffic to two
RJ-11 POTS ports. These ONTs also feature fiber optic, USB, and power connectors.
Figure 1-4 shows the functional blocks for G-240W-A indoor ONT.
ONT PONONTTC, PONONTMCTC, PONONTTCHSI, PONONTTCCES,
PONONTTCFLOW, PONONTTCVOIP statistics
TXBLOCKS
TXFRAGS
RXBLOCKS
RXFRAGS
LOSTFRAGS
BADGEMHDRS
G-240W-A (1) ✓✓✓✓✓
ONT PONONTTC (aggregate) statistics
TXBLOCKS
TXFRAGS
RXBLOCKS
RXFRAGS
LOSTFRAGS
BADGEMHDRS
G-240W-A (1) ✓✓✓✓✓
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
1-14 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Figure 1-4 Single-residence Wi-Fi ONT with Gigabit Ethernet and POTS and without RF video
ONT SoC technology serves as the main hardware block for these ONTs; see
Figure 1-5.
Figure 1-5 G-240W-A ONT hardware block
ONT SoC technology consists of five key elements:
•GPON MAC
The Gigabit Passive Optical Network Media Access Control (GPON MAC)
element on the SoC terminates the GPON interface using an optical diplexer. This
interface supports GPON as described in G.984.3 (GPON TC Layer) ITU
specification.
24409
LED/RST
UART/JTAG
DDR3 FLASH
RJ-11 RJ-11
POTS (2)
UPLINK
RJ-45
RJ-45
RJ-45
RJ-45
Ethernet (4)
SERDES A/D FMI
MISC
APM
12C
MDI[1x4]
Dual-SLICWi-Fi
GPON
BOSA
SoC
Transformer
A12V BAT A3V3 D1V0 A1V5 A1V0
Power Supply
USB
Control
processor
Ethernet
MACs
Ethernet ports GPON
POTS ports
DSP
GPON
MAC
SoC
19421
SoC Bridge
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
Alcatel-Lucent 7368 ISAM ONT 1-15
Edition 02
G-240W-A Product Guide
•Ethernet MAC
The SoC provides up to four GE MACs.
•DSP interface
The Digital Signal Processor (DSP) provides voice processing for 2 POTS lines
with 3-way calling. The DSP has a dedicated 64 kbyte instruction cache and
shares a 32 kbyte data cache with the Control Processor. It provides up to 4
network processor cores, each at 800MHz.
•Control Processor
The Control Processor features an integral memory management unit that
supports a dedicated 64 kbyte instruction cache and shares a single 32 kbyte data
cache with the DSP. The Control Processor and DSP also include a single channel
Data Management Application (DMA) controller with a 4 kbyte read ahead
low-latency Dynamic Random Access Memory (DRAM) access port. The
processors typically run at 600 MHz.
•Switch matrix
The Switch matrix provides an integrated data channel between the four GE
MACs, the GPON MAC, the DSP, the control processor, and the other integrated
elements such as flash memory, DRAM, and the local bus controller.
These ONTs can also interact with additional hardware components to support
functionality not provided by the SoC technology.
1.10 G-240W-A standards compliance
G-240W-A indoor ONTs are compliant with the following standards:
•802.1p marking and VLAN based pbit is supported
•G.711 support for FAX and modem connection
•G.984 support GPON interface (framing)
•G.984.2 support for Amd1, class B+
•G.984.3 support for activation and password functions
•G.984.3 support for AES with operator enable/disable on per port-ID level
•G.984.3 support for FEC in both upstream and downstream directions
•G.984.3 support for multicast using a single GEM Port-ID for all video traffic
•G984.4 and G.983.2 support for OMCI v1 and v2 interface for ONT management
and provisioning
Energy-related products standby and off modes compliance
Hereby, Alcatel-Lucent declares that the G-240W-A ONTs are in compliance with
the essential requirements and other relevant provisions of Directive 2009/125/EC
together with Commission Regulation (EC) No 1275/2008 and Commission
Regulation (EC) No 801/2013.
The G-240W-A ONTS qualify as equipment with high network availability (HiNA)
functionality. Since the main purpose of G-240W-A ONTs is to provide network
functionality with HiNA 7 days /24 hours, the modes Off/Standby, Power
Management, and Networked Standby are inappropriate.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
1-16 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
For information about the type and number of network ports, see “G-240W-A
interfaces and interface capacity” in this chapter.
For information about power consumption, see “G-240W-A detailed specifications”
in this chapter.
1.11 G-240W-A special considerations
G-240W-A is a package P ONT.
Wi-Fi service
G-240W-A indoor ONTs feature Wi-Fi service as well as voice and data services.
Wi-Fi is a wireless networking technology that uses radio waves to provide wireless
HSI and network connections. This ONT complies with the IEEE 802.11 standards,
which the Wi-Fi Alliance defines as the basis for Wi-Fi technology.
Wi-Fi physical features
G-240W-A indoor ONTs have the following physical features that assist in
providing Wi-Fi service:
•WLAN button for enabling and disabling Wi-Fi service
•two external multi-directional antennae
•Wi-Fi Protected Setup (WPS) push button for adding WPS-enabled wireless
devices
Wi-Fi standards and certifications
The Wi-Fi service on G-240W-A indoor ONTs supports the following IEEE
standards and Wi-Fi Alliance certifications:
•compliant with IEEE 802.11 standards
•certified for IEEE 802.11b/g/n standards
•WPA support including WPA-PSK
•certified for WPA2-Personal and WPA2-Enterprise
Wi-Fi GUI features
G-240W-A indoor ONTs have HTML-based Wi-Fi configuration GUIs.
G-240W-A ONT considerations and limitations
Table 1-13 lists the considerations and limitations for Package P G-240W-A ONTs.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
Alcatel-Lucent 7368 ISAM ONT 1-17
Edition 02
G-240W-A Product Guide
Table 1-13 G-240W-A ONT considerations and limitations
Considerations and limitations
Call History Data collection (ONTCALLHST) is supported, except for the following parameters:
RTP packets (discarded), far-end RTCP and RTCP-XR participation, RTCP average and peak round
trip delay, MOS, average jitter, number of jitter-buffer over-runs and under runs.
Some voice features are configurable on a per ONT basis, including Call Waiting, Call Hold, 3-Way
Calling, and Call Transfer.
The following voice features / GSIP parameters are configurable on a per-Client/ per-ONT basis (not
per-Subscriber):
•Enable Caller ID and Enable Caller Name ID
•Digitmap and the associated Interdigit and Critical timers and Enter key parameters
•Warmline timer is enabled per subscriber, but the warmline timer value is configured per ONT
and must have a lower value than the Permanent time
•Miscellaneous timers: Permanent, Timed-release, Reanswer, Error-tone, and CW-alert timers
•Features / functions: Message waiting mode, WMWI refresh interval, DTMF volume level
•Service Codes for the following features: CCW, Call Hold and Warmline
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
1 — G-240W-A unit data sheet
1-18 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
2 — Install a G-240W-A indoor ONT
2-2 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
2.1 Purpose
This chapter provides the steps to install a G-240W-A indoor ONT.
2.2 General
The steps listed in this chapter describe mounting and cabling for G-240W-A indoor
ONTs.
2.3 Prerequisites
You need the following items before beginning the installation:
•all required cables
2.4 Recommended tools
You need the following tools for the installation:
•#2 Phillips screwdriver
•1/4 in. (6 mm) flat blade screwdriver
•wire strippers
•fiber optic splicing tools
•RJ-45 cable plug crimp tool
•voltmeter or multimeter
•optical power meter
•drill and drill bits
•paper clip
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
2 — Install a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 2-3
Edition 02
G-240W-A Product Guide
2.5 Safety information
Read the following safety information before installing the unit.
Danger 1 — Hazardous electrical voltages and currents can cause
serious physical harm or death. Always use insulated tools and follow
proper safety precautions when connecting or disconnecting power
circuits.
Danger 2 — Make sure all sources of power are turned off and have
no live voltages present on feed lines or terminals. Use a voltmeter to
measure for voltage before proceeding.
Danger 3 — Always contact the local utility company before
connecting the enclosure to the utilities.
Warning — This equipment is ESD sensitive. Proper ESD
protections should be used when removing the fiber access cover of
the indoor ONT.
Caution — Keep indoor ONTs out of direct sunlight. Prolonged
exposure to direct sunlight can damage the unit.
Note 1 — Observe the local and national laws and regulations that
may be applicable to this installation.
Note 2 — Observe the following:
•The indoor ONT should be installed in accordance with the
applicable requirements of the NEC or CEC. Local authorities and
practices take precedent when there is conflict between the local
standard and the NEC or CEC.
•The indoor ONT must be installed by qualified service personnel.
•Indoor ONTs must be installed with cables that are suitably rated
and listed for indoor use.
•See the detailed specifications in the G-240W-A unit data sheet for
the temperature ranges for these ONTs.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
2 — Install a G-240W-A indoor ONT
2-4 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
2.6 Procedure
Use this procedure to install a G-240W-A indoor ONT.
1Place the indoor ONT unit:
aOn the flat surface, such as a desk; go to step 3.
bOn a wall, go to step 2.
2Mount the G-240W-A indoor ONT on a wall.
iThe G-240W-A indoor ONT can be mounted in either a horizontal or vertical
position, as shown in Figure 2-1. If possible, mount the ONT on a wall stud.
Figure 2-1 Wall mounting keyholes on G-240W-A indoor ONTs
ii Mark the wall with the location of the mounting holes. These holes should be
the same distance apart as the distance between the centers of the keyholes
on the ONT.
iii Drill the two holes in the wall where the ONT will be mounted and then drive
the mounting screws into the holes.
The recommended length of mounting screw is 1.15 in. (3.8 cm).
Note — The G-240W-A cannot be stacked with another ONT or with
other equipment. The ONT mounting requirements are:
•allow a minimum 100 mm clearance above the top cover
•allow a minimum 50 mm clearance from the side vents
•do not place any heat source directly above the top cover or below
the bottom cover
RESET
Keyholes for horizontal mounting
Keyholes for
vertical
mounting
24111
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
2 — Install a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 2-5
Edition 02
G-240W-A Product Guide
Do not drive the screw into the wall completely. Leave approximately 1/8 in.
(6 mm) between the screw head and the wall surface.
iv Slide the wall mount keyholes on the ONT enclosure or fiber storage tray
down over the mounting screws until the ONT is securely seated.
3Review the connection locations as shown in Figures 2-2 and 2-3.
Figure 2-2 G-240W-A indoor ONT connections (back view)
Figure 2-3 G-240W-A indoor ONT connections (side view)
4Connect the Ethernet cables to the RJ-45 ports; see Figure 2-2 for the location of
the RJ-45 ports.
5Route the POTS cables directly to the RJ-11 ports as per local practices.
LAN4
PON
LAN3 LAN2 LAN1 WPS WLAN RESET USB POWER ON/OFF
TEL2 TEL1
Ethernet ports (4)
(RJ-45)
POTS
ports (2)
(RJ-11)
USB
port
Reset
button
Wireless
On/Off
button
Wi-Fi
security
button
Fiber
Optic
port
24434
On/Off
button
Power
input
24435
LED
USB
LED
indicator
USB
port
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
2 — Install a G-240W-A indoor ONT
2-6 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
The POTS port to the left is labeled 1 for Line 1 while the port on the right is
labeled 2 for Line 2, as shown in Figure 2-2.
6Connect the fiber optic cable with SC/APC adapter into the SC/APC connector; see
Figure 2-2 for the location of the SC/APC connector.
7Install the power supply according to manufacturer specifications.
8Connect the power cable to the power connector.
9Power up the ONT unit by using the power switch.
10 If used, enable the Wi-Fi service.
iLocate the WLAN button on the ONT; see Figure 2-3 for location of the WLAN
button.
ii Press the WLAN button to change the status of the Wi-Fi service.
11 Verify the ONT LEDs, voltage status, and optical signal levels; see the 7368
Hardware and Cabling Installation Guide.
12 Activate and test the services; see the 7368 Hardware and Cabling Installation
Guide.
13 If used, configure the SLID; see the 7368 ISAM ONT Configuration, Management,
and Troubleshooting Guide.
14 If necessary, reset the ONT.
iLocate the Reset button on a G-240W-A indoor ONT as shown in Figure 2-3.
ii Insert the end of a straightened paper clip or other narrow object into the
hole in the Reset button to reset the ONT.
15 STOP. This procedure is complete.
Danger — Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or
adapters.
Warning — Be careful to maintain a bend radius of no less than 1.5 in.
(3.8 cm) when connecting the fiber optic cable. Too small of a bend
radius in the cable can result in damage to the optic fiber.
Note — Fiber cable preparation varies depending on the type and size
of the inside or outside plant fiber cable being spliced to the SC/APC
fiber optic pigtail cable.
Note — Observe the following:
•Units must be powered by a Listed or CE approved and marked
limited power source power supply with a minimum output rate of
12 V dc, 1.25 A.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
3 — Replace a G-240W-A indoor ONT
3-2 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
3.1 Purpose
This chapter provides the steps to replace G-240W-A indoor ONTs.
3.2 General
The steps listed in this chapter describe mounting and cabling for G-240W-A indoor
ONTs.
3.3 Prerequisites
You need the following items before beginning the installation:
•all required cables
3.4 Recommended tools
You need the following tools for replacing the ONT:
•#2 Phillips screwdriver
•1/4 in. (6 mm) flat blade screwdriver
•wire strippers
•fiber optic splicing tools
•RJ-45 cable plug crimp tool
•voltmeter or multimeter
•optical power meter
•drill and drill bits
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
3 — Replace a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 3-3
Edition 02
G-240W-A Product Guide
3.5 Safety information
Read the following safety information before replacing the unit.
Danger 1 — Hazardous electrical voltages and currents can cause
serious physical harm or death. Always use insulated tools and follow
proper safety precautions when connecting or disconnecting power
circuits.
Danger 2 — Make sure all sources of power are turned off and have
no live voltages present on feed lines or terminals. Use a voltmeter to
measure for voltage before proceeding.
Danger 3 — Always contact the local utility company before
connecting the enclosure to the utilities.
Warning — This equipment is ESD sensitive. Proper ESD
protections should be used when removing the fiber access cover of
the indoor ONT.
Caution — Keep indoor ONTs out of direct sunlight. Prolonged
exposure to direct sunlight can damage the unit.
Note 1 — Observe the local and national laws and regulations that
may be applicable to this installation.
Note 2 — Observe the following:
•The indoor ONT should be installed in accordance with the
applicable requirements of the NEC or CEC. Local authorities and
practices take precedent when there is conflict between the local
standard and the NEC or CEC.
•The indoor ONT must be installed by qualified service personnel.
•Indoor ONTs must be installed with cables that are suitably rated
and listed for indoor use.
•See the detailed specifications in the G-240W-A unit data sheet for
the ONT temperature ranges for these ONTs.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
3 — Replace a G-240W-A indoor ONT
3-4 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
3.6 Procedure
Use this procedure to replace a G-240W-A indoor ONT.
1Deactivate the ONT services at the P-OLT.
If you are using the SLID feature, this step is not required. The ONT and the
services can remain in service (IS).
iUse the RTRV-ONT command to verify the ONT status and th associated
services. Record the serial number or the SLID of the ONT displayed in the
command output.
Example:
RTRV-ONT::ONT-1-1-1-1-1;
ii If the ONT is in service, place the ONT in OOS state.
Example:
ED-ONT::ONT-1-1-1-1-1;
2If used, disable the Wi-Fi service by pressing the WLAN button; see Figure 3-1 for
the location of the WLAN button.
Figure 3-1 G-240W-A indoor ONT connections (side view)
3Power down the unit by using the on/off power switch.
4Disconnect the POTS, Ethernet, and power cables from the ONT; see Figures 3-1
and 3-2 for the connector locations on the G-240W-A indoor ONT.
24435
LED
USB
LED
indicator
USB
port
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
3 — Replace a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 3-5
Edition 02
G-240W-A Product Guide
Figure 3-2 G-240W-A indoor ONT connections (back view)
5Disconnect the fiber optic cables.
iUnplug the fiber optic cable with SC/APC connector from the ONT; see
Figure 3-2 for the location of the fiber optic port.
ii Attach a fiber dust cover to the end of the SC/APC connector.
6Replace the ONT with a new unit:
aOn a flat surface, such as a desk, substitute the new ONT for the old ONT on
a flat surface, horizontally resting on its four feet.
bOn a wall.
iSlide the old ONT off of the mounting screws until the ONT is free of the
wall.
ii Slide the wall mount holes on the ONT enclosure over the mounting
screws until it is securely seated.
7Connect the Ethernet cables directly to the RJ-45 ports; see Figure 3-2 for the
location of the RJ-45 ports.
8Connect the POTS cables directly to the RJ-11 ports as per local practices; see
Figure 3-2 for the location of the RJ-11 ports.
The RJ-11 port to the left is labeled 1 for Line 1 while the port on the right is
labeled 2 for Line 2.
Danger — Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or
adapters.
LAN4
PON
LAN3 LAN2 LAN1 WPS WLAN RESET USB POWER ON/OFF
TEL2 TEL1
Ethernet ports (4)
(RJ-45)
POTS
ports (2)
(RJ-11)
USB
port
Reset
button
Wireless
On/Off
button
Wi-Fi
security
button
Fiber
Optic
port
24434
On/Off
button
Power
input
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
3 — Replace a G-240W-A indoor ONT
3-6 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
9If required, have approved service personnel who are trained to work with optic
fiber clean the fiber optic connection. See the 7368 ISAM ONT Configuration,
Management, and Troubleshooting Guide for more information about fiber optic
handling, inspection, and cleaning.
10 Connect the fiber optic cable with SC/APC adapter into the SC/APC connector.
Figure 3-2shows the location of the SC/APC connector.
11 Install the power supply according to manufacturer specifications.
12 Connect the power cable to the power connector.
13 Power up the unit by using the power switch.
14 If used, enable the Wi-Fi service by pressing the WLAN button; see Figure 3-1 for
the location of the WLAN button.
15 If used, configure the SLID; see the 7368 ISAM ONT Configuration, Management,
and Troubleshooting Guide for more information.
16 Verify the ONT LEDs, voltage status, and optical signal levels; see the 7368
Hardware and Cabling Installation Guide.
Danger — Fiber optic cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or
adapters.
Danger — Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or
adapters.
Warning — Be careful to maintain a bend radius of no less than 1.5 in.
(3.8 cm) when connecting the fiber optic cable. Too small of a bend
radius in the cable can result in damage to the optic fiber.
Note — Fiber cable preparation varies depending on the type and size
of the inside or outside plant fiber cable being spliced to the SC/APC
fiber optic pigtail cable.
Note — Observe the following:
•Units must be powered by a Listed or CE approved and marked
limited power source power supply with a minimum output rate of
12 V dc, 1.25 A.
Note — A new SLID or the old SLID may be used with the replacement
ONT. If a new SLID is used, the new SLID must also be programmed at
the P-OLT using TL1 or a network manager. If the old SLID is used, no
changes need to be made at the P-OLT; see the operations and
maintenance documentation for the OLT for more details.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
3 — Replace a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 3-7
Edition 02
G-240W-A Product Guide
17 Activate and test the services; see the 7368 Hardware and Cabling Installation
Guide.
18 If necessary, reset the ONT.
iLocate the Reset button on a G-240W-A indoor ONT as shown in Figure 3-1.
ii Insert the end of a straightened paper clip or other narrow object into the
hole in the Reset button to reset the ONT.
19 STOP. This procedure is complete.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
3 — Replace a G-240W-A indoor ONT
3-8 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-2 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
4.1 General
Please refer to the configuration information provided with your OLT for the
software configuration procedure for a G-240W-A ONT.
For HTTP configuration procedures, please refer to the 7368 ISAM ONT
Configuration, Management, and Troubleshooting Guide.
4.2 HGU mode GUI configuration
Use the procedures below to utilize the web-based GUI for the G-240W-A in HGU
mode. This mode is preset at delivery.
A home gateway unit (HGU) is a home networking device, used as a gateway to
connect devices in the home through fiber to the Internet. An HGU provides a variety
of features for the home network including routing and firewall capability. By using
the HGU, users can connect all smart equipment in their home, including personal
computers, set-top boxes, mobile phones, and other consumer electronics devices, to
the Internet.
Login
Use the procedure below to login to the web-based GUI for the G-240W-A.
Procedure 4-1 Login to web-based GUI
1Open a web browser and enter the IP address of the ONT in the address bar.
The login window appears.
The default gateway IP address is http://192.168.1.254. You can connect to this
IP address using your web browser after connecting your PC to one of Ethernet
ports of the ONT. The static IP address of your PC must be in the same subnet as
the ONT.
2Enter your username and password in the Log in window, as shown in Figure 4-1.
The default username and password are printed on the ONT. The default user
name is userAdmin. The default superuser name is adminGPON. Contact
Alcatel-Lucent for the superuser password.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-3
Edition 02
G-240W-A Product Guide
Figure 4-1 Web login window
3Click Login.
4STOP. This procedure is complete.
Device and connection status
G-240W-A ONTs support the retrieval of a variety of device and connection
information, including:
•device information
•LAN status
•WAN status
•WAN status IPv6
•Home networking information
•Optics module status
•Voice information
Caution — Pressing the Reset button for less than 10 seconds reboots
the ONT; pressing the Reset button for 10 seconds resets the ONT to the
factory defaults, except for the LOID and SLID.
Note — If you forget the current username and password, press the
reset button for 10 s and the default values for the username and
password will be recovered at startup.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-4 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-2 Device information retrieval
1Select Status > Device Information from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-2.
Figure 4-2 Device Information window
Table 4-1 describes the fields in the Device Information window.
Table 4-1 Device Information parameters
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Field Description
Device Name Name on the ONT
Vendor Name of the vendor
Serial Number Serial number of the ONT
Hardware version Hardware version of the ONT
Boot version Boot version of the ONT
Software version Software version of the ONT
Chipset Chipset of the ONT
Device Running
Time Amount of time the device has run since last reset in hours, minutes, and
seconds
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-5
Edition 02
G-240W-A Product Guide
Procedure 4-3 LAN status retrieval
1Select Status > LAN Status from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-3.
Figure 4-3 LAN status window
Table 4-2 describes the fields in the LAN status window.
Table 4-2 LAN status parameters
Field Description
Wireless Information
Wireless Status Indicates whether the wireless is on or off
Wireless Channel Wireless channel number
SSID Name Name of each SSID
Wireless
Encryption Status Encryption type used on the wireless connection
Wireless Rx
Packets Number of packets received on the wireless connection
Wireless Tx
Packets Number of packets transmitted on the wireless connection
Wireless Rx Bytes Number of bytes received on the wireless connection
Wireless Tx Bytes Number of bytes transmitted on the wireless connection
Power
Transmission (mW) Power of the wireless transmission, in mW
Ethernet Information
Ethernet Status Indicates whether the Ethernet connection is on or off
Ethernet IP
Address IP address of the Ethernet connection
(1 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-6 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Procedure 4-4 WAN status retrieval
1Select Status > WAN Status from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-4.
Figure 4-4 WAN status window
Table 4-3 describes the fields in the WAN status window.
Ethernet Subnet
Mask Subnet Mask of the Ethernet connection
Ethernet MAC
Address MAC address of the Ethernet connection
Ethernet Rx
Packets Number of packets received on the Ethernet connection
Ethernet Tx
Packets Number of packets transmitted on the Ethernet connection
Ethernet Rx Bytes Number of bytes received on the Ethernet connection
Ethernet Tx Bytes Number of bytes transmitted on the Ethernet connection
Field Description
(2 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-7
Edition 02
G-240W-A Product Guide
Table 4-3 WAN status parameters
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Field Description
WAN connection
list Drop-down menu listing all WAN connections. The connection shown is the
connection for which WAN status will be shown.
Connection Mode Connection mode of the WAN connection
Enable/Disable Select this checkbox to enable the WAN connection
VLAN VLAN ID
WAN Link Status Whether the WAN link is up or down
PPPoE
Concentrator Displays the PPPoE Access Concentrator (AC) name
This field applies only if the Connection Mode is set to PPPoE
Pon Link Status Whether the PON link is up or down
Tx Packets Number of packets transmitted on the WAN connection
Rx Packets Number of packets received on the WAN connection
Tx Dropped Number of packets dropped on the transmit WAN connection
Rx Dropped Number of packets dropped on the receive WAN connection
Err Packets Number of errored packets on the WAN connection
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-8 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-5 WAN status IPv6 retrieval
1Select Status > WAN Status IPv6 from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-5.
Figure 4-5 WAN status IPv6 window
Table 4-4 describes the fields in the WAN status IPv6 window.
Table 4-4 WAN status IPv6 parameters
Field Description
WAN connection
list Drop-down menu listing all WAN connections. The connection shown is the
connection for which WAN status will be shown.
Enable/Disable Select this checkbox to enable the WAN connection
VLAN VLAN ID
IPv6 Address IPv6 Address that identifies the device and its location
IPv6 Prefix IPv6 prefix
IPv6 Gateway IPv6 gateway address
Primary DNS Primary Domain Name Server
Second DNS Secondary Domain Name Server
Pon Link Status Whether the PON link is up or down
Tx Packets Number of packets transmitted on the WAN connection
Rx Packets Number of packets received on the WAN connection
Tx Dropped Number of packets dropped on the transmit WAN connection
Rx Dropped Number of packets dropped on the receive WAN connection
Err Packets Number of errored packets on the WAN connection
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-9
Edition 02
G-240W-A Product Guide
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Procedure 4-6 Home networking information retrieval
1Select Status > Home Networking from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-6.
Figure 4-6 Home networking information window
Table 4-5 describes the fields in the Home networking window.
Table 4-5 Home networking parameters
2Click Delete to delete a particular local device connection.
Field Description
Local Interface
Ethernet Table displays the number of Ethernet connections and their settings
Wireless (2.4G) Table displays the number of wireless connections and their settings
Wireless Settings (2.4G)
Network Name Name of the wireless network
Access Point Hexadecimal address of the wireless access point
Local Devices
Table entry Each entry indicates the connection type, device name, IPv4 address,
hardware address, and IP address allocation of each connected local device.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-10 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
3Click Refresh to update the displayed information.
4STOP. This procedure is complete.
Procedure 4-7 Optics module status retrieval
1Select Status > Optics Module Status from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-7.
Figure 4-7 Optics module status window
Table 4-6 describes the fields in the Optics module status window.
Table 4-6 Optics module status parameters
Field Description
Laser Bias Current (ONT ANI-ONT-Side Optical
Measurements) Laser bias current, measured in uA
Optics Module Voltage (ONT ANI-ONT-Side Optical
Measurements) Optics module voltage, measured in V
Optics Module Temperature (ONT ANI-ONT-Side
Optical Measurements) Optics module temperature, measured in
C
Rx Optics Signal Level at 1490 nm (ONT ANI-ONT-Side
Optical Measurements) Received optics signal level at 1490 nm,
measured in dBm
Tx Optics Signal Level at 1310 nm (ONT ANI-ONT-Side
Optical Measurements) Transmitted optics signal level at 1310 nm,
measured in dBm
Lower (ONT ANI-ONT-Side Optical
Measurements-Optical Threshold) Lower optical threshold, measured in dBm
Upper (ONT ANI-ONT-Side Optical
Measurements-Optical Threshold) Lower optical threshold, measured in dBm
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-11
Edition 02
G-240W-A Product Guide
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Procedure 4-8 Voice information retrieval
1Select Status > Voice Information from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-8.
Figure 4-8 Voice Information window
Table 4-7 describes the fields in the Voice Information window.
Table 4-7 Voice Information parameters
Note
(1) This field is only visible at the adminGPON level; it is not visible at the userAdmin level.
Field Description
POTS 1 Registration Status Status of POTS port 1: registered or unregistered
POTS 2 Registration Status Status of POTS port 2: registered or unregistered
POTS 1 Line State State of POTS line 1: IDLE, Off Hook, or On Hook
POTS 2 Line State State of POTS line 2: IDLE, Off Hook, or On Hook
Softswitch(1) Proxy IP address; blank if the line is not registered
Telephone line 1 phone number(1) Phone number configured for telephone line 1
Telephone line 2 phone number(1) Phone number configured for telephone line 2
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-12 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Network configuration
G-240W-A ONTs also support network configuration, including:
•LAN
•LAN IPv6
•WAN
•WiFi
•Routing
•DNS
•TR-069
Procedure 4-9 LAN networking configuration
1Select Network > LAN from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-9.
Figure 4-9 LAN network window
Table 4-8 describes the fields in the LAN network window.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-13
Edition 02
G-240W-A Product Guide
Table 4-8 LAN network parameters
2Select the mode for each port.
3Click Save.
4Enter the DHCP configuration information.
5Click Save.
6Bind a MAC address to the LAN by entering the MAC and IP addresses and then
clicking Add. Repeat for all MAC addresses to be bound.
7STOP. This procedure is complete.
Field Description
Port Mode:
All Port to L2 Mode Select this checkbox to set all ports to L2 mode
Port Mode
Port 1 - 4 Drop-down port mode for each port: Route mode or bridge mode
IPv4 Address IP Address of the ONT
Subnet Mask Subnet mask of the ONT
DHCP enable Select this checkbox to enable DHCP
DHCP Start IP
Address Starting DHCP IP address
DHCP End IP
Address Ending DHCP IP address
DHCP Lease Time DHCP lease time (in min)
Bind MAC Address MAC address to associate to the LAN
Bind IP Address IP address to associate to the bound MAC address
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-14 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-10 LAN IPv6 networking configuration
1Select Network > LAN_IPv6 from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-10.
Figure 4-10 LAN IPv6 network window
Table 4-9 describes the fields in the LAN IPv6 network window.
Table 4-9 LAN IPv6 network parameters
Field Description
DNS Server Choose a DNS server from the drop-down menu.
prefix config Choose a prefix config option from the drop-down menu, either
WANConnection (prefix will be obtained from the WAN) or Static (enables you
to enter the prefix).
prefix This field appears if you selected the “Static” option for the “prefix config”
field. Type a connection.
Interface This field appears if you selected the Wan Connection option for the “prefix
config” field. Choose a WAN connection interface from the drop-down menu.
DHCPv6 Server
Enable Select this checkbox to enable DHCP IPv6 server.
DHCP Start IP
Address Enter the starting DHCP IP address.
DHCP End IP
Address Enter the ending DHCP IP address.
Whether the
address info
through DCHP
Select this checkbox to enable address information retrieval through DHCP.
(1 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-15
Edition 02
G-240W-A Product Guide
2Choose a DNS server, prefix config, and interface.
3Select or enter the DHCP configuration information.
4Enter the maximum and minimum intervals for RA messages.
5Click Save/Apply.
6STOP. This procedure is complete.
Procedure 4-11 WAN networking configuration
1Select Network > WAN from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-11.
Figure 4-11 WAN network window
Table 4-10 describes the fields in the WAN network window.
Whether other info
obtained through
DHCP
Select this checkbox to enable retrieval of other information through DHCP.
Maximum interval
for periodic RA
messages
Enter the maximum interval (in seconds) for periodic Router Advertisement
messages. The interval range is from 4 to 1800.
Minimum interval
for periodic RA
messages
Enter the minimum interval (in seconds) for periodic Router Advertisement
messages. The interval range is from 4 to 1800.
Field Description
(2 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-16 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Table 4-10 WAN network parameters
2Configure a specific WAN connection.
3Click Save.
4STOP. This procedure is complete.
Field Description
WAN Connection
List Choose a WAN connection from the drop-down menu to set the connection
parameters
Connection Type Select a connection type: IPoE or PPPoE
IP Mode Choose an IP mode from the drop-down menu: IPv4 or IPv6
Enable/Disable Select this checkbox to enable the WAN connection
NAT Select this checkbox to enable NAT
Service Select the checkboxes to enable service types for this connection
Enable VLAN Select this checkbox to enable VLAN
VLAN ID Enter the VLAN ID
VLAN PRI Enter the VLAN PRI
WAN IP Mode Choose an IP mode from the drop-down menu
Connection Trigger Choose a connection type from the drop-down menu
Username Enter the username
Password Enter the password
Keep Alive Time Enter the Keep Alive Time (from 5 to 60 seconds)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-17
Edition 02
G-240W-A Product Guide
Procedure 4-12 WiFi networking configuration
1Select Network > WiFi from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-12.
Figure 4-12 WiFi network window
Table 4-11 describes the fields in the WiFi network window.
Table 4-11 WiFi network parameters
Field Description
Enable Select this checkbox to enable WiFi
Mode Choose a wi-fi mode from the drop-down menu:
•auto (b/g/n)
•b
•g
•n
•b/g
Bandwidth Choose a channel from the drop-down menu or choose Auto to have the
channel automatically assigned
Channel Choose a bandwidth option from the drop-down menu
Transmitting
Power Choose the percentage transmitting power from the drop-down menu
SSID Select Choose the SSID from the drop-down menu
SSID Name Enter the SSID name
Enable SSID Enable or disable SSID from this drop-down menu
SSID Broadcast Enable or disable SSID broadcast from this drop-down menu
Port Mode Choose a port mode from the drop-down menu:
•Route
•Bridge
(1 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-18 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
2Configure the WiFi connection.
3If you have enabled and configured WPS, click WPS connect.
4Click Save.
5STOP. This procedure is complete.
Encrypt Mode Choose an encryption mode from the drop-down menu:
•OPEN
•WEP
•WPA/WPA2 Personal
•WPA/WPA2 Enterprise
WPA Version Choose a WPA version from the drop-down menu:
•WPA1
•WPA2
•WPA1/WPA2
WPA Encryption
Mode Choose a WPA encryption mode from the drop-down menu:
•TKIP
•AES
•TKIP/AES
WPA Key Enter the WPA key
Enable WPS Enable or disable WPS from this drop-down menu
WPS Mode Choose a WPS mode from the drop-down menu:
•PBC
•PIN
PIN Code Number Enter the WPS PIN
Field Description
(2 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-19
Edition 02
G-240W-A Product Guide
Procedure 4-13 Routing configuration
1Select Network > Routing from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-13.
Figure 4-13 Routing network window
Table 4-12 describes the fields in the Routing network window.
Table 4-12 Routing network parameters
2Enter the routing information.
3Click Add.
4STOP. This procedure is complete.
Field Description
Enable Routing Select this checkbox to enable routing
Destination IP
Address Enter the destination IP address
Destination
Netmask Enter the destination network mask
Gateway Enter the gateway address
IPv4 Interface Choose a WAN connection previously created in the WAN network window
from the drop-down menu
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-20 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-14 DNS configuration
1Select Network > DNS from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-14.
Figure 4-14 DNS network window
Table 4-13 describes the fields in the DNS network window.
Table 4-13 DNS network parameters
2Enter the domain name and IP address and click Add.
3If required, associate an origin domain with a new domain, click Add.
4STOP. This procedure is complete.
Field Description
Domain Name Domain name
IPv4 Address Domain IP address
Origin Domain Origin domain name
New Domain New domain name
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-21
Edition 02
G-240W-A Product Guide
Procedure 4-15 TR-069 configuration
1Select Network > TR-069 from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-15.
Figure 4-15 TR-069 network window
Table 4-14 describes the fields in the TR-069 network window.
Table 4-14 TR-069 network parameters
2Configure TR-069 by entering the required information.
3Click Save.
4STOP. This procedure is complete.
Field Description
Periodic Inform
Enable Select this checkbox to enable periodic inform updates
Periodic Inform
Interval(s) Time between periodic inform updates, in seconds
URL URL of the auto-configuration server
Username Username used to log in to the ONT
Password Password used to log in to the ONT
Connect Request
Username Username used to log in to the auto-configuration server
Connect Request
Password Password used to log in to the auto-configuration server
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-22 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Security configuration
G-240W-A ONT also supports security configuration, including:
•firewall
•MAC filter
•IP filter
•URL filter
•DMZ and ALG
Procedure 4-16 Firewall configuration
1Select Security > Firewall from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-16.
Figure 4-16 Firewall window
Table 4-15 describes the fields in the firewall window.
Table 4-15 Firewall parameters
2Configure the firewall.
3Click Save.
4STOP. This procedure is complete.
Field Description
Security level Choose the security level from the drop-down menu
Attack Protect Enable or disable attack protect from the drop-down menu
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-23
Edition 02
G-240W-A Product Guide
Procedure 4-17 MAC filter configuration
1Select Security > Mac Filter from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-17.
Figure 4-17 MAC filter window
Table 4-16 describes the fields in the MAC filter window.
Table 4-16 MAC filter parameters
2Configure a MAC filter.
3Click Add.
4STOP. This procedure is complete.
Field Description
Enable MAC filter Select this checkbox to enable the MAC filter
Mac Address MAC address
Mac Filter Mode Choose the MAC filter mode from this drop-down menu
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-24 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-18 IP filter configuration
1Select Security > IP filter from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-18.
Figure 4-18 IP filter window
Table 4-17 describes the fields in the IP filter window.
Table 4-17 IP filter parameters
2Configure the IP filter.
Field Description
Enable IP Filter Select this checkbox to enable an IP filter
Mode Choose an IP filter mode from the drop-down menu:
•Drop for upstream
•Drop for downstream
Internal Client Choose an internal client from the drop-down menu:
•Customer setting - uses the IP address input below
•IP - uses the connecting devices' IP to the ONT
Local IP Address Local IP address
Source Subnet
Mask Source subnet mask
Remote IP Address Remote IP address
Destination Subnet
Mask Destination subnet mask
Protocol Choose an application protocol or all from the drop-down menu
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-25
Edition 02
G-240W-A Product Guide
3Click Add.
4STOP. This procedure is complete.
Procedure 4-19 URL filter configuration
1Select Security > URL Filter from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-19.
Figure 4-19 URL Filter window
Table 4-18 describes the fields in the URL Filter window.
Table 4-18 URL Filter parameters
2Configure the URL Filter.
3Click Add Filter.
4STOP. This procedure is complete.
Field Description
Enable URL filter Select the checkbox to enable the URL filter
URL filter type Select the checkbox for Exclude URL or Include URL
URL Address Type the URL address
Port Number Type the port number; the default is 80
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-26 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-20 DMZ and ALG configuration
1Select Security > DMZ and ALG from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-20.
Figure 4-20 DMZ and ALG window
Table 4-19 describes the fields in the DMZ and ALG window.
Table 4-19 DMZ and ALG parameters
2Configure ALG.
3Click Save ALG.
4Configure DMZ.
5Click Save DMZ.
6STOP. This procedure is complete.
Field Description
ALG Config Select the checkboxes to enable the protocols to be supported by the ALG
DMZ Config
WAN Connection
List Choose a WAN connection from the drop-down menu
Enable DMZ Select this checkbox to enable DMZ on the chosen WAN connection
DMZ IP Address Choose Customer Setting and enter the DMZ IP address or choose the IP
address of a connected device from the drop-down menu
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-27
Edition 02
G-240W-A Product Guide
Application configuration
G-240W-A ONT also supports application configuration, including:
•port forwarding
•DDNS
•NTP
•USB storage
•UPnP and DLNA
Procedure 4-21 Port forwarding configuration
1Select Application > Port forwarding from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-21.
Figure 4-21 Port forwarding window
Table 4-20 describes the fields in the port forwarding window.
Table 4-20 Port forwarding parameters
Field Description
APPName Choose an application name from the drop-down menu
WAN Port WAN port range
LAN Port LAN port range
Internal Client Choose a connected device from the drop-down menu and enter the
associated IP address
Protocol Choose the port forwarding protocol from the drop-down menu:
•TCP
•UDP
•TCP/UDP
Enable Mapping Select this checkbox to enable mapping
(1 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-28 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
2Configure port forwarding.
3Click Add.
4STOP. This procedure is complete.
Procedure 4-22 DDNS configuration
1Select Application > DDNS from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-22.
Figure 4-22 DDNS window
Table 4-21 describes the fields in the DDNS window.
Table 4-21 DDNS parameters
WAN Connection
List Choose a WAN connection from the drop-down menu
Field Description
WAN Connection
List Choose a WAN connection from the drop-down menu
Enable DDNS Select this checkbox to enable DDNS on the chosen WAN connection
ISP Choose an ISP from the drop-down menu.
Domain Name Domain name
Username Username
(1 of 2)
Field Description
(2 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-29
Edition 02
G-240W-A Product Guide
2Configure DDNS.
3Click Save.
4STOP. This procedure is complete.
Procedure 4-23 NTP configuration
1Select Application > NTP from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-23.
Figure 4-23 NTP window
Table 4-22 describes the fields in the NTP window.
Table 4-22 NTP parameters
Password Password
Field Description
Enable NTP Service Select this checkbox to enable NTP service
Current Time Enter the current local date and time
First Time Server Choose a time server from the drop-down menu or choose Customer setting
and enter the address of the time server.
Second Time
Server Choose a time server from the drop-down menu or choose Customer setting
and enter the address of the time server.
Interval Time Interval at which to get the time from the time server, in seconds
Time Zone Choose the local time zone from the drop-down menu
Field Description
(2 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-30 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
2Configure NTP.
3Click Save.
4STOP. This procedure is complete.
Procedure 4-24 USB storage configuration
1Select Application > USB storage from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-24.
Figure 4-24 USB storage window
Table 4-23 describes the fields in the USB storage window.
Table 4-23 USB storage parameters
2Configure USB storage.
3Click Save.
4STOP. This procedure is complete.
Field Description
Enable FTP server Select this checkbox to enable using an FTP server for data storage
Username Username for FTP server
Password Password for FTP server
Re-enter Password Password for FTP server
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-31
Edition 02
G-240W-A Product Guide
Procedure 4-25 UPnP and DLNA configuration
1Select Application > UPnP and DLNA from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-25.
Figure 4-25 UPnP and DLNA window
2Select the Enable UPnP checkbox to enable UPnP.
3Click Save/Apply.
4Select the Enable Ushare checkbox to enable Ushare (the UPnP/DLNA media
server).
5Select the Enable DLNA checkbox to enable DLNA.
6Click Save/Apply.
7STOP. This procedure is complete.
Maintenance
G-240W-A ONT also supports maintenance tasks, including:
•password change
•LOID configuration
•SLID configuration
•device management
•backup and restore
•firmware upgrade
•device reboot
•restore factory defaults
•diagnose
•log
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-32 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-26 Password configuration
1Select Maintain > Password from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-26.
Figure 4-26 Password window
Table 4-24 describes the fields in the password window.
Table 4-24 Password parameters
2Configure the new password.
3Click Save.
4STOP. This procedure is complete.
Field Description
New Password New password
Re-enter password Password must match password entered above
Prompt message Password prompt message
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-33
Edition 02
G-240W-A Product Guide
Procedure 4-27 LOID configuration
1Select Maintain > LOID Config from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-27.
Figure 4-27 LOID Config window
Table 4-25 describes the fields in the LOID configuration window.
Table 4-25 LOID configuration parameters
2Configure the LOID.
3Click Save/Apply.
4STOP. This procedure is complete.
Field Description
LOID Type the LOID; the maximum number of characters is 24
If the password is null, this field may be left blank
Password Type the password; the maximum number of characters is 12
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-34 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-28 SLID configuration
1Select Maintain > SLID Configuration from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-28.
Figure 4-28 SLID configuration window
Table 4-26 describes the fields in the SLID configuration window.
Table 4-26 SLID configuration parameters
2Configure the new SLID.
3Click Save.
4STOP. This procedure is complete.
Field Description
Current SLID Displays current SLID
Input new SLID Enter new SLID
SLID Mode Choose a SLID mode from the drop-down menu.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-35
Edition 02
G-240W-A Product Guide
Procedure 4-29 Device management
1Select Maintain > Device Management from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-29.
Figure 4-29 Device management window
Table 4-27 describes the fields in the Device management window.
Table 4-27 Device management parameters
2Configure an alias for a specific host.
3Click Add.
4STOP. This procedure is complete.
Field Description
Host name Choose a host from the drop-down menu
Alias Enter an alias for the chosen host
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-36 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-30 Backup and restore
1Select Maintain > Backup and Restore from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-30.
Figure 4-30 Backup and Restore window
2Click Select File and choose the backup file.
3Click Import Config File to restore the ONT to the saved backup or click Export
Config File to export the current ONT configuration to the backup file.
4STOP. This procedure is complete.
Procedure 4-31 Upgrade firmware
1Select Maintain > Firmware Upgrade from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-31.
Figure 4-31 Firmware upgrade window
2Click Select File and choose the firmware file.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-37
Edition 02
G-240W-A Product Guide
3Click Upgrade to upgrade the firmware.
4STOP. This procedure is complete.
Procedure 4-32 Reboot ONT
1Select Maintain > Reboot Device from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-32.
Figure 4-32 Reboot window
2Click Reboot to reboot the ONT.
3STOP. This procedure is complete.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-38 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-33 Restore factory defaults
1Select Maintain > Factory Default from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-33.
Figure 4-33 Factory default window
2Click Factory Default to reset the ONT to its factory default settings.
3STOP. This procedure is complete.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-39
Edition 02
G-240W-A Product Guide
Procedure 4-34 Diagnose connections
1Select Maintain > Diagnose from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-34.
Figure 4-34 Diagnose window
2Choose a WAN connection to diagnose from the drop-down menu.
3Enter the IP address or domain name.
4Select the test type by selecting either ping or traceroute.
5Enter a ping packet length (64-1024).
6Enter the number of ping attempts to perform (1 - 1000).
7Click Start Test. Results will be displayed at the bottom of the window.
8STOP. This procedure is complete.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-40 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-35 View log files
1Select Maintain > Log from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-35.
Figure 4-35 Log window
2Choose a write level from the drop-down menu to determine which types of events
are recorded in the log file:
•Emergency
•Alert
•Critical
•Error
•Warning
•Notice
•Informational
•Debug
3Choose a reading level from the drop-down menu to determine which types of
events to display from the log file:
•Emergency
•Alert
•Critical
•Error
•Warning
•Notice
•Informational
•Debug
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-41
Edition 02
G-240W-A Product Guide
4The log file is displayed at the bottom of the window.
5STOP. This procedure is complete.
RG troubleshooting counters
The Troubleshooting Counters feature enables service providers and end users to
monitor the performance of their broadband connection.
Tests are run to retrieve upstream and downstream throughput, latency, and DNS
response time. The Troubleshooting Counters window also displays upstream and
downstream packet loss and Internet status.
Procedure 4-36 Retrieve Residential Gateway (RG) troubleshooting
counters
1Select RG Troubleshooting Counters from the left menu in the GPON Home
Gateway window.
The RG Troubleshooting Counters window appears; see Figure 4-36.
Figure 4-36 RG Troubleshooting Counters window
Table 4-28 describes the fields in the RG Troubleshooting Counters window.
Table 4-28 RG Troubleshooting Counters parameters
Field Description
WAN Connection List Select a WAN connection from the list
US Throughput Click US Speed Test to specify the time for the upstream test
The default is weekly, performed at idle to a public server
DS Throughput Click DS Speed Test to specify the time for the downstream test
The default is weekly, performed at idle to a public server
(1 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-42 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
2Configure the test times if desired.
3Click Refresh to update the data.
4STOP. This procedure is complete.
4.3 SFU mode GUI configuration
Use the procedures below to utilize the web-based GUI for the G-240W-A in SFU
mode. This mode is preset at delivery.
SFU customer premise devices are designed for single indoor residential
applications. These ONTs address the demand for bandwidth intensive services, such
as high definition television (HDTV), video-on-demand (VOD) and online games.
The ONT can be configured to seamlessly deliver voice-over-IP and high speed
Internet access via a single fiber optic connection to the home.
Login
Use the procedure below to login to the web-based GUI for the G-240W-A.
Procedure 4-37 Login to web-based GUI
1Open a web browser and enter the IP address of the ONT in the address bar.
The login window appears.
The default gateway IP address is http://192.168.1.254. You can connect to this
IP address using your web browser after connecting your PC to one of Ethernet
ports of the ONT. The static IP address of your PC must be in the same subnet as
the ONT.
2Enter your username and password in the Log in window, as shown in Figure 4-37.
The default username and password are printed on the ONT. The default
superuser username is adminGPON. Contact Alcatel-Lucent for the superuser
password.
US Packet Loss The number of upstream packages lost
DS Packet Loss The number of downstream packages lost
Internet Status Whether the broadband connections is active (UP) or not (DOWN)
Latency Click Latency Test to specify the time for the test
The default is weekly, performed at idle to a public server
DNS Response Time Click DNS Response Test to specify the time for the test
The default is weekly, performed at idle to a public server
Field Description
(2 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-43
Edition 02
G-240W-A Product Guide
Figure 4-37 Web login window
3Click Login.
4STOP. This procedure is complete.
Device and connection status
G-240W-A ONTs support the retrieval of a variety of device information.
Caution — Pressing the Reset button for less than 10 seconds reboots
the ONT; pressing the Reset button for 10 seconds resets the ONT to the
factory defaults, except for the LOID and SLID.
Note — If you forget the current username and password, press the
reset button for 10 s and the default values for the username and
password will be recovered at startup.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-44 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-38 Device information retrieval
1Select Status > Device Information from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-38.
Figure 4-38 Device Information window
Table 4-29 describes the fields in the Device Information window.
Table 4-29 Device Information parameters
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Field Description
Device Name Name on the ONT
Vendor Name of the vendor
Serial Number Serial number of the ONT
Hardware version Hardware version of the ONT
Boot version Boot version of the ONT
Software version Software version of the ONT
Chipset Chipset of the ONT
Device Running
Time Amount of time the device has run since last reset in hours, minutes, and
seconds
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-45
Edition 02
G-240W-A Product Guide
Maintenance
G-240W-A ONT also supports maintenance tasks, including:
•password change
•LOID configuration
•SLID configuration
Procedure 4-39 Password configuration
1Select Maintain > Password from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-39.
Figure 4-39 Password window
Table 4-30 describes the fields in the password window.
Table 4-30 Password parameters
2Configure the new password.
3Click Save.
4STOP. This procedure is complete.
Field Description
New Password New password
Re-enter password Password must match password entered above
Prompt message Password prompt message
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-46 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-40 LOID configuration
1Select Maintain > LOID Config from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-40.
Figure 4-40 LOID configuration window
2Enter the LOID.
3Enter the password, if applicable.
4Click Save/Apply.
5STOP. This procedure is complete.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 4-47
Edition 02
G-240W-A Product Guide
Procedure 4-41 SLID configuration
1Select Maintain > SLID Configuration from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-41.
Figure 4-41 SLID configuration window
Table 4-31 describes the fields in the SLID configuration window.
Table 4-31 SLID configuration parameters
2Configure the new SLID.
3Click Save.
4STOP. This procedure is complete.
4.4 Operator ID
Use the procedure below to modify the operator ID for the G-240W-A.
Field Description
Current SLID Displays current SLID
Input new SLID Enter new SLID
SLID Mode Choose a SLID mode from the drop-down menu.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
4 — Configure a G-240W-A indoor ONT
4-48 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Procedure 4-42 Modifying the operator ID
1Register the ONT with the OLT.
2Check the original OPID.
3Update the OntConfig.xml file by adding-the following content:
<OperatorObject version=”1.0”>
<OperatorID=”XXXX”>
</OperatorObject>
where: xxxx is the correct operator ID, for example ALCL for HGU mode, or XXXX for SFU mode.
4Use a TFTP client tool to transfer the OntConfi.xml file to the OLT’s ONT directory
and change the filename to the software version number, for example,
3FE123456789.xml.
5Use a TL1 command to configure ONUSWCRTL:
ENT-ONTSWCTRL::1::::HWVER=hwver,VARNT=,PLNDSWVER=UNPLANNED,
PLNDSWVERCONF=UNPLANNED,DLDSWVER=swver;
where:
hwver is the EQPTVERNUM, for example EQPTVERNUM=3FE54945ABAA.
swver is the software version number used as the filename in step 2, for example
3FE123456789.xml.
6Download the .xml file to update the operator ID:
ED-ONT::ONT-1/1/3/1/19::::DLSW=AUTO;
7Restart the ONT, then connect to the LAN and access the web-based GUI to check
the operator ID default setting.
8Use a TL1 command to disable further downloads:
ED-ONT::ONT-1/1/3/1/19::::DLSW=DISABLED;
9STOP. This procedure is complete.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
5 — ONT configuration file over OMCI
5-2 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
5.1 Purpose
This procedure describes how to use configuration files over OMCI to configure
ONTs. Some advantages include:
•flexibility to change the ONT default behavior by downloading configuration file
•flexibility to update a deployed ONT by downloading updated parameters
•ability to securely download any configuration file to an ONT
•ability to avoid using embedded configuration files in ONT software
5.2 Supported configuration file types
Table 5-1 describes the configuration file types that are supported from 7368 ISAM
ONT R05.02.00 and later.
Note — This feature is supported for use with 7360 ISAM FX only;
it is not supported for use with 7342 ISAM FTTU.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
5 — ONT configuration file over OMCI
Alcatel-Lucent 7368 ISAM ONT 5-3
Edition 02
G-240W-A Product Guide
Table 5-1 Supported configuration files
File Index Description Details Supported ONTs/DPU
PRE ONT
pre-configuration
file
The XML-based PRECONFIG file controls the working
mechanics of the ONT for various services. The
default behavior of different ONTs may vary based on
the factory settings.
The pre-configuration file includes the factory
default value for the residential gateway.
Note: the pre-configuration file does not work with
SFU ONTs; therefore, this feature applies only to
Residential Gateway ONTs.
The pre-configuration file can be used as is, but
Alcatel-Lucent provides its customers with the
flexibility to customize the pre-configuration file.
This pre-configuration file enables operators to
change the default behavior by downloading a
customized pre-configuration based on customer
inputs.
This PRE XML file includes a custom OPERID.
The Alcatel-Lucent defined index for the PRECONFIG
file is: "PRE"
HGU ONTs:
G-240G-C,G-240W-A,
G-240W-B, G-440G-A
CFG ONT configuration
delta file The XML-based CFG file updates the configurable
parameters (the PRE settings) in the existing PRE file
of a deployed ONT, where required.
This configuration file enables operators to change
the deployed behavior by downloading customized
updates in the CFG file.
This file is used only to modify the parameters in the
PRE file; it is not used for service provisioning.
No OPERID is required, because the update is based
on the OPERID used for the PRE file.
The Alcatel-Lucent defined index for the PRECONFIG
DELTA file is: "CFG"
XML Voice XML file The Voice XML file provides an alternate method for
securely downloading voice parameters from the
OLT, rather than using FTP (OMCIv1/OMCIv2) or
HTTPS (TR-069). Downloading this file makes the
applicable changes in the voice parameters.
This file enables operators to change the voice
behavior by downloading the updated voice XML file.
Alcatel-Lucent recommends using this procedure,
rather than embedded voice XML files.
The Alcatel-Lucent defined index for the Voice XML
file is: "XML"
(1 of 2)
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
5 — ONT configuration file over OMCI
5-4 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Filename conventions
Alcatel-Lucent provides the raw configuration files, which must be saved by the
operator in a TAR file to be uploaded. TAR file names must be unique.
The filenames of the raw configuration files may not adhere to the naming
conventions outlined below. In this case, the files must be renamed to adhere to the
naming conventions before the operator generates the TAR file. Filenames are not
case-sensitive.
ABCXXXXVER
where
ABC is the file index type (PRE, CFG, XML, GFT)
XXXX is the operator ID
For PRE and CFG, a valid operator ID is required
For XML and GFT, any characters may be used
VER is the file version (from 001 to 999)
Note: you cannot update the configuration using two files with the same name.
5.3 ONT configuration file over OMCI
Use this procedure to configure ONTs using configuration files via OMCI.
GFT G.fast-related
configuration file This text-based json script file controls the default
behavior of the G.Fast ONT.
This file includes the provisioning parameters of the
G.fast transports layer; it does not include VLAN or
QoS provisioning.
While the ONT functions well with the default values;
they can optionally be customized.
While default values can work in VDSL mode, a
download file is required for the device to function as
a G.fast ONT.
The Alcatel-Lucent defined index for the G.fast file
is: "GFT"
G-010F-A, G-010F-B
File Index Description Details Supported ONTs/DPU
(2 of 2)
Warning — Executing the following procedure will trigger the ONT
to reboot, which will impact ongoing services.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
5 — ONT configuration file over OMCI
Alcatel-Lucent 7368 ISAM ONT 5-5
Edition 02
G-240W-A Product Guide
Procedure 5-1 Configuring an ONT using a configuration file via OMCI
1Generate the TAR file to be uploaded to the OLT.
Using the raw configuration file(s) provided by Alcatel-Lucent, generate the TAR
file as follows:
iOn a Linux platform, rename the raw configuration file to adhere to the
naming convention, as described in section 5.2.
ii Tar the ABCXXXXVER raw configuration file:
tar -cf ABCXXXXVER.tar ABCXXXXVER
Where
ABCXXXXVER
Is the name of the file created in step i.
This creates two files: ABCXXXXVER and ABCXXXXVER.tar.
iii Rename ABCXXXXVER to ABCXXXXVER.org
iv Remove the “.tar” extension from ABCXXXXVER.tar file.
2Upload the ABCXXXXVER TAR file to the /ONT/ directory in the OLT.
A maximum of 250 files can be kept in the OLT file system.
3Using OLT commands, download the TAR file to the ONT.
For OLT commands, refer to the 7360 ISAM FX CLI Command Guide for
100_320Gbps FD NT and FX NT.
Please note:
•pri-cfgfile-pland/dnload or sec-cfgfile-pland/dnload can be 1
to 14 characters.
•pri-cfgfile-pland and pri-cfgfile-dnload should be the same name.
Examples
Note: X can be 1 or 2 unless specified:
iIf pland-cfgfileX= Disabled and dnload-cfgfileX= Disabled ,
no file will be downloaded to the ONT.
ii If pland-cfgfileX=FILENAME1 and dnload-cfgfileX= Disabled ,
FILENAME1 will be downloaded and FILENAME1 will be made active. An ONT
reboot is required.
iii If pland-cfgfileX=Disabled and dnload-cfgfileX= FILENAME2
FILENAME2 will be downloaded and FILENAME2 will be made passive. An ONT
reboot is not required.
iv If pland-cfgfileX=FILENAME3 and dnload-cfgfileX= FILENAME 4,
the OLT reports an error because the filenames are not the same.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
5 — ONT configuration file over OMCI
5-6 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
vConfigure equipment interface … pland-cfgfile1=XMLXXXXXX1 and
dnload-cfgfile1 XMLXXXXXX1
Configure equipment interface … pland-cfgfile2=XMLXXXXXX2 and
dnload-cfgfile2 XMLXXXXXX2
Although the OLT permits the above two steps without reporting an error,
Alcatel-Lucent does not recommend executing them, because the ONT may
exhibit unexpected behavior.
vi If pland-cfgfileX=Auto and dnload-cfgfileX= Auto
The OLT will download the XML file from "sw-ctr-list" (configure
equipment ont sw-ctrl)
4STOP. This procedure is complete.
The ONT will distribute the configuration files to the different services based on the
active indication from the OLT and on the Alcatel-Lucent defined index.
The ONT automatically reboots to apply the configuration files. After the ONT reboots
and reports the active version, the OLT completes the file download procedure.
Operators must check the committed file from the OLT to verify whether the
corresponding file has been applied. If an error occurs, contact Alcatel-Lucent for
support.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
Customer documentation and product support
Customer documentation
http://www.alcatel-lucent.com/myaccess
Product manuals and documentation updates are available at
alcatel-lucent.com. If you are a new user and require access to this
service, please contact your Alcatel-Lucent sales representative.
Technical Support
http://support.alcatel-lucent.com
Documentation feedback
documentation.feedback@alcatel-lucent.com
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
© 2015 Alcatel-Lucent. All rights reserved.
.
R05.02.01 | October 2015 | 3FE-45360-AAAA-TCZZA | Edition 02
to provide a separation distance of at least 20 cm
Federal Communications Commission (FCC) Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed
from all persons and must not be collocated or operating in conjunction with any other antenna or
transmitter.
