ALCATELLUCENT

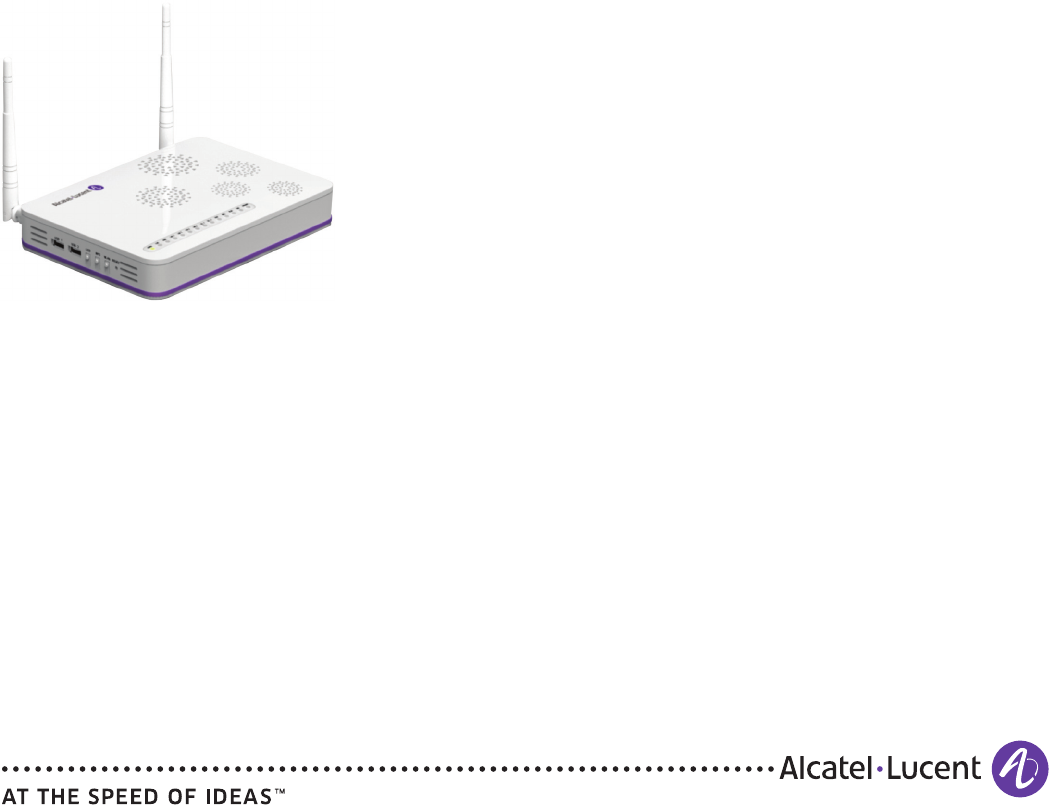

7342 ISAM I240WA
RESIDENTIAL INDOOR ONT
The Alcatel-Lucent 7342 Intelligent Service Access Manager (ISAM) I-240W-A Residential Indoor
Optical Network Terminal (ONT) provides 4 Gigabit Ethernet (GigE), two plain old telephone service
(POTS), and IEEE 802.11b/g/n wireless interfaces. It terminates a full service access network
(FSAN)-compliant gigabit passive optical network (GPON) fiber interface and is designed to deliver
triple play services with high bandwidth capacity. The combination of the ONT termination and
the residential gateway functionality reduces the number of devices needed in the home.
FEATURES
• FourRJ-4510/100/1000Ethernetports
with auto negotiation and Media Dependant
Interface/Media Dependant Interface
Crossover (MDI/MDIX) auto sensing
• Built-inLayer2switch
• Advanceddatafeaturessuchas
virtual LAN (VLAN) tag manipulation,
classification and filtering
• Wireless802.11b/g/n
• TwoPOTSportsforcarriergradevoice
services
• 5ringerequivalencenumbers(RENs)
perline,balancedringat55Vrootmean
square(RMS),anddual-tonemulti-frequency
(DTMF) dialing
• Multiplevoicecodec
• Echocancellation,voiceactivitydetector
(VAD), and comfort noise generator (CNG)
• SessionInitiationProtocol(SIP)(RFC3261)
• TwoUSB2.0ports
• G.984compliant
• ForwardErrorCorrection(FEC)
BENEFITS
• IntegratestheONTandwirelessaccess
point functions to allow for one less
device in the home
• DeliversconnectivitytoEthernetand
wireless devices within the home
• Supportsfulltripleplayservices
including voice, video, and high-speed
Internet access
• SupportsIPvideodistribution
• Deliversvoiceservicesusingvoiceover
IP (VoIP). Supports voice services using
SIPwithG.711,G.729(AandB),and
G.723.1 codecs
• Supportsfaxservices
• SupportsconnectiontoUSBdiskdrives
for home network-attached storage
(NAS) service
• Deliversvideoservicesefcientlywith
multicasting or unicasting
• InternetGroupManagementProtocol
(IGMP)proxy
![](/img.php?id=2679109&img=bg2.png)
www.alcatel-lucent.com Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of
Alcatel-Lucent. All other trademarks are the property of their respective owners. The information presented
is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.
Copyright©2013Alcatel-Lucent.Allrightsreserved.NP2013030672EN(April)
TECHNICAL SPECIFICATIONS
Physical
• Height:39mm(1.5in.)
• Width:205mm(8.1in.)
• Depth:150mm(5.9in.)
• Weight:0.36kg(0.79lb)
• Wallordeskmount
Operating environment
• Temperature:-5°Cto45°C(23°Fto113°F)
• Humidity:5%to90%relativehumidity
Power requirement
• Localpoweringwith12Vinput
(feedusesexternalAC/DCadapter)
• Dyinggaspsupport
• Powerconsumption:lessthan18W
Safety and electromagnetic
interface (EMI)
• Protectionofovervoltage/current
GPON interface
• 1490nmwavelengthdownstream,
1310 nm wavelength upstream
• 2.488Gb/slineratedownstream,
1.244 Gb/s line rate upstream
• CompliantwithG.984.2Amd1,ClassB+
• FullG.984.3-compliantframing
• SupportssingleT-CONTmodeandmultiple
T-CONT modes
• Smallformfactor(SFF)typelaser,
SC/APC connector
• AES-128decryptionwithkeygeneration
and switching
Ethernet
• 10/100/1000Base-Tinterfacewith
RJ-45connectors
• Ethernetportautonegotiationor
manual configuration
• MDI/MDIXautomaticsensing
• Hardwarepriorityqueuesonthe
downstream direction in support of
class of service (CoS)
• VLANtagging/detaggingperEthernetport
and by piggyback reports in the dynamic
bandwidth assignment report (upstream)
(DBRu)
• IGMPsnooping/proxy
• Broadcast/Multicastratelimiting
• Mediaaccesscontrol(MAC)addresslimiting
• Priorityandratecontrolledscheduling
WLAN interface
• 802.11n,compliantwith802.11b/g
• Radioon/offswitch
• 64/128wiredequivalentprivacy
(WEP) encryption
• Wi-Fi®ProtectedAccess(WPA),
WPA-PSK/TKIP
• WPA2,WPA2-PSK/AES
USB interface
• TwoUSB2.0hostinterfaces
POTS interface
• RJ-11connectors
• Balancedring,55VRMS
• 5RENperline
• DTMFdialing
• Echocancellation
• VADandCNG
• SIP(RFC3261)
• Real-timeTransferProtocol(RTP)
(RFC3550andRFC3551)
Residential gateway
• Point-to-PointProtocoloverEthernet
(PPPoE)
• Networkaddresstranslation(NAT)
• Networkaddressporttranslation(NAPT)
• ApplicationLayerGateway(ALG),
universalplugandplay(UPnP)
• Portforwarding
• Demilitarizedzone(DMZ)
• IP/MAClter
• Multi-levelrewall
• Domainnamesystem(DNS)server
• DynamicHostCongurationProtocol
(DHCP)client/server
LED
• Power
• Optical
• NetworkGPON
• LAN(1~4)
• POTS(1~2)
• Wi-FiProtectedSetup(WPS)
• WirelessLAN(WLAN)status
• USB
• Internet
Regulatory compliance
• CEMark
