Nokia Solutions and Networks CPE25100 Non-Line of Sight Digital User Station User Manual Exhibit 1

Nokia Solutions and Networks Non-Line of Sight Digital User Station Exhibit 1

Users Manual Revised

Section 7 FCC ID: PHX-CPE25100
Users Manual – Regulatory Information
Section 7
Regulatory
Information
and
Users Manual
Motorola, Inc., NextNet Wireless Product Group
2900 County Rd 42 W
Burnsville, MN 55337 Page 1 of 5 8/30/2007
Section 7 FCC ID: PHX-CPE25100
Users Manual – Regulatory Information
FCC / INDUSTRY CANADA INFORMATION
NOTICE: This equipment has been tested and found to comply with the Radio
Frequency Radiation Exposure Limits detailed below. A minimum of 20 centimetres (8
inches) separation between this device and the operator and all other persons should be
maintained.
This product complies with the requirements for Radio Frequency Radiation Hazard as
defined in the FCC rules 47CFR1.1307 and 47CFR2.1091 and Industry Canada
Standard RSS-102. Additional information about Radio Frequency Radiation Exposure
can be found on the FCC web site (www.fcc.gov) and the Canada web site
(http://canada.gc.ca/).
Radio Frequency Radiation Exposure Limits
Table 1 Limits for Maximum Permissible Exposure (MPE)
Frequency
Range (MHz) Electric
Field
Strength
(V/m)
Magnetic Field
Strength (A/m) Power
Density
(mW/cm2)
Averaging
Time
(Minutes)
(A) Limits for Occupational/Controlled Exposures
1500-100,000 --- --- 5 6
(B) Limits for General Population/Uncontrolled Exposure
1500-100,000 --- --- 1.0 30
NOTE 1 to Table 1: Occupational/controlled limits apply in situations in which persons
are exposed as a consequence of their employment provided those persons are fully
aware of the potential for exposure and can exercise control over their exposure.
Limits for occupational/controlled exposure also apply in situations when an individual
is transient through a location where occupational/controlled limits apply provided he
or she is made aware of the potential for exposure.
NOTE 2 to Table 1: General population/uncontrolled exposures apply in situations in
which the general public may be exposed, or in which persons that are exposed as a
consequence of their employment may not be fully aware of the potential for exposure
or cannot exercise control over their exposure.
Motorola, Inc., NextNet Wireless Product Group
2900 County Rd 42 W
Burnsville, MN 55337 Page 2 of 5 8/30/2007
Section 7 FCC ID: PHX-CPE25100
Users Manual – Regulatory Information
Declaration of Conformity Compliance Information
Residential Subscriber Unit Model Numbers: RDMi25100
CPEi25100
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Declaration of Conformity Responsible Party:
Motorola, Inc.
2900 West County Road 42, Suite 120
Burnsville, MN 55337
952-929-4008
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE: Modification of this device may void the user’s authority to operate the
equipment.
The device is intended to be powered by Listed/CN ITE LPS or Class II power supply
with output rated 13 V dc, 1.3 A minimum.
Motorola, Inc., NextNet Wireless Product Group
2900 County Rd 42 W
Burnsville, MN 55337 Page 3 of 5 8/30/2007
MOTOROLA, Expedience and the Stylized M Logo
are registered in the US Patent & Trademark Office.
All other product or service names are the property
of their respective owners.
© Motorola, Inc., 2007.
CPEi 100 Series
102-0612-0000
Computer
Power Cord
Ethernet
Cable
CPEi 100
Wireless
Modem

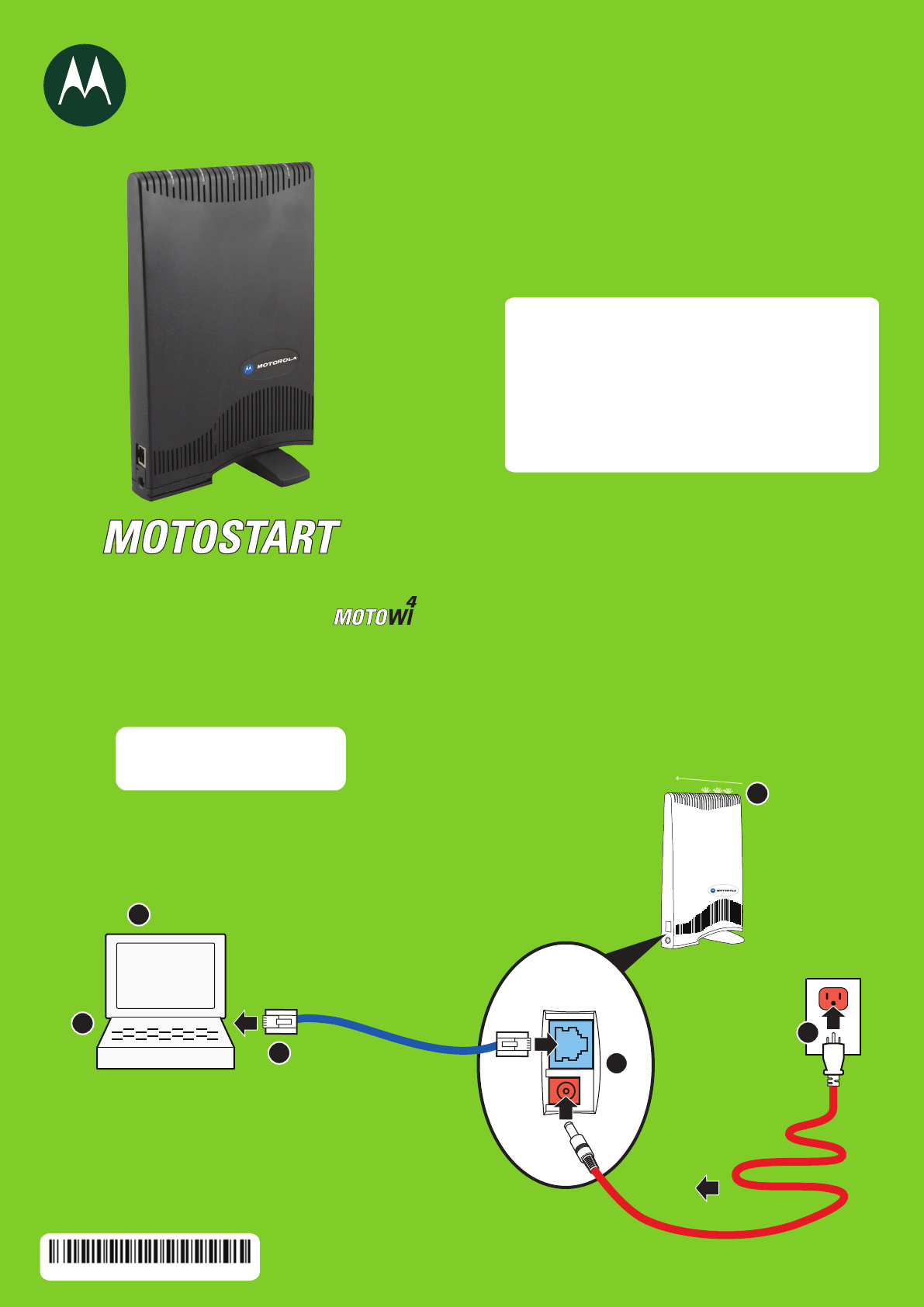

Connect the cables in
numerical order as shown.
Cable Connection Guide
1
2
3
4
5
6
All text and images are FPO
PMS 560 C
100%
PMS 376 C
100%
A4 (210mm x 297mm) folds to A6 (105mm x 148mm)
No software applications or drivers are loaded onto the computer.
Connect the Power cord and Ethernet cable to the CPE.
Plug the power cord into an AC outlet. The unit will turn on.
Rotate the CPE until you find the best signal strength. More lights = better signal.
Power off your computer.
Plug the other end of the Ethernet cable into the Ethernet connector of your computer.
Power on your computer.
When the CPE obtains Ethernet communication with your computer and completes its
connection to the wireless network, the lights stop blinking and remain on.
Procedure to Install the Unit
PMS 376 C
100%

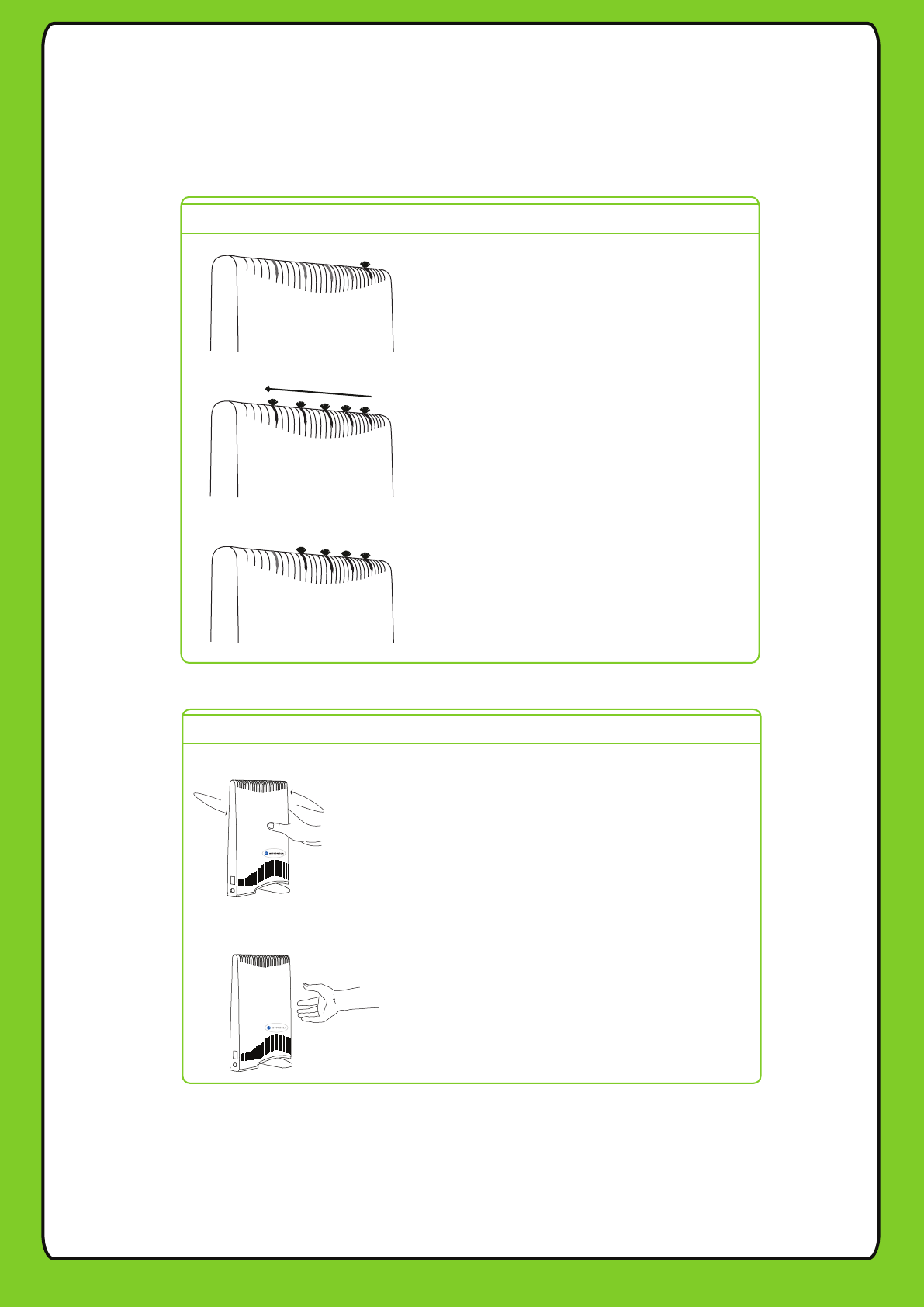

Checking the CPE’s lights
2
The lights on the CPE blink to indicate the strength of
the signal received by the CPE. The CPE is equipped
with an internal antenna that receives this signal
from your Internet service provider.
The more lights that blink on the CPE, the stronger
the signal that the CPE receives.
If the CPE is not able to receive any signal, the lights
blink in sequence. Choose another location in the
building in which to operate the CPE.
After the installation is complete the lights remain
continuously lit. This indicates the CPE can provide
you with high-speed Internet service.
Finding the best signal from the ISP
31. Place the CPE on a table or shelf.
2. Point the back of the CPE (the side without the logo)
toward a window. Remove your hands from the
CPE for a few seconds.
3. Note the number of lights on the CPE that blink.
4. Point the CPE to the left of the starting point, then to
the right. At each point, note how many lights blink.
5. Re-orient the back of the CPE to the direction it was
pointed when the most lights blinked.
6. Ensure that the lights stay on after you release your
hands from the CPE.
PMS 376 C
100%
A4 (210mm x 297mm) folds to A6 (105mm x 148mm)
