BS11 Introduction

Introduction
Base Transceiver Station Equipment
IN:BTSE BS 11 DRAFT
A30808-X3247-B309-1-7619
CAUTION
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own
expense.
2 A30808-X3247-B309-1-7619
IN:BTSE BS 11 Introduction
Base Transceiver Station Equipment
Copyright (C) Siemens AG 1997
Issued by the Public Communication Network Group
Hofmannstraße 51
D-81359 München
Technical modifications possible.
Technical specifications and features are binding only insofar as
they are specifically and expressly agreed upon in a written contract.
Important Notice on Product Safety
Elevated voltages are inevitably present at specific points in this electrical equipment. Some of the
parts can also have elevated operating temperatures.
Non-observance of these conditions and the safety instructions can result in personal injury or in prop-
erty damage.
Therefore only trained and qualified personnel may install and maintain the system.
The system complies with the standard EN 60950. All equipment connected has to comply with the
applicable safety standards.
!
A30808-X3247-B309-1-7619 3
Introduction
Base Transceiver Station Equipment IN:BTSE BS 11
This document consists of a total of 22 pages. All pages are issue 1.
Contents
1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.1 Purpose of the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.2 Structure of the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.3 Structure of the UMN: BTSE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.4 Introduction and Commands registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.5 Overview of SBS-BSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1.6 Base Station Controller (BSC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1.7 Base Transceiver Station Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1.8 Transcoding and Rate Adaptation Unit (TRAU) . . . . . . . . . . . . . . . . . . . . . . 7
1.1.9 Local Maintenance Terminal (LMT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1.10 Maintenance Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 LMT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 Introduction to the Local Maintenance Terminal (LMT) . . . . . . . . . . . . . . . . 8
2.2 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Access levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.4 BTSE Phase and Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.4.1 BTSE Phases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.4.2 BTSE Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.5 Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.6 Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.7 Installation of the LMT software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.7.1 Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

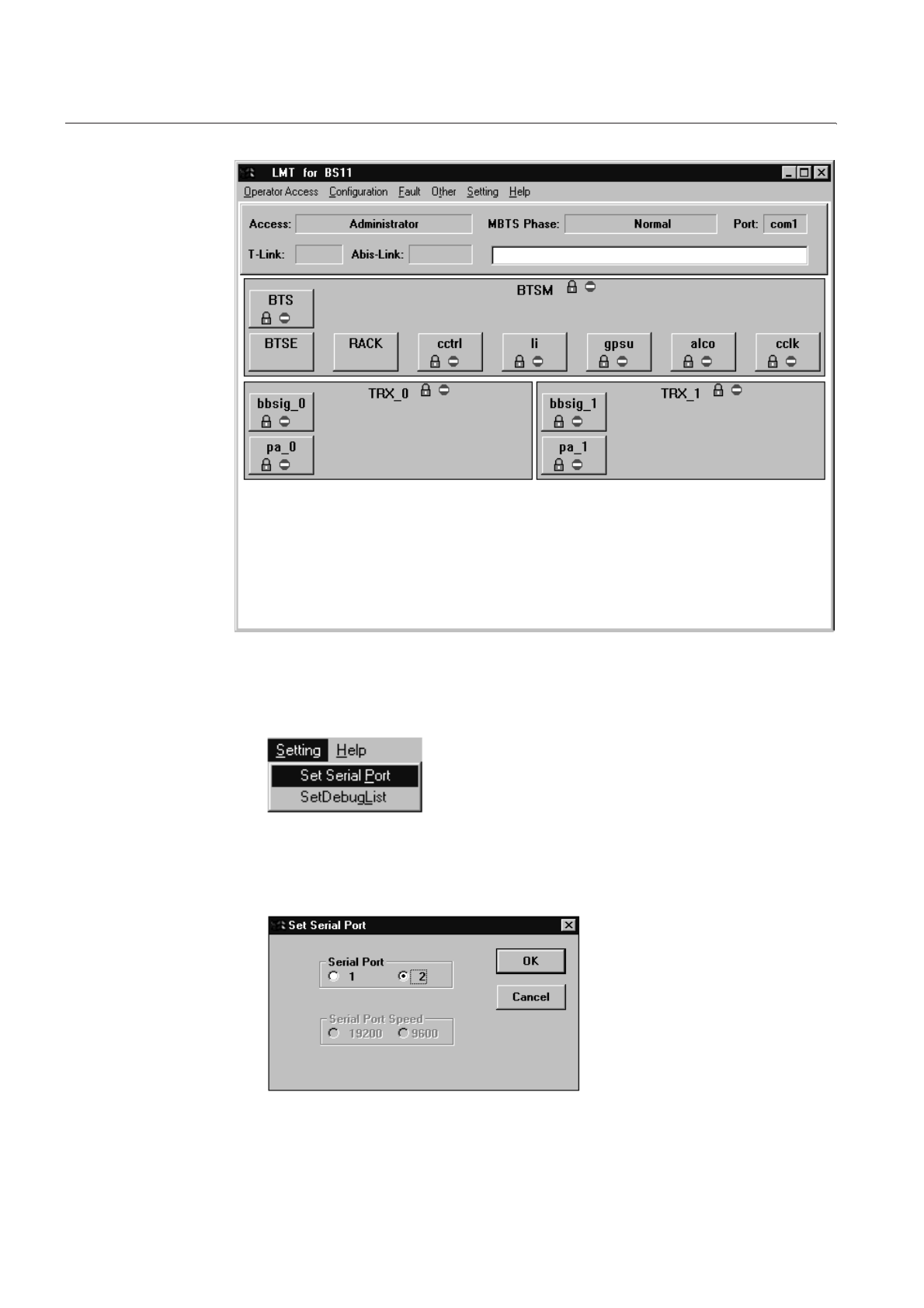

2.8 LMT Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.8.1 Setting Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

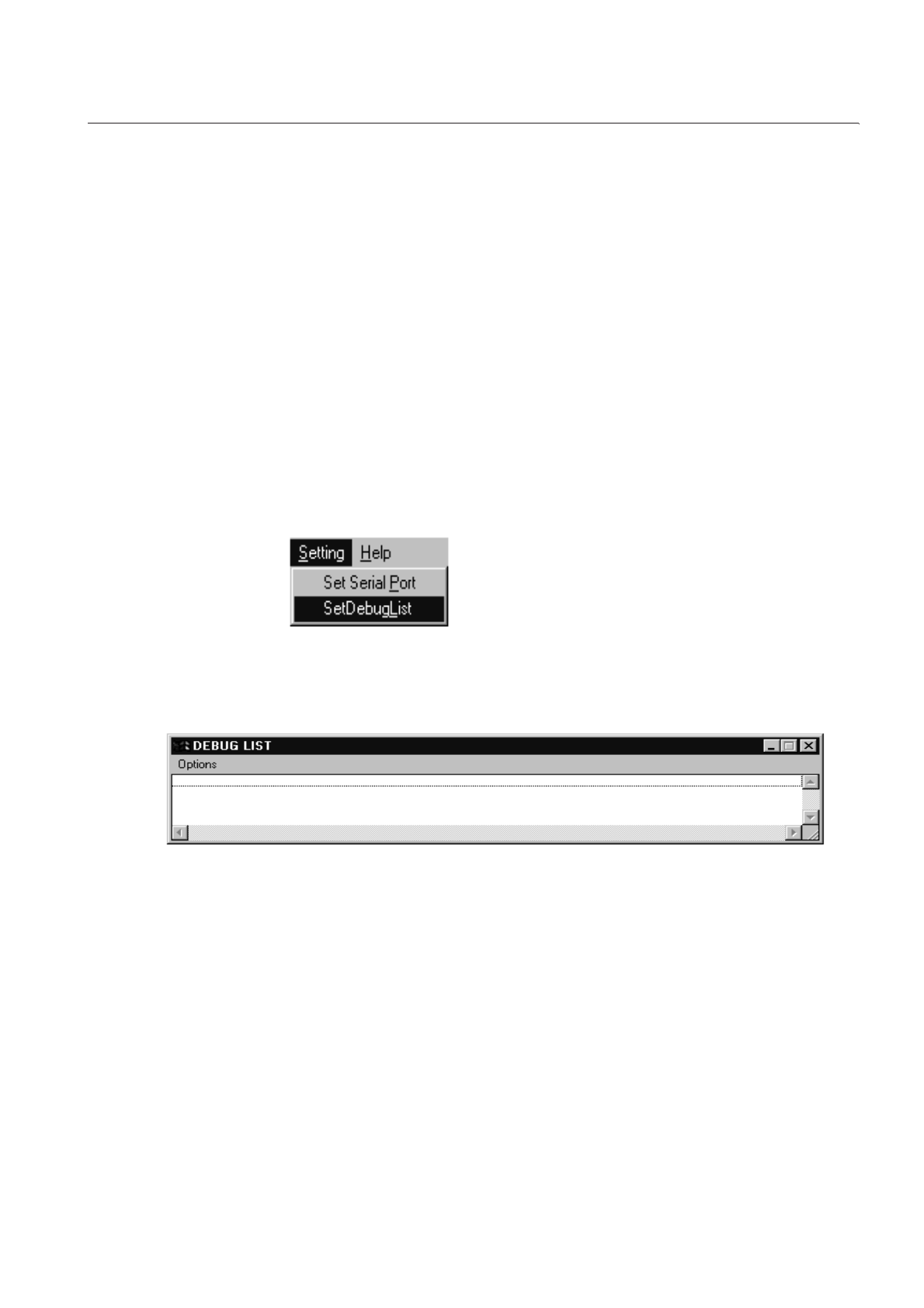

2.8.2 Setting Debug List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.9 LMT Logon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

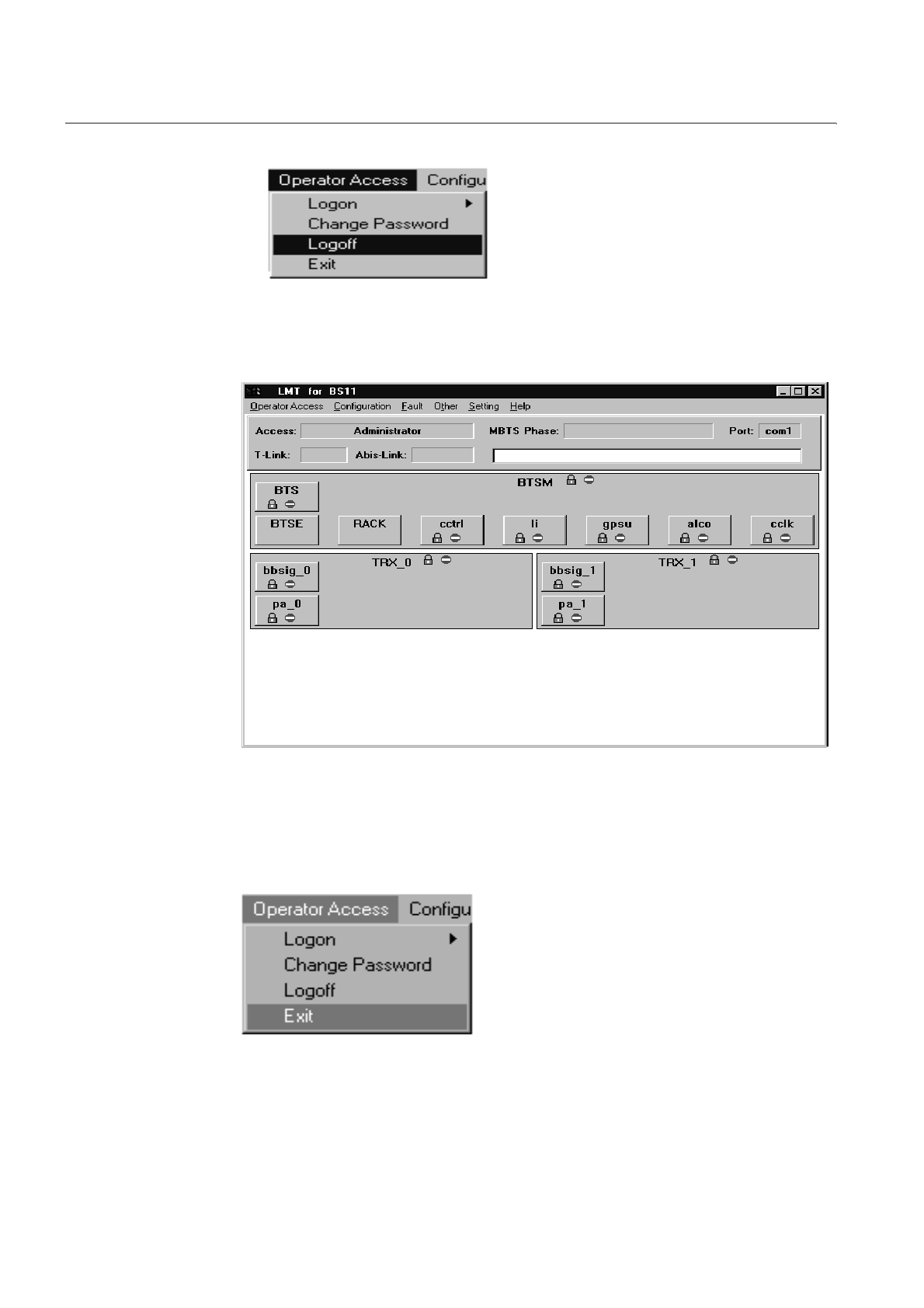

2.10 Logoff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.11 Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3 Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4 A30808-X3247-B309-1-7619
IN:BTSE BS 11 Introduction
Base Transceiver Station Equipment
Illustrations
Fig. 1.1 BSC, BTS and TRAU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Fig. 2.1 Protection circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Fig. 2.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fig. 2.3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fig. 2.4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fig. 2.5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Fig. 2.6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Fig. 2.7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fig. 2.8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Fig. 2.9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Fig. 2.10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Fig. 2.11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fig. 2.12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fig. 2.13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Fig. 2.14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fig. 2.15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fig. 2.16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
A30808-X3247-B309-1-7619 5
Introduction
Base Transceiver Station Equipment IN:BTSE BS 11
1 General
1.1 Introduction
1.1.1 Purpose of the Document
This register is a general guide for use by the operator of the Siemens Base Station
system (SBS). It describes the basic concepts of the BSS and the structure of the
system documentation. A special section is devoted to the Local Maintenance Terminal
(LMT), which is the main device for local interaction with the system.
1.1.2 Structure of the Document
This register is divided into two sessions:
– Session 1: General.
– Session 2: .LMT.This session is a detailed description of the hardware and software
components that identify the LMT. The LMT main menu is fully described as well.
1.1.3 Structure of the UMN: BTSE
The SBS documentation is divided into the following parts:
– BSS documentation
– OMS documentation.
This Introduction Register belongs to the UMN for the BTSE, which belongs to the BSS
documentation.
The purpose of UMN is to provide the user with a complete set of documentation about
the operation and maintenance of SBS. The UMN is composed of the following Regis-
ters:
– Introduction: a general description of the documentation itself and the man-machine
interface (LMT).
– Commands: a description of the commands.
– Maintenance (MMN:BTSE BS11): a description of the actions to be performed when
an error occurs or an alarm is activated.
1.1.4 Introduction and Commands registers
The Introduction register regards the following arguments:
– An overview of the Siemens Base Station (SBS)
– A description of the SBS Documentation Structure
– The Local Maintenance Terminal (LMT) description
The Commands register regards the following arguments:
– LMT Procedures
– LMT Commands.
6 A30808-X3247-B309-1-7619
IN:BTSE BS 11 Introduction
Base Transceiver Station Equipment
1.1.5 Overview of SBS-BSS
The Siemens Base Station (SBS) provides the connection of traffic and signalling chan-
nels between the Mobile Services Switching Center (MSC) and the Mobile Station (MS)
in GSM900 and DCS1800 PLMNs (see Fig. 1.1).
The BSS is composed of the following network elements:
– Base Station Controller (BSC)
– Base Transceiver Station Equipment (BTSE)
– Transcoding and Rate Adaptation Unit (TRAU)
Fig. 1.1 BSC, BTS and TRAU
1.1.6 Base Station Controller (BSC)
The Base Station Controller (BSC) is the core element of a BSS system and provides a
link between the BTSE elements and the MSC.
The connection to the BTSE is performed using the Abis Interface.
In the SBS system, the BSC is connected to the MSC by means of another network
element, the Transcoding and Rate Adaptation Unit (TRAU), via the Asub Interface.
The main functions of the BSC are the following:
– to provide the interfaces to BTSE, TRAU, OMC
– to administer the radio resources
– to perform radio frequency management
– to control the internal digital switch.
1.1.7 Base Transceiver Station Equipment
The BTSE can be seen as a basic cell element in the SBS network and provides the link
between the BSC and the MS.
A30808-X3247-B309-1-7619 7
Introduction
Base Transceiver Station Equipment IN:BTSE BS 11
1.1.8 Transcoding and Rate Adaptation Unit (TRAU)
The TRAU is the interface between the BSC and the MSC. For each traffic channel, the
TRAU adapts the transmission rate on the BSC side to the standardized 64 kbit/s trans-
mission rate on the MSC side.
1.1.9 Local Maintenance Terminal (LMT)
The LMT can be connected only to BTSE, and is the interface between the operator
(user) and the BTSE. It permits for all the operations of Installation and Maintenance
related to the BTSE.
1.1.10 Maintenance Register
The Maintenance register regards the following subjects:
– Section IN gives a short description of how to use the manual and explains the basic
principles of fault clearance
– Section TASK provides information on routine tasks
– Section PROC contains the fault clearance procedures
– Section TAB provides an overview of the jumpers and switches on modules and the
allocation fuses
– Section APP provides details on fault messages, status queries, configuration and
system diagnoses.
8 A30808-X3247-B309-1-7619
IN:BTSE BS 11 Introduction
Base Transceiver Station Equipment
2LMT
2.1 Introduction to the Local Maintenance Terminal (LMT)
The LMT is the interface between BTSE and the operator.
The software which performs the LMT functions must be installed on at least 386
Personal Computer provided with WINDOWS 3.1 and RS-232 serial port.
The LMT is connected to BTSE through an interface called T-interface.
– The LMT provides local maintenance services at the BTSE site
– Under restricted conditions, the LMT may disconnect the BTSE from BSC.
– The BTSE application runs in several phases which will be defined in the following.
The LMT can be connected to BTSE at any time.
Every time that LMT is connected to BTSE, the LMT program starts connection with
BTSE by retrieving the state of BTSE in order to know in which phases the BTSE
program is running at that time, the access type, the T-Link and Abis-Link status.
2.2 Connection
Connect the LMT to connector J02 on BTSE (Fig. 2.1).
Fig. 2.1 Protection circuit
A30808-X3247-B309-1-7619 9
Introduction
Base Transceiver Station Equipment IN:BTSE BS 11
2.3 Access levels
The LMT SW requires the user to enter the LOGON and PASSWORD. This information
is required to set the corresponding access level.
The operator can access the LMT program in the following ways:
– Factory mode
–User mode
– Administrator mode
Each mode access is controlled by one password. The Factory mode permits:
– BTSE software down loading (in phase 1)
– Set or get E.S.N. and CALIBRATION (set in phase 2, get in phase 2 and 3).
The User mode permits obtaining the get attributes and get alarms of BTSE.
The Administrator mode permits provision of all local maintenance service e.g.
create/delete objects of BTSE, set attributes, download and activate software from LMT
(in relation to BTSE phase).
Before executing Logon, Access is NULL.
2.4 BTSE Phase and Status
2.4.1 BTSE Phases
The BTSE will be, at any given time, in one of the possible phases. The current phase
will be communicated to LMT during the LOGON procedure and will affect LMT Menus.
Each phase permits the user to activate all suitable commands for this phase.

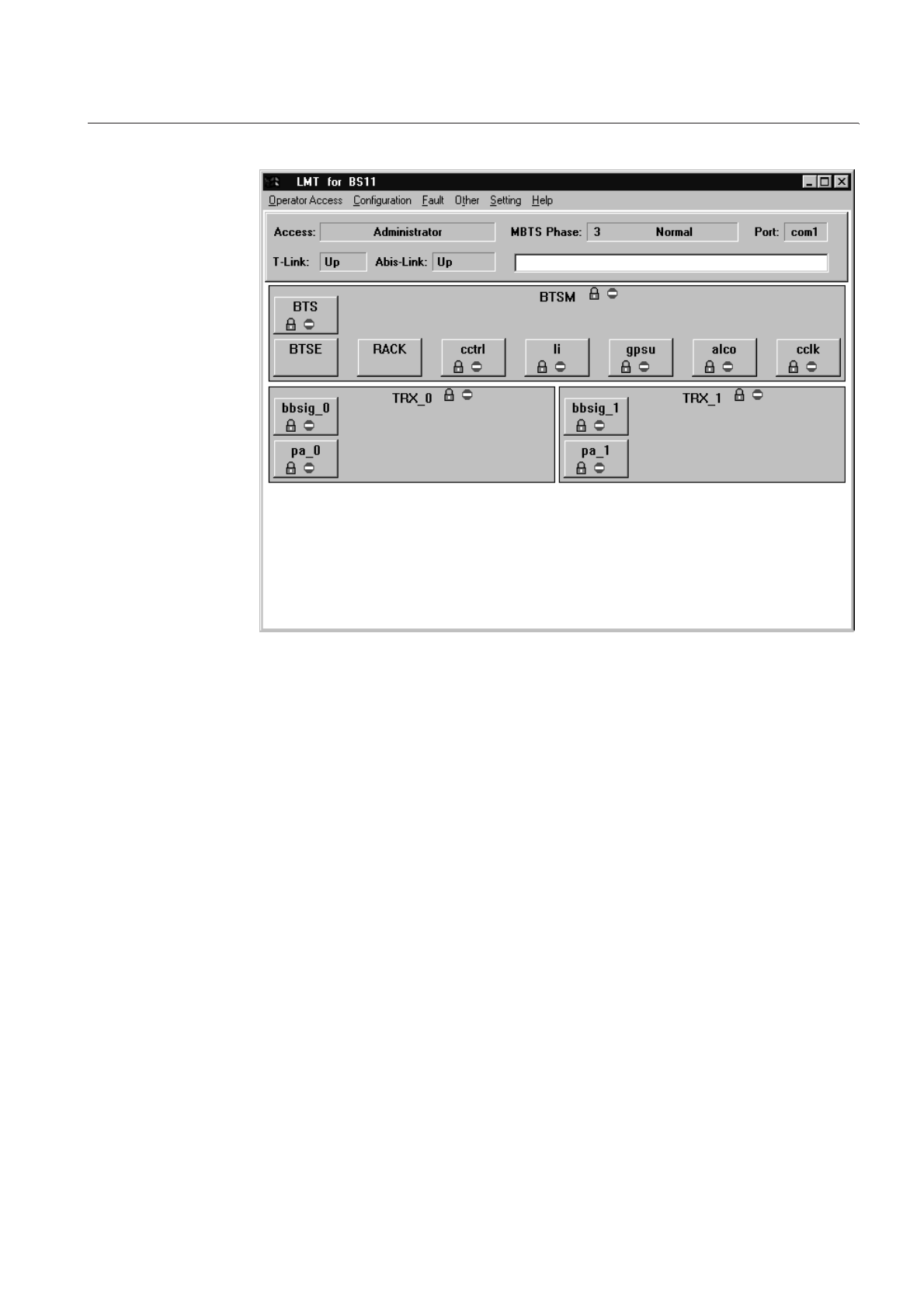

The menu command OTHER/MBTS RESTART start Connection with BSC. BTSE goes
from Phase 2 to Phase 3.
The menu command OTHER/mtbs DISCONNECT start Disconnection from BSC. BTSE
goes from Phase 3 to Phase 2. The possible phases are: Phase 1, Phase 2, Phase 3.
In phase 1 no connection to the BSC is established, only T-interface is working. In Phase
2 no connection to the BSC is established, only T-interface is working and the minimal
version of BTSE application is running. A-bis Link can be UP or DOWN. In Phase 3
connection to the BSC through A-bis link is established, T-interface is working. A-bis
Link can be UP or DOWN.
The possible cases of working in this phase are:
– BTSE application is running
– The SM Safety load is running and the download of BTSE application from BSC is
in progress.
– The SM Safety load is running and the BTSE is waiting for the download of BTSE
application from BSC.
10 A30808-X3247-B309-1-7619
IN:BTSE BS 11 Introduction
Base Transceiver Station Equipment
2.4.2 BTSE Status
The BTSE status is relative to the phase in which BTSE works as follows:
PHASE 1:
•Normal
PHASE 2:
•LOAD BTSCAC
•LOAD BTSDRX
•LOAD BTSBBX
•LOAD BTSARC
•WARM-UP
•WAIT_MIN_CONFIG
•MAINTENANCE
•NOT LOAD SM1
•NOT LOAD UBBCU
NOTE:
In phase 2 status 1-2-3-4-5-8-9 it is possible only to Make Get Attribute operations.
PHASE 3:
•LOAD FROM BSC
•NORMAL
2.5 Hardware
LMT Hardware is composed of the following two elements:
– A portable LAPTOP
These elements are described by the following mandatory minimal requirements:
PC configuration:
– A portable LAPTOP Intel 80486
– 8 Mbytes RAM
– LMT software requires about 610 Kbytes of conventional DOS memory. The PC
must, therefore, be configured appropriately.
– 120 Mbytes hard disk
– VGA 640x480 mono/color
– Mouse
– 1 Serial port (COM1)
– 1 Parallel port
– 1 hour survivability without power supply.
2.6 Software
LMT Software is composed of the following components:
– LMT.EXE
– FAULT.DLL
– GETALARM.DLL
– OTHERCMD.DLL
– GET_ATTR.DLL
– SET_ATTR.DLL
– CREATE.DLL
– TOOLS.DLL
A30808-X3247-B309-1-7619 11
Introduction
Base Transceiver Station Equipment IN:BTSE BS 11
– SERVER.DLL
– GETSTAT.DLL
– FDRIVER.DLL
– SOFTWARE.DLL
– CTL3D.DLL
– STRING.INI
– LMT.INI
– WINDOWS 3.1 or successive version
– Files necessary for Download.
The software version installed is 01.01.
2.7 Installation of the LMT software
The procedure shown is valid both for Windows 3.1 and Windows 95.
– To enter in Windows, type WIN followed by ENTER.
– Create a directory (i.e. LMT).
Copy the contents of the floppy disk supplied in the created directory.
2.7.1 Directory
Create a directory for files downloading from BTSE.
2.8 LMT Setting
The operations described must be performed before LMT Logon.
2.8.1 Setting Serial Port
Class Operation
This is Setting Class Command
Scope and Description of Command
This command selects thes serial port
Applicability
This action can be performed before LMT Logon.
Associated Parameters
None
Response Messages
None
Way to operate
1. The following window is displayed at start up of LMT program
12 A30808-X3247-B309-1-7619
IN:BTSE BS 11 Introduction
Base Transceiver Station Equipment
Fig. 2.2
2. Select Setting-> Set Serial Port
Fig. 2.3
3. The following dialog box is displayed after selection of Set Serial Part.
Fig. 2.4
4. Select the necessary serial port, then click on OK button.
A30808-X3247-B309-1-7619 13
Introduction
Base Transceiver Station Equipment IN:BTSE BS 11
2.8.2 Setting Debug List
Class Operation
This is Setting Class Command
Scope and Description of Command
This command sets Debug List
Applicability
This action must be performed before LMT Logon
Associated Parameters
None
Response Messages
None
Way to operate
1. Select Setting-> Set Debug List
Fig. 2.5
2. The following DEBUG LIST is displayed after selection
Fig. 2.6
2.9 LMT Logon
In order to successfully complete the activation, the user should:
– Verify the correct installation of LMT hardware and software.
– Verify that BTSE and LMT are connected with the suitable cable.
– Verify that BTSE is powered on.
– Run the executable file (i.e. LMT.EXE) downloaded during installation of the LMT
software.
Class Operation
This is an Operator Access Class Command
Scope and Description of Command
This command performs a connection between Local Maintenance Terminal and BTSE
14 A30808-X3247-B309-1-7619
IN:BTSE BS 11 Introduction
Base Transceiver Station Equipment
Applicability
This action can be performed at any BTSE phase working
Associated Parameters
The only parameter associated is the password
Response Messages
Null Response
Successful conclusion command (Password is correct)
Password Wrong
Unsuccessful conclusion command (Password is wrong)
Way to operate
1. The following window is displayed at start up of LMT program
– Release shows the release of LMT program
(xx = Edition of LMT program yy = Version of LMT program
– Access: NULL means that Logon command has not been yet performe
– The Debug List shows the messages from BTSE to LMT
Fig. 2.7
2. Select Operator Access->Logon->User or Administrator or Factory
– The User Access allows only Get Attributes and Get Alarms Commands
– The Administrator Access allows Get and Set Attributes, Get Alarms, Create and
Delete Objects, Change Administrative State for Objects, Download and Activate
or Disactivate Software, Restart of BTSE
– The Factory Access allows Download and Activate Software, Set and Get factory
parameters
A30808-X3247-B309-1-7619 15
Introduction
Base Transceiver Station Equipment IN:BTSE BS 11
Fig. 2.8
3. The following window is displayed after selection of Administrator and the password
required dialog for Administrator Mode Access is displayed
Insert password and Click on OK button
Fig. 2.9
4. With BTSE functioning, the terminal goes automatically to phase 3 as shown below.
Fig. 2.10
5. After 1 minute about, the Data Base alignment starts.
16 A30808-X3247-B309-1-7619
IN:BTSE BS 11 Introduction
Base Transceiver Station Equipment

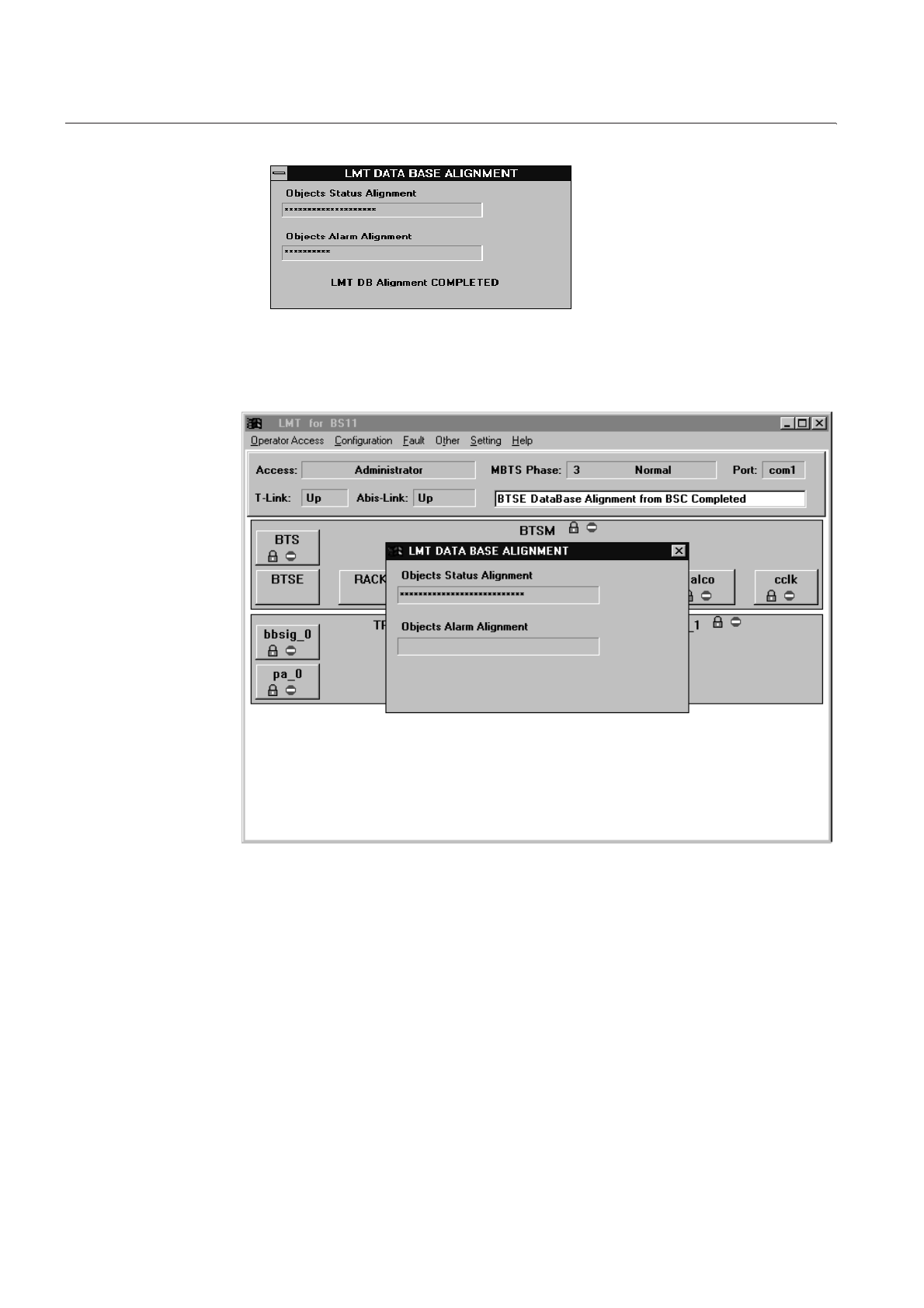

Fig. 2.11
6. When the Data Base Alignment is completed the following window is displayed
Fig. 2.12
7. The following window is displayed when Logon command for administrator mode
access is completed
In this example the LMT is connected to BTSE that works in phase 3
The information showed are:
•Command menu for administrator access
•Type of operator access
•Phase of BTSE working
•Status of link between LMT and BTSE (T-Link)
•Status of link between BTSE and BSC (Abis-Link)
•Graphic representation of functional and hardware objects available of BTSE
•The Debug List shows the messages from BTSE to LMT
A30808-X3247-B309-1-7619 17
Introduction
Base Transceiver Station Equipment IN:BTSE BS 11
Fig. 2.13
2.10 Logoff
Class Operation
This is an Operator Access Class Command
Scope and Description of Command
Before to change the access type you have to select this command
Applicability
This action can be performed at any BTSE phase working
Associated Parameters
There are not associated parameters
Response Messages
There are not response messages
Way to operate
1. For this operation the status of Abis Link is not relevant
2. Select Operator Access->Logoff
18 A30808-X3247-B309-1-7619
IN:BTSE BS 11 Introduction
Base Transceiver Station Equipment
Fig. 2.14
3. The following window is displayed after selection of Logoff
Fig. 2.15
2.11 Exit
Exit option allows to exit from the LMT program.
Fig. 2.16
A30808-X3247-B309-1-7619 19
Introduction
Base Transceiver Station Equipment IN:BTSE BS 11
3 Abbreviations
Abis GSM interface (BSC-BTSE)
ALCO Alarm and Control Board
BBSIG Base Band and Signaling Board
BSC Base Station Controller
BSS Base Station System
BTSE Base Transceiver Station Equipment
BTSM BTS Site Manager
CCLK Common Clock
GPSU Generic Power Supply Unit
GSM Global System for Mobile Communication
LI Link Interface
LMT Local Maintenance Terminal
MS Mobile Station
MSC Mobile Services Switching Center
OMC Operation and Maintenance Center
PA Power Amplifier
PLMN Public Land Mobile Network
SBS Siemens Base Station System
SM Site Management
TRX Transceiver
20 A30808-X3247-B309-1-7619
IN:BTSE BS 11 Introduction
Base Transceiver Station Equipment

Navigation menu
