Users Manual

NTC DN999099 © Nokia Telecommunications Oy Internal Copy 1 (34)

Issue 1 en DRAFT 3 Draft

Confidential

Nokia MetroSite Base Station

Commissioning

Nokia MetroSite Base Station Commissioning

2 (34) © Nokia Telecommunications Oy Internal Copy NTC DN999099

Confidential Issue 1 en DRAFT 3 Draft

The information in this document is subject to change without notice and describes only the

product defined in the introduction of this documentation. This document is intended for the

use of Nokia Telecommunications' customers only for the purposes of the agreement under

which the document is submitted, and no part of it may be reproduced or transmitted in any

form or means without the prior written permission of Nokia Telecommunications. The

document has been prepared to be used by professional and properly trained personnel, and

the customer assumes full responsibility when using it. Nokia Telecommunications welcomes

customer comments as part of the process of continuous development and improvement of the

documentation.

The information or statements given in this document concerning the suitability, capacity, or

performance of the mentioned hardware or software products cannot be considered binding

but shall be defined in the agreement made between Nokia Telecommunications and the

customer. However, Nokia Telecommunications has made all reasonable efforts to ensure that

the instructions contained in the document are adequate and free of material errors and

omissions. Nokia Telecommunications will, if necessary, explain issues which may not be

covered by the document.

Nokia Telecommunications' liability for any errors in the document is limited to the

documentary correction of errors. Nokia Telecommunications WILL NOT BE RESPONSIBLE

IN ANY EVENT FOR ERRORS IN THIS DOCUMENT OR FOR ANY DAMAGES,

INCIDENTAL OR CONSEQUENTIAL (INCLUDING MONETARY LOSSES), that might arise

from the use of this document or the information in it.

This document and the product it describes are considered protected by copyright according to

the applicable laws.

NOKIA logo is a registered trademark of Nokia Corporation.

Other product names mentioned in this document may be trademarks of their respective

companies, and they are mentioned for identification purposes only.

NTC DN999099 © Nokia Telecommunications Oy Internal Copy 3 (34)

Issue 1 en DRAFT 3 DraftConfidential

Contents

Contents 3

1 About this document 7

2 Nokia BTS Manager 9

2.1 Starting and exiting the BTS Manager 9

2.2 Using Help 10

3 Commissioning 11

3.1 Commissioning with Nokia BTS Manager’s Wizard 11

3.2 Allocating transmission capacity with Traffic Manager 21

4 Commissioning report 25

4.1 Test results 25

5 Troubleshooting and fault reporting 27

6 Routing transmission capacity 29

6.1 Creating cross-connections manually 29

Appendix A. LMP connector description 33

Nokia MetroSite Base Station Commissioning

4 (34) © Nokia Telecommunications Oy Internal Copy NTC DN999099

Confidential Issue 1 en DRAFT 3 Draft

NTC DN999099 © Nokia Telecommunications Oy Internal Copy 5 (34)

Issue 1 en DRAFT 3 DraftConfidential

Summary of changes

Updated September 99

Nokia MetroSite Base Station Commissioning

6 (34) © Nokia Telecommunications Oy Internal Copy NTC DN999099

Confidential Issue 1 en DRAFT 3 Draft

About this document

NTC DN999099 © Nokia Telecommunications Oy Internal Copy 7 (34)

Issue 1 en DRAFT 3 DraftConfidential

Caution

1About this document

This document describes the commissioning of the Nokia MetroSite GSM 900,

1800 and 1900 Base Station (BTS). The document provides instructions on how

to use the Nokia BTS Manager’s commissioning Wizard. Read carefully Nokia

MetroSite BTS Warnings and Cautions before starting the commissioning.

The document contains the following information:

• chapter 2: Nokia BTS Manager

• chapter 3: Commissioning

• chapter 4: Commissioning Report

• chapter 5: Troubleshooting and Fault Reporting

• chapter 6: Routing Transmission Capacity

Commissioning measures concerning any Nokia Base Transceiver Station (BTS)

may be performed only by properly trained and authorised personnel.

Nokia MetroSite Base Station Commissioning

8 (34) © Nokia Telecommunications Oy Internal Copy NTC DN999099

Confidential Issue 1 en DRAFT 3 Draft

Nokia BTS Manager

NTC DN999099 © Nokia Telecommunications Oy Internal Copy 9 (34)

Issue 1 en DRAFT 3 DraftConfidential

Note

2Nokia BTS Manager

This chapter gives instructions on how to get started with Nokia BTS Manager. It

is assumed here that the user knows how to use Windows 95 or NT4.0 software.

2.1 Starting and exiting the BTS Manager

The installation program of the manager SW creates a Nokia BTS Manager icon

on the desktop and defines its parameters. For more information on the

installation, refer to the Nokia BTS Manager online Help or the instructions on

the Nokia BTS Manager CD-ROM case.

Start the BTS Manager as follows:

1. Double-click the BTS Manager icon on the desktop. The Nokia BTS

Manager starts with the Supervise and Alarms windows opened. Also, the

software checks the BTS configuration and displays it in the Supervision

window.

2. Enter the MMI password if MMI password checking is on (this is the case

when you work in Windows 95 environment).

3. Enter the BTS password if BTS password checking is on. The software

continues execution only if the BTS accepts the entered password. You

may enter an invalid password three times before the BTS Manager exits.

You can define different Manager options and communications parameters when

starting to work with the BTS Manager.

The BTS Manager PC must be connected to the BTS in order to make the BTS

password checking possible. If no connection exists, password checking is not

applicable.

Nokia MetroSite Base Station Commissioning

10 (34) © Nokia Telecommunications Oy Internal Copy NTC DN999099

Confidential Issue 1 en DRAFT 3 Draft

To exit the BTS Manager, choose the Exit command on the File menu.

2.2 Using Help

The Nokia BTS Manager software has a convenient, context-sensitive online

Help facility for getting information about a task you are going to perform, a

feature you might want to know more about, or a command you may want to use.

To get Help

• press F1

• click the ‘Help’ button on the toolbar

• choose one of the Help menu commands or

• click the Help button in any dialog box.

In the Help Topics window you can see three tabbed pages: Contents, Index and

Find.

Contents

The Contents page displays a list of topics organized in books by category.

Index

The Index page lists keywords in alphabetical order through which different

topics can be reached.

Find

The Find page provides a full-text search functionality that allows you to search

for any word or phrase in the Help file.

To exit Help, press ESC or ALT+F4.

Commissioning

NTC DN999099 © Nokia Telecommunications Oy Internal Copy 11 (34)

Issue 1 en DRAFT 3 DraftConfidential

3Commissioning

3.1 Commissioning with Nokia BTS Manager’s Wizard

The commissioning is done with Nokia BTS Manager’s Wizard.

It is assumed here that the LAPD links and the PCM port are activated at the BSC.

The BCF is in the ‘unlocked’ state.

Before beginning the commissioning do the following:

1. Check that the Abis cables are connected.

2. Check that the Nokia MetroSite BTS is powered up.

3. Connect the Nokia BTS Manager PC to the BTS’s LMP port. See

Appendix A for a description of the LMP cable.

Nokia MetroSite Base Station Commissioning

12 (34) © Nokia Telecommunications Oy Internal Copy NTC DN999099

Confidential Issue 1 en DRAFT 3 Draft

Note

4. Check that you have the required Site IDs and transmission capacity tables,

or that the correct Site Configuration File (SCF) exists on the PC hard disk.

The Site Configuration File is an unformatted ASCII file which contains site

parameters for several sites under a BSC. The file is created from the NMS/2000

database and it can be retrieved to the Manager PC via a Web server interface to

the NMS/2000 (refer to NMS/2000 documentation). During the commissioning

procedure, the parameters for the selected site are automatically read from the

file.

The file can be modified locally using the SCF Editor, which is delivered on the

Nokia BTS Manager CD-ROM. For details on how to install the editor, refer to

the instructions on the CD-ROM case. For information on how to use the editor,

refer to the application’s online Help.

BTS SW is loaded to the BTS by the manufacturer. There is usually no need to

locally load SW to the BTS during commissioning.

Start the commissioning as follows:

1. Start the Nokia BTS Manager by double-clicking the BTS Manager icon

on the desktop.

2. Enter the MMI and BTS passwords, if required.

3. When the BTS Manager indicates that the BTS is in the ‘BCF

commissioning’ state, choose the Wizard command on the Commissioning

menu.

4. Select the Manual Commissioning option and click Next.

Commissioning can be done only with a non-commissioned BTS. If the BTS is

already commissioned, you need to run the Undo Commissioning procedure first.

Commissioning

NTC DN999099 © Nokia Telecommunications Oy Internal Copy 13 (34)

Issue 1 en DRAFT 3 DraftConfidential

Note

Figure 1. Manual Commissioning option

5. The configuration data for the site(s) is stored on your PC in a Site

Configuration File (SCF) under a certain pre-defined name. Open the file,

select the site to be commissioned and click Next.

The next time you launch the Commissioning Wizard, this page

automatically displays the Site Configuration File you used in the previous

session.

If the correct site configuration data is not in the SCF or if the SCF file itself is

not available, select the ‘Undefined’ site option and click Next to continue.

Nokia MetroSite Base Station Commissioning

14 (34) © Nokia Telecommunications Oy Internal Copy NTC DN999099

Confidential Issue 1 en DRAFT 3 Draft

Note

Figure 2. Site configuration file and site name list

If the EAC inputs will not be used, just click Next.

6. Check the EAC inputs if they will be used. If the SCF is available and the

EACs are defined in it, the ‘In Use’ information is read from the SCF;

otherwise you have to mark the required EACs as ‘In Use’.

The state of each EAC will change in real time as you test them, e.g. if you

blow some smoke on the smoke detector. Then, the appropriate state

changes from ‘Open’ to ‘Closed’, or vice versa.

After testing the EACs, mark them ‘Checked’. When you have completed

the testing (or checking), click Next.

The Next button remains disabled until you click a check mark in the Checked

box for all inputs that are ‘In Use’.

Commissioning

NTC DN999099 © Nokia Telecommunications Oy Internal Copy 15 (34)

Issue 1 en DRAFT 3 DraftConfidential

Note

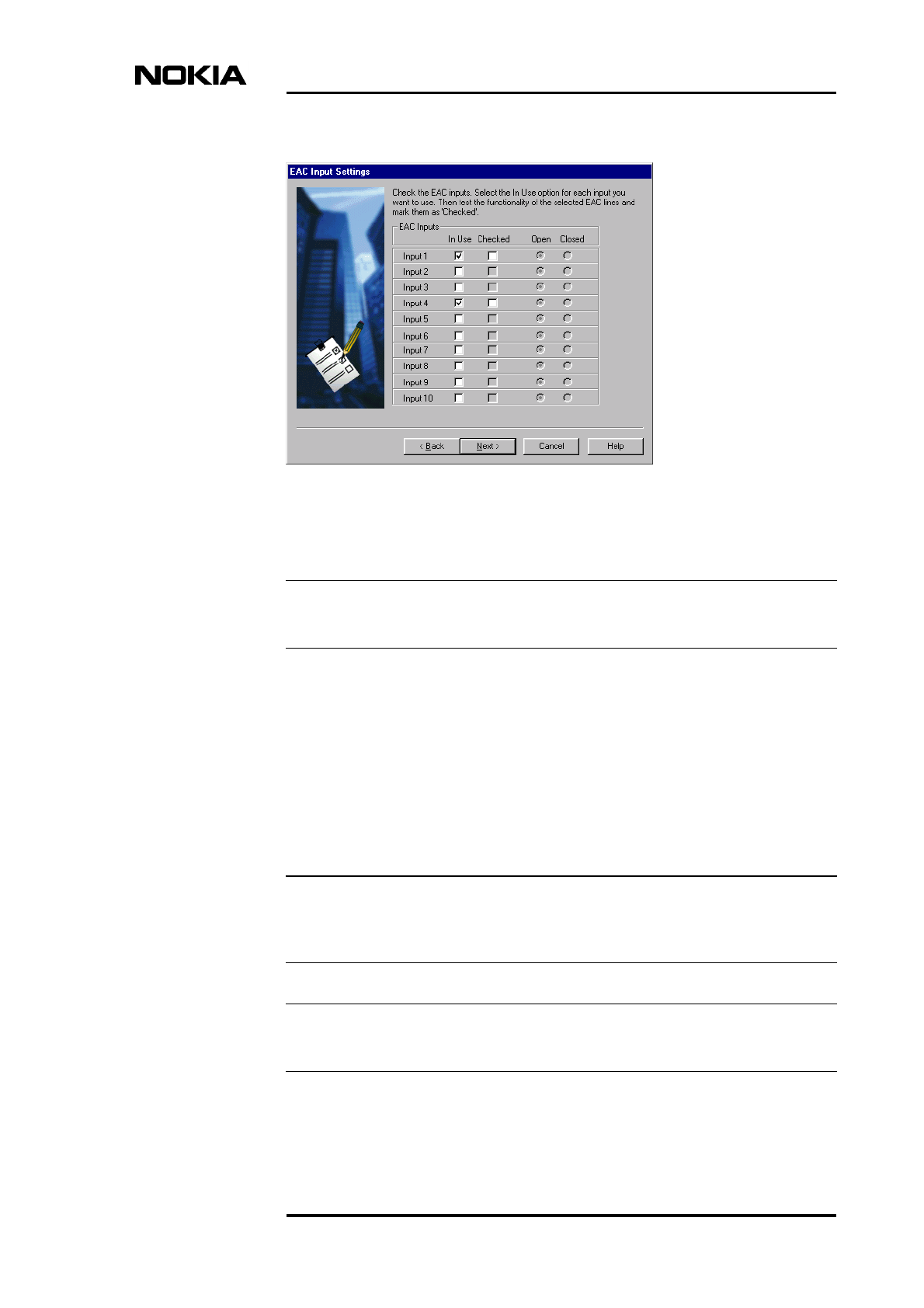

Figure 3. EAC inputs

If the EAC outputs will not be used, click Next.

7. Check the EAC outputs (if they will be used) by changing the EAC states.

If the SCF is available and the EACs are defined in it, the EAC output

information is read from the SCF; otherwise you have to first mark the

required EACs as ‘In use’.

When you have finished the EAC output settings, click the Set Outputs

button to send the information to ther BTS.

After you have completed checking, click Next.

The Next button remains disabled until you click a check mark in the Checked

box for all outputs that are ‘In Use’.

The EAC names and polarities are defined at the BSC.

Nokia MetroSite Base Station Commissioning

16 (34) © Nokia Telecommunications Oy Internal Copy NTC DN999099

Confidential Issue 1 en DRAFT 3 Draft

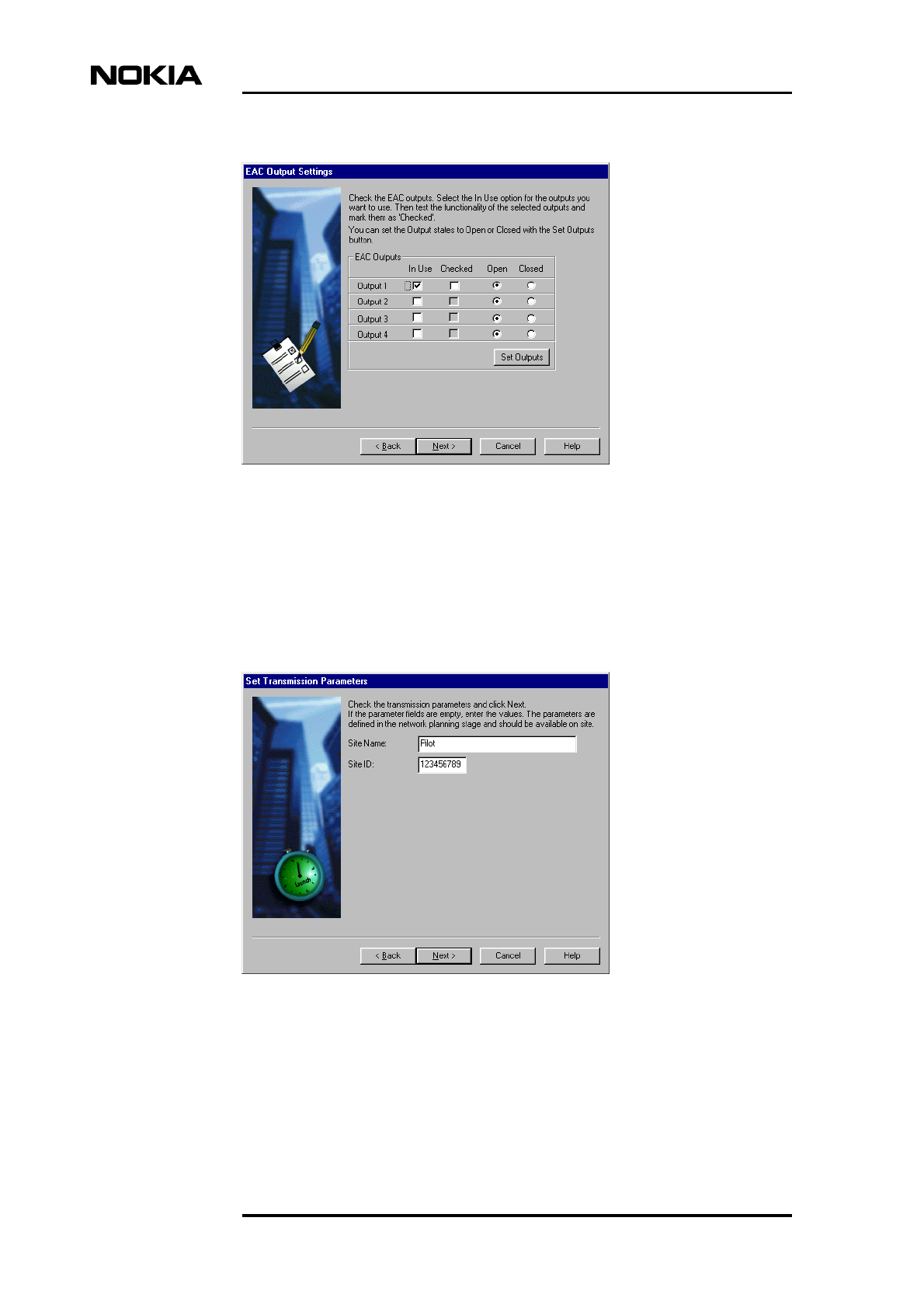

Figure 4. EAC outputs

8. Check that the transmission parameters are correct. If you selected the

<undefined> option on the Site Configuration page, you need to enter the

parameters here, because the information was not available in the Site

Configuration File.

Figure 5. Transmission parameters

Commissioning

NTC DN999099 © Nokia Telecommunications Oy Internal Copy 17 (34)

Issue 1 en DRAFT 3 DraftConfidential

Note

9. Click the Traffic Manager button to open the Traffic Manager dialog box.

The Next button is disabled until you return from the Traffic Manager.

Figure 6. Traffic Manager button

10. Allocate transmission capacity to the BTS with the Traffic Manager (refer

to 3.2) and, when completed, click OK. This will establish a transmission

connection between the BTS and the BSC. (In case the connection fails,

refer to chapter 5, Troubleshooting and fault reporting.)

When you click OK in the Traffic Manager, the Transmission

Configuration page reappears. The Back button is disabled, because the

transmission parameters have already been sent to the BTS. If you need to

change any parameters you have specified prior to this point, you have to

run the Undo Commissioning procedure first and then re-commission the

BTS.

When the Transmission Configuration page reappears, there is a short

delay before the Wizard automatically proceeds to the next page. If the

BTS Test Reporting page does not appear automatically, click Next to

proceed.

When the BTS Test Reporting page appears, there is a slight delay before the

automatic BSC-controlled tests start. If you click the Manual button to open the

TRX Test dialog box and the BSC-controlled tests start, the dialog box closes

automatically.

Nokia MetroSite Base Station Commissioning

18 (34) © Nokia Telecommunications Oy Internal Copy NTC DN999099

Confidential Issue 1 en DRAFT 3 Draft

Note

Caution

Note

During the BTS/BSC start-up scenario the BSC checks the BTS SW and if

it is not the correct one, the BSC loads SW to the BTS. This downloading

will take from 5 to 20 minutes depending on the link speed. If no SW

downloading takes place, the process will take about 10 seconds. After that

the BSC sends the configuration data to the BTS.

11. When the BCF is in the ‘Supervisory’ state and the TRXs are ready for

testing, the BTS tests are run under the BSC’s control. The BSC runs

automatic tests on the Abis link and on each TRX installed in the BTS.

The TRX test will take about 6 - 7 seconds for one TRX, 15 seconds for 4

TRXs (one radio time slot per each TRX is tested), while the Abis loop test

will take about 1 minute 50 seconds (all channels of every TRX are tested).

If the establishment of the BTS/BSC connection does not succeed, the BTS

remains in the ‘Waiting for LAPD’ state. Then you can click the Manual button

to run local TRX tests. You can also run manual tests after the automatic BSC-

controlled tests are over.

In order not to interfere the operation of other sites, make sure that an RF

attenuator is connected to every TRX in the BTS before you start local TRX tests.

The BTS starts operating normally after the tests have been performed, if

the TRXs are unlocked at the BSC. The BCCH TRXs’ LEDs are green and

the TCH TRXs’ LEDs are blinking green.

12. Check the test results on the BTS Test Reporting page and click Next.

The test results can be monitored at the BSC. It is also possible to request the

latest test results remotely from the NMS/2000.

Commissioning

NTC DN999099 © Nokia Telecommunications Oy Internal Copy 19 (34)

Issue 1 en DRAFT 3 DraftConfidential

Note

Figure 7. Test events

13. Check the BTS Commissioning Report.

14. Type a name for the BTS Commissioning Report in the Save As field.

By default, the Commissioning Report is saved to the

\NOKIAMGR\REPORTS folder. To specify a different path for the report,

click Browse and navigate to the folder you want.

15. Click Finish. The Commissioning Wizard closes.

If there is a need to route transmission capacity and no cross-connection file is

available to automate the process, the cross-connections have to be created

manually. See chapter 6 for instructions on how to create the cross-connections.

Nokia MetroSite Base Station Commissioning

20 (34) © Nokia Telecommunications Oy Internal Copy NTC DN999099

Confidential Issue 1 en DRAFT 3 Draft

Note

Figure 8. BTS Commissioning Report

16. Quit the BTS Manager.

17. Disconnect the BTS Manager PC from the Nokia MetroSite BTS’s LMP

port.

The commissioning parameters are stored in the flash memory of the Master TRX

(i.e. TRX1). The Master TRX creates back-up copies of these parameters in the

slave TRXs’ flash memory.

For maintenance purposes, in the case of 1*TRX BTS, make a back-up copy of

the timeslot allocation settings using the Traffic Manager’s export function (refer

to 3.2).

At this point you should check the Alarms window for possible alarms generated

during the commissioning. For alarm descriptions, refer to Nokia MetroSite BTS

Alarm Descriptions.

Complete the installation as instructed in Nokia MetroSite Base Station

Installation.

Commissioning

NTC DN999099 © Nokia Telecommunications Oy Internal Copy 21 (34)

Issue 1 en DRAFT 3 DraftConfidential

Note

3.2 Allocating transmission capacity with Traffic

Manager

The Traffic Manager is a graphical tool that allows you to allocate BTS

transmission capacity independent of which Nokia MetroSite transmission unit is

used. You need only to define the line interface (e.g. Port 1) and the incoming

timeslot allocation on the Abis according to the transmission plan.

With the FXC E1/T1 Symm transmission unit, the cross-connections are created

automatically after the capacity has been set and approved.

If a Site Configuration File is used for transmission capacity allocation, the Abis

TS Allocation table is filled automatically. You only need to check the

correctness of the capacity allocation.

Figure 9. Traffic Manager for allocating BTS transmission capacity

In the case of 1.5 MB links (T1), the Traffic Manager automatically reduces the

number of timeslot rows in the table to 24.

The capacity to be used is defined by selecting its signal type (TCHs, TRXSIG,

OMUSIG, TRXSIG on TCHs or OMUSIG/TRXSIG1) and by reserving required

time slots and bits.

Nokia MetroSite Base Station Commissioning

22 (34) © Nokia Telecommunications Oy Internal Copy NTC DN999099

Confidential Issue 1 en DRAFT 3 Draft

Note

Allocate transmission capacity as follows:

1. Select the line interface used (Port 1 - Port 16, depending on the

transmission unit).

2. Click the appropriate traffic or signal button.

3. Click in a cell in the Abis timeslot allocation table.

4. Select an option, e.g. link speed, as required by the SW. (The selections are

different depending on the signal type.) The SW then automatically

reserves the time slots and bits to be used for the selected function.

5. Repeat steps 2 - 4 until all types of necessary BTS signals are marked.

If you want to modify the allocation table at this point, you have to first delete

prior allocations. Click the right mouse button on the cells to be modified and

delete either one signal allocation, all signal allocations of a particular type or

delete all allocations for the selected port.

6. Check that the signal timing (either ‘Normal’ or ‘Satellite’) is correctly set.

7. Click the OK button to send the information to the BTS.

If you want to modify the allocations after you click OK in the Traffic Manager,

you have to first run Undo Commissiong and reset the BCF.

When the link capacity restricts normal signal allocation, you can use the

‘TRXSIG on TCHS’ and combined ‘OMUSIG/ TRXSIG1’ signal types.

The signal types are discussed below in more detail:

OMUSIG

The BTS can have one OMUSIG which allocates 2, 4 or 8 bits in one time slot

depending on the link speed used (16 - 64 kbit/s). If a combined OMU/TRXSIG1

is used, the allocation of the OMUSIG is disabled.

Commissioning

NTC DN999099 © Nokia Telecommunications Oy Internal Copy 23 (34)

Issue 1 en DRAFT 3 DraftConfidential

OMUSIG/TRXSIG1

The BTS can have one combined OMUSIG/TRXSIG1 which allocates 2, 4 or 8

bits in one timeslot depending on the link speed used (16 - 64 kbit/s). When a

compressed Abis timeslot allocation is used, the OMUSIG/TRXSIG1 can be

located in TCH/TS0 or TCH/TS0 - TS3 which means that it overlaps the TCHs

which are reserved for a TRX (normally TRX1).

TCHs

The BTS must be allocated at least as many TCHs as there are TRXs installed in

it (1 - 12). Each TCH allocates 2 contiguous time slots (16 bits) for a single TRX

each of which is marked with the TRX number. The TCHs are numbered from 1

to 12 in order of which they are defined.

TRXSIG

The BTS must be allocated at least as many TRXSIGs as there are TRXs installed

in it (1 - 12). Each TRXSIG can allocate 2, 4 or 8 bits in one time slot depending

on the link speed used (16 - 64 kbit/s). The TRXSIGs are numbered from 1 to 12

in the order they are entered.

TRXSIG on TCHs

The TRXSIG can be reserved on a traffic channel but then up to 4 traffic channels

are lost. The signal type must always start from the first bit of the channel.

Nokia MetroSite Base Station Commissioning

Confidential Issue 1 en DRAFT 3 Draft

Commissioning report

Issue 1 en DRAFT 3 DraftConfidential

4Commissioning report

After the actual commissioning, the Commissioning Report is saved in a file on

the PC hard disk (by default in the NOKIAMGR\BTSMAN\REPORTS folder).

The report is an ASCII text file that you can open and check with Notepad or any

word processor.

The Commissioning Report can be sent to the NMS/2000 via the Web server. The

report serves as the Site Acceptance document.

4.1 Test results

Each test gives one of the following test results: OK, Partially failed or Failed.

The BTS Commissioning report provides the following information:

• Report title

• Date and time

• BTS logical configuration

• BTS HW report

• BTS SW report

• EAC input test report

• EAC output test report

• TS allocation report

• TRX test report

• Abis test report

• BTS alarm test report

• External TREs

• Telecom status

Nokia MetroSite Base Station Commissioning

Confidential Issue 1 en DRAFT 3 Draft

Troubleshooting and fault reporting

Issue 1 en DRAFT 3 DraftConfidential

5Troubleshooting and fault reporting

In the case of a failure in the commissioning procedure, an alarm will appear in

the alarm window (refer to the BTS Alarm descriptions document in the SW

release binder). Also, you may check the cause of a failure from the

commissioning report and the diagnostic report.

The commissioning procedure may fail, e.g. when:

• the Abis cables are not properly connected (then the transmission unit LED

is not green)

• the pre-configuration failed at the BSC, e.g. the BCF and TRX objects were

not created

• the oven oscillator has not yet warmed up (then the BCF remains in the

‘Configuring’ state)

• the TRXs are not unlocked at the BSC (then the TRXs do not enter the

‘Supervisory’ state)

• the PCM port is not activated at the BSC.

Before starting to re-commission the BTS, first run the Undo Commissioning

procedure.

All damages, failures or faults must be reported to Nokia using the Failure Report

Form provided by the Customer Services (CS).

Nokia MetroSite Base Station Commissioning

Confidential Issue 1 en DRAFT 3 Draft

Routing transmission capacity

Issue 1 en DRAFT 3 DraftConfidential

6Routing transmission capacity

Routing of transmission capacity can be done in two ways, depending whether

there is a cross-connection file available or not.

If the cross-connection file exists, routing of transmission capacity is automated,

i.e. the Site Configuration File refers to the name of the file and the embedded

node manager opens the file and sends the settings to the transmission unit

without any indication to the user by the SW.

If the cross-connection file required is not available, you have to create the cross-

connections manually using the Cross-connections tool (see the section below).

6.1 Creating cross-connections manually

Cross-connections are created with the Cross-connections tool in the transmission

unit manager application.

Cross-connections define how signals are routed from a FXC transmission unit to

another transmission unit. Cross-connections are created into banks which are

either active or inactive. The cross-connections in the active banks are in use,

whereas those in inactive banks can be used for creating or editing cross-

connections. The procedure below describes how to create bi-directional cross-

connections.

Create bi-directional cross-connections as follows:

1. Start the Cross-connections tool by choosing the Open command on the

Transmission menu in the BTS Manager. The manager application for the

transmission unit is launched and the BTS Manager session terminates.

2. Open the inactive bank page. (The number of the active bank is given

above the cross-connections list view.)

Nokia MetroSite Base Station Commissioning

Confidential Issue 1 en DRAFT 3 Draft

Note

3. Open the Add Cross-Connection dialog box by right-clicking the mouse

and selecting the Add... command. (Another way to open the dialog box is

to choose the Add command on the Cross-connections | Connections

submenu.)

4. Define the following settings according to the cross-connection plan:

• label, i.e. the name of the new cross-connection (max. 80 characters)

• cross-connection type; in this case the type is ‘bi-directional’

• granularity (with nx64k set also its coefficient n)

• cross-connection class

• timeout.

5. Click the Tx1/Rx1 button to open the Termination Point view.

6. In the Interface tree view, select one of the FXC transmission card’s

interfaces, e.g. Interface 1.

In the timeslot table, the earlier reserved timeslots and bits are indicated by grey,

while the selected ones will become yellow.

7. Click a cell in the table to define the start bit of the frame.

8. Click OK. The dialog box is closed.

9. Click the Tx2/Rx2 button to open the Termination Point view.

10. In the Interface tree view, select an interface, e.g. Interface 2.

11. Click a cell in the table to define the start bit of the frame.

12. Click OK. The dialog box is closed.

13. Click Apply in the Add Cross-connection dialog box. All settings are

loaded but the window remains open.

14. Repeat steps 1 - 13 for other types of cross-connections.

15. Activate the bank by selecting the Cross-connections | Banks | Activate

command and click OK.

16. Close the views and the Cross-connection tool.

Routing transmission capacity

Issue 1 en DRAFT 3 DraftConfidential

17. Quit the transmission unit manager. The Nokia BTS Manager starts

automatically.

Editing a bank

You can start editing already made settings in an inactive bank by double-clicking

the particular connection in the cross-connection list view in the Cross-

connection window or by selecting the connection and choosing the Edit

command on the pop-up menu (which appears when you right-click the mouse).

If you have activated the bank, you need to copy the cross-connection information

to the inactive bank for editing as active banks cannot be edited. The copy

command also is available in the pop-up menu.

Nokia MetroSite Base Station Commissioning

Confidential Issue 1 en DRAFT 3 Draft

LMP connector description

Issue 1 en DRAFT 3 DraftConfidential

Appendix A. LMP connector description

Figure 10 below describes the connectors and pin order of the LMP cable which

connects the BTS Manager PC to the BTS.

Figure 10. LMP cable connectors

9876

= Hole

= Pin

1 nc

2 RD

3 TD

4 nc

5 GND

6 nc

7 nc

8 nc

9 nc

3 LMP out

2 LMP in

4 GND

2 nc GND = Ground

RD = Received data

TD = Transmitted data

nc = not connected

BQ on the BTS end

of cable D9P (female) on the PC

end of cable

Nokia MetroSite Base Station Commissioning

Confidential Issue 1 en DRAFT 3 Draft

Nokia Solutions and Networks VTPA-01 PCS1900 Base Station User Manual sw

Nokia Solutions and Networks PCS1900 Base Station sw

Users Manual

Navigation menu

Namespaces

Views

Navigation
