Nokia of America BBTRX-04 LTE 700TRDU User Manual Exhibit D Users Manual per 2 1033 c3

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-04

Alcatel-Lucent

Use pursuant to Company Instructions

USERS MANUAL

Section 2.1033(C)(3)

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-04

Alcatel-Lucent

Use pursuant to Company Instructions

USERS MANUAL

SECTION 2.1033(c) (3)

A copy of the installation and operating instructions to be furnished the user. A draft copy of the

instructions may be submitted if the actual document is not available. The actual document shall

be furnished to FCC when it becomes available.

RESPONSE:

A copy of

(1) LTE Radio Access Network (RAN) - Alcatel-Lucent 9412eNodeB Compact Outdoor-

Installation Manual is attached

.

Title page

Alcatel-Lucent Long Term Evolution (LTE)

Radio Access Network (RAN)

Alcatel-Lucent 9412 eNodeB Compact Outdoor

Installation Manual

INTERNAL DISTRIBUTION ONLY

418-000-415

Issue 4.1

August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Proprietary Use pursuant to Company instruction

Legal notice

Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective

owners.

The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.

Contains proprietary/trade secret information which is the property of Alcatel-Lucent and must not be made available to, or copied or used by anyone outside

Alcatel-Lucent without its written authorization.

Notice

Every effort was made to ensure that the information in this Information Product (IP) was complete and accurate at the time of printing. However,

information is subject to change.

Mandatory customer information

Product conformance statements can be found in Appendix A of this manual.

Proprietary Use pursuant to Company instruction

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Contents

About this document

Purpose ............................................................................................................................................................................................. ixix

1Safety

Overview ...................................................................................................................................................................................... 1-11-1

Structure of safety statements ............................................................................................................................................... 1-21-2

Safety - General precautions for installation procedures ........................................................................................... 1-41-4

Safety - specific hazards ......................................................................................................................................................... 1-61-6

2Product overview

Overview ...................................................................................................................................................................................... 2-12-1

Background information

Overview ...................................................................................................................................................................................... 2-32-3

Functional description ............................................................................................................................................................. 2-42-4

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction iii

Physical description

Overview ...................................................................................................................................................................................... 2-62-6

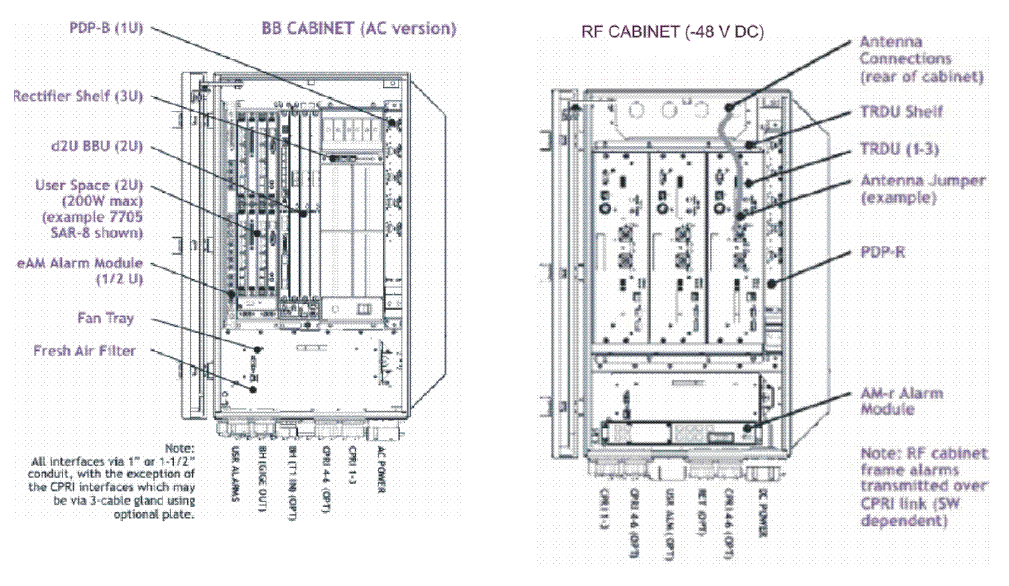

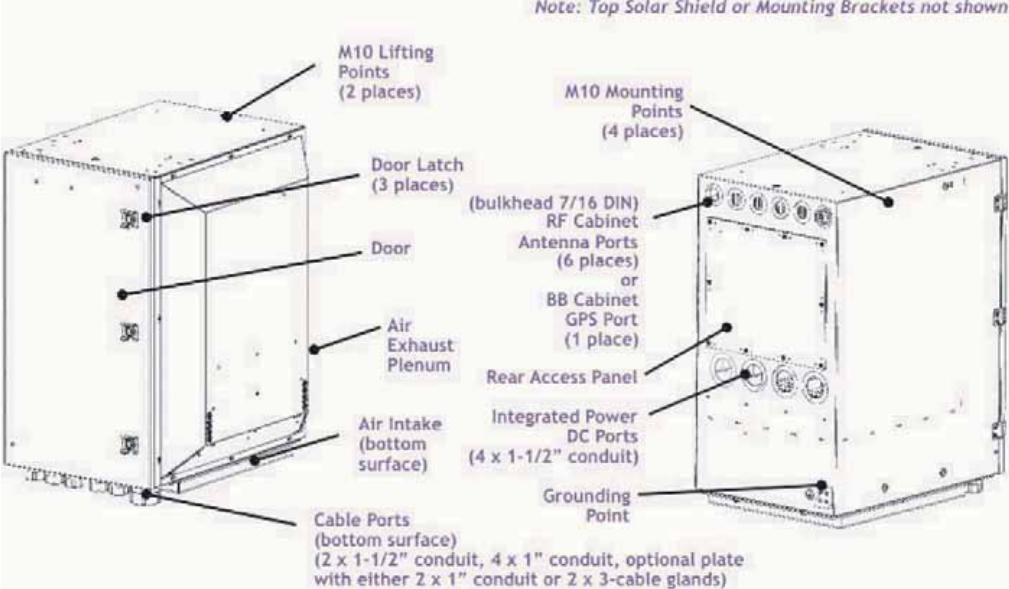

9412 cabinet overview (Standard DC cabinets) ............................................................................................................2-72-7

9412 cabinet overview (-48V DC Distributed cabinet) .............................................................................................. 2-92-9

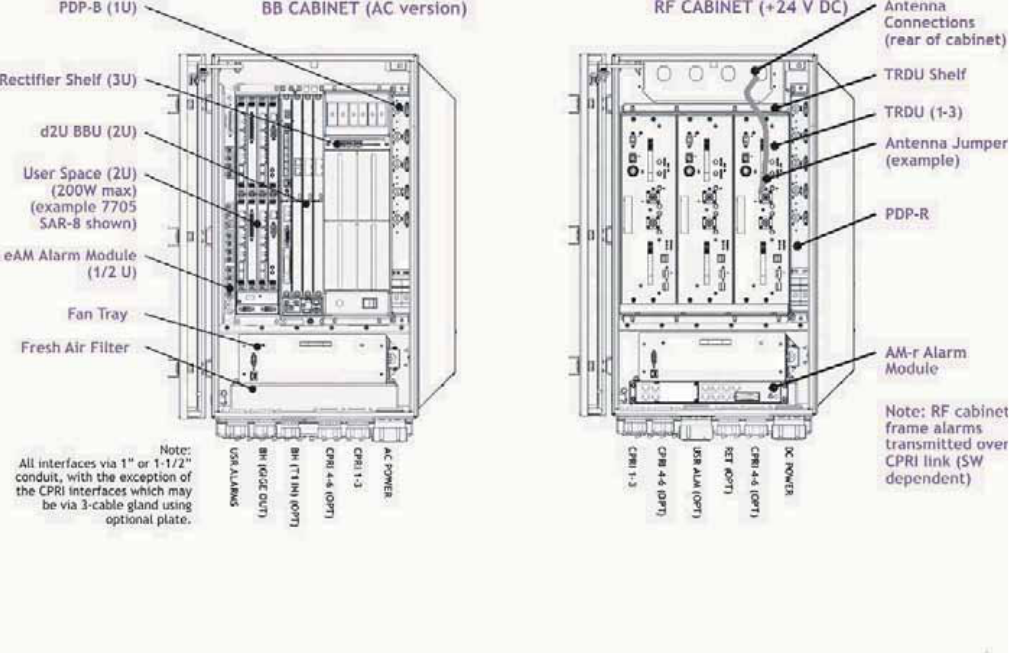

9412 cabinet overview (AC cabinet) ...............................................................................................................................2-102-10

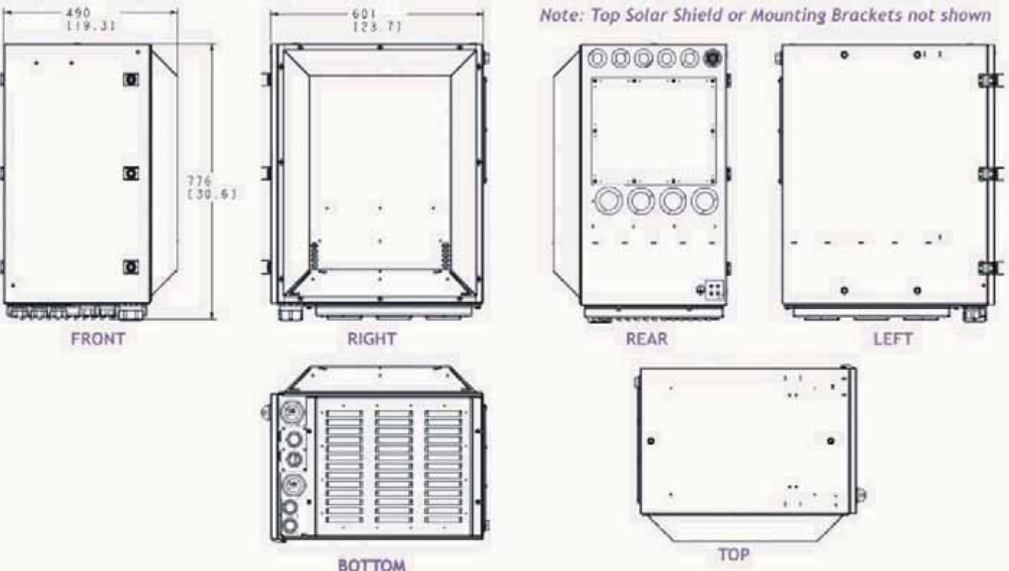

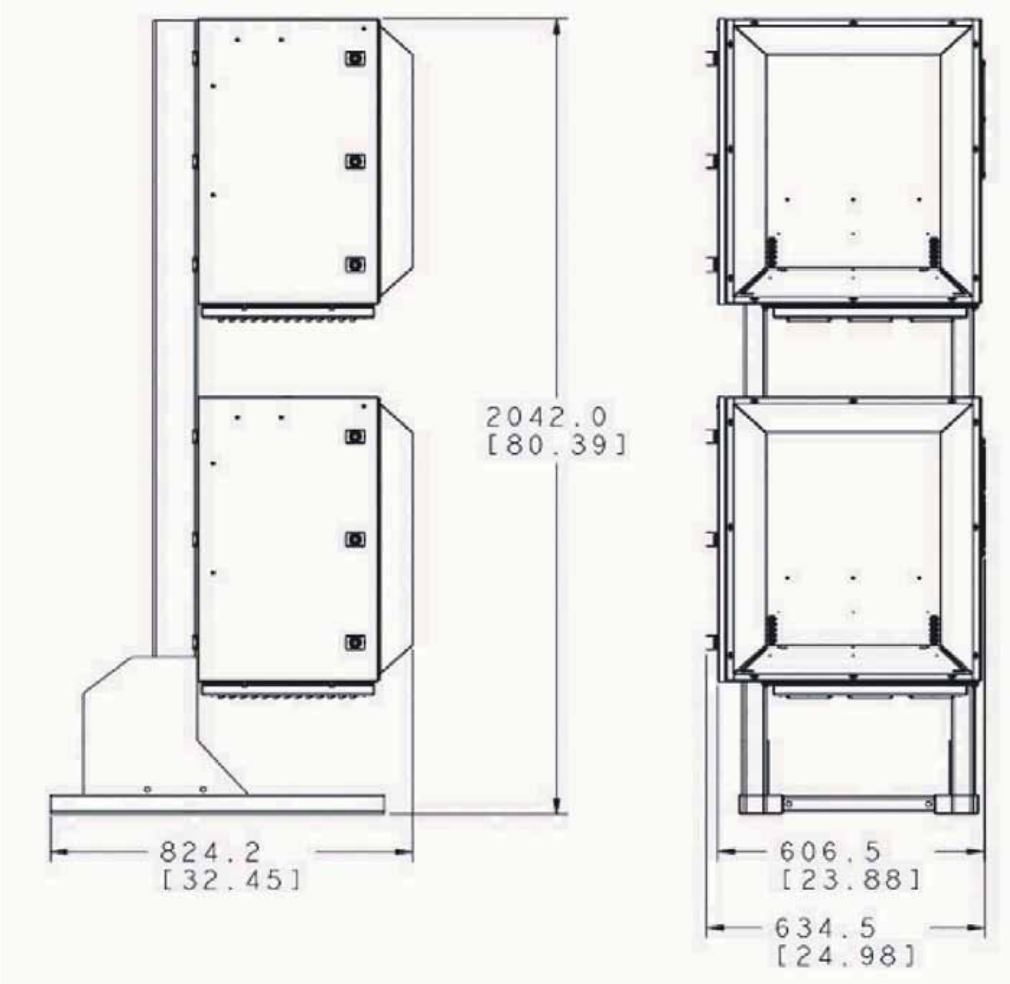

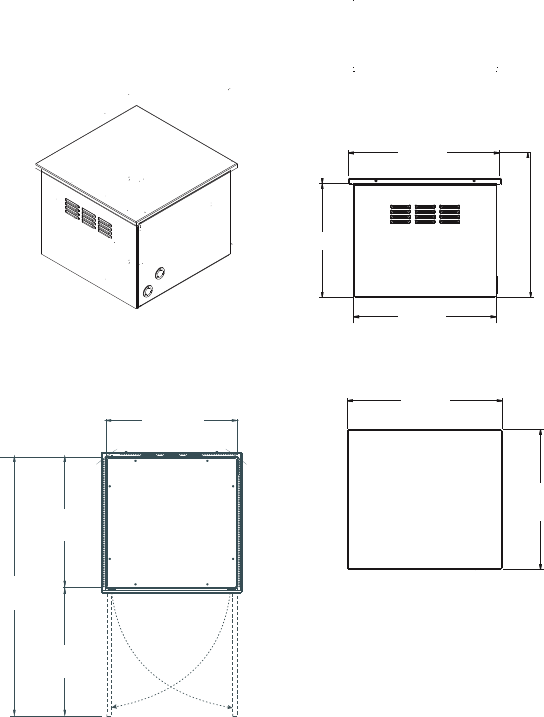

9412 eNodeB overall dimensions ..................................................................................................................................... 2-122-12

EZBFo battery module overview ..................................................................................................................................... 2-142-14

Equipment weights and dimensions ................................................................................................................................2-162-16

Physical interfaces .................................................................................................................................................................. 2-182-18

3Tools, materials, and checklist

Overview ...................................................................................................................................................................................... 3-13-1

Preparatory information

Overview ...................................................................................................................................................................................... 3-23-2

Tools required for installation .............................................................................................................................................. 3-33-3

Torque requirements ................................................................................................................................................................ 3-63-6

Physical installation process overview .............................................................................................................................3-83-8

Installation procedure checklist ........................................................................................................................................... 3-93-9

Verify site preparation completed ..................................................................................................................................... 3-103-10

4Transport, mount, and ground cabinet

Overview ...................................................................................................................................................................................... 4-14-1

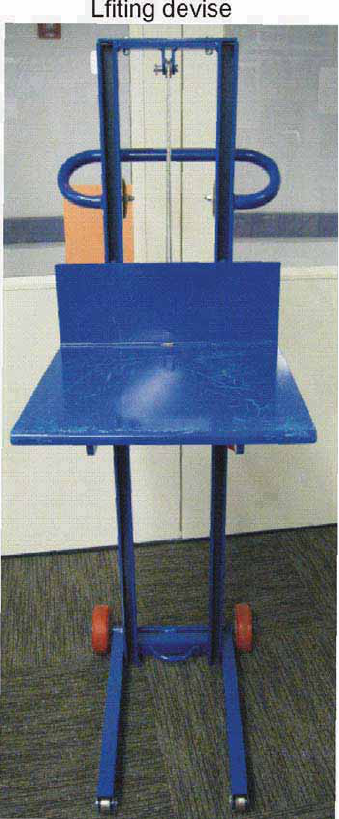

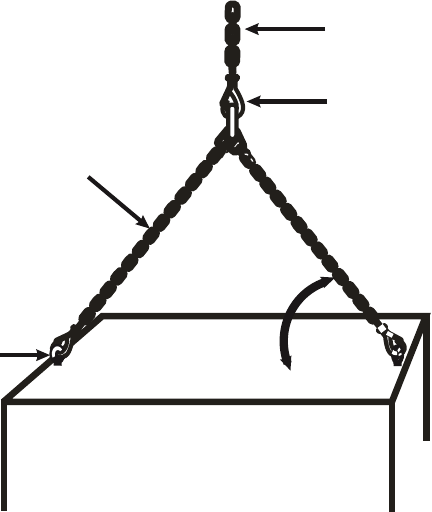

Lifting and moving cabinets ................................................................................................................................................. 4-24-2

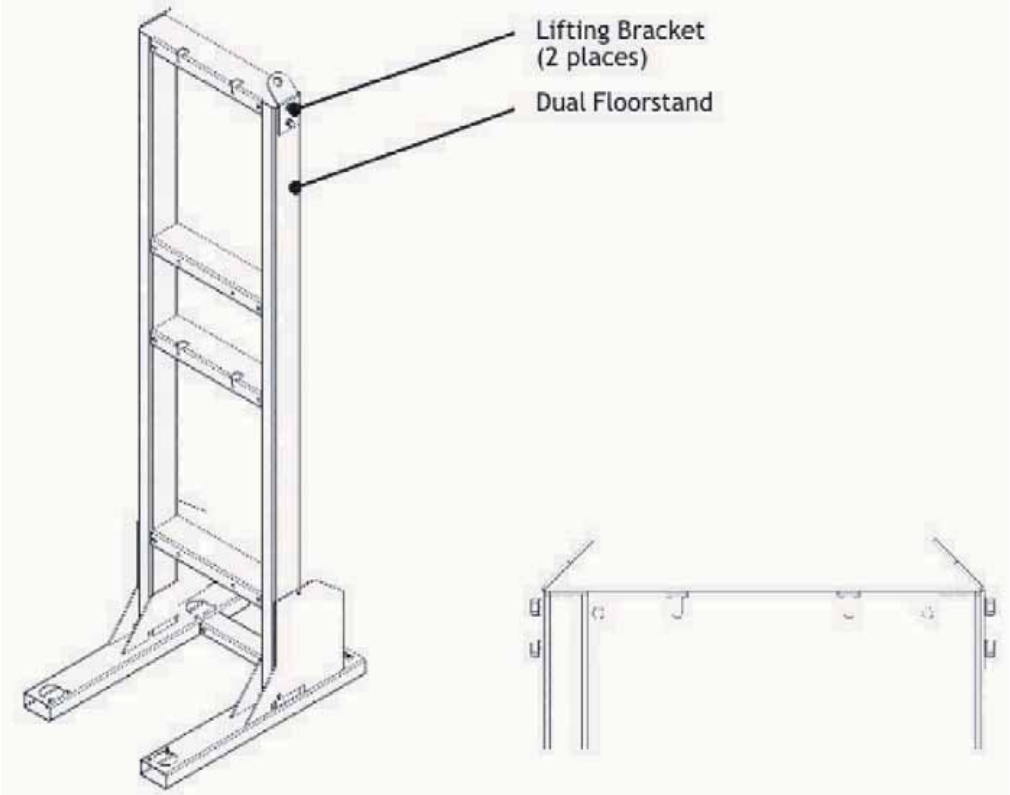

Double stack floor stand lifting brackets ..........................................................................................................................4-74-7

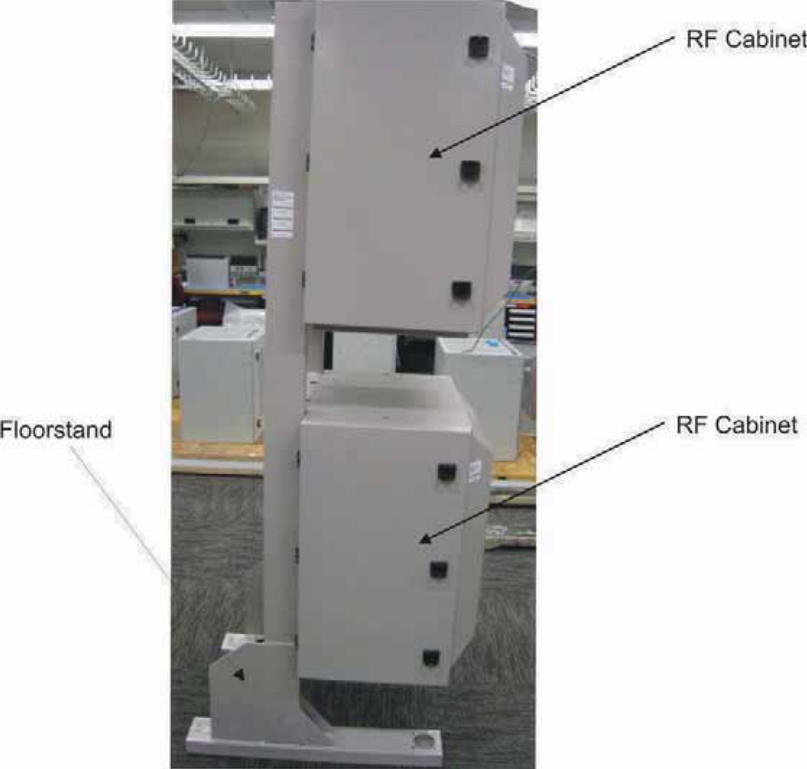

Install 9412 eNodeB Compact on the floor stand ........................................................................................................4-94-9

Install 9412 eNodeB Compact on the pole ...................................................................................................................4-194-19

Pole mounting with pole band ........................................................................................................................................... 4-214-21

Install 9412 eNodeB Compact on the wall ...................................................................................................................4-254-25

Contents

....................................................................................................................................................................................................................................

iv Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Ground the 9412 eNodeB Compact cabinets and floor stand ................................................................................ 4-314-31

6Connect power cables

Overview ...................................................................................................................................................................................... 6-16-1

Connect DC and AC power

Overview ...................................................................................................................................................................................... 6-26-2

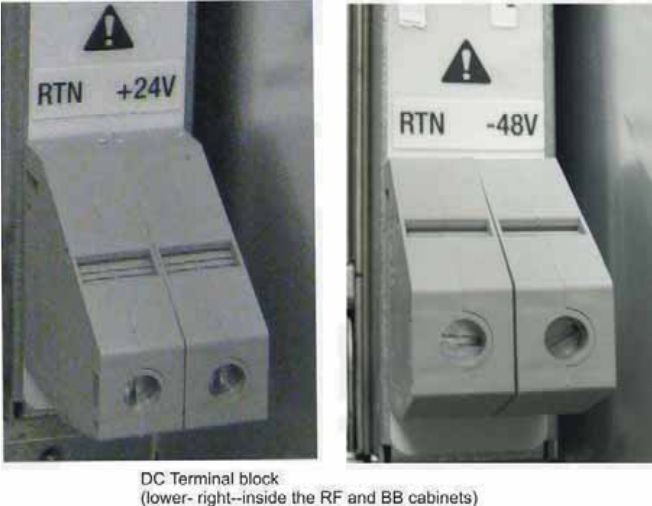

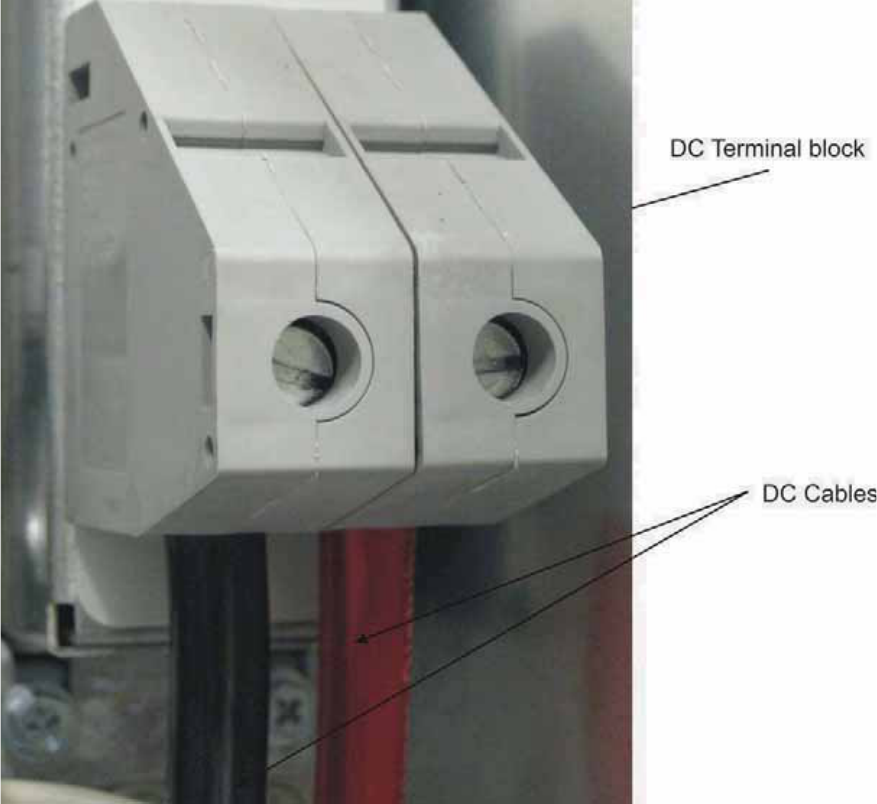

Connect DC cables to 9412 eNodeB (+24 VDC and -48 VDC) ............................................................................. 6-36-3

Connect DC power between RF and BB cabinet (AC configuration) ................................................................... 6-86-8

Connect DC power between RRH and BB cabinet (Distributed configuration) ............................................. 6-116-11

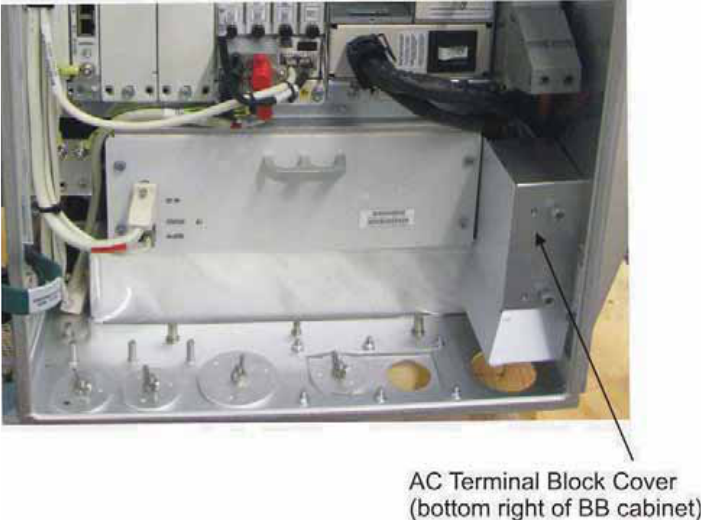

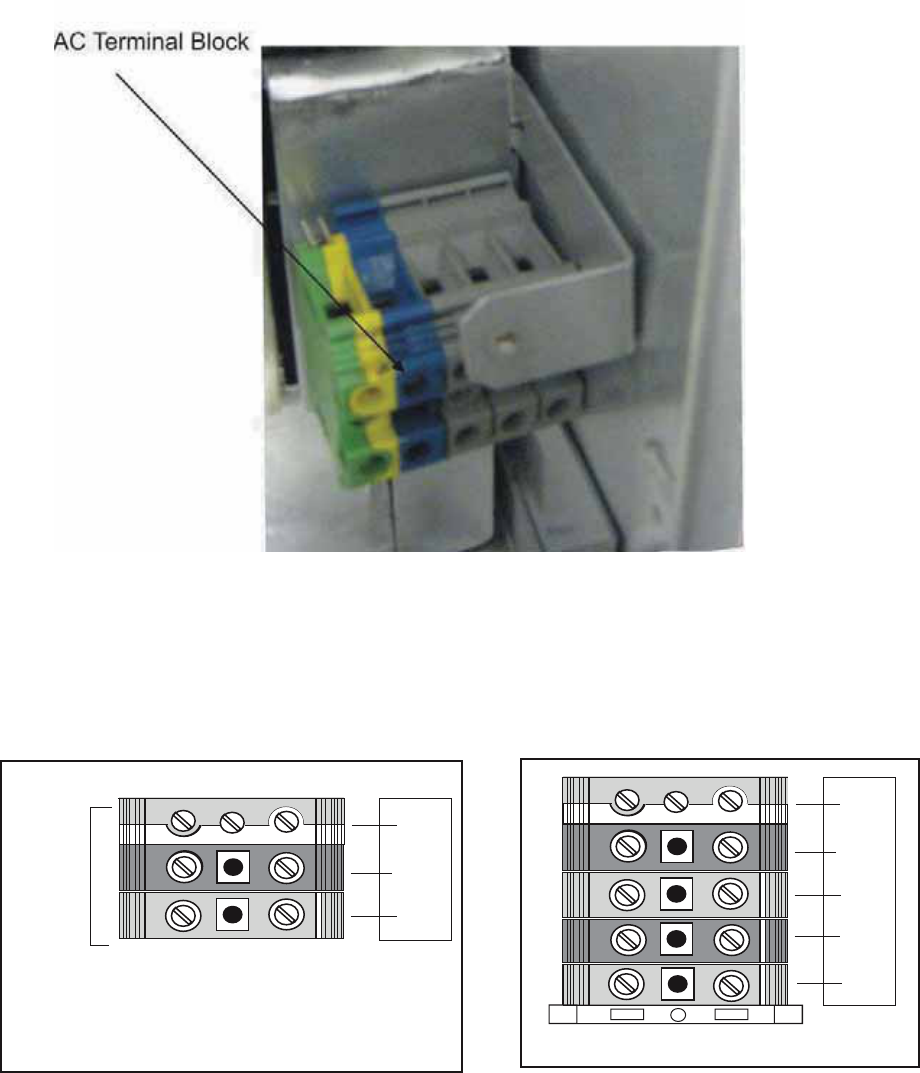

Route and connect the AC cable ...................................................................................................................................... 6-136-13

7Finish the installation

Overview ...................................................................................................................................................................................... 7-17-1

GPS jumper cable

Overview ...................................................................................................................................................................................... 7-27-2

Route and connect GPS jumper cable ...............................................................................................................................7-37-3

GPS antenna sharing (optional) ........................................................................................................................................... 7-57-5

Contents

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction v

RF jumper cables

Overview ...................................................................................................................................................................................... 7-97-9

About jumper cables .............................................................................................................................................................. 7-107-10

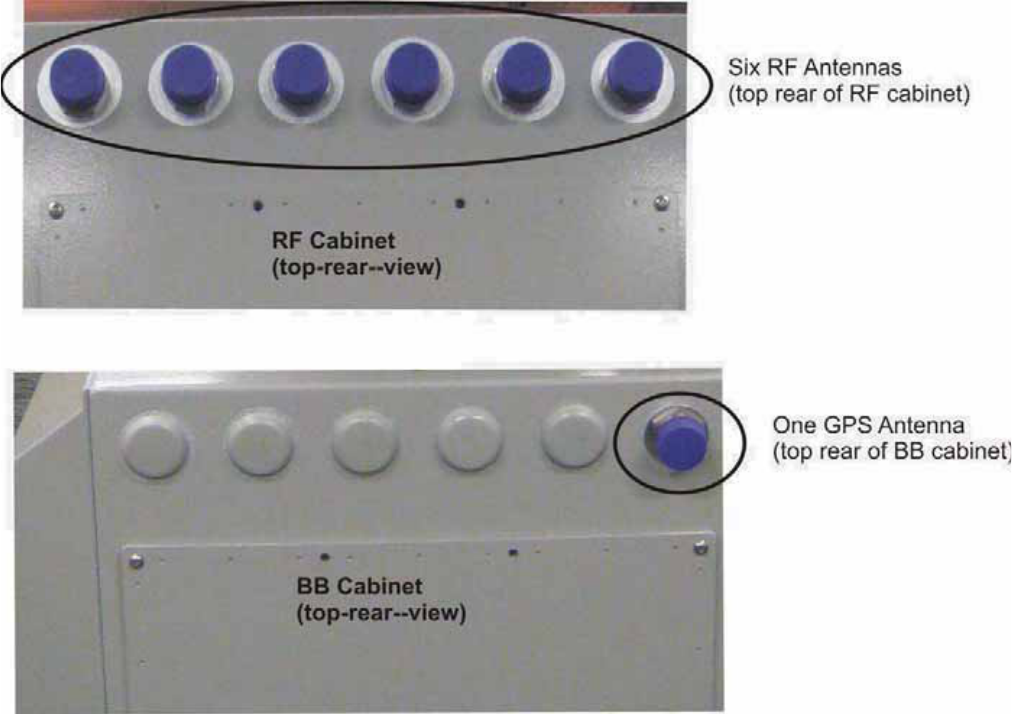

Route and connect RF jumper cables ..............................................................................................................................7-117-11

Final connections

Overview ................................................................................................................................................................................... 7-147-14

Initial start-up and system test ........................................................................................................................................... 7-157-15

Final cabinet installation procedures ...............................................................................................................................7-167-16

Contents

....................................................................................................................................................................................................................................

vi Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

CProduct conformance statements

Overview ..................................................................................................................................................................................... C-1C-1

Canada .......................................................................................................................................................................................... C-2C-2

European Union ........................................................................................................................................................................ C-5C-5

United States .............................................................................................................................................................................. C-9C-9

Contents

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction vii

Contents

....................................................................................................................................................................................................................................

viii Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

About this documentAbout this document

Purpose

This information product (IP), Alcatel-Lucent 9412 eNodeB Compact Outdoor

Installation Manual, 418-000-415, provides basic installation guidelines and

recommendations. Also, these guidelines are generic. Specific implementations may vary

from cell site to cell site.

Procedures are provided for cabinet handling, placement, grounding, powering, and

cabling.

If you are unfamiliar with this document, begin with this chapter, then work through the

materials in the subsequent chapters. This will help you understand how to use all the

provided materials: the installation manual, the job specification, and the cabinet

hardware.

...................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction ix

About this document

....................................................................................................................................................................................................................................

xiv Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

11Safety

Overview

Purpose

This chapter presents the safety precautions that apply to the product. In regions such as

North America and the European Union, the statements that are required are determined

primarily by national or multi-national regulations. However, in some regions, contract

terms determine which statements are required. The presence of the statement indicates

that the product does comply with that statement wherever it is required to do so.

Contents

Structure of safety statements 1-2

Safety - General precautions for installation procedures 1-4

Safety - specific hazards 1-6

...................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-1

Structure of safety statements

Overview

Safety statements describe the safety risks relevant while performing tasks on

Alcatel-Lucent products during deployment and/or use. Failure to avoid the hazards may

have serious consequences.

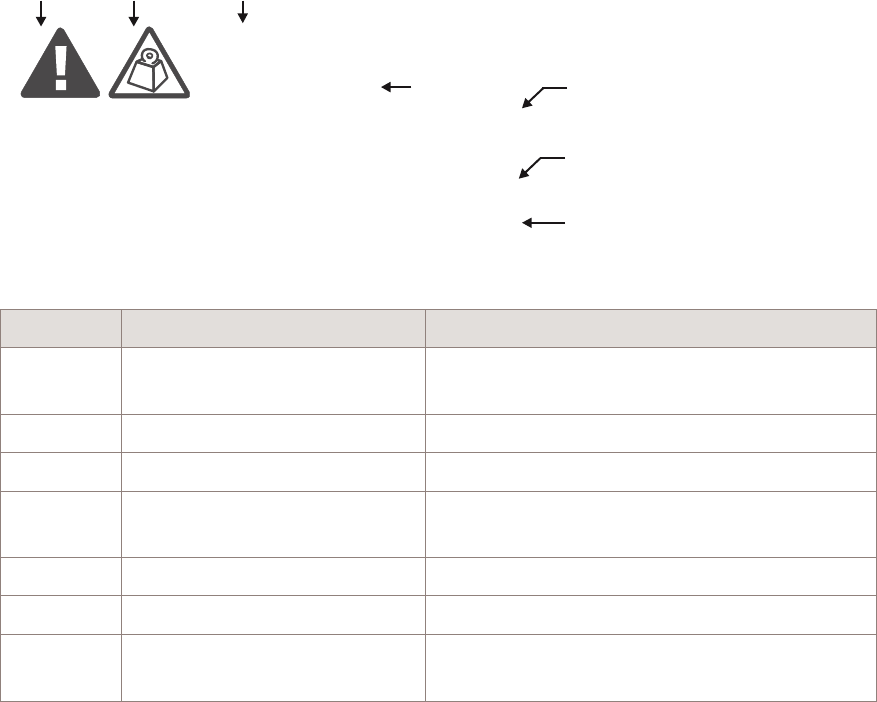

General structure

Safety statements include the following structural elements:

Item Structure element Purpose

1 Safety alert symbol Indicates the potential for personal injury

(optional)

2 Safety symbol Indicates hazard type (optional)

3 Signal word Indicates the severity of the hazard

4 Hazard type Describes the source of the risk of damage or

injury

5 Safety message Consequences if protective measures fail

6 Avoidance message Protective measures to take to avoid the hazard

7 Identifier The reference ID of the safety statement

(optional)

SAMPLE

BC D

EF

G

H

Lifting this equipment by yourself can result in injury

due to the size and weight of the equipment.

Always use three people or a lifting device to transport

and position this equipment. [ABC123]

CAUTION

Lifting hazard

Safety Structure of safety statements

....................................................................................................................................................................................................................................

1-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Signal words

The signal words identify the hazard severity levels as follows:

Signal word Meaning

DANGER Indicates an extremely hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING Indicates a hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, could result in

minor or moderate injury.

NOTICE Indicates a hazardous situation not related to personal injury.

Within this information product, the safety label typically includes additional information

such as the hazard type, a description of the damage that can be caused, and the steps that

should be taken to avoid the hazard.

Safety Structure of safety statements

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-3

Safety - General precautions for installation procedures

Overview

The following general precautions must be observed for installation procedures.

Safety Safety - General precautions for installation procedures

....................................................................................................................................................................................................................................

1-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

WARNING

Personal injury

Failure to observe these safety precautions may result in personal injury or damage to

equipment.

To avoid personal injury or damage to equipment, observe the following instructions:

•Read and understand all instructions.

•Follow all warnings and instructions marked on this product.

•Installation and maintenance procedures must be followed and performed by trained

personnel only.

•The equipment must be provided with a readily accessible disconnect device as part of

site preparation.

•Grounding and circuit continuity is vital for safe operation of the equipment. Never

operate the equipment with grounding/bonding conductor disconnected.

•Install only equipment identified in the product's installation manual. Use of other

equipment may result in an improper connection which could lead to fire or injury.

•Use caution when installing or modifying telecommunications lines.

•The product has multiple power inputs. Before servicing, Disconnect all inputs to

reduce the risk of energy hazards.

•For continued protection against risk of fire, all fuses used in this product must be

replaced only with fuses of the same type and rating.

•Never install telecommunications wiring during a lightning storm.

•Never install telecommunications connections in wet locations.

•Never touch uninsulated telecommunications wiring or terminals unless the

telecommunications line has been disconnected at the interface.

•Never push objects of any kind into the product through slots, as they may touch

dangerous voltage points or short-out parts that could result in a fire or an electrical

short.

•Never spill liquids of any kind on the product.

•Slots and openings in the product are provided for ventilation. To protect it from

overheating, these openings must not be blocked or covered. The product should not

be placed in a built-in installation unless proper ventilation is provided.

•To reduce the risk of an electrical shock, do not disassemble the product. Opening and

removing covers and/or circuit boards may expose you to dangerous voltages or other

risks. Incorrect reassembly can cause electrical shock when the unit is subsequently

used.

Safety Safety - General precautions for installation procedures

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-5

Safety - specific hazards

Overview

This topic reviews specific hazards for installation.

DANGER

Lightning Strikes!

Lightning strikes are possible during stormy weather, and could result in death or severe

injury.

Do not work on the installation itself or on the power supply lines or antenna feeders of a

Compact Cell during stormy weather.

WARNING

Energy Hazard!

Some parts of all electrical installations are energized. Failure to observe this fact and

the safety warnings may lead to bodily injury and property damage.

For this reason, only trained and qualified personnel (electrical workers as defined in

IEC 215 + A1 or EN 60215) may install or service the installation.

WARNING

Energy Hazard!

The power supply lines to the network element are energized. Short circuits can cause

burns to the face and hands.

Open the load disconnect switch in the distribution box to completely de-energize the

network element.

Safety Safety - specific hazards

....................................................................................................................................................................................................................................

1-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

WARNING

Beryllium Oxide Poisoning Hazard!

The transmitter units include components which contain beryllium oxide (BeO). In this

form, BeO ceramics do not constitute a hazardous material as long as this material is not

destroyed by external mechanical forces.

In the event that repair work is carried out by the customer or by third parties, the

following regulations must be observed:

•Applicable version of the Regulation on Hazardous Materials in the Workplace

•Appropriate accident prevention regulations.

The following must be specifically observed:

•Do not eat, drink, or smoke in areas where work is taking place on BeO ceramic

components.

•Wash your hands carefully under running water after working with BeO ceramic

components.

If the following symptoms occur, contact a physician:

•Irritation of the respiratory organs

•Difficulty breathing or skin irritation.

NOTICE

Condensation may cause a short circuit!

Sudden changes in the weather may lead to the formation of condensation on

components. Operating the unit when condensation moisture is present can destroy the

unit.

Units which show signs of condensation must be dried before installation.

Safety Safety - specific hazards

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-7

NOTICE

Electrostatically Sensitive Components!

Semiconductor elements can be damaged by static discharges.

The following rules must be complied with when handling any module containing

semiconductor components:

•Wear conductive or antistatic work clothes (for example, a coat made of 100%

cotton).

•Wear grounded ESD wrist strap.

•Wear shoes with conductive soles.

•Leave the modules in their original packaging until ready for use.

•Make sure there is no difference in potential between yourself, the workplace, and the

package before removing, unpacking, or packing a module.

•Hold the module only by the grip without touching the connection pins, tracks, or

components.

•Place modules removed from the equipment on a conductive surface.

•Test or handle the module only with grounded tools on grounded equipment.

•Handle defective modules exactly like new ones to avoid causing further damage.

NOTICE

Grounding caution!

This equipment has a connection between the grounding conductor of the DC supply

circuit and the grounding conductor.

This equipment shall be connected directly to the DC supply system grounding electrode

conductor or to a bonding jumper from a grounding terminal bar or bus to which the DC

supply system grounding electrode conductor is connected.

This equipment shall be located in the same immediate area (such as, adjacent cabinets)

as any other equipment that has a connection between the grounded conductor of the

same DC supply circuit and the grounding conductor, and also the point of grounding of

the DC system. The DC system shall not be grounded elsewhere.

The DC supply source is to be located within the same premises as the equipment.

There shall be no switching or disconnecting devices in the grounded circuit conductor

between the DC source and the point of connection of the grounding electrode conductor.

Safety Safety - specific hazards

....................................................................................................................................................................................................................................

1-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

22Product overview

Overview

Purpose

This chapter describes the 9412 eNodeB outdoor cabinets. This chapter also shows how

the eNodeB is used in a wireless network and describes its physical characteristics.

Then the physical characteristics of the eNodeB are discussed -- site requirements,

dimensions and weight, and the location of items and components inside the cabinet.

Installation procedures

Before installing the cabinet, the installer should become familiar with the safety

precautions, warnings, and product conformance statements. The recommended tools and

materials required for installation and the process checklist are listed in Chapter 3, “Tools,

materials, and checklist”.

Cabinet installation instructions are covered in Chapter 4, “Transport, mount, and ground

cabinet” , which provides instructions for anchoring the cabinet to the floor. After

anchoring the cabinet, the cabinet is connected to the network with T1/E1 lines, according

to the instructions in Chapter 5, “Connect interface cables”. Instructions for connecting

the user and power alarms to the cabinet are provided in Chapter 5, “Connect interface

cables”. Instructions for connecting the cabinet to a power source are given in Chapter 6,

“Connect power cables”. The eNodeB requires a +24 VDC power source, which can be

provided by an external power converter or DC generator.

Instructions for connecting the cabinet to the cell antennas are given in Chapter 7, “Finish

the installation”.

Contents

Background information 2-3

Functional description 2-4

Physical description 2-6

...................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-1

9412 cabinet overview (Standard DC cabinets) 2-7

9412 cabinet overview (-48V DC Distributed cabinet) 2-9

9412 cabinet overview (AC cabinet) 2-10

9412 eNodeB overall dimensions 2-12

EZBFo battery module overview 2-14

Equipment weights and dimensions 2-16

Physical interfaces 2-18

Product overview Overview

....................................................................................................................................................................................................................................

2-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Background information

Overview

Purpose

The following section provides an overview of the 9412 eNodeB.

This material is provided to the installer so he can better understand the given installation

procedures.

Contents

Functional description 2-4

Product overview

Background information

Overview

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-3

Functional description

Overview

This topic describes relevant product functional information.

Standard configuration

The standard 9412 Compact Outdoor comprises of the following two cabinets, which are

physically identical, but provide different functionality:

•BB (Baseband) cabinet

•RF (Radio Frequency) cabinet

The BB and RF cabinet are connected with CPRI fiber optic cable and an alarm cable,

both routing through the same 1-inch conduit. The alarm cable is required for DC cabinets

only.

Distributed configuration

The distributed 9412 Compact Outdoor comprises of the following:

•BB (Baseband) cabinet

•RRH (Remote Radio Head)

The BB and RRH are connected with CPRI fiber optic cable.

For the Distributed System or RRH installation, refer to Alcatel-Lucent 9442 Remote

Radio Head (RRH) 1721 MHz (AWS) Installation Manual, 418-000-427.

Product attributes

The following list the product attributes for the 9412 eNodeB.

•Flexible installation options: Floorstand/Pole/Wall mountable

•Without integrated power: (RF and BB cabinet)

- Power: +24VDC BB Cabinet and +24VDC RF Cabinet

- Power: -48VDC (BB Cabinet for Distributed System)

•With integrated power (AC): (BB with integrated power provides DC power to RF

cabinet or RRHs).

- AC BB Cabinet Supplies +24 VDC to RF Cabinet

- AC BB Cabinet Supplies -48 VDC to RF Cabinet

•Power: -48VDC (BB distributed)

•Without integrated power: (RF and BB cabinet)

•With integrated power (AC): (BB with integrated power provides DC power to RF

cabinet or RRHs).

•?CPRI links between BB and RF cabinets or BB and RRHs

Product overview

Background information

Functional description

....................................................................................................................................................................................................................................

2-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

•The BB cabinet houses the d2U, a PDP (Power Distribution Panel), eAM (Enhanced

Alarm Module), a Fan tray, and a 2U user space depending upon the configuration

•The BB cabinet can support the SAR module

•The RF cabinet houses a PDP, a Fan tray and 3 TRDUs

•Accepts GigE fiber optic backhaul

•The system may support up to 32 user alarms

•Supports External Battery Backup (EZBFo)

•Supports public safety configuration.

Product overview

Background information

Functional description

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-5

Physical description

Overview

Purpose

This section provides an overview of the equipment inside the 9412 eNodeB.

Contents

9412 cabinet overview (Standard DC cabinets) 2-7

9412 cabinet overview (-48V DC Distributed cabinet) 2-9

9412 cabinet overview (AC cabinet) 2-10

9412 eNodeB overall dimensions 2-12

EZBFo battery module overview 2-14

Equipment weights and dimensions 2-16

Physical interfaces 2-18

Product overview

Physical description

Overview

....................................................................................................................................................................................................................................

2-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

9412 cabinet overview (Standard DC cabinets)

Overview

This topic describes the various internal configurations for the cabinet.

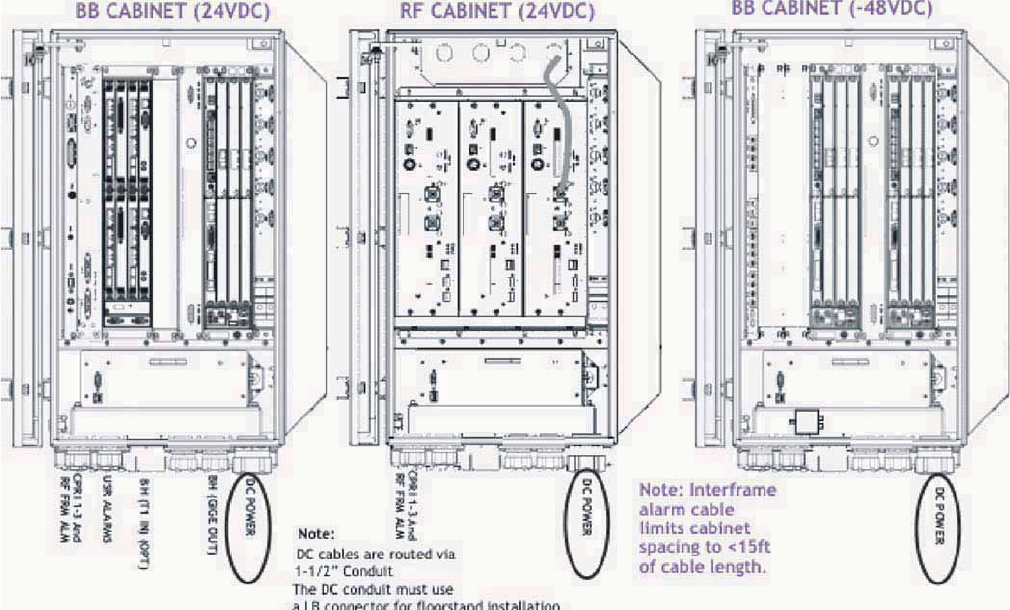

9412 eNodeB- external view

The following diagram shows the external view for the 9412 eNodeB outdoor cabinet.

Product overview

Physical description

9412 cabinet overview (Standard DC cabinets)

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-7

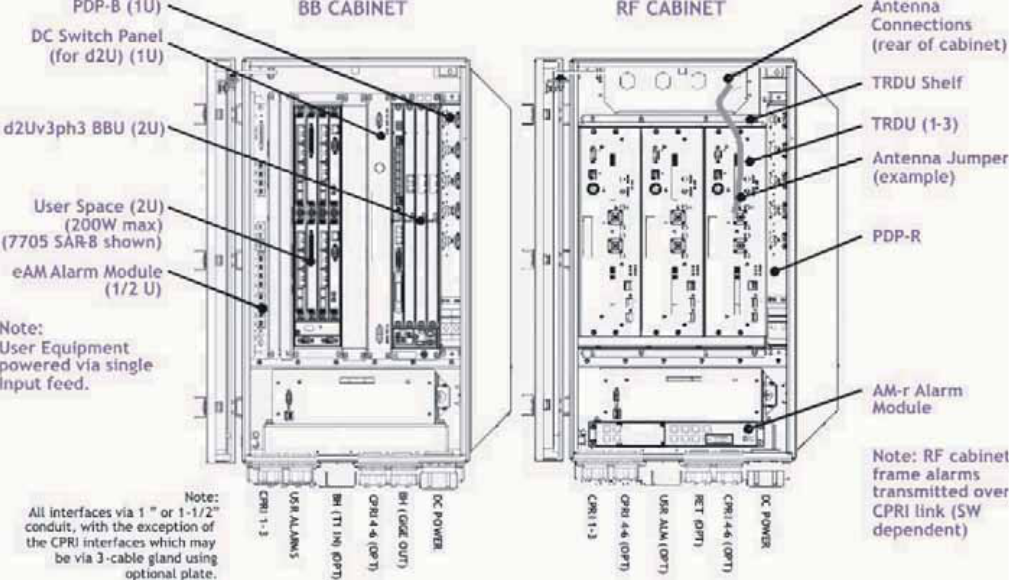

9412 eNodeB- internal view (+24 VDC version)

The following diagram shows the internal components in the 9412 eNodeB cabinet.

Product overview

Physical description

9412 cabinet overview (Standard DC cabinets)

....................................................................................................................................................................................................................................

2-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

9412 cabinet overview (-48V DC Distributed cabinet)

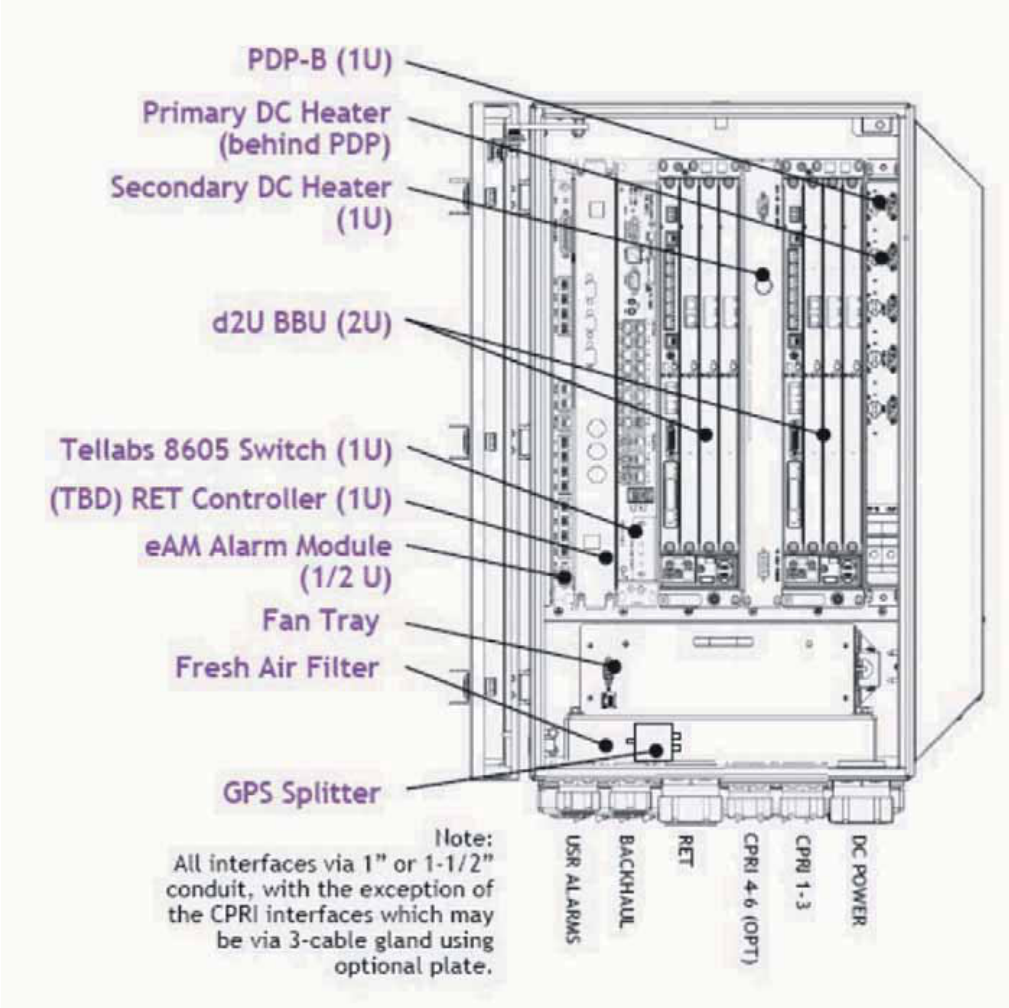

BB cabinet -Internal-view (DC Distributed version)

The following diagram shows the internal components in the 9412 eNodeB Distributed

cabinet (dual band).

Product overview

Physical description

9412 cabinet overview (-48V DC Distributed cabinet)

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-9

9412 cabinet overview (AC cabinet)

AC BB cabinet and +24 V DC RF Cabinet (DC power for RF cabinet supplied by BB cabinet)

The following diagram shows the internal components in the 9412 Compact cabinet for a

+24V configuration.

Product overview

Physical description

9412 cabinet overview (AC cabinet)

....................................................................................................................................................................................................................................

2-10 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

AC BB cabinet and -48 V DC RF Cabinet (DC power for RF cabinet supplied by BB cabinet)

The following diagram shows the internal components in the 9412 Compact cabinet for a

-48V configuration.

Product overview

Physical description

9412 cabinet overview (AC cabinet)

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-11

9412 eNodeB overall dimensions

9412 eNodeB -Overall Dimensions

Two following diagram shows the 9412 eNodeB outdoor cabinet with dimensions. For

more details on weights and dimensions, refer to “Equipment weights and dimensions”

(p. 2-16)

Product overview

Physical description

9412 eNodeB overall dimensions

....................................................................................................................................................................................................................................

2-12 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Dual floor-stand overall dimensions

The following diagram shows dimensions of the 9412 eNodeB cabinets configured on the

dual floor-stand

Product overview

Physical description

9412 eNodeB overall dimensions

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-13

EZBFo dimensions

The following shows the dimensions of the EZBFo:

TOP VIEW

776.2

[30.56]

780.0

[30.71]

ISO VIEW

(Full Assemb ly)

614

[24 in.1]

FRONT VIEW

(Full Assemb ly)

776.2

[30.56]

736.6 **

[29.0]

TOP

730 mm

(28.74 in.)

1456.2 mm

(57.33 in.)

FRONT

FOOTPRINT

726.2 mm

(28.59 in.)

Swingout for

Hinged Door

726.2 mm

(28.59 in.)

Product overview

Physical description

EZBFo battery module overview

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-15

Physical interfaces

Overview

This topic covers the physical interfaces on the 9412 eNodeB outdoor cabinets, such as

RF connections, GPS connections, grounding points, and cable termination points.

Cable interfaces

The following cable interface points are found on the eNodeB:

•DC power

•AC power

•Grounding

•RF antennas (to RF cabinet)

•GPS antenna (to BB cabinet)

•User Alarm

•Fiber

Product overview

Physical description

Physical interfaces

....................................................................................................................................................................................................................................

2-18 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Antenna interface

The following figure shows the antenna interface on the top-rear of the eNodeB cabinets.

Product overview

Physical description

Physical interfaces

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-19

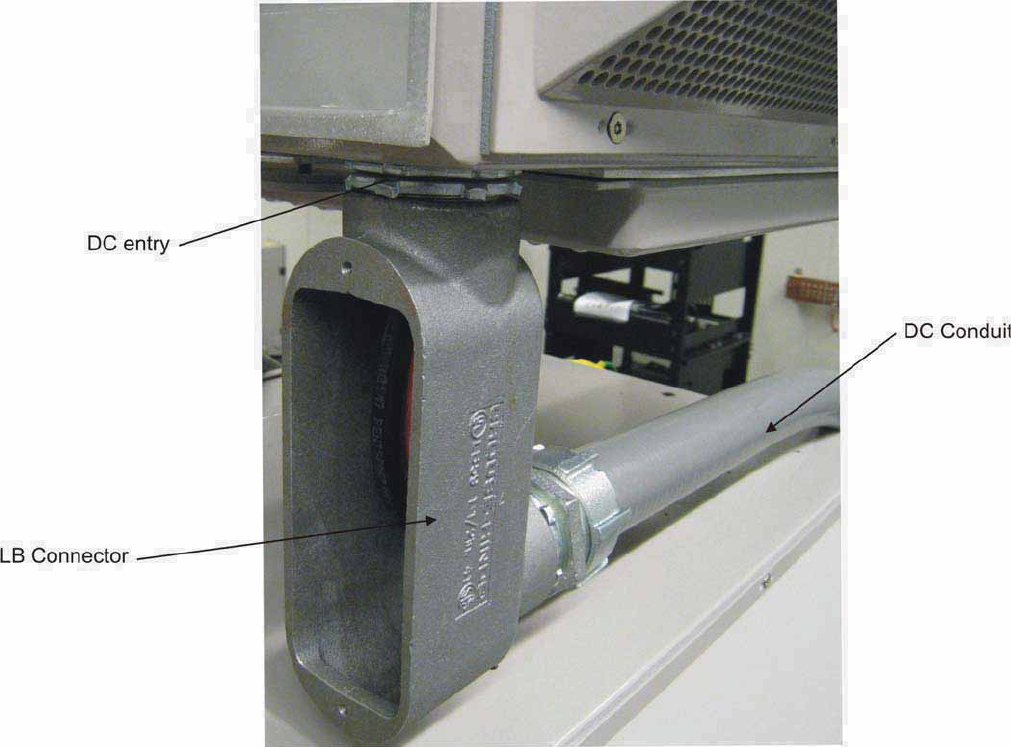

DC cable termination points

The following figure shows the DC cable terminal block inside the RF and BB cabinets.

Product overview

Physical description

Physical interfaces

....................................................................................................................................................................................................................................

2-20 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Product overview Physical interfaces

....................................................................................................................................................................................................................................

2-22 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

33Tools, materials, and

checklist

Overview

Purpose

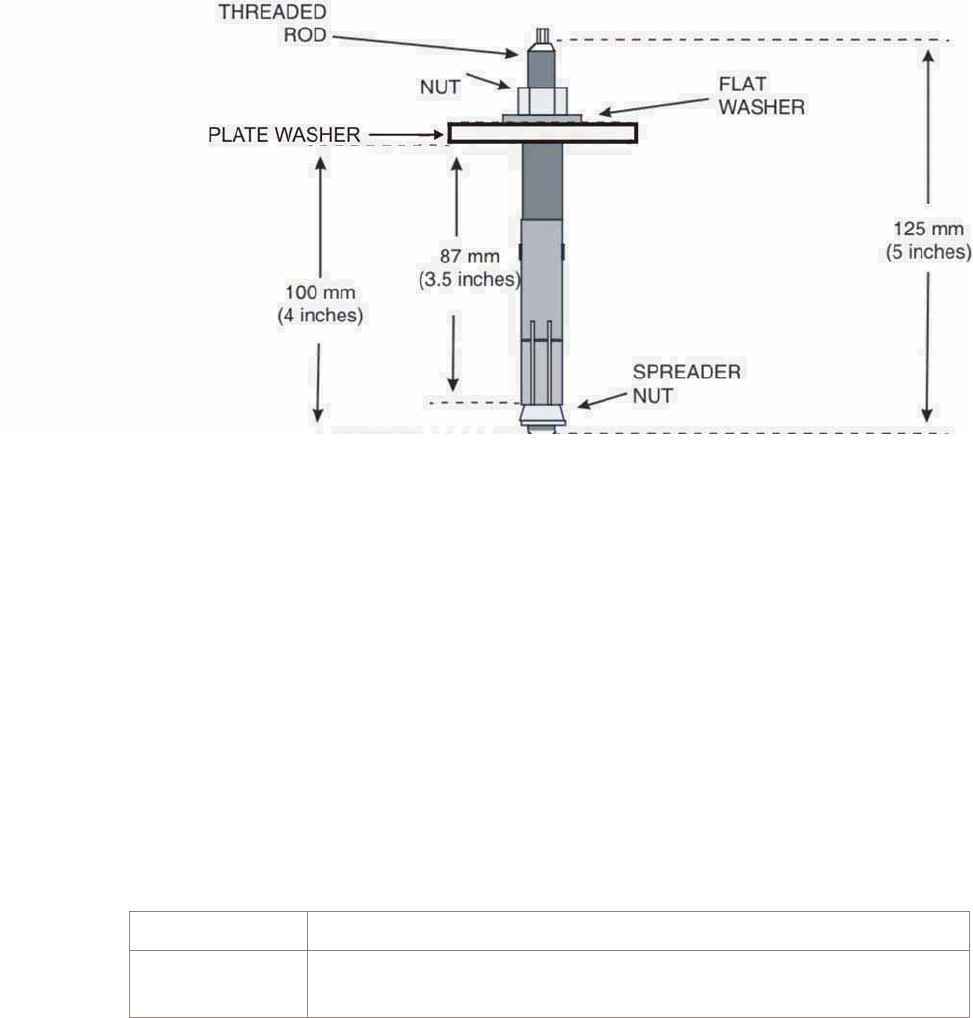

This chapter provides general instructions for anchor installation and cabinet handling.

Also included are the procedures for cabinet placement, anchoring, and grounding.

Contents

Preparatory information 3-2

Tools required for installation 3-3

Torque requirements 3-6

Physical installation process overview 3-8

Installation procedure checklist 3-9

Verify site preparation completed 3-10

...................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-1

Preparatory information

Overview

Purpose

This section presents information and procedures that are relevant before the 9412

eNodeB can be placed, anchored, and grounded.

Also included in this section is information for verifying that site preparation

requirements have been met, so installation of the product can begin properly.

Reference documents

Further information on cabinet clearances and anchor holes can also be found in the

Alcatel-Lucent 9412 eNodeB Compact Outdoor Site Preparation Guidelines,

418-000-414.

Refer to the site-specific layout information for details on where the equipment must be

positioned.

This document also contains all necessary information on how to mark the positions of

the anchor holes and how to drill them.

Contents

Tools required for installation 3-3

Torque requirements 3-6

Physical installation process overview 3-8

Installation procedure checklist 3-9

Verify site preparation completed 3-10

Tools, materials, and checklist

Preparatory information

Overview

....................................................................................................................................................................................................................................

3-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Tools required for installation

Overview

This section provides a master list of all tools, materials, and parts required to perform the

installation.

Tools

CAUTION

Personnel injury or equipment damage

If the installation is performed with energized DC circuits, be sure to use tools that are

properly insulated.

The following is a master list, in alphabetical order, of all tools that may be utilized

during installation:

•Adjustable open-ended wrench (or set of fixed open-ended wrenches)

•Antioxidant compound

•B connecting links, or equivalent (quantity 3)

•Bolt anchor setting tool

•Bonding clamps for facility and phone line cables (normally provided by telephone

company)

•Box cutter or equivalent for opening packages

•Chalk line

•Channel-lock pliers [for 2-1/2 inch nuts, 19 mm (3/4 inch) wide, maximum]

•Channel-lock pliers (standard)

•Crimping tools 22-16 gauge, 10-4/0 gauge (5-120 mm2) for installing terminal lugs

and c-taps

•Derrick, capable of lifting the cabinet

•Drill and drill bits [including 16 mm (5/8 inch) and 18 mm (11/16 inch) for drilling

anchor holes]

•Drill - Pneumatic Hammer (R-5006)

•Roto-Stop Hammer Kit (R-4416) with 1/2 inch (12 mm) chuck or equivalent to drill

anchor holes

•Ear protection gear

•Electrical conduit installation equipment and materials

•Electrical tape

Tools, materials, and checklist

Preparatory information

Tools required for installation

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-3

•ESD wrist strap

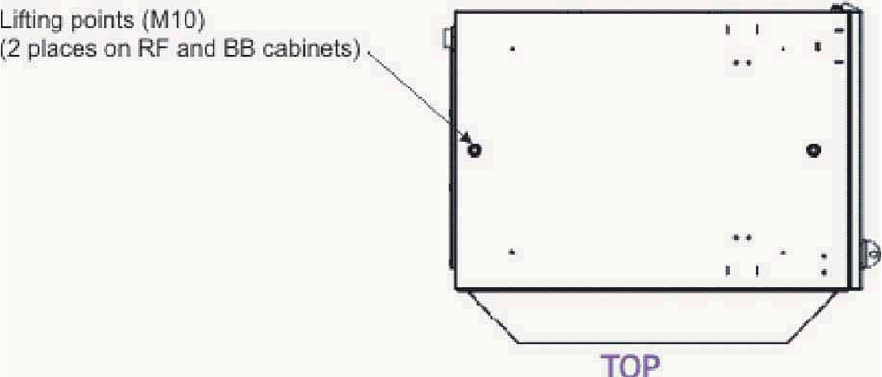

•Eye-bolts (M10/R-ITE-6111), for lifting cabinet

•Eye protection gear

•Fish tape

•Floor punch, for cutting asbestos floor tile prior to drilling

•Floor tile puller, for raised floor tiles

•Forklift, Hoist, Rol-A-Lift, or equivalent lift (non-tilt) capable of lifting and moving

the cabinet into final position

•Galvanizing paint

•Gloves -- Low-voltage rubber lineman's gloves (R-4285)

•Hammer, 0.5 kg (16 oz) for anchor installation, etc.

•Heat gun for heat shrink tubing

•Insulated gloves

•Insulated hand tools (for completing electrical connections)

•Ladder or work stand/stool so installer can access top of the cabinet and ladder rack.

Most connections are elevated. Two work platforms are required so two installers can

work efficiently.

•Level 1.5 meters (4 feet), steel

•Lifting device (R-5312) and lifting boom

•Marker, for marking floor for lineup and drilling

•Measuring tape

•Nut driver set (decimal) with 10 inch extension

•Nut driver set (metric) with 250 mm extension

•Ohmmeter (multimeter, volt/ohmmeter, or equivalent)

•Pliers

•Plumb line

•Pry bar

•Safety goggles or glasses (R-3055)

•Screwdrivers (power and manual), flat-blade, Phillips

•Silicone caulk

•Socket sets (decimal and metric) various drives

•Socket with 6”extension (to bolt cabinet to the floorstand)

•For stripping tools for jumper cables go to table for “Jumper cable and connector

stripping tools”“Jumper cable and connector stripping tools” (p. 7-10)

•Torque wrenches,2-34Nm(17.7 - 300 in-lb)

•Torque wrenches, 6 - 200 Nm (4.4 - 150 ft-lb)

Tools, materials, and checklist

Preparatory information

Tools required for installation

....................................................................................................................................................................................................................................

3-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Metric

Screw

Size

SAE

Screw

Size

Torque - in-lb [or ft-lb] and (Nm)

Wire Connections Head Tightened Nut Tightened

Slotted

Machine

Hex or

Socket

Cap

Slotted

Machine

Hex or

Socket

Cap

Slotted

Machine

Hex or

Socket

Cap

M14 1/2-13 - 500 (56.5) - 585 (66.1) 585 (66.1) 710 (80.2)

M16 5/8-11 - [71] (96.3) - [97]

(131.5)

[97]

(131.5)

[118]

(160.0)

M20 3/4-10 - [125]

(169.5)

- [172]

(233.2)

[172]

(233.2)

[209]

(283.4)

Torque requirements for DC terminal block

The table below gives the torque requirements for the DC terminal block.

Terminal block Minimum torque (Nm) Maximum torque (Nm)

DC terminal block 6 (53 in-lb) 8 (71 in-lb)

Tools, materials, and checklist

Preparatory information

Torque requirements

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-7

Physical installation process overview

Overview

This topic provides the steps for installing the cabinet.

Installation process

Following are the high level steps of the installation process:

1. Verify site preparation is complete

2. Place cabinet

3. Anchor cabinet

4. Ground cabinet

5. Connect GigE backhaul fiber cable

6. Connect User Alarm cables

7. Connect AC/DC power cables

8. Install secondary GPS surge protector at BB cabinet

9. Connect GPS cable

10. Connect RF cables

11. Initial start-up & system test.

Tools, materials, and checklist

Preparatory information

Physical installation process overview

....................................................................................................................................................................................................................................

3-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Installation procedure checklist

Overview

The following is a procedure checklist.

Done N/A Task

“Verify site preparation completed” (p. 3-10)

“General installation procedure for twisted-pair cables” (p. 5-28)

“Route and connect User Alarm cable” (p. 5-23)

“Connect DC cables to 9412 eNodeB (+24 VDC and -48 VDC)” (p. 6-3)

“GPS jumper cable” (p. 7-2)

“RF jumper cables” (p. 7-9)

“Final connections” (p. 7-14)

Tools, materials, and checklist

Preparatory information

Installation procedure checklist

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-9

Verify site preparation completed

Overview

This topic describes what must be done to verify that the site preparation is complete so

that installation procedures can begin.

At this point, the installer must make sure that any requirements that have not been met

are met here.

Verify site preparation

Before installation of the 9412 eNodeB can begin, the site preparation must be complete,

in accordance with Alcatel-Lucent 9412 eNodeB Compact outdoor Site Preparation

Guidelines, 418-000-414.

The following general requirements must be met before the installation of the 9412

eNodeB Compact cabinet can begin:

•Adequate clearance must be provided for service access.

•GigE (fiber optic) backhaul must be installed, and capable of accepting fiber optic

Multi-Mode cable with LC connector.

•Grounding electrode system must be installed.

•RF and GPS antenna runs must be installed.

•Surge protection for RF antenna must be installed.

•Primary sure protector for GPS must be installed.

•Tower light power must be installed (if required).

•Tower light alarm must be installed (if required).

•Anchor holes must be drilled for floor stand mounting option.

•The environment must comply with limits listed in the site prep.

•Cable support structure must be installed.

•Conduits for routing cables to cabinet must be prepared.

Tools, materials, and checklist

Preparatory information

Verify site preparation completed

....................................................................................................................................................................................................................................

3-10 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

44Transport, mount, and

ground cabinet

Overview

Purpose

This chapter provides general instructions for cabinet handling, cabinet placement, anchor

installation, anchoring, and grounding of the radio cabinet.

Contents

Lifting and moving cabinets 4-2

Double stack floor stand lifting brackets 4-7

Install 9412 eNodeB Compact on the floor stand 4-9

Install 9412 eNodeB Compact on the pole 4-19

Pole mounting with pole band 4-21

Install 9412 eNodeB Compact on the wall 4-25

Ground the 9412 eNodeB Compact cabinets and floor stand 4-31

...................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-1

Lifting and moving cabinets

Purpose

Cabinets are usually shipped to the customer via truck and are delivered to the installation

site. During installation, it may be necessary to lift the modular cell cabinet to move it to

a new location. This section describes how to safely lift a modular cell cabinet. Use this

information as you perform the procedures in this chapter.

Lifting machinery

To lift the cabinet, do one of the following:

•Use a forklift with forks that are at least 4 feet long to lift a cabinet that is attached to

a pallet, from the bottom.

•Install lifting eyebolts on the top of the cabinet, and use a derrick and slings to lift the

cabinet from its top.

•Use the recommended lifting device described on “Recommended lifting device”

(p. 4-6)

Safety precautions for using lifting machinery

WARNING

Personnel injury or equipment damage

Cabinets are too heavy to move without appropriate lifting devices.

Derrick equipment or a forklift must be used to lift the cabinet. Do not attempt to move

the cabinet manually, or remove it from the pallet manually.

WARNING

Personnel injury or equipment damage

Lifting double stack floor stand with BB and RF mounted on it.

Do NOT use the lifting points on the top of the cabinet, if lifting the double stack floor

stand with both BB and RF mounted on it. This could cause personal injury or damage to

the equipment. Lifting bracket must be used if lifting the double stack floor stand, refer to

“Double stack floor stand lifting brackets” (p. 4-7)

Transport, mount, and ground cabinet Lifting and moving cabinets

....................................................................................................................................................................................................................................

4-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Comply with the following guidelines when using lifting machinery:

•Only operators who are specifically trained and meet company requirements should

be permitted to operate derrick or forklift equipment.

•All persons working with derricks or forklifts must wear standard safety headgear,

footwear, eye protection, and insulated gloves (if required).

•Do not operate a derrick until both stabilizers are extended and firmly supported. Do

not extend stabilizers after a load is suspended from the derrick.

•While raising the derrick from the stowed position, be alert for overhead obstructions,

such as power lines, that may interfere.

•At all times, keep bystanders away from the work area.

•Operators must not suspend loads over people, nor can any person be permitted to

work, stand, or pass under a suspended load.

•When a cabinet is being lifted with slings, it is unsafe to lift the cabinet when lifting

sling angle is less than 45 degrees to the top of the cabinet.

Guidelines for using a derrick

When a derrick is used to move a cabinet, lifting eyebolts and slings are used to attach the

cabinet to the derrick.

Lifting eyebolts

Four R-ITE-6111 M10 lifting eyebolts are screwed into the eyebolt holes on the top of the

cabinet, as shown in the following figure.

Position each lifting eyebolt so that the plane of the eyebolt points at the center of the top

of the cabinet, as shown in the previous figure. When this is done, and the load is applied,

the plane of the eyebolt will align with the load. Eyebolts that are not aligned with the

load can bend as the load pulls on them sideways.

Transport, mount, and ground cabinet Lifting and moving cabinets

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-3

Observe the following guidelines about lifting eyebolts:

•The eyebolts screw into factory-installed nuts on top of the cabinet. These nuts must

be held in position while the lifting eyebolt is screwed in.

•Do not overtighten the lifting eyebolt.

•The shoulder of the lifting eyebolt must be properly seated (should bear firmly against

the mating part). If it is not, the working loads must be reduced substantially. A steel

washer or spacer may be required for proper seating.

Important! If the plane of the eyebolts does not point to the center of the cabinet after

tightening, the eyebolts may be loosen less than one turn.

•Tightness and seating must be checked after initial load.

•Lifting eyebolts should never be painted or otherwise coated, because such coatings

will cover up flaws.

Slings

Attach the slings to the boom line with a B-connecting link or clevis. Attach the other

ends of the slings to the lifting eyebolts with a B connecting link or clevis.

When a cabinet is being lifted with slings, it is unsafe to lift the cabinet when the lifting

sling angle is less than 45 degrees to the top of the cabinet. At closer than 45 degrees,

there is too much side stress on the lifting eyebolts. Use slings that are long enough to

keep the lifting sling angle at greater than 45 degrees from the top of the cabinet.

Unsafe if lifting sling angle is

less than 45 degrees

to the top of the cabinet.

Lifting sling

angle

Boom line

B connecting link or clevis

Slings

Lifting

Eyebolt

Transport, mount, and ground cabinet Lifting and moving cabinets

....................................................................................................................................................................................................................................

4-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Control the cabinet while it is being lifted

NOTICE

When Moving Cabinet

When moving a cabinet in the following procedures, do not tilt the cabinet beyond 30

degrees from vertical. Do not stand under the cabinet.

A rope tied to the pallet attached to the cabinet should be used to guide the cabinet while

it is being lifted. The rope must be sufficiently long. As the cabinet is being lifted and

transported, use the rope to guide the cabinet and prevent the cabinet from tilting or

swinging.

Always lift cabinets carefully, and keep the boom line tight to prevent the cabinet from

tipping while it is moving. At the end of the lift, slowly place the cabinet on the ground.

Transport, mount, and ground cabinet Lifting and moving cabinets

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-5

Recommended lifting device

The following lifting truck is recommended for the 9412. The lifting devise is available

from Alcatel-Lucent (Part# R-5312).

Transport, mount, and ground cabinet Lifting and moving cabinets

....................................................................................................................................................................................................................................

4-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Double stack floor stand lifting brackets

Double stackl floor stand lifting overview

Note: The double stack floor stand with both BB and RF cabinets mounted to it, can

be lifted using lifting brackets.

Transport, mount, and ground cabinet Double stack floor stand lifting brackets

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-7

Install lifting brackets on the floor stand

WARNING

Personnel injury or equipment damage

Lifting double stack floor stand with BB and RF mounted on it.

Do NOT use the lifting points on the top of the cabinet if lifting the double stack floor

stand with both BB and RF mounted on it. This could cause personal injury or damage to

the equipment.

The lifting brackets are installed to the floor stand as shown in the following figure.

Note: The lifting sling angle at the lifting brackets should be 45°.

Transport, mount, and ground cabinet Double stack floor stand lifting brackets

....................................................................................................................................................................................................................................

4-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

...................................................................................................................................................................................................

6Hold a level against the floor stand vertical upright support.

...................................................................................................................................................................................................

7Insert combinations of 1.5 mm shims and 3 mm shims under corners of the floor stand

until both vertical uprights are true vertical as measured by the level.

Leveling is achieved by the use of shims. Each shim has a slot that is designed to fit

around the body of the anchor. Keep the slot properly aligned when performing this step

so that the anchor sleeves can later be set.

...................................................................................................................................................................................................

8On the anchoring assembly, make sure the large plate washer, flat washer, and nut are

assembled, as shown in the following figure.

SETTING

TOOL

Transport, mount, and ground cabinet Install 9412 eNodeB Compact on the floor stand

....................................................................................................................................................................................................................................

4-14 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

...................................................................................................................................................................................................

9Torque anchor bolts as specified in “Anchoring specifications ” (p. 4-9).

...................................................................................................................................................................................................

10 If ordered, install optional security cover plates on the feet of the floor stand, using

security screws.

To mount the floor stand with anchor bolts to a metal structure

Note: The following materials are required to install the cabinet on a metal support

structure.

Quantity Item

4 M12 (1/2") bolt, 60mm (2”) O. D. washer, M12 (1/2") lock washer, and

1 nut.

To install the bolts to a metal support stucture , perform the following steps.

...................................................................................................................................................................................................

1Verify that the floor stand has been aligned and centered over the holes in the metal

support structure.

Transport, mount, and ground cabinet Install 9412 eNodeB Compact on the floor stand

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-15

END OF STEPS

...................................................................................................................................................................................................

2At four places in the bottom sides of the floor stand, install a hex bolt through a flat

washer and then through the hole.

Make sure the 60 mm (2 inches) O.D. flat washer is underneath the head of the bolt.

Otherwise, the bolt will not secure the floor stand.

...................................................................................................................................................................................................

3Secure each bolt with a lock washer and nut.

...................................................................................................................................................................................................

4Torque each bolt with a ratchet and deep socket to 25 ft-lb (32.2 Nm). Use a second

wrench to hold the nut.

Transport, mount, and ground cabinet Install 9412 eNodeB Compact on the floor stand

....................................................................................................................................................................................................................................

4-16 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

END OF STEPS

...................................................................................................................................................................................................

Install cabinet(s) on floor stand

Note: For double stack floor stand installation, remove the covers from the back of

the floor stand, and install the BB cabinet first.

Perform the following procedure to install the cabinet(s) on the floor stand.

...................................................................................................................................................................................................

1Loosely attach two side M10 hex bolts, flat washers, and lock washers to the top

mounting holes on the back of the cabinet.

Do not tighten yet, install only halfway.

...................................................................................................................................................................................................

2If you have not already done so, attach lifting harness to the two lifting points (eye bolts)

of the cabinet as covered in “Lifting and moving cabinets” (p. 4-2).

...................................................................................................................................................................................................

3CAUTION

Pinch Hazard

The bolts on the cabinet can pinch and damage your fingers. Keep fingers clear when

lowering cabinet into position.

Carefully raise the cabinet into position using the hoisting mechanism, if required.

...................................................................................................................................................................................................

4Carefully raise the cabinet so that it can be slid back onto the floor stand. Align top.

...................................................................................................................................................................................................

5Hang the cabinet on the top slot of the floor stand using previously installed bolts.

...................................................................................................................................................................................................

6Attach top of the floor stand to top of the cabinet using (2) M10 hardware (bolt, flat

washer, and lock washer).

...................................................................................................................................................................................................

7Install two M10 bolts with washers at the lower mounting holes of the cabinet.

...................................................................................................................................................................................................

8Use torque wrench to tighten all the bolts to 32.2 Nm (25 ft-lbs).

Transport, mount, and ground cabinet Install 9412 eNodeB Compact on the floor stand

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-17

Transport, mount, and ground cabinet Install 9412 eNodeB Compact on the floor stand

....................................................................................................................................................................................................................................

4-18 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

END OF STEPS

...................................................................................................................................................................................................

66Connect power cables

Overview

Purpose

The following chapter shows how to connect power cables to the 9412 eNodeB.

Contents

Connect DC and AC power 6-2

Connect DC cables to 9412 eNodeB (+24 VDC and -48 VDC) 6-3

Connect DC power between RF and BB cabinet (AC configuration) 6-8

Connect DC power between RRH and BB cabinet (Distributed configuration) 6-11

Route and connect the AC cable 6-13

...................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 6-1

Connect DC and AC power

Overview

Purpose

The following section covers the procedures for connecting DC power to the 9412

eNodeB.

Contents

Connect DC cables to 9412 eNodeB (+24 VDC and -48 VDC) 6-3

Connect DC power between RF and BB cabinet (AC configuration) 6-8

Connect DC power between RRH and BB cabinet (Distributed configuration) 6-11

Route and connect the AC cable 6-13

Connect power cables

Connect DC and AC power

Overview

....................................................................................................................................................................................................................................

6-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Connect DC cables to 9412 eNodeB (+24 VDC and -48 VDC)

Overview

The following topic provides the procedure for connecting DC cables to the RF and BB

cabinet.

The RF and BB cabinet accepts one DC feeder cable. The DC feeder cable is (1AWG),

stranded copper wire.

Connect power cables

Connect DC and AC power

Connect DC cables to 9412 eNodeB (+24 VDC and -48 VDC)

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 6-3

+24 VDC cable connections

The following table provides information about the +24 VDC feeder cable connections on

each BB and RF cabinets.

Purpose Wire size Label on terminal block and wire color

Feeder 1 1 AWG FEED 1 +24 V

RTN

-48 VDC cable connections

The following table provides information about the -48 VDC feeder cable connections on

the BB and RF cabinets.

Purpose Wire size Label on terminal block and wire color

Feeder 1 1 AWG FEED 1 -48 V

RTN

Connect power cables

Connect DC and AC power

Connect DC cables to 9412 eNodeB (+24 VDC and -48 VDC)

....................................................................................................................................................................................................................................

6-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

DC terminal block

The following figure shows the DC terminal block at the front, lower-right of the eNodeB

cabinets.

Before you begin

Make sure power at DC source is turned off.

Connect power cables

Connect DC and AC power

Connect DC cables to 9412 eNodeB (+24 VDC and -48 VDC)

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 6-5

Route and connect DC power cables for the RF and BB cabinet

Perform the following procedure to connect the DC power cables to the eNodeB:

...................................................................................................................................................................................................

1Route the DC power cables via 1-1/2” conduit through the eNodeB to the DC terminal

block located on the lower-right inside the RF and BB cabinet.

Note: The DC conduit must use an LB connector at the DC entry port as shown.

...................................................................................................................................................................................................

2Cut each DC power cable to appropriate length so it reaches the terminals on the DC

terminal block. Strip 20 mm (0.8 in) of insulation from the end of each DC power cable.

The terminals on the DC terminal block are labeled as follows:

•FEED 1 (+24 V and RTN)

•FEED 1 (-48 V and RTN)

Connect power cables

Connect DC and AC power

Connect DC cables to 9412 eNodeB (+24 VDC and -48 VDC)

....................................................................................................................................................................................................................................

6-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Important! Check polarity of cables before connecting to terminal blocks.

...................................................................................................................................................................................................

3Insert the end of each DC power cable into its corresponding terminal and torque each

terminal to 6 to 8 Nm (57 to 71 in-lb), using a 3/16-inch wide, flat blade screwdriver.

Connect power cables

Connect DC and AC power

Connect DC cables to 9412 eNodeB (+24 VDC and -48 VDC)

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 6-7

END OF STEPS

...................................................................................................................................................................................................

Connect DC power between RF and BB cabinet (AC

configuration)

Route and connect DC cables between RF and BB cabinet

Note: If connecting DC power between the RRH and BB cabinet refer to “Connect

DC power between RRH and BB cabinet (Distributed configuration)” (p. 6-11)

Perform the following procedures to connect DC power between the RF and BB cabinet.

...................................................................................................................................................................................................

1Connect LB and conduit connectors to the DC entry port on the rear of the RF and BB

cabinet.

Connect power cables

Connect DC and AC power

Connect DC power between RF and BB cabinet (AC

configuration)

....................................................................................................................................................................................................................................

6-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

...................................................................................................................................................................................................

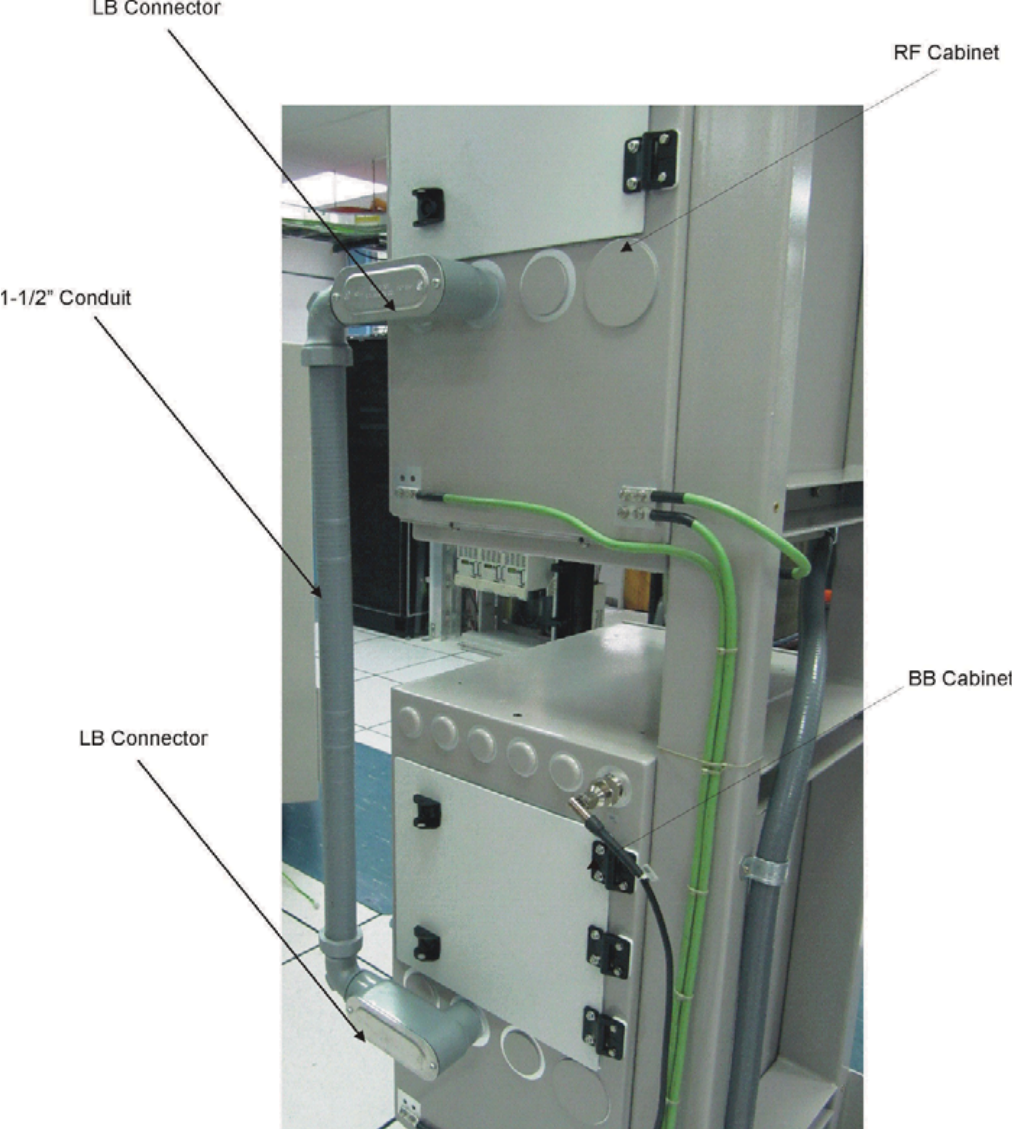

2Cut the required flexible conduit to sufficient length to fit between the cabinets.

Connect power cables

Connect DC and AC power

Connect DC power between RF and BB cabinet (AC

configuration)

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 6-9

...................................................................................................................................................................................................

3Connect the flexible conduit to the two installed LB connectors.

...................................................................................................................................................................................................

4Remove plastic cover from the DC distribution panel on the rear of the BB cabinet.

...................................................................................................................................................................................................

5Connect the DC cable lugs to Feed 1 (Red) and RTN (Black).

...................................................................................................................................................................................................

6Connect the loose end of the DC cable to the DC terminal block inside the RF cabinet.

Connect power cables

Connect DC and AC power

Connect DC power between RF and BB cabinet (AC

configuration)

....................................................................................................................................................................................................................................

6-10 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

END OF STEPS

...................................................................................................................................................................................................

Connect DC power between RRH and BB cabinet (Distributed

configuration)

Route and connect DC cables between RRH and BB cabinet

Perform the following procedures to connect DC power between the RRH and BB

cabinet.

...................................................................................................................................................................................................

1Install 11/2” to 1” conduit Reducer at the DC entry port on the rear of the BB cabinet.

...................................................................................................................................................................................................

2Cut the required 1-inch flexible conduit to sufficient length to fit between the BB and

RRH(s).

...................................................................................................................................................................................................

3Connect the flexible conduit to the installed Reducer.

...................................................................................................................................................................................................

4Remove plastic cover from the DC distribution panel on the rear of the BB cabinet.

...................................................................................................................................................................................................

5Connect the DC cable lugs to Feed 1 (Red) and RTN (Black).

REAR

BB

DC cable

to RRH1 DC cable

to RRH3

DC cable

to RRH2

Install 11/2 to 1 Reducer

at DC entry

1-inch conduit

for DC cables

Connect power cables

Connect DC and AC power

Connect DC power between RRH and BB cabinet

(Distributed configuration)

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 6-11

...................................................................................................................................................................................................

6Connect the loose end of the DC cable to the DC terminal on the RRH.

...................................................................................................................................................................................................

7To connect the DC cable to the RRH, refer to the appropriate RRH installation manual.

9442 RRH installation manual:

•9442 RRH (AWS) Installation manual, 418-000-426

•9442 RRH (700 MHz- Lower Band) Installation manual, 418-000-424

Connect power cables

Connect DC and AC power

Connect DC power between RRH and BB cabinet

(Distributed configuration)

....................................................................................................................................................................................................................................

6-12 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

END OF STEPS

...................................................................................................................................................................................................

Route and connect the AC cable

Overview

The following topic covers the routing and connection AC cable in the 9412 Compact

cabinet.

Route and connect the AC cable in the BB cabinet

Perform the following steps to route and connect the three-wire AC cable to the Phoenix

terminal blocks and ground point in the 9412 Compact cabinet.

...................................................................................................................................................................................................

1Route and dress the cable from its conduit entry point, to the Phoenix terminal block

location at the bottom front of the BB cabinet. Refer to the following figure.

...................................................................................................................................................................................................

2Remove the cover from the AC terminal blocks. Refer to the following figure.

Connect power cables

Connect DC and AC power

Route and connect the AC cable

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 6-13

...................................................................................................................................................................................................

3Fan out the wires and lead them to the correct terminals. Refer to the following figure and

table.

...................................................................................................................................................................................................

4Route the 25 inch ground wire from the end of the AC cable to the AC terminal block.

L1

L2/N

AC/ +24v BB Cabinet

AC

INPUT

SIDE

PE

L1

L2/N

L1

PE

AC/ -48v BB Cabinet

AC TERMINAL BLOCK CONNECTIONS

Connect power cables

Connect DC and AC power

Route and connect the AC cable

....................................................................................................................................................................................................................................

6-14 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

...................................................................................................................................................................................................

5Attach the ring terminal lug to the screw hole with the supplied M5 screw and connect the

ground wire to the ground point on the AC terminal block.

...................................................................................................................................................................................................

6Connect the AC wires (L1 and L2/N) to the Phoenix terminal blocks on the AC terminal

as indicated in the table below. Refer to the Step 3 figure for an illustration of the terminal

blocks.

+24V Terminal Block

AC cable wire

color

Terminal block

label

Function Block Position and

Color

North America and compatible markets

Red L1 L1 1 (Gray)

Black L2/N L2 2 (Blue)

Green PE GND 3 (Yellow/Green)

-48V Terminal Block

Terminal block label Function Block Position and Color

L1 L1, L1,L1 (these terminals are

jumpered)

1,2.3 (Gray)

L2/N L2 4 (Blue)

PE GND 5 (Yellow/Green)

...................................................................................................................................................................................................

7Torque the screws to 1.5 to 1.8 Nm (13 to 16 in.-lb).

Connect power cables

Connect DC and AC power

Route and connect the AC cable

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 6-15

END OF STEPS

...................................................................................................................................................................................................

Connect power cables Route and connect the AC cable

....................................................................................................................................................................................................................................

6-16 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Final connections

Overview

Purpose

This section addresses the final connections to be made after installation of the eNodeB

has been completed.

Contents

Initial start-up and system test 7-15

Final cabinet installation procedures 7-16

Finish the installation

Final connections

Overview

....................................................................................................................................................................................................................................

7-14 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Initial start-up and system test

Important! The procedures for initial start-up and test are not covered in this

document. Refer to Integration Engineering Handbook, IEH 401.

Before initial start-up and test

To perform initial start-up and system test, the RF jumper cables will be temporarily

disconnected at the eNodeB by the personnel who perform initial start-up and system test.

After performing initial start-up and system test, the personnel will permanently connect

the RF jumper cables to the eNodeB.

After initial start-up and test

NOTICE

RF hazard!

If it is necessary to disconnect an RF jumper cable, make sure there is no transmit signal

in the RF jumper cable.

...................................................................................................................................................................................................

1Once initial start-up and test have been completed, make sure the RF jumper cables are

properly connected to the radio cabinet. Refer to Connect RF jumper cables to eNodeB on

page 7-9.

...................................................................................................................................................................................................

2Important! Hold the body of the 90 degree connector (part connected to the entry

cable) with a 22 mm open-end wrench. Torque the rotating nut with a 32 mm

open-end wrench.

Torque each RF connector at the radio cabinet to 25 Nm (221 in-lb).

...................................................................................................................................................................................................

3Finally, secure the RF jumper cables along their route.

Finish the installation

Final connections

Initial start-up and system test

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 7-15

END OF STEPS

...................................................................................................................................................................................................

Final cabinet installation procedures

Overview

This topic describes the tasks that must be completed to finish installation of the eNodeB.

System test

Following installation of the eNodeB, the system should be tested before being put it into

operation. System test procedures are not covered in this installation document.

Information concerning system test and integration is contained in Integration

Engineering Handbook (IEH) 401.

Ensure that it is safe to turn on eNodeB

Use the following procedure to ensure the eNodeB can be turned on.

...................................................................................................................................................................................................

1Inspect for loose tools, materials, and parts. Remove all such loose tools, materials, and

parts.

...................................................................................................................................................................................................

2Verify that all the cable connections are secure.

Power up eNodeB

Use the following procedure to power up the eNodeB.

...................................................................................................................................................................................................

1Turn on the DC circuit breakers at the DC power source.

...................................................................................................................................................................................................

2Turn on the AC heaters, if available.

Finish the installation

Final connections

Final cabinet installation procedures

....................................................................................................................................................................................................................................

7-16 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

END OF STEPS

...................................................................................................................................................................................................

END OF STEPS

...................................................................................................................................................................................................

Appendix C: Product

conformance statements

Overview

Purpose

This section presents the product conformance statements that apply to the eNodeB

Compact cabinet.

In regions such as North America and the European Union, the statements that are

required are determined primarily by national or multi-national regulations. However, in

some regions, contract terms determine which statements are required.

The presence of the statement indicates that the product does comply with that statement

wherever it is required to do so.

Contents

Canada C-2

European Union C-5

United States C-9

...................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction C-1

Canada

Introduction

The statements that follow are the product conformance statements that apply to the 9412

eNodeB when deployed in Canada.

Industry Canada

ICES-003: Interference-Causing Equipment Standard Digital Apparatus

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

IC CS-03: Specification for Terminal Equipment, Terminal Systems, Network

Protection Devices, Connection Arrangements and Hearing Aids Compatibility

This product meets the applicable Industry Canada technical specifications.

RF approval

•RSS-132: Cellular Telephones Employing New Technologies Operating in the Bands

824-849 MHz and 869-894 MHz

The term “IC” before the certification/registration number only signifies that the

Industry Canada technical specifications were met.

•RSS-133: PCS Radio Standards Specifications

The term “IC” before the certification/registration number only signifies that the

Industry Canada technical specifications were met.

Product safety conformance

This product is safety certified for Canada by a laboratory accredited by the Standards

Council of Canada (SCC), such as CSA, UL, or others. The product bears this

certification mark of this certification laboratory on its main nameplate label. Should the

local authority having jurisdiction (AHJ) require prior or additional verification of this

certification, a product certificate of compliance can be obtained from the specific

certification laboratory by the business/product unit Applicant for the product.

Any modifications to this equipment are not permitted without review and written official

authorization from the specific certification laboratory. Unauthorized changes may violate

the product safety certification. Modifications or changes authorized by official CN/CNN

are assumed to have received prior approval from this Lab.

The distributed cabinet has been listed with CSA to install only the following auxiliary

equipment in the 9412 cabinet user space.

•Tellabs 8605 Access Switch

•Kathrein 860 10006 CCU (Central Control Unit for Remote Electrical Tilt) RET.

Product conformance statements Canada

....................................................................................................................................................................................................................................

C-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Antenna exposure

Antenna installations for the 9412 eNodeB shall be performed in accordance with all

applicable manufacturer's recommendations, and national laws and regulations. To ensure

correct antenna installation, the antenna installer shall perform all necessary calculations

and/or field measurements to evaluate compliance with applicable national laws or

regulations regarding exposure to electromagnetic fields. The supplier of radio

equipment, the supplier of antenna equipment and the integrator and builder of the site

must provide sufficient information so that the limits of the exclusion zones can be

determined. Any changes to the antenna or other equipment in the transmit path may

require re-evaluation of the exposures to electromagnetic fields.

Human exposure

Pursuant to Health Canada Safety Code 6, Limits of Human Exposure to Radio frequency

Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, all installations

must be evaluated against the Maximum Exposure Limits as described in Chapter 2,

Health Canada 99-EHD-237.

Optical transmitters

Alcatel-Lucent declares that 9412 eNodeB complies with the International

Electrotechnical Commission (IEC) standards IEC 60825-1 Edition 2.0 (2007) and IEC

60825-2 Edition 3.1 (2007). It is a Class I/1 laser optical fiber communication systems

"product" under the IEC classifications.

This product is designed to ensure that personnel operating the product are not

endangered by laser radiation during normal operation and fault conditions. This product

does not present a risk of eye injury because it is fully enclosed and does not contain

embedded lasers greater than Class I/1 unless otherwise noted.

CAUTION

Laser hazard

Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous laser radiation exposure.

Do not view directly into the laser beam with optical instruments such as a fiber

microscope because viewing of laser emission in excess of Class 1 limits significantly

increases the risk of eye damage.

Never look into the end of an exposed fiber or an open connector as long as the optical

source is switched on.

Ensure that the optical source is switched off before disconnecting optical fiber

connectors.

Product conformance statements Canada

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction C-3

Packaging collection and recovery requirements

Countries, states, localities, or other jurisdictions may require that systems be established

for the return and/or collection of packaging waste from the consumer, or other end user,

or from the waste stream. Additionally, reuse, recovery, and/or recycling targets for the

return and/or collection of the packaging waste may be established.

For more information regarding collection and recovery of packaging and packaging

waste within specific jurisdictions, please contact the Alcatel-Lucent Services -

Environmental Health and Safety organization. For installations not performed by

Alcatel-Lucent Technologies, please contact the Alcatel-Lucent Customer Support Center

at:

Technical Support Services, within Canada: +1 630 224 4672, prompt 2

Product conformance statements Canada

....................................................................................................................................................................................................................................

C-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

European Union

Introduction

The statements that follow are the product conformance statements that apply to the 9412

eNodeB bearing the CE Marking and when deployed in the European Union.

Declaration of Conformity for radio and telecommunication terminal equipment under the scope

of Directive 1999/5/EC

Hereby, Alcatel-Lucent declares that the equipment documented in this publication is in

compliance with the essential requirements and other relevant provisions of Directive

1999/5/EC.

The technical documentation as required by the Conformity Assessment procedure is kept

at the Alcatel-Lucent location which is responsible for this product. For more information

please contact your local Alcatel-Lucent Customer Service Organization.

CE marking

This product has been CE-marked in accordance with the following European Directive:

•Radio and Telecommunication Terminal Equipment (R&TTE) 1999/5/EC

EMC and radio spectrum compliance for the 850 MHz product

The equipment complies with the following EMC and radio spectrum specifications:

•EN 60950-1

•EN 60215

EMC and radio spectrum compliance for the 450 MHz product

The equipment complies with the following EMC and radio spectrum specifications:

•ETSI EN 301 449 V1.1.1 (2005-05)

•ETSI EN 301 489-1 V1.6.1 (2005-09)

•Code of Federal Regulations FCC part 24(E)

•IS 3GPP2 - C.S0010-B

Product safety conformance

The equipment complies with the following product safety specifications:

•EN 60950-1:2001

•EN 60215:1989

Telecommunications Standards

The equipment complies with the following telecommunication specifications:

•Technical Basis Regulation TBR 13

Product conformance statements European Union

....................................................................................................................................................................................................................................

9412 eNB Compact

418-000-415

Issue 4.1 August 2011

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction C-5
