Nokia of America BBTRX-06 LTE RRH2X40-07L-AT User Manual Exhibit D Users Manual per 2 1033 c3

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-06

Alcatel-Lucent Use pursuant to Company Instructions

Section 2.1033(C)(3)

USERS MANUAL

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-06

Alcatel-Lucent Use pursuant to Company Instructions

USERS MANUAL

SECTION 2.1033(c) (3)

A copy of the installation and operating instructions to be furnished the user. A draft copy of the

instructions may be submitted if the actual document is not available. The actual document shall be

furnished to FCC when it becomes available.

RESPONSE: A copy of

(1) 9442 Remote Radio Head (RRH) Hardware Installation Manual is attached.

Title page

Alcatel-Lucent

FDD Remote Radio Head 700 MHz_15.5 (Lower Band)

Hardware Installation Manual (formerly 418–000–425)

3MN-00075-0002-RJZZA

Issue 0 | September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Legal notice

Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective

owners.

The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.

Contains proprietary/trade secret information which is the property of Alcatel-Lucent and must not be made available to, or copied or used by anyone outside

Alcatel-Lucent without its written authorization.

Not to be used or disclosed except in accordance with applicable agreements.

Notice

Every effort was made to ensure that the information in this document was complete and accurate at the time of printing. However, information is subjectto

change.

Developed by the Alcatel-Lucent Documentation Team.

Use pursuant to applicable agreements

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Contents

About this document

Purpose ............................................................................................................................................................................................ viivii

Safety information ...................................................................................................................................................................... viivii

Intended audience ....................................................................................................................................................................... viivii

Safety labels .................................................................................................................................................................................. viivii

Systems supported ...................................................................................................................................................................... viivii

How to comment ......................................................................................................................................................................... viivii

1Safety

Overview ...................................................................................................................................................................................... 1-11-1

Structure of safety statements ............................................................................................................................................... 1-21-2

Safety ........................................................................................................................................................................................... 1-41-4

Safety - specific hazards ......................................................................................................................................................... 1-51-5

Product safety .......................................................................................................................................................................... 1-101-10

2Product overview

Overview ...................................................................................................................................................................................... 2-12-1

Functional description ............................................................................................................................................................. 2-22-2

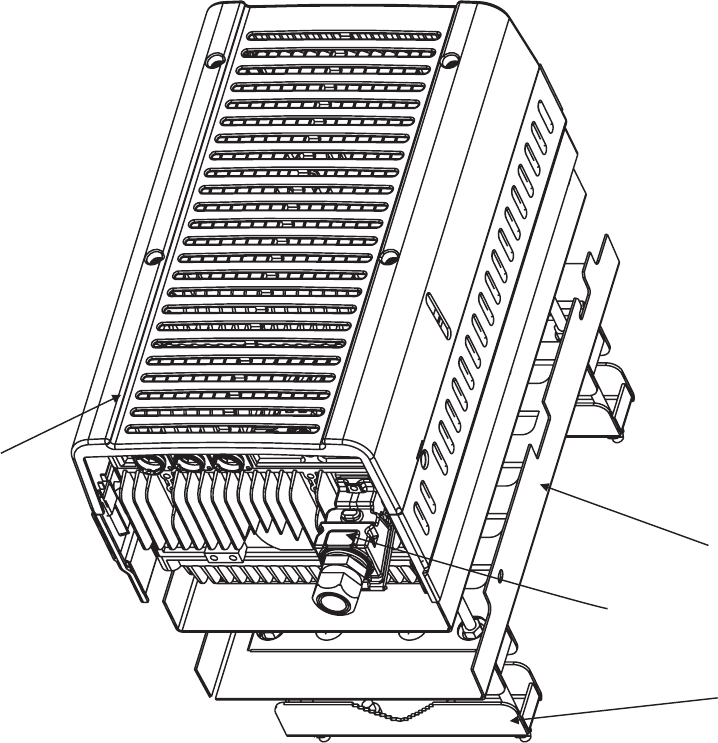

RRH description ........................................................................................................................................................................ 2-32-3

RRH weights and dimensions .............................................................................................................................................. 2-62-6

3Site configurations

Overview ...................................................................................................................................................................................... 3-13-1

RF configurations ..................................................................................................................................................................... 3-23-2

Common Public Radio Interface Configuration ............................................................................................................ 3-33-3

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements iii

4Tools, materials, and checklist

Overview ...................................................................................................................................................................................... 4-14-1

Preparatory information

Overview ...................................................................................................................................................................................... 4-24-2

Tools required for installation .............................................................................................................................................. 4-34-3

Torque requirements ................................................................................................................................................................ 4-64-6

Verify site preparation completed ....................................................................................................................................... 4-84-8

Physical installation process overview ............................................................................................................................. 4-94-9

Installation procedure checklist ......................................................................................................................................... 4-104-10

5Transport, mount, and ground the RRH

Overview ...................................................................................................................................................................................... 5-15-1

Pre-installation instructions

Overview ...................................................................................................................................................................................... 5-25-2

Transport and mount the RRH ............................................................................................................................................. 5-35-3

Mounting instructions

Overview ...................................................................................................................................................................................... 5-85-8

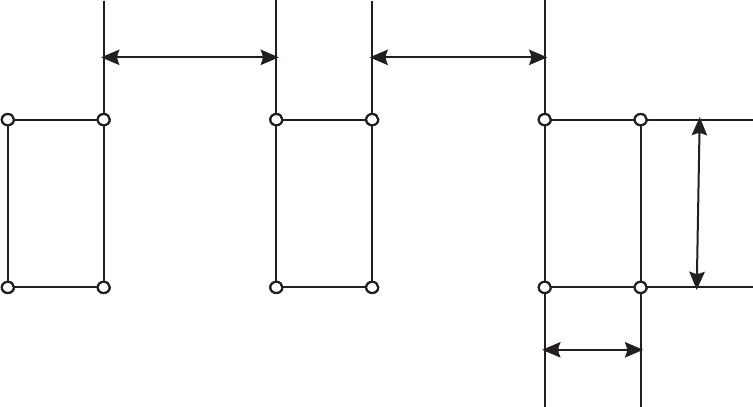

To mount hardware to wall .................................................................................................................................................... 5-95-9

Pole mount installation overview ..................................................................................................................................... 5-165-16

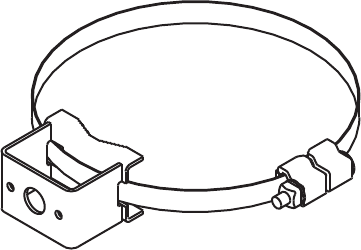

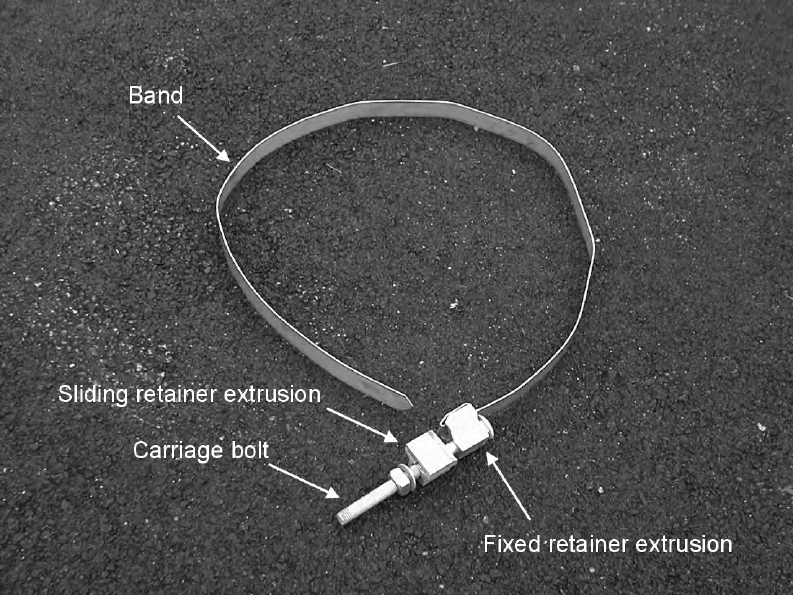

To mount hardware to pole with pole bands ................................................................................................................. 5-185-18

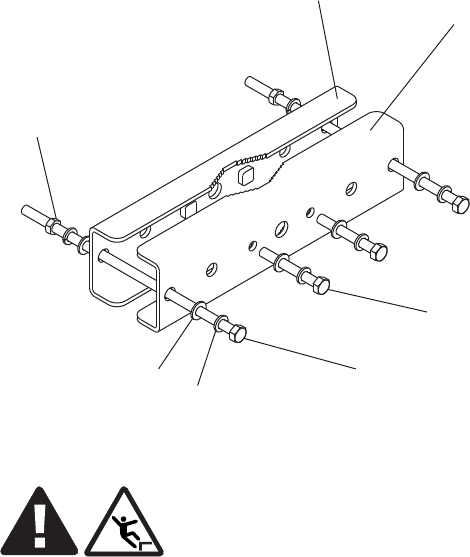

To mount hardware to pole with pole brackets ............................................................................................................ 5-225-22

To install RRH on pole weldment assemblies ............................................................................................................. 5-255-25

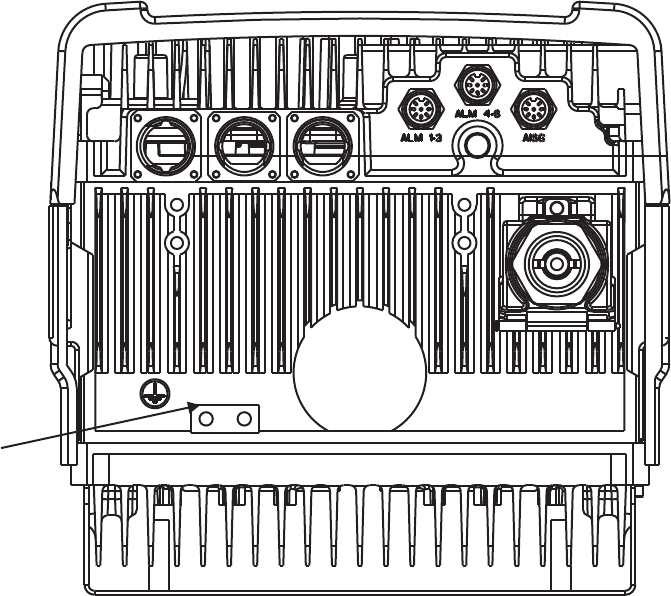

To ground the RRH ................................................................................................................................................................ 5-275-27

6Connect interface and DC cables

Overview ...................................................................................................................................................................................... 6-16-1

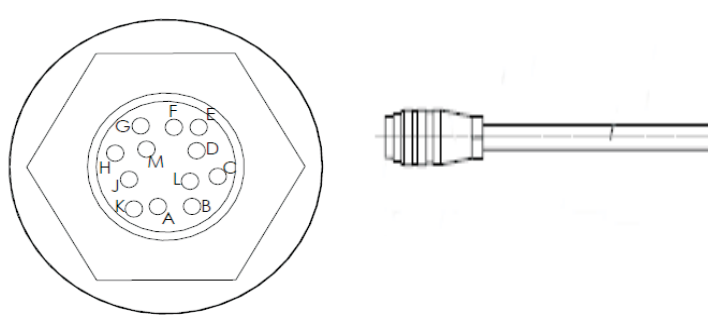

Route and connect user alarm cables ................................................................................................................................. 6-26-2

Route and connect ALD cable (Optional) ........................................................................................................................ 6-56-5

Contents

....................................................................................................................................................................................................................................

iv Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

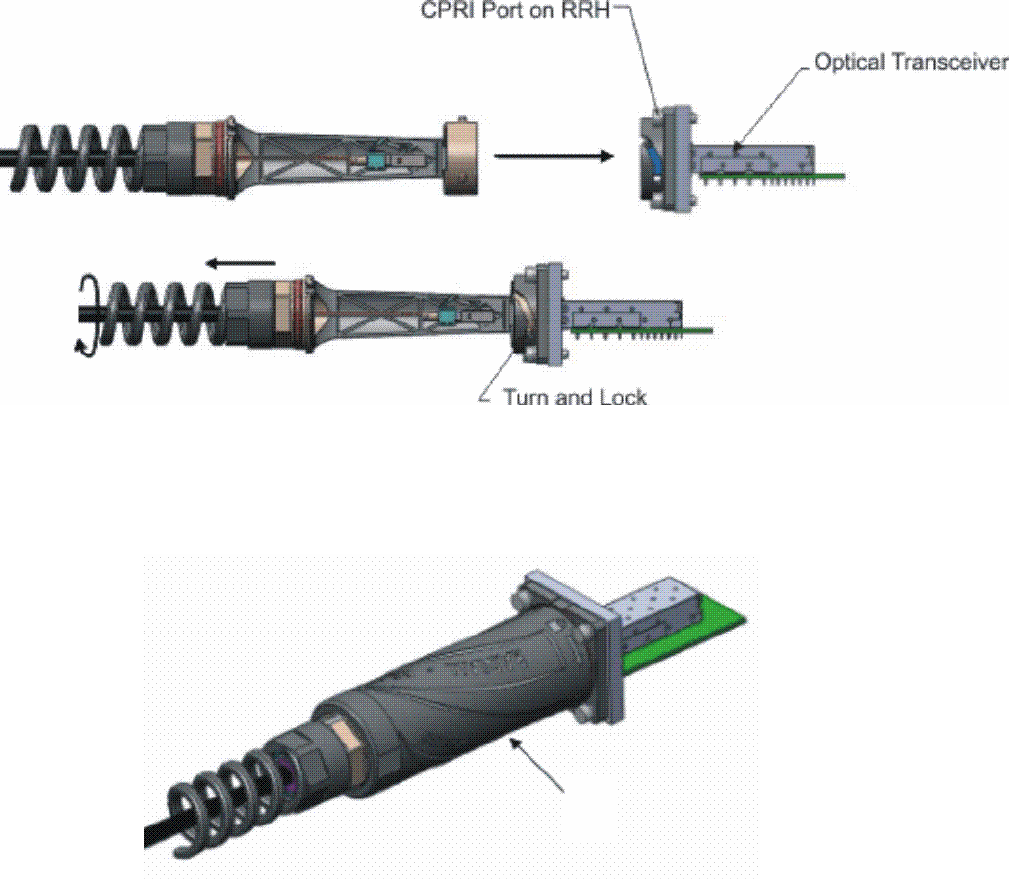

Route and connect optical fiber cables ............................................................................................................................. 6-76-7

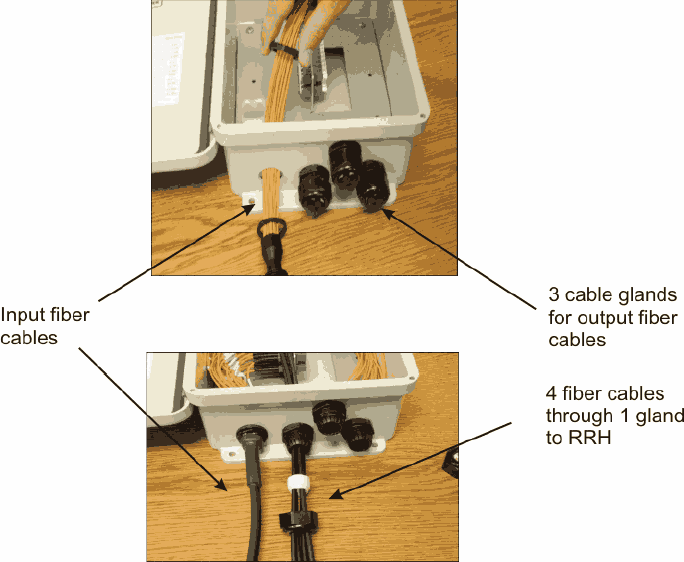

Fiber distribution unit (optional) ...................................................................................................................................... 6-126-12

To route and connect DC power cables .......................................................................................................................... 6-146-14

Phoenix copper power distribution unit (optional) .................................................................................................... 6-166-16

7Finish the installation

Overview ...................................................................................................................................................................................... 7-17-1

To route and connect RF jumper cables ........................................................................................................................... 7-27-2

To finalize RRH installation ................................................................................................................................................. 7-77-7

AProduct conformance statements

Overview ..................................................................................................................................................................................... A-1A-1

Canada ......................................................................................................................................................................................... A-2A-2

China ............................................................................................................................................................................................ A-5A-5

European Union ........................................................................................................................................................................ A-7A-7

United States ........................................................................................................................................................................... A-11A-11

BAcronyms

Overview ..................................................................................................................................................................................... B-1B-1

Acronyms .................................................................................................................................................................................... B-2B-2

Index

Contents

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements v

Contents

....................................................................................................................................................................................................................................

vi Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

About this documentAbout this document

Purpose

This document provides hardware installation instructions for an Alcatel-Lucent FDD

Remote Radio Head.

Procedures are provided for handling, placement, grounding, powering, and cabling the

RRH.

Safety information

For your safety, this document contains safety statements. Safety statements are given at

points where risks of damage to personnel, equipment, and operation may exist. Failure to

follow the directions in a safety statement may result in serious consequences.

Intended audience

This document is intended for customers installing an Alcatel-Lucent FDD Remote Radio

Head (700 MHz).

Safety labels

The safety alert symbol is used on product labels and in this IP to alert the user the user to

important safety instructions.

Systems supported

This document applies to LTE indoor and outdoor cell sites.

How to comment

To comment on this document, go to the Online Comment Form (http://infodoc.alcatel-

lucent.com/comments/) or e-mail your comments to the Comments Hotline

(comments@alcatel-lucent.com).

...................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements vii

About this document

....................................................................................................................................................................................................................................

viii Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

11Safety

Overview

Purpose

This chapter covers safety precautions.

Contents

Structure of safety statements 1-2

Safety 1-4

Safety - specific hazards 1-5

Product safety 1-10

...................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-1

Structure of safety statements

Overview

This topic describes the components of safety statements that appear in this document.

General structure

Safety statements include the following structural elements:

Item Structure element Purpose

1 Safety alert symbol Indicates the potential for personal injury

(optional)

2 Safety symbol Indicates hazard type (optional)

3 Signal word Indicates the severity of the hazard

4 Hazard type Describes the source of the risk of damage or

injury

5 Safety message Consequences if protective measures fail

6 Avoidance message Protective measures to take to avoid the hazard

7 Identifier The reference ID of the safety statement

(optional)

SAMPLE

BC D

EF

G

H

Lifting this equipment by yourself can result in injury

due to the size and weight of the equipment.

Always use three people or a lifting device to transport

and position this equipment. [ABC123]

CAUTION

Lifting hazard

Safety Structure of safety statements

....................................................................................................................................................................................................................................

1-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Signal words

The signal words identify the hazard severity levels as follows:

Signal word Meaning

DANGER Indicates an extremely hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING Indicates a hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, could result in

minor or moderate injury.

NOTICE Indicates a hazardous situation not related to personal injury.

Safety Structure of safety statements

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-3

Safety

General precautions for installation procedures

WARNING

Failure to observe these safety precautions may result in personal

injury or damage to equipment.

•Read and understand all instructions.

•Follow all warnings and instructions marked on this product.

•Installation and maintenance procedures must be followed and performed by

trained personnel only.

•The equipment must be provided with a readily accessible disconnect device

as part of site preparation.

•Grounding and circuit continuity is vital for safe operation of the equipment.

Never operate the equipment with grounding/bonding conductor

disconnected.

•Install only equipment identified in the product's installation manual. Use of

other equipment may result in an improper connection which could lead to

fire or injury.

•Use caution when installing or modifying telecommunications lines.

•The product has multiple power inputs. Before servicing, Disconnect all

inputs to reduce the risk of energy hazards.

•For continued protection against risk of fire, all fuses used in this product

must be replaced only with fuses of the same type and rating.

•Never install telecommunications wiring during a lightning storm.

•Never install telecommunications connections in wet locations.

•Never touch uninsulated wiring or terminals carrying direct current or

ringing current, and never leave this wiring exposed. Protect and tape

uninsulated wiring and terminals to avoid risk of fire, electrical shock, and

injury to personnel.

•Never spill liquids of any kind on the product.

•To reduce the risk of an electrical shock, do not disassemble the product.

Opening and removing covers and/or circuit boards may expose you to

dangerous voltages or other risks. Incorrect reassembly can cause electrical

shock when the unit is subsequently used.

Safety Safety

....................................................................................................................................................................................................................................

1-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Safety - specific hazards

DANGER

Electric-shock hazard

Working in severe weather can result in personal injury or death and damage to the

equipment.

Never install or perform maintenance during severe weather (high winds, lightning,

blizzards, hurricane etc.).

DANGER

Noxious-substance hazard

Use of unspecified cleaning agents can result in personal injury.

Use only specified cleaning agents. Never use flammable solvents.

Always ensure there is adequate ventilation in the work area and wear the appropriate

personal protective equipment.

DANGER

Laser hazard

This equipment operates with invisible laser radiation. Laser radiation can cause

considerable injuries to the eyes.

Never look into the end of an exposed fiber or into an open optical connector when the

optical source is switched on. Always observe the laser warning instructions.

WARNING

Electric-shock hazard

Some parts of all electrical installations are energized. Failure to observe this fact and

the safety warnings may lead to bodily injury and property damage.

For this reason, only trained and qualified personnel (electrical workers as defined in

IEC 60215 + A1 or EN 60215) may install or service the installation.

Safety Safety - specific hazards

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-5

WARNING

Electric-shock hazard

The power supply lines to the network element are energized. Contact with parts carrying

voltage can cause health problems, possibly including death, even hours after the event.

Open and lockout the load disconnect switch in the distribution box to completely

de-energize the network element.

WARNING

Electric-shock hazard

This product may be connected to an AC main power supply and may contain an internal

battery supply. Disconnecting one power source may not de-energize the system, and can

lead to serious injury.

Disconnect and lock out the AC main power supply, if present, and the internal battery

supply, if present, before servicing the equipment.

WARNING

Laser hazard

The light from laser and high-radiance LED's may cause eye damage if absorbed by the

retina.

In the US consult ANSI Z136.2, in Europe consult IEC-60825 Safety of laser products, for

guidance on the safe use of optical fiber communication systems in the workplace.

Safety Safety - specific hazards

....................................................................................................................................................................................................................................

1-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

NOTICE

ESD hazard

Semiconductor devices can be damaged by electrostatic discharges.

The following rules must be complied with when handling any module containing

semiconductor components:

•Wear conductive or antistatic working clothes (for example, coat made of 100%

cotton).

•Wear the grounded wrist strap.

•Wear shoes with conductive soles on a conductive floor surface or conductive work

mat.

•Leave the modules in their original packaging until ready for use.

•Make sure there is no difference in potential between yourself, the workplace, and the

packaging before removing, unpacking, or packing a module.

•Hold the module only by the grip without touching the connection pins, tracks, or

components.

•Place modules removed from the equipment on a properly grounded approved ESD

work mat.

•Test or handle the module only with grounded tools on grounded equipment.

•Handle defective modules exactly like new ones to avoid causing further damage.

NOTICE

Condensation

Sudden changes in the weather may lead to the formation of condensation on

components. Operating the unit when condensation moisture is present can destroy the

unit.

Units which show signs of condensation must be dried before installation.

CAUTION

Laceration hazard

The RRH may have sharp edges and burrs and contact may cause cuts and lacerations.

Beware of sharp edges and burrs.

Wear appropriate personal protective equipment.

Safety Safety - specific hazards

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-7

NOTICE

Tools

Tools left in the working area can cause short circuits during operation which can lead to

the destruction of units.

Make sure after finishing your work that no tools, testing equipment, flashlights, etc.,

have been left in or on the equipment.

NOTICE

Inadequate circulation

Inadequate circulation of cooling air can cause some units to become too warm. This can

lead to operational impairment.

Cover all installation slots for unequipped units with blanking panels.

CAUTION

Hot-surface hazard

Touching a hot heater may cause burns.

Do not touch the heaters.

Before touching the units wait until they have cooled down, wear safety gloves and

clothes.

NOTICE

Corrosive-substance hazard

Cleaning plastic containers and lids with abrasive and aggressive cleaning agents may

cause permanent damage.

Do not use solvents, paraffin, abrasive or aggressive cleaning fluids, abrasive or

aggressive antiseptic agents or abrasive or aggressive materials.

NOTICE

Service-disruption hazard

Cleaning with water or a high-pressure cleaner will damage the RRH.

The washing down of the equipment with water or a high-pressure cleaner is not

permitted.

Safety Safety - specific hazards

....................................................................................................................................................................................................................................

1-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

CAUTION

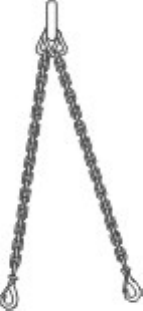

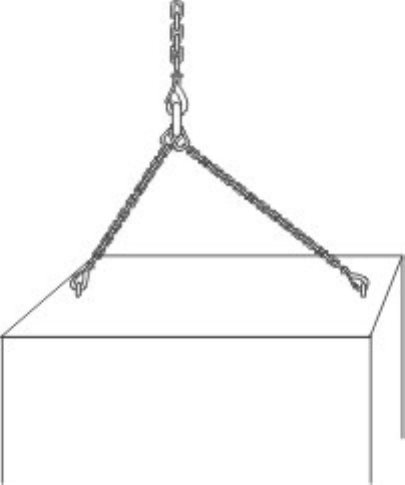

Lifting hazard

Lifting this equipment by yourself can result in injury due to the size and weight of the

equipment.

Always use at least three people or a lifting device to move or position this equipment.

Safety Safety - specific hazards

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-9

Product safety

Equipment safety

Safety information for this equipment can be found on various Caution, Warning, Danger,

information labels or instructions affixed to or included with the RRH, its internal

assemblies or included within this document. Informational and cautionary labels may

appear near the item they address or may be grouped in a single location on the

equipment. Warnings are typically adjacent to the hazard that is noted on the label. The

instructions, cautions and warnings found on these labels must be understood and

observed by all personnel involved with the equipment installation and maintenance.

Safety Product safety

....................................................................................................................................................................................................................................

1-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

22Product overview

Overview

Purpose

This chapter provides an overview of the Alcatel-Lucent FDD Remote Radio Head.

Contents

Functional description 2-2

RRH description 2-3

RRH weights and dimensions 2-6

...................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-1

Functional description

General description

The 2 x 40W 700MHz RRH specified here supports 3GPP E-UTRAN Band 12. The RRH

includes an amplifier with two transmitters, four receivers, and filter all within one

chassis. The RRH supports2x2MIMO and2x4MIMO within one module. The RRH

units can be combined to support4x4MIMO. The nominal transmit power is 40Watts at

the filter output for each of the two transmit paths.

Product capabilities

The product capabilities in this release are:

•Outdoor, -48 V DC

•Transmit Power 2 Tx at 40W each

•700 MHz

•Supports up to six user alarms for each RRH

•RRH Mounting:

– pole

– wall

•Front access installation and service

•Bottom I/O panel access

Product overview Functional description

....................................................................................................................................................................................................................................

2-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

RRH description

RRH front-view (external)

The following figure shows the front external view of the 700 MHz RRH.

Wall mounting bracketWall mounting bracket

Mounting brackets (1of 2)Mounting brackets (1of 2)

Solar ShieldSolar Shield

DC Conduit boxDC Conduit box

Product overview RRH description

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-3

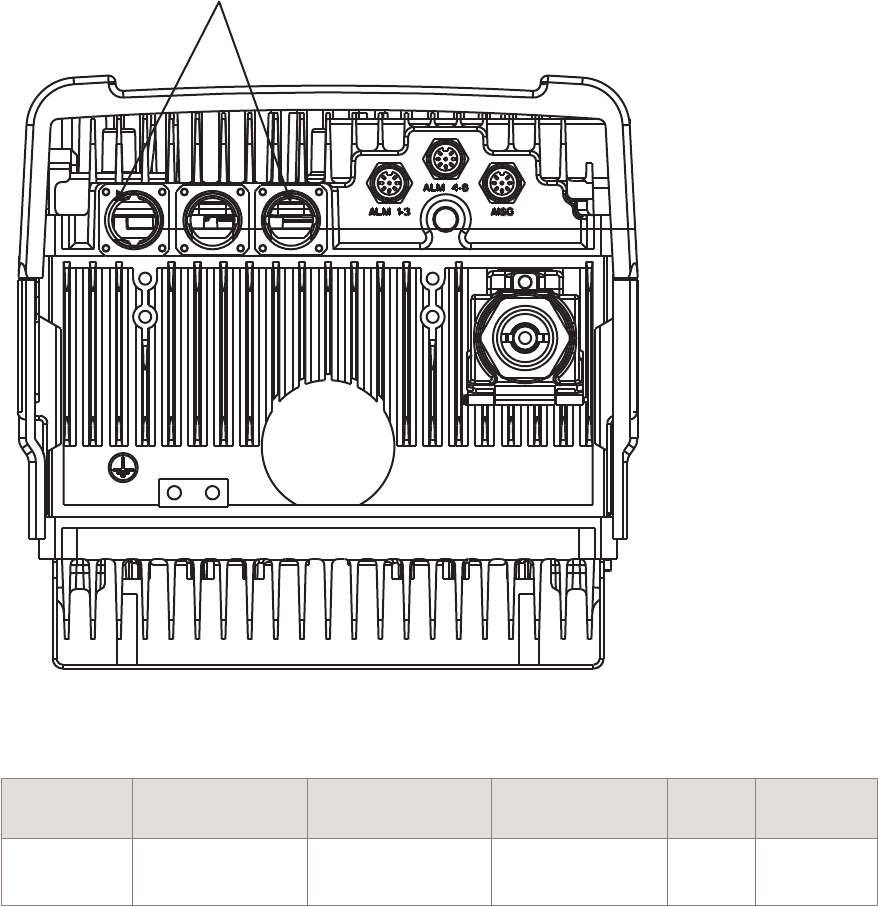

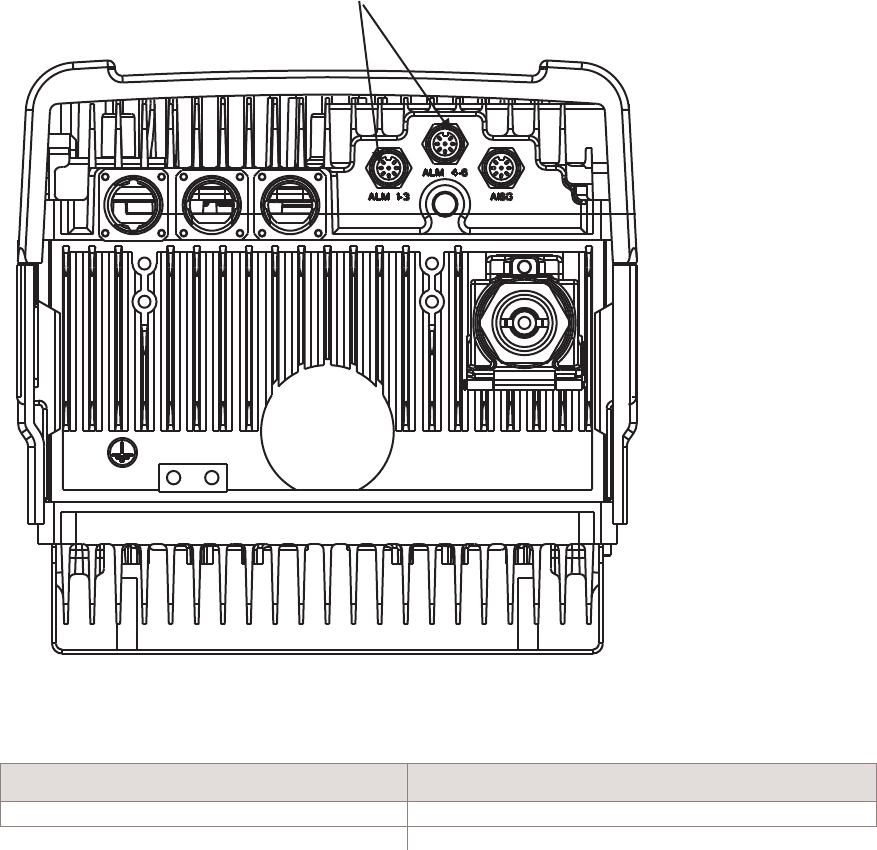

Bottom view of the RRH

Bottom view of the RRH 700 MHz:

DC entryDC entry

User alarmUser alarm AISG (ALD)AISG (ALD)

Ground

CPRI

GigE

Product overview RRH description

....................................................................................................................................................................................................................................

2-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

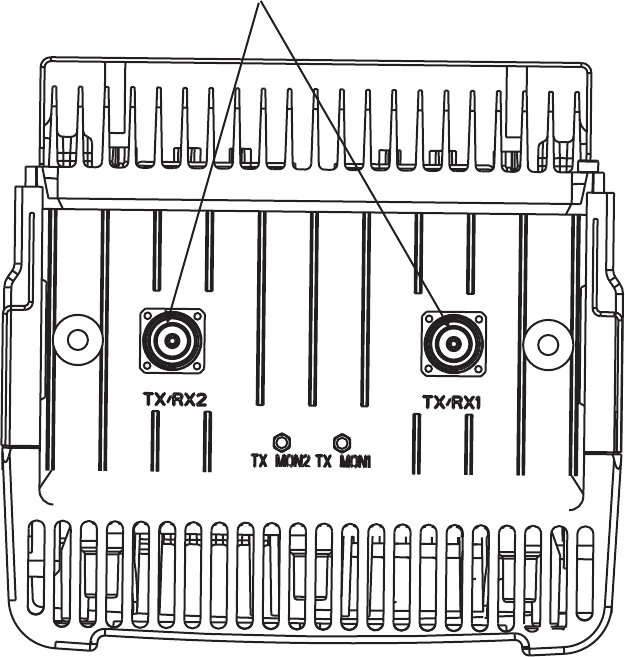

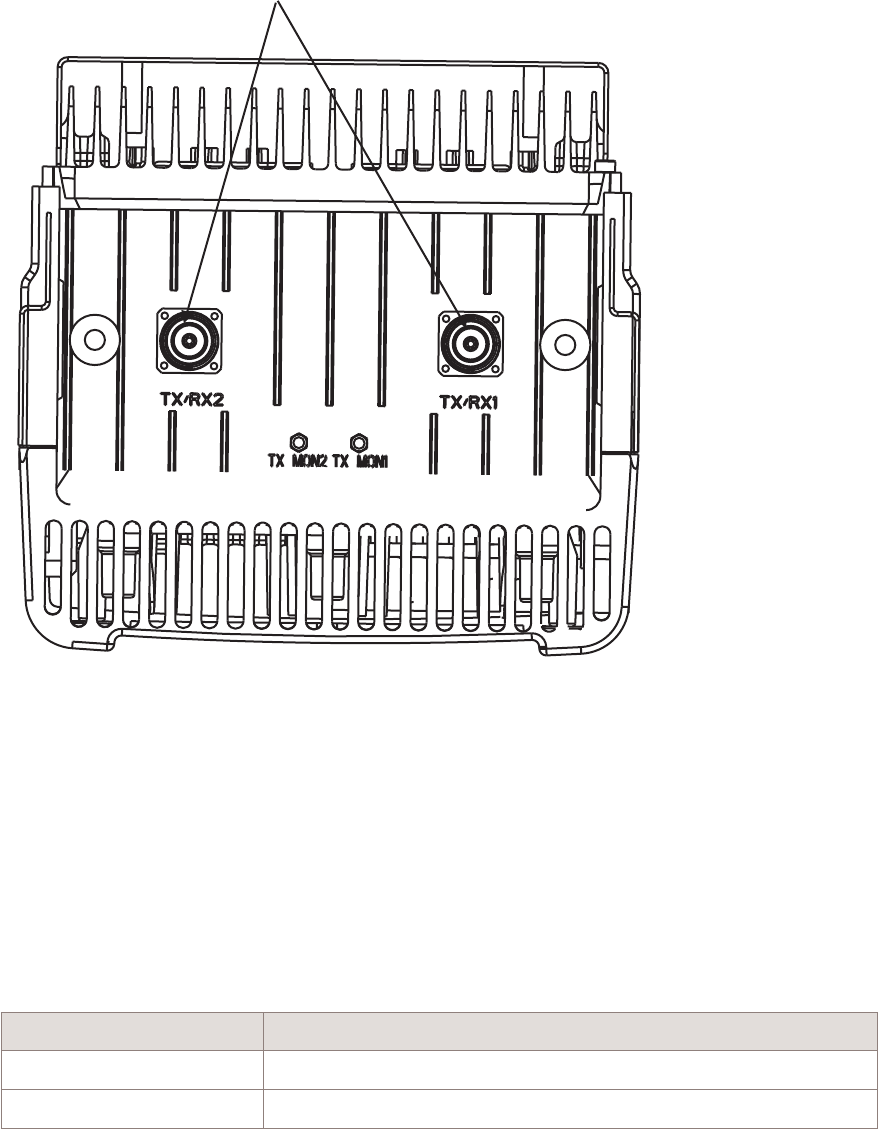

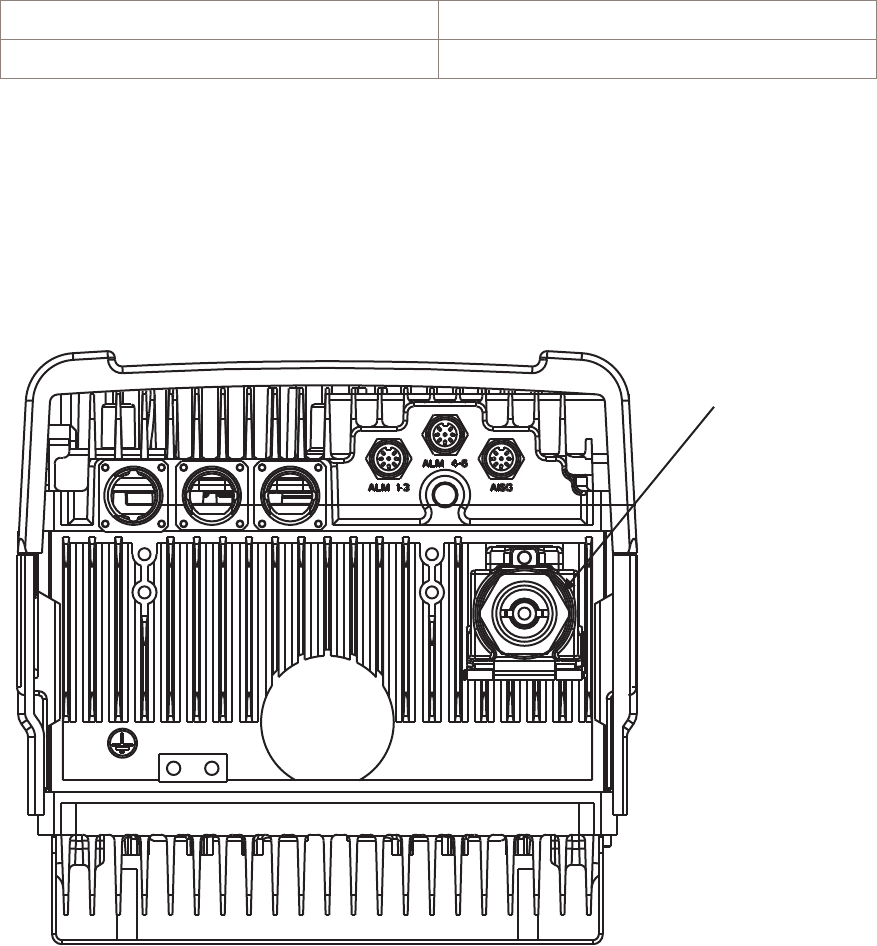

Top view of the RRH

Top view of the RRH 700 MHz:

Cable interfaces

At the bottom of the RRH, the following cable interface points are found:

•-48 DC power connector:

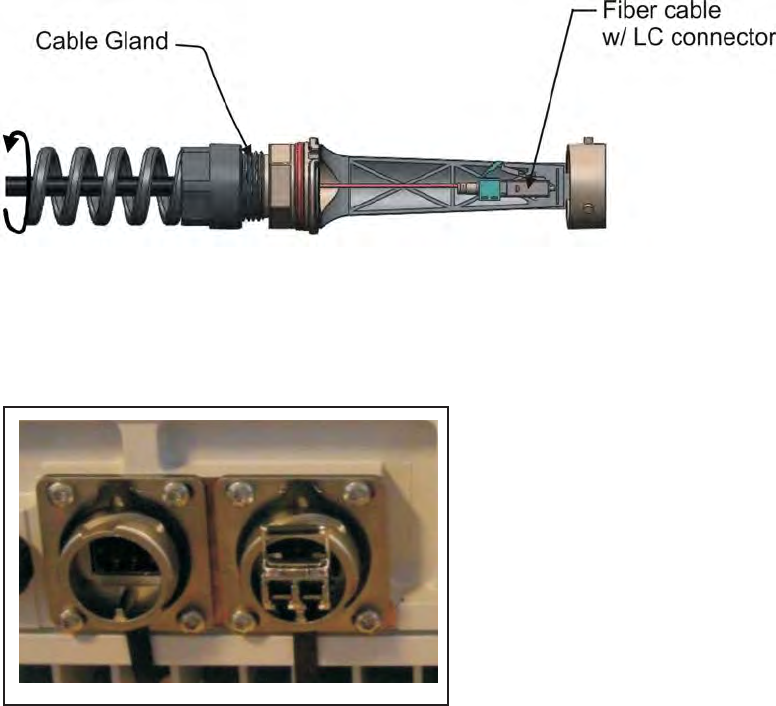

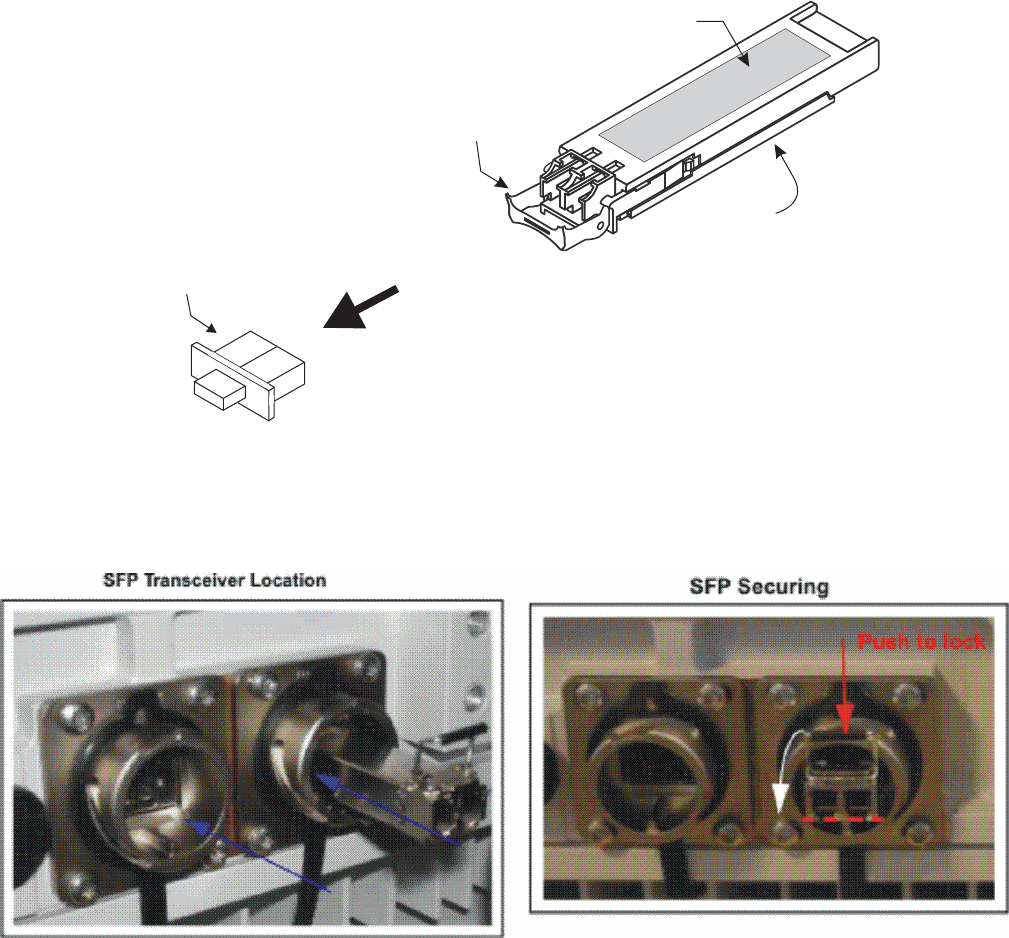

•Two (2) Optical connectors: One optical interface to connect the RRH and the second

optical interface to support daisy-chain

•Two (2) External Alarm Connectors: (8-pin Circular Din Female connector)

•One ALD (RS485) Connector: (8-pin Circular Din Female connector)

•ANT RX: (7/16 DIN coaxial female connector)

•ANT TX/RX: (7/16 DIN coaxial female connector)

•Two (2) SMA connectors: (For testing TX main and TX Diversity)

The top of the RRH allows access for connecting RF cables.

RF Antenna connectionsRF Antenna connections

Product overview RRH description

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-5

RRH weights and dimensions

Weights and dimensions

This topic covers the RRH weights and dimensions.

Standard RRH weights and dimensions

The following table provides weights and dimensions for the RRHs.

RRH configuration Estimated maximum

installed weight without

mounting brackets kg (lb.)

Overall dimensions width x depth x

height

mm (inches)

RRH 700 MHz w/ Solar

Shield

23 (51) 310 x 275 x 530 (12.2 x 10.8 x 21)

Notes:

1. Dimensions are including mounting bracket, solar shield and connectors.

Miscellaneous hardware weights

The following table provides approximate weights for other miscellaneous hardware.

Item Weight kg (lb.)

Shipping box 4.9 (10.8)

Wall bracket (RRH) 4.1 (9)

Pole brackets (2) (standard) 2.73 (6)

Pole Bands (2) 1.8 (4)

Pole Bracket (Low Profile) 1.8 (4)

Product overview RRH weights and dimensions

....................................................................................................................................................................................................................................

2-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

33Site configurations

Overview

Purpose

This chapter provides configuration information for the RRH site.

Contents

RF configurations 3-2

Common Public Radio Interface Configuration 3-3

...................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-1

RF configurations

The RF capacity is measured in sectors, carriers, and RF signal power. The RF capacity

determines what components appear in the RRH and what antenna connections are

required.

Physical RF connections

The base station can be connected to RRHs with the following RF frequencies:

•700 MHz.

The RRH accept connections for:

•Two RF antenna cables with 7-16 DIN female connectors.

RF configurations

The following configurations are supported.

Configuration RF connectors (per sector) RF signal power per carrier

(nominal)

700 MHz 2 40W

Site configurations RF configurations

....................................................................................................................................................................................................................................

3-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

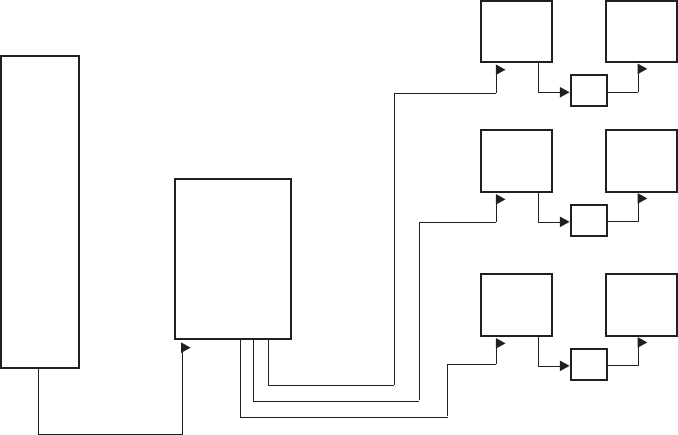

Common Public Radio Interface Configuration

The Common Public Radio Interface (CPRI) of the RRHs can be connected in two

different ways to the Base Band Unit:

•Star configuration

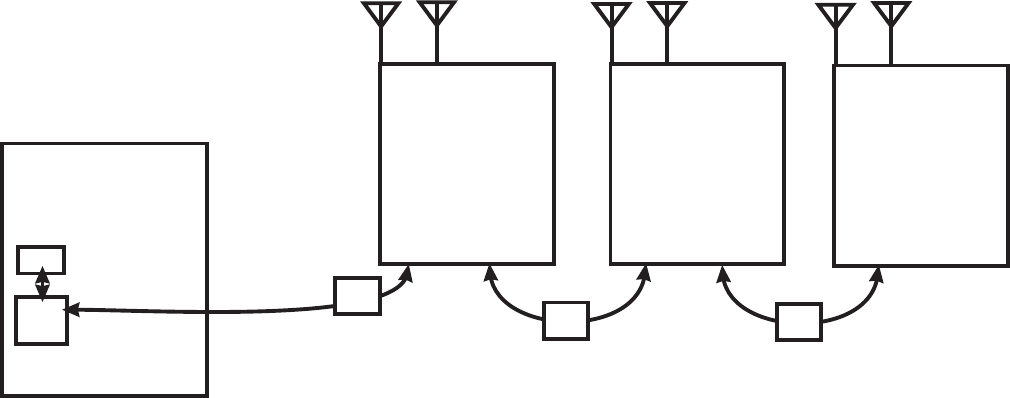

•Daisy chain configuration

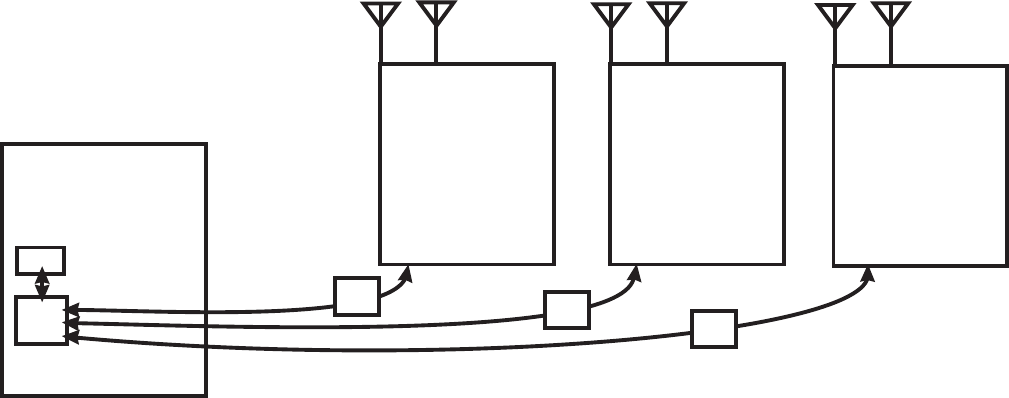

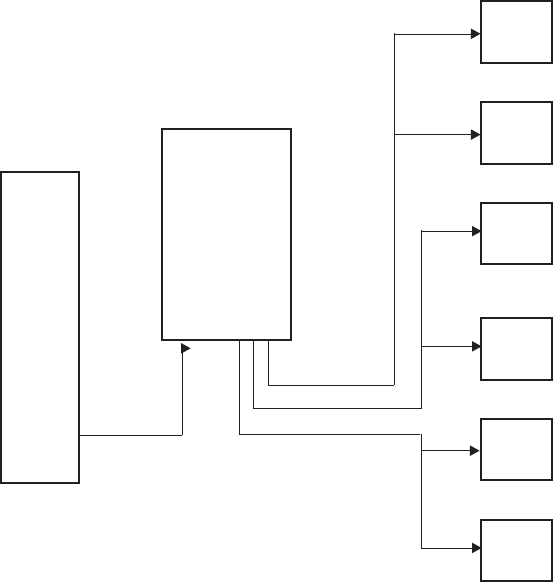

Star configuration

The star configuration is used when the RRHs are being mounted far from each other, but

nearly equally spaced from the Base Band Unit.

Daisy chain configuration

The daisy chain configuration is used when the RRHs are being mounted close together

but far from the Base Band Unit

From an installation perspective these main configurations can be distinguished:

RRH RRH

RRH

Fiber In

CPRI SLAVE

CCM

Alpha Sector Beta Sector Gamma Sector

BBU

*

**

*Customer supplied optional Fiber Splice/Management enclosure

*

CPRI SLAVE CPRI SLAVE

Site configurations Common Public Radio Interface Configuration

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-3

Daisy chain1x3:

RRH RRH

RRH

Fiber In

CPRI

CCM

Alpha Sector Beta Sector Gamma Sector

BBU

*

*Customer supplied optional Fiber Splice/Management enclosure

*

CPRI

*

CPRI CPRI CPRI

Site configurations Common Public Radio Interface Configuration

....................................................................................................................................................................................................................................

3-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

44Tools, materials, and

checklist

Overview

Purpose

This chapter provides the tools and general installation requirements for the RRH.

Contents

Preparatory information 4-2

Tools required for installation 4-3

Torque requirements 4-6

Verify site preparation completed 4-8

Physical installation process overview 4-9

Installation procedure checklist 4-10

...................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 4-1

Preparatory information

Overview

Purpose

This section presents information and procedures that are relevant before the RRHs are

mounted, and grounded.

Also included in this section is information for verifying that site preparation

requirements have been met so that installation of the product can begin properly.

Reference documents

Further information on RRH clearances and anchor holes can also be found in the

Alcatel-Lucent FDD Remote Radio Head (700MHz) Site Preparation Guidelines,

418-000-424.

Refer to the site-specific layout information for details on where the equipment must be

positioned.

This document also contains all necessary information on how to mark the positions of

the anchor holes and how to drill them.

Contents

Tools required for installation 4-3

Torque requirements 4-6

Verify site preparation completed 4-8

Physical installation process overview 4-9

Installation procedure checklist 4-10

Tools, materials, and checklist

Preparatory information

Overview

....................................................................................................................................................................................................................................

4-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Tools required for installation

Overview

This section provides a master list of all tools, materials, and parts required during the

installation process. Items required for installation of the RRH are listed within the

applicable chapter.

Tools

WARNING

Electric-shock hazard

If the installation is performed with energized DC circuits or with a battery backup supply

connected, an energy hazard exists.

Therefore, always use tools that are properly insulated.

The following is a master list, in alphabetical order, of all tools that may be utilized

during installation:

•Adjustable open-ended wrench (or set of fixed open-ended wrenches)

•Antioxidant compound

•Shackle links, or equivalent (quantity: 2)

•Bolt anchor setting tool

•Bonding clamps for facility and phone line cables (normally provided by telephone

company)

•Box cutter or equivalent, to open packaging

•Chalk line

•Channel-lock pliers [for 2-1/2 inch nuts, max. 3/4-inch (19 mm) wide]

•Channel-lock pliers (standard)

•Crimping tools 22-16 gauge, 10-4/0 gauge (5-120 mm2) for installation of terminal

lugs and c-taps (R-3695A)

•Derrick, capable of supporting a 500 lb. (220 kg) load

•Drill and drill bits (including 5/8" [16 mm] and 11/16" [18 mm] for drilling anchor

holes)

•Drill bit (3/4") for 5/8" through bolts, if required

•Drill - Pneumatic Hammer (R-5006),

Roto-Stop Hammer Kit (R-4416) with 1/2-inch (12 mm) chuck, or equivalent to drill

anchor holes

•Ear protection gear

Tools, materials, and checklist

Preparatory information

Tools required for installation

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 4-3

•Electrical conduit installation equipment and materials

•Electrical tape

•ESD wrist strap (not provided with RRHs)

•Eye protection gear

•Fish tape

•Flashlight

•Floor punch, for cutting asbestos floor tile prior to drilling

•Floor tile puller, for raised floor tiles

•A hoist capable of lifting and moving the RRH into final position

•Galvanizing paint

•Gin boom

•Gloves - Low voltage rubber lineman's gloves (R-4285)

•Hammer, 16 oz. (.5 kg) for anchor installation

•Heat gun for heat shrink

•Insulated gloves

•Insulated hand tools (for completing electrical connections)

•Ladder or work stand/stool .

•Level (4 ft. - 1.5 m) (steel)

•Marker, to mark floor for lineup and drilling

•Measuring tape

•Nut driver set (decimal) with 10-inch extension

•Nut driver set (metric) with 250-mm extension

•Ohmmeter (Multimeter, volt/ohmmeter, or equivalent)

•Pallet jack

•Pliers

•Plumb line

•Pry bar

•Safety goggles or glasses (R-3055)

•Screwdrivers (power and manual), flat-blade, Phillips

•Silicone caulk

•Socket sets (decimal and metric) various drives, including 1/4" drive for security bit

•Stripping tool (for LDF4 antenna jumper cables) - part number 74Z-0-12-15 for

Huber Suhner connectors; part number ITE-7189 for Andrew connectors.

•Tools for preparing cables

•Torque wrenches, 35 - 300 in.-lb. (4 - 34 Nm)

•Torque wrenches, 4.4 -150 ft.-lb. (6 - 200 Nm)

Tools, materials, and checklist

Preparatory information

Tools required for installation

....................................................................................................................................................................................................................................

4-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

•Vacuum cleaner or equivalent, as required for clearing debris from anchor holes

•Volt/ohmmeter

•Wire stripper

•Wire rope or chain slings, 7/16 inch (11 mm), 7 feet long (2 m), minimum (quantity:

2)

•Wrench - Adjustable, (3/4 in./20 mm) open-ended wrench (or set of fixed open-ended

wrenches)

•Wrench - Flare Nut or Box Wrench, 12 mm (1/2 in.) required to install seismic

anchors.

Parts and/or kits needed

The following is a master list of all parts and kits that are required during installation of

the RRH.

•DC connectorized cable

•External user alarm interface kit

•Fiber optics connectorized cable

•RF antenna jumper cables

•Anchor kit - 12 mm expansion anchor kit

•RRH grounding kit

•R-ITE-6111 M10 eyebolts (2).

•Mounting bracket (wall, pole, floorstand)

Tools, materials, and checklist

Preparatory information

Tools required for installation

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 4-5

Torque requirements

Overview

This section provides mechanical torque requirements. Refer to the table below.

Torque requirements for mechanical connections

The table below identifies the torque requirements to be followed when making

mechanical connections.

Item Description Torque

Newton

Meters

Inch

Pounds

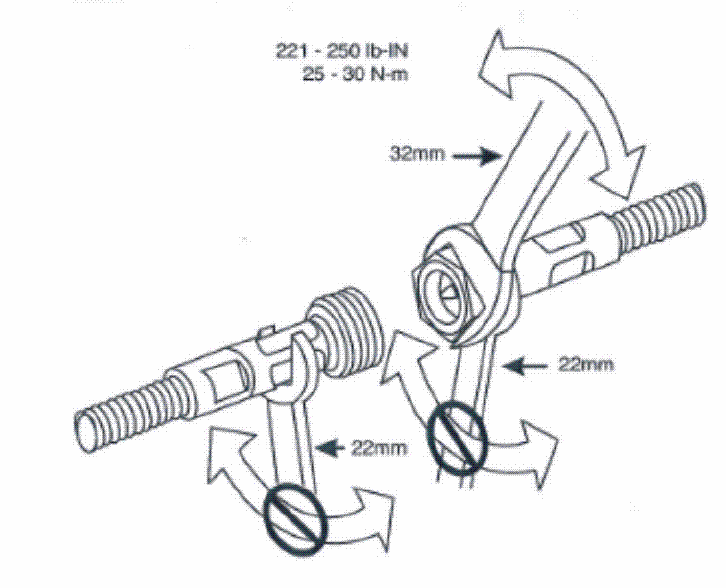

RF cable connections 25 221

M6 x 16-mm thread rolling screw 4 30

All other M6 fasteners (nuts, hex-head bolts, etc.) 4 30

All M5 fasteners (pan-head screws, Torx screws and hex nut,

etc.)

430

All M4 fasteners (pan-head screws, hex nut, etc.) 1.5 14

Generic torque specifications for electrical connections

Important! The table below is to be used exclusively for electrical connections. Refer

to the previous table for mechanical connections.

The table below identifies the torque requirements to be followed when making

electrical connections.

Metric

Screw

Size

SAE

Screw

Size

Torque - in.-lb. [or ft.-lb.] and (Nm)

Wire Connections Head Tightened Nut Tightened

Slotted

Machine

Hex or

Socket

Cap

Slotted

Machine

Hex or

Socket

Cap

Slotted

Machine

Hex or

Socket

Cap

M4 8-32 15 (1.7) 15 (1.7) 19 (2.1) 19 (2.1) 19 (2.1) 23 (2.6)

M5 10-24 21 (2.4) 21 (2.4) 27 (3.1) 27 (3.1) 27 (3.1) 33 (3.7)

M6 1/4-20 50 (5.6) 50 (5.6) 65 (7.3) 65 (7.3) 65 (7.3) 80 (9.0)

M8 5/16-18 - 100

(11.3)

- 135 (15.3) 135 (15.3) 165

(18.6)

M10 3/8-16 - 180

(20.3)

- 240 (27.1) 240 (27.1) 290

(32.8)

Tools, materials, and checklist

Preparatory information

Torque requirements

....................................................................................................................................................................................................................................

4-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Metric

Screw

Size

SAE

Screw

Size

Torque - in.-lb. [or ft.-lb.] and (Nm)

Wire Connections Head Tightened Nut Tightened

Slotted

Machine

Hex or

Socket

Cap

Slotted

Machine

Hex or

Socket

Cap

Slotted

Machine

Hex or

Socket

Cap

M12 1/2-13 - 280

(31.6)

- 385 (43.5) 385 (43.5) 465

(52.5)

M14 1/2-13 - 500

(56.5)

- 585 (66.1) 585 (66.1) 710

(80.2)

M16 5/8-11 - [71]

(96.3)

- [97] (131.5) [97] (131.5) [118]

(160.0)

M20 3/4-10 - [125]

(169.5)

- [172]

(233.2)

[172] (233.2) [209]

(283.4)

Tools, materials, and checklist

Preparatory information

Torque requirements

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 4-7

Verify site preparation completed

Overview

This topic describes what must be done to verify that the site preparation is complete so

that installation procedures can begin.

If some of the requirements are not met, the installer must do so now.

Verify site preparation

Before installation of the RRH site can begin, site preparation should have been

completed in accordance with Alcatel-Lucent FDD Remote Radio Head (700 MHz) Site

Preparation Guidelines, 418-000-424.

This unit is only to be installed in restricted access locations.

The following site preparation requirements must be met before the installation of the

RRH can begin:

•Adequate clearance must be provided for service access.

•DC electric service must be installed.

•User alarm facilities must be installed.

•Grounding electrode system must be installed.

•RF and antenna runs must be installed.

•Surge protection for antennas must be installed (if required).

•Tower light power must be installed (if required).

•Tower light alarm must be installed (if required).

•Mounting bracket holes must be drilled.

•The environment must comply with limits listed under Environmental Requirements.

•Cable supports and racks must be installed.

•Conduits for user alarms, and power are provided.

Tools, materials, and checklist

Preparatory information

Verify site preparation completed

....................................................................................................................................................................................................................................

4-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Physical installation process overview

Overview

This topic delineates the steps involved in the installation of the RRH.

Installation process

Following are the high level steps of the installation process:

1. Verify site preparation is complete

2. Transport the RRH

3. Mount the RRH

4. Ground the RRH

5. Connect user alarm

6. Connect DC power cable

7. Connect RF cables

8. Initial start-up & system test

9. Connect fiber optics cable.

10. Final steps to finish installation.

Tools, materials, and checklist

Preparatory information

Physical installation process overview

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 4-9

Installation procedure checklist

Overview

The following is a procedure checklist.

Checklist installation procedure

Done N/A Task

Verify site preparation completed

Transport and mount the RRH

Mounting instructions

Ground the RRH

Connect DC cable to the RRH

Connect twisted-pair cables to the RRH

Connect user alarms cable

Connect fiber optics cable

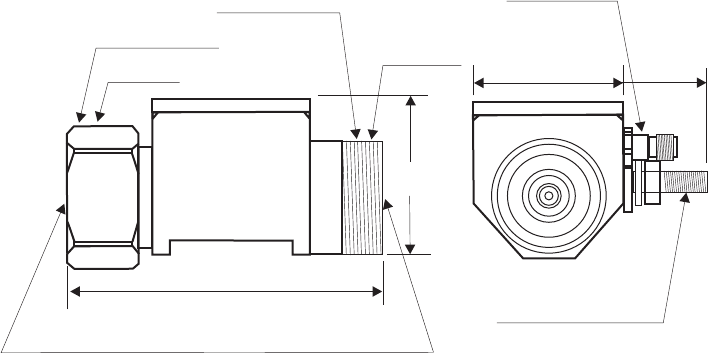

Background information on antenna jumper cables

Final installation procedures

Tools, materials, and checklist

Preparatory information

Installation procedure checklist

....................................................................................................................................................................................................................................

4-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

55Transport, mount, and

ground the RRH

Overview

Purpose

This chapter provides general instructions for mounting and grounding the RRH.

Contents

Pre-installation instructions 5-2

Transport and mount the RRH 5-3

Mounting instructions 5-8

To mount hardware to wall 5-9

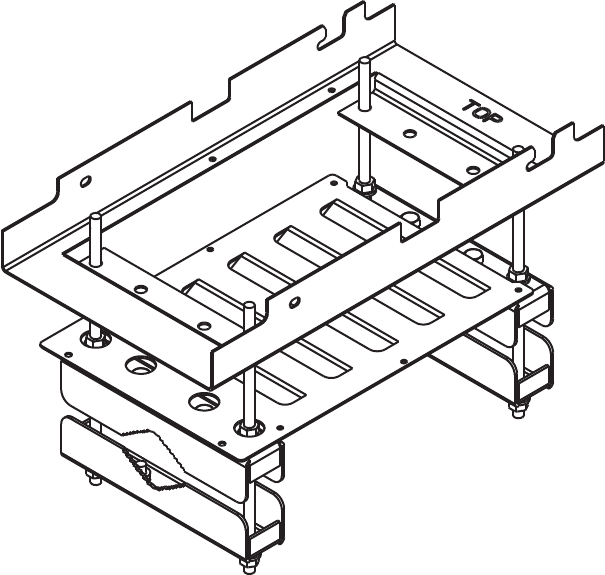

Pole mount installation overview 5-16

To mount hardware to pole with pole bands 5-18

To mount hardware to pole with pole brackets 5-22

To install RRH on pole weldment assemblies 5-25

To ground the RRH 5-27

...................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-1

Pre-installation instructions

Overview

Purpose

This section covers the:

1. Instructions for transporting and mounting the RRH.

Contents

Transport and mount the RRH 5-3

Transport, mount, and ground the RRH

Pre-installation instructions

Overview

....................................................................................................................................................................................................................................

5-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Transport and mount the RRH

Overview

This topic describes how to attach a two-leg lifting sling to the RRH and to move it near

to its designated position using a lifting mechanism such as a derrick.

Unpack the RRH

Use the following steps to unpack the RRH.

...................................................................................................................................................................................................

1Make note of the "TIP N TELL" indicator on the package to see if the RRH was

mishandled or tipped during shipment.

...................................................................................................................................................................................................

2Remove the bubble wrap.

Important! Keep RRH upright.

...................................................................................................................................................................................................

3Check RRHs for signs of damage.

...................................................................................................................................................................................................

4Report damage as required.

Prepare RRH for lifting and transport

A lifting device or hoisting mechanism is required when moving the RRH.

Obtain M10 eyebolts, lifting device, and mounting hardware.

Lifting harness requirements, when required

The general requirements for a lifting harness are as follows:

•Two-leg sling

•Without shortening element

•Length: greater than or equal to 305 mm (12 inch) from hook to lifting point

•Angle should not be greater than 45 degrees from y-axis

•Sufficient lifting capacity for the RRH including the pallet.

Transport, mount, and ground the RRH

Pre-installation instructions

Transport and mount the RRH

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-3

WARNING

RRH may fall

If the RRH falls while being lifted, it may injure or kill a person.

Take both of the following precautions:

•Use lifting shackles and lifting straps that can support the RRH if one shackle or one

lifting strap fails and three remain. If a separate rating for shear is not provided, each

shackle must be used at no more than 25% of its tension rating.

•Keep the area beneath the RRH and the immediate surrounding area completely clear

of personnel at all times during the lifting operation.

Before you begin

For each cell site, the shipping company, installer, or installation supervisor must plan

which methods to use based on:

•How the equipment is delivered

•The dimensions and weights of the equipment

•The access route to the position where the equipment will be installed

The RRH equipment typically arrive at the site by truck. This topic assumes that:

•Each RRH is on a pallet

•The packaging has been removed.

Lift RRH using boom tip winch, when required

Important! Before attempting to use derrick equipment, refer to Chapter 2, "Safety

precautions for handling equipment".

Use the following procedure to lift a RRH using a rotating derrick equipped with a boom

tip winch.

...................................................................................................................................................................................................

1Important! Use only the required eyebolts. DO NOT use any other holes or the RRH

may be damaged.

At two positions, install an M10 eye bolt on the top of the RRH.

...................................................................................................................................................................................................

2WARNING

Slip hazard

Personnel injury or equipment damage

When moving the RRH, use appropriate lifting devices and sufficient number of

personnel.

Transport, mount, and ground the RRH

Pre-installation instructions

Transport and mount the RRH

....................................................................................................................................................................................................................................

5-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

For more detailed information, refer to Corner Mounted Rotating Derrick Equipped with

Hydraulic Digger- Description and Maintenance, 649-300-021 for operating procedures

and precautions. Also consult Slings, 649-310-115, and B Connecting Links,

081-410-105.

...................................................................................................................................................................................................

3Important! To avoid excessive stress on the top of the RRH, make sure that each leg

of the lifting harness is at least 305 mm (12 inches) long.

Note: It is permissible for two people to lift.

Attach the slings to the boom line on the winch with a B connecting link or clevis.

...................................................................................................................................................................................................

4Attach the other ends of the slings to the lifting eye-bolts on the RRH with a shackle link

or clevis.

Transport, mount, and ground the RRH

Pre-installation instructions

Transport and mount the RRH

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-5

Transport, mount, and ground the RRH

Pre-installation instructions

Transport and mount the RRH

....................................................................................................................................................................................................................................

5-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

END OF STEPS

...................................................................................................................................................................................................

Transport and place the RRH

Proceed as follows to transport the RRH by derrick:

...................................................................................................................................................................................................

1Carefully lift the RRH using the boom tip wench.

...................................................................................................................................................................................................

2Transport the RRH via the rotating derrick to the installation position.

...................................................................................................................................................................................................

3Determine if the RRH is being installed against a wall or on a pole.

...................................................................................................................................................................................................

4Set the RRH down at or near the installation position, depending on the type of mounting

method is to be used. Use the following instructions.

If mounting on a: Then:

Wall Use the hoisting mechanism to align the RRH where it is to be mounted

on the wall.

Continue with “Wall mount hardware installation”.

Pole Use the hoisting mechanism to align the RRH where it is to be mounted

on the pole.

Continue with “Pole mount installation overview” (p. 5-16).

...................................................................................................................................................................................................

5Remove the lifting harness and the eye bolts once the RRH is in position.

For wall and pole mounting, continue using the lifting harness to hold the RRH into

position until mounting has been fully completed.

Transport, mount, and ground the RRH

Pre-installation instructions

Transport and mount the RRH

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-7

END OF STEPS

...................................................................................................................................................................................................

Mounting instructions

Overview

Purpose

This sections contains instructions for the various methods of mounting the RRH.

Contents

To mount hardware to wall 5-9

Pole mount installation overview 5-16

To mount hardware to pole with pole bands 5-18

To mount hardware to pole with pole brackets 5-22

To install RRH on pole weldment assemblies 5-25

To ground the RRH 5-27

Transport, mount, and ground the RRH

Mounting instructions

Overview

....................................................................................................................................................................................................................................

5-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

To mount hardware to wall

Overview

This section describes the procedures to be followed when installing the mounting

hardware for the RRH on a solid concrete wall (or to the Unistrut on a wall).

Wall mount brackets

WARNING

Personnel injury or equipment damage

Before any hardware installation occurs, carefully read the section:

"Safety precautions for handling and placement"

Important! Various building materials and construction methods dictate that the RRH

be fastened to the wall with appropriate mounting hardware. It is the responsibility of

the customer to provide any necessary support material and structures to ensure that

the installation will be in compliance with Building Officials and Code Administrators

(BOCA), Uniform Building Code (UBC), and all local codes.

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to wall

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-9

The following figure illustrates the mounting bracket that is required to mount the RRH

on a wall.

Wall bracket assembly

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to wall

....................................................................................................................................................................................................................................

5-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

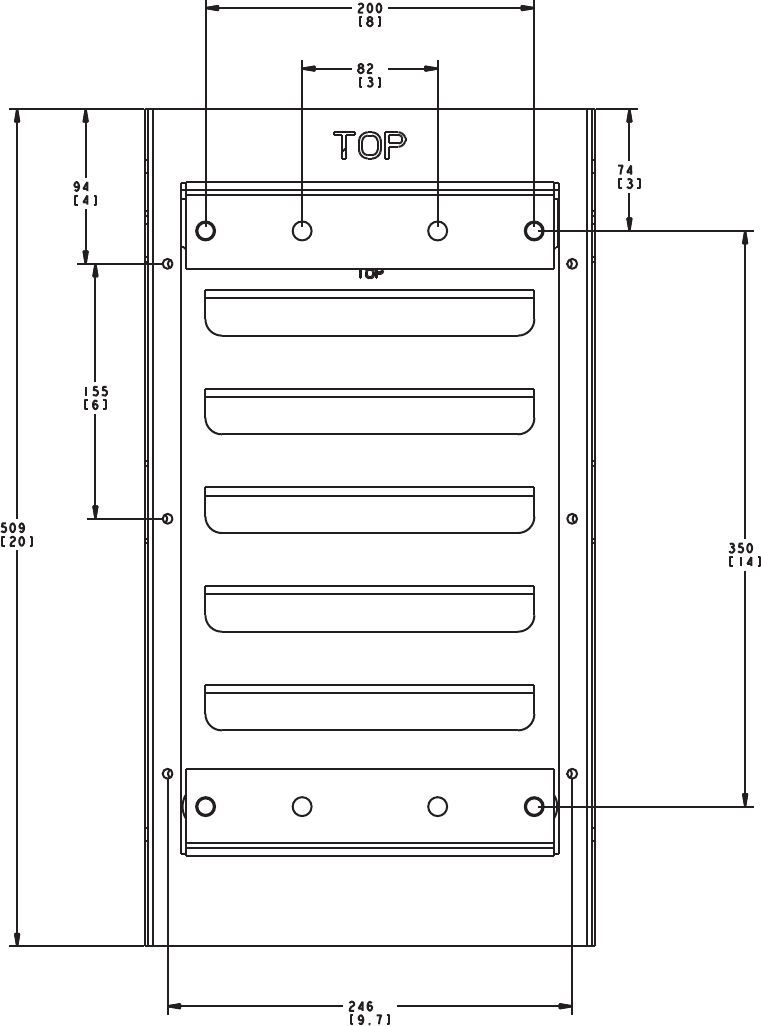

Wall mount - hole pattern

The following graphic shows the wall mounting hole pattern for the RRH. The dimension

shown are in millimeters.

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to wall

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-11

Wall mount clearances - Three RRHs

The following graphic shows the hole patterns and minimum distances for wall mounting

up to three RRHs in a row.

P

210 (8.3)

200 (7.8)

350 (13.8)

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to wall

....................................................................................................................................................................................................................................

5-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

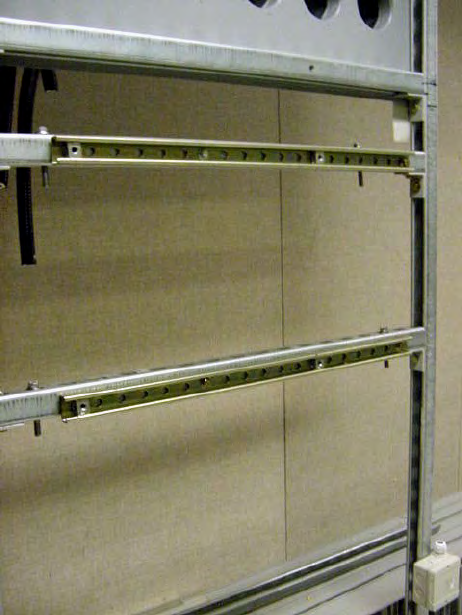

Indirect wall mounting (unistrut)

The following graphic shows the unistrut.

Before you begin

Make sure you have read and understood the section “Transport and mount the RRH”

(p. 5-3).

Attach mounting bracket

...................................................................................................................................................................................................

1Attach the wall mounting bracket for the RRH to concrete wall using four M10 or 3/8”

anchor bolts. Use four M10 (3/8”) hex bolts with flatwasher, lockwasher and, springnut

for unistrut system.

...................................................................................................................................................................................................

2Level and properly torque bolts.

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to wall

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-13

END OF STEPS

...................................................................................................................................................................................................

Result

The RRH mounting bracket is attached to the wall or to the unistrut.

Install RRH on wall

CAUTION

Personal Injury

The bolts on the RRH can pinch and damage your fingers.

Keep fingers clear when lowering the RRH into position.

Perform the following procedure to install the RRH on a wall or to the unistrut on a wall.

...................................................................................................................................................................................................

1Insert Gin Boom into top of the wall mount bracket.

...................................................................................................................................................................................................

2Attach the hoisting mechanism chains.

...................................................................................................................................................................................................

3If you have not already done so, attach lifting harness to the two lifting points (eye bolts)

of the RRH.

...................................................................................................................................................................................................

4Carefully raise the RRH into position using the hoisting mechanism, if required.

...................................................................................................................................................................................................

5Loosely attach the two side top M10 hex bolts, flat washers, and lock washers to the RRH

as supplied with the wall mounting kit. Do not tighten yet, install only halfway. Tape the

washers to the bolts.

Important! When lifting the RRH, do not rest the bottom side on the ground.

...................................................................................................................................................................................................

6At the upper corners of the RRH, pull the washers to the sides. Position to the M10 hex

bolts on the RRH in the top mounting slots of the wall bracket.

...................................................................................................................................................................................................

7Remove the sling.

...................................................................................................................................................................................................

8Install the two bottom side M10 hex bolts, flat washers, and lock washers through the

wall mounting bracket.

Remove tape from top hardware.

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to wall

....................................................................................................................................................................................................................................

5-14 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

...................................................................................................................................................................................................

9If necessary, level brackets to insure that the RRH will be mounted level. Use a level to

level the top of the RRH.

...................................................................................................................................................................................................

10 Tighten all the M10 hex bolts and use a torque wrench to tighten all the nuts 32.2 Nm (25

ft/lb).

...................................................................................................................................................................................................

11 Install tamper proof screws.

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to wall

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-15

END OF STEPS

...................................................................................................................................................................................................

Pole mount installation overview

Overview

This section describes the procedures to be followed when installing the RRH on a pole.

There are two types of pole mounting installations:

1. Pole brackets and pole bands

2. Pole brackets with (customer supplied) through bolts

Pole brackets are available in low profile or standard. Standard pole brackets provide a

greater standoff from pole for additional cable clearance.

Pole mounting weldment and pole band components

Each pole mounting band consists of a fixed retainer extrusion, a sliding retainer

extrusion, a carriage bolt, and a band, as shown in the following figure

To mount equipment pole brackets - standard or low profiles - must be threaded on to the

band.

Transport, mount, and ground the RRH

Mounting instructions

Pole mount installation overview

....................................................................................................................................................................................................................................

5-16 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

The following figure shows both, low profile and standard weldment:

Note: Pole band weldment assemblies must be created for both upper and lower bands at

the same time.

Standard Poleband

Transport, mount, and ground the RRH

Mounting instructions

Pole mount installation overview

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-17

To mount hardware to pole with pole bands

Purpose

This section describes the procedures to be followed when installing the RRH on a 152

mm to 380 mm diameter pole with pole brackets.

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Before you begin

The following mounting hardware is required to mount up to the RRH on a pole:

•Pole mounting bands (qty. 2)

•Pole brackets (qty. 2)

•Wall Mounting Brackets

•M10 bolts, lock washers, and flat washers (four).

Measure and mark pole and pole bands

Perform the following procedure to measure and mark the upper and lower pole band

locations and the pole bands.

...................................................................................................................................................................................................

1Use a tape measure to determine and mark the position of the upper and lower pole bands

350 mm (14.37 in) apart for RRHs. Refer to specific cell site engineering information for

measurement details.

...................................................................................................................................................................................................

2Measure the circumferencee (distance around the pole) at the heights of the bands to be

installed.

...................................................................................................................................................................................................

3Measure the distances you calculated in Step 2 on the pole bands from the fixed retainer

extrusion as shown in the following figure.

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to pole with pole bands

....................................................................................................................................................................................................................................

5-18 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

...................................................................................................................................................................................................

4Mark the bands at that point.

...................................................................................................................................................................................................

5Use a nail and a chalked plumb line or plumb bob to mark a vertical line on the pole so

that the upper and lower brackets will be aligned.

Place weldment(s) on pole bands

Perform the following procedure to place the pole weldment on the upper and lower pole

bands.

...................................................................................................................................................................................................

1Remove the sliding retainer extrusion from the pole bands.

...................................................................................................................................................................................................

2Thread the weldment(s) onto the pole bands.

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to pole with pole bands

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-19

END OF STEPS

...................................................................................................................................................................................................

3Replace the sliding retainer extrusion on each pole band so that the beveled ends of

extrusion faces the open end of the band.

Bend the bands

Perform the following procedure to bend the upper and lower pole bands.

...................................................................................................................................................................................................

1Bend the bands at the previously marked spot so that the pointed end of the band will be

inside the band after installation.

...................................................................................................................................................................................................

2Strike the bands with a hammer to create a sharp radius that allows the retainer to lock

into place.

...................................................................................................................................................................................................

3Make a 90 degree bend at the base of each retainer extrusion to allow the retainers and

carriage bolt to properly align and lock into place.

Install pole bands on pole

Perform the following procedure to install the upper and lower pole bands on the pole.

...................................................................................................................................................................................................

1Place the pole bands around the pole at the determined height.

...................................................................................................................................................................................................

2Insert the carriage bolt through both retainers, making sure that the head of bolt properly

locks into the fixed retainer.

...................................................................................................................................................................................................

3Install the nut and tighten it just enough so that the band and weldment(s) maintain their

position on the pole. Do not fully tighten the nut.

...................................................................................................................................................................................................

4Adjust the position of the weldment(s) so that they are centered on the horizontal and

vertical lines marked on the pole.

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to pole with pole bands

....................................................................................................................................................................................................................................

5-20 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

END OF STEPS

...................................................................................................................................................................................................

END OF STEPS

...................................................................................................................................................................................................

5Adjust bands so that they are snug and do not slide down pole (bands may need

adjustment when attaching wall mounting brackets.

...................................................................................................................................................................................................

6Attach wall mounting bracket using four M10 hex bolts, lockwasher, and flatwasher.

...................................................................................................................................................................................................

7Torque each bolt 32.2 Nm (25 ft/lb.).

...................................................................................................................................................................................................

8Fully tighten each band.

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to pole with pole bands

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-21

END OF STEPS

...................................................................................................................................................................................................

To mount hardware to pole with pole brackets

Purpose

This section describes the procedures to be followed when installing the RRH on a 50

mm to 152 mm diameter pole with pole brackets.

Pole brackets for small diameter poles

The figure shows a complete pole bracket assembly.

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Before you begin

The following mounting hardware is required to mount up to the RRH on a small

diameter pole:

•Pole mounting brackets (qty. 2x2)

•300 mm M10 hex nut bolts (qty. 4)

•80 mm M10 hex nut bolts (qty. 4)

Pole bracket

Opposite bracket

300 mm M10 hex bolt

80 mm M10 hex bolt

Lockwasher

Flatwasher

M10 nut

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to pole with pole brackets

....................................................................................................................................................................................................................................

5-22 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

•lock washers (qty. 12), flat washers (qty. 12), for M10 bolts

•M10 nuts (qty. 4)

•Wall Mounting Brackets (equipped with RRH).

Measure and mark pole and attach pole brackets

...................................................................................................................................................................................................

1Use tape measure to determine and mark the position of upper pole bracket.

...................................................................................................................................................................................................

2Attach upper pole bracket to the wall mount bracket using two 80mm long M10 hex bolts,

lock washers, flat washers. Insert bolts through inner holes of the wall mount bracket

panel.

Repeat for lower pole bracket

...................................................................................................................................................................................................

3Insert a 300 mm, M10 long hex bolt, equipped with lock washer, and flat washer, through

the upper left-most hole in the bracket panel, through the attached pole bracket.

...................................................................................................................................................................................................

4Insert opposite bracket over threaded portion of the 300 mm bolt, and secure with flat

washer, lockwasher, and hex nut.

...................................................................................................................................................................................................

5Adjust to estimated pole diameter

...................................................................................................................................................................................................

6Lift sub-assembly to marked height

...................................................................................................................................................................................................

7Insert 300 mm long, M10 hex bolt, lock washer, and flat washer through the right- most

upper hole in mounting bracket panel, through the attached pole bracket and the opposite

bracket, and secure with lock washer, flat washer and hex nut

...................................................................................................................................................................................................

8Equally tighten hardware

...................................................................................................................................................................................................

9Install opposite end of lower pole bracket using 300 mm, M10 long hex bolts, lock

washers, and flat washers

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to pole with pole brackets

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-23

...................................................................................................................................................................................................

10 Equally tighten hardware

How to continue

Continue hardware installation with the installation of the RRH: “To install RRH on pole

weldment assemblies” (p. 5-25)

Transport, mount, and ground the RRH

Mounting instructions

To mount hardware to pole with pole brackets

....................................................................................................................................................................................................................................

5-24 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

END OF STEPS

...................................................................................................................................................................................................

To install RRH on pole weldment assemblies

Purpose

This section describes the procedures to be followed when installing the RRH to pole

weldment assemblies.

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Before you begin

Make sure you have read and understood the section “Transport and mount the RRH”

(p. 5-3).

Install RRH on pole weldment assemblies

Perform the following procedure to install the RRH on the mounting hardware.

...................................................................................................................................................................................................

1Attach the hoisting mechanism chains.

...................................................................................................................................................................................................

2If you have not already done so, attach the lifting harness to the two lifting points (eye

bolts) of the RRH.

...................................................................................................................................................................................................

3Carefully raise the RRH into position using the hoisting mechanism, if required.

...................................................................................................................................................................................................

4Loosely attach the two side top M10 hex bolts, flat washers, and lock washers to the RRH

as supplied with the wall mounting kit. Do not tighten yet, install only halfway. Tape the

washers to the bolts.

Note: When lifting the RRH, do not rest the bottom side of the RRH on the ground.

...................................................................................................................................................................................................

5At the upper corners of the RRH, pull the washers to the sides. Position the M10 hex bolts

on the RRH in the top mounting slots of the bracket.

Transport, mount, and ground the RRH

Mounting instructions

To install RRH on pole weldment assemblies

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-25

...................................................................................................................................................................................................

6Remove the sling.

...................................................................................................................................................................................................

7Install the two bottom side M10 hex bolts, flat washers, and lock washers through the

wall mount bracket.

Remove tape from top hardware.

...................................................................................................................................................................................................

8If necessary, level brackets to insure that the RRH will be mounted level. Use a level to

level the top of the RRH.

...................................................................................................................................................................................................

9Tighten all the M10 hex bolts and use a torque wrench to tighten all the nuts to 32.2 Nm

(25 ft/lb).

...................................................................................................................................................................................................

10 Install tamper proof screws.

Transport, mount, and ground the RRH

Mounting instructions

To install RRH on pole weldment assemblies

....................................................................................................................................................................................................................................

5-26 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

END OF STEPS

...................................................................................................................................................................................................

To ground the RRH

Purpose

This topic describes how to ground the RRH.

To ground the RRH, a minimum of one connection to the grounding system is required.

The grounding position is located on the top of the RRH.

Ground area at RRH

The following figure shows the grounding area on the RRH.

Ground the RRH

To ground the RRH, perform the following steps.

...................................................................................................................................................................................................

1Route the 16 mm2(#6 AWG) ground cable pigtail from the ground system (installed

during site preparation) to the RRH.

Ground

Transport, mount, and ground the RRH

Mounting instructions

To ground the RRH

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-27

...................................................................................................................................................................................................

2At the RRH end, cut the cable to proper length and strip the cable's end.

...................................................................................................................................................................................................

3Crimp the supplied ground lug on the end of the cable. Clean the contact surface area and

use antioxidant to avoid oxidation.

...................................................................................................................................................................................................

4Connect each ground lug to the RRH using the supplied M6 screws, lock washers, and

flat washers. Use antioxidant at the grounding pads.

...................................................................................................................................................................................................

5Torque each screw to 5.6 Nm (50 in-lb).

Transport, mount, and ground the RRH

Mounting instructions

To ground the RRH

....................................................................................................................................................................................................................................

5-28 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

END OF STEPS

...................................................................................................................................................................................................

66Connect interface and DC

cables

Overview

Purpose

This chapter provides instructions for routing and connecting the following cables to the

RRH:

•User alarm cables

•ALD cable

•Fiber optics cables.

•DC cable

Contents

Route and connect user alarm cables 6-2

Route and connect ALD cable (Optional) 6-5

Route and connect optical fiber cables 6-7

Fiber distribution unit (optional) 6-12

To route and connect DC power cables 6-14

Phoenix copper power distribution unit (optional) 6-16

...................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-1

Route and connect user alarm cables

Purpose

This topic provides all necessary information and procedural instructions to route and

connect the user alarm cables to the Remote Radio Head (RRH).

User alarm cables

The RRH manages and reports 4 external alarms to the OMC. The alarm cable can be

connected to the User alarm interface of the RRH.

User alarm cable connections

The following table shows the connector type on the user alarm cable.

Cable Connectors type

User alarms 8-pin Circular Male connector

User alarmUser alarm

Connect interface and DC cables Route and connect user alarm cables

....................................................................................................................................................................................................................................

6-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Cable Connectors type

User alarms wire colors and punchdown positions

Refer to table below for RRH wire color-coding and punch down information.

Pin # Function Wire Color

1 N/C (No Connect N/A

2 ALARM 3 RTN (N) BLACK

3 ALARM 1 (P) BROWN

6 ALARM 2 RTN (N) GREEN

4 ALARM 2 (P) RED

5 N/C N/A

7 ALARM 3 (P) BLUE

8 ALARM 1 RTN (N) WHITE

Route and connect the alarm cable

Perform the following steps to route and connect the alarm cable..

...................................................................................................................................................................................................

1Route the external alarm cable from RRH to the alarm Distribution Frame.

...................................................................................................................................................................................................

2Connect the alarm cable to the distribution block. Refer to the following figure.

Connect interface and DC cables Route and connect user alarm cables

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-3

...................................................................................................................................................................................................

3Route the alarm cable in the cable way under the RRH.

...................................................................................................................................................................................................

4Remove the protective cover and check the continuity of the wires between the

distribution frame (alarm Distribution Frame) and the connector pins using a multimeter.

Note: This measurement is performed on the alarm cable connector (RRH side) with a

loop back of each pair (one by one) on the alarm DF side. Using a multimeter, check

that no short circuit appears between each pair and the shielding wires.

...................................................................................................................................................................................................

5Screw the alarm connector in RRH.

Connect interface and DC cables Route and connect user alarm cables

....................................................................................................................................................................................................................................

6-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

END OF STEPS

...................................................................................................................................................................................................

Route and connect ALD cable (Optional)

Purpose

This topic provides all necessary information and procedural instructions to route and

connect the ALD cable to the Remote Radio Head (RRH).

ALD cable connection

Route and connect the alarm cable

Perform the following steps to route and connect the alarm cable.

...................................................................................................................................................................................................

1Route the ALD cable under the RRH, use a ty rap to fix this cable.

...................................................................................................................................................................................................

2Remove the cap from ALD connector.

AISG (ALD)AISG (ALD)

Connect interface and DC cables Route and connect ALD cable (Optional)

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-5

...................................................................................................................................................................................................

3Screw the ALD connector on the RRH connector.

Connect interface and DC cables Route and connect ALD cable (Optional)

....................................................................................................................................................................................................................................

6-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

END OF STEPS

...................................................................................................................................................................................................

Route and connect optical fiber cables

Purpose

This topic provides all necessary information and procedural instructions to route and

connect the optical fiber cables to the Remote Radio Head (RRH).

CPRI connections

The fiber optic cables are connected at the bottom of the RRH as shown in the following

figure.

Cable functions

Cable Use Cable type Number of

lines per cable

Max.

Cables

Connec-

tor type

Fiber optic Base Band Unit

connection

single mode 2 1 LC

CPRI

Connect interface and DC cables Route and connect optical fiber cables

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-7

Cable Use Cable type Number of

lines per cable

Max.

Cables

Connec-

tor type

Fiber optic Daisy chain

connection

between two

RRHs

single mode 2 2 for

Slave /

Master

LC

Identify CPRI Configuration

Remote Radio Heads can be connected to the Base Band Unit in different ways. Make

sure which configuration is applicable.

Depending on the actual site configuration, there can be

•up to three RRHs individually connected

•one daisy chain, containing three RRHs

•two daisy chains, each containing three RRHs

•three daisy chains, each containing two RRHs

Each individual connection or daisy chain is connected to one CPRI port of the Base

Band Unit. Depending on the actual configuration the RRHs may need to be

interconnected too.

Route and connect fiber cable

NOTICE

Protect fiber cable

.

The optical fiber should be protected in solid pipe to proximate of RRH, use twine to

secure the optical fiber in the cable way (neither use tie rap), neither cut this cable on

site, the exceed length should be coil in side and protected in box. The fiber optic

connector should be protected by cap when not being used. Respect the bending radius

during the manipulation of optic cable (82.5mm).

Perform the following steps to connect the fiber optic cables to the RRH.

...................................................................................................................................................................................................

1Locate the fiber optic cable connections for the RRH. Refer to “CPRI connections”

(p. 6-7) -- and Loosen the cable gland to allow pulling of the fiber cable.

Connect interface and DC cables Route and connect optical fiber cables

....................................................................................................................................................................................................................................

6-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

...................................................................................................................................................................................................

2On the RRH, remove the protective cap from the CPRI connector.

...................................................................................................................................................................................................

3Remove protector cover from transceiver. Refer to the following figure.

Connect interface and DC cables Route and connect optical fiber cables

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-9

...................................................................................................................................................................................................

4Insert the SFP optical transceiver in the appropriate location and lock them.

...................................................................................................................................................................................................

5Connect the Radial connector side to the RRH in the CPRI PRI port.

...................................................................................................................................................................................................

6Connector the cable to the RRH -Turn clockwise to secure the Radiall connector.

FIBER TRANSCEIVER

Rear side

(side with label)

Protector

Cover

Top side

Locking

Bracket

Plug

(RRH)

end

Receptacle

(cable)

end

Connect interface and DC cables Route and connect optical fiber cables

....................................................................................................................................................................................................................................

6-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

...................................................................................................................................................................................................

7Secure the coupling nut and locked to the receptacle.

Connect interface and DC cables Route and connect optical fiber cables

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-11

END OF STEPS

...................................................................................................................................................................................................

Fiber distribution unit (optional)

Overview

This topic describes the optional fiber distribution unit and its connection to the RRHs.

Requirements and specifications

The fiber distribution unit is required when an RRH is pole or wall mounted and has the

following requirements and capabilities:

•Can be sited up to a distance of 14 km from the RRH

•Can connect via 3 output glands to a maximum of 12 RRHs.

Connection of 6 RRHs (3x2) via a fiber distribution unit

This example configuration shows 3 RRHs connected directly from the fiber distribution

unit and 3 RRHs connected by daisy chain

Connect interface and DC cables Fiber distribution unit (optional)

....................................................................................................................................................................................................................................

6-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

BBU

D2U

RRH RRH

*

RRH RRH

*

RRH RRH

*

Fiber

Distribution

Unit

* Customer supplied optional Fiber Splice/Management enclosure

Connect interface and DC cables Fiber distribution unit (optional)

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-13

To route and connect DC power cables

Purpose

The following section covers the procedures for connecting DC and power alarm cables.

DC cable connections

The following table provides information about the DC feeder cables for the RRH.

Purpose Wire size [mm² (AWG)]

-48 V DC Feeder 16 (6)

Conduit for DC feeder cables (outdoor)

For outdoor installation, the DC feeder and power alarm cables are routed through the

same 1-inch rigid or liquid-tight flexible metal conduit. For indoor installation, conduit is

not required for the cables.

DC power connection

DC entryDC entry

Connect interface and DC cables To route and connect DC power cables

....................................................................................................................................................................................................................................

6-14 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Before you begin

Make sure power at DC source is turned off and secured against turn-on.

Route and connect DC power cables to the RRH

WARNING

Turn OFF circuit breaker

Risk of injury or/and equipment damage by electricity.

The circuit breaker dedicated to the RRH must be DISCONNECTED.

Perform the following procedure to connect the DC power cables to the RRH:

...................................................................................................................................................................................................

1Route the DC power cables to the RRH.

Remove the protective cap from the DC connector.

...................................................................................................................................................................................................

2Screw the DC cable to the DC connector.

...................................................................................................................................................................................................

3Connect the other side of the DC cable to the power plant.

The cables must be connected with respect to the following polarity:

•Blue to -48V

•Black to 0V

Connect interface and DC cables To route and connect DC power cables

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-15

END OF STEPS

...................................................................................................................................................................................................

Phoenix copper power distribution unit (optional)

Overview

This topic describes the optional Phoenix copper power distribution unit and its

connection to the RRHs.

Requirements and specifications

The power distribution unit is required when an RRH is pole or wall mounted:

•Can connect to a maximum of 6 RRHs

•Can be sited at a distance as required per calculation of voltage drop to the RRH

BBU

D2U

Phoenix

Copper

Power

Distribution

Unit

RRH

Connect interface and DC cables Phoenix copper power distribution unit (optional)

....................................................................................................................................................................................................................................

6-16 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

77Finish the installation

Overview

Purpose

This chapter details the procedures for connecting RF cables to the RRH. In the standard

configuration, there are two RF jumper cables. Final actions to finish the RRH installation

are described.

Contents

To route and connect RF jumper cables 7-2

To finalize RRH installation 7-7

...................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 7-1

To route and connect RF jumper cables

Jumper cable and connector stripping tools

The following table describes the stripping tools that can be used to prepare jumper cables

and connectors:

Cable Assembly

Manufacturer

Cable

Manufacturer

Connector

Manufacturer

Stripping Tool Part Number

Manufacturer Part

Number

Alcatel-Lucent

Part Number

Andrew Andrew Andrew Andrew Part Number:

CPT-L4ARC1

ITE-7189

Huber-Suhner Andrew Huber-Suhner Huber-Suhner Part

Number 74Z-0-12-15

R-6042

RFS RFS RFS RFS Part Number:

TRIM-L12-A

R-6096

Amphenol •RFS

•Leoni

Amphenol RFS Part Number:

TRIM-L12-A

R-6096

Notes:

1. The “R” or “ITE” prefix identifies tools that can be borrowed from a centralized location by Alcatel-Lucent

personnel only.

Finish the installation To route and connect RF jumper cables

....................................................................................................................................................................................................................................

7-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

RF connector location

There are two RF connectors at the top of the RRH:

Before you begin

This procedure assumes the following requirements have been met.

•Cable shield grounding has been completed for all antenna cables at a point outside of

the Node B.

The RF jumper cables must be labeled at both ends so they can be properly connected.

Tools

The following tools are required:

Quantity Description

1 Open end wrench, 22 mm

1 Open end wrench, 32 mm

RF Antenna connectionsRF Antenna connections

Finish the installation To route and connect RF jumper cables

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 7-3

Materials

The following materials are expected to be present:

Quantity Description

2 per sector RF jumper cable

One 7/16, DIN male connector supplied installed at one end.

One 7/16, DIN male connector supplied loose for other end.

2 per sector In case of Tower Top mounted Low Noise Amplifiers (TTLNAs)

installed: Y-Bias-T (9-PIN D-SUB to SMA (Outdoor)/ SMB

(Indoor))

Notes:

1. All RF cable connectors must be at least IP67 rated. (IP67 rating requirement, as defined by

IEC 60529, calls for total protection against dust and protection against submersion in

water.)

2. Since the RF cable connectors are at least IP 67 rated, no additional weatherproofing of the

connectors is required if these are torque to the recommended value of 221 lbf in.. However,

if customer wants to weather proof the connectors at the RRH or outside, optional 'Weather

proofing kit' from Alcatel-Lucent may be used.

The RF jumper cables connect the external antenna cables to the RF transmit and receive

connectors on the RRH. The minimum bending radius for the RF jumper cables is 125

mm (5 inches).

Important! The RF jumper cables must be connected before initial start-up and

testing can take place. Do not connect the RF jumper cables if testing is going to be

performed immediately.

Install Bias-T connectors

In case TTLNAs are installed, a Bias-T connector has to be installed to each RRH RF

antenna port used:

...................................................................................................................................................................................................

1Install Y-Bias-T connector to RRH port.

...................................................................................................................................................................................................

2Connect each SMA connector to Bias –T

...................................................................................................................................................................................................

3Route the 9-pin D-Sub through cable gland at the bottom of RRH and connect at ALD

port

Finish the installation To route and connect RF jumper cables

....................................................................................................................................................................................................................................

7-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

...................................................................................................................................................................................................

4Ground the M6x10 grounding stud at Bias-Ts with customer provided grounding system.

Y-Bias-T connector

Route and connect RF jumper cables to the RRH

Use the following procedure to connect the RF jumper cables to the RF ports on top of

the RRH

...................................................................................................................................................................................................

1Label both ends of each cable with receive diversity number.

...................................................................................................................................................................................................

2Connect the RF jumper cable(s) to the RRH port(s) and route them from the RRH to the

RF antenna.

...................................................................................................................................................................................................

3Providing adequate slack, cut each cable so it reaches its corresponding RF antenna

connector or, if applicable, its corresponding RF surge protector.

Re-mark each RF jumper cable if the cable marking has been removed.

...................................................................................................................................................................................................

4Terminate the end of each cable with the supplied 7/16 DIN connector. (Use the

appropriate stripping tool. Refer to “Jumper cable and connector stripping tools”

(p. 7-2)for the appropriate tool required for installation).

M6 x 1.0 Grounding stud

M29 x 1.5-6g thread

Antenna port

DC Injection port

(40.0mm) (20.0mm)

(31.8mm Hex flats)

(81.7mm)

BTS port

Mates to IEC 169-4: 169-1 or equivalent

(41.8mm)

Finish the installation To route and connect RF jumper cables

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 7-5

END OF STEPS

...................................................................................................................................................................................................

5Connect each RF jumper cable to its corresponding RF antenna cable.

Important! RF surge protectors are optional.

...................................................................................................................................................................................................

6Torque each 7/16, male DIN connector to 25 Nm (221 in lb), as shown in the figure

below.

Important! When connecting the 7/16, DIN male connector (on the RF jumper cable)

to the 7/16, DIN female connector (on the antenna cable) two wrenches must be used.

The rotating coupling nut on the 7/16, male connector is tightened with a 32 mm end

wrench while the 7/16, male connector on the RF jumper cable is held with a 22 mm

end wrench. Refer to the figure below.

Finish the installation To route and connect RF jumper cables

....................................................................................................................................................................................................................................

7-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

END OF STEPS

...................................................................................................................................................................................................

To finalize RRH installation

Initial start-up and system test procedures

The actual procedures for initial start-up and test are not covered in this document.

Before initial start-up and test

To perform initial start-up and system test, the RF jumper cables will be temporarily

disconnected at the RRH by the personnel who perform initial start-up and system test.

After performing initial start-up and system test, the personnel will permanently connect

the RF jumper cables to the RRH.

System test

Following installation of the RRH, the system should be tested before being put it into

operation. System test procedures are not covered in this installation document.

Information concerning system test and integration is contained in Alcatel-Lucent

Installation Engineering Handbook 401.

Final actions after initial start-up and test

NOTICE

RF hazard!

If it is necessary to disconnect an RF jumper cable, make sure there is no transmit signal

in the RF jumper cable.

...................................................................................................................................................................................................

1Once initial start-up and test have been completed, make sure the RF jumper cables are

properly connected to the RRH.

...................................................................................................................................................................................................

2Torque each RF connector at the radio RRH to 25 Nm (221 in-lb).

Important! Hold the body of the connector (part connected to the entry cable) with a

22 mm open-end wrench. Torque the rotating nut with a 32 mm open-end wrench.

...................................................................................................................................................................................................

3Secure the RF jumper cables along their route.

...................................................................................................................................................................................................

4Inspect site for loose tools, materials, and parts. Remove all such loose tools, materials,

and parts.

Finish the installation To finalize RRH installation

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 7-7

...................................................................................................................................................................................................

5Verify that all the exterior conduit and cable connections are secure.

Finish the installation To finalize RRH installation

....................................................................................................................................................................................................................................

7-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

END OF STEPS

...................................................................................................................................................................................................

Appendix A: Product

conformance statements

Overview

Purpose

This section presents the product conformance statements that apply to the FDD RRH.

In regions such as North America and the European Union, the statements that are

required are determined primarily by national or multi-national regulations. However, in

some regions, contract terms determine which statements are required.

The presence of the statement indicates that the product does comply with that statement

wherever it is required to do so.

Contents

Canada A-2

China A-5

European Union A-7

United States A-11

...................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-1

Canada

Introduction

The statements that follow are the product conformance statements that apply to the FDD

RRH when deployed in Canada.

Industry Canada

ICES-003: Interference-Causing Equipment Standard Digital Apparatus

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

IC CS-03: Specification for Terminal Equipment, Terminal Systems, Network

Protection Devices, Connection Arrangements and Hearing Aids Compatibility

This product meets the applicable Industry Canada technical specifications.

RF approval

•RSS-132: Cellular Telephones Employing New Technologies Operating in the Bands

824-849 MHz and 869-894 MHz

The term “IC” before the certification/registration number only signifies that the

Industry Canada technical specifications were met.

•RSS-133: PCS Radio Standards Specifications

The term “IC” before the certification/registration number only signifies that the

Industry Canada technical specifications were met.

Product safety conformance

This product is safety certified for Canada by a laboratory accredited by the Standards

Council of Canada (SCC), such as CSA, UL, or others. The product bears this

certification mark of this certification laboratory on its main nameplate label. Should the

local authority having jurisdiction (AHJ) require prior or additional verification of this

certification, a product certificate of compliance can be obtained from the specific

certification laboratory by the business/product unit Applicant for the product.

Any modifications to this equipment are not permitted without review and written official

authorization from the specific certification laboratory. Unauthorized changes may violate

the product safety certification. Modifications or changes authorized by official CN/CNN

are assumed to have received prior approval from this Lab.

Antenna exposure

Antenna installations for the FDD RRH shall be performed in accordance with all

applicable manufacturer's recommendations, and national laws and regulations. To ensure

correct antenna installation, the antenna installer shall perform all necessary calculations

and/or field measurements to evaluate compliance with applicable national laws or

Product conformance statements Canada

....................................................................................................................................................................................................................................

A-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

regulations regarding exposure to electromagnetic fields. The supplier of radio

equipment, the supplier of antenna equipment and the integrator and builder of the site

must provide sufficient information so that the limits of the exclusion zones can be

determined. Any changes to the antenna or other equipment in the transmit path may

require re-evaluation of the exposures to electromagnetic fields.

Human exposure

Pursuant to Health Canada Safety Code 6, Limits of Human Exposure to Radio frequency

Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, all installations

must be evaluated against the Maximum Exposure Limits as described in Chapter 2,

Health Canada 99-EHD-237.

Optical transmitters

Alcatel-Lucent declares that FDD RRH complies with the International Electrotechnical

Commission (IEC) standards IEC 60825-1 Edition 2.0 (2007) and IEC 60825-2 Edition

3.1 (2007). It is a Class I/1 laser optical fiber communication systems "product" under the

IEC classifications.

This product is designed to ensure that personnel operating the product are not

endangered by laser radiation during normal operation and fault conditions. This product

does not present a risk of eye injury because it is fully enclosed and does not contain

embedded lasers greater than Class I/1 unless otherwise noted.

CAUTION

Laser hazard

Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous laser radiation exposure.

Do not view directly into the laser beam with optical instruments such as a fiber

microscope because viewing of laser emission in excess of Class 1 limits significantly

increases the risk of eye damage.

Never look into the end of an exposed fiber or an open connector as long as the optical

source is switched on.

Ensure that the optical source is switched off before disconnecting optical fiber

connectors.

Product conformance statements Canada

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-3

Packaging collection and recovery requirements

Countries, states, localities, or other jurisdictions may require that systems be established

for the return and/or collection of packaging waste from the consumer, or other end user,

or from the waste stream. Additionally, reuse, recovery, and/or recycling targets for the

return and/or collection of the packaging waste may be established.

For more information regarding collection and recovery of packaging and packaging

waste within specific jurisdictions, please contact the Alcatel-Lucent Services -

Environmental Health and Safety organization. For installations not performed by

Alcatel-Lucent Technologies, please contact the Alcatel-Lucent Customer Support Center

at:

Technical Support Services, within Canada: +1 630 224 4672, prompt 2

Product conformance statements Canada

....................................................................................................................................................................................................................................

A-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

China

Introduction

The statements that follow are the product conformance statements that apply to the FDD

RRH when deployed in China.

EMC Compliance

The equipment complies with the following electromagnetic compatibility specifications:

•CISPR 22 Class B

Product safety conformance

The equipment complies with the following product safety specifications:

•IEC 60950-1

Optical transmitters

Alcatel-Lucent declares that FDD RRH complies with the International Electrotechnical

Commission (IEC) standards IEC 60825-1 Edition 2.0 (2007) and IEC 60825-2 Edition

3.1 (2007). It is a Class I/1 laser optical fiber communication systems "product" under the

IEC classifications.

This product is designed to ensure that personnel operating the product are not

endangered by laser radiation during normal operation and fault conditions. This product

does not present a risk of eye injury because it is fully enclosed and does not contain

embedded lasers greater than Class I/1 unless otherwise noted.

CAUTION

Laser hazard

Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous laser radiation exposure.

Do not view directly into the laser beam with optical instruments such as a fiber

microscope because viewing of laser emission in excess of Class 1 limits significantly

increases the risk of eye damage.

Never look into the end of an exposed fiber or an open connector as long as the optical

source is switched on.

Ensure that the optical source is switched off before disconnecting optical fiber

connectors.

Product conformance statements China

....................................................................................................................................................................................................................................

FDD RRH 700L

3MN-00075-0002-RJZZA

Issue 0 September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-5
