Nokia of America BBTRX-10A MetroCell Outdoor WiFi Access Point User Manual Wifi AP UserMan exh3

APPLICANT: Alcatel-Lucent EXHIBIT 3 FCC ID: AS5BBTRX-10A

Page 1 of 1

EXHIBIT 3

Section 2.1033 (b)(3) INSTALLATION AND OPERATING INSTRUCTIONS

A copy of the installation and operating instructions to be furnished to the user. A draft copy of the

instructions may be submitted if the actual document is not available. The actual document shall be

furnished to the FCC when it becomes available.

Response

A copy of the operation and installation manual for 9764 Metro Cell Outdoor Wi-Fi Access Point is

attached to this exhibit.

Title page

Alcatel-Lucent 9764

Metro Cell Outdoor Wi-Fi AP

Operation and Installation

3MN-WiFi-AP

Issue 1.01 | November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Proprietary Use pursuant to Company instruction

Legal notice

Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective

owners.

The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.

Contains proprietary/trade secret information which is the property of Alcatel-Lucent and must not be made available to, or copied or used by anyone outside

Alcatel-Lucent without its written authorization.

Proprietary Use pursuant to Company instruction

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Contents

About this document

Purpose ............................................................................................................................................................................................. xixi

Reason for reissue ........................................................................................................................................................................ xixi

Supported systems ........................................................................................................................................................................ xixi

How to use this document ......................................................................................................................................................... xixi

Safety information ........................................................................................................................................................................ xixi

Prerequisites .................................................................................................................................................................................. xiixii

Conventions used ........................................................................................................................................................................ xiixii

Document support ...................................................................................................................................................................... xivxiv

Technical support ....................................................................................................................................................................... xivxiv

How to order ................................................................................................................................................................................ xivxiv

How to comment ........................................................................................................................................................................ xivxiv

1Safety statements

Overview ...................................................................................................................................................................................... 1-11-1

Structure of safety statements ............................................................................................................................................... 1-21-2

Safety ........................................................................................................................................................................................... 1-41-4

Safety - specific hazards ......................................................................................................................................................... 1-51-5

Product safety ............................................................................................................................................................................. 1-71-7

29764 MCO Wi-Fi Access Point

Overview ...................................................................................................................................................................................... 2-12-1

Functional description ............................................................................................................................................................. 2-22-2

Physical description ................................................................................................................................................................. 2-52-5

System architecture .................................................................................................................................................................. 2-92-9

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction iii

3Installation of the 9764 MCO Wi-Fi AP

Overview ...................................................................................................................................................................................... 3-13-1

Procedure 3-1: Attach 9764 MCO Wi-Fi AP module to 9764 MCO module ..................................................... 3-23-2

LED state description - 9764 MCO Wi-Fi AP ............................................................................................................... 3-73-7

AProduct conformance statements

Overview ..................................................................................................................................................................................... A-1A-1

United States compliance

Federal Communications Commission ............................................................................................................................ A-2A-2

Product safety conformance statements .......................................................................................................................... A-3A-3

Antenna exposure statements .............................................................................................................................................. A-4A-4

Eco-environmental statements ............................................................................................................................................ A-5A-5

Index

Contents

....................................................................................................................................................................................................................................

iv Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

List of tables

2-1 9764 MCO Wi-Fi AP physical characteristics ................................................................................................ 2-62-6

2-2 Transmit power ........................................................................................................................................................... 2-92-9

2-3 Antenna gain ............................................................................................................................................................. 2-102-10

3-1 9764 MCO Wi-Fi AP LED description ............................................................................................................. 3-73-7

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction v

List of tables

....................................................................................................................................................................................................................................

vi Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

List of figures

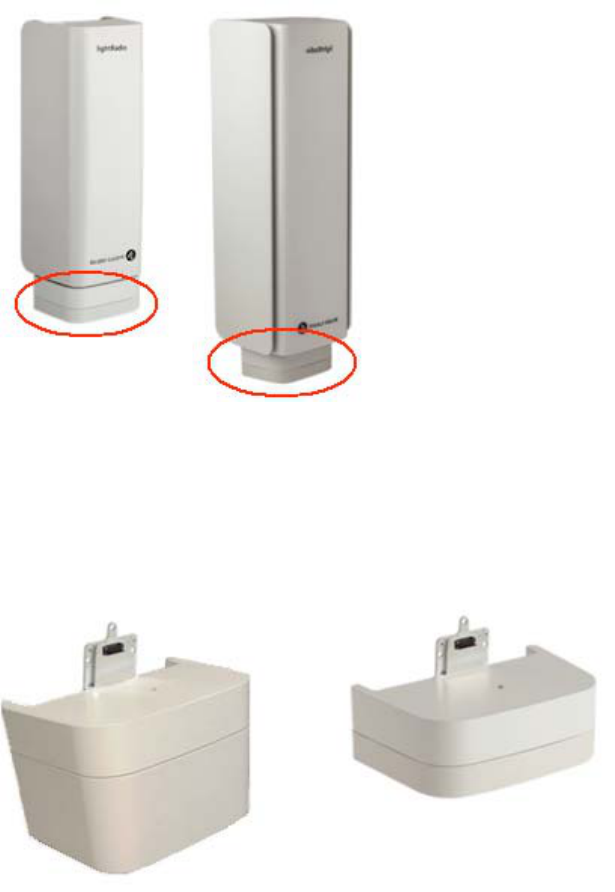

2-1 9764 MCO Wi-Fi AP attached to 9764 MCO hardware variants ............................................................ 2-52-5

2-2 9764 MCO Wi-Fi AP - closed housing .............................................................................................................. 2-52-5

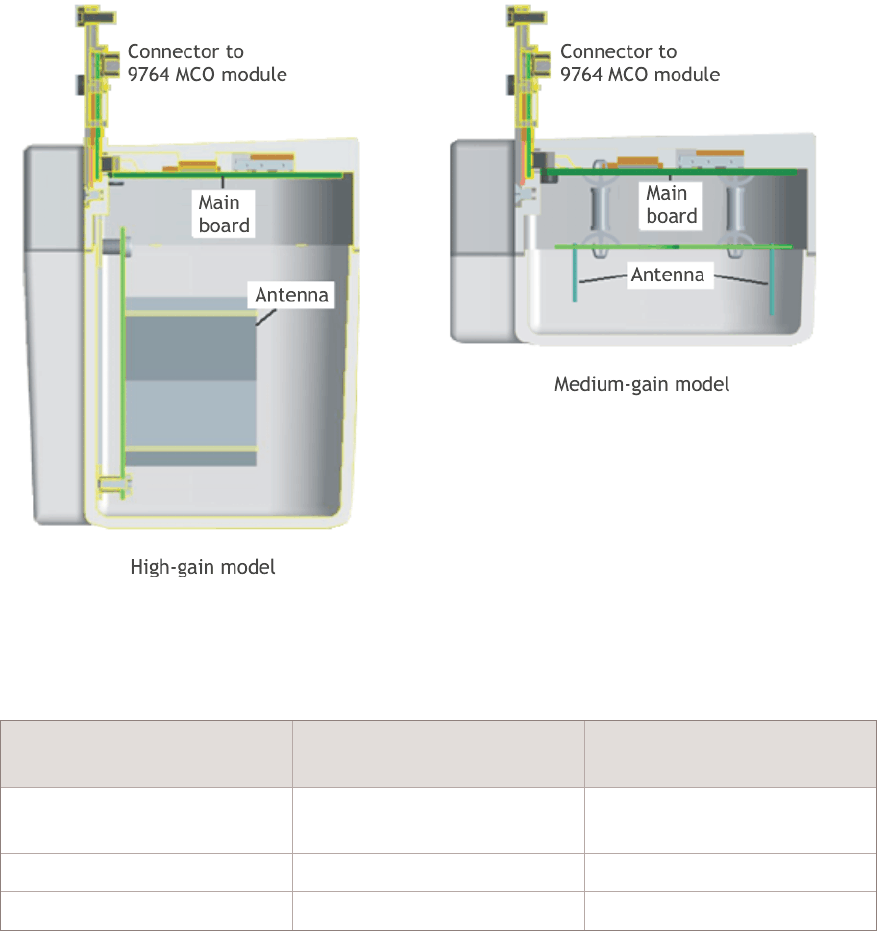

2-3 9764 MCO Wi-Fi AP - cutaway view ................................................................................................................ 2-62-6

2-4 9764 MCO Wi-Fi AP connection point on 9764 MCO ............................................................................... 2-72-7

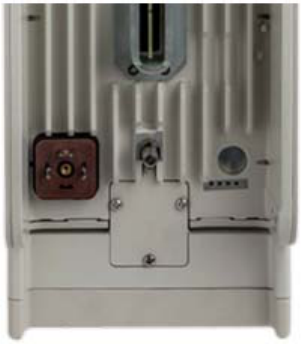

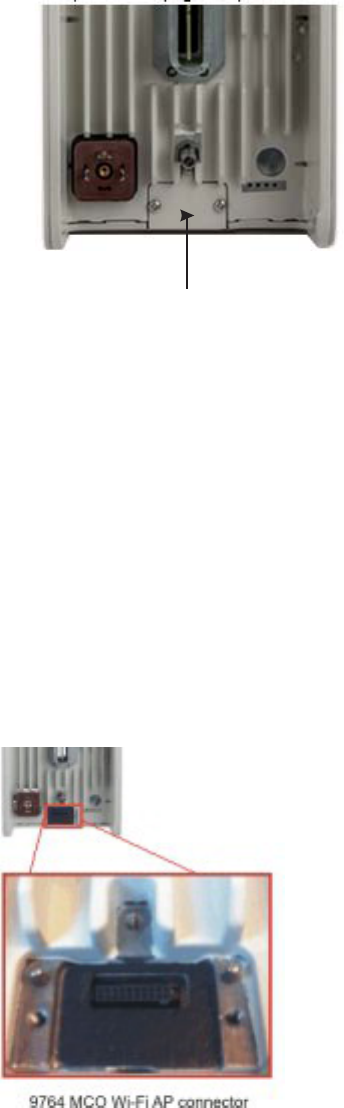

3-1 Wi-Fi AP connector cover on 9764 MCO module ........................................................................................ 3-43-4

3-2 Wi-Fi AP connector on 9764 MCO module .................................................................................................... 3-43-4

3-3 9764 MCO Wi-Fi AP module attached to 9764 MCO module ................................................................. 3-53-5

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction vii

List of figures

....................................................................................................................................................................................................................................

viii Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

List of procedures

3 Installation of the 9764 MCO Wi-Fi AP

3-1 Attach 9764 MCO Wi-Fi AP module to 9764 MCO module .................................................................... 3-23-2

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction ix

List of procedures

....................................................................................................................................................................................................................................

xAlcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

About this documentAbout this document

Purpose

The purpose of this document is to provide product operation information and hardware

installation instructions for an Alcatel-Lucent 9764 Metro Cell Outdoor Wi-Fi Access

Point (hereafter referred to as the 9764 MCO Wi-Fi AP).

Reason for reissue

Issue

number

Issue date Reason for reissue

1.01 November

2013

Added “Appendix A: Product conformance statements”

Supported systems

This document applies to the following:

•9764 Metro Cell Outdoor Wi-Fi Access Point

How to use this document

The first chapter provides an overview of the 9764 MCO Wi-Fi AP physical architecture

and operations.

The second chapter provides 9764 MCO Wi-Fi AP hardware installation steps.

The appendix provides 9764 MCO Wi-Fi AP product conformances applicable within the

United States.

Safety information

For your safety, this document contains safety statements. Safety statements are given at

points where risks of damage to personnel, equipment, and operation may exist. Failure to

follow the directions in a safety statement may result in serious consequences.

...................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction xi

Prerequisites

None

Conventions used

Typographical conventions

The typographical conventions used in this document are described in the following table.

Appearance Description

emphasis Text that is emphasized

document titles Titles of books or other documents

graphical user interface text Text that is displayed in a graphical user

interface

variables

A value or command-line parameter that the

user provides

Technical conventions

Lengths and other measurements are given in metric units, with non-metric units given as

equivalents for use in non-metric markets.

For manufactured parts, the following system of conventions is used:

•Metric sizes of nuts, bolts, flat washers, and lock washers are identified by an

uppercase letter M followed immediately by a size in millimeters (example: M10)

•American fractional sizes of nuts, bolts, anchor bolts, and washers are identified by a

number followed immediately by a double apostrophe (example: 3/8"). In the case of

lengths measured in feet, “2 feet” is used rather than “2'” so that the single apostrophe

is not overlooked.

The illustrations in this document do not contain all details and exceptions, but are

intended to highlight main points. Dimensions are usually shown in millimeters, with

inches in parenthesis. As an example, 680.0 (26.77) equals 680 millimeters or 26.77

inches.

Wire gauges are specified in metric units. Equivalent sizes in the American Wire Gauge

(AWG) system are given in the following table:

Standard cross-sections and wire diameter of round copper conductors

About this document

....................................................................................................................................................................................................................................

xii Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

The following table is from CEI/IEC 60947-1:2004, Table 1, Standard cross-sections of

round copper conductors and approximate relationship between mm2and AWG/kcmil

sizes for reference. Additional wire sizes are included in this document as appropriate for

the topic.

ISO rated cross-sectional area (mm2) AWG/kcmil size

0.2 24

0.34 22

0.5 20

0.75 18

1-

1.5 16

2.5 14

412

610

10 8

16 6

25 4

35 2

-1

50 0 (1/0)

70 00 (2/0)

95 000 (3/0)

- 0000 (4/0)

120 250 kcmil

150 300 kcmil

185 350 kcmil

- 400 kcmil

240 500 kcmil

300 600 kcmil

NOTE: The dash, when it appears, counts as a size when considering connecting capacity (see

7.1.7.2 in the standard).

About this document

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction xiii

Document support

For support in using this or any other Alcatel-Lucent document, contact Alcatel-Lucent at

the following telephone numbers. These numbers apply for document support only. Please

see the section “Technical support” for details about product hardware, software, and

technical support.

When using this type of

phone

From within the United

States, dial

From outside the United

States, dial

Cellular or VoIP 1-888-582-3688 +1-630-224-2485

Landline – phones lacking the

plus (+) character

1-888-582-3688 origination country exit

code-1-630-224-2485

(replace the plus sign with

your country's exit code)

See a listing of exit codes.

Technical support

For technical support, contact your local Alcatel-Lucent customer support team. See the

Alcatel-Lucent Support web site (http://www.alcatel-lucent.com/support/) for contact

information.

How to order

To order Alcatel-Lucent documents, contact your local sales representative or use Online

Customer Support (OLCS) (http://support.alcatel-lucent.com).

How to comment

To comment on this document, go to the Online Comment Form (http://infodoc.alcatel-

lucent.com/comments/) or e-mail your comments to the Comments Hotline

(comments@alcatel-lucent.com).

About this document

....................................................................................................................................................................................................................................

xiv Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

11Safety statements

Overview

Purpose

This chapter provides general information on the structure of safety instructions and

summarizes general safety requirements.

General safety and residual risk

The equipment has been developed in line with state-of-the-art technology and conforms

with current national and international safety requirements.

The equipment is considered safe during normal operation when safe working practices

are complied with. However, hazards may arise if procedures are not followed correctly

or safe working practices are not complied with.

Contents

Structure of safety statements 1-2

Safety 1-4

Safety - specific hazards 1-5

Product safety 1-7

...................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-1

Structure of safety statements

Overview

This topic describes the components of safety statements that appear in this document.

General structure

Safety statements include the following structural elements:

Item Structure element Purpose

1 Safety alert symbol Indicates the potential for personal injury

(optional)

2 Safety symbol Indicates hazard type (optional)

3 Signal word Indicates the severity of the hazard

4 Hazard type Describes the source of the risk of damage or

injury

5 Safety message Consequences if protective measures fail

6 Avoidance message Protective measures to take to avoid the hazard

7 Identifier The reference ID of the safety statement

(optional)

SAMPLE

BC D

EF

G

H

Lifting this equipment by yourself can result in injury

due to the size and weight of the equipment.

Always use three people or a lifting device to transport

and position this equipment. [ABC123]

CAUTION

Lifting hazard

Safety statements Structure of safety statements

....................................................................................................................................................................................................................................

1-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Signal words

The signal words identify the hazard severity levels as follows:

Signal word Meaning

DANGER Indicates an extremely hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING Indicates a hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, could result in

minor or moderate injury.

NOTICE Indicates a hazardous situation not related to personal injury.

Safety statements Structure of safety statements

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-3

Safety

General precautions for installation procedures

WARNING

Failure to observe these safety precautions may result in personal

injury or damage to equipment.

•Read and understand all instructions.

•Follow all warnings and instructions marked on this product.

•Installation and maintenance procedures must be followed and performed by

trained personnel only.

•The equipment must be provided with a readily accessible disconnect device

as part of site preparation.

•Grounding and circuit continuity is vital for safe operation of the equipment.

Never operate the equipment with grounding/bonding conductor

disconnected.

•Before servicing, disconnect power input to reduce the risk of energy

hazards.

•If installed in ambient temperatures above 46°C (115°F), this unit must be

installed only in restricted access locations, where access is limited to

qualified service personnel only.

Safety statements Safety

....................................................................................................................................................................................................................................

1-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Safety - specific hazards

DANGER

Electric-shock hazard

Working in severe weather can result in personal injury or death and damage to the

equipment.

Never install or perform maintenance during severe weather (high winds, lightning,

blizzards, hurricane etc.).

DANGER

Noxious-substance hazard

Use of unspecified cleaning agents can result in personal injury.

Use only specified cleaning agents. Never use flammable solvents.

Always ensure there is adequate ventilation in the work area and wear the appropriate

personal protective equipment.

CAUTION

RF hazard

RF exposure in excess of applicable limits can result in adverse health effects.

Metro Cells are designed and installed in order to comply with the international exposure

guidelines laid down by the International Commission on Non-Ionizing Radiation

Protection (ICNIRP) and/or the Institute of Electrical & Electronics Engineers

(IEEE) C95.1. ICNIRP guidelines have been implemented by the European Commission

and a number of other countries. IEEE guidelines have been implemented in North

America and some other countries.

Workers that are required to work in close proximity to the equipment, for example

maintenance personnel, should strictly follow instructions provided by their employer.

Workers equipped with personal medical electronic devices, such as pacemakers and

hearing aids, shall consult the manufacturer's instructions and consult their occupational

health practitioner.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-5

CAUTION

Electrical energy hazard

Some parts of all electrical installations are energized. Failure to observe this fact and

the safety warnings may lead to bodily injury and property damage.

For this reason, only trained and qualified personnel (electrical workers as defined in

IEC 60215 + A1 or EN 60215) may install or service the installation.

CAUTION

Electrical energy hazard

The power supply lines to the network element are energized. Contact with parts carrying

voltage can cause health problems, possibly including death, even hours after the event.

Open and lockout the load disconnect switch in the distribution box to completely

de-energize the network element.

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

NOTICE

Condensation

Sudden changes in the weather may lead to the formation of condensation on

components. Operating the unit when condensation moisture is present can destroy the

unit.

Units which show signs of condensation must be dried before installation.

NOTICE

Tools

Tools left in the working area can cause short circuits during operation which can lead to

the destruction of units.

Make sure after finishing your work that no tools, testing equipment, flashlights, etc.,

have been left in or on the equipment.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

1-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Product safety

Equipment safety

Safety information for this equipment can be found on various Caution, Warning, Danger,

information labels or instructions affixed to or included with the product or included

within this document. Informational and cautionary labels may appear near the item they

address or may be grouped in a single location on the equipment. Warnings are typically

adjacent to the hazard that is noted on the label. The instructions, cautions and warnings

found on these labels must be understood and observed by all personnel involved with the

equipment installation and maintenance.

Safety statements Product safety

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-7

Safety statements Product safety

....................................................................................................................................................................................................................................

1-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

229764 MCO Wi-Fi Access

Point

Overview

Purpose

This appendix provides an overview of the Alcatel-Lucent 9764 Metro Cell Outdoor

Wi-Fi AP (9764 MCO Wi-Fi AP).

Two models are available:

•9764 Metro Cell Outdoor Wi-Fi AP V1.0 MG (contains medium-gain antennas)

•9764 Metro Cell Outdoor Wi-Fi AP V1.0 HG (contains high-gain antennas)

The information contained herein applies to both models unless otherwise specified.

Contents

Functional description 2-2

Physical description 2-5

System architecture 2-9

...................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-1

Functional description

General description

The Alcatel-Lucent 9764 Metro Cell Outdoor Wi-Fi AP (9764 MCO Wi-Fi AP) is an

optional product that enables Alcatel-Lucent 9764 Metro Cell Outdoor UEs to access the

Wi-Fi® network.

Product features and attributes

The 9764 MCO Wi-Fi AP is a field replaceable unit (FRU) installed on the bottom of the

9764 MCO module (simple plug-in). It is designed to be used outdoors and shares

backhaul with the 9764 MCO to which it is attached.

The 9764 MCO Wi-Fi AP supports

•Co-location with Alcatel-Lucent 9764 MCO variants.

•Dual-band dual-concurrent communication (802.11 a/n, b/g/n).

Meaning, simultaneous support of 2.4 / 5 GHz dual frequency bands (802.11 b/g/n,

802.11a/n).

•20/40 MHz bandwidth.

•Integrated antennas optimized for 2x2 MIMO.

•Maximum physical data rate throughput of 2x300Mbps.

•Carrier grade Wi-Fi® to help offload the macro network.

•OAM using the Alcatel-Lucent 9772 Wi-Fi Service Controller.

Performance

The 9764 MCO Wi-Fi AP:

•Supports up to 256 simultaneously connected users.

•Supports IEEE standards 802.11 a/n (5 GHz) and 802.11 b/g/n (2.4 GHz).

•Supports all data rates up to peak for 802.11n/a/g/b mode according to selected

BW/MIMO operation.

Reliability and availability

The 9764 MCO Wi-Fi AP:

•Is designed to have a minimum lifetime of 10 years.

•Will continue operating in degraded mode with limited functionality, in the event of a

failure. That is, in the case of one Tx or one Rx RF path failure, the 9764 MCO Wi-Fi

AP continues operating in single Tx or Rx mode.

9764 MCO Wi-Fi Access Point Functional description

....................................................................................................................................................................................................................................

2-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

IP and QoS

Internet protocol (IP) and Quality of Service (QoS) functionalities are outlined herein.

IP

The 9764 MCO Wi-Fi AP transport interface supports IPv4.

DHCP

The 9764 MCO Wi-Fi AP supports:

•DHCP for automatic address assignment as well as supporting static addresses.

•DHCP relay per SSID.

•DHCP server per SSID.

WMM®

The 9764 MCO Wi-Fi AP supports:

•Wi-Fi Multimedia™ (WMM®) QoS on access link.

•Mapping between DSCP and WMM access classes (ACs), configurable through

management.

Rate limiting

The 9764 MCO Wi-Fi AP supports rate limiting. Rate limiting limits the maximum rate

sent to or received from the wireless network (and WLAN) per wireless client, preventing

any single user from overwhelming the wireless network and providing differential

service for service providers. Rate limiting is configurable through management.

Traffic filtering

The 9764 MCO Wi-Fi AP supports layer 2-7 stateful traffic filtering firewall.

Prioritization

The 9764 MCO Wi-Fi AP supports:

•Different priority levels per subscription.

•Different priority levels per SSID (configurable by management).

Security

The 9764 MCO Wi-Fi AP addresses security for both hardware and software.

Hardware

The 9764 MCO Wi-Fi AP module is locked in place using Torx screws when mounted to

the bottom of the 9764 MCO.

9764 MCO Wi-Fi Access Point Functional description

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-3

Software

The 9764 MCO Wi-Fi AP supports:

•Concurrent open and 802.1x-based authentication mechanisms on separate SSIDs.

•Authentication Protocols: EAP-SIM, EAP-AKA, EAP-TLS, EAP-TTLS/PAP,

EAP-TTLS/CHAP, EAP-TTLS/MSCHAP, EAP-TTLS/MSCHAPv2,

PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, and EAP-FAST.

•Supports authentication and also blacklist based on client MAC address.

•Supports VPN clients and VPN passthrough.

•Supports layer 2-7 stateful traffic filtering firewall and configuration thereof.

9764 MCO Wi-Fi Access Point Functional description

....................................................................................................................................................................................................................................

2-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Physical description

Product overview

The 9764 Metro Cell Outdoor Wi-Fi AP is housed in a weatherized enclosure containing

the following active components:

•Integrated antennas supporting 2x2 MIMO.

This figure reflects the location of the 9764 MCO Wi-Fi AP module when attached to the

9764 MCO.

This figure reflects the available 9764 MCO Wi-Fi AP module models (9764 Metro Cell

Outdoor Wi-Fi AP V1.0 HG [high gain] and 9764 Metro Cell Outdoor Wi-Fi AP V1.0

MG [medium gain]).

Figure 2-1 9764 MCO Wi-Fi AP attached to 9764 MCO hardware variants

Figure 2-2 9764 MCO Wi-Fi AP - closed housing

9764 MCO Wi-Fi Access Point Physical description

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-5

This figure reflects the major components of both the High-gain and Medium-gain

models of the 9764 MCO Wi-Fi AP.

The physical dimensions of the 9764 MCO Wi-Fi AP module are:

Table 2-1 9764 MCO Wi-Fi AP physical characteristics

Physical property 9764 MCO Wi-Fi AP V1.0

MG model

9764 MCO Wi-Fi AP V1.0

HG model

Dimension (Height x Width

x Depth)

5cm x 13cm x 7cm 9cm x 13cm x 7cm

Volume 0.5 liters 0.8 liters

Weight 0.35 kg 0.4 kg

Product base items and configurations

The 9764 MCO Wi-Fi AP module is a single, field-replaceable, unit that may be mounted

to many Alcatel-Lucent 9764 Metro Cell Outdoor variants.

Figure 2-3 9764 MCO Wi-Fi AP - cutaway view

9764 MCO Wi-Fi Access Point Physical description

....................................................................................................................................................................................................................................

2-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Available models include:

•9764 Metro Cell Outdoor Wi-Fi AP V1.0 HG (contains High-gain integrated

antennas)

•9764 Metro Cell Outdoor Wi-Fi AP V1.0 MG (contains Medium-gain integrated

antennas)

The unit is shipped with 3 M3 10mm Torx screws used to secure the 9764 MCO Wi-Fi

AP module to the 9764 MCO.

Connection interfaces

The 9764 MCO Wi-Fi AP module has a single interface connector that plugs into the back

bottom of the 9764 MCO, carrying both power and all communication between the two

components.

This figure reflects the connection point on the back bottom of the 9764 MCO.

Antennas

The 9764 MCO Wi-Fi AP supports 2 integrated antennas optimized for 2x2 MIMO with

up to 2 spatial streams.

Two hardware models are available:

•9764 MCO Wi-Fi AP V1.0 MG model with Medium-gain integrated antennas.

•9764 MCO Wi-Fi AP V1.0 HG model with High-gain integrated antennas.

Status indicators

There is an external single bi-color LED (amber/green) on the upper side of the 9764

MCO Wi-Fi AP module housing (pointing up towards the 9764 MCO radome).

Although external, this LED is not easily visible and is not used for post-installation

troubleshooting. During initial cell power-up, however, the installation technician may

observe the LED changes as the unit goes through its booting sequences. Once the cell is

in normal operation for 30 minutes, the LED will turn off automatically.

Figure 2-4 9764 MCO Wi-Fi AP connection point on 9764 MCO

9764 MCO Wi-Fi Access Point Physical description

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-7

Refer to “LED state description - 9764 MCO Wi-Fi AP” (p. 3-7) for details.

Product labeling

To the top of the 9764 MCO Wi-Fi AP module will be affixed three labels:

1. A product label reflecting:

•Vendor name/Icon

•Model name

•Part number

•Serial number

•MAC address

•CLEI code (U.S. only)

•Data matrix barcode for Part number, Serial number, MAC address, and CLEI

code (CLEI code is for U.S. only)

2. A regulatory label reflecting:

•Vendor name/Icon

•Product name

•Regulatory rules

•Power input

•Enclosure rating

•Applicable regulatory and environmental certification logos (for example, CE and

WEEE recycling logos)

•Manufacturer name

3. An FCC label reflecting:

•Vendor name/Icon

•FCC ID

9764 MCO Wi-Fi Access Point Physical description

....................................................................................................................................................................................................................................

2-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

System architecture

Timing architecture and interface

The 9764 MCO Wi-Fi AP is connected via Gigabit Ethernet to the 9764 MCO.

Power architecture

The 9764 MCOWi-Fi AP is powered via the 9764 MCO.

The 9764 MCOWi-Fi AP consumes/dissipates not more than 8W average (averaged over

several minutes), and has a peak power consumption of 12W.

Antenna architecture

The 9764 MCO Wi-Fi AP provides downward tilt relative to metro cellular beam and uses

advanced antenna design to support IEEE standard 802.11n, providing optimized MIMO

performance and coverage.

The 9764 MCO Wi-Fi AP targets best in class receiver sensitivity, with minimum

performance requirements in the range of -90 dBm @ 1 Mbps and -80 dBm @ 60 Mbps.

MIMO

Multiple-input and multiple-output (MIMO) refers to the use of multiple antennas at both

the transmitter and receiver to improve communication performance. The 9764 MCO

Wi-Fi AP supports 2x2 MIMO with up to 2 spatial streams up to 20/40 MHz peak rate.

Transmission power

9764 MCO Wi-Fi AP module transmit power is configurable in 1dBm steps from

minimum to maximum configuration. The commercial product supports:

Table 2-2 Transmit power

9764 MCO Wi-Fi AP V1.0 HG 9764 MCO Wi-Fi AP V1.0 MG

Frequency

band

2.4 GHz 5.4 GHz 2.4 GHz 5.4 GHz

Region

(market)

NAR EU /

RoW

NAR EU /

RoW

NAR EU /

RoW

NAR EU /

RoW

Max

conducted

power per

chain (dBm)

22 11 18 18 22 13 18 18

Typical Max

EIRP (dBm) /

per band

31 20 28 28 29 20 27 27

9764 MCO Wi-Fi Access Point System architecture

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-9

EIRP: Effective Isotropic Radiated Power

Gain

The 9764 MCO Wi-Fi AP supports two integrated internal antennas supporting the

following:

Table 2-3 Antenna gain

Antenna

attributes

9764 MCO Wi-Fi AP V1.0 HG

(Internal, High-gain, 2 ports)

9764 MCO Wi-Fi AP V1.0 MG

(Internal, Medium-gain, 2

ports)

Frequency

band

2.4 GHz 5.4 GHz 2.4 GHz 5.4 GHz

Typical antenna

gain

5.7 dBi 6.9 dBi 3.5 dBi 5.5 dBi

Frequencies and channels

The 9764 MCO Wi-Fi AP is a dual-band dual-concurrent product, meaning simultaneous

support of 2.4 / 5 GHz dual-band (802.11 b/g/n, 802.11a/n).

2.4 GHz ISM band

In the 2.4 GHz industrial, scientific and medical (ISM) band, 9764 MCO Wi-Fi AP

supports:

•IEEE 802.11 b/g/n

•20 MHz (default) IEEE 802.11n mixed mode

•40 MHz IEEE 802.11n

•All allowed operating channels up to 32dBm.

5 GHz U-NII band

In the 5 GHz Unlicensed National Information Infrastructure (U-NII) band, 9764 MCO

Wi-Fi AP supports:

•IEEE 802.11 a/n

•40 MHz IEEE 802.11n mixed mode

•20 MHz and 40 MHz IEEE 802.11n

•All allowed operating channels up to 30dBm (using the high gain antenna

configuration).

•Dynamic frequency switching (DFS) and transmit power control (TPC).

Backhaul architecture

The 9764 MCO Wi-Fi AP shares a common backhaul with the 9764 MCO.

9764 MCO Wi-Fi Access Point System architecture

....................................................................................................................................................................................................................................

2-10 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Environmental architecture

The 9764 MCO Wi-Fi AP is capable of cold start -30°C and operation in the temperature

range of -40°C/+55°C.

The 9764 MCO Wi-Fi AP meets all the same environmental requirements and conditions

as the 9764 MCO to which it is attached.

Standards and Regulatory Compliance

The 9764 MCO Wi-Fi AP is compliant with applicable environmental and regulatory

standards and specifications.

Certifications - US

For commercial use in the United States, the 9764 MCO Wi-Fi AP is compliant with

applicable standards, such as:

•NEBS

•UL®

•FCC

Certifications - Wi-Fi Alliance®

The 9764 MCO Wi-Fi AP meets the following standards:

•802.11b/g/n, 802.11a/n

•WPA1™ and WPA2™ Personal and Metro Cell

•WMM™ (Wi-Fi Multimedia™), WMM Power Save

•Wi-Fi CERTIFIED Passpoint™ (phase 1)

•Authentication Protocols: EAP-SIM, EAP-AKA, EAP-TLS, EAP-TTLS/PAP,

EAP-TTLS/CHAP, EAP-TTLS/MSCHAP, EAPTTLS/MSCHAPv2,

PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, and EAP-FAST.

IEEE

The 9764 MCO Wi-Fi AP is compliant with IEEE standards:

•802.11 (2007).

•802.11n HT-Mixed Mode in 2.4 GHz and 5 GHz.

•802.11n HT-Greenfield Mode in 5 GHz (no 802.11a clients supported).

•802.11d and updates or all equivalent taking into account new 802.11n, 5GHz bands,

Dynamic Frequency Selection (DFS) and Transmit Power Control (TPC).

•802.11i (including 802.1x authentication for RADIUS).

•802.11e (QoS, T-Spec).

•802.11u (interworking with external networks), SW upgradeable.

9764 MCO Wi-Fi Access Point System architecture

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-11

Telecommunications Specifications

The 9764 MCO Wi-Fi AP module supports the Alcatel-Lucent lightRadio Wi-Fi solution

based on 3GPP SaMOG (S2a-based Mobility over GTP) and ANDSF (Access Network

Discovery and Selection Function).

Environmental/Electrical/Regulatory Specifications

The 9764 MCO Wi-Fi AP is developed to meet all applicable basic environmental,

electrical health/safety, and regulatory specifications (such as ETSI, IEC, TP, GR, and

Telcordia), and meets all the same requirements and conditions as the 9764 MCO to

which it is attached.

The 9764 MCO Wi-Fi AP module is designed to operate in a -40C to +55C ambient

environment. The unit is a passively-cooled design. The unit will not be equipped with

heaters for cold temperature operation or cold start, however supports a cold start at -30C.

RF Exposure

•Europe: EU 1999/519/EC, EU 2004/40/EC, EN50383, EN50384, EN50385, ICNIRP

Guidelines, IEC62232.

The RF exposure to the module itself in “Touch” conditions complies with general

public exposure limits defined in Europe and ICNIRP based regulations when

combined with the 9764 MCO.

•North America: US FCC 47CFR 1.1310, US FCC OET65 (including supplements),

Canada Safety Code 6, Canada RSS 102, IEC62232.

The module combined with the 9764 MCO complies with FCC 47CFR1.1310 (US)

and Safety Code 6 (Canada) RF exposure limits for uncontrolled (general public)

environments. The module must be installed and operated with a minimum separation

distance of 20 cm (8 inches) between the radiator and user (see: USA – FCC OET

Bulletin 65 and supplements and Canada – RSS 102).

Installation of the 9764 MCO Wi-Fi AP shall be performed in accordance with all

applicable manufacturer's recommendations, and national laws and regulations.

See the Product Conformance appendix for details of 9764 MCO conformances.

OA&M

The 9764 MCO Wi-Fi AP is managed via the Alcatel-Lucent 9772 Wi-Fi Service

Controller (9772 Wi-Fi SC).

9764 MCO Wi-Fi Access Point System architecture

....................................................................................................................................................................................................................................

2-12 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

33Installation of the 9764

MCO Wi-Fi AP

Overview

Purpose

This appendix provides instructions for attaching the Alcatel-Lucent 9764 Metro Cell

Outdoor Wi-Fi AP to the 9764 MCO.

Contents

Procedure 3-1: Attach 9764 MCO Wi-Fi AP module to 9764 MCO module 3-2

LED state description - 9764 MCO Wi-Fi AP 3-7

...................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-1

Procedure 3-1: Attach 9764 MCO Wi-Fi AP module to 9764 MCO

module

Purpose

This topic describes the procedures to attach the 9764 MCOWi-Fi AP module to the 9764

MCO module.

Prerequisites

The following tools may be used during installation:

•Screwdrivers (power and/or manual):

- Phillips (flat blade)

- Torx (T10)

Before installation begins, ensure the following:

•Internet service is available.

•Required tools are available.

•The 9764 MCOWi-Fi AP product is available.

•The rear of the 9764 MCO module is accessible.

Product delivery contents

The following items are supplied with the 9764 MCO Wi-Fi AP:

•The 9764 MCO Wi-Fi AP module

•Three M3 10mm Torx screws (to secure the 9764 MCO Wi-Fi AP module to the 9764

MCO module).

Installation of the 9764 MCO Wi-Fi AP Procedure 3-1: Attach 9764 MCO Wi-Fi AP module to 9764

MCO module

....................................................................................................................................................................................................................................

3-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Attach 9764 MCO Wi-Fi AP module to 9764 MCO module

NOTICE

ESD hazard

Semiconductor devices can be damaged by electrostatic discharges (ESD)

The following rules must be complied with when handling any module containing

semiconductor components:

•Wear conductive or antistatic working clothes (for example, coat made of 100%

cotton).

•Wear a grounded wrist strap.

•Wear shoes with conductive soles on a conductive floor surface or conductive work

mat.

•Leave the modules in their original packaging until ready for use.

•Make sure there is no difference in potential between yourself, the workplace, and the

packaging before removing, unpacking, or packing a module.

•Whenever handling ESD-sensitive components, do not touch any connection pins or

tracks.

•Place modules removed from the equipment on a conductive surface.

•Test or handle the module only with grounded tools on grounded equipment.

•Handle defective modules exactly like new ones to avoid causing further damage.

Perform the following steps to attach the 9764 MCO Wi-Fi AP module to the 9764 MCO

module:

...................................................................................................................................................................................................

1Remove the 9764 MCO Wi-Fi AP module from its packaging.

...................................................................................................................................................................................................

2Using a T10 Torx screwdriver, remove the cover over the Wi-Fi AP connector on the

lower back of the 9764 MCO module by unscrewing the three screws.

The following figure shows the Wi-Fi AP connector cover:

Installation of the 9764 MCO Wi-Fi AP Procedure 3-1: Attach 9764 MCO Wi-Fi AP module to 9764

MCO module

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-3

Important! Ensure that the appropriate gasket surrounding the connector is in place

on the 9764 MCO module (as shown in Figure 3-2, “Wi-Fi AP connector on 9764

MCO module” (p. 3-4)).

Note: Retain the cover and the three (3) cover screws. Should the need arise to

remove but not replace the 9764 MCO Wi-Fi AP module in the future, the dummy

cover and its screws must be reattached to the 9764 MCO module.

...................................................................................................................................................................................................

3Push the 9764 MCO Wi-Fi AP module onto the Wi-Fi AP connector.

Figure 3-1 Wi-Fi AP connector cover on 9764 MCO module

Cover over 9764 MCO Wi-Fi AP connector

Figure 3-2 Wi-Fi AP connector on 9764 MCO module

Installation of the 9764 MCO Wi-Fi AP Procedure 3-1: Attach 9764 MCO Wi-Fi AP module to 9764

MCO module

....................................................................................................................................................................................................................................

3-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

...................................................................................................................................................................................................

4Using a T10 Torx screwdriver and the three M3 10mm Torx screws shipped with the 9764

MCO Wi-Fi AP module, screw the attachment plate to the 9764 MCO module and to the

back of the 9764 MCO Wi-Fi AP module, and tighten all screws.

Torque screws to 0.6 Nm (0.443 lb ft).

The following figure shows the 9764 MCO Wi-Fi AP module attached to the 9764 MCO:

9764 MCO Wi-Fi AP integration overview

Integration refers to the entire process from hardware installation to “normal operation”.

9764 MCO Wi-Fi AP integration proceeds as follows:

1. Hardware is installed and mounted.

2. Power is applied to the 9764 MCO (and by default, to the 9764 MCO Wi-Fi AP

module).

3. The switch on the 9764 MCO module contains a default configuration that connects

the 9764 MCO Wi-Fi AP port to the backhaul port (there are no 9764 MCO Wi-Fi AP

OAM parameters to be configured prior to initial power-up).

The switch will forward Wi-Fi packages as soon as the 9764 MCO module software

has booted and as soon as the 9764 MCO Wi-Fi AP software is running.

4. A connection between 9764 MCO Wi-Fi AP and Alcatel-Lucent 9772 Wi-Fi Service

Controller (9772 Wi-Fi SC) is automatically established.

Figure 3-3 9764 MCO Wi-Fi AP module attached to 9764 MCO module

Installation of the 9764 MCO Wi-Fi AP Procedure 3-1: Attach 9764 MCO Wi-Fi AP module to 9764

MCO module

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-5

END OF STEPS

...................................................................................................................................................................................................

5. The 9764 MCO Wi-Fi AP downloads the latest software version from the appropriate

file server (if applicable).

6. The 9764 MCO Wi-Fi AP is provisioned and configured via the 9772 Wi-Fi SC.

A timer is started after the configuration is sent successfully from the 9772 Wi-Fi SC.

During this time, the LED on top of the 9764 MCO Wi-Fi AP module illuminates and

is visible through the narrow gap between the bottom of the 9764 MCO module and

the top of the 9764 MCO Wi-Fi AP module.

7. The field technician may choose to observe the LED colors and blinking patterns to

ensure error-free boot-up and normal operation. Refer to “LED state description -

9764 MCO Wi-Fi AP” (p. 3-7) for details.

- If normal operation is achieved, then the LED is automatically turned off when the

timer expires.

- If there are problems, then the LED displays the applicable error color/pattern. Refer

to “LED state description - 9764 MCO Wi-Fi AP” (p. 3-7) for details.

8. The field technician will make the first test call – provided all necessary core network

elements (NEs) are configured properly (for example, WLAN GW, AAA, etc.).

Installation of the 9764 MCO Wi-Fi AP Procedure 3-1: Attach 9764 MCO Wi-Fi AP module to 9764

MCO module

....................................................................................................................................................................................................................................

3-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

LED state description - 9764 MCO Wi-Fi AP

Overview

The 9764 MCO Wi-Fi AP module has a single external bi-color LED (red/green) on the

top of the module housing.

The LED illuminates with different colors and blinking patterns during boot-up, then is

automatically turned off after normal operation has been achieved and the timer expires.

If there are problems, then the LED displays the applicable error color/pattern.

Due to limited visibility requiring direct line-of-site between the 9764 MCO Wi-Fi AP

module and the 9764 MCO module, the LED is not intended for ongoing troubleshooting

after the unit has been successfully deployed. However, the field technician

installing/replacing the 9764 MCO Wi-Fi AP module may watch the LED during boot-up

if desired.

LED statuses

The LED reflects 9764 MCO Wi-Fi AP statuses as follows:

Table 3-1 9764 MCO Wi-Fi AP LED description

9764 MCO Wi-Fi AP Status LED appearance

Booting and self-test Blink red and green simultaneously at 5Hz

(appears as orange blinking)

Unadopted Blink red at 5Hz

Normal operation - 5GHz radio disabled: Blink red at five-second intervals

- 5GHz radio activity: Steady red

- 2.4GHz radio disabled: Blink green at five-second intervals

- 2.4GHz radio activity: Steady green

Firmware update running Blink green at 5Hz

Timer has expired and unit is

operating normally

No LED lit

Installation of the 9764 MCO Wi-Fi AP LED state description - 9764 MCO Wi-Fi AP

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-7

Installation of the 9764 MCO Wi-Fi AP LED state description - 9764 MCO Wi-Fi AP

....................................................................................................................................................................................................................................

3-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Appendix A: Product

conformance statements

Overview

Purpose

This section presents the product conformance statements that apply to the 9764 MCO

Wi-Fi Access Point equipment.

The statements that are required are determined primarily by national or multinational

regulations. However, in some regions, contract terms determine which statements are

required.

The presence of the statement indicates that the product does comply with that statement

wherever it is required to do so.

Contents

United States compliance A-2

Federal Communications Commission A-2

Product safety conformance statements A-3

Antenna exposure statements A-4

Eco-environmental statements A-5

...................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction A-1

United States compliance

Federal Communications Commission

Important! Changes or modifications not expressly approved by Alcatel-Lucent, Inc.

could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

47 CFR FCC Part 15 Class B

Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna

•Increase the separation between the equipment and receiver

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

•Consult the dealer or an experienced radio/TV technician for help.

RF approval

This equipment complies with 47 CFR Part 2, Subpart J - Equipment Authorization

Procedures, of the FCC Rules.

This equipment complies with 47 CFR Part 15, Subpart C – Intentional Radiators and

Subpart E – Unlicensed National Information Infrastructure Devices

Product conformance statements

United States compliance

Federal Communications Commission

....................................................................................................................................................................................................................................

A-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Product safety conformance statements

Product safety conformance

The 9764 MCO Wi-Fi AP is Safety Certified as part of 9764 Metro Cell Outdoor for the

United States of America by a Nationally Recognized Test Laboratory (NRTL) accredited

by the US Department of Labor, Occupational Safety and Health Administration (OSHA),

such as UL, CSA, or others. The product bears this certification mark of this certification

laboratory on its main nameplate label. Should the local authority having jurisdiction

(AHJ) require prior or additional verification of this certification, a product certificate of

compliance can be obtained from the specific certification laboratory by the

business/product unit Applicant for the product or by contacting Alcatel-Lucent Technical

Support. See the Alcatel-Lucent Support web site (http://www.alcatel-lucent.com/support/

(http://www.alcatel-lucent.com/support/)) for contact information.

Any modifications to this equipment are not permitted without review and official written

authorization from the specific Certification Body. Unauthorized changes may violate the

Product Safety Certification. Modifications or changes authorized by official CN/CNN

are assumed to have received prior approval from this Lab.

Product conformance statements

United States compliance

Product safety conformance statements

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction A-3

Antenna exposure statements

RF exposure

This equipment complies with FCC RF radiation exposure limits set forth in 47 CFR Part

1, Subpart I, Section 1.1310 for a general population/uncontrolled exposure environment.

The antenna(s) used for this transmitter shall be installed to provide a separation distance

of at least 20 cm from all persons when they are not co-located or operating in

conjunction with any other antenna or transmitter. Any changes to the antenna or other

equipment in the transmit path may require re-evaluation of the exposures to

electromagnetic fields.

Product conformance statements

United States compliance

Antenna exposure statements

....................................................................................................................................................................................................................................

A-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Eco-environmental statements

Packaging collection and recovery requirements

Countries, states, localities, or other jurisdictions may require that systems be established

for the return and/or collection of packaging waste from the consumer, or other end user,

or from the waste stream. Additionally, reuse, recovery, and/or recycling targets for the

return and/or collection of the packaging waste may be established.

For more information regarding collection and recovery of packaging and packaging

waste within specific jurisdictions, contact the Alcatel-Lucent Environment, Health and

Safety organization or Alcatel-Lucent Hazardous Waste Center technical support at (888)

539-2783.

Material content compliance

The following notification applies to Alcatel-Lucent products distributed for sale, resale,

or use.

This product, part, or both may include a lithium-manganese dioxide battery, which

contains very small amounts of a perchlorate substance. Special handling may apply.

For California:

Perchlorate Material - special handling may apply.

See (http://www.dtsc.ca.gov/hazardouswaste/perchlorate/).

Product conformance statements

United States compliance

Eco-environmental statements

....................................................................................................................................................................................................................................

9764 MCO Wi-Fi AP

3MN-WiFi-AP

Issue 1.01 November 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction A-5
