Alcatel-Lucent
Remote Radio Head 2X60W - 850, 1900 MHz | UA08.1
Site Preparation
NN-20500-305
Issue 0.7; November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Legal notice
Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other
trademarks are the property of their respective owners.
The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for
inaccuracies contained herein.
Copyright © 2011 Alcatel-Lucent. All rights reserved.
Contains proprietary/trade secret information which is the property of Alcatel-Lucent and must not be made
available to, or copied or used by anyone outside Alcatel-Lucent without its written authorization.
Not to be used or disclosed except in accordance with applicable agreements.
Use pursuant to applicable agreements
Legal notice
Title page
Alcatel-Lucent
Remote Radio Head 2X60W - 850, 1900 MHz | UA08.1
Site Preparation
NN-20500-305
Issue 0.7
November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Use pursuant to applicable agreements
P
RELIMINARY
P
RELIMINARY
Legal notice
Legal notice
Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective
owners.
The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.
Copyright © 2011 Alcatel-Lucent. All rights reserved.
Contains proprietary/trade secret information which is the property of Alcatel-Lucent and must not be made available to, or copied or used by anyone outside
Alcatel-Lucent without its written authorization.
Not to be used or disclosed except in accordance with applicable agreements.
Use pursuant to applicable agreements
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
P
RELIMINARY
P
RELIMINARY
22Safety statements
Overview
Purpose
This chapter covers safety precautions.
Contents
Structure of safety statements 2-2
Safety 2-4
Safety - specific hazards 2-5
Product safety 2-8
...................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 2-1
P
RELIMINARY
P
RELIMINARY
Structure of safety statements
Overview
Safety statements describe the safety risks relevant while performing tasks on
Alcatel-Lucent products during deployment and/or use. Failure to avoid the hazards may
have serious consequences.
General structure
Safety statements include the following structural elements:

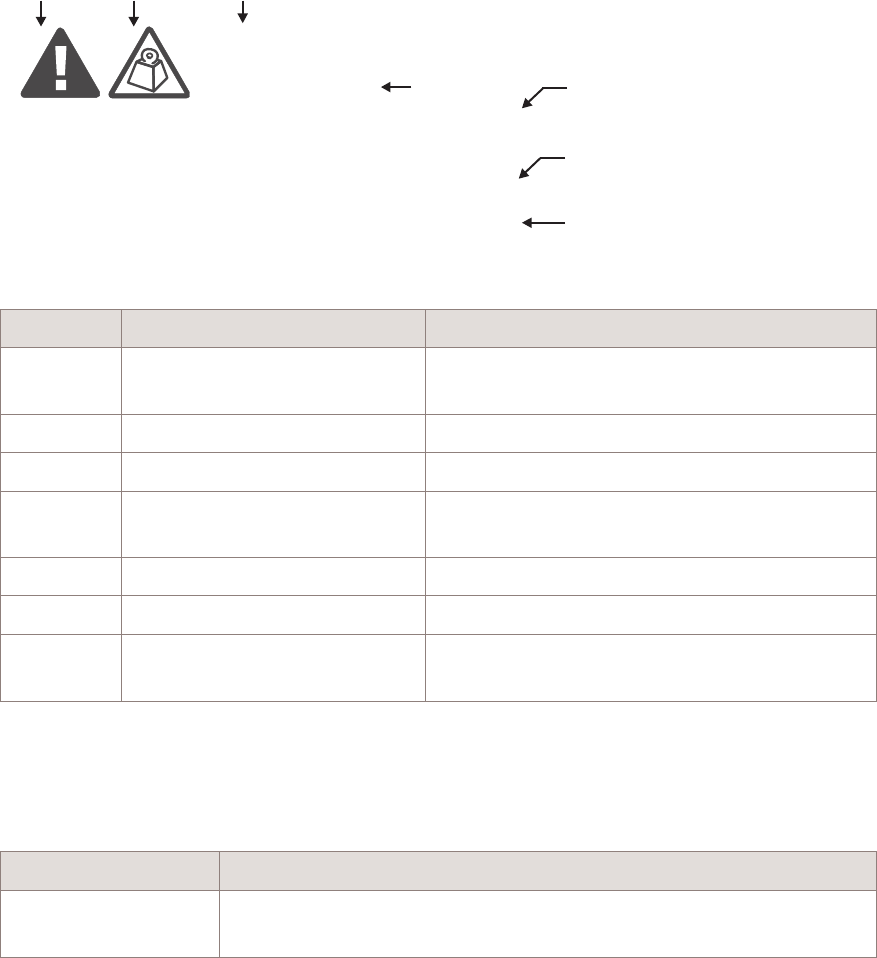

Item Structure element Purpose
1 Safety alert symbol Indicates the potential for personal injury
(optional)
2 Safety symbol Indicates hazard type (optional)
3 Signal word Indicates the severity of the hazard
4 Hazard type Describes the source of the risk of damage or
injury
5 Safety message Consequences if protective measures fail
6 Avoidance message Protective measures to take to avoid the hazard
7 Identifier The reference ID of the safety statement
(optional)
Signal words
The signal words identify the hazard severity levels as follows:
Signal word Meaning
DANGER Indicates an extremely hazardous situation which, if not avoided, will
result in death or serious injury.
SAMPLE
BC D
EF
G
H
Lifting this equipment by yourself can result in injury
due to the size and weight of the equipment.
Always use three people or a lifting device to transport
and position this equipment. [ABC123]
CAUTION
Lifting hazard
Safety statements Structure of safety statements
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
2-2 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
Signal word Meaning
WARNING Indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION Indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
NOTICE Indicates a hazardous situation not related to personal injury.
Safety statements Structure of safety statements
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 2-3
P
RELIMINARY
P
RELIMINARY
Safety
General precautions for installation procedures
WARNING
Failure to observe these safety precautions may result in personal
injury or damage to equipment.
Read and understand all instructions.
Follow all warnings and instructions marked on this product.
Installation and maintenance procedures must be followed and performed by
trained personnel only.
The equipment must be provided with a readily accessible disconnect device
as part of site preparation.
Grounding and circuit continuity is vital for safe operation of the equipment.
Never operate the equipment with grounding/bonding conductor
disconnected.
Install only equipment identified in the product's installation manual. Use of
other equipment may result in an improper connection which could lead to
fire or injury.
Use caution when installing or modifying telecommunications lines.
The product has multiple power inputs. Before servicing, Disconnect all
inputs to reduce the risk of energy hazards.
For continued protection against risk of fire, all fuses used in this product
must be replaced only with fuses of the same type and rating.
Never install telecommunications wiring during a lightning storm.
Never install telecommunications connections in wet locations.
Never touch uninsulated wiring or terminals carrying direct current or
ringing current, and never leave this wiring exposed. Protect and tape
uninsulated wiring and terminals to avoid risk of fire, electrical shock, and
injury to personnel.
Never spill liquids of any kind on the product.
To reduce the risk of an electrical shock, do not disassemble the product.
Opening and removing covers and/or circuit boards may expose you to
dangerous voltages or other risks. Incorrect reassembly can cause electrical
shock when the unit is subsequently used.
Safety statements Safety
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
2-4 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
Safety - specific hazards
DANGER
Electric-shock hazard
Working in severe weather can result in personal injury or death and damage to the
equipment.
Never install or perform maintenance during severe weather (high winds, lightning,
blizzards, hurricane etc.).
DANGER
Noxious-substance hazard
Use of unspecified cleaning agents can result in personal injury.
Use only specified cleaning agents. Never use flammable solvents.
Always ensure there is adequate ventilation in the work area and wear the appropriate
personal protective equipment.
DANGER
Laser hazard
This equipment operates with invisible laser radiation. Laser radiation can cause
considerable injuries to the eyes.
Never look into the end of an exposed fiber or into an open optical connector when the
optical source is switched on. Always observe the laser warning instructions.
WARNING
Electric-shock hazard
Some parts of all electrical installations are energized. Failure to observe this fact and
the safety warnings may lead to bodily injury and property damage.
For this reason, only trained and qualified personnel (electrical workers as defined in
IEC 60215 + A1 or EN 60215) may install or service the installation.
WARNING
Electric-shock hazard
The power supply lines to the network element are energized. Contact with parts carrying
voltage can cause health problems, possibly including death, even hours after the event.
Open and lockout the load disconnect switch in the distribution box to completely
de-energize the network element.
Safety statements Safety - specific hazards
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 2-5
P
RELIMINARY
P
RELIMINARY
WARNING
Laser hazard
The light from laser and high-radiance LED's may cause eye damage if absorbed by the
retina.
In the US consult ANSI Z136.2, in Europe consult IEC-60825 Safety of laser products, for
guidance on the safe use of optical fiber communication systems in the workplace.
NOTICE
ESD hazard
Semiconductor devices can be damaged by electrostatic discharges.
The following rules must be complied with when handling any module containing
semiconductor components:
Wear conductive or antistatic working clothes (for example, coat made of 100%
cotton).
Wear the grounded wrist strap.
Wear shoes with conductive soles on a conductive floor surface or conductive work
mat.
Leave the modules in their original packaging until ready for use.
Make sure there is no difference in potential between yourself, the workplace, and the
packaging before removing, unpacking, or packing a module.
Hold the module only by the grip without touching the connection pins, tracks, or
components.
Place modules removed from the equipment on a conductive surface.
Test or handle the module only with grounded tools on grounded equipment.
Handle defective modules exactly like new ones to avoid causing further damage.
NOTICE
Condensation
Sudden changes in the weather may lead to the formation of condensation on
components. Operating the unit when condensation moisture is present can destroy the
unit.
Units which show signs of condensation must be dried before installation.
Safety statements Safety - specific hazards
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
2-6 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
CAUTION
Laceration hazard
The cabinet and the components within may have sharp edges and burrs and contact may
cause cuts and lacerations.
Beware of sharp edges and burrs, especially when working on areas inside the cabinet
difficult to access.
Wear appropriate personal protective equipment.
NOTICE
Tools
Tools left in the working area can cause short circuits during operation which can lead to
the destruction of units.
Make sure after finishing your work that no tools, testing equipment, flashlights, etc.,
have been left in or on the equipment.
NOTICE
Corrosive-substance hazard
Cleaning plastic containers and lids with abrasive and aggressive cleaning agents may
cause permanent damage.
Do not use solvents, paraffin, abrasive or aggressive cleaning fluids, abrasive or
aggressive antiseptic agents or abrasive or aggressive materials.
NOTICE
Service-disruption hazard
Cleaning with water or a high-pressure cleaner will damage the components in the
cabinet.
The washing down of the equipment or cabinet with water or a high-pressure cleaner is
not permitted.
CAUTION
Lifting hazard
Lifting this equipment by yourself can result in injury due to the size and weight of the
equipment.
Always use at least two people or a lifting device to move or position this equipment.
Safety statements Safety - specific hazards
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 2-7
P
RELIMINARY
P
RELIMINARY
Product safety
Equipment safety
Safety information for this equipment can be found on various Caution, Warning, Danger,
information labels or instructions affixed to or included with the enclosure, its internal
assemblies or included within this document. Informational and cautionary labels may
appear near the item they address or may be grouped in a single location on the
equipment. Warnings are typically adjacent to the hazard that is noted on the label. The
instructions, cautions and warnings found on these labels must be understood and
observed by all personnel involved with the equipment installation and maintenance.
Safety statements Product safety
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
2-8 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
33Product overview
Overview
Purpose
.
This chapter provides an overview of the Alcatel-Lucent Remote Radio Heads:
RRH 2X60-850
RRH 2X60-1900
Contents
Functional description 3-2
Physical description 3-4
Equipment 3-12
Mounting locations 3-13
...................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 3-1
P
RELIMINARY
P
RELIMINARY
Functional description
General description
The Alcatel-Lucent Remote Radio Head 2X60W product is the latest generation of
UMTS cell site equipment.
Product configurations
The standard configuration offers:
For the 9396 d2U a maximum of three sectors per Base Band Unit (BBU)
For the 9326 / 9926 d2U a maximum of six sectors per Base Band Unit (BBU)
Product capabilities
The product capabilities in this release are:
DC power supply variant: – 48V (– 40V to – 57V)
RF output power @ antenna port : 2X60W (47.8dBm) at antenna connector, shared
across transmitted carriers.
Operating radio frequency:
850 MHz for the RRH 2X60-850
Band V, 3GPP TS25.104
1900 MHz for the RRH 2X60-1900
Band II, 3GPP TS25.104
Number of carriers: up to four adjacent carriers (20 MHz) per antenna
One sector
2 antennae
4 antennae (future release)
Daisy chaining for RRHs operating in single carrier mode
User alarms
External user alarms
RRH 2X60-850 RRH 2X60-1900
66
Mounting standard configuration:
– Pole
– Wall
– Floorstand
Front access installation and service
Bottom I/O panel access
Single or twin Antenna Line Device (ALD) compliant with AISG V2.0
Product overview Functional description
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
3-2 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
Rx AIT
CPRI ports/Rates:2/HWready 3,4,5
External view

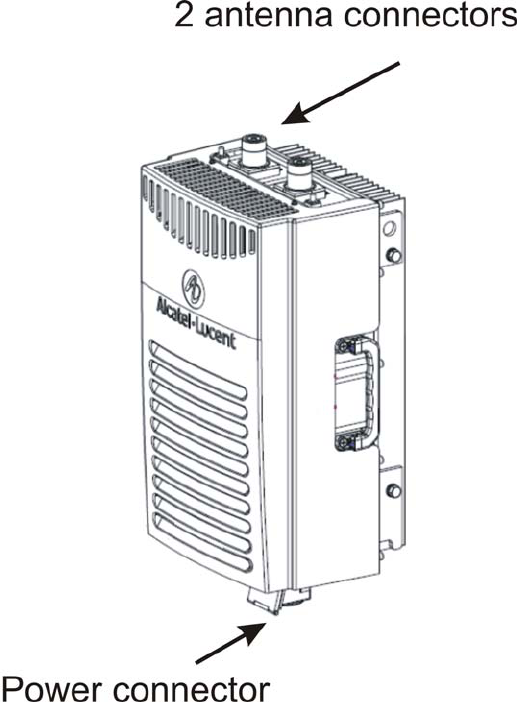

This is a view of an RRH 2X60W with 2 antenna connections:
Product overview Functional description
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 3-3
P
RELIMINARY
P
RELIMINARY
Physical description
Overview
This topic covers RRH top and bottom descriptions, ancillary and grounding information.
Cable interfaces
On the RRH bulkhead the following cable interface points are found:
DC power
Fiber optic
User alarms
Antenna Line Device
Local Maintenance Terminal port (LMT)
RF
Ground
The top of the RRH allows access for connecting RF cables.
Product overview Physical description
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
3-4 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY

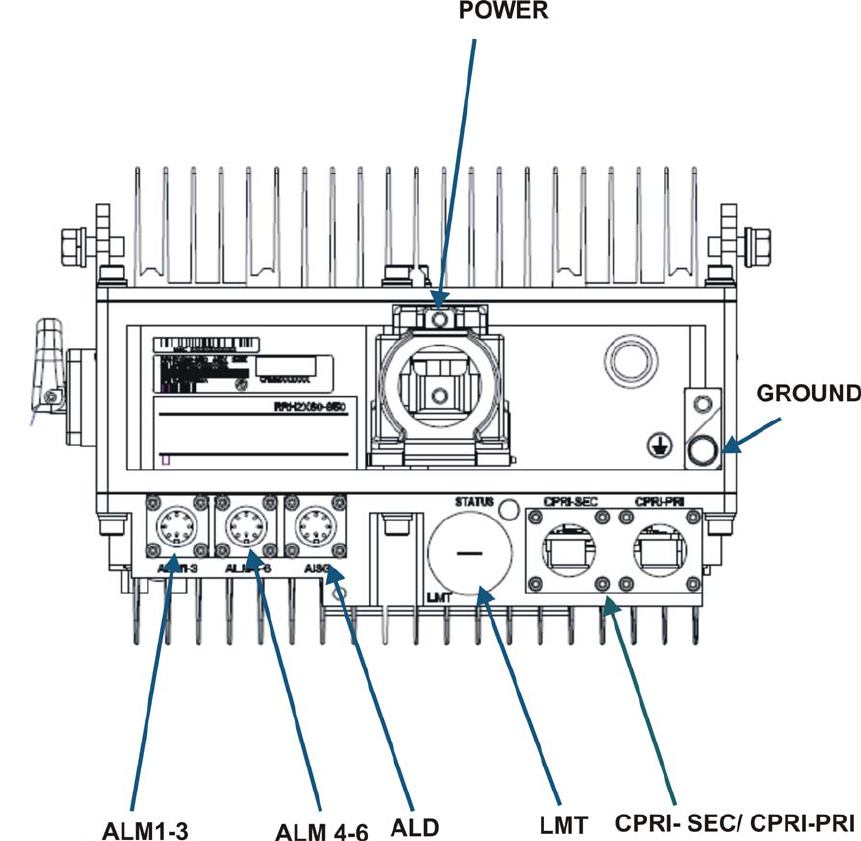

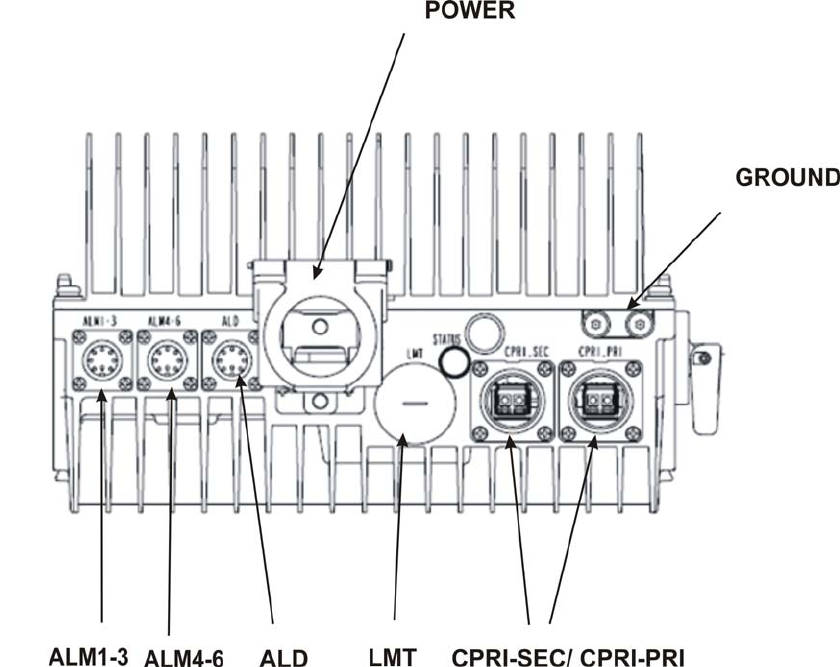

Bottom view of the RRH
Bottom view of the RRH 2X60W-850:
Product overview Physical description
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 3-5
P
RELIMINARY
P
RELIMINARY
Bottom view of the RRH 2X60W-1900:
For details on the RRH connectors refer to “RRH connectors” (p. 3-8).
Product overview Physical description
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
3-6 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY

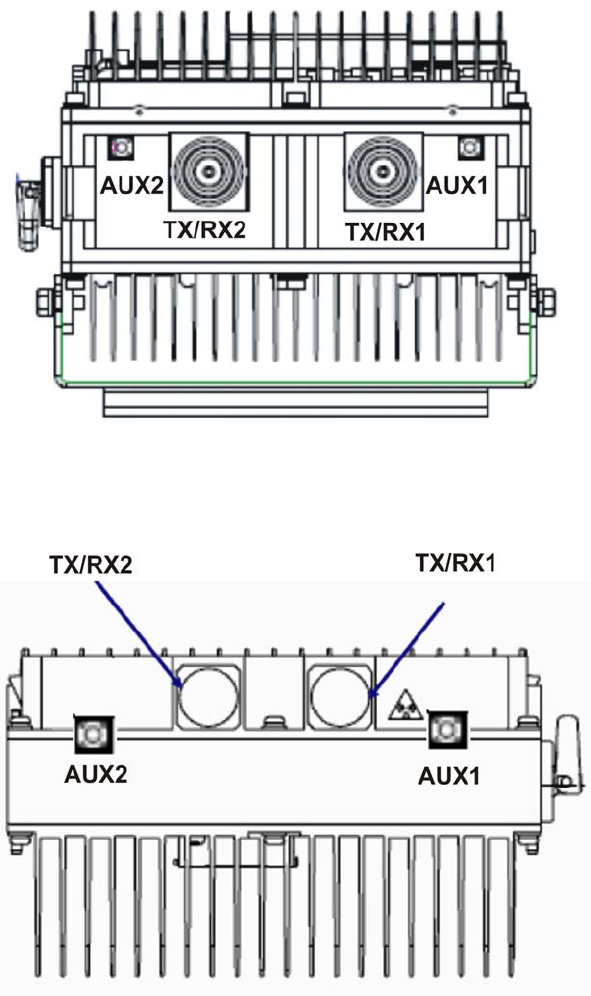

Top view of the RRH
Top view of the RRH 2X60W-850:
Top view of the RRH 2X60W-1900:
Product overview Physical description
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 3-7
P
RELIMINARY
P
RELIMINARY
RRH connectors
Description of the connectors present on the bulkhead:
Connector Function
EAC Rx Receive diversity antenna path
7/16 DIN coaxial female connector for the
connection with the diversity antenna
EAC Tx/Rx Transmit and receive antenna path
7/16 DIN coaxial female connector for the
connection with the antenna
GND Ground connection
ALD (Antenna Line Device) Antenna power and control
1 AISG (RS485) connector
8-pin Circular Din female connector
Support of RETA compatible with AISG 2.0.
CPRI _PRI CPRI optical port
Used to connect the RRH to the Node B
SFP, with waterproof Radiall flange connector
(which includes the protective metal cover)
CPRI _SEC CPRI optical daisy-chained port
Used to connect to the other RRH in daisy
chain configuration
SFP, with waterproof Radiall flange connector
(which includes the protective metal cover)
User Alarms (ALM 1-3, ALM 4-6) 6 user alarms for both RRH 2X60-850 and
RRH 2X60-1900
Implemented with 2 X 8-pin circular DIN
female connectors (same as AISG).
DC Power –48 V DC
Up to 8 AWG
AUX Rx 2 AUX Rx ports (AUX_RX1, AUX_RX2),
located on the top of the RRH 2X60-850 and
1900.
LMT Local maintenance terminal (LMT) RJ45
connector located on the bottom of the RRH
2X60-850 and 1900
Note: A reset button is located next to the LMT port
Product overview Physical description
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
3-8 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
Ancillary support of RRH 2X60-850 and RRH 2X60-1900
RRH 2X60-xx ancillary
Item Quantity Comments
Power cable without
connector
1 Different cable lengths (RRH
2X60-850 or 1900)
12 AWG, 10 AWG or 8 AWG
power cable pair
Ground cable 1 16 m Length
Ground cable is mandatory
for the RRH installation.
Grounding kit 1 Optional
Alarm cable 1 or 2 15 m or 30 m length. One
cable supports 3 user alarms.
Cable, alarm connectorized 4
pair
Optional
SFP optical transceiver One SFP per RRH 2X60W in
star configuration
Two SFP per RRH 2X60W in
daisy chain configuration
except on the last RRH
2X60W of the chain.
Optical transceiver for
multi-mode, dual fiber
Optical transceiver for
single-mode, single fiber
Optical transceiver for
single-mode, dual fiber
Optical cable Depends on configuration Several variants according to
site cabling
Optical fiber type
LC-LC Single-mode, dual
fiber
LC to LC Single Mode
Single fiber
LC to LC Multi Mode
Dual fiber
Optical connection: LC-LC
R2CT kit 1 Per optical connector used
Several variants according to
site cabling
This kit is used to waterproof
the optical connection. It’s not
necessary if the RRH 2X60W
is installed indoor.
Optional
Product overview Physical description
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 3-9
P
RELIMINARY
P
RELIMINARY
RRH 2X60-xx ancillary
Item Quantity Comments
TMA 1 AISG 2.0 connection:
Standard 8 pin circular
Optional
TMA connection kit 1 Optional
RF Jumpers 2, 4 Per sector
Mounting Kit 1 Wall mounting bracket Standard
Wall mounting is mandatory
per RRH 2X60W whatever
the mounting kit used.
1 Pole mounting bracket Standard
Optional
1 Floor mounting bracket Standard
Optional

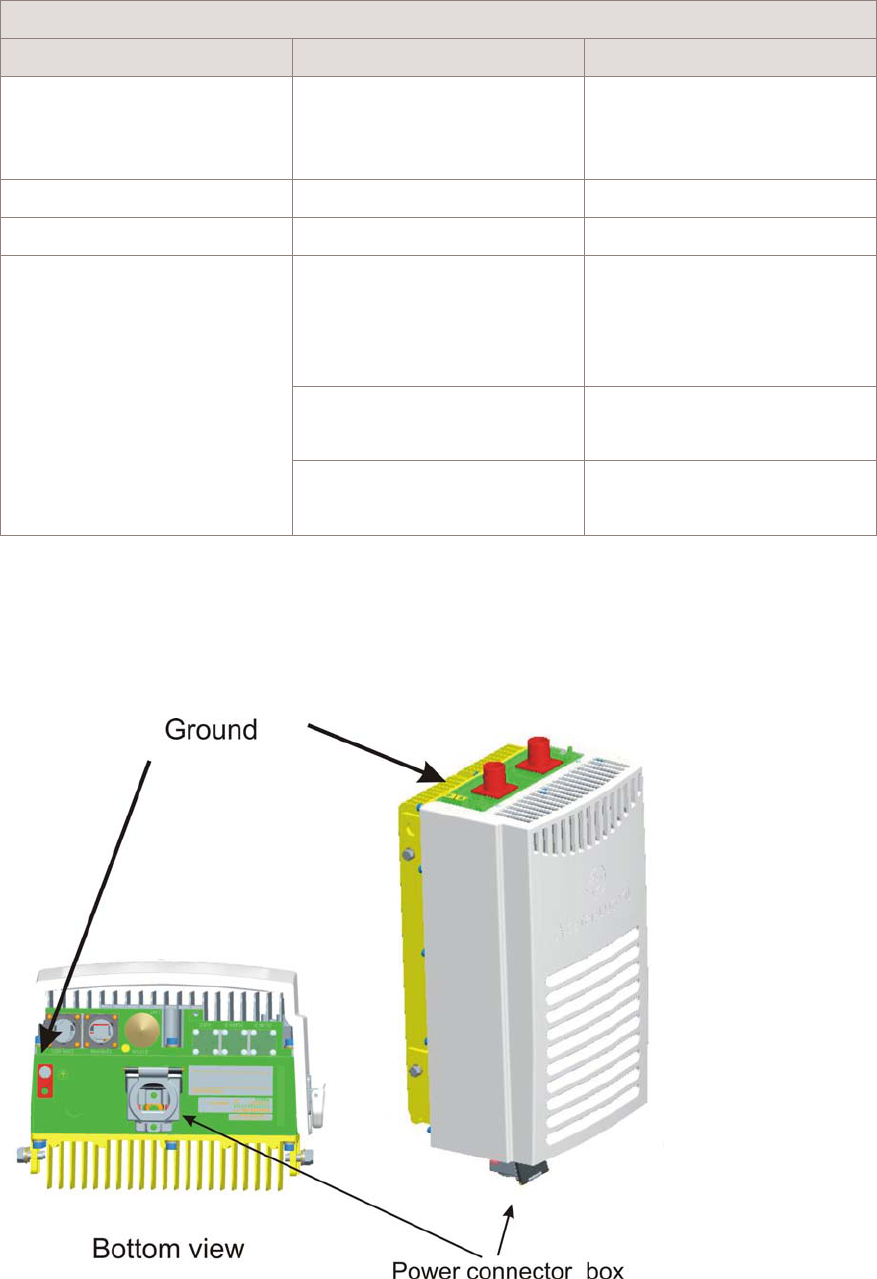

Ground location
Ground connections are located on both, the top and the bottom of the enclosure's left
side. In the figure the side of the RRH enclosure is shown.
Product overview Physical description
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
3-10 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
The ground cable is connected to the RRH with M6 screw and cable with a simple or
double lug.
Product overview Physical description
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 3-11
P
RELIMINARY
P
RELIMINARY
Equipment
Physical features
This topic covers the RRH weights and dimensions.
Weights and dimensions

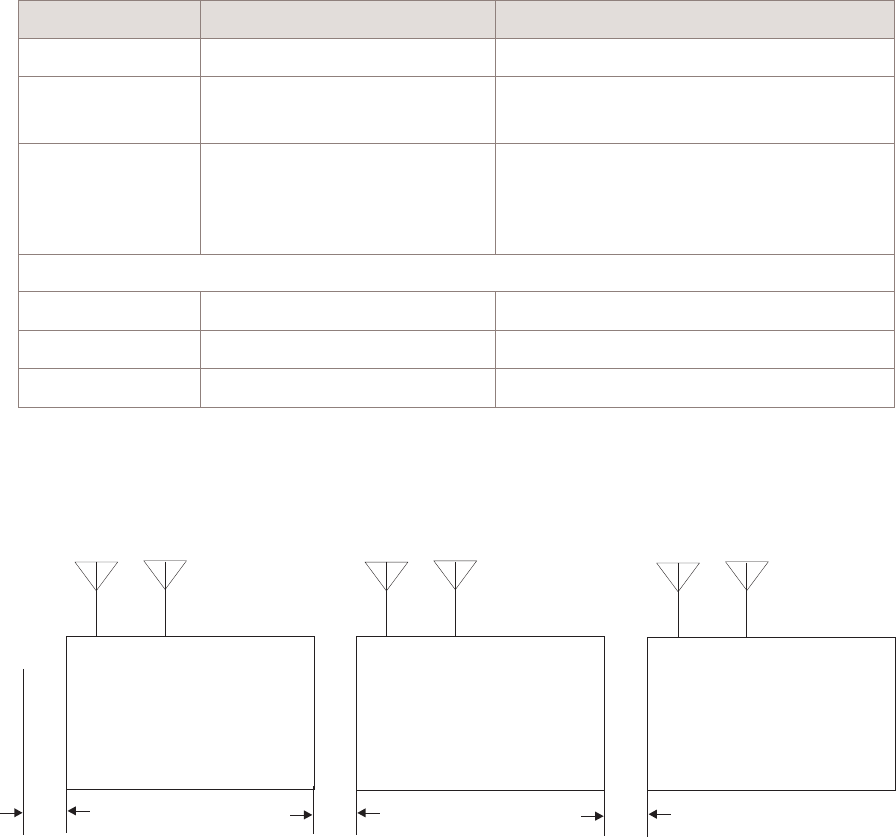

The following table provides RRH weights and dimensions.
Features RRH 2X60-850 RRH 2X60-1900
Size with DC solar cover
HxWxD mm
Volume l
2 antennae
470 x 285 x 225
30
2 antennae
510 x 285 x 180
26
Weight with solar shield
kg
22 18
Miscellaneous hardware weights

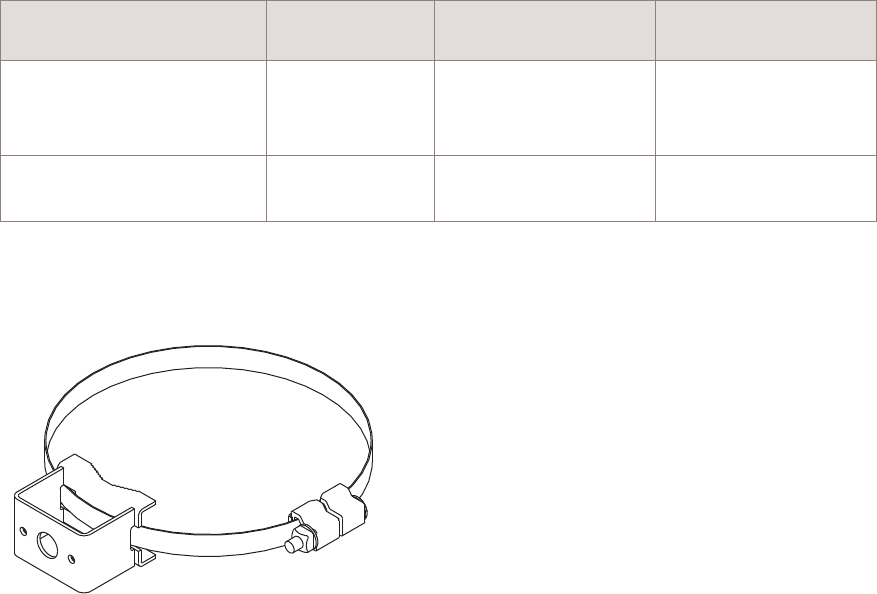

The following table provides approximate weights for batteries and other miscellaneous
hardware.
Item Weight kg (lb.)
Wall bracket (RRH) 4.1 (9)
Pole brackets (2) (standard) 2.73 (6)
Pole Bands (2) 1.8 (4)
Pole Bracket (Low Profile) 1.8 (4)
Floorstand (RRH) 11 (24.2)
Product overview Equipment
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
3-12 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
Mounting locations
Mounting configurations
The RRH can be mounted in three standard configurations:
Pole-mounted (using either pole bands or through bolts)
Wall-mounted
Floorstand-mounted.
Pole mounting

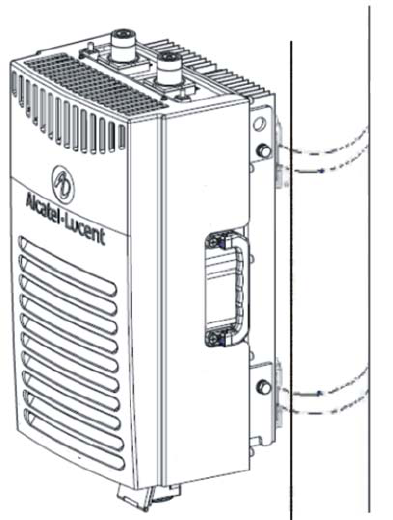

The following diagram shows an RRH 2X60W mounted with standard weldments and
bands to a pole:
Wall mounting

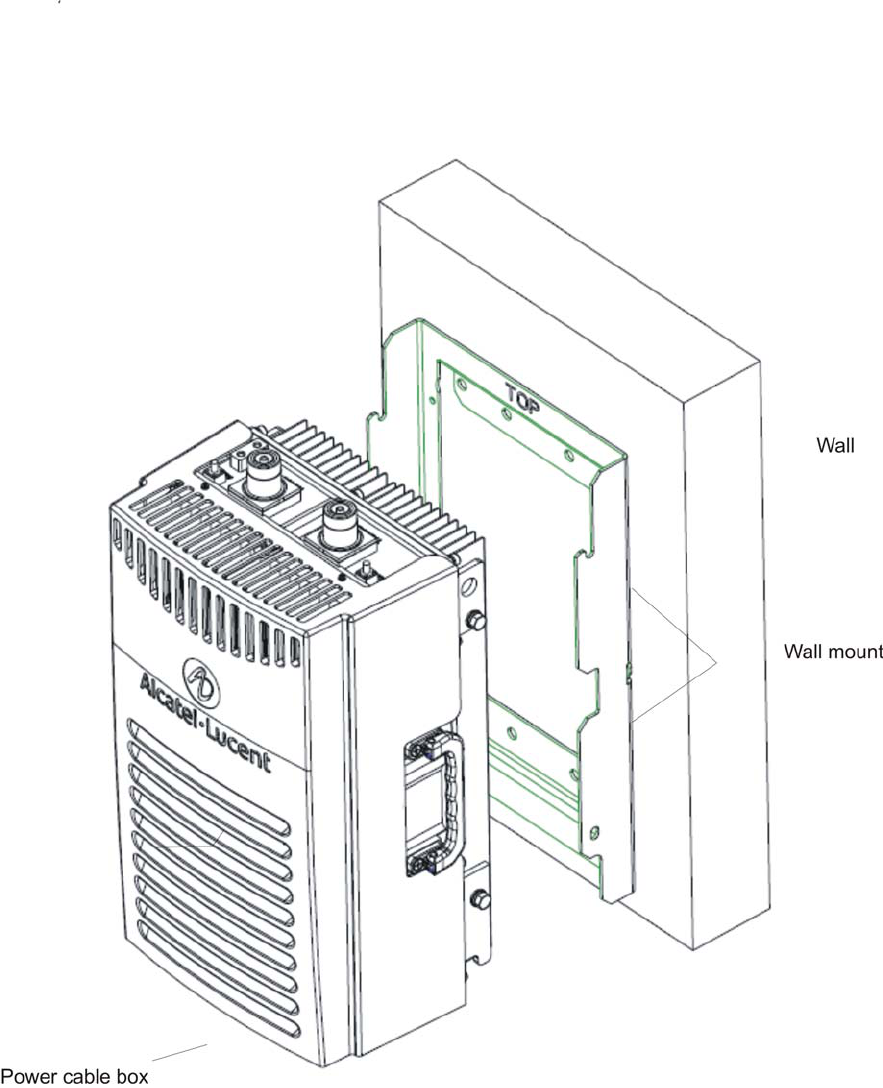

The following diagram shows an example of RRH 2X60W mounted to a wall using a
pole mount standard profile:
Product overview Mounting locations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 3-13
P
RELIMINARY
P
RELIMINARY
Floor stand

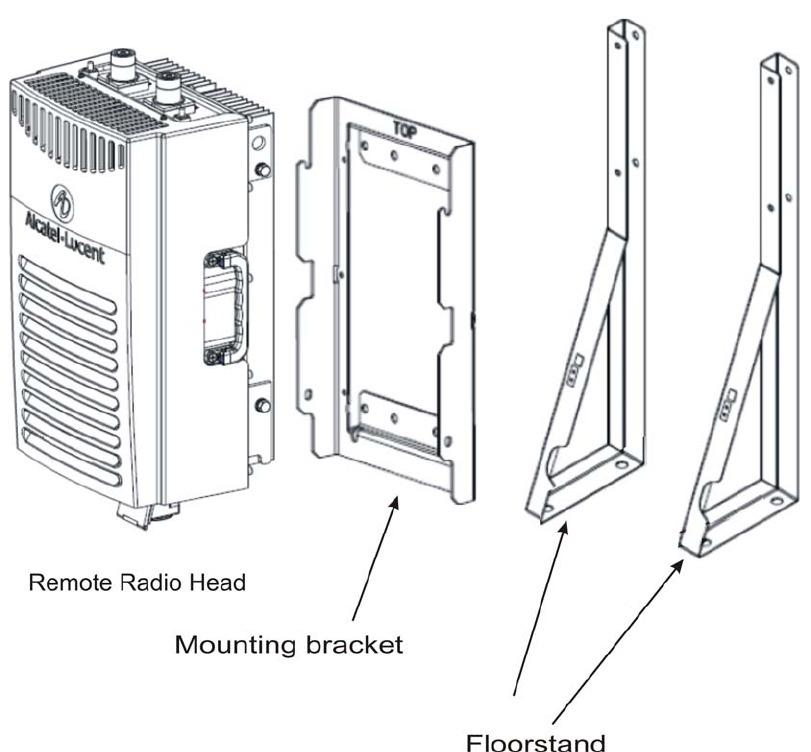

The following diagram shows a floor stand mounted RRH 2X60W:
Product overview Mounting locations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
3-14 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
Product overview Mounting locations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 3-15
P
RELIMINARY
P
RELIMINARY
Product overview Mounting locations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
3-16 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
44Site configurations
Overview
Purpose
This chapter provides information about the RRH 2X60W radio and CPRI configurations.
Contents
RF configurations 4-2
CPRI configurations 4-3
...................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 4-1
P
RELIMINARY
P
RELIMINARY
RF configurations
Physical RF connections
The RF capacity is measured in sectors, carriers, and RF signal power. The RF capacity
determines what components appear in the RRH and what antenna connections are
required.
The base station can be connected to RRHs of the following RF frequency:
UMTS 850 MHz using the RRH 2X60-850
UMTS 1900 MHz using the RRH 2X60-1900
The RRH accepts connections for:
Two or four (future release) RF antenna cables with 7-16 DIN coaxial female
connectors
RF configurations
The following configurations are supported.
Configuration RF connectors (per sector) RF signal power per carrier
(nominal)
UMTS 850, 1900 MHz 2 60 W
UMTS 850, 1900 MHz multi carrier 4
with antenna sharing: 2
Site configurations RF configurations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
4-2 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
CPRI configurations
Star or Daisy Chain solution
The solution is a distributed architecture composed of two optical interfaces located in:
The digital NodeB
The RRH
The optical modules are connected by optical fibers that carry:
Downlink and uplink base band digital signals
OAM information
The daisy chain allows to connect RRHs on one single optical link connected to the
digital Node B part.
In the star configuration the BBU is the central node that provides the common
connection point for all connected RRHs.

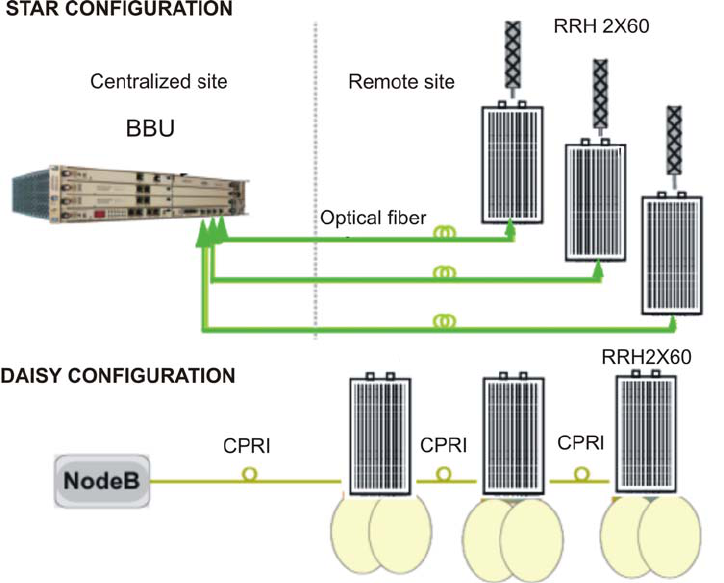

This figure shows the star and daisy chain configuration:
Different capabilities and configurations are supported, depending on whether the RRH
2X60W is connected to a 9396 d2U or to a 9926 d2U.
For RRH 2X60W on 9396 d2U, the configuration that is supported is the star
configuration with single frequency on the first Power Amplifier (PA 1).
Site configurations CPRI configurations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 4-3
P
RELIMINARY
P
RELIMINARY
For the 9926 d2U the second Tx path is enabled. With six CPRI ports available, many
configurations are possible, the main ones are:
6 RRHs in STSR2 (two frequencies on PA 1) in star configuration
3 RRHs in STSR4 (four frequencies on PA 1) in star configuration
2 X 3 RRHs in STSR2 (two fibers of three RRHs each with two frequencies on PA 1)
using daisy-chain configuration
3 X 2 RRHs in STSR2 (three fibers of two RRHs each with two frequencies on PA 1)
using daisy-chain configuration
6 RRHs in STSR1+1 (two fibers of three RRHs each with one frequency on PA 1; one
frequency on second Power Amplifier (PA 2)) in star configuration
2 X 3 RRHs in STSR1+1 (two fibers of three RRHs each with one frequency on PA 1;
one frequency on PA 2) using daisy-chain configuration
3 X 2 RRHs in STSR1+1 (three fibers of two RRHs each with one frequency on PA 1;
one frequency on PA 2) using daisy-chain configuration
3 RRHs in STSR2+2 (two frequencies on PA1; two frequencies on PA 2) in star
configuration
Other supported configurations for the RRH 2X60W and 9926 d2U include either
depopulated variations of the above (including STSR3, STSR2+1), or mixed
configurations using 2 clusters (the first 3 fiber connections are considered cluster 1, and
the second 3 fiber connections are considered cluster 2). Dual band 850/1900
configurations are also possible using 1 band per cluster. The possible dual band
configurations for RRH 2X60W and 9926 d2U include:
6 RRHs in STSR2 (two frequencies on PA 1) in star configuration, with cluster 1 =
Band A and cluster 2 = Band B
2 X 3 RRHs in STSR2 (two fibers of three RRHs each with two frequencies on PA 1)
using daisy-chain configuration, with fiber 1 (on cluster 1) = Band A and fiber 4 (on
cluster 2) = Band B
3 X 2 RRHs in STSR2 (three fibers of two RRHs each with two frequencies on PA 1)
using daisy-chain configuration, with the first RRH on each fiber = Band A and the
second RRH on each fiber = Band B
6 RRHs in STSR1+1 (two fibers of three RRHs each with one frequency on PA 1; one
frequency on PA 2) in star configuration, with cluster 1 = Band A and cluster 2 = Band
B
2 X 3 RRHs in STSR1+1 (two fibers of three RRHs each with one frequency on PA 1;
one frequency on PA 2) using daisy-chain configuration, with fiber 1 (on cluster 1) =
Band A and fiber 4 (on cluster 2) = Band B
3 X 2 RRHs in STSR1+1 (three fibers of two RRHs each with one frequency on PA 1;
one frequency on PA 2) using daisy-chain configuration, with the first RRH on each
fiber = Band A and the second RRH on each fiber = Band B
Note: For more details refer to the RRH Product Engineering Information document
(Related information).
Site configurations CPRI configurations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
4-4 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
55Site requirements
Overview
Purpose
This chapter describes the site requirements for the following RRHs:
RRH 2X60-850
RRH 2X60-1900
Contents
Environmental requirements 5-2
General site requirements 5-3
RRH clearances 5-4
Site requirements for pole mount installations 5-5
Site requirements for wall mount installations 5-9
Site requirements for floor stand installations 5-13
...................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 5-1
P
RELIMINARY
P
RELIMINARY
Environmental requirements
Outdoor environment
The outdoor RRH is weather-hardened, which enables it to operate in environments
within the conditions described in the following table.
Condition Specification
Manufacturing Manufactured according to the WEEE (Waste of Electrical and Electronic
Equipment) and RoHS (Restriction of Hazardous Substances)
recommendations
Operating temperature -40 to +50 °C (+55 °C with optional solar shields)
Absolute humidity 0.03 g/m3 to 36 g/m3
Relative humidity 5 to 100% (non-condensing but not to exceed 0.024 kg water/kg of dry air)
Acoustic noise No noise generated (no fan, natural convection cooling)
Operating altitude Up to 15,000 feet where the maximum ambient temperature decreased by
0.5 degrees C per 1,000 feet above sea level
Enclosure rating Type 4 (NEMA) IP55 (IEC 60529)
Wind driven rain Refer to Telcordia GR-487-CORE
Dust and water ingress Weather resistant to prevent ingress of rain, snow, dust and other solid
foreign objects to a minimum level of IP65. The corrosion requirements is
over the 15 years lifetime.
Refer to Telcordia GR-487-CORE
Firearms resistance Refer to Telcordia GR-487-CORE
Wind resistance Refer to Telcordia GR-487-CORE
Storage requirements Refer to Telcordia GR-63-CORE, Section 4.1.1
RRH heat dissipation (maximum)
The following table provides the estimated typical and the maximum heat dissipation
information for the RRH.
RRH Estimated DC heat dissipation
(typical value)
Estimated DC heat dissipation
(maximum value).
RRH 2X60-850 305 W 340 W
RRH 2X60-1900 300 W 380 W
Site requirements Environmental requirements
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
5-2 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
General site requirements
General requirements
The following general requirements must be met before the installation of the RRH can
begin:
Adequate clearance must be provided for service access.
Electric service must be installed as described in Appendix C “Electrical power
requirements”.
Back haul and user alarm facilities must be installed as described in Chapter 9, “User
alarm, and fiber optic requirements”.
Grounding electrode system must be installed.
RF antenna runs must be installed (if required).
Tower light power must be installed (if required).
Tower light alarm must be installed (if required).
Mounting bracket holes must be drilled.
The environment must comply with limits listed in “Environmental requirements”
(p. 5-2).
Cable supports and racks must be installed.
Cable support and racks
All RF cable runs, power cable runs, and facilities cable runs must be supported by a
cable support and rack system.
The according cable conduits must be provided.
Structural requirements
Pole, wall loading, and wind must be considered during site preparation.
In some cases, cell site equipment may not be mounted directly to the wall without plate
or strut to properly distribute the load.
The support structure must be designed in compliance with national building codes and
all other applicable codes.
Site requirements General site requirements
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 5-3
P
RELIMINARY
P
RELIMINARY
RRH clearances
Minimum clearances table
The following table provides the minimum wall mount clearances recommended around
the RRH.
RRH Clearances mm (inches) Comments
Front 1000 (39.37) Installation access
Rear 70 (2.76) Zero rear clearance is allowed using
supplied mounting brackets.
Side clearance 300 (11.81) Air flow
To secure RRH body on the mounting kit
To change the shield cover.
Top 300 (11.81) Air flow
Bottom 500 (19.67) Conduit routing
Minimum clearances graphics for RRH
The following graphic is an example of minimum clearances between RRHs.
TX/RX 0
RX 1
RRH
TX/RX 0
RX 1 TX/RX 0
RX 1
RRH RRH
To wall
or
obstruction
300 mm
(11.81 in.)
300 mm
(11.81 in.)
300 mm
(11.81 in.)
Site requirements RRH clearances
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
5-4 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
Site requirements for pole mount installations
Prepare site for pole mounting installation
The following are required to prepare a site for pole mounting installation of the RRH.
Install power runs
Install grounding system
Install back haul runs
Install RF runs
Install user alarm runs
Mark on the pole where the top of the pole bracket would be located
Pole mounting installation requirements
The following table provides the requirements for the different types of pole weldment.
Weldment Type Standoff mm
(inches)
Application Pole diameter mm
Standard weldment 118 (4.6) Multiple RRHs
installation at the
same elevation
152 - 380
Low profile small pole
mount
40 (1.6) Single RRH
installation
50 - 152

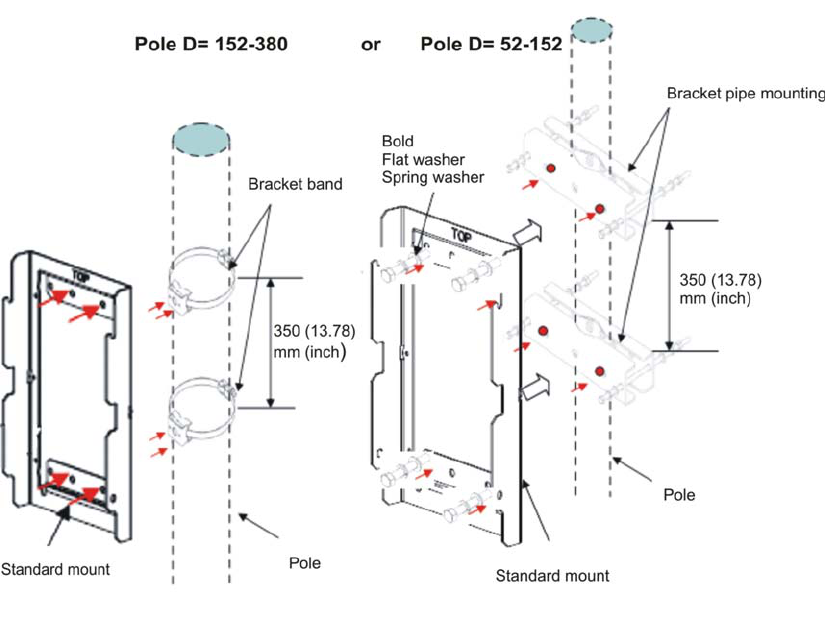

The following figure shows the type of weldments required for a pole mount installation.
The standard pole weldments are used for multiple RRH installations.
Centerline distance between pole mount brackets shall be 350 mm (13.78 in) for the
RRH.

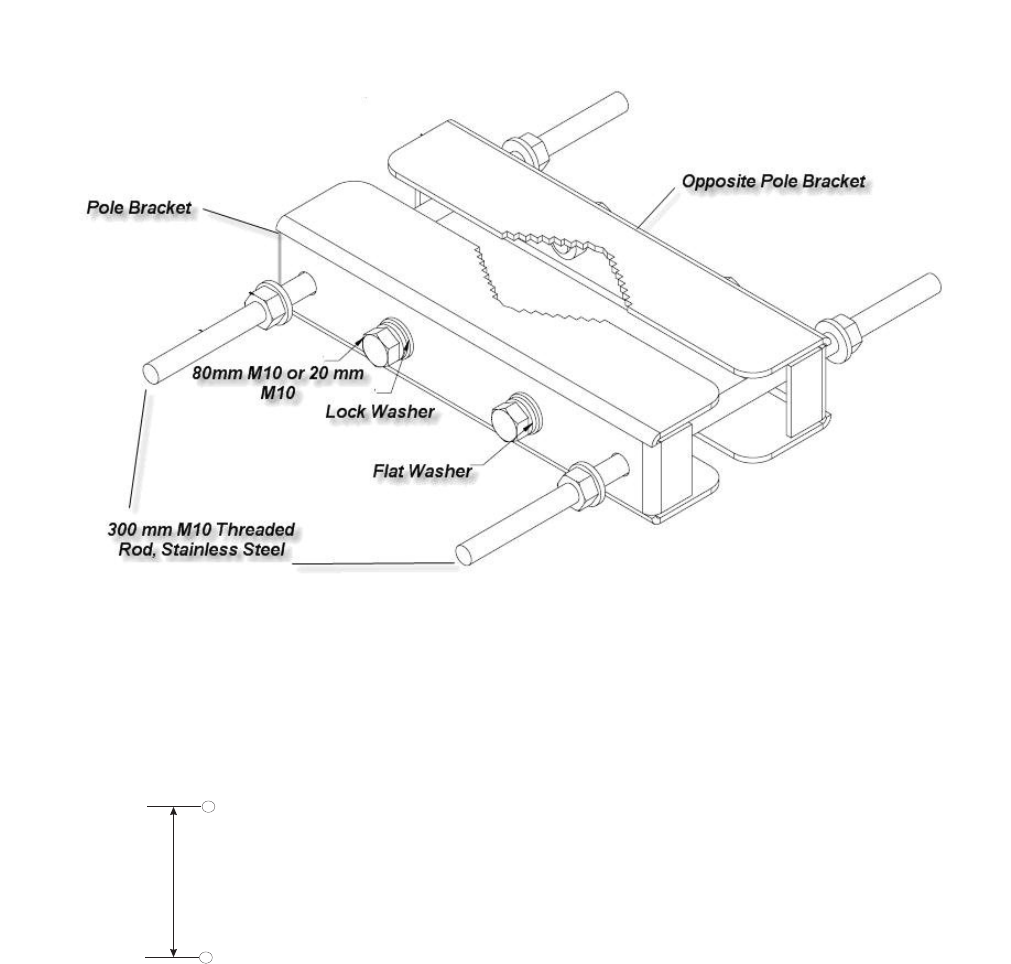

The following graphic shows the pole brackets needed for small diameter poles.
Pole band with
standard weldment
Site requirements Site requirements for pole mount installations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 5-5
P
RELIMINARY
P
RELIMINARY
The grip ranges for pole braket of :
85 mm is: 51 mm to 150 mm.
50 mm is: 50 mm to 150 mm.

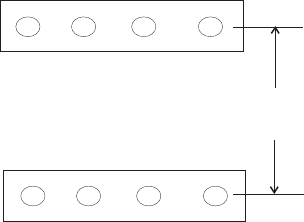

Drill pattern for through pole bolts

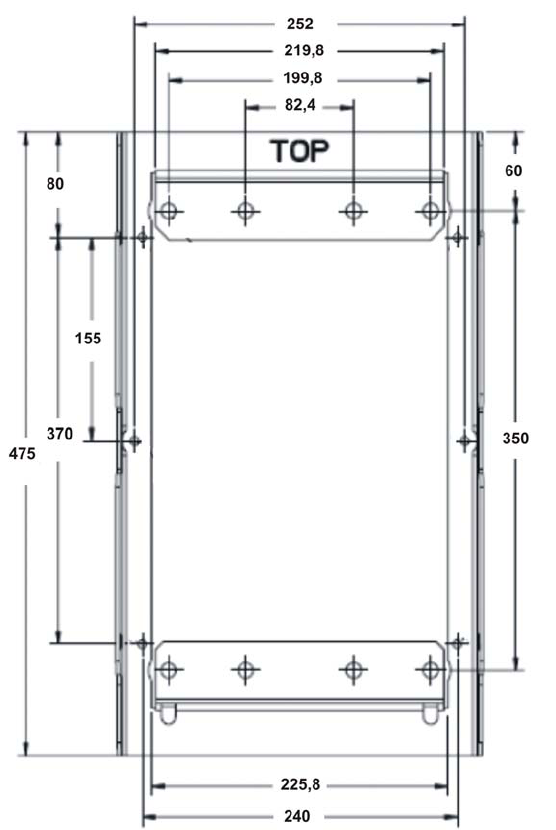

Drill pattern for pole mounting
350
(13.78)
Site requirements Site requirements for pole mount installations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
5-6 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
Pole mounting installation
The following graphic shows the pole mounting installation:
Site requirements Site requirements for pole mount installations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 5-7
P
RELIMINARY
P
RELIMINARY
Example for pole mounting
RRH mounted with standard weldments:
Site requirements Site requirements for pole mount installations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
5-8 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
Site requirements for wall mount installations
Overview
This topic describes site requirements for RRH installation on a wall.
Prepare site for wall mount installation
The following are required to prepare a site for wall mount installation of the RRH.
Install DC power runs
Install grounding system
Install Back haul
Install RF runs
Install user alarm runs
Wall mounting shall comply with the applicable architectural codes listed on listed earlier
in this chapter.
Holes shall be pre-drilled with (customer supplied) anchor hardware, if mounting to a
concrete wall.
Unistrut shall be in place, if required for mounting RRH.
RRH wall mounting hardware
The following is an example of customer-supplied mounting hardware that is required to
mount struts to a solid concrete wall:
1.5" x 1.5" Unistrut® or equivalent struts (2)
M10 (3/8") x 100 mm (4") long Power-Stud™ (formerly called Rawl-Stud®) or
equivalent anchor bolts for solid concrete walls (4)
M10 (3/8") nuts (4)
M10 (3/8") flat washers (8)
M10 (3/8") spring nuts from the same manufacturer as the struts (4)
M10 (3/8") x 25 mm (1") long hex-head bolts (4)
M10 (3/8") lock washers (4).
Site requirements Site requirements for wall mount installations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 5-9
P
RELIMINARY
P
RELIMINARY
Wall mount brackets mounting holes
The following figure shows the drill pattern for the wall mounting bracket holes.
Site requirements Site requirements for wall mount installations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
5-10 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY

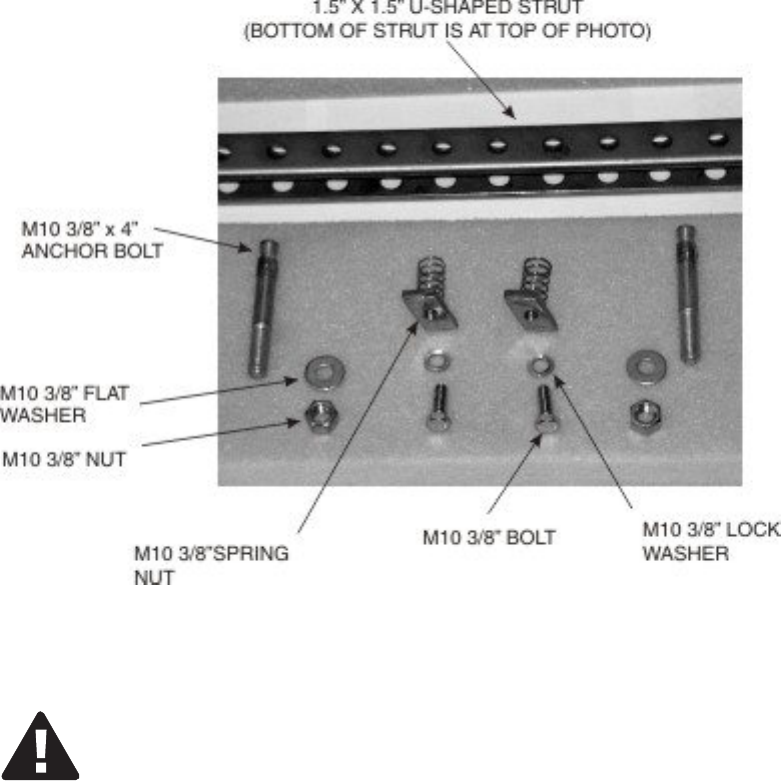

Strut mounting hardware
The following photo illustrates the hardware that is required to mount a strut on a
concrete wall and the RRH to the strut.
Steps to install unistrut
CAUTION
Equipment damage hazard
Damage to equipment may result.
Prior to drilling holes in a wall, consult with the customer as to the location of gas, water,
and electrical pipes or conduits to minimize accidental hazard and equipment damage.
Also consult with the building engineer as to local code requirements and wall loading
information.
Proceed as follows to install the Unistrut.
...................................................................................................................................................................................................
1Determine the layout of the struts that will support the RRH.
...................................................................................................................................................................................................
2Place the top strut on the wall and make sure that the strut is level. Use the holes at the
ends of the strut as a template to mark the positions of the holes to be drilled in the wall.
Site requirements Site requirements for wall mount installations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 5-11
P
RELIMINARY
P
RELIMINARY
...................................................................................................................................................................................................
3Place the bottom strut against the wall 350 mm (13.78 inches), measured center to center,
from the top strut. Use the holes in the strut as a template to mark the positions of the
holes to be drilled in the wall. See the figure below.
...................................................................................................................................................................................................
4Drill holes in the wall at the marked positions using an appropriate concrete drill bit for
selected anchor.
...................................................................................................................................................................................................
5To install the top strut, place the top strut against the wall. Drive the anchor bolts into the
holes of the strut until nut and washer are flush with the strut.
...................................................................................................................................................................................................
6Tighten the nut to proper torque requirement.
...................................................................................................................................................................................................
7Repeat Steps 5 and 6 to install the bottom strut.
350 (13.78)
Site requirements Site requirements for wall mount installations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
5-12 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
END OF STEPS
...................................................................................................................................................................................................
Site requirements for floor stand installations
Overview
This topic describes site requirements for RRH installation on a floor, such as the location
and drilling of anchor holes for the floor stand.
Anchor hole specifications
The following table provides anchoring specifications for seismic zones 0 through 4.
Equipment Seismic
zone(s)
Anchor type Number of
holes
Hole size
mm
(inches)
Hole depth
mm (inches)
Torque Nm
(lbf in)
Floorstand 0, 1, 2 1/2" Dia
drop-in
416mm
(5/8 in.)
50 mm
(2 in.)
24 (212)
3, 4 M12 x 125
mm
418mm
(11/16 in.)
100 mm
(4 in.)
79 (700)
Floor stand
The floor stand shown below is required to install the RRH to the floor.
Site requirements Site requirements for floor stand installations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 5-13
P
RELIMINARY
P
RELIMINARY
The following figure shows the drill pattern for the floor stand anchor holes.
Mark and drill the anchor holes
Important! The marking and drilling of the anchor holes shall be performed as part of
site preparation. Anchor holes must be properly covered to prevent debris from falling
inside. Before marking or drilling the anchor holes, refer to “RRH clearances”
(p. 5-4) for more details.
Proceed as follows to mark and drill the anchor holes in a concrete surface:
...................................................................................................................................................................................................
1Measure and mark the location where the RRH anchors will be installed. Refer to “RRH
clearances” (p. 5-4) and the figure above for anchor footprint.
...................................................................................................................................................................................................
2Drill the anchor holes to the proper size and depth as specified in the previous table.
Important! If a 100 mm (4.00”) hole depth cannot be attained for a 12-mm expansion
stud anchor, a spacer may be removed from the anchor assembly when it is installed.
The minimum depth of the hole is 76.2 mm (3.00”).
...................................................................................................................................................................................................
3If Then
floor stand is not available on site tape over the open holes to prevent debris
from falling inside.
do not install the anchors at this time. Anchors
will be installed later by equipment installers.
procedure ends here.
floor stand is available on site continue with next step.
Site requirements Site requirements for floor stand installations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
5-14 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY
...................................................................................................................................................................................................
4Center floor stand over the drilled anchor holes.
...................................................................................................................................................................................................
5Set and torque the anchor bolts.
Install strain relief bracket to floor stand
For indoor installations, the strain relief bracket is installed to the floor stand with four
screws (M5. 12 mm, Pan Head, Cross), as follows:
...................................................................................................................................................................................................
1Remove the two screws (M5, 10 mm, Pan Head, cross) from each side of the strain relief
bracket. Keep them for reinstallation.
...................................................................................................................................................................................................
2Slide the strain relief bracket through the top of the floor stand until the M5 threads of the
bracket's sides match the according holes in the floor stand.
...................................................................................................................................................................................................
3Reinstall the four M5 screws. Do not use washers. Torque to 4 Nm (35 lbf.-in.).
After final installation of RRH and cable connections, the cables should be tied to the
strain relief bracket with cable ties.
Site requirements Site requirements for floor stand installations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 5-15
P
RELIMINARY
P
RELIMINARY
END OF STEPS
...................................................................................................................................................................................................
END OF STEPS
...................................................................................................................................................................................................
Site requirements Site requirements for floor stand installations
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
5-16 Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent RRH 2X60W
NN-20500-305 UA08.1
Issue 0.7 November 2011
P
RELIMINARY
P
RELIMINARY

Navigation menu
