Nordic ID 8052A Wireless data collection terminal User Manual

Nordic ID Oy Wireless data collection terminal

User Manual

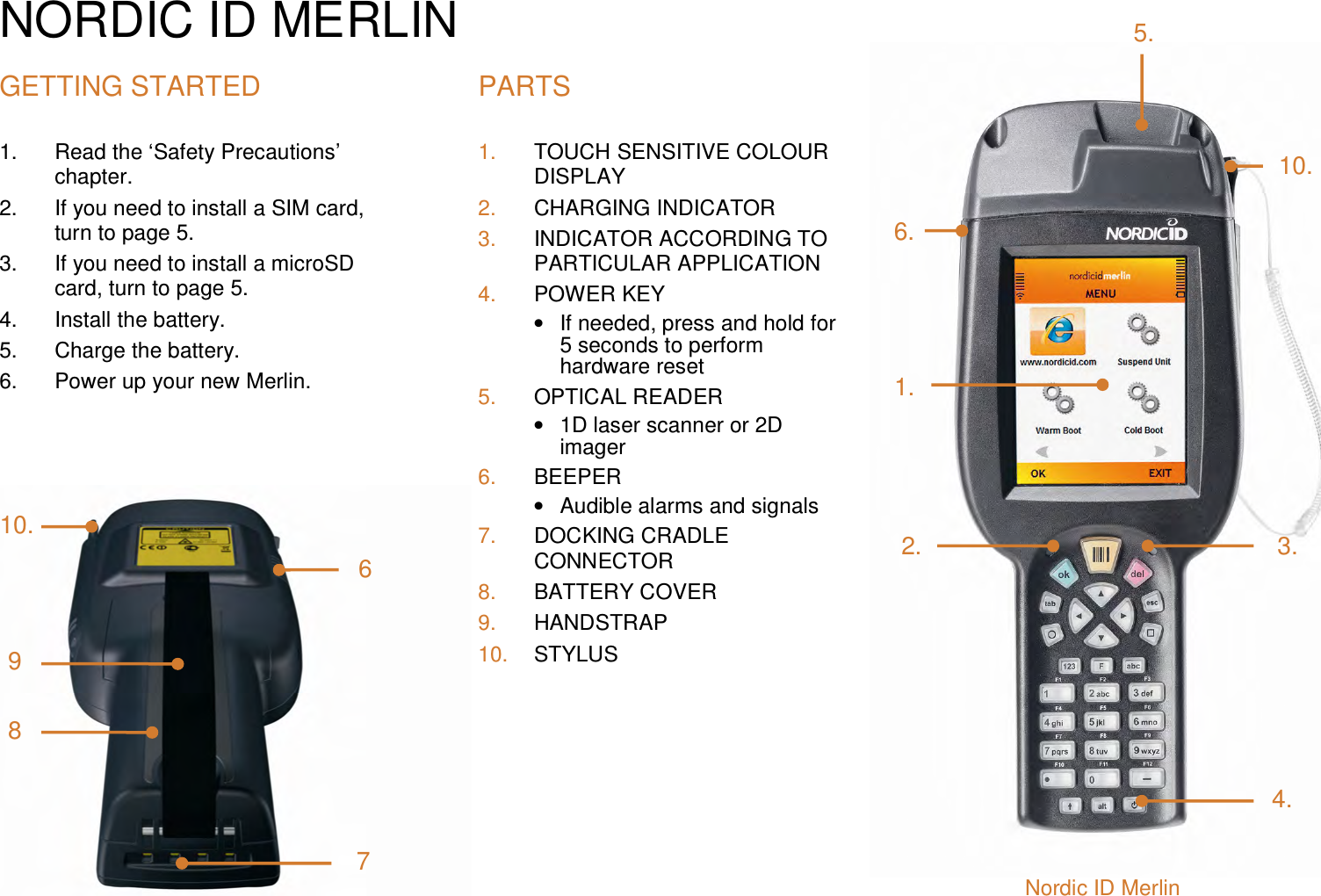

NORDIC ID MERLIN GETTING STARTED 1. Read the ‘Safety Precautions’ chapter. 2. If you need to install a SIM card, turn to page 5. 3. If you need to install a microSD card, turn to page 5. 4. Install the battery. 5. Charge the battery. 6. Power up your new Merlin. PARTS 1. TOUCH SENSITIVE COLOUR DISPLAY 2. CHARGING INDICATOR 3. INDICATOR ACCORDING TO PARTICULAR APPLICATION 4. POWER KEY • If needed, press and hold for 5 seconds to perform hardware reset 5. OPTICAL READER • 1D laser scanner or 2D imager 6. BEEPER • Audible alarms and signals 7. DOCKING CRADLE CONNECTOR 8. BATTERY COVER 9. HANDSTRAP 10. STYLUS 6710. 986. 1. 2. 5. 10. 3. 4. Nordic ID Merlin
NORDIC ID MERLIN KEYS 1. SCAN • Starting-up tag reading by default optical reader 2. OK (green) • Functioning as conventional Enter key 3. TAB • Select window elements 4. CIRCLE KEY • Functioning according to a particular application 5. ARROW KEYS • Move cursor within an input field or to navigate menus 6. 123 KEY • Setting the alphanumeric keys to numeric mode 7. DEL (red key) • Deleting the character before the cursor 8. ESC • Cancels the operation being under way 9. SQUARE KEY • Toggling the soft-key input panel 10. ABC KEY • Setting the numeric keys to alphanumeric mode • Toggle between upper-case and lower-case letters 11. F KEY • Setting the alphanumeric keys to function-key mode Function keys F1 to F10 12. POWER BUTTON 13. ALT KEY 14. SHIFT KEY • SHIFT + OK is keylock 15. Alphanumeric keypad / Function keys Nordic ID Merlin Blade HF RFID Nordic ID Merlin Cross Dipole UHF RFID Nordic ID Merlin HF/UHF RFID 1. 13. 2. 7. 8. 10. 11. 12. 14. 3. 5. 4. 6. 15. 9.

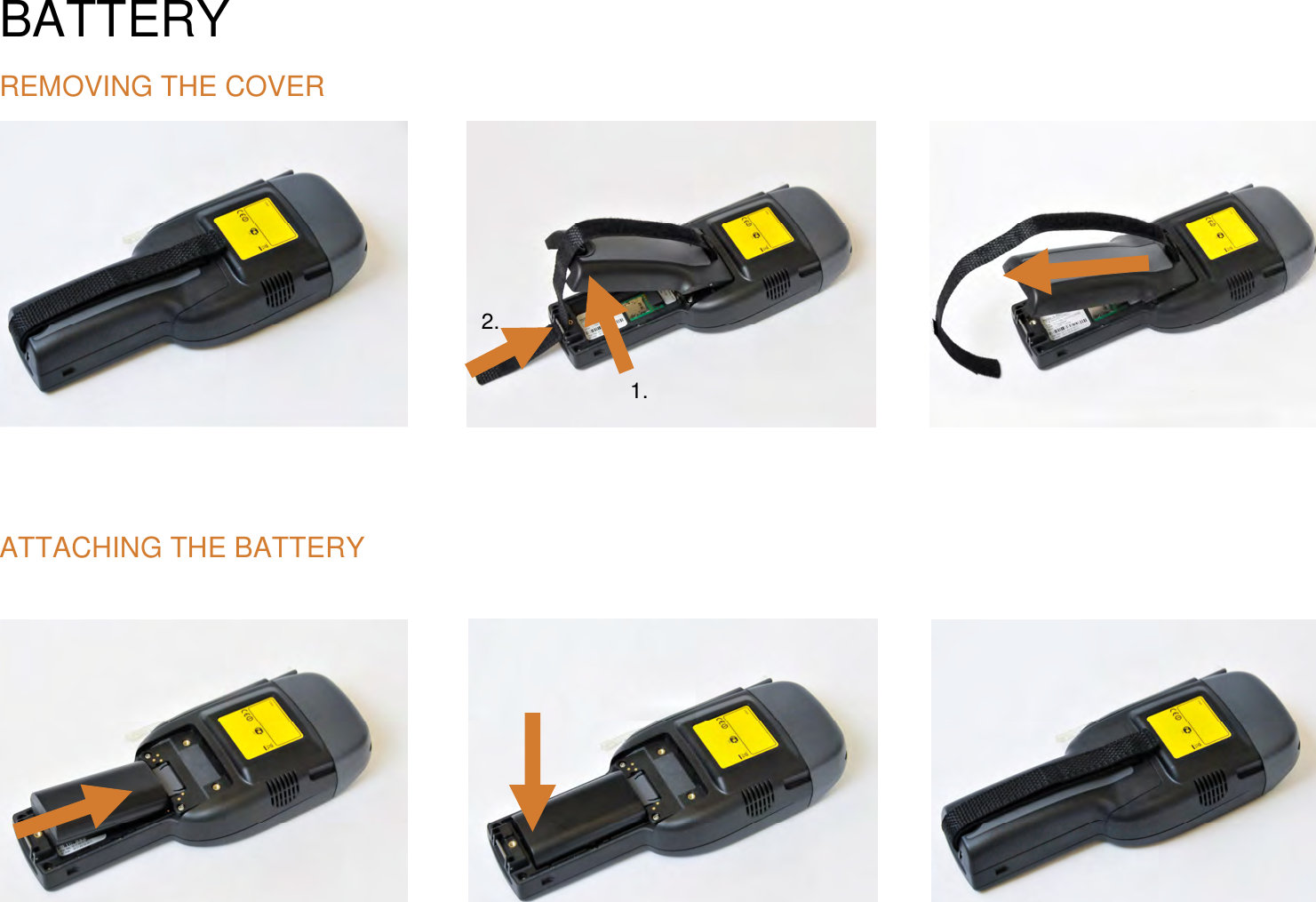

BATTERY REMOVING THE COVER ATTACHING THE BATTERY 2. 1.

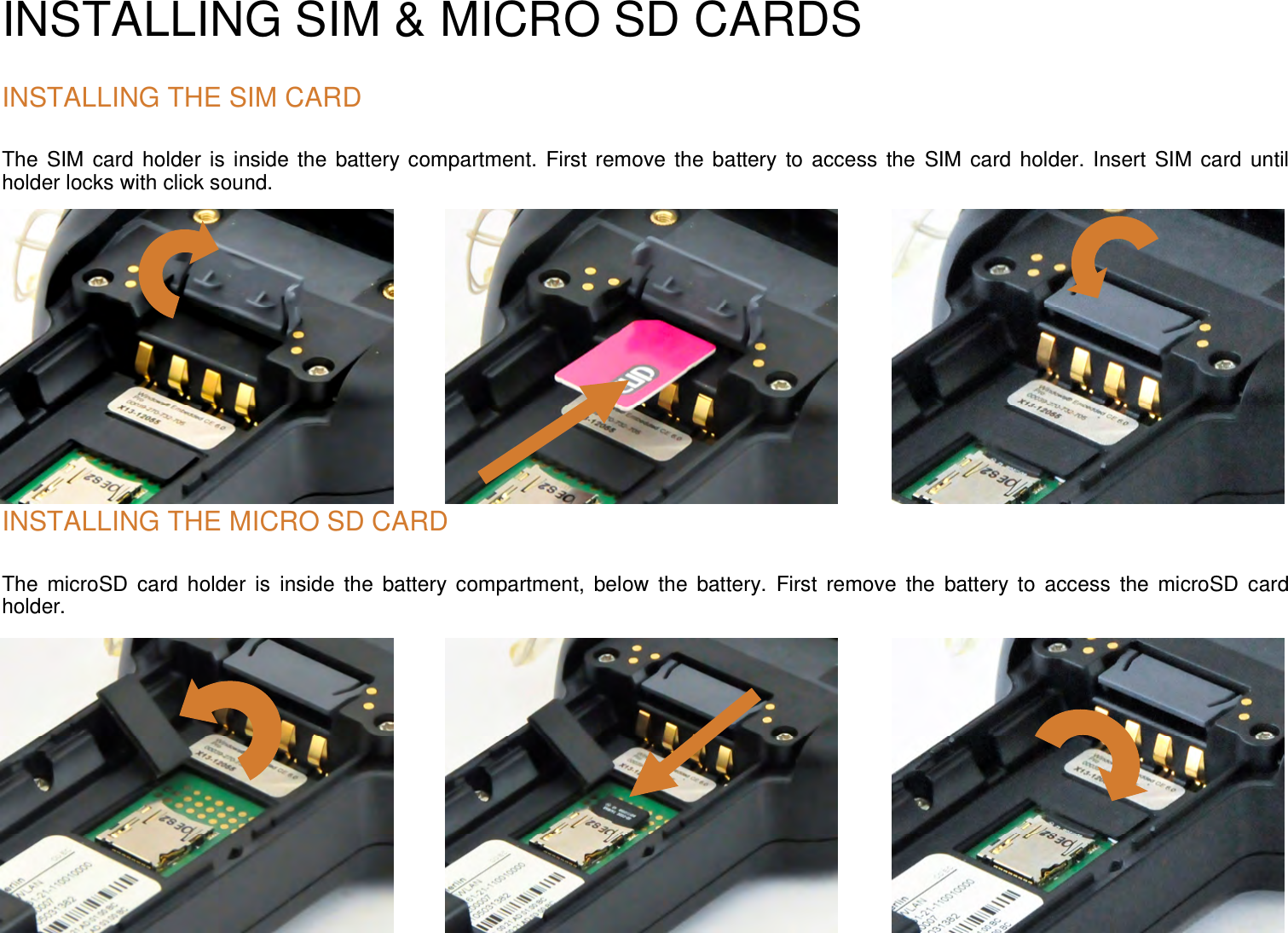

INSTALLING SIM & MICRO SD CARDS INSTALLING THE SIM CARD The SIM card holder is inside the battery compartment. First remove the battery to access the SIM card holder. Insert SIM card until holder locks with click sound. INSTALLING THE MICRO SD CARDThe microSD card holder is inside the battery compartment, below the battery. First remove the battery to access the microSD card holder.
NORDIC ID MERLIN CHARGERS Nordic ID Merlin has the following chargers available: Desktop charger with USB connection, Vehicle charger with USB connection, Desktop communication charger with Ethernet and USB connections, 4-slot battery charger and 4-slot desktop charger. DETACH THE DEVICE FROM THE CHARGER 1. Press 2. Lift DESKTOP CHARGER with Ethernet and battery charging slot 4-SLOT BATTERY CHARGE 4-SLOT DESKTOP CHARGER 1. 2.

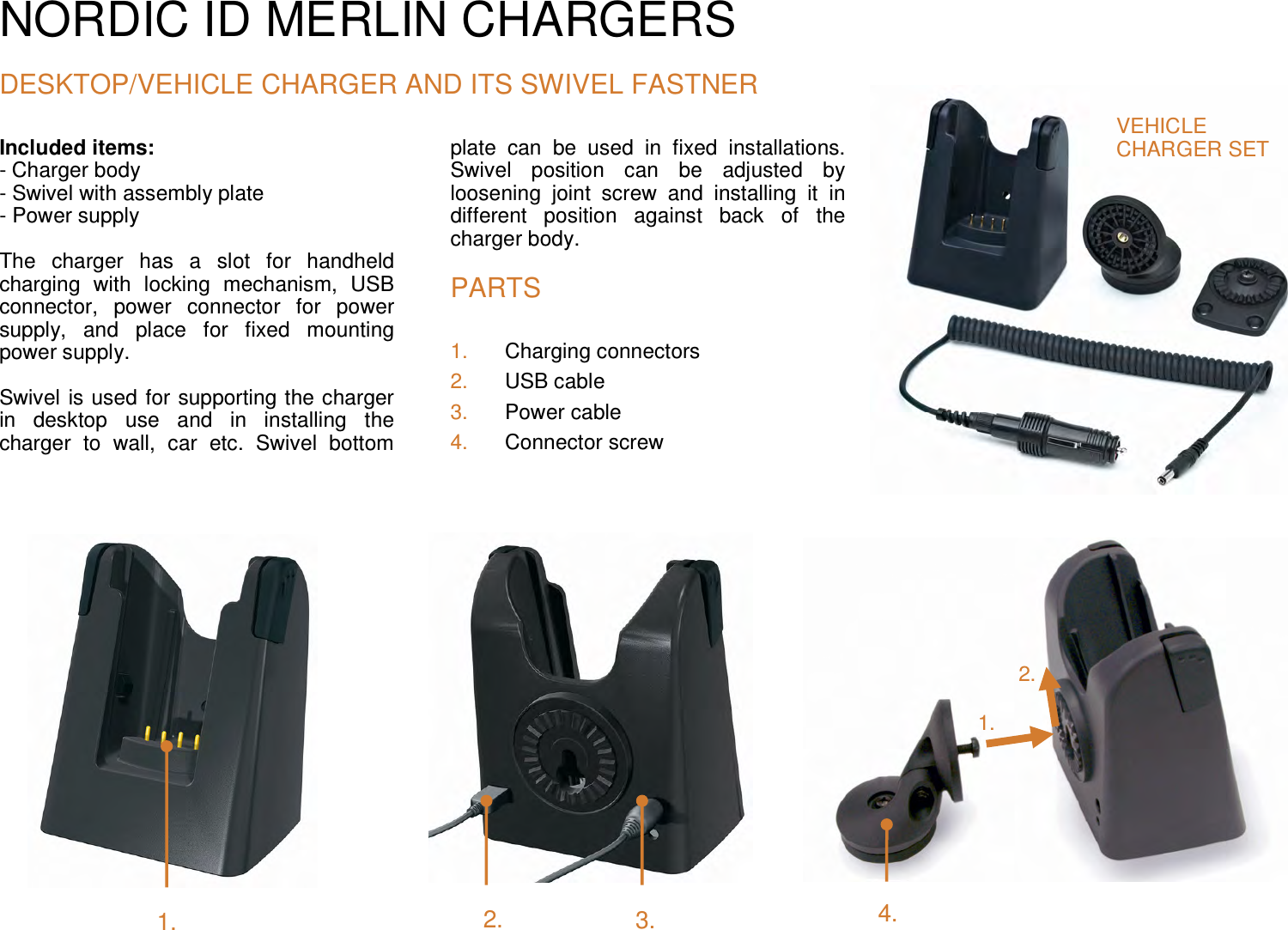

NORDIC ID MERLIN CHARGERS DESKTOP/VEHICLE CHARGER AND ITS SWIVEL FASTNER Included items: - Charger body - Swivel with assembly plate - Power supply The charger has a slot for handheld charging with locking mechanism, USB connector, power connector for power supply, and place for fixed mounting power supply. Swivel is used for supporting the charger in desktop use and in installing the charger to wall, car etc. Swivel bottom plate can be used in fixed installations. Swivel position can be adjusted by loosening joint screw and installing it in different position against back of the charger body. PARTS 1. Charging connectors 2. USB cable 3. Power cable 4. Connector screw VEHICLE CHARGER SET 1. 2. 3. 2. 1. 4.

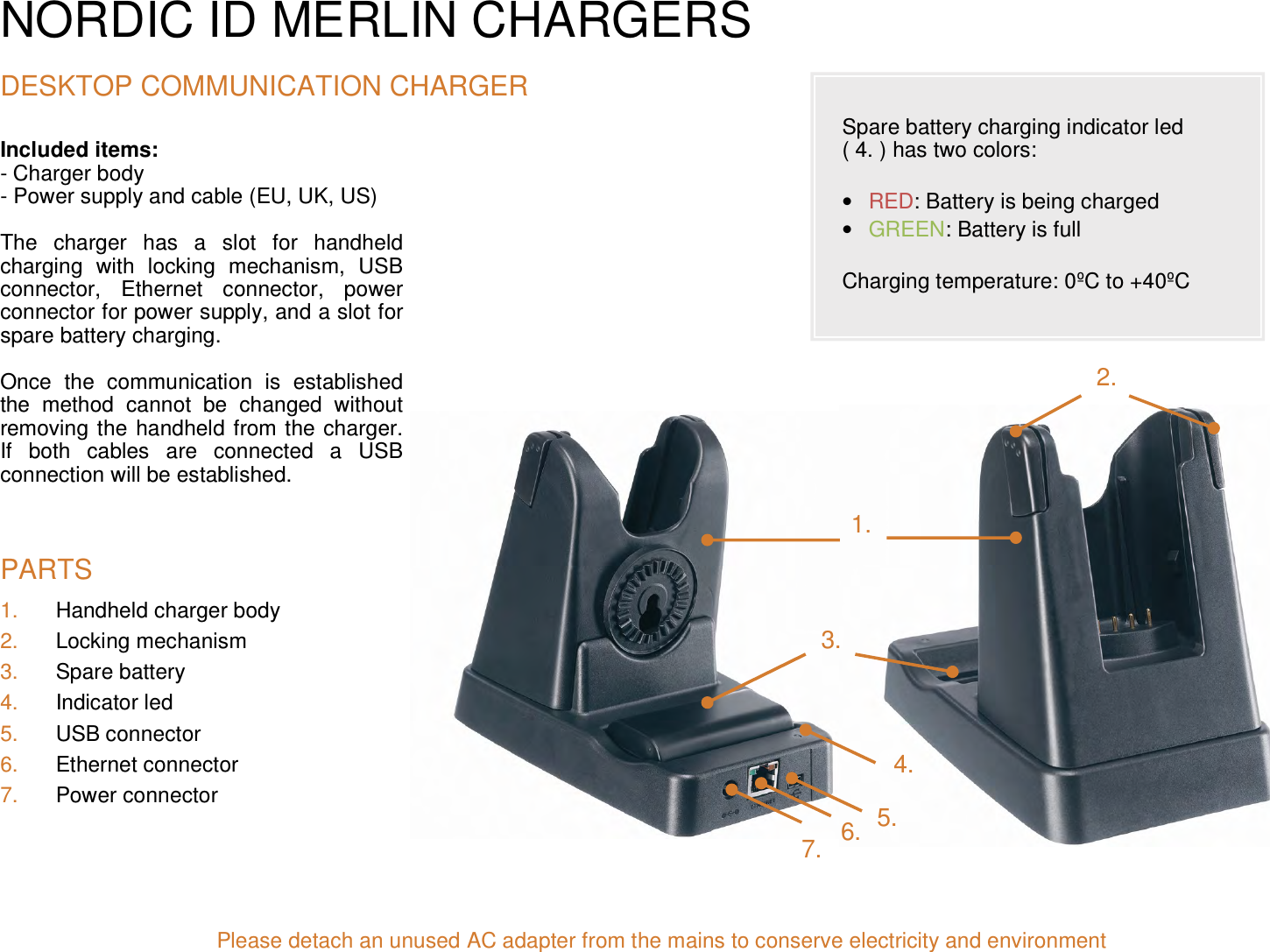

NORDIC ID MERLIN CHARGERS DESKTOP COMMUNICATION CHARGER Included items: - Charger body - Power supply and cable (EU, UK, US) The charger has a slot for handheld charging with locking mechanism, USB connector, Ethernet connector, power connector for power supply, and a slot for spare battery charging. Once the communication is established the method cannot be changed without removing the handheld from the charger. If both cables are connected a USB connection will be established. PARTS 1. Handheld charger body 2. Locking mechanism 3. Spare battery 4. Indicator led 5. USB connector 6. Ethernet connector 7. Power connector Please detach an unused AC adapter from the mains to conserve electricity and environment5. 2. 1. 3. 4. 6. 7. Spare battery charging indicator led ( 4. ) has two colors: • RED: Battery is being charged • GREEN: Battery is full Charging temperature: 0ºC to +40ºC

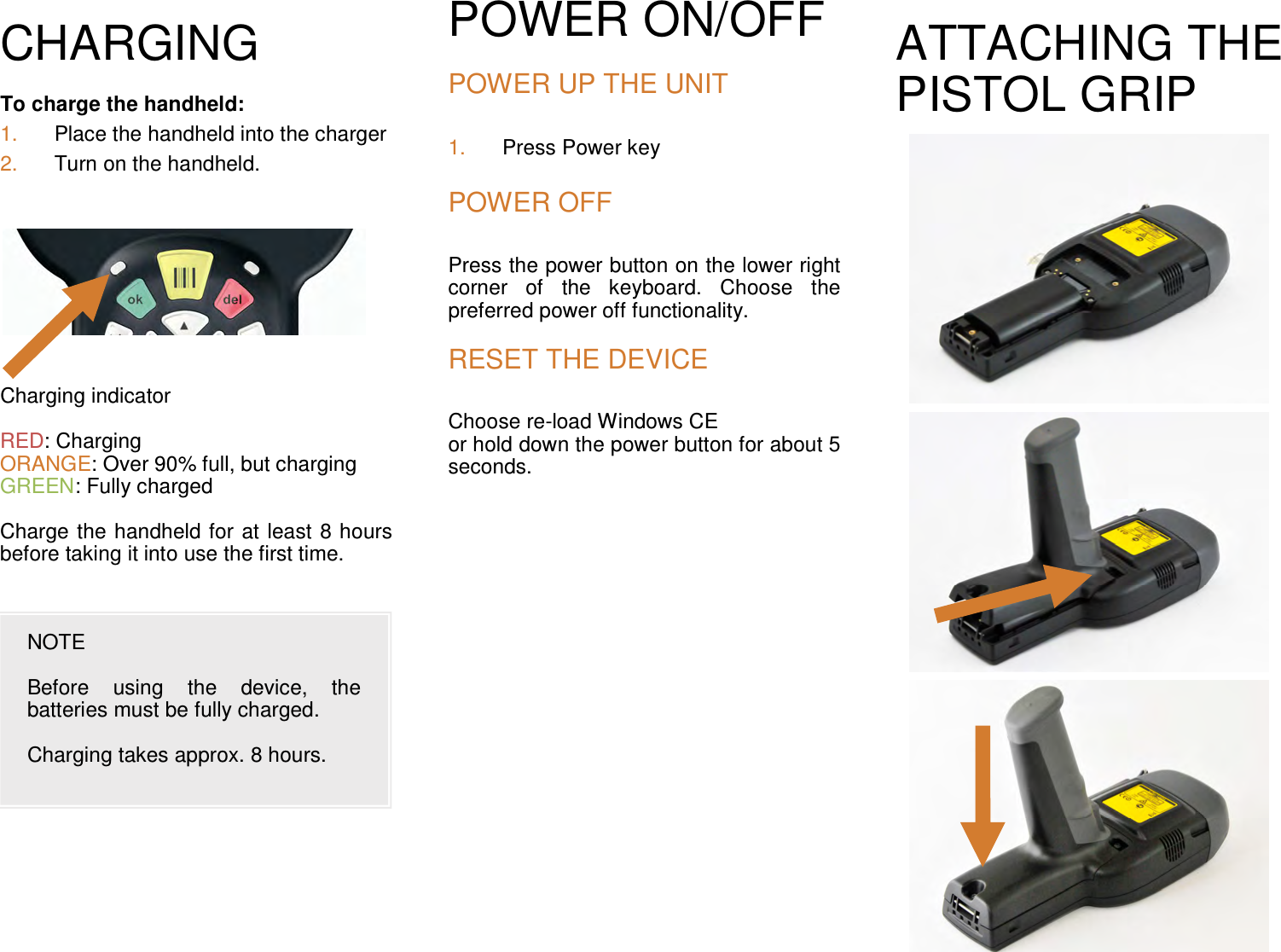

CHARGING To charge the handheld: 1. Place the handheld into the charger 2. Turn on the handheld. Charging indicator RED: Charging ORANGE: Over 90% full, but charging GREEN: Fully charged Charge the handheld for at least 8 hours before taking it into use the first time. POWER ON/OFF POWER UP THE UNIT 1. Press Power key POWER OFF Press the power button on the lower right corner of the keyboard. Choose the preferred power off functionality. RESET THE DEVICE Choose re-load Windows CE or hold down the power button for about 5 seconds. ATTACHING THE PISTOL GRIP NOTE Before using the device, the batteries must be fully charged. Charging takes approx. 8 hours.

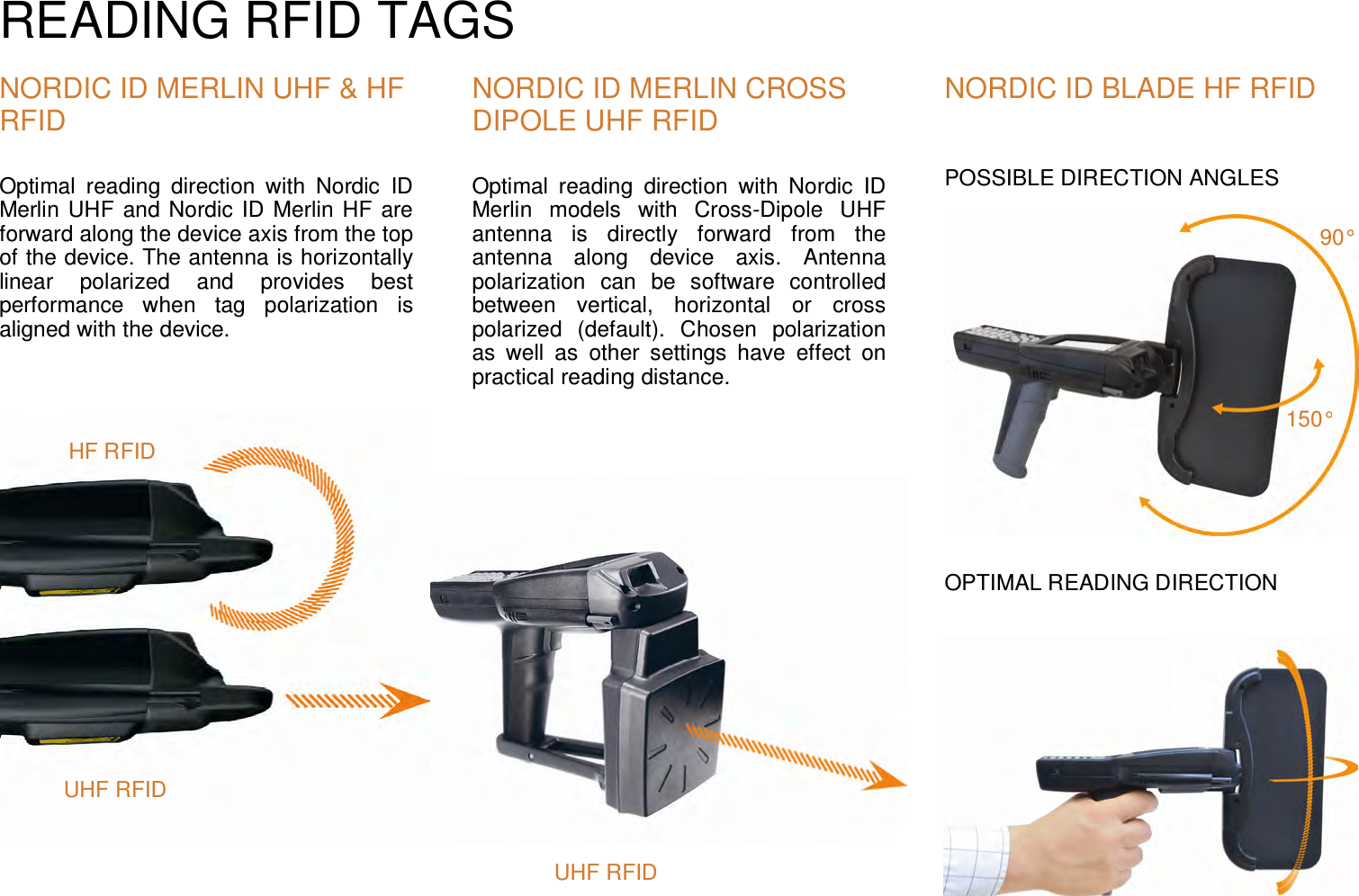

READING RFID TAGS NORDIC ID MERLIN UHF & HF RFID Optimal reading direction with Nordic ID Merlin UHF and Nordic ID Merlin HF are forward along the device axis from the top of the device. The antenna is horizontally linear polarized and provides best performance when tag polarization is aligned with the device. NORDIC ID MERLIN CROSS DIPOLE UHF RFID Optimal reading direction with Nordic ID Merlin models with Cross-Dipole UHF antenna is directly forward from the antenna along device axis. Antenna polarization can be software controlled between vertical, horizontal or cross polarized (default). Chosen polarization as well as other settings have effect on practical reading distance. NORDIC ID BLADE HF RFID POSSIBLE DIRECTION ANGLES OPTIMAL READING DIRECTION UHF RFID HF RFID UHF RFID 150° 90°

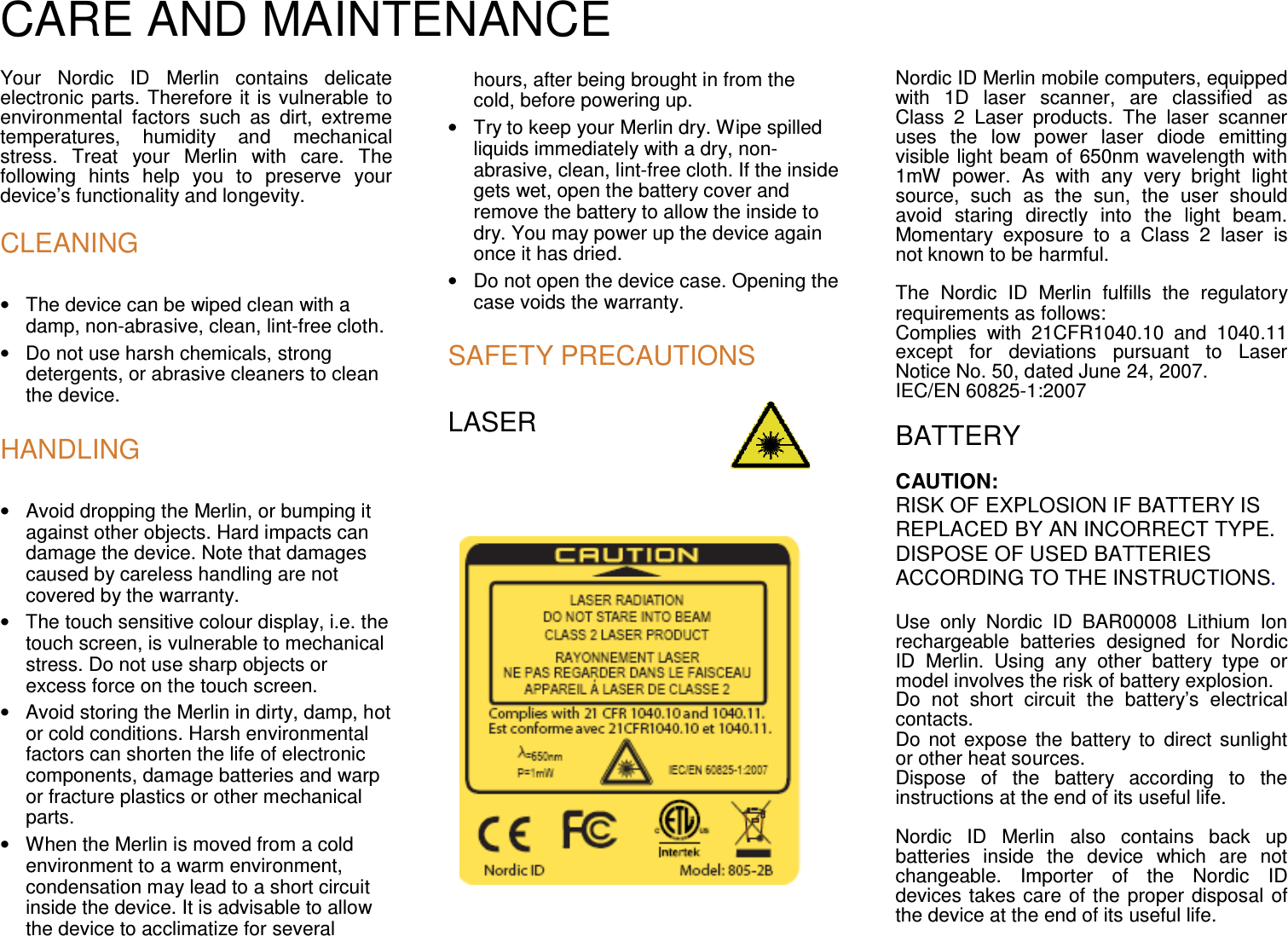

CARE AND MAINTENANCE Your Nordic ID Merlin contains delicate electronic parts. Therefore it is vulnerable to environmental factors such as dirt, extreme temperatures, humidity and mechanical stress. Treat your Merlin with care. The following hints help you to preserve your device’s functionality and longevity. CLEANING • The device can be wiped clean with a damp, non-abrasive, clean, lint-free cloth. • Do not use harsh chemicals, strong detergents, or abrasive cleaners to clean the device. HANDLING • Avoid dropping the Merlin, or bumping it against other objects. Hard impacts can damage the device. Note that damages caused by careless handling are not covered by the warranty. • The touch sensitive colour display, i.e. the touch screen, is vulnerable to mechanical stress. Do not use sharp objects or excess force on the touch screen. • Avoid storing the Merlin in dirty, damp, hot or cold conditions. Harsh environmental factors can shorten the life of electronic components, damage batteries and warp or fracture plastics or other mechanical parts. • When the Merlin is moved from a cold environment to a warm environment, condensation may lead to a short circuit inside the device. It is advisable to allow the device to acclimatize for several hours, after being brought in from the cold, before powering up. • Try to keep your Merlin dry. Wipe spilled liquids immediately with a dry, non-abrasive, clean, lint-free cloth. If the inside gets wet, open the battery cover and remove the battery to allow the inside to dry. You may power up the device again once it has dried. • Do not open the device case. Opening the case voids the warranty. SAFETY PRECAUTIONS LASER Nordic ID Merlin mobile computers, equipped with 1D laser scanner, are classified as Class 2 Laser products. The laser scanner uses the low power laser diode emitting visible light beam of 650nm wavelength with 1mW power. As with any very bright light source, such as the sun, the user should avoid staring directly into the light beam. Momentary exposure to a Class 2 laser is not known to be harmful. The Nordic ID Merlin fulfills the regulatory requirements as follows: Complies with 21CFR1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. IEC/EN 60825-1:2007 BATTERY CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Use only Nordic ID BAR00008 Lithium Ion rechargeable batteries designed for Nordic ID Merlin. Using any other battery type or model involves the risk of battery explosion. Do not short circuit the battery’s electrical contacts. Do not expose the battery to direct sunlight or other heat sources. Dispose of the battery according to the instructions at the end of its useful life. Nordic ID Merlin also contains back up batteries inside the device which are not changeable. Importer of the Nordic ID devices takes care of the proper disposal of the device at the end of its useful life.

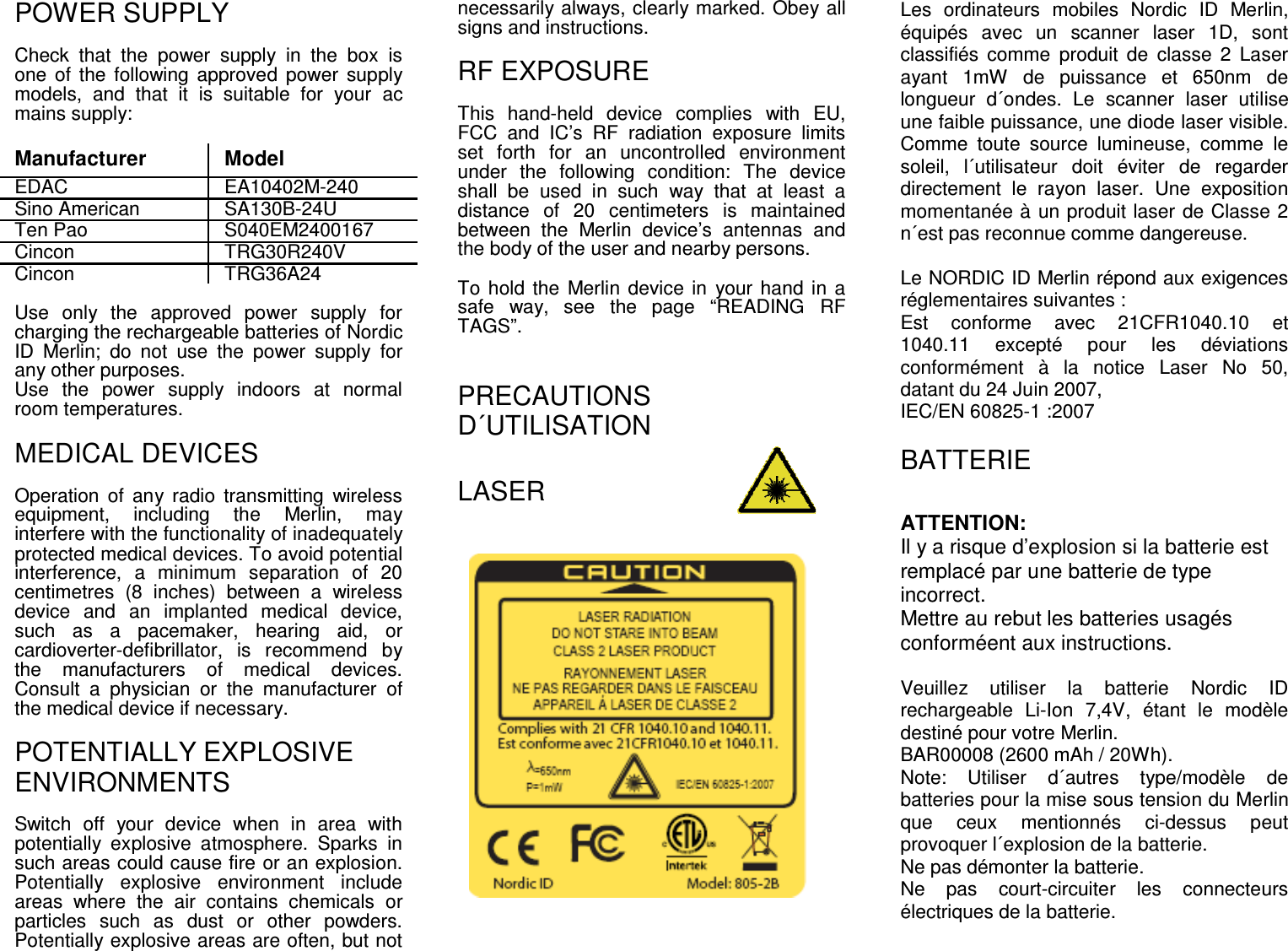

POWER SUPPLY Check that the power supply in the box is one of the following approved power supply models, and that it is suitable for your ac mains supply: Manufacturer Model EDAC EA10402M-240 Sino American SA130B-24U Ten Pao S040EM2400167 Cincon TRG30R240V Cincon TRG36A24 Use only the approved power supply for charging the rechargeable batteries of Nordic ID Merlin; do not use the power supply for any other purposes. Use the power supply indoors at normal room temperatures. MEDICAL DEVICES Operation of any radio transmitting wireless equipment, including the Merlin, may interfere with the functionality of inadequately protected medical devices. To avoid potential interference, a minimum separation of 20 centimetres (8 inches) between a wireless device and an implanted medical device, such as a pacemaker, hearing aid, or cardioverter-defibrillator, is recommend by the manufacturers of medical devices. Consult a physician or the manufacturer of the medical device if necessary. POTENTIALLY EXPLOSIVE ENVIRONMENTS Switch off your device when in area with potentially explosive atmosphere. Sparks in such areas could cause fire or an explosion. Potentially explosive environment include areas where the air contains chemicals or particles such as dust or other powders. Potentially explosive areas are often, but not necessarily always, clearly marked. Obey all signs and instructions. RF EXPOSURE This hand-held device complies with EU, FCC and IC’s RF radiation exposure limits set forth for an uncontrolled environment under the following condition: The device shall be used in such way that at least a distance of 20 centimeters is maintained between the Merlin device’s antennas and the body of the user and nearby persons. To hold the Merlin device in your hand in a safe way, see the page “READING RF TAGS”. PRECAUTIONS D´UTILISATION LASER Les ordinateurs mobiles Nordic ID Merlin, équipés avec un scanner laser 1D, sont classifiés comme produit de classe 2 Laser ayant 1mW de puissance et 650nm de longueur d´ondes. Le scanner laser utilise une faible puissance, une diode laser visible. Comme toute source lumineuse, comme le soleil, l´utilisateur doit éviter de regarder directement le rayon laser. Une exposition momentanée à un produit laser de Classe 2 n´est pas reconnue comme dangereuse. Le NORDIC ID Merlin répond aux exigences réglementaires suivantes : Est conforme avec 21CFR1040.10 et 1040.11 excepté pour les déviations conformément à la notice Laser No 50, datant du 24 Juin 2007, IEC/EN 60825-1 :2007 BATTERIE ATTENTION: Il y a risque d’explosion si la batterie est remplacé par une batterie de type incorrect. Mettre au rebut les batteries usagés conforméent aux instructions. Veuillez utiliser la batterie Nordic ID rechargeable Li-Ion 7,4V, étant le modèle destiné pour votre Merlin. BAR00008 (2600 mAh / 20Wh). Note: Utiliser d´autres type/modèle de batteries pour la mise sous tension du Merlin que ceux mentionnés ci-dessus peut provoquer l´explosion de la batterie. Ne pas démonter la batterie. Ne pas court-circuiter les connecteurs électriques de la batterie.

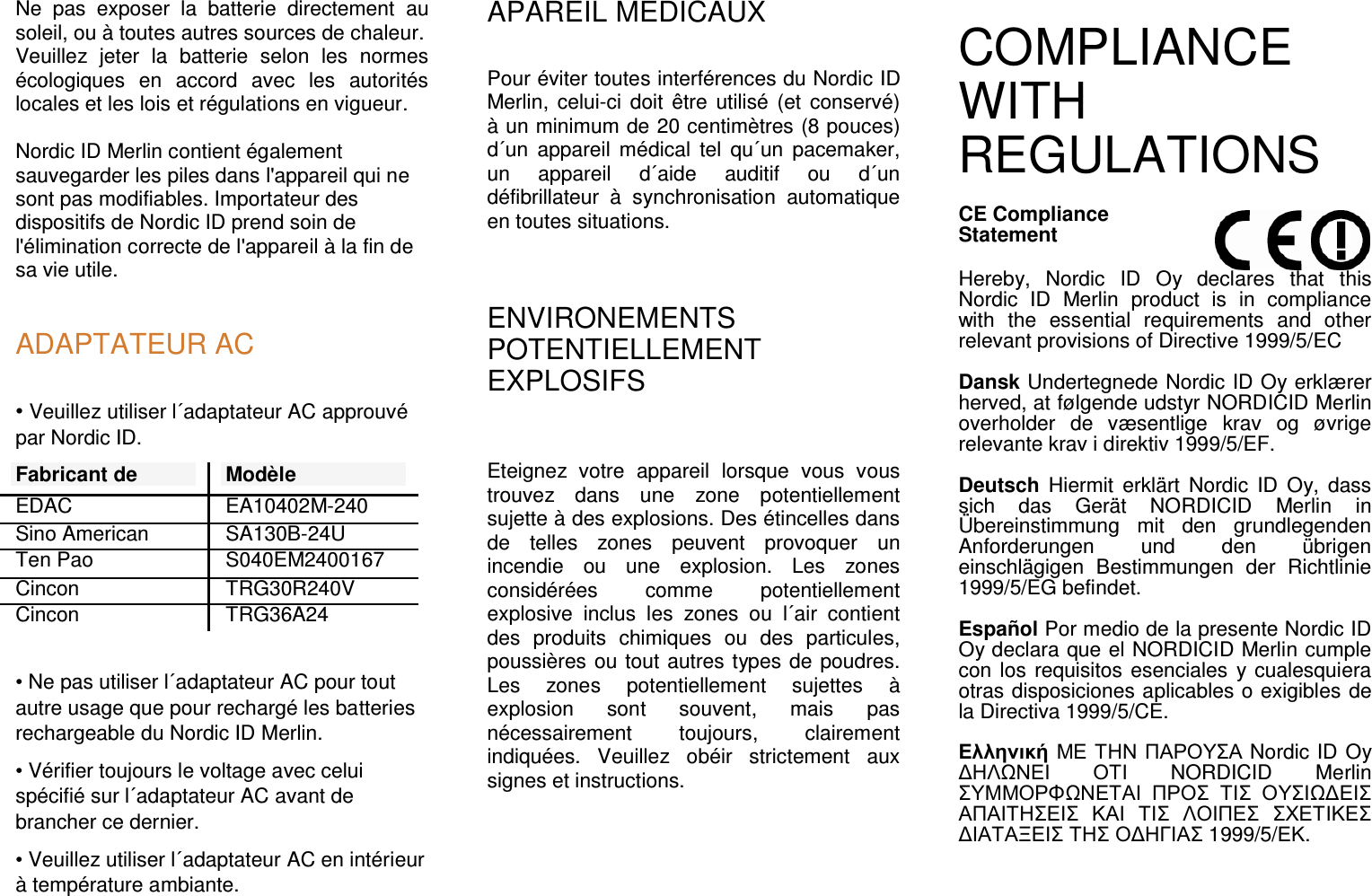

Ne pas exposer la batterie directement au soleil, ou à toutes autres sources de chaleur. Veuillez jeter la batterie selon les normes écologiques en accord avec les autorités locales et les lois et régulations en vigueur. Nordic ID Merlin contient également sauvegarder les piles dans l'appareil qui ne sont pas modifiables. Importateur des dispositifs de Nordic ID prend soin de l'élimination correcte de l'appareil à la fin de sa vie utile. ADAPTATEUR AC • Veuillez utiliser l´adaptateur AC approuvé par Nordic ID. Fabricant de Modèle EDAC EA10402M-240 Sino American SA130B-24U Ten Pao S040EM2400167 Cincon TRG30R240V Cincon TRG36A24 • Ne pas utiliser l´adaptateur AC pour tout autre usage que pour rechargé les batteries rechargeable du Nordic ID Merlin. • Vérifier toujours le voltage avec celui spécifié sur l´adaptateur AC avant de brancher ce dernier. • Veuillez utiliser l´adaptateur AC en intérieur à température ambiante. APAREIL MEDICAUX Pour éviter toutes interférences du Nordic ID Merlin, celui-ci doit être utilisé (et conservé) à un minimum de 20 centimètres (8 pouces) d´un appareil médical tel qu´un pacemaker, un appareil d´aide auditif ou d´un défibrillateur à synchronisation automatique en toutes situations. ENVIRONEMENTS POTENTIELLEMENT EXPLOSIFS Eteignez votre appareil lorsque vous vous trouvez dans une zone potentiellement sujette à des explosions. Des étincelles dans de telles zones peuvent provoquer un incendie ou une explosion. Les zones considérées comme potentiellement explosive inclus les zones ou l´air contient des produits chimiques ou des particules, poussières ou tout autres types de poudres. Les zones potentiellement sujettes à explosion sont souvent, mais pas nécessairement toujours, clairement indiquées. Veuillez obéir strictement aux signes et instructions. COMPLIANCE WITH REGULATIONS CE Compliance Statement Hereby, Nordic ID Oy declares that this Nordic ID Merlin product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC Dansk Undertegnede Nordic ID Oy erklærer herved, at følgende udstyr NORDICID Merlin overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch Hiermit erklärt Nordic ID Oy, dass sich das Gerät NORDICID Merlin in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Español Por medio de la presente Nordic ID Oy declara que el NORDICID Merlin cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Nordic ID Oy ∆ΗΛΩΝΕΙ ΟΤΙ NORDICID Merlin ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.

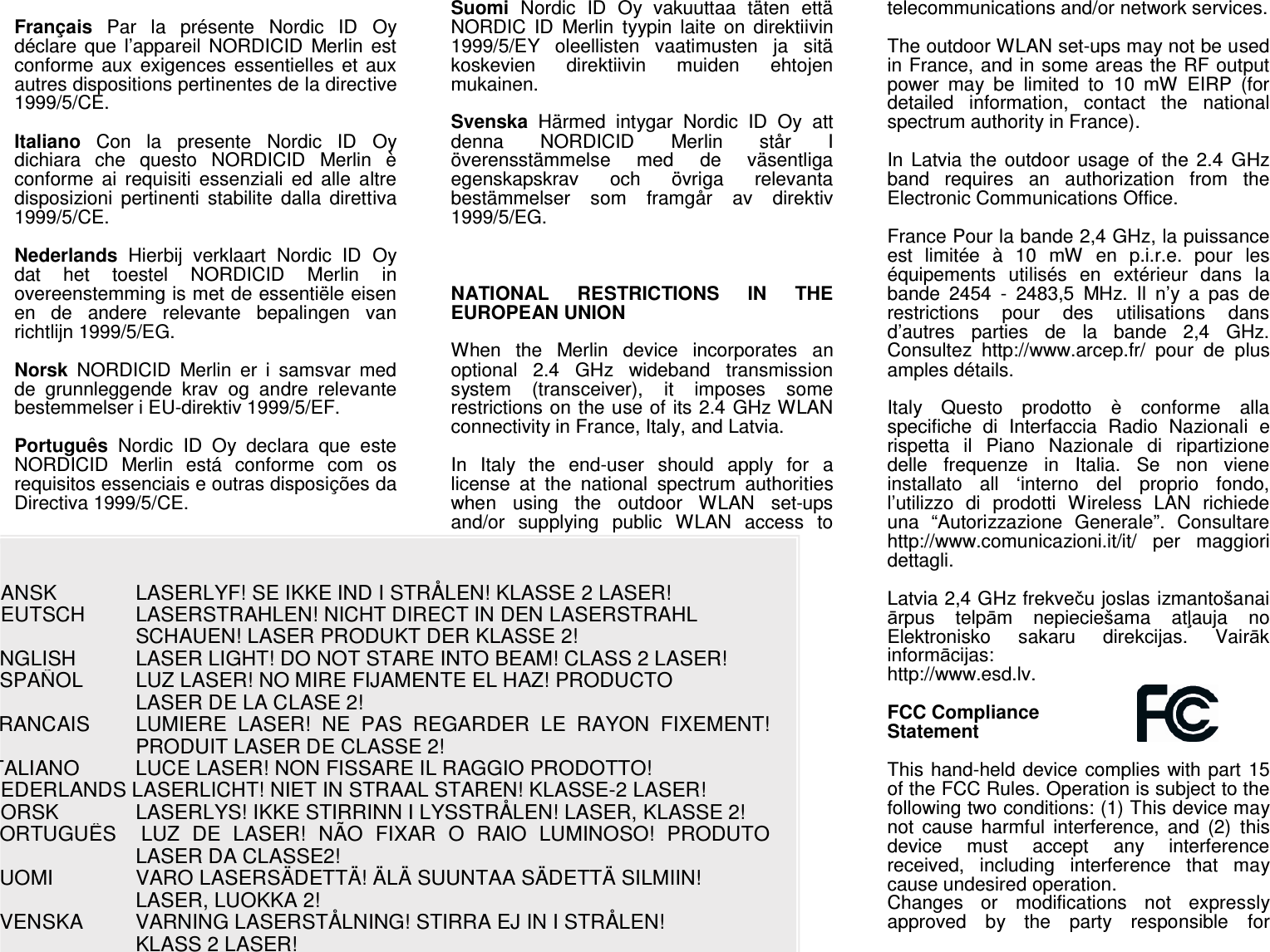

DANSK LASERLYF! SE IKKE IND I STRÅLEN! KLASSE 2 LASER! DEUTSCH LASERSTRAHLEN! NICHT DIRECT IN DEN LASERSTRAHL SCHAUEN! LASER PRODUKT DER KLASSE 2! ENGLISH LASER LIGHT! DO NOT STARE INTO BEAM! CLASS 2 LASER! ESPAÑOL LUZ LASER! NO MIRE FIJAMENTE EL HAZ! PRODUCTO LASER DE LA CLASE 2! FRANCAIS LUMIERE LASER! NE PAS REGARDER LE RAYON FIXEMENT! PRODUIT LASER DE CLASSE 2! ITALIANO LUCE LASER! NON FISSARE IL RAGGIO PRODOTTO! NEDERLANDS LASERLICHT! NIET IN STRAAL STAREN! KLASSE-2 LASER! NORSK LASERLYS! IKKE STIRRINN I LYSSTRÅLEN! LASER, KLASSE 2! PORTUGUÊS LUZ DE LASER! NÃO FIXAR O RAIO LUMINOSO! PRODUTO LASER DA CLASSE2! SUOMI VARO LASERSÄDETTÄ! ÄLÄ SUUNTAA SÄDETTÄ SILMIIN! LASER, LUOKKA 2! SVENSKA VARNING LASERSTÅLNING! STIRRA EJ IN I STRÅLEN! KLASS 2 LASER! Français Par la présente Nordic ID Oy déclare que l’appareil NORDICID Merlin est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano Con la presente Nordic ID Oy dichiara che questo NORDICID Merlin è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Nederlands Hierbij verklaart Nordic ID Oy dat het toestel NORDICID Merlin in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Norsk NORDICID Merlin er i samsvar med de grunnleggende krav og andre relevante bestemmelser i EU-direktiv 1999/5/EF. Português Nordic ID Oy declara que este NORDICID Merlin está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Suomi Nordic ID Oy vakuuttaa täten että NORDIC ID Merlin tyypin laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Svenska Härmed intygar Nordic ID Oy att denna NORDICID Merlin står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. NATIONAL RESTRICTIONS IN THE EUROPEAN UNION When the Merlin device incorporates an optional 2.4 GHz wideband transmission system (transceiver), it imposes some restrictions on the use of its 2.4 GHz WLAN connectivity in France, Italy, and Latvia. In Italy the end-user should apply for a license at the national spectrum authorities when using the outdoor WLAN set-ups and/or supplying public WLAN access to telecommunications and/or network services. The outdoor WLAN set-ups may not be used in France, and in some areas the RF output power may be limited to 10 mW EIRP (for detailed information, contact the national spectrum authority in France). In Latvia the outdoor usage of the 2.4 GHz band requires an authorization from the Electronic Communications Office. France Pour la bande 2,4 GHz, la puissance est limitée à 10 mW en p.i.r.e. pour les équipements utilisés en extérieur dans la bande 2454 - 2483,5 MHz. Il n’y a pas de restrictions pour des utilisations dans d’autres parties de la bande 2,4 GHz. Consultez http://www.arcep.fr/ pour de plus amples détails. Italy Questo prodotto è conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il Piano Nazionale di ripartizione delle frequenze in Italia. Se non viene installato all ‘interno del proprio fondo, l’utilizzo di prodotti Wireless LAN richiede una “Autorizzazione Generale”. Consultare http://www.comunicazioni.it/it/ per maggiori dettagli. Latvia 2,4 GHz frekveču joslas izmantošanai ārpus telpām nepieciešama atļauja no Elektronisko sakaru direkcijas. Vairāk informācijas: http://www.esd.lv. FCC Compliance Statement This hand-held device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the hand-held equipment. FCC Compliance Notice NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. Radio modules The device may contain the following approved radio module(s) being identifiable by its FCC ID: Module: NUR-05W FCC ID: SCCNUR05W Module: SDC-SSD30AG FCC ID: TWG-SDCMSD30AG Industry Canada Compliance Statement This hand-held device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device is intended to be operated indoors in order to prevent radio interference to the licensed service. Radio modules The device may incorporate the following approved radio module(s) being identifiable by its IC ID: Module: NUR-05W IC ID: 5137A-NUR05W Module: SDC-SSD30AG IC ID: 6616A-SDCMSD30AG ETL listed ETL LISTED 4004039 CONFORMS TO UL STD 60950-1 CERTIFIED TO CAN/CSA STD C22.2 NO. 60950-1 ГОСТ Р Терминал ручной Nordic ID Merlin удостоверен сертификатом соответствия ГОСТ Р № POCC FI. AE68. B13015, срок действия с 09.02.2009 до 08.02.2012, выдан органом по сертификации продукции РОСС RU.001.11AE68 ООО «КОРПОРАЦИЯ СТАНДАРТ». В соответствии с протоколом № 8-МРД-119, выданным 24 декабря 2008 г. испытательной лабораторией ИИР ЭМС ФГУП РЧЦ ЦФО, Nordic ID Merlin отвечает требованиям решения ГКРЧ №07-20-03-001 от 7 мая 2007 г. Терминал ручной «Nordic ID Merlin» относится к РЭС малого радиуса действия, использование которых разрешается только в пределах зданий, сооружений, закрытых промышленных и складских площадок. Срок действия настоящего решения ГКРЧ до 01.05.2017 г. В соответствии с п.16 извлечения из списка устройств, для которых обязательна регистрация, Постановлением Правительства РФ от 25 июля 2007 г. N 476 регистрация Nordic ID Merlin не требуется.
END USER LICENSE AGREEMENT IMPORTANT – READ CAREFULLY THESE END USER LICENSE TERMS BEFORE INSTALLING OR USING THE SOFTWARE. By using the Device on which Software is installed, You agree to be bound by the License Terms, including the warranty disclaimers and limitations of liability provisions below. If You do not agree to the License Terms, You may not use the Device or install the Software. Instead, promptly contact the reseller You purchased the Device from for instructions on return of unused Device(s) for a refund. ANY INSTALLATION OR USE OF THE SOFTWARE OR THE DEVICE ON WHICH SOFTWARE IS INSTALLED INDICATES YOUR AGREEMENT TO BE BOUND BY THE LICENSE TERMS (OR RATIFICATION OF ANY PREVIOUS CONSENT). DEFINITIONS “Device” means the Nordic ID equipment You acquired from Nordic ID or one of its resellers and on which the Software was pre-installed or onto which it is to be installed. “Software” means the computer program(s) licensed and installed on the Device and/or any Revisions thereto. Software may include computer programs made by Nordic ID as well as operating systems and application programs by third party licensors or other software suppliers. The Software includes any disks or media on which it is recorded and any Documentation. “Documentation” means the materials accompanying the Software which describe its functions and how to install and use the Software. “Revision” means any correction, modification, update, enhancement, or new version of the Software or Documentation whether printed or in electronic format (including but not limited to on-line documentation). “You” or “Your” refers to the end user licensed to use the Software under the License Terms. “Nordic ID” means Nordic ID Oy, a company incorporated in Salo, Finland PROPRIETARY RIGHTS AND LICENSE You agree that the Software constitute trade secrets and/or copyrighted material of Nordic ID, its licensors, or other software suppliers. All rights, title and interest in and to the Software (including, without limitation, any images, photographs, animations, video, audio, music, text, and applets incorporated into the Software, the accompanying media and printed materials), and any copies of the Software are owned by Nordic ID, its licensors or other software suppliers. You acknowledge and agree that nothing in the License Terms gives You any right, title or interest in and to the Software except the limited rights expressly granted herein. You agree to maintain and reproduce all copyright and other proprietary notices of Software. Nordic ID hereby grants You a license to use the Software subject to the following terms and conditions: Unless expressly provided in the Documentation, You may use the Software only as embedded in, for execution on, or (where the applicable Documentation permits installation on non-Nordic ID equipment) for communication with Device. You have no right to use Revisions unless You, at the time of acquiring such Revision hold a valid license to the original Software and have paid the applicable license fees (if any) The Software is licensed, not sold. Nordic ID hereby grants You a non-exclusive, terminable, limited license to use the Software on the Device(s) for Your own internal business purposes subject to payment of applicable license fees (if required). No other right or license is granted or implied. You agree not to modify copy, distribute or otherwise disclose the Software without the prior written consent of Nordic ID. You further agree not to reverse engineer, disassemble, or de-compile the Software, except and only to the extent that such activity is expressly permitted by applicable law notwithstanding this limitation. This license shall terminate when You no longer own or You cease to use the Device(s) on which You are licensed to use the Software. Your rights to the Software do not include any license, right, power or authority to subject the Software in whole or in part to any of the terms of an Excluded License. “Excluded License” means any license that requires as a condition of use, modification and/or distribution of Software subject to Excluded License, that such Software of other software combined or distributed with such software be a) disclosed or distributed in source code form; b) licensed for the purpose of making derivative works; or c) redistributable at no charge You may not sell, lease, rent, assign, sublicense or transfer the Software except that You may transfer all of Your rights under the License Terms as part of a sale or transfer of the Device(s). Such a sale or transfer may only be made if You retain no copies of the Software, You transfer all of the Software (including any media, archival copies, Revisions and Documentation) and the recipient agrees to abide by the terms of the License Terms. A Revision may not be transferred unless You transfer all prior

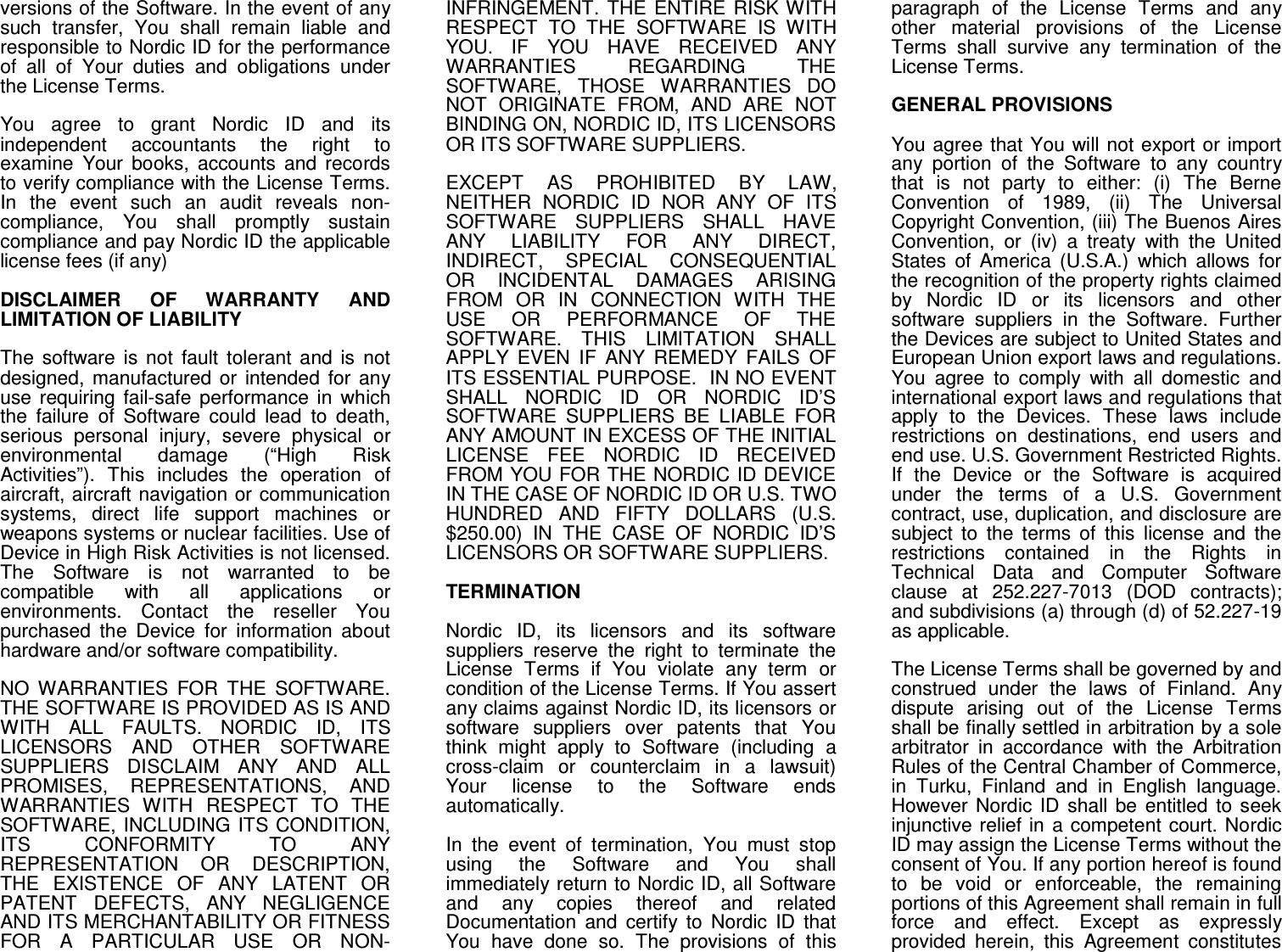

versions of the Software. In the event of any such transfer, You shall remain liable and responsible to Nordic ID for the performance of all of Your duties and obligations under the License Terms. You agree to grant Nordic ID and its independent accountants the right to examine Your books, accounts and records to verify compliance with the License Terms. In the event such an audit reveals non-compliance, You shall promptly sustain compliance and pay Nordic ID the applicable license fees (if any) DISCLAIMER OF WARRANTY AND LIMITATION OF LIABILITY The software is not fault tolerant and is not designed, manufactured or intended for any use requiring fail-safe performance in which the failure of Software could lead to death, serious personal injury, severe physical or environmental damage (“High Risk Activities”). This includes the operation of aircraft, aircraft navigation or communication systems, direct life support machines or weapons systems or nuclear facilities. Use of Device in High Risk Activities is not licensed. The Software is not warranted to be compatible with all applications or environments. Contact the reseller You purchased the Device for information about hardware and/or software compatibility. NO WARRANTIES FOR THE SOFTWARE. THE SOFTWARE IS PROVIDED AS IS AND WITH ALL FAULTS. NORDIC ID, ITS LICENSORS AND OTHER SOFTWARE SUPPLIERS DISCLAIM ANY AND ALL PROMISES, REPRESENTATIONS, AND WARRANTIES WITH RESPECT TO THE SOFTWARE, INCLUDING ITS CONDITION, ITS CONFORMITY TO ANY REPRESENTATION OR DESCRIPTION, THE EXISTENCE OF ANY LATENT OR PATENT DEFECTS, ANY NEGLIGENCE AND ITS MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR NON-INFRINGEMENT. THE ENTIRE RISK WITH RESPECT TO THE SOFTWARE IS WITH YOU. IF YOU HAVE RECEIVED ANY WARRANTIES REGARDING THE SOFTWARE, THOSE WARRANTIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, NORDIC ID, ITS LICENSORS OR ITS SOFTWARE SUPPLIERS. EXCEPT AS PROHIBITED BY LAW, NEITHER NORDIC ID NOR ANY OF ITS SOFTWARE SUPPLIERS SHALL HAVE ANY LIABILITY FOR ANY DIRECT, INDIRECT, SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PURPOSE. IN NO EVENT SHALL NORDIC ID OR NORDIC ID’S SOFTWARE SUPPLIERS BE LIABLE FOR ANY AMOUNT IN EXCESS OF THE INITIAL LICENSE FEE NORDIC ID RECEIVED FROM YOU FOR THE NORDIC ID DEVICE IN THE CASE OF NORDIC ID OR U.S. TWO HUNDRED AND FIFTY DOLLARS (U.S. $250.00) IN THE CASE OF NORDIC ID’S LICENSORS OR SOFTWARE SUPPLIERS. TERMINATION Nordic ID, its licensors and its software suppliers reserve the right to terminate the License Terms if You violate any term or condition of the License Terms. If You assert any claims against Nordic ID, its licensors or software suppliers over patents that You think might apply to Software (including a cross-claim or counterclaim in a lawsuit) Your license to the Software ends automatically. In the event of termination, You must stop using the Software and You shall immediately return to Nordic ID, all Software and any copies thereof and related Documentation and certify to Nordic ID that You have done so. The provisions of this paragraph of the License Terms and any other material provisions of the License Terms shall survive any termination of the License Terms. GENERAL PROVISIONS You agree that You will not export or import any portion of the Software to any country that is not party to either: (i) The Berne Convention of 1989, (ii) The Universal Copyright Convention, (iii) The Buenos Aires Convention, or (iv) a treaty with the United States of America (U.S.A.) which allows for the recognition of the property rights claimed by Nordic ID or its licensors and other software suppliers in the Software. Further the Devices are subject to United States and European Union export laws and regulations. You agree to comply with all domestic and international export laws and regulations that apply to the Devices. These laws include restrictions on destinations, end users and end use. U.S. Government Restricted Rights. If the Device or the Software is acquired under the terms of a U.S. Government contract, use, duplication, and disclosure are subject to the terms of this license and the restrictions contained in the Rights in Technical Data and Computer Software clause at 252.227-7013 (DOD contracts); and subdivisions (a) through (d) of 52.227-19 as applicable. The License Terms shall be governed by and construed under the laws of Finland. Any dispute arising out of the License Terms shall be finally settled in arbitration by a sole arbitrator in accordance with the Arbitration Rules of the Central Chamber of Commerce, in Turku, Finland and in English language. However Nordic ID shall be entitled to seek injunctive relief in a competent court. Nordic ID may assign the License Terms without the consent of You. If any portion hereof is found to be void or enforceable, the remaining portions of this Agreement shall remain in full force and effect. Except as expressly provided herein, this Agreement constitutes
the entire agreement with respect to the license of Software and supersedes any conflicting or additional terms. © Nordic ID Oy, 11/2010

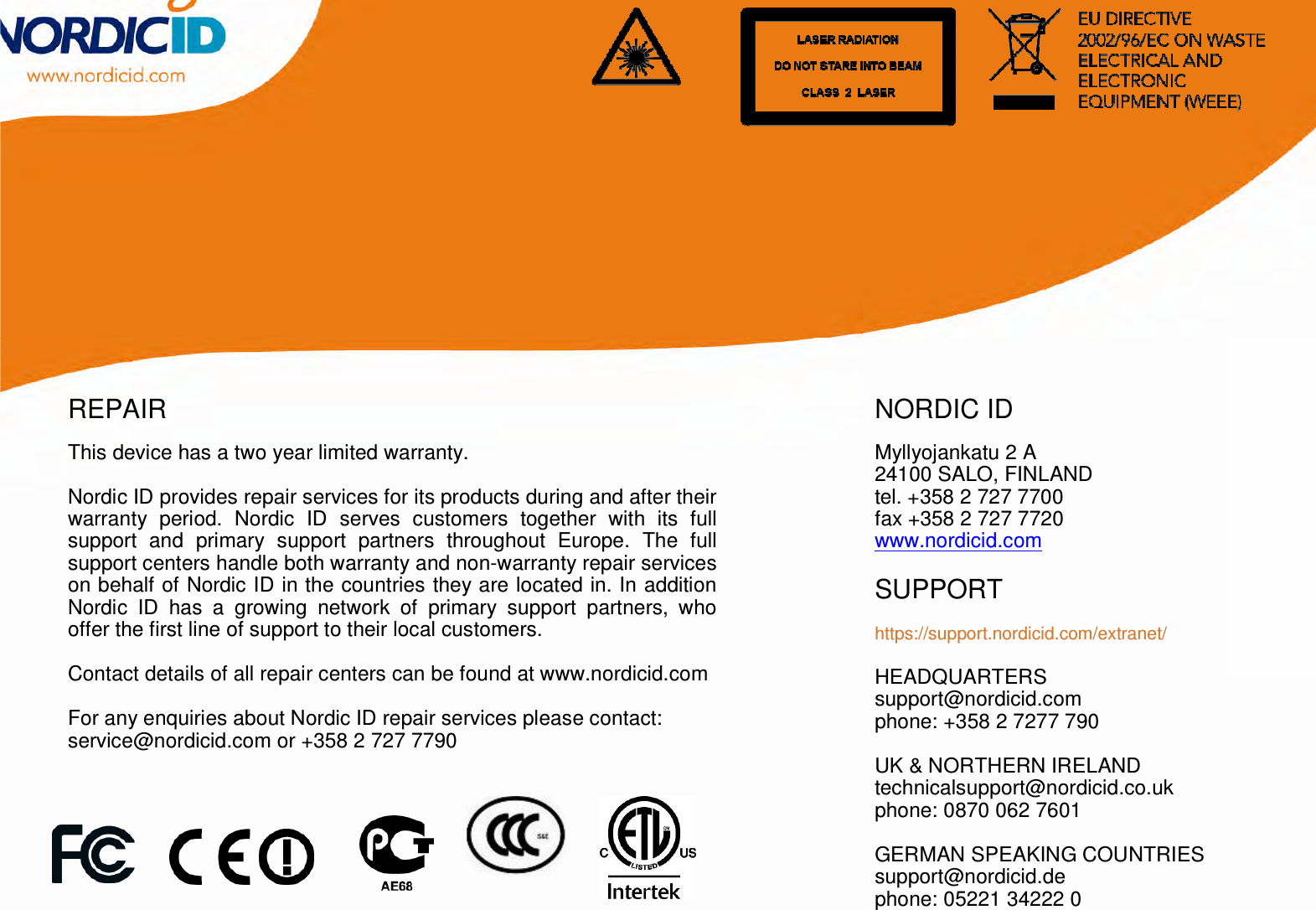

NORDIC ID Myllyojankatu 2 A 24100 SALO, FINLAND tel. +358 2 727 7700 fax +358 2 727 7720 www.nordicid.com SUPPORT https://support.nordicid.com/extranet/ HEADQUARTERS support@nordicid.com phone: +358 2 7277 790 UK & NORTHERN IRELAND technicalsupport@nordicid.co.uk phone: 0870 062 7601 GERMAN SPEAKING COUNTRIES support@nordicid.de phone: 05221 34222 0 REPAIR This device has a two year limited warranty. Nordic ID provides repair services for its products during and after their warranty period. Nordic ID serves customers together with its full support and primary support partners throughout Europe. The full support centers handle both warranty and non-warranty repair services on behalf of Nordic ID in the countries they are located in. In addition Nordic ID has a growing network of primary support partners, who offer the first line of support to their local customers. Contact details of all repair centers can be found at www.nordicid.com For any enquiries about Nordic ID repair services please contact: service@nordicid.com or +358 2 727 7790
