Nordic ID 811-2 Wireless Data Collection Terminal User Manual Morphic Quickguide 4 2011 7

Nordic ID Oy Wireless Data Collection Terminal Morphic Quickguide 4 2011 7

Users Manual

QUICKGUIDE

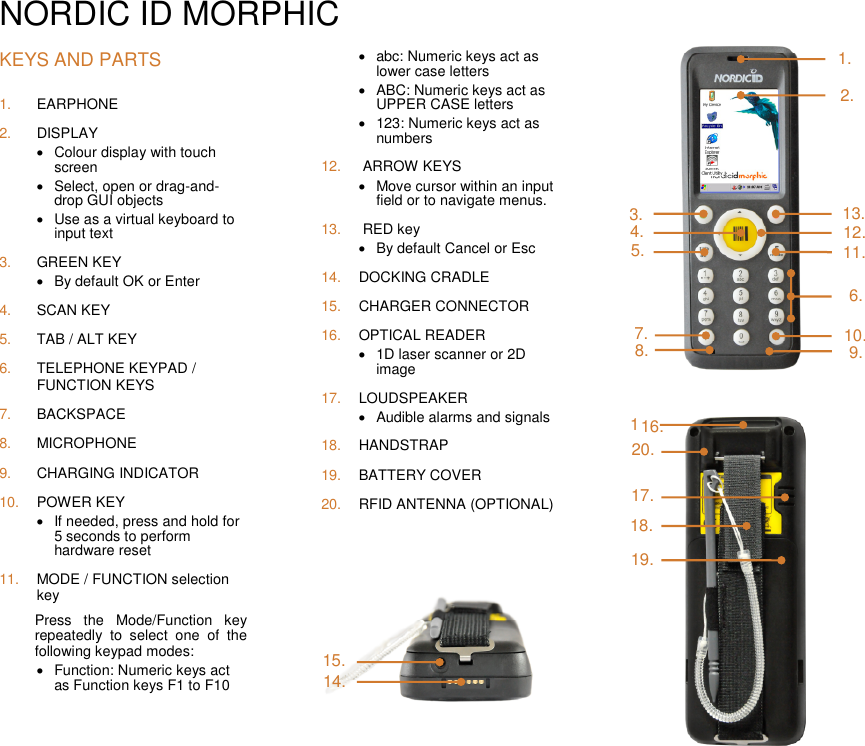

NORDIC ID MORPHICKEYS AND PARTS1. EARPHONE2. DISPLAYColour display with touchscreenSelect, open or drag-and-drop GUI objectsUse as a virtual keyboard toinput text3. GREEN KEYBy default OK or Enter4. SCAN KEY5. TAB / ALT KEY6. TELEPHONE KEYPAD /FUNCTION KEYS7. BACKSPACE8. MICROPHONE9. CHARGING INDICATOR10. POWER KEYIf needed, press and hold for5 seconds to performhardware reset11. MODE / FUNCTION selectionkeyPress the Mode/Function keyrepeatedly to select one of thefollowing keypad modes:Function: Numeric keys actas Function keys F1 to F10abc: Numeric keys act aslower case lettersABC: Numeric keys act asUPPER CASE letters123: Numeric keys act asnumbers12. ARROW KEYSMove cursor within an inputfield or to navigate menus.13. RED keyBy default Cancel or Esc14. DOCKING CRADLE15. CHARGER CONNECTOR16. OPTICAL READER1D laser scanner or 2Dimage17. LOUDSPEAKERAudible alarms and signals18. HANDSTRAP19. BATTERY COVER20. RFID ANTENNA (OPTIONAL)3.4.5.7.11.12.6.8.10.13.2.1.9.15.14.16.17.18.19.20.16.

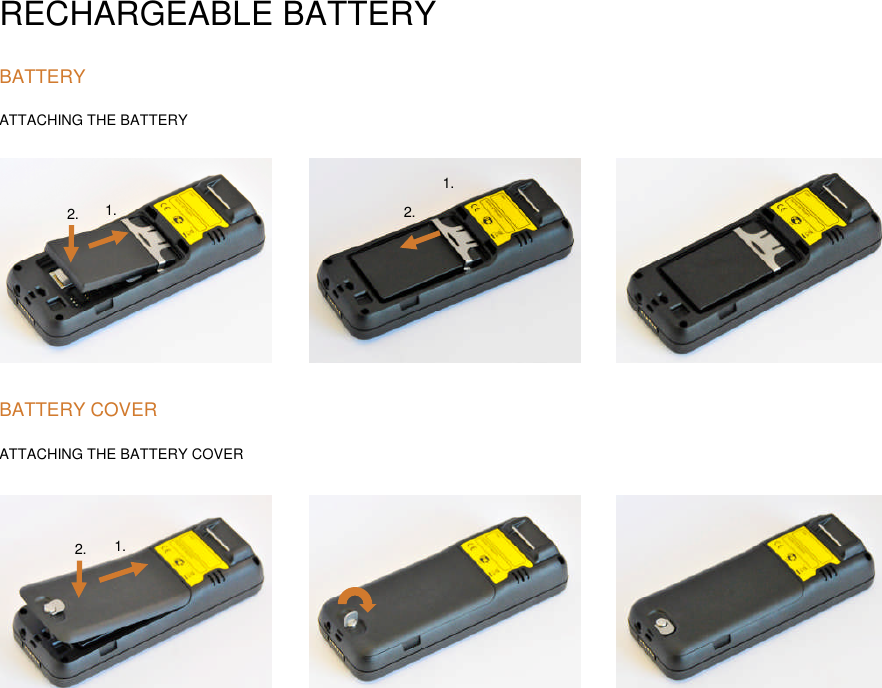

RECHARGEABLE BATTERYBATTERYATTACHING THE BATTERYBATTERY COVERATTACHING THE BATTERY COVER1.2.2.1.1.2.

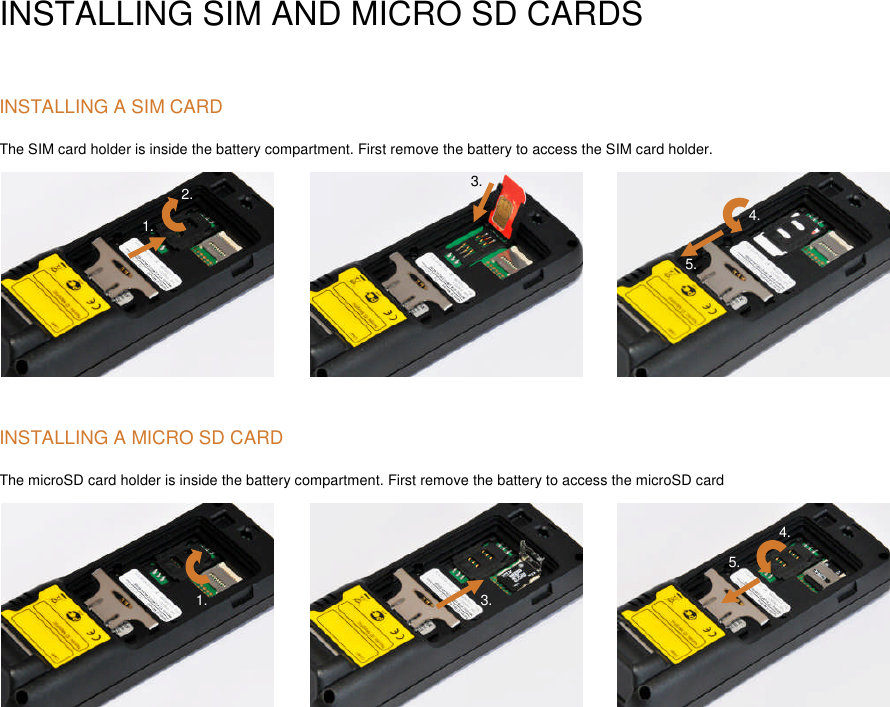

INSTALLING SIM AND MICRO SD CARDSINSTALLING A SIM CARDThe SIM card holder is inside the battery compartment. First remove the battery to access the SIM card holder.INSTALLING A MICRO SD CARDThe microSD card holder is inside the battery compartment. First remove the battery to access the microSD card3.1.2.4.5.4.5.2.1.3.

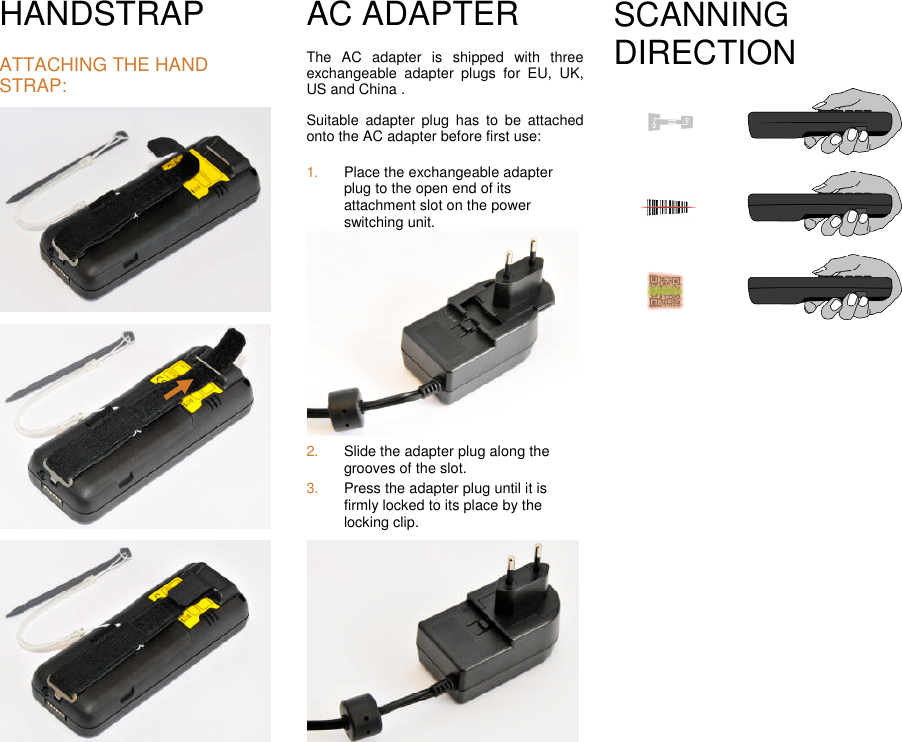

HANDSTRAPATTACHING THE HANDSTRAP:AC ADAPTERThe AC adapter is shipped with threeexchangeable adapter plugs for EU, UK,US and China .Suitable adapter plug has to be attachedonto the AC adapter before first use:1. Place the exchangeable adapterplug to the open end of itsattachment slot on the powerswitching unit.2. Slide the adapter plug along thegrooves of the slot.3. Press the adapter plug until it isfirmly locked to its place by thelocking clip.SCANNINGDIRECTION

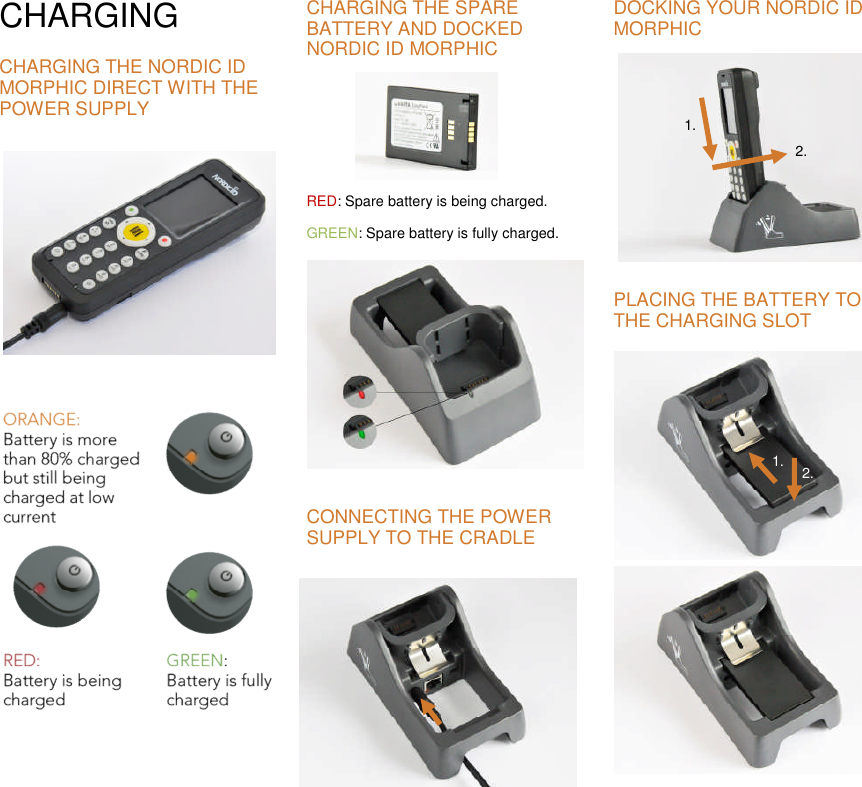

CHARGINGCHARGING THE NORDIC IDMORPHIC DIRECT WITH THEPOWER SUPPLYCHARGING THE SPAREBATTERY AND DOCKEDNORDIC ID MORPHICRED: Spare battery is being charged.GREEN: Spare battery is fully charged.CONNECTING THE POWERSUPPLY TO THE CRADLEDOCKING YOUR NORDIC IDMORPHICPLACING THE BATTERY TOTHE CHARGING SLOT1.2.1.2.

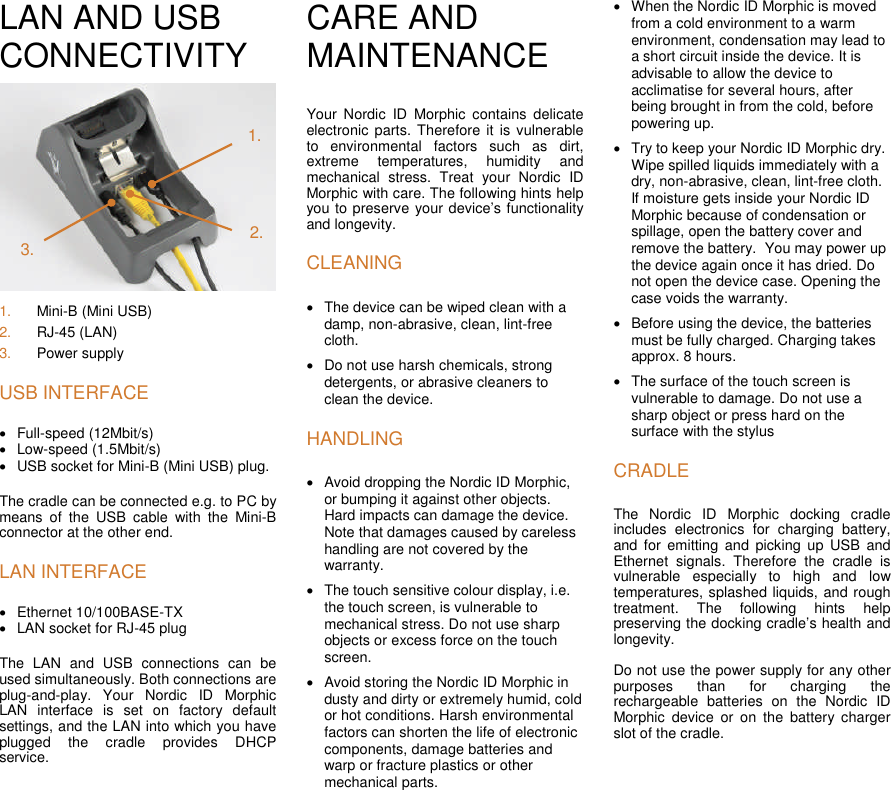

LAN AND USBCONNECTIVITY1. Mini-B (Mini USB)2. RJ-45 (LAN)3. Power supplyUSB INTERFACEFull-speed (12Mbit/s)Low-speed (1.5Mbit/s)USB socket for Mini-B (Mini USB) plug.The cradle can be connected e.g. to PC bymeans of the USB cable with the Mini-Bconnector at the other end.LAN INTERFACEEthernet 10/100BASE-TXLAN socket for RJ-45 plugThe LAN and USB connections can beused simultaneously. Both connections areplug-and-play. Your Nordic ID MorphicLAN interface is set on factory defaultsettings, and the LAN into which you haveplugged the cradle provides DHCPservice.CARE ANDMAINTENANCEYour Nordic ID Morphic contains delicateelectronic parts. Therefore it is vulnerableto environmental factors such as dirt,extreme temperatures, humidity andmechanical stress. Treat your Nordic IDMorphic with care. The following hints helpyou to preserve your device’s functionalityand longevity.CLEANINGThe device can be wiped clean with adamp, non-abrasive, clean, lint-freecloth.Do not use harsh chemicals, strongdetergents, or abrasive cleaners toclean the device.HANDLINGAvoid dropping the Nordic ID Morphic,or bumping it against other objects.Hard impacts can damage the device.Note that damages caused by carelesshandling are not covered by thewarranty.The touch sensitive colour display, i.e.the touch screen, is vulnerable tomechanical stress. Do not use sharpobjects or excess force on the touchscreen.Avoid storing the Nordic ID Morphic industy and dirty or extremely humid, coldor hot conditions. Harsh environmentalfactors can shorten the life of electroniccomponents, damage batteries andwarp or fracture plastics or othermechanical parts.When the Nordic ID Morphic is movedfrom a cold environment to a warmenvironment, condensation may lead toa short circuit inside the device. It isadvisable to allow the device toacclimatise for several hours, afterbeing brought in from the cold, beforepowering up.Try to keep your Nordic ID Morphic dry.Wipe spilled liquids immediately with adry, non-abrasive, clean, lint-free cloth.If moisture gets inside your Nordic IDMorphic because of condensation orspillage, open the battery cover andremove the battery. You may power upthe device again once it has dried. Donot open the device case. Opening thecase voids the warranty.Before using the device, the batteriesmust be fully charged. Charging takesapprox. 8 hours.The surface of the touch screen isvulnerable to damage. Do not use asharp object or press hard on thesurface with the stylusCRADLEThe Nordic ID Morphic docking cradleincludes electronics for charging battery,and for emitting and picking up USB andEthernet signals. Therefore the cradle isvulnerable especially to high and lowtemperatures, splashed liquids, and roughtreatment. The following hints helppreserving the docking cradle’s health andlongevity.Do not use the power supply for any otherpurposes than for charging therechargeable batteries on the Nordic IDMorphic device or on the battery chargerslot of the cradle.2.3.1.
SAFETY PRECAUTIONSLASERNordic ID Morphic mobile computers,equipped with 1D laser scanner, areclassified as Class 2 Laser productshaving 1mW power and 650nmwavelength. The laser scanner uses a lowpower, visible laser diode. As with anyvery bright light source, such as the sun,the user should avoid staring directly intothe light beam. Momentary exposure to aClass 2 laser is not known to be harmful.The NORDIC ID Morphic fulfils theregulatory requirements as follows:Complies with 21CFR1040.10 and1040.11 except for deviations pursuant toLaser Notice No. 50, dated June 24, 2007.IEC/EN 60825-1:2007BATTERY用错误型号电池更换,会有爆炸的危险,务必按照说明处置用完的电池Use only the following Varta EasyPackRecahargeable Li-Polymer 3,7V batterymodels being intended for your Nordic IDMorphic:EZPack XL (2260 mAh / 8,4Wh)EZPack L (1130 mAh / 4,2 Wh)Note! Using some other battery type ormodel for powering your Nordic ID Morphicthan those mentioned above may cause abattery explosion.Do not disassemble the battery.Do not short circuit the battery’s electricalcontacts.Do not expose the battery to direct sunlightor other heat sources.Dispose the battery in ecologically soundmanner and according to local laws andregulations.AC ADAPTERUse only AC adapters approved byNordic ID. This device is intended foruse with Nordic PowerS024EM0520300 AC adapter.Do not use the AC adapter for any otherpurposes than for charging the NordicID Morphic rechargeable batteries.Check the mains voltage against thosespecified in the AC adapter beforeplugging to mains socket.Use the AC adapter indoors at normalroom temperatures.MEDICAL DEVICESTo avoid potential interference from NordicID Morphic it shall be operated (, and kept)a minimum of 20 centimetres (8 inches)from a medical device such as apacemaker, hearing aid, or cardioverter-defibrillator, in every situation.POTENTIALLY EXPLOSIVEENVIRONMENTSSwitch off your device when in area withpotentially explosive atmosphere. Sparksin such areas could cause fire or anexplosion. Potentially explosiveenvironment include areas where the aircontains chemicals or particles such asdust or other powders. Potentiallyexplosive areas are often, but notnecessarily always, clearly marked. Obeyall signs and instructions.DANSK LASERLYF! SE IKKE IND I STRÅLEN! KLASSE 2 LASER!DEUTSCH LASERSTRAHLEN! NICHT DIRECT IN DEN LASERSTRAHLSCHAUEN! LASER PRODUKT DER KLASSE 2!ENGLISH LASER LIGHT! DO NOT STARE INTO BEAM! CLASS 2 LASER!ESPAÑOL LUZ LASER! NO MIRE FIJAMENTE EL HAZ! PRODUCTOLASER DE LA CLASE 2!FRANCAIS LUMIERE LASER! NE PAS REGARDER LE RAYON FIXEMENT!PRODUIT LASER DE CLASSE 2!ITALIANO LUCE LASER! NON FISSARE IL RAGGIO PRODOTTO!NEDERLANDS LASERLICHT! NIET IN STRAAL STAREN! KLASSE-2 LASER!NORSK LASERLYS! IKKE STIRRINN I LYSSTRÅLEN! LASER, KLASSE 2!PORTUGUÊS LUZ DE LASER! NÃO FIXAR O RAIO LUMINOSO! PRODUTOLASER DA CLASSE2!SUOMI VARO LASERSÄDETTÄ! ÄLÄ SUUNTAA SÄDETTÄ SILMIIN!LASER, LUOKKA 2!SVENSKA VARNING LASERSTÅLNING! STIRRA EJ IN I STRÅLEN!KLASS 2 LASER!

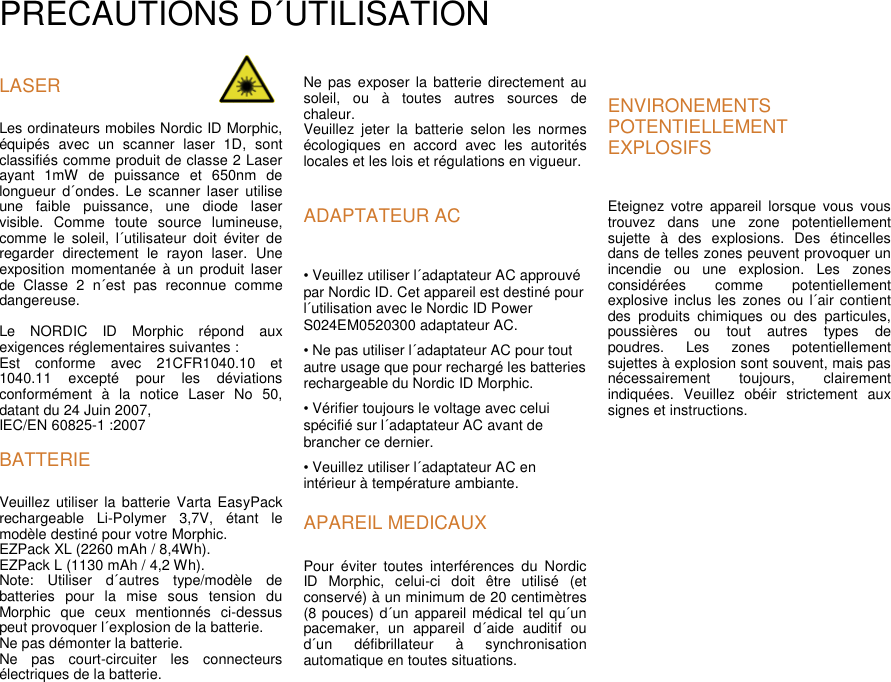

PRECAUTIONS D´UTILISATIONLASERLes ordinateurs mobiles Nordic ID Morphic,équipés avec un scanner laser 1D, sontclassifiés comme produit de classe 2 Laserayant 1mW de puissance et 650nm delongueur d´ondes. Le scanner laser utiliseune faible puissance, une diode laservisible. Comme toute source lumineuse,comme le soleil, l´utilisateur doit éviter deregarder directement le rayon laser. Uneexposition momentanée à un produit laserde Classe 2 n´est pas reconnue commedangereuse.Le NORDIC ID Morphic répond auxexigences réglementaires suivantes :Est conforme avec 21CFR1040.10 et1040.11 excepté pour les déviationsconformément à la notice Laser No 50,datant du 24 Juin 2007,IEC/EN 60825-1 :2007BATTERIEVeuillez utiliser la batterie Varta EasyPackrechargeable Li-Polymer 3,7V, étant lemodèle destiné pour votre Morphic.EZPack XL (2260 mAh / 8,4Wh).EZPack L (1130 mAh / 4,2 Wh).Note: Utiliser d´autres type/modèle debatteries pour la mise sous tension duMorphic que ceux mentionnés ci-dessuspeut provoquer l´explosion de la batterie.Ne pas démonter la batterie.Ne pas court-circuiter les connecteursélectriques de la batterie.Ne pas exposer la batterie directement ausoleil, ou à toutes autres sources dechaleur.Veuillez jeter la batterie selon les normesécologiques en accord avec les autoritéslocales et les lois et régulations en vigueur.ADAPTATEUR AC• Veuillez utiliser l´adaptateur AC approuvépar Nordic ID. Cet appareil est destiné pourl´utilisation avec le Nordic ID PowerS024EM0520300 adaptateur AC.• Ne pas utiliser l´adaptateur AC pour toutautre usage que pour rechargé les batteriesrechargeable du Nordic ID Morphic.• Vérifier toujours le voltage avec celuispécifié sur l´adaptateur AC avant debrancher ce dernier.• Veuillez utiliser l´adaptateur AC enintérieur à température ambiante.APAREIL MEDICAUXPour éviter toutes interférences du NordicID Morphic, celui-ci doit être utilisé (etconservé) à un minimum de 20 centimètres(8 pouces) d´un appareil médical tel qu´unpacemaker, un appareil d´aide auditif oud´un défibrillateur à synchronisationautomatique en toutes situations.ENVIRONEMENTSPOTENTIELLEMENTEXPLOSIFSEteignez votre appareil lorsque vous voustrouvez dans une zone potentiellementsujette à des explosions. Des étincellesdans de telles zones peuvent provoquer unincendie ou une explosion. Les zonesconsidérées comme potentiellementexplosive inclus les zones ou l´air contientdes produits chimiques ou des particules,poussières ou tout autres types depoudres. Les zones potentiellementsujettes à explosion sont souvent, mais pasnécessairement toujours, clairementindiquées. Veuillez obéir strictement auxsignes et instructions.

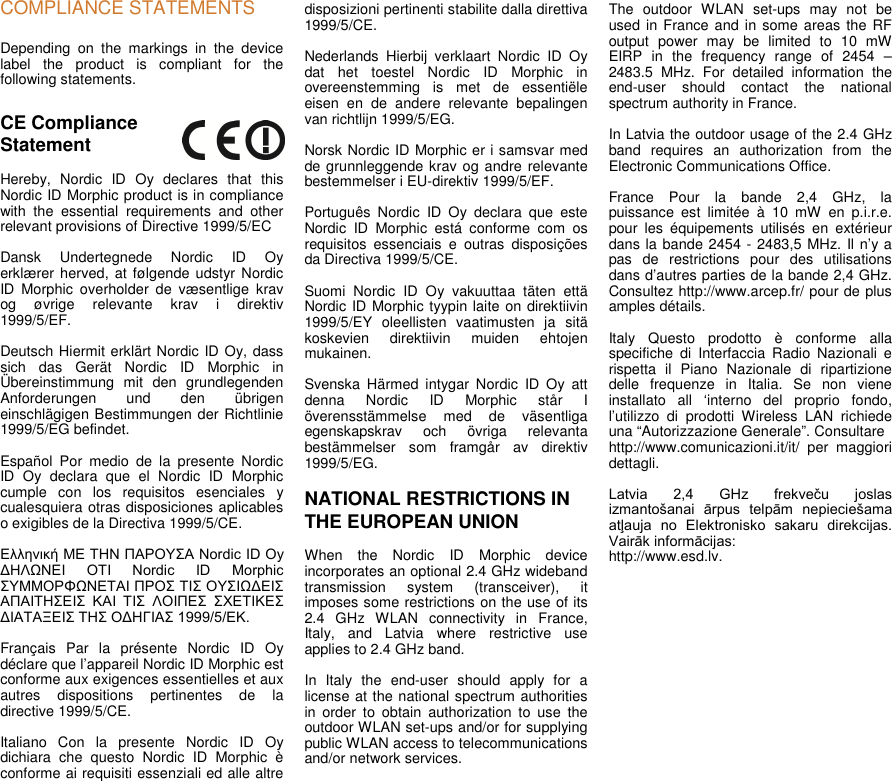

COMPLIANCE STATEMENTSDepending on the markings in the devicelabel the product is compliant for thefollowing statements.CE ComplianceStatementHereby, Nordic ID Oy declares that thisNordic ID Morphic product is in compliancewith the essential requirements and otherrelevant provisions of Directive 1999/5/ECDansk Undertegnede Nordic ID Oyerklærer herved, at følgende udstyr NordicID Morphic overholder de væsentlige kravog øvrige relevante krav i direktiv1999/5/EF.Deutsch Hiermit erklärt Nordic ID Oy, dasssich das Gerät Nordic ID Morphic inÜbereinstimmung mit den grundlegendenAnforderungen und den übrigeneinschlägigen Bestimmungen der Richtlinie1999/5/EG befindet.Español Por medio de la presente NordicID Oy declara que el Nordic ID Morphiccumple con los requisitos esenciales ycualesquiera otras disposiciones aplicableso exigibles de la Directiva 1999/5/CE.Ελληνική ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Nordic ID Oy ΔΗΛΩΝΕΙ ΟΤΙ Nordic ID Morphic ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français Par la présente Nordic ID Oydéclare que l’appareil Nordic ID Morphic estconforme aux exigences essentielles et auxautres dispositions pertinentes de ladirective 1999/5/CE.Italiano Con la presente Nordic ID Oydichiara che questo Nordic ID Morphic èconforme ai requisiti essenziali ed alle altredisposizioni pertinenti stabilite dalla direttiva1999/5/CE.Nederlands Hierbij verklaart Nordic ID Oydat het toestel Nordic ID Morphic inovereenstemming is met de essentiëleeisen en de andere relevante bepalingenvan richtlijn 1999/5/EG.Norsk Nordic ID Morphic er i samsvar medde grunnleggende krav og andre relevantebestemmelser i EU-direktiv 1999/5/EF.Português Nordic ID Oy declara que esteNordic ID Morphic está conforme com osrequisitos essenciais e outras disposiçõesda Directiva 1999/5/CE.Suomi Nordic ID Oy vakuuttaa täten ettäNordic ID Morphic tyypin laite on direktiivin1999/5/EY oleellisten vaatimusten ja sitäkoskevien direktiivin muiden ehtojenmukainen.Svenska Härmed intygar Nordic ID Oy attdenna Nordic ID Morphic står Iöverensstämmelse med de väsentligaegenskapskrav och övriga relevantabestämmelser som framgår av direktiv1999/5/EG.NATIONAL RESTRICTIONS INTHE EUROPEAN UNIONWhen the Nordic ID Morphic deviceincorporates an optional 2.4 GHz widebandtransmission system (transceiver), itimposes some restrictions on the use of its2.4 GHz WLAN connectivity in France,Italy, and Latvia where restrictive useapplies to 2.4 GHz band.In Italy the end-user should apply for alicense at the national spectrum authoritiesin order to obtain authorization to use theoutdoor WLAN set-ups and/or for supplyingpublic WLAN access to telecommunicationsand/or network services.The outdoor WLAN set-ups may not beused in France and in some areas the RFoutput power may be limited to 10 mWEIRP in the frequency range of 2454 –2483.5 MHz. For detailed information theend-user should contact the nationalspectrum authority in France.In Latvia the outdoor usage of the 2.4 GHzband requires an authorization from theElectronic Communications Office.France Pour la bande 2,4 GHz, lapuissance est limitée à 10 mW en p.i.r.e.pour les équipements utilisés en extérieurdans la bande 2454 - 2483,5 MHz. Il n’y apas de restrictions pour des utilisationsdans d’autres parties de la bande 2,4 GHz.Consultez http://www.arcep.fr/ pour de plusamples détails.Italy Questo prodotto è conforme allaspecifiche di Interfaccia Radio Nazionali erispetta il Piano Nazionale di ripartizionedelle frequenze in Italia. Se non vieneinstallato all ‘interno del proprio fondo,l’utilizzo di prodotti Wireless LAN richiedeuna “Autorizzazione Generale”. Consultarehttp://www.comunicazioni.it/it/ per maggioridettagli.Latvia 2,4 GHz frekveču joslas izmantošanai ārpus telpām nepieciešama atļauja no Elektronisko sakaru direkcijas. Vairāk informācijas: http://www.esd.lv.

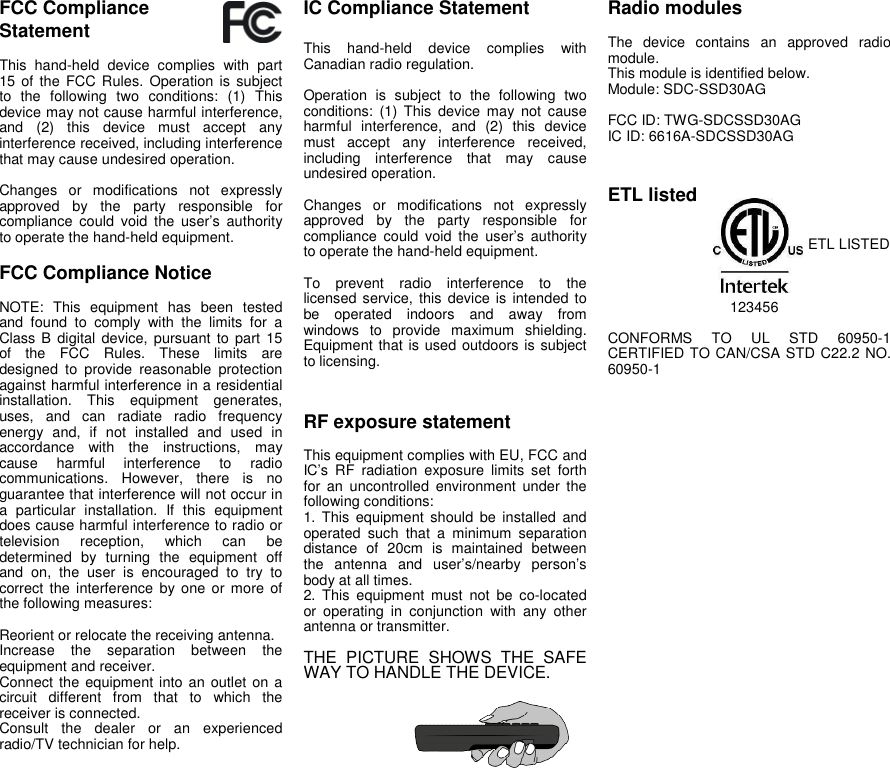

FCC ComplianceStatementThis hand-held device complies with part15 of the FCC Rules. Operation is subjectto the following two conditions: (1) Thisdevice may not cause harmful interference,and (2) this device must accept anyinterference received, including interferencethat may cause undesired operation.Changes or modifications not expresslyapproved by the party responsible forcompliance could void the user’s authorityto operate the hand-held equipment.FCC Compliance NoticeNOTE: This equipment has been testedand found to comply with the limits for aClass B digital device, pursuant to part 15of the FCC Rules. These limits aredesigned to provide reasonable protectionagainst harmful interference in a residentialinstallation. This equipment generates,uses, and can radiate radio frequencyenergy and, if not installed and used inaccordance with the instructions, maycause harmful interference to radiocommunications. However, there is noguarantee that interference will not occur ina particular installation. If this equipmentdoes cause harmful interference to radio ortelevision reception, which can bedetermined by turning the equipment offand on, the user is encouraged to try tocorrect the interference by one or more ofthe following measures:Reorient or relocate the receiving antenna.Increase the separation between theequipment and receiver.Connect the equipment into an outlet on acircuit different from that to which thereceiver is connected.Consult the dealer or an experiencedradio/TV technician for help.IC Compliance StatementThis hand-held device complies withCanadian radio regulation.Operation is subject to the following twoconditions: (1) This device may not causeharmful interference, and (2) this devicemust accept any interference received,including interference that may causeundesired operation.Changes or modifications not expresslyapproved by the party responsible forcompliance could void the user’s authorityto operate the hand-held equipment.To prevent radio interference to thelicensed service, this device is intended tobe operated indoors and away fromwindows to provide maximum shielding.Equipment that is used outdoors is subjectto licensing.RF exposure statementThis equipment complies with EU, FCC andIC’s RF radiation exposure limits set forthfor an uncontrolled environment under thefollowing conditions:1. This equipment should be installed andoperated such that a minimum separationdistance of 20cm is maintained betweenthe antenna and user’s/nearby person’sbody at all times.2. This equipment must not be co-locatedor operating in conjunction with any otherantenna or transmitter.THE PICTURE SHOWS THE SAFEWAY TO HANDLE THE DEVICE.Radio modulesThe device contains an approved radiomodule.This module is identified below.Module: SDC-SSD30AGFCC ID: TWG-SDCSSD30AGIC ID: 6616A-SDCSSD30AGETL listedETL LISTED123456CONFORMS TO UL STD 60950-1CERTIFIED TO CAN/CSA STD C22.2 NO.60950-1

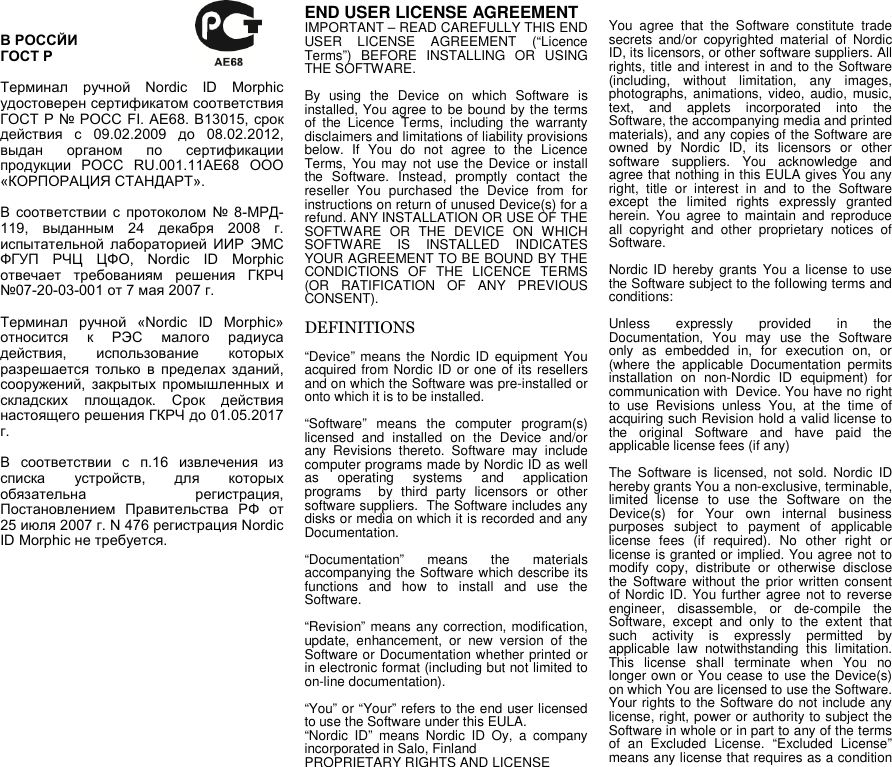

В PОССЙИ ГОСТ Р Терминал ручной Nordic ID Morphic удостоверен сертификатом соответствия ГОСТ Р № POCC FI. AE68. B13015, срок действия с 09.02.2009 до 08.02.2012, выдан органом по сертификации продукции РОСС RU.001.11AE68 ООО «КОРПОРАЦИЯ СТАНДАРТ». В соответствии с протоколом № 8-МРД-119, выданным 24 декабря 2008 г. испытательной лабораторией ИИР ЭМС ФГУП РЧЦ ЦФО, Nordic ID Morphic отвечает требованиям решения ГКРЧ №07-20-03-001 от 7 мая 2007 г. Терминал ручной «Nordic ID Morphic» относится к РЭС малого радиуса действия, использование которых разрешается только в пределах зданий, сооружений, закрытых промышленных и складских площадок. Срок действия настоящего решения ГКРЧ до 01.05.2017 г. В соответствии с п.16 извлечения из списка устройств, для которых обязательна регистрация, Постановлением Правительства РФ от 25 июля 2007 г. N 476 регистрация Nordic ID Morphic не требуется. END USER LICENSE AGREEMENTIMPORTANT – READ CAREFULLY THIS ENDUSER LICENSE AGREEMENT (“LicenceTerms”) BEFORE INSTALLING OR USINGTHE SOFTWARE.By using the Device on which Software isinstalled, You agree to be bound by the termsof the Licence Terms, including the warrantydisclaimers and limitations of liability provisionsbelow. If You do not agree to the LicenceTerms, You may not use the Device or installthe Software. Instead, promptly contact thereseller You purchased the Device from forinstructions on return of unused Device(s) for arefund. ANY INSTALLATION OR USE OF THESOFTWARE OR THE DEVICE ON WHICHSOFTWARE IS INSTALLED INDICATESYOUR AGREEMENT TO BE BOUND BY THECONDICTIONS OF THE LICENCE TERMS(OR RATIFICATION OF ANY PREVIOUSCONSENT).DEFINITIONS“Device” means the Nordic ID equipment Youacquired from Nordic ID or one of its resellersand on which the Software was pre-installed oronto which it is to be installed.“Software” means the computer program(s)licensed and installed on the Device and/orany Revisions thereto. Software may includecomputer programs made by Nordic ID as wellas operating systems and applicationprograms by third party licensors or othersoftware suppliers. The Software includes anydisks or media on which it is recorded and anyDocumentation.“Documentation” means the materialsaccompanying the Software which describe itsfunctions and how to install and use theSoftware.“Revision” means any correction, modification,update, enhancement, or new version of theSoftware or Documentation whether printed orin electronic format (including but not limited toon-line documentation).“You” or “Your” refers to the end user licensedto use the Software under this EULA.“Nordic ID” means Nordic ID Oy, a companyincorporated in Salo, FinlandPROPRIETARY RIGHTS AND LICENSEYou agree that the Software constitute tradesecrets and/or copyrighted material of NordicID, its licensors, or other software suppliers. Allrights, title and interest in and to the Software(including, without limitation, any images,photographs, animations, video, audio, music,text, and applets incorporated into theSoftware, the accompanying media and printedmaterials), and any copies of the Software areowned by Nordic ID, its licensors or othersoftware suppliers. You acknowledge andagree that nothing in this EULA gives You anyright, title or interest in and to the Softwareexcept the limited rights expressly grantedherein. You agree to maintain and reproduceall copyright and other proprietary notices ofSoftware.Nordic ID hereby grants You a license to usethe Software subject to the following terms andconditions:Unless expressly provided in theDocumentation, You may use the Softwareonly as embedded in, for execution on, or(where the applicable Documentation permitsinstallation on non-Nordic ID equipment) forcommunication with Device. You have no rightto use Revisions unless You, at the time ofacquiring such Revision hold a valid license tothe original Software and have paid theapplicable license fees (if any)The Software is licensed, not sold. Nordic IDhereby grants You a non-exclusive, terminable,limited license to use the Software on theDevice(s) for Your own internal businesspurposes subject to payment of applicablelicense fees (if required). No other right orlicense is granted or implied. You agree not tomodify copy, distribute or otherwise disclosethe Software without the prior written consentof Nordic ID. You further agree not to reverseengineer, disassemble, or de-compile theSoftware, except and only to the extent thatsuch activity is expressly permitted byapplicable law notwithstanding this limitation.This license shall terminate when You nolonger own or You cease to use the Device(s)on which You are licensed to use the Software.Your rights to the Software do not include anylicense, right, power or authority to subject theSoftware in whole or in part to any of the termsof an Excluded License. “Excluded License”means any license that requires as a condition

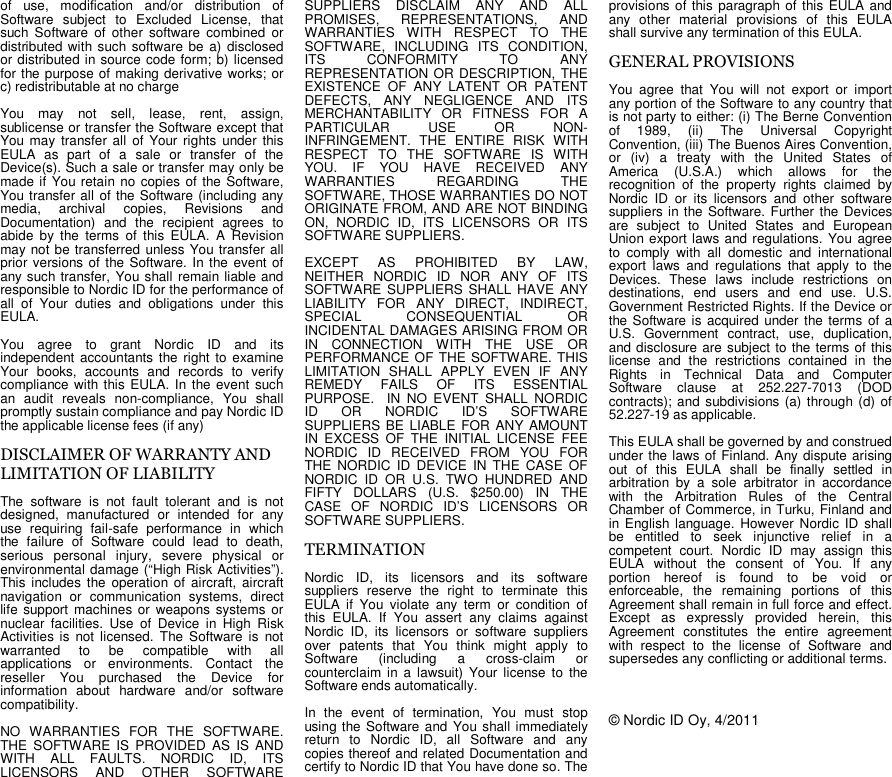

of use, modification and/or distribution ofSoftware subject to Excluded License, thatsuch Software of other software combined ordistributed with such software be a) disclosedor distributed in source code form; b) licensedfor the purpose of making derivative works; orc) redistributable at no chargeYou may not sell, lease, rent, assign,sublicense or transfer the Software except thatYou may transfer all of Your rights under thisEULA as part of a sale or transfer of theDevice(s). Such a sale or transfer may only bemade if You retain no copies of the Software,You transfer all of the Software (including anymedia, archival copies, Revisions andDocumentation) and the recipient agrees toabide by the terms of this EULA. A Revisionmay not be transferred unless You transfer allprior versions of the Software. In the event ofany such transfer, You shall remain liable andresponsible to Nordic ID for the performance ofall of Your duties and obligations under thisEULA.You agree to grant Nordic ID and itsindependent accountants the right to examineYour books, accounts and records to verifycompliance with this EULA. In the event suchan audit reveals non-compliance, You shallpromptly sustain compliance and pay Nordic IDthe applicable license fees (if any)DISCLAIMER OF WARRANTY ANDLIMITATION OF LIABILITYThe software is not fault tolerant and is notdesigned, manufactured or intended for anyuse requiring fail-safe performance in whichthe failure of Software could lead to death,serious personal injury, severe physical orenvironmental damage (“High Risk Activities”).This includes the operation of aircraft, aircraftnavigation or communication systems, directlife support machines or weapons systems ornuclear facilities. Use of Device in High RiskActivities is not licensed. The Software is notwarranted to be compatible with allapplications or environments. Contact thereseller You purchased the Device forinformation about hardware and/or softwarecompatibility.NO WARRANTIES FOR THE SOFTWARE.THE SOFTWARE IS PROVIDED AS IS ANDWITH ALL FAULTS. NORDIC ID, ITSLICENSORS AND OTHER SOFTWARESUPPLIERS DISCLAIM ANY AND ALLPROMISES, REPRESENTATIONS, ANDWARRANTIES WITH RESPECT TO THESOFTWARE, INCLUDING ITS CONDITION,ITS CONFORMITY TO ANYREPRESENTATION OR DESCRIPTION, THEEXISTENCE OF ANY LATENT OR PATENTDEFECTS, ANY NEGLIGENCE AND ITSMERCHANTABILITY OR FITNESS FOR APARTICULAR USE OR NON-INFRINGEMENT. THE ENTIRE RISK WITHRESPECT TO THE SOFTWARE IS WITHYOU. IF YOU HAVE RECEIVED ANYWARRANTIES REGARDING THESOFTWARE, THOSE WARRANTIES DO NOTORIGINATE FROM, AND ARE NOT BINDINGON, NORDIC ID, ITS LICENSORS OR ITSSOFTWARE SUPPLIERS.EXCEPT AS PROHIBITED BY LAW,NEITHER NORDIC ID NOR ANY OF ITSSOFTWARE SUPPLIERS SHALL HAVE ANYLIABILITY FOR ANY DIRECT, INDIRECT,SPECIAL CONSEQUENTIAL ORINCIDENTAL DAMAGES ARISING FROM ORIN CONNECTION WITH THE USE ORPERFORMANCE OF THE SOFTWARE. THISLIMITATION SHALL APPLY EVEN IF ANYREMEDY FAILS OF ITS ESSENTIALPURPOSE. IN NO EVENT SHALL NORDICID OR NORDIC ID’S SOFTWARESUPPLIERS BE LIABLE FOR ANY AMOUNTIN EXCESS OF THE INITIAL LICENSE FEENORDIC ID RECEIVED FROM YOU FORTHE NORDIC ID DEVICE IN THE CASE OFNORDIC ID OR U.S. TWO HUNDRED ANDFIFTY DOLLARS (U.S. $250.00) IN THECASE OF NORDIC ID’S LICENSORS ORSOFTWARE SUPPLIERS.TERMINATIONNordic ID, its licensors and its softwaresuppliers reserve the right to terminate thisEULA if You violate any term or condition ofthis EULA. If You assert any claims againstNordic ID, its licensors or software suppliersover patents that You think might apply toSoftware (including a cross-claim orcounterclaim in a lawsuit) Your license to theSoftware ends automatically.In the event of termination, You must stopusing the Software and You shall immediatelyreturn to Nordic ID, all Software and anycopies thereof and related Documentation andcertify to Nordic ID that You have done so. Theprovisions of this paragraph of this EULA andany other material provisions of this EULAshall survive any termination of this EULA.GENERAL PROVISIONSYou agree that You will not export or importany portion of the Software to any country thatis not party to either: (i) The Berne Conventionof 1989, (ii) The Universal CopyrightConvention, (iii) The Buenos Aires Convention,or (iv) a treaty with the United States ofAmerica (U.S.A.) which allows for therecognition of the property rights claimed byNordic ID or its licensors and other softwaresuppliers in the Software. Further the Devicesare subject to United States and EuropeanUnion export laws and regulations. You agreeto comply with all domestic and internationalexport laws and regulations that apply to theDevices. These laws include restrictions ondestinations, end users and end use. U.S.Government Restricted Rights. If the Device orthe Software is acquired under the terms of aU.S. Government contract, use, duplication,and disclosure are subject to the terms of thislicense and the restrictions contained in theRights in Technical Data and ComputerSoftware clause at 252.227-7013 (DODcontracts); and subdivisions (a) through (d) of52.227-19 as applicable.This EULA shall be governed by and construedunder the laws of Finland. Any dispute arisingout of this EULA shall be finally settled inarbitration by a sole arbitrator in accordancewith the Arbitration Rules of the CentralChamber of Commerce, in Turku, Finland andin English language. However Nordic ID shallbe entitled to seek injunctive relief in acompetent court. Nordic ID may assign thisEULA without the consent of You. If anyportion hereof is found to be void orenforceable, the remaining portions of thisAgreement shall remain in full force and effect.Except as expressly provided herein, thisAgreement constitutes the entire agreementwith respect to the license of Software andsupersedes any conflicting or additional terms.© Nordic ID Oy, 4/2011

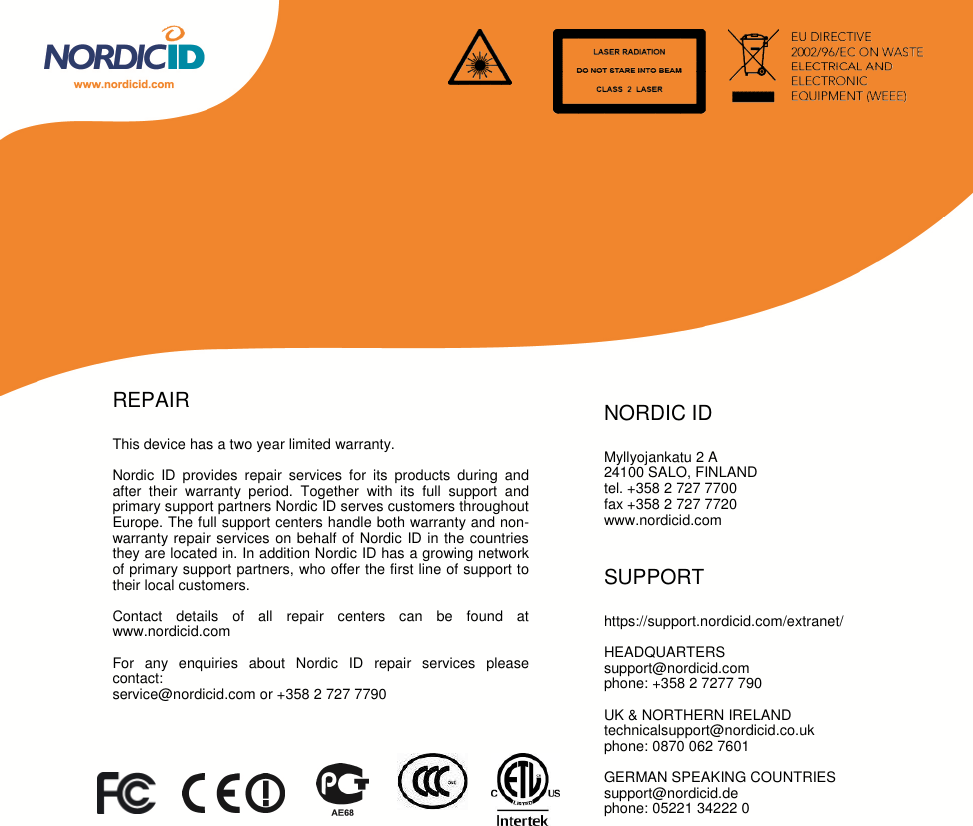

REPAIRThis device has a two year limited warranty.Nordic ID provides repair services for its products during andafter their warranty period. Together with its full support andprimary support partners Nordic ID serves customers throughoutEurope. The full support centers handle both warranty and non-warranty repair services on behalf of Nordic ID in the countriesthey are located in. In addition Nordic ID has a growing networkof primary support partners, who offer the first line of support totheir local customers.Contact details of all repair centers can be found atwww.nordicid.comFor any enquiries about Nordic ID repair services pleasecontact:service@nordicid.com or +358 2 727 7790NORDIC IDMyllyojankatu 2 A24100 SALO, FINLANDtel. +358 2 727 7700fax +358 2 727 7720www.nordicid.comSUPPORThttps://support.nordicid.com/extranet/HEADQUARTERSsupport@nordicid.comphone: +358 2 7277 790UK & NORTHERN IRELANDtechnicalsupport@nordicid.co.ukphone: 0870 062 7601GERMAN SPEAKING COUNTRIESsupport@nordicid.dephone: 05221 34222 0
