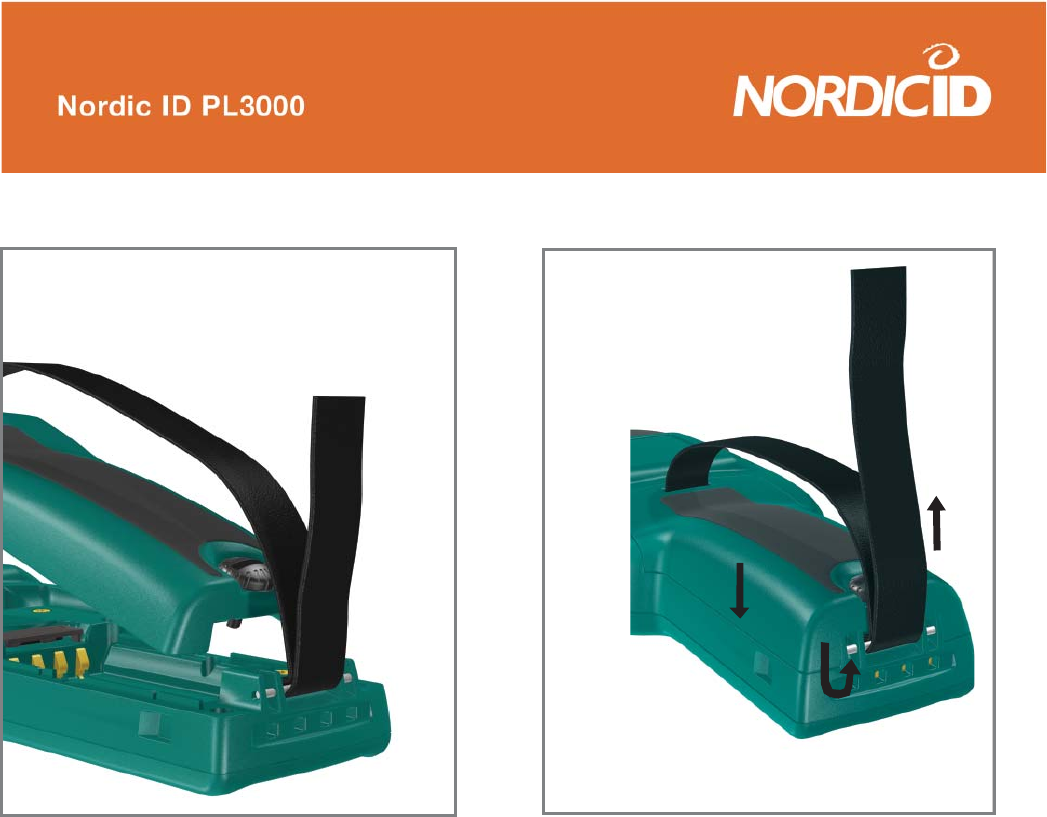

2.2.3 Handstrap 15
2.2.4 Installing the charger 17
2.2.5 Charging the unit 17
2.3 Switching on the power 19
2.4 Testing the device 19
3 User interface 20
3.1 Main parts of the device 20
3.2 Keyboard 20
3.3 Indicator lights and connections 21
3.4 PL3000 casing 21
3.4.1 Stylus holder 22
4 PL3000 Features 22
4.1 Equipment features 22
4.1.1 Processor 22
4.1.2 Microsoft ® Windows ® CE 23
4.1.3 Memory 23
4.1.4 Display 23
4.1.5 Touch screen 23
4.1.6 Keypad 23
4.1.7 Keyboard backlight 23
4.1.8 Imager (optional) 24
4.1.9 Vibrating alarm (optional) 25
4.1.10 Automatic wakeup motion sensor 25
4.1.11 Battery 25
4.1.12 Loudspeaker 25
4.1.13 Headset jack 25
4.1.15 13.56 MHz RFID multi-protocol reader (optional) 26
4.1.16 Wireless LAN (optional) 26
4.1.17 Fingerprint reader (optional) 26
4.1.18 USB 27
4.2 Accessories 27
4.2.1 Charger 27
4.2.2 Power supply for the charger 27
4.2.3 USB cable 28
4.2.4 Headset with microphone 28
4.2.5 Spare battery pack 28
5 Handling the device 29
5.1 Cleaning the device 29
5.2 Using the keyboard 29
5.3 Using stylus and touch screen 29
5.4 Resetting the device 30
5.4.1 Software resets 30
5.4.2 Managing battery power 32
5.4.3 Changing the battery pack 32
5.4.4 File System Backup 33
/FLASH/RamBackup/RamBackup.pak 34
5.4.5 Saving the registry 34
5.4.6 Setting time and date 35
5.4.7 Reading codes 36
5.4.8 Utilising virtual keyboard 36
6 Applications & tools 38
6.1 Start menu 38
6.1.2 Demo 38
6.1.3 Nordic ID 38
Rotate 39

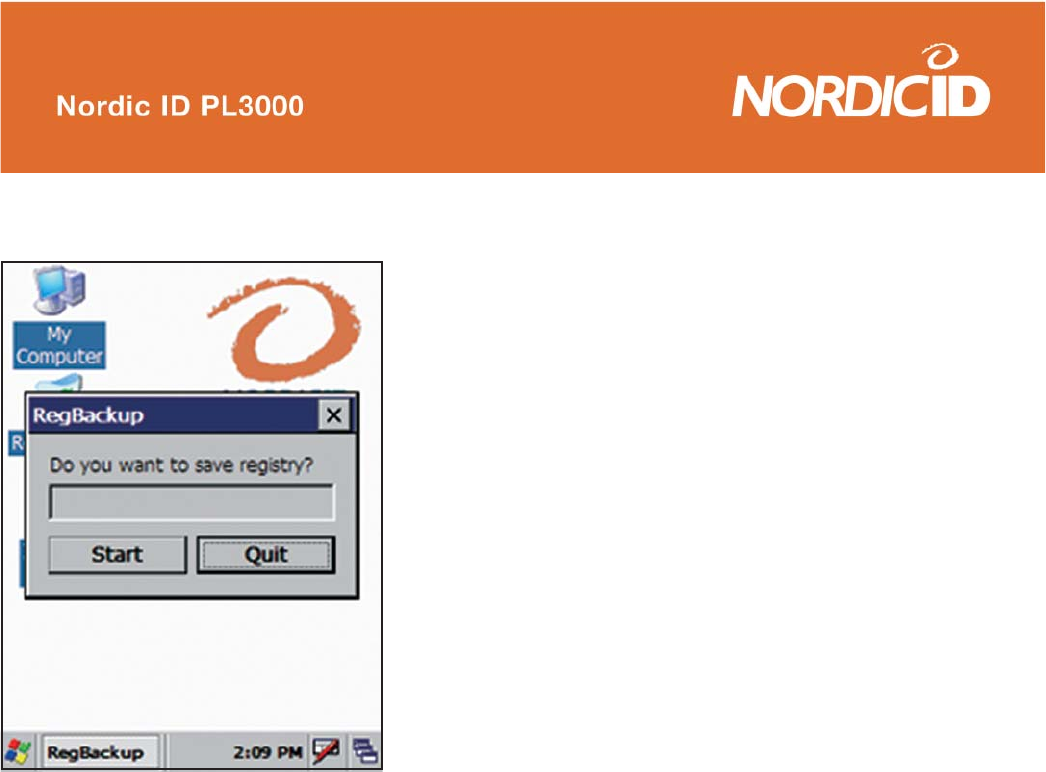

RegBackup 40
Version 41

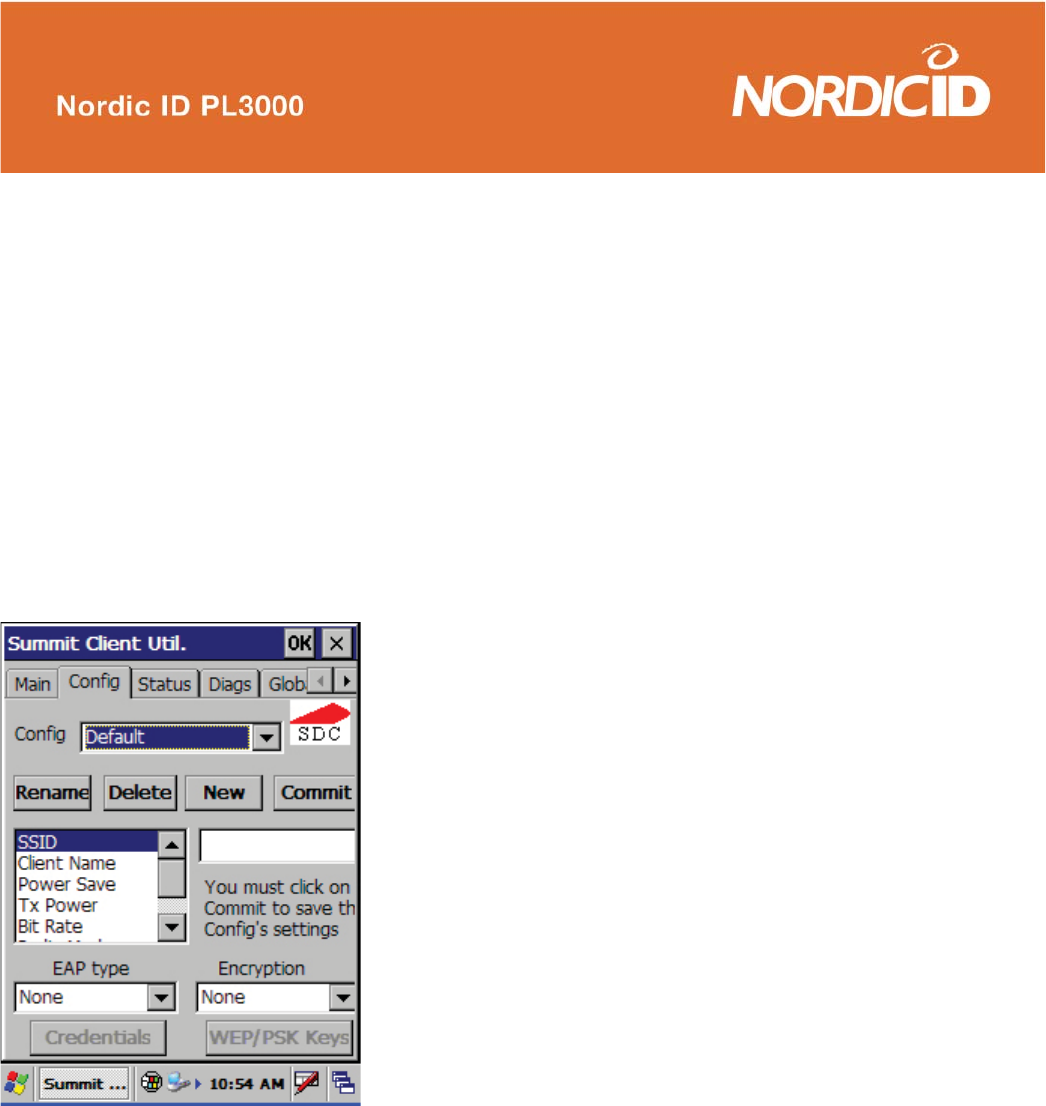

6.1.4 Summit 41
See the appendix J for instructions how to create WLAN connection for SUMMIT card. 41
6.1.5 Command prompt 42
6.1.6 Internet explorer 42
6.1.7 Microsoft WordPad 43

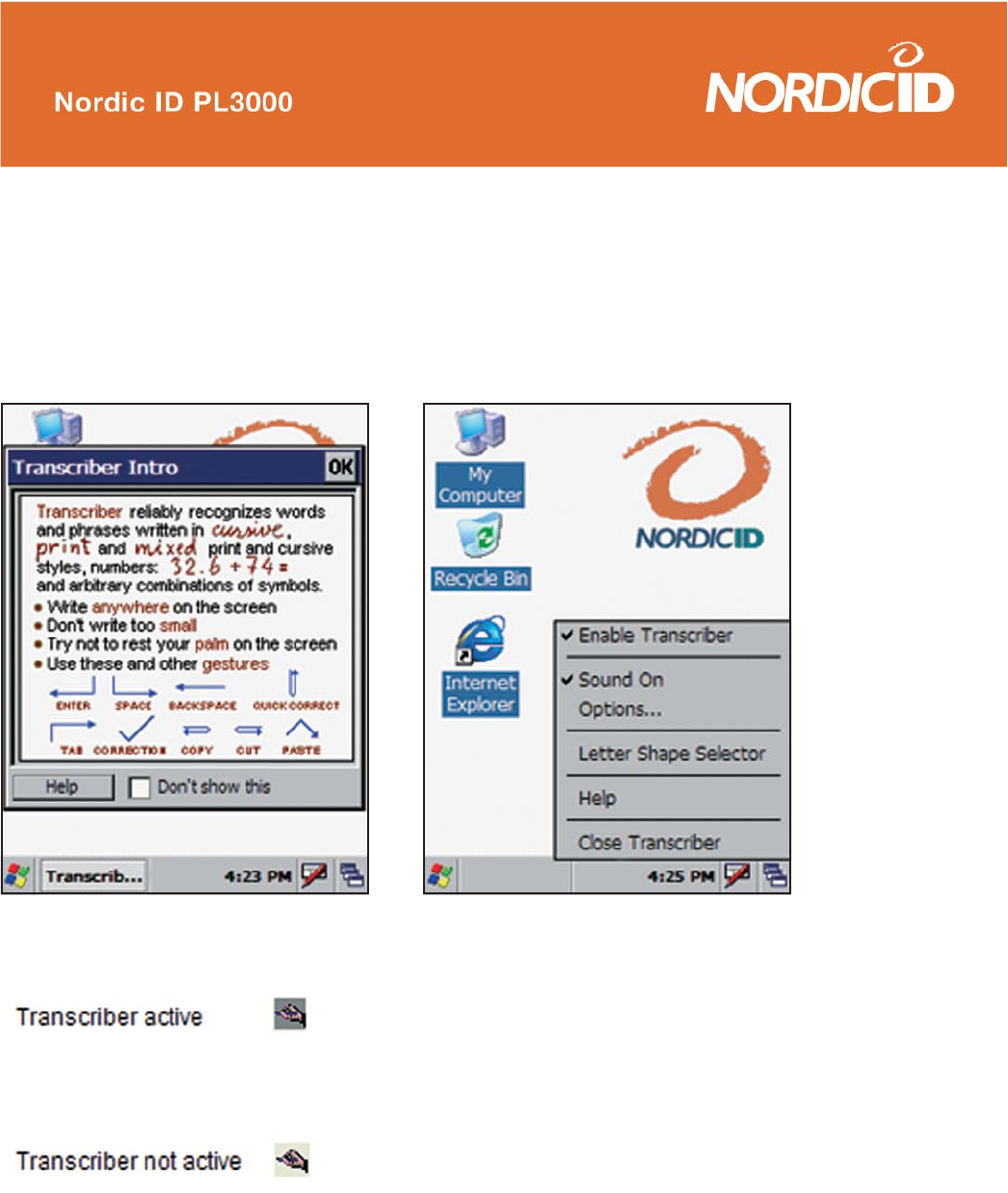

6.1.8 Transcriber 43
6.1.9 Windows Explorer 45
6.2 The task bar 45
6.3 Pop-up menu 46
6.4 Shutdown menu 46
6.5 The Control Panel 47
6.5.1 Aironet Client Utility 47
6.5.2 APN Manager 51
6.5.3 Bluetooth Device Properties 51
6.5.4 Certi cates 55
6.5.5 Date and Time 56
6.5.6 Dialing 56
6.5.7 Display 56
6.5.8 Input Panel 57

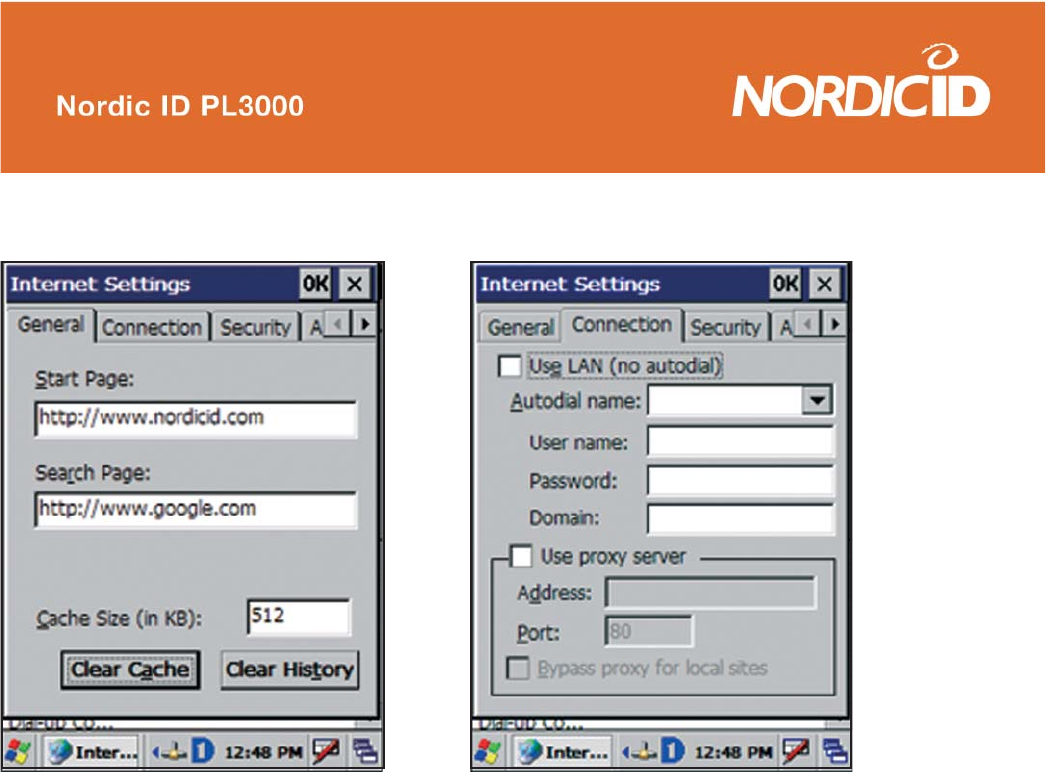

6.5.9 Internet Options 57
6.5.10 Keyboard 61
6.5.11 Mouse 61
6.5.12 Network and Dial-up Connections 61
6.5.13 NID Backlight 62
6.5.14 NID Indicators 62
6.5.15 NID Keymap 62
6.5.16 NID Power Button 63
6.5.17 NID Scanner 63
6.5.18 NID Tilt Switch 64
6.5.20 NID Trigger Button 65
6.5.19 NID Touch Screen 65
6.5.21 Owner 65
6.5.22 Password 65
6.5.24 Power 66
6.5.25 Regional Settings 67
6.5.26 Remove Programs 67
6.5.27 Storage Manager 67
6.5.28 Stylus 68
6.5.29 System 68
6.5.30 UMTS Con gurator 69
6.5.31 Touch screen 69
6.5.32 Volume & Sounds 69

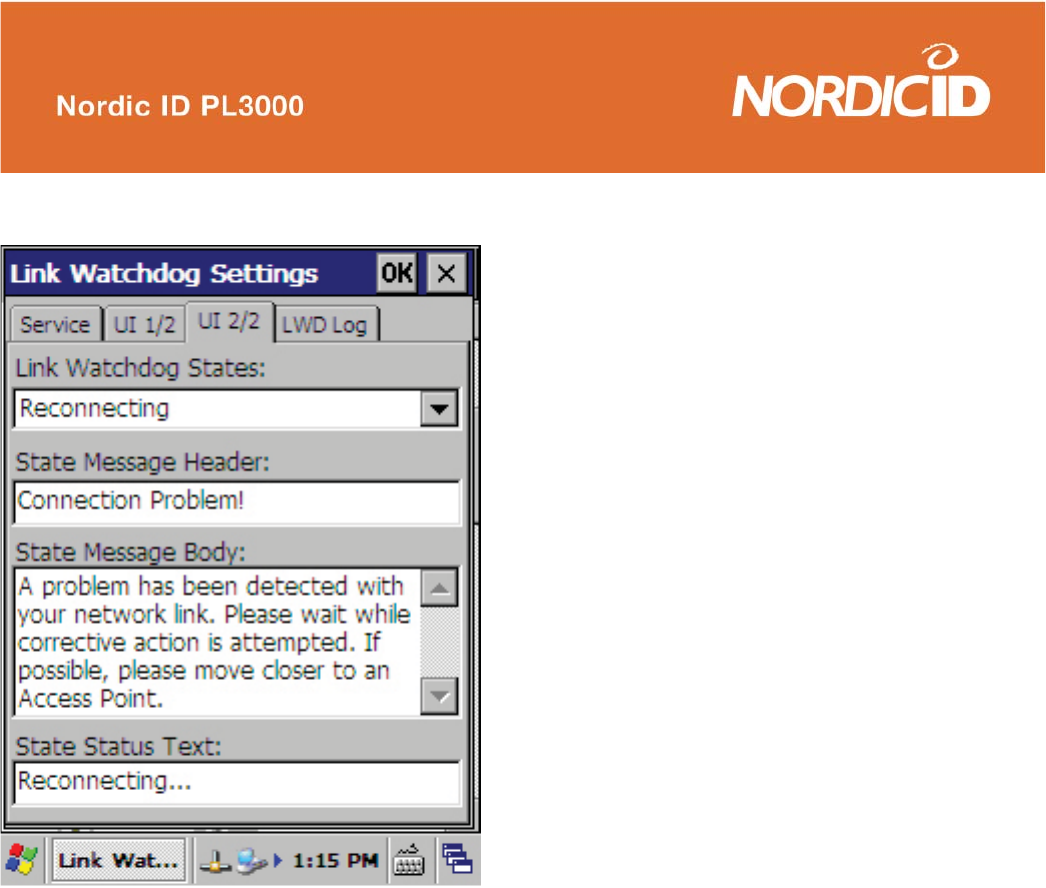

6.5.33 LinkWatchdog 70
6.5.34 Simple Network Time Protocol (SNTP) Service 78
7 Safety warnings 83
7.1 User safety 83
7.2 Regulatory and safety agency approvals 83
7.2.1 Medical equipment compatibility 84
7.2.2 Wireless networks and microwave equipment 84
7.2.3 LED safety 84
7.2.4 Laser safety 84
7.3 Batteries 86
7.4 Charging and electrical safety 86
8 Warranty 86
8.1 Warranty coverage 87
8.2 Returning the unit for service (RMA) 87
8.3 Technical support 87
8.4 Type label 88
8.5 Recycling 88
Appendix A -Technical speci cations 89
Appendix B - Code reading distances and requirements 90
Appendix C – Keyboard key mappings 96
Appendix D Activesync 97
Appendix E Creating Cisco WLAN connection 99
Appendix F Creating Option GPRS connection 100
Appendix G Application development 101
Appendix H Con guring the Linksys WCF54G –card 103
Appendix I PL3000 con gurations 105
Appendix J Creating Summit WLAN connection 106
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 6
Notice
Information in this User Manual is subject to change. Nordic ID assumes no responsibility regarding the
information presented in this User Manual.
Copyright
Nordic ID Oy owns all rights to this manual. All rights reserved. Copying this manual without the written
permission from the manufacturer by printing, copying, recording or by any other means or the full or partial
translation of the manual to any other language including all programming languages using any electrical,
mechanical, magnetic, optical, manual or other methods or devices is forbidden.
Nordic ID reserves the right to change the technical speci cations or functions of its products or to
discontinue manufacturing of any of its products without any written announcement and urges customers
to ensure that the information at their disposal is valid.
Disclaimer
Nordic ID products have not been designed, intended nor inspected to be used in any life support related
applications nor as a part of any other critical system and are not granted functional warranty if used in any
such applications.
Nordic ID urges its customers to arrange proper and adequate user training, which includes safety issues
for any personnel using, programming or otherwise handling the Nordic ID PL3000 handheld computers.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 7
Trademarks
Nordic ID and the Nordic ID logo are registered trademarks of Nordic ID Oy.
All terms mentioned in this User Manual that are known to be trademarks or service marks have been
appropriately marked in the list below with either the ©, ® or the ™ symbol or started with capital letter.
Nordic ID cannot attest to the accuracy of this information. Use of a term in this User Manual should not be
regarded as affecting the validity of any trademark or copyright.
Company/Owner of the Trademark
Microsoft Company
ARM Limited
CompactFlash Assosiation
Bluetooth SIG
Wi-Fi Alliance
Trademark
Microsoft® Windows® CE
Windows® CE
Visual Studio .NET 2003
Embedded Visual C/C++ 4.0®
ActiveSync
ARM
CompactFlash®
Bluetooth
Wi-Fi
Table 1, Identi ed trademarks used in this User manual
Latest information
For latest information on the PL3000 and on possible changes to this manual please consult our web site
at http://www.nordicid.com
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 8
EU Declaration of conformity
Nordic ID hereby declares, that the Nordic ID PL3000 handheld computer has been tested according
to the standards EN 301 489-1 (v. 1.6.1) and EN 301 489-3 (v. 1.4.1). The equipment conforms with the
essential requirements of the Directive 1999/5/EC.
Salo, 26.9.2006
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
FCC Notice
Changes or modi cations not expressly approved by the party responsible for compliance could void
the users authority to operate the equipment. This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Use only the power cord and connector cables supplied by Nordic ID to connect the equipment and
power supply.
Use only shielded cables to connect I/O devices to this equipment.
The PL3000 complies with FCC requirements. The FCC ID information is printed on the back side of the
Handheld Computer.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 9
IC Related Information
This equipment complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
The PL3000 may not cause harmful interference, and
The PL3000 must accept any interference received, including interference that may cause undesired
operation.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 10
1. Introduction
1.1 Nordic ID
Nordic ID develops, manufactures and markets handheld instruments for various industries. Nordic ID’s
headquarters are located at Salo in the south-western part of Finland.
An increasing part of the company’s turnover is invested in Research and Development. The Nordic ID
products are characterised by high quality, stylish design and excellent ergonomics with one-handed
operability.
1.2 Handheld computers –principle of operation
In general, handheld computers are a class of devices that have either a ¼-, or a half-, or a full sized VGA
screen with or without an integrated keyboard. Furthermore, they usually contain a standard package of
integrated applications, both wireless and wired connectivity (network) options, and typically also some
Windows application interfaces for developers of complete systems.
1.3 Nordic ID PL3000
The Nordic ID PL3000 is a con gurable computer that can be equipped with various functionalities. Different
functionalities include various alternative auto ID methods, wireless communication methods and other
functionalities to make the PL3000 easy and comfortable to use. The Nordic ID PL3000 uses the Windows
CE operating system.
The PL3000 is lightweight and features a one hand operated keyboard with a guiding keyboard backlight
system and its rugged casing makes it suitable for rough conditions.

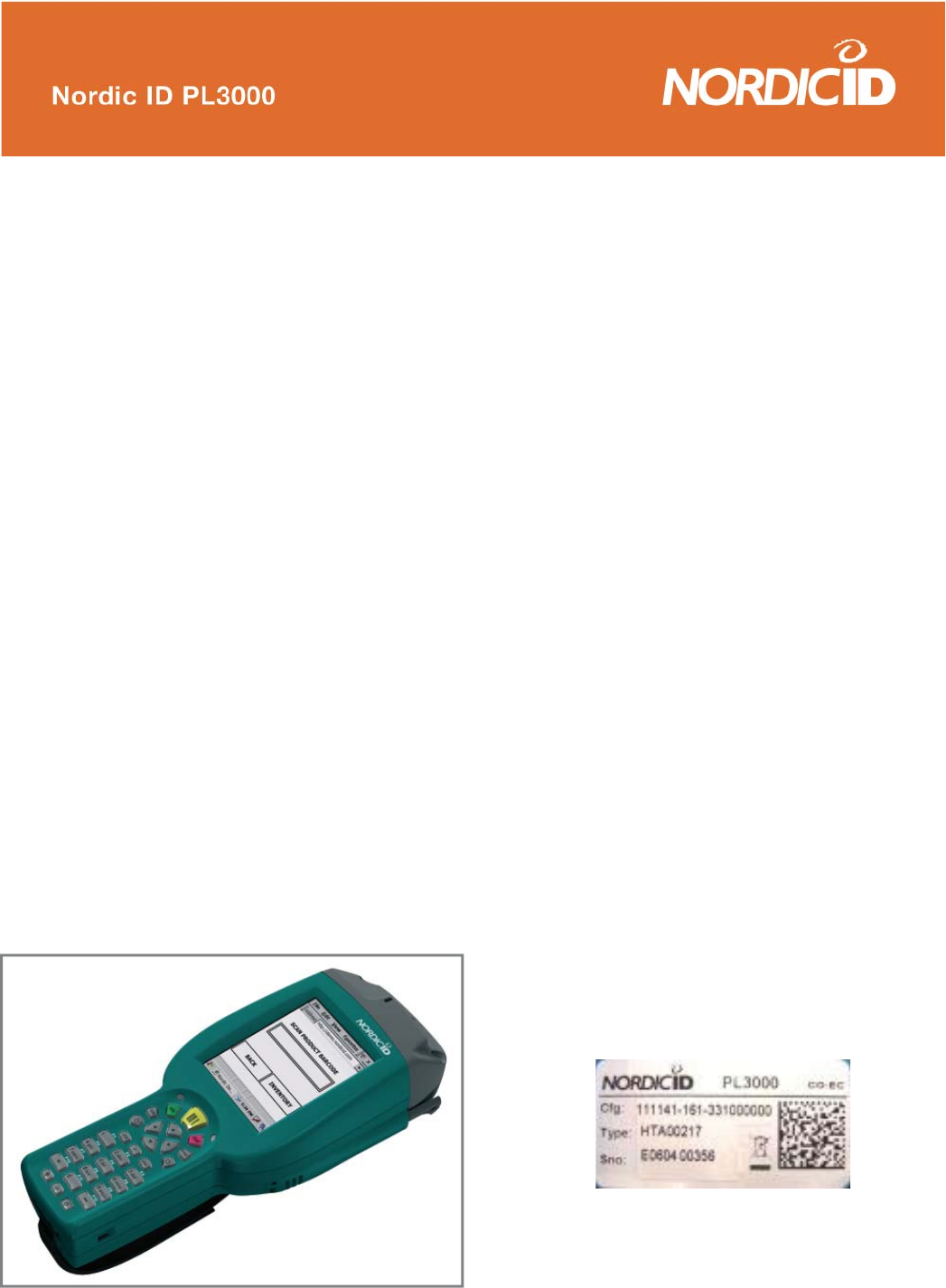

Type label
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 11
1.4 Short introduction to typical applications
Typical systems that utilize handheld computers consist of one or more handheld computers connected via
a wireless network to a host computer. Examples of different systems are shown in the images below.

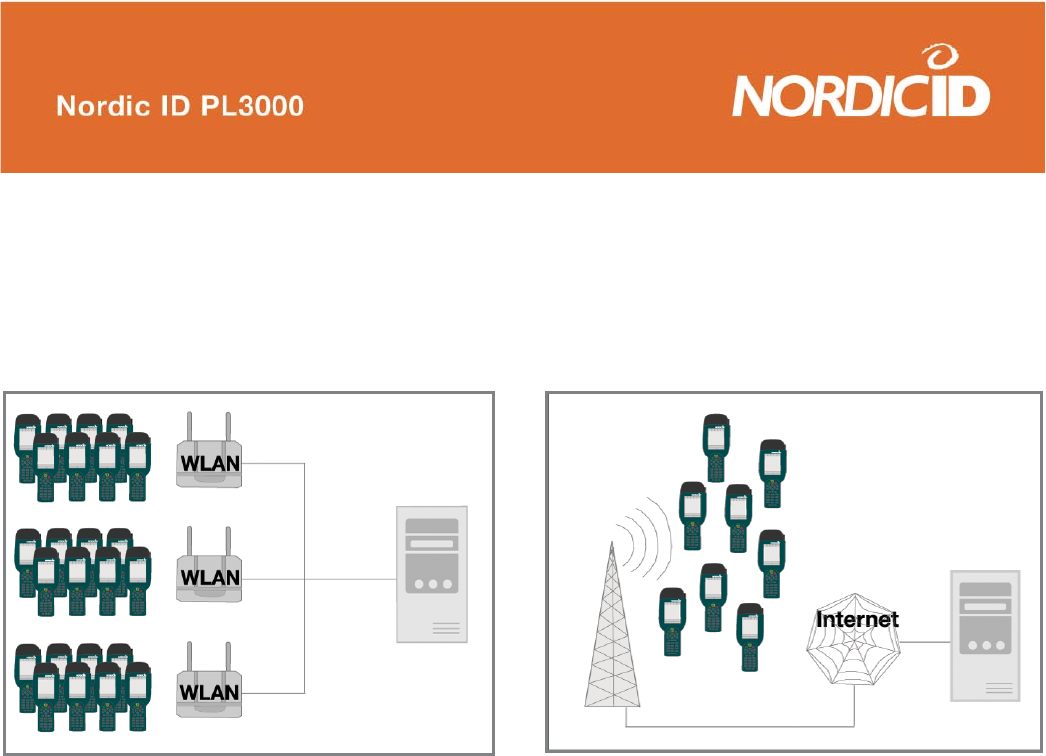

Fig.1 Network over WLAN Fig.2 Network over GSM/GPRS
The end user application itself depends on the software solution provided by the system providers, who will
be always introducing new IT applications compatible with the Nordic ID PL3000.
The PL3000 platform can be used with web-based, native software applications or with terminal emulation
solutions.
1.5 PL3000 con gurations
The Nordic ID PL3000 handheld computer can be provided with or without Identi cation and communication
functionalities. For detailed information about the different con gurations available contact your nearest
Nordic ID sales of ce.
It is possible to con gure the PL3000 with different memory sizes. It is also available in different colours. The
PL3000 handheld computers technical speci cations can be found in the Appendix A.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 12
1.6 PL3000 Accessories
There is several accessories available for the PL3000 handheld computer:
Desktop/Wall mount/Vehicle charger
USB cable
Extra battery
Multiple desktop charger
Multiple battery charger
Pistol grip
2 Getting started
2.1 Unpacking the unit
When you unpack the shipping carton containing a PL3000, please check that all items mentioned in the
delivery note are included. Make also sure that they are intact (no shipping damage).
Should shipping damage be suspected, please contact your local dealer or Nordic ID. Do not take the
equipment in the use.
The box containing the PL3000 includes:
PL3000 handheld computer and stylus
Lithium-ion battery pack
Quick guide
User manual cd
The additional PL3000 equipment will also include some or all of the following:
Desktop charger
Power supply and cable for power supply (European, UK or US)
USB cable
Spare battery
Pistol grip
Other accessories are packed in separate shipping cartons.
Be careful when unpacking the components. In case the product has been stored or transported in cold or
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 13
it has been left in cold temperatures for a prolonged time, allow suf cient time for the items to warm up and
reach normal room temperature and humidity before taking it into use.
2.2 Preparing the device
The battery in the device is normally fully discharged and must be charged for the rst time for 8 hours prior
to using the PL3000.
2.2.1 Installing SD/MMC memory card
The SD/MMC card slot is located inside the battery compartment. The SD card cannot be installed when
battery is in place.
Open the SD/MMC card slot cover by lifting up the cover and removing the battery. Insert the SD/MMC card
so that the copper connectors of the card face down towards the front of the unit. Ensure that the cut corner
of the SD/MMC card is facing the upper right corner. Press the card into the slot until it clicks and the card
locks into place. You can remove the card by pressing it lightly to release the card lock. A spring in the slot
will push the card out of the slot. Close the SD/MMC card slot and replace the battery.

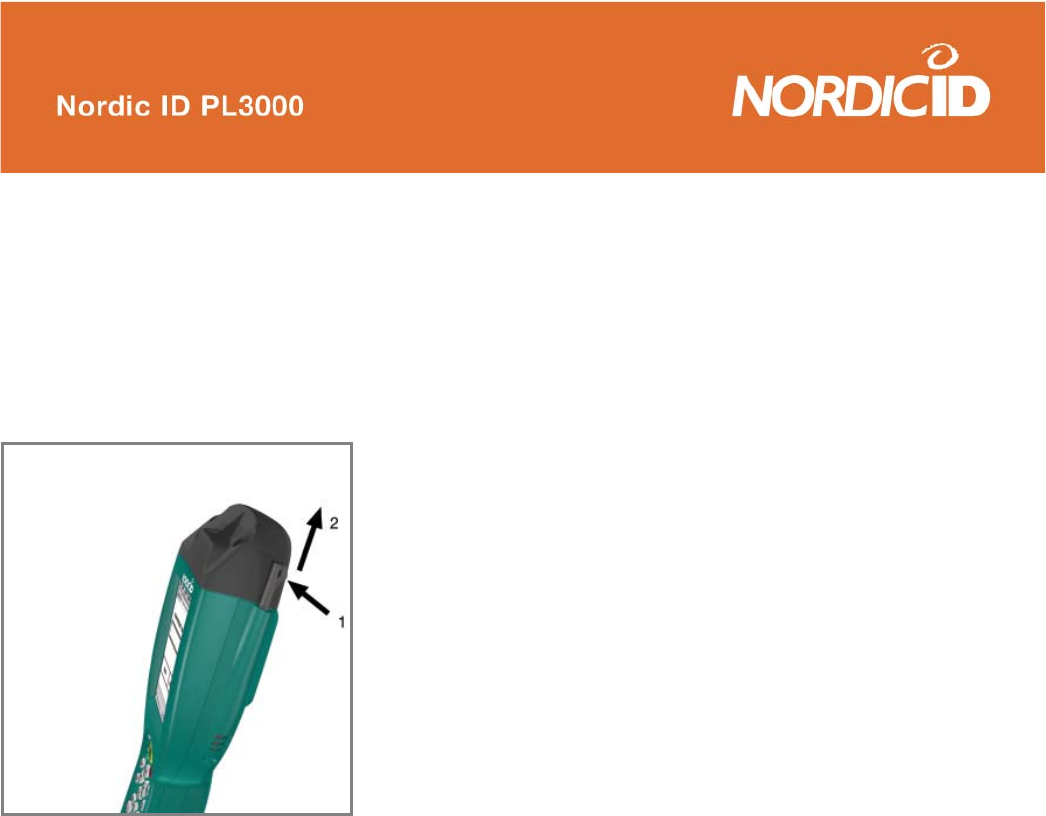

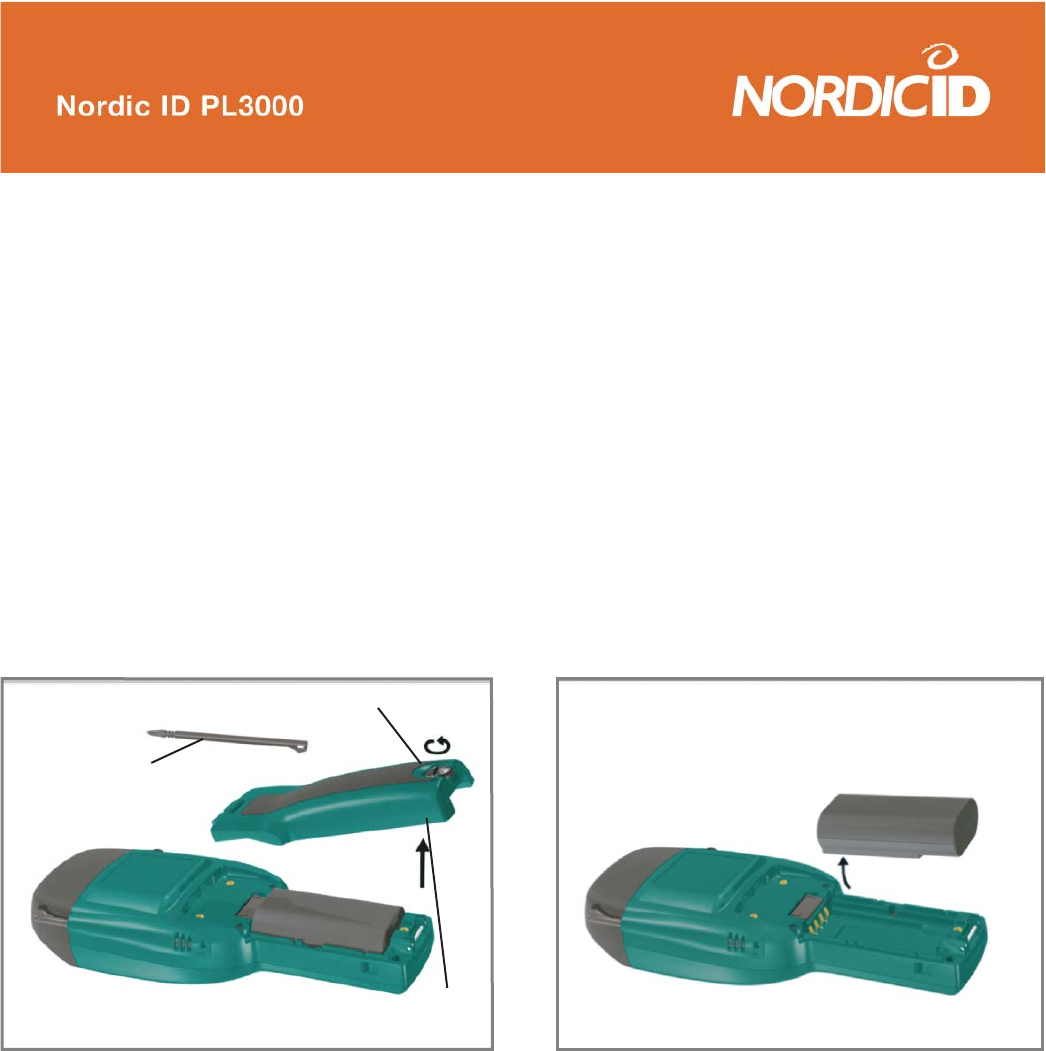

Fig.3 Taking the back cover off
1. Open the screw
2. Lift the
back cover
Use stylus as
a screwdriver
Fig.4 Removing the battery
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 14
2.2.2 Installing battery

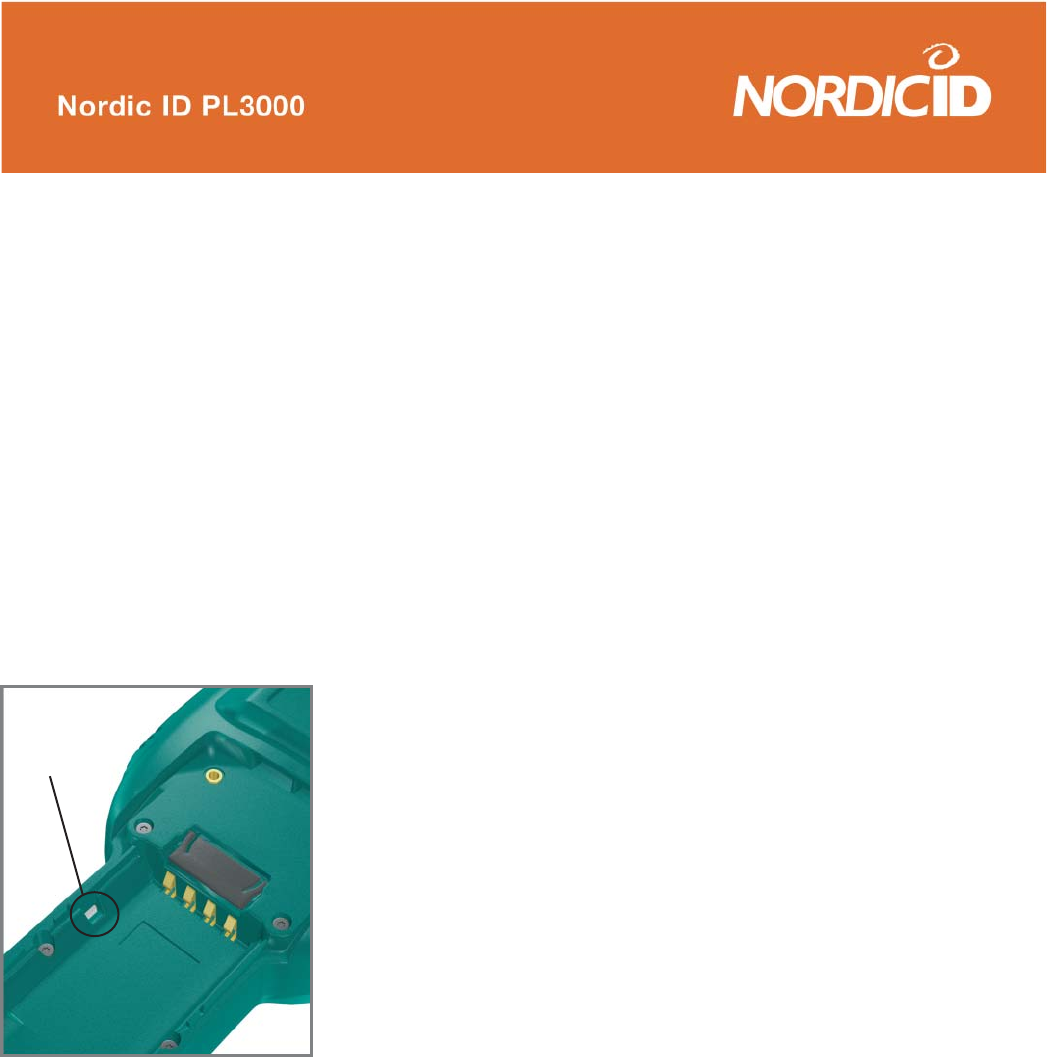

The battery is located in the compartment inside the PL3000 handle. Open the compartment by loosing the
screw at the bottom of the device and lifting off the back cover. Place the bottom end of the battery to the
bottom end of the battery compartment, as depicted in gure 8. Push it against the battery support foam
so that the connectors in the battery face the connectors in the device. Push the top end of the battery into
the compartment.
If you are using handstrap, note that it is easier to slip the strap under the holding bar when the battery cover
is not closed. Close the battery cover and tighten the screw. If the battery cover is not properly closed the
device looses the IP 54 rating.

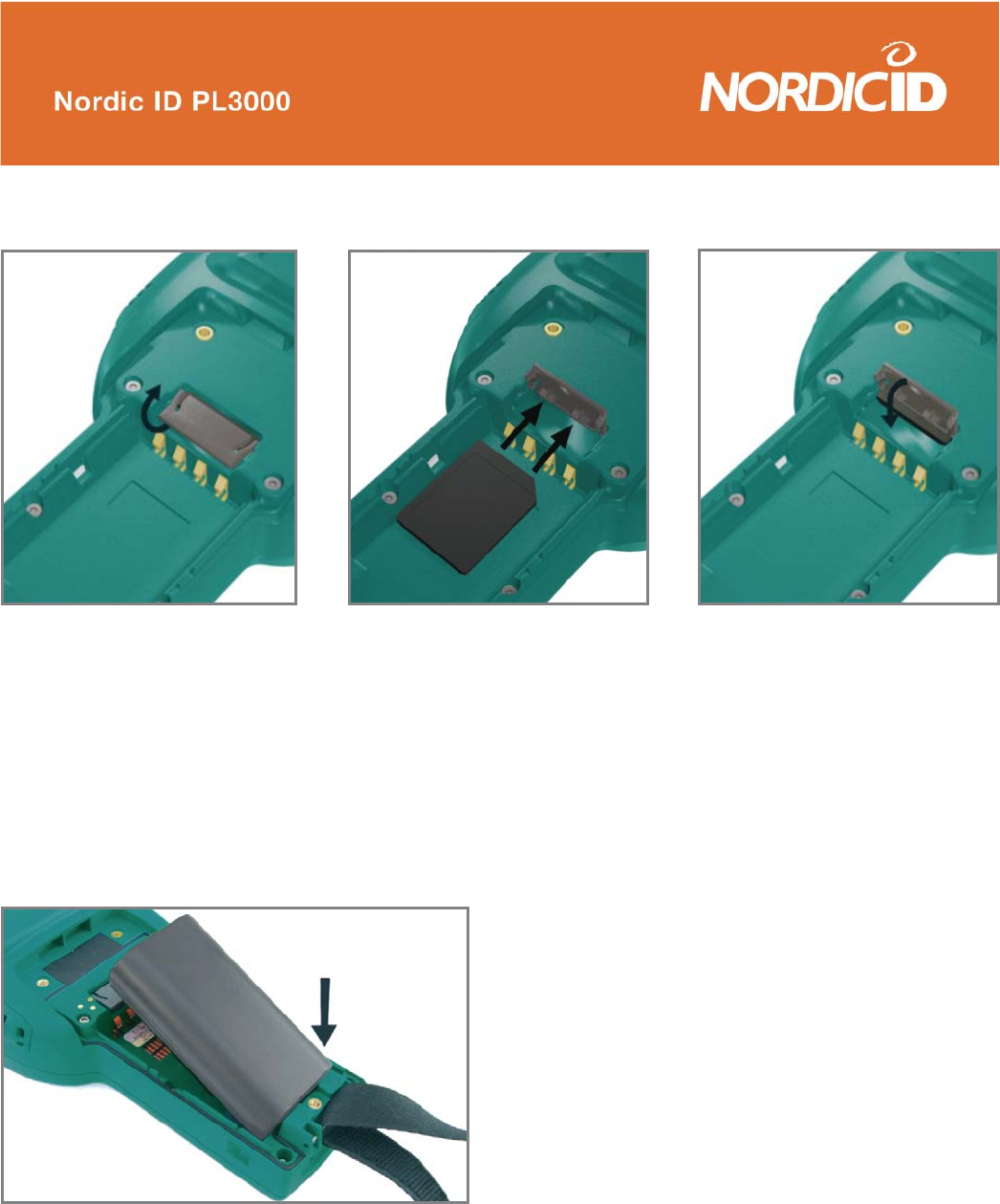

Fig.8 Installing battery
Fig.5 Open the slot cover Fig.6 Install the SD/MMC card Fig.7 Close the slot cover
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 15

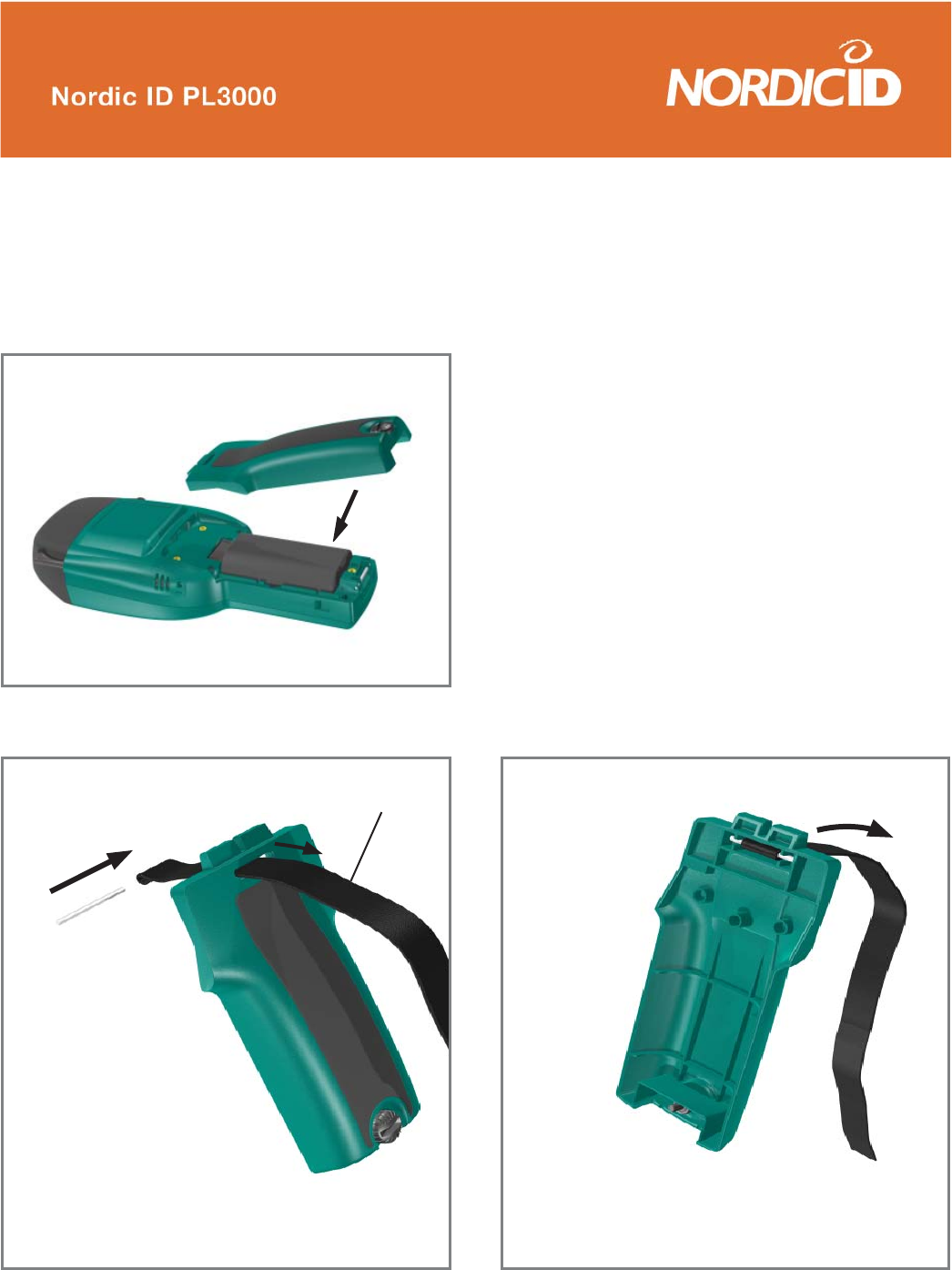

2.2.3 Handstrap
The hand strap helps you to take a secure grip of the PL3000. In gures 9 to 13 you can see how to install
the handstrap to the PL3000.
Pull the handstrap until
the metal stick sets
up to its holes.
1.
2.
Soft part of the
handstrap up
1. Thread the metal stick through
the loop of the handstrap.
2. Pull the strap through the hole
on the upper part of the cover
so that the soft part of the hand-
strap is up.
Fig.10 & 11 Installing the handstrap to the PL3000
Fig.9 Remove the back cover
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 16
3. Pull the handstrap to
the suitable size.
Fig.12 & 13 Installing the handstrap to the PL3000
1.Thread the handstrap
under the metal stick
on the lower part of the
PL3000 body.
2. Close the cover.
The handstrap has a sticker on it. This
way it is possible to change the size
of the handstrap more than once.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 17
2.2.4 Installing the charger
Follow the instructions from the Charger Quick Guide to assemble the swivel to the charger body. Connect
the power cord to the power supply unit. Connect the power supply to the charger body. There are power
cords with different plugs available. Use only a power supply supplied by Nordic Power AB. See the gure
14.
2.2.5 Charging the unit
Place the device into the charger as shown in gures 15. - 17. An indicator light on the top right corner
of the keyboard shows the charging status. When the battery is less than 90% capacity the light is red,
when there is 90-100% capacity the light is orange. When the battery is full the light changes to green. The
minimum charging time for the initial charging is approximately 8 hours. Normal charging time is about 2½
hours to 90% of the capacity and about 5 hours to full capacity.
Remove the PL3000 from the charger by pressing the release buttons on the side of the charger. The
indicator light illuminates only when the unit is switched on or is on suspend mode. If the power level is very
low (below about 5%) the red indicator light remains illuminated when the unit is removed from charger. In
this case charging should be continued.

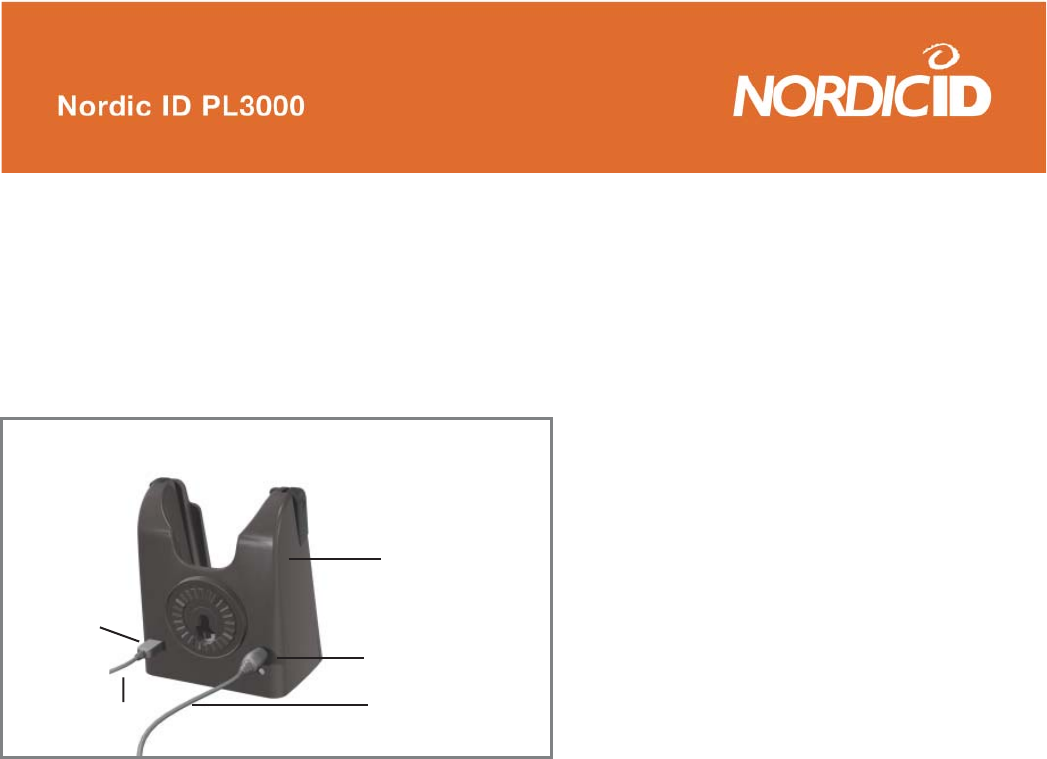

Fig.14 Connect the power supply to the charger body
Charger body
Power connector
Power supply cabel
Mini USB-
Connector
Mini USB-cable
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 18
Red indicator
light
Green indicator
light

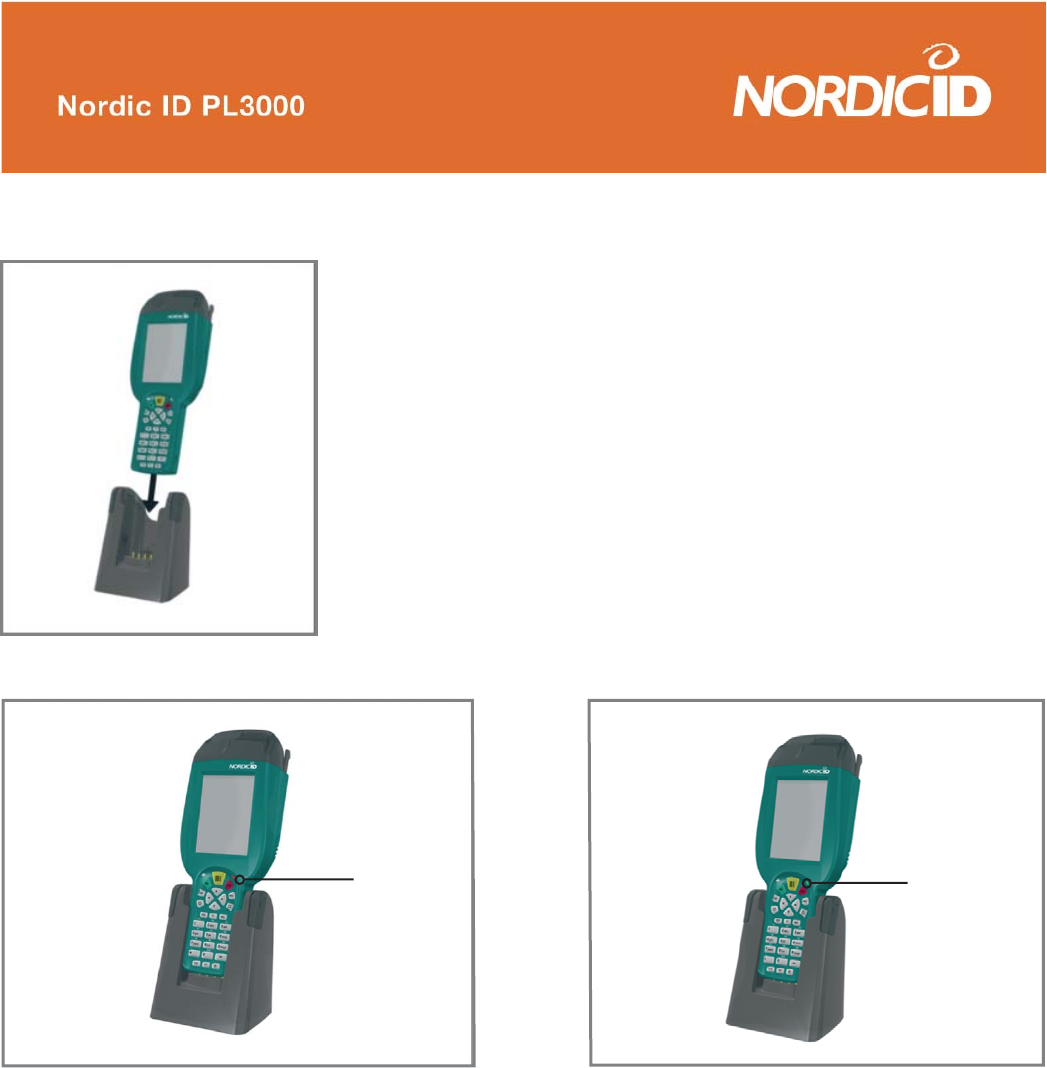

Fig.16 Red indicator light shows that battery has less than
90% of the capacity
Fig.17 Green indicator light shows that battery is full
Fig.15 Placing the PL3000 to the charger
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 19

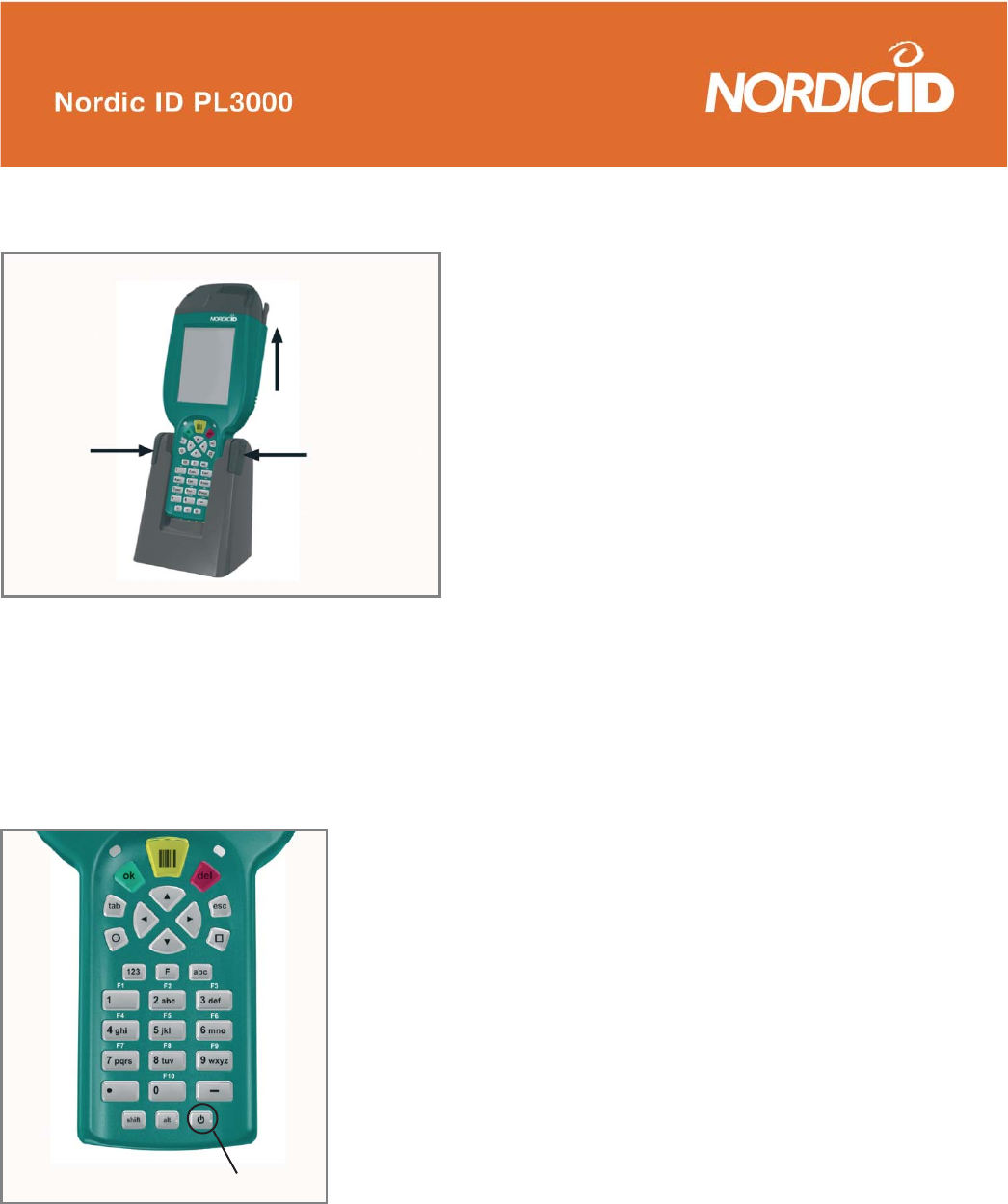

Fig.18 Removing the PL3000 from the charger
Press release
buttons
Lift the device
from the charger
2.4 Testing the device
After the power is switched on and Windows has started you can test the different functions by following
the instructions in this User Manual.
Power key
Fig.19 Switching on the power
2.3 Switching on the power
Switch on the unit by pressing the power-key on the bottom row of the device’s keyboard. When the device
is turned on the display shows the Nordic ID start-up screen containing the text “loading Windows CE”.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 20
3.2 Keyboard
In gure 22 are the explanations of the Nordic ID PL3000 keyboard.
Programmable light
OK key (enter)
Tabulator
Navigation keys
Programmable key
Keypad mode
selection keys
Character/
numeric/
function keys
Shift
Charger indicator light
Delete
Escape
Navigation keys
Programmable key
Keypad mode
selection keys
Power key
Character/
numeric/
function keys
Fig.22
3 User interface

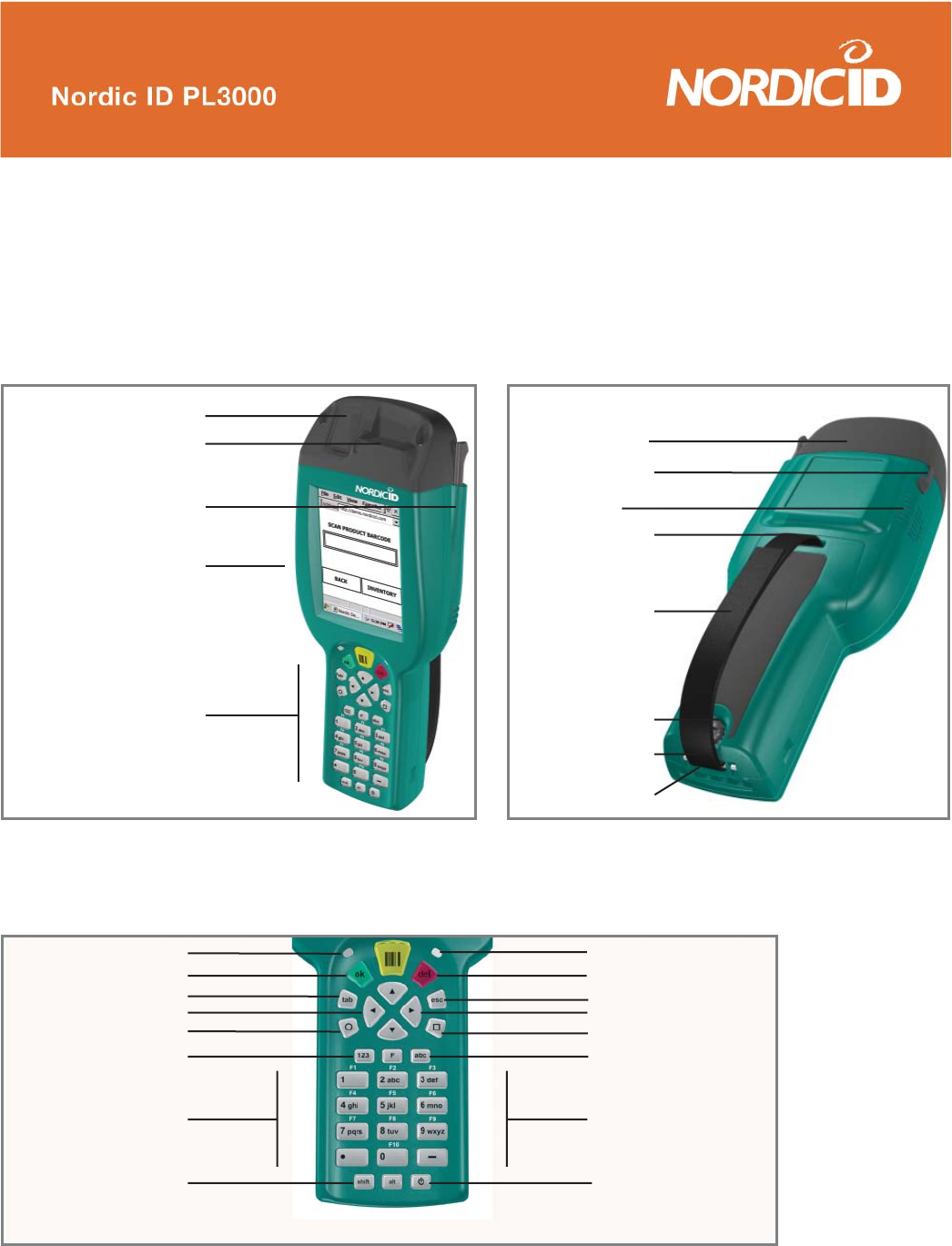

3.1 Main parts of the device
The main parts of the Nordic ID PL3000 are shown in the gures 20 and 21.
Imager (optional)
Fingerprint reader
(optional)
Stylus holder
Fig.20
Top cover
Headset connector
Loudspeaker
Handstrap
attachment point
Handstrap
Battery cover
screw
Handstrap
attachment point
Charger connector Fig.21
Keyboard
Screen
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 21
3.4 PL3000 casing
The PL3000 casing is ergonomic yet robust in design. This gives a comfortable user experience and yet it
is tough enough to survive the hazards of every day use. The PL3000 has been drop tested from a height of
1.5 m onto concrete and has resist against dust and drop water (IP-rating of 54).
3.3 Indicator lights and connections
The following picture shows the indicator lights and connectors of the Nordic ID PL3000.

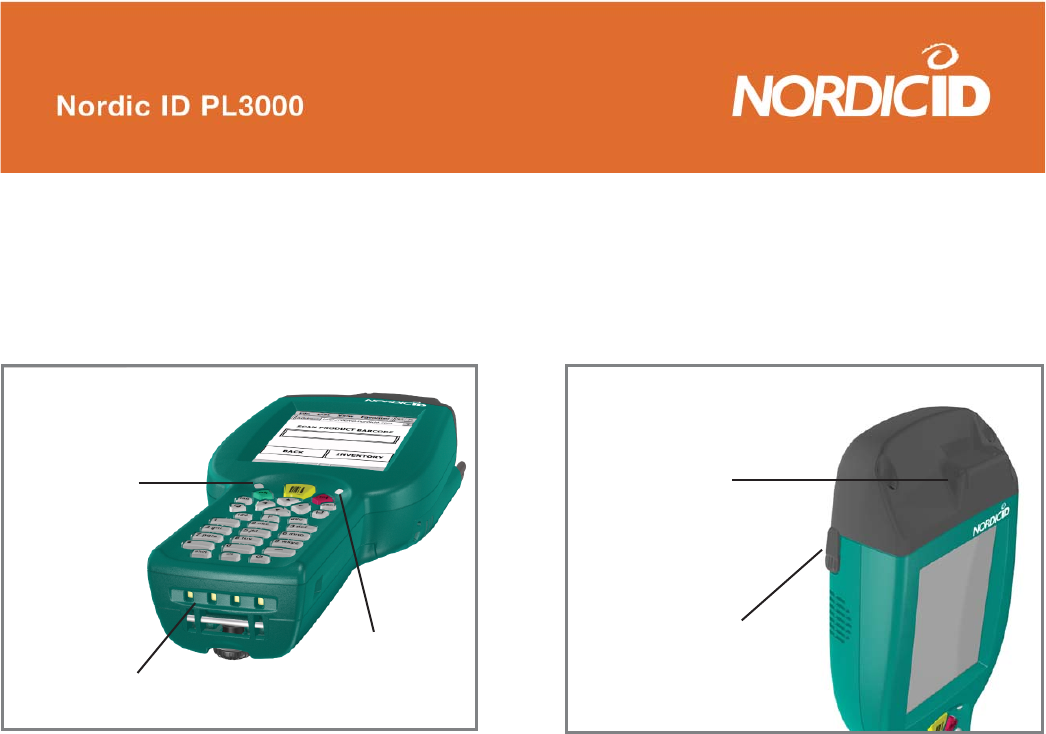

Fig.23 & 24 Indicator lights and connections
Charger
connector
Charger indicator
light
Light level sensor
Headset connector
covered with rubber
plug
Programmable
indicator light
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 22
3.4.1 Stylus holder
The stylus holder is on the right side of the PL3000. Remove the stylus from the holder by pressing the top
of the stylus towards the body of the PL3000 and lifting it out of the holder as shown in gure 25. Place the
stylus in the holder with the wing pointing towards the back of the PL3000. In order to prevent loosing the
stylus you may wish to connect the stylus with a length of string to the PL3000 body.
1. Press the
stylus to the
way of the
top cover
2. Lift the
stylus from
the holder
Fig.25 Removing stylus from the holder
4 PL3000 Features
The PL3000 is a con gurable platform. The speci c features depend on the chosen con guration. In these
chapters different features are introduced.
4.1 Equipment features
4.1.1 Processor
200 MHz ARM 9225 Processor
High performance, low power processor for a portable Multi-Media devices
Wide industrial use guarantees extensive application and development tool support
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 23
4.1.2 Microsoft ® Windows ® CE
The use of the same popular desktop GUI (Graphical User Interface) as in Windows 98se and
Windows 2000 will help users to feel comfortable to use the device.
A large number of extensively tested shareware and freeware software solutions are available.
The number of solutions is constantly rising.
Integrated Internet Explorer 6.0 browser with its support for, among other things, XML.
4.1.3 Memory
64 MB (128 MB) of SDRAM of which 32 MB (96 MB) is available to user applications.
32 MB of FLASH memory, in which the operating system is stored. The 32 MB version
gives the application developer and end-user 8 MB of non-volatile storage space and
a non-volatile registry.
4.1.4 Display
3,5”, 320 x 240 pixel ¼ VGA colour trans ective TFT display,
4.1.5 Touch screen
High-precision resistive lm-based touch screen.
Mouse-like experience for users used to the Windows desktop.
Virtual keyboard functionality
Transcriber
4.1.6 Keypad
29-key keyboard
10 function keys
2 programmable free keys
Key placement suitable for one hand operation
All keys except the power button are programmable
4.1.7 Keyboard backlight
Individually guided backlight keys
Can be used as user guiding keyboard functionality
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 24
4.1.8 Imager (optional)
Imager consists of three parts - sighter, optics and optical reader.
The sighter is used for aiming the reader at the barcode to be read. There are two types of sighters
available:
LED-sighter shows green rectangle and blinking red light. The reading area is inside the green
rectangle.
Laser-sighter shows red corners of a rectangle and red dots in the middle of the rectangle. The
reading area is in between of the corners.
There are two alternatives for the imager optics.
High density optics (HD) is used for reading small codes from short distance.
Standard density optics (SR) is used for reading codes from 5 cm to 50 cm depending the size and
density of the code.
There are three alternative decoders for the imager:
1D decoder is used for reading barcodes and PDF matrixes.
Limited decoder is used for reading 1D and 2D codes.
Full decoder is used for taking photos.
Lightning conditions
The imager is designed to be used under lighting conditions ranging from complete darkness to 100,000
lux. Below 540 lux the reading distance may be reduced. Typical indoor light varies from 1000 to 2000 lux
and bright sunlight is 30,000 lux. The imager may not work under conditions of specular re ection.

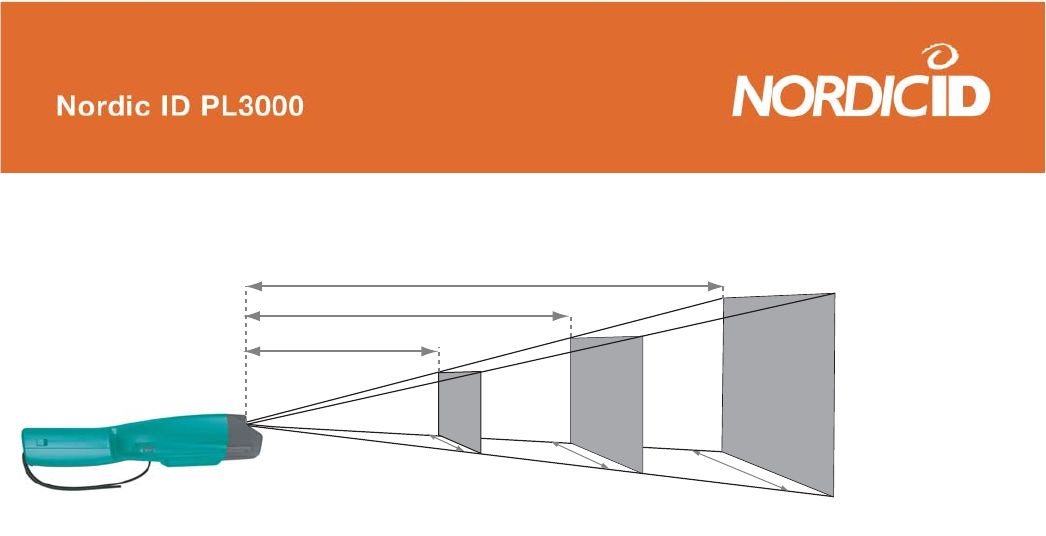

Reading distance and viewing area
The reading distance varies on the ambient conditions and barcode types. At 23°C temperature and
ambient light from 540 to 10,’000 the reading distances for various barcodes may vary from 2 cm to 50
cm. Detailed information of reading distances for different barcodes are in Appendix B.
With a nominal operating distance, the reading angle is 40 degrees. The PL3000 can be rotated 180
degrees, e.g. the imager can read codes upside down. The angle may effect on reading.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 25
The imager functions properly with linear barcode symbols having a minimum re ectance difference
(MRD) of 37.5% (10mil symbol, positioned at focus. The minimum MRD for matrix codes is 45%.
Motion sensitivity
The imager will operate with 5 cm/second of lateral motion on a 15-mil linear barcode at the plane of
optimum focus.
4.1.9 Vibrating alarm (optional)
The vibrating alarm is used as an alarm signal instead of or alongside the audio alarm. For example to
indicate a successful scan.
4.1.10 Automatic wakeup motion sensor
The automatic wakeup motion sensor can be used to prolong operational time by con guring it to keep the
unit in operational mode while motion is detected, or to wake-up the device from sleep-mode when motion
has been detected.
4.1.11 Battery
2200 mAh @ 7,4V
4 to 28 hours of continuous use with one battery pack
Dual battery operation available with pistol grip.
4.1.12 Loudspeaker
Loudspeaker is used for playing sounds in PL3000.
Control the loud speaker with Control Panel Sounds and volume application
4.1.13 Headset jack
2.5 mm headset jack
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 26
4.1.15 13.56 MHz RFID multi-protocol reader (optional)
Frequency:
13.56 MHz (CE, EN 300-330, ETS 300-683 European radio FCC Part 15 in some con gurations)
Supported tags:
ICODE
ISO15693
4.1.16 Wireless LAN (optional)
Compliant with Wi-Fi Protected Access (WPA) and IEEE 802.11i (WPA2)
Authentication support: EAP-TLS, PEAP-MSCHAPv2, PEAP-GTC, LEAP, and EAP-FAST
Encryption support: Static, pre-shared, and dynamic encryption keys 40-bit and 128-bit keys WEP, WPA (TKIP), and
WPA2 (AES) encryption methods.
4.1.17 Fingerprint reader (optional)
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 27
4.1.18 USB
The type of the USB controller is Client Controller. The USB controller makes it possible to connect the
PL3000 to a host controller in a PC and to synchronise the contents of the unit with other applications.
However, it is not possible to control other USB devices with the PL3000.
4.2 Accessories
4.2.1 Charger
The PL3000 charger is used for charging the PL3000 without removing the battery. The charger is supplied
with desktop- or wall mount version. There is also a vehicle version available.
The charger can be mounted on a desk, a wall, a vehicle,a trolley or other locations by using the swivel
mount.
The desktop charger also contains a USB port. See chapters on “USB” and “ActiveSync” to learn more
about the USB connection.

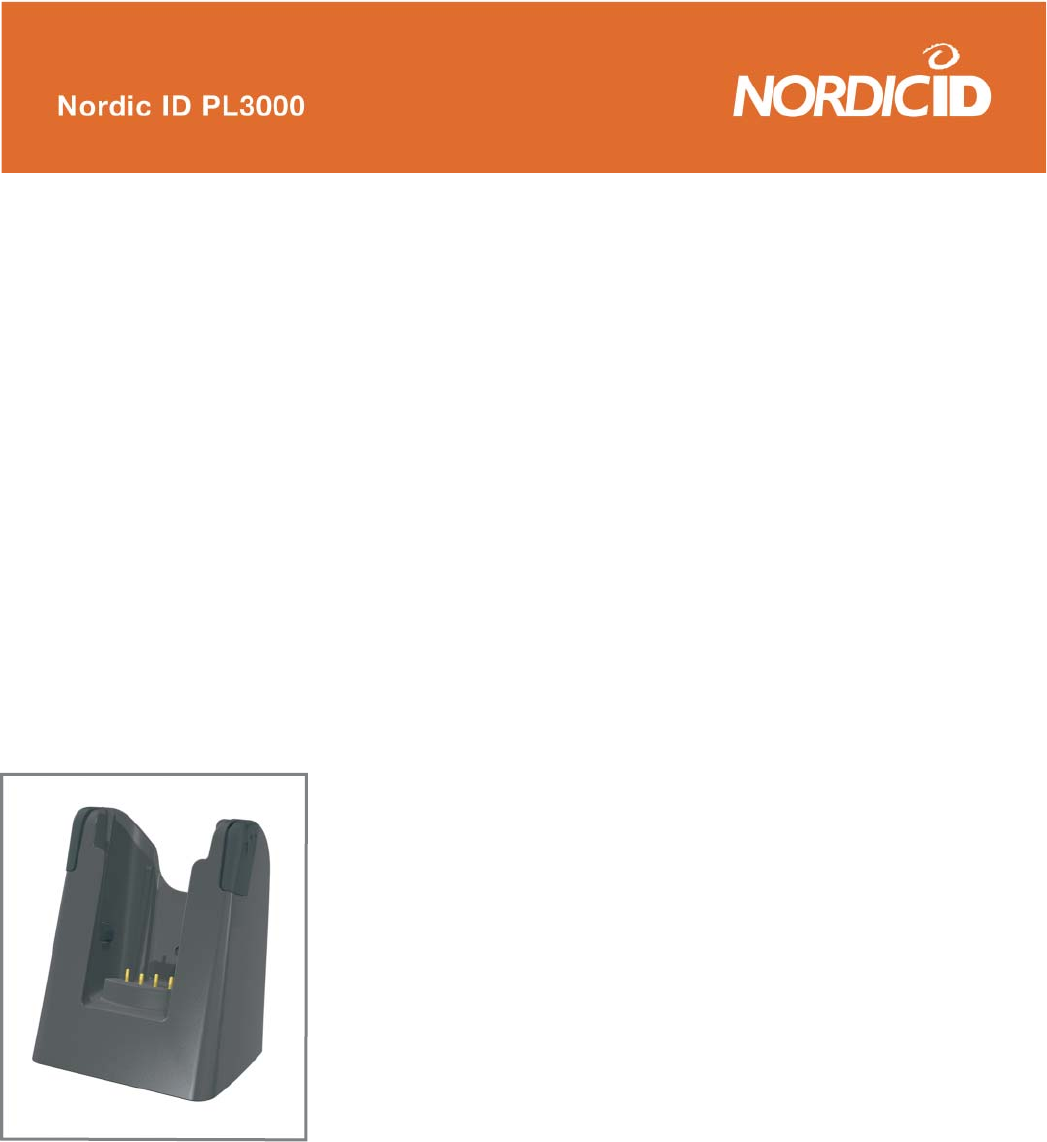

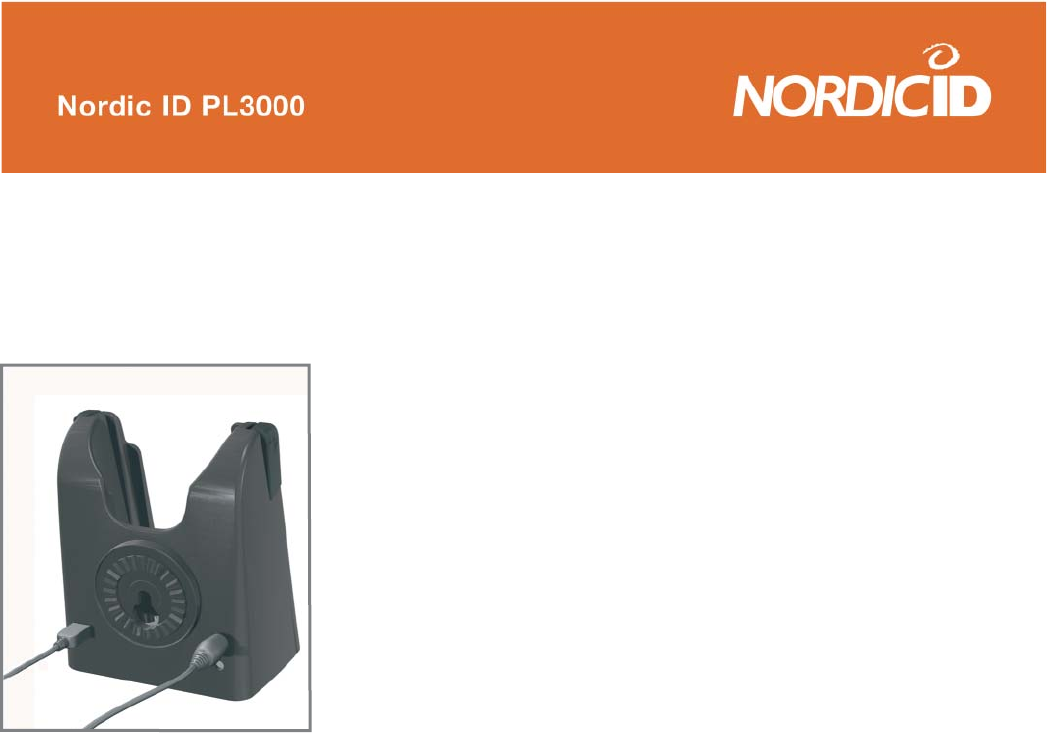

Fig.26 Charger of the PL3000
4.2.2 Power supply for the charger
Use only a power supply from Nordic ID for charging the PL3000.
See the chapter 2.2.5. “Charging the unit” for instructions of connecting the power supply and power cable
to the power supply.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 28
4.2.3 USB cable
The USB cable is used to connect the desktop charger to the USB port of the PC.
Fig.27 USB connector in the charger of the PL3000
4.2.4 Headset with microphone
A microphone and a headset can be connected to the PL3000 through the headset jack. Nordic ID does not
supply headsets; a standard headset with a 2,5 mm connector can be used.
The volume might need to be adjusted because the load impedance of headsets varies between models
and manufacturers.
4.2.5 Spare battery pack
One or more spare batteries may be purchased for your PL3000. If you intend to use PL3000 handsets
continuously without recharging the battery, Nordic ID recommends that you purchase spare batteries.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 29
5 Handling the device
5.1 Cleaning the device
The PL3000 casing and keyboard should be cleaned with clean, moist, non-abrasive, lint-free cloth. Note
that intensive rubbing of the soft rubber part of the top-cover and the back of battery pack cover may harm
the rubber coating.
The PL3000 display window and the imager window may be cleaned with a clean, non-abrasive, lint-free
cloth.
NOTE: The use alcohol or detergents may harm the casing and is therefore not recommended.
Any moisture inside the battery compartment or in the headset jack may be harmful for the device.
5.2 Using the keyboard
Nordic ID recommends the use of the keyboard. The user friendly keyboard of the PL3000 has 29 large-size
keys which are easily operated with a thumb. The keyboard has also a backlight and individual key light
activation which will guide the user if needed.
5.3 Using stylus and touch screen

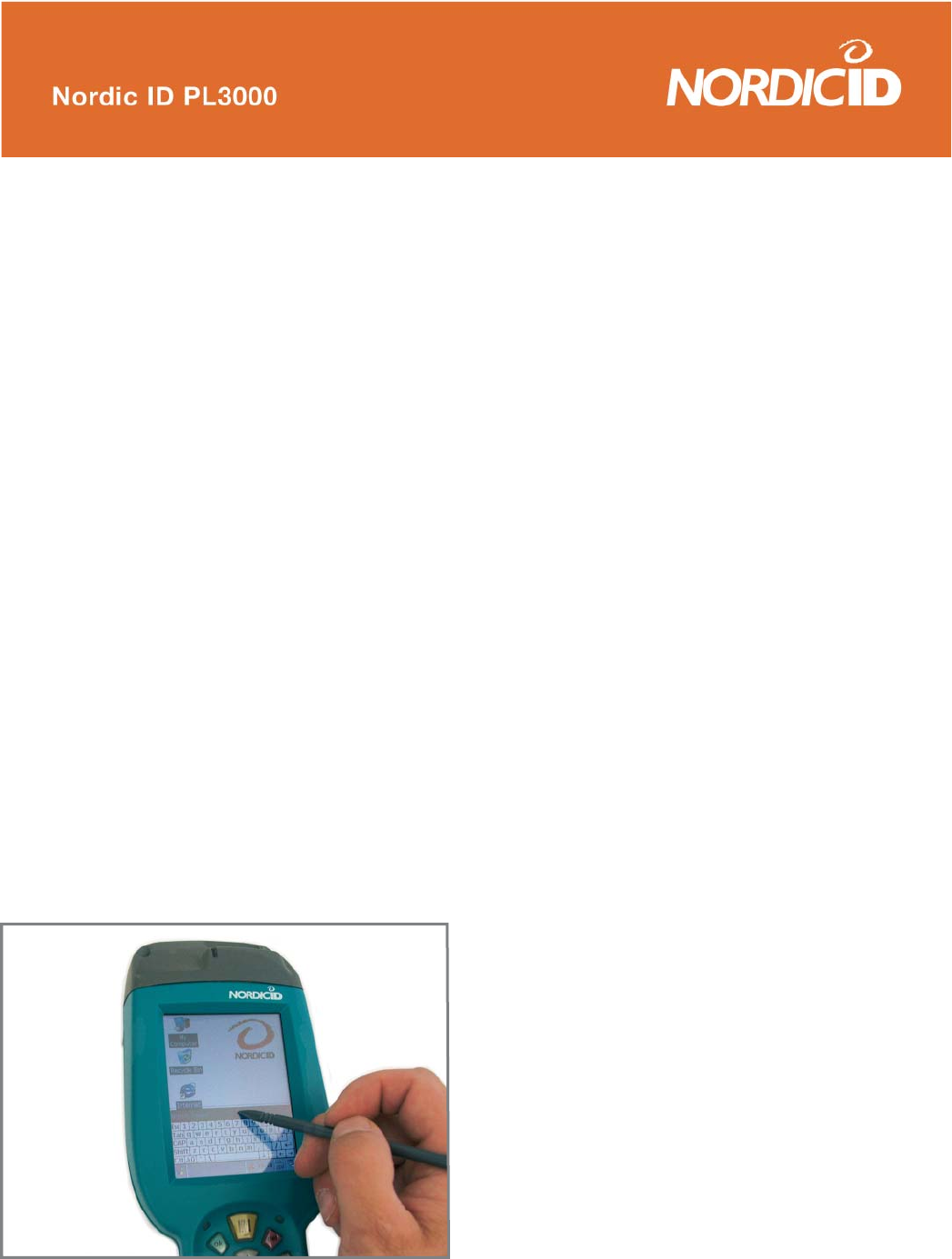

Use the touch screen only with a stylus supplied by Nordic ID, do not use extensive force since it may
damage the display’s surface. To prevent loosing the stylus, it can be connected to the PL3000 with a
string.
Fig.28 Using stylus
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 30
5.4 Resetting the device
5.4.1 Software resets
A short press of the power key can start the software-reset process. A shutdown application window will
appear on the display of the PL3000.
In the shutdown selection window there are:
Suspend
Warm reset
Cold reset and
Windows CE reload
Select the type of reset required. The description of the reset type is shown in dialogue box of the shutdown
window.
In the suspend mode the display is switched off. When restarted Windows will continue from where it was.
Use suspend mode when you want to save the battery life but wish to continue the use of the device from
where you were. Suspend should be used in normal use.

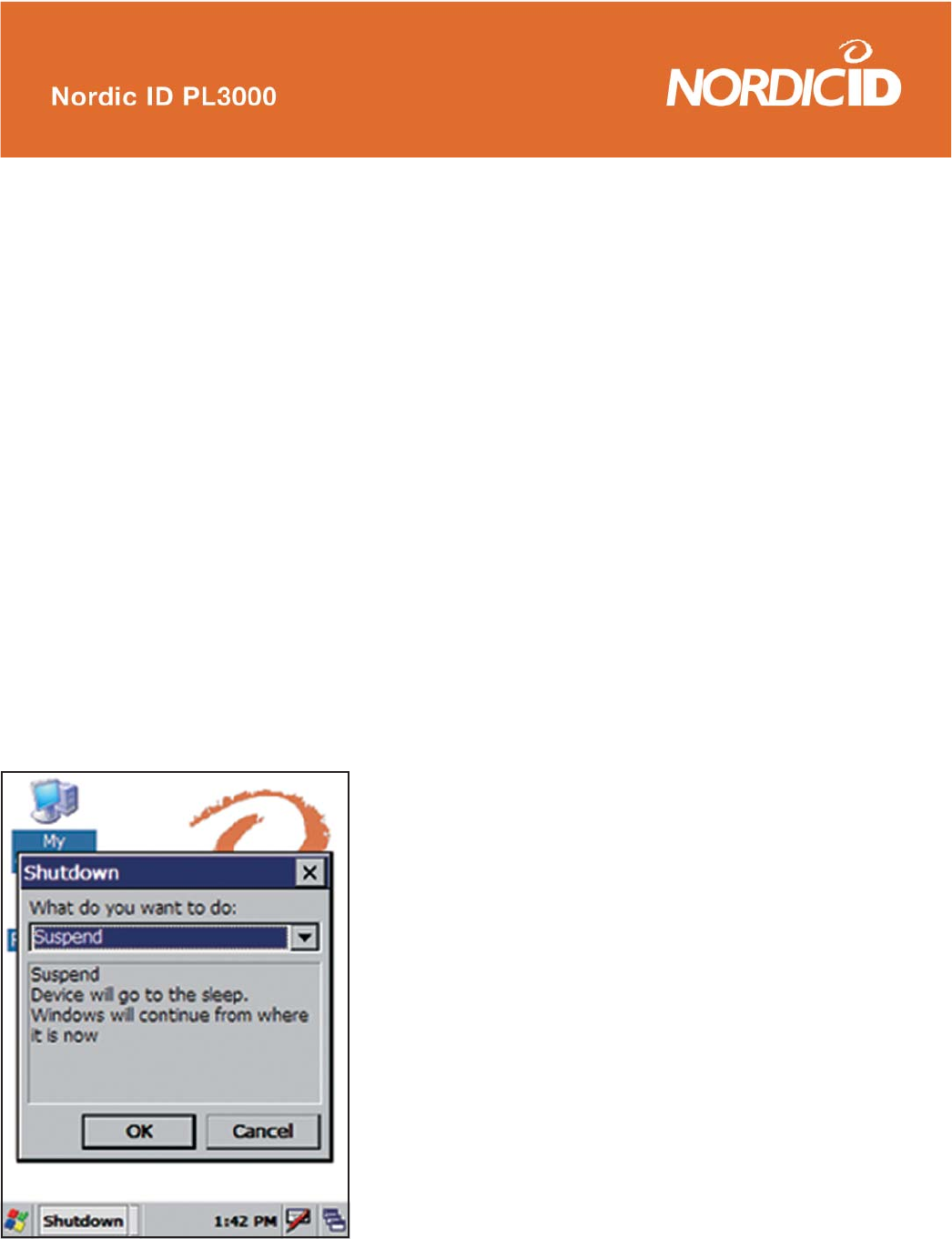

Fig.29 Suspend window
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 31
In a warm reset the memory and windows registry remains, but all unsaved data will be lost. The installation
of software may require a warm reset of the device.
In a cold reset the RAM will be cleared and unsaved registry modi cations will be lost. Use the Cold reset
when you want to remove installed software.
In the Reload Windows CE RAM memory will be reloaded from FLASH memory. All unsaved data and
registry modi cations will be lost. Reloading Windows CE is mostly used by software developers when a
device image is updated.
Reset with reset switch
The reset switch is located on the left side inside the battery compartment. By pressing the reset switch the
device starts the reloading of Windows CE. Unnecessary reset with the reset switch is not recommended.
Reset switch
Fig.30 Reset switch of PL3000
Starting the device after reset
The device remains switched off after a reset and starts with loading Windows when the power key is
pressed again and the battery cover is in place.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 32
5.4.2 Managing battery power
The battery power and power save functionality can be controlled from the controlpanel’s Power properties.
See the chapter 6.5.16. for details.
To save the battery power, do not use the keyboard backlight display if not necessary and suspend the
device when not in use.
With the Pistol Grip accessory a second battery pack can be taken into use to prolong the battery life.
When longer than normal operating time is required the use of spare batteries is recommended. The PL3000
requires a constant supply of power in order to be operational.
Fig.31 Power properties windows
5.4.3 Changing the battery pack
When the power of the PL3000 battery has decreased to 5% of the full charge, a pop-up window will appear
on the display of the device, notifying the user that the battery level is low. This indicates that the device
should be placed immediately in the charger.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 33
After this indication you should save all unsaved data and settings, and then change the battery pack or
charge the battery.
If at any point the power level drops below the nal threshold value (2% of full charge) the PL3000 enters
into suspend mode.
When the battery cover is opened the PL3000 performs a le system backup and suspends Windows CE.
The memory with all settings and les is maintained with the backup battery for about 2 hours. During this
period the main battery should be installed again. The backup battery is fully charged after every 20 hours
of use.
The battery is located in the compartment inside the PL3000 handle. Open the compartment by loosing the
screw on the bottom of the device and lifting off the back cover.
Place the bottom of the battery to the bottom of the battery compartment. Press it against the support foam
so that battery connectors face the connectors in the device.
Push the top end of the battery into the compartment
If you are using a hand strap, note that it is easier to slip it under the holding bar when battery cover is not
closed.
Close the battery cover and tighten the screw. If the battery cover is not properly closed the PL3000 IP-
rating may be lost.
5.4.4 File System Backup
The File System Backup application allows you to backup all les in the RAM le system of the PL3000 to
FLASH memory. At the same time as the backup is made, a monitor le is created in the Windows folder.
Every time the device boots up the File System Backup veri es that the le is present. If not, it means either
that there has been a power failure that has led to the erasing of the RAM or that a hard reset has been
made. In both cases File System Backup proceeds to restore the backed up les to their correct place
in RAM. Using le backup system prevents losing programs or data from RAM memory even when the
PL3000’s battery is removed.
Choose “File System Backup” from the Nordic ID folder under programs in the start-up menu.
Choose “Backup RAM Files”
The device shows the backup progress on the display.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 34
When the backup is complete, the text “Backup Complete, les copied to \FLASH\RAMBackup” appears
on the display.
Close the File System Backup by selecting “Close”.
Before closing the le is compressed, this takes a few seconds.
The backup copies of the RAM les are contained in a single le in the FLASH folder:
/FLASH/RamBackup/RamBackup.pak
5.4.5 Saving the registry
Saving the registry saves the PL3000’s settings permanently. Save the Windows registry by choosing the
program “RegBackup” from the Nordic ID folder under programs in the start-up menu.
Select yes for saving the registry.
When saving the registry, the dialogue window in gure 33 appears on the display. Answer “start” and close
the window.

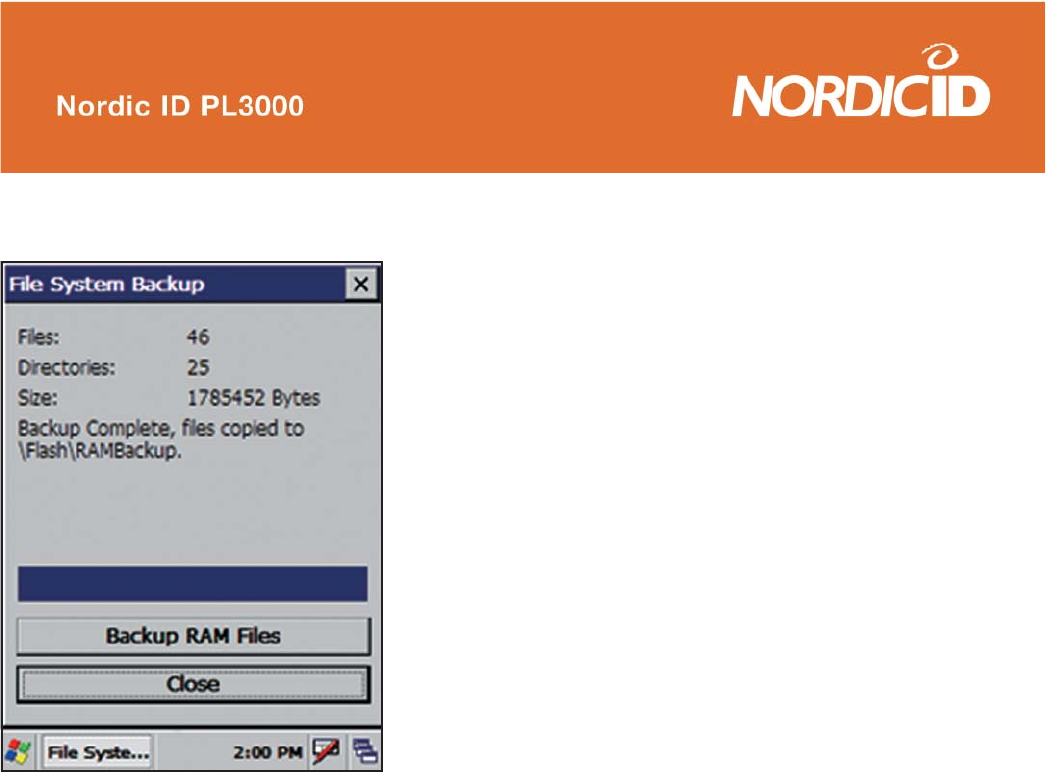

Fig.32 File System Backup window
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 35
Fig.33 Saving registry window

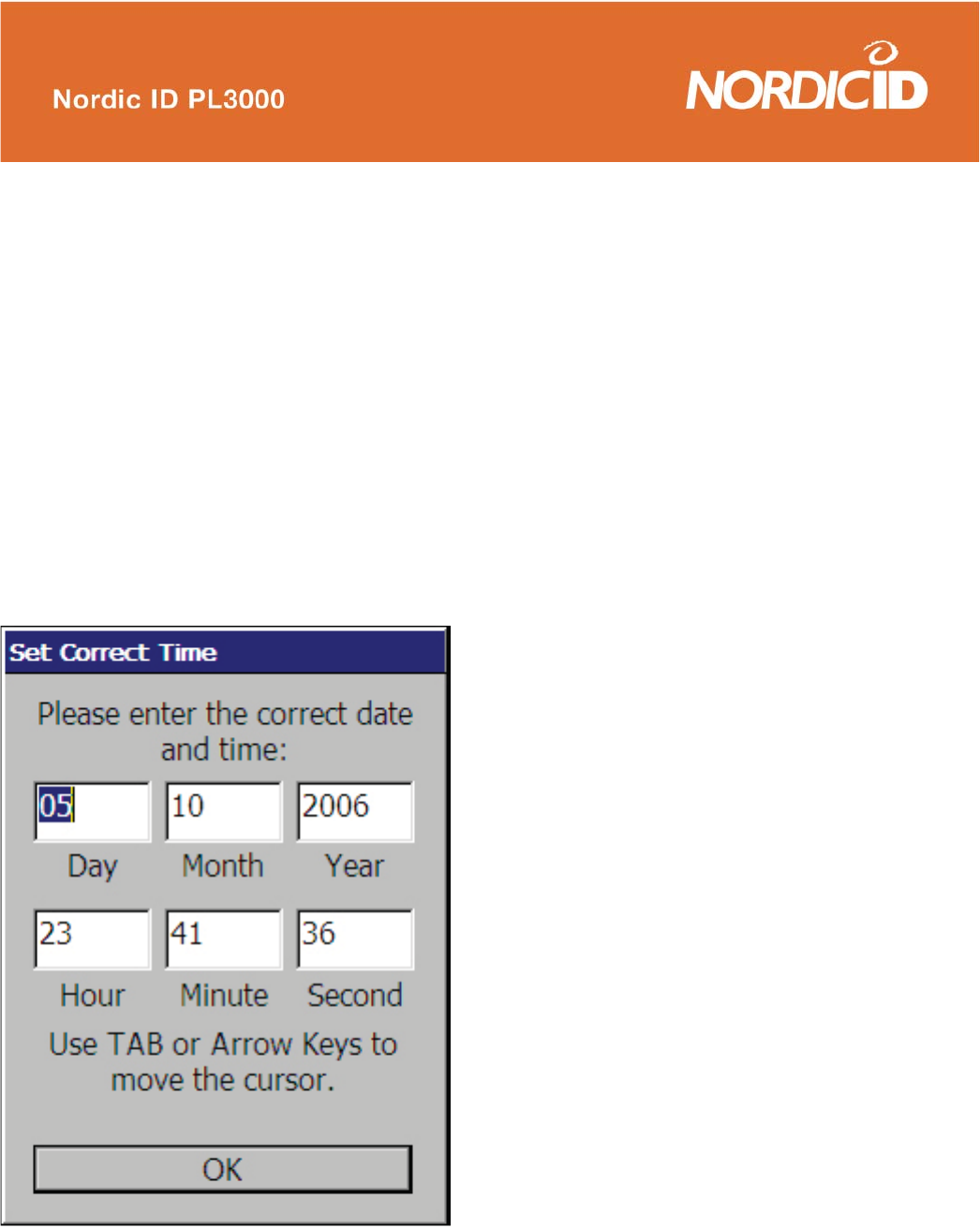

5.4.6 Setting time and date
Double click the time icon on the bar menu. Set the date and time from the display and select “Apply”. Start
using the settings by pressing the OK key on the keyboard.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 36
5.4.7 Reading codes
The optimum reading distance varies with the barcode type and size. Typically the optimum distance is
about 15 cm. With LED-sighting device a good distance is when the green aiming light covers the code area
from side to side. If the code is not read check the reader settings from your system integrator. Reading is
fastest when the code is read at right angle to the reader. Start code reading with scan button.

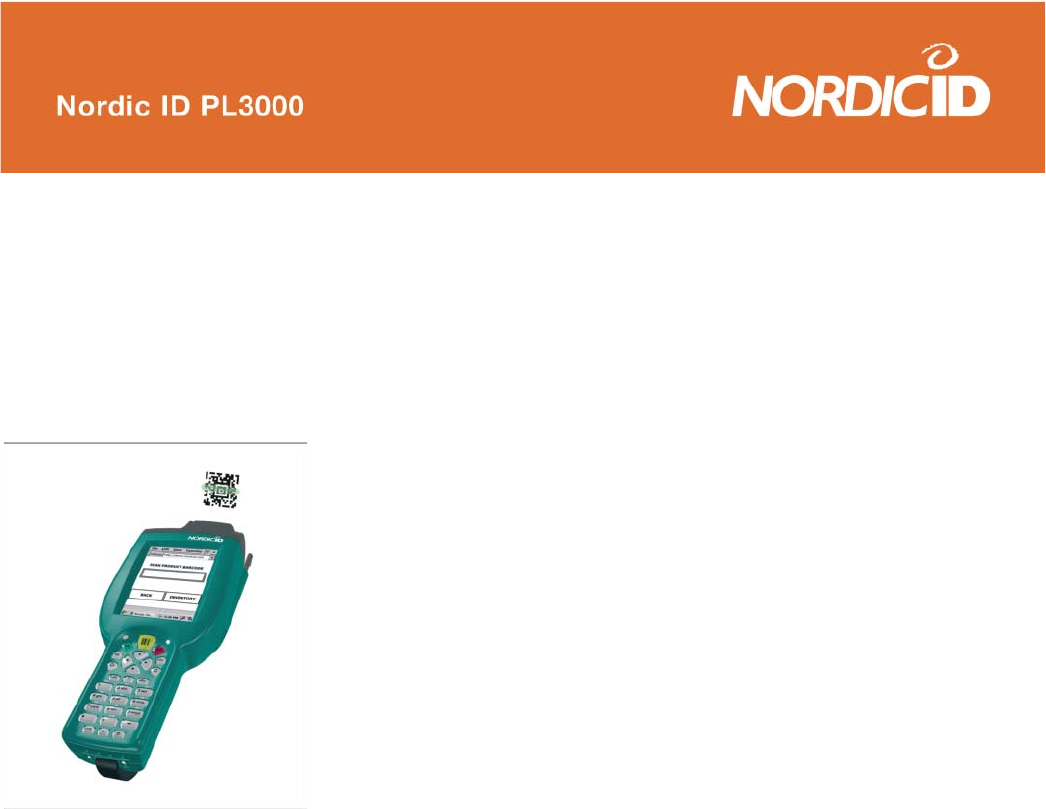

Fig.34 Reading codes
5.4.8 Utilising virtual keyboard
Open the virtual keyboard menu from the control bars keyboard icon. Select Keyboard from the menu. The
keyboard appears at the bottom of the display. The virtual keyboard is displayed in the gure 35. You can
move the keyboard by grabbing it from the upper bar and dragging it onto the screen.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 37
Special characters can be chosen by selecting the SHIFT key. Scandic letters and other special characters
can be used by selecting the [áü] key.
You can close the virtual keyboard by opening the keyboard menu from the control bar and by selecting
“Hide input panel”.

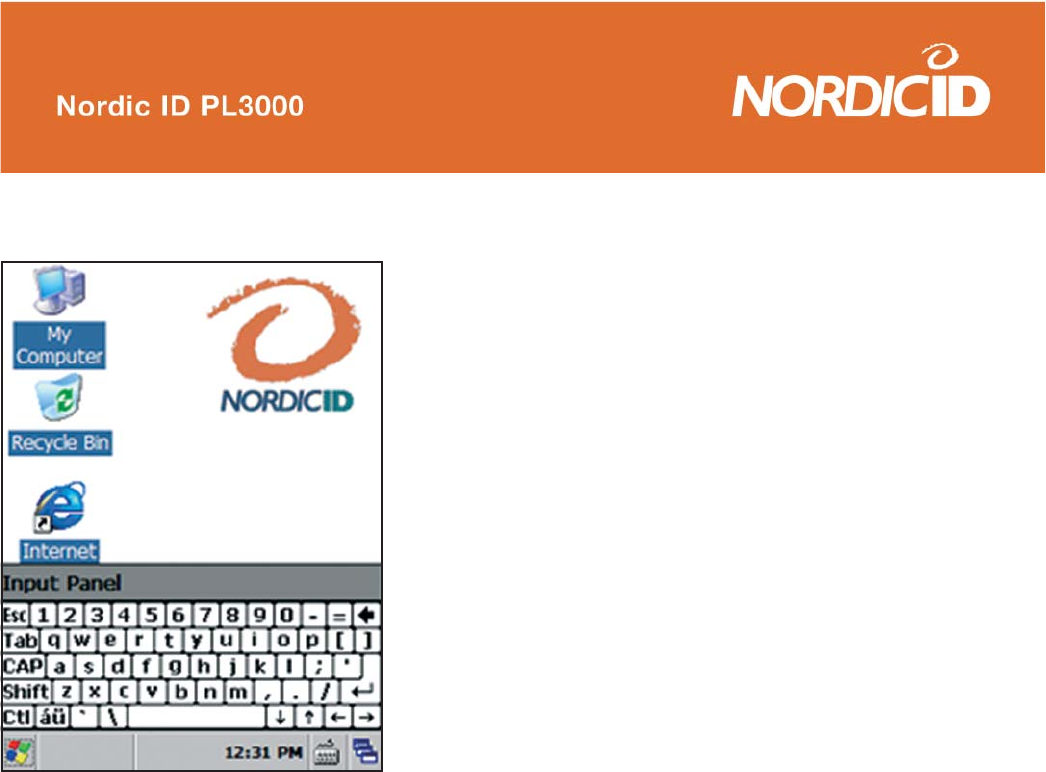

Fig.35 Virtual keyboard
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 38
6 Applications & tools
6.1 Start menu
In the start-up menu there are links to programs, settings and other items you use. In the default mode the
items and sub-items are:
Programs
• Demo
• ImagerStream_Demo
• Nordic ID
• File system backup
• IP con g
• RegBackup
• Rotate
• Version
• Summit
• Certs
Readme
• Scu

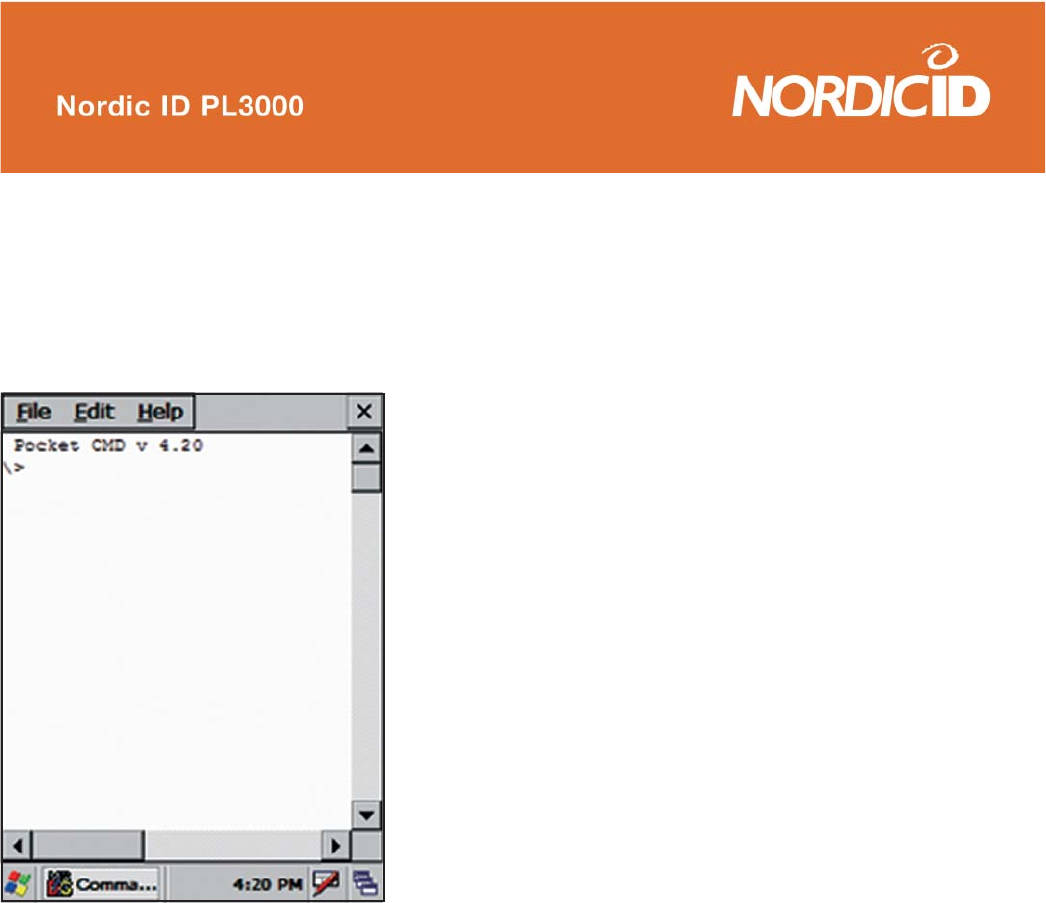

• Command prompt
• Inbox
• Internet Explorer
• Microsoft WordPad
• Remote Desktop Connection
• Transcriber
• Windows explorer
6.1.2 Demo
This item contains 2 demo software; Imagestream_Demo and QBusting_Demo. The Imagestream demo
uses the imager of the PL3000 as a video camera constantly capturing images and displaying them on a
screen. The streamer is activated by pressing the Scan-button.
The QBusting –demo introduces the mobile payment system called QBusting.
6.1.3 Nordic ID
This item contains contains some of the PL3000 related applications and controls.
File System backup
Performs a complete le system backup to ash memory.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 39

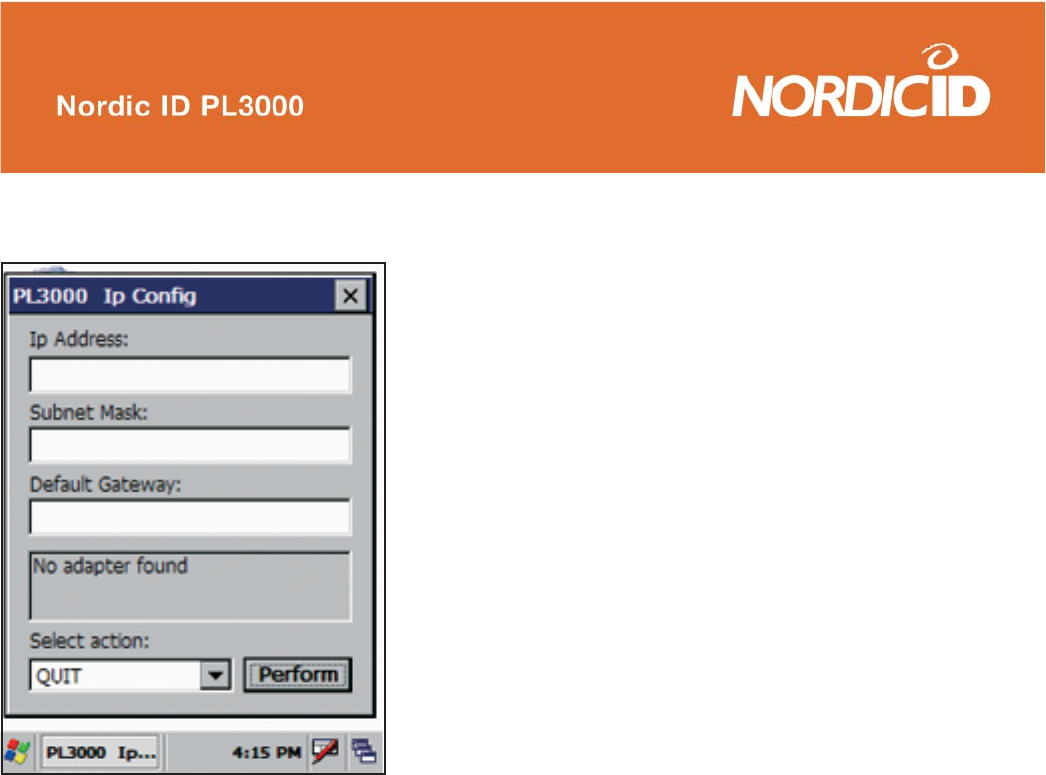

Fig.36 IP con guration window
IP Con g
This application shows you the current state of your PL3000 Internet Protocol (IP) settings. If the elds are
empty it means there is no connection present that implement an IP stack, or that the existing connections
are not operational. If you believe that you have a working network link, yet the IP information is incorrect,
you can request new information. Please keep in mind that this works only if you have a DHCP server
working on the network where the PL3000 is connected to. Select ‘Renew IP’ from the action list and tap
the ‘Perform’ button to request a new IP information. The application is started from the Start/Programs/
NordicID menu.
Rotate

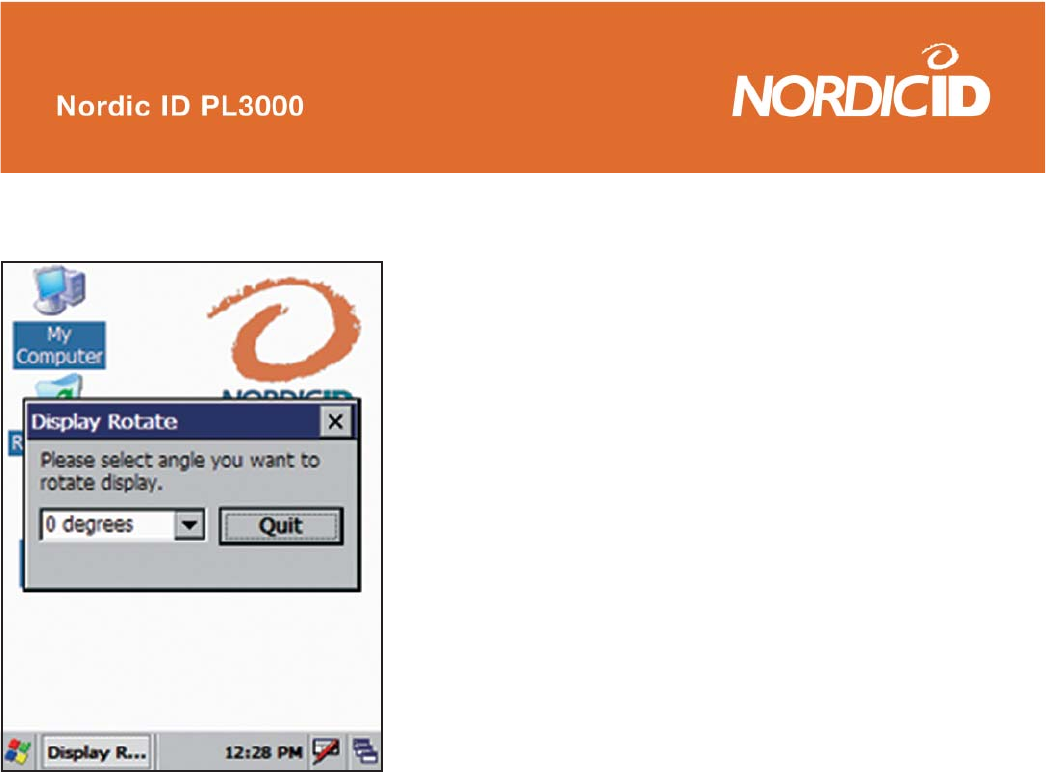

With the rotate software you can turn the PL3000 display 90, 180 or 270 degrees counter clockwise. Select
the angle and the display rotates. By selecting 0 the display returns to the original position. Press close to
close the Rotate software. When the software is closed the display remains at the selected position until the
display is rotated again or until the device is reset with warm or cold reset.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 40
Fig.37 Rotate window
RegBackup
RegBackup is used for saving the Windows registry .
When you install a program onto the PL3000, you are installing more than just les. Most Windows programs
also make modi cations and additions to the Windows Registry. The registry is kind of a catalogue of
settings for all programs, including the operating system. So in order for your installed programs to work
correctly, even after a power loss, the registry needs to be stored in FLASH. The PL3000 uses an automatic
backup system where all changes to the registry (which is in RAM) are backed up periodically. There are
three ways the registry can be backed up:
Switching the power off by using the power button. When the PL3000 is switching itself off,
it also backs up any changes to the registry to FLASH.
Leaving the unit on for 5 minutes. Any modi cations to the registry are automatically backed up
every ve minutes.
Running /Windows/RegBackup.exe. This program triggers a backup of the registry immediately.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 41
Fig.38 RegBackup window
Version
This tool shows the rmware version of the PL3000 and when it was created. In addition it shows if you have
a custom rmware. If the rmware is a custom version, then the name of the version is stated below the
rmware version line. In addition to these facts, some of the included software components are listed in the
‘Included components’ tab. To start the tool, activate its link in the Start/Programs/NordicID menu.

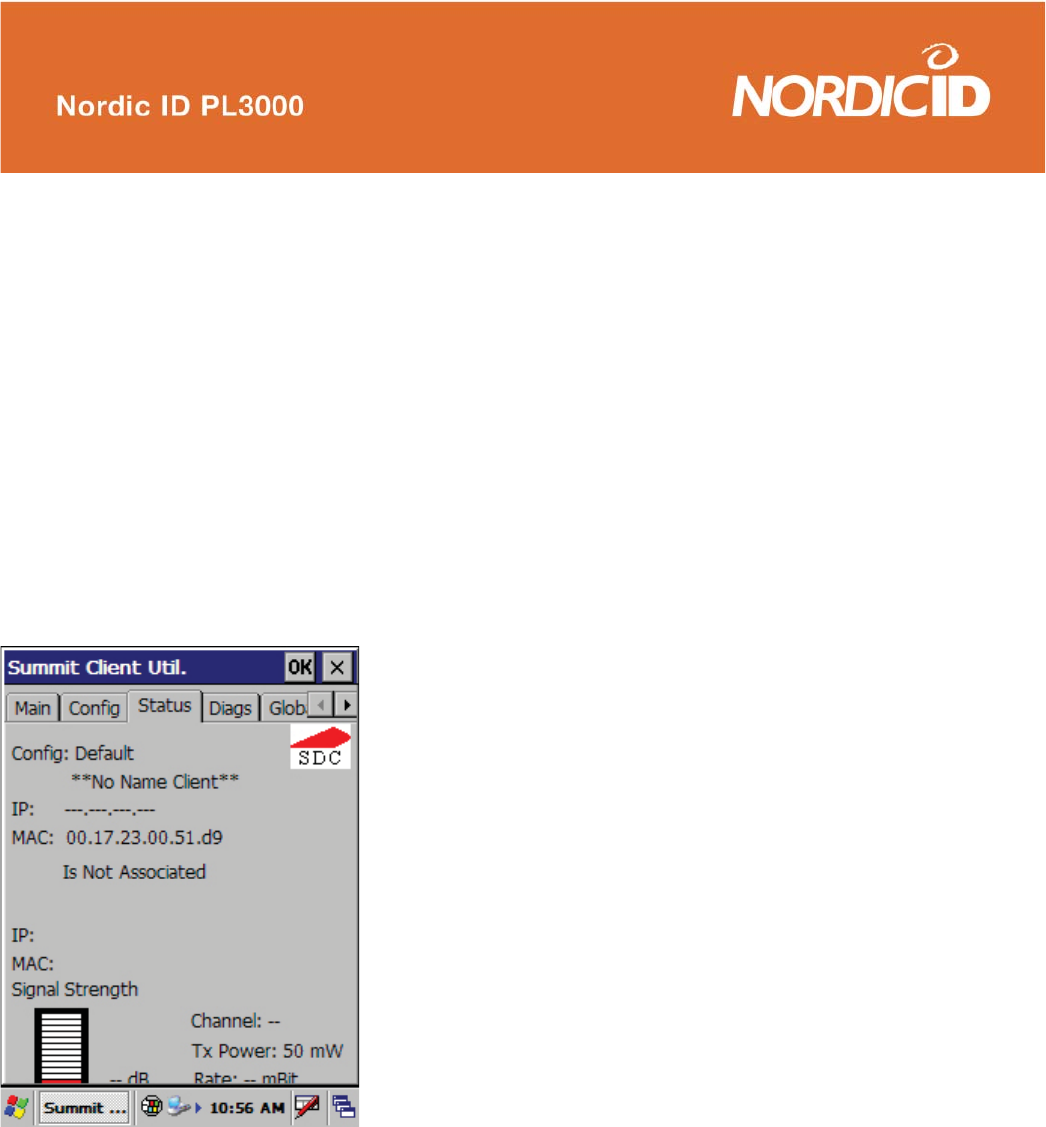

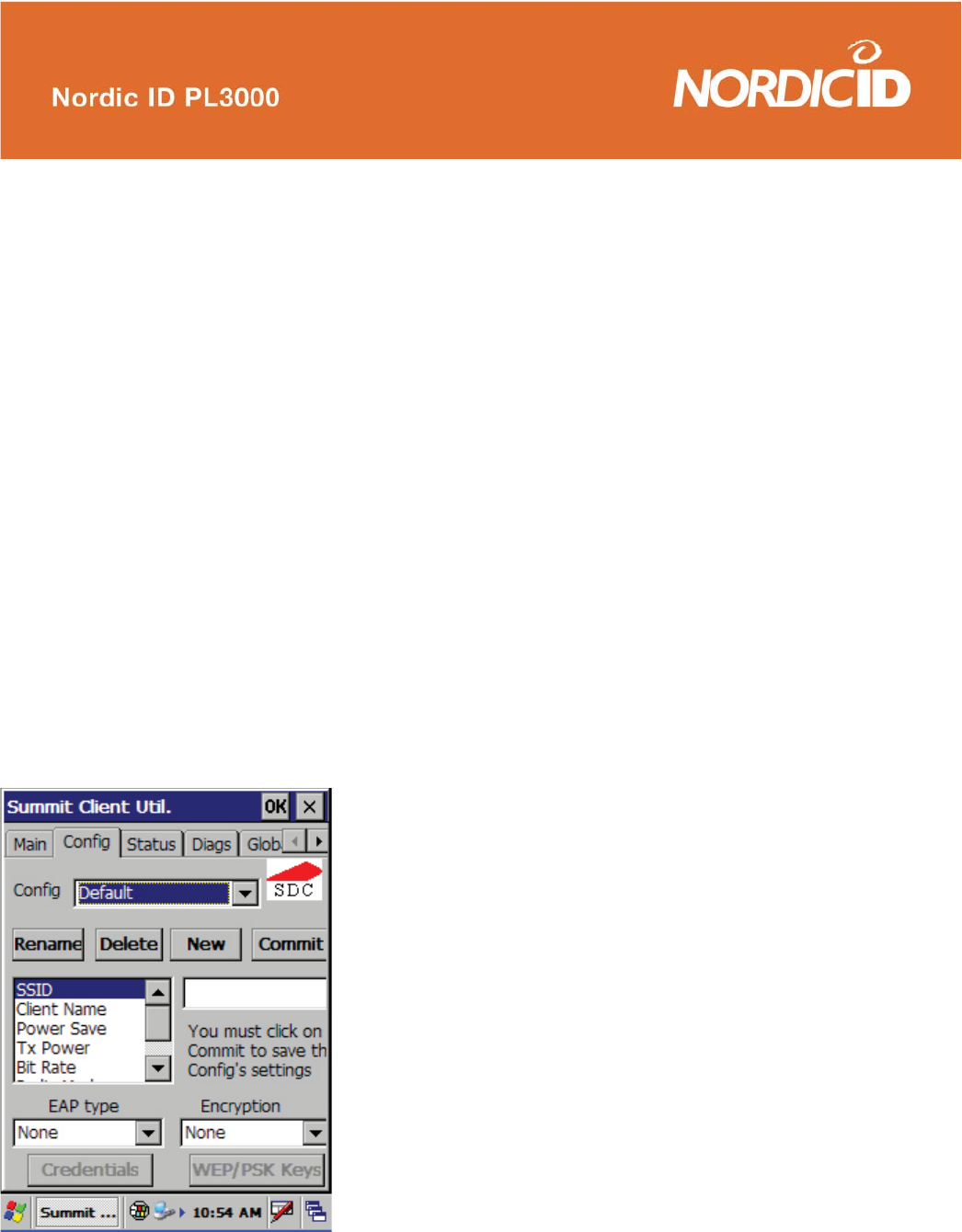

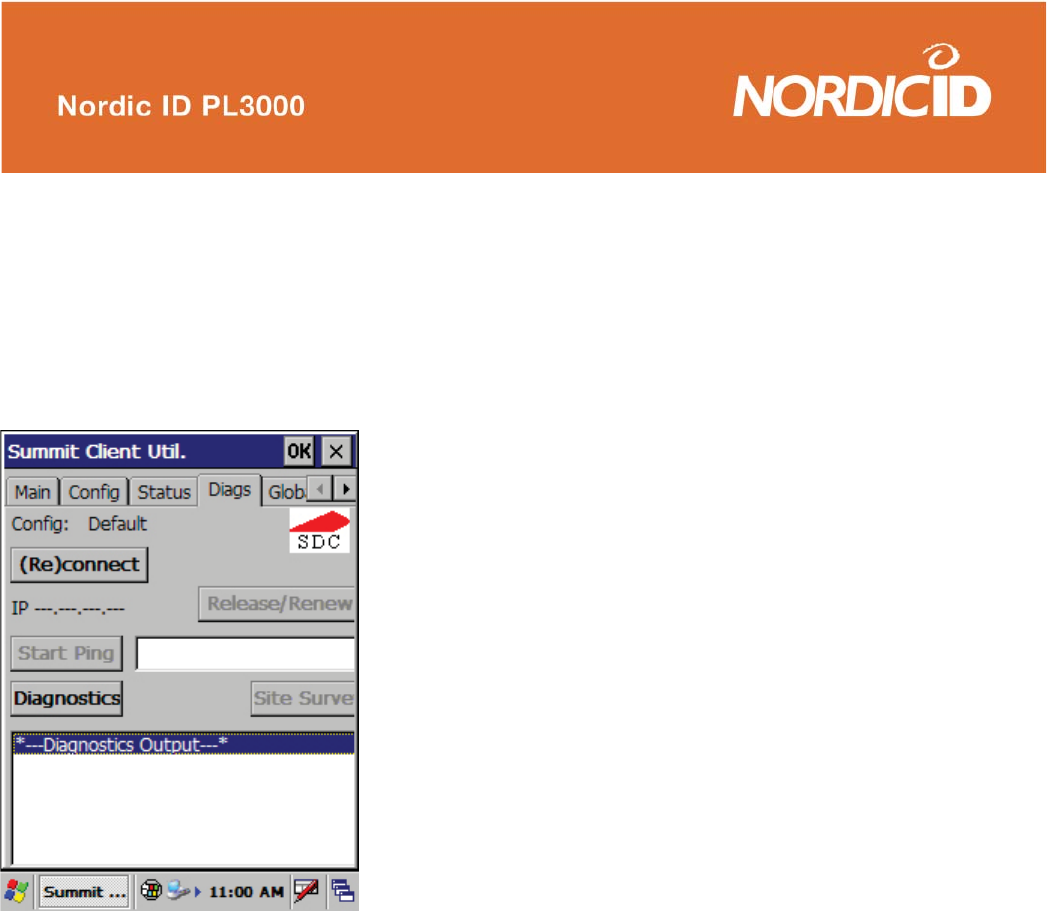

6.1.4 Summit

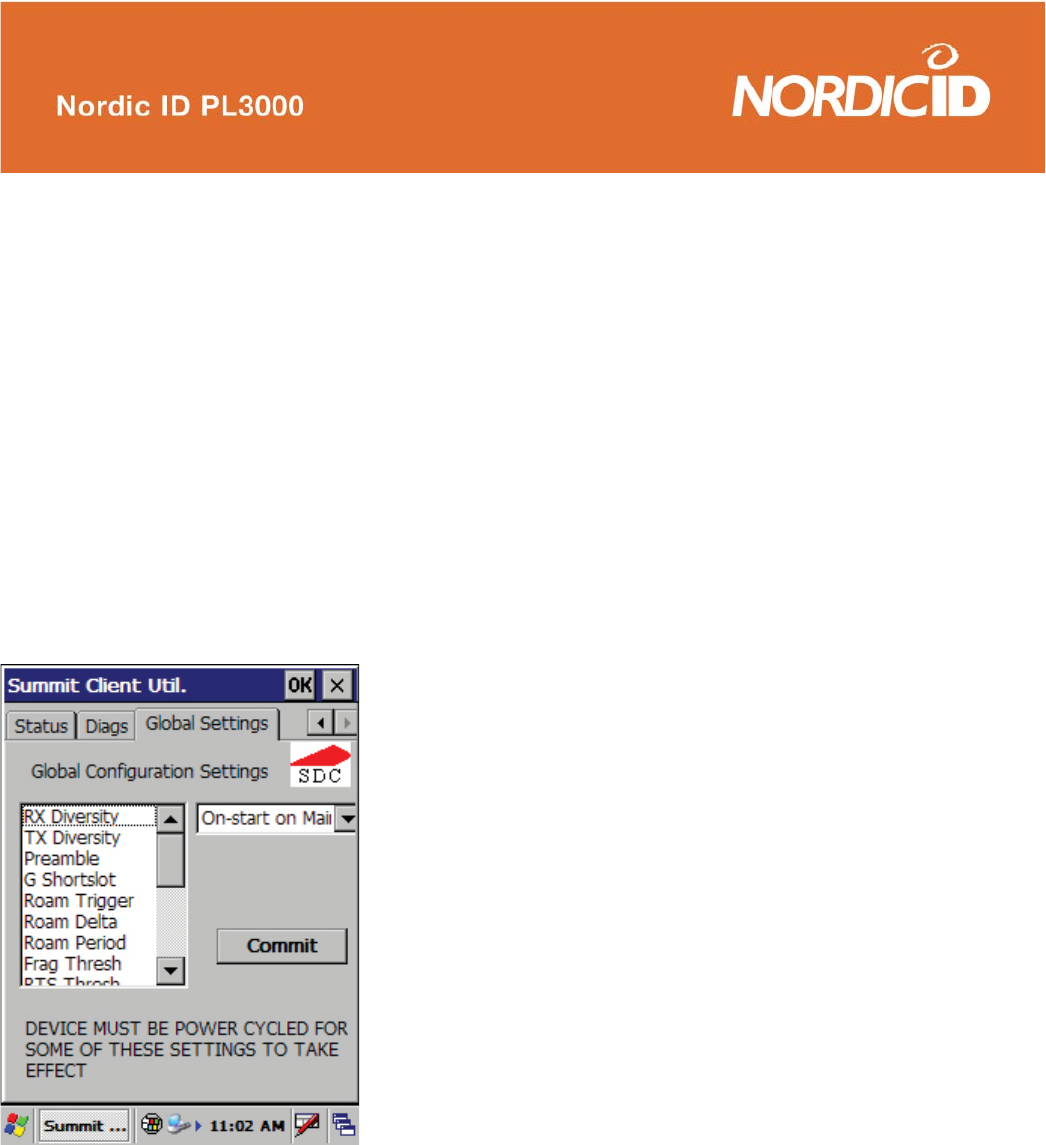

See the appendix J for instructions how to create WLAN connection for SUMMIT card.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 42
6.1.5 Command prompt
Command prompt opens the command prompt window. Open the Command prompt window from Start
menu, Program menu, Command prompt.
Fig.42 Command prompt window
6.1.6 Internet explorer
As default the PL3000 has Internet Explorer 6.0. This is used for browsing the Internet or for utilising web-
based applications.
Microsoft Internet Explorer 6.0 for Windows CE
Internet Explorer 6.0 (IE) allows you to view content from HTTP servers and HTML les. These can either
be stored in the PL3000 or they may be accessed through a network connection. This browser works very
much like its desktop counterpart, so any user familiar with other Internet Explorer versions should feel
right at home. Please note that some form of connection to the Internet is needed in order to browse any
web pages from the Internet. If your PC has an Internet connection set up, all you have to do is set up an
ActiveSync connection, and you can navigate the web with the PL3000. There are also more complicated
ways of connecting to the Internet involving WLAN-cards. Contact your network administrator for more
information about how such network resources are set-up at your location.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 43
Some of the supported features of Internet Explorer 6.0:
HTML 4.01, DHTML, XHTML 1.0, MSXML 2.0 & 3.0
HTTP, HTTPS and FTP
CSS & CSS2
ActiveX controls
SSL 2.0 & 3.0
JavaScript 1.4
JavaScript 5.5 & VBScript 5.5
40-bit SSL (128-bit is available if required)
PNG, GIF (Also Animated), JPEG and BMP image formats
Integration with third party Java virtual machines.
6.1.7 Microsoft WordPad
The WordPad application is a “light” version of the Microsoft WordPad usually bundled with desktop versions
of Windows. Microsoft WordPad gives you the ability to view and change WordPad documents. The toolbar
can be moved around using the grip-bar next to the font selector in the picture. The toolbar is usually placed
beside the menu, and moving it down under the menu (like in the screenshot) will make it easier to use. If
you have a standard production release of the PL3000 rmware this software is present
6.1.8 Transcriber
With the transcriber most of the keyboard and mouse functionalities can be executed with the stylus and
touch screen. When you start the Transcriber software a dialogue window with instructions opens and a
transcriber icon appears on the task bar. Closing the window does not close the transcriber.
When the transcriber is active the icon appears with dark background, when the transcriber is not active
the icon is without background.
When the transcriber is active the stylus movement is displayed on the display. Note that the using the
transcriber may slow down tapping. Functionalities and delays in the actions appear as a jammed display
during the delay period.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 44
By double clicking the transcriber icon you can open the transcriber menu. From the selections, and options
and Letter Shape Selector you can change the visual, vocal and their settings in the transcriber.
Close the transcriber completely by choosing close transcriber from the transcriber menu. Transcriber
cannot be used while display is rotated.
Fig.43 Transcriber window Fig. 44 Transcriber menu
Fig. 45 Transcriber icons
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 45
6.1.9 Windows Explorer
With the Windows Explorer you can browse les and folders stored in the PL3000 and perform actions with
les and folders.
Document icon opens File, Edit, View, Go and Favourite menus. Button icon opens quick buttons for le
and folder actions.
6.2 The task bar
The task bar is located to the bottom of the display. You can hide or display the task bar from start menu ->
settings task bar -> start menu.
When the task bar is hidden you can open it by tapping the bottom of display with the stylus.
The hidden task bar can be opened also with the keyboard:

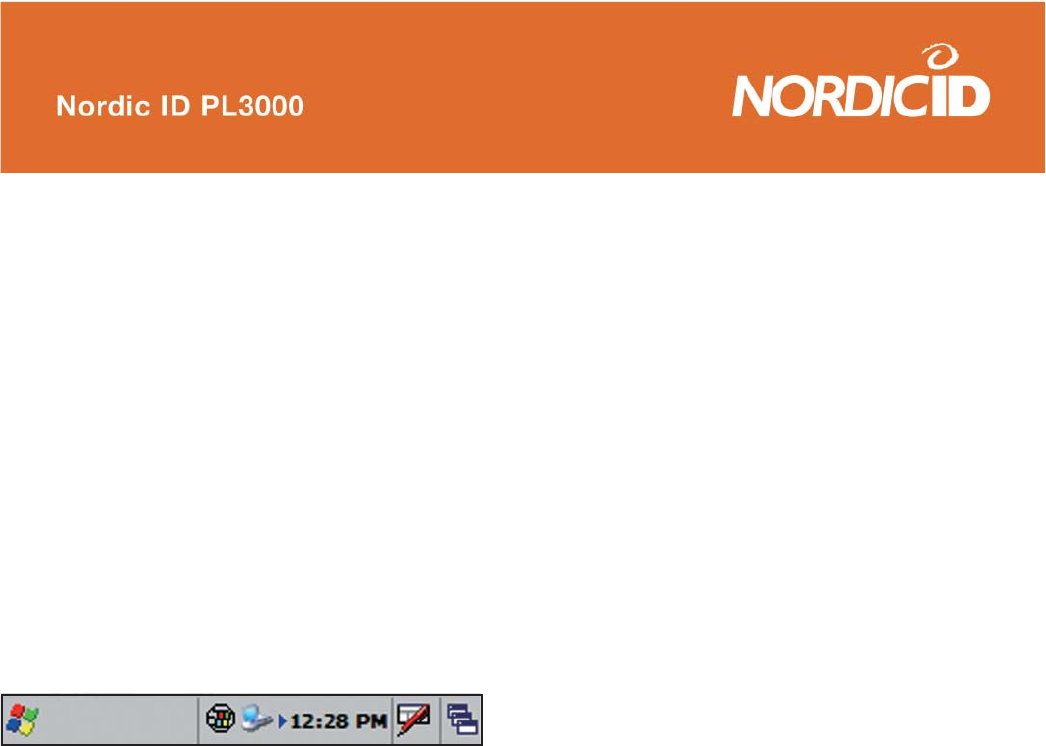

Fig.48 The Task bar
Close all the windows,
Press esc for removing all selections
Press tab for selecting taskbar
Press “OK” for opening the task bar
Task bar items
Startup icon. Single click opens the Windows start menu.
Alphabetic icon. The [A] icon shows when the capital letters mode is selected.
Time Icon. Double click opens the calendar and clock of the PL3000. See the chapter “Setting on the
time and date” for instructions.
Virtual Keyboard Icon. Single click opens the virtual keyboard menu. See the chapter on “the virtual
keyboard” for instructions.
Desktop Icon. Single click brings desktop on the display.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 46
6.3 Pop-up menu
Open the pop-up menu by pressing an icon on the display for one second. This corresponds on the right
key click of the PC’s mouse. From the pop-up menu you can, for example, see the properties of the selected
item.
6.4 Shutdown menu
A short press of the power key opens shutdown window. A shutdown window appears in the display of the
PL3000.
In the shutdown window there are:
Suspend
Warm reset
Cold reset and
Windows CE reload
Select the type of reset from menu. The description of the selected reset type is shown in dialogue box
within the shutdown window. See chapter 5.4. for details.
Fig.49 Shutdown window
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 47
6.5 The Control Panel
The PL3000 control panel contains subprograms that allow you to con gure how the unit should work.
These subprograms are represented by the icons in the image on the left. The subprograms available and
their functionalities are explained below.
Open the control panel from Start menu, Settings and Control panel.
6.5.1 Aironet Client Utility
The Aironet Client Utility is used to con gure the Cisco Aironet 350 series 802.11b Wireless LAN Cards.
Unless such a card is present in the PCMCIA slot of the PL3000 this program will only allow you to check
the version of the driver. This is done by starting the program and clicking the ‘About…’ button; this will
bring up a dialogue showing the version of the driver. If the rmware of your card is too old to work with the
installed version of the driver, an error message will appear upon inserting the card. In this case you need to
acquire a compatible rmware image le for the card from Cisco and update your card. You can also contact
your Nordic ID reseller for help in acquiring the rmware. Please note also that in most cases the rmware
version of the card and an access point should be upgraded hand-in-hand. This can be veri ed by reading
the release notes of the new rmware le.
The Program Dialogue
The gure 45 shows the main window for the ACU. If the buttons are displayed grey there is no WLAN card
in the PL3000 or the card is not correctly installed. With a card present the following functions are available
to you:
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 48

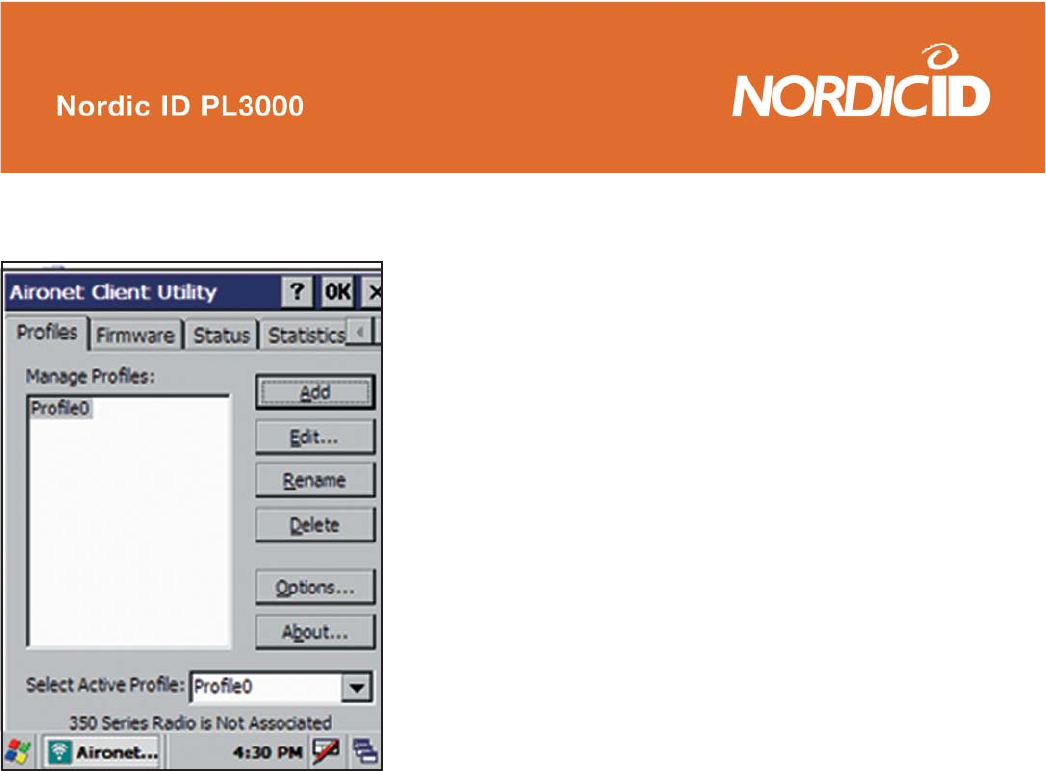

Fig.50 Main window for the ACU
ADD/Edit/Rename/Delete Pro le
The pro le editor is where you con gure an existing pro le or create a new pro le to allow you to connect
to an 802.11b network. The factory default values are correct for a Cisco 350 or 1200 series access point
with default settings.
If you are attempting to connect to other access points you must check the correct settings from your
network administrator. The rst is whether or not Infrastructure or AdHoc mode should be used. Usually
if you are connecting to an access point you are using Infrastructure Mode. If you are connecting to your
laptop PC you will most likely be using AdHoc. Con gure the ‘Infrastructure Mode’ setting accordingly. After
this you will need to con gure at least the SSID value.
Most networks today are encrypted. In this case you will need to con gure the encryption before the link will
work. When running AdHoc with some access points, static WEP keys are used. Con gure the WEP key as
necessary. All other settings on this page should be left alone unless you know that for your network they
should be con gured differently. Especially the power saving feature should not be modi ed. The factory
default setting of ‘Fast PSP’ offers near maximum radio coverage and transmission speed. It also improves
battery life signi cantly. If you set this to ‘CAM’ (Constant Awake Mode) the battery life of the unit drops from
around ve hours to two hours constant power on usage. You will, however, get about 10% better signal
and faster transmission.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 49

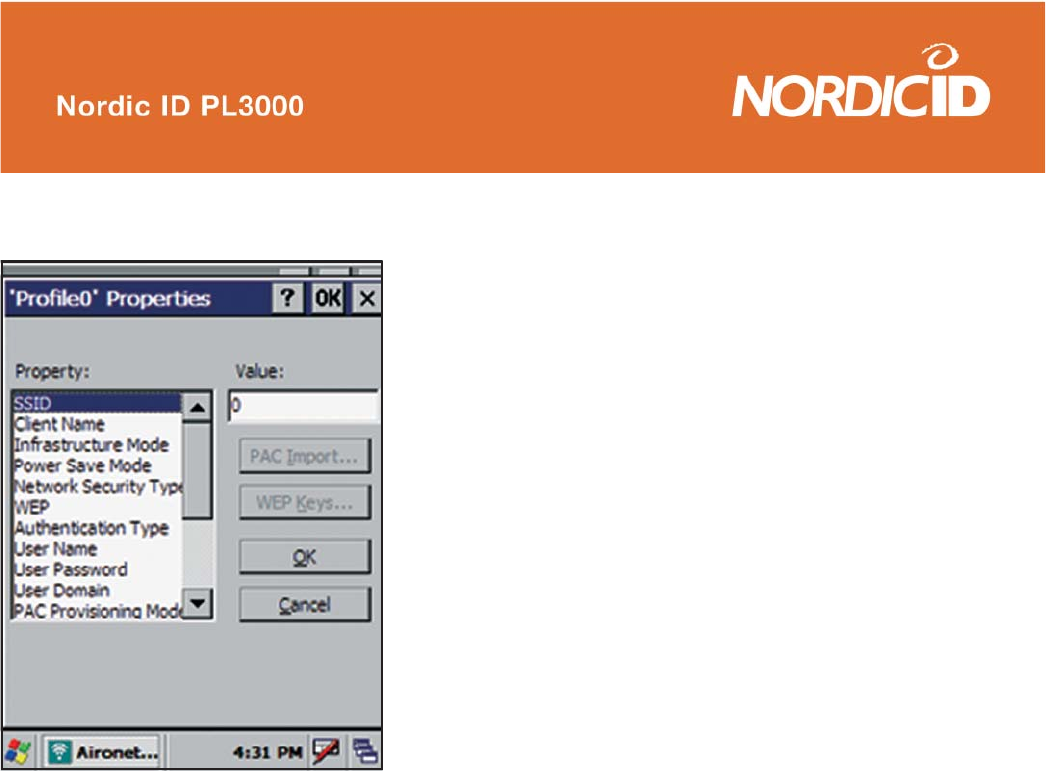

Fig.51 ACU Pro le Properties
You can create and save several pro les for use with different networks. You can choose the active pro le
with Select Active Pro le menu.
Options
From options you can chose whether the signal strength is displayed in percentage or as dBm.
About
About displays the version of the Aironet Client Utility that is installed on the PL3000.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 50
Firmware
On the rmware tab, it is able to load a new rmware image into the Aironet card. You can accomplish this
by copying the new rmware image le to the PL3000 by any method available to you. (ActiveSync transfer,
SD Card, Browser Download, etc.) Once the le is present in the unit you can click the ‘Browse…’ button
under on the rmware tab page. Then proceed with selecting the rmware image le; the upgrade will
proceed automatically once this is done. Do not upgrade the rmware unless you know it is necessary! If
everything is working as it should, never upgrade.

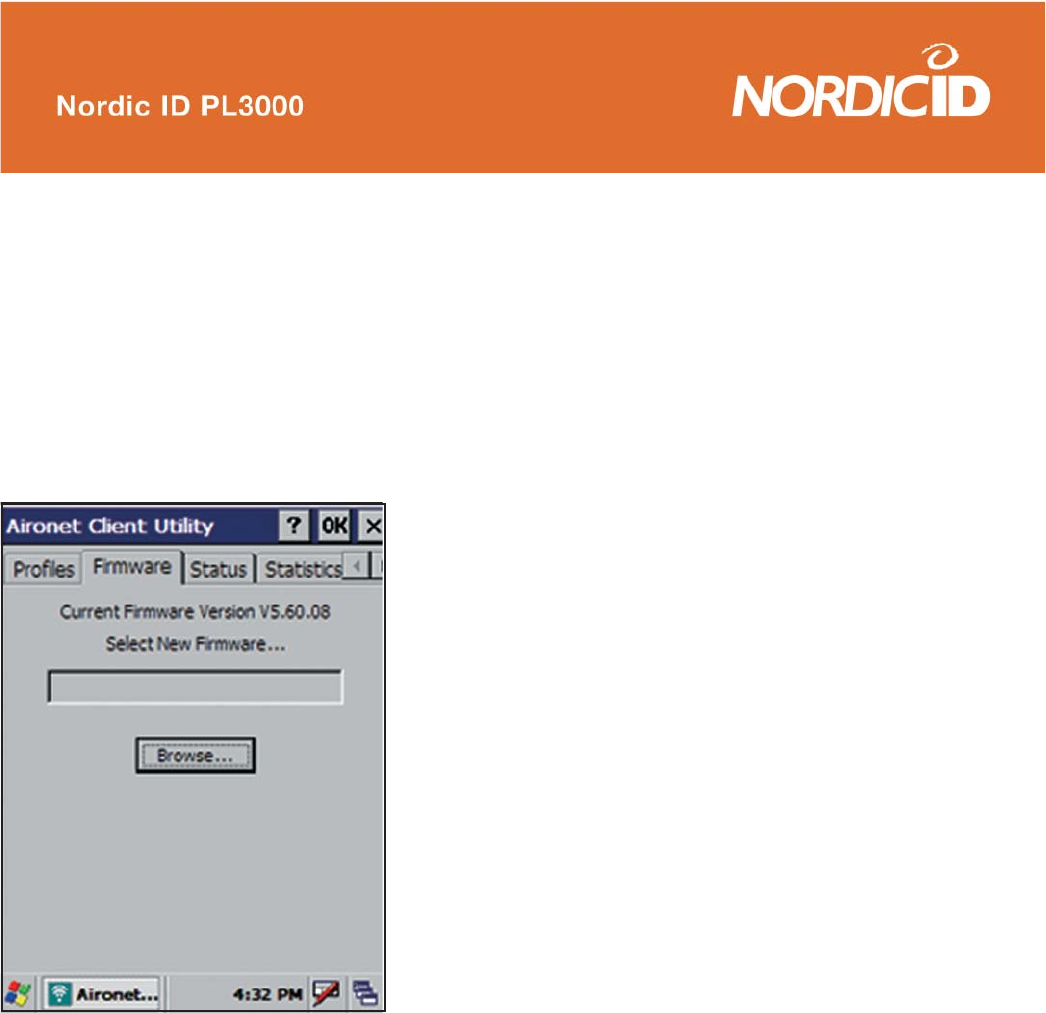

Fig.52 ACU Firmware window
Status
The status page gives you the signal strength and quality information as well as information of the driver
and rmware versions. If the strength and quality bars are empty it means there is no 802.11b network to
connect to, or the settings are incorrect and the card cannot therefore establish a connection.
Statistics
This tab page shows you a summary of the traf c that has occurred since the last hard reset. You can view
either received or transmitted data statistics by choosing the alternative from the category menu.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 51
Survey
Use the tab page to investigate radio coverage for the sites you wish to use 802.11b wireless networking
on.
6.5.2 APN Manager
This tool allows you to con gure the APN (Access Point Name) of the GPRS base station you are using.
The name of the APN is usually ‘internet’, and if your service provider uses this you will not need to modify
this setting. This tool affects the Option Globetrotter GPRS or Combo card only, and has no effect on other
vendors’ cards.

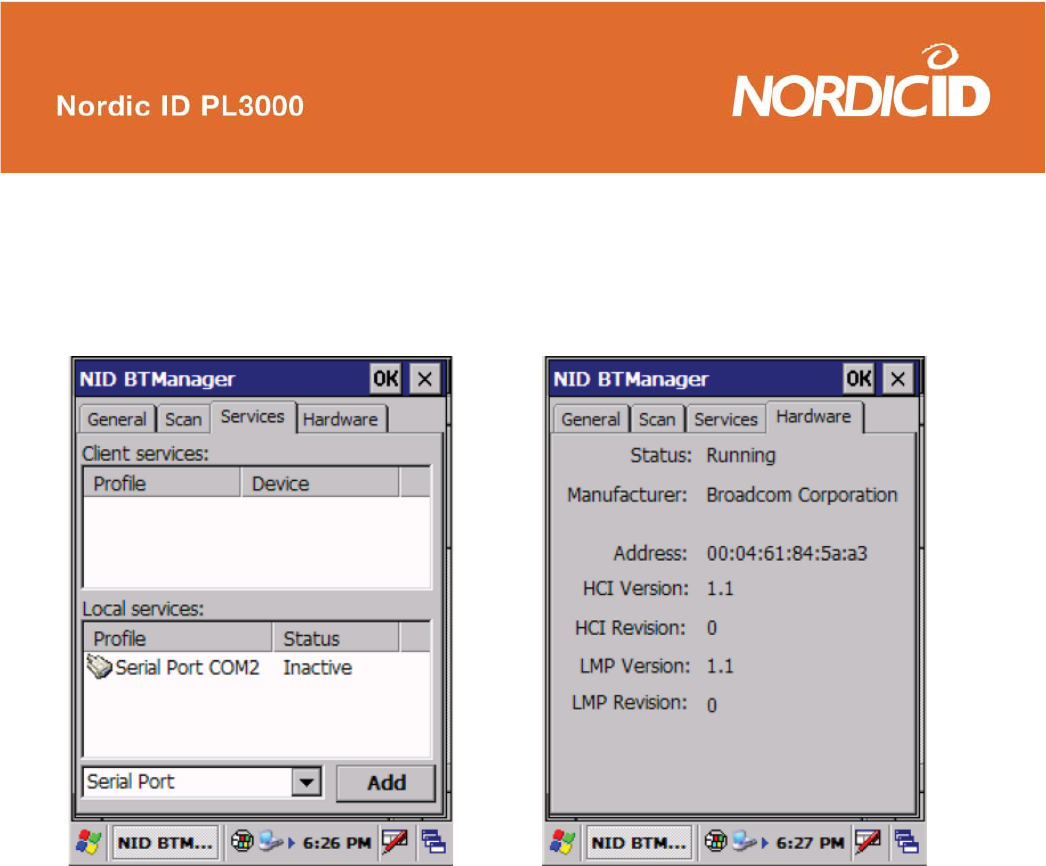

6.5.3 Bluetooth Device Properties
With this tool opens the NID Bluetooth Manager. You need to have a Bluetooth version of the PL3000 in
order to use this tool.
The Nordic ID Bluetooth manager is an application that improves the usability and brings some new features
to the standard Windows CE Bluetooth manager. The application consist of 4 tab-pages; General, Scan,
Services and Hardware.
General
The General -tab page contains the information about the BT identi cation such as device name and type.
The device name is a friendly name of the device that is usually used in the BT communication.
Device type can be chosen as handheld, PDA, laptop and desktop. The type is usually displayed at the
remote device with the name as a graphical indicator.
At the bottom of the window are the two radio buttons; Advanced and Apply. The Advanced-button
displays the advanced settings-tab where the Discovery-radio button sets the device as discoverable/not
discoverable.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 52
The device can be set to play a sound when requested a PIN-code authentication by a remote device. The
sound can be chosen by pressing the … -button and browsing the appropriate wave- le from the opened
le selection dialog. The selected le can be played by pressing the > -button by the le selection dialog
–button. Close closes the Advanced –window.
The changes are taken into use by pressing the apply-
button.
Scan
The Scan -tab page contains the tools for discovering
the devices and services in it. The “Scan devices in
range” –button scans the discoverable devices into
range of the PL3000. The scanning may take a while
and the devices within the range are shown at the
Devices: -window. The devices are shown by their type
and their friendly name. The information of the status of
the connection to that device is shown after the friendly
name of the device.

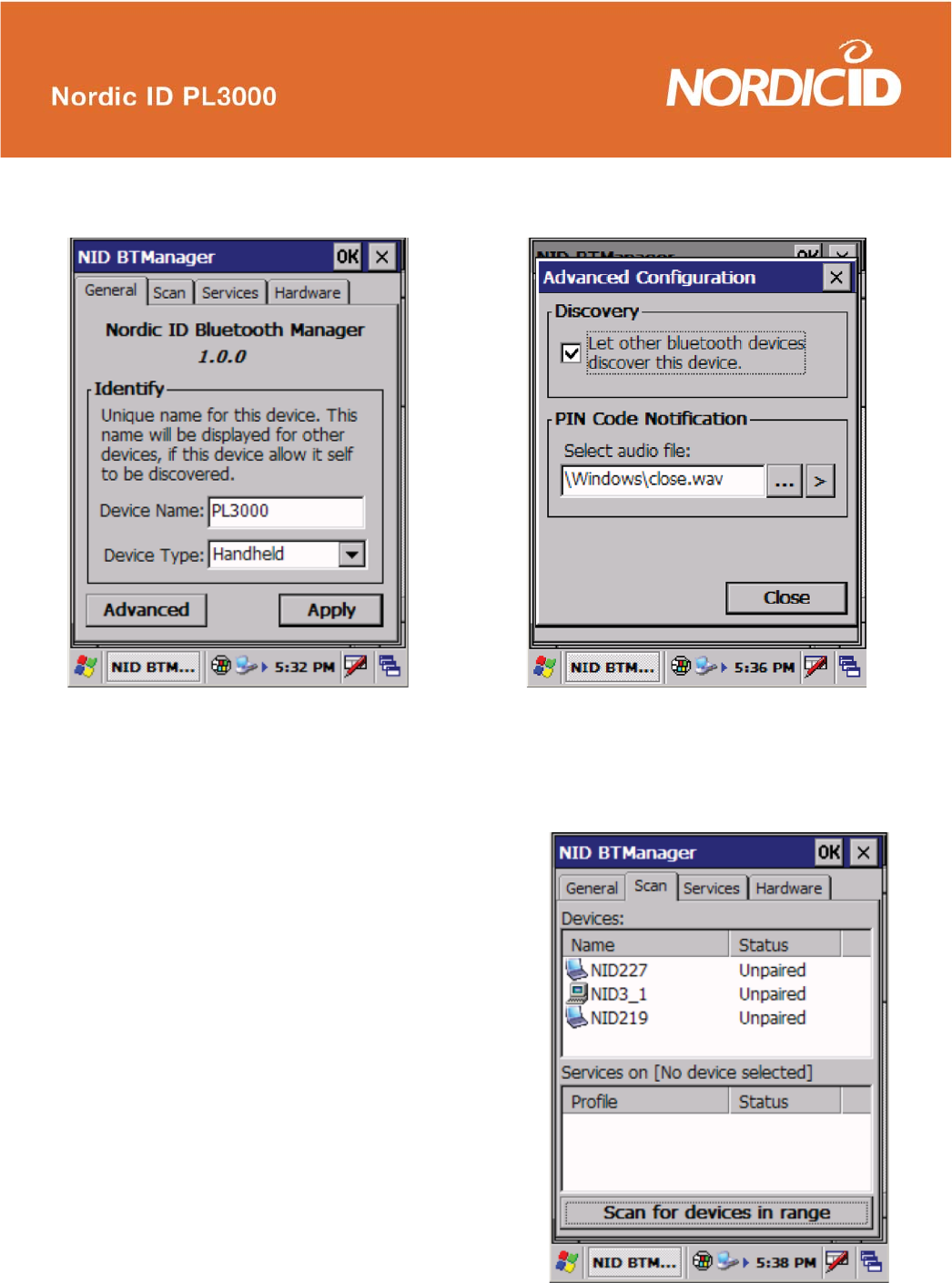

Fig.53 NID BT Manager General -tab page Fig.54 General -tab page advanced options
Fig.55 Scan -tab page of the NID BT Manager
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 53
By selecting the device at the “Device:” -window the NID BT-manager scans the services in that device. The
services found are displayed at the Services –window. Currently the NID BT-manager shows only the Serial
Port –service.
When tapping the name of the device into Device-window the additional selection window pops up. Select
Pair to set up a secure connection to the device. Note that the PIN-number set to same for both devices.
The Bluetooth PIN code is 1-8 bytes long (8-128 bits) Personal Identi cation Number. However, most devices
use PIN sizes of 4 decimal digits.
By selecting the service by tapping it, the PL3000 opens the con guration window for that service. The
service con guration window includes the checkboxes for automatic startup after power up, secure
connection and authentication.
The additional settings of the Service con guration -window includes the Com port mapping to the service.
The serial port pro le can be set to create Activesync link. Link creation is explained at Services chapter.
Services
This tab-page shows the discovered services in the local and remote devices. The services at the remote
devices are shown at the Client services –window. The Local services –window shows the services on the
PL3000.

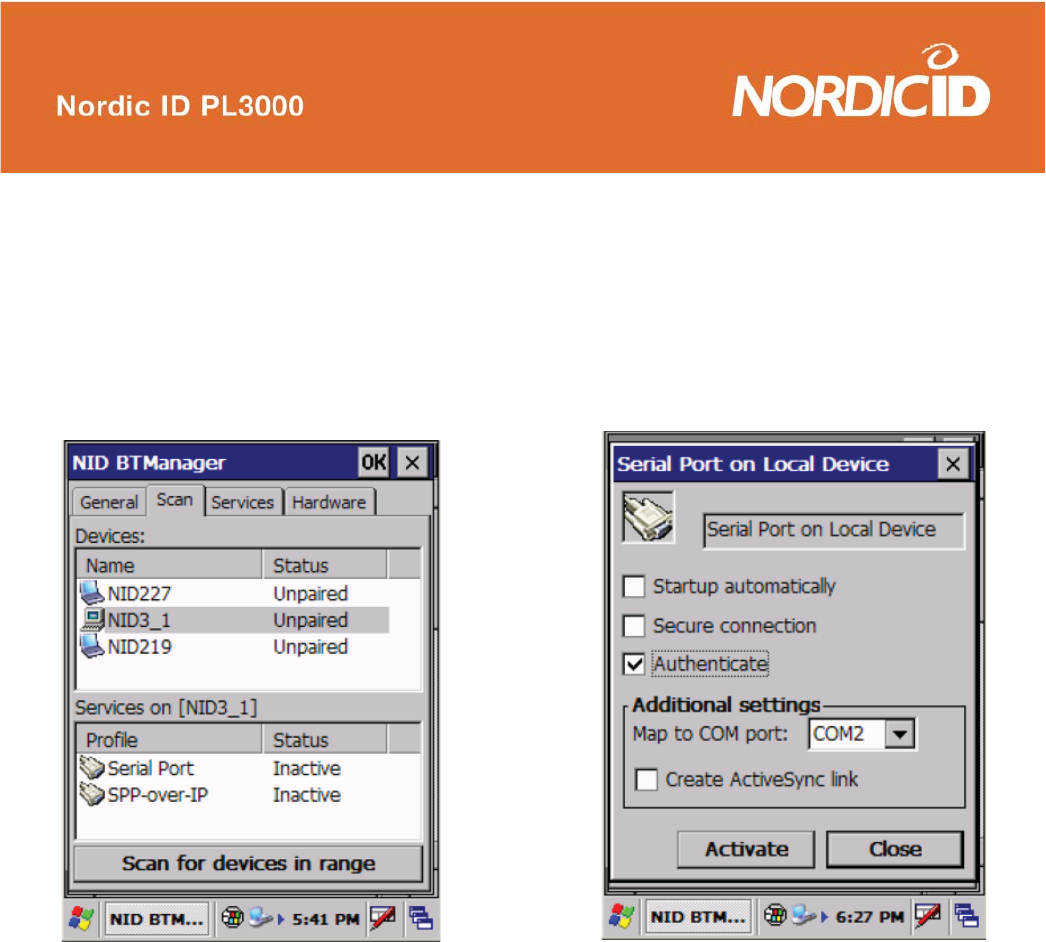

Fig.56 Services found on discovered device Fig.57 Service properties
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 54
The local services can be added by pressing the add-button. The Nordic ID BT manager currently supports
Serial Port service for the local device. The serial port service can be mapped to a virtual COM-port which
can be used for applications that support the COM-port communication.
Hardware
The hardware tab-page contains information about the Bluetooth HW status, chip manufacturer and the
48-bit Bluetooth address (in hexadecimal form).
Fig.58 Services on a local machine Fig.59 Hardware properties of the BT chip
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 55
6.5.4 Certi cates
This tool allows you to register security certi cates to the PL3000. This is only necessary if your PL3000
solution is to work with a remote host that uses certi cates, such as a secure WWW site.
The certi cates dialogue allows you to import a new certi cate from a certi cate le, view existing certi cates
and remove unwanted ones. There are three available certi cate stores; one containing trusted authorities,
one containing your personal digital certi cates and one containing other authorities. You access these
stores by selecting the one you want from the control.

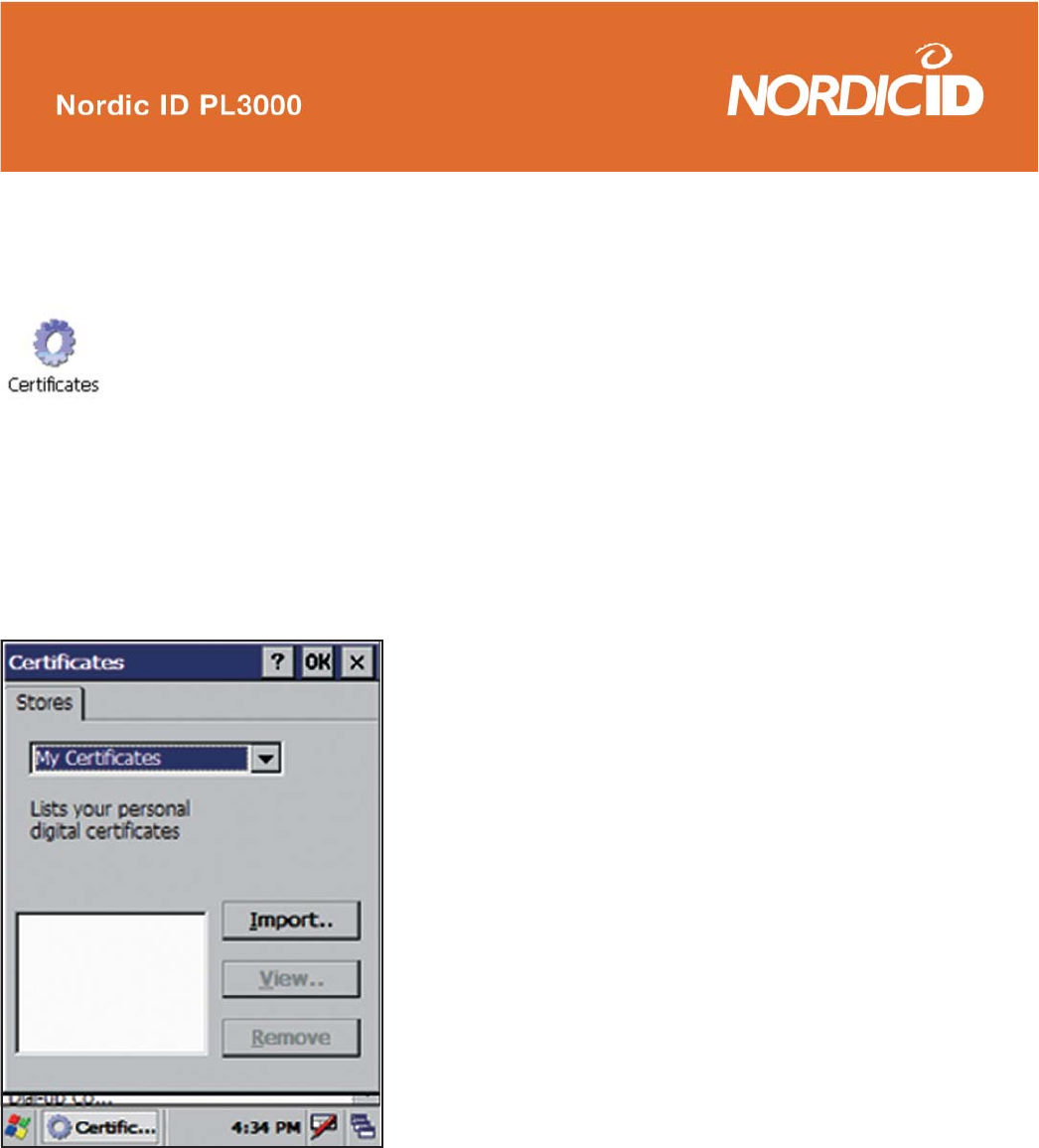

Fig.60 Certi cates window
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 56
6.5.5 Date and Time
The date and time settings are quite straightforward to con gure. If you intend to use Simple Network Time
Protocol (SNTP) you must set the time zone for the device. Otherwise the timeoffset that is received from
the SNTP server will be wrong, resulting in an incorrect time.
6.5.6 Dialing
The dialling properties dialogue allows you to con gure country and area code dial string settings. These
settings are used by modem PCMCIA cards, if no modem is available these settings have no effect. If you
are using an Option Globetrotter GPRS or Combo card supplied by Nordic ID, you should not need to
change any settings in this dialogue as the factory default settings are correct for those cards.
6.5.7 Display
The display settings dialogue allows you to set the background image of the desktop, change the appearance
of the operating system and set the backlight power saving timers. The background image can be changed
to any BMP-type image le resident in the PL3000 le system. For best performance, the image should
have a resolution of 320x240 pixels, and a bit depth of 4 or 8 (16 or 256 colours). The backlight timer is also
con gurable in the power con guration dialogue, along with more power settings.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 57
6.5.8 Input Panel
In addition to selecting which keyboard to use, you can enable stylus gestures. This option allows you to
enter symbols such as space by tapping the virtual keyboard and dragging to the left. Similarly backspace
works by tapping and dragging to the right. Stylus gestures can be dif cult to use as accidental taps and
drags are also processed.
6.5.9 Internet Options
The internet options dialogue allows you to con gure all settings related to Internet Explorer. This same
options dialogue is accessible in Internet Explorer, by selecting View and Internet Options from the menu.
Page 1: General Options
Here you can set the default start and search page addresses. The start page is the rst page that is loaded
when Internet Explorer starts, the default is to load no page. The cache size is also con gurable on this
page. The cache is used to store pages you have accessed previously. Thus speeding up the reloading time
when you access the same page agein. A larger cache will hold more pages, but will also reserve memory
that the browser needs. If the browser becomes starved of memory it will load pages more slowly. You can
also disable page caching completely by setting the size to zero. This will force Internet Explorer to always
load the page from the remote host.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 58
Page 2: Connection settings
On this page you can con gure autodialing and proxy settings. When you type a web page address into the
address bar of the browser and hit enter, the browser will check if there is an open connection. If so, the
browser proceeds to try to load the requested page over that connection. If there is no connection available,
the ‘Use LAN’ checkbox tells the browser how to proceed. If it is checked, the browser will assume that the
LAN connection is down and gives up. If it is unchecked the browser will dial to the connection selected in
the ‘Autodial name’ control. If your service provider or local network topology requires or recommends use
of proxy server, check the ‘Use a proxy server box and enter the address and port of the server.
A proxy server performs a similar task as the cache mentioned on the General Options page. But instead
of storing pages that you have accessed locally, a proxy server stores pages for all the users of that server.
The proxy server is usually located physically close to you, or it can at least provide a very fast link to you.
When you request a page that the proxy server already has stored in, it will be sent to you by the proxy
server instead of the actual host. This leads to pages loading faster and reduced Internet traf c.
Fig.61 General Options Window in Internet Options Fig.62Connection Settings Window in Internet Options
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 59
Page 3: Security settings
These settings affect the kind of pages Internet Explorer is allowed to load and display. Their importance is
usually low compared to desktop PC’s as the PL3000 Internet Explorer is usually restricted to a controlled
set of pages, and usually only one server. But if you use the PL3000 Internet Explorer to view pages from
servers not under your control, or whose operators’ intentions cannot wholly be trusted, then modifying
these settings can provide you with additional security. The implications and explanations of these settings
are beyond the scope of this manual and also depend on the host you are going to use.
Page 4: Advanced options
The advanced options allow you to control what elements of a page to load. When browsing the Internet
this can improve performance quite a bit, as most pages made for desktop PC’s can be quite heavy to
handle for the browser of the PL3000. When developing your own browser based solution it can helpful if
the browser informs you about every scripting error on the page. Although the link underlining setting allows
you to choose to underline links on hover, this has the same effect as setting it to never. This is because of
the stylus pen input does not allow hovering over a link in the same sense as a mouse cursor does.
Fig.63 Security Settings Window in Internet Options Fig.64 Advanced Settings window in Internet Options
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 60
Lock
The lock options usually go hand in hand with the full screen options on the previous con guration page.
With default settings in use, resetting or pulling the battery out of the unit will show the user the Windows
CE desktop, once the unit has restarted. This can be undesirable for a browser based application as it can
confuse users, require additional training and may be a security hazard. For this reason you can con gure
the unit to always launch Internet Explorer when the device starts, and to start it in locked mode. Locked
mode means that Internet Explorer covers the entire screen, and there is no way for the user to get out
of this mode, except for pressing the unlock key and entering the unlock code. When the automatic start
option is in use, Internet Explorer starts by ensuring that the network link is up and running, before loading
the start page. This means that if you use for instance a Cisco Aironet 350 or Option Globetrotter GPRS
card, the browser will wait for these to re-establish their connection before proceeding. During this time the
keyboard and touch screen is disabled, so the user cannot interfere with this process.

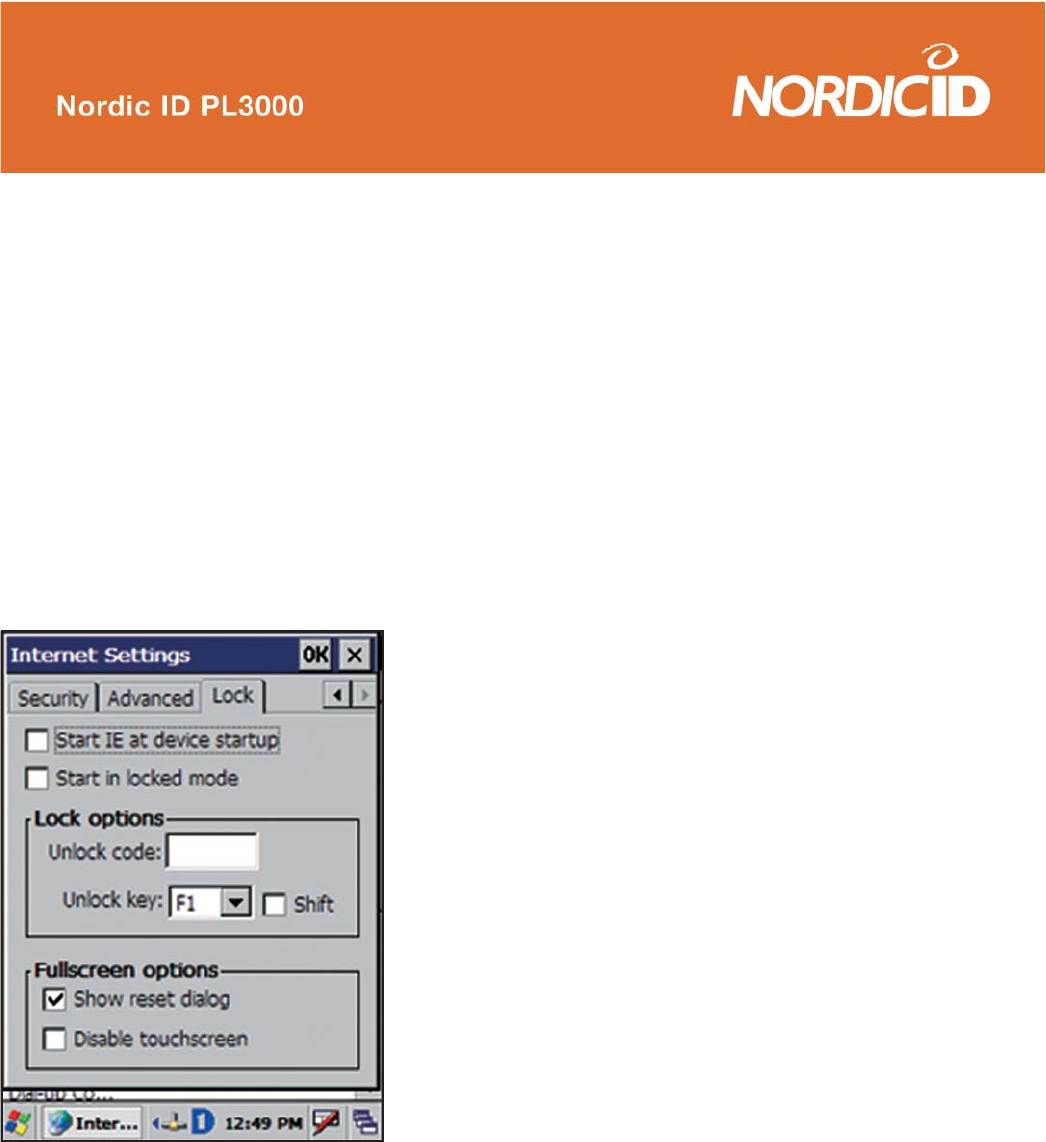

Fig.65 Lock window in Internet Options
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 61
6.5.10 Keyboard
The keyboard properties dialogue allows you to enable or disable the character repeat function for the
keyboard and set the repeat delay and rate. The character repeat function means that when you hold a
keyboard key down, that keystroke will be sent repeatedly to the application. The repeat delay value de nes
how long it takes after a key press before repeat function is triggered. The repeat rate value de nes how fast
new key down events are sent once the function is triggered.
6.5.11 Mouse
With this function you can calibrate the speed and accuracy of the double tap function of stylus . For details
see the chapter 6.5.21.
6.5.12 Network and Dial-up Connections
This dialogue contains all active network and potential dialup connections that have been con gured. To
activate a connection, doubletap it. To con gure a connection either tap the connection once and select
properties from the ‘Connection’ menu or hold down the ‘alt’ key and tap the connection and select properties
from the menu that appears. You can create new connections by doubletapping ‘Make New Connection’.
By default, there are usb and GPRS connection de ned. The rst is used when forming an ActiveSync
connection to a host PC. The GPRS connection is prede ned for use with the Option Globetrotter GPRS
or Combo card, and will work as is in most countries and with most operators. If your operator requires a
different dialstring to ‘*99#’ or a AP name different to ‘internet’ this pro le will not work without de ning any
neccessary operator speci c settings rst.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 62
6.5.13 NID Backlight
This is a tool for backlight con guration. The con guration program allows to adjust the level and mode of
the backlight. There are 3 modes available; constant off, constant on and Auto on/off.
6.5.14 NID Indicators
This tool is for setting the battery and wireless connection status bars on display. The indicator bar can be
set to display battery level and/or signal strength on a ve step scale. The indicator bar can be set to display
on either side of the display. If the indicators are set visible, those can be hidden/displayed by pressing the
circle -button.
Note that when displayed indicators are always on top and may hide a part of the active window.
6.5.15 NID Keymap
This tool opens the Keyboard con guration program. With this program it is able to create and save the
custom keyboard mappings for the PL3000.
Any key of the keyboard can be set to launch a program or be mapped to function as key of the standard
qwerty- keyboard. Also the combination of <shift>,<alt> or <function> with any key can be mapped on any
key of the PL3000 keyboard.
Note: This application can con gure all the keys of the PL3000 keyboard EXCEPT the power-key and
the external trigger key on the pistol grip.
The actions to the keys are set from Mapping-tab below the Actions. There are 50 action identi ers and
each of them can be set to launch an external program. First set and action id number (1-50) and the browse
the selected action. The parameters can be written after the selected executable.
The key mappings are made from below the mappings. Choose the key to be mapped from the key -listbox.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 63
Then choose, if desired, the action id number. Modi er (shift, alt or function) and virtual key to be mapped
to. The misc –tab has controls to the input mode selection (123, abc or ABC), Scan mode –selection ( and
the control of the lights of the input mode keys.
The con gured keymappings can be saved as a pro le or to system default.
6.5.16 NID Power Button

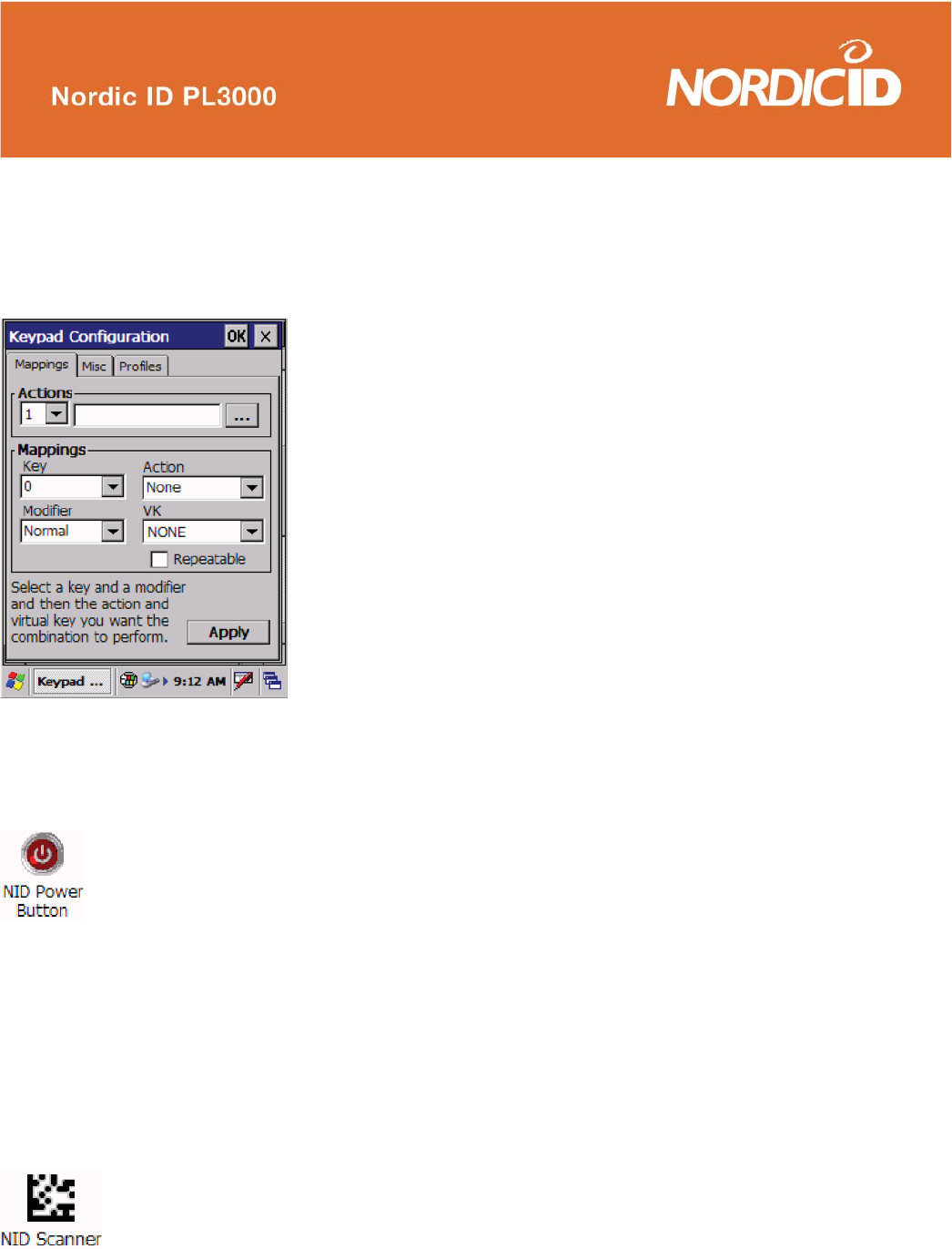

Fig.66 Mapping-tab
Power button con guration program is for con guring the power-key behavior. The default function of the
power-key is to open the shutdown menu but it can be mapped to execute any program. After the holding
the power-key for a “hold time” (in milliseconds) the PL3000 goes to suspend mode.
The power-key can also be mapped to function as any virtual key.
The con gured power-key behavior can be saved as a pro le or to system default.
6.5.17 NID Scanner
The scanner con guration –program is for con guring the scanner functions. The program has 4 tab pages;
Codes, Misc, Scan and Pro les.
The actions to the keys are set from Mapping-tab below the Actions.
There are 50 action identi ers and each of them can be set to launch an
external program. First set and action id number (1-50) and then browse
the selected action. The parameters can be written after the selected
executable.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 64
The Codes tab includes the information about symbolism decoding. The enabling or disabling of the sym-
bolism can be selected by tapping the name of the code. Enabled codes are marked with
The Misc –tab includes the controls for sounds of the successful / unsuccessful decoding, post x symbols
after the scanned code, decode limit time (the max time of decoding the symbolism from one image in ms),
scan timeout time (max time to scan the images in sec before the timeout), search limit time (max time to
search symbolism in image in ms) and video reverse checkbox (on/off).
Scan –tab can be used as a test area for code decoding. After scanning the symbolism the decoded info is
displayed on Result string –textbox. The information about decoding is shown in the Result info –textbox.
Also the AIMSI –information is shown below the result –textboxes.
In the Pro les –tab the selected changes can be saved as pro les or system defaults.
6.5.18 NID Tilt Switch

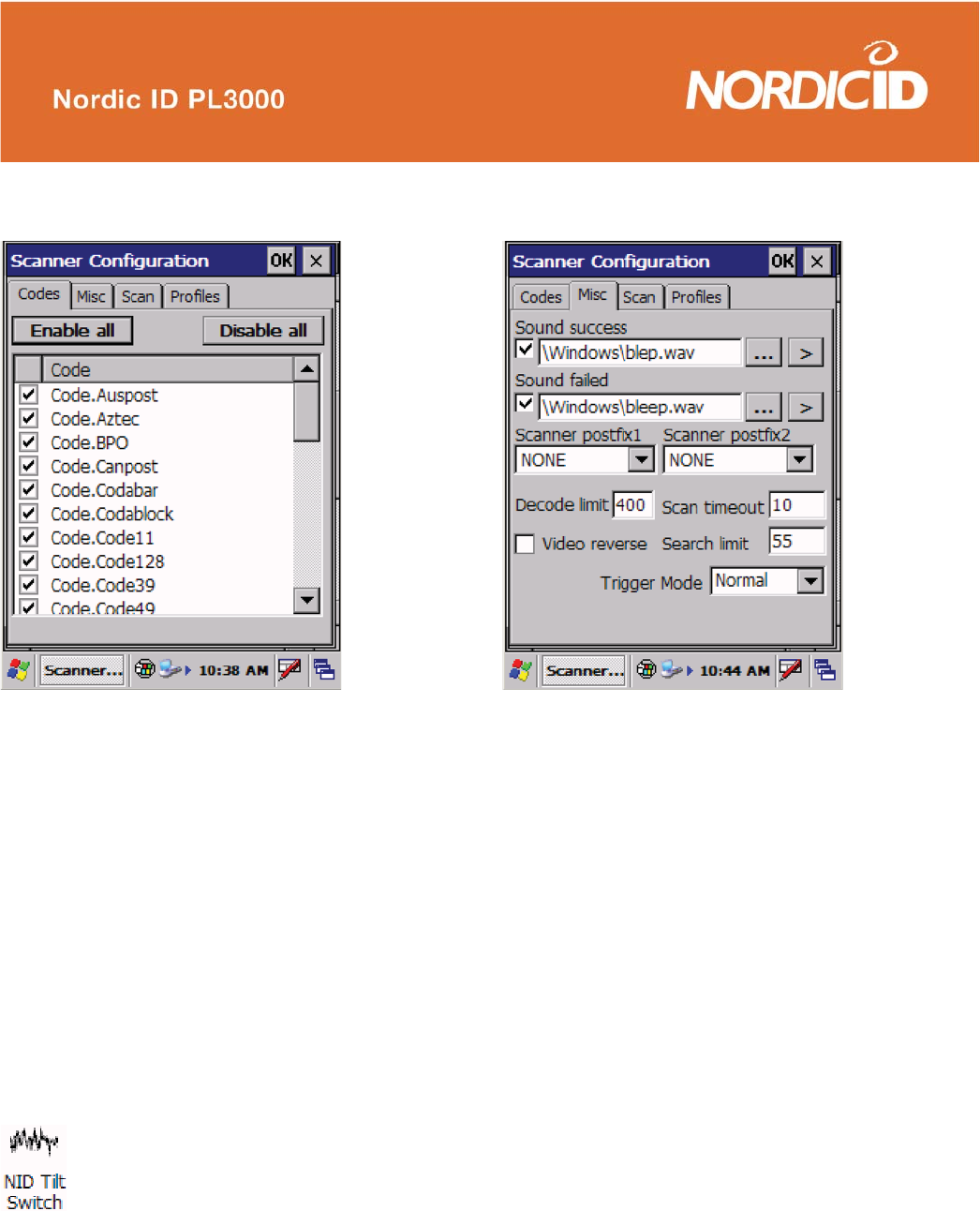

Fig.67 Codes -tab in the Scanned Con guration program Fig.68 Misc -tab in the Scanned Con guration program
This con gures the internal motion sensor to wakeup the device and/or keeping the device on. If Wakeup
automatically –option is checked, device wakes up to active mode when sensing motion.
The Keep alive –checkbox enables the keep alive –option which resets the timeout timers when sensing
motion.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 65
6.5.21 Owner
In this con guration dialogue you can enter personal information about yourself, or the intended user. Some
applications available for Windows CE can then use this information automatically. You can also enter a
default network identi action and domain, which can speed up accesses to network resources with the
PL3000 since you do not need to enter this information again at every connection attempt.
6.5.22 Password
With this con guration dialogue you can password protect your PL3000 from unwanted users. Do not forget
the password once you have entered one, there is no way to retrieve it. The unit will have to be reset to
factory defaults to clear the password if you forget it, and this will destroy all user information and programs
in the unit. If you enter a password you can also choose when the password will be asked for. The options
are at power on and when a screensaver terminates, the password will always be queried after the device
has been reset.
6.5.23 PC Connection
6.5.20 NID Trigger Button
Trigger Button con gures the external pistol grip button behavior. The trigger button can be mapped to
function as any key of the keyboard and/or execute any program.
6.5.19 NID Touch Screen
This allows to disable the touchscreen. Also the pro les can be created by the touch screen rule.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 66
6.5.24 Power
The power settings dialogue allows you to view the power status of the battery, to manage the power saving
pro les and to view the power state of device drivers in the PL3000.
Page 1: Battery
This page displays the status of the battery. The top part of the dialogue windows indicates the current
charge level of the main battery.
The bottom of the dialogue indicates the battery status and estimated operation time left.
Page 2: Schemes
The power schemes control when the PL3000 hardware features are automatically switched off. There
are three timers that make up the scheme. These are the user idle timer, the system idle timer and the
suspend timer. They respectively control when the backlight is switched off, when the display is switched
off and when the unit is switched off. The timers are reset every time user interaction occurs, either from the
keyboard or by the touch screen.
If the user idle timeout reaches its goal, the backlight is dimmed and the system idle starts counting down.
When the system idle timeout occurs, the display is switched off and the suspend timeout starts counting
down. If it reaches its goal, the device enters hibernate mode. This conserves a lot of power yet preserves
all programs’ states. Any PC Card in the device is powered down at this point, which means the 802.11b,
Bluetooth or GPRS connection will need to be re-established when the device wakes up. Once in hibernate
mode, only three things can wake the device up. The rst is the power button, which is always enabled. The
two other wake-up sources are the motion sensor and the real time clock alarm. Both of these are optional,
and are not in use by default .
Which power scheme is in use depends on whether or not the PL3000 is connected to the charger or not.
As the names indicate, the battery power scheme is active while no charger is connected. The AC power
scheme is used while connected to the charger.
This dialogue shows you what type of connection is currently selected for communication with a Windows
PC using ActiveSync. The factory default is to use the USB cable. In order to form a connection between
your PC and the PL3000 you will need to have ActiveSync 3.5 or later installed on your PC. In addition, you
will need to have the PL3000 USB driver installed if you wish to use the USB cable. You can download driver
from PL3000 SDK.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 67
Page 3: Device status
This page displays the power state of the active device drivers in the PL3000. Only those drivers that
implement power management are displayed. This page is for information purposes only and no user
interaction is possible here.
6.5.25 Regional Settings
The regional settings specify which geographical region the unit is being used in. The settings made here can
affect time, date, currency and language options in other programs. For instance the Simple Network Time
Protocol determines, from the settings in this control panel application, how much to shift the Greenwich
Mean Time value that is provided by the time server.
6.5.26 Remove Programs
The remove program dialogue allows you to uninstall programs you have previously installed. Please note
that if you have used the File Backup System tool, the removing of programs will not remove the backup
copies of them. So next time the device is reset the programs will be back, unless you backup the RAM
memory after the programs are removed.
6.5.27 Storage Manager
The storage manager displays the info about the memory installed to the PL3000. By default the FLASH
memory information is displayed.
When an SD or MMC memory card is installed the information of the card is displayed.
The storage manager can be used for formatting, mounting, scanning and defragmenting the memory.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 68
6.5.28 Stylus
The stylus dialogue allows you to calibrate the touch screen of the PL3000, and set the double tap interval.
There is a simple method to determine how accurately your PL3000’s touch screen is calibrated. Close all
programs so that only the desktop is visible. Then tap and hold the stylus to the screen in an area of the
desktop where there are no icons or any other controls. Move the stylus so that the selection box becomes
visible. You can tell the accuracy of the calibration by how close the corner of the selection box is to the
tip of the stylus pen. If the corner of the selection box is above the pen tip, you will probably experience
dif culties in selecting the taskbar at the bottom of the screen. If the selection box is a millimetre or two
below the pens tip it does not require recalibration, it might actually help a bit when accessing the taskbar.
The sensitivity of the touch screen is also controllable, but not in this dialogue. See the chapter “6.5.24
Touch screen” for the sensitivity setting .
6.5.29 System
The system dialogue allows you to view system details such as operating system version, processor type
and amount of memory installed. You can also set the name of the device. The name is used, among other
programs, by ActiveSync to recognise the device. The most important setting in this dialogue is the memory
division dialogue. Of the RAM present in a typical PL3000 half is by default used as execution memory for
programs, the other half is used to store les and installed programs. All software installed onto the unit
after the production reside in the storage part of the RAM memory. You might want to modify the default
division based on your actual usage environment. If you for instance use only Internet Explorer, and have
not expected to install any 3rd party software, you could set the division to enable larger portion to be
used by program memory. This gives the browser a lot more memory to work with, which should increase
the execution speed when handling complex pages. Do not remove all storage memory as the operating
system can allocate temporary les dynamically, and among other things cookies from the browser are
stored in the storage memory.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 69
6.5.30 UMTS Con gurator
UMTS con gurator is used for displaying and changing the settings of UMTS connection.
6.5.31 Touch screen
The touch screen sensitivity might require tuning for some specialised applications. If your solution intends
to use the PL3000 touch screen for signature capture, the sensitivity will probably need changing. The
factory default setting is intended for normal tap, double tap and dragging operation and it is tuned so that
accidental taps or double taps are not easily recognised. This setting makes the touch screen too insensitive
for signature capture. Modify as needed, but it is not recommended to modify these settings unless you are
experienced in sensitivity problems while using the stylus.
6.5.32 Volume & Sounds
This dialogue allows you to manage the sound pro le of the unit. You can select for what event you wish to
have sounds played, and what sounds to play as well as the volume of the played sound.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 70
6.5.33 LinkWatchdog
Introduction
A common problem with many Wireless applications is that the network connection may be lost without
it becoming immediately apparent. More importantly, there may not be any straightforward way to re-
establish a lost network link. It is also not something that the end user should have to deal with. To solve
this problem the LinkWatchdog solution was created. It basically works by periodically checking that it
is able to access one or more prede ned servers. If it is unable to do this, it will attempt to restart the
network connection in order to re-establish it. The solution is made up of three components; there is the
LWD service which actually monitors the link status, there is a Control Panel applet for con guring the
LinkWatchdog and nally a user interface program that is run by the LWD service when the connection is
lost.
The Control Panel Applet
Con guration and Control over the LWD service is done trough its control panel applet. The applet is
divided into four pages. The rst one is for enabling / disabling the service and con guring it, the second
two are for con guring the user interface executable. The last page is for viewing and saving the LWD
service log.

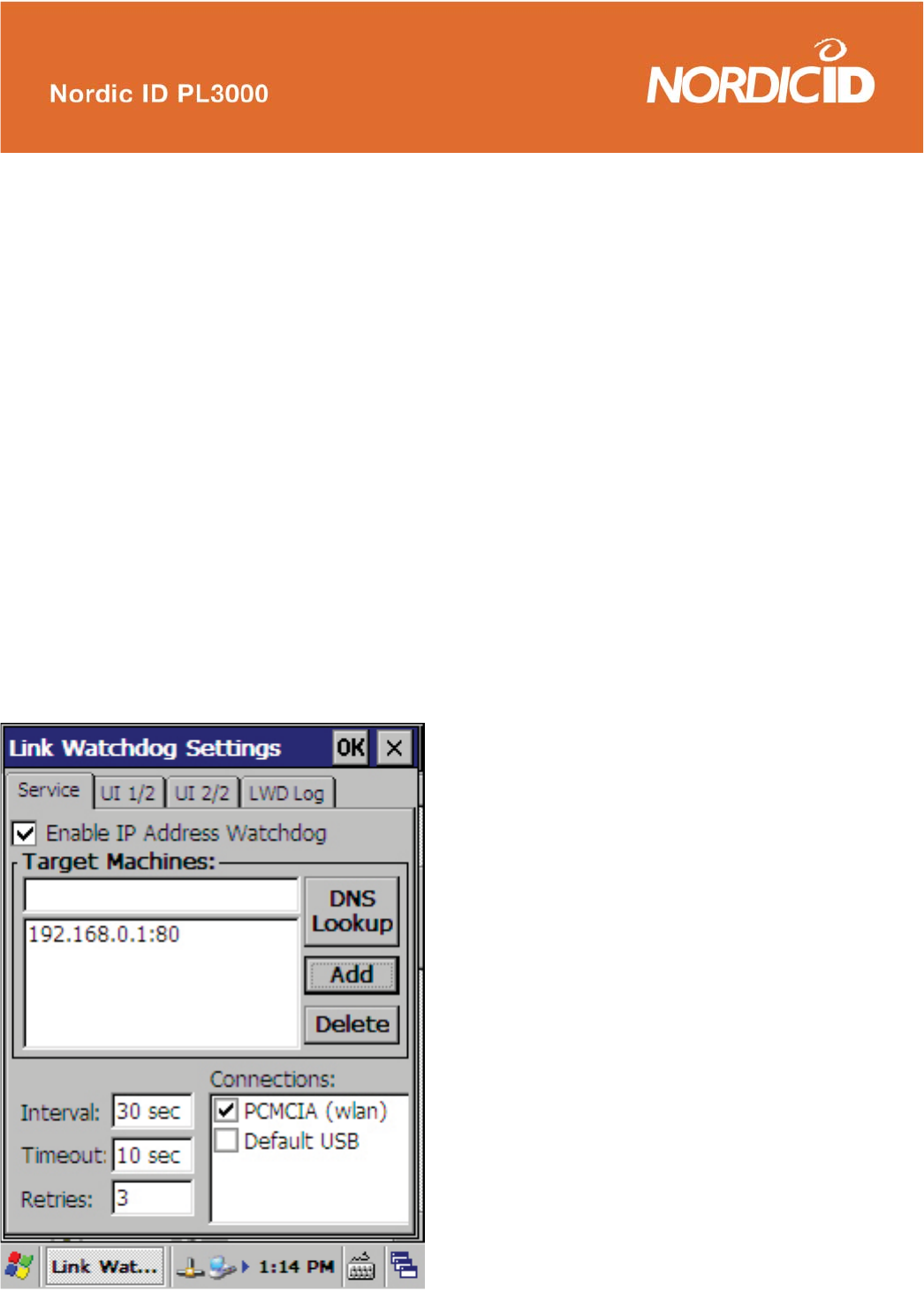

Page 1 : Service Con guration
Before con guring the LinkWatchdog, you need
to enable it by checking the “Enable IP Address
Watchdog”. When the dialog box is closed, this
checkbox is used to determine if the LWD service
should be started or stopped.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 71
LinkWatchdog works by periodically attempting to connect to one to ve prede ned target machines. The
target machines are speci ed by entering their ip-address and port number separated by a semicolon. An
example of a valid target machine address is “194.168.100.1:8080”. No other address format is accepted.
You cannot use domain names because they usually resolve to more than one ip address. For this reason
there is a built in Domain Name Service lookup function. To use this, enter the target domain name in the
target machines eld, and hit DNS lookup. Provided you have a working network connection you will be
presented with a list of ip addresses to which the domain resolves. You may then select which of these
addresses you want to use as target machines. When you approve your selection with OK, you will be
asked to enter the port number for each target machine. Please keep in mind that the port you enter must
be open and accessible to the PL3000. Firewalls and NAT devices between the PL3000 and your target
machine(s) may prevent you form connecting, if they are con gured to do so.
Once you have speci ed your target machines, you can set up the behaviour of the LWD service. It may
be best to try using the default settings before any other settings are tried. The interval value speci es
how often the LWD service should attempt to contact the target machine(s). Values shorter than half a
minute should be considered carefully. If you have a solution containing many units, you may cause a fair
amount of traf c over the network if this value is set too low. LinkWatchdog does not actually send any
data to the target machine, but it does attempt to open a link to the speci ed port. This requires a few
IP packets to accomplish. A too large interval value will lower the bene t of using LinkWatchdog as the
connection may be lost, and no corrective action will be taken for a long time. A suitable value needs to
be determined on a case by case basis.
The timeout value speci es how long the LWD service should wait for a reply from a target machine before
giving up and determining that the target machine does not respond. The retries value speci es how many
times the LWD service should attempt to contact a target machine before giving up and determining the
machine is not currently accessible. The LWD service contacts all target machines in the list concurrently,
and if any one of the connection(s) succeed the LWD service determines that the link is up. If all retry
attempts on all target machines fail, the LWD service will attempt to re-establish the connection. It does
this by disabling the connections that you have checked in the “Connections:” list and re-enabling them
again. For PC-Cards this means cutting the power from the card, and re-enabling it again. This causes the
card and driver to reload in a similar manner as if the device was reset. For RAS (GSM, GPRS and EDGE)
connections, this means hanging up and redialling the connection.
When closing the dialog box with OK, the con guration you have made is immediately applied. This
means that the LWD service is loaded and started or stopped and unloaded according to your settings
at this point. Keep this in mind when viewing the LWD service log on Page 4. If the service is not running,
you cannot read its log.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 72
Page 2 : User Interface Con guration 1 of 2
The “Enable Built-in Link Watchdog UI” speci es
whether or not the Link Watchdog user interface
program is allowed to run. If enabled, it is launched
automatically by the LWD service when the service
determines the link is down. This is to inform the user
of the device what is happening. It is critical for totally
online applications such as terminal emulation and
Internet Explorer. If the user attempts to use a browser
based application without a working network link some
form of connection error page will be shown. End users
typically do not know how to behave in this situation.
The LinkWatchdog User Interface component locks the
device down, so that it cannot be used while the link is
re-established. The UI component also displays status
information to the user. The only case where the UI
component would be undesirable is if your application
is tailor-made to communicate directly with the LWD
service, thereby rendering the default user interface
component unnecessary and disruptive.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 73

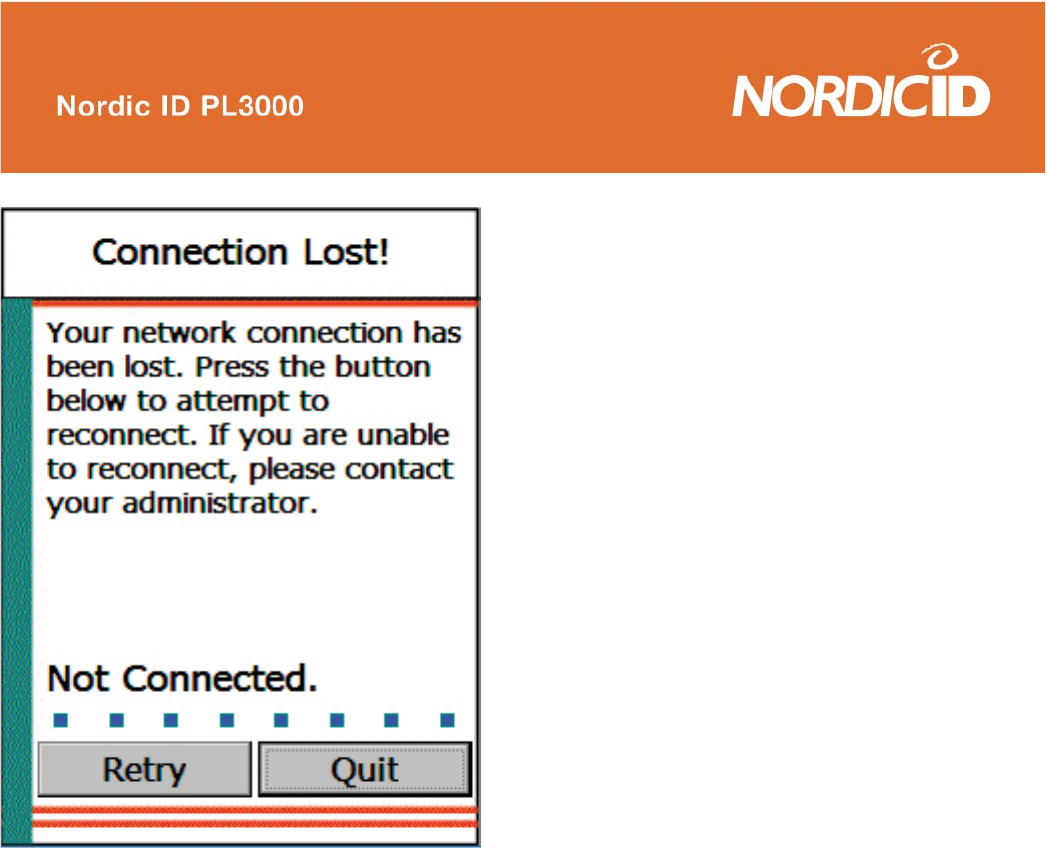

The Unlock Code eld allows you to specify a text string password that must be entered by the user in
order to dismiss the LinkWatchdog User Interface component. If the LWD service manages to re-establish
the network link, the UI program will automatically shut down and disappear. No password is needed in
this case, and the user may continue using the device normally. If the network link is not re-established
the UI application will show a message informing the user that the network is currently down. There is a
“Retry” and a “Quit” button that the user may press in this state. If you specify an unlock code, the user
must enter that text string correctly in order to close the UI application. To disable the unlock code, clear
the eld so that it contains no characters.
The Activate Sound eld speci es a wave le that
will be played when the LWD service launches the UI
application. The Connect Sound is played when the
LWD service determines that the network link has
been re-established.
The Retry and Quit button text elds specify what
button labels appear on the retry and quit buttons in
the UI application. This is so that you may customize
the user interface to use your local language. The
appearance customization settings continue on page
3.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 74
Page 3 : User Interface Con guration 2 of 2
The UI application displays the current network link
state, there are three possible states. The UI application
always starts out in the “Reconnecting” state. It remains
in this state until either the network link is re-established
or the LWD service reconnect attempt is timed out. If
the link is re-established the UI application displays
the “Connected” state message. If the timeout occurs,
the “Connection Lost” state message is displayed.
Please note that even in the connection lost state, the
LWD service is constantly monitoring the link state.
Should the link state change to up, the state message
in the UI application will automatically change to the
“Connected” state. Each state has three text elds
you may con gure to say whatever you wish in any
supported language. They should be set so that they
promptly and without confusion inform the user about
what is happening. The “State Message Header” is
a one line header in big bold font at the top of the UI
application window. The “State Message Body” is a
multiline text eld that you may use to convey a short
message to the user describing the current state. The
“State Status Text” eld is a bold text line intended to
inform the user about what the LWD service is currently
doing.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 75

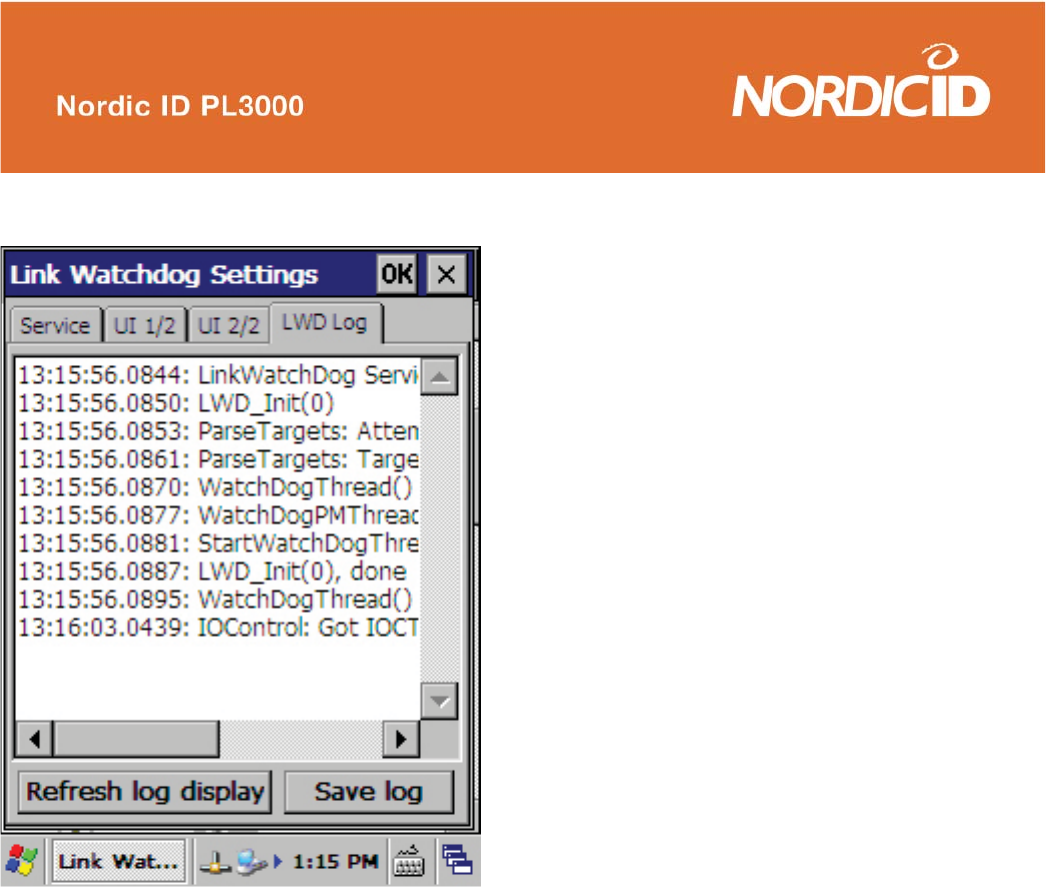

Page 4 : LWD Service Log
A service is an application that does not have a user
interface and typically performs background tasks.
The LinkWatchdog solution contains the LWD service
that performs the link monitoring behind the scenes.
To verify that the LWD service is working and in case
it is not, the reason for the failure, the LWD service
maintains an internal event log. This log can be read
and stored to disk using page 4 in the LinkWatchdog
Control Panel applet. Should you run into problems
you are unable to resolve with LinkWatchdog,
always include the service log text le in your mail to
Customer Support. This will signi cantly improve our
ability to assist you.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 76
LinkWatchdog Programmers Reference
The LinkWatchdog settings are stored under the following registry key:
HKEY_LOCAL_MACHINE\SOFTWARE\Apps\LinkWatchdog
To have the LWD service start your user interface application instead of the LinkWD_UI.exe program, create the
following value under this key:
“UIExec”=”Your application path and executable”
You can communicate with the LWD service using standard Widows CE I/O calls. Open the connection to the service
with a CreateFile call such as this:
HANDLE lwd = INVALID_HANDLE_VALUE;
lwd = CreateFile(L”LWD0:”,GENERIC_READ,0,NULL,OPEN_EXISTING,0,NULL);
if (lwd != INVALID_HANDLE_VALUE)
{
//Service was running, you’re good to go
}
You can then query the current link state like this:
DWORD newstate = 0;
DWORD written = 0;
#de ne IOCTL_LINKWD_GETSTATE \
CTL_CODE(FILE_DEVICE_SERVICE, 3001, METHOD_BUFFERED, FILE_ANY_ACCESS)
if (lwd != INVALID_HANDLE_VALUE)
{
DeviceIoControl(lwd, IOCTL_LINKWD_GETSTATE, NULL, 0, &newstate, sizeof
(DWORD), &written, NULL);
}
The valid values of newstate after this are de ned as:
enum LWD_STATES
{
LWD_STATE_RECO = 0xBEEF0001,
LWD_STATE_LOST = 0xBEEF0002,
LWD_STATE_CONN = 0xBEEF0003,
};
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 77
To force the LWD service to shut down and restart the network link, you may use this call:
DWORD written = 0;
if (lwd != INVALID_HANDLE_VALUE)
{
DeviceIoControl( lwd, IOCTL_LINKWD_RETRY, NULL, 0, NULL, 0, &written,
NULL);
}
Finally, when you are done, remember to use CloseHandle to avoid handle leaks.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 78
6.5.34 Simple Network Time Protocol (SNTP) Service
Introduction
Many software applications require that the handheld device clock is set correctly. For instance Wireless
LAN network credential certi cates have a speci c validity timeframe, which means at least the current
year and month needs to be correct. Applications requiring greater precision are numerous; most
inventory applications record some form of timestamp information that is later used to determine the
most recent data. The SNTP protocol is as its name says, an easy way to acquire the correct time from a
remote server over the network. The SNTP protocol does not attempt to correct for the data transmission
lag time over the network. This means that the time data, when arriving and being applied in the handheld
terminal is already some milliseconds too old. How much depends on the network transmission delays
involved. In almost all cases, the time value acquired using STNP can be assumed to be correct to the
second, but perhaps not to the tenth of a second and certainly not into the millisecond range. SNTP lag
can roughly be estimated by pinging the NTP server and dividing the result by two, since ping usually
reports round trip time and the time lag is only introduced by the return transmission in SNTP.
The SNTP implementation in the PL3000 consists of
three applications. There is the SNTP service which,
when enabled, is running in the background and
periodically updates the time. There is an application
called AskTime which can be con gured to query the
user for the correct time in case the SNTP request
does not succeed. There is the SNTP Control Panel
applet which is used to con gure both the SNTP
service and the AskTime application.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 79

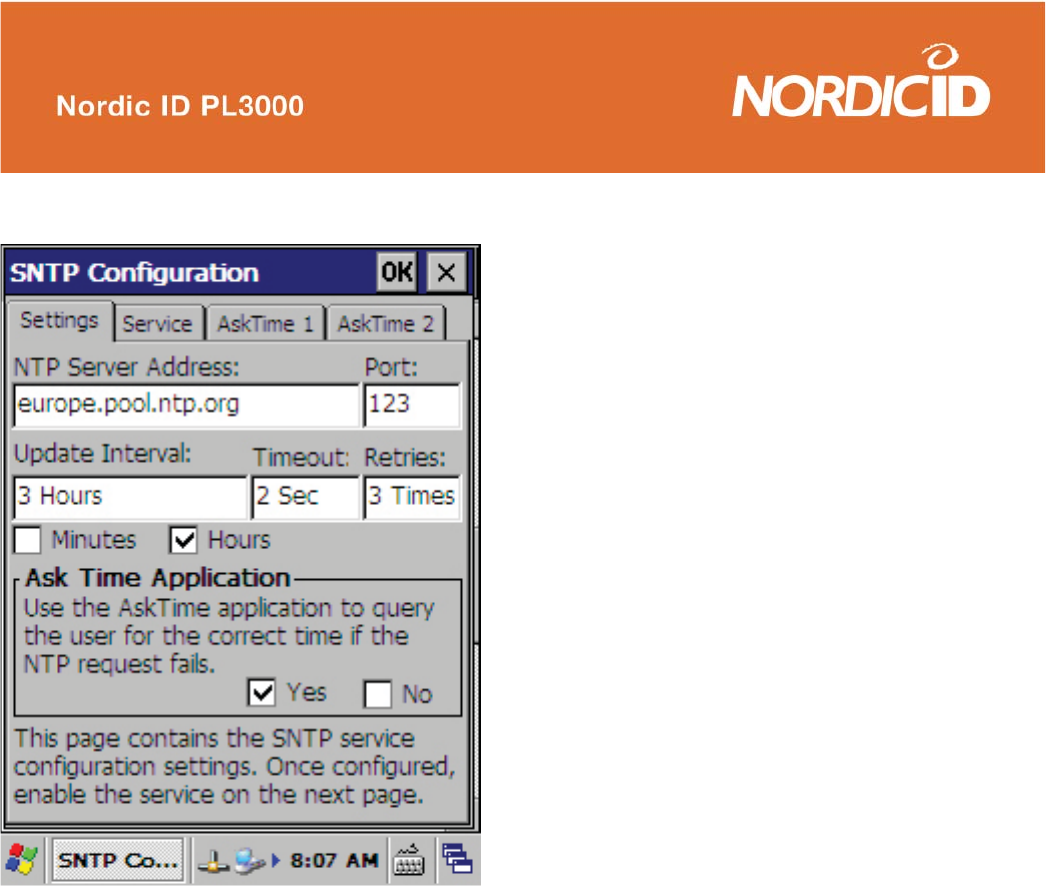

Page 1 : Service Con guration
The rst page contains all SNTP service con guration
settings. The default NTP Server Address is “europe.
pool.ntp.org” which is a collection of NTP servers that
anyone may access. The standard NTP port is 123,
change this value only if you are sure your NTP server
uses a different port. Also verify that this port is not
blocked by any rewalls along the route. The Update
Interval value speci es how often the SNTP service
should ask for the correct time. In most applications it is
pointless to have this value set to less than a few hours,
it only generates unnecessary traf c. Every time any one
of the PL3000’s network links change state, an address
change noti cation message is sent to all services in
the unit. This message causes the SNTP service to ask
for the correct time. This means every time the device
is rebooted, wakes up from sleep or associates with
a WLAN AP the correct time is automatically fetched.
Thus there is no reason to set the update interval to
anything less than one hour, three or six hours should
be suf cient for most applications. The Timeout value
tells the SNTP service how long it should wait for the
NTP server to reply to the request before giving up.
The Retries value sets how many additional attempts at
contacting the NTP server will be made if the rst one
fails.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 80

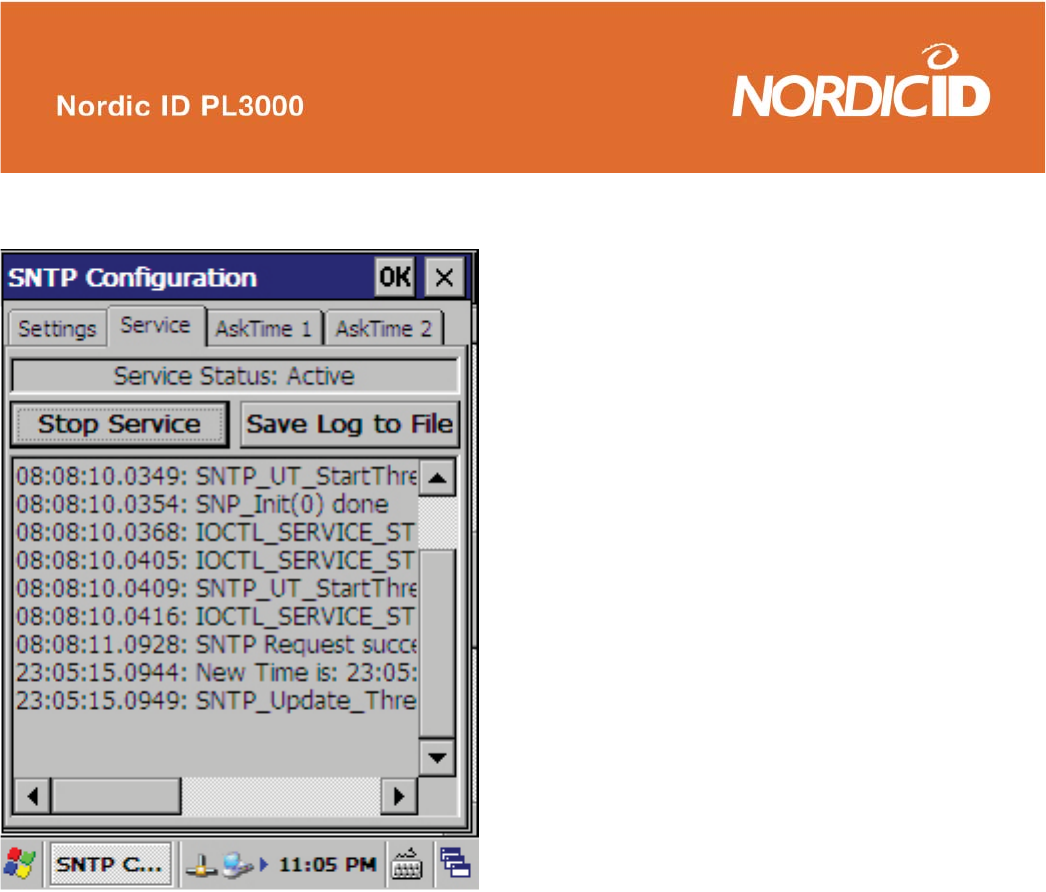

Page 2 : Service Log
The Start / Stop Service button causes the SNTP
service to load and start or stop and unload. Remember
to perform a registry backup after starting the service,
so that it remains active even after a cold boot. If you
are having problems with the service and you wish
to contact our Customer Services department it will
signi cantly improve our ability to assist you if you
include the SNTP service log. To store the log to a text
le, click the Save Log to File button. You can then
copy this le to a PC over ActiveSync and read it using
Notepad, WordPad or Microsoft Word.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 81
The AskTime application is a standalone application called AskTime.exe. It is used by the SNTP service
if so con gured on page 1. The Quick Help button contains a brief description of how the application
works. When the PL3000 starts up after a cold boot, its date will be set to 1.1.2005. For this reason
we may assume that if the date is set to some value prior to 1.1.2006 the correct date and time is not
currently known. If the date and time is past this date, either the SNTP request has previously gone
trough or the user has already con gured the correct time once. By checking the “Query user only when
time < 2006” you con gure AskTime to ask the user to enter the correct time only when completely
necessary. AskTime will in any case not allow the user to enter a date prior to 1.1.2006.
Page 3 : AskTime Con guration 1/2
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 82
Page 4 : AskTime Con guration 2/2
The second page of the AskTime con guration pages
contains the error strings that are displayed to the
user if an invalid time value is entered. For instance, if
an hour value of 26 is entered the Invalid Hour string
is displayed in a MessageBox and the invalid value
is highlighted. As with the user interface strings on
the rst AskTime con guration page, you may freely
change these strings to say what you wish is your local
language.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 83
7 Safety warnings
7.1 User safety
The Nordic ID PL3000 is an electronic device and depending on the actual con guration may include one
or more radio transmitters.
When using the PL3000 the user should ensure the integrity of the casing, any cables and accessories of
the device. The PL3000 should not be used in moist conditions where risks of electric shocks exist.
Electronic components within the device may contain hazardous chemicals that may have an adverse effect
on the environment and human health.
The user should avoid extreme bending and reaching the arm and the wrist when using the PL3000.
Radio transmitters may cause interference.
7.2 Regulatory and safety agency approvals
The following table contains information about the different regulatory and safety agency approvals required
of handheld terminal devices.
Subject
Led/laser
sighting device
Speci cation/Standard
EN 301489-1:2002
EN 301489-3:2002
CISPR 22: 1997
ANSI C63.4: 3000
FCC 47 CFR PART 15, SUBPART B, CLASS B:2002
EMC 89/336/EEC
IEC/EN 60950-1:2001
EN 60825-1/A2: 2001
Table 2 Regulatory & Safety Agency Approvals
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 84
7.2.1 Medical equipment compatibility
Medical devices, such as pacemakers, hearing aids, etc. are usually manufactured according to the IEC
601-1-2 standard, which requires that devices must operate properly in an EM (Electromagnetic) eld which
has strength of 3V/m over a frequency band from 26 to 1000 MHz.
Persons using pacemakers should be aware of the possible risk of interference from any electronic device
if positioned too close to the pacemaker.
When using WLAN, Bluetooth, GPRS, GSM or other features, which emit radio frequency signal, please
verify that the model in question ful ls the required standards.
7.2.2 Wireless networks and microwave equipment
When equipped with a WLAN (Wireless Local Area Network) adapter or Bluetooth, users should be aware
that Bluetooth and most Wireless LAN networks operate at the frequency of 2.4 GHz. Many microwave
products, e.g. microwave ovens, operate at the same frequency. Therefore, in environments containing such
products, performance degradation may be noticed. In most cases all effected equipment will continue to
operate normally, excluding data transfer speed, which may be slower than normal due to the increased
need for error correction.
7.2.3 LED safety
Some con gurations of Nordic ID PL3000 include an LED-sighting device in the imager. This sighting device
is Class 1 LED Product Certi ed to IEC 60825-1 Ed.1.2 2001. Class 1 LED products are safe under reasonably
foreseeable conditions of operation, including the use of optical instruments for intra-beam viewing.
7.2.4 Laser safety
Some Con gurations of Nordic ID PL3000 include a laser-sighting device located in the imager. The sighting
device is Class 2 Laser Product Certi ed to IEC 60825-1 Ed. 1.2 2001, which may cause eye injury if the
beam is directed straight or via a re ecting surface to the eye. The laser beam should never be pointed at
the eye of a person or an animal. Mirror or re ecting surfaces may cause the beam to de ect in harmful
ways. Never look directly into the laser module when the beam is active.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 85
ENGLISH
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER
DEUTSCH
LASERSTRAHLEN
NICHT DIRECT IN DEN LASERSTRAHL
SCHAUEN
LASERPRODUKT DER KLASSE 2
FRANCAIS
LUMIERE LASER NE PAS REGARDER
LE RAYON FIXEMENT
PRODUIT LASER DE
CLASSE 2
ITALIANO
LUCE LASER
NON FISSARE IL RAGGIO PRODOTTO
ESPAÑOL
LUZ LASER NO MIRE
FIJAMENTE EL HAZ
PRODUCTO LASER DE LA
CLASE 2
PORTUGUÊS
LUZ DE LASER NÃO
FIXAR O RAIO
LUMINOSO
PRODUTO LASER DA
CLASSE 2
SUOMI
VAARA LASERSÄTEIL
ÄLÄ TUIJOTA SÄTEESEEN
LUOKKA 2 LASER
SVENSKA
VARNING
LASERSTÅLNING
STIRRA EJ IN I STRÅLEN
KLASS 2 LASER
DANSK
LASERLYF
SE IKKE IND I STRÅLEN
KLASSE 2 LASER
NORSK
LASERLYS
IKKE STIRRINN I LYSSTRÅLEN
LASER, KLASSE 2
NEDERLANDS
LASERLICHT NIET IN
STRAAL STAREN
KLASSE-2 LASER
Table 3 Laser warnings
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 86
7.3 Batteries
The PL3000 contains a removable Lithium-Ion battery pack. Please follow the instructions below when
handling the battery pack:
Use only original battery packs available from Nordic ID or from authorised dealers.
Replace a defective battery pack immediately to prevent possible damage to the unit.
Never short-circuit the battery pack terminals or throw the battery pack into a re as this may
cause an explosion.
Excessive discharge may cause permanent degradation of the battery’s performance. Battery
charging should be done immediately after the unit indicates a low battery status.
The battery pack does not require any special maintenance.
NOTICE: Use only reghargeable battery type: Varta, Model 2sLIC18650-22C.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF
USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
7.4 Charging and electrical safety
Before using the PL3000 charger check that all the cords and connections, covers of charger and PL3000
are undamaged. Any damages may risk the safe use of the device.
NOTICE: Use only applicable power supply with Desk Top Charger: Nordic Power AB, Model SA30-
24U. Use only applicable power supply with Multi Desk Top Charger: FSP Group Inc., Model FSP120-
ACC with MDTC.
8 Warranty
Please read these warranty and safety related warnings carefully before taking the product into use:
Warranty will be void, if the product is used in any way which is in contradiction with the instructions given
in this User Manual, or if the housing of the PL3000 has been opened or tampered.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 87
The devices mentioned in this manual are to be used only according to the instructions described in this
manual. Faultless and safe operation of the devices can be guaranteed only if the transport, storage,
operation and handling of the devices are followed. This also applies to the maintenance of the products.
The PL3000 contains no user serviceable parts inside the actual case apart from the battery pack and SD/
MMC card located inside the battery compartment.
The PL3000 has not been designed, intended or inspected to be used in any life support related device or
system related function or as a part of any other critical system and are granted no functional warranty if
they are used in any such applications.
8.1 Warranty coverage
The manufacturer grants to the PL3000 a warranty of one year, however, no longer than two years from the
date of manufacturing to the system integrator or local Nordic ID dealer. The manufacturer warrants that the
PL3000 is free from defects in materials and workmanship under normal use during the warranty period.
The system integrator or local Nordic ID dealer must supply proof of sale for the unit in question.
Only Nordic ID has the quali ed service maintenance facilities and know-how for the servicing of the
PL3000.
NOTE: Service attempts by unauthorised personnel will void warranty.
8.2 Returning the unit for service (RMA)
The PL3000 shall be returned to the manufacturer for repair in case of the system integrator or the local
Nordic ID dealer cannot help with the problem. Each party will bear the cost of freight of the PL3000 to be
repaired to the intended destination.
8.3 Technical support
The supplier of the PL3000 or your local Nordic ID dealer primarily provides all other non-service related
technical support. Nordic ID as a hardware manufacturer provides the hardware repair related technical
support.
Please use the e-mail address support@nordicid.com or other contact information for requesting direct
hardware support from Nordic ID.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 88
8.4 Type label
The label is located inside the PL3000 battery compartment. Information printed on label as text is:
Nordic ID (company logo)
PL3000
CO:EC (country of origin)
Hand terminal con guration code
Hand terminal Item code
Hand terminal serial number
Information printed on the label as a single Datamatrix barcode in format: PL3000; ht_con g_code; ht_Item_
code; ht_serial_number
PL3000
Hand terminal con guration code
Hand terminal Item code
Hand terminal serial number
8.5 Recycling
When removing the device from use in EU area, the device must be returned to local Nordic ID of ce or
to the Nordic ID service centre. Please see www.nordicid.com or your supplier to nd nearest Nordic ID
of ce or Service centre. Returning the device to Nordic ID enables reuse of the materials in the device. If
the device is left to nature hazardous substances in the equipment may have effects on environment and
human health.
Wasted Nordic ID PL3000 handheld computers and accessories should be collected separately.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 89
Appendix A -Technical speci cations
Technical speci cations depend on the con guration of the individual device. You may not have all the
features in the table installed into your device.
Processor
Operating platform
Memory
Battery
Display
Keyboard
Imager
Casing
Dimensions
Weight
Operation temperature
Storage temperature
WLAN
Bluetooth
GPRS
Card slot
Headset jack
Other I/O
Charger
Charging time
Pistol grip
200 MHz ARM processor
Windows CE
64 / 128 MB SDRAM
32 MB FLASH
29 keys
Backlight with brightness control
Individually quided backlight
L: 230 mm
H: 45 mm
W: 90 mm
-10 C to +50 C
-20 C to +60C
802.11b/g
SD/MMC card slot
2.5 mm connector
Loudspeaker
Vibrating alarm
Wakeup motion sensor
Desktop, wall mounted and vehicle charger
USB 2.0 full speed client
User mountable accessory
Barcode reading trigger
Extra battery optional
2200 mAh @ 7,2V (4-28 hours continuous use)
Supports common 1D and 2D codes, LED-sighter
or Laser-sighter, Short and normal range optics,
1D, 2D and photo decoders
IP 54
Drop tested from 1.5 meters onto concrete oor
Turquoise and grey
450g with batteries, without pistol grip and extra antenna
5 hours from 0 to 100% charged
2½ hours from 0 to 90% charged
3,5” ¼ VGA colour trans ective TFT display, touch screen
Class 1
Class 10 multislot
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 90
Appendix B - Code reading distances and requirements
This appendix explains some basics of reading distances and the speci cation for some of the supported
codes.
Glossary of terms:
Mil:
One thousand of an inch, ~0,0254mm
X dimension:
Also known as “code size” or “symbol density” of a bar code. In a bar code symbol, data is conveyed by the patterns
and relative widths of the bars and spaces. The x dimension describes the minimum element width in mils of the
narrowest element (bar or space) in the bar code.
For 2D matrix symbologies, X dimension refers to the nominal dimension of the smallest data cell.
The X dimension density of the barcode largely decides how many characters can be encoded in one inch.
The resolution of an imager is also measured by the x dimension density that the imager can recognize.
The decode zone:
The decode zone is a function of various symbol characteristics including density, print contrast, wide-to-narrow ratio
and edge acuity.
Depth of Field (DoF):
The Depth of Field is the area between the maximum and minimum readable length of a scan engine and a bar code.
Field of View (FoV):
The Field of View is the maximum readable size of an ID symbology at the given range
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 91
¬^¬¬CM
¬^¬¬CM
¬^¬¬CM
¬¬¬¬
^¬¬CM
¬¬¬¬
^¬¬CM
¬¬¬¬
^¬¬CM
¬¬¬¬
^¬¬CM
¬¬¬¬
^¬¬CM
¬¬¬¬
^¬¬CM
Figure: The PL3000 Field of View in given ranges
ID Symbology:
A symbology (or code) is a protocol for arranging the bars and spaces or blacks and whites that make up a
particular kind of ID symbology. Often 1D symbologies are referred as bar codes. There is no one standard
bar code; instead, it’s estimated that there are currently over 400 barcode symbologies that serve different
uses, industries, or geographic needs.
Symbologies can be designed to encode numbers, letters, special character control characters, or
a combination of any of the three. There are generally two kinds of barcode symbologies; discrete and
continuous. A discrete symbology is one where every character in the bar code can be interpreted
individually without referencing the rest of the bar code. A continuous symbology is one where individual
characters in the bar code cannot be interpreted individually. Most barcode readers have a feature called
“auto-discrimination”, which allows them to be con gured to automatically recognize and read different
barcode symbologies, much the same way a human reader can interpret and read different font types.
However the 1D (one-dimensional) barcodes can encode only very limited number of symbols, a 2D code
is actually a portable data le that travels with the product it is af xed to, and provides large amounts of
machine-readable information. In this way all 2D symbologies are fundamentally different from the traditional
1D bar codes.
2D symbologies can encode any data such as ASCII, alphanumeric, or binary data. They also utilize
sophisticated error/erasure correction algorithms to compensate for lost or missing data, extraneous marks,
or label damage. Currently there are approximately two dozen 2D symbologies in the market place. They
can be divided into two main categories: Stacked Linear Codes and Matrix Codes.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 92

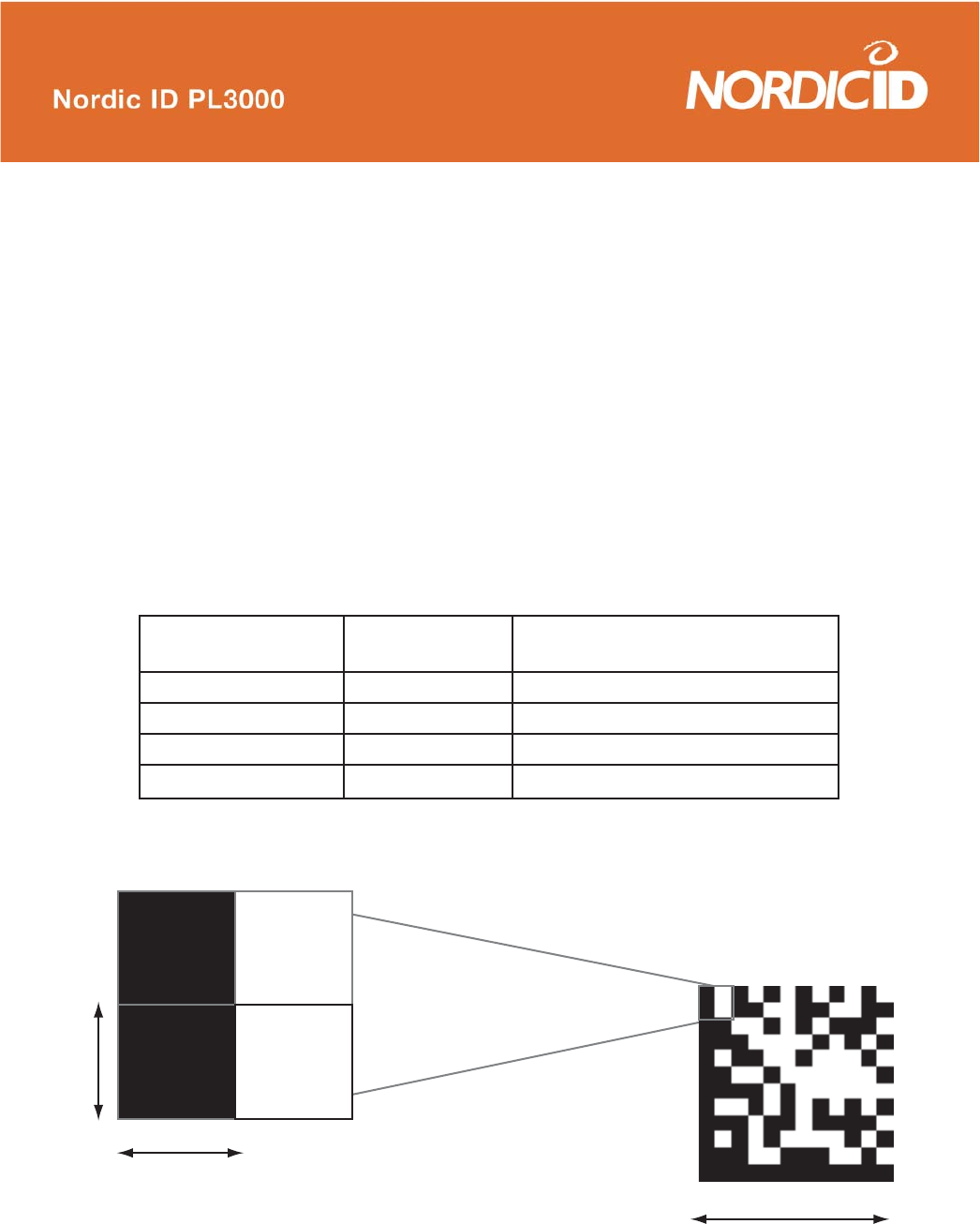

Print quality
One of the key element in successful decoding is the print quality. The better the print quality, the easier
the identi cation. When printing ID symbologies, there may appear small defects on the print. These
defects are usually printer related so, that different types of printers create different kinds of defects. The
printing method should be chosen so that the edges of the symbols should be well de ned. Their edges
should not be rough or fuzzy, so that the bars and spaces have the proper widths intended for the bar
code symbology used.
Also the printer resolution has to be considered when printing the codes. The printer must be able to
print the narrowest element, the x dimension, of the code. See table for printer resolution versus to the x
dimension.
Resolution (dpi) Dot size (mil) Narrowest printable element
sizes
200 5 10; 15; 20; 25; 30...
300 3,3 6.6; 10; 13.3; 16.6; 20...
400 2,5 5; 7.5; 10; 12,5; 15...
600 1,6 5; 6.6; 8.3; 10; 11,6...
#%,,
¬MIL
¬MIL
¬X¬¬MIL
^¬¬MM
Figure: DataMatrix (15 mil) ID symbology cell and code size (not in actual size)
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 93
Table: Printer resolution effect on the narrowest element size(s)
Key to successful decoding
In PL3000 the imager does the ID symbology recognition and decoding. The reason why it is called an
imager is because it is actually a camera that captures the still images and interprets them (when scanning
is activated by pressing the scan-key). If the imager can recognize and decode the ID symbology it stops
the scanning and returns the value to the active program.
The successful decoding of the ID symbology requires that all the following conditions have met.
1. The ID symbology (barcode or 2D code) is printed with good quality.
2. ID symbology is supported by the imager
3. ID symbology is in Depth of Field (see table ) and the size of the ID symbology doesn’t exceed the
Width of View.
4. Lightning and contrast conditions are in met.
The imager performs best in the presence of at least 535 lux, (50 fc) of ambient light. Codes printed on
glossy or laminated paper are best read at angles greater than 5° in relation to the scanner. This prevents
the bright illumination re ections from being returned to the scanner.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 94
Code Near
(inch)
Near
(cm) Far
(inch)
Far
(cm)
Maxicode (35-mil) 2.0 5.1 13.0 33.0
Datamatrix 15-mil
(ECC200) 3.7 9.4 6.5 16.5
PDF417,ECL4 10-mil 3.1 7.9 9.0 22.7
PDF 417,ECL4 8-mil 3.3 8.4 8.0 20.3
PDF 417,ECL4
6.6-mil 4.5 11.4 6.25 15.9
Code 39 15-mil 2.1
3.2
3.5
2.5
2.5
4.0
2.5
2.25
3.25
3.5
3.5
4.0
5.3
8.1
8.9
6.4
10.2
6.4
6.4
5.7
8.3
8.9
8.9
10.2
12.8
9.2
7.6
12.5
5.9
11.8
11.0
11.5
14.25
21.5
11.25
6.5
32.5
23.4
19.3
31.8
15.0
30.0
27.9
29.2
36.2
54.6
28.6
16.5
Code 39 10-mil
Code 39 8-mil
UPC 13-mil, 100%
Postnet
12-point OCRA
12-point OCRB
Code 39 13-mil 90%
Code 39 20-mil 90%
Code 39 40-mil 90%
PDF 417 ECL3 15-
mil 90%
QR 15-mil 90%
Depth of Field for Standard Density (SD) optics for some barcode types:
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 95
High Density (HD) optics for some barcode types:
Code Near (inch) Near (cm) Far (inch) Far (cm)
Maxicode (35-mil)
2.8 7.1
6.4 4.1
Datamatrix 15-mil (ECC200)
2.5
5.1 7.9
10.4
PDF417,ECL4 10-mil
2.0
5.8
20.1
9.7
PDF 417,ECL4 15-mil
2.3
4.8
15.2
6.0
PDF 417,ECL4 6.6-mil
1.9
5.8
5.8 14.7
Code 39 15-mil
2.2
2.1
1.6
2.2
2.2
2.6
2.4
2.4
2.0
5.3
4.1
5.6
6.6
3.8
5.6
6.1
6.1
5.1
7.2
5.0
6.9
4.7
9.1
16.5
4.3
3.5
4.2
18.3
12.7
17.5
11.9
3.6
6.5
10.2
8.9
10.7
Code 39 6-mil
QR 10-mil
Code 39 4-mil
Code 39 5-mil
QR 12-mil
Code 39 13-mil
Datamatrix 9-mil
Datamatrix 10-mil
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 96
Appendix C – Keyboard key mappings
Numeric Function Alphabetic
Key Normal Shift+ Alt+ Normal Shift+ Alt+ Normal Shift+ Alt+
F Read
code
Read
code
Read
code
Read
code
Read
code
Read
code
Read
code
Read
code
Read
code
ok Enter Enter Enter Enter Enter Enter Enter Enter Enter
del Delete Delete Delete Delete Delete Delete Delete Delete Delete
cUp Up Up Select
up
Up Up
eLeft Select
left
Left Select
left
Left Select
left
fRight Select
right
Right Select
right
Right Select
right
dDown Down Down Select
down
Down Down
tab Tab Tab Open
Task
Tab Tab Open
Task
Tab Tab Open
Task
esc Escape Escape Escape Escape Escape Escape Escape Escape Escape
O
Open/
Close
Input
panel
Open/
Close
Input
panel
Open/
Close
Input
panel
Open/
Close
Input
panel
123
F
abc
1 1 1 F1 F1 ..;`1 ..;`1
2 2 2 F2 F2 abc2 ABC@
3 3 3 F3 F3 def3 DEF3
4 4 4 F4 F4 ghi4 GHI$
5 5 5 F5 F5 jkl5 JKL%
6 6 6 F6 F6 mno6 MNO^
7 7 7 F7 F7 pqrs7 PQRS&
8 8 8 F8 F8 tuv8 TUV*
9 9 9 F9
slides
F9
slides
wxyz9 WXYZ(
. . . F10 . F10 . . >
0 0 0 F11 F11 Space.
0
Space.
)
- - - F12 - F12 - - _
Shift N/A Shift Shift N/A Shift Shift N/A Shift
alt Alt-
Menu
Alt-
Menu
N/A Alt-
Menu
Alt-
Menu
N/A Alt-
Menu
Alt-
Menu
N/A
фOn/Off On/Off On/Off On/Off On/Off On/Off On/Off On/Off On/Off
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 97
Appendix D Activesync
The Windows CE .NET 4.2 operating system is delivered with a software for transferring les, programs and
data between a Windows PC and a PL3000 unit. This program is called ActiveSync and is made by Microsoft.
Installing the PC version of this software onto your desktop, your computer will enable you to synchronise
the contents of your PL3000 with your Windows PC using a USB port connection or Bluetooth.
Installing ActiveSync
Microsoft ActiveSync version 3.7 and all later versions will work with the PL3000. If you have ActiveSync
already installed, please make sure that the version number is 3.7 or later. To acquire the latest version,
please visit Microsoft’s search page and search for ActiveSync:
http://www.microsoft.com/downloads/search.asp
Select your operating system and ActiveSync from the menus shown on the pages and you will be presented
with the latest ActiveSync version for download.
Setting up the connection
After you have installed ActiveSync you are ready to set up the connection. There are currently two ways to
establish an ActiveSync connection between the handheld unit and the PC. Of these the USB cable is the
fastest and most convenient once set up correctly, but it requires installing a driver.
ActiveSync over USB
The USB is the fastest and most exible way to communicate with a PC. It is also the only method, which
requires a driver to be installed on your PC in order for the connection to work properly. Windows XP, 2000,
98 and ME all support making a USB connection. You will need to have one of these operating systems
installed on your desktop PC in order to use the USB connection and naturally your PC has to be equipped
with a USB port. Make sure that the power to your PL3000 is switched on and that it is in the Desktop
Charger. Attach the USB cable to the USB connector on the back of the Desktop Charger and then connect
the other end to the USB port on your PC. At this point the operating system should prompt you to de ne
or supply the software driver for the device it has detected. The driver is available from the Nordic ID web
site.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 98
After the driver is installed the connection should be established automatically. This can be veri ed by
observing the round grey icon in the ActiveSync main window. If the grey icon begins to spin and changes
from grey to green, the connection is being established. If not, you need to con gure ActiveSync to use the
USB port by selecting “Connection Settings” from the ActiveSync le menu and by checking the “Allow
USB connection with this desktop computer” check box. Apply the changes by selecting OK. After this the
window is closed. When the connection is established the icon will stop spinning and remain green. You
have now successfully set up your USB ActiveSync connection.
File transfers & Synchronisation
When the ActiveSync connection is established ActiveSync will ask you on your PC if you wish to set up
a new partnership. If you answer “No”, you will still be able to transfer les to and from the PL3000, and
you can also install programs. Answering, “Yes” will enable you to keep data automatically synchronised
between your PC and PL3000.
Creating an ActiveSync connection to a PC
Through ActiveSync le folders of the PL3000 can be accessed from a PC.
Install ActiveSync onto your PC.
Save the PL3000_usbsync, wceusbh security log and wceusbh system les to your hard drive.
After connecting the PL3000 charger with USB cable to the PC, place the PL3000 into the charger. Switching
on the PL3000, your PC should automatically start the hardware installation wizard. In the wizard select the
folder where PL3000_usbsync is installed and install the drivers.
If your PC does not automatically recognise the PL3000, install the driver by starting the hardware installation
from the control panel.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 99
Appendix E Creating Cisco WLAN connection
Start the Aironet Client Utility (ACU) from the Cisco folder.
Create a pro le and edit the settings according to your network.
To ensure that there is suf cient signal in the WLAN network you should use the site survey tool of the
ACU.
After creating the pro le and settings, connect to the network using the Wireless Login Module under Start-
up menu within programs within Cisco.
Exemplary Ad-Hoc network installation
Add a network by using the Aironet Client Utility.
Write the SSID code of the network you have selected.
Choose the Infrastructure Mode value: No
Con rm the setting by clicking OK
Select active pro le: AdHoc and con rm the setting by clicking OK
After setting set xed IP addresses to the PL3000 and the PC an Adhoc network is created.
Specify an IP Adress for the PL3000.
The IP Address, Subnet mask, Default Gateway Primary DNS and Secondary DNS addresses must be same
as for the PC.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 100
Appendix F Creating Option GPRS connection
When the GPRS card is installed the device recognises the card when the PL3000 is turned on. The text
“Pin Driver, registering to network” appears on the display” to take the GPRS card into use.
From the Startup menu select network and dial up connections. Choose the GPRS, connection, select the
modem and choose Globetrotter and click “OK”
Set the API to Internet from the “API” software in the control panel.
When starting the browser or otherwise establishing the connection, a dial-up window appears in the display.
If needed the password and username are supplied by the network operator.
Depending on the actual SIM card and network provider you may need to manually change the settings.
For the correct settings consult your network provider. If the automatic IP settings are not supported you
may need to set the DNS server IP address manually. Settings/network and dial up connections, GPRS
connections, properties, TCP/IP settings/name servers primary and secondary DNS. Click “OK” to save the
settings
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 101
Appendix G Application development
Microsoft Windows CE.NET 4.2
Windows CE .NET 4.2 is a robust operating system for the professional PDT and embedded device market.
The Operating System is highly con gurable and customisable and includes a great deal of the features
found in desktop Windows computers today. Windows CE .NET 4.2 and Windows Mobile 2003 are running
the same version of the kernel, but as with previous versions, they are not completely compatible. The
PL3000 contains aygshell.dll which allows Windows Mobile applications to run on the CE .NET 4.2 platform,
but compatibility must be tested on a case by case basis.
Program compatibility
When looking for existing programs that will run on your PL3000, there are three things to consider. First;
the target Operating System must be Windows CE .NET or one of its predecessors. If you use a program
compiled for a predecessor, such as H-PC 3000, you will probably also need the dynamic link libraries it is
dependent on. The one typically required is MFCCE300.DLL or MFCCE211.DLL. The PL3000 has the le
MFCCE420.DLL preinstalled which is the correct one for Windows CE .NET 4.2.
The second thing you need to take into account is the processor architecture. The brand name or
manufacturer of the processor is not important. Only programs compiled with the ARM V4i compiler will
work on the PL3000. The last thing to remember is the display orientation and size. Almost all programs
and drivers that work for the PL3000 have dialogues made for a portrait quarter VGA screen. If the display
shape or size does not t the PL3000 and a change cannot be made, use any available scroll bars and the
display rotating software.
SDK & Application types
The Software Development Kit (SDK) for the PL3000 is available from the Nordic ID partner support
website. To register and receive a login and password please see the support section in Nordic ID web site
www.nordicid.com or contact Nordic ID directly. The SDK is necessary for all solutions where a custom
application will be programmed for and installed on the PL3000. For solutions using technologies such as
terminal emulation or Internet Explorer you will not require the SDK. These types of applications require no
development on the PL3000 unit as the application is built on the server. For terminal emulation Nordic ID
can recommend third party terminal emulation software which has been tested with the PL3000. To develop
software that will run on the PL3000, you will require:
Embedded Visual C++ application development
ActiveSync 3.5 or later installed on your host PC.
• eMbedded Visual C++ 4.0
• The PL3000 Windows CE 4.2 SDK
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 102
• To control the device hardware you will need to use the MHL interface. The partner support section on the
Nordic ID website has details about MHL available.
Additionally the general Windows CE .NET 4.2 SDK is good to have installed.
All of these tools are free and available from the Nordic ID SDK site, except the eMbedded Visual C++ 4.0
application. It is available free of charge from Microsoft.
.NET Compact 1.1 framework application development
ActiveSync 3.7 or later installed on your host PC.
• Microsoft Visual Studio .NET 2003 with the Compact Framework package installed
• The PL3000 Windows CE 4.2 SDK installed.
• To control the PL3000 hardware you will need the MHL .NET wrapper class. This is available from Nordic
ID on request.
.NET Compact 2.0 framework application development
ActiveSync 3.7 or later installed on your host PC.
• Microsoft Visual Studio .NET 2005
• The PL3000 Windows CE 4.2 SDK installed.
• To control the PL3000 hardware you will need the MHL .NET wrapper class. This is available from Nordic
ID on request.
HTML + J Script / VBScript Application development
As this type of solution uses the Internet Explorer 6.0 application on the PL3000, no third party development
tools are explicitly required. PL3000 speci c hardware features are only available by calling a COM component
trough a client side script in your solution. This COM component is actually the same MHL component used
in all the languages above, but exposed trough a COM component wrapper. The MHL SDK documentation
is available from the Nordic ID partner support webpage. You do not need to download and install the SDK
for this type of solution.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 103
Appendix H Con guring the Linksys WCF54G –card
This appendix describes the con guration of the wireless network with Linksys WCF54G –network
adapter.
Glossary of term
WEP The rst security standard used in wireless networks to encrypt the wireless network traf c.
WPA Wi-Fi Protected Access. An improved security standard for wireless networks that provides
stronger data protection and network access control. It provides stronger data protection by using
encryption, access controls and user authentication (not included in WEP). WPA utilizes 128-bit encryption
keys and dynamic session keys to ensure the wireless network’s privacy and security.
PSK A mechanism in Wi-Fi Protected Access (WPA) that allows the use of manually entered keys or
passwords to initiate WPA security. The PSK is entered on the access point or wireless gateway and each
device that is on the Wi-Fi network. The password also initiates the encryption process which, in WPA is
Temporal Key Integrity Protocol (TKIP).
EAP Extensible Authentication Protocol. A protocol that provides an authentication Framework for both
wireless and wired Ethernet enterprise networks.
Required information from the network administrator:
- Network SSID (name)
- Type of network (AdHock or Network)
- Encryption used
- Authentication method used
- Network key (PSK)
Connecting to the wireless network
Before con guring the wireless network settings de ne the IP-addresses and Name servers from the
“Settings – Network and Dial-up connections” –menu. The Linksys -card should automatically create the
default IP-setting le named “WLAG46F1”. By default the IP-addresses and nameservers are con gured
to be obtained by DHCP. Modify the setting by tapping that le and typing the IP-addresses and Name
servers if needed.
By default the program always pops up when new network(s) is detected, this can be disabled by
unchecking the “Notify when new networks available” checkbox. If not, open the application by double
tapping the Network connections –tray icon (see picture) and select the Wireless Information –tab.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 104
Networks within reach are listed below Add New… -selection.
Note: If the network is con gured as not visible, it cannot be seen in this window. Open the network
con guration window by tapping the desired network or Add New…-selection in the listbox . Fill the
wireless properties with the information provided by your network administrator. Save the settings and
close the window by tapping the OK-box at the top of the window.
After con guring the wireless properties, choose the network to be connected from the listbox and tap the
connect -button. The PL3000 tries to connect the selected network and indicates the connection status
at the window below the Available networks –listbox. Also the signal strength of the selected network is
shown.
Network Monitor window
The Network monitor application can be opened from Programs – WCF54G Wireless Network Monitor.
This application shows the status of the current network connection, tools for network management and
troubleshooting and controls for wlan radio power.

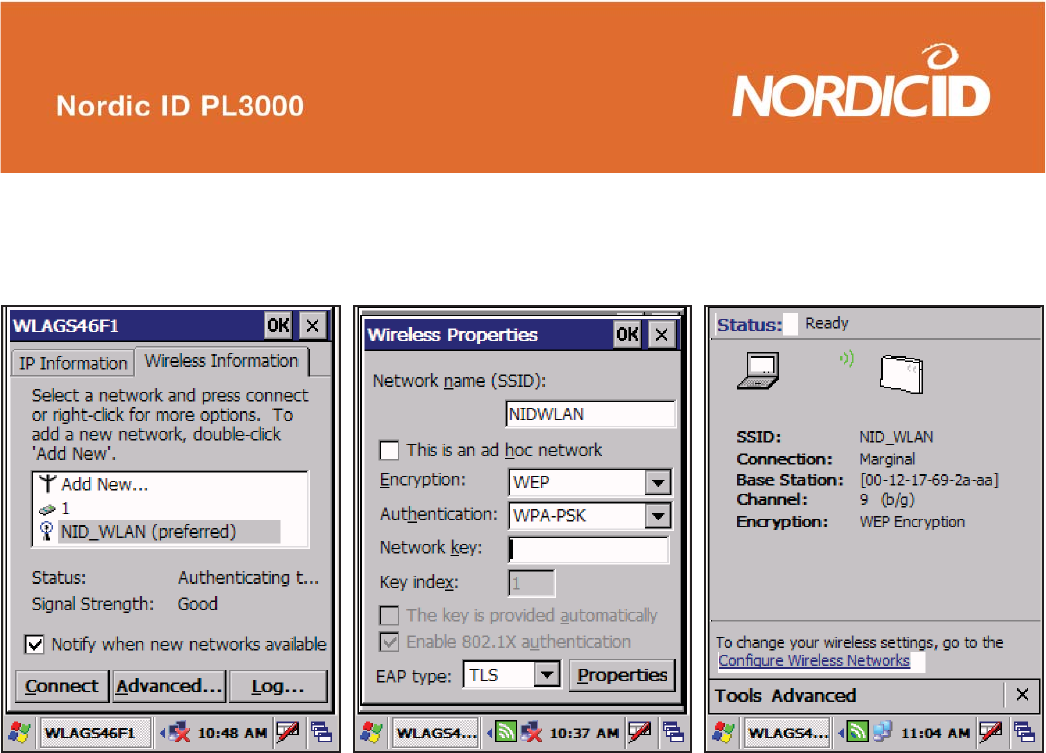

Fig: Detected networks in range. NID_
WLAN is being connected. Authori-
sation process in progress.
Fig: Wireless properties -window. Enter
the network settings here.
Fig: Network monitor -window.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 105
Appendix I PL3000 con gurations
PL3000 handheld computer can include one or more of the following functionalities as described in the
table below. Con guration is de ned in the Item code on the type label.
Barcode reader: one of the following readers may be included in the PL3000:
- Imager/ Linear Imager / Laser scanner
RFID reader/writer: One of the following RFID reader/writers may be included in the PL3000:
- HF RFID
Radio: one of the following radios may be included in the PL3000:
- WLAN / 3G
Bluetooth radio
- Bluetooth radio may be included in the PL3000:
Finger print reader
-Finger print reader may be included in the PL3000. Finger print reader cannot be in the PL3000 with
Linear imager or Laser scanner
Memory options: One of following memory options may be included in the PL3000:
- 64MB RAM / 128 MB RAM
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 106
Appendix J Creating Summit WLAN connection
The Summit Client Utility (SCU) is an application designed for end users and administrators of mobile
devices that use a Summit radio module.
- From the Start menu, select Programs
- Select the directory called Summit
- Inside the Summit directory are two items: a directory for the storage of security certi cates and
the SCU. To run SCU, click the SCU icon.
The SCU has ve windows: Main, Con g, Global Settings, Status, and Diags (or Troubleshooting).
Figure 1 below is an example of a Main window:
Figure1: Main window
Here are the highlights:
1. Enable/disable radio: When the radio is enabled, selecting this button disables it; when the radio is
disabled, selecting this button enables it.
2. Active con g: A user can view the name of the active con guration pro le, or con g. An administrator
can use the selection list to select a different con g. If “ThirdPartyCon g” is selected then, after the
device goes through a power cycle, WZC (Windows Zero Con g) is used for con guration of the
radio.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 107
3. Association status: Indicates if the radio is associated to an access point and, if not, what the radio’s
status is.
4. Regulatory domain: Indicates the regulatory domain or domains for which the radio is con gured.
“Worldwide” means that the radio can be used in any domain. The domain cannot be con gured by
an administrator or user.
5. Software versions: Indicates the version of the device driver and the version of SCU that are running
on the device.
6. About box: Supplies information on SCU that on a Windows application normally would appear under
Help | About.
Con g Window
Con g settings are radio and security settings that are stored in the registry as part of a con guration pro le,
or con g. When a con g is selected as the active con g on the Main window, the settings for that con g
become active. An administrator can de ne, change, and delete a con g on the Con g window in SCU.
Con g changes made on the window are saved to the con g only when the Commit button is pressed. SCU
supports a maximum of 20 con gs.
Figure 2 below is an example of a Con g window:
Figure 2: Con g window
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 108
Here are the highlights:
- Con g: This is used to select the con g to be viewed or, if you are an administrator, edited. If
“ThirdPartyCon g” is selected then, after the device goes through a power cycle, WZC is used for
con guration of the radio.
- Actions: Four actions are available to an administrator:
1. Rename: Give the con g a new name, one that is not assigned to another con g
2. Delete: Delete the con g, provided that it is not the active con g
3. New: Create a new con g with default settings and give it a name (and then change settings
using other selections on the window)
4. Commit: Ensure that changes to con g settings made on the window are saved in the
con g
- Radio attribute and setting: Attributes in the list box can be selected individually. When an attribute
is selected, the current setting or an appropriate selection box with the current setting highlighted
appears on the right. For example, selecting SSID causes an edit box to appear; selecting transmit
power causes SCU to display a drop-down list box with available settings.
- Security settings: The items at the bottom of the window enable the administrator to con gure the
settings for authentication and encryption.
EAP Credentials
Here are some important notes on entering credentials for EAP authentication:
- If the credentials speci ed in the con g are incorrect then, when that con g is used, the authentication
will fail without an error message, and the user will not be prompted to enter correct credentials
- If the credentials are not speci ed in the con g then, when the radio tries to associate using that
con g, the user will be prompted to enter the credentials
- When prompted, the user can enter valid credentials, enter invalid credentials, or cancel the
operation
- If the user enters valid credentials and taps the OK button, the radio will associate and authenticate
- If the user enters invalid credentials and taps the OK button, the radio will associate but not authenticate,
and the user will be re-prompted to enter credentials
- If the user taps the Cancel button or the user clears the credentials elds and taps the OK button,
then the radio will not attempt to associate with that con g until the user performs one of the following
actions (while the con g is the active con g):
- Causes the device to go through a power cycle or suspend/resume
- Disables and enables the radio or taps the Reconnect button on the Diags windows
- Modi es the con g and taps the Commit button
Alternatively, the user can select another con g as the active con g and then switch back to the con g for
which EAP authentication was canceled.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 109
ThirdPartyCon g
If the con g named “ThirdPartyCon g” is selected as the active con g, then SCU works in tandem with WZC
for con guration of all radio and security settings for the radio module. WZC must be used to de ne the
following radio and security settings: SSID, Auth Type, EAP Type, and Encryption. The following SCU con g
settings can be de ned for the ThirdPartyCon g con g: Client Name, Power Save, Tx Power, Bit Rate, and
Radio Mode. Those SCU con g settings, all SCU global settings, and the WZC settings are applied to the
radio when ThirdPartyCon g is selected as the active con g and a power cycle is performed.
Status Window
The Status window provides status information on the radio. Status items include IP address and MAC
address for the client radio, IP address and MAC address for the AP, signal strength, channel, transmit
power, and data rate. A sample Status window is shown in Figure 4 below:
Figure 4: Status window
Here are the highlights:
- Client info: Name of active con g, client name, client IP address, and client MAC address
- AP info: AP name, AP IP address, and AP MAC address
- Signal strength, shown both graphically and numerically
- Other connection info: Channel, transmit power[4], and bit rate
One status item, the radio association state, is shown on both the Status window and the Main window.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 110
Potential values are: Down (not recognized), Not Associated, Associated, or [EAP type] Authenticated.
Diags Window
A sample Diags, or troubleshooting, window is shown in Figure 5 below:
Figure 5: Diags window
Here are the functions available on the Diags window:
- (Re)connect: Disable and enable the radio, apply or reapply the current con g, and attempt to associate
and authenticate to the wireless LAN, logging all activity in the output area at the bottom.
- Release/Renew: Obtain a new IP address through DHCP release/renew, and log all activity in the
output area at the bottom.
- Start Ping: Start a continuous ping to the address in the edit box next to it. Once the button is clicked,
its name and function will change to Stop Ping. Leaving the Diags window also will stop the ping, as
will pressing any other button on the screen.
©2006 Nordic ID Oy
Nordic ID PL3000 user manual, v. 2.6, October 2006 111
- Diagnostics: Attempt to (re)connect to an AP, and provide a more thorough dump of data than is
obtained with (Re)connect. The dump will include radio state, con g settings, global settings, and
a BSSID list of APs in the area. In addition to displaying the diagnostic information on the Diags
window, SCU will save the information to the le “_sdc_diag.txt” in the Windows directory.
- Site Survey: Launch a separate site survey utility (not yet available).
Global Settings Window
Global settings include:
- Radio and security settings that apply to all con gs
- Settings that apply to SCU itself
An administrator can de ne and change most global settings on the Global Settings window in SCU. A
sample Global Settings window is shown in Figure 3 below:
Figure 3: Global Settings window
When a global setting is changed on the window and the Commit button is tapped, the change may not take
effect until the device is power cycled.
A few global settings can be de ned or set only through a separate utility such as the Summit Manufacturing
Utility, which is made available only to device manufacturers and not to their customers.

Navigation menu
