USER’S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. 29822.1

Serial No.

Write the serial number in the space

above for reference.

QUESTIONS?

If you have questions, or if parts

are damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-936-4266

Mon.–Fri., 7:30 until 16:30 ET

(excluding holidays)

OR E-MAIL US:

customerservice@iconcanada.ca

www.nordictrack.com

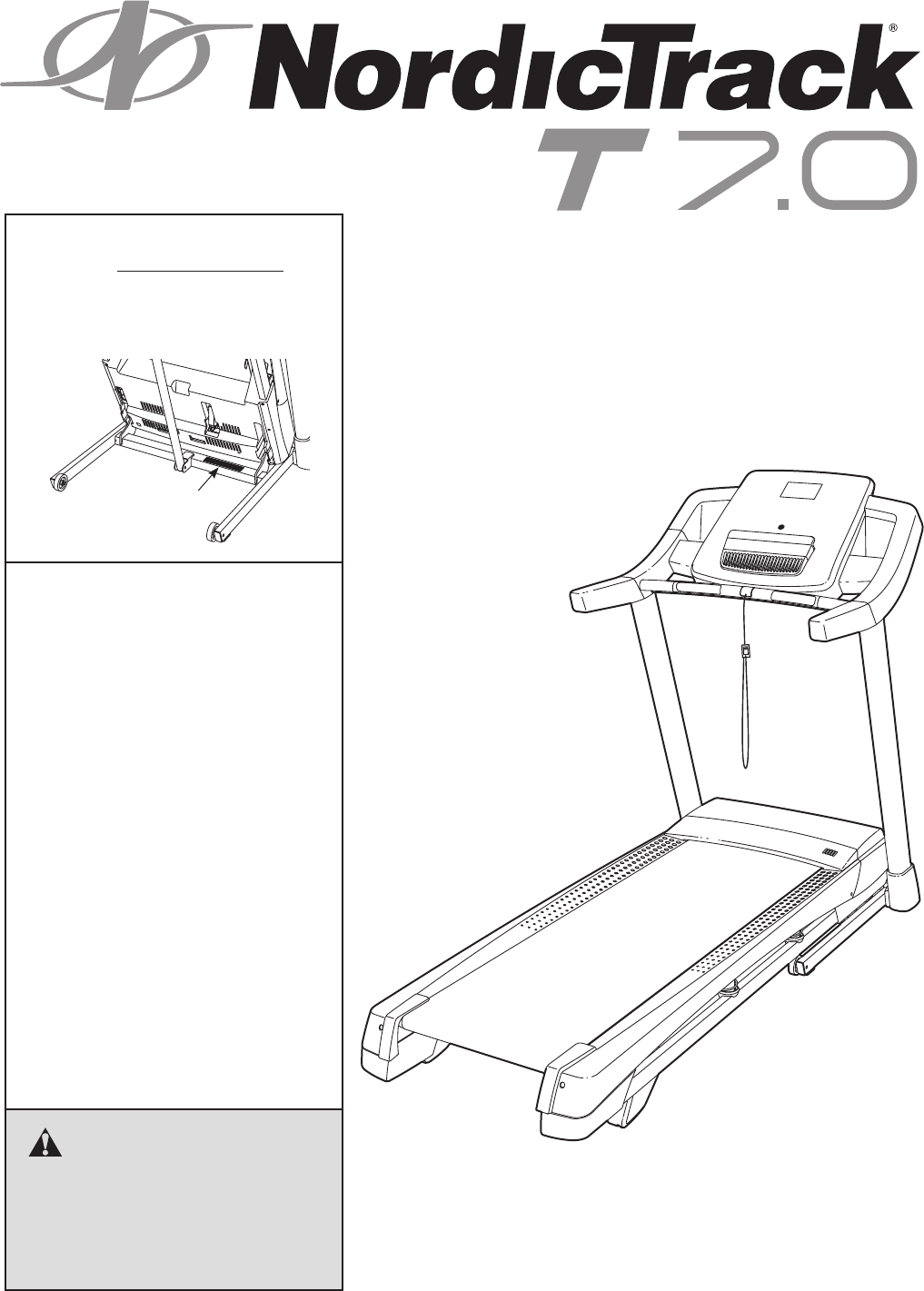

Serial Number

Decal

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT PRECAUTIONS .................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

OPERATION AND ADJUSTMENT ............................................................15

HOW TO FOLD AND MOVE THE TREADMILL ..................................................24

TROUBLESHOOTING .....................................................................25

EXERCISE GUIDELINES ...................................................................28

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

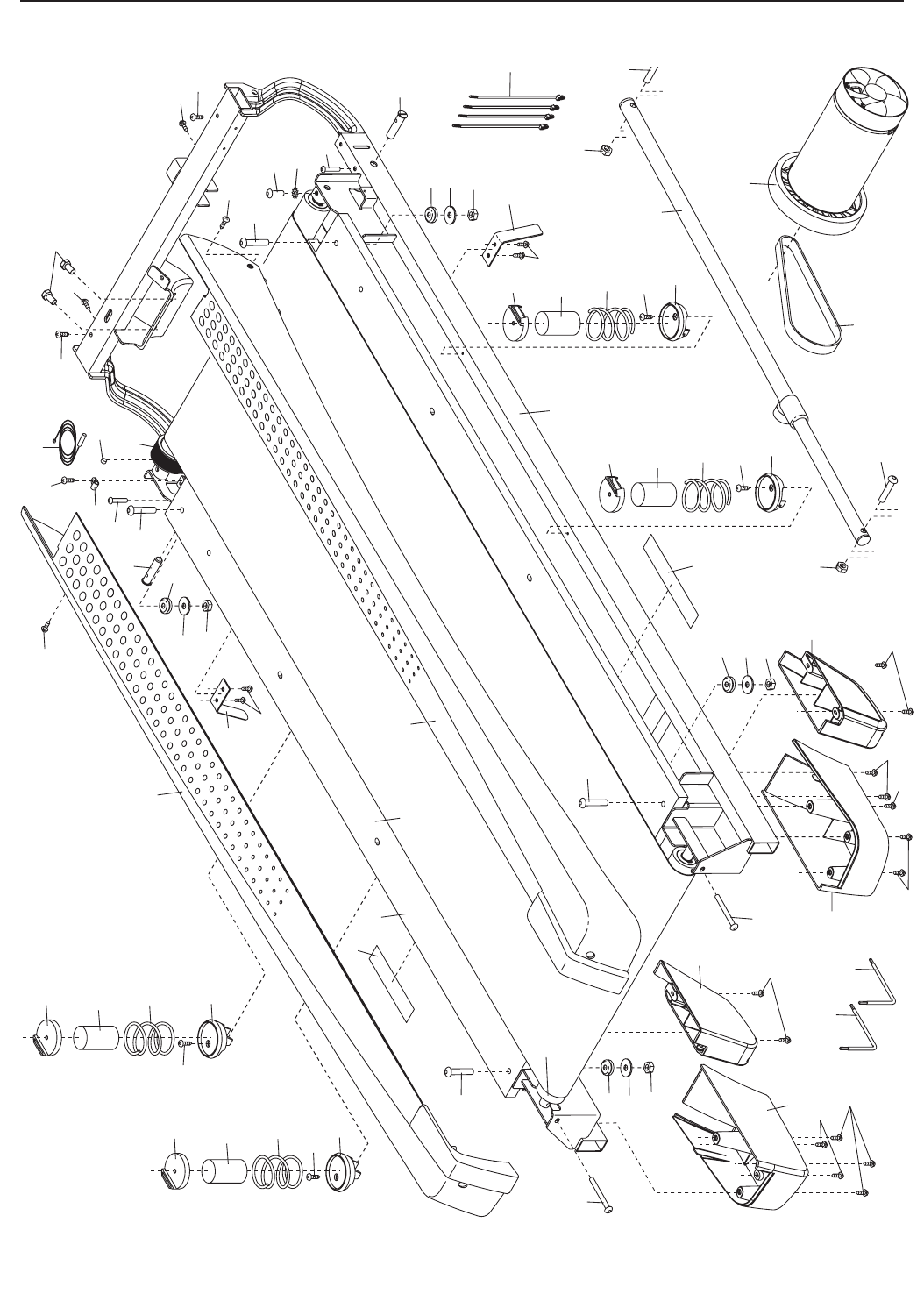

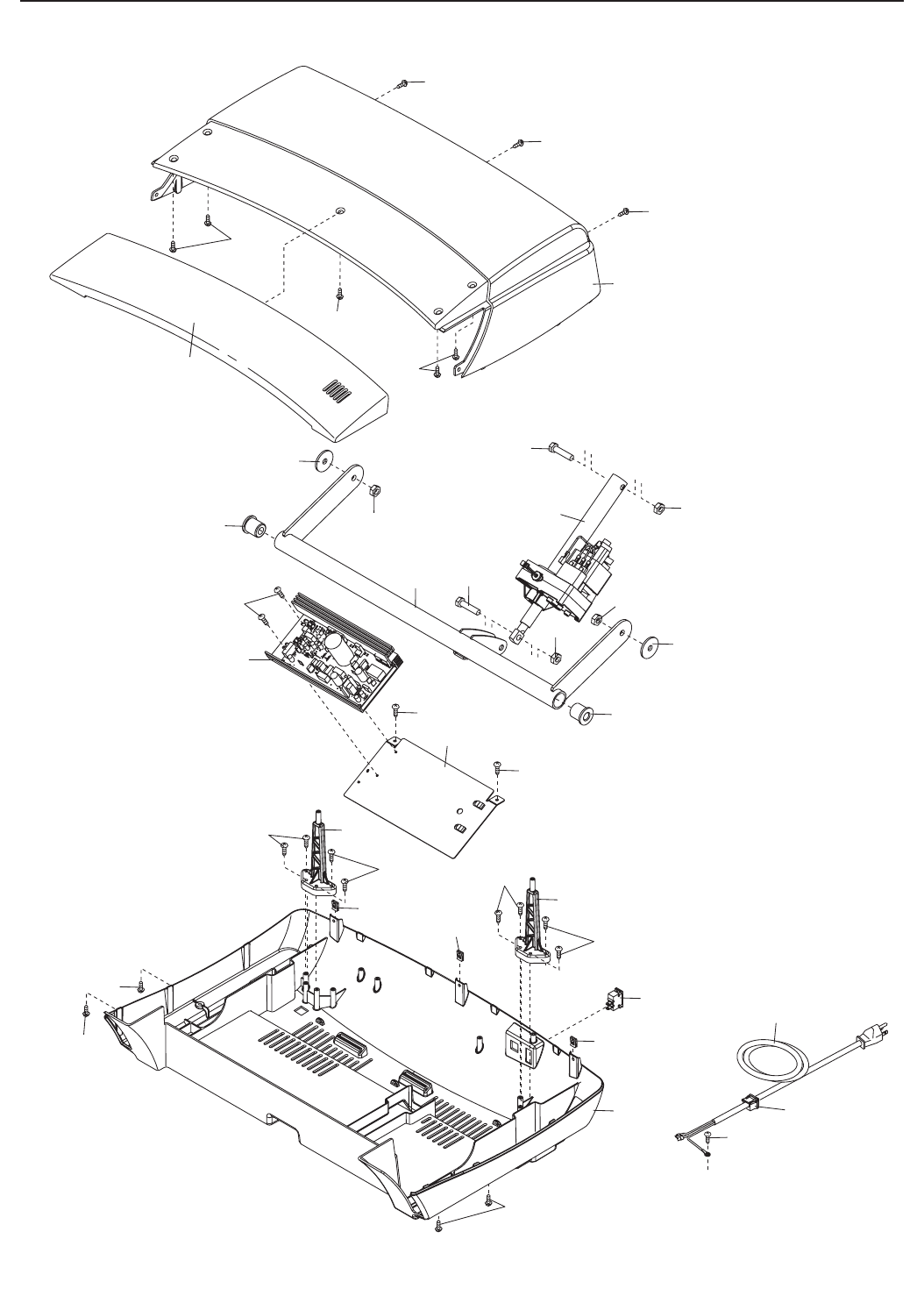

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

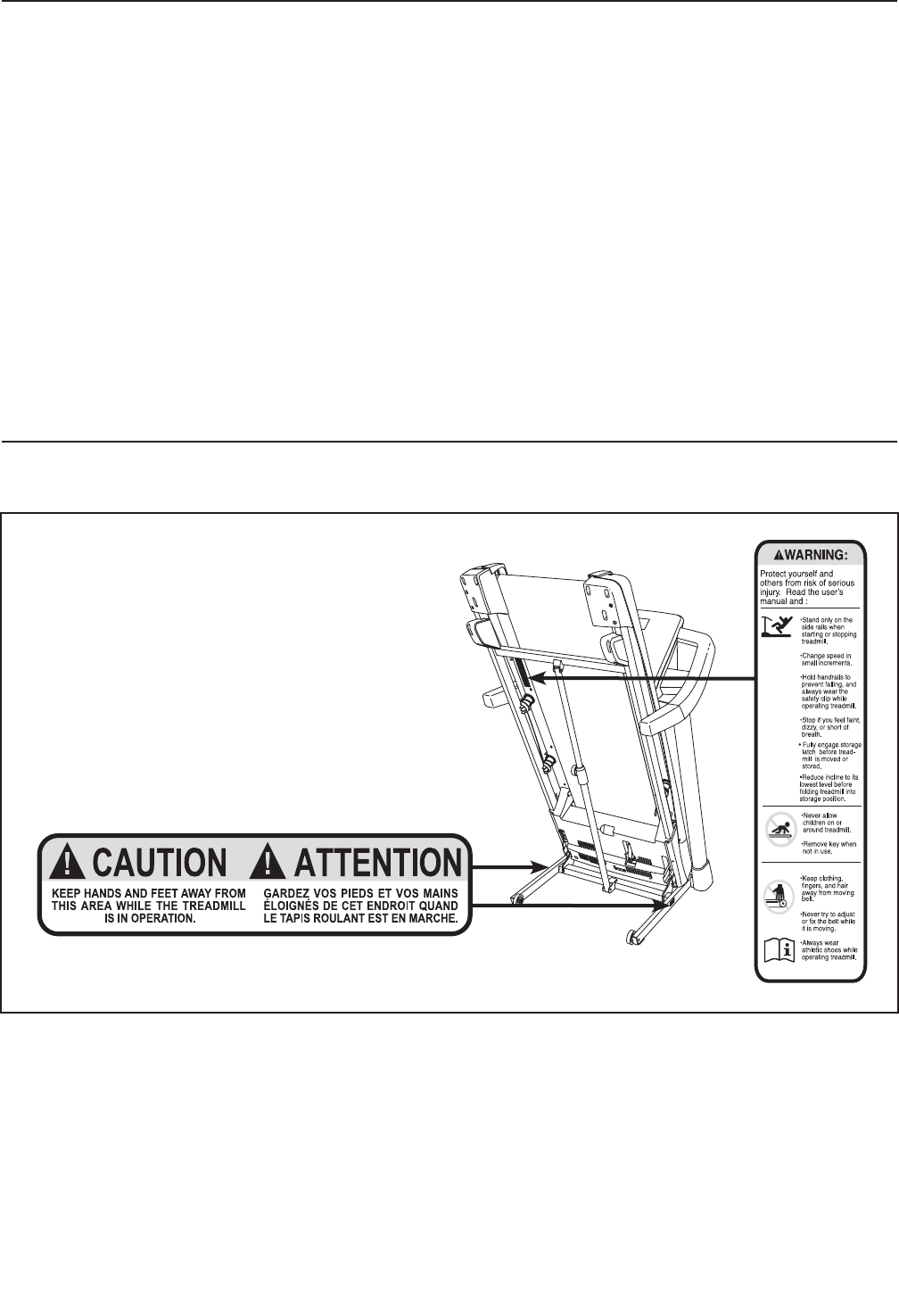

This drawing shows the locations of the warning

decals. If a decal is missing or illegible, call the

telephone number on the front cover of this

manual and request a free replacement decal.

Apply the decal in the location shown. Note:

The decals may not be shown at actual size.

WARNING DECAL PLACEMENT

256836

NORDICTRACK is a registered trademark of ICON IP, Inc.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program, con-

sult your physician. This is especially impor-

tant for persons over age 35 or persons with

pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Place the treadmill on a level surface, with

at least 8 ft. (2.4 m) of clearance behind it

and 2 ft. (0.6 m) on each side. Do not place

the treadmill on any surface that blocks air

openings. To protect the oor or carpet from

damage, place a mat under the treadmill.

6. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

7. Keep children under age 12 and pets away

from the treadmill at all times.

8. The treadmill should be used only by per-

sons weighing 350 lbs. (159 kg) or less.

9. Never allow more than one person on the

treadmill at a time.

10. Wear appropriate exercise clothes while us-

ing the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended

for both men and women. Always wear ath-

letic shoes. Never use the treadmill with bare

feet, wearing only stockings, or in sandals.

11. When connecting the power cord (see page

15), plug the power cord into a surge sup-

pressor (not included) and plug the surge

suppressor into a grounded circuit capable

of carrying 15 or more amps. No other appli-

ance should be on the same circuit. Do not

use an extension cord.

12. Use only a single-outlet surge suppressor

that meets all of the specications described

on page 15. To purchase a surge suppressor

call the telephone number on the front cover

of this manual.

13. Failure to use a properly-functioning surge

suppressor could result in damage to the

control system of the treadmill. If the control

system is damaged, the walking belt may

slow, accelerate, or stop unexpectedly, which

may result in a fall and serious injury.

14. Keep the power cord and the surge suppres-

sor away from heated surfaces.

15. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See TROU-

BLESHOOTING on page 25 if the treadmill is

not working properly.)

16. Read, understand, and test the emergency

stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 17).

17. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

18. The treadmill is capable of high speeds. Ad-

just the speed in small increments to avoid

sudden jumps in speed.

19. The heart rate monitor is not a medical

device. Various factors, including the user’s

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is in-

tended only as an exercise aid in determining

heart rate trends in general.

WARNING: To reduce the risk of serious injury, read all important precations and in-

structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-

sumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

20. Never leave the treadmill unattended while

it is running. Always remove the key, unplug

the power cord, and press the power switch

into the off position when the treadmill is not

in use. (See the drawing on page 5 for the

location of the power switch.)

21. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 7, and HOW TO FOLD

AND MOVE THE TREADMILL on page 24.)

You must be able to safely lift 45 lbs. (20 kg)

to raise, lower, or move the treadmill.

22. When folding or moving the treadmill, make

sure that the storage latch is holding the

frame securely in the storage position.

23. Never insert any object into any opening on

the treadmill.

24. Inspect and properly tighten all parts of the

treadmill regularly.

25. DANGER: Always unplug the power

cord immediately after use, before clean-

ing the treadmill, and before performing the

maintenance and adjustment procedures

described in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servic-

ing other than the procedures in this manual

should be performed by an authorized ser-

vice representative only.

26. This treadmill is intended for home use only.

Do not use this treadmill in a commercial,

rental, or institutional setting.

27. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

SAVE THESE INSTRUCTIONS

Thank you for selecting the new NORDICTRACK® T7.0

treadmill. The T7.0 treadmill provides an impressive

selection of features designed to make your workouts

at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the treadmill. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

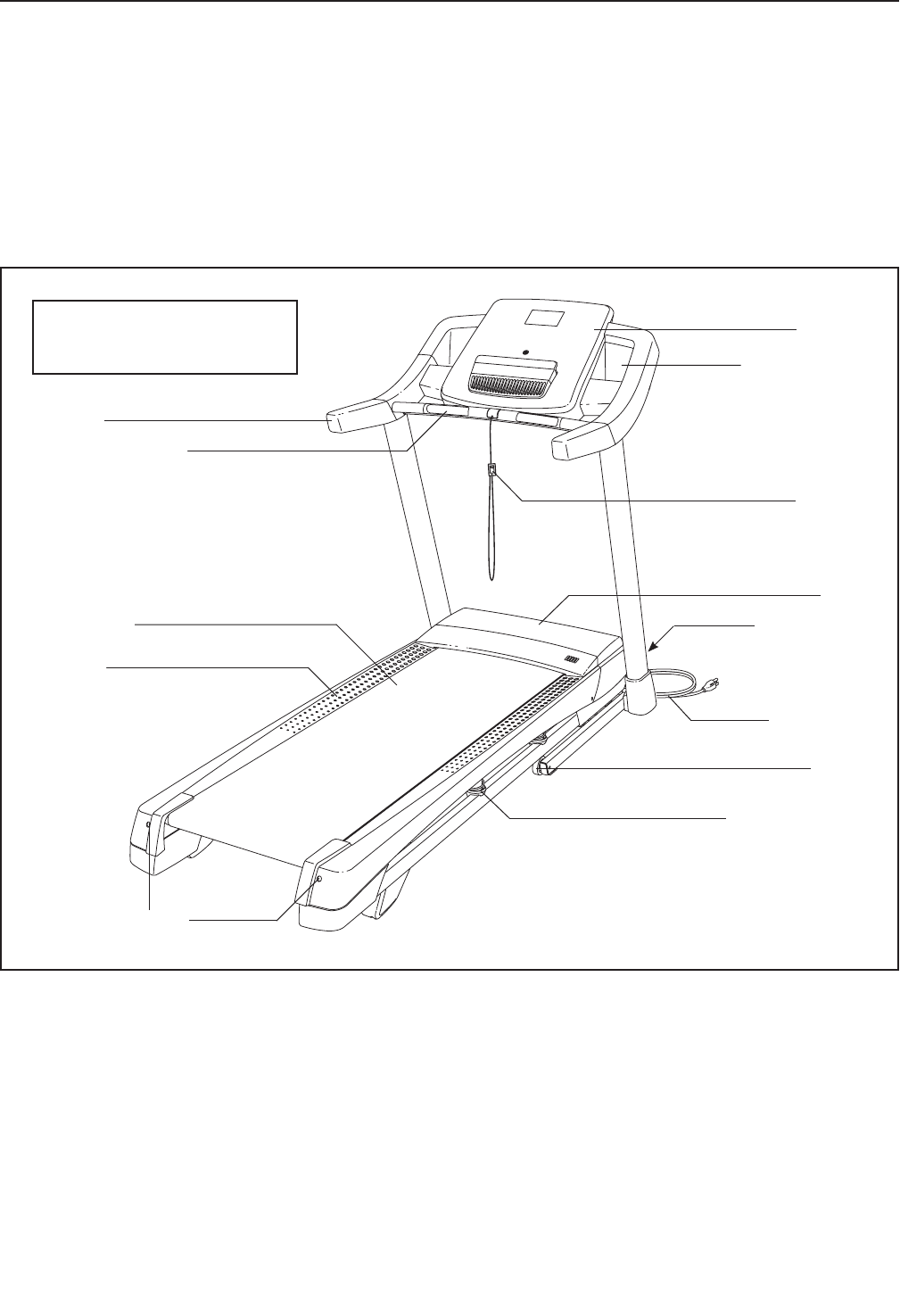

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

BEFORE YOU BEGIN

Length: 6 ft. 1 in. (185 cm)

Width: 3 ft. (91 cm)

Handrail

Console

Key/Clip

Power Switch

Power Cord

Walking Belt

Hood

Wheel

Foot Rail

Idler Roller

Adjustment Screws

Accessory Tray

Platform Cushion

Heart Rate Monitor

PART IDENTIFICATION CHART

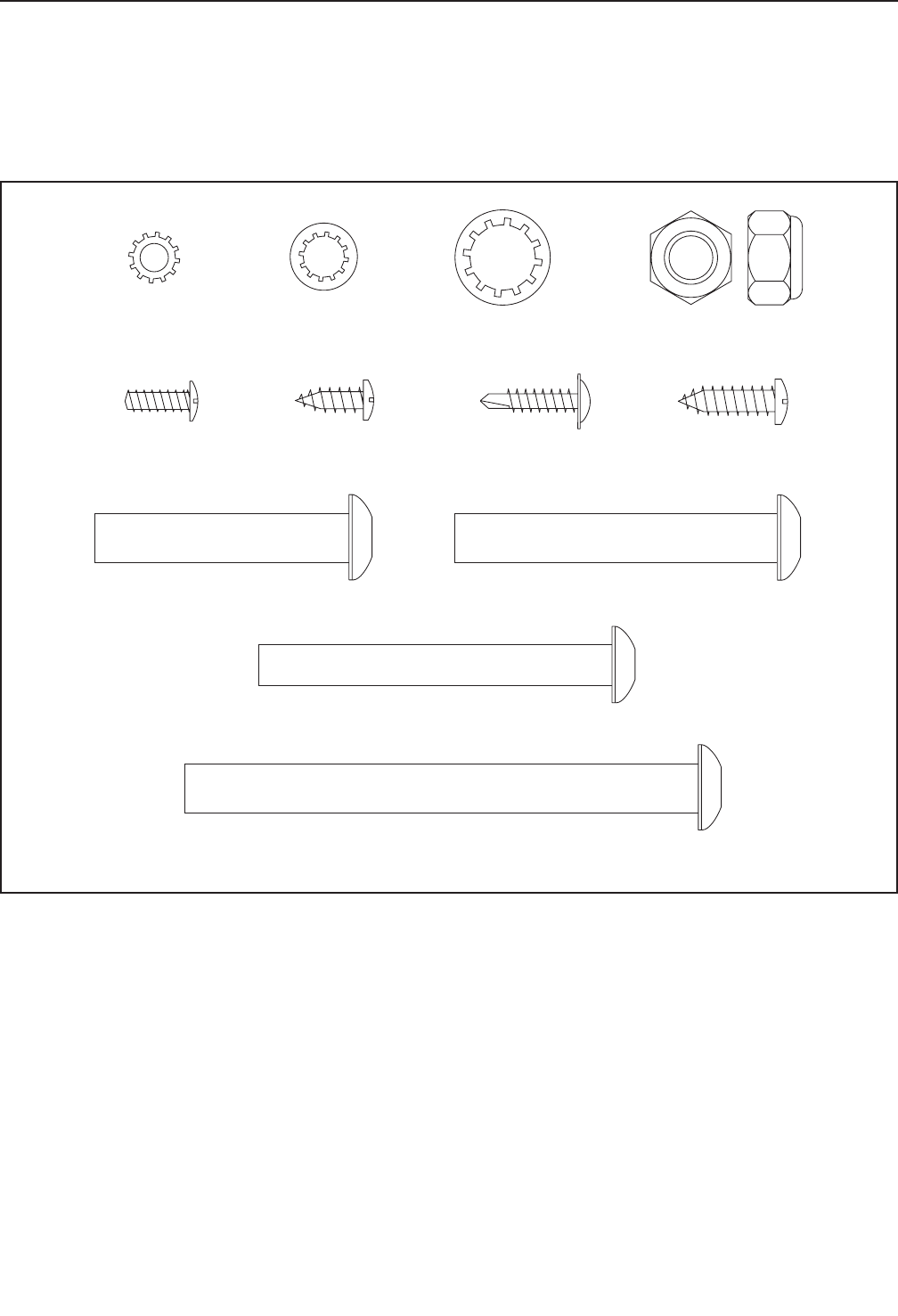

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-

ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key

number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-

tached. Extra hardware may be included.

#10 x 3/4" Screw

(4)–4

#8 x 1/2" Ground

Screw (6)–1

3/8" Star

Washer (10)–6

3/8" Nut (9)–4

#8 x 3/4" Screw

(6)–12

#10 Star

sher (5)–4

3/8" x 2" Bolt (2)–2 3/8" x 2 1/2" Bolt (7)–2

3/8" x 3 1/2" Screw (9)–4

3/8" x 4" Screw (3)–6

5/16" x 1"

Screw (7)–2

#8 x 1/2" Screw

(1)–14

5/16" x 2 3/4" Screw (12)–4

5/16" Flat

Washer (XX)–4

5/16" Star

Washer (8)–4

#8 x 3/4" Tek

Screw (13)–8

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materialsuntilyounishallassemblysteps.

• The underside of the walking belt is coated with

high-performance lubricant. After shipping, there

may be some lubricant on top of the walking belt

or on the shipping carton. This is normal. If there

is lubricant on top of the walking belt, wipe it off

with a soft cloth and a mild, non-abrasive cleaner.

• To identify small parts, see page 6.

• Assembly requires the following tools:

the included hex keys

one adjustable wrench

one Phillips screwdriver

scissors

needlenose pliers

To avoid damaging parts, do not use power tools.

ASSEMBLY

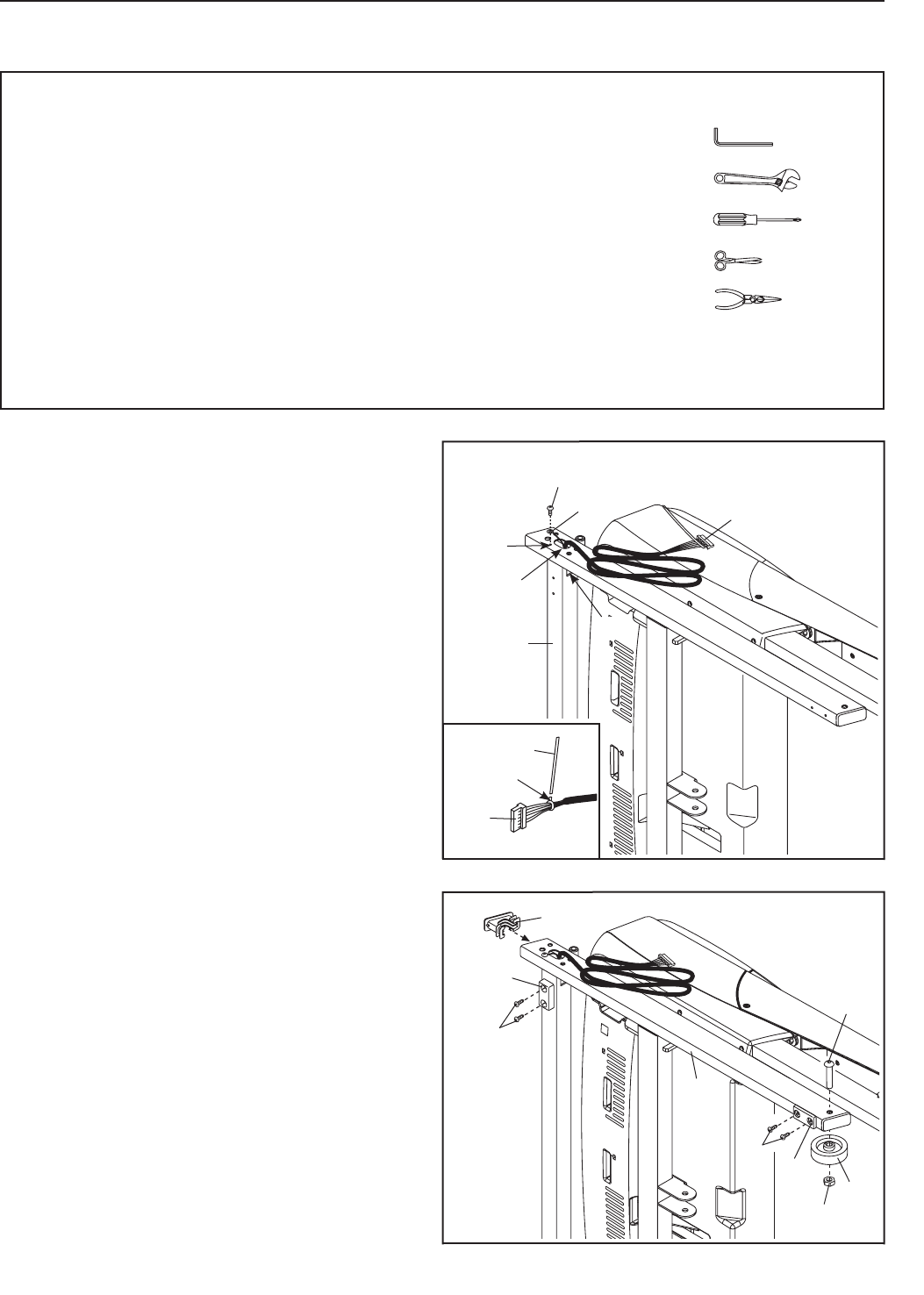

1. Make sure that the power cord is unplugged.

With the help of a second person, tip the tread-

mill onto its right side.

Pull the Upright Wire (91) and the Base Ground

Wire (86) through the indicated hole in the Base

(29).

Remove and discard the indicated screw (A) in

the Base (29). Attach the Base Ground Wire (86)

to the Base with a #8 x 1/2" Ground Screw (6).

Make sure that the Grommet (90) is pressed into

the square hole in the Base (29).

See the inset drawing. Cut the plastic tie near

the Upright Wire (91). Be careful not to dam-

age the Upright Wire.

2. Attach a Wheel (93) to the Base (29) with a 3/8"

x 2 1/2" Bolt (7) and a 3/8" Nut (9). Do not over-

tighten the Nut; the Wheel must turn freely.

Attach a Thick Base Pad (37) and a Thin Base

Pad (92) to the Base (29) in the locations shown

with four #8 x 3/4" Tek Screws (13). Be careful

not to overtighten the Screws.

Press a Base Cap (87) into the Base (29).

Hole

Cut

Tie

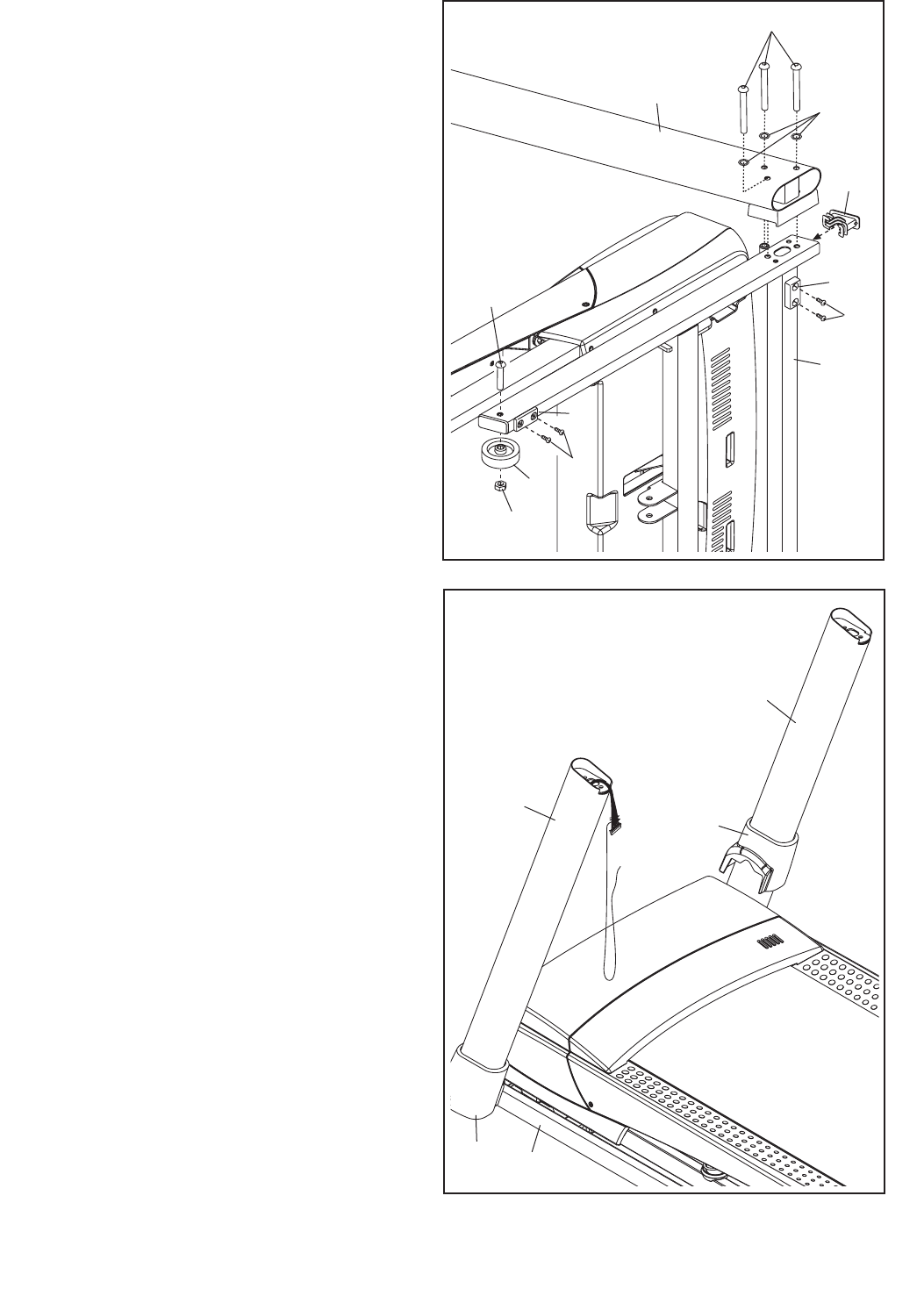

3. Identify the Left Upright (84), which is marked

“Left.” Have a second person hold the Left

Upright near the Base (29).

See the inset drawing. Tie the wire tie in the

Left Upright (84) securely around the end of the

Upright Wire (91). Then, insert the Upright Wire

into the lower end of the Left Upright as you pull

the other end of the wire tie through the Left

Upright.

Wire

Tie

Wire

Tie

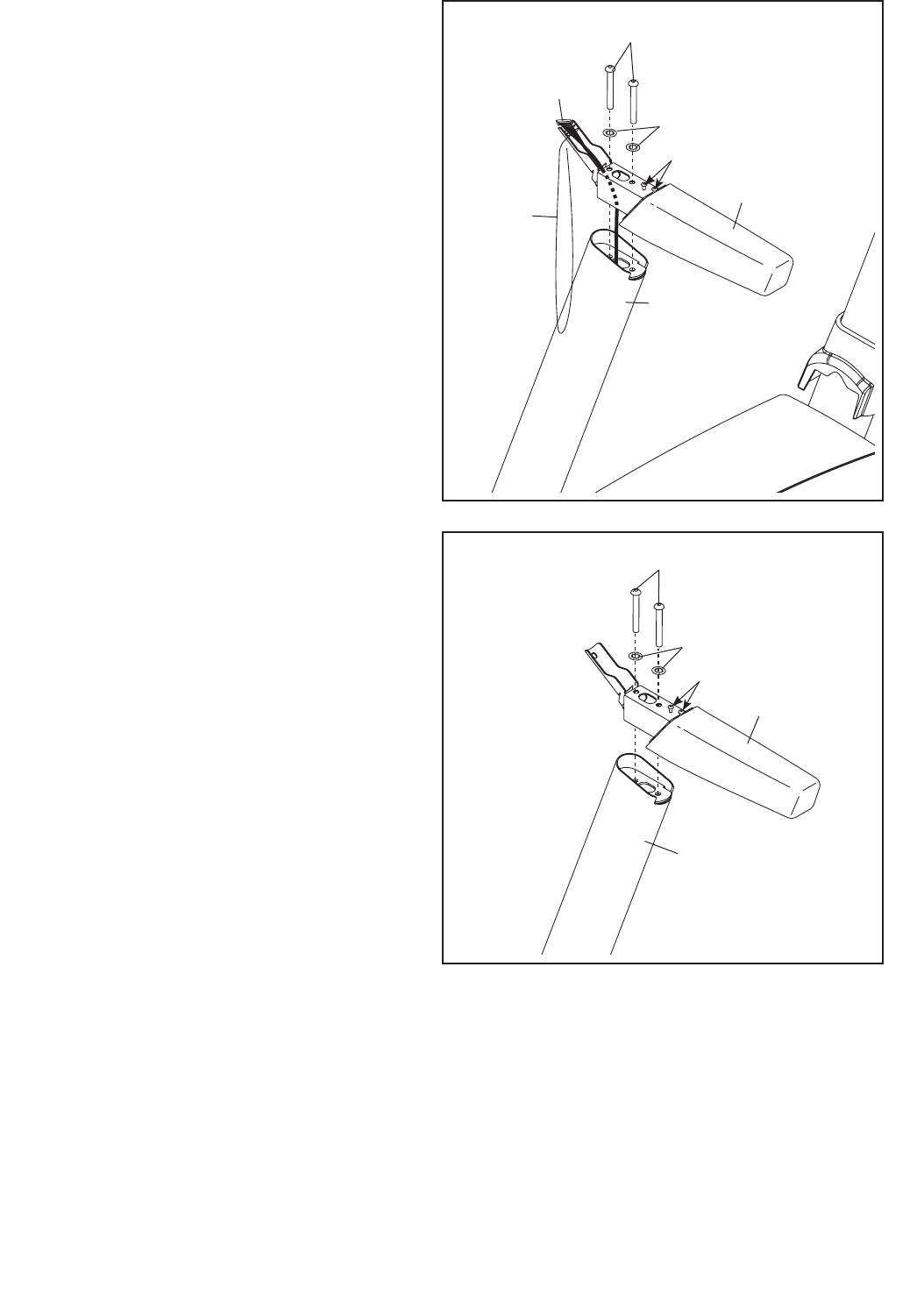

4. With the help of a second person, hold the Left

Upright (84) against the Base (29). Be care-

ful not to pinch the wires. Partially tighten

three 3/8" x 4" Screws (3) with three 3/8" Star

Washers (10) into the Left Upright and the

Base; do not fully tighten the Screws yet. 84

Wires

5. With the help of a second person, tip the tread-

mill onto its left side. Next, press in a Base Cap

(87).

Attach a Wheel (93) to the Base (29) with a 3/8"

x 2 1/2" Bolt (7) and a 3/8" Nut (9). Do not over-

tighten the Nut; the Wheel must turn freely.

Attach a Thick Base Pad (37) and a Thin Base

Pad (92) to the Base (29) in the locations shown

with four #8 x 3/4" Tek Screws (13). Be careful

not to overtighten the Screws.

Hold the Right Upright (85) against the Base

(29). Partially tighten three 3/8" x 4" Screws (3)

with three 3/8" Star Washers (10) into the Right

Upright and the Base; do not fully tighten the

Screws yet.

6. With the help of a second person, position the

treadmillsothattheBase(29)isatontheoor

as shown.

Identify the Left and Right Base Covers (88, 89),

which are marked “Left” and “Right.” Slide the

Left and Right Base Covers onto the Left and

Right Uprights (84, 85) as shown.

88 29

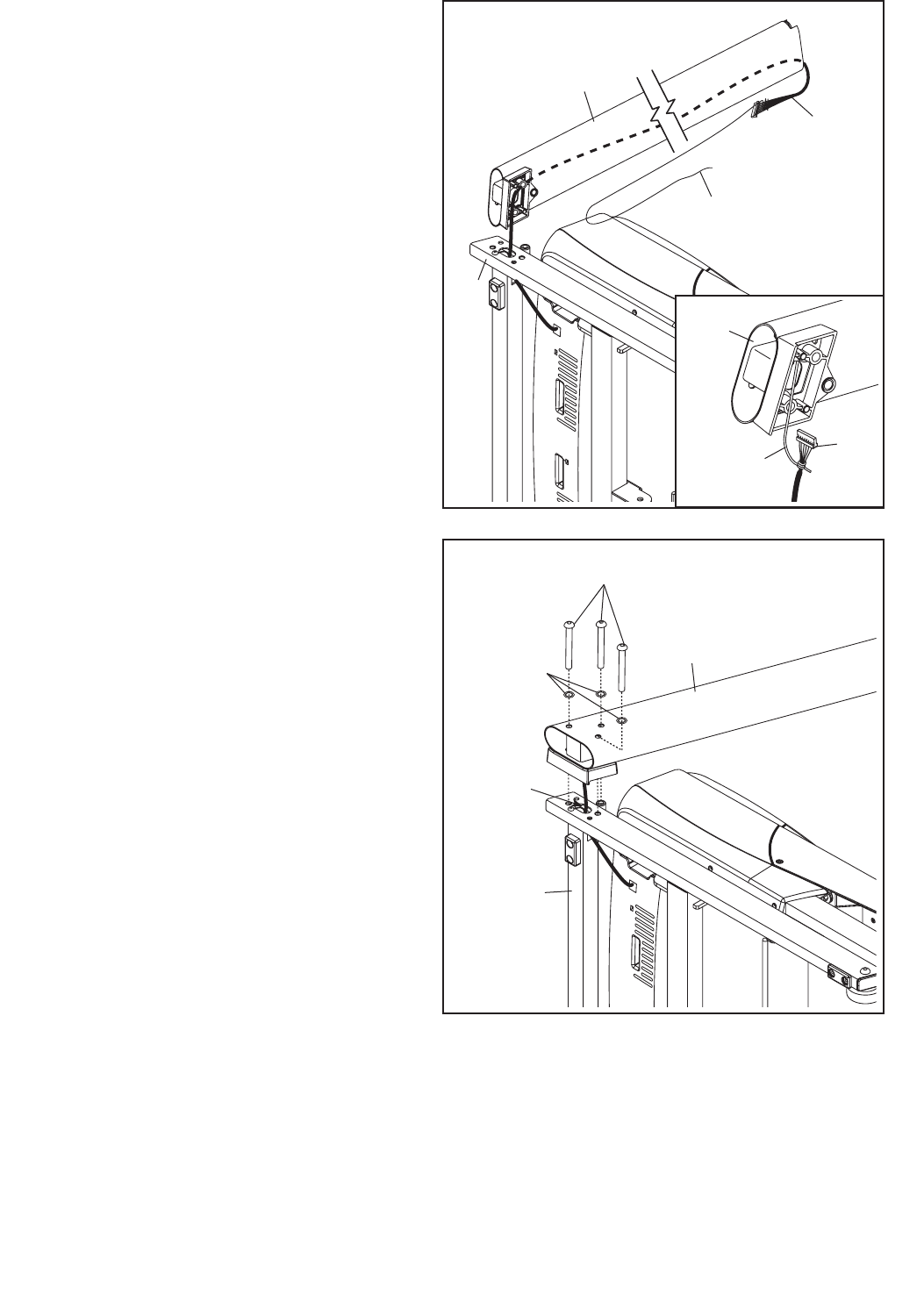

7. Identify the Left Handrail (79), which is marked

“Left.” If there is a wire in the Left Handrail, re-

move and discard it.

Hold the Left Handrail (79) near the Left Upright

(84). Insert the wire tie on the Upright Wire (91)

into the bottom and out of the end of the Left

Handrail as shown. Then, pull the Upright Wire

through the Left Handrail.

Attach the Left Handrail (79) to the Left Upright

(84) with two 5/16" x 2 3/4" Screws (12) and

two 5/16" Star Washers (8). Make sure not

to pinch the Upright Wire (91). Start both

Screws, but do not tighten them yet.

Remove and discard the two indicated screws

Wire

Tie

8. Attach the Right Handrail (83) to the Right

Upright (85) with two 5/16" x 2 3/4" Screws (12)

and two 5/16" Star Washers (8). Start both

Screws, but do not tighten them yet.

Remove and discard the two indicated screws

9. Set the Console Base (98) face down on a soft

surface to avoid scratching the Console Base.

Remove the two screws (A) from the Pulse

Crossbar (81). Remove the Pulse Crossbar and

discard the screws.

Remove the four 5/16" x 5/8" Screws (11) from

the Console Frame (101). The Screws will be

used in a later step.

101

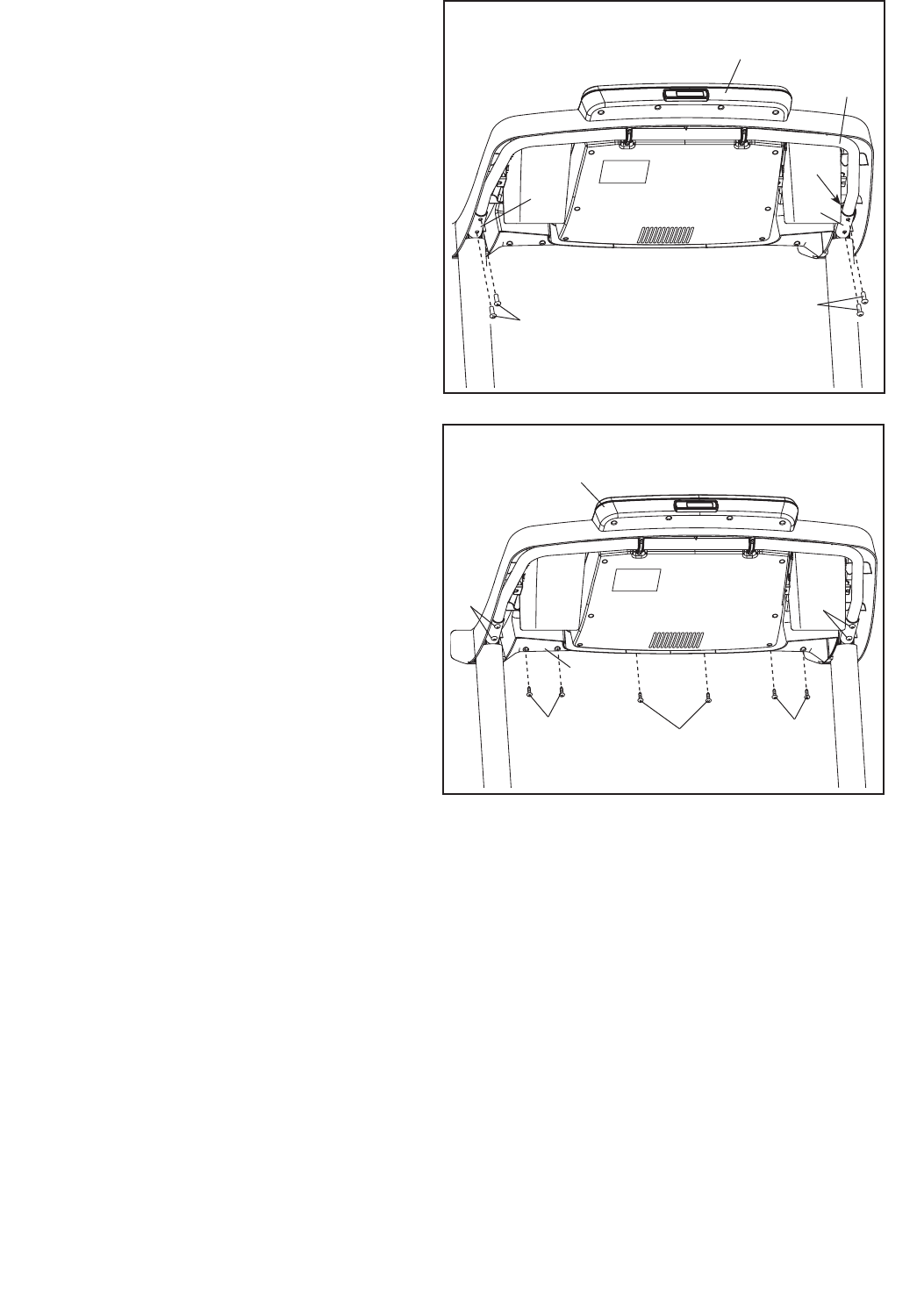

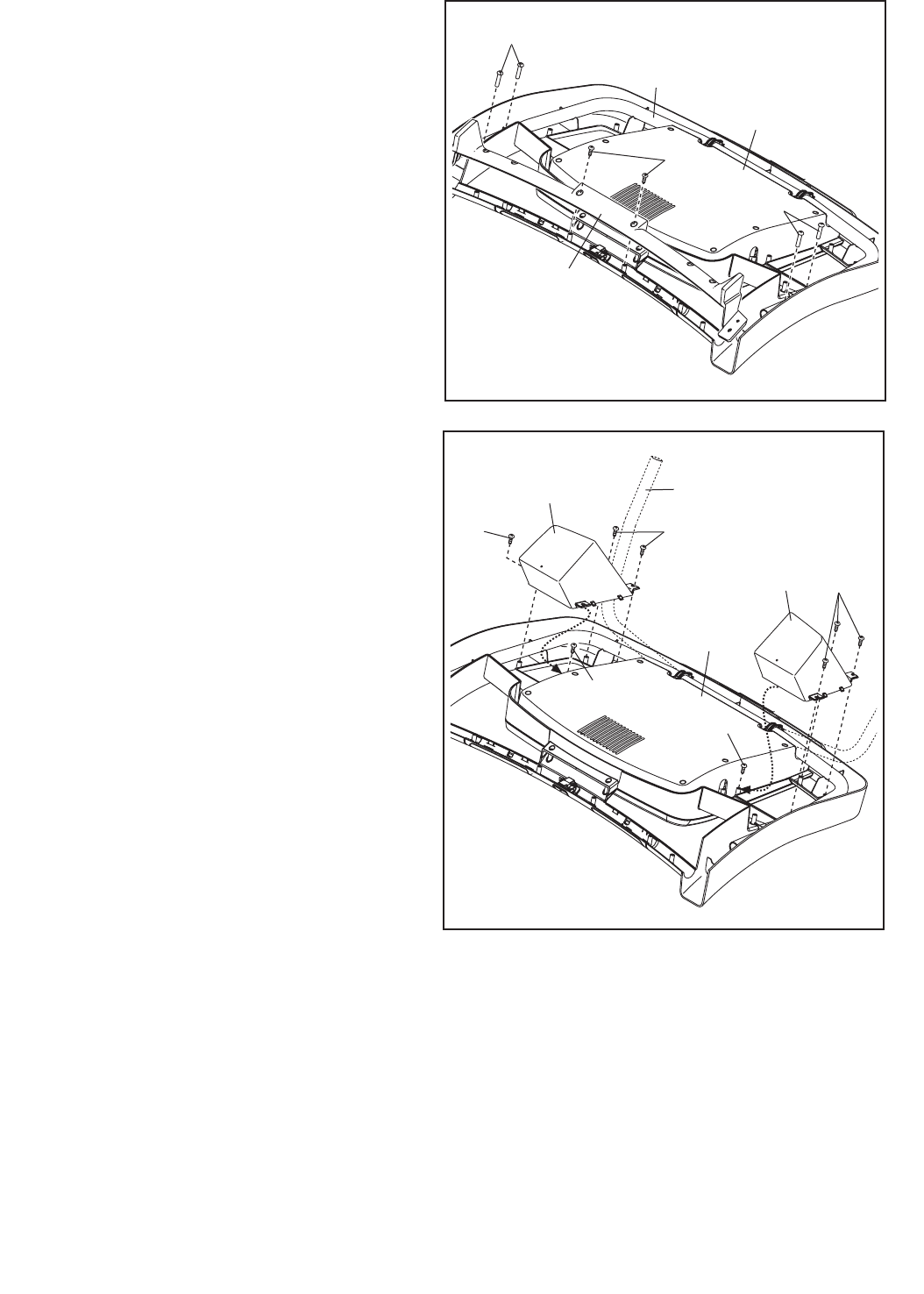

10. Identify the Left and Right Trays (95, 96), which

are marked “Left” and “Right.”

Attach the Trays (95, 96) to the Console Base

(98) with eight #8 x 1/2" Screws (1). Note: It may

be easier to start the two inside Screws and

then slide the Trays into place before tightening

the other six Screws.

Note: It may be necessary to rotate the Console

Frame (101) upward when attaching the Trays

(95, 96).

101

11. IMPORTANT: To avoid damaging the Pulse

Crossbar (81), do not use power tools and

do not overtighten the #10 x 3/4" Screws (4).

Orient the Pulse Crossbar (81) as shown.

Attach the Pulse Crossbar to the Left and Right

Handrails (79, 83) with four #10 x 3/4" Screws

(4) and four #10 Star Washers (5). Start all four

Screws, and then tighten them.

Make sure that the Upright Wire (91) isn’t

pinched. Firmly tighten the four 5/16" x 2 3/4"

Screws (12).

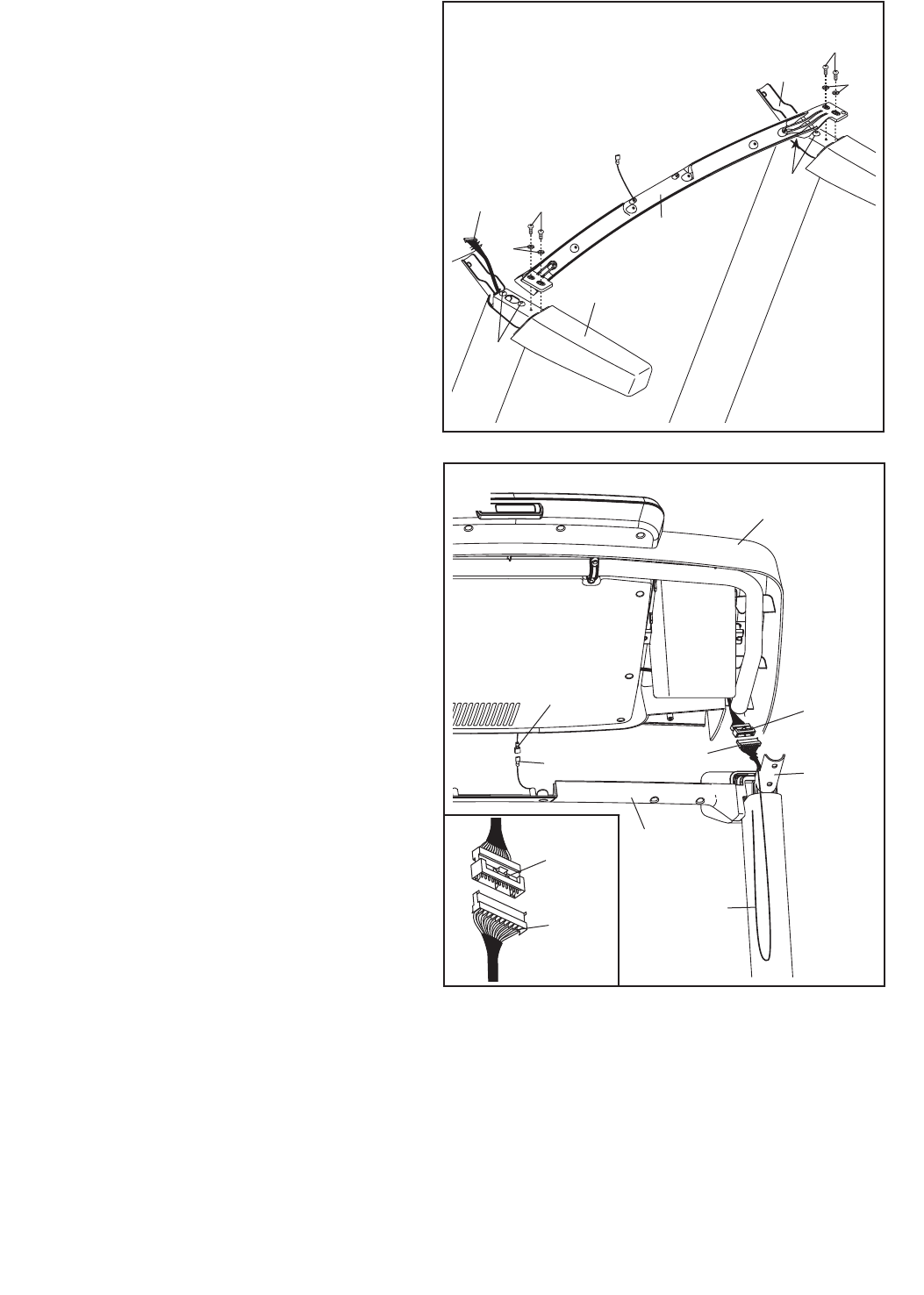

12. With the help of a second person, hold the con-

sole assembly near the Left Handrail (79) and

the Right Handrail (not shown).

Connect the ground wire from the console as-

sembly to the Ground Wire (80) on the Pulse

Crossbar (81).

Connect the Upright Wire (91) to the console

wire. See the inset drawing. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try

again. IF YOU DO NOT CONNECT THE CON-

NECTORS PROPERLY, THE CONSOLE MAY

BECOME DAMAGED WHEN YOU TURN ON

THE POWER. Then, remove the wire tie from

the Upright Wire.

12 Console

Assembly

Wire

Tie

Console

Wire

Console

Wire

Ground

Wire

13. Set the console assembly on the Left and Right

Handrails (79, 83). Make sure that no wires

are pinched. Insert the excess Upright Wire

(91) behind the Console Frame (101).

Attach the console assembly to the brackets on

the Handrails (79, 83) with the four 5/16" x 5/8"

Screws (11) that you removed in step 9. Start

all four Screws, but do not tighten them yet.

Console

Assembly

14. Attach the Pulse Crossbar (81) to the console

assembly with six #8 x 1/2" Screws (1). Start all

six Screws, and then tighten them.

Firmly tighten the four 5/16" x 5/8" Screws (11).

See steps 4 and 5. Tighten all six 3/8" x 4"

Screws (3).

Console

Assembly

11 11

101

16. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plas-

ticonthetreadmilldecals,removetheplastic.Toprotecttheoororcarpet,placeamatunderthetreadmill.

Note: Extra hardware may be included. Keep the included hex key in a secure place; the hex key is used to

adjust the walking belt (see pages 26 and 27).

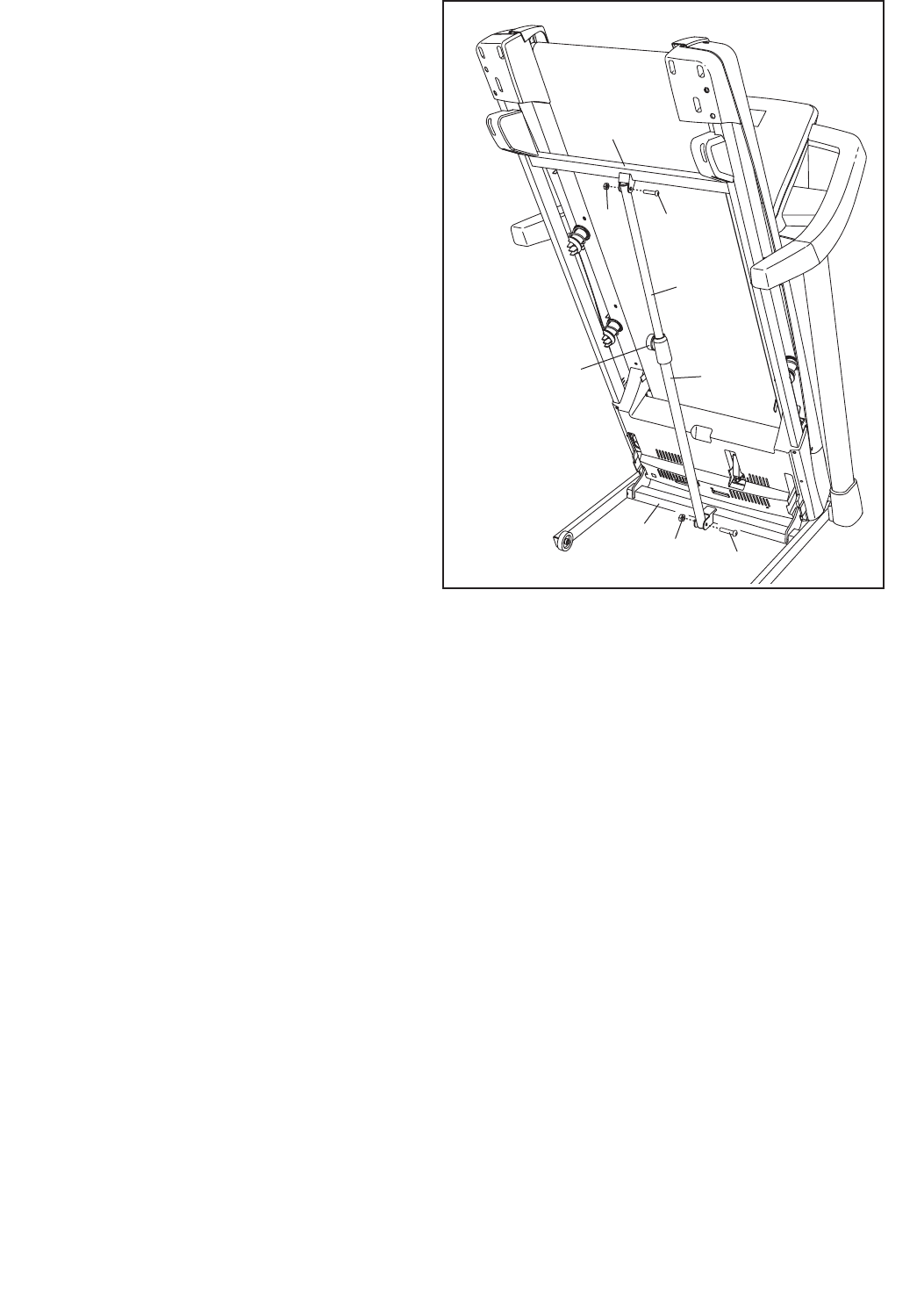

15. Raise the Frame (57) to the position shown.

Have a second person hold the Frame until

this step is completed.

Orient the Storage Latch (54) so that the large

barrel and the latch knob are oriented as shown.

Remove any ties from the end of the Storage

Latch (54). Attach the lower end of the Storage

Latch to the Base (29) with a 3/8" x 2" Bolt (2)

and a 3/8" Nut (9).

Attach the upper end of the Storage Latch (54)

to the Frame (57) with a 3/8" x 2" Bolt (2) and a

3/8" Nut (9).

Large

Barrel

Latch

Knob

OPERATION AND ADJUSTMENT

HOW TO PLUG IN THE POWER CORD

Your treadmill, like other electronic equipment, can be

damaged by sudden voltage changes in your home’s

power. To decrease the risk of damaging your

treadmill, always use a surge suppressor with your

treadmill (see drawing 1 at the right). To purchase

a surge suppressor, see precaution 12 on page 3.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have

a UL suppressed voltage rating of 400 volts or less

and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps. There must be a moni-

toring light on the surge suppressor to indicate

whether it is functioning properly. Failure to use a

properly-functioning surge suppressor could dam-

age the control system of the treadmill (see precau-

tion 13 on page 3).

This product must be grounded. If it should mal-

function or break down, grounding provides a path

of least resistance for electric current to reduce the

risk of electric shock. This product’s power cord has

an equipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropri-

ate outlet that is properly installed and grounded

in accordance with all local codes and ordinances.

IMPORTANT: The treadmill is not compatible with

GFCI-equipped outlets and may not be compatible

with AFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit

(see drawing 1). A temporary adapter may be used to

connect the surge suppressor to a 2-pole receptacle if

a properly-grounded outlet is not available (see

drawing 2).

The temporary adapter should be used only until a

properly-grounded outlet (see drawing 1) can be in-

stalledbyaqualiedelectrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly-grounded outlet box cover.

The adapter must be held in place by a metal screw.

Some 2-pole receptacle outlet box covers are not

grounded. Contact a qualied electrician to de-

termine if the outlet box cover is grounded before

using an adapter.

DANGER: Improper connec-

tion of the equipment-grounding conductor

increases the risk of electric shock. Check

with a qualied electrician or serviceman if

you are unsure whether the product is prop-

erly grounded. Do not modify the plug—if it

will not t the outlet, have a proper outlet in-

stalled by a qualied electrician.

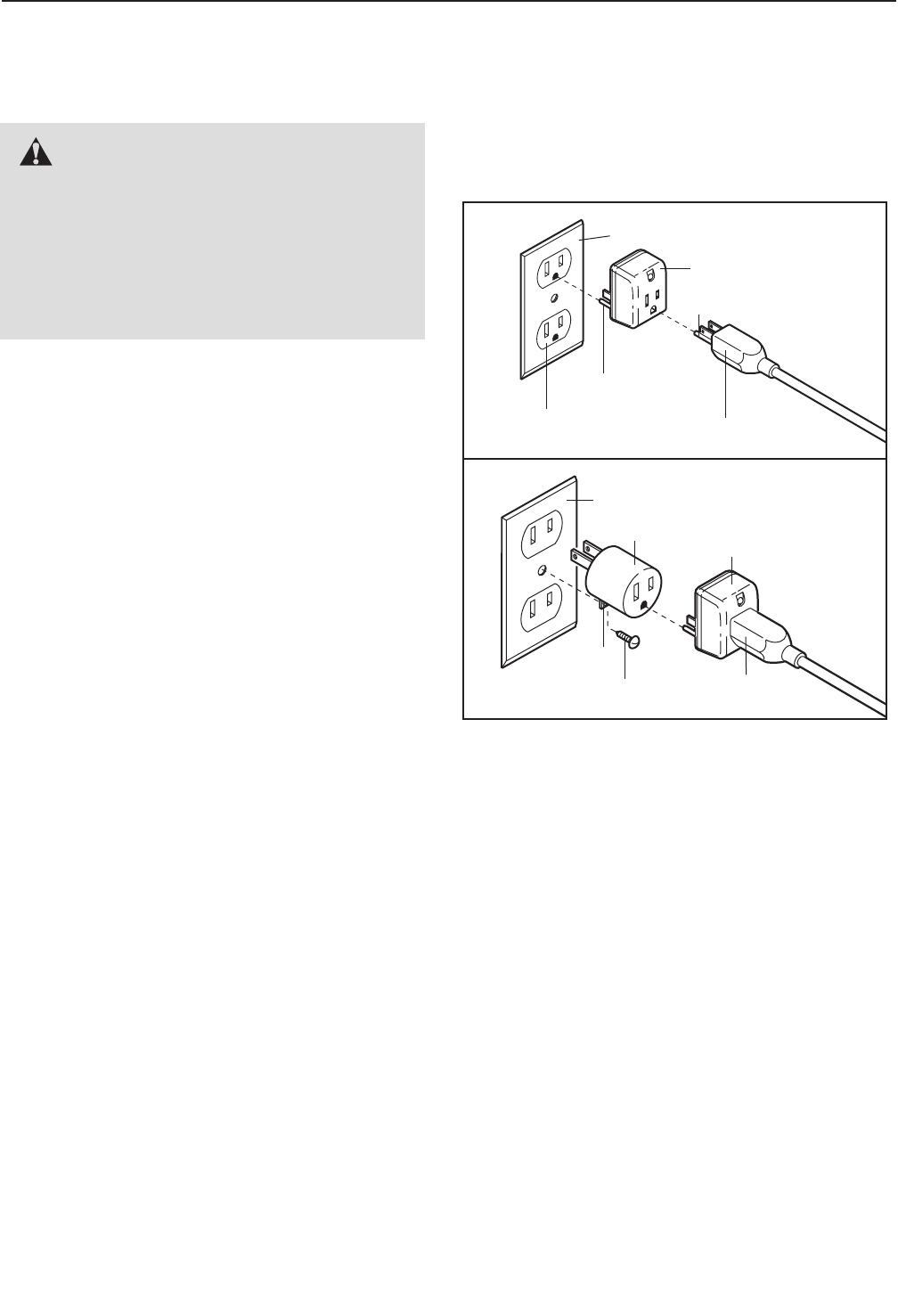

1Grounded Outlet Box

Grounding Plug

Surge Suppressor

Grounding Pin

Grounded Outlet Box

Surge Suppressor

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Pin

Grounding Plug

ETS799811

(NTL79011)

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of

features designed to make your workouts more effec-

tive and enjoyable. When you use the manual mode,

you can change the speed and incline of the treadmill

with the touch of a button. As you exercise, the con-

sole will display instant exercise feedback. You can

even measure your heart rate using the handgrip heart

rate monitor.

In addition, the console features twenty-four onboard

workouts—six calorie workouts, six incline workouts,

six intensity workouts, and six speed workouts. Each

workout automatically controls the speed and incline of

the treadmill as it guides you through an effective exer-

cise session.

The console also features an iFit Live mode that en-

ables the treadmill to communicate with your wireless

network through an optional iFit Live module. With the

iFit Live mode, you can download personalized work-

outs, create your own workouts, track your workout

results, race against other runners, and access many

other features. To purchase an iFit Live module at

any time, go to www.iFit.com or call the telephone

number on the front cover of this manual.

You can even listen to your favorite workout music or

audio books with the console’s stereo sound system

while you exercise.

To turn on the power, see page 17. To use the man-

ual mode, see page 17. To use an onboard workout,

see page 20. To use an iFit Live workout, see page

21. To use the stereo sound system, see page 22.

To use the information mode, see page 23.

Note: The console can display speed and distance in

eithermilesorkilometers.Tondwhichunitofmea-

surement is selected, see THE INFORMATION MODE

on page 23. For simplicity, all instructions in this man-

ual refer to miles.

IMPORTANT: If there are sheets of plastic on the

console, remove the plastic. To prevent damage

to the walking platform, wear clean athletic shoes

while using the treadmill. The rst time you use

the treadmill, observe the alignment of the walking

belt, and center the walking belt if necessary (see

page 27).

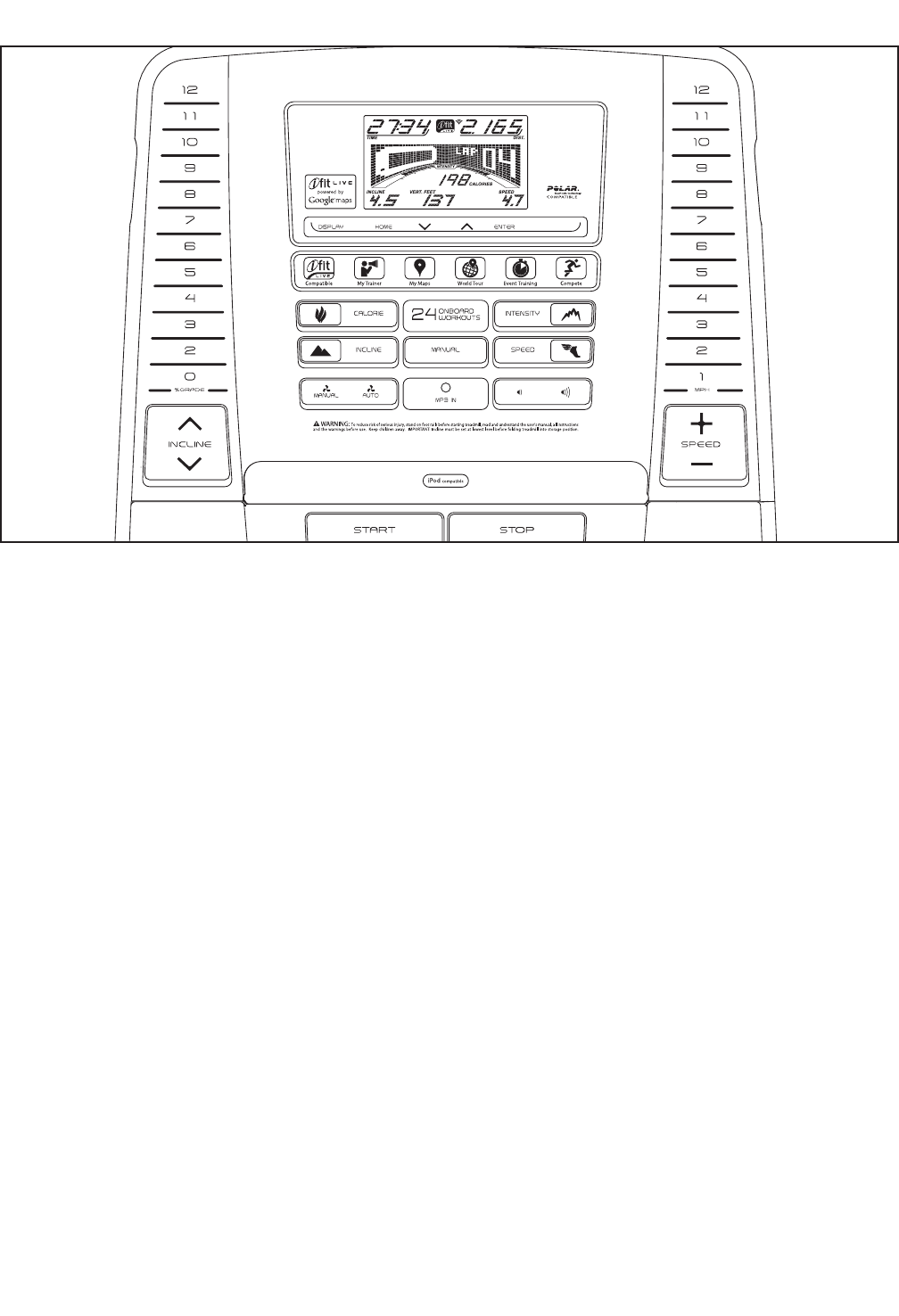

CONSOLE DIAGRAM

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to

cold temperatures, allow it to warm to room tem-

perature before turning on the power. If you do not

do this, you may damage the console displays or

other electrical components.

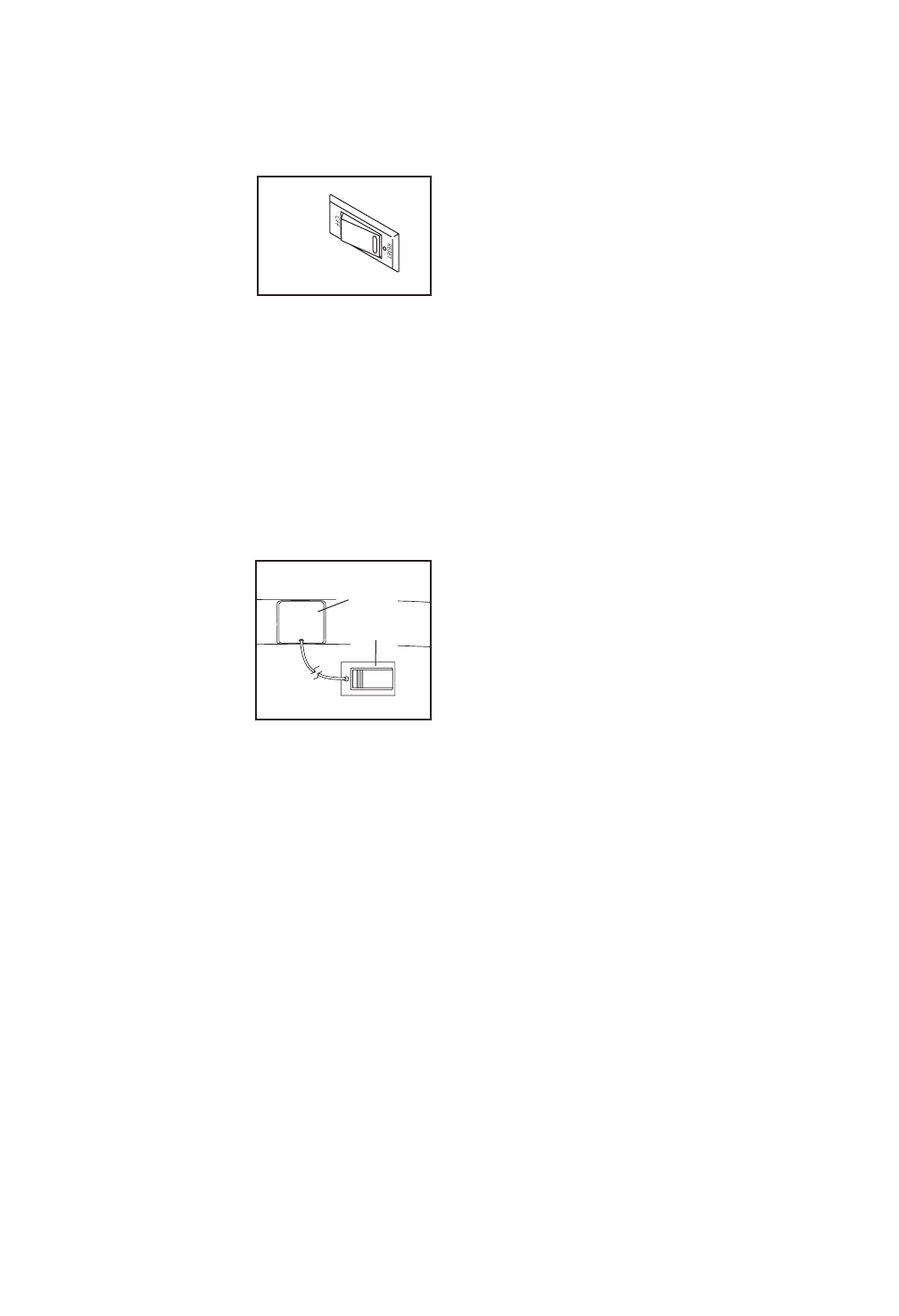

Plug in the power cord (see

page 15). Next, locate the

power switch on the tread-

mill frame near the power

cord. Press the power

switch into the reset

position.

IMPORTANT: The console features a display demo

mode, designed to be used if the treadmill is dis-

played in a store. If the displays light as soon as

you plug in the power cord and press the power

switch into the reset position, the demo mode is

turned on. To turn off the demo mode, hold down

the Stop button for a few seconds. If the displays

remain lit, see THE INFORMATION MODE on page

23 to turn off the demo mode.

Next, stand on the foot

rails of the treadmill. Find

the clip attached to the key

and slide the clip onto the

waistband of your clothes.

Then, insert the key into

the console. After a mo-

ment, the displays will light.

IMPORTANT: In an emer-

gency, the key can be pulled from the console,

causing the walking belt to slow to a stop. Test the

clip by carefully taking a few steps backward; if the

key is not pulled from the console, adjust the posi-

tion of the clip.

HOW TO USE THE MANUAL MODE

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

If the manual mode is not selected, press the

Manual button to select the manual mode.

3. Start the walking belt.

To start the walking belt, press the Start button, the

Speed increase button, or one of the MPH buttons

numbered 1 through 12.

If you press the Start button or the Speed increase

button, the walking belt will begin to move at 1

mph. As you exercise, change the speed of the

walking belt as desired by pressing the Speed in-

crease and decrease buttons. Each time you press

one of the buttons, the speed setting will change

by 0.1 mph; if you hold down the button, the speed

setting will change in increments of 0.5 mph. Note:

After you press the button, it may take a moment

for the walking belt to reach the selected speed

setting.

If you press one of the numbered Quick Speed but-

tons, the walking belt will gradually change speed

until it reaches the selected speed setting. To se-

lect a speed setting that includes a decimal—such

as 3.5 mph—press two numbered buttons in suc-

cession. For example, to select a speed setting of

3.5 mph, press the 3 button and then immediately

press the 5 button.

To stop the walking belt, press the Stop button.

Thetimewillbegintoashinthedisplay.Tore-

start the walking belt, press the Start button or the

Speed increase button.

Reset

ETS799811

(NTL79011)

Key

Clip

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease button or one of the

numbered % Grade buttons. Each time you press

one of the buttons, the treadmill will gradually ad-

just to the selected incline setting.

5. Follow your progress with the displays.

As you walk or run on the treadmill, the display can

show the following workout information:

 •Theelapsedtime

 •Thedistancethatyouhavewalkedorrun

 • Theworkoutintensitybar

 •Theapproximatenumberofcaloriesyouhave

burned

 •Theinclinelevelofthetreadmill

 • Thenumberofverticalfeetyouhaveclimbed

 •Thespeedofthewalkingbelt

 •Yourheartrate(seestep6onpage19)

 • Thematrix

The matrix offers several display tabs. Press the

increase and decrease button next to the Enter

button until the desired tab is shown.

 TheInclinetabwillshowaproleoftheinclineset-

tings of the workout. A new segment will appear at

the end of each minute. The Speed tab will show a

proleofthespeedsettingsoftheworkout.

The My Trail tab will show a track that represents

1/4 mile (400 m). As you exercise, the white rect-

angle will show your progress. The My Trail tab will

also show the number of laps you complete.

The Calorie tab will show the approximate amount

of calories you have burned. The height of each

segment represents the amount of calories burned

during that segment.

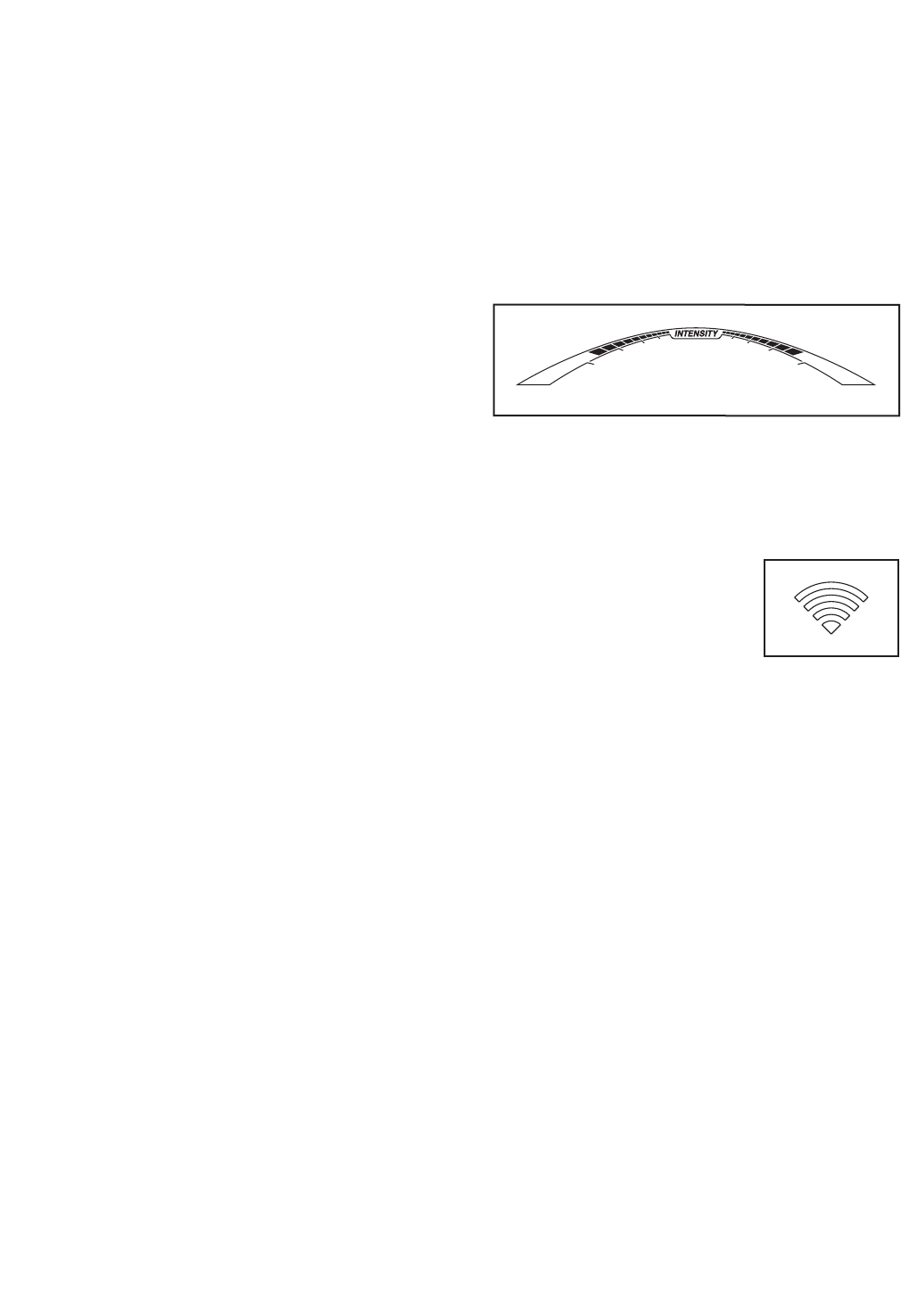

As you exercise, the workout intensity level bar will

indicate the approximate intensity level of your

exercise.

Press the Home button to return to the default

menu (see THE INFORMATION MODE on page

23 to set the default menu). If necessary, press the

Home button again.

When a wireless iFit Live

module is connected, the

wireless symbol at the top

of the display will show the

strength of your wireless

signal. Four arcs indicate full

signal strength.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

ETS799811

(NTL79011)

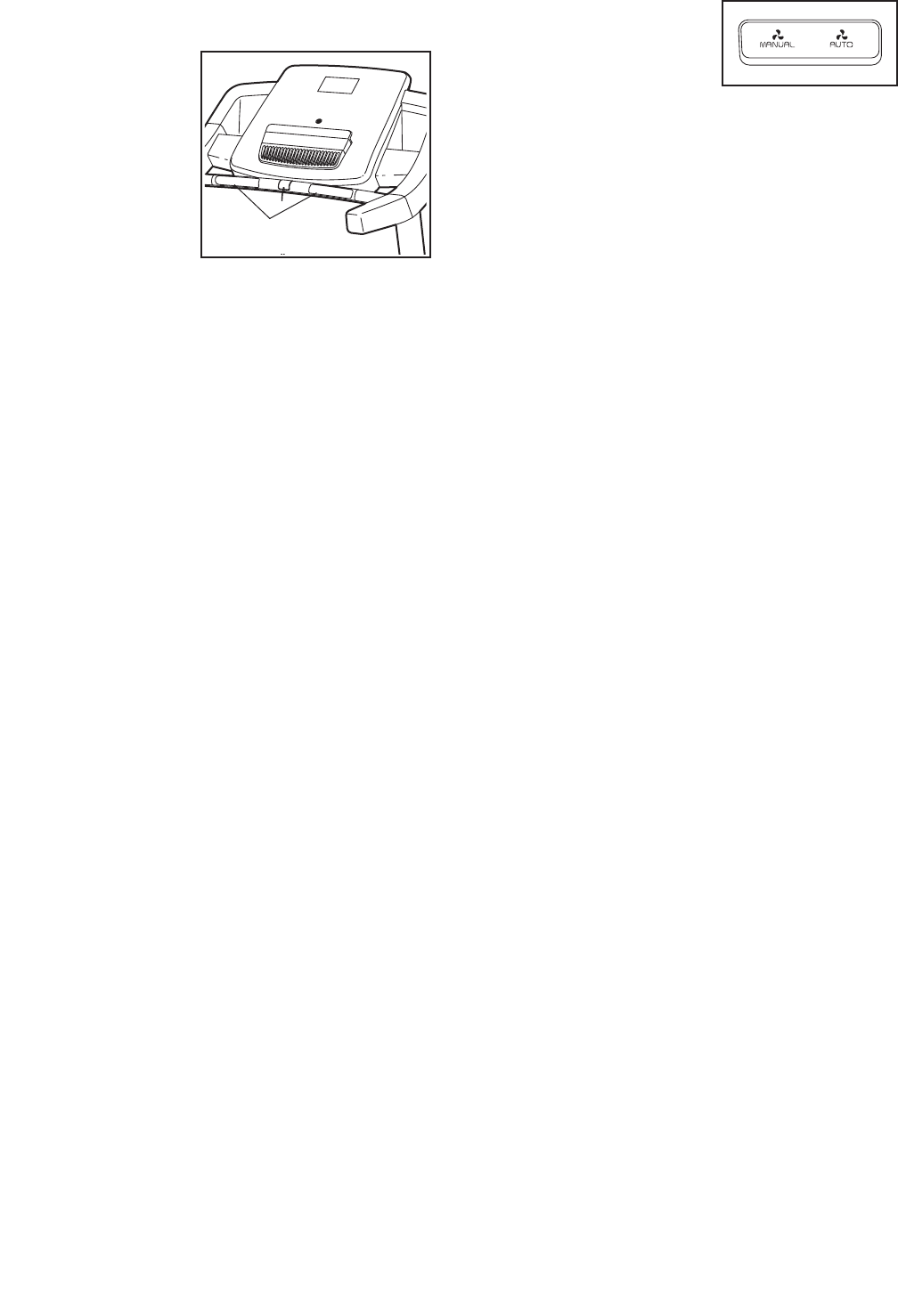

6. Measure your heart rate if desired.

Before using

the handgrip

heart rate moni-

tor, remove the

sheets of plastic

from the metal

contacts on the

pulse bar. In ad-

dition, make sure

that your hands

are clean.

To measure your heart rate, stand on the foot

rails and hold the pulse bar with your palms on

the metal contacts for approximately ten seconds;

avoid moving your hands. When your pulse is

detected, a heart symbol in the calorie display

willasheachtimeyourheartbeats,oneortwo

dashes will appear, and then your heart rate will be

shown. For the most accurate heart rate read-

ing, continue to hold the contacts for about 15

seconds.

7. Turn on the fan if desired.

The fan features several speed settings and an

auto mode. When the auto mode is selected, the

speed of the fan will automatically increase and de-

crease as the speed of the walking belt increases

and decreases.

Press the Manual fan

button repeatedly to

select a fan speed or to

turn off the fan. Press

the Auto fan button to

select the auto mode or to turn off the fan.

8. When you are nished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest set-

ting or you may damage the treadmill when you

fold it to the storage position. Next, remove the

key from the console and put it in a secure place.

 Whenyouarenishedusingthetreadmill,press

the power switch into the off position and unplug

the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may

wear prematurely.

Contacts

HOW TO USE AN ONBOARD WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 17.

2. Select an onboard workout.

To select an onboard workout, press the Calorie

button, the Incline button, the Intensity button, or

the Speed button repeatedly until the desired work-

out appears in the display.

When you select an onboard workout, the lower

display will show the duration of the workout and

the name of the workout. The upper display will

show the duration and distance of the workout. In

addition,aproleofthespeedsettingsofthework-

out will appear in the matrix. If you select a calorie

workout, the approximate number of calories you

will burn will appear in the name of the workout.

3. Start the workout.

Press the Start button or the Speed increase button

to start the workout. A moment after you press the

button, the treadmill will automatically adjust to the

rstspeedandinclinesettingsoftheworkout.Hold

the handrails and begin walking.

Each workout is divided into segments. One speed

setting and one incline setting are programmed for

each segment. Note: The same speed setting and/

or incline setting may be programmed for consecu-

tive segments.

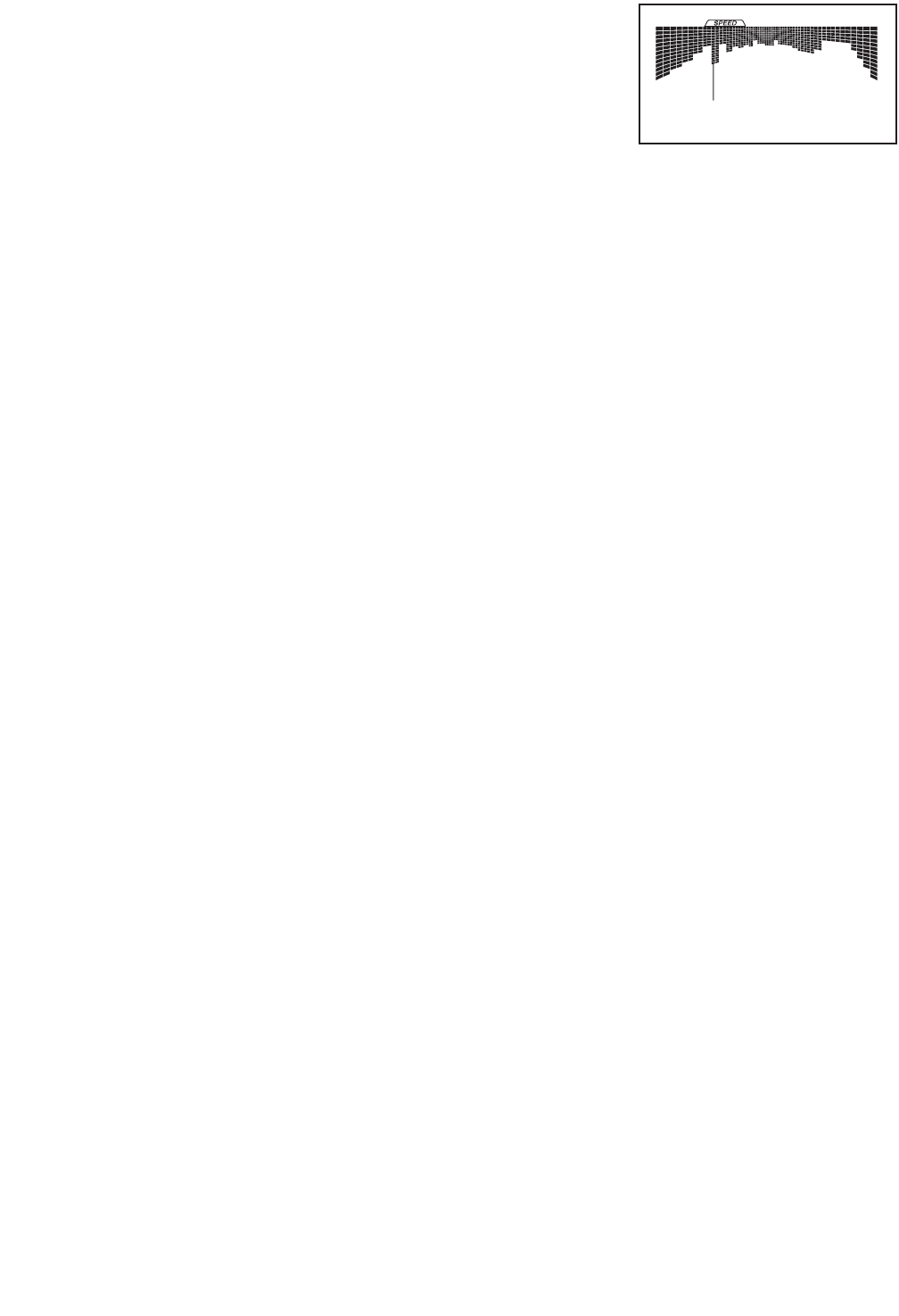

During the

workout, the

prolesonthe

speed and

incline tabs

will show your

progress. The

ashingseg-

mentoftheprolerepresentsthecurrentsegment

oftheworkout.Theheightoftheashingsegment

indicates the speed or incline setting for the current

segment. At the end of each segment, a series of

toneswillsoundandthenextsegmentoftheprole

willbegintoash.Ifadifferentspeedand/orincline

setting is programmed for the next segment, the

treadmill will automatically adjust to the new speed

and/or incline setting.

The workout will continue in this way until the last

segmentoftheproleashesinthedisplayandthe

last segment ends. The walking belt will then slow

to a stop.

Note: The calorie goal is an estimate of the

number of calories that you will burn during

the workout. The actual number of calories that

you burn will depend on your metabolic rate. In

addition, if you manually change the speed or

incline of the treadmill during the workout, the

number of calories you burn will be affected.

Current Segment

If the speed or incline setting is too high or too low

at any time during the workout, you can manu-

ally override the setting by pressing the Speed or

Incline buttons; however, when the next segment

of the workout begins, the treadmill will auto-

matically adjust to the speed and incline set-

tings for the next segment.

To stop the workout at any time, press the Stop

button.Thetimewillbegintoashinthedisplay.

To resume the workout, press the Start button or

the Speed increase button. The walking belt will

begin to move at 1 mph. When the next segment of

the workout begins, the treadmill will automatically

adjust to the speed and incline settings for the next

segment.

4. Follow your progress with the displays.

See step 5 on page 18. The display will show the

time remaining instead of the elapsed time.

5. Measure your heart rate if desired.

See step 6 on page 19.

6. Turn on the fan if desired.

See step 7 on page 19.

7. When you are nished exercising, remove the

key from the console.

See step 8 on page 19.

HOW TO USE AN IFIT LIVE WORKOUT

Note: To use an iFit Live workout, you must have an

optional iFit Live module. To purchase an iFit Live

module at any time, go to www.iFit.com or call the

telephone number on the front cover of this man-

ual. You must also have access to a computer with a

USB port and an internet connection. In addition, you

must have access to a wireless network including an

802.11b router with SSID broadcast enabled (hidden

networks are not supported). An iFit.com membership

is also required.

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 17.

2. Insert the iFit Live module into the console.

To insert the iFit Live module, see the instructions

included with the iFit Live module.

IMPORTANT: To satisfy exposure compliance

requirements, the antenna and transmitter in

the iFit Live module must be at least 8 in. (20

cm) from all persons and must not be near or

connected to any other antenna or transmitter.

3. Select a user.

If more than one user is registered, you can switch

users in the iFit Live main screen. Press the in-

crease and decrease buttons next to the Enter but-

ton to select a user.

4. Select an iFit Live workout.

To select an iFit Live workout, press one of the iFit

Live buttons. Before some workouts will download,

you must add them to your schedule on

www.iFit.com.

Press the iFit Live button to download the next

workout in your schedule. Press the My Trainer

button, the My Maps button, the World Tour button,

or the Event Training button to download the next

workout of that type in your schedule. Press the

Compete button to compete in a race that you have

previously scheduled. For more information on

the iFit Live workouts, please see

www.iFit.com.

When you select an iFit Live workout, the display

will show the duration of the workout, the distance

you will walk or run, and the approximate number of

calories you will burn. The display may also show

the name of the workout. If you select a competition

workout, the display will count down to the begin-

ning of the race.

5. Start the workout.

See step 3 on page 20.

During some workouts, the voice of a personal

trainer will guide you through your workout. You

can select an audio setting for your personal trainer

(see THE INFORMATION MODE on page 23).

To stop the workout at any time, press the Stop

button.Thetimewillbegintoashinthedisplay.

To resume the workout, press the Start button or

the Speed increase button. The walking belt will

begin to move at thespeedsettingfortherstseg-

ment of the workout. When the next segment of

the workout begins, the treadmill will automatically

adjust to the speed and incline settings for the next

segment.

6. Follow your progress with the displays.

See step 5 on page 18.

The My Trail tab will show a map of the trail you

are walking or running or it will show a track and

the number of laps you complete.

During a competition workout, the Competition tab

will show your progress in the race. As you race,

the top line in the matrix will show how much of the

race you have completed. The other lines will show

your top four competitors. The end of the matrix

represents the end of the race.

7. Measure your heart rate if desired.

See step 6 on page 19.

8. Turn on the fan if desired.

See step 7 on page 19.

9. When you are nished exercising, remove the

key from the console.

See step 8 on page 19.

For more information on the iFit Live mode, go to

www.iFit.com.

HOW TO USE THE STEREO SOUND SYSTEM

To play music or audio books through the console’s

stereo speakers, you must connect your MP3 player,

CD player, or other personal audio player to the con-

sole through the MP3 jack.

To use the MP3 jack, locate the included audio wire

and plug it into the MP3 jack. Then, plug the audio wire

into a jack on your MP3 player, CD player, or other

personal audio player. Make sure that the audio wire

is fully inserted.

Next, press the Play button

on your MP3 player, CD

player, or other personal

audio player. Adjust the vol-

ume on your personal audio

player or press the volume

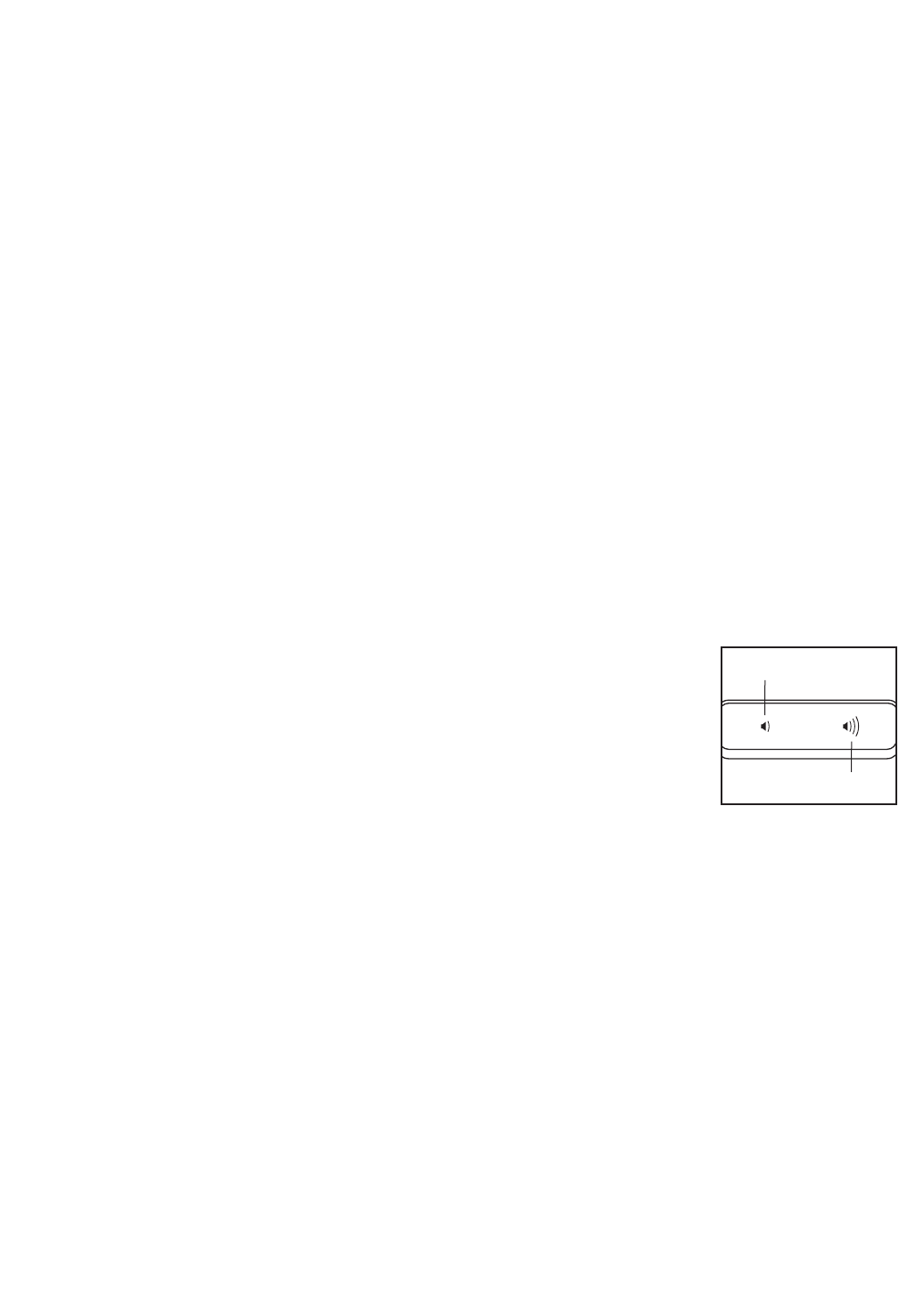

increase and decrease but-

tons on the console.

If you are using a personal CD player and the CD

skips,settheCDplayerontheoororanotheratsur-

face instead of on the console.

Decrease

Increase

THE INFORMATION MODE

The console features an information mode that keeps

track of treadmill information and allows you to person-

alize console settings.

To select the information mode, hold down the Stop

button while inserting the key into the console and then

release the Stop button. When the information mode is

selected, the following information will be shown:

The time display will show the total number of hours

the treadmill has been used.

The distance display will show the total number of

miles (or kilometers) that the walking belt has moved.

The lower section of the display will show the status of

an iFit Live module. If an iFit Live module is connected,

the display will show the words WIFI MODULE. If a

USB module is connected, the display will show the

words USB/SD MODULE. If no module is connected,

the display will show the words NO IFIT MODULE.

While the information mode is selected, the matrix

will display several optional screens. Press the

decrease button next to the Enter button to select

each of the following screens:

1. UNITS: To change the unit of measurement, press

the Enter button. To view distance in miles, select

ENGLISH. To view distance in kilometers, select

METRIC.

2. DEMO: The console features a display demo

mode, designed to be used if the treadmill is dis-

played in a store. While the demo mode is turned

on, the console will function normally when you

plug in the power cord, press the power switch

into the reset position, and insert the key into the

console. However, when you remove the key, the

displays will remain lit, although the buttons will not

function. If the demo mode is turned on, the word

ON will appear in the matrix. To turn on or turn off

the demo mode, press the Enter button.

3. CONTRAST LVL: Press the Incline increase and

decrease buttons to adjust the contrast level of the

display.

If a module is connected, you may also select the

following screen:

4. TRAINER VOICE: To turn on or turn off the voice

of the personal trainer, press the Enter button.

If an iFit Live module is connected, you may also

select the following screens:

5. DEFAULT MENU: The default menu will appear

when you insert the key into the console or when

you press the Home button. Press the Enter button

repeatedly to select the manual main screen or the

iFit Live screen as the default menu.

6. CHECK WIFI STATUS: Press the Enter button to

check the status of your iFit Live module. The lower

display will show the software version number, the

network SSID, the network encryption type, the

connection status, the wireless signal strength, the

IP address of the module, the number of registered

users and their names, the results of the DNS

lookup, and the status of the iFit Live server.

7. SEND/RECEIVE DATA: To send and receive

workouts, workout logs, and updates, press the

Enterbutton.Whentheprocessisnished,the

words TRANSFERS DONE will appear in the

display.

To exit the information mode, remove the key from the

console.

HOW TO FOLD THE TREADMILL

To avoid damaging the treadmill, adjust the incline

to the lowest position before you fold the treadmill.

Then, remove the key and unplug the power cord.

CAUTION: You must be able to safely lift 45 lbs. (20

kg) to raise, lower, or move the treadmill.

1. Holdthemetalframermlyinthelocationshown

by the arrow below. CAUTION: Do not hold the

frame by the plastic foot rails. Bend your legs

and keep your back straight.

2. Raise the frame until the latch knob locks in the

storage position. CAUTION: Make sure that the

latch knob locks.

Toprotecttheoororcarpet,placeamatunderthe

treadmill. Keep the treadmill out of direct sunlight. Do

not leave the treadmill in the storage position in tem-

peratures above 85° F (30° C).

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the

left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill

may require two people.

1. Hold the frame and one of the handrails, and place

one foot against a wheel.

2. Pull back on the handrail until the treadmill will roll

on the wheels, and carefully move it to the desired

location. CAUTION: Do not move the treadmill

without tipping it back, do not pull on the frame,

and do not move the treadmill over an uneven

surface.

3. Place one foot against a wheel, and carefully lower

the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

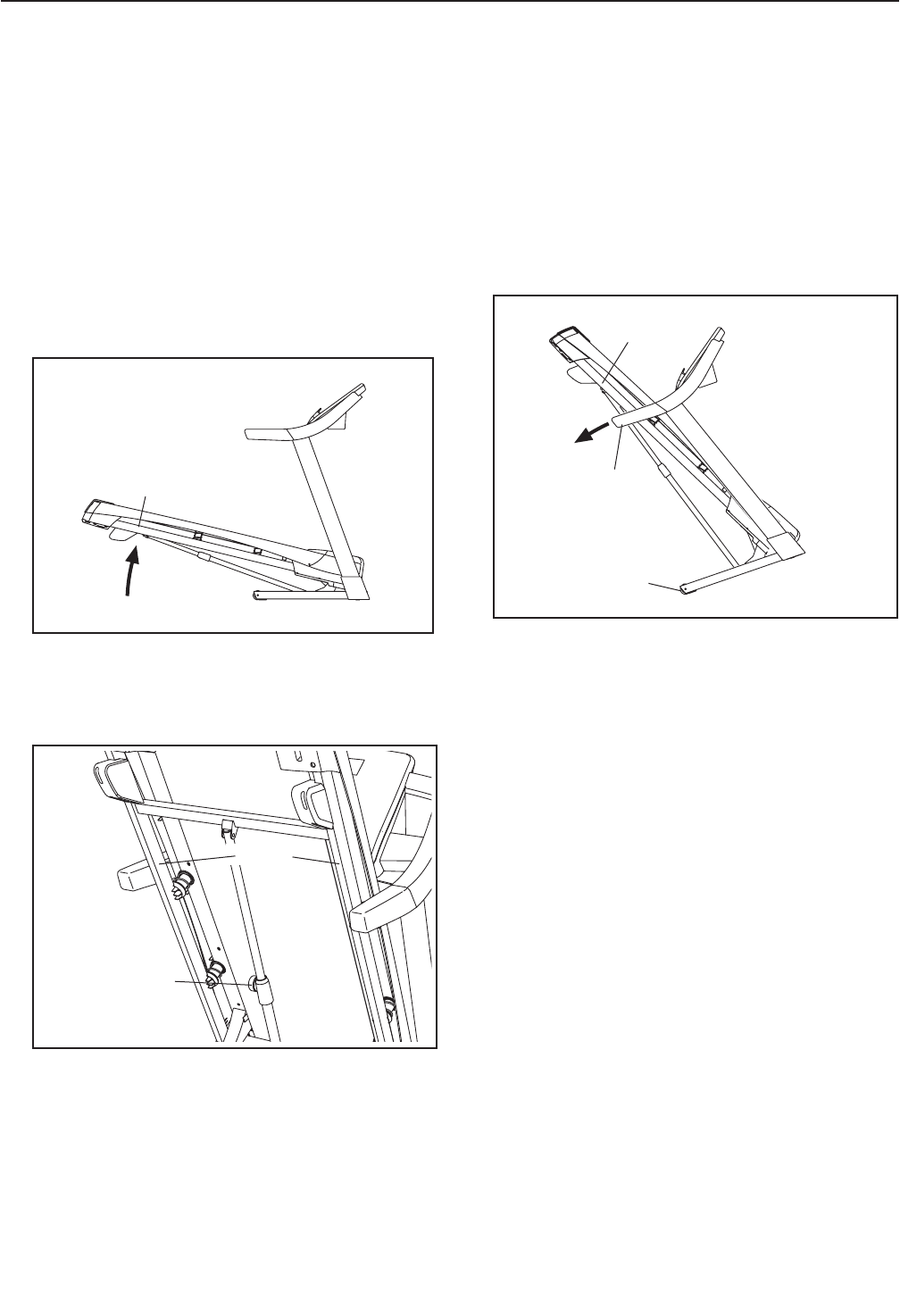

1. See drawing 2. Hold the upper end of the treadmill

with your right hand. Then, pull the latch knob to

the left and hold it. IMPORTANT: Do not turn the

latch knob. If necessary, push the frame forward

slightly. Pivot the frame downward a few inches,

and release the latch knob.

2. See drawing 1 at the left. Hold the metal frame

rmlywithbothhands,andlowerittotheoor.

CAUTION: Do not hold the frame by the plastic

foot rails, and do not drop the frame. Bend your

legs and keep your back straight.

HOW TO FOLD AND MOVE THE TREADMILL

Latch

Knob

Frame

Handrail

Frame

Wheel

Most treadmill problems can be solved by following

the simple steps below. Find the symptom that

applies, and follow the steps listed. If further assis-

tance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a

surge suppressor and that the surge suppressor is

plugged into a properly-grounded outlet (see page

15). Use only a single-outlet surge suppressor that

meetsallofthespecicationsdescribedonpage

15. IMPORTANT: The treadmill is not compat-

ible with GFCI-equipped outlets and may not be

compatible with AFCI-equipped outlets.

b. After the power cord has been plugged in, make

sure that the key is inserted into the console.

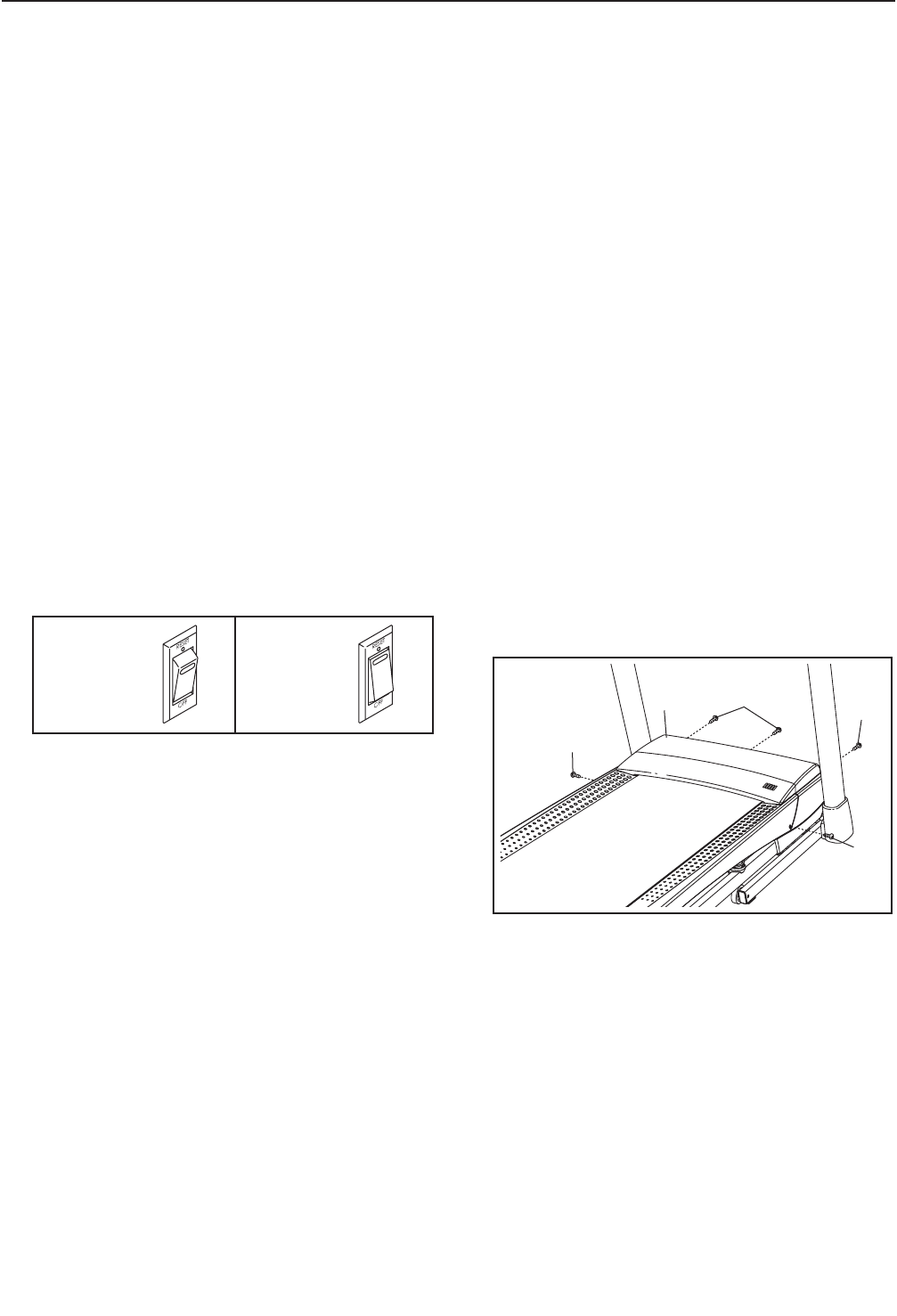

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes

as shown, the switch has tripped. To reset the

powerswitch,waitforveminutesandthenpress

the switch back in.

SYMPTOM: The power turns off during use

a. Check the power switch (see the drawing above).

Iftheswitchhastripped,waitforveminutesand

then press the switch back in.

b. Make sure that the power cord is plugged in. If the

powercordispluggedin,unplugit,waitforve

minutes, and then plug it back in.

c. Remove the key from the console, and then

reinsert it.

d. If the treadmill still will not run, please see the front

cover of this manual.

SYMPTOM: The console displays remain lit when

you remove the key from the console

a. The console features a display demo mode, de-

signed to be used if the treadmill is displayed in a

store. If the displays remain lit when you remove

the key, the demo mode is turned on. To turn off

the demo mode, hold down the Stop button for a

few seconds. If the displays are still lit, see THE

INFORMATION MODE on page 23 to turn off the

demo mode.

SYMPTOM: The displays of the console do not

function properly

a. Remove the key from the console and UNPLUG

THE POWER CORD.

 Removetheve#8x3/4"Screws(15).Carefully

slide the Motor Hood (65) off.

TROUBLESHOOTING

Reset

Tripped

65 15

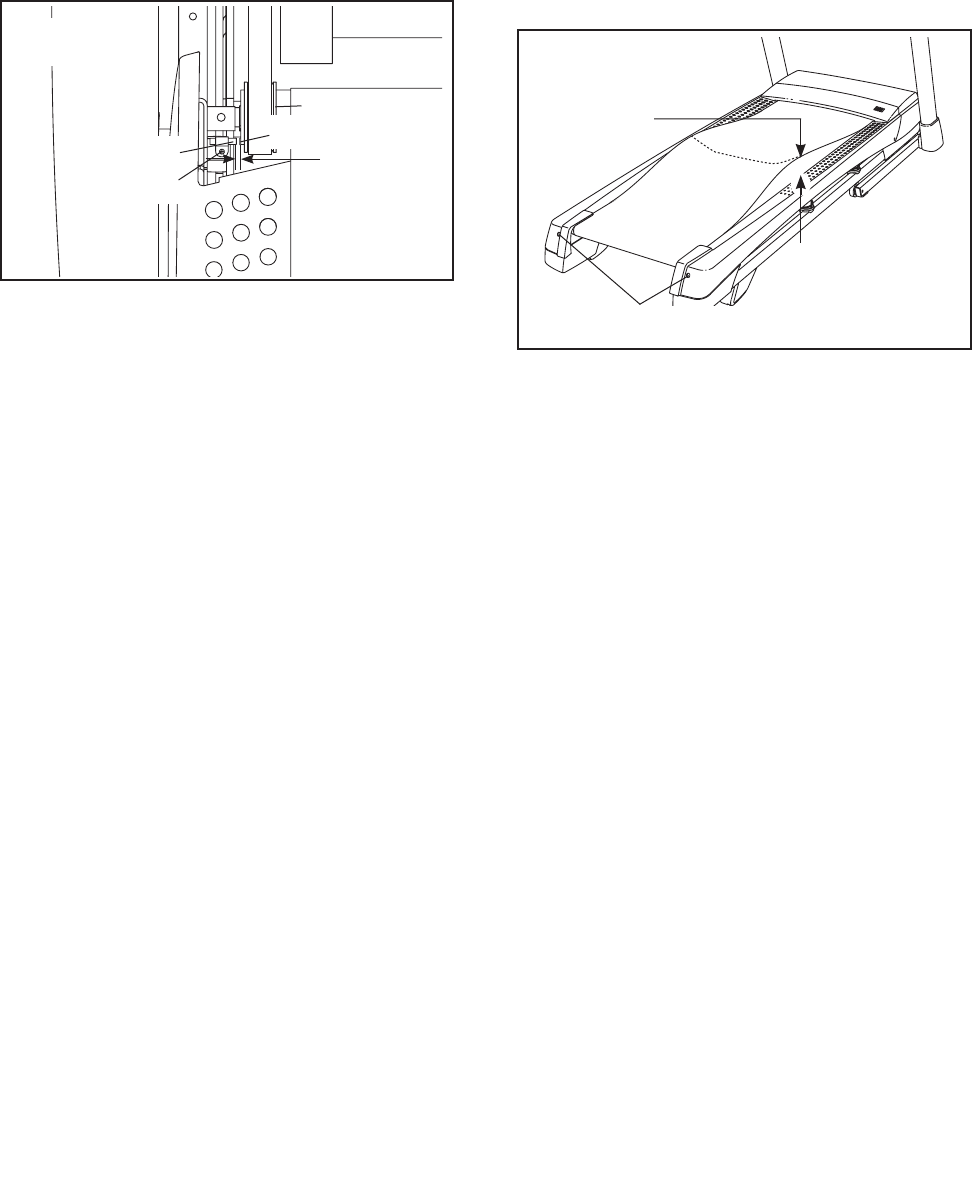

Locate the Reed Switch (52) and the Magnet (51)

on the left side of the Pulley (50). Turn the Pulley

until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet

and the Reed Switch is about 1/8 in. (3 mm). If

necessary, loosen the #8 x 3/4" Tek Screw (13),

move the Reed Switch slightly, and then retighten

the Screw. Reattach the Motor Hood (not shown)

withtheve#8x3/4"Screws(notshown)andrun

the treadmill for a few minutes to check for a cor-

rect speed reading.

SYMPTOM: The incline of the treadmill does not

change correctly

a. Hold down the Stop button and the Speed increase

button, insert the key into the console, and then

release the Stop button and the Speed increase

button. Press the Stop button and then press the

Incline increase or decrease button. The treadmill

will automatically rise to the maximum incline level

and then return to the minimum level. This will re-

calibrate the incline system. If the incline does not

begin calibrating, press the Stop button again, and

then press the Incline increase or decrease button

again. When the incline is calibrated, remove the

key from the console.

SYMPTOM: The walking belt slows when walked on

a. Use only a single-outlet surge suppressor that

meetsallofthespecicationsdescribedonpage

15.

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may

become damaged. Remove the key and UNPLUG

THE POWER CORD. Using the hex key, turn both

idler roller screws counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you

should be able to lift each edge of the walking belt

2 to 3 in. (5 to 7 cm) off the walking platform. Be

careful to keep the walking belt centered. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

c. Your treadmill features a walking belt coated with

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to the

walking belt or the walking platform unless in-

structed to do so by an authorized service rep-

resentative. Such substances may deteriorate

the walking belt and cause excessive wear. If

you suspect that the walking belt needs more lubri-

cant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see

the front cover of this manual.

Idler Roller Screws

2–3 in.

Top

View

52 1/8 in.

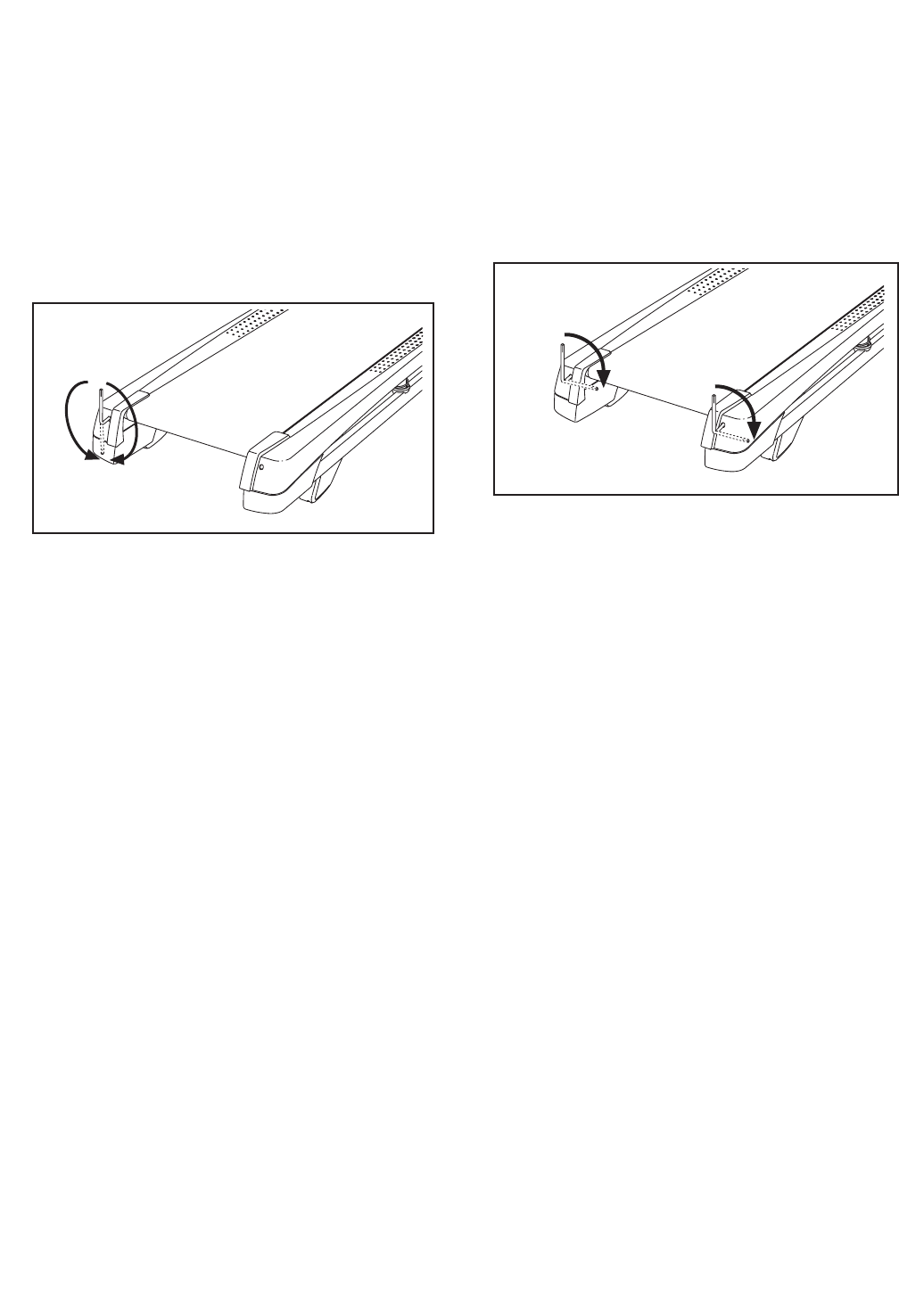

SYMPTOM: The walking belt is off-center or slips

when walked on

a. If the walking belt is off-center,rstremovethe

key and UNPLUG THE POWER CORD. If the

walking belt has shifted to the left, use the hex

key to turn the left idler roller screw clockwise 1/2

of a turn; if the walking belt has shifted to the

right, turn the left idler roller screw counterclock-

wise 1/2 of a turn. Be careful not to overtighten the

walking belt. Then, plug in the power cord, insert

the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered.

b. If the walking belt slips when walked on,rstre-

move the key and UNPLUG THE POWER CORD.

Using the hex key, turn both idler roller screws

clockwise, 1/4 of a turn. When the walking belt is

correctly tightened, you should be able to lift each

edge of the walking belt 2 to 3 in. (5 to 7 cm) off

the walking platform. Be careful to keep the walk-

ing belt centered. Then, plug in the power cord,

insert the key, and carefully walk on the treadmill

for a few minutes. Repeat until the walking belt is

properly tightened.

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your "training zone." The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise—never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

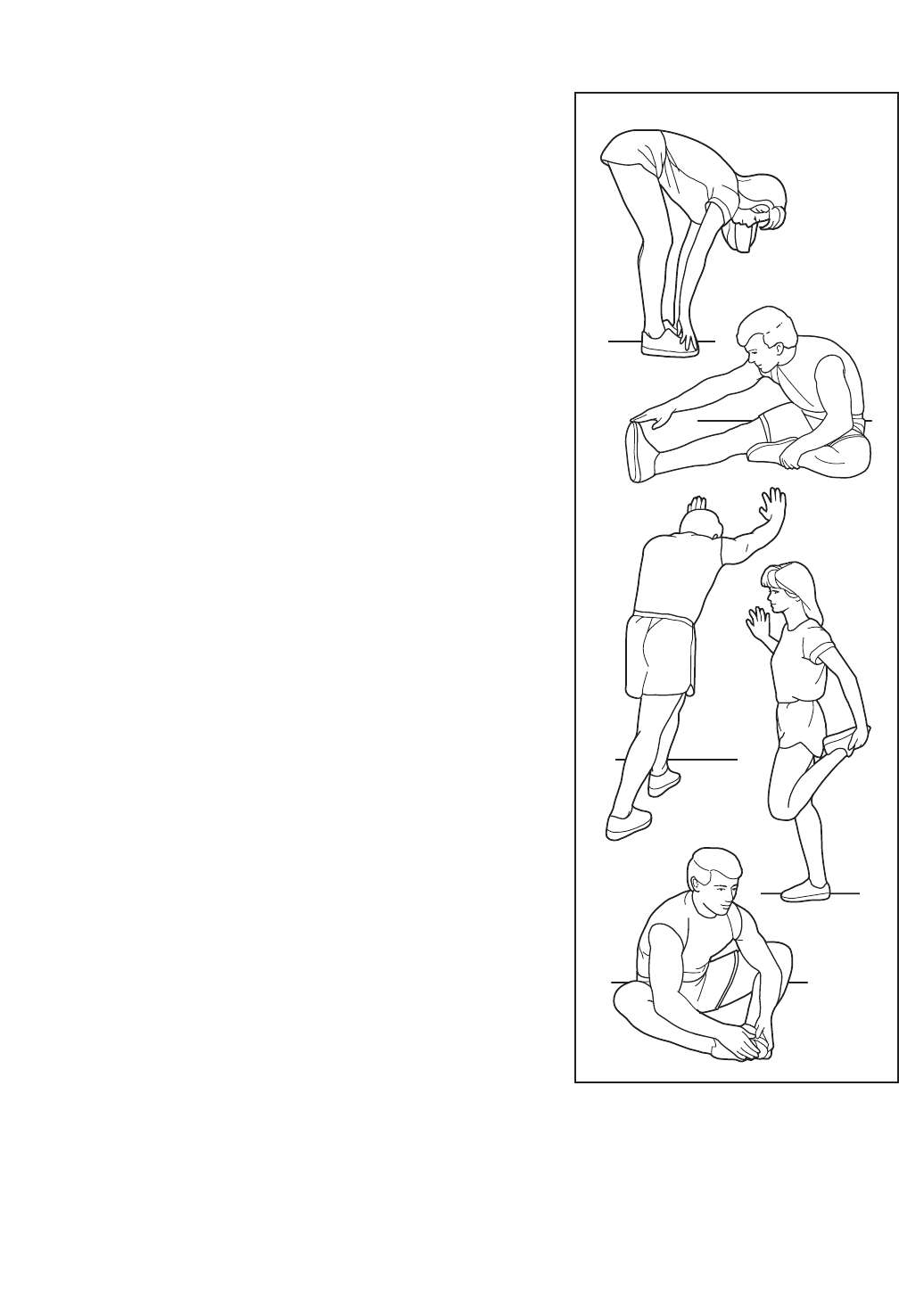

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach

down toward your toes as far as possible. Hold for 15 counts, then

relax. Repeat 3 times. Stretches: Hamstrings, back of knees and

back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward

you and rest it against the inner thigh of your extended leg. Reach

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Hamstrings, lower back and

groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back foot

atontheoor.Bendyourfrontleg,leanforwardandmoveyour

hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times

for each leg. To cause further stretching of the achilles tendons,

bend your back leg as well. Stretches: Calves, achilles tendons and

ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one

foot with your other hand. Bring your heel as close to your buttocks

as possible. Hold for 15 counts, then relax. Repeat 3 times for each

leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip

muscles.

Key No. Qty. Description Key No. Qty. Description

PART LIST Model No. 29822.1 R0811A

1 14 #8 x 1/2" Screw

2 2 3/8" x 2" Bolt

3 6 3/8" x 4" Screw

4 4 #10 x 3/4" Screw

5 4 #10 Star Washer

6 7 #8 x 1/2" Ground Screw

7 2 3/8" x 2 1/2" Bolt

8 4 5/16" Star Washer

9 4 3/8" Nut

10 6 3/8" Star Washer

11 4 5/16" x 5/8" Screw

12 4 5/16" x 2 3/4" Screw

13 13 #8 x 3/4" Tek Screw

14 33 #8 x 3/4" Pan Head Screw

15 5 #8 x 3/4" Screw

16 2 1/4" Roller Screw

17 1 Key/Clip

18 2 #8 x 1 3/4" Screw

19 9 #8 x 7/16" Screw

20 2 5/16" x Motor Screw

21 2 1/4" x 1 1/2" Screw

22 2 3/8" x 1" Bolt

23 4 5/16" x 1 3/4" Shoulder Bolt

24 1 1/4" x 1" Screw

25 4 #8 x 1" Screw

26 12 #8 x 3/4" Pan Tek Screw

27 1 3/8" x 1 1/2" Hex Head Bolt

28 1 3/8" x 3" Hex Head Bolt

29 1 Base

30 1 1/4" Star Washer

31 4 5/16" Flat Washer

32 2 Incline Frame Washer

33 4 5/16" Nut

34 3 Hood Clip

35 4 Platform Grommet

36 4 3/8" Jam Nut

37 2 Thick Base Pad

38 4 Isolator Top

39 4 Isolator

40 4 Spring

41 4 Isolator Bottom

42 1 Left Foot Rail

43 1 Caution Decal

44 1 Walking Platform

45 1 Walking Belt

46 1 Right Foot Rail

47 2 Belt Guide

48 2 Incline Frame Pin

49 1 Reed Switch Clip

50 1 Drive Roller/Pulley

51 1 Magnet

52 1 Reed Switch

53 4 Cable Tie

54 1 Storage Latch

55 1 Drive Motor

56 1 Motor Belt

57 1 Frame

58 1 Right Rear Foot

59 1 Left Rear Foot

60 1 Right Rear Cover

61 1 Left Rear Cover

62 1 Idler Roller

63 1 Hex Key

64 1 5/32" Hex Key

65 1 Motor Hood

66 1 Hood Accent

67 1 Incline Motor

68 2 Incline Frame Insert

69 1 Incline Frame

70 1 Controller

71 1 Electronics Bracket

72 2 Hood Post

73 1 Power Switch

74 1 Power Cord

75 1 Power Cord Grommet

76 1 Belly Pan

77 2 Handrail Cover

78 1 Left Handrail Insert

79 1 Left Handrail

80 1 Ground Wire

81 1 Pulse Crossbar

82 1 Right Handrail Insert

83 1 Right Handrail

84 1 Left Upright

85 1 Right Upright

86 1 Base Ground Wire

87 4 Base Cap

88 1 Left Base Cover

89 1 Right Base Cover

90 1 Grommet

91 1 Upright Wire

92 2 Thin Base Pad

93 2 Wheel

94 2 Warning Decal

95 1 Left Tray

96 1 Right Tray

97 1 Audio Wire

98 1 Console Base

99 1 Wire Tie

100 1 Console

Key No. Qty. Description

101 1 Console Frame

102 2 Console Clamp

103 1 French Latch Decal

* – User’s Manual

Note:Specicationsaresubjecttochangewithoutnotice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

EXPLODED DRAWING A

44 45

15 13 52

18 20

59 103

Model No. 29822.1 R0811A

EXPLODED DRAWING B

69 27

Model No. 29822.1 R0811A

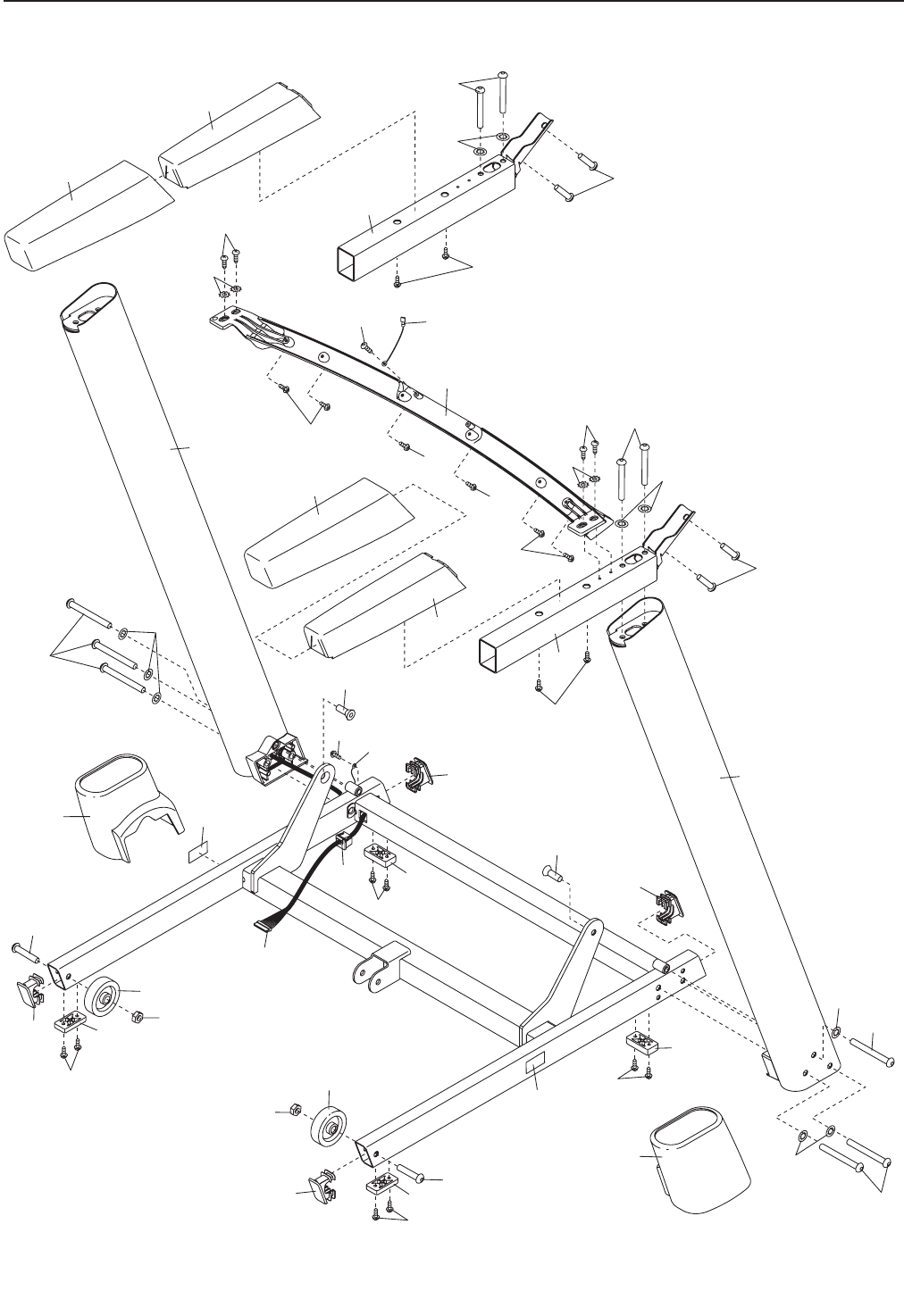

EXPLODED DRAWING C

686

17 80

Model No. 29822.1 R0811A

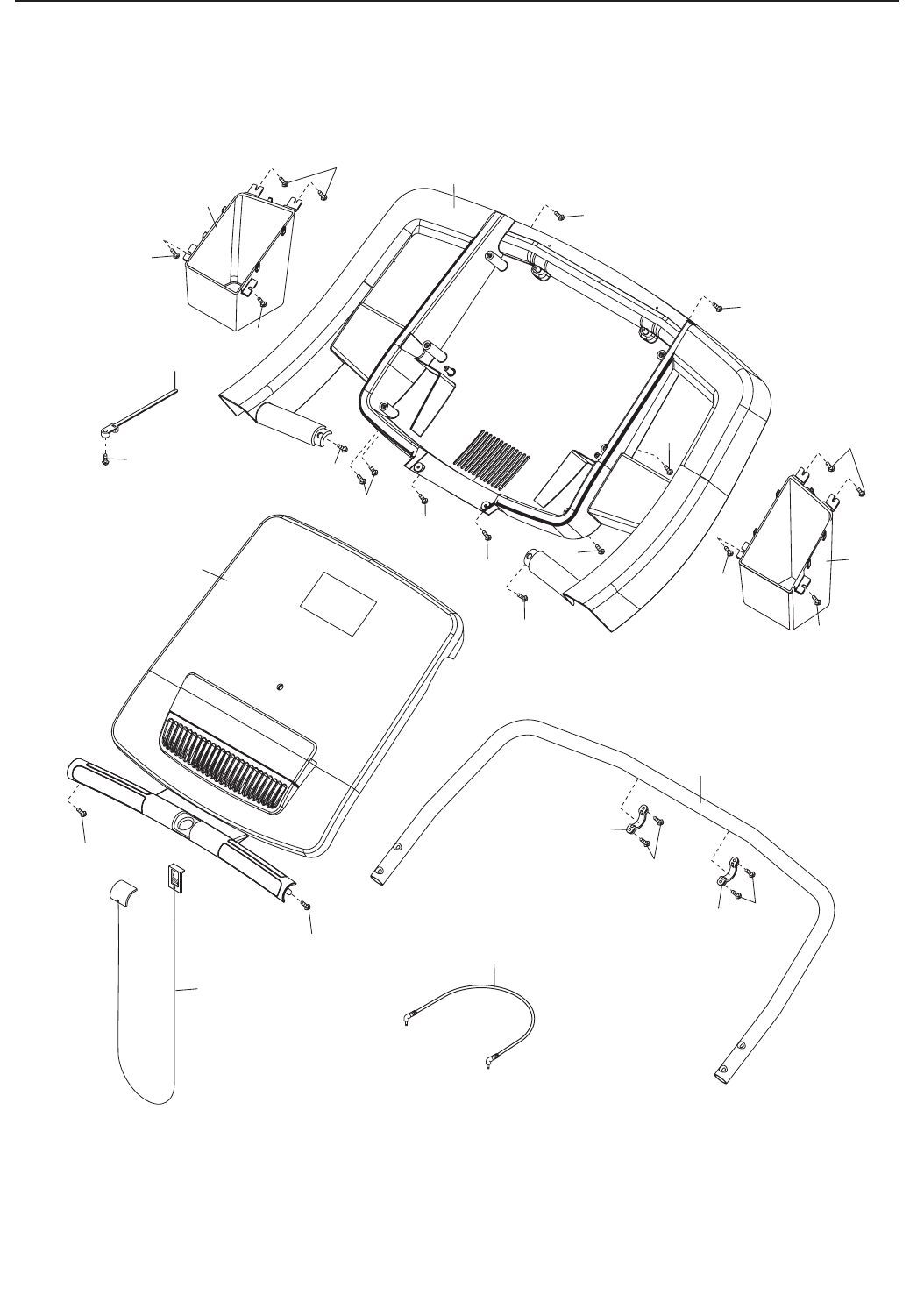

EXPLODED DRAWING D

102

14 96

101

100

Model No. 29822.1 R0811A

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

•themodelnumberandserialnumberoftheproduct(seethefrontcoverofthismanual)

•thenameoftheproduct(seethefrontcoverofthismanual)

•thekeynumberanddescriptionofthereplacementpart(s)(seethePARTLISTandtheEXPLODEDDRAWING

near the end of this manual)

ICON of Canada, Inc. (ICON) warrants this product to be free from defects in workmanship and material,

under normal use and service conditions. The frame and drive motor are warranted for a lifetime. Parts

are warranted for two (2) years from the date of purchase. Labor is warranted for one (1) year from the

date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty

is limited to repairing or replacing, at ICON’s option, the product through one of its authorized service

centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product

is shipped to a service center, freight charges to and from the service center will be the customer’s re-

sponsibility. If replacement parts are shipped while the product is under warranty, the customer will be

responsible for a minimal handling charge. For in-home service, the customer will be responsible for a

minimal trip charge. This warranty does not extend to freight damage to the product. This warranty will

automatically be voided if the product is used as a store display model, if all instructions in this manual

are not followed, if the product is abused or improperly or abnormally used, or if the product is used for

commercialorrentalpurposes.Nootherwarrantybeyondthatspecicallysetforthaboveisauthorized

by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property,lossofrevenuesorprots,lossofenjoymentoruse,orcostsofremovalorinstallation;orother

consequential damages of any kind. Some provinces do not allow the exclusion or limitation of incidental

or consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantabilityortnessforaparticularpurposearelimitedintheirscopeanddurationtothetermsset

forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly,

the above limitation may not apply to the customer.

Thiswarrantyprovidesspeciclegalrights;thecustomermayhaveotherrightsthatvaryfromprovince

to province.

ICON of Canada, Inc., 900 de l’Industrie, St. Jérôme, QC J7Y 4B8

LIMITED WARRANTY

Nordic Track 298221 Owner S Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
