CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
DO NOT CONTACT THE STORE;
please contact Customer Care.
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
CALL TOLL-FREE:
1-888-825-2588
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
USER'S MANUAL
Model No. NTL15008.0
Serial No.
Write the serial number in the space
above for reference.
www.nordictrack.com
TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS .................................................................3
BEFOREYOUBEGIN .......................................................................5
ASSEMBLY ...............................................................................6
OPERATIONANDADJUSTMENT ............................................................12
HOWTOMOVETHEINCLINETRAINER.......................................................20
TROUBLESHOOTING ......................................................................21
EXERCISEGUIDELINES ...................................................................24
PARTLIST ...............................................................................26

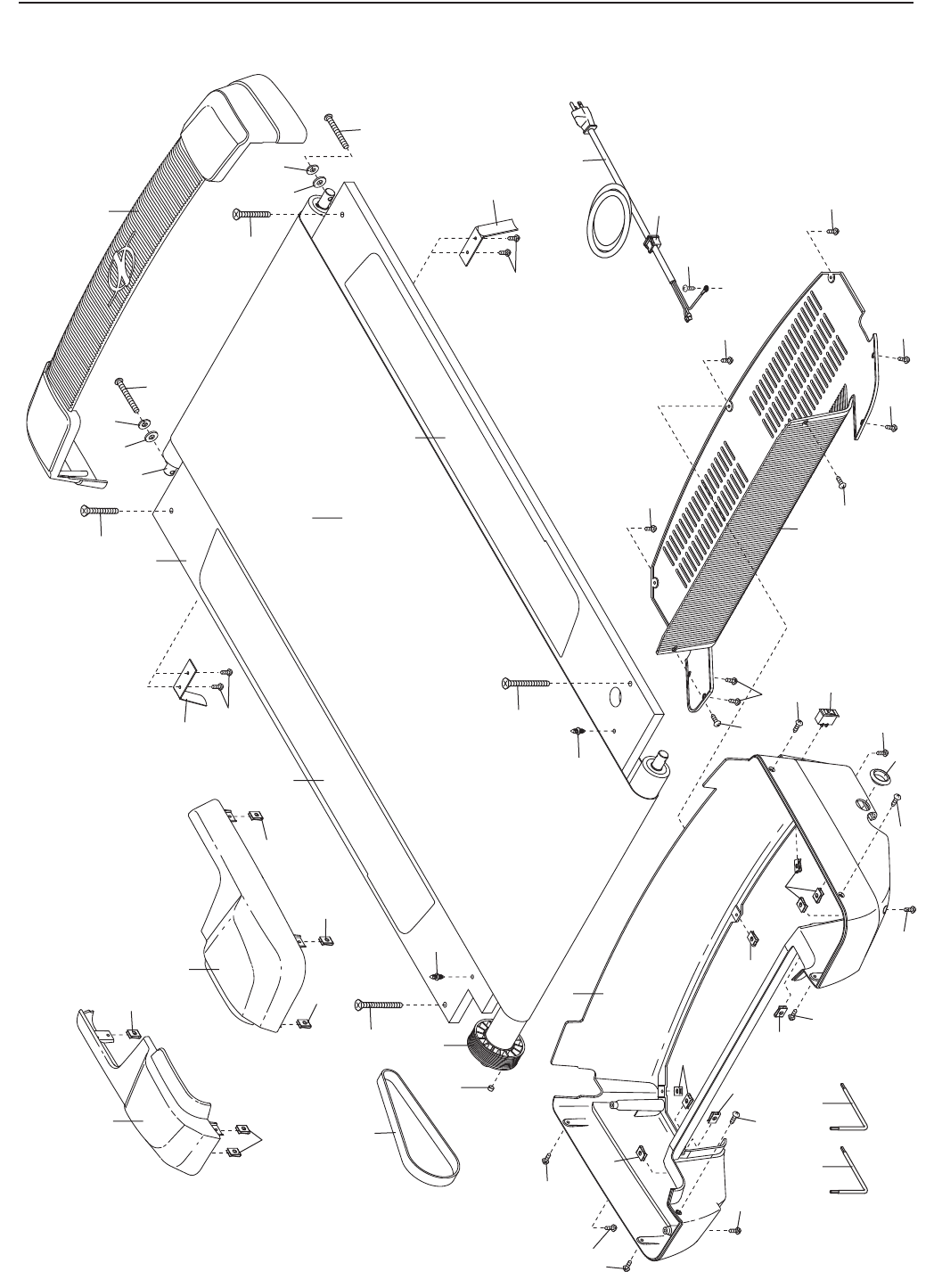

EXPLODEDDRAWING .....................................................................28
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY...............................................................BackCover
NordicTrack is a registered trademark of ICON IP, Inc.
2

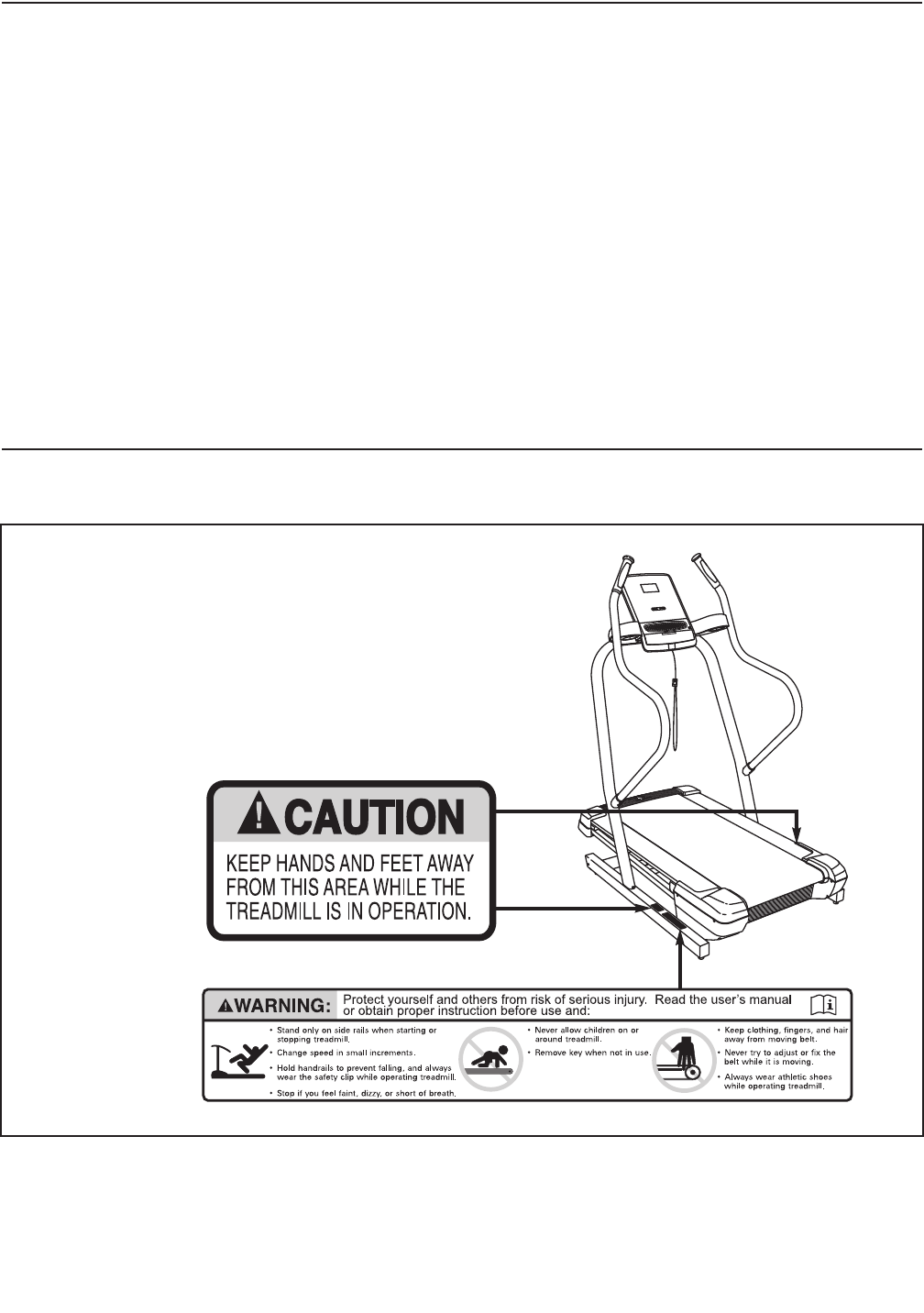

This drawing shows the locations of the warning decals.
If a decal is missing or illegible, call the telephone
number on the front cover of this manual and re-
quest a free replacement decal. Apply the decal in
the location shown. Note: The decals may not be
shown at actual size.
WARNING DECAL PLACEMENT
3
1. Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over age 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this incline trainer are ade-
quately informed of all warnings and precau-
tions.
3. Use the incline trainer only as described.
4. Place the incline trainer on a level surface,
with at least 8 ft. (2.4 m) of clearance behind
it and 2 ft. (0.6 m) on each side. Do not place
the incline trainer on any surface that blocks
air openings. To protect the floor or carpet
from damage, place a mat under the incline
trainer.
5. Keep the incline trainer indoors, away from
moisture and dust. Do not put the incline
trainer in a garage or covered patio, or near
water.
6. Do not operate the incline trainer where
aerosol products are used or where oxygen
is being administered.
7. Keep children under age 12 and pets away
from the incline trainer at all times.
8. The incline trainer should be used only by
persons weighing 300 lbs. (136 kg) or less.
9. Never allow more than one person on the in-
cline trainer at a time.
10. Wear appropriate exercise clothes when
using the incline trainer. Do not wear loose
clothes that could become caught in the in-
cline trainer. Athletic support clothes are rec-
ommended for both men and women. Always
wear athletic shoes. Never use the incline
trainer with bare feet, wearing only stockings,
or in sandals.
11. When connecting the power cord (see page
12), plug the power cord into a surge suppres-
sor (not included) and plug the surge sup-
pressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 12. To purchase a surge suppressor, see
your local NordicTrack dealer or call the tele-
phone number on the front cover of this man-
ual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the incline trainer. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the incline
trainer if the power cord or plug is damaged,
or if the incline trainer is not working prop-
erly. (See TROUBLESHOOTING on page 21 if
the incline trainer is not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the incline
trainer (see HOW TO TURN ON THE POWER
on page 14).
17. Never start the incline trainer while you are
standing on the walking belt. Always hold the
handrails while using the incline trainer.
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your incline trainer before using your incline trainer.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
IMPORTANT PRECAUTIONS
4
18. The incline trainer is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
19. The pulse sensors are not medical devices.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensors are intended
only as an exercise aid in determining heart
rate trends in general.
20. Never leave the incline trainer unattended
while it is running. Always remove the key,
unplug the power cord, and switch the
reset/off circuit breaker to the “off” position
when the incline trainer is not in use. (See the
drawing on page 5 for the location of the
reset/off circuit breaker.)
21. Do not attempt to move the incline trainer until
it is properly assembled. (See ASSEMBLY on
page 6, and HOW TO MOVE THE INCLINE
TRAINER on page 20.) You must be able to
safely lift 45 lbs. (20 kg) to move the incline
trainer.
22. Do not change the incline of the incline
trainer by placing objects under the incline
trainer.
23. Inspect and properly tighten all parts of the
incline trainer regularly.
24. Never insert or drop any object into any
opening on the incline trainer.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning
the incline trainer, and before performing the
maintenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
26. The incline trainer is intended for in-home use
only. Do not use the incline trainer in any
commercial, rental, or institutional setting.
SAVE THESE INSTRUCTIONS
Thank you for selecting the revolutionary NordicTrack®
INCLINE TRAINER X3 INTERACTIVE. The INCLINE
TRAINER X3 INTERACTIVE offers a selection of fea-
tures designed to make your workouts at home more
enjoyable and effective.
For your benefit, read this manual carefully before
using the incline trainer. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

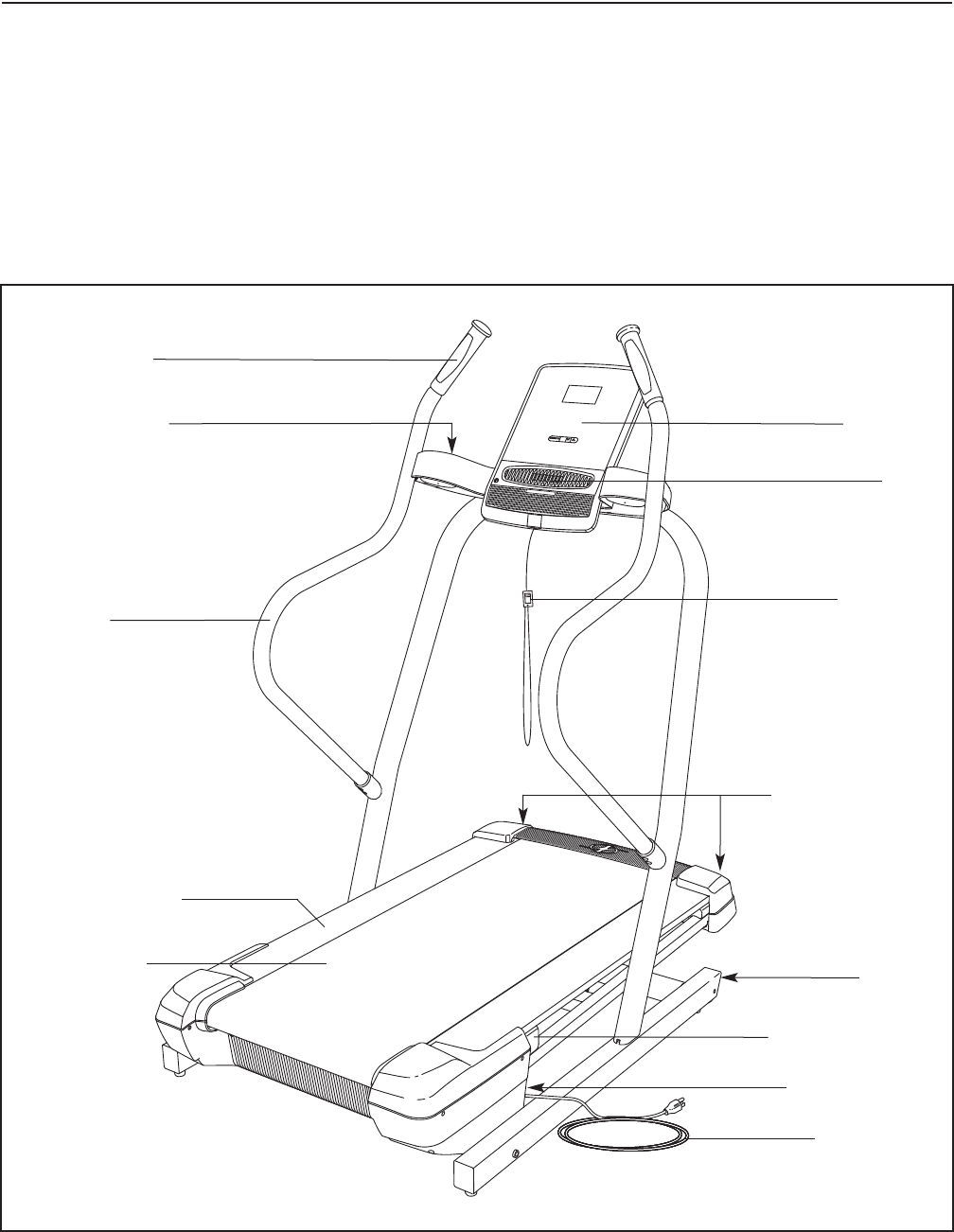

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
5
Handrail
Console
Fan
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Power Cord
Platform Cushion
Wheel
Idler Roller
Adjustment Bolts
Accessory Tray
Walking Platform
Pulse Sensor
ASSEMBLY
Assembly requires two persons. Set the incline trainer in a cleared area and remove all packing materials. Do
not dispose of the packing materials until assembly is completed. Note: The underside of the incline trainer
walking belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the
top of the walking belt or the shipping carton. This is normal and does not affect incline trainer performance. If
there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive
cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver and
adjustable wrench .

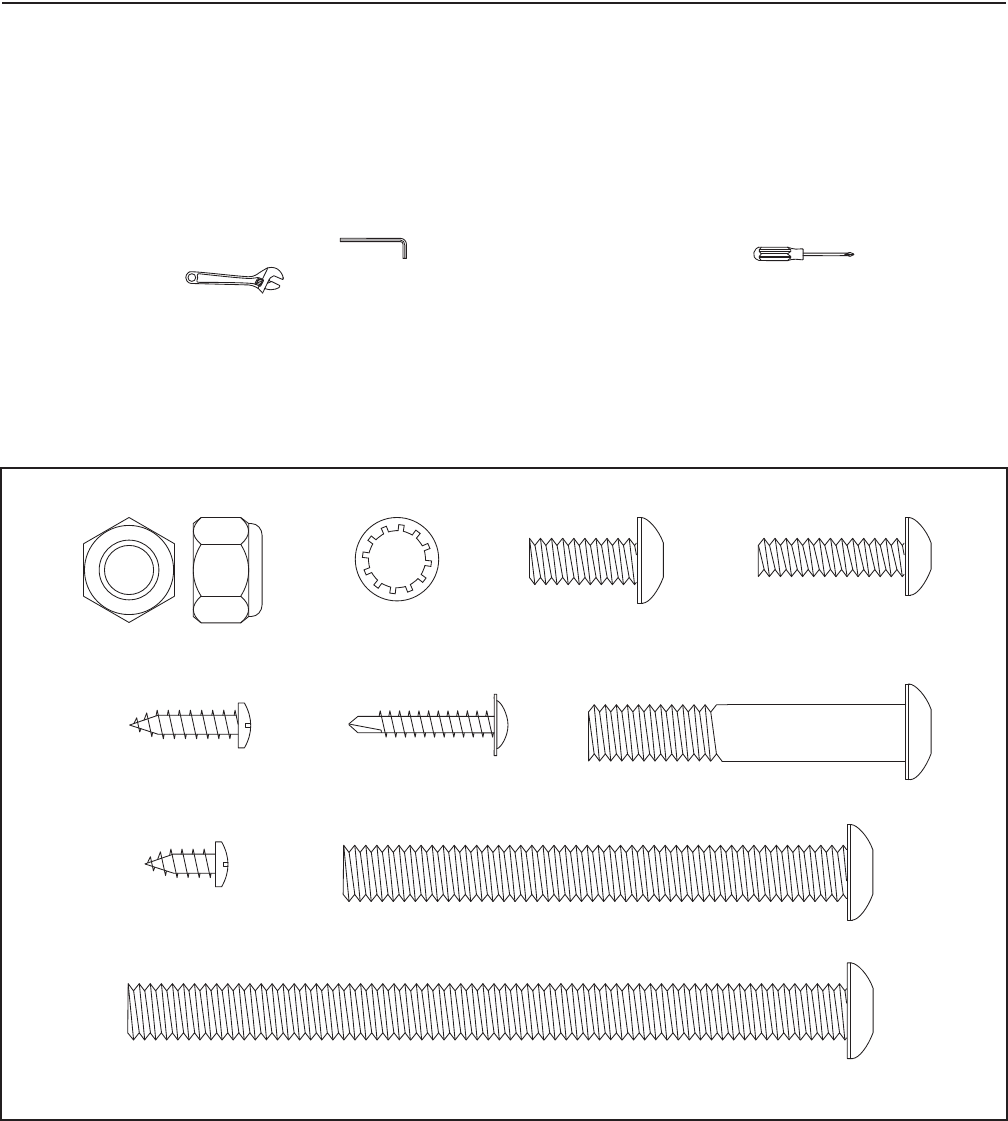

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assem-
bly. Extra hardware may be included.
6
#8 x 3/4"
Screw (1)–8
#8 x 1" Tek
Screw (2)–4
3/8" Nut (8)–2
3/8" Star
Washer (9)–6
#8 x 1/2" Cover
Screw (92)–2 3/8" x 3 1/2" Bolt (3)–4
3/8" x 2 1/2" Bolt (4)–2
3/8" x 5" Bolt (7)–2
5/16" x 3/4"
Bolt (6)–4
1/4" x 1"
Bolt (32)–4
7

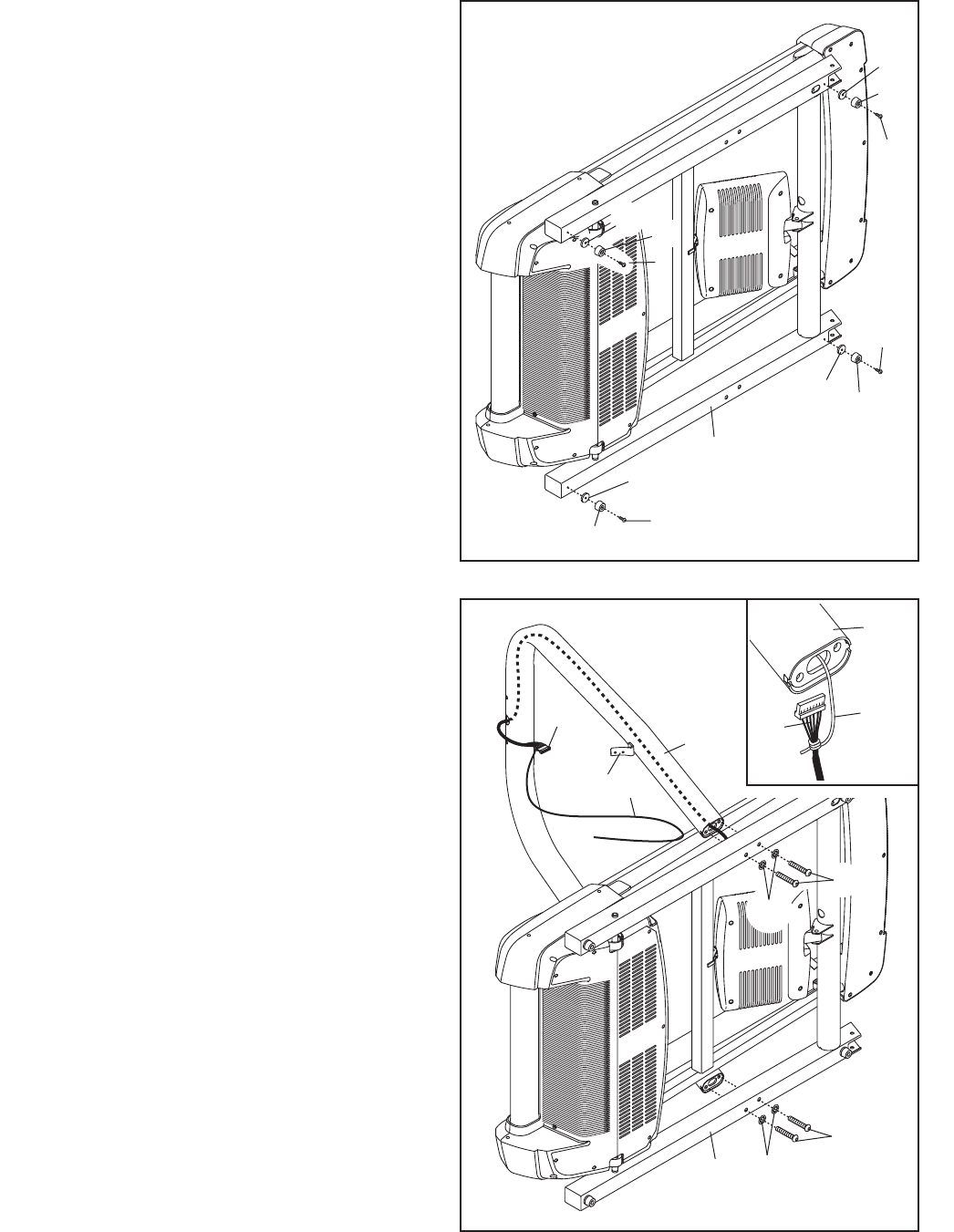

1. Make sure that the power cord is unplugged.
With the help of a second person, tip the incline
trainer onto its left side. Have the second person
hold the incline trainer to prevent it from tipping.
Attach four Base Feet (80) and four Base Foot
Spacers (79) to the Base (78) with four #8 x 1"
Tek Screws (2). Be careful not to overtighten
the Screws.
1
2
2
2
80
80
80
79
79
79
78
2
2. Hold the Upright (74) near the incline trainer,
with the brackets on the Upright oriented as
shown.
See the inset drawing. Wrap the wire tie in the
Upright (74) around the end of the Upright Wire
(72). Then, pull the other end of the wire tie until
the Upright Wire is routed completely through
the Upright.
Attach the Upright (74) to the Base (78) with
four 3/8" x 3 1/2" Bolts (3) and four 3/8" Star
Washers (9). Start all four Bolts before tight-
ening any of them. Be careful not to pinch
the Upright Wire (72).
2
74
78
Tie
9
3
72
9
74
72 Wire
Tie
Bracket
3
79 80
8

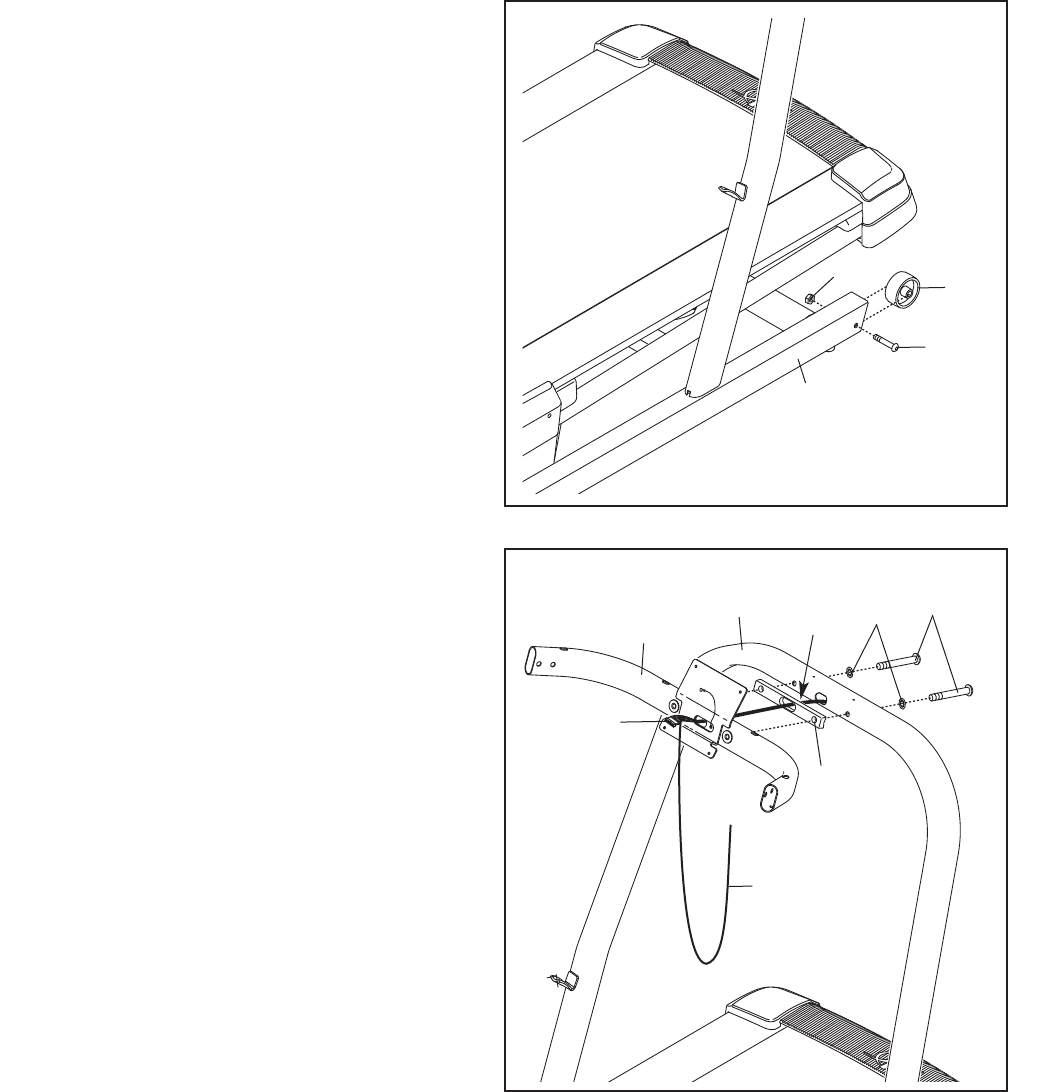

3. With the help of a second person, carefully tip
the incline trainer down so that the Base (78) is
flat on the floor.
Attach a Wheel (77) to each side of the Base
(78) with a 3/8" x 2 1/2" Bolt (4) and a 3/8" Nut
(8) (only one side shown).
3
4
877
78
4. Hold the Yoke Spacer (87) near the Upright
(74). Make sure that the curved side of the
Yoke Spacer is facing the Upright. Insert the
Upright Wire (72) through the Yoke Spacer.
Orient the Yoke (88) as shown. Insert the
Upright Wire (72) through the Yoke.
Attach the Yoke (88) and the Yoke Spacer (87)
to the Upright (74) with two 3/8" Star Washers
(9) and two 3/8" x 5" Bolts (7); do not fully
tighten the Bolts yet.
Remove the wire tie from the Upright Wire (72).
4
87
Curved
Side
74 7
9
88
Wire Tie
72
9
5. Slide a Handrail Cover (76) onto the Left

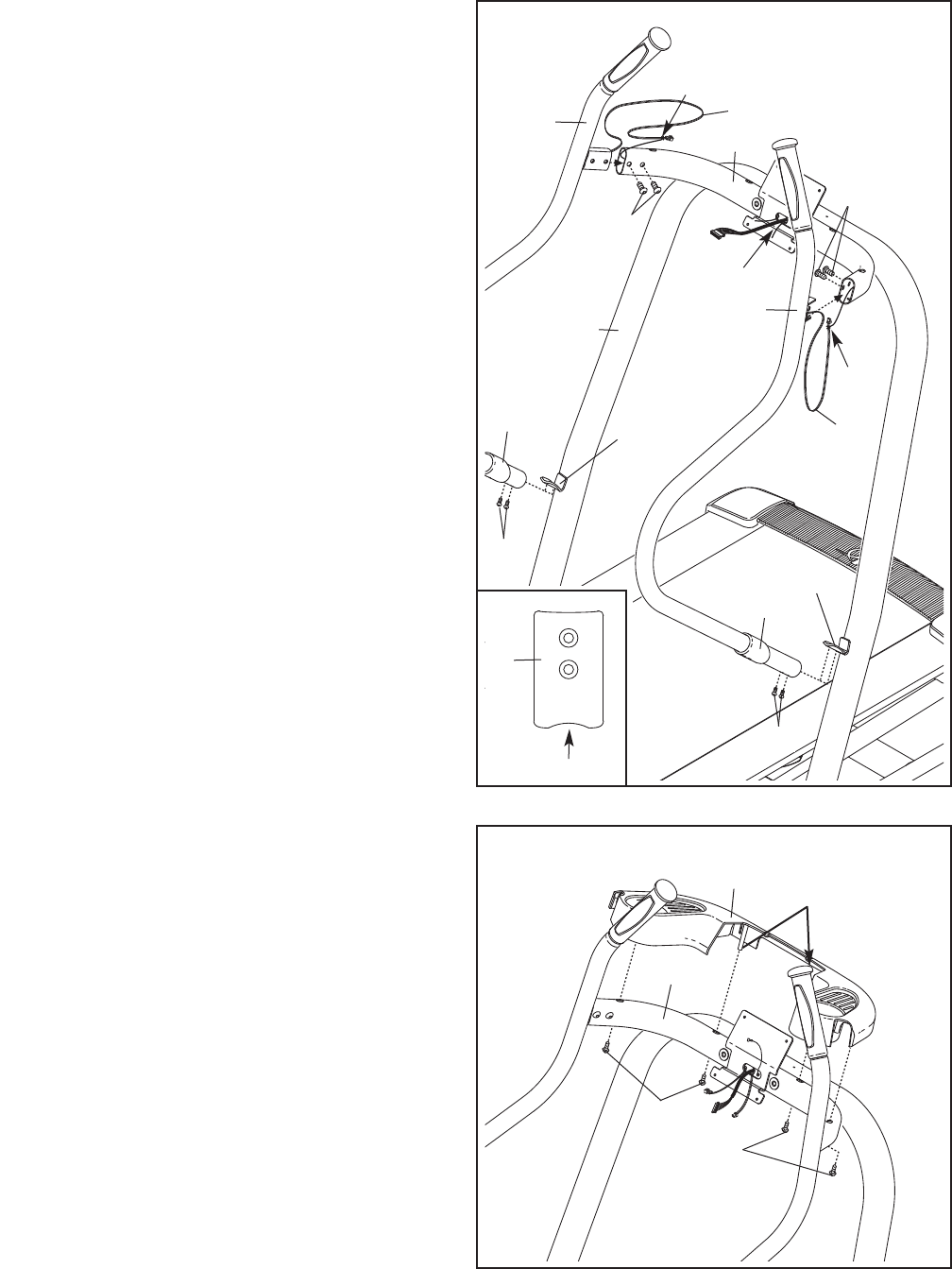

Handrail (69). See the inset drawing. Make
sure the curved side of the Handrail Cover is
facing the Upright (74).
Have a second person hold the Left Handrail
(69) near the Yoke (88). Locate the wire tie in-
side the Yoke. Wrap the end of the wire tie
around the Left Pulse Wire (70).
Pull the other end of the wire tie until the Left
Pulse Wire (70) is extending from the hole in the
Yoke (88). At the same time, slide the Left
Handrail (69) into the Yoke. Make sure not to
pinch the Left Pulse Wire. Then, slide the bot-
tom of the Left Handrail onto the bracket on the
Upright (74).
Attach the Left Handrail (69) to the Yoke (88)
with two 5/16" x 3/4" Bolts (6); do not fully
tighten the Bolts yet.
Slide the Handrail Cover (76) up the Left Handrail
(69). Attach the Left Handrail to the Upright (74)
with two 1/4" x 1" Bolts (32). Start both Screws
before tightening either of them. Then, tighten
the two 5/16" x 3/4" Bolts (6). Slide the Handrail
Cover down against the Upright.
Remove the wire tie from the Left Pulse Wire (70).
Repeat this step with the Right Handrail (75),
the other Handrail Cover (76), and the Right
Pulse Wire (71).
5
6
6
71
70
Wire
Tie
Wire
Tie
75
74
88
69
76
32
Bracket
76
32
Bracket
6. Slide the Accessory Tray (86) onto the Yoke
(88). Partially insert the two indicated tabs and
then partially insert the other tabs. Then, fully in-
sert all of the tabs. Make sure not to break the
tabs.
Attach the Accessory Tray (86) to the Yoke (88)
with four #8 x 3/4" Screws (1). Start all four
Screws before tightening any of them. Do
not overtighten the Screws.
6
86 Tabs
1
1
88
Hole
76
Curved Side
10

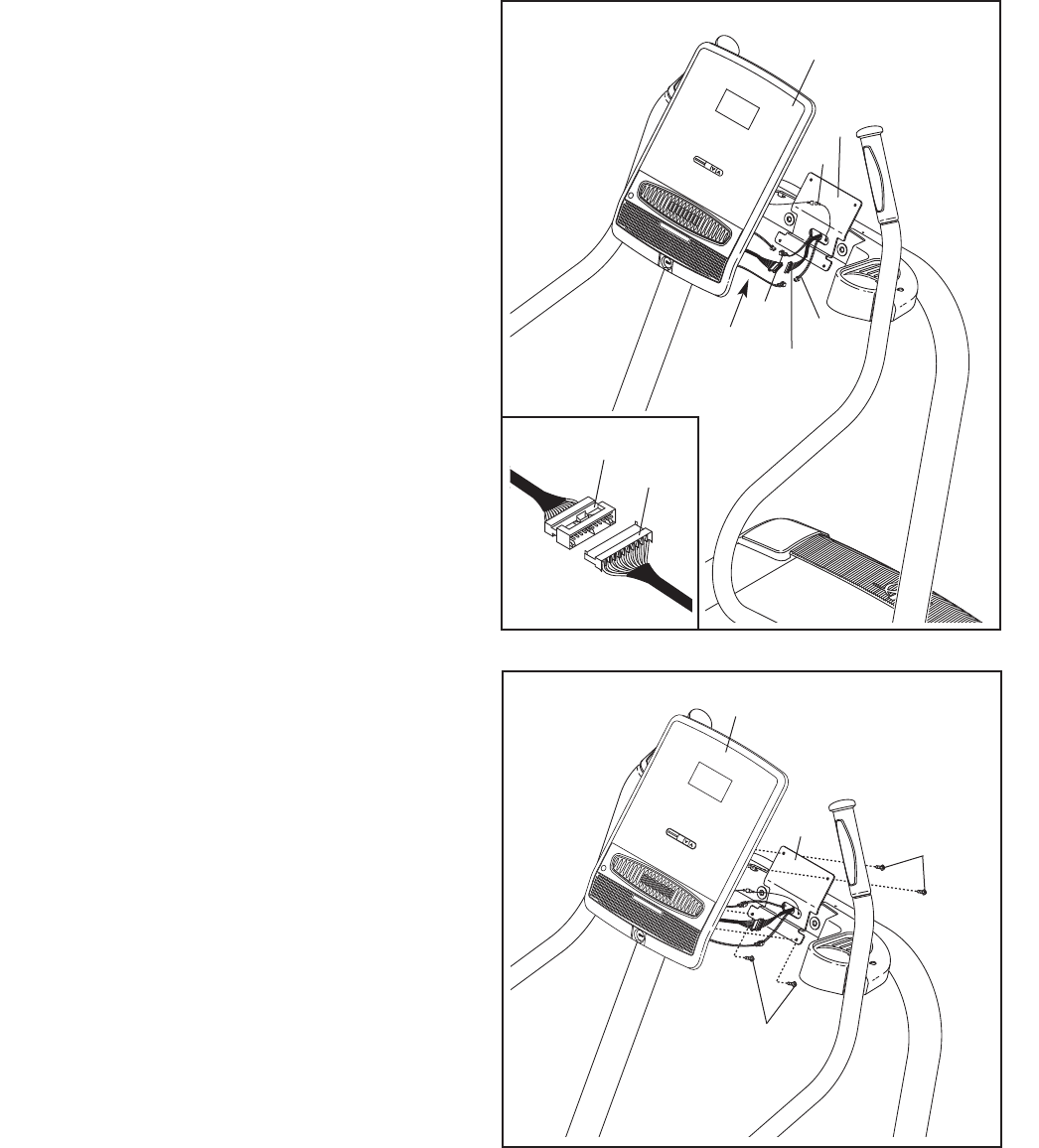

7. Have a second person hold the Console (84)
near the Yoke (88). Connect the Upright Wire
(72), the Left and Right Pulse Wires (70, 71),
and the Console Ground Wire (89) to the wires
extending from the Console. See the inset
drawing. The connectors should slide to-
gether easily and snap into place. If they do
not, turn one connector and try again. IF THE
CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
Insert the excess wire into the Console (84).
7
84
89
71
72
70
72
8. Attach the Console (84) to the plate on the Yoke
(88) with four #8 x 3/4" Screws (1). Be careful
not to pinch any wires. Start all four Screws
before tightening any of them. Do not over-
tighten the Screws.
8
1
1
88
84
88
Console
Wires
Console Wire
11
9
92
74
73

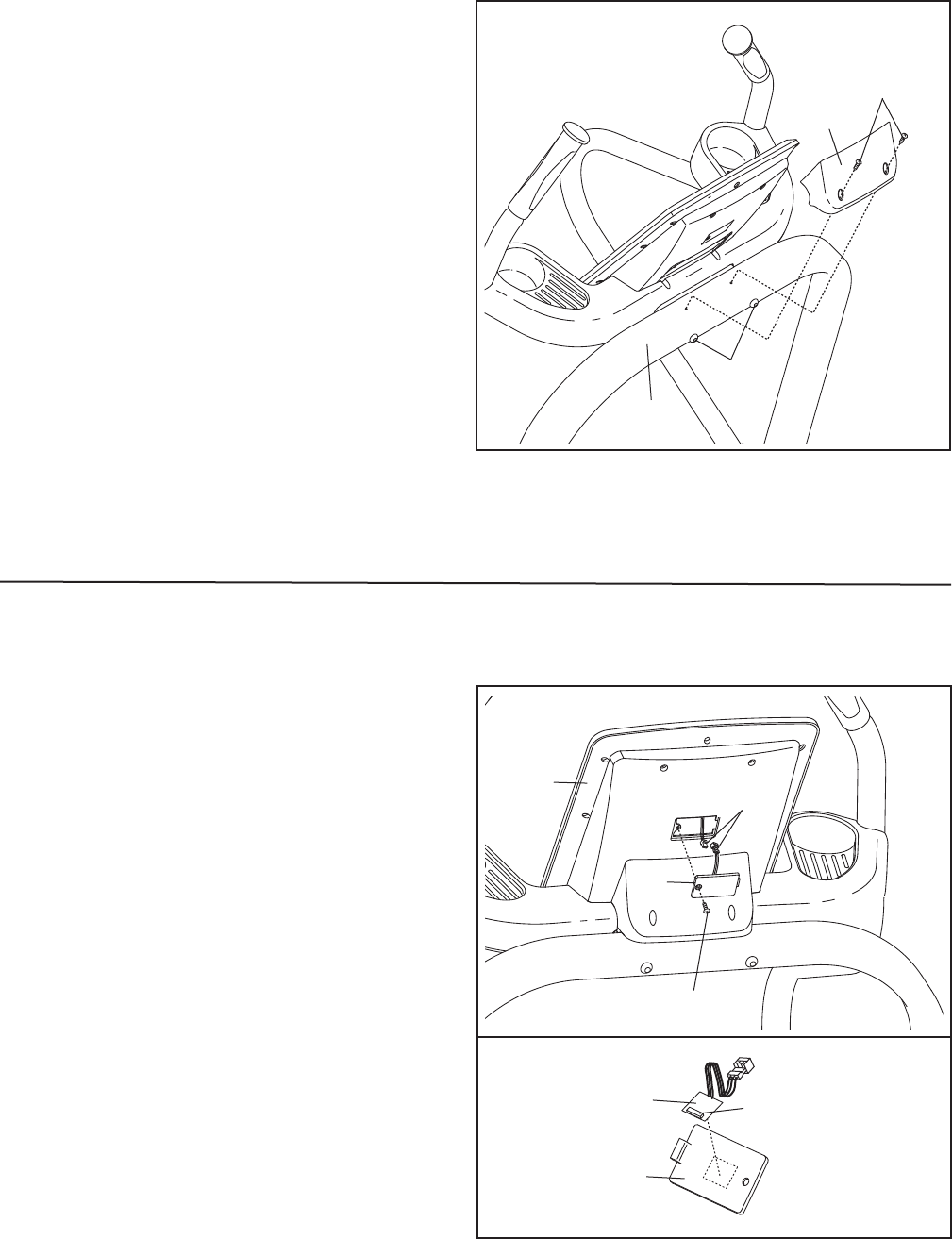

9. Tighten the 3/8" x 5" Bolts (7).
Attach the Console Cover (73) to the top of the
Upright (74) with two #8 x 1/2" Cover Screws
(92). Do not overtighten the Screws.
10. Make sure that all parts are properly tightened before you use the incline trainer. Keep the included hex
keys in a secure place. A hex key is used to adjust the walking belt (see pages 22 and 23). To protect the
floor or carpet from damage, place a mat under the incline trainer.
7
1
Receiver
90
90
1. Make sure that the power cord is unplugged.
Remove the indicated #8 x 3/4" Screw (1) from
the Access Door (90) on the back of the Console
(84).
2. See the lower drawing. Hold the receiver so
that the antenna is oriented as shown. Peel
the paper backing off the back of the receiver.
Press the receiver onto the Access Door (90) in
the location shown.
3. Connect the wire on the receiver to the wire ex-
tending from the Console (84). Make sure that
no wires are pinched. Reattach the Access
Door (90) to the Console with the #8 x 3/4"
Screw (1). Discard the other wires included with
the receiver.
If you purchase the optional chest pulse sensor (see page 19), follow the steps below to install the re-
ceiver included with the chest pulse sensor.
Antenna
84 Wires
12
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
Your incline trainer features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to the
walking belt or the walking platform. Such sub-
stances will deteriorate the walking belt and cause
excessive wear.
HOW TO PLUG IN THE POWER CORD
Your incline trainer, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your homeʼs power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your incline trainer being damaged, always use a
surge suppressor with your incline trainer (see
drawing 1 at the right). To purchase a surge sup-
pressor, see your local NordicTrack dealer or call
the telephone number on the front cover of this
manual and order part number 146148, or see your
local electronics store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the incline
trainer. If the control system is damaged, the walk-
ing belt may slow, accelerate, or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
IMPORTANT: The incline trainer is not compatible
with GFCI-equipped outlets.

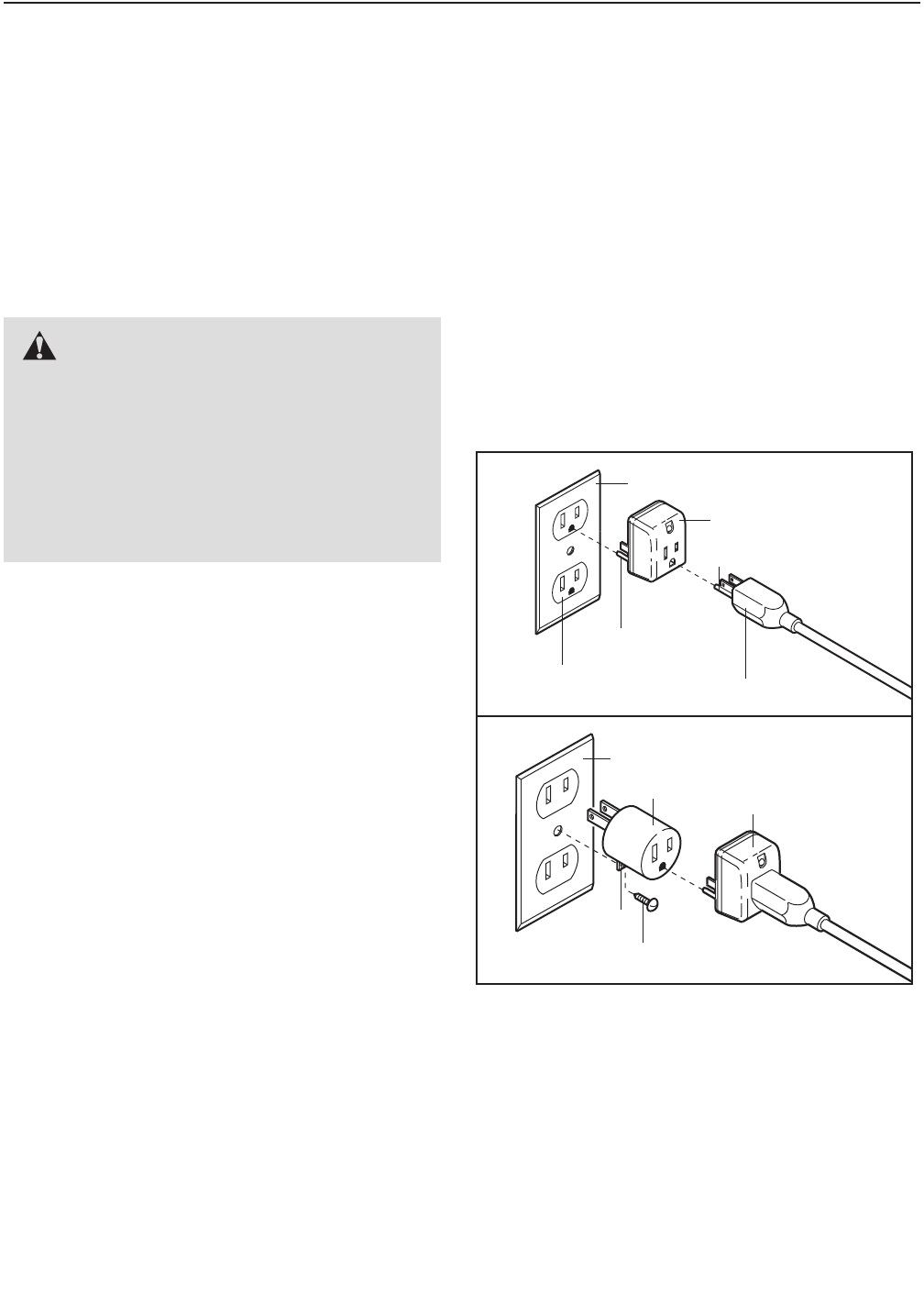

This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
13
FEATURES OF THE CONSOLE
The incline trainer console offers an impressive array of
features designed to make your workouts more effec-
tive and enjoyable. When the manual mode of the con-
sole is selected, the speed and incline of the incline
trainer can be changed with the touch of a button. As
you exercise, the console will display continuous exer-
cise feedback. You can even measure your heart rate
using the handgrip pulse sensor or the optional chest
pulse sensor (see page 19 for information on the op-
tional chest pulse sensor).
In addition, the console features nine 1 step calorie
workouts. Each workout automatically controls the
speed and incline of the incline trainer as it guides you
through an effective exercise session. You can even
use the random workout generator to get a new work-
out every time you exercise.
The console also features the new iFit interactive work-
out system. The iFit system enables the console to ac-
cept iFit interactive workout cards containing workouts
designed to help you achieve specific fitness goals. iFit
workouts automatically control the incline trainer while
the voice of a personal trainer coaches you through
every step of your workout. iFit cards are available sep-
arately. To purchase iFit cards at any time, please
see the front cover of this manual or go to
www.iFit.com. iFit cards are also available at select
stores.
You can also listen to your favorite workout music or
audio books with the consoleʼs premium stereo sound
system while you get in shape.
To turn on the power, see page 14. To use the man-
ual mode, see page 14. To use a 1 step calorie work-
out, see page 16. To use a random workout, see
page 17. To use an iFit card, see page 18. To use
the information mode, see page 19. To use the
stereo sound system, see page 19.

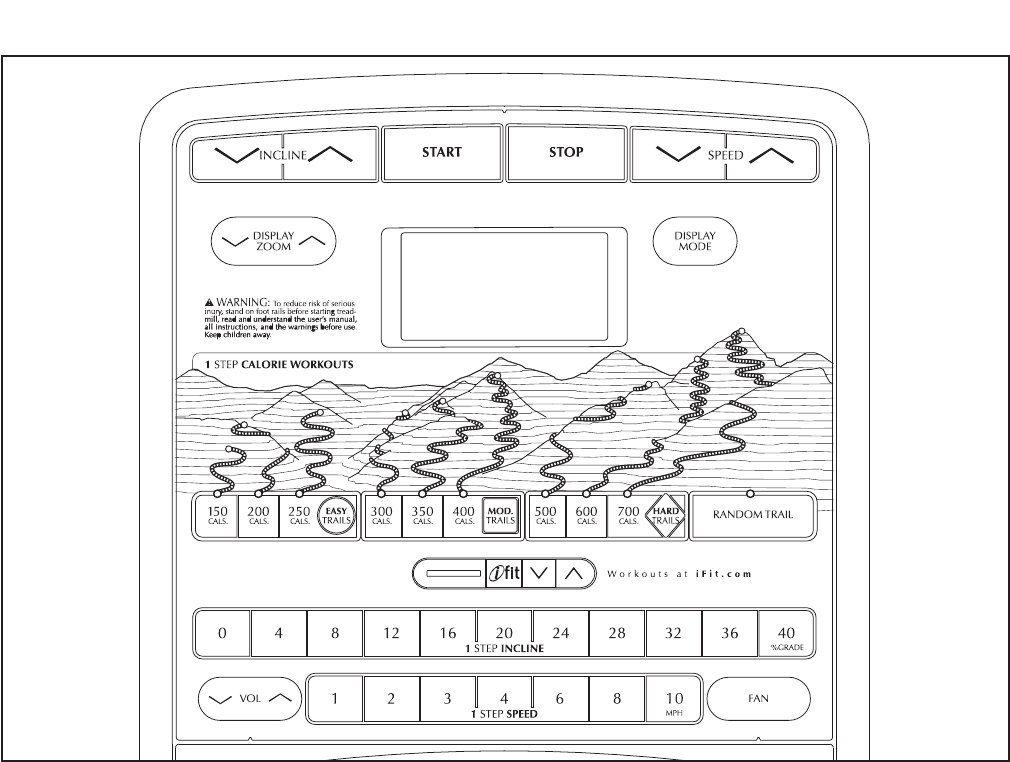

CONSOLE DIAGRAM
14

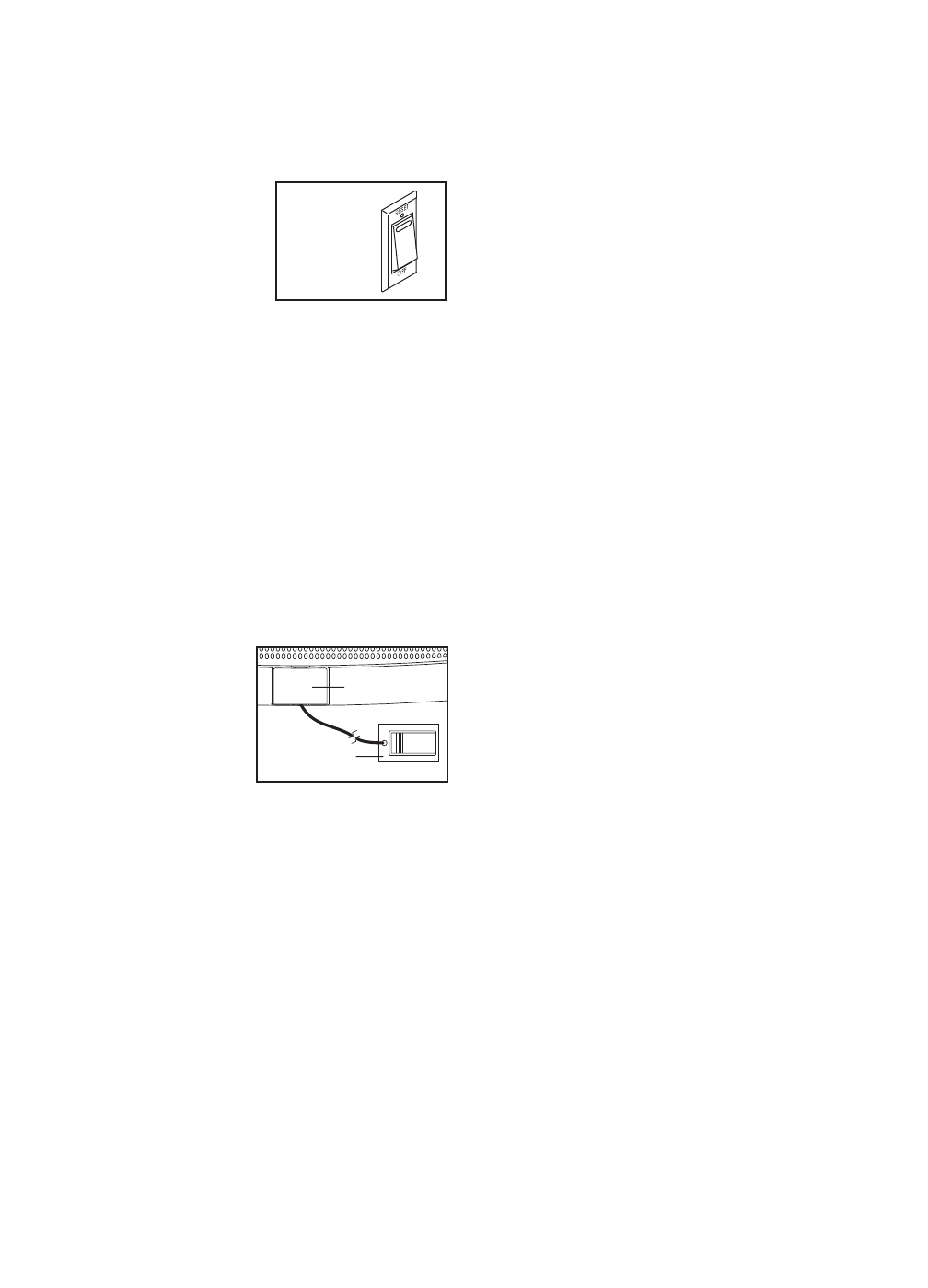

HOW TO TURN ON THE POWER
IMPORTANT: If the incline trainer has been ex-
posed to cold temperatures, allow it to warm to
room temperature before turning on the power. If
you do not do this, you may damage the console
displays or other electrical components.
Plug in the power cord (see
page 12). Next, locate the
reset/off circuit breaker on
the incline trainer frame
near the power cord. Make
sure that the circuit breaker
is in the “reset” position.
IMPORTANT: The console features a display demo
mode, designed to be used if the incline trainer is
displayed in a store. If the displays light as soon
as you plug in the power cord and switch the
reset/off circuit breaker to the reset position, the
demo mode is turned on. To turn off the demo
mode, hold down the Stop button for a few sec-
onds. If the displays remain lit, see THE INFORMA-
TION MODE on page 19 to turn off the demo mode.
If the console is in demo mode, the incline will automati-
cally rise to the maximum incline level.
Next, stand on the walking
platform of the incline trainer.
Locate the clip attached to
the key (see the drawing at
the right), and slide the clip
securely onto the waistband
of your clothes. Then, insert
the key into the console.
After a moment, the displays will light. IMPORTANT:
In an emergency situation, the key can be pulled
from the console, causing the walking belt to slow
to a stop. Test the clip by carefully taking a few
steps backward; if the key is not pulled from the
console, adjust the position of the clip.
IMPORTANT: If there is a sheet of clear plastic on
the face of the console, remove the plastic. To pre-
vent damage to the walking platform, wear clean
athletic shoes while using the incline trainer. The
first time the incline trainer is used, observe the
alignment of the walking belt, and center the walk-
ing belt if necessary (see page 23).
Note: The console can display speed and distance in
either miles or kilometers. To find which unit of mea-
surement is selected, see THE INFORMATION MODE
on page 19. For simplicity, all instructions in this man-
ual refer to miles.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
If necessary, press the Incline buttons to lower the
incline to the minimum incline level.
2. Select the manual mode.
Each time the key is inserted, the manual mode
will be selected. If you have selected a workout,
press any of the workout buttons repeatedly until
the words MANUAL CONTROL appear in the dis-
play.
3. Start the walking belt and adjust the speed.
To start the walking belt, press the Start button, the
Speed increase button, or one of the 1 Step Speed
buttons numbered 1 to 10.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed in-
crease and decrease buttons next to the Start but-
ton. Each time you press a button, the speed set-
ting will change by 0.1 mph; if you hold down a but-
ton, the speed setting will change in increments of
0.5 mph. If you press one of the numbered 1 Step
Speed buttons, the walking belt will gradually
change speed until it reaches the selected speed
setting.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button, the
Speed increase button, or one of the numbered 1
Step Speed buttons.
4. Change the incline of the incline trainer as
desired.
To change the incline of the incline trainer, press
the Incline increase and decrease buttons or one
of the 1 Step Incline buttons numbered 0 to 40.
Each time you press one of the buttons, the incline
will gradually change until it reaches the selected
incline setting. As the incline increases, the maxi-
mum speed of the incline trainer will decrease.
Reset
Position
Key
Clip
15
5. Monitor your progress with the display.
When the manual mode
is selected, the console
offers four display modes.
The display mode that
you select will determine
which workout information
is shown. Press the
Display Mode button repeatedly to select the de-
sired display mode.

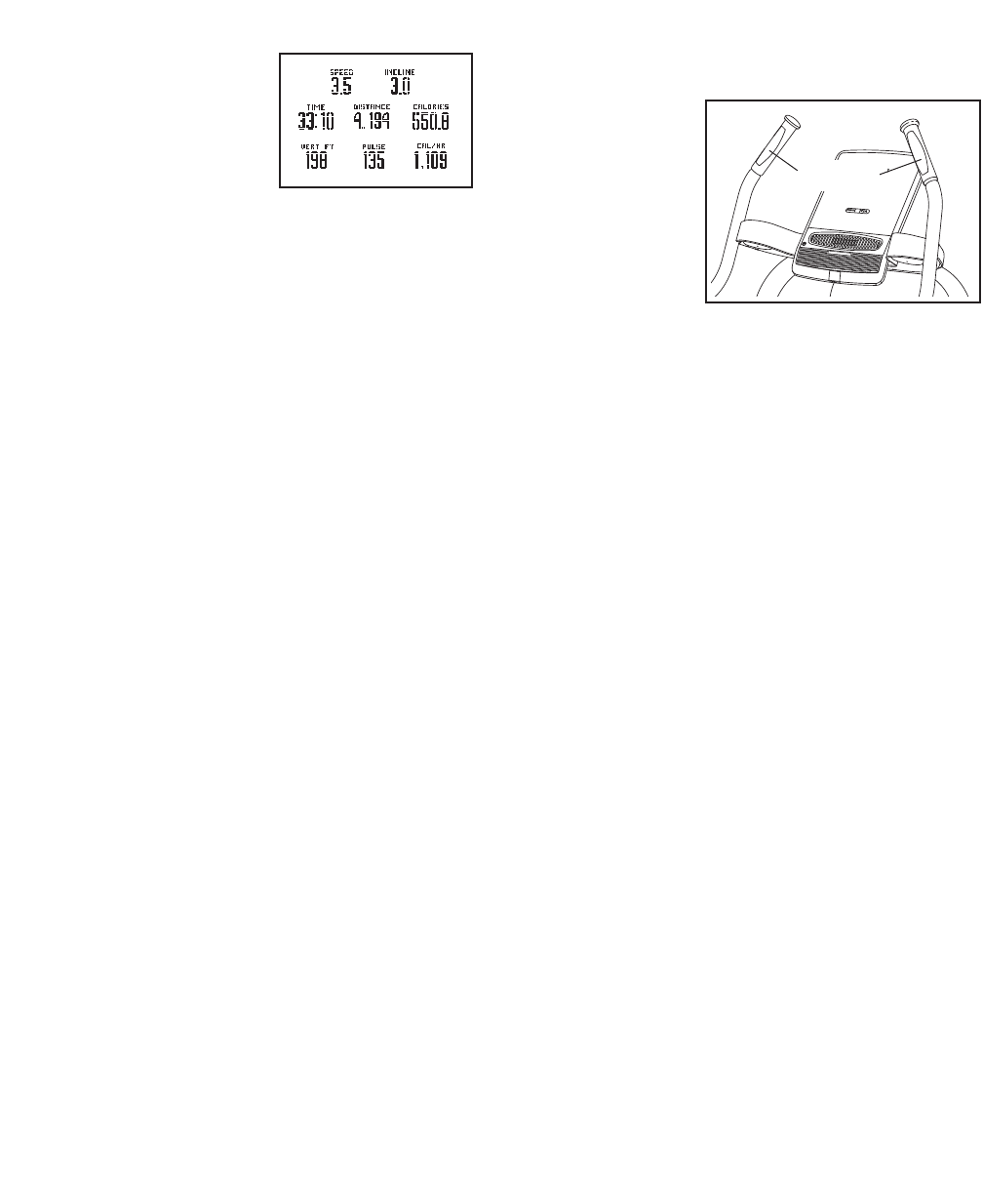

As you walk or run on the incline trainer, the dis-
play can show the following workout information:
• The elapsed time.
• The distance that you have walked or run.
• The number of vertical feet you have climbed.
• The approximate number of calories burned per
hour.
• The speed of the walking belt.
• The incline level of the incline trainer.
• The approximate number of calories you have
burned.
• Your heart rate. Note: Your heart rate can be dis-
played only while you use the handgrip pulse
sensor or the optional chest pulse sensor (see
step 6).
Regardless of which display mode you select, the
speed or incline setting will appear in the display for
a few seconds each time you change the setting.
If desired, adjust the volume by pressing the
Volume (VOL) increase and decrease buttons on
the console.
To reset the console, press the Stop button, re-
move the key, and then reinsert the key.
6. Measure your heart rate if desired.
Note: If you use the handgrip pulse sensor and
the optional chest pulse sensor at the same
time, the console will not display your heart
rate accurately. For information on the optional
chest pulse sensor, see page 19.
Before using
the handgrip
pulse sensor,
remove the
sheets of clear
plastic from
the metal con-
tacts if neces-
sary. In addi-
tion, make
sure that your hands are clean.
To measure your heart rate, stand on the walking
platform and hold the metal contacts on the
handrail—avoid moving your hands. Hold the
contacts for approximately ten seconds. When your
pulse is detected, your heart rate will be shown.
For the most accurate heart rate reading, con-
tinue to hold the contacts for about 15 sec-
onds.
7. Turn on the fan if desired.
The fan has high and low speed settings. Press the
Fan button repeatedly to select a fan speed or to
turn off the fan. Note: If the fan is on when the
walking belt stops, the fan will automatically turn off
after a few minutes.
8. When you are finished exercising, remove the
key from the console.
Step onto the walking platform and press the Stop
button. Next, remove the key from the console and
put it in a secure place. If the console is in demo
mode (see THE INFORMATION MODE on page
19), the incline will automatically rise to the maximum
incline level.
When you are finished using the incline trainer,
switch the reset/off circuit breaker to the “off” posi-
tion and unplug the power cord. IMPORTANT: If
you do not do this, the incline trainerʼs electri-
cal components may wear prematurely.
Contacts
16
HOW TO USE A 1 STEP CALORIE WORKOUT
1. Insert the key into the console.
See step 1 on page 14.
2. Select a 1 step calorie workout.
To select a 1 step calorie workout, press one of the
1 Step Calorie Workouts buttons until the name of
the desired workout appears in the display and the
light at the bottom of the desired trail lights up.
When a workout is selected, the display will show a
trail on the side of a mountain.
Each workout is divided into segments. One speed
setting and one incline setting are programmed for
each segment. Note: The same speed setting or
incline setting may be programmed for consecutive
segments.
3. Start the walking belt.
Press the Start button to start the workout. A mo-
ment after you press the button, the incline trainer
will begin to move. Hold the handrails and begin
walking.
At the end of the first segment of the workout, a se-
ries of tones will sound. If a different speed and/or
incline setting is programmed for the second seg-
ment, the speed setting and/or incline setting will
appear in the display for a moment to alert you and
the incline trainer will automatically adjust to the
speed and incline settings for the next segment.
The workout will continue in this way until you
reach the end of the trail on the display. The walk-
ing belt will then slow to a stop.
If the speed or incline setting is too high or too low
at any time during the workout, you can override
the setting by pressing the Speed or Incline but-
tons; however, when the next segment begins,
the incline trainer will automatically adjust to
the speed and incline settings for the next seg-
ment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start but-
ton. The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
incline trainer will automatically adjust to the speed
and incline settings for the next segment.
Note: The calorie goal is an estimate of the
number of calories that you will burn during the
program. The actual number of calories that
you burn will depend on your weight. In addi-
tion, if you manually change the speed or in-
cline of the incline trainer during the program,
the number of calories you burn will be af-
fected.
4. Monitor your progress with the display.
See step 5 on page 15. When a 1 step calorie work-
out is selected, the console offers four display
modes. Press the Display Mode button repeatedly
to select the desired display mode.
The display will show an animation of the trail you
are walking or running. The circle above the trail
will show your progress. Press the Display Zoom
increase and decrease buttons to zoom in or zoom
out. In the display that shows an animation of a
runner, the incline profile represents the incline
level of the trail and the right side of the display will
show the number of vertical feet you have climbed.
To adjust the contrast of the display, see THE IN-
FORMATION MODE on page 19.
5. Measure your heart rate if desired.
See step 6 on page 15.
6. Turn on the fan if desired.
See step 7 on page 15.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 15.
17
HOW TO USE A RANDOM WORKOUT
1. Insert the key into the console.
See step 1 on page 14.
2. Select a random workout.
To select a random workout, press the Random
Trail button. The incline trainer will create a new
workout based on random speed and incline set-
tings.

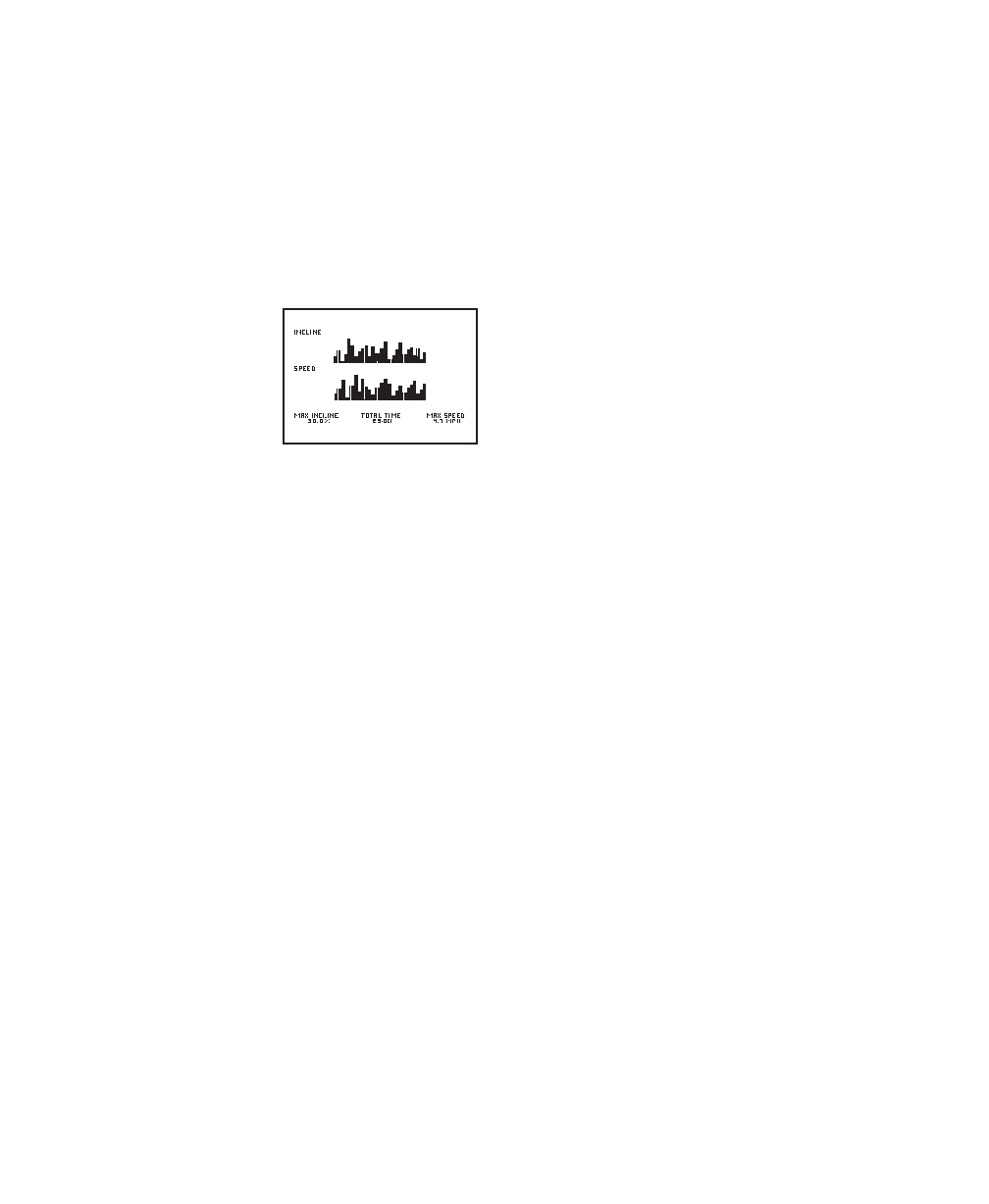

When a random workout
is selected, the display
will show a profile of the
incline settings and a pro-
file of the speed settings
of the workout. In addi-
tion, the display will show
the maximum incline setting, duration, and maxi-
mum speed setting of the workout.
Each random workout is divided into one-minute
segments. One speed setting and one incline set-
ting are programmed for each segment. Note: The
same speed setting and/or incline setting may be
programmed for consecutive segments.
3. Start the walking belt.
Press the Start button to start the workout. A mo-
ment after you press the button, the incline trainer
will automatically adjust to the first speed and in-
cline settings of the workout. Hold the handrails
and begin walking.
During the workout, the profiles will show your
progress. The flashing segments of the profiles rep-
resent the current segment of the workout. The
height of the flashing segment indicates the speed
setting or the incline setting for the current seg-
ment. At the end of each segment, a series of tones
will sound and the next segment of the profiles will
begin to flash. If a different speed and/or incline set-
ting is programmed for the next segment of the
workout, the new speed and/or incline setting will
appear in the display to alert you. The incline trainer
will then automatically adjust to the speed and/or in-
cline setting for the next segment.
The workout will continue in this way until the last
segments of the profiles flash in the display and the
last segment ends. The walking belt will then slow
to a stop.
If the speed or incline setting for the current seg-
ment is too high or too low, you can manually over-
ride the setting by pressing the Speed or Incline
buttons; however, when the current segment of
the workout ends, the incline trainer will auto-
matically adjust to the speed and incline set-
tings for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start but-
ton or the Speed increase button. The walking belt
will begin to move at 1 mph. When the next seg-
ment of the workout begins, the incline trainer will
automatically adjust to the speed and incline set-
tings for the next segment.
4. Monitor your progress with the display.
When a random workout is selected, the console
offers three display modes. Press the Display Mode
button repeatedly to select the desired display
mode. The display can show profiles of the speed
and incline settings of the workout, the time remain-
ing in the workout, the distance you have walked or
run, the approximate number of calories you have
burned, the speed of the walking belt, and the incline
of the incline trainer.
5. Measure your heart rate if desired.
See step 6 on page 15.
6. Turn on the fan if desired.
See step 7 on page 15.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 15.
18
HOW TO USE AN IFIT CARD
1. Insert the key into the console.
See step 1 on page 14.
2. Insert an iFit card and select a workout.

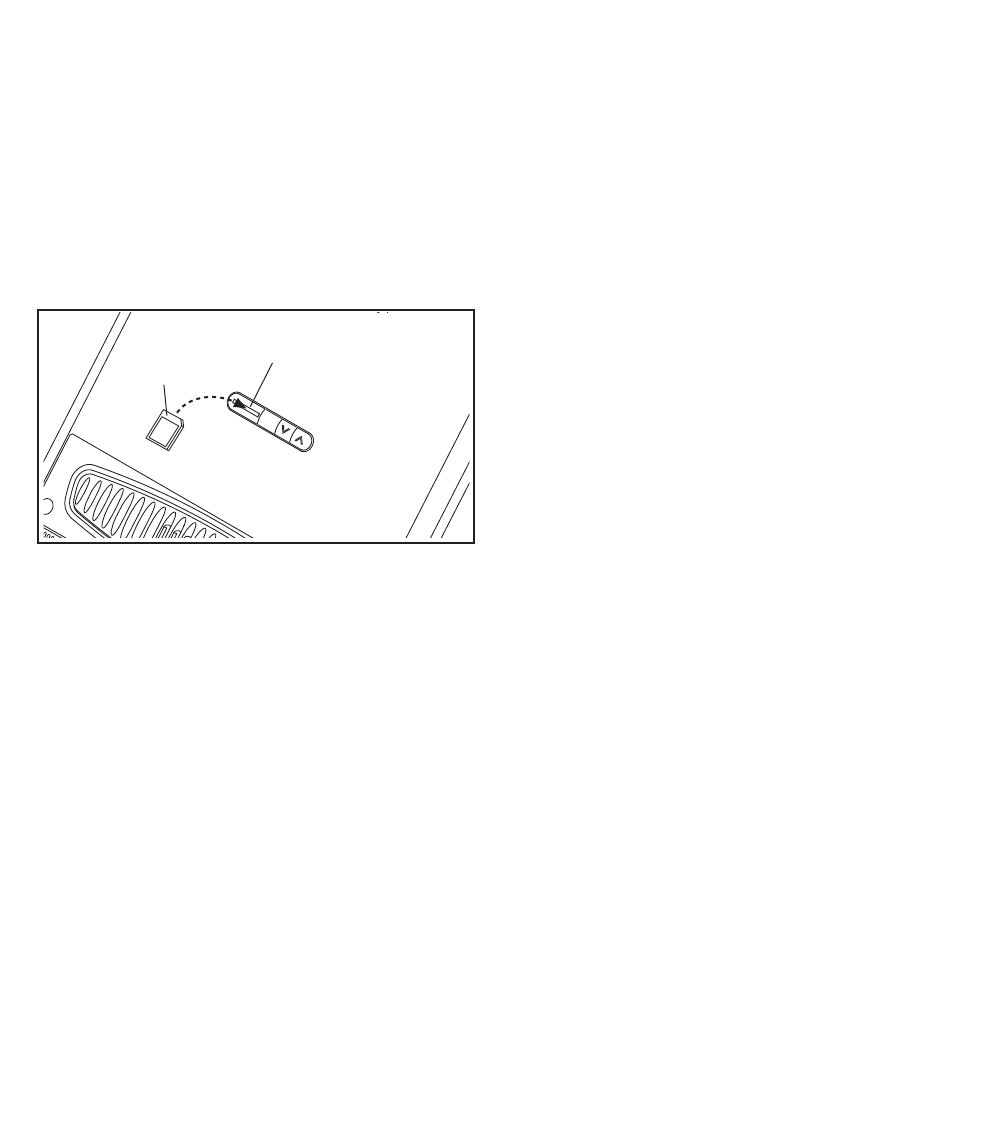

To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face-down and are inserted
into the iFit slot.
Next, select an iFit workout by pressing the iFit in-
crease or decrease button. When an iFit workout is
selected, the display will show a profile of the
speed settings of the workout. In addition, the dis-
play will show the maximum incline setting, dura-
tion, and maximum speed setting of the workout.
Each iFit workout is divided into several one-
minute segments. One speed setting and one in-
cline setting are programmed for each segment.
Note: The same speed and/or incline setting may
be programmed for consecutive segments.
3. Start the walking belt.
Press the Start button to start the workout. A mo-
ment after you press the button, the incline trainer
will automatically adjust to the first speed and in-
cline settings of the workout. Hold the handrails
and begin walking.
During the workout, the voice of a personal trainer
will guide you through the workout. The iFit workout
will function in the same way as a random workout
(see page 17).
If the speed or incline setting for the current seg-
ment is too high or too low, you can override the
setting by pressing the Speed or Incline buttons;
however, when the next segment begins, the
incline trainer will automatically adjust to the
speed and incline settings for the next seg-
ment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start but-
ton. The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
incline trainer will automatically adjust to the speed
and incline settings for the next segment.
4. Monitor your progress with the display.
When an iFit workout is selected, the console offers
three display modes. Press the Display Mode but-
ton repeatedly to select the desired display mode.
The display can show a profile of the speed settings
of the workout, the time remaining in the workout,
the distance you have walked or run, the approxi-
mate number of calories you have burned, the
speed of the walking belt, and the incline of the in-
cline trainer.
5. Turn on the fan if desired.
See step 6 on page 15.
6. When you are finished exercising, remove the
key from the console.
See step 7 on page 15.
CAUTION: Always remove iFit cards from the
iFit slot when you are not using them.
iFit Slot
iFit Card
19
THE INFORMATION MODE
The console features an information mode that keeps
track of the total distance that the walking belt has
moved and the total number of hours that the treadmill
has been used. The information mode also allows you
to select miles or kilometers to measure distance, and
to turn on and turn off the display demo mode.
You can also adjust the contrast level of the display.
To select the information mode, hold down the Stop
button, insert the key into the console, and then release
the Stop button. When the information mode is se-
lected, the following information will appear in the dis-
play:

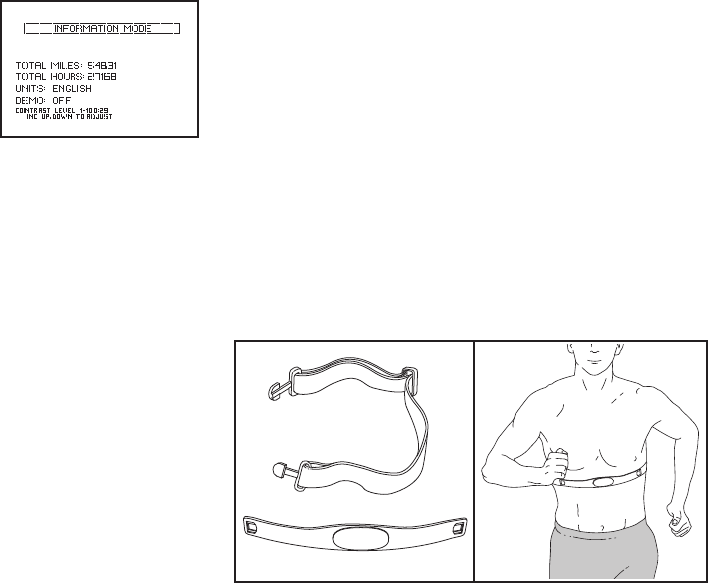

The display will show the total
number of hours the treadmill
has been used and the total
number of miles that the walk-
ing belt has moved.
The display will show the selected unit of measure-
ment. To change the unit of measurement, press the
Speed increase button. To view distance in miles, se-
lect ENGLISH. To view distance in kilometers, select
METRIC.
The console features a display demo mode, designed
to be used if the incline trainer is displayed in a store.
While the demo mode is turned on, the console will
function normally when you plug in the power cord,
switch the reset/off circuit breaker to the reset position,
and insert the key into the console. However, when
you remove the key, the displays will remain lit, al-
though the buttons will not function. If the demo mode
is turned on, the word “ON” will appear in display while
the information mode is selected. To turn on or turn off
the demo mode, press the Speed decrease button.
Note: When the incline trainer is in the demo mode, the
incline will automatically rise to the maximum incline
level.
The display will also show the contrast level of the dis-
play. Press the Incline increase and decrease buttons to
adjust the contrast.
To exit the information mode, remove the key from the
console.
HOW TO USE THE STEREO SOUND SYSTEM
To play music or audio books through the consoleʼs
speakers, you must connect your MP3 player, CD
player, or other personal audio player to the console.
Locate the audio wire. Plug one end into the audio jack
near the speakers. Then, plug the audio wire into a
jack on your MP3 player, CD player, or personal audio
player. Make sure that the audio wire is fully
plugged in.
Next, press the Play button on your MP3 player, CD
player, or other personal audio player. Then, adjust the
volume on your personal audio player or press the
Volume (VOL) increase and decrease buttons on the
console.
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat sur-
face instead of on the console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor offers hands-free oper-
ation as it tracks your heart rate during your workouts.
To purchase the optional chest pulse sensor, see
the front cover of this manual.
20

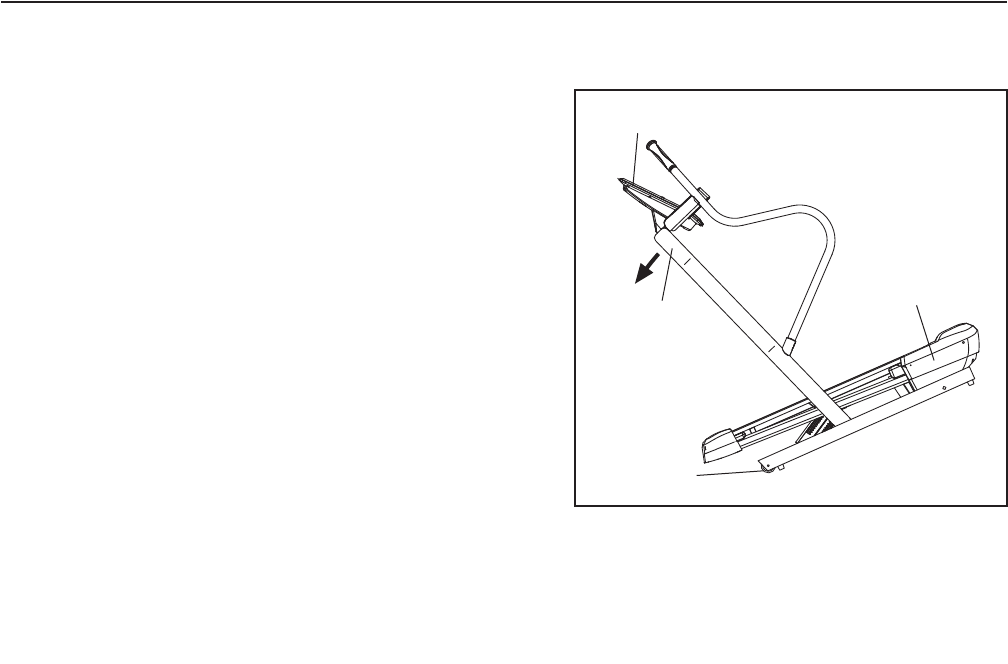

HOW TO MOVE THE INCLINE TRAINER
Before moving the incline trainer, insert the key into the
console, raise the incline to the maximum incline level,
remove the key, and unplug the power cord.
Due to the size and weight of the incline trainer, moving it
requires two or three persons. Hold the upright firmly
near the console. CAUTION: To decrease the possibility
of damage to the incline trainer or of injury, do not lift the
incline trainer by the plastic belly pan. Do not pull on the
console. Carefully roll the incline trainer on the wheels to the
desired location and then lower it to the level position. CAU-
TION: To reduce the risk of injury, use extreme caution
while moving the incline trainer. Do not attempt to move
the incline trainer over uneven surfaces.
Wheel
Upright
Belly
Pan
Console
21
TROUBLESHOOTING
Most incline trainer problems can be solved by following the steps below. Find the symptom that applies,
and follow the steps listed. If further assistance is needed, please see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 12). Use only a single-outlet surge suppres-
sor that meets all of the specifications described on page 12. IMPORTANT: The incline trainer is
not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.

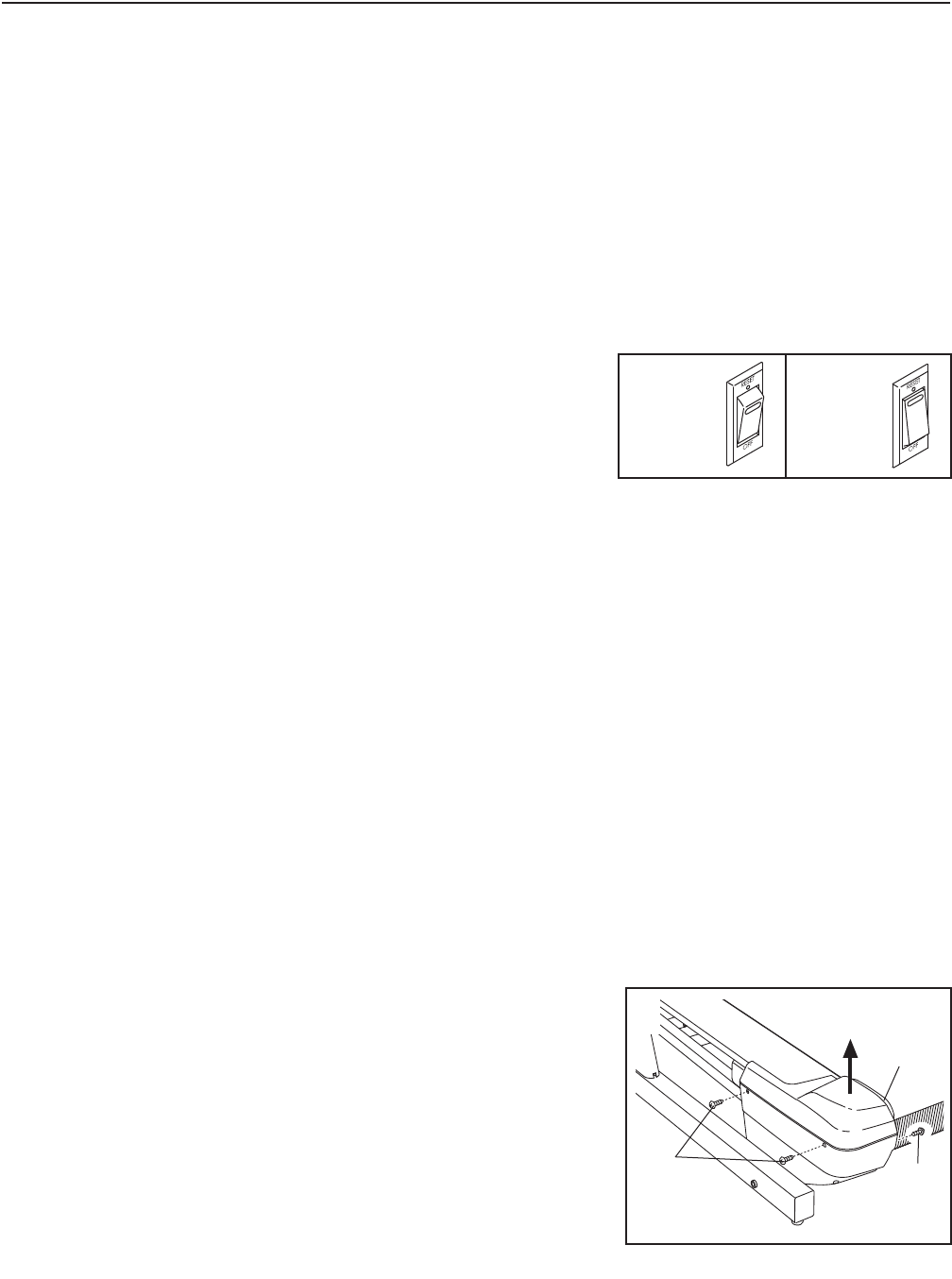

c. Check the reset/off circuit breaker located on the in-
cline trainer frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes and
then press the switch to the reset position.
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
for five minutes and then press the switch to the reset position.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the incline trainer still will not run, please see the front cover of this manual.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the incline trainer is displayed
in a store. If the displays remain lit when you remove the key and the incline rises to the maxi-
mum level, the demo mode is turned on. To turn off the demo mode, hold down the Stop button
for a few seconds. If the displays are still lit, see THE INFORMATION MODE on page 19 to turn
off the demo mode.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Remove the three indicated #8 x 3/4"
Screws (1). Lift off the Left Roller Cover (35).
Tripped
Position
Reset
Position
c
1
1
a
35
22

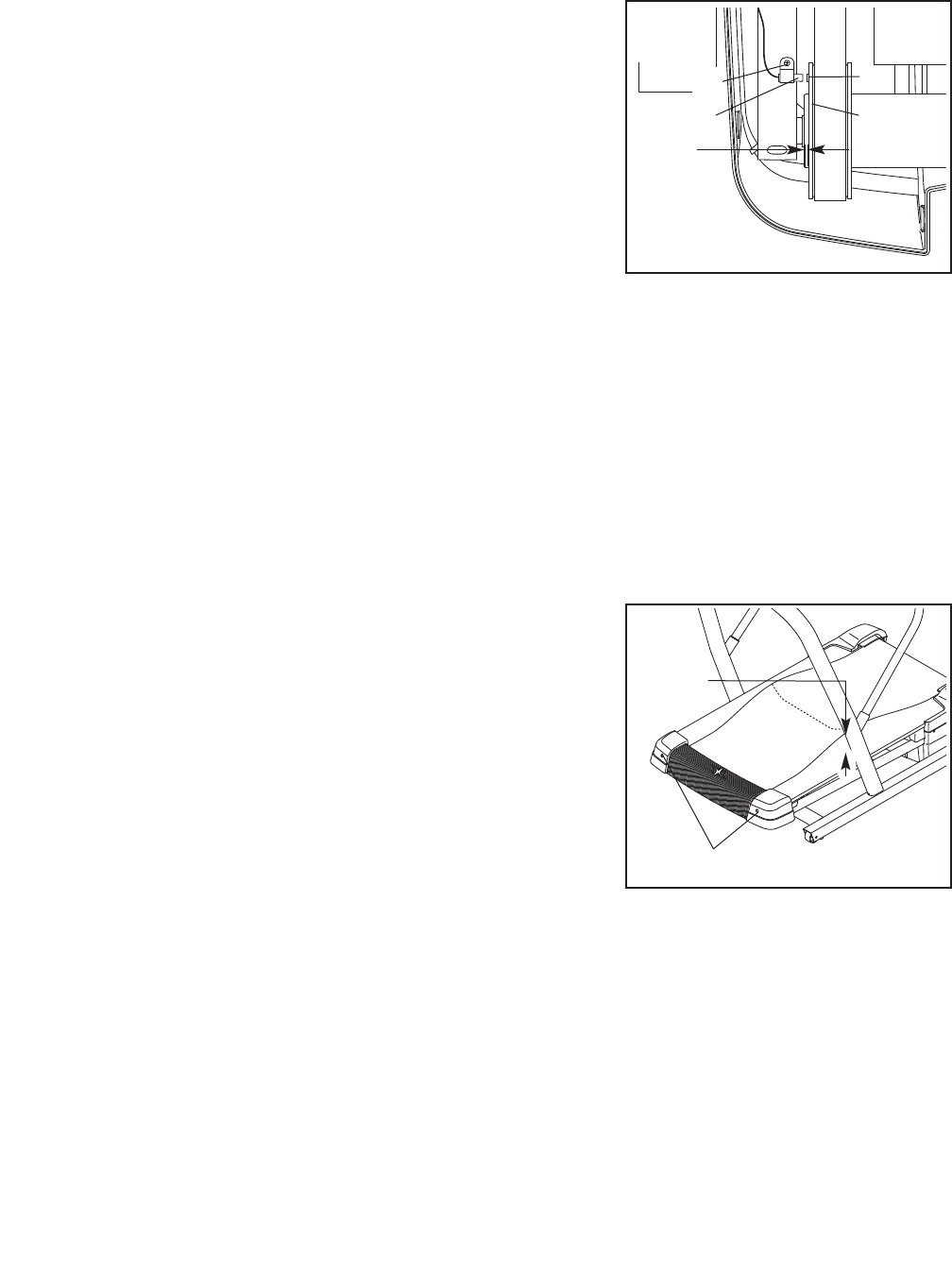

Locate the Reed Switch (49) and the Magnet (37) on
the left side of the Pulley (38). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8 in. (3 mm). If necessary, loosen
the #8 x 3/4" Clamp Screw (13), move the Reed
Switch slightly, and then retighten the Screw.
Reattach the Left Roller Cover (not shown) and run the
incline trainer for a few minutes to check for a correct
speed reading.
PROBLEM: The incline of the incline trainer does not change correctly
SOLUTION: a. Hold down the Stop button and the Speed increase button, insert the key into the console, and
then release the Stop button and the Speed increase button. Press the Stop button again. Then,
press the Incline increase or decrease button. The incline trainer will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
If the incline does not calibrate, press the Stop button, and then press the Incline increase or de-
crease button again. When the incline is calibrated, remove the key from the console.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 12.
b. If the walking belt is overtightened, incline trainer per-
formance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD. Using the hex key, turn both idler
roller bolts counterclockwise, 1/4 of a turn. When the
walking belt is properly tightened, you should be able
to lift each edge of the walking belt 3 to 4 in. (8 to 10
cm) off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power cord,
insert the key, and run the incline trainer for a few
minutes. Repeat until the walking belt is properly
tightened.
c. If the walking belt still slows when walked on, please see the front cover of this manual.
38
1/8 in.
37
3–4 in.
b
Idler Roller Bolts
Top
View
49
13
23

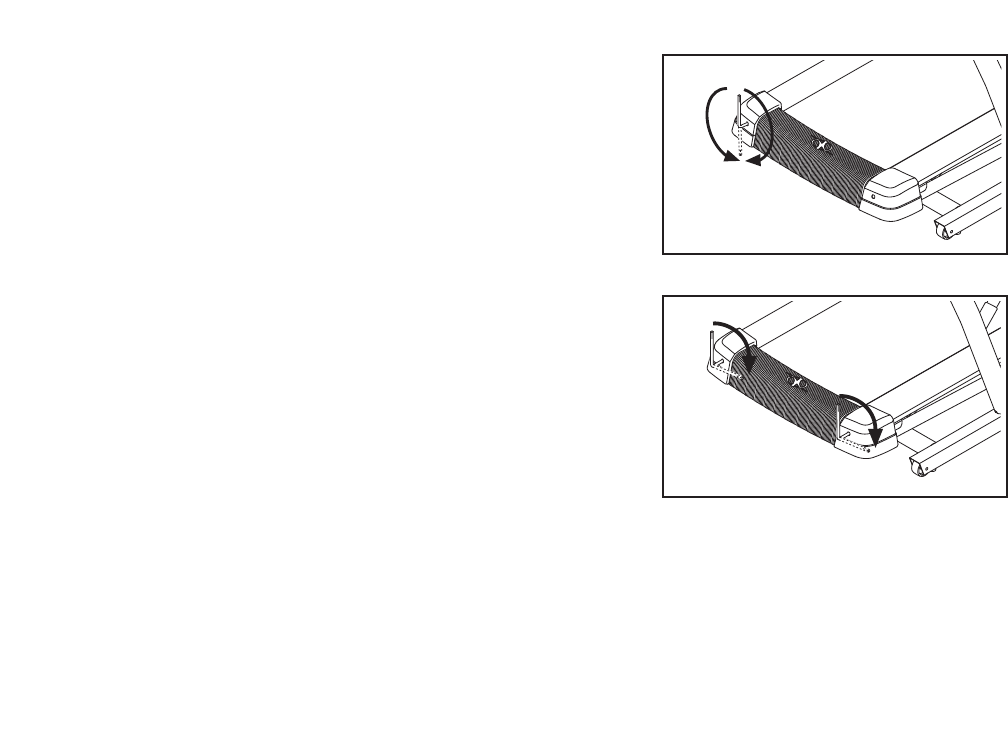

PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, remove the key and
UNPLUG THE POWER CORD. If the walking belt
has shifted to the left, use the hex key to turn the
left idler roller bolt clockwise 1/2 of a turn; if the walk-
ing belt has shifted to the right, turn the bolt coun-
terclockwise 1/2 of a turn. Be careful not to over-
tighten the walking belt. Plug in the power cord, insert
the key, and run the incline trainer for a few minutes.
Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the hex key, turn both idler roller bolts clockwise, 1/4
of a turn. When the walking belt is correctly tightened,
you should be able to lift each edge of the walking
belt 3 to 4 in. (8 to 10 cm) off the walking platform. Be
careful to keep the walking belt centered. Then, plug
in the power cord, insert the key, and carefully walk
on the incline trainer for a few minutes. Repeat until
the walking belt is properly tightened.
a
b
24
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

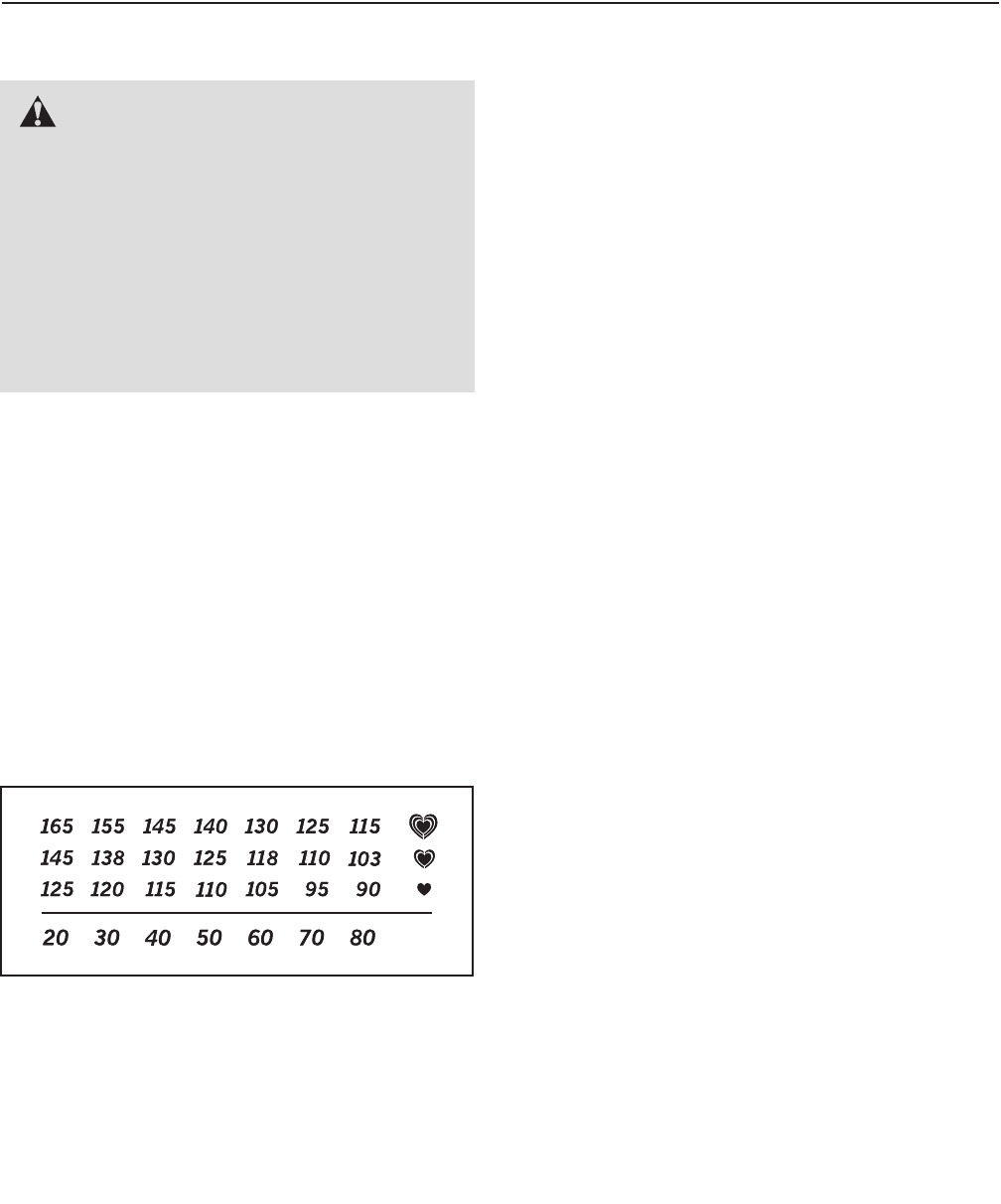

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exer-
cise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic ex-
ercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning any
exercise program, consult your physician.
This is especially important for persons over
age 35 or persons with pre-existing health
problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is in-
tended only as an exercise aid in determining
heart rate trends in general.
25

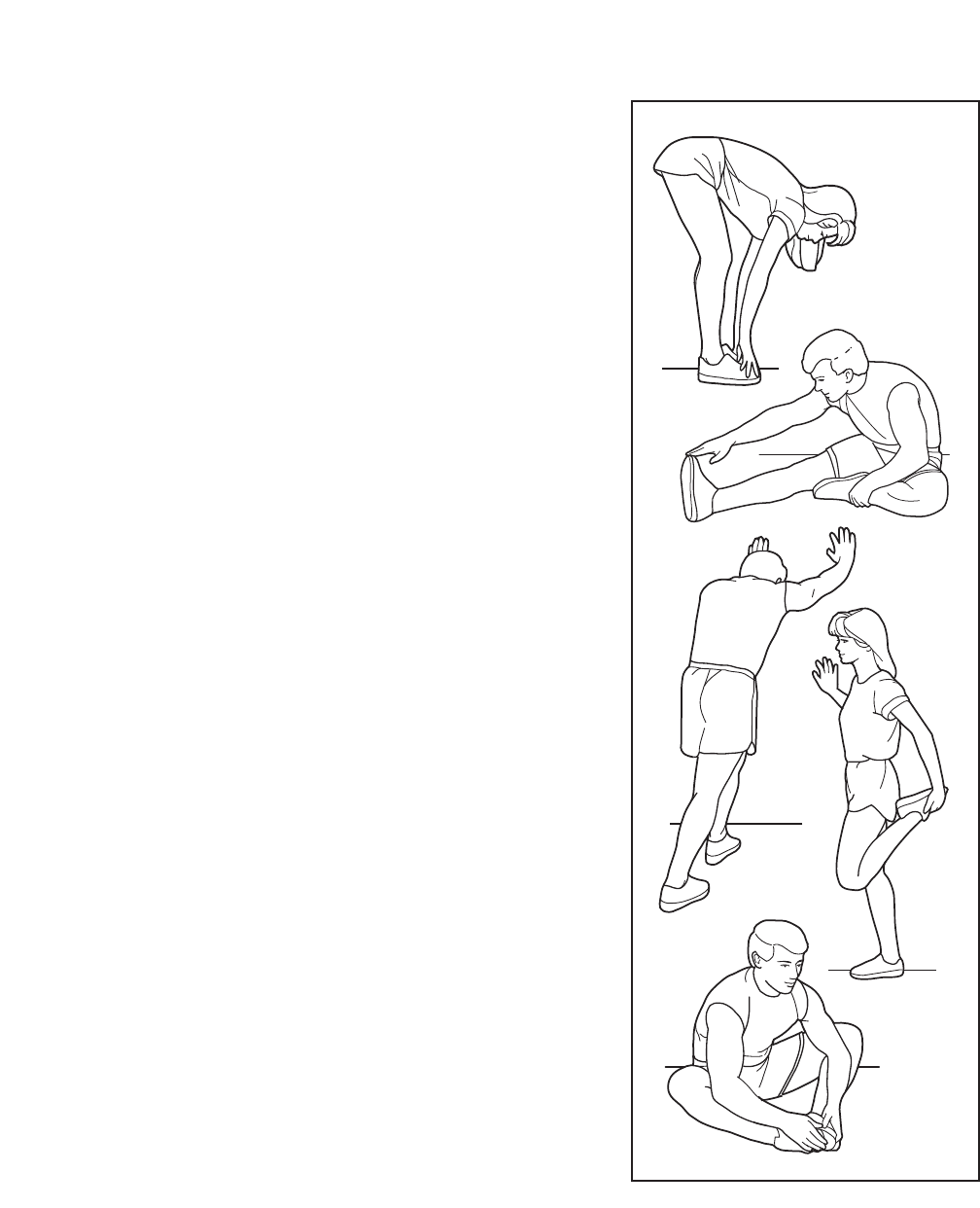

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back foot
flat on the floor. Bend your front leg, lean forward and move your
hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times
for each leg. To cause further stretching of the achilles tendons,
bend your back leg as well. Stretches: Calves, achilles tendons and
ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
1
2
3
4
5
26
PART LIST—Model No. NTL15008.0 R1208C
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
137 #8 x 3/4" Screw
24#8 x 1" Tek Screw
3 4 3/8" x 3 1/2" Bolt
423/8" x 2 1/2" Bolt
5172" Incline Motor Wire
645/16" x 3/4" Bolt
723/8" x 5" Bolt
823/8" Nut
983/8" Star Washer
10 4 #6 x 1" Screw
11 12 #8 x 3/4" Tek Screw
12 3 #8 x 1/2" Screw
13 1 #8 x 3/4" Clamp Screw
14 4 Belt Guide Screw
15 2 1/4" x 1 1/2" Screw
16 2 5/16 x 1 1/4" Bolt
17 2 5/16 x 1 3/4" Bolt
18 2 1/4" x 2 1/2" Bolt
19 1 3/8" x 1" Bolt
20 1 3/8" x 1 3/4" Bolt
21 2 3/8" x 4 1/4" Bolt
22 13 #8 x 1/2" Screw
23 5 Motor Bolt
24 7 #8 Star Washer
25 2 1/4" Flat Washer
26 2 1/4" Lock Washer
27 2 1/4" Star Washer
28 2 3/8" Lock Nut
29 2 5/16" Flange Nut
30 15 Clip
31 2 Plastic Fastener
32 4 1/4" x 1" Bolt
33 1 Hex Key
34 1 5/32" Hex Key
35 1 Left Roller Cover
36 1 Right Roller Cover
37 1 Magnet
38 1 Drive Roller/Pulley
39 1 Belly Pan
40 2 Belt Guide
41 1 Walking Platform
42 1 Walking Belt
43 1 Idler Roller
44 1 Front Hood
45 1 Power Cord
46 1 Grommet
47 1 Belly Pan Cover
48 1 Reset/Off Circuit Breaker
49 1 Reed Switch
50 1 Reed Switch Clamp
51 1 Left Rear Cushion
52 1 Frame
53 1 Belly Pan Plate
54 1 Front Left Cushion
55 1 Front Belly Pan
56 1 Top Incline Motor Cover
57 1 Bottom Incline Motor Cover
58 1 Incline Motor
59 1 Wire Clamp
60 1 Electronics Plate
61 4 Plastic Stand-Off
62 1 PCB Board
63 1 Controller
64 1 Drive Motor
65 1 Resistance Mechanism
66 4 Pulse Plate
67 4 Pulse Plate Housing
68 2 Pulse Handle
69 1 Left Handrail
70 1 Left Pulse Wire
71 1 Right Pulse Wire
72 1 Upright Wire
73 1 Console Cover
74 1 Upright
75 1 Right Handrail
76 2 Handrail Cover
77 2 Wheel
78 1 Base
79 4 Base Foot Spacer
80 4 Base Foot
81 2 Caution Decal
82 1 Warning Decal
83 2 Base Cap
84 1 Console
85 1 Console Fan
86 1 Accessory Tray
87 1 Yoke Spacer
88 1 Yoke
89 1 Console Ground Wire
90 1 Access Door
91 1 Key/Clip
92 2 #8 x 1/2" Cover Screw
93 1 Motor Belt
94 1 Left Platform Decal
95 1 Right Platform Decal
96 1 Right Front Cushion
97 1 Right Rear Cushion
98 2 8" Cable Tie
99 8 8" Wire Tie
100 3 Round Grommet
27
Key No. Qty. Description Key No. Qty. Description
101 1 70" Incline Motor Wire
102 1 Motor Shield
103 1 Audio Wire
*–8" White Wire, M/F
*–10" Blue Wire, 2F
*–4" Blue Wire, M/F
*– 6" Black Wire, M/F
*–4" Red Wire, M/F
*–10" Red Wire, 2F
*–Userʼs Manual
Note: Specifications are subject to change without notice. See the back cover of this manual for information about
ordering replacement parts. *These parts are not illustrated.
35
1
1
1
1
1
1
1
1
1
1
1
1
1
1
11
11
11
14
14
16
16
17
17 18
18
22
26
25
26
25
30
30
30
30
30
30
30
11
30
30
31
31
36
38
37
42
41
40
44
43
40
47
39
33
45
46
48
34
93
94
95
100
30
30
EXPLODED DRAWING A—Model No. NTL15008.0 R1208C
28

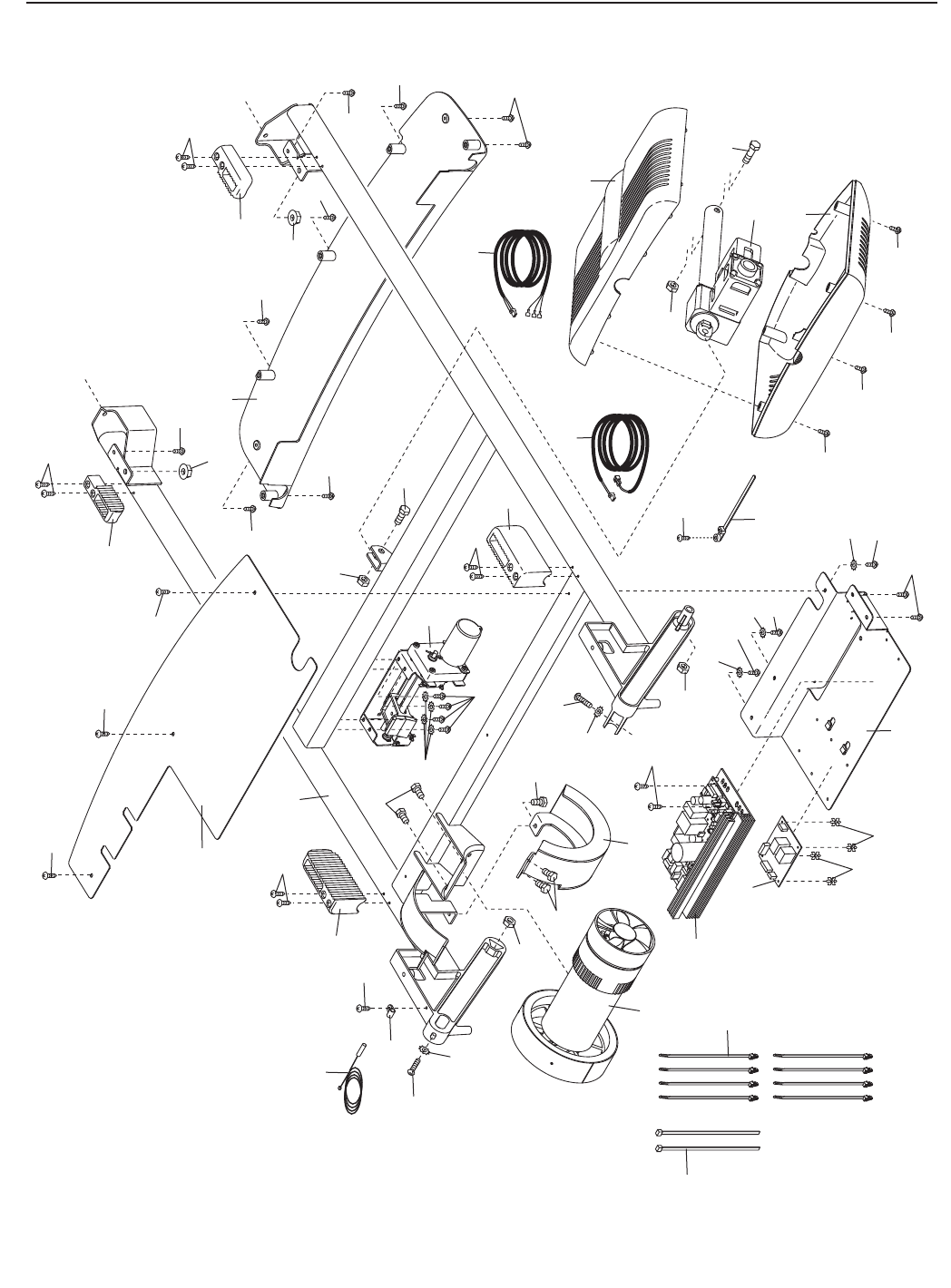

EXPLODED DRAWING B—Model No. NTL15008.0 R1208C
1
1
11
1
1
1
1
1
1
1
11
11
11
11
11
12
12
12
50
13
15
15
19
20
22
22
22
22
22
22
23
24
24
24
24
27
27
28
28
28
29
29
49
53
51
54
52
55
56
59
57
58
60
62
61
61
96
97
65
63
64
99
101
5
98 28
23
23
102
29
92
32
2
2
2
80
79
2
4
4
8
8
9
3
9
3
10
10
10
10
21
21 9
9
82
81
81
66 67
67
66
71
67
66
67
68
68
69
75
73
74
77
77
76
78
70
66
83
83
72
72
76
32
80
79
80
79
80
79
100
100
30

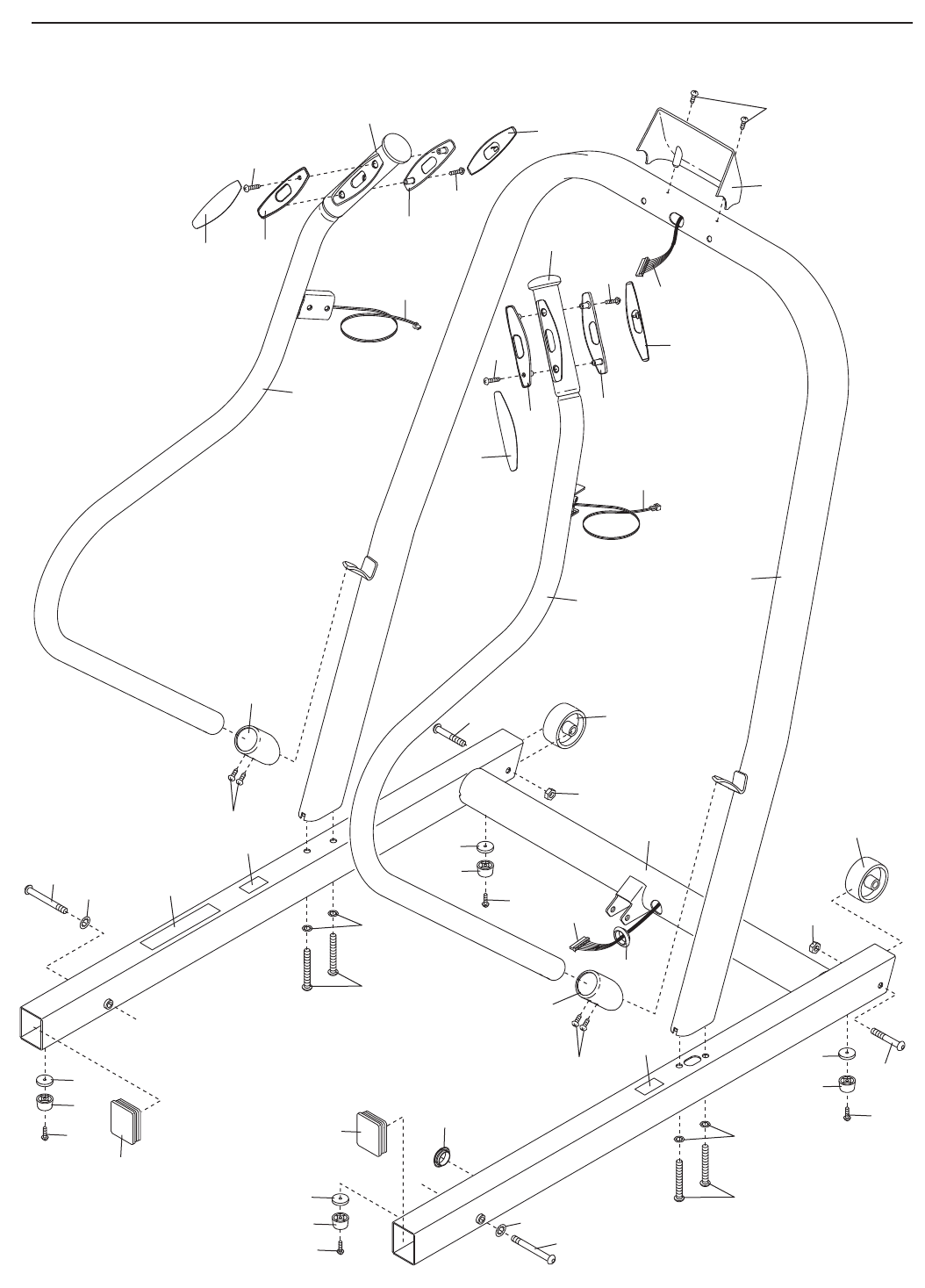

EXPLODED DRAWING C—Model No. NTL15008.0 R1208C
7
22
1
1
89
1
1
1
1
6
6
1
9
86
85
84
88 87
1
90
91
103
31

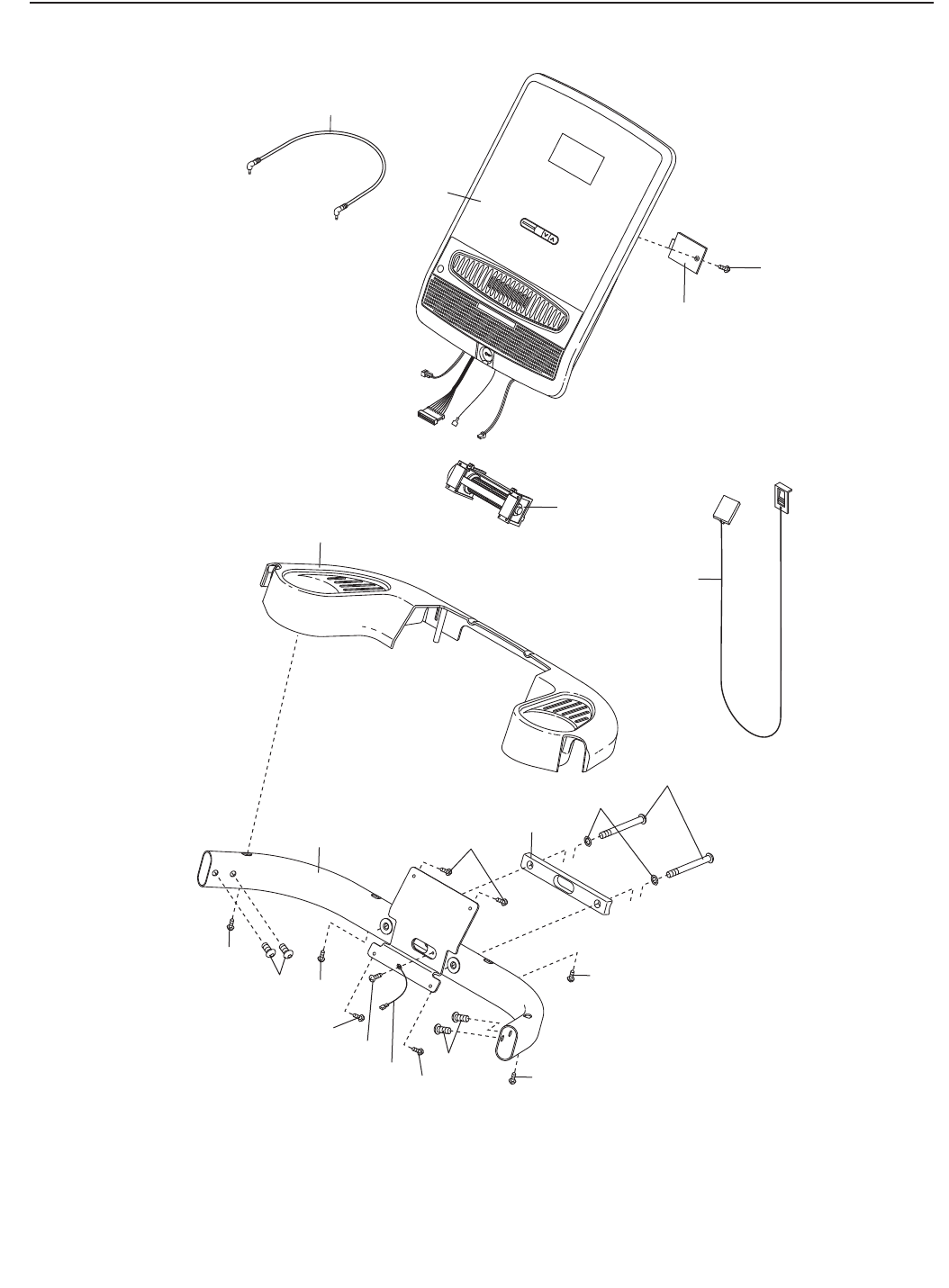

EXPLODED DRAWING D—Model No. NTL15008.0 R1208C
Part No. 274109 R1208C Printed in USA © 2008 ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame and drive motor are warranted for a life-
time. Parts and labor are warranted for one (1) year from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All re-
pairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to any damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service cen-
ter; products used for commercial or rental purposes; or products used as store display models. No other
warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-
cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

Navigation menu
