PatentPending
Model No. NTL99020
Serial No.
Find the serial number in the location
shown below. Write the serial number
in the space above for reference.
_ _Serii_iumber Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.-Fri., 6 a.m.-6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................. 3
BEFORE YOU BEGIN ....................................................................... 5
ASSEMBLY ............................................................................... 6
OPERATION AND ADJUSTMENT ............................................................. 8

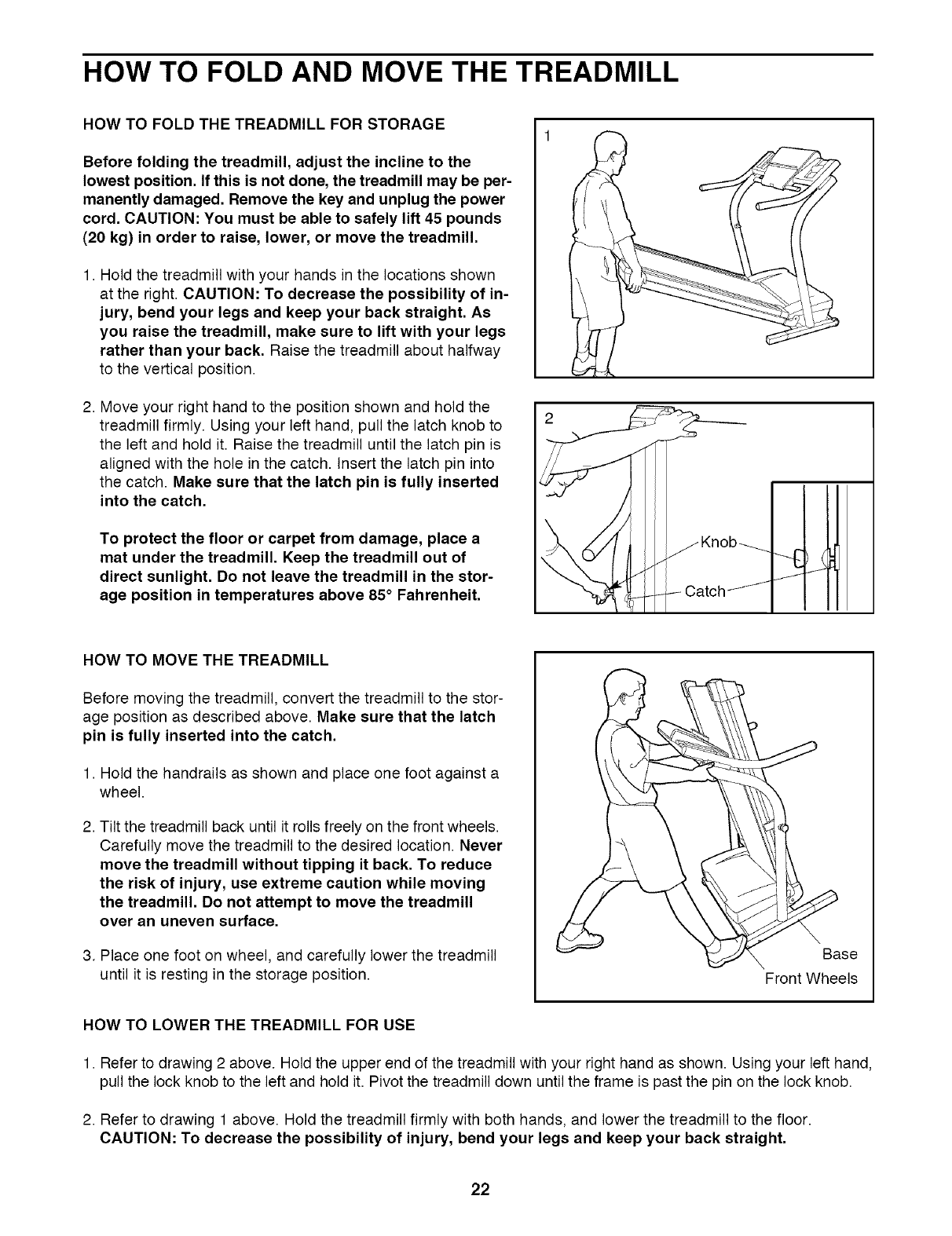

HOW TO FOLD AND MOVE THE TREADMILL .................................................. 22

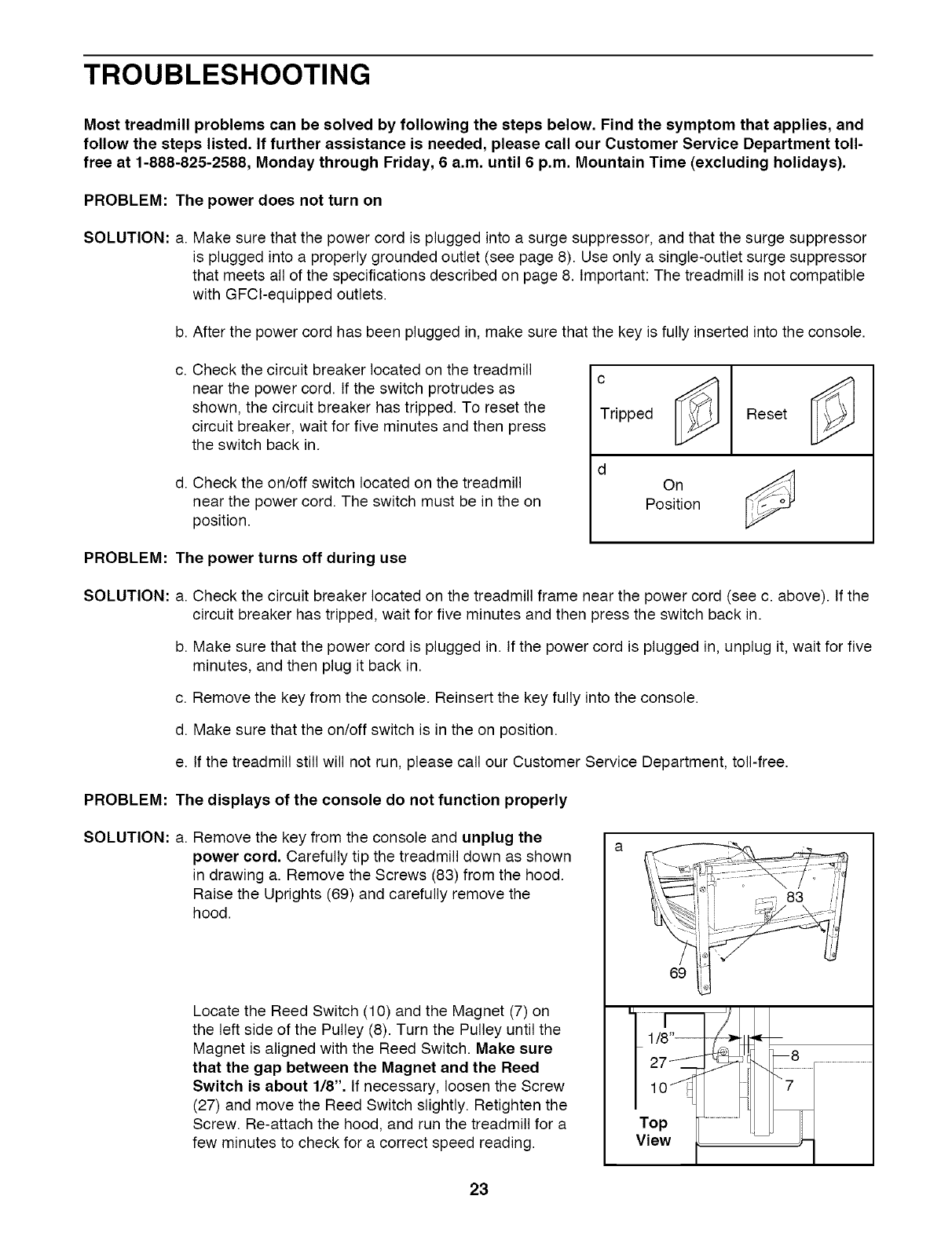

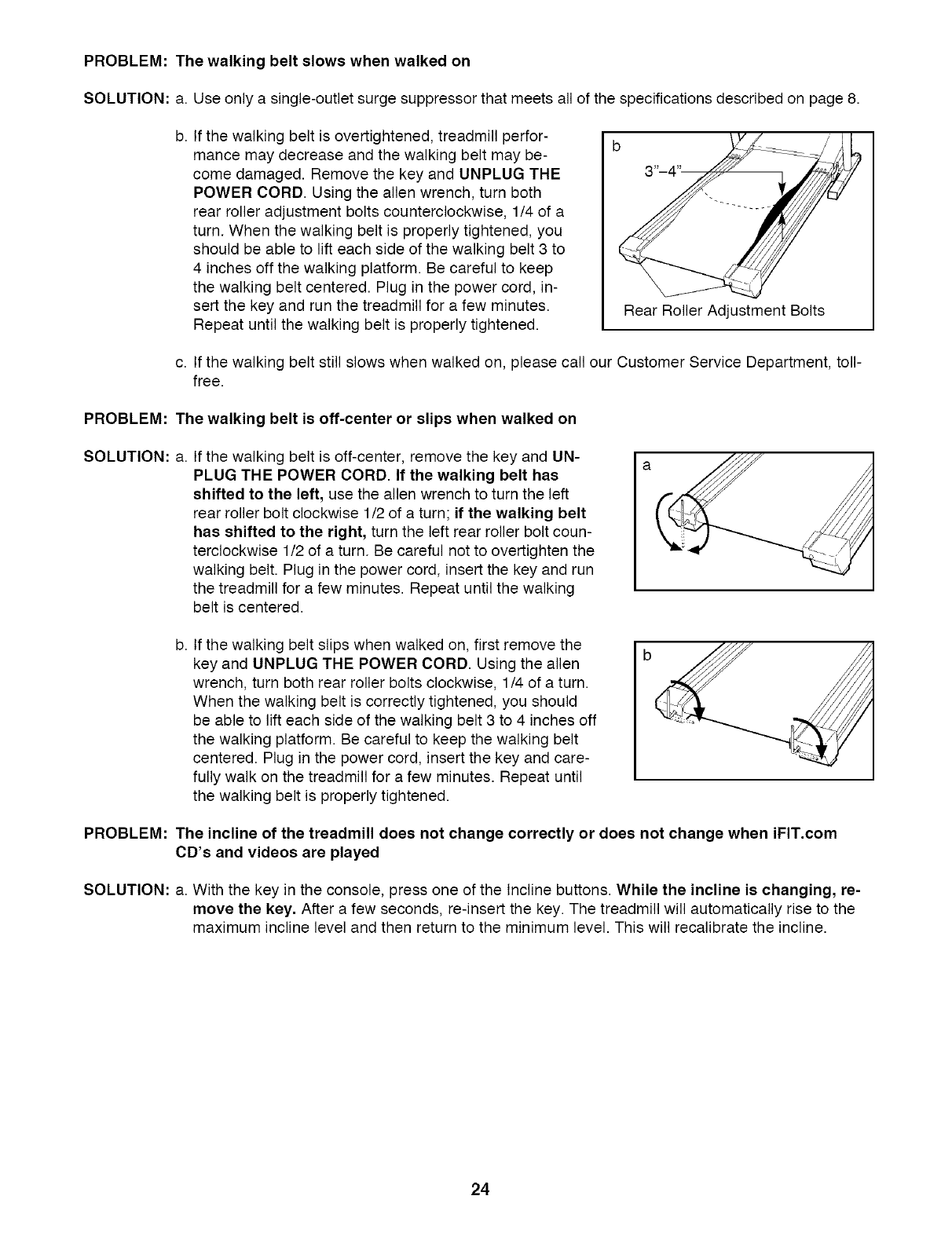

TROUBLESHOOTING ...................................................................... 23

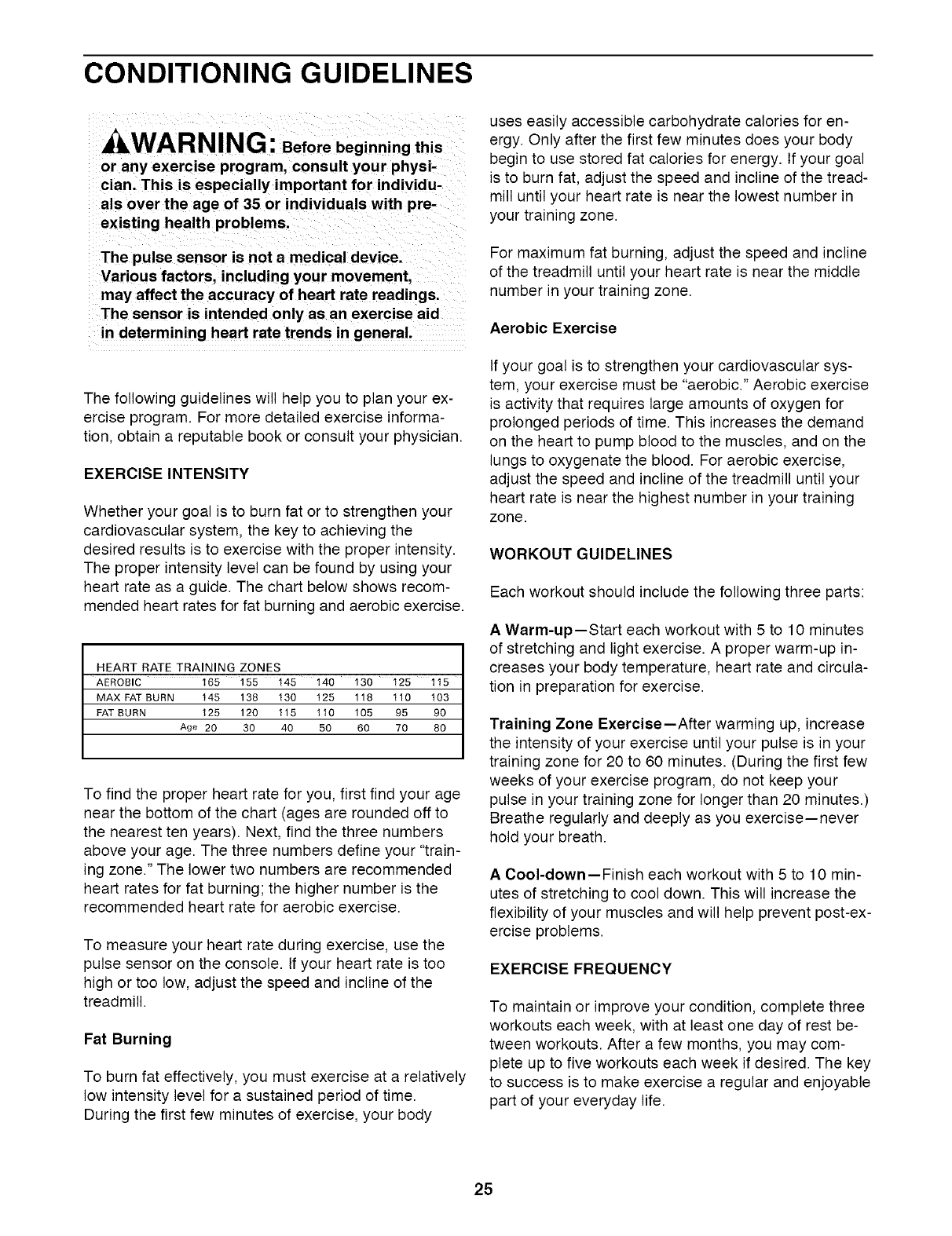

CONDITIONING GUIDELINES ............................................................... 25

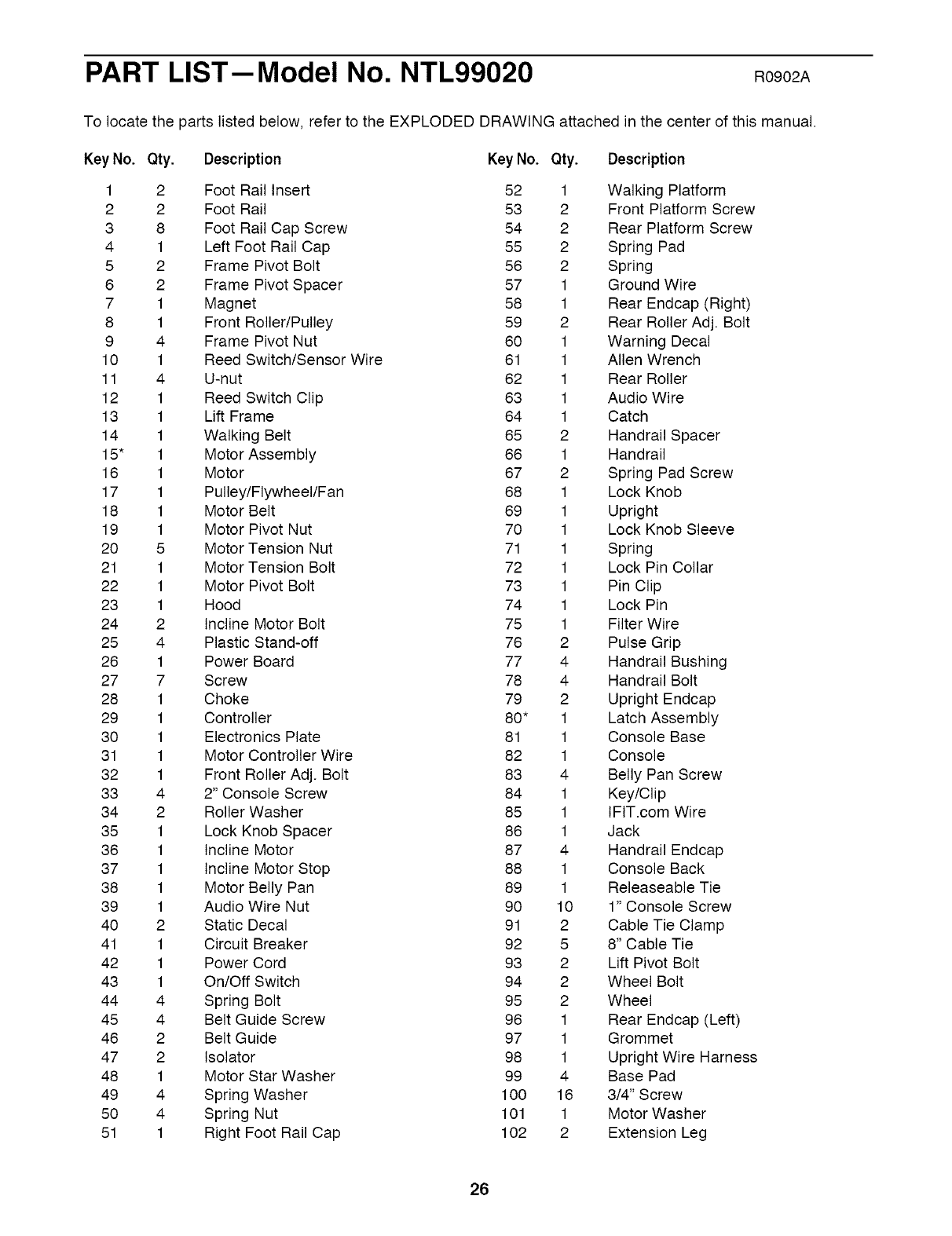

PART LIST ............................................................................... 26

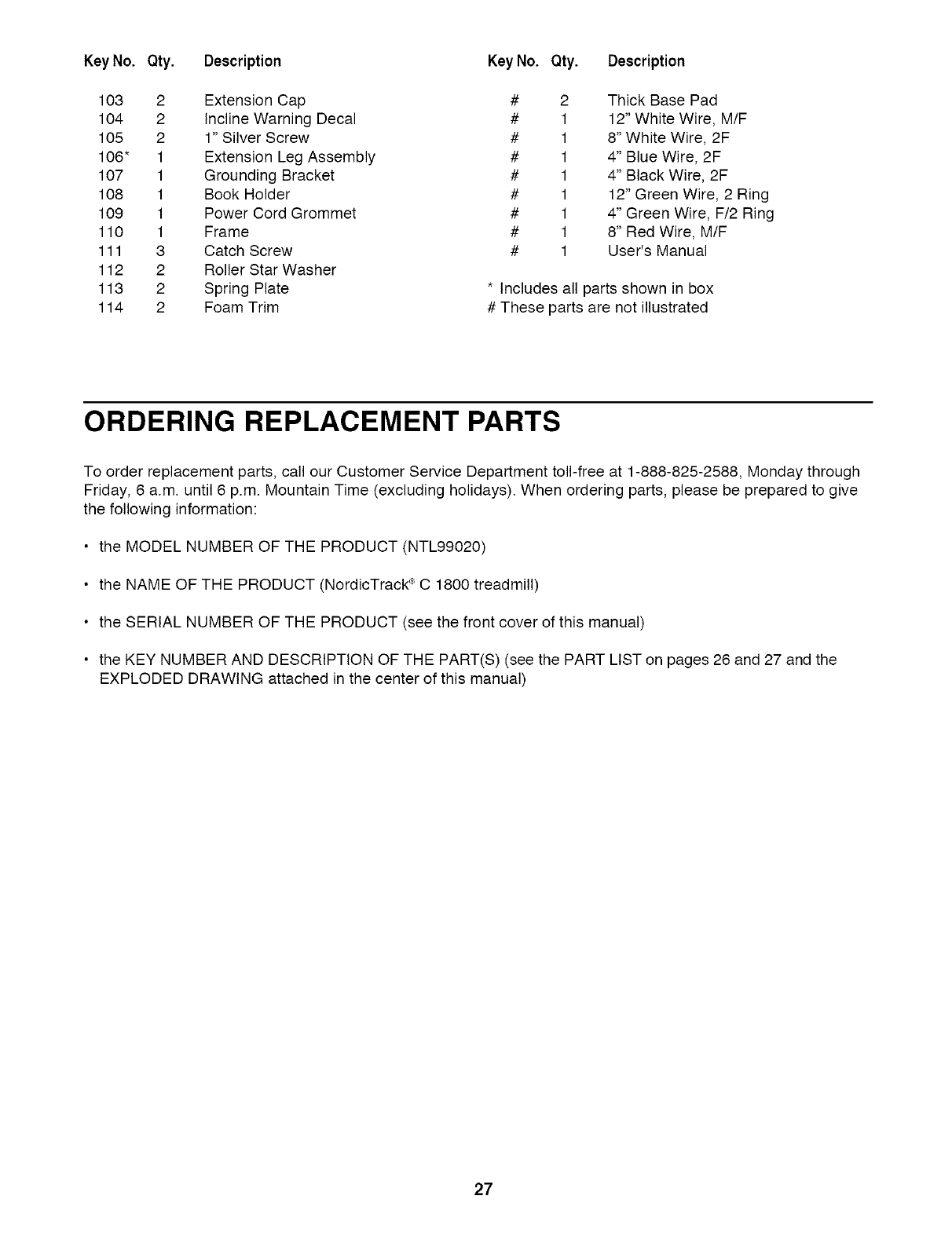

ORDERING REPLACEMENT PARTS .......................................................... 27
LIMITED WARRANTY ............................................................... Back Cover

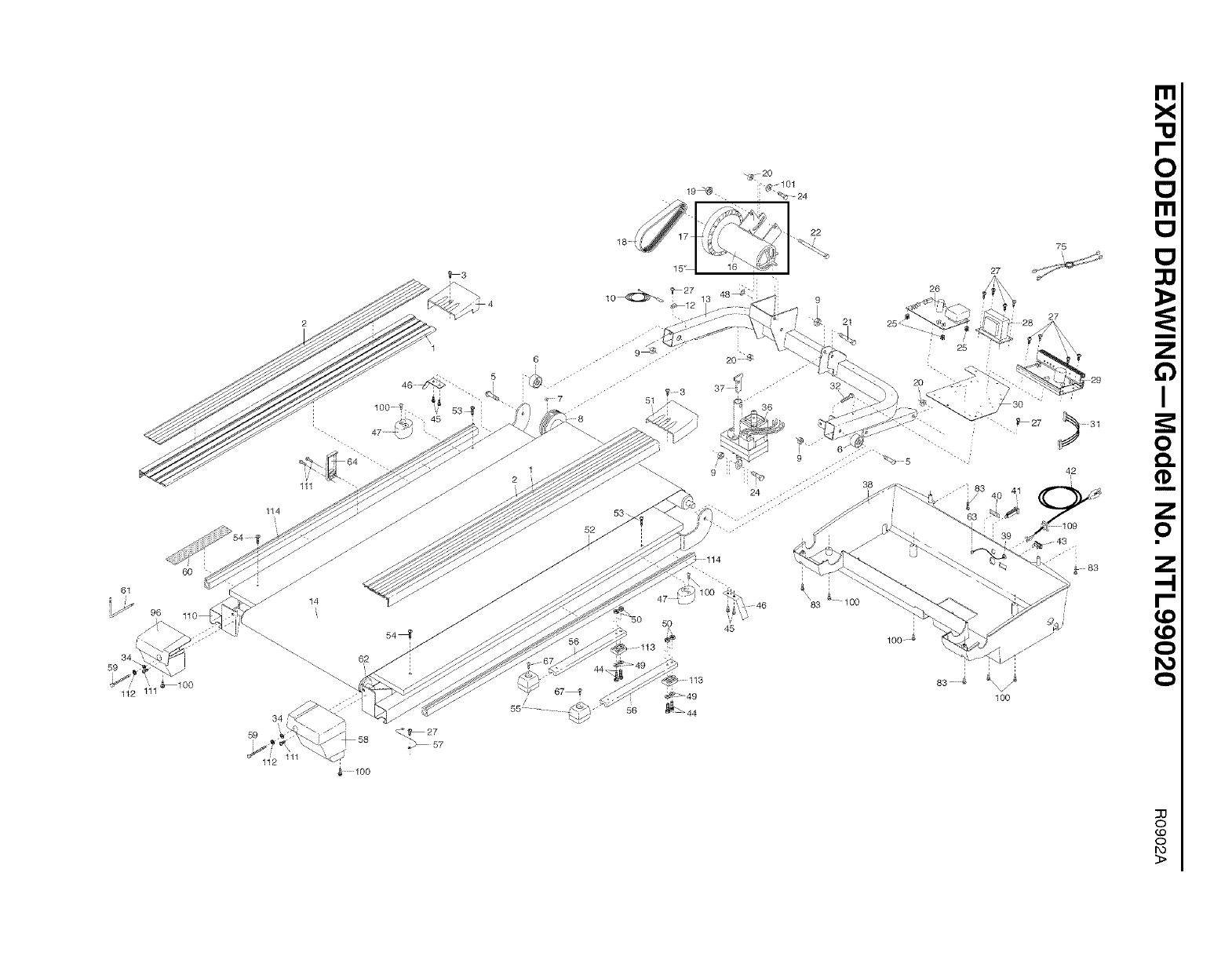

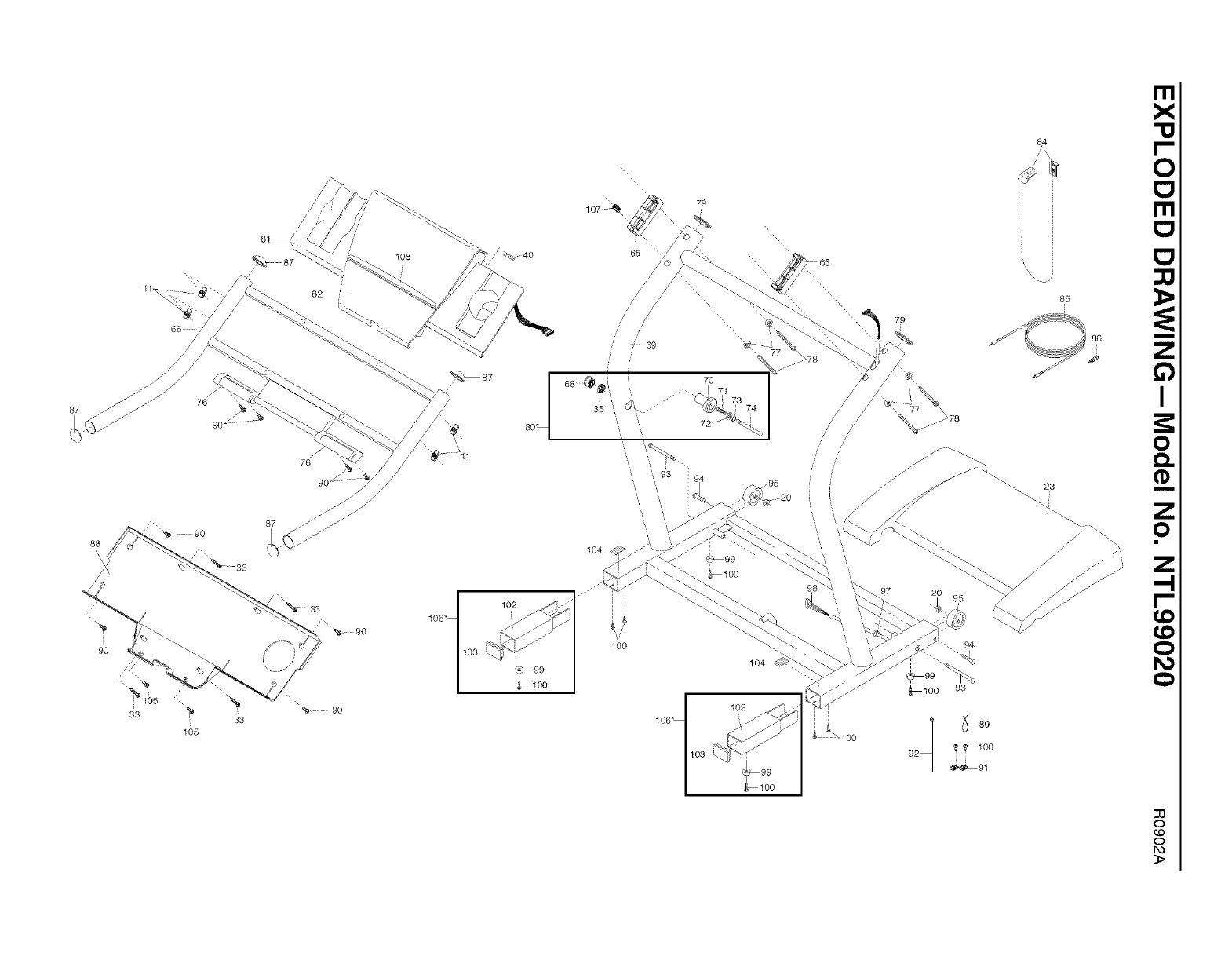

Note: An EXPLODED DRAWING is attached in the center of this manual.
NordicTrack is a registered trademark of ICON Health & Fitness, Inc.
2
IMPORTANT PRECAUTIONS
_WARN ING: To reduce the risk of burns, fire. electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
12. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.
13. Keep the power cord and the surge suppres-
sor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 5 if the tread-
mill is not working properly.)
15. Never start the treadmill wh lie you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 250 pounds.
8. Never allow more than one person on the
tread mill at a time.
Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

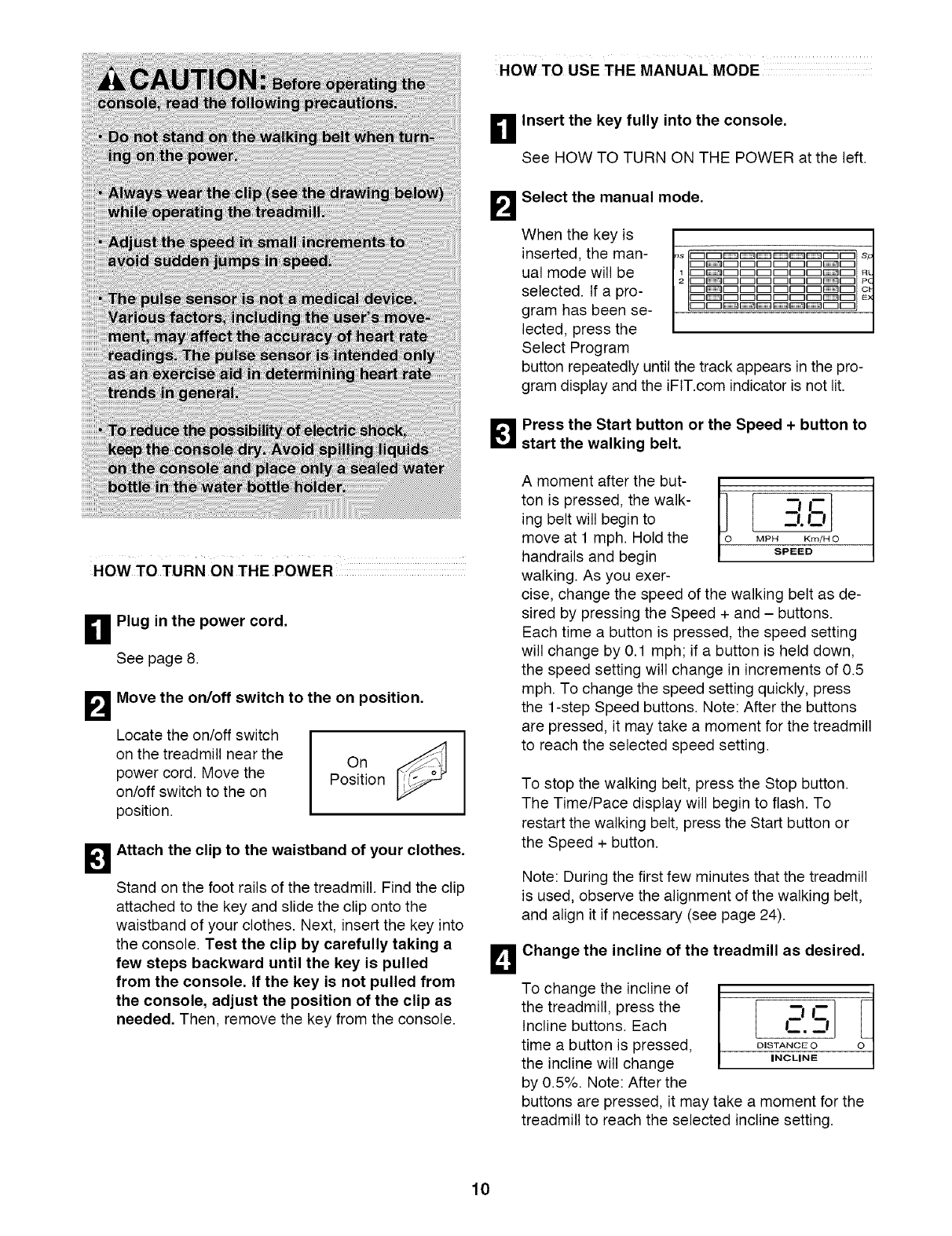

10. When connecting the power cord (see page 8),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
16. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
17. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
18. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord and move the on/oft switch to
the off position when the treadmill is not in
use. (See the drawing on page 5 for the loca-
tion of the on/off switch.)
19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 22.) You
must be able to safely lift 45 pounds (20 kg) in
order to raise, lower, or move the treadmill.
11. Use only a single-outlet surge suppressor that 20. Do not change the incline of the treadmill by
meets all of the specifications described on placing objects under the treadmill.
page 8. To purchase a surge suppressor, see
your local NordicTrack dealer or call 1-800- 21. When folding or moving the treadmill, make
806-3651 and order part number 146148. sure that the storage latch is fully closed.

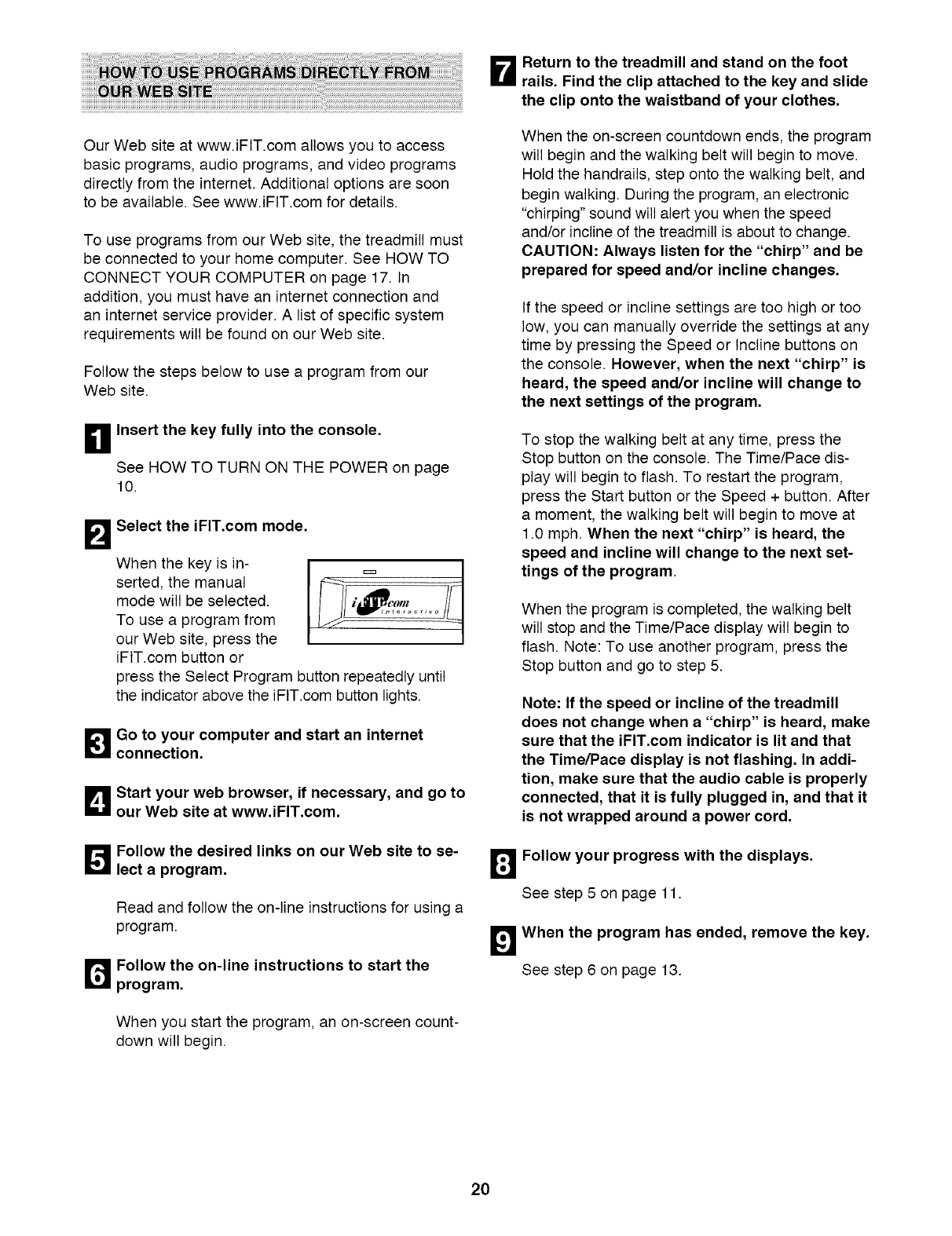

22.WhenusingiFIT.comCD'sandvideos,an
electronic"chirping" sound will alert you
when the speed and/or incline of the treadmill
is about to change. Always listen for the
"chirp" and be prepared for speed and/or in-
cline changes. In some instances, the speed
and/or incline may change before the per-
sonal trainer describes the change.

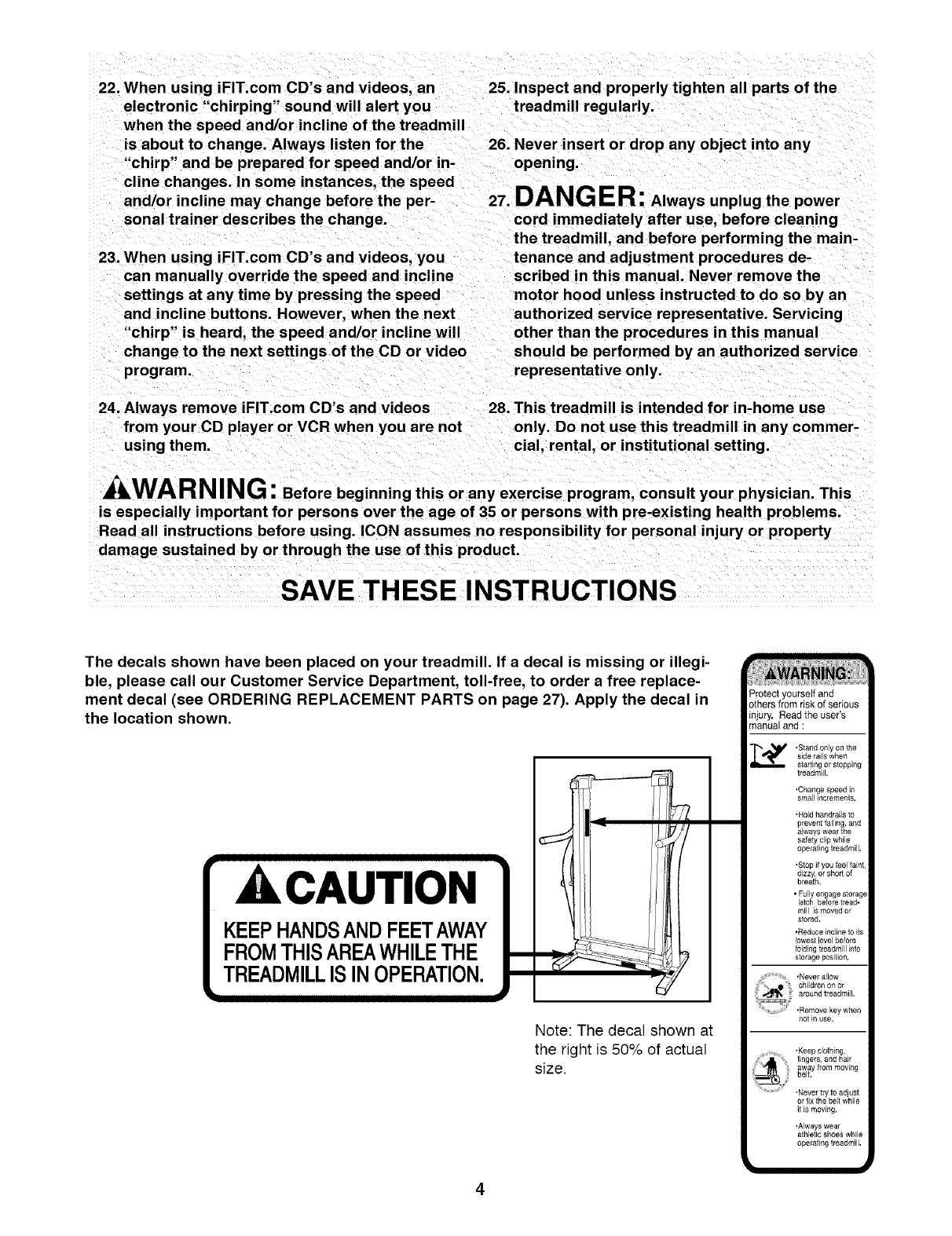

23. When using iFIT.com CD's and videos, you
can manually override the speed and incline
settings at any time by pressing the speed
and incline buttons. However, when the next
25. Inspect and properly tighten all parts of the
treadmill regularly.
26. Never insert or drop any object into any
opening.
2z,DANG ER: Always unplug thepower
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
"chirp" is heard, the speed and/or incline will other than the procedures in this manual
change to the next settings of the CD or video should be performed by an authorized service
program, representative only.
24. Always remove iFIT.com CD's and videos 28. This treadmill is intended for in-home use
from your CD player or VCR when you are not only. Do not use this treadmill in any commer-
using them. cial, rental, or institutional setting.
, WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown have been placed on your treadmill. If a decal is missing or illegi-
ble, please call our Customer Service Department, toll-free, to order a free replace-
ment decal (see ORDERING REPLACEMENT PARTS on page 27). Apply the decal in
the location shown.
ACAUTION
KEEP HANDSAND FEETAWAY
FROMTHISAREAWHILETHE
TREADMILLIS IN OPERATION.
Note: The decal shown at
the right is 50% of actual
size.
Protect yourself and
others from risk of serious
injury. Read the user's
manual and :
-Stand only on the
side rails when
startfog or stopping
treadmill.
.Change speed in
small i_tcremenls.
-Hold handrails to
prevent fallfog, and
always wear the
safety clip while
operating treadmill.
"Stop if you feel faint,
dizzy, or shod of
breath.
mill is moved or
stored.
*Reduce incline to its
lowest level before
folding fleadmill into
storage position.
.Never allow
children on or
around treadmill.
.Remove key when
not in use.
*Keep clothing,
fingers, and hair
away from moving
belt.
.Never try to adjt_st
or lix the belt while
it is moving.
.Always wear
athletic shoes while
operating treadmill.
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack 'R;
C 1800 treadmill. The C 1800 treadmill combines ad-
vanced technology with innovative design to help you
get the most from your exercise program in the conve-
nience of your home. And when you're not exercising,
the unique C 1800 treadmill can be folded up, requiring
less than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our Customer Service Department toll-free
at 1-888-825-2588, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays). To
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is NTL99020. The serial num-
ber can be found on a decal attached to the treadmill
(see the front cover of this manual for the location).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Hand Weight Holder*
Console
Book Water Bottle Holdert
LEFT SIDE
Lock Knob
Walking Belt
Pulse Sensor
Key/Clip
RIGHT SIDE
On/Off Switch
--_ Circuit Breaker
Foot Rail
Rear Roller
Adjustment Bolts
*For information about optional hand
weights, see page 21.
tNo water bottle is included.
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
I
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench _1
and your own phillips screwdriver (_C;====_ and wire cutters _____.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise the
Uprights (69) until the treadmill is in the position shown.
Refer to the inset drawing. Insert one of the Extension
Legs (102) into the treadmill as shown. Make sure that
the Extension Leg is turned so the Base Pad (99) is on
the bottom. Note: It may be helpful to tip the Uprights
(69) forward as you insert the Extension Leg.
Insert the other Extension Leg (not shown) in the same
way.
2. Press the Lock Knob Sleeve (70) into the left Upright (69).
Make sure that the Lock Pin Collar (72) and the Spring
(71) are on the Lock Pin (74). Insert the Lock Pin into the
Lock Knob Sleeve (70) and the left Upright (69). Next,
press the Lock Knob Spacer (35) onto the left Upright.
Tighten the Lock Knob (68) onto the Lock Pin.
35 71
72
74
3. With the help of a second person, carefully tip the
Uprights (69) down as shown. Make sure that the
Extension Legs (102) remain in the Uprights,
Attach each Extension Leg (102) with two 3/4" Screws
(100) as shown.
With the help of a second person, carefully tip the
Uprights (69) back to the vertical position.
Note: One replacement Base Pad (99) may be included.
Use the Base Pad to replace any Base Pad that becomes
worn.
69
99- O0
102
69
102
6
4. Slide the Grounding Bracket (107) onto one of the
Handrail Spacers (65) in the location shown.
See inset drawing A. Pinch the tabs on the Grounding
Bracket (107) so that the tabs will fit into the hole in the
Upright (69 [see inset drawing B]).
See inset drawing B. Place the Handrail Spacer (65) on
the left Upright (69) as shown, with the cutout on the indi-
cated side. Note: Make sure that the tabs on the
Grounding Bracket (107 [see inset drawing A]) are in-
serted into the hole in the Upright.
5. Pull the Upright Wire Harness (98) up through the other
Handrail Spacer (65). Place the Handrail Spacer on the
right Upright (69) as shown, with the cutout turned toward
the treadmill (see inset drawing A).
Have a second person hold the Handrails (66) near the
Uprights (69) as shown. Connect the Upright Wire
Harness (98) to the wires extending from the Console
Base (81). Insert the connectors and the Upright Wire
Harness into the hole in the Console Base (see inset
drawing B).
Set the Handrails (66) on the Handrail Spacers (65),
being careful not to pinch the Upright Wire Harness (98).
K
A
Tabs
107
65 _ _ Cutout
81
6. Insert two Handrail Bolts (78) with Handrail Bushings
(77) into the right Upright (69) and the right Handrail
Spacer (65). Turn the Handrail Bushings so they fit
against the Upright with the thick sides of the Bushings
toward the center of the treadmill as shown in the inset
drawing. Lift the right Handrail (66) slightly and align the
Bolts with the holes in the Handrail. Next, thread the
Bolts into the Handrail. Do not tighten the Bolts yet,
Attach the left Handrail (not shown) in the same way.
Tighten all four Handrail Bolts (78).
77
Thick
Side
7, Make sure that all parts are properly tightened before you use the treadmill. Note: If there is a thin sheet
of clear plastic on the hood decal, remove it. Keep the included allen wrench in a secure place. The allen
wrench is used to adjust the walking belt (see page 24). To protect the floor or carpet from damage, place a
mat under the treadmill.
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBE TM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBE TM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. Such substances will deteriorate the walking
belt and cause excessive wear,
HOW TO PLUG IN THE POWER CORD
DANG ER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product--if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home's power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local NordicTrack dealer or call 1-800-806-
3651 and order part number 146148.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indi-
cate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the
treadmill. If the control system is damaged, the
walking belt may change speed or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances,
Important: The treadmill is not compatible with
GFOl-equipped outlets,
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
Outlet Box
Surge Suppressor
"_J... Grounding Pin
Metal Screw
Outlet Box
Adapter
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter,
ProgramDisplay
It n'E-n
DISTANCE O O SEG,[IME PACEO OF_T PULSEO MPH Km/HO
INCLINE TIME CALORIES SPEED
WARM-UP/ COOL,DOWN FAT-_URN ENDURANCE PERFORMANCE
TRAINING ZONES
Pulse
Sensor
START STOP
Note: If there is a sheet of clear
plastic on the console, remove it.
IA vO
ji
Key ___]_ Clip
Pulse
Sensor

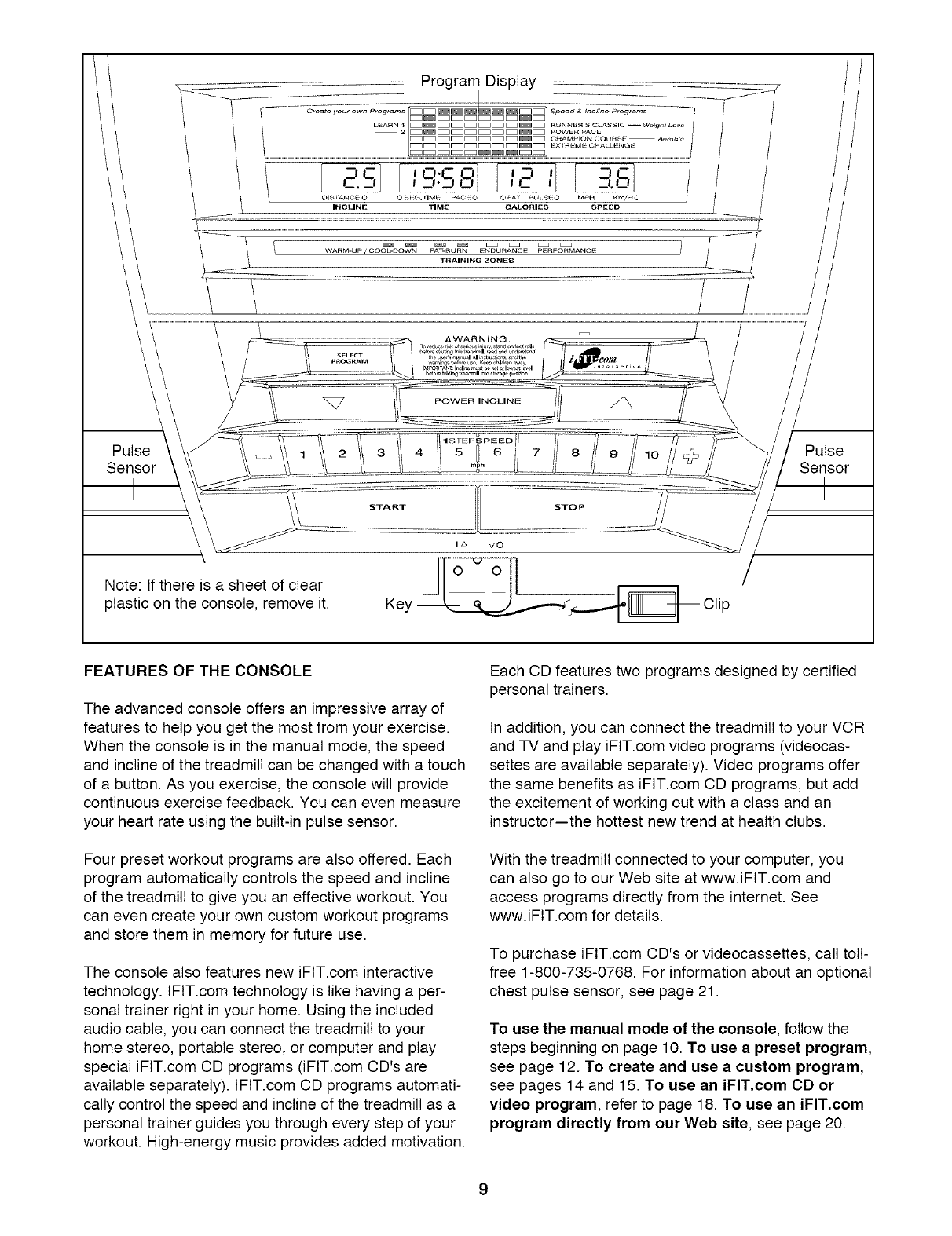

FEATURES OF THE CONSOLE
The advanced console offers an impressive array of
features to help you get the most from your exercise.
When the console is in the manual mode, the speed
and incline of the treadmill can be changed with a touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the built-in pulse sensor.
Four preset workout programs are also offered. Each
program automatically controls the speed and incline
of the treadmill to give you an effective workout. You
can even create your own custom workout programs
and store them in memory for future use.

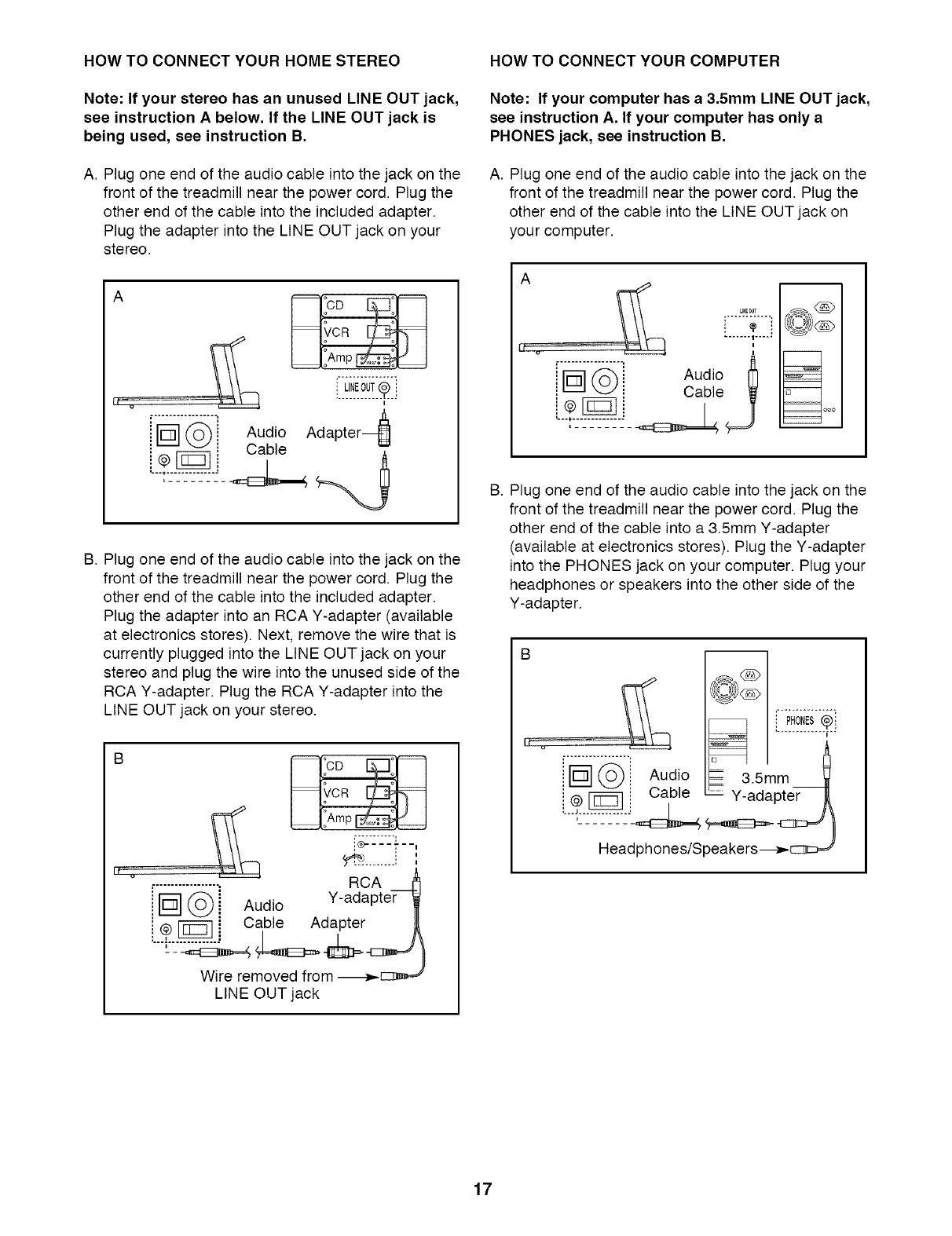

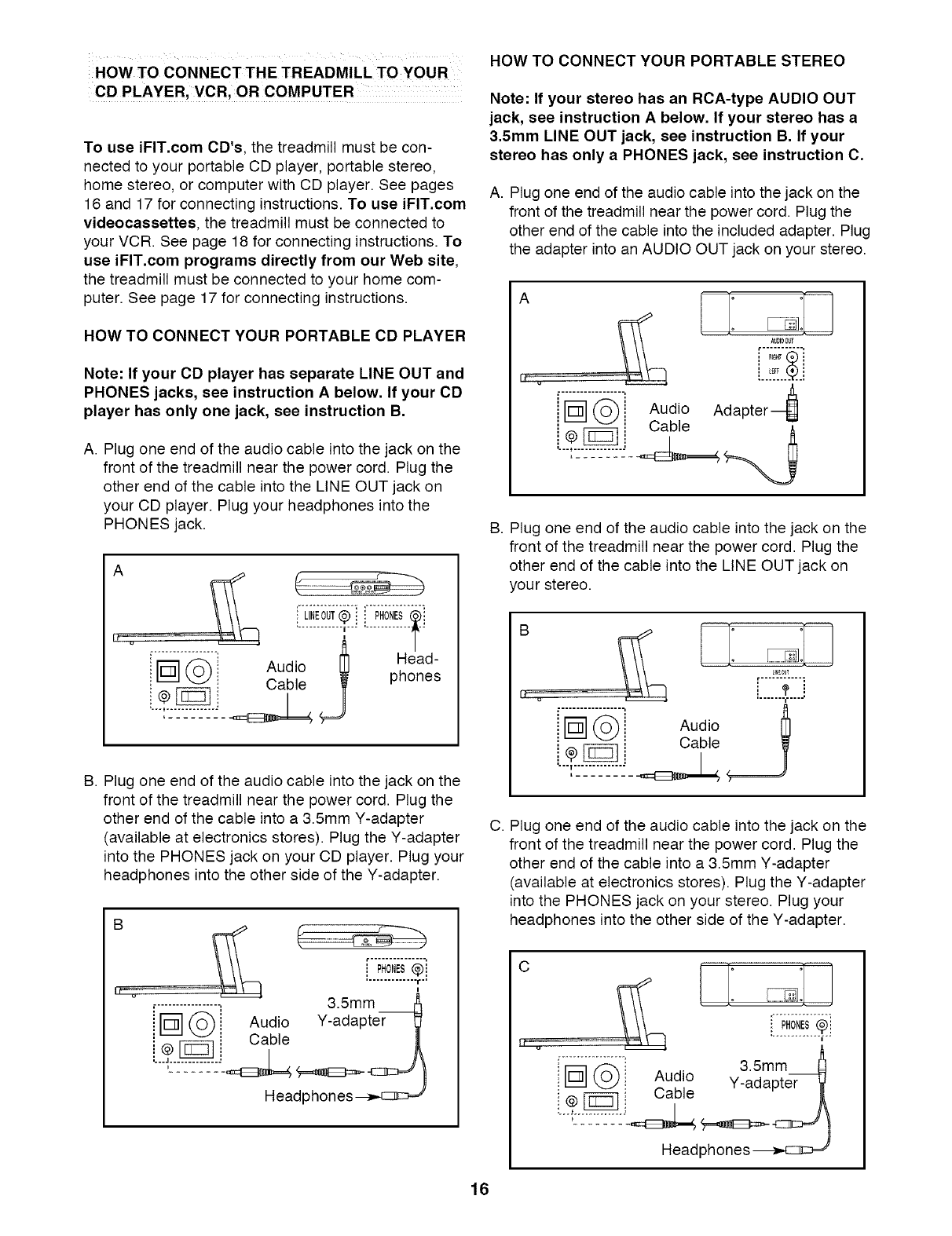

The console also features new iFIT.com interactive
technology. IFIT.com technology is like having a per-
sonal trainer right in your home. Using the included
audio cable, you can connect the treadmill to your
home stereo, portable stereo, or computer and play
special iFIT.com CD programs (iFIT.com CD's are
available separately). IFIT.com CD programs automati-
cally control the speed and incline of the treadmill as a
personal trainer guides you through every step of your
workout. High-energy music provides added motivation.
Each CD features two programs designed by certified
personal trainers.
In addition, you can connect the treadmill to your VCR
and TV and play iFIT.com video programs (videocas-
settes are available separately). Video programs offer
the same benefits as iFIT.com CD programs, but add
the excitement of working out with a class and an
instructor--the hottest new trend at health clubs.
With the treadmill connected to your computer, you
can also go to our Web site at www.iFIT.com and
access programs directly from the internet. See
www.iFIT.com for details.
To purchase iFIT.com CD's or videocassettes, call toll-
free 1-800-735-0768. For information about an optional
chest pulse sensor, see page 21.
To use the manual mode of the console, follow the

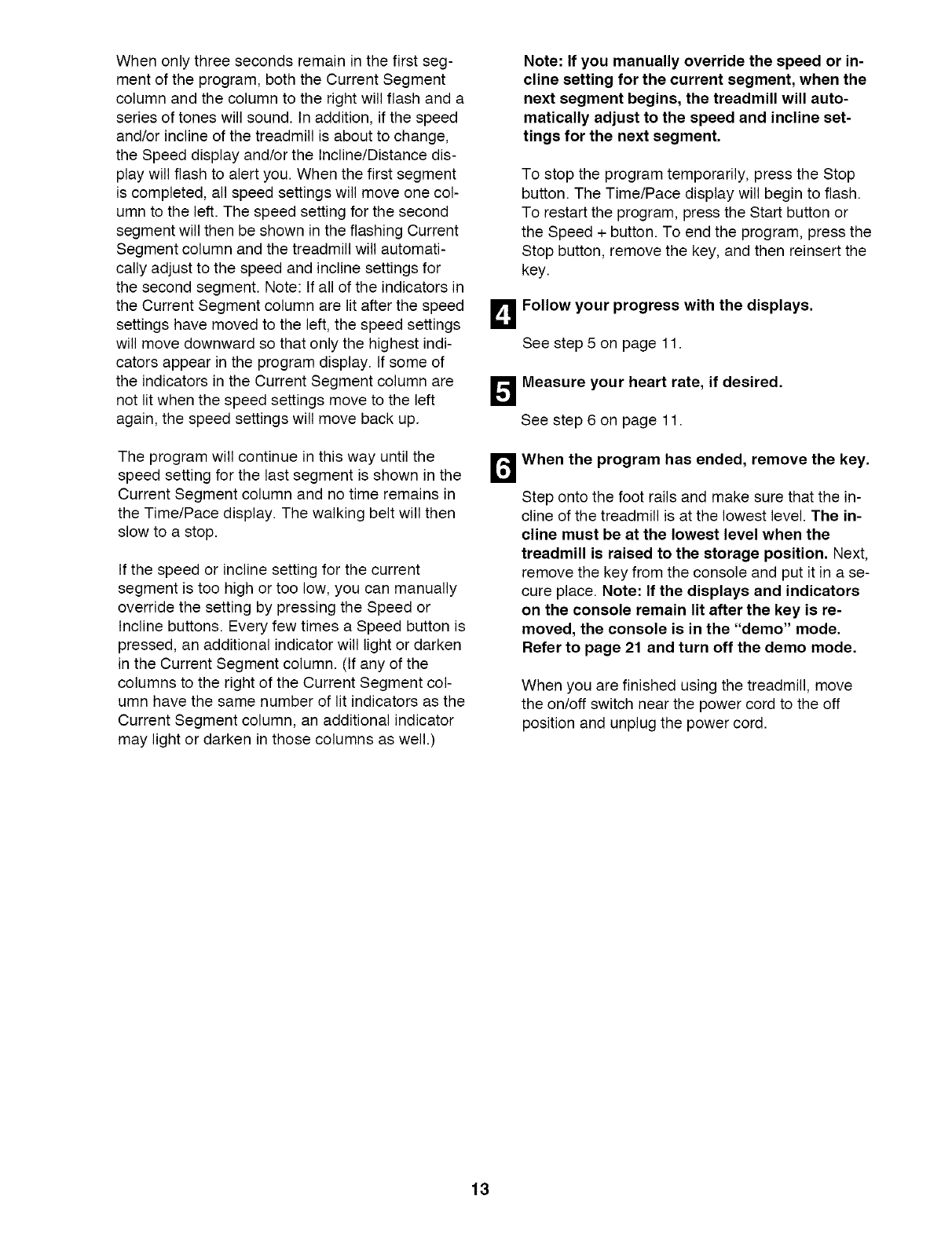

steps beginning on page 10. To use a preset program,

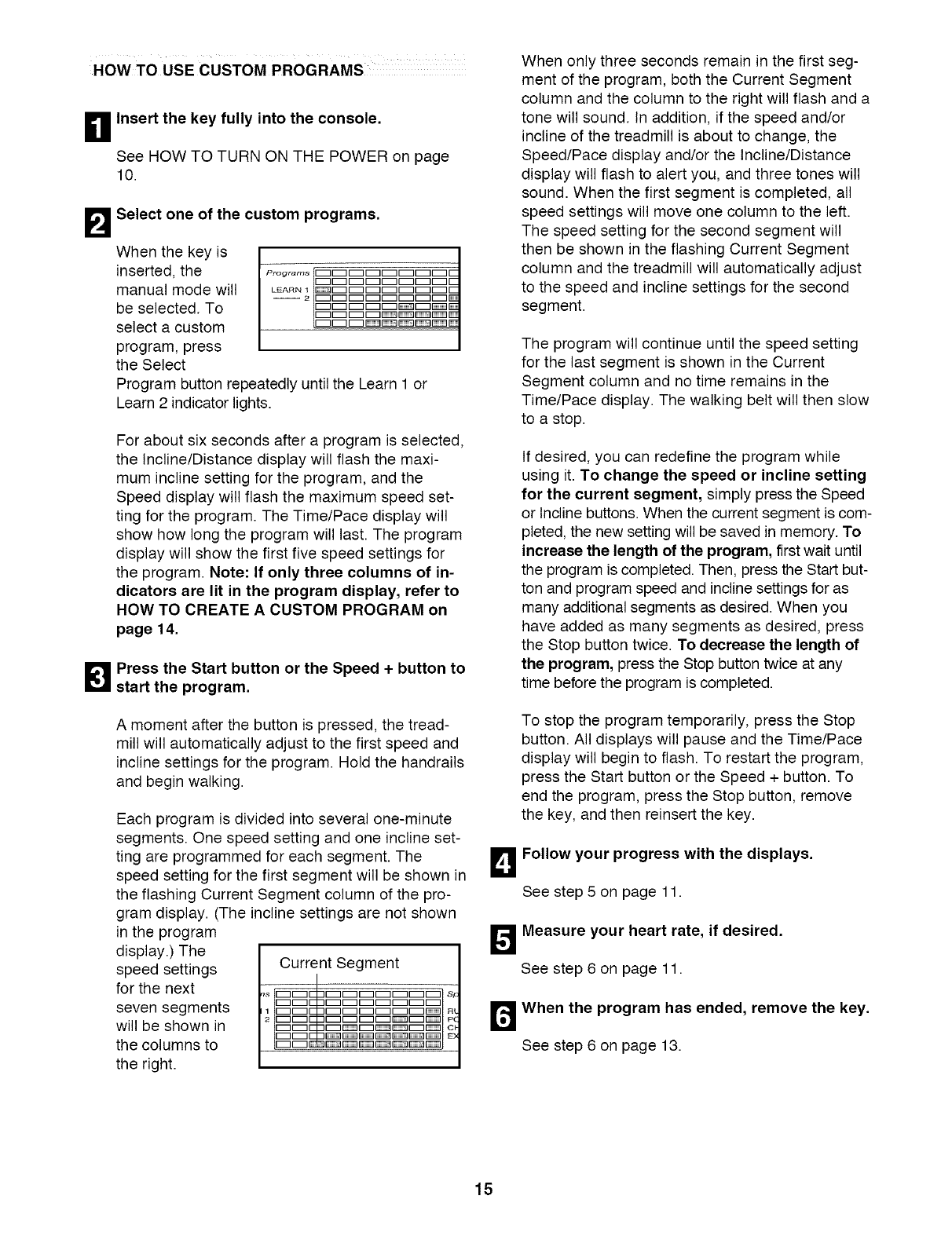

see page 12. To create and use a custom program,

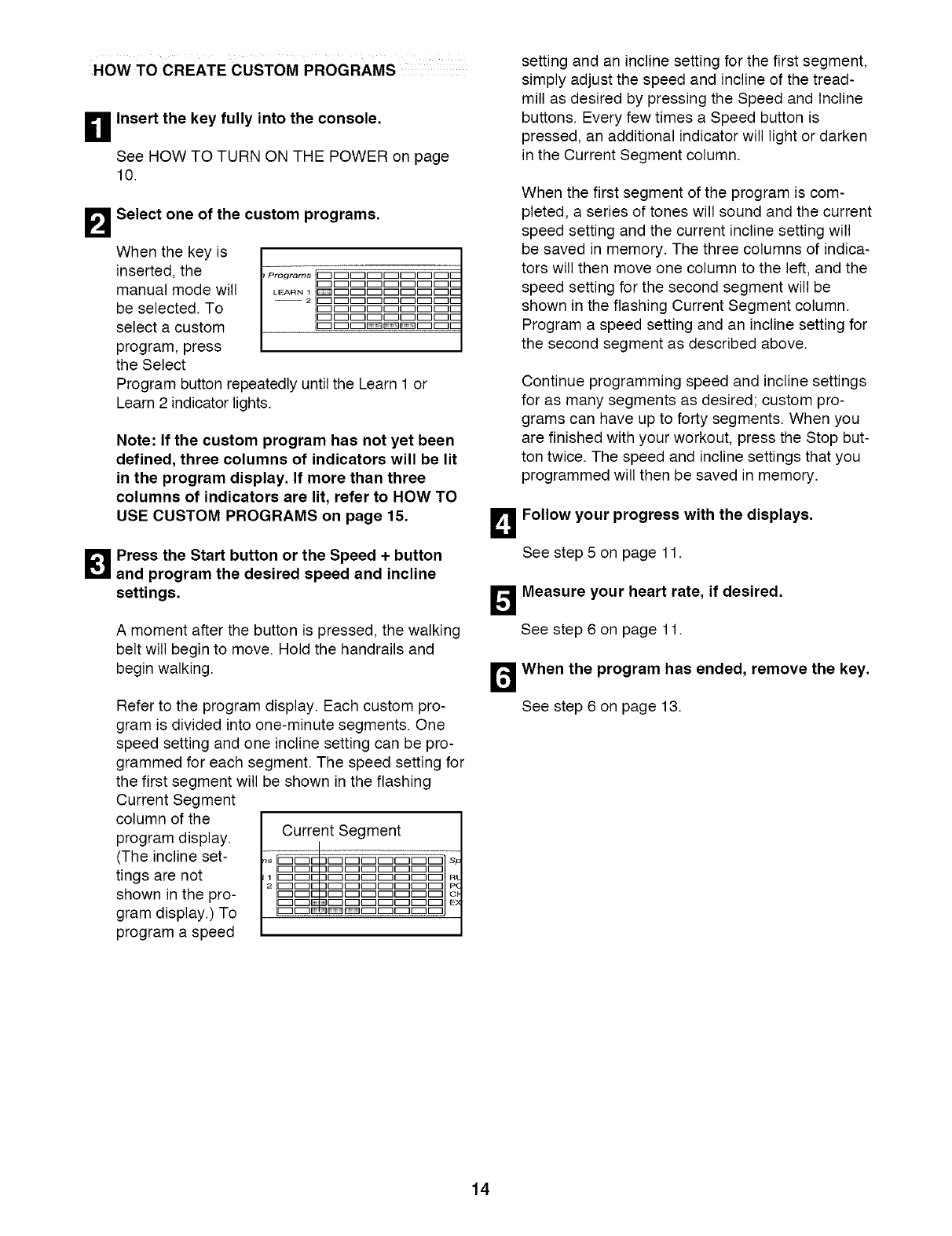

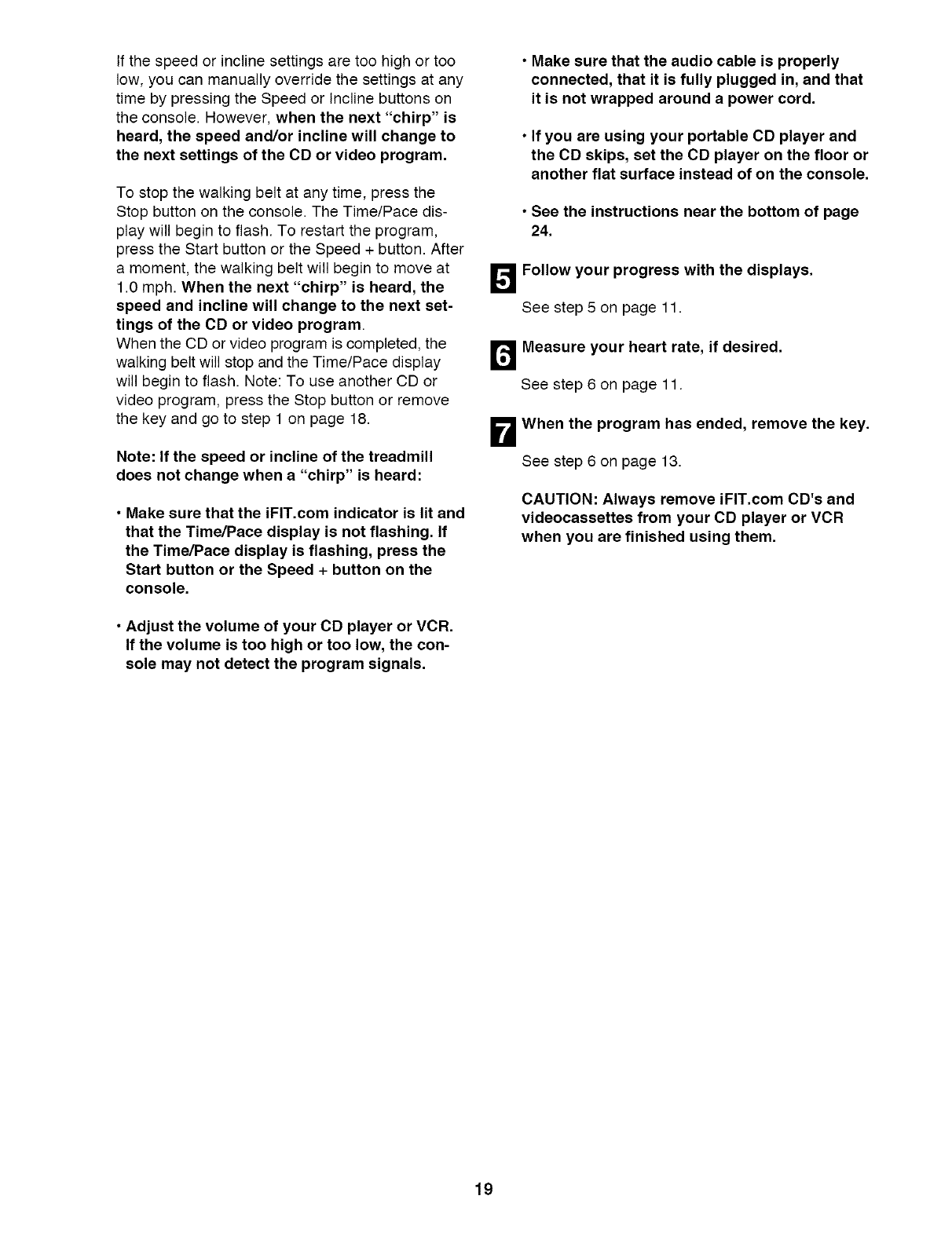

see pages 14 and 15. To use an iFIT.com CD or
video program, refer to page 18. To use an iFIT.com
program directly from our Web site, see page 20.
HOW TO USE THE MANUAL MODE
L1
B
B
Plug in the power cord.
See page 8.
Move the on/off switch to the on position.
Locate the on/off switch
on the treadmill near the
power cord. Move the
on/off switch to the on
position.
Position
Attach the clip to the waistband of your clothes.
Stand on the foot rails of the treadmill. Find the clip
attached to the key and slide the clip onto the
waistband of your clothes. Next, insert the key into
the console. Test the clip by carefully taking a
few steps backward until the key is pulled
from the console, If the key is not pulled from
the console, adjust the position of the clip as
needed, Then, remove the key from the console.
D
B
Insert the key fully into the console.
See HOW TO TURN ON THE POWER at the left.
Select the manual mode.
When the key is
inserted, the man-
ual mode will be
selected. If a pro-
gram has been se-
lected, press the
Select Program
button repeatedly until the track appears in the pro-
gram display and the iFIT.com indicator is not lit.
B ress the Start button or the Speed +button to
start the walking belt.
E!
A moment after the but-
ton is pressed, the walk- I'll-']
ing belt will begin to _--I,O
move at 1 mph. Hold the _ MPH Km/HO
handrails and begin SPEED
walking. As you exer-
cise, change the speed of the walking belt as de-
sired by pressing the Speed + and - buttons.
Each time a button is pressed, the speed setting
will change by 0.1 mph; if a button is held down,
the speed setting will change in increments of 0.5
mph. To change the speed setting quickly, press
the 1-step Speed buttons. Note: After the buttons
are pressed, it may take a moment for the treadmill
to reach the selected speed setting.
To stop the walking belt, press the Stop button.
The Time/Pace display will begin to flash. To
restart the walking belt, press the Start button or
the Speed + button.
Note: During the first few minutes that the treadmill
is used, observe the alignment of the walking belt,
and align it if necessary (see page 24).
Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
Incline buttons. Each
time a button is pressed,
the incline will change
by 0.5%. Note: After the
DISTANCE O
INCLINE
buttons are pressed, it may take a moment for the
treadmill to reach the selected incline setting.
10

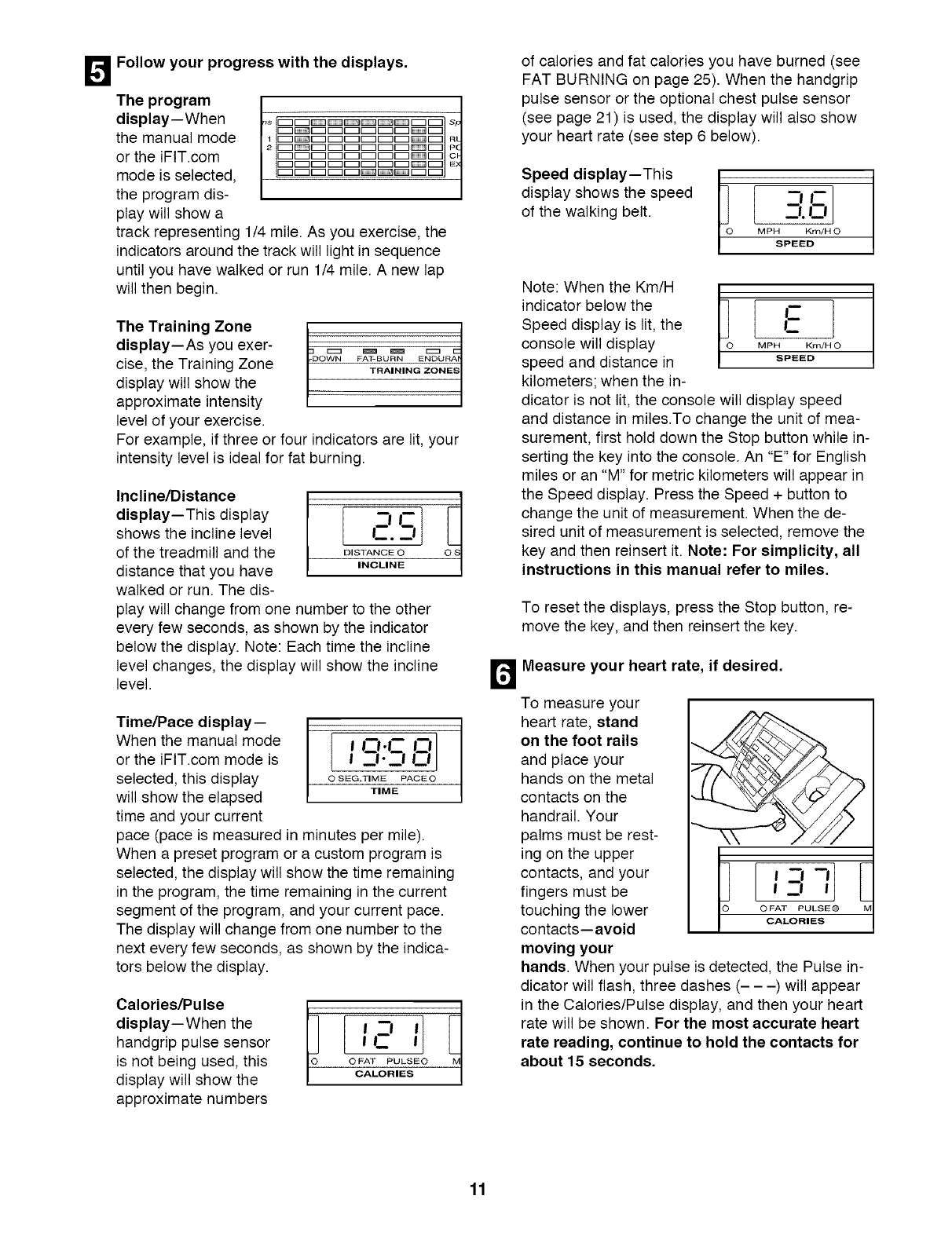

0Follow your progress with the displays,
The program
display--When
the manual mode
or the iFIT.com
mode is selected,
the program dis-
play will show a I t
track representing 1/4 mile. As you exercise, the
indicators around the track will light in sequence
until you have walked or run 1/4 mile. A new lap
will then begin.
The Training Zone
display--As you exer-
cise, the Training Zone
display will show the
approximate intensity
level of your exercise.
O_N FAT-BURN ENDURA
TRAINING ZONE
For example, if three or four indicators are lit, your
intensity level is ideal for fat burning.
Incline/Distance
display--This display
shows the incline level
of the treadmill and the
distance that you have
walked or run. The dis-
-"-1
C.D
DISTANCE O
INCLINE
play will change from one number to the other
every few seconds, as shown by the indicator
below the display. Note: Each time the incline
level changes, the display will show the incline
level.
Time/Pace display--
When the manual mode I _ I--I.I-- I--I1or the iFIT.com mode is --I._--IO
selected, this display o SEG.TIMEPACEO
will show the elapsed TIME
time and your current
pace (pace is measured in minutes per mile).
When a preset program or a custom program is
selected, the display will show the time remaining
in the program, the time remaining in the current
segment of the program, and your current pace.
The display will change from one number to the
next every few seconds, as shown by the indica-
tors below the display.
Caores useI
display--When the
handgrip pulse sensor _ I_--!
is not being used, this OFATPULSEO
display will show the CALORIES
approximate numbers
of calories and fat calories you have burned (see
FAT BURNING on page 25). When the handgrip
pulse sensor or the optional chest pulse sensor
(see page 21) is used, the display will also show
your heart rate (see step 6 below).
Speed display--This
display shows the speed
of the walking belt. D.O
MP pEE ,Ho
Note: When the Km/H
indicator below the
Speed display is lit, the
console will display
speed and distance in
kilometers; when the in-
dicator is not lit, the console will display speed
and distance in miles.To change the unit of mea-
surement, first hold down the Stop button while in-
serting the key into the console. An "E" for English
miles or an "M" for metric kilometers will appear in
the Speed display. Press the Speed + button to
change the unit of measurement. When the de-
sired unit of measurement is selected, remove the
key and then reinsert it. Note: For simplicity, all
instructions in this manual refer to miles,
To reset the displays, press the Stop button, re-
move the key, and then reinsert the key.
DMeasure your heart rate, if desired.
To measure your
heart rate, stand
on the foot rails
and place your
hands on the metal
contacts on the
handrail. Your
palms must be rest-
ing on the upper
contacts, and your 1 _ --171l
fingers must be - ----!
touching the lower o OFATPULSEO
CALORIES
contacts--avoid
moving your
hands. When your pulse is detected, the Pulse in-
dicator will flash, three dashes (- - -) will appear
in the Calories/Pulse display, and then your heart
rate will be shown. For the most accurate heart
rate reading, continue to hold the contacts for
about 15 seconds,
11

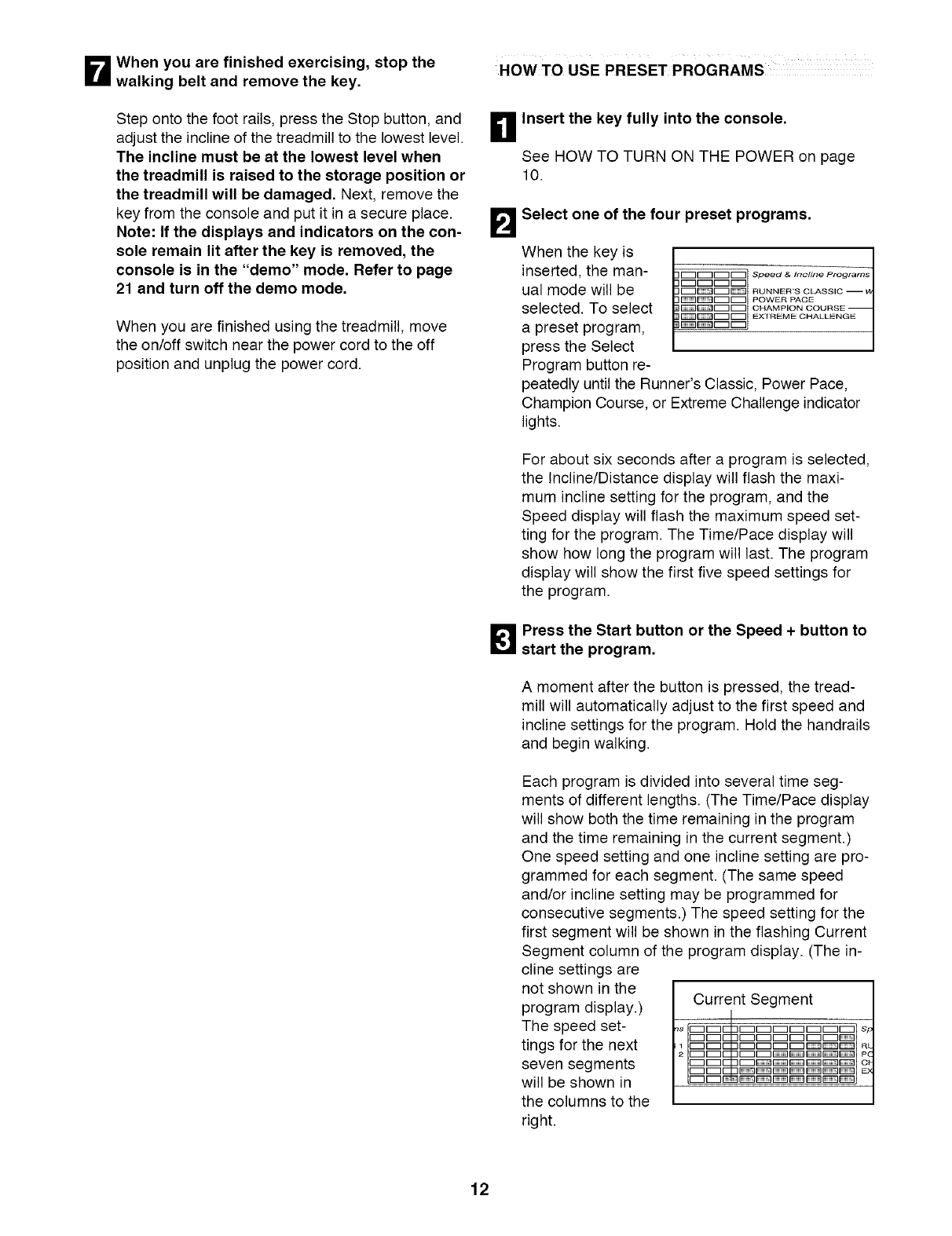

B hen you are finished exercising, stop the
walking belt and remove the key. HOW TO USE PRESET PROGRAMS
Step onto the foot rails, press the Stop button, and _11
adjust the incline of the treadmill to the lowest level. I1,1
The incline must be at the lowest level when
the treadmill is raised to the storage position or
the treadmill will be damaged, Next, remove the
key from the console and put it in a secure place. I_!
Note: If the displays and indicators on the con-
sole remain lit after the key is removed, the
console is in the "demo" mode, Refer to page
21 and turn off the demo mode,
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page
10.
Select one of the four preset programs.
When the key is
inserted, the man-
ual mode will be
selected. To select
a preset program,
press the Select
Program button re-
]_]_ Speed & Incline Programs
][_[_ RUNNER'S CLASSlO --
]_ POWER PAOE
_ CHAMPION COURSE
_ EXTREME CHALLEN
peatedly until the Runner's Classic, Power Pace,
Champion Course, or Extreme Challenge indicator
lights.
For about six seconds after a program is selected,
the Incline/Distance display will flash the maxi-
mum incline setting for the program, and the
Speed display will flash the maximum speed set-
ting for the program. The Time/Pace display will
show how long the program will last. The program
display will show the first five speed settings for
the program.
_ress the Start button or the Speed +button to
start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings for the program. Hold the handrails
and begin walking.
Each program is divided into several time seg-
ments of different lengths. (The Time/Pace display
will show both the time remaining in the program
and the time remaining in the current segment.)
One speed setting and one incline setting are pro-
grammed for each segment. (The same speed
and/or incline setting may be programmed for
consecutive segments.) The speed setting for the
first segment will be shown in the flashing Current
Segment column of the program display. (The in-
cline settings are
not shown in the Current Segment
program display.)
The speed set-
tings for the next
seven segments
will be shown in
the columns to the
right.
12
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound. In addition, if the speed
and/or incline of the treadmill is about to change,
the Speed display and/or the Incline/Distance dis-
play will flash to alert you. When the first segment
is completed, all speed settings will move one col-
umn to the left. The speed setting for the second
segment will then be shown in the flashing Current
Segment column and the treadmill will automati-
cally adjust to the speed and incline settings for
the second segment. Note: If all of the indicators in
the Current Segment column are lit after the speed
settings have moved to the left, the speed settings
will move downward so that only the highest indi-
cators appear in the program display. If some of
the indicators in the Current Segment column are
not lit when the speed settings move to the left
again, the speed settings will move back up.
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column and no time remains in
the Time/Pace display. The walking belt will then
slow to a stop.
If the speed or incline setting for the current
segment is too high or too low, you can manually
override the setting by pressing the Speed or
Incline buttons. Every few times a Speed button is
pressed, an additional indicator will light or darken
in the Current Segment column. (If any of the
columns to the right of the Current Segment col-
umn have the same number of lit indicators as the
Current Segment column, an additional indicator
may light or darken in those columns as well.)
E!
0
Note: If you manually override the speed or in-
cline setting for the current segment, when the
next segment begins, the treadmill will auto-
matically adjust to the speed and incline set-
tings for the next segment.
To stop the program temporarily, press the Stop
button. The Time/Pace display will begin to flash.
To restart the program, press the Start button or
the Speed + button. To end the program, press the
Stop button, remove the key, and then reinsert the
key.
Follow your progress with the displays.
See step 5 on page 11.
Measure your heart rate, if desired.
See step 6 on page 11.
When the program has ended, remove the key.
Step onto the foot rails and make sure that the in-
cline of the treadmill is at the lowest level. The in-
cline must be at the lowest level when the
treadmill is raised to the storage position, Next,
remove the key from the console and put it in a se-
cure place. Note: If the displays and indicators
on the console remain lit after the key is re-
moved, the console is in the "demo" mode,
Refer to page 21 and turn off the demo mode,
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.
13
HOW TO CREATE CUSTOM PROGRAMS
_1 Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page
10.
BSelect one of the custom programs.
When the key is
inserted, the p,og......
manual mode will LEARN1
--2
be selected. To
select a custom
program, press
the Select
Program button repeatedly until the Learn 1 or
Learn 2 indicator lights.
DDDDDDDDE
DDDDDDDDE
_DDDDDDDE
DDDDDDDDE
DDDDDDDDE
DDDDDDDDE
DDD_DDE
Note: If the custom program has not yet been
defined, three columns of indicators will be lit
in the program display. If more than three
columns of indicators are lit, refer to HOW TO
USE CUSTOM PROGRAMS on page 15.
_ress the Start button or the Speed + button
and program the desired speed and incline
settings.
A moment after the button is pressed, the walking
belt will begin to move. Hold the handrails and
begin walking.
Refer to the program display. Each custom pro-
gram is divided into one-minute segments. One
speed setting and one incline setting can be pro-
grammed for each segment. The speed setting for
the first segment will be shown in the flashing
Current Segment
column of the
program display. Current Segment
(The incline set- ,s _r_E_r_r_r_r_r_r_ E s_
tings are not 1 _r_E3r_r_r_r_r_r_r-- R_
2 _DE 3DDD_DD_ PC
shown in the pro- _r_r-_r_r_r_r_r_r_r-- c_
gram display.) To _r_E _r_r_r_r_r--
program a speed
B
O
setting and an incline setting for the first segment,
simply adjust the speed and incline of the tread-
mill as desired by pressing the Speed and Incline
buttons. Every few times a Speed button is
pressed, an additional indicator will light or darken
in the Current Segment column.
When the first segment of the program is com-
pleted, a series of tones will sound and the current
speed setting and the current incline setting will
be saved in memory. The three columns of indica-
tors will then move one column to the left, and the
speed setting for the second segment will be
shown in the flashing Current Segment column.
Program a speed setting and an incline setting for
the second segment as described above.
Continue programming speed and incline settings
for as many segments as desired; custom pro-
grams can have up to forty segments. When you
are finished with your workout, press the Stop but-
ton twice. The speed and incline settings that you
programmed will then be saved in memory.
Follow your progress with the displays.
See step 5 on page 11.
Measure your heart rate, if desired.
See step 6 on page 11.
When the program has ended, remove the key.
See step 6 on page 13.
14
HOW TO USE CUSTOM PROGRAMS
_1 Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page
10.
BSelect one of the custom programs.
When the key is
inserted, the
manual mode will
be selected. To
select a custom
program, press
the Select
Prograr_Ts
LEARN 1
--2
Program button repeatedly until the Learn 1 or
Learn 2 indicator lights.
For about six seconds after a program is selected,
the Incline/Distance display will flash the maxi-
mum incline setting for the program, and the
Speed display will flash the maximum speed set-
ting for the program. The Time/Pace display will
show how long the program will last. The program
display will show the first five speed settings for
the program. Note: If only three columns of in-
dicators are lit in the program display, refer to
HOW TO CREATE A CUSTOM PROGRAM on
page 14.
_1 Press the Start button or the Speed + button to
start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings for the program. Hold the handrails
and begin walking.
Each program is divided into several one-minute
segments. One speed setting and one incline set-
ting are programmed for each segment. The
speed setting for the first segment will be shown in
the flashing Current Segment column of the pro-
gram display. (The incline settings are not shown
in the program
display.) The
speed settings Current Segment
for the next
seven segments
will be shown in
the columns to
the right.
B
O
D
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash and a
tone will sound. In addition, if the speed and/or
incline of the treadmill is about to change, the
Speed/Pace display and/or the Incline/Distance
display will flash to alert you, and three tones will
sound. When the first segment is completed, all
speed settings will move one column to the left.
The speed setting for the second segment will
then be shown in the flashing Current Segment
column and the treadmill will automatically adjust
to the speed and incline settings for the second
segment.
The program will continue until the speed setting
for the last segment is shown in the Current
Segment column and no time remains in the
Time/Pace display. The walking belt will then slow
to a stop.
If desired, you can redefine the program while
using it. To change the speed or incline setting
for the current segment, simply press the Speed
or Incline buttons. When the current segment is com-
pleted, the new setting will be saved in memory. To
increase the length of the program, first wait until
the program is completed. Then, press the Start but-
ton and program speed and incline settings for as
many additional segments as desired. When you
have added as many segments as desired, press
the Stop button twice. To decrease the length of
the program, press the Stop button twice at any
time before the program is completed.
To stop the program temporarily, press the Stop
button. All displays will pause and the Time/Pace
display will begin to flash. To restart the program,
press the Start button or the Speed + button. To
end the program, press the Stop button, remove
the key, and then reinsert the key.
Follow your progress with the displays.
See step 5 on page 11.
Measure your heart rate, if desired.
See step 6 on page 11.
When the program has ended, remove the key.
See step 6 on page 13.
15
HOW TO CONNECT THE TREADMILL TO YOUR
CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CD's, the treadmill must be con-
nected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
16 and 17 for connecting instructions. To use iFIT.com
videocassettes, the treadmill must be connected to
your VCR. See page 18 for connecting instructions. To
use iFIT.com programs directly from our Web site,
the treadmill must be connected to your home com-
puter. See page 17 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your CD player. Plug your headphones into the
PHONES jack.
A
"................_ ' Head
i r_-I f_A-h:: Audo r_ ,-
i _ k._/i Cable W pnones
j
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your CD player. Plug your
headphones into the other side of the Y-adapter.
i PHONES(_!
:.............¢"
i
; 3.5mm
[D-] (_ i Audio Y-adapter [_
@_]i Cable _!
Headphones_
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter. Plug
the adapter into an AUDIO OUT jack on your stereo.
, , ...A20...%..._
i¢0biAud,oAdapter
Cable ,
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
t................ ",
i q©i
®®i
,..t ..............
Audio
Cable
i......
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your stereo. Plug your
headphones into the other side of the Y-adapter.
cAUdil° Y-adapier
................... Headphones
16
HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the LINE OUT jack on your
stereo.
iLINEOUT(_ ::
AudioAdapter
@ _]i Cable _,
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
RCA Y-adapter. Plug the RCA Y-adapter into the
LINE OUT jack on your stereo.
il © AudioY-adapte --
? _ Cable Adapter
;Amp __
RCA
Wire removed from ____.c:_
LINE OUT jack
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your computer.
A
LIN_OUI
....... 1.....
i
r_-](_ Audioj
Cable
m
ooo
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your computer. Plug your
headphones or speakers into the other side of the
Y-adapter.
S m
'r-C-__ : :i----_Udl 0 _
i@©i z 3.,mm;
==? [_== Cable = Y-adapter
Headphones/Speakers__
17
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 17.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the AUDIO OUT jack on your
VCR.
HOW TO USE IFIT,COM CD AND VIDEO
PROGRAMS
To use iFIT.com CD's or videocassettes, the treadmill
must be connected to your portable CD player, portable
stereo, home stereo, computer with CD player, or
VCR. See HOW TO CONNECT THE TREADMILL TO
YOUR CD PLAYER, VCR, OR COMPUTER on pages
16 and 18. Note: To purchase iFIT,com CD's or
videocassettes, call toll-free 1-800-735-0768.
Follow the steps below to use an iFIT.com CD or video
program.
A
i[_i Audio
,._.._.i Cable
AUBOOUT
LEFT
Add
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
RCA Y-adapter. Plug the RCA Y-adapter into the
AUDIO OUT jack on your VCR.
n
B
B
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page
10.
Select the iFIT.com mode.
When the key is in-
serted, the manual
mode will be selected.
To use an iFIT.com CD
or video program, press
the iFIT.com button or
press the Select Program button repeatedly until
the indicator above the iFIT.com button lights.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
B
................... RCA Y-adapter-
[] _ Audio
= Cab e Adapter
Wire removed from_
AUDIO OUT jack
B ress the PLAY button on your CD player or
VCR.
A moment after the button is pressed, your per-
sonal trainer will begin guiding you through your
workout. Simply follow your personal trainer's
instructions. Note: If the Time/Pace display is
flashing, press the Start button or the Speed +
button on the console. The treadmill will not re-
spond to a CD or video program when the
Time/Pace display is flashing.
During the CD or video program, an electronic
"chirping" sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the "chirp" and be
prepared for speed and/or incline changes, In
some instances, the speed and/or incline may
change before the personal trainer describes
the change.
18
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next "chirp" is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
To stop the walking belt at any time, press the
Stop button on the console. The Time/Pace dis-
play will begin to flash. To restart the program,
press the Start button or the Speed + button. After
a moment, the walking belt will begin to move at
1.0 mph. When the next "chirp" is heard, the
speed and incline will change to the next set-
tings of the CD or video program.
When the CD or video program is completed, the
walking belt will stop and the Time/Pace display
will begin to flash. Note: To use another CD or
video program, press the Stop button or remove
the key and go to step 1 on page 18.
Note: If the speed or incline of the treadmill
does not change when a "chirp" is heard:
Make sure that the iFIT.com indicator is lit and
that the Time/Pace display is not flashing. If
the Time/Pace display is flashing, press the
Start button or the Speed 4-button on the
console.
Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signals.
O
B
Make sure that the audio cable is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord.
If you are using your portable CD player and
the CD skips, set the CD player on the floor or
another flat surface instead of on the console.
See the instructions near the bottom of page
24.
Follow your progress with the displays.
See step 5 on page 11.
Measure your heart rate, if desired.
See step 6 on page 11.
When the program has ended, remove the key.
See step 6 on page 13.
CAUTION: Always remove iFIT.com CD's and
videocassettes from your CD player or VCR
when you are finished using them.
19
Our Web site at www.iFIT.com allows you to access
basic programs, audio programs, and video programs
directly from the internet. Additional options are soon
to be available. See www.iFIT.com for details.
To use programs from our Web site, the treadmill must
be connected to your home computer. See HOW TO
CONNECT YOUR COMPUTER on page 17. In
addition, you must have an internet connection and
an internet service provider. A list of specific system
requirements will be found on our Web site.
Follow the steps below to use a program from our
Web site.
_1 Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page
10.
BSelect the iFIT.com mode.
When the key is in-
serted, the manual
mode will be selected.
To use a program from
our Web site, press the
iFIT.com button or
press the Select Program button repeatedly until
the indicator above the iFIT.com button lights.
Go to your computer and start an internet
connection.
B tart your web browser, if necessary, and go to
our Web site at www.iFIT.com.
_.'._ Follow the desired links on our Web site to se- I_1
lect a program. W
Read and follow the on-line instructions for using a
program.
r_ Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
B eturn to the treadmill and stand on the foot
rails. Find the clip attached to the key and slide
the clip onto the waistband of your clothes.
D
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic
"chirping" sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the "chirp" and be
prepared for speed and/or incline changes,
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next "chirp" is
heard, the speed and/or incline will change to
the next settings of the program.
To stop the walking belt at any time, press the
Stop button on the console. The Time/Pace dis-
play will begin to flash. To restart the program,
press the Start button or the Speed + button. After
a moment, the walking belt will begin to move at
1.0 mph. When the next "chirp" is heard, the
speed and incline will change to the next set-
tings of the program.
When the program is completed, the walking belt
will stop and the Time/Pace display will begin to
flash. Note: To use another program, press the
Stop button and go to step 5.
Note: If the speed or incline of the treadmill
does not change when a "chirp" is heard, make
sure that the iFIT.com indicator is lit and that
the Time/Pace display is not flashing. In addi-
tion, make sure that the audio cable is properly
connected, that it is fully plugged in, and that it
is not wrapped around a power cord.
Follow your progress with the displays.
See step 5 on page 11.
When the program has ended, remove the key.
See step 6 on page 13.
20
THE INFORMATION MODE/DEMO MODE THE OPTIONAL CHEST PULSE SENSOR
The console features an information mode that keeps
track of the total number of miles that the walking belt
has moved and the total number of hours that the
treadmill has been operated. The information mode
also allows you to switch the console from miles to
kilometers. In addition, the information mode allows
you to turn on and turn off the demo mode.
To select the information mode, hold down the Stop
button while inserting the key into the console. When
the information mode is selected, the following informa-
tion will be shown:
The Incline/Distance
display will show the total
number of miles that the
walking belt has moved. /'-1
IH_-,
The Time/Pace display will
show the total number of
hours that the treadmill has
been used.
L
r N]DO
O SEG.TIME PACEO
TIME
An "E" for English miles or
an "M" for metric kilometers
will appear in the Speed/
Pace display. Press the
Speed + button to change
the unit of measurement.
,'---1MPH Km/HO
SPEED
IMPORTANT: The
Calories/Pulse display
should be blank. If a "d" ap-
pears in the display, the con-
sole is in the "demo" mode.
This mode is intended to be
used only when a treadmill is displayed in a store.
When the console is in the demo mode, the power cord
can be plugged in, the key can be removed from the
console, and the displays and indicators on the console
will automatically light in a preset sequence, although
the buttons on the console will not operate. If a "d" ap-
pears in the Calories/Pulse display when the infor-
mation mode is selected, press the Speed - button
so the display is blank,
To exit the information mode, remove the key from the
console.
An optional chest pulse sensor adds even more
features to the console. The chest pulse sensor provides
hands-free operation and continuously monitors your
heart rate during your workouts. To purchase the
optional chest pulse sensor, call toll-free 1-800-
734-2377,
OPTIONAL HAND WEIGHTS
Optional hand weights
let you exercise your
upper body while you
walk on the treadmill.
The hand weights fit
into convenient holders
in the console. To pur-
chase hand weights,
call toll-free 1-800-
772-0257,
21
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be per-
manently damaged. Remove the key and unplug the power
cord. CAUTION: You must be able to safely lift 45 pounds
(20 kg) in order to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown
at the right. CAUTION: To decrease the possibility of in-
jury, bend your legs and keep your back straight, As
you raise the treadmill, make sure to lift with your legs
rather than your back, Raise the treadmill about halfway
to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob to
the left and hold it. Raise the treadmill until the latch pin is
aligned with the hole in the catch. Insert the latch pin into
the catch. Make sure that the latch pin is fully inserted
into the catch,
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85° Fahrenheit.
2
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor-
age position as described above. Make sure that the latch
pin is fully inserted into the catch,
1. Hold the handrails as shown and place one foot against a
wheel.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back, To reduce
the risk of injury, use extreme caution while moving
the treadmill. Do not attempt to move the treadmill
over an uneven surface.
3. Place one foot on wheel, and carefully lower the treadmill
until it is resting in the storage position.
se
Front Wheels
HOW TO LOWER THE TREADMILL FOR USE
1. Refer to drawing 2 above. Hold the upper end of the treadmill with your right hand as shown. Using your left hand,
pull the lock knob to the left and hold it. Pivot the treadmill down until the frame is past the pin on the lock knob.
2. Refer to drawing 1 above. Hold the treadmill firmly with both hands, and lower the treadmill to the floor.
CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight,
22
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department toll-
free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor
that meets all of the specifications described on page 8. Important: The treadmill is not compatible
with GFCl-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
C,
d,
Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
Check the on/off switch located on the treadmill
near the power cord. The switch must be in the on
position.
c
Tripped Reset
ony
Position
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the
circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. Make sure that the on/off switch is in the on position.
e. If the treadmill still will not run, please call our Customer Service Department, toll-free.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and unplug the
power cord, Carefully tip the treadmill down as shown
in drawing a. Remove the Screws (83) from the hood.
Raise the Uprights (69) and carefully remove the
hood.
Locate the Reed Switch (10) and the Magnet (7) on
the left side of the Pulley (8). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8". If necessary, loosen the Screw
(27) and move the Reed Switch slightly. Retighten the
Screw. Re-attach the hood, and run the treadmill for a
few minutes to check for a correct speed reading.
' =" i
1/8"--
27___
Top
View
........................................
23
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.
b, If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walking belt 3 to
4 inches off the walking platform. Be careful to keep
the walking belt centered. Plug in the power cord, in-
sert the key and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened. Rear Roller Adjustment Bolts
c. If the walking belt still slows when walked on, please call our Customer Service Department, toll-
free.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, remove the key and UN-
PLUG THE POWER CORD. If the walking belt has
shifted to the left, use the allen wrench to turn the left
rear roller bolt clockwise 1/2 of a turn; if the walking belt
has shifted to the right, turn the left rear roller bolt coun-
terclockwise 1/2 of a turn. Be careful not to overtighten the
walking belt. Plug in the power cord, insert the key and run
the treadmill for a few minutes. Repeat until the walking
belt is centered.
b, If the walking belt slips when walked on, first remove the
key and UNPLUG THE POWER CORD. Using the allen
wrench, turn both rear roller bolts clockwise, 1/4 of a turn.
When the walking belt is correctly tightened, you should
be able to lift each side of the walking belt 3 to 4 inches off
the walking platform. Be careful to keep the walking belt
centered. Plug in the power cord, insert the key and care-
fully walk on the treadmill for a few minutes. Repeat until
the walking belt is properly tightened.
PROBLEM: The incline of the treadmill does not change correctly or does not change when iFIT,com
CD's and videos are played
SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-
move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline.
24
CONDITIONING GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for individu-
als over the age of 35 or individuals with pre-
existing health problems.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
The following guidelines will help you to plan your ex-
ercise program. For more detailed exercise informa-
tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning and aerobic exercise.
HEART RATE TRAINING ZONES
AEROBIC 165 155 145 140 130 125 115
MAX FAT BURN 145 138 130 125 118 110 103
FAT BURN 125 120 I15 110 105 95 90
Age 20 30 40 50 60 70 80
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your "train-
ing zone." The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
pulse sensor on the console. If your heart rate is too
high or too low, adjust the speed and incline of the
treadmill.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for en-
ergy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the tread-
mill until your heart rate is near the lowest number in
your training zone.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up--Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in-
creases your body temperature, heart rate and circula-
tion in preparation for exercise.
Training Zone Exercise--After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise--never
hold your breath.
A Cool-down--Finish each workout with 5 to 10 min-
utes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-ex-
ercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may com-
plete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
25
PART LIST--Model No. NTL99020 Rogo2A
To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.
Key No. Qty. Description Key No. Qty.
1 2 Foot Rail Insert 52 1
2 2 Foot Rail 53 2
3 8 Foot Rail Cap Screw 54 2
4 1 Left Foot Rail Cap 55 2
5 2 Frame Pivot Bolt 56 2
6 2 Frame Pivot Spacer 57 1
7 1 Magnet 58 1
8 1 Front Roller/Pulley 59 2
9 4 Frame Pivot Nut 60 1
10 1 Reed Switch/Sensor Wire 61 1
11 4 U-nut 62 1
12 1 Reed Switch Clip 63 1
13 1 Lift Frame 64 1
14 1 Walking Belt 65 2
15* 1 Motor Assembly 66 1
16 1 Motor 67 2
17 1 Pulley/Flywheel/Fan 68 1
18 1 Motor Belt 69 1
19 1 Motor Pivot Nut 70 1
20 5 Motor Tension Nut 71 1
21 1 Motor Tension Bolt 72 1
22 1 Motor Pivot Bolt 73 1
23 1 Hood 74 1
24 2 Incline Motor Bolt 75 1
25 4 Plastic Stand-off 76 2
26 1 Power Board 77 4
27 7 Screw 78 4
28 1 Choke 79 2
29 1 Controller 80* 1
30 1 Electronics Plate 81 1
31 1 Motor Controller Wire 82 1
32 1 Front Roller Adj. Bolt 83 4
33 4 2" Console Screw 84 1
34 2 Roller Washer 85 1
35 1 Lock Knob Spacer 86 1
36 1 Incline Motor 87 4
37 1 Incline Motor Stop 88 1
38 1 Motor Belly Pan 89 1
39 1 Audio Wire Nut 90 10
40 2 Static Decal 91 2
41 1 Circuit Breaker 92 5
42 1 Power Cord 93 2
43 1 On/Off Switch 94 2
44 4 Spring Bolt 95 2
45 4 Belt Guide Screw 96 1
46 2 Belt Guide 97 1
47 2 Isolator 98 1
48 1 Motor Star Washer 99 4
49 4 Spring Washer 100 16
50 4 Spring Nut 101 1
51 1 Right Foot Rail Cap 102 2
Description
Walking Platform
Front Platform Screw
Rear Platform Screw
Spring Pad
Spring
Ground Wire
Rear Endcap (Right)
Rear Roller Adj. Bolt
Warning Decal
Allen Wrench
Rear Roller
Audio Wire
Catch
Handrail Spacer
Handrail
Spring Pad Screw
Lock Knob
Upright
Lock Knob Sleeve
Spring
Lock Pin Collar
Pin Clip
Lock Pin
Filter Wire
Pulse Grip
Handrail Bushing
Handrail Bolt
Upright Endcap
Latch Assembly
Console Base
Console
Belly Pan Screw
Key/Clip
IFIT.com Wire
Jack
Handrail Endcap
Console Back
Releaseable Tie
1" Console Screw
Cable Tie Clamp
8" Cable Tie
Lift Pivot Bolt
Wheel Bolt
Wheel
Rear Endcap (Left)
Grommet
Upright Wire Harness
Base Pad
3/4" Screw
Motor Washer
Extension Leg
26
Key No. Qty. Description Key No. Qty. Description
103 2 Extension Cap
104 2 Incline Warning Decal
105 2 1" Silver Screw
106" 1 Extension Leg Assembly
107 1 Grounding Bracket
108 1 Book Holder
109 1 Power Cord Grommet
110 1 Frame
111 3 Catch Screw
112 2 Roller Star Washer
113 2 Spring Plate
114 2 Foam Trim
# 2 Thick Base Pad
# 1 12" White Wire, M/F
# 1 8" White Wire, 2F
# 1 4" Blue Wire, 2F
# 1 4" Black Wire, 2F
# 1 12" Green Wire, 2 Ring
# 1 4" Green Wire, F/2 Ring
# 1 8" Red Wire, M/F
# 1 User's Manual
* Includes all parts shown in box
# These parts are not illustrated
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-888-825-2588, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
the MODEL NUMBER OF THE PRODUCT (NTL99020)
the NAME OF THE PRODUCT (NordicTrack '_C 1800 treadmill)
the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
the KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 26 and 27 and the
EXPLODED DRAWING attached in the center of this manual)
27
6O
6t
tt4
111
1
2
14
59
112
62
100
_27 _7
_8 {
52
%
5O
55 ................ <c_ ..... 56 _44
45
22
9
_, 2t
6
9
26
25
I
83 1O0
5
75
30
_27 _) 31
42
4O
1O9
43
_- 83
I"11
X
iI
0
I"11
I
Z
0
Z
I,D
0
o
o
88
33
76
90
105
87
33
.... 90
40 65
7O
IO0
/
t 06"t 102
/_l 99
_t O0
/ /
/ /
/,
/ /
,/ /
i
i
79
/
2o
94
_100 93
LIMITED WARRANTY
WHAT IS COVERED--The entire NordicTrack ®C 1800 treadmill ("Product") is warranted to be free of all defects in ma-
terial and workmanship.
WHO IS COVERED--The original purchaser or any person receiving the Product as a gift from the original purchaser.
HOW LONG IS IT COVERED--ICON Health & Fitness, Inc. ("ICON"), warrants the motor for three years after the date
of purchase. The belt and deck are covered for two years after the date of purchase. All mechanical components are
covered for two years after the date of purchase. All electrical components are covered for two years after the date of
purchase. Labor is covered for one year. The hood, covers, belly pan, and decals are covered for six months after the
date of purchase.
WHAT WE DO TO CORRECT COVERED DEFECTS--We will ship to you, without charge, any replacement part or
component, providing the repairs are authorized by ICON first and are performed by an ICON trained and authorized
service provider, or, at our option, we will replace the Product.
WHAT IS NOT COVERED--Any failures or damage caused by unauthorized service, misuse, accident, negligence, im-
proper assembly or installation, alterations, modifications without our written authorization or by failure on your part to
use, operate, and maintain as set out in your User's Manual ("Manual"). This warranty does not extend to products used
for commercial or rental purposes or to products used as store display modules.
WHAT YOU MUST DO--Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the
Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discov-
ery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER'S MANUAL--It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product.
Remember to do the periodic maintenance requirements specified in the Manual to assure proper operation and your
continued satisfaction.
HOW TO GET PARTS AND SERVICE--Simply call our Customer Service Department at 1-888-825-2588 and tell them
your name and address and the serial number of your Product. They will tell you how to get a part replaced, or if neces-
sary, arrange for service where your Product is located or advise you how to ship the Product for service. Before ship-
ping, always obtain a Return Authorization Number (RA No.) from our Customer Service Department; securely pack
your Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the
product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the ser-
vice is covered by warranty.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the
use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or
profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature.
Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above lim-
itation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability
or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not
allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
No one is authorized to change, modify or extend the terms of this limited warranty.
This warranty gives you specific legal rights and you may have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 188222 R0902A Printed in USA © 2002 ICON Health & Fitness, Inc.

Navigation menu
