Nordictrack 831298892 User Manual NORDIC TRACK SUMMIT 4500 Manuals And Guides L0408116

NORDICTRACK Treadmill Manual L0408116 NORDICTRACK Treadmill Owner's Manual, NORDICTRACK Treadmill installation guides

NTTL16902 L0408116

User Manual: Nordictrack 831298892 831298892 NORDICTRACK NORDIC TRACK SUMMIT 4500 - Manuals and Guides View the owners manual for your NORDICTRACK NORDIC TRACK SUMMIT 4500 #831298892. Home:Fitness Equipment Parts:Nordictrack Parts:Nordictrack NORDIC TRACK SUMMIT 4500 Manual

Open the PDF directly: View PDF .
Page Count: 34

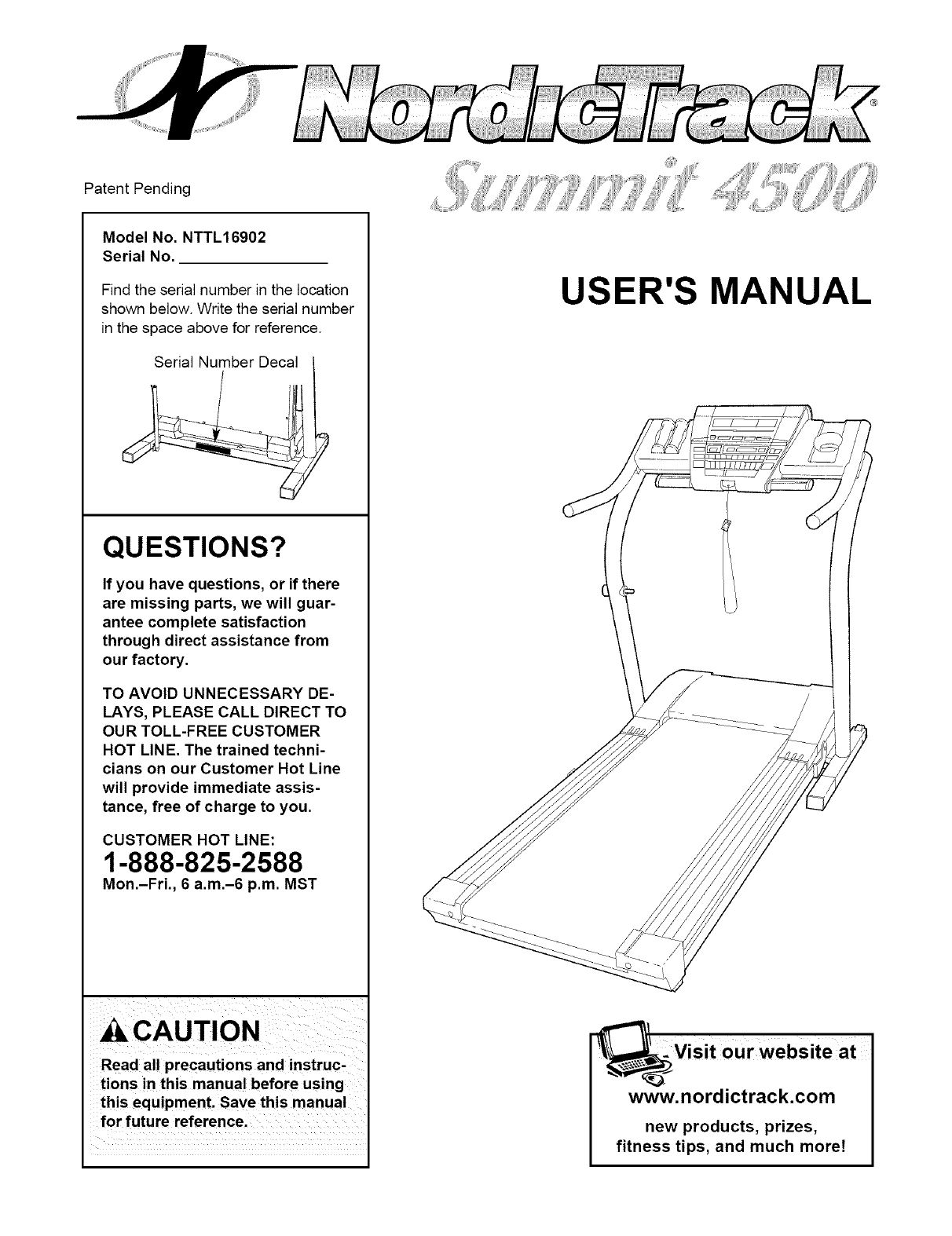

PatentPending

Model No. NTTL16902

Serial No.

Find the serial number in the location

shown below. Write the serial number

in the space above for reference.

Serial Number Decal

QUESTIONS?

If you have questions, or if there

are missing parts, we will guar-

antee complete satisfaction

through direct assistance from

our factory.

TO AVOID UNNECESSARY DE-

LAYS, PLEASE CALL DIRECT TO

OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our Customer Hot Line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-888-825-2588

Mon.-Fri., 6 a.m.-6 p.m. MST

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

USER'S MANUAL

Visit our website at

www, nordictrack.com

new products, prizes,

fitness tips, and much more!

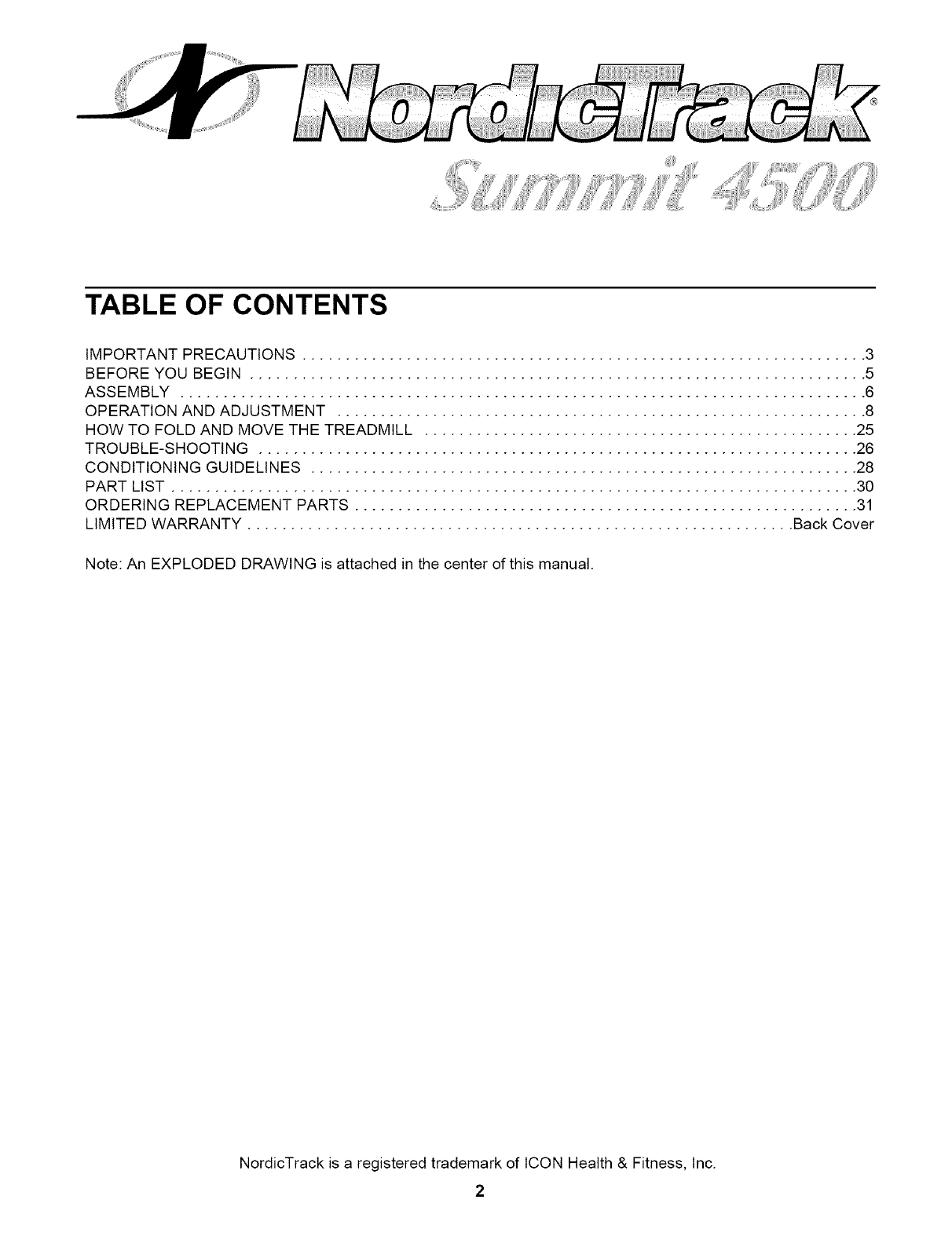

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................. 3

BEFORE YOU BEGIN ....................................................................... 5

ASSEMBLY ............................................................................... 6

OPERATION AND ADJUSTMENT ............................................................. 8

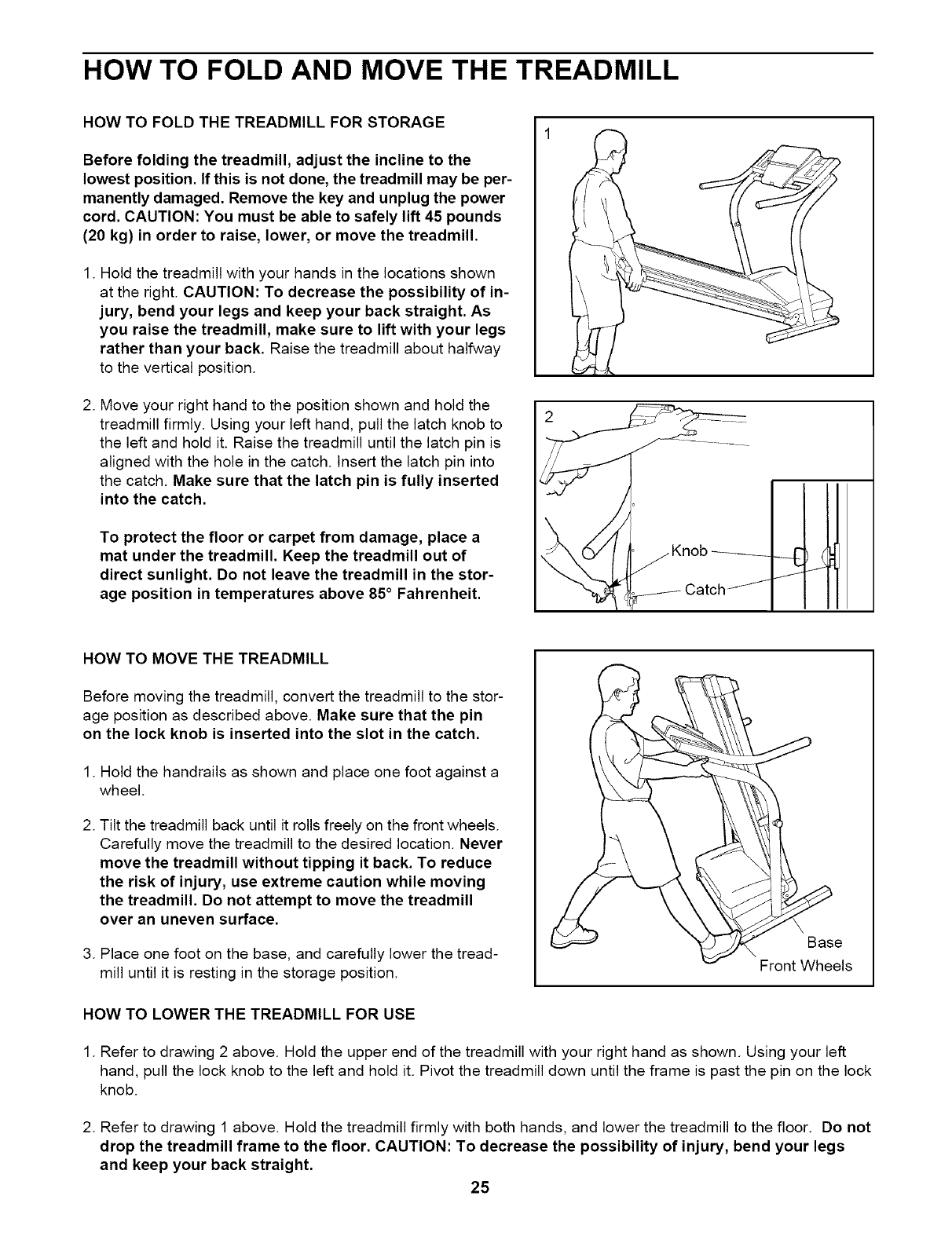

HOW TO FOLD AND MOVE THE TREADMILL .................................................. 25

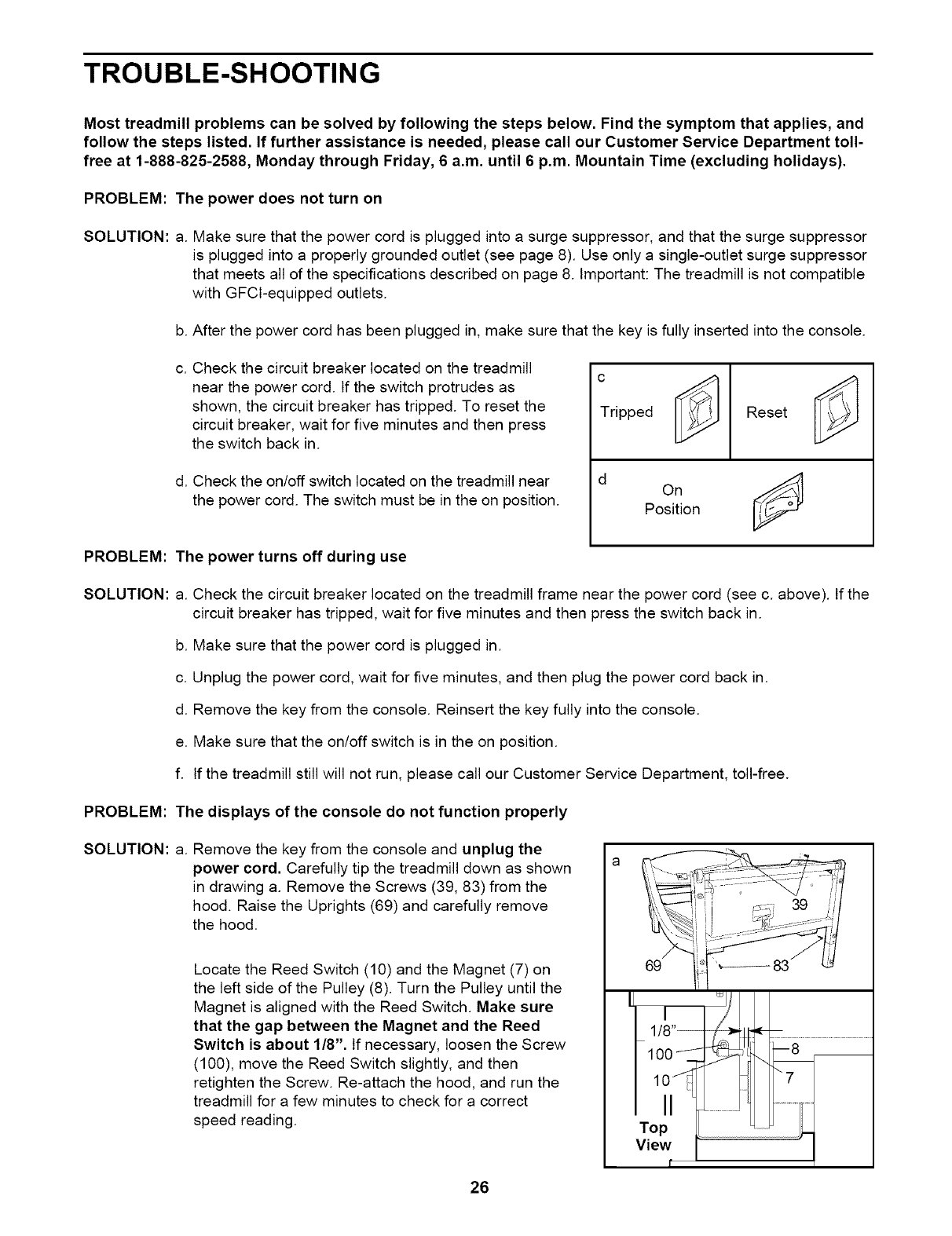

TROUBLE-SHOOTING ..................................................................... 26

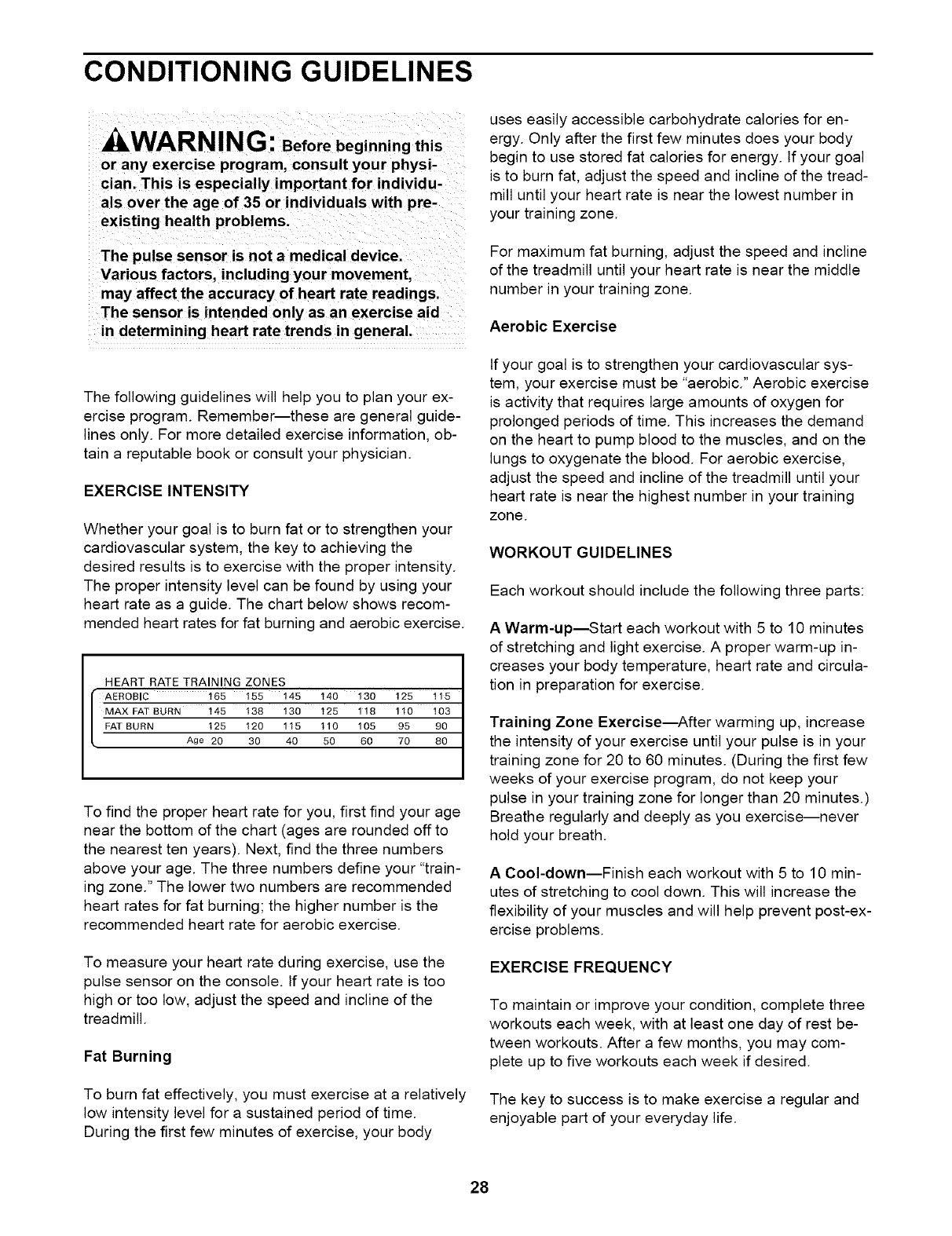

CONDITIONING GUIDELINES ............................................................... 28

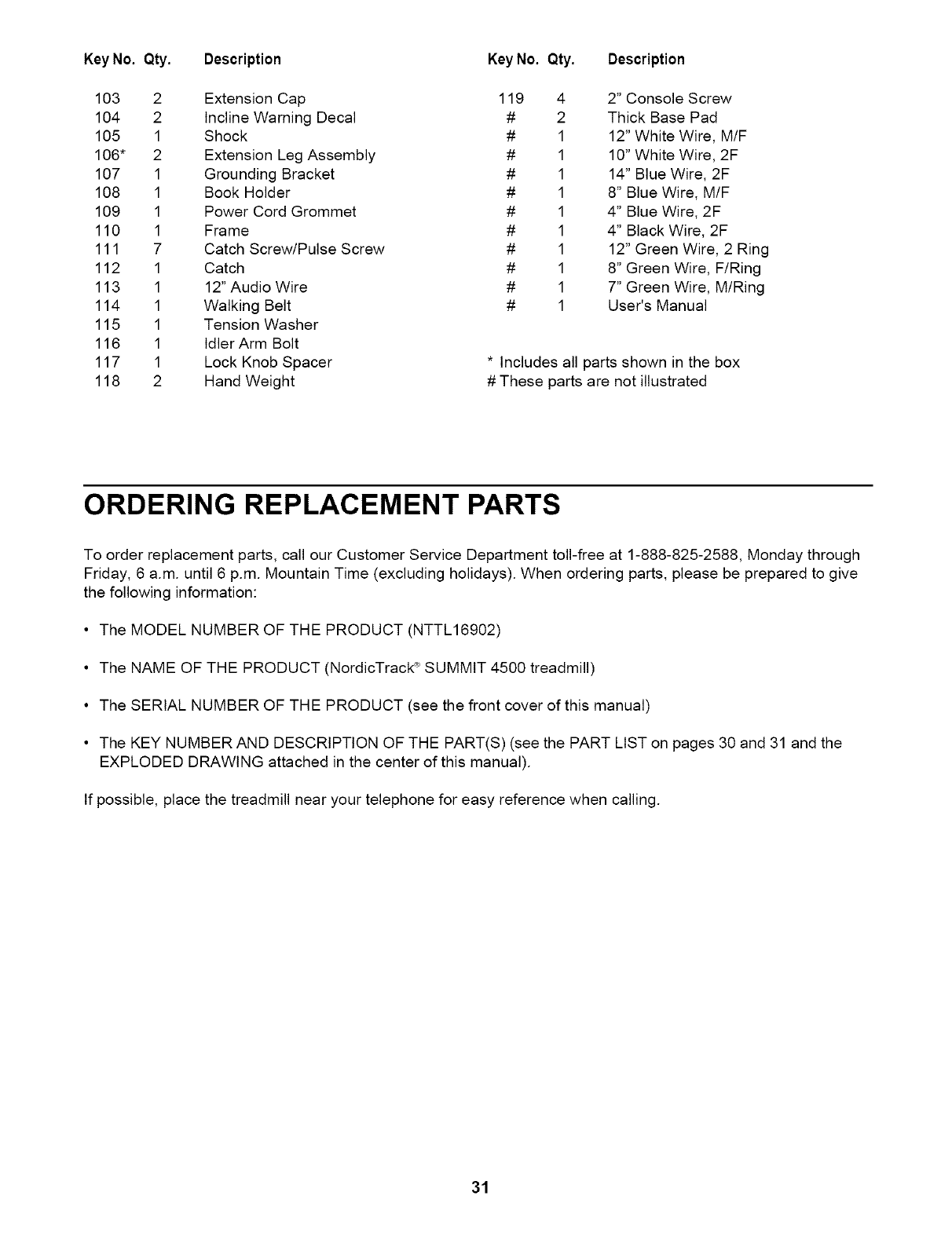

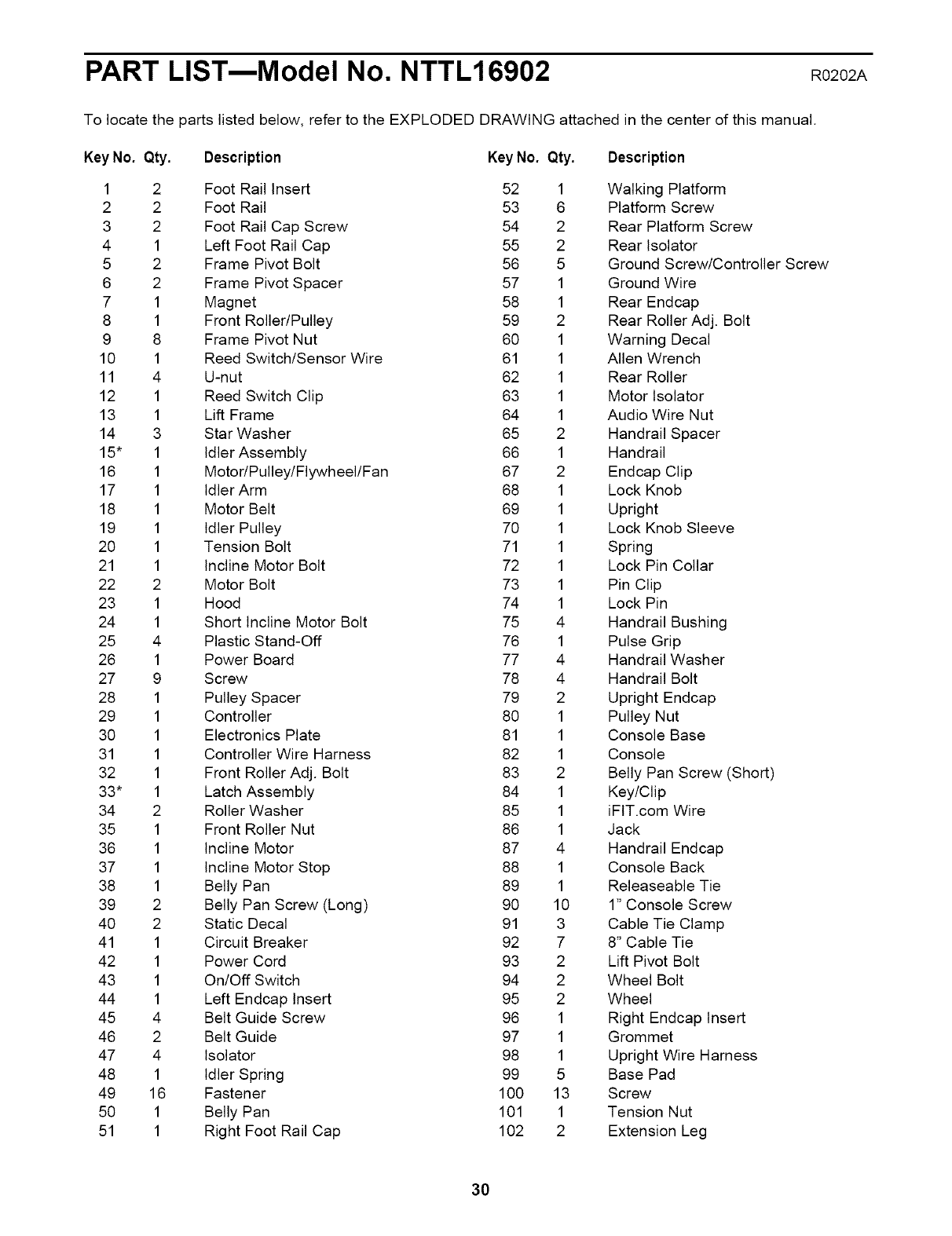

PART LIST ............................................................................... 30

ORDERING REPLACEMENT PARTS .......................................................... 31

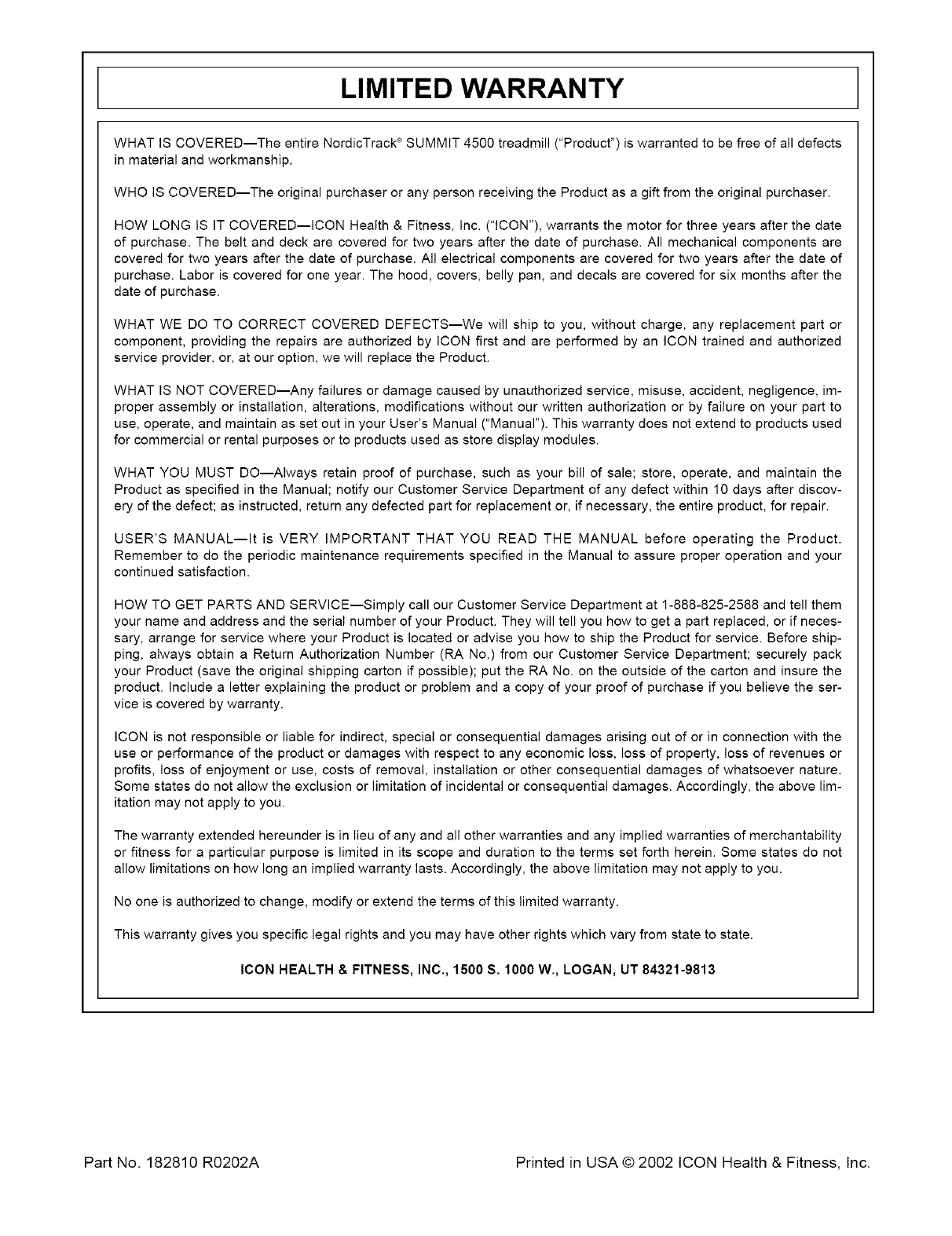

LIMITED WARRANTY ............................................................... Back Cover

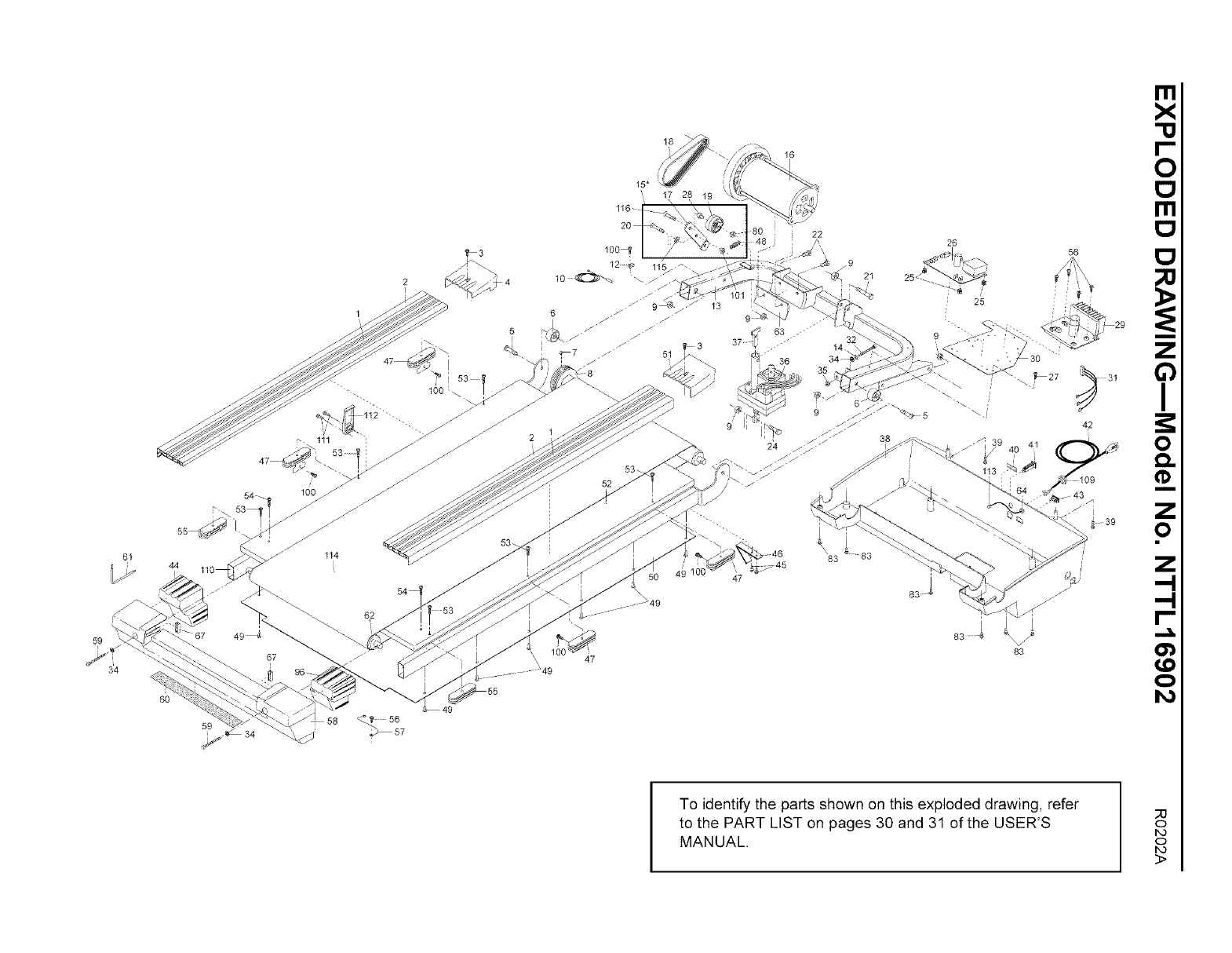

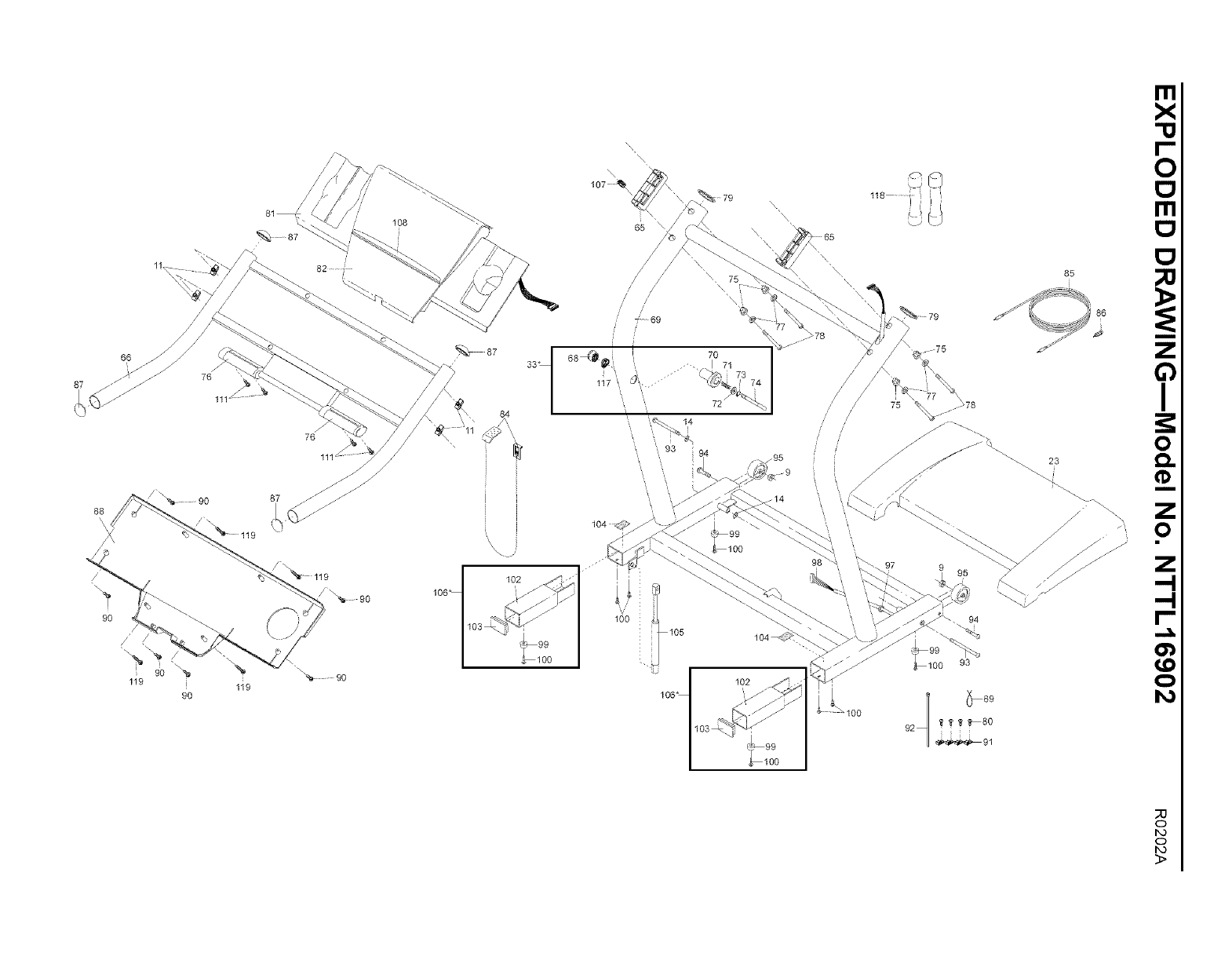

Note: An EXPLODED DRAWING is attached in the center of this manual.

NordicTrack is a registered trademark of ICON Health & Fitness, Inc.

2

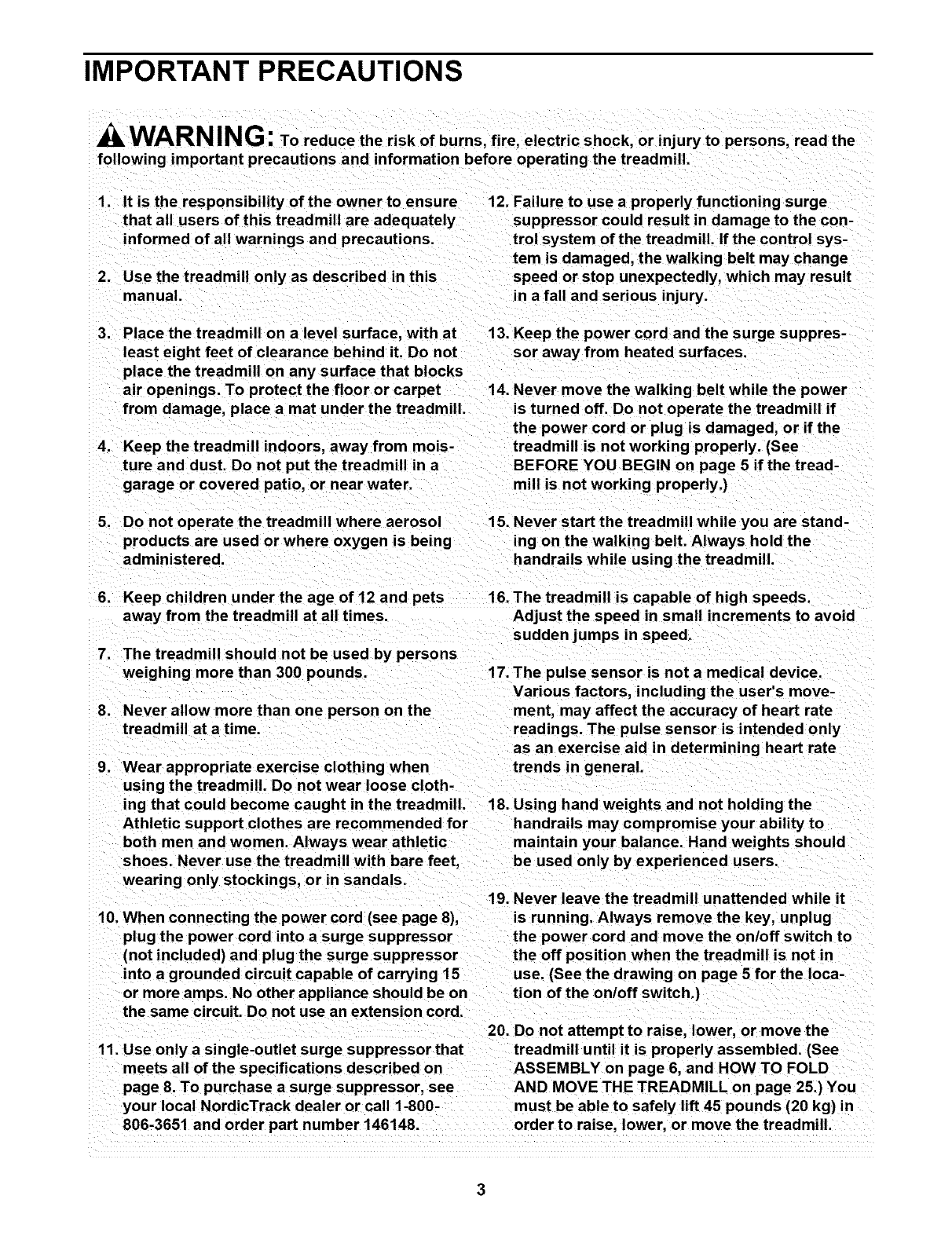

IMPORTANT PRECAUTIONS

WARN ING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

1, It is the responsibility of the owner to ensure 12. Failure to use a properly functioning surge

that all users of this treadmill are adequately suppressor could result in damage to the con-

informed of all warnings and precautions, trol system of the treadmill. If the control sys-

tem is damaged, the walking belt may change

2, Use the treadmill only as described in this speed or stop unexpectedly, which may result

manual, in a fall and serious injury.

3, Place the treadmill on a level surface, with at 13. Keep the power cord and the surge suppres-

least eight feet of clearance behind it. Do not sor away from heated surfaces.

place the treadmill on any surface that blocks

air openings. To protect the floor or carpet 14. Never move the walking belt while the power

from damage, place a mat under the treadmill, is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

4, Keep the treadmill indoors, away from mois- treadmill is not working properly. (See

ture and dust. Do not put the treadmill in a BEFORE YOU BEGIN on page 5 if the tread-

garage or covered patio, or near water, mill is not working properly.)

5, Do not operate the treadmill where aerosol 15. Never start the treadmill while you are stand-

products are used or where oxygen is being ing on the walking belt. Always hold the

administered, handrails while using the treadmill.

6. Keep children under the age of 12 and pets 16. The treadmill is capable of high speeds.

away from the treadmill at all times. Adjust the speed in small increments to avoid

sudden jumps in speed.

7. The treadmill should not be used by persons

weighing more than 300 pounds.

8, Never allow more than one person on the

treadmill at a time.

17. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

9. Wear appropriate exercise clothing when ..................

using the treadmill. Do not wear loose cloth-

ing that could become caught in the treadmill. 18. Using hand weights and not holding the

Athletic support clothes are recommended for

both men and women. Always wear athletic

shoes. Never use the treadmill with bare feet,

wearing only stockings, or in sandals.

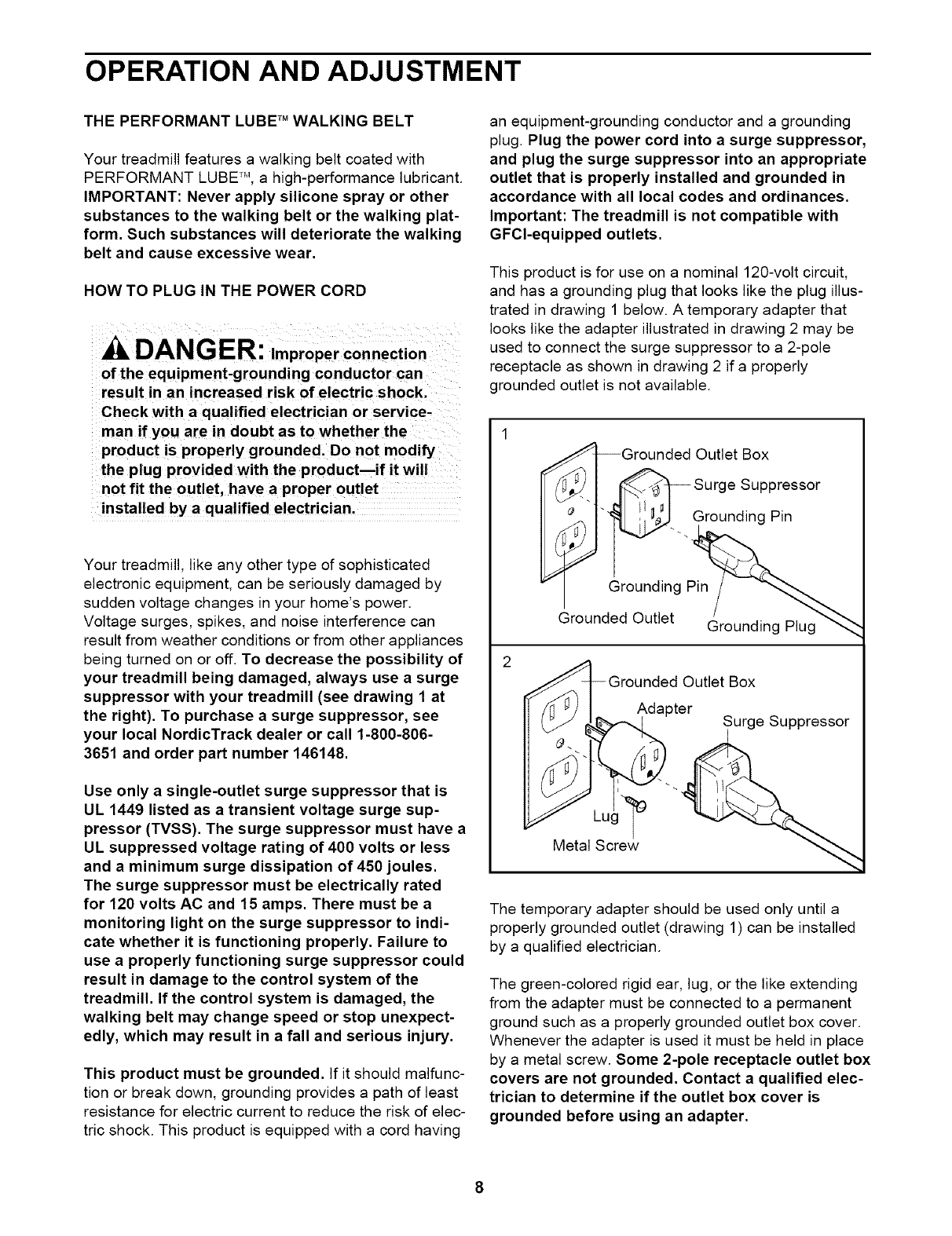

10. When connecting the power cord (see page 8),

handrails may compromise your ability to

maintain your balance. Ha nd weights should

be used only by experienced users.

19. Never leave the treadmill unattended while it

is run ning. Always remove the key, unplug

plug the power cord into a surge suppressor the power cord and move the on/off switch to

(not included) and plug the surge suppressor

into a grounded circuit capable of carrying 15

or more amps. No other appliance should be on

the same circuit. Do not use an extension cord.

11. Use only a single-outlet surge suppressor that

meets all of the specifications described on

the off position when the treadmill is not in

......................................

tion of the on/off switch.)

20. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

.......... page 6, and HOW TO FOLD

page 8. To purchase a surge suppressor, see AND MOVE THE TREADMILL on page 25.) You

your local NordicTrack dealer or call 1-800- must be able to safely lift 45 pounds (20 kg) in

806-3651 and order part number 146148. order to raise, lower, or move the treadmill.

21.Donotchangetheinclineof thetreadmill by your CD player or VCR when you are not

placing objects under the treadmill, using them.

22. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

26. Inspect and tighten all parts of the treadmill

regularly.

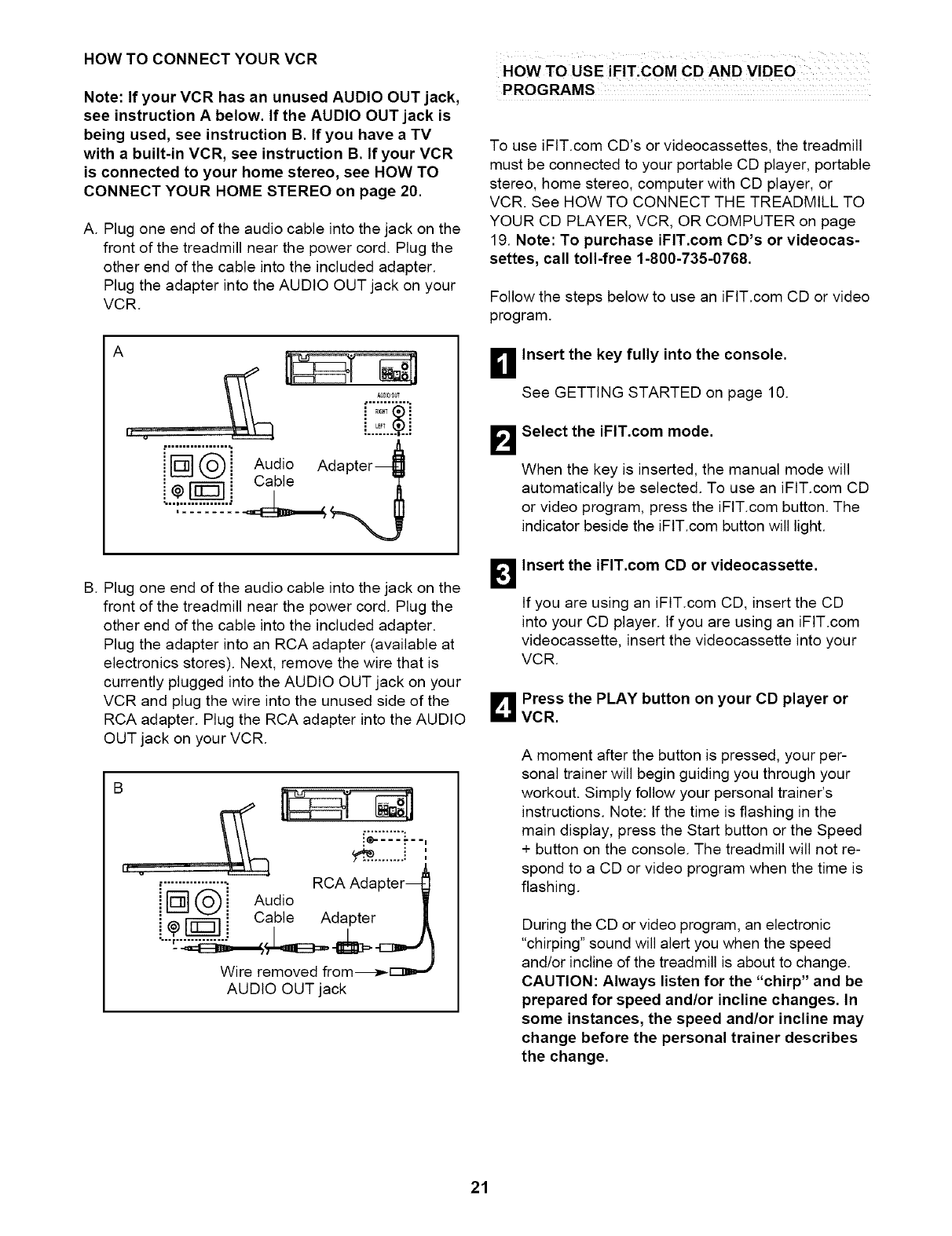

23. When using iFIT.com CDs and videos, an

electronic "chirping" sound will alert you

when the speed and/or incline of the treadmill

is about to change. Always listen for the

"chirp" and be prepared for speed and/or in-

cline changes. In some instances, the speed

and/or incline may change before the per-

sonal trainer describes the change.

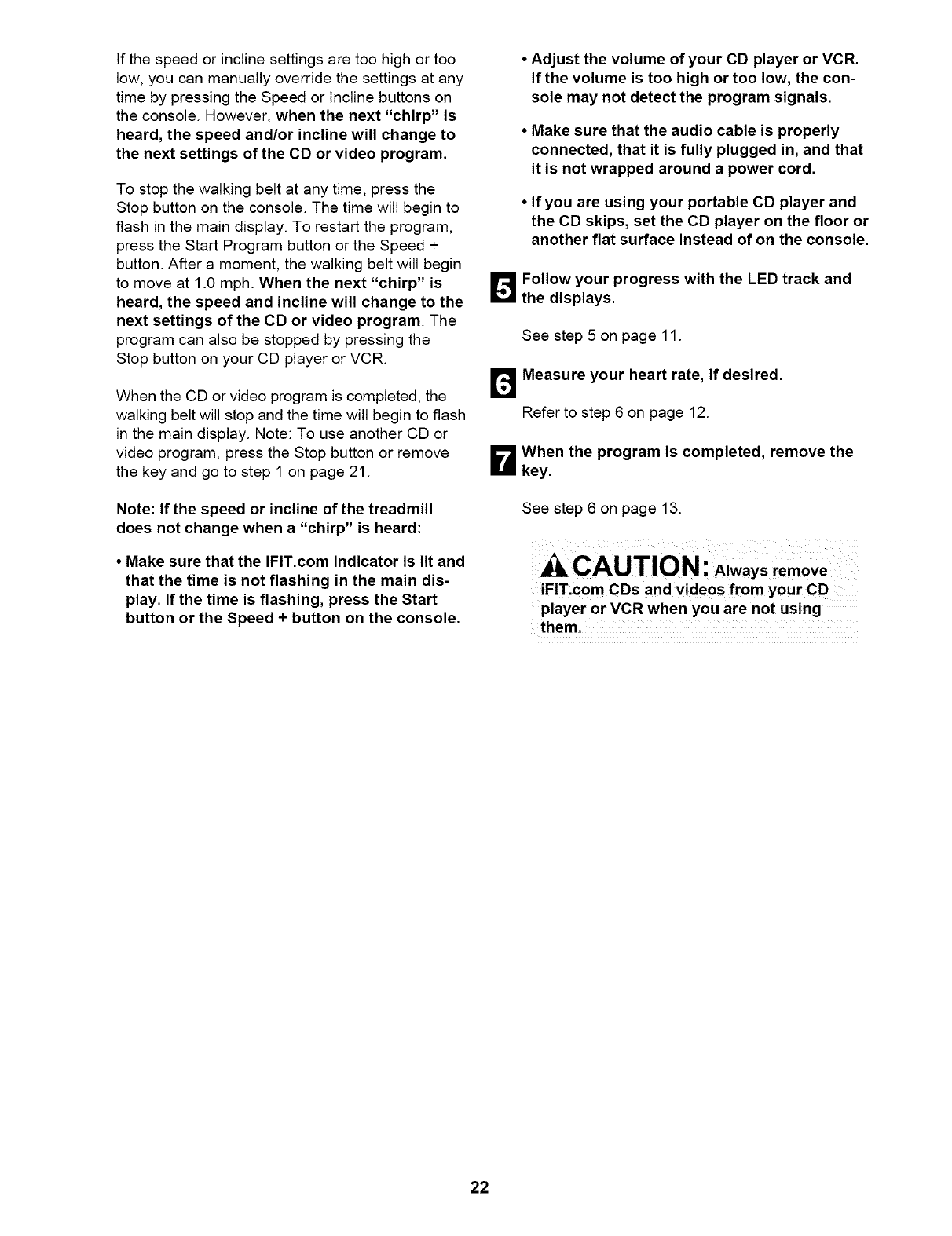

24. When using iFIT.com CDs and videos, you

can manually override the speed and incline

settings at any time by pressing the speed

27. Never insert or drop any object into any

opening.

28. DANG ER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the mai n-

tenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized service

and incline buttons. However, when the next representative only.

"chirp" is heard, the speed and/or incline will

change to the next settings of the CD or video 29. This treadmill is intended for in-home use

program, only. Do not use this treadmill in any commer-

cial, rental, or institutional setting.

25.Always remove iFIT.com CDs and videos from

WARNIN G: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

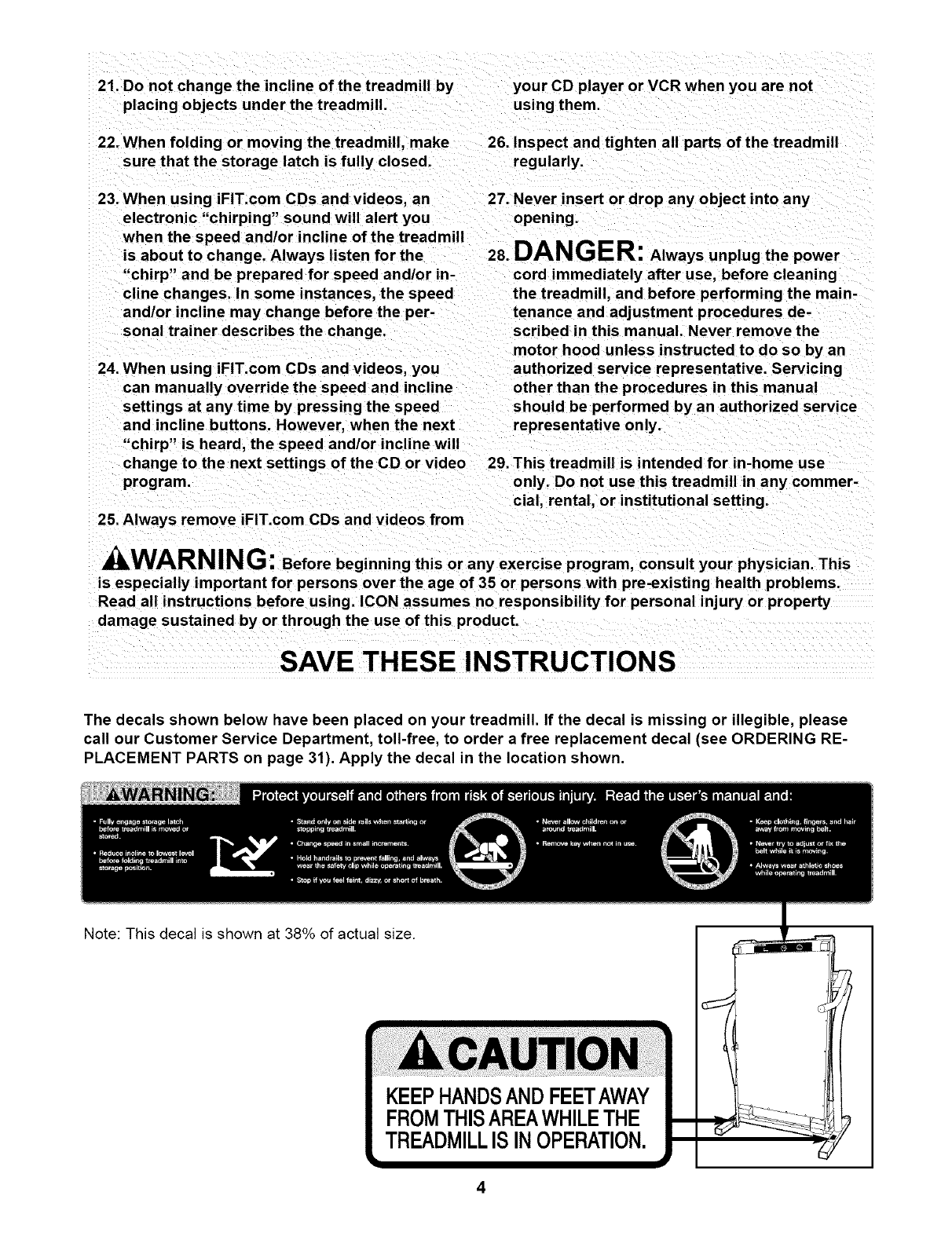

The decals shown below have been placed on your treadmill. If the decal is missing or illegible, please

call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING RE-

PLACEMENT PARTS on page 31). Apply the decal in the location shown.

Note: This decal is shown at 38% of actual size.

KEEP HANDSAND FEETAWAY

FROMTHISAREAWHILETHE

TREADMILLIS IN OPERATION.

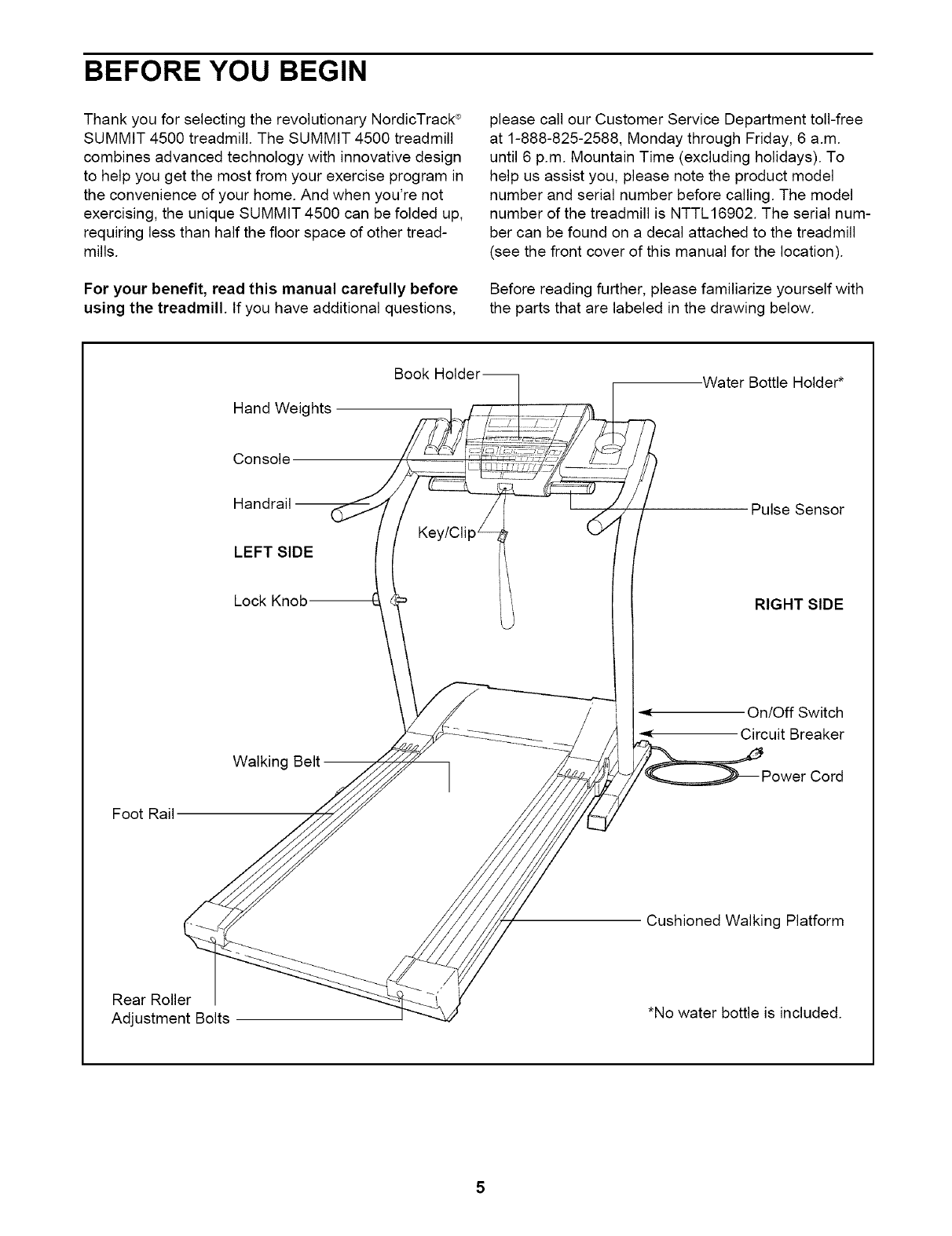

BEFORE YOU BEGIN

Thank you for selecting the revolutionary NordicTrack ®

SUMMIT 4500 treadmill. The SUMMIT 4500 treadmill

combines advanced technology with innovative design

to help you get the most from your exercise program in

the convenience of your home. And when you're not

exercising, the unique SUMMIT 4500 can be folded up,

requiring less than half the floor space of other tread-

mills.

For your benefit, read this manual carefully before

using the treadmill. If you have additional questions,

please call our Customer Service Department toll-free

at 1-888-825-2588, Monday through Friday, 6 a.m.

until 6 p.m. Mountain Time (excluding holidays). To

help us assist you, please note the product model

number and serial number before calling. The model

number of the treadmill is NTTL16902. The serial num-

ber can be found on a decal attached to the treadmill

(see the front cover of this manual for the location).

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Hand Weights

Book Water Bottle Holder*

Foot Rail

Console

LEFT SIDE

Lock Knob

Walking

Pulse Sensor

RIGHT SIDE

On/Off Switch

Circuit Breaker

Cushioned Walking Platform

Rear Roller

Adjustment Bolts *No water bottle is included.

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench Ji

and your own phillips screwdriver (]_=========_and wire cutters _--_.

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a

small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal

condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off

the lubricant with a soft cloth and a mild, non-abrasive cleaner.

1. With the help of a second person, carefully raise the

Uprights (69) until the treadmill is in the position shown.

Insert one of the Extension Legs (102)into the treadmill

as shown in the inset drawing. Make sure that the

Extension Leg is turned so the Base Pad (99) is on the

bottom. Note: It may be helpful to tip the Uprights (69)

forward as you insert the Extension Leg.

Insert the other Extension Leg (not shown) in the same

way.

69

2. Press the Lock Knob Sleeve (70) into the left Upright (69).

Make sure that the Lock Pin Collar (72) and the Spring

(71) are on the Lock Pin (74). Insert the Lock Pin into

Lock Knob Sleeve (70) and the left Upright (69). Press the

Lock Knob Spacer (117) onto the left Upright. Tighten the

Lock Knob (68) onto the Lock Pin.

68 .

117 72

74

3. With the help of a second person, tip the Uprights (69)

down as shown. Make sure that the Extension Legs

(102) remain in the Uprights.

Attach each Extension Leg (102) with two Screws (100)

as shown.

With the help of a second person, carefully tip the

Uprights (69) back to the vertical position.

Note: A replacement Base Pad (99) may be included. Use

the Base Pad to replace any Base Pad that becomes

worn. 100

102

102

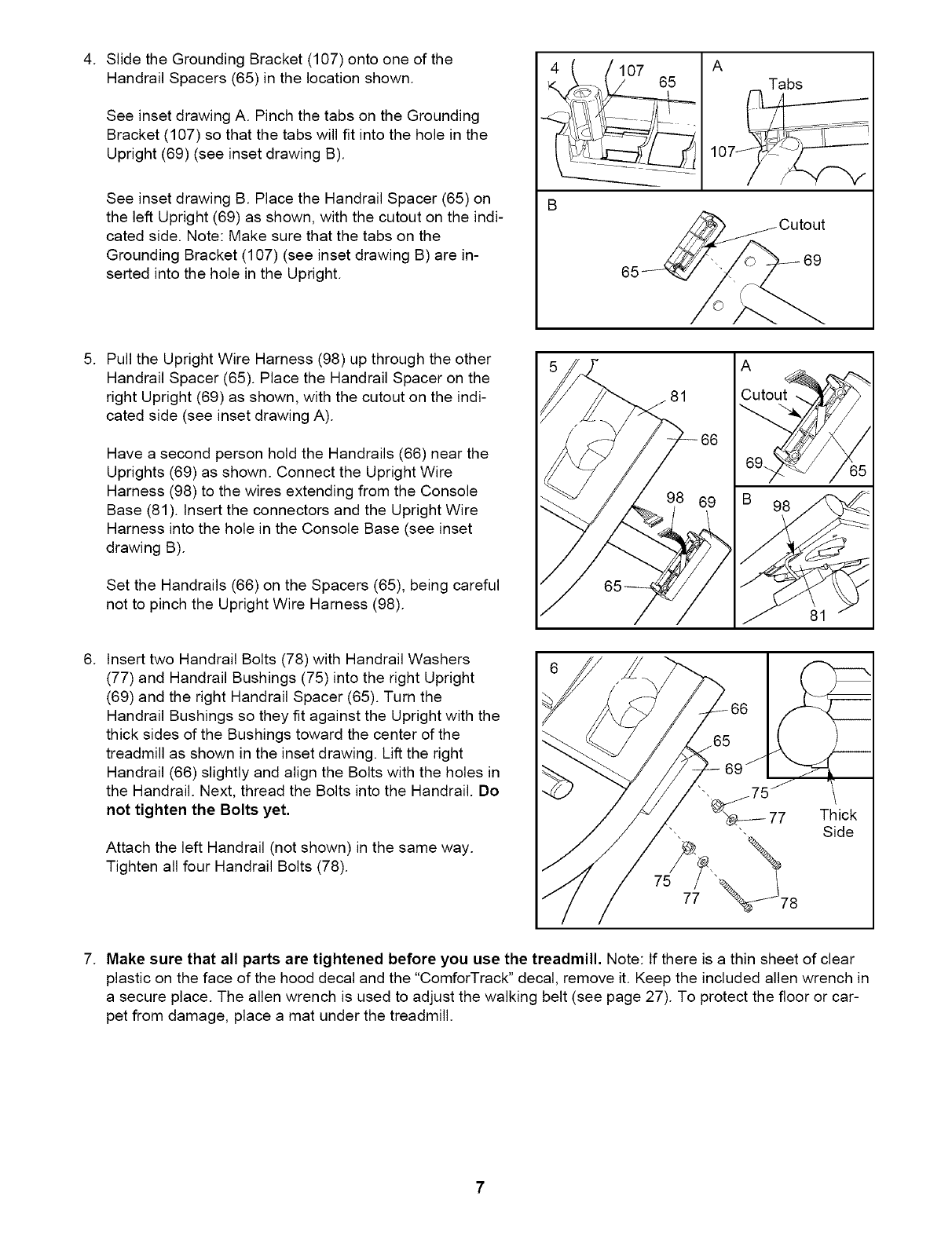

4. SlidetheGroundingBracket(107)ontooneofthe

HandrailSpacers(65)inthelocationshown.

SeeinsetdrawingA.PinchthetabsontheGrounding

Bracket(107)sothatthetabswillfitintotheholeinthe

Upright(69)(seeinsetdrawingB).

SeeinsetdrawingB.PlacetheHandrailSpacer(65)on

theleftUpright(69)asshown,withthecutoutontheindi-

catedside.Note:Makesurethatthetabsonthe

GroundingBracket(107)(seeinsetdrawingB)arein-

sertedintotheholeintheUpright.

5. PulltheUprightWireHarness(98)upthroughtheother

HandrailSpacer(65).PlacetheHandrailSpaceronthe

rightUpright(69)asshown,withthecutoutontheindi-

catedside(seeinsetdrawingA).

HaveasecondpersonholdtheHandrails(66)nearthe

Uprights(69)asshown.ConnecttheUprightWire

Harness(98)tothewiresextendingfromtheConsole

Base(81).InserttheconnectorsandtheUprightWire

HarnessintotheholeintheConsoleBase(seeinset

drawingB).

SettheHandrails(66)ontheSpacers(65),beingcareful

nottopinchtheUprightWireHarness(98).

Z

}<

A

Tabs

107

A

81

81

6. Insert two Handrail Bolts (78) with Handrail Washers

(77) and Handrail Bushings (75) into the right Upright

(69) and the right Handrail Spacer (65). Turn the

Handrail Bushings so they fit against the Upright with the

thick sides of the Bushings toward the center of the

treadmill as shown in the inset drawing. Lift the right

Handrail (66) slightly and align the Bolts with the holes in

the Handrail. Next, thread the Bolts into the Handrail. Do

not tighten the Bolts yet.

Attach the left Handrail (not shown) in the same way.

Tighten all four Handrail Bolts (78). 75

77 78

Thick

Side

7. Make sure that all parts are tightened before you use the treadmill. Note: If there is a thin sheet of clear

plastic on the face of the hood decal and the "ComforTrack" decal, remove it. Keep the included allen wrench in

a secure place. The allen wrench is used to adjust the walking belt (see page 27). To protect the floor or car-

pet from damage, place a mat under the treadmill.

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBE TM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBE TM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. Such substances will deteriorate the walking

belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

DA NG ER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product--if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home's power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge

suppressor with your treadmill (see drawing 1 at

the right). To purchase a surge suppressor, see

your local NordicTrack dealer or call 1-800-806-

3651 and order part number 146148.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less

and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated

for 120 volts AC and 15 amps. There must be a

monitoring light on the surge suppressor to indi-

cate whether it is functioning properly. Failure to

use a properly functioning surge suppressor could

result in damage to the control system of the

treadmill. If the control system is damaged, the

walking belt may change speed or stop unexpect-

edly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

an equipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCl-equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

Outlet Box

Suppressor

Grounding Pin

Grounding Pin

Grounded Outlet Grounding Plug

Metal Screw

Outlet Box

Adapter

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

Pulse

Sensor

of theconsole,removeit.

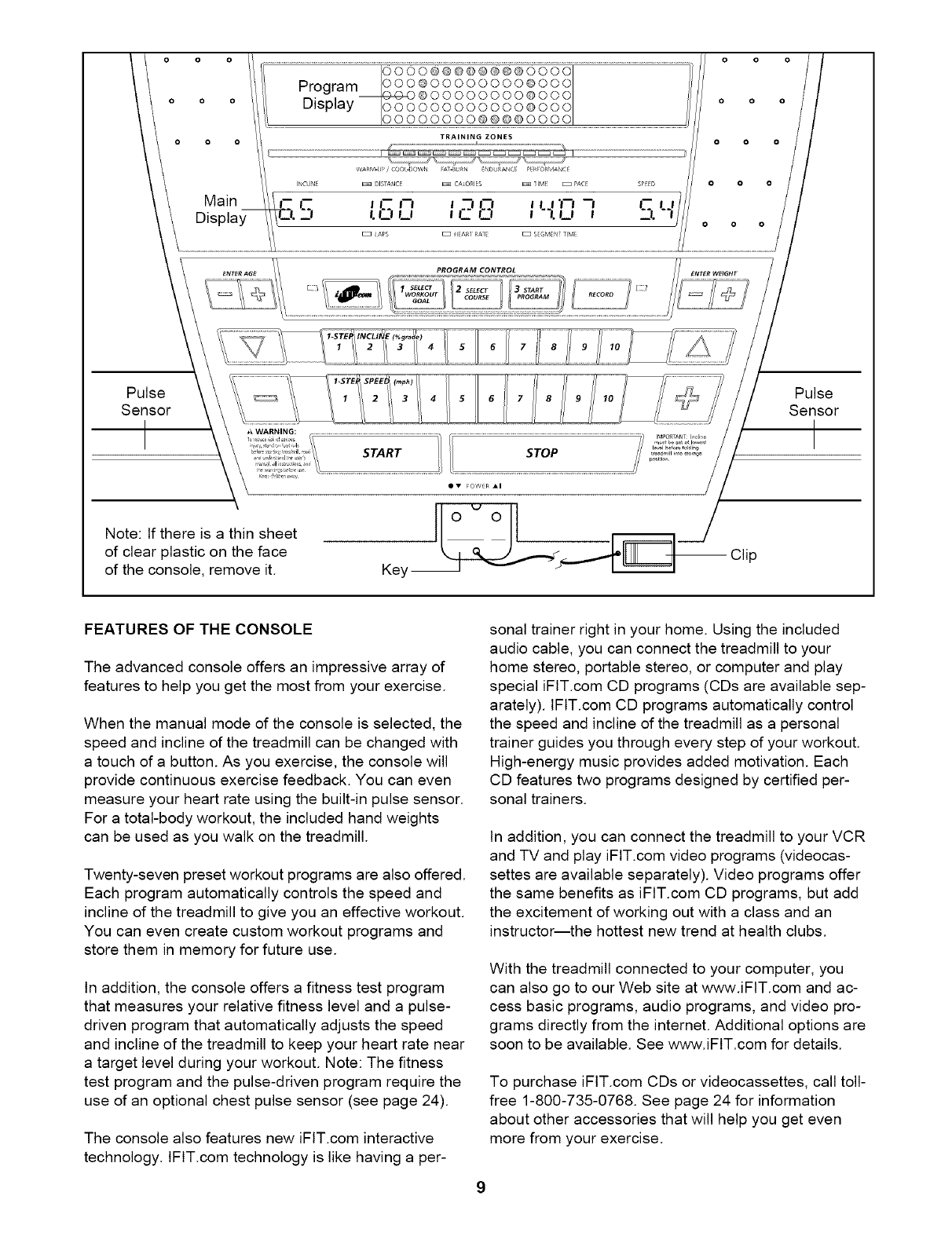

FEATURESOFTHECONSOLE

Theadvancedconsoleoffersanimpressivearrayof

featuresto helpyougetthemostfromyourexercise.

Whenthemanualmodeoftheconsoleisselected,the

speedandinclineofthetreadmillcanbechangedwith

atouchofa button.Asyouexercise,theconsolewill

providecontinuousexercisefeedback.Youcaneven

measureyourheartrateusingthebuilt-inpulsesensor.

Foratotal-bodyworkout,theincludedhandweights

canbeusedasyouwalkonthetreadmill.

Twenty-sevenpresetworkoutprogramsarealsooffered.

Eachprogramautomaticallycontrolsthespeedand

inclineofthetreadmillto giveyouaneffectiveworkout.

Youcanevencreatecustomworkoutprogramsand

storetheminmemoryforfutureuse.

Inaddition,theconsoleoffersafitnesstestprogram

thatmeasuresyourrelativefitnesslevelanda pulse-

drivenprogramthatautomaticallyadjuststhespeed

andinclineof thetreadmilltokeepyourheartratenear

atargetlevelduringyourworkout.Note:Thefitness

testprogramandthepulse-drivenprogramrequirethe

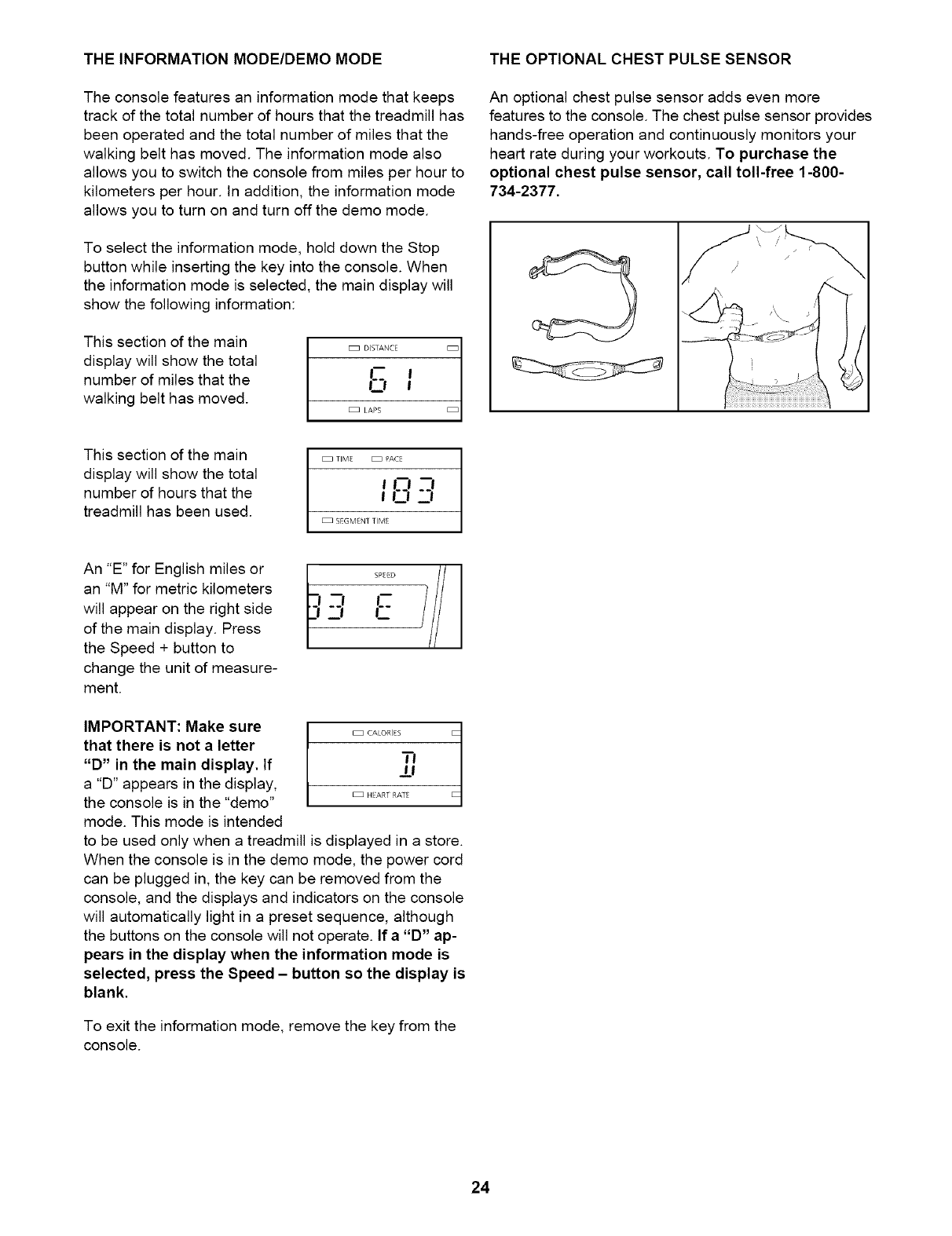

useofanoptionalchestpulsesensor(seepage24).

TheconsolealsofeaturesnewiFtT.cominteractive

technology.IFIT.comtechnologyislikehavingaper-

sonaltrainerrightinyourhome.Usingtheincluded

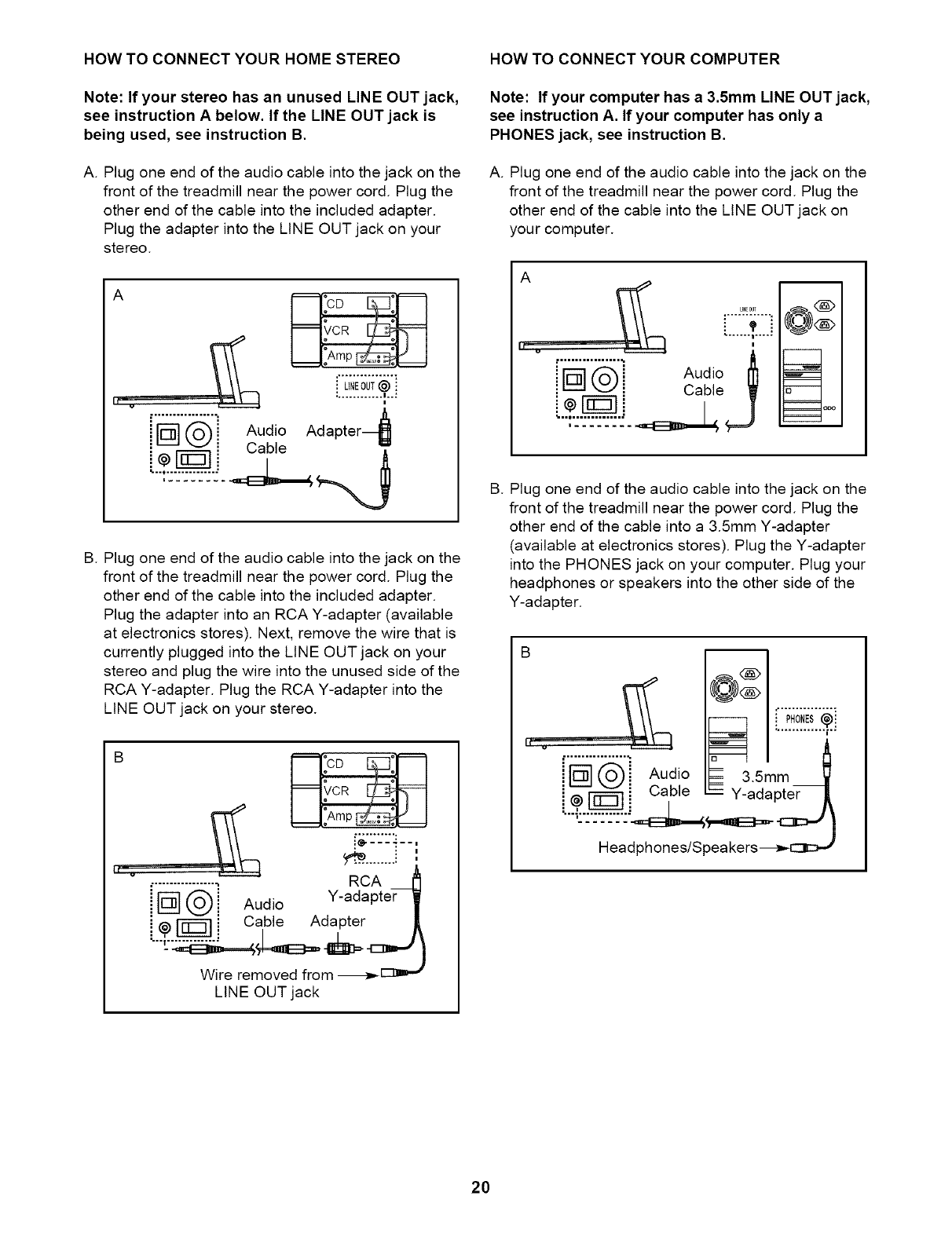

audiocable,youcanconnectthetreadmilltoyour

homestereo,portablestereo,orcomputerandplay

specialiFtT.comCDprograms(CDsareavailablesep-

arately).IFtT.comCDprogramsautomaticallycontrol

thespeedandinclineofthetreadmillasapersonal

trainerguidesyouthrougheverystepofyourworkout.

High-energymusicprovidesaddedmotivation.Each

CDfeaturestwoprogramsdesignedbycertifiedper-

sonaltrainers.

Inaddition,youcanconnectthetreadmilltoyourVCR

andTVandplayiFIT.comvideoprograms(videocas-

settesareavailableseparately).Videoprogramsoffer

thesamebenefitsasiFIT.comCDprograms,butadd

theexcitementofworkingoutwithaclassandan

instructor--thehottestnewtrendathealthclubs.

Withthetreadmillconnectedtoyourcomputer,you

canalsogotoourWebsiteatwww.iFIT.comandac-

cessbasicprograms,audioprograms,andvideopro-

gramsdirectlyfromtheinternet.Additionaloptionsare

soonto beavailable.Seewww.iFIT.comfordetails.

TopurchaseiFIT.comCDsorvideocassettes,calltoll-

free1-800-735-0768.Seepage24forinformation

aboutotheraccessoriesthatwillhelpyougeteven

morefromyourexercise.

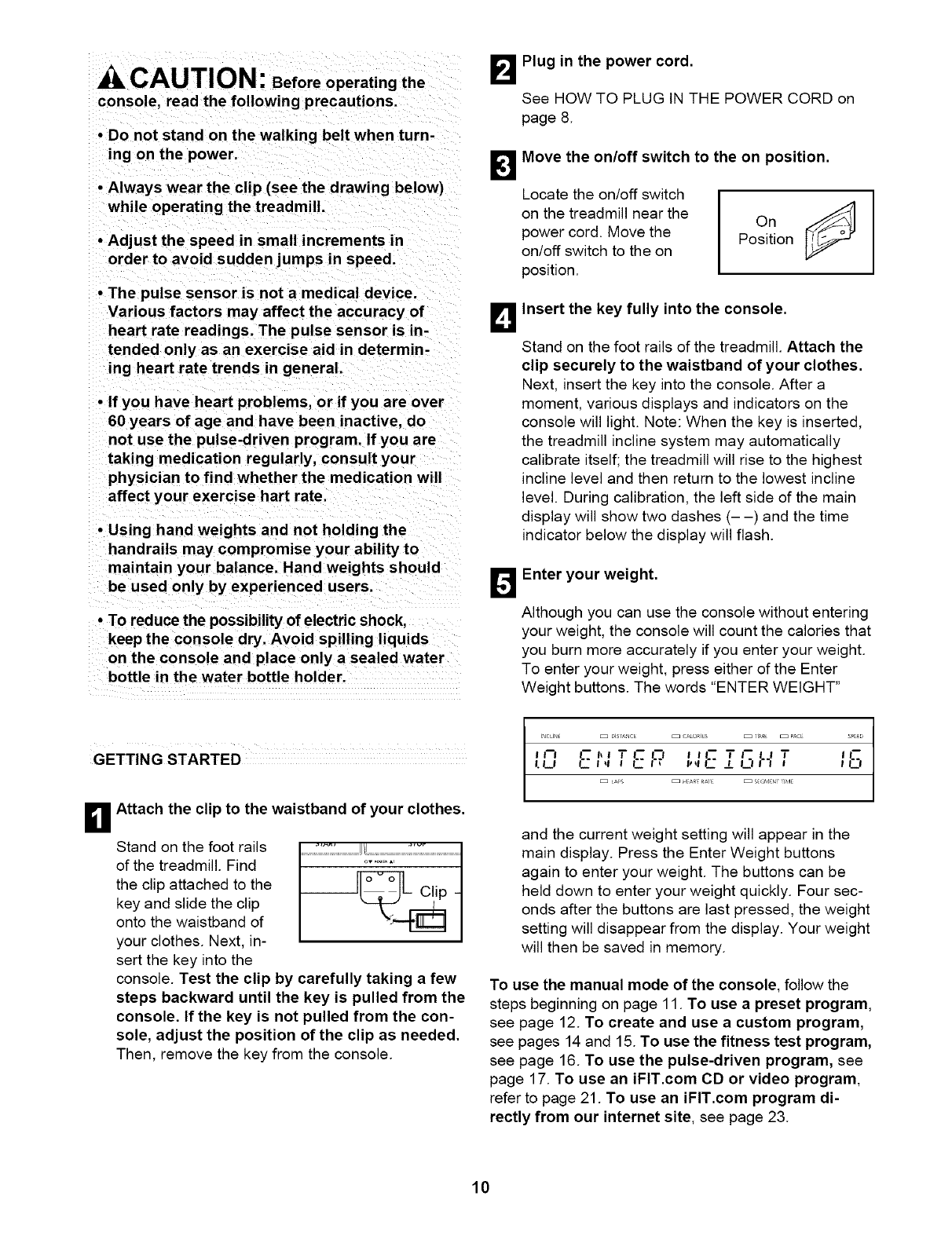

CAUTION: Before operating the BPlug in the power cord.

console, read the following precautions.

• Do not stand on the walking belt when turn-

ing on the power.

• Always wear the clip (see the drawing below)

while operating the treadmill.

• Adjust the speed in small increments in

order to avoid sudden jumps in speed.

• The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is in-

tended only as an exercise aid in determin-

ing heart rate trends in general.

•If you have heart problems, or if you are over

60 years of age and have been inactive, do

not use the pulse-driven program. If you are

taking medication regularly, consult your

physician to find whether the medication will

affect your exercise hart rate.

•Using hand weights and not holding the

handrails may compromise your ability to

maintain your balance. Hand weights should

be used only by experienced users.

* To reduce the possibility of electric shock,

keep the console dry. Avoid spilling liquids

on the console and place only a sealed water

bottle in the water bottle holder.

D

B

D

See HOW TO PLUG IN THE POWER CORD on

page 8.

Move the on/off switch to the on position.

Locate the on/off switch

on the treadmill near the

power cord. Move the

on/off switch to the on

position. onf

Position

Insert the key fully into the console.

Stand on the foot rails of the treadmill. Attach the

clip securely to the waistband of your clothes.

Next, insert the key into the console. After a

moment, various displays and indicators on the

console will light. Note: When the key is inserted,

the treadmill incline system may automatically

calibrate itself; the treadmill will rise to the highest

incline level and then return to the lowest incline

level. During calibration, the left side of the main

display will show two dashes (- -) and the time

indicator below the display will flash.

Enter your weight.

Although you can use the console without entering

your weight, the console will count the calories that

you burn more accurately if you enter your weight.

To enter your weight, press either of the Enter

Weight buttons. The words "ENTER WEIGHT"

GETTING STARTED

nAttach the clip to the waistband of your clothes.

Stand on the foot rails

of the treadmill. Find

the clip attached to the

key and slide the clip

onto the waistband of

your clothes. Next, in-

sert the key into the

console. Test the clip by carefully taking a few

steps backward until the key is pulled from the

console. If the key is not pulled from the con-

sole, adjust the position of the clip as needed.

Then, remove the key from the console.

INCLI_ _ DIS]_,NCL _ CALORIES _ rlML _ P_,L S_L_D

i#-I I- I,J T I- n IJl-- T C U T _L'C

,.U L,,, 'L -- ± Lit sI_1 L. I I__1

/

A_>S _ HEAR RAIE _ SQMK IME

and the current weight setting will appear in the

main display. Press the Enter Weight buttons

again to enter your weight. The buttons can be

held down to enter your weight quickly. Four sec-

onds after the buttons are last pressed, the weight

setting will disappear from the display. Your weight

will then be saved in memory.

To use the manual mode of the console, follow the

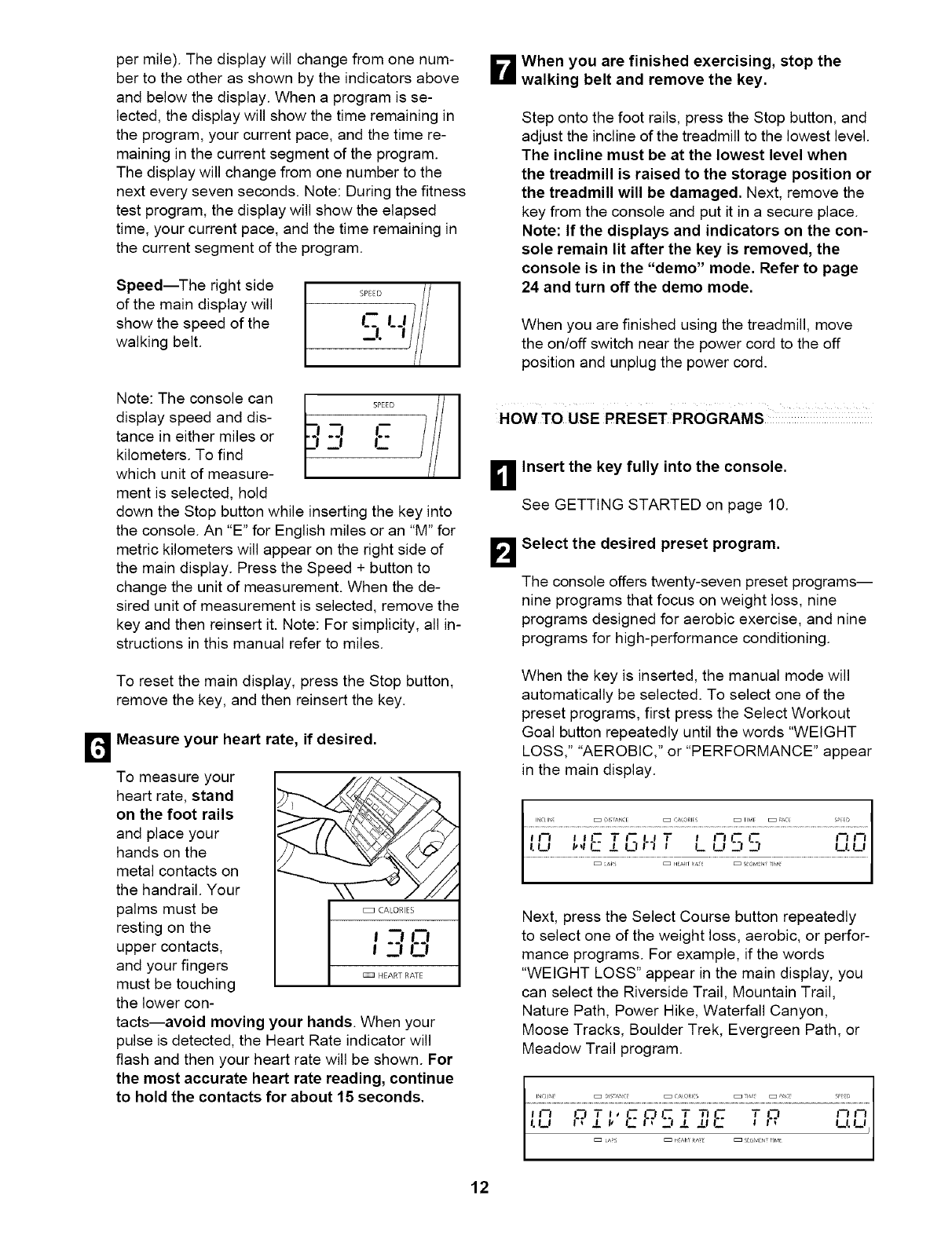

steps beginning on page 11. To use a preset program,

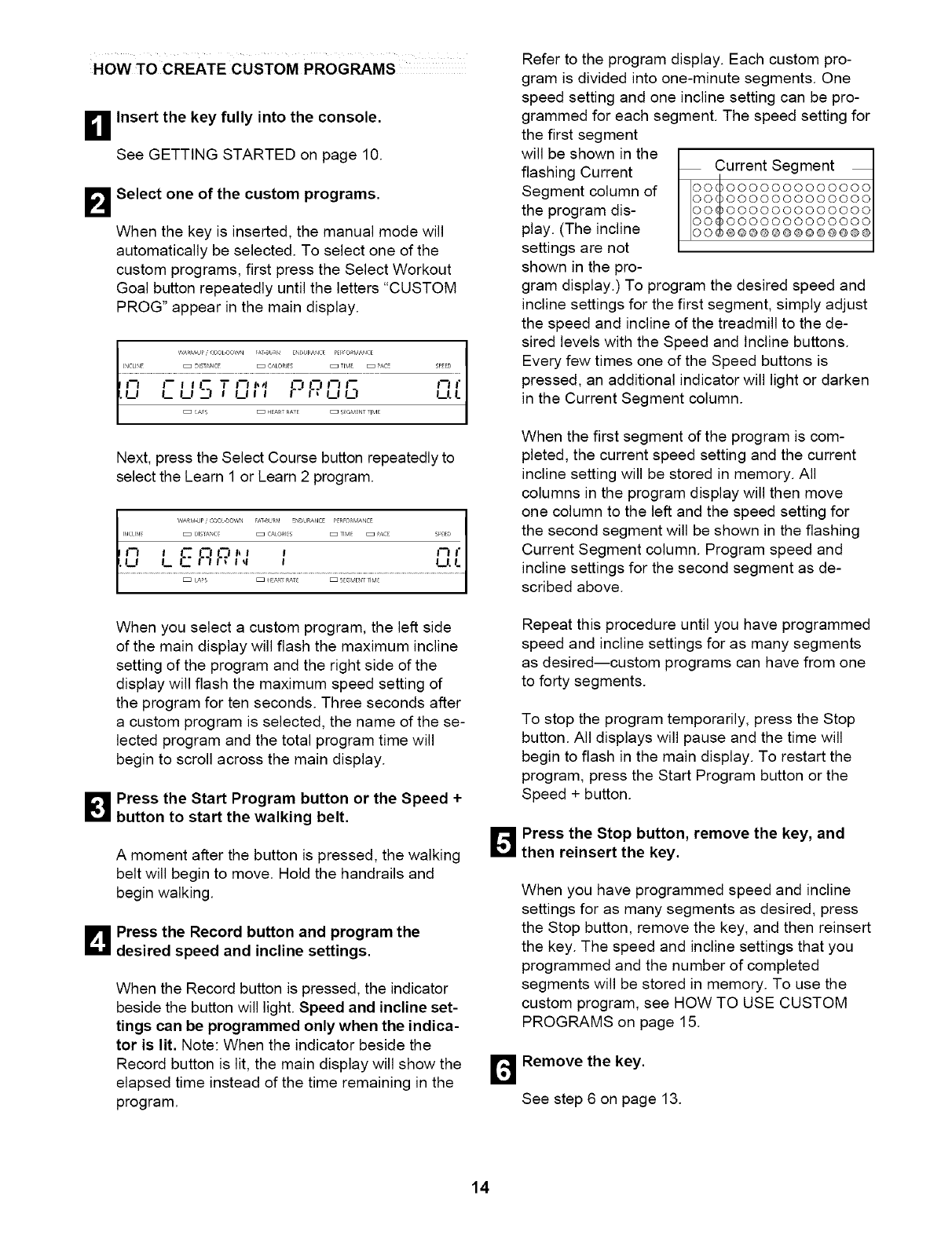

see page 12. To create and use a custom program,

see pages 14 and 15. To use the fitness test program,

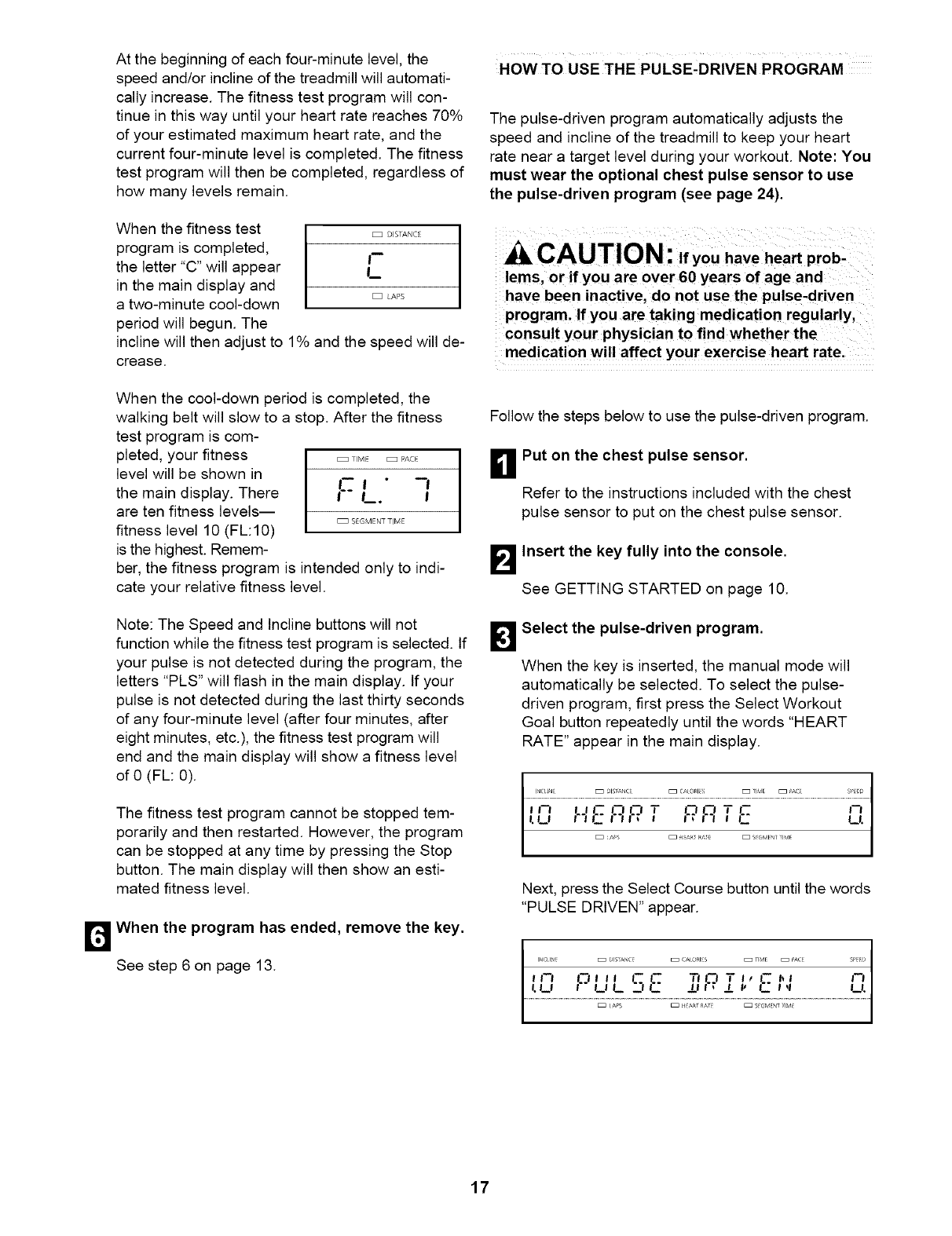

see page 16. To use the pulse-driven program, see

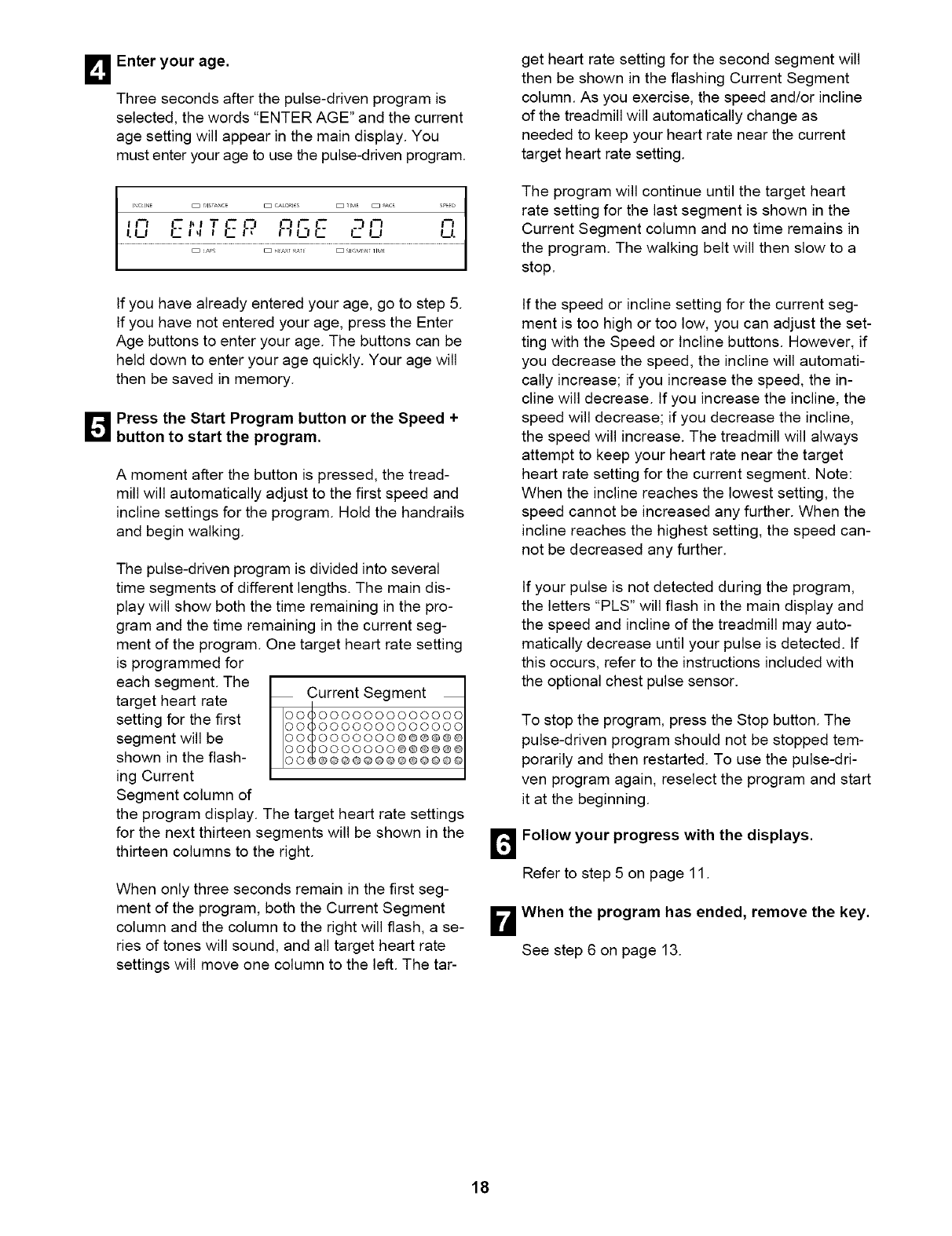

page 17. To use an iFIT.com CD or video program,

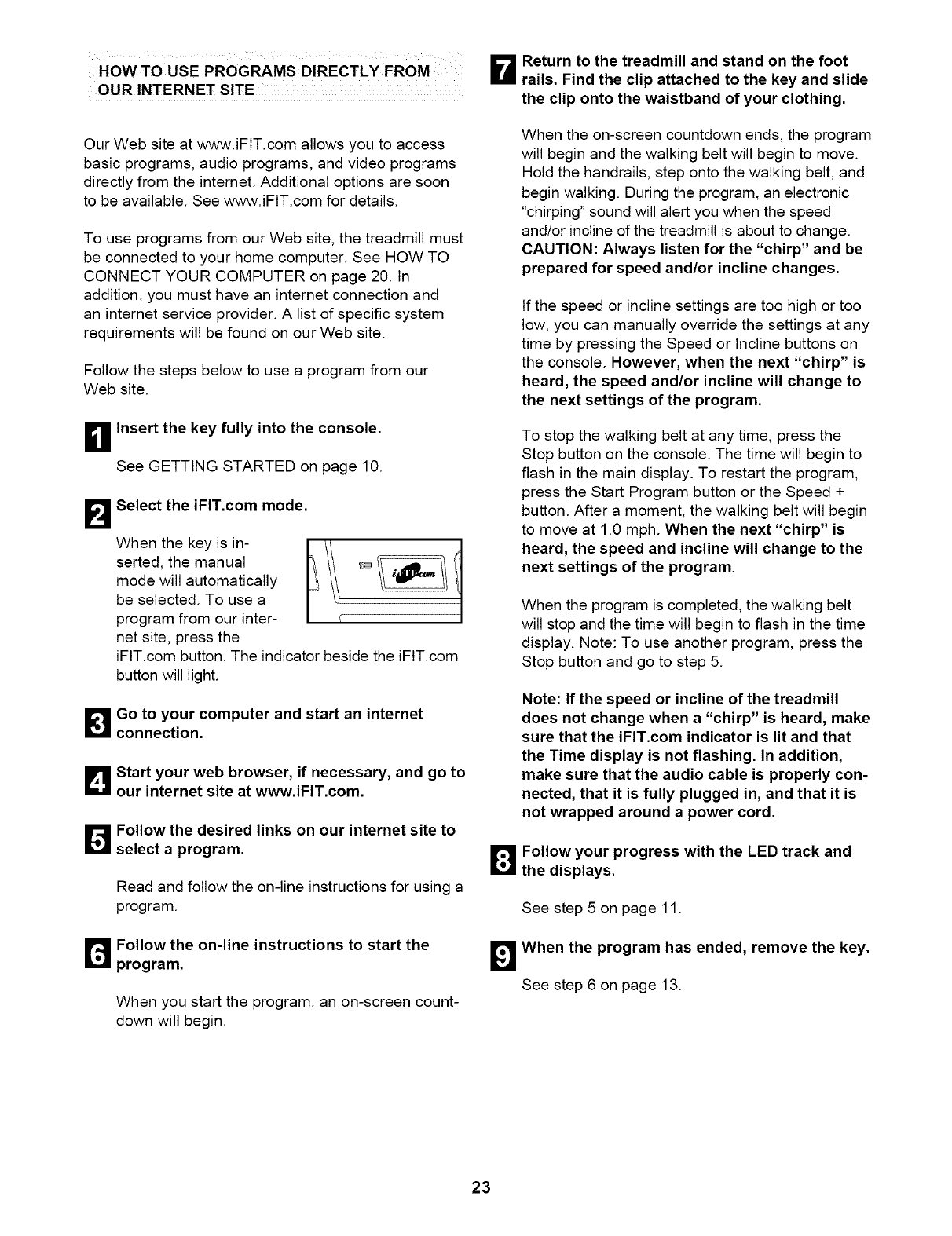

refer to page 21. To use an iFIT.com program di-

rectly from our internet site, see page 23.

10

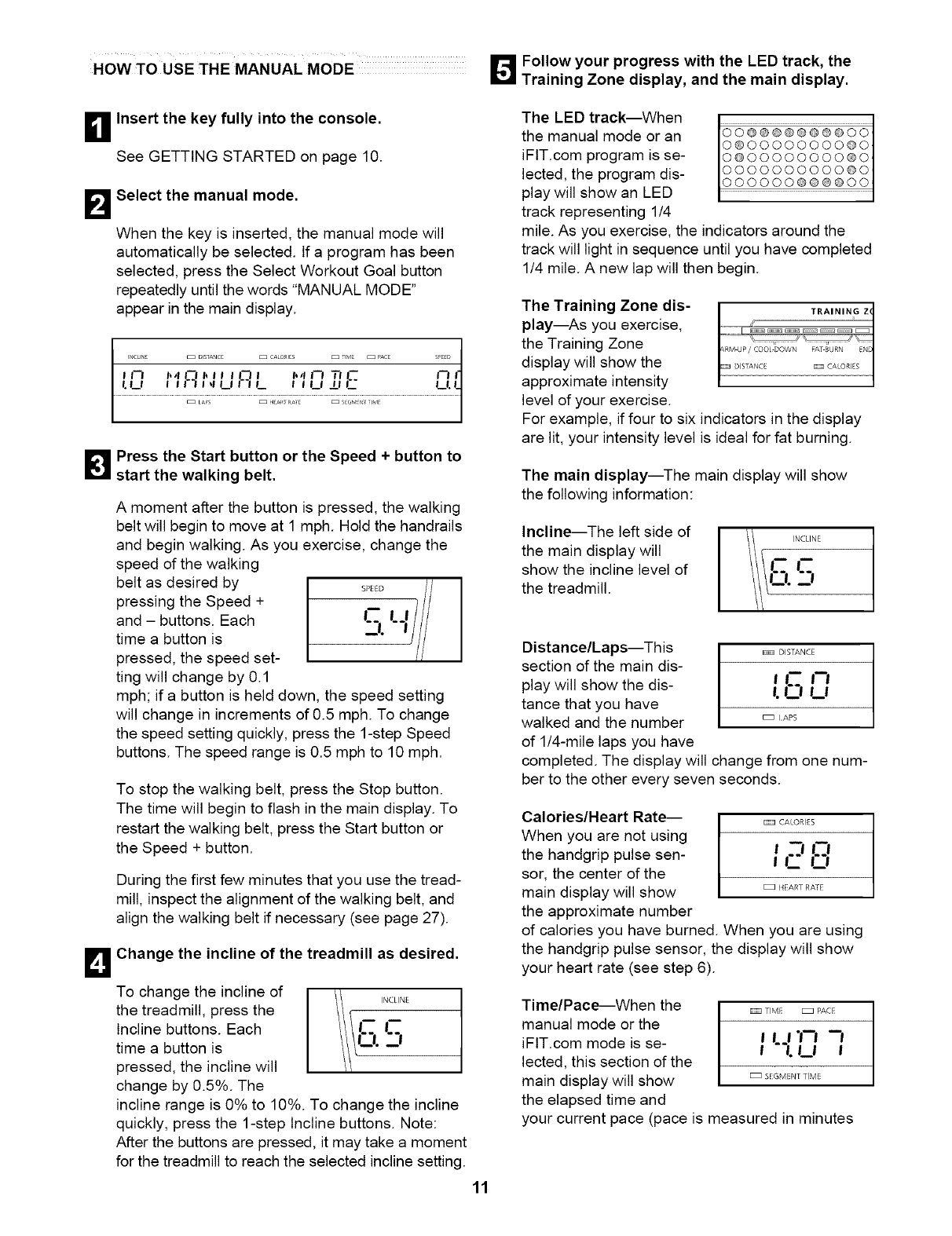

HOW TO USE THE MANUAL MODE _Follow your progress with the LED track, the

Training Zone display, and the main display.

=!

E]

Insert the key fully into the console.

See GETTING STARTED on page 10.

Select the manual mode.

When the key is inserted, the manual mode will

automatically be selected. If a program has been

selected, press the Select Workout Goal button

repeatedly until the words "MANUAL MODE"

appear in the main display.

_ress the Start button or the Speed + button to

start the walking belt.

A moment after the button is pressed, the walking

belt will begin to move at 1 mph. Hold the handrails

and begin walking. As you exercise, change the

speed of the walking

belt as desired by

pressing the Speed +

and - buttons. Each

time a button is

pressed, the speed set-

ting will change by 0.1

mph; if a button is held down, the speed setting

will change in increments of 0.5 mph. To change

the speed setting quickly, press the 1-step Speed

buttons. The speed range is 0.5 mph to 10 mph.

To stop the walking belt, press the Stop button.

The time will begin to flash in the main display. To

restart the walking belt, press the Start button or

the Speed + button.

During the first few minutes that you use the tread-

mill, inspect the alignment of the walking belt, and

align the walking belt if necessary (see page 27).

BChange the incline of the treadmill as desired.

To change the incline of

the treadmill, press the

Incline buttons. Each

time a button is

pressed, the incline will

change by 0.5%. The

incline range is 0% to 10%. To change the incline

quickly, press the 1-step Incline buttons. Note:

After the buttons are pressed, it may take a moment

for the treadmill to reach the selected incline setting.

The LED track--When

the manual mode or an

iFIT.com program is se-

lected, the program dis-

play will show an LED

track representing 1/4

00@@@@@@@@00

0@00000000@0

O@O00OO000@O

O00OO00000@O

000000@@@@00

mile. As you exercise, the indicators around the

track will light in sequence until you have completed

1/4 mile. A new lap will then begin.

The Training Zone dis-

play--As you exercise,

the Training Zone

display will show the

approximate intensity

level of your exercise.

For example, if four to six indicators in the display

are lit, your intensity level is ideal for fat burning.

The main display--The main display will show

the following information:

Incline--The left side of \\ ,NCUNE

the main display will \\_1_

show the incline level of ///i--i.

the treadmill.

Distance/Laps--This DISTANCE

section of the main dis- II-- N

play will show the dis- I. I'"1 I_1

tance that you have

walked and the number _ LAPS

of 1/4-mile laps you have

completed. The display will change from one num-

ber to the other every seven seconds.

Calories/Heart Rate-- CAIORIES

When you are not using t --I t--I

the handgrip pulse sen- I I'_.."0

sor, the center of the

main display will show _ {FARTRAT["

the approximate number

of calories you have burned. When you are using

the handgrip pulse sensor, the display will show

your heart rate (see step 6).

Time/Pace--When the

manual mode or the

iFIT.com mode is se-

lected, this section of the

main display will show

the elapsed time and

your current pace (pace is measured in minutes

TIME _ PACE

_R I'rl --I

"'l. U i

SEGMENT TIME

11

D

per mile). The display will change from one num-

ber to the other as shown by the indicators above

and below the display. When a program is se-

lected, the display will show the time remaining in

the program, your current pace, and the time re-

maining in the current segment of the program.

The display will change from one number to the

next every seven seconds. Note: During the fitness

test program, the display will show the elapsed

time, your current pace, and the time remaining in

the current segment of the program.

Speed--The right side

of the main display will

show the speed of the

walking belt.

Note: The console can

display speed and dis-

tance in either miles or

kilometers. To find

which unit of measure-

ment is selected, hold

down the Stop button while inserting the key into

the console. An "E" for English miles or an "M" for

metric kilometers will appear on the right side of

the main display. Press the Speed + button to

change the unit of measurement. When the de-

sired unit of measurement is selected, remove the

key and then reinsert it. Note: For simplicity, all in-

structions in this manual refer to miles.

To reset the main display, press the Stop button,

remove the key, and then reinsert the key.

Measure your heart rate, if desired.

To measure your

heart rate, stand

on the foot rails

and place your

hands on the

metal contacts on

the handrail. Your

palms must be := CA_OR_S

resting on the

upper contacts, _ 9_9

and your fingers HEART RATE

must be touching

the lower con-

tacts--avoid moving your hands. When your

pulse is detected, the Heart Rate indicator will

flash and then your heart rate will be shown. For

the most accurate heart rate reading, continue

to hold the contacts for about 15 seconds.

B hen you are finished exercising, stop the

walking belt and remove the key.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest level.

The incline must be at the lowest level when

the treadmill is raised to the storage position or

the treadmill will be damaged. Next, remove the

key from the console and put it in asecure place.

Note: If the displays and indicators on the con-

sole remain lit after the key is removed, the

console is in the "demo" mode. Refer to page

24 and turn off the demo mode.

When you are finished using the treadmill, move

the on/off switch near the power cord to the off

position and unplug the power cord.

HOW TO USE PRESET PROGRAMS

B

B

Insert the key fully into the console.

See GETTING STARTED on page 10.

Select the desired preset program.

The console offers twenty-seven preset programs--

nine programs that focus on weight loss, nine

programs designed for aerobic exercise, and nine

programs for high-performance conditioning.

When the key is inserted, the manual mode will

automatically be selected. To select one of the

preset programs, first press the Select Workout

Goal button repeatedly until the words "WEIGHT

LOSS," "AEROBIC," or "PERFORMANCE" appear

in the main display.

Next, press the Select Course button repeatedly

to select one of the weight loss, aerobic, or perfor-

mance programs. For example, if the words

"WEIGHT LOSS" appear in the main display, you

can select the Riverside Trail, Mountain Trail,

Nature Path, Power Hike, Waterfall Canyon,

Moose Tracks, Boulder Trek, Evergreen Path, or

Meadow Trail program.

12

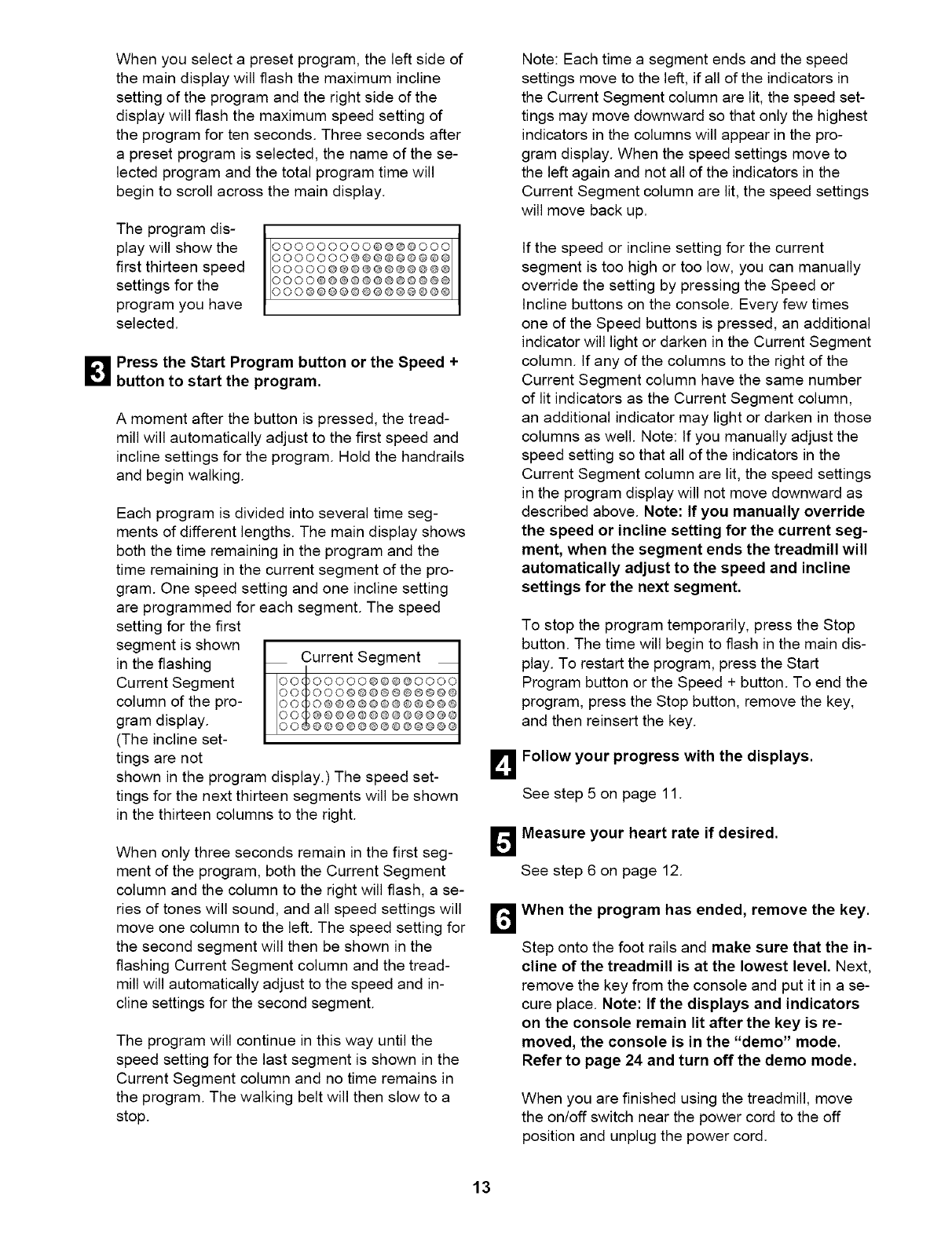

When you select a preset program, the left side of

the main display will flash the maximum incline

setting of the program and the right side of the

display will flash the maximum speed setting of

the program for ten seconds. Three seconds after

a preset program is selected, the name of the se-

lected program and the total program time will

begin to scroll across the main display.

The program dis-

play will show the

first thirteen speed

settings for the

program you have

selected.

_1 Press the Start Program button or the Speed +

button to start the program.

A moment after the button is pressed, the tread-

mill will automatically adjust to the first speed and

incline settings for the program. Hold the handrails

and begin walking.

Each program is divided into several time seg-

ments of different lengths. The main display shows

both the time remaining in the program and the

time remaining in the current segment of the pro-

gram. One speed setting and one incline setting

are programmed for each segment. The speed

setting for the first

segment is shown

in the flashing

Current Segment

column of the pro-

gram display.

(The incline set-

tings are not

shown in the program display.) The speed set-

tings for the next thirteen segments will be shown

in the thirteen columns to the right.

Current Segment

O0()O0000@@@@OOOO

00()000@@@@@@@@@@

00()0@@@@@@@@@@@@

00()@@@@@@@@@@@@@

00(_@@@@@@@@@@@@@

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash, a se-

ries of tones will sound, and all speed settings will

move one column to the left. The speed setting for

the second segment will then be shown in the

flashing Current Segment column and the tread-

mill will automatically adjust to the speed and in-

cline settings for the second segment.

The program will continue in this way until the

speed setting for the last segment is shown in the

Current Segment column and no time remains in

the program. The walking belt will then slow to a

stop.

B

D

D

Note: Each time a segment ends and the speed

settings move to the left, if all of the indicators in

the Current Segment column are lit, the speed set-

tings may move downward so that only the highest

indicators in the columns will appear in the pro-

gram display. When the speed settings move to

the left again and not all of the indicators in the

Current Segment column are lit, the speed settings

will move back up.

If the speed or incline setting for the current

segment is too high or too low, you can manually

override the setting by pressing the Speed or

Incline buttons on the console. Every few times

one of the Speed buttons is pressed, an additional

indicator will light or darken in the Current Segment

column. If any of the columns to the right of the

Current Segment column have the same number

of lit indicators as the Current Segment column,

an additional indicator may light or darken in those

columns as well. Note: If you manually adjust the

speed setting so that all of the indicators in the

Current Segment column are lit, the speed settings

in the program display will not move downward as

described above. Note: If you manually override

the speed or incline setting for the current seg-

ment, when the segment ends the treadmill will

automatically adjust to the speed and incline

settings for the next segment.

To stop the program temporarily, press the Stop

button. The time will begin to flash in the main dis-

play. To restart the program, press the Start

Program button or the Speed + button. To end the

program, press the Stop button, remove the key,

and then reinsert the key.

Follow your progress with the displays.

See step 5 on page 11.

Measure your heart rate if desired.

See step 6 on page 12.

When the program has ended, remove the key.

Step onto the foot rails and make sure that the in-

cline of the treadmill is at the lowest level. Next,

remove the key from the console and put it in a se-

cure place. Note: If the displays and indicators

on the console remain lit after the key is re-

moved, the console is in the "demo" mode.

Refer to page 24 and turn off the demo mode.

When you are finished using the treadmill, move

the on/off switch near the power cord to the off

position and unplug the power cord.

13

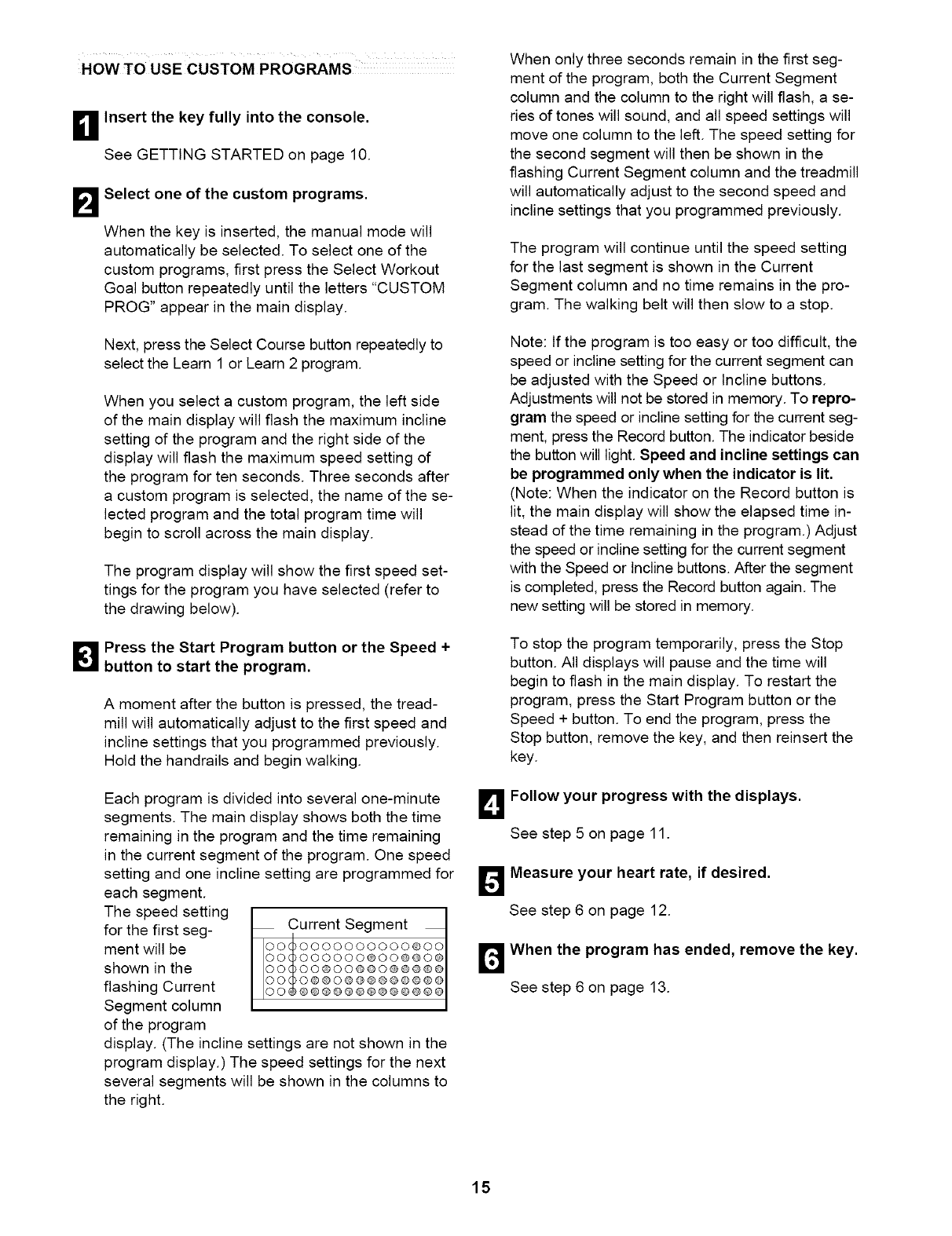

HOWTO CREATE CUSTOM PROGRAMS

i]

F,I

Insert the key fully into the console.

See GETTING STARTED on page 10.

Select one of the custom programs.

When the key is inserted, the manual mode will

automatically be selected. To select one of the

custom programs, first press the Select Workout

Goal button repeatedly until the letters "CUSTOM

PROG" appear in the main display.

Next, press the Select Course button repeatedly to

select the Learn 1 or Learn 2 program.

When you select a custom program, the left side

of the main display will flash the maximum incline

setting of the program and the right side of the

display will flash the maximum speed setting of

the program for ten seconds. Three seconds after

a custom program is selected, the name of the se-

lected program and the total program time will

begin to scroll across the main display.

_q_ Press the Start Program button or the Speed +

button to start the walking belt.

A moment after the button is pressed, the walking

belt will begin to move. Hold the handrails and

begin walking.

B ress the Record button and program the

desired speed and incline settings.

When the Record button is pressed, the indicator

beside the button will light. Speed and incline set-

tings can be programmed only when the indica-

tor is lit. Note: When the indicator beside the

Record button is lit, the main display will show the

elapsed time instead of the time remaining in the

program.

Refer to the program display. Each custom pro-

gram is divided into one-minute segments. One

speed setting and one incline setting can be pro-

grammed for each segment. The speed setting for

the first segment

will be shown in the

flashing Current

Segment column of

the program dis-

play. (The incline

settings are not

shown in the pro-

Current Segment J

o$oooooooooooooi

O@OOOOOOOOOOOOO I

O@OOOOOOOOOOOOO I

0@0000000000000 I

O@@@@@@@@@@@@OO I

gram display.) To program the desired speed and

incline settings for the first segment, simply adjust

the speed and incline of the treadmill to the de-

sired levels with the Speed and Incline buttons.

Every few times one of the Speed buttons is

pressed, an additional indicator will light or darken

in the Current Segment column.

When the first segment of the program is com-

pleted, the current speed setting and the current

incline setting will be stored in memory. All

columns in the program display will then move

one column to the left and the speed setting for

the second segment will be shown in the flashing

Current Segment column. Program speed and

incline settings for the second segment as de-

scribed above.

Repeat this procedure until you have programmed

speed and incline settings for as many segments

as desired--custom programs can have from one

to forty segments.

To stop the program temporarily, press the Stop

button. All displays will pause and the time will

begin to flash in the main display. To restart the

program, press the Start Program button or the

Speed + button.

_ress the Stop button, remove the key, and

then reinsert the key.

When you have programmed speed and incline

settings for as many segments as desired, press

the Stop button, remove the key, and then reinsert

the key. The speed and incline settings that you

programmed and the number of completed

segments will be stored in memory. To use the

custom program, see HOW TO USE CUSTOM

PROGRAMS on page 15.

Remove the key.

See step 6 on page 13.

14

HOW "1"OUSE CUSTOM PROGRAMS

_1 Insert the key fully into the console.

See GETTING STARTED on page 10.

B Select one of the custom programs.

When the key is inserted, the manual mode will

automatically be selected. To select one of the

custom programs, first press the Select Workout

Goal button repeatedly until the letters "CUSTOM

PROG" appear in the main display.

Next, press the Select Course button repeatedly to

select the Learn 1 or Learn 2 program.

When you select a custom program, the left side

of the main display will flash the maximum incline

setting of the program and the right side of the

display will flash the maximum speed setting of

the program for ten seconds. Three seconds after

a custom program is selected, the name of the se-

lected program and the total program time will

begin to scroll across the main display.

The program display will show the first speed set-

tings for the program you have selected (refer to

the drawing below).

_ress the Start Program button or the Speed +

button to start the program.

A moment after the button is pressed, the tread-

mill will automatically adjust to the first speed and

incline settings that you programmed previously.

Hold the handrails and begin walking.

Each program is divided into several one-minute

segments. The main display shows both the time

remaining in the program and the time remaining

in the current segment of the program. One speed

setting and one incline setting are programmed for

each segment.

The speed setting

for the first seg-

ment will be

shown in the

flashing Current

Segment column

of the program

display. (The incline settings are not shown in the

program display.) The speed settings for the next

several segments will be shown in the columns to

the right.

Current Segment

o$oooooooooo®ool

o@oooooo®oo®®ool

0@00@00@©0@@@00 I

0@0@@0@@®@®@@00 I

O@@@@@@@@@@@@OO I

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash, a se-

ries of tones will sound, and all speed settings will

move one column to the left. The speed setting for

the second segment will then be shown in the

flashing Current Segment column and the treadmill

will automatically adjust to the second speed and

incline settings that you programmed previously.

The program will continue until the speed setting

for the last segment is shown in the Current

Segment column and no time remains in the pro-

gram. The walking belt will then slow to a stop.

Note: If the program is too easy or too difficult, the

speed or incline setting for the current segment can

be adjusted with the Speed or Incline buttons.

Adjustments will not be stored in memory. To repro-

gram the speed or incline setting for the current seg-

ment, press the Record button. The indicator beside

the button will light. Speed and incline settings can

be programmed only when the indicator is lit.

(Note: When the indicator on the Record button is

lit, the main display will show the elapsed time in-

stead of the time remaining in the program.) Adjust

the speed or incline setting for the current segment

with the Speed or Incline buttons. After the segment

is completed, press the Record button again. The

new setting will be stored in memory.

To stop the program temporarily, press the Stop

button. All displays will pause and the time will

begin to flash in the main display. To restart the

program, press the Start Program button or the

Speed + button. To end the program, press the

Stop button, remove the key, and then reinsert the

key.

Bollow your progress with the displays.

See step 5 on page 11.

_easure your heart rate, if desired.

See step 6 on page 12.

r_ when the program has ended, remove the key.

See step 6 on page 13.

15

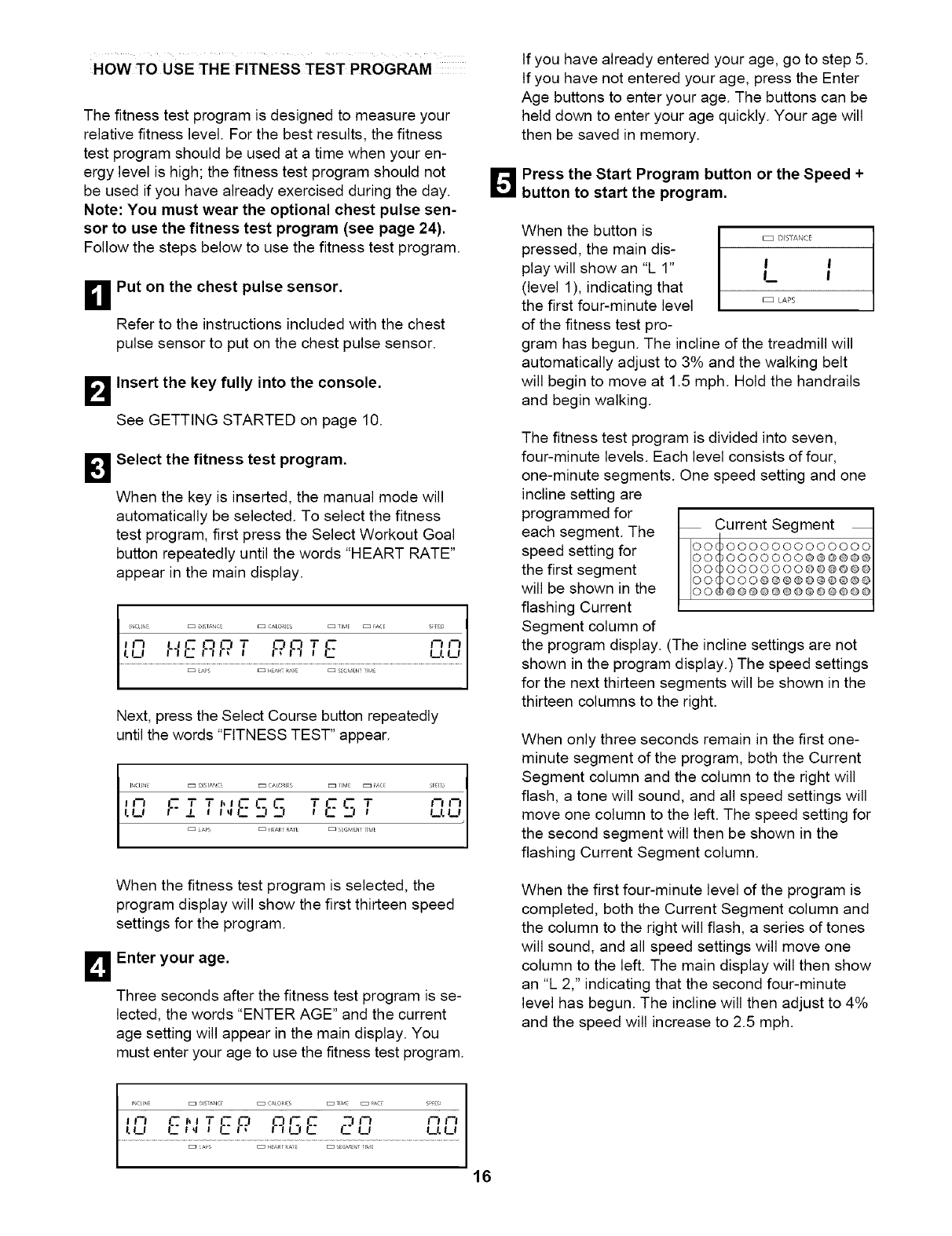

HOW TO USE THE FITNESS TEST PROGRAM

The fitness test program is designed to measure your

relative fitness level. For the best results, the fitness

test program should be used at a time when your en-

ergy level is high; the fitness test program should not

be used if you have already exercised during the day.

Note: You must wear the optional chest pulse sen-

sor to use the fitness test program (see page 24).

Follow the steps below to use the fitness test program.

_lPut on the chest pulse sensor.

Refer to the instructions included with the chest

pulse sensor to put on the chest pulse sensor.

BInsert the key fully into the console.

See GETTING STARTED on page 10.

DSelect the fitness test program.

When the key is inserted, the manual mode will

automatically be selected. To select the fitness

test program, first press the Select Workout Goal

button repeatedly until the words "HEART RATE"

appear in the main display.

B

Next, press the Select Course button repeatedly

until the words "FITNESS TEST" appear.

"-' F.T.T""-SS,,,c i-,-,-,c :, T

i.U

When the fitness test program is selected, the

program display will show the first thirteen speed

settings for the program.

Enter your age.

Three seconds after the fitness test program is se-

lected, the words "ENTER AGE" and the current

age setting will appear in the main display. You

must enter your age to use the fitness test program.

If you have already entered your age, go to step 5.

If you have not entered your age, press the Enter

Age buttons to enter your age. The buttons can be

held down to enter your age quickly. Your age will

then be saved in memory.

_"_ Press the Start Program button or the Speed +

button to start the program.

When the button is DISI/\NCE

pressed, the main dis-

play will show an "L 1" ! !

L I

(level 1), indicating that

the first four-minute level := _,_s

of the fitness test pro-

gram has begun. The incline of the treadmill will

automatically adjust to 3% and the walking belt

will begin to move at 1.5 mph. Hold the handrails

and begin walking.

The fitness test program is divided into seven,

four-minute levels. Each level consists of four,

one-minute segments. One speed setting and one

incline setting are

programmed for

each segment. The

speed setting for

the first segment

will be shown in the

flashing Current

Segment column of

Current Segment q

o$ooooooooooooo1

O@OOOO00OOOOO00]

O@O000000@@OOO0 I

O@O00@@@@@@@@O0 I

O@@@@@@@@@@@@OO I

the program display. (The incline settings are not

shown in the program display.) The speed settings

for the next thirteen segments will be shown in the

thirteen columns to the right.

When only three seconds remain in the first one-

minute segment of the program, both the Current

Segment column and the column to the right will

flash, a tone will sound, and all speed settings will

move one column to the left. The speed setting for

the second segment will then be shown in the

flashing Current Segment column.

When the first four-minute level of the program is

completed, both the Current Segment column and

the column to the right will flash, a series of tones

will sound, and all speed settings will move one

column to the left. The main display will then show

an "L 2," indicating that the second four-minute

level has begun. The incline will then adjust to 4%

and the speed will increase to 2.5 mph.

16

D

At the beginning of each four-minute level, the

speed and/or incline of the treadmill will automati-

cally increase. The fitness test program will con-

tinue in this way until your heart rate reaches 70%

of your estimated maximum heart rate, and the

current four-minute level is completed. The fitness

test program will then be completed, regardless of

how many levels remain.

When the fitness test _ _ls_Nc_

program is completed, I--

the letter "C" will appear I_

in the main display and LAPS

a two-minute cool-down

period will begun. The

incline will then adjust to 1% and the speed will de-

crease.

When the cool-down period is completed, the

walking belt will slow to a stop. After the fitness

test program is com-

pleted, your fitness

level will be shown in

the main display. There

are ten fitness levels--

fitness level 10 (FL:10)

is the highest. Remem-

ber, the fitness program is intended only to indi-

cate your relative fitness level.

TIME _ PACt

F' -'

I_, I

SEGMENT TIME

Note: The Speed and Incline buttons will not

function while the fitness test program is selected. If

your pulse is not detected during the program, the

letters "PLS" will flash in the main display. If your

pulse is not detected during the last thirty seconds

of any four-minute level (after four minutes, after

eight minutes, etc.), the fitness test program will

end and the main display will show a fitness level

of 0 (FL: 0).

The fitness test program cannot be stopped tem-

porarily and then restarted. However, the program

can be stopped at any time by pressing the Stop

button. The main display will then show an esti-

mated fitness level.

When the program has ended, remove the key.

See step 6 on page 13.

HOW TO USE THE PULSE,DRIVEN PROGRAM

The pulse-driven program automatically adjusts the

speed and incline of the treadmill to keep your heart

rate near a target level during your workout. Note: You

must wear the optional chest pulse sensor to use

the pulse-driven program (see page 24).

CAUTION : .youhaveheartprob-

lems, or if you are over 60 years of age and

have been inactive, do not use the pulse-driven

program. If you are taking medication regularly,

consult your physician to find whether the

medication will affect your exercise heart rate.

Follow the steps below to use the pulse-driven program.

_1 Put on the chest pulse sensor.

Refer to the instructions included with the chest

pulse sensor to put on the chest pulse sensor.

B Insert the key fully into the console.

See GETTING STARTED on page 10.

DSelect the pulse-driven program.

When the key is inserted, the manual mode will

automatically be selected. To select the pulse-

driven program, first press the Select Workout

Goal button repeatedly until the words "HEART

RATE" appear in the main display.

INGI_ EZ _IS_NC_ EZ CAtO_I_!S EZ TIM_ EZ _A(;_ SP_O

,,n ,,,-nn Tl./Rvr n

kU ¢'1¢" I"l ¢; _ I'__ U.

AS D lASt I_AF D % _;MINT IM

Next, press the Select Course button until the words

"PULSE DRIVEN" appear.

INQIN a _lSf.', ¢ a A[ORI[S a rh4 a _AC SP _

N FJ I I a- L--. TIN i, I-I

I__1 k [11__ __ I__ I_1 I__1,,.,_, ,_, T I,' c,

EZ A_S EZ _ ,_ R_,_ EZ SfC_4m _I_,I

17

BEnter your age.

Three seconds after the pulse-driven program is

selected, the words "ENTER AGE" and the current

age setting will appear in the main display. You

must enter your age to use the pulse-driven program.

If you have already entered your age, go to step 5.

If you have not entered your age, press the Enter

Age buttons to enter your age. The buttons can be

held down to enter your age quickly. Your age will

then be saved in memory.

_"_ Press the Start Program button or the Speed +

button to start the program.

A moment after the button is pressed, the tread-

mill will automatically adjust to the first speed and

incline settings for the program. Hold the handrails

and begin walking.

The pulse-driven program is divided into several

time segments of different lengths. The main dis-

play will show both the time remaining in the pro-

gram and the time remaining in the current seg-

ment of the program. One target heart rate setting

is programmed for

each segment. The

target heart rate

setting for the first

segment will be

shown in the flash-

ing Current

Segment column of

the program display. The target heart rate settings

for the next thirteen segments will be shown in the

thirteen columns to the right.

Current Segment

DO(,O000000000000

OOC,O000000000000

OOC'OOO0000@@@@@@

OO('OOO00000000@@

OO_'@@@@@@@@@@@@@

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash, a se-

ries of tones will sound, and all target heart rate

settings will move one column to the left. The tar-

1t

B

get heart rate setting for the second segment will

then be shown in the flashing Current Segment

column. As you exercise, the speed and/or incline

of the treadmill will automatically change as

needed to keep your heart rate near the current

target heart rate setting.

The program will continue until the target heart

rate setting for the last segment is shown in the

Current Segment column and no time remains in

the program. The walking belt will then slow to a

stop.

If the speed or incline setting for the current seg-

ment is too high or too low, you can adjust the set-

ting with the Speed or Incline buttons. However, if

you decrease the speed, the incline will automati-

cally increase; if you increase the speed, the in-

cline will decrease. If you increase the incline, the

speed will decrease; if you decrease the incline,

the speed will increase. The treadmill will always

attempt to keep your heart rate near the target

heart rate setting for the current segment. Note:

When the incline reaches the lowest setting, the

speed cannot be increased any further. When the

incline reaches the highest setting, the speed can-

not be decreased any further.

If your pulse is not detected during the program,

the letters "PLS" will flash in the main display and

the speed and incline of the treadmill may auto-

matically decrease until your pulse is detected. If

this occurs, refer to the instructions included with

the optional chest pulse sensor.

To stop the program, press the Stop button. The

pulse-driven program should not be stopped tem-

porarily and then restarted. To use the pulse-dri-

ven program again, reselect the program and start

it at the beginning.

Follow your progress with the displays.

Refer to step 5 on page 11.

When the program has ended, remove the key.

See step 6 on page 13.

18

HOW TO CONNECT THE TREADMILL TO YOUR

CD PLAYER, VCR, OR COMPUTER

To use iFIT.com CDs, the treadmill must be con-

nected to your portable CD player, portable stereo,

home stereo, or computer with CD player. See pages

19 and 20 for connecting instructions. To use iFIT.com

videocassettes, the treadmill must be connected to

your VCR. See page 21 for connecting instructions. To

use iFIT.com programs directly from our internet

site, the treadmill must be connected to your home

computer. See page 20 for connecting instructions.

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and

PHONES jacks, see instruction A below. If your CD

player has only one jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your CD player. Plug your headphones into the

PHONES jack.

ir u

['_'@i Audio _ Head-

L";@'."_'i _j phones

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your CD player. Plug your

headphones into the other side of the Y-adapter.

h v

i PHORES@i

•.............f.,

i

.................,._ 3.5mm

i rD-] (_i Audio Y-adapter_

_ _ i Cable

r

Head phones --_::::]c>-J

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT

jack, see instruction A below. If your stereo has a

3.5mm LINE OUT jack, see instruction B. If your

stereo has only a PHONES jack, see instruction C.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter. Plug

the adapter into an AUDIO OUT jack on your stereo.

A

l[ v

i@@ Audio

• Cable

L.........

Ei:o]1

AUDIOOUT

[--;°.;-----!

Adapter_

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your stereo.

Ii vl i: o:il

UNE0t_

,o

C. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your stereo. Plug your

headphones into the other side of the Y-adapter.

C

[I: ]L_

•"................] . 3.5mm O

,r_@i Aud,o

• i Cable Y-adapter -4

....... -_m_-,4_=,,_E_- -c:_ _

Headphones _

19

HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER

Note: If your stereo has an unused LINE OUT jack,

see instruction A below. If the LINE OUT jack is

being used, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into the LINE OUT jack on your

stereo.

h v

@@ Audio

Cable

_VCR _

__

UNE0UT@

............ I=.=*

|

Adapter_

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into an RCA Y-adapter (available

at electronics stores). Next, remove the wire that is

currently plugged into the LINE OUT jack on your

stereo and plug the wire into the unused side of the

RCA Y-adapter. Plug the RCA Y-adapter into the

LINE OUT jack on your stereo.

tr u.................. RCA

r_ @ Audio Y-adapte_--

_ Cable Adapter

_VCR _T

-- :Amp _ __

_----.:-:.=_.,

Wire removed from _l:::::I_

LINE OUT jack

Note: If your computer has a 3.5mm LINE OUT jack,

see instruction A. If your computer has only a

PHONES jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your computer.

A

h v

L_N_0U_

%,0

m

^_^_

®

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your computer. Plug your

headphones or speakers into the other side of the

Y-adapter.

m

r_(_i Audio _ 3.5mm

'__i Cable _ Y-adapter

Headphones/Speakers@

20

HOW TO CONNECT YOUR VCR

Note: If your VCR has an unused AUDIO OUT jack,

see instruction A below. If the AUDIO OUT jack is

being used, see instruction B. If you have a TV

with a built-in VCR, see instruction B. If your VCR

is connected to your home stereo, see HOW TO

CONNECT YOUR HOME STEREO on page 20.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into the AUDIO OUT jack on your

VCR.

Ag0100UT

r ........... .

RIGHT !

@@ AudioAda

Cable

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into an RCA adapter (available at

electronics stores). Next, remove the wire that is

currently plugged into the AUDIO OUT jack on your

VCR and plug the wire into the unused side of the

RCA adapter. Plug the RCA adapter into the AUDIO

OUT jack on your VCR.

h v

[;:--"4--,

[..........::z"".. RCA Adapter--

i r_-] (_0")i Audio

i _ _ i Cable Adapter

L.7._L-_--J_ //

Wire removed from_l:_D_

AUDIO OUT jack

HOW TO USE iFIT,COM CD AND VIDEO

PROGRAMS

To use iFtT.com CD's or videocassettes, the treadmill

must be connected to your portable CD player, portable

stereo, home stereo, computer with CD player, or

VCR. See HOW TO CONNECT THE TREADMILL TO

YOUR CD PLAYER, VCR, OR COMPUTER on page

19. Note: To purchase iFIT.com CD's or videocas-

settes, call toll-free 1-800-735-0768.

Follow the steps below to use an iFIT.com CD or video

program.

_1 Insert the key fully into the console.

See GETTING STARTED on page 10.

BSelect the iFIT.com mode.

When the key is inserted, the manual mode will

automatically be selected. To use an iFIT.com CD

or video program, press the iFIT.com button. The

indicator beside the iFIT.com button will light.

DInsert the iFIT.com CD or videocassette.

If you are using an iFIT.com CD, insert the CD

into your CD player, tf you are using an iFtT.com

videocassette, insert the videocassette into your

VCR.

B ress the PLAY button on your CD player or

VCR.

A moment after the button is pressed, your per-

sonal trainer will begin guiding you through your

workout. Simply follow your personal trainer's

instructions. Note: If the time is flashing in the

main display, press the Start button or the Speed

+ button on the console. The treadmill will not re-

spond to a CD or video program when the time is

flashing.

During the CD or video program, an electronic

"chirping" sound will alert you when the speed

and/or incline of the treadmill is about to change.

CAUTION: Always listen for the "chirp" and be

prepared for speed and/or incline changes. In

some instances, the speed and/or incline may

change before the personal trainer describes

the change.

21

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next "chirp" is

heard, the speed and/or incline will change to

the next settings of the CD or video program.

To stop the walking belt at any time, press the

Stop button on the console. The time will begin to

flash in the main display. To restart the program,

press the Start Program button or the Speed +

button. After a moment, the walking belt will begin

to move at 1.0 mph. When the next "chirp" is

heard, the speed and incline will change to the

next settings of the CD or video program. The

program can also be stopped by pressing the

Stop button on your CD player or VCR.

When the CD or video program is completed, the

walking belt will stop and the time will begin to flash

in the main display. Note: To use another CD or

video program, press the Stop button or remove

the key and go to step 1 on page 21.

Note: If the speed or incline of the treadmill

does not change when a "chirp" is heard:

•Make sure that the iFIT.com indicator is lit and

that the time is not flashing in the main dis-

play. If the time is flashing, press the Start

button or the Speed + button on the console.

•Adjust the volume of your CD player or VCR.

If the volume is too high or too low, the con-

sole may not detect the program signals.

•Make sure that the audio cable is properly

connected, that it is fully plugged in, and that

it is not wrapped around a power cord.

•If you are using your portable CD player and

the CD skips, set the CD player on the floor or

another fiat surface instead of on the console.

_ollow your progress with the LED track and

the displays.

See step 5 on page 11.

Measure your heart rate, if desired.

Refer to step 6 on page 12.

B hen the program is completed, remove the

key.

See step 6 on page 13.

iFIT,com CDs and videos from your CD

player or VCR when you are not using

them.

22

HOW TOUSE PROGRAMS DIRECTLY FROM

OUR INTERNET SITE

Our Web site at www.iFtT.com allows you to access

basic programs, audio programs, and video programs

directly from the internet. Additional options are soon

to be available. See www.iFIT.com for details.

To use programs from our Web site, the treadmill must

be connected to your home computer. See HOW TO

CONNECT YOUR COMPUTER on page 20. In

addition, you must have an internet connection and

an internet service provider. A list of specific system

requirements will be found on our Web site.

Follow the steps below to use a program from our

Web site.

_1 Insert the key fully into the console.

See GETTING STARTED on page 10.

BSelect the iFIT.com mode.

When the key is in-

serted, the manual

mode will automatically

be selected. To use a

program from our inter-

net site, press the

iFIT.com button. The indicator beside the iFIT.com

button will light.

_lGo to your computer and start an internet

connection.

B tart your web browser, if necessary, and go to

our internet site at www.iFIT.com.

_'_ Follow the desired links on our internet site to

select a program.

Read and follow the on-line instructions for using a

program.

r_ Follow the on-line instructions to start the

program.

When you start the program, an on-screen count-

down will begin.

B eturn to the treadmill and stand on the foot

rails. Find the clip attached to the key and slide

the clip onto the waistband of your clothing.

When the on-screen countdown ends, the program

will begin and the walking belt will begin to move.

Hold the handrails, step onto the walking belt, and

begin walking. During the program, an electronic

"chirping" sound will alert you when the speed

and/or incline of the treadmill is about to change.

CAUTION: Always listen for the "chirp" and be

prepared for speed and/or incline changes.

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next "chirp" is

heard, the speed and/or incline will change to

the next settings of the program.

To stop the walking belt at any time, press the

Stop button on the console. The time will begin to

flash in the main display. To restart the program,

press the Start Program button or the Speed +

button. After a moment, the walking belt will begin

to move at 1.0 mph. When the next "chirp" is

heard, the speed and incline will change to the

next settings of the program.

When the program is completed, the walking belt

will stop and the time will begin to flash in the time

display. Note: To use another program, press the

Stop button and go to step 5.

Note: If the speed or incline of the treadmill

does not change when a "chirp" is heard, make

sure that the iFIT.com indicator is lit and that

the Time display is not flashing. In addition,

make sure that the audio cable is properly con-

nected, that it is fully plugged in, and that it is

not wrapped around a power cord.

_ollow your progress with the LED track and

the displays.

D

See step 5 on page 11.

When the program has ended, remove the key.

See step 6 on page 13.

23

THE INFORMATION MODE/DEMO MODE THE OPTIONAL CHEST PULSE SENSOR

The console features an information mode that keeps

track of the total number of hours that the treadmill has

been operated and the total number of miles that the

walking belt has moved. The information mode also

allows you to switch the console from miles per hour to

kilometers per hour. In addition, the information mode

allows you to turn on and turn off the demo mode.

To select the information mode, hold down the Stop

button while inserting the key into the console. When

the information mode is selected, the main display will

show the following information:

This section of the main

display will show the total

number of miles that the

walking belt has moved.

DISTANCE

I-- I

O i

LAPS

TIME _ PACE

$EGMEM IlM

An optional chest pulse sensor adds even more

features to the console. The chest pulse sensor provides

hands-free operation and continuously monitors your

heart rate during your workouts. To purchase the

optional chest pulse sensor, call toll-free 1-800-

734-2377.

_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_

This section of the main

display will show the total

number of hours that the

treadmill has been used.

An "E" for English miles or

an "M" for metric kilometers

will appear on the right side

of the main display. Press

the Speed + button to

change the unit of measure-

ment.

j-i i-

_! I_

IMPORTANT: Make sure

that there is not a letter

"D" in the main display. If

a "D" appears in the display,

the console is in the "demo"

mode. This mode is intended

to be used only when a treadmill is displayed in a store.

When the console is in the demo mode, the power cord

can be plugged in, the key can be removed from the

console, and the displays and indicators on the console

will automatically light in a preset sequence, although

the buttons on the console will not operate. If a "D" ap-

pears in the display when the information mode is

selected, press the Speed - button so the display is

blank.

To exit the information mode, remove the key from the

console.

24

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the

lowest position. If this is not done, the treadmill may be per-

manently damaged. Remove the key and unplug the power

cord. CAUTION: You must be able to safely lift 45 pounds

(20 kg) in order to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown

at the right. CAUTION: To decrease the possibility of in-

jury, bend your legs and keep your back straight. As

you raise the treadmill, make sure to lift with your legs

rather than your back. Raise the treadmill about halfway

to the vertical position.

2. Move your right hand to the position shown and hold the

treadmill firmly. Using your left hand, pull the latch knob to

the left and hold it. Raise the treadmill until the latch pin is

aligned with the hole in the catch. Insert the latch pin into

the catch. Make sure that the latch pin is fully inserted

into the catch.

To protect the floor or carpet from damage, place a

mat under the treadmill. Keep the treadmill out of

direct sunlight. Do not leave the treadmill in the stor-

age position in temperatures above 85° Fahrenheit.

?

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the stor-

age position as described above. Make sure that the pin

on the lock knob is inserted into the slot in the catch.

1. Hold the handrails as shown and place one foot against a

wheel.

2. Tilt the treadmill back until it rolls freely on the front wheels.

Carefully move the treadmill to the desired location. Never

move the treadmill without tipping it back. To reduce

the risk of injury, use extreme caution while moving

the treadmill. Do not attempt to move the treadmill

over an uneven surface.

3. Place one foot on the base, and carefully lower the tread-

mill until it is resting in the storage position.

\ Base

els

HOW TO LOWER THE TREADMILL FOR USE

1. Refer to drawing 2 above. Hold the upper end of the treadmill with your right hand as shown. Using your left

hand, pull the lock knob to the left and hold it. Pivot the treadmill down until the frame is past the pin on the lock

knob.

2. Refer to drawing 1 above. Hold the treadmill firmly with both hands, and lower the treadmill to the floor. Do not

drop the treadmill frame to the floor. CAUTION: To decrease the possibility of injury, bend your legs

and keep your back straight.

25

TROUBLE-SHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and

follow the steps listed. If further assistance is needed, please call our Customer Service Department toll-

free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor

that meets all of the specifications described on page 8. Important: The treadmill is not compatible

with GFCl-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

C.

d.

Check the circuit breaker located on the treadmill

near the power cord. If the switch protrudes as

shown, the circuit breaker has tripped. To reset the

circuit breaker, wait for five minutes and then press

the switch back in.

Check the on/off switch located on the treadmill near

the power cord. The switch must be in the on position.

C

Tripped Reset

onf

Position

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the

circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in.

c. Unplug the power cord, wait for five minutes, and then plug the power cord back in.

d. Remove the key from the console. Reinsert the key fully into the console.

e. Make sure that the on/off switch is in the on position.

f. If the treadmill still will not run, please call our Customer Service Department, toll-free.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Remove the key from the console and unplug the

power cord. Carefully tip the treadmill down as shown

in drawing a. Remove the Screws (39, 83) from the

hood. Raise the Uprights (69) and carefully remove

the hood.

7

Locate the Reed Switch (10) and the Magnet (7) on

the left side of the Pulley (8). Turn the Pulley until the

Magnet is aligned with the Reed Switch. Make sure

that the gap between the Magnet and the Reed

Switch is about 1/8". tf necessary, loosen the Screw

(100), move the Reed Switch slightly, and then

retighten the Screw. Re-attach the hood, and run the

treadmill for a few minutes to check for a correct

speed reading.

26

100 \

10_ .... "7

Top

View

r

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG THE

POWER CORD. Using the allen wrench, turn both

rear roller adjustment bolts counterclockwise, 1/4 of a

turn. When the walking belt is properly tightened, you

should be able to lift each side of the walking belt 3 to

4 inches off the walking platform. Be careful to keep

the walking belt centered. Plug in the power cord, in-

sert the key and run the treadmill for a few minutes.

Repeat until the walking belt is properly tightened. Rear Roller Adjustment Bolts

c. If the walking belt still slows when walked on, please call our Customer Service Department, toll-

free.

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key and

UNPLUG THE POWER CORD. If the walking belt has

shifted to the left, use the allen wrench to turn the left

rear roller bolt clockwise 1/2 of a turn; if the walking belt

has shifted to the right, turn the bolt counterclockwise

1/2 of a turn. Be careful not to overtighten the walking belt.

Plug in the power cord, insert the key and run the treadmill

for a few minutes. Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, first remove the

key and UNPLUG THE POWER CORD. Using the allen

wrench, turn both rear roller bolts clockwise, 1/4 of a turn.

When the walking belt is correctly tightened, you should

be able to lift each side of the walking belt 3 to 4 inches off

the walking platform. Be careful to keep the walking belt

centered. Plug in the power cord, insert the key and care-

fully walk on the treadmill for a few minutes. Repeat until

the walking belt is properly tightened.

PROBLEM: The incline of the treadmill does not change correctly or does not change when iFIT.com

CDs and videos are played

SOLUTION: a. With the key in the console, press one of the incline buttons. While the incline is changing, re-

move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the

maximum incline level and then return to the minimum level. This will recalibrate the incline system.

27

CONDITIONING GUIDELINES

,&WARNIN G: Beforebeginning this

or any exercise program, consult your physi-

cian. This is especially important for individu-

als over the age of 35 or individuals with pre-

existing health problems.

The pulse sensor is not a medical device.

Various factors, including your movement,

may affect the accuracy of heart rate readings.

The sensor is intended only as an exercise aid

in determining heart rate trends in general.

The following guidelines will help you to plan your ex-

ercise program. Remember--these are general guide-

lines only. For more detailed exercise information, ob-

tain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning and aerobic exercise.

HEART RATE TRAINING ZONES

AEROBIC 165 155 145 140 130 125 115

MAX FAT BURN 145 I38 130 125 118 110 103

FAT BURN 125 120 115 110 105 95 90

Age 20 30 40 50 60 70 80

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers

above your age. The three numbers define your "train-

ing zone." The lower two numbers are recommended

heart rates for fat burning; the higher number is the

recommended heart rate for aerobic exercise.

To measure your heart rate during exercise, use the

pulse sensor on the console. If your heart rate is too

high or too low, adjust the speed and incline of the

treadmill.

Fat Burning

To burn fat effectively, you must exercise at a relatively

low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible carbohydrate calories for en-

ergy. Only after the first few minutes does your body

begin to use stored fat calories for energy. If your goal

is to burn fat, adjust the speed and incline of the tread-

mill until your heart rate is near the lowest number in

your training zone.

For maximum fat burning, adjust the speed and incline

of the treadmill until your heart rate is near the middle

number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be "aerobic." Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the speed and incline of the treadmill until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A Warm-up--Start each workout with 5 to 10 minutes

of stretching and light exercise. A proper warm-up in-

creases your body temperature, heart rate and circula-

tion in preparation for exercise.

Training Zone Exercise--After warming up, increase

the intensity of your exercise until your pulse is in your

training zone for 20 to 60 minutes. (During the first few

weeks of your exercise program, do not keep your

pulse in your training zone for longer than 20 minutes.)

Breathe regularly and deeply as you exercise--never

hold your breath.

A Cool-down--Finish each workout with 5 to 10 min-

utes of stretching to cool down. This will increase the

flexibility of your muscles and will help prevent post-ex-

ercise problems.

EXERClSE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months, you may com-

plete up to five workouts each week if desired.

The key to success is to make exercise a regular and

enjoyable part of your everyday life.

28

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch--never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward

from your hips. Allow your back and shoulders to relax as you

reach down toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Hamstrings, back

of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot to-

ward you and rest it against the inner thigh of your extended leg.

Reach toward your toes as far as possible. Hold for 15 counts,

then relax. Repeat 3 times for each leg. Stretches: Hamstrings,

lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back

foot flat on the floor. Bend your front leg, lean forward and move

your hips toward the wall. Hold for 15 counts, then relax. Repeat

3 times for each leg. To cause further stretching of the achilles

tendons, bend your back leg as well. Stretches: Calves, achilles

tendons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp

one foot with your other hand. Bring your heel as close to your

buttocks as possible. Hold for 15 counts, then relax. Repeat 3

times for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold for

15 counts, then relax. Repeat 3 times. Stretches: Quadriceps

and hip muscles.

3

5

29

PART LISTmModel No. NTTL16902 Ro2o2A

To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.

Key No. Qty. Description Key No. Qty.

1 2 Foot Rail Insert 52 1

2 2 Foot Rail 53 6

3 2 Foot Rail Cap Screw 54 2

4 1 Left Foot Rail Cap 55 2

5 2 Frame Pivot Bolt 56 5

6 2 Frame Pivot Spacer 57 1

7 1 Magnet 58 1

8 1 Front Roller/Pulley 59 2

9 8 Frame Pivot Nut 60 1

10 1 Reed Switch/Sensor Wire 61 1

11 4 U-nut 62 1

12 1 Reed Switch Clip 63 1

13 1 Lift Frame 64 1

14 3 Star Washer 65 2

15" 1 Idler Assembly 66 1

16 1 MotorlPulleylFlywheellFan 67 2

17 1 Idler Arm 68 1

18 1 Motor Belt 69 1

19 1 Idler Pulley 70 1

20 1 Tension Bolt 71 1

21 1 Incline Motor Bolt 72 1

22 2 Motor Bolt 73 1

23 1 Hood 74 1

24 1 Short Incline Motor Bolt 75 4

25 4 Plastic Stand-Off 76 1

26 1 Power Board 77 4

27 9 Screw 78 4

28 1 Pulley Spacer 79 2

29 1 Controller 80 1

30 1 Electronics Plate 81 1

31 1 Controller Wire Harness 82 1

32 1 Front Roller Adj. Bolt 83 2

33* 1 Latch Assembly 84 1

34 2 Roller Washer 85 1

35 1 Front Roller Nut 86 1

36 1 Incline Motor 87 4

37 1 Incline Motor Stop 88 1

38 1 Belly Pan 89 1

39 2 Belly Pan Screw (Long) 90 10

40 2 Static Decal 91 3

41 1 Circuit Breaker 92 7

42 1 Power Cord 93 2

43 1 On/Off Switch 94 2

44 1 Left Endcap Insert 95 2

45 4 Belt Guide Screw 96 1

46 2 Belt Guide 97 1

47 4 Isolator 98 1

48 1 Idler Spring 99 5

49 16 Fastener 100 13

50 1 Belly Pan 101 1

51 1 Right Foot Rail Cap 102 2

Description

Walking Platform

Platform Screw

Rear Platform Screw

Rear Isolator

Ground Screw/Controller Screw

Ground Wire

Rear Endcap

Rear Roller Adj. Bolt

Warning Decal

Allen Wrench

Rear Roller

Motor Isolator

Audio Wire Nut

Handrail Spacer

Handrail

Endcap Clip

Lock Knob

Upright

Lock Knob Sleeve

Spring

Lock Pin Collar

Pin Clip

Lock Pin

Handrail Bushing

Pulse Grip

Handrail Washer

Handrail Bolt

Upright Endcap

Pulley Nut

Console Base

Console

Belly Pan Screw (Short)

Key/Clip

iFIT.com Wire

Jack

Handrail Endcap

Console Back

Releaseable Tie

1" Console Screw

Cable Tie Clamp

8" Cable Tie

Lift Pivot Bolt

Wheel Bolt

Wheel

Right Endcap Insert

Grommet

Upright Wire Harness

Base Pad

Screw

Tension Nut

Extension Leg

30

Key No. Qty. Description Key No. Qty. Description

103 2 Extension Cap

104 2 Incline Warning Decal

105 1 Shock

106" 2 Extension Leg Assembly

107 1 Grounding Bracket

108 1 Book Holder

109 1 Power Cord Grommet

110 1 Frame

111 7 Catch Screw/Pulse Screw

112 1 Catch

113 1 12" Audio Wire

114 1 Walking Belt

115 1 Tension Washer

116 1 Idler Arm Bolt

117 1 Lock Knob Spacer

118 2 Hand Weight

119 4 2" Console Screw

# 2 Thick Base Pad

# 1 12" White Wire, M/F

# 1 10" White Wire, 2F

# 1 14" Blue Wire, 2F

# 1 8" Blue Wire, M/F

# 1 4" Blue Wire, 2F

# 1 4" Black Wire, 2F

# 1 12" Green Wire, 2 Ring

# 1 8" Green Wire, FIRing

# 1 7" Green Wire, MIRing

# 1 User's Manual

* Includes all parts shown in the box

# These parts are not illustrated

ORDERING REPLACEMENT PARTS

To order replacement parts, call our Customer Service Department toll-free at 1-888-825-2588, Monday through

Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give

the following information:

• The MODEL NUMBER OF THE PRODUCT (NTTL16902)

• The NAME OF THE PRODUCT (NordicTrack '_SUMMIT 4500 treadmill)

• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)

• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 30 and 31 and the

EXPLODED DRAWING attached in the center of this manual).

If possible, place the treadmill near your telephone for easy reference when calling.

31

59

61 44

100 \

100

56

58 457

18

47

22

i ! /

37 _ 63 14 32

36

38

26

25

56

31

42

Ill

X

I'-

O

0

m

0

0

o

_D

Z

0

Z

F-

O_

_D

0

To identify the parts shown on this exploded drawing, refer

to the PART LIST on pages 30 and 31 of the USER'S

MANUAL. Y_

87

66

90

119

9O

76

111

119

87

76

102

\\

\\

65

/ / \

/ / "\ 75

/ // '\,

/

/ /

/ /

/

69

/

7O

I71

104

100 105

/95

14

\

/

/

/ /

/ //

// /

/,

/ /

\

85

- 75

97 9

94

93

m

X

r-

0

0

m

0

0

o

_D

m

Z

F-

O_

_D

0

o

1",3

o

to

3>

LIMITED WARRANTY

WHAT IS COVERED--The entire NordicTrack ®SUMMIT 4500 treadmill ("Product") is warranted to be free of all defects

in material and workmanship.

WHO IS COVERED--The original purchaser or any person receiving the Product as a gift from the original purchaser.

HOW LONG IS IT COVERED--ICON Health & Fitness, Inc. ("ICON"), warrants the motor for three years after the date

of purchase. The belt and deck are covered for two years after the date of purchase. All mechanical components are

covered for two years after the date of purchase. All electrical components are covered for two years after the date of

purchase. Labor is covered for one year. The hood, covers, belly pan, and decals are covered for six months after the

date of purchase.

WHAT WE DO TO CORRECT COVERED DEFECTS--We will ship to you, without charge, any replacement part or

component, providing the repairs are authorized by ICON first and are performed by an ICON trained and authorized

service provider, or, at our option, we will replace the Product.

WHAT IS NOT COVERED--Any failures or damage caused by unauthorized service, misuse, accident, negligence, im-

proper assembly or installation, alterations, modifications without our written authorization or by failure on your part to

use, operate, and maintain as set out in your User's Manual ("Manual"). This warranty does not extend to products used

for commercial or rental purposes or to products used as store display modules.

WHAT YOU MUST DO--Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the

Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discov-

ery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.

USER'S MANUAL--It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product.

Remember to do the periodic maintenance requirements specified in the Manual to assure proper operation and your

continued satisfaction.

HOW TO GET PARTS AND SERVICE--Simply call our Customer Service Department at 1-888-825-2588 and tell them

your name and address and the serial number of your Product. They will tell you how to get a part replaced, or if neces-

sary, arrange for service where your Product is located or advise you how to ship the Product for service. Before ship-

ping, always obtain a Return Authorization Number (RA No.) from our Customer Service Department; securely pack

your Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the

product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the ser-

vice is covered by warranty.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the

use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or

profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature.

Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above lim-

itation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability

or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not

allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

No one is authorized to change, modify or extend the terms of this limited warranty.

This warranty gives you specific legal rights and you may have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Part No. 182810 R0202A Printed in USA © 2002 ICON Health & Fitness, Inc.
