User Manual
1
WS15Z5-1 WALL MOUNTED SWITCH
The GoControl™ family of Z-Wave® certifi ed wireless lighting products (smart
LED fi xtures, bulbs, switches, dimmers, outlets, plug-in modules, and thermostats)
and security devices (alert sounder, motion sensor, and door/window sensor)
bring a new level of intelligent wireless capability to commercial and residential
environments.
The Z-Wave wireless protocol is an international wireless standard for remote
home automation, security and other applications. This product can be included
and operated in any Z-Wave network with other Z-Wave certifi ed devices from other
manufacturers and/or other applications. All non-battery operated nodes within
the network will act as repeaters regardless of vendor to increase reliability of the
network.
GoControl Z-Wave products are easy to install, are Z-Wave Plus certifi ed, and allow
dealers to create an integrated wireless network with nearly limitless expansion
and interoperability with security, energy management, home entertainment,
appliances, and more.
DANGER! SHOCK HAZARD. Read and understand these instructions before
installing. This device is intended for installation in accordance with the National
Electric code and local regulations in the United States, or the Canadian Electrical
Code and local regulations in Canada. It is recommended that a qualifi ed electrician
perform this installation. Make sure the load controlled by the switch does not
exceed 1800 watts. For indoor use only. Retain instructions for future use.
Z-WAVE PLUS FEATURES
The WS15Z5-1 contains a Z-Wave 500 Series Module that supports Z-Wave Plus®
features. A Z-Wave certifi ed portable or stationary Controller can communicate with
the Z-Wave 500 Series Module.
Depending on the capability of the Controller or gateway software, the following
operations can be performed with the WS15Z5-1. Refer to the Controller or gateway
manual for details.
• Turn the load ON and OFF.
• Add or Remove the WS15Z5-1.
• Assign the WS15Z5-1 to a specific Group/Scene and/or to include the load as part of
ALL ON or ALL OFF system commands.
• Over-the-air firmware update by the gateway or static Controller.
• Lifeline function which automatically notifies the associated modules and the network
that a manually reset device is no longer in the network, thus, the corresponding
association becomes invalid.
INSTALLATION
Wire this switch in place of a current wall switch according to the diagram above.
When used, WS15Z5-1’s are required to be wired to the same line (or neutral)
which is also wired to the load being controlled, and not wired to any other neutral.
If multiple neutrals are tied together in one box, separate the neutrals to preserve
the integrity of the WS15Z5-1 circuit.
✓CAUTION! Do not wire unit “live” (with power on the circuit).
Adding to a network:
Refer to your Controller operating instructions to add this switch under the command
of the Wireless Controller.
1. With your Controller in Discovery or Add Mode, tap the switch. The LED will blink
slowly when in ADD Mode.
2. You should see an indication on your Controller that the “device was added” to
the network and the LED will stop blinking.
3. The device will appear in the list of Switches. It should display as a switch.
If the Controller/Gateway shows the addition failed, repeat Steps 1-3.
✓NOTE: If you have trouble adding the WS15Z5-1 to a group it may be that
the Home ID and Node ID were not cleared from it after testing. You must fi rst
“RESET UNIT” to remove it from the network. Although adding it to a group
includes it in the network, removing it from a group does not remove it from
the network. If removed from a group, it functions as a repeater (only). “RESET
UNIT” removes it completely from the network.
To Reset Unit (If Required):
In the event that your primary Controller is lost or otherwise inoperable, to reset the
WS15Z5-1 and clear all network information, follow these steps:
1. Tap the top of the switch fi ve (5) times.
2. Press and hold the bottom of the switch for 15 seconds. The LED will increasingly
blink faster to indicate that a Reset is taking place.
Removing from a network:
The WS15Z5-1 can be removed from the network by the Controller/Gateway. Refer
to the Controller operating instructions for details.
1. Set the Controller into Removal Mode and follow its instruction to delete the
WS15Z5-1 from the Controller.
2. Remove the switch by tapping the paddle 2 times. The LED will begin blinking
slowly for 10 seconds indicating that it has been removed.
3. You should see an indication on your Controller that the “device was removed”
from the network.
BASIC OPERATION
(Local Control)
The switch paddle on the WS15Z5-1 allows the user to:
• Turn the attached load on or off.
• Tapping top of switch turns the load attached ON.
• Tapping bottom of switch turns the load attached OFF.
LED Indication
To act as a night light, the LED on the WS15Z5-1 will turn ON when the load
attached is OFF. However, the LED can be user confi gured to turn ON, when the
load attached is ON, if so desired. See “CONFIGURATION” section.
Remote Control
The WS15Z5-1 will respond to BASIC and BINARY commands that are part of the
Z-Wave system. Refer to your Controller’s instructions as to whether your Controller
can transmit those commands.
PRINTER’S INSTRUCTIONS:
INSTR,INSTL,WS15Z5-1; P/N: 10007259 X5; INK: BLACK; MATERIAL: 20# MEAD BOND; SIZE: 8.500” x 11.000”; TOLERANCE ± .125”; SCALE: 1-1; PAGE 1 OF 2

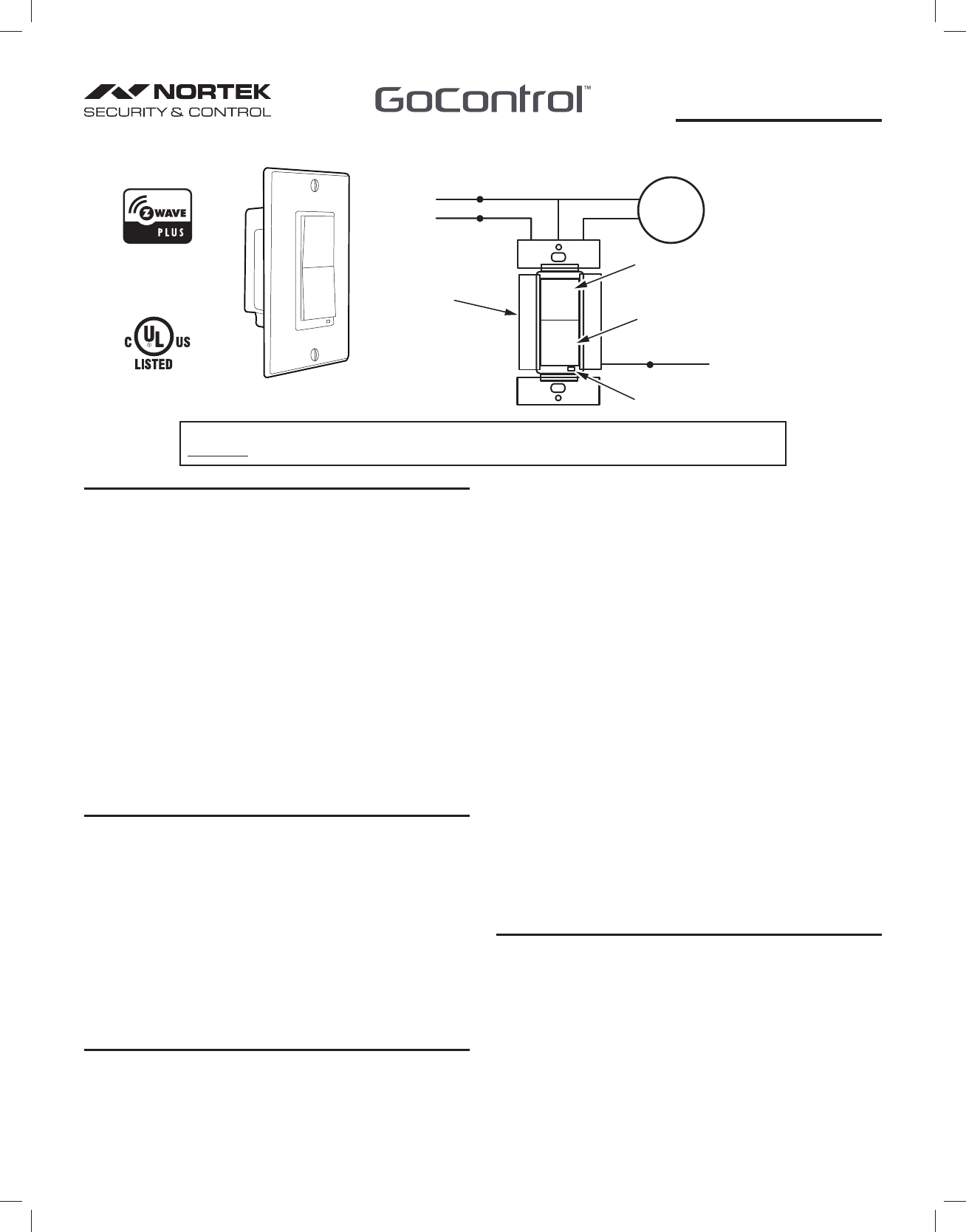

WS15Z5-1
Z-Wave Radio Frequency (RF) Controlled, 120 VAC
Scene and NWI Capable, Wall Mounted Switch, Series 500
NEUTRAL
120 VAC
PUSH ON
WHITE
LINE BLACK
PUSH OFF
STATUS LED
GREEN GROUND
TAP TOP OR BOTTOM
OF SWITCH PADDLE
TO CONFIGURE
SCORED TAB WILL
BREAK FLUSH WITH
EDGE OF PLASTIC
BLUE
LOAD
15 AMPS
MAXIMUM
WS15Z5-1 AND THE LOAD
MUST SHARE THE SAME
PROPRIETARY NEUTRAL
Shown with supplied
decorative trim plate
NOTE: This unit must be added to the Network only where it will be permanently installed. The proper operation of this node in the
mesh network is dependent on it knowing its location with respect to other nodes. You cannot “test bench” confi gure this unit, then install.
2
Associations
The WS15Z5-1 supports one Group with fi ve Nodes for lifeline communication.
Group 1 must be assigned the Node ID of the Controller to which unsolicited
notifi cations from the WS15Z5-1 will be sent. The Z-Wave Controller should set
this Association automatically after inclusion. You can associate up to fi ve Z-Wave
devices to Group 1. Lifeline Association only supports the “manual reset” event.
For instructions on how to “set Lifeline Association” please refer to your wireless
Controller instructions.
Creating Associations
1. Learn all devices into the Z-Wave Hub.
2. Tap the paddle of the WS15Z5-1 four times quickly to enter Association mode.
The LED will begin to blink quickly (twice per second).
3. Tap the paddle of the switch or device you want to Associate to the WS15Z5-1
three times.
4. Repeat Step #3 for up to 5 total dimmers and / or switches within 60 seconds of
entering Association mode.
5. Association mode will turn off after 60 seconds.
Although the Associations are now functional, it is recommended that you refer to
your Hubs instructions to “Poll” or “Heal” the Z-Wave network to recognize the new
Associations.
Removing Associations
To remove the Associations, if the Hub has recognized the Associations, refer to
the Z-Wave Hub’s instructions on how to remove Associations. If the Hub has not
recognized the Associations, removing the WS15Z5-1 from the Z-Wave network will
eliminate the Associations.
ADVANCED OPERATION
All On/All Off
The WS15Z5-1 supports the ALL ON / ALL OFF commands. The WS15Z5-1 can be
set to respond to ALL ON and ALL OFF commands four different ways.
Refer to your Controller for information on how to set the WS15Z5-1 to operate in
the manner you desire. Some Controllers may be only able to set certain settings of
ALL ON/ALL OFF response.
The four different ways the WS15Z5-1 can be setup to respond to ALL ON and ALL
OFF commands are:
1. Responds to ALL ON or the ALL OFF command.
2. Responds to ALL OFF command but will not respond to ALL ON command.
3. Responds to ALL ON command but will not respond to ALL OFF command.
4. Responds to ALL ON and the ALL OFF command.
CONFIGURATION
The WS15Z5-1 supports the Confi guration command. Each unit can be
confi gured to operate slightly differently than how it works when you fi rst install it.
Using the Confi guration command you can confi gure the following:
Night Light
By default, the LED on the WS15Z5-1 will turn OFF when the load attached is
turned ON. To make the LED turn ON when the load attached is turned ON, set
Parameter 3 to a value of 1.
Parameter Length Valid Values Confi guration Option
31 Byte
0LED OFF when the load is on, and ON when the load
is off (default - night lite mode)
1LED ON when the load is on, and OFF when the
load is off
2 LED is always on
3 LED is always off
4LED blinks during RF transmissions from or to the
device
Invert Switch
To change the top of the switch to OFF and the bottom of the switch ON, set
Parameter 4 to a value of 1.
Parameter Length Valid Values Confi guration Option
41 Byte 0Top of switch is ON, bottom of switch is OFF (default)
1 Bottom of switch is ON, top of switch is OFF
Over-The-Air (OTA) Update
A Quadruple tap of the switch enables the fi rmware update mode. Firmware update
mode must be entered before the system Controller sends the fi rmware update
command to begin downloading new fi rmware. Firmware update mode is enabled
for 60 seconds after the quadruple tap. If the Firmware update does not begin
before the end of the 60 seconds then fi rmware update mode is exited returns
to normal operation. The LED “winks” twice per second indicating it is in fi rmware
update mode.
Resetting to Defaults
Each confi guration Parameter can be set back to its default setting by setting the
default bit in the Confi guration Set command. See your Controller’s instructions on
how to do this (and if it supports it). All confi guration commands will be reset to their
default state when the WS15Z5-1 is excluded from the Z-Wave network by using
the Controller to reset the node.
SPECIFICATIONS
Power: 120 VAC, 60 Hz
Signal (Frequency): 908.42 MHz / 916 MHz
Maximum Load: Resistive: 15 amps (1800 watts) maximum, 120 VAC
Motor: 1/2 H.P. maximum, 120 VAC
Incandescent: 600W maximum, 120 VAC
Range: Up to 130 feet line of sight
Z-Wave® and Z-Wave Plus® are registered trademarks of Sigma Designs
and its subsidiaries in the United States and other countries.
REGULATORY INFORMATION
The WS15Z5-1 is certifi ed to comply with applicable FCC and IC rules and regulations governing RF and EMI
emissions.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) This device must accept any interference received, including interference
that may cause undesired operation.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician to help.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment
IC Notice
This Class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Le présent appareil est conforme
aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
This device complies with the Industry Canada license exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
WARRANTY
This Nortek Security & Control product is warranted against defects in material and workmanship for twelve (12)
months. This warranty extends only to wholesale customers who buy direct from Nortek Security & Control or
through Nortek Security & Control’s normal distribution channels. Nortek Security & Control does not warrant
this product to consumers. Consumers should inquire from their selling dealer as to the nature of the dealer’s
warranty, if any. There are no obligations or liabilities on the part of Nortek Security & Control for consequential
damages arising out of or in connection with use or performance of this product or other indirect damages
with respect to loss of property, revenue, or profi t, or cost of removal, installation, or re-installation. All implied
warranties, including implied warranties for merchantability and implied warranties for fi tness, are valid only until
Warranty Expiration Date as labeled on the product. This Nortek Security & Control LLC Warranty is in lieu of all
other warranties express or implied.
All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact Nortek
Security & Control Returns at 1-855-546-3279 for an RPA# and other important details.
IMPORTANT !!!
Radio controls provide a reliable communications link and fi ll an important need in portable wireless signaling.
However, there are some limitations which must be observed.
• For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as Part 15 devices.
As such, they have limited transmitter power and therefore limited range.
• A receiver cannot respond to more than one transmitted signal at a time and may be blocked by radio signals that
occur on or near their operating frequencies, regardless of code settings.
• Changes or modifications to the device may void FCC compliance.
• Infrequently used radio links should be tested regularly to protect against undetected interference or fault.
• A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale distributor or dealer,
and these facts should be communicated to the ultimate users.
PRINTER’S INSTRUCTIONS:
INSTR,INSTL,WS15Z5-1; P/N: 10007259 X5; INK: BLACK; MATERIAL: 20# MEAD BOND; SIZE: 8.500” x 11.000”; TOLERANCE ± .125”; SCALE: 1-1; PAGE 2 OF 2
Copyright © 2015 Nortek Security & Control LLC 10007259 X5
