Nortel Networks 2330 Dual Band Access Point User Manual
Nortel Networks, Inc. Dual Band Access Point Users Manual
Users Manual
Part No. 320662-A
May 2005
4655 Great America Parkway
Santa Clara, CA 95054
*320662-A*
Nortel WLAN—Access Point
2330 Quick Installation Guide
2
320662-A
Copyright © Nortel Networks Limited 2005. All rights reserved.
The information in this document is subject to change without notice. The statements, configurations, technical data, and
recommendations in this document are believed to be accurate and reliable, but are presented without express or implied
warranty. Users must take full responsibility for their applications of any products specified in this document. The
information in this document is proprietary to Nortel.
Trademarks
Nortel Networks, the Nortel logo, the Globemark, and Unified Networks are trademarks of Nortel
Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation.
Adobe and Acrobat Reader are trademarks of Adobe Systems Incorporated.
All other trademarks and registered trademarks are property of their respective owners.
The asterisk after a name denotes a trademarked item.
Restricted rights legend
Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subparagraph
(c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013.
Notwithstanding any other license agreement that may pertain to, or accompany the delivery of, this computer software,
the rights of the United States Government regarding its use, reproduction, and disclosure are as set forth in the
Commercial Computer Software-Restricted Rights clause at FAR 52.227-19.
Statement of conditions
In the interest of improving internal design, operational function, and/or reliability, Nortel Inc. reserves the right to make
changes to the products described in this document without notice.
Nortel Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s)
described herein.
Portions of the code in this software product may be Copyright © 1988, Regents of the University of California. All
rights reserved. Redistribution and use in source and binary forms of such portions are permitted, provided that the above
copyright notice and this paragraph are duplicated in all such forms and that any documentation, advertising materials,
and other materials related to such distribution and use acknowledge that such portions of the software were developed
by the University of California, Berkeley. The name of the University may not be used to endorse or promote products
derived from such portions of the software without specific prior written permission.
SUCH PORTIONS OF THE SOFTWARE ARE PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
In addition, the program and information contained herein are licensed only pursuant to a license agreement that contains
restrictions on use and disclosure (that may incorporate by reference certain limitations and notices imposed by third
parties).
3
Nortel WLAN—Access Point 2330 Quick Installation Guide
Regulatory Compliance Statements for WLAN Access Point 2330
Federal Communications Commission (FCC) Compliance Notices
This section includes the following FCC statements for the WLAN Access Point 2330:
• Class B Interference Statement
• RF Radiation Exposure & Hazard Warning
• Non-Modification Statement
• Deployment Statement
Class B Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in either a commercial or residential environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio communications, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio communications technician for help.
FCC Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
RF Radiation Exposure & Hazard Statement
To ensure compliance with FCC RF exposure requirements, this device must be installed in a location such that the
antenna of the device will be greater than 20 cm (8 in.) from all persons. Using higher gain antennas and types of
antennas not covered under the FCC certification of this product is not allowed. Installers of the radio and end users of
the product must adhere to the installation instructions provided in this manual.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Non-Modification Statement
Use only the supplied internal antenna, or external antennas supplied by the manufacturer. Unauthorized antennas,
modifications, or attachments could damage the WLAN Access Point 2330 and violate FCC regulations. Any changes or
modifications not expressly approved by the party responsible for compliance could void the user's authority to operate
this equipment.
4
320662-A
Deployment Statement
This product is certified for indoor deployment only. Do not install or use this product outdoors.
Canadian IC Statement
Operation is subject to the following two conditions in Canada:
1) this device may not cause interference, and
2) this device must accept any interference, including interference that may cause undesired operation of the
device
To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite systems) this device is intended to
be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is
installed outdoors is subject to licensing.
Because high power radars are allocated as primary users (meaning they have priority) in the 5250-5350 MHz band,
these radars could cause interference and/or damage to license exempt WLAN devices.
European Community Compliance
Declaration of Conformity
Marking by this symbol
indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC).
This equipment meets the following conformance standards:
EN300 328 V1.4.1 (2003-04), EN301 893 V1.2.3 (2003-08), EN301 489-17 V1.2.1 (2002-08), EN60950
European Community Declaration of Conformity
English Hereby, Nortel Networks, declares that this Radio LAN device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Finnish ValmistajaNortel Networks vakuuttaa täten että Radio LAN device tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Dutch Hierbij verklaart Nortel Networks dat het toestel Radio LAN device in overeenstemming is met de
essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG
Bij deze verklaart Nortel Networks dat deze Radio LAN device voldoet aan de essentiële eisen en aan de
overige relevante bepalingen van Richtlijn 1999/5/EC.
French Par la présente Nortel Networks déclare que l'appareil Radio LAN device est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE
Par la présente, Nortel Networks déclare que ce Radio LAN device est conforme aux exigences
essentielles et aux autres dispositions de la directive 1999/5/CE qui lui sont applicables
Swedish Härmed intygar Nortel Networks att denna Radio LAN device står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Danish Undertegnede Nortel Networks erklærer herved, at følgende udstyr Radio LAN device overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF
5
Nortel WLAN—Access Point 2330 Quick Installation Guide
German Hiermit erklärt Nortel Networks, dass sich dieser/diese/diesesRadio LAN device in Übereinstimmung
mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG
befindet". (BMWi)
Hiermit erklärt Nortel Networks die Übereinstimmung des Gerätes Radio LAN device mit den
grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie 1999/5/EG.
(Wien)
Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Nortel Networks ∆ΗΛΩΝΕΙ ΟΤΙ Radio LAN device ΣΥΜΜΟΡΦΩΝΕΤΑΙ
ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ
1999/5/ΕΚ
Italian Con la presente Nortel Networks dichiara che questo Radio LAN device è conforme ai requisiti essenziali
ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Spanish Por medio de la presente Nortel Networks declara que el Radio LAN device cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/ 5/CE
Portuguese Nortel Networks declara que este Radio LAN device está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Countries of Operation & Conditions of Use in the European Community
The professional installer should use the configuration utility provided with this product to check the current channel of
operation and confirm that the device is operating in conformance with the spectrum usage rules for European
Community countries. If operation is occurring outside of the allowable channels as indicated in the Regulatory
Conformance Guide, then operation of the product must cease immediately and the installer must consult with the
local technical support staff responsible for the wireless network.
This device is intended to be operated in all countries of the European Community. Requirements for indoor versus
outdoor operation, license requirements and allowed channels of operation apply as described below.
• This device is restricted to indoor use when operated in the European Community using the 5.15-5.35 GHz
band, including Channels 36, 40, 44, 48, 52, 56, 60 & 64. Consult the Regulatory Conformance Guide for
allowed 5 GHz channels by country.
• This device may be operated indoors or outdoors in all countries of the European Community using the 2.4
GHz band, including Channels 1 - 13, except where noted below.
• In Italy the end-user must apply for a license from the national spectrum authority to operate this device
outdoors.
• In Belgium outdoor operation is only permitted using the 2.46 - 2.4835 GHz band: Channel 13 and a license
is required for outdoor operation over 300 meters.
• In France outdoor operation is only permitted using the 2.4 - 2.454 GHz band: Channels 1 - 7.
• The 5GHz Turbo Mode feature is not allowed for operation in any European Community country.
Operation Using 5 GHz Channels in the European Community
To remain in conformance with European National spectrum usage laws, please consult the Regulatory Conformance
Guide for the channel limitations associated with the 5 GHz bands. The professional installer should verify the current
channel of operation of the WLAN Access Point 2330 and compare it to the allowable channels of operation in the
geographic region where the unit is being installed. If operation is occurring outside of the allowable frequencies as
listed in the guide, then operation of the product must cease immediately and the installer must consult with the local
technical support staff responsible for the wireless network.
6
320662-A
Dynamic Frequency Selection (DFS)
This device implements a DFS feature in accordance with the limits in EN 301 893 Version 1.2.3, Section 4.6 and Annex
D, Tables D.1, D.2 & D.4 for a device operating in the mode defined as “Master”. Section 4.6, Tables 6 and 7 of this
document define the requirements prior to using a channel and during normal operation for a Master device (i.e.,
Interference Detection Threshold, Channel Availability Check Time, Uniform Spreading, Channel Closing Transmission
Time and Channel Move Time). This product qualifies for this category since the maximum achievable transmit power is
greater than 23 dBm per the requirements of Table D.2 in Annex D of the standard.
External Antenna Statement
Intentional radiators, such as the Nortel Networks WLAN Access Point 2330 are not intended to be operated with any
antenna(s) other than those furnished by Nortel Networks. An intentional radiator may only be operated with the
antenna(s) with which it is authorized. For a complete listing of the authorized antennas for use with this product, visit
http://www.nortel.com/support.
In order to ensure continued compliance, use of an antenna not on the Nortel approved antenna list is not allowed
without specific authorization from Nortel Networks. For additional questions or inquiries regarding specific antennas,
contact Nortel at 1-800-4NORTEL, and use express routing code (ERC) 1572.
Use of an antenna not specifically authorized by Nortel Networks may not comply with local regulatory requirements
with respect to radiated emission limits and may result in illegal operation of the product. The installer of the wireless
system and associated antenna is required to ensure that only those antennas on the Nortel approved antenna list or those
antennas specifically approved by Nortel on a case by case basis are deployed with the intentional radiator.
Be sure to associate the appropriate antenna model number and localized regulatory region when selecting the Nortel
Networks authorized antenna(s).
Contacting Nortel Technical Support 7
Nortel WLAN—Access Point 2330 Quick Installation Guide
Contacting Nortel Technical Support
If you purchased a service contract for your Nortel product from a distributor or authorized reseller, contact the technical
support staff for that distributor or reseller for assistance.
Additional information about the Nortel Technical Solutions Centers is available from the www.nortel.com/contactus
URL.
An Express Routing Code (ERC) is available for many Nortel products and services. When you use an ERC, your call is
routed to a technical support person who specializes in supporting that product or service. To locate an ERC for your prod-
uct or service, go to the www.nortel.com/erc URL.
If you purchased a Nortel service program, contact one of the following Nortel Technical Solutions Centers:
RMA Procedures
Please have the following available when making a call:
• Company and Contact information
• Equipment model number(s)
• WLAN Security Switch software revision level (4.0.x.x)
• WLAN Management Software revision level (4.0.x.x)
• Symptom(s)
• Network configuration
You can find Nortel Technical Support information at www.nortel.com/support.
Technical Solutions Center Telephone
Europe, Middle East, and Africa 00800 8008 9009
or
+44 (0) 870 907 9009
North America (800) 4NORTEL or (800) 466-7835
Asia Pacific (61) (2) 9927-8800
China (800) 810-5000
8WLAN—Access Point 2330
320662-A
WLAN—Access Point 2330
This document provides basic indoor hardware installation instructions for AP access point model 2330.
For more information about AP installation as well as safety and installation requirements, see the following:
zNortel WLAN—Access Point 2330 Installation Guide. Part # 320661-A
zNortel WLAN Access Point 2330—Regulatory Conformance Guide Part # 320660-A
Cable Requirement

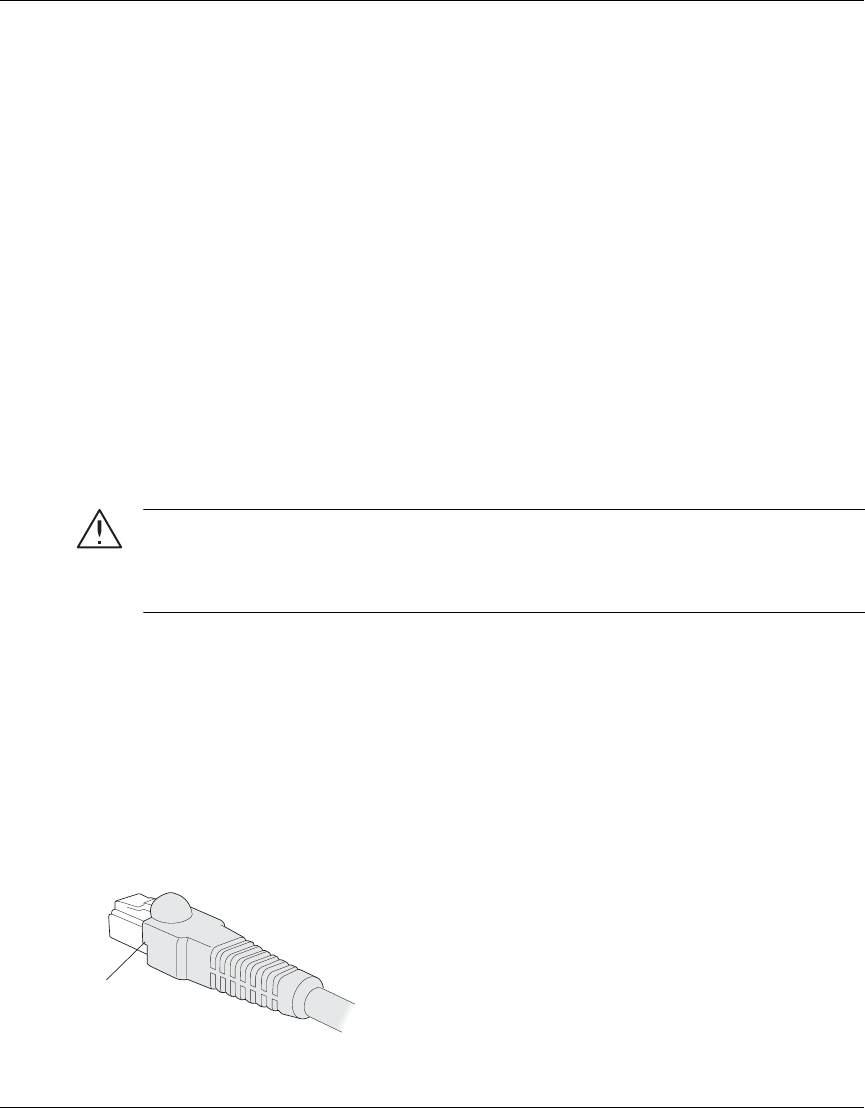

The Ethernet ports on the 2330 access point cannot accept a Cat 5 cable that has an uneven sheath such as the one shown
in Figure 1. The RJ-45 connector on the cable will not seat properly in the receptacle on the 2330 access point. Use a Cat
5 cable with an even sheath instead.
Figure 1. Do Not Use a Cat 5 Cable with an Uneven Sheath
Cable Requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Suspended Ceiling Installation—Flush Ceiling Tiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Suspended Ceiling Installation—Drop Ceiling Tiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Junction Box Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Solid Wall or Ceiling Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Configuring the AP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Caution! When mounting the WLAN Access Point 2330, this device must be installed in
a location such that the device will be greater than 20 cm (8 in.) from all persons to ensure
compliance with regulatory RF exposure requirements. Using higher gain antennas and
types of antennas not covered under the FCC certification of this product is not allowed.
Uneven sheath
840-9502-0067
Suspended Ceiling Installation—Flush Ceiling Tiles 9
Nortel WLAN—Access Point 2330 Quick Installation Guide
Suspended Ceiling Installation—Flush Ceiling Tiles
This procedure applies to T-bars that are 23.9 mm (15/16 inches) wide. For a 14.2-mm (9/16-inch) or 15.9-mm (5/8-inch)
T-bar, go to “Suspended Ceiling Installation—Drop Ceiling Tiles” on page 11.

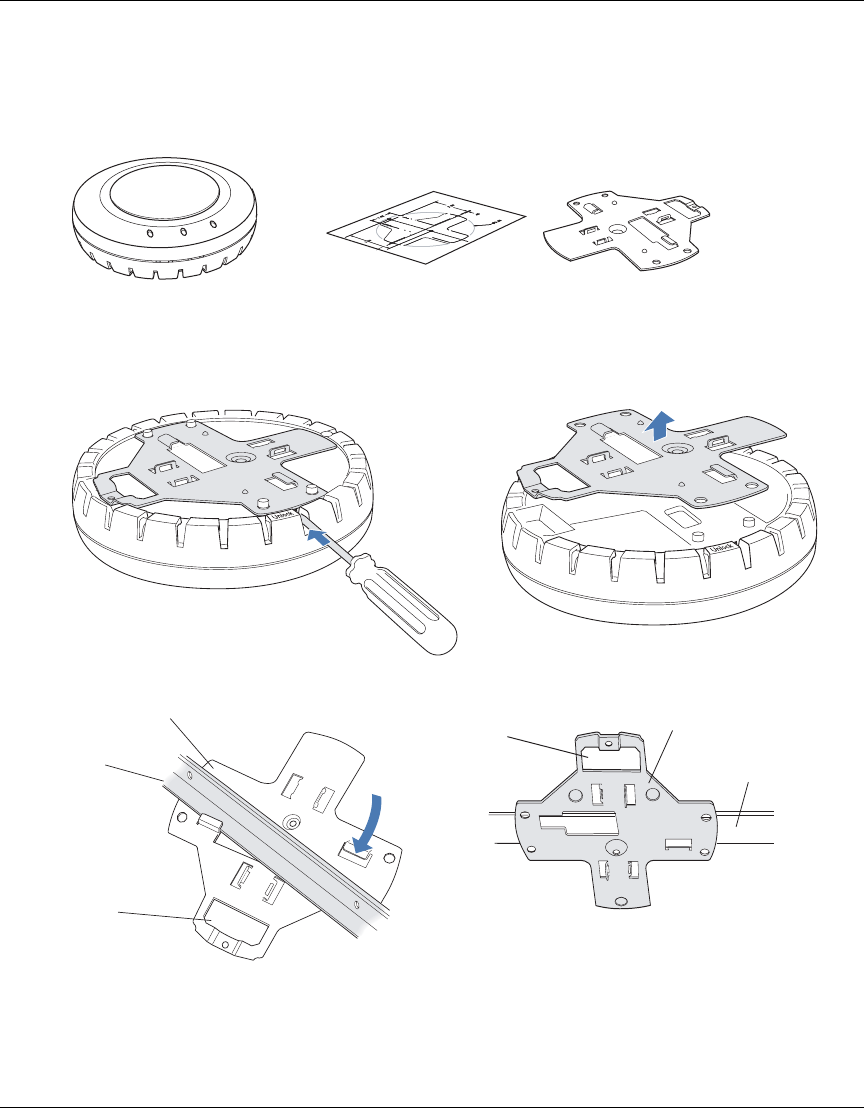

1Use the mounting template to cut a hole for the Cat 5 cable.
2Remove the mounting bracket from the 2330 access point.
3Attach the mounting bracket to the T-bar clamp.
Mounting
bracket
Mounting
template
Access
point
840-9502-0089
840-9502-0011
840-9502-0008
T- b a r
(Viewed from above ceiling tiles, looking down.)
840-9502-0005
Universal mounting
bracket
Port connector
opening
T- b a r
Universal mounting bracket
840-9502-0004
Port connector
opening
10 Suspended Ceiling Installation—Flush Ceiling Tiles
320662-A
4Insert the Cat 5 cable through the point connector opening in the mounting bracket, then plug the cable
into the 2330.

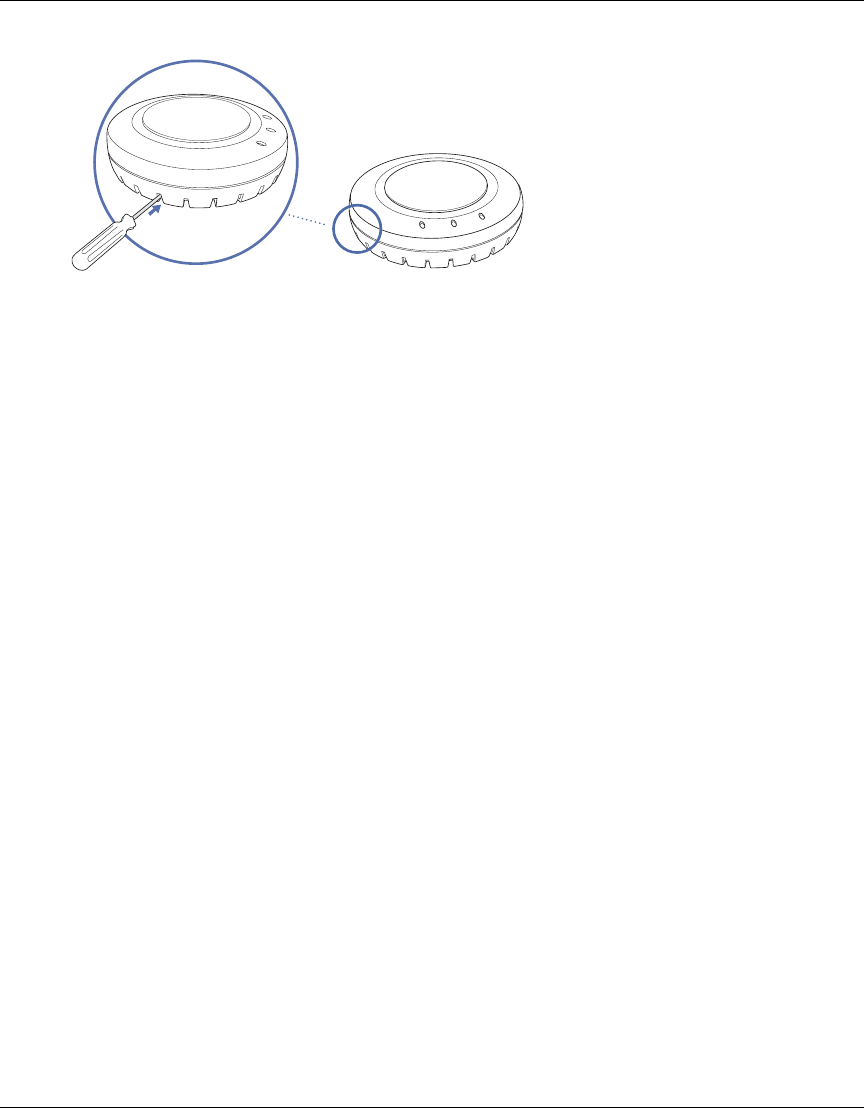

5Attach the 2330 to the mounting bracket.
840-9502-0002
840-9502-0006
Lock
T-bar
Suspended Ceiling Installation—Drop Ceiling Tiles 11
Nortel WLAN—Access Point 2330 Quick Installation Guide
Suspended Ceiling Installation—Drop Ceiling Tiles
This procedure applies to T-bars that are 23.9 mm (15/16 inches), 14.2-mm (9/16-inches), or 15.9-mm (5/8-inches) wide.
You also can use this procedure for flush ceilings with 14.2-mm (9/16-inch) or 15.9-mm (5/8-inch) T-bars.

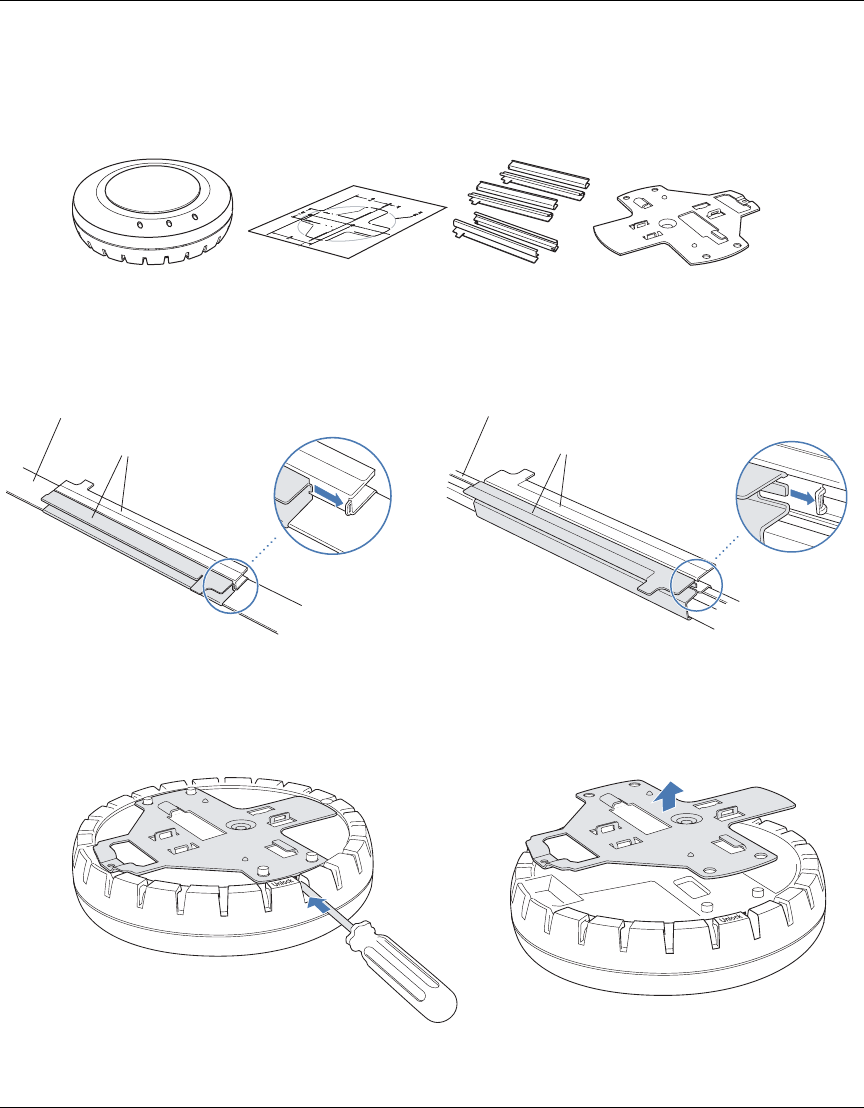

1Use the mounting template to cut a hole for the Cat 5 cable.
2Install the T-bar clamp that fits the T-bar.
3Remove the mounting bracket from the 2330 access point.
T-bar clamps
(use set that fits T-bar)
Mounting
template
Mounting
bracket
Access
point
840-9502-0088
T-bar
T-bar clamp halves
Slide together
840-9502-0003
23.9-mm (15/16-inch) or 14.2-mm (9/16-inch) T-bar
T-bar
T-bar clamp halves
Slide together
840-9502-0066
15.9-mm (5/8-inch) T-bar
(The clamps are different widths but the assembly is the same.)
840-9502-0011
840-9502-0008
12 Suspended Ceiling Installation—Drop Ceiling Tiles
320662-A
4Attach the mounting bracket to the T-bar clamp.

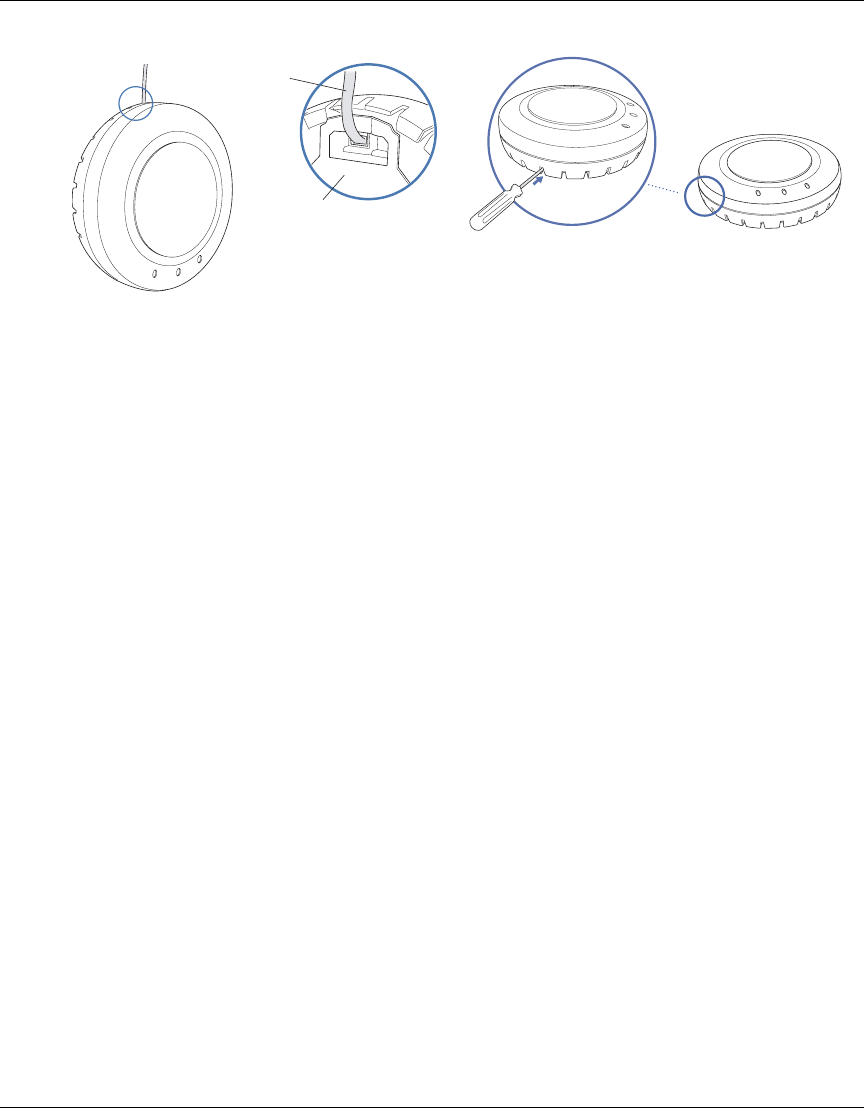

5Insert the Cat 5 cable through the point connector opening in the mounting bracket, then plug the cable
into the 2330.
6Attach the 2330 to the mounting bracket.
T- bar
T-bar clamps
(attached
to T-bar)
Universal mounting
bracket
840-9502-0012
(Viewed from above ceiling tiles, looking down.)
Port connector
opening
T- b a r
Universal mounting bracket
840-9502-0004
Port connector
opening
840-9502-0002
840-9502-0006
Lock
T-bar
Junction Box Installation 13
Nortel WLAN—Access Point 2330 Quick Installation Guide
Junction Box Installation

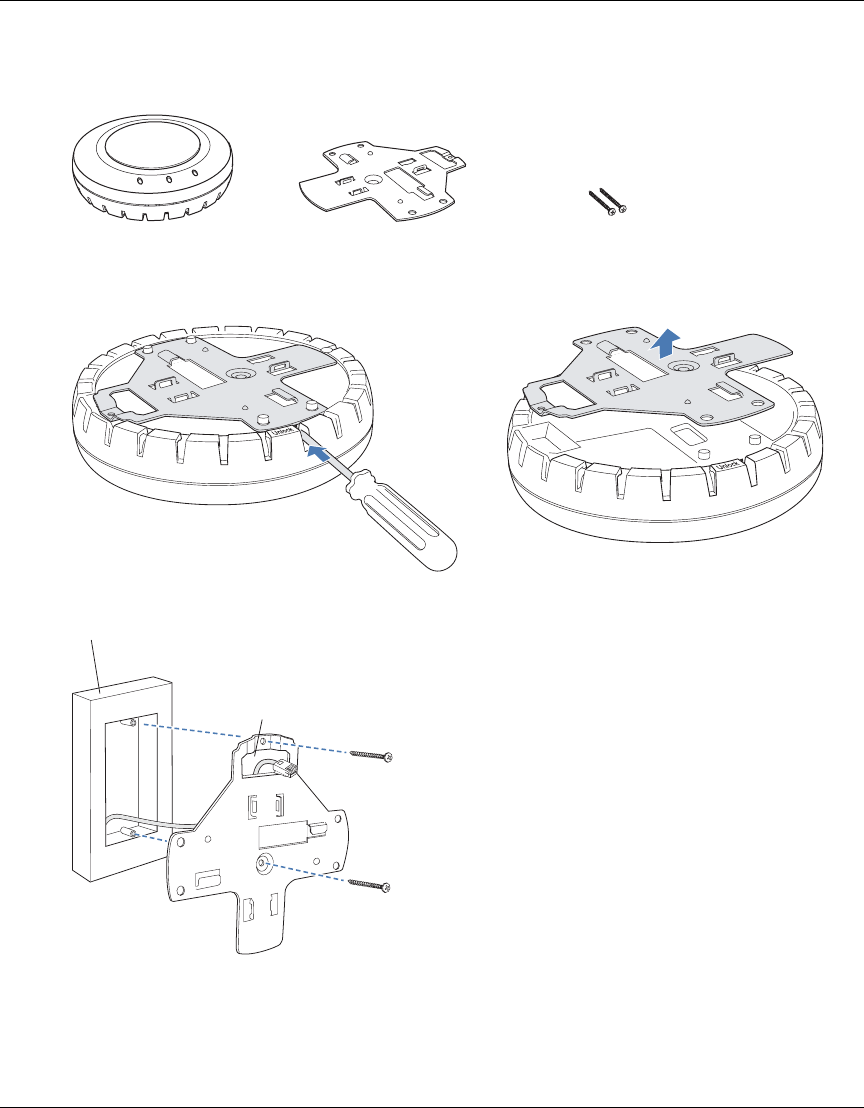

1Remove the mounting bracket from the 2330 .
2Attach the bracket to the junction box.
Mounting hardwareMounting
bracket
Access
point
840-9502-0090
840-9502-0011
840-9502-0008
840-9502-0017
Junction box
Port connector
opening
14 Junction Box Installation
320662-A
3Plug the Cat 5 cable into the 2330 access point and attach the 2330 to the mounting bracket.
840-9502-0062
Lock
Solid Wall or Ceiling Installation 15
Nortel WLAN—Access Point 2330 Quick Installation Guide
Solid Wall or Ceiling Installation
1Use the mounting template to cut a hole for the Cat 5 cable.
2Remove the mounting bracket from the 2330 .
3Attach the bracket to the wall or ceiling.
Mounting
hardware
Mounting
template
Mounting
bracket
Access
point
840-9502-0091
840-9502-0011
840-9502-0008
840-9502-0015
16 Configuring the AP
320662-A
4Plug the Cat 5 cable into the 2330 access point and attach the 2330 to the mounting bracket.
Configuring the AP
To configure the channels, power settings, and other 2330 parameters, see the following:
zNortel WLAN—Security Switch 2300 Series Quick Installation Guide
z“Configuring a WSS for Basic Service” chapter in the Nortel WLAN—Security Switch 2300 Series
Installation and Basic Configuration Guide
z“Configuring the AP Access Points” chapter in the Nortel WLAN—Security Switch 2300 Series
Configuration Guide
zNortel WLAN Access Point 2330—Regulatory Conformance Guide
840-9502-0016
Universal mounting bracket
Cable
840-9502-0062
Lock
