50 Great Oaks Boulevard
San Jose, California 95119
408-360-5500 Main
408-360-5501 Fax
www.nortelnetworks.com
Web OS Switch Software
10.0 Application Guide
Part Number: 212777, Revision A, February 2002
Web OS 10.0 Application Guide
2212777-A, February 2002
Copyright 2002 Nortel Networks, Inc., 50 Great Oaks Boulevard, San Jose, California 95119, USA. All
rights reserved. Part Number: 212777, Revision A.
This document is protected by copyright and distributed under licenses restricting its use, copying,
distribution, and decompilation. No part of this document may be reproduced in any form by any means
without prior written authorization of Nortel Networks, Inc. Documentation is provided “as is” without
warranty of any kind, either express or implied, including any kind of implied or express warranty of non-
infringement or the implied warranties of merchantability or fitness for a particular purpose.
U.S. Government End Users: This document is provided with a “commercial item” as defined by FAR
2.101 (Oct 1995) and contains “commercial technical data” and “commercial software documentation” as
those terms are used in FAR 12.211-12.212 (Oct 1995). Government End Users are authorized to use this
documentation only in accordance with those rights and restrictions set forth herein, consistent with FAR
12.211- 12.212 (Oct 1995), DFARS 227.7202 (JUN 1995) and DFARS 252.227-7015 (Nov 1995).
Nortel Networks, Inc. reserves the right to change any products described herein at any time, and without
notice. Nortel Networks, Inc. assumes no responsibility or liability arising from the use of products
described herein, except as expressly agreed to in writing by Nortel Networks, Inc. The use and purchase of
this product does not convey a license under any patent rights, trademark rights, or any other intellectual
property rights of Nortel Networks, Inc.
Web OS, Alteon 180, Alteon 180e, Alteon 184, Alteon AD3, Alteon AD4, and ACEswitch are trademarks
of Nortel Networks, Inc. in the United States and certain other countries. Cisco® and EtherChannel® are
registered trademarks of Cisco Systems, Inc. in the United States and certain other countries. Check Point®
and FireWall-1® are trademarks or registered trademarks of Check Point Software Technologies Ltd. Any
other trademarks appearing in this manual are owned by their respective companies.
212777-A, February 2002 3
Contents
Preface 21
Who Should Use This Guide 21
What You’ll Find in This Guide 21
Typographic Conventions 23
Contacting Us 24
Part 1: Basic Switching & Routing
Chapter 1: Basic IP Routing 27
IP Routing Benefits 28
Routing Between IP Subnets 28
Example of Subnet Routing 31
Defining IP Address Ranges for the Local Route Cache 35
Border Gateway Protocol (BGP) 36
Internal Routing Versus External Routing 36
Forming BGP Peer Routers 37
BGP Failover Configuration 37
DHCP Relay 41
DHCP Overview 41
DHCP Relay Agent Configuration 42
Chapter 2: VLANs 43
VLAN ID Numbers 44
VLAN Tagging 44
VLANs and the IP Interfaces 45
VLAN Topologies and Design Issues 45
Example 1: Multiple VLANS with Tagging Adapters 46
Example 2: Parallel Links with VLANs 48
Web OS 10.0 Application Guide
4 Contents 212777-A, February 2002
VLANs and Spanning Tree Protocol 49
Bridge Protocol Data Units (BPDUs) 50
Multiple Spanning Trees 51
VLANs and Default Gateways 58
Segregating VLAN Traffic 58
Configuring the Local Network 60
Configuring Default Gateways per VLAN 60
VLANs and Jumbo Frames 63
Isolating Jumbo Frame Traffic using VLANs 63
Routing Jumbo Frames to Non-Jumbo Frame VLANs 64
Chapter 3: Port Trunking 65
Overview 65
Statistical Load Distribution 66
Built-In Fault Tolerance 66
Port Trunking Example 67
Chapter 4: OSPF 69
OSPF Overview 69
Types of OSPF Areas 70
Types of OSPF Routing Devices 71
Neighbors and Adjacencies 72
The Link-State Database 72
The Shortest Path First Tree 73
Internal Versus External Routing 73
OSPF Implementation in Web OS 74
Configurable Parameters 74
Defining Areas 75
Interface Cost 77
Electing the Designated Router and Backup 77
Summarizing Routes 77
Default Routes 78
Virtual Links 79
Router ID 80
Authentication 80
Host Routes for Load Balancing 82
OSPF Features Not Supported in This Release 82
Web OS 10.0 Application Guide
Contents 5
212777-A, February 2002
OSPF Configuration Examples 83
Example 1: Simple OSPF Domain 84
Example 2: Virtual Links 86
Example 3: Summarizing Routes 90
Example 4: Host Routes 92
Verifying OSPF Configuration 98
Chapter 5: Secure Switch Management 99
Setting Allowable Source IP Address Ranges 100
Secure Switch Management 101
Authentication and Authorization 101
Requirements 102
RADIUS Authentication and Authorization 103
RADIUS Authentication Features in Web OS 104
Web Switch User Accounts 105
Secure Shell and Secure Copy 107
Encryption of Management Messages 108
SCP Services 108
RSA Host and Server Keys 109
Radius Authentication 110
SecurID Support 110
Port Mirroring 113
Part 2: Web Switching Fundamentals
Chapter 6: Server Load Balancing 117
Understanding Server Load Balancing 118
Identifying Your Network Needs 118
How Server Load Balancing Works 119
Implementing Basic Server Load Balancing 121
Network Topology Requirements 122
Configuring Server Load Balancing 124
Additional Server Load Balancing Options 128
Extending SLB Topologies 136
Proxy IP Addresses 136
Mapping Ports 139
Direct Server Interaction 142
Delayed Binding 146
Web OS 10.0 Application Guide
6 Contents 212777-A, February 2002
Load Balancing Special Services 149
IP Server Load Balancing 149
FTP Server Load Balancing 150
Domain Name Server (DNS) Load Balancing 151
Real Time Streaming Protocol SLB 155
Wireless Application Protocol SLB 158
Intrusion Detection System Server Load Balancing 163
WAN Link Load Balancing 166
Chapter 7: Filtering 169
Overview 170
Filtering Benefits 170
Filtering Criteria 170
Stacking Filters 172
Overlapping Filters 172
The Default Filter 173
VLAN-based Filtering 174
Optimizing Filter Performance 176
Filter Logs 176
IP Address Ranges 178
Cache-Enabled versus Cache-Disabled Filters 178
TCP Rate Limiting 179
Configuring TCP Rate Limiting Filters 180
Tunable Hash for Filter Redirection 184
Filter-based Security 185
Network Address Translation 191
Static NAT 191
Dynamic NAT 193
FTP Client NAT 195
Matching TCP Flags 197
Matching ICMP Message Types 201
Web OS 10.0 Application Guide
Contents 7
212777-A, February 2002
Chapter 8: Application Redirection 203
Overview 204
Web Cache Redirection Environment 204
Additional Application Redirection Options 205
RTSP Web Cache Redirection 211
IP Proxy Addresses for NAT 213
Excluding Noncacheable Sites 215
Chapter 9: Virtual Matrix Architecture 217
Chapter 10: Health Checking 219
Real Server Health Checks 221
DSR Health Checks 222
Link Health Checks 223
Configuring the Switch for Link Health Checks 223
TCP Health Checks 224
ICMP Health Checks 224
Script-Based Health Checks 225
Configuring the Switch for Script-Based Health Checks 225
Script Format 226
Scripting Guidelines 227
Script Configuration Examples 227
Application-Specific Health Checks 230
HTTP Health Checks 231
UDP-Based DNS Health Checks 233
FTP Server Health Checks 234
POP3 Server Health Checks 235
SMTP Server Health Checks 236
IMAP Server Health Checks 237
NNTP Server Health Checks 238
RADIUS Server Health Checks 239
HTTPS/SSL Server Health Checks 240
WAP Gateway Health Checks 240
LDAP Health Checks 243
ARP Health Checks 245
Failure Types 246
Service Failure 246
Server Failure 246
Web OS 10.0 Application Guide
8 Contents 212777-A, February 2002
Chapter 11: High Availability 247
VRRP Overview 248
VRRP Components 248
VRRP Operation 251
Selecting the Master VRRP Router 251
Active-Standby Failover 252
Failover Methods 253
Active-Standby Redundancy 254
Active-Active Redundancy 255
Hot-Standby Redundancy 256
Synchronizing Configurations 258
Web OS Extensions to VRRP 259
Virtual Server Routers 259
Sharing/Active-Active Failover 260
Tracking VRRP Router Priority 261
High Availability Configurations 263
Active-Standby Virtual Server Router Configuration 263
Active-Active VIR and VSR Configuration 265
Active/Active Server Load Balancing Configuration 267
VRRP-Based Hot-Standby Configuration 275
Virtual Router Deployment Considerations 277
Mixing Active-Standby and Active-Active Virtual Routers 277
Synchronizing Active/Active Failover 277
Eliminating Loops with STP and VLANs 278
Assigning VRRP Virtual Router ID 280
Configuring the Switch for Tracking 280
Synchronizing Configurations 282
Stateful Failover of Layer 4 and Layer 7 Persistent Sessions 283
What Happens When a Switch Fails 284
Viewing Statistics on Persistent Port Sessions 286
Web OS 10.0 Application Guide
Contents 9
212777-A, February 2002
Part 3: Advanced Web Switching
Chapter 12: Global Server Load Balancing 289
GSLB Overview 290
Benefits 290
Compatibility with Other Web OS Features 290
How GSLB Works 291
Configuring GSLB 293
IP Proxy for Non-HTTP Redirects 304
How IP Proxy Works 305
Configuring Proxy IP Addresses 307
Verifying GSLB Operation 308
Configuring Client Site Preferences 308
Using Border Gateway Protocol for GSLB 312
Chapter 13: Firewall Load Balancing 313
Firewall Overview 314
Basic FWLB 316
Basic FWLB Implementation 317
Configuring Basic FWLB 319
Four-Subnet FWLB 326
Four-Subnet FWLB Implementation 327
Configuring Four-Subnet FWLB 329
Advanced FWLB Concepts 346
Free-Metric FWLB 346
Adding a Demilitarized Zone (DMZ) 349
Firewall Health Checks 351
Chapter 14: Virtual Private Network Load Balancing 353
Overview 354
Virtual Private Networks 354
How VPN Load Balancing Works 354
VPN Load-Balancing Configuration 356
Requirements 356

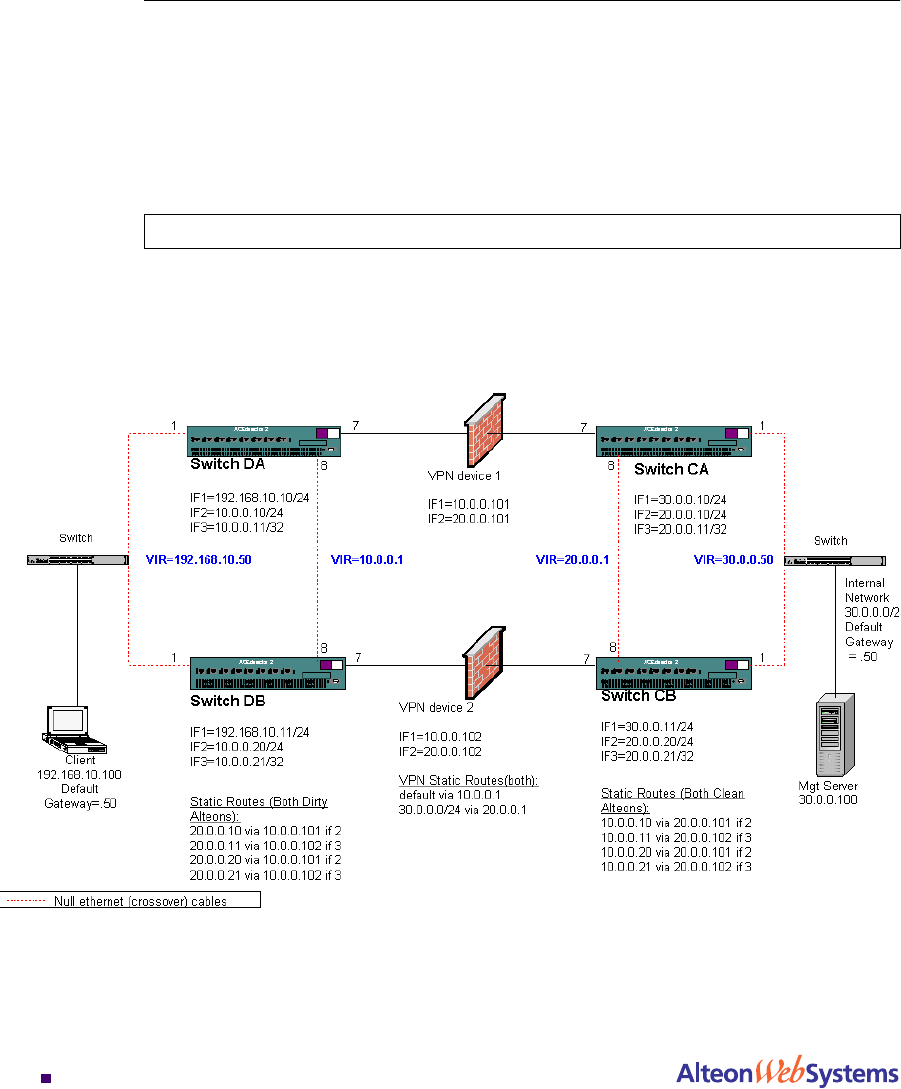

VPN Load-Balancing Configuration Example 356
Web OS 10.0 Application Guide
10 Contents 212777-A, February 2002
Chapter 15: Content Intelligent Switching 371
Overview 372
Parsing Content 373
HTTP Header Inspection 374
Buffering Content with Multiple Frames 374
Content Intelligent Server Load Balancing 375
URL-Based Server Load Balancing 375
Virtual Hosting 380
Cookie-Based Preferential Load Balancing 383
Browser-Smart Load Balancing 386
URL Hashing for Server Load Balancing 387
Header Hash Load Balancing 389
DNS Load Balancing 390
Layer 7 RTSP Load Balancing 392
Content Intelligent Web Cache Redirection 394
URL-Based Web Cache Redirection 395
HTTP Header-Based Web Cache Redirection 403
Browser-Based Web Cache Redirection 405
URL Hashing for Web Cache Redirection 406
Layer 7 RTSP Streaming Cache Redirection 409
Exclusionary String Matching for Real Servers 410
Configuring for Exclusionary URL String Matching 410
Regular Expression Matching 412
Standard Regular Expression Characters 412
Configuring Regular Expressions 413
Content Precedence Lookup 414
Requirements 415
Using the or and and Operators 415
Assigning Multiple Strings 416
Layer 7 Deny Filter 417
Web OS 10.0 Application Guide
Contents 11
212777-A, February 2002
Chapter 16: Persistence 421
Overview of Persistence 422
Using Source IP Address 422
Using Cookies 423
Using SSL Session ID 423
Cookie-Based Persistence 424
Permanent and Temporary Cookies 425
Cookie Formats 425
Cookie Properties 426
Client Browsers that Do Not Accept Cookies 426
Cookie Modes of Operation 427
Configuring Cookie-Based Persistence 430
Server-Side Multi-Response Cookie Search 436
SSL Session ID-Based Persistence 437
How SSL Session ID-Based Persistence Works 437
Chapter 17: Bandwidth Management 441
Overview 442
Bandwidth Policies 444
Rate Limits 445
Bandwidth Policy Configuration 445
Data Pacing 446
Classification Criteria 447
Server Output Bandwidth Control 447
Application Bandwidth Control 447
Combinations 448
Precedence 448
Bandwidth Classification Configuration 448
Frame Discard 449
URL-Based Bandwidth Management 449
HTTP Header-Based Bandwidth Management 451
Cookie-Based Bandwidth Management 451
Bandwidth Statistics and History 452
Statistics Maintained 452
Statistics and Management Information Bases 452
Packet Coloring (TOS bits) for Burst Limit 453
Operational Keys 453
Web OS 10.0 Application Guide
12 Contents 212777-A, February 2002
Configuring Bandwidth Management 454
Additional Configuration Examples 457
Preferential Services Examples 460
Glossary 471
Index 475
212777-A, February 2002 13
Figures
Figure 1-1: The Router Legacy Network 29
Figure 1-2: Switch-Based Routing Topology 30
Figure 1-3: iBGP and eBGP 37
Figure 1-4: BGP Failover Configuration Example 38
Figure 1-5: DHCP Relay Agent Configuration 42
Figure 2-1: Example 1: Multiple VLANs with Tagging Gigabit Adapters 46
Figure 2-2: Example 2: Parallel Links with VLANs 48
Figure 2-3: Using Multiple Instances of Spanning Tree Protocol 51
Figure 2-4: VLAN 3 Isolated in a Single Spanning Tree Group 52
Figure 2-5: Implementing Multiple Spanning Tree Groups 53
Figure 2-6: Default Gateways per VLAN 58
Figure 2-7: Jumbo Frame VLANs 64
Figure 3-1: Port Trunk Group 65
Figure 3-2: Port Trunk Group Configuration Example 67
Figure 4-1: OSPF Area Types 70
Figure 4-2: OSPF Domain and an Autonomous System 71
Figure 4-3: Injecting Default Routes 78
Figure 4-4: OSPF Authentication 80
Figure 4-5: A Simple OSPF Domain 84
Figure 4-6: Configuring a Virtual Link 86
Figure 4-7: Summarizing Routes 90
Figure 4-8: Configuring OSPF Host Routes 92
Figure 5-1: Authentication and Authorization: How It Works 103
Figure 5-2: Monitoring Ports 113
Web OS 10.0 Application Guide
14 Figures 212777-A, February 2002
Figure 6-1: Traditional Versus SLB Network Configurations 119
Figure 6-2: Web Hosting Configuration Without SLB 121
Figure 6-3: Web Hosting with SLB Solutions 121
Figure 6-4: SLB Client/Server Traffic Routing 122
Figure 6-5: Example Network for Client/Server Port Configuration 123
Figure 6-6: Basic Virtual Port to Real Port Mapping Configuration 140
Figure 6-7: Direct Server Return 143
Figure 6-8: Mapped and Nonmapped Server Access 144
Figure 6-9: DoS SYN Attacks without Delayed Binding 146
Figure 6-10: Repelling DoS SYN Attacks With Delayed Binding 147
Figure 6-11: Layer 4 DNS Load Balancing 151
Figure 7-1: Assigning Filters According to Range of Coverage 172
Figure 7-2: Assigning Filters to Overlapping Ranges 172
Figure 7-3: Assigning a Default Filter 173
Figure 7-4: VLAN-based Filtering 174
Figure 7-5: Configuring Clients with Different Rates 180
Figure 7-6: Limiting User Access to Server 183
Figure 7-7: Security Topology Example 185
Figure 7-8: Static Network Address Translation 192
Figure 7-9: Dynamic Network Address Translation 193
Figure 7-10: Active FTP for Dynamic NAT 195
Figure 7-11: TCP ACK Matching Network 197
Figure 8-1: Traditional Network Without Web Cache Redirection 204
Figure 8-2: Network with Web Cache Redirection 205
Figure 11-1: Example 1: VRRP Router 250
Figure 11-2: Example 2: VRRP Router 252
Figure 11-3: A Non-VRRP, Hot-Standby Configuration 253
Figure 11-4: Active-Standby Redundancy 254
Figure 11-5: Active-Active Redundancy 255
Figure 11-6: Hot-Standby Redundancy 256
Figure 11-7: Active-Active High Availability 260
Figure 11-8: Active-Standby High-Availability Configuration 263
Figure 11-9: Active-Active High-Availability Configuration 265
Figure 11-10: Hot-Standby Configuration 275
Figure 11-11: Loops in Active-Active Configuration 278
Figure 11-12: Cross-Redundancy Creates Loops, But STP Resolves Them 279
Figure 11-13: Using VLANs to Create Non-Looping Topologies 279
Figure 11-14: Stateful Failover Example when the Master Switch Fails 284
Web OS 10.0 Application Guide
Figures 15
212777-A, February 2002
Figure 12-1: DNS Resolution with Global Server Load Balancing 291
Figure 12-2: GSLB Topology Example 294
Figure 12-3: HTTP and Non-HTTP Redirects 304
Figure 12-4: POP3 Request Fulfilled via IP Proxy 305
Figure 12-5: GSLB Proximity Tables: How They Work 309
Figure 12-6: Configuring Client Proximity Table 310
Figure 13-1: Typical Firewall Configuration Before FWLB 314
Figure 13-2: Basic FWLB Topology 316
Figure 13-3: Basic FWLB Process 317
Figure 13-4: Basic FWLB Example Network 319
Figure 13-5: Four-Subnet FWLB Topology 326
Figure 13-6: Four-Subnet FWLB Process 327
Figure 13-7: Four-Subnet FWLB Example Network 329
Figure 13-8: Basic FWLB Example Network 346
Figure 13-9: Four-Subnet FWLB Example Network 347
Figure 13-10: Typical Firewall Load-Balancing Topology with DMZ 349
Figure 14-1: Basic Network Frame Flow and Operation 355
Figure 14-2: VPN Load-Balancing Configuration Example 356
Figure 14-3: Checkpoint Rules for Both VPN Devices as Seen in the Policy
Editor 368
Figure 15-1: Content Intelligent Load Balancing Example 372
Figure 15-2: URL-Based Server Load Balancing 376
Figure 15-3: Balancing Nontransparent Caches 387
Figure 15-4: Load Balancing DNS Queries 390
Figure 15-5: URL-Based Web Cache Redirection 396
Figure 15-6: URL Hashing for WCR 408
Figure 15-7: Content Precedence Lookup Protectors Example 415
Figure 15-8: Content Precedence Lookup Multiple Strings Example 416
Figure 15-9: Configuring Layer 7 Deny Filter 417
Figure 16-1: Cookie-Based Persistence: How It Works 424
Figure 16-2: Insert Cookie Mode 427
Figure 16-3: Passive Cookie Mode 428
Figure 16-4: Rewrite Cookie Mode 429
Figure 16-5: SSL Session ID-Based Persistence 438
Web OS 10.0 Application Guide
16 Figures 212777-A, February 2002
Figure 17-1: Bandwidth Management: How It Works 442
Figure 17-2: Bandwidth Rate Limits 444
Figure 17-3: Virtual Clocks and TDT 446
Figure 17-4: URL-Based Bandwidth Management 450
Figure 17-5: URL-Based Bandwidth Management with Web Cache Redirection 450
Figure 17-6: Cookie-Based Bandwidth Management 451
Figure 17-7: Cookie-Based Preferential Services 467
212777-A, February 2002 17
Tables
Table 1-1: Subnet Routing Example: IP Address Assignments 31
Table 1-2: Subnet Routing Example: IP Interface Assignments 31
Table 1-3: Subnet Routing Example: Optional VLAN Ports 33
Table 1-4: Local Routing Cache Address Ranges 35
Table 2-1: Ports, Trunk Groups, and VLANs 49
Table 2-2: Multiple Spanning Tree Groups per VLAN 54
Table 2-3: Route Cache Example 59
Table 5-1: User Access Levels 105
Table 5-2: Web OS Alteon Levels 106
Table 6-1: Web Host Example: Real Server IP Addresses 124
Table 6-2: Web Host Example: Port Usage 126
Table 6-3: Well-Known Application Ports 128
Table 6-4: Proxy Example: Port Usage 137
Table 7-1: Well-Known Protocol Types 171
Table 7-2: Well-Known Application Ports 171
Table 7-3: Filtering IP Address Ranges 178
Table 7-4: Web Cache Example: Real Server IP Addresses 186
Table 7-5: TCP Flags 197
Table 7-6: ICMP Message Types 201
Table 8-1: Web Cache Example: Real Server IP Addresses 206
Table 11-1: Active Standby Configuration 252
Table 11-2: Sharing Active-Active Failover 260
Table 11-3: VRRP Tracking Parameters 261
Web OS 10.0 Application Guide
18 Tables 212777-A, February 2002
Table 12-1: GSLB Example: California Real Server IP Addresses 296
Table 12-2: GSLB Example: California Alteon 180 Port Usage 297
Table 12-3: Denver Real Server IP Addresses 300
Table 12-4: Web Host Example: Alteon 180 Port Usage 301
Table 12-5: HTTP Versus Non-HTTP Redirects 305
Table 15-1: Standard Regular Expression Special Characters 412
Table 15-2: Real Server Content 416
Table 16-1: Comparison Among the Three Cookie Modes 427
Table 17-1: Bandwidth Rate Limits 445
Table 17-2: Bandwidth Policy Limits 445
212777-A, February 2002 19
New Features
The following table lists the new features in Web OS 10.0 and the supported platforms:
Feature Alteon Web Switches
AD3/180e Alteon Web Switches
AD4/184
Vlan-based default gateway No Yes
Vlan Filtering No Yes
Multiple Instances of Spanning Tree Yes Yes
Layer 7 deny filter Yes Yes
Increase real server support to 1024 No Yes
SYN Attack Detection/Protection Yes Yes
Enhanced Port Mirroring Yes Yes
Reporting Classification Manager: SYSLOG and
SNMP
No Yes
Reporting Classification Manager: Ability to fil-
ter SYSLOG based on severity
No Yes
Reporting Classification Manager: SNMP traps
defined for VRRP state changes
No Yes
Reporting Classification Manager: SNMP traps
defined for failed login
No Yes
Selectable Hash Parameters Yes Yes
Layer 4 DNS Load Balancing (UDP and TCP
ports)
Yes Yes
L7 DNS Load Balancing Yes Yes
Enhanced DNS Health Check Yes Yes
TCP Rate Limiting Yes Yes
Web OS 10.0 Application Guide
20 New Features 212777-A, February 2002
Hash on any HTTP header Yes Yes
Increase support of 16 rport to vport No Yes
Increased number of scripted health check to 16 No Yes
Descriptive names for filters Yes Yes
OSPF No Yes
LDAP health check Yes Yes
Streaming Cache Redirection Yes Yes
L7 Parsing of RTSP SLB Yes Yes
ARP health check Yes Yes
Telnet client Yes Yes
Increase logging buffer Yes Yes
Support of OPER command on Web OS BBI and
SNMP
No Yes
Enhanced Web OS Browser-based Interface
support
No Yes
Configurable prompt name Yes Yes
Bandwidth management No Yes
Feature Alteon Web Switches
AD3/180e Alteon Web Switches
AD4/184
212777-A, February 2002 21
Preface
This Application Guide describes how to configure and use the Web OS software on the Alteon
Web switches. For documentation on installing the switches physically, see the Hardware
Installation Guide for your particular switch model.
Who Should Use This Guide
This Application Guide is intended for network installers and system administrators engaged in
configuring and maintaining a network. The administrator should be familiar with Ethernet
concepts, IP addressing, Spanning Tree Protocol, and SNMP configuration parameters.
What You’ll Find in This Guide
This guide will help you plan, implement, and administer Web OS software. Where possible,
each section provides feature overviews, usage examples, and configuration instructions.
Part 1: Basic Switching & Routing
nChapter 1, “Basic IP Routing,” describes how to configure the Web switch for IP routing
using IP subnets, Border Gateway Protocol (BGP), or DHCP Relay.
nChapter 2, “VLANs,” describes how to configure Virtual Local Area Networks (VLANs)
for creating separate network segments, including how to use VLAN tagging for devices
that use multiple VLANs. This chapter also describes how Jumbo frames can be used to
ease server processing overhead.
nChapter 3, “Port Trunking,” describes how to group multiple physical ports together to
aggregate the bandwidth between large-scale network devices.
nChapter 4, “OSPF,” describes OSPF concepts, how OSPF is implemented in Web OS, and
four examples of how to configure your switch for OSPF support.
Web OS 10.0 Application Guide
22 Preface 212777-A, February 2002
nChapter 5, “Secure Switch Management,” describes how to manage the switch using spe-
cific IP addresses, RADIUS authentication, Secure Shell (SSH), and Secure Copy (SCP).
Part 2: Web Switching Fundamentals
nChapter 6, “Server Load Balancing,” describes how to configure the Web switch to bal-
ance network traffic among a pool of available servers for more efficient, robust, and scal-
able network services.
nChapter 7, “Filtering,” describes how to configure and optimize network traffic filters for
security and Network Address Translation purposes.
nChapter 8, “Application Redirection,” describes how to use filters for redirecting traffic to
such network streamlining devices as Web caches.
nChapter 9, “Virtual Matrix Architecture,” describes how to optimize system resources by
distributing the workload to multiple processors.
nChapter 10, “Health Checking,” describes how to configure the Web switch to recognize
the availability of the various network resources used with the various load-balancing and
application redirection features.
nChapter 11, “High Availability,” describes how to use the Virtual Router Redundancy Pro-
tocol (VRRP) to ensure that network resources remain available if one Web switch fails.
Part 3: Advanced Web Switching
nChapter 12, “Global Server Load Balancing,” describes configuring Server Load Balanc-
ing across multiple geographic sites.
nChapter 13, “Firewall Load Balancing,” describes how to combine features to provide a
scalable solution for load balancing multiple firewalls.
nChapter 14, “Virtual Private Network Load Balancing,” describes using your Web switch
to load balance secure point-to-point links.
nChapter 15, “Content Intelligent Switching,” describes how to perform load balancing and
application redirection based on Layer 7 packet content information (such as URL, HTTP
Header, browser type, and cookies).
nChapter 16, “Persistence,” describes how to ensure that all connections from a specific cli-
ent session reach the same server. Persistence can be based on cookies or SSL session ID.
nChapter 17, “Bandwidth Management,” describes how to configure the Web switch for
allocating specific portions of the available bandwidth for specific users or applications.
Web OS 10.0 Application Guide
Preface 23
212777-A, February 2002
Typographic Conventions
The following table describes the typographic styles used in this book.
Table 1 Typographic Conventions
Typeface or
Symbol Meaning Example
AaBbCc123 This type is used for names of commands,
files, and directories used within the text.
View the readme.txt file.
It also depicts on-screen computer output and
prompts.
Main#
AaBbCc123 This bold type appears in command exam-
ples. It shows text that must be typed in
exactly as shown.
Main# sys
<AaBbCc123> This italicized type appears in command
examples as a parameter placeholder. Replace
the indicated text with the appropriate real
name or value when using the command. Do
not type the brackets.
To establish a Telnet session, enter:
host# telnet <IP address>
This also shows book titles, special terms, or
words to be emphasized.
Read your User’s Guide thoroughly.
[ ] Command items shown inside brackets are
optional and can be used or excluded as the
situation demands. Do not type the brackets.
host# ls [-a]
Web OS 10.0 Application Guide
24 Preface 212777-A, February 2002
Contacting Us
For complete product support and sales information, visit the Nortel Networks website at the
following URL:
http://www.nortelnetworks.com
See the contact information on this site for regional support and sales phone numbers and
e-mail addresses.
nIn North America, dial toll-free 1-800-4NORTEL.
nOutside North America, call 987-288-3700.
212777-A, February 2002 25
Part 1: Basic Switching &
Routing
This section discusses basic Layer 1 through Layer 3 switching and routing functions. In addi-
tion to switching traffic at near line rates, the Web switch can perform multi-protocol routing.
This section includes the following basic switching and routing topics:
nBasic IP Routing
nVLANs
nJumbo Frames
nPort Trunking
nBorder Gateway Protocol (BGP)
nOpen Shortest Path First (OSPF)
nSecure Switch Management
Web OS 10.0 Application Guide
26 Basic Switching & Routing 212777-A, February 2002
212777-A, February 2002 27
CHAPTER 1
Basic IP Routing
This chapter provides configuration background and examples for using the Alteon Web switch
to perform IP routing functions. The following topics are addressed in this chapter:
n“IP Routing Benefits” on page 28
n“Routing Between IP Subnets” on page 28
n“Example of Subnet Routing” on page 31
n“Defining IP Address Ranges for the Local Route Cache” on page 35
n“Border Gateway Protocol (BGP)” on page 36
n“DHCP Relay” on page 41
Web OS 10.0 Application Guide
28 Chapter 1: Basic IP Routing 212777-A, February 2002
IP Routing Benefits
The Alteon Web switch uses a combination of configurable IP switch interfaces and IP routing
options. The switch IP routing capabilities provide the following benefits:
nConnects the server IP subnets to the rest of the backbone network.
nPerforms server load balancing (using both Layer 3 and Layer 4 switching in combina-
tion) to server subnets that are separate from backbone subnets.
nProvides another means to invisibly introduce Jumbo frame technology into the server-
switched network by automatically fragmenting UDP Jumbo frames when routing to non-
Jumbo frame VLANs or subnets.
nProvides the ability to route IP traffic between multiple Virtual Local Area Networks
(VLANs) configured on the switch.
Routing Between IP Subnets
The physical layout of most corporate networks has evolved over time. Classic hub/router
topologies have given way to faster switched topologies, particularly now that switches are
increasingly intelligent. Alteon Web switches are intelligent and fast enough to perform rout-
ing functions on a par with wire speed Layer 2 switching.
The combination of faster routing and switching in a single device provides another service—
it allows you to build versatile topologies that account for legacy configurations.
Web OS 10.0 Application Guide
Chapter 1: Basic IP Routing 29
212777-A, February 2002
For example, consider the following topology migration:
Figure 1-1 The Router Legacy Network
In this example, a corporate campus has migrated from a router-centric topology to a faster,
more powerful, switch-based topology. As is often the case, the legacy of network growth and
redesign has left the system with a mix of illogically distributed subnets.
This is a situation that switching alone cannot cure. Instead, the router is flooded with cross-
subnet communication. This compromises efficiency in two ways:
nRouters can be slower than switches. The cross-subnet side trip from the switch to the
router and back again adds two hops for the data, slowing throughput considerably.
nTraffic to the router increases, increasing congestion.
Even if every end-station could be moved to better logical subnets (a daunting task), competi-
tion for access to common server pools on different subnets still burdens the routers.
This problem is solved by using Alteon Web switches with built-in IP routing capabilities.
Cross-subnet LAN traffic can now be routed within the Web switches with wire speed Layer 2
switching performance. This not only eases the load on the router but saves the network
administrators from reconfiguring each and every end-station with new IP addresses.
Admin/Sales
Server
Subnet
Router
Switch
Staff/Eng2
Switch
Eng/Staff2/Sales
Switch
FDDI
Internet
Web Switch
Admin. Subnet
Server
Subnet
Hub
Staff Subnet
Hub
Eng. Subnet
Hub
Internet
FDDI Router
Web OS 10.0 Application Guide
30 Chapter 1: Basic IP Routing 212777-A, February 2002
Take a closer look at the Alteon Web switch in the following configuration example:
Figure 1-2 Switch-Based Routing Topology
The Alteon Web switch connects the Gigabit Ethernet and Fast Ethernet trunks from various
switched subnets throughout one building. Common servers are placed on another subnet
attached to the switch. A primary and backup router are attached to the switch on yet another
subnet.
Without Layer 3 IP routing on the switch, cross-subnet communication is relayed to the default
gateway (in this case, the router) for the next level of routing intelligence. The router fills in the
necessary address information and sends the data back to the switch, which then relays the
packet to the proper destination subnet using Layer 2 switching.
With Layer 3 IP routing in place on the Alteon Web switch, routing between different IP sub-
nets can be accomplished entirely within the switch. This leaves the routers free to handle
inbound and outbound traffic for this group of subnets.
To make implementation even easier, UDP Jumbo frame traffic is automatically fragmented to
regular Ethernet frame sizes when routing to non-Jumbo frame VLANS or subnets. This auto-
matic frame conversion allows servers to communicate using Jumbo frames, all transparently
to the user.
Third Floor
10/100 Client Subnet
208.31.177.1-254
Second Floor
10/100 Client Subnet
131.15.15.1-254
First Floor
10/100 Client Subnet
100.20.10.1-254
1000 Mbps 1000 Mbps
1000 Mbps
Alteon Web Switch
Secondary Default
Router: 205.21.17.2 Server Subnet:
206.30.15.1-254
Primary Default
Router: 205.21.17.1
IF#1 IF#5
IF#3
IF#2 IF#4
IP Routing
Web OS 10.0 Application Guide
Chapter 1: Basic IP Routing 31
212777-A, February 2002
Example of Subnet Routing
Prior to configuring, you must be connected to the switch Command Line Interface (CLI) as
the administrator.
NOTE – For details about accessing and using any of the menu commands described in this
example, see the Web OS Command Reference.
1. Assign an IP address (or document the existing one) for each real server, router, and cli-
ent workstation.
In the example topology in Figure 1-2 on page 30, the following IP addresses are used:
2. Assign an IP interface for each subnet attached to the switch.
Since there are five IP subnets connected to the switch, five IP interfaces are needed:
Table 1-1 Subnet Routing Example: IP Address Assignments
Subnet Devices IP Addresses
1 Primary and Secondary Default Routers 205.21.17.1 and 205.21.17.2
2 First Floor Client Workstations 100.20.10.1-254
3 Second Floor Client Workstations 131.15.15.1-254
4 Third Floor Client Workstations 208.31.177.1-254
5 Common Servers 206.30.15.1-254
Table 1-2 Subnet Routing Example: IP Interface Assignments
Interface Devices IP Interface Address
IF 1 Primary and Secondary Default Routers 205.21.17.3
IF 2 First Floor Client Workstations 100.20.10.16
IF 3 Second Floor Client Workstations 131.15.15.1
IF 4 Third Floor Client Workstations 208.31.177.2
IF 5 Common Servers 206.30.15.200
Web OS 10.0 Application Guide
32 Chapter 1: Basic IP Routing 212777-A, February 2002
IP interfaces are configured using the following commands at the CLI:
3. Set each server and workstation’s default gateway to the appropriate switch IP interface
(the one in the same subnet as the server or workstation).
4. Configure the default gateways to the routers’ addresses.
Configuring the default gateways allows the switch to send outbound traffic to the routers:
5. Enable, apply, and verify the configuration.
Examine the resulting information. If any settings are incorrect, make the appropriate changes.
6. Save your new configuration changes.
>> # /cfg/ip/if 1 (Select IP interface 1)
>> IP Interface 1# addr 205.21.17.3 (Assign IP address for the interface)
>> IP Interface 1# ena (Enable IP interface 1)
>> IP Interface 1# ../if 2 (Select IP interface 2)
>> IP Interface 2# addr 100.20.10.16 (Assign IP address for the interface)
>> IP Interface 2# ena (Enable IP interface 2)
>> IP Interface 2# ../if 3 (Select IP interface 3)
>> IP Interface 3# addr 131.15.15.1 (Assign IP address for the interface)
>> IP Interface 3# ena (Enable IP interface 3)
>> IP Interface 3# ../if 4 (Select IP interface 4)
>> IP Interface 4# addr 208.31.177.2 (Assign IP address for the interface)
>> IP Interface 4# ena (Enable IP interface 4)
>> IP Interface 4# ../if 5 (Select IP interface 5)
>> IP Interface 5# addr 206.30.15.200 (Assign IP address for the interface)
>> IP Interface 5# ena (Enable IP interface 5)
>> IP Interface 5# ../gw 1 (Select primary default gateway)
>> Default gateway 1# addr 205.21.17.1 (Assign IP address for primary router)
>> Default gateway 1# ena (Enable primary default gateway)
>> Default gateway 1# ../gw 2 (Select secondary default gateway)
>> Default gateway 2# addr 205.21.17.2 (Assign address for secondary router)
>> Default gateway 2# ena (Enable secondary default gateway)
>> Default gateway 2# ../fwrd (Select the IP Forwarding Menu)
>> IP Forwarding# on (Turn IP forwarding on)
>> IP Forwarding# apply (Make your changes active)
>> IP Forwarding# /cfg/ip/cur (View current IP settings)
>> IP# save (Save for restore after reboot)
Web OS 10.0 Application Guide
Chapter 1: Basic IP Routing 33
212777-A, February 2002
Using VLANs to Segregate Broadcast Domains
In the previous example, devices that share a common IP network are all in the same broadcast
domain. If you want to limit the broadcasts on your network, you could use VLANs to create
distinct broadcast domains. For example, as shown in the following procedure, you could cre-
ate one VLAN for the client trunks, one for the routers, and one for the servers.
In this example, you are adding to the previous configuration.
1. Determine which switch ports and IP interfaces belong to which VLANs.
The following table adds port and VLAN information:
2. Add the switch ports to their respective VLANs.
The VLANs shown in Table 1-3 are configured as follows:
Table 1-3 Subnet Routing Example: Optional VLAN Ports
VLAN Devices IP Interface Switch Port
1 First Floor Client Workstations 2 1
Second Floor Client Workstations 3 2
Third Floor Client Workstations 4 3
2 Primary Default Router 1 4
Secondary Default Router 1 5
3Common Servers 1 5 6
Common Servers 2 5 7
>> # /cfg/vlan 1 (Select VLAN 1)
>> VLAN 1# add port 1 (Add port for 1st floor to VLAN 1)
>> VLAN 1# add port 2 (Add port for 2nd floor to VLAN 1)
>> VLAN 1# add port 3 (Add port for 3rd floor to VLAN 1)
>> VLAN 1# ena (Enable VLAN 1)
>> VLAN 1# ../VLAN 2 (Select VLAN 2)
>> VLAN 2# add port 4 (Add port for default router 1)
>> VLAN 2# add port 5 (Add port for default router 2)
>> VLAN 2# ena (Enable VLAN 2)
>> VLAN 2# ../VLAN 3 (Add port for default router 3)
>> VLAN 3# add port 6 (Select VLAN 3)
>> VLAN 3# add port 7 (Select port for common server 1)
>> VLAN 3# ena (Enable VLAN 3)
Web OS 10.0 Application Guide
34 Chapter 1: Basic IP Routing 212777-A, February 2002
Each time you add a port to a VLAN, you may get the following prompt:
Enter y to set the default Port VLAN ID (PVID) for the port.
3. Add each IP interface to the appropriate VLAN.
Now that the ports are separated into three VLANs, the IP interface for each subnet must be
placed in the appropriate VLAN. From Table 1-3 on page 33, the settings are made as follows:
4. Apply and verify the configuration.
Examine the resulting information. If any settings are incorrect, make the appropriate changes.
5. Save your new configuration changes.
Port 4 is untagged and VLAN 2 is not a configured PVID for port 4.
Would you like to change all PVIDS for port 4 to VLAN 2 [y n]?
>> VLAN 3# /cfg/ip/if 1 (Select IP interface 1 for def. routers)
>> IP Interface 1# vlan 2 (Set to VLAN 2)
>> IP Interface 1# ../if 2 (Select IP interface 2 for first floor)
>> IP Interface 2# vlan 1 (Set to VLAN 1)
>> IP Interface 2# ../if 3 (Select IP interface 3 for second floor)
>> IP Interface 3# vlan 1 (Set to VLAN 1)
>> IP Interface 3# ../if 4 (Select IP interface 4 for third floor)
>> IP Interface 4# vlan 1 (Set to VLAN 1)
>> IP Interface 4# ../if 5 (Select IP interface 5 for servers)
>> IP Interface 5# vlan 3 (Set to VLAN 3)
>> IP Interface 5# apply (Make your changes active)
>> IP Interface 5# /info/vlan (View current VLAN information)
>> Information# port (View current port information)
>> Information# save (Save for restore after reboot)
Web OS 10.0 Application Guide
Chapter 1: Basic IP Routing 35
212777-A, February 2002
Defining IP Address Ranges for the Local
Route Cache
A local route cache lets you use switch resources more efficiently. The local network address
and local network mask parameters (accessed via the /cfg/ip/frwd/local/add com-
mand) define a range of addresses that will be cached on the switch. The local network address
is used to define the base IP address in the range that will be cached. The local network mask is
applied to produce the range. To determine if a route should be added to the memory cache, the
destination address is masked (bit-wise AND) with the local network mask and checked
against the local network address.
By default, the local network address and local network mask are both set to 0.0.0.0. This pro-
duces a range that includes all Internet addresses for route caching: 0.0.0.0 through
255.255.255.255.
To limit the route cache to your local hosts, you could configure the parameters as shown in the
following example:
NOTE – Static routes must be configured within the configured range. All other addresses that
fall outside the defined range are forwarded to the default gateway.
Table 1-4 Local Routing Cache Address Ranges
Local Host Address Range Local Network Address Local Network Mask
0.0.0.0 - 127.255.255.255 0.0.0.0 128.0.0.0
128.0.0.0 - 128.255.255.255 128.0.0.0 128.0.0.0 or 255.0.0.0
205.32.0.0 - 205.32.255.255 205.32.0.0 255.255.0.0
Web OS 10.0 Application Guide
36 Chapter 1: Basic IP Routing 212777-A, February 2002
Border Gateway Protocol (BGP)
Border Gateway Protocol (BGP) is an Internet protocol that enables routers on a network to
share and advertise routing information with each other about the segments of the IP address
space they can access within their network and with routers on external networks. BGP allows
you to decide what is the “best” route for a packet to take from your network to a destination
on another network rather than simply setting a default route from your border router(s) to your
upstream provider(s). BGP is defined in RFC 1771.
Alteon Web switches can advertise their IP interfaces and virtual server IP addresses using
BGP and take BGP feeds from as many as four BGP router peers. This allows more resilience
and flexibility in balancing traffic from the Internet.
Internal Routing Versus External Routing
To ensure effective processing of network traffic, every router on your network needs to know
how to send a packet (directly or indirectly) to any other location/destination in your network.
This is referred to as internal routing and can be done with static routes or using active, inter-
nal routing protocols, such as RIP, RIPv2, and OSPF.
It is also useful to tell routers outside your network (upstream providers or peers) about the
routes you can access in your network. External networks (those outside your own) that are
under the same administrative control are referred to as autonomous systems (AS). Sharing of
routing information between autonomous systems is known as external routing.
External BGP (eBGP) is used to exchange routes between different autonomous systems
whereas internal BGP (iBGP) is used to exchange routes within the same autonomous system.
An iBGP is a type of internal routing protocol you can use to do active routing inside your net-
work. It also carries AS path information, which is important when you are an ISP or doing
BGP transit.
NOTE – The iBGP peers must be part of a fully meshed network, as shown in Figure 1-3.
Web OS 10.0 Application Guide
Chapter 1: Basic IP Routing 37
212777-A, February 2002
Figure 1-3 iBGP and eBGP
Typically, an AS has one or more multiple border routers—peer routers that exchange routes
with other ASs—and an internal routing scheme that enables routers in that AS to reach every
other router and destination within that AS. When you advertise routes to border routers on
other autonomous systems, you are effectively committing to carry data to the IP space repre-
sented in the route being advertised. For example, if you advertise 192.204.4.0/24, you are
declaring that if another router sends you data destined for any address in 192.204.4.0/24, you
know how to carry that data to its destination.
Forming BGP Peer Routers
Two BGP routers become peers or neighbors once you establish a TCP connection between
them. For each new route, if a peer is interested in that route (for example, if a peer would like
to receive your static routes and the new route is static), an update message is sent to that peer
containing the new route. For each route removed from the route table, if the route has already
been sent to a peer, an update message containing the route to withdraw is sent to that peer.
For each Internet host, you must be able to send a packet to that host, and that host has to have a
path back to you. This means that whoever provides Internet connectivity to that host must have
a path to you. Ultimately, this means that they must “hear a route” which covers the section of the
IP space you are using; otherwise, you will not have connectivity to the host in question.
BGP Failover Configuration
Use the following example to create redundant default gateways for an Alteon Web switch at a
Web Host/ISP site, eliminating the possibility, should one gateway go down, that requests will
be forwarded to an upstream router unknown to the switch.
AS 11
AS 50
AS 20
eBGP
Internet
ISP A
ISP B
iBGP
Web
Switches
Web OS 10.0 Application Guide
38 Chapter 1: Basic IP Routing 212777-A, February 2002
As shown in Figure 1-4, the switch is connected to ISP 1 and ISP 2. The customer negotiates
with both ISPs to allow the Web switch to use their peer routers as default gateways. The ISP
peer routers will then need to announce themselves as default gateways to the Web switch.
Figure 1-4 BGP Failover Configuration Example
On the Web switch, one peer router (the secondary one) is configured with a longer AS path
than the other, so that the peer with the shorter AS path will be seen by the switch as the pri-
mary default gateway. ISP 2, the secondary peer, is configured with a metric of “3,” thereby
appearing to the switch to be three router hops away.
1. Configure the switch as you normally would for Server Load Balancing (SLB).
nAssign an IP address to each of the real servers in the server pool.
nDefine each real server.
nDefine a real server group.
nDefine a virtual server.
nDefine the port configuration.
For more information about SLB configuration, refer to Chapter 6.
ISP 2
Default gateway,
with routes having
shorter AS PATH
VIP: 200.200.200.200
Alteon Web switch
IP: 200.200.200.1
IP:210.210.210.1
Web switch
announces
routes with
metric of "3"
Peer 1 Router
(Primary)
IP: 200.200.200.2
AS 100
ISP 1
AS 200
Real server 2
IP: 200.200.200.11
Real server 1
IP: 200.200.200.10
AS 300
AS 300
Peer 2 Router
(Secondary)
IP: 210.210.210.2
Alteon metric = AS path
length (metric of '3' = local
AS repeated 3 times
Web OS 10.0 Application Guide
Chapter 1: Basic IP Routing 39
212777-A, February 2002
2. Define the VLANs.
For simplicity, both default gateways are configured in the same VLAN in this example. The
gateways could be in the same VLAN or different VLANs.
3. Define the IP interfaces.
The switch will need an IP interface for each default gateway to which it will be connected.
Each interface will need to be placed in the appropriate VLAN. These interfaces will be used
as the primary and secondary default gateways for the switch.
4. Enable IP forwarding.
IP forwarding is used for VLAN-to-VLAN (non-BGP) routing. You need to enable IP forward-
ing if the default gateways are on different subnets or if the switch is connected to different
subnets and those subnets need to communicate through the switch (which they almost always
do).
NOTE – To help eliminate the possibility for a Denial of Service (DoS) attack, the forwarding
of directed broadcasts is disabled by default.
>> # /cfg/vlan 1 (Select VLAN 1)
>> vlan 1# add <port number>(Add a port to the VLAN membership)
>> vlan 1# ena (Enable VLAN 1)
>> /cfg/ip/rearp 10 (Set re-ARP period for interface to 10)
>> IP# metrc strict (Set metric for default gateway)
>> IP# if 1 (Select default gateway interface 1)
>> IP Interface 1# ena (Enable switch interface 1)
>> IP Interface 1# addr 200.200.200.1 (Configure IP address of interface 1)
>> IP Interface 1# mask 255.255.255.0 (Configure IP subnet address mask)
>> IP Interface 1# broad 200.200.200.255 (Configure IP broadcast address)
>> IP Interface 1# vlan 1 (Configure VLAN # for this interface)
>> IP Interface 1# ../ip/if 2 (Select default gateway interface 2)
>> IP Interface 2# ena (Enable switch interface 2)
>> IP Interface 2# addr 210.210.210.1 (Configure IP address of interface 2)
>> IP Interface 2# mask 255.255.255.0 (Configure IP subnet address mask)
>> IP Interface 2# broad 210.210.210.255 (Configure IP broadcast address)
>> IP Interface 2# vlan 1 (Configure VLAN # for this interface)
>> /cfg/ip/ frwd on (Enable IP forwarding)
Web OS 10.0 Application Guide
40 Chapter 1: Basic IP Routing 212777-A, February 2002
5. Configure BGP peer router 1 and 2.
Peer 1 is the primary gateway router. Peer 2 is configured with a metric of “3.” The metric
option is key to ensuring gateway traffic is directed to Peer 1, as it will make Peer 2 appear to
be three router hops away from the switch. Thus, the switch should never use it unless Peer 1
goes down.
The metric command in the peer menu tells the Alteon Web switch to create an AS path of “3”
when advertising via BGP.
6. On the switch, apply and save your configuration changes.
>> # /cfg/ip/bgp/peer 1 (Select BGP peer router 1)
>> BGP Peer 1# ena (Enable this peer configuration)
>> BGP Peer 1# addr 200.200.200.2 (Set IP address for peer router 1)
>> BGP Peer 1# if 200.200.200.1 (Set IP interface for peer router 1)
>> BGP Peer 1# las 300 (Set local AS number)
>> BGP Peer 1# ras 100 (Set remote AS number)
>> BGP Peer 1# ../peer 2 (Select BGP peer router 2)
>> BGP Peer 2# ena (Enable this peer configuration)
>> BGP Peer 2# addr 210.210.210.2 (Set IP address for peer router 2)
>> BGP Peer 2# if 210.210.210.1 (Set IP interface for peer router 2)
>> BGP Peer 2# las 300 (Set local AS number)
>> BGP Peer 2# ras 200 (Set remote AS number)
>> BGP Peer 2# metric 3 (Set AS path length to 3 router hops)
>> BGP Peer 2# apply (Make your changes active)
>> save (Save for restore after reboot)
Web OS 10.0 Application Guide
Chapter 1: Basic IP Routing 41
212777-A, February 2002
DHCP Relay
Dynamic Host Configuration Protocol (DHCP) is a transport protocol that provides a frame-
work for automatically assigning IP addresses and configuration information to other IP hosts
or clients in a large TCP/IP network. Without DHCP, the IP address must be entered manually
for each network device. DHCP allows a network administrator to distribute IP addresses from
a central point and automatically send a new IP address when a device is connected to a differ-
ent place in the network.
DHCP is an extension of another network IP management protocol, Bootstrap Protocol
(BOOTP), with an additional capability of being able to dynamically allocate reusable network
addresses and configuration parameters for client operation.
Built on the client/server model, DHCP allows hosts or clients on an IP network to obtain their
configurations from a DHCP server, thereby reducing network administration. The most sig-
nificant configuration the client receives from the server is its required IP address; (other
optional parameters include the “generic” file name to be booted, the address of the default
gateway, and so forth).
Nortel Networks DHCP relay agent eliminates the need to have DHCP/BOOTP servers on
every subnet. It allows the administrator to reduce the number of DHCP servers deployed on
the network and to centralize them. Without the DHCP relay agent, there must be at least one
DHCP server deployed at each subnet that has hosts needing to perform the DHCP request.
DHCP Overview
DHCP is described in RFC 2131, and the DHCP relay agent supported on Alteon Web
switches is described in RFC 1542. DHCP uses UDP as its transport protocol. The client sends
messages to the server on port 67 and the server sends messages to the client on port 68.
DHCP defines the methods through which clients can be assigned an IP address for a finite
lease period and allowing reassignment of the IP address to another client later. Additionally,
DHCP provides the mechanism for a client to gather other IP configuration parameters it needs
to operate in the TCP/IP network.
In the DHCP environment, the Alteon Web switch acts as a relay agent. The DHCP relay fea-
ture (/cfg/ip/bootp) enables the switch to forward a client request for an IP address to
two BOOTP servers with IP addresses that have been configured on the switch.
When a switch receives a UDP broadcast on port 67 from a DHCP client requesting an IP
address, the switch acts as a proxy for the client, replacing the client source IP (SIP) and desti-
nation IP (DIP) addresses. The request is then forwarded as a UDP Unicast MAC layer mes-
sage to two BOOTP servers whose IP addresses are configured on the switch. The servers
Web OS 10.0 Application Guide
42 Chapter 1: Basic IP Routing 212777-A, February 2002
respond as a a UDP Unicast message back to the switch, with the default gateway and IP
address for the client. The destination IP address in the server response represents the interface
address on the switch that received the client request. This interface address tells the switch on
which VLAN to send the server response to the client.
DHCP Relay Agent Configuration
To enable the Alteon Web switch to be the BOOTP forwarder, you need to configure the
DHCP/BOOTP server IP addresses on the switch. Generally, you should configure the com-
mand on the switch IP interface closest to the client so that the DHCP server knows from
which IP subnet the newly allocated IP address should come.
The following figure shows a basic DHCP network example:
Figure 1-5 DHCP Relay Agent Configuration
In Alteon Web switch implementation, there is no need for primary or secondary servers. The
client request is forwarded to the BOOTP servers configured on the switch. The use of two
servers provide failover redundancy. However, no health checking is supported.
Use the following commands to configure the switch as a DHCP relay agent:
Additionally, DHCP Relay functionality can be assigned on a per interface basis. Use the fol-
lowing command to enable the Relay functionality:
>> # /cfg/ip/bootp
>> Bootstrap Protocol Relay# addr (Set IP address of BOOTP server)
>> Bootstrap Protocol Relay# addr2 (Set IP address of 2nd BOOTP server)
>> Bootstrap Protocol Relay# on (Globally turn BOOTP relay on)
>> Bootstrap Protocol Relay# off (Globally turn BOOTP relay off)
>> Bootstrap Protocol Relay# cur (Display current configuration)
>> # /cfg/ip/if <interface number>/relay ena
DHCP Client Web Switch
DHCP Relay Agent DHCP Server
Boston Atlanta
20.1.1.1 10.1.1.2
212777-A, February 2002 43
CHAPTER 2
VLANs
This chapter describes network design and topology considerations for using Virtual Local Area
Networks (VLANs). VLANs are commonly used to split up groups of network users into man-
ageable broadcast domains, to create logical segmentation of workgroups, and to enforce security
policies among logical segments. The following topics are discussed in this chapter:
n“VLAN ID Numbers” on page 44
n“VLAN Tagging” on page 44
n“VLANs and the IP Interfaces” on page 45
This section briefly describes how management functions can only be accomplished from
stations on VLANs that include an IP interface to the switch.
n“VLAN Topologies and Design Issues” on page 45
This section discusses how you can logically connect users and segments to a host that
supports many logical segments or subnets by using the flexibility of the multiple VLAN
system.
n“VLANs and Spanning Tree Protocol” on page 49
n“VLANs and Default Gateways” on page 58
n“VLANs and Jumbo Frames” on page 63
NOTE – Basic VLANs can be configured during initial switch configuration (see “Using the
Setup Utility” in the Web OS Command Reference). More comprehensive VLAN configuration
can be done from the Command Line Interface (see “VLAN Configuration” as well as “Port
Configuration” in the Web OS Command Reference).
Web OS 10.0 Application Guide
44 Chapter 2: VLANs 212777-A, February 2002
VLAN ID Numbers
Web OS supports up to 246 VLANs per switch. Even though the maximum number of VLANs
supported at any given time is 246, each can be identified with any number between 1 and
4094.
VLANs are defined on a per-port basis. Each port on the switch can belong to one or more
VLANs, and each VLAN can have any number of switch ports in its membership. Any port
that belongs to multiple VLANs, however, must have VLAN tagging enabled (see “VLAN
Tagging” on page 44).
Each port in the switch has a configurable default VLAN number, known as its PVID. The fac-
tory default value of all PVIDs is 1. This places all ports on the same VLAN initially, although
each port’s PVID is configurable to any VLAN number between 1 and 4094.
Any untagged frames (those with no VLAN specified) are classified with the sending port’s
PVID.
VLAN Tagging
Web OS software supports 802.1Q VLAN tagging, providing standards-based VLAN support
for Ethernet systems.
Tagging places the VLAN identifier in the frame header, allowing multiple VLANs per port.
When you configure multiple VLANs on a port, you must also enable tagging on that port.
Since tagging fundamentally changes the format of frames transmitted on a tagged port, you
must carefully plan network designs to prevent tagged frames from being transmitted to
devices that do not support 802.1Q VLAN tags.
Web OS 10.0 Application Guide
Chapter 2: VLANs 45
212777-A, February 2002
VLANs and the IP Interfaces
Carefully consider how you create VLANs within the switch, so that communication with the
switch Management Processor (MP) remains possible.
You can access the switch for remote configuration, trap messages, and other management
functions only from stations on VLANs that include an IP interface to the switch (see “IP Inter-
face Menu” section in the Web OS Command Reference). Likewise, you can cut off access to
management functions to any VLAN by excluding IP interfaces from the VLAN’s member-
ship.
For example, if all IP interfaces are left on VLAN 1 (the default), and all ports are configured
for VLANs other than VLAN 1, then switch management features are effectively cut off. If an
IP interface is added to one of the other VLANs, the stations in that VLAN will all have access
to switch management features.
VLAN Topologies and Design Issues
By default, the Web OS software has a single VLAN configured on every port. This configura-
tion groups all ports into the same broadcast domain. The VLAN has an 802.1Q VLAN PVID
of 1. VLAN tagging is turned off, because by default only a single VLAN is configured per
port.
Since VLANs are most commonly used to create individual broadcast domains and/or separate
IP subnets, host systems should be present on more than one VLAN simultaneously. Alteon
Web switches and VLAN-tagging server adapters support multiple VLANS on a per-port or
per-interface basis, allowing very flexible configurations.
You can configure multiple VLANs on a single VLAN-tagging server adapter, with each
VLAN being configured through a logical interface and logical IP address on the host system.
Each VLAN configured on the server adapter must also be configured on the switch port to
which it is connected. If multiple VLANs are configured on the port, tagging must be turned
on.
Using this flexible multiple VLAN system, you can logically connect users and segments to a
host with a single VLAN-tagging adapter that supports many logical segments or subnets.
Web OS 10.0 Application Guide
46 Chapter 2: VLANs 212777-A, February 2002
Example 1: Multiple VLANS with Tagging Adapters
Figure 2-1 Example 1: Multiple VLANs with Tagging Gigabit Adapters
The features of this VLAN are described below:
Component Description
Web Switch This switch is configured for three VLANs that represent three differ-
ent IP subnets. Two servers and five clients are attached to the switch.
Server #1 This server is part of VLAN 3 and only has presence in one IP subnet.
The port that the VLAN is attached to is configured only for VLAN 3,
so VLAN tagging is off.
Server #2 This high-use server needs to be accessed from all VLANs and IP sub-
nets. The server has an VLAN-tagging adapter installed with VLAN
tagging turned on. The adapter is attached to one of the Web switch’s
Gigabit Ethernet ports, that is configured for VLANs 1, 2, and 3. Tag-
ging is turned on. Because of the VLAN tagging capabilities of both the
adapter and the switch, the server is able to communicate on all three IP
subnets in this network. Broadcast separation between all three VLANs
and subnets, however, is maintained.
Server #1
VLAN #3 Server #2
Gigabit/Tagged
adapter
(All VLANs)
PC #1
VLAN #2 PC #2
VLAN #2 PC #3
VLAN #1 PC #4
VLAN #3 PC #5
Gigabit/Tagged
adapter
VLANs #1 & #2
Shared Media
Alteon
Web Switch
Web OS 10.0 Application Guide
Chapter 2: VLANs 47
212777-A, February 2002
NOTE – VLAN tagging is required only on ports that are connected to other Alteon Web
switches or on ports that connect to tag-capable end-stations, such as servers with VLAN-
tagging adapters.
PCs #1 and #2 These PCs are attached to a shared media hub that is then connected to
the switch. They belong to VLAN 2 and are logically in the same IP
subnet as Server 2 and PC 5. Tagging is not enabled on their switch
port.
PC #3 A member of VLAN 1, this PC can only communicate with Server 2
and PC 5.
PC #4 A member of VLAN 3, this PC can only communicate with Server 1
and Server 2.
PC #5 A member of both VLAN 1 and VLAN 2, this PC has VLAN-tagging
Gigabit Ethernet adapter installed. It can communicate with Server #2
via VLAN 1, and to PC #1 and PC #2 via VLAN 2. The switch port to
which it is connected is configured for both VLAN 1 and VLAN 2 and
has tagging enabled.
Component Description
Web OS 10.0 Application Guide
48 Chapter 2: VLANs 212777-A, February 2002
Example 2: Parallel Links with VLANs
Figure 2-2 Example 2: Parallel Links with VLANs
The following items describe the features of this example:
nExample 2 shows how it is possible, through the use of VLANs, to create configurations
where there are multiple links between two switches, without creating broadcast loops.
nTwo Alteon Web switches are connected with two different Gigabit Ethernet links. With-
out VLANs, this configuration would create a broadcast loop, but the STP topology reso-
lution process resolves parallel loop-creating links.
nTo prevent broadcast loops, port 7 is on VLAN 10 and VLAN 22, port 8 is on VLAN 32
and VLAN 109. Both switch-to-switch links are on different VLANs and, thus, are sepa-
rated into their own broadcast domains.
nPorts 1 and 2 on both switches are on VLAN 10; ports 3 and 4 on both switches are on
VLAN 22; Ports 5 and 6 on both switches are on VLAN 32; port 9 on both switches are on
VLAN 109.
nIt is necessary to turn on Spanning Tree Protocol (STP) on at least one of the switch-to-
switch links or, alternately, turned on in both switches. STP Bridge Protocol Data Units
(BPDUs) will be transmitted out both Gigabit Ethernet ports and interpreted by the switch
that there is a loop to resolve.
nSpanning Tree is VLAN-aware.
Link
Data
Active
Link
Data
Active
9
8
TX RX
TX
RX
Power Console
5
TX RX
4
TX RX
3
TX RX
1
TX RX
2
TX RX
6
TX RX
Web Switch
10/100/10000 Mbps Ethernet Server Switch
7
TX RX
Link
Data
1000
Base-SX
Gigabit
Powered
Link
Data
Active
Link
Data
Active
9
8
TX RX
TX
RX
Power Console
5
TX RX
4
TX RX
3
TX RX
1
TX RX
2
TX RX
6
TX RX
Web Switch
10/100/10000 Mbps Ethernet Server Switch
7
TX RX
Link
Data
1000
Base-SX
Gigabit
Powered
Gigabit Ethernet Port 8
VLAN #32, VLAN #109
Gigabit Ethernet Port 7
VLAN #10, VLAN #22
020
Web OS 10.0 Application Guide
Chapter 2: VLANs 49
212777-A, February 2002
VLANs and Spanning Tree Protocol
Spanning Tree Protocol (STP) detects and eliminates logical loops in a bridged or switched
network. STP forces redundant data paths into a standby (blocked) state. When multiple paths
exist, Spanning Tree configures the network so that a switch uses only the most efficient path.
If that path fails, Spanning Tree automatically sets up another active path on the network to
sustain network operations.
The relationship between port, trunk groups, VLANs, and Spanning Trees is shown in
Table 2-1.
NOTE – Due to Spanning Tree’s sequence of listening, learning, and forwarding or blocking,
lengthy delays may occur. For more information on using STP in cross-redundant topologies,
see “Eliminating Loops with STP and VLANs” on page 278.
Table 2-1 Ports, Trunk Groups, and VLANs
Switch Element Belongs to
Port Trunk group
or
One or more VLANs
Trunk group One or more VLANs
VLAN One Spanning Tree group
Web OS 10.0 Application Guide
50 Chapter 2: VLANs 212777-A, February 2002
Bridge Protocol Data Units (BPDUs)
To create a Spanning Tree, the Web switch generates a configuration Bridge Protocol Data
Unit (BPDU), which it then forwards out of its ports. All switches in the Layer 2 network par-
ticipating in the Spanning Tree gather information about other switches in the network through
an exchange of BPDUs.
A BPDU is a 64-byte packet that is sent out at a configurable interval, which is typically set for
two seconds. The BPDU is used to establish a path, much like a “hello” packet in IP routing.
BPDUs contain information about the transmitting bridge and its ports, including bridge and
MAC addresses, bridge priority, port priority, and path cost. If the ports are tagged, each port
sends out a special BPDU containing the tagged information.
The generic action of a switch on receiving a BPDU is to compare the received BPDU to its
own BPDU that it will transmit. If the received BPDU is better than its own BPDU, it will
replace its BPDU with the received BPDU. Then, the Web switch adds its own bridge ID num-
ber and increments the path cost of the BPDU. The Web switch uses this information to block
any necessary ports.
Determining the Path for Forwarding BPDUs
When determining which port to use for forwarding and which port to block, Web switches use
information in the BPDU, including each bridge priority ID. A technique based on the “lowest
root cost” is then computed to determine the most efficient path for forwarding.
For more information on bridge priority, port priority, and port cost, refer to the Web OS 10.0
Command Reference. Much like least-cost routing, root cost assigns lower values to high-
bandwidth ports, such as Gigabit Ethernet, to encourage their use. For example, a 10-Mbps
link has a “cost” of 100, a 100-Mbps (Fast Ethernet) link carries a cost of 19, and a 1000-Mbps
(or Gigabit Ethernet) link has a cost of 4. The objective is to use the fastest links so that the
route with the lowest cost is chosen.
Web OS 10.0 Application Guide
Chapter 2: VLANs 51
212777-A, February 2002
Multiple Spanning Trees
Web OS 10.0 supports up to 16 instances of Spanning Trees or Spanning Tree groups. Each
VLAN can be placed on a unique Spanning Tree group per switch except for the default Span-
ning Tree group (STG 1). The default Spanning Tree group (1) can have more than one VLAN.
All other Spanning Tree groups (2-16) can have only one VLAN associated with it. Spanning
Tree can be enabled or disabled for each port. Multiple Spanning Trees can be enabled on
tagged or untagged ports.
NOTE – By default, all newly created VLANs are members of Spanning Tree Group 1.
Why Do We Need Multiple Spanning Trees?
Figure 2-3 shows a simple example of why we need multiple Spanning Trees. Two VLANs,
VLAN 1 and VLAN 100 exist between Web switch A and Web switch B. If you have a single
Spanning Tree group, the switches see an apparent loop, and one VLAN may become blocked,
affecting connectivity, even though no actual loop exists.
If VLAN 1 and VLAN 100 belong to different Spanning Tree Groups, then the two instances
of Spanning Tree separate the topology without forming a loop. Both VLANs can forward
packets between the Web switches without losing connectivity.
Figure 2-3 Using Multiple Instances of Spanning Tree Protocol
Spanning Tree Group 1: VLAN 1
Spanning Tree Group 2: VLAN 100
VLAN 1
VLAN 100 Web Switch B
Web Switch A
Web OS 10.0 Application Guide
52 Chapter 2: VLANs 212777-A, February 2002
Example of a Four-Switch Topology with a Single Spanning Tree
In the four-switch topology example shown in Figure 2-4 on page 52, and assuming Web
switch A has a higher priority, you can have at least three loops on the network:
nData flowing from Web switches A to B to C and back to Web switch A.
nData flowing from Web switches A to C to D and back to Web switch A
nData flowing from Web switches A to B to C to D and back to Web switch A.
With a single Spanning Tree environment, as shown in Figure 2-4, you will have two links
blocked to prevent loops on the network. It is possible that the blocks may be between Web
switches C and D and between Web switches B and C, depending on the bridge priority, port
priority, and port cost. The two blocks would prevent looping on the network, but the blocked
link between Web switches B and C will inadvertently isolate VLAN 3 altogether.
NOTE – For more information on bridge priority, port priority, and port cost see the Web OS
10.0 Command Reference.
Figure 2-4 VLAN 3 Isolated in a Single Spanning Tree Group
STG 1
VLAN 1
VLAN 1
VLAN 2
VLAN 3
Web Switch B
Web Switch C
Web Switch D
Web Switch A
VLAN 1
Blocked Port
Web OS 10.0 Application Guide
Chapter 2: VLANs 53
212777-A, February 2002
Example of a Four-Switch Topology with Multiple Spanning Trees
If multiple Spanning Trees are implemented and each VLAN is on a different Spanning Tree,
elimination of logical loops will not isolate any VLAN.
Figure 2-5 shows the same four-switch topology as in Figure 2-4 on page 52, but with multiple
Spanning Trees enabled. The VLANs are identified on each of the three shaded areas connect-
ing the switches. The port numbers are shown next to each switch. The Spanning Tree Group
(STG) number for each VLAN is shown at the switch.
Figure 2-5 Implementing Multiple Spanning Tree Groups
Three instances of Spanning Tree are configured in the example shown in Figure 2-5. Refer to
Table 2-2 on page 54 to identify the Spanning Tree group a VLAN is participating in for each
switch.
STG 1
STG 1
VLAN 1
Web Switch B
Web Switch C
Web Switch D
Web Switch A
VLAN 2
VLAN 3
Port 1
Port 1
Port 1
Port 2
Port 2
Port 8
STG 2
Port 8
Port 1
STG 1
Port 8
STG 2
Port 8
STG 2
STG 1
Web OS 10.0 Application Guide
54 Chapter 2: VLANs 212777-A, February 2002
Switch-Centric Spanning Tree Protocol
In Figure 2-5 on page 53, VLAN 2 is shared by Web switch A and B on ports 8 and 1 respec-
tively. Web switch A identifies VLAN 2 in Spanning Tree group 2 and Web switch B identifies
VLAN 2 in Spanning Tree group 1. Spanning Tree group is switch-centric—it is used to iden-
tify the VLANs participating in the Spanning Tree groups. The Spanning Tree group ID is not
transmitted in the BPDU. Each Spanning Tree decision is based on the configuration of that
switch.
Table 2-2 Multiple Spanning Tree Groups per VLAN
VLAN 1 VLAN 2 VLAN 3
Web Switch A Spanning Tree Group 1
Ports 1 and 2
Spanning Tree Group 2
Port 8
Web Switch B Spanning Tree Group 1
Port 1
Spanning Tree Group 2
Port 8
Web Switch C Spanning Tree Group 1
Ports 1 and 2
Spanning Tree Group 2
Port 8
Web Switch D Spanning Tree Group 1
Ports 1 and 8
Web OS 10.0 Application Guide
Chapter 2: VLANs 55
212777-A, February 2002
VLAN Participation in Spanning Tree Groups
The VLAN participation for each Spanning Tree group in Figure 2-5 on page 53 is discussed in
the following sections:
nVLAN 1 Participation
If Web switch A is the root bridge, then Web switch A will transmit the BPDU for VLAN
1 on ports 1 and 2. Web switch C receives the BPDU on its port 2 and Web switch D
receives the BPDU on its port 1. Web switch D will block port 8 or Web switch C will
block port 1 depending on the information provided in the BPDU.
nVLAN 2 Participation
Web switch A, the root bridge generates another BPDU for Spanning Tree Group 2 and
forwards it out from port 8. Web switch B receives this BPDU on its port 1. Port 1 on Web
switch B is on VLAN 2, Spanning Tree group 1. Because Web switch B has no additional
ports participating in Spanning Tree group 1, this BPDU is not be forwarded to any addi-
tional ports and Web switch A remains the designated root.
nVLAN 3 Participation
For VLAN 3 you can have Web switch B or C to be the root bridge. If Web switch B is the
root bridge for VLAN 3, Spanning Tree group 2, then Web switch B transmits the BPDU
out from port 8. Web switch C receives this BPDU on port 8 and is identified as participat-
ing in VLAN 3, Spanning Tree group 2. Since Web switch C has no additional ports par-
ticipating in Spanning Tree group 2, this BPDU is not forwarded to any additional ports
and Web switch B remains the designated root.
Web OS 10.0 Application Guide
56 Chapter 2: VLANs 212777-A, February 2002
Configuring Multiple Spanning Tree Groups
This configuration shows how to configure the three instances of Spanning Tree groups on the
Web switches A, B, C, and D illustrated in Figure 2-5 on page 53.
By default Spanning Trees 2-15 are empty, and Spanning Tree Group 1 contains all configured
VLANs until individual VLANs are explicitly assigned to other Spanning Tree groups. You
can have only one VLAN per Spanning Tree group except for Spanning Tree group 1.
1. Configure the following on Web switch A:
Add port 8 to VLAN 2 and define Spanning Tree group 2 for VLAN 2.
VLAN 2 is automatically removed from Spanning Tree Group 1.
2. Configure the following on Web switch B:
Add port 1 to VLAN 2, port 8 to VLAN 3 and define Spanning Tree groups 2 for VLAN 3.
VLAN 3 is automatically removed from Spanning Tree group 1 and by default VLAN 2
remains in Spanning Tree group 1.
NOTE – Each instance of Spanning Tree group is enabled by default.
>> # /cfg/vlan2 (Select VLAN 2 menu)
>> VLAN 2# add 8 (Add port 8)
>> VLAN 2# ../stp (Select STP menu)
>> Enter Spanning Tree group index [1-16]# 2(Select Spanning Tree Group 2)
>> Spanning Tree Group 2# add 2 (Add VLAN 2)
>> # /cfg/vlan2 (Select VLAN 2 menu)
>> VLAN 2# add 1 (Add port 1)
>> VLAN 2# ../stp (Select STP menu)
>> VLAN 2# ../vlan3 (Select VLAN 3 menu)
>> VLAN 3# add 8 (Add port 8)
>> VLAN 3# ../stp (Select STP menu)
>> Enter Spanning Tree group index [1-16]# 2(Select group 2)
>> Spanning Tree Group 2# add 2 (Add VLAN 3)
Web OS 10.0 Application Guide
Chapter 2: VLANs 57
212777-A, February 2002
3. Configure the following on Web switch C:
Add port 8 to VLAN 3 and define Spanning Tree group 3 for VLAN 3.
VLAN 3 is automatically removed from Spanning Tree group 1 and by default VLAN 2
remains in Spanning Tree Group 1.
NOTE – Web switch D does not require any special configuration for multiple Spanning Trees,
because it configured for the default Spanning Tree group (STG 1) only.
>> # /cfg/vlan3 (Select VLAN 3 menu)
>> VLAN 3# add 8 (Add port 8)
>> VLAN 3# ../stp (Select STP menu)
>> Enter Spanning Tree group index [1-16]# 3(Select group 3)
>> Spanning Tree Group 2# add 3 (Add VLAN 3)
Web OS 10.0 Application Guide
58 Chapter 2: VLANs 212777-A, February 2002
VLANs and Default Gateways
Web OS allows you to assign different default gateways for each VLAN. You can effectively
map multiple customers to specific gateways on a single switch. The benefits of segregating
customers to different default gateways are:
nResource optimization
nEnhanced customer segmentation
nImproved service differentiation
Segregating VLAN Traffic
Deploy this feature in an environment where you want to segregate VLAN traffic to a config-
ured default gateway. In Figure 2-6, VLANs 2 and 3 have different routing requirements.
VLAN 2 is required to route traffic through default gateway 5 and VLAN 3 is required to route
traffic through default gateway 6.
Figure 2-6 Default Gateways per VLAN
You can configure 246 default gateways per VLAN with values starting from 5 through 250. If
default gateways per VLAN fail, then traffic is directed to default gateways 1 through 4.
Default gateways 1 through 4 are used for load balancing session requests and as backup when
a specific gateway that has been assigned to a VLAN is down.
nortelnetworks.com
192.168.20.200
yahoo.com
200.1.2.200
Web Switch
VLAN 2 using Gateway 5
172.21.2.1
Internet
VLAN 3 using Gateway 6
172.21.3.1
Gateway 5: 10.10.1.20
Gateway 6: 10.10.1.30
Gateway 1: 10.10.4.1
Router 2
VLAN 4
10.10.1.30
Router 3
VLAN 1
10.10.4.1
IF 1: 10.10.1.1
IF 2: 10.10.4.40
IF 3: 172.21.2.200
IF 4: 172.21.3.200
1
2
3
7
8
Router 1
VLAN 4
10.10.1.20
Web OS 10.0 Application Guide
Chapter 2: VLANs 59
212777-A, February 2002
In the example shown in Figure 2-6, if default gateways 5 or 6 fail, then traffic is directed to
default gateway 1, which is configured with IP address 10.10.4.1. If default gateways 1
through 4 are not configured on the switch, then packets from VLAN 2 and VLAN 3 are dis-
carded.
The route cache table on the switch records each session request by mapping the destination IP
address with the MAC address of the default gateway. The command /info/arp/dump on
the switch command line will display the entries in the route cache similar to those shown in
Table 2-3. The destination IP addresses (see the last two rows) are associated with the MAC
addresses of the default gateways.
As shown in Table 2-3, traffic from VLAN 2 uses Gateway 5 to access destination IP address
192.168.20.200. If traffic from VLAN 3 requests the same destination address, then traffic is
routed via Gateway 5 instead of Gateway 6, because 192.168.20.200 in the route cache is
mapped to Gateway 5. If the requested route is not in the route cache, then the switch reads the
routing table. If the requested route is not in the routing table, then the switch looks at the con-
figured default Gateway.
Table 2-3 Route Cache Example
Destination IP
address Flags MAC address VLAN Port Referenced
ports
10.10.1.1 P 00:60:cf:46:48:60 4 1-9
10.10.1.20 00:60:cf:44:cd:a0 4 1 empty
10.10.1.30 00:60:cf:42:3b:40 4 2 empty
10.10.4.1 00:60:cf:42:77:e0 1 3 empty
10.10.4.40 P 00:60:cf:46:48:60 1 1-9
172.21.2.27 00:50:da:17:c8:05 2 7 1
172.21.2.200 P 00:60:cf:46:48:60 2 1-9
172.21.3.14 00:c0:4f:09:3e:56 3 8 2
172.21.2.200 P 00:60:cf:46:48:60 3 1-9
192.168.20.200 R 00:60:cf:44:cd:a0 4 1 7
200.1.2.200 R 00:60:cf:42:3b:40 4 2 8
Web OS 10.0 Application Guide
60 Chapter 2: VLANs 212777-A, February 2002
Configuring the Local Network
To completely segregate VLAN traffic to its own default gateway, you can configure the local
network addresses of the VLAN. This will ensure that all traffic from VLAN 2 is forwarded to
Gateway 5 and all traffic from VLAN 3 is forwarded to Gateway 6.
Typically, the switch routes traffic based on the routes in the routing table. The routing table
will contain an entry of the configured local network with the default gateway. The route cache
will not contain the route entry. This configuration provides a more secure environment, but
affects performance if the routing table is close to its maximum capacity.
NOTE – Web OS allows you to configure up to five local networks.
Configuring Default Gateways per VLAN
Follow this procedure to configure the example shown in Figure 2-6:
1. Assign an IP address for each router and client workstation.
2. Assign an IP interface for each subnet attached to the switch.
>> /cfg/ip/if 1 (Select IP interface 1 for gateway 5 &
6 subnet)
>> IP Interface 1# addr 10.10.1.1 (Assign IP address for interface 1)
>> IP Interface 1# mask 255.255.255.0 (Assign mask for IF 1)
>> IP Interface 1# broad 10.10.1.255 (Assign broadcast address for IF 1)
>> IP Interface 1# vlan 4 (Assign VLAN 4 to IF 1)
>> IP Interface 1# ../if 2 (Select IP interface 2 for gateway 1)
>> IP Interface 2# addr 10.10.4.40 (Assign IP address for interface 2)
>> IP Interface 2# mask 255.255.255.0 (Assign mask for IF 2)
>> IP Interface 2# broad 10.10.4.255 (Assign broadcast address for IF 2)
>> IP Interface 2# vlan 1 (Assign VLAN 1 to IF 2)
>> IP Interface 2# ../if 3 (Select IP interface 3 for VLAN 2
subnet)
>> IP Interface 3# addr 172.21.2.200 (Assign IP address for interface 3)
>> IP Interface 3# mask 255.255.255.0 (Assign mask for IF 3)
>> IP Interface 3# broad 172.21.2.255 (Assign broadcast address for IF 3)
>> IP Interface 3# vlan 2 (Assign VLAN 2 to IF 3)
>> IP Interface 3# ../if 4 (Select IP interface 4 for VLAN 3)
subnet)
>> IP Interface 4# addr 172.21.3.200 (Assign IP address for interface 4)
>> IP Interface 4# mask 255.255.255.0 (Assign mask for IF 4)
>> IP Interface 4# broad 172.21.3.255 (Assign broadcast address for IF 4)
>> IP Interface 4# vlan 3 (Assign VLAN 3 to IF 4)
Web OS 10.0 Application Guide
Chapter 2: VLANs 61
212777-A, February 2002
3. Configure the default gateways.
Configuring default gateways 5 and 6 for VLANs 2 and 3 respectively. Configure default gate-
way 1 for load balancing session requests and as backup when default gateways 5 and 6 fail.
NOTE – The IP address for default gateways 1 to 4 must be unique. IP addresses for default
gateways 5 to 250 can be set to the same IP address as the other gateways (including default
gateway 1 to 4). For example, you can configure two default gateways with the same IP
address for two different VLANs.
4. Add the VLANs to the default gateways and enable them.
5. Apply and verify your configuration.
Examine the results under the gateway section. If any settings are incorrect, make the appropri-
ate changes.
>> /cfg/ip/gw 5 (Select default gateway 5)
>> Default gateway 5# addr 10.10.1.20 (Assign IP address for gateway 5)
>> Default gateway 5# ../gw 6 (Select default gateway 6)
>> Default gateway 6# addr 10.10.1.30 (Assign IP address for gateway 6)
>> Default gateway 6# ../gw 1 (Select default gateway 1)
>> Default gateway 1# addr 10.10.4.1 (Assign IP address for gateway 1)
>> /cfg/ip/gw 5 (Select default gateway 5)
>> Default gateway 5# vlan 2 (Add VLAN 2 for default gateway 5)
>> Default gateway 5# ena (Enable default gateway 5)
>> Default gateway 5# ../ gw 6 (Select default gateway 6)
>> Default gateway 6# vlan 3 (Add VLAN 3 for default gateway 6)
>> Default gateway 6# ena (Enable default gateway 6)
>> Default gateway 6# ../gw 1 (Select default gateway 1)
>> Default gateway 1# ena (Enable gateway 1 for all VLAN s)
>> Default gateway 1# ../cur (View current IP settings)
Web OS 10.0 Application Guide
62 Chapter 2: VLANs 212777-A, February 2002
6. (Optional) Configure the local networks to ensure that the VLANs use the configured
default gateways.
7. Apply and save your new configuration changes.
>> IP# frwd/local (Select the local network Menu)
>> IP Forwarding# add 10.10.0.0 (Specify the network for routers 1, 2,
& 3)
>> IP Forwarding# mask 255.255.0.0 (Add the mask for the routers)
>> IP Forwarding# add 172.21.2.0 (Specify the network for VLAN 2)
>> IP Forwarding# mask 255.255.255.0 (Add the mask for VLAN 2 network)
>> IP Forwarding# add 172.21.3.0 (Specify the network for VLAN 3)
>> IP Forwarding# mask 255.255.255.0 (Add the mask for VLAN 3)
>> IP Forwarding# apply
>> IP Forwarding# save
Web OS 10.0 Application Guide
Chapter 2: VLANs 63
212777-A, February 2002
VLANs and Jumbo Frames
To reduce host frame processing overhead, Gigabit network adapters that can handle frame
sizes of 9K and higher (such as the 3COM PCI-X/PCI Gigabit adapters) and Alteon Web
switches, both running operating Web OS version 2.0 or later, can receive and transmit frames
that are far larger than the maximum normal Ethernet frame. By sending one Jumbo frame
instead of myriad smaller frames, the same task is accomplished with less processing.
The switches and the adapter should support Jumbo frame sizes up to 9018 octets. Jumbo
frames can be transmitted and received between Gigabit adapter-enabled hosts through the
switch across any VLAN that has Jumbo frames enabled.
Isolating Jumbo Frame Traffic using VLANs
Jumbo frame traffic must not be used on a VLAN where there is any device that cannot process
frame sizes larger than Ethernet maximum frame size.
Additional VLANs can be configured on the adapters and switches to support non-Jumbo
frame VLANs for servers and workstations that do not support extended frame sizes. End-sta-
tions installed with Jumbo frames-capable Gigabit adapters, and attached to Web switches can
communicate across both the Jumbo frame VLANs and regular frame VLANs at the same
time.
In the example illustrated in Figure 2-7 on page 64, the two servers can handle Jumbo frames
but the two clients cannot; therefore Jumbo frames should only be enabled and used on the
VLAN represented by the solid lines but not for the VLAN with the dashed lines. Jumbo
frames are not supported on ports that are configured for half-duplex mode.
Web OS 10.0 Application Guide
64 Chapter 2: VLANs 212777-A, February 2002
Figure 2-7 Jumbo Frame VLANs
Routing Jumbo Frames to Non-Jumbo Frame VLANs
When IP routing is used to route traffic between VLANs, the switch will fragment Jumbo UDP
datagrams when routing from a Jumbo frame VLAN to a non-Jumbo frame VLAN. The result-
ing Jumbo frame to regular frame conversion makes implementation even easier.
Jumbo Frame
VLAN
Normal Frame
VLAN
Normal Frame
VLAN
212777-A, February 2002 65
CHAPTER 3
Port Trunking
Trunk groups can provide super-bandwidth, multi-link connections between Alteon Web
switches or other trunk-capable devices. A trunk group is a group of ports that act together,
combining their bandwidth to create a single, larger virtual link. This chapter provides configu-
ration background and examples for trunking multiple ports together:
n Overview
n“Port Trunking Example” on page 67
Overview
When using port trunk groups between two Alteon Web switches as shown in Figure 3-1, you
can create a virtual link between the switches operating up to six gigabits per second, depend-
ing on how many physical ports are combined. The switch supports up to four trunk groups per
switch, each with two to six links.
Figure 3-1 Port Trunk Group
Trunk groups are also useful for connecting an Alteon Web switch to third-party devices that
support link aggregation, such as Cisco routers and switches with EtherChannel technology
(not ISL trunking technology) and Sun's Quad Fast Ethernet Adapter. Nortel Networks trunk
group technology is compatible with these devices when they are configured manually.
Link
Data
Active
Link
Data
Active
9
8
TX RX
TX
RX
Power Console
5
TX RX
4
TX RX
3
TX RX
1
TX RX
2
TX RX
6
TX RX
Web Switch
10/100/10000 Mbps Ethernet Server Switch
7
TX RX
Link
Data
1000
Base-SX
Gigabit
Powered
Link
Data
Active
Link
Data
Active
9
8
TX RX
TX
RX
Power Console
5
TX RX
4
TX RX
3
TX RX
1
TX RX
2
TX RX
6
TX RX
Web Switch
10/100/10000 Mbps Ethernet Server Switch
7
TX RX
Link
Data
1000
Base-SX
Gigabit
Powered
Aggregate Port Trunk
041
Web OS 10.0 Application Guide
66 Chapter 3: Port Trunking 212777-A, February 2002
Statistical Load Distribution
Network traffic is statistically load balanced between the ports in a trunk group. The Web OS-
powered switch uses both the Layer 2 MAC address and Layer 3 IP address information
present in each transmitted frame for determining load distribution.
The addition of Layer 3 IP address examination is an important advance for traffic distribution
in trunk groups. In some port trunking systems, only Layer 2 MAC addresses are considered in
the distribution algorithm. Each packet’s particular combination of source and destination
MAC addresses results in selecting one line in the trunk group for data transmission. If there
are enough Layer 2 devices feeding the trunk lines, then traffic distribution becomes relatively
even. In some topologies, however, only a limited number of Layer 2 devices (such as a hand-
ful of routers and servers) feed the trunk lines. When this occurs, the limited number of MAC
address combinations encountered results in a lopsided traffic distribution, which can reduce
the effective combined bandwidth of the trunked ports.
By adding Layer 3 IP address information to the distribution algorithm, a far wider variety of
address combinations is seen. Even with just a few routers feeding the trunk, the normal
source/destination IP address combinations (even within a single LAN) can be widely varied.
This results in a wider statistical load distribution and maximizes the use of the combined
bandwidth available to trunked ports.
Built-In Fault Tolerance
Since each trunk group is comprised of multiple physical links, the trunk group is inherently
fault tolerant. As long as one connection between the switches is available, the trunk remains
active.
Statistical load balancing is maintained whenever a port in a trunk group is lost or returned to
service.
Web OS 10.0 Application Guide
Chapter 3: Port Trunking 67
212777-A, February 2002
Port Trunking Example
In the example below, three ports will be trunked between two Alteon Web switches.
Figure 3-2 Port Trunk Group Configuration Example
Prior to configuring each switch in the above example, you must connect to the appropriate
switch’s Command Line Interface (CLI) as the administrator.
NOTE – For details about accessing and using any of the menu commands described in this
example, see the Web OS Command Reference.
1. Connect the switch ports that will be involved in the trunk group.
2. Follow these steps on Web switch 1:
(a) Define a trunk group.
(b) Apply and verify the configuration.
Examine the resulting information. If any settings are incorrect, make appropriate changes.
(c) Save your new configuration changes.
>> # /cfg/trunk 1 (Select trunk group 1)
>> Trunk group 1# add 2 (Add port 2 to trunk group 1)
>> Trunk group 1# add 4 (Add port 4 to trunk group 1)
>> Trunk group 1# add 5 (Add port 5 to trunk group 1)
>> Trunk group 1# ena (Enable trunk group 1)
>> Trunk group 1# apply (Make your changes active)
>> Trunk group 1# cur (View current trunking configuration)
>> Trunk group 1# save (Save for restore after reboot)
Link
Data
Active
Link
Data
Active
9
8
TX RX
TX
RX
Power Console
5
TX RX
4
TX RX
3
TX RX
1
TX RX
2
TX RX
6
TX RX
Web Switch
10/100/10000 Mbps Ethernet Server Switch
7
TX RX
Link
Data
1000
Base-SX
Gigabit
Powered
Link
Data
Active
Link
Data
Active
9
8
TX RX
TX
RX
Power Console
5
TX RX
4
TX RX
3
TX RX
1
TX RX
2
TX RX
6
TX RX
Web Switch
10/100/10000 Mbps Ethernet Server Switch
7
TX RX
Link
Data
1000
Base-SX
Gigabit
Powered
Trunk 1: Ports 2, 4, and 5 on Switch 1 Trunk 3: Ports 4, 6, and 9 on Switch 2
042
2 4 5 4 6 9
Switch #2Switch #1
Web OS 10.0 Application Guide
68 Chapter 3: Port Trunking 212777-A, February 2002
3. Repeat the process on Web switch 2.
Trunk group 1 (on Web switch 1) is now connected to trunk group 3 (on Web switch 2).
NOTE – In this example, two Alteon Web switches are used. If a third-party device supporting
link aggregation is used (such as Cisco routers and switches with EtherChannel technology or
Sun’s Quad Fast Ethernet Adapter), trunk groups on the third-party device should be config-
ured manually. Connection problems could arise when using automatic trunk group negotia-
tion on the third-party device.
4. Examine the trunking information on each switch.
Information about each port in each configured trunk group will be displayed. Make sure that
trunk groups consist of the expected ports and that each port is in the expected state.
The following restrictions apply:
nAny physical switch port can belong to only one trunk group.
nUp to four ports can belong to the same trunk group.
nBest performance is achieved when all ports in any given trunk group are configured for
the same speed.
nTrunking from non-Alteon devices must comply with Cisco® EtherChannel® technology.
>> # /cfg/trunk 3 (Select trunk group 3)
>> Trunk group 3# add 4 (Add port 4 to trunk group 3)
>> Trunk group 3# add 6 (Add port 6 to trunk group 3)
>> Trunk group 3# add 9 (Add port 9 to trunk group 3)
>> Trunk group 3# ena (Enable trunk group 3)
>> Trunk group 3# apply (Make your changes active)
>> Trunk group 3# cur (View current trunking configuration)
>> Trunk group 3# save (Save for restore after reboot)
>> /info/trunk (View trunking information)
212777-A, February 2002 69
CHAPTER 4
OSPF
Web OS 10.0 supports the Open Shortest Path First (OSPF) routing protocol. The Web OS
implementation conforms to the OSPF version 2 specifications detailed in Internet RFC 1583.
The following sections discuss OSPF support for the Alteon AD4/184 Web switches:
n“OSPF Overview” on page 69. This section provides information on OSPF concepts, such
as types of OSPF areas, types of routing devices, neighbors, adjacencies, link state data-
base, authentication, and internal versus external routing.
n“OSPF Implementation in Web OS” on page 74. This section describes how OSPF is
implemented in Web OS, such as configuration parameters, electing the designated router,
summarizing routes, defining route maps and so forth.
n“OSPF Configuration Examples” on page 83. This section provides step-by-step instruc-
tions on configuring four different configuration examples:
Creating a simple OSPF domain
Creating virtual links
Summarizing routes
Creating host routes
OSPF Overview
OSPF is designed for routing traffic within a single IP domain called an Autonomous System
(AS). The AS can be divided into smaller logical units known as areas.
All routing devices maintain link information in their own Link State Database (LSDB). The
LSDB for all routing devices within an area is identical but is not exchanged between different
areas. Only routing updates are exchanged between areas, thereby significantly reducing the
overhead for maintaining routing information on a large, dynamic network.
The following sections describe key OSPF concepts.
Web OS 10.0 Application Guide
70 Chapter 4: OSPF 212777-A, February 2002
Types of OSPF Areas
An AS can be broken into logical units known as areas. In any AS with multiple areas, one
area must be designated as area 0, known as the backbone. The backbone acts as the central
OSPF area. All other areas in the AS must be connected to the backbone. Areas inject sum-
mary routing information into the backbone, which then distributes it to other areas as needed.
As shown in Figure 4-1, OSPF defines the following types of areas:
nStub Area—an area that is connected to only one other area. External route information is
not distributed into stub areas.
nNot-So-Stubby-Area (NSSA)—similar to a stub area with additional capabilities. Routes
originating from within the NSSA can be propagated to adjacent transit and backbone
areas. External routes from outside the AS can be advertised within the NSSA but are not
distributed into other areas.
nTransit Area—an area that allows area summary information to be exchanged between
routing devices. The backbone (area 0), any area that contains a virtual link to connect two
areas, and any area that is not a stub area or an NSSA are considered transit areas.
Figure 4-1 OSPF Area Types
Backbone
Area 0
Stub Area
Not-So-Stubby Area
(NSSA)
Transit Area
No External Routes
from Backbone
Stub Area, NSSA,
or Transit Area
Connected to Backbone
via Virtual Link
(Also a Transit Area)
External LSA
Routes
Internal LSA
Routes
ABR ABR
ABR
ASBR
Non-OSPF Area
RIP/BGP AS
Virtual
Link
ABR
ABR = Area Border Router
ASBR = Autonomous System
Boundary Router
Web OS 10.0 Application Guide
Chapter 4: OSPF 71
212777-A, February 2002
Types of OSPF Routing Devices
As shown in Figure 4-2, OSPF uses the following types of routing devices:
nInternal Router (IR)—a router that has all of its interfaces within the same area. IRs main-
tain LSDBs identical to those of other routing devices within the local area.
nArea Border Router (ABR)—a router that has interfaces in multiple areas. ABRs maintain
one LSDB for each connected area and disseminate routing information between areas.
nAutonomous System Boundary Router (ASBR)—a router that acts as a gateway between
the OSPF domain and non-OSPF domains, such as RIP, BGP, and static routes.
Figure 4-2 OSPF Domain and an Autonomous System
Backbone
Area 0
Area 3
Area 2
Area 1
Inter-Area Routes
(Summary Routes) ABR
ABR
ABR
ASBR
Internal
Router
ASBR
External
Routes
BGP
RIP
OSPF Autonomous System
Web OS 10.0 Application Guide
72 Chapter 4: OSPF 212777-A, February 2002
Neighbors and Adjacencies
In areas with two or more routing devices, neighbors and adjacencies are formed.
Neighbors are routing devices that maintain information about each others’ health. To establish
neighbor relationships, routing devices periodically send hello packets on each of their inter-
faces. All routing devices that share a common network segment, appear in the same area, and
have the same health parameters (hello and dead intervals) and authentication parameters
respond to each other’s hello packets and become neighbors. Neighbors continue to send peri-
odic hello packets to advertise their health to neighbors. In turn, they listen to hello packets to
determine the health of their neighbors and to establish contact with new neighbors.
The hello process is used for electing one of the neighbors as the area’s Designated Router
(DR) and one as the area’s Backup Designated Router (BDR). The DR is adjacent to all other
neighbors and acts as the central contact for database exchanges. Each neighbor sends its data-
base information to the DR, which relays the information to the other neighbors.
The BDR is adjacent to all other neighbors (including the DR). Each neighbor sends its data-
base information to the BDR just as with the DR, but the BDR merely stores this data and does
not distribute it. If the DR fails, the BDR will take over the task of distributing database infor-
mation to the other neighbors.
The Link-State Database
OSPF is a link-state routing protocol. A link represents an interface (or routable path) from the
routing device. By establishing an adjacency with the DR, each routing device in an OSPF area
maintains an identical Link-State Database (LSDB) describing the network topology for its
area.
Each routing device transmits a Link-State Advertisement (LSA) on each of its interfaces.
LSAs are entered into the LSDB of each routing device. OSPF uses flooding to distribute
LSAs between routing devices.
When LSAs result in changes to the routing device’s LSDB, the routing device forwards the
changes to the adjacent neighbors (the DR and BDR) for distribution to the other neighbors.
OSPF routing updates occur only when changes occur, instead of periodically. For each new
route, if an adjacency is interested in that route (for example, if configured to receive static
routes and the new route is indeed static), an update message containing the new route is sent
to the adjacency. For each route removed from the route table, if the route has already been
sent to an adjacency, an update message containing the route to withdraw is sent.
Web OS 10.0 Application Guide
Chapter 4: OSPF 73
212777-A, February 2002
The Shortest Path First Tree
The routing devices use a link-state algorithm (Dijkstra’s algorithm) to calculate the shortest
path to all known destinations, based on the cumulative cost required to reach the destination.
The cost of an individual interface in OSPF is an indication of the overhead required to send
packets across it. The cost is inversely proportional to the bandwidth of the interface. A lower
cost indicates a higher bandwidth.
Internal Versus External Routing
To ensure effective processing of network traffic, every routing device on your network needs
to know how to send a packet (directly or indirectly) to any other location/destination in your
network. This is referred to as internal routing and can be done with static routes or using
active internal routing protocols, such as OSPF, RIP, or RIPv2.
It is also useful to tell routers outside your network (upstream providers or peers) about the
routes you have access to in your network. Sharing of routing information between autono-
mous systems is known as external routing.
Typically, an AS will have one or more border routers (peer routers that exchange routes with
other OSPF networks) as well as an internal routing system enabling every router in that AS to
reach every other router and destination within that AS.
When a routing device advertises routes to boundary routers on other autonomous systems, it
is effectively committing to carry data to the IP space represented in the route being advertised.
For example, if the routing device advertises 192.204.4.0/24, it is declaring that if another
router sends data destined for any address in the 192.204.4.0/24 range, it will carry that data to
its destination.
Web OS 10.0 Application Guide
74 Chapter 4: OSPF 212777-A, February 2002
OSPF Implementation in Web OS
Web OS 10.0 supports a single instance of OSPF and up to 1K routes on the network. The fol-
lowing sections describe OSPF implementation in Web OS:
n“Configurable Parameters” on page 74
n“Defining Areas” on page 75
n“Interface Cost” on page 77
n“Electing the Designated Router and Backup” on page 77
n“Summarizing Routes” on page 77
n“Default Routes” on page 78
n“Virtual Links” on page 79
n“Router ID” on page 80
n“Authentication” on page 80
n“Host Routes for Load Balancing” on page 82
n“OSPF Features Not Supported in This Release” on page 82
Configurable Parameters
In Web OS 10.0, OSPF parameters can be configured through the Command Line Interface
(CLI), Web OS Browser-Based Interface (BBI) for Alteon AD4 and 184 switches, or through
SNMP.
The CLI supports the following parameters: interface output cost, interface priority, dead and
hello intervals, retransmission interval, and interface transmit delay.
In addition to the above parameters, you can also specify the following:
nShortest Path First (SPF) interval—Time interval between successive calculations of the
shortest path tree using the Dijkstra’s algorithm.
nStub area metric—A stub area can be configured to send a numeric metric value such that
all routes received via that stub area carry the configured metric to potentially influence
routing decisions.
nDefault routes—Default routes with weight metrics can be manually injected into transit
areas. This helps establish a preferred route when multiple routing devices exist between
two areas. It also helps route traffic to external networks.
Web OS 10.0 Application Guide
Chapter 4: OSPF 75
212777-A, February 2002
Defining Areas
If you are configuring multiple areas in your OSPF domain, one of the areas must be desig-
nated as area 0, known as the backbone. The backbone is the central OSPF area and is usually
physically connected to all other areas. The areas inject routing information into the backbone
which, in turn, disseminates the information into other areas.
Since the backbone connects the areas in your network, it must be a contiguous area. If the
backbone is partitioned (possibly as a result of joining separate OSPF networks), parts of the
AS will be unreachable, and you will need to configure virtual links to reconnect the parti-
tioned areas (see “Virtual Links” on page 79).
Up to three OSPF areas can be connected to a Web switch with Web OS 10.0 software. To con-
figure an area, the OSPF number must be defined and then attached to a network interface on
the Web switch. The full process is explained in the following sections.
An OSPF area is defined by assigning two pieces of information—an area index and an area
ID. The command to define an OSPF area is as follows:
NOTE – The aindex option above is an arbitrary index used only on the switch and does not
represent the actual OSPF area number. The actual OSPF area number is defined in the
areaid portion of the command as explained in the following sections.
Assigning the Area Index
The aindex <area index> option is actually just an arbitrary index (0-2) used only by the
Web switch. This index does not necessarily represent the OSPF area number, though for con-
figuration simplicity, it should where possible.
For example, both of the following sets of commands define OSPF area 0 (the backbone) and
area 1 because that information is held in the area ID portion of the command. However, the
first set of commands is easier to maintain because the arbitrary area indexes agree with the
area IDs:
nArea index and area ID agree
/cfg/ip/ospf/aindex 0/areaid 0.0.0.0 (Use index 0 to set area 0 in ID octet format)
/cfg/ip/ospf/aindex 1/areaid 0.0.0.1 (Use index 1 to set area 1 in ID octet format)
nArea index set to an arbitrary value
/cfg/ip/ospf/aindex 1/areaid 0.0.0.0 (Use index 1 to set area 0 in ID octet format)
/cfg/ip/ospf/aindex 2/areaid 0.0.0.1 (Use index 2 to set area 1 in ID octet format)
>> # /cfg/ip/ospf/aindex <area index>/areaid <n.n.n.n>
Web OS 10.0 Application Guide
76 Chapter 4: OSPF 212777-A, February 2002
Using the Area ID to Assign the OSPF Area Number
The OSPF area number is defined in the areaid <IP address> option. The octet format is
used in order to be compatible with two different systems of notation used by other OSPF net-
work vendors. There are two valid ways to designate an area ID:
nPlacing the area number in the last octet (0.0.0.n)
Most common OSPF vendors express the area ID number as a single number. For exam-
ple, the Cisco IOS-based router command “network 1.1.1.0 0.0.0.255 area 1”
defines the area number simply as “area 1.” On the Web switch, using the last octet in
the area ID, “area 1” is equivalent to “areaid 0.0.0.1”.
nMulti-octet (IP address)
Some OSPF vendors express the area ID number in multi-octet format. For example,
“area 2.2.2.2” represents OSPF area 2 and can be specified directly on the Web
switch as “areaid 2.2.2.2”.
NOTE – Although both types of area ID formats are supported, be sure that the area IDs are in
the same format throughout an area.
Attaching an Area to a Network
Once an OSPF area has been defined, it must be associated with a network. To attach the area
to a network, you must assign the OSPF area index to an IP interface that participates in the
area. The format for the command is as follows:
For example, the following commands could be used to configure IP interface 14 for a pres-
ence on the 10.10.10.1/24 network, to define OSPF area 1, and to attach the area to the net-
work:
>> # /cfg/ip/ospf/if <interface number>/aindex <area index>
>> # /cfg/ip/if 14 (Select menu for IP interface 14)
>> IP Interface 14# addr 10.10.10.1 (Define IP address on backbone
network)
>> IP Interface 14# mask 255.255.255.0 (Define IP mask on backbone)
>> IP Interface 14# ena (Enable IP interface 14)
>> IP Interface 14# ../ospf/aindex 1 (Select menu for area index 1)
>> OSPF Area (index) 1 # areaid 0.0.0.1 (Define area ID as OSPF area 1)
>> OSPF Area (index) 1 # ena (Enable area index 1)
>> OSPF Area (index) 1 # ../if 14 (Select OSPF menu for interface 14)
>> OSPF Interface 14# aindex 1 (Attach area to network on interface
14)
>> OSPF Interface 14# enable (Enable interface 14 for area index 1)
Web OS 10.0 Application Guide
Chapter 4: OSPF 77
212777-A, February 2002
Interface Cost
The OSPF link-state algorithm (Dijkstra’s algorithm) places each routing device at the root of a
tree and determines the cumulative cost required to reach each destination. Usually, the cost is
inversely proportional to the bandwidth of the interface. Low cost indicates high bandwidth.
You can manually enter the cost for the output route with the following command:
Electing the Designated Router and Backup
In any area with more than two routing devices, a Designated Router (DR) is elected as the
central contact for database exchanges among neighbors, and a Backup Designated Router
(BDR) is elected in case the DR fails.
DR and BDR elections are made through the hello process. The election can be influenced by
assigning a priority value to the Web switch’s OSPF interfaces. The command is as follows:
A priority value of 127 is the highest, and 1 is the lowest. A priority value of 0 specifies that
the interface cannot be used as a DR or BDR. In case of a tie, the routing device with the low-
est router ID wins.
Summarizing Routes
Route summarization condenses routing information. Without summarization, each routing
device in an OSPF network would retain a route to every subnet in the network. With summa-
rization, routing devices can reduce some sets of routes to a single advertisement, reducing
both the load on the routing device and the perceived complexity of the network. The impor-
tance of route summarization increases with network size.
Summary routes can be defined for up to 16 IP address ranges using the following command:
where <range number> is a number 1 to 16, <IP address> is the base IP address for the range,
and <mask> is the IP address mask for the range. For a detailed configuration example, see
“Example 3: Summarizing Routes” on page 90.
>> # /cfg/ip/ospf/if <OSPF interface number>/cost <cost value (1-65535)>
>> # /cfg/ip/ospf/if <OSPF interface number>/prio <priority value (0-127)>
>> # /cfg/ip/ospf/range <range number>/addr <IP address>/mask
<mask>
Web OS 10.0 Application Guide
78 Chapter 4: OSPF 212777-A, February 2002
Default Routes
When an OSPF routing device encounters traffic for a destination address it does not recog-
nize, it forwards that traffic along the default route. Typically, the default route leads upstream
toward the backbone until it reaches the intended area or an external router.
Each Web switch acting as an ABR automatically inserts a default route into each attached
area. In simple OSPF stub areas or NSSAs with only one ABR leading upstream (see Area 1 in
Figure 4-3), any traffic for IP address destinations outside the area is forwarded to the switch’s
IP interface, and then into the connected transit area (usually the backbone). Since this is auto-
matic, no further configuration is required for such areas.
Figure 4-3 Injecting Default Routes
In more complex OSPF areas with multiple ABRs or ASBRs (such as area 0 and area 2 in Fig-
ure 4-3), there are multiple routes leading from the area. In such areas, traffic for unrecognized
destinations cannot tell which route leads upstream without further configuration.
To resolve the situation and select one default route among multiple choices in an area, you can
manually configure a metric value on each ABR. The metric assigns a priority to the ABR for
its selection as the priority default route in an area. The following command is used for setting
the metric value:
where <metric value> sets the priority for choosing this switch for default route. The value
none sets no default and 1 sets the highest priority for default route. Metric type determines
the method for influencing routing decisions for external routes.
To clear a default route metric from the switch, use the following command:
>> # /cfg/ip/ospf/default <metric value> <metric type (1 or 2)>
>> # /cfg/ip/ospf/default none
IF 2 IF 1
IF 1 IF 2
IF 1 IF 2
Backbone Stub AreaStub Area
Area 2Area 1 Area 0
ABR
ABR
ASBR to
External Networks
IR
ABR
Metric:
201
Metric:
10
Default
Route
Priority
Default
Route Priority
Default
Route
IR
Metric:
900
Metric:
201
Metric:
200
Web OS 10.0 Application Guide
Chapter 4: OSPF 79
212777-A, February 2002
Virtual Links
Usually, all areas in an OSPF AS are physically connected to the backbone. In some cases
where this is not possible, you can use a virtual link. Virtual links are created to connect one
area to the backbone through another non-backbone area (see Figure 4-1 on page 70).
The area which contains a virtual link must be a transit area and have full routing information.
Virtual links cannot be configured inside a stub area or NSSA. The area type must be defined
as transit using the following command:
The virtual link must be configured on the routing devices at each endpoint of the virtual link,
though they may traverse multiple routing devices. To configure an Alteon Web switch as one
endpoint of a virtual link, use the following command:
where <link number> is a value between 1 and 3, <area index> is the OSPF area index of the
transit area, and <router ID> is the IP address of the virtual neighbor (nbr), the routing device
at the target endpoint. Another router ID is needed when configuring a virtual link in the other
direction. To provide the Alteon Web switch with a router ID, see the following section Router
ID.
For a detailed configuration example on Virtual Links, see “Example 2: Virtual Links” on page
86.
>> # /cfg/ip/ospf/aindex <area index>/type transit
>> # /cfg/ip/ospf/virt <link number>/aindex <area index>/nbr <router
ID>
Web OS 10.0 Application Guide
80 Chapter 4: OSPF 212777-A, February 2002
Router ID
Routing devices in OSPF areas are identified by a router ID. The router ID is expressed in IP
address format. The IP address of the router ID is not required to be included in any IP inter-
face range or in any OSPF area.
The router ID can be configured in one of the following two ways:
nDynamically—OSPF protocol configures the lowest IP interface IP address as the router
ID. This is the default.
nStatically—Use the following command to manually configure the router ID:
nTo modify the router ID from static to dynamic, set the router ID to 0.0.0.0, save the con-
figuration, and reboot the Web switch. To view the router ID, enter:
Authentication
OSPF protocol exchanges are authenticated so that only trusted routing devices can participate.
This ensures less processing on routing devices that are not listening to OSPF packets.
OSPF allows packet authentication and uses IP multicast when sending and receiving packets.
Routers participate in routing domains based on predefined passwords. Web OS 10.0 supports
simple password authentication (type 1 plain text passwords) only. This type of authentication
allows a password to be configured per area.
Figure 4-4 shows authentication configured for area 0 with the password test. Simple authenti-
cation is also configured for the virtual link between area 2 and area 0. Area 1 is not configured
for OSPF authentication.
Figure 4-4 OSPF Authentication
>> # /cfg/ip/ospf/rtrid <IP address>
>> # /info/ospf/gen
IF 1
Area 1
Area 0
ABR ABR
ASBR to
External Networks
Area 2 Virtual link
key=alteon
Simple authentication
key=test
IF 3
IF 4
IF 2
IF 5
Web switch 1
Web switch 2 Web switch 3
Web switch 5
Web switch 4
Web OS 10.0 Application Guide
Chapter 4: OSPF 81
212777-A, February 2002
To configure OSPF passwords on the Web switches shown in Figure 4-4 use the following
commands:
1. Enable OSPF authentication for Area 0 on Web switches 1, 2, and 3.
2. Configure a simple text password up to eight characters for each OSPF IP interface in
Area 0 on Web switches 1, 2, and 3.
3. Enable OSPF authentication for Area 2 on Web switch 4.
4. Configure a simple text password up to eight characters for the virtual link between Area
2 and Area 0 on Web switches 2 and 4.
>> # /cfg/ip/ospf/aindex 0/auth password
(Turn on OSPF password authenti-
cation)
>> # /cfg/ip/ospf/if 1
>> OSPF Interface 1 # key test
>> OSPF Interface 1 # ../if 2
>> OSPF Interface 2 # key test
>> OSPF Interface 1 # ../if 3
>> OSPF Interface 3 # key test
>> # /cfg/ip/ospf/aindex 2/auth password
(Turn on OSPF password authenti-
cation)
>> # /cfg/ip/ospf/virt 1/key alteon
Web OS 10.0 Application Guide
82 Chapter 4: OSPF 212777-A, February 2002
Host Routes for Load Balancing
Web OS 10.0 implementation of OSPF includes host routes. Host routes are used for advertis-
ing network device IP addresses to external networks, accomplishing the following goals:
nServer Load Balancing (SLB) within OSPF
Host routes advertise virtual server IP addresses to external networks. This allows stan-
dard SLB between the Web switch and the server pools in an OSPF environment. For
more information on SLB, see Chapter 6, “Server Load Balancing and your Web OS 10.0
Command Reference.
nABR Load Sharing
As a second form of load balancing, host routes can be used for dividing OSPF traffic
among multiple ABRs. To accomplish this, each Web switch provides identical services
but advertises a host route for a different virtual server IP address to the external network.
If each virtual server IP address serves a different and equal portion of the external world,
incoming traffic from the upstream router should be split evenly among ABRs.
nABR Failover
Complementing ABR load sharing, identical host routes can be configured on each ABR.
These host routes can be given different costs so that a different ABR is selected as the
preferred route for each virtual server and the others are available as backups for failover
purposes.
If redundant routes via multiple routing processes (such as OSPF, RIP, BGP, or static routes)
exist on your network, the Web switch defaults to the OSPF-derived route.
For a configuration example, see “Example 4: Host Routes” on page 92.
OSPF Features Not Supported in This Release
The following OSPF features are not supported in this release:
nRedistributing routes into OSPF (Web OS 10.0 does not allow your switch to emulate an
ASBR)
nSummarizing external routes
nFiltering OSPF routes
nConfiguring equal cost route load balancing
nUsing OSPF to forward multicast routes
nConfiguring OSPF on non-broadcast multi-access networks (such as frame relay, X.25,
and ATM)
Web OS 10.0 Application Guide
Chapter 4: OSPF 83
212777-A, February 2002
OSPF Configuration Examples
A summary of the basic steps for configuring OSPF on the Web switch is listed here. Detailed
instructions for each of the steps is covered in the following sections:
1. Configure IP interfaces.
One IP interface is required for each desired network (range of IP addresses) being assigned to
an OSPF area on the Web switch.
2. (Optional) Configure the router ID.
The router ID is required only when configuring virtual links on the Web switch.
3. Enable OSPF on the switch.
4. Define the OSPF areas.
5. Configure OSPF interface parameters.
IP interfaces are used for attaching networks to the various areas.
6. (Optional) Configure route summarization between OSPF areas.
7. (Optional) Configure virtual links.
8. (Optional) Configure host routes.
Web OS 10.0 Application Guide
84 Chapter 4: OSPF 212777-A, February 2002
Example 1: Simple OSPF Domain
In this example, two OSPF areas are defined—one area is the backbone and the other is a stub
area. A stub area does not allow advertisements of external routes, thus reducing the size of the
database. Instead, a default summary route of IP address 0.0.0.0 is automatically inserted into
the stub area. Any traffic for IP address destinations outside the stub area will be forwarded to
the stub area’s IP interface, and then into the backbone.
Figure 4-5 A Simple OSPF Domain
Follow this procedure to configure OSPF support as shown in Figure 4-5:
1. Configure IP interfaces on each network that will be attached to OSPF areas.
In this example, two IP interfaces are needed: one for the backbone network on 10.10.7.0/24
and one for the stub area network on 10.10.12.0/24.
2. Enable OSPF.
>> # /cfg/ip/if 1 (Select menu for IP interface 1)
>> IP Interface 1 # addr 10.10.7.1 (Set IP address on backbone network)
>> IP Interface 1 # mask 255.255.255.0 (Set IP mask on backbone network)
>> IP Interface 1 # broad 10.10.7.255 (Set the broadcast address)
>> IP Interface 1 # enable (Enable IP interface 1)
>> IP Interface 1 # ../if 2 (Select menu for IP interface 2)
>> IP Interface 2 # addr 10.10.12.1 (Set IP address on stub area network)
>> IP Interface 2 # enable (Enable IP interface 2)
>> IP Interface 1 # mask 255.255.255.0 (Set IP mask on backbone network)
>> IP Interface 2 # /cfg/ip/ospf/on (Enable OSPF on the Web switch)
Area 0
(0.0.0.0)
IF 1
10.10.7.1 IF 2
10.10.12.1
Area 1
(0.0.0.1)
Backbone Stub Area
Network
10.10.7.0/24 Network
10.10.12.0/24
Web OS 10.0 Application Guide
Chapter 4: OSPF 85
212777-A, February 2002
3. Define the backbone.
The backbone is always configured as a transit area using areaid 0.0.0.0.
4. Define the stub area.
5. Attach the network interface to the backbone.
6. Attach the network interface to the stub area.
7. Apply and save the configuration changes.
>> Open Shortest Path First # aindex 0 (Select menu for area index 0)
>> OSPF Area (index) 0 # areaid 0.0.0.0 (Set the ID for backbone area 0)
>> OSPF Area (index) 0 # type transit (Define backbone as transit type)
>> OSPF Area (index) 0 # enable (Enable the area)
>> OSPF Area (index) 0 # ../aindex 1 (Select menu for area index 1)
>> OSPF Area (index) 1 # areaid 0.0.0.1 (Set the area ID for OSPF area 1)
>> OSPF Area (index) 1 # type stub (Define area as stub type)
>> OSPF Area (index) 1 # enable (Enable the area)
>> OSPF Area 1 # ../if 1 (Select OSPF menu for IP interface 1)
>> OSPF Interface 1 # aindex 0 (Attach network to backbone index)
>> OSPF Interface 1 # enable (Enable the backbone interface)
>> OSPF Interface 1 # ../if 2 (Select OSPF menu for IP interface 2)
>> OSPF Interface 2 # aindex 1 (Attach network to stub area index)
>> OSPF Interface 2 # enable (Enable the stub area interface)
>> OSPF Interface 2 # apply
(Global command to apply all changes)
>> OSPF Interface 2 # save
(Global command to save all changes)
Web OS 10.0 Application Guide
86 Chapter 4: OSPF 212777-A, February 2002
Example 2: Virtual Links
In the example shown in Figure 4-6, area 2 is not physically connected to the backbone as is
usually required. Instead, area 2 will be connected to the backbone via a virtual link through
area 1. The virtual link must be configured at each endpoint.
Figure 4-6 Configuring a Virtual Link
Configuring OSPF for a Virtual Link on Switch #1
1. Configure IP interfaces on each network that will be attached to the switch.
In this example, two IP interfaces are needed on Switch #1: one for the backbone network on
10.10.7.0/24 and one for the transit area network on 10.10.12.0/24.
2. Configure the router ID.
A router ID is required when configuring virtual links. Later, when configuring the other end
of the virtual link on Web Switch 2, the router ID specified here will be used as the target vir-
tual neighbor (nbr) address.
3. Enable OSPF.
>> # /cfg/ip/if 1
(Select menu for IP interface 1)
>> IP Interface 1 # addr 10.10.7.1
(Set IP address on backbone network)
>> IP Interface 1 # enable
(Enable IP interface 1)
>> IP Interface 1 # ../if 2
(Select menu for IP interface 2)
>> IP Interface 2 # addr 10.10.12.0
(Set IP address on transit area network
)
>> IP Interface 2 # enable
(Enable interface 2)
>> IP Interface 2 # /cfg/ip/ospf/rtrid 10.10.10.1
(Set static router ID on Web switch 1)
>> IP # /cfg/ip/ospf/on (Enable OSPF on Web switch 1)
Router ID:
10.10.10.1 Router ID:
10.10.14.1
Switch #1 Switch #2
Virtual Link 1
Area 0
(0.0.0.0)
IF 1
10.10.7.1 IF 2
10.10.12.1
Area 1
(0.0.0.1)
Backbone Transit Area
IF 1
10.10.12.2 IF 2
10.10.24.1
10.10.7.0/24
Network 10.10.12.0/24
Network 10.10.24.0/24
Network
Area 2
(0.0.0.2)
Stub Area
Web OS 10.0 Application Guide
Chapter 4: OSPF 87
212777-A, February 2002
4. Define the backbone.
5. Define the transit area.
The area that contains the virtual link must be configured as a transit area.
6. Attach the network interface to the backbone.
7. Attach the network interface to the transit area.
8. Configure the virtual link.
The nbr router ID configured in this step must be the same as the router ID that will be config-
ured for Switch #2 in Step 2 on page 88.
9. Apply and save the configuration changes.
>> Open Shortest Path First # aindex 0 (Select menu for area index 0)
>> OSPF Area (index) 0 # areaid 0.0.0.0 (Set the area ID for backbone area 0)
>> OSPF Area (index) 0 # type transit (Define backbone as transit type)
>> OSPF Area (index) 0 # enable (Enable the area)
>> OSPF Area (index) 0 # ../aindex 1 (Select menu for area index 1)
>> OSPF Area (index) 1 # areaid 0.0.0.1 (Set the area ID for OSPF area 1)
>> OSPF Area (index) 1 # type transit (Define area as transit type)
>> OSPF Area (index) 1 # enable (Enable the area)
>> OSPF Area (index) 1 # ../if 1 (Select OSPF menu for IP interface 1)
>> OSPF Interface 1 # aindex 0 (Attach network to backbone index)
>> OSPF Interface 1 # enable (Enable the backbone interface)
>> OSPF Interface 1 # ../if 2 (Select OSPF menu for IP interface 2)
>> OSPF Interface 2 # aindex 1 (Attach network to transit area index)
>> OSPF Interface 2 # enable (Enable the transit area interface)
>> OSPF Interface 2 # ../virt 1
(Specify a virtual link number)
>> OSPF Virtual Link 1 # aindex 1
(Specify the transit area for the virtual link)
>> OSPF Virtual Link 1 # nbr 10.10.14.1
(Specify the router ID of the recipient)
>> OSPF Virtual Link 1 # enable
(Enable the virtual link)
>> OSPF Interface 2 # apply
(Global command to apply all changes)
>> OSPF Interface 2 # save
(Global command to save all changes)
Web OS 10.0 Application Guide
88 Chapter 4: OSPF 212777-A, February 2002
Configuring OSPF for a Virtual Link on Switch #2
1. Configure IP interfaces on each network that will be attached to OSPF areas.
Two IP interfaces are needed on Switch #2: one for the transit area network on 10.10.12.0/24
and one for the stub area network on 10.10.24.0/24.
2. Configure the router ID.
A router ID is required when configuring virtual links. This router ID should be the same one
specified as the target virtual neighbor (nbr) on Web switch 1 in Step 8 on page 87.
3. Enable OSPF.
4. Define the backbone.
This version of Web OS 10.0 requires that a backbone index be configured on the non-back-
bone end of the virtual link as follows:
5. Define the transit area.
>> # /cfg/ip/if 1
(Select menu for IP interface 1)
>> IP Interface 1 # addr 10.10.12.2
(Set IP address on transit area network
)
>> IP Interface 1 # enable
(Enable IP interface 1)
>> IP Interface 1 # ../if 2
(Select menu for IP interface 2)
>> IP Interface 2 # addr 10.10.24.1
(Set IP address on stub area network)
>> IP Interface 2 # enable
(Enable IP interface 2)
>> IP Interface 2 # /cfg/ip/rtrid 10.10.14.1
(Set static router ID on Web switch 2)
>> IP# /cfg/ip/ospf/on (Enable OSPF on Web switch 2)
>> Open Shortest Path First # aindex 0 (Select the menu for area index 0)
>> OSPF Area (index) 0 # areaid 0.0.0.0 (Set the area ID for OSPF area 0)
>> OSPF Area (index) 0 # enable (Enable the area)
>> OSPF Area (index) 0 # ../aindex 1 (Select menu for area index 1)
>> OSPF Area (index) 1 # areaid 0.0.0.1 (Set the area ID for OSPF area 1)
>> OSPF Area (index) 1 # type transit (Define area as transit type)
>> OSPF Area (index) 1 # enable (Enable the area)
Web OS 10.0 Application Guide
Chapter 4: OSPF 89
212777-A, February 2002
6. Define the stub area.
7. Attach the network interface to the backbone.
8. Attach the network interface to the transit area.
9. Configure the virtual link.
The nbr router ID configured in this step must be the same as the router ID that was config-
ured for Web switch #1 in Step 2 on page 86.
10. Apply and save the configuration changes.
Other Virtual Link Options
nYou can use redundant paths by configuring multiple virtual links.
nOnly the endpoints of the virtual link are configured. The virtual link path may traverse
multiple routers in an area as long as there is a routable path between the endpoints.
>> OSPF Area (index) 1 # ../aindex 2 (Select the menu for area index 2)
>> OSPF Area (index) 2 # areaid 0.0.0.2 (Set the area ID for OSPF area 2)
>> OSPF Area (index) 2 # type stub (Define area as stub type)
>> OSPF Area (index) 2 # enable (Enable the area)
>> OSPF Area (index) 2 # ../if 1 (Select OSPF menu for IP interface 1)
>> OSPF Interface 1 # aindex 1 (Attach network to transit area index)
>> OSPF Interface 1 # enable (Enable the transit area interface)
>> OSPF Interface 1 # ../if 2 (Select OSPF menu for IP interface 2)
>> OSPF Interface 2 # aindex 2 (Attach network to stub area index)
>> OSPF Interface 2 # enable (Enable the stub area interface)
>> OSPF Interface 2 # ../virt 1
(Specify a virtual link number)
>> OSPF Virtual Link 1 # aindex 1
(Specify the transit area for the virtual link)
>> OSPF Virtual Link 1 # nbr 10.10.10.1
(Specify the router ID of the recipient)
>> OSPF Virtual Link 1 # enable
(Enable the virtual link)
>> OSPF Interface 2 # apply
(Global command to apply all changes)
>> OSPF Interface 2 # save
(Global command to save all changes)
Web OS 10.0 Application Guide
90 Chapter 4: OSPF 212777-A, February 2002
Example 3: Summarizing Routes
By default, ABRs advertise all the network addresses from one area into another area. Route
summarization can be used for consolidating advertised addresses and reducing the perceived
complexity of the network.
If the network IP addresses in an area are assigned to a contiguous subnet range, you can con-
figure the ABR to advertise a single summary route that includes all the individual IP
addresses within the area.
The following example shows one summary route from area 1 (stub area) injected into area 0
(the backbone). The summary route consists of all IP addresses from 36.128.0.0 through
36.128.254.255 except for the routes in the range 36.128.200.0 through 36.128.200.255.
Figure 4-7 Summarizing Routes
NOTE – You can specify a range of addresses to prevent advertising by using the hide option.
In this example, routes in the range 36.128.200.0 through 36.128.200.255 are kept private.
Follow this procedure to configure OSPF support as shown in Figure 4-7:
1. Configure IP interfaces for each network which will be attached to OSPF areas.
2. Enable OSPF.
>> # /cfg/ip/if 1 (Select menu for IP interface 1)
>> IP Interface 1 # addr 10.10.7.1 (Set IP address on backbone network)
>> IP Interface 1 # ena (Enable IP interface 1)
>> IP Interface 1 # ../if 2 (Select menu for IP interface 2)
>> IP Interface 2 # addr 36.128.192.1 (Set IP address on stub area network)
>> IP Interface 2 # ena (Enable IP interface 2)
>> IP Interface 2 # /cfg/ip/ospf/on (Enable OSPF on the Web switch)
IF 1
10.10.7.1 IF 2
36.128.192.1
Area 1
(0.0.0.1)
36.128.192.x to
36.128.254.x
Area 0
(0.0.0.0)
Summary
Route ABR
Stub AreaBackbone
36.128.192.0/18
Network
10.10.7.0/24
Network
Web OS 10.0 Application Guide
Chapter 4: OSPF 91
212777-A, February 2002
3. Define the backbone.
4. Define the stub area.
5. Attach the network interface to the backbone.
6. Attach the network interface to the stub area.
7. Configure route summarization by specifying the starting address and mask of the range
of addresses to be summarized.
8. Use the hide command to prevent a range of addresses from advertising to the backbone.
9. Apply and save the configuration changes.
>> Open Shortest Path First # aindex 0 (Select menu for area index 0)
>> OSPF Area (index) 0 # areaid 0.0.0.0 (Set the ID for backbone area 0)
>> OSPF Area (index) 0 # type transit (Define backbone as transit type)
>> OSPF Area (index) 0 # enable (Enable the area)
>> OSPF Area (index) 0 # ../aindex 1 (Select menu for area index 1)
>> OSPF Area (index) 1 # areaid 0.0.0.1 (Set the area ID for OSPF area 1)
>> OSPF Area (index) 1 # type stub (Define area as stub type)
>> OSPF Area (index) 1 # enable (Enable the area)
>> OSPF Area (index) 1 # ../if 1 (Select OSPF menu for IP interface 1)
>> OSPF Interface 1 # aindex 0 (Attach network to backbone index)
>> OSPF Interface 1 # enable (Enable the backbone interface)
>> OSPF Interface 1 # ../if 2 (Select OSPF menu for IP interface 2)
>> OSPF Interface 2 # aindex 1 (Attach network to stub area index)
>> OSPF Interface 2 # enable (Enable the stub area interface)
>> OSPF Interface 2 # ../range 1
(Select menu for summary range)
>> OSPF Summary Range 1 # addr 36.128.192.0
(Set base IP address of summary range)
>> OSPF Summary Range 1 # mask 255.255.192.0
(Set mask address for summary range)
>> OSPF Summary Range 1 # aindex 0
(Inject summary route into backbone)
>> OSPF Summary Range 1 # enable
(Enable summary range)
>> OSPF Interface 2 # ../range 2
(Select menu for summary range)
>> OSPF Summary Range 2 # addr 36.128.200.0
(Set base IP address)
>> OSPF Summary Range 2 # mask 255.255.200.255
(Set mask address)
>> OSPF Summary Range 2 # hide enable
(Hide the range of addresses)
>> OSPF Summary Range 2 # apply
(Global command to apply all changes)
>> OSPF Summary Range 2 # save
(Global command to save all changes)
Web OS 10.0 Application Guide
92 Chapter 4: OSPF 212777-A, February 2002
Example 4: Host Routes
The Web OS 10.0 implementation of OSPF includes host routes. Host routes are used for
advertising network device IP addresses to external networks and allows for Server Load Bal-
ancing (SLB) within OSPF. It also makes ABR load sharing and failover possible.
Consider the example network in Figure 4-8. Both Web switches have access to servers with
identical content and are configured with the same virtual server IP addresses: 10.10.10.1 and
10.10.10.2. Web switch #1 is given a host route with a low cost for virtual server 10.10.10.1
and another host route with a high cost for virtual server 10.10.10.2. Web switch #2 is config-
ured with the same hosts but with the costs reversed; one host route has a high cost for virtual
server 10.10.10.1 and another has a low cost for virtual server 10.10.10.2.
All four host routes are injected into the upstream router and advertised externally. Traffic
comes in for both virtual server IP addresses (10.10.10.1 and 10.10.10.2). The upstream router
sees that both addresses exist on both Web switches and uses the host route with the lowest
cost for each. Traffic for 10.10.10.1 goes to Web switch #1 because its host route has the low-
est cost for that address. Traffic for 10.10.10.2 goes to Web switch #2 because its host route has
the lowest cost. This effectively shares the load among ABRs. Both Web switches then use
standard Server Load Balancing (SLB) to distribute traffic among available real servers.
In addition, if one of the Web switches were to fail, the upstream routing device would forward
the traffic to the ABR whose host route has the next lowest cost. In this example, the remaining
Web switch would assume the entire load for both virtual servers.
Figure 4-8 Configuring OSPF Host Routes
ABR Load Sharing Standard SLB
Preferred path
(lowest cost)
to Host Route
10.10.10.1
Preferred path
(lowest cost)
to Host Route
10.10.10.2
Virtual Servers/Host Routes:
10.10.10.1, Cost 1
10.10.10.2, Cost 100
Web Switch #1
Web Switch #2
Virtual Servers/Host Routes:
10.10.10.1, Cost 100
10.10.10.2, Cost 1
Area 1
Stub Area
Area 0
Backbone
Real Servers
with Identical
Content
Web OS 10.0 Application Guide
Chapter 4: OSPF 93
212777-A, February 2002
Configuring OSPF for Host Routes on Web Switch #1
1. Configure basic SLB parameters.
Web switch 1 is connected to two real servers. Each real server is given an IP address and is
placed in the same real server group.
2. Configure client and server processing on specific ports.
3. Enable direct access mode.
4. Configure the primary virtual server.
Alteon Web Switch # 1 will be preferred for virtual server 10.10.10.1.
>> # /cfg/slb/real 1 (Select menu for real server 1)
>> Real server 1 # rip 100.100.100.25 (Set the IP address for real server 1)
>> Real server 1 # ena (Enable the real server)
>> Real server 1 # ../real 2 (Select menu for real server 2)
>> Real server 2 # rip 100.100.10.26 (Set the IP address for real server 2)
>> Real server 2 # ena (Enable the real server)
>> Real server 2 # ../group 1 (Select menu for real server group 1)
>> Real server group 1 # add 1 (Add real server 1 to group)
>> Real server group 1 # add 2 (Add real server 2 to group)
>> Real server group 1 # enable (Enable the group)
>> Real server group 1 # ../on (Turn SLB on)
>> Layer 4# port 4 (Select switch port 4)
>> SLB Port 4 # client ena (Enable client processing on Port 4)
>> SLB Port 4 # ../port 5 (Select switch Port 5)
>> SLB Port 5 # server ena (Enable server processing on Port 5)
>> Layer 4 Port 5# ../adv (Select the SLB advance menu)
>> Layer 4 Advanced# direct ena (Enable DAM)
>> Layer 4 Advanced# .. (Return to the SLB menu)
>> Layer 4 # virt 1
(Select menu for virtual server 1)
>> Virtual server 1 # vip 10.10.10.1
(Set the IP address for virtual server 1)
>> Virtual server 1 # ena
(Enable the virtual server)
>> Virtual server 1 # service http
(Select menu for service on virtual server)
>> Virtual server 1 http service # group 1
(Use real server group 1 for http service)
Web OS 10.0 Application Guide
94 Chapter 4: OSPF 212777-A, February 2002
5. Configure the backup virtual server.
Alteon Web switch # 1 will act as a backup for virtual server 10.10.10.2. Both virtual servers in
this example are configured with the same real server group and provide identical services.
6. Configure IP interfaces for each network that will be attached to OSPF areas.
7. Enable OSPF on Web switch 1.
8. Define the backbone.
9. Define the stub area.
>> Virtual server 2 http service # /cfg/slb/virt 2
(Select menu for virtual server 2)
>> Virtual server 1 # vip 10.10.10.2
(Set the IP address for virtual server 2)
>> Virtual server 1 # ena
(Enable the virtual server)
>> Virtual server 1 # service http
(Select menu for service on virtual server)
>> Virtual server 1 # group 1
(Use real server group 1 for http service)
>> Virtual server 1 # /cfg/ip/if 1 (Select menu for IP interface 1)
>> IP Interface 1 # addr 10.10.7.1 (Set IP address on backbone network)
>> IP Interface 1 # enable (Enable IP interface 1)
>> IP Interface 1 # ../if 2 (Select menu for IP interface 2)
>> IP Interface 2 # addr 10.10.10.40 (Set IP address on stub area network)
>> IP Interface 2 # enable (Enable IP interface 2)
>> IP Interface 2 # ../ospf/on (Enable OSPF on Web switch 1)
>> Open Shortest Path First # aindex 0 (Select menu for area index 0)
>> OSPF Area (index) 0 # areaid 0.0.0.0 (Set the ID for backbone area 0)
>> OSPF Area (index) 0 # type transit (Define backbone as transit type)
>> OSPF Area (index) 0 # enable (Enable the area)
>> OSPF Area (index) 0 # ../aindex 1 (Select menu for area index 1)
>> OSPF Area (index) 1 # areaid 0.0.0.1 (Set the ID for stub area 1)
>> OSPF Area (index) 1 # type stub (Define area as stub type)
>> OSPF Area (index) 1 # enable (Enable the area)
Web OS 10.0 Application Guide
Chapter 4: OSPF 95
212777-A, February 2002
10. Attach the network interface to the backbone.
11. Attach the network interface to the stub area.
12. Configure host routes.
One host route is needed for each virtual server on Web switch 1. Since virtual server
10.10.10.1 is preferred for Web switch 1, its host route has a low cost. Because virtual server
10.10.10.2 is used as a backup in case Web switch 2 fails, its host route has a high cost.
13. Apply and save the configuration changes.
>> OSPF Area (index) 1 # ../if 1 (Select OSPF menu for IP interface 1)
>> OSPF Interface 1 # aindex 0 (Attach network to backbone index)
>> OSPF Interface 1 # enable (Enable the backbone interface)
>> OSPF Interface 1 # ../if 2 (Select OSPF menu for IP interface 2)
>> OSPF Interface 2 # aindex 1 (Attach network to stub area index)
>> OSPF Interface 2 # enable (Enable the stub area interface)
>> OSPF Interface 2 # ../host 1
(Select menu for host route 1)
>> OSPF Host Entry 1 # addr 10.10.10.1
(Set IP address same as virtual server 1)
>> OSPF Host Entry 1 # aindex 0
(Inject host route into backbone area)
>> OSPF Host Entry 1 # cost 1
(Set low cost for preferred path)
>> OSPF Host Entry 1 # enable
(Enable the host route)
>> OSPF Host Entry 1 # ../host 2
(Select menu for host route 2)
>> OSPF Host Entry 2 # addr 10.10.10.2
(Set IP address same as virtual server 2)
>> OSPF Host Entry 2 # aindex 0
(Inject host route into backbone area)
>> OSPF Host Entry 2 # cost 100
(Set high cost for use as backup path)
>> OSPF Host Entry 2 # enable
(Enable the host route)
>> OSPF Host Entry 2 # apply (Global command to apply all changes)
>> OSPF Host Entry 2 # save (Global command to save all changes)
Web OS 10.0 Application Guide
96 Chapter 4: OSPF 212777-A, February 2002
Configuring OSPF for Host Routes on Web Switch 2
1. Configure basic SLB parameters.
Web switch 2 is connected to two real servers. Each real server is given an IP address and is
placed in the same real server group.
2. Configure the virtual server parameters.
The same virtual servers are configured as on Web switch 1.
3. Configure IP interfaces for each network that will be attached to OSPF areas.
>> # /cfg/slb/real 1 (Select menu for real server 1)
>> Real server 1 # rip 100.100.100.27 (Set the IP address for real server 1)
>> Real server 1 # enable (Enable the real server)
>> Real server 1 # ../real 2 (Select menu for real server 2)
>> Real server 2 # rip 100.100.10.28 (Set the IP address for real server 2)
>> Real server 2 # enable (Enable the real server)
>> Real server 2 # ../group 1 (Select menu for real server group 1)
>> Real server group 1 # add 1 (Add real server 1 to group)
>> Real server group 1 # add 2 (Add real server 2 to group)
>> Real server group 1 # enable (Enable the group)
>> Real server group 1 # ../on (Turn SLB on)
>> Layer 4 # virt 1
(Select menu for virtual server 1)
>> Virtual server 1 # vip 10.10.10.1
(Set the IP address for virtual server 1)
>> Virtual server 1 # enable
(Enable the virtual server)
>> Virtual server 1 # service http
(Select menu for service on virtual server)
>> Virtual server 1 http service # group 1
(Use real server group 1 for http service)
>> Virtual server 2 http service # /cfg/slb/virt 2
(Select menu for virtual server 2)
>> Virtual server 1 # vip 10.10.10.2
(Set the IP address for virtual server 2)
>> Virtual server 1 # enable
(Enable the virtual server)
>> Virtual server 1 # service http
(Select menu for service on virtual server)
>> Virtual server 1 # group 1
(Use real server group 1 for http service)
>> Virtual server 1 # /cfg/ip/if 1 (Select menu for IP Interface 1)
>> IP Interface 1 # addr 10.10.7.2 (Set IP address on backbone network)
>> IP Interface 1 # enable (Enable IP interface 1)
>> IP Interface 1 # ../if 2 (Select menu for IP Interface 2)
>> IP Interface 2 # addr 10.10.10.41 (Set IP address on stub area network)
>> IP Interface 2 # enable (Enable IP interface 2)
Web OS 10.0 Application Guide
Chapter 4: OSPF 97
212777-A, February 2002
4. Enable OSPF on Web switch #2.
5. Define the backbone.
6. Define the stub area.
7. Attach the network interface to the backbone.
8. Attach the network interface to the stub area.
>> IP Interface 2 # ../ospf/on (Enable OSPF on Web switch #2)
>> Open Shortest Path First # aindex 0 (Select menu for area index 0)
>> OSPF Area (index) 0 # areaid 0.0.0.0 (Set the ID for backbone area 0)
>> OSPF Area (index) 0 # type transit (Define backbone as transit type)
>> OSPF Area (index) 0 # enable (Enable the area)
>> OSPF Area (index) 0 # ../aindex 1 (Select menu for area index 1)
>> OSPF Area (index) 1 # areaid 0.0.0.1 (Set the ID for stub area 1)
>> OSPF Area (index) 1 # type stub (Define area as stub type)
>> OSPF Area (index) 1 # enable (Enable the area)
>> OSPF Area (index) 1 # ../if 1 (Select OSPF menu for IP interface 1)
>> OSPF Interface 1 # aindex 0 (Attach network to backbone index)
>> OSPF Interface 1 # enable (Enable the backbone interface)
>> OSPF Interface 1 # ../if 2 (Select OSPF menu for IP interface 2)
>> OSPF Interface 2 # aindex 1 (Attach network to stub area index)
>> OSPF Interface 2 # enable (Enable the stub area interface)
Web OS 10.0 Application Guide
98 Chapter 4: OSPF 212777-A, February 2002
9. Configure host routes.
Host routes are configured just like those on Web switch 1, except their costs are reversed.
Since virtual server 10.10.10.2 is preferred for Web switch 2, its host route has been given a
low cost. Because virtual server 10.10.10.1 is used as a backup in case Web switch 1 fails, its
host route has been given a high cost.
10. Apply and save the configuration changes.
Verifying OSPF Configuration
Use the following commands to verify the OSPF configuration on your switch:
n/info/ospf/general
n/info/ospf/nbr
n/info/ospf/dbase/dbsum
n/info/ospf/route
n/stats/route
Refer to the Web OS 10.0 Command Reference for information on the above commands.
>> OSPF Interface 2 # ../host 1
(Select menu for host route 1)
>> OSPF Host Entry 1 # addr 10.10.10.1
(Set IP address same as virtual server 1)
>> OSPF Host Entry 1 # aindex 0
(Inject host route into backbone area)
>> OSPF Host Entry 1 # cost 100
(Set high cost for use as backup path)
>> OSPF Host Entry 1 # enable
(Enable the host route)
>> OSPF Host Entry 1 # ../host 2
(Select menu for host route 2)
>> OSPF Host Entry 2 # addr 10.10.10.2
(Set IP address same as virtual server 2)
>> OSPF Host Entry 2 # aindex 0
(Inject host route into backbone area)
>> OSPF Host Entry 2 # cost 1
(Set low cost for primary path)
>> OSPF Host Entry 2 # enable
(Enable the host route)
>> OSPF Host Entry 2 # apply
(Global command to apply all changes)
>> OSPF Host Entry 2 # save
(Global command to save all changes)
212777-A, February 2002 99
CHAPTER 5
Secure Switch Management
This chapter discusses the use of secure tunnels so that the data on the network is encrypted
and secured for messages between a remote administrator and the switch.
To limit access to the switch’s Management Processor without having to configure filters for
each switch port, you can set a source IP address (or range) that will be allowed to connect to
the switch IP interface through Telnet, SSH, SNMP, or the Web OS Browser-Based Interface
(BBI). This will also help prevent spoofing or attacks on the switch’s TCP/IP stack. The fol-
lowing sections are addressed in this chapter:
n“Setting Allowable Source IP Address Ranges” on page 100
n“Secure Switch Management” on page 101
n“RADIUS Authentication and Authorization” on page 103
n“Secure Shell and Secure Copy” on page 107
n“Port Mirroring” on page 113
Web OS 10.0 Application Guide
100 Chapter 5: Secure Switch Management 212777-A, February 2002
Setting Allowable Source IP Address
Ranges
The allowable management IP address range is configured using the system mnet and mmask
options available on the Command Line Interface (CLI) System Menu (/cfg/sys).
NOTE – The mnet and mmask commands in the /cfg/slb/adv menu are used for a differ-
ent purpose.
When an IP packet reaches the Management Processor, the source IP address is checked
against the range of addresses defined by mnet and mmask. If the source IP address of the host
or hosts are within this range, they are allowed to attempt to log in. Any packet addressed to a
switch IP interface with a source IP address outside this range is discarded silently.
Example: Assume that the mnet is set to 192.192.192.0 and the mmask is set to
255.255.255.128. This defines the following range of allowed IP addresses: 192.192.192.1 to
192.192.192.127.
nA host with a source IP address of 192.192.192.21 falls within the defined range and
would be allowed to access the switch Management Processor.
nA host with a source IP address of 192.192.192.192 falls outside the defined range and is
not granted access. To make this source IP address valid, you would need to shift the host
to an IP address within the valid range specified by the mnet and mmask or modify the
mnet to be 192.192.192.128 and the mmask to be 255.255.255.128. This would put the
192.192.192.192 host within the valid range allowed by the mnet and mmask
(192.192.192.128-255).
NOTE – When the mnet and mmask Management Processor filter is applied, Routing Inter-
face Protocol (RIP) updates received by the switch will be discarded if the source IP address of
the RIP packet(s) falls outside the specified range. You can correct this by configuring static
routes.
Web OS 10.0 Application Guide
Chapter 5: Secure Switch Management 101
212777-A, February 2002
Secure Switch Management
Secure switch management is needed for environments that perform significant management
functions across the Internet. The following are some of the functions for secured manage-
ment:
nAuthentication of remote administrators
Authentication is the action of determining and verifying who the administrator is; it usu-
ally involves a name and a password. The password can be either a fixed password or a
challenge-response query.
nAuthorization of remote administrators
Once an administrator has been authenticated, authorization is the action of determining
what that user is allowed to do. Authorization does not merely provide yes or no answers
but may also customize the service for a particular administrator.
nEncryption of management information exchanged between the remote administrator and
the switch
Examples of protocols to encrypt management information are SSH (Secure Shell) and
SCP (Secure Copy).
Authentication and Authorization
NOTE – While authentication and authorization (AA) protocols and servers are designed to
authenticate remote dial-up users (in addition to authorizing remote access capabilities to
users), this overview is focused on using the AA model to authenticate and authorize remote
administrators for managing a switch.
The AA model is based on a client/server model. The Remote Access Server (RAS)—the
switch—is a client to the back-end database server. A remote user (the remote administrator)
interacts only with the RAS, not the back-end server and database.
Two prominent AA protocols used to control dial-up access into networks are Cisco’s
TACACS+ (Terminal Access Controller Access Control System) and Livingston Enterprise’s
RADIUS (Remote Authentication Dial-In User Service). Web OS supports only the RADIUS
authentication method.
Web OS 10.0 Application Guide
102 Chapter 5: Secure Switch Management 212777-A, February 2002
Requirements
The following components are required for authorization and authentication:
nA remote administrator
nThe Web switch with authentication and authorization protocol support, acting as a client
in the AA model
nA back-end authentication and authorization server that performs the following functions:
Authenticates remote administrators
Checks the remote administrator’s authorization to access the switch
Optionally, tracks and logs the administrator’s activity while logging on
nAn AA database that contains information about authorized administrators and their spe-
cific capabilities and privileges
Web OS 10.0 Application Guide
Chapter 5: Secure Switch Management 103
212777-A, February 2002
RADIUS Authentication and Authorization
RADIUS is an access server authentication, authorization, and accounting protocol used to
secure remote access to networks and network services against unauthorized access.
RADIUS consists of three components:
nA protocol with a frame format that utilizes UDP over IP (based on RFC 2138 and 2866)
nA centralized server that stores all the user authorization information
nA client, in this case, the switch
The operation of RADIUS authentication and authorization protocol is based on the AA model
described previously. The switch—acting as the RADIUS client—will communicate to the
RADIUS server to authenticate and authorize a remote administrator using the protocol defini-
tions specified in RFC 2138 and 2866. Transactions between the client and RADIUS server are
authenticated through the use of a shared secret, which is never sent over the network. In addi-
tion, the remote administrator passwords are sent encrypted between the RADIUS client (the
switch) and the back-end RADIUS server.
Figure 5-1 Authentication and Authorization: How It Works
Internet
1. Remote administrator connects to
switch and provides user name
and password
2. Using Authentication/Authorization
protocol, the switch sends request
to authentication server
3. Authentication server
checks request against
the user ID database
4. Using RADIUS protocol,
the authentication server
instructs the switch to
grant or deny admim access
Authentication
Servers
Alteon Web Switch
Web OS 10.0 Application Guide
104 Chapter 5: Secure Switch Management 212777-A, February 2002
RADIUS Authentication Features in Web OS
The following Radius Authentication features are supported in Web OS:
nSupports RADIUS client on the switch, based on the protocol definitions in RFC 2138 and
2866.
nEnables/disables support of RADIUS authentication and authorization.
The default disables the use of RADIUS for authentication and authorization.
nAllows RADIUS secret password up to 32 bytes and less than 16 octets.
nSupports secondary authentication server so that when the primary authentication server
is unreachable, the switch can send client authentication requests to the secondary authen-
tication server.
Use the /cfg/sys/radius/cur command to show the currently active RADIUS
authentication server.
nSupports user-configurable RADIUS server retry and time-out values.
The parameters are:
Time-out value = 1-10 seconds
Retries = 1-3
The switch will time out if it does not receive a response from the RADIUS server in 1-3
retries. The switch will also automatically retry connecting to the RADIUS server before it
declares the server down.
nSupports user-configurable RADIUS application port.
The default is 1645/UDP based on RFC 2138. Port 1812 is also supported.
nAllows network administrator to define privileges for one or more specific users to access
the switch at the RADIUS user database.
nSecurID is supported if the RADIUS server can do an ACE/Server client proxy. The pass-
word is the PIN number, plus the token code of the SecurID card.
Web OS 10.0 Application Guide
Chapter 5: Secure Switch Management 105
212777-A, February 2002
Web Switch User Accounts
The user accounts listed in Table 5-1 can be defined in the RADIUS server dictionary file.
Table 5-1 User Access Levels
User Account Description and Tasks Performed Password
User The User has no direct responsibility for switch management.
He/she can view all switch status information and statistics but
cannot make any configuration changes to the switch.
user
SLB Operator The SLB Operator manages Web servers and other Internet ser-
vices and their loads. In addition to being able to view all switch
information and statistics, the SLB Operator can enable/disable
servers using the SLB operation menu.
slboper
Layer 4 Operator The Layer 4 Operator manages traffic on the lines leading to the
shared Internet services. This user currently has the same access
level as the SLB operator. This level is reserved for future use, to
provide access to operational commands for operators managing
traffic on the line leading to the shared Internet services.
l4oper
Operator The Operator manages all functions of the switch. In addition to
SLB Operator functions, the Operator can reset ports or the
entire switch.
oper
SLB Administrator The SLB Administrator configures and manages Web servers
and other Internet services and their loads. In addition to SLB
Operator functions, the SLB Administrator can configure param-
eters on the SLB menus, with the exception of not being able to
configure filters or bandwidth management.
slbadmin
Layer 4 Administrator The Layer 4 Administrator configures and manages traffic on the
lines leading to the shared Internet services. In addition to SLB
Administrator functions, the Layer 4 Administrator can config-
ure all parameters on the SLB menus, including filters and band-
width management.
l4admin
Administrator The super-user Administrator has complete access to all menus,
information, and configuration commands on the switch, includ-
ing the ability to change both the user and administrator pass-
words.
admin
Web OS 10.0 Application Guide
106 Chapter 5: Secure Switch Management 212777-A, February 2002
When the user logs in, the switch authenticates his/her level of access by sending the RADIUS
access request, that is, the client authentication request, to the RADIUS authentication server.
If the remote user is successfully authenticated by the authentication server, the switch will
verify the privileges of the remote user and authorize the appropriate access. When both the
primary and secondary authentication servers are not reachable, the administrator has an
option to allow backdoor access via the console only or console and telnet access. The default
is disable for telnet access and enable for console access.
All user privileges, other than those assigned to the Administrator, have to be defined in the
RADIUS dictionary. Radius attribute 6 which is built into all Radius servers defines the admin-
istrator. The file name of the dictionary is RADIUS vendor-dependent. The following user
privileges are Web OS-proprietary definitions.
Table 5-2 Web OS Alteon Levels
User Name/Access User-Service-Type Value
User Vendor-supplied 255
SLB Operator Vendor-supplied 254
Layer 4 Operator Vendor-supplied 253
Operator Vendor-supplied 252
SLB Administrator Vendor-supplied 251
Layer 4 Administrator Vendor-supplied 250
Web OS 10.0 Application Guide
Chapter 5: Secure Switch Management 107
212777-A, February 2002
Secure Shell and Secure Copy
Although a remote network administrator can manage the configuration of an Alteon Web
switch via Telnet, this method does not provide a secure connection. Using Secure Shell (SSH)
and Secure Copy (SCP), messages between a remote administrator and the switch use secure
tunnels so that the data on the network is encrypted and secured. Figure 5-1 on page 103 illus-
trates secure switch management.
NOTE – SSH/SCP features are configured via the console port, using the CLI. However, SCP
putcfg and TFTP getcfg can also change the SSH/SCP configuration.When SSH is
enabled, SCP is also enabled.
SSH is a protocol that enables a remote administrator to log securely into another computer
over a network to execute management commands. All the data sent over the network using
SSH is encrypted and secured. Using SSH gives administrators an alternate way to manage the
switch, one that provides strong security.
SCP is typically used to copy files securely from one machine to another. SCP uses SSH for
encryption of data on the network. On an Alteon Web switch, SCP is used to download and
upload the switch configuration via secure channels.
The benefits of using SSH and SCP are listed below:
nAuthentication of remote administrators
Identifying the administrator using Name/Password
nAuthorization of remote administrators
Determining the permitted actions and customizing service for individual administrators
nEncryption of management messages
Encrypting messages between the remote administrator and switch
nSecure copy support
NOTE – The Web OS implementation of SSH is based on SSH version 1.5 and supports SSH-
1.5-1.x.xx. SSH clients of other versions (especially version 2) will not be supported. The fol-
lowing SSH clients have been tested:
nSSH 1.2.23 and SSH 1.2.27 for Linux (freeware)
nSecureCRT 3.0.2 and SecureCRT 3.0.3 for Windows NT (Van Dyke Technologies, Inc.)
nF-Secure SSH 1.1 for Windows (Data Fellows)
Web OS 10.0 Application Guide
108 Chapter 5: Secure Switch Management 212777-A, February 2002
NOTE – There can be a maximum number of four simultaneous Telnet/SSH/SCP connections
at one time. The /cfg/sys/radius/telnet command also applies to SSH/SCP connec-
tions.
Encryption of Management Messages
The supported encryption and authentication methods for both SSH and SCP are listed below:
Server Host Authentication: Client RSA authenticates the switch at the beginning of
every connection
Key Exchange: RSA
Encryption: 3DES-CBC, DES
User Authentication: Local password authentication, RADIUS, SecurID (via
RADIUS, for SSH only—does not apply to SCP)
SCP Services
Administrator privileges are required to perform SCP commands. Set the SCP admin password
(this password must be different from the admin password).
The following SCP commands are supported in this service. These commands are entered
using the CLI on the client that is running the SCP application:
ngetcfg is used to download the switch's configuration to the remote host via SCP.
nputcfg is used to upload the switch's configuration from a remote host to the switch; the
diff command will be automatically executed at the end of putcfg to notify the remote
client of the difference between the new and the current configurations.
nputcfg_apply will run the apply command after the putcfg is done.
nputcfg_apply_save saves the new configuration to the flash after putcfg_apply
is done.
The putcfg_apply and putcfg_apply_save commands are provided because extra
apply and save commands are usually required after a putcfg; however, an SCP session
is not in an interactive mode at all.
Web OS 10.0 Application Guide
Chapter 5: Secure Switch Management 109
212777-A, February 2002
RSA Host and Server Keys
To support the SSH server feature, two sets of RSA keys (host and server keys) are required.
The host key is 1024 bits and is used to identify the Web switch. The server key is 768 bits and
is used to make it impossible to decipher a captured session by breaking into the Web switch at
a later time.
When the SSH server is first enabled and applied, the switch will automatically generate the
host and server keys and will then store them into the FLASH memory.
NOTE – The Web switch will perform only one session of key/cipher generation at a time.
Thus, an SSH/SCP client will not be able to log in if the switch is performing key generation at
that time, or if another client has logged in immediately prior. Also, key generation will fail if
an SSH/SCP client is logging in at that time.
nTo generate a host key:
nTo generate a server key:
Again, the host and server key are automatically stored in FLASH memory when generated.
NOTE – For security reasons, the SSHD menu options are available via the console port only
and not via Telnet, SNMP, or the Browser-Based Interface (BBI).
When the switch reboots, it will retrieve the host and server keys from the FLASH memory. If
these two keys are not available in the flash and if the SSH server feature is enabled, the switch
will automatically generate them during the system reboot.
The switch can also automatically regenerate the RSA server key. To set the interval of RSA
server key autogeneration, use this command:
where the number of hours must range between 0–24, and a value of 0 denotes that RSA server
key autogeneration is disabled. When greater than 0, the switch will autogenerate the RSA
server key every specified interval; however, RSA server key generation will be skipped if the
switch is busy doing other key or cipher generation when the timer expires.
>> # /cfg/sys/sshd/hkeygen
>> # /cfg/sys/sshd/skeygen
>> # /cfg/sys/sshd/intrval <number of hours (0-24)>
Web OS 10.0 Application Guide
110 Chapter 5: Secure Switch Management 212777-A, February 2002
Radius Authentication
SSH/SCP is integrated with RADIUS authentication. After the RADIUS server is enabled on
the switch, all subsequent SSH authentication requests will be redirected to the specified
RADIUS servers for authentication. The redirection is transparent to the SSH clients.
SecurID Support
SSH/SCP can also work with SecurID, a token card-based authentication method. The use of
SecurID requires the interactive mode during login, which is not provided by the SSH connec-
tion.
NOTE – There is no SNMP or Browser-Based Interface (BBI) support for SecurID because the
SecurID server, ACE, is a one-time password authentication and requires an interactive ses-
sion.
To log in using SSH without difficulties, you need to use a special username, “ace,” to log in
and bypass the SSH authentication. After an SSH connection is established, you will then be
prompted to enter the username and password (the SecurID authentication is being performed
now). You will need to provide your actual username and the token in your SecurID card as a
regular Telnet user would do in order to log in.
To use SCP, you need to use the SCP-only administrator’s password (that is, the scpadm
option under the /cfg/sys/sshd menu) to bypass the checking of SecurID. Alternately,
you can configure a regular administrator with a fixed password in the RADIUS server if it can
be supported. A regular administrator with a fixed password in the RADIUS server can per-
form both SSH and SCP with no additional authentication required.
A SCP-only administrator’s password is typically used when SecurID is used. For example, it
can be used in an automation program (in which the tokens of SecurID are not available) to
back up (download) the switch configurations each day.
NOTE – The SCP-only administrator’s password must be different from the regular administra-
tor’s password. If the two passwords are the same, the administrator using that password will
not be allowed to log in as a SSH user because the switch will recognize him as the SCP-only
administrator and only allow the administrator access to SCP commands.
Web OS 10.0 Application Guide
Chapter 5: Secure Switch Management 111
212777-A, February 2002
Configuring SSH/SCP
SSH/SCP parameters can be configured only via the console port, using the CLI. The switch
SSH daemon uses TCP port 22 only and is not configurable.
To enable or disable the SSH/SCP feature, use the following commands:
To set the interval of RSA server key autogeneration, use this command:
where the number of hours must range between 0–24, and a value of 0 denotes that RSA server
key autogeneration is disabled. When greater than 0, the switch will auto-generate the RSA
server key every interval specified; however, RSA server key generation will be skipped if the
switch is busy doing other key or cipher generation when the timer expires.
To enable or disable the SCP apply and save (SCP putcfg_apply and
putcfg_apply_save commands), use these commands:
The following commands are useful for obtaining information about the current SSH/SCP-
related configuration:
To apply the pending changes from the new configuration, use this command:
NOTE – If SSH/SCP is enabled and an apply command is issued, the switch will automati-
cally generate the RSA host and server keys if they are not available. It will take several min-
utes to complete this process.
>> # /cfg/sys/sshd/on (Turn SSH/SCP on)
>> # /cfg/sys/sshd/off (Turn SSH/SCP off)
>> # /cfg/sys/sshd/intrval <number of hours (0-24)>
>> # /cfg/sys/sshd/ena (Enable SSH/SCP apply and save)
>> # /cfg/sys/sshd/dis (Disable SSH/SCP apply and save)
>> # /cfg/sys/sshd/cur (View current SSH/SCP settings)
>> # diff (View pending changes)
>> # apply
Web OS 10.0 Application Guide
112 Chapter 5: Secure Switch Management 212777-A, February 2002
To save the current configuration to FLASH, use this command:
Usually, there will be no need to generate manually the RSA host and server keys. However,
you may still do so by using the following commands:
NOTE – These two commands will take effect immediately without the need of an apply
command being issued.
Some Supported Client Commands
Up to four simultaneous Telnet/SSH/SCP connections are supported on a switch.
nTo log in to the switch:
ssh <switch IP address> or ssh -l <username> <switch IP address>
nTo download the switch configuration using SCP:
scp <switch IP address>:getcfg <local filename>
nTo upload the configuration to the switch:
scp <local filename> <switch IP address>:putcfg
Some examples are listed below:
where 205.178.15.157 is the IP address of the example switch.
Please also note that apply and save commands are still needed after the last command
(scp ad4.cfg 205.178.15.157:putcfg) is issued. Or, instead, you can use the fol-
lowing commands:
>> # save
>> # /cfg/sys/sshd/hkeygen (Generates the host key)
>> # /cfg/sys/sshd/skeygen (Generates the server key)
>> # ssh 205.178.15.157
>> # ssh -l dleu 205.178.15.157
>> # scp 205.178.15.157:getcfg ad4.cfg
>> # scp ad4.cfg 205.178.15.157:putcfg
>> # scp ad4.cfg 205.178.15.157:putcfg_apply
>> # scp ad4.cfg 205.178.15.157:putcfg_apply_save
Web OS 10.0 Application Guide
Chapter 5: Secure Switch Management 113
212777-A, February 2002
Port Mirroring
Port mirroring is implemented to enhance the security of your network. For example, an IDS
server can be connected to the monitor port to detect intruders attacking the network.
The port mirroring feature in Web OS 10.0 allows you to attach a sniffer to a monitoring port
that is configured to receive a copy of every single packet that is forwarded from the mirrored
port. Web OS enables you to mirror port traffic for all layers (Layer 2 - 7).
As shown in Figure 5-2, port 5 is monitoring ingress traffic (traffic entering the switch) on port
1 and egress traffic (traffic leaving the switch) on port 3. You can attach a device to port 5 to
monitor the traffic on ports 1 and 3.
Figure 5-2 Monitoring Ports
Figure 5-2 shows two mirrored ports monitored by a single port. Similarly, you can have a sin-
gle or groups of
na mirrored port to a monitored port
nmany mirrored ports to one monitored port
Web OS 10.0 does not support a single port being monitored by multiple ports.
Packets are duplicated and sent to the mirrored ports after client or server port processing is
completed. Data packets sent from a client to a virtual server are seen at the mirrored port as
follows:
nsource IP address = client IP address
ndestination IP address = real server IP address rather than the virtual server IP address.
Conversely, the response from the server to the client will be seen as follows:
nsource IP address =virtual server IP address
ndestination IP address=client IP address
Link
Data
Active
Link
Data
Active
9
8
TX RX
TX
RX
Power Console
5
TX RX
4
TX RX
3
TX RX
1
TX RX
2
TX RX
6
TX RX
7
TX RX
Link
Data
1000
Base-SX
Gigabit
Powered
Mirrored ports
Monitoring port
Ingress traffic
Egress traffic
Web OS 10.0 Application Guide
114 Chapter 5: Secure Switch Management 212777-A, February 2002
NOTE – Port mirroring and bandwidth management cannot be enabled at the same time.
To configure port mirroring for the example shown in Figure 5-2,
1. Specify the monitoring port.
2. Select the ports that you want to mirror.
3. Enable port mirroring.
4. Apply and save the configuration.
5. View the current configuration.
>> # /cfg/pmirr/monport 5 (Select port 5 for monitoring)
>> Port 5 # add 1 (Select port 1 to mirror)
>> Enter port mirror direction [in, out, or both]: in
(Monitor ingress traffic on port 1)
>> Port 5 # add 3 (Select port 3 to mirror)
>> Enter port mirror direction [in, out, or both]: out
(Monitor egress traffic on port 3)
>> # /cfg/pmirr/mirr ena (Enable port mirroring)
>> PortMirroring# apply (Apply the configuration)
>> PortMirroring# save (Save the configuration)
>> PortMirroring# cur (Display the current settings)
Port mirroring is enabled
Monitoring Ports Mirrored Ports
1none
2none
3none
4none
5(1, in) (3, out)
6none
7none
8none
9none
212777-A, February 2002 115
Part 2: Web Switching
Fundamentals
Internet traffic consists of myriad services and applications which use the Internet Protocol
(IP) for data delivery. IP, however, is not optimized for all the various applications. Web
switching goes beyond IP and makes intelligent switching decisions based on the application
and its data. This sections details the following fundamental Web switching features:
nServer Load Balancing
nFiltering
nApplication Redirection
nVirtual Matrix Architecture
nHealth Checking
nHigh Availability
Web OS 10.0 Application Guide
116 Web Switching Fundamentals 212777-A, February 2002
212777-A, February 2002 117
CHAPTER 6
Server Load Balancing
Server Load Balancing (SLB) allows you to configure the Alteon Web switch to balance user
session traffic among a pool of available servers that provide shared services. The following
sections in this chapter describe how to configure and use SLB:
n“Understanding Server Load Balancing” on page 118. This section discusses the benefits
of server load balancing and how it works.
n“Implementing Basic Server Load Balancing” on page 121. This section discusses how
implementing SLB provides reliability, performance, and ease of maintenance on your
network.
“Network Topology Requirements” on page 122. This section provides key require-
ments to consider before deploying server load balancing.
“Configuring Server Load Balancing” on page 124.
“Additional Server Load Balancing Options” on page 128.
n“Extending SLB Topologies” on page 136. This section discusses proxy IP addresses,
mapping a virtual port to real ports, monitoring real server ports, and delayed binding.
n“Load Balancing Special Services” on page 149. This section discusses load balancing
based on special services, such as source IP addresses, FTP, RTSP, DNS, WAP, IDS, and
WAN link.
For additional information about the SLB feature, see your Web OS Command Reference.
Web OS 10.0 Application Guide
118 Chapter 6: Server Load Balancing 212777-A, February 2002
Understanding Server Load Balancing
SLB benefits your network in a number of ways:
nIncreased efficiency for server utilization and network bandwidth
With SLB, your Alteon Web switch is aware of the shared services provided by your
server pool and can then balance user session traffic among the available servers. Impor-
tant session traffic gets through more easily, reducing user competition for connections on
overutilized servers. For even greater control, traffic is distributed according to a variety
of user-selectable rules.
nIncreased reliability of services to users
If any server in a server pool fails, the remaining servers continue to provide access to
vital applications and data. The failed server can be brought back up without interrupting
access to services.
nIncreased scalability of services
As users are added and the server pool’s capabilities are saturated, new servers can be
added to the pool transparently.
Identifying Your Network Needs
SLB may be the right option for addressing these vital network concerns:
nA single server no longer meets the demand for its particular application.
nThe connection from your LAN to your server overloads the server’s capacity.
nYour NT and UNIX servers hold critical application data and must remain available even
in the event of a server failure.
nYour Web site is being used as a way to do business and for taking orders from customers.
It must not become overloaded or unavailable.
nYou want to use multiple servers or hot-standby servers for maximum server uptime.
nYou must be able to scale your applications to meet client and LAN request capacity.
nYou can’t afford to continue using an inferior load-balancing technique, such as DNS
round robin or a software-only system.
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 119
212777-A, February 2002
How Server Load Balancing Works
In an average network that employs multiple servers without server load balancing, each server
usually specializes in providing one or two unique services. If one of these servers provides
access to applications or data that is in high demand, it can become overutilized. Placing this
kind of strain on a server can decrease the performance of the entire network as user requests are
rejected by the server and then resubmitted by the user stations. Ironically, over-utilization of
key servers often happens in networks where other servers are actually available.
The solution to getting the most from your servers is SLB. With this software feature, the
switch is aware of the services provided by each server. The switch can direct user session traf-
fic to an appropriate server, based on a variety of load-balancing algorithms.
Figure 6-1 Traditional Versus SLB Network Configurations
To provide load balancing for any particular type of service, each server in the pool must have
access to identical content, either directly (duplicated on each server) or through a back-end
network (mounting the same file system or database server).
Retail Trading Lending
Retail
Trading
Lending
Retail
Trading
Lending
Retail
Trading
Lending
Clients Clients
Retail
Retail Trading
Trading
Trading
Trading
Trading
Trading
Web OS 10.0 Application Guide
120 Chapter 6: Server Load Balancing 212777-A, February 2002
The Web switch, with SLB software, acts as a front-end to the servers, interpreting user session
requests and distributing them among the available servers. Load balancing in Web OS can be
done in the following ways:
nVirtual server-based load balancing
This is the traditional load balancing method. The switch is configured to act as a virtual
server and is given a virtual server IP address (or range of addresses) for each collection of
services it will distribute. Depending on your switch model, there can be as many as 256
virtual servers on the switch, each distributing up to eight different services (up to a total
of 2048 services).
Each virtual server is assigned a list of the IP addresses (or range of addresses) of the real
servers in the pool where its services reside. When the user stations request connections to
a service, they will communicate with a virtual server on the switch. When the switch
receives the request, it binds the session to the IP address of the best available real server
and remaps the fields in each frame from virtual addresses to real addresses.
IP, FTP, RTSP, IDS, and static session WAP are examples of some of the services that use
virtual servers for load balancing.
nFiltered-based load balancing
A filter allows you to control the types of traffic permitted through the switch. Filters are
configured to allow, deny, or redirect traffic according to the IP address, protocol, or Layer
4 port criteria. In filtered-based load balancing, a filter is used to redirect traffic to a real
server group. If the group is configured with more than one real server entry, redirected
traffic is load balanced among the available real servers in the group.
Firewalls, WAP with RADIUS snooping, IDS, and WAN links use redirection filters to
load balance traffic.
nContent-based load balancing
Content-based load balancing uses Layer 7 application data (such as URL, cookies, and
Host Headers) to make intelligent load balancing decisions.
URL-based load balancing, browser-smart load balancing, and cookie-based preferential
load balancing are a few examples of content-based load balancing.
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 121
212777-A, February 2002
Implementing Basic Server Load Balancing
Consider a situation where customer Web sites are being hosted by a popular Web hosting
company and/or Internet Service Provider (ISP). The Web content is relatively static and is
kept on a single NFS server for easy administration. As the customer base increases, the num-
ber of simultaneous Web connection requests also increases.
Figure 6-2 Web Hosting Configuration Without SLB
Such a company has three primary needs:
nIncreased server availability
nServer performance scalable to match new customer demands
nEasy administration of network and servers
Figure 6-3 Web Hosting with SLB Solutions
Web Server
NFS Server
Web Clients
Internet
Web Host
Router
As clients increase, the server becomes overloaded
Web Server Farm
NFS Server
Web Switch
AB
C
Web Clients
Internet
Web Host
Routers
Layer 4 Switching &
Server Load Balancing
Layer 2
Switching Layer 2
Switching
Web OS 10.0 Application Guide
122 Chapter 6: Server Load Balancing 212777-A, February 2002
All of the above issues can be addressed by adding an Alteon Web switch with SLB software.
nReliability is increased by providing multiple paths from the clients to the Web switch and
by accessing a pool of servers with identical content. If one server fails, the others can take
up the additional load.
nPerformance is improved by balancing the Web request load across multiple servers. More
servers can be added at any time to increase processing power.
nFor ease of maintenance, servers can be added or removed dynamically, without interrupt-
ing shared services.
Network Topology Requirements
When deploying SLB, there are a few key aspects to consider:
nIn standard SLB, all client requests to a virtual server IP address and all responses from the
real servers must pass through the switch, as shown in Figure 6-4. If there is a path between
the client and the real servers that does not pass through the switch, the Web switch can be
configured to proxy requests in order to guarantee that responses use the correct path (see
“Proxy IP Addresses” on page 136).
Figure 6-4 SLB Client/Server Traffic Routing
nIdentical content must be available to each server in the same pool. Either of these meth-
ods can be used:
Static applications and data are duplicated on each real server in the pool.
Each real server in the pool has access to the same data through use of a shared file
system or back-end database server.
Clients Switch
Internet NFS Server
Server Pool #1
Server Pool #2
Switch
Alternate path is not valid with
Layer 4 services. IP proxy
addresses must be used on the
Alteon Web switch
Web
Switch
Router
Router
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 123
212777-A, February 2002
nSome services require that a series of client requests go to the same real server so that ses-
sion-specific state data can be retained between connections. Services of this nature
include Web search results, multi-page forms that the user fills in, or custom Web-based
applications typically created using cgi-bin scripts. Connections for these types of ser-
vices must be configured as persistent (see Chapter 16, “Persistence”) or must use the
minmisses or hash metrics (see “Metrics for Real Server Groups” on page 131).
nClients and servers can be connected through the same switch port. Each port in use on the
switch can be configured to process client requests, server traffic, or both. You can enable
or disable processing on a port independently for each type of Layer 4 traffic.
Layer 4 client processing: Ports that are configured to process client request traffic
provide address translation from the virtual server IP to the real server IP address.
Layer 4 server processing: Ports that are configured to process server responses to cli-
ent requests provide address translation from the real server IP address to the virtual
server IP address. These ports require real servers to be connected to the Web switch
directly or through a hub, router, or another switch.
NOTE – Switch ports configured for Layer 4 client/server processing can simultaneously pro-
vide Layer 2 switching and IP routing functions.
Consider the following network topology:
Figure 6-5 Example Network for Client/Server Port Configuration
In Figure 6-5, the switch load balances traffic to a Web server pool and to a Domain Name
System (DNS) server pool. The switch port connected to the Web server pool (port 2) is
asked to perform both server and client processing.
Some topologies require special configuration. For example, if clients were added to Switch B
as shown in Figure 6-5, these clients could not access the Web server pool using SLB services,
except through a proxy IP address that is configured on port 2 of the Alteon Web switch.
Web Switch
Router DNS
Server
Pool
Web
Server
Pool
Internet
C
S
Client Processing
Server Processing
S
C
Clients on the Internet
initiate HTTP sessions which
are load balanced to Web servers
Web servers initiate DNS requests
which are load balanced
to DNS servers
S
C
A
B
1
2
3
Web OS 10.0 Application Guide
124 Chapter 6: Server Load Balancing 212777-A, February 2002
Configuring Server Load Balancing
This section describes the steps for configuring an SLB Web hosting solution. In the following
procedure, many of the SLB options are left to their default values. See “Additional Server
Load Balancing Options” on page 128 for more options.
The following is required prior to configuration:
nYou must be connected to the switch Command Line Interface (CLI) as the administrator.
nThe SLB software must be enabled.
NOTE – For details about any of the menu commands described in this example, see your
Web OS Command Reference.
1. Assign an IP address to each of the real servers in the server pool.
The real servers in any given real server group must have an IP route to the switch that per-
forms the SLB functions. This IP routing is most easily accomplished by placing the switches
and servers on the same IP subnet, although advanced routing techniques can be used as long
as they do not violate the topology rules outlined in “Network Topology Requirements” on
page 122.
For this example, the three Web-host real servers have been given the following IP addresses
on the same IP subnet:
NOTE – An imask option can be used to define a range of IP addresses for real and virtual
servers (see “IP Address Ranges Using imask” on page 129).
Table 6-1 Web Host Example: Real Server IP Addresses
Real Server IP address
Server A 200.200.200.2
Server B 200.200.200.3
Server C 200.200.200.4
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 125
212777-A, February 2002
2. Define an IP interface on the switch.
The switch must have an IP route to all of the real servers that receive Web switching services.
For SLB, the switch uses this path to determine the level of TCP/IP reach of the real servers.
To configure an IP interface for this example, enter these commands from the CLI:
NOTE – The IP interface and the real servers must belong to the same VLAN, if they are in the
same subnet. This example assumes that all ports and IP interfaces use default VLAN 1,
requiring no special VLAN configuration for the ports or IP interface.
3. Define each real server.
For each real server, you must assign a real server number, specify its actual IP address, and
enable the real server. For example:
4. Define a real server group and add the three real servers to the service group.
>> # /cfg/ip/if 1 (Select IP interface 1)
>> IP Interface 1# addr 200.200.200.100 (Assign IP address for the interface)
>> IP Interface 1# ena (Enable IP interface 1)
>> IP Interface 1# /cfg/slb/real 1 (Server A is real server 1)
>> Real server 1# rip 200.200.200.2 (Assign Server A IP address)
>> Real server 1# ena (Enable real server 1)
>> Real server 1# ../real 2 (Server B is real server 2)
>> Real server 2# rip 200.200.200.3 (Assign Server B IP address)
>> Real server 2# ena (Enable real server 2)
>> Real server 2# ../real 3 (Server C is real server 3)
>> Real server 3# rip 200.200.200.4 (Assign Server C IP address)
>> Real server 3# ena (Enable real server 3)
>> Real server 3# /cfg/slb/group 1 (Select real server group 1)
>> Real server group 1# add 1 (Add real server 1 to group 1)
>> Real server group 1# add 2 (Add real server 2 to group 1)
>> Real server group 1# add 3 (Add real server 3 to group 1)
Web OS 10.0 Application Guide
126 Chapter 6: Server Load Balancing 212777-A, February 2002
5. Define a virtual server.
All client requests will be addressed to a virtual server IP address on a virtual server defined on
the switch. Clients acquire the virtual server IP address through normal DNS resolution. In this
example, HTTP is configured as the only service running on this virtual server, and this service
is associated with the real server group. For example:
NOTE – This configuration is not limited to HTTP Web service. Other TCP/IP services can be
configured in a similar fashion. For a list of other well-known services and ports, see “Well-
Known Application Ports” on page 128. To configure multiple services, see “Configuring Mul-
tiple Services” on page 130.
6. Define the port settings.
In this example, the following ports are being used on the Web switch:
>> Real server group 1# /cfg/slb/virt 1 (Select virtual server 1)
>> Virtual server 1# vip 200.200.200.1 (Assign a virtual server IP address)
>> Virtual server 1# ena (Enable the virtual server)
>> Virtual server 1# service http (Select the HTTP service menu)
>> Virtual server 1 http Service# group 1 (Associate virtual port to real group)
Table 6-2 Web Host Example: Port Usage
Port Host L4 Processing
1 Server A serves SLB requests. Server
2 Server B serves SLB requests. Server
3 Server C serves SLB requests. Server
4 Back-end NFS server provides centralized Web content for all three
real servers. This port does not require Web switching features.
None
5 Client router A connects the switch to the Internet where client
requests originate.
Client
6 Client router B connects the switch to the Internet where client
requests originate.
Client
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 127
212777-A, February 2002
The ports are configured as follows:
7. Enable, apply, and verify the configuration.
Examine the resulting information. If any settings are incorrect, make the appropriate changes.
8. Save your new configuration changes.
NOTE – You must apply any changes in order for them to take effect, and you must save
changes if you wish them to remain in effect after switch reboot.
9. Check the SLB information.
Check that all SLB parameters are working according to expectation. If necessary, make any
appropriate configuration changes and then check the information again.
>> Virtual server 1# /cfg/slb/port 1 (Select physical switch port 1)
>> SLB port 1# server ena (Enable server processing on port 1)
>> SLB port 1# ../port 2 (Select physical switch port 2)
>> SLB port 2# server ena (Enable server processing on port 2)
>> SLB port 2# ../port 3 (Select physical switch port 3)
>> SLB port 3# server ena (Enable server processing on port 3)
>> SLB port 3# ../port 5 (Select physical switch port 5)
>> SLB port 5# client ena (Enable client processing on port 5)
>> SLB port 5# ../port 6 (Select physical switch port 6)
>> SLB port 6# client ena (Enable client processing on port 6)
>> SLB port 6# .. (Select the SLB Menu)
>> Layer 4# on (Turn Server Load Balancing on)
>> Layer 4# apply (Make your changes active)
>> Layer 4# cur (View current settings)
>> Layer 4# save (Save for restore after reboot)
>> Layer 4# /info/slb/dump (View SLB information)
Web OS 10.0 Application Guide
128 Chapter 6: Server Load Balancing 212777-A, February 2002
Additional Server Load Balancing Options
In the previous section (“Configuring Server Load Balancing” on page 124), many of the SLB
options are left to their default values. The following configuration options can be used to cus-
tomize SLB on your Web switch:
n“Supported Services and Applications” on page 128
n“Disabling and Enabling Real Servers” on page 129
n“IP Address Ranges Using imask” on page 129
n“Health Checks for Real Servers” on page 130
n“Configuring Multiple Services” on page 130
n“Metrics for Real Server Groups” on page 131
n“Weights for Real Servers” on page 134
n“Connection Time-outs for Real Servers” on page 134
n“Maximum Connections for Real Servers” on page 134
n“Backup/Overflow Servers” on page 135
Supported Services and Applications
Each virtual server can be configured to support up to eight services, limited to a total of 256
services per switch. Using the /cfg/slb/virt <virtual server number>/service
option, the following TCP/UDP applications can be specified:
NOTE – The service number specified on the switch must match the service specified on the server.
NOTE – Load balancing some applications (such as FTP and RTSP) require special attention.
See “Load Balancing Special Services” on page 149 for more information.
Table 6-3 Well-Known Application Ports
Number TCP/UDP
Application Number TCP/UDP
Application Number TCP/UDP
Application
20
21
22
23
25
37
42
43
53
69
70
ftp-data
ftp
ssh
telnet
smtp
time
name
whois
domain
tftp
gopher
79
80
109
110
111
119
123
143
144
161
162
finger
http
pop2
pop3
sunrpc
nntp
ntp
imap
news
snmp
snmptrap
179
194
220
389
443
520
554
1645, 1812
1813
1985
bgp
irc
imap3
ldap
https
rip
rtsp
Radius
Radius Accounting
hsrp
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 129
212777-A, February 2002
Disabling and Enabling Real Servers
If you need to reboot a server, you must make sure that new sessions are not sent to the real
server and that old sessions are not discarded. When the session count gets to zero, you may
shut down the server. Use the following command to disable real servers:
When maintenance is complete, use the following command to enable the real server:
IP Address Ranges Using imask
The imask option lets you define a range of IP addresses for the real and virtual servers con-
figured under SLB. By default, the imask setting is 255.255.255.255, which means that each
real and virtual server represents a single IP address. An imask setting of 255.255.255.0 would
mean that each real and virtual server represents 256 IP addresses. Consider the following
example:
nA virtual server is configured with an IP address of 172.16.10.1.
nReal servers 172.16.20.1 and 172.16.30.1 are assigned to service the virtual server.
nThe imask is set to 255.255.255.0.
If the client request was sent to virtual server IP address 172.16.10.45, the unmasked portion of
the address (0.0.0.45) gets mapped directly to whichever real server IP address is selected by
the SLB algorithm. Thus, the request would be sent to either 172.16.20.45 or 172.16.30.45.
>> # /oper/slb/dis <real server number>
>> # /oper/slb/ena <real server number>
Web OS 10.0 Application Guide
130 Chapter 6: Server Load Balancing 212777-A, February 2002
Health Checks for Real Servers
Determining health for each real server is a necessary function for SLB. By default for TCP
services, the switch checks health by opening a TCP connection to each service port config-
ured as part of each service. For more information, see “Configuring Multiple Services” on
page 130. For UDP services, the switch pings servers to determine their status.
By default, the switch checks each service on each real server every two seconds. If the real
server is busy processing connections, it may not respond to a health check. By default, if a
service does not respond to four consecutive health checks, the switch declares the service
unavailable. As shown below, the health check interval and the number of retries can be
changed:
For more complex health-checking strategies, see Chapter 10, “Health Checking.”
Configuring Multiple Services
When you configure multiple services in a group, their health checks will be dependent on
each other. If a real server fails a health check for a service, then the status of the real server for
the second service appears as “blocked.”
If you are configuring two independent services such as FTP and SMTP—where the real
server failure on one service does not affect other services that the real server supports, then
configure two groups with the same real servers but different services. If a real server config-
ured for both FTP and SMTP fails FTP, the real server is still available for SMTP. This allows
the services to act independently even though they are using the same real servers.
If you are configuring two dependent services such as HTTP and HTTPS—where the real
server failure on one service blocks the real server for other services, then configure a single
group with multiple services. If a real server configured for both HTTP and HTTPS fails for
the HTTP service, then the server is blocked from supporting any HTTPS requests. The switch
will block HTTPS requests, (even though HTTPS has not failed) until the HTTP service
becomes available again. This helps in troubleshooting so you know which service has failed.
>> # /cfg/slb/real <real server number> (Select the real server)
>> Real server# inter 4 (Check real server every 4 seconds)
>> Real server# retry 6 (Declare down after 6 checks fail)
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 131
212777-A, February 2002
Metrics for Real Server Groups
Metrics are used for selecting which real server in a group will receive the next client connec-
tion. The available metrics minmisses (minimum misses), hash, leastconns (least con-
nections), roundrobin, bandwidth, and response (response time) are explained in
detail below. The default metric is leastconns.
To change a real server group metric to minmisses, for example, enter:
Minimum Misses
The minmisses metric is optimized for Application Redirection. It uses IP address informa-
tion in the client request to select a server. The specific IP address information used depends on
the application:
nFor Application Redirection, the client destination IP address is used. All requests for a
specific IP destination address is sent to the same server. This metric is particularly useful
in caching applications, helping to maximize successful cache hits. Best statistical load
balancing is achieved when the IP address destinations of load-balanced frames are spread
across a broad range of IP subnets.
nFor SLB, the client source IP address and real server IP address are used. All requests
from a specific client are sent to the same server. This metric is useful for applications
where client information must be retained on the server between sessions. With this met-
ric, server load becomes most evenly balanced as the number of active clients with differ-
ent source or destination addresses increases.
When selecting a server, the switch calculates a score for each available real server based on
the relevant IP address information. The server that scores the highest is assigned the connec-
tion. This metric attempts to minimize the disruption of persistency when servers are removed
from service. This metric should be used only when persistence is a must.
NOTE – The minmisses metric cannot be used for firewall load balancing, since the real
server IP addresses used in calculating the score for this metric are different on each side of the
firewall.
>> # /cfg/slb/group <group number> (Select the real server group)
>> Real server group# metric minmisses (Use minmisses metric)
Web OS 10.0 Application Guide
132 Chapter 6: Server Load Balancing 212777-A, February 2002
Hash
The hash metric uses IP address information in the client request to select a server. The spe-
cific IP address information used depends on the application:
nFor Application Redirection, the client destination IP address is used. All requests for a
specific IP destination address will be sent to the same server. This is particularly useful
for maximizing successful cache hits.
nFor SLB, the client source IP address is used. All requests from a specific client will be
sent to the same server. This option is useful for applications where client information
must be retained between sessions.
nFor FWLB, both the source and destination IP addresses are used to ensure that the two
unidirectional flows of a given session are redirected to the same firewall.
When selecting a server, a mathematical hash of the relevant IP address information is used as
an index into the list of currently available servers. Any given IP address information will
always have the same hash result, providing natural persistence, as long as the server list is sta-
ble. However, if a server is added to or leaves the mix, then a different server might be
assigned to a subsequent session with the same IP address information even though the original
server is still available. Open connections are not cleared.
NOTE – The hash metric provides more distributed load balancing than minmisses at any
given instant. It should be used if the statistical load balancing achieved using minmisses is
not as optimal as desired. If the load balancing statistics with minmisses indicate that one
server is processing significantly more requests over time than other servers, consider using
the hash metric.
Least Connections
With the leastconns metric, the number of connections currently open on each real server
is measured in real time. The server with the fewest current connections is considered to be the
best choice for the next client connection request.
This option is the most self-regulating, with the fastest servers typically getting the most con-
nections over time.
Round Robin
With the roundrobin metric, new connections are issued to each server in turn; that is, the
first real server in the group gets the first connection, the second real server gets the next con-
nection, followed by the third real server, and so on. When all the real servers in this group
have received at least one connection, the issuing process starts over with the first real server.
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 133
212777-A, February 2002
Response Time
The response metric uses real server response time to assign sessions to servers. The
response time between the servers and the switch is used as the weighting factor. The switch
monitors and records the amount of time it takes for each real server to reply to a health check
to adjust the real server weights. The weights are adjusted so they are inversely proportional to
a moving average of response time. In such a scenario, a server with half the response time as
another server will receive a weight twice as large.
NOTE – The effects of the response weighting apply directly to the real servers and are not
necessarily confined to the real server group. When response time-metered real servers are also
used in other real server groups that use the leastconns or roundrobin metrics, the
response weights are applied on top of the leastconns or roundrobin calculations
for the affected real servers. Since the response weight changes dynamically, this can pro-
duce fluctuations in traffic distribution for the real server groups that use the leastconns or
roundrobin metrics.
Bandwidth
The bandwidth metric uses real server octet counts to assign sessions to a server. The switch
monitors the number of octets sent between the server and the switch. Then, the real server
weights are adjusted so they are inversely proportional to the number of octets that the real
server processes during the last interval.
Servers that process more octets are considered to have less available bandwidth than servers
that have processed fewer octets. For example, the server that processes half the amount of
octets over the last interval receives twice the weight of the other servers. The higher the band-
width used, the smaller the weight assigned to the server. Based on this weighting, the subse-
quent requests go to the server with the highest amount of free bandwidth. These weights are
automatically assigned.
The bandwidth metric requires identical servers with identical connections.
NOTE – The effects of the bandwidth weighting apply directly to the real servers and are not
necessarily confined to the real server group. When bandwidth-metered real servers are also
used in other real server groups that use the leastconns or roundrobin metrics, the
bandwidth weights are applied on top of the leastconns or round-robin calculations
for the affected real servers. Since the bandwidth weight changes dynamically, this can pro-
duce fluctuations in traffic distribution for the real server groups that use the leastconns or
roundrobin metrics.
Web OS 10.0 Application Guide
134 Chapter 6: Server Load Balancing 212777-A, February 2002
Weights for Real Servers
Weights can be assigned to each real server. These weights bias load balancing to give the fast-
est real servers a larger share of connections. Weight is specified as a number from 1 to 48.
Each increment increases the number of connections the real server gets. By default, each real
server is given a weight setting of 1. A setting of 10 would assign the server roughly 10 times
the number of connections as a server with a weight of 1. To set weights, enter the following
commands:
NOTE – Weights are not applied when using the hash or minmisses metrics.
Connection Time-outs for Real Servers
In some cases, open TCP/IP sessions might not be closed properly (for example, the switch
receives the SYN for the session, but no FIN is sent). If a session is inactive for 10 minutes (the
default), it is removed from the session table in the switch. To change the time-out period,
enter the following:
The example above would change the time-out period of all connections on the designated real
server to four minutes.
Maximum Connections for Real Servers
You can set the number of open connections each real server is allowed to handle for SLB. To
set the connection limit, enter the following:
Values average from approximately 500 HTTP connections for slower servers to 1500 for
quicker, multiprocessor servers. The appropriate value also depends on the duration of each
session and how much CPU capacity is occupied by processing each session. Connections that
use a lot of Java or CGI scripts for forms or searches require more server resources and thus a
lower maxcon limit. You may wish to use a performance benchmark tool to determine how
many connections your real servers can handle.
When a server reaches its maxcon limit, the switch no longer sends new connections to the
server. When the server drops back below the maxcon limit, new sessions are again allowed.
>> # /cfg/slb/real <real server number> (Select the real server)
>> Real server# weight 10 (10 times the number of connections)
>> # /cfg/slb/real <real server number> (Select the real server)
>> Real server# tmout 4 (Specify an even numbered interval)
>> # /cfg/slb/real <real server number> (Select the real server)
>> Real server# maxcon 1600 (Allow 1600 connections maximum)
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 135
212777-A, February 2002
Backup/Overflow Servers
A real server can backup other real servers and can handle overflow traffic when the maximum
connection limit is reached. Each backup real server must be assigned a real server number and
real server IP address. It must then be enabled. Finally, the backup server must be assigned to
each real server that it will back up. The following defines real server 4 as a backup for real
servers 1 and 2:
In a similar fashion, a backup/overflow server can be assigned to a real server group. If all real
servers in a real server group fail or overflow, the backup comes online.
Real server groups can also use another real server group for backup/overflow:
>> # /cfg/slb/real 4 (Select real server 4 as backup)
>> Real server 4# rip 200.200.200.5 (Assign backup IP address)
>> Real server 4# ena (Enable real server 4)
>> Real server 4# /cfg/slb/real 1 (Select real server 1)
>> Real server 1# backup 4 (Real server 4 is backup for 1)
>> Real server 1# /cfg/slb/real 2 (Select real server 2)
>> Real server 2# backup 4 (Real server 4 is backup for 2)
>> # /cfg/slb/group <real server group number> (Select real server group)
>> Real server group# backup r4 (Assign real server 4 as backup)
>> # /cfg/slb/group <real server group number> (Select real server group)
>> Real server group# backup g2 (Assign real server group 2 as
backup)
Web OS 10.0 Application Guide
136 Chapter 6: Server Load Balancing 212777-A, February 2002
Extending SLB Topologies
For standard SLB, all client-to-server requests to a particular virtual server and all related
server-to-client responses must pass through the same Web switch. In complex network topol-
ogies, routers and other devices can create alternate paths around the Web switch managing
SLB functions (see Figure 6-4 on page 122). Under such conditions, the Web switch with
Web OS provides the following solutions:
n Proxy IP Addresses
n Mapping Ports
n Direct Server Interaction
n Delayed Binding
Proxy IP Addresses
In complex network topologies (see Figure 6-4 on page 122), SLB functions can be managed
using a proxy IP address on the client switch ports.
When the client requests services from the switch’s virtual server, the client sends its own IP
address for use as a return address. If a proxy IP address is configured for the client port on the
switch, the switch replaces the client’s source IP address with the switch’s own proxy IP
address before sending the request to the real server. This creates the illusion that the switch
originated the request.
The real server uses the switch’s proxy IP address as the destination address for any response.
SLB traffic is forced to return through the proper switch, regardless of alternate paths. Once
the switch receives the proxied data, it puts the original client IP address into the destination
address and sends the packet to the client. This process is transparent to the client.
NOTE – Because requests appear to come from the switch proxy IP address rather than the cli-
ent source IP address, the network administrator should be aware of this behavior during
debugging and statistics collection.
The proxy IP address can also be used for direct access to the real servers (see “Direct Server
Interaction” on page 142).
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 137
212777-A, February 2002
The following procedure can be used for configuring proxy IP addresses:
1. Disable server processing on affected switch ports.
When implementing proxies, switch ports can be reconfigured to disable server processing.
Referring to the Table 6-2 on page 126, the following revised port conditions are used:
The following commands are used to disable server processing on ports 1-3:
2. Add proxy IP addresses to the client ports.
Each client port requires a proxy IP address. Each proxy IP address must be unique on your
network. The following commands are used to configure client proxies:
The proxies are transparent to the user.
Table 6-4 Proxy Example: Port Usage
Port Host L4 Processing
1 Server A None
2 Server B None
3 Server C None
4 Back-end NFS server provides centralized Web content for all three
real servers. This port does not require Web switching features.
None
5 Client router A connects the switch to the Internet where all client
requests originate.
Client
6 Client router B also connects the switch to the Internet where all client
requests originate.
Client
>> # /cfg/slb/port 1 (Select switch port 1)
>> SLB port 1# server dis (Disable server processing on port 1)
>> SLB port 1# ../port 2 (Select switch port 2)
>> SLB port 2# server dis (Disable server processing on port 2)
>> SLB port 2# ../port 3 (Select switch port 3)
>> SLB port 3# server dis (Disable server processing on port 3)
>> # /cfg/slb/port 5 (Select network port 5)
>> SLB port 5# pip 200.200.200.68 (Set proxy IP address for client port 5)
>> SLB port 5# ../port 6 (Select network port 6)
>> SLB port 6# pip 200.200.200.69 (Set proxy IP address for client port 6)
Web OS 10.0 Application Guide
138 Chapter 6: Server Load Balancing 212777-A, February 2002
3. If the Virtual Matrix Architecture (VMA) feature is enabled, add proxy IP addresses for
all other switch ports (except port 9).
VMA is normally enabled on the switch. In addition to enhanced resource management, VMA
eliminates many of the restrictions found in earlier versions of the Web OS. VMA does
require, that when any switch port is configured with a proxy IP address, all ports must be con-
figured with unique proxy IP addresses. If VMA is disabled, only the client port needs a proxy
IP address and this step can be skipped.
The following commands can be used for configuring the additional unique proxy IP
addresses:
NOTE – Port 9 does not require a proxy IP address under VMA.
For conceptual information, see “Virtual Matrix Architecture” on page 217 of this manual and
for information on using the commands, see the Web OS Command Reference
(/cfg/slb/adv/matrix) for more information.
4. Apply and save your changes.
NOTE – Remember that you must apply any changes in order for them to take effect, and you
must save them if you wish them to remain in effect after switch reboot. Also, the
/info/slb command is useful for checking the state of Server Load Balancing operations.
>> SLB port 6# /cfg/slb/port 1 (Select network port 1)
>> SLB port 1# pip 200.200.200.70 (Set proxy IP address for port 1)
>> SLB port 1# ../port 2 (Select network port 2)
>> SLB port 2# pip 200.200.200.71 (Set proxy IP address for port)
>> SLB port 2# ../port 3 (Select network port 3)
>> SLB port 3# pip 200.200.200.72 (Set proxy IP address for port 3)
>> SLB port 3# ../port 4 (Select network port 4)
>> SLB port 4# pip 200.200.200.73 (Set proxy IP address for port 4)
>> SLB port 4# ../port 7 (Select network port 7)
>> SLB port 7# pip 200.200.200.74 (Set proxy IP address for port 7)
>> SLB port 7# ../port 8 (Select network port 8)
>> SLB port 8# pip 200.200.200.75 (Set proxy IP address for port 8)
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 139
212777-A, February 2002
Mapping Ports
An Alteon Web switch allows you to hide the identity of a port for security by mapping a vir-
tual server port to a different real server port.
Mapping a Virtual Server Port to a Real Server Port
In addition to providing direct real server access in some situations (see “Mapping Ports” on
page 144), mapping is required when administrators choose to execute their real server pro-
cesses on different ports than the well-known TCP/UDP ports. Otherwise, virtual server ports
are mapped directly to real server ports by default and require no mapping configuration.
Port mapping is configured from the Virtual Server Services menu. For example, to map the
virtual server TCP/UDP port 80 to real server TCP/UDP port 8004, you could enter the follow-
ing:
NOTE – If filtering is enabled, a proxy IP address is configured, or URL parsing is enabled on
any switch port, then port mapping is supported with Direct Access Mode (DAM). For infor-
mation about DAM, refer to “Using Direct Access Mode” on page 143.
Mapping a Single Virtual Server Port to Multiple Real Server Ports
To take advantage of multi-CPU or multi-process servers, Web OS can be configured to map a
single virtual port to multiple real ports. This capability allows the Web site managers, for
example, to differentiate users of a service by using multiple service ports to process client
requests.
An Alteon Web switch supports up to 16 real ports per server when multiple rports are
enabled. This feature allows the network administrator to configure up to 16 real ports for a
single service port. This feature is supported in Layer 4 and Layer 7 and in cookie-based and
SSL persistence switching environments.
When multiple real ports on each real server are mapped to a virtual port, the Web switch treats
the real server IP address/port mapping combination as a distinct real server.
NOTE – For each real server, you can only configure one service with multiple real ports.
>> # /cfg/slb/virt 1/service 80
(Select virtual server port 80)
>> Virtual Server 1 http Service# rport 8004
(Map to real port 8004)
Web OS 10.0 Application Guide
140 Chapter 6: Server Load Balancing 212777-A, February 2002
Consider the following network:
Figure 6-6 Basic Virtual Port to Real Port Mapping Configuration
In this example, four real servers are used to support a single service (HTTP). Clients access
this service through a virtual server with IP address 192.168.2.100 on virtual port 80. Since
each real server uses two ports (8001 and 8002) for HTTP services, the logical real servers are:
n192.168.2.1/8001
n192.168.2.1/8002
n192.168.2.2/8001
n192.168.2.2/8002
n192.168.2.3/8001
n192.168.2.3/8002
n192.168.2.4/8001
n192.168.2.4/8002
Domain Name virtual server IP
address Ports Activated Port Mapping Real Server IP
Address
www.right.com 192.168.2.100 80 (HTTP) 8001 (rport 1)
8002 (rport 2)
192.168.2.1 (RIP 1)
192.168.2.2 (RIP 2)
192.168.2.3 (RIP 3)
192.168.2.4 (RIP 4)
Real Servers
Web Switch
Web Clients
Internet
Web Host
Routers
192.168.2.1
192.168.2.2
192.168.2.3
192.168.2.4
8001
8002
8001
8002
8001
8002
8001
8002
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 141
212777-A, February 2002
Load Balancing Metric
For each service, a real server is selected using the configured load balancing metric (hash,
leastconns, minmisses, or roundrobin). To ensure even distribution, once an avail-
able server is selected, the switch will use the roundrobin metric to choose a real port to
receive the incoming connection.
If the algorithm is leastconns, the switch sends the incoming connections to the logical
real server (real server IP address/port combination) with the least number of connections.
The /cfg/slb/virt command defines the real server TCP or UDP port assigned to a ser-
vice. By default, this is the same as the virtual port (service virtual port). If rport is config-
ured to be different from the virtual port defined in /cfg/slb/virt <virtual server
number>/service <virtual port>, the switch maps the virtual port to the real port.
NOTE – To use the single virtual port to multiple rport feature, configure this real server port
option to be a value of 0. However, note that you cannot configure multiple services with mul-
tiple rports in the same server if the multiple rport feature is enabled.
Configuring Multiple Service Ports
Two commands, addport and remport, under the real server menu allow users to add or
remove multiple service ports associated with a particular server. (A service port is a TCP or
UDP port number.) For example: addport 8001 and remport 8001.
1. Configure the real servers.
2. Add all four servers to a group.
3. Configure a virtual server IP address.
>> # /cfg/slb/real 1/rip 192.168.2.1/ena
>> # ../real 2/rip 192.168.2.2/ena
>> # ../real 3/rip 192.168.2.3/ena
>> # ../real 4/rip 192.168.2.4/ena
>> # /cfg/slb/group 1
>> Real server Group 1# add 1
>> Real server Group 1# add 2
>> Real server Group 1# add 3
>> Real server Group 1# add 4
>> # /cfg/slb/virt 1/vip 192.168.2.100/ena
Web OS 10.0 Application Guide
142 Chapter 6: Server Load Balancing 212777-A, February 2002
4. Turn on multiple rport for Port 80.
5. Add the ports to which the Web server listens.
Direct Server Interaction
Direct access to real servers can be provided in the following ways:
n Using Direct Server Return
n Using Direct Access Mode
n Assigning Multiple IP Addresses
n Using Proxy IP Addresses
n Mapping Ports
n Monitoring Real Servers
Using Direct Server Return
Some clients may need direct access to the real servers (for example, to monitor a real server
from a management workstation). The Direct Server Return (DSR) feature allows the server to
respond directly to the client. This capability is useful for sites where large amounts of data are
flowing from servers to clients, such as with content providers or portal sites that typically
have asymmetric traffic patterns.
DSR and content-intelligent Layer 7 switching cannot be performed at the same time because
content intelligent switching requires that all frames go back to the switch for connection splic-
ing.
NOTE – DSR requires that the server be set up to receive frames that have a destination IP
address that is equal to the virtual server IP address.
>> # /cfg/slb/virt 1/service 80/rport 0
>> # /cfg/slb/real 1/addport 8001 (Add port 8001 to real server 1)
>> # addport 8002 (Add port 8002 to real server 1)
>> # ../real 2/addport 8001 (Add port 8001 to real server 2)
>> # addport 8002 (Add port 8002 to real server 2)
>> # ../real 3/addport 8001 (Add port 8001 to real server 3)
>> # addport 8002 (Add port 8002 to real server 3)
>> # ../real 4/addport 8001 (Add port 8001 to real server 4)
>> # addport 8002 (Add port 8002 to real server 4)
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 143
212777-A, February 2002
The sequence of steps that are executed in this scenario are shown in Figure 6-7:
Figure 6-7 Direct Server Return
1. A client request is forwarded to the Web switch.
2. Because only MAC addresses are substituted, the switch forwards the request to the best
server, based on the configured load-balancing policy.
3. The server responds directly to the client, bypassing the switch, and using the virtual
server IP address as the source IP address.
To set up DSR, use the following commands:
Using Direct Access Mode
When Direct Access Mode (DAM) (/cfg/slb/direct) is enabled on a switch, any client
can communicate with any real server’s load-balanced service. Also, with DAM enabled, any
number of virtual services can be configured to load balance a real service.
Traffic sent directly to real server IP addresses is excluded from load-balancing decisions. The
same clients may also communicate to the virtual server IP address for load-balanced requests.
NOTE – When DAM is enabled on a switch, port mapping and default gateway load balancing
is supported only when filtering is enabled, a proxy IP address is configured, or URL parsing is
enabled on any switch port.
Assigning Multiple IP Addresses
One way to provide both SLB access and direct access to a real server is to assign multiple IP
addresses to the real server. For example, one IP address could be established exclusively for
SLB and another could be used for direct access needs.
>> # /cfg/slb/real <real server number>/submac ena
>> # /cfg/slb/virt <virtual server number>/service <service number>/nonat ena
Internet
2
Layer 2 Switch
Web Switch
Server farm
Client
1
3
Web OS 10.0 Application Guide
144 Chapter 6: Server Load Balancing 212777-A, February 2002
Using Proxy IP Addresses
Proxy IP addresses are used primarily to eliminate SLB topology restrictions in complex net-
works (see “Proxy IP Addresses” on page 136). Proxy IP addresses can also provide direct
access to real servers.
If the switch port to the client is configured with a proxy IP address, the client can access each
real server directly using the real server’s IP address. The switch port must be connected to the
real server and client processing must be disabled (see the server and client options
under the /cfg/slb/port command in your Web OS Command Reference).
SLB is still accessed using the virtual server IP address.
Mapping Ports
When SLB is used without proxy IP addresses and without DAM, the Web switch must pro-
cess the server-to-client responses. If a client were to access the real server IP address and port
directly, bypassing client processing, the server-to-client response could be mishandled by
SLB processing as it returns through the Web switch, with the real server IP address getting
remapped back to the virtual server IP address on the Web switch.
First, two port processes must be executed on the real server. One real server port will handle
the direct traffic, and the other will handle SLB traffic. Then, the virtual server port on the Web
switch must be mapped to the proper real server port.
In Figure 6-8, clients can access SLB services through well-known TCP port 80 at the virtual
server’s IP address. The Web switch behaving like a virtual server is mapped to TCP port 8000
on the real server. For direct access that bypasses the virtual server and SLB, clients can spec-
ify well-known TCP port 80 as the real server’s IP address.
Figure 6-8 Mapped and Nonmapped Server Access
NOTE – Port mapping is supported with DAM when filtering is enabled, a proxy IP address is
configured, or URL parsing is enabled on any switch port.
For more information on how to map a virtual server port to a real server port, see “Mapping
Ports” on page 139.
80
8000
80
Virtual Server on the
Alteon Web Switch Real
Server
Client
Network
Direct Access
via Real Server IP & Port
Layer 4 Mapped Access
via Virtual Server IP & Port
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 145
212777-A, February 2002
Monitoring Real Servers
Typically, the management network is used by network administrators to monitor real servers
and services. By configuring the mnet and mmask options of the SLB Configuration Menu
(/cfg/slb/adv), you can access the real services being load balanced.
NOTE – Clients on the management network do not have access to SLB services and cannot
access the virtual services being load balanced.
The mnet and mmask options are described below:
nmnet: If defined, management traffic with this source IP address is allowed direct (non-
SLB) access to the real servers. Only specify an IP address in dotted decimal notation. A
range of IP addresses is produced when used with the mmask option.
nmmask: This IP address mask is used with mnet to select management traffic that is
allowed direct real server access only.
Web OS 10.0 Application Guide
146 Chapter 6: Server Load Balancing 212777-A, February 2002
Delayed Binding
The delayed binding feature on the switch prevents SYN Denial-of-Service (DoS) attacks on
the server. DoS occurs when the server or switch is denied servicing the client because it is sat-
urated with invalid traffic.
Typically, a three-way handshake occurs before a client connects to a server. The client sends
out a synchronization (SYN) request to the server. The server allocates an area to process the
client requests, and acknowledges the client by sending a SYN ACK. The client then acknowl-
edges the SYN ACK by sending an acknowledgement (ACK) back to the server, thus complet-
ing the three-way handshake.
Figure 6-9 on page 146 illustrates a classic type of SYN DoS attack. If the client does not
acknowledge the server’s SYN ACK with a data request (REQ) and, instead, sends another
SYN request, the server gets saturated with SYN requests. As a result, all of the servers
resources are consumed and it can no longer service legitimate client requests.
Figure 6-9 DoS SYN Attacks without Delayed Binding
Using an Alteon Web switch with delayed binding, as illustrated in Figure 6-10 on page 147,
the Web switch intercepts the client SYN request before it reaches the server. The Web switch
responds to the client with a SYN ACK that contains embedded client information. The Web
switch does not allocate a session until a valid SYN ACK is received from the client or the
three-way handshake is complete.
Client Server
Normal Request
Client sends a SYN request
Server reserves session and sends SYN ACK
Client sends an ACK or DATA REQ
Server responds with DATA
Client Server
DoS SYN Attack
Client sends a SYN request
Server reserves session and sends SYN ACK
Server continues reserving sessions.
Server is eventually saturated and
cannot process legitimate requests.
Client ignores SYN ACK and continues to send new SYN requests
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 147
212777-A, February 2002
Figure 6-10 Repelling DoS SYN Attacks With Delayed Binding
Once the Web switch receives a valid ACK or DATA REQ from the client, the Web switch
sends a SYN request to the server on behalf of the client, waits for the server to respond with a
SYN ACK, and then forwards the clients DATA REQ to the server. Basically, the Web switch
delays binding the client session to the server until the proper handshakes are complete.
Thus, with delayed binding, two independent TCP connections span a Web session: one from
the client to the Web switch and the second from the Web switch to the selected server. The
switch temporarily terminates each TCP connection until content has been received, thus pre-
venting the server from being inundated with SYN requests.
NOTE – Delayed binding is automatically enabled when content intelligent switching features
are used. However, if you are not parsing content, you must explicitly enable delayed binding
if desired.
Internet
Client Web Switch
Normal Request with Delayed Binding
Client sends a SYN request
Switch responds with special SYN ACK
Client sends an ACK or DATA REQ
Switch sends a SYN request to server
Switch recognizes valid three-way handshake
Server responds with SYN ACK
Server responds with DATA and switch splices connection to client
Switch sends ACK or DATA REQ
Server
Internet
Client Web Switch
DoS SYN Attack with Delayed Binding
Client sends a SYN request
Switch responds with special SYN ACK
Switch responds with another SYN ACK
Client sends new SYN requests No session entry is made until a valid
three-way handshake is complete.
Switch and server resources are
protected for legitimate requests
Server
Web OS 10.0 Application Guide
148 Chapter 6: Server Load Balancing 212777-A, February 2002
Configuring Delayed Binding
To configure your switch for delayed binding, use the following command:
NOTE – Enable delayed binding without configuring any HTTP SLB processing or persistent
binding types.
To configure delayed binding for Web cache redirection, see “Delayed Binding for Web Cache
Redirection” on page 210.
Detecting SYN Attacks
In Web OS, SYN attack detection is enabled by default, whenever delayed binding is enabled.
SYN attack detection:
nProvides a way to track half open connections
nActivates a trap notifying that the configured threshold is exceeded
nMonitors DoS attacks and proactively signals alarm
nProvides enhanced security
nImproves visibility and protection for DoS attacks
The probability of a SYN attack is higher if excessive half-open sessions are being generated
on the Web switch. Half-open sessions show an incomplete three-way handshake between the
server and the client. You can view the total number of half-open sessions from the
/stat/slb/layer7/maint menu.
To detect SYN attacks, the Web switch keeps track of the number of new half-open sessions
for a set period of time. If the value exceeds the threshold, then a syslog message and an
SNMP trap are generated.
You can change the default parameters for detecting SYN attacks in the
/cfg/slb/adv/synatk menu. You can specify how frequently you want to check for
SYN attacks, from 2 seconds to a minute and modify the default threshold representing the
number of new half-open sessions per second.
>> # /cfg/slb/virt <virtual server number>/service <service type>/dbind
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 149
212777-A, February 2002
Load Balancing Special Services
This section discusses load balancing based on special services, such as
n IP Server Load Balancing
n FTP Server Load Balancing
n Domain Name Server (DNS) Load Balancing
n Real Time Streaming Protocol SLB
n Wireless Application Protocol SLB
n Intrusion Detection System Server Load Balancing
n WAN Link Load Balancing
IP Server Load Balancing
IP server load balancing allows you to configure your Web switch for server load balancing
based on client’s IP address only. Typically, the client IP address is used with the client port
number to produce a session identifier. When the Layer 3 option is enabled, the switch uses
only the client IP address as the session identifier.
To configure the switch for IP load balancing:
IP server load balancing must be used if IP traffic is totally encrypted and you do not have
access to the content.
>> # /cfg/slb/virt <virtual server number>
>> Virtual Server 1# layr3 ena
>> Virtual Server 1# service ip
>> Virtual Server 1 IP Service# group <group number >
Web OS 10.0 Application Guide
150 Chapter 6: Server Load Balancing 212777-A, February 2002
FTP Server Load Balancing
As defined in RFC 959, FTP uses two connections—one for control information and another for
data. Each connection is unique. Unless the client requests a change, the server always uses TCP
port 21 (a well-known port) for control information, and TCP port 20 as the default data port.
FTP uses TCP for transport. After the initial three-way handshake, a connection is established.
When the client requests any data information from the server, it will issue a PORT command
(such as ls, dir, get, put, mget and mput) via the control port.
There are two modes of FTP operation, active and passive:
nIn Active FTP, the FTP server initiates the data connection.
nIn Passive FTP, the FTP client initiates the data connection. Because the client also ini-
tiates the connection to the control channel, the passive FTP mode does not pose a prob-
lem with firewalls and is the most common mode of operation.
FTP Network Topology Restrictions
FTP network topology restrictions are listed below:
nFTP uses both a control channel and a data channel; both channels need to be bound to the
same real server.
nThe FTP server may initiate FTP data sessions.
nInformation exchanged on the control channel is used to determine the IP address and port
for data connections between the FTP server and the FTP client.
Configuring FTP Server Load Balancing
1. Make sure that a proxy IP address is enabled on the client port(s) or DAM is enabled.
2. Make sure the virtual port for FTP is set up for the virtual server.
3. Enable FTP parsing.
4. To make your configuration changes active, enter apply at any prompt in the CLI.
NOTE – You must apply any changes in order for them to take effect, and you must save
them if you wish them to remain in effect after switch reboot.
>> # /cfg/slb/virt <virtual server number>
>> Virtual Server 1# service ftp
>> Virtual Server 1 ftp Service# ftpp ena
>> Virtual Server 1 ftp Service# apply
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 151
212777-A, February 2002
Domain Name Server (DNS) Load Balancing
In previous releases of Web OS, DNS load balancing was based on virtual server IP address
and virtual port (VPORT) only. In Web OS 10.0 however, DNS load balancing allows you to
choose the service based on the two forms of DNS queries: UDP and TCP. This enables the
switch to send TCP DNS queries to one group of real servers and UDP DNS queries to another
group of real servers. The requests are then load balanced among the real servers in that group.
Figure 6-11 shows four real servers load balancing UDP and TCP queries between two groups.
Figure 6-11 Layer 4 DNS Load Balancing
NOTE – You can configure both UDP and TCP DNS queries for the same virtual server
IP address.
Web Switch
Group 1
UDP
health udpdns
Internet
Group 2
TCP
health dns
Real servers
Real servers
20
21
22
26
Client
10.10.10.20
10.10.10.21
10.10.10.22
10.10.10.26
vip 20.20.20.20
Web OS 10.0 Application Guide
152 Chapter 6: Server Load Balancing 212777-A, February 2002
Preconfiguration Tasks
1. Enable server load balancing.
2. Configure the four real servers and their real IP addresses.
3. Configure group 1 for UDP and group 2 for TCP.
For more information on configuring health check, see “UDP-Based DNS Health Checks” on
page 233.
4. Define and enable the server ports and the client ports.
For more information, see Step 6 “Define the port settings.” on page 126. Some DNS servers
initiate upstream requests and must be configured both as server and client.
>> # /cfg/slb/ena
>> # /cfg/slb/real 20
>> Real server 20 # ena (Enable real server 20)
>> Real server 20 # rip 10.10.10.20 (Specify the IP address)
>> Real server 20 # ../real 21
>> Real server 21 # ena (Enable real server 21)
>> Real server 21 # rip 10.10.10.21 (Specify the IP address)
>> Real server 20 # ../real 22
>> Real server 22 # ena (Enable real server 22)
>> Real server 22 # rip 10.10.10.22 (Specify the IP address)
>> Real server 20 # ../real 26
>> Real server 26 # ena (Enable real server 26)
>> Real server 26 # rip 10.10.10.26 (Specify the IP address)
>> # /cfg/slb/group 1 (Select real server group 1)
>> Real server group 1 # metric roundrobin (Specify the load balancing
metric for group 1)
>> Real server group 1 # health udpdns (Set the health check to UDP)
>> Real server group 1 # add 20 (Add real server 20)
>> Real server group 1 # add 21 (Add real server 21)
>> Real server group 1 # ../group 2
>> Real server group 2 # metric roundrobin (Specify the load balancing
metric for group 2)
>> Real server group 2 # health dns (Set the health check to TCP)
>> Real server group 2 # add 22 (Add real server 22)
>> Real server group 2 # add 26 (Add real server 26)
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 153
212777-A, February 2002
Configuring UDP-based DNS Load Balancing
1. Configure and enable a virtual server IP address 1 on the switch.
2. Set up the DNS service for the virtual server, and add real server group 1.
3. Disable delayed binding.
Delayed binding is not required because UDP does not process session requests with a TCP
three-way handshake.
4. Enable UDP DNS queries.
5. Apply and save your configuration.
>> # /cfg/slb/virt 1/vip 20.20.20.20 (Specify the virt server IP address)
>> Virtual Server 1# ena (Enable the virtual server)
>> Virtual Server 1# service dns (Specify the DNS service)
>> Virtual Server 1 DNS Service# group 1 (Select the real server group)
>> Virtual Server 1 DNS Service# dbind dis (Disable delayed binding)
>> Virtual Server 1 DNS Service# udp ena (Enable UDP balancing)
>> Virtual Server 1 DNS Service# apply
>> Virtual Server 1 DNS Service# save
Web OS 10.0 Application Guide
154 Chapter 6: Server Load Balancing 212777-A, February 2002
Configuring TCP-based DNS Load Balancing
1. Configure and enable the virtual server IP address 2 on the switch.
2. Set up the DNS service for virtual server, and select real server group 2.
3. Enable delayed binding.
4. As this is TCP-based load balancing, make sure to disable UDP DNS queries.
5. Apply and save your configuration.
>> # /cfg/slb/virt 2/vip 20.20.20.20 (Specify the virt server IP address)
>> Virtual Server 2# ena (Enable the virtual server)
>> Virtual Server 2# service dns (Specify the DNS service)
>> Virtual Server 2 DNS Service# group 2 (Select the real server group)
>> Virtual Server 2 DNS Service# dbind ena(Enable delayed binding)
>> Virtual Server 2 DNS Service# udp dis (Disable UDP balancing)
>> Virtual Server 2 DNS Service# apply
>> Virtual Server 2 DNS Service# save
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 155
212777-A, February 2002
Real Time Streaming Protocol SLB
Real Time Streaming Protocol (RTSP) is an application-level protocol for control over the
delivery of data with real-time properties as documented in RFC 2326.
RTSP is used as a “network remote control” for multimedia servers. Typically, a multimedia
presentation consists of several streams of data (for example, video stream, audio stream, and
text) that must be presented in a synchronized fashion. A multimedia client like Real Player or
Quick Time Player downloads these multiple streams of data from the multimedia servers and
presents them on the player screen.
RTSP is used to control the flow of these multimedia streams. Each presentation uses one
RTSP control connection and several other connections to carry the audio/video/text
multimedia streams. In this document, the term RTSP server refers to any multimedia server
that implements the RTSP protocol for multimedia presentation.
How RTSP Server Load Balancing Works
The objective of RTSP server load balancing is to intelligently switch an RTSP request, and the
other media streams associated with a presentation, to a suitable RTSP server based on the
configured load-balancing metric. Web OS supports one Layer 7 metric (URL hashing and
URL pattern matching) and all Layer 4 load-balancing metrics.
RTSP load balancing with the URL hash metric can be used to load balance cache servers
that cache multimedia presentations. Since multimedia presentations consume a large amount
of Internet bandwidth, and their correct presentation depends upon the real time delivery of the
data over the Internet, several caching servers cache the multimedia data. As a result, the data
is available quickly from the cache, when required. The Layer 7 metric of URL hashing directs
all requests with the same URL to the same cache server, ensuring that no data is duplicated
across the cache servers.
Typically, an RTSP client establishes a control connection to an RTSP server over TCP port
554 and the data flows over UDP or TCP. For information on using RTSP with Web cache redi-
rection, see “RTSP Web Cache Redirection” on page 211.
NOTE – This feature is not applicable if the streaming media (multimedia) servers use HTTP
protocol to tunnel RTSP traffic. To ensure that RTSP server load balancing works, make sure
the streaming media server is configured for RTSP protocol.
In a typical scenario, the RTSP client issues several sequences of commands to establish con-
nections for each component stream of a presentation. There are several variations to this pro-
cedure, depending upon the RTSP client and the server involved. For example, there are two
prominent RTSP server and client implementations: Real Server marketed by Real Networks
Web OS 10.0 Application Guide
156 Chapter 6: Server Load Balancing 212777-A, February 2002
Corporation, and Quicktime Streaming Server marketed by the Apple Inc. The RTSP stream
setup sequence is different for these two servers, and the switch handles each differently. Some
of these differences are described below.
nReal Server
Real Server supports both UDP and TCP transport protocols for the RTSP streams. The
actual transport is negotiated during the initialization of the connection. If TCP transport is
selected, then all streams of data will flow in the TCP control connection itself. If UDP
transport is chosen, the client and server negotiate a client UDP port, which is manually
configurable.
The real media files that the Real Server plays have the extension “.rm”, “.ram” or “.smil”.
nQuickTime Streaming Server
Apple Inc.’s QuickTime Streaming Server typically runs on the Apple platforms. Quick-
Time files that can be played over the Internet using RTSP are specially formatted and are
called “hinted QuickTime files.” Normal QuickTime files cannot be used for streaming.
The QuickTime files have the extension “.mov”.
QuickTime uses UDP protocol exclusively for transport and TCP for control connection.
Each stream of a QuickTime presentation sends Real Time Protocol (RTP), and Real Time
Control Protocol (RTCP) data using two UDP connections. Typically, a QuickTime pre-
sentation has two streams and therefore uses four UDP connections and one TCP control
connection. QuickTime clients use a UDP port, which is manually configurable.
RTSP Implementation
RTSP implementation in Web OS supports the following:
nAlteon AD3, Alteon AD4, Alteon 180e, and Alteon 184 platforms
nPrivate addressing on the server side
nLayer 7 URL-hashing metric, URL pattern matching, and all Layer 4 metrics for load bal-
ancing.
nAll the stream connections and the control connections are switched to the same cache
server to facilitate caching of entire presentations.
nRTSP-compliant applications (excludes Windows Media Player because it is not RTSP
compliant).
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 157
212777-A, February 2002
Configuring RTSP Load Balancing
Before configuring your Web switch for RTSP load balancing, do the following:
nEnable Virtual Matrix Architecture (VMA)
nEnable Direct Access Mode (DAM)
nDisable port-based Bandwidth Management
nDisable proxy IP addressing
1. To configure a virtual server for Layer 4 load balancing of RTSP, select rtsp or port
554 as a service for the virtual server.
2. To configure a virtual server for Layer 7 URL hashing of RTSP, select rtsp as a virtual
service and enable rtspslb.
This command enables URL hashing using the entire URL; however, any extension of the type
(.xxx) occurring at the end of the URL is omitted from hash computation.
3. Apply and save your configuration.
>> # /cfg/slb/virt <virtual server number>/service rtsp
>> # /cfg/slb/virt 1/service rtsp/rtspslb hash|pattern|dis
>> Virtual Server 2 rtsp Service# apply
>> Virtual Server 2 rtsp Service# save
Web OS 10.0 Application Guide
158 Chapter 6: Server Load Balancing 212777-A, February 2002
Wireless Application Protocol SLB
Wireless Application Protocol (WAP) is an open, global specification for a suite of protocols
designed to allow wireless devices to communicate and interact with other devices. It
empowers mobile users with wireless devices to easily access and interact with information
and services instantly by allowing non-voice data, such as text and images, to pass between
these devices and the Internet. Wireless devices include cellular phones, pagers, Personal
Digital Assistants (PDAs), and other hand-held devices.
WAP supports most wireless networks and is supported by all operating systems—with the
goal of inter-operability. A WAP Gateway translates Wireless Markup Language (WML)—
which is a WAP version of HTML—into HTML/HTTP so that requests for information can be
serviced by traditional Web servers.
To load balance WAP traffic among available parallel servers, the switch must provide persis-
tency so that the clients can always go to the same WAP gateway to perform WAP operation.
Web OS allows the Web switch to decide which real gateway the request should go. WAP SLB
is based on RADIUS static session entry or RADIUS snooping.
The following topics are discussed in this section:
n Using RADIUS Static Session Entries
n Using RADIUS Snooping
n Preconfiguring WAP Server Load Balancing
n Enabling Wireless Application Protocol SLB
n Configuring RADIUS Snooping
Using RADIUS Static Session Entries
RADIUS is a client/server protocol and software that enables remote access servers to commu-
nicate with a central server to authenticate dial-in users and authorize their access to the
requested network or service. RADIUS allows a company to maintain user profiles in a central
database that all remote servers can share. It provides better security, allowing a company to
set up a policy that can be applied at a single administered network point. RADIUS is an indus-
try standard used by network product companies and is a proposed IETF standard.
The RADIUS server uses a static session entry to determine which real WAP gateway should
receive the user’s sessions. Typically, each WAP gateway is integrated with a RADIUS server
on the same host, and a RADIUS request packet is allowed to go to any of the RADIUS
servers. Upon receiving a request from a client, the RADIUS server instructs the switch to
create a static session entry in the switch via Transparent Proxy Control Protocol (TPCP).
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 159
212777-A, February 2002
TPCP is Alteon’s proprietary protocol that is used to establish communication between the
RADIUS servers and the Alteon Web switch. It is UDP-based and uses ports 3121, 1812, and
1645.
Using TPCP, a static session entry is added or removed by the external devices, such as the
RADIUS servers. A regular session entry is usually added or removed by the switch itself. A
static session entry, like a regular session entry, contains information such as the client IP
address, the client port number, real port number, virtual (destination) IP address, virtual (des-
tination) port number.
A static session entry added via TPCP to the switch does not age out. The entry will only be
deleted by another TPCP Delete Session request. If the user adds session entries using
the traditional server load balancing methods, the entries will continue to age out.
Since TPCP is UDP-based, the Add/Delete Session requests may get lost during trans-
mission. The WAP gateway issues another Add Session request on detecting that it has lost
a request. The WAP gateway detects this situation when it receives WAP traffic that does not
belong to that WAP gateway. If a Delete Session request is lost, it will be overwritten by
another Add Session request.
How WAP SLB Works Using Static Session Entries
1. On dialing, the user is first authenticated by the Remote Access Server (RAS).
2. The RAS sends a RADIUS authentication request to one of the RADIUS servers, which
can be integrated with a WAP gateway.
3. If the user is accepted, the RADIUS server determines which WAP gateway is right for
this user and informs the switch of the decision via TPCP.
4. The switch receives an Add Session request from the RADIUS server and adds a ses-
sion entry to its session table to bind a WAP gateway with that user.
5. A response (RADIUS Accept) packet is sent back to the RAS by the RADIUS server.
6. The RAS receives a RADIUS Accept packet and allows the WAP traffic for that user.
7. If the user disconnects, the RAS detects it and sends a RADIUS Accounting Stop
message to the RADIUS server.
8. The RADIUS server sends a Delete session message and removes the session entry
for that user.
Web OS 10.0 Application Guide
160 Chapter 6: Server Load Balancing 212777-A, February 2002
Using RADIUS Snooping
Radius snooping allows the Alteon Web switch to examine RADIUS accounting packets for
client information. This information is needed to add to or delete static session entries to the
session table of the switch so that it can perform the required persistency for load balancing. A
static session entry does not age out. Such an entry, added using RADIUS Snooping, will only
be deleted using RADIUS Snooping. The switch load balances both the RADIUS and WAP
gateway traffic using the same virtual server IP address.
How WAP SLB Works Using RADIUS Snooping
Before the RAS allows the WAP traffic for a user to pass in and out of the gateway, it sends a
RADIUS Accounting Start message to one of the RADIUS Servers. The switch then
snoops on the packet to extract the information it needs. It needs to know the type of the
RADIUS Accounting message, the client IP address, the caller ID, and the user’s name. If it
finds this information, the switch adds a session entry to its session table. If any of this infor-
mation is missing, the switch will not take any action to handle the session entry.
When the client ends the WAP connection, RAS sends RADIUS Accounting Stop
packet. If the switch finds the needed information in a RADIUS Accounting Stop packet,
it removes the corresponding session entry from its table. The following steps occur for
RADIUS snooping:
1. The user is authenticated on dialing.
2. The RAS establishes a session with the client and sends a RADIUS Accounting Start mes-
sage with the client IP address to the RADIUS server.
3. The switch snoops on the RADIUS accounting packet and adds a session entry if it finds
enough information in the packet.
4. The switch load balances the WAP traffic to a specific WAP gateway.
5. When the client terminates the session, the RAS sends an Accounting Stop message to the
RADIUS server, and the session entry is deleted from the switch.
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 161
212777-A, February 2002
Preconfiguring WAP Server Load Balancing
nConfigure WAP server load balancing on Alteon AD4 and Alteon 184 platforms only.
nEnable Virtual Matrix Architecture (VMA).
nDisable DAM (Direct Access Mode).
nDisable pbind and enable udp under the WAP services (ports 9200 to 9203) menu.
nConfigure for RADIUS service 1812 and 1645.
NOTE – The radius service number specified on the switch must match with the service speci-
fied on the server.
Enabling Wireless Application Protocol SLB
1. Enable the external notification from WAP gateway to add and delete session request.
2. Enable TPCP for adding and deleting WAP sessions.
Configuring RADIUS Snooping
Consider the following items before configuring RADIUS snooping:
nThe same virtual server IP address must be used when load balancing both the RADIUS
accounting traffic and WAP traffic.
nAll the RADIUS servers must use the same UDP port for RADIUS accounting services.
nBefore a session entry is recorded on the switch, WAP packets for a user can go to any of
the real WAP gateways.
>> # /cfg/slb/adv/matrix ena
>> # /cfg/slb/adv/direct dis
>> # /cfg/slb/virt <number>/service <name|number>/pbind dis
>> # /cfg/slb/virt <number>/service <name|number>/udp ena
>> # cfg/slb/adv/tpcp ena
>> # cfg/slb/wap/tpcp ena
Web OS 10.0 Application Guide
162 Chapter 6: Server Load Balancing 212777-A, February 2002
nIf a session entry for a client cannot be added because of resource constraints, the subse-
quent WAP packets for that client will not be load balanced correctly; and the client will
need to drop the connection and then reconnect to his wireless service.
nThe persistence of a session cannot be maintained if the number of healthy real WAP gate-
ways changes during the session. For example, if a new WAP server comes into service or
some of the existing WAP servers are down, the number of healthy WAP gateway changes
and, in this case, the persistence for a user cannot be maintained.
nPersistence cannot be maintained if the user moves from one ISP to another, or if the base
of the user’s session changes (that is, from CALLING_STATION_ID to USER_NAME, or
vice versa). For example, if a user moves out of a roaming area, it is possible that his/her
CALLING_STATION_ID is not available in the RADIUS Accounting packets. In such a
case, the switch uses USER_NAME to choose a WAP server instead of
CALLING_STATION_ID. Thus, persistence cannot be maintained.
Configure the following filter on the switch to examine a RADIUS accounting packet:
1. Set the basic filter parameters.
2. Turn on proxy and RADIUS snooping.
3. Apply and save your configuration.
NOTE – Web OS supports Virtual Router Redundancy Protocol (VRRP) and stateful failover,
using both static session entries and RADIUS snooping. However, active-active configuration
with Stateful Failover is not supported.
>> # /cfg/slb/filt 1 (Select the filter)
>> Filter 1 # dip 10.10.10.100 (Set the destination IP address)
>> Filter 1 # dmask 255.255.255.255 (Set the destination IP mask)
>> Filter 1 # proto udp (Set the protocol to UDP)
>> Filter 1 # dport 1813 (Set the destination port)
>> Filter 1 # action redir (Set the action to redirect)
>> Filter 1 # group 1 (Set the group for redirection)
>> Filter 1 # rport 1813 (Set server port for redirection)
>> Filter 1 # adv (Select the advance filter menu)
>> Filter 1 Advanced# proxy ena (Enable proxy)
>> Filter 1 Advanced# rdsnp ena (Enable RADIUS snooping)
>> Filter 1 Advanced# apply
>> Filter 1 Advanced# save
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 163
212777-A, February 2002
Intrusion Detection System Server Load Balancing
Intrusion Detection System (IDS) is a type of security management system for computers and
networks. An Intrusion Detection System gathers and analyzes information from various areas
within a computer or a network to identify possible security breaches, which include both
intrusions (attacks from outside the organization) and misuse (attacks from within the organi-
zation).
Intrusion detection functions include:
nMonitoring and analyzing both user and system activities
nAnalyzing system configurations and vulnerabilities
nAssessing system and file integrity
nRecognizing patterns typical of attacks
nAnalyzing abnormal activity patterns
nTracking user policy violations
Intrusion detection devices inspect every packet before it enters a network, looking for any
signs of an attack. The attacks are recorded and logged in an attempt to guard against future
attacks and to record the information about the intruders.
IDS Server Load Balancing helps scale intrusion detection systems since it is not possible for
an individual server to scale information being processed at gigabit speeds.
How Intrusion Detection Server Load Balancing Works
Web OS allows the switch to forward the IP packets to an Intrusion Detection server at the end
of the filtering process or at the end of client processing (when filtering is not enabled). The
user must enable IDS SLB on the port and allocate a real server group for IDS Server Load
Balancing. The IDS SLB-enabled switch copies all incoming packets to this group of intrusion
detection servers. For each session entry created on the switch, an IDS server is selected based
on the IDS server load-balancing metric.
The IDS server receives copies of all the processed frames that are forwarded to the destination
devices. Session entries are maintained so that all the frames of a given session are forwarded
to the same IDS server.
Each IDS server must be connected directly to a different switch port or VLAN because no
field in the packet header can be substituted. Substituting a field would corrupt the packet that
must also be forwarded to its real destination.
Web OS 10.0 Application Guide
164 Chapter 6: Server Load Balancing 212777-A, February 2002
Load Balancing Metrics for IDS
The following metrics are supported in IDS load balancing:
nminmisses
nroundrobin
Disable delayed binding if you select this metric.
nhash
To select a real server, Web OS allows you to implement the hash metric in two ways:
Client processing on port
If the port is configured for client processing only, then the switch hashes on the
source IP address.
Filter processing on the port
If a filter is configured on the port, then the switch allows you to hash with source IP
address, destination IP address, or both.
NOTE – The leastconns, bandwidth, and response metrics are not applicable to IDS
server load balancing.
Configuring IDS Server Load Balancing
To configure your switch for IDS, do the following:
NOTE – IDS SLB is supported only when RTSP SLB or WAP RADIUS Snooping are disabled
on the Web switch.
1. Configure real servers on the switch that correspond to your IDS servers.
NOTE – Real servers are configured by providing the IP address of the actual server. If your
IDS servers are implemented without an IP address then you should configure a dummy
address for the real server. Also, set the health check of the IDS group to link health check as
shown in Step 5 of this procedure.
For example, if your IDS servers are connected to port 1 and port 2 on the switch and are not
using IP addresses, you could configure dummy addresses as follows:
>> # /cfg/slb/real 1/rip 1.1.1.1/ena (Define a dummy address)
>> # /cfg/slb/real 2/rip 2.2.2.2/ena (Define a dummy address)
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 165
212777-A, February 2002
2. Create a group and add IDS servers to the group.
Each IDS server must be connected directly to a different switch port or VLAN. If the IDS
group will be configured for link health check, match the IDS server number to the physical
port number (1 to 9) to which it is connected. For ICMP health check, the IDS server number
can be between 1 and 31.
3. Define the IDS server load balancing group.
4. Enable the IDS ports for the clients.
5. Define the group health check.
If you implemented IDS without an IP address, link health check is specifically developed for
IDS load balancing. Use ICMP health check if your IDS servers are configured with an IP
address.
6. Apply and save your changes.
>> # /cfg/slb/group <group number> (Define a group)
>>Real Server Group # add 1 (Add IDS server 1)
>>Real Server Group # add 2 (Add IDS server 2)
>> # /cfg/slb/adv/idslb <group number>(Select the group with the IDS servers)
>> # /cfg/slb/port 5 (Select IDS port 1)
>> SLB port 5# idslb ena (Enable IDS on port 1)
>> SLB port 5# ../port 6 (Select IDS port 2)
>> SLB port 6# idslb ena (Enable IDS on port 2)
>> # /cfg/slb/group <group number>/health link
>> Real server group 1# apply
>> Real server group 1# save
Web OS 10.0 Application Guide
166 Chapter 6: Server Load Balancing 212777-A, February 2002
WAN Link Load Balancing
Wide Area Networking (WAN) is a telecommunications network system spread across a broad
geographic area. A WAN may be privately owned or rented, but the term usually means the
inclusion of public (shared user) networks, such as the telephone system. WANs can also be con-
nected through leased lines and satellites. WANs are typically composed of powerful routers and
switches that link business enterprises, universities, remote offices, and so on, around the world.
To handle the high volume of data on the Internet, some corporations are using more than one
Internet Service provider (ISP) as a way to increase reliability of Internet connections. Such
enterprises with more than one ISP are referred to as being multi-homed. In addition to reliabil-
ity, a multi-homed network architecture enables enterprises to distribute load among multiple
connections and to provide more optimal routing.
The WAN link load-balancing feature introduces additional resilience for networks in multi-
homed environment. When users want to control which WAN link the traffic traverses, WAN
link load balancing can be used to steer requests initiated within the user’s network and his/her
responses over the appropriate link at that moment in time.
How WAN Link Load Balancing Works
The Web switch uses redirection filters to redirect traffic initiated from within the user’s net-
work to a group of devices that exist at the other end of the WAN link (routers, for example).
These filters determine which link is the best at the time the request is generated. To ensure
that the responses traverse the same link, the source IP address of the request is translated to
one of the addresses that the selected ISP owns.
The design of WAN link load balancing is identical to standard redirection, except that it
substitutes the source IP address of each frame with the proxy IP address of the port to which
the WAN link is connected.
Configuring WAN Link Load Balancing
Before configuring the Web switch for WAN Link load balancing, make sure of the following:
nDisable NAT Web Cache Redirection. WAN Link load balancing and NAT Web Cache
Redirection cannot be configured on the same switch.
nConfigure the load balancing metric for response time only.
nDo not configure your ports into trunk groups.
nDo not configure WAN link load balancing with two or more WAN links connected
through the same switch port. This feature uses the proxy IP address of the destination port
when translating the source IP address of the requests.
Web OS 10.0 Application Guide
Chapter 6: Server Load Balancing 167
212777-A, February 2002
To configure the switch for WAN link load balancing:
1. Define a real server with proxy disabled.
2. Add the real server to a real server group using the response metric.
3. Define the WAN link load balancing redirection filter.
4. Enable WAN link load balancing for the redirection filter.
5. Enable WAN link load balancing proxy for the redirection filter.
6. Apply and save your changes.
>> # /cfg/slb/real 1 (Select the real server menu)
>> Real server 1# ena (Enable real server 1)
>> Real server 1# rip <IP address>(Set the real server IP address)
>> Real server 1# proxy dis (Disable proxy)
>> # /cfg/slb/group 1
>> Real server group 1# add 1
>> Real server group 1# metric response
>> Real server group 1# /cfg/slb/filt 1
>> Filter 1# ena
>> Filter 1# action redir
>> Filter 1# group 1
>> # /cfg/slb/filt 1/adv/linklb ena
>> # /cfg/slb/filt 1/adv/proxy ena
>> Filter 1 Advanced# apply
>> Filter 1 Advanced# save
Web OS 10.0 Application Guide
168 Chapter 6: Server Load Balancing 212777-A, February 2002
212777-A, February 2002 169
CHAPTER 7
Filtering
This chapter provides a conceptual overview of filters and includes configuration examples
showing how filters can be used for network security and Network Address Translation (NAT).
The following topics are discussed in this chapter:
n“Overview” on page 170. This section describes the benefits and filtering criteria to allow
for extensive filtering at the IP and TCP/UDP levels.
“Filtering Benefits” on page 170
“Filtering Criteria” on page 170
“Stacking Filters” on page 172
“Overlapping Filters” on page 172
“The Default Filter” on page 173
“VLAN-based Filtering” on page 174
“Optimizing Filter Performance” on page 176
“Filter Logs” on page 176
“IP Address Ranges” on page 178
“Cache-Enabled versus Cache-Disabled Filters” on page 178
n“TCP Rate Limiting” on page 179. This section explains how TCP rate limiting allows
you to monitor the number of new TCP connections within a configurable time window.
n“Tunable Hash for Filter Redirection” on page 184 allows you to select any hash parame-
ter for filter redirection.
n“Filter-based Security” on page 185. This section provides an example of configuring fil-
ters for providing the best security.
n“Network Address Translation” on page 191. This section provides two examples: Internal
client access to the Internet and external client access to the server.
n“Matching TCP Flags” on page 197 and “Matching ICMP Message Types” on page 201.
Describes the ACK filter criteria which provides greater filtering flexibility and lists
ICMP message types that can be filtered respectively.
Web OS 10.0 Application Guide
170 Chapter 7: Filtering 212777-A, February 2002
Overview
Alteon Web switches are used to deliver content efficiently and secure your servers from unau-
thorized intrusion, probing, and Denial-of-Service (DoS) attacks. Web OS includes extensive
filtering capabilities at the IP and TCP/UDP levels.
Filtering Benefits
Layer 3 (IP) and Layer 4 (application) filtering give the network administrator a powerful tool
with the following benefits:
nIncreased security for server networks
Filters can be configured to allow or deny traffic according to various IP address, protocol,
and Layer 4 port criteria. You can also secure your switch from further virus attacks by
allowing you to configure the switch with a list of potential offending string patterns. For
more information, see “Layer 7 Deny Filter” on page 417.
This gives the administrator control over the types of traffic permitted through the switch.
Any filter can be optionally configured to generate system log messages for increased
security visibility.
nUsed to map the source or destination IP addresses and ports
Generic Network Address Translation (NAT) can be used to map the source or destination
IP addresses and the ports of private network traffic to or from advertised network IP
addresses and ports.
Filtering Criteria
Up to 2048 filters can be configured on Alteon 184 and Alteon AD4 Web switches. Up to 224
filters are supported on other Alteon Web switches. Descriptive names can be used to define
filters. Each filter can be set to allow, deny, redirect, or translate traffic based on any combina-
tion of the following filter options:
nsip: source IP address or range (see “IP Address Ranges” on page 178)
ndip: destination IP address or range (dip and dmask)
Web OS 10.0 Application Guide
Chapter 7: Filtering 171
212777-A, February 2002
nproto: protocol number or name as shown in Table 7-1
nsport: TCP/UDP application or source port as shown in Table 7-2, or source port range
(such as 31000-33000)
NOTE – The service number specified on the switch must match the service specified on the server.
ndport: TCP/UDP application or destination port as shown in Table 7-2, or destination port
range (such as 31000-33000)
ninvert: reverse the filter logic in order to activate the filter whenever the specified condi-
tions are not met.
nAdvanced filtering options such as TCP flags (page 197) or ICMP message types (page 201)
are also available.
Using these filter criteria, you can create a single filter that blocks external Telnet traffic to
your main server except from a trusted IP address. Another filter could warn you if FTP access
is attempted from a specific IP address. Another filter could redirect all incoming e-mail traffic
to a server where it can be analyzed for spam. The options are nearly endless.
Table 7-1 Well-Known Protocol Types
Number Protocol Name
1
2
6
17
89
112
icmp
igmp
tcp
udp
ospf
vrrp
Table 7-2 Well-Known Application Ports
Number TCP/UDP
Application Number TCP/UDP
Application Number TCP/UDP
Application
20
21
22
23
25
37
42
43
53
69
70
ftp-data
ftp
ssh
telnet
smtp
time
name
whois
domain
tftp
gopher
79
80
109
110
111
119
123
143
144
161
162
finger
http
pop2
pop3
sunrpc
nntp
ntp
imap
news
snmp
snmptrap
179
194
220
389
443
520
554
1645, 1812
1813
1985
bgp
irc
imap3
ldap
https
rip
rtsp
Radius
Radius Accounting
hsrp
Web OS 10.0 Application Guide
172 Chapter 7: Filtering 212777-A, February 2002
Stacking Filters
Stacking filters are assigned and enabled on a per-port basis. Each filter can be used by itself or
in combination with any other filter on any given switch port. The filters are numbered 1
through 2048 on Alteon 184 and Alteon AD4 Web switches, and 1 though 224 on other Alteon
Web switches. When multiple filters are stacked together on a port, the filter’s number deter-
mines its order of precedence: the filter with the lowest number is checked first. When traffic is
encountered at the switch port, if the filter matches, its configured action takes place and the
rest of the filters are ignored. If the filter criteria doesn’t match, the next filter is tried.
As long as the filters do not overlap, you can improve filter performance by making sure that
the most heavily utilized filters are applied first. For example, consider a filter system where
the Internet is divided according to destination IP address:
Figure 7-1 Assigning Filters According to Range of Coverage
Assuming that traffic is distributed evenly across the Internet, the largest area would be the
most utilized and is assigned to Filter 1. The smallest area is assigned to Filter 4.
Overlapping Filters
Filters are permitted to overlap, although special care should be taken to ensure the proper
order of precedence. When overlapping filters are present, the more specific filters (those that
target fewer addresses or ports) should be applied before the generalized filters.
Example:
Figure 7-2 Assigning Filters to Overlapping Ranges
In this example, Filter 2 must be processed prior to Filter 3. If Filter 3 was permitted to take
precedence, Filter 2 could never be triggered.
Allow Deny Redirect
Filtering by Destination IP Address Ranges
Deny
0.0.0.0 255.255.255.255
Filter 1Filter 3Filter 4Filter 2
Allow Redirect
Filtering by Destination IP Address Ranges
Deny
0.0.0.0 255.255.255.255
Filter 1Filter 3 Filter 2
Web OS 10.0 Application Guide
Chapter 7: Filtering 173
212777-A, February 2002
The Default Filter
Before filtering can be enabled on any given port, a default filter should be configured. This
filter handles any traffic not covered by any other filter. All the criteria in the default filter must
be set to the full range possible (any). For example:
Figure 7-3 Assigning a Default Filter
In this example, the default filter is defined as Filter 224 in order to give it the lowest order of
precedence. All matching criteria in Filter 224 are set to the any state. If no other filter acts on
the traffic, Filter 224 processes it, denying and logging unwanted traffic.
Default filters are recommended (but not required) when configuring filters for IP traffic con-
trol and redirection. Using default filters can increase session performance but takes some of
the session binding resources. If you experience an unacceptable number of binding failures, as
shown in the Server Load Balancing Maintenance Statistics (/stats/slb/maint), you
may wish to remove some of the default filters.
>> # /cfg/slb/filt 224 (Select the default filter)
>> Filter 224# sip any (From any source IP addresses)
>> Filter 224# dip any (To any destination IP addresses)
>> Filter 224# proto any (For any protocols)
>> Filter 224# action deny (Deny matching traffic)
>> Filter 224# name deny unwanted traffic (Provide a descriptive name for the
filter)
>> Filter 224# ena (Enable the default filter)
>> Filter 224# adv (Select the advanced menu)
>> Filter 224 Advanced# log enable (Log matching traffic to syslog)
Allow Redirect
Filtering by Destination IP Address Ranges
Deny
0.0.0.0 255.255.255.255
Filter 1Filter 224 Filter 2
Web OS 10.0 Application Guide
174 Chapter 7: Filtering 212777-A, February 2002
VLAN-based Filtering
Filters are applied per switch, per port, or per VLAN. VLAN-based filtering allows a single
Web switch to provide differentiated services for multiple customers, groups, or departments.
For example, you can define separate filters for Customers A and B on the same Web switch
on two different VLANs. If VLANs are assigned based on data traffic, for example, ingress
traffic on VLAN 1, egress traffic on VLAN 2, and management traffic on VLAN 3, filters can
be applied accordingly to the different VLANs.
In the following example shown in Figure 7-4, Filter 2 is configured to allow local clients on
VLAN 20 to browse the Web, and Filter 3 is configured to allow local clients on VLAN 30 to
Telnet anywhere outside the local intranet. Filter 7 is configured to deny ingress traffic from
VLAN 70.
Figure 7-4 VLAN-based Filtering
STOP
Web Switch
Internet
Unique Filters per
VLAN (up to 2048)
VLAN 20
VLAN 30
VLAN 70
Filter 2
Filter 3
Filter 7
Web OS 10.0 Application Guide
Chapter 7: Filtering 175
212777-A, February 2002
Configuring VLAN-based Filtering
1. Configure filter 2 to allow local clients to browse the Web and then assign VLAN 20 to
the filter.
The filter must recognize and allow TCP traffic from VLAN 20 to reach the local client destina-
tion IP addresses if originating from any HTTP source port:
All clients from other VLANs will be ignored.
2. Configure filter 3 to allow local clients to Telnet anywhere outside the local intranet and
then assign VLAN 30 to the filter.
The filter must recognize and allow TCP traffic to reach the local client destination IP
addresses if originating from a Telnet source port:
>> # /cfg/slb/filt 2 (Select the menu for Filter 2)
>> Filter 2# sip any (From any source IP address)
>> Filter 2# dip 205.177.15.0 (To base local network dest. address)
>> Filter 2# dmask 255.255.255.0 (For entire subnet range)
>> Filter 2# proto tcp (For TCP protocol traffic)
>> Filter 2# sport http (From any source HTTP port)
>> Filter 2# dport any (To any destination port)
>> Filter 2# action allow (Allow matching traffic to pass)
>> Filter 2# vlan 20 (Assign VLAN 20 to Filter 2)
>> Filter 2# ena (Enable the filter)
>> # /cfg/slb/filt 3 (Select the menu for Filter 3)
>> Filter 3# sip any (From any source IP address)
>> Filter 3# dip 205.177.15.0 (To base local network dest. address)
>> Filter 3# dmask 255.255.255.0 (For entire subnet range)
>> Filter 3# proto tcp (For TCP protocol traffic)
>> Filter 3# sport telnet (From a Telnet port)
>> Filter 3# dport any (To any destination port)
>> Filter 3# action allow (Allow matching traffic to pass)
>> Filter 3# name allow clients to telnet (Provide a descriptive name for the
filter)
>> Filter 3# vlan 30 (Assign VLAN 30 to Filter 3)
>> Filter 3# ena (Enable the filter)
Web OS 10.0 Application Guide
176 Chapter 7: Filtering 212777-A, February 2002
3. Configure Filter 7 to deny traffic and then assign VLAN 70 to the filter.
As a result, ingress traffic from VLAN 70 is denied entry to the switch.
Optimizing Filter Performance
Filter efficiency can be increased by placing filters that are used most often near the beginning
of the filtering list.
It is a recommended practice to number filters in small increments (5, 10, 15, 20, etc.) to make
it easier to insert filters into the list at a later time. However, as the number of filters increases,
you can improve performance by minimizing the increment between filters. For example, fil-
ters numbered 2, 4, 6, and 8 are more efficient than filters numbered 20, 40, 60, and 80. Peak
processing efficiency is achieved when filters are numbered sequentially beginning with 1.
Filter Logs
To provide enhanced troubleshooting and session inspection capability, packet source and des-
tination IP addresses are included in filter log messages. Filter log messages are generated
when a Layer 3/Layer 4 filter is triggered and has logging enabled. The messages are output to
the console port, system host log (syslog), and the Web-based interface message window.
>> # /cfg/slb/filt 7 (Select the menu for Filter 7)
>> Filter 7# sip any (From any source IP address)
>> Filter 7# dip 205.177.15.0 (To base local network dest. address)
>> Filter 7# dmask 255.255.255.0 (For entire subnet range)
>> Filter 7# proto tcp (For TCP protocol traffic)
>> Filter 7# sport http (From a Telnet port)
>> Filter 7# dport any (To any destination port)
>> Filter 7# action deny (Allow matching traffic to pass)
>> Filter 7# vlan 70 (Assign VLAN 70 to Filter 7)
>> Filter 7# ena (Enable the filter)
Web OS 10.0 Application Guide
Chapter 7: Filtering 177
212777-A, February 2002
Example: A network administrator has noticed a significant number of ICMP frames on one
portion of the network and wants to determine the specific sources of the ICMP messages. The
administrator uses the Command Line Interface (CLI) to create and apply the following filter:
When applied to one or more switch ports, this simple filter rule will produce log messages
that show when the filter is triggered, and what the IP source and destination addresses were
for the ICMP frames traversing those ports.
Example: Filter log message output is shown below, displaying the filter number, port, source
IP address, and destination IP address:
>> # /cfg/slb/filt 15 (Select filter 15)
>> Filter 15# sip any (From any source IP address)
>> Filter 15# dip any (To any destination IP address)
>> Filter 15# action allow (Allows matching traffic to pass)
>> Filter 15# name allow matching traffic (Provide a descriptive name for the
filter)
>> Filter 15# proto icmp (For the ICMP protocol)
>> Filter 15# ena (Enable the filter)
>> Filter 15# adv/log enable (Log matching traffic to syslog)
>> Filter 15 Advanced# /cfg/slb/port 7 (Select a switch port to filter)
>> SLB port 7# add 15 (Add the filter to the switch port)
>> SLB port 7# filt ena (Enable filtering on the switch port)
>> SLB port 7# apply (Apply the configuration changes)
>> SLB port 7# save (Save the configuration changes)
slb: filter 15 fired on port 7, 206.118.93.110 -> 20.10.1.10
Web OS 10.0 Application Guide
178 Chapter 7: Filtering 212777-A, February 2002
IP Address Ranges
You can specify a range of IP addresses for filtering both the source and/or destination IP
address for traffic. When a range of IP addresses is needed, the source IP (sip) address or des-
tination IP (dip) address defines the base IP address in the desired range. The source mask
(smask) or destination mask (dmask) is the mask that is applied to produce the range.
For example, to determine if a client request’s destination IP address should be redirected to
the cache servers attached to a particular switch, the destination IP address is masked (bit-wise
AND) with the dmask and then compared to the destination IP address.
As another example, the switch could be configured with two filters so that each would handle
traffic filtering for one half of the Internet. To do this, you could define the following parameters:
Cache-Enabled versus Cache-Disabled Filters
To improve efficiency, by default, the Web switch performs filter processing only the first
frame in each session. Subsequent frames in the session are assumed to match the same criteria
and are automatically treated in the same fashion as the initial frame. These filters create a ses-
sion entry in the Web switch and are known as cache-enabled.
Some types of filtering (TCP flag and ICMP message type filtering) require each frame in the
session to be filtered separately. These filters are known as cache-disabled.
All filters are cache-enabled by default. To change the status of a filter, use the following com-
mands:
NOTE – Cache-enabled filters should not be applied to the same ports as cache-disabled filters.
Otherwise, the cache-disabled filters could potentially be bypassed for frames matching the
cache-enabled criteria.
Table 7-3 Filtering IP Address Ranges
Filter Internet Address Range dip dmask
1 0.0.0.0 - 127.255.255.255 0.0.0.0 128.0.0.0
2 128.0.0.0 - 255.255.255.255 128.0.0.0 128.0.0.0
>> # /cfg/slb/filt <filter number>/adv (Select the advanced filter menu)
>> Filter 1 Advanced # cache ena|dis (Enable or disable filter caching)
Web OS 10.0 Application Guide
Chapter 7: Filtering 179
212777-A, February 2002
TCP Rate Limiting
Web OS 10.0 allows you to prevent a client or a group of clients from claiming all the TCP
resources on the servers. This is done by monitoring the rate of incoming TCP connection
requests to a virtual IP address and limiting the client requests with a known set of IP
addresses.
TCP rate limiting is similar to bandwidth management. In both features, you configure filters
to limit the TCP connection requests; but in bandwidth management the limiting factor is port-
based, and in TCP rate limit it is user-based.
The TCP rate limit is defined as the maximum number of TCP connection requests within a
configured time window. The switch monitors the number of new TCP connections and when it
exceeds the configured limit, any new TCP connection request is blocked. When this occurs,
the client is said to be held down. The client is held down for a specified duration of time, after
which new TCP connection requests from the client are allowed to pass through again.
Figure 7-5 on page 180 shows four clients configured for TCP rate limits based on source IP
address. Clients 1 and 4 have the same TCP rate limit of 10 connections per second. Client 2
has a TCP rate limit of 20 connections per second. Client 3 has a TCP rate limit of 30 connec-
tions per second.
When the rate of new TCP connections from clients 1, 2, 3, and 4 reach a pre-determined
threshold, any new connection request from the client is blocked for a pre-determined amount
of time. If the client’s IP address and the configured filter do not match, then the default filter
is applied.
Web OS 10.0 Application Guide
180 Chapter 7: Filtering 212777-A, February 2002
In Figure 7-5, the default filter 224 configured for Any is applied for all other connection
requests.
Figure 7-5 Configuring Clients with Different Rates
Configuring TCP Rate Limiting Filters
TCP rate limiting can be configured for all filter types (allow, redir, SIP, and DIP) and parame-
ters. You can specify the source IP address and mask options in the filter configuration menu to
monitor a client or a group of clients. The destination IP address and mask options are used to
monitor connections to a virtual IP address or a group of virtual IP addresses.
Basic TCP Rate Limiting Filter
The following example shows how to configure TCP rate limiting for Filter 10 in Figure 7-5.
1. Enable TCP rate limiting for the filter.
2. Configure maximum number of TCP connections.
The maxcon value is specified in units of 10. The value of 3 indicates a total of 30 TCP con-
nections.
>> # /cfg/slb/filt 10/adv/tcp
>> TCP Advanced menu # tcplim ena (Enable TCP rate limiting)
>> TCP Advanced menu # maxcon 3 (Set the max. number of connections)
Web Switch
Internet
Real servers
Clients
1
2
3
4
Filter 10: 10 conn/sec
Filter 20: 20 conn/sec
Filter 30: 30 conn/sec
Filter 224: Allow Any
Client 1 limit: 10 conn/sec
Client 2 limit: 20 conn/sec
Client 3 limit: 30 conn/sec
Client 4 limit: 10 conn/sec
Web OS 10.0 Application Guide
Chapter 7: Filtering 181
212777-A, February 2002
3. Set the timewin parameter and calculate the total time window in seconds.
The total time window is a multiple of fastage (for information on fastage, see the Con-
figuration chapter in the Web OS 10.0 Command Reference). The total time window is calcu-
lated with the following equation:
Total Time window = timewin x fastage
If the default value for fastage is 1 second, then the configured total time window is 3 sec-
onds.
NOTE – From Step 2 and 3, the TCP rate limit defined as the maximum number of connections
over a specified time window is 30 TCP connections for every 3 seconds (or 10 TCP connec-
tions per second).
For a small site, 30 TCP connections per second provides a good indication if your site is being
attacked. The default is 100 TCP connections per second. For larger sites, TCP rate limit
greater than 2550 connection per second indicates the possibility that your switch is under
attack.
4. Set the holddur parameter and calculate the hold down time in minutes.
The hold down time is a multiple of slowage (for information on slowage, see the Config-
uration chapter in the Web OS 10.0 Command Reference). The hold down time is calculated
with the following equation:
Hold down time = holddur x slowage
If slowage is set to the default value of 0 (2 minutes), then the configured value for hold
down time is
Hold down time = 2 x 2 = 4 minutes
If a client exceeds the TCP rate limit, then the client is not allowed to make any new TCP con-
nections for 4 minutes.
The following two configuration examples illustrate how to use TCP rate limiting to limit user
access based on source IP address and virtual IP address.
>> # /cfg/slb/adv/timewin 3 (Set the time window)
>> # /cfg/slb/adv/holddur 2 (Set the hold duration)
Web OS 10.0 Application Guide
182 Chapter 7: Filtering 212777-A, February 2002
TCP Rate Limiting Filter Based on Source IP Address
This example shows how to define a filter that limits clients with IP address 30.30.30.x to 150
TCP connections per second. Once a user exceeds that limit, they are not allowed any new
TCP connections for 10 minutes.
Configure the following on the switch:
Fastage and slowage are set at their default values:
Fastage = 0 (1 sec) slowage = 0 (2 minutes).
Time window = timewin x fastage = 1 x 1 second = 1 second
Hold down time = holddur x slowage = 5 x 2 minutes = 10 minutes
Max rate = maxcon/time window = 150 connections/1 second = 150 connections/second
Any client with source IP address equal to 30.30.30.x is allowed to make 150 new TCP con-
nections per second to any single destination. When the rate limit of 150 is met, the hold down
time takes effect and the client is not allowed to make any new TCP connections to the same
destination for 10 minutes.
>> # /cfg/slb/filt 100/ena (Enable the filter)
>> Filter 100 # sip 30.30.30.0 (Specify the source IP address)
>> Filter 100 # smask 255.255.255.0 (Specify the source IP address mask)
>> Filter 100 # adv/tcp (Select the advanced filter menu)
>> TCP advanced# tcplim en (Enable TCP rate limiting)
>> TCP advanced# maxconn 15 (Specify the maximum connections)
>> TCP advanced# /cfg/slb/adv (Select the Layer 4 advanced menu)
>> Layer 4 Advanced # timewin 1 (Set the time window for the session)
>> Layer 4 Advanced # holddur 5 (Set the hold duration for the session)
Web OS 10.0 Application Guide
Chapter 7: Filtering 183
212777-A, February 2002
TCP Rate Limiting Filter Based on Virtual Server IP Address
This example defines a filter that limits clients to 100 TCP connections per second to a specific
destination (VIP 10.10.10.100). Once a client exceeds that limit, the client is not allowed to
make any new TCP connection request to that destination for 40 minutes. Figure 7-6 shows
how to use this feature to limit client access to a specific destination.
Figure 7-6 Limiting User Access to Server
Configure the following on the switch:
Fastage and slowage are set to 2 seconds and 8 minutes as follows:
time window = timewin x fastage = 1 x 2 seconds = 2 seconds
hold down time = holddur x slowage = 5 x 8 minutes = 40 minutes
max rate = maxcon/time window = 200 connections/2 seconds = 100 connections/second
>> # /cfg/slb/filt 100/ena (Enable the filter)
>> Filter 100 # dip 10.10.10.100/dmask 255.255.255.0
(Specify the virtual server IP address)
>> Filter 100# adv/tcp (Select the advanced filter menu)
>> TCP advanced# tcplim en (Enable TCP rate limiting)
>> TCP advanced# maxconn 20 (Specify the maximum connections)
>> TCP advanced# /cfg/slb/adv (Select the Layer 4 advanced menu)
>> Layer 4 Advanced # timewin 1 (Set the time window for the session)
>> Layer 4 Advanced # holddur 5 (Set the hold duration for the session)
/cfg/slb/adv/fastage 1 (Fastage is set to 2 seconds)
/cfg/slb/adv/slowage 2 (Slowage is set to 8 minutes)
Web Switch
Internet
Real serversClients
1
2
3
4
Client 1, 2, 3, and 4 are limited
to 100 conn/sec to virtual IP address
Filter 100: 100 conn/sec
VIP: 10.10.10.100
S1
S2
Web OS 10.0 Application Guide
184 Chapter 7: Filtering 212777-A, February 2002
All clients are limited to 100 new TCP connections/second to the server. If a client exceeds this
rate, then the client is not allowed to make any new TCP connections to the server for 40 min-
utes.
NOTE – All SLB sessions on the switch are affected when you make changes to the fastage
or slowage parameters.
Tunable Hash for Filter Redirection
Web OS 10.0 allows you to choose a number of options when using the hash parameter for fil-
ter redirection. Hashing can be based on source IP address, destination IP address, both, or
source IP address and source port. For example:
1. Configure hashing based on source IP address:
Hashing on the 24-bit source IP address ensures that client requests access the same cache.
2. Set the metric for the real server group to minmisses or hash.
The source IP address is passed to the real server group for either of the two metrics.
NOTE – If firewall load balancing is enabled on the switch, the firewall load balancing filter
which hashes on source and destination IP addresses will override the tunable hash filter.
>> # /cfg/slb/filt 10/ena (Enable the filter)
>> Filter 10 # action redir (Specify the redir action)
>> Filter 10 # proto tcp (Specify the protocol)
>> Filter 10 # group 1 (Specify the group of real servers)
>> Filter 10 # rport 3128 (Specify the redirection port)
>> Filter 10 # vlan any (Specify the VLAN)
>> Filter 10 # adv (Select the advanced filter menu)
>> TCP advanced menu # thash sip (Select source IP address for hashing)
>> # /cfg/slb/group 1 (Select the group of real servers)
>> Real server group 1 # metric minmiss (Set the metric to minmiss or hash)
Web OS 10.0 Application Guide
Chapter 7: Filtering 185
212777-A, February 2002
Filter-based Security
This section provides an example of configuring filters for providing the best security. It is
generally recommended that you configure filters to deny all traffic except for those services
that you specifically wish to allow. Consider the following sample network:
Figure 7-7 Security Topology Example
In this example, the network is made of local clients on a collector switch, a Web server, a mail
server, a domain name server, and a connection to the Internet. All the local devices are on the
same subnet.
For best security, it is generally recommended that you configure filters to deny all traffic
except for those services that you specifically wish to allow. In this example, the administrator
wishes to install basic security filters to allow only the following traffic:
nExternal HTTP access to the local Web server
nExternal SMTP (mail) access to the local mail server
nLocal clients browsing the World Wide Web
nLocal clients using Telnet to access sites outside the intranet
nDNS traffic
All other traffic is denied and logged by the default filter.
NOTE – Since IP address and port information can be manipulated by external sources, filter-
ing does not replace the necessity for a well-constructed network firewall.
Web Server
205.177.15.2 Mail Server
205.177.15.3 DNS
205.177.15.4
Alteon Web Switch
Local Clients
Internet
RouterClient Switch
Web OS 10.0 Application Guide
186 Chapter 7: Filtering 212777-A, February 2002
Configuring a Filter-Based Security Solution
Before you begin, you must be connected to the switch CLI as the administrator.
In this example, all filters are applied only to the switch port that connects to the Internet. If
intranet restrictions are required, filters can be placed on switch ports connecting to local
devices.
Also, filtering is not limited to the few protocols and TCP or UDP applications shown in this
example. See Table 7-1 on page 171 and Table 7-2 on page 171 for a list of other well-known
protocols and applications.
1. Assign an IP address to each of the network devices.
For this example, the network devices have the following IP addresses on the same IP subnet:
2. Create a default filter that will deny and log unwanted traffic.
The default filter is defined as Filter 224 in order to give it the lowest order of precedence:
NOTE – Because the proto parameter is not tcp or udp, the source port (sport) and desti-
nation port (dport) values are ignored and may be excluded from the filter configuration.
Table 7-4 Web Cache Example: Real Server IP Addresses
Network Device IP address
Local Subnet 205.177.15.0 - 205.177.15.255
Web Server 205.177.15.2
Mail Server 205.177.15.3
Domain Name Server 205.177.15.4
>> # /cfg/slb/filt 224 (Select the default filter)
>> Filter 224# sip any (From any source IP addresses)
>> Filter 224# dip any (To any destination IP addresses)
>> Filter 224# proto any (For any protocols)
>> Filter 224# action deny (Deny matching traffic)
>> Filter 224# name deny unwanted traffic (Provide a descriptive name for the
filter)
>> Filter 224# ena (Enable the default filter)
>> Filter 224# adv/log enable (Log matching traffic to syslog)
Web OS 10.0 Application Guide
Chapter 7: Filtering 187
212777-A, February 2002
3. Create a filter that will allow external HTTP requests to reach the Web server.
The filter must recognize and allow TCP traffic with the Web server’s destination IP address
and HTTP destination port:
4. Create a pair of filters to allow incoming and outgoing mail to and from the mail server.
Filter 2 allows incoming mail to reach the mail server, and Filter 3 allows outgoing mail to
reach the Internet:
>> Filter 224# ../filt 1 (Select the menu for filter 1)
>> Filter 1# sip any (From any source IP address)
>> Filter 1# dip 205.177.15.2 (To Web server dest. IP address)
>> Filter 1# dmask 255.255.255.255 (Set mask for exact dest. address)
>> Filter 1# proto tcp (For TCP protocol traffic)
>> Filter 1# sport any (From any source port)
>> Filter 1# dport http (To an HTTP destination port)
>> Filter 1# action allow (Allow matching traffic to pass)
>> Filter 1# name allow matching traffic (Provide a descriptive name for the
filter)
>> Filter 1# ena (Enable the filter)
>> Filter 1# ../filt 2 (Select the menu for filter 2)
>> Filter 2# sip any (From any source IP address)
>> Filter 2# dip 205.177.15.3 (To mail server dest. IP address)
>> Filter 2# dmask 255.255.255.255 (Set mask for exact dest. address)
>> Filter 2# proto tcp (For TCP protocol traffic)
>> Filter 2# sport any (From any source port)
>> Filter 2# dport smtp (To a SMTP destination port)
>> Filter 2# action allow (Allow matching traffic to pass)
>> Filter 2# ena (Enable the filter)
>> Filter 2# ../filt 3 (Select the menu for filter 3)
>> Filter 3# sip 205.177.15.3 (From mail server source IP address)
>> Filter 3# smask 255.255.255.255 (Set mask for exact source address)
>> Filter 3# dip any (To any destination IP address)
>> Filter 3# proto tcp (For TCP protocol traffic)
>> Filter 3# sport smtp (From a SMTP port)
>> Filter 3# dport any (To any destination port)
>> Filter 3# action allow (Allow matching traffic to pass)
>> Filter 3# ena (Enable the filter)
Web OS 10.0 Application Guide
188 Chapter 7: Filtering 212777-A, February 2002
5. Create a filter that will allow local clients to browse the Web.
The filter must recognize and allow TCP traffic to reach the local client destination IP addresses
if traffic originates from any HTTP source port:
6. Create a filter that will allow local clients to Telnet anywhere outside the local intranet.
The filter must recognize and allow TCP traffic to reach the local client destination IP
addresses if originating from a Telnet source port:
7. Create a series of filters to allow Domain Name System (DNS) traffic.
DNS traffic requires four filters; one pair is needed for UDP traffic (incoming and outgoing)
and another pair for TCP traffic (incoming and outgoing).
>> Filter 3# ../filt 4 (Select the menu for Filter 4)
>> Filter 4# sip any (From any source IP address)
>> Filter 4# dip 205.177.15.0 (To base local network dest. address)
>> Filter 4# dmask 255.255.255.0 (For entire subnet range)
>> Filter 4# proto tcp (For TCP protocol traffic)
>> Filter 4# sport http (From any source HTTP port)
>> Filter 4# dport any (To any destination port)
>> Filter 4# action allow (Allow matching traffic to pass)
>> Filter 4# name allow clients Web browse (Provide a descriptive name for the
filter)
>> Filter 4# ena (Enable the filter)
>> Filter 4# ../filt 5 (Select the menu for Filter 5)
>> Filter 5# sip any (From any source IP address)
>> Filter 5# dip 205.177.15.0 (To base local network dest. address)
>> Filter 5# dmask 255.255.255.0 (For entire subnet range)
>> Filter 5# proto tcp (For TCP protocol traffic)
>> Filter 5# sport telnet (From a Telnet port)
>> Filter 5# dport any (To any destination port)
>> Filter 5# action allow (Allow matching traffic to pass)
>> Filter 5# ena (Enable the filter)
Web OS 10.0 Application Guide
Chapter 7: Filtering 189
212777-A, February 2002
For UDP:
Similarly, for TCP:
>> Filter 5# ../filt 6 (Select the menu for Filter 6)
>> Filter 6# sip any (From any source IP address)
>> Filter 6# dip 205.177.15.4 (To local DNS Server)
>> Filter 6# dmask 255.255.255.255 (Set mask for exact dest. address)
>> Filter 6# proto udp (For UDP protocol traffic)
>> Filter 6# sport any (From any source port)
>> Filter 6# dport domain (To any DNS destination port)
>> Filter 6# action allow (Allow matching traffic to pass)
>> Filter 6# ena (Enable the filter)
>> Filter 6# ../filt 7 (Select the menu for Filter 7)
>> Filter 7# sip 205.177.15.4 (From local DNS Server)
>> Filter 7# smask 255.255.255.255 (Set mask for exact source address)
>> Filter 7# dip any (To any destination IP address)
>> Filter 7# proto udp (For UDP protocol traffic)
>> Filter 7# sport domain (From a DNS source port)
>> Filter 7# dport any (To any destination port)
>> Filter 7# action allow (Allow matching traffic to pass)
>> Filter 7# ena (Enable the filter)
>> Filter 7# ../filt 8 (Select the menu for Filter 8)
>> Filter 8# sip any (From any source IP address)
>> Filter 8# dip 205.177.15.4 (To local DNS Server)
>> Filter 8# dmask 255.255.255.255 (Set mask for exact dest. address)
>> Filter 8# proto tcp (For TCP protocol traffic)
>> Filter 8# sport any (From any source port)
>> Filter 8# dport domain (To any DNS destination port)
>> Filter 8# action allow (Allow matching traffic to pass)
>> Filter 8# ena (Enable the filter)
>> Filter 8# ../filt 9 (Select the menu for Filter 9)
>> Filter 9# sip 205.177.15.4 (From local DNS Server)
>> Filter 9# smask 255.255.255.255 (Set mask for exact source address)
>> Filter 9# dip any (To any destination IP address)
>> Filter 9# proto tcp (For TCP protocol traffic)
>> Filter 9# sport domain (From a DNS source port)
>> Filter 9# dport any (To any destination port)
>> Filter 9# action allow (Allow matching traffic to pass)
>> Filter 9# ena (Enable the filter)
Web OS 10.0 Application Guide
190 Chapter 7: Filtering 212777-A, February 2002
8. Assign the filters to the switch port that connects to the Internet.
Web OS allows you to add and remove a contiguous block of filters with a single command.
9. Apply and verify the configuration.
Examine the resulting information. If any settings are incorrect, make appropriate changes.
10. Save your new configuration changes.
11. Check the server load balancing information.
Check that all SLB parameters are working according to expectation. If necessary, make any
appropriate configuration changes and then check the information again.
NOTE – Changes to filters on a given port do not take effect until the port’s session information
is updated (every two minutes or so). To make filter changes take effect immediately, clear the
session binding table for the port (see the /oper/slb/clear command in the Web OS 10.0
Command Reference).
>> Filter 9# ../port 5 (Select the SLB port 5 to the Internet)
>> SLB Port 5# add 1-9 (Add filters 1-9 to port 5)
>> SLB Port 5# add 224 (Add the default filter to port 5)
>> SLB Port 5# filt enable (Enable filtering for port 5)
>> SLB Port 5# apply (Make your changes active)
>> SLB Port 5# cur (View current settings)
>> SLB Port 5# save (Save for restore after reboot)
>> SLB Port 5# /info/slb/dump (View SLB information)
Web OS 10.0 Application Guide
Chapter 7: Filtering 191
212777-A, February 2002
Network Address Translation
Network Address Translation (NAT) is an Internet standard that enables an Alteon Web switch
to use one set of IP addresses for internal traffic and a second set of addresses for external traf-
fic. Alteon Web switches use filters to implement NAT.
NAT serves two main purposes:
nProvides a type of firewall by hiding internal IP addresses and increases network security.
nEnables a company to use more internal IP addresses. Since they’re used internally only,
there’s no possibility of conflict with public IP addresses used by other companies and
organizations.
In the following NAT examples, a company has configured its internal network with private IP
addresses. A private network is one that is isolated from the global Internet and is, therefore,
free from the usual restrictions requiring the use of registered, globally unique IP addresses.
With NAT, private networks are not required to remain isolated. NAT capabilities within the
switch allow internal, private network IP addresses to be translated to valid, publicly adver-
tised IP addresses and back again. NAT can be configured in one of the following two ways:
nStatic NAT provides a method for direct mapping of one predefined IP address (such as a
publicly available IP address) to another (such as a private IP address)
nDynamic NAT provides a method for mapping multiple IP addresses (such as a group of
internal clients) to a single IP address (to conserve publicly advertised IP addresses)
Alteon Web switches use filters to implement NAT.
Static NAT
The static NAT (non-proxy) example requires two filters: one for the external client-side
switch port, and one for the internal, server-side switch port. The client-side filter translates
incoming requests for the publicly advertised server IP address to the server’s internal private
network address. The filter for the server-side switch port reverses the process, translating the
server’s private address information to a valid public address.
Web OS 10.0 Application Guide
192 Chapter 7: Filtering 212777-A, February 2002
In this example, clients on the Internet require access to servers on the private network:
Figure 7-8 Static Network Address Translation
Configuring Static NAT
>> # /cfg/slb/filt 10 (Select the menu for outbound filter)
>> Filter 10# action nat (Perform NAT on matching traffic)
>> Filter 10# nat source (Translate source information)
>> Filter 10# sip 10.10.10.0 (From the clients private IP address)
>> Filter 10# smask 255.255.255.0 (For the entire private subnet range)
>> Filter 10# dip 205.178.13.0 (To the public network address)
>> Filter 10# dmask 255.255.255.0 (For the same subnet range)
>> Filter 10# ena (Enable the filter)
>> Filter 10# adv/proxy disable (Override any proxy IP settings)
>> Filter 10 Advanced# /cfg/slb/filt 11 (Select the menu for inbound filter)
>> Filter 11# action nat (Use the same settings as outbound)
>> Filter 11# nat dest (Reverse the translation direction)
>> Filter 11# sip 10.10.10.0 (Use the same settings as outbound)
>> Filter 11# smask 255.255.255.0 (Use the same settings as outbound)
>> Filter 11# dip 205.178.13.0 (Use the same settings as outbound)
>> Filter 11# dmask 255.255.255.0 (Use the same settings as outbound)
>> Filter 11# ena (Enable the filter)
>> Filter 11# adv/proxy disable (Override any proxy IP settings)
>> Filter 11 Advanced# /cfg/slb/port 1 (Select server-side port)
>> SLB port 1# add 10 (Add the outbound filter)
>> SLB port 1# filt enable (Enable filtering on port 1)
>> SLB port 1# ../port 2 (Select the client-side port)
>> SLB port 2# add 11 (Add the inbound filter)
>> SLB port 2# filt enable (Enable filtering on port 2)
>> SLB port 2# apply (Apply configuration changes)
>> SLB port 2# save (Save configuration changes)
Router
External Clients
Internet
Inbound filter:
NAT destination
to private address
Outbound filter:
NAT source info
to public address
1 2
Public IP Address:
205.178.13.x
Server:
10.10.10.1
(Private network)
Web OS 10.0 Application Guide
Chapter 7: Filtering 193
212777-A, February 2002
Note the following important points about this configuration:
nWithin each filter, the smask and dmask values are identical.
nAll parameters for both filters are identical except for the NAT direction. For Filter 10,
nat source is used. For Filter 11, nat dest is used.
nFilters for static (non-proxy) NAT should take precedence over dynamic NAT filters (fol-
lowing example). Static filters should be given lower filter numbers.
Dynamic NAT
Dynamic NAT is a many-to-one solution: multiple clients on the private subnet take advantage
of a single external IP address, thus conserving valid IP addresses. In this example, clients on
the internal private network require TCP/UDP access to the Internet:
Figure 7-9 Dynamic Network Address Translation
NOTE – Dynamic NAT can also be used to support ICMP traffic for PING.
This example requires a NAT filter to be configured on the switch port that is connected to the
internal clients. When the NAT filter is triggered by outbound client traffic, the internal private
IP address information on the outbound packets is translated to a valid, publicly advertised IP
address on the switch. In addition, the public IP address must be configured as a proxy IP
address on the switch port that is connected to the internal clients. The proxy performs the
reverse translation, restoring the private network addresses on inbound packets.
RouterHub
Internal Clients
10.10.10.x
(Private network)
Internet
Inbound proxy on
public address
Outbound filter:
NAT source info
to public address
1
Public IP Address:
205.178.17.12
Web OS 10.0 Application Guide
194 Chapter 7: Filtering 212777-A, February 2002
Configuring Dynamic NAT
NOTE – The invert option in this example filter makes this specific configuration easier but
is not a requirement for dynamic NAT.
NOTE – Dynamic NAT solutions apply only to TCP/UDP traffic. Also, filters for dynamic
NAT should be given a higher numbers than any static NAT filters (see “Static NAT” on page
191).
>> # /cfg/slb/filt 14 (Select the menu for client filter)
>> Filter 14# invert ena (Invert the filter logic)
>> Filter 14# dip 10.10.10.0 (If the destination is not private)
>> Filter 14# dmask 255.255.255.0 (For the entire private subnet range)
>> Filter 14# sip any (From any source IP address)
>> Filter 14# action nat (Perform NAT on matching traffic)
>> Filter 14# nat source (Translate source information)
>> Filter 14# ena (Enable the filter)
>> Filter 14# adv/proxy enable (Allow PIP proxy translation)
>> Filter 14 Advanced# /cfg/slb/port 1 (Select SLB port 1)
>> SLB port 1# add 14 (Add the filter to port 1)
>> SLB port 1# pip 205.178.17.12 (Set public IP address proxy)
>> SLB port 1# filt enable (Enable filtering on port 1)
>> SLB port 1# proxy ena (Enable proxies on this port)
>> SLB port 1# apply (Apply configuration changes)
>> SLB port 1# save (Save configuration changes)
Web OS 10.0 Application Guide
Chapter 7: Filtering 195
212777-A, February 2002
FTP Client NAT
Alteon Web switches provide NAT services to many clients with private IP addresses. In
Web OS, an FTP enhancement provides the capability to perform true FTP NAT for dynamic
NAT.
Because of the way FTP works in active mode, a client sends information on the control chan-
nel, information that reveals their private IP address, out to the Internet. However, the switch
filter only performs NAT translation on the TCP/IP header portion of the frame, preventing a
client with a private IP address from doing active FTP.
The switch can monitor the control channel and replace the client ’s private IP address with a
proxy IP address defined on the switch. When a client in active FTP mode sends a port com-
mand to a remote FTP server, the switch will look into the data part of the frame and modify
the port command as follows:
nThe real server (client) IP address will be replaced by a public proxy IP address. If VMA
is enabled, a pool (1-8) of proxy IP addresses is used instead of a single one.
nThe real server (client) port will be replaced with a proxy port.
Figure 7-10 Active FTP for Dynamic NAT
RouterHub
Real servers
10.10.10.x
(Private network)
Internet
Inbound proxy on
public address
Outbound filter:
NAT source info
to public address
1
Public IP Address:
205.178.17.12
(Pool of proxy IP
addresses instead
of a single proxy
IP address)
Web OS 10.0 Application Guide
196 Chapter 7: Filtering 212777-A, February 2002
Configuring Active FTP Client NAT
NOTE – The passive mode does not need this feature.
1. Make sure that a proxy IP address is enabled on the filter port.
2. Make sure that a source NAT filter is set up for the port.:
3. Enable active FTP NAT using the following command:
4. Apply and save the switch configuration.
>> # /cfg/slb/filt 14 (Select the menu for client filter)
>> Filter 14# invert ena (Invert the filter logic)
>> Filter 14# dip 10.10.10.0 (If the destination is not private)
>> Filter 14# dmask 255.255.255.0 (For the entire private subnet range)
>> Filter 14# sip any (From any source IP address)
>> Filter 14# action nat (Perform NAT on matching traffic)
>> Filter 14# nat source (Translate source information)
>> Filter 14# ena (Enable the filter)
>> Filter 14# adv/proxy enable (Allow PIP proxy translation)
>> Filter 14 Advanced# /cfg/slb/port 1 (Select SLB port 1)
>> SLB port 1# add 14 (Add the filter to port 1)
>> SLB port 1# pip 205.178.17.12 (Set public IP address proxy)
>> SLB port 1# filt enable (Enable filtering on port 1)
>> SLB port 1# proxy ena (Enable proxies on this port)
>> SLB port 1# apply (Apply configuration changes)
>> SLB port 1# save (Save configuration changes)
>> # /cfg/slb/filt <filter number>/adv/ftpa ena
Web OS 10.0 Application Guide
Chapter 7: Filtering 197
212777-A, February 2002
Matching TCP Flags
Web OS supports packet filtering based on any of the following TCP flags.
Any filter may be set to match against more than one TCP flag at the same time. If there is
more than one flag enabled, the flags are applied with a logical AND operator. For example, by
setting the switch to filter SYN and ACK, the switch filters all SYN-ACK frames.
NOTE – TCP flag filters must be cache-disabled. Exercise caution when applying cache-
enabled and cache-disabled filters to the same switch port. For more information, see “Cache-
Enabled versus Cache-Disabled Filters” on page 178.
Configuring the TCP Flag Filter
NOTE – By default, all TCP filter options are disabled. TCP flags will not be inspected unless
one or more TCP options are enabled.
Consider the following network:
Figure 7-11 TCP ACK Matching Network
Table 7-5 TCP Flags
Flag Description
URG Urgent
ACK Acknowledgement
PSH Push
RST Reset
SYN Synchronize
FIN Finish
SMTP
Mail Server
Router
Web Switch
Web Servers:
203.122.186.*
Internet Inside/
Trusted LAN
1
2
3
Web OS 10.0 Application Guide
198 Chapter 7: Filtering 212777-A, February 2002
In this network, the Web servers inside the LAN must be able to transfer mail to any SMTP-
based mail server out on the Internet. At the same time, you want to prevent access to the LAN
from the Internet, except for HTTP.
SMTP traffic uses well-known TCP Port 25. The Web servers will originate TCP sessions to
the SMTP server using TCP destination Port 25, and the SMTP server will acknowledge each
TCP session and data transfer using TCP source Port 25.
Creating a filter with the ACK flag closes one potential security hole. Without the filter, the
switch would permit a TCP SYN connection request to reach any listening TCP destination
port on the Web servers inside the LAN, as long as it originated from TCP source Port 25. The
server would listen to the TCP SYN, allocate buffer space for the connection, and reply to the
connect request. In some SYN attack scenarios, this could cause the server’s buffer space to
fill, crashing the server or at least making it unavailable.
A filter with the ACK flag enabled prevents external devices from beginning a TCP connection
(with a TCP SYN) from TCP source Port 25. The switch drops any frames that have the ACK
flag turned off.
The following filters are required:
1. A filter that allows the Web servers to pass SMTP requests to the Internet.
>> # /cfg/slb/filt 10 (Select a filter for trusted SMTP requests)
>> Filter 10# sip 203.122.186.0 (From the Web servers’ source IP address)
>> Filter 10# smask 255.255.255.0 (For the entire subnet range)
>> Filter 10# sport any (From any source port)
>> Filter 10# proto tcp (For TCP traffic)
>> Filter 10# dip any (To any destination IP address)
>> Filter 10# dport smtp (To well-known destination SMTP port)
>> Filter 10# action allow (Allow matching traffic to pass)
>> Filter 10# ena (Enable the filter)
Web OS 10.0 Application Guide
Chapter 7: Filtering 199
212777-A, February 2002
2. A filter that allows SMTP traffic from the Internet to pass through the switch only if the
destination is one of the Web servers, and the frame is an acknowledgment (ACK) of a
TCP session.
3. A filter that allows trusted HTTP traffic from the Internet to pass through the switch to
the Web servers.
4. A filter that allows HTTP responses from the Web servers to pass through the switch to
the Internet.
>> Filter 10# ../filt 15 (Select a filter for Internet SMTP ACKs)
>> Filter 15# sip any (From any source IP address)
>> Filter 15# sport smtp (From well-known source SMTP port)
>> Filter 15# proto tcp (For TCP traffic)
>> Filter 15# dip 203.122.186.0 (To the Web servers’ IP address)
>> Filter 15# dmask 255.255.255.0 (To the entire subnet range)
>> Filter 15# dport any (To any destination port)
>> Filter 15# action allow (Allow matching traffic to pass)
>> Filter 15# ena (Enable the filter)
>> Filter 15# adv/tcp (Select the advanced TCP menu)
>> Filter 15 Advanced# ack ena (Match acknowledgments only)
>> Filter 15 Advanced# /cfg/slb/filt 16(Select a filter for incoming HTTP traffic)
>> Filter 16# sip any (From any source IP address)
>> Filter 16# sport http (From well-known source HTTP port)
>> Filter 16# proto tcp (For TCP traffic)
>> Filter 16# dip 203.122.186.0 (To the Web servers’ IP address)
>> Filter 16# dmask 255.255.255.0 (To the entire subnet range)
>> Filter 15# dport http (To well-known destination HTTP port)
>> Filter 16# action allow (Allow matching traffic to pass)
>> Filter 16# ena (Enable the filter)
>> Filter 16# ../filt 17 (Select a filter for outgoing HTTP traffic)
>> Filter 17# sip 203.122.186.0 (From the Web servers’ source IP address)
>> Filter 17# smask 255.255.255.0 (From the entire subnet range)
>> Filter 17# sport http (From well-known source HTTP port)
>> Filter 17# proto tcp (For TCP traffic)
>> Filter 17# dip any (To any destination IP address)
>> Filter 17# dport http (To well-known destination HTTP port)
>> Filter 17# action allow (Allow matching traffic to pass)
>> Filter 17# ena (Enable the filter)
Web OS 10.0 Application Guide
200 Chapter 7: Filtering 212777-A, February 2002
5. A default filter is required to deny all other traffic.
6. Apply the filters to the appropriate switch ports.
>> Filter 17# ../filt 224 (Select a default filter)
>> Filter 224# sip any (From any source IP address)
>> Filter 224# dip any (To any destination IP address)
>> Filter 224# action deny (Block matching traffic)
>> Filter 224# name deny matching traffic (Provide a descriptive name for the
filter)
>> Filter 224# ena (Enable the filter)
>> Filter 224# ../port 1 (Select the Internet-side port)
>> SLB port 1# add 15 (Add the SMTP ACK filter to the port)
>> SLB port 1# add 16 (Add the incoming HTTPS filter)
>> SLB port 1# add 224 (Add the default filter to the port)
>> SLB port 1# filt ena (Enable filtering on the port)
>> SLB port 1# ../port 2 (Select the first Web server port)
>> SLB port 2# add 10 (Add the outgoing SMTP filter to the port)
>> SLB port 2# add 17 (Add the outgoing HTTP filter to the port)
>> SLB port 2# add 224 (Add the default filter to the port)
>> SLB port 2# filt ena (Enable filtering on the port)
>> SLB port 2# ../port 3 (Select the other Web server port)
>> SLB port 3# add 10 (Add the outgoing SMTP filter to the port)
>> SLB port 3# add 17 (Add the outgoing HTTP filter to the port)
>> SLB port 3# add 224 (Add the default filter to the port)
>> SLB port 3# filt ena (Enable filtering on the port)
>> SLB port 3# apply (Apply the configuration changes)
>> SLB port 3# save (Save the configuration changes)
Web OS 10.0 Application Guide
Chapter 7: Filtering 201
212777-A, February 2002
Matching ICMP Message Types
Internet Control Message Protocol (ICMP) is used for reporting TCP/IP processing errors.
There are numerous types of ICMP messages, as shown in Table 7-6. Although ICMP packets
can be filtered using the proto icmp option, by default, the Web switch ignores the ICMP
message type when matching a packet to a filter. To perform filtering based on specific ICMP
message types, ICMP message type filtering must be enabled.
Web OS software supports filtering on the following ICMP message types:
Table 7-6 ICMP Message Types
Type # Message Type Description
0echorep ICMP echo reply
3destun ICMP destination unreachable
4quench ICMP source quench
5redir ICMP redirect
8echoreq ICMP echo request
9rtradv ICMP router advertisement
10 rtrsol ICMP router solicitation
11 timex ICMP time exceeded
12 param ICMP parameter problem
13 timereq ICMP timestamp request
14 timerep ICMP timestamp reply
15 inforeq ICMP information request
16 inforep ICMP information reply
17 maskreq ICMP address mask request
18 maskrep ICMP address mask reply
Web OS 10.0 Application Guide
202 Chapter 7: Filtering 212777-A, February 2002
The command to enable or disable ICMP message type filtering is entered from the Advanced
Filtering menu as follows:
For any given filter, only one ICMP message type can be set at any one time. The any option
disables ICMP message type filtering. The list option displays a list of the available ICMP
message types that can be entered.
NOTE – ICMP message type filters must be cache-disabled. Exercise caution when applying
cache-enabled and cache-disabled filters to the same switch port. For more information, see
“Cache-Enabled versus Cache-Disabled Filters” on page 178.
>> # /cfg/slb/filt <filter number>/adv
>> Filter 1 Advanced# icmp <message type|number|any|list>
212777-A, February 2002 203
CHAPTER 8
Application Redirection
Application Redirection improves network bandwidth and provides unique network solutions.
Filters can be created to redirect traffic to cache and application servers improving speed of
access to repeated client access to common Web or application content and freeing valuable
network bandwidth.
The following topics are discussed in this chapter:
n“Overview” on page 204. Application redirection helps reduce the traffic congestion dur-
ing peak loads by accessing locally cached information. This section also discusses how
performance is improved by balancing cached Web requests across multiple servers.
n“Web Cache Configuration Example” on page 206. This section provides a step-by-step
procedure on how to intercept all Internet bound HTTP requests (on default TCP port 80)
and redirect them to the Web cache servers.
n“RTSP Web Cache Redirection” on page 211. This section explains how to configure the
switch to redirect data (multimedia presentations) to the cache servers and how to balance
the load among the cache servers.
n“IP Proxy Addresses for NAT” on page 213. This section discusses the benefits of trans-
parent proxies when used with application redirection.
n“Excluding Noncacheable Sites” on page 215. This section describes how to filter out
applications that keep real-time session information from being redirected to cache serv-
ers.
NOTE – To access Application Redirection functionality, the optional Layer 4 software must
be enabled on the Web switch (see “Filtering and Layer 4” in Chapter 8 of the Web OS Com-
mand Reference).
Web OS 10.0 Application Guide
204 Chapter 8: Application Redirection 212777-A, February 2002
Overview
Most of the information downloaded from the Internet is not unique, as clients will often
access the Web page many times for additional information or to explore other links. Duplicate
information also gets requested as the components that make up Internet data at a particular
Web site (pictures, buttons, frames, text, and so on) are reloaded from page to page. When you
consider this scenario in the context of many clients, it becomes apparent that redundant
requests can consume a considerable amount of your available bandwidth to the Internet.
Application redirection can help reduce the traffic congestion during peak loads. When Appli-
cation redirection filters are properly configured for the Web OS-powered switch, outbound
client requests for Internet data are intercepted and redirected to a group of application or Web
cache servers on your network. The servers duplicate and store inbound Internet data that has
been requested by your clients. If the servers recognize a client’s outbound request as one that
can be filled with cached information, the servers supply the information rather than send the
request across the Internet.
In addition to increasing the efficiency of your network, accessing locally cached information
can be much faster than requesting the same information across the Internet.
Web Cache Redirection Environment
Consider a network where client HTTP requests begin to regularly overload the Internet router.
Figure 8-1 Traditional Network Without Web Cache Redirection
Clients
Internet
Router
Client Switch
Client Switch
Congestion
Targets Router
Web OS 10.0 Application Guide
Chapter 8: Application Redirection 205
212777-A, February 2002
The network needs a solution that addresses the following key concerns:
nThe solution must be readily scalable
nThe administrator should not need to reconfigure all the clients’ browsers to use proxy
servers.
Figure 8-2 Network with Web Cache Redirection
Adding an Alteon Web switch with optional Layer 4 software addresses these issues:
nWeb cache servers can be added or removed dynamically without interrupting services.
nPerformance is improved by balancing the cached Web request load across multiple serv-
ers. More servers can be added at any time to increase processing power.
nThe proxy is transparent to the client.
nFrames that are not associated with HTTP requests are normally passed to the router.
Additional Application Redirection Options
Application redirection can be used in combination with other Layer 4 options, such as load
balancing metrics, health checks, real server group backups, and more. See “Additional Server
Load Balancing Options” on page 128 for details.
AB
C
Clients
Internet
Router
Client Switch
Client Switch
HTTP
Requests
HTTP requests
are redirected
Cache farm proxies
client requests
Web OS 10.0 Application Guide
206 Chapter 8: Application Redirection 212777-A, February 2002
Web Cache Configuration Example
The following is required prior to configuration:
nYou must connect to the Web switch Command Line Interface (CLI) as the administrator.
nOptional Layer 4 software must be enabled.
NOTE – For details about the procedures above, and about any of the menu commands
described in this example, see the Web OS Command Reference.
In this example, an Alteon Web switch is placed between the clients and the border gateway to
the Internet. The Web switch will be configured to intercept all Internet bound HTTP requests (on
default TCP port 80), and redirect them to the Web cache servers. The Web switch will distribute
HTTP requests equally to the Web cache servers based on the destination IP address of the
requests.
Also, filters are not limited to the few protocols and TCP or UDP applications shown in this
example. See Table 6-3 on page 128 and Table 7-2 on page 171 for a list of other well-known
protocols and services.
1. Assign an IP address to each of the Web cache servers.
Similar to server load balancing, the Web cache real servers are assigned an IP address and
placed into a real server group. The real servers must be in the same VLAN and must have an
IP route to the Web switch that will perform the Web cache redirection. In addition, the path
from the Web switch to the real servers must not contain a router. The router would stop HTTP
requests from reaching the Web cache servers and, instead, directing them back out to the
Internet.
More complex network topologies can be used if configuring IP proxy addresses (see “IP
Proxy Addresses for NAT” on page 213).
For this example, the three Web cache real servers have the following IP addresses on the same
IP subnet:
Table 8-1 Web Cache Example: Real Server IP Addresses
Web Cache Server IP address
Server A 200.200.200.2
Server B 200.200.200.3
Server C 200.200.200.4
Web OS 10.0 Application Guide
Chapter 8: Application Redirection 207
212777-A, February 2002
2. Install transparent Web cache software on all three Web cache servers.
3. Define an IP interface on the Web switch.
Since, by default, the Web switch only remaps destination MAC addresses, it must have an IP
interface on the same subnet as the three Web cache servers.
To configure an IP interface for this example, enter this command from the CLI:
NOTE – The IP interface and the real servers must be in the same subnet. This example
assumes that all ports and IP interfaces use default VLAN 1, requiring no special VLAN con-
figuration for the ports or IP interface.
4. Define each real server on the switch.
For each Web cache real server, you must assign a real server number, specify its actual IP
address, and enable the real server. For example:
5. Define a real server group.
This places the three Web cache real servers into one service group:
>> # /cfg/ip/if 1 (Select IP interface 1)
>> IP Interface 1# addr 200.200.200.100 (Assign IP address for the interface)
>> IP Interface 1# ena (Enable IP interface 1)
>> ip# /cfg/slb/real 1 (Server A is real server 1)
>> Real server 1# rip 200.200.200.2 (Assign Server A IP address)
>> Real server 1# ena (Enable real server 1)
>> Real server 1# ../real 2 (Server B is real server 2)
>> Real server 2# rip 200.200.200.3 (Assign Server B IP address)
>> Real server 2# ena (Enable real server 2)
>> Real server 2# ../real 3 (Server C is real server 3)
>> Real server 3# rip 200.200.200.4 (Assign Server C IP address)
>> Real server 3# ena (Enable real server 3)
>> Real server 3# ../group 1 (Select real server group 1)
>> Real server group 1# add 1 (Add real server 1 to group 1)
>> Real server group 1# add 2 (Add real server 2 to group 1)
>> Real server group 1# add 3 (Add real server 3 to group 1)
Web OS 10.0 Application Guide
208 Chapter 8: Application Redirection 212777-A, February 2002
6. Set the real server group metric to minmisses.
This setting helps minimize Web cache misses in the event real servers fail or are taken out of
service:
7. Verify that server processing is disabled on the ports supporting application redirection.
NOTE – Do not use the “server” setting on a port with Application Redirection enabled. Server
processing is used only with SLB. To disable server processing on the port, use the commands
on the /cfg/slb/port menu, as described in Chapter 8 of the Web OS Command Refer-
ence.
8. Create a filter that will intercept and redirect all client HTTP requests.
The filter must be able to intercept all TCP traffic for the HTTP destination port and must redi-
rect it to the proper port on the real server group:
The rport parameter must be configured whenever TCP/UDP protocol traffic is redirected.
The rport parameter defines the real server TCP or UDP port to which redirected traffic will
be sent. The port defined by the rport parameter is used when performing Layer 4 health
checks of TCP services.
Also, if NAT and proxy addresses are used on the Web switch (see Step 3 on page 207), the
rport parameter must be configured for all application redirection filters. Take care to use
the proper port designation with rport: if the transparent proxy operation resides on the host,
the well-known port (80 or “http”) is probably required. If the transparent proxy occurs on the
Web switch, make sure to use the service port required by the specific software package.
See “IP Proxy Addresses for NAT” on page 213 for more about IP proxy addresses.
>> Real server group 1# metric minmisses (Metric for minimum cache misses.)
>> SLB port 6# /cfg/slb/filt 2 (Select the menu for Filter 2)
>> Filter 2# sip any (From any source IP addresses)
>> Filter 2# dip any (To any destination IP addresses)
>> Filter 2# proto tcp (For TCP protocol traffic)
>> Filter 2# sport any (From any source port)
>> Filter 2# dport http (To an HTTP destination port)
>> Filter 2# action redir (Set the action for redirection)
>> Filter 2# rport http (Set the redirection port)
>> Filter 2# group 1 (Select real server group 1)
>> Filter 2# ena (Enable the filter)
Web OS 10.0 Application Guide
Chapter 8: Application Redirection 209
212777-A, February 2002
9. Create a default filter.
In this case, the default filter will allow all noncached traffic to proceed normally:
NOTE – When the proto parameter is not tcp or udp, then sport and dport are ignored.
10. Assign the filters to the client ports.
Assuming that the redirected clients are connected to physical switch Ports 5 and 6, both ports
are configured to use the previously created filters as follows:
11. Enable, apply, and verify the configuration.
NOTE – SLB must be turned on in order for application redirection to work properly. The on
command is valid only if the optional Layer 4 software is enabled on your Web switch (see
“Activating Optional Software” in the Web OS Command Reference).
12. Examine the resulting information from the cur command. If any settings are incorrect,
make appropriate changes.
>> Filter 2# ../filt 224 (Select the default filter)
>> Filter 224# sip any (From any source IP addresses)
>> Filter 224# dip any (To any destination IP addresses)
>> Filter 224# proto any (For any protocols)
>> Filter 224# action allow (Set the action to allow traffic)
>> Filter 224# ena (Enable the default filter)
>> Filter 224# ../port 5 (Select the SLB port 5)
>> SLB Port 5# add 2 (Add filter 1 to port 5)
>> SLB Port 5# add 224 (Add the default filter to port 5)
>> SLB Port 5# filt enable (Enable filtering for port 5)
>> SLB Port 5# ../port 6 (Select the SLB port 6)
>> SLB Port 6# add 2 (Add filter 1 to port 6)
>> SLB Port 6# add 224 (Add the default filter to port 6)
>> SLB Port 6# filt enable (Enable filtering for port 6)
>> SLB Port 6# /cfg/slb (Select Server Load Balancing Menu)
>> Layer 4# on (Activate Layer 4 software services)
>> Layer 4# apply (Make your changes active)
>> Layer 4# cur (View current settings)
Web OS 10.0 Application Guide
210 Chapter 8: Application Redirection 212777-A, February 2002
13. Save your new configuration changes.
14. Check the SLB information.
Check that all SLB parameters are working according to expectation. If necessary, make any
appropriate configuration changes and then check the information again.
NOTE – Changes to filters on a given port only effect new sessions. To make filter changes
take effect immediately, clear the session binding table for the port (see the /oper/slb/
clear command in the Web OS Command Reference).
Delayed Binding for Web Cache Redirection
To configure delayed binding on your Web switch for WCR only, use the following command:
For more conceptual information on delayed binding, see “Delayed Binding” on page 146.
>> Layer 4# save (Save for restore after reboot)
>> Layer 4# /info/slb (View SLB information)
>> # /cfg/slb/filt <filter number>/adv/urlp ena
Web OS 10.0 Application Guide
Chapter 8: Application Redirection 211
212777-A, February 2002
RTSP Web Cache Redirection
Web OS 10.0 supports Web Cache Redirection (WCR) for Real Time Streaming Protocol
(RTSP). RTSP WCR is similar to HTTP WCR in configuration and in concept. Multimedia
presentations consume a lot of Internet bandwidth. The quality of these presentations depends
upon the real time delivery of the data. To ensure the high quality of multimedia presentations,
several caching servers are needed to cache the multimedia data locally. This data is then made
available quickly from the cache memory as required.
RTSP WCR redirects cached data transparently and balances the load among the cache servers.
If there is no cache server, the request is directed to the origin server. Internet Service Provid-
ers use this feature to cache the multimedia data of a customer site locally. Since the requests
for this data are directed to the local cache, they are served faster.
You can also configure certain URL content to be non-cacheable. The requests for non-
cacheable URLs will bypass the cache server and be sent across the Internet to the origin
server. The client packets are relayed to the server by using Layer 4 server load balancing.
For a detailed information on load balancing two prominent commercial RTSP servers—Real
Player and QuickTime—see “Real Time Streaming Protocol SLB” on page 155.
RTSP Web Cache Redirection Example
To configure RTSP for web cache redirection, follow this procedure:
1. Define RTSP WCR cache servers for RTSP WCR load balancing.
2. Define RTSP cache server groups for RTSP WCR load balancing.
>> # /cfg/slb/real 1
>> Real server 1# rip 1.1.1.1 (Enter an IP address, for example:
1.1.1.1 for RTSP cache Server 1)
>> # /cfg/slb/real 2
>> Real server 2# rip 1.1.1.2 (Enter an IP address, for example:
1.1.1.2 for RTSP cache Server 2)
>> # /cfg/slb/group 1
>> Group 1# add 1 (Add RTSP cache server 1 to group 1)
>> Group 1# add 2 (Add RTSP cache server 2 to group 1)
Web OS 10.0 Application Guide
212 Chapter 8: Application Redirection 212777-A, February 2002
3. Configure an RTSP redirection filter to cache data and balance the load among the cache
servers.
4. Configure a default allow filter to facilitate traffic.
5. Turn on filtering on the port and add filters to the port to support basic WCR.
6. Apply and save the configuration.
>> # /cfg/slb/filt 1 (Select the menu for filter 1)
>> Filter 1# action redir (Set the action for redirection)
>> Filter 1# proto tcp (Enter TCP protocol)
>> Filter 1# dport rtsp (Enter service port for RTSP)
>> Filter 1# rport rtsp (Enter redirection port for RTSP)
>> Filter 1# group 1 (Select RTSP cache server group 1)
>> Filter 1# adv (Select advanced menu for filter 1)
>> Filter 1# Advanced# proxy disable (Disable proxy)
>> # /cfg/slb/filt 2048 (Select a default allow filter 2048)
>> Filter 2048# sip any (From any source IP addresses)
>> Filter 2048# dip any (To any destination IP addresses)
>> Filter 2048# ena (Enable a default allow filter)
>> Filter 2048# action allow (Set the action to allow normal traffic)
>> # /cfg/slb/port 1 (Select the menu for port 1)
>> SLB Port 1# add 1 (Add RTSP filter 1 to port 1)
>> SLB Port 1# add 2 (Add RTSP filter 2 to port 1)
>> SLB Port 1# filt ena (Enable filtering on port 1)
>> SLB Port 1# apply
>> SLB Port 1# save
Web OS 10.0 Application Guide
Chapter 8: Application Redirection 213
212777-A, February 2002
IP Proxy Addresses for NAT
Transparent proxies provide the benefits listed below when used with application redirection.
Application redirection is automatically enabled when a filter with the redir action is applied
on a port.
nWith proxies IP addresses configured on redirected ports, the Web switch can redirect cli-
ent requests to servers located on any subnet, anywhere.
nThe Web switch can perform transparent substitution for all source and destination
addresses, including destination port remapping. This provides support for comprehen-
sive, fully-transparent proxies. These proxies are transparent to the user. No additional cli-
ent configuration is needed.
The following procedure can be used for configuring proxy IP addresses:
1. Add proxy IP addresses to the redirection ports.
Each of the ports using redirection filters require proxy IP addresses to be configured. Each
proxy IP address must be unique on your network. These are configured as follows:
2. If VMA is enabled, add proxy IP addresses for all other switch ports (except port 9).
Virtual Matrix Architecture (VMA) is normally enabled on the Web switch. In addition to
enhanced resource management, this feature eliminates many of the restrictions found in ear-
lier versions of the Web OS. It does require, however, that when any switch port is configured
with an IP proxy address, all ports must be configured with IP proxy addresses. Otherwise, if
VMA is disabled, only the client port with filters need proxy IP addresses and this step can be
skipped.
>> SLB port 3# /cfg/slb/port 5 (Select network port 5)
>> SLB port 5# pip 200.200.200.68 (Set proxy IP address for port 5)
>> SLB port 5# proxy ena (Enable proxy port 5)
>> SLB port 5# ../port 6 (Select network port 6)
>> SLB port 6# pip 200.200.200.69 (Set proxy IP address for port 6)
>> SLB port 6# proxy ena (Enable proxy port 6)
Web OS 10.0 Application Guide
214 Chapter 8: Application Redirection 212777-A, February 2002
The following commands can be used to configure the additional unique proxy IP addresses:
NOTE – Port 9 does not require a proxy IP address with VMA enabled.
See the Web OS Command Reference for more information (/cfg/slb/adv/matrix).
3. Configure the application redirection filters.
Once proxy IP addresses are established, configure each Application Redirection filter (Filter 2
in our example) with the real server TCP or UDP port to which redirected traffic will be sent.
In this case, the requests are mapped to a different destination port (8080). You must also
enable proxies on the real servers:
NOTE – This configuration is not limited to HTTP Web service. Other TCP/IP services can be
configured in a similar fashion. For example, if this had been a DNS redirect, rport would be
sent to well-known port 53 (or the service port you want to remap to). For a list of other well-
known services and ports, see the Web OS Command Reference.
4. Apply and save your changes.
5. Check server statistics to verify that traffic has been redirected based on filtering criteria:
>> SLB port 6# ../port 1 (Select network port 1)
>> SLB port 1# pip 200.200.200.70 (Set proxy IP address for port 1)
>> SLB port 1# ../port 2 (Select network port 2)
>> SLB port 2# pip 200.200.200.71 (Set proxy IP address for port 2)
>> SLB port 2# ../port 3 (Select network port 3)
>> SLB port 3# pip 200.200.200.72 (Set proxy IP address for port 3)
>> SLB port 3# ../port 4 (Select network port 4)
>> SLB port 4# pip 200.200.200.73 (Set proxy IP address for port 4)
>> SLB port 4# ../port 7 (Select network port 7)
>> SLB port 7# pip 200.200.200.74 (Set proxy IP address for port 7)
>> SLB port 7# ../port 8 (Select network port 8)
>> SLB port 8# pip 200.200.200.75 (Set proxy IP address for port 8)
>> # /cfg/slb/filt 2 (Select the menu for Filter 2)
>> Filter 2# rport 8080 (Set proxy redirection port)
>> Filter 2# real 1/proxy enable (Enable proxy on real servers)
>> Real server 1# ../real 2/proxy enable (Enable proxy on real servers)
>> Real server 2# ../real 3/proxy enable (Enable proxy on real servers)
>> # /info/slb/group <group number>/filter <filter number>
Web OS 10.0 Application Guide
Chapter 8: Application Redirection 215
212777-A, February 2002
Excluding Noncacheable Sites
Some Web sites provide content that is not well suited for redirection to cache servers. Such
sites might provide browser-based games or applications that keep real-time session informa-
tion or authenticate by client IP address.
To prevent such sites from being redirected to cache servers, create a filter which allows this
specific traffic to pass normally through the Web switch. This filter must have a higher prece-
dence (a lower filter number) than the application redirection filter.
For example, if you wished to prevent a popular Web-based game site on subnet 200.10.10.*
from being redirected, you could add the following to the previous example configuration:
>> # /cfg/slb/filt 1 (Select the menu for filter 1)
>> Filter 1# dip 200.10.10.0 (To the site’s destination IP address)
>> Filter 1# dmask 255.255.255.0 (For entire subnet range)
>> Filter 1# sip any (From any source IP address)
>> Filter 1# proto tcp (For TCP traffic)
>> Filter 1# dport http (To an HTTP destination port)
>> Filter 1# sport any (From any source port)
>> Filter 1# action allow (Allow matching traffic to pass)
>> Filter 1# ena (Enable the filter)
>> Filter 1# ../port 5 (Select SLB port 5)
>> SLB port 5# add 1 (Add the filter to port 5)
>> SLB port 5# ../port 6 (Select SLB port 6)
>> SLB port 6# add 1 (Add the filter to port 6)
>> SLB port 6# apply (Apply configuration changes)
>> SLB port 6# save (Save configuration changes)
Web OS 10.0 Application Guide
216 Chapter 8: Application Redirection 212777-A, February 2002
212777-A, February 2002 217
CHAPTER 9
Virtual Matrix Architecture
Virtual Matrix Architecture (VMA) is a hybrid architecture that takes full advantage of the dis-
tributed processing capability in Alteon Web switches. With VMA, the switch makes optimal
use of system resources by distributing the workload to multiple processors, thereby improving
switch performance and increasing session capacity. VMA also removes the topology con-
straints introduced by using Direct Access Mode (DAM).
The number of concurrent sessions per switch, with VMA enabled, is given below:
nAD4 and A184: 512K
nAD3 and A180E: 336K
nAD2: 256K
For better switch performance and higher session capacities, it is recommended that you
enable VMA, especially when using Bandwidth Management and Content Intelligent Switch-
ing for multiple frames processing (up to 4500 bytes).
Proxy IP Addresses and VMA
By default, VMA is enabled on the Web switch (/cfg/slb/adv/matrix). If you are
upgrading to Web OS from a previous release, however, VMA will be initially disabled if a
proxy IP address is configured for any port on the switch. VMA requires that if any port is con-
figured with a proxy IP address, then all ports (except port 9) must be configured with a unique
proxy IP address prior to enabling VMA.
With VMA, the concept of a per-port session table doesn’t apply; instead, there is a global ses-
sion table. To identify which processor should process responses to proxied requests, a unique
proxy IP address must be configured on each port (except port 9). The action of the unused
proxy IP addresses can be disabled using /cfg/slb/port x/proxy dis.
Web OS 10.0 Application Guide
218 Chapter 9: Virtual Matrix Architecture 212777-A, February 2002
Frames ingressing a port that has been configured with a proxy IP address and the proxy
option enabled (/cfg/slb/port x/proxy ena) can be processed using a proxy IP
address by any switch port. The client source address is substituted with the proxy IP address
of the port processing the request.
Frames ingressing switch ports that have been configured with a proxy IP address, but do not
have the proxy option enabled, is processed by other ports that have been configured with a
proxy IP address; but the client source address will not be replaced with a proxy IP address
before it is forwarded to a server.
NOTE – VMA must be enabled if you are setting up Firewall Load Balancing (FWLB) with
clean-side switches performing server load balancing (SLB) or URL-based SLB and Direct
Access Mode (DAM) is enabled.
>> # /cfg/slb/port 1/pip 10.10.10.10 (Proxy IP for NAT, etc.)
>> # /cfg/slb/port 1/pip 10.10.10.11/proxy ena (Turns on address proxying)
>> # /cfg/slb/port 2/pip 10.10.10.11/proxy dis (Turns off address proxying)
>> # /cfg/slb/port 3/pip 10.10.10.12/proxy dis
>> # /cfg/slb/port 4/pip 10.10.10.13/proxy dis
>> # /cfg/slb/port 5/pip 10.10.10.14/proxy dis
and so on....
212777-A, February 2002 219
CHAPTER 10
Health Checking
Content intelligent Web switches allow Web masters to customize server health checks to ver-
ify content accessibility in large Web sites. As the amount of content grows and information is
distributed across different server farms, flexible, customizable content health checks are criti-
cal to ensure end-to-end availability.
The following Web OS health-checking topics are described in this chapter.
n“Real Server Health Checks” on page 221. This section explains the switch’s default
health check, which checks the status of each service on each real server every two
seconds.
n“DSR Health Checks” on page 222. This section describes the servers’ ability to respond
to the client queries made to the Virtual server IP address when the server is in Direct
Server Return (DSR) mode.
n“Link Health Checks” on page 223. This section describes how to perform Layer 1 health
checking on an Intrusion Detection Server (IDS).
n“TCP Health Checks” on page 224. TCP health checks help verify the TCP applications
that cannot be scripted.
n“ICMP Health Checks” on page 224. This section explains how ICMP health checks are
used for UDP services.
n“Script-Based Health Checks” on page 225. This section describes how to configure the
switch to send a series of health-check requests to real servers or real server groups and
monitor the responses.
nApplication-based health checks:
“HTTP Health Checks” on page 231. This section provides examples of HTTP-based
health checks using hostnames.
“UDP-Based DNS Health Checks” on page 233. This section explains the functional-
ity of the DNS Health Checks using UDP packets.
Web OS 10.0 Application Guide
220 Chapter 10: Health Checking 212777-A, February 2002
“FTP Server Health Checks” on page 234. This section describes how the File Trans-
fer Protocol (FTP) server is used to perform health checks and explains how to con-
figure the switch to perform FTP health checks.
“POP3 Server Health Checks” on page 235. This section explains how to use Post
Office Protocol Version 3 (POP3) mail server to perform health checks between a cli-
ent system and a mail server and how to configure the switch for POP3 health checks.
“SMTP Server Health Checks” on page 236. This section explains how to use Simple
Mail Transfer Protocol (SMTP) mail server to perform health checks between a client
system and a mail server and how to configure the switch for SMTP health checks.
“IMAP Server Health Checks” on page 237. This section describes how the mail
server Internet Message Access Protocol (IMAP) protocol is used to perform health
checks between a client system and a mail server.
“NNTP Server Health Checks” on page 238. This section explains how to use Net-
work News Transfer Protocol (NNTP) server to perform health checks between a cli-
ent system and a mail server and how to configure the switch for NNTP health checks
“RADIUS Server Health Checks” on page 239. This section explains how the
RADIUS protocol is used to authenticate dial-up users to Remote Access Servers
(RASs).
“HTTPS/SSL Server Health Checks” on page 240. This section explains how the
switch queries the health of the SSL servers by sending an SSL client “Hello” packet
and then verifies the contents of the server’s “Hello” response.
“WAP Gateway Health Checks” on page 240. This section discusses how the Web
switch provides a connectionless WSP health check for WAP gateways.
“LDAP Health Checks” on page 243. This section describes how to configure the
switch to perform Lightweight Directory Access Protocol (LDAP) health checks for
the switch to determine whether or not the LDAP server is running.
n“ARP Health Checks” on page 245. This section describes how to perform health checks
on Intrusion Detection Servers (IDS) that do not have full TCP/IP stack support.
n“Failure Types” on page 246. This section explains the service failed and server failed
states.
Web OS 10.0 Application Guide
Chapter 10: Health Checking 221
212777-A, February 2002
Real Server Health Checks
Alteon Web switches running Server Load Balancing (SLB) monitor the servers in the real
server group and the load-balanced application(s) running on them. If a switch detects that a
server or application has failed, it will not direct any new connection requests to that server.
When a service fails, an Alteon Web switch can remove the individual service from the load-
balancing algorithm without affecting other services provided by that server.
By default, the Web switch checks the status of each service on each real server every two sec-
onds. Sometimes, the real server may be too busy processing connections to respond to health
checks. If a service does not respond to four consecutive health checks, the switch, by default,
declares the service unavailable. You can modify both the health check interval and the number
of retries.
NOTE – Health checks are performed sequentially when used in conjunction with a virtual
server configured with multiple services and groups. As a result, the actual health-check inter-
val could vary significantly from the value set for it using the inter parameter.
>> # /cfg/slb/real <real server number> (Select the real server)
>> Real server# inter 4 (Check real server every 4 seconds)
>> Real server# retry 6 (If 6 consecutive health checks fail,
declare real server down)
Web OS 10.0 Application Guide
222 Chapter 10: Health Checking 212777-A, February 2002
DSR Health Checks
Direct Server Return (DSR) health checks are used to verify the existence of a server-provided
service where the server replies directly back to the client without responding through the vir-
tual server IP address. In this configuration, the server will be configured with a real server IP
address and virtual server IP address. The virtual server IP address is configured to be the same
address as the user’s virtual server IP address. When DSR health checks are selected, the spec-
ified health check is sent originating from one of the switch’s configured IP interfaces, and is
destined to the virtual server IP address with the MAC address that was acquired from the real
server IP address’s Address Resolution Protocol (ARP) entry.
Web OS 10.0 allows you to perform health checks for DSR configurations. For more informa-
tion, see “Using Direct Server Return” on page 142. The switch is able to verify that the server
correctly responds to requests made to the virtual server IP address as required in DSR config-
urations. To perform this function, the real server IP address is replaced with the virtual server
IP address in the health check packets that are forwarded to the real servers for health check-
ing. With this feature enabled, the health check will fail if the real server is not properly config-
ured with the virtual server IP address.
NOTE – viphlth is enabled by default. This has no effect on the health check unless the real
server is configured with DSR.
Configuring the Switch for DSR Health Checks
1. Select the health check menu for a real server group.
2. Enable DSR VIP health checks for a real server group.
For more information on DSR, see “Using Direct Server Return” on page 142.
3. Apply and save your configuration.
>> # /cfg/slb/group 1 (Select the Real Server Group 1 menu)
>> Real server group 1# viphlth enable|disable
>> DSR VIP Health Check# apply
Web OS 10.0 Application Guide
Chapter 10: Health Checking 223
212777-A, February 2002
Link Health Checks
Link health check is performed at the Layer 1 (physical) level. The server is considered to be
up when the link (connection) is present and the server is considered to be down when the link
is absent. These checks are used on servers that do not respond to any other health checks.
Intrusion Detection Servers (IDSs) fall into this category. Many IDSs have two physical
interfaces. One is used to detect intrusions, and the other is used to generate logging. The first
interface detects intrusions but it does not have TCP/IP stack. So it is not possible to perform
any health check other than Layer 1 health checking on the IDS. As long as the physical link
between the switch and the IDS is up, it indicates the IDS is alive.
To perform this health check, a link option has been added to the real server group health com-
mand. The real server number is used to determine which port the server is connected to. For
example, real server 1 is assumed to be connected to port 1. The valid IDS real server numbers
are from 1 to 9 when health check is in use.
Configuring the Switch for Link Health Checks
Configure the switch to verify if the IDS server is alive by performing the following tasks:
1. Select the health check menu for real server group 1.
2. Set the health check type to link for real server group 1.
3. Apply and save your configuration.
>> # /cfg/slb/group 1
>> # Real server group 1# health
Current health check type: tcp
Enter health check type: link
>> # Real server group 1# apply
>> # Real server group 1# save
Web OS 10.0 Application Guide
224 Chapter 10: Health Checking 212777-A, February 2002
TCP Health Checks
TCP health checks are useful in verifying user-specific TCP applications that cannot be
scripted.
Session switches monitor the health of servers and applications by sending Layer 4 connection
requests (TCP SYN packets) for each load-balanced TCP service to each server in the server
group on a regular basis. The rate at which these connection requests are sent is a user-config-
urable parameter. These connection requests identify both failed servers and failed services on
a healthy server. When a connection request succeeds, the session switch quickly closes the
connection by sending a TCP FIN (finished) packet.
NOTE – TCP health check is a default health check after you have configured the switch for a
particular service.
ICMP Health Checks
Configure the switch with ICMP health check to verify if the real server is alive. The Layer 3
echo - echo reply health check is used for UDP services or when ICMP health checks are
configured.
1. Select the health check menu for group 1.
2. Set the health check type to ICMP for group 1.
3. Apply and save your configuration.
>> # /cfg/slb/group 1
>> # Real server group 1# health icmp
>> # Real server group 1# apply
Web OS 10.0 Application Guide
Chapter 10: Health Checking 225
212777-A, February 2002
Script-Based Health Checks
The “send/expect” script-based health checks dynamically verify application and content
availability using scripts. These scripts execute a sequence of tests to verify application and
content availability.
Configuring the Switch for Script-Based Health Checks
You can configure the switch to send a series of health check requests to real servers or real
server groups and monitor the responses. ASCII-based scripts can be used to verify application
and content availability.
NOTE – Only TCP services can be health checked, since UDP protocols are usually not ASCII
based.
The benefits of using script-based health checks are listed below:
nAbility to send multiple commands
nCheck for any return string
nTest availability of different applications
nTest availability of multiple domains or Web sites
Web OS supports the following capacity for a single switch:
n1024 bytes per script
n16 scripts per switch
napproximately 10 to 15 health check statements (HTTP get and expect strings)
A simple command line interface controls the addition and deletion of ASCII commands to
each script. New commands are added and removed from the end of the script. Commands
exist to open a connection to a specific TCP port, send an ASCII request to the server, expect
an ASCII string, and close a connection. The string configured with an expect command is
searched for in each response packet. If it is not seen anywhere in any response packet before
the real server health check interval expires, the server does not pass the expect step and fails
the health check. A script can contain any number of these commands, up to the allowable
number of characters that a script supports.
NOTE – Health check scripts can only be set up via the command line interface, but once
entered, can be assigned as the health-check method using SNMP or the Browser-Based Inter-
face (BBI).
Web OS 10.0 Application Guide
226 Chapter 10: Health Checking 212777-A, February 2002
Script Format
The general format for health-check scripts is shown below:
NOTE – If you are doing HTTP 1.1 pipelining, you need to individually open and close each
response in the script.
nEach script should start with the command open port <protocol port number>. The
next line can be either a send or expect.
nThe first word is the method. This is usually get; however, HTTP supports several other
commands, including put and head. The second word indicates the content desired, or
request-URI, and the third word represents the version of the protocol used by the client.
If you supplied HTTP/1.1 for the protocol version, you would also have to add in the fol-
lowing line: Host: www.hostname.com
Example: GET /index.html HTTP/1.1 (press Enter key)
Host: www.hostname.com (press Enter key twice)
This is known as a host header. It is important to include because most Web sites now
require it for proper processing. Host headers were optional in HTTP/1.0 but are required
when you use HTTP/1.1+.
nIn order to tell the Web server you have finished entering header information, a blank line
of input is needed after all headers. At this point, the URL will be processed and the
results returned to you.
NOTE – If you make an error, enter rem to remove the last typed script line entered. If you
need to remove more than one line, enter rem for each line that needs to be removed.
nThe switch provides the “\” prompt, which is one enter key stroke. When using the send
command, note what happens when you type the send command with the command
string. When you type send, press enter and allow the switch to format the command
string (that is, \ versus \\).
open application_port (e.g., 80 for HTTP, 23 for Telnet, etc.)
send request1
expect response1
send request2
expect response2
send request3
expect response3
close
Web OS 10.0 Application Guide
Chapter 10: Health Checking 227
212777-A, February 2002
Scripting Guidelines
nUse generic result codes that are standard and defined by the RFC, as applicable. This
helps ensure that if the customer changes server software, the servers won’t start failing
unexpectedly.
nSearch only for the smallest and most concise piece of information possible. Each script
cannot exceed 1K in size, so use the space wisely.
nAvoid tasks that may take a long time to perform or the health check will fail. For exam-
ple, avoid tasks that exceed the interval for load balancing.
Script Configuration Examples
Script Example 1: A Basic Health Check
Configure the switch to check a series of Web pages (HTML or dynamic CGI scripts) before it
declares a real server is available to receive requests.
NOTE – If you are using the CLI to create a health check script, you must use quotes (“) to
indicate the beginning and end of each command string.
NOTE – When you are using the command line interface to enter the send string as an argu-
ment to the send command, you must type two “\”s before an “n” or “r.” If you are instead
prompted for the line, that is, the text string is entered after hitting <return>, then only one “\”
is needed before the “n” or “r.”
/cfg/slb/group x/health script1/content none
/cfg/slb/adv/script1
open
80
send
"GET /index.html HTTP/1.1
\\r\\n
HOST:www.hostname.com\\r\\n\\r\\n"
expect
"HTTP/1.1 200"
close
open
80
send
"GET /script.cgi HTTP/1.1
\\r\\n
HOST:www.hostname.com\\r\\n\\r\\n"
expect
"HTTP/1.1 200"
close
open
443
…
close
Web OS 10.0 Application Guide
228 Chapter 10: Health Checking 212777-A, February 2002
Script Example 2: GSLB URL Health Check
In earlier Web OS releases, each remote Global Server Load Balancing site’s virtual server IP
address was required to be a real server of the local switch. Each switch sends a health check
request to the other switch’s virtual servers that are configured on the local switch. The health
check is successful if there is at least one real server on the remote switch that is up. If all real
servers on the remote switch are down, the remote real server (a virtual server of a remote
switch) will respond with an HTTP Redirect message to the health check.
Using the scriptable health check feature, you can set up health check statements to check all
the substrings involved in all the real servers.
Site 1 with Virtual Server 1 and the following real servers:
nReal Server 1 and Real Server 2: “images”
nReal Server 3 and Real Server 4: “html”
nReal Server 5 and Real Server 6: “cgi” and “bin”
nReal Server 7 (which is Virtual Server 2): “any”
Site 2 with Virtual Server 2 and the following real servers:
nReal Server 1 and Real Server 2: “images”
nReal Server 3 and Real Server 4: “html”
nReal Server 5 and Real Server 6: “cgi” and “bin”
nReal Server 7 (which is Virtual Server 2): “any”
A sample script is shown below:
/cfg/slb/group x/health script2/content none
/cfg/slb/adv/script2
open
80
send
"GET /images/default.asp HTTP/1.1\\r\\nHOST: 192.192.1.2\\r\\n\\r\\n"
expect
"HTTP/1.1 200"
close
open
80
send
"GET /install/default.html HTTP/1.1\\r\\nHOST:
192.192.1.2
\\r\\n\\r\\n"
expect
"HTTP/1.1 200"
close
open
80
send
"GET /
script.cgi
HTTP/1.1\\r\\nHOST: www.myurl.com \\r\\n\\r\\n"
expect
"HTTP/1.1 200"
close
Web OS 10.0 Application Guide
Chapter 10: Health Checking 229
212777-A, February 2002
Script-based health checking is intelligent in that it will only send the appropriate requests to
the relevant servers. In the example above, the first GET statement will only be sent to Real
Server 1 and Real Server 2. Going through the health-check statements serially will ensure that
all content is available by at least one real server on the remote site.
Configure the remote real server IP address (the virtual server IP address of the remote site) to
accept “any” URL requests. The purpose of the first GET is to check if Real Server 1 or Real
Server 2 is up—that is, to check if the remote site has at least one server for “images” content.
Either Real Server 1 or Real Server 2 will respond to the first GET health check.
If all the real server IP addresses are down, Real Server 7 (the virtual server IP address of the
remote site) will respond with an HTTP Redirect (respond code 302) to the health check. Thus,
the health check will fail as the expected response code is 200, ensuring that the HTTP Redi-
rect messages will not cause a loop.
Verifying Script-Based Health Checks
If a script fails, the expect line in the script that is not succeeding is displayed under the /
info/slb/real <real server number> command:
The server is not responding to the get with the expect string.
When the script succeeds in determining the health of a real server, the following information
is displayed:
>> # /info/slb/real 1
1: 205.178.13.225, 00:00:00:00:00:00, vlan 1, port 0, health 4, FAILED
real ports:
script 2, DOWN, current
send GET / HTTP/1.0\r\n\r\n
expect HTTP/1.0 200
>> # /info/slb/real 1
1: 205.178.13.223, 00:00:5e:00:01:24, vlan 1, port 2, health 4, up
real ports:
script 2, up, current
Web OS 10.0 Application Guide
230 Chapter 10: Health Checking 212777-A, February 2002
Application-Specific Health Checks
Application-specific health checks include the following applications:
n“HTTP Health Checks” on page 231
n“UDP-Based DNS Health Checks” on page 233
n“FTP Server Health Checks” on page 234
n“POP3 Server Health Checks” on page 235
n“SMTP Server Health Checks” on page 236
n“IMAP Server Health Checks” on page 237
n“NNTP Server Health Checks” on page 238
n“RADIUS Server Health Checks” on page 239
n“HTTPS/SSL Server Health Checks” on page 240
n“WAP Gateway Health Checks” on page 240
“WSP Content Health Checks” on page 241
“WTLS Health Checks” on page 242
n“LDAP Health Checks” on page 243
Web OS 10.0 Application Guide
Chapter 10: Health Checking 231
212777-A, February 2002
HTTP Health Checks
HTTP-based health checks can include the hostname for HOST: headers. The HOST: header
and health check URL are constructed from the following components:
If the HOST: header is required, an HTTP/1.1 GET will occur. Otherwise, an HTTP/1.0
GET will occur. HTTP health check is successful if you get a return code of 200.
Example 1:
hname = everest
dname = alteonwebsystems.com
content = index.html
Health check is performed using:
GET /index.html HTTP/1.1
Host: everest.alteonwebsystems.com
NOTE – If the content is not specified, the health check will revert back to TCP on the port that is being
load balanced.
Example 2:
hname = (none)
dname = raleighduram.cityguru.com
content = /page/gen/?_template=alteon
Health check is performed using:
GET /page/gen/?_template=alteon HTTP/1.1
Host: raleighduram.cityguru.com
Example 3:
hname = (none)
dname = jansus
content = index.html
Item Option Configured Under Max. Length
Virtual server hostname hname /cfg/slb/virt/service 9 characters
Domain name dname /cfg/slb/virt 35 characters
Server group health check field content /cfg/slb/group 34 characters
Web OS 10.0 Application Guide
232 Chapter 10: Health Checking 212777-A, February 2002
Health check is performed using:
GET /index.html HTTP/1.1
Host: jansus
Example 4:
hname = (none)
dname = (none)
content = index.html
Health check is performed using:
GET /index.html HTTP/1.0 (since no HTTP HOST: header is required)
Example 5:
hname = (none)
dname = (none)
content = //everest/index.html
Health check is performed using:
GET /index.html HTTP/1.1
Host: everest
Configuring the Switch for HTTP Health Checks
Perform the following on the switch to configure the switch for HTTP health checks:
1. Select the real server group.
2. Set the health check type to FTP for the real server group.
3. Configure the health check content.
4. Apply and save your configuration.
>> # /cfg/slb/group 1 (Select a real server group)
>> # /cfg/slb/group 1/health http
>> # /cfg/slb/group 1/content <filename>
>> # Real server group 1# apply
>> # Real server group 1# save
Web OS 10.0 Application Guide
Chapter 10: Health Checking 233
212777-A, February 2002
UDP-Based DNS Health Checks
Web OS 10.0 supports UDP-based health checks along with TCP health checks, and performs
load-balancing based on TCP and UDP protocols.
DNS servers can be based on both TCP and UDP protocols. With UDP-based DNS health
checks enabled, you can send TCP-based queries to one real server group and UDP-based que-
ries to another real server group.
The health check may be performed by sending a UDP-based query (for example, for
www.nortelnetworks.com), and watching for the server’s reply. The domain name to be que-
ried may be modified by specifying the content command if you need to change the
domain name.
Configuring the Switch for UDP-based Health Checks
Configure the switch to verify if the DNS server is alive.
1. Select the real server group.
2. Set the health check type to UDP for the real server group.
3. Set the content to domain name.
4. Apply and save your configuration.
NOTE – If no host name is configured, the health check is performed by sending a UDP-based
query from a dummy host and watching for the server’s reply. The reply, even though negative
(for example, “Server not found” since the query is from a dummy host), serves the purpose of
a health check, nonetheless.
>> # /cfg/slb/group 1
>> # Real server group 1# health udpdns
>> # Real server group 1# content <filename>|//<host><filename>|none
>> # Real server group 1# apply
>> # Real server group 1# save
Web OS 10.0 Application Guide
234 Chapter 10: Health Checking 212777-A, February 2002
FTP Server Health Checks
The Internet File Transfer Protocol (FTP) provides facilities for transferring files to and from
remote computer systems. Usually the user transferring a file needs authority to login and
access files on the remote system. This protocol is documented in RFC 1123.
In normal Internet operation, the FTP server listens on the well-known port number 21 for con-
trol connection requests. The client sends a control message which indicates the port number
on which the client is prepared to accept an incoming data connection request.
When a transfer is being set up, it is always initiated by the client. However, either the client or
the server may be the sender of data. Along with transferring user requested files, the data
transfer mechanism is also used for transferring directory listings from server to client.
NOTE – To configure the switch for FTP health checks, the FTP server must accept anony-
mous user.
Configuring the Switch for FTP Health Checks
Create any file name from an FTP server under FTP server directory, for example, .txt, .exe,
.bin and so forth.
To configure the switch for FTP health checks:
1. Select the real server group.
2. Set the health check type to FTP for the real server group.
3. Configure the health check content.
4. Apply and save your configuration.
>> # /cfg/slb/group 1 (Select a real server group)
>> # /cfg/slb/group 1/health ftp
>> # /cfg/slb/group 1/content <filename>
>> # Real server group 1# apply
>> # Real server group 1# save
Web OS 10.0 Application Guide
Chapter 10: Health Checking 235
212777-A, February 2002
POP3 Server Health Checks
The Post Office Protocol - Version 3 (POP3) is intended to permit a workstation to dynami-
cally access a maildrop on a server host. The POP3 protocol is used to allow a workstation to
retrieve mail that the server is holding for it. This protocol is documented in RFC 1939.
When the user on a client host wants to enter a message into the transport system, it establishes
an SMTP connection to its relay host and sends all mail to it.
Initially, the server host starts the POP3 service by listening on TCP port 110. When a client
host wants to make use of the service, it establishes a TCP connection with the server host.
Configuring the Switch for POP3 Health Checks
To support health checking on the UNIX POP3 server, the network administrator must config-
ure a username:password value in the switch, using the content option on the SLB real
server group menu (/cfg/slb/group)
To configure the switch for POP3 health checks:
1. Select the real server group.
2. Set the health check type to POP3 for the real server group..
3. Configure the health check content.
4. Apply and save your configuration.
>> # /cfg/slb/group 1 (Select a real server group)
>> # /cfg/slb/group 1/health pop3
>> # /cfg/slb/group 1/content <username>:<password>
>> # Real server group 1# apply
>> # Real server group 1# save
Web OS 10.0 Application Guide
236 Chapter 10: Health Checking 212777-A, February 2002
SMTP Server Health Checks
Simple Mail Transfer Protocol is a protocol to transfer e-mail messages between servers reli-
ably and efficiently. This protocol traditionally operates over TCP, port 25 and is documented
in RFC 821. Most e-mail systems that send mail over the Internet use SMTP to send messages
from one server to another; the messages can then be retrieved with an e-mail client using
either POP or IMAP.
Configuring the Switch for SMTP Health Checks
To support SMTP health checking, the network administrator must configure a username:pass-
word value in the switch, using the content option on the SLB real server group menu (/
cfg/slb/group)
To configure the switch for SMTP health checks:
1. Select the health check menu for the real server group.
2. Set the health check type to SMTP for the real server group..
3. Configure the health check content.
4. Apply and save your configuration.
>> # /cfg/slb/group 1 (Select a real server group)
>> # /cfg/slb/group 1/health smtp
>> # /cfg/slb/group 1/content <username>
>> # Real server group 1# apply
>> # Real server group 1# save
Web OS 10.0 Application Guide
Chapter 10: Health Checking 237
212777-A, February 2002
IMAP Server Health Checks
Internet Message Access Protocol (IMAP) is a mail server protocol used between a client sys-
tem and a mail server that allows a user to retrieve and manipulate mail messages. IMAP is not
used for mail transfers between mail servers. IMAP servers listen to TCP port 143.
Configuring the Switch for IMAP Health Check
To support IMAP health checking, the network administrator must configure a username:pass-
word value in the switch, using the content option on the SLB Real Server Group Menu (/
cfg/slb/group)
To configure the switch for IMAP health checks:
1. Select the health check menu for the real server group.
2. Set the health check type to IMAP for the real server group..
3. Configure the health check content.
The content option specifies the username:password value that the server tries to match in
its user database. In addition to verifying the user name and password, the database may spec-
ify the client(s) or port(s) the user is allowed to access.
4. Apply and save your configuration.
>> # /cfg/slb/group 1 (Select a real server group)
>> # /cfg/slb/group 1/health imap
>> # /cfg/slb/group 1/content <username>:<password>
>> # Real server group 1# apply
>> # Real server group 1# save
Web OS 10.0 Application Guide
238 Chapter 10: Health Checking 212777-A, February 2002
NNTP Server Health Checks
Net News Transfer Protocol (NNTP) is a TCP/IP protocol based upon text strings sent bidirec-
tionally over 7 bit ASCII TCP channels, and listens to port 119. It is used to transfer articles
between servers as well as to read and post articles. NNTP specifies a protocol for the distribu-
tion, inquiry, retrieval, and posting of news articles using a reliable stream-based transmission
of news among the ARPA-Internet community. NNTP is designed so that news articles are
stored in a central database allowing a subscriber to select only those items he wishes to read.
NNTP is documented in RFC977. Articles are transmitted in the form specified by RFC1036.
Configuring the Switch for NNTP Health Checks
To configure the switch for NNTP health checks:
1. Select the real server group.
2. Set the health check type to NNTP for the real server group.
3. Configure the health check content.
Create nntp directory from MS Windows Option Pack4.
4. Apply and save your configuration.
>> # /cfg/slb/group 1 (Select a real server group)
>> # /cfg/slb/group 1/health nntp
>> # /cfg/slb/group 1/content <nntp newsgroup name>
>> # Real server group 1# apply
>> # Real server group 1# save
Web OS 10.0 Application Guide
Chapter 10: Health Checking 239
212777-A, February 2002
RADIUS Server Health Checks
The Remote Authentication Dial-In User Service (RADIUS) protocol is used to authenticate
dial-up users to Remote Access Servers (RASs) and the client application they will use during
the dial-up connection.
nRADIUS Content Health Check Enhancements
Include the switch IP as the Network-attached storage (NAS) IP parameter in the
RADIUS content health check
RADIUS health check using the configured real server port (rport)
Variable-length RADIUS secret password. Supports less than 16 octets and up to 32
octets
nThe secret value is a field of up to 32 alphanumeric characters used by the switch to
encrypt a password during the RSA Message Digest Algorithm (MD5) and by the
RADIUS server to decrypt the password during verification.
nThe content option specifies the username:password value that the server tries to
match in its user database. In addition to verifying the user name and password, the data-
base may specify the client(s) or port(s) the user is allowed to access.
NOTE – Network-attached storage (NAS) is hard disk storage that is set up with its own net-
work address rather than being attached to the department computer that is serving applications
to a network’s workstation users. By removing storage access and its management from the
department server, both application programming and files can be served faster because they
are not competing for the same processor resources. The network-attached storage device is
attached to a local area network (typically, an Ethernet network) and assigned an IP address.
File requests are mapped by the main server to the NAS file server.
Configuring the Switch for RADIUS Server Content Health Checks
The Alteon Web switch will provide the NAS IP parameter while performing RADIUS content
health checks. The switch uses the IP address of the IP interface that is on the same subnet as
the RADIUS server or the default gateway as the NAS IP.
The RADIUS health check is performed using the configured real server port (rport). To
configure RADIUS health checks, use the /cfg/slb/virt <#>/service menu.
Web OS 10.0 Application Guide
240 Chapter 10: Health Checking 212777-A, February 2002
Configuring the Switch for RADIUS Secret and Password
RADIUS is stateless and uses UDP as its transport protocol. To support RADIUS health
checking, the network administrator must configure two parameters on the switch:
nthe /cfg/slb/secret value
nthe content parameter with a username:password value.
HTTPS/SSL Server Health Checks
The sslh health check option on the Real Server Group Menu (/cfg/slb/group <#>)
allows the switch to query the health of the SSL servers by sending an SSL client “Hello”
packet and then verify the contents of the server’s “Hello” response. SSL health check is per-
formed using the real server port configured, that is, the rport.
The SSL enhanced health check behavior is summarized below:
nThe switch sends a SSL “Hello” packet to the SSL server.
nIf it is up and running, the SSL server responds with the “Server Hello” message.
nThe switch verifies fields in the response and marks the service “Up” if the fields are OK.
During the handshake, the user and server exchange security certificates, negotiate an encryp-
tion and compression method, and establish a session ID for each session.
WAP Gateway Health Checks
Wireless Application protocol (WAP) carries Internet traffic to mobile devices and allows Web
services to be delivered to mobile phones and handsets. The translation from HTTP/HTML to
WAP/WML (Wireless Markup Language) is implemented by servers known as WAP gateways
on the land-based part of the network. WAP devices can communicate in two ways:
nWireless Session Protocol (WSP) content health checks, the unencrypted mode of sending
WML traffic (similar to HTTPS).
nWireless Transport Layer Security (WTLS) health checks, an encrypted mode of sending
WML traffic (similar to HTTP).
>> # /cfg/slb/group <real server group number> (Select the real server group)
>> # health radius (Specify the type of health checking)
>> # content <username>:<password> (Specify the RADIUS username:pass-
word value)
>> # /cfg/slb/adv/secret <RADIUS-coded value> (Enter up to 32 alphanumeric charac-
ters used to encrypt and decrypt pass-
word)
Web OS 10.0 Application Guide
Chapter 10: Health Checking 241
212777-A, February 2002
WSP Content Health Checks
Wireless Session Protocol content health checks can be configured in two modes: connection-
less and connection-oriented. Connectionless WSP runs on UDP/IP protocol, port 9200.
Therefore, Alteon Web switches can be used to load balance the gateways in this mode of oper-
ation.
Web OS 10.0 provides a content-based health check mechanism where customized WSP pack-
ets can be sent to the gateways, and the switch can verify the expected response, in a manner
similar to scriptable health checks.
The content of the WSP/UDP packet that is sent to the gateway can be configured as a hexa-
decimal string, which is encapsulated in a UDP packet and shipped to the server. Hence, this
byte string should include all applicable WSP headers.
The content that the switch expects to receive from the gateway is also specified in the form of
hexadecimal byte string. The switch matches each byte of this string with the received content.
If there is a mismatch of even a single byte on the received content, the gateway fails the health
check. The user can also configure an offset for the received WSP packet: a byte index to the
WSP response content from where the byte match can be performed.
Configuring the Switch for WSP Content Health Checks
1. Select the WAP Health Check Menu.
2. Use the sndcnt command to enter the content to be sent to the WSP gateway.
3. Enter the content that the switch expects to receive from the WSP gateway.
NOTE – A maximum of 255 bytes of input are allowed on the switch command line. You may
remove spaces in between the numbers to save space on the command line. For example, type
010203040506 instead of 01 02 03 04 05 06.
>> # /cfg/slb/adv/waphc
>> WAP Health Check# sndcnt
Current Send content:
Enter new Send content: 01 42 15 68 74 74 70 3a 2f 77 77 77 2e 6e 6f
6b 61 6d 00 .
>> WAP Health Check# rcvcnt
Current Receive content:
Enter new Receive content: 01 04 60 0e 03 94
Web OS 10.0 Application Guide
242 Chapter 10: Health Checking 212777-A, February 2002
4. Enter the WSP port.
5. Set the offset value.
6. Because WAP gateways are UDP-based and operate on a UDP port, configure UDP ser-
vice in the virtual server menu.
7. Enable WSP health checks for group 1.
8. Apply and save the configuration.
WTLS Health Checks
Wireless Transport Layer Security (WTLS) can be configured to use ports 9202 and 9203 in
connectionless and connection oriented modes respectively.
The WTLS health check feature provides a WTLS Hello based health check for connection-
oriented WTLS traffic on port 9203. The web switch sends a new WTLS Client Hello to the
WAP gateway, and checks to see if it receives a valid WTLS Server Hello back from the WAP
Gateway.
>> WAP Health Check# wspport 9200
>> WAP Health Check# offset 0
>> # /cfg/slb/virt 1
>> Virtual Server 1# service (Configure virtual service 1)
Enter virtual port: 9200 (On the default WSP port)
>> Virtual Server 1 9200 Service# group 1 (Set the real server group number)
>> Virtual Server 1 9200 Service# udp ena (Enable UDP load balancing)
>> Virtual Server 1 9200 Service# apply (Apply the configuration)
>> # /cfg/slb/group 1 (Select the Real Server Group 1 menu)
>> Real server group 1# health wsp (Set the health check type)
>> Real server group 1# apply
Web OS 10.0 Application Guide
Chapter 10: Health Checking 243
212777-A, February 2002
Configuring the Switch for WTLS Health Checks
1. Select the group with the WAP gateway.
2. Use the sndcnt command to enter the content to be sent to the WSP gateway.
3. Select a port number other than 9203, if you want to change the port number on which
your gateway is listening to WTLS traffic.
4. Apply and save your configuration.
LDAP Health Checks
Lightweight Directory Access Protocol (LDAP) health checks enable the switch to determine
whether the LDAP server is alive or not. LDAP versions 2 and 3 are described in RFC 1777
and RFC 2251.
The LDAP health check process consists of three LDAP messages over one TCP connection:
nBind request: The switch first creates a TCP connection to the LDAP server on port 339,
which is the default port. After the connection is established, the switch initiates an LDAP
protocol session by sending an anonymous bind request to the server.
nBind response: On receiving the bind request, the server sends a bind response to the
switch. If the result code indicates that the server is alive, the switch marks the server as
up. Otherwise, the switch marks the server as down even if the switch did this because the
server did not respond within the timeout window.
nUnbind request: If the server is alive, the switch sends a request to unbind the server.
This request does not require a response. It is necessary to send an unbind request as the
LDAP server may crash if too many protocol sessions are active.
If the server is up, the switch closes the TCP connection after sending the unbind request. If the
server is down, the connection is torn down after the bind response, if one arrives. The connec-
tion will also be torn down if it crosses the timeout limit, irrespective of the server’s condition.
>> Main# /cfg/slb/group 1 (Select the Real Server Group 1 menu)
>> Real server group 1# health wtls
>> Main# /cfg/slb/adv/wap
>> WAP Health Check Menu # wtlsprt 10203
>> WSP Health Check# apply
Web OS 10.0 Application Guide
244 Chapter 10: Health Checking 212777-A, February 2002
Configuring the Switch for LDAP Health Checks
Configure the switch to verify if the LDAP server is alive.
1. Select the health check menu for the real server group.
2. Set the health check type to LDAP for the real server group.
3. Apply and save your configuration.
Determining the Version of LDAP
1. Select the Advanced Menu.
2. Set the version of LDAP. The default version is 2.
3. Apply and save your configuration.
>> # /cfg/slb/group 1
>> # Real server group 1# health ldap
>> # Real server group 1# apply
>> # Real server group 1# save
>> # Real server group 1# /cfg/slb/adv
>> # # Real server group 1# ldap <2 | 3> (Select the desired LDAP version)
>> LDAP Health Check# apply
>> LDAP Health Check# save
Web OS 10.0 Application Guide
Chapter 10: Health Checking 245
212777-A, February 2002
ARP Health Checks
Address Resolution Protocol (ARP) is the TCP/IP protocol that resides within the Internet
layer. ARP resolves a physical address from an IP address. ARP queries machines on the local
network for their physical addresses. ARP also maintains IP to physical address pairs in its
cache memory. In any IP communication, the ARP cache is consulted to see if the IP address of
the computer or the router is present in the ARP cache. Then the corresponding physical
address is used to send a packet.
In the switch, this features allows the user to health check the Intrusion Detection Server (IDS)
by sending an ARP query. The health check consists of the following sequence of actions:
1. Accessing the ARP table.
2. Looking for the session entry in the ARP table. If the entry exists in the table, that means
the real server is up, otherwise the health check has failed.
3. If the entry is present, then check the timestamp to find out if the last used time is greater
than the ARP health check interval. If it is, then delete the query, as this means that the
health check has failed.
4. Send another ARP request and repeat the above process until the timestamp shows the
last used time smaller than the ARP health check interval.
Configuring the Switch for ARP Health Checks
1. Select the SLB group from the health check menu.
2. Select the type of health check to use.
3. Enable ARP health checks for group 1.
4. Apply and save your configuration.
>> /cfg/slb/group 1
>> Real server group 1# health arp
>> Real server group 1# arp enable
>> Real server group 1# apply
Web OS 10.0 Application Guide
246 Chapter 10: Health Checking 212777-A, February 2002
Failure Types
Service Failure
If a certain number of connection requests for a particular service fail, the session switch
places the service into the service failed state. While in this state, no new connection requests
are sent to the server for this service; however, if graceful real server failure is enabled
(/cfg/slb/adv/grace ena), state information about existing sessions is maintained and
traffic associated with existing sessions continues to be sent to the server. Connection requests
to, and traffic associated with, other load-balanced services continue to be processed by the
server.
Example: A real server is configured to support HTTP and FTP within two real server groups.
If a session switch detects an HTTP service failure on the real server, it removes that real
server group from the load-balancing algorithm for HTTP but keeps the real server in the mix
for FTP. Removing only the failed service from load balancing allows users access to all
healthy servers supporting a given service.
When a service on a server is in the service failed state, the session switch sends Layer 4
connection requests for the failed service to the server. When the session switch has
successfully established a connection to the failed service, the service is restored to the load-
balancing algorithm.
Server Failure
If all load-balanced services supported on a server fail to respond to switch connection requests
within the specified number of attempts, then the server is placed in the server failed state.
While in this state, no new connection requests are sent to the server; however, if graceful real
server failure is enabled (/cfg/slb/adv/grace ena), state information about existing
sessions is maintained and traffic associated with existing sessions continues to be sent to the
server.
NOTE – All load-balanced services on a server must fail before the switch places the server in
the server failed state.
The server is brought back into service as soon as the first service is proven to be healthy.
Additional services are brought online as they are subsequently proven to be healthy.
212777-A, February 2002 247
CHAPTER 11
High Availability
Alteon Web switches support high-availability network topologies through an enhanced imple-
mentation of the Virtual Router Redundancy Protocol (VRRP).
The following topics are discussed in this chapter:
n“VRRP Overview” on page 248. This section discusses VRRP operation and Web OS
redundancy configurations.
n“Failover Methods” on page 253. This section describes the three modes of high availabil-
ity.
n“Web OS Extensions to VRRP” on page 259. This section describes VRRP enhancements
implemented in Web OS.
n“High Availability Configurations” on page 263. This section discusses a few of the more
useful and easily deployed redundant configurations.
“Active-Standby Virtual Server Router Configuration” on page 263
“Active-Active VIR and VSR Configuration” on page 265
“Active/Active Server Load Balancing Configuration” on page 267
“VRRP-Based Hot-Standby Configuration” on page 275
n“Virtual Router Deployment Considerations” on page 277. This section describes issues to
consider when deploying virtual routers.
n“Stateful Failover of Layer 4 and Layer 7 Persistent Sessions” on page 283. This section
describes how to enable stateful failover by mirroring Layer 7 and Layer 4 persistent
transactional states on the peer switch.
Web OS 10.0 Application Guide
248 Chapter 11: High Availability 212777-A, February 2002
VRRP Overview
In a high-availability network topology, no device can create a single point-of-failure for the
network or force a single point-of-failure to any other part of the network. This means that
your network will remain in service despite the failure of any single device. To achieve this
usually requires redundancy for all vital network components.
VRRP enables redundant router configurations within a LAN, providing alternate router paths
for a host to eliminate single points-of-failure within a network. Each participating VRRP-
capable routing device is configured with the same virtual router IP address and ID number.
One of the virtual routers is elected as the master, based on a number of priority criteria, and
assumes control of the shared virtual router IP address. If the master fails, one of the backup
virtual routers will take control of the virtual router IP address and actively process traffic
addressed to it.
Because the router associated with a given alternate path supported by VRRP uses the same IP
address and MAC address as the routers for other paths, the host’s gateway information does
not change, no matter what path is used. A VRRP-based redundancy schema reduces adminis-
trative overhead because hosts need not be configured with multiple default gateways.
VRRP Components
Each physical router running VRRP is known as a VRRP router.
Virtual Interface Router
Two or more VRRP routers can be configured to form a virtual interface router (VIR). (RFC
2338 calls this entity a virtual router.) The term virtual interface router will be used to distin-
guish this type of entity from a virtual server router (VSR), as described in “Web OS Exten-
sions to VRRP” on page 259. When the term virtual router is used herein, the concept applies
to both virtual interface routers and virtual server routers. Each VRRP router may participate
in one or more virtual interface routers.
A virtual interface router acts as a default or next hop gateway for hosts on a LAN. Each vir-
tual interface router consists of a user-configured virtual router identifier (VRID) and an IP
address.
Web OS 10.0 Application Guide
Chapter 11: High Availability 249
212777-A, February 2002
Virtual Router MAC Address
The VRID is used to build the virtual router MAC Address. The five highest-order octets of the
virtual router MAC Address are the standard MAC prefix (00-00-5E-00-01) defined in RFC
2338. The VRID is used to form the lowest-order octet.
Owners and Renters
Only one of the VRRP routers in a virtual interface router may be configured as the IP address
owner. This router has the virtual interface router’s IP address as its real interface address. This
router responds to packets addressed to the virtual interface router’s IP address for ICMP
pings, TCP connections, and so on.
There is no requirement for any VRRP router to be the IP address owner. Most VRRP installa-
tions choose not to implement an IP address owner. For the purposes of this chapter, VRRP
routers that are not the IP address owner are called renters.
Master and Backup Virtual Router
Within each virtual router, one VRRP router is selected to be the virtual router master. See
“Selecting the Master VRRP Router” on page 251 for an explanation of the selection process.
NOTE – If the IP address owner is available, it will always become the virtual router master.
The virtual router master forwards packets sent to the virtual interface router. It also responds to
Address Resolution Protocol (ARP) requests sent to the virtual interface router’s IP address.
Finally, the virtual router master sends out periodic advertisements to let other VRRP routers
know it is alive and its priority.
Within a virtual router, the VRRP routers not selected to be the master are known as virtual
router backups. Should the virtual router master fail, one of the virtual router backups becomes
the master and assumes its responsibilities.
Web OS 10.0 Application Guide
250 Chapter 11: High Availability 212777-A, February 2002
The Alteon Web switches in Figure 11-1 have been configured as VRRP routers. Together,
they form a virtual interface router (VIR).
Figure 11-1 Example 1: VRRP Router
Web switch 1 in Figure 11-1 has its real interface configured with the IP address of the virtual
interface router and is, therefore, the IP address owner. It also becomes the virtual router mas-
ter. Web switch 2 is a virtual router backup. Its real interface is configured with an IP address
that is on the same subnet as the virtual interface router but is not the IP address of the virtual
interface router.
The virtual interface router has been assigned a VRID = 1. Therefore, both of the VRRP rout-
ers have a MAC address = 00-00-5E-00-01-01.
Internet
Router
Router
VRRP Router
VRRP Router
VRID = 1
Router #2 = Backup Standby
VR IP address = 205.178.13.226
MAC address = 00.00.SE.00.01.01
Priority = 100
IP interface = 205.178.13.225
VRID = 1
Router #1 = Master Active
VR IP address = 205.178.13.226
MAC address = 00.00.SE.00.01.01
Priority = 255
IP interface = 205.178.13.226
Virtual
Interface
Router
Host #1
Default Gateway
205.178.13.226
Web Switch 1
Web Switch 2
Web OS 10.0 Application Guide
Chapter 11: High Availability 251
212777-A, February 2002
VRRP Operation
The host shown in Figure 11-1 is configured with the virtual interface router’s IP address as its
default gateway. The master forwards packets destined to remote subnets and responds to ARP
requests. In this example, the master is also the virtual interface router’s IP address owner—
therefore it also responds to ICMP ping requests and IP datagrams destined for the virtual
interface router's IP address. The backup does not forward any traffic on behalf of the virtual
interface router nor does it respond to ARP requests.
If the owner is not available, the backup becomes the master and takes over responsibility for
packet forwarding and responding to ARP requests. However, because this switch is not the
owner, it does not have a real interface configured with the virtual interface router's IP address.
Selecting the Master VRRP Router
Each VRRP router that is not an owner is configured with a priority between 1–254. According
to the VRRP standard, an owner has a priority of 255. A bidding process determines which
VRRP router is or becomes the master—the VRRP router with the highest priority. Owners
have a higher priority than the range permitted for non-owners. If there is an IP address owner,
it is always the master for the virtual interface router, as long as it is available.
The master periodically sends advertisements to an IP multicast address. As long as the back-
ups receive these advertisements, they remain in the backup state. If a backup does not receive
an advertisement for three advertisement intervals, it initiates a bidding process to determine
which VRRP router has the highest priority and takes over as master.
If, at any time, a backup determines that it has higher priority than the current master does, it
can preempt the master and become the master itself, unless configured not to do so. In pre-
emption, the backup assumes the role of master and begins to send its own advertisements. The
current master sees that the backup has higher priority and will stop functioning as the master.
A backup router can stop receiving advertisements for one of two reasons—the master can be
down, or all communications links between the master and the backup can be down. If the
master has failed, it is clearly desirable for the backup (or one of the backups, if there is more
than one) to become the master.
NOTE – If the master is healthy but communication between the master and the backup has
failed, there will then be two masters within the virtual router. To prevent this from happening,
configure redundant links to be used between the switches that form a virtual router.
Web OS 10.0 Application Guide
252 Chapter 11: High Availability 212777-A, February 2002
Active-Standby Failover
The previous text described the use of a group of VRRP routers to form a single virtual inter-
face router. It implements a traditional hot-standby configuration in which the backup router
only functions when the active router has failed. VRRP can also be used to implement active-
standby configurations. In an active-standby configuration, both switches support active traf-
fic, but are configured so that they do not simultaneously support the same service.
In the example shown in Figure 11-2, Web switch 1 is the master for the virtual interface router
with VRID = 1, and its backup for the virtual interface router with VRID = 2. Web switch 2 is
master for the virtual interface router with VRID = 2 and backup for the virtual interface router
with VRID = 1. In this manner, both routers can actively forward traffic at the same time but
not for the same interface.
Figure 11-2 Example 2: VRRP Router
Table 11-1 Active Standby Configuration
VRID = 1 VRID = 2
Web Switch 1 Router #1 = Master Active
VR IP address = 205.178.13.226
MAC address = 00.00.SE.00.01.01
Priority = 255
IP interface = 205.178.13.226
Router #1 = Backup Standby
VR IP address = 205.178.13.240
MAC address = 00.00.SE.00.01.02
Priority = 100
IP interface = 205.178.13.239
Web Switch 2 Router #2 = Backup Standby
VR IP address = 205.178.13.226
MAC address = 00.00.SE.00.01.01
Priority = 100
IP interface = 205.178.13.225
Router #1 = Master Active
VR IP address = 205.178.13.240
MAC address = 00.00.SE.00.01.02
Priority = 255
IP interface = 205.178.13.240
Internet
Router
Router VRID = 1
Router #2 = Backup Standby
VRID = 1
Router #1 = Master Active
Host #1
Default Gateway
205.178.13.226
Host #2
Default Gateway
205.178.13.240
Web Switch 1
Web Switch 2
VRID = 2
Router #2 = Master Active
VRID = 2
Router #1 = Backup Standby
Web OS 10.0 Application Guide
Chapter 11: High Availability 253
212777-A, February 2002
Failover Methods
With service availability becoming a major concern on the Internet, service providers are
increasingly deploying Internet traffic control devices, such as Web switches, in redundant
configurations. Traditionally, these configurations have been hot-standby configurations,
where one switch is active and the other is in a standby mode. A non-VRRP hot-standby con-
figuration is shown in the figure below:
Figure 11-3 A Non-VRRP, Hot-Standby Configuration
While hot-standby configurations increase site availability by removing single points-of-fail-
ure, service providers increasingly view them as an inefficient use of network resources
because one functional Web switch sits by idly until a failure calls it into action. Service pro-
viders now demand that vendors’ equipment support redundant configurations where all
devices can process traffic when they are healthy, increasing site throughput and decreasing
user response times when no device has failed.
Web OS high availability configurations are based on VRRP. The Web OS implementation of
VRRP includes proprietary extensions to accommodate Layer 4 though Layer 7 Web switching
features.
The Web OS implementation of VRRP supports three modes of high availability:
nActive-Standby
nActive-Active
nHot-Standby
The first mode, active-standby, is based on standard VRRP, as defined in RFC 2338. The sec-
ond and third modes, active-active and hot-standby, are based on proprietary Web OS exten-
sions to VRRP. Each mode is described in detail in the following sections.
Intranet Servers
NFS Server
AB
Intranet Clients
Client Switches
Primary Web Switch
IP: 200.200.200.100
Secondary Web Switch
IP: 200.200.200.101
Active Links
Backup Links
Inter-switch
Link
Web OS 10.0 Application Guide
254 Chapter 11: High Availability 212777-A, February 2002
Active-Standby Redundancy
In an active-standby configuration, shown in Figure 11-4, two Web switches are used. Both
switches support active traffic but are configured so that they do not simultaneously support
the same service. Each switch is active for its own set of services, such as IP routing interfaces
or load-balancing virtual server IP addresses, and acts as a standby for other services on the
other switch. If either switch fails, the remaining switch takes over processing for all services.
The backup switch may forward Layer 2 and Layer 3 traffic, as appropriate.
NOTE – In an active-standby configuration, the same service cannot be active simultaneously
on both switches.
Figure 11-4 Active-Standby Redundancy
Internet
Router
Router
Standby VIP 1
VIP: 205.178.13.226
Active VIP 1
VIP: 205.178.13.226
Active VIP 2
VIP: 205.178.13.240
Standby VIP 2
VIP: 205.178.13.240
Standby VIP 3
VIP: 205.178.13.110
Active VIP 3
VIP: 205.178.13.110
Active
Active
Web OS 10.0 Application Guide
Chapter 11: High Availability 255
212777-A, February 2002
Active-Active Redundancy
In an active-active configuration, two Web switches provide redundancy for each other, with
both active at the same time for the same services.
Web OS has extended VRRP to include virtual servers, allowing full active/active redundancy
between its Layer 4 switches. In an active-active configuration, shown in Figure 11-5, both
switches can process traffic for the same service at the same time; both switches can be active
simultaneously for a given IP routing interface or load-balancing virtual server (VIP).
Figure 11-5 Active-Active Redundancy
In the example above, one switch is still the master router. However, traffic going through the
backup router (associated with the same virtual router on the switch) that is addressed to the
master router will be intercepted and processed by the backup router.
Internet
Router
Router
Active VIP 1
VIP: 205.178.13.226
Active VIP 1
VIP: 205.178.13.226
Active VIP 2
VIP: 205.178.13.240
Active VIP 2
VIP: 205.178.13.240
Active VIP 3
VIP: 205.178.13.110
Active VIP 3
VIP: 205.178.13.110
Active
Active
Web OS 10.0 Application Guide
256 Chapter 11: High Availability 212777-A, February 2002
Hot-Standby Redundancy
In a hot-standby configuration, Spanning Tree Protocol (STP) is not needed to eliminate bridge
loops. This speeds up failover when a switch fails. The standby switch blocks all ports configured
as standby ports, whereas the master switch enables these same ports. Consequently, on a given
switch, all virtual routers are either master or backup; they cannot change state individually.
To provide as much flexibility as possible, the old hot-standby approach has been modified to
eliminate the problems previously associated with it and is now based on VRRP. In a hot-standby
configuration, two or more switches provide redundancy for each other. One switch is elected
master and actively processes Layer 4 traffic. The other switches (the backups) assume the master
role should the master fail. The backups may forward Layer 2 and Layer 3 traffic as appropriate.
There are three components to the VRRP-based, hot-standby model: the virtual router group,
additional Layer 4 port states, and configuration synchronization options. The hot-standby
model is shown in Figure 11-6.
Figure 11-6 Hot-Standby Redundancy
Internet
Router
Router
Active VIP 1
VIP: 205.178.13.226
Standby VIP 1
VIP: 205.178.13.226
Active VIP 2
VIP: 205.178.13.240
Standby VIP 2
VIP: 205.178.13.240
Active VIP 3
VIP: 205.178.13.110
Standby VIP 3
VIP: 205.178.13.110
Active
Hot Standby
Web OS 10.0 Application Guide
Chapter 11: High Availability 257
212777-A, February 2002
Virtual Router Group
The virtual router group ties all of the virtual routers together as a single entity and is central to
the hot-standby configuration. All virtual routers on a given switch must all be either master or
backup. They cannot failover individually, only as a group. Once hot-standby is globally
enabled, the virtual router group must be enabled. The virtual router group aggregates all of the
virtual routers as a single entity.
If the virtual router group is master on one switch, it means the switch is master; otherwise, the
switch is backup. However, Layer 4 processing is still enabled. If a virtual server is not a vir-
tual router, the backup switch can still process traffic addressed to that virtual server IP
address. Filtering is also still functional. Only traffic addressed to virtual server routers is not
processed.
VRRP actually contains support for virtual router groups. Each advertisement is not limited to
a single virtual router IP address and can include up to 256 addresses. This means that all vir-
tual routers are advertised in the same packet, conserving processing and buffering resources.
However, the advertisements are also used to help bridges learn the virtual router MAC
address. Since all of the virtual routers can have different virtual router identifiers (VRIDs),
you must rotate the MAC source address of the advertisement to ensure that the bridges learn
all of the virtual router MAC addresses.
Hot-Standby and Inter-Switch Port States
The second part of the solution involves introducing two additional Layer 4 port states, hot-
standby and inter-switch:
n Links that attach to the standby switch must be configured as hot standby using
/cfg/slb/port x/hotstan.
nLinks that are used by VRRP to deliver updates are configured as intersw, or inter-
switch links (not to be confused with Cisco’s ISL). The command to configure one or
more ports as interswitch links is /cfg/slb/port <port number>/intersw.
NOTE – A port cannot be configured to support both hot-standby and interswitch link.
The hot-standby switch listens to the master’s VRRP updates. After an interval period has
expired without receiving a update, the backup switch will take over. The forwarding states of
hot-standby ports are controlled much like the forwarding states of the old hot-standby
approach. Enabling hot-standby on a switch port allows the hot-standby algorithm to control
the forwarding state of the port. If a switch is master, the forwarding states of the hot-standby
ports are enabled. If a switch is backup, the hot-standby ports are blocked from forwarding or
receiving traffic.
Web OS 10.0 Application Guide
258 Chapter 11: High Availability 212777-A, February 2002
When the hotstan option (/cfg/slb/port x/hotstan) is enabled and all hot-standby
ports have link, the virtual router group's priority is automatically incremented by the “track
other virtual routers” value. This action allows the switches to failover when a hot-standby port
loses link. Other enabled tracking features only have affect when all hot-standby ports on a
switch have link. The default virtual routers tracking value is 2 seconds. Keep in mind that this
is an automatic process that cannot be turned off.
NOTE – The VRRP hot-standby approach does not support single-link failover. If one hot-
standby port loses link, the entire switch must become master to eliminate loss of connectivity.
The forwarding states of non-hot-standby ports are not controlled via the hot-standby algo-
rithm, allowing the additional ports on the switches to provide added port density. The client
ports on both switches should be able to process or forward traffic to the master switch.
The inter-switch port state is only a place holder. Its presence forces the user to configure a
inter-switch link when hot-standby is globally enabled and prohibits the inter-switch link from
also being a hot-standby link for VRRP advertisements. These advertisements must be able to
reach the backup switch.
Synchronizing Configurations
The final piece in configuring a high-availability solution includes the addition of synchroniza-
tion options to simplify the manual configuration. Configuration options have been added to
refine what is synchronized, to whom, and to disable synchronizing certain configurations.
These options include proxy IP addresses, Layer 4 port configuration, filter configuration, and
virtual router priorities.
Also, a peer menu (cfg/slb/sync/peer) has been added to allow the user to configure
the IP addresses of the switches that should be synchronized. This provides added synchroni-
zation validation but does not require the users to enter the IP address of the redundant switch
for each synchronization.
NOTE – When using both VRRP and GSLB, you must change the /cfg/sys/wport
(Browser-Based Interface port) value of the target switch (the switch that is being synchro-
nized to) to a port other than port 80 before VRRP synchronization begins.
For more information on synchronizing configurations between two switches, see “Synchro-
nizing Configurations” on page 282.
Web OS 10.0 Application Guide
Chapter 11: High Availability 259
212777-A, February 2002
Web OS Extensions to VRRP
This section describes the following VRRP enhancements that are implemented in Web OS:
n Virtual Server Routers
n Sharing/Active-Active Failover
n Tracking VRRP Router Priority
Virtual Server Routers
Web OS supports virtual server routers, which extend the benefits of VRRP to virtual server IP
addresses that are used to perform SLB.
Virtual server routers operate for virtual server IP addresses in much the same manner as Vir-
tual Interface Routers operate for IP interfaces. A master is negotiated via a bidding process,
during which information about each VRRP router’s priority is exchanged. Only the master can
process packets that are destined for the virtual server IP address and respond to ARP requests.
One difference between virtual server routers and virtual interface routers is that a virtual
server router cannot be an IP address owner. All virtual server routers are renters.
All virtual routers, whether virtual server routers or virtual interface routers, operate indepen-
dently of one another; that is, their priority assignments, advertisements, and master negotia-
tions are separate. For example, when you configure a VRRP router’s priority in a virtual
server router, you are not affecting that VRRP router’s priority in any virtual interface router or
any other virtual server router of which it is a part. However, because of the requirement that
MAC addresses be unique on a LAN, VRIDs must be unique among all virtual routers,
whether virtual interface routers or virtual server routers.
Web OS 10.0 Application Guide
260 Chapter 11: High Availability 212777-A, February 2002
Sharing/Active-Active Failover
Web OS supports sharing of interfaces at both Layer 3 and Layer 4, as shown in Figure 11-7.
With sharing, an IP interface or a VIP address can be active simultaneously on multiple
switches, enabling active-active operation as shown in Table 11-2.
Figure 11-7 Active-Active High Availability
When sharing is used, incoming packets are processed by the switch on which they enter the
virtual router. The ingress switch is determined by external factors, such as routing and Span-
ning Tree configuration.
NOTE – Sharing cannot be used in configurations where incoming packets have more than one
entry point into the virtual router—for example, where a hub is used to connect the switches.
Table 11-2 Sharing Active-Active Failover
Web Switch 1 Master-Active VR 1
VRID 2
VIP: 205.178.13.226
MAC address 00-00-5E-OO-01-02
Backup-Active VR 2
VRID 4
VIP: 205.178.13.240
MAC address 00-00-5E-OO-01-04
Master-Active VR 3
VRID 6
VIP: 205.178.13.110
MAC address 00-00-5E-OO-01-06
Web Switch 2 Backup-Active VR 1
VRID 2
VIP: 205.178.13.226
MAC address 00-00-5E-OO-01-02
Master-Active VR 2
VRID 4
VIP: 205.178.13.240
MAC address 00-00-5E-OO-01-04
Backup-Active VR 3
VRID 6
VIP: 205.178.13.110
MAC address 00-00-5E-OO-01-06
Internet
Router
Router Backup-Active VR 1
Master-Active VR 2
Backup-Active VR 3
Master-Active VR 1
Backup-Active VR 2
Master-Active VR 3
Web Switch 1
Web Switch 2
Web OS 10.0 Application Guide
Chapter 11: High Availability 261
212777-A, February 2002
When sharing is enabled, the master election process still occurs. Although the process does
not affect which switch processes packets that must be routed or that are destined for the vir-
tual server IP address, it does determine which switch sends advertisements and responds to
ARP requests sent to the virtual router’s IP address.
Web OS strongly recommends that sharing, rather than active-standby configurations, be used
whenever possible. Sharing offers both better performance and fewer service interruptions in
the face of fault conditions than active-standby configurations.
Tracking VRRP Router Priority
Web OS supports a tracking function that dynamically modifies the priority of a VRRP router,
based on its current state. The objective of tracking is to have, whenever possible, the master
bidding processes for various virtual routers in a LAN converge on the same switch. Tracking
ensures that the selected switch is the one that offers optimal network performance. For track-
ing to have any effect on virtual router operation, preemption must be enabled.
NOTE – Tracking only affects hot standby and active-standby configurations. It does not have
any effect on active-active sharing configurations.
Web OS can track the attributes listed in Table 11-3:
Table 11-3 VRRP Tracking Parameters
Parameter Description
Number of virtual routers in master mode
on the switch
/cfg/vrrp/track/vrs
Useful for ensuring that traffic for any particular cli-
ent/server pair is handled by the same switch, increasing
routing and load-balancing efficiency. This parameter
influences the VRRP router’s priority in both virtual inter-
face routers and virtual server routers.
Number of IP interfaces active on the
switch
/cfg/vrrp/track/ifs
Helps elect the virtual routers with the most available
routes as the master. (An IP interface is considered active
when there is at least one active port on the same VLAN.)
This parameter influences the VRRP router’s priority in
both virtual interface routers and virtual server routers.
Number of active ports on the same VLAN
/cfg/vrrp/track/ports
Helps elect the virtual routers with the most available
ports as the master. This parameter influences the VRRP
router’s priority in both virtual interface routers and virtual
server routers.
Web OS 10.0 Application Guide
262 Chapter 11: High Availability 212777-A, February 2002
Each tracked parameter has a user-configurable weight associated with it. As the count associ-
ated with each tracked item increases (or decreases), so does the VRRP router’s priority, sub-
ject to the weighting associated with each tracked item. If the priority level of a backup is
greater than that of the current master, then the backup can assume the role of the master.
See “Configuring the Switch for Tracking” on page 280 for an example on how to configure
the switch for tracking VRRP priority.
Number of physical switch ports that
have active Layer 4 processing on the
switch
/cfg/vrrp/track/l4pts
Helps elect the main Layer 4 switch as the master.
This parameter influences the VRRP router's prior-
ity in both virtual interface routers and virtual server
routers.
Number of healthy real servers behind
the virtual server IP address that is the
same as the IP address of the virtual
server router on the switch
/cfg/vrrp/track/reals
Helps elect the switch with the largest server pool as
the master, increasing Layer 4 efficiency. This
parameter influences the VRRP router's priority in
virtual server routers only.
In networks where the Hot Standby
Router Protocol (HSRP) is used for
establishing router failover, the num-
ber of Layer 4 client-only ports that
receive HSRP advertisements
/cfg/vrrp/track/hsrp
Helps elect the switch closest to the master HSRP
router as the master, optimizing routing efficiency.
This parameter influences the VRRP router's prior-
ity in both virtual interface routers and virtual server
routers.
Table 11-3 VRRP Tracking Parameters
Parameter Description
Web OS 10.0 Application Guide
Chapter 11: High Availability 263
212777-A, February 2002
High Availability Configurations
Alteon Web switches offer flexibility in implementing redundant configurations. This section
discusses a few of the more useful and easily deployed configurations:
n“Active-Standby Virtual Server Router Configuration” on page 263
n“Active-Active VIR and VSR Configuration” on page 265
n“Active/Active Server Load Balancing Configuration” on page 267
n“VRRP-Based Hot-Standby Configuration” on page 275
Active-Standby Virtual Server Router Configuration
Figure 11-8 shows an example configuration where two Alteon Web switches are used as
VRRP routers in an active-standby configuration, implementing a virtual server router. Active-
standby redundancy should be used in configurations that cannot support sharing, that is, con-
figurations where incoming packets will be seen by more than one switch, such as instances
where a hub is used to connect the switches. In this configuration, when both switches are
healthy, only the master responds to packets sent to the virtual server IP address.
Figure 11-8 Active-Standby High-Availability Configuration
Although this example shows only two switches, there is no limit on the number of switches
used in a redundant configuration. It is possible to implement an active-standby configuration
across all the VRRP-capable switches in a LAN.
Each VRRP-capable switch in an active-standby configuration is autonomous. Switches in a
virtual router need not be identically configured.
Internet
Router
Router
Backup-Standby
VRID 2
VIP: 205.178.13.226
MAC address 00-00-5E-00-01-02 Server 4
RIP 1: 205.178.13.104
RIP 2: 205.178.13.108
Master-Active
VRID 2
VIP: 205.178.13.226
MAC address 00-00-5E-00-01-02
Server 3
RIP 1: 205.178.13.103
RIP 2: 205.178.13.107
Server 2
RIP 1: 205.178.13.102
RIP 2: 205.178.13.106
Server 1
RIP 1: 205.178.13.101
RIP 2: 205.178.13.105
Web Switch 1
Web Switch 2
Web OS 10.0 Application Guide
264 Chapter 11: High Availability 212777-A, February 2002
To implement the active-standby example, perform the following switch configuration:
1. Configure the appropriate Layer 2 and Layer 3 parameters on both switches.
This includes any required VLANs, IP interfaces, default gateways, and so on. If IP interfaces
are configured, none should use the virtual server IP address described in Step 4.
2. Define all filters required for your network configuration.
Filters may be configured on one switch and synchronized with settings on the other switch
(see Step 5 below).
3. Configure all required SLB parameters on Web switch 1.
For the purposes of this example, assume that Web switch 1 in Figure 11-8 is configured in this
step. Required Layer 4 parameters include a VIP = 205.178.13.226 and one real server group
with four real servers, RIP = 205.178.13.101, RIP = 205.178.13.102, RIP = 205.178.13.103,
and RIP = 205.178.13.104.
4. Configure the VRRP parameters on Web switch 1.
This configuration includes VRID = 2, VIP = 205.178.13.226 and the priority. Enable tracking
and set the parameters appropriately (refer to “Configuring the Switch for Tracking” on page
280). Make sure to disable sharing.
5. Synchronize the SLB and VRRP configurations by synchronizing the configuration from
Web switch 1 to Web switch 2.
Use the /oper/slb/synch command (see “Synchronizing Configurations” on page 282).
6. Change the real servers in the Web switch 2 configuration to RIP = 205.178.13.105,
RIP = 205.178.13.106, RIP =205.178.13.107, and RIP = 205.178.13.108.
Adjust Web switch 2’s priority (see “Configuring the Switch for Tracking” on page 280).
In this example, with Web switch 1 as the master, if a link between Web switch 1 and a server
fails, the server will fail health checks and be taken out of the load-balancing algorithm. If track-
ing is enabled and is configured to take into account the number of healthy real servers for the
Virtual Router's VIP address, Web switch 1’s priority will be reduced. If it is reduced to a value
lower than Web switch 2’s priority, then Web switch 2 will assume the role of master. In this
case, all active connections serviced by Web switch 1’s virtual server IP address are severed.
If the link between Web switch 1 and its Internet router fails, the protocol used to distribute
traffic between the routers, for example, Open Shortest Path First (OSPF), will reroute traffic
to the other router. Web switch 2 (backup) will act as a Layer 2/3 switch and forward all traffic
destined to the virtual server IP address to Web switch 1.
If the entire Web switch 1 (master) fails, the protocol used to distribute traffic between the
routers, such as OSPF, will reroute traffic to Web switch 2. Web switch 2 (backup) detects that
the master has failed because it will stop receiving advertisements. The backup then assumes
the master's responsibility of responding to ARP requests and issuing advertisements.
Web OS 10.0 Application Guide
Chapter 11: High Availability 265
212777-A, February 2002
Active-Active VIR and VSR Configuration
Figure 11-9 two Alteon Web switches are used as VRRP routers in an active-active configura-
tion implementing a virtual server router. As noted earlier, this is the preferred redundant con-
figuration.
Figure 11-9 Active-Active High-Availability Configuration
Although this example shows only two switches, there is no limit on the number of switches
used in a high availability configuration. It is possible to implement an active-active configura-
tion and perform load sharing between all of the VRRP-capable switches in a LAN.
In this configuration, when both switches are healthy, the load balanced packets are sent to the
virtual server IP address, resulting in higher capacity and performance than when the switches
are used in an active-standby configuration.
The switch on which a frame enters the virtual server router is the one that processes that
frame. The ingress switch is determined by external factors, such as routing and STP settings.
NOTE – Each VRRP-capable switch is autonomous. There is no requirement that the switches
in a virtual router be identically configured. Different switch models with different numbers of
ports and different enabled services may be used in a virtual router.
Internet
Router
Router
Backup-Active
VRID 2
VIP: 205.178.13.226
MAC address 00-00-5E-00-01-02 Server 4
RIP 1: 205.178.13.104
Master-Active
VRID 2
VIP: 205.178.13.226
MAC address 00-00-5E-00-01-02
Server 3
RIP 1: 205.178.13.103
Server 2
RIP 1: 205.178.13.102
Server 1
RIP 1: 205.178.13.101
Web Switch 1
Web Switch 2
Web OS 10.0 Application Guide
266 Chapter 11: High Availability 212777-A, February 2002
To implement this example, configure the switches as follows:
1. Configure the appropriate Layer 2 and Layer 3 parameters on both switches.
This configuration includes any required VLANs, IP interfaces, default gateways, and so on. If
IP interfaces are configured, none of them should use the VIP address described in Step 4.
2. Define all filters required for your network configuration.
Filters may be configured on one switch and synchronized with the settings on the other switch
(see Step 5, below).
3. Configure all required SLB parameters on one of the switches.
For the purposes of this example, assume that Web switch 1 (see Figure 11-9 on page 265) is
configured in this step. Required Layer 4 parameters include a VIP = 205.178.13.226 and one
real server group with two real servers, RIP = 205.178.13.101 and RIP = 205.178.13.102.
RIP = 205.178.13.103 should be configured as a backup server to RIP = 205.178.13.101.
RIP = 205.178.13.104 should be configured as a backup server to RIP = 205.178.13.102.
NOTE – In this configuration, each server’s backup is attached to the other switch. This ensures
that operation will continue if all of the servers attached to a switch fail.
4. Configure the VRRP parameters on the switch.
Configure VRID = 2, VIP address = 205.178.13.226, and priority. Be sure to enable sharing.
5. Synchronize the SLB and VRRP configurations by pushing the configuration from Web
switch 1 to Web switch 2.
Use the /oper/slb/sync command.
6. Reverse the roles of the real servers and their backups in Web switch 2’s configuration.
Configure RIP = 205.178.13.103 and RIP= 205.178.13.104 as the real servers
Configure RIP = 205.178.13.101 and RIP = 205.178.13.102 as their backups, respectively.
In this configuration, if a link between a switch and a server fails, the server will fail health
checks and its backup (attached to the other switch) will be brought online. If a link between a
switch and its Internet router fails, the protocol used to distribute traffic between the routers
(for example, OSPF) will reroute traffic to the other router. Since all traffic now enters the vir-
tual server router on one switch, that switch will process all incoming connections.
If an entire master switch fails, the backup will detect this failure because it will stop receiving
advertisements. The backup will assume the master’s responsibility of responding to ARP
requests and issuing advertisements.
Be cautious before setting the maximum connections (maxconn) metric in this configuration.
The maxcon number is not shared between switches. Therefore, if a server is used for normal
operation by one switch and is activated simultaneously as a backup by the other switch, the
total number of possible connections to that server will be the sum of the maximum connection
limits defined for it on both switches.
Web OS 10.0 Application Guide
Chapter 11: High Availability 267
212777-A, February 2002
Active/Active Server Load Balancing Configuration
In this example, you set up four virtual servers each load balancing two servers providing one
service (for example, HTTP) per virtual server.
You are load balancing HTTP, HTTPS, POP3, SMTP, and FTP. Each protocol is load balanced
via a different virtual server. You could load balance all of these services on one VIP, but in this
example, four distinct virtual servers are used to illustrate the benefits of active/active failover.
Set up one switch, dump out the configuration script (also called a text dump), edit it, and
dump the edited configuration into the peer switch.
NOTE – Configuring the switch for active-active failover should take no longer than 15 min-
utes to complete. You can use either the Web OS Browser-Based Interface (BBI) or the Com-
mand Line Interface (CLI) for configuration.
Task 1: Background Configuration
1. Define the IP interfaces.
The switch will need an IP interface for each subnet to which it will be connected so it can
communicate with devices attached to it. Each interface will need to be placed in the appropri-
ate VLAN. In our example, Interfaces 1, 2, 3, and 4 will be in VLAN 2 and Interface 5 will be
in VLAN 1.
NOTE – On Alteon Web switches, you may configure more than one subnet per VLAN.
To configure the IP interfaces for this example, enter the following commands from the CLI:
Repeat the commands for each interface listed below:
nIF 2 20.10.10.10
nIF 3 30.10.10.10
nIF 4 40.10.10.10
nIF 5 200.1.1.10
>> Main# /cfg/ip/if 1 (Select IP interface 1)
>> IP Interface 1 # addr 10.10.10.10 (Assign IP address for the interface)
>> IP Interface 1 # vlan 2 (Assign VLAN for the interface)
>> IP Interface 1 # ena (Enable IP interface 1)
Web OS 10.0 Application Guide
268 Chapter 11: High Availability 212777-A, February 2002
2. Define the VLANs.
In this configuration, set up two VLANs: One for the outside world (the ports connected to the
upstream switches, toward the routers) and one for the inside (the ports connected to the down-
stream switches, toward the servers).
Repeat this command for the second VLAN.
nVLAN 1 - IF 5—physical ports connected to upstream switches.
nVLAN 2 - IFs 1,2,3,4—physical ports connected to downstream switches.
3. Disable Spanning Tree.
4. Enable IP forwarding.
IP forwarding is enabled by default. Make sure IP forwarding is enabled if the virtual server IP
addresses and real server IP addresses are on different subnets, or if the switch is connected to
different subnets and those subnets need to communicate through the switch. If you are in
doubt as to whether or not to enable IP forwarding, enable it. In this example, the virtual server
IP addresses and real server IP addresses are on different subnets, so enable this feature using
the following command:
>> Main# /cfg/vlan <VLAN number>(Select VLAN 1)
>> vlan 1 # add <port number>(Add a port to the VLAN membership)
>> vlan 1 # ena (Enable VLAN 1)
>> Main# /cfg/stp 1 (Select the STP Group number)
>> Main# /cfg/stp/off (Disable STP)
>> Main# /cfg/stp/apply (Make your changes active)
>> Main# /cfg/ip/frwd/on (Enable IP forwarding)
Web OS 10.0 Application Guide
Chapter 11: High Availability 269
212777-A, February 2002
Task 2: SLB Configuration
1. Define the Real Servers.
The real server IP addresses are defined and put into four groups, depending on the service
they are running. Notice that RIPs 7 and 8 are on routable subnets in order to support passive
FTP. For each real server, you must assign a real server number, specify its actual IP address,
and enable the real server.
For example:
Repeat this sequence of commands for the following real servers:
nRIP 2 10.10.10.6/24
nRIP 3 20.10.10.5/24
nRIP 4 20.10.10.6/24
nRIP 5 30.10.10.5/24
nRIP 6 30.10.10.6/24
nRIP 7 200.1.1.5/24
nRIP 8 200.1.1.6/24
2. Define the real server groups, adding the appropriate real servers.
This combines the three real servers into one service group:
Repeat this sequence of commands for the following real server groups:
nGroup 2—Add RIP 3 and 4
nGroup 3—Add RIP 5 and 6
nGroup 4—Add RIP 7 and 8
>> Main# /cfg/slb/real 1 (Server A is real server 1)
>> Real server 1 # rip 10.10.10.5/24 (Assign Server A IP address)
>> Real server 1 # ena (Enable real server 1)
>> Real server 8 # /cfg/slb/group 1 (Select real server group 1)
>> Real server group 1# add 1 (Add real server 1 to group 1)
>> Real server group 1# add 2 (Add real server 2 to group 1)
Web OS 10.0 Application Guide
270 Chapter 11: High Availability 212777-A, February 2002
3. Define the virtual servers.
After defining the virtual server IP addresses and associating them with a real server group
number, you must tell the switch which IP ports/services/sockets you want to load balance on
each VIP. You can specify the service by either the port number, service name, or socket num-
ber.
Repeat this sequence of commands for the following virtual servers:
nVIP 2 200.200.200.101 will load balance HTTPS (Port 443) to Group 2
nVIP 3 200.200.200.102 will load balance POP/SMTP (Ports 110/25) to Group 3
nVIP 4 200.200.200.104 will load balance FTP (Ports 20/21) to Group 4
4. Define the client and server port states.
Defining a client port state tells that port to watch for any frames destined for the VIP and to
load balance them if they are destined for a load-balanced service. Defining a server port state
tells the port to the do the remapping (NAT) of the real server IP address back to the virtual
server IP address. Note the following:
nThe ports connected to the upstream switches (the ones connected to the routers) will need
to be in the client port state.
nThe ports connected to the downstream switches (the ones providing fan out for the serv-
ers) will need to be in the server port state.
Configure the ports, using the following sequence of commands:
>> Real server group 4 # /cfg/slb/virt 1 (Select virtual server 1)
>> Virtual server 1 # vip 200.200.200.100 (Assign a virtual server IP address)
>> Virtual Server 1 # service 80 (Assign HTTP service port 80)
>> Virtual server 1 http Service # group 1 (Associate virtual port to real group)
>> Virtual server 1 # ena (Enable the virtual server)
>> Virtual server 4# /cfg/slb/port 1 (Select physical switch port 1)
>> SLB port A1 # client ena (Enable client processing on port 1)
>> SLB port A1 # ../port 2 (Select physical switch port 2)
>> SLB port A2 # server ena (Enable server processing on port 2)
Web OS 10.0 Application Guide
Chapter 11: High Availability 271
212777-A, February 2002
Task 3: Virtual Router Redundancy Configuration
1. Configure virtual routers 2, 4, 6, and 8.
These virtual routers will have the same IP addresses as the virtual server IP address. This is
what tells the switch that these are virtual service routers (VSRs). In this example, Layer 3
bindings are left in their default configuration, which is disabled.
Configure a virtual router using the following sequence of commands:
Repeat this sequence of commands for the following virtual routers:
nVR 4 - VRID 4 - IF 5 (associate with IP interface #5)—Address 200.200.200.101
nVR 6 - VRID 6 - IF 5 (associate with IP interface #5)—Address 200.200.200.103
nVR 8 - VRID 8 - IF 5 (associate with IP interface #5)—Address 200.200.200.104
2. Configure virtual routers 1, 3, 5, and 7.
These virtual routers will act as the default gateways for the servers on each respective subnet.
Because these virtual routers are survivable next hop/default gateways, they are called virtual
interface routers (VIRs).
Configure each virtual router listed below, using the sequence of commands in Step 1.
nVR 1 - VRID 1 - IF 1 (associate with IP interface 1)—Address 10.10.10.1
nVR 3 - VRID 3 - IF 2 (associate with IP interface 2)—Address 20.10.10.1
nVR 5 - VRID 5 - IF 3 (associate with IP interface 3)—Address 30.10.10.1
nVR 7 - VRID 7 - IF 4 (associate with IP interface 4)—Address 40.10.10.1
>> Virtual server 4 # /cfg/vrrp/vr 2 (Select virtual router 2)
>> Virtual router 2 vrid 2 (Set virtual router ID)
>> Virtual router 2 addr 200.200.200.100 (Assign virtual router IP address)
>> Virtual router 2 if 5 (Assign virtual router interface)
>> Virtual router 2 ena (Enable virtual router 2)
Web OS 10.0 Application Guide
272 Chapter 11: High Availability 212777-A, February 2002
3. Set the renter priority for each virtual router.
Since you want Switch 1 to be the master router, you need to bump the default virtual router
priorities (which are 100 to 101 on virtual routers 1-4) to force switch 1 to be the master for
these virtual routers.
Use the following sequence of commands:
Apply this sequence of commands to the following virtual routers, assigning each a priority of
101:
nVR 2 - Priority 101
nVR 3 - Priority 101
nVR 4 - Priority 101
4. Configure priority tracking parameters for each virtual router.
For this example, the best parameter(s) on which to track is Layer 4 ports (l4pts).
Use the following command:
This command sets the priority tracking parameter for virtual router 1, electing the virtual
router with the most available ports as the master router. Repeat this command for the follow-
ing virtual routers:
nVR 2 - Track l4pts VR 6 - Track l4pts
nVR 3 - Track l4pts VR 7 - Track l4pts
nVR 4 - Track l4pts VR 8 - Track l4pts
Switch 1 configuration is complete.
>> Virtual server 4 # /cfg/vrrp/vr 1 (Select virtual router 1)
>> Virtual router 1 prio 101 (Set virtual router priority)
>> Virtual server 4# /cfg/vrrp/vr 1/track l4pts
Web OS 10.0 Application Guide
Chapter 11: High Availability 273
212777-A, February 2002
Task 4: Configuring Switch 2
Use the following procedure to dump the configuration script (text dump) out of Switch 1:
nUsing the Browser Based Interface (BBI)
(a) You need a serial cable that is a DB-9 Male to DB-9 Female, straight-through (not a
null modem) cable.
(b) Connect the cable from a COM port on your computer to the console port on switch 1.
(c) Open HyperTerminal (or the terminal program of your choice) and connect to the
switch using the following parameters: Baud: 9600, Data Bits: 8, Parity: None, Stop
Bits:1, Flow Control: None.
nUsing HyperTerminal
(a) Only the Baud Rate and Flow Control options need to be changed from the default set-
tings.
(b) Once you connect to the switch, start logging your session in HyperTerminal (trans-
fer/capture text).
(c) Save the file as “Customer Name” Switch 1, then type the following command in the
switch command line interface:
/cfg/dump
A script will be dumped out.
(d) Stop logging your session (transfer/capture text/stop).
Modify the script as follows:
1. Open the text file that you just created and change the following:
nDelete anything above “Script Start.”
nDelete the two lines directly below “Script Start.” These two lines identify the switch from
which the dump was taken and the date and time. If these two lines are left in, it will con-
fuse Web switch 2 when you dump in the file.
nChange the last octet in all the IP interfaces from .10 to .11. Find this in line:
/cfg/ip/if 1/addr 10.10.10.10. Simply delete the “0” and put in a “1.” Be
sure to do this for all the IP interfaces, otherwise, you will have duplicate IP addresses in
the network.
2. Change the virtual router priorities.
Virtual routers 1–4 need to have their priority set to 100 from 101, and virtual routers 5-7 need
to have their priorities set to 101 from 100. You can find this in line /cfg/vrrp/vr
1/vrid 1/if 1/prio 101.
Web OS 10.0 Application Guide
274 Chapter 11: High Availability 212777-A, February 2002
3. Scroll to the bottom of the text file and delete anything past “Script End.”
4. Save the changes to the text file as “Customer Name” Switch 2.
Move your serial cable to the console port on the second switch. Any configuration on it needs
to be deleted by resetting it to factory settings, using the following command:
You can tell if the switch is at factory default when you log on because the switch will prompt
you if you want to use the step-by-step configuration process. When it does, respond: “No.”
5. In HyperTerminal, go to transfer/send text file and send the Switch 2 text file. The configu-
ration will dump into the switch. Simply type apply, then save. When you can type charac-
ters in the terminal session again, reboot the switch (/boot/reset).
>> Main# /boot/conf factory/reset
Web OS 10.0 Application Guide
Chapter 11: High Availability 275
212777-A, February 2002
VRRP-Based Hot-Standby Configuration
A hot-standby configuration allows all processes to failover to a backup switch if any type of
failure should occur. The primary application for hot-standby redundancy is to avoid bridging
loops when using the Spanning Tree Protocol (STP), IEEE 802.1d. VRRP-based hot-standby
supports the default Spanning Tree only. It does not support multiple Spanning Trees.
Figure 11-10 shows a classic network topology, designed with redundancy in mind. This topol-
ogy contains bridging loops that would require the use of STP. In the typical network, STP
failover time is 45-50 seconds, much longer than the typical failover rate using VRRP only.
NOTE – To use hot-standby redundancy, peer switches must have an equal number of ports.
Figure 11-10 Hot-Standby Configuration
NOTE – In complex networks, STP convergence time can be much higher than 45-50 seconds.
If VRRP was used in this configuration, it would require STP. An important factor to consider is
that the switch would be affected by the slower failover time of STP even if VRRP were in use.
While VRRP can be used without STP in this scenario, doing so would involve a more com-
plex network configuration, requiring multiple subnets and/or VLANs and enabling IP for-
warding to route between them.
Legend
1. L4 ports are configured as Hot-Standby.
2. Crosslink is configured as Interswitch link.
Active
Side
Servers
C H C H
Hub
7
Clients
7
1S H
33
Interswitch link
Standby
Side
Hub
S H
1
Web OS 10.0 Application Guide
276 Chapter 11: High Availability 212777-A, February 2002
By reducing complexity to a single subnet and not requiring routing (L3), hot-standby can be
used. The key to hot-standby is that the interswitch link (the link between switches), does NOT
participate in STP, so there are no loops in the topology (see Figure 11-10). STP does not need to
be enabled, and the switch will have failover times similar to what would be the case with VRRP.
Configuration Procedure
Configuration takes place after configuring SLB and VRRP with STP enabled:
1. From the SLB menu, enable a hot-standby link on the Layer 4 ports; then enable inter-
switch link on the crosslink.
2. From the VRRP menu, enable VRRP group mode; then enable hot-standby.
3. Sync the VRRP, SLB, and filter settings to the other switch (same ports).
NOTE – Switches peering with each other must have an equal number of ports.
4. Turn off STP after verifying that the network is stable.
NOTE – You must reboot the switch for the hot-standby configuration to take effect.
>> Main# /cfg/slb/port 1 (Select port 1)
>> SLB Port 1# server ena (Enable the server)
>> SLB Port 1# hotstan ena (Enable hot standby)
>> SLB Port 1# ../port 3 (Select port 3)
>> SLB Port 3# intersw ena (Enable inter-switch processing)
>> SLB Port 3# ../port 7 (Select port 7)
>> SLB Port 7# client ena (Enable the client)
>> SLB Port 7# hotstan ena (Enable hot standby)
>> Main# /cfg/vrrp/on (Enable VRRP)
>> VRRP# hotstan ena (Enable hot standby)
>> VRRP# group ena (Enable VR group)
>> Main# /oper/slb/sync
>> Main# /cfg/stp 1/off (Disable STP group)
>> Spanning Tree Group 1# save (Enable hot standby)
>> Main# /boot/reset (Reset the switch)
Web OS 10.0 Application Guide
Chapter 11: High Availability 277
212777-A, February 2002
Virtual Router Deployment Considerations
Review the following issues described in this section to prevent network problems when
deploying virtual routers:
n Mixing Active-Standby and Active-Active Virtual Routers
n Synchronizing Active/Active Failover
n Eliminating Loops with STP and VLANs
n Assigning VRRP Virtual Router ID
n Configuring the Switch for Tracking
n Synchronizing Configurations
Mixing Active-Standby and Active-Active Virtual Routers
If the network environment can support sharing, enable it for all virtual routers in the LAN. If
not, use active-standby for all virtual routers. Do not mix active-active and active-standby vir-
tual routers in a LAN. Mixed configurations have not been tested, may result in unexpected
operational characteristics, and, therefore, are not recommended.
Synchronizing Active/Active Failover
The hot-standby failover required the primary and secondary switches to have identical config-
urations and port topology. With VRRP and active/active failover, this is optional. Each switch
can be configured individually with different port topology, SLB, and filters. If you would
rather force two active/active switches to use identical settings, you can synchronize their con-
figuration using the following command:
/oper/slb/synch
The sync command copies the following settings to the switch at the specified IP interface
address:
nVRRP settings
nSLB settings (including port settings)
nFilter settings (including filter port settings)
nProxy IP settings
If you perform the sync command, you should check the configuration on the target switch to
ensure that the settings are correct.
For more information on synchronizing configurations between two switches, see “Synchro-
nizing Configurations” on page 282.
Web OS 10.0 Application Guide
278 Chapter 11: High Availability 212777-A, February 2002
Eliminating Loops with STP and VLANs
VRRP active/active failover is significantly different from the hot-standby failover method
supported in previous releases. As shown in Figure 11-11, active-active configurations can
introduce loops into complex LAN topologies.
Figure 11-11 Loops in Active-Active Configuration
Internet
Router
Router Web Switch
Web Switch
Server
Server
Bridging Loop
Web OS 10.0 Application Guide
Chapter 11: High Availability 279
212777-A, February 2002
Using Spanning Tree Protocol to Eliminate Loops
VRRP generally requires Spanning Tree Protocol (STP) to be enabled in order to resolve
bridge loops that usually occur in cross-redundant topologies, as shown in Figure 11-12. In this
example, a number of loops are wired into the topology. STP resolves loops by blocking ports
where looping is detected.
Figure 11-12 Cross-Redundancy Creates Loops, But STP Resolves Them
One drawback to using STP with VRRP is the failover response time. STP could take as long
as 45 seconds to re-establish alternate routes after a switch or link failure.
Using VLANs to Eliminate Loops
When using VRRP, you can decrease failover response time by using VLANs instead of STP
to separate traffic into non-looping broadcast domains. An example is shown in Figure 11-13:
Figure 11-13 Using VLANs to Create Non-Looping Topologies
This topology allows STP to be disabled. On the Alteon Web switches, IP routing allows traf-
fic to cross VLAN boundaries. The servers use the Alteon Web switches as default gateways.
For port failure, traffic is rerouted to the alternate path within one health check interval (con-
figurable between 1 and 60 seconds, with a default of 2 seconds).
Routers Alteon Web Switches Switches Servers
Internet
is for switch-to-switch
and external routing
groups the first sub-
switch with the Alteon
Web Switches
groups the second
sub- switch with the
Alteon Web switches
VLAN 1
VLAN 2
VLAN 3
Routers Alteon Web Switches Switches Servers
Internet
Web OS 10.0 Application Guide
280 Chapter 11: High Availability 212777-A, February 2002
Assigning VRRP Virtual Router ID
During the software upgrade process, VRRP virtual router IDs will be automatically assigned
if failover is enabled on the switch. When configuring virtual routers at any point after
upgrade, virtual router ID numbers (/cfg/vrrp/vr #/vrid) must be assigned. The virtual
router ID may be configured as any number between 1 and 255.
Configuring the Switch for Tracking
Tracking configuration largely depends on user preferences and network environment. Con-
sider the configuration shown in Figure 11-8 on page 263. Assume that the user wants the fol-
lowing behavior on the network:
nWeb switch 1 is the master router upon initialization.
nIf Web switch 1 is the master and it has one active server fewer than Web switch 2, it
remains the master.
nThe user wants this behavior because running one server down is less disruptive than
bringing a new master online and severing all active connections in the process.
nIf Web switch 1 is the master and it has two or more active servers fewer than Web switch
2, then Web switch 2 becomes the master.
nIf Web switch 2 is the master, it remains the master even if servers are restored on Web
switch 1 such that it has one fewer or an equal number of servers.
nIf Web switch 2 is the master and it has one active server fewer than Web switch 1, then
Web switch 1 becomes the master.
The user can implement this behavior by configuring the switch for tracking as follows:
1. Set the priority for Web switch 1 to the default value of 100.
2. Set the priority for Web switch 2 to 96.
3. On both switches, enable tracking based on the number of virtual routers in master mode
on the switch and set the value = 5.
4. On both switches, enable tracking based on the number of healthy real servers behind
the VIP address that is the same as the IP address of the virtual server router on the
switch and set the value = 6.
Initially, Web switch 1 (Figure 11-8) will have a priority of 100 (base value) + 5 (since it will
initially be the master) + 24 (4 active real servers x 6 per real server) = 129. Web switch 2 will
have a priority of 96 (base value) + 24 (4 active real servers X 6 per real server) = 120.
Web OS 10.0 Application Guide
Chapter 11: High Availability 281
212777-A, February 2002
If one server attached to Web switch 1 fails, then Web switch 1’s priority will be reduced by 6
to 123. Since 123 is greater than 120 (Web switch 2’s priority), Web switch 1 will remain the
master.
If a second server attached to Web switch 1 fails, then Web switch 1’s priority will be reduced
by 6 more to 117. Since 117 is less than 120 (Web switch 2’s priority), then Web switch 2 will
become the Master. At this point, Web switch 1’s priority will fall by 5 more and Web switch
2's will rise by 5 because the switches are tracking how many Masters they are running. So,
Web switch 1's priority will settle out at 112 and Web switch 2's priority at 125.
When both servers are restored to Web switch 1, that switch's priority will rise by 12 (2 healthy
real servers X 6 per healthy server) to 124. Since 124 is less than 125, Web switch 2 will
remain the master.
If, at this point, a server fails on Web switch 2, its priority will fall by 6 to 119. Since 119 is less
than 124, Web switch 1 will become the Master. Its priority will settle out at 129 (since it's now
the master) while Web switch 2’s priority will drop by 5 more to 114.
As you can see from this example, the user's goals were met by the configured tracking param-
eters.
NOTE – There is no shortcut to setting tracking parameters. The goals must first be set and the
outcomes of various configurations and scenarios analyzed to find settings that meet the goals.
Web OS 10.0 Application Guide
282 Chapter 11: High Availability 212777-A, February 2002
Synchronizing Configurations
As noted above, each VRRP-capable switch is autonomous. Switches in a virtual router need
not be identically configured. As a result, configurations cannot be synchronized automatically.
For user convenience, it is possible to synchronize a configuration from one VRRP-capable
switch to another using the /oper/slb/sync command. However, care must be taken
when using this command to avoid unexpected results. All server load balancing, port configu-
rations, filter configurations, and VRRP parameters can be synchronized using the
/oper/slb/synch command.
NOTE – Before you synchronize the configuration between two switches, a peer must be con-
figured on each switch. Switches being synchronized must use the same administrator pass-
word.
Configure the two switches as peers to each other. From Switch 1, configure Switch 2 as a peer
and specify its IP address as follows:
Similarly, from switch #2, configure switch # 1 as a peer and specify its IP address as follows:
Port specific parameters, such as what filters are applied and enabled on what ports, are part of
what is pushed by the /oper/slb/synch command. Thus, if the /oper/slb/synch
command is used, it is highly recommended that the hardware configurations and network con-
nections of all switches in the virtual router be identical; that is, each switch should be the
same model, have the same line cards in the same slots (if modular) and have the same ports
connected to the same external network devices. Otherwise, unexpected results may occur
when the /oper/slb/synch command attempts to configure a non-existent port or applies
an inappropriate configuration to a port.
>> Main # /cfg/slb/sync (Select the synchronization menu)
>> Config Synchronization # peer 1 (Select a peer)
>> Peer Switch 1 # addr <ip address>(Assign switch 2 IP address)
>> Peer Switch 1 # enable (Enable peer switch)
>> Main # /cfg/slb/sync (Select the synchronization menu)
>> Config Synchronization # peer 2 (Select a peer)
>> Peer Switch 2 # addr <ip address>(Assign switch 1 IP address)
>> Peer Switch 2 # enable (Enable peer switch)
Web OS 10.0 Application Guide
Chapter 11: High Availability 283
212777-A, February 2002
Stateful Failover of Layer 4 and Layer 7
Persistent Sessions
Web OS provides stateful failover of content-intelligent persistent session state and Layer 7
persistent session state. This includes the following:
nSSL session state
nHTTP cookie state
nLayer 4 persistent
nFTP session state
Providing stateful failover enables network administrators to mirror their Layer 7 and Layer 4
persistent transactional state on the peer switch.
NOTE – Stateful failover does not synchronize all sessions, except persistent sessions. Make
sure Direct Access Mode (DAM) is enabled when you configure stateful failover for Layer 7
persistency (for example: SSL session ID persistence-based server load balancing, URL and
cookie-based server load balancing).
To provide stateful failover, the state of the connection and session table must be shared
between the switches in high-availability configurations. With Virtual Matrix Architecture
(VMA) enabled, all URL and cookie-parsing information is stored in the session table on port
9. Sharing this information between switches is necessary to ensure the persistent session goes
back to the same server.
NOTE – Stateful failover is only supported in active-standby mode with VMA enabled.
Web OS 10.0 Application Guide
284 Chapter 11: High Availability 212777-A, February 2002
What Happens When a Switch Fails
Assume that the user performing an e-commerce transaction has selected a number of items
and placed them in the shopping cart. The user has already established a persistent session on
the top server in Figure 11-14. The user then clicks the Submit button to purchase the items.
At this time, the active switch fails. With stateful failover, the following sequence of events
occurs:
1. The backup switch (Switch 2) becomes active.
2. The incoming request is redirected to Switch 2.
3. When the user clicks Submit again, the request is forwarded to the correct server.
Even though Switch 1 has failed, the stateful failover feature prevents the client from having to
re-establish a secure session. The server that stores the secure session now returns a response
to the client via Switch 2.
Figure 11-14 Stateful Failover Example when the Master Switch Fails
Router
Web Switch 1
Failed
Layer 2
Switch
Servers
Web Switch 2
Active
IP: A
IP: B
Internet
Traffic is redirected
to Switch 2
Clients
Web OS 10.0 Application Guide
Chapter 11: High Availability 285
212777-A, February 2002
Stateful Failover Configuration Example
After the VRRP setup, perform the following additional steps to enable stateful failover on the
switches.
On the Master Switch
1. Enable stateful failover.
2. Set the update interval.
On the Backup Switch
1. Turn on stateful failover.
2. Set the update interval.
NOTE – The update does not have to be the same for both switches. Stateful failover supports
up to two peer switches. Repeat the steps mentioned above to enable stateful failover on all the
peer switches.
>> # /cfg/slb/sync/state ena
>> # /cfg/slb/sync/update 10 (The default is 30)
>> # /cfg/slb/sync/state ena
>> # /cfg/slb/sync/update 10 (The default is 30)
Web OS 10.0 Application Guide
286 Chapter 11: High Availability 212777-A, February 2002
Viewing Statistics on Persistent Port Sessions
You can view statistics on persistent port sessions using the /stats/slb/ssl command.
To determine which switch is the master and which is the backup, use the /info/vrrp
command.
If the switch is a master:
If the switch is a backup:
>> # /info/vrrp (View VRRP Information)
VRRP information:
1: vrid 1, 172.21.16.187, if 4, renter, prio 109, master,
server
3: vrid 3, 192.168.1.30, if 2, renter, prio 109, master
5: vrid 5, 172.21.16.10, if 4, renter, prio 109, master
>> # /info/vrrp (View VRRP Information)
VRRP information:
1: vrid 1, 172.21.16.187, if 1, renter, prio 104, backup,
server
3: vrid 3, 192.168.1.30, if 3, renter, prio 104, backup
5: vrid 5, 172.21.16.10, if 1, renter, prio 104, backup
212777-A, February 2002 287
Part 3: Advanced Web
Switching
Web OS can parse requests and classify flows using URLs, host tags, and cookies so that each
request can be isolated and treated intelligently. This section describes the following advanced
Web switching applications:
nGlobal Server Load Balancing
nFirewall Load Balancing
nVirtual Private Network Load Balancing
nContent Intelligent Switching
nPersistence
nBandwidth Management
Web OS 10.0 Application Guide
288 Advanced Web Switching 212777-A, February 2002
212777-A, February 2002 289
CHAPTER 12
Global Server Load Balancing
This chapter provides information for configuring Global Server Load Balancing (GSLB)
across multiple geographic sites. The following topics are covered:
n“GSLB Overview” on page 290
n“Configuring GSLB” on page 293
n“IP Proxy for Non-HTTP Redirects” on page 304
n“Verifying GSLB Operation” on page 308
n“Configuring Client Site Preferences” on page 308
n“Using Border Gateway Protocol for GSLB” on page 312
Web OS 10.0 Application Guide
290 Chapter 12: Global Server Load Balancing 212777-A, February 2002
GSLB Overview
GSLB allows balancing server traffic load across multiple physical sites. The Alteon GSLB
implementation takes into account an individual site’s health, response time, and geographic
location to smoothly integrate the resources of the dispersed server sites for complete global
performance.
Benefits
GSLB meets the following demands for distributed network services:
nHigh content availability is achieved through distributed content and distributed decision
making. If one site becomes disabled, the others become aware of it and take up the load.
nThere is no latency during client connection set up. Instant site hand-off decisions can be
made by any distributed switch.
nThe best performing sites receive a majority of traffic over a given period of time but are
not overwhelmed.
nSwitches at different sites regularly exchange information through the Distributed Site
State Protocol (DSSP), and can trigger exchanges when any site’s health status changes.
This ensures that each active site has valid state knowledge and statistics.
nGSLB implementation takes geography as well as network topology into account.
nCreative control is given to the network administrator or Webmaster to build and control
content by user, location, target application, and more.
nGSLB is easy to deploy, manage, and scale. Switch configuration is straightforward. There
are no complex system topologies involving routers, protocols, and so forth.
nFlexible design options are provided.
nAll IP protocols are supported.
Compatibility with Other Web OS Features
nURL-based server load balancing is compatible with GSLB.
nCookie-based persistence is compatible with GSLB: cookie rewrite and cookie insert
modes.
Web OS 10.0 Application Guide
Chapter 12: Global Server Load Balancing 291
212777-A, February 2002
How GSLB Works
GSLB is based on the Domain Name System (DNS) and proximity by source IP address. In the
example in Figure 12-1, a client is using a browser to view the Web site for the Foo Corporation
at “www.foocorp.com.” The Foo Corporation has two Web sites: one in California, and one in
Denver, each with identical content and available services. Both Web sites have an Alteon Web
switch configured for GSLB. These switches are also configured as the Authoritative Name
Servers for “www.foocorp.com.”
Figure 12-1 DNS Resolution with Global Server Load Balancing
The DNS resolution for GSLB is described in detail in the following procedure:
1. The client Web browser requests the “www.foocorp.com” IP address from the local DNS.
2. Client’s DNS asks its upstream DNS, which in turn asks the next, and so on, until the
address is resolved.
Eventually, the request reaches an upstream DNS server that has the requested IP address
information on hand or the request reaches one of the Foo Corporation’s DNS servers.
3. The Foo Corporation’s California DNS has been configured to use the local Web switch
with GSLB software as the authoritative name server for “www.foocorp.com.”
Internet
Foo Corp. California Foo Corp. Denver
Client Site
DNS
DNS
Web
Servers
Web
Servers
DNS
Switches regularly exchange performance information
Web SwitchWeb Switch
Best Service!
4
3
2
15
DNS response
lists best site's
IP address first
DNS
Request HTTP
Request
Web OS 10.0 Application Guide
292 Chapter 12: Global Server Load Balancing 212777-A, February 2002
4. The California Web switch responds to the DNS request, listing the IP address with the
current best service.
Each switch with GSLB software is capable of responding to the client’s name resolution
request. Since each switch regularly checks and communicates health and performance infor-
mation with its peers, either switch can determine which site(s) are best able to serve the cli-
ent’s Web access needs. It can respond with a list of IP addresses for the Foo Corporation’s
distributed sites, which are prioritized by performance, geography, and other criteria.
In this case, the California Web switch knows that Foo Corp. Denver currently provides better
service, and lists Foo Corp. Denver’s virtual server IP address first when responding to the
DNS request.
5. The client connects to Foo Corp. Denver for the best service.
The client’s Web browser will use the IP address information obtained from the DNS request
to open a connection to the best available site. The IP addresses represent virtual servers at any
site, which are locally load balanced according to regular SLB configuration.
If the site serving the client HTTP content suddenly experiences a failure (no healthy real serv-
ers) or becomes overloaded with traffic (all real servers reach their maximum connection
limit), the switch issues an HTTP Redirect and transparently causes the client to connect to
another peer site.
The end result is that the client gets quick, reliable service with no latency and no special cli-
ent-side configuration.
Web OS 10.0 Application Guide
Chapter 12: Global Server Load Balancing 293
212777-A, February 2002
Configuring GSLB
Configuring GSLB is simply an extension of the configuration procedure for SLB. The process
is summarized as follows:
nUse the administrator login to connect to the switch you want to configure.
nActivate SLB and GSLB software keys. See the Web OS Command Reference for details.
nConfigure the switch at each site with basic attributes.
Configure the switch IP interface.
Configure the default gateways.
nConfigure the switch at each site to act as the DNS server for each service that is hosted on
its virtual servers. Also, configure the local DNS server to recognize the switch as the
authoritative DNS server for the hosted services.
nConfigure the switch at each site for local SLB.
Define each local real server.
Group local real servers into real server groups.
Define the local virtual server with its IP address, services, and real server groups.
Define the switch port states.
Enable SLB.
nFinally, configure each switch so that it recognizes its remote peers.
Configure a remote real server entry on each switch for each remote service.
Add the remote real server entry to an appropriate real server group.
Enable GSLB.
Web OS 10.0 Application Guide
294 Chapter 12: Global Server Load Balancing 212777-A, February 2002
Example GSLB Topology
Consider the following example network:
Figure 12-2 GSLB Topology Example
In the following examples, many of the options are left to their default values. See “Additional
Server Load Balancing Options” on page 128 for more options.
GSLB Requirements
The following is required prior to configuration:
nYou must be connected to the switch Command Line Interface (CLI) as the administrator.
nBoth of the following optional software keys must be activated:
SLB
GSLB
NOTE – For details about any of the processes or menu commands described in this example,
see the Web OS Command Reference.
Internet
California Site Denver Site
200.200.200.X Network 174.14.70.X Network
Web Servers:
200.200.200.2
200.200.200.3
Web Servers:
174.14.70.2
174.14.70.3
Web Switch
A
BC
D
IP Interface:
200.200.200.100
Virtual Server:
200.200.200.1
Web Switch
IP Interface:
174.14.70.100
Virtual Server:
174.14.70.1
DNS Server:
200.200.200.102 DNS Server:
174.14.70.102
Default Gateway:
200.200.200.101 Default Gateway:
174.14.70.101
Web OS 10.0 Application Guide
Chapter 12: Global Server Load Balancing 295
212777-A, February 2002
Task 1: Configure the Basics at the California Site
1. If the Browser-Based Interface (BBI) is to be used for managing the California switch,
change its service port.
GSLB uses service port 80 on the IP interface for DSSP updates. By default, the Web OS
Browser-Based Interface (BBI) also uses port 80. Both services cannot use the same port. If the
BBI is enabled (see the /cfg/sys/http command in Chapter 7 of the Web OS Command
Reference), configure it to use a different port.
For example, enter the following command to change the BBI port to 8080:
2. On the California switch, define an IP interface.
The switch IP interface responds when asked to resolve client DNS requests. The IP interface
must have an IP route to the local real servers. The switch uses this path to determine if the real
servers can be reached via TCP/IP.
To configure an IP interface for this example, enter these commands from the CLI:
NOTE – This example assumes that all ports and IP interfaces use default VLAN 1, requiring
no special VLAN configuration for the ports or IP interface.
3. On the California switch, define the default gateway.
The router at the edge of the site acts as the default gateway to the Internet. To configure the
default gateway for this example, enter these commands from the CLI:
4. Configure the local DNS server to recognize the local GSLB switch as the authoritative
name server for the hosted services.
Determine the domain name that will be distributed to both sites and the host name for each
distributed service. In this example, the California DNS server is configured to recognize
200.200.200.100 (the IP interface of the California GSLB switch) as the authoritative name
server for “www.foocorp.com.”
>> # /cfg/sys (Select the System menu)
>> System# wport 8080 (Set service port 8080 for BBI)
>> System# /cfg/ip/if 1 (Select IP interface 1)
>> IP Interface 1# addr 200.200.200.100 (Assign IP address for the interface)
>> IP Interface 1# ena (Enable IP interface 1)
>> IP Interface 1# ../gw 1 (Select default gateway 1)
>> Default gateway 1# addr 200.200.200.101(Assign IP address for the gateway)
>> Default gateway 1# ena (Enable default gateway 1)
Web OS 10.0 Application Guide
296 Chapter 12: Global Server Load Balancing 212777-A, February 2002
Task 2: Configure the California Switch for Standard SLB
1. Assign an IP address to each of the real servers in the local California server pool.
The real servers in any real server group must have an IP route to the switch that will perform
the SLB functions. This is most easily accomplished by placing the switches and servers on the
same IP subnet, although advanced routing techniques can be used as long as they do not vio-
late the topology rules outlined in “Network Topology Requirements” on page 122.
For this example, the host real servers have IP addresses on the same IP subnet:
2. On the California switch, define each local real server.
For each local real server, you must assign a real server number, specify its actual IP address,
and enable the real server. For example:
3. On the California switch, define a real server group.
Combine the real servers into one service group and set the necessary health checking parame-
ters. In this example, HTTP health checking is used to ensure that Web content is being served.
If the index.html file is not accessible on a real server during health checks, the real server
will be marked as down.
Table 12-1 GSLB Example: California Real Server IP Addresses
Real Server IP address
Server A 200.200.200.2
Server B 200.200.200.3
>> Default gateway 1# /cfg/slb/real 1 (Server A is real server 1)
>> Real server 1# rip 200.200.200.2 (Assign IP address to server A)
>> Real server 1# ena (Enable real server 1)
>> Real server 1# ../real 2 (Server B is real server 2)
>> Real server 2# rip 200.200.200.3 (Assign IP address to server B)
>> Real server 2# ena (Enable real server 2)
>> Real server 2# ../group 1 (Select real server group 1)
>> Real server group 1# add 1 (Add real server 1 to group 1)
>> Real server group 1# add 2 (Add real server 2 to group 1)
>> Real server group 1# health http (Use HTTP for health checks)
>> Real server group 1# content index.html (Set URL content for health checks)
Web OS 10.0 Application Guide
Chapter 12: Global Server Load Balancing 297
212777-A, February 2002
4. On the California switch, define a virtual server.
All client requests will be addressed to a virtual server IP address defined on the switch. Cli-
ents acquire the virtual server IP address through normal DNS resolution. HTTP uses well-
known TCP port 80. In this example, HTTP is configured as the only service running on this
virtual server IP address and, is associated with the real server group. For example:
NOTE – This configuration is not limited to HTTP services. For a list of other well-known
TCP/IP services and ports, see Table 6-3 on page 128.
5. On the California switch, define the type of Layer 4 traffic processing each port must
support.
In this example, the following ports are being used on the Web switch:
The ports are configured as follows:
6. On the California switch, enable SLB.
>> Real server group 1# ../virt 1 (Select virtual server 1)
>> Virtual server 1# vip 200.200.200.1 (Assign a virtual server IP address)
>> Virtual Server 1# service 80
>> Virtual server 1 http Service# group 1 (Associate virtual port to real group)
>> Virtual server 1 http Service# ../ena (Enable virtual server)
Table 12-2 GSLB Example: California Alteon 180 Port Usage
Port Host Layer 4 Processing
1 Server A Server
2 Server B Server
6 Default Gateway Router. This connects the switch to the Internet
where all client requests originate.
Client
>> Virtual server 1# /cfg/slb/port 1 (Select physical switch port 1)
>> SLB port 1# server ena (Enable server processing on port 1)
>> SLB port 1# ../port 2 (Select physical switch port 2)
>> SLB port 2# server ena (Enable server processing on port 2)
>> SLB port 2# ../port 6 (Select physical switch port 6)
>> SLB port 6# client ena (Enable client processing on port 6)
>> SLB port 6# /cfg/slb (Select the SLB Menu)
>> Layer 4# on (Turn SLB on)
Web OS 10.0 Application Guide
298 Chapter 12: Global Server Load Balancing 212777-A, February 2002
Task 3: Configure the California Site for GSLB
1. On the California switch, define each remote site.
When you start configuring at the California site, California is local and Denver is remote. Add
and enable the remote switch’s IP address interface. In this example, there is only one remote
site: Denver, with an IP interface address of 174.14.70.100. The following commands are used:
Each additional remote site would be configured in the same manner. You can enable up to 64
remote sites with a total aggregate of 2048 service/site combinations.
2. On the California switch, assign each remote distributed service to a local virtual server.
Configure the local California site to recognize the services offered at the remote Denver site.
To do this, configure one real server entry on the California switch for each virtual server
located at each remote site. Since there is only one remote site (Denver) with only one virtual
server, only one more local real server entry is needed at the California site.
The new real server entry is configured with the IP address of the remote virtual server rather
than the usual IP address of a local physical server. Do not confuse this value with the IP inter-
face address on the remote switch.
Also, the remote parameter is enabled, and the real server entry is added to the real server
group under the local virtual server for the intended service. Finally, since the real server health
checks are performed across the Internet, the health-checking interval should be increased to
30 or 60 seconds to avoid generating excess traffic. For example:
NOTE – Take care to note where each configured value originates or this step can result in
improper configuration.
>> Layer 4# gslb/site 1 (Select remote site 1)
>> Remote site 1# prima 174.14.70.100 (Define remote interface)
>> Remote site 1# ena (Enable remote site 1)
>> Remote site 1# /cfg/slb/real 3 (Create an entry for real server 3)
>> Real server 3# rip 174.14.70.1 (Set remote virtual server IP address)
>> Real server 3# remote enable (Define the real server as remote)
>> Real server 3# inter 60 (Set a high health check interval)
>> Real server 3# ena (Enable the real server entry)
>> Real server 3# ../group 1 (Select appropriate real server group)
>> Real server group 1# add 3 (Add real server 3 to the group 1)
Web OS 10.0 Application Guide
Chapter 12: Global Server Load Balancing 299
212777-A, February 2002
3. On the California switch, define the domain name and host name for each service hosted
on each virtual server.
In this example, the domain name for the Foo Corporation is “foocorp.com,” and the host
name for the only service (HTTP) is “www.” These values are configured as follows:
To define other services (such as FTP), make additional hostname entries.
4. On the California switch, turn on GSLB.
5. Apply and verify the configuration.
Examine the resulting information. If any settings are incorrect, make and apply any appropri-
ate changes, and then check again.
6. Save your new configuration changes.
Task 4: Configure the Basics at the Denver Site
Following the same procedure described for California (see “Example GSLB Topology” on
page 294), configure the Denver site as follows:
1. If the Web OS BBI is to be used for managing the Denver switch, change its service port.
>> Real server group 1# ../virt 1 (Select virtual server 1)
>> Virtual server 1# dname foocorp.com (Define domain name)
>> Virtual server 1# service 80/hname www (Define HTTP host name)
>> Virtual server 1# ../gslb (Select the GSLB Menu)
>> Global SLB# on (Activate GSLB for the switch)
>> Global SLB# apply (Make your changes active)
>> Global SLB# cur (View current GSLB settings)
>> Global SLB# /cfg/slb/cur (View current SLB settings)
>> Layer 4# save (Save for restore after reboot)
>> # /cfg/sys (Select the System menu)
>> System# wport 8080 (Set service port 8080 for BBI)
Web OS 10.0 Application Guide
300 Chapter 12: Global Server Load Balancing 212777-A, February 2002
2. On the Denver switch, define an IP interface.
3. On the Denver switch, define the default gateway.
4. Configure the local DNS server to recognize the local GSLB switch as the authoritative
name server for the hosted services.
The Denver DNS server is configured to recognize 174.14.70.100 (the IP interface of the Den-
ver GSLB switch) as the authoritative name server for “www.foocorp.com.”
Task 5: Configure the Denver Switch for Standard SLB
1. Assign an IP address to each of the real servers in the local Denver server pool.
2. On the Denver switch, define each local real server.
>> # /cfg/ip/if 1 (Select IP interface 1)
>> IP Interface 1# addr 174.14.70.100 (Assign IP address for the interface)
>> IP Interface 1# ena (Enable IP interface 1)
>> IP Interface 1# ../gw 1 (Select default gateway 1)
>> Default gateway 1# addr 174.14.70.101 (Assign IP address for the gateway)
>> Default gateway 1# ena (Enable default gateway 1)
Table 12-3 Denver Real Server IP Addresses
Real Server IP address
Server C 179.14.70.2
Server D 179.14.70.2
>> Default gateway 1# /cfg/slb/real 1 (Server C is real server 1)
>> Real server 1# rip 179.14.70.2 (Assign IP address for Server C)
>> Real server 1# ena (Enable real server 1)
>> Real server 1# ../real 2 (Server D is real server 2)
>> Real server 2# rip 179.14.70.3 (Assign IP address for Server D)
>> Real server 2# ena (Enable real server 2)
Web OS 10.0 Application Guide
Chapter 12: Global Server Load Balancing 301
212777-A, February 2002
3. On the Denver switch, define a real server group.
4. On the Denver switch, define a virtual server.
5. On the Denver switch, define the type of Layer 4 processing each port must support.
In this example, the following ports are being used on the Alteon 180 Web switch:
The ports are configured as follows:
6. On the Denver switch, enable SLB.
>> Real server 2# ../group 1 (Select real server group 1)
>> Real server group 1# add 1 (Add real server 1 to group 1)
>> Real server group 1# add 2 (Add real server 2 to group 1)
>> Real server group 1# health http (Use HTTP for health checks)
>> Real server group 1# content index.html (Set URL content for health checks)
>> Real server group 1# ../virt 1 (Select virtual server 1)
>> Virtual server 1# vip 179.14.70.1 (Assign IP address)
>> Virtual server 1# service http (Select the HTTP service menu)
>> Virtual server 1 http service# group 1 (Associate virtual port to real group)
>> Virtual server 1 http service# ../ena (Enable the virtual server)
Table 12-4 Web Host Example: Alteon 180 Port Usage
Port Host Layer 4 Processing
3 Server C Server
4 Server D Server
5 Default Gateway Router. This connects the switch to the Internet
where all client requests originate.
Client
>> Virtual server 1# /cfg/slb/port 3 (Select physical switch port 3)
>> SLB port 3# server ena (Enable server processing on port 3)
>> SLB port 3# ../port 4 (Select physical switch port 4)
>> SLB port 4# server ena (Enable server processing on port 4)
>> SLB port 4# ../port 5 (Select physical switch port 5)
>> SLB port 5# client ena (Enable client processing on port 5)
>> SLB port 5# /cfg/slb (Select the SLB Menu)
>> Layer 4# on (Turn SLB on)
Web OS 10.0 Application Guide
302 Chapter 12: Global Server Load Balancing 212777-A, February 2002
Task 6: Configure the Denver Site for GSLB
Following the same procedure described for California (see “Task 3: Configure the California
Site for GSLB” on page 298), configure the Denver site as follows:
1. On the Denver switch, define each remote site.
When you start configuring at the Denver site, Denver is local and California is remote. Add
and enable the remote switch’s IP address interface. In this example, there is only one remote
site: California, with an IP interface address of 200.200.200.100. The following commands are
used:
Each additional remote site would be configured in the same manner. You can enable up to 64
remote sites with a total aggregate of 2048 service/site combinations.
2. On the Denver switch, assign each remote distributed service to a local virtual server.
In this step, the local Denver site is configured to recognize the services offered at the remote
California site. As before, configure one real server entry on the Denver switch for each virtual
server located at each remote site. Since there is only one remote site (California) with only
one virtual server, only one more local real server entry is needed at the Denver site.
The new real server entry is configured with the IP address of the remote virtual server, rather
than the usual IP address of a local physical server. Do not confuse this value with the IP inter-
face address on the remote switch.
Also, the remote parameter is enabled, and the real server entry is added to the real server
group under the local virtual server for the intended service. Finally, since the real server health
checks are headed across the Internet, the health-checking interval should be increased to 30 or
60 seconds to avoid generating excess traffic.
>> Layer 4# gslb/site 1 (Select remote site 1)
>> Remote site 1# prima 200.200.200.100 (Define remote IP interface address)
>> Remote site 1# ena (Enable remote site 1)
Web OS 10.0 Application Guide
Chapter 12: Global Server Load Balancing 303
212777-A, February 2002
For example:
NOTE – Take care to note where each configured value originates or this step can result in
improper configuration.
3. On the Denver switch, define the domain name and host name for each service hosted on
each virtual server.
These will be the same as for the California switch: the domain name is “foocorp.com,” and
the host name for the HTTP service is “www.” These values are configured as follows:
4. On the Denver switch, turn on GSLB.
5. Apply and verify the configuration.
Examine the resulting information. If any settings are incorrect, make and apply any appropri-
ate changes, and then check again.
6. Save your new configuration changes.
>> Remote site 1# /cfg/slb/real 3 (Create an entry for real server 3)
>> Real server 3# rip 200.200.200.1 (Set remote virtual server IP address)
>> Real server 3# remote enable (Define the real server as remote)
>> Real server 3# inter 60 (Set a high health check interval)
>> Real server 3# ena (Enable the real server entry)
>> Real server 3# ../group 1 (Select appropriate. real server group)
>> Real server group 1# add 3 (Add real server 3 to group 1)
>> Real server group 1# ../virt 1 (Select virtual server 1)
>> Virtual server 1# dname foocorp.com (Define domain name)
>> Virtual server 1# service 80 (Select HTTP for virtual server)
>> Virtual server 1 http# hname www (Define HTTP hostname)
>> Virtual server 1 http# /cfg/slb/gslb/on (Activate GSLB for the switch)
>> Global SLB# apply (Make your changes active)
>> Global SLB# cur (View current GSLB settings)
>> Global SLB# /cfg/slb/cur (View current SLB settings)
>> Layer 4# save (Save for restore after reboot)
Web OS 10.0 Application Guide
304 Chapter 12: Global Server Load Balancing 212777-A, February 2002
IP Proxy for Non-HTTP Redirects
Typically, client requests for HTTP applications are automatically redirected to the location
with the best response and least load for the requested content. This is because the HTTP proto-
col has a built-in redirection function that allows requests to be redirected to an alternate site.
If a client requests a non-HTTP application such as FTP, POP3, or SMTP, then the lack of a
redirection function in these applications requires that a proxy IP address be configured on the
client port. The client port will initiate a redirect only if resources are unavailable at the first site.
NOTE – This feature should be used as a method of last resort for GSLB implementations in
topologies where the remote servers are usually virtual server IP addresses in other Alteon
Web switches.
Figure 12-3 illustrates the packet-flow of HTTP and non-HTTP redirects in a GSLB environ-
ment.
Figure 12-3 HTTP and Non-HTTP Redirects
Client Site
DNS
Request
Site 1
DNS
Web
Servers
Web
Servers
DNS
Web Switch
Web Switch
Site 2
HTTP Applications
Non HTTP Applications
Proxy IP address is
configured on Client
port for non-HTTP
applications.
DNS
Internet
1a
1b
2a
2b
Web OS 10.0 Application Guide
Chapter 12: Global Server Load Balancing 305
212777-A, February 2002
Table 12-5 explains the packet -flow process in detail. In this example, the initial DNS request
from the client reaches Site 2, but Site 2 has no available services.
How IP Proxy Works
Figure 12-4 shows examples of two GSLB sites deployed in California and Denver. The appli-
cations being load balanced are HTTP and POP3. Any request that cannot be serviced locally
is sent to the peer site. HTTP requests are sent to the peer site using HTTP Redirect. Any other
application request will be sent to the peer site using the IP proxy feature.
Figure 12-4 POP3 Request Fulfilled via IP Proxy
Table 12-5 HTTP Versus Non-HTTP Redirects
Site 2 Web switch Site 1 Web switch
HTTP application
(built-in redirection) 1a. Client DNS request reaches Site 2.
Resources are unavailable at Site 2.
Site 2 sends a response to Client with Site 1’s
virtual server IP address.
1b. Client resends request to Site 1.
Resources are available at Site 1.
Site 1 completes TCP three-way handshake with
client.
Non-HTTP application
(no redirection) 2a. Client DNS request reaches Site 2.
Resources are unavailable at Site 2.
Site 2 sends a request to Site 1 with Site 2’s
proxy IP address as the source IP address and
the virtual server IP address of Site 1 as the des-
tination IP address.
2b. Site 1 processes the client proxy IP request.
Resources are available at Site 1.
Site 1 returns request to proxy IP port on Site 2.
Site 2 completes the three-way handshake with
Client.
Proxy IP Address
174.14.70.4
Proxy Disabled For
Local Real Servers
Proxy Enabled For
Remote Server
Internet
California Site #1
174.14.70.X Network
A
BC
D
Proxy IP Address
200.200.200.4
Proxy Disabled For
Local Real Servers
200.200.200.X Network
HTTP/POP3
Local Servers
200.200.200.2
200.200.200.3
Remote Server
174.14.70.1
Web Switch
Virtual Server
200.200.200.1
Denver: Site #2
HTTP/POP3
Local Servers
174.14.70.2
174.14.70.3
Remote Server
200.200.200.1
Virtual Server
174.14.70.1
Service requests are always served by
local real servers if available.
If local real servers cannot service the request,
the remote server is used via proxy.
Web Switch
Proxy Enabled For
Remote Server
Web OS 10.0 Application Guide
306 Chapter 12: Global Server Load Balancing 212777-A, February 2002
The following procedure explains the three-way handshake between the two sites and the cli-
ent for a non-HTTP application (POP3). When POP3 processes at Site 1 terminate because of
operator error, the following events occur to allow POP3 requests to be fulfilled:
1. A user POP3 TCP SYN request is received by the virtual server at Site 1. The switch at
that site determines that there are no local resources to handle the request.
2. The Site 1 switch rewrites the request such that it now contains a client proxy IP address
as the source IP address, and the virtual server IP address at Site 2 as the destination IP
address.
3. The switch at Site 2 receives the POP3 TCP SYN request to its virtual server. The request
looks like a normal SYN frame, so it performs normal local load-balancing.
4. Internally at Site 2, the switch and the real servers exchange information. The TCP SYN
ACK from Site 2’s local real server is sent back to the IP address specified by the proxy IP
address.
5. The Site 2 switch sends the TCP SYN ACK frame to Site 1, with Site 2’s virtual server IP
address as the source IP address, and Site 1’s proxy IP address as the destination IP
address.
6. The switch at Site 1 receives the frame and translates it, using Site 1’s virtual server IP
address as the source IP address and the client’s IP address as the destination IP address.
This cycle continues for the remaining frames to transmit all the client’s mail, until a FIN
frame is received.
Web OS 10.0 Application Guide
Chapter 12: Global Server Load Balancing 307
212777-A, February 2002
Configuring Proxy IP Addresses
Refer to the example starting on page 294 and Figure 12-4, the switch at Site 1 in California is
configured with switch port 6 connecting to the default gateway and real server 3 represents
the remote server in Denver.
The following commands are used at Site 1 in California to configure the proxy IP address for
the remote server in Denver:
NOTE – If any port is configured with a proxy IP address, then all ports (except port 9) must
be configured with a unique proxy IP address prior to enabling Virtual Matrix Architecture
(VMA). Once they are configured, proxy IP addresses not in use can be disabled.
If you want to configure proxy IP addresses on Site 2, the following commands are issued on
the Denver switch:
>> # /cfg/slb/port 6 (Select port to default gateway)
>> SLB port 6# pip 200.200.200.4 (Set unique proxy IP address)
>> SLB port 6# proxy enable (Enable proxy for switch port 6)
>> SLB port 6 ../real 1/proxy disable (Disable local real server proxy)
>> Real server 1# ../real 2/proxy disable (Disable proxy for local server)
>> Real server 2# ../real 3/proxy enable (Enable proxy for remote server)
>> Real server 3# apply (Apply configuration changes)
>> Real server 3# save (Save configuration changes)
>> # /cfg/slb/port 5 (Select port to default gateway)
>> SLB port 5# pip 174.14.17.4 (Set unique proxy IP address)
>> SLB port 5# proxy enable (Enable proxy for switch port 5)
>> SLB port 5# ../real 1/proxy disable (Disable local real server proxy)
>> Real server 1# ../real 2/proxy disable (Disable local real server proxy)
>> Real server 2# ../real 3/proxy enable (Enable proxy for remote server)
>> Real server 3# apply (Apply configuration changes)
>> Real server 3# save (Save configuration changes)
Web OS 10.0 Application Guide
308 Chapter 12: Global Server Load Balancing 212777-A, February 2002
Verifying GSLB Operation
nUse your browser to request the configured service (www.foocorp.com in the previous
example).
nExamine the /info/slb information on each switch.
nCheck to see that all SLB parameters are working according to expectation. If necessary,
make any appropriate configuration changes and then check the information again.
nExamine the following statistics on each switch:
/stats/slb/gslb/virt <virtual server number>
/stats/slb/gslb/group <real server group number>
/stats/slb/maint
Configuring Client Site Preferences
Internet Assigned Numbers Authority (IANA), the central coordinator for the assignment of
unique parameter values for Internet protocols, does not provide sufficient geographic separa-
tion of client proximity information. As a result, large ISP partners cannot use their own geo-
graphic data to determine GSLB site selection based on client location. However, using static
“client-to-site” mapping in Web OS software, you can configure client proximity tables to select
GSLB sites based on client location.
The use of a static client/site database allows you to customize the client environment. The
proximity database is limited to 128 entries. The GSLB client proximity table is supported for
HTTP protocol.
Web OS 10.0 Application Guide
Chapter 12: Global Server Load Balancing 309
212777-A, February 2002
Figure 12-5 illustrates GSLB proximity tables. The client sends a request to the DNS server,
which is forwarded to the master switch. The master switch looks through its proximity table
and returns the request to the DNS server with the virtual server IP address of the preferred
site. The DNS server sends a new request through the Internet and connects the client to the
preferred site.
Figure 12-5 GSLB Proximity Tables: How They Work
The following example illustrated in Figure 12-6 on page 310 shows how to add entries into a
GSLB proximity table. Two client networks, A and B, are configured in the proximity table on
the master switch at Site 4. Client A with a subnet address of 205.178.13.0 is configured with
static entries for preferred Sites 1 and 3. Client B, with a subnet address of 204.165.0.0, is con-
figured with static entries for preferred Sites 2 and 4.
1. CLIENT SENDS REQUEST
TO LOCAL DNS SERVER 2. DNS REQUEST
SENT TO MASTER
SWIT CH
DATABASE FIELDS
<IP ADDRESS> <NETMASK> <VIP>
3.MASTER
SWIT CH LOOKS AT
DATABASE AND RESPONDS
4.CLIENT REQUEST FORWARDED
TO NEAREST LOCATION
Web OS 10.0 Application Guide
310 Chapter 12: Global Server Load Balancing 212777-A, February 2002
Client A, with a source IP address of 205.178.13.10, initiates a request that is sent to the local
DNS server. The local DNS server is configured to forward requests to the DNS server at Site
4. The Web switch at Site 4 looks up its proximity table and finds Client A prefers to connect
to Sites 1 or 3. Similarly, Client B’s requests are always forwarded to Sites 2 or 4.
Figure 12-6 Configuring Client Proximity Table
You can add static entries in the proximity table for up to 128 client networks.
NOTE – Web OS allows you to configure a single domain only and for each client subnet you
can configure up to two preferred sites.
The Web switch forwards the client request based on the minimum available sessions and
response time between the two preferred sites.
Internet
Client Site B
DNS
Request
Client Site A
DNS
Request
205.178.13.0 204.165.0.0
IF: 1.1.1.1 / 24
VIP: 1.1.1.100
IF: 2.2.2.2 / 24
VIP: 2.2.2.100 IF: 3.3.3.3 / 16
VIP: 3.3.3.100
IF: 4.4.4.4 / 24
VIP: 4.4.4.100
Web
Servers Web
Servers
DNS DNS
DNS DNS
Web Switch
Web Switch
Web Switch
Web Switch
Site 3Site 2
Site 4Site 1
Web
Servers Web
Servers
Master switch returns
Client's request with the
VIP of the preferred site
2. The master switch looks through its
proximity table and responds to the
DNS request by providing the virtual
IP address of the preferred site.
3. The client sends out a new request
and connects to the preferred site.
Prefers
Sites 1 and 3 Prefers
Sites 2 and 4
1. Client sites A and B send requests to
their DNS servers which are forwarded
to the master switch at Site 4.
Web OS 10.0 Application Guide
Chapter 12: Global Server Load Balancing 311
212777-A, February 2002
Use the following commands to configure a proximity table on the Web switch at Site 4:
NOTE – For each client subnet, add only one static entry.
Using this configuration, the DNS request “nortelnetworks.com” from 205.178.13.0 will get a
DNS response with only the virtual server IP address of Site 1, if Site 1 has less load than
Site 3.
>> # /cfg/slb/gslb/lookup/lookups ena (Enable the lookup or proximity table)
>> # dname nortelnetworks.com (Select the domain name)
>> # network 1 (Select Client A subnet)
>> # sip 205.178.13.0 (Assign source address for Client A)
>> # mask 255.255.255.0 (Assign the mask for Client A)
>> # vip1 <virtual server IP addr of Site 3>(Select preferred Site 3)
>> # vip2 <virtual server IP addr of Site 1>(Select preferred Site 1)
>> # ../network 2 (Select Client B subnet)
>> # sip 204.165.0.0 (Assign source address for Client B)
>> # mask 255.255.0.0 (Assign the mask for Client B)
>> # vip1 <virtual server IP add of Site 4>(Select preferred Site 4)
>> # vip2 <virtual server IP add of Site 2>(Select preferred Site 2)
Web OS 10.0 Application Guide
312 Chapter 12: Global Server Load Balancing 212777-A, February 2002
Using Border Gateway Protocol for GSLB
Border Gateway Protocol (BGP)-based GSLB utilizes the Internet’s routing protocols to local-
ize content delivery to the most efficient and consistent site. It does so by using a shared IP
block that co-exists in each Internet Service Provider’s (ISP’s) network and is then advertised,
using BGP, throughout the Internet.
Because of the way IP routing works, BGP-based GSLB allows for the routing protocols to
route DNS requests to the closest location, which then returns IP addresses of that particular
site, locking in the requests to that site. In effect, the Internet is making the decision of the best
location for you, avoiding the need for advanced GSLB.
Some corporations use more than one ISP as a way to increase the reliability and bandwidth of
their Internet connection. Enterprises with more than one ISP are referred to as being multi-
homed. Instead of multi-homing a network to several other networks, BGP-based GSLB
enables you to multi-home a particular piece of content (DNS information) to the Internet by
distributing the IP blocks that contain that content to several sites.
When using DNS to select the site, a single packet is used to make the decision so that the
request will not be split to different locations. Through the response to the DNS packet, a client
is locked in to a particular site, resulting in efficient, consistent service that cannot be achieved
when the content itself is shared.
For example, in multi-homing, you can connect a data center to three different Internet provid-
ers and have one DNS server that has the IP address 1.1.1.1. In this case, all requests can be
received via any given feed but are funneled to the same server on the local network. In BGP-
based GSLB, the DNS server (with the IP address 1.1.1.1) is duplicated and placed local to the
peering point instead of having a local network direct traffic to one server.
When a particular DNS server receives a request for a record (in this case, the Web switch), it
returns with the IP address of a virtual server at the same site. This can be achieved using the
local option (/cfg/slb/gslb/local ena) in the GSLB configuration. If one site is
saturated, then the switch will failover and deliver the IP address of a more available site.
For more information on configuring your switch to support BGP routing, see “Border Gate-
way Protocol (BGP)” on page 36.
212777-A, February 2002 313
CHAPTER 13
Firewall Load Balancing
Firewall Load Balancing (FWLB) with Alteon Web switches allows multiple active firewalls
to operate in parallel. Parallel operation allows users to maximize firewall productivity, scale
firewall performance without forklift upgrades, and eliminate the firewall as a single point-of-
failure.
This chapter presents the following material:
n “Firewall Overview” on page 314
An overview of firewalls and the various FWLB solutions supported by Alteon Web
switches.
n“Basic FWLB” on page 316
Explanation and example configuration for FWLB in simple networks, using two parallel
firewalls and two Web switches. The basic FWLB method combines redirection filters and
static routing for FWLB.
n“Four-Subnet FWLB” on page 326
Explanation and example configuration for FWLB in a large-scale, high-availability net-
work with redundant firewalls and Web switches. This method combines redirection fil-
ters, static routing, and Virtual Router Redundancy Protocol (VRRP).
n“Advanced FWLB Concepts” on page 346
“Free-Metric FWLB” on page 346. Using other load balancing metrics (besides
hash) by enabling the Return to Sender (RTS) option.
“Adding a Demilitarized Zone (DMZ)” on page 349. Adding a DMZ for servers that
attach to the Web switch between the Internet and the firewalls.
“Firewall Health Checks” on page 351. Methods for fine-tuning the health checks
performed for FWLB.
Web OS 10.0 Application Guide
314 Chapter 13: Firewall Load Balancing 212777-A, February 2002
Firewall Overview
Firewall devices have become indispensable for protecting network resources from unautho-
rized access. Prior to FWLB, however, firewalls could become critical bottlenecks or single
points-of-failure for your network.
As an example, consider the following network:
Figure 13-1 Typical Firewall Configuration Before FWLB
One network interface card on the firewall is connected to the public side of the network, often
to an Internet router. This is known as the dirty or untrusted side of the firewall. Another net-
work interface card on the firewall is connected to the side of the network with the resources
that must be protected. This is known as the clean or trusted side of the firewall.
In this simple example, all traffic passing between the dirty, clean, and DMZ networks must
traverse the firewall, which examines each individual packet. The firewall is configured with a
detailed set of rules that determine which types of traffic are allowed and which types are
denied. Heavy traffic can turn the firewall into a serious bottleneck. The firewall is also a sin-
gle point-of-failure device. If it goes out of service, external clients can no longer reach your
services and internal clients can no longer reach the Internet.
Sometimes, a Demilitarized Zone (DMZ) is attached to the firewall or between the Internet and
the firewall. Typically, a DMZ contains its own servers that provide dirty-side clients with
access to services, making it unnecessary for dirty-side traffic to use clean-side resources.
FWLB with Alteon Web switches provides a variety of options that enhance firewall perfor-
mance and resolve typical firewall problems.
"Dirty" Public Network
Internet
DMZ
Firewall
Private
Network
"Clean" Private Network
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 315
212777-A, February 2002
Alteon Web switches support the following methods of FWLB:
nBasic FWLB for simple networks
This method uses a combination of static routes and redirection filters and is usually
employed in smaller networks.
A Web switch filter on the dirty-side splits incoming traffic into streams headed for differ-
ent firewalls. To ensure persistence of session traffic through the same firewall, distribu-
tion is based on a mathematical hash of the IP source and destination addresses.
For more information about basic FWLB, see “Basic FWLB” on page 316.
nFour-Subnet FWLB for larger networks
Although similar to basic FWLB, the four-subnet method is more often deployed in larger
networks that require high-availability solutions. This method adds Virtual Router Redun-
dancy Protocol (VRRP) to the configuration.
Just as with the basic method, four-subnet FWLB uses the hash metric to distribute fire-
wall traffic and maintain persistence.
For more information, see “Four-Subnet FWLB” on page 326.
Each method is described in more detail in the following sections.
Web OS 10.0 Application Guide
316 Chapter 13: Firewall Load Balancing 212777-A, February 2002
Basic FWLB
The basic FWLB method uses a combination of static routes and redirection filters to allow
multiple active firewalls to operate in parallel.
Figure 13-2 shows a basic FWLB topology:
Figure 13-2 Basic FWLB Topology
The firewalls being load balanced are in the middle of the network, separating the dirty side
from the clean side. This configuration requires a minimum of two Web switches: one on the
dirty side of the firewalls and one on the clean side.
A redirection filter on the dirty-side Web switch splits incoming client traffic into multiple
streams. Each stream is routed through a different firewall. The valid client traffic in each
stream is forwarded to a virtual server on the clean-side Web switch. The clean-side Web
switch uses Server Load Balancing (SLB) settings to select a real server on the internal net-
work for each incoming request. The same process is used for outbound server responses; a
redirection filter on the clean-side Web switch splits the traffic, and static routes forward each
stream through a different firewall and then back to the client.
Although other metrics can be used in some configurations (see “Free-Metric FWLB” on page
346), the distribution of traffic within each stream is normally based on a mathematical hash of
the IP source and destination addresses. This ensures that each client request and its related
responses will use the same firewall (a feature known as persistence) and that the streams will
be roughly equal in traffic load.
Although basic firewall load-balancing techniques can support more firewalls as well as multi-
ple switches on the clean and dirty sides for redundancy, the configuration complexity
increases dramatically. The four-subnet FWLB solution is usually preferred in larger scale,
high-availability topologies (see page 326).
"Dirty" Side of Network
Firewalls
Web Switch
"Clean" Side of Network
Internet Internal
Network
Web Switch
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 317
212777-A, February 2002
Basic FWLB Implementation
In this example, traffic is load balanced among the available firewalls.
Figure 13-3 Basic FWLB Process
1. The client requests data.
The external clients intend to connect to services at the publicly advertised IP address assigned
to a virtual server on the clean-side Web switch.
2. A redirection filter balances incoming requests among different IP addresses.
When the client request arrives at the dirty-side Web switch, a filter redirects it to a real server
group that consists of a number of different IP addresses. This redirection filter splits the traffic
into balanced streams: one for each IP address in the real server group. For FWLB, each IP
address in the real server group represents an IP Interface (IF) on a different subnet on the
clean-side Web switch.
3. Requests are routed to the firewalls.
On the dirty-side switch, one static route is needed for each traffic stream. For instance, the first
static route will lead to an IP interface on the clean-side Web switch using the first firewall as
the next hop. A second static route will lead to a second clean-side IP interface using the second
firewall as the next hop, and so on. By combining the redirection filter and static routes, traffic
is load balanced among all active firewalls.
All traffic between specific IP source/destination address pairs flows through the same fire-
wall, ensuring that sessions established by the firewalls persist for their duration.
NOTE – More than one stream can be routed though a particular firewall. You can weight the
load to favor one firewall by increasing the number of static routes that traverse it.
"Dirty" Side "Clean" Side
Internet
Firewalls Servers
Web Switch
Client Web Switch
3
4
5
876
12
9
10
1. Client sends a request
2. Redir filter selects upper or lower path
3. Static route directs request through
the selected firewall
4. Firewall forwards valid traffic
5. SLB selects an available server
6. Server responds
7. Redir filter selects reverse path
8. Static route directs response back
through the same firewall
9. Firewall forwards valid traffic
10. Client receives response
Web OS 10.0 Application Guide
318 Chapter 13: Firewall Load Balancing 212777-A, February 2002
4. The firewalls decide if they should allow the packets and, if so, forwards them to a virtual
server on the clean-side Web switch.
Client requests are forwarded or discarded according to rules configured for each firewall.
NOTE – Rule sets must be consistent across all firewalls.
5. The clean-side Web switch performs normal SLB functions.
Packets forwarded from the firewalls are sent to the original destination address, that is, the vir-
tual server on the clean-side Web switch. There, they are load balanced to the real servers using
standard SLB configuration.
6. The real server responds to the client request.
7. Redirection filters on the clean-side Web switch balance responses among different IP
addresses.
Redirection filters are needed on all ports on the clean-side Web switch that attach to real serv-
ers or internal clients on the clean-side of the network. Filters on these ports redirect the Inter-
net-bound traffic to a real server group that consists of a number of different IP addresses. Each
IP address represents an IP interface on a different subnet on the dirty-side Web switch.
8. Outbound traffic is routed to the firewalls.
Static routes are configured on the clean-side switch. One static route is needed for each stream
that was configured on the dirty-side Web switch. For instance, the first static route would be
configured to lead to the first dirty-side IP interface using the first firewall as the next hop. The
second static route would lead to the second dirty-side IP interface using the second firewall as
the next hop, and so on.
Since Web switches intelligently maintain state information, all traffic between specific IP
source/destination addresses flows through the same firewall, maintaining session persistence.
NOTE – If Network Address Translation (NAT) software is used on the firewalls, FWLB ses-
sion persistence requires the RTS option to be enabled on the Web switch (see “Free-Metric
FWLB” on page 346).
9. The firewall decides if it should allow the packet and, if so, forwards it to the dirty-side
Web switch.
Each firewall forwards or discards the server responses according to the rules that are config-
ured for it. Forwarded packets are sent to the dirty-side Web switch and out to the Internet.
10. The client receives the server response.
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 319
212777-A, February 2002
Configuring Basic FWLB
The steps for configuring basic FWLB are provided below. While two or four switches can be
used, the following procedure assumes a simple network topology with only two Web switches
(one on each side of the firewalls) as shown in Figure 13-4.
Figure 13-4 Basic FWLB Example Network
Configure the Dirty-Side Web Switch
1. Configure VLANs.
NOTE – Alternately, if using hubs between the switches and firewalls and you do not wish to
configure VLANs, you must enable Spanning Tree Protocol to prevent broadcast loops.
2. Define the dirty-side IP interface.
In addition to one IP interface for general switch management, there must be one dirty-side IP
interface for each firewall path being load balanced. Each must be on a different subnet.
>> # /cfg/ip/if 1 (Select IP interface 1)
>> IP Interface 1# addr 192.16.12.1 (Set address for switch management)
>> IP Interface 1# mask 255.255.255.0 (Set subnet mask for interface 1)
>> IP Interface 1# ena (Enable IP interface 1)
>> IP Interface 1# ../if 2 (Select IP interface 2)
>> IP Interface 2# addr 10.1.1.1 (Set the IP address for interface 2)
>> IP Interface 2# mask 255.255.255.0 (Set subnet mask for interface 2)
>> IP Interface 2# ena (Enable IP interface 2)
>> IP Interface 2# ../if 3 (Select IP interface 3)
>> IP Interface 3# addr 10.1.2.1 (Set the IP address for interface 3)
>> IP Interface 3# mask 255.255.255.0 (Set subnet mask for interface 3)
>> IP Interface 3# ena (Enable IP interface 3)
"Dirty" Side "Clean" Side
Internet
Firewall 1
Firewall 2
Servers
Web Switch 1
IF1: 192.16.12.1
Web Switch 2
IF1: 20.1.1.1
Virtual Server:
20.1.1.10
20.1.1.2
20.1.1.3
Dirty Side:
10.1.2.10
IF2: 10.1.1.1
IF3: 10.1.2.1 IF2: 10.1.3.1
IF3: 10.1.4.1
Dirty Side:
10.1.1.10
Clean Side:
10.1.4.10
Clean Side:
10.1.3.10
12
3
2
3
4
5
Web OS 10.0 Application Guide
320 Chapter 13: Firewall Load Balancing 212777-A, February 2002
3. Configure the clean-side IP interface as if they were real servers on the dirty side.
Later in this procedure, you’ll configure one clean-side IP interface on a different subnet for
each firewall path being load balanced. On the dirty-side Web switch, create two real servers
using the IP address of each clean-side IP interface used for FWLB.
NOTE – Each of the four interfaces used for FWLB (two on each Web switch) in this example
must be configured for a different IP subnet.
4. Place the IP interface real servers into a real server group.
5. Set the health check type for the real server group to ICMP.
6. Set the load-balancing metric for the real server group to hash.
Using the hash metric, all traffic between specific IP source/destination address pairs flows
through the same firewall. This ensures that sessions established by the firewalls are main-
tained for their duration.
NOTE – Other load balancing metrics such as leastconns, roundrobin, minmiss,
response, and bandwidth can be used when enabling the Return to Sender (RTS) option.
For more information, see “Free-Metric FWLB” on page 346.
7. Enable SLB on the switch.
>> IP Interface 3# /cfg/slb/real 1 (Select real server 1)
>> Real server 1# rip 10.1.3.1 (Assign clean-side IF 2 address)
>> Real server 1# ena (Enable real server 1)
>> Real server 1# ../real 2 (Select real server 2)
>> Real server 2# rip 10.1.4.1 (Assign clean-side IF 3 address)
>> Real server 2# ena (Enable real server 1)
>> Real server 2# /cfg/slb/group 1 (Select real server group 1)
>> Real server group 1# add 1 (Add real server 1 to group 1)
>> Real server group 1# add 2 (Add real server 2 to group 1)
>> Real server group 1# health icmp (Select ICMP as health check type)
>> Real server group 1# metric hash (Select SLB hash metric for group 1)
>> Real server group 1# /cfg/slb/on
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 321
212777-A, February 2002
8. Create a filter to allow local subnet traffic on the dirty side of the firewalls to reach the
firewall interfaces.
9. Create the FWLB redirection filter.
This filter will redirect inbound traffic, load balancing it among the defined real servers in the
group. In this network, the real servers represent IP interfaces on the clean-side Web switch.
10. Add filters to the ingress port.
11. Define static routes to the clean-side IP interfaces, using the firewalls as gateways.
One static route is required for each firewall path being load balanced. In this case, two paths
are required: one that leads to clean-side IF 2 (10.1.3.1) through the first firewall (10.1.1.10) as
its gateway, and one that leads to clean-side IF 3 (10.1.4.1) through the second firewall
(10.1.2.10) as its gateway.
12. Apply and save the configuration changes.
>> Layer 4# /cfg/slb/filt 10 (Select filter 10)
>> Filter 10# sip any (From any source IP address)
>> Filter 10# dip 192.16.12.0 (To this destination IP address)
>> Filter 10# action allow (Allow frames with this DIP address)
>> Filter 10# ena (Enable filter)
>> Filter 10# ../filt 15 (Select filter 15)
>> Filter 15# sip any (From any source IP address)
>> Filter 15# dip any (To any destination IP address)
>> Filter 15# proto any (For any protocol)
>> Filter 15# action redir (Perform redirection)
>> Filter 15# group 1 (To real server group 1)
>> Filter 15# ena (Enable the filter)
>> Filter 15# ../port 1 (Select the ingress port)
>> SLB Port 1# add 10 (Add the filter to the ingress port)
>> SLB Port 1# add 15 (Add the filter to the ingress port)
>> SLB Port 1# filt ena (Enable filtering on the port)
>> SLB Port 5# /cfg/ip/route
>> IP Static Route# add 10.1.3.1 255.255.255.255 10.1.1.10
>> IP Static Route# add 10.1.4.1 255.255.255.255 10.1.2.10
>> # apply
>> # save
Web OS 10.0 Application Guide
322 Chapter 13: Firewall Load Balancing 212777-A, February 2002
Configure the Clean-Side Web Switch
1. Define the clean-side IP interfaces.
Create one clean-side IP interface on a different subnet for each firewall being load balanced.
NOTE – An extra IP interface (IF 1) prevents server-to-server traffic from being redirected.
2. Configure the dirty-side IP interfaces as if they were real servers on the clean side.
You should already have configured a dirty-side IP interface on a different subnet for each fire-
wall path being load balanced. Create two real servers on the clean-side switch, using the IP
address of each dirty-side IP interface.
NOTE – Each of the four IP interfaces (two on each Web switch) in this example must be con-
figured for a different IP subnet.
3. Place the real servers into a real server group.
>> # /cfg/ip/if 1 (Select IP interface 1)
>> IP Interface 1# addr 20.1.1.1 (Set the IP address for interface 1)
>> IP Interface 1# mask 255.255.255.0 (Set subnet mask for interface 1)
>> IP Interface 1# ena (Enable IP interface 1)
>> IP Interface 1# ../if 2 (Select IP interface 2)
>> IP Interface 2# addr 10.1.3.1 (Set the IP address for interface 2)
>> IP Interface 2# mask 255.255.255.0 (Set subnet mask for interface 2)
>> IP Interface 2# ena (Enable IP interface 2)
>> IP Interface 2# ../if 3 (Select IP interface 3)
>> IP Interface 3# addr 10.1.4.1 (Set the IP address for interface 3)
>> IP Interface 3# mask 255.255.255.0 (Set subnet mask for interface 3)
>> IP Interface 3# ena (Enable IP interface 3)
>> IP Interface 5# /cfg/slb/real 1 (Select real server 1)
>> Real server 1# rip 10.1.1.1 (Assign dirty-side IF 1 address)
>> Real server 1# ena (Enable real server 1)
>> Real server 1# ../real 2 (Select real server 2)
>> Real server 2# rip 10.1.2.1 (Assign dirty-side IF 2 address)
>> Real server 2# ena (Enable real server 2)
>> Real server 2# ../group 1 (Select real server group 1)
>> Real server group 1# add 1 (Select real server 1 to group 1)
>> Real server group 1# add 2 (Select real server 2 to group 1)
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 323
212777-A, February 2002
4. Set the health check type for the real server group to ICMP.
5. Set the load-balancing metric for the real server group to hash.
NOTE – The clean-side Web switch must use the same metric as defined on the dirty side.
6. Enable server load balancing on the switch.
7. Configure ports 2 and 3, which are connected to the clean-side of the firewalls, for client
processing.
8. Configure the virtual server that will load balance the real servers.
9. Configure the real servers to which traffic will be load-balanced.
These are the real servers on the network.
>> Real server group 1# health icmp (Select ICMP as health check type)
>> Real server group 1# metric hash (Select SLB hash metric for group 1)
>> Real server group 1# /cfg/slb/on
>> Real server group 1# ../port 2/client ena(Enable client processing on port 2)
>> SLB port 2# ../port 3/client ena (Enable client processing on port 3)
>> SLB port 3# apply (Apply the configuration)
>> SLB port 3# save (Save the configuration)
>> SLB port 3# ../virt 100 (Configure virtual server 100)
>> Virtual Server 100# vip 20.1.1.10 (Assign virtual server 100 IP address)
>> Virtual Server 100# ena (Enable the virtual server)
>> Real server group 1# /cfg/slb/real/2 (Select real server 2)
>> Real server 2 # rip 20.1.1.2 (Assign real server 2 IP address)
>> Real server 2 # ena (Enable real server 2)
>> Real server 2 # ../real 3 (Select real server 3)
>> Real server 3 # rip 20.1.1.3 (Assign real server 3 IP address)
Web OS 10.0 Application Guide
324 Chapter 13: Firewall Load Balancing 212777-A, February 2002
10. Place the real servers into a real server group.
11. Configure ports 4 and 5, which are connected to the real servers, for server processing.
12. Enable server load balancing on the switch.
13. Create a filter to prevent server-to-server traffic from being redirected.
14. Create the redirection filter.
This filter will redirect outbound traffic, load balancing it among the defined real servers in the
group. In this case, the real servers represent IP interfaces on the dirty-side switch.
>> Real server 3# ../group 200 (Select real server group 1)
>> Real server group 200# add 2 (Select real server 2 to group 200)
>> Real server group 200# add 3 (Select real server 3 to group 200)
>> Real server group 200# ../port 4/server ena
>> SLB port 4# ../port 5/server ena
>> Real server group 1# /cfg/slb/on
>> Layer 4# /cfg/slb/filt 10 (Select filter 10)
>> Filter 10# sip any (From any source IP address)
>> Filter 10# dip 20.1.1.0 (To base IP address for IF 5)
>> Filter 10# dmask 255.255.255.0 (For the range of addresses)
>> Filter 10# proto any (For any protocol)
>> Filter 10# action allow (Allow traffic)
>> Filter 10# ena (Enable the filter)
>> Filter 10# ../filt 15 (Select filter 15)
>> Filter 15# sip any (From any source IP address)
>> Filter 15# dip any (To any destination IP address)
>> Filter 15# proto any (For any protocol)
>> Filter 15# action redir (Perform redirection)
>> Filter 15# group 1 (To real server group 1)
>> Filter 15# ena (Enable the filter)
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 325
212777-A, February 2002
15. Add the filters to the ingress ports for the outbound packets.
Redirection filters are needed on all the ingress ports on the clean-side Web switch. Ingress
ports are any that attach to real servers or internal clients on the clean-side of the network. In
this case, two real servers are attached to the clean-side Web switch on port 4 and port 5.
16. Define static routes to the dirty-side IP interfaces, using the firewalls as gateways.
One static route is required for each firewall path being load balanced. In this case, two paths
are required: one that leads to dirty-side IF 2 (10.1.1.1) through the first firewall (10.1.3.10) as
its gateway, and one that leads to dirty-side IF 3 (10.1.2.1) through the second firewall
(10.1.4.10) as its gateway.
NOTE – Configuring static routes for FWLB does not require IP forwarding to be turned on.
17. Apply and save the configuration changes.
>> Filter 15# ../port 4 (Select ingress port 4)
>> SLB Port 4# add 10 (Add the filter to the ingress port)
>> SLB Port 4# add 15 (Add the filter to the ingress port)
>> SLB Port 4# filt ena (Enable filtering on the port)
>> SLB Port 4# ../port 5 (Select ingress port 5)
>> SLB Port 5# add 10 (Add the filter to the ingress port)
>> SLB Port 5# add 15 (Add the filter to the ingress port)
>> SLB Port 5# filt ena (Enable filtering on the port)
>> SLB Port 5# /cfg/ip/route
>> IP Static Route# add 10.1.1.1 255.255.255.255 10.1.3.10
>> IP Static Route# add 10.1.2.1 255.255.255.255 10.1.4.10
>> # apply
>> # save
Web OS 10.0 Application Guide
326 Chapter 13: Firewall Load Balancing 212777-A, February 2002
Four-Subnet FWLB
The four-subnet FWLB method is often deployed in large networks that require high-availabil-
ity solutions. This method uses filtering, static routing, and Virtual Router Redundancy Proto-
col (VRRP) to provide parallel firewall operation between redundant Web switches.
Figure 13-5 shows one possible network topology using the four-subnet method:
Figure 13-5 Four-Subnet FWLB Topology
This network is classified as a high-availability network because no single component or link
failure could cause network resources to become unavailable. Simple switches and vertical
block interswitch connections are used to provide multiple paths for network failover. Nor-
mally the interswitch link between the primary and secondary Web switches is configured on
port 9 of the Web switch. However, the interswitch links may trunked together with multiple
ports for additional protection from failure.
NOTE – Other topologies that use internal hubs, or diagonal cross-connections between the
Web switches and simple switches are also possible. While such topologies may resolve net-
working issues in special circumstances, they can make configuration more complex and can
cause restrictions on the use of advanced features such as Active-Active VRRP, free-metric
FWLB, or Content Intelligent Switching. Alternate topologies are explored in more detail in
Web OS FWLB white papers, but are not within the scope of this manual.
Subnet 1 Subnet 2 Subnet 3 Subnet 4
Dirty Side Clean Side
Internet
Routers Simple
Switches Simple
Switches
Firewalls
Primary
Secondary
Web Switch
Primary
Secondary
Web Switch Servers
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 327
212777-A, February 2002
As shown in Figure 13-5, the network is divided into four sections:
nSubnet 1 includes all equipment between the exterior routers and dirty-side Web switches.
nSubnet 2 includes the dirty-side Web switches with their interswitch link, and dirty-side
firewall interfaces.
nSubnet 3 includes the clean-side firewall interfaces, and clean-side Web switches with
their interswitch link.
nSubnet 4 includes all equipment between the clean-side Web switches and their servers.
In this network, external traffic arrives through both routers. Since VRRP is enabled, one of
the dirty-side Web switches acts as primary and receives all traffic. The dirty-side primary Web
switch performs FWLB in a fashion similar to basic FWLB: a redirection filter splits traffic
into multiple streams which are routed through the available firewalls to the primary clean-side
Web switch.
Just as with the basic method, four-subnet FWLB uses the hash metric to distribute firewall
traffic and maintain persistence, though other load-balancing metrics can be used by configur-
ing an additional Return to Sender (RTS) option (see “Free-Metric FWLB” on page 346).
Four-Subnet FWLB Implementation
In this example, traffic between the redundant Web switches is load balanced among the avail-
able firewalls.
Figure 13-6 Four-Subnet FWLB Process
Subnet 1 Subnet 2 Subnet 3 Subnet 4
Dirty Side Clean Side
Internet
Routers Simple
Switches Simple
Switches
Firewalls Secondary
Web Switch
Primary Primary
Secondary
Web Switch Servers
1
23
1. VRRP forces incoming traffic to converge on primary dirty-side Web switch
2. Firewall load balancing occurs between primary Web switches
3. Primary clean-side Web switch performs standard SLB
Web OS 10.0 Application Guide
328 Chapter 13: Firewall Load Balancing 212777-A, February 2002
1. Incoming traffic converges on the primary dirty-side Web switch.
External traffic arrives through redundant routers. A set of interconnected switches ensures
that both routers have a path to each dirty-side Web switch.
VRRP is configured on each dirty-side Web switch so that one acts as the primary routing
switch. If the primary fails, the secondary takes over.
2. FWLB is performed between primary Web switches.
Just as with basic FWLB, filters on the ingress ports of the dirty-side Web switch redirect traf-
fic to a real server group composed of multiple IP addresses. This configuration splits incom-
ing traffic into multiple streams. Each stream is then routed toward the primary clean-side Web
switch through a different firewall.
Although other load balancing metrics can be used in some configurations (see “Free-Metric
FWLB” on page 346), the distribution of traffic within each stream is normally based on a
mathematical hash of the IP source and destination addresses. Hashing ensures that each
request and its related responses will use the same firewall (a feature known as persistence),
and that the streams will be statistically equal in traffic load.
3. The primary clean-side Web switch forwards the traffic to its destination.
Once traffic arrives at the primary clean-side Web switch, it is forwarded to its destination. In
this example, the Web switch uses regular server load balancing settings to select a real server
on the internal network for each incoming request.
The same process is used for outbound server responses; a filter on the clean-side Web switch
splits the traffic, and static routes forward each response stream back through the same firewall
that forwarded the original request.
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 329
212777-A, February 2002
Configuring Four-Subnet FWLB
An example network for four-subnet FWLB is illustrated in Figure 13-7. While other complex
topologies are possible, this example assumes a high-availability network using block (rather
than diagonal) interconnections between switches.
Figure 13-7 Four-Subnet FWLB Example Network
NOTE – The port designations of both dirty-side Web switches are identical, as are the port
designations of both clean-side Web switches. This simplifies configuration by allowing you to
synchronize each primary Web switch’s configuration with the secondary.
Four-subnet FWLB configuration is summarized as follows:
nConfigure routers and firewalls and test them for proper operation.
nConfigure VLANs, IP interfaces, and static routes on all Web switches and test them.
nConfigure secondary web switches with VRRP support settings.
nConfigure FWLB groups and redirection filters on the primary dirty-side Web switch.
nConfigure and synchronize VRRP on the primary dirty-side Web switch.
nConfigure FWLB and SLB groups, and add FWLB redirection filters on the primary
clean-side Web switch.
nConfigure VRRP on the primary clean-side Web switch and synchronize the secondary.
These steps are explained in detail in the following sections.
Subnet 1 (VLAN 1):
195.1.1.0/24 Subnet 2 (VLAN 2):
10.10.2.0/24 Subnet 3 (VLAN 3):
10.10.3.0/24 Subnet 4 (VLAN 4):
10.10.4.0/24
Dirty Side Clean Side
Internet
1
1
2
2
9
9
3
3
4
4
9
9
Router
195.1.1.1
Router
195.1.1.2
Firewall #1
Dirty: 10.10.2.3
Clean: 10.10.3.3
Firewall #2
Dirty: 10.10.2.4
Clean: 10.10.3.4
10.10.4.20
10.10.4.21
10.10.4.22
Web Switch #3
IF1: 10.10.4.10
IF2: 10.10.3.1
IF3: 10.10.3.2/32
VIP: 10.10.4.100
Web Switch #4
IF1: 10.10.4.11
IF2: 10.10.3.11
IF3: 10.10.3.12/32
VIP: 10.10.4.100
Web Switch #1
IF1: 195.1.1.10
IF2: 10.10.2.1
IF3: 10.10.2.2/32
Web Switch #2
IF1: 195.1.1.11
IF2: 10.10.2.11
IF3: 10.10.2.12/32
VIR
195.1.1.9 VIR
10.10.2.9 VIR
10.10.3.9 VIR
10.10.4.9
Web OS 10.0 Application Guide
330 Chapter 13: Firewall Load Balancing 212777-A, February 2002
Configure the Routers
The routers must be configured with a static route to the destination services being accessed by
the external clients.
In this example, the external clients intend to connect to services at a publicly advertised IP
address on this network. Since the real servers are load balanced behind a virtual server on the
clean-side Web switch using normal SLB settings, the routers require a static route to the vir-
tual server IP address. The next hop for this static route is the Web switch Virtual Interface
Router (VIR), which is in the same subnet as the routers:
Route Added: 10.10.4.100 (to clean-side virtual server) via 195.1.1.9 (Subnet 1 VIR)
Configure the Firewalls
Before you configure the Web switches, the firewalls must be properly configured. For incom-
ing traffic, each firewall must be configured with a static route to the clean-side virtual server,
using the VIR in its clean-side subnet as the next hop. For outbound traffic, each firewall must
use the VIR in its dirty-side subnet as the default gateway.
In this example, the firewalls are configured with the following IP addresses:
The firewalls must also be configured with rules that determine which types of traffic will be
forwarded through the firewall and which will be dropped. All firewalls participating in FWLB
must be configured with the same set of rules.
NOTE – It is important to test the behavior of the firewalls prior to adding FWLB.
Table 2 Four-Subnet Firewall IP Address Configuration
Item Address
Firewall 1
Dirty-side IP interface
Clean-side IP interface
Default Gateway
Route Added
10.10.2.3
10.10.3.3
10.10.2.9 (Subnet 2 VIR)
10.10.4.100 (virtual server) via 10.10.3.9 (Subnet 3 VIR)
Firewall 2
Dirty-side IP interface
Clean-side IP interface
Default Gateway
Route Added
10.10.2.4
10.10.3.4
10.10.2.9 (dirty-side VIR)
10.10.4.100 (virtual server) via 10.10.3.9 (Subnet 3 VIR)
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 331
212777-A, February 2002
Configure Connectivity for the Primary Dirty-Side Web Switch
1. Configure VLANs on the primary dirty-side Web switch.
Two VLANs are required. VLAN 1 includes port 1, for the Internet connection. VLAN 2
includes port 2, for the firewall connection, and port 9, for the interswitch connection.
NOTE – Port 1 is part of VLAN 1 by default and does not require manual configuration.
2. Configure IP interfaces on the primary dirty-side Web switch.
Three IP interfaces (IF’s) are used. IF 1 is on placed on Subnet 1. IF 2 will be used for routing
traffic through the top firewall. IF 3 will be used for routing traffic through the lower firewall.
To avoid confusion, IF 2 and IF 3 will be used in the same way on all Web switches.
NOTE – By configuring the IP interface mask prior to the IP address, the broadcast address is
automatically calculated. Also, only the first IP interface in a given subnet is given the full sub-
net range mask. Subsequent IP interfaces (such as IF 3) are given individual masks.
3. Turn Spanning Tree Protocol (STP) off for the primary dirty-side Web switch.
>> # /cfg/vlan 2
>> # add 2 (Port 2 connects to the firewall)
>> # add 9 (Port 9 is the inter-switch connection)
>> # ena
>> # /cfg/ip/if 1
>> # mask 255.255.255.0
>> # addr 195.1.1.10
>> # ena
>> # ../if 2
>> # mask 255.255.255.0
>> # addr 10.10.2.1
>> # vlan 2
>> # ena
>> # ../if 3
>> # mask 255.255.255.255
>> # addr 10.10.2.2
>> # vlan 2
>> # ena
>> # /cfg/stp/off
Web OS 10.0 Application Guide
332 Chapter 13: Firewall Load Balancing 212777-A, February 2002
4. Configure static routes on the primary dirty-side Web switch.
Four static routes are required:
nTo primary clean-side IF 2 via Firewall 1 using dirty-side IF 2
nTo primary clean-side IF 3 via Firewall 2 using dirty-side IF 3
nTo secondary clean-side IF 2 via Firewall 1 using dirty-side IF 2
nTo secondary clean-side IF 3 via Firewall 2 using dirty-side IF 3
NOTE – Remember, IF 2 is being used on all Web switches whenever routing through the top
firewall, and IF 3 is being used on all Web switches whenever routing through the lower fire-
wall.
The static route add command uses the following format:
add <destination address> <dest. mask> <gateway address> <source interface>
This example requires the following static route configuration:
NOTE – When defining static routes for FWLB, it is important to specify the source IP inter-
face numbers.
5. Make your changes take effect.
>> # /cfg/ip/frwd/route
>> # add 10.10.3.1 255.255.255.255 10.10.2.3 2
>> # add 10.10.3.2 255.255.255.255 10.10.2.4 3
>> # add 10.10.3.11 255.255.255.255 10.10.2.3 2
>> # add 10.10.3.12 255.255.255.255 10.10.2.4 3
>> # apply
>> # save
>> # /boot/reset
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 333
212777-A, February 2002
Configure Connectivity for the Secondary Dirty-Side Web Switch
Except for the IP interfaces, this configuration is identical to the primary dirty-side Web switch.
1. Configure VLANs on the secondary dirty-side Web switch.
2. Configure IP interfaces on the secondary dirty-side Web switch.
3. Turn STP off for the secondary dirty-side Web switch.
4. Configure static routes on the secondary dirty-side Web switch.
5. Apply and save your configuration.
>> # /cfg/vlan 2
>> # add 2
>> # add 9
>> # ena
>> # /cfg/ip/if 1
>> # mask 255.255.255.0
>> # addr 195.1.1.11
>> # ena
>> # ../if 2
>> # mask 255.255.255.0
>> # addr 10.10.2.11
>> # vlan 2
>> # ena
>> # ../if 3
>> # mask 255.255.255.255
>> # addr 10.10.2.12
>> # vlan 2
>> # ena
>> # /cfg/stp/off
>> # /cfg/ip/frwd/route
>> # add 10.10.3.1 255.255.255.255 10.10.2.3 2
>> # add 10.10.3.2 255.255.255.255 10.10.2.4 3
>> # add 10.10.3.11 255.255.255.255 10.10.2.3 2
>> # add 10.10.3.12 255.255.255.255 10.10.2.4 3
>> # apply
>> # save
>> # /boot/reset
Web OS 10.0 Application Guide
334 Chapter 13: Firewall Load Balancing 212777-A, February 2002
Configure Connectivity for the Primary Clean-Side Web Switch
1. Configure VLANs on the primary clean-side Web switch.
Two VLANs are required. VLAN 3 includes the firewall port and interswitch connection port.
VLAN 4 includes the port that attaches to the real servers.
2. Configure IP interfaces on the primary clean-side Web switch.
3. Turn STP off for the primary clean-side Web switch.
>> # /cfg/vlan 3
>> # add 3
>> # add 9
>> # ena
>> # ../vlan 4
>> # add 4
>> # ena
>> # /cfg/ip/if 1
>> # mask 255.255.255.0
>> # addr 10.10.4.10
>> # vlan 4
>> # ena
>> # ../if 2
>> # mask 255.255.255.0
>> # addr 10.10.3.1
>> # vlan 3
>> # ena
>> # ../if 3
>> # mask 255.255.255.255
>> # addr 10.10.3.2
>> # vlan 3
>> # ena
>> # /cfg/stp/off
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 335
212777-A, February 2002
4. Configure static routes on the primary clean-side Web switch.
Four static routes are needed:
nTo primary dirty-side IF 2 via Firewall 1 using clean-side IF 2
nTo primary dirty-side IF 3 via Firewall 2 using clean-side IF 3
nTo secondary dirty-side IF 2 via Firewall 1 using clean-side IF 2
nTo secondary dirty-side IF 3 via Firewall 2 using clean-side IF 3
Again, the static route add command uses the following format:
add <destination address> <dest. mask> <gateway address> <source interface>
This example requires the following static route configuration:
5. Apply and save your changes.
Configure Connectivity for the Secondary Clean-Side Web Switch
1. Configure VLANs on the secondary clean-side Web switch.
>> # /cfg/ip/frwd/route
>> # add 10.10.2.1 255.255.255.255 10.10.3.3 2
>> # add 10.10.2.2 255.255.255.255 10.10.3.4 3
>> # add 10.10.2.11 255.255.255.255 10.10.3.3 2
>> # add 10.10.2.12 255.255.255.255 10.10.3.4 3
>> # apply
>> # save
>> # /boot/reset
>> # /cfg/vlan 3
>> # add 3
>> # add 9
>> # ena
>> # ../vlan 4
>> # add 4
>> # ena
Web OS 10.0 Application Guide
336 Chapter 13: Firewall Load Balancing 212777-A, February 2002
2. Configure IP interfaces on the secondary clean-side Web switch.
3. Turn STP off for the secondary clean-side Web switch.
4. Configure static routes on the secondary clean-side Web switch.
5. Apply and save your changes.
>> # /cfg/ip/if 1
>> # mask 255.255.255.0
>> # addr 10.10.4.11
>> # vlan 4
>> # ena
>> # ../if 2
>> # mask 255.255.255.0
>> # addr 10.10.3.11
>> # vlan 3
>> # ena
>> # ../if 3
>> # mask 255.255.255.255
>> # addr 10.10.3.12
>> # vlan 3
>> # ena
>> # /cfg/stp/off
>> # /cfg/ip/frwd/route
>> # add 10.10.2.1 255.255.255.255 10.10.3.3 2
>> # add 10.10.2.2 255.255.255.255 10.10.3.4 3
>> # add 10.10.2.11 255.255.255.255 10.10.3.3 2
>> # add 10.10.2.12 255.255.255.255 10.10.3.4 3
>> # apply
>> # save
>> # /boot/reset
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 337
212777-A, February 2002
Verify Proper Connectivity
To verify proper configuration up to this point, use the ping option to test network connectiv-
ity. At each Web switch, you should receive a valid response when pinging the destination
addresses established in the static routes.
For example, on the secondary clean-side Web switch, the following commands should receive
a valid response:
Configure VRRP Support on the Secondary Dirty-Side Web Switch
The secondary dirty-side Web switch must be configured with the primary as its peer. Once
this is done, the secondary Web switch will get the remainder of its configuration from the pri-
mary when synchronized in a later step.
In this example, the secondary Web switch is configured to use primary dirty-side interface 1
as its peer.
Configure VRRP Support on the Secondary Clean-Side Web Switch
In this example, the secondary Web switch uses primary clean-side interface 1 as its peer.
>> # ping 10.10.2.1
Response; 10.10.2.1: #1 OK, RTT 1 msec.
>> # ping 10.10.2.2
Response; 10.10.2.2: #1 OK, RTT 1 msec.
>> # ping 10.10.2.11
Response; 10.10.2.11: #1 OK, RTT 1 msec.
>> # ping 10.10.2.12
Response; 10.10.2.12: #1 OK, RTT 1 msec.
>> # /cfg/vrrp/on
>> # /cfg/slb
>> # on
>> # sync/peer 1
>> # addr 195.1.1.10
>> # ena
>> # apply
>> # save
>> # /cfg/vrrp/on
>> # /cfg/slb
>> # on
>> # sync/peer 1
>> # addr 10.10.4.10
>> # ena
>> # apply
>> # save
Web OS 10.0 Application Guide
338 Chapter 13: Firewall Load Balancing 212777-A, February 2002
Complete the Configuration of the Primary Dirty-Side Web Switch
1. Create an FWLB real server group on the primary dirty-side Web switch.
A real server group is used as the target for the FWLB redirection filter. Each IP address that is
assigned to the group represents a path through a different firewall. In this case, since two fire-
walls are used, two addresses are added to the group.
Earlier, it was stated that this example uses IF 2 on all Web switches whenever routing through
the top firewall, and IF 3 on all Web switches whenever routing through the lower firewall.
Therefore, the first address will represent the primary clean-side IF 2, and the second repre-
sents the primary clean-side IF 3.
Using the hash metric, all traffic between specific IP source/destination address pairs flows
through the same firewall, ensuring that sessions established by the firewalls are maintained
for their duration (persistence).
NOTE – Other load balancing metrics, such as leastconns, roundrobin, minmiss,
response, and bandwidth, can be used when enabling the Return to Sender (RTS) option.
For more information, see “Free-Metric FWLB” on page 346.
>> # /cfg/slb
>> # on
>> # real 1
>> # rip 10.10.3.1
>> # ena
>> # ../real 2
>> # rip 10.10.3.2
>> # ena
>> # ../group 1
>> # add 1
>> # add 2
>> # metric hash
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 339
212777-A, February 2002
2. Create the FWLB filters.
Three filters are required on the port attaching to the routers:
nFilter 10 prevents local traffic from being redirected.
nFilter 20 prevents VRRP traffic (and other multicast traffic on the reserved 224.0.0.0/24
network) from being redirected.
nFilter 224 redirects the remaining traffic to the firewall group.
>> # /cfg/slb/filt 10
>> # dip 195.1.1.0
>> # dmask 255.255.255.0
>> # ena
>> # ../filt 20
>> # dip 224.0.0.0
>> # dmask 255.255.255.0
>> # ena
>> # ../filt 224
>> # action redir
>> # group 1
>> # ena
>> # ../port 1
>> # filt ena
>> # add 10
>> # add 20
>> # add 224
Web OS 10.0 Application Guide
340 Chapter 13: Firewall Load Balancing 212777-A, February 2002
3. Configure VRRP on the primary dirty-side Web switch.
VRRP in this example requires two virtual routers–one for the subnet attached to the routers,
and one for the subnet attached to the firewalls.
4. Configure the VRRP peer on the primary dirty-side Web switch.
5. Apply and save your configuration changes.
6. Synchronize primary and secondary dirty-side Web switches.
>> # /cfg/vrrp
>> # on
>> # vr 1
>> # vrid 1 (Configure virtual router 1)
>> # addr 195.1.1.9 (For the subnet attached to the routers)
>> # if 1
>> # prio 101
>> # share dis
>> # ena
>> # track
>> # ifs ena
>> # ports ena
>> # /cfg/vrrp/vr 2
>> # vrid 2 (Configure virtual router 2)
>> # addr 10.10.2.9 (For the subnet attached to the firewall)
>> # if 2
>> # prio 101
>> # share dis
>> # ena
>> # track
>> # ifs ena
>> # ports ena
>> # /cfg/slb/sync
>> # prios d
>> # peer 1
>> # ena
>> # addr 195.1.1.11
>> # apply
>> # save
>> # /oper/slb/sync
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 341
212777-A, February 2002
Complete the Configuration of the Primary Clean-Side Web Switch
1. Create an FWLB real server group on the primary clean-side Web switch.
A real server group is used as the target for the FWLB redirection filter. Each IP address
assigned to the group represents a return path through a different firewall. In this case, since
two firewalls are used, two addresses are added to the group. The two addresses are the inter-
faces of the dirty-side Web switch, and are configured as if they are real servers.
NOTE – Remember that IF 2 is used on all Web switches whenever routing through the top
firewall, and IF 3 is used on all Web switches whenever routing through the lower firewall.
NOTE – The clean-side Web switch must use the same metric as defined on the dirty side. For
information on using metrics other than hash, see “Free-Metric FWLB” on page 346.
>> # /cfg/slb
>> # on
>> # real 1
>> # rip 10.10.2.1 (IF2 of the primary dirty-side Web switch)
>> # ena
>> # ../real 2
>> # rip 10.10.2.2 (IF2 of the primary dirty-side Web switch)
>> # ena
>> # ../group 1
>> # add 1
>> # add 2
>> # metric hash
Web OS 10.0 Application Guide
342 Chapter 13: Firewall Load Balancing 212777-A, February 2002
2. Create an SLB real server group on the primary clean-side Web switch, to which traffic
will be load-balanced.
The external clients intend to connect to HTTP services at a publicly advertised IP address.
The servers on this network are load balanced by a virtual server on the clean-side Web switch.
SLB options are configured as follows:
NOTE – The virtual server IP address configured in this step will also be configured as a Vir-
tual Server Router (VSR) when VRRP is configured in a later step.
>> # /cfg/slb (Select the SLB menu)
>> # real 20 (Select real server 20)
>> # rip 10.10.4.20 (Set IP address of real server 20)
>> # ena (Enable)
>> # ../real 21 (Select real server 21)
>> # rip 10.10.4.21 (Set IP address of real server 21)
>> # ena (Enable)
>> # ../real 22 (Select real server 22)
>> # rip 10.10.4.22 (Set IP address of real server 22)
>> # ena (Enable)
>> # ../group 2 (Select real server group 2)
>> # add 20 (Add the real servers to the group)
>> # add 21
>> # add 22
>> # metric leastconns (Select least connections as the load
balancing metric)
>> # ../virt 1 (Select the virtual server 1 menu)
>> # vip 10.10.4.100 (Set the virtual server IP address)
>> # service http (Select HTTP for load balancing)
>> # group 2 (Add real server group 2)
>> # ena (Enable the virtual server)
>> # ../port 4/server ena (Enable server processing on the port
connected to the real servers)
>> # ../port 3/client ena (Enable client processing on the port
connected to the firewall)
>> # ../port 9/client ena (Enable client processing on the inter-
switch connection)
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 343
212777-A, February 2002
3. Create the FWLB filters on the primary clean-side Web switch.
Three filters are required on the port attaching to the real servers:
nFilter 10 prevents local traffic from being redirected.
nFilter 20 prevents VRRP traffic from being redirected.
nFilter 224 redirects the remaining traffic to the firewall group.
>> # /cfg/slb/filt 10
>> # dip 10.10.4.0
>> # dmask 255.255.255.0
>> # ena
>> # ../filt 20
>> # dip 224.0.0.0
>> # dmask 255.255.255.0
>> # ena
>> # ../filt 224
>> # action redir
>> # group 1
>> # ena
>> # ../port 4
>> # filt ena
>> # add 10
>> # add 20
>> # add 224
Web OS 10.0 Application Guide
344 Chapter 13: Firewall Load Balancing 212777-A, February 2002
4. Configure VRRP on the primary clean-side Web switch.
VRRP in this example requires two virtual routers to be configured–one for the subnet attached
to the real servers, and one for the subnet attached to the firewalls.
A third virtual router is required for the virtual server used for optional SLB.
>> # /cfg/vrrp
>> # on
>> # vr 1
>> # vrid 3
>> # addr 10.10.4.9
>> # if 1
>> # prio 100
>> # share dis
>> # ena
>> # track
>> # ifs ena
>> # ports ena
>> # /cfg/vrrp/vr 2
>> # vrid 4
>> # addr 10.10.3.9
>> # if 2
>> # prio 101
>> # share dis
>> # ena
>> # track
>> # ifs ena
>> # ports ena
>> # /cfg/vrrp/vr 3
>> # vrid 5
>> # addr 10.10.4.100
>> # prio 102
>> # share dis
>> # ena
>> # track
>> # ifs ena
>> # ports ena
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 345
212777-A, February 2002
5. Configure the peer on the primary clean-side Web switch.
6. Apply and save your configuration changes.
7. Synchronize primary and secondary dirty-side Web switches.
>> # /cfg/slb/sync
>> # prios d
>> # peer 1
>> # ena
>> # addr 10.10.4.11
>> # apply
>> # save
>> # /oper/slb/sync
Web OS 10.0 Application Guide
346 Chapter 13: Firewall Load Balancing 212777-A, February 2002
Advanced FWLB Concepts
Free-Metric FWLB
Free-metric FWLB allows to you use load-balancing metrics other than hash, such as
leastconns, roundrobin, minmiss, response, and bandwidth for more versatile
FWLB.
The free-metric method uses the Return to Sender (RTS) option. RTS can be used with basic
FWLB or four-subnet FWLB networks.
Free-Metric with Basic FWLB
For this example, review the basic FWLB example network.
Figure 13-8 Basic FWLB Example Network
To use free-metric FWLB in this network, the following configuration changes are necessary.
1. On the clean-side Web switch, enable RTS on the ports attached to firewalls (ports 2 and 3).
2. On the dirty-side Web switch, remove the redirection filter from the ports attached to the
real servers (ports 4 and 5), but make sure filter processing is enabled.
>> # /cfg/slb/port 2/rts enable
>> # ../port 3/rts enable
>> # ../port 4/rem 224
>> # filt ena
>> # ../port 5/rem 224
>> # filt ena
"Dirty" Side "Clean" Side
Internet
Firewall 1
Firewall 2
Servers
Web Switch 1
IF1: 192.16.12.1
Web Switch 2
IF1: 20.1.1.1
Virtual Server:
20.1.1.10
20.1.1.2
20.1.1.3
Dirty Side:
10.1.2.10
IF2: 10.1.1.1
IF3: 10.1.2.1 IF2: 10.1.3.1
IF3: 10.1.4.1
Dirty Side:
10.1.1.10
Clean Side:
10.1.4.10
Clean Side:
10.1.3.10
12
3
2
3
4
5
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 347
212777-A, February 2002
3. On the dirty-side Web switch, set the FWLB metric.
Any of the following load-balancing metrics can be used: hash, leastconns, roun-
drobin, minmiss, response, and bandwidth. See “Metrics for Real Server Groups”
on page 131 for details on using each metric.
NOTE – Some metrics allow other options (such as weights) to be configured.
Free-Metric with Four-Subnet FWLB
For this example, review the four-subnet example network.
Figure 13-9 Four-Subnet FWLB Example Network
>> # ../group 1
>> # metric <metric type>
Subnet 1 (VLAN 1):
195.1.1.0/24 Subnet 2 (VLAN 2):
10.10.2.0/24 Subnet 3 (VLAN 3):
10.10.3.0/24 Subnet 4 (VLAN 4):
10.10.4.0/24
Dirty Side Clean Side
Internet
1
1
2
2
9
9
3
3
4
4
9
9
Router
195.1.1.1
Router
195.1.1.2
Firewall #1
Dirty: 10.10.2.3
Clean: 10.10.3.3
Firewall #2
Dirty: 10.10.2.4
Clean: 10.10.3.4
10.10.4.20
10.10.4.21
10.10.4.22
Web Switch #3
IF1: 10.10.4.10
IF2: 10.10.3.1
IF3: 10.10.3.2/32
VIP: 10.10.4.100
Web Switch #4
IF1: 10.10.4.11
IF2: 10.10.3.11
IF3: 10.10.3.12/32
VIP: 10.10.4.100
Web Switch #1
IF1: 195.1.1.10
IF2: 10.10.2.1
IF3: 10.10.2.2/32
Web Switch #2
IF1: 195.1.1.11
IF2: 10.10.2.11
IF3: 10.10.2.12/32
VIR
195.1.1.9 VIR
10.10.2.9 VIR
10.10.3.9 VIR
10.10.4.9
Web OS 10.0 Application Guide
348 Chapter 13: Firewall Load Balancing 212777-A, February 2002
To use free-metric FWLB in this network, the following configuration changes are necessary.
1. On the clean-side Web switches, enable RTS on the ports attached to the firewalls (port 3)
and on the interswitch port (port 9).
On both clean-side switches:
2. On the clean-side Web switches, remove the redirection filter from the ports attached to
the real servers (ports 4), but make sure filter processing is enabled.
To view the original redirection filters that were configured for the four-subnet example, see
Step 3. on page 343.
On both clean-side switches:
3. On the dirty-side Web switches, set the FWLB metric.
On both dirty-side Web switches:
Any of the following load-balancing metrics can be used: hash, leastconns, roun-
drobin, minmiss, response, and bandwidth. See “Metrics for Real Server Groups”
on page 131 for details on using each metric.
NOTE – Some metrics allow other options (such as weights) to be configured.
>> # /cfg/slb/port 3/rts enable
>> # ../port 9/rts enable
>> # ../port 4/rem 224
>> # filt ena
>> # ../group 1
>> # metric <metric type>
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 349
212777-A, February 2002
Adding a Demilitarized Zone (DMZ)
Implementing a DMZ in conjunction with firewall load balancing enables the Web switch to
do the traffic filtering, off-loading this task from the firewall. A DMZ is created by configuring
FWLB with another real server group and a redirection filter towards the DMZ subnets.
The DMZ servers can be connected to the Web switch on the dirty side of the firewall. A typi-
cal firewall load balancing configuration with a DMZ is shown in Figure 13-10.
Figure 13-10 Typical Firewall Load-Balancing Topology with DMZ
The DMZ servers can be attached to the Web switch directly or through an intermediate hub or
switch. The Web switch is then configured with filters to permit or deny access to the DMZ
servers. In this manner, two levels of security are implemented: one that restricts access to the
DMZ through the use of Web switch filters, and another that restricts access to the clean net-
work through the use of stateful inspection performed by the firewalls.
Firewalls
DMZ
Web Switches
Internet Private
Network
Note: There can be
one or two DMZs.
Web Switches
Web OS 10.0 Application Guide
350 Chapter 13: Firewall Load Balancing 212777-A, February 2002
You could add the filters required for the DMZ (to each Web switch) as follows:
1. On the dirty-side Web switch, create the filter to allow HTTP traffic to reach the DMZ
Web servers.
In this example, the DMZ Web servers use IP addresses 205.178.29.0/24.
2. Create another filter to deny all other traffic to the DMZ Web servers.
NOTE – The deny filter has a higher filter number than the allow filter. This is necessary so
that the allow filter has the higher order of precedence.
3. Add the filters to the traffic ingress ports.
4. Apply and save the configuration changes.
>> # /cfg/slb/filt 80 (Select filter 80)
>> Filter 80# sip any (From any source IP address)
>> Filter 80# dip 205.178.29.0 (To the DMZ base destination)
>> Filter 80# dmask 255.255.255.0 (For the range of DMZ addresses)
>> Filter 80# proto tcp (For TCP protocol traffic)
>> Filter 80# sport any (From any source port)
>> Filter 80# dport http (To an HTTP destination port)
>> Filter 80# action allow (Allow the traffic)
>> Filter 80# ena (Enable the filter)
>> Filter 80# ../filt 89 (Select filter 89)
>> Filter 89# sip any (From any source IP address)
>> Filter 89# dip 205.178.29.0 (To the DMZ base destination)
>> Filter 89# dmask 255.255.255.0 (For the range of DMZ addresses)
>> Filter 89# proto any (For TCP protocol traffic)
>> Filter 89# action deny (Allow the traffic)
>> Filter 89# ena (Enable the filter)
>> Filter 89# ../port 1 (Select the ingress port)
>> SLB Port 1# add 80 (Add the allow filter)
>> SLB Port 1# add 89 (Add the deny filter)
>> SLB Port 1# apply
>> SLB Port 1# save
Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing 351
212777-A, February 2002
Firewall Health Checks
Basic FWLB health checking is automatic. No special configuration is necessary unless you
wish to tune the health checking parameters. See Chapter 10, “Health Checking” for details.
Firewall Service Monitoring
To maintain high availability, Web switches monitor firewall health status and send packets
only to healthy firewalls. There are two methods of firewall service monitoring: ICMP and
HTTP. Each Web switch monitors the health of the firewalls on a regular basis by pinging the
IP interfaces configured on its partner Web switch on the other side of the firewall.
If a Web switch IP interface fails to respond to a user-specified number of pings, it (and, by
implication, the associated firewall), is placed in a Server Failed state. At this time, the partner
Web switch stops routing traffic to that IP interface and, instead, distributes it across the
remaining healthy Web switch IP interfaces and firewalls.
When a Web switch IP interface is in the Server Failed state, its partner Web switch continues
to send pings to it at user-configurable intervals. After a specified number of successful pings,
the IP interface (and its associated firewall) is brought back into service.
For example, to configure the switch to allow one-second intervals between health checks or
pings, two failed health checks to remove the firewall, and four successful health checks to
restore the firewall to the real server group, use the following command:
Physical Link Monitoring
Web switches also monitor physical link status of switch ports connected to firewalls. If the
physical link to a firewall goes down, that firewall is placed immediately in the Server Failed
state. When a Web switch detects that a failed physical link to a firewall has been restored, it
brings the firewall back into service.
>> /cfg/slb/real <real server number>/inter 1/retry 2/restr 4
Web OS 10.0 Application Guide
352 Chapter 13: Firewall Load Balancing 212777-A, February 2002
Using HTTP Health Checks
For those firewalls that do not permit ICMP pings to pass through, Web switches can be con-
figured to perform HTTP health checks, as described below.
1. Set the health check type to HTTP instead of ICMP.
2. Configure a “dummy” redirect filter as the last filter (after the redirect all filter) to force
the HTTP health checks to activate, as shown below:
NOTE – Make sure that the number of each real filter is lower than the number of the “dummy”
redirect filter.
>> # /cfg/slb/group 1/health http (Select HTTP health checks)
>> # /cfg/slb/filt 225 (Select filter 225)
>> Filter 224# proto tcp (For TCP protocol traffic)
>> Filter 224# action redir (Redirect the traffic)
>> Filter 224# group 1 (Set real server group for redirection)
>> Filter 224# rport http (Set real server port for redirection)
>> Filter 224# ena (Enable the filter)
212777-A, February 2002 353
CHAPTER 14
Virtual Private Network Load
Balancing
The VPN (Virtual Private Network) load balancing feature in Web OS 10.0 allows the switch
to load balance simultaneously up to 255 VPN devices. The switch records from which VPN
server a session was initiated and ensures that the traffic returns back to the same VPN server
from which the session started.
The following topics are addressed in this chapter:
n“Overview” on page 354
n“VPN Load-Balancing Configuration” on page 356
Web OS 10.0 Application Guide
354 Chapter 14: Virtual Private Network Load Balancing 212777-A, February 2002
Overview
Virtual Private Networks
A VPN is a connection that has the appearance and advantages of a dedicated link, but it
occurs over a shared network. Using a technique called tunneling, data packets are transmitted
across a routed network, such as the Internet, in a private tunnel that simulates a point-to-point
connection. This approach enables network traffic from many sources to travel via separate
tunnels across the infrastructure. It also enables traffic from many sources to be differentiated,
so that it can be directed to specific destinations and receive specific levels of service.
VPNs provide security features of a firewall, network address translation, data encryption, and
authentication and authorization. Since most of the data sent between VPN initiators and ter-
minators is encrypted, network devices cannot use information inside the packet to make intel-
ligent routing decisions.
How VPN Load Balancing Works
VPN load balancing requires that all ingress traffic passing through a particular VPN must
traverse the same VPN as it egresses back to the client. Traffic ingressing from the Internet is
usually addressed to the VPNs, with the real destination encrypted inside the datagram. Traffic
egressing the VPNs into the intranet contains the real destination in the clear.
Using the hash algorithm on the source and destination address may not be possible in many
VPN/firewall configurations because the address may be encrypted inside the datagram. Also,
the source/destination IP address of the packet may change as the packet traverses from the
dirty-side switches to clean-side switches and back.
To support VPN load balancing, the Alteon Web switch records state on frames entering the
switch to and from the VPNs. This session table ensures that the same VPN server handles all
the traffic between an inside host and an outside client for a particular session.
NOTE – VPN load balancing is supported for connecting from remote sites to the network
behind the VPN cluster IP address. Connection initiated from clients internal to the VPN gate-
ways is not supported.
Basic frame flow, from the dirty side of the network to the clean side, is shown in Figure 5-1.
An external client is accessing an internal server. No Network Address Translation (NAT) is
performed by the VPN devices.
Web OS 10.0 Application Guide
Chapter 14: Virtual Private Network Load Balancing 355
212777-A, February 2002
Figure 14-1 Basic Network Frame Flow and Operation
The basic steps that occur at the switches when a request arrives from the Internet are
described below:
1. The user prepares to send traffic to the destination server.
2. The VPN client software encrypts the packet and sends it to the cluster IP address of the
VPN devices.
3. Switch 1 (SW1) makes an entry in the session table and forwards the packet to VPN
device 1.
The selection of the VPN device is based on the hash load-balancing metric.
4. The VPN device strips the IP header and decrypts the encrypted IP header.
5. Switch 2 (SW2) forwards the packet to E.10.
If an entry is found, the frame is forwarded normally. If an entry is not found, the switch deter-
mines which VPN device processed the frame by performing a lookup with the source MAC
address of the frame. If the MAC address matches a MAC address of a real VPN server, the
switch adds an entry to the session table so that reverse traffic is redirected to the same VPN
server. Finally, the frame is forwarded normally.
Web OS 10.0 Application Guide
356 Chapter 14: Virtual Private Network Load Balancing 212777-A, February 2002
VPN Load-Balancing Configuration
Requirements
nConfigure the switch with firewall load balancing. For more information, see “Firewall
Load Balancing” on page 313.
nEnable the Return to Sender (RTS) feature on the ports attached to the VPN devices, using
the following command:
VPN Load-Balancing Configuration Example
The following example uses Alteon Web switches for VPN load balancing. The configuration
is for four Web switches, four subnets, and two VPN devices.
Figure 14-2 VPN Load-Balancing Configuration Example
Build the topology illustrated in Figure 14-2 on page 356, and configure the switches as shown
on the following pages.
>> # /cfg/slb/port <port number>/rts ena
Web OS 10.0 Application Guide
Chapter 14: Virtual Private Network Load Balancing 357
212777-A, February 2002
Configure the First Clean-Side Switch (CA)
1. Turn off BOOTP.
2. Define and enable VLAN 2 for ports 7, and 8.
3. Turn off Spanning Tree Protocol (STP).
4. Define the clean-side IP interfaces.
Create one clean-side IP interface on a different subnet for each VPN device being load bal-
anced.
5. Configure routes for each of the IP interfaces you configured in Step 4 using the VPN
devices as gateways.
>> # /cfg/sys/bootp dis
>> # /cfg/vlan 2/ena/def 7 8
>> # /cfg/stp/off
>> # /cfg/ip/if 1/ena (Select IP interface 1 and enable)
>> IP Interface 1# mask 255.255.255.0 (Set subnet mask for interface 1)
>> IP Interface 1# addr 30.0.0.10 (Set IP address for interface 1)
>> IP Interface 1# vlan 1 (For VLAN 1)
>> IP Interface 1# ../if 2/ena (Select IP interface 2 and enable)
>> IP Interface 2# mask 255.255.255.0 (Set subnet mask for interface 2)
>> IP Interface 2# addr 20.0.0.10 (Set IP address for interface 2)
>> IP Interface 2# vlan 2 (For VLAN 2)
>> IP Interface 2# ../if 3/ena (Select IP interface 3 and enable)
>> IP Interface 3# mask 255.255.255.255 (Set subnet mask for interface 3)
>> IP Interface 3# addr 20.0.0.11 (Set IP address for interface 3)
>> IP Interface 3# vlan 2 (For VLAN 2)
Web OS 10.0 Application Guide
358 Chapter 14: Virtual Private Network Load Balancing 212777-A, February 2002
One static route is required for each VPN device being load balanced.
6. Configure VRRP for virtual routers 1 and 2.
>> # /cfg/ip/route
>> IP Static Route# add 10.0.0.10 (Static route destination IP address)
>> IP Static Route# 255.255.255.255 (Destination subnet mask)
>> IP Static Route# 20.0.0.101 (Enter gateway IP address)
>> IP Static Route# 2(For interface 2)
>> IP Static Route# add 10.0.0.11 (Enter destination IP address)
>> IP Static Route# 255.255.255.255 (Destination subnet mask)
>> IP Static Route# 20.0.0.102 (Enter gateway IP address)
>> IP Static Route# 3(For interface 3)
>> IP Static Route# add 10.0.0.20 (Enter destination IP address)
>> IP Static Route# 255.255.255.255 (Destination subnet mask)
>> IP Static Route# 20.0.0.101 (Enter gateway IP address)
>> IP Static Route# 2(For interface 2)
>> IP Static Route# add 10.0.0.21 (Static route destination IP address)
>> IP Static Route# 255.255.255.255 (Destination subnet mask)
>> IP Static Route# 20.0.0.102 (Enter gateway IP address)
>> IP Static Route# 3(For interface 3)
>> # /cfg/vrrp/on (Enable VRRP)
>> Virtual Router Redundancy Protocol# vr 1 (Select virtual router 1 menu)
>> VRRP Virtual Router 1# ena (Enable the virtual router)
>> VRRP Virtual Router 1# vrid 1 (Assign virtual router ID 1)
>> VRRP Virtual Router 1# if 1 (To interface number 1)
>> VRRP Virtual Router 1# prio 101 (Set the renter priority)
>> VRRP Virtual Router 1# addr 30.0.0.50 (Set IP address of virtual router)
>> VRRP Virtual Router 1# share dis (Disable sharing)
>> VRRP Virtual Router 1# track (Select virtual router tracking menu)
>> VRRP VR 1 Priority Tracking# vrs ena (Enable tracking of virtual routers)
>> VRRP VR 1 Priority Tracking# apply (Apply the configuration)
>> VRRP VR 1 Priority Tracking# save (Save the configuration)
>> VRRP VR 1 Priority Tracking# ../vr 2 (Select virtual router 2 menu)
>> VRRP Virtual Router 2# ena (Enable the virtual router)
>> VRRP Virtual Router 2# vrid 2 (Assign virtual router ID 2)
>> VRRP Virtual Router 2# if 2 (To interface number 2)
>> VRRP Virtual Router 2# prio 101 (Set the renter priority)
>> VRRP Virtual Router 2# addr 20.0.0.1 (Set IP address of virtual router)
>> VRRP Virtual Router 2# share dis (Disable sharing)
>> VRRP Virtual Router 2# track (Select Virtual Router Tracking Menu)
>> VRRP VR 2 Priority Tracking# ports ena (Track VLAN switch ports)
>> VRRP VR 2 Priority Tracking# apply (Apply the configuration)
>> VRRP VR 2 Priority Tracking# save (Save the configuration)
Web OS 10.0 Application Guide
Chapter 14: Virtual Private Network Load Balancing 359
212777-A, February 2002
7. Enable Server Load Balancing (SLB) on the first clean switch.
8. Configure real servers for health checking VPN devices.
9. Configure real server group 1, and add real servers 1, 2, 3, and 4 to the group.
10. Enable RTS on the necessary ports.
11. Enable filter processing on the server ports so that the responses from the real server will
be looked up in the VPN session table.
12. Apply and save the configuration, and reboot the switch.
>> # /cfg/slb/on
>> # /cfg/slb/real 1/ena (Enable slb for real server 1)
>> Real server 1 # rip 10.0.0.10 (Assign IP address for real server 1)
>> Real server 1 # ../real 2/ena (Enable SLB for real server 2)
>> Real server 2 # rip 10.0.0.11 (Assign IP address for real server 2)
>> Real server 2 # ../real 3/ena (Enable SLB for real server 3)
>> Real server 3 # rip 10.0.0.20 (Assign IP address for real server 3)
>> Real server 3 # ../real 4/ena (Enable SLB for real server 4)
>> Real server 4 # rip 10.0.0.21 (Assign IP address for real server 4)
>> # /cfg/slb/group 1 (Configure real server group 1)
>> Real server group 1# metric hash (Select SLB hash metric for group 1)
>> Real server group 1# add 1 (Add real servers 1-4 to group 1)
>> Real server group 1# add 2/add 3/add 4
>> # /cfg/slb/port 7/rts ena (Enable Return to Sender on port 7)
>> # /cfg/slb/port 8/rts ena (Enable Return to Sender on port 8)
>> # /cfg/slb/port 1/filter ena
>> # apply
>> # save
>> # /boot/reset
Web OS 10.0 Application Guide
360 Chapter 14: Virtual Private Network Load Balancing 212777-A, February 2002
Configure the Second Clean-Side Switch (CB)
1. Turn off bootp.
2. Define and enable VLAN 2 for ports 7 and 8.
3. Turn off Spanning Tree Protocol.
4. Define the clean-side IP interfaces.
Create one clean-side IP interface on a different subnet for each VPN device being load bal-
anced.
5. Configure routes for each of the IP interfaces you configured in Step 4, using the VPN
devices as gateways.
One static route is required for each VPN device being load balanced.
>> # /cfg/sys/bootp dis
>> # /cfg/vlan 2/ena/def 7 8
>> # /cfg/stp/off
>> # /cfg/ip/if 1/ena/mask 255.255.255.0/addr 30.0.0.11
>> # /cfg/ip/if 2/ena/mask 255.255.255.0/addr 20.0.0.20/vl 2
>> # /cfg/ip/if 3/ena/mask 255.255.255.255/addr 20.0.0.21/vl 2
>> # /cfg/ip/route
>> # add 10.0.0.10 255.255.255.255 20.0.0.101 2
>> # add 10.0.0.11 255.255.255.255 20.0.0.102 3
>> # add 10.0.0.20 255.255.255.255 20.0.0.101 2
>> # add 10.0.0.21 255.255.255.255 20.0.0.102 3
Web OS 10.0 Application Guide
Chapter 14: Virtual Private Network Load Balancing 361
212777-A, February 2002
6. Configure Virtual Router Redundancy Protocol (VRRP) for virtual routers 1 and 2.
7. Enable SLB.
8. Configure real servers for health checking VPN devices.
9. Enable the real server group.
10. Enable RTS on the necessary ports.
>> # /cfg/vrrp/on
>> Virtual Router Redundancy Protocol# vr 1
>> VRRP Virtual Router 1# ena
>> VRRP Virtual Router 1# vrid 1
>> VRRP Virtual Router 1# if 1
>> VRRP Virtual Router 1# addr 30.0.0.50
>> VRRP Virtual Router 1# share dis
>> VRRP Virtual Router 1# track/vrs ena
>> VRRP Virtual Router 1 Priority Tracking# /cfg/vrrp/vr 2
>> VRRP Virtual Router 2# ena
>> VRRP Virtual Router 2# vrid 2
>> VRRP Virtual Router 2# if 2
>> VRRP Virtual Router 2# addr 20.0.0.1
>> VRRP Virtual Router 2# share dis
>> VRRP Virtual Router 2# track/ports ena
>> VRRP Virtual Router 2 Priority Tracking# /cfg/slb/on
>> Layer 4# /cfg/slb/real 1/ena/rip 10.0.0.10
>> Real server 1# ../real 2/ena/rip 10.0.0.11
>> Real server 2# ../real 3/ena/rip 10.0.0.20
>> Real server 3# ../real 4/ena/rip 10.0.0.21
>> Real server 4# ../group 1
>> Real server group 1# metric hash
>> Real server group 1# add 1/add 2/add 3/add 4
>> Real server group 1# ../port 7/rts ena
>> SLB port 7# ../port 8/rts ena
Web OS 10.0 Application Guide
362 Chapter 14: Virtual Private Network Load Balancing 212777-A, February 2002
11. Enable filter processing on the server ports so that the response from the real server will
be looked up in VPN session table.
12. Apply and save the configuration, and reboot the switch.
Configure the First Dirty-Side WebSwitch (DA)
1. Turn off BOOTP.
2. Define and enable VLAN 2 for ports 7 and 8.
3. Turn off STP.
4. Configure IP interfaces 1, 2, and 3.
5. Define static routes for each of the IP interfaces you configured in Step 4, using the VPN
devices as gateways.
One static route is required for each VPN device being load balanced.
>> SLB port 8# ../port 1/filter ena
>> SLB port 8# apply
>> SLB port 8# save
>> SLB port 8# /boot/reset
>> # /cfg/sys/bootp dis
>> # /cfg/vlan 2/ena/def 7 8
>> # /cfg/stp/off
>> # /cfg/ip/if 1/ena/mask 255.255.255.0/addr 192.168.10.10
>> # /cfg/ip/if 2/ena/mask 255.255.255.0/addr 10.0.0.10/vl 2
>> # /cfg/ip/if 3/ena/mask 255.255.255.255/addr 10.0.0.11/vl 2
>> # /cfg/ip/route
>> # add 20.0.0.10 255.255.255.255 10.0.0.101 2
>> # add 20.0.0.11 255.255.255.255 10.0.0.102 3
>> # add 20.0.0.20 255.255.255.255 10.0.0.101 2
>> # add 20.0.0.21 255.255.255.255 10.0.0.102 3
Web OS 10.0 Application Guide
Chapter 14: Virtual Private Network Load Balancing 363
212777-A, February 2002
6. Configure VRRP for virtual routers 1 and 2.
7. Enable SLB.
8. Configure real servers for health-checking VPN devices.
9. Enable the real server group.
>> # /cfg/vrrp/on
>> Virtual Router Redundancy Protocol# /cfg/vrrp/vr 1
>> VRRP Virtual Router 1# ena
>> VRRP Virtual Router 1# vrid 1
>> VRRP Virtual Router 1# if 1
>> VRRP Virtual Router 1# prio 101
>> VRRP Virtual Router 1# addr 192.168.10.50
>> VRRP Virtual Router 1# share dis
>> VRRP Virtual Router 1# track
>> VRRP Virtual Router 1 Priority Tracking# vrs ena
>> VRRP Virtual Router 1 Priority Tracking# ports ena
>> VRRP Virtual Router 1 Priority Tracking# /cfg/vrrp/vr 2
>> VRRP Virtual Router 2# ena
>> VRRP Virtual Router 2# vrid 2
>> VRRP Virtual Router 2# if 2
>> VRRP Virtual Router 2# prio 101
>> VRRP Virtual Router 2# addr 10.0.0.1
>> VRRP Virtual Router 2# share dis
>> VRRP Virtual Router 2# track
>> VRRP Virtual Router 2 Priority Tracking# vrs ena
>> VRRP Virtual Router 2 Priority Tracking# ports ena
>> VRRP Virtual Router 1 Priority Tracking# /cfg/slb/on
>> Layer 4# real 1/ena/rip 20.0.0.10
>> Real server 1# ../real 2/ena/rip 20.0.0.11
>> Real server 2# ../real 3/ena/rip 20.0.0.20
>> Real server 3# ../real 4/ena/rip 20.0.0.21
>> Real server 1# ../group 1
>> Real server group 1# metric hash
>> Real server group 1# add 1/add 2/add 3/add 4
Web OS 10.0 Application Guide
364 Chapter 14: Virtual Private Network Load Balancing 212777-A, February 2002
10. Configure the filters to allow local subnet traffic on the dirty side of the VPN device to
reach the VPN device interfaces.
11. Create a filter to allow the management firewall (Policy Server) to reach the VPN firewall.
12. Create the redirection filter and enable firewall load balancing.
This filter will redirect inbound traffic, redirecting it among the defined real servers in the group.
13. Add filters to the ingress port.
14. Apply and save the configuration, and reboot the switch.
>> # ../filt 100
>> # ena
>> # sip any
>> # dip 192.168.10.0/dmask 255.255.255.0
>> # action allow
>> # ../filt 110
>> # ena
>> # sip any
>> # dip 224.0.0.0/dmask 255.0.0.0
>> # action allow
>> # ../filt 120 ena
>> # sip 192.168.10.120
>> # smask 255.255.255.255
>> # dip 10.0.0.0
>> # dmask 255.255.255.0
>> # ../filt 224
>> # ena
>> # sip any
>> # dip any
>> # action redir
>> # ../filt 224/adv
>> # fwlb ena
>> # ../port 1
>> # filt ena
>> # add 100/add 110/add 224
>> # apply
>> # save
>> # /boot/reset
Web OS 10.0 Application Guide
Chapter 14: Virtual Private Network Load Balancing 365
212777-A, February 2002
Configure the Second Dirty-Side WebSwitch (DB)
1. Turn off BOOTP.
2. Define and enable VLAN 2 for ports 7 and 8.
3. Turn off STP.
4. Configure IP interfaces 1, 2, and 3.
5. Configure routes for each of the IP interfaces you configured in Step 4.
>> # /cfg/sys/bootp dis
>> # /cfg/vlan 2/ena/def 7 8
>> # /cfg/stp/off
>> # /cfg/ip/if 1/ena/mask 255.255.255.0/addr 192.168.10.11
>> # /cfg/ip/if 2/ena/mask 255.255.255.0/addr 10.0.0.20/vl 2
>> # /cfg/ip/if 3/ena/mask 255.255.255.255/addr 10.0.0.21/vl 2
>> # /cfg/ip/route
>> # add 20.0.0.10 255.255.255.255 10.0.0.101 2
>> # add 20.0.0.11 255.255.255.255 10.0.0.102 3
>> # add 20.0.0.20 255.255.255.255 10.0.0.101 2
>> # add 20.0.0.21 255.255.255.255 10.0.0.102 3
Web OS 10.0 Application Guide
366 Chapter 14: Virtual Private Network Load Balancing 212777-A, February 2002
6. Configure VRRP for virtual routers 1 and 2.
7. Enable SLB.
8. Configure real servers for health checking VPN devices.
9. Enable the real server group, and place real servers 1-4 into the real server group.
>> # /cfg/vrrp/on
>> # /cfg/vrrp/vr 1
>> # ena
>> # vrid 1
>> # if 1
>> # addr 192.168.10.50
>> # share dis
>> # track
>> # vrs ena
>> # ports ena
>> # /cfg/vrrp/vr 2
>> # ena
>> # vrid 2
>> # if 2
>> # addr 10.0.0.1
>> # share dis
>> # track
>> # vrs ena
>> # ports ena
>> # /cfg/slb/on
>> # /cfg/slb/real 1/ena/rip 20.0.0.10
>> # /cfg/slb/real 2/ena/rip 20.0.0.11
>> # /cfg/slb/real 3/ena/rip 20.0.0.20
>> # /cfg/slb/real 4/ena/rip 20.0.0.21
>> # /cfg/slb/group 1
>> # metric hash
>> # add 1/add 2/add 3/add 4
Web OS 10.0 Application Guide
Chapter 14: Virtual Private Network Load Balancing 367
212777-A, February 2002
10. Configure the filters to allow local subnet traffic on the dirty side of the VPN device to
reach the VPN device interfaces.
11. Create the redirection filter and enable firewall load balancing.
This filter will redirect inbound traffic, among the defined real servers in the group.
12. Add filters to the ingress port.
13. Apply and save the configuration and reboot the switch.
>> # /cfg/slb/filt 100
>> # ena
>> # sip any
>> # dip 192.168.10.0/dmask 255.255.255.0
>> # ../filt 110
>> # ena
>> # sip any
>> # dip 224.0.0.0/dmask 255.0.0.0
>> # /cfg/slb/filt 224
>> # ena
>> # sip any
>> # dip any
>> # proto any
>> # action redir
>> # ../filt 224/adv
>> # fwlb ena
>> # /cfg/slb/port 1
>> # filt ena
>> # add 100/add 110/add 224
>> # apply
>> # save
>> # /boot/reset
Web OS 10.0 Application Guide
368 Chapter 14: Virtual Private Network Load Balancing 212777-A, February 2002
Test Configurations and General Topology
The switches should be able to health check each other, and all switches should see four real
servers up. (Rules on the VPN devices permit this—see Figure 14-3 on page 368.)
Figure 14-3 Checkpoint Rules for Both VPN Devices as Seen in the Policy Editor
1. Disconnect the cables (cause failures) to change the available servers that are up.
This should change the VRRP preferences. You can view VRRP preferences using the CLI
command /info/vrrp.
2. Use the Checkpoint Log Viewer to watch for accepted and dropped traffic. In the tool bar
above, click on Window, then Log Viewer.
NOTE – To help simplify the logs, the health checks are not logged.
>> # /info/slb/dump (Verify which servers are up)
Web OS 10.0 Application Guide
Chapter 14: Virtual Private Network Load Balancing 369
212777-A, February 2002
Test the VPN
1. Launch the SecuRemote client on the dirty side of the network.
2. Add a new site.
3. Enter the policy server IP address: 192.168.10.120. You have the option of adding a
nickname.
4. Launch a browser (such as Netscape or Internet Explorer) and go to http://30.0.0.100
5. You will be asked to authenticate yourself.
6. Enter vpnuser for user name and alteon for the password.
Web OS 10.0 Application Guide
370 Chapter 14: Virtual Private Network Load Balancing 212777-A, February 2002
7. You will see a message verifying that you were authenticated.
8. Browse to the Web site.
If there are other services running on other servers in the internal network, you should also be
able to reach those services. All of this traffic is traveling over the VPN and is being decrypted
at the VPN device. You can verify which VPN device is being used by looking at the Log
Viewer. You should also be able to see the client authentication as well as the decrypted traffic.
To verify that the FWLB and hash metric is working correctly on the dirty-side switches (that
is, hashed on client IP address/Destination IP address), you can configure your current client
with an IP address one higher (or lower) in the last octet, and try to reestablish the VPN con-
nection. Or, add another PC on the dirty side and connect.
NOTE – When many clients are coming from behind a VPN gateway (for example, not using
the SecuRemote clients but using a VPN 1 Gateway or other compatible VPN Gateway), you
will not see load balancing across those clients. Each SecuRemote client will be treated differ-
ently, but each VPN 1 Gateway will be treated as one client each (that is, one Client IP
address). VPN Device 1 and VPN Device 2 belong to one cluster IP.
212777-A, February 2002 371
CHAPTER 15
Content Intelligent Switching
This chapter discusses advanced load balancing solutions utilizing Layer 7 content switching.
Inspecting HTTP headers, examining content identifiers such as URLs and cookies, and pars-
ing content requests are discussed in the following topics:
n“Overview” on page 372
n“Content Intelligent Server Load Balancing” on page 375
n“Content Intelligent Web Cache Redirection” on page 394
n“Exclusionary String Matching for Real Servers” on page 410
n“Regular Expression Matching” on page 412
n“Content Precedence Lookup” on page 414
n“Layer 7 Deny Filter” on page 417
NOTE – Direct Access Mode (DAM) must be enabled or configure a proxy IP address on all
switch ports (except port 9) for all content-intelligent switching features.
Web OS 10.0 Application Guide
372 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Overview
Alteon Web switches performs content intelligent switching by processing numerous tasks for
each incoming session, including connection setup, traffic parsing, applying server selection
algorithms, splicing connections and translating session addresses, metering and controlling
server bandwidth usage, processing traffic filters, collecting statistics, and so on. Figure 15-1
illustrates the process of content intelligent switching in the Web switch.
Figure 15-1 Content Intelligent Load Balancing Example
Client requests
a Web page
1. Requests for static
data go to caches
Requests for dynamic
data go to servers
Client sends an
HTTP request
3.
Switch completes 3-way
handshake with client
2.
Switch parses the HTTP request
and forwards based on header
and URL information
4.
Switch gets response,
adjusts the sequence
numbers in the TCP Header,
and forwards the packet
to the client
6.
Web server receives
the HTTP request and
responds
5.
File types:
"images"
".gif"
".jpg"
".html"
File types:
".cgi"
".bin"
".exe"
Internet
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 373
212777-A, February 2002
Parsing Content
Examining session content places heavier demands upon the Web switch than examining
TCP/IP headers for the following reasons:
nContent is non-deterministic. Content identifiers such as URLs and cookies can be of
varying lengths and can appear at unpredictable locations within a request. Scanning ses-
sion traffic for a specific string is far more processor-intensive than looking at a known
location in a session for a specific number of bytes.
nTo parse a content request, the Web switch must temporarily terminate the TCP connec-
tion from the client. This temporary termination is called a delayed binding. While the
connection is suspended, the Web switch acknowledges the client connection on behalf of
the server, buffers and examines the client request, and finally opens a connection to an
appropriate server based on the requested content.
For more information on delayed binding, see “Delayed Binding” on page 146.
nDelayed binding causes two independent TCP connections to span a Web session: one
from the client to the Web switch and the second from the Web switch to the selected
server. The Web switch must modify the TCP header, including performing TCP sequence
number translation and recalculating checksums on every packet that travels between the
client and the server, for the duration of the session. This function, known as TCP connec-
tion splicing, heavily tasks a Web switch, particularly when the switch must process thou-
sands of these sessions simultaneously.
nIn addition to real-time traffic and connection processing, a content intelligent Web switch
must monitor servers to ensure that requests are forwarded to the best-performing and
healthiest servers. This monitoring involves more than simple ICMP or TCP connection
tests, as servers can continue to process network protocols while failing to retrieve con-
tent.
nIf content is segregated in different servers or server farms, the Web switch must provide a
flexible, user-customizable mechanism allowing a relevant set of application and content
tests to be applied to each server or server farm.
In addition to implementing content intelligent switching, the switch periodically performs
background functions such as updating network topology, measuring server performance, and
health checking for servers, applications, and server sites.
Web OS 10.0 Application Guide
374 Chapter 15: Content Intelligent Switching 212777-A, February 2002
HTTP Header Inspection
Content intelligent switching is performed by inspecting HTTP headers. HTTP headers
include additional information about requests and responses. The HTTP 1.1 specification
defines a total of 46 headers. For Web Cache Redirection, at any given time one HTTP header
is supported globally for the entire switch.
HTTP headers can be general, request, response, or entity headers. General headers may exist
in both requests and responses. Requests and response headers are specific only to requests and
responses, respectively. Entity headers describe the content of the request body or the content
of the response body.
Each HTTP header field consists of a name, followed immediately by a colon ( : ), a single
space character, and the field value. Field names are case-insensitive. Header fields can be
extended over multiple lines by preceding each extra line with at least one space.
Some customer applications of HTTP header inspection are listed below:
nRedirection based on domain name
nCachability based on domain name
nVirtual hosting
nRedirection based on browser type
nCookie-based preferential redirection
Buffering Content with Multiple Frames
To handle the overall length of HTTP headers, including request headers containing multiple
cookies, and the Maximum Segment Size (MSS) of dial-up connections, Web OS software
provides the following support:
nHTTP GET Request Headers
NOTE – In addition to the URL path, which generally is less than 300 bytes, the HTTP GET
requests also include general headers and request headers.
Parsing GET requests to match URL path and HTTP header beyond the first frame
while performing delayed binding
Processing multiple frames from a single HTTP GET request, using a TCP stack on
the switch
nHTTP Cookie Request Headers
Buffering a maximum of 4500 bytes for a single GET request across multiple frames. A
single GET request can include multiple cookies.
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 375
212777-A, February 2002
Content Intelligent Server Load Balancing
Web OS allows you to load balance HTTP requests based on different HTTP header informa-
tion, such as “Cookie:” header for persistent load balancing, “Host:” header for virtual hosting,
or “User-Agent” for browser-smart load balancing.
n URL-Based Server Load Balancing on this page
n“Virtual Hosting” on page 380
n“Cookie-Based Preferential Load Balancing” on page 383
n“URL Hashing for Server Load Balancing” on page 387
n“Header Hash Load Balancing” on page 389
n“DNS Load Balancing” on page 390
n“Layer 7 RTSP Load Balancing” on page 392
URL-Based Server Load Balancing
URL-based SLB allows you to optimize resource access and server performance. Content dis-
persion can be optimized by making load-balancing decisions on the entire path and filename
of each URL.
NOTE – Both HTTP 1.0 and HTTP 1.1 requests are supported.
For URL matching you can configure up to 128 strings comprised of 40 bytes each. Each URL
Web request is then examined against the URL strings defined for each real server. URL
requests are load balanced among multiple servers matching the URL, according to the load
balancing metric configured for the real server group (leastConns is the default).
In Figure 15-2, the following criteria are specified for content load balancing:
nRequests with “.cgi” in the URL are forwarded to real servers 3 and 4.
nRequests with the string “images” in the URL are sent to real servers 1 and 2.
nRequests with URLs starting with “/product:” are sent to real servers 2, 3, and 5.
Requests containing URLs with anything else are sent to real servers 1, 2, 3, and 4. These serv-
ers have been defined with the “any” string.
Web OS 10.0 Application Guide
376 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Figure 15-2 URL-Based Server Load Balancing
Configuring URL-Based Server Load Balancing
To configure URL-based SLB, perform the following steps:
1. Before you can configure URL-based load balancing, ensure that the switch has already
been configured for basic SLB with the following tasks:
NOTE – When URL-based SLB is used in an active/active redundant setup, use a proxy IP
address instead of Direct Access Mode (DAM) to enable the URL parsing feature.
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
nDefine a real server group and set up health checks for the group.
nDefine a virtual server on virtual port 80 (HTTP), and assign the real server group to service it.
nEnable SLB on the switch.
nEnable client processing on the port connected to the clients.
For information on how to configure your network for SLB, see “Server Load Balancing” on
page 117.
Alteon Web Switch
String matching for:
images
/product
.gif
.jpg
String matching for:
/product
.cgi
.bin
.exe
String matching for:
/product
.html
In groups with multiple servers,
traffic is distributed within the
group via standard SLB metric
or URL hashing
GET/www.foo.com/event/reg.bin
GET/www.foo.com/product/abc.html
GET/www.foo.com/images/abc.gif
1
2
34
56
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 377
212777-A, February 2002
2. Define the string(s) to be used for URL load balancing.
nadd: Add string or a path.
nrem: Remove string or a path.
A default string “any” indicates that the particular server can handle all URL or Web-cache
requests. Refer to the following examples given below:
Example 1: String with the Forward Slash (/)
A string that starts with a forward slash ( /), such as “/images,” indicates that the server
will process requests that start out with the “/images” string only.
For example, with the “/images” string, the server will handle these requests:
/images/product/b.gif
/images/company/a.gif
/images/testing/c.jpg
The server will not handle these requests:
/company/images/b.gif
/product/images/c.gif
/testing/images/a.gif
Example 2: String without the Forward Slash (/)
A string that does not start out with a forward slash ( / ) indicates that the server will process
any requests that contain the defined string. For example, with the “images” string, the server
will process these requests:
/images/product/b.gif
/images/company/a.gif
/images/testing/c.jpg
/company/images/b.gif
/product/images/c.gif
/testing/images/a.gif
Example 3: String with the Forward Slash (/) Only
If a server is configured with the load balance string ( / ) only, it will only handle requests to
the root directory. For example, the server will handle any files in the root directory:
/
/index.htm
/default.asp
/index.shtm
>> # /cfg/slb/layer7/slb/add|rem <string>
Web OS 10.0 Application Guide
378 Chapter 15: Content Intelligent Switching 212777-A, February 2002
3. Apply and save your configuration changes.
4. Identify the defined string IDs.
For easy configuration and identification, each defined string has an ID attached, as shown in
the following example:
Number of entries: six
5. Configure one or more real servers to support URL-based load balancing.
6. Add the defined string(s) to the real server using the following command:
where ID is the identification number of the defined string.
NOTE – If you don’t add a defined string (or add the defined string “any”) the server will han-
dle any request.
A server can have multiple defined strings. For example:
n“/images”
n“/sales”
n“.gif”
With these defined strings, this particular server can handle requests that start with “/images”
or “/sales” and any requests that contain “.gif”.
>> # /cfg/slb/layer7/slb/cur
ID SLB String
1any
3/sales
4/xitami
5/manual
>> # /cfg/slb/real 2/layer7/addlb <ID>
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 379
212777-A, February 2002
7. Enable SLB on the switch.
8. Enable DAM on the switch or configure a proxy IP address on the client port.
nTo turn on DAM:
nTo turn off DAM and configure a proxy IP address on the client port:
NOTE – By enabling DAM on the switch or, alternatively, disabling DAM and configuring a
Proxy IP address on the client port, port mapping for URL load balancing can be performed.
9. Enable URL-based SLB on the virtual server(s).
Statistics for URL-Based Server Load Balancing
To show the number of hits to the SLB or cache server, use this command:
Sample Statistics:
>> # /cfg/slb/on (Turn SLB on)
>> # /cfg/slb/adv/direct ena
>> # /cfg/slb/direct dis
>> # port 2/pip 12.12.12.12
>> # proxy ena
>> # /cfg/slb/virt <virtual server number>/service 80/httpslb urlslb
>> # /stats/slb/layer7/lb
ID SLB String Hits
1any 73881
2.gif 0
3/sales 0
4/xitami 162102
5/manual 0
6.jpg 0
Web OS 10.0 Application Guide
380 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Virtual Hosting
Web OS allows individuals and companies to have a presence on the Internet in the form of a
dedicated Web site address. For example, you can have a “www.site-a.com” and “www.site-
b.com” instead of “www.hostsite.com/site-a” and “www.hostsite.com/site-b.”
Service providers, on the other hand, do not want to deplete the pool of unique IP addresses by
dedicating an individual IP address for each home page they host. By supporting an extension in
HTTP 1.1 to include the host header, Web OS enables service providers to create a single virtual
server IP address to host multiple Web sites per customer, each with their own host name.
NOTE – For SLB, one HTTP header is supported per virtual server.
The following list provides more detail on virtual hosting with configuration information.
nAn HTTP/1.0 request sent to an origin server (not a proxy server) is a partial URL instead
of a full URL.
An example of the request that the origin server would see as follows:
GET /products/180/ HTTP/1.0
User-agent: Mozilla/3.0
Accept: text/html, image/gif, image/jpeg
The GET request does not include the host name. From the TCP/IP headers, the origin
server knows the requests host name, port number, and protocol.
nWith the extension to HTTP/1.1 to include the HTTP HOST: header, the above request to
retrieve the URL “/www.nortelnetworks.com/ products/180” would look like this:
GET /products/180/ HTTP/1.1
Host: www.nortelnetworks.com
User-agent: Mozilla/3.0
Accept: text/html, image/gif, image/jpeg
The Host: header carries the hostname used to generate the IP address of the site.
nBased on the Host: header, the switch will forward the request to servers representing dif-
ferent customers’ Web sites.
nThe network administrator needs to define a domain name as part of the 128 supported
URL strings.
nThe switch performs string matching; that is, the string “nortelnetworks.com” or
“www.nortelnetworks.com” will match “www.nortelnetworks.com.”
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 381
212777-A, February 2002
Virtual Hosting Configuration Overview
The sequence of events for configuring virtual hosting based on HTTP Host: headers is
described below:
1. The network administrator defines a domain name as part of the 128 supported URL
strings.
Both domain names “www.company-a.com” and “www.company-b.com” resolve to the same
IP address. In this example, the IP address is for a virtual server on the switch.
2. “www.company-a.com” and “www.company-b.com” are defined as URL strings.
3. Server Group 1 is configured with Servers 1 through 8.
Servers 1 through 4 belong to “www.company-a.com” and Servers 5 through 8 belong to
“www.company-b.com.”
4. The network administrator assigns string “www.company-a.com” to Servers 1 through 4
and string “www.company-b.com” to Servers 5 through 8.
5. The Web switch inspects the HTTP host header in requests received from the client.
nIf the host header is “www.company-a.com,” the switch directs requests to one of the
Servers 1 through 4.
nIf the host header is “www.company-b.com,” the switch directs requests to one of the
Servers 5 through 8.
Web OS 10.0 Application Guide
382 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Configuring the “Host” Header for Virtual Hosting
To support virtual hosting, configure the switch for Host header-based load balancing with the
following procedure:
1. Before you can configure header-based server load balancing, ensure that the switch has
already been configured for basic SLB with the following tasks:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
nAssign servers to real server groups.
nDefine virtual servers and services.
For information on how to configure your network for server load balancing, see “Server Load
Balancing” on page 117.
2. Turn on URL parsing for the virtual server for virtual hosting.
3. Define the host names.
4. Configure the real server(s) to handle the appropriate load balancing string(s).
To add a defined string:
where ID is the identification number of the defined string.
NOTE – If you don't add a defined string (or add the defined string “any”), the server will han-
dle any request.
>> # /cfg/slb/virt 1 (Select the virtual IP for host
header-based SLB)
>> Virtual Server 1 # service 80 (Select the HTTP service)
>> Virtual Server 1 http Service # httpslb host
>> # /cfg/slb/layer7/slb/add "www.customer1.com"
>> Server Loadbalance Resource# add "www.customer2.com"
>> Server Loadbalance Resource# add "www.customer3.com"
>> # /cfg/slb/real 2 (Select the real server)
>> Real Server 2 # Layer 7
>> Real Server 2 Layer 7 Commands # addlb <ID>(Specify the string ID)
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 383
212777-A, February 2002
Cookie-Based Preferential Load Balancing
Cookies can be used to provide preferential services for customers, ensuring that certain users
are offered better access to resources than other users when site resources are scarce. For
example, a Web server could authenticate a user via a password and then set cookies to identify
them as “Gold,” “Silver,” or “Bronze” customers. Using cookies, you can distinguish individu-
als or groups of users and place them into groups or communities that get redirected to better
resources and receive better services than all other users.
NOTE – Cookie-based persistent load balancing is described in Chapter 16, “Persistence.”
Cookie-based preferential services enable the following support:
nRedirect higher priority users to a larger server or server group.
nIdentify a user group and redirect them to a particular server.
nServe content based on user identity.
nPrioritize access to scarce resources on a Web site.
nProvide better services to repeat customers, based on access count.
Clients that receive preferential service can be distinguished from other users by one of the fol-
lowing methods:
nIndividual User
Specific individual user could be distinguished by IP address, login authentication, or per-
manent HTTP cookie.
nUser Communities
Some set of users, such as “Premium Users” for service providers who pay higher mem-
bership fees than “Normal Users” could be identified by source address range, login
authentication, or permanent HTTP cookie.
nApplications
Users could be identified by the specific application they are using. For example, priority
can be given to HTTPS traffic that is performing credit card transactions versus HTTP
browsing traffic.
nContent
Users could be identified by the specific content they are accessing.
Based on one or more of the criteria above, you can load balance requests to different server
groups.
Web OS 10.0 Application Guide
384 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Configuring Cookie-Based Preferential Load Balancing
To configure cookie-based preferential load balancing, perform the following procedure.
1. Before you can configure header-based load balancing, ensure that the switch has already
been configured for basic SLB with the following tasks:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
nAssign servers to real server groups.
nDefine virtual servers and services.
For information on how to configure your network for SLB, see Chapter 6, “Server Load Bal-
ancing.
2. Turn on URL parsing for the virtual server.
where
sid = cookie name
1 = offset (the starting position of the value to be used for hashing)
6 = length (the number of bytes in the cookie value)
d = looks for the cookie in the cookie header instead of the URI (disables searching for cookie
in the URI)
3. Define the cookie values.
Since a session cookie does not exist in the first request of an HTTP session, a default server or
“any” server is needed to assign cookies to a “None” cookie HTTP request.
>> # /cfg/slb/virt 1
>> Virtual Server 1 # service 80
>> Virtual Server 1 http Service # httpslb cookie
Enter Cookie Name: sid
Enter the starting point of the Cookie value [1-64]: 1
Enter the number of bytes to extract [1-64]: 6
Look for Cookie in URI [e|d]: d
>> # /cfg/slb/layer7/slb/add "Gold"
>> # add "Silver"
>> # add "Bronze"
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 385
212777-A, February 2002
Example:
nReal Server 1: “Gold” handles gold requests.
nReal Server 2: “Silver” handles silver request.
nReal Server 3: “Bronze” handles bronze request.
nReal Server 4: “any” handles any request that does not have a cookie or matching
cookie.
With servers defined to handle the requests listed above, here is what happens:
nRequest 1 comes in with no cookie; it is forwarded to Real Server 4 to get cookie assigned.
nRequest 2 comes in with “Gold” cookie; it will be forwarded to Real Server 1.
nRequest 3 comes in with “Silver” cookie; it will be forwarded to Real Server 2.
nRequest 4 comes in with “Bronze” cookie; it will be forwarded to Real Server 3.
nRequest 5 comes in with “Titanium” cookie; it will be forwarded to Real Server 4, since it
does not have an exact cookie match (matches with “any” configured at Real Server 4).
4. Configure the real server(s) to handle the appropriate load balance string(s).
To add a defined string:
where ID is the identification number of the defined string.
NOTE – If you don't add a defined string (or add the defined string “any”), the server will han-
dle any request.
5. Enable DAM on the switch or configure a proxy IP address on the client port.
To use cookie-based preferential load balancing without DAM, you must configure a proxy IP
address on the client port.
NOTE – If VMA is enabled, you need to configure a proxy IP address on ports 1-8. If VMA is
disabled, you need only one proxy IP address.
Enable proxy load balancing on the port used for cookie-based preferential load balancing. If
Virtual Matrix Architecture (VMA) is enabled on the switch, you can choose to configure the
remaining ports with proxy IP disabled.
>> # /cfg/slb/real 2/layer7/addlb <ID>
Web OS 10.0 Application Guide
386 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Browser-Smart Load Balancing
HTTP requests can be directed to different servers based on browser type by inspecting the
“User-Agent” header. For example,
GET /products/180/ HTTP/1.0
User-agent: Mozilla/3.0
Accept: text/html, image/gif, image/jpeg
To allow the switch to perform browser-smart load balancing, perform the following proce-
dure.
1. Before you can configure browser-based load balancing, ensure that the switch has
already been configured for basic SLB with the following tasks:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
nAssign servers to real server groups.
nDefine virtual servers and services.
2. Turn on URL parsing for the virtual server for “User-Agent:” header.
3. Define the host names.
4. Configure the real server(s) to handle the appropriate load balancing string(s).
NOTE – If you don't add a defined string (or add the defined string “any”), the server will han-
dle any request.
Use the following command to add a defined string:
where ID is the identification number of the defined string.
>> # /cfg/slb/virt 1/service 80/httpslb browser
>> # /cfg/slb/layer7/slb/add "Mozilla"
>> Server Loadbalance Resource# add "Internet Explorer"
>> Server Loadbalance Resource# add "Netscape"
>> # /cfg/slb/real 2/layer7/addlb <ID>
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 387
212777-A, February 2002
URL Hashing for Server Load Balancing
By default, hashing algorithms use the IP source address and/or IP destination address
(depending on the application area) to determine content location. The default hashing algo-
rithm for SLB is the IP source address. By enabling URL hashing, requests going to the same
page of an origin server are redirected to the same real server or cache server.
Virtual Server Load Balancing of Nontransparent Caches
You can deploy a cluster of non-transparent proxy caches and use the virtual server to load bal-
ance requests to the cache servers. The client’s browser is configured to send Web requests to a
nontransparent cache (the IP address of the configured virtual server).
If hash is selected as the load-balancing algorithm, the switch hashes the source IP address to
select the server for SLB. Under this condition, the switch may not send Web requests for the
same origin server to the same proxy cache server. For example, requests made from a client to
“http://www.nortelnetworks.com/products” from different clients may get sent to different
caches.
Figure 15-3 Balancing Nontransparent Caches
Configuring URL Hashing
You can direct the same URL request to the same cache or proxy server by using a virtual
server IP address to load balance proxy requests. By configuring hash or minmisses as the
metric, the switch uses the number of bytes in the URI to calculate the hash key.
If the host field exists and the switch is configured to look into the Host: header, the switch
uses the Host: header field to calculate the hash key.
Client's browser is configured
to send Web requests to the
origin server via the virtual server
Virtual Server IP Address:
205.178.13.243
Non-Transparent
Cache Farm
$
$$
Web OS 10.0 Application Guide
388 Chapter 15: Content Intelligent Switching 212777-A, February 2002
To configure URL hashing, perform the following procedure:
1. Before you can configure URL hashing, ensure that the switch has already been config-
ured for basic SLB with the following tasks:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
nAssign servers to real server groups.
nDefine virtual servers and services.
nConfigure load-balancing algorithm for hash or minmiss.
nEnable SLB.
For information on how to configure your network for SLB, see Chapter 6, “Server Load
Balancing.”
nDefine server port and client port.
2. Enable URL hashing.
Hashing is based on the URL, including the HTTP Host: header (if present), up to a maximum
of 255 bytes.
3. Set the metric for the real server group to minmisses or hash.
>> # /cfg/slb/virt 1
>> Virtual Server 1 # service 80
>> Virtual Server 1 http Service # httpslb urlhash
Enter new hash length [1-255]: 25
>> # /cfg/slb/group 1/metric <hash|minmiss>
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 389
212777-A, February 2002
Header Hash Load Balancing
Web OS allows you to hash on any selected HTTP header. To configure the Web switch for
load balancing based on header hash, perform the following procedure:
1. Ensure that the switch has already been configured for basic SLB:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
nAssign servers to real server groups.
nDefine virtual servers and services.
For information on how to configure your network for SLB, see Chapter 6, “Server Load Bal-
ancing.”
2. Enable header hashing.
3. Set the metric for the real server group to minmisses or hash.
>> # /cfg/slb/virt 1
>> Virtual Server 1 # service 80
>> Virtual Server 1 http Service # httpslb headerhash
Select Operation: none
Enter new HTTP header name: User-agent
Enter new hash length [1-255]: 25
>> # /cfg/slb/group 1/metric <hash|minmiss>
Web OS 10.0 Application Guide
390 Chapter 15: Content Intelligent Switching 212777-A, February 2002
DNS Load Balancing
The Internet name registry has become so large that a single server cannot keep track of all the
entries. This is resolved by splitting the registry and saving it on different servers.
If you have large DNS server farms, Web OS allows you to load balance traffic based on DNS
names. To load balance DNS names, the host name is extracted from the query, processed by
the regular expressions engine, and the request is sent to the appropriate real server.
For example, Figure 15-4 shows a DNS server farm load balancing DNS queries based on
DNS names. Requests with DNS names beginning with A through G are sent to Server 1; DNS
names beginning with H through M are sent to Server 2; DNS names beginning with N through
T are sent to Server 3; DNS names beginning with U through Z are sent to Server 4.
Figure 15-4 Load Balancing DNS Queries
Client Web Switch
DNS Server Farm
DNS Queries A - G
DNS Queries H - M
DNS Queries N - T
Server 1
Server 2
Server 3
DNS Queries U - Z
Server 4
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 391
212777-A, February 2002
To configure the switch for DNS load balancing, perform the following procedure:
1. Before you can configure DNS load balancing, ensure that the switch has already been
configured for basic SLB with the following tasks:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server (DNS server address).
nAssign servers to real server groups.
nDefine virtual servers and services.
nEnable SLB.
For information on how to configure your network for SLB, see Chapter 6, “Server Load
Balancing.”
nDefine server port and client port.
2. Enable DNS load balancing.
3. Enable delayed binding.
4. Define the host names.
5. Apply and save your configuration changes.
6. Identify the defined string IDs.
For easy configuration and identification, each defined string has an ID attached, as shown in
the following example:
>> # /cfg/slb/virt 1 (Select the virtual server)
>> Virtual Server 1 # service 53 (Select the DNS service)
>> Virtual Server 1 DNS Service # dnsslb ena (Enable DNS SLB)
>> Virtual Server 1 DNS Service# dbind ena
>> # /cfg/slb/layer7/slb/add www.[abcdefg]*.com
>> Server Loadbalance Resource# add www.[hijklm]*.com
>> Server Loadbalance Resource# add www.[nopqrst]*.com
>> Server Loadbalance Resource# add www.[uvwxyz]*.com
>> # /cfg/slb/layer7/slb/cur
Web OS 10.0 Application Guide
392 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Number of entries: five
7. Add the defined string IDs to the real server using the following command:
NOTE – If you don't add a defined string (or add the defined string “any”) the server will han-
dle any request.
Layer 7 RTSP Load Balancing
Earlier versions of Web OS supported hashing to bind a client’s request to a real server for
Layer 7 load balancing. As a result, all the real servers carried the same content. In addition to
hashing, Web OS 10.0 allows you to segregate the requests based on the string pattern, match
the strings in the requests, and direct the requests to the assigned servers. For more information
on RTSP, refer to “Real Time Streaming Protocol SLB” on page 155
To configure RTSP load balancing using hash, follow this procedure:
ID SLB String
1 any, cont 1024
2 www.[abcdefg]*.com, cont 1024
3 www.[hijklm]*.com, cont 1024
4 www.[nopqrst]*.com, cont 1024
5 www.[uvwxyz]*.com, cont 1024
>> # /cfg/slb/real 1/layer7/addlb 2
>> # /cfg/slb/real 2/layer7/addlb 3
>> # /cfg/slb/real 3/layer7/addlb 4
>> # /cfg/slb/virt 1/service 554
>> Virtual Server 1 rtsp Service# rtspslb
Enter new RTSP load balancing method [hash|pattern|disabled]: hash
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 393
212777-A, February 2002
To configure RTSP load balancing using pattern matching, follow this procedure:
1. Add the URL string.
nYou can remove the URL string by performing the following:
nYou can rename the URL string by performing the following:
2. Assign a URL string ID to a real server.
3. Enable Layer 7 Parsing for RTSP.
4. Apply and save the configuration
>> # /cfg/slb/layer7/slb/add <URL string ID> (Add URL string ID, for example,
g2video.rm)
>> # /cfg/slb/layer7/slb
>> Server Load Balance Resource# rem <URL string ID>
(Remove URL string ID: g2video.rm)
>> # /cfg/slb/layer7/slb
>> Server Load Balance Resource# rename <URL string ID>
(Rename URL string: g2video.rm)
>> # /cfg/slb/real 1 (Select the real server)
>> Real Server 1 # Layer 7
>> Real Server 1 Layer 7 Commands # addlb <URL string ID (1-128)>
(Add the string ID for RTSP load
balance)
>> # /cfg/slb/virt 1 /service rtsp
>> Virtual Server 1 rtsp Service# rtspslb
Current RTSP URL load balancing: disabled
Enter new RTSP load balancing method [hash|pattern|disabled]: pattern
>> Virtual Server 1 rtsp Service# apply
>> Virtual Server 1 rtsp Service# save
Web OS 10.0 Application Guide
394 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Content Intelligent Web Cache Redirection
Web OS allows you to redirect Web cache requests based on different HTTP header information,
such as “Host:” header or “User-Agent” for browser-smart load balancing. For more information
on layer 4 Web cache redirection, see Chapter 8, “Application Redirection.”
The No Cache/Cache Control for Web Cache Redirection (WCR) feature in Web OS allows
you to off load the processing of non-cacheable content from cache servers by sending only
appropriate requests to the cache server farm. When a Cache-Control header is present in a
HTTP 1.1 request, it indicates a client's special request with respect to caching, such as to guar-
antee up-to-date data from the origin server. If this feature (Cache-Control: no cache directive)
is enabled, HTTP 1.1 GET requests are forwarded directly to the origin servers.
NOTE – The term origin server refers to the server originally specified in the request.
The HTTP 1.0 Pragma: no-cache header is equivalent to the HTTP 1.1 Cache-Con-
trol header. By enabling the Pragma: no-cache header, requests are forwarded to the ori-
gin server.
NOTE – For WCR, at any given time one HTTP header is supported globally for the entire
switch.
This section discusses the following types of Web cache redirection:
n“URL-Based Web Cache Redirection” on page 395
n“HTTP Header-Based Web Cache Redirection” on page 403
n“Browser-Based Web Cache Redirection” on page 405
n“URL Hashing for Web Cache Redirection” on page 406
n“Layer 7 RTSP Streaming Cache Redirection” on page 409
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 395
212777-A, February 2002
URL-Based Web Cache Redirection
URL parsing for Web Cache Redirection operates in a manner similar to URL-based server
load balancing except that in WCR a virtual server on the switch is the target of all IP/HTTP
requests. For information on URL-based server load balancing, see “URL-Based Server Load
Balancing” on page 375.
By separating static and dynamic content requests via URL parsing, Web OS enables you to
send requests with specific URLs or URL strings to designated cache servers. The URL-based
WCR option allows you to off load overhead processing from the cache servers by only send-
ing appropriate requests to the cache server farm.
NOTE – Both HTTP 1.0 and HTTP 1.1 requests are supported.
Each request is examined and handled as described below:
nIf the request is a non-GET request such as HEAD, POST, PUT, or HTTP with cookies, it
is not sent to the cache.
nIf the request is an ASP or CGI request or a dynamically generated page, it is not sent to
the cache.
nIf the request contains a Cookie, it can optionally bypass the cache.
You can configure up to 32 URL expressions, each 8 bytes long, for noncacheable content
types. You can use up to 128 strings, comprising of 40 bytes each for URL string matching on
each switch. As each URL Web request is examined, noncacheable items are forwarded to the
origin server while requests with matching strings are redirected to the appropriate cache
server.
Examples of matching string expressions are:
n/product
Any URL that starts with “/product,” including any information in the “/product” direc-
tory
nproduct
Any URL that has the string “product”
Web OS 10.0 Application Guide
396 Chapter 15: Content Intelligent Switching 212777-A, February 2002
The switch is preconfigured with a list of 13 noncacheable items that you can add to, delete, or
modify. These items are either known dynamic content file extensions or dynamic URL
parameters, as described below:
nDynamic content files:
Common gateway interface files (.cgi)
cold fusion files (.cfm), ASP files (.asp)
BIN directory
CGI-BIN directory
SHTML (scripted html)
Microsoft HTML extension files (.htx)
executable files (.exe)
nDynamic URL parameters: +, !, %, =, &
Figure 15-5 URL-Based Web Cache Redirection
Requests matching the URL are load balanced among the multiple servers, depending on the
metric specified for the real server group (leastconns is the default).
Web Cache Redirector
Non-HTTP GET
GET/www.hostc.com/cgi-bin/script.bin
GET/http://finance.yahoo.com/q?s=hwp%2C+ibm%d=v1
GET/product/Webswitch.html
GET/company/information.html
GET/company/images/switch.gif
Internet
Host A
Implicit load balancing
within the group
/product
information
Host B
Host C
images
$$
$
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 397
212777-A, February 2002
Network Address Translation Options
URL-based WCR supports three types of Network Address Translation (NAT): No NAT, Half
NAT, and Full NAT.
nNo NAT
In this NAT method, the traffic is redirected to the Web cache with the destination MAC
address replaced by the MAC address of the cache. The destination IP address remains
unchanged, and no modifications are made to the IP address or the MAC address of the
source or origin server. This works well for transparent cache servers, which process traf-
fic destined to their MAC address but with the IP address of some other device.
nHalf NAT
In this most commonly used NAT method, the destination IP address is replaced by the IP
address of the Web cache, and the destination MAC address is replaced by the MAC
address of the Web cache. Both the IP address and the MAC address of the source remain
unchanged.
nFull NAT
In this NAT method, the source IP address and the source MAC address are replaced by
the IP address and MAC address of the Web cache. This method works well for proxy
cache servers.
Configuring URL-Based Web Cache Redirection
To configure URL-based Web Cache Redirection (WCR), perform the following steps:
1. Before you can configure URL-based WCR, configure the switch for basic Server Load
Balancing (SLB) with the following tasks:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
For information on how to configure your network for SLB, see “Server Load Balancing” on
page 117.
2. Configure the switch to support basic WCR.
For information on WCR, refer to “Application Redirection” on page 203.
Web OS 10.0 Application Guide
398 Chapter 15: Content Intelligent Switching 212777-A, February 2002
3. Configure the parameters and file extensions that bypass WCR.
The switch is preconfigured with a list of 13 noncacheable items:
nDynamic content files: Common gateway interface files (.cgi), cold fusion files (.cfm),
ASP files (.asp), BIN directory, CGI-BIN directory, SHTML (scripted html), Microsoft
HTML extension files (.htx), executable files(.exe)
nDynamic URL parameters: +, !, %, =, &
a) Add or remove expressions that should not be cacheable.
b) Enable/disable ALLOW for non-GETS (such as HEAD, POST, and PUT) to the ori-
gin server, as described below.
Ena: The switch allows all non-GET requests to the origin server.
Dis: The switch compares all requests against the expression table to determine
whether the request should be redirected to a cache server or the origin server.
c) Enable/disable cache redirection of requests that contain “cookie:” in the HTTP
header.
Ena: The switch redirects all requests that contain “cookie:” in the HTTP header to
the origin server.
Dis: The switch compares the URL against the expression table to determine
whether the request should be redirected to a cache server or the origin server.
d) Enable/disable cache redirection of requests that contain “Cache-control:no
cache” in the HTTP 1.1 header or “Pragma:no cache” in the HTTP 1.0 header
to the origin server.
Ena: The switch redirects all requests that contain Cache-control: no cache
in the HTTP 1.1 header or Pragma:no cache in the HTTP 1.0 header to the origin
server.
Dis: The switch compares the URL against the expression table to determine
whether the request should be redirected to a cache server or the origin server.
>> # /cfg/slb/layer7/redir/add|remove <expression>
>> # /cfg/slb/layer7/redir/urlal ena|dis
>> # /cfg/slb/layer7/redir/cookie ena|dis
>> # /cfg/slb/layer7/redir/nocache ena|dis
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 399
212777-A, February 2002
4. Define the string(s) to be used for Web cache SLB. Refer to the parameters listed below:
nadd: Add a string or a path.
nrem: Remove string or a path.
A default string “any” indicates that the particular server can handle all URL or Web-cache
requests. Refer to the following examples:
Example 1: String Starting with the Forwardslash (/)
A string that starts with a forwardslash ( /), such as “/images,” indicates that the server will
process requests that start out with the “/images” string only.
For example, with the “/images” string, the server will handle these requests:
/images/product/b.gif
/images/company/a.gif
/images/testing/c.jpg
The server will not handle these requests:
/company/images/b.gif
/product/images/c.gif
/testing/images/a.gif
Example 2: String without the Forwardslash (/)
A string that does not start out with a forwardslash ( / ) indicates that the server will process
any requests that contain the defined string. For example, with the “images” string, the server
will process these requests:
/images/product/b.gif
/images/company/a.gif
/images/testing/c.jpg
/company/images/b.gif
/product/images/c.gif
/testing/images/a.gif
Example 3: String with the Forwardslash (/) Only
If a server is configured with the load balance string ( / ) only, it will only handle requests to
the root directory. For example, the server will handle any files in the ROOT directory:
/
/index.htm
/default.asp
/index.shtm
>> # /cfg/slb/layer7/slb/add|rem <string>
Web OS 10.0 Application Guide
400 Chapter 15: Content Intelligent Switching 212777-A, February 2002
5. Apply and save your configuration changes.
6. Identify the defined string IDs.
For easy configuration and identification, each defined string has an ID attached, as shown in
the following example:
Number of entries: six
7. Configure the real server(s) to support WCR.
NOTE – If you don't add a defined string (or add the defined string “any”), the server will han-
dle any request.
Add the defined string(s) to the real servers:
where ID is the identification number of the defined string.
The server can have multiple defined strings. For example: “/images”, “/sales”, “.gif”
With these defined strings, the server can handle requests that begin with “/images” or “/sales”
and any requests that contain “.gif”.
8. Define a real server group and add real servers to the group.
The following configuration combines three real servers into a group:
>> # /cfg/slb/layer7/slb/cur
ID SLB String
1any
3/sales
4/xitami
5/manual
>> # /cfg/slb/real 2/layer7/addlb <ID>
>> # /cfg/slb/group 1 (Select real server group 1)
>> Real server group 1# add 1 (Add real server 1 to group 1)
>> Real server group 1# add 2 (Add real server 2 to group 1)
>> Real server group 1# add 3 (Add real server 3 to group 1)
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 401
212777-A, February 2002
9. Configure a filter to support basic WCR.
The filter must be able to intercept all TCP traffic for the HTTP destination port and must redi-
rect it to the proper port in the real server group:
10. Enable URL-based WCR on the same filter.
11. Select the appropriate NAT option.
The three NAT options are listed below. For more information about each option, see “Net-
work Address Translation Options” on page 397.
nNo NAT option:
n Half NAT option:
nFull NAT option:
>> # /cfg/slb/filt <filter number>(Select the menu for Filter #x)
>> Filter <filter number># sip any (From any source IP addresses)
>> Filter <filter number># dip any (To any destination IP addresses)
>> Filter <filter number># proto tcp (For TCP protocol traffic)
>> Filter <filter number># sport any (From any source port)
>> Filter <filter number># dport http (To an HTTP destination port)
>> Filter <filter number># action redir (Set the action for redirection)
>> Filter <filter number># rport http (Set the redirection port)
>> Filter <filter number># group 1 (Select real server group 1)
>> Filter <filter number># ena (Enable the filter)
>> # /cfg/slb/filt <filter number>/adv/urlp ena
>> # /cfg/slb/filter <filter number>/adv/proxy dis
>> # /cfg/slb/filter <filter number>/adv/proxy ena
>> # /cfg/slb/port <port number>
>> SLB port <port number># pip 12.12.12.12 (Configure proxy IP address on
the physical port)
>> SLB port <port number># ../filt <filter number>
>> Filter <filter number># rport 3128 (Specify redirection port)
>> Filter <filter number># adv (Select the advance menu)
>> Filter <filter number> Advanced# proxy ena(Enable proxy IP address)
Web OS 10.0 Application Guide
402 Chapter 15: Content Intelligent Switching 212777-A, February 2002
12. Create a default filter for noncached traffic on the switch.
NOTE – When the proto parameter is not tcp or udp, then sport and dport are ignored.
13. Turn on filtering for the port.
14. Add the filters to the client port.
15. Enable Direct Access Mode (DAM) on the switch.
16. Enable, apply, and verify the configuration.
Viewing Statistics for URL-Based Web Cache Redirection
To show the number of hits to the cache server or origin server, use this command:
>> # /cfg/slb/filt <filter number>(Select the default filter)
>> Filter <filter number># sip any (From any source IP addresses)
>> Filter <filter number># dip any (To any destination IP addresses)
>> Filter <filter number># proto any (For any protocol traffic)
>> Filter <filter number># action allow (Set the action to allow traffic)
>> Filter <filter number># ena (Enable the default filter)
>> Filter <filter number># port <port number> (Assign the default filter to a port)
>> SLB <port number># filt ena
>> SLB <port number># add <filter number>
>> SLB <port number># ../adv
>> Layer 4 Advanced# direct ena
>> # /cfg/slb (Select the SLB Menu)
>> # on (Turn SLB on)
>> # apply (Make your changes active)
>> # cur (View current settings)
>> # /stats/slb/layer7/redir
Total URL based Web cache redirection stats:
Total cache server hits: 73942
Total origin server hits: 2244
Total none-GETs hits: 53467
Total ’Cookie: ’ hits: 729
Total no-cache hits: 43
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 403
212777-A, February 2002
HTTP Header-Based Web Cache Redirection
To configure the switch for WCR based on the “Host:” header, use the following procedure:
1. Configure basic SLB.
Before you can configure header-based cache redirection, ensure that the switch has already
been configured for basic SLB (see “Server Load Balancing” on page 117)with the following
tasks:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
nAssign servers to real server groups.
nDefine virtual servers and services.
2. Turn on URL parsing for the filter.
3. Enable header load balancing for the Host: header.
4. Define the host names.
5. Apply and save your configuration changes.
6. Identify the string ID numbers with this command.
Each defined string has an associated ID number.
Number of entries: four
>> # /cfg/slb/filt 1/adv/urlp ena
>> # /cfg/slb/layer7/redir/header ena host
>> # /cfg/slb/layer7/slb/add ".com"
>> Server Load Balance Resource# add ".org"
>> Server Load Balance Resource# add ".net"
>> # /cfg/slb/layer7/slb/cur
ID SLB String
1any
2.com
3.org
4.net
Web OS 10.0 Application Guide
404 Chapter 15: Content Intelligent Switching 212777-A, February 2002
7. Configure the real server(s) to handle the appropriate load balance string(s).
Add the defined string IDs to the real servers:
where ID is the identification number of the defined string.
NOTE – If you don’t add a defined string (or add ID=1), the server will handle any request.
8. If Host: header filtering is enabled (Step 3), you can configure the switch to use the host
header field to determine whether requests are cacheable (or noncacheable).
For example, if you want all domain names that end with .net or .uk not to go to a cache
server, then enter the following command:
>> # /cfg/slb/real 2/layer7/addlb <ID>
>> # /cfg/slb/layer7/redir/add .net .uk
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 405
212777-A, February 2002
Browser-Based Web Cache Redirection
Browser-based Web cache redirection uses the User-agent: header. To configure browser-
based WCR, perform the following procedure.
1. Before you can configure header-based WCR, ensure that the switch is already config-
ured for basic SLB with the following tasks:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
nAssign servers to real server groups.
nDefine virtual servers and services.
2. Turn on URL parsing for the filter.
3. Enable header load balancing for “User-Agent:” header.
4. Define the host names.
5. Apply and save your configuration changes.
6. Identify the string ID numbers with this command.
Each defined string has an ID number.
Number of entries: four
>> # /cfg/slb/filt 1/adv/urlp enable
>> # /cfg/slb/layer7/redir/header ena useragent
>> # /cfg/slb/layer7/slb/add "Mozilla"
>> Server Load Balance Resource# add "Internet Explorer"
>> Server Load Balance Resource# add "Netscape"
>> # /cfg/slb/layer7/slb/cur
ID SLB String
1any
2Mozilla
3Internet Explorer
4Netscape
Web OS 10.0 Application Guide
406 Chapter 15: Content Intelligent Switching 212777-A, February 2002
7. Add the defined string IDs to configure the real server(s) to handle the appropriate load
balance string(s).
where ID is the identification number of the defined string.
NOTE – If you don’t add a defined string (or add the ID 1), the server will handle any request.
URL Hashing for Web Cache Redirection
By default, hashing algorithms use the source IP address and/or destination IP address
(depending on the application area) to determine content location. For example, firewall load
balancing uses both source and destination IP addresses, WCR uses only the destination IP
address, and SLB uses only the source IP address.
Hashing is based on the URL, including the HTTP Host header (if present), up to a maximum
of 255 bytes. You can optimize “cache hits” by using the hashing algorithm to redirect client
requests going to the same page of an origin server to a specific cache server.
For example the switch could use the string “nortelnetworks.com/products/180/” for hashing
the following request:
GET http://products/180 / HTTP/1.0
HOST:www.nortelnetworks.com
To configure the switch for WCR based on a hash key, use the following procedure:
1. Configure basic SLB.
Before you can configure header-based cache redirection, ensure that the switch has already
been configured for basic SLB (see “Server Load Balancing” on page 117) with the following
tasks:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
nAssign servers to real server groups.
nDefine virtual servers and services.
nConfigure the load-balancing algorithm to hash or minmiss.
>> # /cfg/slb/real 2/layer7/addlb <ID>
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 407
212777-A, February 2002
2. Turn on URL parsing for the filter.
3. Enable hash to direct a cacheable URL request to a specific cache server.
By default, the host header field is used to calculate the hash key and URL hashing is disabled.
nhash ena: Enables hashing based on the URL and the host header if it is present. Specify
the length of the URL to hash into the cache server.
nhash disable: Disables hashing based on the URL. Instead, the host header field to calcu-
late the hash key.
If the host header field does not exist in the HTTP header, then the switch uses the source
IP address as the hash key.
Example 1: Hashing on the URL
In this example, URL hashing is enabled. If the Host field does not exist, the specified length
of the URL is used to hash into the cache server as shown in Figure 15-6 on page 408. If the
Host field exists, the specified length of both the Host field and the URL is used to hash into
the cache server. The same URL request goes to the same cache server as shown below:
nClient 1 request http://www.nortelnetworks.com/sales/index.htm is
directed to cache server 1.
nClient 2 request http://www.nortelnetworks.com/sales/index.htm is
directed to cache server 1.
nClient 3 request http://www.nortelnetworks.com/sales/index.htm is
directed to cache server 1.
>> # /cfg/slb/filt 1/adv/urlp ena
>> # /cfg/slb/layer7/redir/hash ena
Enter new hash length [1-255]: 24
Web OS 10.0 Application Guide
408 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Figure 15-6 URL Hashing for WCR
Example 2: Hashing on the Host Header Field Only
In this example, URL hashing is disabled. If you use the Host header field to calculate the hash
key, the same URL request goes to the same cache server:
nClient 1 request http://www.nortelnetworks.com is directed to cache server 1.
nClient 2 request http://www.nortelnetworks.com is directed to cache server 1.
nClient 3 request http://www.nortelnetworks.com is directed to cache server 1.
Example 3: Hashing on the Source IP address
In this example, URL hashing is disabled. Because the host header field does not exist in the
HTTP header, the source IP address is used as the hash key and requests from clients 1, 2, and
3 are directed to three different cache servers as shown below.
nClient 1 request http://www.nortelnetworks.com is directed to cache server 1.
nClient 2 request http://www.nortelnetworks.com is directed to cache server 2.
nClient 3 request http://www.nortelnetworks.com is directed to cache server 3.
Alteon Web Switch
Cache server farm
http://www.nortelnetworks.com
Clients 2
3
1
1
2
3
Internet
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 409
212777-A, February 2002
Layer 7 RTSP Streaming Cache Redirection
This section explains Layer 7 support for RTSP Streaming Cache Redirection. For conceptual
information on RTSP Streaming Cache Redirection, see “RTSP Web Cache Redirection” on
page 211. For detailed information on two prominent commercial RTSP servers—Real Player
and QuickTime—see “Real Time Streaming Protocol SLB” on page 155.
To configure RTSP for Streaming Cache Redirection, follow this procedure:
1. Enable URL parsing for the redirection filter.
2. Configure the parameters and file extensions that will bypass RTSP streaming cache
redirection. (This is the user-defined non-cacheable content)
. You can add or remove RTSP files like *.mov, *.smil, .rm, and so forth.
3. Assign the url string to the real server.
where ID is the identification number of the defined string.
4. Apply and save the configuration.
>> Main# /cfg/slb/filt <filter number>/adv (Select the filtering advanced menu)
>> Filter 1 Advanced# urlp ena (Enable URL parsing)
>> /cfg/slb/layer7/rtspred (Select the RTSP cache redirection
menu)
>> Web Cache Redirection# add|rem <expression> (Add non-cacheable RTSP URL
expression for load balancing)
>> # /cfg/slb/real 1 (Select the real server)
>> Real Server 1 # Layer 7
>> Real Server 1 Layer 7 Commands # addlb <ID>(Add the URL string ID for RTSP
cache redirection)
>> Real Server 1 Layer 7 Commands# apply
>> Real Server 1 Layer 7 Commands# save
Web OS 10.0 Application Guide
410 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Exclusionary String Matching for Real
Servers
URL-based SLB and WCR can match or exclude up to 128 strings. Examples of strings are as
follows:
n“/product,” matches URLs that starts with /product.
n“product,” matches URLs that have the string “product” anywhere in the URL.
You can assign one or more strings to each real server. When more than one URL string is
assigned to a real server, requests matching any string are redirected to that real server. There is
also a special string known as “any” that matches all content.
Web OS also supports exclusionary string matching. Using this option, you can define a server
to accept any requests regardless of the URL, except requests with a specific string.
NOTE – Once exclusionary string matching is enabled, clients cannot access the URL strings
that are added to that real server. This means you cannot configure a dedicated server to
receive a certain string and, at the same time, have it exclude other URL strings. The exclu-
sionary feature is enabled per server, not per string.
For example, the following strings are assigned to a real server:
string 1 = cgi
string 2 = NOT cgi/form_A
string 3 = NOT cgi/form_B
As a result, all cgi scripts are matched except form_A and form_B.
Configuring for Exclusionary URL String Matching
This configuration example shows you how to configure a server to handle any requests except
requests that contain the string “test” or requests that start with “/images” or “/product”.
To configure exclusionary URL string matching, perform the following procedure:
1. Before you can configure URL string matching, ensure that the switch has already been
configured for basic SLB:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
nAssign servers to real server groups.
nDefine virtual servers and services.
nEnable SLB.
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 411
212777-A, February 2002
For information on how to configure your network for server load balancing, see Chapter 6,
“Server Load Balancing.”
2. Add the load balancing strings (for example test, /images, and /product) to the real
server.
3. Apply and save the configuration.
4. Identify the IDs of the defined strings.
Number of entries: three
5. Assign the URL string ID to the real server.
6. Enable the exclusionary string matching option.
If you configured a string “any” and enabled the exclusion option, the server will not handle
any requests. This has the same effect as disabling the server.
>> # /cfg/slb/layer7/slb/add test
>> Server Loadbalance Resource# add “/images”
>> Server Loadbalance Resource# add “/product”
>> Server Loadbalance Resource# cur
ID SLB String
1any
2test
3/images
4/product
>> Real Server 1 Layer 7 commands# addlb 2
>> Real Server 1 Layer 7 commands# addlb 3
>> Real Server 1 Layer 7 commands# addlb 4
>> Real Server 1 Layer 7 commands# exclude enable
Web OS 10.0 Application Guide
412 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Regular Expression Matching
Regular expressions are used to describe patterns for string matching. They enable you to
match the exact string, such as URLs, host names, or IP addresses. It is a powerful and effec-
tive way to express complex rules for Layer 7 string matching. Both Layer 7 HTTP SLB and
Web Cache Redirection can use regular expressions as a resource. Configuring for regular
expressions can enhance content-based switching in the following areas:
nHTTP header matching
nURL matching
Standard Regular Expression Characters
The following is a list of standard regular expression special characters that are supported in
Web OS:
Use the following rules to describe patterns for string matching:
nSupports one layer of parenthesis.
nSupports only single “$” (match at end of line) which must appear at the end of the string.
For example, “abc$*def” is not supported.
nSize of the user input string must be 40 characters or less.
Table 15-1 Standard Regular Expression Special Characters
Construction Description
*Matches any string of zero or more characters
.Matches any single character
+Matches one or more occurrences of the pattern it follows
?Matches zero or one occurrences of its followed pattern
$Matches the end of a line
\Escape the following special character
[abc] Matches any of the single character inside the bracket
[^abc] Matches any single character except those inside the bracket
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 413
212777-A, February 2002
nSize of the regular expression structure after compilation cannot exceed 43 bytes for load
balancing strings and 23 bytes for Web Cache Redirection. The size of regular expression
after compilation varies, based on regular expression characters used in the user input
string.
nUse “/” at the beginning of the regular expression. Otherwise a regular expression will
have “*” prefixed to it automatically. For example, “html/*\.htm” appears as
“*html/*\.htm”.
nIncorrectly or ambiguously formatted regular expressions are rejected instantly. For exam-
ple:
where a “+” or “?” follows a special character like the “*”
A single “+” or “?” sign
Unbalanced brackets and parenthesis
Configuring Regular Expressions
The regular expression feature is applicable to both URL SLB path strings and URL SLB redi-
rected expression strings. Configure regular expressions at the following CLI prompts:
or
As a result, both HTTP SLB and WCR can use regular expression as the resource.
NOTE – The more complex the structure of the string, the longer it will take for the server to
load balance the incoming packets.
/cfg/slb/layer7/slb/add
/cfg/slb/layer7/slb/redir/add
Web OS 10.0 Application Guide
414 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Content Precedence Lookup
The Layer 7 Precedence Lookup feature in Web OS allows you to give precedence to one Layer
7 parameter over another and selectively decide which parameter should be analyzed first.
The Content Precedence Lookup feature allows you to combine up to two Layer 7 load balanc-
ing mechanisms. You can specify which types of Layer 7 content to examine, the order in
which they are examined, and a logical operator (and/or) for their evaluation.
The following Layer 7 content types can be specified:
nURL SLB
nHTTP Host
nCookie
nBrowsers (User agent)
nURL hash
nHeader hash
Using the above content types with the and and or operators, the Web switch is configured to
refine HTTP-based server load balancing multiple times on a single client HTTP request in
order to bind it to an appropriate server. Typically, when you combine two content types with
an operator (and/or), URL hash and Header hash are used in combination with Host, Cookie,
or Browser content types.
For example, the following types of load balancing can be configured using the Content Prece-
dence Lookup feature:
nVirtual host and/or URL-based load balancing
nCookie persistence and URL-based load balancing
nCookie load balancing and/or URL-based load balancing
nCookie persistence and HTTP SLB together in the same service
nMultiple HTTP SLB process type on the same service
NOTE – Cookie persistence can also be combined with the Layer 7 content types. For more
information on cookie persistence, see Chapter 16, “Persistence.”
For example, the Content Precedence Lookup feature can be used in the following scenarios:
nIf the client request is sent without a cookie and if no HTTP SLB is configured, then the
switch binds the request to the real server using normal SLB.
nIf the client request is sent without a cookie, but HTTP SLB is configured on the switch,
then the request is bound to real server based on HTTP SLB.
nIf the client request is sent with a cookie, and a real server associated to the cookie is
found in the local session table, then the request will stay bound to that real server.
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 415
212777-A, February 2002
Requirements
nEnable Direct Access Mode (DAM), or configure proxy IP address if DAM is disabled.
nEnable delayed binding.
Using the or and and Operators
Figure 15-7 shows a network with real servers 1 and 3 configured for URL SLB and real serv-
ers 2 and 3 configured for HTTP Host SLB.
Figure 15-7 Content Precedence Lookup Protectors Example
If the Content Precedence Lookup feature is configured with the or and and operators, the
request from the client is as follows:
nHTTP Host or URL SLB
The HTTP Host header takes precedence because it is specified first. If there is no Host
Header information and because or is the operator, the URL string is examined next.
If a request from a client contains no Host Header but has a URL string (such as
“/gold”), the request is load balanced among Server 1 or Server 3.
If a request from a client contains a Host Header, then the request is load balanced
among Server 2 and Server 3. The URL string is ignored because the HTTP Host was
specified and matched first.
nHTTP Host and URL SLB
The HTTP Host header takes precedence because it is specified first. Because and is the
operator, both a Host Header and URL string are required. If either is not available, the
request is dropped.
If a request from a client contains a URL string (such as “/gold”) but not a Host
Header, it is not served by any real server.
If a request from a client contains a URL string (such as “/gold”) and Host Header, it
is served only by real server 3.
Web Switch
Real Servers
URL: "/gold"
Host: "www.host.net"
URL: "/gold"
Host: "www.host.net"
Client
Internet
1
2
3
Web OS 10.0 Application Guide
416 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Assigning Multiple Strings
Figure 15-8 shows an example of a company providing content for two large customers: Cus-
tomers A and B. Customer A uses www.a.com as their domain name, and Customer B uses
www.b.com.
The company has a limited number of public IP addresses and wishes to assign them on a very
conservative basis. As a result, the company implements virtual hosting by advertising a single
virtual server IP address that includes both customers’ Web sites. Additionally, the hosting
company assigns only one service (HTTP port 80) to support the virtual server.
The virtual hosting company wishes to maintain the flexibility to allow different types of con-
tent to be placed on different servers. To make most efficient use of their server resources, they
separate their servers into two groups, using their fastest servers to process dynamic content
(such as .cgi files) and their slower servers to process all static content (such as .jpg files).
Figure 15-8 Content Precedence Lookup Multiple Strings Example
To configure content precedence lookup for the example in Figure 15-8, the hosting company
groups all the real servers into one real server group even though different servers provide ser-
vices for different customers and different types of content. In this case, the servers are set up
for the following purpose:
Table 15-2 Real Server Content
Server Customer Content
Server 1 Customer A Static .jpg files
Server 2 Customer A Static .jpg files
Server 3 Customer A Dynamic .cgi files
Server 4 Customer B Static .jpg files
Server 5 Customer B Dynamic .cgi files
Web Switch
Real Servers
Client
Internet
1 2 3 4 5
Host: www.a.com
URL: *.jpg Host: www.a.com
URL: *.jpg Host: www.a.com
URL: *.cgi Host: www.b.com
URL: *.jpg Host: www.b.com
URL: *.cgi
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 417
212777-A, February 2002
When a client request is received with www.a.com in the Host Header and .jpg in the URL,
the request will be load balanced between Server 1 and Server 2.
To accomplish this configuration, you must assign multiple strings (a Host Header string and a
URL string) for each real server.
Layer 7 Deny Filter
Web OS allows you to secure your switch from virus attacks by configuring the switch with a
list of potential offending string patterns (HTTP URL request). The switch examines the HTTP
content of the incoming client request for the matching string pattern. If the matching virus
pattern is found, then the packet is dropped and a reset frame is sent to the offending client.
SYSLOG messages and SNMP traps are generated warning operators of a possible attack.
Figure 15-9 shows an incoming client request with a virus string. The Web switch is config-
ured for Layer 7 deny filter, so it blocks the incoming packet with the virus string and prevents
it from entering the network.
Figure 15-9 Configuring Layer 7 Deny Filter
Web Switch
Internet
Real servers
Clients
Any virus string
www.playdog.com STOP
2. Switch filter
processes the
string and
denies entry to
the network.
1. Client sends
a URL request
with a virus
string.
Web OS 10.0 Application Guide
418 Chapter 15: Content Intelligent Switching 212777-A, February 2002
Configuring a Layer 7 Deny Filter
1. Before you can configure Layer 7 deny filter, ensure that the switch has already been con-
figured for basic switch functions:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
For information on how to configure your network for the above tasks, see Chapter 6, “Server
Load Balancing.”
2. Define the virus string patterns or offending HTTP URL request to be blocked.
3. Apply and save the configuration.
4. Identify the IDs of the defined strings.
Number of entries: four
5. Select the filter and enable the filter action to deny.
6. Enable URL parsing.
>> # /cfg/slb/layer7/slb/add ida (Define the code red virus string)
>> Server Loadbalance resource# add %c1%9c (Define the code blue virus string)
>> Server Loadbalance resource# add %c0%af(Define the code blue virus string)
>> Server Loadbalance resource# add playdog.com(Define the offending URL
request)
>> Server Loadbalance resource# cur
ID SLB String
1ida
2%c1%9c
3%c0%af
4playdog.com
>> # /cfg/slb/filt 1 (Select the filter)
>> Filter 1 # action deny (Set the filter action to deny)
>> Filter 1 # adv
>> Filter 1 Advanced# urlp ena (Enable URL parsing)
Web OS 10.0 Application Guide
Chapter 15: Content Intelligent Switching 419
212777-A, February 2002
7. Enable the Layer 7 deny option.
8. Assign the URL string ID from Step 4 to the filter.
9. Apply and save the configuration.
10. Apply the filter to the client port.
If the incoming client requests are on port 3, then add the filter to the port.
>> Filter 1 Advanced# l7deny (Select the Layer 7 deny menu)
>> Filter 1 Advanced L7deny# ena (Enable Layer 7 deny filter)
>> Filter 1 Advanced L7deny# addstr 1 (Add the code red virus string)
>> Filter 1 Advanced L7deny# addstr 2 (Add the code blue virus string)
>> Filter 1 Advanced L7deny# addstr 3 (Add the code blue virus string)
>> Filter 1 Advanced L7deny# addstr 4 (Add the offending URL request)
>> # /cfg/slb/port 3 (Select the client port)
>> SLB Port 3# filt ena (Enable filtering on the port)
>> SLB Port 3# add 1 (Add the Layer 7 filter to the port)
Web OS 10.0 Application Guide
420 Chapter 15: Content Intelligent Switching 212777-A, February 2002
212777-A, February 2002 421
CHAPTER 16
Persistence
The Web OS persistence feature ensures that all connections from a specific client session
reach the same real server, even when Server Load Balancing (SLB) is used.
The following topics are addressed in this chapter:
n“Overview of Persistence” on page 422. This section gives an overview of persistence and
the different types of persistence methods implemented in Web OS.
n“Cookie-Based Persistence” on page 424. The use of cookie persistence provides a mech-
anism for inserting a unique key for each client of a virtual server. This feature is only
used in nonsecure socket layer (non-SSL) connections. This section discusses in detail
how persistence is maintained between a client and a real server using different types of
cookies.
n“Server-Side Multi-Response Cookie Search” on page 436. This section explains how to
configure the switch to look through multiple HTTP responses from the server to achieve
cookie-based persistence.
n“SSL Session ID-Based Persistence” on page 437. This section explains how an applica-
tion server and client communicate over an encrypted HTTP session.
Web OS 10.0 Application Guide
422 Chapter 16: Persistence 212777-A, February 2002
Overview of Persistence
In a typical SLB environment, traffic comes from various client networks across the Internet to
the virtual server IP address on the Web switch. The switch then load balances this traffic
among the available real servers.
In any authenticated Web-based application, it is necessary to provide a persistent connection
between a client and the Web server to which it is connected. Because HTTP does not carry
any state information for these applications, it is important for the browser to be mapped to the
same real server for each HTTP request until the transaction is complete. This ensures that the
client traffic is not load balanced mid-session to a different real server, forcing the user to
restart the entire transaction.
Persistence-based SLB enables the network administrator to configure the network to redirect
requests from a client to the same real server that initially handled the request. Persistence is an
important consideration for administrators of e-commerce Web sites, where a server may have
data associated with a specific user that is not dynamically shared with other servers at the site.
In Web OS, persistence can be based on the following characteristics: source IP address, cook-
ies, and Secure Sockets Layer (SSL) session ID.
Using Source IP Address
Until recently, the only way to achieve TCP/IP session persistence was to use the source IP
address as the key identifier. There are two major conditions which cause problems when ses-
sion persistence is based on a packet’s IP source address:
nMany clients sharing the same source IP address (proxied clients): Proxied clients
appear to the switch as a single source IP address and do not take advantage of SLB on the
switch. When many individual clients behind a firewall use the same proxied source IP
address, requests are directed to the same server, without the benefit of load balancing the
traffic across multiple servers. Persistence is supported without the capability of effec-
tively distributing traffic load.
Also, persistence is broken if you have multiple proxy servers behind the Web switch per-
forming SLB. The Web switch changes the client’s address to different proxy addresses as
attempts are made to load balance client requests.
nSingle client sharing a pool of source IP addresses: When individual clients share a
pool of source IP addresses, persistence for any given request cannot be assured. Although
each source IP address is directed to a specific server, the source IP address itself is ran-
domly selected, thereby making it impossible to predict which server will receive the
request. SLB is supported, but without persistence for any given client.
Web OS 10.0 Application Guide
Chapter 16: Persistence 423
212777-A, February 2002
Using Cookies
Cookies are strings passed via HTTP from servers to browsers. Based on the mode of opera-
tion, cookies are inserted by either the Web switch or the server. After a client receives a
cookie, a server can poll that cookie with a GET command, which allows the querying server
to positively identify the client as the one that received the cookie earlier.
The cookie-based persistence feature solves the proxy server problem and gives better load
distribution at the server site. In the Web switch, cookies are used to route client traffic back to
the same physical server to maintain session persistence.
Using SSL Session ID
The SSL session ID is effective only when the server is running SSL transactions. Because of
the heavy processing load required to maintain SSL connections most network configurations
use SSL only when it is necessary. Persistence based on SSL Session ID ensures completion of
complex transactions in proxy server environments. However, this type of persistence does not
scale on servers because of their computational requirements.
Web OS 10.0 Application Guide
424 Chapter 16: Persistence 212777-A, February 2002
Cookie-Based Persistence
Cookies are a mechanism for maintaining state between clients and servers. When the server
receives a client request, the server issues a cookie, or token, to the client, which the client then
sends to the server on all subsequent requests. Using cookies, the server does not require
authentication, the client IP address, or any other time-consuming mechanism to determine
that the user is the same user that sent the original request.
In the simplest case, the cookie may be just a “customer ID” assigned to the user. It may be a
token of trust, allowing the user to skip authentication while his or her cookie is valid. It may
also be a key that associates the user with additional state data that is kept on the server, such as
a shopping cart and its contents. In a more complex application, the cookie may be encoded so
that it actually contains more data than just a single key or an identification number. The
cookie may contain the user’s preferences for a site that allows their pages to be customized.
Figure 16-1 Cookie-Based Persistence: How It Works
1 USER REGISTERS TO BUY
AN ITEM
2 SWITCH COMPLETES THREE-WAY
HANDSHAKE WITH CLIENT.
- FORWARDS HTTP REQUEST TO COOKIE
SERVER
3 WEB SERVER DESIGNATED TO SERVE
COOKIES RECORDS INFORMATION AND
SENDS THE CLIENT A COOKIE
4 SWITCH RECORDS OR REWRITES
COOKIE INFORMATION BASED ON
CONFIGURATION
5 COOKIE STORED ON CLIENT
MACHINE
6 CLIENT DECIDES TO BUY AN
ITEM. THE COOKIE
INFORMATION IS SENT AS
PART OF THE HTTP
REQUEST
7 BASED ON COOKIE INFORMATION SWITCH
REDIRECTS REQUEST TO THE SAME SERVER
OR HASHES ON COOKIE VALUE
Web OS 10.0 Application Guide
Chapter 16: Persistence 425
212777-A, February 2002
The following topics discussing cookie-based persistence are detailed in this section:
n“Permanent and Temporary Cookies” on page 425
n“Cookie Formats” on page 425
n“Cookie Properties” on page 426
n“Client Browsers that Do Not Accept Cookies” on page 426
n“Cookie Modes of Operation” on page 427
n“Configuring Cookie-Based Persistence” on page 430
Permanent and Temporary Cookies
Cookies can either be permanent or temporary. A permanent cookie is stored on the client's
browser, as part of the response from a Web site’s server. It will be sent by the browser when
the client makes subsequent requests to the same site, even after the browser has been shut
down. A temporary cookie is only valid for the current browser session. Similar to a SSL Ses-
sion-based ID, the temporary cookie expires when you shut down the browser. Based on RFC
2109, any cookie without an expiration date is a temporary cookie.
Cookie Formats
A cookie can be defined in the HTTP header (the recommended method) or placed in the URL
for hashing. The cookie is defined as a “Name=Value” pair and can appear along with other
parameters and cookies. For example, the cookie “SessionID=1234” can be represented in
one of the following ways:
nIn the HTTP Header
Cookie: SesssionID=1234
Cookie: ASP_SESSIONID=POIUHKJHLKHD
Cookie: name=john_smith
The second cookie represents an Active Server Page (ASP) session ID. The third cookie
represents an application-specific cookie that records the name of the client.
nWithin the URL
http://www.mysite.com/reservations/SessionID=1234
Web OS 10.0 Application Guide
426 Chapter 16: Persistence 212777-A, February 2002
Cookie Properties
Cookies are configured on the Web switch by defining the following properties:
nCookie names of up to 20 bytes
nThe offset of the cookie value within the cookie string
For security, the real cookie value can be embedded somewhere within a longer string.
The offset directs the Web switch to the starting point of the real cookie value within the
longer cookie string.
nLength of the cookie value
This defines the number of bytes to extract for the cookie value within a longer cookie
string.
nWhether to find the cookie value in the HTTP header (the default) or the URL
nCookie values of up to 64 bytes for hashing
Hashing on cookie values is used only with the passive cookie mode (“Passive Cookie
Mode” on page 428), using a temporary cookie. The switch mathematically calculates the
cookie value using a hash algorithm to determine which real server should receive the
request.
nAn asterisk (*) in cookie names for wildcards
For example, Cookie name = ASPsession*
Client Browsers that Do Not Accept Cookies
Under normal conditions, most browsers are configured to accept cookies. However, if a client
browser is not configured to accept cookies, you must use hash as the load-balancing metric
to maintain session persistence.
With cookie-based persistence enabled, session persistence for browsers that do not accept
cookies will be based on the source IP address. However, individual client requests coming
from a proxy firewall will appear to be coming from the same source IP address. Therefore, the
requests will be directed to a single server, resulting in traffic being concentrated on a single
real server instead of load balanced across the available real servers.
Web OS 10.0 Application Guide
Chapter 16: Persistence 427
212777-A, February 2002
Cookie Modes of Operation
Web OS supports the following modes of operation for cookie-based session persistence:
insert, passive, and rewrite mode. The following table shows the differences among the modes:
Each of the modes are explained in detail in the following sections.
Insert Cookie Mode
In the insert cookie mode, the Web switch generates the cookie value on behalf of the server.
Because no cookies are configured at the server, the need to install cookie server software on
each real server is eliminated.
In this mode, the client sends a request to visit the Web site. The Web switch performs load
balancing and selects a real server. The real server responds without a cookie. The Web switch
inserts a cookie and forwards the new request with the cookie to the client.
Figure 16-2 Insert Cookie Mode
Table 16-1 Comparison Among the Three Cookie Modes
Cookie Mode Configuration Required Cookie Location Uses Switch
Session Entry
Insert Cookie Switch only HTTP Header No
Passive Cookie Server and Switch HTTP Header or URL Yes
Rewrite Cookie Server and Switch HTTP Header No
Internet
1. Configure switch to insert cookie values
Web Server
Farm
Client
Web Switch
Proxy Firewall
2. Client visits the Web site via HTTP request 3. Switch selects
server via SLB
4. Server responds
without any cookie
5. Web switch inserts a cookie and forwards the
request to the client.
Web OS 10.0 Application Guide
428 Chapter 16: Persistence 212777-A, February 2002
Passive Cookie Mode
In Passive Cookie mode, when the client first makes a request, the switch selects the server
based on the load-balancing metric. The real server embeds a cookie in its response to the cli-
ent. The switch records the cookie value and matches it in subsequent requests from the same
client.
NOTE – The passive cookie mode is recommended for temporary cookies. However, you can
use this mode for permanent cookies if the server is embedding an IP address.
The following figure shows passive cookie mode operation:
Figure 16-3 Passive Cookie Mode
Subsequent requests from Client 1 with the same cookie value will be sent to the same real
server (RIP 1 in this example).
Internet
1. Configure server to send cookies
2. Configure switch to record cookie values
Web Server
Farm
Client
Web Switch
Proxy Firewall
3. Client visits the web site 4. Switch selects
cookie server
5. Server returns
cookie value
6. Switch registers cookie value and forwards it
to the client for use in subsequent requests
Web OS 10.0 Application Guide
Chapter 16: Persistence 429
212777-A, February 2002
Rewrite Cookie Mode
In rewrite cookie mode, the Web switch generates the cookie value on behalf of the server,
eliminating the need for the server to generate cookies for each client.
Instead, the server is configured to return a special persistence cookie which the switch is con-
figured to recognize. The switch then intercepts this persistence cookie and rewrites the value
to include server-specific information before sending it on to the client. Subsequent requests
from the same client with the same cookie value are sent to the same real server.
Rewrite cookie mode requires at least eight bytes in the cookie header. An additional eight
bytes must be reserved if you are using cookie-based persistence with Global Server Load Bal-
ancing (GSLB).
NOTE – Rewrite cookie mode only works for cookies defined in the HTTP header, not cookies
defined in the URL.
Example: The following figure shows rewrite cookie mode operation:
Figure 16-4 Rewrite Cookie Mode
NOTE – When the Web switch rewrites the value of the cookie, the rewritten value represents
the responding server; that is, the value can be used for hashing into a real server ID or it can
be the real server IP address. The rewritten cookie value is encoded.
Internet
1. Configure switch to rewrite cookie values
Web Server
Farm
Client
Web Switch
Proxy Firewall
2. Client visits the Web site via HTTP request 3. Switch selects
server via SLB
4. Server HTTP response
includes empty cookie
5. Web switch rewrites the cookie to contain a
server ID for hashing on subsequent requests
Web OS 10.0 Application Guide
430 Chapter 16: Persistence 212777-A, February 2002
Configuring Cookie-Based Persistence
1. Before you can configure cookie-based persistence, you need to configure the switch for
basic SLB. This includes the following tasks:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nConfigure each real server with its IP address, name, weight, and so forth.
nAssign servers to real server groups.
nDefine virtual servers and services.
For information see “Server Load Balancing” on page 117.
2. Either enable Direct Access Mode (DAM), or disable DAM and specify proxy IP
address(es) on the client port(s).
nEnable DAM for the switch.
nDisable DAM and specify proxy IP address(es) on the client port(s).
NOTE – If Virtual Matrix Architecture (VMA) is enabled on the switch, you must configure a
unique proxy IP address for every port (except port 9).
3. If proxy IP addresses are used, make sure server processing is disabled on the server
port.
>> # /cfg/slb/adv/direct ena (Enable Direct Access Mode on switch)
>> # /cfg/slb/adv/direct disable (Disable DAM on the switch)
>> # /cfg/slb/port 1 (Select network port 1)
>> # pip 200.200.200.68 (Set proxy IP address for port 1)
>> # /cfg/slb/port 1 (Select switch port 1)
>> # server dis (Disable server processing on port 1)
Web OS 10.0 Application Guide
Chapter 16: Persistence 431
212777-A, February 2002
4. Select the appropriate load-balancing metric for the real server group.
nIf embedding an IP address in the cookie, select roundrobin or leastconns as the
metric.
nIf you are not embedding the IP address in the cookie, select hash as the metric in con-
junction with a cookie assignment server.
While you may experience traffic concentration using the hash metric with a cookie
assignment server, using a hash metric without a cookie assignment server will cause
traffic concentration on your real servers.
5. Enable cookie-based persistence on the virtual server service.
In this example, cookie-based persistence is enabled for service 80 (HTTP).
Once you specify cookie as the mode of persistence, you will be prompted for the following
parameters:
nCookie-based persistence mode: insert, passive or rewrite
nCookie name
nStarting point of the cookie value
nNumber of bytes to be extracted
nLook for cookie in the URI [e | d]
If you want to look for cookie name/value pair in the URI, enter e to enable this option. To
look for the cookie in the HTTP header, enter d to disable this option.
>> # /cfg/slb/group 2/metric hash (Select hash as server group metric)
>> # /cfg/slb/virt 1/service 80/pbind
Current persistent binding mode: disabled
Enter cookie|sslid|disable persistence mode: cookie
Enter insert|passive|rewrite cookie persistence mode [i/p/r]: p
Enter cookie name: CookieSession1
Enter starting point of cookie value [1-64]: 1
Enter number of bytes to extract [0-64]: 8
Look for cookie in URI [e|d]: d
Set multiple response count [1-16]: 1
Web OS 10.0 Application Guide
432 Chapter 16: Persistence 212777-A, February 2002
nSet multiple response count
This parameter is set for passive mode only. Typically, the Web switch searches the first
HTTP response packet from the server and, if a persistence cookie is found, sets up a per-
sistent connection between the server and the client. While this approach works for most
servers, some customers with complex server configurations might send the persistence
cookie a few responses later. In order to achieve cookie-based persistence in such cases,
Web OS allows the network administrator to configure the switch to look through multiple
HTTP responses from the server. The switch looks for the persistence cookie in the speci-
fied number of responses (each of them can be multi-frame) from the server.
Setting Expiration Timer for Insert Cookie
If you configure for insert cookie persistence mode, then you will be prompted for cookie expi-
ration timer. The expiration timer specifies a date string that defines the valid life time of that
cookie. The expiration timer for insert cookie can be of the following types:
nAbsolute timer
The syntax for the absolute timer is MM/dd/yy[@hh:mm]. The date and time is based on
RFC 822, RFC 850, RFC 1036, and RFC 1123, with the variations that the only legal time
zone is GMT. Once the expiration date is met, the cookie is not stored or given out. For
example,
nRelative timer
This timer defines the elapsed time from when the cookie was created. The syntax for the rela-
tive timer is days[:hours[:minutes]]. For example,
NOTE – If the cookie expiration timer is not specified, the cookie will expire when the user’s
session ends.
Enter cookie expiration: 12/31/01@11:59
Current persistent binding for http: disabled
New persistent binding for http: cookie
New cookie persistence mode: insert
Inserted cookie expires on Mon 12/31/01 at 11:59
Enter cookie expiration: 32:25:61
Current persistent binding for http: disabled
New persistent binding for http: cookie
New cookie persistence mode: insert
Inserted cookie expires after 33 days 2 hours 1 minutes
Web OS 10.0 Application Guide
Chapter 16: Persistence 433
212777-A, February 2002
Example 1: Setting the Cookie Location
In this example, the client request has two different cookies labeled “UID.” One exists in the
HTTP header and the other appears in the URI:
GET /product/switch/UID=12345678;ck=1234...
Host: www.alteonwebsystems.com
Cookie: UID=87654321
nLook for the cookie in the HTTP header
The last parameter in this command answers the “Look for cookie in URI?”
prompt. If you set this parameter to disable, the Web switch will use UID=87654321
as the cookie.
nLook for the cookie in the URI
The last “Look for cookie in URI?” parameter is set to enable. Therefore the Web
switch will use UID=12345678 as the cookie.
>> # /cfg/slb/virt 1/service 80/pbind cookie passive UID 1 8 dis
>> # /cfg/slb/virt 1/service 80/pbind cookie passive UID 1 8 ena
Web OS 10.0 Application Guide
434 Chapter 16: Persistence 212777-A, February 2002
Example 2: Parsing the Cookie
This example shows three configurations where the switch uses the hashing key or wild cards
to determine which part of the cookie value should be used for determining the real server. For
example, the value of the cookie is defined as follows:
Cookie: sid=0123456789abcdef; name1=value1;...
nSelect the entire value of the sid cookie as a hashing key for selecting the real server:
This command directs the switch to use the sid cookie, starting with the first byte in the
value and using the full 16 bytes.
nSelect a specific portion of the sid cookie as a hashing key for selecting the real server:
This command directs the switch to use the sid cookie, starting with the eight byte in the
value and using only four bytes. This uses 789a as a hashing key.
nUsing wildcards for selecting cookie names:
With this configuration, the switch will look for a cookie name that starts with ASPSES-
SIONID. ASPSESSIONID123, ASPSESSIONID456, and ASPSESSIONID789 will
all be seen by the switch as the same cookie name. If more than one cookie matches, only
the first one will be used.
Example 3: Using Passive Cookie Mode
If you are using passive cookie mode, the Web switch examines the server’s Set-Cookie:
value and directs all subsequent connections to the server that assigned the cookie.
For example, if Server 1 sets the cookie as “Set-Cookie: sid=12345678,” then all traf-
fic from a particular client with cookie sid=12345678 will be directed to Server 1.
The following command is used on the Web switch:
>> # /cfg/slb/virt 1/service 80/pbind cookie passive sid 1 16 dis
>> # /cfg/slb/virt 1/service 80/pbind cookie passive sid 8 4 dis
>> # /cfg/slb/virt 1/service 80/pbind cookie passive
ASPSESSIONID* 1 16 dis
>> # /cfg/slb/virt 1/service 80/pbind cookie passive sid 1 8 dis
Web OS 10.0 Application Guide
Chapter 16: Persistence 435
212777-A, February 2002
Example 4: Using Rewrite Cookie Mode
nRewrite server cookie with the encrypted real server IP address:
In cookie rewrite mode, if the cookie length parameter is configured to be eight bytes, the
switch will rewrite the placeholder cookie value with the encrypted real server IP address.
If the server is configured to include a placeholder cookie, such as follows:
Set-Cookie: sid=alteonpersistence;
then the Web switch will rewrite the first eight bytes of the cookie to include the server’s
encrypted IP address:
Set-Cookie: sid=cdb20f04rsistence;
All subsequent traffic from a specific client with this cookie will be directed to the same
real server.
nRewrite server cookie with the encrypted real server IP address and virtual server IP
address:
If the cookie length is configured to be 16 bytes, the switch will rewrite the cookie value
with the encrypted real server IP address and virtual server IP address.
If the server is configured to include a placeholder cookie, as follows:
Set-Cookie: sid=alteonwebcookies;
then the Web switch will rewrite the first 16 bytes of the cookie to include the encrypted
real server IP address and virtual server IP address:
Set-Cookie: sid=cdb20f04cdb20f0a;
All subsequent traffic from a specific client to the particular virtual server IP address with
this cookie will be directed to the same real server.
>> # /cfg/slb/virt 1/service 80/pbind cookie rewrite sid 1 8 dis
>> # /cfg/slb/virt 1/service 80/pbind cookie rewrite sid 1 16 dis
Web OS 10.0 Application Guide
436 Chapter 16: Persistence 212777-A, February 2002
Server-Side Multi-Response Cookie Search
Cookie-based persistence requires the switch to search the HTTP response packet from the
server and, if a persistence cookie is found, sets up a persistence connection between the server
and the client. The Alteon switch looks through the first HTTP response from the server. While
this approach works for most servers, some customers with complex server configurations
might send the persistence cookie a few responses later. In order to achieve cookie-based per-
sistence in such cases, Web OS 10.0 allows the network administrator to configure the switch
to look through multiple HTTP responses from the server.
In Web OS 10.0, the network administrator can modify a response counter to a value from 1-
16. The switch will look for the persistence cookie in this number of responses (each of them
can be multi-frame) from the server.
Configuring Server-Side Multi-Response Cookie Search
Configure the server-side multi-response cookie search by using the following command:
>> # /cfg/slb/virt <virtual server>/service <virtual port number>/rcount
Current Cookie search response count:
Enter new Cookie search response count [1-16]:
Web OS 10.0 Application Guide
Chapter 16: Persistence 437
212777-A, February 2002
SSL Session ID-Based Persistence
SSL is a set of protocols built on top of TCP/IP that allows an application server and client to
communicate over an encrypted HTTP session, providing authentication, non-repudiation, and
security. The SSL protocol handshake is performed using clear (unencrypted) text. The content
data is then encrypted (using an algorithm exchanged during the handshake) prior to being
transmitted.
Using the SSL session ID, the switch forwards the client request to the same real server to
which it was bound during the last session. Because SSL protocol allows many TCP connec-
tions to use the same session ID from the same client to a server, key exchange needs to be
done only when the session ID expires. This reduces server overhead and provides a mecha-
nism, even when the client IP address changes, to send all sessions to the same real server.
NOTE – The destination port number to monitor for SSL traffic is user-configurable.
How SSL Session ID-Based Persistence Works
nAll SSL sessions that present the same session ID (32 random bytes chosen by the SSL
server) will be directed to the same real server.
NOTE – The SSL session ID can only be read by the switch after the TCP three-way hand-
shake. In order to make a forwarding decision, the switch must terminate the TCP connection
to examine the request.
nNew sessions are sent to the real server based on the metric selected (hash,
roundrobin, leastconns, minmisses, response, and bandwidth).
nIf no session ID is presented by the client, the switch picks a real server based on the met-
ric for the real server group and waits until a connection is established with the real server
and a session ID is received.
nThe session ID is stored in a session hash table. Subsequent connections with the same
session ID are sent to the same real server. This binding is preserved even if the server
changes the session ID mid-stream. A change of session ID in the SSL protocol will cause
a full three-way handshake to occur.
nSession IDs are kept on the switch until an idle time equal to the configured server time-
out (a default of 10 minutes) for the selected real server has expired.
Web OS 10.0 Application Guide
438 Chapter 16: Persistence 212777-A, February 2002
Figure 16-5 illustrates persistence based on SSL session ID as follows:
1. An SSL Hello handshake occurs between Client 1 and Server 1 via the Web switch.
2. An SSL session ID is assigned to Client 1 by Server 1.
3. The Web switch records the SSL session ID.
4. The Web switch selects a real server based on the existing SLB settings.
As a result, subsequent connections from Client 1 with the same SSL session ID are directed to
Server 1.
Figure 16-5 SSL Session ID-Based Persistence
5. Client 2 appears to the switch to have the same source IP address as Client 1 because they
share the same proxy firewall.
However, the Web switch does not automatically direct Client 2 traffic to Server 1 based on the
source IP address. Instead an SSL session ID for the new traffic is assigned. Based on SLB set-
tings, the connection from Client 2 is spliced to Server 3.
As a result, subsequent connections from Client 2 with the same SSL session ID are directed to
Server 3.
Internet
Web Server
Farm
Client 1
Client 2
Firewall
Web OS 10.0 Application Guide
Chapter 16: Persistence 439
212777-A, February 2002
Configuring SSL Session ID-Based Persistence
To configure session ID-based persistence for a real server, perform the following steps:
1. Configure real servers and services for basic SLB, as indicated below:
nDefine each real server and assign an IP address to each real server in the server pool.
nDefine a real server group and set up health checks for the group.
nDefine a virtual server on the virtual port for HTTPS (for example, port 443) and assign a
real server group to service it.
nEnable SLB on the switch.
nEnable client processing on the port connected to the client.
For information on how to configure your network for SLB, see “Server Load Balancing” on
page 117
2. If a proxy IP address is not configured on the client port, enable DAM for real servers.
3. Select session ID-based persistence as the persistent binding option for the virtual port.
4. Enable client processing on the client port.
>> # /cfg/slb/adv/direct ena
>> # /cfg/slb/virt <virtual server number>/service <virtual port> pbind sslid
>> # /cfg/slb/port <port number>/client ena
Web OS 10.0 Application Guide
440 Chapter 16: Persistence 212777-A, February 2002
212777-A, February 2002 441
CHAPTER 17
Bandwidth Management
Bandwidth Management (BWM) enables Web site managers to allocate a certain portion of the
available bandwidth for specific users or applications. It allows companies to guarantee that
critical business traffic, such as e-commerce transactions, receive higher priority versus non-
critical traffic. Traffic classification can be based on user or application information. BWM
policies can be configured to set lower and upper bounds on the bandwidth allocation.
The following topics are addressed in this chapter:
n“Overview” on page 442
n“Bandwidth Policies” on page 444
n“Data Pacing” on page 446
n“Classification Criteria” on page 447
n“Bandwidth Statistics and History” on page 452
n“Packet Coloring (TOS bits) for Burst Limit” on page 453
n“Operational Keys” on page 453
n“Configuring Bandwidth Management” on page 454
Web OS 10.0 Application Guide
442 Chapter 17: Bandwidth Management 212777-A, February 2002
Overview
To manage bandwidth, create one or more bandwidth management contracts. The switch uses
these contracts to limit individual traffic flows.
Figure 17-1 Bandwidth Management: How It Works
Each contract comprises the following:
nA classification policy where certain frames are grouped together
nA bandwidth policy specifying usage limitations to be applied to these frames
NOTE – At any given time, up to 1024 contracts can be created for a single Alteon AD4 or
Alteon 184 Web switch.
Internet
1. Client buys a contract
(for example, a VIP address)
2. Administrator configures
bandwidth policy and contract
3. Classification is done
on ingress port of switch
4. Bandwidth management done on
egress port of switch. Can optionally
set TOS values to reflect usage rate
5. TOS value (optional)
affects router bandwidth
Web Switch
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 443
212777-A, February 2002
nWhen Virtual Matrix Architecture (VMA) is not enabled, bandwidth classification is done
on the ingress side of the switch (at the ingress port or designated port) and can be based
on the following: source port, VLAN, filters, Virtual Internet Protocol (VIP) address, ser-
vice on the Virtual server, URL, and so on.
When VMA is enabled, traffic classification that is not based on filters or Server Load
Balancing (SLB) is done on the ingress port—that is, the port on which the frame is
received (not the client port or the server port). If the traffic classification is filter-based or
SLB traffic, then the classification occurs on the designated port.
NOTE – VMA is recommended when Bandwidth Management is enabled.
nBandwidth management occurs on the egress port of the switch—that is, the port from
which the frame is leaving. However, in the case of multiple routes or trunk groups, the
egress port can actually be one of several ports (from the point-of-view of where the
queues are located).
Rate management is controlled by using queues for each contract and by scheduling when
frames are sent from each queue. Each frame is put into a managed buffer and placed on a
contract queue. The time that the next frame is supposed to be transmitted for the contract
queue is calculated according to the configured rate of the contract, the current egress rate
of the ports, and the buffer size set for the contract queue. The scheduler then organizes all
the frames to be sent according to their time-based ordering and meters them out to the
port.
NOTE – Bandwidth management and port mirroring cannot be enabled at the same time.
Web OS 10.0 Application Guide
444 Chapter 17: Bandwidth Management 212777-A, February 2002
Bandwidth Policies
Bandwidth policies are bandwidth limitations defined for any set of frames, specifying the
guaranteed bandwidth rates. A bandwidth policy is often based on a rate structure whereby a
Web host or co-location provider could charge a customer for bandwidth utilization. There are
three rates that are configured: a Committed Information Rate (CIR)/Reserved Limit, a Soft
Limit, and a Hard Limit, as described below.
A queue depth is also associated with a policy. A queue depth is the size of the queue that holds
the data. It can be adjusted to accommodate delay-sensitive traffic (such as audio) versus drop-
sensitive traffic (such as FTP).
Figure 17-2 Bandwidth Rate Limits
Hard Limit
Soft Limit
Reserved Limit
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 445
212777-A, February 2002
Rate Limits
A bandwidth policy specifies three limits, listed and described in Table 17-1:
Bandwidth Policy Configuration
Each bandwidth policy, comprised of the reserved, soft, and hard limits, is assigned an index.
These policies can be found under the /cfg/bwm menu. Up to 64 bandwidth policies can be
defined. Bandwidth limits are usually entered in Mbps.
NOTE – For better granularity, rates can be entered in Kbps by appending “K” to the entered
number. For example, 1 Mbps can be entered as either “1” or as “1024k.”
Table 17-2 lists the granularity of policy limits:
In addition, a queue size is associated with each policy. The queue size is measured in bytes.
Table 17-1 Bandwidth Rate Limits
Rate Limit Description
Committed Information
Rate (CIR)
or Reserved Limit
This is a rate that a bandwidth classification is always guaranteed. In con-
figuring BWM contracts, ensure that the sum of all committed informa-
tion rates never exceeds the link speeds associated with ports on which
the traffic is transmitted. In a case where the total CIRs exceed the out-
bound port bandwidth, the switch will perform a graceful degradation of
all traffic on the associated ports.
Soft Limit This is the desired bandwidth rate, that is, the rate the customer has
agreed to pay on a regular basis. When output bandwidth is available, a
bandwidth class will be allowed to send data at this rate. No exceptional
condition will be reported when the data rate does not exceed this limit.
Hard Limit This is a “never exceed” rate. A bandwidth class is never allowed to trans-
mit above this rate. Typically, traffic bursts between the soft limit and the
hard limit are charged a premium. The maximum hard limit for a band-
width policy is 1 Gbps, even when multiple Gigabit ports are trunked.
Table 17-2 Bandwidth Policy Limits
Bandwidth Range Interval Bandwidth Range Interval
250 Kbps to 5000 Kbps 250 Kbps 50 Mbps to 150 Mbps 10 Kbps
1 Mbps to 20 Mbps 1 Mbps 150 Mbps to 500 Mbps 25 Mbps
20 Mbps to 50 Mbps 5 Mbps 500 Mbps to 1000 Mbps 50 Mbps
Web OS 10.0 Application Guide
446 Chapter 17: Bandwidth Management 212777-A, February 2002
Data Pacing
The mechanism used to keep the individual traffic flows under control is called data pacing. It
is based on the concept of a virtual clock and theoretical departure times (TDT). The actual cal-
culation of the TDT is based initially on the soft limit rate. The soft limit can be thought of as a
target limit for the ISP’s customer. So long as bandwidth is available and the classification
queue is not being filled at a rate greater than the soft limit, the TDT will be met for both incom-
ing frames and outgoing frames and no borrowing or bandwidth limitation will be necessary.
Figure 17-3 Virtual Clocks and TDT
If the data is arriving more quickly than it can be transmitted at the soft limit and sufficient
bandwidth is still available, the rate is adjusted upwards based on the depth of the queue, until
the rate is fast enough to reduce the queue depth or the hard limit is reached. If the data cannot
be transmitted at the soft limit, then the rate is adjusted downward until the data can be trans-
mitted or the CIR is hit. If the CIR is overcommitted among all the contracts configured for the
switch, graceful degradation will reduce each CIR until the total bandwidth allocated fits
within the total bandwidth available.
Each BWM contract is assigned a bandwidth policy index and (optionally) a name. This index
can be viewed using the /cfg/bwm/cont menu. Contracts can be enabled and disabled. The
set of classifications associated with each contract can be viewed using the /info/bwm menu.
For frames qualifying for multiple classifications, precedence of contracts is also specified per
contract. If no precedence is specified, the default order is used (see “Precedence” on page 448).
nWhen both filter Types-Of-Service (TOS) and BWM TOS are applied, BWM TOS has
precedence.
nBWM configurations will optionally be synchronized during VRRP synchronization
except the port contracts and VLAN contracts, which will not be synchronized.
Queue 1
Queue 2
Queue 3
Queue 4
Time
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 447
212777-A, February 2002
Classification Criteria
The frames associated with a particular BWM contract are specified, using the parameters
listed below. All of these classifications are aimed at limiting the traffic outbound from the
server farm for bandwidth measurement and control.
Server Output Bandwidth Control
nPhysical Port - All frames are from a specified physical port.
nVLAN - All frames are from a specified VLAN. Even if a VLAN translation occurs, the
bandwidth policy is based on the ingress VLAN.
nIP Source Address - All frames have a specified IP source address or range of addresses
defined with a subnet mask.
nIP Destination Address - All frames have a specified IP destination address or range of
addresses defined with a subnet mask.
nSwitch services on the virtual servers
The following are various Layer 4 groupings:
A single virtual server
A group of virtual servers
A service for a particular virtual server
Select a particular port number (service on the virtual server) within a particular vir-
tual server IP address.
The following are various Layer 7 groupings:
A single URL path
A group of URL paths
A single cookie
Application Bandwidth Control
Classification policies allow bandwidth limitations to be applied to particular applications; that
is, they allow applications to be identified and grouped. Classification can be based on any fil-
tering rule, including those listed below:
nTCP Port Number - All frames with a specific TCP source or destination port number
nUDP - All UDP frames
nUDP Port Number - All frames with a specific UDP source or destination port number
Web OS 10.0 Application Guide
448 Chapter 17: Bandwidth Management 212777-A, February 2002
Combinations
Combinations of classifications are limited to grouping items together into a contract. For
example, if you wanted to have three different virtual servers associated with a contract, you
would specify the same contract index on each of the three virtual server IP addresses. You can
also combine filters in this manner.
Precedence
If a frame qualifies for different classifications, it is important to be able to specify the classifi-
cation with which it should be associated. There are two mechanisms to address classifica-
tion—a per-contract precedence value and a default ordering. If a contract does not have an
assigned precedence value, then the ordering is as follows:
1. Layer 7 applications (for example, URL, HTTP, headers, cookies, and so forth)
2. Layer 4 services on the virtual server
3. Filter
4. VLAN
5. Source Port/Default Assignment
Bandwidth Classification Configuration
Any item that is configured with a filter can be used for BWM. Bandwidth classification is per-
formed using the following menus:
n/cfg/slb/filt is used to configure classifications based on the IP destination
address, IP source address, TCP port number, UDP, UDP port number, or any filter rule.
n/cfg/slb/virt is used to configure classifications based on virtual servers.
n/cfg/port is used to configure classifications based on physical ports.
(In case of trunking, use /cfg/trunk.)
n/cfg/vlan is used to configure classifications based on VLANs.
n/cfg/slb/layer7/lb is used to configure classification based on URL paths.
To associate a particular classification with a contract, enter the contract index into the “cont”
menu option under the applicable configuration menus.
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 449
212777-A, February 2002
Frame Discard
When packets in a contract queue have not yet been sent and the buffer size set for the queue is
full, any new frames attempting to be placed in the queue will be discarded.
URL-Based Bandwidth Management
URL-based BWM allows the network administrator or Web site manager to control bandwidth
based on URLs, HTTP headers, or cookies.
All three types of BWM are accomplished by following the configuration guidelines on con-
tent switching described in Chapter 15, “Content Intelligent Switching.” You would also need
to assign a contract to each defined string, where the string is contained in a URL, an HTTP
header, or a cookie.
BWM based on URLs gives Web site managers the following capabilities:
nAbility to allocate bandwidth based on the type of request
The switch allocates bandwidth based on certain strings in the incoming URL request. For
example, as shown in Figure 17-4, if a Web site has 10Mbs of bandwidth, the site manager
can allocate 1 Mbs of bandwidth for static HTML content, 3Mbs of bandwidth for graphic
content and 4Mbs of bandwidth for dynamic transactions, such as URLs with cgi-bin
requests and .asp requests.
nAbility to prioritize transactions or applications
By allocating bandwidth, the Web switch can guarantee that certain applications and trans-
actions get better response time.
nAbility to allocate a certain amount of bandwidth for requests that can be cached
As shown in Figure 17-5 on page 450, users will be able to allocate a certain percentage of
bandwidth for Web cache requests by using the URL parsing and bandwidth management
feature.
Web OS 10.0 Application Guide
450 Chapter 17: Bandwidth Management 212777-A, February 2002

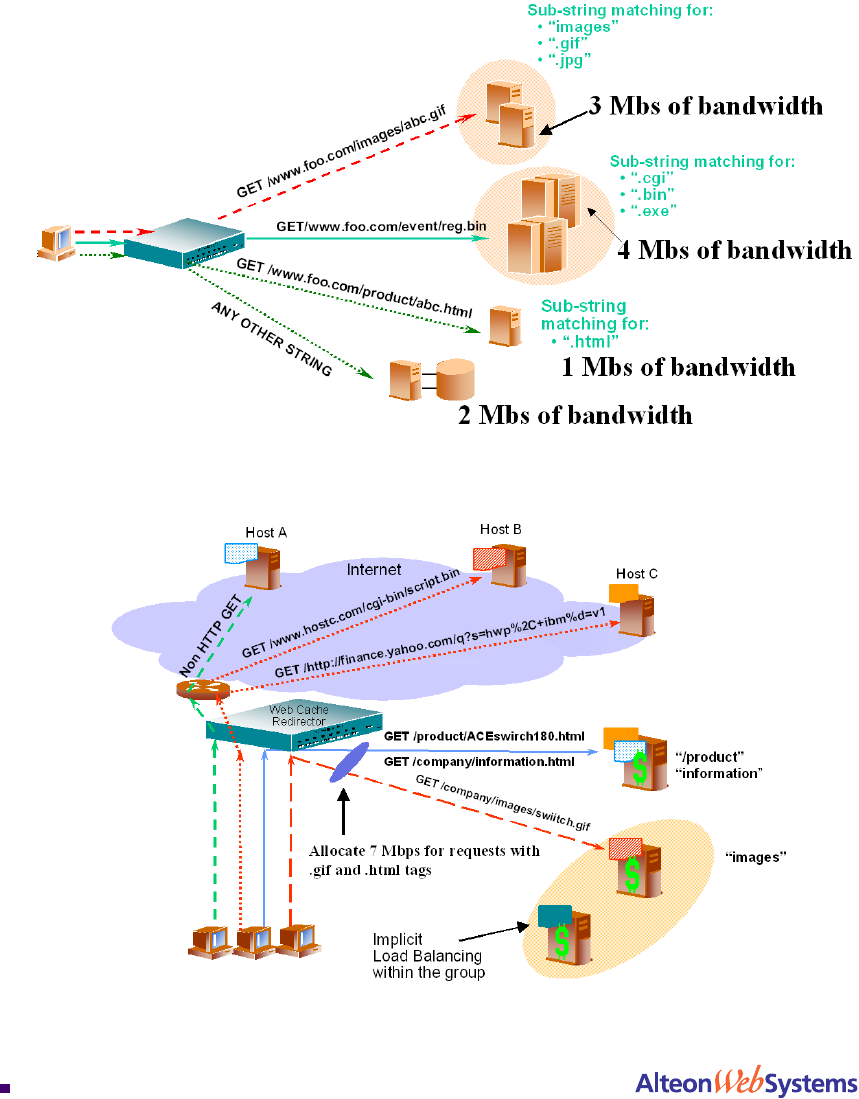

Figure 17-4 URL-Based Bandwidth Management
Figure 17-5 URL-Based Bandwidth Management with Web Cache Redirection
Cache servers
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 451
212777-A, February 2002
HTTP Header-Based Bandwidth Management
HTTP header-based BWM allows Web site managers to allocate bandwidth based on header
value. Thus, they can allocate bandwidth based on browser type, cookie value, and so forth.
Cookie-Based Bandwidth Management
Cookie-based BWM enables Web site managers to prevent network abuse by bandwidth-hog-
ging users. Using this feature, bandwidth can be allocated by type of user or other user-specific
information available in the cookie.
Cookie-based bandwidth management empowers service providers to create tiered services.
For example, Web site managers can classify users as first class, business class, and coach and
allocate a larger share of the bandwidth for preferred classes.
Figure 17-6 Cookie-Based Bandwidth Management
NOTE – Cookie-based BWM does not apply to cookie-based persistency or cookie pas-
sive/active mode applications.
Web OS 10.0 Application Guide
452 Chapter 17: Bandwidth Management 212777-A, February 2002
Bandwidth Statistics and History
Statistics are maintained in order to allow Web switch owners to bill for bandwidth usage. Sta-
tistics for frequency and count are configurable. Statistics are kept in the individual Switch
Processors (SP) and then collected every second by the MP (Management Processor). The MP
then combines the statistics, as statistics for some classifications may be spread across multiple
SPs.
The MP maintains some global statistics, such as total octets and a window of historical statis-
tics. When the history buffer of 128K is ready to overflow, it can be optionally e-mailed to a
user for long-term storage. Additionally, the history buffer can be sent to the user when the
user enters the command: /oper/bwm/sndhist. The SMTP protocol is used for this
transfer if the SMTP host has been configured (/cfg/sys/smtp) and the user e-mail address
has been set up (/cfg/bwm/user). To obtain graphs, the data must be collected and pro-
cessed by an external entity through SNMP or through e-mailed logs.
History is maintained only for the contracts for which the history option is enabled
(/cfg/bwm/cont x/hist).
If SMTP is enabled, then the info command (/info/bwm) can display when the history sta-
tistics will be e-mailed to a user.
Statistics Maintained
The total number of octets sent, octet discards, and times over the soft limit are kept for each
contract. The history buffer maintains the average queue size for the time interval and the aver-
age rate for the interval.
Statistics and Management Information Bases
nFor existing BWM classes:
As mentioned above, the MP maintains per-contract rate usage statistics. These are obtain-
able via a private MIB.
nWhen BWM services are not enabled:
Even when BWM is not enforced, the MP can still collect classification information and
report it, allowing the customer to observe a network for a while before deciding how to
configure it. This feature can be disabled using /cfg/bwm/force dis. When this
command is used, no limits will be applied on any contract.
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 453
212777-A, February 2002
Packet Coloring (TOS bits) for Burst Limit
Whenever the soft limit is exceeded, optional packet coloring can be done to allow down-
stream routers to use diff-serv mechanisms (that is, writing the Type-Of-Service (TOS) byte of
the IP header) to delay or discard these out-of-profile frames. Frames that are not out-of -pro-
file are marked with a different, higher priority value. This feature can be enabled or disabled
on a per-contract basis, using the wtos option under the contract menu (/cfg/bwm/cont
x/wtos) to enable/disable overwriting IP TOS.
The actual values used by the switch for overwriting TOS values (depending on whether traffic
is over or under the soft TOS limit) are set in the bandwidth policy menu (/cfg/bwm/pol
x) with the utos and otos options. The values allowed are 0-255. Typically, the values spec-
ified should match the appropriate diff-serv specification but could be different, depend-
ing on the customer environment.
Operational Keys
There are two operational keys for BWM: a standard key and a demo key. The demo key auto-
matically expires after a demo time period. These keys may only be enabled if Layer 4 services
have been enabled.
Web OS 10.0 Application Guide
454 Chapter 17: Bandwidth Management 212777-A, February 2002
Configuring Bandwidth Management
The following procedure provides general instructions for configuring BWM on the switch.
Specific configuration examples begin on page 457.
1. Configure the switch as you normally would for SLB. Configuration includes the follow-
ing tasks:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
nDefine a real server group.
nDefine a virtual server.
nDefine the port configuration.
For more information about SLB configuration, see “Server Load Balancing” on page 117.
2. Enable BWM on the switch.
NOTE – If you purchased the Bandwidth Management option, make sure you enable it by typ-
ing /oper/swkey and entering its software key.
3. Select a bandwidth policy.
Each policy must have a unique number from 1 to 64.
4. Set the hard, soft, and reserved rate limits for the policy, in Mbps.
Typically, charges are applied for burst rates between the soft and hard limit. Each limit must
be set between 256K-1000M.
NOTE – For rates less than 1 Mbps, append a “K” suffix to the number.
>> # /cfg/bwm/on (Turn BWM on)
>> Bandwidth Management# pol 1 (Select bandwidth policy 1)
>> Policy 1# hard 6 (Set “never exceed” rate)
>> Policy 1# soft 5 (Set desired bandwidth rate)
>> Policy 1# resv 4 (Set committed information rate)
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 455
212777-A, February 2002
5. (Optional) Set the TOS byte value, between 0-255, for the policy underlimit and over-
limit.
There are two parameters for specifying the TOS bits: underlimit (utos) and overlimit
(otos). These TOS values are used to overwrite the TOS values of IP packets if the traffic for
a contract is under or over the soft limit, respectively. These values only have significance to a
contract if TOS overwrite is enabled in the Bandwidth Management Contract Menu
(cfg/bwm/cont x/wtos ena.)
The administrator has to be very careful in selecting the TOS values because of their greater
impact on the downstream routers.
6. Set the buffer limit for the policy.
Set a value between 8192-128000 bytes. The buffer depth for a BWM contract should be set to
a multiple of the packet size.
NOTE – Keep in mind that the total buffer limit for the Bandwidth Management policy is
128K.
7. On the switch, select a BWM contract and (optional) a name for the contract.
Each contract must have a unique number from 1 to 256.
8. (Optional) Set a precedence value for the BWM contract.
Each contract can be given a precedence value from 1-256. The higher the number, the higher
the precedence. If a frame is applicable to different classifications, then the contract with
higher precedence will be assigned to the frame. If the precedence is the same for the applica-
ble contracts, then the following order will be used to assign the contract to the frame:
(1) Incoming port, (2) VLAN, (3) Filter, (4) Service on the Virtual server, (5) URL/Cookie
>> Policy 1# utos 204 (Set BWM policy underlimit)
>> Policy 1# otos 192 (Set BWM policy overlimit)
>> Policy 1# buffer 16320 (Set BWM policy buffer limit)
>> Policy 1# /cfg/bwm/cont 1 (Select BWM contract 1)
>> BWM Contract 1# name BigCorp (Assign contract name “BigCorp”)
>> BWM Contract 1# prec 1 (Sets contract precedence value to 1)
Web OS 10.0 Application Guide
456 Chapter 17: Bandwidth Management 212777-A, February 2002
9. (Optional) Enable TOS overwriting for the BWM contract.
10. Set the bandwidth policy for this contract.
Each bandwidth management contract must be assigned a bandwidth policy.
11. Enable the BWM contract.
12. Classify the frames for this contract and assign the BWM contract to the filter.
Each BWM contract must be assigned a classification policy. The classification can be based on
a filter or service(s) on the Virtual server. Filters are used to create classification policies based
on the IP source address, IP destination address, TCP port number, UDP, and UDP port number.
In this case, all frames that match filter 1 or virtual server 1 will be assigned contract 1.
13. On the switch, apply and verify the configuration.
Examine the resulting information. If any settings are incorrect, make any appropriate changes.
14. On the switch, save your new configuration changes.
15. On the switch, check the BWM information.
Check that all BWM contract parameters are set correctly. If necessary, make any appropriate
configuration changes and then check the information again.
>> BWM Contract 1# wtos ena (Enables overwriting for contract)
>> BWM Contract 1# pol 1 (Assign policy 1 to BWM contract 1)
>> BWM Contract 1# ena (Enables this BWM contract)
>> BWM Contract 1# /cfg/slb/virt 1/cont 1 (Assign contract to virtual server)
>> Virtual Server 1# ../filt 1/adv/cont 1 (Assign contract 1 to filter 1)
>> Filter 1 Advanced# apply (Make your changes active)
>> Filter 1 Advanced# /cfg/bwm/cur (View current settings)
>> Bandwidth Management# save (Save for restore after reboot)
>> Bandwidth Management# /info/bwm <contract number>(View BWM information)
>> Bandwidth Management# /stats/bwm <contract number>(View BWM information)
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 457
212777-A, February 2002
Additional Configuration Examples
Examples are provided for the following Bandwidth Management applications:
nUser/Application Fairness: see next section
nPreferential Services: page 460
nURL-Based: page 463
nCookie-Based: page 465
nSecurity Management: page 468
User/Application Fairness Example
Bandwidth Management can be applied to prevent heavy bursters from locking out other users,
such as in preventing the following:
nCustomers using broadband access (such as DSL) from blocking dial-up customers
nCustomers from the same hosting facility locking out each other because of flash crowd
nFTP from locking out Telnet
nRate limit particular applications
In the following example, BWM is configured to prevent broadband customers from affecting
dial-up customer access. This is accomplished by setting higher bandwidth policy rate limits
for the port processing broadband traffic.
1. Select the first bandwidth policy.
Each policy must have a number from 1 to 64.
NOTE – Ensure BWM is enabled on the switch (/cfg/bwm/on).
2. Set the hard, soft, and reserved rate limits for the bandwidth policy, in Mbps.
>> # /cfg/bwm/pol 1 (Select BWM policy 1)
>> Policy 1# hard 5 (Set “never exceed” rate)
>> Policy 1# soft 4 (Set desired bandwidth rate)
>> Policy 1# resv 3 (Set committed information rate)
Web OS 10.0 Application Guide
458 Chapter 17: Bandwidth Management 212777-A, February 2002
3. On the switch, select a BWM contract and name the contract.
Each contract must have a unique number from 1 to 256.
4. Set the bandwidth policy for this contract.
Each BWM contract must be assigned a bandwidth policy.
5. Enable this BWM contract.
6. Select the second bandwidth policy.
7. Set the hard, soft, and reserved rate limits for this policy, in Mbps.
8. On the switch, select the second BWM contract and name the contract.
9. Set the bandwidth policy for this contract.
Each BWM contract must be assigned a bandwidth policy.
10. Enable this BWM contract.
>> Policy 1# /cfg/bwm/cont 1 (Select BWM contract 1)
>> BWM Contract 1# name dial-up (Assign contract name “dial-up”)
>> BWM Contract 1# pol 1 (Assign policy 1 to BWM Contract 1)
>> BWM Contract 1# ena (Enables this BWM contract)
>> BWM Contract 1# /cfg/bwm/pol 2 (Select bandwidth policy 2)
>> Policy 2# hard 30 (Set “never exceed” rate)
>> Policy 2# soft 25 (Set desired bandwidth rate)
>> Policy 2# resv 20 (Set committed information rate)
>> Policy 2# /cfg/bwm/cont 2 (Select BWM contract 2)
>> BWM Contract 2# name broadband (Assign contract name “broadband”)
>> BWM Contract 2# pol 2 (Assign policy 2 to BWM contract 2)
>> BWM Contract 2# ena (Enables this BWM contract)
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 459
212777-A, February 2002
11. Assign the BWM contracts to different switch ports.
Physical switch ports are used to classify which frames are managed by each contract—that is,
one BWM contract will be applied to all frames from a specific port. The second contract will
be applied to all frames from another specified port.
12. On the switch, apply and verify the configuration.
Examine the resulting information. If any settings are incorrect, make any appropriate changes.
13. On the switch, save your new configuration changes.
14. On the switch, check the BWM information.
Check that all BWM contract parameters are set correctly. If necessary, make any appropriate
configuration changes and then check the information again.
>> BWM Contract 2# /cfg/port 1/cont 1 (Assign contract 1 to port 1)
>> Port 1# ../port 2/cont 2 (Assign contract 2 to port 2)
>> Port 2# apply (Make your changes active)
>> Port 2# /cfg/bwm/cur (View current BWM settings)
>> Bandwidth Management# save (Save for restore after reboot)
>> Bandwidth Management# /info/bwm <contract number> (View BWM information)
Web OS 10.0 Application Guide
460 Chapter 17: Bandwidth Management 212777-A, February 2002
Preferential Services Examples
BWM can be used to provide preferential treatment to certain traffic, based on source IP
blocks, applications, URL paths, or cookies. You may find it useful to configure higher policy
rate limits for specific sites, for example, those used for e-commerce.
Web Site Preference Example
In the following example, there are two Web sites, “A.com” and “B.com.” BWM is configured
to give preference to traffic sent to Web site “B.com:”
1. Configure the switch as you normally would for SLB. Configuration includes the follow-
ing tasks:
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
nDefine a real server group.
nDefine a virtual server.
nDefine the port configuration.
For more information about SLB configuration, refer to “Server Load Balancing” on page 117.
NOTE – Ensure BWM is enabled on the switch (/cfg/bwm/on).
2. Select the first bandwidth policy.
Each policy must have a number from 1 to 64.
3. Set the hard, soft, and reserved rate limits for the bandwidth policy in Mbps.
4. On the switch, select a BWM contract and name the contract.
Each contract must have a unique number from 1 to 256.
>> # /cfg/bwm/pol 1 (Select BWM policy 1)
>> Policy 1# hard 10 (Set “never exceed” rate)
>> Policy 1# soft 8 (Set desired bandwidth rate)
>> Policy 1# resv 5 (Set committed information rate)
>> Policy 1# /cfg/bwm/cont 1 (Select BWM Contract 1)
>> BWM Contract 1# name a.com (Assign contract name “a.com”)
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 461
212777-A, February 2002
5. Set the bandwidth policy for this contract.
Each BWM contract must be assigned a bandwidth policy.
6. Enable this BWM contract.
7. Select the second bandwidth policy.
8. Set the hard, soft, and reserved rate limits for this policy, in Mbps.
9. On the switch, select the second BWM contract and name the contract.
10. Set the bandwidth policy for this contract.
Each BWM contract must be assigned a bandwidth policy.
11. Enable this BWM contract.
>> BWM Contract 1# pol 1 (Assign policy 1 to BWM contract 1)
>> BWM Contract 1# ena (Enables this BWM contract)
>> BWM Contract 1# /cfg/bwm/policy 2 (Select BWM policy 2)
>> Policy 2# hard 18 (Set “never exceed” rate)
>> Policy 2# soft 15 (Set desired bandwidth rate)
>> Policy 2# resv 10 (Set committed information rate)
>> Policy 2# /cfg/bwm/cont 2 (Select BWM contract 2)
>> BWM Contract 2# name b.com (Assign contract name “b.com”)
>> BWM Contract 2# pol 2 (Assign policy 2 to BWM contract 2)
>> BWM Contract 2# ena (Enables this BWM contract)
Web OS 10.0 Application Guide
462 Chapter 17: Bandwidth Management 212777-A, February 2002
12. Create a virtual server that will be used to classify the frames for contract 1 and assign
the Virtual server IP address for this server. Then, assign the BWM contract to the vir-
tual server. Repeat this procedure for a second virtual server.
NOTE – This classification applies to the services within the virtual server and not to the
virtual server itself.
The classification policy for these BWM contracts is based on a virtual server. One of the
BWM contracts will be applied to any frames that are sent to the virtual server associated with
that contract.
13. On the switch, apply and verify the configuration.
Examine the resulting information. If any settings are incorrect, make the appropriate changes.
14. On the switch, save your new configuration changes.
15. On the switch, check the bandwidth management information.
Check that all BWM contract parameters are set correctly. If necessary, make any appropriate
configuration changes and then check the information again.
>> BWM Contract 2# /cfg/slb/virt 1/cont 1 (Assign contract to virtual server 1)
>> Virtual Server 1# vip 100.2.16.2 (Set virtual server VIP address)
>> Virtual Server 1# ena (Enable this virtual server)
>> Virtual Server 1# /cfg/slb/virt 2/cont 2 (Assign contract to virtual server)
>> Virtual Server 2# vip 100.2.16.3 (Set virtual server IP address)
>> Virtual Server 2# ena (Enable this virtual server)
>> Virtual Server 2# apply (Make your changes active)
>> Virtual Server 2# /cfg/bwm/cur (View current BWM settings)
>> Bandwidth Management# save (Save for restore after reboot)
>> Bandwidth Management# /info/bwm <contract number>(View BWM information)
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 463
212777-A, February 2002
URL-Based Bandwidth Management Example
In this example, you will assign bandwidth based on URL paths. For URL-based server load
balancing, a user has to first define strings to monitor. Each of these strings is attached to real
servers, and any URL with the string is load balanced across the assigned servers.
NOTE – The complete procedure to configure URL-based SLB is described in Chapter 7,
“Content Intelligent Switching” of the Web OS Application Guide.
The best way to achieve URL-based bandwidth management is to assign a contract to each
defined string. This allocates a percentage of bandwidth to the string or URL containing the
string.
To configure the switch for URL-based bandwidth management, perform the following steps:
NOTE – Refer to the Web OS Command Reference, Chapter 7, for more information on how to
create a contract.
1. Define a load-balancing string for URL-based server load balancing. For example, add
the string “alteon.”
To see the URL path ID assigned for the string “alteon,” execute the cur command:
2. Allocate bandwidth for each string.
To implement this, assign a BWM contract to a defined string.
>> # /cfg/slb/layer7/lb/add alteon
>> Server Load Balance Resource# cur
Number of entries: 2
1: any, cont 1024
2: alteon, cont 3
>> Server Load Balance Resource# cont <URL path ID> <BWM Contract number>
Web OS 10.0 Application Guide
464 Chapter 17: Bandwidth Management 212777-A, February 2002
3. Configure a real server to handle the URL request.
To add a defined string:
where URL path ID is the identification number of the defined string as displayed when you
enter the cur command.
Example: /cfg/slb/real 2/layer7/addlb 3
4. Either enable Direct Access Mode (DAM) on the switch or configure a proxy IP address
on the client port.
NOTE – If VMA is enabled and you are using a proxy IP address, you need to configure proxy
IP addresses on ports 1 through 8.
To turn on DAM:
To turn off DAM and configure a proxy IP address on the client port:
NOTE – By enabling DAM on the switch or, alternatively, disabling DAM and configuring a
proxy IP address on the client port, port mapping for URL-based server load balancing can be
performed.
>> # /cfg/slb/real 2/layer7/addlb <URL path ID>
>> # /cfg/slb/adv/direct ena
>> # /cfg/slb/adv/direct dis
>> # ../port 2/pip 12.12.12.12
>> # proxy ena
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 465
212777-A, February 2002
5. Turn on URL-based server load balancing on the virtual server.
Configure everything under the virtual server as in Configuration Example 1.
If the same string is used by more than one service, and you want to allocate a certain percent-
age of bandwidth to this URL string for this service on the virtual server, then define a rule
using the urlcont command.
This contract is tied to service 1. The urlcont command will overwrite the contract assigned
to the URL string ID.
6. Enable Server Load Balancing.
Cookie-Based Bandwidth Management Example
In this example, you will assign bandwidth based on cookies. First, configure cookie-based
server load balancing, which is very similar to URL-based load balancing. Any cookie contain-
ing the specified string is redirected to the assigned server.
Scenario 1: In this scenario, the Web site has a single virtual server IP address and supports
multiple classes of users. Turn on cookie parsing for the service on the virtual server.
1. Define one or more load-balancing strings.
Example:
>> # /cfg/slb/virt 1/service 80/httpslb enable urlslb
>> # /cfg/slb/virt 1/service 80/urlcont <URL path ID> <BW Contract number>
>> # /cfg/slb/on
>> # /cfg/slb/virt 1/service 80
>> # httpslb enabled cookie sid 1 8 disable
>> # /cfg/slb/layer7/lb/add <URL path ID>
>> # /cfg/slb/layer7/lb/add "Business"
>> # add "First"
>> # add "Coach"
Web OS 10.0 Application Guide
466 Chapter 17: Bandwidth Management 212777-A, February 2002
2. Allocate bandwidth for each string.
To do this, assign a BWM contract to each defined string.
3. Configure a real server to handle the cookie.
To add a defined string:
where URL path ID is the identification number of the defined string.
Example:
4. Either enable DAM on the switch or configure a proxy IP address on the client port.
NOTE – If VMA is enabled, you need to configure a unique proxy IP address for each port 1-8.
To turn on DAM:
To turn off DAM and configure a Proxy IP address on the client port:
NOTE – By enabling DAM on the switch or, alternatively, disabling DAM and configuring a
Proxy IP address on the client port, port mapping for URL-based load balancing can be per-
formed.
5. Enable SLB.
>> # /cfg/slb/layer7/lb/cont <URL path ID> <BWM Contract number>
>> # /cfg/slb/real 2/layer7/addlb <URL path ID>
>> # /cfg/slb/real 2/layer7/addlb 3
>> # /cfg/slb/adv/direct ena
>> # /cfg/slb/adv/direct dis
>> # ../port 2/pip 12.12.12.12
>> # proxy ena
>> # /cfg/slb/on
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 467
212777-A, February 2002
Scenario 2: In this scenario, the Web site has multiple virtual server IP addresses, and the
same user classification or multiple sites use the same string name. In this scenario, there are
two Virtual IP (VIP) addresses: 172.17.1.1 and 172.17.1.2. Both the virtual servers and sites
have first class and business class customers, with different bandwidth allocations, as shown in
Figure 17-7 on page 467.

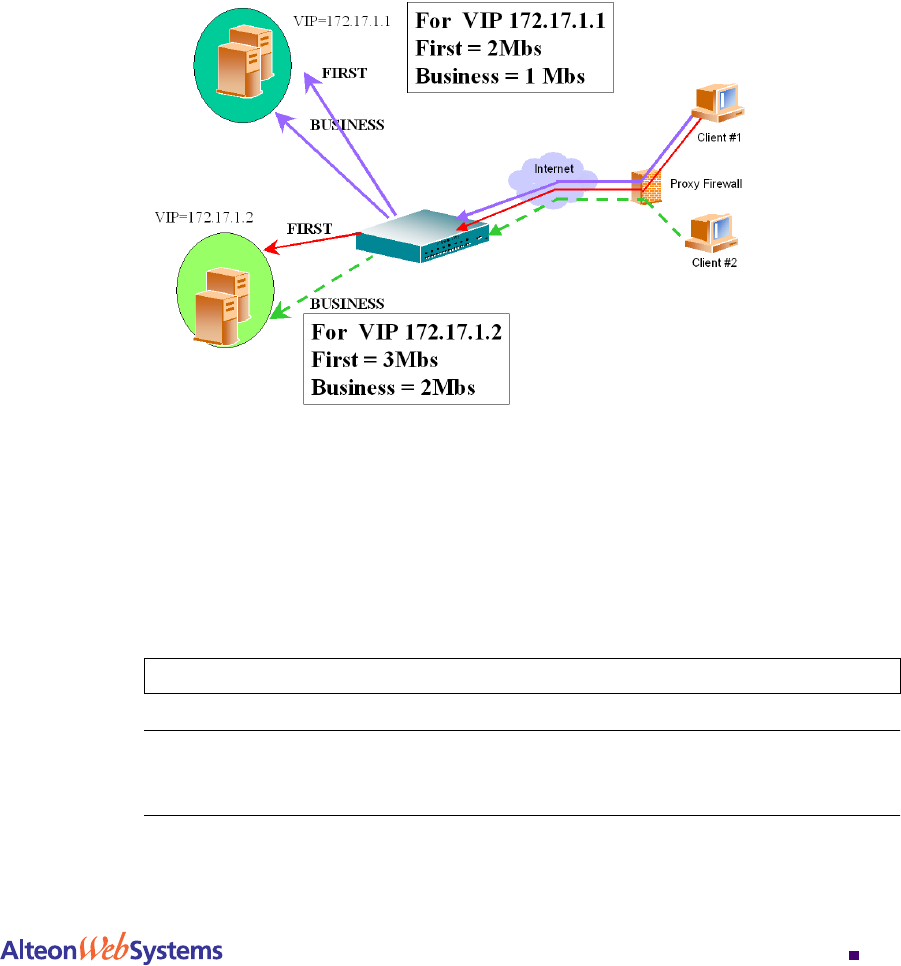

Figure 17-7 Cookie-Based Preferential Services
The configuration to support this scenario is similar to Scenario 1. Note the following:
1. Configure the string and assign contracts for the strings and services.
2. If the same string is used by more than one service, and you want to allocate a certain
percentage of bandwidth to a user class for this service on the virtual server, then define a
rule using the urlcont command:
NOTE – When assigning /cfg/slb/virt 1/service 80/urlcont (contract 1) and
/cfg/slb/layer7/lb/cont (contract 2) to the same URL, urlcont will override
contract 2, even if contract 2 has higher precedence.
>> # /cfg/slb/virt 1/service 80/urlcont <URL path ID> <BW Contract number>
Web OS 10.0 Application Guide
468 Chapter 17: Bandwidth Management 212777-A, February 2002
Security Management Example
BWM can be used to prevent Denial of Service (DoS) attacks by a flooding of “necessary evil”
packets and limiting the rate of TCP SYN, ping, other disruptive packets, and alerting/logging
the network manager when soft limits are exceeded.
In the following example, a filter is configured to match ping packets, and BWM is configured
to prevent DoS attacks by limiting the bandwidth policy rate of those packets:
1. Configure the switch as usual for SLB (see “Server Load Balancing” on page 117):
nAssign an IP address to each of the real servers in the server pool.
nDefine an IP interface on the switch.
nDefine each real server.
nDefine a real server group.
nDefine a virtual server.
nDefine the port configuration.
NOTE – Ensure BWM is enabled on the switch (/cfg/bwm/on).
2. Select a bandwidth policy.
Each policy must have a number from 1 to 64.
3. Set the hard, soft, and reserved rate limits for this policy in Kilobytes.
4. Set the buffer limit for the policy.
Set a parameter between 8192 and 128000 bytes. The buffer depth for a BWM contract should
be set to a multiple of the packet size.
5. On the switch, select a BWM contract and name the contract.
Each contract must have a unique number from 1 to 256.
>> # /cfg/bwm/pol 1 (Select BWM policy 1)
>> Policy 1# hard 250k (Set “never exceed” rate)
>> Policy 1# soft 250k (Set desired bandwidth rate)
>> Policy 1# resv 250k (Set committed information rate)
>> Policy 1# buffer 8192 (Set policy buffer limit of 8192 bytes)
>> Bandwidth Management# /cfg/bwm/cont 1 (Select BWM contract 1)
>> BWM Contract 1# name icmp (Select contract name “icmp”)
Web OS 10.0 Application Guide
Chapter 17: Bandwidth Management 469
212777-A, February 2002
6. Set the bandwidth policy for the contract.
Each BWM contract must be assigned a bandwidth policy.
7. Enable the BWM contract.
8. Create a filter that will be used to classify the frames for this contract and assign the
BWM contract to the filter.
The classification policy for this BWM contract is based on a filter configured to match ICMP
traffic. The contract will be applied to any frames that match this filter
9. On the switch, apply and verify the configuration.
Examine the resulting information. If any settings are incorrect, make the appropriate changes.
10. On the switch, save your new configuration changes.
11. On the switch, check the BWM information.
Check that all BWM contract parameters are set correctly. If necessary, make any appropriate
configuration changes and then check the information again.
>> BWM Contract 1# pol 1 (Assign policy 1 to BWM contract 1)
>> BWM Contract 1# ena (Enables this BWM contract)
>> BW Contract 1# /cfg/slb/filt 1/proto icmp (Define protocol affected by filter)
>> Filter 1# adv/icmp any (Set the ICMP message type)
>> Filter 1 Advanced# cont 1 (Assign BWM contract 1 to this filter)
>> Filter 1 Advanced# /cfg/slb/filt 1/ena (Enable this filter)
>> Filter 1# apply (Port and enable filtering)
>> Filter 1 Advanced# apply (Make your changes active)
>> Filter 1 Advanced# /cfg/bwm/cur (View current BWM settings)
>> Bandwidth Management# save (Save for restore after reboot)
>> Bandwidth Management# /info/bwm <contract number> (View BWM information)
Web OS 10.0 Application Guide
470 Chapter 17: Bandwidth Management 212777-A, February 2002
212777-A, February 2002 471
Glossary
DIP (Destination IP
Address) The destination IP address of a frame.
Dport (Destination
Port) The destination port (application socket: for example, http-80/https-443/DNS-53)
NAT (Network
Address Translation) Any time an IP address is changed from one source IP or destination IP address to another
address, network address translation can be said to have taken place. In general, half NAT
is when the destination IP or source IP address is changed from one address to another.
Full NAT is when both addresses are changed from one address to another. No NAT is
when neither source nor destination IP addresses are translated. Virtual server-based load
balancing uses half NAT by design, because it translates the destination IP address from
the Virtual Server IP address, to that of one of the real servers.
Preemption In VRRP, preemption will cause a Virtual Router that has a lower priority to go into
backup should a peer Virtual Router start advertising with a higher priority.
Priority In VRRP, the value given to a Virtual Router to determine its ranking with its peer(s). Min-
imum value is 1 and maximum value is 254. Default is 100. A higher number will win out
for master designation.
Proto (Protocol) The protocol of a frame. Can be any value represented by a 8-bit value in the IP header
adherent to the IP specification (for example, TCP, UDP, OSPF, ICMP, and so on.)
Real Server Group A group of real servers that are associated with a Virtual Server IP address, or a filter.
Redirection or
Filter-Based Load
Balancing
A type of load balancing that operates differently from virtual server-based load balancing.
With this type of load balancing, requests are transparently intercepted and “redirected” to
a server group. “Transparently” means that requests are not specifically destined for a Vir-
tual Server IP address that the switch owns. Instead, a filter is configured in the switch.
This filter intercepts traffic based on certain IP header criteria and load balances it.
Filters can be configured to filter on the SIP/Range (via netmask), DIP/Range (via net-
mask), Protocol, SPort/Range or DPort/Range. The action on a filter can be Allow, Deny,
Redirect to a Server Group, or NAT (translation of either the source IP or destination IP
address). In redirection-based load balancing, the destination IP address is not translated to
that of one of the real servers. Therefore, redirection-based load balancing is designed to
load balance devices that normally operate transparently in your network—such as a fire-
wall, spam filter, or transparent Web cache.
RIP (Real Server) Real Server IP Address. An IP addresses that the switch load balances to when requests
are made to a Virtual Server IP address (VIP).
Web OS 10.0 Application Guide
472 Glossary 212777-A, February 2002
SIP (Source IP
Address) The source IP address of a frame.
SPort (Source Port) The source port (application socket: for example, HTTP-80/HTTPS-443/DNS-53).
Tracking In VRRP, a method to increase the priority of a virtual router and thus master designation
(with preemption enabled). Tracking can be very valuable in an active/active configura-
tion.
You can track the following:
Vrs: Virtual Routers in Master Mode (increments priority by 2 for each)
Ifs: Active IP interfaces on the Web switch (increments priority by 2 for each)
Ports: Active ports on the same VLAN (increments priority by 2 for each)
l4pts: Active Layer 4 Ports, client or server designation (increments priority by 2
for each
reals: healthy real servers (increments by 2 for each healthy real server)
hsrp: HSRP announcements heard on a client designated port (increments by 10
for each)
VIP (Virtual Server IP
Address) An IP address that the switch owns and uses to load balance particular service requests
(like HTTP) to other servers.
VIR (Virtual Interface
Router) A VRRP address that is an IP interface address shared between two or more virtual rout-
ers.
Virtual Router A shared address between two devices utilizing VRRP, as defined in RFC 2338. One vir-
tual router is associated with an IP interface. This is one of the IP interfaces that the switch
is assigned. All IP interfaces on the Alteon Web switches must be in a VLAN. If there is
more than one VLAN defined on the Web switch, then the VRRP broadcasts will only be
sent out on the VLAN of which the associated IP interface is a member.
Virtual Server Load
Balancing Classic load balancing. Requests destined for a Virtual Server IP address (VIP), which is
owned by the switch, are load balanced to a real server contained in the group associated
with the VIP. Network address translation is done back and forth, by the switch, as
requests come and go.
Frames come to the switch destined for the VIP. The switch then replaces the VIP and with
one of the real server IP addresses (RIP’s), updates the relevant checksums, and forwards
the frame to the server for which it is now destined. This process of replacing the destina-
tion IP (VIP) with one of the real server addresses is called half NAT. If the frames were
not half NAT’ed to the address of one of the RIPs, a server would receive the frame that
was destined for it’s MAC address, forcing the packet up to Layer 3. The server would
then drop the frame, since the packet would have the DIP of the VIP and not that of the
server (RIP).
VRID (Virtual Router
Identifier) In VRRP, a value between 1 and 255 that is used by each virtual router to create its MAC
address and identify its peer for which it is sharing this VRRP address. The VRRP MAC
address as defined in the RFC is 00-00-5E-00-01-{VRID}. If you have a VRRP address
that two switches are sharing, then the VRID number needs to be identical on both
switches so each virtual router on each switch knows whom to share with.
Web OS 10.0 Application Guide
Glossary 473
212777-A, February 2002
VRRP (Virtual Router
Redundancy
Protocol)
A protocol that acts very similarly to Cisco’s proprietary HSRP address sharing protocol.
The reason for both of these protocols is so devices have a next hop or default gateway that
is always available. Two or more devices sharing an IP interface are either advertising or
listening for advertisements. These advertisements are sent via a broadcast message to an
address such as 224.0.0.18.
With VRRP, one switch is considered the master and the other the backup. The master is
always advertising via the broadcasts. The backup switch is always listening for the broad-
casts. Should the master stop advertising, the backup will take over ownership of the
VRRP IP and MAC addresses as defined by the specification. The switch announces this
change in ownership to the devices around it by way of a Gratuitous ARP, and advertise-
ments. If the backup switch didn’t do the Gratuitous ARP the Layer 2 devices attached to
the switch would not know that the MAC address had moved in the network. For a more
detailed description, refer to RFC 2338.
VSR (Virtual Server
Router) A VRRP address that is a shared Virtual Server IP address. VSR is Web OS proprietary
extension to the VRRP specification. The switches must be able to share Virtual Server IP
addresses, as well as IP interfaces. If they didn’t, the two switches would fight for owner-
ship of the Virtual Server IP address, and the ARP tables in the devices around them would
have two ARP entries with the same IP address but different MAC addresses.
Web OS 10.0 Application Guide
474 Glossary 212777-A, February 2002
212777-A, February 2002 475
Index
Symbols
[ ]....................................................................... 23
Numerics
80 (port) ........................................................... 295
802.1Q VLAN tagging................................... 44, 45
A
active cookie mode............................................ 429
active-active redundancy.................................... 255
configuration.............................................. 265
Server Load Balancing ................................ 267
synchronization .......................................... 277
active-standby redundancy ................................. 254
configuration.............................................. 263
administrator account......................................... 105
allow (filtering)......................................... 120, 170
application health checking ................................ 231
application ports........................................ 128, 171
application redirection ....................................... 203
client IP address authentication..................... 215
example with NAT ..................................... 208
games and real-time applications .................. 215
non cacheable sites...................................... 215
non-HTTP redirects for GSLB...................... 304
proxies ................................... 205, 208 to 213
rport.................................................. 208, 214
topologies .................................................. 206
Web-cache redirection example......... 204 to 215
authenticating, in OSPF ....................................... 80
authoritative name servers.................................. 291
autonomous systems (AS) .................................... 73
B
backup servers...................................................135
bandwidth management...........................449 to 450
burst limit...................................................453
classification policies...................................447
configuration, general.......................454 to 456
configuration, preferential service .................460
configuration, security .................................468
configuration, user fairness...........................457
cookie-based ..............................................451
data pacing.................................................446
HTTP header-based.....................................451
operational keys..........................................453
precedence .................................................448
statistics and history ....................................452
VMA.........................................................443
bandwidth policies .............................................444
rates ..........................................................445
BBI ....................................................................74
Border Gateway Protocol (BGP) ...........................36
use with GSLB ...........................................312
Bridge Protocol Data Unit (BPDU) .................48, 50
broadcast domains .............................33, 43, 45, 48
Browser-Based Interface ......................................74
C
CGI-bin scripts..........................................123, 134
Cisco EtherChannel .............................................68
client traffic processing ......................................123
SLB web balancing example ........................126
command conventions..........................................23
Command Line Interface ......................................74
Web OS 10.0 Application Guide
476 Index 212777-A, February 2002
configuring
cookie-based persistence ..............................430
FTP Server Load Balancing ..................150, 151
multi-response cookie search.........................436
stateful failover ...........................................285
contacting us........................................................24
content intelligent
server load balancing ...................................375
Web cache redirection..................................394
cookie
active .........................................................429
different types .............................................427
expiration timer...........................................432
header ........................................................425
insert mode.................................................427
names ........................................................426
passive mode ..............................................428
permanent...................................................425
temporary ...................................................425
values.........................................................426
cookie-based persistence.....................................424
customer support..................................................24
D
data pacing ........................................................446
datagram ...........................................................354
default gateway....................................................30
configuration example......................32, 61, 295
VLAN-based ................................................58
default password ................................................105
default route, OSPF ..............................................78
delayed binding.............................. 146 to 148, 373
Web cache redirection..................................210
deny (filtering)...........................................120, 170
dip (destination IP address for filtering)................178
direct real server access ......................................142
Distributed Site State Protocol (DSSP).........290, 295
dmask, destination mask for filtering....................178
Domain Name System (DNS)
filtering ..............................................185, 188
Global SLB (diagram)..................................291
load balancing, layer 4..................................151
load balancing, layer 7..................................390
round robin .................................................118
dport (filtering option) ................................186, 209
DSSP. See Distributed Site State Protocol.
duplex mode for jumbo frames ..............................63
dynamic NAT....................................................193
E
egress traffic ..................................................... 354
encrypt ............................................................. 354
EtherChannel ...................................................... 65
as used with port trunking .............................. 68
expiration timer, insert cookie............................. 432
external routing ............................................. 36, 73
F
failed server protection, SLB .............................. 118
failover
active-active............................................... 260
active-standby ............................................ 252
overview.................................................... 253
stateful....................................................... 283
fault tolerance
port trunking ................................................ 66
Server Load Balancing ................................ 122
filter redirection
tunable hash ............................................... 184
filtering
configuration example ................................. 186
default filter ....................................... 173, 186
IP address ranges ........................................ 178
layer 7 deny ............................................... 417
NAT configuration example ..............191 to 193
numbering.................................................. 176
order of precedence..................................... 172
proto (option) ..................................... 186, 209
security example......................................... 185
filtering-based VLANs....................................... 174
firewalls ........................................................... 185
fragmenting jumbo frames.............................. 28, 30
frame processing ................................................. 63
frame tagging. See VLANs tagging.
FTP.................................................................. 304
FTP Server Load Balancing................................ 150
configuring ........................................ 150, 151
Web OS 10.0 Application Guide
Index 477
212777-A, February 2002
G
gateway. See default gateway.
Gigabit adapters
jumbo frames ............................................... 63
Global SLB
configuration tutorial........................ 294 to 303
Distributed Site State Protocol.............. 290, 295
DNS resolution (diagram)............................ 291
domain name configuration.......................... 299
health check interval ................................... 298
hostname configuration ............................... 299
HTTP redirect ............................................ 292
port states .................................................. 297
real server groups........................................ 296
real servers................................................. 296
remote site configuration ............................. 298
tests .......................................................... 308
using proxy IP............................................ 304
H
half-duplex for jumbo frames ............................... 63
hash metric ....................................................... 132
hashing
redirection filters ........................................ 184
hashing on any HTTP header.............................. 389
health checks ............................................ 208, 237
configuration using scripts ........................... 227
format ....................................................... 226
Global SLB interval .................................... 298
hostname for HTTP content .............. 231 to 232
HTTPS/SSL............................................... 240
IMAP server .............................................. 237
RADIUS server .......................................... 239
real server parameters.................................. 231
script-based..................................... 225 to 229
verifying scripts.......................................... 229
wireless session protocol................... 240 to 242
WSP ......................................................... 241
WTLS....................................................... 242
high-availability ................................................ 247
Host routes
OSPF .......................................................... 82
hostname, for HTTP health checks.............. 231, 299
hot-standby redundancy ..................................... 256
configuration.............................................. 275
HTTP
application health checks..............................231
redirects (Global SLB option).......................292
HTTP header
hashing ......................................................389
HTTP URL request............................................417
HTTPS/SSL health checks..................................240
I
ICMP ...............................................................171
IEEE 802.1Q VLAN tagging ................................45
IF. See IP interfaces.
IGMP ...............................................................171
IMAP server health checks .................................237
imask................................................................129
ingress traffic ....................................................354
insert cookie mode.............................................427
expiration timer...........................................432
internal routing..............................................36, 73
Internet Service Provider (ISP), SLB example ......121
inter-switch port states, for hot-standby redundancy....
257
Intrusion Detection System (IDS)........................163
load balancing metrics .................................164
IP address
conservation ...............................................191
filter ranges ................................................178
local route cache ranges .................................35
private .......................................................191
proxies....................122, 136, 205, 208 to 213
real server groups................125, 269, 296, 400
real servers.................................120, 124, 296
routing example ......................................31, 60
SLB real servers..........................................125
virtual servers .....................120, 122, 126, 297
IP interfaces
configuration example .........................125, 295
example configuration .......................31, 34, 60
VLAN #1 (default)........................................45
VLANs........................................................45
IP proxies
for application redirection ............................213
for Global Server Load Balancing .................304
for Server Load Balancing............................136
See also proxies, proxy IP address (PIP).
Web OS 10.0 Application Guide
478 Index 212777-A, February 2002
IP routing ..........................................................123
cross-subnet example .....................................28
default gateway configuration ...................32, 61
IP interface configuration ...................31, 34, 60
IP subnets.....................................................29
network diagram............................................29
routing between VLANs.................................64
subnet configuration example..........................31
switch-based topology....................................30
IP subnets............................................................30
routing ...................................................29, 30
VLANs ..................................................43, 45
ISL Trunking.......................................................65
J
jumbo frames
fragmenting to normal size........................28, 30
frame size.....................................................63
Gigabit adapter..............................................63
isolating with VLANs ....................................63
routing ...................................................28, 30
supported duplex modes .................................63
VLANs ........................................................63
L
Layer 4
administrator account ...................................105
server load balancing ...................................124
Web cache redirection..................................206
Layer 7
deny filter...................................................417
precedence lookup .......................................414
regular expression matching..........................412
server load balancing ...................................375
string matching............................................410
Web cache redirection..................................394
least connections (SLB Real Server metric) ..........132
limiting TCP sessions .........................................179
lmask (local route cache parameter) .......................35
lnet (local route cache parameter) ..........................35
load balancing
DNS.................................................. 151, 390
FTP traffic ................................................. 150
IDS traffic.................................................. 163
layer 7 traffic.............................................. 375
RTSP ................................................ 155, 392
TCP-based DNS queries .............................. 151
types of........................................... 149 to 166
UDP-based DNS queries.............................. 151
WAN traffic............................................... 166
WAP traffic................................................ 158
local route cache address range ............................. 35
local route cache parameters
lmask .......................................................... 35
lnet.............................................................. 35
log
filtering option............................................ 170
log (filtering option) .......................................... 185
logical segment. See IP subnets.
LSAs.................................................................. 72
M
MAC address .................................................... 355
Management Processor (MP)................................ 45
use in switch security................................... 100
manual style conventions ..................................... 23
mapping ports ................................................... 214
mapping virtual ports to real ports ....................... 139
maxcons limit............................................ 134, 135
maximum connections ............................... 134, 135
minimum misses (SLB real server metric)............ 131
mirroring ports .................................................. 113
MP (Management Processor)................................ 45
multi-homing .................................................... 312
multi-links between switches
using port trunking........................................ 65
using VLANs ............................................... 48
multimedia servers............................................. 155
multiple spanning tree groups ............................... 51
Web OS 10.0 Application Guide
Index 479
212777-A, February 2002
N
name servers, Global SLB configuration example.291
Network Address Translation (NAT)................... 208
configuration example...................... 191 to 193
filter example ............................................. 194
proxy ........................................................ 194
static example............................................. 191
network performance
statistics, with use of proxy addresses............ 136
New ................................................................... 19
NFS server........................................................ 121
non cacheable sites in application redirection ....... 215
none (port processing mode) example.................. 126
non-HTTP redirects for GSLB............................ 304
O
optional software............................................... 203
OSPF
area types..................................................... 70
authentication............................................... 80
configuration examples......................... 84 to 98
default route................................................. 78
external routes.............................................. 82
filtering criteria........................................... 171
host routes ................................................... 82
link state database......................................... 72
neighbors..................................................... 72
overview...................................................... 69
redistributing routes ...................................... 82
route summarization...................................... 77
router ID...................................................... 80
virtual link ................................................... 79
overflow servers................................................ 135
P
parallel links ....................................................... 48
password
administrator account .................................. 105
default ....................................................... 105
L4 administrator account ............................. 105
user account ............................................... 105
PDUs ................................................................. 48
persistence
cookie-based .............................................. 424
multi-reponse cookie search ......................... 436
SSL session ID-based....................... 437 to 439
persistent
bindings .....................................................123
port sessions...............................................286
PIP. See proxies, proxy IP address.
POP3................................................................304
port 80 ..............................................................295
port mapping .....................................................214
port mirroring....................................................113
port processing mode
client .........................................................126
none ..........................................................126
server ................................................123, 126
port states..........................................................297
port trunking .......................................................66
configuration example ...................................67
description ...................................................68
EtherChannel................................................65
fault tolerance...............................................66
ports
for services.........................................128, 171
physical. See switch ports.
SLB configuration example..........................126
precedence, in bandwidth classifications ..............448
private IP address ..............................................191
private network..................................................191
protocol types....................................................171
proxies...................................122, 136, 205 to 213
configuration example .................................194
NAT..........................................................193
proxy IP address (PIP)................122, 136, 144, 213
proxy servers.....................................................205
PVID (port VLAN ID) .........................................44
Q
QuickTime Streaming Server..............................156
R
RADIUS
health checks..............................................239
port 1812 and 1645..............128, 159, 161, 171
port 1813 ...................................128, 162, 171
server parameters ........................................239
SSH/SCP ...................................................110
RADIUS snooping.............................................160
RADIUS static session entries.............................158
real server groups
configuration example .................269, 296, 400
Web OS 10.0 Application Guide
480 Index 212777-A, February 2002
real servers ........................................................122
backup/overflow servers...............................135
configuration example..................................296
connection timeouts.....................................134
health checks ..............................................231
maximum connections .................................134
SLB configuration example ..........................125
weights.......................................................134
redirect (HTTP) .................................................292
redirecting filters
tunable hash................................................184
redirecting non-HTTP applications ......................304
redirection. See application redirection
redundancy
active-active................................................255
active-standby .............................................254
hot-standby.................................................256
remote (Global SLB real server property).............298
roundrobin
SLB Real Server metric................................132
route cache, sample ..............................................59
Router ID
OSPF...........................................................80
routers.....................................................29, 32, 61
border ..........................................................73
peer .............................................................73
port trunking.................................................65
switch-based routing topology.........................30
using redirection to reduce Internet congestion 203
web-cache redirection example......................204
routes, advertising................................................73
routing ................................................................36
internal and external.......................................73
rport (filtering)...........................................208, 214
RSA keys ..........................................................109
RTSP
configuring .................................................157
Layer 7 load balancing .................................392
server load balancing ...................................155
Web cache redirection..................................211
S
scalability, service..............................................118
SCP
services ......................................................108
script-based health checks....................... 225 to 229
searching for cookie ...........................................432
searching for cookies..........................................432
SecurID ............................................................ 110
security
filtering.............................................. 170, 185
firewalls..................................................... 185
from viruses ............................................... 170
layer 7 deny filter........................................ 417
port mirroring............................................. 113
private networks ......................................... 191
switch management....................................... 99
VLANs........................................................ 43
segmentation. See IP subnets.
segments. See IP subnets.
server (port processing mode) example................ 126
server failure..................................................... 246
Server Load Balancing
across subnets............................................... 28
active-active redundancy.............................. 267
backup servers............................................ 135
complex network topologies......................... 136
configuration example ......................... 121, 136
direct real server access ............................... 142
distributed sites........................................... 290
DNS.................................................. 151, 390
failed server protection ................................ 118
fault tolerance............................................. 122
FTP........................................................... 150
health checks.............................................. 231
IDS ........................................................... 163
maximum connections................................. 134
overflow servers ......................................... 135
overview.................................................... 119
persistent bindings ...................................... 123
port processing modes ......................... 123, 126
proxies .............................................. 122, 136
proxy IP addresses ...................................... 144
real server group .........................125, 269, 400
real server IP address (RIP) .......................... 120
real servers................................................. 122
remote sites................................................ 290
RTSP ................................................ 155, 392
topology considerations ............................... 122
virtual IP address (VIP) ....................... 120, 122
virtual servers..................................... 120, 126
WAN links................................................. 166
WAP......................................................... 158
weights...................................................... 134
server pool........................................................ 118
server port processing ........................................ 123
service failure.................................................... 246
Web OS 10.0 Application Guide
Index 481
212777-A, February 2002
service ports.............................................. 128, 171
setting multiple response count........................... 432
shared services.................................................. 118
SIP (source IP address for filtering)..................... 178
smask
source mask for filtering .............................. 178
SMTP .............................................................. 304
SNMP ................................................................ 74
Spanning-Tree Protocol
eliminating bridge loops with VRRP ............. 279
multiple instances ......................................... 51
replacing with hot-standby failover ............... 275
VLANs ................................................. 48, 49
spoofing, prevention of ........................................ 99
sport (filtering option)................................ 186, 209
SSH
RSA host and server keys ............................ 109
SSH/SCP
configuring ................................................ 111
supported client commands .......................... 112
stateful failover ................................................. 283
static NAT........................................................ 191
static session entries........................................... 158
statistical load distribution.................................... 66
STP bridge PDUs ................................................ 48
streaming media ................................................ 155
summarizing routes ............................................. 77
switch failover .................................................. 253
switch management
security........................................................ 99
via IP interface ............................................. 45
switch ports VLANs membership ......................... 44
syslog
messages ................................................... 170
T
tagging. See VLANs tagging.
TCP ................................................. 171, 188, 189
health checking using .................................. 130
port 80....................................................... 144
rate limiting ............................................... 179
TCP/UDP port numbers ..................................... 139
TDT (Theoretical Departure Times) .................... 446
Telnet............................................................... 185
text conventions .................................................. 23
Theoretical Departure Times (TDT) .................... 446
timeouts for real server connnections................... 134
TOS burst limit for bandwidth management......... 453
transparent proxies..................136, 205, 208 to 213
tunable hashing..................................................184
tunneling...........................................................354
typographic conventions.......................................23
U
UDP .................................................171, 188, 189
datagrams.....................................................64
jumbo frame traffic fragmentation...................30
server status using .......................................130
URL-based.............................................449 to 450
user account ......................................................105
Using proxy IP
GSLB........................................................304
V
virtual clocks.....................................................446
virtual interface router (VIR) ..............................248
virtual IP address (VIP)..............................120, 122
virtual link, OSPF ................................................79
Virtual Local Area Networks. See VLANs.
virtual port mapping to multiple real ports.139 to 142
virtual router
ID numbering .............................................280
virtual router group ............................................257
Virtual Router Redundancy Protocol
tracking......................................................261
virtual server router............................................259
virtual servers....................................................120
configuration example .................................126
IP address...........................................126, 297
virus attacks, preventing .....................................417
Web OS 10.0 Application Guide
482 Index 212777-A, February 2002
VLANs
broadcast domains .......................33, 43, 45, 48
default PVID.................................................44
example showing multiple VLANs ..................46
filtering ......................................................174
gateway, default ............................................58
ID numbers...................................................44
IP interface configuration ...............................34
IP interfaces..................................................45
jumbo frames ................................................63
Management Processor...................................45
multiple links ................................................48
multiple spanning trees...................................49
multiple VLANs......................................44, 45
parallel links example.....................................48
port members ................................................44
PVID ...........................................................44
routing .........................................................33
security ........................................................43
Spanning-Tree Protocol............................48, 49
tagging............................................... 44 to 47
topologies.....................................................45
VLAN #1 (default) ...... 44 to 45, 125, 207, 295
VLAN-tagging adapter support for ..................45
VPN .................................................................353
VPN cluster .......................................................354
VPN Load Balancing overview ...........................354
VRRP (Virtual Router Redundancy Protocol)
active-active redundancy ..............................255
active-standby redundancy............................254
hot-standby redundancy................................256
inter-switch port states..................................257
overview ............................................248, 261
synchronization...........................................277
synchronizing configurations ........................257
virtual interface router..................................248
virtual router ID numbering ..........................280
virtual server router......................................259
vrid............................................................249
W
WAP
WSP content health check............................ 241
WTLS health check..................................... 242
WAP Gateway .................................................. 158
WAP load balancing
RADIUS snooping...................................... 160
static session entries .................................... 158
Web cache redirection
browser-based ............................................ 405
delayed binding .......................................... 210
example..................................................... 206
HTTP header-based..................................... 403
layer 7 traffic.............................................. 394
RTSP ................................................ 211, 409
See application redirection
servers....................................204 to 206, 207
URL hashing .............................................. 406
URL-based................................................. 395
Web hosting...................................................... 121
weights............................................................. 134
Wide Area Networking (WAN)
configuring ................................................ 166
load balancing ............................................ 166
Wireless Application Protocol ............................ 158
World Wide Web, client security for browsing ..... 185
WSP health check.............................................. 241
WSP health checks .................................240 to 242
WTLS health check ........................................... 242
