Northfield Telecommunications d b a Advanced Wireless Communications AWR391V3 Two-Way Radio User Manual AW391 20080812
Northfield Telecommunications, Inc. d/b/a Advanced Wireless Communications Two-Way Radio AW391 20080812
User manual
UHF 450-470 MHzFrequency:
AWR391V3
Surwave Charger
Model Number: SSA021F060080USD

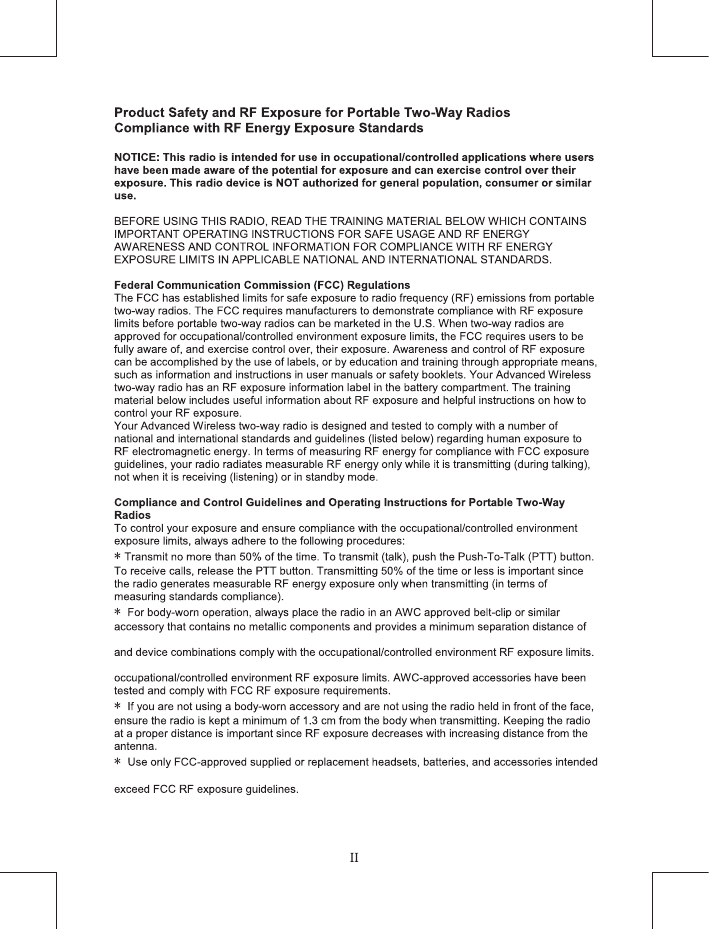

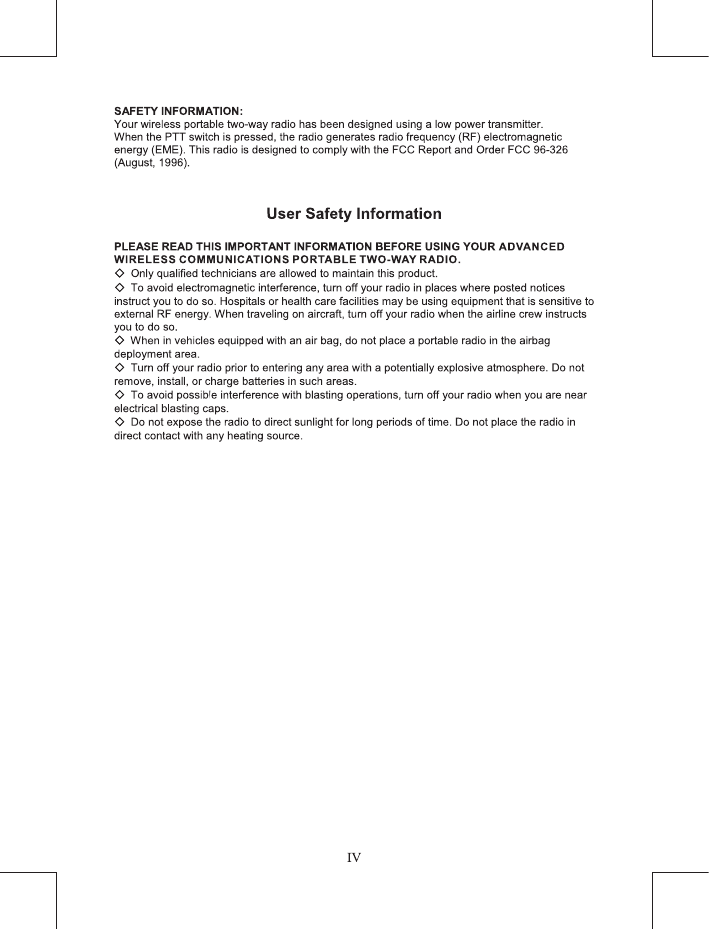

2.5cm between the back of the radio and the user’s body. AWC-approved accessories, antennas,
Using non AWC approved accessories may result in exposure levels which exceed the FCC’s
for use with this radio. Use of non-FCC approved headsets, batteries and accessories may

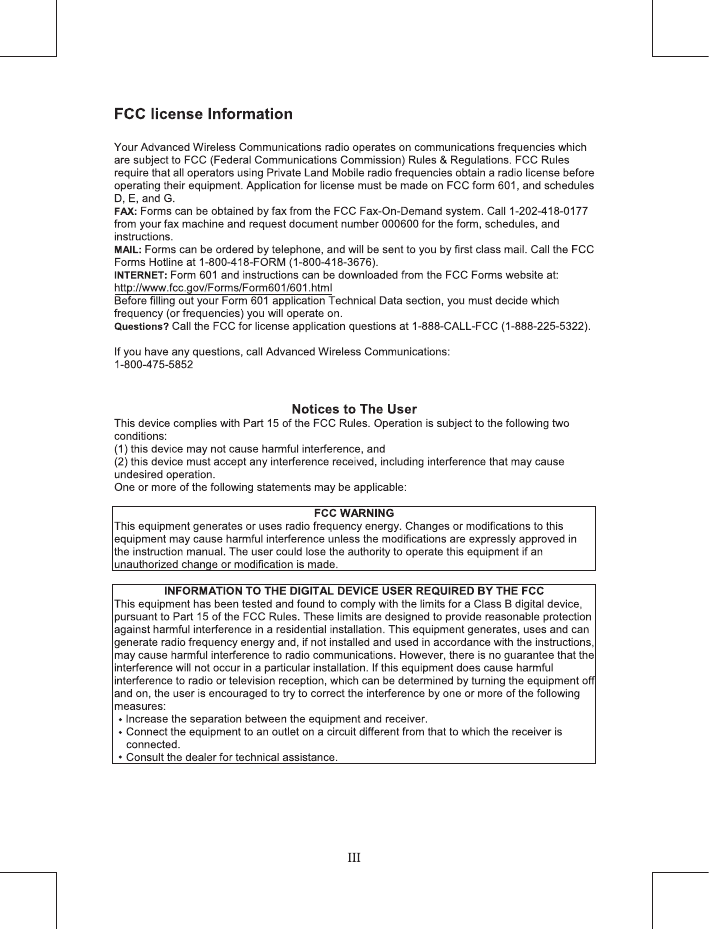

IC Statement:
This device complies with IndustryCanada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'IndustrieCanada
applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes : (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
INTRODUCTION
Advanced Wireless Communications is a leader in the design and integration of wireless
communications solutions. Since 1992, we’ve been creating on site wireless systems that
help businesses communicate effectively.
1
Whether it’s a national chain of retail stores, a 50-story office tower, construction site, a
large distribution center, a college campus or a retirement home, Advanced Wireless
has the expertise and experience to create the best solution possible...
We’re ready to partner with you to make your communications more effective and efficient.
Ken & Ben Coons
Founders of Advanced Wireless Communications
GETTING ACQUAINTED
PRODUCT INSPECTION
Thank you for your purchase of Advanced Wireless Communications Portable two-way
radio model: Mini 391 V3. Before use, please inspect the product as follows.
First check the shipping carton for any signs of damage if any damage has occurred,
please contact your dealer immediately. Confirm the supplied product against the packing
slip to assure accuracy.

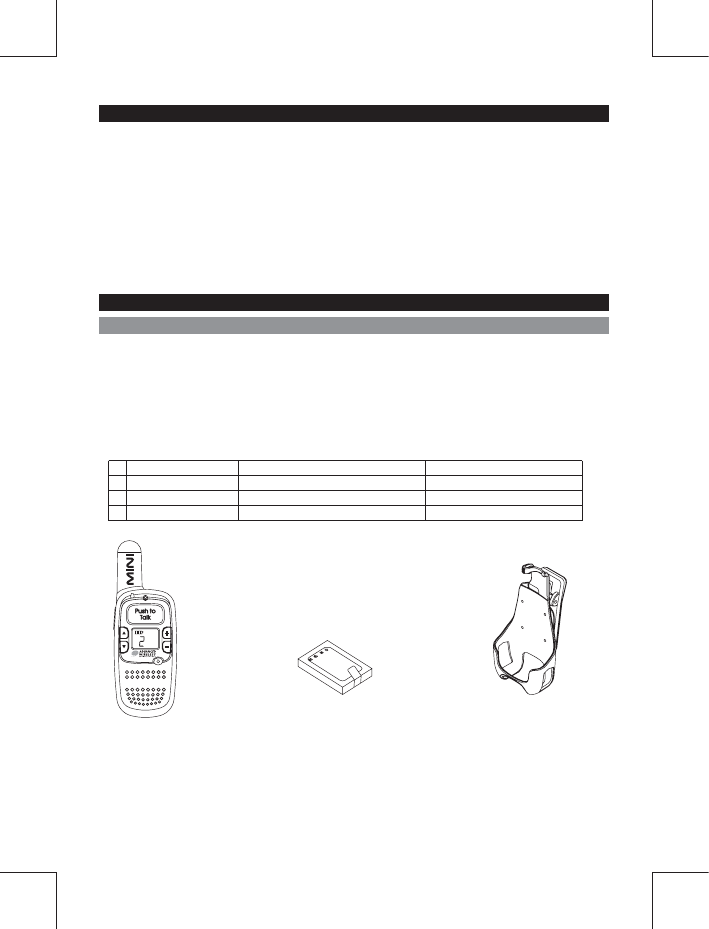

PACKAGING CONTENTS:
Part number Item Qty.
1. S139145702 AWR391V3 1
pc
2. BA0L080040 Li-ion Battery pack for Mini 391
1pc
3. 4503003911 Holster for Mini 391 1
pc
12 3
Headset 1pc, Model: AWR391HS
2
TRANSCEIVER RADIO VIEW
1
0
6
7
8
10
11
9
2
3
4
5

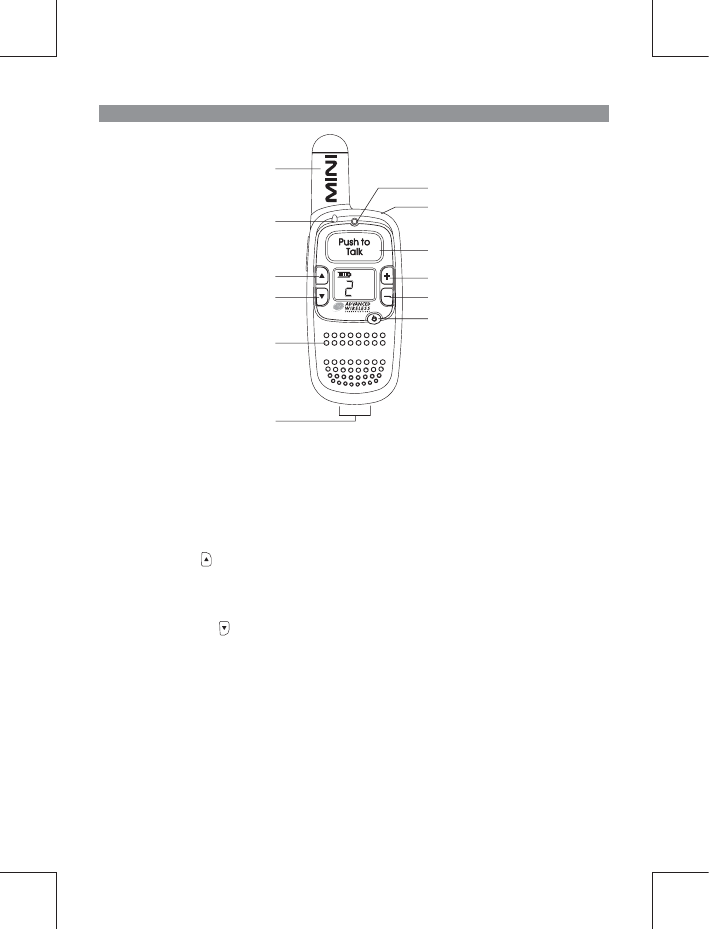

Front View:
0. Antenna
Receives and transmits signals
1. LED indicator
Lights up red when transmitting a signal
2. Channel Up
Press and hold for more than 2.0 seconds to activate the auto scan or dual watch
(selected by PC program) for available channel. While radio is on, press button
to increase channel no.
Generates audible sound
4. Speaker
3. Channel Down
Press and hold for more than 2.0 seconds to activate the key lock.While radio
is on, press button to decrease channel no.
5. Connection pins
Slot pins into a desktop charger docking pins station (docking station not included)
6. Microphone
Picks up voice sounds
7. Headset jack
Allows use of headset for hands-free communication.
8. Push to talk
Press and hold button, speak into the microphone using your normal
speaking voice.
PTT
Press and hold more than 1.5 seconds to rapidly increase the volume. While radio
is on, press button to increase the volume by a single unit.
10. Volume Down
Press and hold for more than 1.5 seconds to rapidly decrease the volume. While radio
is on, press button to decrease the volume by a single unit.
11. Power
Press and hold for more than 1.5 seconds to turn the unit on or off.

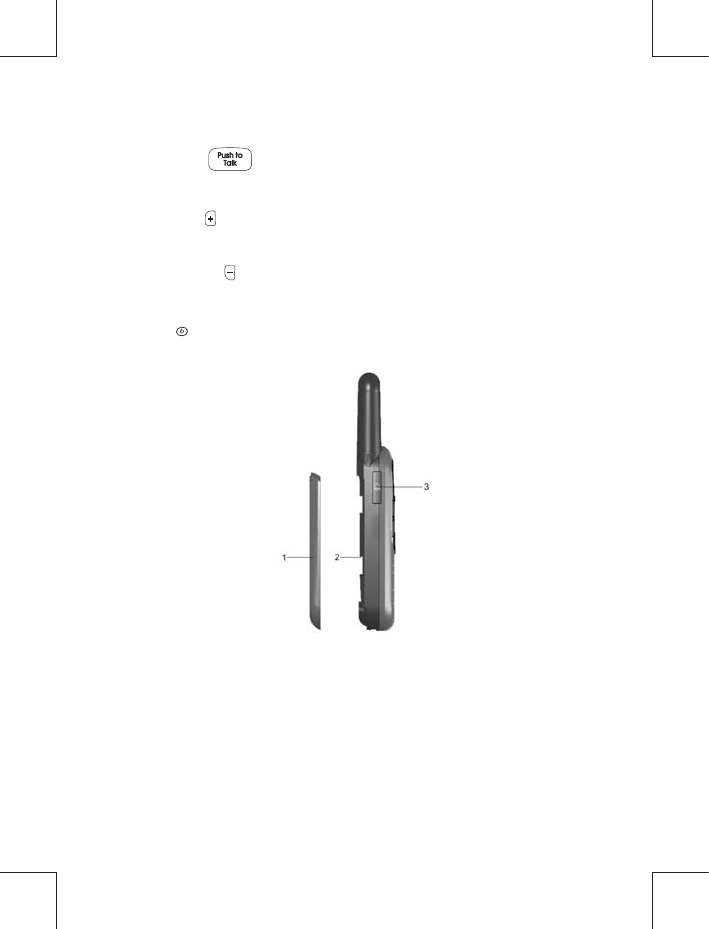

Back View:
1. Battery door
Remove to access battery compartment
2. Battery compartment
Uses lithium 3.7V-830mAhrechargeable battery
3. buttonMon
Activate MONITOR function
9. Volume Up
3
4

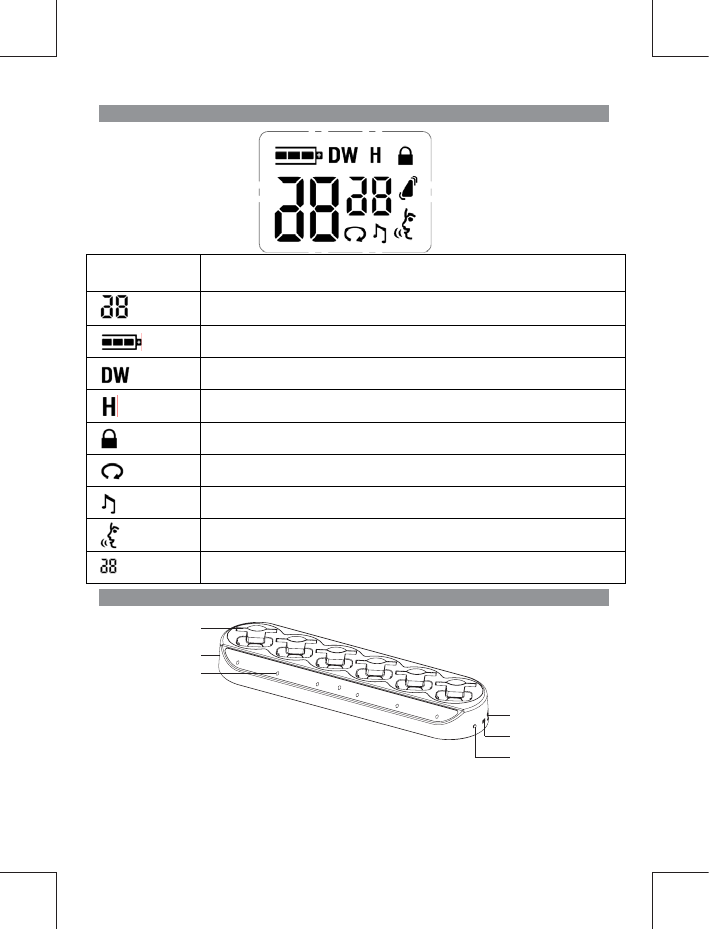

LCD DISPLAY SYMBOLS
6-GANG CHARGER VIEW
1. Docking cradle
2. DC adaptor socket: Charge radio units; provide power for cloning operation
3. LED status indicator for extra batteries
1
2
3
4
5
6
SYMBOLFUNCTION
(big)Channel number: Select between 16 channels
Battery indicator: Provides battery status during operation
Dual Watch: Scan 2 channels
High Power˖the current channel is high power
Keypad lock: Locks keypad to prevent accidental button activation
Auto-scan: Unit is scanning Channels or CTCSS
PTT tone: the Call tone is activated
VOX: Voice activation system
(small)Auxiliary function

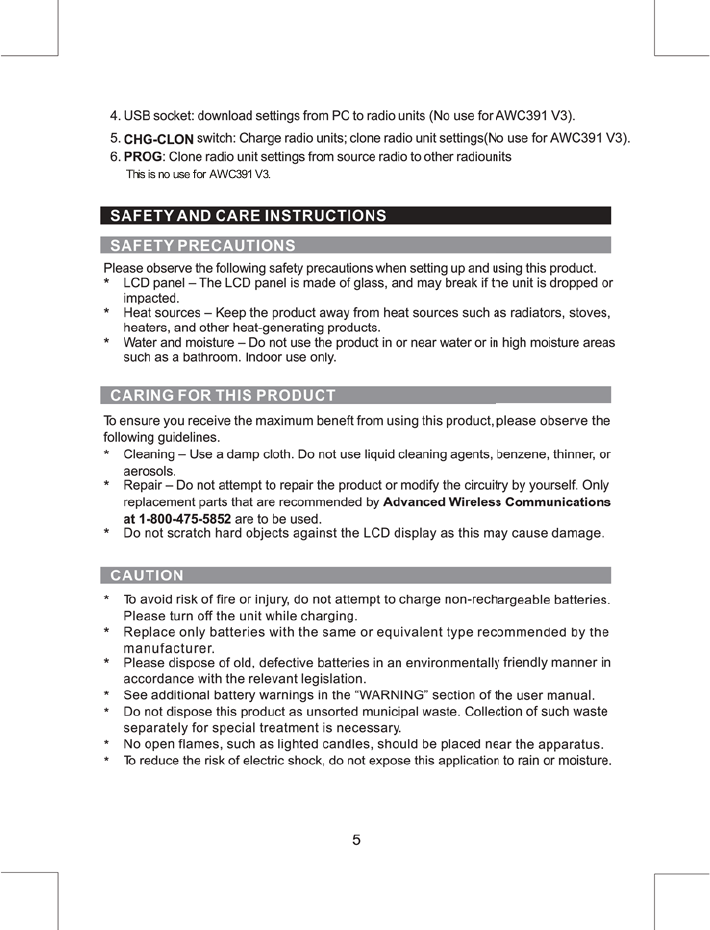

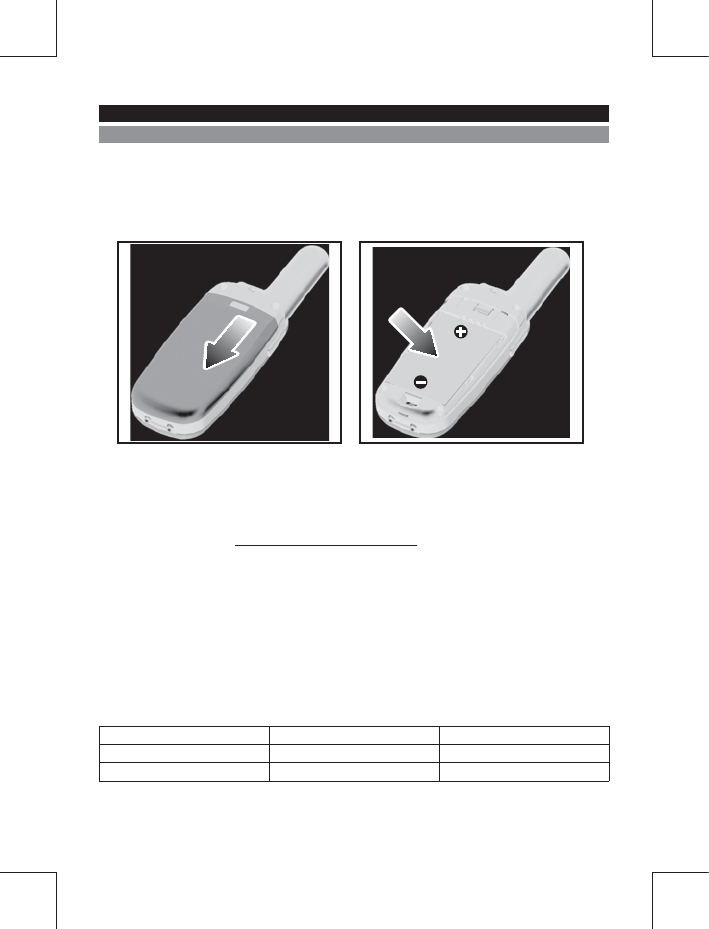

To insert the battery:
1. Slide the battery door open.
2. Insert the lithium battery into the battery compartment, making sure the polarities
(+ and –) match.
3. Slide the back cover and clip into place.
WARNING:There is a danger in which incorrectly placing the battery can cause an
explosion. Always make sure the radio is switched off before installing or changing
the battery. Replace only with the same or equipment type. Use ONLY with lithium 3.7V
830mAH rechargeable battery. Contact Advanced Wireless Communications at
1-800-475-5852 or www.adavncedwireless.com for more information.
6
GETTING STARTED
INSTALLING / REMOVING / CHARGING THE BATTERY
To charge the battery using 6 gang charger:
IMPORTANT:Charge the battery for 12 hours on the first charge. After that, it should
take 4 or less hours to charge.
Make sure the adapter is not obstructed and is easily accessible to the unit.
1) Connect 6 gang charger to AC power using DC adaptor provided.
2) Slide switch to select CHG.CHG-CLON
3) Insert radio unit into 1 docking cradle (insert additional radio units into docking
cradles, 2 through 6). Please ensure radio screen faces forward (same direction
as LED lights on gang charger).
st
Battery Status Extra Batteries LED Radio screen
Battery charging
Battery charged
Red
Green
LCD backlight on
LCD backlight off

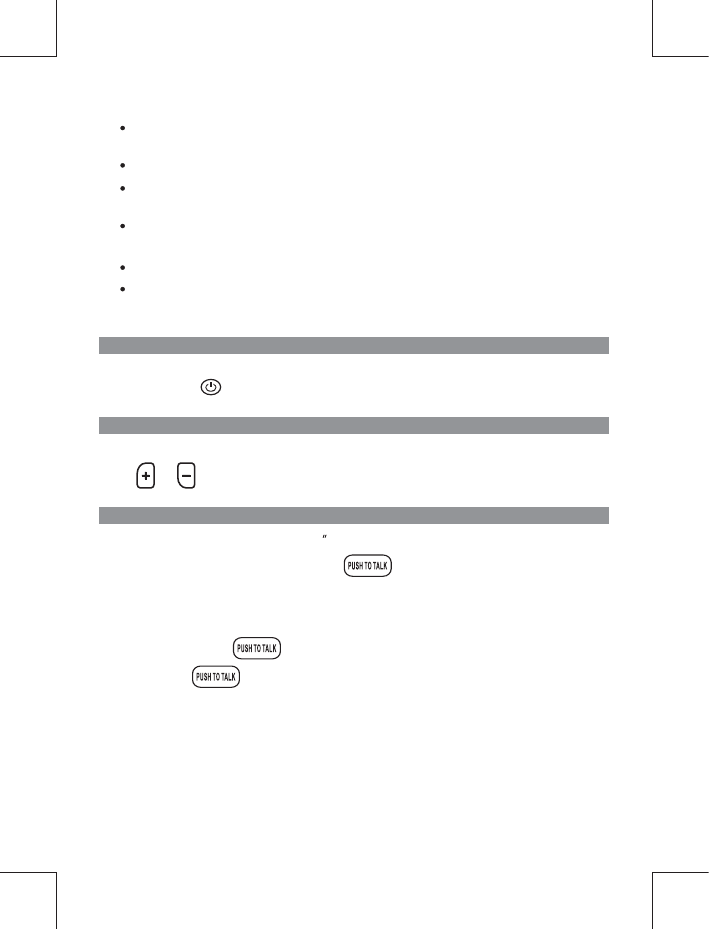

Press and hold until you hear a beep and the LCD display appears or disappears.
TURNTHEUNITON/OFF
To turn the unit ON or OFF:
To change the volume level:
Use or to increase or decrease volume.
VOLUME
NOTE:
To completely disconnect from power, the adapter should be disconnected from the
6-Ganged Charger.
Batteries should not be exposed to excessive heat such as sunshine or fire.
To maintain the battery life of your two-way transceiver it is recommended that you only
charge the battery when needed. Overcharging the battery will reduce performance.
The 6-Ganged Charger and adapter should not be exposed to wet conditions. No
with liquid, such as vases, should be placed on the main unit and adapter.objects filled
For best results ensure that the unit is turned off before charging.
Remove batteries before storing your radio for extended periods. Batteries corrode
over time and may cause permanent damage to your radio.
For best transmission speak about 2 away from the radio and leave a short pause
before speaking once you have pressed
To talk to another transceiver:
The transceiver will automatically play received transmissions.
NOTE:You can only communicate with another transceiver that is on the same channel
and using the same CTCSS/DCS code as your transceiver.
1. Press and hold “ ” to check if the channel is free.Mon
TALK TO ANOTHER TRANSCEIVER
2. Press and hold and speak into the microphone to transmit.
3. Release once you have finished speaking to allow other radios to respond.
7

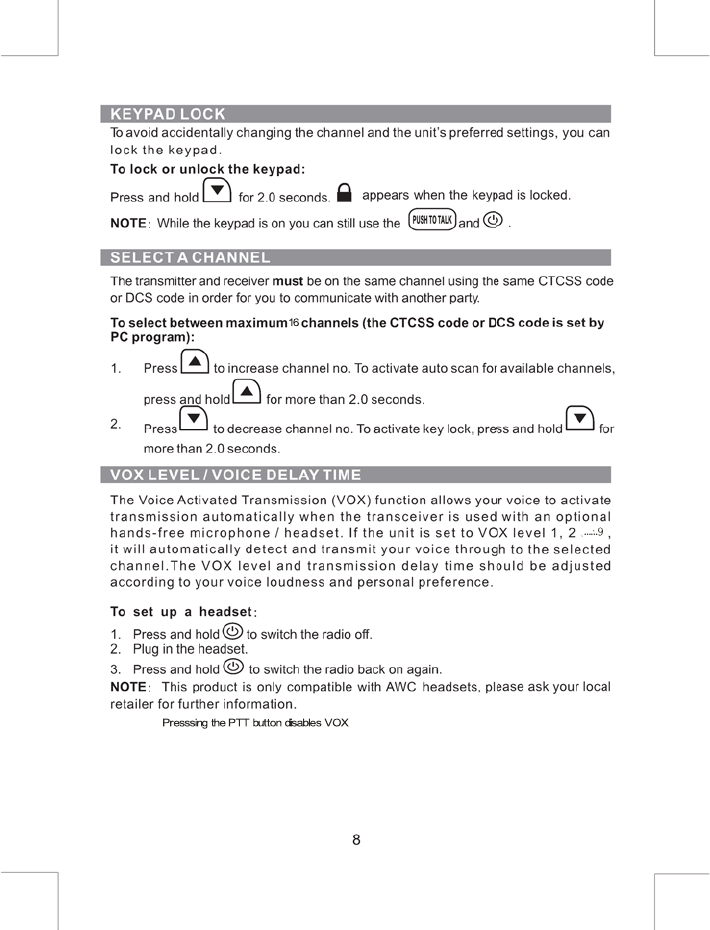

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES / REMEDIES
Can’t turn the radio on Check the battery is correctly installed
●and has been
fully charged
Can’t communicate with
other radios
VOX function is not working ●Check the headset is correctly plugged in and is
compatible with the Mini 391 radio
●For this and all other issues contact Advanced Wireless
Communications at 1-800-475-5852 or
www.advancedwireless.com for more information
See below for some common problems and their remedies. DO NOT attempt any repairs
yourself. This will invalidate your warranty.
9
