Simple ADA solution for
moderate traffic applications
CATALOG
LOW ENERGY OPERATOR
5700
SERIES
5700 SERIES
LOW ENERGY OPERATOR
2 | Norton Door Controls
TABLE OF CONTENTS
Introduction, Features, Benefits, Patents . .....................................................................2
Functions, Electrical Data, Certifications, Specifications ........................................................3
Applications ..................................................................................................4
Kits ...........................................................................................................5
Parts List ......................................................................................................6
Arm and Track Assemblies ....................................................................................7
Accessories ............................................................................................... 8-12
How To Order .............................................................................................. 14

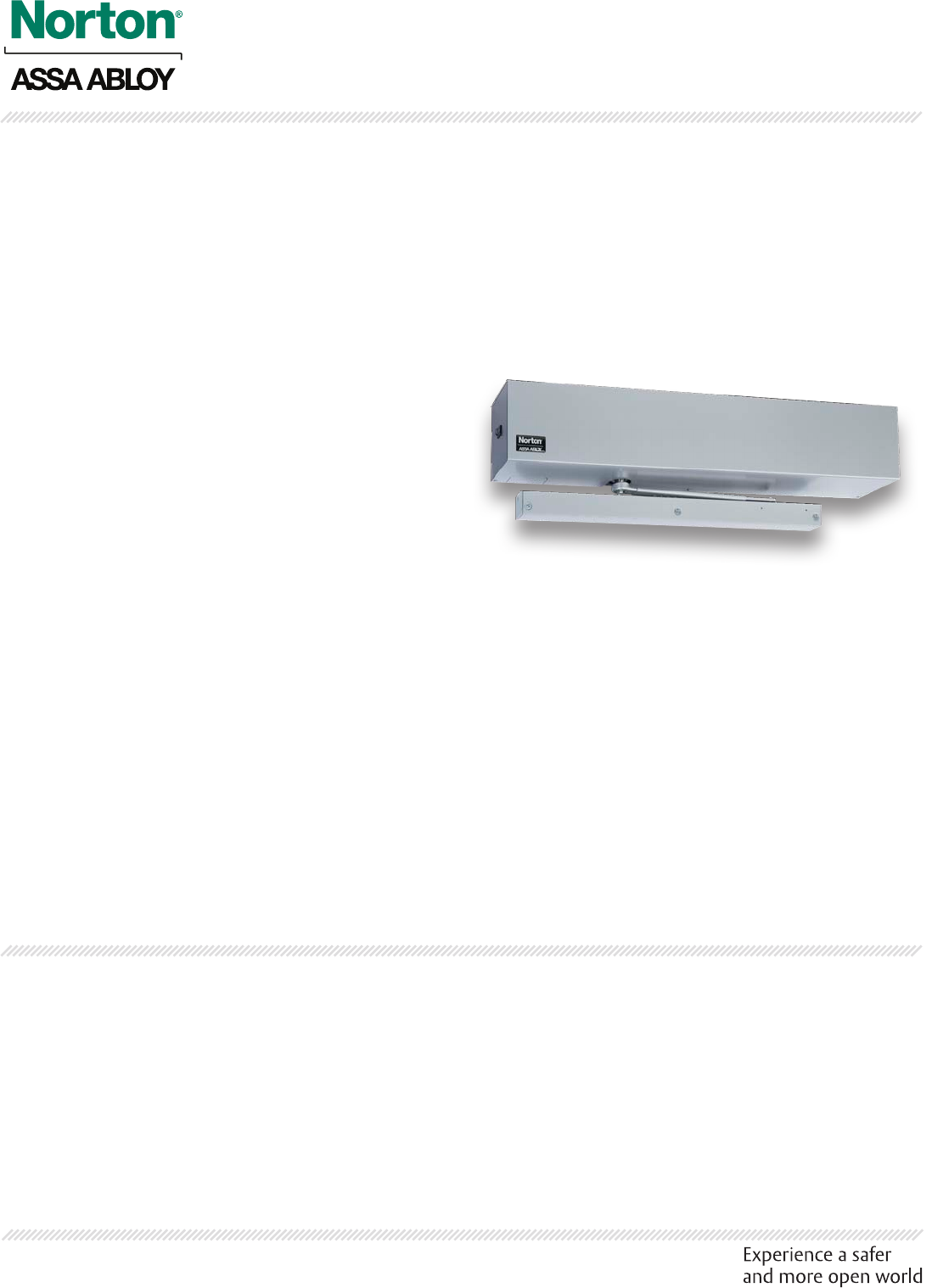

INTRODUCTION
FEATURES
» Non-handed
» Push or pull side mounting
» Comprises heavy-duty Norton 1601 door closer
» Optional kit includes push buttons and plug-in power
cord
» Operates as mechanical surface close during close
cycles, when door is opened manually or if power is off
» Spring force provides the feel of a manual door closer
» Door can be opened manually if desired
» Adjustable spring power
» Backcheck valve
» Sweep valve & latch valve
» Unit activation options:
› Wall switches
› Radio frequency device
» End-user on/off switch
» Adjustable door sensitivity
» Onboard power supply for accessories: 24VDC (1.1A)
» 2 year limited warranty
A reliable ADA solution comprising Norton's heavy-duty 1601 door closer. The use of a hydraulic closer
ensures quiet and consistently smooth operation, ideal in applications where doors are typically operated
manually but can also be activated via wall switches for automatic operation. The 5700 offers basic
automated door functions and is designed for quick set-up, making it easy to specify and install.
BENEFITS
» Basic features simplify product choice
» Designed for quick installation, setup
and adjustments
» Hydraulic closer offers quiet and
smooth operation
PATENTS
» United States: 5,881,497, 7,316,096 and
7,484,333
» Canada: 2,568,877
5700 SERIES
LOW ENERGY OPERATOR
3 | Norton Door Controls
CERTIFICATIONS
» ANSI/BHMA A156.19 certified
» Meets ANSI/BHMA A156.4 requirements
» UL / cUL listed for use on fire rated doors
» UL10C listed for positive pressure fire test
» Manufactured in an ISO 9001 and ISO
14001 certified facility
» Complies with requirements for the
Americans with Disabilities Act (A.D.A)
» UL certified environmental product
declaration
FUNCTIONS
» Adjustable Hold Open
› Amount of time a door will stay in the full open position
after an activation
» Obstruction Detection
› Motor stops if door is obstructed during opening; door
closes
» On/Off Switch
› Disables operator activation
» Open Delay
› Delays operator opening for locking hardware
» Overload Safety Shut-Off
› After 2 minutes of receiving a door activation signal, inverter
times out and door closes
› Prevents motor/inverter damage
ELECTRICAL DATA
» Power input; 120 VAC, 60Hz
» Relay output: SPDT
› Normally open/normally closed
(jumper)
› For electric strike function
SPECIFICATIONS
Door Controls____ (interior) (exterior) swinging door(s) shall be of rack and pinion design contained within a precision cast aluminum
housing. Door closing force shall be adjustable to ensure adequate closing control. Door closing speed shall be controlled by independent
hydraulic adjustment valves in the sweep and latch range of the closing cycle. Door Operator shall provide conventional door closer
opening forces unless the power operator motor is activated. Door Operator shall provide conventional door closing forces at all times
except in the event of power outage during powered door open cycle. Door Operator opening force and speed shall be adjustable by
independent electronic adjustment to ensure adequate opening control per accessibility codes. Door Operator shall have an adjustable
hydraulic backcheck valve to cushion the door speed if door is opened violently. Door Operator shall have a manual adjustment
to locate both full open and full closed door positions. Maximum door open shall be adjustable and capable to a maximum 180°
conditions permitting. [(Door Operator shall be AUTOMATICALLY ACTIVATED, i.e., motion sensor.) (Door Operator shall be SELECTIVELY
ACTIVATED by external initiating device, i.e., wall switch, etc.) (Door Operator shall be both AUTOMATICALLY ACTIVATED and SELECTIVELY
ACTIVATED.)] Door operator shall have adjustable hold open time capability in range from 5 to 30 seconds. Door operator shall have input
line rating of 120VAC, .6A or 240VAC, .3A. Units shall have relay contact for interfacing products having a contact rating of 30VDC at 1A
or 125VAC at .5A. Unit shall have an external On/Off Switch to defeat powered opening when desired. Unit shall have an internal circuit
breaker switch to interrupt input power for servicing. Unit shall be U.L. Listed for automatic closing door. Unit shall be in compliance with
the requirements of the Americans With Disabilities Act (ADA), ANSI standards A117.1 and A156.19. Unit shall meet C-UL US.
ADDITIONAL DETAILED SPECIFICATIONS:
When activated, the unit shall, by means of an integral motor and chain drive, power open the door at both a speed and force that are
adjustable to meet accessibility codes. The door shall be powered from a door closed position to a full door open position and remain
in momentary hold open for ___seconds (adjustable 0 to 30 seconds) [(Unit shall power open door to full open position up to 180°
(5710); 170° (5730), conditions permitting.) (Unit shall be capable of allowing the door to be opened manually from 0 to 180°, conditions
permitting.)] Once unit reaches full hold open position, if reinitiated, unit’s momentary hold open time shall restart from the initially set
hold open time. If unit is initiated during the closing cycle, unit shall revert to opening cycle beginning at that door position. Obstruction
detection on open shall neutralize and reverse motor action reverting motor to closed position thus allowing door to close under closer
spring force only. This obstruction detection feature shall be integral to unit. During closing cycle, the unit shall close door under spring
power not to exceed a closing force of 15 lbf.
5700 SERIES
LOW ENERGY OPERATOR
4 | Norton Door Controls

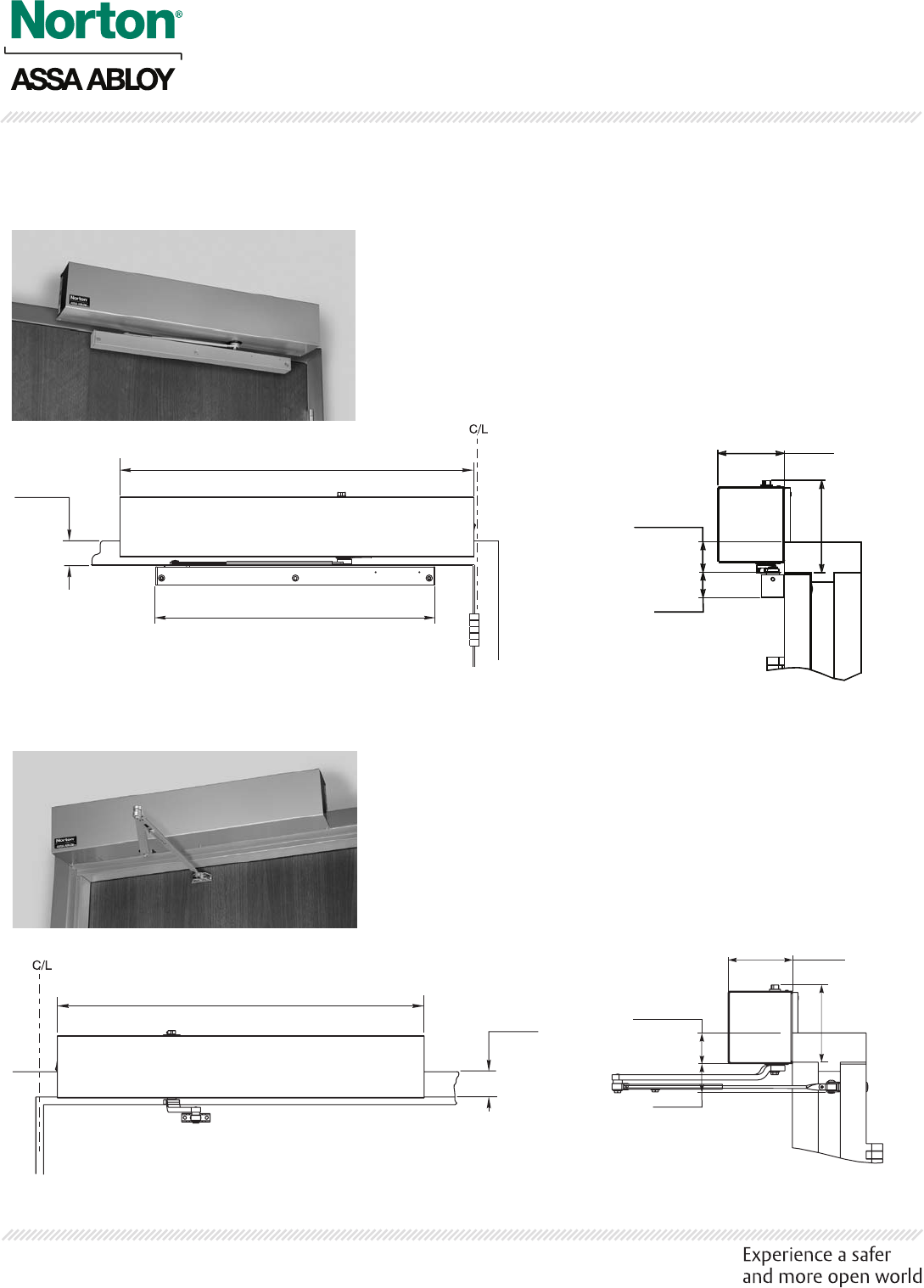

APPLICATIONS
5710
HINGE (PULL) SIDE OF DOOR
» Adjustable Stop
» 110° swing (trim permitting)
Minimum Door width
Single Door – 29" (74cm)
Pair of Doors – 30" (76cm)
An auxiliary stop is suggested
where severe conditions exist.
5730
STOP (PUSH) SIDE OF DOOR
Standard Duty Double Lever Arm
» Frame reveals 2-5/8" to 6-3/4" (67-171mm)
» An auxiliary door stop is required for these applications.
» 170° swing (trim permitting)
29"
(74cm)
23"
(58cm)
2"
(51mm) 6" (152)
Min Ceiling
Clearance
4-3/8"
(111)
2" (51)
Frame
Face
1-5/8"
(41)
29"
(74cm)
1-1/2"
(38mm)
5-1/4" (133)
Min Ceiling
Clearance
4-3/8"
(111)
2" (51)
Frame
Face
2"
(51)
5700 SERIES
LOW ENERGY OPERATOR
5 | Norton Door Controls

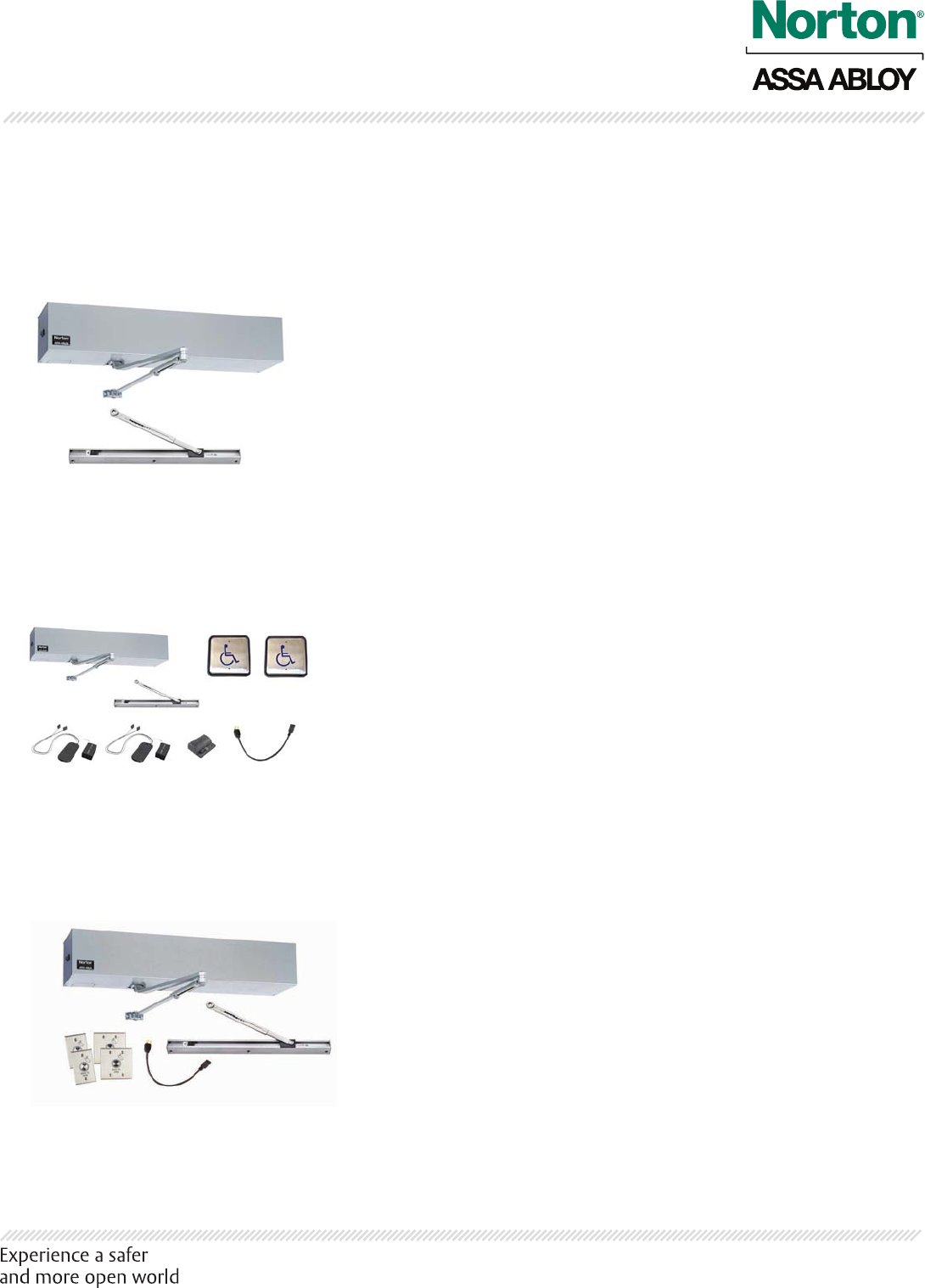

5700 KITS
Universal Kits
5740
» Kit Includes: Operator, Cover,
and Push & Pull Arms
ADA Kits
5740K3
» Kit Includes: Operator, Cover, Push & Pull
Arms, (2) ADA1019-1 Switches,
(2) 548 Transmitters, (1) 539 Receiver,
and (1) 5700PC 18" Power Cord
Hands-Free Kits
5740K2
» Kit Includes: Operator, Cover, Push & Pull
Arms, (2) 700 Wave-to-Open Switches, and
Power Cord
5700 SERIES
LOW ENERGY OPERATOR
6 | Norton Door Controls

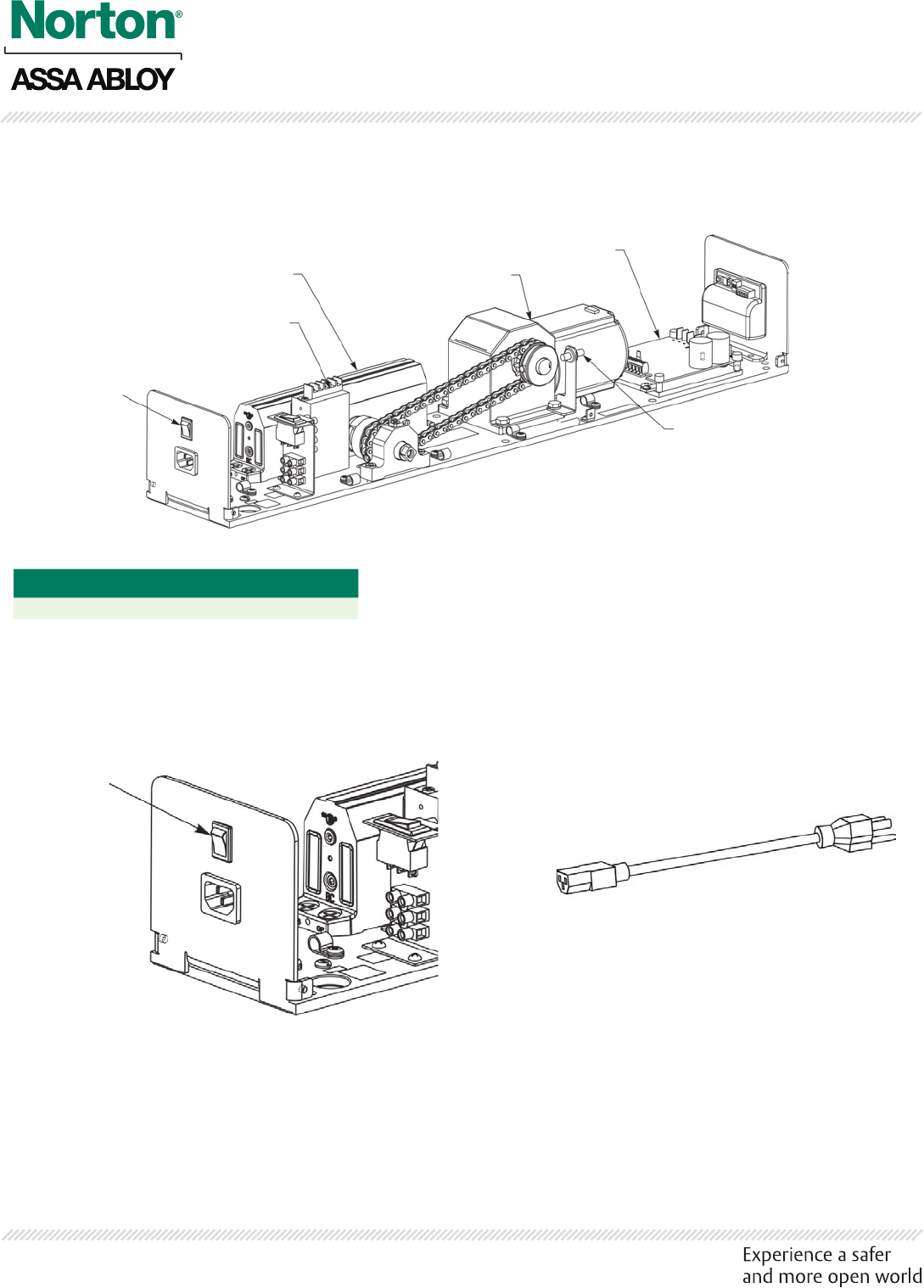

PARTS LIST
POWER SWITCH
5700SW
RF POWER SUPPLY
5700PWS
1600 SERIES
CLOSER BODY
REED SWITCH
5700RS
MOTOR ASSEMBLY
5700M
INVERTER
5700IN
Part # Description
5700CVR Cover
POWER SWITCH
5700SW
POWER CORD
5700PC
POWER CORD INPUT
Factory prepped and installed receptacle
(125V / 10A RATED 18AWG 18 INCHES MAX.,
NEMA 5-15P AND IEC320-C13 CONNECTORS
CORD MUST BE UL LISTED.)
NOTE: Consult local authority having jurisdiction to confirm use of power cord is acceptable. Operator must be furnished with the power
cord from the factory. Power cords cannot be added to operators in the field. Maximum distance from operator to receptacle is 15".
5700 SERIES
LOW ENERGY OPERATOR
7 | Norton Door Controls

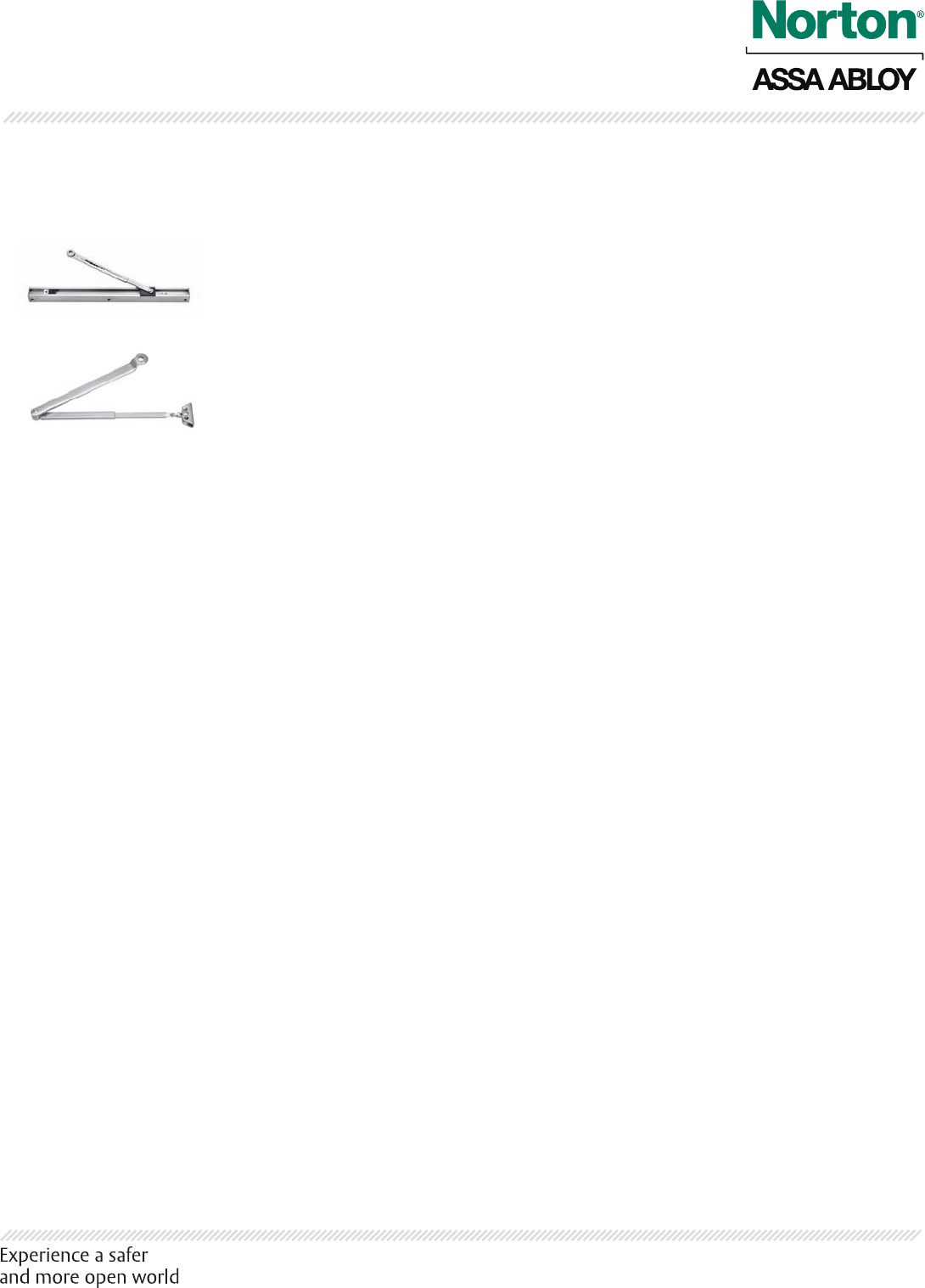

ARM AND TRACK ASSEMBLIES
5710-1 - Arm and Track Assembly
7701ST-1A - Arm Assembly
7200-1T - Track Assembly
7701-1A - Arm Assembly
7701-1W - Main Arm & Rod
7701-11A - Adjusting Tube & Shoe
5700 SERIES
LOW ENERGY OPERATOR
8 | Norton Door Controls

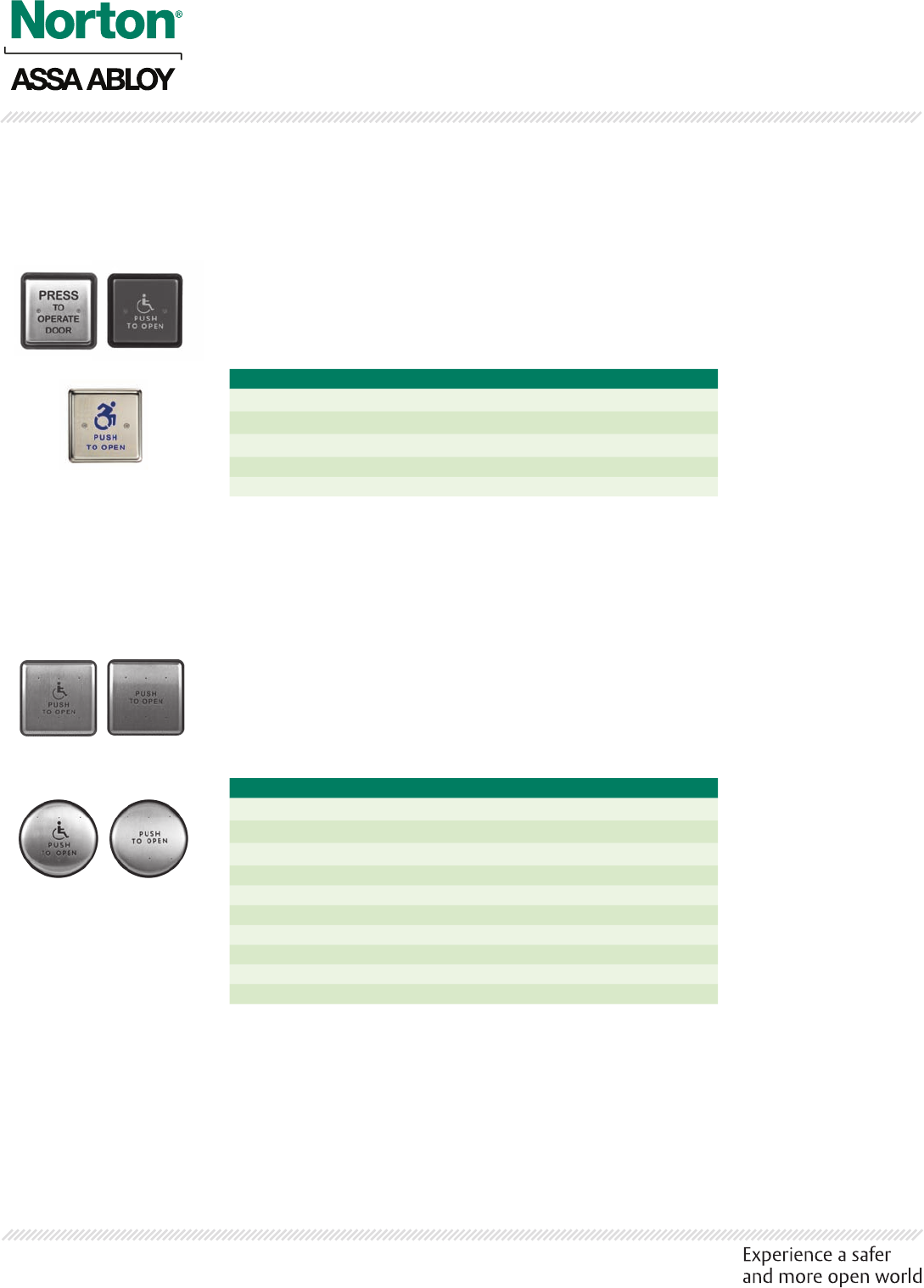

ACCESSORIES
Activating Door Switches
501 502
671
532
505
534
506
» 6" W. x 6" H.
» 9 volt battery
» 15 amp @ 125 VAC
» Flush mounted
» Stainless steel with blue letters
Model Description Hard wired RF (433MHz)
501 Press to Operate Door 3
502 Press to Open x logo 3
671 Press to Open x alternative logo 3
672 Press to Open x alternative logo 3
542 4-1/2" surface mount box
» 4-1/2" W. x 4-1/2" H.
» 15 amp @ 125 VAC
» Flush mounted
» Fits single or 2 gang electrical box
Model Description Hard wired RF (433MHz)
505 Square button: Push to Open x Logo 3
506 Round button: Push to Open x Logo 3
507 Square button: Push to Open 3
531 Square button: Push to Open x Logo 3
532 Square button: Push to Open 3
533 Round button: Push to Open x Logo 3
534 Round button: Push to Open 3
535 Round button: Push to Open 3
555 6" square surface mount box
557 6" round surface mount box
505, 506, 507 and 534 switches
may also be installed with single
or double gang electrical box
using fasteners included
671 and 672 switches meet
new state accessibility logo
requirements in NY, CA, and CT
5700 SERIES
LOW ENERGY OPERATOR
9 | Norton Door Controls

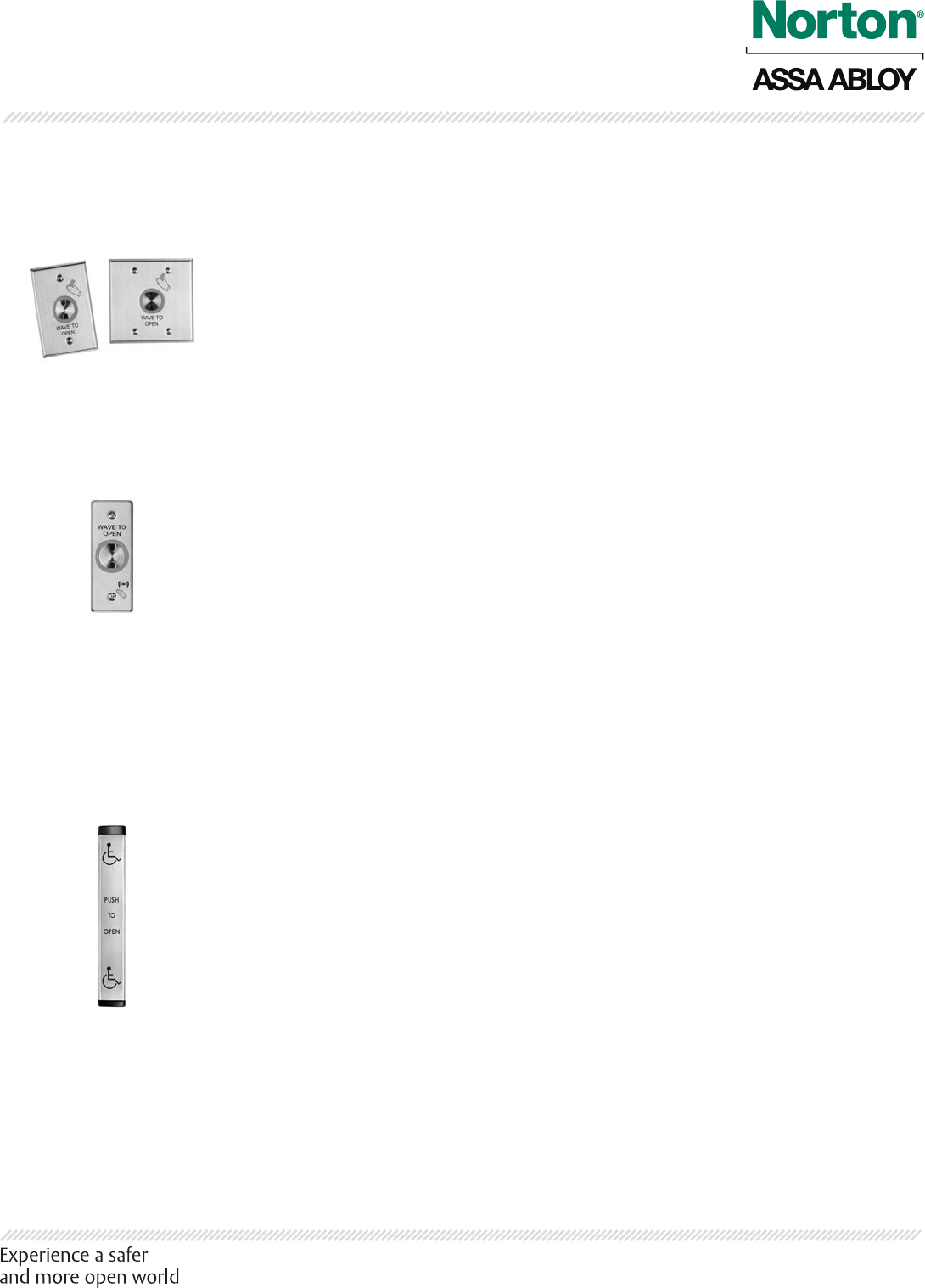

Low Profile Push Plate
» 36" x 6" activation zone
» 1" low profile depth
» Stainless steel face plate
» Adapts to either wireless or hard wired installations
» 638 - Wireless
» 639 - Hard wired
700
638
ACCESSORIES
Wave-to-Open Wall Switch
» Single gang and double gang packaged together
» Sensor requires movement for activation
» Variable relay – hold time from 0 – 35 seconds
» Range 0" to 4"
» Dimensions:
3" W x 4-3/4" H (single);
4-1/2" W x 4-1/2" H (double)
Note:
» All hard wired switches are Momentary Contact SPDT, UL Listed.
» Optional DPDT switches are available; suffix "D" to model number.
Narrow Wave-to-Open Wall Switch
» Narrow gang
» Sensor requires movement for activation
» Variable relay - hold time from 0-35 seconds
» Range 0" to 4"
» Durable stainless steel body holds up in moist environments
704
5700 SERIES
LOW ENERGY OPERATOR
10 | Norton Door Controls
503
504
ACCESSORIES

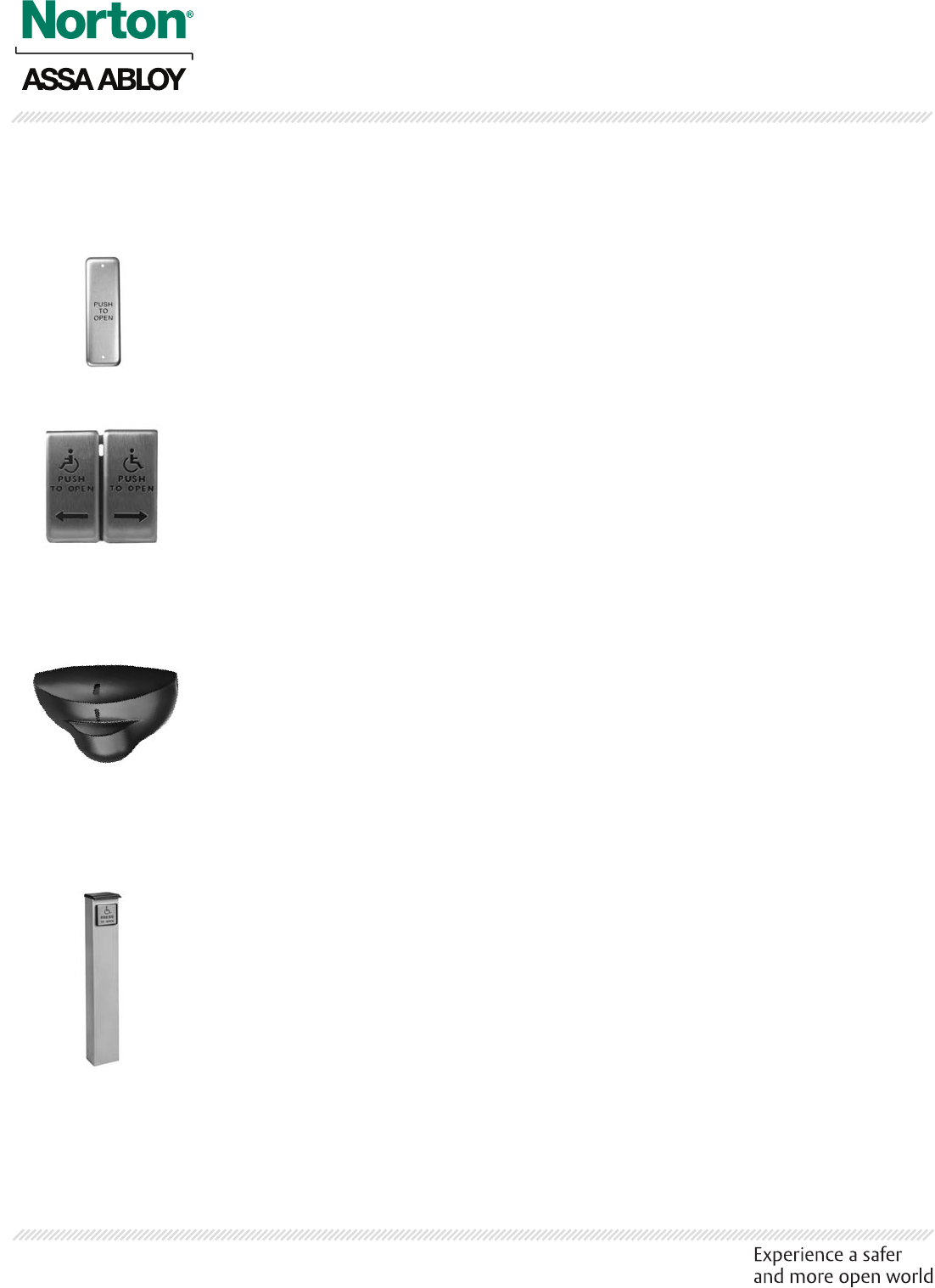

Motion Sensor
» 4-3/4" x 3-3/16" x 2" projection
» Unidirectional
» Black cover
» SPDT relay
» Adjustable angle pattern
» 24 VDC input
» Must not be placed where motion of door can be sensed
663*
500
Switch Post
» 4" x 6" x 40" x 3/16" wall thickness
» 9 volt battery
» RF temperature range: -4° F to 122° F
» 689 (aluminum) or 690 (dark bronze) finishes; specify when ordering
» Standard formed plastic cap
» Surface mounted (above ground)
» 530 – radio frequency transmitter
» 500 – hard wired switch
» 530POST – post only; switch not included
Vestibule Switches
» 1-1/2" x 4-3/4" face plate
» SPDT UL listed switch-mom.
» 15 amp @ 125 VAC
» Fits 1-3/4" frame
» Stainless steel with blue letters
» 5" W. x 4-3/4" H.
» 2 – SPDT UL listed switches-mom.
» 15 amp @ 125 VAC
» Fits 2-gang electrical box
» Stainless steel with blue letters
* Use of motion sensor must be approved by local authority having jurisdiction.
5700 SERIES
LOW ENERGY OPERATOR
11 | Norton Door Controls
ACCESSORIES

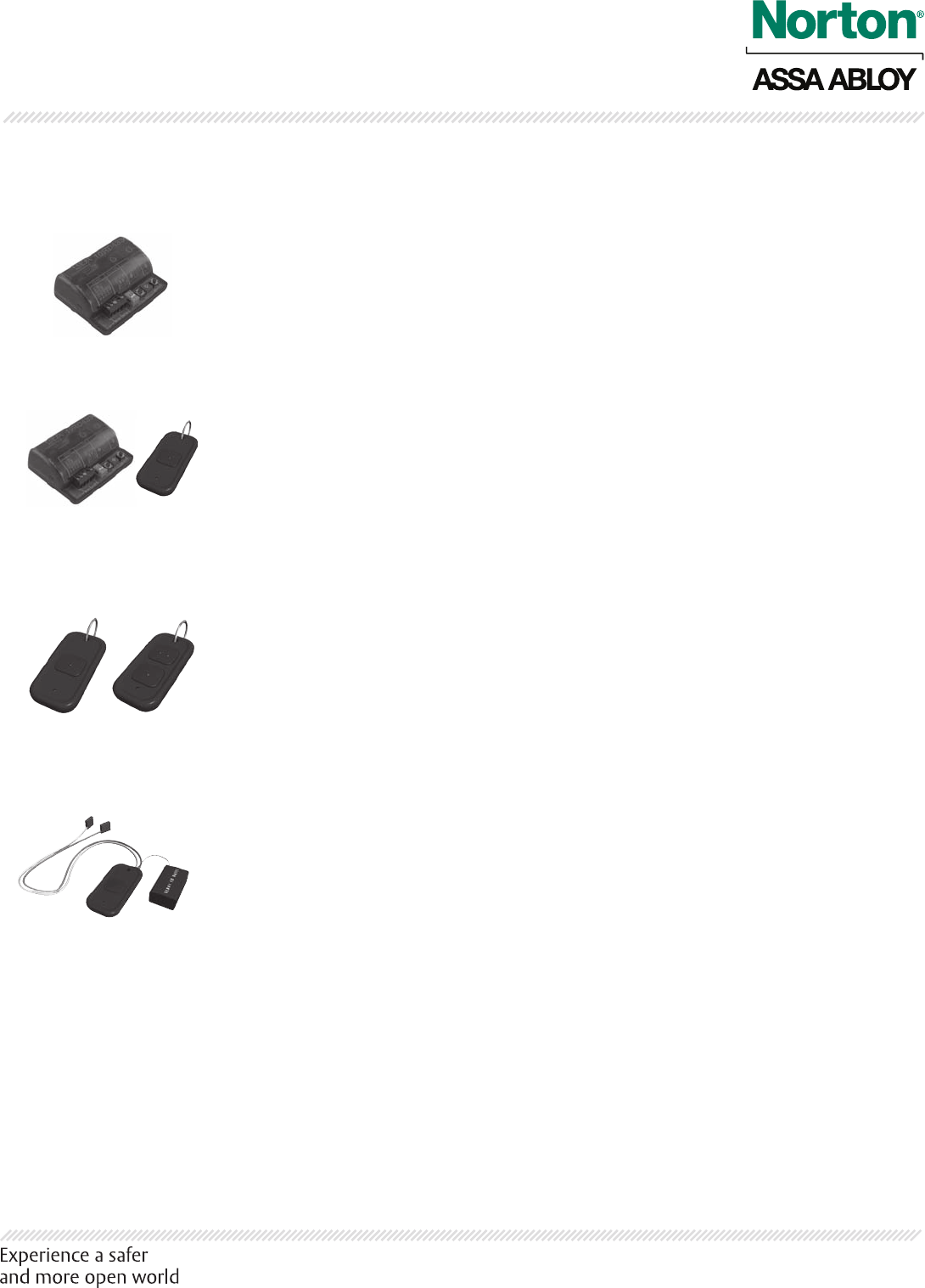

Radio Frequency Receiver
» 433 MHz
Executive Package
(includes 539 receiver and 536 transmitter)
Transmitters
» 2-3/8"w x 4-3/16"h x 15/16"d
» 536: single channel
» 538: two channel
» Converts existing hard wired push plates to work with RF receivers offered after June 2013
» Single channel
» 9 volt battery included
539
536 538
548
5900EXPG
5700 SERIES
LOW ENERGY OPERATOR
12 | Norton Door Controls
ACCESSORIES

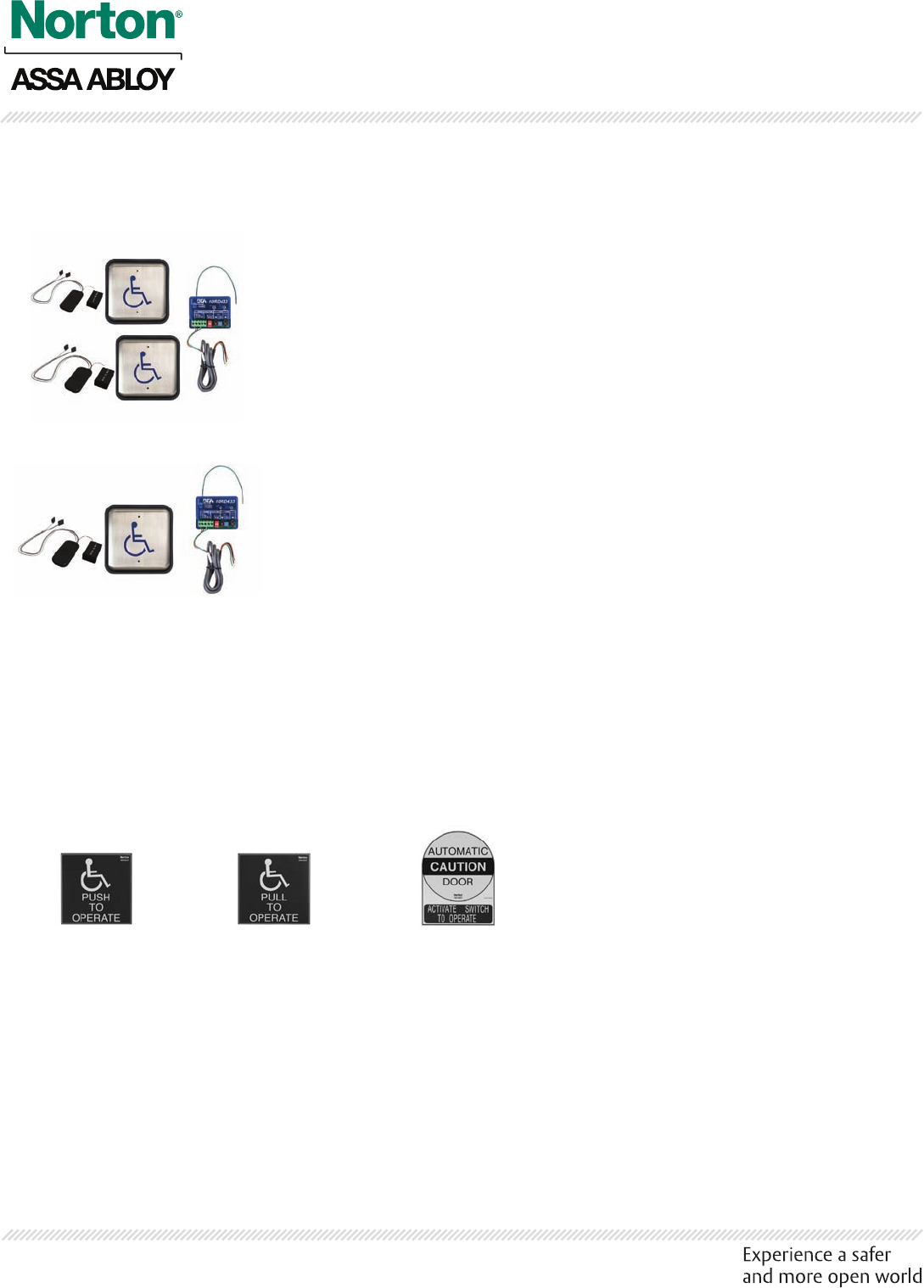

679 Signage Kit (supplied standard)
(1 per switch) (1 per switch) (2 per operator)
OPERATIONAL SIGNAGE
Push-Button Kits
Includes:
» (2) ADA1019-2 wall switches
» (2) 548 transmitters (with 9 volt batteries)
» (1) 539 receiver
565
564
Includes:
» (1) ADA1019-2 wall switch
» (1) 548 transmitter (with 9 volt battery)
» (1) 539 receiver
5700 SERIES
LOW ENERGY OPERATOR
13 | Norton Door Controls
HOW TO ORDER
FOURTH DIGIT
Closer Power Size
0 – 1601 (size 1-6)
SUFFIX
RF – Radio Frequency^
PC – Power Cord
PCRF – Power Cord,
Radio Frequency
K3 – Complete
package (includes
accessories) ONLY
available with 5740
(refer to page 5).
THIRD DIGIT
Identifies Type of Application
HINGE (PULL) SIDE OF DOOR
1 – Rigid Arm & Slide Track
Max reveal 1/8" (3mm)
STOP (PUSH) SIDE OF DOOR
3 – Double Lever Arm
Minimum reveal: 2-5/8" (67)
Maximum reveal: 6-3/4" (171)
UNIVERSAL UNIT – PUSH OR PULL
SIDE MOUNTING
4 – Includes push and pull arms. Units
shipped as a Rigid Arm/Slide Track;
can be converted to a Double
Lever Arm in field
57 1 0 SUFFIX FINISH
FIRST TWO
DIGITS
PRODUCT
SERIES
Description
Specify
Designation
(BHMA)
Complements the
following finishes
Old
Designation
Aluminum 689 628, 625, 629, 630, 651 AL
Statuary Bronze 690 640, 613 STAT
Black Suede
Powder BSP — —
White Suede
Powder WSP — —
Norton is a brand associated with ASSA ABLOY Accessories and Door Controls Group, Inc., an ASSA ABLOY Group company. Copyright © 2012-2020, ASSA ABLOY Accessories and Door Controls Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
Norton Door Controls | www.nortondoorcontrols.com
3000 Highway 74 East | Monroe, NC 28112 | 1.877.974.2255
ASSA ABLOY Opening Solutions
Door Security Solutions Canada | www.assaabloy.ca
160 Four Valley Drive | Vaughan, ON L4K 4T9 | 800.461.3007
Since 1880, Norton door controls have been an integral part of schools, hospitals
and businesses around the globe. When you need products and people that
perform at the highest level, rely on Norton – From Open to Close.
43100-M 10/20
