Novatel Wireless Inc. Wireless Edge Modem Enabler G Integration Guide
Integration guide
Enfora Enabler II-E
Quad-Band
GSM/GPRS/EGPRS Modem
Integration Guide
Version 0.03
Enfora L.P. 661 E. 18th Street Plano Texas 75074
www.enfora.com
This entire document is PRELIMINARY and
subject to change. To the best of our ability
the hardware/mechanical interfaces
specifications are representative of
production units. Note that a few software
features (the UDPAPI, event engine, …) are
not enabled in early demonstration units.
Integration Guide
Version 0.03
Document Title: Enfora Enabler II-E Quad Band GSM/GPRS/EGPRS Modem Integration
Guide
Version: 0.03
Date: 4/19/2005
Status: Not Released
Document Control ID: EDG0100PB003MAN
General
All efforts have been made to ensure the accuracy of material provided in this document at the time of release.
However, the items described in this document are subject to continuous development and improvement. All
specifications are subject to change without notice and does not represent a commitment on the part of Enfora, L.P.
Enfora, L.P. will not be responsible for any loss or damages incurred related to the use of information contained in
this document.
This product is not intended for use in life support appliances, devices or systems where a malfunction of the
product can reasonably be expected to result in personal injury. Enfora, L.P. customers using, integrating, and/or
selling this product for use in such applications do so at their own risk and agree to fully indemnify Enfora, L.P. for
any damages resulting from illegal use or resale.
Copyright
Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under
copyright, no part of this document may be reproduced, stored in or introduced into a retrieval system, or
transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any
purpose, without the express written permission of Enfora, L.P.
Enfora may have patents, patent applications, trademarks, copyrights or other intellectual property rights covering
subject matter in this document. Except as expressly provided in any written license agreement from Enfora, the
furnishing of this document does not give you any license to these patents, trademarks, copyrights or other
intellectual property.
©2002, 2003, 2004, 2005 Enfora, L.P. All rights reserved.
Enabler and Spider are either registered trademarks or trademarks of Enfora, L.P. in the United States.
Integration Guide
Version 0.03
1.0 Safety Precautions..................................................................................................... 5
1.1 Important Safety Information............................................................................................... 5
2.0 Regulatory Compliance FCC......................................................................... 5
2.1 Integration Considerations and Installation Requirements ................................................. 5
2.2 Disclaimer ........................................................................................................................... 7
3.0 Manual Overview......................................................................................................... 8
3.1 Revision History .................................................................................................................. 8
3.2 Reference Documents ........................................................................................................ 9
4.0 Introduction....................................................................................................................... 11
4.1 Product Overview.............................................................................................................. 11
4.2 Key Features of the GSM/GPRS OEM Module ................................................................ 11
4.3 Providing Multi-Band Operation........................................................................................ 12
4.4 Wireless Data Application Possibilities ............................................................................. 12
4.5 GSM/GPRS System Overview ......................................................................................... 13
5.0 Technical Specifications.................................................................................... 15

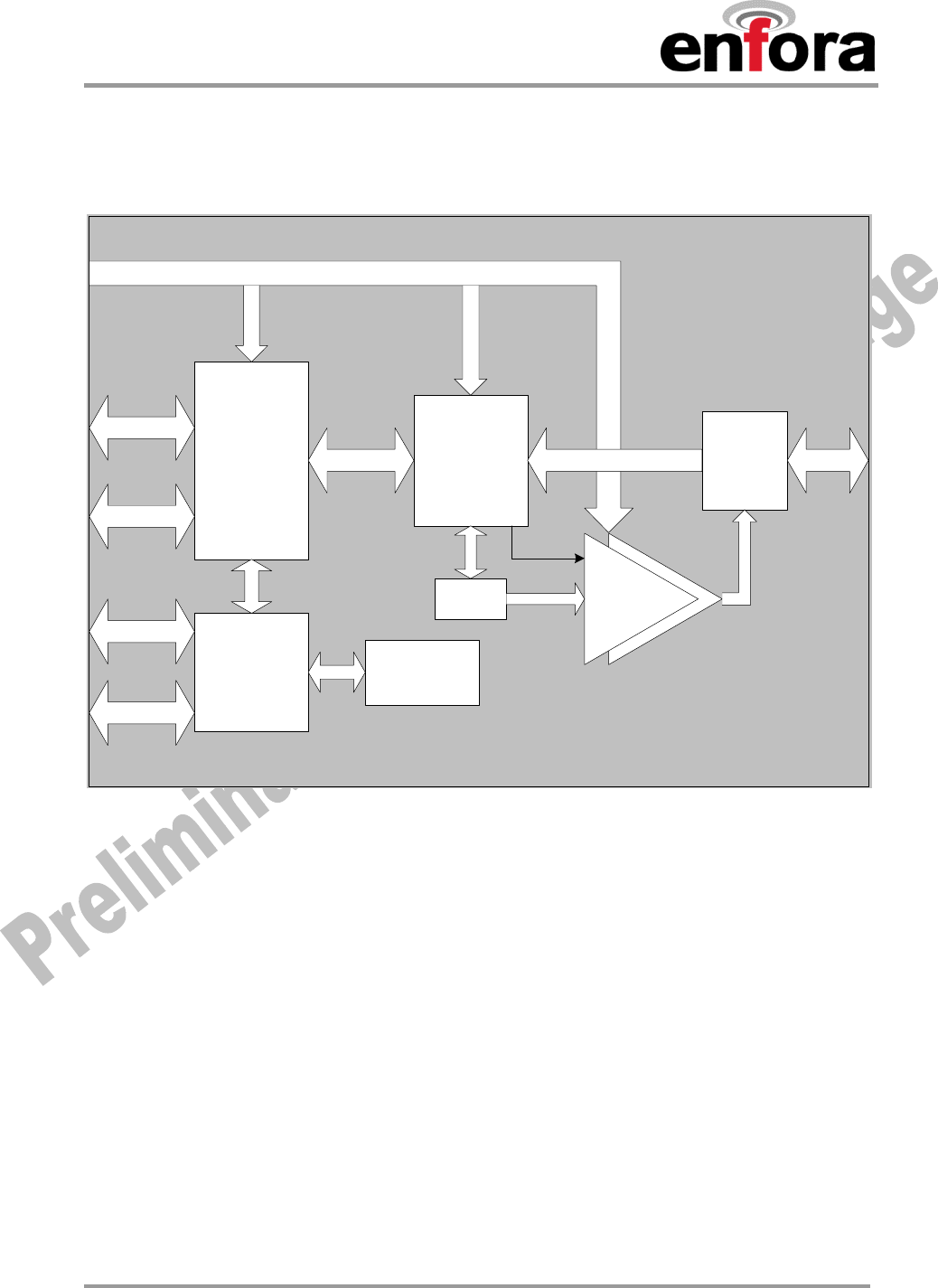

5.1 Enabler II-E Module Block Diagram.................................................................................. 15
5.2 Detailed Product Specifications ........................................................................................ 16
5.3 Operating Power ............................................................................................................... 17
6.0 Physical Interfaces................................................................................................... 19
6.1 Physical Layout.................................................................................................................19
6.2 Enabler II-E Mounting Reference TBD ............................................................................. 21
6.3 Module Pin Orientation Reference.................................................................................... 22
6.4 Connectors........................................................................................................................ 22
6.5 I/O Signal Connector on the Enfora Enabler II-E Module................................................. 23
6.6 Circuit Protection............................................................................................................... 24
6.7 Antenna............................................................................................................................. 24
6.8 Control Connector Signal Descriptions and Functions ..................................................... 25
6.9 Subscriber Identity Module (SIM) Carrier ......................................................................... 33
7.0 Modes of Operation................................................................................................ 35
7.1 Enabling the Transmission Modes for the GSM/GPRS/EGPRS Services ....................... 35
7.2 Voice Communication ....................................................................................................... 35
7.3 Circuit-Switched Data ....................................................................................................... 35
7.4 SMS: Short Message Services ......................................................................................... 36
7.5 SMS Features Supported by the Enfora Enabler II-E Module.......................................... 36
8.0 SIM Operation............................................................................................................... 37
8.1 Provisioning the SIM ......................................................................................................... 37
8.2 GSM Services Supported by the Enfora Enabler II-E Module.......................................... 37
8.3 GPRS Services Supported by the Enfora Enabler II-E Module........................................ 37
8.4 EGPRS Services Supported by the Enfora Enabler II-E Module ..................................... 37
8.5 Selecting the Modes of Operation .................................................................................... 38
9.0 Software Interface .................................................................................................... 39
9.1 Software Interface............................................................................................................. 39
9.2 Format for the AT Commands .......................................................................................... 39
9.3 Enfora AT Command Set.................................................................................................. 40
9.4 Enfora Packet Application Programming Interface ........................................................... 40
9.5 Enfora Modem Control Library Architecture ..................................................................... 42
10.0 Setup and Initialization .................................................................................... 45
10.1 General Setup................................................................................................................ 45
Integration Guide
Version 0.03
10.2 GSM/SMS Examples ..................................................................................................... 48
10.3 GPRS Packet Examples................................................................................................ 48
11.0 Integration and Testing ................................................................................... 49
Integrating the Enfora Enabler II-E Module ................................................................................ 49
APPENDIX A - Warranty Repair and Return Policy ........................ 51
APPENDIX B - Regulations and Compliance ......................................... 53
GCF and PTCRB Approval......................................................................................................... 53
Electromagnetic Compatibility (EMC) and Safety Requirements ............................................... 53
EMC/Safety Requirements for the USA ..................................................................................... 53
Human Exposure Compliance Statement .................................................................................. 54
Compliance with FCC Regulations............................................................................................. 54
Unintentional Radiators, Part 15................................................................................................. 55
Intentional Radiators, Part 24 ..................................................................................................... 55
Instructions to the Original Equipment Manufacturer (OEM)...................................................... 56
Nationally Recognized Testing Laboratory (NRTL) Approval..................................................... 59
EMC/Safety Requirements for the Countries of the European Union (EU)................................ 60
EMC/Safety Requirements for Other Countries ......................................................................... 60
APPENDIX C - Glossary and Acronyms....................................................... 61
APPENDIX D – Tables And Figures .................................................................. 63
APPENDIX E - Contacting Enfora........................................................................ 64
Integration Guide
Version 0.03
EDG0100PB003 Page 5 0.03 – 4/19/05
1.0 Safety Precautions
1.1 Important Safety Information
The following information applies to the devices described in this manual. Always observe all
standard and accepted safety precautions and guidelines when handling any electrical device.
• Save this manual: it contains important safety information and operating instructions.
• Do not expose the Enfora Enabler II-E product to open flames.
• Ensure that liquids do not spill into the devices.
• Do not attempt to disassemble the product: Doing so will void the warranty. With the exception
of the Subscriber Identification Module (SIM), this product does not contain consumer-
serviceable components.
2.0 Regulatory Compliance FCC
2.1 Integration Considerations and Installation Requirements
The Enabler II-E OEM GPRS modem is designed for use in a variety of host units, "enabling" the
host platform to perform wireless data communications. However, there are certain criteria relative
to integrating the modem into a host platform such as a PC, laptop, handheld or PocketPC, monitor
and control unit, etc. that must be considered to ensure continued compliance with FCC
compliance requirements.
• In order to use the Enabler II-E without additional FCC certification approvals, the installation must
meet the following conditions:
• For the transmitter to meet the MPE categorical exclusion requirements of 2.1091, the ERP
must be less than 1.5 watts for personnel separation distance of at least 20 cm (7.9 in).
Therefore, the maximum antenna gain cannot exceed +3.3dBi. If greater than 1.5 watts exists,
then additional testing and FCC approval is required.
• If used in a "portable" application such as a handheld device with the antenna less than 20 cm
(7.9 in.) from the human body when the device is operating, then the integrator is responsible
for passing additional "as installed" testing:
• SAR (Specific Absorption Rate) testing, with results submitted to the FCC for approval
prior to selling the integrated unit. If unable to meet SAR requirements, then the host unit
must be restricted to "mobile" use (see below).
• Unintentional emissions, FCC Part 15; results do not have to be submitted to the FCC
unless requested, although the test provides substantiation for required labeling (see
below).
Integration Guide
Version 0.03
EDG0100PB003 Page 6 0.03 – 4/19/05
• If used in a "mobile" application where the antenna is normally separated at least 20 cm
(7.9 in) from the human body during device operation, then an appropriate warning label
must be placed on the host unit adjacent to the antenna. The label should contain a
statement such as the following:
WARNING
RF exposure. Keep at least 20 cm
(7.9 in) separation distance from
the antenna and the human body.
• Host unit user manuals and other documentation must also include appropriate caution and
warning statements and information.
• If the FCCID for the modem is not visible when installed in the host platform, then a
permanently attached or marked label must be displayed on the host unit referring to the
enclosed modem.
For example, the label should contain wording such as:
Contains GSM/GPRS modem transmitter module
FCC ID: TBD
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
This device must accept any interference received,
including interference that may cause undesired
operation.
or
Contains FCC ID: TBD
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
This device must accept any interference received,
including interference that may cause undesired
operation.
• Any antenna used with the modem must be approved by the FCC or as a Class II Permissive
Change (including MPEL or SAR data as applicable). The "professional installation" provision
of FCC Part 15.203 does not apply.
• The transmitter and antenna must not be co-located or operating in conjunction with any other
antenna or transmitter. Violation of this would allow a user to plug another transmitter in to the
product and potentially create an RF exposure condition.
WARNING
The transmitter and antenna must not be collocated
or operating in conjunction with any
other antenna or transmitter. Failure to observe
this warning could produce an RF exposure
condition.
Integration Guide
Version 0.03
EDG0100PB003 Page 7 0.03 – 4/19/05
2.2 Disclaimer
The information and instructions contained within this publication comply with all FCC, GCF,
PTCRB, RTTE, IMEI and other applicable codes that are in effect at the time of publication. Enfora
disclaims all responsibility for any act or omissions, or for breach of law, code or regulation,
including local or state codes, performed by a third party.
Enfora strongly recommends that all installations, hookups, transmissions, etc., be performed by
persons who are experienced in the fields of radio frequency technologies. Enfora acknowledges
that the installation, setup and transmission guidelines contained within this publication are
guidelines, and that each installation may have variables outside of the guidelines contained
herein. Said variables must be taken into consideration when installing or using the product, and
Enfora shall not be responsible for installations or transmissions that fall outside of the
parameters set forth in this publication.
Enfora shall not be liable for consequential or incidental damages, injury to any person or
property, anticipated or lost profits, loss of time, or other losses incurred by Customer or any third
party in connection with the installation of the Products or Customer's failure to comply with the
information and instructions contained herein.
!
The Enabler II-E platform is designed with features to
support a robust connection. There are instances
where the module performance is beyond the control
of the intended design. Integrated designs that require
24 by 7 operation must implement power control via an
external circuit or by implementing power management
as specified within this design guide.
Integration Guide
Version 0.03
EDG0100PB003 Page 8 0.03 – 4/19/05
3.0 Manual Overview
This document describes the hardware interface of the Enabler II-E GSM/GPRS OEM Modem. The purpose
of this document is to define the electrical, mechanical and software interfaces while providing detailed
technical information in order to streamline the process of hardware and system integration.
3.1 Revision History
Date Rev Author Description
7/26/04 Draft
0.01
Rob Holden
Initial Draft. Developed from document: Enfora Enabler II-G Integration
Guide GSM0108PB001MAN.
8/10/04 0.02 John
Hurlbert
• Incorporated updated RF specs
• Incorporated latest pinout definition
4/19/05 0.03 John
Hurlbert
• Changed Document Number to EDG0100PB003MAN
• Incorporated latest 60 pin pinout definition
• Deleted redundant summary specification section
• Added mechanical figures
• Updated specification tables
•
•
•
•
•
•
Integration Guide
Version 0.03
EDG0100PB003 Page 9 0.03 – 4/19/05
3.2 Reference Documents
Enfora Enabler II-E Product Documentation
Manuals
• EDG0100PB004MAN - Enfora Enabler II-E AT Command Set Reference
• GSM0102PB002MAN - Enfora GSM-GPRS Family UDP-API Reference
• GSM0000PB006MAN - Enfora GSM-GPRS Family Modem Control Library Reference
Application Notes
• GSM0000AN002 - Enabler-G PPP Configuration for Windows 2000
• GSM0000AN003 - Enabler-G Data Circuit Switched Call Configuration and Use
• GSM0000AN004 - Enabler-G SMS Configuration and Use
• GSM0000AN005 - Enabler-G Automated Network Connection Configuration and Use
• GSM0000AN006 - Enabler-G Module Status Query
• GSM0000AN007 - Enabler-G Status Reporting
• GSM0000AN008 - Enabler-G PPP Configuration for Windows XP
• GSM0000AN009 - Dynamic IP Assignment Support
• GSM0000AN010 - Enabler-G PPP Configuration for PocketPC 2002
• GSM0000AN011 - PAD Configuration and Use
• GSM0000AN012 - Network Transparency Configuration for PAD
• GSM0000AN013 - Enabler-G Sleep Mode Configuration and Use
• GSM0000AN014 - Anytime PPP API Access
• GSM0000AN015 - Event Monitor and Reporting Overview
• GSM0000AN016 - How to Send SMS Messages to an E-Mail Address
• GSM0000AN017 - SMTP Mail Access via TCP PAD
• GSM0000AN018 - USNO NTP Network Time Service TCP PAD
Technical Notes
• GSM0000TN001 - Enabler-G Firmware Upgrade
• GSM0000TN002 - Enabler-G PPP Negotiation Sequence
• GSM0000TN006 - UDP Wakeup Message Header Decoding
• GSM0000TN007 - Enabler-G 3-Wire Serial Interface Requirements
• GSM0000TN008 - Enabler Power Supply Requirements
• GSM0000TN009 - Server Application Design Considerations for Dynamic IP
White Papers
• GSM0000WP001 - Enabler-G Differentiation Features
• GSM0000WP002 - Using Enfora UDP API Versus CMUX Protocol
GSM test Specifications
• 3GPP TS 51.010-1
•
Integration Guide
Version 0.03
EDG0100PB003 Page 10 0.03 – 4/19/05
US Government
Federal Communications Commission (FCC)
Internet: http://www.fcc.gov/
• FCC Rules, Part 24
• 47 CFR Subpart E--Broadband PCS
• 47 CFR § 24.52, sections 1.1307(b), 2.1091, and 2.1093
• FCC Rules, Part 22 for GSM 850
• FCC Rules, Part 15
• FCC Rules, Part 2
• Subpart J--Equipment Authorization Procedures
• Section 2.925
FCC Office of Engineering and Technology (OET)
Internet: http://www.fcc.gov.oet/
• Bulletin Number 65 "Evaluating Compliance with FCC Guidelines for Human Exposure to Radio
Frequency Electromagnetic Fields"
• Supplement C "Additional Information for Evaluating Compliance of Mobile and Portable Devices
with FCC Limits for Exposure to Radio Frequency Emissions"
Environmental Regulations
• National Environmental Policy Act (NEPA) of 1969 (Part 1, Subpart 1)
Mechanical Specifications
• ASTM D999
• ASTM D775
• IEC 68-2-27
• Bellcore Gr-63-CORE
• ETS 300 019-1-1 Class 1.2
• ETS 300 019-1-2 Class 2.1
• ETS 300 019-1-3 Class 3.1
RF and EMI Specifications
• ETSI Standards
• EN 61000-4-6
• EN 61000-4-3
• TS 51.010-1, Section 12.2
• EN 55022 Class B
Integration Guide
Version 0.03
EDG0100PB003 Page 11 0.03 – 4/19/05
4.0 Introduction
4.1 Product Overview
Enfora Enabler II-E GSM/GPRS Radio modem is a compact, wireless OEM module that utilizes the Global
System for Mobile Communications (GSM) and GPRS (General Packet Radio Services) international
communications standard to provide two-way wireless capabilities via GSM services. The Enfora Enabler II-
E module is a fully Type-approved GSM/GPRS device, enabling application-specific, two-way
communication and control. The Enfora Enabler II-E module is available as a quad band version.
The small size of the Enfora Enabler II-E module allows it to be integrated easily into the application and
packaging.
4.2 Key Features of the GSM/GPRS OEM Module
The following table summarizes the main features of the Enfora Enabler II-E Radio Module.
Data input/output interface 60 position
Primary serial port V.24 protocol, 3 V levels
Voice Supports four vocoder modes: full-rate (FR),
enhanced full-rate (EFR), half-rate (HR) and
adaptive multi-rate (AMR)
Antenna Interface ultra Miniature Coaxial Interconnect
Command protocol Enfora Packet API, GSM AT command set
Subscriber Identification Module
(SIM)
Optional mini-SIM carrier and interface on board
Interface
Optional remote SIM Accessible via the 60-pin connector
Electrical power 3.3 to 4.5 Vdc Power
Peak currents and average
power dissipation
Refer to the Operating Power table in the
Technical Specifications for peak currents and
average power dissipation for various modes of
operation.
Frequency bands EGSM 900, DCS 1800, PCS 1900 and GSM 850
capability.
Radio Features
GSM/GPRS/EGPRS features
supported
Provides for all GSM/GPRS/EGPRS
authentication, encryption, and frequency hopping
algorithms. GPRS Coding Schemes CS1-CS4
supported. Multi-Slot Class 10 (4RX/2TX, Max 5
Slots). EGPRS feature set TBD
Regulatory Agency approvals • GCF Type Approval
• PTCRB Type Approval
• FCC Certification
• R&TTE
• CE (European Community Certification)
• IC (Industry Canada) Approval
GSM/GPRS/EG
PRS
Functionality
• Mobile-originated and mobile-terminated SMS messages: up to 140 bytes or
up to 160 GSM 7-bit ASCII characters.
• Reception of Cell Broadcast Message
• SMS Receipt acknowledgement
• Circuit Switched Data (Transparent & Non-transparent up to 9.6 Kbps)
• Voice (EFR, FR, HR, AMR)
• Supports Unstructured Supplementary Service Data (USSD)
• Multi-Slot Class 10 Supported (4Rx/2TX), (5 Slot Max)
• PBCCH/PCCCH Supported
• EGPRS Release 99
SIM 1.8 & 3 V Mini-Subscriber Identity Module (SIM) compatible
Integration Guide
Version 0.03
EDG0100PB003 Page 12 0.03 – 4/19/05
Table 1 - Enabler II-E Key Features
4.3 Providing Multi-Band Operation
The Enfora Enabler II-E module provides by default the appropriate multi-band operation, it is also possible
to select the operating frequency by AT Command. There are two modes of multiband enviroment available:
• The GSMS850 / PCS1900 bands are available for use in North America and places where these
bands have been provisioned for.
• The GSM900 / DCS1800 MHz bands are available for use in Europe and the rest of the world.
4.4 Wireless Data Application Possibilities
A variety of applications can use the Enfora Enabler II-E module for transmitting and receiving data and
voice, such as:
• Automated Meter Reading (AMR)
• Point of Sale Applications
• E-mail and Internet access
• Automated Vehicle Location (AVL)
• Telematics
• Telemetry
• Wireless Security
Integration Guide
Version 0.03
EDG0100PB003 Page 13 0.03 – 4/19/05
4.5 GSM/GPRS System Overview
The Enfora Enabler II-E modules shown in Figure 1 and Figure 2 are designed for easy integration with
other components and packaging by leveraging the existing public GSM networks. Compare the Enfora
Enabler II-E to systems that require the construction, operation, maintenance, and expense of a private
wireless network.
Integration Guide
Version 0.03
EDG0100PB003 Page 14 0.03 – 4/19/05
Figure 1 Applications Using the Enfora Enabler II-E module in a GSM/GPRS/EGPRS Network
Integration Guide
Version 0.03
EDG0100PB003 Page 15 0.03 – 4/19/05
5.0 Technical Specifications
5.1 Enabler II-E Module Block Diagram
Figure 2 Enabler II-E Module Block Diagram
PWR
Digital
Baseband/
CPU
SRAM/
Flash
Memory
Analog
Baseband/
Power
Mgmt
RF
Interface
PA
VCO
Ser. Intfc.
SIM
Audio
GPIO
Analog BB Antenna
Intfc.
RX Intfc. RF
Integration Guide
Version 0.03
EDG0100PB003 Page 16 0.03 – 4/19/05
5.2 Detailed Product Specifications
Physical Dimensions and Weight
Size (L x W x H)
46.3 mm x 30.2 mm x 3.1 mm
Weight
< 2 oz.
Climatic: Operational
Operating temperature -20°C to +60°C
Relative humidity
5 - 95%
Solar radiation Not Applicable
Air pressure (altitude) 70 kPa to 106 kPa (-400 m to 3000 m)
Climatic: Storage and Transportation
Duration 24 months
Ambient temperature -40C to +85C
Relative humidity 5% to 95%, non condensing (at 40C)
Thermal shock -50C to +23C, +70C to +23C; < 5 min
Altitude -400 m to 15,000 m
Mechanical: Operational
Operational vibration, sinusoidal
3.0 mm disp, 2 to 9 Hz; 1 m/s2 , 9 to 350 Hz
Operational vibration, random
0.1 m2 /s3 , 2 to 200 Hz
Mechanical: Storage and Transportation
Transportation vibration, packaged ASTM D999
Drop, packaged ASTM D775 method A, 10 drops
Shock, un-packaged 150 m/s2 , 11 ms, half-sine per IEC 68-2-27
Drop, un-packaged 4-inch drop per Bellcore GR-63-CORE
Mechanical: Proposed Standards
Transportation ETSI Standard ETS 300 019-1-2 Class 2.3
Transportation
Operational ETSI Standard ETS 300 019-1-3 Class 3.1
Operational
Storage ETSI Standard ETS 300 019-1-1 Class 1.2 Storage
Integration Guide
Version 0.03
EDG0100PB003 Page 17 0.03 – 4/19/05
Electromagnetic Emissions
Radiated spurious FCC Part 24 / Part 15 Class \ B
TS 51.010-1 Section 12.2
EN 55022 Class B
Electromagnetic Immunity
(per ETSI ETS 300 342-1)
Radio Frequency (RF) Electromagnetic Field 3 V/m 800 – 1000 MHz; 1 kHz 80%
EN 61000-4-3
Electrostatic discharge (ESD) Contact discharge to coupling planes: ±2 kV, ±4 kV
Air discharge to coupling planes: ±2 kV, ±4 kV,
±8 kV
RF common mode 3 V rms (Level 2) 150 kHz – 80 MHz
EN 61000-4-6
5.3 Operating Power
5.3.1 GSM Operating Power
Enfora Enabler II-E (@ 3.76
Volts)
Typical Current (mAmps) Typical Peak Current (Amps)
GSM 850
EGSM 900
GSM
1 TX 1 RX
1 RX
Idle
DCS 1800
GSM
1 TX 1 RX
1 RX
Idle
PCS 1900
GSM
1 TX 1 RX
1 RX
Idle
5.3.2 GPRS Operating Power
Enfora Enabler II-E (@ 3.76
Volts)
Typical Current (mAmps) Typical Peak Current (Amps)
GSM 850
EGSM 900
GPRS
1 TX /1RX
2 TX/ 2RX
1 TX/ 2RX
1 TX/ 3RX
1 TX/ 4RX
1 RX
Idle
DCS 1800
GPRS
1 TX /1RX
2 TX/ 2RX
1 TX/ 2RX
1 TX/ 3RX
1 TX/ 4RX
1 RX
Idle
PCS 1900
GPRS
1 TX /1RX
2 TX/ 2RX
1 TX/ 2RX
1 TX/ 3RX
1 TX/ 4RX
1 RX
Idle
Integration Guide
Version 0.03
EDG0100PB003 Page 18 0.03 – 4/19/05
5.4 Transmit Power
Enfora Enabler II-E module Power Class Transmit Power
1900 MHz
1800 MHz
GSM Power Class 1
EGPRS Power Class E2
1-W conducted power maximum (30
dBm +/- 2 dB), measured at the
antenna port
0.4 W conducted power maximum
(26 dBm +/- 3dB), measured at the
antenna port
850 MHz
900 MHz
GSM Power Class 4
EGPRS Power Class E2
2-W conducted power
maximum (33 dBm +/- 2 dB),
measured at the antenna port
0.5 W conducted power maximum
(27 dBm +/- 3dB), measured at the
antenna port
5.5 Receiver Sensitivity
The EDG0100 modem conforms to all of the GSM 3GPP requirements as verified according to 3GPP TS
51.010-1. The sensitivity is at 25 °C - TCH/FS Class II (RBER) Static Conditions.
Band Sensitivity Mode
1900 MHz -105 dBm
1800 MHz -105 dBm
900 MHz -105 dBm
850 MHz -105 dBm
Integration Guide
Version 0.03
EDG0100PB003 Page 19 0.03 – 4/19/05
6.0 Physical Interfaces
6.1 Physical Layout
Figure 3 Enabler II-E Package Dimensions (without integrated SIM carrier)
Integration Guide
Version 0.03
EDG0100PB003 Page 20 0.03 – 4/19/05

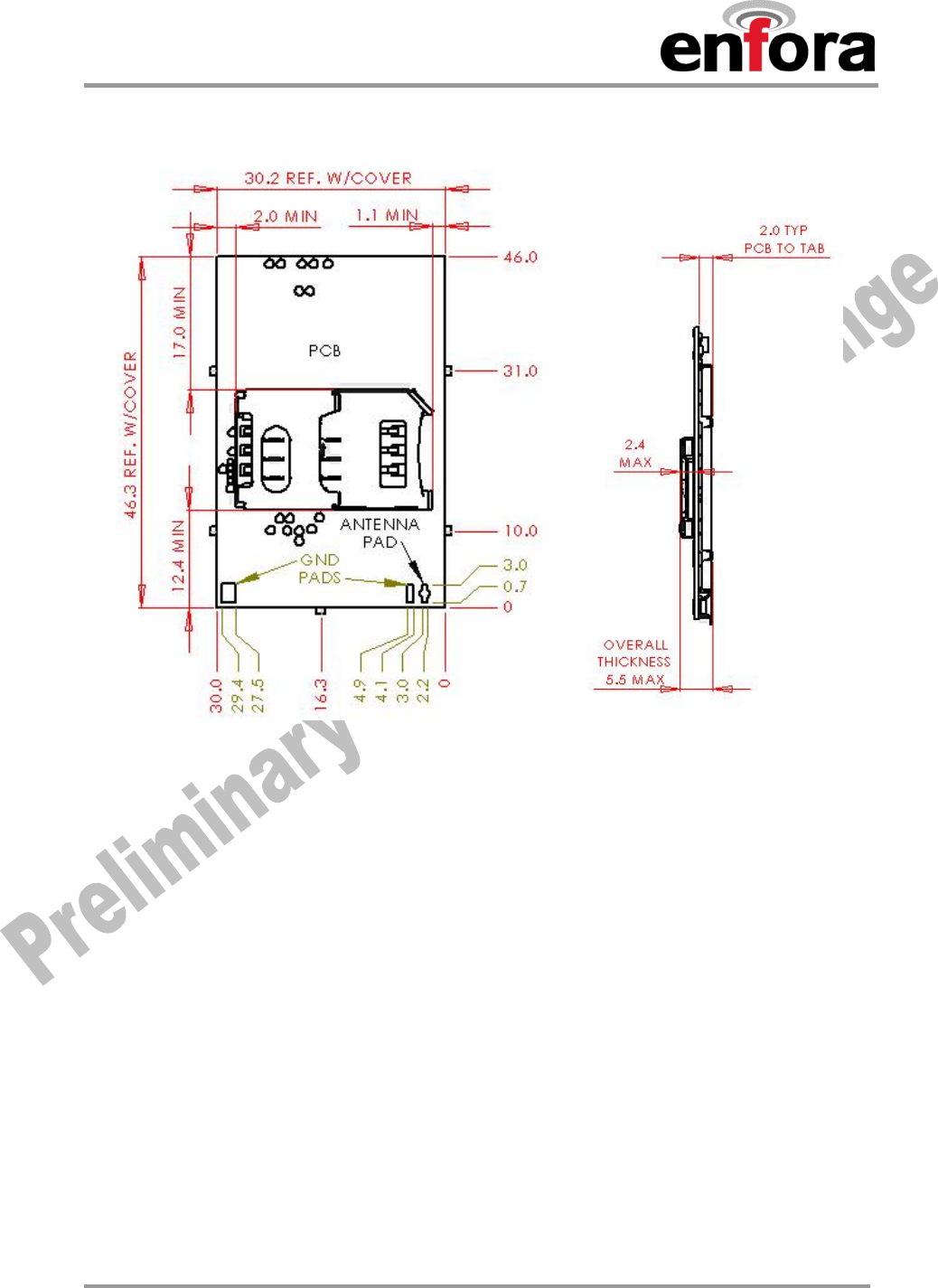

Figure 4 Enabler II-E Package Dimensions (with integrated SIM carrier)
• The overall dimensions will be a maximum of 46.3 X 30.2 X 3.1
• Mated 60-pin I/O connector stack height is 2.0 MM
• Antenna direct connect solder pad is 1.02 mm wide X 2.54 mm high.
• Antenna ground pads are 2.03 mm wide X 2.54 mm high.
Integration Guide
Version 0.03
EDG0100PB003 Page 21 0.03 – 4/19/05
6.2 Enabler II-E Mounting Reference TBD
Figure 5 Provides Enabler II-E vertical mounting information.
Figure 5 Vertical Enabler II-E Mounting
The Enabler II-E provides mounting tabs that can be soldered to a PCB. These tabs provide circuit
grounding for the module and their use is recommended. Figure 6 provides mounting tab reference for PCB
integration.
Figure 6 Enabler II-E Mounting Tabs
Integration Guide
Version 0.03
EDG0100PB003 Page 22 0.03 – 4/19/05
6.3 Module Pin Orientation Reference
59 57 55 53 51 49
4
7 45 43 41 39 . . . . . . 25 23 21 19 17 15 13 11 9 7 5 3 1
60 58 56 54 52 50
4
8 46 44 42 40 . . . . . . 26 24 22 20 18 16 14 12 10 8 6 4 2
Figure 7 Pin Orientation
6.4 Connectors
6.4.1 Enabler II-E I/O Control Connector
The connector used to interface to the host is a 60-pin, SMT, Dual Row, Vertical Stacking: .50MM (.020")
Pitch Plug; Molex part number 53729-0604.
6.4.2 PCB Integration I/O Control Connector
The mating connector for a board mount application is a 60-pin, SMT, Dual Row, Vertical Stacking:
.50MM (.020") Pitch Receptacle; Molex part number 52974-0604 or 52974-0608.
Pin 2
Pin 1
Integration Guide
Version 0.03
EDG0100PB003 Page 23 0.03 – 4/19/05
6.5 I/O Signal Connector on the Enfora Enabler II-E Module
The Enfora Enabler II-E module communicates with the carrier board of the application via the 60-pin I/O
signal connector. The following table describes the pin assignments for the connector, sorted by pin number.
6.5.1 I/O Connector Pin Assignments
The following table shows the pin assignments for the input/output connector.
PIN
#
FUNCTION
Serial
Pin
I/O Description Description/Comments
1 Power Input P Batt/Vcc Power input to Enabler II-E module.
2 Power Input P Batt/Vcc Power input to Enabler II-E module.
3 Power Input P Batt/Vcc Power input to Enabler II-E module.
4 Power Input P Batt/Vcc Power input to Enabler II-E module.
5 Power Input P Batt/Vcc Power input to Enabler II-E module.
6 Power Input P Batt/Vcc Power input to Enabler II-E module.
7 Ground R GND Power return for digital and analog grounds.
8 Ground R GND Power return for digital and analog grounds.
9 Handset Speaker (-) O INTERNAL_SPK(-) Handset speaker output (negative).
10 Power Input P Batt/Vcc Power input to Enabler II-E module.
11 Ground R GND Power return for digital and analog grounds.
12 Power Input P Batt/Vcc Power input to Enabler II-E module.
13 Handset Speaker (+) O INTERNAL_SPK(+) Handset speaker output (positive).
14 GPIO-1 I/O GPIO-1 General-purpose Input/Output.
15 Ground R GND Power return for digital and analog grounds.
16 Ground R GND Power return for digital and analog grounds.
17 Microphone Bias O VMIC Microphone Bias.
18 GPIO-5 I/O GPIO-5 General-purpose Input/Output.
19 Ground R GND Power return for digital and analog grounds.
20 Reserved Reserved for future use.
21 Handset Microphone (-) I INT_MIC(-) Handset microphone input (negative).
22 Reset I RESET Module Reset
23 Ground R GND Power return for digital and analog grounds.
24 Power Control Signal I PWR_CTL_SIGNAL Power Control Signal.
25 Handset Microphone (+) I INT_MIC(+) Handset microphone input (positive).
26 Reserved Reserved for future use.
27 GPIO-3 I/O GPIO-3 General-purpose Input/Output.
28 GPIO-2 I/O GPIO-2 General-purpose Input/Output.
29 Reserved Reserved for future use.
30 GPIO-4 I/O GPIO-4 General Purpose Input-Output
31 Reserved Reserved for future use.
32 GPIO-6 I/O GPIO-6 General Purpose Input-Output
33 Ground R GND Power return for digital and analog grounds.
34 GPIO-7 I/O GPIO-7 General Purpose Input-Output
35 DAC O DAC Digital-to-Analog Output.
36 VBACKUP P VBACKUP Modem backup power for real-time clock.
37 Reserved Reserved for future use.
38 Stereo Headset - (+) Left O HEADSET_SPK (Left) (+) Stereo Headset Earphone – Left (positive)
39 GPIO-8 I/O GPIO-8 General Purpose Input-Output
40 Reserved Reserved for future use.
41 Ground 5 R GND Power return for digital and analog grounds.
42 Headset Microphone (+) I HEADSET_MIC(+) Headset Microphone (positive).
43 Serial Receive Data 2 O RXD_RADIO Serial Data to Host.
44 Ground R GND Power return for digital and analog grounds.
45 Data Set Ready 6 O DSR_RADIO DSR Signal to Host.
46 A to D Input I ADC2 Analog-to-Digital Converter Input 2.
47 Data Carrier Detect 1 O DCD DCD Signal to Host.
48 SIM Clock O SIM_CLK SIM Clock.
Integration Guide
Version 0.03
EDG0100PB003 Page 24 0.03 – 4/19/05
PIN
#
FUNCTION
Serial
Pin
I/O Description Description/Comments
49 Ring Indicator 9 O RI RING Indicator.
50 Ground R GND Power return for digital and analog grounds.
51 Serial Transmit Data 3 I TXD_RADIO Serial Data from Host.
52 SIM Data I/O I/O SIM_IO SIM I/O Data.
53 Request To Send 7 I RTS_RADIO RTS Signal from Host.
54 SIM Reset O SIM_RST SIM Reset.
55 Clear To Send 8 O CTS_RADIO CTS Signal to Host.
56 A to D Input I ADC1 Analog-to-Digital Converter Input 1.
57 Data Terminal Ready 4 I DTR_RADIO Data Terminal Ready Signal from Host.
58 SIM Power O SIM_VCC SIM Power.
59 Ground R GND Power return for digital and analog grounds.
60 Ground R GND Power return for digital and analog grounds.
Table 2 - Enabler II-E Pin Assignments
I=Input into Enabler; O=Output from Enabler; P=Power Input to Enabler; R=Power Return from Enabler;
I/O=Input/Output into/from Enabler
Reserved for future use
NO CONNECT if on-board SIM holder is used
6.6 Circuit Protection
Other than the basic low level ESD protection within the module’s integrated circuits (typically 2000 V), the
Enabler II-E does not have any protection against ESD events or other excursions that exceed the specified
operating parameters.
The only exception is that the remote SIM lines on the main I/O connector do have additional ESD protection
that should handle standard human-model contact ESD events.
Generally, ESD protection (typically TVS/Transzorb devices) should be added to all signals that leave the
host board. This includes VBAT/VCC.
Series resistors (typically 47 Ω) can also be added in series with data lines to limit the peak current during a
voltage excursion.
!
Caution – It is the Integrator’s responsibility to protect
the Enabler II-E from electrical disturbances and
excursions that exceed the specified operating
parameters.
6.7 Antenna
The Enabler II-E utilizes an ultra Miniature Coaxial Interconnect from Sunridge (MCB-ST-00T) as the on-
board antenna connector. A compatible mating connector is the Sunridge MCB2-xx-xx-xxx-x series
component. The cable assembly is made to order. Maximum stack height of cable connector and PCB
connector is 2.0 mm.
Integration Guide
Version 0.03
EDG0100PB003 Page 25 0.03 – 4/19/05
6.8 Control Connector Signal Descriptions and Functions
6.8.1 Input Power
The Enfora Enabler II-E module uses a single voltage source of VCC=+3.3V to 4.5V. (exact values of the
uplink currents are shown in Tables 5.3.1 GSM Operating Power and 5.3.2 GPRS Operating Power). The
VCC lines (pins 1 to 6) should be connected on the application board.
!
The uplink burst will cause strong ripple on the voltage
lines and should be effectively filtered. It is recommended
that 1000 to 2000 uF of capacitance be placed as close to
the modem I/O connector as possible.
It should be noted that the input voltage level should not
drop below the minimum voltage rating under any
circumstances, especially during the uplink burst period.
Integration Guide
Version 0.03
EDG0100PB003 Page 26 0.03 – 4/19/05
6.8.2 Ring Indicate
The Enabler II-E module is capable of using the Ring line to discern the type of incoming call. The indicator
can be monitored via a hardware line available on the 60 pin I/O signal connector. The Ring Indicator pin is
#49.
The function of the Ring line depends on the type of the call received.
When the module is receiving a voice call, the Ring line goes low for 1 second and high for another 2
seconds. Every 3 seconds the ring string is generated and sent over the Receive (Data Out) (Rx) line. If
there is a call in progress and call waiting is activated for a connected handset or hands free device, the
Ring pin switches to ground in order to generate acoustic signals that indicate the waiting call.
When a data call is received, Ring goes low and will remain low. Every 3 seconds a ring string is generated
and sent over the Receive (Data Out) (Rx) line.
An incoming SMS can be indicated by an Unsolicited Result Code (URC) causing the Ring line to go low for
1 second only. Using the AT+CNMI command, the Enabler II-E can be configured to send or not to send
URCs upon the receipt of SMS. See Enfora Enabler-IIE AT Command Set Reference -
EDG0100PB004MAN.

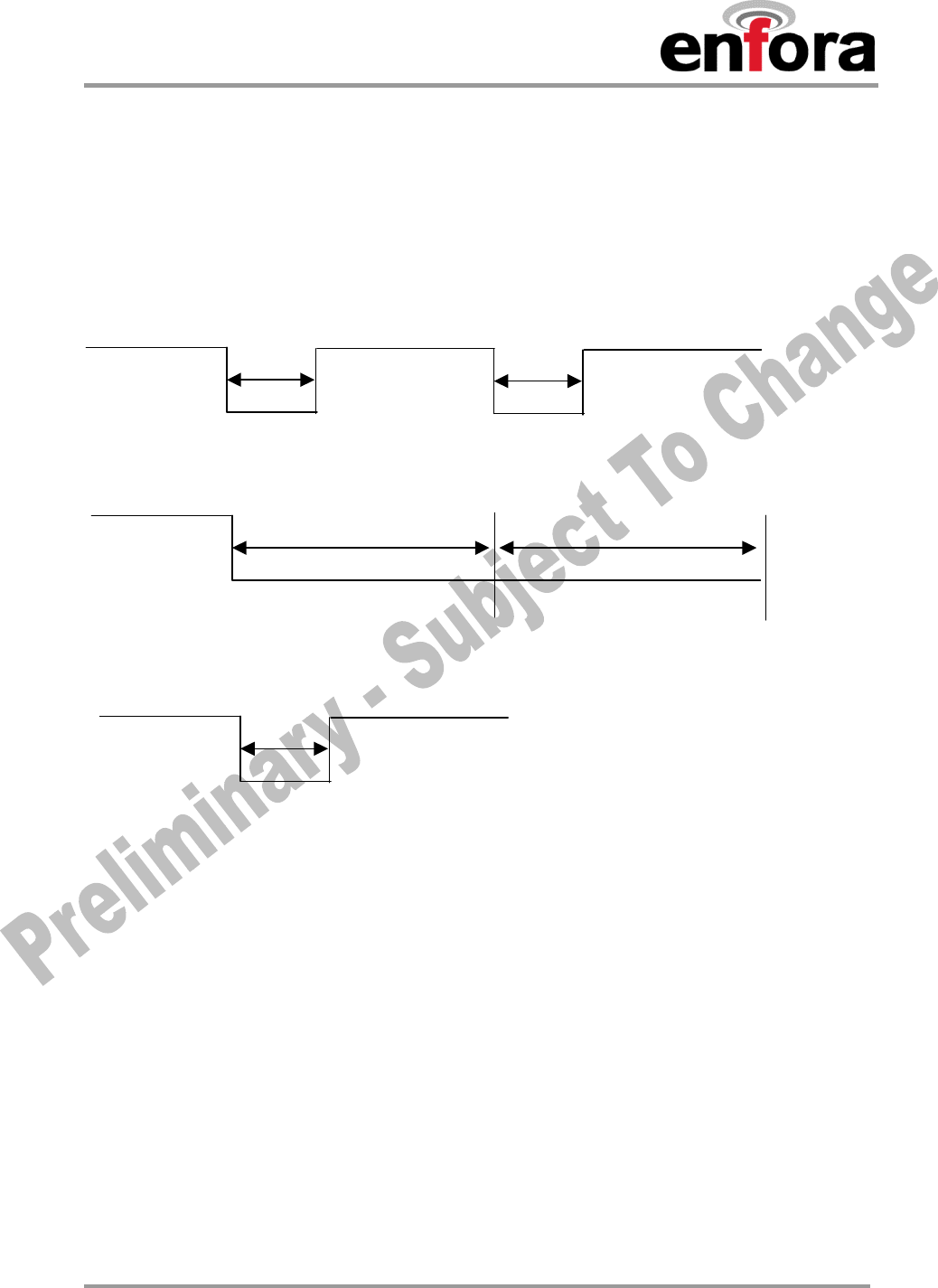

Figure 8 Ring Indicate Timing
1 second
URC
Ring
1 second 2 seconds 1 second 2 seconds
RING String RING String
Ring
3 seconds
RING String RING String
Ring
3 seconds
RING String
Integration Guide
Version 0.03
EDG0100PB003 Page 27 0.03 – 4/19/05
6.8.3 Radio Power/Reset (Pin 22)
A pulse on this Active-High input resets/restarts the module. This input has a “weak pull-down” resistor
internal to the module and can be left open-circuit or grounded if it is not going to be used. To initiate a
reset, provide a high-pulse of at least 50 ms duration.
PARAMETER PARAMETER / CONDITIONS MIN TYP MAX UNIT
VIL Input Voltage – Low or float 0 0.3 x
VBAT
Vdc
VIH Input Voltage – High 0.7 x
VBAT
VBAT Vdc
IPD Internal Pull-Down Resistor -40 -2 µA
Pulse Duration High Pulse Duration 50 mS
6.8.4 Using the Power Control Signal
The input is equivalent to the “phone ON-button”. This is a hardware-controlled pin on power-up. It must
be grounded momentarily or continuously to start the modem. Subsequent signals to this pin (active
high-to-low transition) will cycle power to the module. When the modem is OFF, a high-to-low pulse of >
100 mS will turn the modem ON. When the modem is ON, a high-to-low pulse of XXX mS will deregister
from the network and turn the modem OFF. XXX is > 100 mS and can be configured via AT Command for
pulses up to 10000 mS. This input has a “weak pull-up” resistor internal to the module. This input can be left
grounded if the “RTC Sleep Function” is not required. If RTC Sleep is required, see Section 6.8.5.
PARAMETER PARAMETER / CONDITIONS MIN TYP MAX UNIT
VIL Input Voltage – Low or float 0 0.3 x
VBAT
Vdc
VIH Input Voltage – High 0.7 x
VBAT
VBAT Vdc
IPU Internal Pull-Up Resistor -20 -2 µ
µµ
µA
ON Pulse Duration 100 mS
OFF Pulse Duration Programmable 100 10000 mS
6.8.5 Real Time Clock (RTC)
TBD
6.8.6 Using VBAK
VBAK is a backup voltage that can maintain the RTC clock and alarm functions. If VBAK is not present in the
system (intentionally or not) and RADIO_PWR/RST is active low, the RTC clock may still be powered if leakage
voltage exists on VBAT2. Otherwise the RTC clock will loose power and be reset when VBAT2 is restored.
PARAMETER PARAMETER / CONDITIONS MIN TYP MAX UNIT
Input Voltage Range 3.2 4.5 Vdc
Input Current 4 µ
µµ
µA
Integration Guide
Version 0.03
EDG0100PB003 Page 28 0.03 – 4/19/05
6.8.7 Serial Interface (9 Pin I/F) (See table in section 6.5.1 I/O Connector Pin Assignments)
The modem provides a standard 16550 UART serial interface to the host. The data interface operates at
CMOS level.
The Enabler II-E is designed to be used like a DCE device. RxData is the serial data from the modem to the
host. TxData is the serial data from the host to the modem.
Figure 9 Enabler II-E Serial Interface
This data may contain 7 or 8 data bits, 1 or 2 stop bits, even/odd/no parity bits. The baud rate may be
adjusted to 75, 150, 300, 1200, 2400, 4800, 9600,19200, 38400, 57600, or 115200 bits per second.
Default settings are 8 data, 1 stop, no parity, and 115200 baud. DTR may be used to force the modem into
AT command mode from online data mode (See AT Command Document, command AT&D). RTS and CTS
may be used for hardware handshaking. DSR is always active (connected to ground) while the modem is
on. RING may be used to alert the host to a variety of incoming calls.
For a minimal implementation, connect RxData and TxData to the COM port serial data lines, connect DTR
and RTS to GND.
PARAMETER PARAMETER / CONDITIONS MIN TYP MAX UNIT
VIL Input Voltage – Low 0 0.8 Vdc
VIH Input Voltage – High 2.0 Vdc
VOL Output Voltage – Low 0.65 Vdc
VOH Output Voltage – High 2.4 Vdc
IOL / IOH Rated Output Current 4 mA
RING
CTS
DTR
DSR
RTS
Rx
Tx
Enabler II-E
UART
DCD
Host
Integration Guide
Version 0.03
EDG0100PB003 Page 29 0.03 – 4/19/05
6.8.8 General Purpose Input/Output Interface (GPIO)
Eight general-purpose signals are provided. Each of these signals may be selected as inputs or outputs.
They may be used independently as a user-specified function, or may be used to provide modem control
and status signals. Several examples of modem control signals are: power shutdown command,
register/deregister on network command, and transmitter disable. Several examples of modem status
signals are: registration status and ready-for-power-down status to be used with power shutdown command
signal.
I/O Lines Parameter/Conditions MIN TYP MAX UNIT
VIL Input Voltage – Low 0 0.8 Vdc
VIH Input Voltage – High 2.0 Vdc
VOL Output Voltage – Low 0.65 Vdc
VOH Output Voltage – High 2.4 Vdc
IOL / IOH Rated Output Current 4 mA
6.8.9 Analog-To-Digital Input
Analog-To-Digital Input Parameter/Conditions MIN TYP MAX UNIT
ADCBRES ADC Binary Resolution 10 Bits
ADCREF ADC Reference Voltage 1.75 Vdc
VADC ADC Range 0 1.75 Vdc
Integral/Differential Non-Linearity -2 +2 LSB
Input Leakage 1 µ
µµ
µA
Retuning Frequency 1 MHz
Input Capacitor Maximum settling time for the input
signal is 16*t
12 pF
6.8.10 Digital-To-Analog Output
Digital-To-Analog Output Parameter/Conditions MIN TYP MAX UNIT
DACBRES DAC Binary Resolution 10 Bits
TS Settling Time 10 µ
µµ
µS
VOMAX Output Voltage with Code Maximum 2.0 2.2 2.4 Vdc
VOMIN Output Voltage with Code Minimum 0.18 0.24 0.3 Vdc
Output Voltage @ Power Down 0 50 MV
Output Impedance @ Power Down 100 Ω
ΩΩ
Ω
DC Supply Sensitivity 1 %
Integration Guide
Version 0.03
EDG0100PB003 Page 30 0.03 – 4/19/05
6.8.11 Handset Microphone Input
Parameter Parameter/Conditions MIN TYP MAX UNIT
Maximum Input Range –
Mic(+) to Mic(-)
Inputs 3 dBm0 (Max. digital
sample amplitude when PGA gain
set to 0 dB)
32.5 mVRMS
Nominal Ref. Level –
Mic(+) to Mic(-)
-10 dBm0
Differential Input Resistance –
Mic(+) to Mic(-)
36 kΩ
ΩΩ
Ω
Microphone Pre-Amplifier Gain 25.6 dB
6.8.12 Microphone Bias Output
Parameter Parameter/Conditions MIN TYP MAX UNIT
Bias Voltage on Mic(+) Set to 2.0 V 1.9 2.1 Vdc
Set to 2.5 V 2.4 2.6 Vdc
Mic Bias Current Capability 0 2 mA
6.8.13 Handset Speaker Output
Parameter Parameter/Conditions MIN TYP MAX UNIT
Max Differential Resistive Load Output Swing 3.9 VPP 120 Ω
ΩΩ
Ω
Output Swing 1.5 VPP 33 Ω
ΩΩ
Ω
Maximum Differential
Capacitive Load
100 pF
Common Mode Minimum
Resistive Load
At Internal Speaker (+) or (-) 200 kΩ
ΩΩ
Ω
Common Mode Maximum
Capacitive Load
At Internal Speaker (+) or (-) 10 pF
Amplifier Gain 1 dB
Enfora recommends an external audio amplifier for loads of less than 16 Ω or if volume is inadequate.
6.8.14 Headset Microphone Input
Parameter Parameter/Conditions MIN TYP MAX UNIT
Maximum Input Range Inputs 3 dBm0 (Max. digital
sample amplitude when PGA gain
set to 0 dB)
78 mVrms
Nominal Ref. Level -10 dBm0
Microphone Pre-Amplifier Gain 25.6 dB
Integration Guide
Version 0.03
EDG0100PB003 Page 31 0.03 – 4/19/05
6.8.15 Headset Speaker Output
Parameter Parameter/Conditions MIN TYP MAX UNIT
Maximum Swing RL = 32 Ω & 2% distortion
VSP input level = +3 dBm0
1.60 1.96 Vp-p
Maximum Capacitive Load 100 pF
Maximum Resistive Load 32 Ω
ΩΩ
Ω
Amplifier Gain -5 dB
Amplifier State in Power Down HighZ
The headset speaker output is a single ended output. Enfora recommends an external audio amplifier for
loads of less than 32 Ω or if volume is inadequate.
Integration Guide
Version 0.03
EDG0100PB003 Page 32 0.03 – 4/19/05
6.8.16 Audio Design Note
Speaker and microphone PCB traces should be run in pairs and buried between two ground planes for best
results. The following figure provides a sample circuit design for connection of Mic and Speaker pins.
NOTE: The audio circuitry shown is left as a placeholder and is to be
considered preliminary.

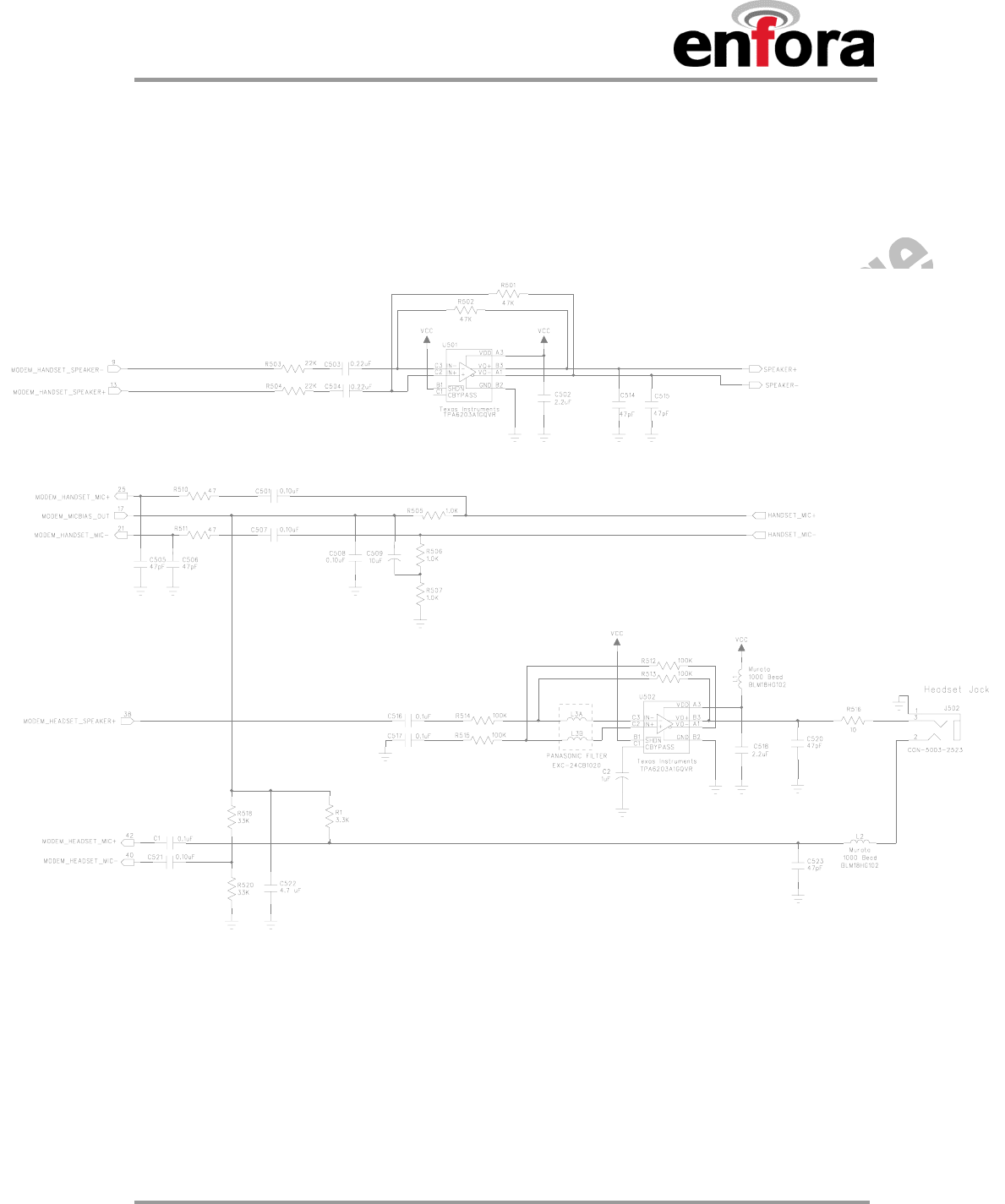

Figure 10 Audio Reference
(Please note that this schematic can be zoomed to read the detail)
Integration Guide
Version 0.03
EDG0100PB003 Page 33 0.03 – 4/19/05
6.9 Subscriber Identity Module (SIM) Carrier
The SIM, an integral part of any GSM terminal device, is a “smart card” that is programmed with
subscriber information:
• The user information consists of an International Mobile Subscriber Identity (IMSI) number, which is
registered with the GSM provider, and an encryption Ki (pronounced "key"). This information
consists of a microprocessor and memory installed on a plastic card.
Note: The SIM is not provided with the Enfora Enabler II-E module. The SIM must be obtained from the
GSM service provider and must be provisioned by the operator for data and/or voice. Always
take care to protect the SIM: the GSM terminal will not operate without the SIM installed.
The SIM provides the IMSI for authentication. To gain access to the GSM network, the network
must recognize the IMSI number, and the terminal must be able to properly decrypt the data sent
by the network. The SIM also serves as a buffer for SMS messages, storing the message for
transmission until a radio link is available and buffering received messages until retrieved.
6.9.1 SIM Integration for the Enfora Enabler II-E Module
The Enabler II-E default configuration does not include an on-board SIM carrier. Enfora provides a separate
product SKU for the Enabler II-E module with the integrated SIM carrier.
Integration Guide
Version 0.03
EDG0100PB003 Page 34 0.03 – 4/19/05
6.9.2 Using a Remote SIM with the Enfora Enabler II-E Module
The Enabler II-E default configuration does not include an on-board SIM carrier. If the module is going to be
integrated using a remote SIM, the following guidelines are provided:
• To utilize a remote SIM, the integrator must provide a suitable SIM connector on the Application.
• The maximum distance from the Enabler II-E to the remote SIM connector must not exceed 25.4
cm (10 inches).
Parameter Parameter/Conditions MIN TYP MAX UNIT
VDD Supply Voltage: 1.8 V Mode + Active 1.7 1.8 1.95 Vdc
Supply Voltage: 3 V Mode + Active 2.75 2.85 3.0 Vdc
Supply Voltage: 1.8 V Mode + Sleep 1.7 1.83 1.95 Vdc
Supply Voltage: 3 V Mode + Sleep 2.75 2.9 3.1 Vdc
IDD 1.8 or 3 V Modes 20 mA

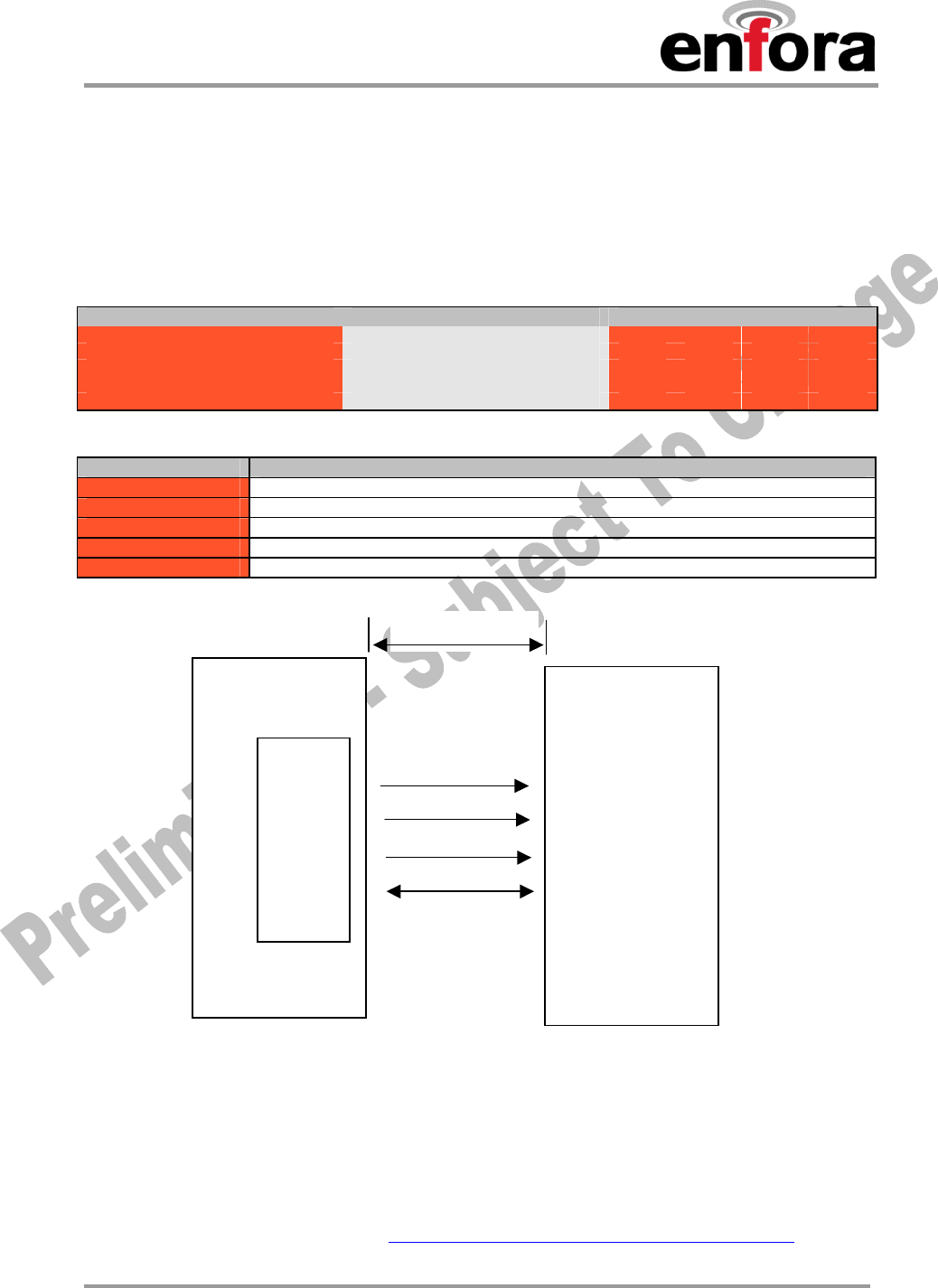

Figure 11 Remote SIM Interface
• ESD Protection
• 15 kV Air Discharge
• 8 kV Contact Discharge
6.9.2.1 Remote SIM Component Information
A SIM carrier compatible for use on the Enabler II-E is a JAE Plug-In SIM Card carrier with hinge; JAE
part number SF7W006S1BE1000.JAE Plug-in SIM Card with hinge cover SF7 Series.
Remote SIM Line Description
SIM_VDD Remote SIM power supply
SIM_RST Remote SIM reset
SIM_CLK Remote SIM clock
SIM_I/O Remote SIM serial data interface
GND Use module ground (GND) as Return for SIM Power & Data
SIM_CLK
<25.4 cm (10 in)
SIM_I/O
SIM_RST
SIM_VDD
Enabler II-E
SIM
Interface
Remote SIM
Integration Guide
Version 0.03
EDG0100PB003 Page 35 0.03 – 4/19/05
7.0 Modes of Operation
GSM/GPRS/EGPRS supports many optional services and modes. The Enfora Enabler II-E module supports
the following services:
• Circuit-switched data
• Short-Message Services (SMS)
• Class B/C GPRS Functionality
• Voice communication
• EGPRS
7.1 Enabling the Transmission Modes for the GSM/GPRS/EGPRS Services
Each of the GSM/GPRS/EGPRS services has two modes that can be enabled separately:
• Mobile-originated (MO): allows the making of a service request (such as, making a telephone call or
sending an SMS)
• Mobile-terminated (MT): allows receiving a service request (such as receiving a telephone call or an
SMS)
Note: Contact your local GSM operator to ensure that the services and modes have been provisioned for
the SIM.
7.2 Voice Communication
The Enfora Enabler II-E module has full voice capabilities, provided the necessary connections have been
made for the speaker and microphone pins on the 60-pin I/O connector. The Enfora Enabler-IIE AT
Command Set Reference - EDG0100PB004MAN has the entire list of commands that can be used to
control the voice functionality. The quick start guide in this manual provides a basic command set that can
be used to initialize and test the voice functionality.
The Enfora Enabler II-E module supports three standard vocoder compression algorithms for voice
communication: Full-Rate, Enhanced Full-Rate (EFR), and Half-rate (HR) and also provides support for the
Adaptive Multi-Rate (AMR) codec.
7.3 Circuit-Switched Data
In this mode, the Enfora Enabler II-E module supports both of the connection modes of transmission that are
provided by GSM:
• Non-Transparent mode delivers a constantly low error rate but with a non-guaranteed throughput or
delay. The Non-Transparent service provides a performance that is closest to using a modem over a
fixed Public Switched Telephone Network (PSTN) line.
Note: All GSM service providers may not support Transparent mode. In those cases, the Enfora Enabler II-
E module can be configured to switch automatically to Non-Transparent mode. This capability depends on
the settings in the AT+CBST command.
Integration Guide
Version 0.03
EDG0100PB003 Page 36 0.03 – 4/19/05
7.4 SMS: Short Message Services
• Short Message Services (SMS) is a feature-rich GSM service. The Enfora Enabler II-E module can
perform the following tasks:
• Sending and receiving binary messages of up to 160 characters (7-bit characters)
• Sending and receiving text messages of up to 140 bytes (8-bit data)
• Submitting a SMS Protocol Data Unit (PDU) to a SMSC (Short Message Service Center) and storing a
copy of the PDU until either a report arrives from the network or a timer expires
• Receiving a SMS PDU from a SMSC
• Returning a delivery report to the network for a previously received message
• Receiving a report from the network
• Notifying the network when the module has sufficient memory capacity available to receive one or more
SMS messages (after the module had previously rejected a message because its memory capacity was
exceeded)
7.5 SMS Features Supported by the Enfora Enabler II-E Module
The following list details the key characteristics and assumptions regarding the form of SMS supported in
the Enfora Enabler II-E module.
• Supports both mobile-originated (MO) and mobile-terminated (MT) SMS
• Delivers the message to a telephone
• Supports 8-bit data
• Supports Message Class 0, Class 1, & Class 2
• Provides a status report indicator
• Allows the definition of a validity period
• Provides the Service Center Time Stamp
• Alerts the SMSC
• USSD
• Replace SMS
Integration Guide
Version 0.03
EDG0100PB003 Page 37 0.03 – 4/19/05
8.0 SIM Operation
8.1 Provisioning the SIM
The SIM can support optional features or services. Most operators typically configure the SIM to
send/receive voice calls and to receive SMS; however, some may require an additional tariff to enable the
SIM to send SMS. The transmission of circuit switched and GPRS data are also additional services that
may be required to allow the service:
• Mobile-originated (MO): allows making a service request (such as, making a call or sending an SMS)
• Mobile-terminated (MT): allows receiving a service request (such as, receiving a phone call or an SMS)
It is imperative for the Enfora Enabler II-E module that the SIM be configured for the optional services that
are required for the application.
8.2 GSM Services Supported by the Enfora Enabler II-E Module
The Enfora Enabler II-E module supports four GSM services (modes of operation) that must be enabled by
the operator:
• Voice calls (MO and MT): requires a telephone number
• SMS (MO and MT): uses the telephone number for Voice
• Circuit-switched data calls (MO and MT): requires a telephone number
• The GSM SIM can have multiple telephone numbers.
8.3 GPRS Services Supported by the Enfora Enabler II-E Module
The Enfora Enabler II-E module supports the following GPRS (modes of operation) that must be enabled by
the operator:
• GPRS Packet Connectivity (MO and MT) with Both Dynamic and Static IP option
• GPRS SMS (MO and MT): uses the IP (Dynamic or Static) set by the operator
• Multiple APN Setting
• Quality of Service Options
• Multi-slot 10 Class of Service
8.4 EGPRS Services Supported by the Enfora Enabler II-E Module
The Enfora Enabler II-E module supports the following EGPRS (modes of operation) that must be enabled
by the operator:
• EGPRS Packet Connectivity (MO and MT) with Both Dynamic and Static IP option
• EGPRS SMS (MO and MT): uses the IP (Dynamic or Static) set by the operator
• Multiple APN Setting
Integration Guide
Version 0.03
EDG0100PB003 Page 38 0.03 – 4/19/05
• Quality of Service Options
• Multi-slot 10 Class of Service
8.5 Selecting the Modes of Operation
When provisioning the SIM for the Enfora Enabler II-E module, enable the following modes of operation:
• Voice calls: configure the SIM for both MO and MT service (to send and receive)
• SMS: configure the SIM either for MT alone (to receive) or for both MO and MT (to send and receive)
• Circuit Switched Data: configure the SIM either for MO alone (to send) or for both MO and MT (to send
and receive)
Voice SMS CS Data GPRS Function
MO/MT MT MO Voice calls, receive SMS, make data calls
MO/MT MO/MT MO Voice calls, receive / send SMS, make data calls
MO/MT MO/MT MO/MT Voice calls, receive / send SMS, make / receive data calls
(requires an additional data telephone number)
Integration Guide
Version 0.03
EDG0100PB003 Page 39 0.03 – 4/19/05
9.0 Software Interface
9.1 Software Interface
The application sends commands to the Enfora Enabler II-E module via the I/O signal connector.
These commands use the Enfora AT Command Set and/or Enfora’s Packet API.
The Enfora Enabler II-E module operates in one of the following modes:
• Command mode: Used for configuring the Enfora Enabler II-E module, for interrogating the GSM
network, and for placing and receiving calls. It uses the AT command set via the serial port for
communication.
• On-line mode: Used after a circuit-switched data call has been established. Data is passed between
the Enfora Enabler II-E module and the controlling application without command interpretation. The
only AT command that is interpreted in On-line mode is the +++ command. (This command places the
Enfora Enabler II-E module in Command mode but does not terminate the circuit-switched data call.)
• IP Packet /API Mode: Used to read/write modem parameters, interrogate network information, and
place and receive calls in real-time, multi-tasking mode. The Packet API mode is facilitated over a PPP
connection and the packets can be constructed according to the information provided in the Enfora
GSM-GPRS Family UDP-API Reference GSM0102PB002MAN. Enfora GSM-GPRS Family Modem
Control Library Reference GSM0000PB006MAN provides detail of the UDP Modem Control Library that
has three levels: port , messaging, and modem libraries. Each of the three levels contains one or more
libraries. For example, the port libraries layer has UDP PPP Port, UDP Socket Port, and COM Port
libraries. All libraries are provided as a part of the Enfora Enabler II-E Integration Toolkit.
The AT command driver of the Enfora Enabler II-E module never exits the Command state, that is, it never
enters the On-line mode. Although the host interface may not be able to access the AT command
interpreter, it is always running and is available via the API Mode over a PPP connection and/or via the RF
interface.
• In the Command state, characters that are received from the Customer Premise Equipment (CPE) are
treated as AT commands by the Enfora Enabler II-E module.
• In response to the commands received from the CPE, the Enfora Enabler II-E module sends characters
(AT commands) to the CPE.
• Various events can also trigger the Enfora Enabler II-E module to send characters (AT commands) to
the CPE.
9.2 Format for the AT Commands
The general format of the command line is: <prefix> <command> <CR>
<prefix> AT
<command> See AT Command Manual
<CR> 0X0D
The prefix AT obtains synchronization, identifies the character parameters, and indicates that a command
may be in the following characters.
AT commands are not case sensitive: use either capital letters or lower-case letters for the AT command.
Note: Some AT Command parameter values ARE case sensitive and are documented in the Enfora
Enabler-IIE AT Command Set Reference - EDG0100PB004MAN.
Integration Guide
Version 0.03
EDG0100PB003 Page 40 0.03 – 4/19/05
9.3 Enfora AT Command Set
For a full description of the AT commands, refer to the Enfora Enabler-IIE AT Command Set Reference -
EDG0100PB004MAN.
Note: A command description that includes an *asterisk denotes that the GSM service provider must enable
supplementary services functionality before the command is available.
9.4 Enfora Packet Application Programming Interface

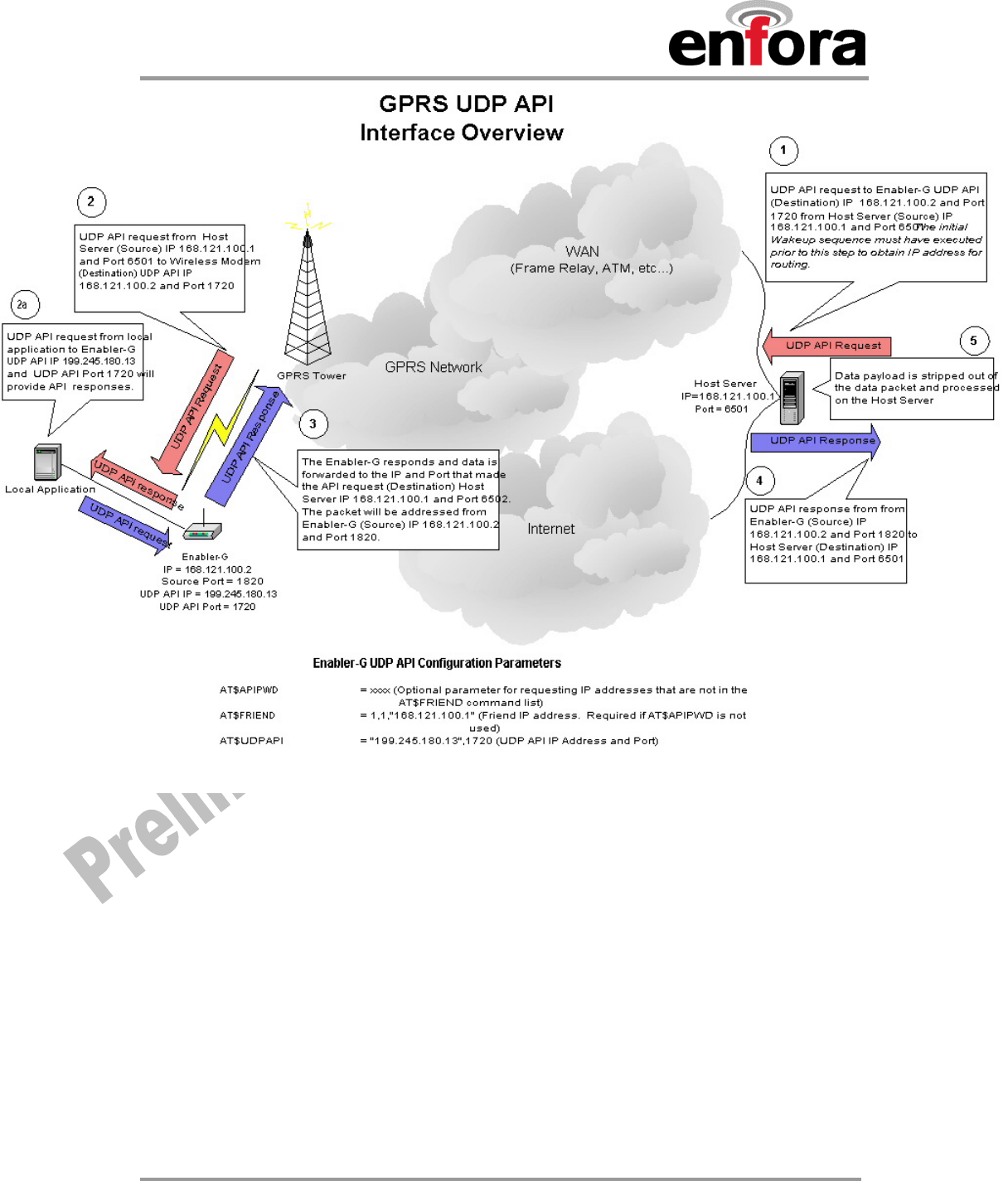

9.4.1 UDP-API Architecture
The following information provides an overview of the Enfora UDP-based API architecture. Full details are
provided in the Enfora GSM-GPRS Family UDP-API Reference GSM0102PB002MAN.
Figure 12 provides the general structure for the UDP-API.
Create Control /
Status Message
Add UDP Header
Add IP Header
Add PPP Framing
Write to COM Port
Read Control / Status
Message
Decode UDP Header
Decode IP Header
Remove PPP Framing
Read from COM Port
Host Computer
Modem
Figure 12 UDP-API Structure
Integration Guide
Version 0.03
EDG0100PB003 Page 41 0.03 – 4/19/05
The following provides information related to the general construction of the UDP-API packet. Other
command structures are available and can be found in the API reference manual.
All AT commands are supported via this method. To send an AT command via DUN or OTA, the user has
to follow the following message structure. This message structure sends the ATI command to the modem
and receives response from the modem.
Bytes Data Description Comments
0 – 19 IP Header
20 – 27 UDP Header
28 0x00
29 0x01 Sequence Number
30 0x04 AT Command Read/Write
31 0x00 Reserved
32 0x41
33 0x54
34 0x49
AT Command
(ATI)
Following data will be returned by the modem:
Bytes Data Description Comments
0 – 19 IP Header
20 – 27 UDP Header
28 0x00
29 0x01 Sequence Number
30 0x05 AT Command Response
31 0x00 Reserved
32 0x0D
33 0x0A
34 0x45
35 0x6E
36 0x66
37 0x6F
38 0x72
39 0x61
40 0x2C
41 0x20
42 0x49
43 0x6E
44 0x63
45 0x2E
46 0x0D
47 0x0A
AT Command Response
(Enfora, L.P.)
Integration Guide
Version 0.03
EDG0100PB003 Page 42 0.03 – 4/19/05
9.5 Enfora Modem Control Library Architecture
The following information provides an overview of the Enfora Modem Control Library architecture. Full
details are provided in the Enfora GSM-GPRS Family Modem Control Library Reference
GSM0000PB006MAN.
Figure 13 provides the general embedded architecture for the Enabler II-E modem. There are various levels
of access provided to allow complete application design flexibility. SLIP access is not currently available.
COM Port Library
UDP SLIP Port Library UDP PPP Port Library UDP Socket Port Library
UDP Messaging Library
UDP Modem Library
GPRS Parameters Table
Port libraries
Messaging
libraries
Modem libraries
Figure 13 Library Layout
The table below can be used to help decide which library configuration is the best for a project. SLIP
access is not currently available.
UDP SLIP Port
Library
UDP PPP Port
Library
UDP Socket Port
Library
UDP Messaging
Library with SLIP
UDP Messaging
Library with PPP
UDP Messaging
Library with
Socket
UDP Modem
Library with SLIP
UDP Modem
Library with PPP
UDP Modem
Library with
Socket
Benefits
Allows dynamic IP assignment
Allows multiple application to
access the modem
Allow AT Commands
Allows modem control
message
Provide modem control
message formatting
Provides modem parameters
database service
Suitable for microcontroller
programming
Requirements
Requires TCP/IP stack
Memory usage Low Low Low Low Low Low High High High
Table 3 - Modem Library Configurations
Integration Guide
Version 0.03
EDG0100PB003 Page 43 0.03 – 4/19/05
9.5.1 Using Port Library
Figure 14 provides the architecture for Port Library access.
UART DriverPort Library
Host Control InterfaceHost Application
Host Modem
Figure 14 Using Port Library
Port Libraries provide the most basic modem access services. It converts modem control messages to
either UDP SLIP or UDP PPP, and vice versa. SLIP access is not currently available.
Modem Control Message
SLIP Header IP Header UDP Header Modem Control Message SLIP End
Or
PPP Header IP Header UDP Header Modem Control Message PPP End
9.5.2 Using Messaging Library
Figure 15 provides the architecture for Messaging Library access.
UART DriverPort Library
Host Control Interface
Messaging Library
Host Application
Host Modem
Figure 15 Using Messaging Library
Messaging Library provides some important modem access services. It builds a modem control message
and converts the message to either UDP SLIP or UDP PPP before sending the data to the modem. It also
parses the modem control messages from the modem. SLIP access is not currently available.
Parameter, Data
SLIP Header IP Header UDP Header Modem Control Message SLIP End
Or
PPP Header IP Header UDP Header Modem Control Message PPP End
Integration Guide
Version 0.03
EDG0100PB003 Page 44 0.03 – 4/19/05
9.5.3 Using Modem Library
Figure 16 provides the architecture for Modem Library access.
UART DriverPort Library
Host Control Interface
Messaging Library
Modem Library
Host Application
Host Modem
Figure 16 Using Modem Library
Modem Library provides the most complete modem access services. In addition to the features already
provided by the Messaging Library, the modem library maintains a modem parameter database. In order to
maintain the parameter database, the modem library requires more memory than the other libraries. This
makes the library unsuitable for some of the micro controller programming. However, it is a good library to
use by applications in a personal computer or a PDA. It allows the programmer to develop host applications
for the modem quickly.
Integration Guide
Version 0.03
EDG0100PB003 Page 45 0.03 – 4/19/05
10.0 Setup and Initialization
10.1 General Setup
The data modem is controlled through the Modem RS232 port on the development board. Connect a nine
pin straight through serial cable from the Modem RS232 connector to the serial port on the controlling
computer.
Hook up power supply, connect antenna, and install SIM into modem.
10.1.1 HyperTerminal Configuration for Enabler II-E
The following provides an example for setting up a Windows HyperTerminal session that can be used to
experiment with various configurations on the Enabler II-E for controlling computer:
1. Select the connection interface, Direct to Com 1 (or whatever port is the serial port).
Figure 17 HyperTerminal Definition
Integration Guide
Version 0.03
EDG0100PB003 Page 46 0.03 – 4/19/05
2. Configure the COM port as displayed below.

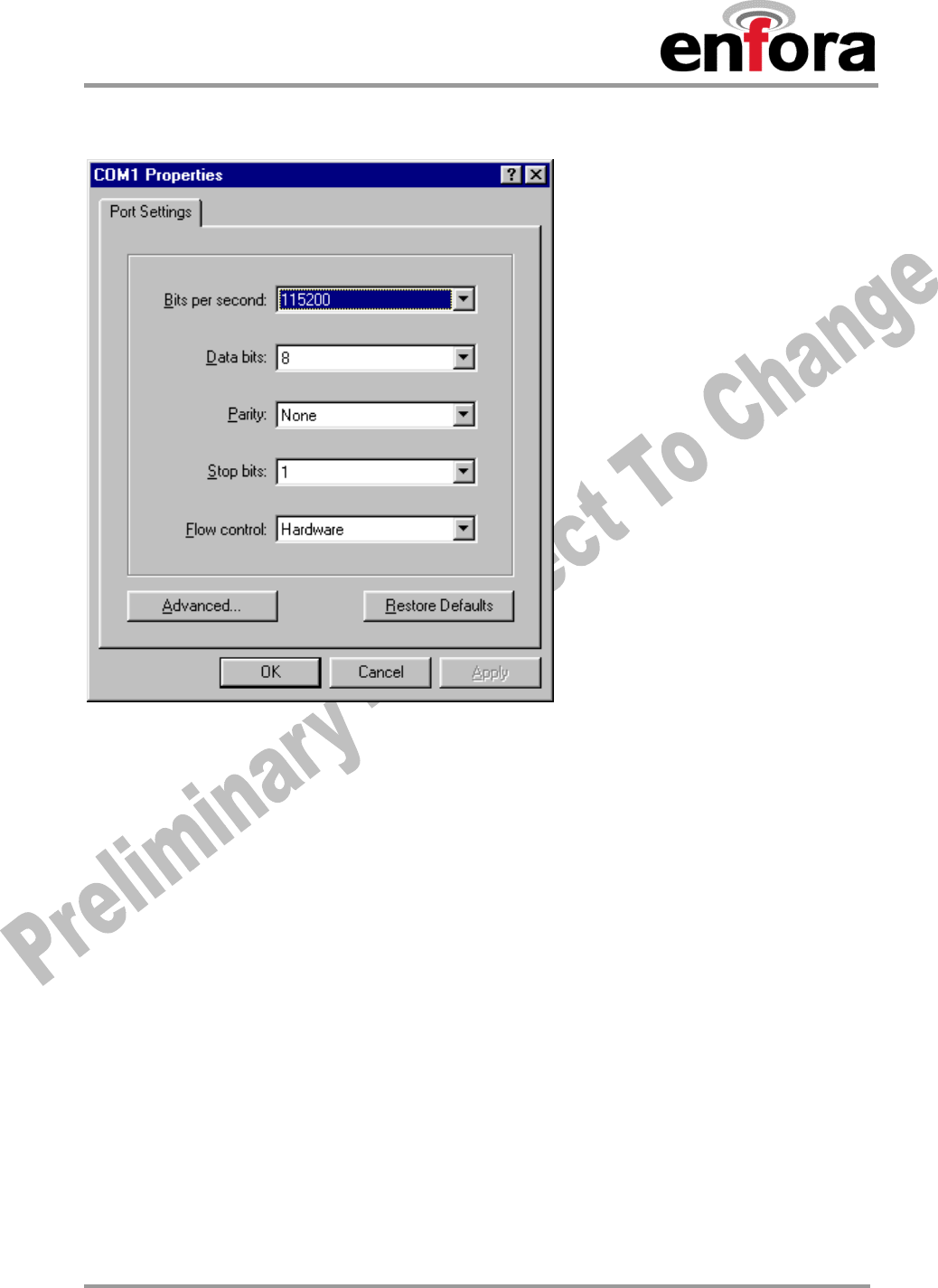

Figure 18 COM Port Settings
10.1.2 Initialization (AT Command Interface)
In the GSM vocabulary, a call from GSM mobile to the PSTN is called a "mobile-originated call" or "outgoing
call". A call from the fixed network to a GSM mobile is called a "mobile-terminated call" or "incoming call."
In the following examples, “Entry” refers to the application. The following convention describes the
direction of the data exchange:
• The data exchange from the customer application to the Enfora Enabler II-E module is designated as:
Entry
• The data exchange from the Enfora Enabler II-E module to the customer application is designated as:
Response
Note: With the exception of the +++ command (Online Escape Sequence), all commands must be preceded
by the AT attention code (or command prefix) and terminated by pressing the <CR> character.
In the following examples, the <CR> and <CR><LF> are intentionally omitted for clarity and space.
Integration Guide
Version 0.03
EDG0100PB003 Page 47 0.03 – 4/19/05
10.1.3 Initial Response to the AT Command
After power is applied to the Enfora Enabler II-E module, the module performs a power-up self-test. The
self-test completes within one (1) second. When queried with the AT command, the Enfora Enabler II-E
module responds with one of the following result codes:
• OK signifies that the Enfora Enabler II-E module is ready, that it correctly interprets the AT command,
and that it has executed the command.
• ERROR signifies that the Enfora Enabler II-E module does not understand the command or that the
command is invalid.
Entry AT
Response OK Command valid: module is ready
The Enfora Enabler II-E module must be in AT Command mode (please refer to section 10.3 GPRS Packet
Examples for packet mode initialization and setup) when any command is entered (with the exception of the
online escape sequence). Commands entered when the module is in On-line mode are treated as data, and
are transmitted as such to the receiving module. i.e. If the module is in PPP or SLIP mode, AT commands
cannot be entered.
10.1.4 Sending an Initialization String to the Enfora Enabler II-E Module
The following example provides the sample AT commands and responses for the following initialization
tasks:
• Reset the module to the factory defaults
• Disable character echo
• Transmit Result Codes
• Set the module to Verbose mode (to display result codes as words)
• Set the DCD to match the state of remote modem
• Ignore the DTR
Entry AT&FE0Q0V1&C1&d0 Initialization string
Response OK Command is valid
Entry ATSO=1 Auto answer on 1st ring
Response OK Command is valid
10.1.5 Setting Up the Communication Mode for the Enfora Enabler II-E Module
The following example sequence provides the AT command and response for setting the Enfora Enabler II-E
module for full phone functionality, automated operator selection, 9600 baud, non-transparent mode.
Entry AT+CFUN=1 FULL phone functionality
Response OK Command is valid
Entry AT+COPS=0 Automatic operator selection
Response OK Command is valid
Entry AT+CBST=7,0,1 9600 baud, non-transparent mode
Response OK Command is valid
Integration Guide
Version 0.03
EDG0100PB003 Page 48 0.03 – 4/19/05
10.1.6 Querying the Status of the Enfora Enabler II-E Module
This topic is addressed in the Enfora Application Note GSM0000AN006 – Enabler-G Module Status
Query.
10.1.7 Setting Module Reporting Parameters for GSM and GPRS
This topic is addressed in the Enfora Application Note GSM0000AN007 - Enabler-G Status Reporting.
10.2 GSM/SMS Examples
10.2.1 Initialize the Enfora Enabler II-E Module to Send and Receive SMS Text Messages
This topic is addressed in the Enfora Application Note GSM0000AN004 - Enabler-G SMS Configuration
and Use.
10.2.2 Managing SMS Messages
This topic is addressed in the Enfora Application Note GSM0000AN004 - Enabler-G SMS Configuration
and Use.
10.2.3 Data Call Configuration
This topic is addressed in the Enfora Application Note GSM0000AN003 - Enabler-G Data Circuit Switched
Call Configuration and Use.
10.2.4 Voice Call Configuration
This topic is addressed in the Enfora Application Note GSM0000AN003 - Enabler-G Data Circuit Switched
Call Configuration and Use.
10.3 GPRS Packet Examples
10.3.1 GPRS/EGPRS ATTACH and ACTIVATE
This topic is addressed in the Enfora Application Note GSM0000AN005 - Enabler-G Automated Network
Connection Configuration and Use.
10.3.2 Windows PPP Setup
The Enabler II-E module can be used in a Windows operating system environment as a standard serial
modem device. The required setup and configuration process is contained in Enfora Application Notes
GSM0000AN001 - Enabler-G PPP Configuration for Windows 98 and GSM0000AN002 - Enabler-G PPP
Configuration for Windows 2000.
Integration Guide
Version 0.03
EDG0100PB003 Page 49 0.03 – 4/19/05
11.0 Integration and Testing
The Enfora Enabler II-E module has been designed to minimize the amount of time required for integration
and testing the application. By being fully certified by the appropriate bodies, the Enfora Enabler II-E
module provides seamless integration into the GSM network.
The integration issues for the application can be narrowed to the utilization of the AT commands and the use
of the GSM functionality. Coverage and signal quality may be evaluated by using the RSSI commands.
Additional network information can be determined by using AT commands.
Integration of the GPRS Packet capabilities is more complicated than using AT command sequences to
initiate the connection and begin transferring data. The following Application Notes should be used to
integrate the GPRS packet capabilities:
GSM0000AN002 - Enabler-G PPP Configuration for Windows 2000
GSM0000AN008 - Enabler-G PPP Configuration for Windows XP
GSM0000AN010 - Enabler-G PPP Configuration for PocketPC 2002
GSM0000AN005 - Enabler-G Automated Network Connection Configuration and Use
Integrating the Enfora Enabler II-E Module
Note: Generally, all interfaces that are externally available to the end user need to be ESD-
conditioned and terminated in some way. Many of these interfaces should not be connected with
power applied.
At the highest level, this is done using some type of GSM test equipment (such as, Racal 6103E), a
computer, and a serial interface tester. The GSM test equipment must be able to simulate a GSM
call and measure the key parameters related to the module.
Additionally, the serial interfaces and some minimal SIM functionality can be verified by sending AT
commands to the Enfora Enabler II-E module.
All of these conditions need to be verified at ambient as well as extreme conditions.
As part of integration, each of the following interfaces must be verified:
Information Recommendations
SIM The maximum line length of the SIM interface is 25.4 cm (10 inches).
The Enfora Enabler II-E module takes care of the signal conditioning
As a minimum, an external application with a remote SIM will require a standard SIM
carrier.
Filter the SIM VCC signal with a 10 uf / 10 V capacitor to help with the line length.
Primary and
secondary serial
Interfaces
The Enfora Enabler II-E module uses a 3 V digital interface. The RS-232 signals
must be level-shifted to get standard levels. These signals must be ESD-protected.
Reset Interface Resets the Enfora Enabler II-E module when tied low.
Audio/Microphone
Interface
Preliminary balancing on Enfora Enabler II-E module.
Maximum length TBD
Integration Guide
Version 0.03
EDG0100PB003 Page 50 0.03 – 4/19/05
Testing the following parameters verifies the RF parameters that may be affected by such things as RF
path loss, power supply noise, and external interference.
Functionality Parameters to be Tested
Transmitter Frequency Error
Phase Error
PA Ramp
Modulation Spectrum
RF Power Steps
Timing Advance
Receiver BER Based RX Tests (RXQUAL RXLEV)
BER Based Sensitivity
Testing the following GSM functionality verifies proper network communication.
Functionality Parameters to be Tested
Transmitter Frequency Error
Phase Error
PA Ramp
Modulation Spectrum
RF Power Steps
Timing Advance
Receiver BER Based RX Tests (RXQUAL RXLEV)
BER Based Sensitivity
Testing the following GSM functionality verifies proper network communication.
Functionality Parameters to be Tested
Network Function Synchronization and registration
Call set-up and call termination (both MT and MO calls)
SMS and/or data calls
Integration Guide
Version 0.03
EDG0100PB003 Page 51 0.03 – 4/19/05
APPENDIX A - Warranty Repair and Return Policy
ENFORA, L.P. 12-MONTH LIMITED WARRANTY
Enfora warrants to the original purchaser of the product that, for a period of one (1) year
from the date of product purchase, the product hardware, when used in conjunction with
any associated software (including any firmware and applications) supplied by Enfora,
will be free from defects in material or workmanship under normal operation. Enfora
further warrants to such original purchaser that, for a period of ninety (90) days from the
date of product purchase, any software associated with the product will perform
substantially in accordance with the user documentation provided by Enfora, and any
software media provided with the product will be free from defects in material or
workmanship under normal operation. Enfora does not warrant that the product
hardware or any associated software will meet the purchaser’s requirements or that the
operation of the product hardware or software will be uninterrupted or error-free. This
limited warranty is only for the benefit of the original purchaser and is not transferable.
During the warranty period applicable to the product hardware, Enfora, at its expense
and in its sole discretion, will repair or replace the product if it is determined to have a
covered hardware defect, provided that the purchaser first notifies Enfora of any such
defect, furnishes Enfora with a proof of purchase, requests and obtains a return
merchandize authorization (RMA) number from Enfora, and returns the product, shipping
charges prepaid, to Enfora under that RMA. If, upon reasonable examination of the
returned product, Enfora does not substantiate the defect claimed by purchaser, or
determines that the defect is not covered under this limited warranty, Enfora will not be
required to repair or replace the product, but may instead reship the product to the
purchaser, in which case purchaser shall be responsible for paying Enfora’s usual
charges for unpacking, testing, and repacking the product for reshipment to purchaser.
Purchaser shall bear the risk of loss or damage in transit to any product returned by
purchaser to Enfora, or any returned product not found to be defective or covered under
this warranty and reshipped by Enfora to purchaser. In the event Enfora repairs or
replaces a defective product, the repaired or replacement product will be warranted for
the remainder of the original warranty period on the defective product. If Enfora is
unable to repair or replace a defective product, the purchaser’s exclusive remedy shall
be a refund of the original purchase price. Any returned and replaced product, or any
product for which Enfora has refunded the original purchase price, becomes the property
of Enfora.
During the warranty period applicable to the software or its media, Enfora, at its
expense, will replace any defective software or media if purchaser gives written
notification of the defect to the technical support department at Enfora during the
applicable warranty period. Enfora shall not have any obligation to provide any software
bug fixes, upgrades or new releases except as necessary to correct any covered defect
of which purchaser notifies Enfora during the applicable warranty period.
Enfora shall have no obligation under this limited warranty for (a) normal wear and tear,
(b) the cost of procurement of substitute products or (c) any defect that is (i) discovered
by purchaser during the warranty period but purchaser does not notify or request an
RMA number from Enfora, as required above, until after the end of the warranty period,
(ii) caused by any accident, misuse, abuse, improper installation, handling or testing, or
Integration Guide
Version 0.03
EDG0100PB003 Page 52 0.03 – 4/19/05
unauthorized repair or modification of the product, (iii) caused by use of any software
other than any software supplied by Enfora, or by use of the product other than in
accordance with its documentation or (iv) the result of electrostatic discharge, electrical
surge, fire, flood or similar causes.
ENFORA’S SOLE RESPONSIBILITY AND PURCHASER’S SOLE REMEDY UNDER
THIS LIMITED WARRANTY SHALL BE TO REPAIR OR REPLACE THE PRODUCT
HARDWARE, SOFTWARE OR SOFTWARE MEDIA (OR IF REPAIR OR
REPLACEMENT IS NOT POSSIBLE, OBTAIN A REFUND OF THE PURCHASE
PRICE) AS PROVIDED ABOVE. ENFORA EXPRESSLY DISCLAIMS ALL OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY, SATISFACTORY PERFORMANCE AND FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL ENFORA BE LIABLE FOR ANY
INDIRECT, SPECIAL, EXEMPLARY, INCIDENTAL OR CONSEQUENTIAL DAMAGES
(INCLUDING WITHOUT LIMITATION LOSS OR INTERRUPTION OF USE, DATA,
REVENUES OR PROFITS) RESULTING FROM A BREACH OF THIS WARRANTY OR
BASED ON ANY OTHER LEGAL THEORY, EVEN IF ENFORA HAS BEEN ADVISED
OF THE POSSIBILITY OR LIKELIHOOD OF SUCH DAMAGES.
Some jurisdictions may require a longer warranty period than specified above and,
accordingly, for products sold in those jurisdictions the applicable warranty period shall
be extended as required under the law of those jurisdictions. Furthermore, some
jurisdictions may not allow the disclaimer of implied warranties or the exclusion or
limitation of incidental or consequential damages, so the above disclaimer, limitation or
exclusion may not apply to products sold in those jurisdictions. This limited warranty
gives the purchaser specific legal rights and the purchaser may have other legal rights
that vary from jurisdiction to jurisdiction.
In some instances, certain aspects of the product warranty may also be covered in a
separate written agreement between Enfora and the distributor or reseller, if any, from
whom purchaser purchased the product. That agreement may provide, for example, a
longer warranty period or a different product return procedure that may also be available
to purchaser (e.g., the product may be returned to Enfora through the distributor or
reseller).
This limited warranty shall be governed by the laws of the State of Texas, United States
of America, without regard to conflict of laws principles. This limited warranty shall not be
governed in any respect by the United Nations Convention on Contracts for the
International Sale of Goods.
Integration Guide
Version 0.03
EDG0100PB003 Page 53 0.03 – 4/19/05
APPENDIX B - Regulations and Compliance
This section summarizes the responsibilities and actions required of manufacturers and integrators who
incorporate OEM versions of the Enfora Enabler II-E module into their products. In certain situations and
applications, these products will require additional FCC, CE, GCF, PTCRB or other regulatory approvals
prior to sale or operation. Appropriate instructions, documentation and labels are required for all products.
For more information concerning regulatory requirements, please contact Enfora.
GCF and PTCRB Approval
The Enfora Enabler II-E module is type approved in accordance with the requirements of and through the
procedures set forth by the GSM industry association. The relevant conformance specification is TS 51.010-
1. For applications that use an unmodified version of the Enfora Enabler II-E module, further testing in this
area may not be required. Any OEM changes in the SIM interface, antenna port, software or the physical
makeup of the unit may require an incremental delta FTA to ensure continued compliance with the above-
mentioned standard. For more information concerning type approval, please contact Enfora.
Electromagnetic Compatibility (EMC) and Safety Requirements
The Enfora Enabler II-E module has been tested and approved for application in the United States of
America (US) and the European Union (EU). The compliance details for each of these markets follow. For
other markets, additional or alternative regulatory approvals may be required. Always ensure that all rules
and regulations are complied with in every country that the OEM application is to be operated. Regardless
of the country or market, the OEM must comply with all applicable regulatory requirements.
EMC/Safety Requirements for the USA
Compliance to the US rules and regulations falls under two categories:
• Radio approvals: Federal Communications Commission (FCC)
• Transmitter: FCC Rules, Part 24
• Unintentional emission: FCC Rules, Part 15
• Product safety approvals: NRTL by an OSHA-approved Nationally Recognized Testing Laboratory
(NRTL)
Although the Enfora Enabler II-E module has been authorized by the FCC and listed as a component by an
NRTL, products and applications that incorporate the Enfora Enabler II-E module will require final verification
of EM emission and product safety approval.
Note: Particular attention should be made to the following statements regarding RF Exposure:
Integration Guide
Version 0.03
EDG0100PB003 Page 54 0.03 – 4/19/05
Human Exposure Compliance Statement
EDG0100 Quad-Band Module
Enfora certifies that the Enfora Enabler II-E 850/900/1800/1900 MHz GSM Radio Module (FCC ID: TBD)
complies with the RF hazard requirements applicable to broadband PCS equipment operating under the
authority of 47 CFR Part 24 (and Part 22 for GSM 850), Subpart E of the FCC Rules and Regulations. This
certification is contingent upon installation, operation and use of the Enfora Enabler II-E and its host product
in accordance with all instructions provided to both the OEM and end used. When installed and operated in
a manner consistent with the instructions provided, the Enfora Enabler II-E meets the maximum permissible
exposure (MPE) limits for general population / uncontrolled exposure at defined in Section 1.1310 of the
FCC Rules and Regulations.
Note: Installation and operation of this equipment must comply with all applicable FCC Rules and
Regulations, including those that implement the National Environmental Policy Act of 1969 (Part 1, Subpart
I), with specific regard to antenna sitting and human exposure to radio frequency radiation. For further
guidance, consult the FCC Rules, your service provider, or Enfora.
Compliance with FCC Regulations
The Federal Communications Commission (FCC) is the agency of the Federal Government that oversees all
non-governmental radio frequency transmitters that operate within the United States. Unintentional
emissions from digital devices are regulated by Part 15 of the FCC Rules and Regulations, which
distinguishes between the environments in which these devices may operate. Intentional radiators operating
as a PCS-1900 radio transmitter are regulated under Part 24, Subpart E—Broadband PCS of the FCC Rules
and Regulations.
Integration Guide
Version 0.03
EDG0100PB003 Page 55 0.03 – 4/19/05
Unintentional Radiators, Part 15
Equipment designated as Class A is intended for use in a commercial, industrial or business environment.
The Enfora Enabler II-E module has been tested and found to comply with the limits for a Class A digital
device and can be integrated into equipment or applications intended for use in commercial, industrial or
business environments.
The following statement must be included in the user manual for such products:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Equipment intended for use in a residential environment (not-withstanding use in commercial, industrial or
business environments) is designated as Class B. The Enfora Enabler II-E module has been tested and
found to comply with the limits for a Class B digital device and can be integrated into equipment or
applications intended for use in residential environments.
The following statement must be included in the user manual for such products:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Intentional Radiators, Part 24
Products incorporating the Enfora Enabler II-E transceiver operate as Personal Communications Services
(PCS) devices under the authority of Part 24, Subpart E—Broadband PCS, of the FCC Rules and
Regulations. All such transmitters must be authorized by the FCC through its Certification process, as
detailed in Part 2, Subpart J - Equipment Authorization Procedures. Through the Certification process, the
FCC verifies that the product complies with all applicable regulatory and technical requirements, including
those that address human exposure to radio frequency radiation. In general, radio frequency transmitters
cannot be sold or operated in the US prior to FCC approval.
Integration Guide
Version 0.03
EDG0100PB003 Page 56 0.03 – 4/19/05
Instructions to the Original Equipment Manufacturer (OEM)
To comply with the requirements of the National Environmental Policy Act (NEPA) of 1969, operation of an
FCC-regulated transmitter may not result in human exposure to radio frequency radiation in excess of the
applicable health and safety guidelines established by the FCC. Further information on RF exposure issues
may be found in the FCC's Office of Engineering and Technology (OET) Bulletin Number 65, "Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields" and
Supplement C, "Additional Information for Evaluating Compliance of Mobile and Portable devices with FCC
Limits for Human Exposure to Radio Frequency Emissions.” Both of these documents are available via the
Internet at the OET web site: http://www.fcc.gov/oet
The Enfora Enabler II-E products are GSM radio transceivers, which operate under the authority of 47 CFR
Part 24, Subpart E of the FCC Rules and Regulations. When installed and operated in accordance with the
instructions provided in this manual, these devices comply with current FCC regulations regarding human
exposure to radio frequency radiation.
The following installation and operation restrictions apply to all Enfora Enabler II-E products:
• This device may only be used in fixed and mobile applications.
• Portable applications, as defined by the FCC, are prohibited.
• The use of this device for desktop and other applications where the antenna can easily be
relocated are considered by the FCC to be mobile applications.
• A separation distance of at least 20 cm (7.87 inches) between the antenna and the body
of the user and other persons must be maintained at all times
• In FIXED applications, antenna gain is limited to a maximum of 7 dBi, with a
corresponding Equivalent Isotropic Radiated Power (EIRP) of 37 dBm / 5 W.
• In MOBILE applications, antenna gain is limited to a maximum of 3 dBi, with a
corresponding EIRP of 33 dBm / 2 W.
• End products must provide instructions to ensure compliance with radio frequency
radiation exposure requirements.
• A warning label visible to all persons exposed to the antenna and identical to that
described in this manual must be displayed on or next to the antenna.
• Separate FCC approval for RF exposure compliance is required for end products that do
not meet these conditions.
Antenna gain is defined as gain in dBi (dB referenced to an isotropic radiator) minus cabling loss.
Integration Guide
Version 0.03
EDG0100PB003 Page 57 0.03 – 4/19/05
Note: Additional care must be taken by the installer and/or user of the Enfora Enabler II-E products to
ensure proper antenna selection and installation. Adherence to the above conditions is necessary to comply
with FCC requirements for safe operation regarding exposure to RF radiation.
Depending upon the application and type of product into which the Enfora Enabler II-E module has been
incorporated, specific OEM actions and responsibilities required to meet these conditions vary. However, in
all cases the primary concern is to ensure compliance with current FCC guidelines and regulations that limit
human exposure to radio frequency radiation.
Definitions
For the purpose of determining compliance with current FCC rules addressing human exposure to
radio frequency radiation, the FCC has established the following three categories of transmitting
devices:
• Portable Devices – devices where the antenna is located within 20 cm (7.87 inches) of
any person, including the user, if applicable. Portable devices operating under the
authority of Part 24 (broadband PCS) are limited to a maximum of 2 W EIRP.
• Mobile Devices – devices designed to be used in other than fixed locations and generally
such that the antenna is located at a minimum of 20 cm (7.87 inches) from any person,
including the user, if applicable. Mobile devices operating under the authority of Part 24
(broadband PCS) are limited to a maximum of 2 W EIRP.
• Fixed devices – devices in which the antenna, either integral to the product or remotely
located, is physically secured at one location and is not able to be easily moved to another
location.
Integration Guide
Version 0.03
EDG0100PB003 Page 58 0.03 – 4/19/05
OEM Responsibilities for All Products Containing the Enabler II-E
In addition to any other regulatory requirements, OEMs and integrators must include or provide the following
information, instructions, warnings and labels with any device or product into which the Enfora Enabler II-E
PCS-1900 GSM transceiver has been incorporated:
Information Description
Detailed Operating
Instructions for
ensuring compliance
with current FCC
guidelines which limit
human exposure to
radio frequency
radiation
The OEM must provide an operating/installation manual with the final product which
clearly indicates that these operating conditions and restrictions must be observed
at all times to ensure compliance with current FCC guidelines which limit human
exposure to radio frequency radiation.
20 cm (7.87 inch) separation distance between the antenna and all persons must be
maintained at all times for all fixed and mobile products and applications
Portable devices and applications are prohibited unless such devices and products
are specifically authorized by the FCC
Maximum antenna gain is limited to 3 dBi* in mobile products and applications
Maximum antenna gain is limited to 7 dBi* in fixed products and applications.
Modifications and/or additions to the Enfora Enabler II-E GSM transceiver, including
use of antennas with higher gain than those authorized by the FCC, are prohibited
*dBi = antenna gain in dB relative to an isotropic radiator
Antenna Avoidance
Label
Attach the following warning label directly to
or displayed next to the antenna.
Furthermore, this label must be visible to
and easily readable by all persons in the
immediate vicinity of the antenna
WARNING
To comply with FCC RF exposure
requirements, a separation
distance of 20 cm (7.87”) or more
must be maintained between this
antenna and all persons
Human Exposure
Compliance
Statement
Include the following statement in the
instruction / operation manual.
Enfora certifies that the Enfora
Enabler II-E ™ MHz GSM Radio
Module (FCC ID: TBD) complies with
the RF hazard requirements
applicable to broadband PCS
equipment operating under the
authority of 47 CFR Part 24, Subpart
E of the FCC Rules and Regulations.
This certification is contingent upon
installation, operation and use of the
Enfora Enabler II-E and its host
product in accordance with all
instructions provided to both the
OEM and end used. When installed
and operated in a manner consistent
with the instructions provided, the
Enfora Enabler II-E meets the
maximum permissible exposure
(MPE) limits for general population /
uncontrolled exposure at defined in
Section 1.1310 of the FCC Rules
and Regulations.
Integration Guide
Version 0.03
EDG0100PB003 Page 59 0.03 – 4/19/05
Specific OEM Responsibilities for Portable Products and Applications
Each device or product, into which the Enfora Enabler II-E GSM transceiver has been incorporated, and
which is intended to be used in an application that meets the definition of "portable" MUST be separately
authorized by the FCC for the purposes of determining compliance with current FCC guidelines limiting
human exposure to radio frequency radiation.
Portable devices must be evaluated for RF exposure based on Specific Absorption Rate (SAR) limits; further
information on such evaluations are available from the FCC via the Internet.
Specific OEM Responsibilities for Mobile Products and Applications
Separate or additional FCC approvals are NOT required for devices or products, into which the Enfora
Enabler II-E GSM transceiver has been incorporated, that are used in applications that meet the definition
of "mobile."
For all end products, the OEM or integrator must provide instructions, warnings and labels to ensure that the
product complies with current FCC guidelines limiting human exposure to radio frequency radiation.
Current FCC regulations limit the EIRP of mobile devices to 2 W. Because the nominal RF output power of
the Enfora Enabler II-E GSM transceiver is 1.0 W (30 dBm), antenna gain for mobile products and
applications cannot exceed 3 dBi.
Specific OEM Responsibilities for Fixed Products and Applications
Separate or additional FCC approvals are not required for devices or products, into which the Enfora
Enabler II-E GSM transceiver has been incorporated, that are used in applications that meet the definition of
"fixed.”
For all end products, the OEM or integrator must provide the instructions, warnings and labels to ensure that
the product complies with current FCC guidelines limiting human exposure to radio frequency radiation.
Separate or additional FCC approvals are required for devices or end products used in fixed applications
where antenna gain in excess of 7dBi is desired.
Nationally Recognized Testing Laboratory (NRTL) Approval
The Enfora Enabler II-E module has been tested by an NRTL and approved as a component for
incorporation into OEM products. The final product and application that incorporates the Enfora Enabler II-E
module will require separate verification of product safety approval.
Integration Guide
Version 0.03
EDG0100PB003 Page 60 0.03 – 4/19/05
EMC/Safety Requirements for the Countries of the European Union (EU)
The European Union (EU) is comprised of fifteen countries that follow a harmonized set of standards,
utilizing the CE mark as a uniform mark of acceptance. The member countries are:
• Austria
• Belgium
• Cyprus *
• CzechRepublic*
• Denmark
• Estonia*
• Finland
• France
• Germany
• Greece
• Hungary*
• Ireland
• Italy
• Latvia*
• Lithuania*
• Luxembourg
• Malta*
• The Netherlands
• Poland*
• Portugal
• Slovakia*
• Slovenia*
• Spain
• Sweden
• United Kingdom
* As of May 1st 2004
EMC/Safety Requirements for Other Countries
In most other countries that have not been listed above there are similar rules and regulations that must be
met for importing the Enfora Enabler II-E module. Each may require a different mark of approval (for
example, the CB Scheme) as an acceptance requirement. For each of these cases the country should
identified, and the appropriate steps should be taken to meet the requirements set forth in the intended
market.
Integration Guide
Version 0.03
EDG0100PB003 Page 61 0.03 – 4/19/05
APPENDIX C - Glossary and Acronyms
API Application Programming Interface.
App Application Refers to the Application which sends or receives commands/responses from the
Enfora Enabler II-E Module
AT Command Set Commands issued by intelligent device to a modem to perform functions, such as
to initiate call, to answer call, or to transmit data.
BER
Bit Error Rate
Bit Error Rate
CMUX Multiplexer protocol that operates between an MS and a TE and allows a number
of simultaneous sessions over a normal serial asynchronous interface
CPE
Customer Premise Equipment
A terminal in fixed location on the customer’s premises.
CSD
Circuit Switched Data
Data link from a terminal through the network allowing real-time, duplex
connectivity at 9600 bytes/second.
Dbi Decibels referenced to an isotropic radiator
DCE
Data Communications
Equipment
Data Communications Equipment
DCS
Digital Cellular System
A collection of services and capabilities providing flexibility of access and mobility
through a combination of wireless and wire-line networks, utilizing the 1800 MHz
bandwidth.
DTE
Data Terminal Equipment
Data Terminal Equipment
EDGE
Enhanced Data rates for GSM
Evolution
An alternate acronym for EGPRS
EFR
Enhanced Full Rate
Voice (vocoder) compression algorithms which offer the highest quality voice
communication.
EGPRS
Enhanced General Packet Radio
Service
An advancement on GPRS using alternate coding schemes to gain increased data
throughput than GPRS.
EIR
Equipment Identity Register
A database used to store International Mobile Equipment Identity (IMEI) of a locally
issued terminal.
EIRP
Equivalent Isotropic Radiated
Power
In a given direction, the gain of a transmitting antenna multiplied by the net power
accepted by the antenna from the connected transmitter.
EMC
Electromagnetic Compatibility
The ability of a device to function satisfactorily in its electromagnetic environment
without inducing intolerable disturbance to that environment (or to other devices)
ESD
Electrostatic Discharge
Static electricity that can damage electronic equipment.
EU
European Union
An organization of 15 European states whose purpose is to organize relations
between the Member States and between their peoples.
FTA
Full Type Approval
GSM Full Type Approval
GPRS
General Packet Radio Service
Standard for packet communications utilizing Global Standard for Mobility (GSM)
infrastructure.
GSM
Global System for Mobile
Communications
Standard for digital communications. Allows consistent communications in various
parts of the world despite variations in RF spectrum allocations. Transferring the
SIM (see below) permits users to roam by changing terminal equipment.
HLR
Home Location Register
Stores the identity and user data for all subscribers belonging to the area of the
related MSC.
IMEI
International Mobile
Equipment Identity
A unique number for each GSM Terminal tracked by the GSM operators in their
Equipment Identity Register (EIR) database.
IMSI
International Mobile
Subscriber Identification
A unique number identifying the subscriber stored in the SIM card. Number is
used in conjunction with the network for call routing.
Ki A secret code used in authentication and encryption by the terminal.
Integration Guide
Version 0.03
EDG0100PB003 Page 62 0.03 – 4/19/05
MO
Mobile Originated
Any GSM/GPRS service originated at the mobile terminal.
MT
Mobile Terminated
Any GSM/GPRS service originated from or routed through the network and sent to
the mobile terminal.
MSC
Mobile Switching Center
The central switch of the GSM network. Performs call routing, collects call detail
records for billing, and supervises system operations.
Non-Transparent Mode Delivers a constantly low error rate but with a non-guaranteed throughput or delay.
The Non-Transparent service provides a performance that is closest to using a
modem over a fixed PSTN line.
NRTL
Nationally Recognized Test
Laboratory
OSHA-approved Nationally Recognized Testing Laboratory
OEM Original Equipment Manufacturer.
PA Power Amplifier.
Packet A collection of data transmitted over a digital network in a burst.
PCS Personal Communication Services.
PDA Personal Digital Assistant.
PDU Packet Data Unit.
PPP Point-To-Point Protocol.
SIM Subscriber Identity Module.
SMS Short Message Service.
SMSC Short Message Service Center.
UDP User Datagram Protocol.
Integration Guide
Version 0.03
EDG0100PB003 Page 63 0.03 – 4/19/05
APPENDIX D – Tables And Figures
TABLES
Table 1 - Enabler II-E Key Features.............................................................................................................. 12
Table 2 - Enabler II-E Pin Assignments......................................................................................................... 24
Table 3 - Modem Library Configurations ....................................................................................................... 42
FIGURES
Figure 1 Applications Using the Enfora Enabler II-E module in a GSM/GPRS/EGPRS Network .................. 14
Figure 2 Enabler II-E Module Block Diagram ................................................................................................ 15
Figure 3 Enabler II-E Package Dimensions (without integrated SIM carrier)................................................. 19
Figure 4 Enabler II-E Package Dimensions (with integrated SIM carrier)...................................................... 20
Figure 5 Vertical Enabler II-E Mounting......................................................................................................... 21
Figure 6 Enabler II-E Mounting Tabs............................................................................................................ 21
Figure 7 Pin Orientation ................................................................................................................................ 22
Figure 8 Ring Indicate Timing........................................................................................................................ 26
Figure 12 Enabler II-E Serial Interface .......................................................................................................... 28
Figure 13 Audio Reference............................................................................................................................ 32
Figure 14 Remote SIM Interface ................................................................................................................... 34
Figure 15 UDP-API Structure ........................................................................................................................ 40
Figure 16 Library Layout ............................................................................................................................... 42
Figure 17 Using Port Library.......................................................................................................................... 43
Figure 18 Using Messaging Library............................................................................................................... 43
Figure 19 Using Modem Library .................................................................................................................... 44
Figure 20 HyperTerminal Definition............................................................................................................... 45
Figure 21 COM Port Settings ........................................................................................................................ 46
Integration Guide
Version 0.03
EDG0100PB003 Page 64 0.03 – 4/19/05
APPENDIX E - Contacting Enfora
For technical support and customer service dealing with the modem itself,
contact the company where you purchased the product. If you purchased the
product directly from Enfora, visit the SUPPORT page on the Enfora website:
http://www.enfora.com.
