GSM0128 User Manual HTML Version

Users Manual

Enfora Enabler IIG Quad-Band

GSM/GPRS Radio Modem

Integration Guide

Version Draft

Integration Guide:

GSM0128IG001

GSM Modem Integration Guide

Revision Draft

GSM0128IG001 i Version Draft – 9/22/08

Document Title: Enfora Enabler IIG Quad Band GSM/GPRS Modem

Integration Guide

Version: Draft

Date: 9/22/08

Status: Draft

Document Control ID: GSM0128IG001

General

All efforts have been made to ensure the accuracy of material provided in this document at

the time of release. However, the items described in this document are subject to continuous

development and improvement. All specifications are subject to change without notice and

do not represent a commitment on the part of Enfora, Inc. Enfora, Inc. will not be responsible

for any loss or damages incurred related to the use of information contained in this document.

This product is not intended for use in life support appliances, devices or systems where a

malfunction of the product can reasonably be expected to result in personal injury. Enfora,

Inc. customers using, integrating, and/or selling this product for use in such applications do so

at their own risk and agree to fully indemnify Enfora, Inc. for any damages resulting from

illegal use or resale.

Complying with all applicable copyright laws is the responsibility of the user. Without limiting

the rights under copyright, no part of this document may be reproduced, stored in or

introduced into a retrieval system, or transmitted in any form or by any means (electronic,

mechanical, photocopying, recording or otherwise), or for any purpose, without the express

written permission of Enfora, Inc.

Enfora may have patents, patent applications, trademarks, copyrights or other intellectual

property rights covering subject matter in this document. Except as expressly provided in any

written license agreement from Enfora, the furnishing of this document does not give you any

license to these patents, trademarks, copyrights or other intellectual property.

Enabler and Spider are either registered trademarks or trademarks of Enfora, Inc. in the

United States.

GSM Modem Integration Guide

Revision Draft

GSM0128IG001 ii Version Draft – 9/22/08

1.0SAFETY PRECAUTIONS ................................................................................................................................. 5

1.1IMPORTANT SAFETY INFORMATION ..................................................................................................................... 5

2.0REGULATORY COMPLIANCE FCC ............................................................................................................ 5

2.1INTEGRATION CONSIDERATIONS AND INSTALLATION REQUIREMENTS ................................................................. 5

2.2DISCLAIMER ....................................................................................................................................................... 7

3.0MANUAL OVERVIEW ..................................................................................................................................... 8

3.1REVISION HISTORY ............................................................................................................................................. 8

3.2REFERENCE DOCUMENTS .................................................................................................................................... 9

Enfora Enabler IIG Product Documentation ............................................................................................................ 9

GSM and PCS Device Specifications ........................................................................................................................ 9

US Government ......................................................................................................................................................... 9

Federal Communications Commission (FCC) .......................................................................................................... 9

FCC Office of Engineering and Technology (OET) .................................................................................................. 9

Environmental Regulations ....................................................................................................................................... 9

Mechanical Specifications ........................................................................................................................................ 9

RF and EMI Specifications ..................................................................................................................................... 10

4.0INTRODUCTION ............................................................................................................................................. 11

4.1PRODUCT OVERVIEW ........................................................................................................................................ 11

4.2KEY FEATURES OF THE GSM/GPRS OEM MODULE ......................................................................................... 11

4.3PROVIDING MULTI-BAND OPERATION .............................................................................................................. 12

4.4WIRELESS DATA APPLICATION POSSIBILITIES ................................................................................................... 12

4.5GSM/GPRS SYSTEM OVERVIEW ...................................................................................................................... 13

4.6SUMMARY OF THE FEATURES FOR THE ENFORA ENABLER IIG RADIO MODULE ................................................. 15

4.7GENERAL LAYOUT GUIDELINES FOR ENFORA GSM MODULES ............................................................................ 17

5.0TECHNICAL SPECIFICATIONS .................................................................................................................. 18

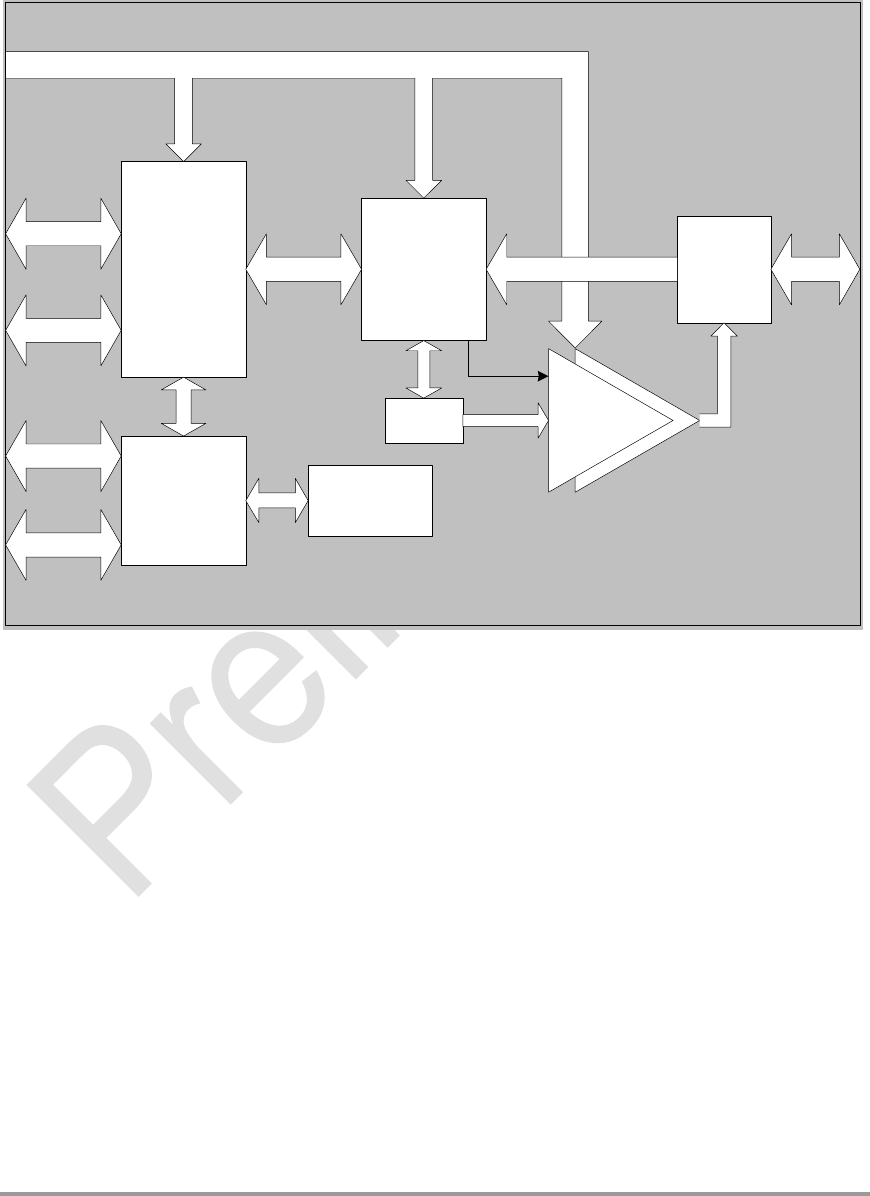

5.1ENABLER IIG MODULE BLOCK DIAGRAM ......................................................................................................... 18

5.2DETAILED PRODUCT SPECIFICATIONS ............................................................................................................... 19

Physical Dimensions and Weight ............................................................................................................................ 19

Climatic: Operational ............................................................................................................................................. 19

Climatic: Storage and Transportation .................................................................................................................... 19

Mechanical: Operational ........................................................................................................................................ 19

Mechanical: Storage and Transportation ............................................................................................................... 19

Mechanical: Proposed Standards ........................................................................................................................... 19

Electromagnetic Emissions ..................................................................................................................................... 19

Electromagnetic Immunity ...................................................................................................................................... 19

(per ETSI ETS 300 342-1) ....................................................................................................................................... 19

5.3OPERATING POWER .......................................................................................................................................... 20

5.3.1GSM Operating Power ............................................................................................................................ 20

5.3.2GPRS Operating Power .......................................................................................................................... 20

5.4Transmit Power ........................................................................................................................................... 21

5.5Receiver Sensitivity ..................................................................................................................................... 21

5.6Radio Power/Reset ...................................................................................................................................... 21

6.0PHYSICAL INTERFACES ............................................................................................................................. 22

6.1PHYSICAL LAYOUT ........................................................................................................................................... 22

6.2ENABLER IIG MOUNTING REFERENCE .............................................................................................................. 24

6.3MODULE PIN ORIENTATION REFERENCE ........................................................................................................... 25

6.4CONNECTORS ................................................................................................................................................... 25

6.4.1Enabler IIG I/O Control Connector ........................................................................................................ 25

6.4.2PCB Integration I/O Control Connector ................................................................................................. 25

6.5I/O SIGNAL CONNECTOR ON THE ENFORA ENABLER IIG MODULE .................................................................... 25

6.5.1I/O Connector Pin Assignments .............................................................................................................. 26

6.6CIRCUIT PROTECTION ....................................................................................................................................... 27

6.7ANTENNA ......................................................................................................................................................... 27

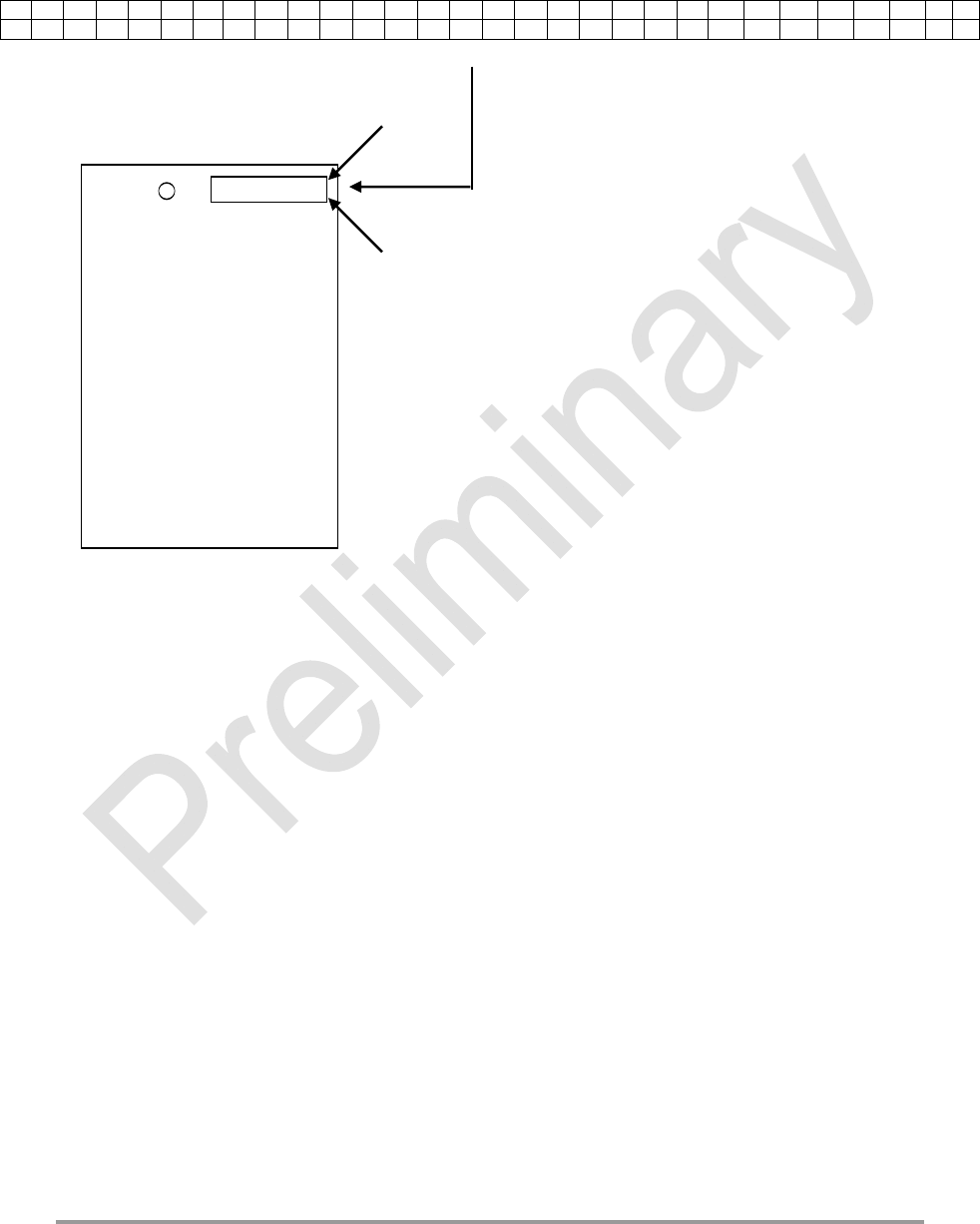

6.7.1Antenna Solder Pads ............................................................................................................................... 27

GSM Modem Integration Guide

Revision Draft

GSM0128IG001 iii Version Draft – 9/22/08

6.7.2RF Connector .......................................................................................................................................... 28

6.8CONTROL CONNECTOR SIGNAL DESCRIPTIONS AND FUNCTIONS ........................................................................ 28

6.8.1Input Power ............................................................................................................................................. 28

6.8.2Ring Indicate (Pin 49) ............................................................................................................................. 29

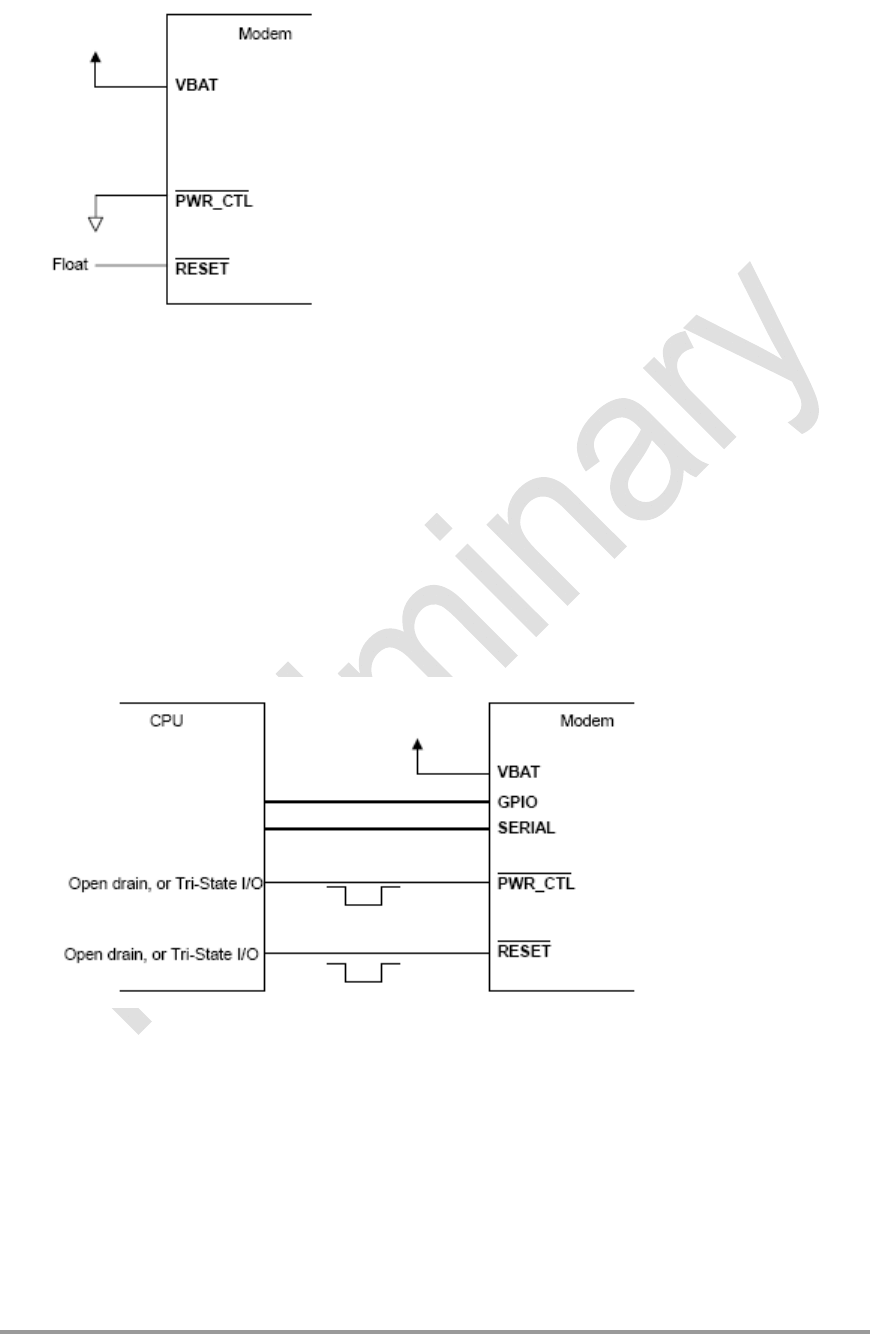

6.8.3Radio Power/Reset (Pin 22) .................................................................................................................... 30

6.8.4Using the Power Control Signal (Pin 24) ............................................................................................... 30

6.8.4.1Turning ON the Enabler IIG ................................................................................................................... 31

6.8.4.2Turning OFF the Enabler IIG ................................................................................................................. 31

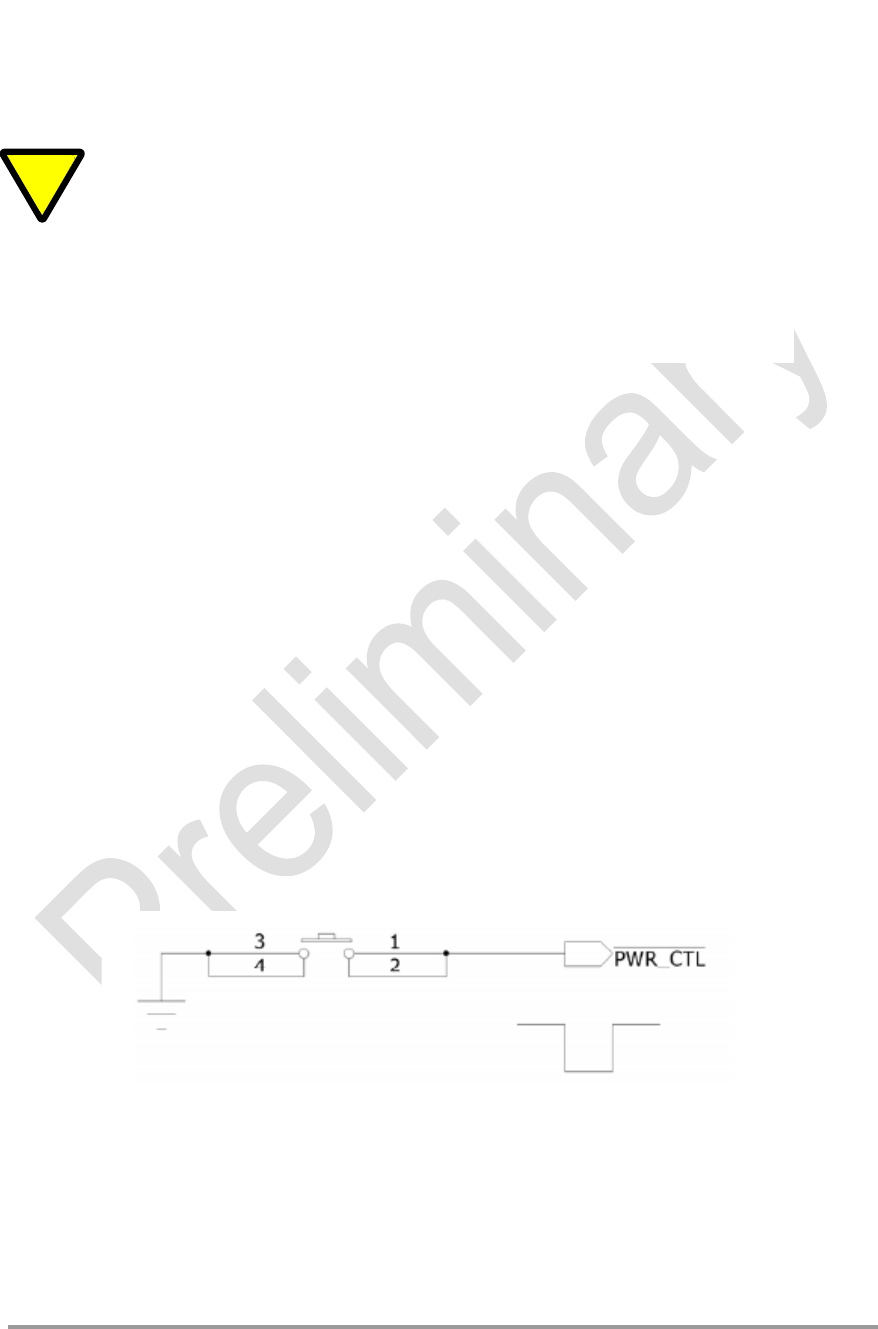

6.8.4.3Using the Power Control Signal ............................................................................................................. 31

6.8.5Using VBAK (pin 36) .............................................................................................................................. 34

6.8.6System Shutdown Methods ...................................................................................................................... 35

6.8.7Serial Interface (9 Pin I/F) (Pins 41, 43, 45, 47, 49, 51, 53, 55, 57) ....................................................... 37

6.9GENERAL PURPOSE INPUT/OUTPUT INTERFACE (GPIO) (PINS 14, 18, 27, 28, 30, 32, 34, 39) ............................. 38

6.9.1Analog-To-Digital Input (Pin 56) ........................................................................................................... 38

6.9.2Handset Microphone Input (Pins 17, 21, 25) .......................................................................................... 38

6.9.3Handset Speaker Output (Pins 9, 13) ...................................................................................................... 39

6.9.4Headset Microphone Input (Pin 42) ........................................................................................................ 39

6.9.5Headset Speaker Output (Pin38) ............................................................................................................. 40

6.9.6Audio Design Note .................................................................................................................................. 41

6.10SUBSCRIBER IDENTITY MODULE (SIM) CARRIER (PINS 48, 52, 54, 55) ............................................................. 42

6.10.1SIM Integration for the Enfora Enabler IIG Module .............................................................................. 42

6.10.2Using a Remote SIM with the Enfora Enabler IIG Module ..................................................................... 43

6.10.2.1Remote SIM Component Information .................................................................................................. 43

7.0MODES OF OPERATION .............................................................................................................................. 44

7.1ENABLING THE TRANSMISSION MODES FOR THE GSM/GPRS SERVICES............................................................ 44

7.2VOICE COMMUNICATION .................................................................................................................................. 44

7.3SMS: SHORT MESSAGE SERVICES .................................................................................................................... 45

7.4SMS FEATURES SUPPORTED BY THE ENFORA ENABLER IIG MODULE ............................................................... 45

8.0SIM OPERATION ............................................................................................................................................ 46

8.1PROVISIONING THE SIM ................................................................................................................................... 46

8.2GSM SERVICES SUPPORTED BY THE ENFORA ENABLER IIG MODULE ............................................................... 46

8.3GPRS SERVICES SUPPORTED BY THE ENFORA ENABLER IIG MODULE .............................................................. 46

8.4SELECTING THE MODES OF OPERATION............................................................................................................. 47

9.0SOFTWARE INTERFACE ............................................................................................................................. 48

9.1SOFTWARE INTERFACE ..................................................................................................................................... 48

9.2FORMAT FOR THE AT COMMANDS .................................................................................................................... 48

9.3ENFORA AT COMMAND SET ............................................................................................................................. 49

9.4ENFORA PACKET APPLICATION PROGRAMMING INTERFACE .............................................................................. 49

9.4.1UDP-API Architecture ............................................................................................................................ 49

9.5ENFORA MODEM CONTROL LIBRARY ARCHITECTURE ....................................................................................... 51 

9.5.1Using Port Library .................................................................................................................................. 52

9.5.2Using Messaging Library ........................................................................................................................ 52

9.5.3Using Modem Library ............................................................................................................................. 53

10.0SETUP AND INITIALIZATION .................................................................................................................... 54

10.1GENERAL SETUP ............................................................................................................................................... 54

10.1.1HyperTerminal Configuration for Enabler IIG ....................................................................................... 54

10.1.2Initialization (AT Command Interface) ................................................................................................... 55

10.1.3Initial Response to the AT Command ...................................................................................................... 56

10.1.4Sending an Initialization String to the Enfora Enabler IIG Module ........................................................ 56

10.1.5Setting Up the Communication Mode for the Enfora Enabler IIG Module ............................................. 56

11.0INTEGRATION AND TESTING .................................................................................................................... 57

INTEGRATING THE ENFORA ENABLER IIG MODULE ...................................................................................................... 57

APPENDIX A - LIMITED WARRANTY .................................................................................................................. 59

SCOPE .......................................................................................................................................................................... 59

HARDWARE .................................................................................................................................................................. 59

GSM Modem Integration Guide

Revision Draft

GSM0128IG001 iv Version Draft – 9/22/08

SOFTWARE ................................................................................................................................................................... 59

OTHER CONSIDERATIONS ............................................................................................................................................. 60

APPENDIX B - REGULATIONS AND COMPLIANCE .......................................................................................... 61

GCF/PTCRB APPROVAL (FORMERLY FTA) ................................................................................................................ 61

ELECTROMAGNETIC COMPATIBILITY (EMC) AND SAFETY REQUIREMENTS ................................................................... 61

EMC/SAFETY REQUIREMENTS FOR THE USA ............................................................................................................... 61

HUMAN EXPOSURE COMPLIANCE STATEMENT .............................................................................................................. 62

COMPLIANCE WITH FCC REGULATIONS ........................................................................................................................ 62

UNINTENTIONAL RADIATORS, PART 15 ......................................................................................................................... 63 

INTENTIONAL RADIATORS, PART 22 & 24 ..................................................................................................................... 63

INSTRUCTIONS TO THE ORIGINAL EQUIPMENT MANUFACTURER (OEM) ........................................................................ 64 

OEM Responsibilities for All Products Containing the Enabler IIIG module ......................................................... 66

Specific OEM Responsibilities for Portable Products and Applications ................................................................. 67

Specific OEM Responsibilities for Mobile Products and Applications ................................................................... 67

Specific OEM Responsibilities for Fixed Products and Applications...................................................................... 67

EMC/SAFETY REQUIREMENTS FOR THE COUNTRIES OF THE EUROPEAN UNION (EU) .................................................... 68

EMC/SAFETY REQUIREMENTS FOR OTHER COUNTRIES ................................................................................................ 68

APPENDIX C - GLOSSARY AND ACRONYMS ..................................................................................................... 69

APPENDIX D – TABLES AND FIGURES ................................................................................................................ 71

APPENDIX E - CONTACTING ENFORA ................................................................................................................ 72

GSM0128IG001 5 Revision Draft – 9/22/08

1.0 Safety Precautions

1.1 Important Safety Information

The following information applies to the devices described in this manual. Always observe all

standard and accepted safety precautions and guidelines when handling any electrical device.

 Save this manual: it contains important safety information and operating instructions.

 Do not expose the Enfora Enabler IIG product to open flames.

 Ensure that liquids do not spill into the devices.

 Do not attempt to disassemble the product: Doing so will void the warranty. With the exception

of the Subscriber Identification Module (SIM), this product does not contain consumer-

serviceable components.

2.0 Regulatory Compliance FCC

2.1 Integration Considerations and Installation Requirements

The Enabler IIG OEM GPRS modem is designed for use in a variety of host units, "enabling" the

host platform to perform wireless data communications. However, there are certain criteria relative

to integrating the modem into a host platform such as a PC, laptop, handheld or PocketPC, monitor

and control unit, etc. that must be considered to ensure continued compliance with FCC

compliance requirements.

 In order to use the Enabler IIG without additional FCC certification approvals, the installation must

meet the following conditions:

 Maximum RF output power and antenna gain to meet Maximum Permissible Exposure

Requirements: GSM850 mode: Power at antenna port is +33 dBm. The maximum gain is 1.4

dBi. GSM1900 mode: Power at antenna port is 30 dBm. The maximum gain is 7 dBi in order

to meet the requirements of maximum 2 watts EIRP for mobile transmitters. If RF power and/or

antenna gain is desired, a separate FCC certification is required.

 For the transmitter to meet the MPE categorical exclusion requirements of 2.1091, the ERP

must be less than 1.5 watts for personnel separation distance of at least 20 cm (7.9 in).

Therefore, the maximum antenna gain cannot exceed +3.3dBi. If greater than 1.5 watts exists,

then additional testing and FCC approval is required.

 If used in a "portable" application such as a handheld device with the antenna less than 20 cm

(7.9 in.) from the human body when the device is operating, then the integrator is responsible

for passing additional "as installed" testing:

 SAR (Specific Absorption Rate) testing, with results submitted to the FCC for approval

prior to selling the integrated unit. If unable to meet SAR requirements, then the host unit

must be restricted to "mobile" use (see below).

 Unintentional emissions, FCC Part 15; results do not have to be submitted to the FCC

unless requested, although the test provides substantiation for required labeling (see

below).

GSM0128IG001 6 Revision Draft – 9/22/08

 If used in a "mobile" application where the antenna is normally separated at least 20 cm

(7.9 in) from the human body during device operation, then an appropriate warning label

must be placed on the host unit adjacent to the antenna. The label should contain a

statement such as the following:

WARNING

RF exposure. Keep at least 20 cm

(7.9 in) separation distance from

the antenna and the human body.

 Host unit user manuals and other documentation must also include appropriate caution and

warning statements and information.

 If the FCCID for the modem is not visible when installed in the host platform, then a

permanently attached or marked label must be displayed on the host unit referring to the

enclosed modem.

For example, the label should contain wording such as:

Contains GSM/GPRS modem transmitter module

FCC ID: MIVGSM0128

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2)

This device must accept any interference received,

including interference that may cause undesired

operation.

Contains FCC ID: MIVGSM0128

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2)

This device must accept any interference received,

including interference that may cause undesired

operation.

Substitute MIVGSM0108 for the quad-band modem label.

 Any antenna used with the modem must be approved by the FCC or as a Class II Permissive

Change (including MPEL or SAR data as applicable). The "professional installation" provision

of FCC Part 15.203 does not apply.

 The transmitter and antenna must not be co-located or operating in conjunction with any other

antenna or transmitter. Violation of this would allow a user to plug another transmitter in to the

product and potentially create an RF exposure condition.

WARNING

The transmitter and antenna must not be collocated

or operating in conjunction with any

other antenna or transmitter. Failure to observe

this warning could produce an RF exposure

condition.

GSM0128IG001 7 Revision Draft – 9/22/08

2.2 Disclaimer

The information and instructions contained within this publication comply with all FCC, GCF,

PTCRB, RTTE, IMEI and other applicable codes that are in effect at the time of publication. Enfora

disclaims all responsibility for any act or omissions, or for breach of law, code or regulation,

including local or state codes, performed by a third party.

Enfora strongly recommends that all installations, hookups, transmissions, etc., be performed by

persons who are experienced in the fields of radio frequency technologies. Enfora acknowledges

that the installation, setup and transmission guidelines contained within this publication are

guidelines, and that each installation may have variables outside of the guidelines contained

herein. Said variables must be taken into consideration when installing or using the product, and

Enfora shall not be responsible for installations or transmissions that fall outside of the parameters

set forth in this publication.

Enfora shall not be liable for consequential or incidental damages, injury to any person or property,

anticipated or lost profits, loss of time, or other losses incurred by Customer or any third party in

connection with the installation of the Products or Customer's failure to comply with the information

and instructions contained herein.

The Enabler IIG platform is designed with features to

support a robust connection. There are instances

where the module performance is beyond the control

of the intended design. Integrated designs that require

24 by 7 operation must implement power control via an

external circuit or by implementing power management

as specified within this design guide.

GSM0128IG001 8 Revision Draft – 9/22/08

3.0 Manual Overview

This document describes the hardware interface of the Enabler IIG GSM/GPRS OEM modem. The purpose

of this document is to define the electrical, mechanical and software interfaces while providing detailed

technical information in order to streamline the process of hardware and system integration.

3.1 Revision History

Date Rev Autho

Description

08/29/08 1.00 Armando De

Jesus

Initial Release

GSM0128IG001 9 Revision Draft – 9/22/08

3.2 Reference Documents

Enfora Enabler IIG Product Documentation

Manuals

 GSM0128AT001 - Enfora GSM/GPRS OEM Module AT Command Set Reference

 GSM0308UG001 - Enfora GSM-GPRS Family API Reference

GSM and PCS Device Specifications

 GSM 11.10-1 (GSM 850, 900, and 1800 MHz devices)

 PCS 11.10 (PCS 1900 MHz devices)

US Government

Federal Communications Commission (FCC)

Internet: http://www.fcc.gov/

 FCC Rules, Part 24

 47 CFR Subpart E--Broadband PCS

 47 CFR § 24.52, sections 1.1307(b), 2.1091, and 2.1093

 FCC Rules, Part 22 for GSM 850

 FCC Rules, Part 15

 FCC Rules, Part 2

 Subpart J--Equipment Authorization Procedures

 Section 2.925

FCC Office of Engineering and Technology (OET)

Internet: http://www.fcc.gov.oet/

 Bulletin Number 65 "Evaluating Compliance with FCC Guidelines for Human Exposure to Radio

Frequency Electromagnetic Fields"

 Supplement C "Additional Information for Evaluating Compliance of Mobile and Portable Devices

with FCC Limits for Exposure to Radio Frequency Emissions"

Environmental Regulations

 National Environmental Policy Act (NEPA) of 1969 (Part 1, Subpart 1)

Mechanical Specifications

 ASTM D999

 ASTM D775

 IEC 68-2-27

 Bellcore Gr-63-CORE

 ETS 300 019-1-1 Class 1.2

 ETS 300 019-1-2 Class 2.1

 ETS 300 019-1-3 Class 3.1

GSM0128IG001 10 Revision Draft – 9/22/08

RF and EMI Specifications

 ETSI Standards

 EN 61000-4-6

 EN 61000-4-3

 GSM 11.10, Section 12.2

 EN 55022 Class B

GSM0128IG001 11 Revision Draft – 9/22/08

4.0 Introduction

4.1 Product Overview

Enfora Enabler IIG GSM/GPRS Radio modem is a compact, wireless OEM module that utilizes the Global

System for Mobile Communications (GSM) and GPRS (General Packet Radio Services) international

communications standard to provide two-way wireless capabilities via GSM services. The Enfora Enabler

IIG module is a fully Type-approved GSM/GPRS device, enabling application-specific, two-way

communication and control. The Enfora Enabler IIG module is available in both triple and quad band

versions.

The small size of the Enfora Enabler IIG module allows it to be integrated easily into the application and

packaging.

4.2 Key Features of the GSM/GPRS OEM Module

The following table summarizes the main features of the Enfora Enabler IIG Radio Module.

Interface Data input/output interface 60 position

Primary serial port V.24 protocol, 3 V levels

Voice Supports three vocoder modes: full-rate (FR), and

enhanced full-rate (EFR), and half-rate (HR)

Antenna Interface Miniature Coaxial Interconnect

Command protocol Enfora Packet API, GSM AT command set

Subscriber Identification Module

(SIM)

Optional 1.8 / 3 V mini-SIM carrier and interface

on board

Optional remote SIM Accessible via the 60-pin connector

Power Electrical power 3.3 to 4.5 Vdc

Peak currents and average

power dissipation

Refer to the Operating Power table in the

Technical Specifications for peak currents and

average power dissipation for various modes of

operation.

Radio Features Frequency bands EGSM 900, DCS 1800, and PCS 1900 capability.

Quad band version adds GSM 850 capability.

GSM/GPRS features supported Provides for all GSM/GPRS authentication,

encryption, and frequency hopping algorithms.

GPRS Coding Schemes CS1-CS4 supported.

Multi-Slot Class 10 (4RX/2TX, Max 5 Slots).

Regulatory Agency approvals



GCF Type Approval

 PTCRB Type Approval

 FCC Certification (Part 24)

 RTTE

 CE (European Community Certification)

 IC (Industry Canada) Approval

GSM/GPRS

Functionality

 Mobile-originated and mobile-terminated SMS messages: up to 140 bytes or

up to 160 GSM 7-bit ASCII characters.

 Reception of Cell Broadcast Message

 SMS Receipt acknowledgement

 Circuit Switched Data (Transparent & Non-transparent up to 9.6 Kbps)

 Voice (EFR, FR, HR)

 Supports Unstructured Supplementary Service Data (USSD)

 Multi-Slot Class 10 Supported (4Rx/2TX), (5 Slot Max)

 PBCCH/PCCCH Supported

SIM 1.8 / 3 V Mini-Subscriber Identity Module (SIM) compatible

Table 1 - Enabler IIG Key Features

GSM0128IG001 12 Revision Draft – 9/22/08

4.3 Providing Multi-Band Operation

The Enfora Enabler IIG module provides multi-band operation, with the operating frequency selectable by

AT Command:

 The 1900 MHz Enfora Enabler IIG module is available for integration and deployment for use

worldwide, with 1900 MHz support primarily in North America and regions where the 1900 MHz

Personal Communication Services (PCS) band is allocated. The GSM0128 Quad-Band module

also supports GSM 850 for use in North America.

 The 900/1800 MHz Enfora Enabler IIG modules are available for deployment in Europe and the

rest of the world.

4.4 Wireless Data Application Possibilities

A variety of applications can use the Enfora Enabler IIG module for transmitting and receiving data and

voice, such as:

 Automated Meter Reading (AMR)

 Point of Sale Applications

 E-mail and Internet access

 Automated Vehicle Location (AVL)

 Telematics

 Telemetry

 Wireless Security

GSM0128IG001 13 Revision Draft – 9/22/08

4.5 GSM/GPRS System Overview

The Enfora Enabler IIG modules shown in Figure 1 and Figure 2 are designed for easy integration with other

components and packaging by leveraging the existing public GSM networks. Compare the Enfora Enabler

IIG to systems that require the construction, operation, maintenance, and expense of a private wireless

network.

GSM0128IG001 14 Revision Draft – 9/22/08

Figure 1 - Applications Using the Enfora Enabler IIG module in a GSM/GPRS Network

GSM0128IG001 15 Revision Draft – 9/22/08

4.6 Summary of the Features for the Enfora Enabler IIG Radio Module

The following summarizes the main features of the Enfora Enabler IIG Radio Module.

Mechanical

Dimensions ........................................................... 46.3 mm x 30.2 mm x 3.1 mm

Weight ................................................................... ≈ 2.3 oz

Packet Data Transfer:

Protocol ................................................................. GPRS Release 97 and 99 (SMG 31)

Coding Schemes ................................................... CS1-CS4

Multi-Slot Capability: (Demonstrated @MS10) .......... MS10 (4RX/2TX) (Max 5 Slots)

Packet Channel Support ....................................... PBCCH/PCCCH

Short Message Services:

GSM SMS ............................................................. MO, MT, CB, Text and PDU Modes

GPRS SMS ........................................................... MO, MT, CB, Text and PDU Modes

Voice Capability:

Speech Codec ...................................................... EFR, FR, HR, AMR

Radio Performance Multi-Band:

GSM0128 Radio Frequencies ............................... 850 (GSM), 900 (EGSM), 1800 MHz (DCS), or 1900 MHz

(PCS)

Sensitivity .............................................................. -106 dBm (Typical GPRS CS1)

850 & 900 MHz Transmit Power ........................... Class 4 (2 W)

1800 & 1900 MHz Transmit Power ....................... Class 1 (1 W)

System Requirements:

Host Interface ........................................................ Serial Interface

DC Voltage ............................................................ 3.3 to 4.5 Vdc

Application Interface:

Host Protocol ........................................................ Status API and AT Commands

Internal Protocols .................................................. UDP stack, TCP/IP stack, PPP, PAD, and CMUX

Physical Interface .................................................. Serial 16550 – Default rate 115,200 baud

Audio Interface ...................................................... 1 Headset w/ Mic & Bias, 1 Mic w/Bias, 1 Earphone

SIM Interface:

Remote SIM Option .............................................. 1.8 / 3-Volt SIM Capability

GSM0128IG001 16 Revision Draft – 9/22/08

Environmental:

Operating Temperature ........................................ -20 °C to 60 °C (Fully Spec Compliant)

Storage Temperature ............................................ -40 °C to 85 °C

Humidity ................................................................ 5 to 95% non-condensing

EMC:

Emissions .............................................................. FCC Parts 15 & 24, Class B

GSM 11.10, Section 12.2

EN 55022 Class B

FCC Part 22 for GSM 850

Susceptibility ......................................................... Per ETSI ETS 300 342-1

EN 61000-4-3

ESD 4 kV contact, 8 kV air discharge

EN 61000-4-6

Operating Power (TYPICAL):

GSM Operation

GSM 850/900 (1 RX/1 TX, full power) ................... 255mA average, 1.75 A peak

DCS 1800 (1 RX/1 TX, full power) ........................ 205 mA average, 1.3 A peak

PCS 1900 (1 RX/1 TX, full power) ........................ 205 mA average, 1.225 A peak

Idle ........................................................................ < 5 mA

Shutdown ..............................................................  50 uA

GPRS Operation

EGSM 850/900 (4 RX/1 TX, full power) ................ 275 mA average, 1.725 A peak

EGSM 850/900 (2 RX/2 TX, full power) ................ 440 mA average, 1.725 A peak

DCS 1800 (4 RX/1 TX, full power) ........................ 240 mA average, 1.325A peak

DCS 1800 (2 RX/2 TX, full power) ........................ 345 mA average, 1.325 A peak

PCS 1900 (4 RX/1 TX, full power) ........................ 240 mA average, 1.25A peak

PCS 1900 (2 RX/2 TX, full power) ........................ 340 mA average, 1. A peak

Idle ........................................................................ < 5 mA

Shutdown ..............................................................  50 uA

Transmit Power

1800/1900 MHz ..................................................... GSM Power Class 1 (30 dBm  2 dB @ antenna

connection)

850/900 MHz ......................................................... GSM Power Class 4 (33 dBm  2 dB @ antenna

connection)

Receiver Sensitivity (Typical)

1800/1900 MHz ..................................................... -106 dBm, GPRS Coding Scheme 1 (CS1)

850/900 MHz ......................................................... -106 dBm, GPRS Coding Scheme 1 (CS1)

GSM0128IG001 17 Revision Draft – 9/22/08

4.7 General layout guidelines for Enfora GSM modules

To ensure lowest possible EMI emission, maximum thermal conduction and mechanical integrity, all metal

tabs on the GSM module shield must be soldered down on to a continuous ground plane. The PCB trace

that feeds the RF output port should be 50ohm characteristic impedance, coplanar, or routed into internal

layers to keep the top layer continuous around and underneath the device. Provide ample ground vias

around metal tabs, the RF trace and launch pad. If possible, keep I/O and power traces away from the RF

port.

GSM0128IG001 18 Revision Draft – 9/22/08

5.0 Technical Specifications

5.1 Enabler IIG Module Block Diagram

Figure 2 - Enabler IIG Module Block Diagram

PWR

Digital

Baseband/

CPU

SRAM/

Flash

Memory

Analog

Baseband/

Power

Mgmt

Interface

Tri-band

VCO

Ser. Intfc.

SIM

Audio

GPIO

Analog BB Antenna

Intfc.

RX Intfc. RF

GSM0128IG001 19 Revision Draft – 9/22/08

5.2 Detailed Product Specifications

Physical Dimensions and Weight

Size (L x W x H)

46.3 mm x 30.2 mm x 3.1 mm

Weight

(Less than 2 oz.) ***** PLEASE CHECK Weight***

Climatic: Operational

Operating temperature -20°C to +60°C

Relative humidity

5 - 95%

Solar radiation Not Applicable

Air pressure (altitude) 70 kPa to 106 kPa (-400 m to 3000 m)

Climatic: Storage and Transportation

Duration 24 months

Ambient temperature -4C to +8C

Relative humidity 5% to 95%, non condensing (at 4C)

Thermal shock -5C to +2C, +7C to +2C; < 5 min

Altitude -400 m to 15,000 m

Mechanical: Operational

Operational vibration, sinusoidal

3.0 mm disp, 2 to 9 Hz; 1 m/s2 , 9 to 350 Hz

Operational vibration, random

0.1 m2 /s3 , 2 to 200 Hz

Mechanical: Storage and Transportation

Transportation vibration, packaged ASTM D999

Drop, packaged ASTM D775 method A, 10 drops

Shock, un-packaged 150 m/s2 , 11 ms, half-sine per IEC 68-2-27

Drop, un-packaged 4-inch drop per Bellcore GR-63-CORE

Mechanical: Proposed Standards

Transportation ETSI Standard ETS 300 019-1-2 Class 2.3

Transportation

Operational ETSI Standard ETS 300 019-1-3 Class 3.1

Operational

Storage ETSI Standard ETS 300 019-1-1 Class 1.2 Storage

Electromagnetic Emissions

Radiated spurious FCC Part 24 / Part 15 Class \ B

GSM 11.10 Section 12.2

EN 55022 Class B

Electromagnetic Immunity

(per ETSI ETS 300 342-1)

Radio Frequency (RF) Electromagnetic Field 3 V/m 800 – 1000 MHz; 1 kHz 80%

EN 61000-4-3

Electrostatic discharge (ESD) Contact discharge to coupling planes: ±2 kV, ±4 kV

Air discharge to coupling planes: ±2 kV, ±4 kV,

±8 kV

RF common mode 3 V rms (Level 2) 150 kHz – 80 MHz

EN 61000-4-6

GSM0128IG001 20 Revision Draft – 9/22/08

5.3 Operating Power

The Enfora Enabler IIG module requires an input voltage of 3.3 Vdc to 4.5 Vdc.

5.3.1 GSM Operating Power

GSM Operation Input Current

Band Mode Low Nom/Avg High/Peak Units

1900

1 RX/1 TX, Full Power

205 1225 mA

1800 205 1300 mA

900 245 1650 mA

850 255 1750 mA

ALL

Peaks are

based on

Average

DRX2 4.7 <5 mA

DRX5 2.65 <5

DRX9 2.1 <5

N/A Shutdown ~ 50 uA

5.3.2 GPRS Operating Power

GPRS Operation Input Current

Band Mode Low Nom/Avg High/Peak Units

1900 4 RX/1TX, Full Power 240 1250 mA

2 RX/2TX, Full Power 340 1250 mA

1 RX/1TX, Full Power 195 1225 mA

1800 4 RX/1TX, Full Power 240 1325 mA

2 RX/2TX, Full Power 345 1325 mA

1 RX/1TX, Full Power 195 1300 mA

900 4 RX/1TX, Full Power 275 1650 mA

2 RX/2TX, Full Power 425 1675 mA

1 RX/1TX, Full Power 235 1650 mA

850 4 RX/1TX, Full Power 275 1725 mA

2 RX/2TX, Full Power 440 1750 mA

1 RX/1TX, Full Power 240 1700 mA

ALL

Peaks are

based on

Average

DRX2 4.7 <5 mA

DRX5 2.65 <5 mA

DRX9 2.1 <5 mA

N/A Shutdown ~ 15 uA

GSM0128IG001 21 Revision Draft – 9/22/08

5.4 Transmit Power

Enfora Enabler IIG module Power Class Transmit Powe

1900 MHz

1800 MHz

GSM Power Class 1 1-W conducted power maximum (30

dBm +/- 2 dB), measured at the

antenna port

850 MHz

900 MHz

GSM Power Class 4 2-W conducted power maximum

(33 dBm +/- 2 dB),

measured at the antenna port

5.5 Receiver Sensitivity

Enfora Enabler IIG module Sensitivity Mode

1900 MHz

1800 MHz -106 dBm (typical) GPRS Coding Scheme 1 (CS1)

900 MHz

850 MHz -106 dBm (typical)

GPRS Coding Scheme 1 (CS1)

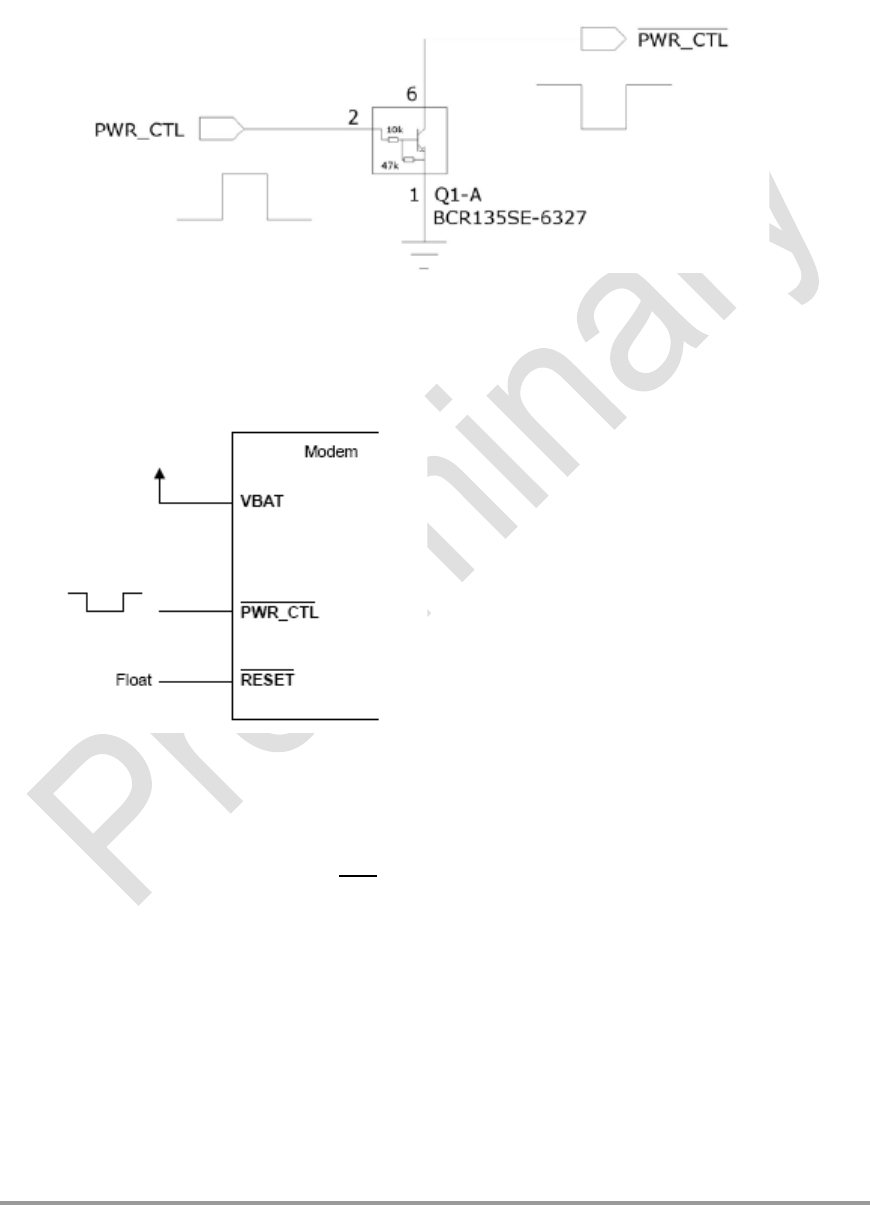

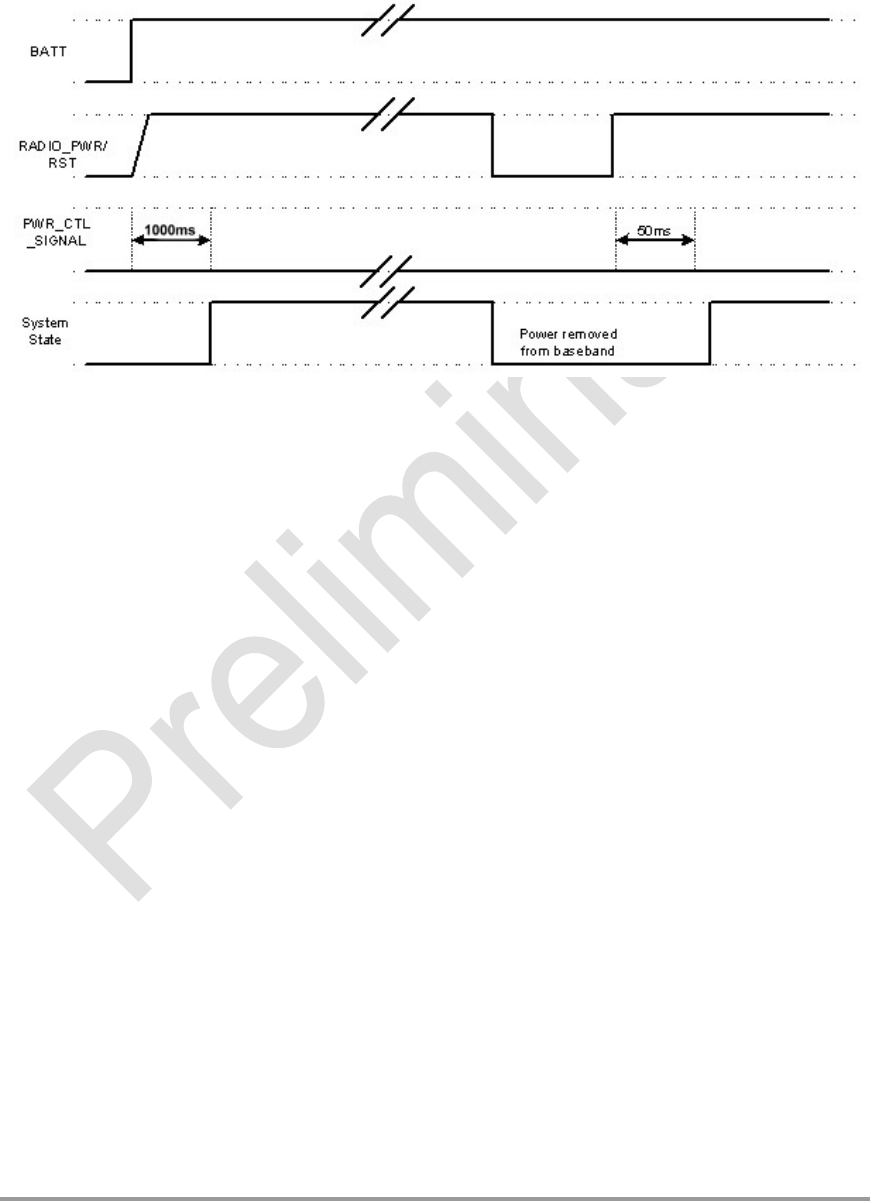

5.6 Radio Power/Reset

Low is modem OFF. High is modem ON.

Radio Power/Reset Parameter/Conditions MIN TYP MAX UNIT

VIL Input Voltage - Low -0.5 0.9 Vdc

IH Input Voltage - High 2.0 3.4 Vdc

GSM0128IG001 22 Revision Draft – 9/22/08

6.0 Physical Interfaces

6.1 Physical Layout

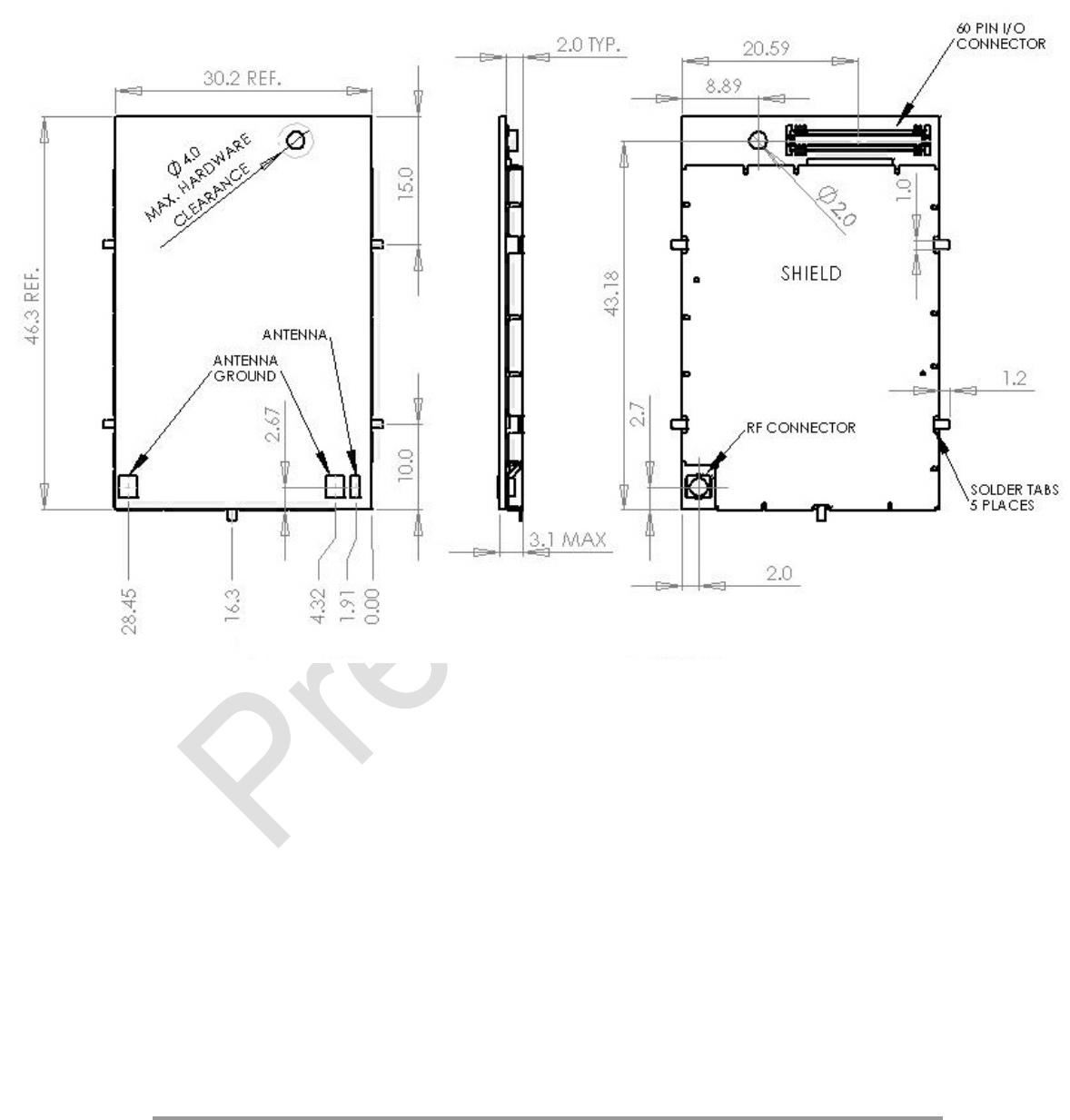

Figure 3 - Enabler IIG Package Dimensions (without integrated SIM carrier)

GSM0128IG001 23 Revision Draft – 9/22/08

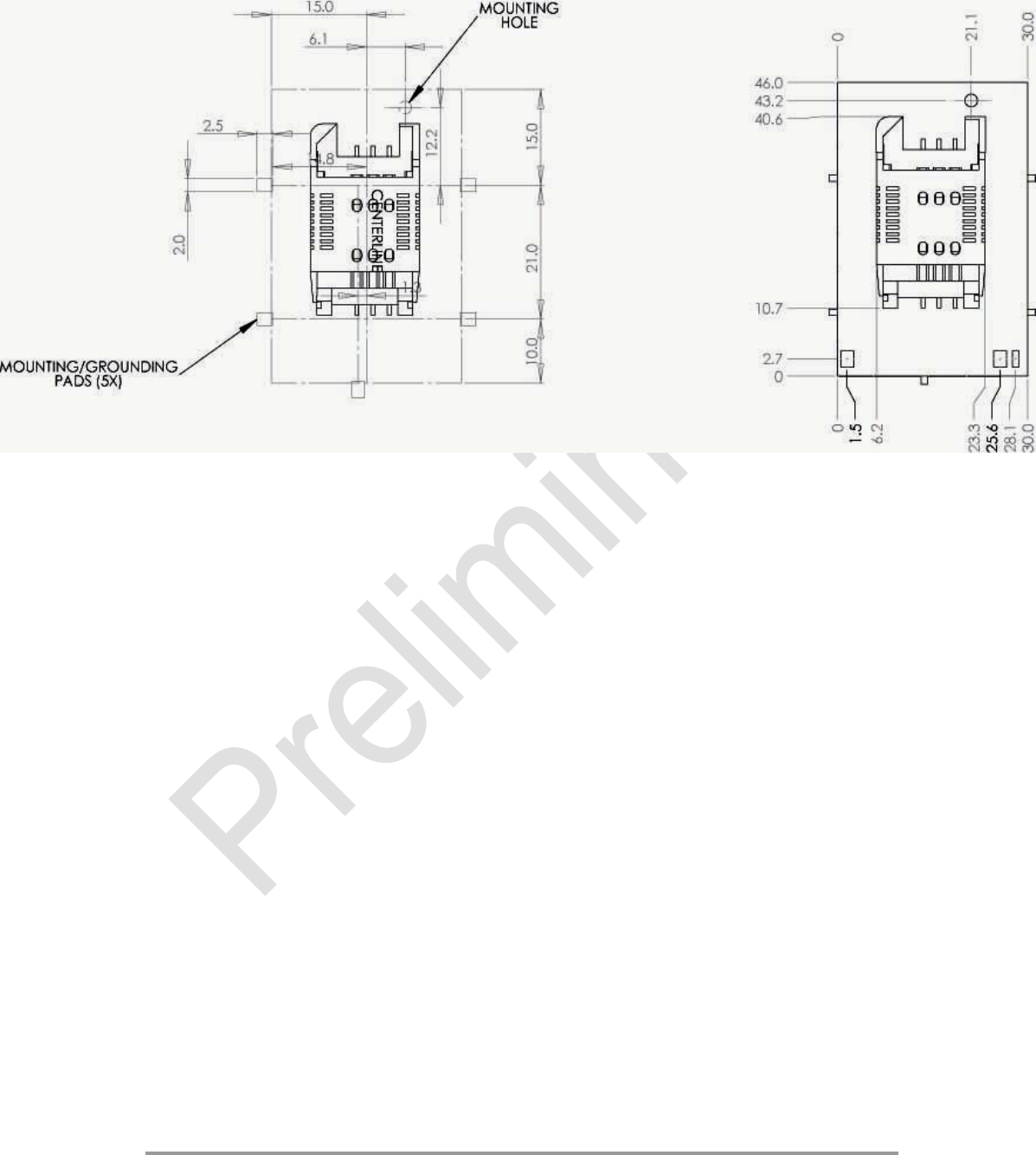

Figure 4 - Enabler IIG Package Dimensions (with integrated SIM carrier)

 Use 46.3 X 30.2 X 3.1 as overall module dimension

 Mated 60-pin I/O connector stack height is 2.0 MM

 If mounting screw is used, a nylon washer is recommended at board interface. A maximum diameter of

4.00 should be used for all fastening hardware.

 Antenna direct connect solder pad is 1.02 mm wide X 2.54 mm high.

 Antenna ground pads are 2.03 mm wide X 2.54 mm high.

GSM0128IG001 24 Revision Draft – 9/22/08

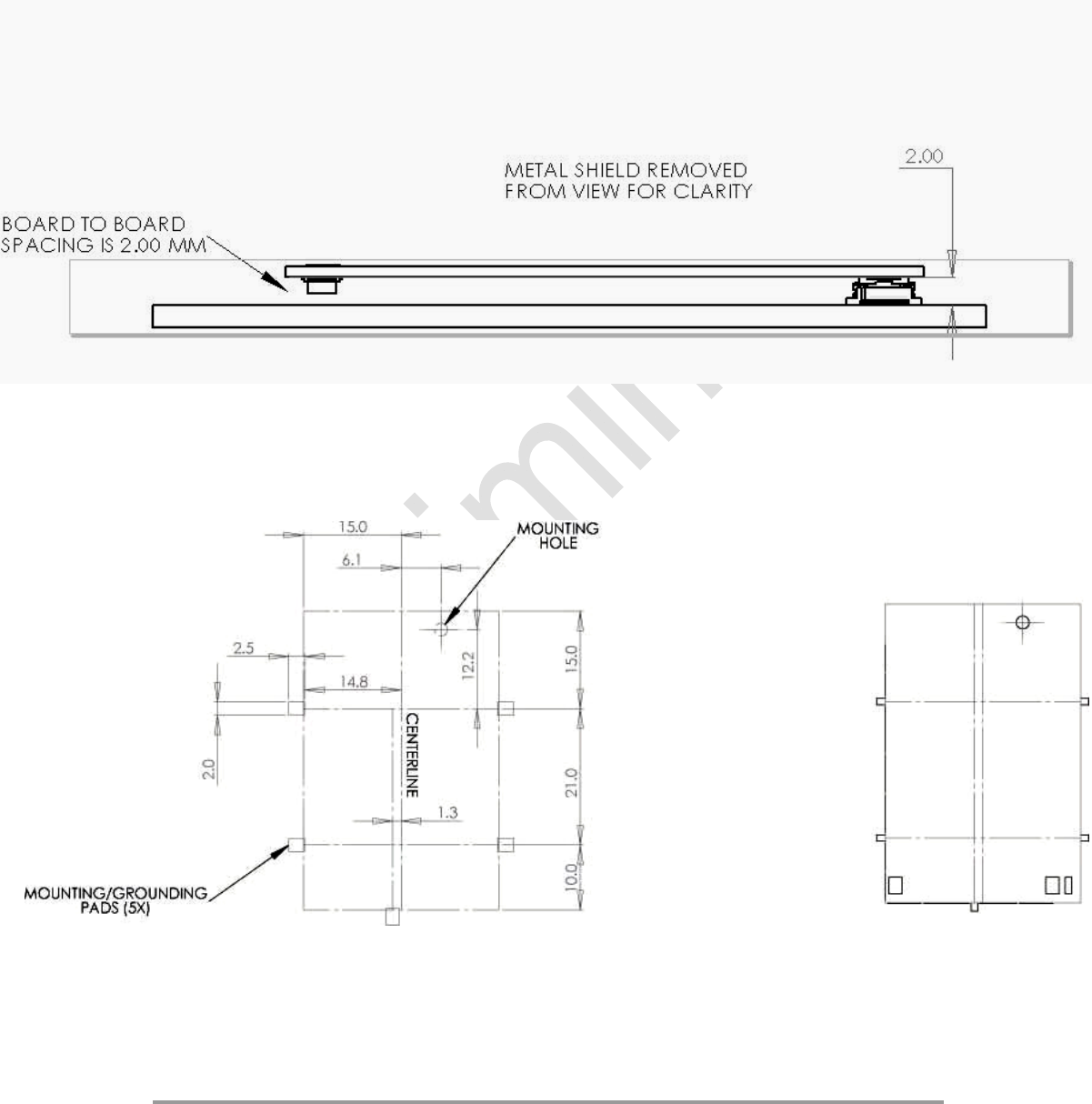

6.2 Enabler IIG Mounting Reference

Figure 5 provides Enabler IIG vertical mounting information.

Figure 5 - Vertical Enabler IIG Mounting

The Enabler IIG provides mounting tabs that can be soldered to a PCB. These tabs provide circuit

grounding for the module and their use is recommended. Figure 6 provides mounting tab reference for PCB

integration.

Figure 6 - Enabler IIG Mounting Tabs

GSM0128IG001 25 Revision Draft – 9/22/08

6.3 Module Pin Orientation Reference

59 57 55 53 51 49

7 45 43 41 39 37 35 33 31 29 27 25 23 21 19 17 15 13 11 9 7 5 3 1

60 58 56 54 52 50

8 46 44 42 40 38 36 34 32 30 28 26 24 22 20 18 16 14 12 10 8 6 4 2

Figure 7 - Module Pin Orientation

6.4 Connectors

6.4.1 Enabler IIG I/O Control Connector

The connector used to interface to the host is a 60-pin, SMT, Dual Row, Vertical Stacking: .50MM (.020")

Pitch Plug; Molex part number 53729-0604.

6.4.2 PCB Integration I/O Control Connector

The mating connector for a board mount application is a 60-pin, SMT, Dual Row, Vertical Stacking:

.50MM (.020") Pitch Receptacle; Molex part number 52974-0604.

6.5 I/O Signal Connector on the Enfora Enabler IIG Module

The Enfora Enabler IIG module communicates with the carrier board of the application via the 60-pin I/O

signal connector. The following table describes the pin assignments for the connector, sorted by pin number.

Pin 1

Pin 2

GSM0128IG001 26 Revision Draft – 9/22/08

6.5.1 I/O Connector Pin Assignments

The following table shows the pin assignments for the input/output connector. The pin assignments are

shown in order of functionality.

# FUNCTION Serial

Pin I/O ENABLER IIG Description/Comments

1 Power Input P Batt/Vcc Electrical power input to Enabler IIG module.

2 Power Input P Batt/Vcc Electrical power input to Enabler IIG module.

3 Power Input P Batt/Vcc Electrical power input to Enabler IIG module.

4 Power Input P Batt/Vcc Electrical power input to Enabler IIG module.

5 Power Input P Batt/Vcc Electrical power input to Enabler IIG module.

6 Power Input P Batt/Vcc Electrical power input to Enabler IIG module.

7 Ground R GND Electrical power return for digital and analog grounds.

8 Ground R GND Electrical power return for digital and analog grounds.

9 Handset Speaker (-) O INTERNAL_SPK(-) Handset speaker output (negative).

10 Power Input P Batt/Vcc Electrical power input to Enabler IIG module.

11 Ground R GND Electrical power return for digital and analog grounds.

12 Power Input P Batt/Vcc Electrical power input to Enabler IIG module.

13 Handset Speaker (+) O INTERNAL_SPK(+) Handset speaker output (positive).

14 GPIO-1 I/O GPIO-1 General-purpose Input/Output.

15 Ground R GND Electrical power return for digital and analog grounds.

16 Ground R GND Electrical power return for digital and analog grounds.

17 Microphone Bias O VMIC Microphone Bias.

18 GPIO-5 I/O GPIO-5 General-purpose Input/Output.

19 Ground R GND Electrical power return for digital and analog grounds.

20 Reserved Reserved for future use.

21 Handset Microphone (-) I INT_MIC(-) Handset microphone input (negative).

22 Radio Power/Reset I RADIO_PWR/RST Radio power/reset.

23 Ground R GND Electrical power return for digital and analog grounds.

24 Power Control Signal I PWR_CTL_SIGNAL Power Control Signal.

25 Handset Microphone (+) I INT_MIC(+) Handset microphone input (positive).

26 Reserved Reserved for future use.

27 GPIO-3 I/O GPIO-3 General-purpose Input/Output.

28 GPIO-2 I/O GPIO-2 General-purpose Input/Output.

29 Reserved Reserved for future use.

30 GPIO-4 I/O GPIO-4 GPIO/MCSI TX.

31 Reserved Reserved for future use.

32 GPIO-6 I/O GPIO-6 GPIO/MCSI RX.

33 Ground R GND Electrical power return for digital and analog grounds.

34 GPIO-7 I/O GPIO-7 GPIO/MCSI CLK.

35 Reserved O Reserved reserved

36 RTC Power I VBAK Modem backup power for real-time clock.

37 Reserved Reserved for future use.

38 Headset Earphone (+) O HEADSET_SPK(+) Headset Earphone (positive).

39 GPIO-8 I/O GPIO-8 GPIO8

40 Headset Microphone (-) I HEADSET_MIC(-) Headset Microphone (negative).

41 Ground 5 R GND Electrical power return for digital and analog grounds.

42 Headset Microphone (+) I HEADSET_MIC(+) Headset Microphone (positive).

43 Serial Receive Data 2 O RXD_RADIO Serial Data to Host.

44 Ground R GND Electrical power return for digital and analog grounds.

45 Data Set Ready 6 O DSR_RADIO DSR Signal to Host.

46 Reserved O Reserved reserved

47 Data Carrier Detect 1 O DCD DCD Signal.

48 SIM Clock O SIM_CLK SIM Clock. No Connect if on-board SIM holder is used.

49 Ring Indicator 9 O RI RING Indicator.

50 Ground R GND Electrical power return for digital and analog grounds.

51 Serial Transmit Data 3 I TXD_RADIO Serial Data from Host.

52 SIM I/O I/O SIM_IO SIM I/O Data. No Connect if on-board SIM holder is

used

53 Request To Send 7 I RTS_RADIO RTS Signal from Host.

GSM0128IG001 27 Revision Draft – 9/22/08

# FUNCTION Serial

Pin I/O ENABLER IIG Description/Comments

54 SIM Reset O SIM_RST SIM Reset. No Connect if on-board SIM holder is used

55 Clear To Send 8 O CTS_Radio CTS Signal to Host.

56 ADC1 I ADC1 Analog-to-Digital Converter Input 1.

0 – 1.75 Vdc range. 1.709 mV resolution. 10 bit.

57 Data Terminal Ready 4 I DTR_RADIO DTR Signal from Host.

58 SIM Power O SIM_VCC SIM Power. No Connect if on-board SIM holder is used

59 Ground R GND Electrical power return for digital and analog grounds.

60 Ground R GND Electrical power return for digital and analog grounds.

Table 2 - Enabler IIG Pin Assignments

I=Input into Enabler; O=Output from Enabler;

P=Power Input to Enabler; R=Power Return from Enabler

I/O=Input/Output into/from Enabler

6.6 Circuit Protection

Other than the basic low level ESD protection within the module’s integrated circuits (typically 2000 V), the

Enabler IIG does not have any protection against ESD events or other excursions that exceed the specified

operating parameters.

The only exception is that the remote SIM lines on the main I/O connector do have additional ESD protection

that should handle standard human-model contact ESD events.

Generally, ESD protection (typically TVS/Transorb devices) should be added to all signals that leave the

host board. This includes VBAT/VCC.

Series resistors (typically 47 ) can also be added in series with data lines to limit the peak current during a

voltage excursion.

Caution – It is the integrator’s responsibility to protect

the Enabler IIG from electrical disturbances and

excursions that exceed the specified operating

parameters.

6.7 Antenna

A custom tri-band antenna can be attached via the on-board connector or soldered directly to the modem.

Each antenna direct-connect solder pad is 1.02 x 2.54 mm.

6.7.1 Antenna Solder Pads

Pads are provided to solder a cable or antenna directly to the Enabler IIG board.

GSM0128IG001 28 Revision Draft – 9/22/08

6.7.2 RF Connector

The Enabler IIG utilizes an Miniature Coaxial Interconnect from Sunridge (MCB-ST-00T) as the on-board

antenna connector. A compatible mating connector is the Sunridge MCB2-xx-xx-xxx-x series component.

The cable assembly is made to order. Maximum stack height of cable connector and PCB connector is 2.0

mm.

6.8 Control Connector Signal Descriptions and Functions

6.8.1 Input Power

The Enfora Enabler IIG module uses a single voltage source of VCC=+3.3V to 4.5V. (exact values of the

uplink currents are shown in Tables5.3.1 GSM Operating Power and 5.3.2 GPRS Operating Power). The

VCC lines (pins 1 to 6) should be connected on the application board.

The uplink burst will cause strong ripple on the voltage

lines and should be effectively filtered. It is recommended

that 1000 to 2000 uF of capacitance be placed as close to

the modem I/O connector as possible.

It should be noted that the input voltage level should not

drop below the minimum voltage rating under any

circumstances, especially during the uplink burst period.

GSM0128IG001 29 Revision Draft – 9/22/08

6.8.2 Ring Indicate (Pin 49)

The Enabler IIG module is capable of using the Ring line to discern the type of incoming call. The indicator

can be monitored via a hardware line available on the 60 pin I/O signal connector. The Ring Indicator pin is

#49.

The function of the Ring line depends on the type of the call received.

When the module is receiving a voice call, the Ring line goes low for 1 second and high for another 2

seconds. Every three (3) seconds the ring string is generated and sent over the Receive (Data Out) (Rx)

line. If there is a call in progress and call waiting is activated for a connected handset or hands free device,

the Ring pin switches to ground in order to generate acoustic signals that indicate the waiting call.

When a Fax or data call is received, Ring goes low and will remain low. Every 3 seconds a ring string is

generated and sent over the Receive (Data Out) (Rx) line.

An incoming SMS can be indicated by an Unsolicited Result Code (URC) which causes the Ring line to go

low for 1 second only. Using the AT+CNMI command, the Enabler IIG can be configured to send or not to

send URCs upon the receipt of SMS. See Enfora GSM0128AT001 – Enfora Enabler IIG AT Command

Set.

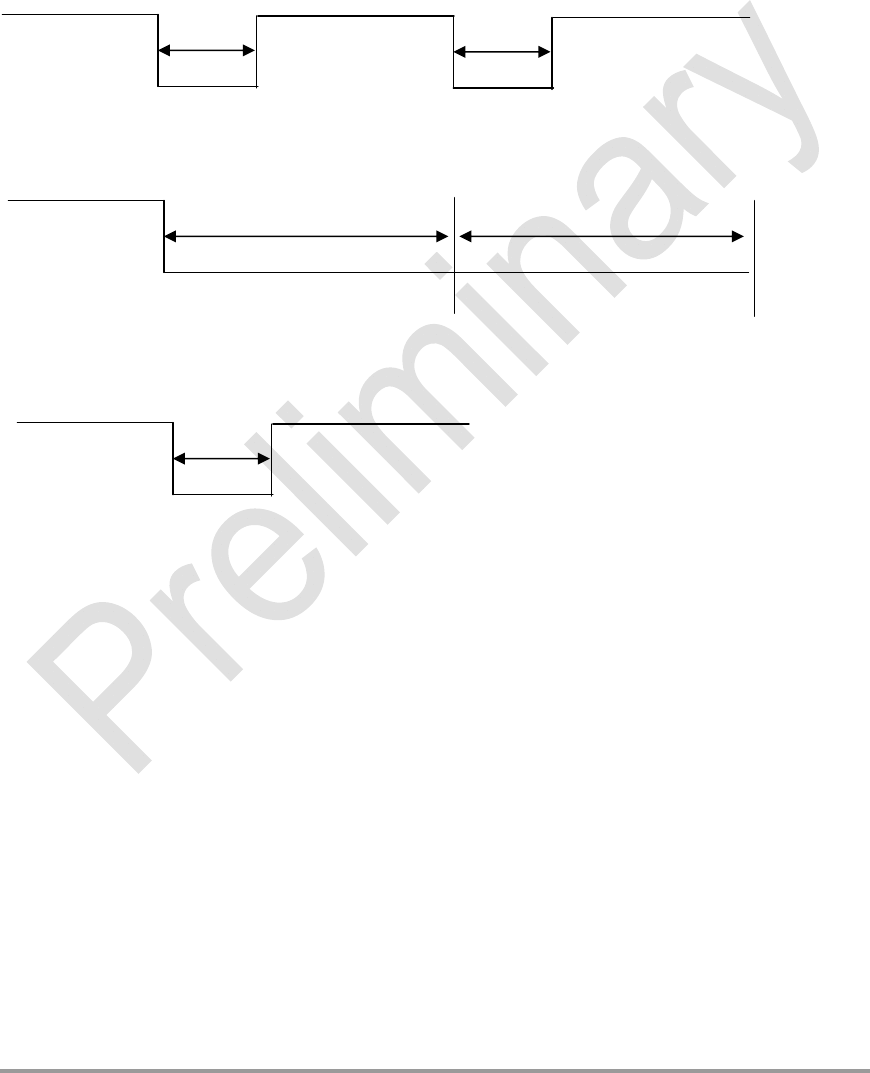

Figure 8 - Ring Indicate Timing

1 second

URC

Ring

1 second 2 seconds 1 second 2 seconds

RING String RING String

Ring

3 seconds

RING String RING String

Ring

3 seconds

RING String

GSM0128IG001 30 Revision Draft – 9/22/08

6.8.3 Radio Power/Reset (Pin 22)

The Reset signal is used to force the modem to start at a known state. When the Reset is pulled low the

modem will immediately suspend any function and will not exit the reset state until the Reset signal is

released to be pulled high. Once the transition from low to high is complete, the modem will boot. The Reset

signal is falling edge triggered, so the reset function is set immediately when the signal is pulled low.

When using Reset, it will immediately detach the connection from the GSM network although this is not

considered ideal. Typically during a normal shutdown, the modem will issue a detach request to the network

to indicate that it is being removed. Reset must not be used to “power off” the device, but only as a last

resort wherein there is no response from the module.

Controlling the Reset signal must only performed by an open collector/open drain device. Driving the Reset

signal high will interfere with the normal operation of the modem power on/off sequences. Power sequencing

cannot be guaranteed if Reset is being driven high by an external device. If driving from an external

microprocessor, the reset can be controlled by driving the control pin low as an output, then change the pin

control to be an input, this will satisfy the high impedance requirement.

The Reset pin can also be monitored as a system on/off indication. When the modem is powered on during

a normal operating state, this pin will be set high. When the modem is powered down or in the “off” state,

this pin will be low. Any monitoring circuit MUST be high impedance, such as a logic gate or microprocessor

input.

Parameter Parameter/

Conditions MIN TYP MAX UNIT

VIL Input Voltage – Low or

float

0.58 Vdc

VIH Input Voltage – High 1.36 1.95 Vdc

IPU Internal Pull-Up Resistor -40 -31 -15 µA

IIL

Reset Pulse Duration

Current Sink 10 -2.0 mA

6.8.4 Using the Power Control Signal (Pin 24)

The input is equivalent to a “phone ON-button”. A failing-edge on this Active-Low input will switch ON the

module or switch OFF the module after a delay*. This input has a “weak pull-up” resistor internal to the

module. This input can be left grounded if the “RTC Sleep Function is not required. If RTC Sleep is required,

then the PWR_CTL line must be floated to allow the internal resistor to pull the line high.

Controlling the Power Control signal must only be performed by an open collector/open drain device. Driving

the Power Control signal high may interfere with the normal operation of the modem. If driving from an

external microprocessor, the Power Control can be controlled by driving the control pin low as an output,

then change the microprocessor’s pin control to be an input (this will satisfy the high impedance

requirement).

GSM0128IG001 31 Revision Draft – 9/22/08

6.8.4.1 Turning ON the Enabler IIG

Pulling the PWR_CTL line on the Enabler IIG LOW for at least 50ms (after Vbat is applied and stabilized) is

required to turn it ON. Section 6.8.43 describes various ways to provide the signal.

Do not use a pull-up resistor on the PWR_CTL line since the line is pulled up internal to the modem.

6.8.4.2 Turning OFF the Enabler IIG

The Enabler IIG can be turned OFF by either a low pulse on the PWR_CTL line or, or by a software

command (ATt$OFF - see AT command guide for further information). Section 6.8.4.3 describes various

ways to provide the signal.

6.8.4.3 Using the Power Control Signal

Typical use powering module on/off with a switch:

Figure - 9 - Power Control Switch

*The OFF Delay is controlled by the

AT$OFFDLY command. A value of 0 disables

the PWR_CTL line from turning the module

off. 0 is the default value.

To enable the module to switch-OFF via

PWR_CTL one must set AT$OFFDLY to a

value other than 0. The valid range is 100 to

1000 milliseconds.

GSM0128IG001 32 Revision Draft – 9/22/08

Typical use controlling PWR_CTL from a microcontroller:

Typical connection of PWR_CTL to modem:

This next figure shows a typical connection to the Enabler IIG module in a machine-to-machine application

using the external PWR_CTL signal, when there is not an external processor controlling the power on/off

states. The RTC deep sleep functions will NOT function since the PWR_CTL pin is tied low, the processor

will never stay in a “RTC Sleep” mode. To reset the module, either the RESET pin is toggled or power

(VBAT) must be cycled.

GSM0128IG001 33 Revision Draft – 9/22/08

Figure 10 – External Power Control Signal (no external processor)

Figure 10 shows a typical connection from an external processor to the Enabler IIG module, using the external

PWR_CTL signal. The Enabler IIG can be powered on by using the PWR_CTL signal, and reset with the RESET

signal. When using the PWR_CTL, the I/O or serial lines can be at any voltage state desired. It is recommended

that the I/O and serial lines be tri-stated or set low when the modem is shutdown for an extended period of time to

prevent any leakage of current from the processor to the modem.

Figure 11 – Power Control Signal (using external processor)

GSM0128IG001 34 Revision Draft – 9/22/08

Diane, could you modify this table as per the one below?

Parameter Parameter/

Conditions MIN TYP MAX UNIT

VIL

VIH

IPU

IIL

Input Voltage – Low or float

Input Voltage – High

Internal Pull-Up Resistor

Current Sink

0.7 x Vbat

-40

-31

0.3 x

VBAT

1.95

-15

-2.0

Vdc

µA

ON Pulse Duration

OFF Pulse Duration Minimum is programable

(AT$OFFDLY)

10 100 5000 mS

Boot time Time to boot from power on

to command prompt

1.1 Sec

6.8.5 Using VBAK (pin 36)

VBAK is a backup voltage that can maintain the RTC clock and alarm functions. If VBAK is not present in the

system (intentionally or not) and RADIO_PWR/RST is active low, the RTC clock may still be powered if leakage

voltage exists on VCC. Otherwise the RTC clock will lose power and be reset when VCC is restored.

PARAMETER PARAMETER / CONDITIONS MIN TYP MAX UNIT

Backup Voltage (Real-Time-Clock)

BACKUP Backup Voltage for Real-Time-Clock 1.9 2.8 5.5

IBACKUP Input Current (VBACKUP = 3.2 V, VBAT = 0 V,

No Load on GPIO or Serial Port)

30 Adc

GSM0128IG001 35 Revision Draft – 9/22/08

6.8.6 System Shutdown Methods

There are several ways to control the modem when using either the PWR_CTL_SIGNAL signal or the

RADIO_PWR/RST signal.

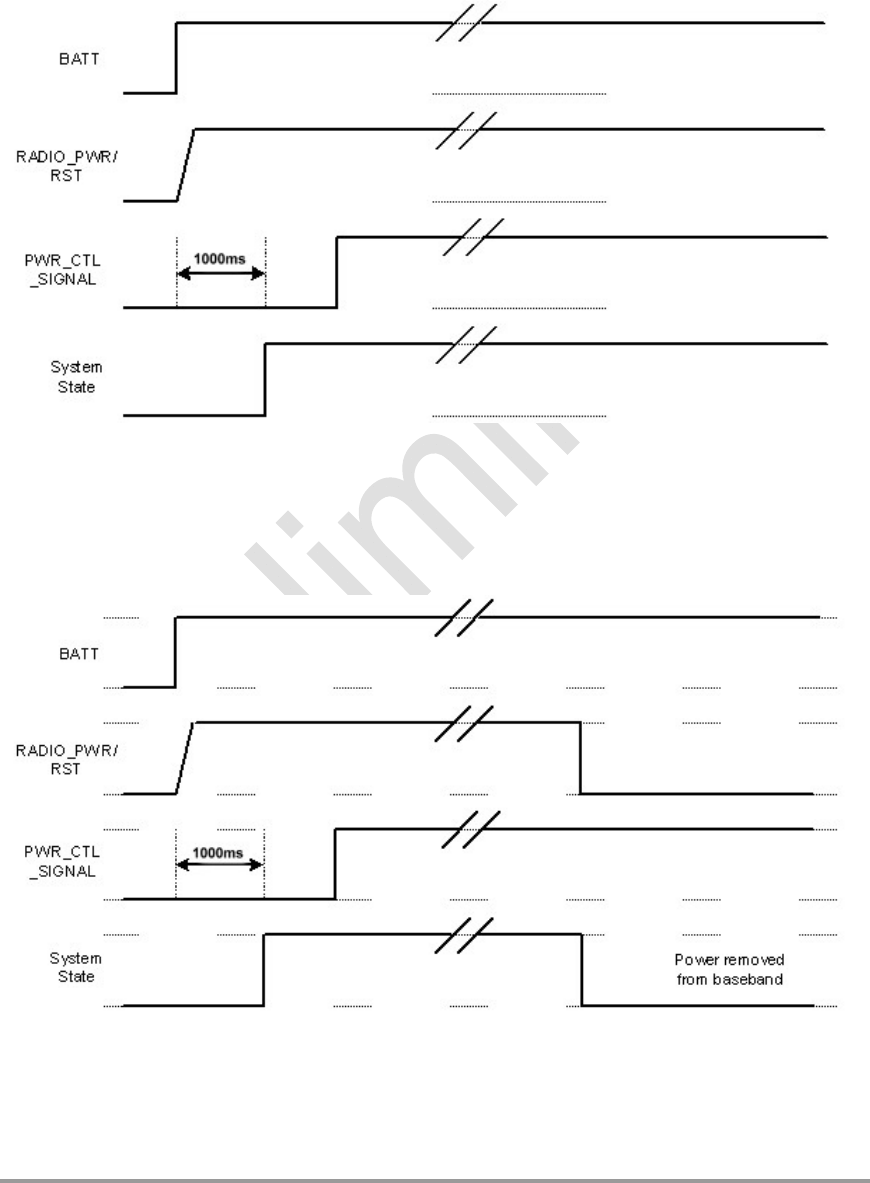

Figure 12 shows a power sequence when the PWR_CTL_SIGNAL signal is used to power up.

Figure 12 - Power On Using Power Control Signal

Figure 13 shows a power on with the PWR_CTL_SIGNAL signal, but a shutdown with the RADIO_PWR/RST

signal.

Figure 13 – Power-On Using Power Control Signal – Power Down Using Radio

Power/Reset

GSM0128IG001 36 Revision Draft – 9/22/08

Figure 14 shows the power on/off sequence when PWR_CTL_SIGNAL is tied to GND. Note that the GPIO and

serial port lines should not have any voltage on them, with PWR_CTL_SIGNAL tied to GND the system will startup

even if there is a voltage on the lines, but it is not preferred. This mode will NOT allow for the RTC sleep to function.

Figure 14 - Power On/Off using Power Control Signal tied to Ground

GSM0128IG001 37 Revision Draft – 9/22/08

6.8.7 Serial Interface (9 Pin I/F) (Pins 41, 43, 45, 47, 49, 51, 53, 55, 57)

The modem provides a standard 16550 UART serial interface to the host. The data interface operates at

CMOS level. The Enabler IIG is designed to be used like a DCE device. RxData is the serial data from the

modem to the host. TxData is the serial data from the host to the modem.

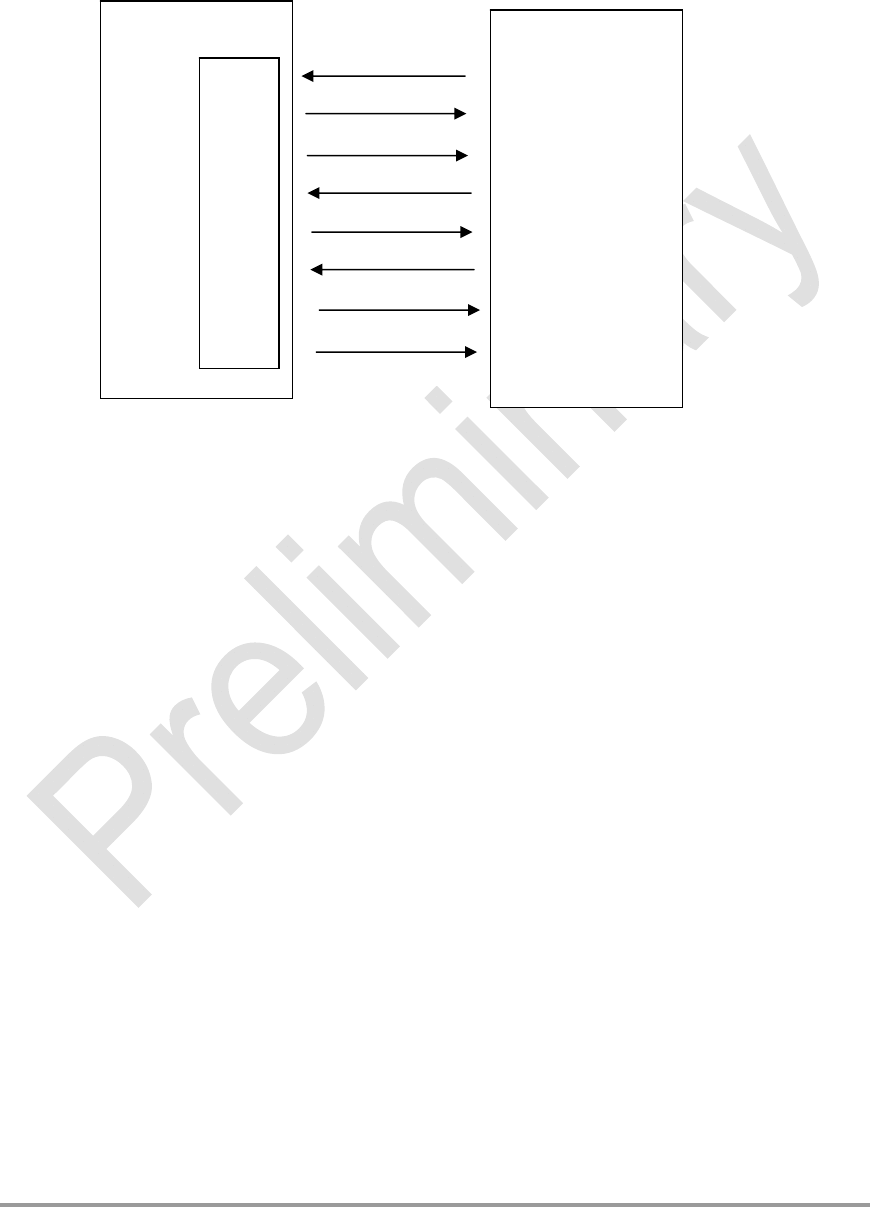

Figure 15 - Enabler IIG Serial Interface

This data may contain 7 or 8 data bits, 1 or 2 stop bits, even/odd/no parity bits. The baud rate may be

adjusted to , 300, 600, 1200, 2400, 4800, 7200, 9600, 14400, 19200, 28800, 33900, 38400, 57600, ,115200,

bits per second.

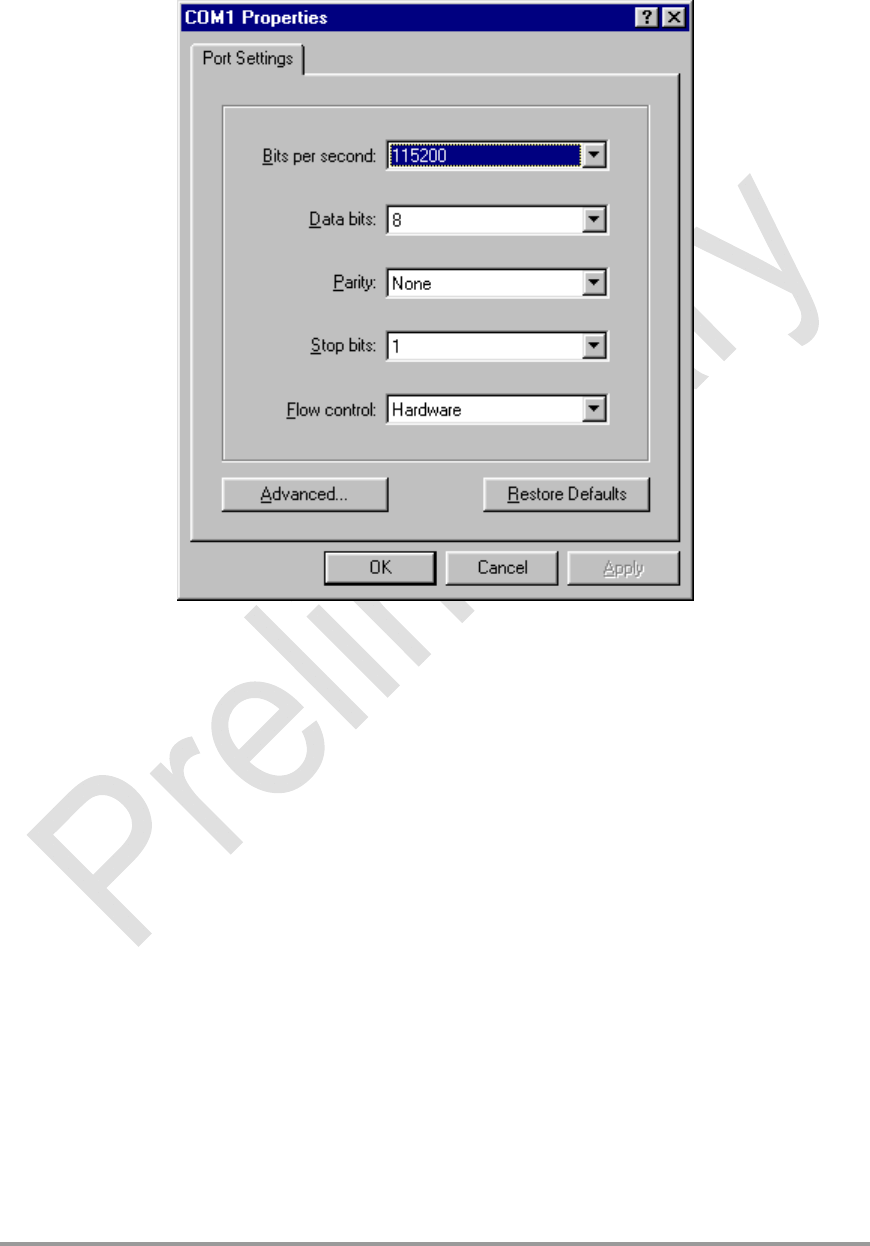

Default settings are 8 data, 1 stop, no parity, and 115200 baud. DTR may be used to force the modem into

AT command mode from online data mode (See AT Command Document, command AT&D). RTS and CTS

may be used for hardware handshaking. DSR is always active (connected to ground) while the modem is

on. RING may be used to alert the host to a variety of incoming calls.

For a minimal implementation, connect RxData and TxData to the COM port serial data lines, and connect

DTR and RTS to GND.

The electrical characteristics for the I/O lines are the same as the General Purposes Input/Output (GPIO)

lines.

RING

CTS

DTR

DSR

RTS

Enabler IIG

UART

DCD

Host

GSM0128IG001 38 Revision Draft – 9/22/08

6.9 General Purpose Input/Output Interface (GPIO) (Pins 14, 18, 27, 28, 30, 32, 34, 39)

Eight general-purpose signals are provided. Each of these signals may be selected as inputs or outputs.

They may be used independently as a user-specified function, or may be used to provide modem control

and status signals. Several examples of modem control signals are: power shutdown command,

See GSM0128AT000 for AT Command control.

GPIO number Pin number

GPIO_1 14

GPIO_2 28

GPIO_3 27

GPIO_4 30

GPIO_5 18

GPIO_6 32

GPIO_7 34

GPIO_8 39

I/O Lines Parameter/

Conditions MIN TYP MAX UNIT

VIL Input Voltage – Low 0 0.60 Vdc

VIH Input Voltage – High 1.11 1.8 Vdc

VOL Output Voltage - Low 0.45 Vdc

VOH Output Voltage - High 1.26 Vdc

IOL / IOH Rated Output Current 4 mA

6.9.1 Analog-To-Digital Input (Pin 56)

Resolution - 10 - Bit

MADS voltaje

reference

- 1.75 - V

Differential

nonlinearity

-2 - 2 LSB

Integral nonlinearity Best fitting -2 - 2 LSB

Input range 0 - 1.75 V

STARTADC pulse

mínimum duration

MADC period = T = 1/F - 1*T - µs

6.9.2 Handset Microphone Input (Pins 17, 21, 25)

Paramete

Conditions MIN TYP MAX UNIT

Maximum Input Range

–

Mic(+) to Mic(-) Inputs 3 dBm0 (Max. digital

sample amplitude when PGA

gain set to 0 dB)

32.5 m

rms

Nominal Ref. Level

–

Mic(+) to Mic(-) -10 dBm0

Differential Input Resistance

–

Mic(+) to Mic(-) 36 k



Microphone Pre-Amplifier Gain 25.6 dB

Bias Voltage on Mic(+) 2.0 or 2.5 V 2.0 2.5

Mic Bias Current Capability 2 mA

GSM0128IG001 39 Revision Draft – 9/22/08

6.9.3 Handset Speaker Output (Pins 9, 13)

Parameter Test Conditions MIN TYP MAX UNIT

Earphone output

swing at EARP-

EARN

Distortion ≤ 2% and 120 Ω input

level = MAX, amp gain = -11dB

0.98 Vpp

Distortion ≤ 2% and 33Ω, input

level = MAX, amp gain = -11dB

0.38

Distortion ≤ 2% and 120 Ω, input

level = MAX, amp gain = 1dB

3.1 3.92

Distortion ≤ 2% and 33 Ω, input

level MAX, amp gain = 1dB

1.2 1.5

Earphone

amplifier gain

EARG = 1 1 dB

EARG - 0 -11 dB

Earphone

amplifier state in

power drain

High Z

Earphone

amplifier power

supply rejection

1 kHz, 100mvpp 50 dB

6.9.4 Headset Microphone Input (Pin 42)

Paramete

Conditions MIN TYP MAX UNIT

Maximum Input Range

–

Mic(+) to Mic(-) Inputs 3 dBm0 (Max. digital

sample amplitude when PGA

gain set to 0 dB)

32.5 m

rms

Nominal Ref. Level

–

Mic(+) to Mic(-) -10 dBm0

Differential Input Resistance

–

Mic(+) to Mic(-) 100 k



Microphone Pre-Amplifier Gain 25.6 dB

Bias Voltage on Mic(+) 2.0 or 2.5 V 2.0 2.5 Vdc

Mic Bias Current Capability 0 0.5 mA

GSM0128IG001 40 Revision Draft – 9/22/08

6.9.5 Headset Speaker Output (Pin38)

Parameter Parameter/

Conditions MIN TYP MAX UNIT

Headphone output swing

at (HSOL/R)

Distortion ≤ 2% and 32 Ω, VSP

input level = + 3 dBm0

1.6 1,96 Vpp

Distortion ≤ 2% and 32 Ω, VSP

input level = + 3 dBm0

1.48 1.85

Headphone L/R amplifier

gain

-5 dB

HSOL/R amplifier state

in power down

High Z

HSOL/R amplifier power

supply rejection

1 kHz, 100mVpp 50 dB

GSM0128IG001 41 Revision Draft – 9/22/08

6.9.6 Audio Design Note

Speaker and microphone PCB traces should be run in pairs and buried between two ground planes for best

results. The following figure provides a sample circuit design for connection of microphone and speaker

pins.

Figure 16 - Audio Reference

(Please note that this schematic can be zoomed to read the detail)

GSM0128IG001 42 Revision Draft – 9/22/08

6.10 Subscriber Identity Module (SIM) Carrier (Pins 48, 52, 54, 55)

The SIM, an integral part of any GSM terminal device, is a “smart card” that is programmed with subscriber

information:

 The user information consists of an International Mobile Subscriber Identity (IMSI) number, which is

registered with the GSM provider, and an encryption Ki (pronounced "key"). This information

consists of a microprocessor and memory installed on a plastic card.

Note: The SIM is not provided with the Enfora Enabler IIG module. The SIM must be obtained from the

GSM service provider and must be provisioned by the operator for data and/or voice. Always take care to

protect the SIM: the GSM terminal will not operate without the SIM installed.

The SIM provides the IMSI for authentication. To gain access to the GSM network, the network

must recognize the IMSI number, and the terminal must be able to properly decrypt the data sent

by the network. The SIM also serves as a buffer for SMS messages, storing the message for

transmission until a radio link is available and buffering received messages until retrieved.

6.10.1 SIM Integration for the Enfora Enabler IIG Module

The Enabler IIG default configuration does not include an on-board SIM carrier. Some versions may include

an on-board SIM carrier. Enfora provides a separate product SKU for the Enabler IIG module with the

integrated SIM carrier.

GSM0128IG001 43 Revision Draft – 9/22/08

6.10.2 Using a Remote SIM with the Enfora Enabler IIG Module

Although some versions may include it, the Enabler IIG default configuration does not include an on-board

SIM carrier. If the module is going to be integrated using a remote SIM, the following guidelines are

provided:

 To utilize a remote SIM, the integrator must provide a suitable SIM connector on the Application.

 The maximum distance from the Enabler IIG to the remote SIM connector must not exceed 25.4 cm

(10 inches).

Remote SIM Powe

Parameter/Conditions MIN TYP MAX UNIT

DD Remote SIM Supply Voltage

3 V Mode

2.7 3.3 Vdc

1.8V Mode 1.62 1.98

Figure 17 - Remote SIM Interface

 ESD Protection

 15 kV Air Discharge

 8 kV Contact Discharge

6.10.2.1 Remote SIM Component Information

A SIM carrier compatible for use on the Enabler IIG is a JAE Plug-In SIM Card carrier with hinge; JAE

part number SF7W006S1BE1000. JAE Plug-in SIM Card with hinge cover SF7 Series.

Remote SIM Line Description

SIM_VDD Remote SIM power supply

SIM_RST Remote SIM reset

SIM_CL

Remote SIM clock

SIM_I/O Remote SIM serial data interface

SIM_CLK

<25.4 cm (10 in)

SIM_I/O

SIM_RST

SIM_VDD

Enabler IIG

SIM

Interface

Remote SIM

GSM0128IG001 44 Revision Draft – 9/22/08

7.0 Modes of Operation

GSM/GPRS supports many optional services and modes. The Enfora Enabler IIG module supports the

following GSM/GPRS services:

 Short-Message Services (SMS)

 Class B GPRS Functionality

 Voice communication

7.1 Enabling the Transmission Modes for the GSM/GPRS Services

Each of the GSM/GPRS services has two modes that can be enabled separately:

 Mobile-originated (MO): allows the making of a service request (such as, making a telephone call or

sending an SMS)

 Mobile-terminated (MT): allows receiving a service request (such as receiving a telephone call or an

SMS)

Note: Contact your local GSM operator to ensure that the services and modes have been provisioned

for the SIM.

7.2 Voice Communication

The Enfora Enabler IIG module has full voice capabilities, provided the necessary connections have been

made for the speaker and microphone pins on the 60-pin I/O connector. The GSM0128 AT Command Doc

has the entire list of commands that can be used to control the voice functionality. The quick start guide in

this manual provides a basic command set that can be used to initialize and test the voice functionality.

The Enfora Enabler IIG module supports three vocoder compression algorithms for voice communication:

Full-Rate, Enhanced Full-Rate (EFR), Adaptive Multi Rate (AMR), and Half-rate (HR).

GSM0128IG001 45 Revision Draft – 9/22/08

7.3 SMS: Short Message Services

 Short Message Services (SMS) is a feature-rich GSM service. The Enfora Enabler IIG module can

perform the following tasks:

 Sending and receiving binary messages of up to 160 characters (7-bit characters)

 Sending and receiving text messages of up to 140 bytes (8-bit data)

 Submitting a SMS Protocol Data Unit (PDU) to a SMSC (Short Message Service Center) and storing a

copy of the PDU until either a report arrives from the network or a timer expires

 Receiving a SMS PDU from a SMSC

 Returning a delivery report to the network for a previously received message

 Receiving a report from the network

 Notifying the network when the module has sufficient memory capacity available to receive one or more

SMS messages (after the module had previously rejected a message because its memory capacity was

exceeded)

7.4 SMS Features Supported by the Enfora Enabler IIG Module

The following list details the key characteristics and assumptions regarding the form of SMS supported in

the Enfora Enabler IIG module.

 Supports both mobile-originated (MO) and mobile-terminated (MT) SMS

 Delivers the message to a telephone

 Supports 8-bit data

 Supports Message Class 0, Class 1, & Class 2

 Provides a status report indicator

 Allows the definition of a validity period

 Provides the Service Center Time Stamp

 Alerts the SMSC

 USSD

GSM0128IG001 46 Revision Draft – 9/22/08

8.0 SIM Operation

8.1 Provisioning the SIM

The SIM can support optional features or services. Most operators typically configure the SIM to

send/receive voice calls and to receive SMS; however, some may require an additional tariff to enable the

SIM to send SMS. The transmission of circuit switched and GPRS data are also additional services that

may be required to allow the service:

 Mobile-originated (MO): allows making a service request (such as, making a call or sending an SMS)

 Mobile-terminated (MT): allows receiving a service request (such as, receiving a phone call or an SMS)

It is imperative for the Enfora Enabler IIG module that the SIM be configured for the optional services that

are required for the application.

8.2 GSM Services Supported by the Enfora Enabler IIG Module

The Enfora Enabler IIG module supports four GSM services (modes of operation) that must be enabled by

the operator:

 Voice calls (MO and MT): requires a telephone number

 SMS (MO and MT): uses the telephone number for Voice

 The GSM SIM can have multiple telephone numbers.

8.3 GPRS Services Supported by the Enfora Enabler IIG Module

The Enfora Enabler IIG module supports the following GPRS (modes of operation) that must be enabled by

the operator:

 GPRS Packet Connectivity (MO and MT) with Both Dynamic and Static IP option

 GPRS SMS (MO and MT): uses the IP (Dynamic or Static) set by the operator

 Multiple APN Setting

 Quality of Service Options

 Multi-slot 10 Class of Service

GSM0128IG001 47 Revision Draft – 9/22/08

8.4 Selecting the Modes of Operation

When provisioning the SIM for the Enfora Enabler IIG module, enable the following modes of operation:

 Voice calls: configure the SIM for both MO and MT service (to send and receive)

 SMS: configure the SIM either for MT alone (to receive) or for both MO and MT (to send and receive)

Voice SMS GPRS Function

MO/MT MT Voice calls, receive SMS, make data calls

MO/MT MO/MT Voice calls, receive / send SMS, make data calls

MO/MT MO/MT Voice calls, receive / send SMS, make / receive data calls

(requires an additional data telephone number)

GSM0128IG001 48 Revision Draft – 9/22/08

9.0 Software Interface

9.1 Software Interface

The application sends commands to the Enfora Enabler IIG module via the 60-pin I/O signal connector.

These commands use the Enfora AT Command Set and/or Enfora’s Packet API.

The Enfora Enabler IIG module operates in one of the following modes:

 Command mode: Used for configuring the Enfora Enabler IIG module, for interrogating the GSM

network, and for placing and receiving calls. It uses the AT command set via the serial port for

communication.

 IP Packet /API Mode: Used to read/write modem parameters, interrogate network information, and

place and receive calls in real-time, multi-tasking mode. The Packet API mode is facilitated over a PPP

connection and the packets can be constructed according to the information provided in the

GSM0308UG001 - Enfora GSM-GPRS Family API Reference. GSM0308UG001 - Enfora GSM-GPRS

Family API Reference provides detail of the UDP Modem Control Library that has three levels: port,

messaging, and modem libraries. Each of the three levels contains one or more libraries. For example,

the port libraries layer has UDP PPP Port, UDP Socket Port, and COM Port libraries. All libraries are

provided as a part of the Enfora Enabler IIG Integration Toolkit.

The AT command driver of the Enfora Enabler IIG module never exits the Command state, that is, it never

enters the On-line mode. Although the host interface may not be able to access the AT command

interpreter, it is always running and is available via the API Mode over a PPP connection and/or via the RF

interface.

 In the Command state, characters that are received from the Customer Premise Equipment (CPE) are

treated as AT commands by the Enfora Enabler IIG module.

 In response to the commands received from the CPE, the Enfora Enabler IIG module sends characters

(AT commands) to the CPE.

 Various events can also trigger the Enfora Enabler IIG module to send characters (AT commands) to

the CPE.

9.2 Format for the AT Commands

The general format of the command line is: <prefix> <command> <CR>

<prefix> AT

<command> See AT Command Manual

<CR> 0X0D

The prefix AT obtains synchronization, identifies the character parameters, and indicates that a command

may be in the following characters.

AT commands are not case sensitive: use either capital letters or lower-case letters for the AT command.

Note: Some AT Command parameter values ARE case sensitive and are documented in GSM0128AT001

– Enfora Enabler IIG AT Command Set.

GSM0128IG001 49 Revision Draft – 9/22/08

9.3 Enfora AT Command Set

For a full description of the AT commands, refer to the GSM0128AT001 – Enfora Enabler IIG AT

Command Set.

Note: A command description that includes an *asterisk denotes that the GSM service provider must enable

supplementary services functionality before the command is available.

9.4 Enfora Packet Application Programming Interface

9.4.1 UDP-API Architecture

The following information provides an overview of the Enfora UDP-based API architecture. Full details are

provided in the GSM0308UG001 - Enfora GSM-GPRS Family API Reference.

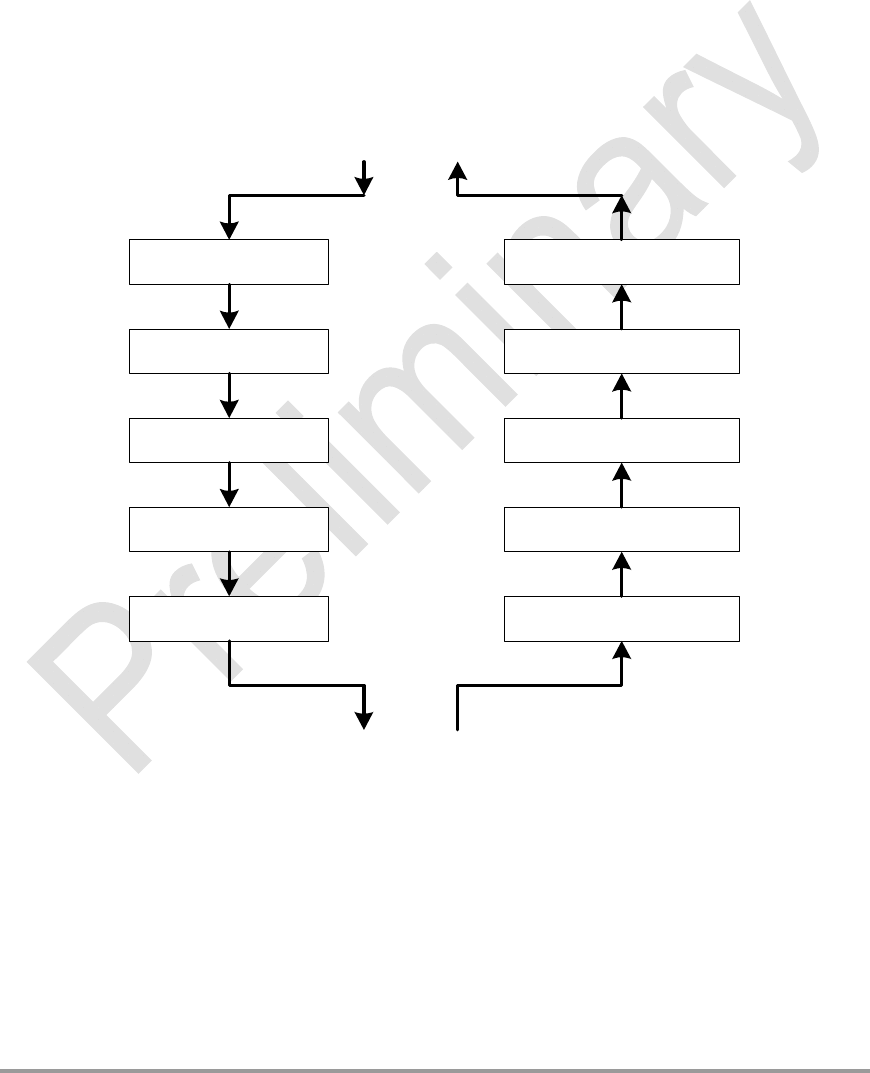

Figure 18 provides the general structure for the UDP-API.

Create Control /

Status Message

Add UDP Header

Add IP Header

Add PPP Framing

Write to COM Port

Read Control / Status

Message

Decode UDP Header

Decode IP Header

Remove PPP Framing

Read from COM Port

Host Computer

Modem

Figure 18 - UDP-API Structure

GSM0128IG001 50 Revision Draft – 9/22/08

The following provides information related to the general construction of the UDP-API packet. Other

command structures are available and can be found in the API reference manual.

All AT commands listed in the GSM0128AT001 – Enfora Enabler IIG AT Command Set document are

supported via this method. To send an AT command via DUN or OTA, the user has to follow the following

message structure. This message structure sends the ATI command to the modem and receives Enfora,

Inc. response from the modem.

Bytes Data Description Comments

0 – 19 IP Header

20 – 27 UDP Header

28 0x00 Sequence Number

29 0x01

30 0x04 AT Command Read/Write

31 0x00 Reserved

32 0x41 AT Command

(ATI)

33 0x54

34 0x49

Following data will be returned by the modem:

Bytes Data Description Comments

0 – 19 IP Header

20 – 27 UDP Header

28 0x00 Sequence Number

29 0x01

30 0x05 AT Command Response

31 0x00 Reserved

32 0x0D

AT Command Response

(Enfora, Inc.)

33 0x0A

34 0x45

35 0x6E

36 0x66

37 0x6F

38 0x72

39 0x61

40 0x2C

41 0x20

42 0x49

43 0x6E

44 0x63

45 0x2E

46 0x0D

47 0x0A

GSM0128IG001 51 Revision Draft – 9/22/08

9.5 Enfora Modem Control Library Architecture

The following information provides an overview of the Enfora Modem Control Library architecture. Full

details are provided in the GSM0308UG001 - Enfora GSM-GPRS Family API Reference.

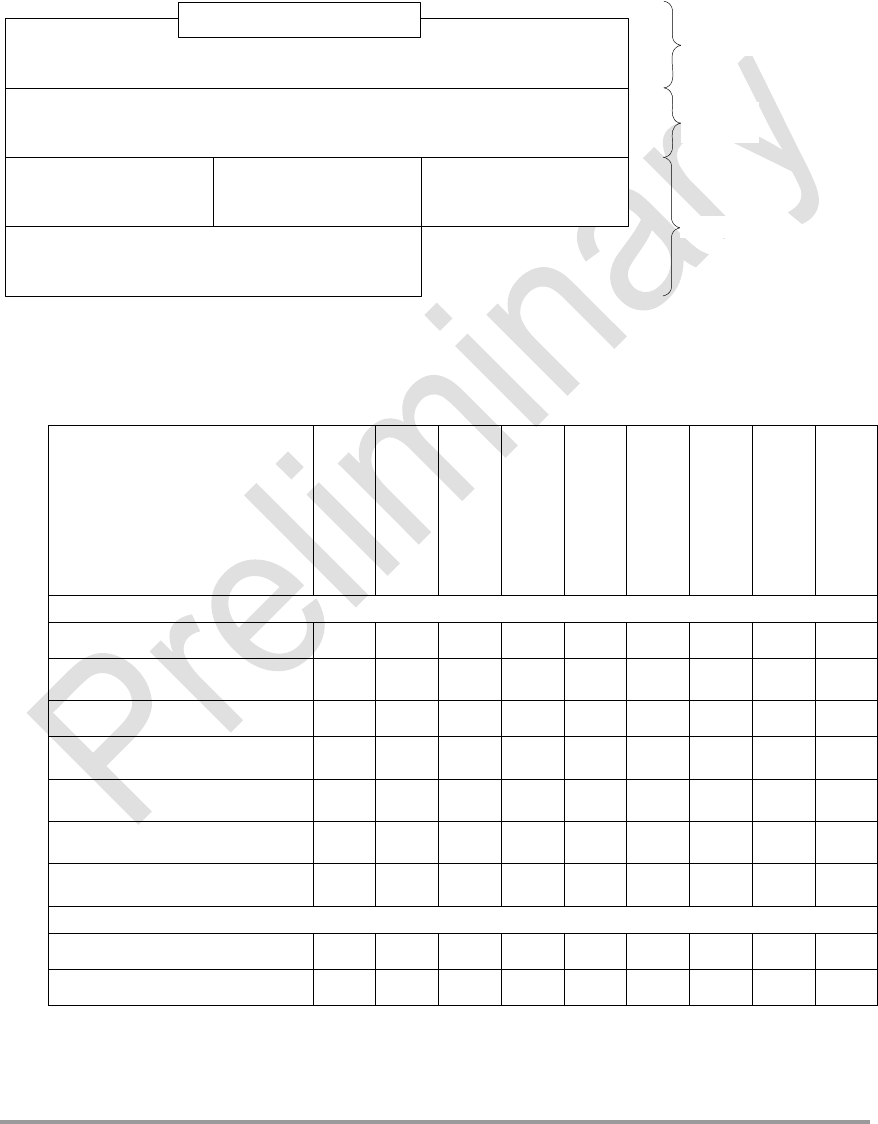

Figure 19 provides the general embedded architecture for the Enabler IIG modem. There are various levels

of access provided to allow complete application design flexibility. SLIP access is not currently available.

COM Port Library

UDP SLIP Port Library UDP PPP Port Library UDP Socket Port Library

UDP Messaging Library

UDP Modem Library

GPRS Parameters Table

Port libraries

Messaging

libraries

Modem libraries

Figure 19 - Library Layout

The table below can be used to help decide which library configuration is the best for a project. SLIP

access is not currently available.

UDP SLIP Port

Library

UDP PPP Port

Library

UDP Socket Port

Library

UDP Messaging

Library with SLIP

UDP Messaging

Library with PPP

UDP Messaging

Library with

Socket

UDP Modem

Library with SLIP

UDP Modem

Library with PPP

UDP Modem

Library with

Socket

Benefits

Allows dynamic IP assignment      

Allows multiple application to

access the modem



Allow AT Commands      

Allows modem control

message         

Provide modem control

message formatting

     

Provides modem parameters

database service

  

Suitable for microcontroller

programming      

Requirements

Requires TCP/IP stack 



Memory usage Low Low Low Low Low Low High High High

Table 3 - Modem Library Configurations

GSM0128IG001 52 Revision Draft – 9/22/08

9.5.1 Using Port Library

Figure 20 provides the architecture for Port Library access.

UART DriverPort Library

Host Control InterfaceHost Application

Host Modem

Figure 20 - Using Port Library

Port Libraries provide the most basic modem access services. It converts modem control

messages to either UDP SLIP or UDP PPP, and vice versa. SLIP access is not currently

available.

Modem Control Message



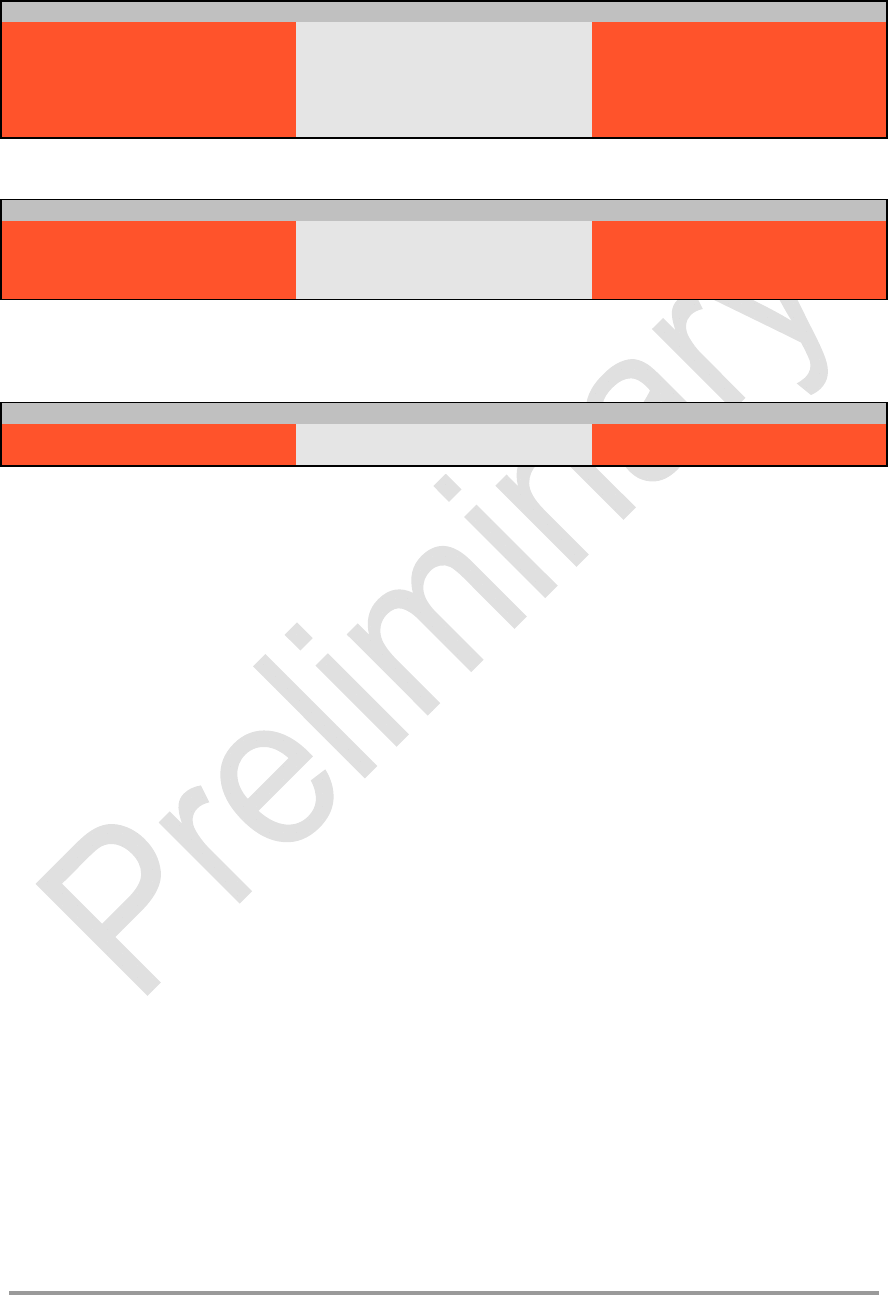

SLIP Header IP Header UDP Header Modem Control Message SLIP End

PPP Header IP Header UDP Header Modem Control Message PPP End

9.5.2 Using Messaging Library

Figure 21 provides the architecture for Messaging Library access.

UART DriverPort Library

Host Control Interface

Messaging Library

Host Application

Host Modem

Figure 21 - Using Messaging Library

Messaging Library provides some important modem access services. It builds a modem control

message and converts the message to either UDP SLIP or UDP PPP before sending the data to

the modem. It also parses the modem control messages from the modem. SLIP access is not

currently available.

Parameter, Data



SLIP Header IP Header UDP Header Modem Control Message SLIP End

PPP Header IP Header UDP Header Modem Control Message PPP End

GSM0128IG001 53 Revision Draft – 9/22/08

9.5.3 Using Modem Library

Figure 22 provides the architecture for Modem Library access.

UART DriverPort Library

Host Control Interface

Messaging Library

Modem Library

Host Application

Host Modem

Figure 22 - Using Modem Library

Modem Library provides the most complete modem access services. In addition to the features already

provided by the Messaging Library, the modem library maintains a modem parameter database. In order to

maintain the parameter database, the modem library requires more memory than the other libraries. This

makes the library unsuitable for some of the micro controller programming. However, it is a good library to

use by applications in a personal computer or a PDA. It allows the programmer to develop host applications

for the modem quickly.

GSM0128IG001 54 Revision Draft – 9/22/08

10.0 Setup and Initialization

10.1 General Setup

The GPRS modem is controlled through the Modem RS232 port on the development board. Connect a nine

pin straight through serial cable from the Modem RS232 connector to the serial port on the controlling

computer.

Hook up power supply, connect antenna, and install SIM into modem.

10.1.1 HyperTerminal Configuration for Enabler IIG

The following provides an example for setting up a Windows HyperTerminal session that can be used to

experiment with various configurations on the Enabler IIG for controlling computer:

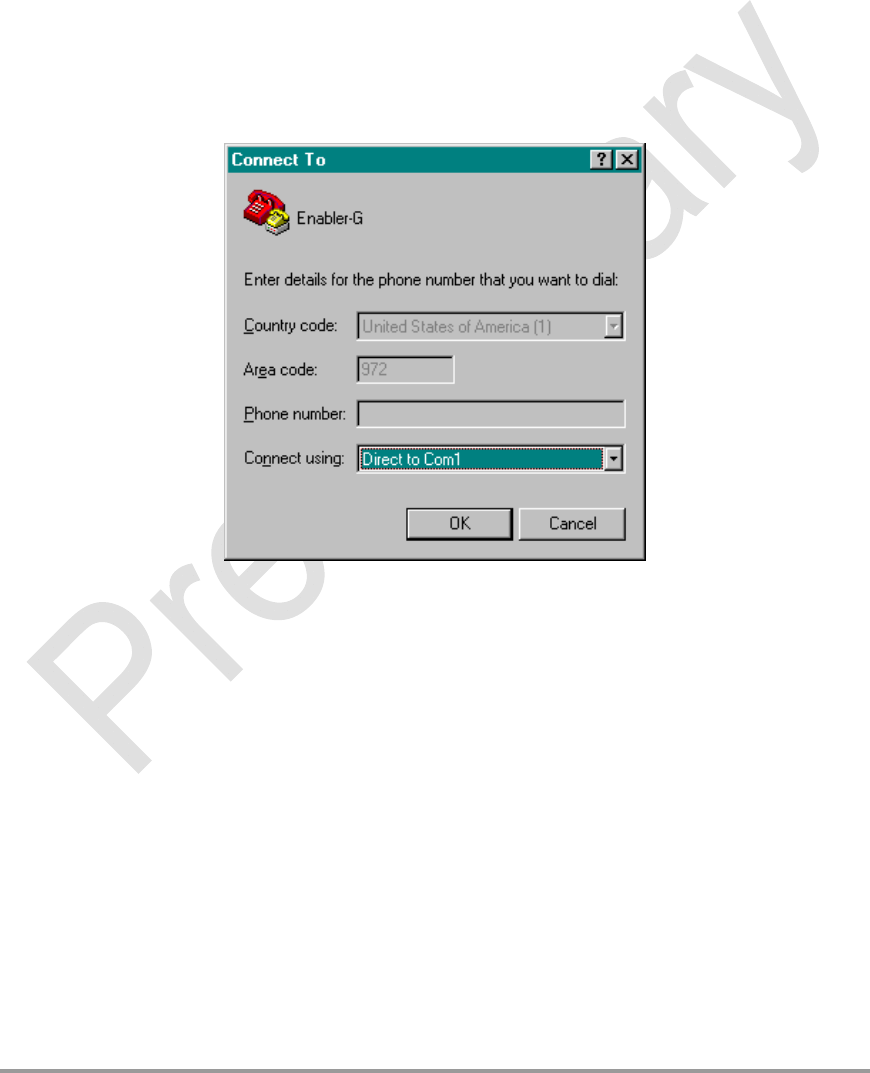

1. Select the connection interface, Direct to Com 1 (or whatever port is the serial port).

Figure 23 - HyperTerminal Definition

GSM0128IG001 55 Revision Draft – 9/22/08

2. Configure the COM port as displayed below.

Figure 24 - COM Port Settings

10.1.2 Initialization (AT Command Interface)

In the GSM vocabulary, a call from GSM mobile to the PSTN is called a "mobile-originated call" or "outgoing

call". A call from the fixed network to a GSM mobile is called a "mobile-terminated call" or "incoming call."

In the following examples, “Entry” refers to the application. The following convention describes the direction

of the data exchange:

 The data exchange from the customer application to the Enfora Enabler IIG module is designated as:

Entry

 The data exchange from the Enfora Enabler IIG module to the customer application is designated as:

Response

Note: With the exception of the +++ command (Online Escape Sequence), all commands must be

preceded by the AT attention code (or command prefix) and terminated by pressing the <CR>

character.

In the following examples, the <CR> and <CR><LF> are intentionally omitted for clarity and space.

GSM0128IG001 56 Revision Draft – 9/22/08

10.1.3 Initial Response to the AT Command

After power is applied to the Enfora Enabler IIG module, the module performs a power-up self-test. The

self-test completes within one (1) second. When queried with the AT command, the Enfora Enabler IIG

module responds with one of the following result codes:

 OK signifies that the Enfora Enabler IIG module is ready, that it correctly interprets the AT command,

and that it has executed the command.

 ERROR signifies that the Enfora Enabler IIG module does not understand the command or that the

command is invalid.

Entry AT

Response OK Command valid: module is ready

Commands entered when the module is in On-line mode are treated as data, and are transmitted as such to

the receiving module. i.e., if the module is in PPP or SLIP mode, AT commands cannot be entered.

10.1.4 Sending an Initialization String to the Enfora Enabler IIG Module

The following example provides the sample AT commands and responses for the following initialization

tasks:

 Reset the module to the factory defaults

 Disable character echo

 Transmit Result Codes

 Set the module to Verbose mode (to display result codes as words)

 Set the DCD to match the state of remote modem

 Ignore the DTR

Entry AT&FE0Q0V1&C1&d0 Initialization string

Response OK Command is valid

Entry ATSO=1 Auto answer on 1st ring

Response OK Command is valid

10.1.5 Setting Up the Communication Mode for the Enfora Enabler IIG Module

The following example sequence provides the AT command and response for setting the Enfora Enabler IIG

module for full phone functionality, automated operator selection, 9600 baud, non-transparent mode.

Entry AT+CFUN=1 FULL phone functionality

Response OK Command is valid

Entry AT+COPS=0 Automatic operator selection

Response OK Command is valid

Entry AT+CBST=7,0,1 9600 baud, non-transparent mode

Response OK Command is valid

GSM0128IG001 57 Revision Draft – 9/22/08

1.1.1

11.0 Integration and Testing

The Enfora Enabler IIG module has been designed to minimize the amount of time required for integration

and testing the application. By being fully certified by the appropriate bodies, the Enfora Enabler IIG module

provides seamless integration into the GSM network.

The integration issues for the application can be narrowed to the utilization of the AT commands and the use

of the GSM functionality. Coverage and signal quality may be evaluated by using the RSSI commands.

Additional network information can be determined by using AT commands.

Integration of the GPRS Packet capabilities is more complicated than using AT command sequences to

initiate the connection and begin transferring data. The following Application Notes should be used to

integrate the GPRS packet capabilities:

GSM0000AN001 - Enabler-G PPP Configuration for Windows 98

GSM0000AN002 - Enabler-G PPP Configuration for Windows 2000

GSM0000AN008 - Enabler-G PPP Configuration for Windows XP

GSM0000AN010 - Enabler-G PPP Configuration for PocketPC 2002

GSM0000AN005 - Enabler-G Automated Network Connection Configuration and Use

Integrating the Enfora Enabler IIG Module

Note: Generally, all interfaces that are externally available to the end user need to be ESD-

conditioned and terminated in some way. Many of these interfaces should not be connected with

power applied.

At the highest level, this is done using some type of GSM test equipment (such as, Racal 6103E), a

computer, and a serial interface tester. The GSM test equipment must be able to simulate a GSM

call and measure the key parameters related to the module.

Additionally, the serial interfaces and some minimal SIM functionality can be verified by sending AT

commands to the Enfora Enabler IIG module.

All of these conditions need to be verified at ambient as well as extreme conditions.

As part of integration, each of the following interfaces must be verified:

Information Recommendations

SIM The maximum line length of the SIM interface is 25.4 cm (10 inches).

The Enfora Enabler IIG module takes care of the signal conditioning

As a minimum, an external application with a remote SIM will require a standard SIM

carrier.

Filter the SIM VCC signal with a 10 uf / 10 V capacitor to help with the line length.

Primary and

secondary serial

Interfaces

The Enfora Enabler IIG module uses a 3 V digital interface. The RS-232 signals

must be level-shifted to get standard levels. These signals must be ESD-protected.

Reset Interface Resets the Enfora Enabler IIG module when tied low.

Audio/Microphone

Interface Preliminary balancing on Enfora Enabler IIG module.

Maximum length TBD

GSM0128IG001 58 Revision Draft – 9/22/08

Testing the following parameters verifies the RF parameters that may be affected by such things as RF

path loss, power supply noise, and external interference.

Functionality Parameters to be Tested

Transmitte

Frequency Error

Phase Error

PA Ramp

Modulation Spectrum

RF Power Steps

Timing Advance

Receive

BER Based RX Tests (RXQUAL RXLEV)

BER Based Sensitivity

Testing the following GSM functionality verifies proper network communication.

Functionality Parameters to be Tested

Transmitte

Frequency Error

Phase Error

PA Ramp

Modulation Spectrum

RF Power Steps

Timing Advance

Receive

BER Based RX Tests (RXQUAL RXLEV)

BER Based Sensitivity

Testing the following GSM functionality verifies proper network communication.

Functionality Parameters to be Tested

Network Function Synchronization and registration

Call set-up and call termination (both MT and MO calls)

SMS and/or data calls

GSM0128IG001 59 Revision Draft – 9/22/08

APPENDIX A - LIMITED WARRANTY

Scope

Enfora warrants to the original purchaser of the product that, for a period of one (1) year from the date

of product purchase, the product hardware, when used in conjunction with any associated software

(including any firmware and applications) supplied by Enfora, will be free from defects in material or

workmanship under normal operation. Enfora further warrants to such original purchaser that, for a

period of ninety (90) days from the date of product purchase, any software associated with the product

will perform substantially in accordance with the user documentation provided by Enfora, and any

software media provided with the product will be free from defects in material or workmanship under

normal operation. Enfora does not warrant that (a) the product hardware or any associated software

will meet the purchaser’s requirements, (b) that the operation of the product hardware or software will

be uninterrupted or error-free, or (c) the product, when integrated in, or combined with, other products

or software not supplied by Enfora, will continue to perform substantially in accordance with the user

documentation. This limited warranty is only for the benefit of the original purchaser and is not

transferable. No other party may act on behalf of such purchaser for the purpose of claiming or

exercising any rights or benefits under or in connection with this limited warranty except as may be

provided in a written agreement between Enfora and such other party.

Hardware

During the warranty period applicable to the product hardware, Enfora, at its expense and in its sole

discretion, will repair or replace the product if it is determined to have a covered hardware defect,

provided that the purchaser first notifies Enfora of any such defect, furnishes Enfora with a proof of

purchase, requests and obtains a return merchandize authorization (RMA) number from Enfora, and

returns the product, shipping charges prepaid, to Enfora under that RMA. If, upon reasonable

examination of the returned product, Enfora does not substantiate the defect claimed by purchaser, or

determines that the defect is not covered under this limited warranty, Enfora will not be required to

repair or replace the product, but may instead reship the product to the purchaser, in which case

purchaser shall be responsible for paying Enfora’s usual charges for unpacking, testing, and repacking

the product for reshipment to purchaser. Purchaser shall bear the risk of loss or damage in transit to

any product returned by purchaser to Enfora, or any returned product not found to be defective or

covered under this warranty and reshipped by Enfora to purchaser. In the event Enfora repairs or

replaces a defective product, the repaired or replacement product will be covered under this limited

warranty for the remainder of the original warranty period on the defective product. If Enfora is unable

to repair or replace a defective product, the purchaser’s exclusive remedy shall be a refund of the

original purchase price. Any returned and replaced product, or any product for which Enfora has

refunded the original purchase price, becomes the property of Enfora.

Software

During the warranty period applicable to the software or its media, Enfora, at its expense, will replace

any defective software or media if purchaser gives written notification of the defect to the technical

support department at Enfora during the applicable warranty period. Enfora will ship or otherwise

transmit the replacement software or media to purchaser, and purchaser shall be responsible for

incorporating any replacement software in the product. Enfora shall not have any obligation to provide

any software bug fixes, upgrades or new releases except as may be necessary to correct any covered

defect of which purchaser notifies Enfora in writing during the applicable warranty period. Enfora, from

time to time and in its sole discretion, may make available for download on its website

(www.enfora.com) certain software bug fixes, upgrades or new releases for the product. The purchaser

should periodically visit such website to determine whether any such bug fixes, upgrades or new

releases have become available. Download and use of any such bug fixes, upgrades or new releases

is subject to all of the applicable terms and conditions of Enfora’s technical support policy as posted and

updated on its website.

GSM0128IG001 60 Revision Draft – 9/22/08

Exceptions and Disclaimers

Enfora shall have no obligation under this limited warranty for (a) normal wear and tear, (b) the cost of

procurement of substitute products or (c) any defect that is (i) discovered by purchaser during the warranty

period but purchaser does not notify or request an RMA number from Enfora, as required above, until after

the end of the warranty period, (ii) caused by any accident, misuse, abuse, improper installation, handling or

testing, or unauthorized repair or modification of the product, (iii) caused by use of any software other than

any software supplied by Enfora, or by use of the product other than in accordance with its documentation or

(iv) the result of electrostatic discharge, electrical surge, fire, flood or similar causes. Unless otherwise

provided in a written agreement between the purchaser and Enfora, the purchaser shall be solely

responsible for the proper configuration, testing and verification of the product prior to deployment in the

field.

ENFORA’S SOLE RESPONSIBILITY AND PURCHASER’S SOLE REMEDY UNDER

THIS LIMITED WARRANTY SHALL BE TO REPAIR OR REPLACE THE PRODUCT

HARDWARE, SOFTWARE OR SOFTWARE MEDIA (OR IF REPAIR OR

REPLACEMENT IS NOT POSSIBLE, OBTAIN A REFUND OF THE PURCHASE

PRICE) AS PROVIDED ABOVE. ENFORA EXPRESSLY DISCLAIMS ALL OTHER

WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT,

MERCHANTABILITY, SATISFACTORY PERFORMANCE AND FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ENFORA BE LIABLE FOR ANY

INDIRECT, SPECIAL, EXEMPLARY, INCIDENTAL OR CONSEQUENTIAL DAMAGES

(INCLUDING WITHOUT LIMITATION LOSS OR INTERRUPTION OF USE, DATA,

REVENUES OR PROFITS) RESULTING FROM A BREACH OF THIS WARRANTY OR

BASED ON ANY OTHER LEGAL THEORY, EVEN IF ENFORA HAS BEEN ADVISED

OF THE POSSIBILITY OR LIKELIHOOD OF SUCH DAMAGES.

Other Considerations

Some jurisdictions may require a longer warranty period than specified above and, accordingly,

for products sold in those jurisdictions the applicable warranty period shall be extended as

required under the laws of those jurisdictions. Furthermore, some jurisdictions may not allow the

disclaimer of implied warranties or the exclusion or limitation of incidental or consequential

damages, so the above disclaimer, limitation or exclusion may not apply to products sold in those

jurisdictions. This limited warranty gives the purchaser specific legal rights and the purchaser

may have other legal rights that vary from jurisdiction to jurisdiction.

In some instances, certain aspects of the product warranty may also be covered in a separate

written agreement between Enfora and the distributor or reseller, if any, from whom purchaser

purchased the product. That agreement may provide, for example, a different product return

procedure that may also be available to purchaser (e.g., the product may be returned to Enfora

through that distributor or reseller).

Governing Law

This limited warranty shall be governed by the laws of the State of Texas, United States

of America, without regard to conflict of laws principles. This limited warranty shall not be

governed in any respect by the United Nations Convention on Contracts for the

International Sale of Goods.

GSM0128IG001 61 Revision Draft – 9/22/08

APPENDIX B - Regulations and Compliance

This section summarizes the responsibilities and actions required of manufacturers and integrators who

incorporate OEM versions of the Enfora Enabler IIIG module into their products. In certain situations and

applications, these products will require additional FCC, CE, GCF, PTCRB or other regulatory approvals

prior to sale or operation. Appropriate instructions, documentation and labels are required for all products.

For more information concerning regulatory requirements, please contact Enfora.

GCF/PTCRB Approval (Formerly FTA)

The Enfora Enabler IIIG module is type approved in accordance with the requirements of and through

the procedures set forth by the GSM industry association. The relevant conformance specification is

3GPP TS 51010-1. Any OEM changes in the SIM interface, antenna port, software or the physical

makeup of the unit may require an incremental FTA to ensure continued compliance with the above-

mentioned standard. For more information concerning type approval, please contact Enfora.

Electromagnetic Compatibility (EMC) and Safety Requirements

The Enfora Enabler IIIG module has been tested and approved for application in the United States of

America (US) and the European Union (EU). The compliance details for each of these markets follow.

For other markets, additional or alternative regulatory approvals may be required. Always ensure that

all rules and regulations are complied with in every country that the OEM application is to be operated.

Regardless of the country or market, the OEM must comply with all applicable regulatory requirements.

EMC/Safety Requirements for the USA

Compliance to the US rules and regulations falls under two categories:

Radio approvals: Federal Communications Commission (FCC)

Transmitter: FCC Rules, Part 22 & 24

Unintentional emission: FCC Rules, Part 15

Although the Enfora Enabler IIIG module has been authorized by the FCC and listed as a component by

an NRTL, products and applications that incorporate the Enfora Enabler IIIG module will require final

verification of EM emission and product safety approval.

Note: Particular attention should be made to the following statements regarding RF Exposure:

GSM0128IG001 62 Revision Draft – 9/22/08

Human Exposure Compliance Statement

GSM0308 GSM/GPRS Module

Enfora certifies that the Enfora Enabler IIIG 850/900/1800/1900 MHz GSM Radio Module (FCC ID:

MIVGSM0308) complies with the RF hazard requirements applicable to broadband PCS equipment

operating under the authority of 47 CFR Part 24, Subpart E and Part 22 of the FCC Rules and

Regulations. This certification is contingent upon installation, operation and use of the Enfora Enabler

IIIG module and its host product in accordance with all instructions provided to both the OEM and end

user. When installed and operated in a manner consistent with the instructions provided, the Enfora

Enabler IIIG module meets the maximum permissible exposure (MPE) limits for general population /

uncontrolled exposure at defined in Section 1.1310 of the FCC Rules and Regulations.

Note: Installation and operation of this equipment must comply with all applicable FCC Rules and

Regulations, including those that implement the National Environmental Policy Act of 1969 (Part 1,

Subpart I), with specific regard to antenna sitting and human exposure to radio frequency radiation.

For further guidance, consult the FCC Rules, a certified FCC test house, or Enfora.

Compliance with FCC Regulations

The Federal Communications Commission (FCC) is the agency of the Federal Government that

oversees all non-governmental radio frequency transmitters that operate within the United States.

Unintentional emissions from digital devices are regulated by Part 15 of the FCC Rules and

Regulations, which distinguishes between the environments in which these devices may operate.

Intentional radiators operating as a GSM-1900 radio transmitter are regulated under Part 22 & 24,

Subpart E—Broadband PCS of the FCC Rules and Regulations.

GSM0128IG001 63 Revision Draft – 9/22/08

Unintentional Radiators, Part 15

Equipment designated as Class A is intended for use in a commercial, industrial or business

environment. The Enfora Enabler IIIG module has been tested and found to comply with the limits for a

Class A digital device and can be integrated into equipment or applications intended for use in

commercial, industrial or business environments.

The following statement must be included in the user manual for such products:

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

Equipment intended for use in a residential environment (not-withstanding use in commercial, industrial

or business environments) is designated as Class B. The Enfora Enabler IIIG module has been tested

and found to comply with the limits for a Class B digital device and can be integrated into equipment or

applications intended for use in residential environments.

The following statement must be included in the user manual for such products:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on the user is

encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.



 Consult the dealer or an experienced radio/TV technician for help.

Intentional Radiators, Part 22 & 24

Products incorporating the Enfora Enabler IIIG transceiver operate as Personal Communications

Services (PCS) devices under the authority of Part 22 & Part 24, Subpart E—Broadband PCS, of the

FCC Rules and Regulations. All such transmitters must be authorized by the FCC through its

Certification process, as detailed in Part 2, Subpart J - Equipment Authorization Procedures. Through

the Certification process, the FCC verifies that the product complies with all applicable regulatory and

technical requirements, including those that address human exposure to radio frequency radiation. In

general, radio frequency transmitters cannot be sold or operated in the US prior to FCC approval.

GSM0128IG001 64 Revision Draft – 9/22/08

Instructions to the Original Equipment Manufacturer (OEM)

To comply with the requirements of the National Environmental Policy Act (NEPA) of 1969, operation of

an FCC-regulated transmitter may not result in human exposure to radio frequency radiation in excess

of the applicable health and safety guidelines established by the FCC. Further information on RF

exposure issues may be found in the FCC's Office of Engineering and Technology (OET) Bulletin

Number 65, "Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency

Electromagnetic Fields" and Supplement C, "Additional Information for Evaluating Compliance of Mobile

and Portable devices with FCC Limits for Human Exposure to Radio Frequency Emissions.” Both of

these documents are available via the Internet at the OET web site: http://www.fcc.gov/oet

The Enfora Enabler IIIG products are GSM radio transceivers, which operate under the authority of 47

CFR Part 24, Subpart E and Part 22 of the FCC Rules and Regulations. When installed and operated

in accordance with the instructions provided in this manual, these devices comply with current FCC

regulations regarding human exposure to radio frequency radiation.

The following installation and operation restrictions apply to all Enfora Enabler IIIG products:

 This device may only be used in fixed and mobile applications.

 Portable applications, as defined by the FCC, are prohibited.

 The use of this device for desktop and other applications where the antenna can easily be

relocated are considered by the FCC to be mobile applications.

 A separation distance of at least 20 cm (7.87 inches) between the antenna and the body

of the user and other persons must be maintained at all times

 In FIXED applications, antenna gain is limited to a maximum of 7 dBi, with a

corresponding Equivalent Isotropic Radiated Power (EIRP) of 37 dBm / 5 W.

 In MOBILE applications, antenna gain is limited to a maximum of 2 dBi, with a

corresponding EIRP of 33 dBm / 2 W.

 End products must provide instructions to ensure compliance with radio frequency

radiation exposure requirements.

 A warning label visible to all persons exposed to the antenna and identical to that

described in this manual must be displayed on or next to the antenna.

 Separate FCC approval for RF exposure compliance is required for end products that do

not meet these conditions.

Antenna gain is defined as gain in dBi (dB referenced to an isotropic radiator) minus cabling loss.

GSM0128IG001 65 Revision Draft – 9/22/08

Note: Additional care must be taken by the installer and/or user of the Enfora Enabler IIIG

products to ensure proper antenna selection and installation. Adherence to the above conditions is

necessary to comply with FCC requirements for safe operation regarding exposure to RF radiation.

Depending upon the application and type of product into which the Enfora Enabler IIIG module has

been incorporated, specific OEM actions and responsibilities required to meet these conditions

vary. However, in all cases the primary concern is to ensure compliance with current FCC

guidelines and regulations that limit human exposure to radio frequency radiation.

Definitions

For the purpose of determining compliance with current FCC rules addressing human

exposure to radio frequency radiation, the FCC has established the following three

categories of transmitting devices:

 Portable Devices – devices where the antenna is located within 20 cm (7.87

inches) of any person, including the user, if applicable. Portable devices

operating under the authority of Part 22 or 24 (broadband PCS) are limited to a

maximum of 2 W EIRP.

 Mobile Devices – devices designed to be used in other than fixed locations and

generally such that the antenna is located at a minimum of 20 cm (7.87 inches)

from any person, including the user, if applicable. Mobile devices operating

under the authority of Part 22 or 24 (broadband PCS) are limited to a maximum

of 2 W EIRP.

 Fixed devices – devices in which the antenna, either integral to the product or

remotely located, is physically secured at one location and is not able to be easily

moved to another location. The antenna for a fixed device is mounted on an

outdoor permanent structure with a minimum separation distance of 2 meters (79

inches)

GSM0128IG001 66 Revision Draft – 9/22/08

OEM Responsibilities for All Products Containing the Enabler IIIG module

In addition to any other regulatory requirements, OEMs and integrators must include or provide the

following information, instructions, warnings and labels with any device or product into which the

Enfora Enabler IIIG GSM1900 GSM transceiver has been incorporated:

Information Description

Detailed Operating

Instructions for

ensuring compliance

with current FCC

guidelines which limit

human exposure to

radio frequency

radiation

The OEM must provide an operating/installation manual with the final product which clearly indicates

that these operating conditions and restrictions must be observed at all times to ensure compliance

with current FCC guidelines which limit human exposure to radio frequency radiation.

20 cm (7.87 inch) separation distance between the antenna and all persons must be maintained at all

times for all fixed and mobile products and applications

Portable devices and applications are prohibited unless such devices and products are specifically

authorized by the FCC

Maximum antenna gain is limited to 2 dBi* in mobile products and applications

For fixed applications (2 meter separation) the antenna gain can be as much as 26 dBi.

Modifications and/or additions to the Enfora Enabler IIIG GSM transceiver, including use of antennas

with higher gain than those authorized by the FCC, are prohibited

*dBi = antenna gain in dB relative to an isotropic radiator

Antenna Avoidance

Label

Attach the following warning label directly to

or displayed next to the antenna.

Furthermore, this label must be visible to

and easily readable by all persons in the

immediate vicinity of the antenna

WARNING

To comply with FCC RF exposure requirements, a

separation distance of 20 cm (7.87”) or more must

be maintained between this antenna and all persons

Human Exposure

Compliance

Statement

Include the following statement in the

instruction / operation manual.

Enfora certifies that the Enfora Enabler IIIG ™ MHz

GSM Radio Module (FCC ID: MIVGSM0308) complies

with the RF hazard requirements applicable to

broadband PCS equipment operating under the

authority of 47 CFR Part 22 or Part 24, Subpart E of the

FCC Rules and Regulations.

This certification is contingent upon installation,

operation and use of the

Enfora Enabler IIIG module and its host product in

accordance with all instructions provided to both the

OEM and end used. When installed and operated in a

manner consistent with the instructions provided, the

Enfora Enabler IIIG module meets the maximum

permissible exposure (MPE) limits for general

population / uncontrolled exposure at defined in Section

1.1310 of the FCC Rules and Regulations.

GSM0128IG001 67 Revision Draft – 9/22/08

Specific OEM Responsibilities for Portable Products and Applications

Each device or product, into which the Enfora Enabler IIIG PCS-1900 GSM transceiver has been

incorporated, and which is intended to be used in an application that meets the definition of

"portable" MUST be separately authorized by the FCC for the purposes of determining compliance

with current FCC guidelines limiting human exposure to radio frequency radiation.

Portable devices must be evaluated for RF exposure based on Specific Absorption Rate (SAR)

limits; further information on such evaluations are available from the FCC via the Internet.

Specific OEM Responsibilities for Mobile Products and Applications

Separate or additional FCC approvals are NOT required for devices or products, into which the

Enfora Enabler IIIG PCS-1900 GSM transceiver has been incorporated, that are used in

applications that meet the definition of "mobile."

For all end products, the OEM or integrator must provide instructions, warnings and labels to

ensure that the product complies with current FCC guidelines limiting human exposure to radio

frequency radiation.

Current FCC regulations limit the EIRP of mobile devices to 2 W. Because the nominal RF output

power of the Enfora Enabler IIIG GSM1900 GSM transceiver is 1.0 W (31 dBm), antenna gain for

mobile products and applications cannot exceed 2 dBi.

Specific OEM Responsibilities for Fixed Products and Applications

Separate or additional FCC approvals are not required for devices or products, into which the

Enfora Enabler IIIG GSM transceiver has been incorporated, that are used in applications that meet

the definition of "fixed.”

For all end products, the OEM or integrator must provide the instructions, warnings and labels to

ensure that the product complies with current FCC guidelines limiting human exposure to radio

frequency radiation.

Separate or additional FCC approvals are required for devices or end products used in fixed

applications where antenna gain in excess of 7dBi is desired.

GSM0128IG001 68 Revision Draft – 9/22/08

EMC/Safety Requirements for the Countries of the European Union (EU)

The European Union (EU) is comprised of fifteen countries that follow a harmonized set of standards,

utilizing the CE mark as a uniform mark of acceptance. The member countries are:

 Austria

 Belgium

 Cyprus

 Czech Republic

 Denmark

 Estonia

 Finland

 France

 Germany

 Greece

 Hungary

 Ireland

 Italy

 Latvia

 Lithuania

 Luxembourg

 The Netherlands

 Poland

 Portugal

 Slovakia

 Slovenia

 Spain

 Sweden

 United Kingdom

EMC/Safety Requirements for Other Countries

In most other countries that have not been listed above there are similar rules and regulations that must

be met for importing the Enfora Enabler IIIG module. Each may require a different mark of approval (for

example, the CB Scheme) as an acceptance requirement. For each of these cases the country should

identified, and the appropriate steps should be taken to meet the requirements set forth in the intended

market.

GSM0128IG001 69 Revision Draft – 9/22/08

APPENDIX C - Glossary and Acronyms

API Application Programming Interface.

App Application Refers to the Application which sends or receives commands/responses from the

Enfora Enabler IIG Module

AT Command Set Commands issued by intelligent device to a modem to perform functions, such as

to initiate call, to answer call, or to transmit data.

BER

Bit Error Rate Bit Error Rate

CMUX Multiplexer protocol that operates between an MS and a TE and allows a number

of simultaneous sessions over a normal serial asynchronous interface

CPE

Customer Premise Equipment A terminal in fixed location on the customer’s premises.

CSD

Circuit Switched Data Data link from a terminal through the network allowing real-time, duplex

connectivity at 9600 bytes/second.

Dbi Decibels referenced to an isotropic radiator

DCE

Data Communications

Equipment

Data Communications Equipment

DCS

Digital Cellular System A collection of services and capabilities providing flexibility of access and mobility

through a combination of wireless and wire-line networks, utilizing the 1800 MHz

bandwidth.

DTE

Data Terminal Equipment Data Terminal Equipment

EFR

Enhanced Full Rate Voice (vocoder) compression algorithms which offer the highest quality voice

communication.

EIR

Equipment Identity Register A database used to store International Mobile Equipment Identity (IMEI) of a locally

issued terminal.

EIRP

Equivalent Isotropic Radiated

Power

In a given direction, the gain of a transmitting antenna multiplied by the net power

accepted by the antenna from the connected transmitter.

EMC

Electromagnetic Compatibility The ability of a device to function satisfactorily in its electromagnetic environment

without inducing intolerable disturbance to that environment (or to other devices)

ESD

Electrostatic Discharge Static electricity that can damage electronic equipment.

European Union An organization of 15 European states whose purpose is to organize relations

between the Member States and between their peoples.

Full Type Approval GSM Full Type Approval

GPRS

General Packet Radio Service Standard for packet communications utilizing Global Standard for Mobility (GSM)

infrastructure.

GSM

Global System for Mobile

Communications

Standard for digital communications. Allows consistent communications in various

parts of the world despite variations in RF spectrum allocations. Transferring the

SIM (see below) permits users to roam by changing terminal equipment.

HLR

Home Location Register Stores the identity and user data for all subscribers belonging to the area of the

related MSC.

IMEI

International Mobile

Equipment Identity

A unique number for each GSM Terminal tracked by the GSM operators in their

Equipment Identity Register (EIR) database.

IMSI

International Mobile

Subscriber Identification

A unique number identifying the subscriber stored in the SIM card. Number is

used in conjunction with the network for call routing.

Ki A secret code used in authentication and encryption by the terminal.

Mobile Originated Any GSM/GPRS service originated at the mobile terminal.

Mobile Terminated Any GSM/GPRS service originated from or routed through the network and sent to

the mobile terminal.

MSC

Mobile Switching Center The central switch of the GSM network. Performs call routing, collects call detail

records for billing, and supervises system operations.

GSM0128IG001 70 Revision Draft – 9/22/08

Non-Transparent Mode Delivers a constantly low error rate but with a non-guaranteed throughput or delay.

The Non-Transparent service provides a performance that is closest to using a

modem over a fixed PSTN line.

NRTL

Nationally Recognized Test

Laboratory

OSHA-approved Nationally Recognized Testing Laboratory

OEM Original Equipment Manufacturer.

Power Amplifier.

Packet A collection of data transmitted over a digital network in a burst.

PCS Personal Communication Services.

Personal Digital Assistant.

PDU Packet Data Unit.

PPP Point-To-Point Protocol.

SIM Subscriber Identity Module.

SMS Short Message Service.

SMSC Short Message Service Center.

UDP User Datagram Protocol.

GSM0128IG001 71 Revision Draft – 9/22/08

APPENDIX D – Tables and Figures

TABLES

Table 1 - Enabler IIG Key Features .............................................................................................................. 11

Table 2 - Enabler IIG Pin Assignments ......................................................................................................... 27

Table 3 - Modem Library Configurations ....................................................................................................... 51

FIGURES

Figure 1 - Applications Using the Enfora Enabler IIG module in a GSM/GPRS Network .............................. 14

Figure 2 - Enabler IIG Module Block Diagram ............................................................................................... 18

Figure 3 - Enabler IIG Package Dimensions (without integrated SIM carrier) ............................................... 22

Figure 4 - Enabler IIG Package Dimensions (with integrated SIM carrier) .................................................... 23

Figure 5 - Vertical Enabler IIG Mounting ....................................................................................................... 24

Figure 6 - Enabler IIG Mounting Tabs ........................................................................................................... 24

Figure 7 - Module Pin Orientation ................................................................................................................. 25

Figure 8 - Ring Indicate Timing ..................................................................................................................... 29

Figure 9 - Power Control Switch ................................................................................................................... 31

Figure 10 – External Power Control Signal (no external processor) ............................................................. 33

Figure 11 – Power Control Signal (using external processor) ....................................................................... 33

Figure 12 - Power On Using Power Control Signal ....................................................................................... 35

Figure 13 - Power On Using Power Control Signal – Power Down Using Radio Power/Reset ..................... 35

Figure 14 - Power On/Off using Power Control Signal tied to Ground .......................................................... 36

Figure 15 - Enabler IIG Serial Interface ........................................................................................................ 37

Figure 16 - Audio Reference ......................................................................................................................... 41

Figure 17 - Remote SIM Interface ................................................................................................................. 43

Figure 18 - UDP-API Structure ...................................................................................................................... 49

Figure 19 - Library Layout ............................................................................................................................. 51

Figure 20 - Using Port Library ....................................................................................................................... 52

Figure 21 - Using Messaging Library ............................................................................................................ 52

Figure 22 - Using Modem Library .................................................................................................................. 53

Figure 23 - HyperTerminal Definition ............................................................................................................ 54

Figure 24 - COM Port Settings ...................................................................................................................... 55

GSM0128IG001 72 Revision Draft – 9/22/08

APPENDIX E - Contacting Enfora

For technical support and customer service dealing with the modem itself,

contact the company where you purchased the product. If you purchased the

product directly from Enfora, visit the SUPPORT page on the Enfora website:

http://www.enfora.com.
