Novatel Wireless NRM-MC547 MC545/MC547 HSPA+ Dual- Carrier High-Speed Data Modem User Manual Manual
Novatel Wireless, Inc. MC545/MC547 HSPA+ Dual- Carrier High-Speed Data Modem Manual
Manual
©2010 Novatel Wireless, Inc. All rights reserved. The information contained in this document is subject to change
without notice and should not be construed as a commitment by Novatel Wireless, Inc.
Patents and Licenses
Visit www.nvtl.com/patents for a complete list of all Novatel Wireless patents.
Software License
Proprietary Rights Provisions:
The software drivers provided with this product are copyrighted by Novatel Wireless and/or Novatel Wireless’ suppliers.
Although copyrighted, the software drivers are unpublished and embody valuable trade secrets proprietary to Novatel
Wireless and/or Novatel Wireless’ suppliers. The disassembly, decompilation, and/or Reverse Engineering of the software
drivers for any purpose is strictly prohibited by international law. The copying of the software drivers, except for a reasonable
number of back-up copies is strictly prohibited by international law. It is forbidden by international law to provide access
to the software drivers to any person for any purpose other than processing the internal data for the intended use of the
software drivers.
U.S. Government Restricted Rights Clause:
The software drivers are classied as “Commercial Computing device Software” and the U.S. Government is acquiring only
“Restricted Rights” in the software drivers and their Documentation.
U.S. Government Export Administration Act Compliance Clause:
It is forbidden by US law to export, license or otherwise transfer the software drivers or Derivative Works to any country where
such transfer is prohibited by the United States Export Administration Act, or any successor legislation, or in violation of the
laws of any other country.
Trademarks and Service Marks
Novatel Wireless is a trademark of Novatel Wireless, Inc., and the other trademarks, logos, and service marks (collectively the
“Trademarks”) used in this user manual are the property of Novatel Wireless or their respective owners. Nothing contained in
this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Novatel
Wireless or any other Trademark displayed in this user manual without the written permission of Novatel Wireless or its
respective owners.
• Ovation, the Ovation logo, Novatel Wireless, and the Novatel Wireless logo are all trademarks of Novatel Wireless, Inc.
• MobiLink™ is a trademark of Novatel Wireless.
• Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft® Corporation in the United States
and/or other countries.
• Apple® and Mac® are registered trademarks of Apple, Inc., registered in the U.S. and other countries.
• Linux® is a registered trademark of Linus Torvalds in the United States and/or other countries.
• microSDHC, SD Card, and the SD logo are trademarks of SD-3C LLC.
The names of actual companies and products mentioned in this user manual may be the trademarks of their respective
owners.
FCC ID: NBZNRM-MC547
IC: 3229A-MC547
FCC ID: NBZNRM-MC545
IC: 3229A-MC545
PN: 90026247_R1_DraftI_08Nov2010
Please visit www.novatelwireless.com for the latest information about your device.
Contents
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Overview ........................................................................... 2
Package Contents ....................................................................... 2
System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Components ................................................................................ 3
LED States (MC545 / MC547) ............................................................. 4
Caring for Your Device ....................................................................... 5
Using Ovation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using the Device for the First Time ........................................................... 7
Insert the SIM Card ...................................................................... 7
Properly Insert the Device in Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Install the MobiLink Software ............................................................ 9
After Installation is Complete ............................................................ 9
Connect To and Disconnect From the Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Activation ..............................................................................10
Accessing the User Guides ..................................................................11
Using a microSDHC™ Card ..................................................................12
microSDHC Slot ........................................................................12
Inserting and Removing a microSDHC Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Saving Files to microSDHC ..............................................................14
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Common Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Support ....................................................................................19
Product Specications and Regulatory Information . . . . . . . . . . . . . . . . . . . . . . 20
Product Specications ......................................................................21
Regulatory Statements .....................................................................23
CE Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Federal Communications Commission Notice (FCC – United States) . . . . . . . . . . . . . . . . . . 24
Wireless Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Limited Warranty and Liability ..............................................................25
Safety Hazards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2
Welcome
Congratulations on your purchase of the Novatel Wireless Ovation™ MC545/MC547 HSPA+ Dual-
Carrier High-Speed Data Modem! Please review this manual before installing the MobiLink software
and drivers, and before using the device for the rst time.
Product Overview
Package Contents
The Novatel Wireless Ovation MC545/MC547 modem package includes:
•Ovation modem
•Quick Start Guide
•MobiLink Software (included on the device; no CD required)
•MobiLink User Guide (on device)
System Requirements
•Supported operating systems
•Windows® XP (Service Pack 2 or higher), Vista, 7
•Mac OS® X v10.4.x Tiger, v10.5.x Leopard, v10.6.x Snow Leopard and later
•Linux® (v2.6 and later) Visit www.novatelwireless.com for more information.
•USB port: USB 1.1 supported; USB 2.0 high speed recommended
•Hard Drive: minimum 100 MB available
•Memory: 64 MB RAM
•Internet browser software: i.e., Microsoft Internet Explorer v6.0 or higher, Firefox, Safari,
Opera, Chrome
3

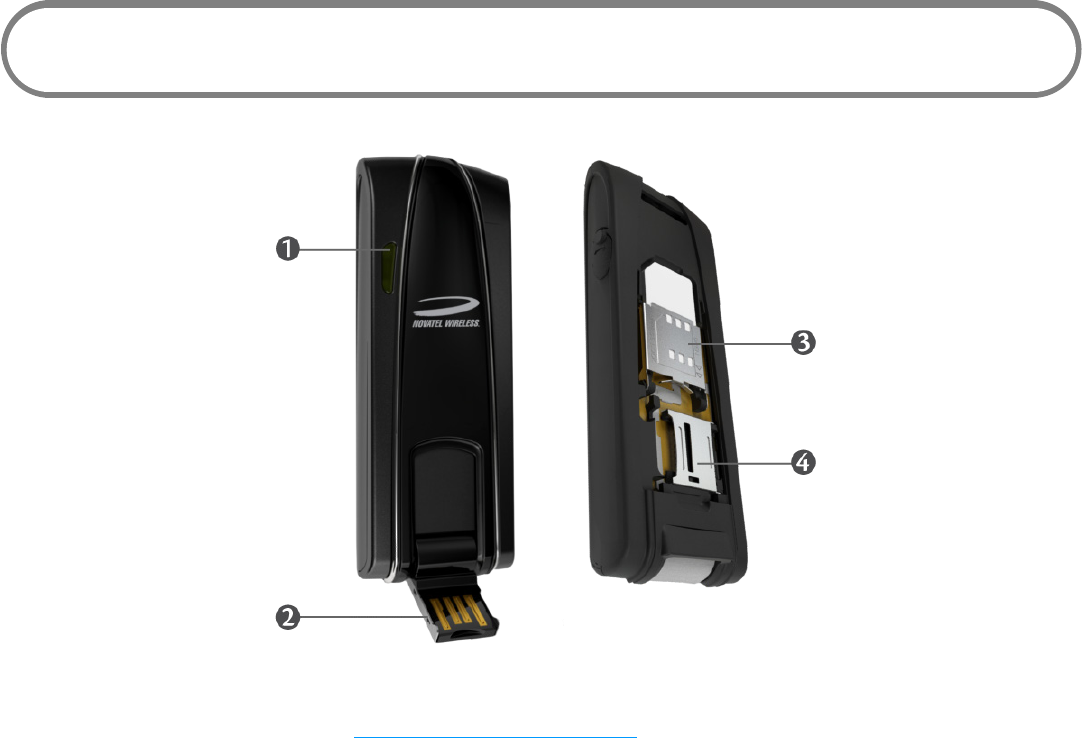

Components
LED indicator: Indicates the device is working correctly or needs attention; also indicates
data transmission. [See LED States (MC545 / MC547) (page 4).]
Hinged USB connector: Allows the USB connector to open and close.
SIM card slot: (On the back of the device, under the removable plastic panel.) Holds the SIM
card from your network operator.
microSDHC slot: (On the back of the device, under the removable plastic panel.) When a
microSDHC card is inserted, this feature enables you to store les on the device and transfer
les to another device or computer.
4

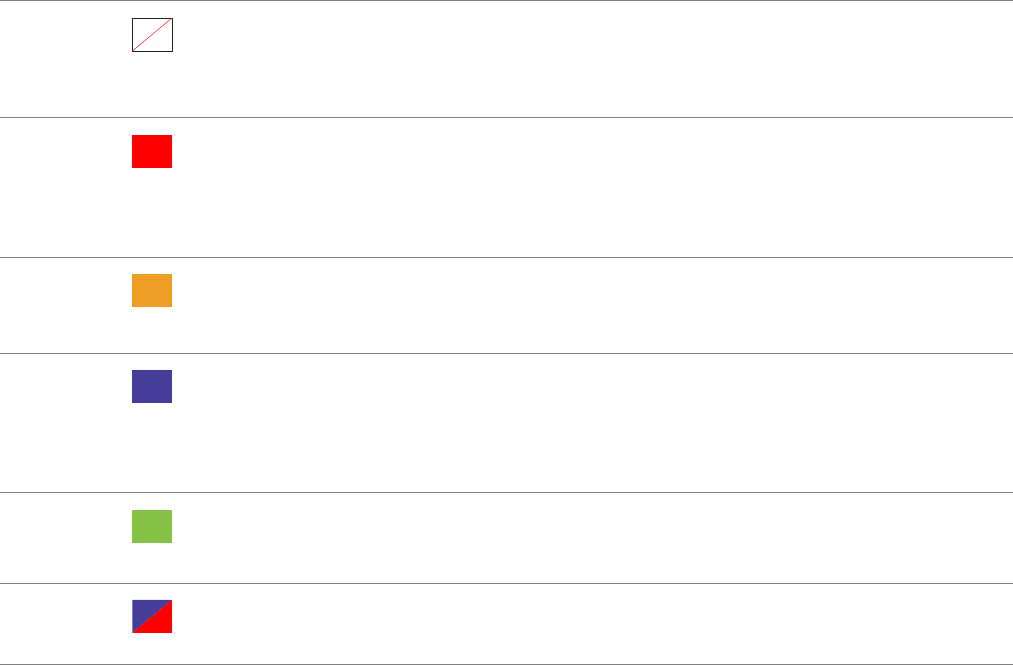

LED States (MC545 / MC547)
Ovation’s LED indicates the status of the current connection.
LED Color Device Status LED Status Description
No Light No Power,
or Incorrect
Angle
The device is powered o
The device bend angle is too narrow or too wide;
return the device to its original position
Red Initializing, or
Error
Short solid:
Long solid:
Flashing:
Normal startup, changes to yellow very quickly
Device error, restart the device
SIM card error
Yellow Searching for
service
Flashing: Searching for service
Blue Connected, or
Dual-Carrier
HSPA+
Solid:
Flashing:
Connected to a network using Dual-Carrier HSPA+
Network found (all networks)
Green HSPA+, 3G, or
2G
Solid: Connected to a network using HSPA+, 3G, or 2G
Blue/Red Error Alternating: Device error, contact support
5
Caring for Your Device
Like any electronic device, the modem must be handled with care to ensure reliable operation.
Novatel Wireless recommends the following guidelines:
•Do not apply adhesive labels to the device; they might cause the device to potentially
overheat and they might alter the performance of the antenna.
•The USB connector should plug easily into your computer’s standard Type A USB port. Do not
force the device into a port, as doing so might damage the connector.
•Protect the device from liquids, dust, and excessive heat.
•Store the device in a safe place when not in use.
•Do not force the SIM card into the SIM card slot.
7
Using the Device for the First Time
IMPORTANT Do not insert the device into a USB hub, as it might not provide sufficient power.
Insert the SIM Card
IMPORTANT To use Ovation MC545/MC547, you must have an account with a network
operator.
If your device was not pre-activated, your device might require account activation. If so, your
network operator should have provided activation instructions. If your account needs to be
activated and instructions were not provided, contact your network operator for complete
instructions. [See Activation (page 10).]

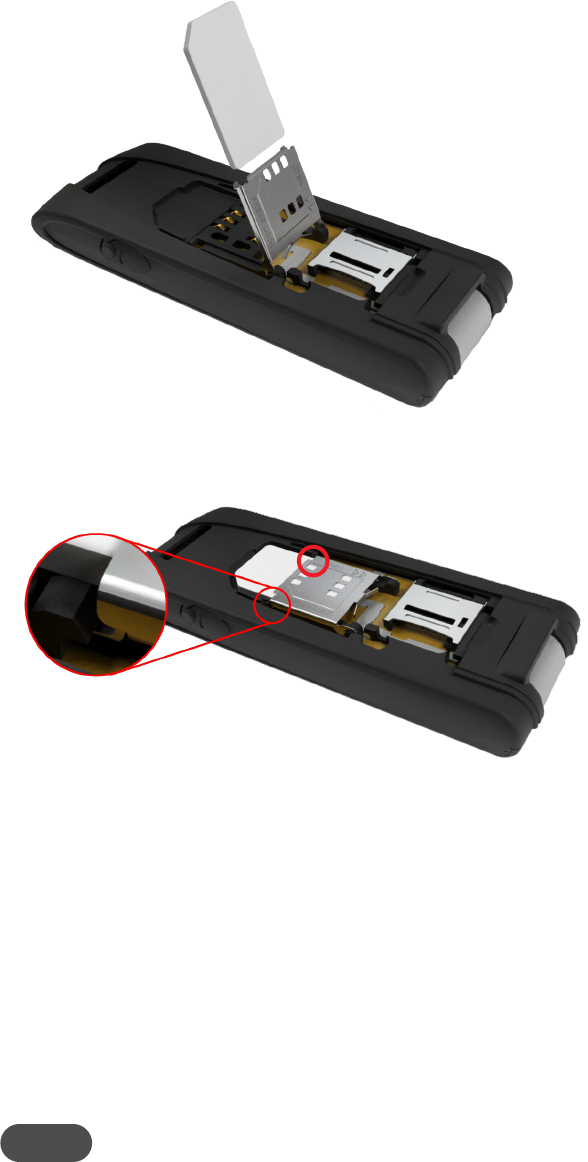

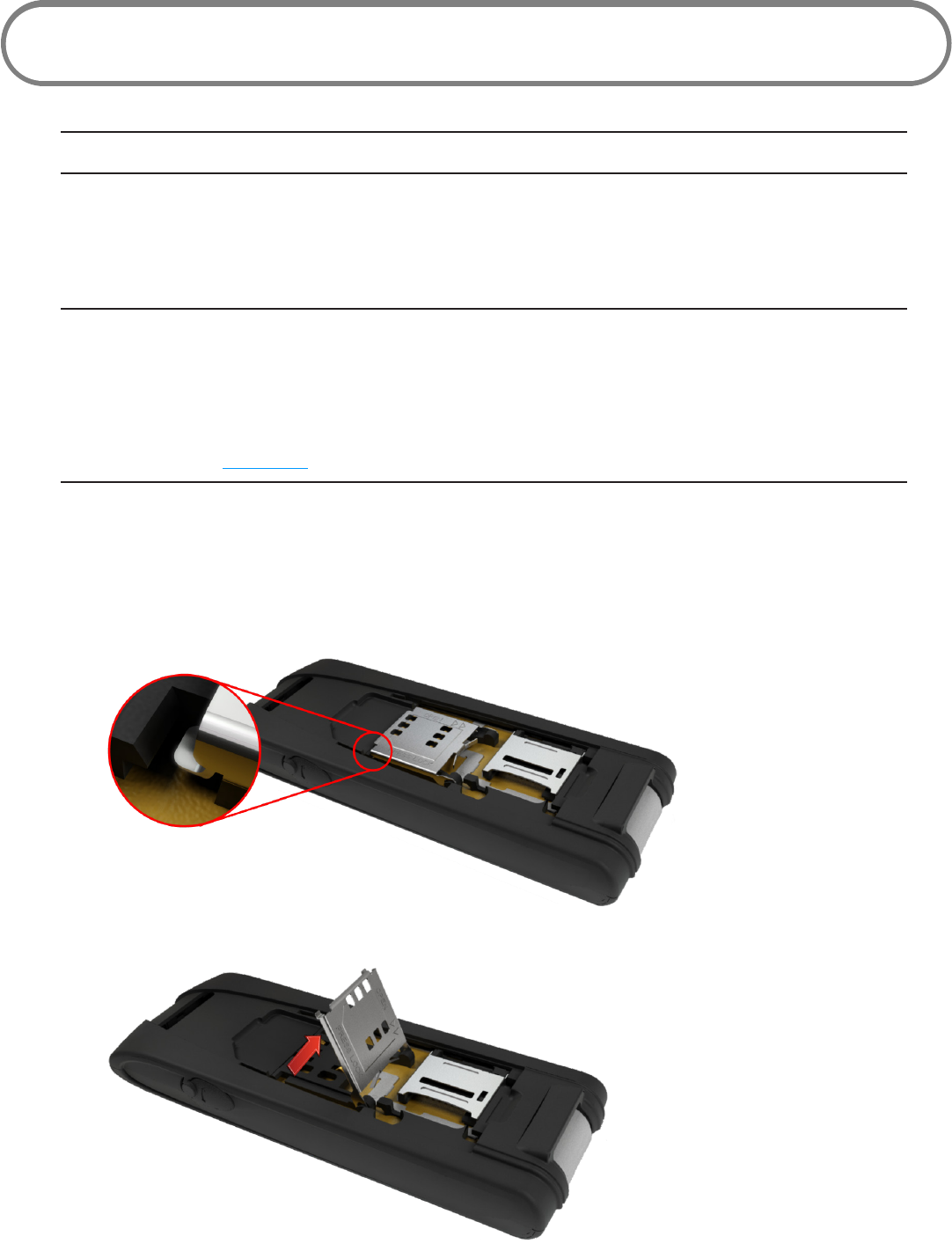

Before your rst use, you must install the SIM card supplied by your network operator.
Remove the cover from the back of the device by inserting a ngernail under the end of the
cover closest to the USB connector and pulling toward you.
Slide the SIM card holder toward the USB connector to release the spring-loaded catch.
Lift the SIM card holder up with a ngernail.
8
Insert the SIM card so the metal contacts on the card face the metal contacts inside the
device. The cut corner on the card goes in last.
Push the inserted SIM card in the SIM card holder down and then slide it back toward the
spring until both sides of the SIM card holder catch.
Replace the cover.
Properly Insert the Device in Your Computer
To properly insert the device
Gently ip open the USB connector. Hold the device along the side edges and gently insert the
device into your computer’s Type A USB port. The device should t easily into the port. Do not
force the device into the port as this might damage both the device and the port.
NOTE If you have difficulty inserting the device into your computer’s USB port, verify that you are inserting
the device in the correct orientation and you are using a Type A USB port.
9
Install the MobiLink Software
IMPORTANT Do not insert the device into a USB hub, as it might not provide sufficient power.
The MobiLink software congures the device and its connection manager connects the computer
to the wireless broadband network.
The device includes the MobiLink software in its ash memory, so no installation CD is needed. The
rst time you insert the device in the computer, the following occurs:
•Windows: The device automatically installs MobiLink.
•Mac: The device opens a Finder window with an installer package.
To install the MobiLink software
Turn on your computer and close all applications.
Insert the device into your computer’s USB port. [See To properly insert the device (page 8).]
»Windows: The installation program launches automatically.
»Mac: A Finder window opens to show a package icon. Double-click the icon to launch the installer.
Follow the on-screen instructions.
Mac users need to re-start the computer and then open MobiLink in the Applications folder.
Tip! Mac users: The MobiLink Dock icon is a convenient way to open the software if you keep it in the
Dock. After MobiLink is open, click and hold the MobiLink Dock icon until the Dock icon menu
opens, and then select Keep in Dock (Tiger and Leopard) or Options > Keep in Dock (Snow Leopard)
You can also select Open at Login in the Dock icon menu.
After Installation is Complete
Windows: After installation completes, Windows users see the following:
•A MobiLink shortcut is placed on the desktop
•A MobiLink status icon appears in the system tray
(Windows notication area)
•The MobiLink connection manager window opens
10
Mac: After the computer re-starts and the MobiLink application is open, Mac users see the
following:
•A MobiLink icon is placed in the Dock
•A MobiLink status icon appears on the right side of the
menu bar
•The MobiLink connection manager window opens
Tip! Mac users: The MobiLink Dock icon is a convenient way to open the software if you keep it in the
Dock. After MobiLink is open, click and hold the MobiLink icon until the Dock icon menu opens, and
then select Keep in Dock (Tiger and Leopard) or Options > Keep in Dock (Snow Leopard).
Connect To and Disconnect From the Network
Click the MobiLink icon to open the MobiLink software.
The connection manager opens.
To connect to the network, click Connect.
When you are done using the device: to disconnect from the network, click Disconnect.
Activation
If your account is not pre-activated, you might need to activate your device with your network
operator.
If the MobiLink connection manager says Device is not activated, click the Activation button and follow
the on-screen instructions.
11
Accessing the User Guides
You can access the User Guides on the device after the MobiLink software is installed.
To access the User Guides (Windows)
Insert the device into your computer’s USB port.
Go to My Computer > Devices with Removable Storage.
Right-click the MobiLink icon in the Device with Removable Storage list.
A menu opens.
Select Explore.
A window opens.
Click to open the Docs folder and nd the User Guides.
To access the User Guides (Mac)
Insert the device into your computer’s USB port.
Open a Finder window.
In the left column of the Finder window, select Ovation MC545/MC547.
In the main Finder window, click to open the Docs folder and nd the User Guides.
12
Using a microSDHC™ Card
microSDHC cards (sold separately) can add memory storage to Ovation MC545/MC547.
microSDHC Slot
Ovation MC545/MC547 is equipped with removable memory storage. This feature enables you to
simultaneously connect to the Internet, access your corporate VPN on the y, and store data on the
device without needing another ash drive.
A microSDHC card is required to take advantage of the memory storage feature and is available in
high-capacity sizes. [See Data Storage (page 22).]
Inserting and Removing a microSDHC Card
To insert a microSDHC card
Remove the cover from the back of the device by inserting a ngernail under the end of the
cover closest to the USB connector and pulling toward you.
Slide the microSDHC card holder to the side to release the catch.
13
Lift the microSDHC card holder up with a ngernail.
Place the microSDHC card in the holder. Be sure the metal contacts on the card face the
metal contacts inside the device. Also be sure the shape of the card matches the holder
exactly.
Push the microSDHC card holder down and then slide it forward until the holder catches. Be
sure the card is locked in place.
Replace the cover.
To remove a microSDHC card
Remove the cover and follow the insertion steps in reverse. Use your ngernail only;
do not use sharp objects to remove the card.
14
Saving Files to microSDHC
The process of saving les to the microSDHCHC memory card is similar to saving les to any external
ash drive inserted in your computer. A microSDHC card with sucient free space must be inserted
in the device. [See To properly insert the device (page 8).].
To download files directly to the device
When you download a le, a Save to dialog opens. In the Save to dialog, click the down arrow
to view the contents of the drop-down menu.
Select Ovation MC545/MC547.
»Windows: The device typically appears as a removable storage device with an assigned drive letter
for identification.
»Mac: The device typically appears in the Devices list on the left side of the Finder window, or as a disk
image on the desktop.
Type a name for the le you are saving to the device and click Save.
To save files from an application
When saving les directly from an application to the device, go to File > Save As. In the Save As
window, click the down arrow.
Select Ovation MC545/MC547.
»Windows: The device typically appears as a removable storage device with an assigned drive letter
for identification.
»Mac: The device typically appears in the Devices list on the left side of the Finder window, or as a disk
image on the desktop.
In the Save As eld, type a name for the le you are saving to the device and then click Save.
To drag/drop – copy/paste
Locate Ovation MC545/MC547.
»Windows: The device typically appears as a removable storage device with an assigned drive letter
for identification.
»Mac: The device typically appears in the Devices list on the left side of the Finder window, or as a disk
image on the desktop.
Double-click the device to open a window and view the contents.
Drag or paste les into the Ovation MC545/MC547 window.
15
To open files from the microSDHC card
Locate the device.
»Windows: The device typically appears as a removable storage device with an assigned drive letter
for identification.
»Mac: The device typically appears in the Devices list on the left side of the Finder window, or as a disk
image on the desktop.
Double-click the device to open a window and view the contents.
Double-click to open the le.
17
Overview
When properly installed, Ovation MC545/MC547 is a highly reliable product. Most problems are
caused by one of these issues.
•System resources required by the modem are being used by other devices.
•Network coverage is unavailable due to coverage area, an account problem, or a network
problem.
The following tips can help solve many common problems encountered while using the device.
First Steps
•Make sure you are using the device in the correct geographic region.
•Ensure that your network operator’s wireless coverage extends to your current location.
•Ensure you have an active subscription plan from your network operator.
•Re-starting your computer and your modem can resolve many issues.
IMPORTANT Before contacting support, be sure to re-start your computer and re-insert the
device.
18
Common Problems and Solutions
The following are some common problems and solutions.
My computer does not start if the device is inserted. I experience an error or a
blank screen.
Remove the device and re-start the computer. The device contains internal memory which
behaves like a CD-ROM. Some computers, depending on the system BIOS settings, might try
to start from the device’s internal memory instead of the hard drive. The computer might show
a black screen with a cursor or an error message about a non-bootable disk. This behavior is
similar to using any non-bootable CD in your CD-ROM drive.
I cannot install the software
You might not have administrator privileges.
1. Contact your system administrator (if applicable).
2. Log on to your computer as an administrator, or create a user account with administrator
privileges.
I still cannot connect to the network after trying First Steps [See First Steps (page
17).]
Your Connection Type in the active connection prole might be incorrect. Consult the
MobiLink User Guide for more information.
Your access point name (APN) settings, username, or password in the active connection prole
might be incorrect. Consult the MobiLink User Guide for more information.
21
Product Specications
Technology/Bands
•Dual-Carrier HSPA+
•HSPA+/HSPA/UMTS — 900/1900/2100 MHz (MC545)
•HSPA+/HSPA/UMTS — 850/1900/2100 MHz (MC547)
•Quad-band GPRS/EDGE — 850/900/1800/1900 MHz
Data Speeds
•Dual-Carrier HSPA+ Downlink (42 Mbps), Uplink (5.75 Mbps)
•HSPA+ Downlink Cat 14 (21 Mbps)
•HSPA+ Release 7 Uplink Cat 6 (5.76 Mbps)
•HSDPA Release 5 downlink Cat 10 (14 Mbps-ready; rmware update required)
•HSUPA Release 6 Uplink Cat 6 (5.76 Mbps)
•UMTS (384 kbps)
•GPRS/EDGE multi-slot class 12 (up to 237 kbps)
Advanced Technologies
•Receiver Equalization — Improves performance in noisy and highly mobile environments
•Receiver Diversity — Improves performance at cell edges and in buildings
Power Class
•UMTS 850/1900 — Power Class 3
•GPRS 1800/1900 — Power Class 1
•GPRS 850/900 — Power Class 4
•EDGE 850/900/1800/1900 — Power Class E2
Dimensions and Weight
•82 mm x 30 mm x 11 mm (LxWxH)
•24 g
Form Factor
22
•USB Dongle
•USIM card slot (card size: 25 mm x 15 mm)
Embedded Installer, No CD
•MobiLink software is embedded in ash memory for Windows and Mac.
Data Storage
•The device supports microSDHC cards up to 32 GB.
23
Regulatory Statements
CE Marking
This device has been tested to and conforms to the regulatory requirements of the European Union
and has attained CE Marking. The CE Mark is a conformity marking consisting of the letters “CE”.
The CE Mark applies to products regulated by certain European health, safety and environmental
protection legislation. The CE Mark is obligatory for products it applies to: the manufacturer axes
the marking in order to be allowed to sell his product in the European market.
This product conforms to the essential requirements of the R&TTE directive 1999/5/EC in order to
attain CE Marking. A notied body has determined that this device has properly demonstrated that
the requirements of the directive have been met and has issued a favorable certicate of expert
opinion. As such the device will bear the notied body number 0682 after the CE mark.
The CE Marking is not a quality mark. Foremost, it refers to the safety rather than to the quality of a
product.
Secondly, CE Marking is mandatory for the product it applies to, whereas most quality markings are
voluntary.
Marking: The product shall bear the CE mark, the notied body number(s) as depicted on this page.
24
Federal Communications Commission Notice (FCC – United States)
This equipment has been tested to, and found to be within the acceptable limits for a Class B digital device,
pursuant to part 15 of the FCC Rules and Industry Canada ICES-003. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a residential
environment. This equipment generates radio frequency energy and is designed for use in accordance
with the manufacturer’s user manual. However, there is no guarantee that interference will not occur in
any particular installation. If this equipment causes harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, you are encouraged to try to correct the
interference by one or more of the following measures.
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Consult the dealer or an experienced radio/television technician for help
This device complies with Part 15 of the Federal Communications Commission (FCC) Rules and Industry
Canada ICES-003. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired
operation.
WARNING: DO NOT ATTEMPT TO SERVICE THE WIRELESS COMMUNICATION DEVICE YOURSELF. SUCH ACTION
MAY VOID THE WARRANTY. THE DEVICE IS FACTORY TUNED. NO CUSTOMER CALIBRATION OR TUNING IS
REQUIRED. CONTACT YOUR SERVICE PROVIDER FOR INFORMATION ABOUT SERVICING YOUR WIRELESS
COMMUNICATION DEVICE.
Notice to Consumers: Any changes or modication not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
NOTE: The Radio Frequency (RF) emitter installed in your modem must not be located or operated in
conjunction with any other antenna or transmitter, unless specically authorized by Novatel Wireless
Technologies.
MODIFICATIONS: Any changes or modication not expressly approved by Novatel Wireless, Inc. could
void the user’s authority to operate this equipment. The FCC has granted an Equipment Authorization for
this wireless modem with all reported SAR levels evaluated as in compliance with the FCC RF exposure
guidelines.
FCC Equipment Authorization ID: NBZNRM-MC545, NBZNRM-MC547
In order to comply with FCC RF exposure requirements, the device must be installed so that a minimum
separation distance of 0.5 cm (0.2”) is maintained between the antenna and all persons during ordinary
operating conditions.
25
Wireless Communications
IMPORTANT Due to the transmission and reception properties of wireless communications,
data occasionally can be lost or delayed.
Data loss or delay can be caused by variation in radio signal strength that results from changes in
the characteristics of the radio transmission path. Although data loss is rare, the environment where
you operate the modem may adversely aect communications.
Novatel Wireless or its partners will not be held responsible for damages of any kind resulting
from the delays or errors in data transmitted or received with OvationMC545/MC547, or failure of
OvationMC545/MC547 to transmit or receive such data.
Limited Warranty and Liability
Novatel Wireless warrants for the 12 month period immediately following receipt of the Product by
Purchaser that the Product will be free from defects in material and workmanship under normal use. THESE
WARRANTIES ARE EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING,
WITHOUT LIMITATION, ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE.
The exclusive remedy for a claim under this warranty shall be limited to the repair or replacement, at
Novatel Wireless’ option, of defective or non-conforming materials, parts or components. The foregoing
warranties do not extend to (I) non conformities, defects or errors in the Products due to accident, abuse,
misuse or negligent use of the Products or use in other than a normal and customary manner, environmental
conditions not conforming to Novatel Wireless’ specication, of failure to follow prescribed installation,
operating and maintenance procedures, (II) defects, errors or nonconformity’s in the Product due to
modications, alterations, additions or changes not made in accordance with Novatel Wireless’ specications
or authorized by Novatel Wireless, (III) normal wear and tear, (IV) damage caused by force of nature or
act of any third person, (V) shipping damage, (VI) service or repair of Product by the purchaser without
prior written consent from Novatel Wireless, (VII) products designated by Novatel Wireless as beta site test
samples, experimental, developmental, reproduction, sample, incomplete or out of specication Products, or
(VIII) returned products if the original identication marks have been removed or altered.
26
Safety Hazards
Do not operate the device in an environment that might be susceptible to radio interference
resulting in danger, specically:
Areas Where Prohibited by the Law
Follow any special rules and regulations and obey all signs and notices. Always turn o the host
device and remove the device from the computer when instructed to do so, or when you suspect
that it may cause interference or danger.
Where Explosive Atmospheres Might be Present
Do not operate the device in any area where a potentially explosive atmosphere may exist. Sparks
in such areas could cause an explosion or re resulting in bodily injury or even death. Be aware and
comply with all signs and instructions.
Users are advised not to operate the device while at a refueling point or service station. Users are
reminded to observe restrictions on the use of radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants, or where blasting operations are in progress.
Areas with a potentially explosive atmosphere are often but not always clearly marked. Potential
locations can include gas stations, below deck on boats, chemical transfer or storage facilities,
vehicles using liqueed petroleum gas (such as propane or butane), areas where the air contains
chemicals or particles, such as grain, dust or metal powders, and any other area where you would
normally be advised to turn o your vehicle engine.
Near Medical and Life Support Equipment
Do not operate the device in any area near medical equipment or life support equipment, or near
any equipment that may be susceptible to any form of radio interference. In such areas, the host
communications device must be turned o. The device may transmit signals that could interfere
with this equipment.
On an Aircraft, Either on the Ground or Airborne
In addition to United States FAA requirements, many airline regulations state that you must suspend
wireless operations before boarding an airplane. Please ensure that the host device is turned o and
the device is removed from the computer prior to boarding aircraft in order to comply with these
regulations. The device can transmit signals that could interfere with various onboard systems and
controls.
While Operating a Vehicle
The driver or operator of any vehicle should not operate a wireless data device while in control of
a vehicle. Doing so detracts from the driver or operator’s control and operation of that vehicle. In
some countries, operating such communications devices while in control of a vehicle is an oense.
27
Electrostatic Discharge (ESD)
Electrical and electronic devices are sensitive to electrostatic discharge (ESD). Macintosh native
connection software may attempt to reinitialize the device should a substantial electrostatic
discharge reset the device. If the software is not operational after an ESD occurrence, then re-start
your computer.
Glossary
5
29
Glossary
APN — Access point name.
bps — Bits per second–rate of data flow.
Broadband — High-capacity high-speed, transmission channel with a wider bandwidth than
conventional modem lines. Broadband channels can carry video, voice, and data simultaneously.
EDGE — Enhanced Data Rates for GSM Evolution. EDGE is a wireless broadband technology with an
average speed of 400 kbps.
Firewall — A hardware or software boundary that protects a network or single computer from
unwanted outside traffic.
GPRS — General Packet Radio Service. GPRS is a wireless broadband technology with speeds from 56-
114 kbps.
Hot-Swappable — The ability to remove and replace the microSDHC card from the device while it is
still connected to the computer and online without damaging the device.
HSDPA — High Speed Downlink Packet Access. HSDPA is an enhanced version of WCDMA that
supports broadband connections with download speeds up to 7.2 Mbps. This enhanced 3G
technology enables the download of high-bandwidth multimedia files, high resolution graphics, and
other complex files, and viewing email attachments at broadband-like speeds.
HSPA+ — HSPA Evolution or HSPA Evolved. A 3G mobile telephony protocol with up-link speeds up to
11 Mbps and downlink speeds up to 42 Mbps.
HSUPA — High Speed Uplink Packet Access. A 3G mobile telephony protocol with data rates of 7.2
Mbps downlink and 5.76 Mbps uplink.
ISP — Internet Service Provider. Also referred to as the service carrier, an ISP provides Internet
connection service.
Kbps — Kilobits per second–rate of data flow.
LAN — Local Area Network. A data network confined to limited area with moderate to high data rates.
Does not use common carrier circuits, although may have gateways or bridges to other public or
private networks.
Mbps — Megabits per second–rate of data flow.
MicroSDHC — Additional external memory for your device.
MicroSDHC Card — A small, removable flash memory card available in various storage sizes. This
accessory is sold separately.
MicroSDHC Slot — A built-in slot on your device that is designed specifically for a microSDHC card.
PPP — Point-to-Point Protocol. A method of connecting a computer to the Internet.
Proxy — A firewall mechanism that replaces the IP address of a host on the internal (protected)
network with its own IP address for all traffic passing through it.
30
SMS — Short Messaging Service. Short text messages of up to 160 characters sent and received by
wireless devices.
TCP/IP — Transmission Control Protocol/Internet Protocol. The set of communications protocols used
for Internet and other similar protocols.
Type A USB — The USB ports on computers and hubs have a rectangular Type A socket, and
peripheral devices have a cable with a Type A plug. Peripherals that do not have an attached cable
have a square Type B socket on the device and a separate cable with a Type A and Type B plug.
UMTS — Universal Mobile Telecommunications Service. A third-generation broadband, packet-based
transmission of text, digitized voice, video and multimedia at data rates up to 2 Mbps. UMTS offers
a consistent set of services to mobile users all over the world. UMTS is based on the GSM standard.
Until UMTS is fully implemented, users can use multi-mode devices that switch to currently available
technology.
USB — Universal Serial Bus. A connection type for computing device peripherals such as a printer,
mobile broadband modem, etc. USB can be found in versions 1.1 and 2.0. They are further split into
speed categories: Low-Speed, Full-Speed, and High-Speed (v2.0 only). To make use of the maximum
speed of the device, v2.0 High-Speed is required. Check your computer to see what version is fitted.
The device will work on Full-Speed connections, but will be unable to operate at peak rates.
VPN — Virtual Private Network. A way to communicate through a dedicated server securely to a
corporate network over the Internet.
WAN — Wide Area Network (WAN). A computer network covering a broad geographical area. WANs
are used to connect local area networks (LANs) together, so that users and computers in one location
can communicate with users and computers in other locations.
WCDMA — Wideband Code Division Multiple Access. A 3G mobile wireless technology that promises
much higher data speeds to mobile and portable wireless devices. Another name for UMTS.
WWAN — Wireless Wide Area Network (WWAN). Also called “wireless broadband” or “broadband
wireless,” wireless WANs (WWANs) use cellular towers to transmit a wireless signal over a range of
several miles to a mobile device compared to wireless Wi-Fi LANs (WLANs), which span only a few
hundred feet and generally to only stationary devices.
