Novatel Wireless NRM-MC998D Cellular/ PCS WCDMA/ GSM/ EDGE USB Modem User Manual
Novatel Wireless, Inc. Cellular/ PCS WCDMA/ GSM/ EDGE USB Modem Users Manual
Users Manual
quick
start
guide
www.novatelwireless.com
MC998D
PN 90026013 DRAFT B
FPO
120 mm 120 mm
120 mm
TITLE: QUICK START GUIDE MC998D NVTL
P/N: 90026013
Rev.A 08/17/09- A.Farrell- INITIAL DRAFT
Rev.B 08/18/09 - A.Farrell - SECOND DRAFT
Rev.C 08/19/09 - A.Farrell - THIRD DRAFT
ECO:
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
FONTS
Myriad Pro Regular
Myriad Pro Condensed
Myriad Pro Bold
FILES
90026013 Rev A Master Quick Start Guide MC998D NVTL.AI (AI CS3)
90026013 Rev A CS Outline Quick Start Guide MC998D NVTL.EPS (AI CS EPS)
90026013 Rev A View Only Quick Start Guide MC998D NVTL.PDF (DO NOT
PRINT Reference PDF)
IMAGES
ALL IMAGES EMBEDDED IN DOCUMENT
MAGENTA DOES NOT PRINT. FOR DIECUT
REFERENCE ONLY.
COLOR: 4/4
INKS
MATERIAL/FINISH:
80# MATTE OR 115 gsm THROUGHOUT
BINDING: STAPLE
25% MIN Post Consumer
NOTES
PROCESS
CYAN
PROCESS
MAGENTA
PROCESS
YELLOW
PROCESS
BLACK
The Ovation™ MC998D wireless broadband USB modem is a compact
HSPA+ device that features receiver diversity. Surf the web, download
files and music, share photos, manage email and more at speeds of up
to 28.8 Mbps* download (HSPA+) and 5.76 Mbps upload (HSUPA)‡.
Optimised for North America, Ovation MC998D ensures lightening fast
broadband speeds whether you are in London, Paris or Milan. Access
HSPA+, UMTS, EDGE and GPRS mobile broadband networks for fully
featured global roaming†.
Included with Ovation MC998D is MobiLink™ 3, an auto-installing
connection manager for Windows and Mac. Simply plug the device
into your computer and the software automatically installs, giving you
the freedom to connect quickly to the Internet from almost anywhere.
Inside Front Cover
NOTE: This is a Quick Start Guide. For complete details and information regarding the
use of your device, accessories, and additional safety and regulatory information,
please consult the User Guide at www.novatelwireless.com.
DO NOT CONNECT THE DEVICE TO YOUR COMPUTER UNTIL YOU HAVE REVIEWED
THE STEPS OUTLINED IN THIS QUICK START GUIDE.
*21.6 Mbps at launch, future firmware update required for 28.8 Mbps
‡Ovation MC998D supports HSUPA 3GPP Release 6 uplink and HSPA+ 3GPP Release 7 downlink.
†Service Provider dependent
120 mm 120 mm
120 mm
TITLE: QUICK START GUIDE MC998D NVTL
P/N: 90026013
Rev.A 08/17/09- A.Farrell- INITIAL DRAFT
Rev.B 08/18/09 - A.Farrell - SECOND DRAFT
Rev.C 08/19/09 - A.Farrell - THIRD DRAFT
ECO:
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
FONTS
Myriad Pro Regular
Myriad Pro Condensed
Myriad Pro Bold
FILES
90026013 Rev A Master Quick Start Guide MC998D NVTL.AI (AI CS3)
90026013 Rev A CS Outline Quick Start Guide MC998D NVTL.EPS (AI CS EPS)
90026013 Rev A View Only Quick Start Guide MC998D NVTL.PDF (DO NOT
PRINT Reference PDF)
IMAGES
ALL IMAGES EMBEDDED IN DOCUMENT
MAGENTA DOES NOT PRINT. FOR DIECUT
REFERENCE ONLY.
COLOR: 4/4
INKS
MATERIAL/FINISH:
80# MATTE OR 115 gsm THROUGHOUT
BINDING: STAPLE
25% MIN Post Consumer
NOTES
PROCESS
CYAN
PROCESS
MAGENTA
PROCESS
YELLOW
PROCESS
BLACK
System Requirements
• Microsoft Windows® XP, Vista; Mac OS® X 10.4 or higher
• 100 MB Hard Drive Space
• Microsoft Internet Explorer 6.0 or higher; Mozilla Firefox; Safari
• USB 1.1 or 2.0 port
• Ovation MC998D Broadband Modem
• Quick Start Guide
• LED
The LED provides connection and error status
(See page 6 for a detailed list of the colours and their dened states.)
• Hinged USB Connector
Folds back to protect the USB connector while the device is not in use.
• SIM Card Slot
The SIM card is inserted in this location.
(See page 3 for instructions on use. )
• microSD Card Slot
The microSD card is inserted in this location.
(See page 3 for instructions on use. )

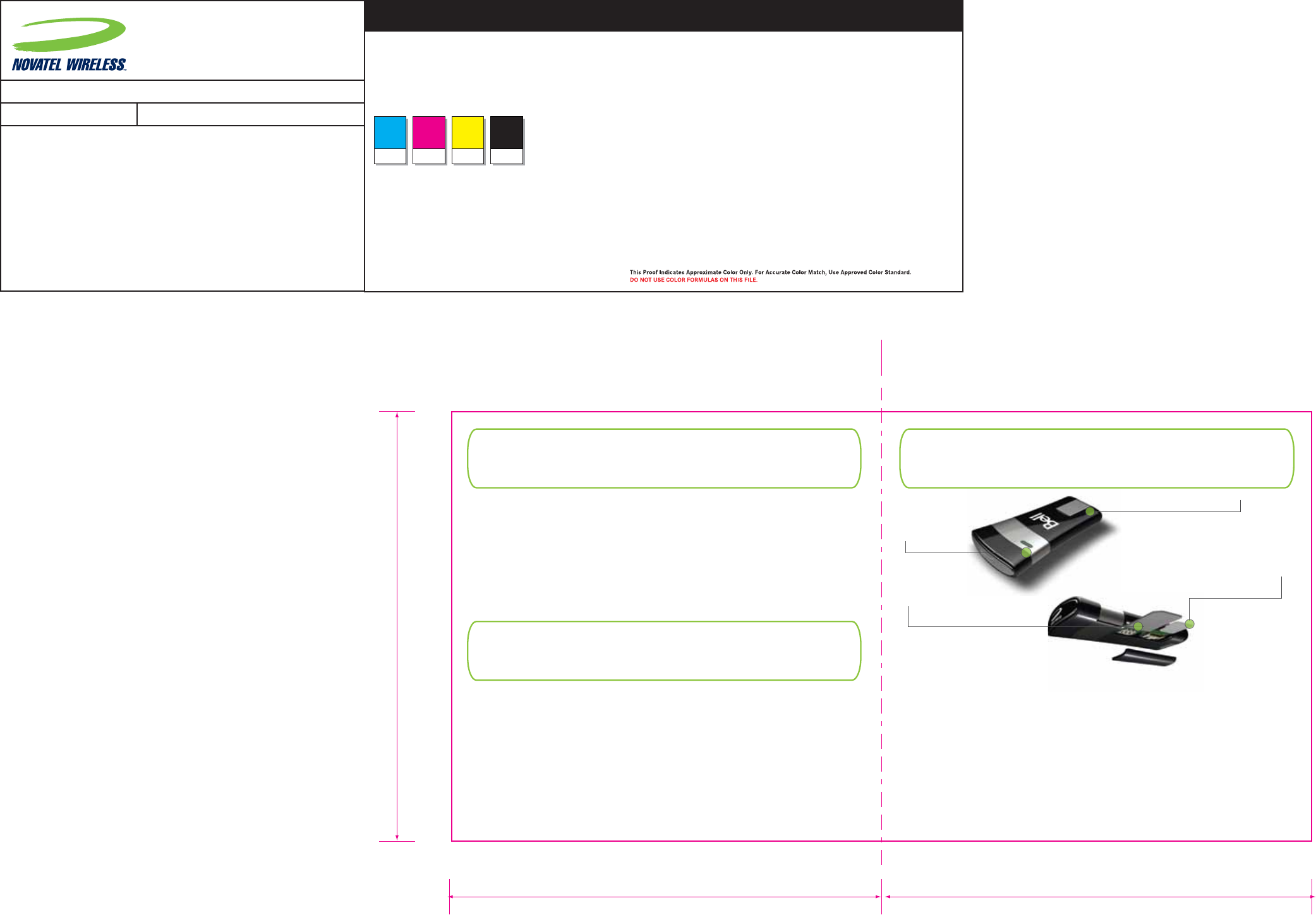

Contents
Ovation MC998D
21
LED
Hinged USB Connector
SIM Card Slot
(on bottom)
microSD Card Slot
(on bottom)
120 mm 120 mm
120 mm
TITLE: QUICK START GUIDE MC998D NVTL
P/N: 90026013
Rev.A 08/17/09- A.Farrell- INITIAL DRAFT
Rev.B 08/18/09 - A.Farrell - SECOND DRAFT
Rev.C 08/19/09 - A.Farrell - THIRD DRAFT
ECO:
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
FONTS
Myriad Pro Regular
Myriad Pro Condensed
Myriad Pro Bold
FILES
90026013 Rev A Master Quick Start Guide MC998D NVTL.AI (AI CS3)
90026013 Rev A CS Outline Quick Start Guide MC998D NVTL.EPS (AI CS EPS)
90026013 Rev A View Only Quick Start Guide MC998D NVTL.PDF (DO NOT
PRINT Reference PDF)
IMAGES
ALL IMAGES EMBEDDED IN DOCUMENT
MAGENTA DOES NOT PRINT. FOR DIECUT
REFERENCE ONLY.
COLOR: 4/4
INKS
MATERIAL/FINISH:
80# MATTE OR 115 gsm THROUGHOUT
BINDING: STAPLE
25% MIN Post Consumer
NOTES
PROCESS
CYAN
PROCESS
MAGENTA
PROCESS
YELLOW
PROCESS
BLACK
12
Getting Started Insert SIM Card
1Remove the cover by sliding it away from the USB connector.
Insert the SIM card into Ovation MC998D. Ensure the orientation
notch is positioned as shown.
Push the SIM card completely into the slot.
Replace the cover securely.
2
3
4
Before connecting the MC998D to your computer for the rst time, you
must insert the SIM card supplied by your service provider.
Getting Started Windows
43
MobiLink software and drivers for Windows automatically install.
(If MobiLink does not automatically install, see page XX for troubleshooting tips.)
Launch MobiLink and click the Menu Icon. Select Prole Manager.
Click New, enter a Prole Name and APN*, then click Next. Enter
your Username* and Password*, if required, and click Finish.
Click Connect!
1
2
3
4
Windows - MobiLink
» Turn on your computer and close all open applications.
» Flip open the USB connector and insert Ovation MC998D into a USB
port.
(*Available from your service provider.)
Profile Manager
Menu
microSD Card*
SIM Card
*microSD cards are sold separately. Follow steps 1-4 for instructions for proper insertion.
For further instruction on how to use a microSD card, consult the user guide.
120 mm 120 mm
120 mm
TITLE: QUICK START GUIDE MC998D NVTL
P/N: 90026013
Rev.A 08/17/09- A.Farrell- INITIAL DRAFT
Rev.B 08/18/09 - A.Farrell - SECOND DRAFT
Rev.C 08/19/09 - A.Farrell - THIRD DRAFT
ECO:
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
FONTS
Myriad Pro Regular
Myriad Pro Condensed
Myriad Pro Bold
FILES
90026013 Rev A Master Quick Start Guide MC998D NVTL.AI (AI CS3)
90026013 Rev A CS Outline Quick Start Guide MC998D NVTL.EPS (AI CS EPS)
90026013 Rev A View Only Quick Start Guide MC998D NVTL.PDF (DO NOT
PRINT Reference PDF)
IMAGES
ALL IMAGES EMBEDDED IN DOCUMENT
MAGENTA DOES NOT PRINT. FOR DIECUT
REFERENCE ONLY.
COLOR: 4/4
INKS
MATERIAL/FINISH:
80# MATTE OR 115 gsm THROUGHOUT
BINDING: STAPLE
25% MIN Post Consumer
NOTES
PROCESS
CYAN
PROCESS
MAGENTA
PROCESS
YELLOW
PROCESS
BLACK
56
Mac - Internet Connect
1Two les appear on the Mac desktop, Instructions.pdf and
Driver_Installer.app.
Follow the instructions outlined in the Instructions.pdf le for the
full installation procedure.
2
» Turn on your computer and close all open applications.
» Flip open the USB connector and insert Ovation MC998D into a
USB port
YELLOW HSPA+ Flashing: HSPA+ service is available
GREEN GPRS/EDGE Flashing: GPRS/EDGE service is available
Solid: Connected to a network using
GPRS/EDGE
VIOLET HSPA Flashing: HSPA service is available
Solid: Connected to a network using HSPA
BLUE UMTS Flashing: UMTS service is available
Solid: Connected to a network using
UMTS
BLUE/
GREEN
Alternating Searching for service
LED
RED Error Solid: Device error. See User Guide
for list of possible errors
Solid: Connected to a network using HSPA+
23
Getting Started Mac The Basics LED States
120 mm 120 mm
120 mm
TITLE: QUICK START GUIDE MC998D NVTL
P/N: 90026013
Rev.A 08/17/09- A.Farrell- INITIAL DRAFT
Rev.B 08/18/09 - A.Farrell - SECOND DRAFT
Rev.C 08/19/09 - A.Farrell - THIRD DRAFT
ECO:
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
FONTS
Myriad Pro Regular
Myriad Pro Condensed
Myriad Pro Bold
FILES
90026013 Rev A Master Quick Start Guide MC998D NVTL.AI (AI CS3)
90026013 Rev A CS Outline Quick Start Guide MC998D NVTL.EPS (AI CS EPS)
90026013 Rev A View Only Quick Start Guide MC998D NVTL.PDF (DO NOT
PRINT Reference PDF)
IMAGES
ALL IMAGES EMBEDDED IN DOCUMENT
MAGENTA DOES NOT PRINT. FOR DIECUT
REFERENCE ONLY.
COLOR: 4/4
INKS
MATERIAL/FINISH:
80# MATTE OR 115 gsm THROUGHOUT
BINDING: STAPLE
25% MIN Post Consumer
NOTES
PROCESS
CYAN
PROCESS
MAGENTA
PROCESS
YELLOW
PROCESS
BLACK
7 8
• Avoid storing your device in extreme temperatures.
• Store your device in a dry and clean environment.
• Avoid spilling any liquid on your device or immersing it in water.
• Do not place any labels on the device as doing so could alter the
sensitivity of the antenna.
• Do not force the modem into the USB port.
• Do not force the SIM card into the SIM card slot.
• Do not apply force to the top or bottom of your device.
• Remove the Ovation MC998D from your computer before
transporting your device.
MobiLink does not automatically install on Windows
1. Remove exisiting drivers from a previous version or previous installation of
MobiLink Connection Manager. Go to Start>Control Panel>Add/Remove
Progams>MobiLink. Restart your computer and follow the steps for
installation on page 4.
2. If you do not have exisiting drivers for MobiLink already installed on your
computer, you may launch the MobiLink installer manually. Ensure that the
device is properly inserted into your computer’s USB port. Go to Start>My
Computer>CD Drive. Here, a CD icon image for MobiLink should be visible.
Click to open. Now, click to open the Setup.exe file and the software
should install.
For a detailed list of troubleshooting tips, consult the user guide.
The Basics Caring for your device The Basics Troubleshooting
120 mm 120 mm
120 mm
TITLE: QUICK START GUIDE MC998D NVTL
P/N: 90026013
Rev.A 08/17/09- A.Farrell- INITIAL DRAFT
Rev.B 08/18/09 - A.Farrell - SECOND DRAFT
Rev.C 08/19/09 - A.Farrell - THIRD DRAFT
ECO:
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
FONTS
Myriad Pro Regular
Myriad Pro Condensed
Myriad Pro Bold
FILES
90026013 Rev A Master Quick Start Guide MC998D NVTL.AI (AI CS3)
90026013 Rev A CS Outline Quick Start Guide MC998D NVTL.EPS (AI CS EPS)
90026013 Rev A View Only Quick Start Guide MC998D NVTL.PDF (DO NOT
PRINT Reference PDF)
IMAGES
ALL IMAGES EMBEDDED IN DOCUMENT
MAGENTA DOES NOT PRINT. FOR DIECUT
REFERENCE ONLY.
COLOR: 4/4
INKS
MATERIAL/FINISH:
80# MATTE OR 115 gsm THROUGHOUT
BINDING: STAPLE
25% MIN Post Consumer
NOTES
PROCESS
CYAN
PROCESS
MAGENTA
PROCESS
YELLOW
PROCESS
BLACK
910
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Consult the dealer or an experienced radio/television technician for help
This device complies with Part 15 of the Federal Communications Commis-
sion (FCC) Rules and Industry Canada ICES-003. Operation is subject to the
following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference
that may cause undesired operation.
WARNING: DO NOT ATTEMPT TO SERVICE THE WIRELESS COMMUNICA-
TION DEVICE YOURSELF. SUCH ACTION MAY VOID THE WARRANTY. THE
OVATION DEVICE IS FACTORY TUNED. NO CUSTOMER CALIBRATION OR
TUNING IS REQUIRED. CONTACT YOUR SERVICE PROVIDER FOR INFOR-
MATION ABOUT SERVICING YOUR WIRELESS COMMUNICATION DEVICE.
NOTE: The Radio Frequency (RF) emitter installed in your modem must not be
located or operated in conjunction with any other antenna or transmitter,
unless specically authorized by Novatel Wireless Technologies.
CE Marking
This device has been tested to and conforms to the essential regulatory
requirements of the European Union R&TTE directive 1999/5/EC and has
attained CE Marking.
Federal Communications Commission Notice (FCC United States)
This equipment has been tested to, and found to be within the acceptable
limits for a Class B digital device, pursuant to part 15 of the FCC Rules and
Industry Canada ICES-003. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in
a residential environment.
This equipment generates radio frequency energy and is designed for use in
accordance with the manufacturer's user manual. However, there is no
guarantee that interference will not occur in any particular installation.
If this equipment causes harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, you are
encouraged to try to correct the interference by one or more of the follow-
ing measures:
Regulatory Information
CE Marking
FCC Notice
Safety Notice Regulatory Information
120 mm 120 mm
120 mm
TITLE: QUICK START GUIDE MC998D NVTL
P/N: 90026013
Rev.A 08/17/09- A.Farrell- INITIAL DRAFT
Rev.B 08/18/09 - A.Farrell - SECOND DRAFT
Rev.C 08/19/09 - A.Farrell - THIRD DRAFT
ECO:
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
FONTS
Myriad Pro Regular
Myriad Pro Condensed
Myriad Pro Bold
FILES
90026013 Rev A Master Quick Start Guide MC998D NVTL.AI (AI CS3)
90026013 Rev A CS Outline Quick Start Guide MC998D NVTL.EPS (AI CS EPS)
90026013 Rev A View Only Quick Start Guide MC998D NVTL.PDF (DO NOT
PRINT Reference PDF)
IMAGES
ALL IMAGES EMBEDDED IN DOCUMENT
MAGENTA DOES NOT PRINT. FOR DIECUT
REFERENCE ONLY.
COLOR: 4/4
INKS
MATERIAL/FINISH:
80# MATTE OR 115 gsm THROUGHOUT
BINDING: STAPLE
25% MIN Post Consumer
NOTES
PROCESS
CYAN
PROCESS
MAGENTA
PROCESS
YELLOW
PROCESS
BLACK
©2009. Novatel Wireless, Inc. All rights reserved.
Ovation, Total Mobile Internet, MobiLink and the Novatel Wireless names and logos are all
either trademarks or registered trademarks of Novatel Wireless, Inc. All other trademarks are
the property of their respective owners.

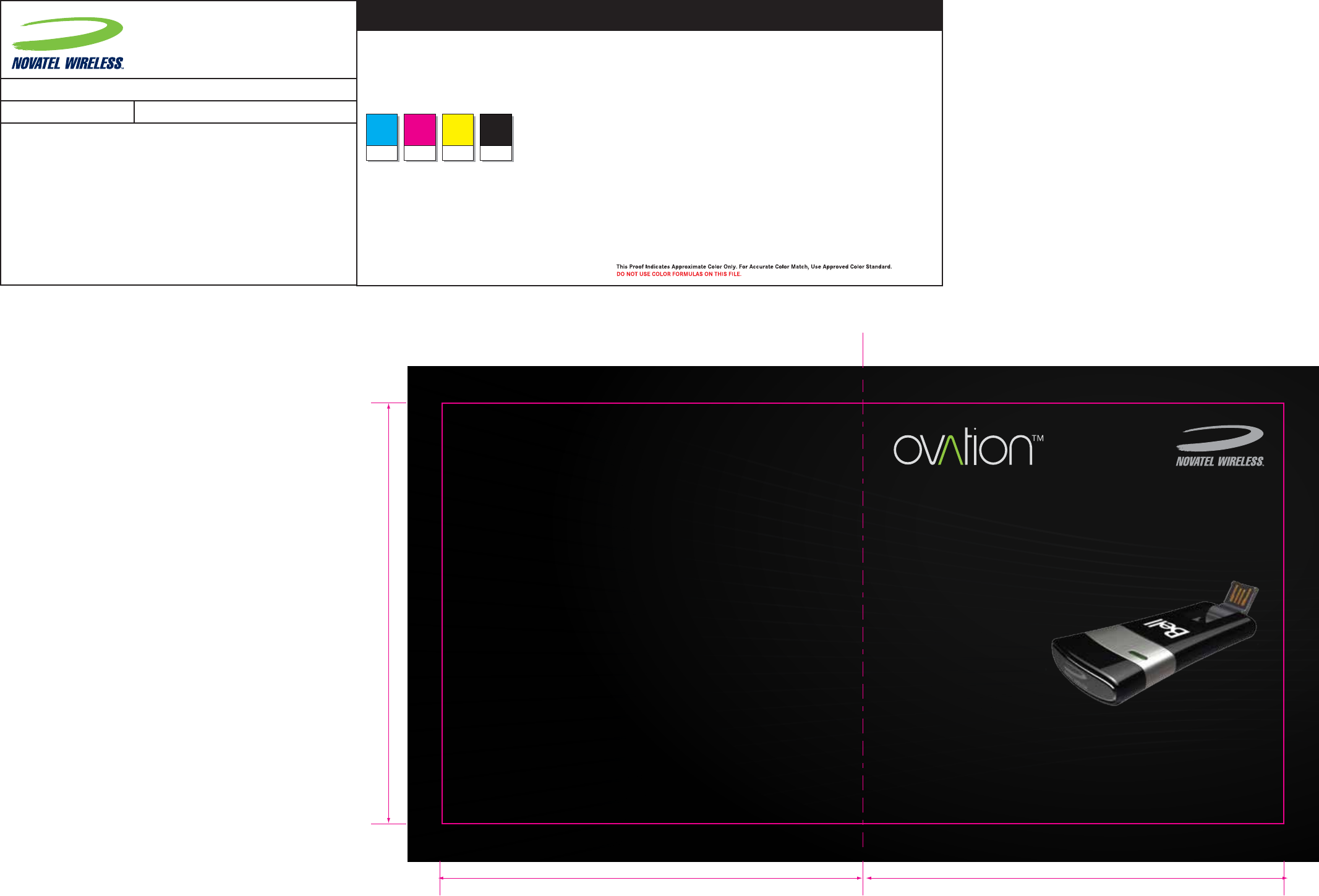

Back Cover
120 mm 120 mm
120 mm
TITLE: QUICK START GUIDE MC998D NVTL
P/N: 90026013
Rev.A 08/17/09- A.Farrell- INITIAL DRAFT
Rev.B 08/18/09 - A.Farrell - SECOND DRAFT
Rev.C 08/19/09 - A.Farrell - THIRD DRAFT
ECO:
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
FONTS
Myriad Pro Regular
Myriad Pro Condensed
Myriad Pro Bold
FILES
90026013 Rev A Master Quick Start Guide MC998D NVTL.AI (AI CS3)
90026013 Rev A CS Outline Quick Start Guide MC998D NVTL.EPS (AI CS EPS)
90026013 Rev A View Only Quick Start Guide MC998D NVTL.PDF (DO NOT
PRINT Reference PDF)
IMAGES
ALL IMAGES EMBEDDED IN DOCUMENT
MAGENTA DOES NOT PRINT. FOR DIECUT
REFERENCE ONLY.
COLOR: 4/4
INKS
MATERIAL/FINISH:
80# MATTE OR 115 gsm THROUGHOUT
BINDING: STAPLE
25% MIN Post Consumer
NOTES
PROCESS
CYAN
PROCESS
MAGENTA
PROCESS
YELLOW
PROCESS
BLACK
11
On an aircraft, either on the ground or airborne
In addition to FAA requirements, many airline regulations state that you must
suspend wireless operations before boarding an airplane. Please ensure that the
host device is turned o and your Ovation MC998D is removed from the USB port
prior to boarding aircraft in order to comply with these regulations. Ovation
MC998D can transmit signals that could interfere with various onboard systems
and controls.
While operating a vehicle
The driver or operator of any vehicle should not operate a wireless data device
while in control of a vehicle. Doing so will detract from the driver or operator's
control and operation of that vehicle. In some countries, operating such commu-
nications devices while in control of a vehicle is an oense.
MODIFICATIONS: Any changes or modication not expressly approved by
Novatel Wireless, Inc. could void the user's authority to operate this equipment.
The FCC has granted an Equipment Authorization for this wireless
modem with all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines.
FCC Equipment Authorization ID: NBZNRM-MC998D
In order to comply with FCC RF exposure requirements, the device must be
installed so that a minimum separation distance of 0.5 cm (0.2”) is maintained
between the antenna and all persons during ordinary operating condition.
Safety Notices
Do not operate your Ovation MC998D in any area where medical equipment, life
support equipment, or near any equipment that may be susceptible to any form
of radio interference. In such areas, the host communications device must be
turned o. The MC998D may transmit signals that could interfere with this equip-
ment.
Please consult the User Guide for complete regulatory and safety
information, available at www.novatelwireless.com
NOTE:
12
Regulatory Information Regulatory Information
120 mm 120 mm
120 mm
TITLE: QUICK START GUIDE MC998D NVTL
P/N: 90026013
Rev.A 08/17/09- A.Farrell- INITIAL DRAFT
Rev.B 08/18/09 - A.Farrell - SECOND DRAFT
Rev.C 08/19/09 - A.Farrell - THIRD DRAFT
ECO:
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
FONTS
Myriad Pro Regular
Myriad Pro Condensed
Myriad Pro Bold
FILES
90026013 Rev A Master Quick Start Guide MC998D NVTL.AI (AI CS3)
90026013 Rev A CS Outline Quick Start Guide MC998D NVTL.EPS (AI CS EPS)
90026013 Rev A View Only Quick Start Guide MC998D NVTL.PDF (DO NOT
PRINT Reference PDF)
IMAGES
ALL IMAGES EMBEDDED IN DOCUMENT
MAGENTA DOES NOT PRINT. FOR DIECUT
REFERENCE ONLY.
COLOR: 4/4
INKS
MATERIAL/FINISH:
80# MATTE OR 115 gsm THROUGHOUT
BINDING: STAPLE
25% MIN Post Consumer
NOTES
PROCESS
CYAN
PROCESS
MAGENTA
PROCESS
YELLOW
PROCESS
BLACK
