MiFi™ 2352/2372 with microSD™ is an intelligent mobile hotspot. Surf
the web, download files and music, share photos, manage email and
more at speeds of up to 7.2 Mbps download and 5.76 Mbps† upload.
This 2-in-1 device with microSD provides freedom to do what you want,
when you want, how you want. Transfer files between computers on
the fly with microSD, share a connection with up to five WiFi enabled
devices and access mobile broadband networks HSPA, UMTS, EDGE, and
GPRS in Europe, North America, and Asia-Pacific*.
With Zero-CD technology, installation couldn’t be simpler. Review the
next three sections and you’ll be well on your way to experiencing the
freedom total mobile internet.
† Category 6, 5.76 Mbps firmware upgrade available in Q3, 2008
* Subject to operator roaming agreements
Inside Front Cover
NOTE: This is a Quick Start Guide. For complete details and information regarding the use of
your device, accessories, and safety and regulatory information, please consult the
User Guide on the device or visit www.nvtl.com/support.
DO NOT INSERT THE DEVICE INTO YOUR COMPUTER UNTIL YOU HAVE REVIEWED THE
STEPS OUTLINED IN THIS QUICK START GUIDE.
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
TITLE: QSG MC990D NVTL
P/N: 90025258
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
CMYK
Black: Process Rich Black (60/40/40/100)
Pantone 376C
Rev.1 05/14/08 - Lawrence Zalasky - INITIAL RELEASE
Rev.2. 07/01/08 - A.Farrell - Added SD Assoc Logo and Reg. Pages
ECO: 08293
System Requirements
Windows® 2000, XP, Vista; Mac® OS X (10.4.7+); Linux® (2.4, 2.6)
100 MB Hard Drive Space
128 MB of RAM
*Visit www.nvtl.com/support for configuration details

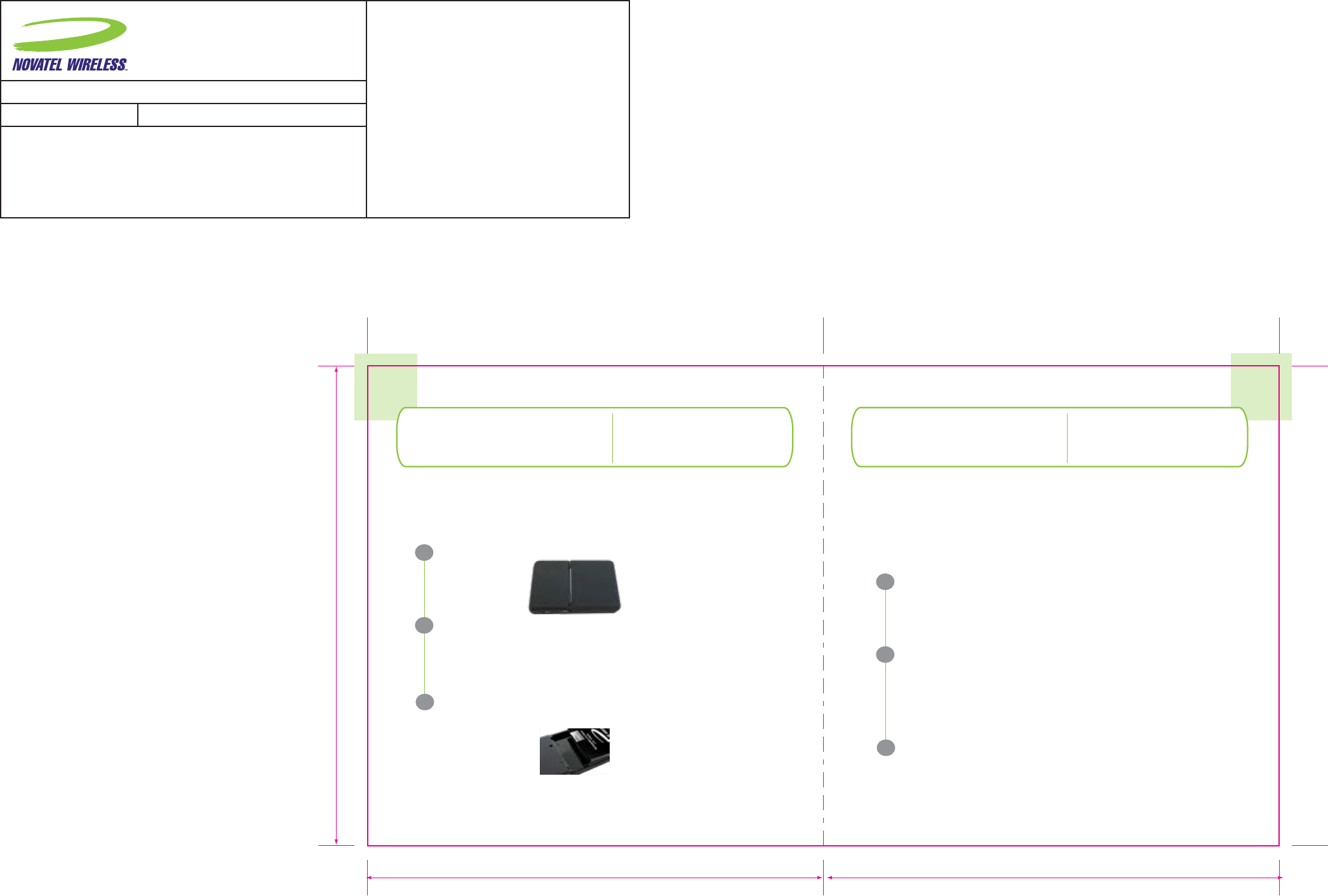

• MiFi 2352/2372
A 2-in-1 Intelligent Mobile Hotspot with removable memory.
• USB cable
• Rechargeable lithium ion battery
• Wall charger with international adapters
• Car charger
• Carry pouch
• LED Power Button
Powers on and o the device. The LED provides connections status.
See page 8 for a detailed list of the colours and their dened states.
• SIM Card Slot
The SIM card is inserted here.
• microSD Slot
Removable memory storage slot (microSD card not included).
• microUSB port
The USB cable, Wall Charger, and Car Charger connect here.
• Battery and SIM Door
The battery and SIM card are stored here.
Contents
MiFi 2352/2372
NOTE: For more information on the details of your device and accessories,
consult the User Guide at www.novatelwireless.com
21
FPO
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
TITLE: QSG MC990D NVTL
P/N: 90025258
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
CMYK
Black: Process Rich Black (60/40/40/100)
Pantone 376C
Rev.1 05/14/08 - Lawrence Zalasky - INITIAL RELEASE
Rev.2. 07/01/08 - A.Farrell - Added SD Assoc Logo and Reg. Pages
ECO: 08293
11
Getting Started Insert SIM Card and Battery
1Open the door at the bottom of the device.
Insert the SIM card into the SIM slot as shown.
Now, insert the battery, lining up the contact points as shown and
replace the door back on the device.
2
3
Before connecting MiFi to your computer for the rst time, you must
insert the (U)SIM card supplied by your service provider and insert and
charge the battery.
You must have an account with a service provider. Your service provider may have provided activation instructions
in this packaging. Otherwise, contact your service provider for complete instructions.
Getting Started Charge the Battery
43
1Connect the microUSB end of the Wall Charger to the microUSB port
of the device.
Plug the other end of the Wall Charger into the appropriate electrical
outlet. Charge for at least two hours.
You are now ready to install MobiLink software and drivers. In order
to install MobiLink you must use the USB cable (included).
2
3
FPO
FPO
FPO
FPO
FPO
IMPORTANT: When installing or replacing a battery, ensure that the
MiFi modem is not connected to your computer with the USB cable
or a USB power supply. Review the Battery Tips and Safety disposal
instructions at the back of this guide.
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
TITLE: QSG MC990D NVTL
P/N: 90025258
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
CMYK
Black: Process Rich Black (60/40/40/100)
Pantone 376C
Rev.1 05/14/08 - Lawrence Zalasky - INITIAL RELEASE
Rev.2. 07/01/08 - A.Farrell - Added SD Assoc Logo and Reg. Pages
ECO: 08293
22
5 6
Installation Installation Set Up Prole
(Windows)
Mac - Internet Connect
1Two les appear on the Mac desktop, Instructions.pdf and
Driver_Installer.app.
Follow the instructions outlined in the Instructions.pdf le for the
full installation procedure.
2
MobiLink software and drivers for Windows automatically installs.
Activate your device with a service provider and create a prole (page 6).
Launch MobiLink and Connect!
1
2
3
Windows - MobiLink
Linux users: Go to www.novatelwireless.com/support for installation and configuration instructions.
Windows®
Mac®
» Turn on your computer and close all open applications.
» Insert the USB cable into the microUSB port on MiFi
and the other end into a USB port on your computer.

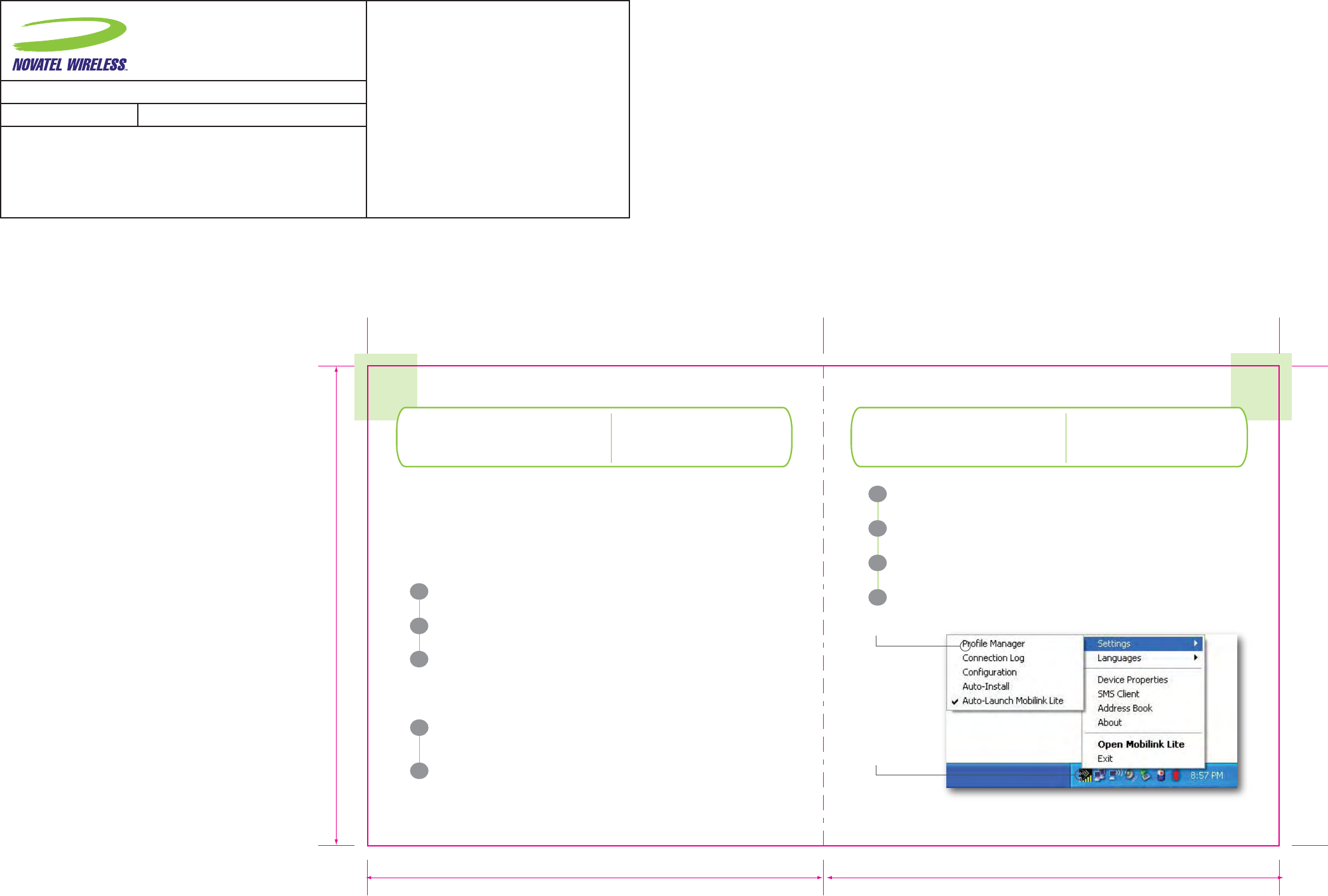

Start the newly installed MobiLink software.
Click the Menu Icon and select Prole Manager.
Click New, enter a Prole Name and APN*, then click Next.
Enter your Username* and Password*, if required, and click Finish.
1
2
3
4
Profile Manager
Menu
*Available from your service provider
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
TITLE: QSG MC990D NVTL
P/N: 90025258
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
CMYK
Black: Process Rich Black (60/40/40/100)
Pantone 376C
Rev.1 05/14/08 - Lawrence Zalasky - INITIAL RELEASE
Rev.2. 07/01/08 - A.Farrell - Added SD Assoc Logo and Reg. Pages
ECO: 08293
7 8
33
RED SIM Error Flashing: SIM card may be missing or
inserted incorrectly
No Service Solid: GPRS/EDGE/UMTS/HSDPA cellular
service is currently not available
GREEN GPRS Flashing: GPRS service is available
Solid: Connected to a network using GPRS
VIOLET EDGE Flashing: EDGE service is available
Solid: Connected to a network using EDGE
BLUE UMTS Flashing: UMTS service is available
Solid*: Connected to a network using UMTS
YELLOW HSDPA Solid*: HSDPA service is available and is
being used during the downl
oad
CYAN HSUPA Solid*: HSUPA service is available and is
being used during the upload
* The LED may appear to flash blue and then yellow or cyan as the service transitions between UMTS and HSDPA/HSUPA.
Connect USB Cable
Wi-Fi The Basics/2372 LED States
Insert the microUSB end of the USB cable to the microUSB port of
MiFi and the other end into a USB port on your computer.
The Power LED and 3G status indicator on the device both illuminate.
Press the Power LED button and launch MobiLink.
1
2
3
There are two methods to connect MiFi to your computer:
USB Cable or Wi-Fi.
Connect MiFi with the the USB Cable
Connect MiFi via Wi-Fi
Press the Power button on MiFi. The Power LED and the 3G status
indicator on the device both illuminate.
Press the Power LED button and launch MobiLink.
Use your normal Wi-Fi application on your computer to establish a
connection to the MiFi modem.
Look for the network, named TBD, in your list of available networks
and click Connect.
1
2
3
3
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
TITLE: QSG MC990D NVTL
P/N: 90025258
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
CMYK
Black: Process Rich Black (60/40/40/100)
Pantone 376C
Rev.1 05/14/08 - Lawrence Zalasky - INITIAL RELEASE
Rev.2. 07/01/08 - A.Farrell - Added SD Assoc Logo and Reg. Pages
ECO: 08293
9 10
3

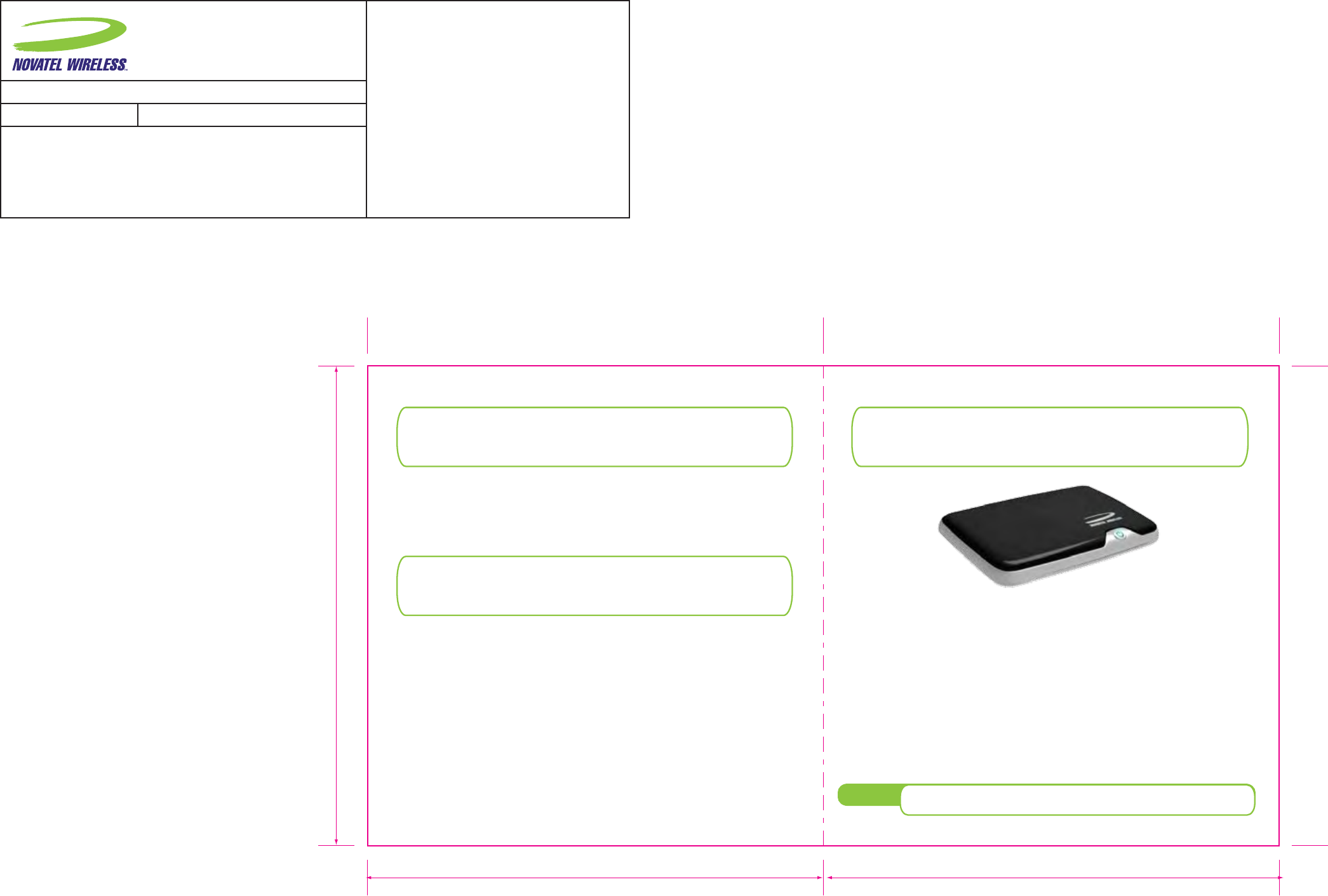

• Avoid storing your device in extreme temperatures.
• Store your device in a dry and clean environment.
• Avoid spilling any liquid on your device or immersing it in water.
• Do not place any labels on the device as doing so could alter the
sensitivity of the antenna.
• Do not force the cable into the USB port.
• Do not force the SIM card into the SIM card slot.
• Do not apply force to the top or bottom of your device.
• Remove the cable from the USB port before transporting your
computing device.
NOTE: Please consult the User Guide for complete regulatory and safety
information, available at www.nvtl.com/support and on the device.
The Basics Caring for and Your Device
CE Marking
This device has been tested to and conforms to the essential regulatory
requirements of the European Union R&TTE directive 1999/5/EC and has
attained CE Marking.
Federal Communications Commission Notice (FCC United States)
This equipment has been tested to, and found to be within the accept-
able limits for a Class B digital device, pursuant to part 15 of the FCC
Rules and Industry Canada ICES-003. These limits are designed to
provide reasonable protection against harmful interference when the
equipment is operated in a residential environment.
This equipment generates radio frequency energy and is designed for
use in accordance with the manufacturer's user manual. However, there
is no guarantee that interference will not occur in any particular installa-
tion.
If this equipment causes harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, you are encouraged to try to correct the interference by one or more
of the following measures:
Regulatory Information
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
TITLE: QSG MC990D NVTL
P/N: 90025258
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
CMYK
Black: Process Rich Black (60/40/40/100)
Pantone 376C
Rev.1 05/14/08 - Lawrence Zalasky - INITIAL RELEASE
Rev.2. 07/01/08 - A.Farrell - Added SD Assoc Logo and Reg. Pages
ECO: 08293
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help
This device complies with Part 15 of the Federal Communications
Commission (FCC) Rules and Industry Canada ICES-003 for EMI compli-
ance. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference
that may cause undesired operation.
WARNING: DO NOT ATTEMPT TO SERVICE THE WIRELESS COMMUNICA-
TION DEVICE YOURSELF. SUCH ACTION MAY VOID THE WARRANTY. THE
OVATION DEVICE IS FACTORY TUNED. NO CUSTOMER CALIBRATION OR
TUNING IS R/EQUIRED. CONTACT YOUR SERVICE PROVIDER FOR INFOR-
MATION ABOUT SERVICING YOUR WIRELESS COMMUNICATION DEVICE.
Notice to Consumers: Any changes or modification not expressly
approved by the party responsible for compliance could void the user's
authority to operate this equipment.
NOTE: The Radio Frequency (RF) emitter installed in your modem must not
be located or operated in conjunction with any other antenna or transmit-
ter, unless specifically authorized by Novatel Wireless Technologies.
MODIFICATIONS: The FCC requires that you be notified that any changes
or modifications made to this device that are not expressly approved by
Novatel Wireless, Inc. may void your authority to operate the equipment.
FCC Equipment Authorization ID: NBZNRM-MiFi 2352 / 2372
This device is only authorized for use in Mobile applications. At least
20cm (8 inches) of separation between the antenna and the users body
must be maintained at all times.
11 12
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
TITLE: QSG MC990D NVTL
P/N: 90025258
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
CMYK
Black: Process Rich Black (60/40/40/100)
Pantone 376C
Rev.1 05/14/08 - Lawrence Zalasky - INITIAL RELEASE
Rev.2. 07/01/08 - A.Farrell - Added SD Assoc Logo and Reg. Pages
ECO: 08293
Safety Notices
DO not operate your device in any area where medical equipment, life
support equipment, or near any equipment that may be susceptible to
any form of radio interference. In such areas, the host communications
device must be turned o. The MiFi 2352/2372 may transmit signals that
could interfere with this equipment.
On an aircraft, either on the ground or airborne
In addition to FAA requirements, many airline regulations state that you
must suspend wireless operations before boarding an airplane. Please
ensure that both MiFi and the host device are turned o and that the MiFi
USB Cable is removed from the USB ports prior to boarding aircraft in
order to comply with these regulations. MiFi can transmit signals that
could interfere with various onboard systems and controls.
While operating a vehicle
The driver or operator of any vehicle should not operate a wireless data
device while in control of a vehicle. Doing so will detract from the driver or
operator's control and operation of that vehicle. In some countries, operat-
ing such communications devices while in control of a vehicle is an
oense.
1413
Battery tips
Battery life depends on the network, signal strength, temperature, features,
and accessories you use.
-Always use Novatel Wireless Original batteries and chargers. The warranty
does not cover damage caused by non-Novatel Wireless batteries and/or
chargers.
-New batteries or batteries stored for a long time may take more time to
charge.
-When charging your battery, keep it near room temperature.
-When storing your battery, keep it uncharged in a cool, dark, dry place.
-Never expose batteries to temperatures below -10°C (14°F) or above 45°C
(113°F). Never leave the device in an unattended vehicle due to uncontrollable
temperatures that may be outside the desired temperature for this device.
-It is normal for batteries to gradually wear down and require longer charging
times. If you notice a change in your battery life, it is probably time to purchase
a new battery.
Contact your local recycling center for proper battery disposal.
WARNING: Never dispose of batteries in a re because they may explode.
Before using the MiFi Modem, read the battery safety information in the
“Safety and General Information” section at the back of this guide. You will
need to install and charge the battery as described on page XX. Some batteries
perform best after several full charge/discharge cycles.
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
TITLE: QSG MC990D NVTL
P/N: 90025258
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
CMYK
Black: Process Rich Black (60/40/40/100)
Pantone 376C
Rev.1 05/14/08 - Lawrence Zalasky - INITIAL RELEASE
Rev.2. 07/01/08 - A.Farrell - Added SD Assoc Logo and Reg. Pages
ECO: 08293
Proper Battery Use and Disposal
IMPORTANT: In event of a battery leak:
-Do not allow the liquid to come in contact with the skin or the eyes. If contact has
been made, wash the aected area with large amounts of water and seek medical
advice.
-Seek medical advice immediately if a battery has been swallowed.
-Communicate the appropriate steps to be taken if a hazard occurs.
Please review the following guidelines for safe and responsible battery use:
-Do not disassemble or open, crush, bend or deform, puncture, or shred.
-Do not modify or remanufacture, attempt to insert foreign object into the battery,
immerse or expose to water or other liquids, or expose to re, explosion, or other
hazard.
-Only use the battery for the system for which it was specied.
-Only use the battery with a charging system that has been qualied with the
system per this standard. Use of an unqualied battery or charger may present a
risk of re, explosion, leakage, or other hazard.
-Do not short circuit a battery or allow metallic or conductive object to contact the
battery terminals.
-Replace the battery only with another battery that has been qualied with the
system per this standard. Use of an unqualied batter may present a risk of re,
explosion, leakage, or other hazard.
-Promptly dispose of used batteries in accordance with local regulations.
-Battery usage by children should be supervised.
-Provide an explanation of security implementation, per 10.2.1.
-Avoid dropping the device or battery. If the device or the battery is dropped,
especially on a hard surface, and the user suspects damage, take it to a service
center for inspection.
-Improper battery use may result in a re, explosion, or other hazard.
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 200, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: 403 295 4800
TITLE: QSG MC990D NVTL
P/N: 90025258
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
CMYK
Black: Process Rich Black (60/40/40/100)
Pantone 376C
Rev.1 05/14/08 - Lawrence Zalasky - INITIAL RELEASE
Rev.2. 07/01/08 - A.Farrell - Added SD Assoc Logo and Reg. Pages
ECO: 08293

Navigation menu
