3 SENDING AND RECEIVING SMS MESSAGES
In This Section
• What is SMS
• Use The SMS client in MobiLink to send SMS messages
• Use the SMS client in MobiLink to read messages
This section will assist you in using the Short Messaging System client in MobiLink
3.1 WHAT IS SMS
Short Message Service (SMS) is the transmission of short text messages to and from mobile devices. Messages cannot be
longer than 160 alpha-numeric characters and cannot contain any images or graphics.
To send or receive an SMS message you only have to be attached to the Network. You may also send and receive SMS
messages while connected to the Network.
NOTE: THE SMS CLIENT ICON WILL ONLY BECOME ACTIVE ONCE YOU ARE ATTACHED TO THE NETWORK.
ATTACHED TO NETWORK: YOU CANNOT TRANSFER DATA
CONNECTED TO NETWORK: YOU CAN TRANSFER DATA (BROWSE INTERNET, CHECK EMAIL ETC…)
3.1.1 MobiLink’s SMS Window
FIGURE 33
Organizational
folders for SMS
List of SMS
messages
Selected SMS
messages
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
2
24
4
GU-90023487
Revision 2
MobiLink SMS Toolbar Description
New SMS Message: Creates a new message
Delete: Deletes the selected SMS message(s)
Reply: Copies the sender field to a new message
Forward Copies the message contents to a new message
SMS Mailbox Description
Inbox: contains received messages
Outbox: is a temporary storage place for messages waiting to be sent
Sent: stores the SMS messages that have been sent
3.1.2 Sending SMS Messages

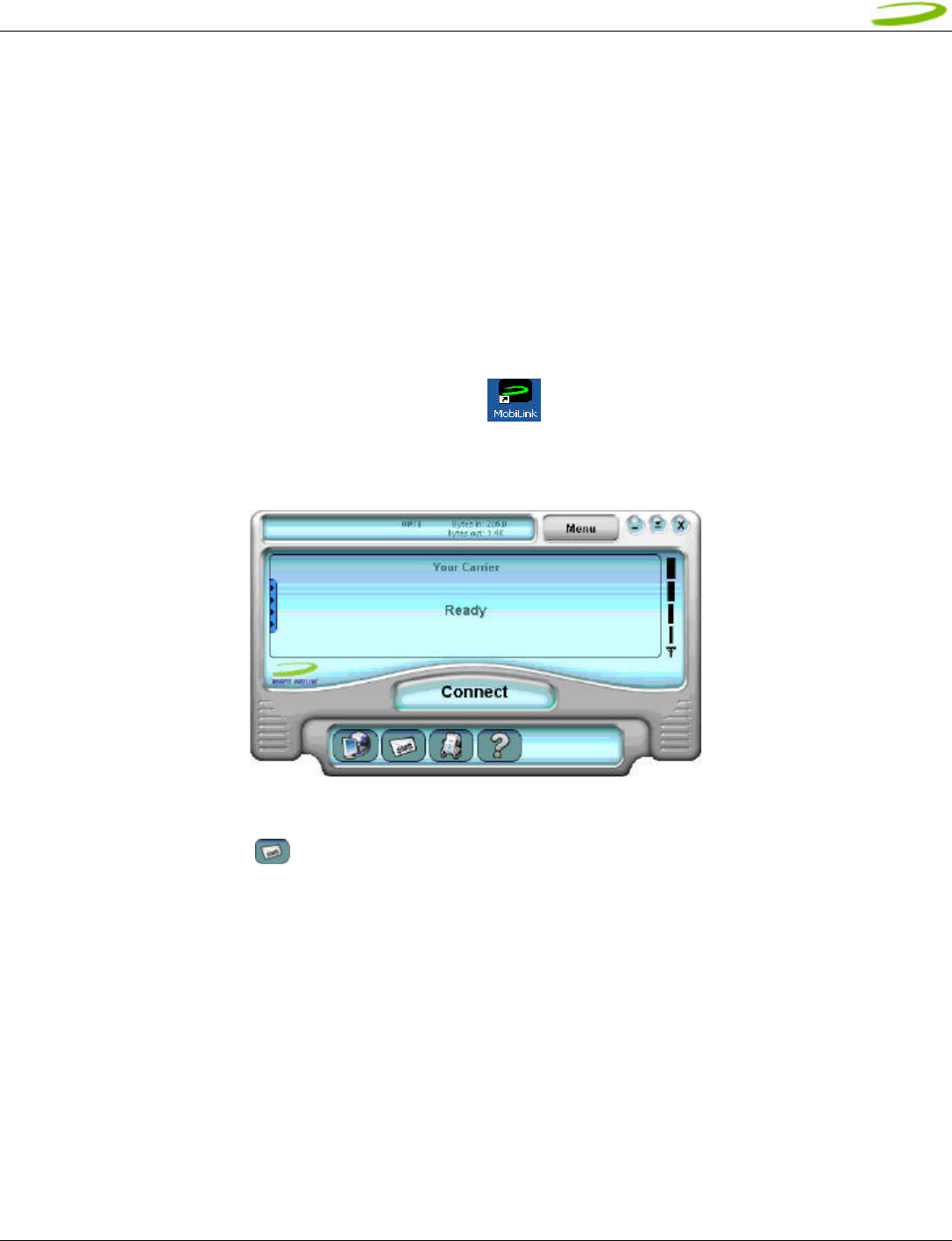

1. Start MobiLink by Double-clicking on the MobiLink icon , located on your desktop.
2. After MobiLink initializes your UMTS Merlin, it searches for a Network and attempts to attach to the Network. If
the attach process is successful you will see Figure 34
FIGURE 34
3. At this point you have successfully attached to the Network and will be able to send and receive SMS messages.
Also, the SMS client icon will now be active.
NOTE: AT THIS POINT YOU WILL NOT BE ABLE TO SEND OR RECEIVE DATA (BROWSE WEB OR CHECK
EMAILS) UNLESS YOU CONNECT TO THE NETWORK BY CLICKING THE CONNECT BUTTON.
4. Click on the SMS client icon (lower pane second icon from left) and the MobiLink SMS window will appear. See
Figure 33 above.
5. Click on the New SMS Message button on the MobiLink SMS Window toolbar. Figure 35 below will appear.
6. In the To box, type the phone number of each recipient, separating names with a semicolon (;). To add phone
numbers from the Address Book, click the To button and then select the phone number.
7. Type your message, and then click Send on the toolbar.
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
2
25
5
GU-90023487
Revision 2
NOTE: WHEN YOU SEND A NEW MESSAGE OR REPLY TO A MESSAGE, YOU CAN ASSIGN THE MESSAGE A
PRIORITY SO THE RECIPIENT KNOWS IF THE MESSAGE IS EITHER AN EMERGENCY OR URGENT MESSAGE.
IN THE COMPOSE MESSAGE WINDOW, CLICK THE EMERGENCY OR URGENT BUTTON ON THE TOOLBAR.
3.1.3 Receiving and Reading SMS Messages
Once you are attached to the Network (See figure 34), you are able to receive SMS messages. MobiLink will notify you

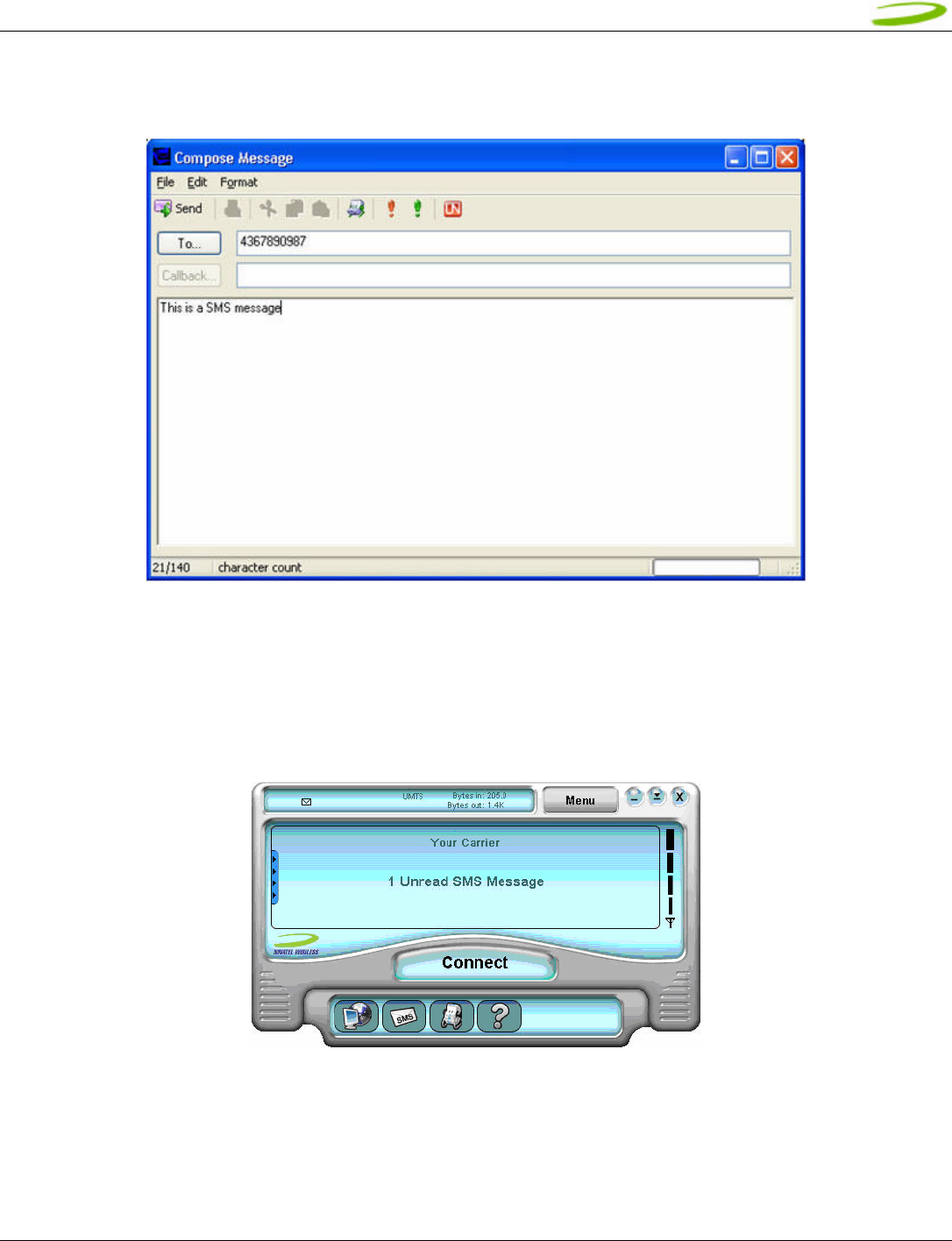

when you receive an SMS message. You will see figure 36.
FIGURE 36
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
2
26
6
GU-90023487
Revision 2
If you are connected to the Network, all you have to do is move your mouse cursor on the envelope icon in the icon
display window (top pane MobiLink’s window) and it will indicate if you have a message.
After the SMS Client receives your messages you can read messages by selecting the SMS client icon (lower pane second
icon from left) MobiLink’s SMS window will appear. See Figure 33 above.
1. Click the Inbox icon in the Folders list.
2. To view the message in the lower pane, click the message in the message list.
You may also view messages from the Outbox and Sent folders.
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
2
27
7
GU-90023487
Revision 2
4 DETERMINE MERLIN STATES
In This Section
• Determine the current state of your UMTS Merlin, by interpreting the cadence (flashing sequence) and
colour of the Light Emitting Diode
The Light Emitting Diode (LED) is a device that lights up when power is applied to it. Interpreting the LED’s flashing
sequence and color, will provide you with the current state of your UMTS Merlin. See Table 1 below.
Cadence
(flashing
sequence)
LED
Display Merlin State Cause Remedy
(1/4sec) 250ms ON
(1/4sec) 250ms OFF RED
Merlin trying to read SIM The modem is unable to
read the SIM.
An error has occurred in the
modem firmware.
See
Section 5,
Problem 5
ON (Not flashing)
RED Merlin Searching for wireless service The Merlin is not receiving a
signal from the wireless
network
See
Section 5,
Problem 6
(1/4sec) 250ms ON
(1 3/4sec) 1750ms
OFF BLUE
Your Merlin is currently receiving a
UMTS circuit switched signal from
the network and has registered on
the circuit switched domain
(1/4sec) 250ms ON
(1/4sec) 250ms OFF
(1/4sec) 250ms ON
(1 3/4sec) 1750ms
OFF
BLUE
Your Merlin is currently receiving a
UMTS packet switched signal from
the network and has registered on
the packet switched domain (also CS
i.e PS or PS+CS )
ON (Not flashing) BLUE Your Merlin is currently PDP context
activated on the UMTS system.
TABLE 1
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
2
28
8
GU-90023487
Revision 2
NOTE: WHEN THE MODEM TRANSITIONS FROM ONE STATE TO ANOTHER, THE ACTUAL LED DISPLAY WILL
NOT CHANGE IMMEDIATELY, RATHER, IT WILL ONLY CHANGE ONCE THE MODEM HAS CONFIRMED THAT
THE NEW STATE IS VALID. FOR EXAMPLE, WHEN THE MODEM IS TAKEN OUT OF A SERVICE AREA IT
MIGHT TAKE THE MODEM 10 TO 90 SECONDS TO CONFIRM THAT NO SERVICE IS AVAILABLE AT WHICH
TIME THE LED DISPLAY WILL CHANGE STATES ACCORDINGLY.
PDP Context Activation Process: To connect to a PDN, such as the Internet, some sort of session description information
needs to exist (i.e. type of IP network, quality of service, IP address etc…) to enable agreement on the characteristics of
any data flow between the network and the mobile terminal. This is essentially what PDP ‘context’ activation is.
Circuit Switched Data connection is basically similar to a land line modem dial up call. A dedicated connection is set up
for the duration of the call regardless of whether data is transferred or not.
A Packet Switched Data connection is typically set up once. Within packet-switched networks, data is divided
(disassembled and packaged) into packets before it is sent. Packets are routed through the networks based on a
destination address contained within each packet. Once all the packets arrive at their respective destinations the data is
recompiled (unpacked and assembled). There is no need to re-establish the connection before each transmission.
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
2
29
9
GU-90023487
Revision 2
5 TROUBLESHOOTING
In This Section
• Troubleshooting common problems
This section will assist you in resolving common problems that might arise during installation or connecting to the
network.
Problem 1: Cannot install MobiLink
Problem 2: When I run the MobiLink software, I get the message “No Card Detected” what does this mean?
Problem 3: When I insert the modem, I get “Unknown_PCMCIA_Manufacturer” instead of “Novatel_ Wireless
Merlin_UMTS_Modem
Problem 4: When I run the MobiLink software, I get the message “SIM not Found – Check Orientation?”
Problem 5: Modem cannot read SIM. LED Flashing RED
Problem 6: When I run MobiLink software, the Window “searching for network” is displayed continuously
Problem 7: Cannot browse the Web
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
3
30
0
GU-90023487
Revision 2
5.1 CANNOT INSTALL MOBILINK
POSSIBLE CAUSE: YOU DON’T HAVE ADMINISTRATIVE PRIVILEGES
RESOLUTION:
Windows 2000 and XP
1. Talk to your system administrator if applicable
2. Log onto your computer as an administrator, or create an user account with administrator privileges
5.2 PROBLEM: WHEN I RUN THE MOBILINK SOFTWARE, I GET THE MESSAGE “NO CARD
DETECTED”
POSSIBLE CAUSES: YOU HAVE NOT INSERTED YOUR UMTS MERLIN PROPERLY INTO THE PCMCIA SLOT OF
YOUR PC, OR WINDOWS DID NOT INSTALL THE DRIVERS CORRECTLY, OR YOU MIGHT HAVE A CONFLICT.
RESOLUTION:
For Windows 2000 and XP
1. Remove Card, reboot PC and try again or go to step 2
2. Insert your Novatel Wireless UMTS U520 modem into your PCMCIA slot to install the drivers onto your computer.
If you have already done so and still receive this error then you must check to see if the drivers have been
installed properly.

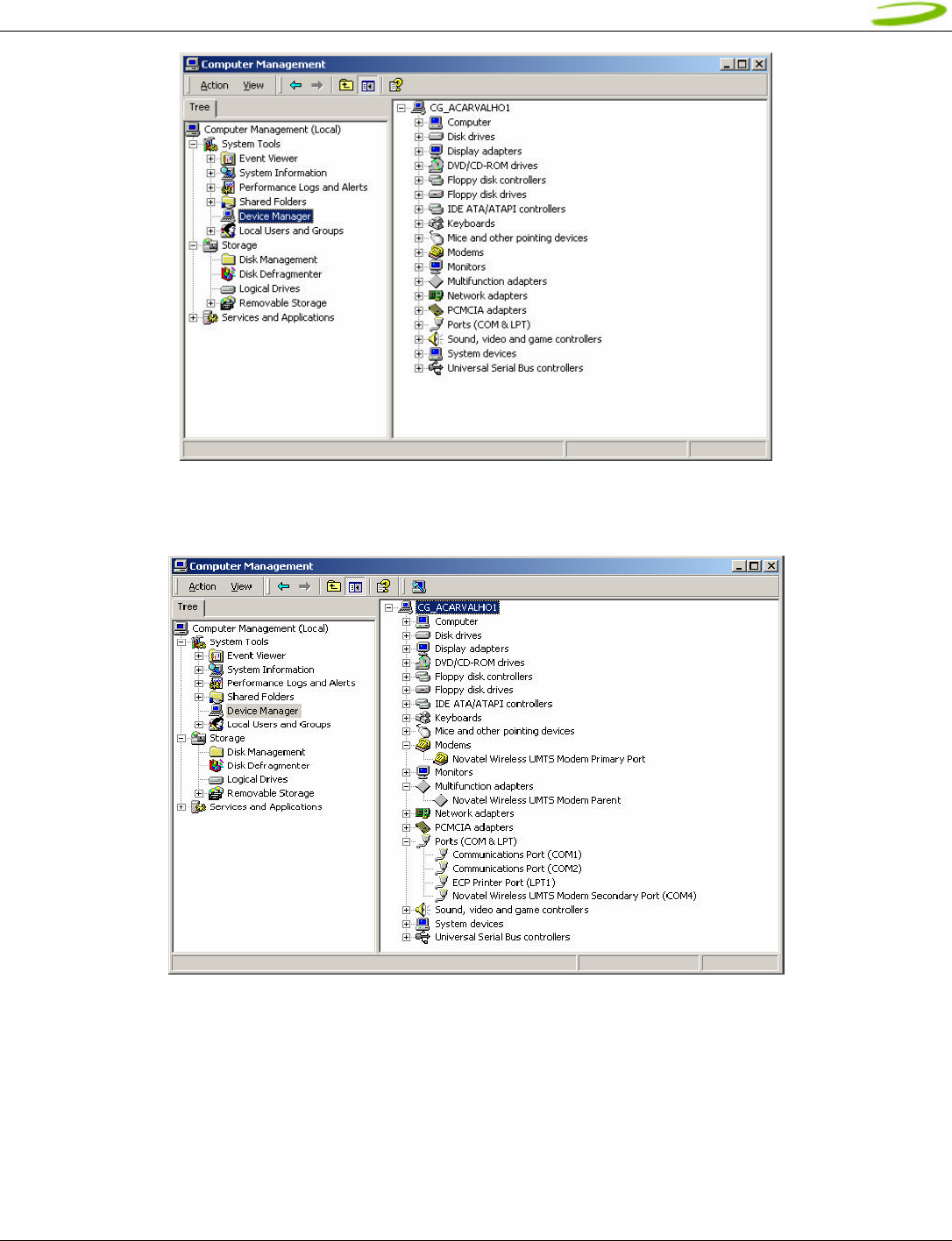

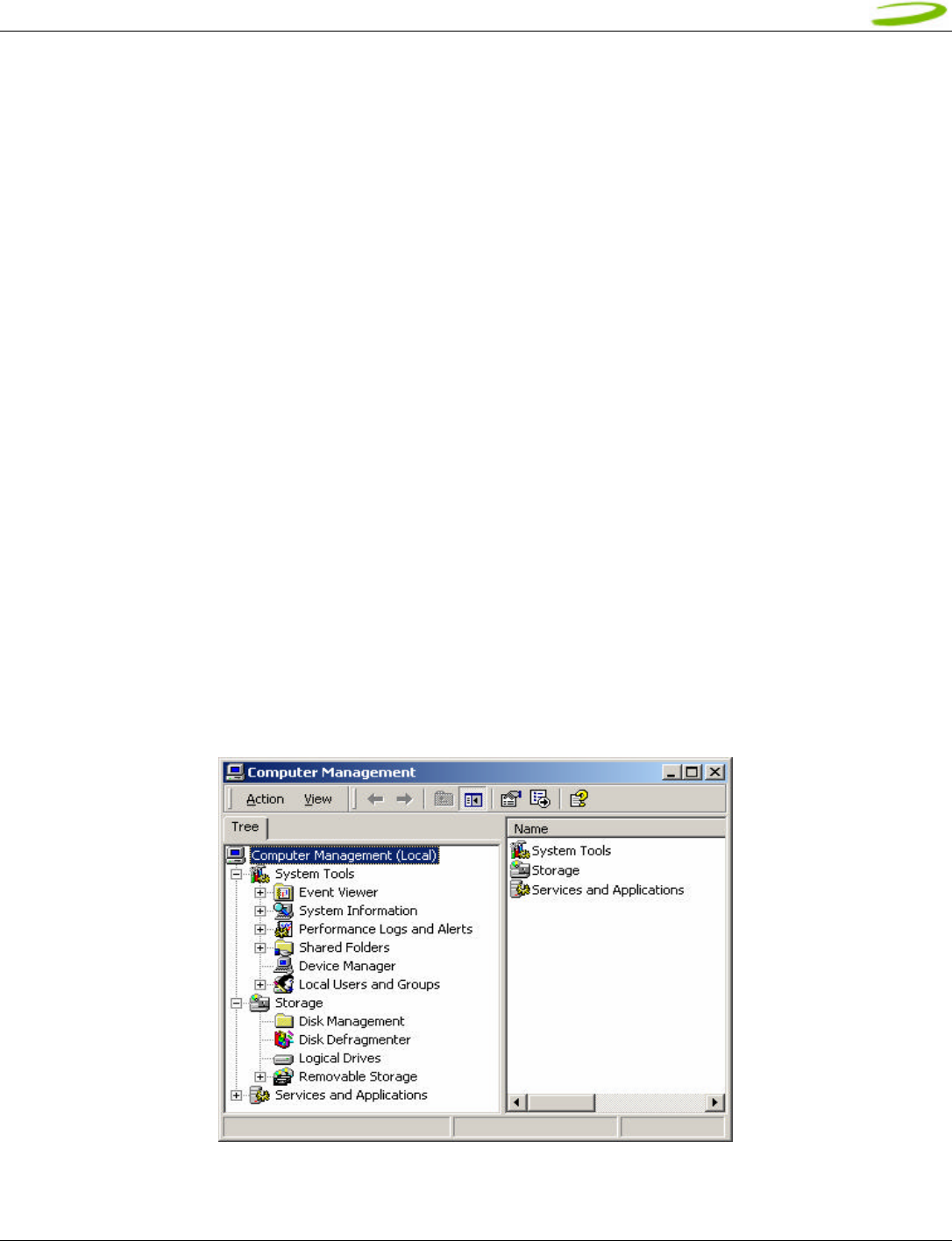

3. Right click My Computer Icon (for Windows 2000 this is usually on the desktop, and for Windows XP this is
usually in the Start menu) > Manage --- See Window 1
4. Select Device Manager --- See Window 2
WINDOW 1
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
3
31
1
GU-90023487
Revision 2
WINDOW 2
5. Expand Modems, Multifunction Adapter and Ports category by clicking on the + sign. See Window 3
WINDOW 3
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
3
32
2
GU-90023487
Revision 2
6. Check and see if you have a yellow exclamation mark or red X on any device. If you do, try the following.
• Reboot your PC or
• Uninstall and reinstall the drivers (Do not have the Merlin plugged in when reinstalling)
To Uninstall follow these steps. For Windows 2000 and XP
1. Go to Start > settings > control panel > Add or remove programs > Select MobiLinK and click Remove.
Make sure your modem is plugged in while uninstalling. (See Windows help if necessary)
2. Remove the modem from the PC slot
3. Reboot and reinstall. Go to Section 1.1.7 Installing MobiLink.
5.3 PROBLEM: WHEN I INSERT THE MODEM, I GET UNKNOWN_PCMCIA_MANUFACTURER”
INSTEAD OF “NOVATEL_ WIRELESS MERLIN_UMTS_MODEM
POSSIBLE CAUSE: HARDWARE FAILURE INSIDE THE MODEM
RESOLUTION: REPLACE MODEM
5.4 PROBLEM: WHEN I RUN THE MOBILINK SOFTWARE, I GET THE MESSAGE “SIM NOT FOUND
– CHECK ORIENTATION?”
POSSIBLE CAUSE: PROBLEM WITH YOUR SIM CARD.
RESOLUTION:
1. Make sure you have inserted the USIM card exactly as the picture in this manual, or on the back of Merlin or
Quick Start Guide, noting the location and orientation of the bevel corner
2. Make sure the contacts of the USIM card are clean.
5.5 PROBLEM: MODEM CANNOT READ SIM. LED FLASHING RED
POSSIBLE CAUSE: SIM LOCKED OR SIM SELF DESTRUCTED
RESOLUTION:
1. Enter in your PIN as required. See Section 2.1.4 Creating a data session
2. Contact your Service Provider if you entered your PIN number incorrectly 3 times. You will require a PUK code.
3. If you enter the PUK code incorrectly 3 times, the SIM is designed to self destruct. You will have to be issued a
new SIM. Contact your Service Provider.
4. Depending on where you purchased your Modem, the Modem could have a Service Provider Lock (SIMLOCK)
which ties the modem to a particular set of SIMs. Please contact the Service Provider to unlock the Modem.
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
3
33
3
GU-90023487
Revision 2
5.6 PROBLEM: WHEN I RUN MOBILINK SOFTWARE, THE WINDOW “SEARCHING FOR
NETWORK” WILL BE DISPLAYED CONTINUOUSLY
POSSIBLE CAUSE: OUT OF UMTS COVERAGE AREA
RESOLUTION: RELOCATE TO AN AREA OF COVERAGE. CONTACT YOUR SERVICE PROVIDER FOR DETAILS OF
THEIR COVERAGE AREAS.
5.7 PROBLEM: CANNOT BROWSE THE WEB
POSSIBLE CAUSE 1: INCORRECT USER NAME, PASSWORD OR ACCESS POINT NAME (APN).
RESOLUTION 1: CHECK YOUR PROFILE FOR AN INCORRECT ENTRY OF THE ABOVE PARAMETERS. RE-ENTER
THE PARAMETERS OR CONTACT YOUR SERVICE PROVIDER IF NECESSARY TO CONFIRM.
POSSIBLE CAUSE 2: NO IP ADDRESS
RESOLUTION 2:
IF YOU ARE CERTAIN THAT, THE USER NAME, PASSWORD AND ACCESS POINT NAME ARE CORRECT, CHECK TO

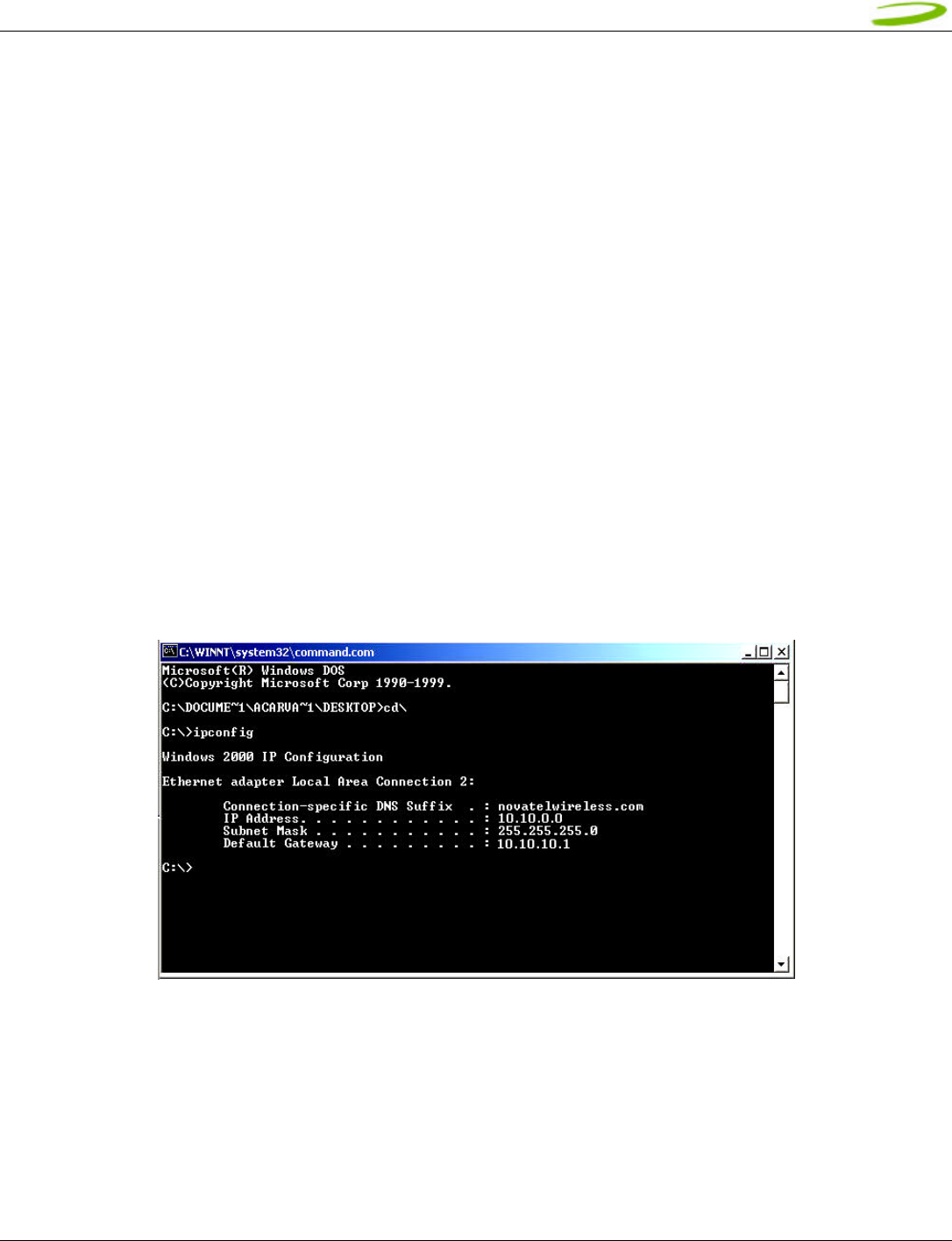

SEE IF YOU ARE GETTING AN IP ADDRESS.
Windows 2000 and XP
1. Click Start > Run and type in Command in the Run Window
2. A DOS window should open. See Window 4
WINDOW 4
3. Type in cd\ and hit enter this will get you to the root directory
4. Type in ipconfig and hit enter. You should have an IP address. If you don’t have an IP address, please
contact your Service Provider.
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
3
34
4
GU-90023487
Revision 2
POSSIBLE CAUSE 3: INCORRECT SERVER SETTINGS
RESOLUTION 3:

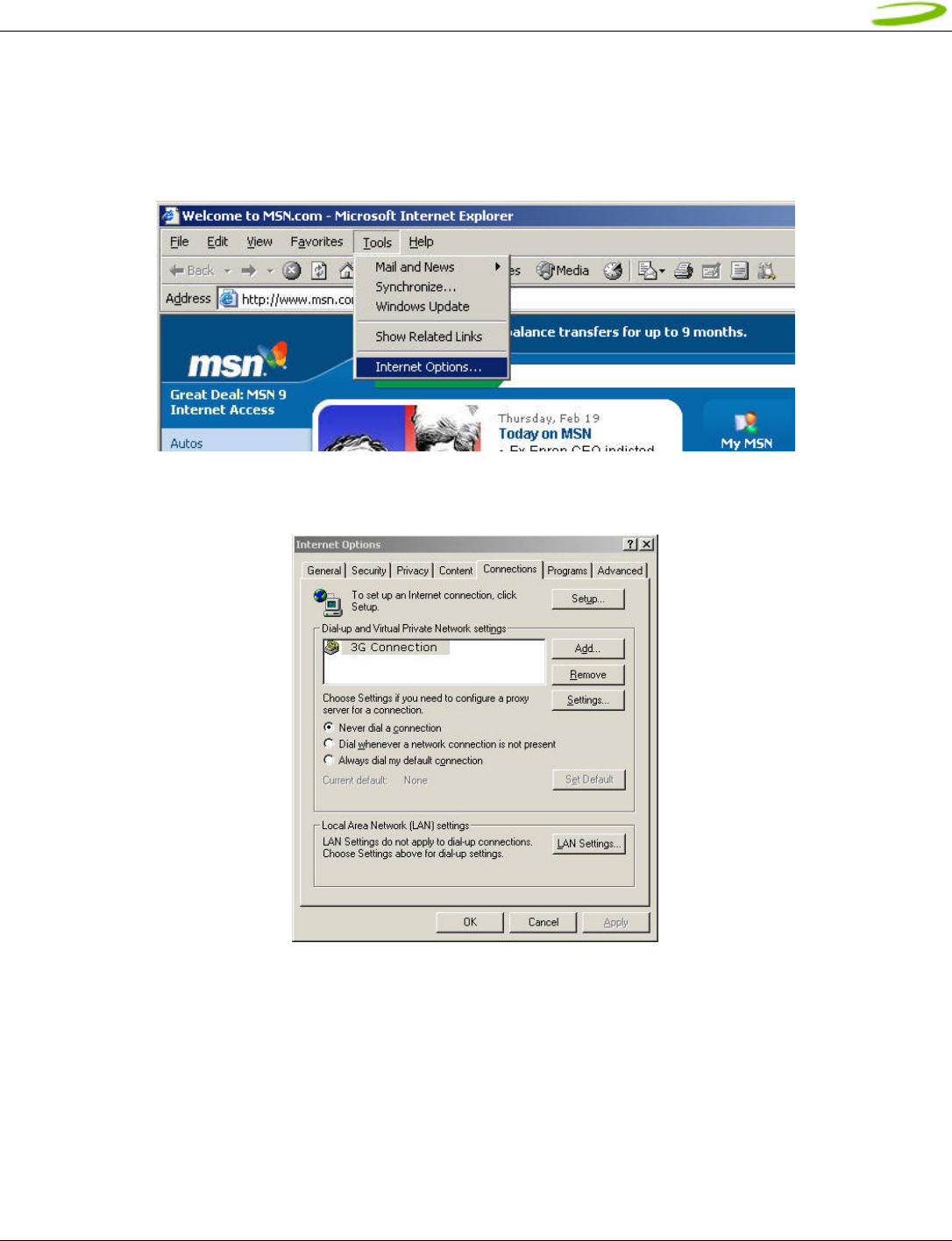

1. In Internet Explorer go to Tools > Internet Options > Connections
2. In Dial Up and Virtual Private Network Setting double click on 3G Connection – See Window 5
WINDOW 5
3. Check appropriate boxes if you are using a proxy server. See Window 6
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
3
35
5
GU-90023487
Revision 2

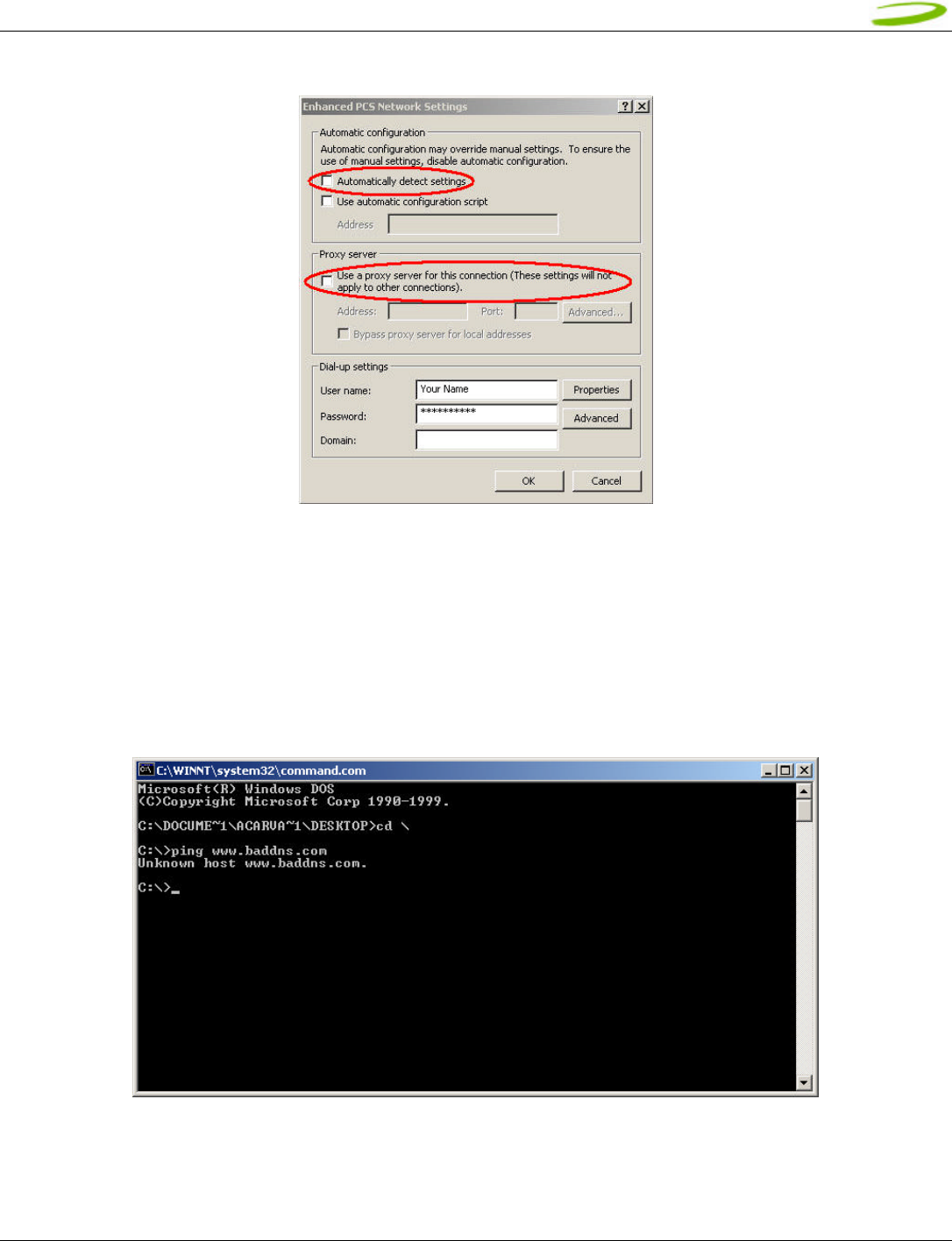

FIGURE 6
POSSIBLE CAUSE 4: DNS SERVER PROBLEMS
RESOLUTION 4:
Windows 2000 and XP
1. Click Start > Run and type in Command in the Run Window
2. A DOS window should open. See Window 7
WINDOW 7
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
3
36
6
GU-90023487
Revision 2
3. At the C prompt type in PING www.nvtl.com
• Response: Unknown host www.nvtl.com --- Usually faulty DNS. Call your Network Provider
• Response: Pinging nvtl.com [216.65.221.49] with 32 bytes of data. DNS ok even if you don’t get reply.
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
3
37
7
GU-90023487
Revision 2
6 PRODUCT SPECIFICATION
In This Section
• Technical and Environmental Specifications
6.1 TECHNICAL SPECIFICATION
This section outlines the technical and environmental specifications of your Merlin U520
Name: Merlin U520
Model Number: NRM–U520
Approvals: FCC
Dimensions: 120.6 x 54 x 5 mm
Wireless Network UMTS
PC Card Standard: Type II PC Card 5V
TABLE 1
Technology: WCDMA (FDD)
Band Designation: UMTS 1900Mhz
Transmit Band: 1850Mhz – 1910Mhz
Receive Band: 1930Mhz – 1990Mhz
Power Output/Transmit
Power Class 4 (+21dBm)
TABLE 2
6.2 ENVIRONMENTAL SPECIFICATION
Operating Temperature
0° Celsius to+55° Celsius
Storage Temperature -20° Celsius to +65° Celsius
Relative Humidity 95% maximum – Non Condensing
Vibration 147 m/s2 (15Gpeak) 10hz-2000hz
TABLE 3
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
3
38
8
GU-90023487
Revision 2
7 SAFETY REGULATIONS
In This Section
• Wireless Communication
• Safety and Hazards
• Regulatory Information
This section will inform you of the important safety measures you should be aware, including the standards that the
modem complies to.
7.1 WIRELESS COMMUNICATIONS
Important Notice
Due to the transmission and reception properties of wireless communications, data can occasionally be lost or delayed.
This can be due to the variation in radio signal strength that results from changes in the characteristics of the radio
transmission path. Although data loss is rare, the environment where you operate the modem may adversely affect
communications.
Variations in radio signal strength are referred to as fading. Fading is caused by several different factors including signal
reflection, the ionosphere, and interference from other radio channels.
Novatel Wireless or its partners will not be held responsible for damages of any kind resulting from the delays or errors in
data transmitted or received with the Merlin U520, or failure of the Merlin U520 to transmit or receive such data.
7.2 SAFETEY HAZARDS
Do not operate the Merlin U520 in an environment that may be susceptible to radio interference resulting in danger
specifically;
Ø Areas where prohibited by the law
o Follow any special rules and regulations and obey all signs and notices. Always turn off the host device
and remove the modem from the card slot when instructed to do so, or when you suspect that it may
cause interference or danger.
Ø Where explosive atmospheres may be present
o Do not operate your modem in any area where a potentially explosive atmosphere may exist. Sparks in
such areas could cause an explosion or fire resulting in bodily injury or even death. Be aware and comply
with all signs and instructions.
o Users are advised not to operate the modem while at a refueling point or service station. Users are
reminded to observe restrictions on the use of radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants or where blasting operations are in progress.
o Areas with a potentially explosive atmosphere are often but not always clearly marked. Potential locations
can include gas stations, below deck on boats, chemical transfer or storage facilities, vehicles using
liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles,
such as grain, dust or metal powders, and any other area where you would normally be advised to turn
off your vehicle engine.
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
3
39
9
GU-90023487
Revision 2
Ø Near Medical and life support equipment
o Do not operate your modem in any area where medical equipment, life support equipment, or near any
equipment that may be susceptible to any form of radio interference. In such areas, the host
communications device must be turned off. The modem may transmit signals that could interfere with
this equipment.
Ø On an aircraft, either on the ground or airborne
o In addition to FAA requirements, many airline regulations state that you must suspend wireless
operations before boarding an airplane. Please ensure that the host device is turned off and your modem
is removed from the card slot prior to boarding aircraft in order to comply with these regulations. The
modem can transmit signals that could interfere with various onboard systems and controls.
Ø While operating a vehicle
o The driver or operator of any vehicle should not operate a wireless data device while in control of a
vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some
countries, operating such communications devices while in control of a vehicle is an offence.
7.3 REGULATORY NOTICES
Federal Communications Commission Notice (United States)
Electronic devices, including computers and wireless modems, generate RF energy incidental to their
intended function and are therefore subject to FCC rules and regulations.
This equipment has been tested to, and found to be within the acceptable limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a residential environment.
This equipment generates radio frequency energy and is designed for use in accordance with the manufacturer’s user
manual. However, there is no guarantee that interference will not occur in any particular installation. If this equipment
causes harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, you are encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/television technician for help
This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
4
40
0
GU-90023487
Revision 2
WARNING: DO NOT ATTEMPT TO SERVICE THE WIRELESS COMMUNICATION DEVICE YOURSELF. SUCH
ACTION MAY VOID THE WARRANTY. THE MERLIN PC CARD MODEM OEM IS FACTORY TUNED. NO
CUSTOMER CALIBRATION OR TUNING IS REQUIRED. CONTACT NOVATEL WIRELESS TECHNICAL SUPPORT
FOR INFORMATION ABOUT SERVICING YOUR WIRELESS COMMUNICATION DEVICE.
FCC CAUTION: Any changes or modification not expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment.
NOTE: The Radio Frequency (RF) emitter installed in your modem must not be located or operated in conjunction with
any other antenna or transmitter.
MODIFICATIONS: The FCC requires that you be notified that any changes or modifications made to this device that are
not expressly approved by Novatel Wireless, Inc. may void your authority to operate the equipment.
7.4 RF EXPOSURE/SPECIFIC ABSORPTION RATE (SAR) INFORMATION
This product has been evaluated for SAR and meets the FCC Guidelines for exposure to radio waves.
FCC Equipment Authorization ID: NBZNRM-U520
Your wireless modem is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure
limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government.
These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population.
The guidelines are based on standards that were developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety
of all persons, regardless of age and health.
The exposure standard for wireless devices including mobile phones and wireless modems uses a unit of measurement
known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standard operating positions reviewed
by the FCC with the device under test transmitting at its highest certified power level in all frequency bands. Although the
SAR is determined at the highest certified power level, the actual SAR level of the phone or modem while operating can
be well below the maximum value. This is because the phone or modem is designed to operate at multiple power levels
so as to use only the power required to reach the network. In general, the closer you are to a wireless base station
antenna, the lower the power output.
Before this device is made available for sale to the public, it must be tested and certified to the FCC that it does not
exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in
positions and locations (for example, at the ear or worn on the body) as required by the FCC for each model.
The FCC has granted an Equipment Authorization for this wireless modem with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. The highest SAR value for this modem when tested for compliance
against FCC standards was 0.639mw/g
M
ME
ER
RL
LI
IN
N
U
U5
52
20
0
U
US
SE
ER
R
G
GU
UI
ID
DE
E
4
41
1
GU-90023487
Revision 2
8 DOCUMENT CONTROL
REVISION CONTROL
Revision Number
Revision History
Revision 1 Initial Release
Revision 2 Added Document Control Page
Added SAR Values Subsection 7.4
