SPIDER-4 USER'S MANUAL Revised 28 Apr 2000
1
INTRODUCTION
About the Spider 4
The Spider 4 is a 4-watt modem with optional Global Positioning Satellite (GPS) capabilities.
You can remotely access mission critical files and applications on your network, designed for
devices operating Windows 95, 98, NT or 2000. It provides wide area network connectivity
over wireless IP services (CDPD). The Spider 4 is illustrated in Figure 1 (Front View) and
Figure 2 (Back View).
Figure 1. Front View
Figure 2. Back View
About This Manual
This manual describes how to install and use the Spider 4. To take full advantage of your
Spider 4, please read all the instructions in this manual.
Contents of This Package
Your Spider 4 package from Nextcell includes one of the following items:
• Spider 4
• Mounting screws (4)
• One 20-foot power harness
• One 22-foot serial cable
• One user’s manual
• One Spider Installation Guide (CD-ROM)
GPS Option CDP-0114-04-002
•GPS receiver embedded in Spider
• One 22-foot serial cable
• One of the GPS antenna option
Available Options
The following optional antennas are available for purchase through your authorized Nextcell
agent:
• Part #ANT-9701-05-001
Cellular roof/trunk mount antenna with thru-hole mounting kit and installation instructions
• Part #ANT-9704-05-001
GPS Antenna with thru-hole mounting kit and installation instructions
• Part #ANT-9705-05-001
GPS Antenna magnetic mounting kit with installation instructions
DRAFT
SPIDER-4 USER'S MANUAL Revised 28 Apr 2000
2
System Requirements
• Serial port – One serial port is required for Spider-4. A second serial port is required
for GPS option.
• Spider Modem Manager
• Refer to installation menu for Spider Installation Guide.
Upgrade Information
If your current system does not meet these requirements, please contact
Nextcell
661 E. 18th Street
Plano, Texas 75074 USA
Or, contact us at our Website: http://www.nextcell.com
INSTALLATION
Installing the Spider 4
To install the Spider 4 into a vehicle, follow these steps:
1. Choose a convenient location in the vehicle, either in the interior or the trunk.
2. Place the Spider 4 in position and mark the location of the mounting holes.
3. Using your marks as a guide, drill the holes using a 1/16-inch drill bit.
4. Align the Spider 4 with the holes that you drilled and secure it using the mounting
screws provided.
Installing Cables
Install cables in the following manner:
1. Turn off the computer, Spider 4 and vehicle when installing the Spider 4, antennas or
cables.
2. Do not create tight loops, sharp bends or crimps in the cables.
3. Use proper termination on all power cables.
4. All cables should be attached to the vehicle and equipment in such a way as to
reduce stress or wear caused by vibrations generated by moving vehicles.
Terminating Power Cables
All cables should be attached to the vehicle and equipment in such a way as to reduce stress
or wear caused by vibrations generated by moving vehicles.
Connecting the Power Supply
CAUTION
Connect to an auxiliary power circuit that becomes active ONLY when the ignition
switch is turned on.
It is extremely important that you connect to an auxiliary power circuit that becomes active
ONLY when the ignition switch is turned ON (e.g., the car radio). There are numerous after-
DRAFT
SPIDER-4 USER'S MANUAL Revised 28 Apr 2000
3
market products available that provide automatic on/off switching, low voltage disconnects,
reverse polarity protection and high voltage protection for your Spider 4. Consult your
automobile manufacturer, automotive parts or consumer electronic stores for more information
on these products.
Using the Power Harness provided, connect the Spider 4 to your vehicle’s power supply
exactly as follows:
•Connect the black wire to chassis ground.
•Connect the white wire to auxiliary power.
•Connect the red wire directly to the 12 volt supply of the battery. The connection
must be capable of supplying up to 4 amps at 12 volts.
•Connect the Power Harness to the Spider 4 connector labeled Power.
If you have installed the Spider 4 properly, the LED on the front of the Spider 4 illuminates
only when you turn the ignition ON.
Installing the Serial Modem Cable
Attach one end of the Serial cable to the computer’s COM port and the other to the Spider 4’s
Serial Modem plug. The Serial Modem plug on the Spider 4 is illustrated in Figure 3.
Figure 3. Serial Modem plug
ANTENNA INSTALLATION
Your Spider 4 package may not include an antenna. You have the flexibility to purchase an
antenna from Nextcell or choose an antenna that has the same specifications and
construction as the antenna provided by Nextcell.
Select an antenna with the following features:
•The antenna is specified to operate in the cellular band (824 – 894 MHz) with 3 dBd
gain.
•The antenna has a 50 ohm cable terminated with a TNC style connector.
Locate and install the antenna on the vehicle according to the manufacturer’s instructions.
CAUTION
In order to comply with FCC RF Maximum Permissible Exposure Limits (MPEL), the
following configuration must be followed.
1. The antenna must be installed a minimum of 0.5 meters (20 inches) from car
occupants and pedestrians.
2. The rf cable between the Spider 4 and the antenna must have at least 1 dB of
insertion loss.
3. If an antenna other than the one provided by Nextcell is used, the antenna used
must have the same electrical specifications and physical construction as the
antenna provided by Nextcell.
DRAFT
SPIDER-4 USER'S MANUAL Revised 28 Apr 2000
4
Compliance with FCC RF exposure limits was evaluated with the above configuration. Other
configurations that have not been tested may not comply with FCC RF exposure limits and
should be avoided. CAUTION
Do not attempt to operate the Spider 4 without an antenna connected. Severe
damage to the Spider 4 and/or computer may result.
Installing the Antenna
Manufacturer’s instructions for installing the Spider 4 Antenna are included with the antenna
kit (Part #ANT-9701-05-001). Follow those directions very carefully in order to avoid damaging
the Spider 4 and/or computer.

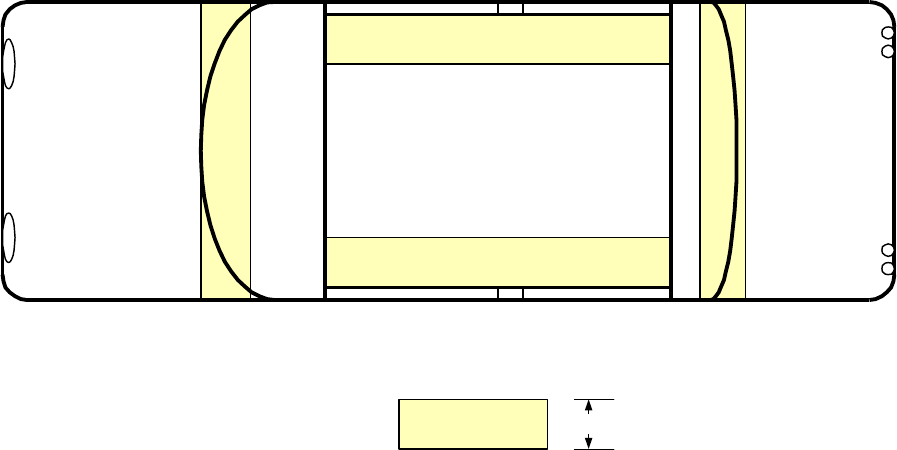

The antenna location area, based on the RF separation distance, is illustrated in Figure 4.
Figure 4. Typical automobile (vehicle) antenna mounting areas.
The Antenna terminal on the Spider 4 is illustrated in Figure 5 below.
Figure 5. Antenna Terminal on the Spider 4
20 in. TYP
NO ANTENNA
DRAFT
SPIDER-4 USER'S MANUAL Revised 28 Apr 2000
5
GETTING STARTED
Spider Modem Manager Main Window
Attach the TNC connector to the Spider 4 terminal labeled Antenna.
Refer to Spider Installation Guide and Spider Users Manual
Optional GPS Antenna and Receiver
SiRF binary format. The factory-default for the Spider 4 is the NMEA format. NMEA
Format
To use this GPS Receiver in the NMEA format, purchase and install mapping software
that adheres to the industry-standard NMEA format on your computer.
SiRF Format
To use this GPS Receiver in the SiRF binary format, download and install Axion
Navigation, Inc.’s software, Conductor software, from their Website at
http://www.axiomnav.com.
About the GPS Receiver
The Receiver powers the preamplifier in the GPS Antenna (Active-style) by applying a 5 volt
DC bias to the center conductor of the RF input to the GPS Receiver. We strongly suggest
you install the Antenna supplied by Nextcell, Inc.
If you must use a Passive-style GPS Antenna, please verify that it has a DC block installed in
order to prevent shorting to the Ground.
Installing the GPS Antenna and Receiver
This Spider 4 comes with two GPS-specific cables:
•5-meter coax cable — connects the GPS Antenna to the Spider 4
•Serial cable — connects the computer to the Spider 4
Turn OFF both the computer and the vehicle. There should be no power provided to the
Spider 4 or the computer while you are installing the GPS Antenna.
Attach the SMA connector at the end of the GPS Antenna coax cable to the SMA
connector located on the back of the Spider 4.
The GPS Antenna terminal on the Spider 4 is illustrated in Figure 6.
Figure 6. Spider 4 GPS Antenna
DRAFT
SPIDER-4 USER'S MANUAL Revised 28 Apr 2000
6
Attach one end of the Serial cable to the computer’s COM port and the other to the
Spider 4’s Serial GPS plug. The Serial GPS plug on the Spider 4 is illustrated in
Figure 7.
Figure 7. Serial GPS plug
Apply power to the computer and the Spider 4
Activate the GPS Mapping software
Activate the GPS mapping software on your computer according to the software
manufacturer’s instructions.
