Xen Expert Days
Virtualization with Xen
SUSE Linux Enterprise Server 10
Ralf Dannert
Technology Specialist
rdannert@novell.com
© Novell Inc. All rights reserved
2
Agenda
Use cases
Terminology and Architecture
VM installation
Using Xen
Case Studies
Roadmap
Novell offerings
Helpful Links
© Novell Inc. All rights reserved
3

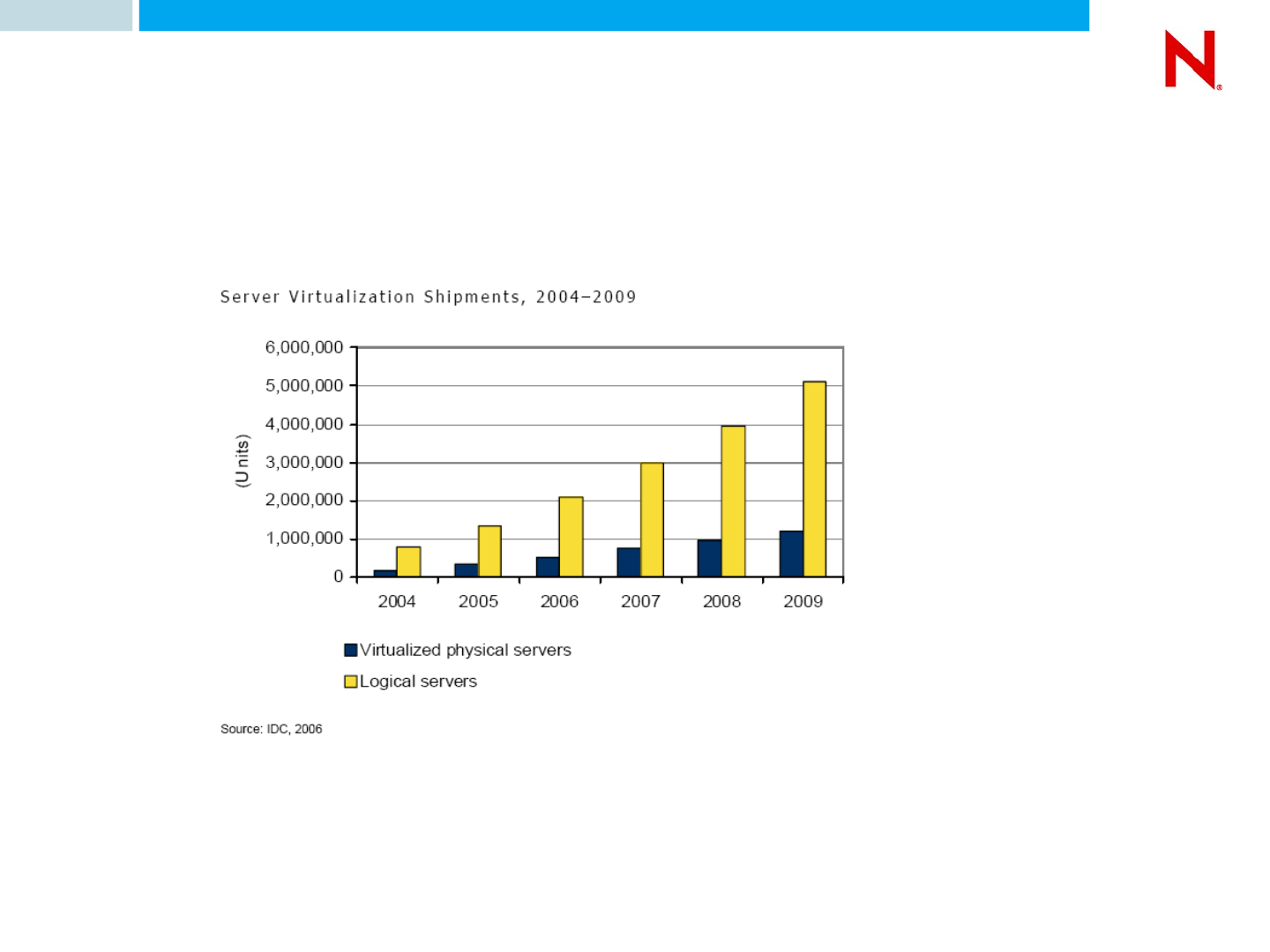

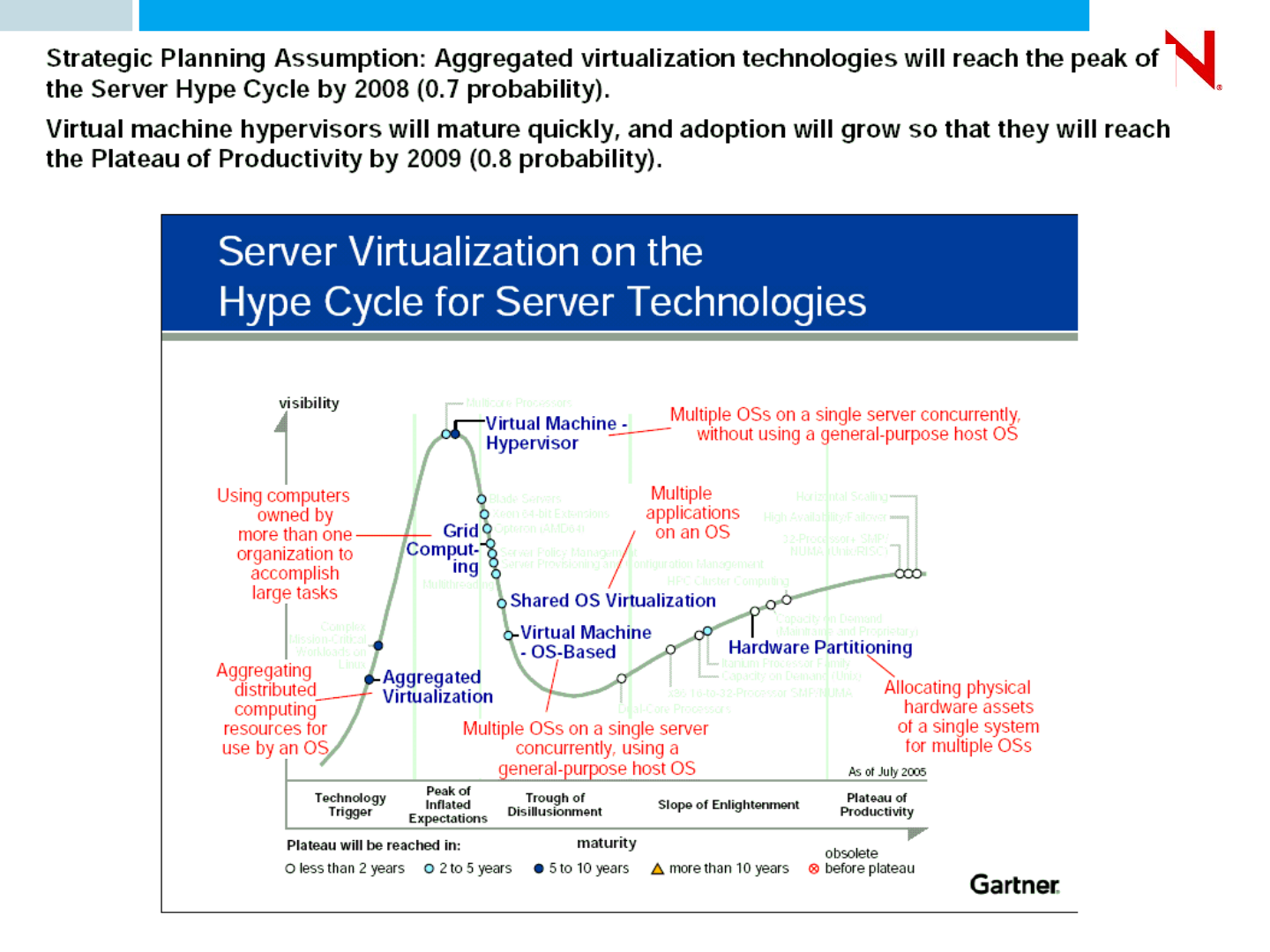

Server Virtualization: Analyst's View
© Novell Inc. All rights reserved
4
© Novell Inc. All rights reserved
5
Novell product portfolio offers choice
Customers can choose to deploy virtualization technologies
provided by Novell and other VT vendors
Novell virtualization strategy is focused on Xen
Customer demand for server consolidation and price /
performance will foster rapid acceptance
Novell supports customers
Virtual Machine Server Hardware from partners and Virtual
Machine configurations are listed in YES certification bulletins
Novell Technical Services supports installation and operation
Executive Summary
Use Cases
© Novell Inc. All rights reserved
7

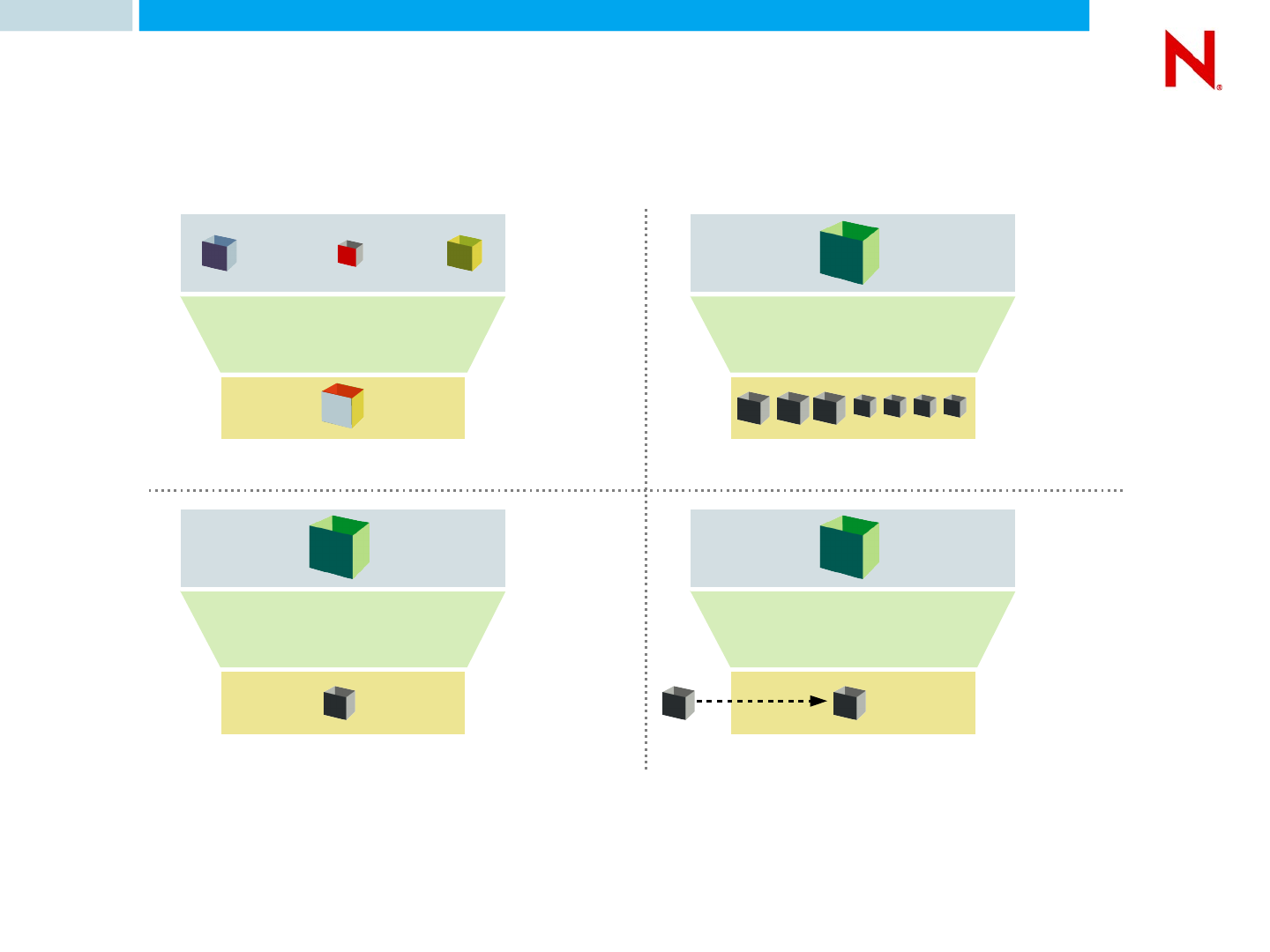

Uses of Virtualization
Sharing Aggregation
Examples: VMs, LPARs, Virtual Disks, VLANs
Physical
Resources
Virtual
Resources
Examples: Virtual Disks, Virtual Storage Pools
Physical
Resources
Virtual
Resources
Transparent Change
Examples: Spare CPU Substitution, CUoD
Physical
Resources
Virtual
Resources
Add or Replace
Extension
Examples: iSCSI, Architecture Emulators
Physical
Resources
Virtual
Resources
© Novell Inc. All rights reserved
8
Use cases

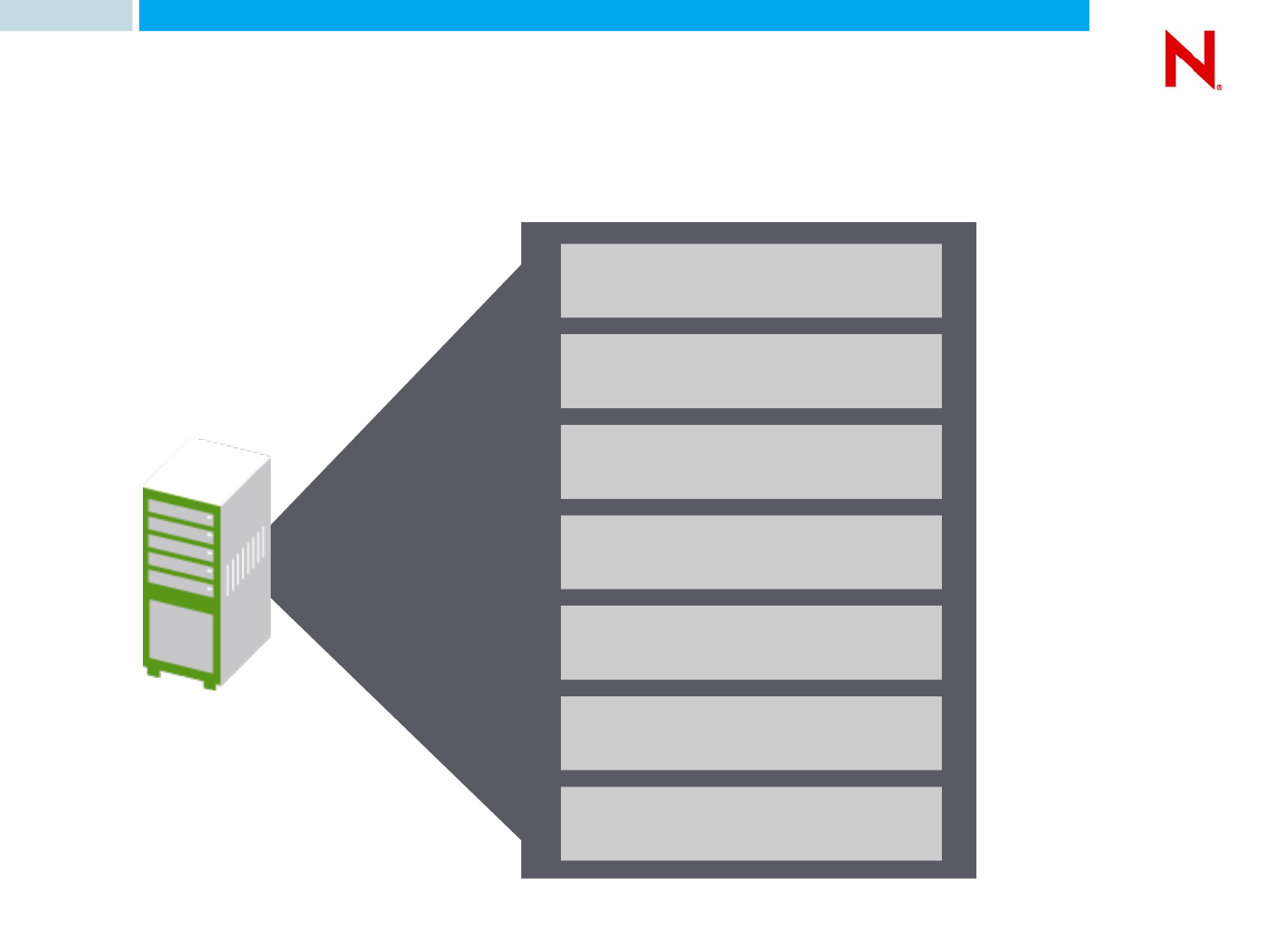

Virtualization allows for more flexibility
Virtual Machines (VM) isolate hardware differences due to a
abstracted resource layer between hardware and OS
Decouples software stacks from hardware life cycles
Dynamic provisioning reduces time to operation: pre-
configured application stacks are faster to deploy
Integrated high availability increases reliability

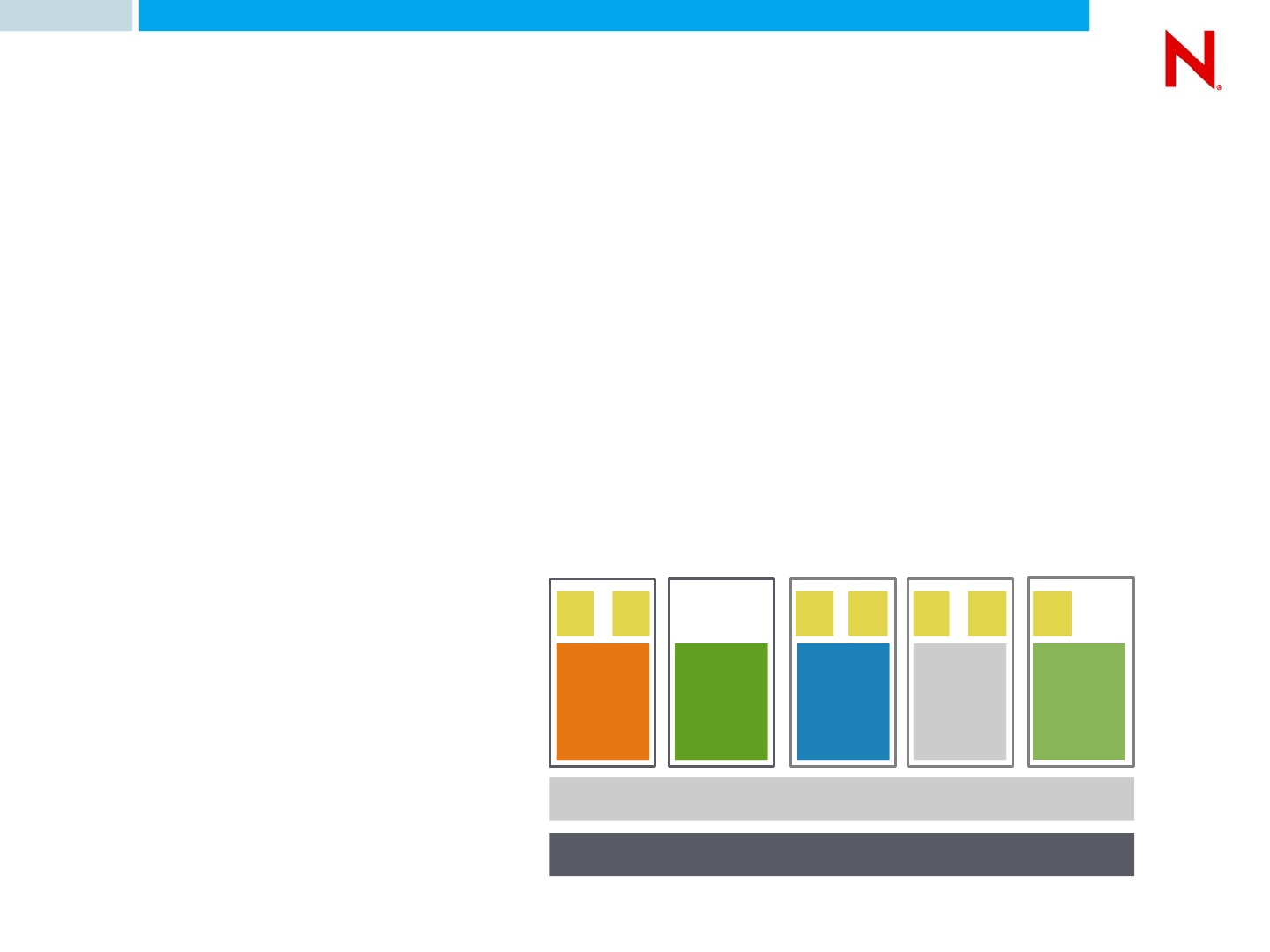

OS OS OS OS OS
VM Virtualization Layer
Hardware
A A A A A A A
Terminology and Architecture
© Novell Inc. All rights reserved
10

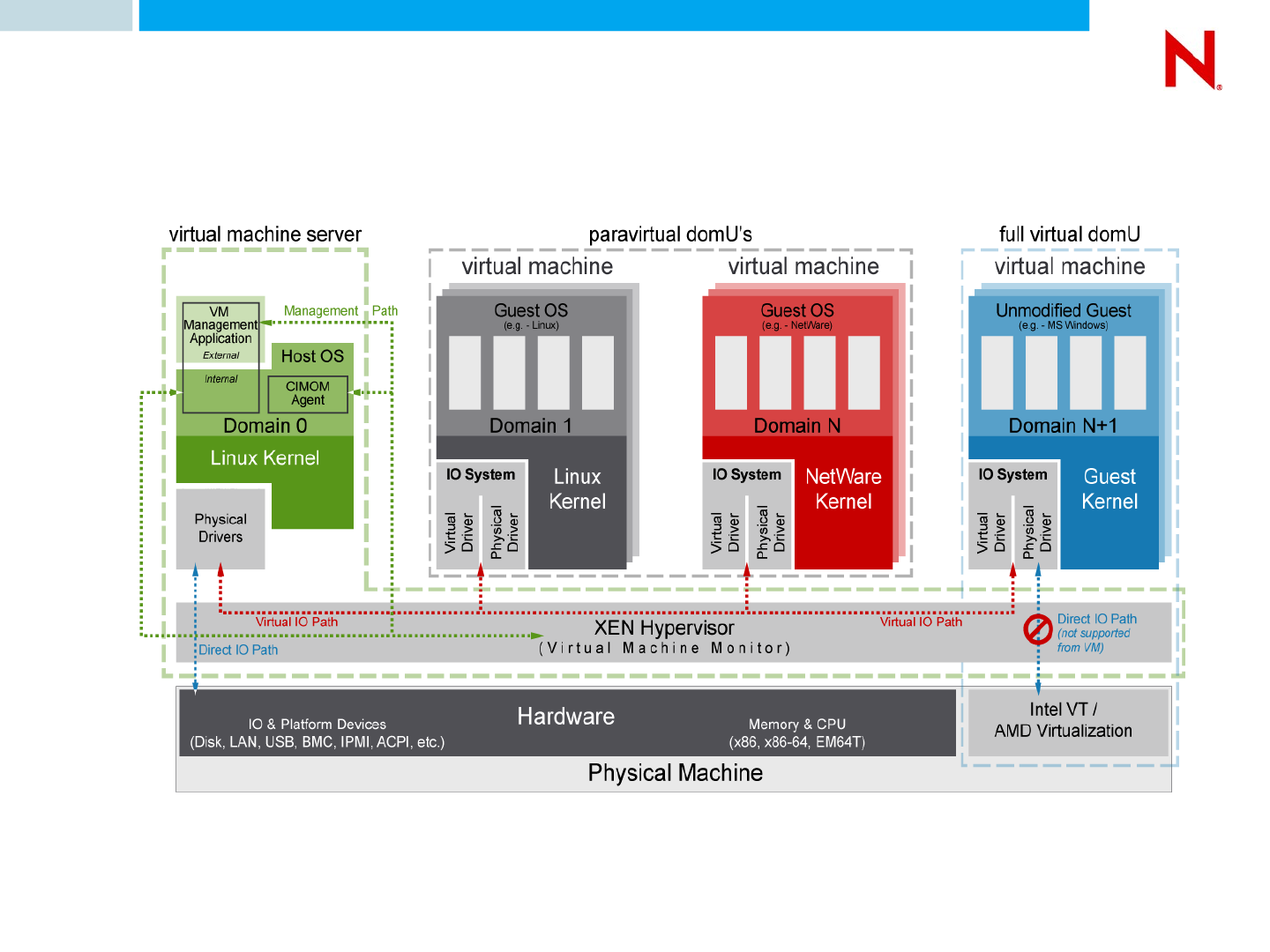

SLES 10 VM Server

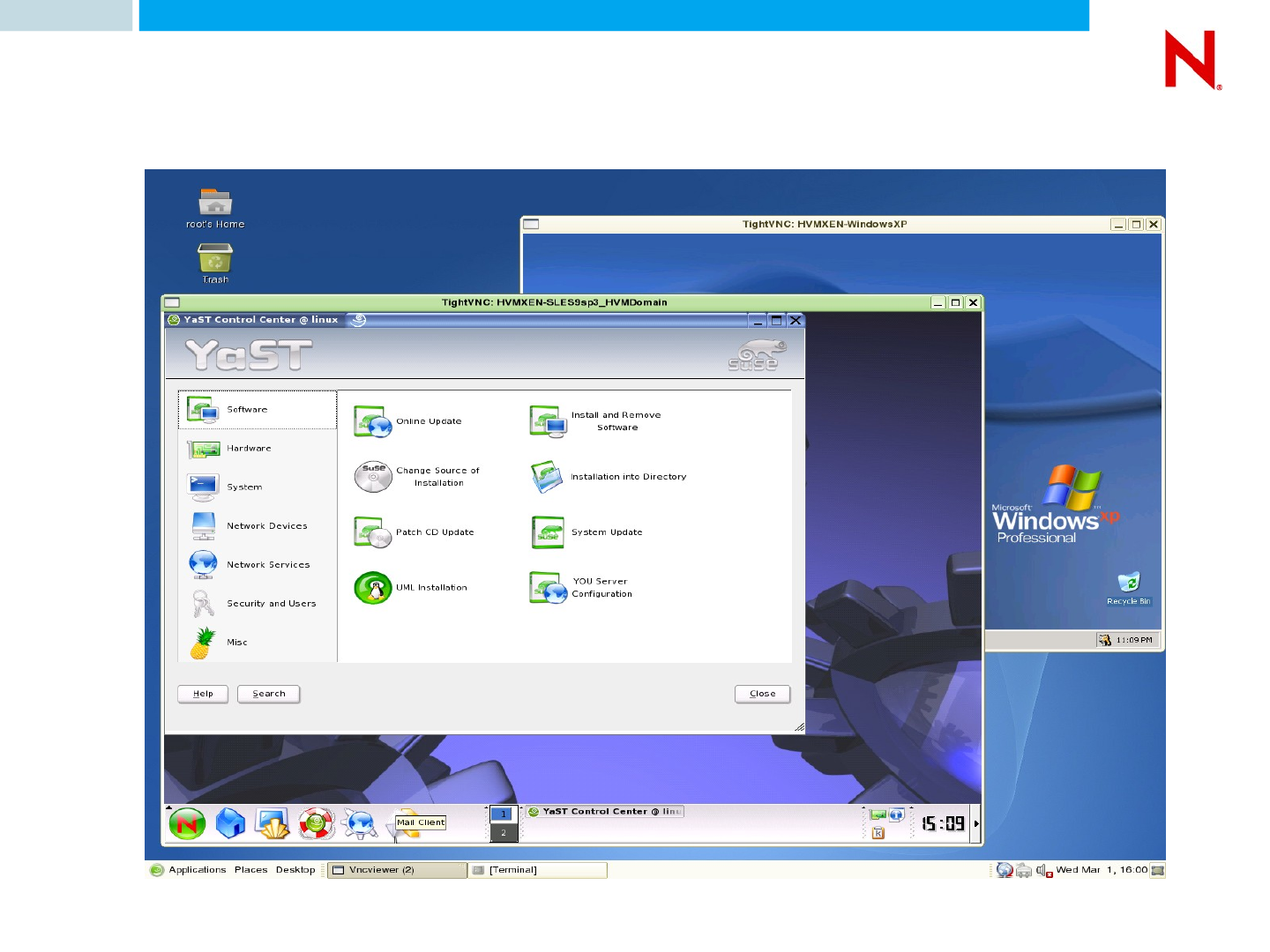

SLES 9 and Windows XP - Fully Virtualized VMs
© Novell Inc. All rights reserved
11
Xen Technology Background
Originally a research project from University of Cambridge
Open source
Xen 2.0 released November 2004
Xen 3.0.0 released December 2005
Xen 3.0.2 release May 2006 (SLES 10 Target)
Xen 3.0.4 SLES 10 SP1 Target
© Novell Inc. All rights reserved
12
Xen Community Terminology
Domain: A container for a running virtual machine. Colloquially,
the VM itself.
Domain 0: The first domain. Privileged to manage other
domains. a.k.a. “dom0”.
Unprivileged domain: Any domain other than domain 0.
Cannot manage other domains. a.k.a. “domU”.
Driver domain: A domain that contains physical drivers. Usually
this is just domain 0.
Physical driver: A device driver (usually in the driver domain)
that talks to the hardware.
Virtual driver: A device driver (usually in a domU) that fullfills
requests by going to the physical driver.
© Novell Inc. All rights reserved
13

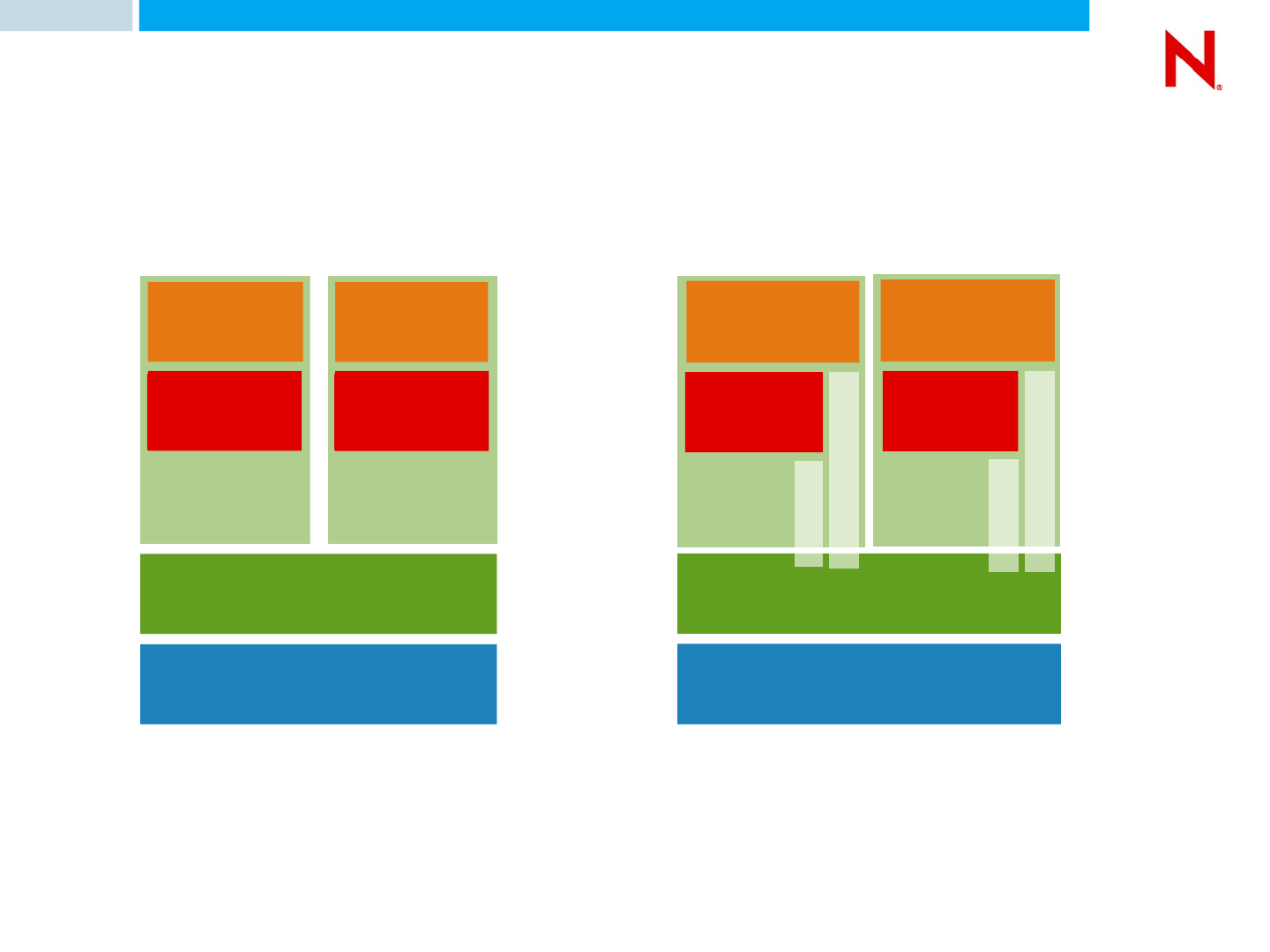

Full & Paravirtualization Overview
Virtual Machine Monitor
HW Platform
Virtual
Machine
Operating
System
Apps
Virtual
Machine
Operating
System
Apps
Full Virtualization
Runtime modification of Guest OS:
VMM manages the conflict, then
returns to OS
Virtual Machine Monitor
HW Platform
Virtual
Machine
Operating
System
Apps
A
P
I
A
P
I
Virtual
Machine
Operating
System
Apps
A
P
I
A
P
I
Paravirtualization
Static modification of Guest OS prior to
runtime: Privileged instruction calls are
exchanged with API functions provided
by the VMM
Almost no performance degradation
Significant scalability
© Novell Inc. All rights reserved
14
Novell Terminology
Fully Virtual: A VM mode that can run a native, unmodified
operating system by emulating all hardware devices.
Paravirtual: A VM mode that can run a modified operating
system, which cooperates with the VMM.
VT Computer: Computer supporting HVM Intel VT, AMD
Standard Computer: A computer that does not support
virtualization technology and therefore can run Xen VMs only in
paravirtual mode.
Native Operating System: A typical operating system that is not
optimized for the VM environment and must run in fully virtual
mode.
© Novell Inc. All rights reserved
15
Privilege Rings
Xen runs at ring 0 (highest privilege)
All domains run at rings 1 - 3.
Kernel is ring 1
User-space is ring 3
Applications Applications
Kernel Kernel
Linux Kernel
domain 0
(management)
Hypervisor (XEN)
Physical Hardware
ring 3
ring 1
ring 0
Events
Hypercalls
© Novell Inc. All rights reserved
16
Hardware assisted virtualization
VT Computer
run multiple OS concurrently
protected execution environments
priviledge ring expansion
simplify hypervisor
Intel VT for directed I/O(VT-d) - direct assign I/O
no emulated drivers necessary
© Novell Inc. All rights reserved
17
Extending Intel Virtualization
Technology
support for I/O device virtualization
direct I/O virtualization to the chipset(“VT-d”).
Currently, I/O devices aren’t aware of virtualization
and must go through the VMM before being
assigned to a virtual machine.
software emulation slow
Performance
>I/O requests must traverse two I/O stacks (guest and host)
Functionality
>Guest OSes “see” only restricted sets of legacy devices
Reliability
>Drivers are potentially undependable if they run as part of privileged
software
© Novell Inc. All rights reserved
18
Full Virtualization Mode on VT
using qemu-dm
using “device model”
hypervisor intercepts mmio regions
forwards request to qemu
i.e.: read request to harddisk
VM emulates the following devices
requires the VM's operating system to install, load, and run its
native device drivers
Network card: AMD PCnet, NE2000
Disk drive: IDE
Graphics card: Cirrus Logic* GD5446, VESA-compliant VGA
Input: PS/2 mouse and keyboard
Sound: Creative* Sound Blaster 16, Ensoniq* ES1370
© Novell Inc. All rights reserved
19

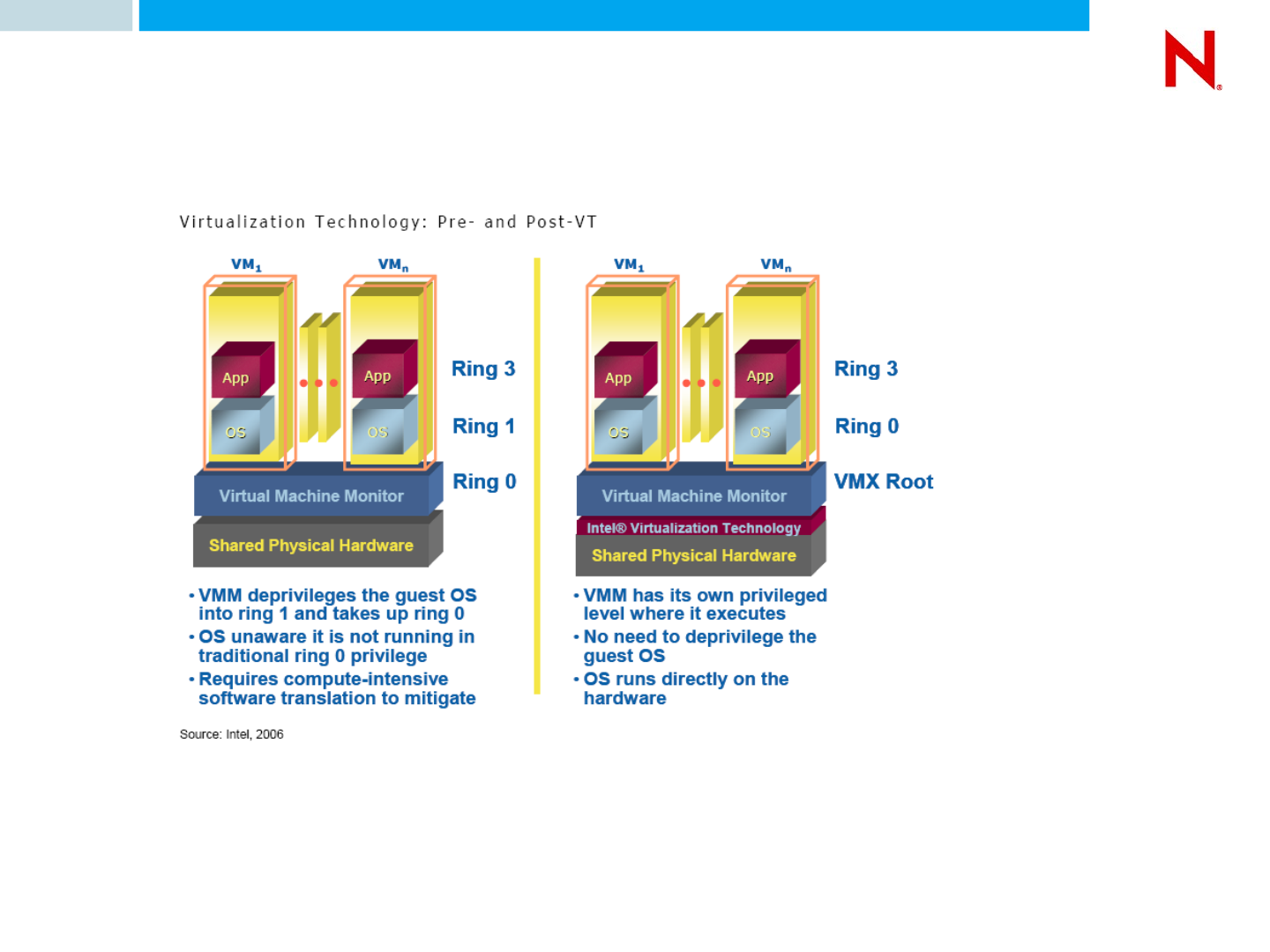

Intel Pre- and Post-VT
© Novell Inc. All rights reserved
20
AMD IOMMU
in DomU OS not loaded at address 0
Xen: direct access to memory difficult-->corruption
hypervisor intervenes in I/O, apply translation-->overhead
solutions:
rewrite graphics driver ?
HW to support IOMMU
AMD IOMMU -provides isolation and memory protection

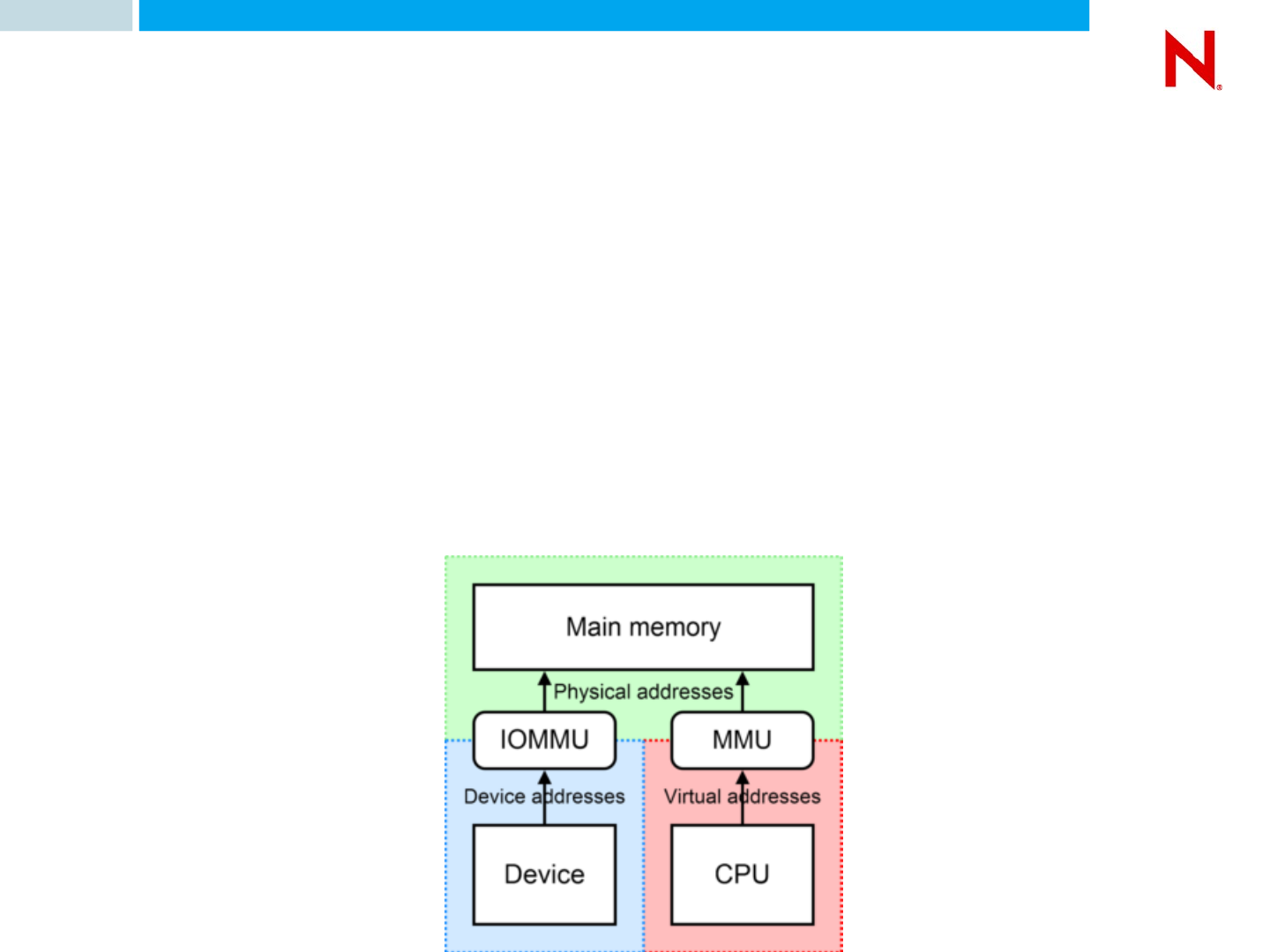

IOMMU: device remap address accessed by HW,
© Novell Inc. All rights reserved
21

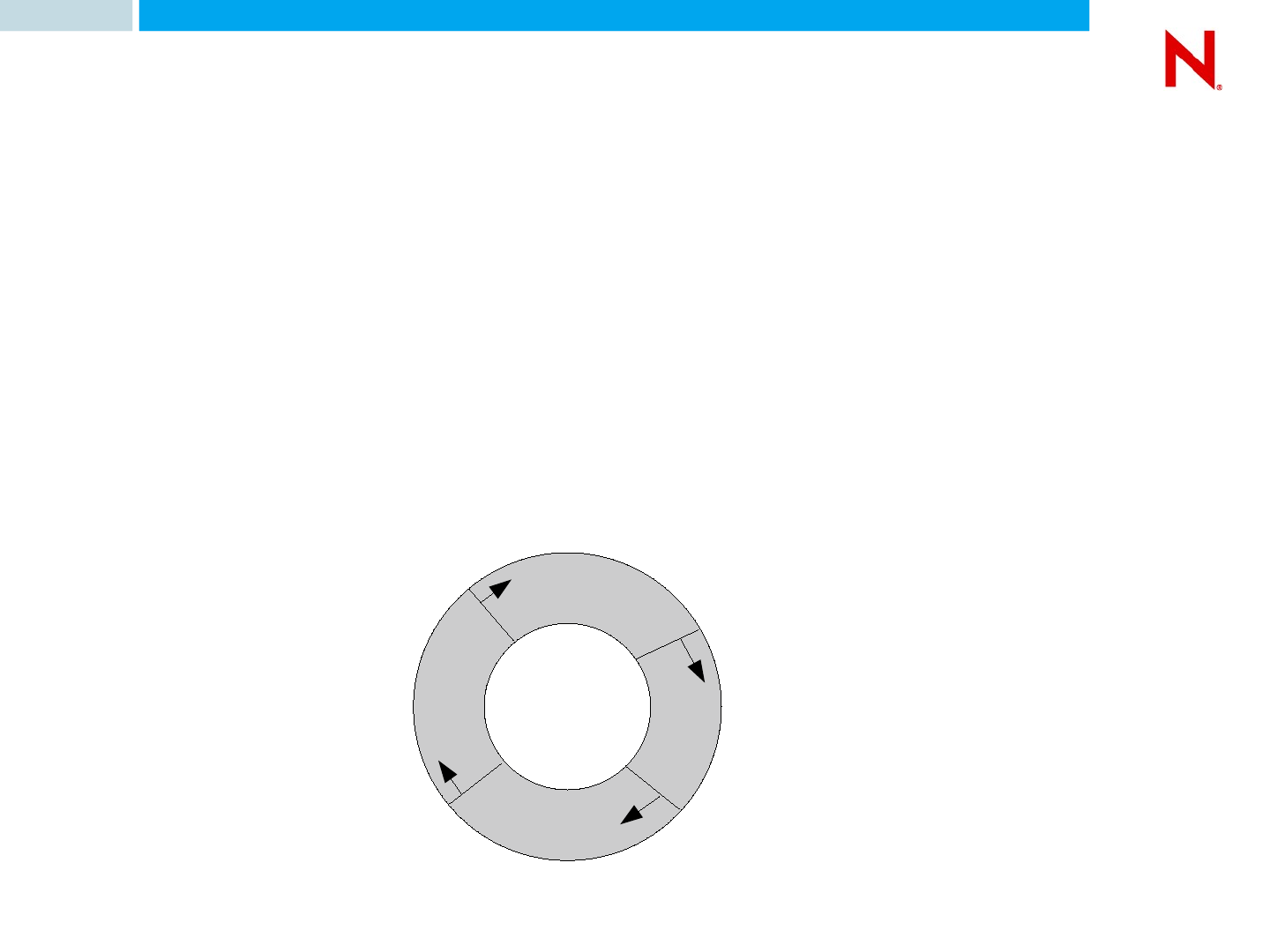

Ring Buffers
Network, disk I/O is done via shared memory, asynchronous ring
buffers.
One ring per VM reduces cross-talk.
Events replace hardware interrupts for notifications.
Page-for-page swap between VM and Xen.
request consumer
response producer
response consumer
request producer

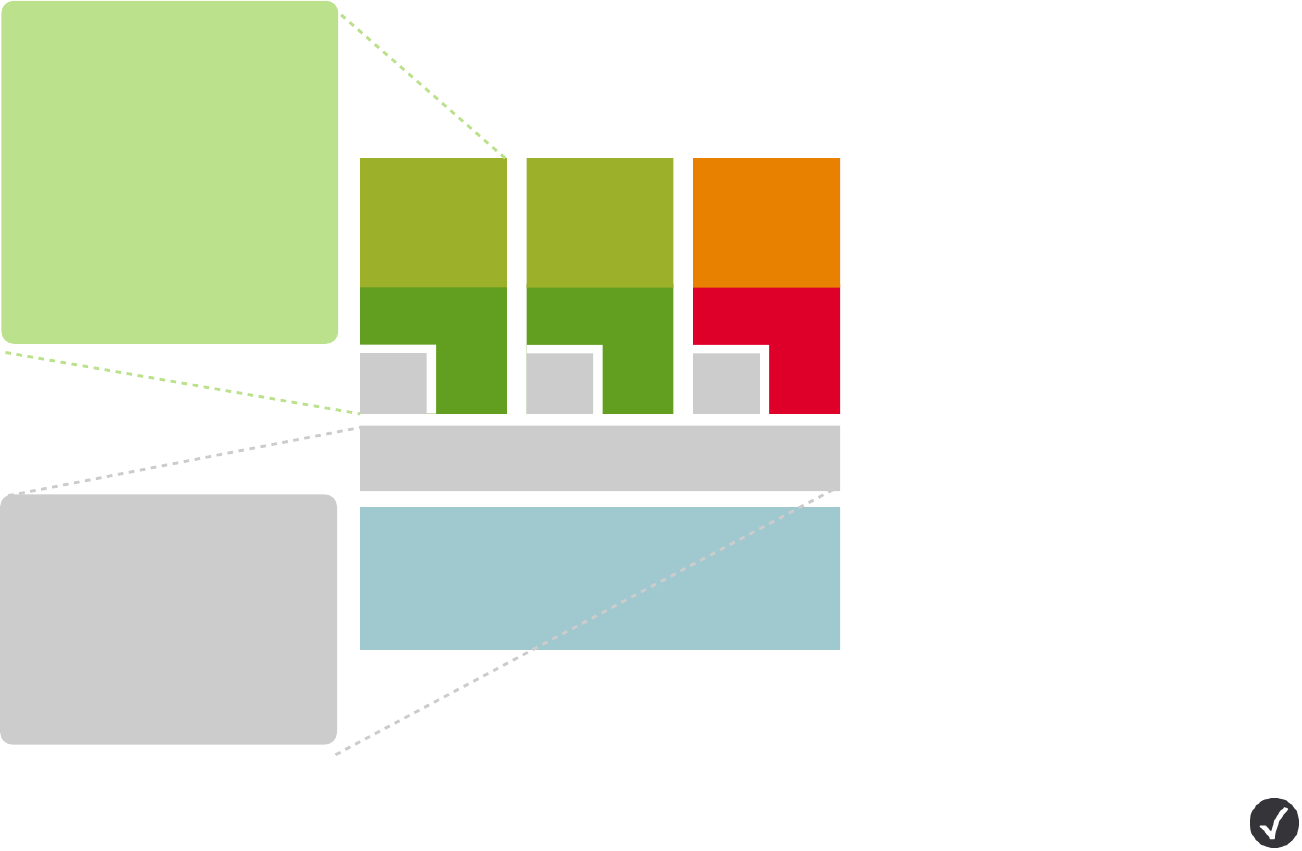

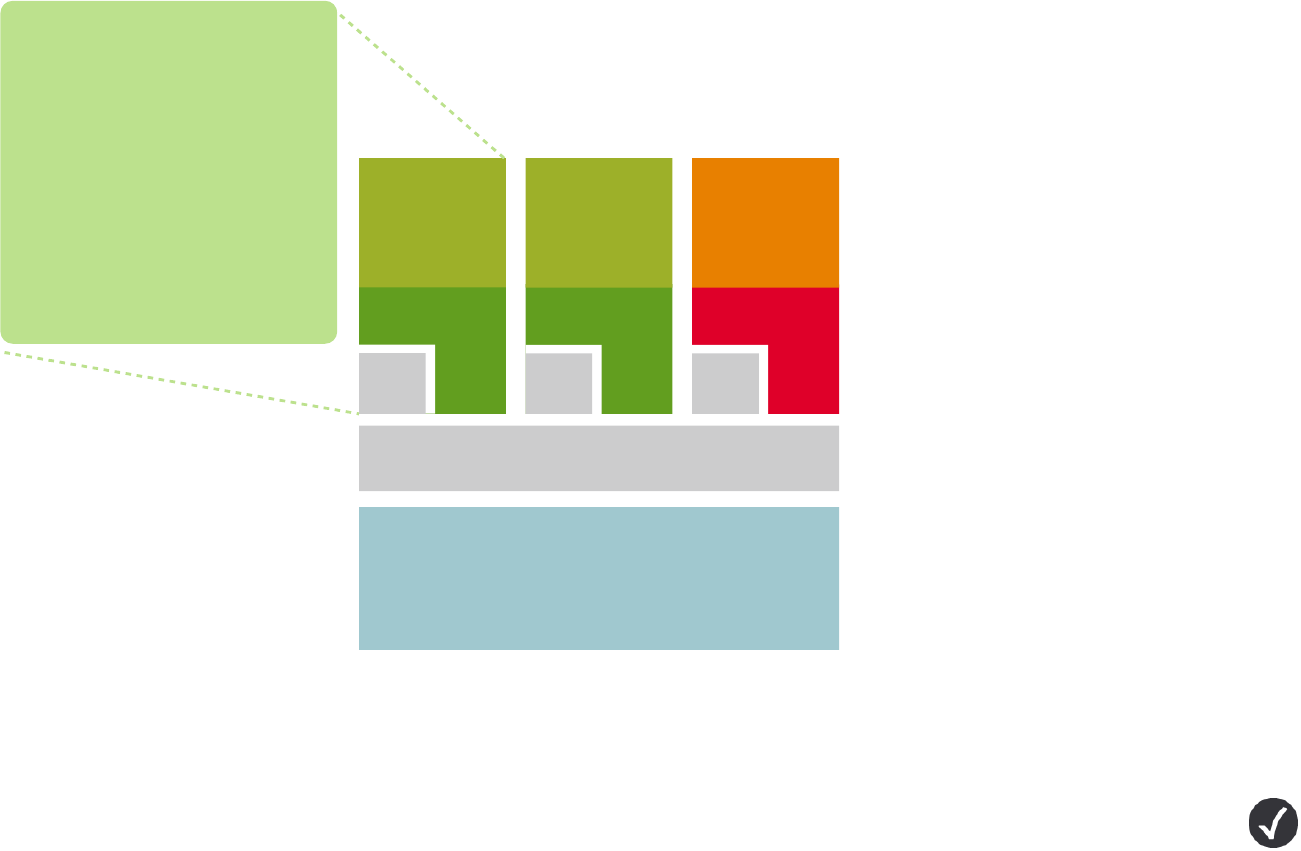

Xen Architecture – Simple View
Hardware
Hypervisor
Linux
Dom0
Pd
Linux
Dom1
Vd
Netware
Dom2
Vd
Pd = Physical Device Driver
Vd = Virtual Device Driver
Xen Architecture – Simple View
Hardware
Hypervisor
Linux
Dom0
Pd
Linux
Dom1
Vd
Netware
Dom2
Vd
Pd = Physical Device Driver
Vd = Virtual Device Driver
Dom0 is the management
domain for Xen guests
controls compute resources
dynamically
(e.g. memory, CPU, I/O)
provides interfaces to the
physical server.
provides administration tools
and interfaces
Xen Architecture – Simple View
Hardware
Hypervisor
Linux
Dom0
Pd
Linux
Dom1
Vd
Netware
Dom2
Vd
Pd = Physical Device Driver
Vd = Virtual Device Driver
Dom0 is the management
domain for Xen guests
controls compute resources
dynamically
(e.g. memory, CPU, I/O)
provides interfaces to the
physical server.
provides administration tools
and interfaces
Hypervisor
is the virtual interface to the
hardware – virtualizes the
hardware
manages conflicts caused by
OS access to privileged
machine instructions
Xen Architecture – Simple View
Hardware
Hypervisor
Linux
Dom0
Pd
Linux
Dom1
Vd
Netware
Dom2
Vd
Pd = Physical Device Driver
Vd = Virtual Device Driver
Dom0 is the management
domain for Xen guests
controls compute resources
dynamically
(e.g. memory, CPU, I/O)
provides interfaces to the
physical server.
provides administration tools
and interfaces
DomU is the guest OS
hosts the application
workloads
typically uses virtual device
drivers to connect to the
physical drivers in Dom0 by
the hypervisor.
can also use physical device
drivers directly
can be stored in a file-image
Hypervisor
is the virtual interface to the
hardware – virtualizes the
hardware
manages conflicts caused by
OS access to privileged
machine instructions
© Novell Inc. All rights reserved
26
Distribution
pDistro
Tuned thin, platform
distribution specialized for
specific physical hardware
management
agents
kernel
system drivers
hypervisor
(vmm)
hardware specific tuning
kernel
virtual drivers
application(s)
libraries
application specific tuning
configuration
operating system
security and fault tolerance
vDistro
Tailored for application
stacks, able to run on any
pDistro
© Novell Inc. All rights reserved
27
Xen Technology – Architecture (cont)
© Novell Inc. All rights reserved
28

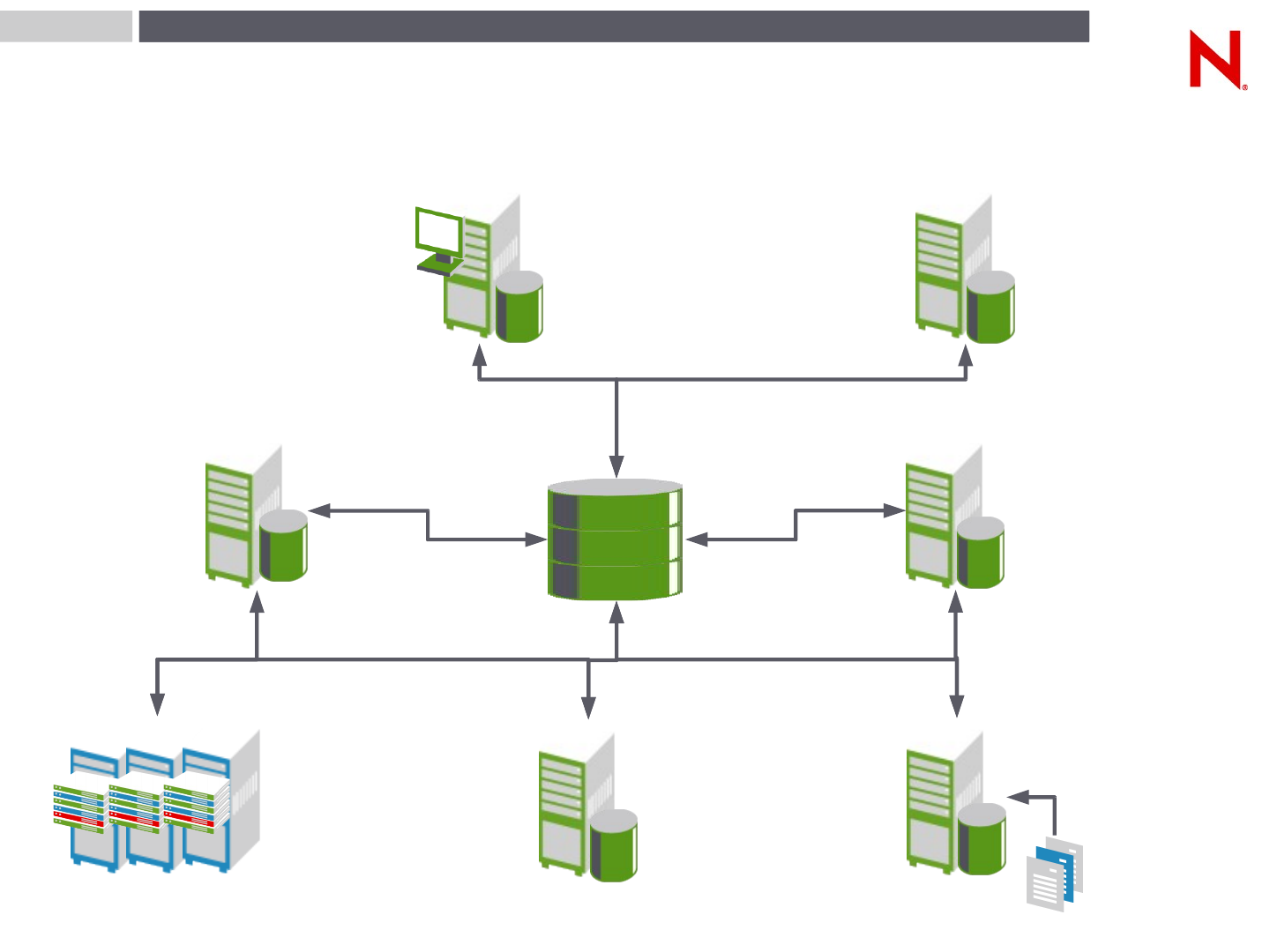

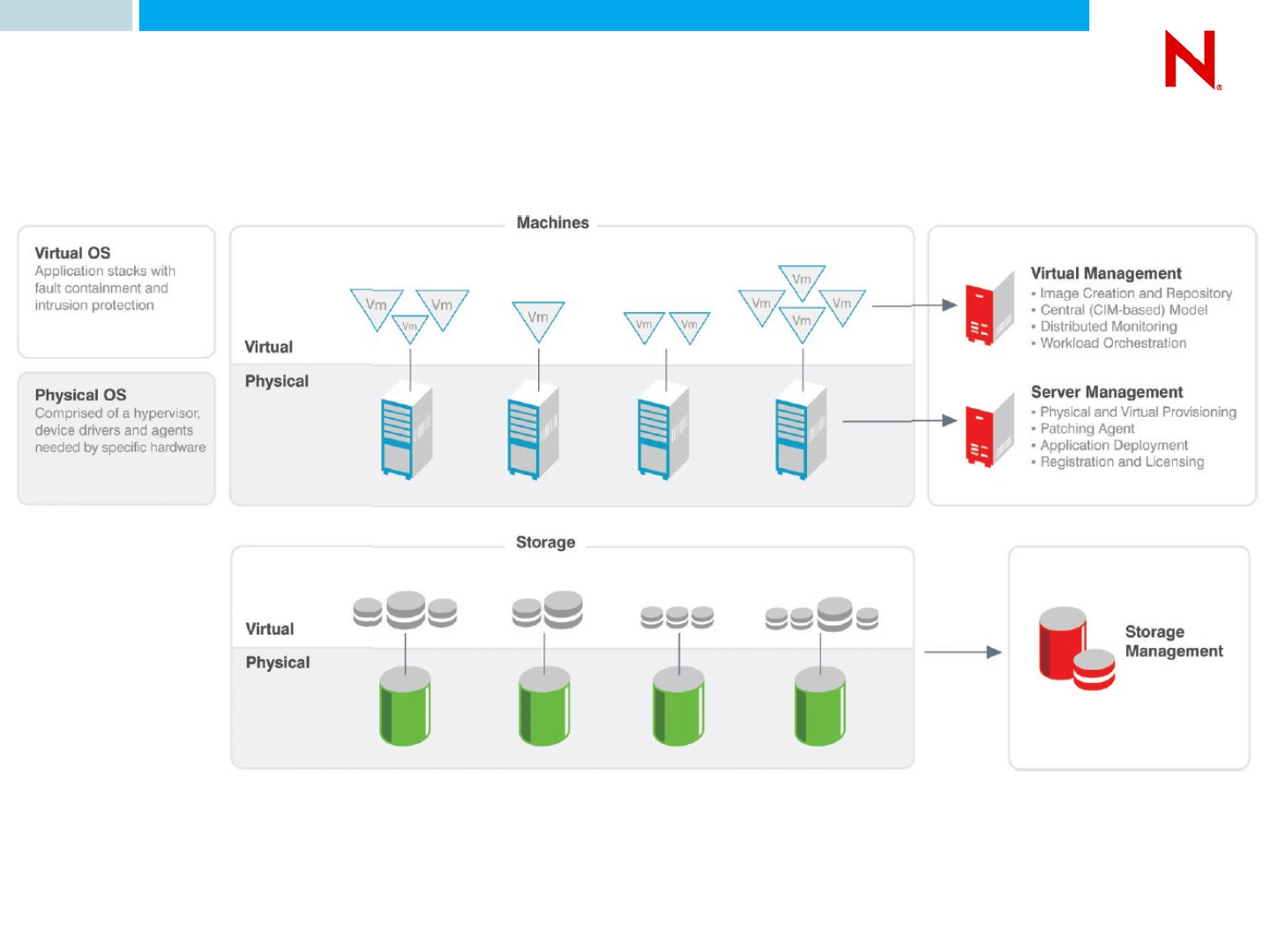

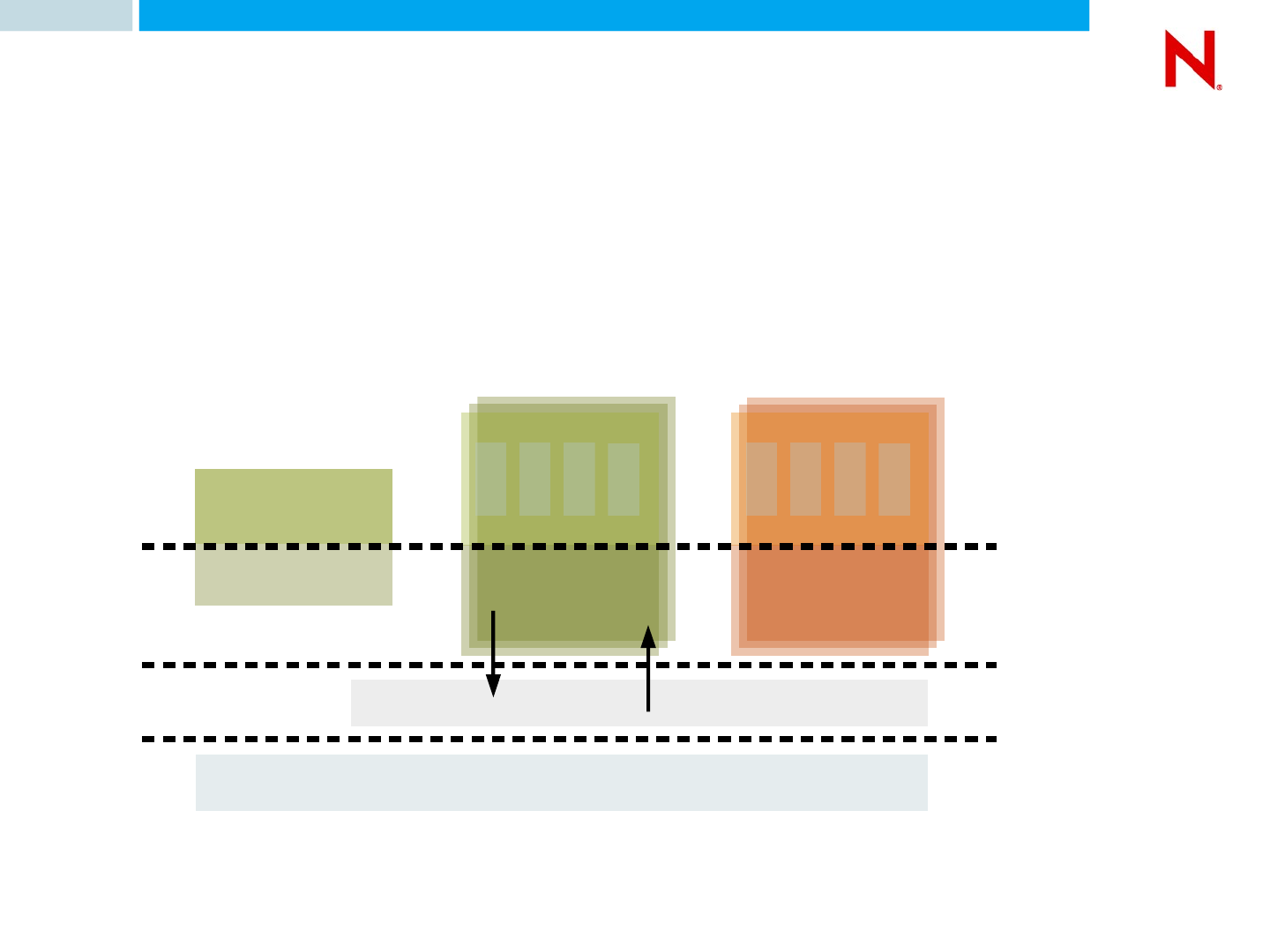

Novell Customer
Center
Emerging Virtual Architectures
ZENworks Linux
Management
p/v-Distro Provisioning
Patching Agent
Application Deployment
Registration & Licensing
VM Management
Incubator & Warehouse
Central (CIM-based) Model
Distributed p/v Monitoring
Workload Orchestration
Monitor / Manage / Analyze / Respond
vDistros
Application stack distribution
containers w/ fault containment and
intrusion protection
vDistros
Are used to deploy virtual machines on any
physical server and to move application stacks
between them in 'real-time'
Virtual Storage
(EVMS & CFS or
segmented storage)
Virtual Machines
(XEN/VMW)
Physical
Storage
Arrays
Physical
Servers
pDistro pDistro
Data Center Servers
pDistros
Are used to deploy physical
machine specific hypervisors with
those drivers and agents needed by
specific hardware vendors.
Typically Hardware Vendors would
create pDistros or build templates
for their hardware.
Data Center Storage
VM Installation
© Novell Inc. All rights reserved
30
VM Installation using YaST
Novell makes VM installation simple with YaST
VM Installation using YaST on SLES 10
Support for para-virtualized guests
Support for fully virtualized guests
Support for new installation or use of existing disk
Install over network (SUSE) or from CD/DVD (SUSE & others)
Support for simple lifecycle management:
Start
Stop
View
Shutdown
© Novell Inc. All rights reserved
31
SLES 10
VM Installation Using YaST
© Novell Inc. All rights reserved
32
VM Disks – Supported Storage
mapping “virtual” disk (within the VM) and a
“physical” disk (within a driver domain).
Generic Block Devices (SCSI, SATA, IDE, LVM, ...)
iSCSI Target (Server), iSCSI Initiator (Client)
FibreChannel Protocol, SAN
Native Multipath IO (Kernel Devicemapper - DM-
MPIO)
Multidisk (MD)
Oracle Cluster Filesystem (OCFS2), Heartbeat2
Enterprise Volume Manager (EVMS2)
Novell® iSCSI, OCFS2 and Heartbeat2 Plugins
© Novell Inc. All rights reserved
33
How Does Xen Compare?
Performance: 1-20% actual overhead (older claim: 1-5%)
Scalability: 10s of Vms
Memory overhead: Negligible for para. ~12MB per VM for full.
Hardware-enforced fault isolation between VMs: Yes
Ability to dynamically grow/shrink hardware resources: Yes
Open source
Commodity hardware
Ease of deployment: Use YaST
Support: From Novell
Using Xen
© Novell Inc. All rights reserved
35
Booting VM Server (Xen)
If you selected the Xen pattern during installation, Grub should be
correct
Installing kernel-xen or kernel-xenpae later should update Grub,
also
Select “XEN” boot option from Grub
Grub loads Xen, Linux kernel, and initrd. Xen initializes, then
hands control to Linux kernel
© Novell Inc. All rights reserved
36
Troubleshooting Boot Loader
Copy/modify the normal entry in /boot/grub/menu.lst:
title Xen
root (hd0,0)
kernel /boot/xen.gz dom0_mem=65536
module /boot/vmlinuz-xen root=/dev/hda1 vga=0x31a selinux=0
splash=silent resume=/dev/hda2 elevator=as showopts
module /boot/initrd-xen
Note:
dom0_mem is in KB. (Optional. Defaults to taking nearly all
memory.)
Copy kernel args verbatim
Specify “module” not “initrd”
© Novell Inc. All rights reserved
37
Daemons
xend:
Required
Runs in VM Server
Must be running to access management commands
Manages VM configuration
xendomains:
Optional
Starts (or restores) VMs when VM Server starts
Stops (or saves or migrates) VMs when VM Server stops
© Novell Inc. All rights reserved
38
VM Configuration Files
Use an example file as a template:
cp /etc/xen/examples/xmexample1 /etc/xen/vm/MyVm
Fields to change:
if manual kernel:
kernel: The location of the kernel, as visible from dom0.
initrd: (*nix-centric) Extra module for kernel, as per Multiboot
specificiation.
if domUloader:
bootloader: /usr/lib/xen/boot/domUloader.py
bootentry: paths of kernel and initrd to extract from VM's disk.
memory: Memory to give the guest, in megabytes.
name: The name must be unique among running VMs.
vif: List of virtual network interfaces.
disk: This maps the disk device (visible in domain 0) to the device in
the guest.
root: (*nix-centric) Device containing root filesystem.
extra: (*nix-centric) Extra kernel arguments, e.g., runlevel.
© Novell Inc. All rights reserved
39
i.e.: /etc/xen/vm/sles10pv
disk = [ 'file:/var/lib/xen/images/sles10pv/hda,hda,w', 'phy:/dev/hdc,hdb,r' ]
memory = 256
vcpus = 1
builder = 'linux'
name = 'sles10pv'
vif = [ 'mac=00:16:3e:41:09:60' ]
localtime = 0
on_poweroff = 'destroy'
on_reboot = 'restart'
on_crash = 'restart'
extra = ' TERM=xterm'
bootloader = '/usr/lib/xen/boot/domUloader.py'
bootentry = 'hda2:/boot/vmlinuz-xen,/boot/initrd-xen'
© Novell Inc. All rights reserved
40
/etc/xen/examples/xmexample.iscsi
kernel = "/boot/vmlinuz-xen"
ramdisk = "/boot/initrd-xen"
memory = 128
name = "nbd"
# Please change MAC
vif = [ 'mac=00:16:e3:10:00:a0, bridge=xenbr0' ]
# Replaced the ':' in the iname with '@'
disk = [ 'iscsi:iqn.2006-09.de.suse@0ac47ee2-216e-452a-a341-
a12624cd0225,hda,w']
dhcp = "dhcp"
hostname= "nbd"
root = "/dev/hda1"
extra = "3"
© Novell Inc. All rights reserved
41
VM Migration
Migration
Moving a VM from one physical machine to another, without
interrupting the VM's state.
IP address follows the VM, so networking is not interrupted
Live Migration
Migration with minimal down-time (10's of ms)
Streams VM's pages over network while VM is still running
Disk must still be visible on destination! (e.g., use iSCSI)
© Novell Inc. All rights reserved
42
Managing VMs with the xm Command
Must be root.
Use “xm” command (Xen Management)
Querying:
xm list
xm list -l
xm console id (disconnect from VM's console with Ctrl-])
Managing:
xm create -c configfile
xm shutdown id
xm destroy id
xm migrate id destination-host
xm migrate -l id destination-host
© Novell Inc. All rights reserved
43
More xm Commands
Hot-plugging:
xm mem-set
xm block-attach
xm block-detach
Debugging:
xm info
xm top
xm dmesg
For more information:
man xm
xm help --long
© Novell Inc. All rights reserved
44
Files & Directories
/etc/xen/xend-config.sxp Machine-wide configuration
/etc/xen/vm/ VM definition files
/etc/xen/auto/ VMs to auto-start
/etc/xen/examples/ Example VM definition files
/etc/xen/scripts/ Scripts (see xend-config.sxp)
/var/lib/xen/images/ VM disk images
/var/log/ Log files, when things go wrong
/usr/share/doc/packages/xen/README.SuSE
Tips & late-breaking information
© Novell Inc. All rights reserved
45
Convert VMware image to Xen image
dd if=/dev/zero of=disk.img bs=32k count=32k
#Virtual Hard Disk to Network Block Device mapper
vmware-loop -p SLES9-0.vmdk
modprobe nbd
vmware-loop SLES9-0.vmdk 2 1
#Extract VMware partition from the device to the image file SLES9.img:
dd if=/dev/nbd1 of=/tmp/SLES9.img bs=32k
#inject the root FS into the Qemu image.
file disk.img
disk.img: x86 boot sector, FREE-DOS Beta 0.9 MBR
fdisk disk.img
..
Units = cylinders of 16065 * 512 = 8225280 bytes
..
Device Boot Start End Blocks Id System
disk.img1 1 15 120456 82 Linux swap / Solaris
disk.img2 16 130 923737+ 83 Linux
fdisk disk.img
#need to skip swap space, swap space ends at 16065*(16-1) bytes
16065*15=240975
dd of=disk.img seek=240975 if=/tmp/SLES9.img
#fdisk: make partition active, to boot from it
Case Studies
© Novell Inc. All rights reserved
47

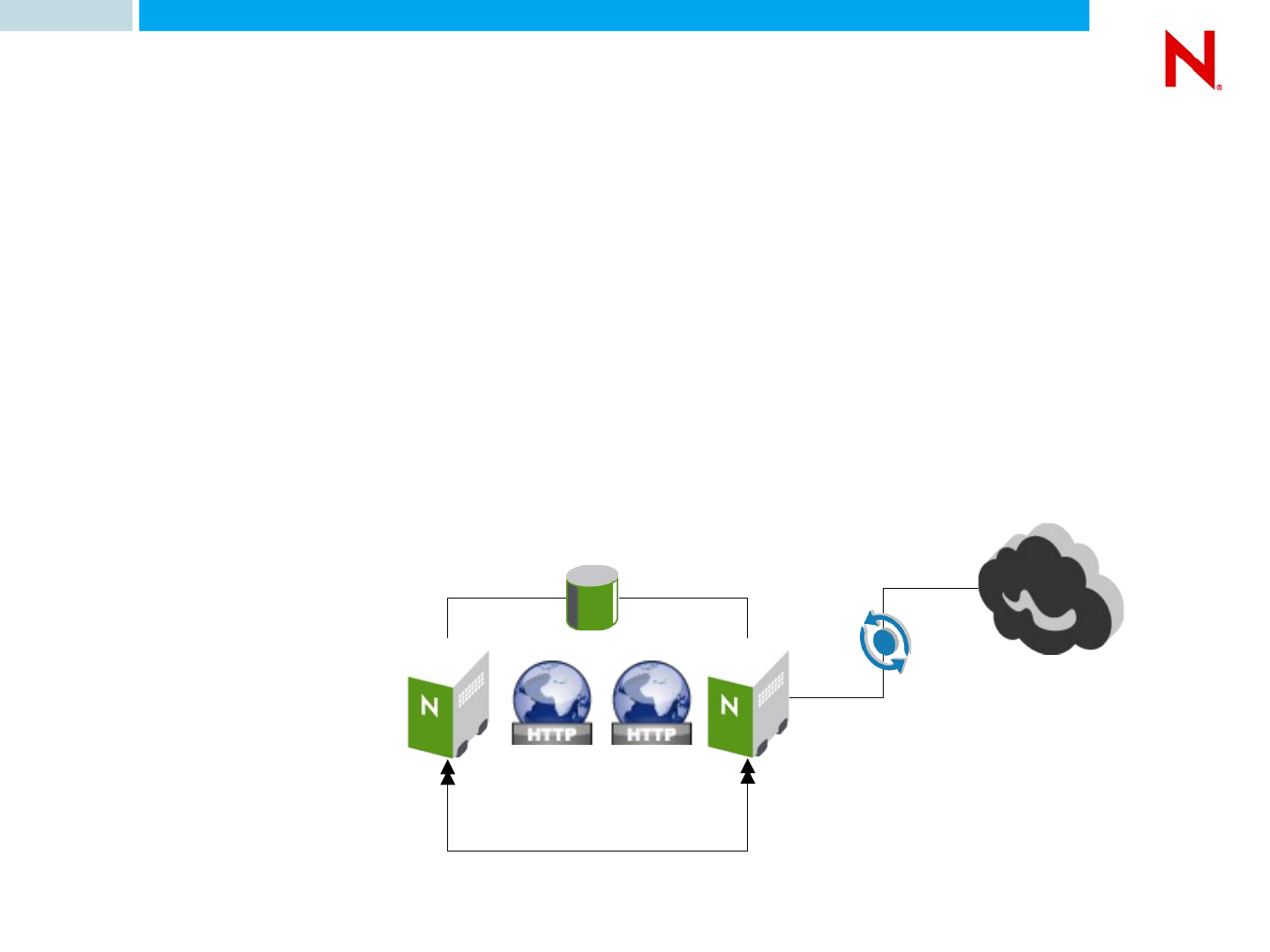

Case Study: HA Web Server
Small office solution
High available web server for non-disruptive online business
>Redundant setup using 2 machines with SLES 10, LAMP stack and
heartbeat2: Xen based apaches, remote storage access via iSCSI and
OCFS2, web shop application
>Automated load balancing and high availability, easy extension of compute
and storage resources
Shared Storage
© Novell Inc. All rights reserved
48

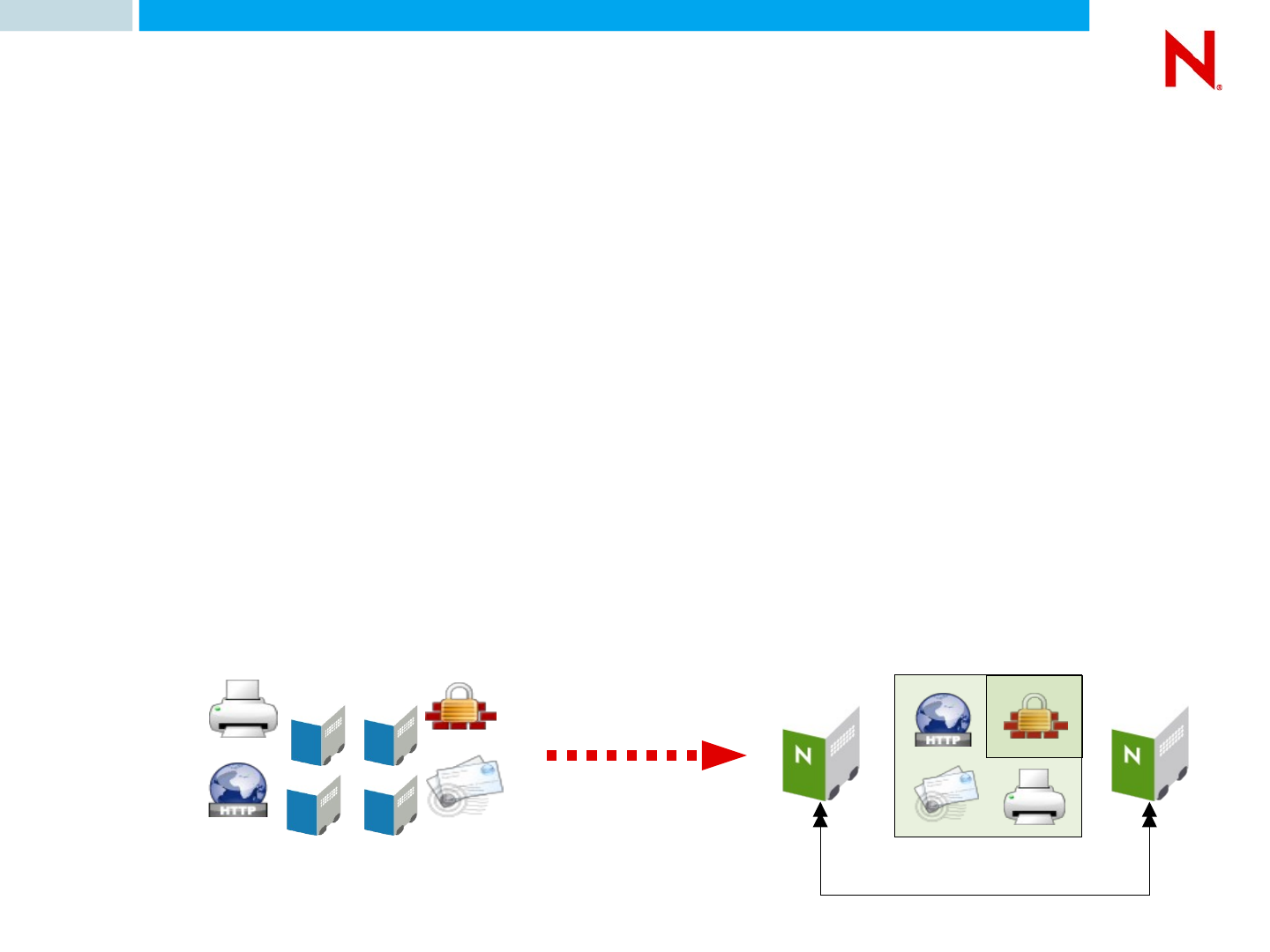

Case Study: HA mail, file and print
Small office solution
Small scale consolidation with increased throughput and
improved fault tolerance
>Past: 4 dedicated servers for mail, file, print and an Internet gateway
>Today: 2 state-of-the-art servers running mail, file, print and Internet gateway
in dedicated and thus isolated VMs, DMZ realized with firewall VM, all VMs
instrumented with Heartbeat v2 to fail-over services on standby virtual
machines.
>More reliability, fault tolerance and thus high level of availability for business
critical IT services. Improved performance by using latest, but still cost
effective hardware, flexibility to do 'rolling' upgrade if performance
requirements increase over time (services stay online)
Novell Xen Roadmap
© Novell Inc. All rights reserved
50
Novell Virtual Server Architecture
Overview
SUSE Linux Enterprise Server 10 includes Xen 3.0.2
Supported hardware architectures: x86 (32bit) / x86 PAE (32bit) /
x86-64 (64bit) including features to run unmodified OS
Unmodified OS operation (full virtualization) requires Intel VT and AMD
Virtualization (AMD-V) hardware
One IO and system management VM, many application VMs
Tight cooperation with virtualization technology providers to maintain
stable interfaces between VM Server and VMs
Virtual Machine Server and Virtual Machine are verified layers by
Novell YES certification
Certified systems, supported solution stacks and their combinations will
be listed in YES certification bulletins
© Novell Inc. All rights reserved
51
SUSE Linux Enterprise Server 10
Xen 3.0.2 support status
Overview
Runs both SLES 10 VM Server / SLES 10 VM (32/32bit and 64/64bit)
VM server RAM support: x86 4GB, x86 PAE 16GB, x86-64 32GB
Multiple vCPUs, NICs and disks for VM Server
Multiple vCPUs, vNICs and vDisks for VM
Technical preview allows to run different unmodified OS if hardware
support is present (full virtualization)
Maintenance update Oct 2006
Updated hypervisor to credit scheduler of Xen 3.0.3 for increased
performance and scalability
Several fixes to improve full virtualized OS installation and support
more minor fixes (see changelog)
© Novell Inc. All rights reserved
52
Xen 3.0.2 support status (2)
Overview – Xen unsupported features
F: Save & Restore (plan: get to supported status with a maintenance
update)
F: Live Migration (plan: get to supported status with a maintenance
update)
F: Use of asynchronous IO with sparse file mounted loopback in Virtual
Machine Server (dom0) (plan: get to supported status with a
maintenance update)
F: Direct physical device access from Virtual Machines
Support: technical preview full virtualization support: track bugs based
on best effort
© Novell Inc. All rights reserved
53
Roadmap - Xen
2006 2007
Virtual Machine Server
SLES10 Xen VM server
SLES10 paravirtualized VM
Tech Preview unmodified OS
with Intel VT / AMD Virtualization
SLES 9, 10 x86
RHEL 4 x86
Microsoft Windows Server
Solaris 10 x86
Technical Preview PV OS
SLES9 SP3 paravirtualized VM
Q2
Virtual Machine Server
SLES10 Xen VM server
SLES10 PV VM
OES2 VM server
Netware PV VM
Unmodified OS using
Intel VT and AMD-V
SLES 9 / 10
MS Windows Server x86
MS Windows XP x86
RHEL 4 x86
Technical Preview
SLES9 SP3 PV VM
Solaris 10 x86
JUL
Xen 3.0.2
Scheduler
Update
OCT
SLES 10 SP1
Xen update
Xen 3.0.4+
© Novell Inc. All rights reserved
54
SUSE Linux Enterprise Server 10 SP1
Xen 3.0.4+ planned support Q2/2007
Overview
CIM provider for VM lifecycle mananagement, monitoring and resource
management
CIM client for VM lifecycle mananagement, monitoring and resource
management
Update from Xen 3.0.2 to 3.0.4+ (due to system management)
SLES 9 PV installation support (preview / documented)
OES2 using Netware 6.5 SP7 PV
VM server RAM support: x86 4GB, x86 PAE 64GB, x86-64 256GB
Basic NUMA support
© Novell Inc. All rights reserved
55
Xen 3.0.4+ support status (1)
Overview – planned Xen supported features
x86 PAE max VM server physical memory: 64GB
x86 PAE max VM memory: 62GB
x86-64 max VM server physical memory: 128GB
x86-64 max VM memory: 126GB
32 logical hardware threads per VM Server, 256 VMs per VM Server
8 vCPUs per VM, 8 VMs per physical CPU core
8 vNIC per VM
© Novell Inc. All rights reserved
56
Xen 3.0.4+ support status (2)
Overview – planned Xen supported features
Save & Restore of Virtual Machines
Live Migration of paravirtualized VMs
use of asynchronous IO with sparse file mounted loopback in Virtual
Machine Server (dom0)
paravirtualized device drivers for IO and network loads for Linux and
MS Windows to boost fullvirtualized OS performance
© Novell Inc. All rights reserved
57
OES2 virtualization support
OES2 shares same common code base of SLE 10 SP1
NetWare runs as paravirtualized OS 32-bit mode on 32bit and
64bit processor architectures that support the x86/x86-64
instruction set.
This includes x86-64 (AMD64 / Intel EM64T)
In this mode NetWare will be fully functional as a 32bit VM
while allowing other virtual machines to fully benefit from the
additional address space available on such architectures
Workgroup servers, NetWare migration to recent hardware, High
Availability
© Novell Inc. All rights reserved
58
Virtualization Pilot Program
Intel-VT or AMD-V hardware assisted
Full Virtualization with PV Device Drivers:
SLES 9 and RHEL 4
MSFT WinXP/2000/2003
increase in performance
cluster aware logical volumes for
hosting Xen domUs
© Novell Inc. All rights reserved
60
cluster aware hosting of Xen domains
Howto use Heartbeat and EVMS (in dom0) to create cluster aware
logical volumes for hosting Xen domUs
Heartbeat 2.0.4 or later
EVMS 2.5.5 or later
hb2-1.0.0.so is the EVMS plugin for Heartbeat2
Add these lines to your /etc/ha.d/ha.cf
respawn root /sbin/evmsd
apiauth evms uid=hacluster,root
© Novell Inc. All rights reserved
61
Start Heartbeat2 and it'll start the EVMS daemon on
each node
Renewal time frames are not well communicated or defined
verify the cluster aware behavior of EVMS
evmsgui->Settings->Node Administered...
all cluster nodes listed
EVMS and Heartbeat interact properly
cluster aware hosting of Xen domains
cont
© Novell Inc. All rights reserved
62
use EVMS to create a logical volume per each Xen domU OS
e.g.10G image of hda
/dev/evms/MyVirtualMachineHda
copy guest OS image into that logical volume
logical volume will have same (persistent) device name across
all cluster nodes
corresponding Xen control file will be location transparent too
reference /dev/evms/MyVirtualMachineHda as path for
domU's hda on all nodes
>http://sourceforge.net/mailarchive/message.php?msg_id=15485661
cluster aware hosting of Xen domains
Summary
PV drivers
© Novell Inc. All rights reserved
64

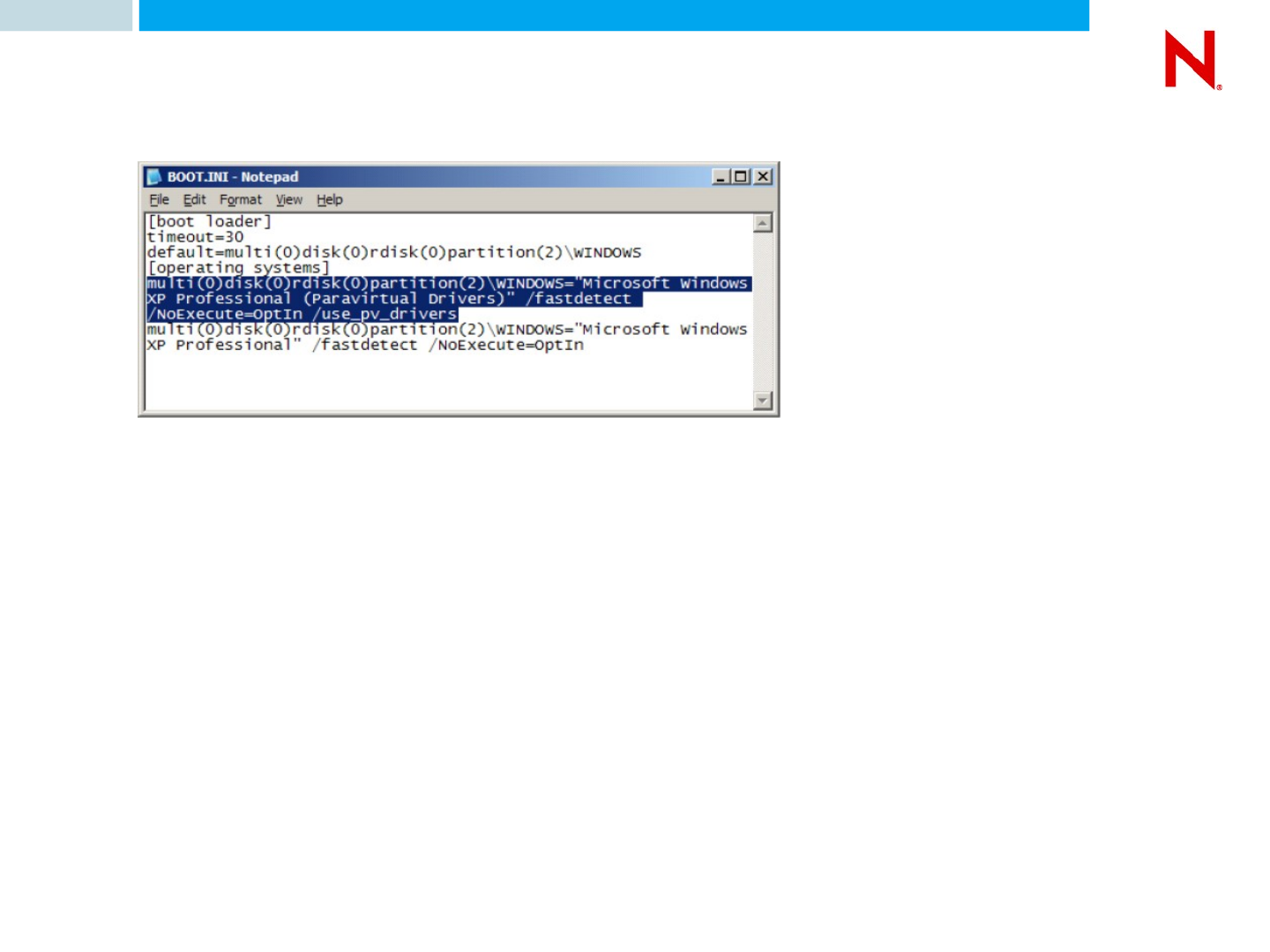

PV Driver for Windows
Novell PV Xenbus Driver for Windows
PCI Device --> Update Driver
>Xen Virtual Block Device
Add a New Hardware Device
Network Drivers
Xen Virtual Nic --> Update Driver
© Novell Inc. All rights reserved
65
setting up PV drivers for SLES9
create new SLES9 VM
edit /boot/grub/menu.lst
>kernel vmlinuz-kernel_ver append hda=noprobe
shutdown VM
xm delete vm_name (reference in xen store)
edit /etc/xen/vm/vm_cfgfile
>remove parameter from vif line EXCEPT mac=
xm new xm_cfgfile, restart VM --> new HW found
/sys/class/net/ethx/drivers/vif-x
verify PV drivers in use:
storage device drivers: /sys/block/hdx/device/nodename
network card driver: /sys/class/net/ethx/driver/vif-x
Novell Xen based offerings
© Novell Inc. All rights reserved
67
Infos on Pricing & Policies
Easy pricing and policy is in place
Today we are charging for first instance (physical or virtual)
first SLES 10 on physical machine or VMware etc
http://www.novell.com/products/server/virtualization.html
Outlook
SLES 10 / SLED 10 or vice versa -> pay first server (like current policy)
OES2 / Netware PV is planned to pay per user
SLES 10 / OES2 PV o. FV / Netware PV – pay first server plus per user
OES2 / Netware / SLES 10 – pay first server plus per user
© Novell Inc. All rights reserved
68
Microsoft and Novell Collaborating on
Virtualization and Interoperability
Collaboration on software to enable SUSE Linux
Enterprise Server 10 to run as a fully virtualized guest
on SP1 of Virtual Server 2005 R2
SUSE Linux Enterprise Server 10 add-ins will be available in 2007
Collaboration on software that translates between
virtualization technologies
Windows Server “Longhorn” supporting paravirtualized SUSE Linux Enterprise
Server 10 guest
SUSE Linux Enterprise Server 10 supporting enlightened Windows Server
“Longhorn” guest
´
Where Do I find Information ?
© Novell Inc. All rights reserved
70
External Resources
Where do customers get more information
Novell Virtualization home page
http://www.novell.com/linux/virtualization/
Virtualization Technical Library, Whitepapers
Novell's pricing for virtualization and available support offerings
http://www.novell.com/products/server/virtualization.html
http://support.novell.com/linux/
Novell online documentation on Xen
http://www.novell.com/documentation/vmserver/
Supported hardware and technical limits
http://developer.novell.com/yessearch/Search.jsp
search in category “Novell Product: SUSE Linux Enterprise 10 x86 with Xen
http://support.novell.com/products/server/supported_packages/ search for
SLES10 and Virtualization (Xen Support Matrix)
© Novell Inc. All rights reserved
71
Other Resources
Recommended links
Xen project home http://www.xensource.com/xen/ wiki
Xen summit presentations
Xen architecture docs, developer discussions, future roadmap
Recent changes, indexes, doc, FAQs
Deployment examples, third party projects related to Xen
Latest Novell's Xen externally available technical preview
http://forge.novell.com/modules/xfmod/project/?xenpreview
Latest code for test (SLES 10, SLES9, ...), not production
Outlook: Data Center Automation
© Novell Inc. All rights reserved
73

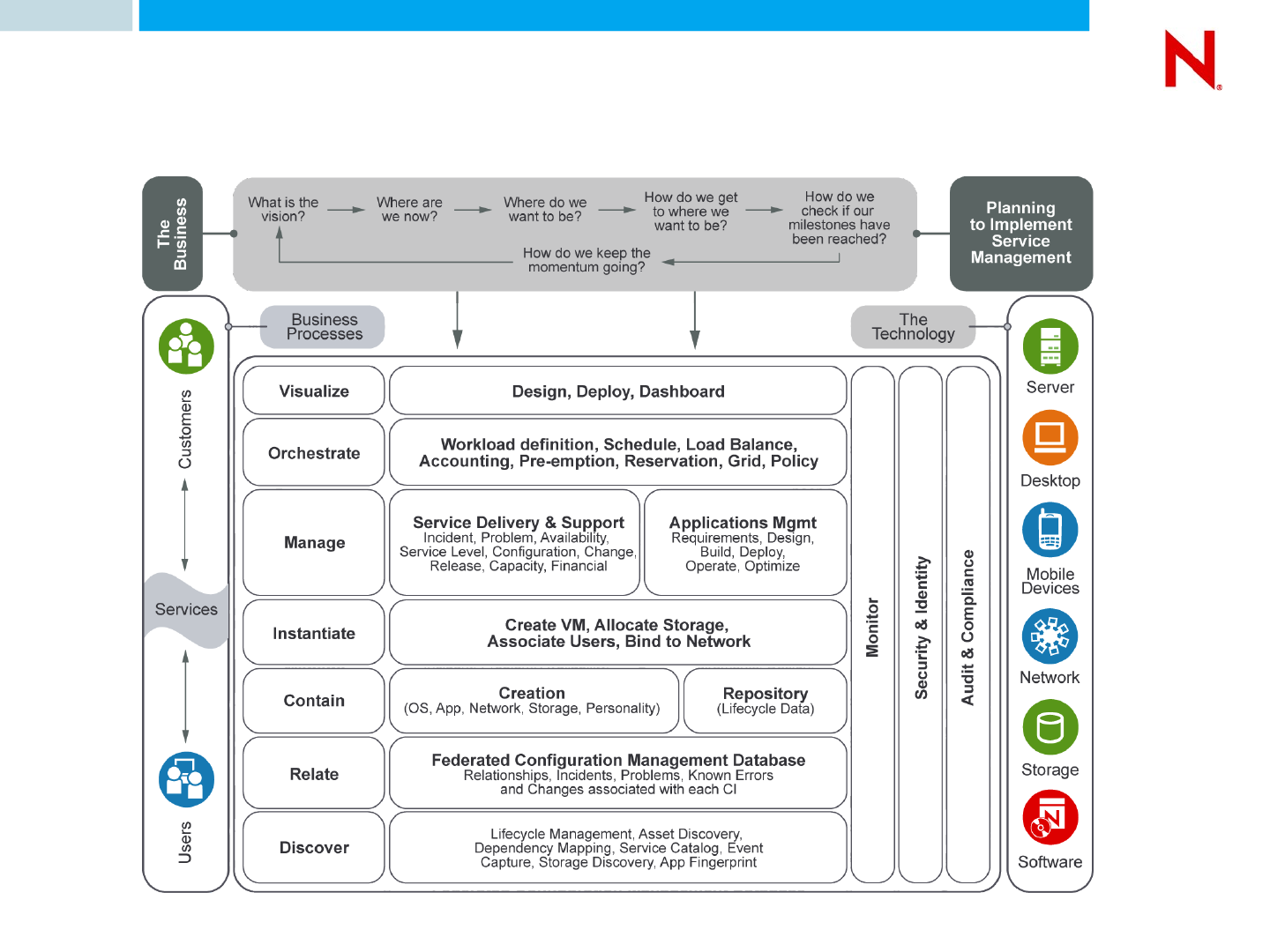

The Solution – Management Blueprint
© Novell Inc. All rights reserved
74
ZENworks® Orchestration Server
Resource Discovery
Workload Management
Dynamic Scheduling
Policy Management
Auditing/Accounting
Autonomic Availability
VM Lifecycle Mgmt
© Novell Inc. All rights reserved
75

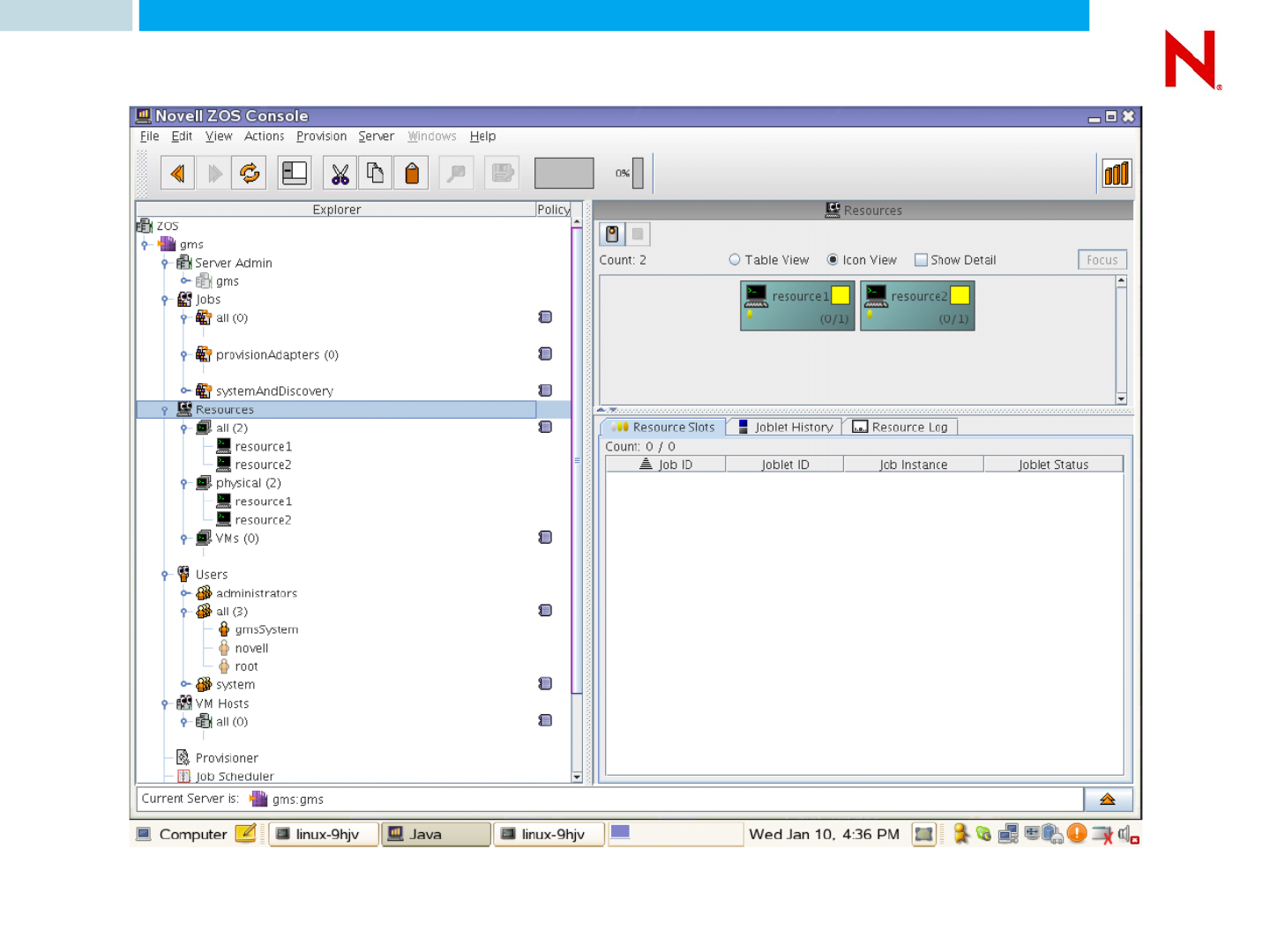

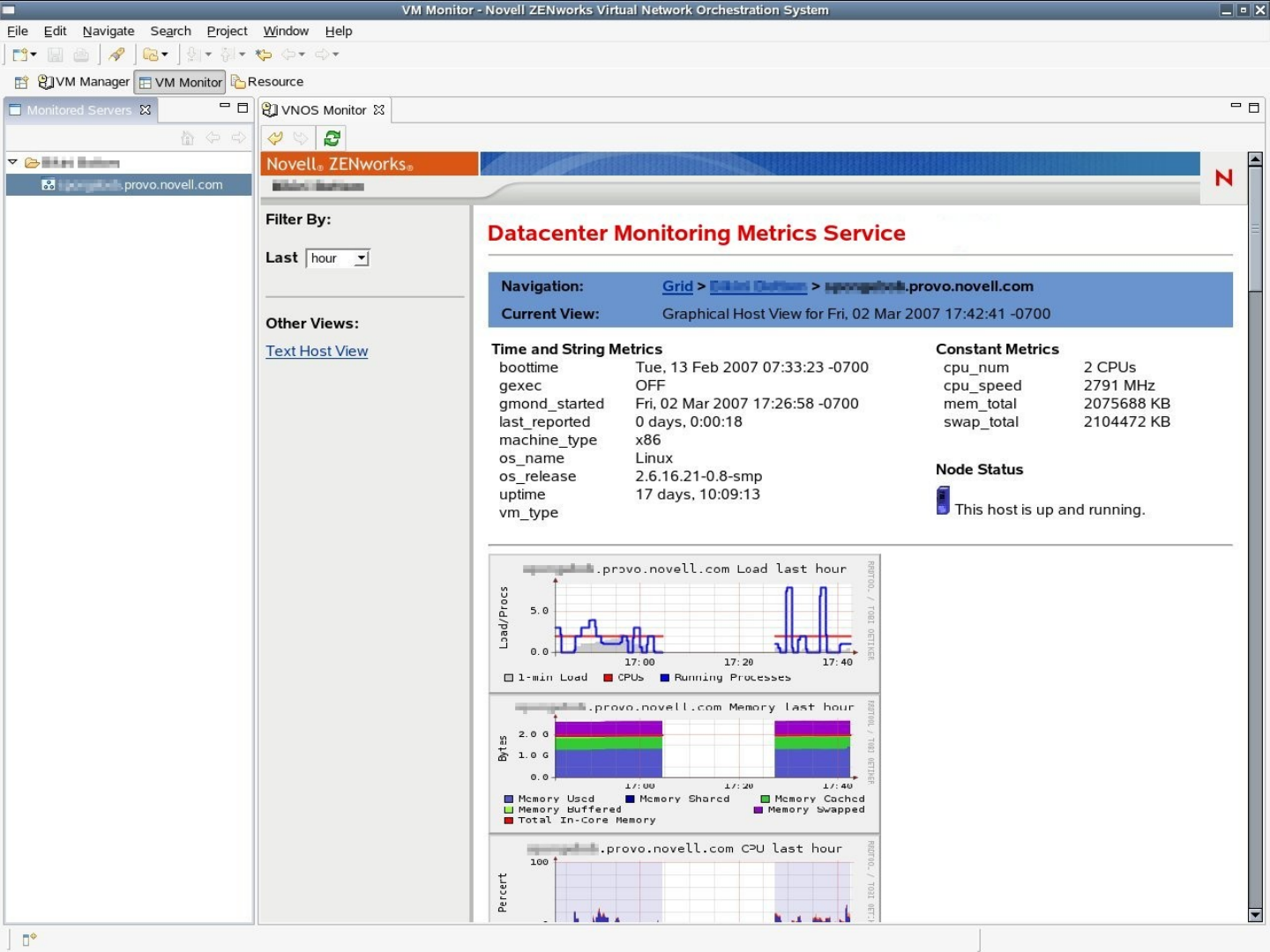

ZENworks Orchestrator
© Novell Inc. All rights reserved
76
ZENworks Orchestrator
Features
Agenten basiertes Entdecken
Paralleles Ausführen
Abschätzung der Workloads
Planen
Überwachung
Nutzdaten, Abrechnung
© Novell Inc. All rights reserved
77
ZENworks Orchestrator
Features - Continued
Erweiterbare Job Definition
Sprache: Python
Regeln: XML Format
Voreinstellungen historischer Daten
Ressourcen Optimierung
Regelbasiert
Reservieren der Ressourcen
Vorrang kritischer Aufgaben
ereignisorientiert
Orchestration Server
© Novell Inc. All rights reserved
78
Heterogenes Virtual Machine Management
VMware, Xen, Microsoft
Entdecken der Server für VM Kommissionierung
Off/On-line Vm's & Templates
Deployment, re-deployment/rollback
Assoziieren physischer, virtueller und Storage Compute
Nodes
ZENworks Virtual Machine Management
Features
© Novell Inc. All rights reserved
79
Cluster-aware Virtualisierung
Redundanz, Hochverfügbarkeit, Disaster Recovery
Regel-basiertes, dynamisches Workload Deployment
Job Zuweisung & Regelausführung
Verteilen und Bewegen der Workloads dynamisch
ZENworks Virtual Machine
Management
Features
© Novell Inc. All rights reserved
80
Novell Portfolio Integration
Virtual Machines
Consolidation
Migration
Effective hardware
utilization
Virtual Storage
Volume manager
High availability software
Cluster file system
Business Continuance
Resource Management
Scheduling
Patch management
Deployment
Grid
Identity Management
Users, groups, resource
association
Pervasive infrastructure that relates
these services together
Utility Computing
Applications
VS VM IDMRM
SUSE Enterprise Linux
Backup
© Novell Inc. All rights reserved
81

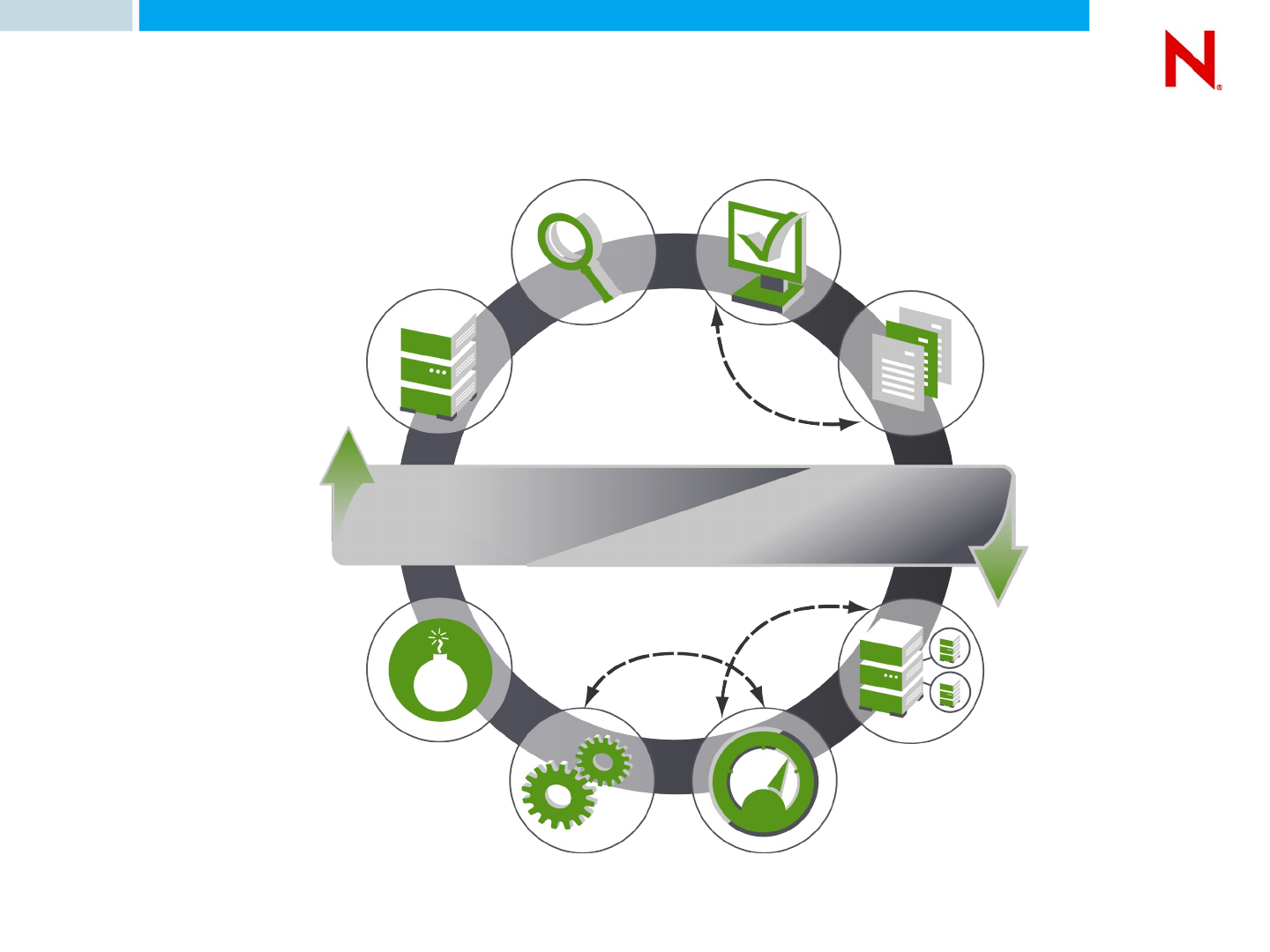

Virtual Machine Lifecycle
Discover
On-box incubator
Check in
Version control
Edit
Config: Change
(using Sandbox)
Runtime: Facts
(temporary)
Deploy
Test (provision)
Production (Sandbox)
Monitor
Status (location state)
Performance (realtime, trends))
Availability
Manage
Lifecycle, Cloning
Location, Runtime
Destroy
Create
On-box tool (find)
Incubation job (make)
Developer
Actions
Operator
Actions
Config (static)
Runtime (Dynamic)
© Novell Inc. All rights reserved
82

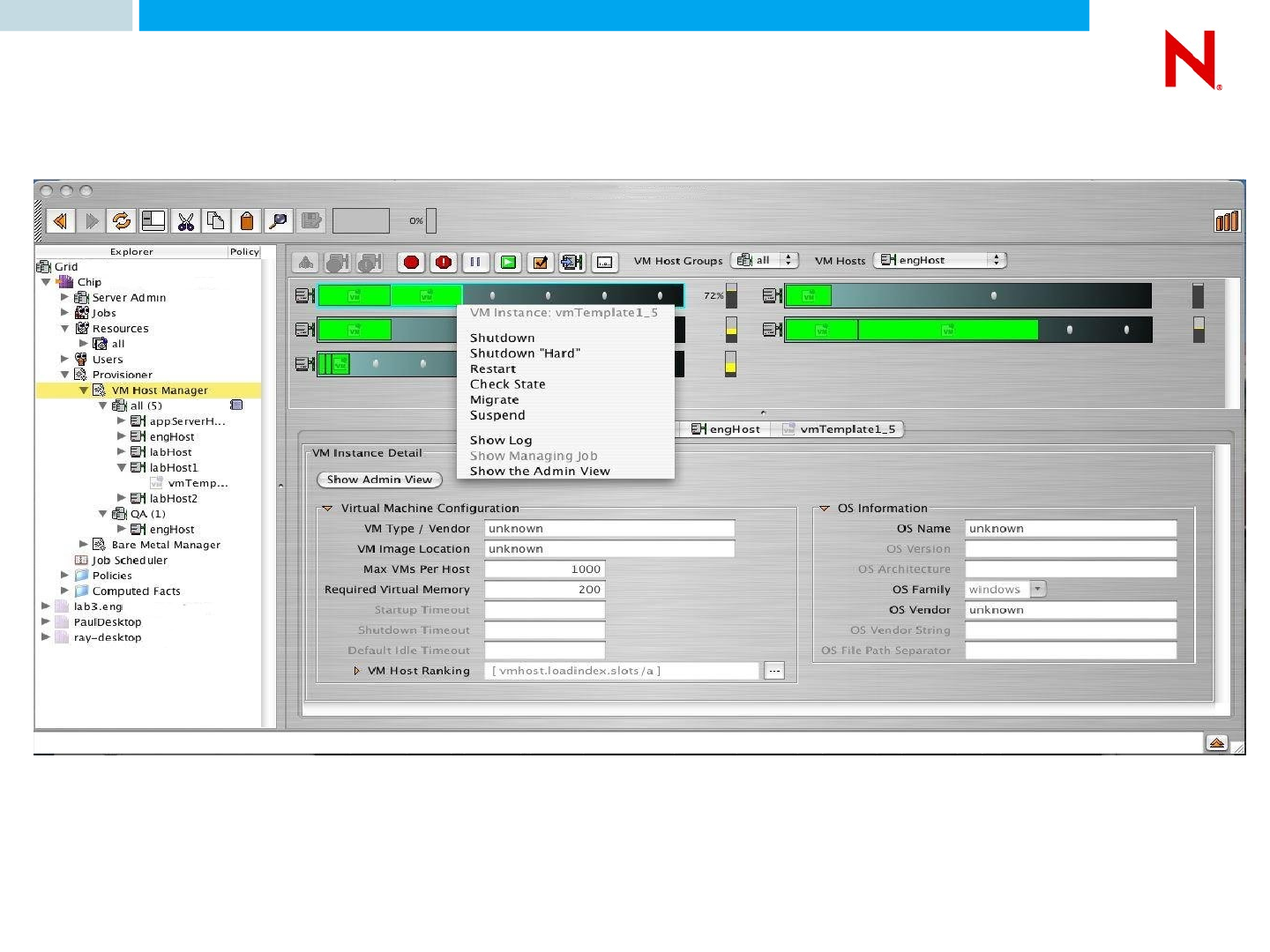

Virtual Machine Lifecycle Control
System maintains library of VMs and images, hosts
Like physical resources VMs have ‘facts’ describing attributes
VMs can be grouped
Actions can be performed on VMs:
Provision, Shutdown, Suspend, Create Template, Create VM,
Create Template From Physical, Create VM From Physical,
Clone VM, Clone Online VM, Clone Template, Destroy,
Restart, Migrate, Check Status, Template to Instance,
Instance to Template, Affiliate With Host, Make Standalone,
Checkpoint, Restore, Delete, Cancel Action
© Novell Inc. All rights reserved
83
Virtual Machine Lifecycle Control
(cont.)
VM lifecycle controlled by:
Programmatically (Job / JDL)
Manually (through mgmt. console)
Automatically on demand
>A job makes request for unavailable resource… Suitable VM image is
located, host is located, image is provisioned, instance is initially reserved
for calling job, logic is invoked to make use of new resource
VM host/instance selection/placement is similar to
resource selection:
Governed by policies, priorities, queues and ranking
Provisioning Adapters provide VM abstraction:
Special ‘provisioning’ jobs perform operations for each
integration with different VM technologies
The provisioning adapter is a JOB!
© Novell Inc. All rights reserved
84

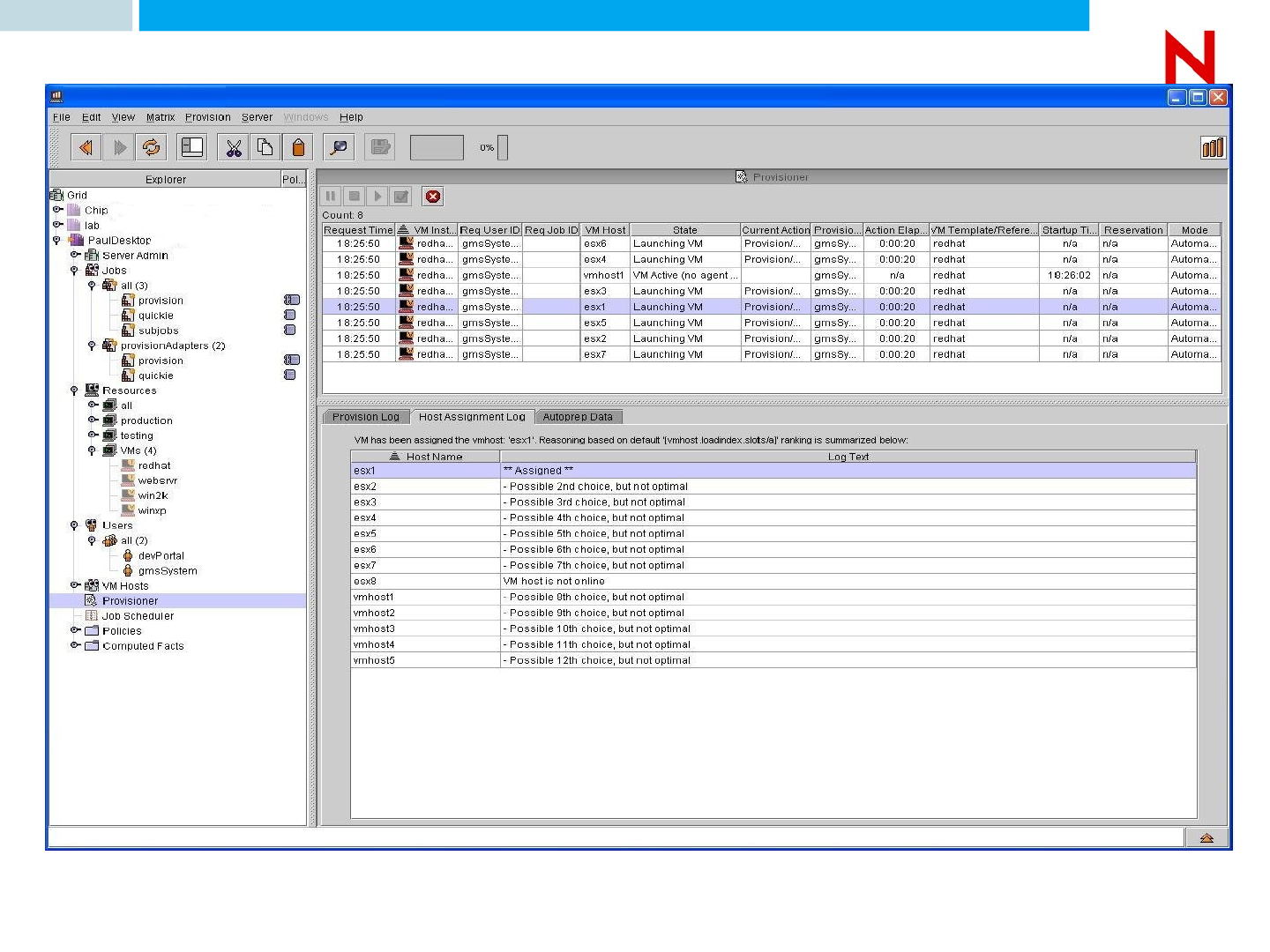

Virtual Provisioning
and Life Cycle Management
Discovery- provisioning adapter job
Two types of VM; Instance & Template
Provisioner requests a VM host
Reservations, Constraints
© Novell Inc, Confidential & Proprietary
85
Architektur
- Auto YaST
- Sysprep
- Kickstart
- NetWare Resp. File
CIMOM
CCM Agent
Orchestration Agent
Physical inventory
Bare metal provisioning
Patch & Update
Configuration
Remote Control
Discovery
Logical unit naming
Quality of service
ACL control
Orchestration
- Rules engine
- Policy
- Scheduling
- Grid services
- Utilization & billing
Storage Resource
Manager
Management Server
Managed Nodes VM Creator
VM Repository
Data Model
Reconciliation
Federation
UMF
Visualization
Reporting
Monitoring Server
Monitoring
Associates physical w/ virtual
ZENworks Orchestration
Server
© Novell Inc. All rights reserved
86
© Novell Inc. All rights reserved
87
© Novell Inc. All rights reserved
88
© Novell Inc. All rights reserved
89
© Novell Inc. All rights reserved
90
Unpublished Work of Novell, Inc. All Rights Reserved.
This work is an unpublished work and contains confidential, proprietary, and trade secret information of Novell,
Inc. Access to this work is restricted to Novell employees who have a need to know to perform tasks within the
scope of their assignments. No part of this work may be practiced, performed, copied, distributed, revised,
modified, translated, abridged, condensed, expanded, collected, or adapted without the prior written consent of
Novell, Inc. Any use or exploitation of this work without authorization could subject the perpetrator to criminal and
civil liability.
General Disclaimer
This document is not to be construed as a promise by any participating company to develop, deliver, or market a
product. Novell, Inc., makes no representations or warranties with respect to the contents of this document, and
specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose.
Further, Novell, Inc., reserves the right to revise this document and to make changes to its content, at any time,
without obligation to notify any person or entity of such revisions or changes. All Novell marks referenced in this
presentation are trademarks or registered trademarks of Novell, Inc. in the United States and other countries. All
third-party trademarks are the property of their respective owners.

Navigation menu
